Wireless Remote Commander
User’s Guide
1. INSTRODUCTION
1. INSTRODUCTION1. INSTRODUCTION
1. INSTRODUCTION
The MCM-140 is a wireless remote control unit for the PowerMax
system. It enables the user to arm/disarm the alarm system, to
initiate emergency/fire/panic alarms, to perform one of the AUX
(auxiliary) functions (see Note 3 in Section 6) and to turn lighting
devices on and off. The keypad includes an RF transmitter that
sends out a differently coded RF signal for each command.
The main features of the MCM-140 are:
• Automatic reporting of low battery voltage.
• Visual indications by red/green/amber LED.
• Keypad back lighting (selectable)
• Various audible signals sounded by the buzzer in response to
specific actions.
• Automatic supervision messages at 60 minute intervals.
• Long-life 3 VDC lithium battery.
• Wall mounting option.
• Friendly programming.
The red LED lights during transmission. The amber LED lights
during the programming process (and during transmission if
battery voltage is low). The green LED lights upon each
keystroke.
LED Indications
Description Symbol
Blinks at a fast rate - - - - - - -
Blinks at a slow rate _ _ _ _ _
Lights steadily (during transmission) ________

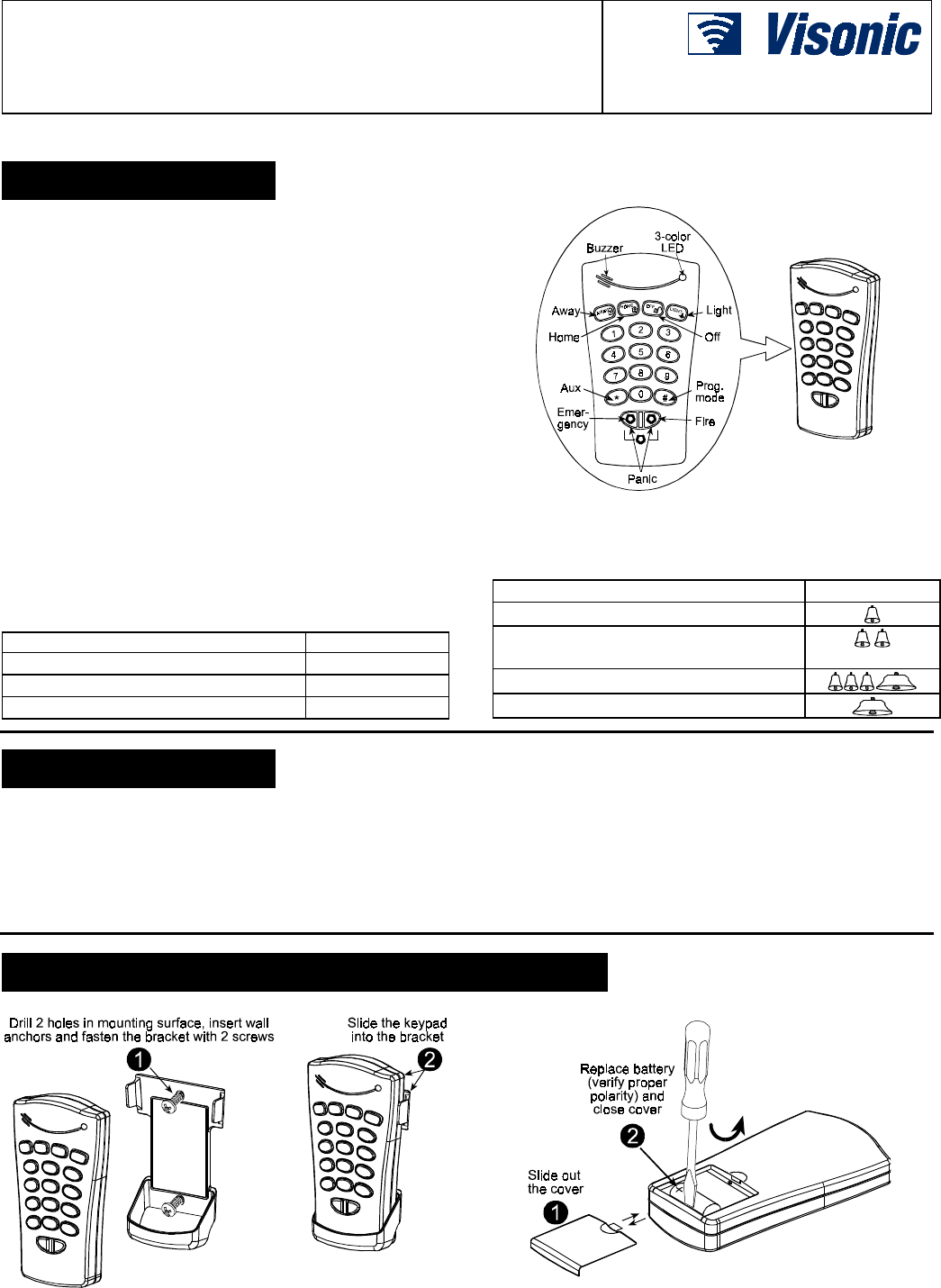

Figure 1 - External View
Keypad Buzzer Sound
Description Symbol
Short single beep, upon pressing a key
2 short beeps, in the programming process
(par. 4.3 & 4.5)
Success (victory) melody
Failure beep
2. SPECIFICATIONS
2. SPECIFICATIONS2. SPECIFICATIONS
2. SPECIFICATIONS
Transmitted ID Type: PowerCode and CodeSecure
PowerCode - Used for Lights 1-7, Light 8 (PGM controlled),
Fire and Emergency functions
CodeSecure - Used for Home arming, Away arming, Disarming,
Aux and Panic functions
Operating Frequency (MHz): 315, 433.9 and 868.95
Battery: 3 VDC, Lithium battery, CR123A
Back light illumination: Selectable on/off
Dimensions (HxWxD): 127 x 70 x 24 mm (5 x 2-3/4 x 31/32 in.)
Operating Temperatures: 0°-49°C (32°-120°F)
3. MOUNTING AND BATTERY REPLACEMENT
3. MOUNTING AND BATTERY REPLACEMENT3. MOUNTING AND BATTERY REPLACEMENT
3. MOUNTING AND BATTERY REPLACEMENT
Figure 2 - Mounting
Figure 3 - Battery Replacement
2 DE2460U
4. PROGRAMMING
4. PROGRAMMING4. PROGRAMMING
4. PROGRAMMING
4.1 Programming Scope
The following programming actions are possible:
• Setting the master user (user #1) code.
• Setting other user codes (users #2-8).
• Allowing/forbidding quick arming of the keypad.
• Muting/reactivating the keypad's buzzer.
• Controlling the keypad's back-lighting.
• Enabling/disabling the supervision/low battery reporting from
the MCM-140.
4.2 Entering the Programming Mode
The programming mode is accessible with the master code only
(1 1 1 1 by default). The "#" key is used to enter and also to exit
the programming mode.
Entering the Programming Mode

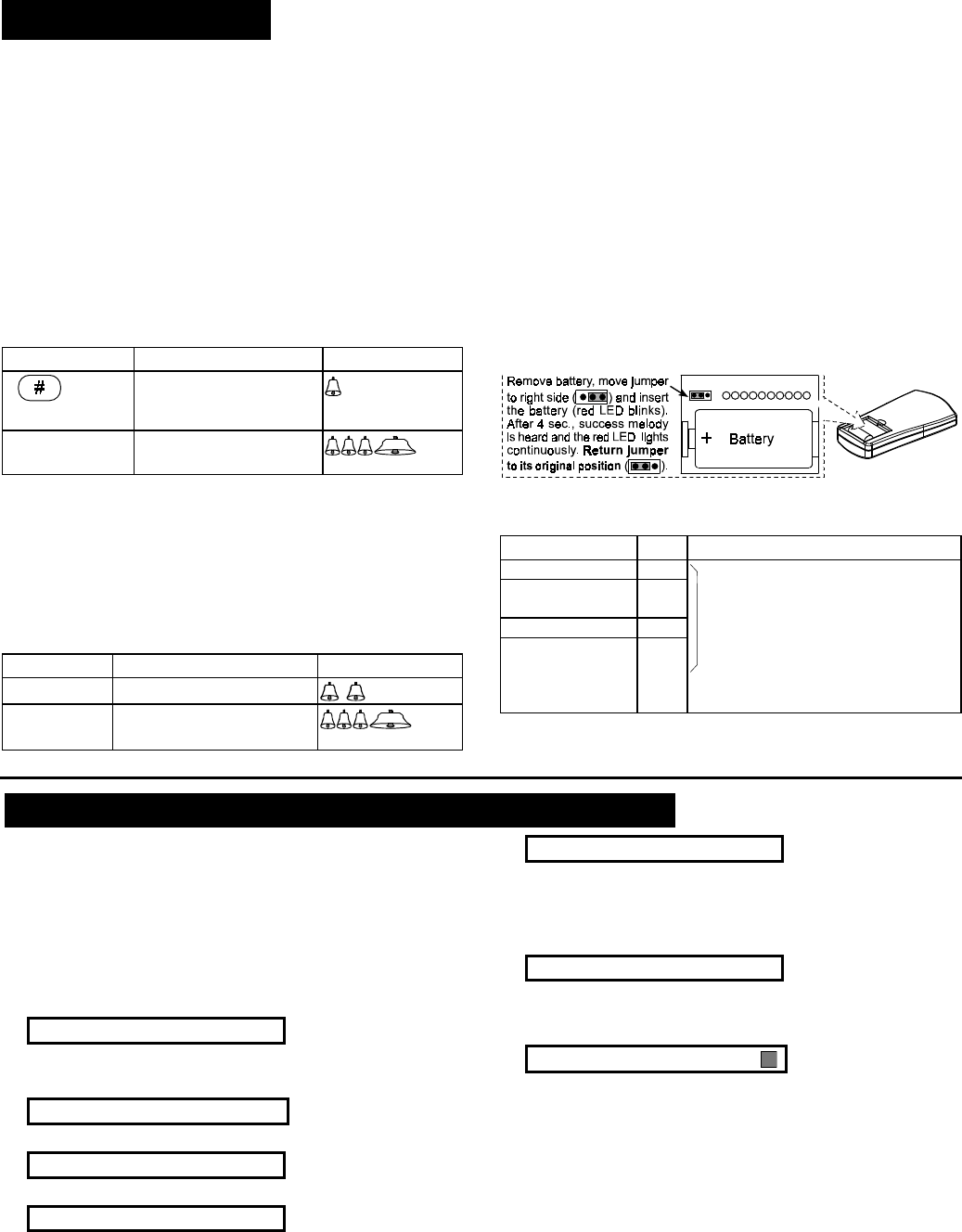

Action LED indication Buzzer response
+ Green LED blinks slowly
until the master code is
keyed *
+[master code]
(1111 by default)
Amber LED blinks slowly
during programming *
(success melody)
* Upon entering the programming mode, the success melody is
heard and the amber LED starts blinking. Blinking will stop
once you exit from this mode (by pressing "#" again) or upon
time out during which no key is pressed. 2 short beeps are
heard when the LED stops blinking.
4.3 Changing Master/User Codes
To change the MCM-140 master and user codes, enter the
programming mode (Par. 4.2) and proceed as follows:
Action LED indication Buzzer response
+[1-8]1 Amber LED blinks
+[new code]2 Amber LED blinks quickly -
(blinks slowly after success)
(success melody)
Notes
1. Enter user No. (1-8). User No. 1 is defined as the master user.
2. Master/user codes consist of 4-digits. Code "0000" is not
valid. It can be used to erase the currently programmed code
(when this action is performed, success melody is heard).
3. PowerMax user codes and MCM-140 user codes are different
codes.
4.4 Restoring the Default Master Code
If the master code is forgotten, it is possible to recall the factory
default master code "1111". To ensure that this possibility is
not misused by unauthorized people, a panic alarm is
automatically transmitted to the PowerMax system when
such an action is performed.
To recall the default master code and prevent a panic alarm, set
PowerMax to User Settings mode (see PowerMax Prog. Guide,
Par. 1.2) and proceed as shown in the following illustration:
4.5 Special Programming Options
Enter the programming mode (Par. 4.2) and proceed as follows:
Desired function Press and then press:
Quick arming 9 1
Buzzer control 9 2 +AWAY to enable (amber LED
lights)
Back lighting 9 3 +OFF to disable (amber LED blinks).
Supervision / low
battery reporting
(only by using Fire
button)
9 4 In both cases, the buzzer sounds twice,
to indicate success.
Notes: The supervision message will be sent once an hour.
When there is Low Bat condition, trouble message will be
displayed in the zone that was selected for the FIRE key.
5. ENROLLING THE MCM
5. ENROLLING THE MCM5. ENROLLING THE MCM
5. ENROLLING THE MCM-
--
-140 TO THE POWERMAX
140 TO THE POWERMAX140 TO THE POWERMAX
140 TO THE POWERMAX
5.1 Enrolling CodeSecure Functions
To enroll the MCM-140 CodeSecure functions (Home/Away
arming, Disarming, Aux and Panic functions), proceed as follows:
A. Enter PowerMax installer menu (see PowerMax Programming
Guide, document DE5450P, par. 1.2).
The PowerMax display will be "1. NEW INSTL CODE".
B. Click <NEXT>. The enrolling mode will be selected and the
PowerMax display will show:
2. ENROLLING
C. Click <OK>.
The PowerMax display will change to:
ENROLL WL DEVICE
D. Click <NEXT>. The PowerMax display will read:
ENROLL KEYFOB
E. Click <OK>. The PowerMax display will read:
Keyfob No: _
F. Press the key on the PowerMax keypad that corresponds with
the location (1-4) that you wish to enroll in (assuming that the
PowerMax memory locations No. 1, 2, 3 and 4 are free - no
keyfob has yet been enrolled to them).
If, for example, you have pressed the "1" key of the PowerMax
keypad, the PowerMax display will change to:
Keyfob No: 1
The clear space at the far right tells you that the memory
location is free.
G. Click <OK>. The PowerMax display will prompt you to initiate
a transmission from the MCM-140:
TRANSMIT NOW
H. Initiate a transmission from the MCM-140 by pressing the "∗"
button for 2 sec. approximately. As a result, the “Happy Tune”
(- - - –––) will sound and the PowerMax display will change to:
Keyfob No: 1
A dark box will appear at the far right, indicating that the
chosen function has been enrolled.
Note: If the same function is already enrolled elsewhere, the
“Happy Tune” will sound twice in succession.
5.2 Enrolling PowerCode Functions
The following MCM-140 PowerCode control functions can be
enrolled:
• Lights No. 1-7
• Light No. 8 (controlled by PGM, "on by zones")
• Fire
• Emergency
To enroll these functions, proceed as follows:
DE2460U 3
A. Enter PowerMax installer menu (see PowerMax Programming
Guide, document DE5450P, par. 1.2).
The PowerMax display will be "1. NEW INSTL CODE".
B. Click <NEXT>. The enrolling mode will be selected and the
PowerMax display will show:
2. ENROLLING
C. Click <OK> to select the “enroll wireless devices” sub-mode.
The PowerMax display will change to:
ENROLL WL DEVICE
D. Click <OK> again. The PowerMax display will read:
Zone No : _
__
_ _
E. Enter the number of the zone (non-alarm zone) to which you
wish to enrol electrical device No. 1 - for instance, zone 23. If
you enter <2>!<3>, the PowerMax display will change to:
Zone No: 23
The clear space at the far right tells you that the zone is free -
no wireless device has been enrolled to it as yet.
F. Click <OK>. The PowerMax display will prompt you to initiate
a transmission from the chosen wireless device:
TRANSMIT NOW
G. Initiate transmission from the MCM-140 by pressing the
LIGHT key followed by pressing "1" (for electrical device #1).
H. In response to the transmitted signal, the “Happy Tune” (- - - –
–– ) will sound and the PowerMax display will change to:
Zone No: 23
A dark box will appear at the far right, indicating that the
chosen device has been enrolled to Zone No. 23.
I. On the PowerMax, press NEXT button.
J. Perform steps "E" to "H" for the other electrical devices (No. 2
to 8).
K. Perform steps "E" to "H" for the MCM-140 FIRE and
EMERGENCY functions. When you are instructed to transmit,
press the MCM-140 FIRE/EMERGENCY key for 2 seconds
until the RED LED lights and “Happy Tune” (- - - ––– ) sounds.
Notes
1. There is no need to teach the keypad PANIC function for the
PowerMax - it will be automatically performed.
2. Define the zones that are enrolled for the 1-8 lights as non-
alarm zones, to prevent an alarm display when a light is
turned on.
6. OPERATION
6. OPERATION6. OPERATION
6. OPERATION
The following table describes how to activate the various
functions.

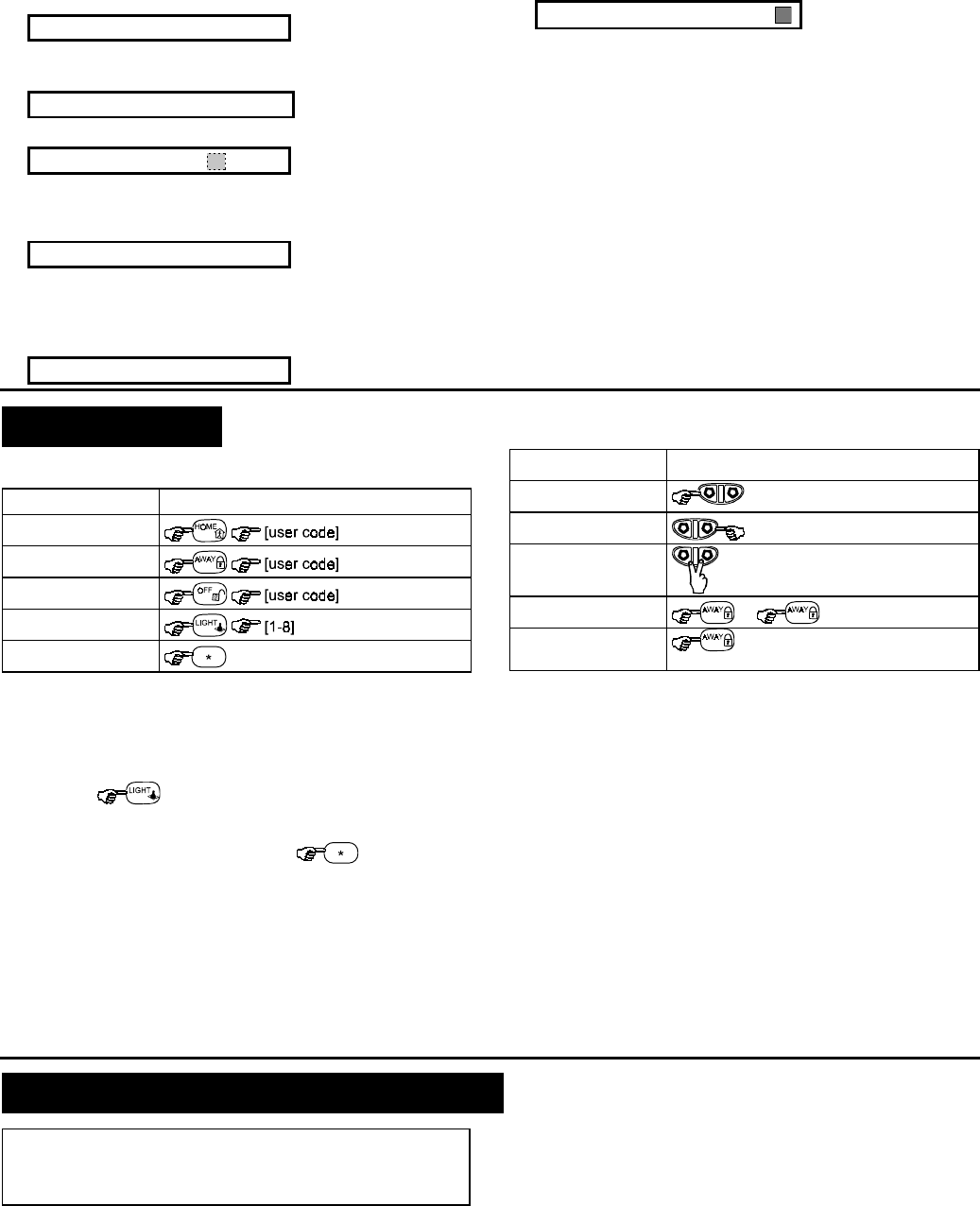

Function Actions
Arming HOME (1) (8)
Arming AWAY (8)
Disarming
Light (1-8) On/Off (2)
AUX Function
(≈ 2 sec.) (3)
Function Actions
Emergency alarm (≈ 2 sec.) (7)
Fire alarm (≈ 2 sec.) (7)
Panic alarm (≈ 2 sec.) (7)
Latchkey arming .... (4)
Quick arm ( ≈ 2 sec.). (LED blinks, then
lights RED during transmission)
Notes
1. Eight user codes are possible (user code # 1 is the master user
code). Factory default master code is "1111". Upon entering a
valid code or a valid command, the success (victory) melody is
heard and the red LED lights briefly (transmission indication).
2. Pressing followed by the desired light number (1-8)
turns on this light (success beeps are heard). Performing
these actions again turns this light off and so on.
3. Pressing the Auxiliary Function key (
≈
2 sec.) can
initiate the STATUS action (system status announcement),
the INSTANT action (entry delay cancellation) or the PGM
action (activation of PGM output or X-10 units), depending on
prior installer programming. For selecting the desired auxiliary
function, refer to the PowerMax Programming manual, Para.
5.16 (AUX Button).
4. For LATCHKEY arming function, press the AWAY key, wait
until the red LED extinguishes, then press the AWAY key
again. The red LED lights and extinguishes again.
From PowerMax version V1.16: Latchkey disarming (opening)
can be done by user No. 8, by using code numbers 5-8 of the
MCM-140.
5. Pressing a non-valid code combination (not master / user
code) causes a long failure beep.
6. If a keying sequence is not completed within timeout, the
desired function will not be executed.
7. Pressing the Emergency, Fire or Panic buttons, causes the
red and green LEDs to blink alternately for 2 seconds to alert
the user. The red LED lights during transmission.
8. If arming Home or arming AWAY command is used with an
invalid user code, the command will not be performed. To
enter the arming HOME/AWAY command again, you should
press the HOME/AWAY key twice and then enter the valid
user code.
7. COMPLIANCE WITH STANDARDS
7. COMPLIANCE WITH STANDARDS7. COMPLIANCE WITH STANDARDS
7. COMPLIANCE WITH STANDARDS
This device complies with the essential requirements and provisions
of Directive 1999/5/EC of the European Parliament and of the Council
of 9 March 1999 on radio and telecommunications terminal
equipment.
Frequency Allocations for Wireless Devices in
European Countries:
• 433.92 MHz has no restriction in any EU member state.
• 418 MHz is allowed in the UK only.
• 315 MHz is not allowed in any EU member state.
• 868.95 MHz (wide band) is allowed in all EU member states
except for Belgium.
• 869.2625 MHz (narrow band) is not restricted in any EU
member state.
The user is cautioned that changes or modifications to the unit,
not expressly approved by Visonic Ltd., could void the user's FCC
or other authority to operate the equipment.
The 315 MHz model of this device complies with Part 15 of the
4 DE2460U
FCC Rules and RSS-210 of Industry and Science Canada.
Operation is subject to these two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesirable operation.
WARRANTY
WARRANTYWARRANTY
WARRANTY
Visonic Ltd. and/or its subsidiaries and its affiliates ("the Manufacturer") warrants its
products hereinafter referred to as "the Product" or "Products" to be in conformance with
its own plans and specifications and to be free of defects in materials and workmanship
under normal use and service for a period of twelve months from the date of shipment by
the Manufacturer. The Manufacturer's obligations shall be limited within the warranty
period, at its option, to repair or replace the product or any part thereof. The Manufacturer
shall not be responsible for dismantling and/or reinstallation charges. To exercise the
warranty the product must be returned to the Manufacturer freight prepaid and insured.
This warranty does not apply in the following cases: improper installation, misuse,
failure to follow installation and operating instructions, alteration, abuse, accident or
tampering, and repair by anyone other than the Manufacturer.
This warranty is exclusive and expressly in lieu of all other warranties, obligations or
liabilities, whether written, oral, express or implied, including any warranty of
merchantability or fitness for a particular purpose, or otherwise. In no case shall the
Manufacturer be liable to anyone for any consequential or incidental damages for breach
of this warranty or any other warranties whatsoever, as aforesaid.
This warranty shall not be modified, varied or extended, and the Manufacturer does not
authorize any person to act on its behalf in the modification, variation or extension of this
warranty. This warranty shall apply to the Product only. All products, accessories or
attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or
otherwise, caused by the malfunction of the Product due to products, accessories, or
attachments of others, including batteries, used in conjunction with the Products.
The Manufacturer does not represent that its Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury
and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the
Product will in all cases provide adequate warning or protection. User understands that a
properly installed and maintained alarm may only reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that such
will not occur or that there will be no death, personal damage and/or damage to property
as a result.
The Manufacturer shall have no liability for any death, personal and/or bodily injury
and/or damage to property or other loss whether direct, indirect, incidental,
consequential or otherwise, based on a claim that the Product failed to function.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or
damage arising under this limited warranty or otherwise, regardless of cause or origin, the
Manufacturer's maximum liability shall not in any case exceed the purchase price of the
Product, which shall be fixed as liquidated damages and not as a penalty, and shall be the
complete and exclusive remedy against the Manufacturer.
Warning: The user should follow the installation and operation instructions and among
other things test the Product and the whole system at least once a week. For various
reasons, including, but not limited to, changes in environmental conditions, electric or
electronic disruptions and tampering, the Product may not perform as expected. The user
is advised to take all necessary precautions for his /her safety and the protection of
his/her property.
6/91
DE2460 5
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 10 NORTHWOOD DRIVE, BLOOMFIELD CT. 06002-1911. PHONE: (860) 243-0833, (800) 223-0020. FAX: (860) 242-8094
VISONIC LTD. (UK): UNIT 1, STRATTON PARK, DUNTON LANE, BIGGLESWADE, BEDS. SG18 8QS. PHONE: (01767) 600857 FAX: (01767) 601098
INTERNET: www.visonic.com
VISONIC LTD. 2002 MCM-140 DE2460U (REV. 0, 1/02)
