Waterproof PowerCode Wrist Transmitter
User Guide

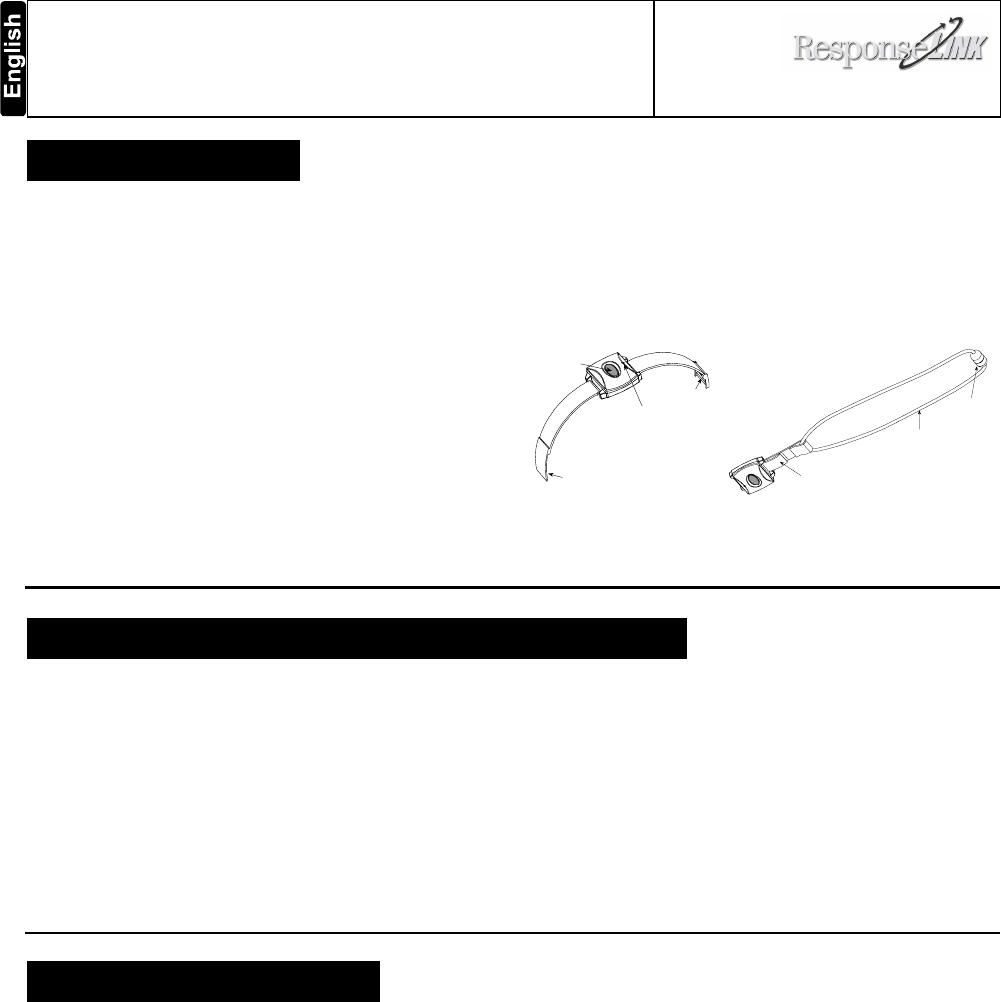

1. INTRODUCTION
1. INTRODUCTION1. INTRODUCTION
1. INTRODUCTION
The MCT-212 RL is a miniature waterproof
transmitter, designed for home health care
signaling. In the event of an emergency, help can
be summoned at the press of the transmitter
button.
All MCT-212 RL units are supplied with a wrist
band and neck strap. They can be worn on the
wrist or around the neck. (See Figure 1a.&1b.)
The LED lights during a transmission to indicate a
good battery. If the LED flashes during a
transmission, this means that the battery is low and
must be replaced immediately. Anytime the MCT-
212 RL is pressed when the battery is low, a trouble
signal will automatically be sent to the Base Unit.
To alert you of the trouble, a red LED will flash and
a trouble message will appear on the display of the
Base Unit. All troubles are reported to the
Monitoring Center.
The transmitter case is hermetically sealed (no
screws) to ensure complete waterproofing of the
case. Therefore battery replacement must be
performed by the factory only.
LED
INDICATOR
FASTENER
LOOP
TRANSMIT
BUTTON
Figure 1a.
MCT-212 RL
with Wrist Band
SAFETY
RELEASE
MECHANISM
NECK
CORD
FASTENER
Figure 1b. MCT-212 RL with
Neck Strap
2
22
2.
. .
. TESTING
TESTINGTESTING
TESTING,
,,
,
MAINTENANCE
MAINTENANCEMAINTENANCE
MAINTENANCE AND ENROLLMENT
AND ENROLLMENT AND ENROLLMENT
AND ENROLLMENT
2.1 Enrolling Transmitters
In order for a transmitter to function, its ID must be
enrolled into the Base Unit. The Transmitter ID is
a 6 character code (ex: EB1772) that can be
found both on the unit’s package and on the
reverse side of the unit. To enroll a transmitter,
provide ResponseLINK (either by telephone or by
fax) of the Transmitter ID.
2.2 Initial Test
Upon pressing the transmit button, the Base Unit
will sound and display simultaneously CALLING
FOR HELP. This indicates that the transmitter
is working properly.
Note: If for any reason the MCT-212 RL does not
result in the above response from the Base Unit,
please contact the central station at 1-800-894-
1428 and verify the Transmitter ID located both on
the unit's package and on the reverse side of the
transmitter beneath the wrist band.
3
33
3. GENERAL COMMENTS
. GENERAL COMMENTS. GENERAL COMMENTS
. GENERAL COMMENTS
3.1 Product Limitations
Our wireless systems are very reliable and are
tested to high standards. However, due to their
low transmitting power (required by FCC, DTI and
other regulatory authorities) there are some
limitations to be considered:
A. Receivers may be blocked by radio signals
occurring on or near their operating
frequencies, regardless of the code selected.
B. A receiver can only respond to one transmitted
signal at a time.
C. Wireless equipment should be tested regularly
(at least once a week) to determine if there are
sources of interference and to protect against
faults.
2 DE2457U
4. SPECIFICATIONS
4. SPECIFICATIONS4. SPECIFICATIONS
4. SPECIFICATIONS
Frequency (MHz): 315
Transmitter ID: Over 16 million possible code
combinations.
Minimum Transmit Duration: 2 sec
Power Supply: 3-volt Lithium cell type CR-2032
Battery Life Expectancy: 3 years (for typical use)
Battery Supervision:
Good battery - LED lights steadily upon activation.
Low battery - LED flashes upon activation.
Note: If transmission is still possible despite the
battery condition, the MCT-212 RL will send a low
battery report to the receiver.
Operating Temperature: 0° to 50°C (32° to
122°F).
Dimensions: 39 x 37 x 13 mm (1-9/16 x 1-7/16 x
5/8 in.).
Weight: 25 g (0.9 oz).
Color: Gray
This device complies with Part 15 of the FCC
Rules and RSS-210 of Industry and Science
Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
WARNING: Changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
The digital circuit of this device has been tested and found to
comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential
installations. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio and television reception. However, there is no guarantee
that interference will not occur in a particular installation. If this
device does cause such interference, which can be verified by
turning the device off and on, the user is encouraged to eliminate
the interference by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the
one which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
IF YOU HAVE ANY QUESTIONS PLEASE CALL (800) 894-1428.
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and
not returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
RESPONSELINK L.L.C.
9555 SEMINOLE BLVD. SUITE 207 SEMINOLE Fl. 33772. PHONE: (727) 466-9373 FAX: (727) 466-9322
MCT-212 RL DE2457U (REV. 0, 12/04)
