1. INTRODUCTION
The Power-G Modem LP is a wireless transceiver designed for
providing simple access to wireless devices. Its main application is an
RF interface in a security system that communicates PG messages.
The transceiver features UART ports that can be applied to the host
of the control panel. Mechanical support and electrical connections
are obtained by mounting the modem on an 8-pin connector and
fastening it with a screw.
2. SPECIFICATIONS
Frequency band: USA: 912-919 MHz
Bandwidth: 118 kHz
Data rate: 50 Kb/s
Communication interface: UART
Antenna input: Coaxial connector U. FL-R-SMT-1(60) – Herose
Supply voltage: 3.3V +/-5%
Transmit current consumption: 45mA
Receiver current consumption: 25mA
Operating temperature: -10 + 55 °C
Dimensions: 57x25x7mm
3. INSTALLATION

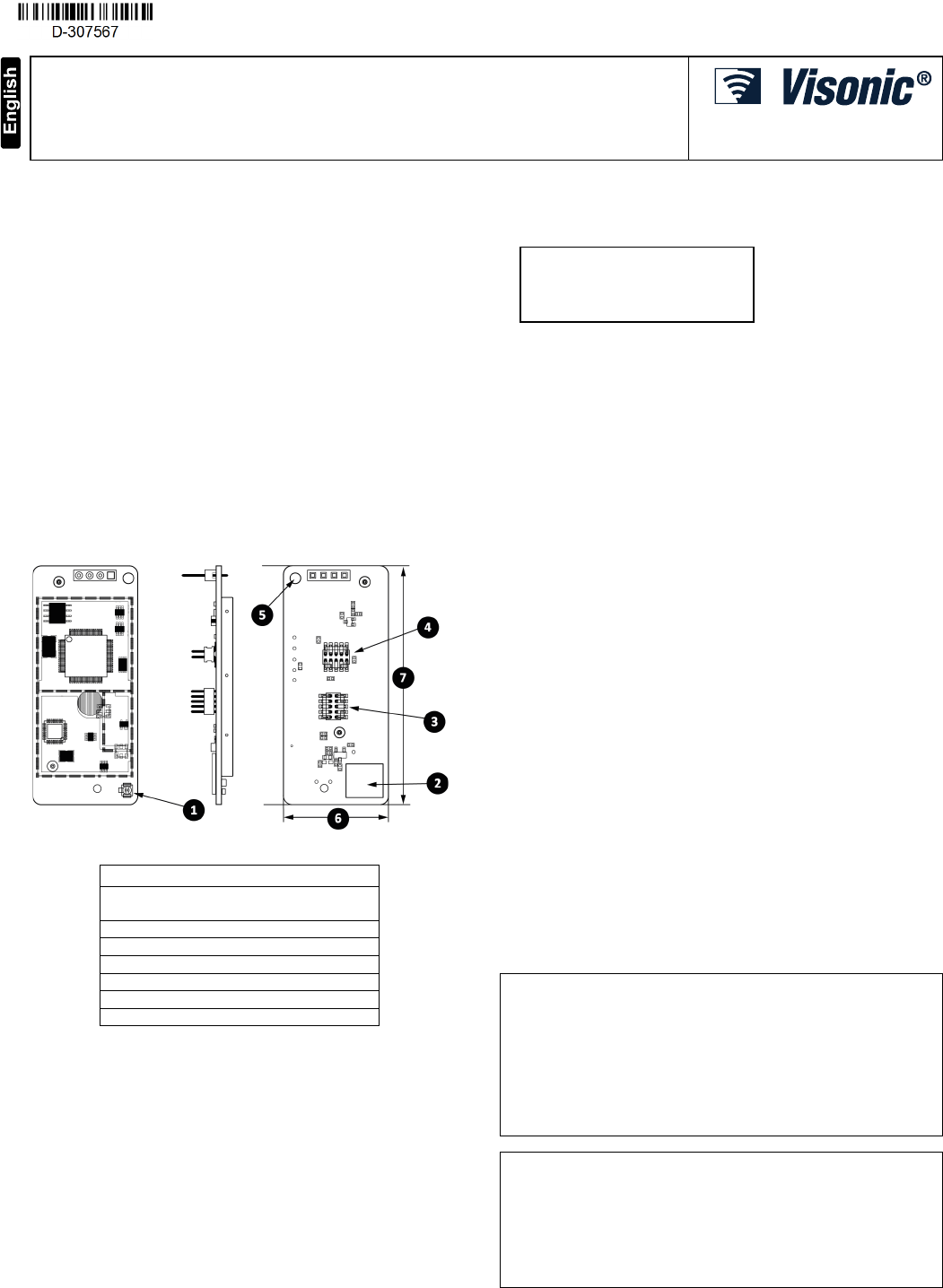

Figure 1
Callout
Description
1 Antenna connector
U. FL-R-SMT-1(60) – HEROSE
2
J1 connector
3
Not used
4
Not used
5
Support screw
6
25.0 mm
7
57.0 mm
Function: J1 connector
1. VCC – Operating voltage: Nominal voltage: 3.3V
2. UART_Rx – Serial asynchronous UART receive port
Minimum high input level: 2.3V
Maximum low input level: 0.99V
3. UART_Tx – Serial asynchronyous UART transmit port
Maximum voltage: 3.3 + 0.3V
Mimimum voltage: -0.3V
4. GND
5. RST – low level active
6. SYSTEM_INT – output, low level active, BOOT0 – input, low
level active
7. Not used
8. Not used
4. COMPLIANCE WITH STANDARDS
USA: FCC 47CFR Part 15
Canada: IC RSS-247
Visonic Ltd.
P/M/N: Power-G Modem LP
Module
FCC ID: WP3PGMODEMLP
IC: 1467C- PGMODEMLP
OEM Integration Notices
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained
between the antenna and users, and
2) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not
be required. However, the OEM integrator is still responsible for
testing their end-product for any additional compliance requirements
required with this module installed.
IMPORTANT NOTE: In the event that these conditions cannot be met
(for example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid
and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-
evaluating the end product (including the transmitter) and obtaining a
separate FCC or authorization.
End Product Labeling
This transceiver module is authorized only for use in device where the
antenna may be installed such that 20 cm may be maintained
between the antenna and users (for example: wireless AP, wireless
Router).
The final end product must be labeled in a visible area with the
following: “Contains TX FCC ID: WP3PGMODEMLP;
IC: 1467C-PGMODEMLP”.
OEM Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the
end user regarding how to install or remove this RF module in the
users manual of the end product which integrate this module.
The users manual for OEM integrators must include the following
information in a prominent location:
“IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed
to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other
antenna or transmitter."
To comply with FCC and IC RF exposure compliance requirements,
the device should be located at a distance of at least 20 cm from all
persons during normal operation. The antennas used for this product
must not be co-located or operated in conjunction with any other
antenna or transmitter.
Le dispositif doit être placé à une distance d'au moins 20 cm à partir
de toutes les personnes au cours de son fonctionnement normal.
Les antennes utilisées pour ce produit ne doivent pas être situés ou
exploités conjointement avec une autre antenne ou transmetteur.
This device complies with Part 15 of the FCC Rules and RSS-247 of
ISED. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’ISED applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes : (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
2 D-307567
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-
003 du Canada.
WARNING! Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you
must contact the company from which you orignially
purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned
as identified by your supplier. This product is not to be
thrown away with everyday waste.
European Directive 2002/96/EC Waste Electrical and
Electronic Equipment.
EMAIL: info@visonic.com
INTERNET: www.visonic.com
©VISONIC LTD. 2018 Power-G Modem LP Transceiver Module D-307567 (Rev 0. 08/18)
