Installation Instructions

DE5465 1
POWERMAX+
Fully Supervised Wireless Alarm Control System
Installation Instructions
TABLE OF CONTENTS
1. INTRODUCTION........................................................ 2
2. SPECIFICATIONS ..................................................... 2
2.1 General Data....................................................... 2
2.2 RF Section .......................................................... 2
2.3 Electrical Data..................................................... 2
2.4 Communication ................................................... 3
2.5 Physical Properties ............................................. 3
3. INSTALLATION.......................................................... 3
3.1 Unpacking the Equipment .................................... 3
3.2 Supplying Power to the Unit................................. 3
3.3 Programming........................................................ 3
3.4 Mounting ............................................................. 3
3.5 Wiring ................................................................... 3
3.6 Connecting the AC Transformer .......................... 6
3.7 PowerMax+ Compatible Detectors....................... 6
3.8 PowerMax+ Compatible Transmitters.................. 6
3.9 PowerMax+ Compatible WL Siren ....................... 7
3.10 Installing an Optional X-10 Siren.......................... 7
3.11 Connecting PowerMax+ to a Computer ............... 7
3.12 Connecting PowerMax+ to GSM Modem............. 7
4. TESTING PROCEDURES .......................................... 7
4.1 Preparations ........................................................ 7
4.2 Diagnostic Test.................................................... 7
4.3 Keyfob Transmitter Test ...................................... 7
4.4 Appliance ON/OFF Test ...................................... 8
4.5 Emergency Transmitter Test ............................... 8
5. MAINTENANCE.......................................................... 8
5.1 Dismounting the Control Panel............................ 8
5.2 Replacing the Backup Battery ............................. 8
5.3 Fuse Replacement .............................................. 8
5.4 Replacing/Relocating Detectors .......................... 8
APPENDIX A. DETECTOR DEPLOYMENT AND
TRANSMITTER ASSIGNMENTS ............................... 9
A.1 Detector Deployment Plan .................................. 9
A.2 Keyfob Transmitter List ....................................... 9
A.3 Emergency Transmitter List .............................. 10
A.4 Non-Alarm Transmitter List ............................... 10
APPENDIX B. X-10 UNIT AND PGM OUTPUT
ASSIGNMENTS ........................................................ 10
FCC STATEMENTS ....................................................... 11
MESSAGE TO THE INSTALLER
The PowerMax+ control panel is supplied with 3 instruction manuals:
Installation Instructions (this manual - for your exclusive use)
Programming Guide (for your exclusive use)
User’s Guide (for your use during installation only. Must be handed over to the master user after testing the system).
Appendices A and B of the installation instructions will help you prepare an installation plan. Please take time to fill out the
forms - your job will become much easier and confusion will be prevented. Filling out the forms will also help you create a
list of detectors and transmitters that must be obtained for the particular application. Compatible detectors and transmitters
are listed and described briefly in Paragraphs 3.7 and 3.8 of this manual.
Remember - it is advisable to power up the control panel temporarily after unpacking and program it on the work bench, in
accordance with the installation plan. Paragraph 3.3 of this manual refers you to the programming guide.
The programming flow charts in the programming guide show all options available for each parameter. Factory defaults are
marked with a dark box to their right, and other options (that can be selected instead) are marked by clear boxes. This
method allows you to put a checkmark in the appropriate clear box whenever you deviate from the factory defaults.
Although setting the correct time and date is one of the user tasks, we recommend that you set the time and date in the
course of programming. Access to the “User Settings” for the installer is possible through item 10 on the installer‘s menu or
through the user menu (see User’s manual section 7).
After programming, proceed to install the system as detailed in the Installation Instructions, from paragraph 3.4 onward.
WARNING! Zone type "emergency" can not be used for medical applications in UL-listed systems.
The installer should verify line seizure. Be aware of other phone line services such as DSL.
2 DE5465
1. INTRODUCTION
The PowerMax+ is a user and installer-friendly, 30-zone
fully-supervised wireless control system. The system is
designed to function in a way that appeals to the user but
also offers features that make installers’ life easier than
ever before:
EASY TO INSTALL
• Plug-in terminal blocks can be wired while detached
from the unit.
• Quick attach-detach TELCO sockets for telephone line
and X-10 controller. Terminal block for telephone line &
set.
• Special wall-mounted bracket permits installation without
having to open the unit’s cabinet.
• Optional plug-in RS-232 module for local computer.
EASY TO MAINTAIN
• Status, alarm memory and trouble data are displayed
upon request.
• Diagnostic test provides visual and audible indication of
the signal level of each detector.
• Remote control and status verification from distant
telephones.
• Event log stores and displays information on 100 past
events.
• Upload / download from distant computer via telephone
line and modem.
QUICK PROGRAMMING
• Multiple-choice selection of options for each parameter.
• Unequivocal visual prompts and audible signals.
• Installer access to the user menu.
A fully equipped alarm system based on the PowerMax+
consists of the units shown in Figure 2 of the user’s guide.
2. SPECIFICATIONS
2.1 General Data
Zones Number: 28 wireless, 2 hardwired (zones 29 & 30).
Hardwired Zone Requirements: 2.2 kΩ E.O.L. resistance
(max. resistance of wires 220 Ω).
Zone Types: Interior follower, perimeter, perimeter follower,
delay 1, delay 2, 24h silent, 24h audible, fire, non-alarm,
emergency, gas and flood.
User Codes: 8 codes, 4 digits each
Control Facilities:
- Integral keypad
- PowerCode / Code-Secure™ hand-held transmitters
- Wireless commander, MCM-140+
- Remote telephone
- Local or remote computer
Display: Single line, back lighted 16-character LCD and 4
LED indicators.
Arming Modes: AWAY, HOME, AWAY-INSTANT, HOME-
INSTANT, LATCHKEY, FORCED, BYPASS.
Alarm Types: Silent alarm, siren alarm or sounder
(internal) alarm, in accordance with zone attributes.
Siren Signals: Continuous (intrusion / 24 hours / panic);
triple pulse - pause - triple pulse... (fire).
Siren (bell) Timeout: Programmable (4 min. by default)
Internal Sounder Output: At least 85 dBA at 10 ft (3 m)
Supervision: Signaling at 60 minutes interval (U.S.
version), 15 minute interval (UK version) or according to
local standards
Special Functions:
- Speech and sound control
- Powerline Carrier Device Control (up to fifteen X-10
brand units) by various factors, as programmed
- Chime zones
- Diagnostic test and event log
- Remote control by telephone
- Computer control and data download/upload
- Calling for help by using an emergency transmitter
- Tracing inactivity of elderly, physically handicapped and
infirm people
- Message center (recording and playback)
- Two-way voice communication
Data Retrieval: Status, alarm memory, trouble, event log.
Real Time Clock: The control panel keeps and displays
time and date.
Compliance with U.S. Standards:
Meets FCC Part 15 and Part 68 requirements.
UL1023 - Household Burglar Alarm System Unit - Grade A.
UL985 - Household fire warning System.
UL1635 – Digital Alarm Communicator System Units.
Compliance with European Standards:
EMC Emission: EN 50081-1 1992, EN300220-3
RFI: EN55022 1998
EMC Immunity: EN 50082-1 1997, EN301489-3
EMC Immunity to Conducted RF: EN6100-4-6 1996
Telephony: TBR21 1998
Safety: EN60950+ Am1(93), Am2(93), Am3(95), Am4(97)
According to the European standard EN5013-1, the
PowerMax+ security grading is 2 – "low to medium risk" and
environmental classification is II – "indoor general".
The PowerMax+ is compatible with the RTTE requirements -
Directive 1999/5/EC of the European Parliament and of the
Council of 9 March 1999.
2.2 RF Section
Operating Frequencies: 315 MHz (in USA & Canada) or
other UHF channels per local requirement in the country of
use.
Receiver Type: Super-heterodyne, fixed frequency
Receiver Range: 600 ft (180 m) in open space
Antenna Type: Spatial diversity
Coding: PowerCode and/or CodeSecure™
2.3 Electrical Data
Power Supply: Plug-in transformer.
120 VAC, 60 Hz / 9 VAC, 1A (in the U.S.A.)
230 VAC, 50 Hz / 9 VAC, 1A
Note: It is possible to use 700 mA transformer if the used
siren current consumption is less than 300 mA.
UL installation: Use transformer type OH-41111AT,
manufactured by Oriental Hero Electrical Factory.
In Europe and elsewhere: Use only Safety National
Approved AC adapter, mains-to-9 VAC, 0.7A or 1A.
Current Drain: Approx. 65 mA standby, 800 mA at full
load and in alarm.
Site External Siren Current (EXT): 550* mA max.
Site Internal Siren Current (INT): 550* mA max.
PGM Output Current: 100* mA max.
DE5465 3
Detector 1 & 2 Total (Sum) Current: 100* mA max.
High Current / Short Circuit Protection: All outputs are
protected (current limited).
* Total PowerMax+ output current (of INT & EXT sirens,
PGM output and detectors) cannot exceed 600 mA.
Total INT & EXT sirens current consumption cannot
exceed 550 mA. For UL installations, total output
current cannot exceed 550 mA.
Backup Battery (provides power for at least 24 hours),
according to the purchase option:
Option 1 (applicable for UL installations): 7.2V 2100 mAh,
rechargeable NiMH battery, p/n GP211ATH6XM2,
manufactured by GP, trickle charge 80 mA approx.
Option 2: 9.6V Nickel Cadmium or Nickel Metal
rechargeable battery pack, 650 to 1800 mAh.
Note: To use a non-Visonic battery pack, its battery snap
should have proper polarity!
Battery Test: Once every 10 seconds.
2.4 Communication
Built-in Modem: 300 baud, Bell 103 protocol
Data Transfer to Local Computer: Via RS232 serial port
Report Destinations: 2 central stations, 4 private
telephones, 1 pager.
Reporting Format Options: SIA, Pulse 4/2 1900/1400 Hz,
Pulse 4/2 1800/2300 Hz, Contact ID, Scancom.
Pulse Rate: 10, 20, 33 and 40 pps - programmable
Message to Private Phones: Tone or voice
Message to Pager: PIN No.ÎAlarm Type ÎZone No.
2.5 Physical Properties
Operating Temp. Range: 32°F to 120°F (0°C to 49°C)
Storage Temp. Range: -4°F to 140°F (-20°C to 60°C)
Humidity: 85% relative humidity, @ 30°C (86°F)
Size: 9-13/16 x 7-1/2 x 1-3/4 in. (250 x 190 x 44 mm)
Weight: 880g (1.94 pounds) without batteries
Color: Ivory and charcoal gray
3. INSTALLATION
3.1 Unpacking the Equipment
Open the cardboard packing box and check whether all
items have been included. If you find out that an item is
missing, contact your vendor or dealer immediately.
3.2 Supplying Power to the Unit
Enrolling the transmitting devices’ ID codes in the Power-
Max+ memory will be easier if carried out before actual
installation, with all detectors and the control panel on a
work bench. It is therefore necessary to power up the
PowerMax+ temporarily from the external power trans-
former (see figure 3). Alternatively, you may power up
from the backup battery, as shown in figure 1.
Disregard any “trouble” indications that may appear
(due to lack of battery or lack of telephone line connection).
Remove battery area cover
(see fig. 4, step 3) and
remove battery compartment
cover (1 screw).
Connect rechargeable
battery pack (see
specifications) to the battery
connector. Afterwards
remount battery area and
battery compartment covers.
1
2
Figure 1 - Backup Battery Insertion
3.3 Programming
It pays off to plan ahead - use the tables in appendices A
and B at the end of this guide to register the intended
location of each detector, the holder and assignment of
each transmitter and the control plan for the X-10 units.
Gather up all transmitters and detectors used in the
system and mark each one in accordance with your
deployment plan.
Program the system now as instructed in the
PowerMax+ Programming Guide.
3.4 Mounting
PowerMax+ mounting process is shown in figure 2.
3.5 Wiring
PowerMax+ wiring is shown in figure 3.
Extract the screw terminal blocks one by one and make
the necessary connections. When done, plug each
terminal block onto its PCB mounted pins.
You will need 6-lead RJ-11 cord(s) for telephone line or
telephone line and telephone set.
4 DE5465
Push the bracket as shown
and then remove it
5
BATTERY
AREA
COVER
Open
keypad
cover
Release battery
area cover
12
SLOT
Mounting
surface
Screw
holes
Screw
holes
Special
plastic
washer
Mark and drill 4 holes in
mounting surface. Insert
wall anchors and fasten the
bracket to the mounting
surface with 4 screws
NOTE
Verify that there is 3 cm (1.25 in.)
free space around the bracket
Special plastic
washer
6
Remove battery
area cover
Remove bracket
locking screw
4
3
Locate the panel on the bracket
projections, pull down and lock the
bracket with locking screw (see step 4).
7

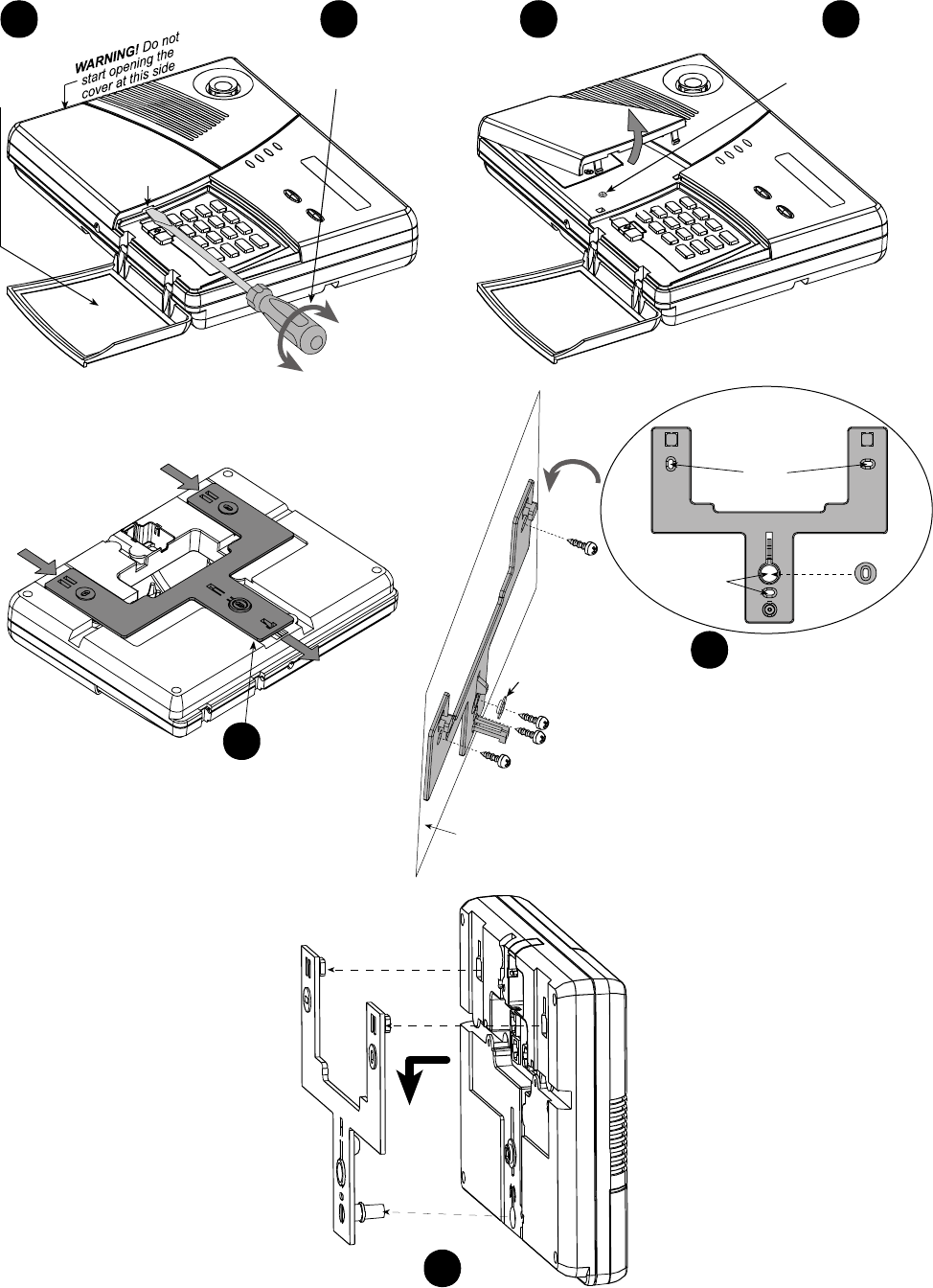

Figure 2 - Mounting
DE5465 5
NOTE: PSC-04 IN THE U.S. AND CANADA,
ALTERNATIVE MODELS ELSEWHERE.
-HOLD
EXT
INT
+12V
+12V
PGM
ZONE 29
GND
ZONE 30
V+
(**)
(**)
(**)
(**)
(**)
(***)
(*)
(*)
(*)
(*)
SITE
INTERNAL
SIREN OR
STROBE
SITE
EXTERNAL
SIREN
9 VAC
IMPORTANT!
OFF-THE-
SHELF CABLES ARE
UNSUITABLE HERE.
PREPARE YOUR OWN
“1 TO 1” CABLE.
6-POSITION
RJ-11 PLUG
POWERLINE
INTERFACE
MODULE
(SEE NOTE)
654321
TEL
LINE
6-POSITION
RJ-11 PLUG
TEL LINE
OPTIONAL
6-POSITION
RJ-11 PLUG
TEL LINE
TEL SET
TEL SET
POWER
TRANSFORMER
Detector with
Tamper switch
+
-
Power
2.2
kΩ
ZONE 29 /
ZONE 30
GND
TAMP
N.C.
Note
Regarding zones 29 & 30, the
PowrMax+ “sees” a specific resistance
according to the event, as follows:
Normal (no alarm & no tamper): 2.2 kΩ
Alarm event: 4.4 kΩ
Tamper event: Infinite resistance
V+(*)
Alarm
N.C.
ZONE 29 /
ZONE 30
CONNECT WIRED DETECTORS AS FOLLOWS:
Detector without
Tamper switch
+
-
Power
GND
2.2 kΩ
V+(*)
Alarm
N.C.
TEL. LINE JACK

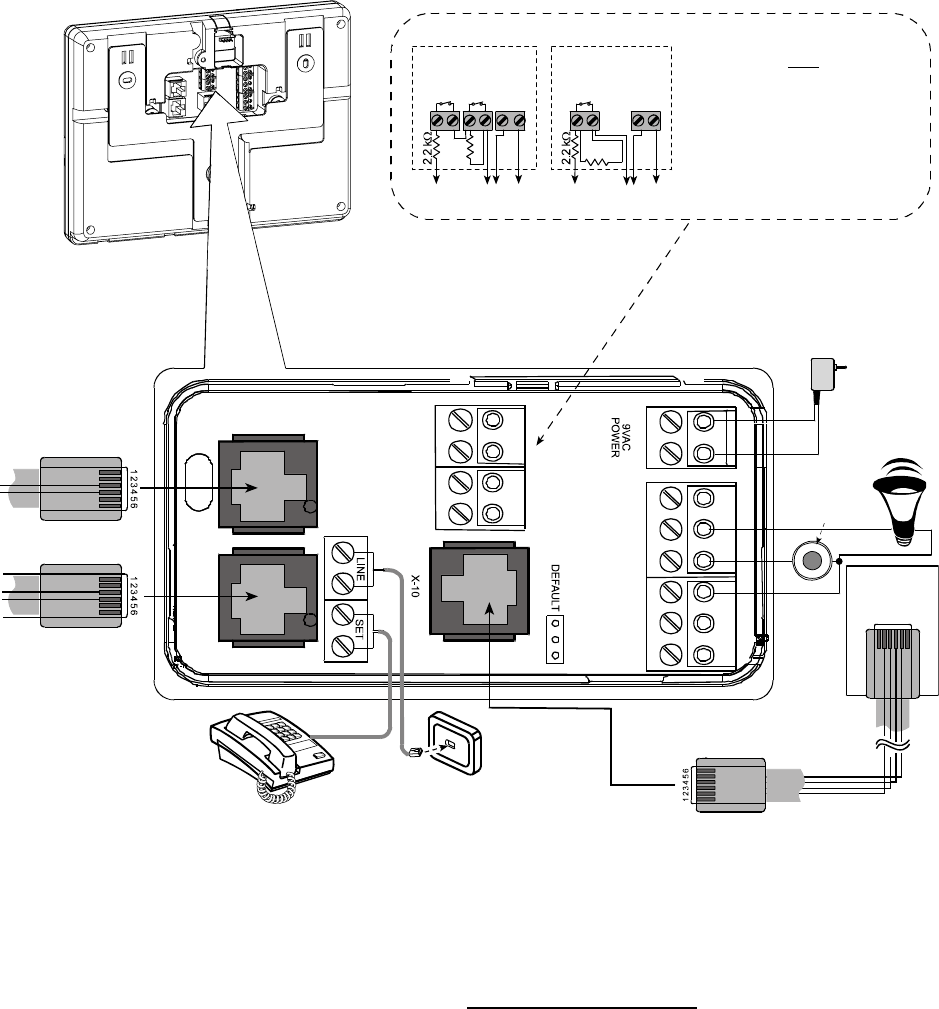

Figure 3 - Wiring Diagram
Notes regarding figure 3:
* Zone 29/GND and Zone 30/GND terminals can be
connected to a normally closed contact of a detector,
switch (for example a Tamper switch of any device), or a
pushbutton, via a 2.2 K
Ω
resistor. Such a resistor is
connected at the factory across both Zone 29/GND and
Zone 30/GND terminals. The resistors should remain
there if the terminals are not used. The V+ terminal can
be used to supply 12V (up to 100mA) to a detector (if
necessary).
** Both +12V terminals are identical (shorted together).
The +12V and "-Hold" terminals can be connected to a
siren (for constant DC power supply) and the INT or
EXT terminal can be used to trigger such a siren. The
INT terminal can be programmed to "internal siren" or
"strobe" (see DEFINE OUTPUTS - DEFINE AUX in
chap. 6 in the PowerMax+ prog. guide).
*** Removable LINE SET terminals or connector (RJ-11),
according to the purchase option.
WARNING! When plugging terminals back into place, be
sure to align them carefully with the pins on the PCB.
Misaligned or reverse insertion of terminals may damage
internal PowerMax+ circuits!
IMPORTANT! The terminals for internal and external
sirens are DC outputs intended for 12V sirens. Connecting
a loudspeaker to any of these outputs will cause a short
circuit and will damage the unit.
Notes for UL installations
a. The site INTERNAL SIREN and EXTERNAL SIREN
are suitable for burglar alarm application only. They are
not suitable for fire alarm signaling.
b. A device that is connected to PGM terminal should not
be programmed to be activated during standby.
c. "V+" and "-HOLD" terminals shall not be used for UL
installations.
d. The system shall be installed in accordance with Chapter
2 of the National Fire Alarm Code, ANSI/NFPA 70.
e. All wiring should be acceptable for class 1 systems as
defined by the National Electrical Code, ANSI/NFPA 70.
No. 26 AWG or larger telecommunication line cord shall
be used.
f. The system shall be installed in accordance with CSA
C22.1 Canadian Electrical Code, Part 1.
g. A minimum spacing of 1/4 inch shall be maintained
between the telephone wiring and the low voltage
wiring (zones, bell circuit, etc). Do not route the LINE
and SET wires in the same wiring channel with other
wires.
6 DE5465
3.6 Connecting the AC Transformer
CAUTION! Do not plug the transformer into the AC
outlet before completing all other wiring.
A. U.S.A. only: Remove the center screw from the AC
wall outlet.
B. Plug the transformer directly in - the Power LED of the
control panel should illuminate.
C. U.S.A. only: Use the screw removed in Step A above
to secure the transformer to the AC outlet. Tighten the
screw well.
D. The distance of the transformer from the system should
not exceed 150 ft using 18 AWG conductors.
For UL installations, do not connect to a receptacle
controlled by a switch.
3.7 PowerMax+ Compatible Detectors
Each detector compatible with the PowerMax+ system is
packed with its own installation instructions. Read them
carefully and install as indicated.
A. PIR Motion Detectors
The wireless passive infrared (PIR) motion detectors used
in the system are of the PowerCode type. The PowerMax+
is capable of “learning” each detector’s identification code
and linking it to a specific zone (see Section 3 in the
Programming Guide). Some units are shown below:

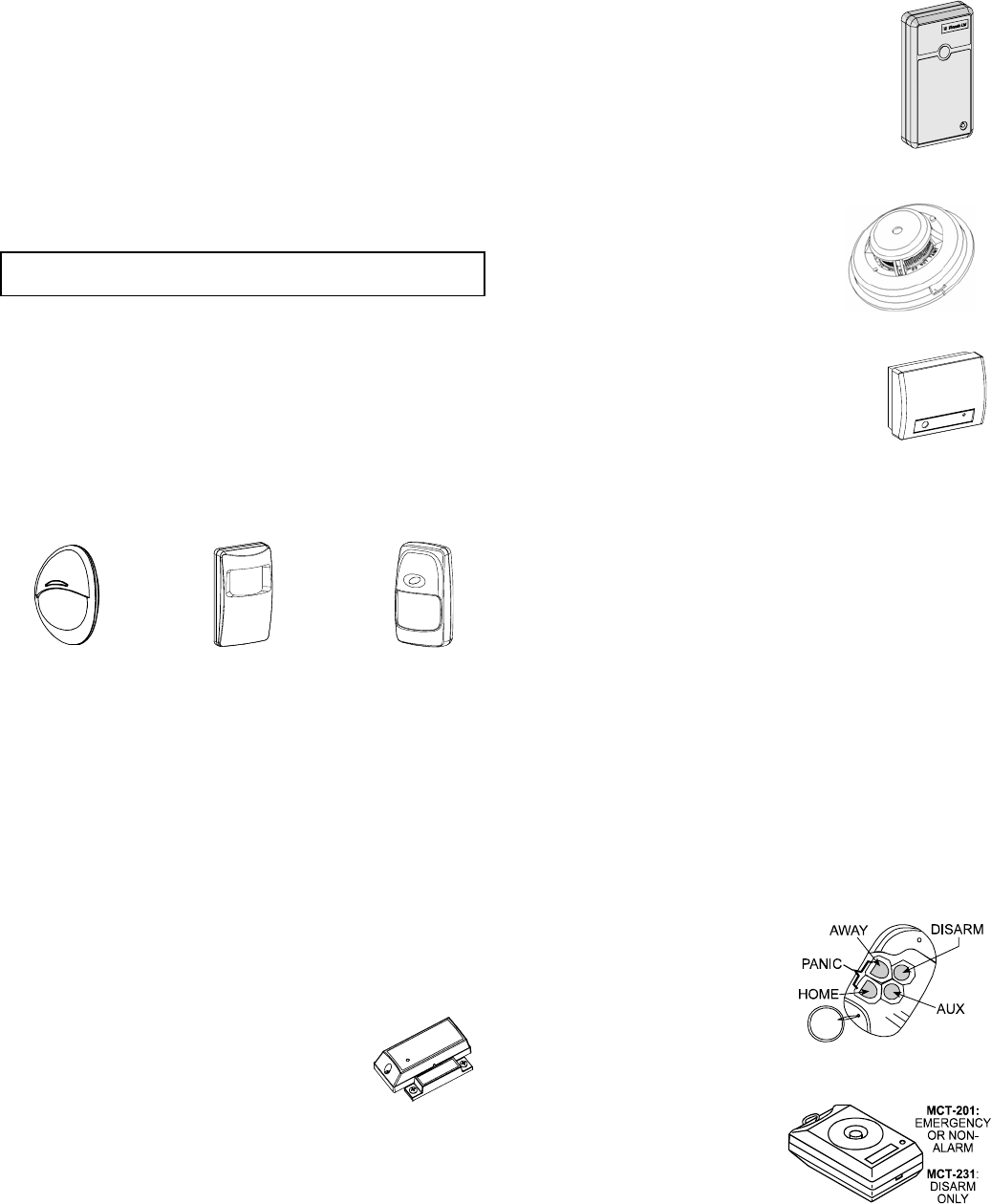

Figure 4
NEXT® K9-
85 MCW
Figure 5
MCPIR-3000
or K-940 MCW
Figure 6
DISCOVERY
K9-80/MCW
MCPIR-3000 is not UL-listed!
Note: K-940 MCW, Discovery K9-80/MCW and NEXT®
K9-85 MCW are pet immune units.
In addition to its unique 24-bit identification code, each
detector transmits a message, containing status information:
• The detector is in alarm (or not).
• The detector is being tampered with (or not).
• The battery voltage is low (or normal).
• “This is a supervisory message”.
If any of these detectors detects motion, it sends out a
message to the alarm control panel. If the system is in the
armed state, an alarm will be triggered.
B. Magnetic Contact Transmitter
MCT-302 (figure 7) is a PowerCode
magnetic-contact transmitter used to detect
the opening of a door or a window. The
alarm contacts are closed as long as the
door or window remains closed.
Figure 7
MCT-302
The unit has an extra alarm input that acts as if it were a
separate wireless transmitter. It sends (or does not send)
a “restored to normal“ message to the alarm system,
depending on the setting of an on-board “DIP” switch. The
“restore” message informs you, through the control panel’s
display, whether the door or window is open or closed.
C. MCT-100 Wireless Adapter for Wired Detectors
(not UL-Listed) MCT-100 (fig. 8) is a
PowerCode device used mainly as a
wireless adapter for 2 regular magnetic
switches installed on 2 windows in the same
room. It has two inputs, behaving as
separate wireless transmitters with
different PowerCode IDs. Each input
sends (or does not send) a “restored“
message to the alarm system, depending
on the setting of an on-board “DIP” switch.
Figure 8
MCT-100
D. Wireless Smoke Detector
MCT-430 (UL-listed). A
photoelectric smoke detector
equipped with a PowerCode-type
transmitter. If enrolled to a fire zone,
it initiates a fire alarm upon
detection of smoke.
Figure 9. MCT-430
E. Glass Break Detector MCT-501
(not UL-Listed). An acoustic detector (fig.
10) equipped with a PowerCode-type
transmitter. Since it restores automatically
after detection, this unit does not send a
restoral message to the control panel.
Figure 10
MCT-501
3.8 PowerMax+ Compatible Transmitters
Note: Each transmitter is packed with its own instructions
for battery installation and use. Be sure to pass these
documents on to the “Master User“ of the alarm system.
The PowerMax+ system is compatible with multi-button
and single button key-ring and hand-held transmitters that
use PowerCode and CodeSecure coding methods.
Multi-button PowerCode transmitters transmit the same
code each time the same button is pressed. They can be
used for emergency signaling, for activating the PGM
output or for controlling appliances via X-10 units. They
can not be used for arming / disarming.
CodeSecure transmitters are of the rolling code type - they
transmit a new code each time the same button is
pressed. This provides a higher security level, especially in
arming / disarming applications, because the code can not
be copied (“grabbed”) by unauthorized people.
Following are the basic details of several compatible
transmitters. The possible applications for each push-
button are indicated in each drawing.
A. MCT-234 (Fig 11):
‘Keyfob’ transmitter - one
unit is supplied with
PowerMax+. You can
program the AUX (auxiliary)
button to perform various
tasks, in accordance with
the user’s needs.

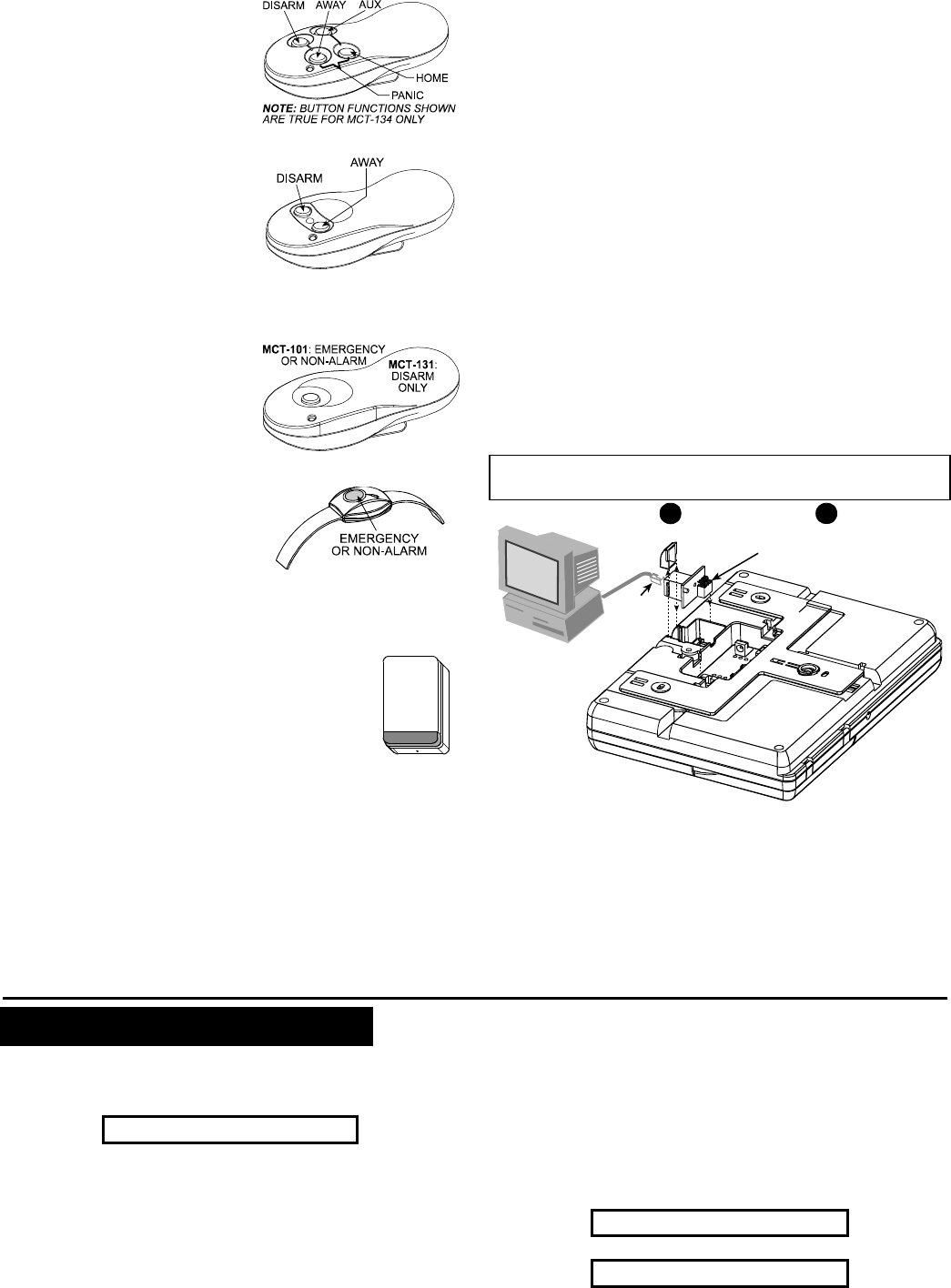

Figure 11. MCT-234
B. MCT-231 / 201* (Fig. 12):
(N.A. in North America)
Single-button pendant units.
The MCT-231 (Code-
Secure) and the MCT-201
(PowerCode) can be enrolled
to perform functions as
shown. Both units look alike.
Figure 12. MCT-231 / 201
* Not UL listed.
DE5465 7
C. MCT-134 / 104* (Fig. 13):
(N.A. in North America)
4-button hand-held units. MCT-
134 (CodeSecure) can replace
the MCT-234 keyfob. MCT-104
(PowerCode) can perform
emergency and non- alarm
functions. Both units look alike. Figure 13. MCT-134 / 104
D. MCT-132 / 102* (Fig. 14):
(N.A. in North America) 2-
button units. MCT-132
(CodeSecure) can perform
functions as shown. MCT-
102 (PowerCode) can
perform emergency and non-
alarm tasks. Both units look
alike.
Figure 14. MCT-132 / 102
E. MCT-131 / 101* (Fig. 15):
(N.A. in North America) Single-
button units. The MCT-131
(CodeSecure) and the MCT-
101 (PowerCode) can be
enrolled to perform functions as
shown. Both units look alike. Figure 15. MCT-131 / 101
F. MCT-211* (Fig. 16) Water-
proof, wrist-worn PowerCode
transmitter. Can be enrolled
to perform emergency or
non-alarm functions.
Figure 16. MCT-211
* Not UL-listed - not to be used in UL-listed systems
3.9 PowerMax+ Compatible WL Siren
The MCS-700 (*) wireless siren (fig. 17) can be
integrated with the PowerMax+ in areas in
which wiring action is difficult or impossible.
The MCS-700 is a fully supervised, 2-way
communication device (it includes a receiver,
to receive activation commands from the alarm
system, and a transmitter to periodically
transmit its status signal to the alarm system).
Figure 17
Wireless
Siren
When an identifiable activation command is received from
the PowerMax+, the siren activates its sounder and the flash
light (strobe light every 1.5 seconds).
* Not UL-listed - not to be used in UL-listed systems
3.10 Installing an Optional X-10 Siren
(Not to be used in UL-listed systems)
If you need a “wireless” external siren, you may install an X-
10 siren module which is triggered by a signal transmitted
via the built-in electrical wiring of the protected site. This
siren can replace the regular external siren or complement it
without laying out additional wires. Of course, such a siren
can be used only in conjunction with an optional power-line
interface module.
The X-10 siren is ready to function upon connection to an
electrical power outlet, without re-programming the Power-
Max+. You only have to set the HOUSE CODE and the
UNIT CODE selectors on the X-10 siren as follows:
House Code: Set this selector to the letter that follows, by
alphabetical order, the letter that you programmed as a
house code for the protected premises. For example, if the
programmed house code is “J”, set the siren house code
selector to “K”.
Note: If the programmed house code letter is “P” (which is
the last programmable letter), select “A” for the siren.
Unit Code: The siren will function only if you set the unit
code selector to “1”.
3.11 Connecting PowerMax+ to a Computer
The control panel can be equipped with an optional RS232
module for serial data interchange with a local computer. If
this module is not supplied, a special plastic cap blocks the
niche designed to accommodate the module.
Attention: For data download from a local computer, the
PowerMax+ must be set to the installer mode.
Insert the RS-232 adapter
into its male connector,
until a click is heard
21
Remove plastic cap
RJ-45
or
RJ-31X
(USA)
Figure 18 - Connecting the PowerMax+ to a Computer
3. 12 Connecting PowerMax+ to GSM Modem
The GSM unit enables the PowerMax+ system to operate
over cellular network. For details regarding the GSM
modem features and connections, refer to the GSM
Modem installation instructions.
4. TESTING PROCEDURES
4.1 Preparations
Make sure all windows and doors are closed. If all zones
are secured (undisturbed), the display should read:
READY HH:MM
If the display is “NOT READY”, query the control panel by
pressing the <SHOW/OK> button repeatedly. The
source(s) of the problem(s) will be displayed and read
aloud. Take the necessary measures to eliminate the
problem(s) before testing the system (see 4.2 below).
4.2 Diagnostic Test
To verify proper function of all detectors in the system, a
comprehensive diagnostic test is required. To perform this
test, refer to figure 9 in the Programming Guide.
4.3 Keyfob Transmitter Test
Initiate transmission from each transmitter enrolled as a
keyfob unit (according to the list in Table A2, Appendix A).
Use each transmitter to arm the control panel AWAY and
immediately disarm it. Upon pressing the keyfob unit’s
AWAY key, the ARM indicator should light.
The display should respond as follows:
ARMING AWAY
Ð
PLEASE EXIT NOW
The exit delay beeps will begin.
8 DE5465
Press the keyfob unit’s DISARM ( ) key. The ARM indicator
should extinguish, the announcement “Disarm, ready to arm"
should be heard and the display should revert to:
READY HH:MM
Test the AUX button in each keyfob in accordance with the
information noted in Table A.2, Appendix A. Verify that the
AUX button performs its duty as programmed.
If the AUX (@) button is defined as “STATUS”, system
status should be displayed and announced upon
pressing the button.
If the AUX (@) button is defined as “INSTANT”, press
the AWAY button and then the AUX button. The
response should be:
ARMING INSTANT
(alternating)
PLEASE EXIT NOW
and the exit delay beeps will start. Press the DISARM ( )
key immediately to disarm.
If the AUX (@) button is programmed as “PGM / X-10”
and permitted to activate one or several X-10 units,
pressing (@) should activate the appliance controlled by
the chosen X-10 unit(s).
If the AUX (@) button is programmed as “PGM / X-10”
and permitted to activate the PGM output, pressing (@)
should activate the device wired to the PGM output.
4.4 Appliance ON/OFF Test
The “X-10 unit assignment” information that you noted in
Appendix B of this manual is very useful for this test.
Go over the table in Appendix B column by column. If, for
instance, the “BY ARM AWAY” column has “X”s marked in
the rows pertaining to units 1, 5 and 15 - then arm AWAY
the system and verify that the appliances controlled by
these units are actually activated upon arming.
Continue in the same manner in the following columns,
always creating the state or event that will activate the
relevant units. Verify that all appliances are activated as
programmed.
IMPORTANT! Before testing “BY TIMER” and “BY ZONE”,
make sure that these forms of control are permitted - click
repeatedly and verify that the display shows:
BY TIMER ON
and:
BY SENSOR ON
A dark box at the extreme right means that these functions
are enabled.
The easiest way for test timed activation is to select the
ninth item in the installer’s menu (”10. USER SETTINGS”)
and set the system clock a few minutes before the relevant
“start time”. Do not forget to return the clock to the correct
time after completion of this test.
4.5 Emergency Transmitter Test
Initiate transmission from each transmitter enrolled to an
emergency zone (according to the list in Table A3,
Appendix A). For example, upon pressing the transmit
button of an emergency transmitter enrolled to zone 22,
the display should read:
Z22 EMERGENCY
(alternating)
VIOLATED
It is advisable to let the central station know that you are
conducting this test, or just disconnect the telephone line
from the PowerMax+ during the test, to prevent false alarms.
5. MAINTENANCE
5.1 Dismounting the Control Panel
A. Release the PowerMax+ unit from its bracket, as shown
in figure 2, step 1-5.
B. Separate the PowerMax+ unit from its bracket.
5.2 Replacing the Backup Battery
Replacement and first-time insertion of battery pack is
similar (see figure 1).
With fresh battery pack, correct insertion and tightened
battery compartment lid, the TROUBLE indicator should
extinguish. However, the “MEMORY” message will now
blink in the display (caused by the “tamper” alarm you
triggered when opening the battery compartment lid).
Clear it by arming the system and immediately disarming.
5.3 Fuse Replacement
The PowerMax+ has two internal fuses that have
automatic reset. Therefore, there is no need to replace
fuses.
When overcurrent condition occurs, the fuse cuts off the
circuit current. Upon fault current being removed, the fuse
is automatically resetted and allows current flow through
the circuit again.
5.4 Replacing/Relocating Detectors
Whenever the maintenance work involves replacement or
re-location of detectors, you must keep in mind the
requirement to provide a 6 dB safety margin for signal
reception. It is therefore mandatory to perform a full
diagnostic test according to Section 9 of the
Programming Guide.
Remember! A "poor" signal is not acceptable, as stated at
the end of the test procedure.
DE5465 9
APPENDIX A. Detector Deployment & Transmitter Assignments
A1. Detector Deployment Plan
Zone
No.
Zone Type Sensor Location or Transmitter Assignment
(in non-alarm or emergency zones)
Chime
(Yes / No)
Controls PGM
(X = YES)
Controls
X-10 Unit No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29 (*)
30 (*)
Zone Types: 1 = Interior follower
<
2 = Perimeter
<
3 = Perimeter follower
<
4 = Delay 1
<
5 = Delay 2
<
6 = 24 h
silent
<
7 = 24 h audible
<
8 = Fire
<
9 = Non-alarm
<
10 = Emergency
<
11 = Gas
<
12 = Flood.
Zone Locations: Note down the intended location for each detector. When programming, you may select one of 26
available zone names (plus 5 custom zone names that you can add - see Figure 3 in the Programming Guide - Define
Zones).
* Zones 29 & 30 only are hardwired zones.
A2. Keyfob Transmitter List
Transmitter Data AUX button Assignments
No. Type Holder Status or Arming “instant” PGM Control X-10 Unit Control
1
2
3
4
Mark the boxes of the X-10 units to be
activated - see Section 7 in the programming
guide.
5
Indicate the desired function
(if any) – see par. 4.17 (Aux
button) in the programming
guide.
Indicate whether
this output will be
activated or not –
see Section 7 in the
programming guide 1 F 2 F 3 F 4 F 5 F
6
System status F Yes F No F 6 F 7 F 8 F 9 F 10 F
7
Arming “instant” F 11 F 12 F 13 F 14 F 15 F
8
10 DE5465
A3. Emergency Transmitter List
Tx # Transmitter Type Enrolled to Zone Name of holder
1
2
3
4
5
6
7
8
9
10
A4. Non-Alarm Transmitter List
Tx # Transmitter Type Enrolled to Zone Name of holder Assignment
1
2
3
4
5
6
7
8
9
10
APPENDIX B. X-10 Unit and PGM Output Assignments
Unit Controlled ON ON ON ON ON ON ON by Timer ON by Zone No. ON
No. Appliance by arm
HOME
by arm
AWAY
by
disarm
by
Memory
by
Delay
by
Keyfob
ON
Time
OFF
Time
a b c by line
fail
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
9 -
10 -
11 -
12 -
13 -
14 -
15 -
PGM
DE5465 11
Federal Communications Commission (FCC) Statements
FCC PART 15 STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any interference received, including interference that may
cause undesired operation.
WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The digital circuits of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential
installations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no
guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be
verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following
measures:
Re-orient or re-locate the receiving antenna.
Increase the distance between the device and the receiver.
Connect the device to an outlet on a circuit different from the one which supplies power to the receiver.
Consult the dealer or an experienced radio/TV technician.
FCC PART 68 STATEMENT
This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains, among
other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this
information must be provided to the telephone company.
This equipment uses the following jacks: An RJ31X is used to connect this equipment to the telephone network. The REN is
used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line
may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not
exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs,
contact the telephone company to determine the maximum REN for the calling area. If this equipment causes harm to the
telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required.
If advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised
of your right to file a complaint with the FCC if you believe necessary. The telephone company may make changes in its
facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone
company will provide advance notice that will enable you to make the necessary modifications in order to maintain
uninterrupted service.
If trouble is experienced with this equipment, please contact the manufacturer for repair and warranty information. If the trouble
is causing harm to the telephone network, the telephone company may request that you remove the equipment from the
network until the problem is resolved.
There are no user serviceable components in this product, and all necessary repairs must be made by the manufacturer. Other
repair methods may invalidate the FCC registration on this product.
This equipment cannot be used on telephone company-provided coin service. Connection to Party Line Service is subject to
state tariffs.
When programming or making test calls to an emergency number, briefly explain to the dispatcher the reason for the call.
Perform such activities in the off-peak hours; such as early morning or late evening.
Alarm dialing equipment must be able to seize the telephone line and place a call in an emergency situation. It must be
able to do this even if other equipment (telephone, answering system, computer modem, etc.) already has the telephone
line in use. To do so, alarm dialing equipment must be connected to a properly installed RJ31X jack that is electrically in
series with and ahead of all other equipment attached to the same telephone line. If you have any questions concerning
these instructions, you should consult your telephone company or a qualified installer about installing the RJ31X jack
and alarm dialing equipment for you.

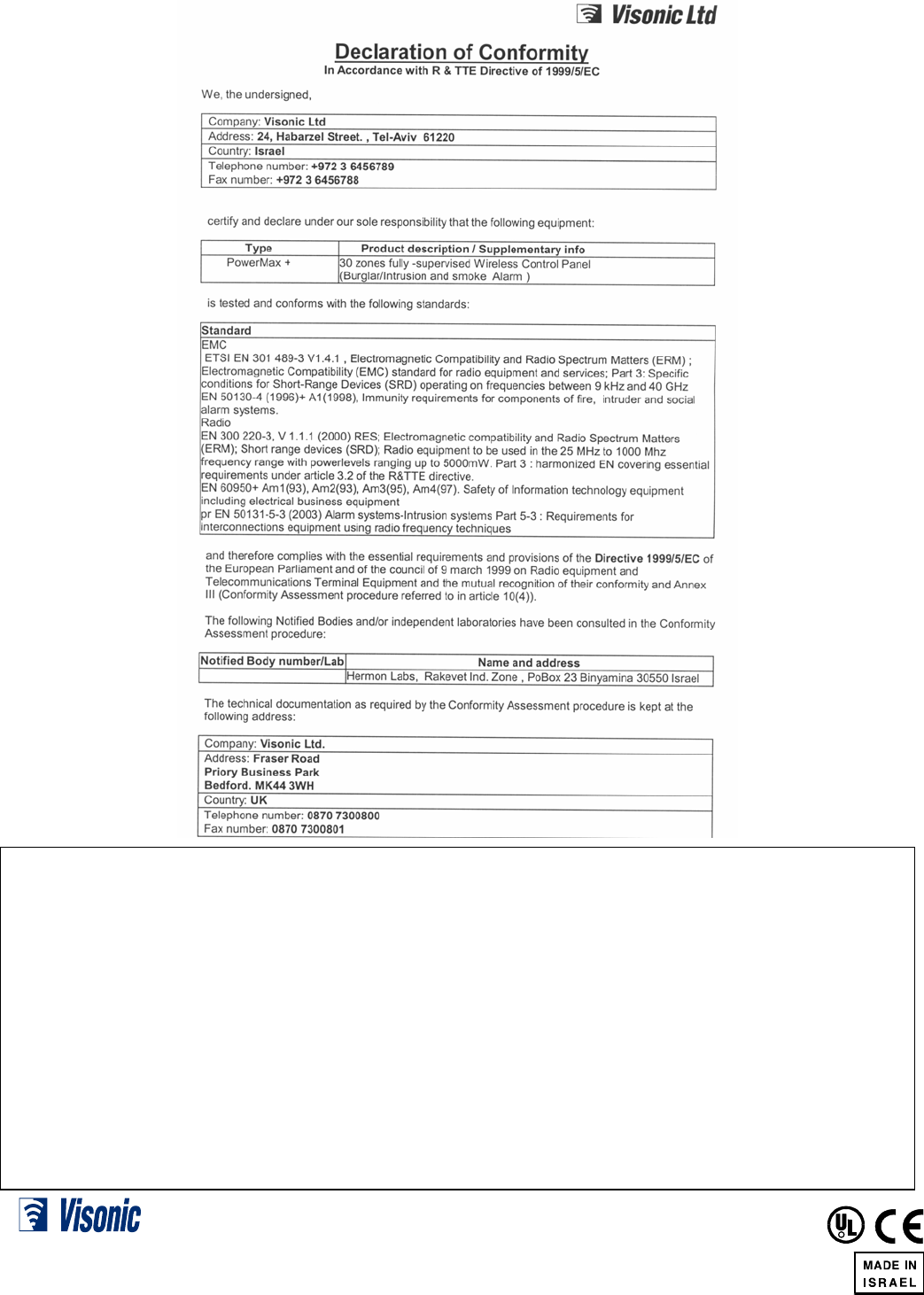

Supplier Declaration of Conformity (SdoC)
Visonic, located at 30, 24 Habarzel street, Tel Aviv 69710, Israel, hereby certifies that the Wireless Alarm Control Panel model
“PowerMax+”, bearing the labeling identification number US:VSOAL03BPOWERMAX+ complies with the Federal
Communication Commission’s (“FCC”) Rules and Regulations 47 CFR Part 68, and the Administrative Council on Terminal
Attachments (“ACTA”) adopted technical criteria: TIA/EIA/IS-968, Telecommunications - Telephone Terminal Equipment -
Technical Requirements for Connection of Terminal Equipment to the Telephone Network, July 2001.
09/10/2002
Yaacov Kotlicki
Chairman
12 DE5465
WARRANTY
Visonic Ltd. and/or its subsidiaries and its affiliates ("the Manufacturer") warrants its
products hereinafter referred to as "the Product" or "Products" to be in conformance with
its own plans and specifications and to be free of defects in materials and workmanship
under normal use and service for a period of twelve months from the date of shipment by
the Manufacturer. The Manufacturer's obligations shall be limited within the warranty
period, at its option, to repair or replace the product or any part thereof. The
Manufacturer shall not be responsible for dismantling and/or reinstallation charges. To
exercise the warranty the product must be returned to the Manufacturer freight prepaid
and insured.
This warranty does not apply in the following cases: improper installation, misuse,
failure to follow installation and operating instructions, alteration, abuse, accident or
tampering, and repair by anyone other than the Manufacturer.
This warranty is exclusive and expressly in lieu of all other warranties, obligations or
liabilities, whether written, oral, express or implied, including any warranty of
merchantability or fitness for a particular purpose, or otherwise. In no case shall the
Manufacturer be liable to anyone for any consequential or incidental damages for breach
of this warranty or any other warranties whatsoever, as aforesaid.
This warranty shall not be modified, varied or extended, and the Manufacturer does not
authorize any person to act on its behalf in the modification, variation or extension of this
warranty. This warranty shall apply to the Product only. All products, accessories or
attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or
otherwise, caused by the malfunction of the Product due to products, accessories, or
attachments of others, including batteries, used in conjunction with the Products.
The Manufacturer does not represent that its Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury
and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the
Product will in all cases provide adequate warning or protection. User understands that a
properly installed and maintained alarm may only reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that
such will not occur or that there will be no death, personal damage and/or damage to
property as a result.
The Manufacturer shall have no liability for any death, personal and/or bodily
injury and/or damage to property or other loss whether direct, indirect, incidental,
consequential or otherwise, based on a claim that the Product failed to function.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or
damage arising under this limited warranty or otherwise, regardless of cause or origin,
the Manufacturer's maximum liability shall not in any case exceed the purchase price of
the Product, which shall be fixed as liquidated damages and not as a penalty, and shall
be the complete and exclusive remedy against the Manufacturer.
Warning: The user should follow the installation and operation instructions and among
other things test the Product and the whole system at least once a week. For various
reasons, including, but not limited to, changes in environmental conditions, electric or
electronic disruptions and tampering, the Product may not perform as expected. The
user is advised to take all necessary precautions for his /her safety and the protection of
his/her property.
6/91
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 10 NORTHWOOD DRIVE, BLOOMFIELD CT. 06002-1911. PHONE: (860) 243-0833, (800) 223-0020. FAX: (860) 242-8094
VISONIC LTD. (UK): FRASER ROAD, PRIORY BUSINESS PARK, BEDFORD MK44 3WH. PHONE: (0870) 730-0800 FAX: (0870) 730-0801
INTERNET: www.visonic.com
VISONIC LTD. 2003 POWERMAX+ Installation Instructions DE5465- (REV. 0, 12/03)
R

Navigation menu
