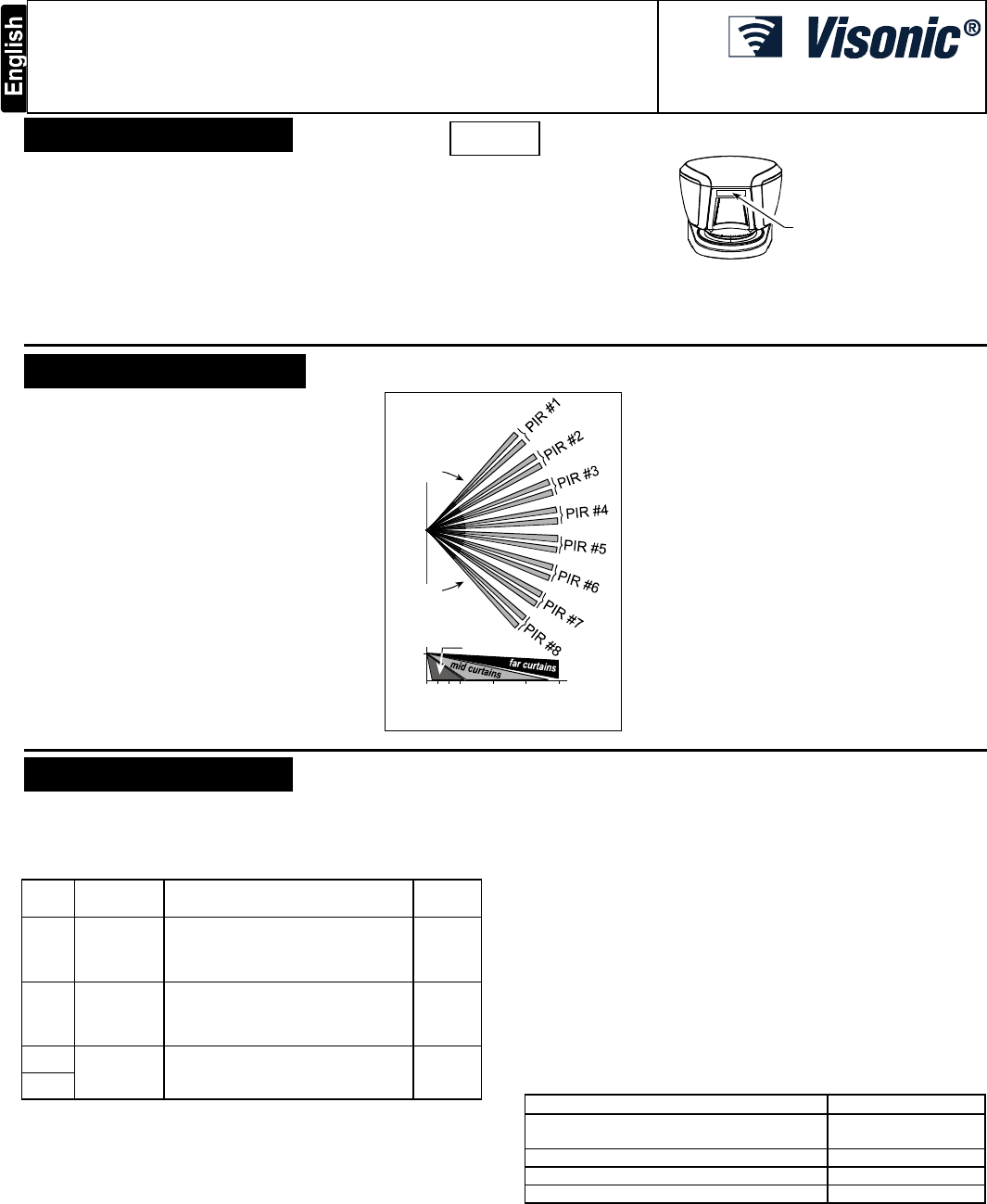

TOWER 20 AM MCW
Outdoor Wireless Octa-PIR™ Detector with Anti-Mask Installation Instructions
1. INTRODUCTION
Detector's Features
• Patented 8 independent PIR matrix (Octa-PIR™) with true
motion recognition (TMR) processing for each of the 8 PIR
detectors and central motion processing - can distinguish
between a moving intruder and moving trees and bushes.
• Immunity to pets weighing up to 18 Kg (40lb), not pet alley.
• Smart protection against snow, rain, dust, wind and direct
sunlight.
• Tamper protection when the detector is opened, removed
from mounting surface or removed from bracket.
• Alarm LED is visible under strong sunlight.
LED
Figure 1 - TOWER 20 AM MCW
• Day/night recognition for sophisticated operation.
• Robust housing.
• Anti masking mode.
• Coverage: 12 meters / 90º.
2. SPECIFICATIONS
OPTICAL
Sensors: 8 dual-element Pyroelectric sensors
provide 16 element array.
Max. Coverage: 12 meters / 90º.
Detector Technology: 8 independent PIR
detectors
Pet- immune: Up to 18Kg ?? (40lb. ??)
ELECTRICAL
Input Power: Two 3V CR123A Lithium batteries.
Battery life: 3 years (for typical use).
WIRELESS
Frequency (MHz): 315, 433, 868.95.
Communication protocol: PowerCode
MOUNTING
Mounting type: Wall mounting
Mounting height: 1.8 to 3.0 meters
Vertical adjustment: 0º to -10º, in 2.5º steps
Horizontal adjustment: -45º to +45º, in 5º steps
TOP VIEW
90°
SIDE VIEW OF
EACH DETECTOR
3 6 9 12 m0
2.4 m
(8 ft)
10 20 30 40 ft
close curtains
Fig. 2 - Coverage pattern
ENVIRONMENTAL
Operating Temperature: -30°C ??? to 60°C
Storage Temperature: -30°C to 60°C
Humidity: 95% max.
White light immunity: Above 6500 lux
PHYSICAL
Dimensions (height x length x width:
157x147x124mm (6-3/16 x 5-13/16 x 4-7/8").
Weight: .......
Color: White or off-white gray ??
STANDARDS COMPLIANCE
Designed to Comply with EN 50131-2-2
"environmental class IV".
EMI Immunity: CE and EN 50131 (min. 20 V/m
10 to 1000 MHz, min. 10 V/m 1Ghz to 2Ghz).
US Patents: 7250605, 6818881, 5693943
3. INSTALLATION
3.1 DIP Switches Setup
Remove the 2 detector's bottom covers (see Figure 3. steps 4-8)
to gain access to the DIP switches. Set the DIP switches
according to the following table:
DIP
SW # Function Description Default
1 Alarm LED
OFF/ON
OFF: Motion and masking alarm
LED is disabled (OFF).
ON: Motion and masking alarm LED
is enabled (ON).
OFF
2 24H / night
only
OFF: Motion alarms are always
enabled (24 hours).
ON: Motion alarms are enabled only
at dark (night).
OFF
3 PIR signal
processing
modes TBD. ??? TBD??
4
3.2 Installation
See Figure 3.
3.3 Adjustments

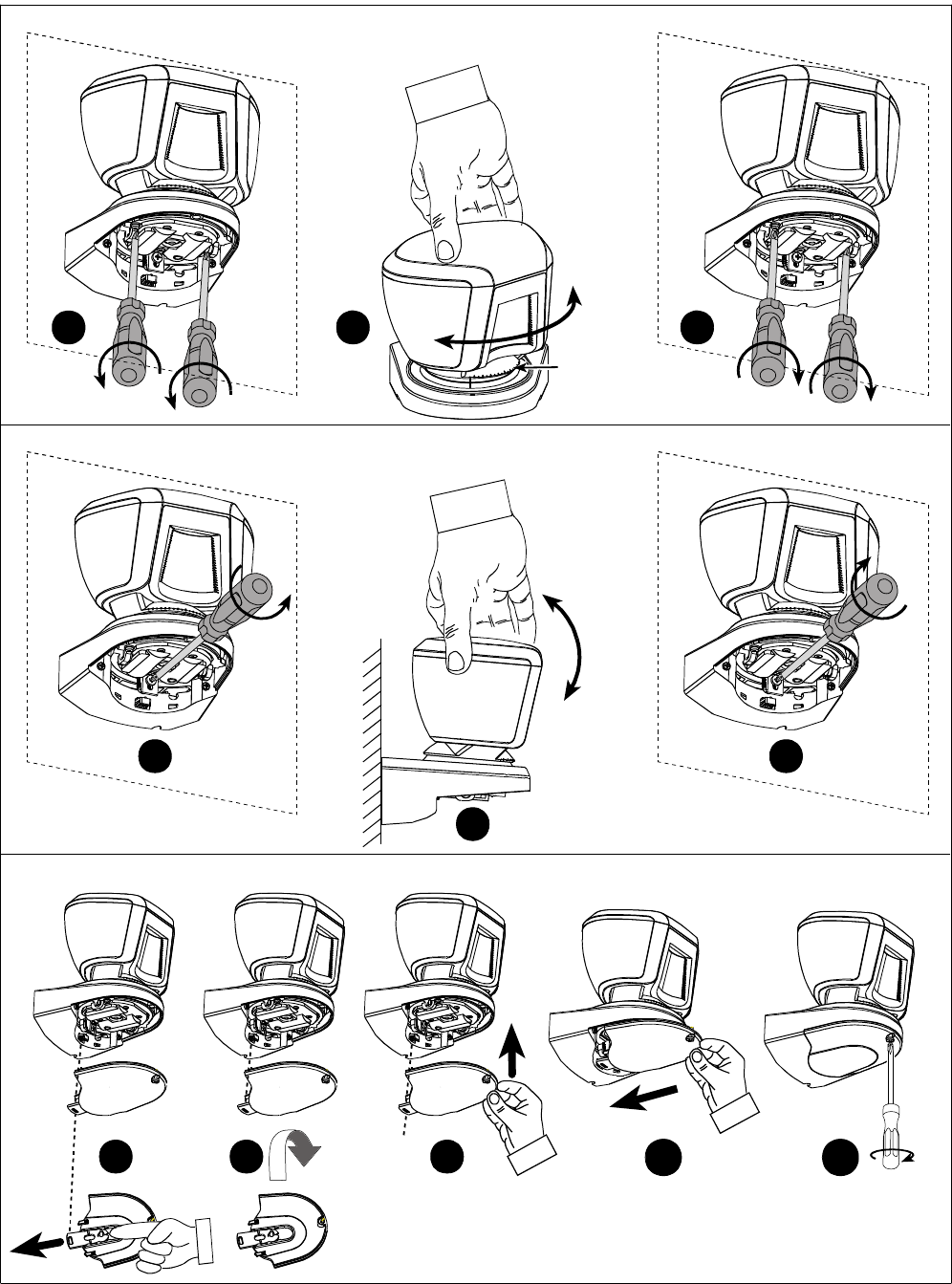

Perform detector's horizontal adjustment, vertical adjustment and
final closure, as shown in Figure 4.
3.4 Test
A. Set the detector in Walk-Test mode, as follows:
Open the detector bottom cover (see Fig. 3, steps 4 - 6) and
then close it. The LED will flash for 30 seconds and then the
detector will enter into 15 minutes walk-test mode.
Note: The detector automatically enters into 15 minutes walk-
test mode after battery installation or Tamper switch recovery.
B. Walk into the detector's field of view at the expected far edge
of the coverage area. Verify that each time your motion is
detected the LED lights for 2 seconds and the control panel
receives the alarm. If required, perform detector's horizontal /
vertical readjustments.
Important! Instruct the user to perform walk test at least once a
week, to verify proper operation of the detector.
C. Place a piece of cardboard on the detector’s front side, to
deliberately mask the optical window. After 30 seconds, the LED
should flash for 5 seconds (see table below) and the alarm control
panel should receive the masking alarm.
D. Remove the masking from the detector’s front side. The LED
should extinguish (after a few seconds).
LED operation: Event LED Operation
First 30 sec after battery insertion or
closing the detector cover slow flashing
Tamper switch open ON 2 sec.
Mask detection (*) (**) fast flashing 5 sec.
PIR detection (**) ON 2 sec.
* The LED flashes fast continuously during walk-test mode.
** LED ON/OFF control by DIP switch #1 (see par. 3.1).
DRAFT
2 D-301620
3
2
6
Drill
Mounting on bracket
4 5
Mark Fasten
1
For Tamper
switch
7
98
Battery insertion
10 11
B
A
Figure 3 - Installation
D-301620 3
HORIZONTAL ADJUSTMENT
(-45° to +45° in 5° clicks / steps)
VERTICAL ADJUSTMENT
(0° to -10° in 2.5° clicks / steps)
Horizontal
scale
1 2
4
5
3
6
COVER CLOSURE
8 97 10 11
Figure 4 - Adjustment and Cover Closure
4 D-301620
