PowerG, Outdoor Mirror PIR Motion Detector with Anti-
masking and Built-In Camera
Installation Instructions
1. INTRODUCTION
1. INTRODUCTION1. INTRODUCTION
1. INTRODUCTION
The TOWER CAM PG2 is a 2-way, wireless outdoor digital mirror PIR
detector with built-in camera. Activated upon PIR detection or upon
demand, the TOWER CAM PG2 sends clear images to the Monitoring
Station for alarm image verification.
The PIR motion detector’s features are as follows:
•
Operates with PowerMaster control panels (version 18 and higher)
•
Patented 8 independent quad PIR detectors (Octa-QUAD
)
operating in true Quad configuration (patented) with true motion
recognition (TMR) processing for each of the 8 PIR detectors.
• Advanced Obsidian Black MirrorTM optics (patent pending).
• Optimum performance even in poor weather conditions such as snow,
rain, dust, wind and direct sunlight
• Tamper protection prevents opening and removal from wall
• PowerG two-way Frequency Hopping Spread Spectrum FHSS-
TDMA technology - provides robustness and reliability
• Built-in link quality indicators enable installer to check signal quality
without physically approaching the control panel.
• Robust housing with recessed window.
• Smart anti masking distinguishes between masking spray and rain.
• Alarm LED is visible in sunlight.
• Automatic termination of walk-test after 15 minutes.
• Microprocessor-controlled temperature compensation.
• Immunity to pets weighing up to 18 Kg (40ib)
• Built-in swivel bracket
The camera’s features are as follows:
• Up to 10 cameras
• Images multiplexed from all cameras
• Color and black & white images
• Auto-setup
• Camera tuning by simple walk-test
• Day and night CMOS camera, with IR illumination. This allows
taking pictures in full darkness without letting the intruder know.
• Instant capture: guarantees capture of fast moving intruder.
• Optional AC power
• An event records 2 images per second. 10-15 images total

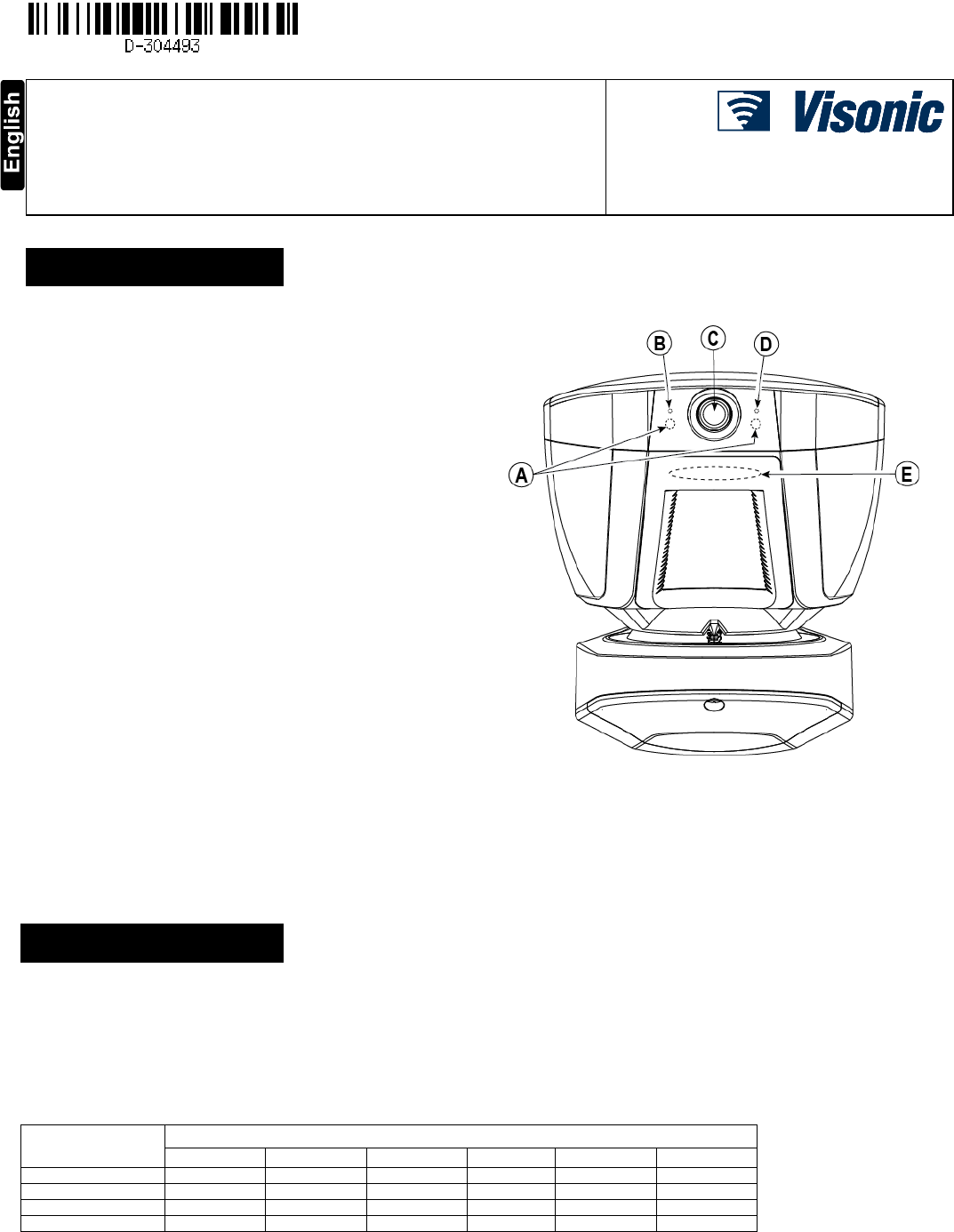

A. IR LEDs B. Indication LED C. Camera
D. External power LED E. Alarm LED
Figure 1. External View
2
22
2.
. .
. INSTALLATION
INSTALLATIONINSTALLATION
INSTALLATION
2.1 Installation
A. Bracket installation (see Figure 2). Fix the bracket firmly on a stable wall or pillar. The orientation of the fixed bracket must be as parallel as
possible to the surveyed ground surface.
B. Adjust the detector's horizontal and vertical angles (see Figure 3), according to the surveyed ground surface. The vertical angle indicator
position for various installation height and coverage distance combinations is detailed in Table 1 (the information refers to a relatively flat
surveyed area. Verify the vertical adjustment by walk-test).
C. Fasten the detector to the bracket (see Figure 2 step 4).
Table 1 - Vertical Adjustment Reference
Mounting Height Coverage Distance
2m / 6.7ft 4m / 13ft 6m / 20ft 8m / 26ft 10m / 33 ft 12m / 39 ft
3.0m / 10 ft
1
2
2
3
3
2.5m / 8 ft
1
1
2
3
4
4
2.0m / 7 ft
1
2
3
4
5
5
1.5m / 5 ft
2
3
4
5
2 D-304493 TOWER CAM PG2 Installation Instructions
Correct Installation
Incorrect Installation

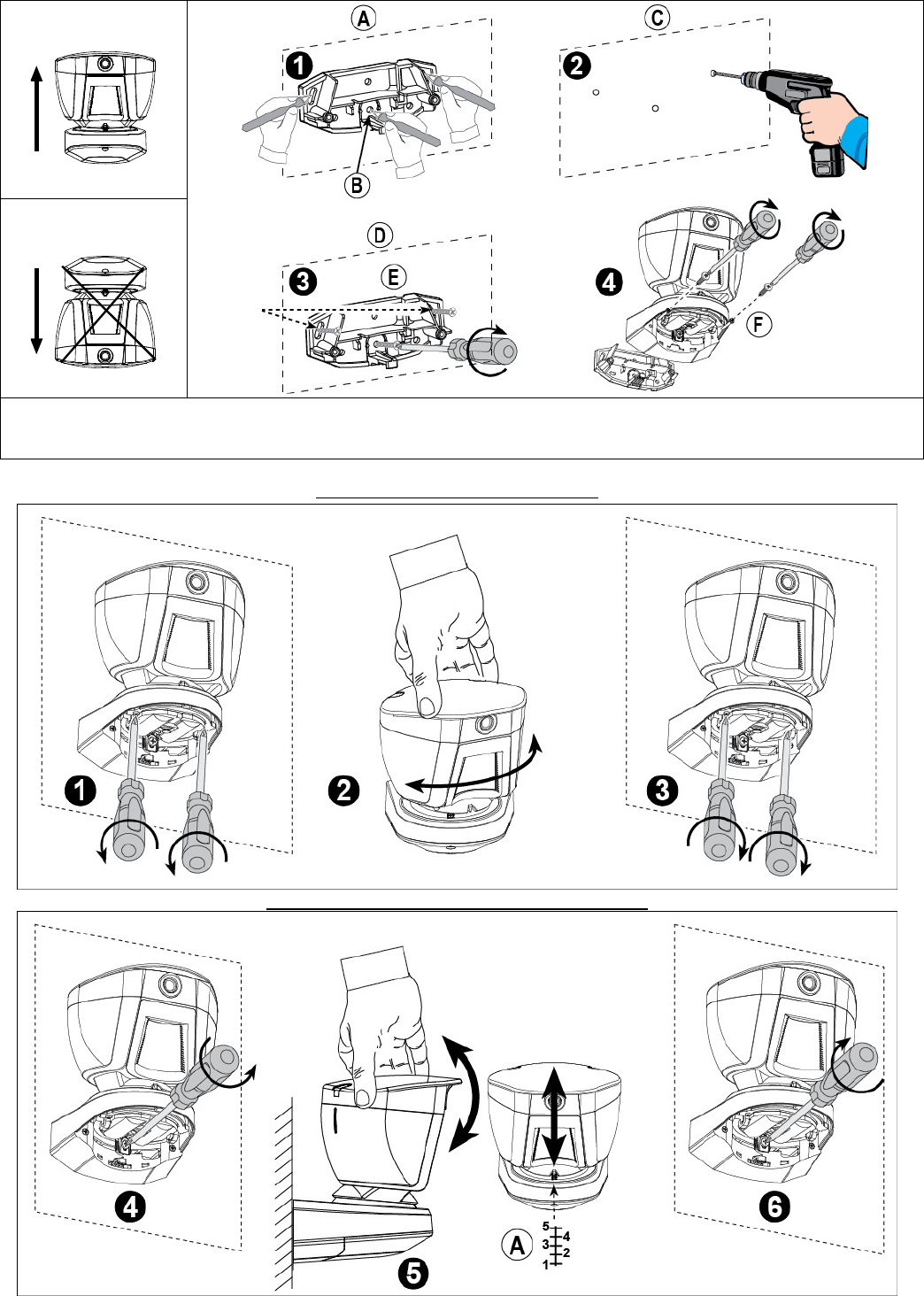

A. Mark drilling point
B. Screw hole for wall tamper C. Drill
D. Fasten E. Three long screws F. Two short screws
Note: The 2 screw holes enable adjustment of the bracket on the wall, if needed, following the walk test.
Figure 2 - Installation
HORIZONTAL ADJUSTMENT (-45°
°°
° to +45°
°°
°)
VERTICAL ADJUSTMENT (0°
°°
° to -10°
°°
° in 2.5°
°°
° clicks / steps)
D-304493 TOWER CAM PG2 Installation Instructions 3
COVER CLOSURE
1. Release locking 2. Adjust 3. Lock 4. Release locking 5. Adjust
6. Lock 7. Turn cover and push slider 8 & 9. Put back cover 10. Secure with screw
A. Vertical angle steps
Figure 3 - Adjustment and Cover Closure

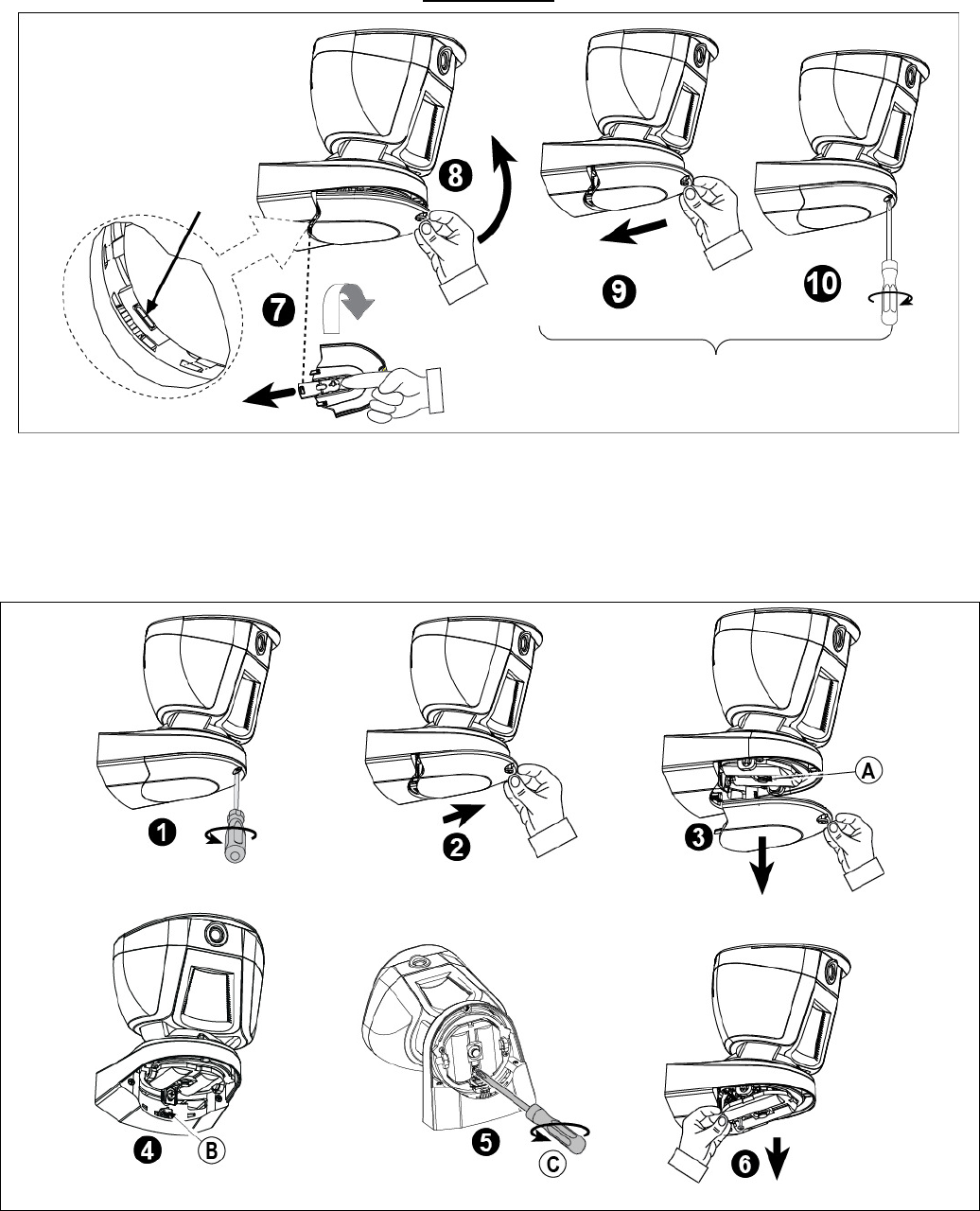

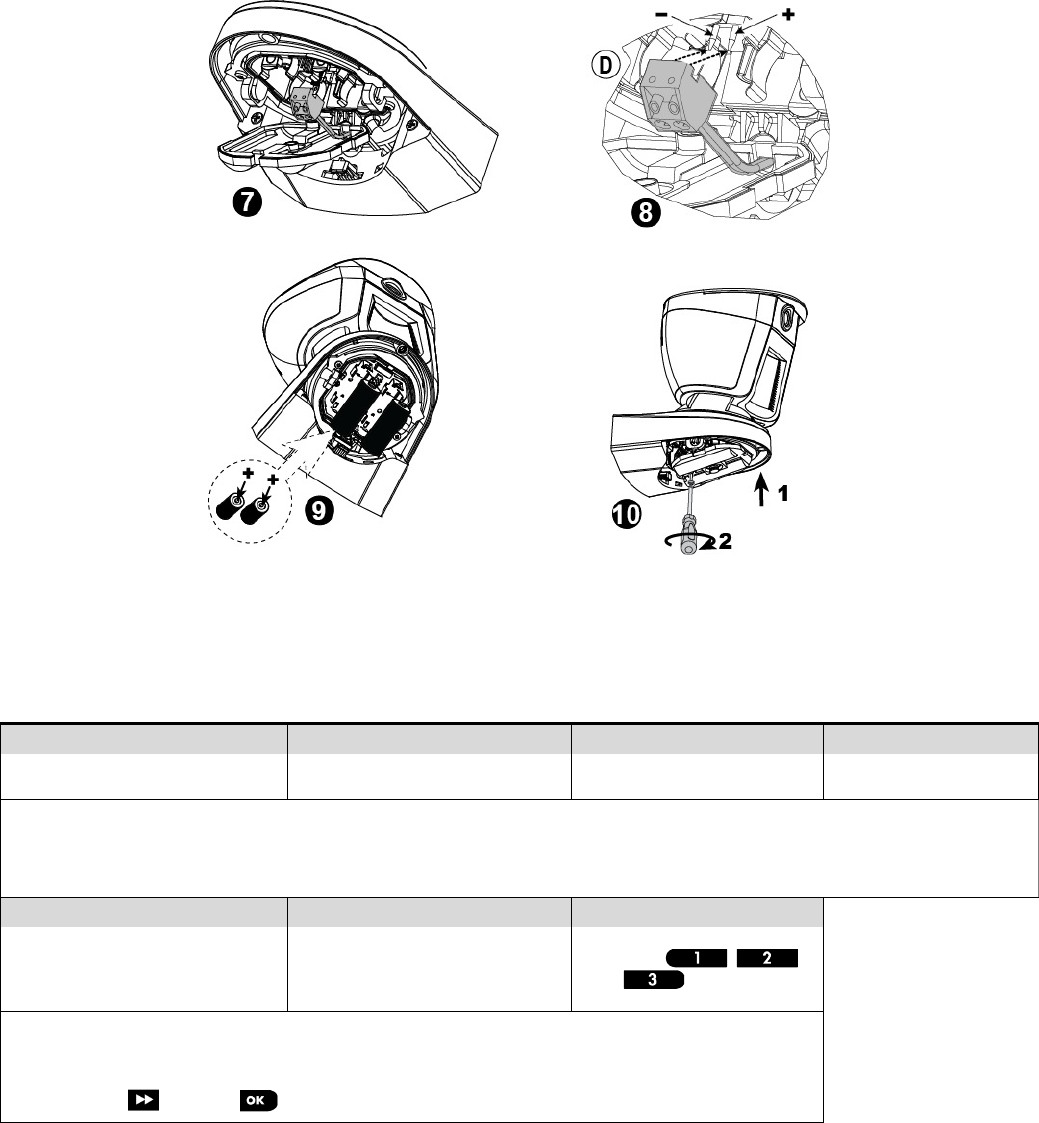

2.2 Battery Insertion
It is recommended to perform the first batteries insertion on a flat surface (see Figure 4). After battery insertion, the LED will flash for 60
seconds and then the detector will enter a 15 minutes' local diagnostic mode.
A. Tamper switch B. Press firmly to release the bracket C. 1 screw
4 D-304493 TOWER CAM PG2 Installation Instructions
Steps 7 and 8 are optional for external 7.5 VDC power connection
D. Snap the terminal block into place.
Caution!
Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery according to the manufacturer's instructions.
Figure 4 – Battery Insertion
2.3. Enrollment
Refer to the PowerMaster control panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu.
A general description of the procedure is provided in the following flow chart.
Step 1 Step 2 Step 3 Step 4
Enter the Installer menu and select
“02:ZONES/DEVICES”
Select "ADD NEW DEVICE"
See Note 1
Enroll the device (see Figure 5) or
enter the device ID
Select a detector number for
the new flood detector
02:ZONES/DEVICES
ADD NEW DEVICES
ENROLL NOW or
ENTR ID:XXX-XXXX
Z09:Motion Camra
ID No. 142-XXXX
MODIFY DEVICES
Step 5 Step 6 Step 7
Configure Location, Zone Type &
Chime parameters
Enter PARTITIONS.
See Note 2
Assign partitions to the detector by
pressing the ,
and/or buttons on the
panel
Z09.LOCATION
Z09.ZONE TYPE
Z09.SET CHIME
Z09/PARTITIONS Z09:P1
P2 P3
means scroll and select
Notes:
[1] If the detector is already enrolled you can configure the detector parameters and assign partitions via the “Modify Devices” option – see
Step 2.
[2] PARTITIONS will appear only if PARTITIONING was previously enabled in a panel that supports the Partitioning feature (for further details,
see "Partitioning" in the PowerMaster Installer Guide).
D-304493 TOWER CAM PG2 Installation Instructions 5
2.4. Configuring the Detector Parameters
Enter the DEVICE SETTINGS menu and follow the configuration instructions for the TOWER CAM PG2 PIR detector as described below.
Option Configuration Instructions
ALARM LED Define whether or not to activate the alarm LED indication.
Optional settings: ON (default) and OFF.
PIR SENSITIVITY Define if the detector operates at regular or high PIR sensitivity, or that at least one detection zone must be crossed
before an alarm is triggered (One Region).
Optional settings: LOW (default), HIGH and One Region.
Note: For EN and UL compliance, the detector should be set to "One Region".
DISARM ACTIVITY Define whether or not to set the activity time during Disarm mode.
Optional settings: NOT Active (default), YES – no delay, YES + 5s delay, YES + 15s delay, YES + 30s delay, YES +
1m delay, YES + 2m delay, YES + 5m delay, YES + 10m delay, YES + 20m delay and YES + 60m delay.
OUTDOOR ANTI-M
Enable or disable the outdoor anti-masking feature.
Optional settings: Disabled (default) and Enabled.
ALARM Hours Define whether motion alarms are always enabled or only when dark (at night).
Optional settings: Day and Night (default) and Night only.
IMAGE COLOR
Define whether the image will be in black & white or color.
Optional settings: Black & White (default) and Color.
IMAGE RESOLUTION Set the pixel quality of the image. Select 160 x 120 for lower quality or 320 x 240 for higher quality.
Optional settings: 320 x 240 (default) and 160 x 120.
IMAGE QUALITY
Set the quality of the image.
Optional settings: High (default) and normal.
IMAGE BRIGHTNESS
Set the brightness of the image.
Optional settings: Normal (default) -3, -2, -1, +1, +2 and +3.
IMAGE CONTRAST
Set the contrast of the image.
Optional settings: Normal (default) -3, -2, -1, +1, +2 and +3.
2.5 Local Diagnostic Test
A. Set the detector in local diagnostic mode, as follows:
Open the detector’s bottom cover (see Figure 4, steps 1 - 3) and then press and release the tamper switch (see Figure 5). The LED will flash
for 60 seconds and then the detector will enter into 15 minutes' local diagnostic mode.
Note: The detector automatically enters into 15 minutes' local diagnostic mode after battery installation or Tamper switch recovery.
B. Adjust the detector in the horizontal plane to cover the required protected area.
C. Walk into the detectors’ field of view. Adjust the vertical plane to receive the maximum number of detections when crossing the entire 90°
pattern. Verify that the LED blinks each time your motion is detected, as you cross one Quad PIR. Then verify that the LED lights steadily
for 2 seconds as you cross the next adjacent Quad PIR. After alarm indication, the LED blinks three times and provides the received
signal strength indication (see Table 2).
Table 2 – Received Signal Strength Indication
LED response Reception
Green LED blinks Strong
Orange LED blinks Good
Red LED blinks
Poor
No blinks
No communication
IMPORTANT! Reliable reception must be assured. Therefore, "poor" signal strength is not acceptable. If you receive a "poor" signal from the
detector, re-locate it and re-test until a "Good" or "Strong" signal strength is received.
Note: For detailed Diagnostics Test instructions refer to the control panel Installer's Guide
The LED blinking, described above, is operative only in Local diagnostic mode. Upon each full detection (LED lights steadily for 2 seconds), the
control panel receives the alarm. If required, perform the detector's horizontal / vertical adjustments (see section 2.1 and Figure 3).
Important! Instruct the user to perform a walk test at least once a week, to verify proper operation of the detector.
D. Place a piece of cardboard on the detector’s front side to deliberately mask the optical window. Verify that after 2 minutes, the yellow LED
lights continuously (see Table 3 below) and the alarm control panel receives the masking alarm.
E. Remove the masking from the detector’s front side. Verify that the LED turns off after 30 seconds.
6 D-304493 TOWER CAM PG2 Installation Instructions
Table 3 - LED operation
LED Indications Event
Red Alarm LED blinks Stabilization (warm-up 60 sec)
Red Alarm LED ON 0.2 sec. Tamper open / close
Red Alarm LED blinks twice One quad PIR detection in diagnostic mode
Red Alarm LED on 2 sec. Intruder alarm
Yellow Indication LED on AM detection – diagnostic mode
Yellow indication LED blinks slowly (0.2 sec. ON, 30 sec. OFF) AM detection – Normal mode

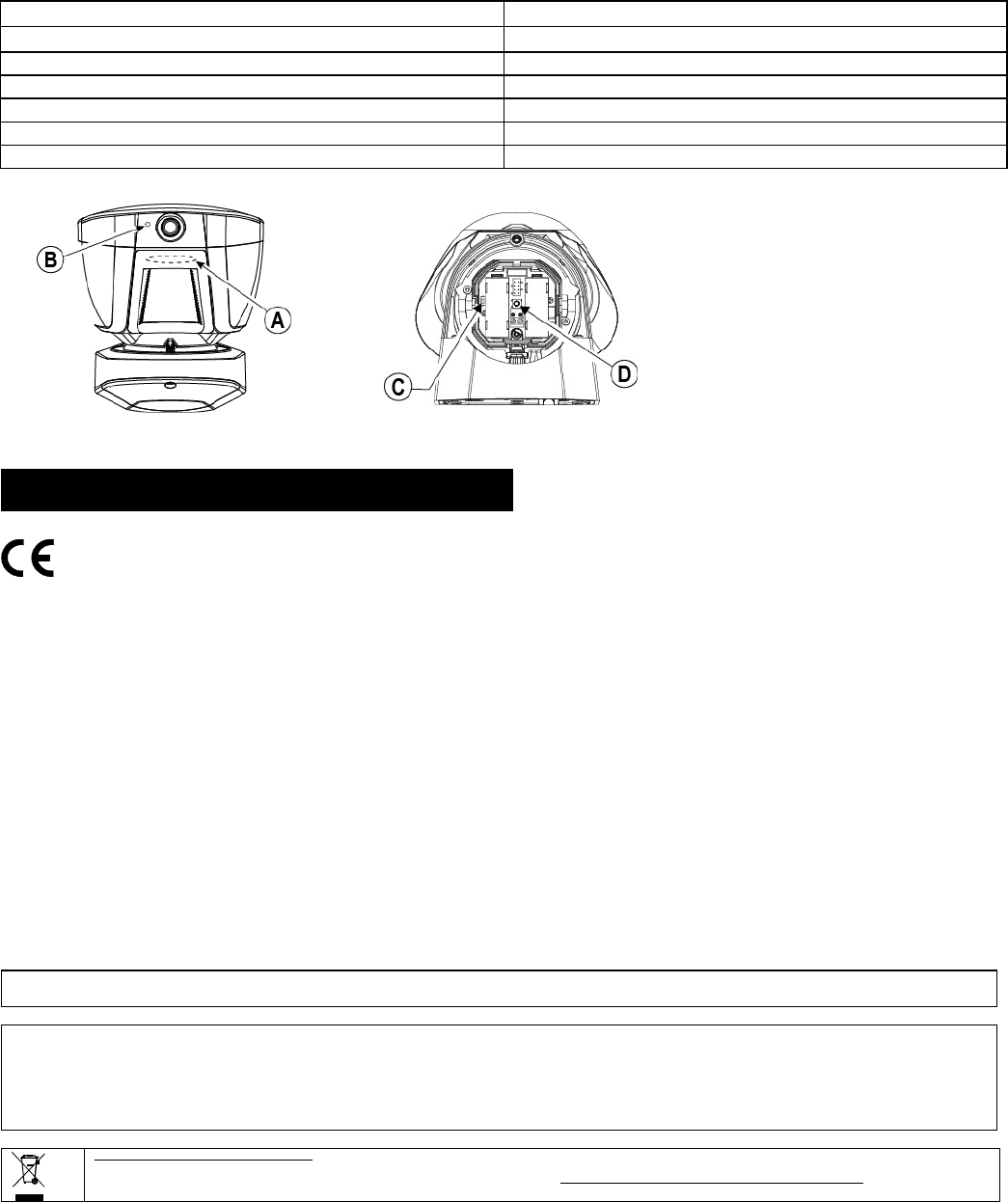

A. Alarm LED
B. Indication LED
C. Enroll button
D. Tamper switch
Figure 5. TOWER CAM PG2
3. COMPLIANCE WITH STANDARDS
Compliance with Standards
The TOWER CAM PG2 is designed to comply with the following standards:
Europe (CE): EN 300220, EN 301489, EN 60950, EN 50130-4, EN 50130-5, EN 50131-2-2, EN 50131-6,
EN 50131-1 Grade 2 Class IV
The TOWER CAM PG2 is compatible with the RTTE requirements - Directive 1999/5/EC of the European
Parliament and of the Council of 9 March 1999 and EN50131-1 Grade 2 Class IV.
UK: This product is suitable for use in systems installed to conform to PD6662:2010 at Grade 2 and
environmental class 4. DD243 and BS8243
USA: CFR 47 Part 15 (FCC), UL-639
Canada: RSS 210
The Power G peripheral devices have two- way communication functionality, providing additional benefits as described in
the technical brochure. This functionality has not been tested to comply with the respective technical requirements and
should therefore be consid
ered outside the scope of the product’s certification.
EN 50131-1 Security Grade Grade 2
EN 50131-1 Environmental Class Class IV
FCC Compliance Statement
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and
television reception.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can
be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one that supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
This device complies with FCC Rules Part 15 and with Industry Canada licence-exempt RSS standard(s). Operation is subject to two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that may cause
undesired operation.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee
aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
D-304493 TOWER CAM PG2 Installation Instructions 7
APPENDIX:
APPENDIX:APPENDIX:
APPENDIX:
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS

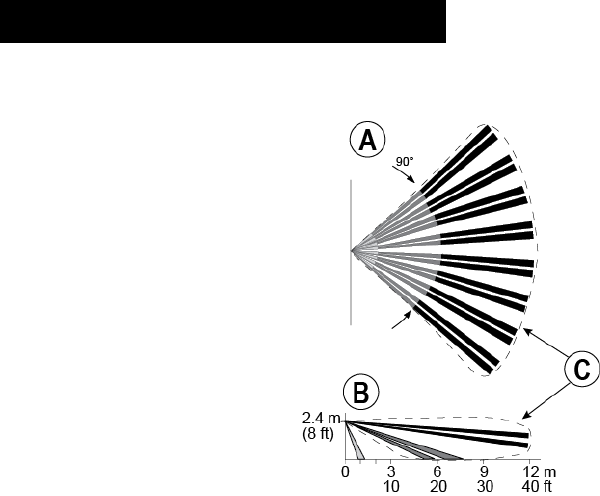

OPTICAL
Black Mirror Max. Coverage
Up to
12 m (40 f
t) / 90°
Detector Technology
8 independent quad PIR detectors operating in true Quad configuration
Figure 6. Coverage Pattern
A. Top view
B. Side view of each detector
C. Image coverage range
Pet Immunity
Up to 18 Kg (40 lb)
ELECTRICAL
Input Power
Two 3V CR
17450
Lithium batteries
Battery Life (for typical use)
3
years
Low
Battery Threshold
4.0 V
Optional Mains Supply
Additional to batteries, 7.5 V
DC, 1.5 A
FUNCTIONAL
IR Illumination
10 m (33 ft)
Picture Resolution
320x240 pixels QVGA
or
160
X120 pixels QQVGA
Frame Rate
2
fps
WIRELESS
Frequency Band (MHz)
Europe and rest of world:
433
434, 868
869
USA:
912
919
Communication Protocol
PowerG
Tamper Alert
Reported when a tamper event occurs and in any subsequent message, until the tamper s
witch is restored
MOUNTING
Mounting Type
Wall mounting
Mounting Height
1.5 – 3.0 m (5 – 10 ft).
Horizontal Adjustment
-45° to +45°, in 5° steps
Vertical Adjustment
0° to -10°, in 2.5° steps
ENVIRONMENTAL
Operating Temperatures
35
°
C to 60
°
C (
31
°
F to 140
°
F)
Storage Temperatures
35
°
C to 60
°
C (
31
°
F to 140
°
F)
Humidity
95% max.
White Light Immunity
Above 25000 lux
PHYSICAL
Size (H x L x W)
1
66
x 147 x 124 mm (6
9
/16 x 5
13/16 x 4
7/8”)
Weight (with battery)
7
00 g (
2
5
oz).
Color
White
PATENTS
U.S. P
atents 7250605
6818881
5693943 (other patents pending)
8 D-304493 TOWER CAM PG2 Installation Instructions
WARRANTY
Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the original purchaser only
(the “Purchaser”) against defective workmanship and materials under normal use of the Product for a
period of twelve (12) months from the date of shipment by the Manufacturer.
This Warranty is absolutely conditional upon the Product having been properly installed, maintained and
operated under conditions of normal use in accordance with the Manufacturers recommended installation
and operation instructions. Products which have become defective for any other reason, according to the
Manufacturers discretion, such as improper installation, failure to follow recommended installation and
operational instructions, neglect, willful damage, misuse or vandalism, accidental damage, alteration or
tampering, or repair by anyone other than the manufacturer, are not covered by this Warranty.
The Manufacturer does not represent that this Product may not be compromised and/or circumvented or
that the Product will prevent any death and/or personal injury and/or damage to property resulting from
burglary, robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or
protection. The Product, properly installed and maintained, only reduces the risk of such events without
warning and it is not a guarantee or insurance that such events will not occur.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
OBLIGATIONS OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR
OTHERWISE. IN NO CASE SHALL THE MANUFACTURER BE LIABLE TO ANYONE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS WARRANTY OR ANY OTHER
WARRANTIES WHATSOEVER, AS AFORESAID.
THE MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR LOSS, DAMAGE, OR EXPENSE, INCLUDING
LOSS OF USE, PROFITS, REVENUE, OR GOODWILL, DIRECTLY OR INDIRECTLY ARISING FROM
PURCHASER’S USE OR INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF
OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
THE MANUFACTURER SHALL HAVE NO LIABILITY FOR ANY DEATH, PERSONAL AND/OR BODILY
INJURY AND/OR DAMAGE TO PROPERTY OR OTHER LOSS WHETHER DIRECT, INDIRECT,
INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, BASED ON A CLAIM THAT THE PRODUCT FAILED
TO FUNCTION.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage arising under this
limited warranty, THE MANUFACTURER'S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT, which shall be fixed as liquidated damages and not as a
penalty, and shall be the complete and exclusive remedy against the Manufacturer.
When accepting the delivery of the Product, the Purchaser agrees to the said conditions of sale and warranty and he
recognizes having been informed of.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so these limitations
may not apply under certain circumstances.
The Manufacturer shall be under no liability whatsoever arising out of the corruption and/or malfunctioning
of any telecommunication or electronic equipment or any programs.
The Manufacturers obligations under this Warranty are limited solely to repair and/or replace at the
Manufacturer’s discretion any Product or part thereof that may prove defective. Any repair and/or
replacement shall not extend the original Warranty period. The Manufacturer shall not be responsible for
dismantling and/or reinstallation costs. To exercise this Warranty the Product must be returned to the
Manufacturer freight pre-paid and insured. All freight and insurance costs are the responsibility of the
Purchaser and are not included in this Warranty.
This warranty shall not be modified, varied or extended, and the Manufacturer does not authorize any person to act on
its behalf in the modification, variation or extension of this warranty. This warranty shall apply to the Product only.
All products, accessories or attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any damage or loss whatsoever,
whether directly, indirectly, incidentally, consequentially or otherwise, caused by the malfunction of the Product due
to products, accessories, or attachments of others, including batteries, used in conjunction with the Products. This
Warranty is exclusive to the original Purchaser and is not assignable.
This Warranty is in addition to and does not affect your legal rights. Any provision in this warranty which is
contrary to the Law in the state or country were the Product is supplied shall not apply.
Warning: The user must follow the Manufacturer’s installation and operational instructions including testing
the Product and its whole system at least once a week and to take all necessary precautions for his/her
safety and the protection of his/her property.
1/08
EMAIL: info@visonic.com
INTERNET: www.visonic.com
VISONIC LTD. 2014 TOWER CAM PG2 D-304493 (Rev. 1, 3/14)

Navigation menu
