DE6290 1
VXS-5
Single-Door Stand Alone Proximity
Access Control System Installation Instructions
1. INTRODUCTION
Thank you for selecting the VXS-5, the most economical,
proximity access control system on the market designed for small
installations. It is a stand alone, self contained access control
system built into a proximity reader housing. The VXS-5 meets
the need of many users for an electronic door strike control
system with a memory capacity of 10 keys or less. A small office,
private home or apartment would be the ideal application for the
VXS-5.
The VXS-5 memorizes a master key plus 10 keys and comes
with five free proximity tags.
The system is powered from a 12 VDC external power supply.
The EMS (Electromagnetic Door Strike) is energized with 12 VDC
when a valid key is presented. System wiring requires 4 leads

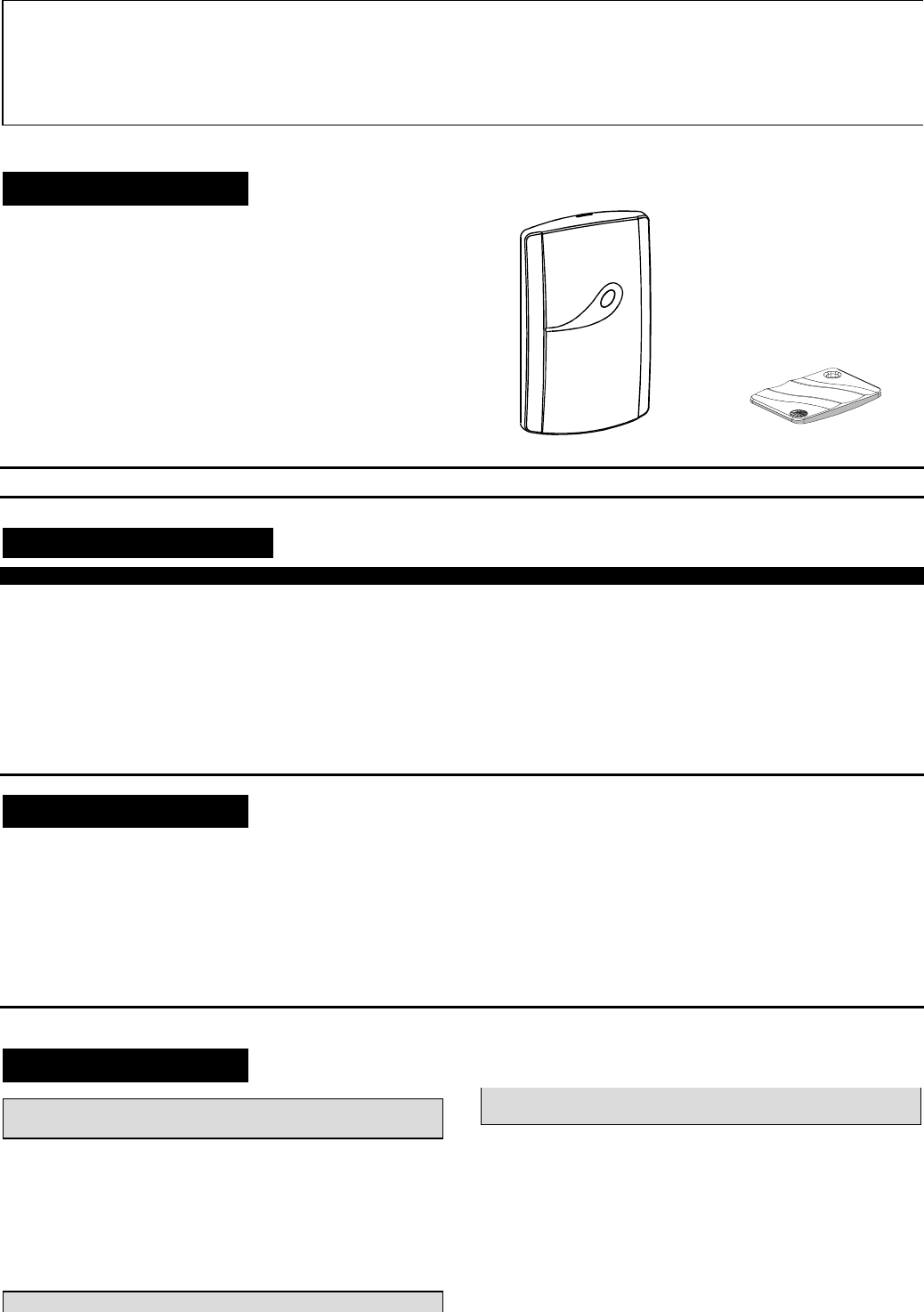

only - 2 for power and 2 for the EMS. VXS-5 Reader and Controller Proximity Key Tag
2. SPECIFICATIONS
VXS-5 CONTROLLER
Frequency: 125 kHz
Power Input: 12 - 14 VDC
Power Output to EMS: 12 VDC
Maximum Current: 150 mA (Idle), 650 mA (EMS open)
Indicators: Tricolor LED - Green, Red, Amber
Tag Reading Range: 50 - 100 mm (2-4 in.)
Tag Codes Possibilities: 1012 possible combinations
Key Memory: 10 keys
Size (H x W x D): 116 x 70 x 16.8 mm (4-1/2 x 2-3/4 x 5/8 in.)
Weight: 121.5 g (4.3 oz)
Operating Temperature: -20°C to 50°C (-4° to 122°F)
Color: Dark gray
TAG-1 PROXIMITY TAG
Size: (H x W x D): 53 x 35 x 7 mm (2-1/8 x 1-3/8 x 9/32 in.)
Weight: 5.5 g (0.2 oz)
Color: Dark gray
3. INSTALLATION
• Insert a screwdriver into the recess at the bottom or top of the
case, and separate the cover from the reader.
• Drill a hole in the wall for the cable.
• Place the base on the installation surface while passing the
cable through the hole, mark two points for drilling, drill the
holes, and insert the enclosed plastic anchors, if necessary.
• Fasten the base to the mounting surface, using the enclosed
screws.
• Connect each wire to the corresponding terminal according to
the following list:
Wire color Function
Black 12V Power [+]
Black/White 12V Power [-]
White EMS [+]
White/Orange EMS [-]
• Replace the reader’s cover, ensuring that the cover is aligned
correctly. This will make the LED visible.
4. PROGRAMMING
Note: The VXS-5 exits programming automatically and reverts to
normal operation if no activity is detected for 10 seconds.
4.1. Initial Non-programmed State
When first connected to power, the LED blinks amber and red
alternately to indicate that there is no master key.
• Present one of the keys supplied with the unit. This key will
become the master key.
• The VXS-5 accepts the master key and the LED turns amber
to indicate the idle state.
Note: It is recommended to keep the master key in a safe
place. The master key is used for programming only and cannot
be used for access control.
4.2. Add Keys
Hold the master key next to the unit for 10 seconds. The LED will
start blinking green at the rate of 2 Hz (twice a second) to
indicate the ADD mode.
While in ADD mode:
• Present a key to be added.
• The green LED lights up steadily for 2 seconds to indicate
acceptance of the new key.
• To add more keys, wait until the unit resumes blinking green
and present a new key.
2DE6290
• When the memory is full with 10 user keys, the VXS-5 will not
accept any more keys and continue blinking green at 2 Hz
even when a new key is presented.
• To exit the ADD mode wait 10 seconds with no activity.
4.3. Delete Keys
While in the ADD mode, hold the master key near the unit for 10
seconds.
• The LED starts blinking red, thus indicating the DELETE
mode.
• If the key to be deleted is available, simply present it to the
unit for deletion. The red LED lights up steadily for 2 seconds
to indicate that the key has been deleted.
If the key is lost or stolen, all keys must be deleted and the
available keys have to be added back in.
• While in the DELETE mode, present the master key to the
VXS-5 for about 10 seconds.
• The red LED will light up steadily for 2 seconds to indicate that
all keys have been deleted.
• Exit DELETE mode by waiting 10 seconds with no activity.
• Enter the ADD mode (see 4.2) and add all available keys.
4.4. Set Unlock Time
The default unlock duration is 5 seconds. To change it, you need
to be in the DELETE mode (see 4.3).
• While in the DELETE mode present the master tag for about
one second.
• The LED blinks amber at 2 Hz rate.
• Present a valid (non-master) key for the required unlock
duration and remove it promptly.
• The VXS-5 will define the new unlock duration as the length of
time the key was presented.
4.5. Reset Master Tag
Resetting the master is performed by connecting the EMS- to the
Power- in the following order:
• While the unit is connected to power, touch the EMS- wire to
the -12V Power for about 1/2 second
• Wait about 2 seconds (count 1.. 2.. 3..)
• Touch the EMS- wire to the -12V Power again, for 1 second
It may take some practice to get it right. Eventually the master is
erased, and the LED blinks red / amber alternately indicating that
a new master is needed (see 4.1).
Note: When deleting the master tag, all other keys are not
affected.
5. OPERATION
During normal operation, the LED lights amber to indicate the idle
state. When presenting a valid key, the LED lights green and
opens the lock for 5 seconds (default unlock duration).
If a key is invalid, the LED lights red for 2 seconds.
If more than 5 consecutive invalid keys are presented with less
than 5 seconds between every two keys, the VXS-5 increases the
time of the red LED to 5 seconds and reverts to 2 seconds when
a valid key is presented or if more than 60 seconds have passed
with no activity.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and
television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such
interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the
following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment
WARRANTY
VisAccess Ltd. and/or its subsidiaries and its affiliates ("the Manufacturer") warrants its
products hereinafter referred to as "the Product" or "Products" to be in conformance with
its own plans and specifications and to be free of defects in materials and workmanship
under normal use and service for a period of twelve months from the date of shipment by
the Manufacturer. The Manufacturer's obligations shall be limited within the warranty
period, at its option, to repair or replace the product or any part thereof. The Manufacturer
shall not be responsible for dismantling and/or reinstallation charges. To exercise the
warranty the product must be returned to the Manufacturer freight prepaid and insured.
This warranty does not apply in the following cases: improper installation, misuse,
failure to follow installation and operating instructions, alteration, abuse, accident or
tampering, and repair by anyone other than the Manufacturer.
This warranty is exclusive and expressly in lieu of all other warranties, obligations or
liabilities, whether written, oral, express or implied, including any warranty of
merchantability or fitness for a particular purpose, or otherwise. In no case shall the
Manufacturer be liable to anyone for any consequential or incidental damages for breach
of this warranty or any other warranties whatsoever, as aforesaid.
This warranty shall not be modified, varied or extended, and the Manufacturer does not
authorize any person to act on its behalf in the modification, variation or extension of this
warranty. This warranty shall apply to the Product only. All products, accessories or
attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or
otherwise, caused by the malfunction of the Product due to products, accessories, or
attachments of others, including batteries, used in conjunction with the Products.
The Manufacturer does not represent that its Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury
and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the
Product will in all cases provide adequate warning or protection. User understands that a
properly installed and maintained alarm may only reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that such
will not occur or that there will be no death, personal damage and/or damage to property
as a result.
The Manufacturer shall have no liability for any death, personal and/or bodily injury
and/or damage to property or other loss whether direct, indirect, incidental,
consequential or otherwise, based on a claim that the Product failed to function.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or
damage arising under this limited warranty or otherwise, regardless of cause or origin, the
Manufacturer's maximum liability shall not in any case exceed the purchase price of the
Product, which shall be fixed as liquidated damages and not as a penalty, and shall be the
complete and exclusive remedy against the Manufacturer.
Warning: The user should follow the installation and operation instructions and among
other things test the Product and the whole system at least once a week. For various
reasons, including, but not limited to, changes in environmental conditions, electric or
electronic disruptions and tampering, the Product may not perform as expected. The user
is advised to take all necessary precautions for his/her safety and the protection of his/her
property.
6/91
DXXXX 3
Technical Dept.: 35 Hamelacha St. Carmiel 20100 ISRAEL Tel: 972 4 9081115 Fax: 972 4 9081116
Sales Dept.: 30 Habarzel St. Tel Aviv 69710 ISRAEL Tel: 972 3 645 6789 Fax: 972 3 645 6891
Internet: www.visaccess.com
VisAccess Ltd. 1999 VXS-5 DE6290- (REV. 0, 9/99)
