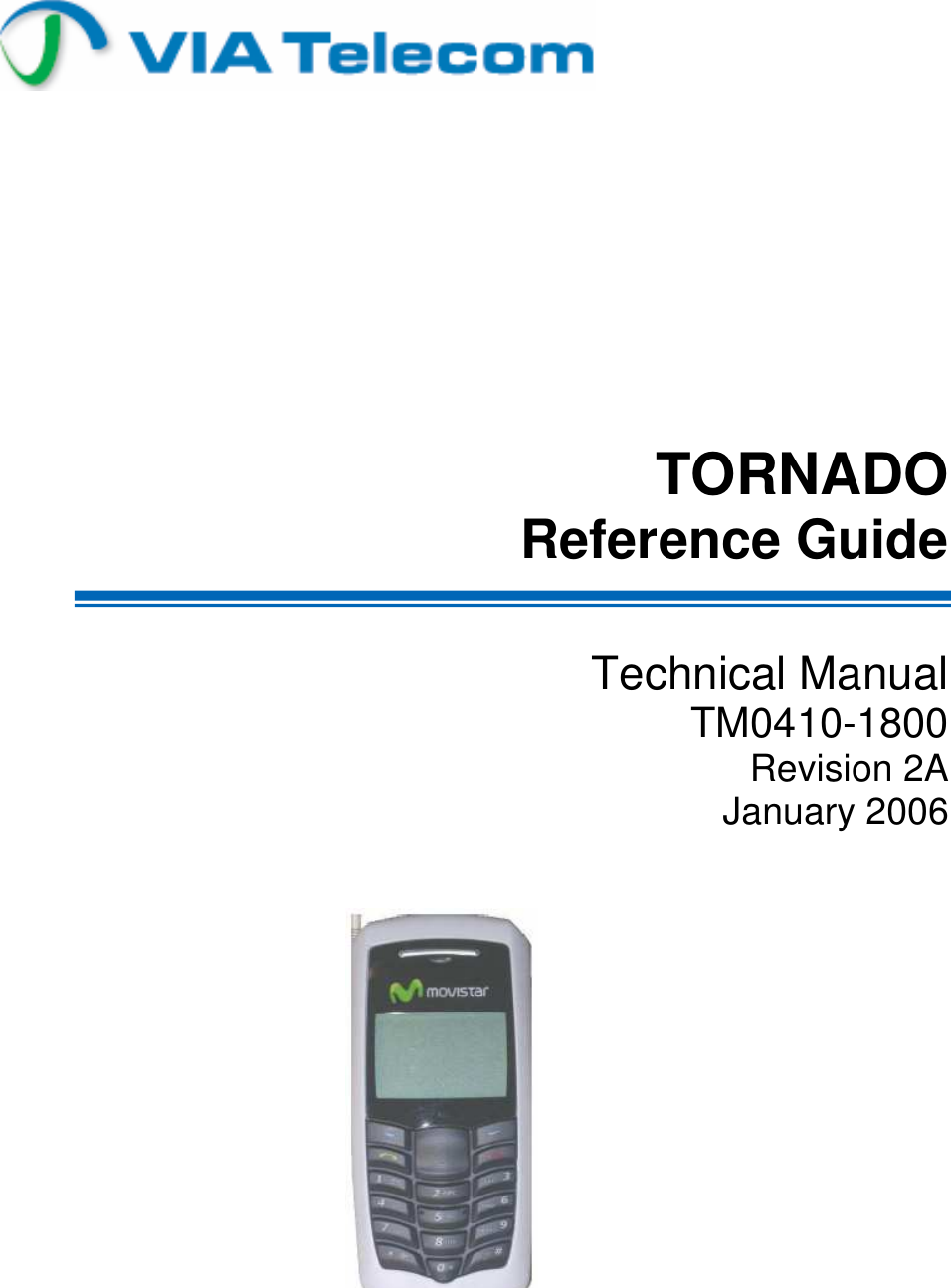

TORNADO Reference Guide Technical Manual TM0410-1800 Revision 2A January 2006

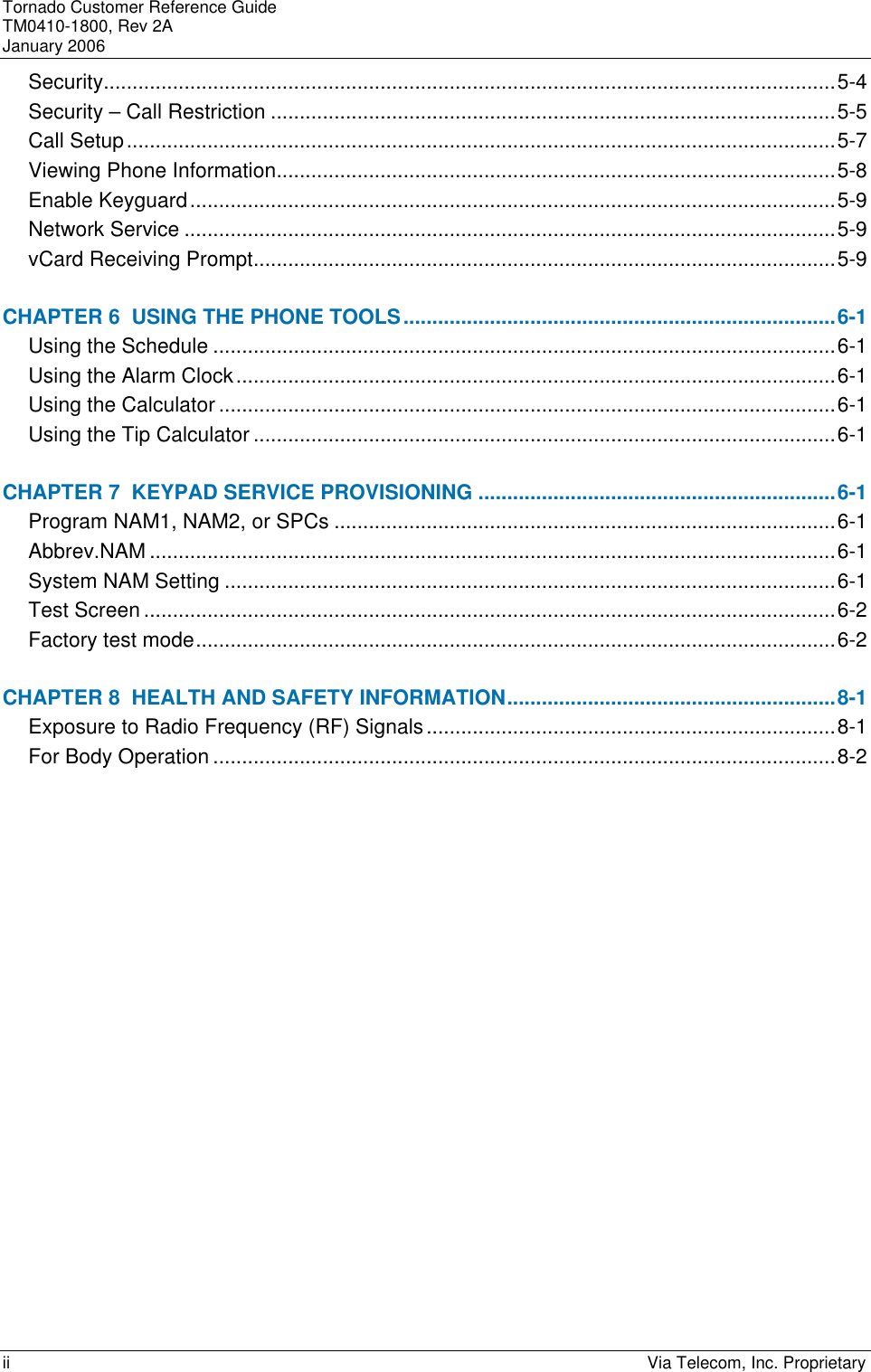

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 ii Via Telecom, Inc. Proprietary Security...............................................................................................................................5-4 Security – Call Restriction ..................................................................................................5-5 Call Setup...........................................................................................................................5-7 Viewing Phone Information.................................................................................................5-8 Enable Keyguard................................................................................................................5-9 Network Service .................................................................................................................5-9 vCard Receiving Prompt.....................................................................................................5-9 CHAPTER 6 USING THE PHONE TOOLS...........................................................................6-1 Using the Schedule ............................................................................................................6-1 Using the Alarm Clock........................................................................................................6-1 Using the Calculator ...........................................................................................................6-1 Using the Tip Calculator .....................................................................................................6-1 CHAPTER 7 KEYPAD SERVICE PROVISIONING ..............................................................6-1 Program NAM1, NAM2, or SPCs .......................................................................................6-1 Abbrev.NAM .......................................................................................................................6-1 System NAM Setting ..........................................................................................................6-1 Test Screen ........................................................................................................................6-2 Factory test mode...............................................................................................................6-2 CHAPTER 8 HEALTH AND SAFETY INFORMATION.........................................................8-1 Exposure to Radio Frequency (RF) Signals.......................................................................8-1 For Body Operation ............................................................................................................8-2

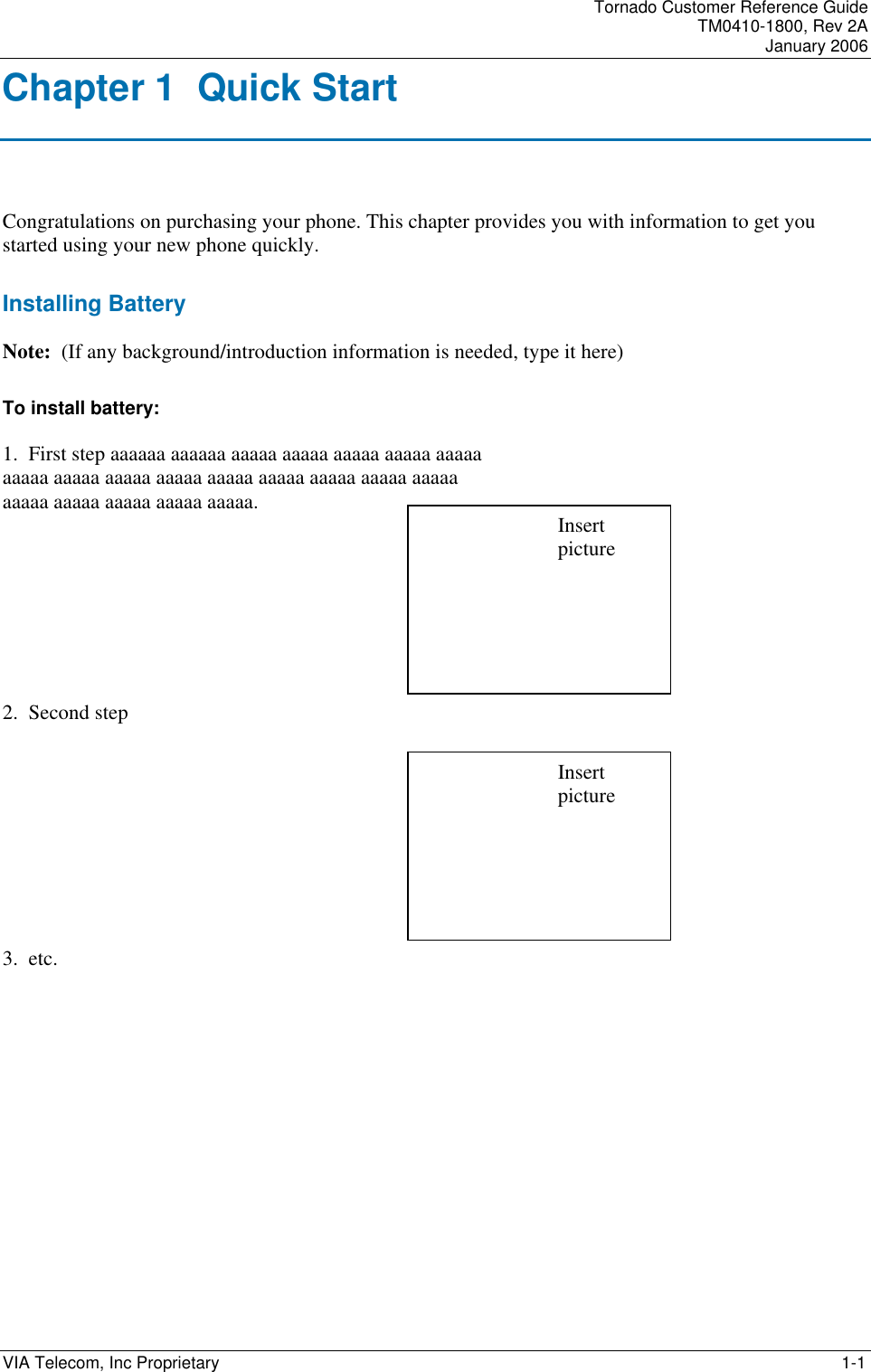

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 VIA Telecom, Inc Proprietary 1-1 Chapter 1 Quick Start Congratulations on purchasing your phone. This chapter provides you with information to get you started using your new phone quickly. Installing Battery Note: (If any background/introduction information is needed, type it here) To install battery: 1. First step aaaaaa aaaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa. 2. Second step 3. etc. Insert picture Insert picture

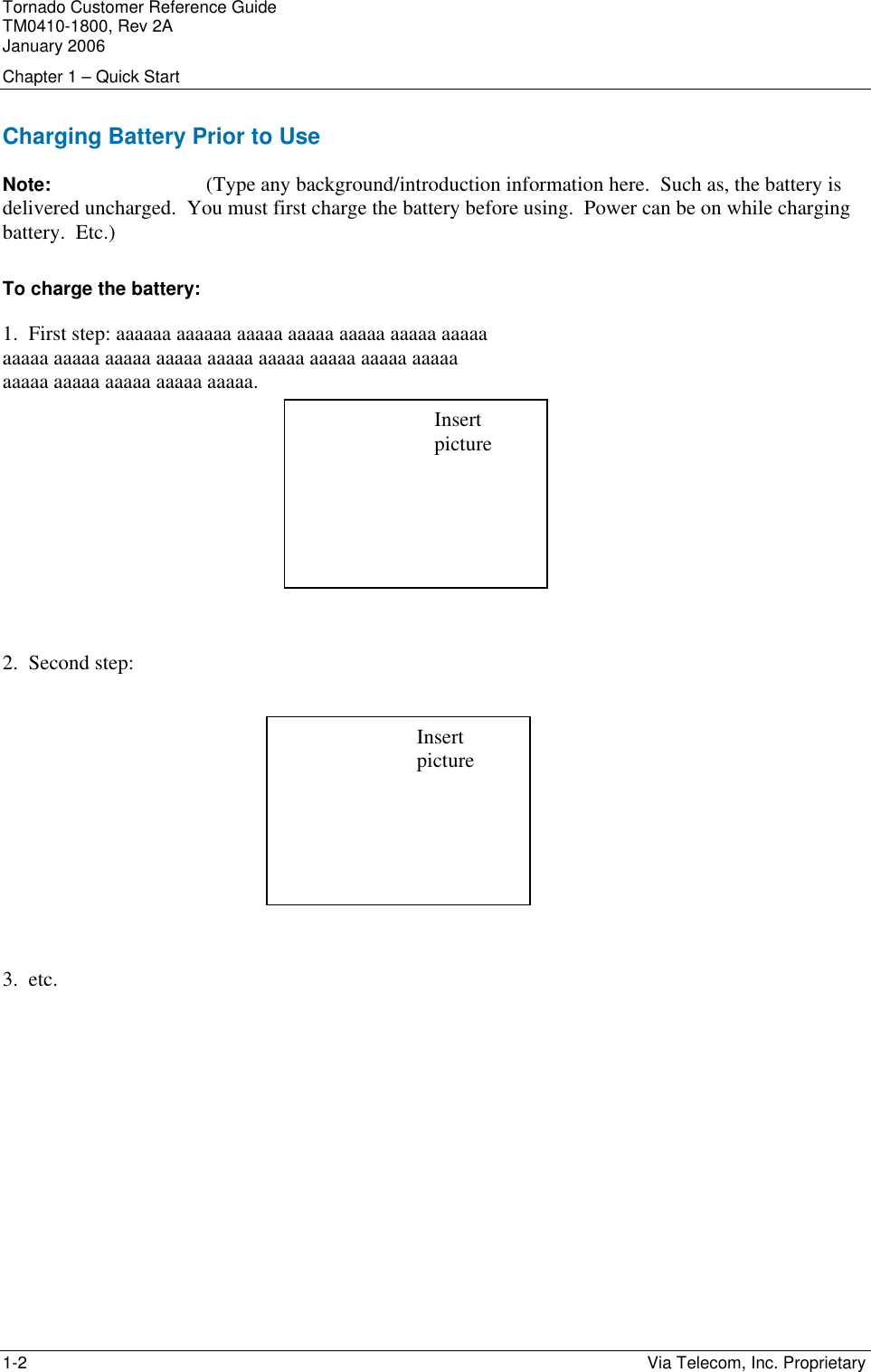

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 1 – Quick Start 1-2 Via Telecom, Inc. Proprietary Charging Battery Prior to Use Note: (Type any background/introduction information here. Such as, the battery is delivered uncharged. You must first charge the battery before using. Power can be on while charging battery. Etc.) To charge the battery: 1. First step: aaaaaa aaaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa aaaaa. 2. Second step: 3. etc. Insert picture Insert picture

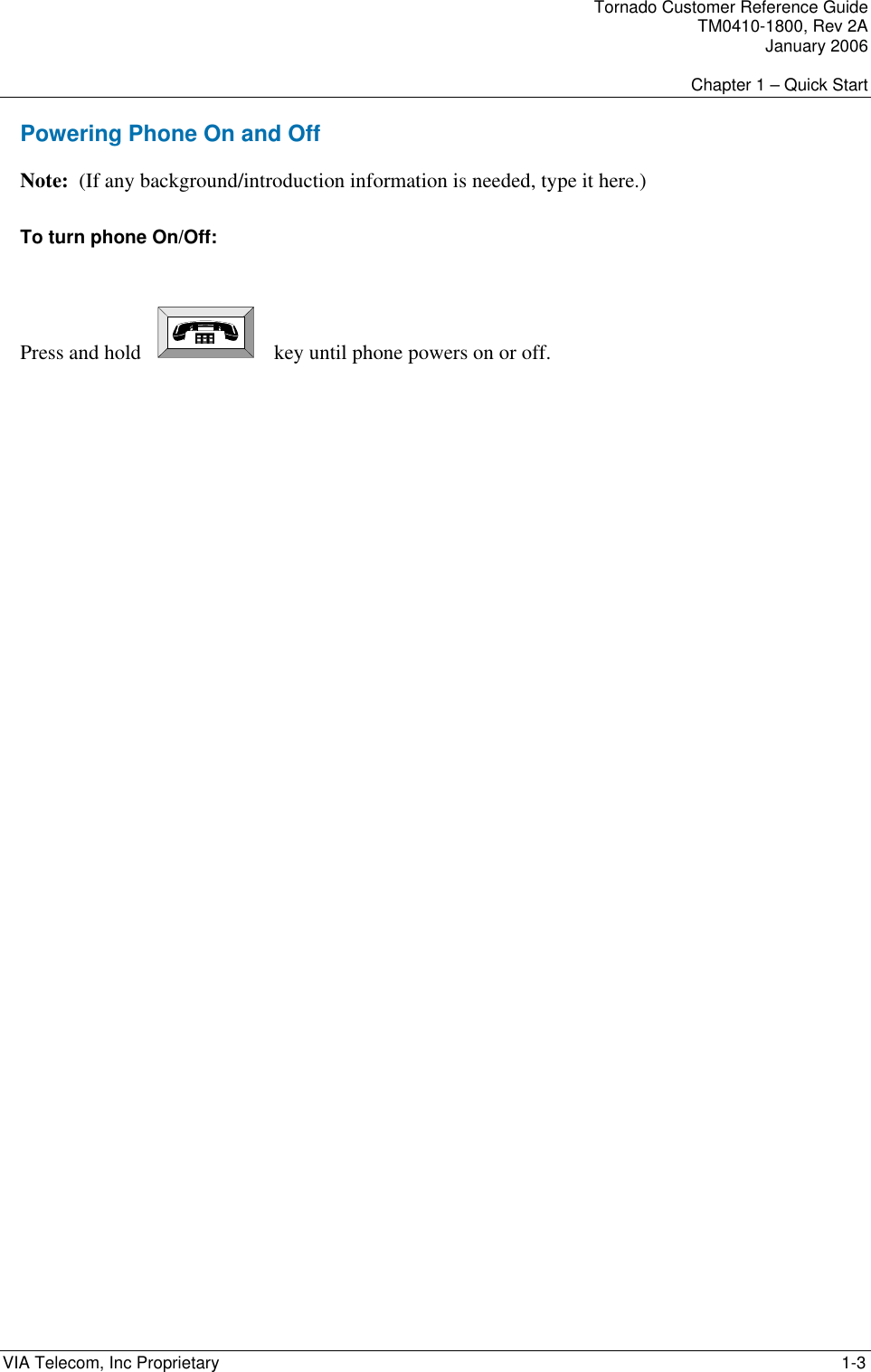

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 1 – Quick Start VIA Telecom, Inc Proprietary 1-3 Powering Phone On and Off Note: (If any background/introduction information is needed, type it here.) To turn phone On/Off: Press and hold key until phone powers on or off.

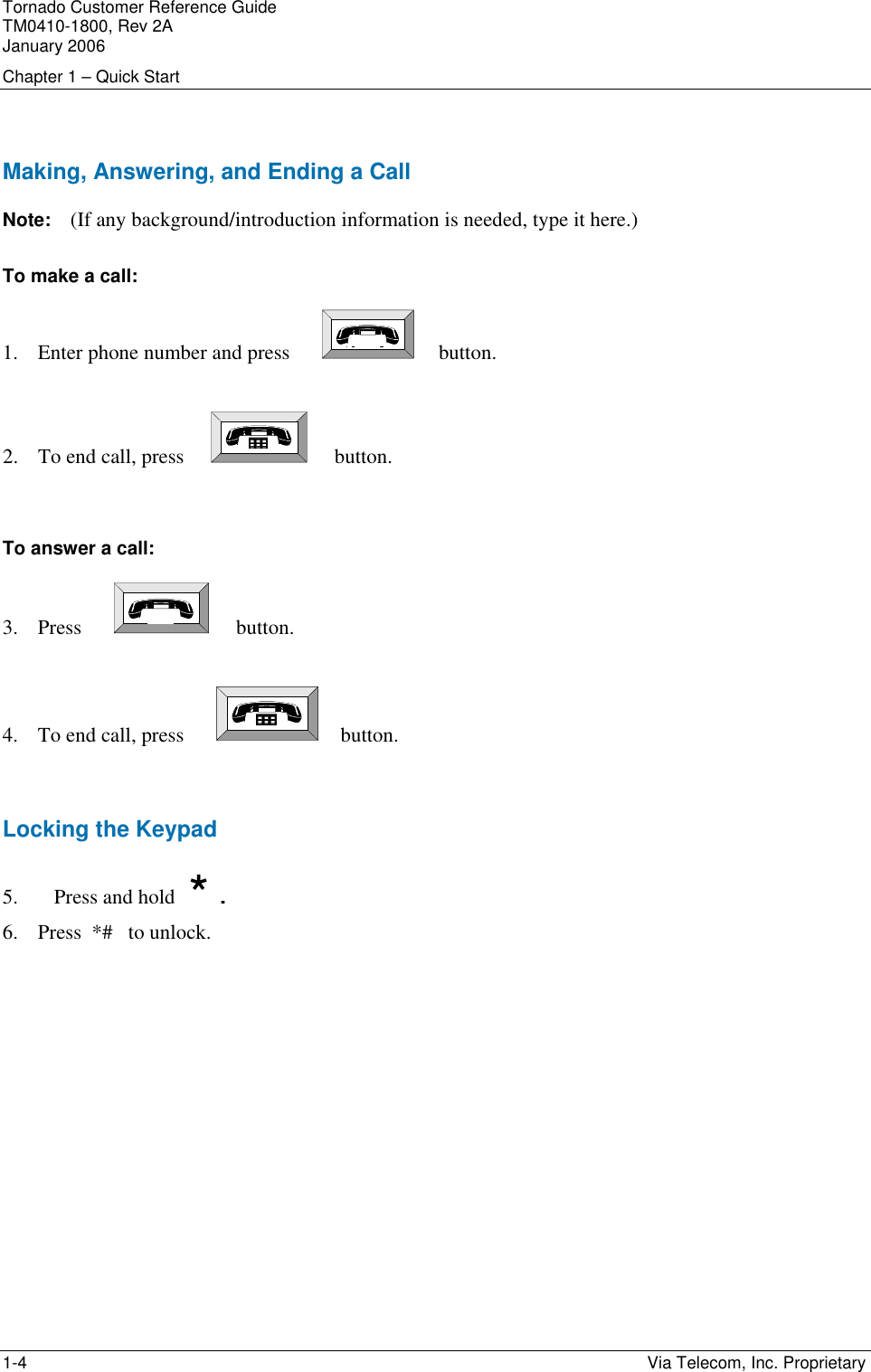

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 1 – Quick Start 1-4 Via Telecom, Inc. Proprietary Making, Answering, and Ending a Call Note: (If any background/introduction information is needed, type it here.) To make a call: 1. Enter phone number and press button. 2. To end call, press button. To answer a call: 3. Press button. 4. To end call, press button. Locking the Keypad 5. Press and hold * . 6. Press *# to unlock.

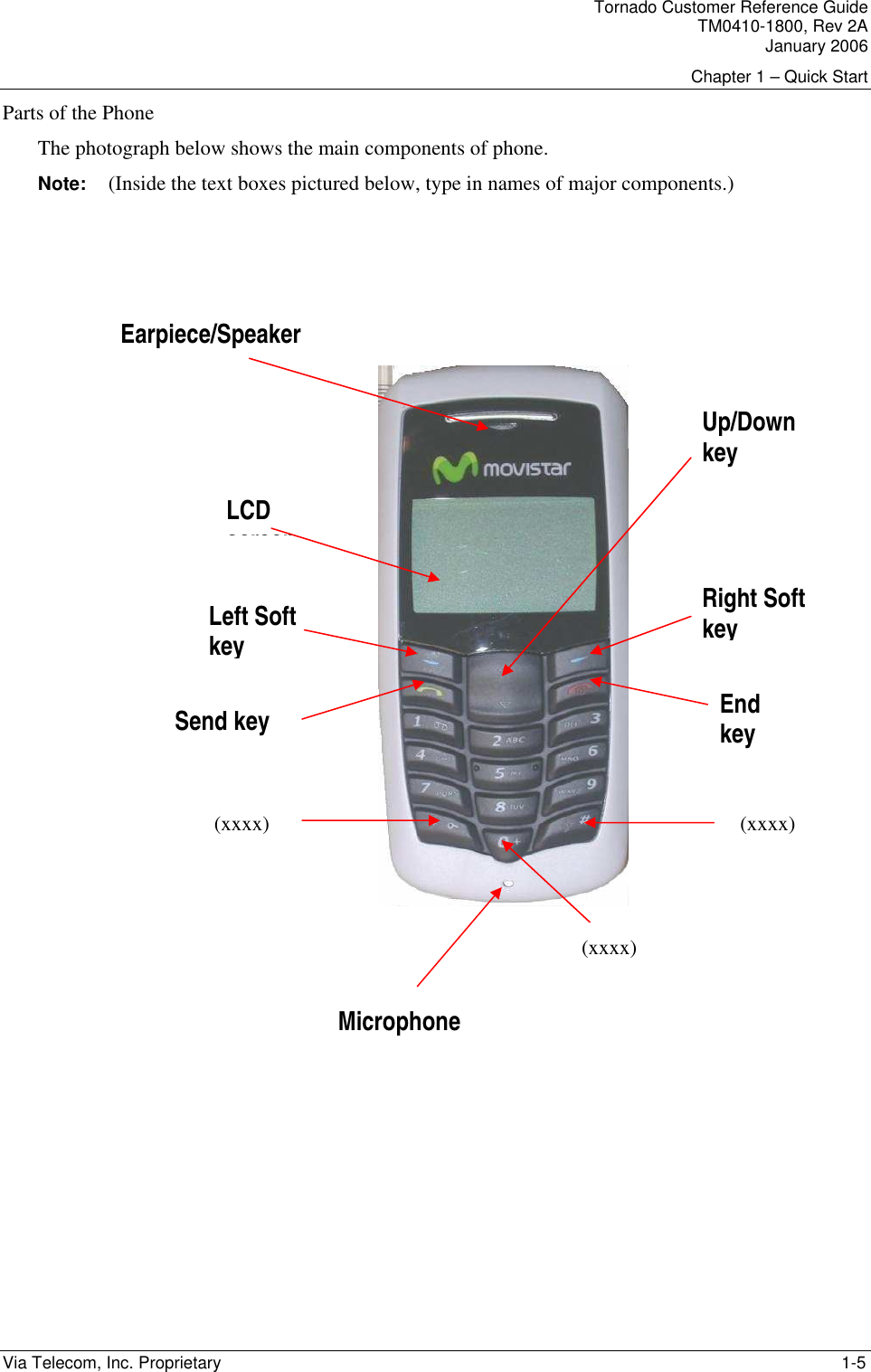

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 1 – Quick Start Via Telecom, Inc. Proprietary 1-5 Parts of the Phone The photograph below shows the main components of phone. Note: (Inside the text boxes pictured below, type in names of major components.) LCD screen Earpiece/Speaker Right Soft key Up/Down key (xxxx) MicrophoneLeft Soft key End key Send key (xxxx) (xxxx)

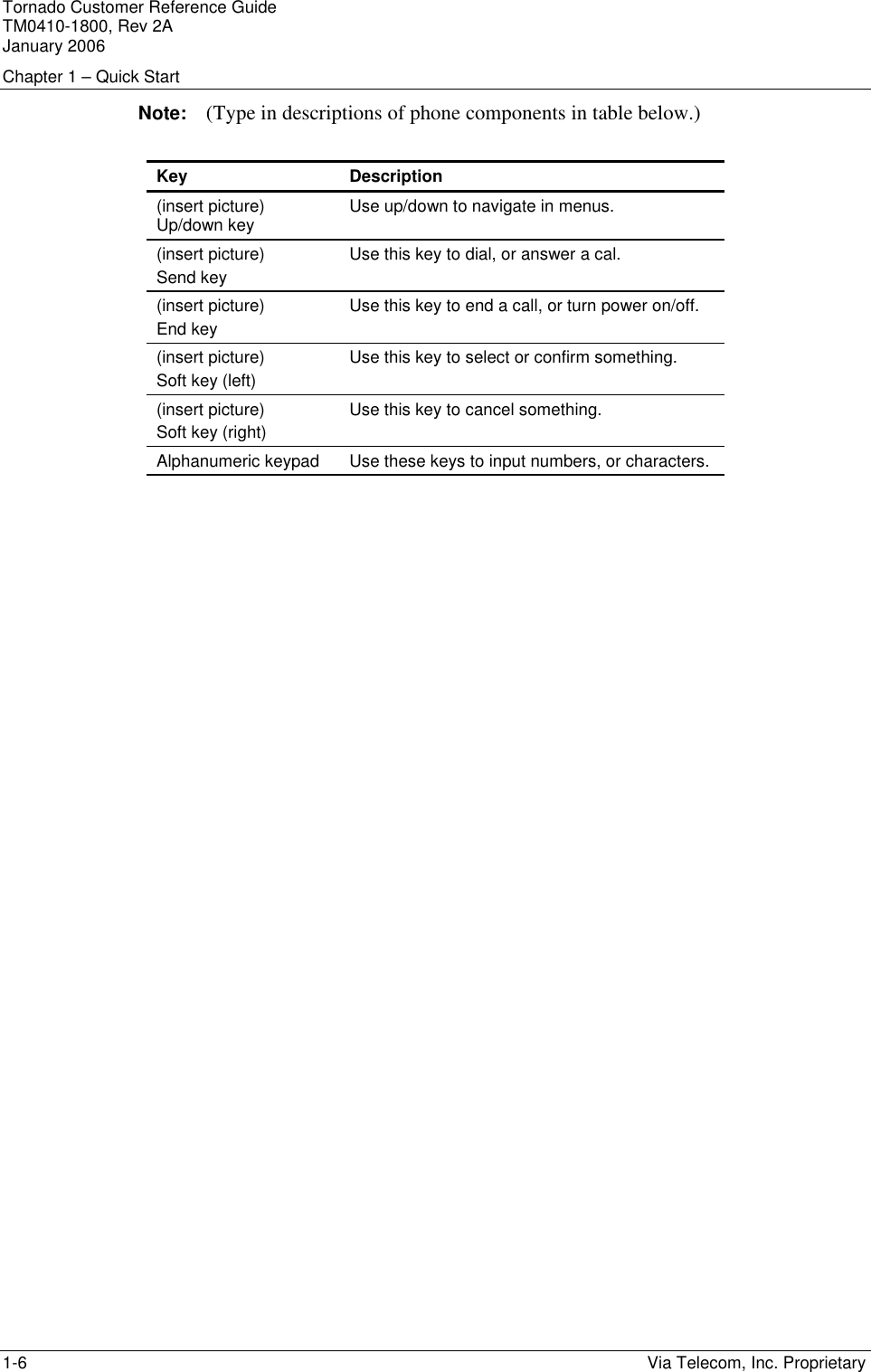

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 1 – Quick Start 1-6 Via Telecom, Inc. Proprietary Note: (Type in descriptions of phone components in table below.) Key Description (insert picture) Up/down key Use up/down to navigate in menus. (insert picture) Send key Use this key to dial, or answer a cal. (insert picture) End key Use this key to end a call, or turn power on/off. (insert picture) Soft key (left) Use this key to select or confirm something. (insert picture) Soft key (right) Use this key to cancel something. Alphanumeric keypad Use these keys to input numbers, or characters.

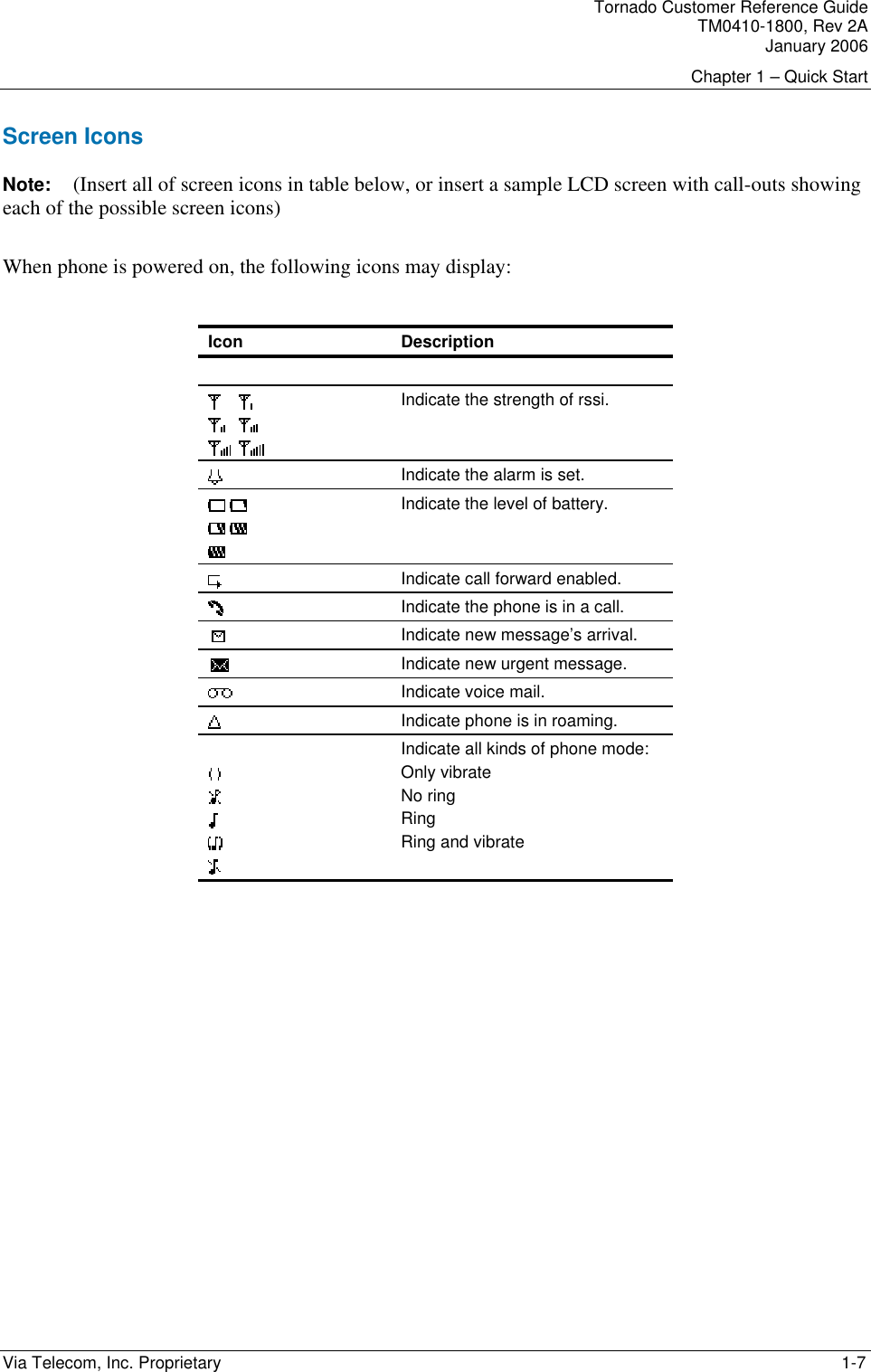

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 1 – Quick Start Via Telecom, Inc. Proprietary 1-7 Screen Icons Note: (Insert all of screen icons in table below, or insert a sample LCD screen with call-outs showing each of the possible screen icons) When phone is powered on, the following icons may display: Icon Description Indicate the strength of rssi. Indicate the alarm is set. Indicate the level of battery. Indicate call forward enabled. Indicate the phone is in a call. Indicate new message’s arrival. Indicate new urgent message. Indicate voice mail. Indicate phone is in roaming. Indicate all kinds of phone mode: Only vibrate No ring Ring Ring and vibrate

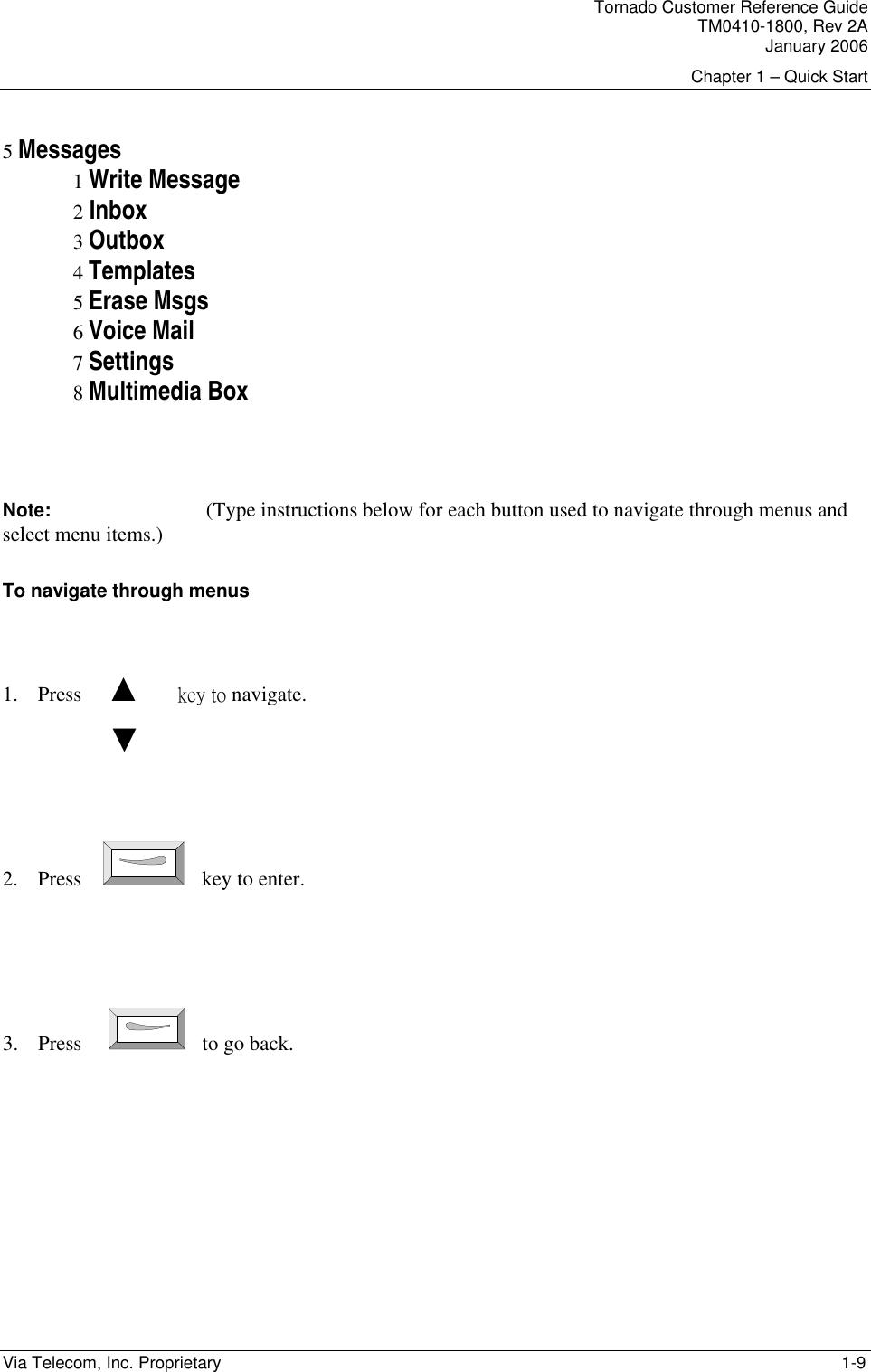

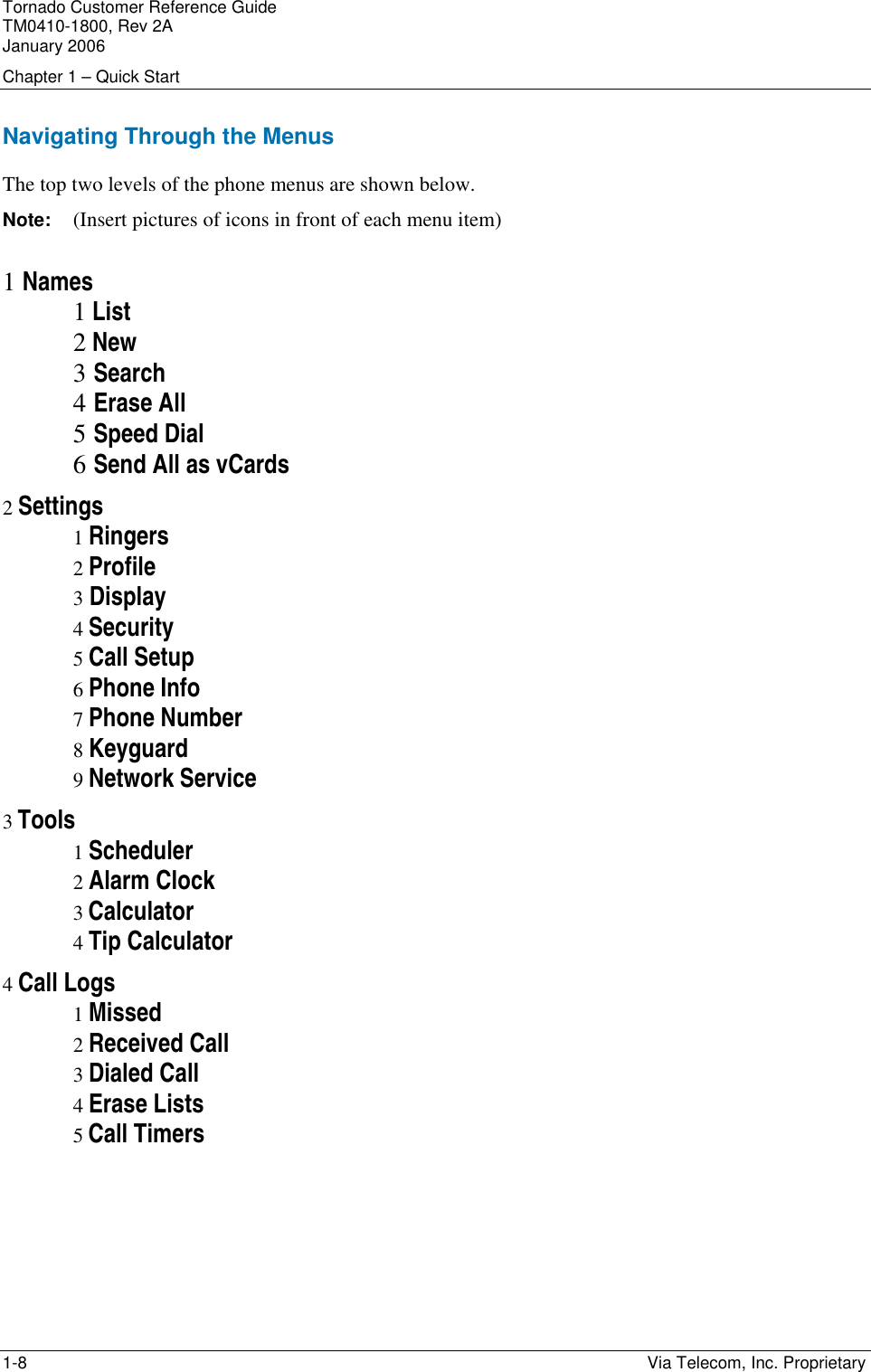

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 1 – Quick Start Via Telecom, Inc. Proprietary 1-9 5 Messages 1 Write Message 2 Inbox 3 Outbox 4 Templates 5 Erase Msgs 6 Voice Mail 7 Settings 8 Multimedia Box Note: (Type instructions below for each button used to navigate through menus and select menu items.) To navigate through menus 1. Press ▲ key to navigate. ▼ 2. Press key to enter. 3. Press to go back.

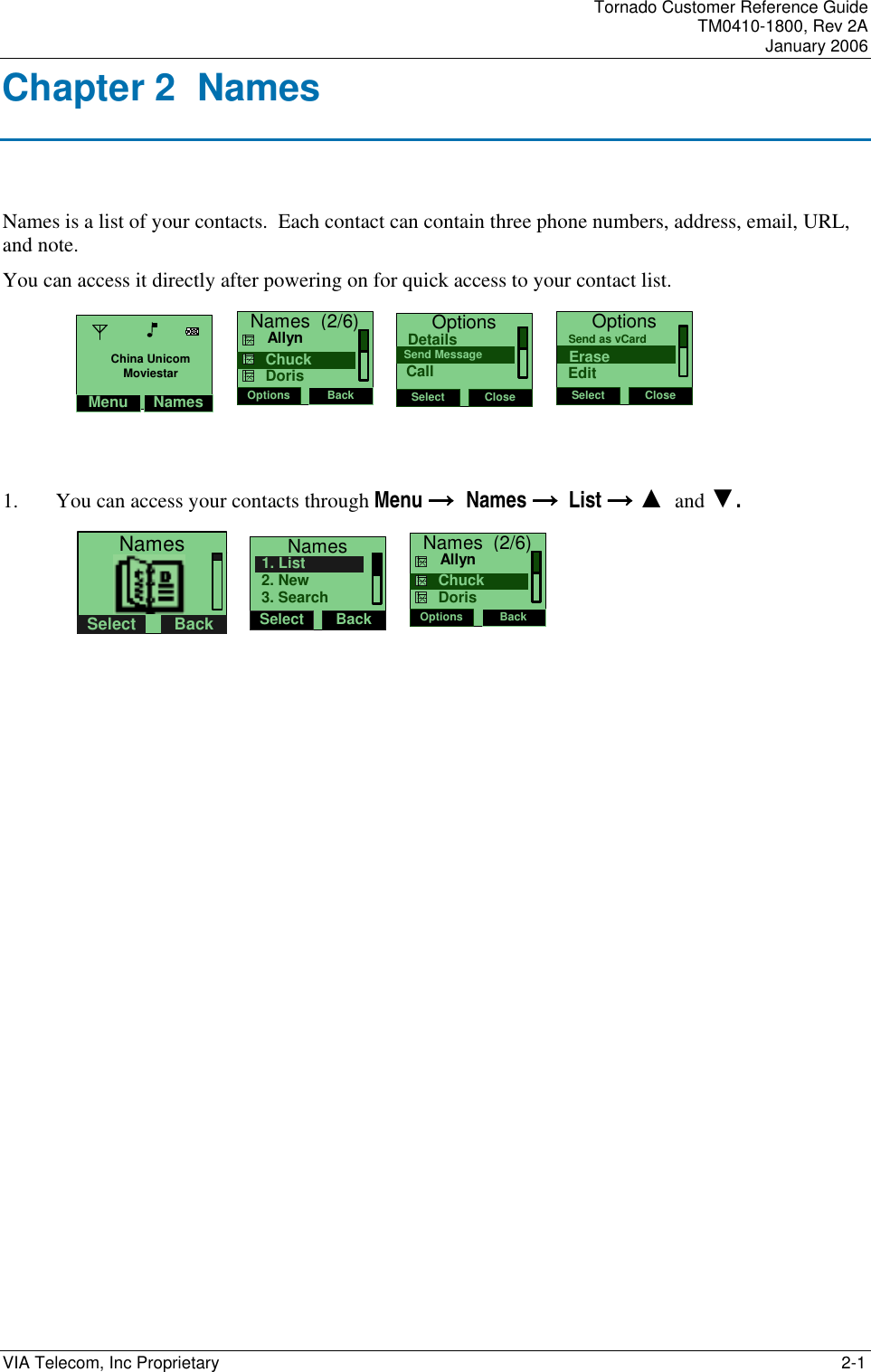

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 VIA Telecom, Inc Proprietary 2-1 Chapter 2 Names Names is a list of your contacts. Each contact can contain three phone numbers, address, email, URL, and note. You can access it directly after powering on for quick access to your contact list. Names (2/6)Options Back Chuck Allyn Doris OptionsSelect CloseSend MessageDetailsCall OptionsSelect CloseEraseSend as vCardEdit 1. You can access your contacts through Menu →→→→ Names →→→→ List →→→→ ▲ and ▼. NamesSelect Back NamesSelect Back2. New1. List3. Search Names (2/6)Options Back Chuck Allyn Doris Menu NamesChina UnicomMoviestar

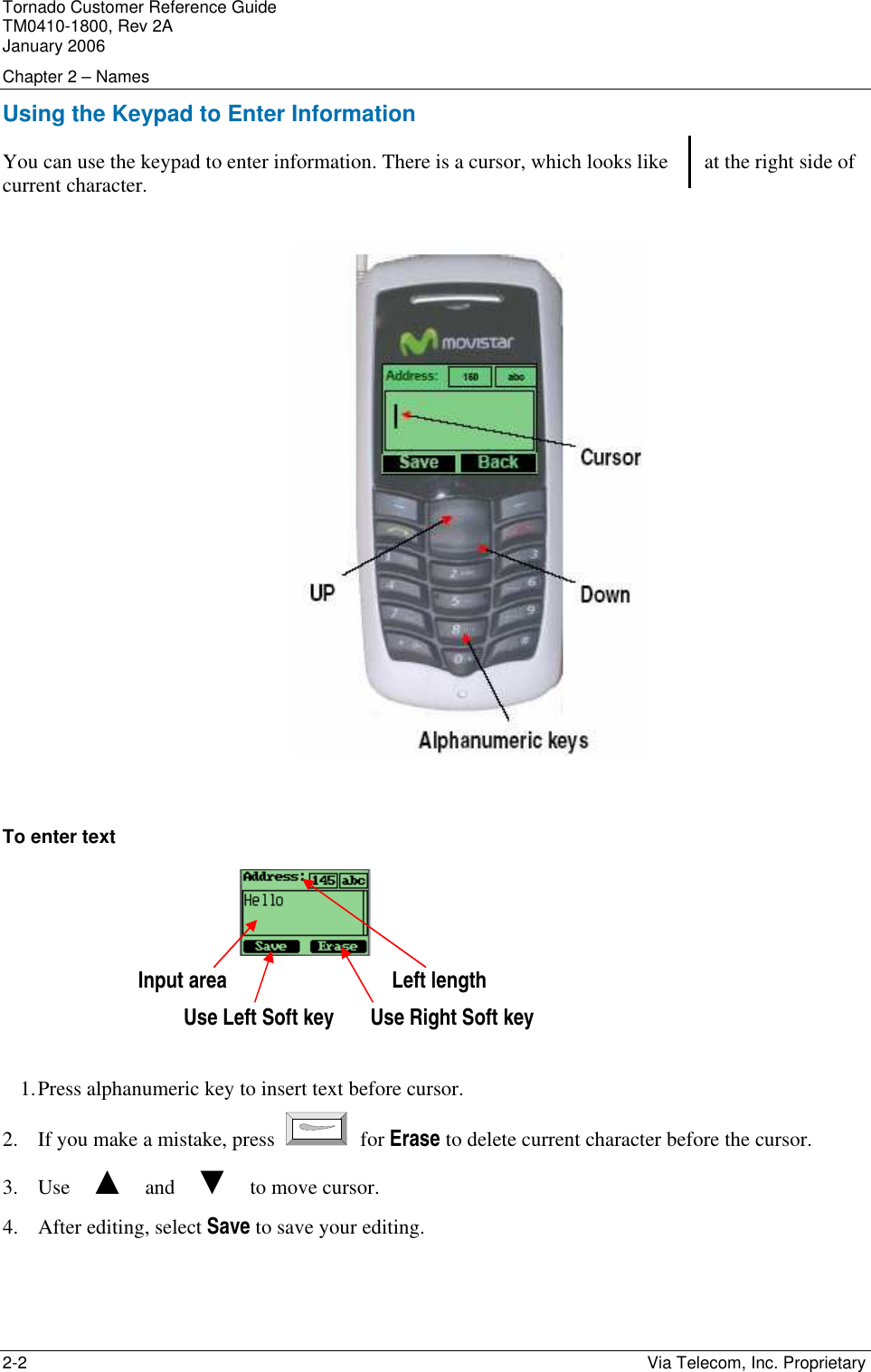

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 – Names 2-2 Via Telecom, Inc. Proprietary Using the Keypad to Enter Information You can use the keypad to enter information. There is a cursor, which looks like at the right side of current character. To enter text Input area Left length Use Left Soft key Use Right Soft key 1. Press alphanumeric key to insert text before cursor. 2. If you make a mistake, press for Erase to delete current character before the cursor. 3. Use ▲ and ▼ to move cursor. 4. After editing, select Save to save your editing.

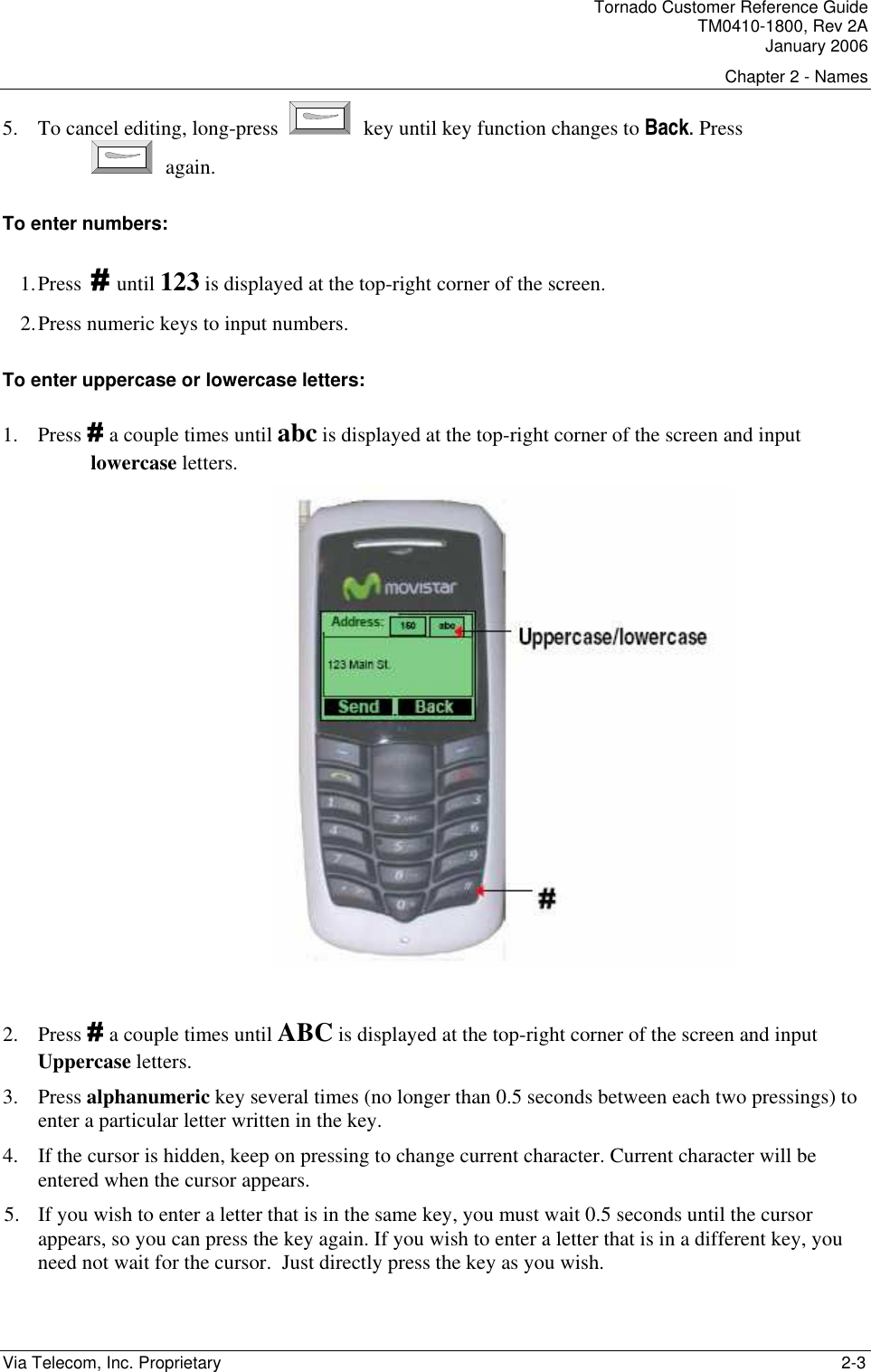

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 - Names Via Telecom, Inc. Proprietary 2-3 5. To cancel editing, long-press key until key function changes to Back. Press again. To enter numbers: 1. Press # until 123 is displayed at the top-right corner of the screen. 2. Press numeric keys to input numbers. To enter uppercase or lowercase letters: 1. Press # a couple times until abc is displayed at the top-right corner of the screen and input lowercase letters. 2. Press # a couple times until ABC is displayed at the top-right corner of the screen and input Uppercase letters. 3. Press alphanumeric key several times (no longer than 0.5 seconds between each two pressings) to enter a particular letter written in the key. 4. If the cursor is hidden, keep on pressing to change current character. Current character will be entered when the cursor appears. 5. If you wish to enter a letter that is in the same key, you must wait 0.5 seconds until the cursor appears, so you can press the key again. If you wish to enter a letter that is in a different key, you need not wait for the cursor. Just directly press the key as you wish.

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 – Names 2-4 Via Telecom, Inc. Proprietary To enter symbols or special characters: 1. Press . 2. Use ▲ and ▼ to select the symbol you need. 3. Press the corresponding number key to select the symbol you want. To change the language: 1. Menu →→→→ ▼ →→→→ Settings → → → → Display →→→→ Language. 2. Reset from another language you cannot read: Menu → → → → press in 5,3,3.

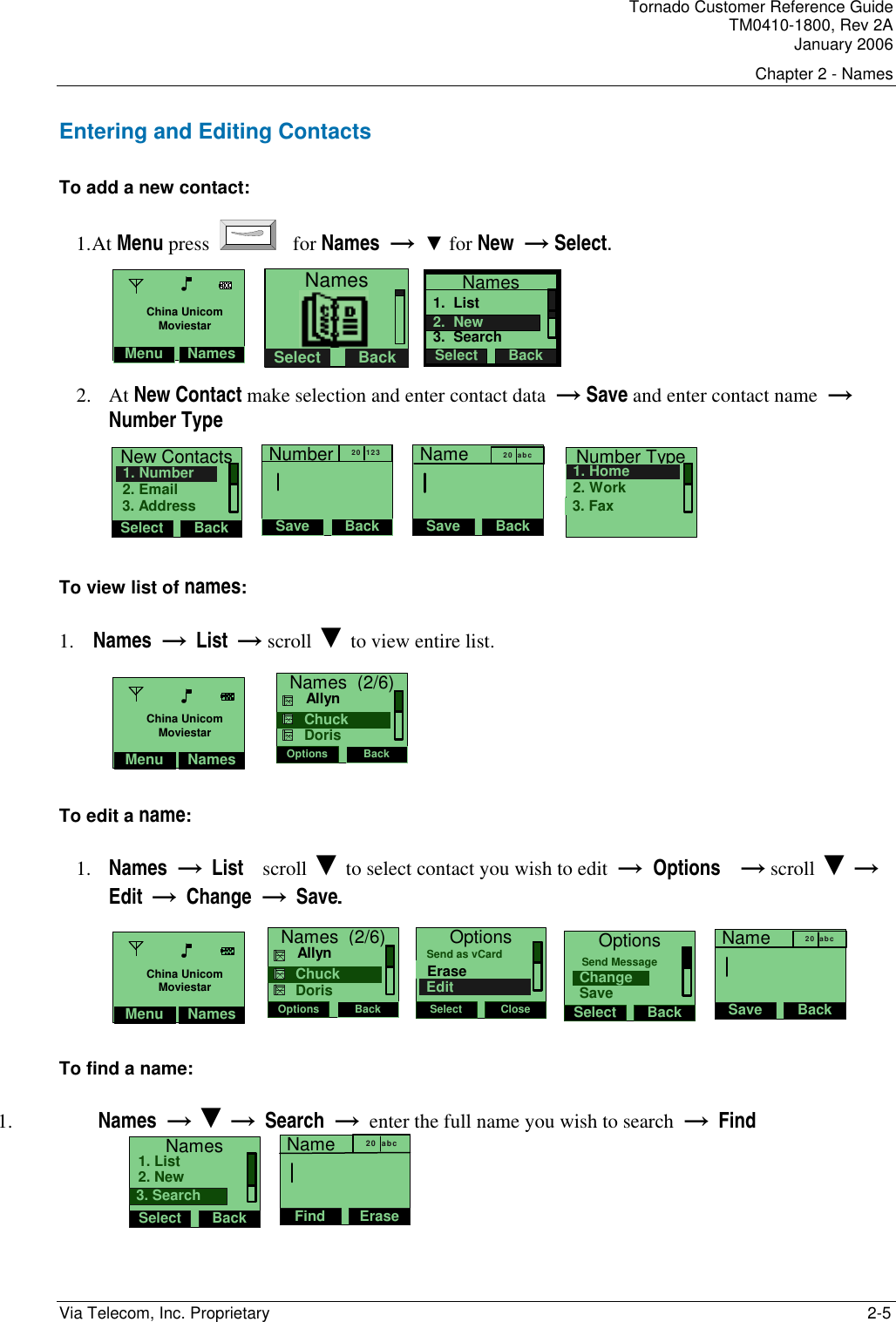

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 - Names Via Telecom, Inc. Proprietary 2-5 Entering and Editing Contacts To add a new contact: 1. At Menu press for Names → ▼ for New → Select. NamesSelect Back Names1. List3. SearchSelect Back2. New 2. At New Contact make selection and enter contact data → Save and enter contact name → Number Type New ContactsSelect Back2. Email1. Number3. Address NumberSave Back20 123 NameSave Back20 ab c Number Type2. Work1. Home3. Fax To view list of names: 1. Names → List → scroll ▼ to view entire list. Names (2/6)Options Back Chuck Allyn Doris To edit a name: 1. Names → List scroll ▼ to select contact you wish to edit → Options → scroll ▼ → Edit → Change → Save. Names (2/6)Options Back Chuck Allyn Doris OptionsSelect CloseEraseSend as vCardEdit OptionsSelect BackChangeSend MessageSave NameSave Back20 ab c To find a name: 1. Names → ▼ → Search → enter the full name you wish to search → Find NamesSelect Back2. New1. List3. Search NameFind Erase20 abc Menu NamesChina UnicomMoviestarMenu NamesChina UnicomMoviestarMenu NamesChina UnicomMoviestar

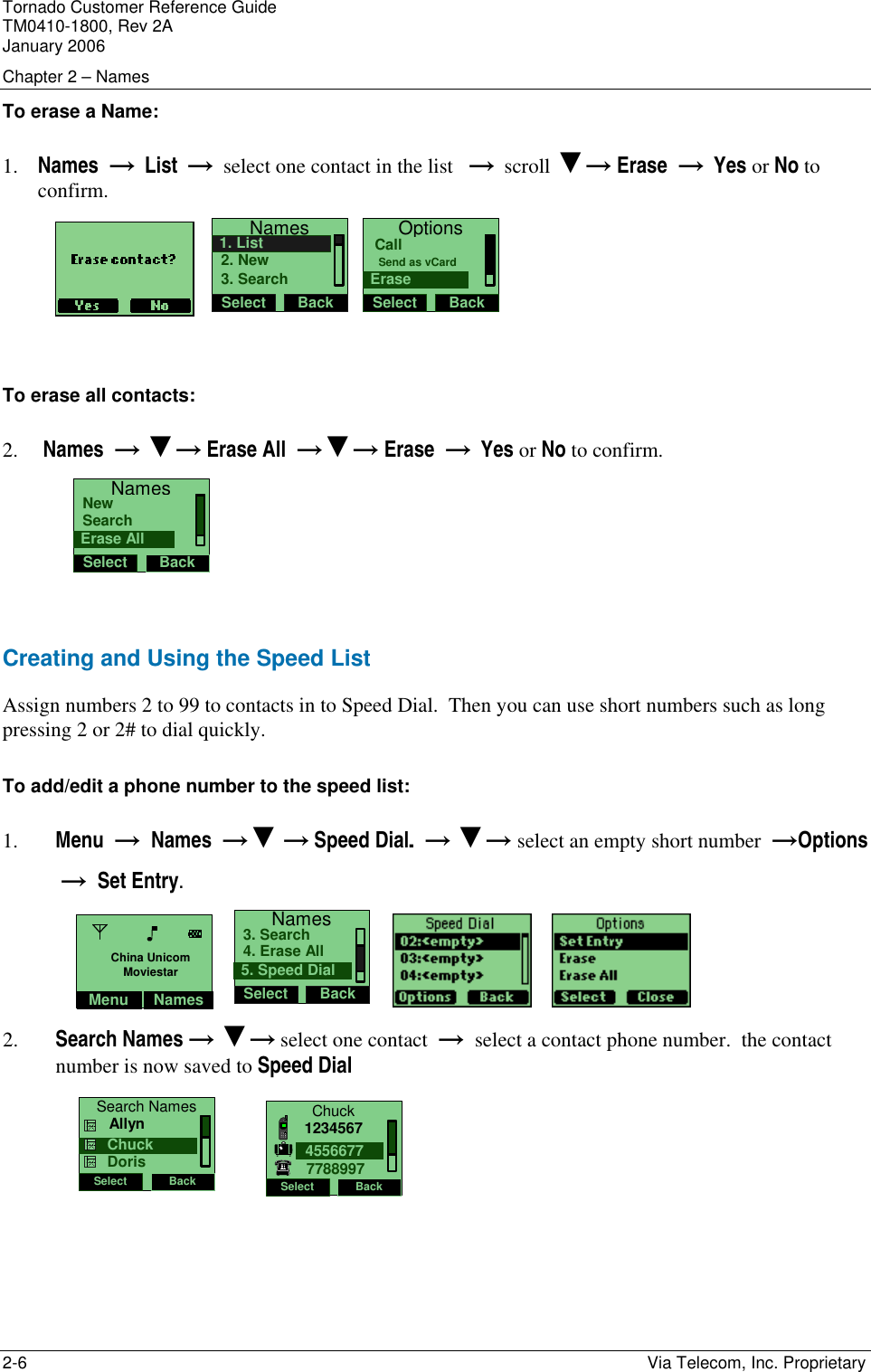

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 – Names 2-6 Via Telecom, Inc. Proprietary To erase a Name: 1. Names → List → select one contact in the list → scroll ▼→ Erase → Yes or No to confirm. NamesSelect Back2. New1. List3. Search OptionsSelect BackSend as vCardCallErase To erase all contacts: 2. Names → ▼→ Erase All →▼→ Erase → Yes or No to confirm. NamesSelect BackSearchNewErase All Creating and Using the Speed List Assign numbers 2 to 99 to contacts in to Speed Dial. Then you can use short numbers such as long pressing 2 or 2# to dial quickly. To add/edit a phone number to the speed list: 1. Menu → Names →▼ → Speed Dial. → ▼→ select an empty short number →Options → Set Entry. NamesSelect Back4. Erase All3. Search5. Speed Dial 2. Search Names → ▼→ select one contact → select a contact phone number. the contact number is now saved to Speed Dial Search NamesSelect Back Chuck Allyn DorisChuckSelect Back455667712345677788997 Menu NamesChina UnicomMoviestar

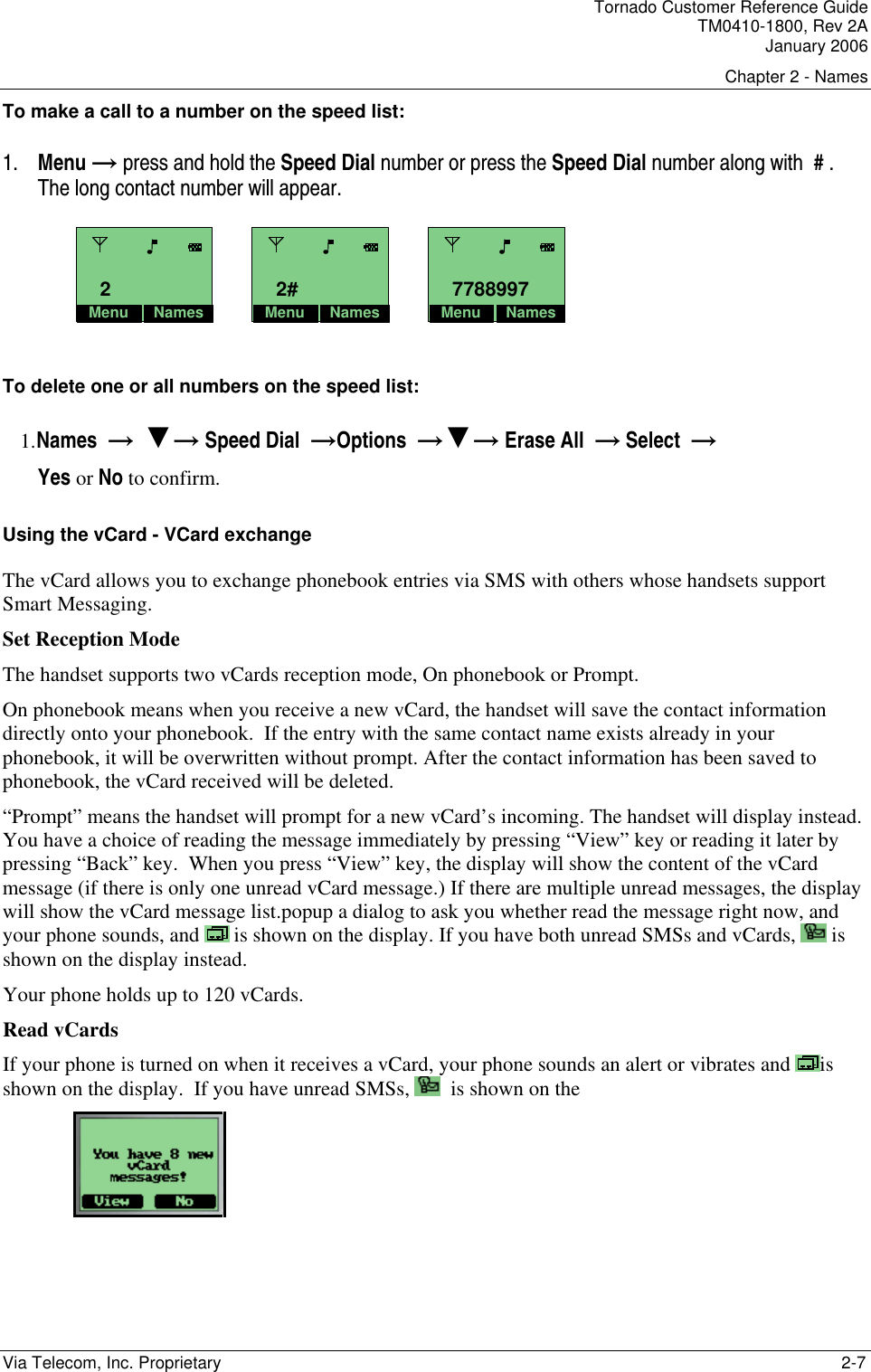

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 - Names Via Telecom, Inc. Proprietary 2-7 To make a call to a number on the speed list: 1. Menu → press and hold the Speed Dial number or press the Speed Dial number along with # . The long contact number will appear. To delete one or all numbers on the speed list: 1. Names → ▼→ Speed Dial →Options →▼→ Erase All → Select → Yes or No to confirm. Using the vCard - VCard exchange The vCard allows you to exchange phonebook entries via SMS with others whose handsets support Smart Messaging. Set Reception Mode The handset supports two vCards reception mode, On phonebook or Prompt. On phonebook means when you receive a new vCard, the handset will save the contact information directly onto your phonebook. If the entry with the same contact name exists already in your phonebook, it will be overwritten without prompt. After the contact information has been saved to phonebook, the vCard received will be deleted. “Prompt” means the handset will prompt for a new vCard’s incoming. The handset will display instead. You have a choice of reading the message immediately by pressing “View” key or reading it later by pressing “Back” key. When you press “View” key, the display will show the content of the vCard message (if there is only one unread vCard message.) If there are multiple unread messages, the display will show the vCard message list.popup a dialog to ask you whether read the message right now, and your phone sounds, and is shown on the display. If you have both unread SMSs and vCards, is shown on the display instead. Your phone holds up to 120 vCards. Read vCards If your phone is turned on when it receives a vCard, your phone sounds an alert or vibrates and is shown on the display. If you have unread SMSs, is shown on the Menu Names2Menu Names2#Menu Names7788997

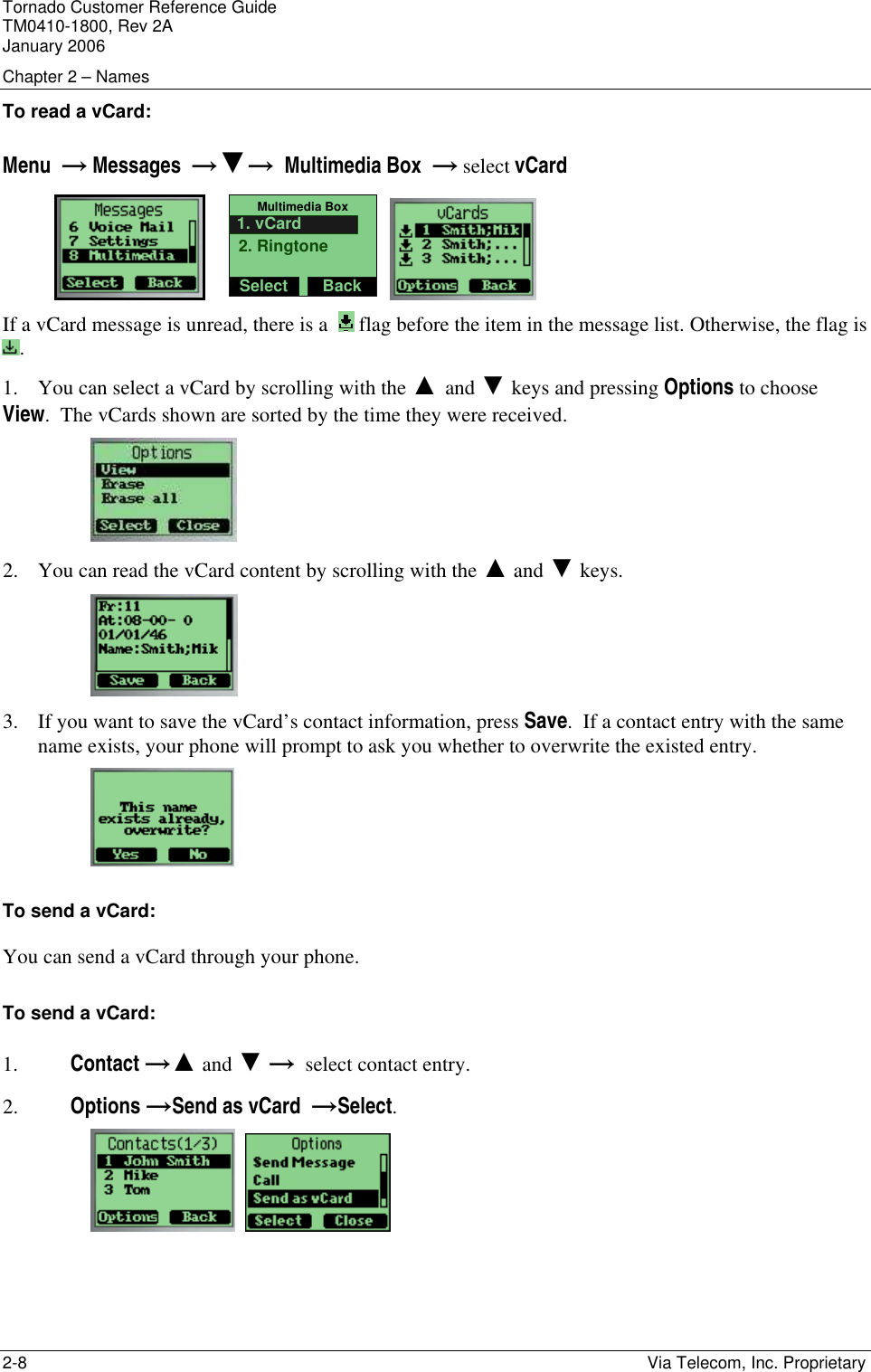

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 – Names 2-8 Via Telecom, Inc. Proprietary To read a vCard: Menu → Messages →▼→ Multimedia Box → select vCard Multimedia BoxSelect Back2. Ringtone1. vCard If a vCard message is unread, there is a flag before the item in the message list. Otherwise, the flag is . 1. You can select a vCard by scrolling with the ▲ and ▼ keys and pressing Options to choose View. The vCards shown are sorted by the time they were received. 2. You can read the vCard content by scrolling with the ▲ and ▼ keys. 3. If you want to save the vCard’s contact information, press Save. If a contact entry with the same name exists, your phone will prompt to ask you whether to overwrite the existed entry. To send a vCard: You can send a vCard through your phone. To send a vCard: 1. Contact →▲ and ▼ → select contact entry. 2. Options →Send as vCard →Select.

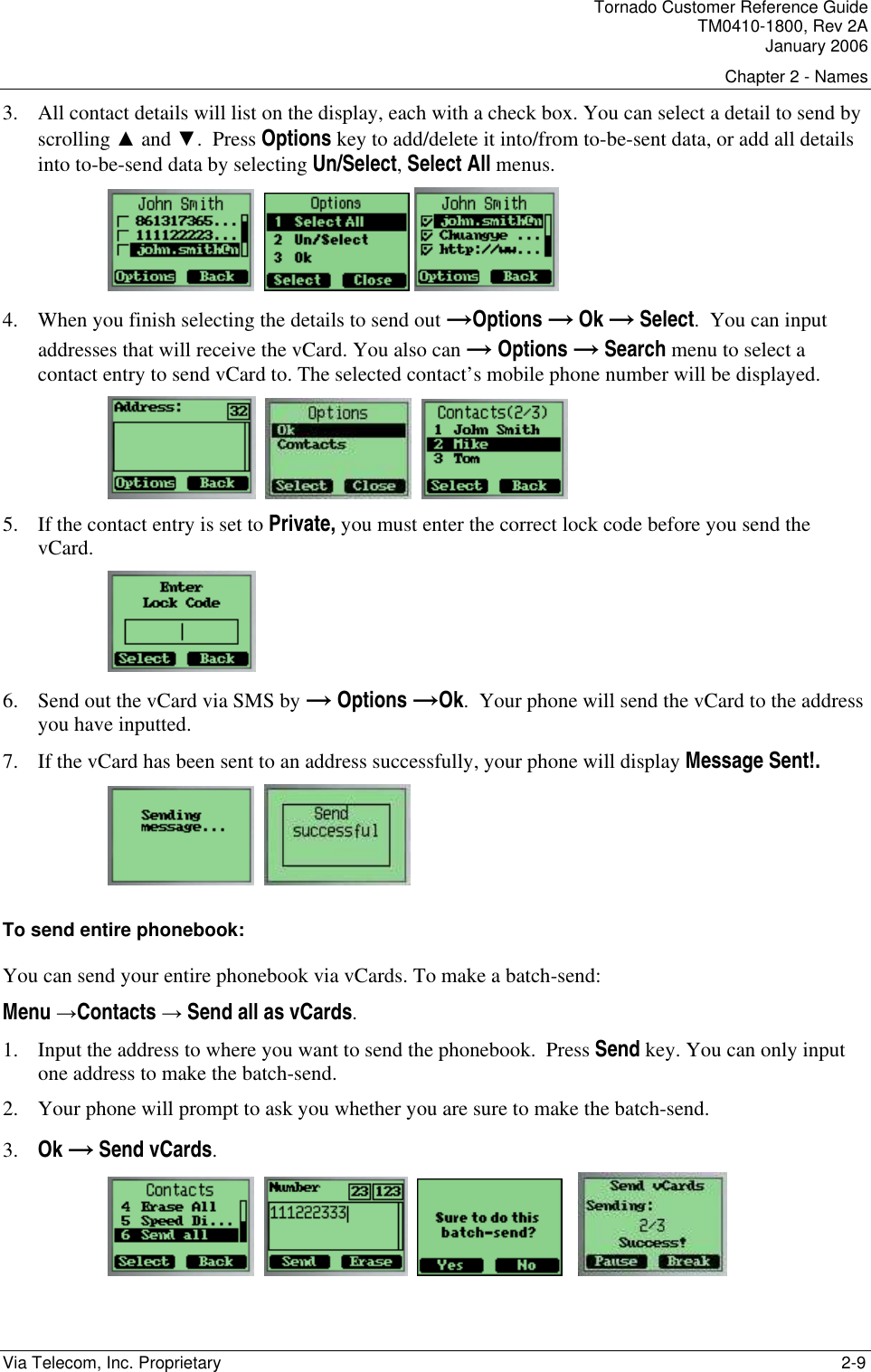

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 - Names Via Telecom, Inc. Proprietary 2-9 3. All contact details will list on the display, each with a check box. You can select a detail to send by scrolling ▲ and ▼. Press Options key to add/delete it into/from to-be-sent data, or add all details into to-be-send data by selecting Un/Select, Select All menus. 4. When you finish selecting the details to send out →Options → Ok → Select. You can input addresses that will receive the vCard. You also can → Options → Search menu to select a contact entry to send vCard to. The selected contact’s mobile phone number will be displayed. 5. If the contact entry is set to Private, you must enter the correct lock code before you send the vCard. 6. Send out the vCard via SMS by → Options →Ok. Your phone will send the vCard to the address you have inputted. 7. If the vCard has been sent to an address successfully, your phone will display Message Sent!. To send entire phonebook: You can send your entire phonebook via vCards. To make a batch-send: Menu →Contacts → Send all as vCards. 1. Input the address to where you want to send the phonebook. Press Send key. You can only input one address to make the batch-send. 2. Your phone will prompt to ask you whether you are sure to make the batch-send. 3. Ok → Send vCards.

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 2 – Names 2-10 Via Telecom, Inc. Proprietary Sending means the current status is sending. 2/3 means the phone is sending the second contact entry in phonebook. Success! means the previous contact entry in phonebook was sent out successfully. If there are errors in sending, your phone display message, Error, resend 1. Your phone will try to resend the vCard up to 10 times. If the vCard can’t be sent successfully in the end, this batch-send will be paused. You can continue this batch-send by pressing Continue key. You can manually pause a batch-send by pressing Pause key. You can break a batch-send by pressing the Break key. To delete vCards; You can delete vCards one by one or delete all vCards at once: 1. When you read vCards, select the vCard you want to delete by scrolling ▲ and ▼. If you want delete all of the vCards, select any one vCard. 2. Options → Erase if you want to delete this vCard. Select Erase All if you want to delete all of the vCards. Press Select. 3. Your phone will prompt to confirm erasing the vCard or erasing all the vCards. 4. Press Ok key. The vCard(s) will be deleted.

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 3-2 VIA Telecom, Inc Proprietary Chapter 3 Messages This chapter introduces the usage of Short Message and Ring Tone. Using Short Message You can use Short Message function to send and receive message. There is an Inbox and Outbox in your phone. Inbox and outbox can hold a maximum of 60 messages. Each message can contain a maximum of 160 characters. You can send the message now or later. To check for received text messages 1. When a new message comes, you will be noticed by means what you set at Setting → → → → profiles →→→→message prompt →→→→ You have 1 new message! will be displayed on screen. 2. Press to select View. Note: When you have a new message , an icon in idle screen to appears. Note: If your message memory is full, the icon will change to . To read a text message 1. Menu → → → → Messages →→→→ Inbox and select message. To erase a text message 1. Select the message →→→→ Option →→→→ Erase To send a text message 1. Menu →→→→ Messages → → → → New Message →→→→Options →→→→Send to edit the address → → → → Options →→→→Ok to send message .

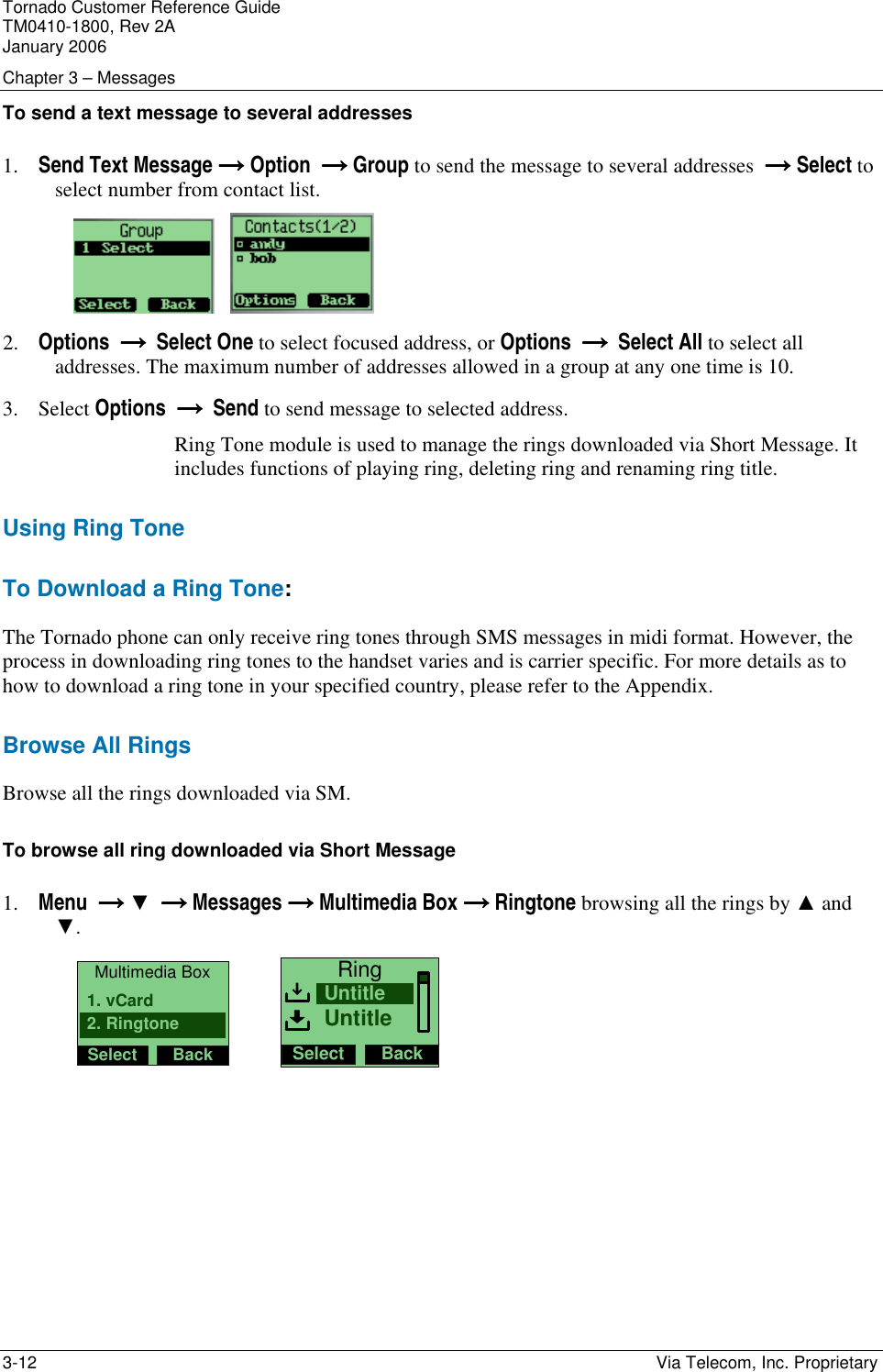

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 3 – Messages 3-12 Via Telecom, Inc. Proprietary To send a text message to several addresses 1. Send Text Message →→→→ Option → → → → Group to send the message to several addresses →→→→ Select to select number from contact list. 2. Options → → → → Select One to select focused address, or Options → → → → Select All to select all addresses. The maximum number of addresses allowed in a group at any one time is 10. 3. Select Options → → → → Send to send message to selected address. Ring Tone module is used to manage the rings downloaded via Short Message. It includes functions of playing ring, deleting ring and renaming ring title. Using Ring Tone To Download a Ring Tone: The Tornado phone can only receive ring tones through SMS messages in midi format. However, the process in downloading ring tones to the handset varies and is carrier specific. For more details as to how to download a ring tone in your specified country, please refer to the Appendix. Browse All Rings Browse all the rings downloaded via SM. To browse all ring downloaded via Short Message 1. Menu → → → → ▼ → → → → Messages → → → → Multimedia Box → → → → Ringtone browsing all the rings by ▲ and ▼. Multimedia BoxSelect Back2. Ringtone1. vCard RingSelect BackUntitleUntitle

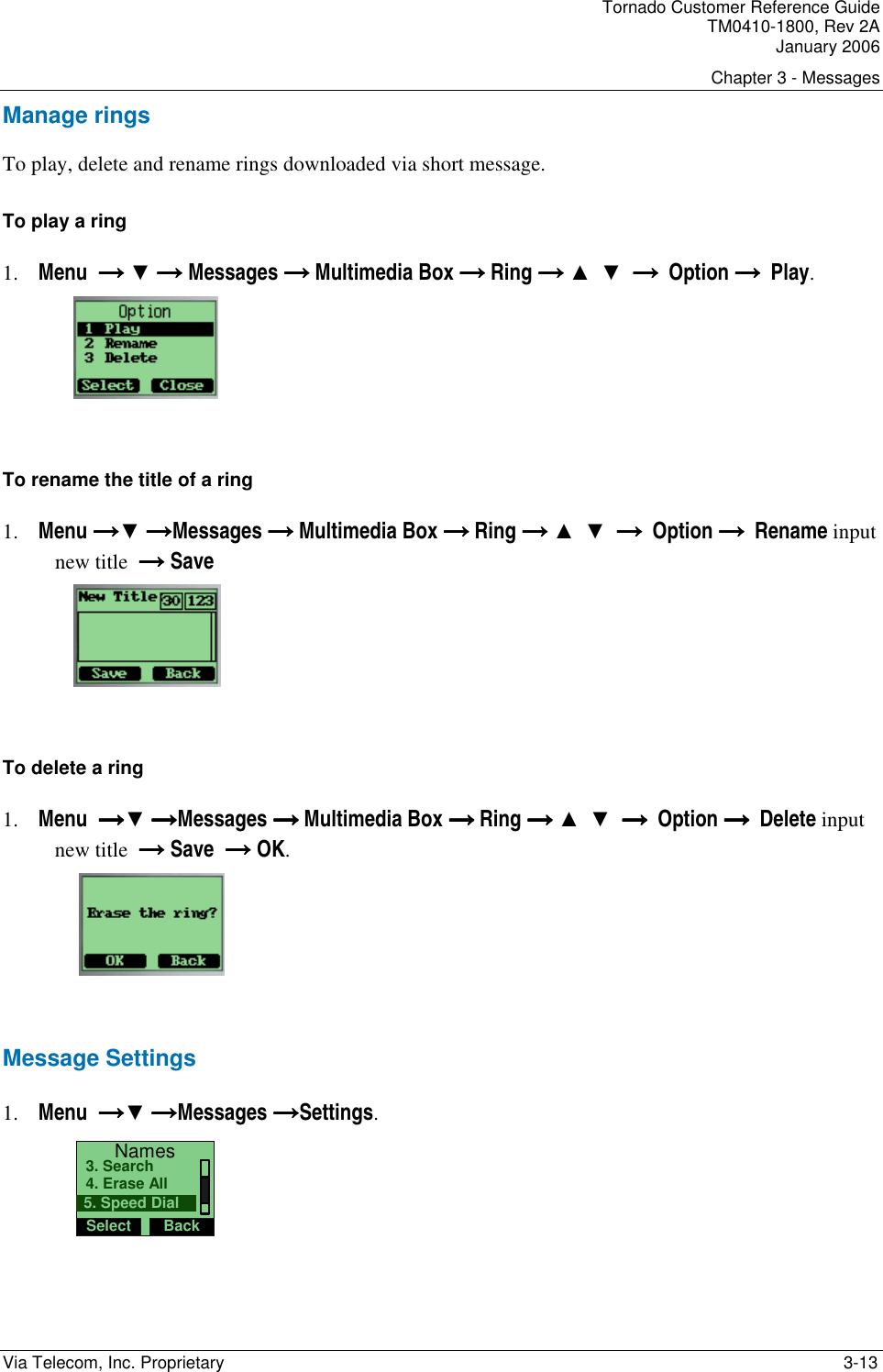

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 3 - Messages Via Telecom, Inc. Proprietary 3-13 Manage rings To play, delete and rename rings downloaded via short message. To play a ring 1. Menu →→→→ ▼ →→→→ Messages → → → → Multimedia Box → → → → Ring →→→→ ▲ ▼ → → → → Option → → → → Play. To rename the title of a ring 1. Menu →→→→▼ →→→→Messages → → → → Multimedia Box → → → → Ring →→→→ ▲ ▼ → → → → Option → → → → Rename input new title →→→→ Save To delete a ring 1. Menu →→→→▼ →→→→Messages → → → → Multimedia Box → → → → Ring →→→→ ▲ ▼ → → → → Option → → → → Delete input new title →→→→ Save →→→→ OK. Message Settings 1. Menu →→→→▼ →→→→Messages →→→→Settings. NamesSelect Back4. Erase All3. Search5. Speed Dial

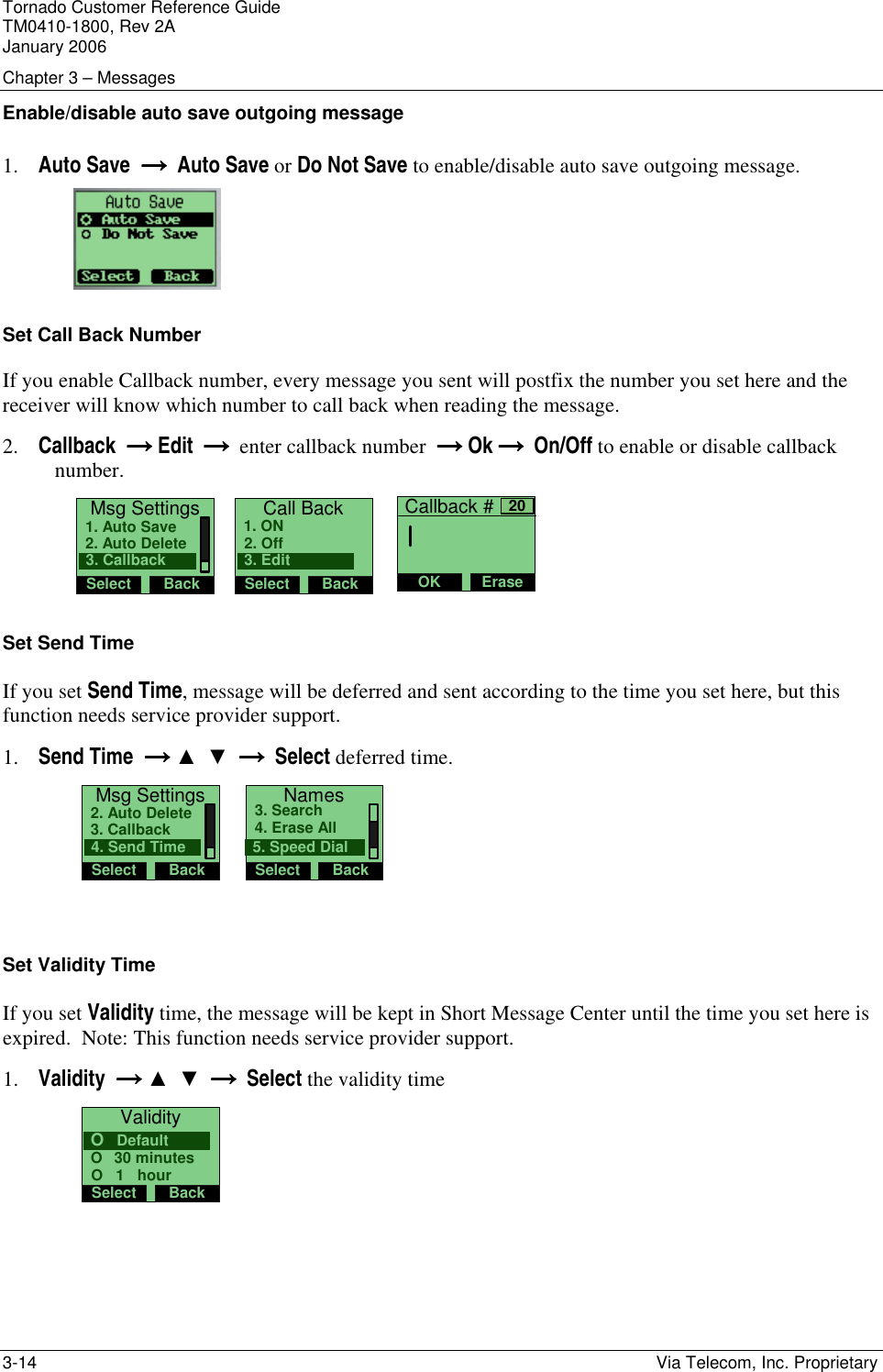

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 3 – Messages 3-14 Via Telecom, Inc. Proprietary Enable/disable auto save outgoing message 1. Auto Save → → → → Auto Save or Do Not Save to enable/disable auto save outgoing message. Set Call Back Number If you enable Callback number, every message you sent will postfix the number you set here and the receiver will know which number to call back when reading the message. 2. Callback → → → → Edit → → → → enter callback number → → → → Ok → → → → On/Off to enable or disable callback number. Msg SettingsSelect Back2. Auto Delete1. Auto Save3. Callback Call BackSelect Back2. Off1. ON3. Edit Callback #OK Erase20 Set Send Time If you set Send Time, message will be deferred and sent according to the time you set here, but this function needs service provider support. 1. Send Time →→→→ ▲ ▼ → → → → Select deferred time. Msg SettingsSelect Back3. Callback2. Auto Delete4. Send Time NamesSelect Back4. Erase All3. Search5. Speed Dial Set Validity Time If you set Validity time, the message will be kept in Short Message Center until the time you set here is expired. Note: This function needs service provider support. 1. Validity →→→→ ▲ ▼ → → → → Select the validity time ValiditySelect BackO 30 minutesO DefaultO 1 hour

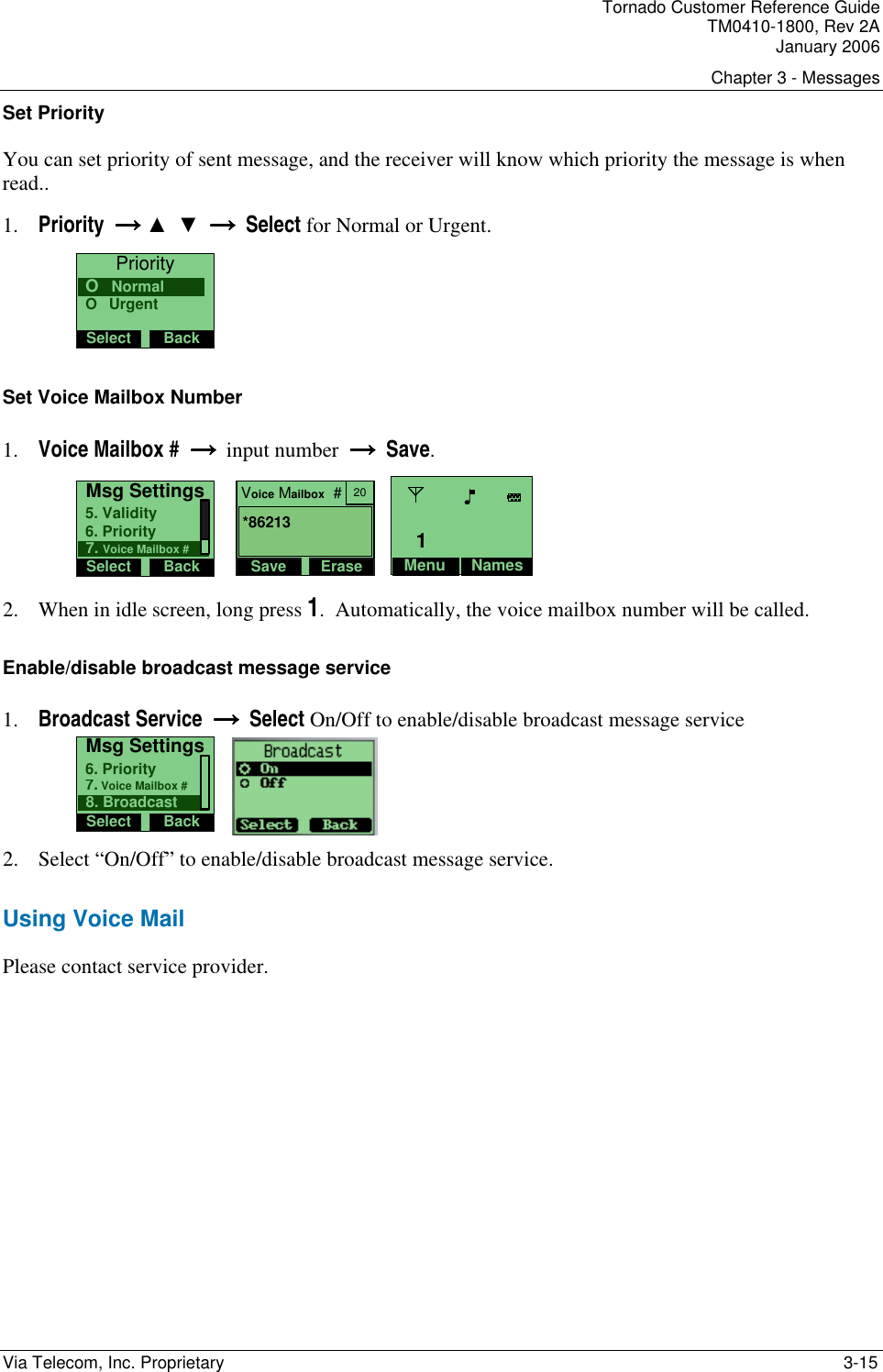

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 3 - Messages Via Telecom, Inc. Proprietary 3-15 Set Priority You can set priority of sent message, and the receiver will know which priority the message is when read.. 1. Priority →→→→ ▲ ▼ → → → → Select for Normal or Urgent. PrioritySelect BackO UrgentO Normal Set Voice Mailbox Number 1. Voice Mailbox # → → → → input number → → → → Save. Msg SettingsSelect Back6. Priority5. Validity7. Voice Mailbox # Voice Mailbox #Save Erase20*86213 Menu Names1 2. When in idle screen, long press 1. Automatically, the voice mailbox number will be called. Enable/disable broadcast message service 1. Broadcast Service → → → → Select On/Off to enable/disable broadcast message service Msg SettingsSelect Back7. Voice Mailbox #6. Priority8. Broadcast 2. Select “On/Off” to enable/disable broadcast message service. Using Voice Mail Please contact service provider.

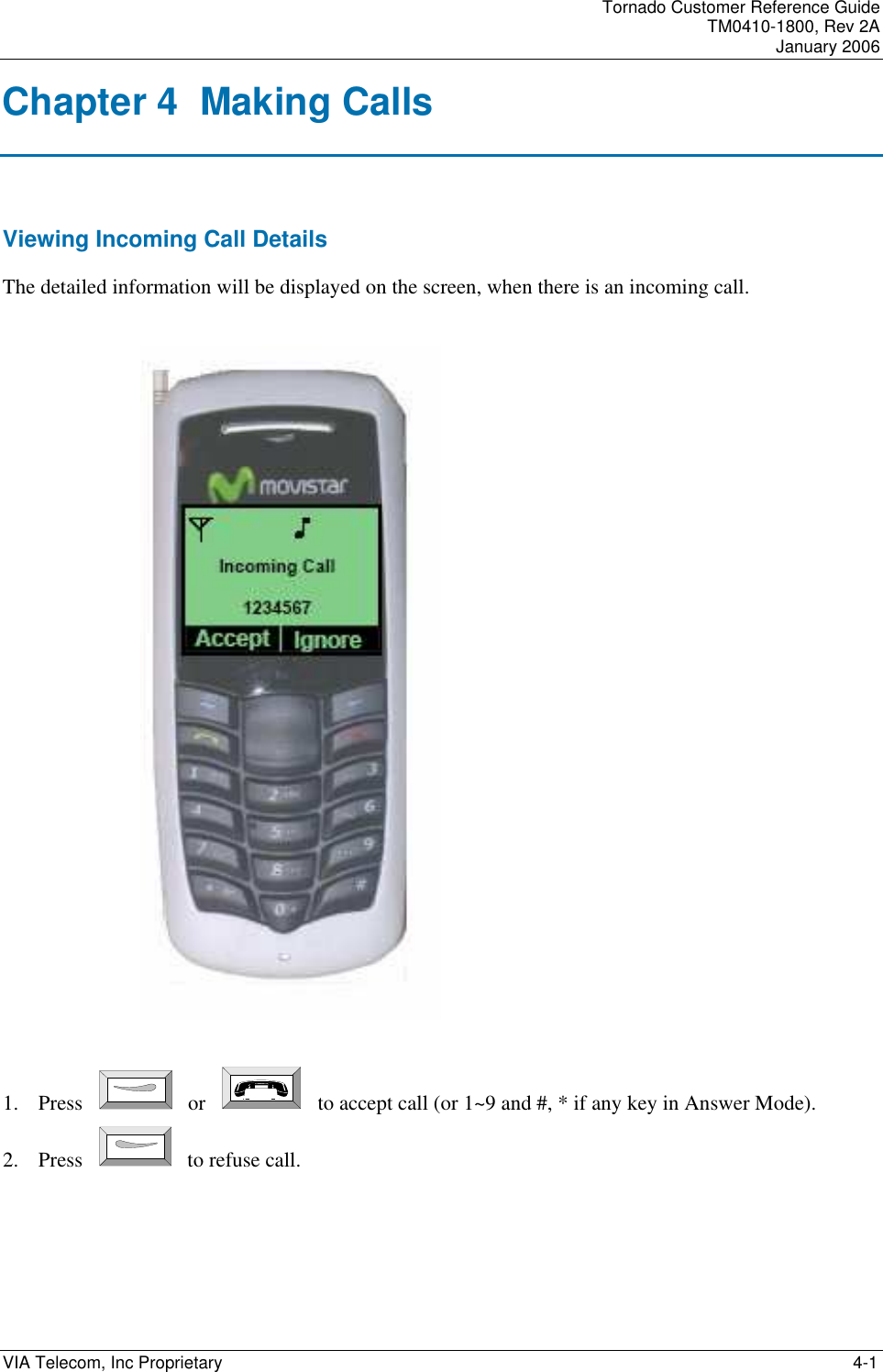

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 VIA Telecom, Inc Proprietary 4-1 Chapter 4 Making Calls Viewing Incoming Call Details The detailed information will be displayed on the screen, when there is an incoming call. 1. Press or to accept call (or 1~9 and #, * if any key in Answer Mode). 2. Press to refuse call.

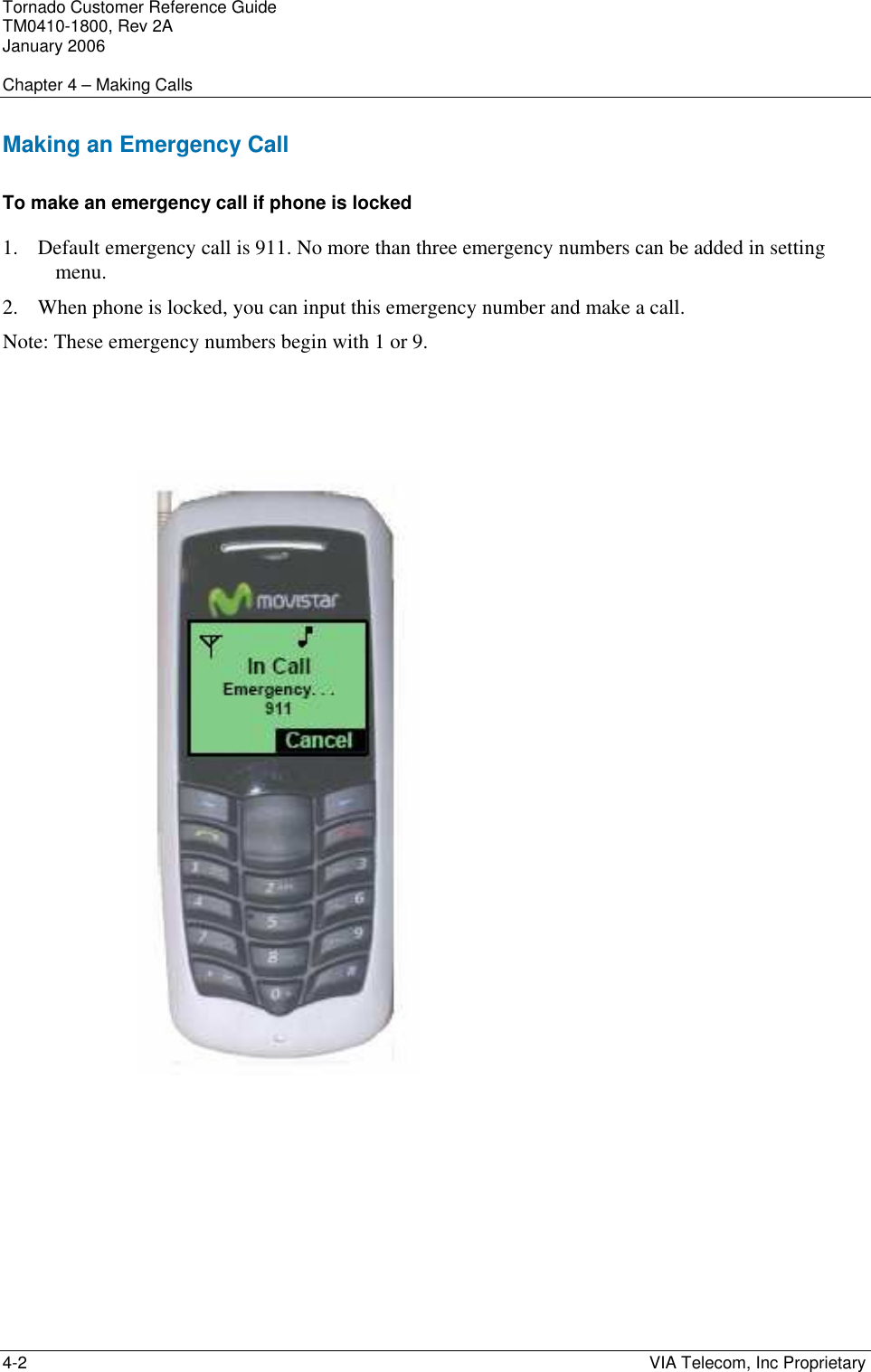

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 4 – Making Calls 4-2 VIA Telecom, Inc Proprietary Making an Emergency Call To make an emergency call if phone is locked 1. Default emergency call is 911. No more than three emergency numbers can be added in setting menu. 2. When phone is locked, you can input this emergency number and make a call. Note: These emergency numbers begin with 1 or 9.

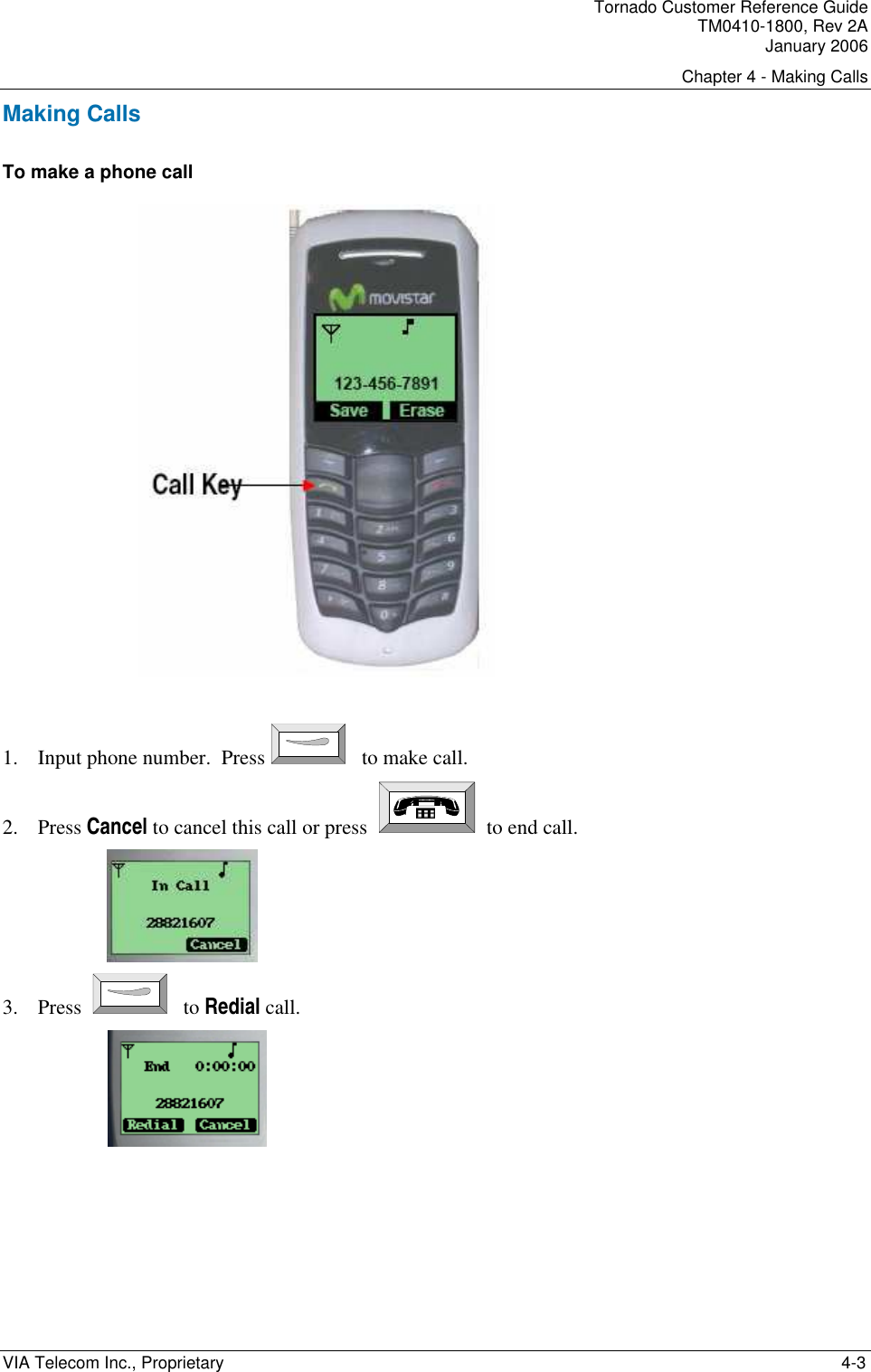

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 4 - Making Calls VIA Telecom Inc., Proprietary 4-3 Making Calls To make a phone call 1. Input phone number. Press to make call. 2. Press Cancel to cancel this call or press to end call. 3. Press to Redial call.

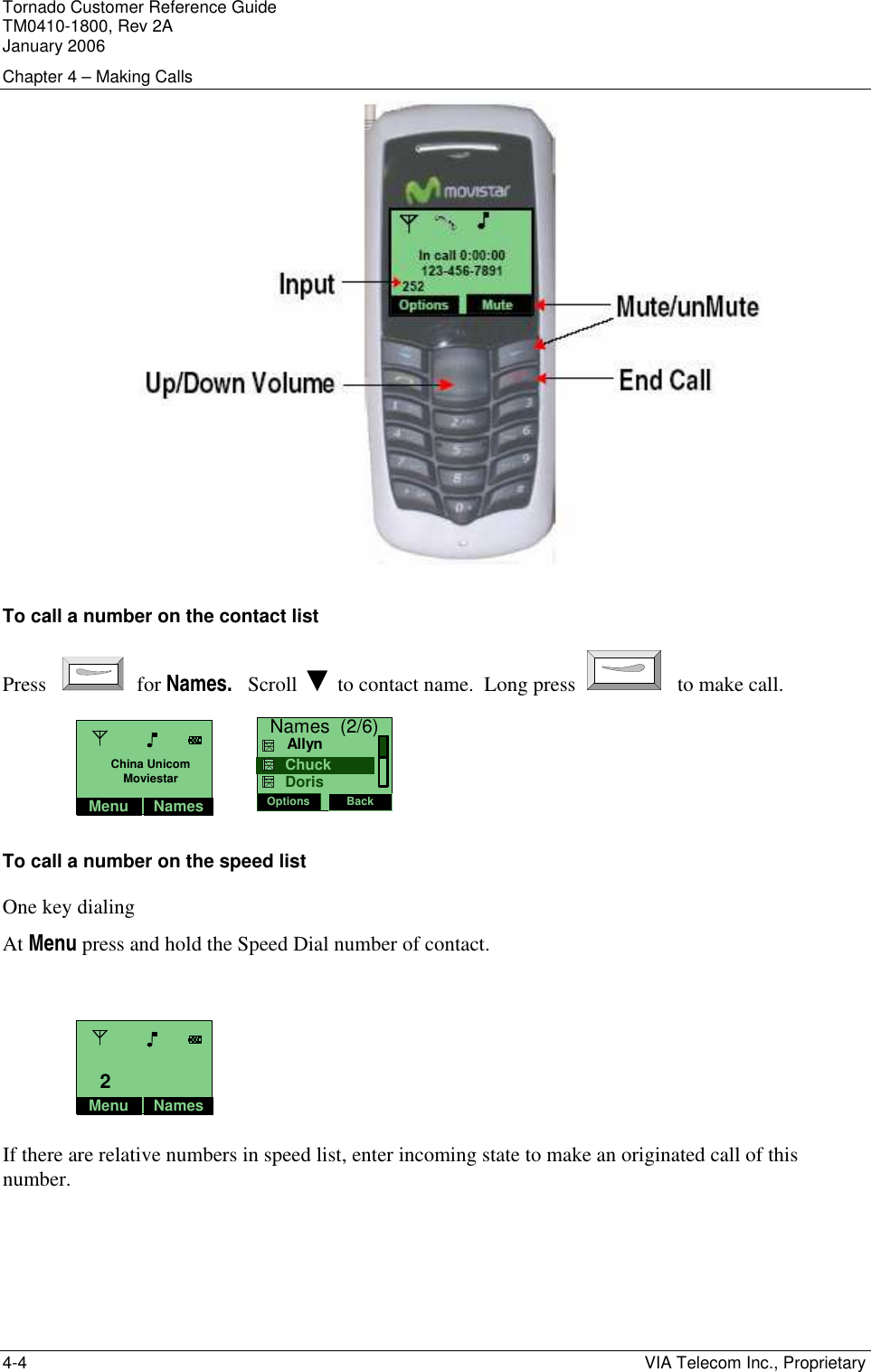

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 4 – Making Calls 4-4 VIA Telecom Inc., Proprietary To call a number on the contact list Press for Names. Scroll ▼ to contact name. Long press to make call. Names (2/6)Options Back Chuck Allyn Doris To call a number on the speed list One key dialing At Menu press and hold the Speed Dial number of contact. If there are relative numbers in speed list, enter incoming state to make an originated call of this number. Menu NamesChina UnicomMoviestarMenu Names2

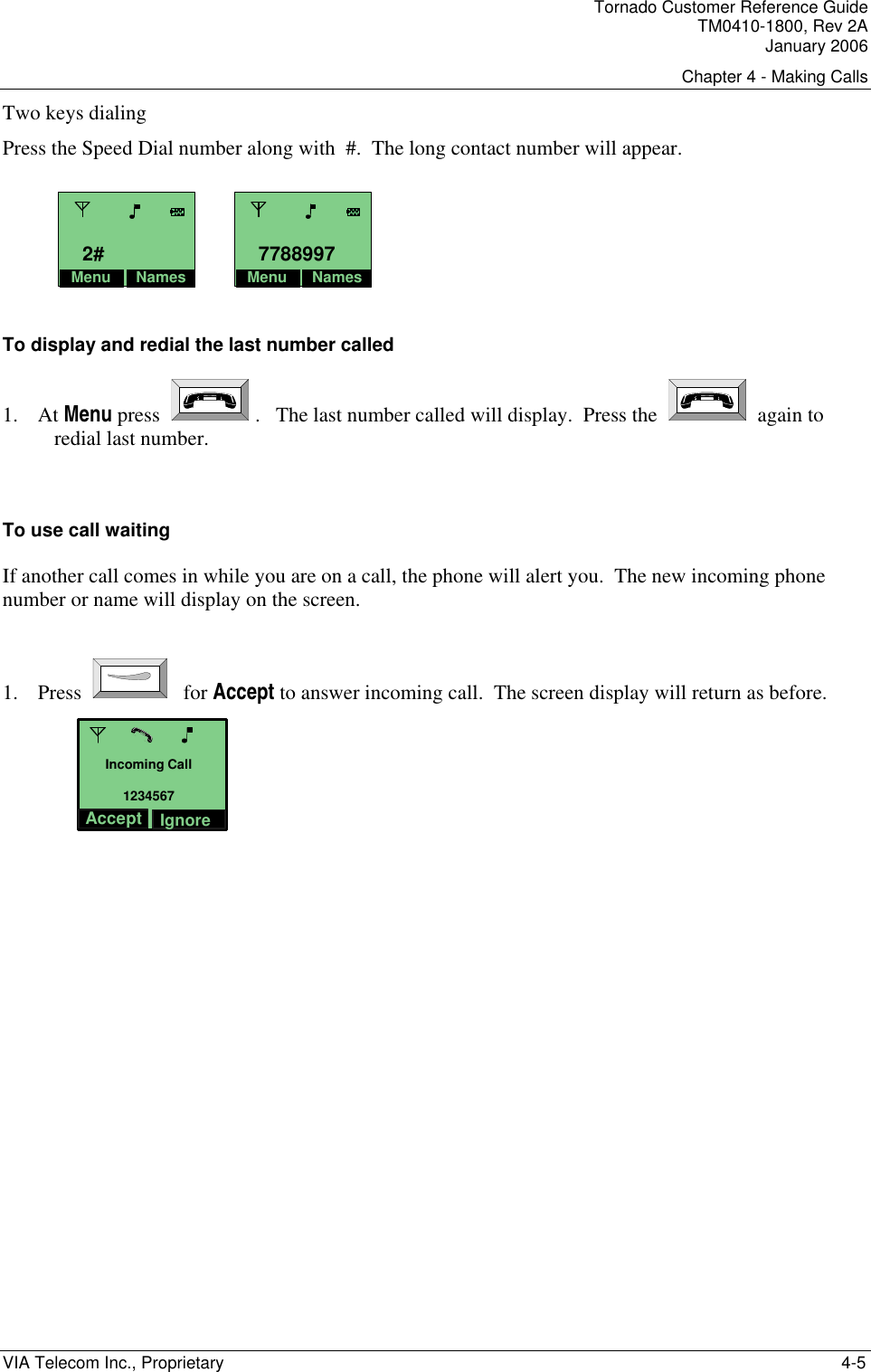

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 4 - Making Calls VIA Telecom Inc., Proprietary 4-5 Two keys dialing Press the Speed Dial number along with #. The long contact number will appear. To display and redial the last number called 1. At Menu press . The last number called will display. Press the again to redial last number. To use call waiting If another call comes in while you are on a call, the phone will alert you. The new incoming phone number or name will display on the screen. 1. Press for Accept to answer incoming call. The screen display will return as before. Incoming Call1234567IgnoreAccept Menu Names2#Menu Names7788997

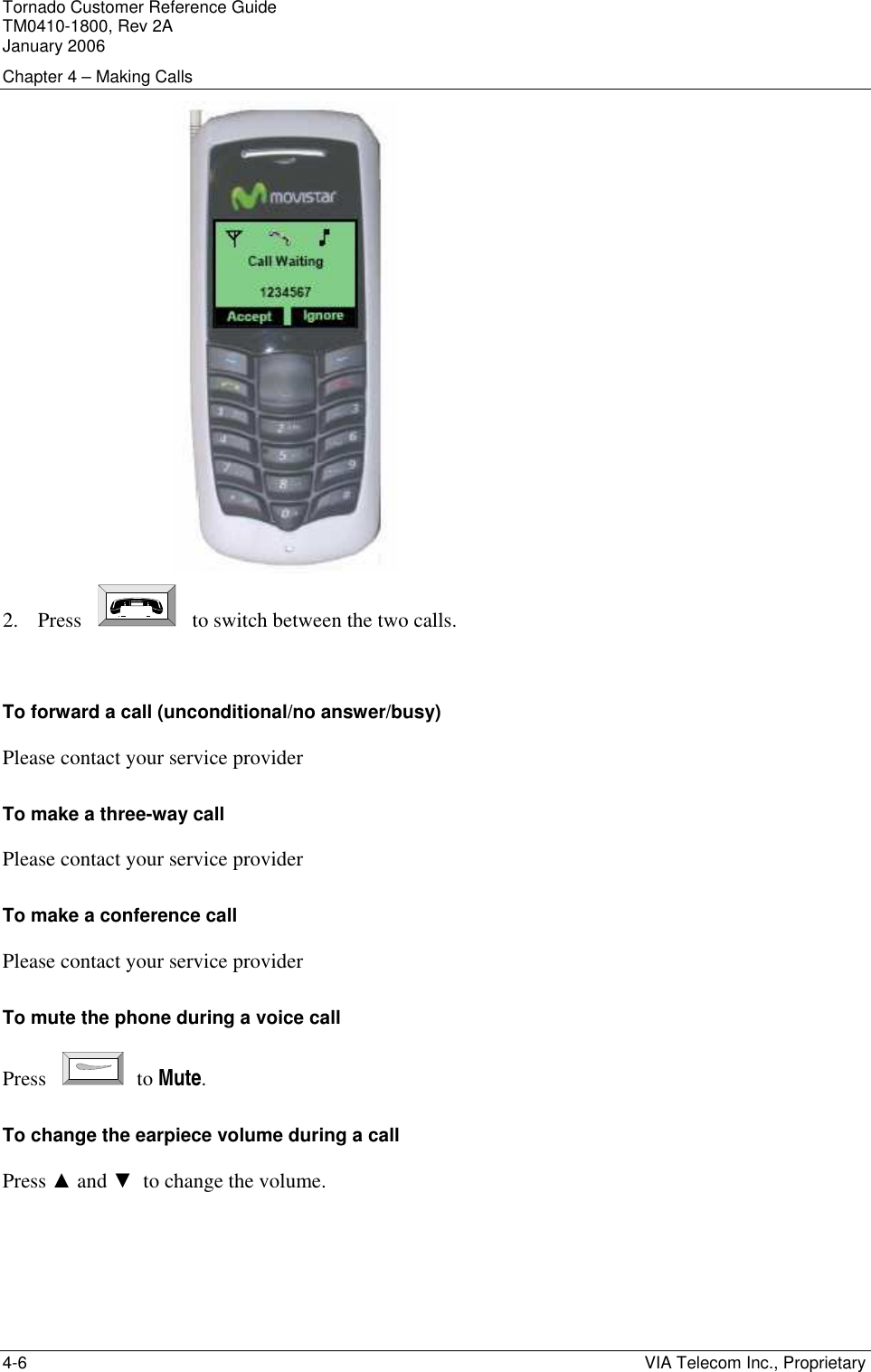

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 4 – Making Calls 4-6 VIA Telecom Inc., Proprietary 2. Press to switch between the two calls. To forward a call (unconditional/no answer/busy) Please contact your service provider To make a three-way call Please contact your service provider To make a conference call Please contact your service provider To mute the phone during a voice call Press to Mute. To change the earpiece volume during a call Press ▲ and ▼ to change the volume.

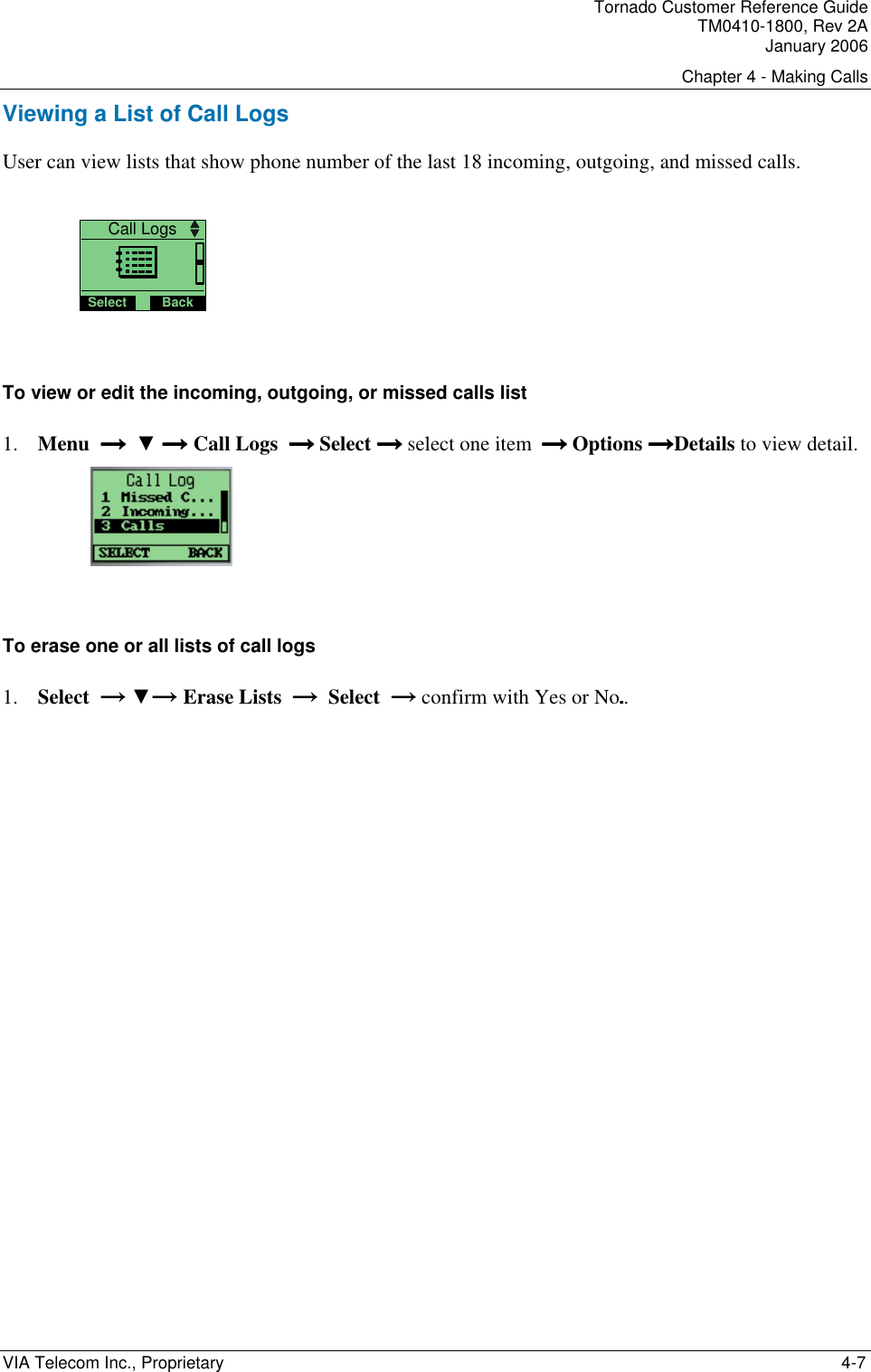

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 4 - Making Calls VIA Telecom Inc., Proprietary 4-7 Viewing a List of Call Logs User can view lists that show phone number of the last 18 incoming, outgoing, and missed calls. Call LogsSelect Back To view or edit the incoming, outgoing, or missed calls list 1. Menu → → → → ▼ →→→→ Call Logs → → → → Select → → → → select one item → → → → Options →→→→Details to view detail. To erase one or all lists of call logs 1. Select → ▼→ Erase Lists → Select → confirm with Yes or No..

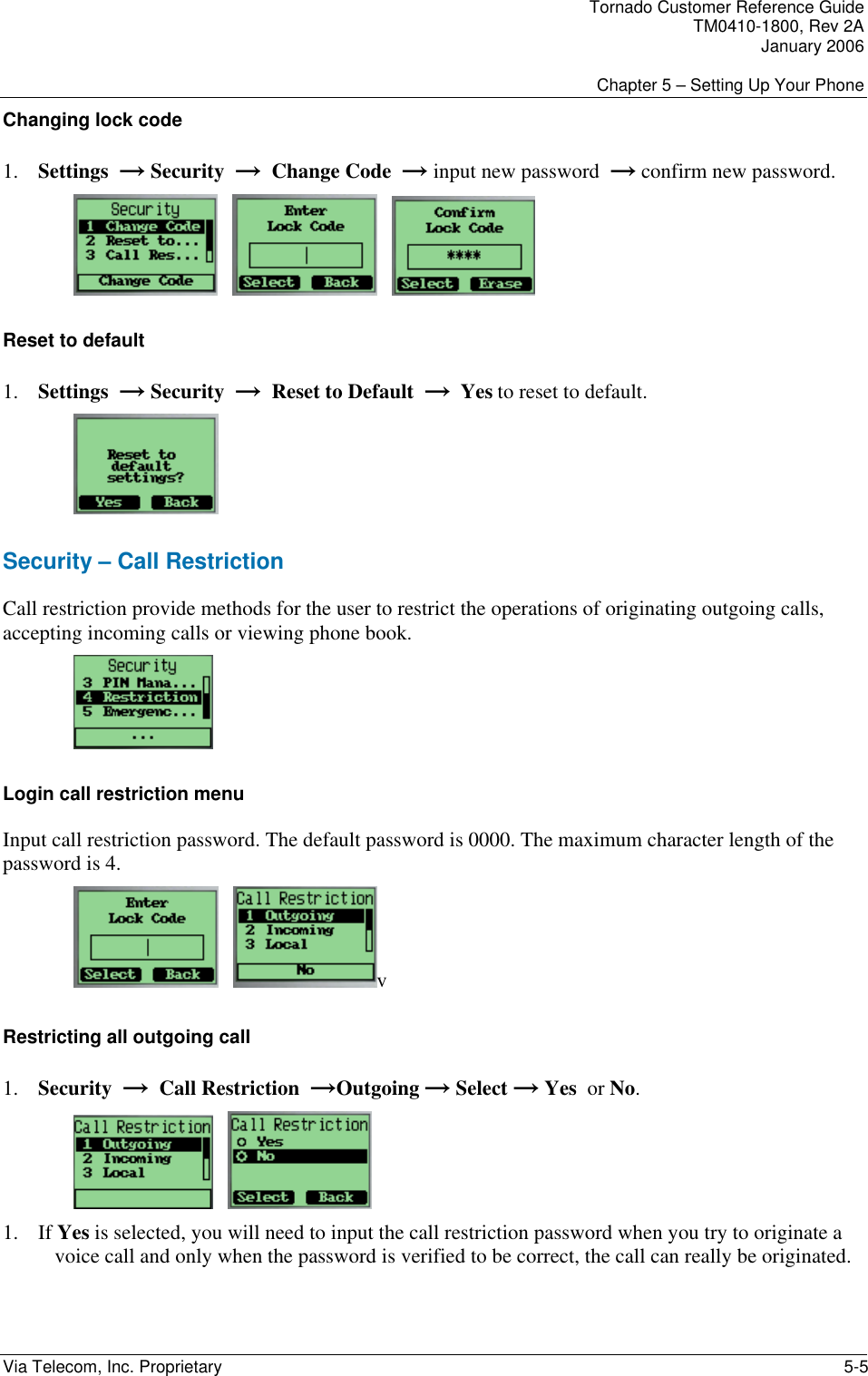

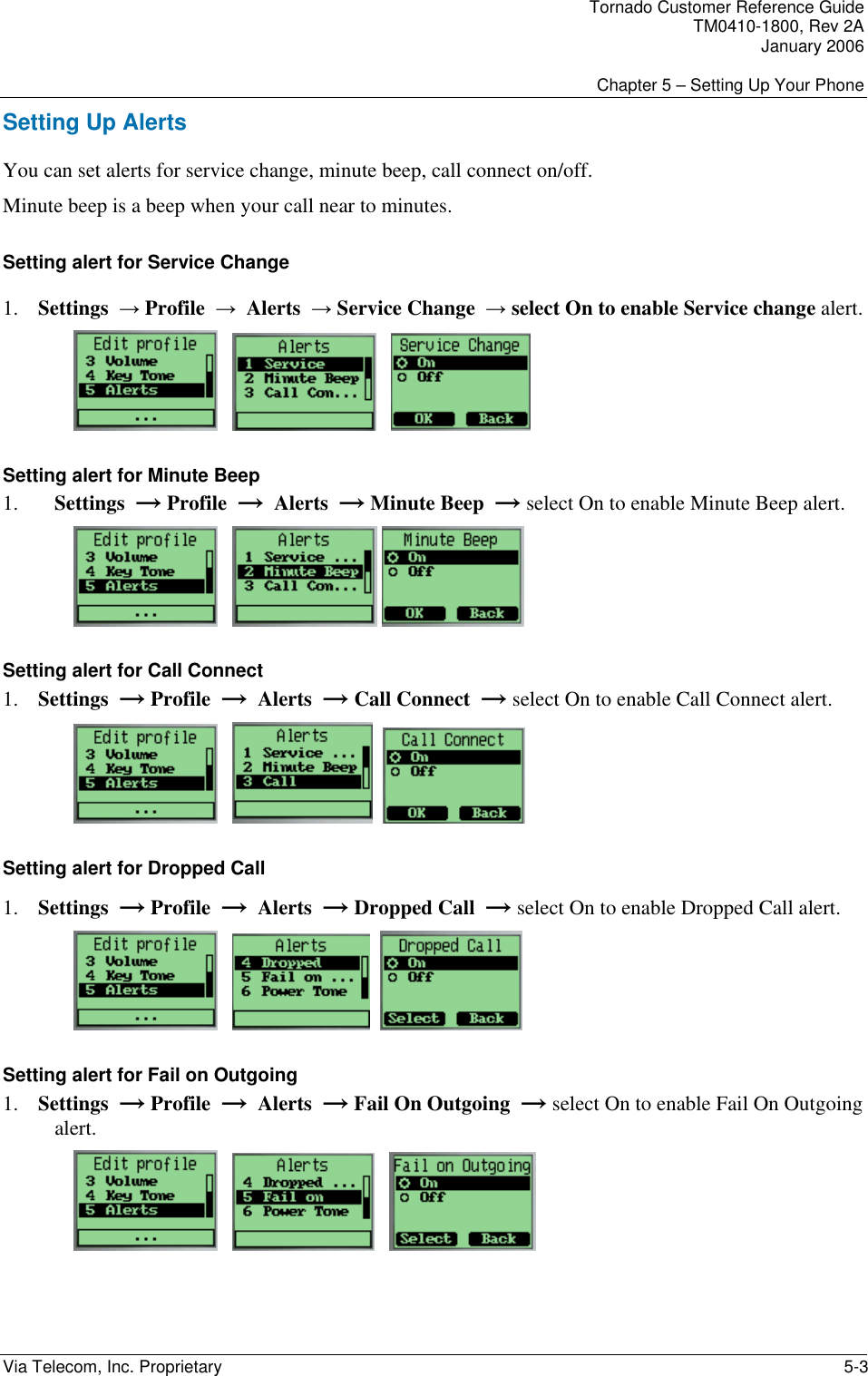

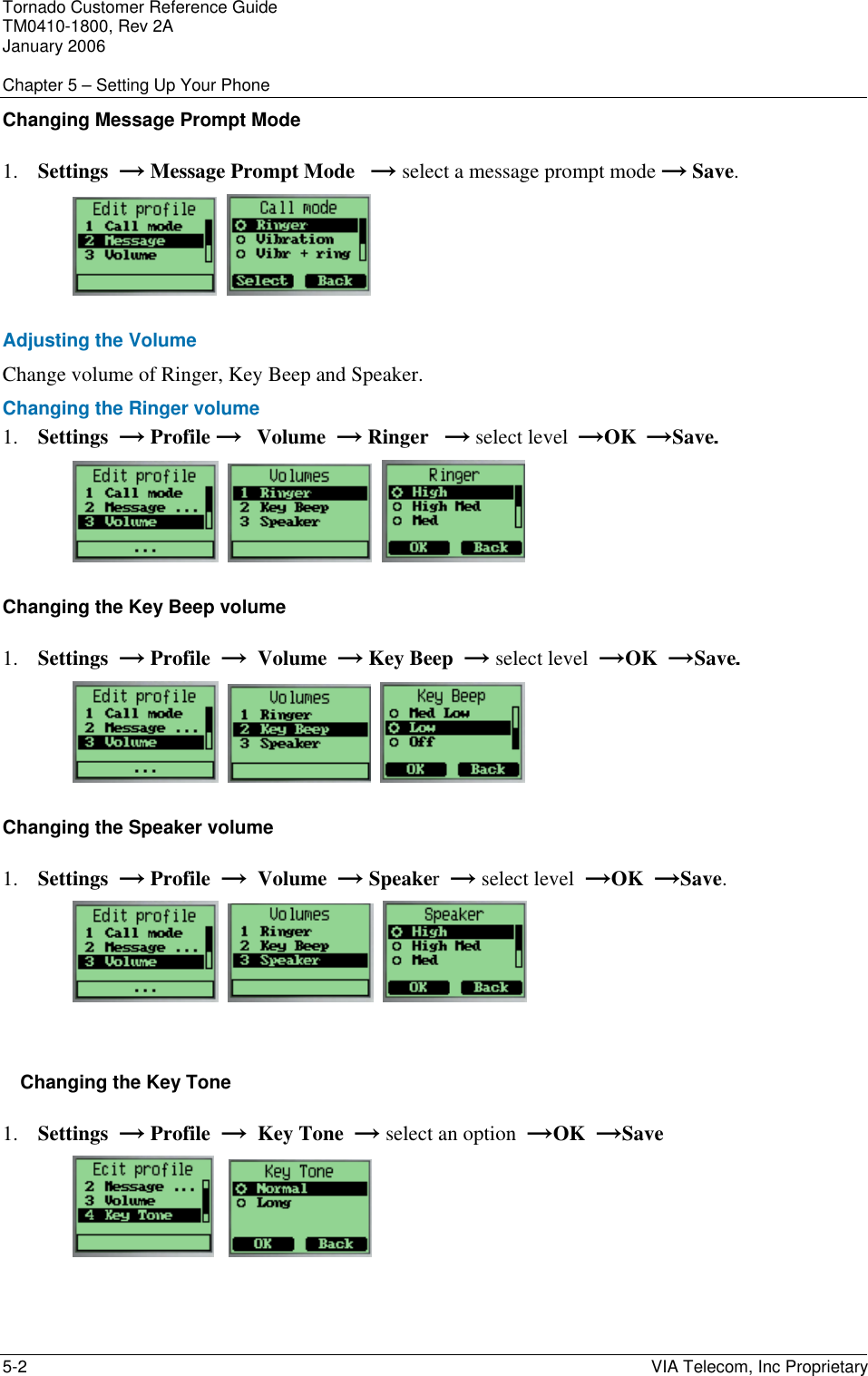

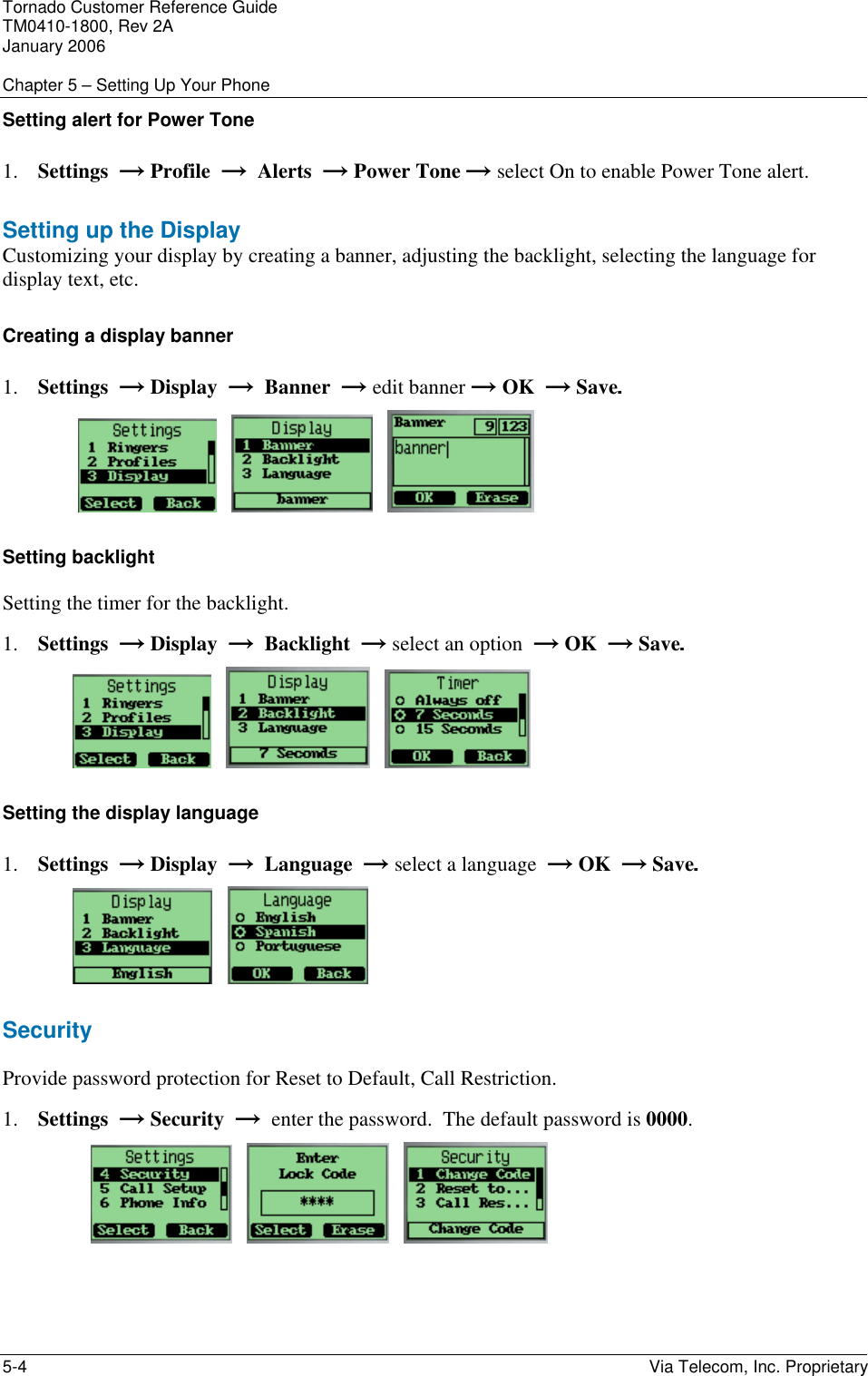

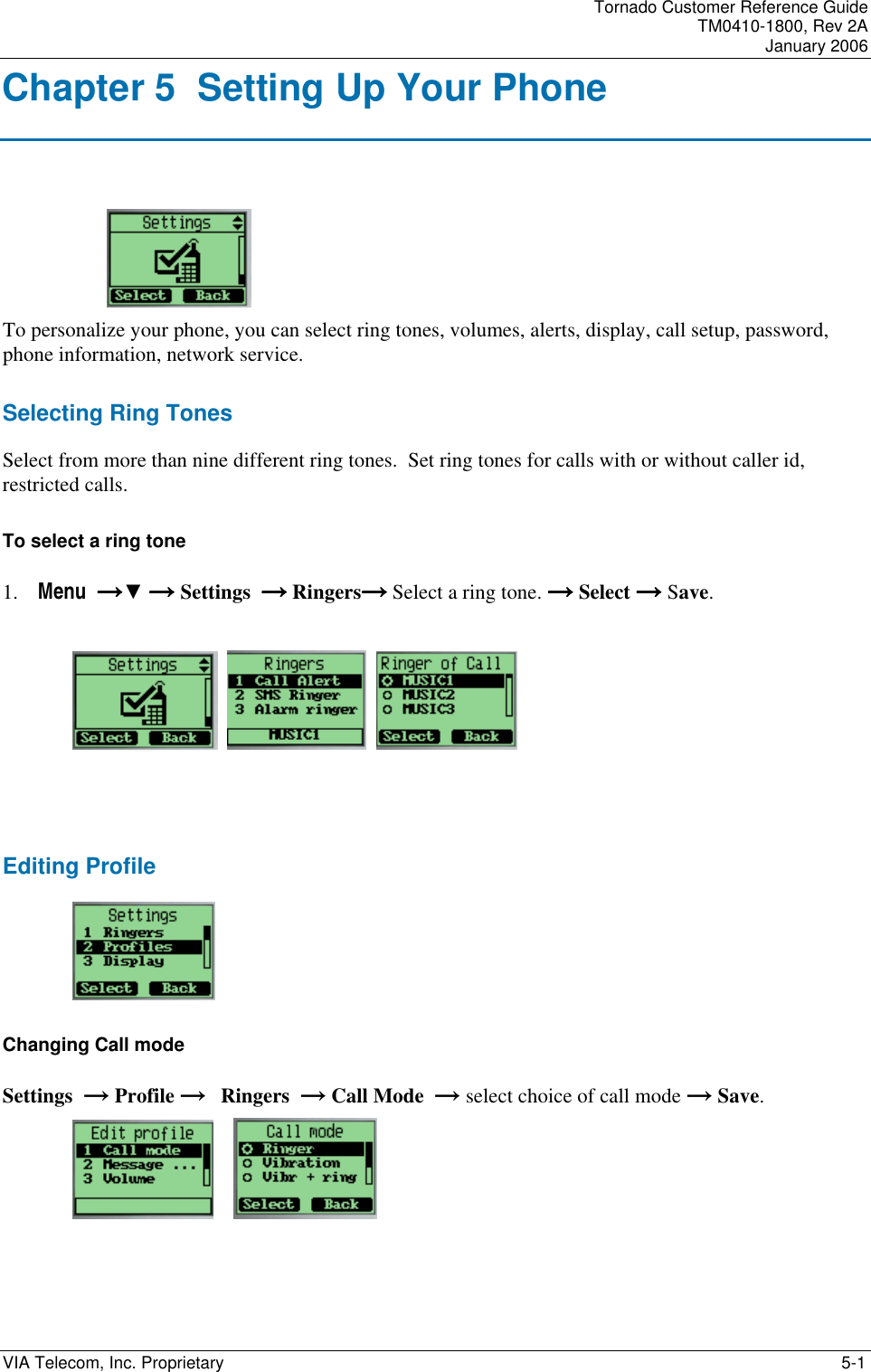

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 5 – Setting Up Your Phone Via Telecom, Inc. Proprietary 5-5 Changing lock code 1. Settings → Security → Change Code → input new password → confirm new password. Reset to default 1. Settings → Security → Reset to Default → Yes to reset to default. Security – Call Restriction Call restriction provide methods for the user to restrict the operations of originating outgoing calls, accepting incoming calls or viewing phone book. Login call restriction menu Input call restriction password. The default password is 0000. The maximum character length of the password is 4. v Restricting all outgoing call 1. Security → Call Restriction →Outgoing → Select → Yes or No. 1. If Yes is selected, you will need to input the call restriction password when you try to originate a voice call and only when the password is verified to be correct, the call can really be originated.

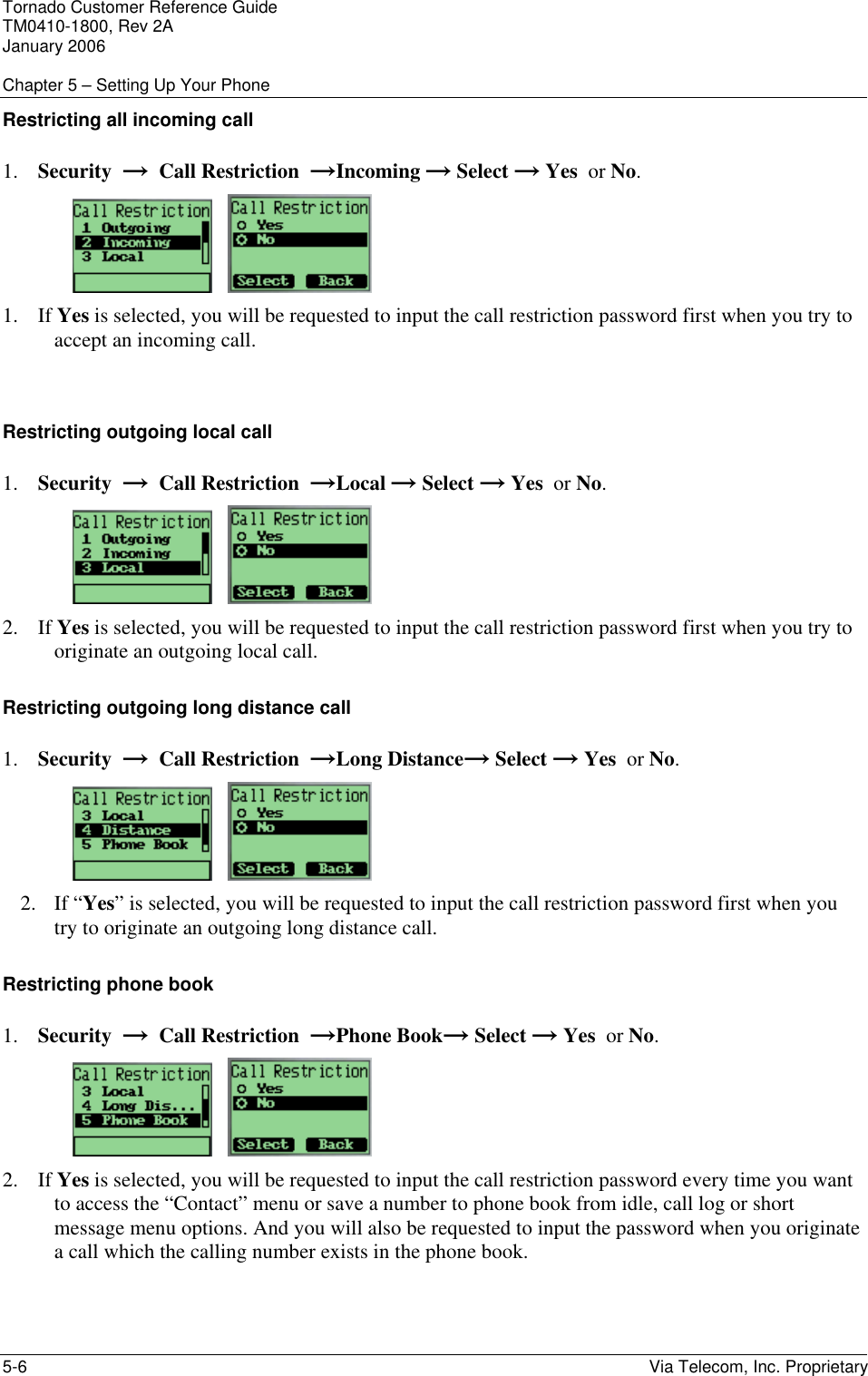

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 5 – Setting Up Your Phone 5-6 Via Telecom, Inc. Proprietary Restricting all incoming call 1. Security → Call Restriction →Incoming → Select → Yes or No. 1. If Yes is selected, you will be requested to input the call restriction password first when you try to accept an incoming call. Restricting outgoing local call 1. Security → Call Restriction →Local → Select → Yes or No. 2. If Yes is selected, you will be requested to input the call restriction password first when you try to originate an outgoing local call. Restricting outgoing long distance call 1. Security → Call Restriction →Long Distance→ Select → Yes or No. 2. If “Yes” is selected, you will be requested to input the call restriction password first when you try to originate an outgoing long distance call. Restricting phone book 1. Security → Call Restriction →Phone Book→ Select → Yes or No. 2. If Yes is selected, you will be requested to input the call restriction password every time you want to access the “Contact” menu or save a number to phone book from idle, call log or short message menu options. And you will also be requested to input the password when you originate a call which the calling number exists in the phone book.

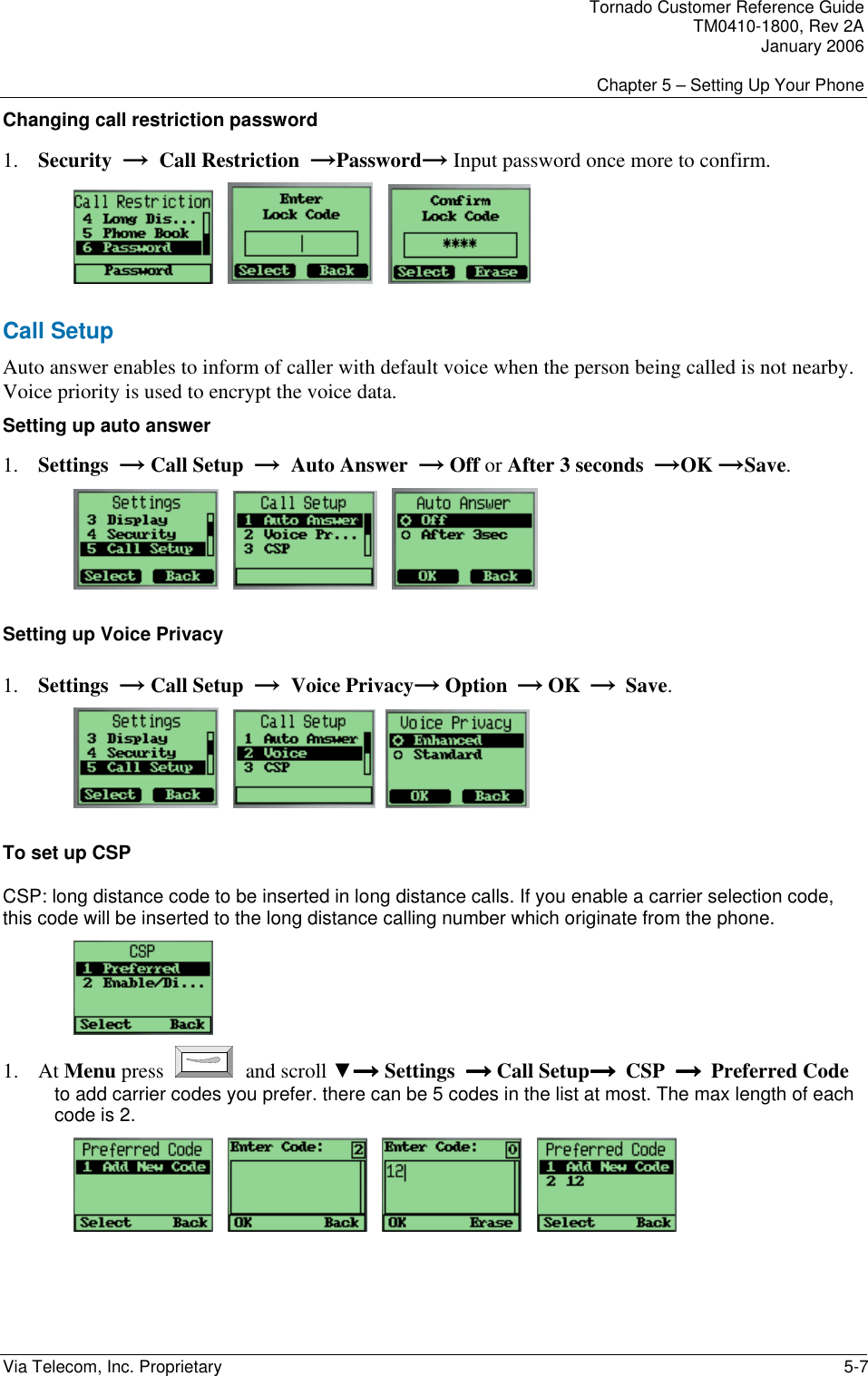

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 5 – Setting Up Your Phone Via Telecom, Inc. Proprietary 5-7 Changing call restriction password 1. Security → Call Restriction →Password→ Input password once more to confirm. Call Setup Auto answer enables to inform of caller with default voice when the person being called is not nearby. Voice priority is used to encrypt the voice data. Setting up auto answer 1. Settings → Call Setup → Auto Answer → Off or After 3 seconds →OK →Save. Setting up Voice Privacy 1. Settings → Call Setup → Voice Privacy→ Option → OK → Save. To set up CSP CSP: long distance code to be inserted in long distance calls. If you enable a carrier selection code, this code will be inserted to the long distance calling number which originate from the phone. 1. At Menu press and scroll ▼→→→→ Settings → → → → Call Setup→ → → → CSP → → → → Preferred Code to add carrier codes you prefer. there can be 5 codes in the list at most. The max length of each code is 2.

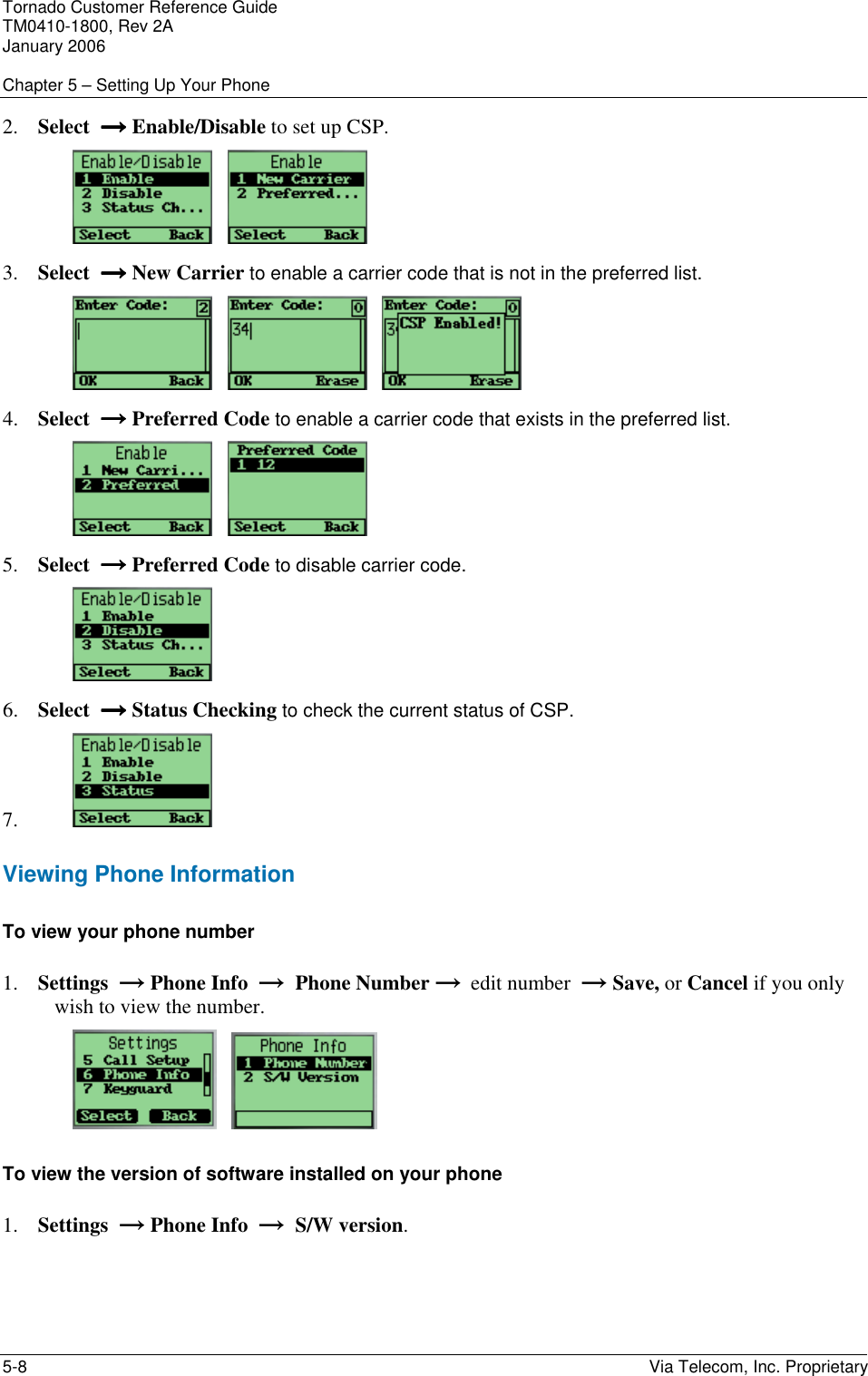

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 5 – Setting Up Your Phone 5-8 Via Telecom, Inc. Proprietary 2. Select →→→→ Enable/Disable to set up CSP. 3. Select →→→→ New Carrier to enable a carrier code that is not in the preferred list. 4. Select →→→→ Preferred Code to enable a carrier code that exists in the preferred list. 5. Select →→→→ Preferred Code to disable carrier code. 6. Select →→→→ Status Checking to check the current status of CSP. 7. Viewing Phone Information To view your phone number 1. Settings → Phone Info → Phone Number → edit number → Save, or Cancel if you only wish to view the number. To view the version of software installed on your phone 1. Settings → Phone Info → S/W version.

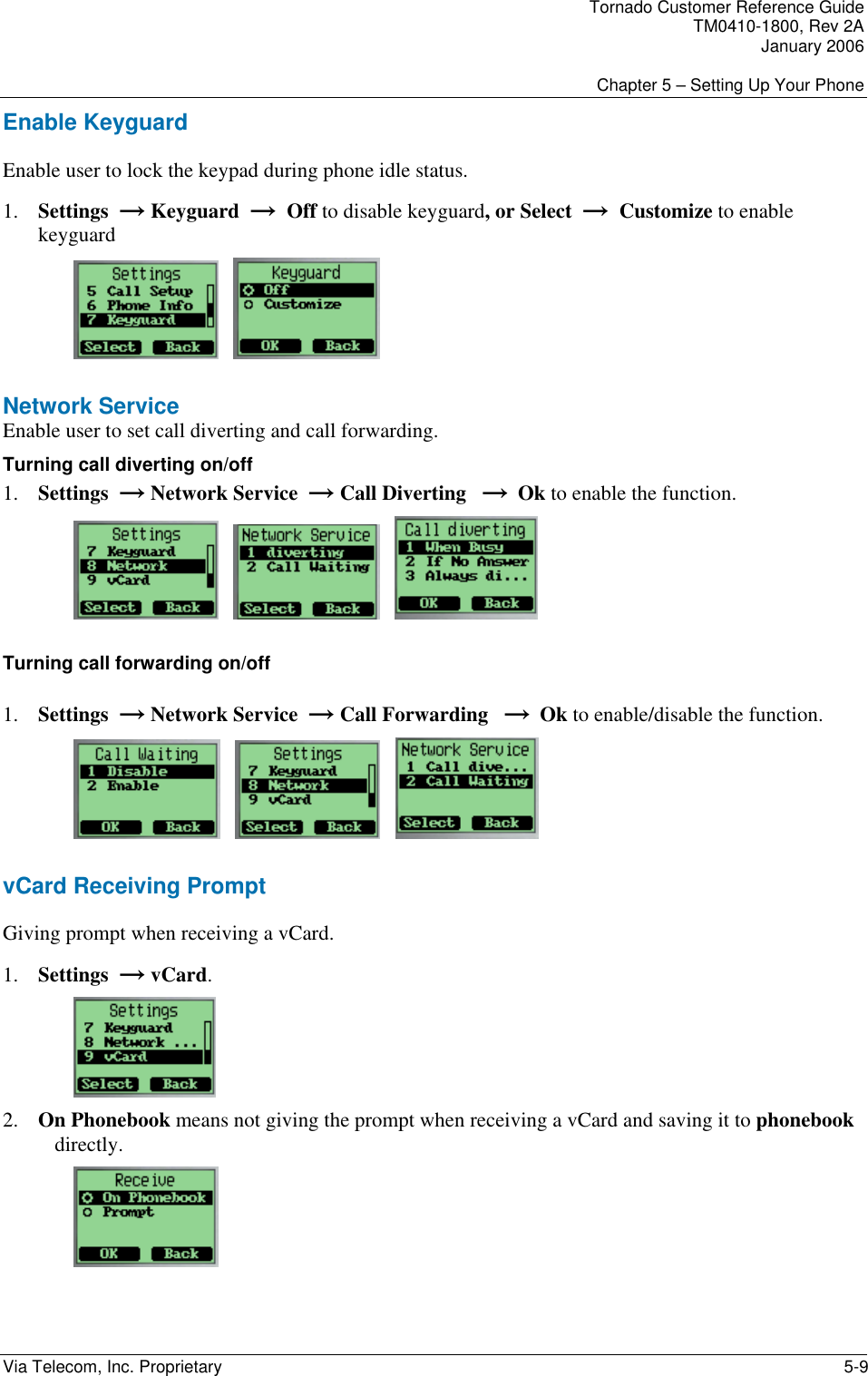

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 5 – Setting Up Your Phone Via Telecom, Inc. Proprietary 5-9 Enable Keyguard Enable user to lock the keypad during phone idle status. 1. Settings → Keyguard → Off to disable keyguard, or Select → Customize to enable keyguard Network Service Enable user to set call diverting and call forwarding. Turning call diverting on/off 1. Settings → Network Service → Call Diverting → Ok to enable the function. Turning call forwarding on/off 1. Settings → Network Service → Call Forwarding → Ok to enable/disable the function. vCard Receiving Prompt Giving prompt when receiving a vCard. 1. Settings → vCard. 2. On Phonebook means not giving the prompt when receiving a vCard and saving it to phonebook directly.

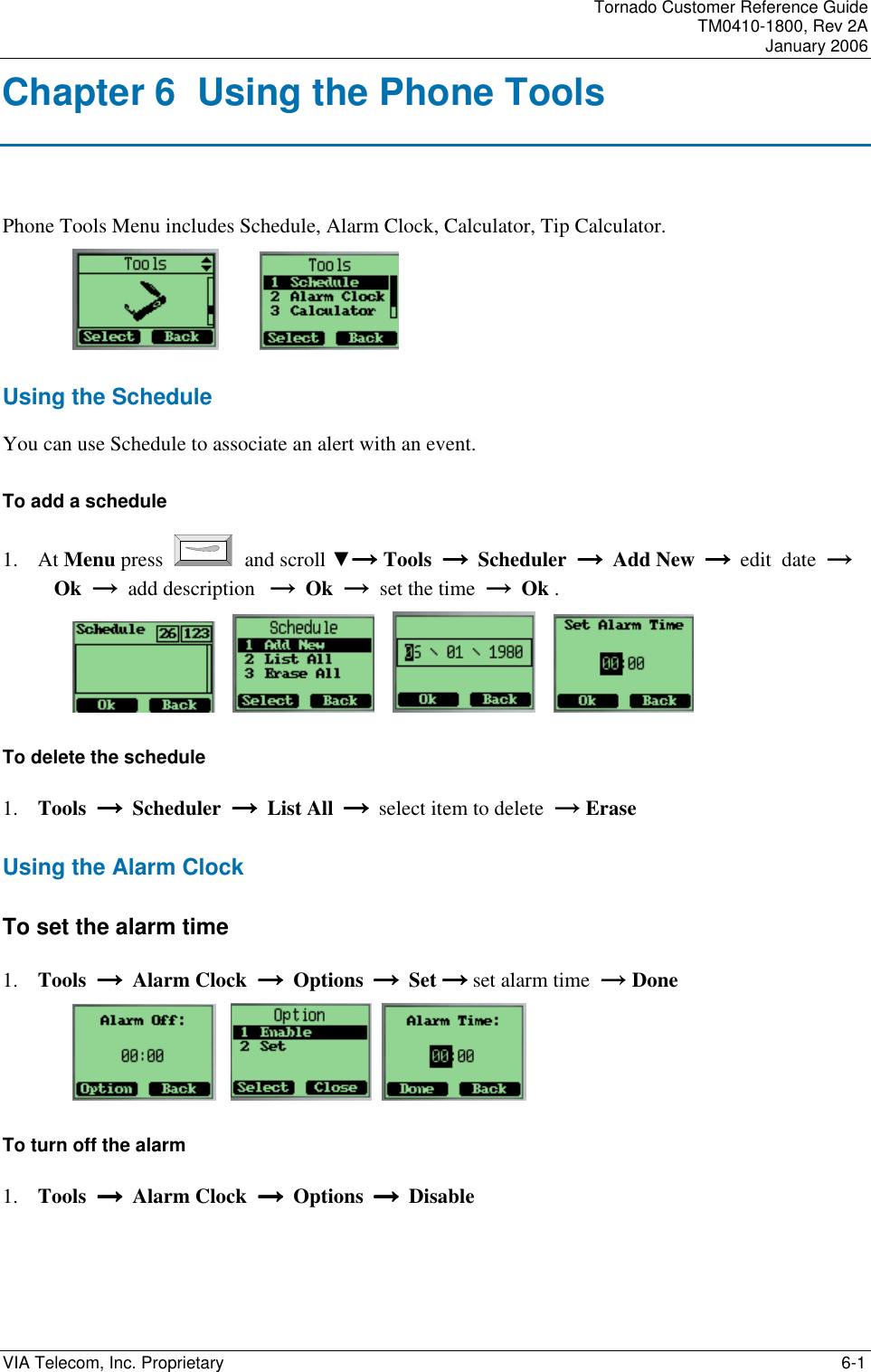

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 VIA Telecom, Inc. Proprietary 6-1 Chapter 6 Using the Phone Tools Phone Tools Menu includes Schedule, Alarm Clock, Calculator, Tip Calculator. Using the Schedule You can use Schedule to associate an alert with an event. To add a schedule 1. At Menu press and scroll ▼→→→→ Tools → → → → Scheduler → → → → Add New →→→→ edit date → Ok → add description → Ok → set the time → Ok . To delete the schedule 1. Tools → → → → Scheduler → → → → List All →→→→ select item to delete → Erase Using the Alarm Clock To set the alarm time 1. Tools → → → → Alarm Clock → → → → Options →→→→ Set →→→→ set alarm time → Done To turn off the alarm 1. Tools → → → → Alarm Clock → → → → Options →→→→ Disable

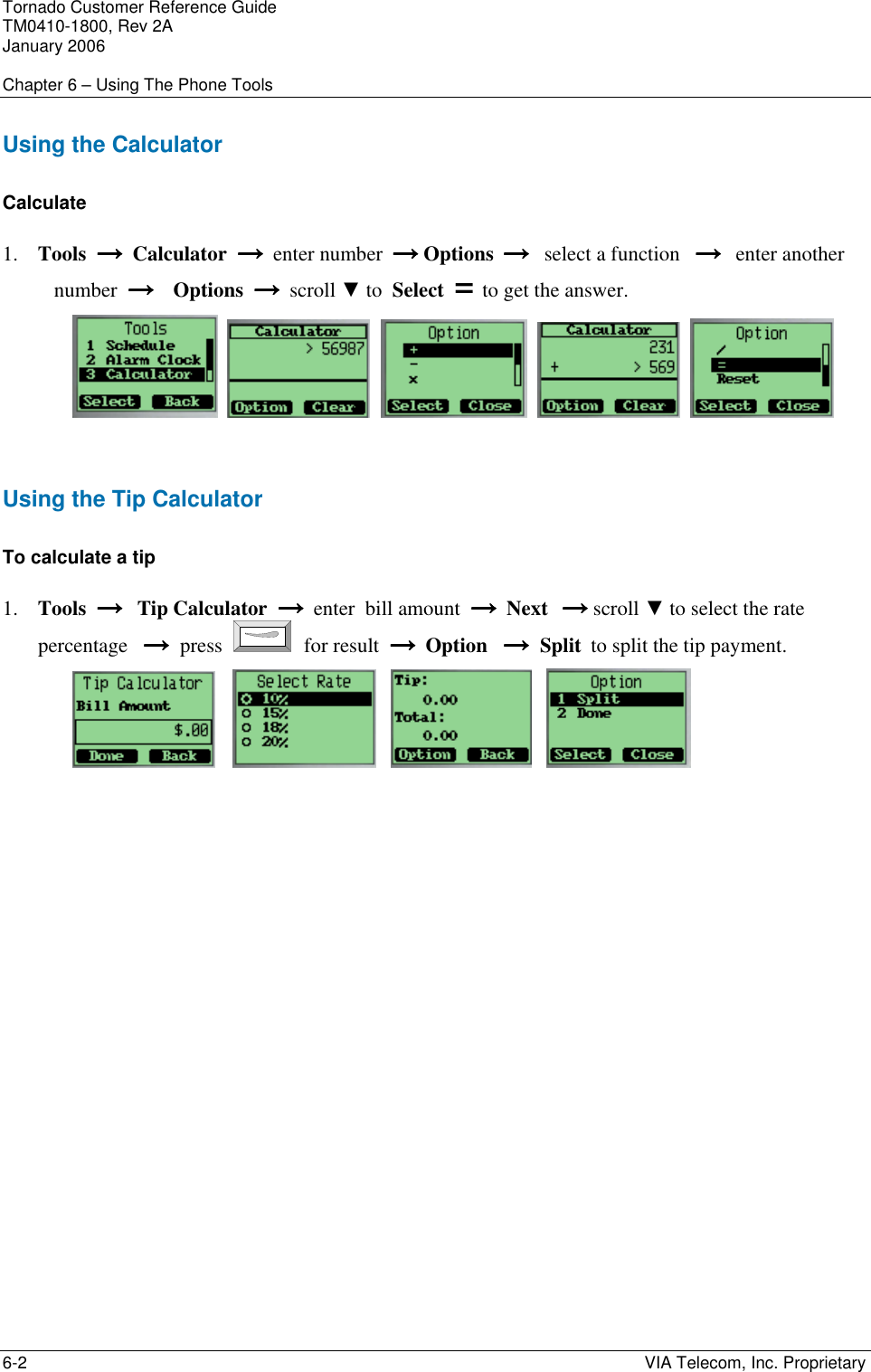

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 6 – Using The Phone Tools 6-2 VIA Telecom, Inc. Proprietary Using the Calculator Calculate 1. Tools → → → → Calculator → → → → enter number → → → → Options → → → → select a function → → → → enter another number → → → → Options → → → → scroll ▼ to Select = to get the answer. Using the Tip Calculator To calculate a tip 1. Tools → → → → Tip Calculator → → → → enter bill amount → → → → Next → → → → scroll ▼ to select the rate percentage →→→→ press for result → → → → Option →→→→ Split to split the tip payment.

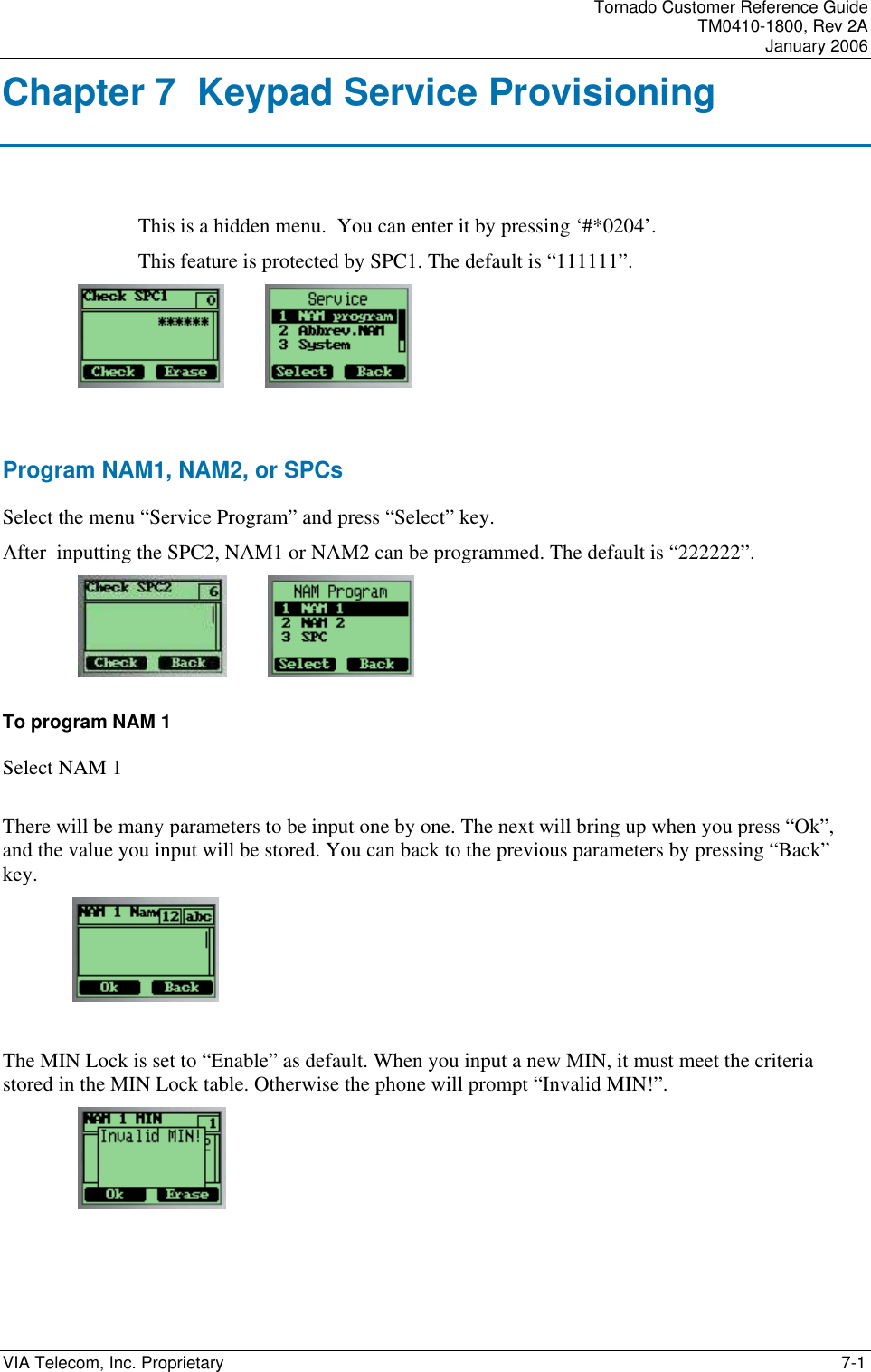

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 VIA Telecom, Inc. Proprietary 7-1 Chapter 7 Keypad Service Provisioning This is a hidden menu. You can enter it by pressing ‘#*0204’. This feature is protected by SPC1. The default is “111111”. Program NAM1, NAM2, or SPCs Select the menu “Service Program” and press “Select” key. After inputting the SPC2, NAM1 or NAM2 can be programmed. The default is “222222”. To program NAM 1 Select NAM 1 There will be many parameters to be input one by one. The next will bring up when you press “Ok”, and the value you input will be stored. You can back to the previous parameters by pressing “Back” key. The MIN Lock is set to “Enable” as default. When you input a new MIN, it must meet the criteria stored in the MIN Lock table. Otherwise the phone will prompt “Invalid MIN!”.

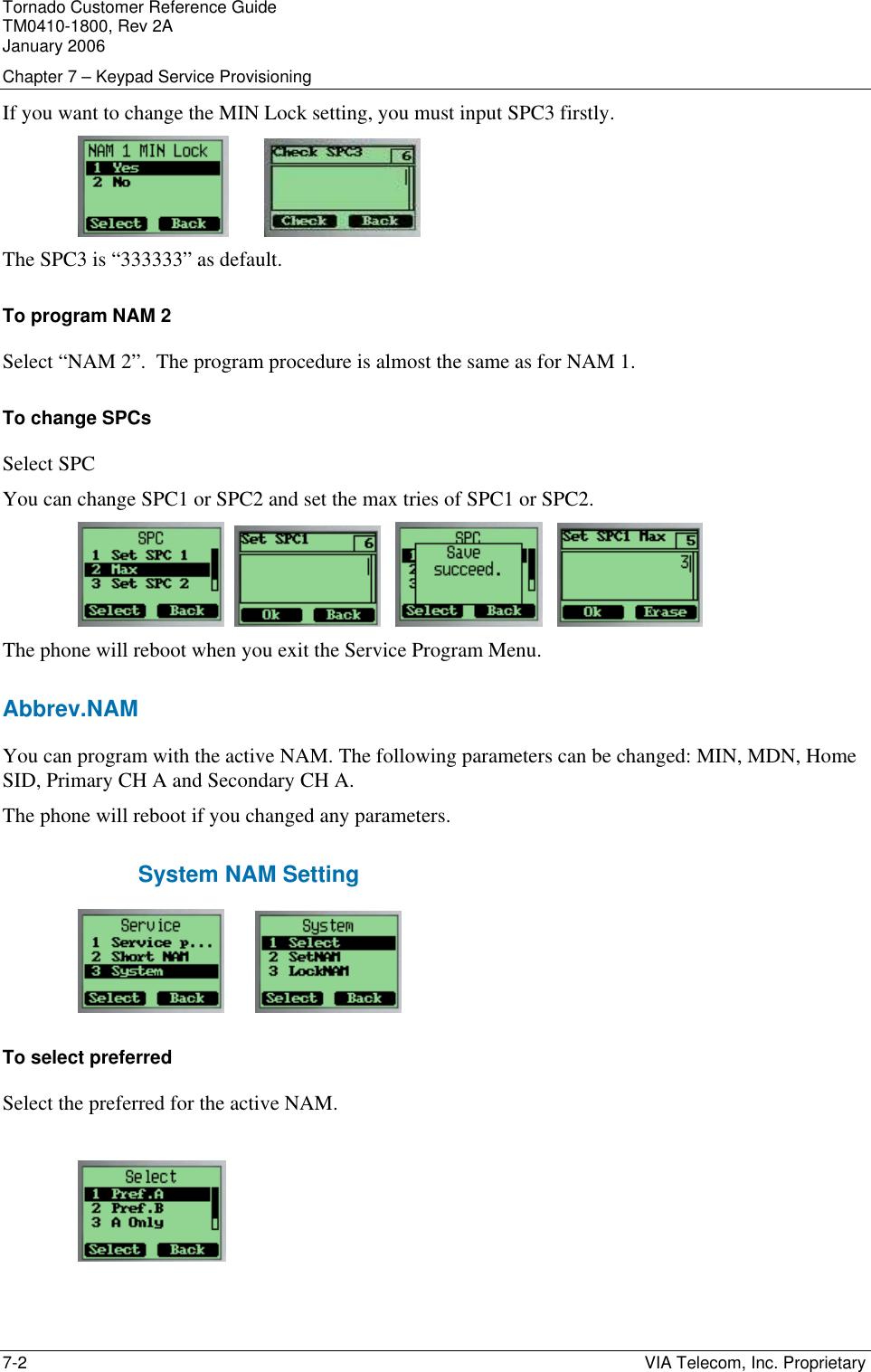

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 7 – Keypad Service Provisioning 7-2 VIA Telecom, Inc. Proprietary If you want to change the MIN Lock setting, you must input SPC3 firstly. The SPC3 is “333333” as default. To program NAM 2 Select “NAM 2”. The program procedure is almost the same as for NAM 1. To change SPCs Select SPC You can change SPC1 or SPC2 and set the max tries of SPC1 or SPC2. The phone will reboot when you exit the Service Program Menu. Abbrev.NAM You can program with the active NAM. The following parameters can be changed: MIN, MDN, Home SID, Primary CH A and Secondary CH A. The phone will reboot if you changed any parameters. System NAM Setting To select preferred Select the preferred for the active NAM.

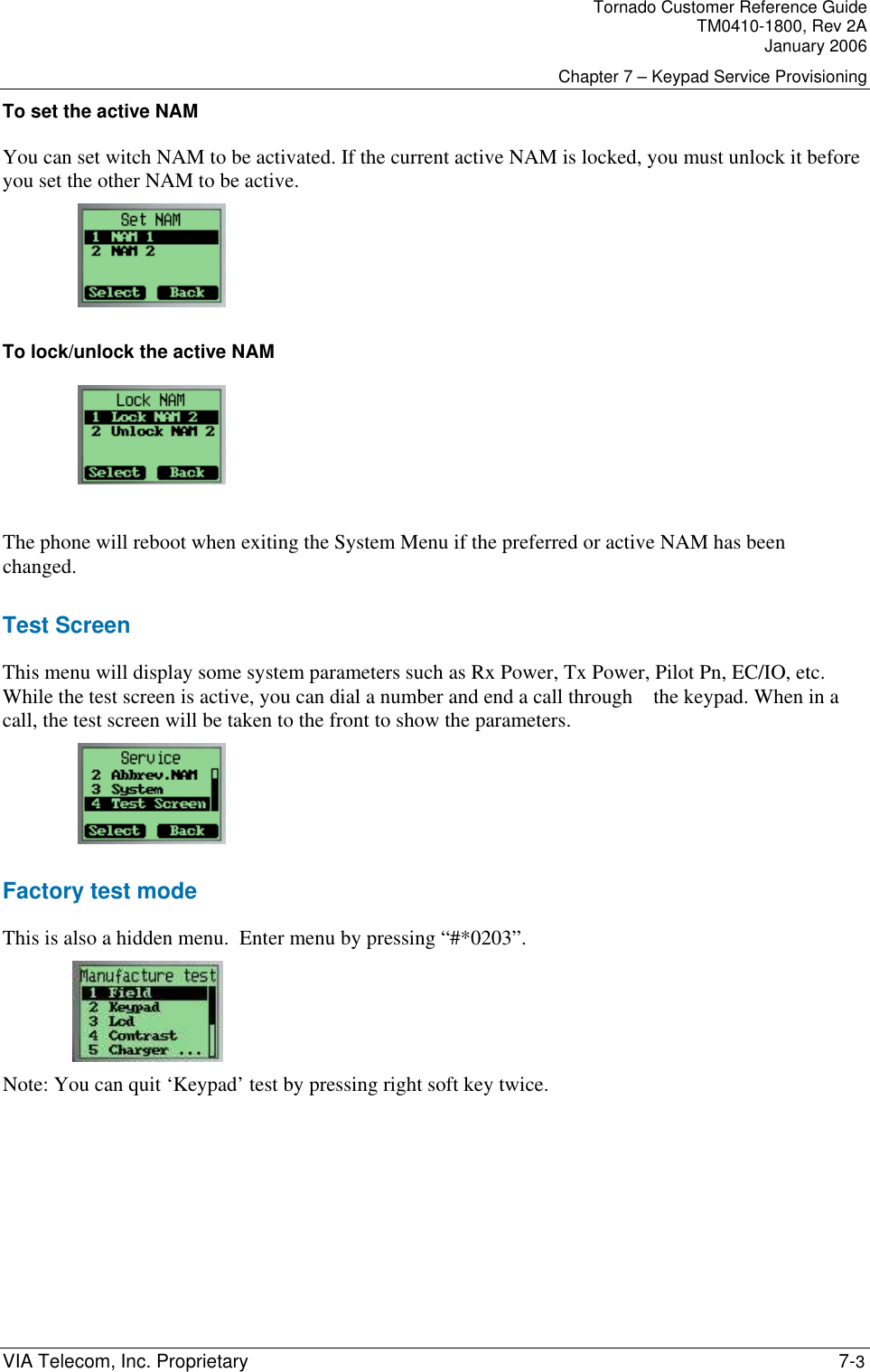

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 7 – Keypad Service Provisioning VIA Telecom, Inc. Proprietary 7-3 To set the active NAM You can set witch NAM to be activated. If the current active NAM is locked, you must unlock it before you set the other NAM to be active. To lock/unlock the active NAM The phone will reboot when exiting the System Menu if the preferred or active NAM has been changed. Test Screen This menu will display some system parameters such as Rx Power, Tx Power, Pilot Pn, EC/IO, etc. While the test screen is active, you can dial a number and end a call through the keypad. When in a call, the test screen will be taken to the front to show the parameters. Factory test mode This is also a hidden menu. Enter menu by pressing “#*0203”. Note: You can quit ‘Keypad’ test by pressing right soft key twice.

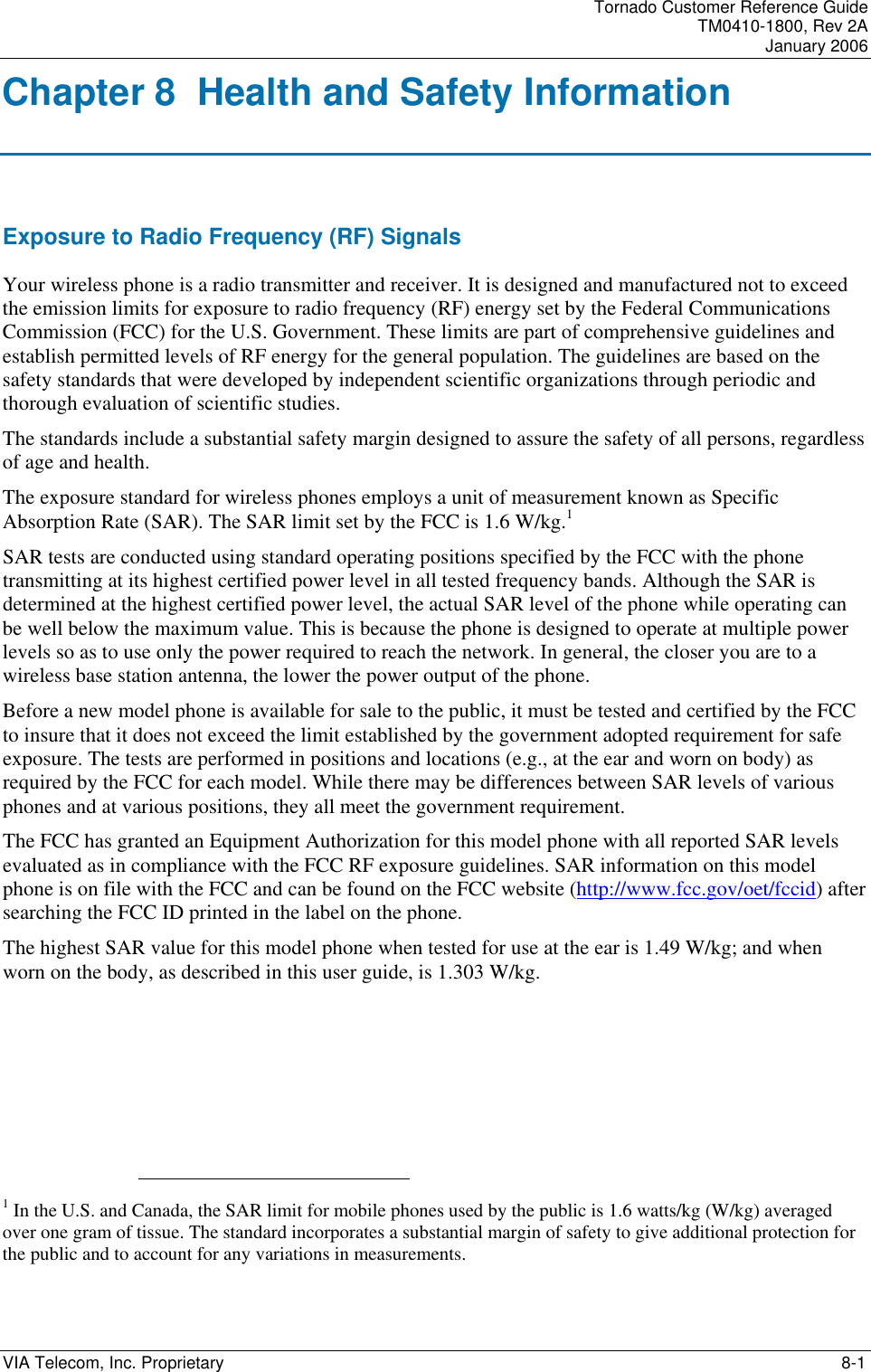

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 VIA Telecom, Inc. Proprietary 8-1 Chapter 8 Health and Safety Information Exposure to Radio Frequency (RF) Signals Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) for the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless phones employs a unit of measurement known as Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/kg.1 SAR tests are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the phone. Before a new model phone is available for sale to the public, it must be tested and certified by the FCC to insure that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on body) as required by the FCC for each model. While there may be differences between SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found on the FCC website (http://www.fcc.gov/oet/fccid) after searching the FCC ID printed in the label on the phone. The highest SAR value for this model phone when tested for use at the ear is 1.49 W/kg; and when worn on the body, as described in this user guide, is 1.303 W/kg. 1 In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

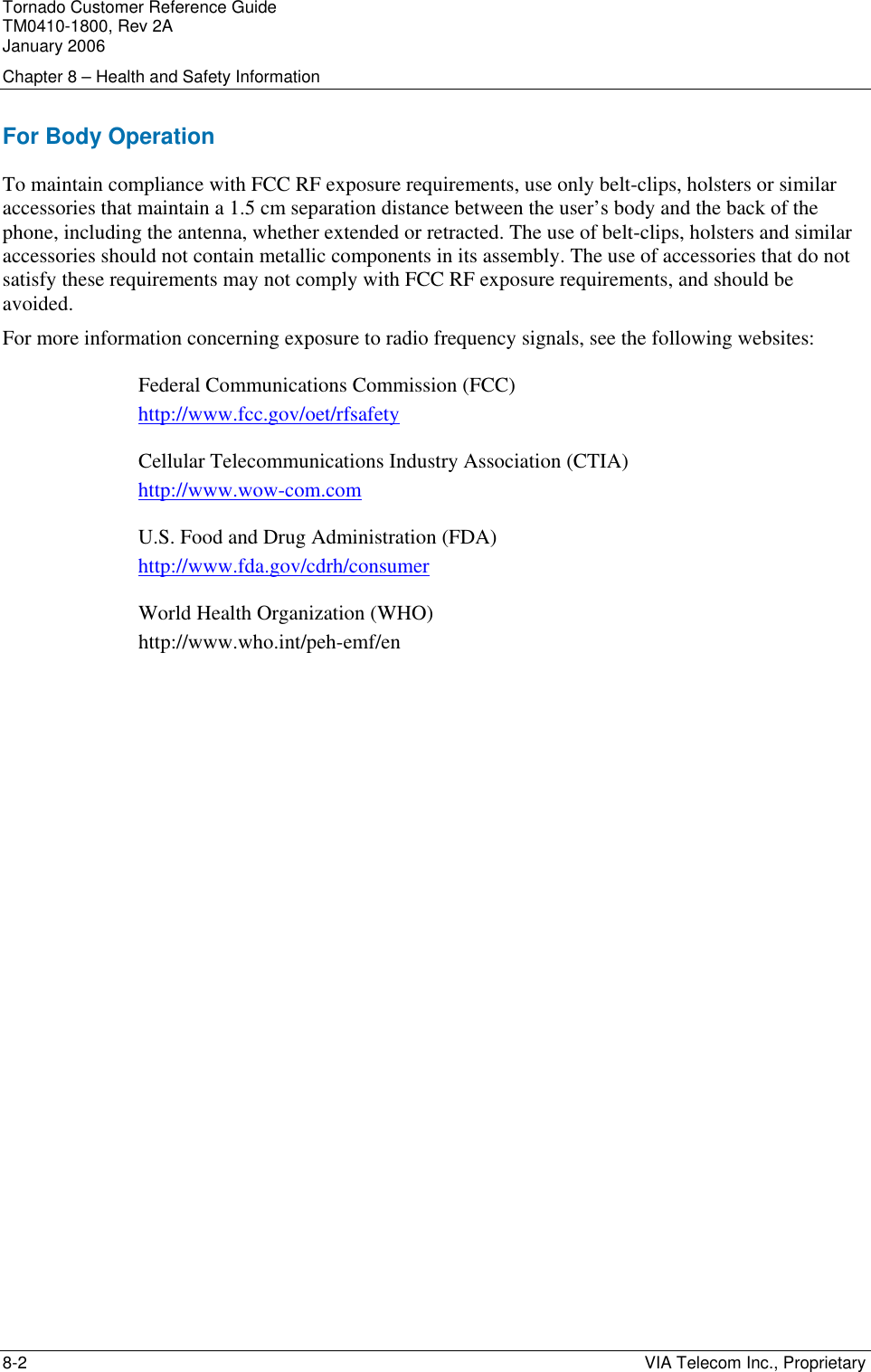

Tornado Customer Reference Guide TM0410-1800, Rev 2A January 2006 Chapter 8 – Health and Safety Information 8-2 VIA Telecom Inc., Proprietary For Body Operation To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. For more information concerning exposure to radio frequency signals, see the following websites: Federal Communications Commission (FCC) http://www.fcc.gov/oet/rfsafety Cellular Telecommunications Industry Association (CTIA) http://www.wow-com.com U.S. Food and Drug Administration (FDA) http://www.fda.gov/cdrh/consumer World Health Organization (WHO) http://www.who.int/peh-emf/en
