User Manual

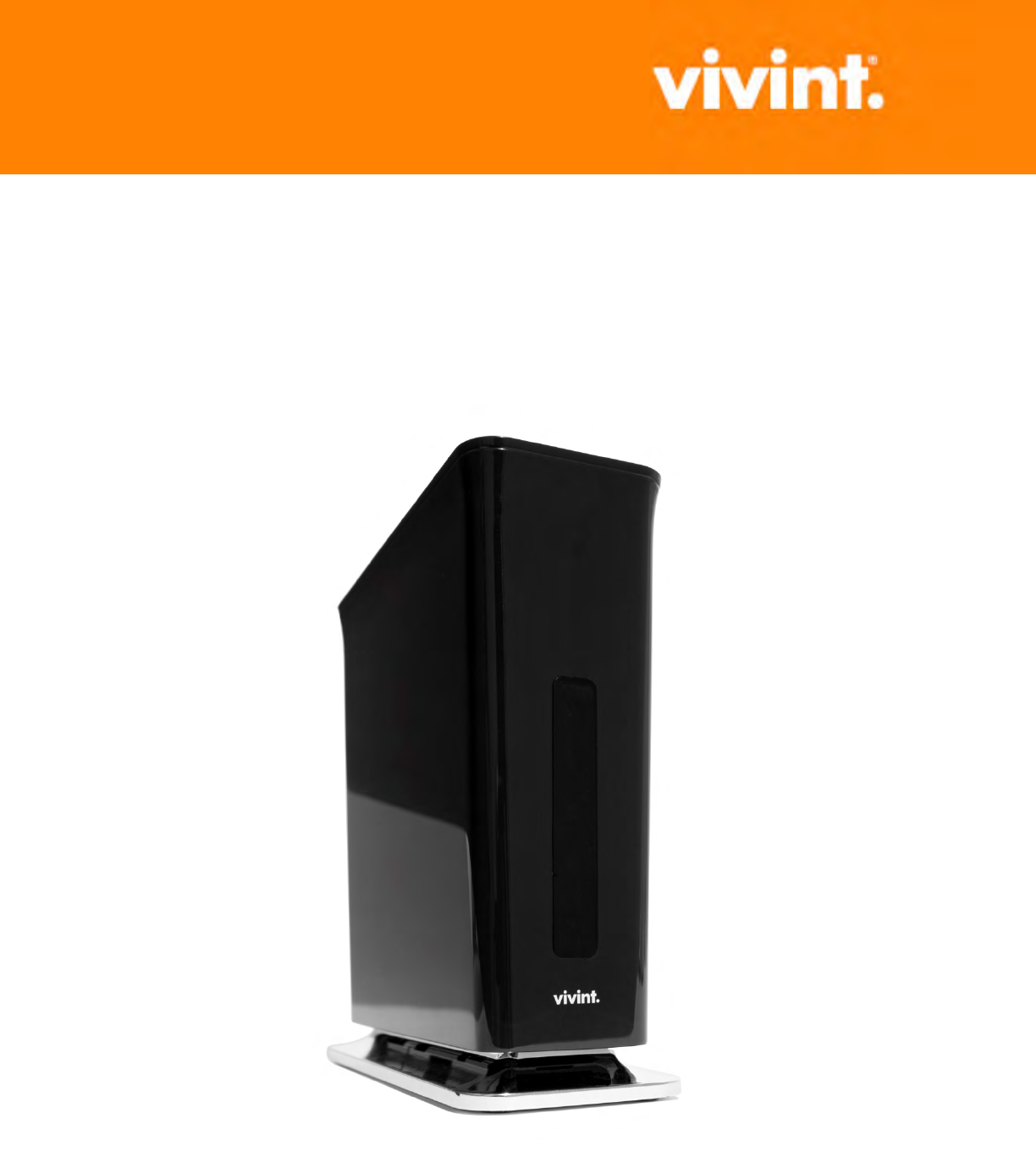

Wireless Router

QUICK START GUIDE

VivintanditsrespectivelogosareeitherregisteredtrademarksortrademarksofVivintInc.intheUnitedStates

andothercountries.

Allothertrademarksarethepropertyoftheirrespectiveowners.

DISCLAIMER:Nopartofthispublicationmaybeexcerpted,reproduced,translated,orutilizedinanyformorbyanymeans,electronicormechanical,

withoutpriorwrittenpermission.VivintInc.doesnotwarrantthatthisdocumentiserrorfreeandretainstherighttomakechangestothisdocumentor

relatedproductspecificationsanddescriptionsatanytimewithoutnotice.Vivintdoesnotassumeanyobligationtoupdatetheinformationcontained

herein.Thisdocumentisprovided“ASIS”andwithoutanyguaranty,warranty,orlicense,expressorimplied,includingbutnotlimitedto:fitnessfora

particularpurpose,merchantability,non-infringementofintellectualproperty,orotherrightsofanythirdparty.AnyVivintproductsreferencedinthis

documentarenotintendedforuseinmedical,lifesaving,orlifesustainingapplications.Thirdpartiesmayhaveintellectualpropertyrightsrelevantto

thisdocumentandthetechnologiesdiscussedherein.

Router P/N:WRDB1200AC-V

M/N:WR01

Power Supply Rating:12V/1.5A

Document Updated / Released: 9/30/2014

Contents

Contents 2

WelcometoVivint 3

Overview 4

Package Contents 4

Overview and Features 5

SettingUptheRouter 6

Connecting the Router 6

Configuring the Router 6

RegulatoryInformation 8

Federal Communication Commission (FCC) Interference Statement 8

Operating Temperature 9

Quick Start Guide

- 3 -

Welcome to Vivint

ThankyouforyourpurchaseandwelcometoVivint®Wireless.

ThisQuick Start GuideisprovidedtohelpyousetupandstartusingyourWi-Firouterinafewsimplesteps.

For Additional Information

Formoreinformation,seethecompleteUser GuideatVivint.com.

TocontactVivintCustomerCare,call

Stay Connected

Quick Start Guide

- 4 -

Overview

Package Contents

Theproductpackagingcontainsthefollowingitems:

n Router

n Powersupply

n Ethernetnetworkcable

n Quick Start Guide

NOTE:

Ifanyoftheaboveitemsaremissingordamaged,pleasecontactyourreseller.

Quick Start Guide

- 5 -

Overview and Features

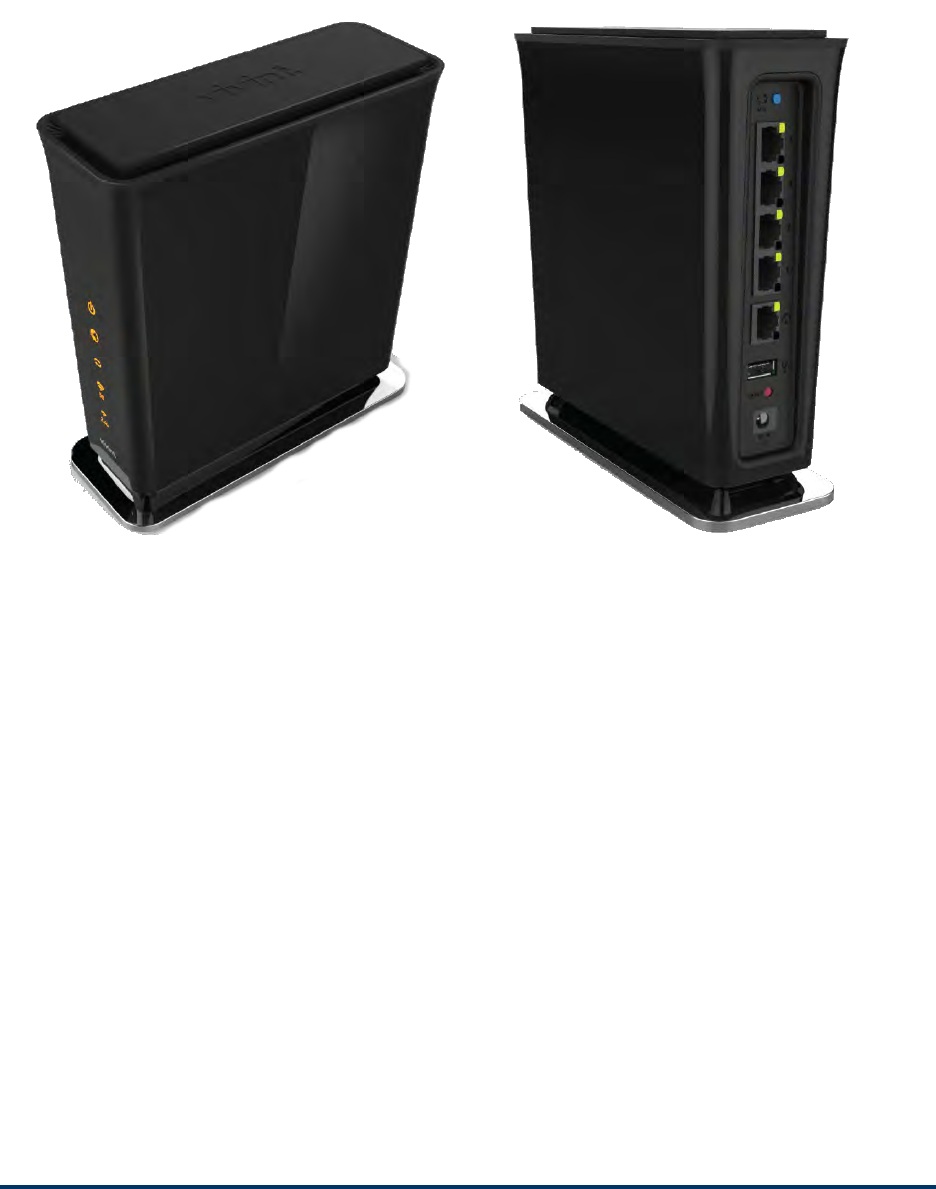

Gettingtoknowtherouter'sfeatures.



___



PowerLEDIcon

InternetLEDIcon

WPSLEDIcon

5GLEDIcon

2.4GLEDIcon



PowerPort

ResetButton

USBPort

InternetWANPort

LANPorts(1-4)

WPSButton

Quick Start Guide

- 6 -

Setting Up the Router

Connecting the Router

To set up the router hardware

1. Unpackallofthepackagecontents.

2. ConnectthenetworkcabletotheEthernetportonyourcomputerandtooneoftheLANportsonthe

router.

3. Insertthepowersupplyintotherouterandconnecttheadaptertoanavailablepoweroutlet.

4. Aftertherouterhaspoweredup,makesurethePowerLEDandInternetLEDarebothlit,andthen

continuewiththerouterconfigurationprocess.

Configuring the Router

To configure basic initial router settings and change the password via the software utility

1. Atyourcomputer,openawebbrowser.

2. Entertherouter'sIPaddress:http://192.168.1.1

3. Whenpromptedtologin,enteravalidusernameandpassword.(Note:Thedefaultusernameisadmin,

andthedefaultpasswordisalsoadmin.)

4. AttheSetup > Basic Setuppage,checktheInternet Connection Typeoptionandmakesureitissetto

"AutomaticConfiguration-DHCP."

Quick Start Guide

- 7 -

5. AlsoattheSetup > Basic Setuppage,verifytheIPaddressfortherouter.

6. ClicktheAdministrationtab.

7. AttheAdministration > Managementpage,enteranewuniquepasswordintheRouter Passwordfield,

andre-entertoconfirm.

8. ClickSave Settings.

Congratulations!You'venowcompletedthebasicrouterinstallation.

NOTE:

Formoreinformationaboutadditional(advanced)routerconfigurationandtroubleshooting,referto

thecompleteUser Guideonline.

Quick Start Guide

- 8 -

Regulatory Information

Federal Communication Commission (FCC) Interference

Statement

CAUTION:

Unauthorizedchangesormodificationscouldvoidtheuser’sauthoritytooperatetheequipment.

ThisdevicehasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15

ofFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operationofthedevice.

Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyandifnotinstalledand

usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,

thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffand

on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

l Reorientorrelocatethereceivingantenna.

l Increasetheseparationbetweentheequipmentandthereceiver.

l Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

l Consultthedealeroranexperiencedradio/televisiontechnicianforhelp.

ForproductavailableintheUSAandCanadamarket,onlychannel1~11canbeoperated.Selectionofother

channelsisnotpossible.

Thisdeviceandit'santennas(s)mustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaor

transmitterexceptinaccordancewithFCCmulti-transmitterproductprocedures.

Thisdeviceisgoingtobeoperatedina5.15~5.25GHzfrequencyrange;itisrestrictedinindoorenvironments

only.

IMPORTANT:FCC Radiation Exposure Statement

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled

environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm

betweentheradiatorandyourbody.

FCC ID:2AAAS-WR01

Quick Start Guide

- 9 -

Operating Temperature

Foroptimalperformance,thewirelessroutershouldbeoperatedunderthefollowingconditions:

l Therouterwilloperatenormallyattemperaturesbetween0°Cto40°C(32°Fto104°F).
