IP Surveillance

PZ7111/PZ7112/PZ7121/PZ7122

10x Zoom Dual Streams PoE

VIVOTEK

2 - User's Manual

Table of Contents

Overview.......................................................................................................................................................3

Read Before Use ��3

Package Contents ��3

Physical Description ��4

Installation ....................................................................................................................................................7

Hardware Installation ��7

Network Deployment ��8

Software Installation �� 11

Accessing the Network Camera .................................................................................................................12

Using Web Browsers ��12

Using RTSP Players ��14

Using 3GPP-compatible Mobile Devices ��15

Using VIVOTEK Recording Software ��16

Main Page ..................................................................................................................................................17

Client Settings ............................................................................................................................................21

Conguration ..............................................................................................................................................23

System ��24

Security ��26

HTTPS ��27

Network ��32

Wireless LAN (PZ7112/PZ7122 only) ��43

DDNS ��46

Access List ��48

Audio and Video ��51

Motion Detection ��57

Camera Control ��59

Homepage Layout ��62

Application ��65

Recording ��78

System Log ��81

View Parameters ��82

Maintenance ��83

Appendix ....................................................................................................................................................87

URL Commands for the Network Camera ��87

Technical Specications ��124

Technology License Notice ��125

Electromagnetic Compatibility (EMC) ��126

VIVOTEK

User's Manual - 3

Overview

VIVOTEK’s PZ71x1(PoE)/71x2(WLAN) is a high-performance network camera featuring 10x

zoom and pan/tilt functionality� The camera is designed for indoor surveillance applications such

as retail stores, ofces, and banks.

The built-in 10x motorized optical zoom module provides excellent depth of eld when zoomed

in, displaying clear-cut images of near or distant objects� With 300-degree pan and 135-degree

tilt, the camera can achieve a wide range of view, giving users more comprehensive control over

the monitored site� The PZ7111/7121 is incorporated with VIVOTEK’s self-developed Bach SoC;

therefore, users can benet from the advantages of dual-codec video and two-way audio. With

support for simultaneous dual streaming, the camera allows users to view MJPEG or MPEG-4

videos on multiple platforms such as web browsers or 3G cell phones�

VIVOTEK’s PZ7111/7121 also supports wireless and Power-over-Ethernet connection, making

installation easier and more cost-efcient. The free, standard, multi-lingual 16-channel recording

software helps users to seamlessly set up an easy-to-use IP surveillance system�

Read Before Use

The use of surveillance devices may be prohibited by law in your country� The Network Camera

is not only a high-performance web-ready camera but can also be part of a exible surveillance

system� It is the user’s responsibility to ensure that the operation of such devices is legal and

complies with all privacy laws before installing this unit for its intended use�

It is important to rst verify that all contents received are complete according to the Package

Contents listed below� Take note of the warnings in the Quick Installation Guide before the

Network Camera is installed; then carefully read and follow the instructions in the Installation

chapter to avoid damage due to faulty assembly and installation� This also ensures the product

is used properly as intended�

The Network Camera is a network device and its use should be straightforward for those

who have basic networking knowledge� It is designed for various applications including video

sharing, general security/surveillance, etc� The Configuration chapter suggests ways to best

utilize the Network Camera and ensure proper operations� For more creative and professional

developers, the URL Commands of the Network Camera section serves as a helpful reference

to customizing existing homepages or integrating with the current web server�

Package Contents

■ PZ7111/PZ7112/PZ7121/PZ7122

■ Power Adapter

■ Antenna (PZ7112/PZ7122 only)

■ Screws

■ Quick Installation Guide

■ Warranty Card

■ Software CD

■ A/V Cable

■ Ceiling Mount Brackets

VIVOTEK

4 - User's Manual

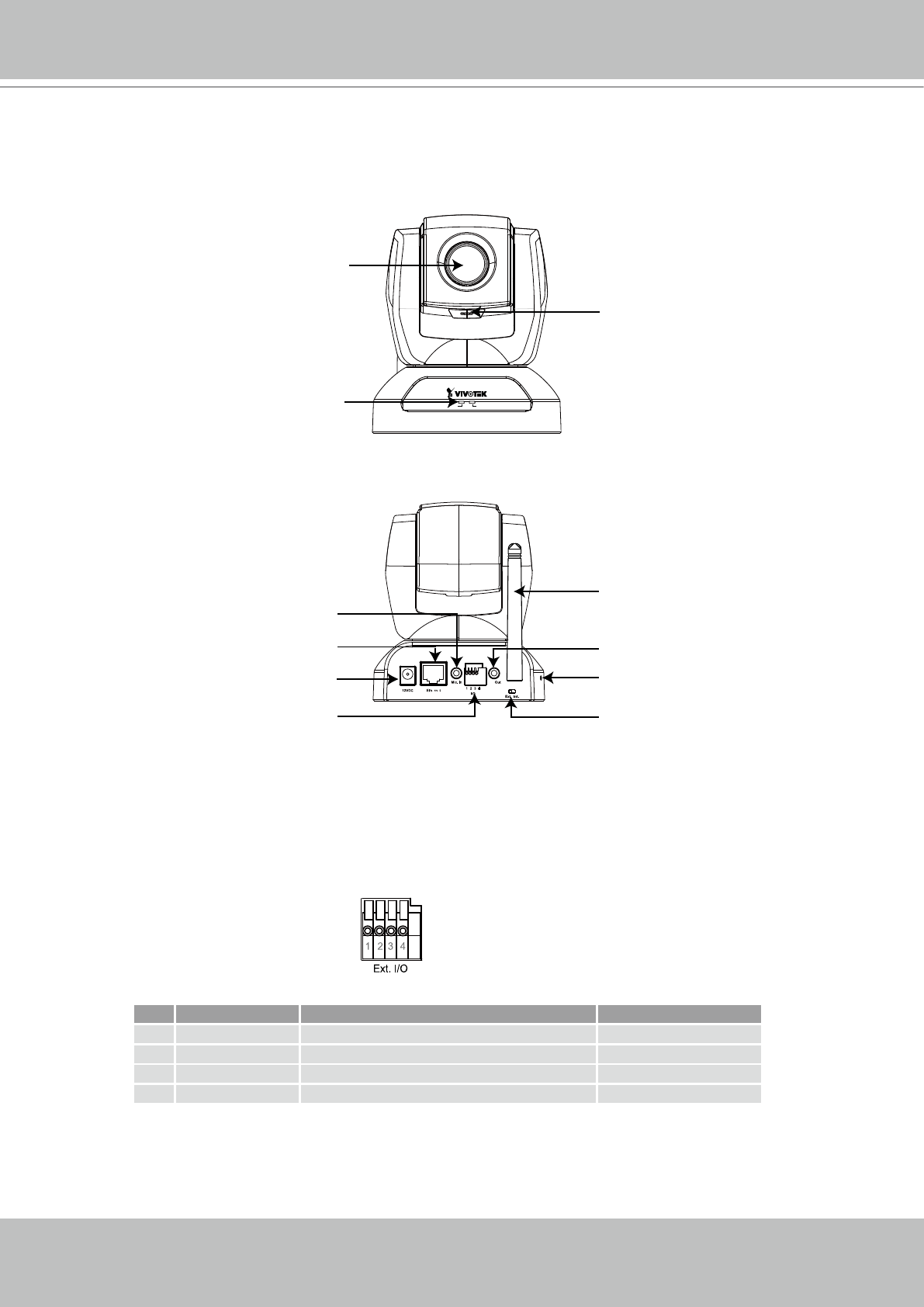

Physical Description

Front panel

Rear panel

General I/O Terminal Block

This Network Camera provides a general I/O terminal block which is used to connect external

input / output devices. The pin denitions are described below.

1: Power

2: Digital output

3: Digital input

4: Ground

Activity

Power/MIC

Built-in Microphone

Status LED

Lens

e e

Recessed Reset Button

Ethernet 10/100

RJ45 Socket

External/Internal

Microphone Switch

General I/O

Terminal Block

AV Out

Microphone In

Power Cord Socket

Antenna

(PZ7112 / PZ7122 only)

Pin Name Specification Remarks

1 Power 12VDC ± 5%, max� 1�5A Max� rating 2A

2 Digital output Max� 40VDC, max� 400mA, isolation 2kV

3 Digital input OPEN/Short-to-GND, isolation 2kV Internal pull-up

4 Ground

VIVOTEK

User's Manual - 5

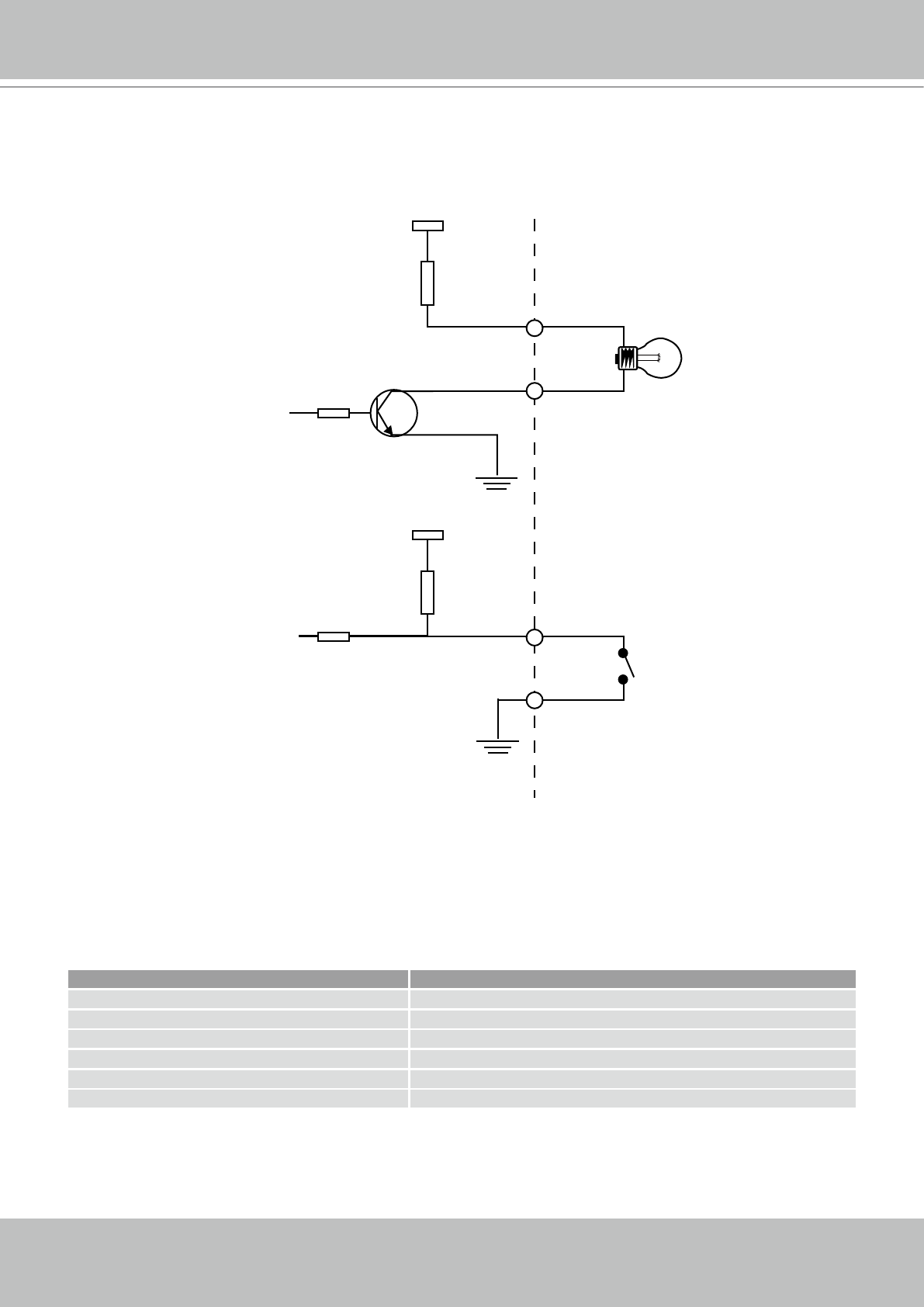

DI/DO Diagram

Please refer to the following illustration for the connection method�

Status LED

The color of LED indicates the status of the Network Camera�

Status LED Color Description

Blinking red Power is being supplied to the Network Camera�

Solid green The Network Camera is booting up�

Steady green with blinking red The Network Camera is trying to obtain an IP address�

Steady green and red An IP address is successfully assigned to the Network Camera�

Steady red with blinking green The Network Camera is working�

Blinking red and green During firmware upgrade�

12V

+12V

Digital output

PIN 1

Power+12V

PIN 2

Digital input

PIN 3

Ground

PIN 4

VIVOTEK

6 - User's Manual

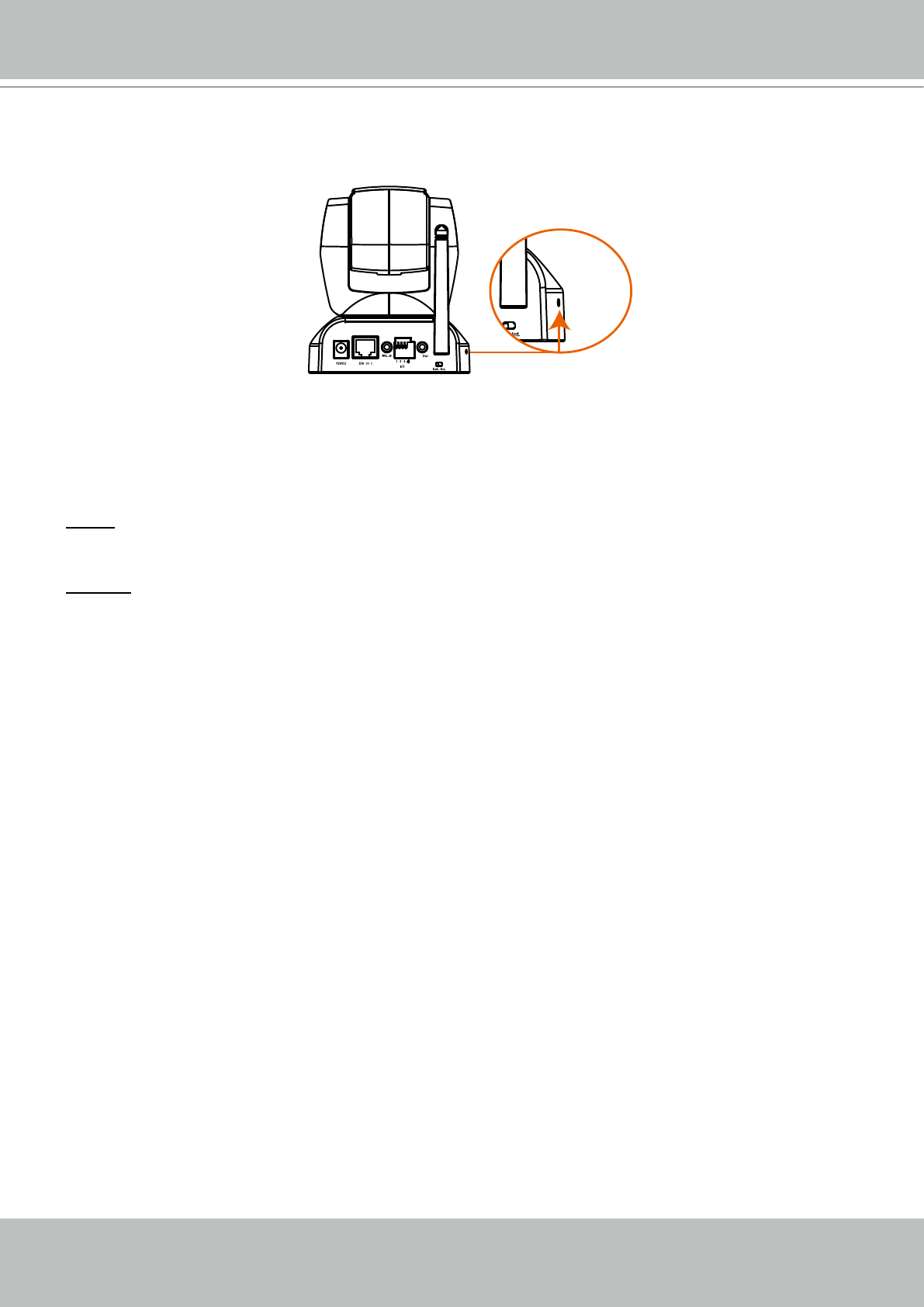

Hardware Reset

The reset button is used to reset the system or restore the factory default settings� Sometimes

resetting the system can return the camera to normal operation� If the system problems remain

after rebooting, restore the factory settings and install again�

Reset: Press and release the recessed reset button with a paper clip or thin object� Wait for the

Network Camera to reboot�

Restore: Press and hold the recessed reset button until the status LED rapidly blinks red and

green simultaneously� Note that all settings will be restored to factory default�

e e

VIVOTEK

User's Manual - 7

Installation

Hardware Installation

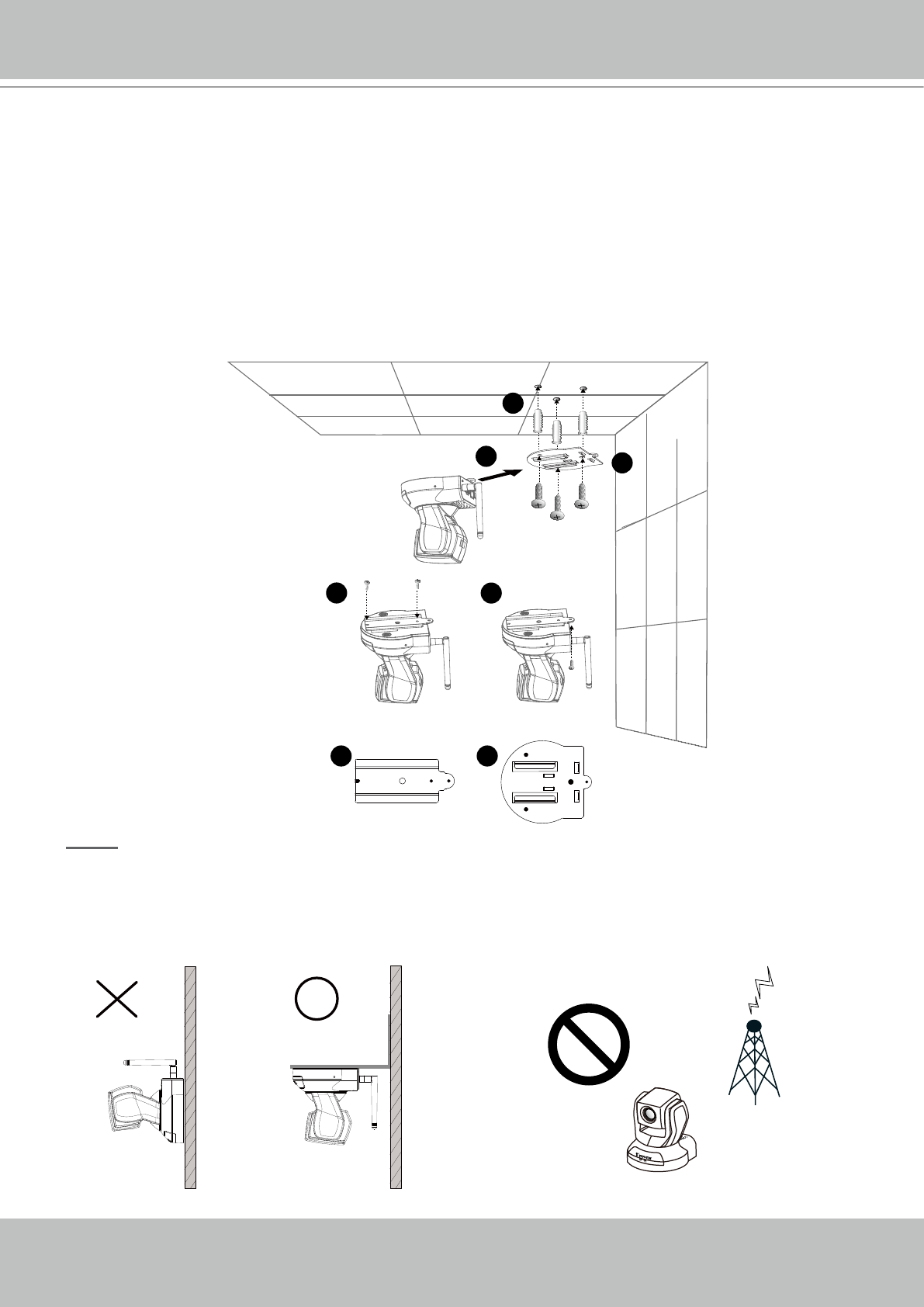

Follow the steps below to install the Network Camera to the ceiling:

1� Attach ceiling mount bracket A to the Network Camera and secure it with two small screws�

2� Drill three pilot holes into the ceiling; hammer the plastic anchors into the holes�

3� Fasten ceiling mount bracket B to the ceiling with three screws�

4� Slide the Network Camera into ceiling mount bracket B�

5� Secure the ceiling mount bracket A and B with a small screw�

NOTE

► If you want to intall the Network Camera on

the wall, please use the wall mount bracket

(optional, not included in the package)�

► Keep away from interference source to

make sure performance integrate, and

avoid snow or moiré patterning�

Activity

Power/MIC

VIVOTEK

8 - User's Manual

Network Deployment

Setup the Network Camera over the Internet

This section explains how to congure the Network Camera over an Internet connection�

1� If you have external devices such as sensors and alarms, connect them to the general I/O

terminal block�

2� Connect the camera to a switch via Ethernet cable�

3� Connect the supplied power cable from the Network Camera to a power outlet�

There are several ways to set up the Network Camera over the Internet� The rst way is to set

up the Network Camera behind a router� The second way is to utilize a static IP� The third way is

to use PPPoE�

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow

the steps below�

1� Connect your Network Camera behind a router, the Internet environment is illustrated below�

Regarding how to obtain your IP address, please refer to Software Installation on page 11 for

details�

IP address : 192.168.0.3

Subnet mask : 255.255.255.0

Default router : 192.168.0.1

IP address : 192.168.0.2

Subnet mask : 255.255.255.0

Default router : 192.168.0.1

LAN (Local Area Network)

Router IP address : 192.168.0.1

WAN (Wide Area Network )

Router IP address : from ISP

Cable or DSL Modem

POW E R COLLISION

LINK

RECEI VE

PARTITI O N

12345

Internet

Ethernet Switch

e e

PO W E R COLLI SION

LINK

REC E I V E

PARTI T I ON

12345

1: Power

2: Digital ouput

3: Digital input

4: Ground

VIVOTEK

User's Manual - 9

2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is

192�168�0�3, please forward the following ports for the Network Camera on the router�

■ HTTP port

■ RTSP port

■ RTP port for audio

■ RTCP port for audio

■ RTP port for video

■ RTCP port for video

If you have changed the port numbers on the Network page, please open the ports accordingly

on your router� For information on how to forward ports on the router, please refer to your

router’s user’s manual�

3� Find out the public IP address of your router provided by your ISP (Internet Service Provider)�

Use the public IP and the secondary HTTP port to access the Network Camera from the

Internet� Please refer to Network Type on page 32 for details�

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera�

Please refer to LAN on page 32 for details�

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to

PPPoE on page 33 for details�

VIVOTEK

10 - User's Manual

Set up the Network Camera through Power over Ethernet (PoE) (PZ71x1 only)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, which allows it to be powered via a single Ethernet

cable� If your switch/router supports PoE, refer to the following illustration to connect the

Network Camera to a PoE-enabled switch/router�

e e

PO W ER COLLISION

LINK

RECE I V E

PARTI TION

12345

When using a non-PoE switch

If your switch/router does not support PoE, use a PoE power injector (optional) to connect

between the Network Camera and a non-PoE switch/router�

PoE Switch

e e

POW E R COLLI SION

LINK

RECEI V E

PARTITI ON

12345

Non-PoE Switch

PoE Power Injector

(optional)

power + data transmission

VIVOTEK

User's Manual - 11

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up

your Network Camera on the LAN�

1� Install IW2 from the Software Utility directory on the software CD�

Double click the IW2 shortcut on your desktop to launch the program�

2� The program will conduct an analysis of your network environment�

After your network environment is analyzed, please click Next to continue the program�

3� The program will search for all VIVOTEK network devices on the same LAN�

4� After searching, the main installer window will pop up� Click on the MAC and model name

which matches the product label on your device to connect to the Network Camera via

Internet Explorer�

0002D107C32D

RoHS

Network Camera

PZ7112

VIVOTEK

12 - User's Manual

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players,

3GPP-compatible mobile devices, and VIVOTEK recording software�

Using Web Browsers

Use Installation Wizard 2 (IW2) to access to the Network Cameras installed on the LAN�

If your network environment is not the LAN, follow these steps to access the Network Camera:

1� Launch your web browser (eg� Microsoft® Internet Explorer, Mozilla Firefox, or Netscape)�

2. Enter the IP address of the Network Camera in the address eld. Press Enter�

3� The live video will be displayed in your web browser�

4. If this is the rst time installing the VIVOTEK network camera, an information bar will pop up

as shown below� Follow the instructions to install the required plug-in on your computer�

NOTE

► For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live

video. If you do not have Quick Time on your computer, please install it rst, then launch the

web browser�

VIVOTEK

User's Manual - 13

► By default, the Network Camera is not password-protected. To prevent unauthorized access,

it is highly recommended to set a password for the Network Camera�

For more information about how to enable password protection, please refer to Security on

page 26�

► If you see a dialog box indicating that your security settings prohibit running ActiveX®

Controls, please enable the ActiveX® Controls for your browser�

1� Choose Tools > Internet Options > Security > Custom Level�

2. Look for Download signed ActiveX® controls; select Enable or Prompt� Click OK�

3. Refresh your web browser, then install the Active X® control� Follow the instructions to

complete installation�

VIVOTEK

14 - User's Manual

Using RTSP Players

To view the MPEG-4 streaming media using RTSP players, you can use one of the following

applications that support RTSP streaming�

Quick Time Player

Real Player

VLC media player

mpegable Player

pvPlayer

As most ISPs and players only allow RTSP streaming through port number 554, please set the

RTSP port to 554� For more information, please refer to RTSP Streaming on page 41�

For example:

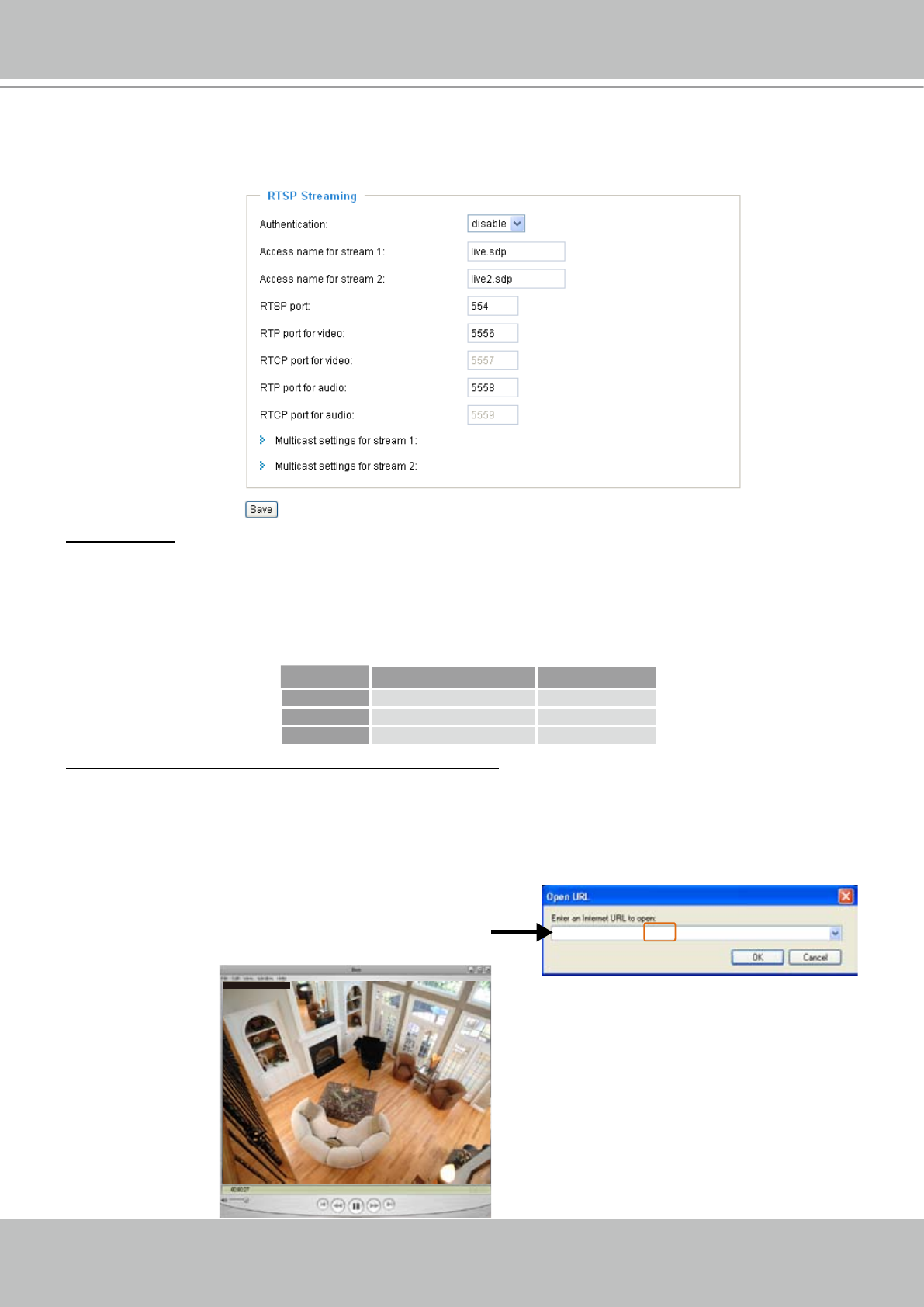

4� The live video will be displayed in your player�

For more information on how to configure the RTSP access name, please refer to RTSP

Streaming on page 41 for details�

rtsp://192.168.5.106:554/live.sdp

Video 16:38:01 2008/01/03

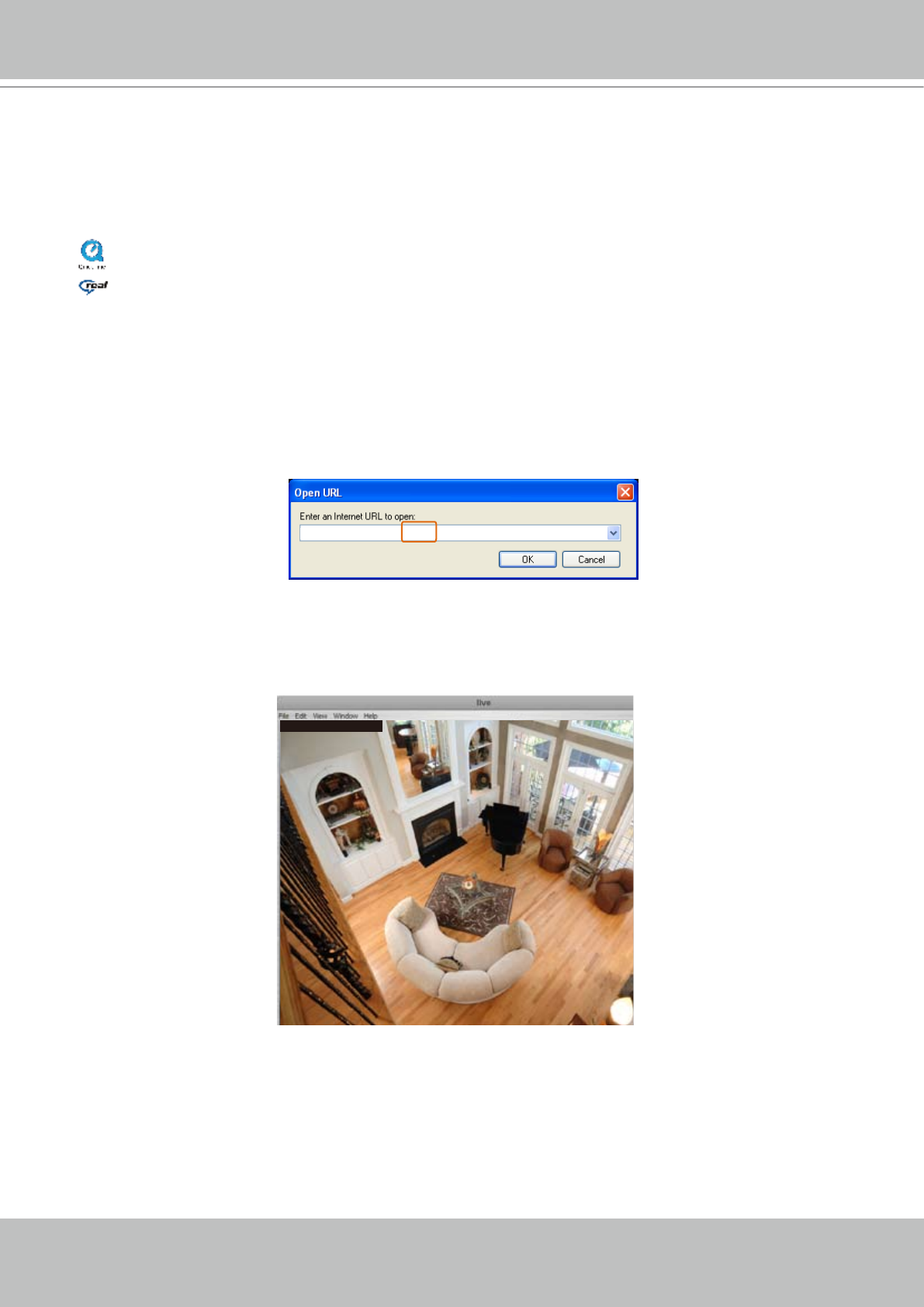

1� Launch the RTSP player�

2� Choose File > Open URL� A URL dialog box will pop up�

3� The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for

stream1 or stream2>

VIVOTEK

User's Manual - 15

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network

Camera can be accessed over the Internet� For more information on how to set up the Network

Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 8�

To utilize this feature, please check the following settings on your Network Camera:

1� Because most players on 3GPP mobile phones do not support RTSP authentication, make

sure the authentication mode of RTSP streaming is set to disable�

For more information, please refer to RTSP Streaming on page 41�

2� As the the bandwidth on 3G networks is limited, larger video sizes are not available� Please

set the video and audio streaming parameters as listed below�

For more information, please refer to Audio and Video on page 51�

Video Mode MPEG-4

Frame size 176 x 144

Maximum frame rate 5 fps

Intra frame period 1S

Video quality (Constant bit rate) 40kbps

Audio type (GSM-AMR) 12.2kbps

3� As most ISPs and players only allow RTSP streaming through port number 554, please set

the RTSP port to 554� For more information, please refer to RTSP Streaming on page 41�

4� Launch the players on 3GPP-compatible mobile devices (ex� Real Player)�

5� Type the following URL commands in the player�

The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming

access name for stream1 or stream2>�

For example:

rtsp://192.168.5.106:554/live.sdp

VIVOTEK

16 - User's Manual

Using VIVOTEK Recording Software

The product software CD also contains VIVOTEK’s recording software, allowing simultaneous

monitoring and video recording for multiple Network Cameras� Please install the recording

software, then launch the program to add the Network Camera to the Channel list� For detailed

information about how to use the recording software, please refer to the user’s manual of the

software or download the manual from http://www�vivotek�com�

VIVOTEK

User's Manual - 17

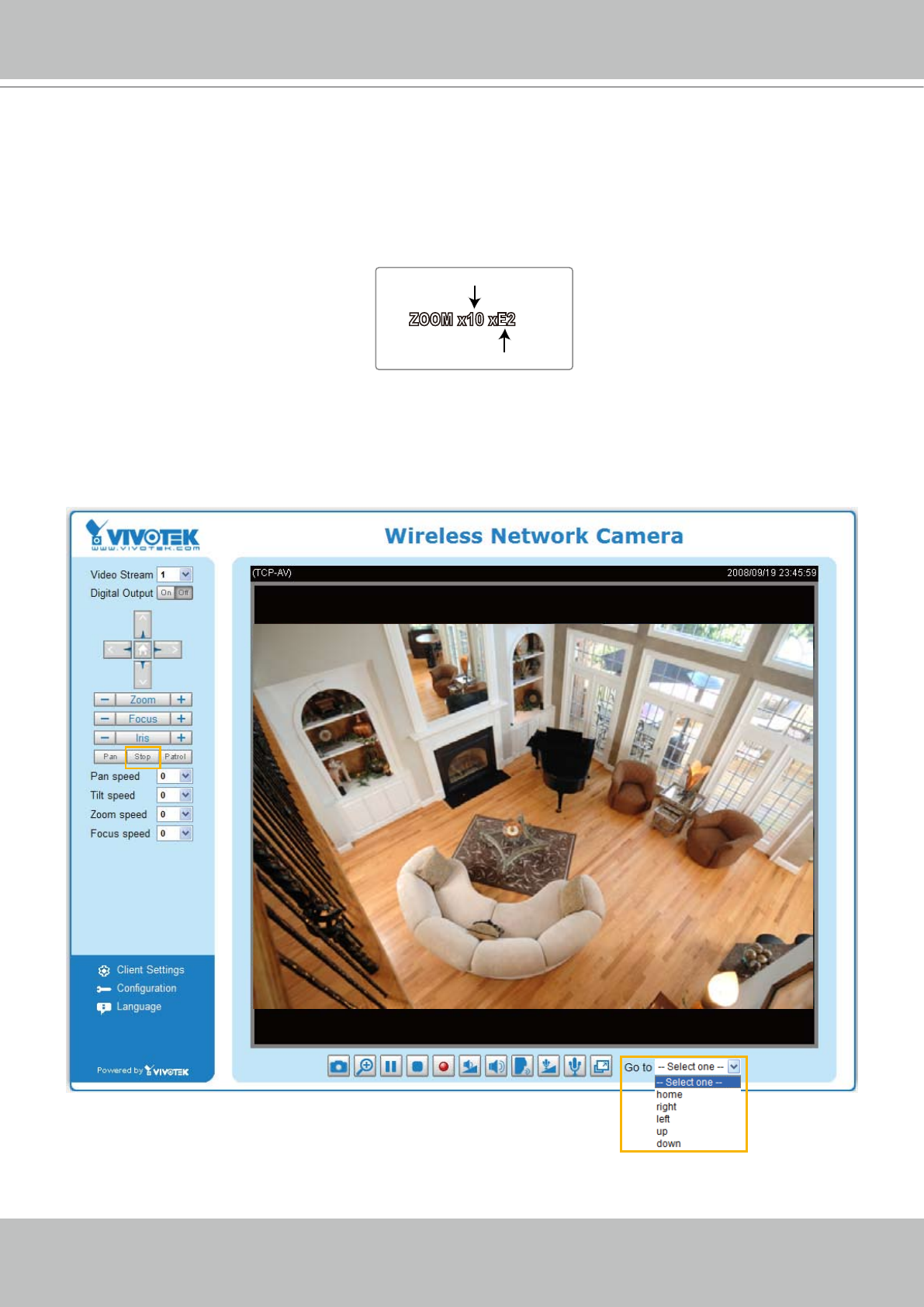

Main Page

This chapter explains the layout of the main page� It is composed of the following sections:

VIVOTEK INC. Logo, Host Name, Camera Control Area, PTZ Control Panel, Conguration Area,

and Live video window�

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website�

Host Name

The host name can be customized to t your needs. For more information, please refer to System on page 24�

Camera Control Area

Video Stream: This Network Camera supports MJPEG or MPEG-4 dual streams simultaneously� You can

select either one for live viewing�

Digital Output: Click to turn the digital output device on or off�

PTZ Control Panel

VIVOTEK INC. Logo

Camera Control Area

Configuration Area

Host Name

Live View Window

PTZ Control Panel

Return to Home Position

Right

Left

Down

Zoom In

Zoom Out

Focus Far

Open

Focus Near

Auto Focus

Auto Iris

Start to Auto Patrol

Start to Auto Pan

Stop Auto Panning/patrolling

VIVOTEK

18 - User's Manual

Pan: Click this button to start the auto pan� When the current position is Home or on the left side of

Home, the camera starts panning from the current position to the left-most position, then to the right-

most position, and nally backward to the original position. When the current position is on the right side

of Home, the camera starts panning from the current position to the right-most position, then to the left-

most position, and nally backward to the original position.

Stop: Click this button to stop the Auto Pan and Auto Patrol functions�

Patrol: Once the Administrator has determined the list of preset positions, click this button to command

the camera to patrol among those positions on the Patrol List� For more information, please refer to

Camera Control on page 59�

Pan /Tilt /Zoom /Focus speed: Adjust the speed of pan/ tilt/ zoom/ focus�

Conguration Area

Client Settings: Click this button to access the client settings page� For more information, please refer to

Client Settings on page 21�

Conguration: Click this button to access the conguration page of the Network Camera. It is suggested

that a password be applied to the Network Camera so that only the administrator can configure the

Network Camera� For more information, please refer to Conguration on page 23�

Language: Click this button to choose a language for the user interface� Language options are available

in: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文�

Live Video Window

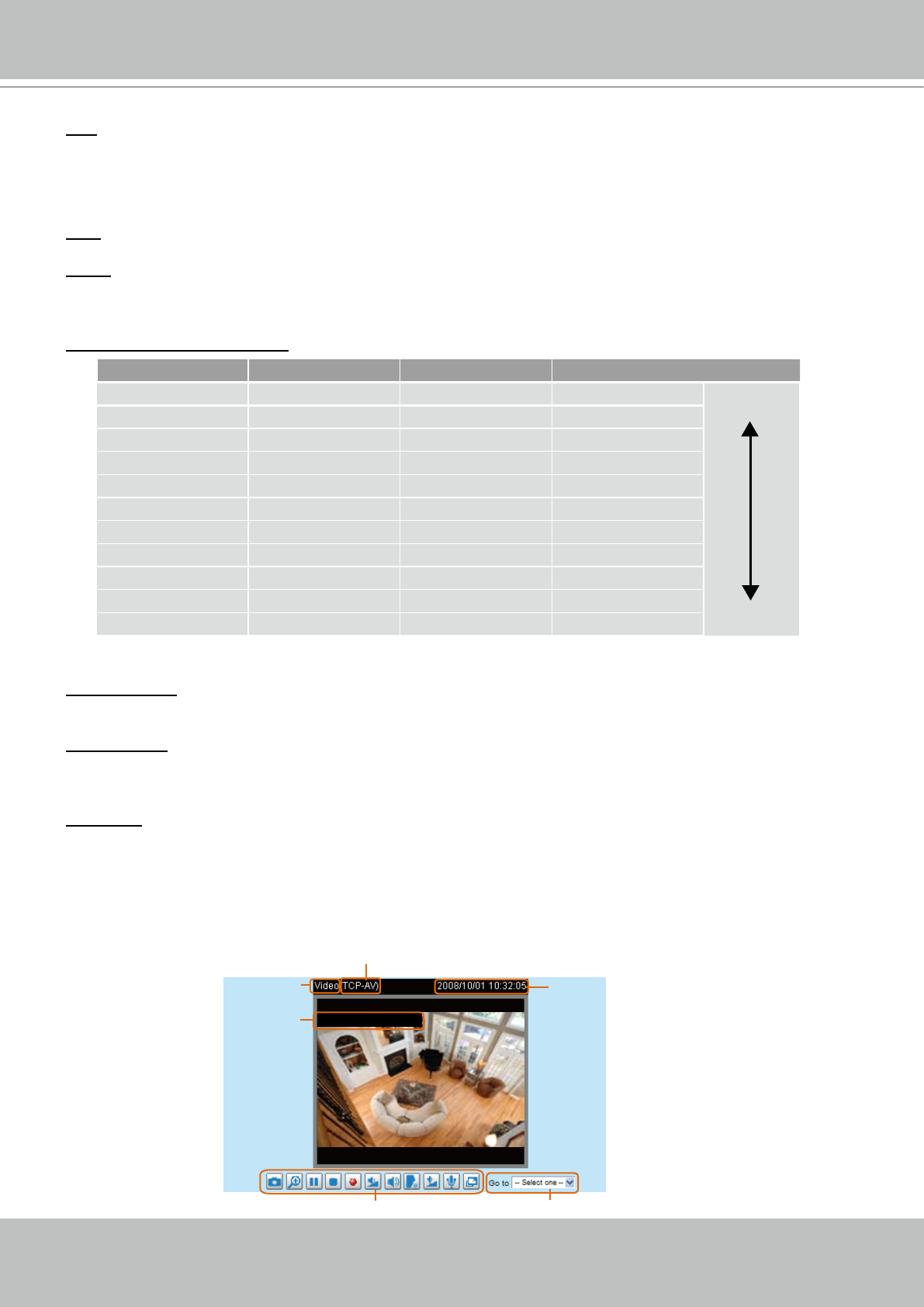

■ The following window is displayed when the video mode is set to MPEG-4:

Video and Audio Control Buttons

MPEG-4 Protocol and Media Options

Video Title

Drop-down List of Preset Positions

Title and Time Video 10:32:05 2008/10/01

Time

Pan speed Tilt speed Zoom speed Focus speed

-5 -5 -5 -5 Slower

Faster

-4 -4 -4 -4

-3 -3 -3 -3

-2 -2 -2 -2

-1 -1 -1 -1

0000

1111

2222

3333

4444

5555

VIVOTEK

User's Manual - 19

Video Title: The video title can be congured. For more information, please refer to Video Settings on

page 51�

MPEG-4 Protocol and Media Options: The transmission protocol and media options for MPEG-4 video

streaming. For further conguration, please refer to Client Settings on page 21�

Time: Display the current time. For further conguration, please refer to Video Settings on page 51�

Title and Time: The video title and time can be stamped on the streaming video. For further conguration,

please refer to Video Settings on page 51�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

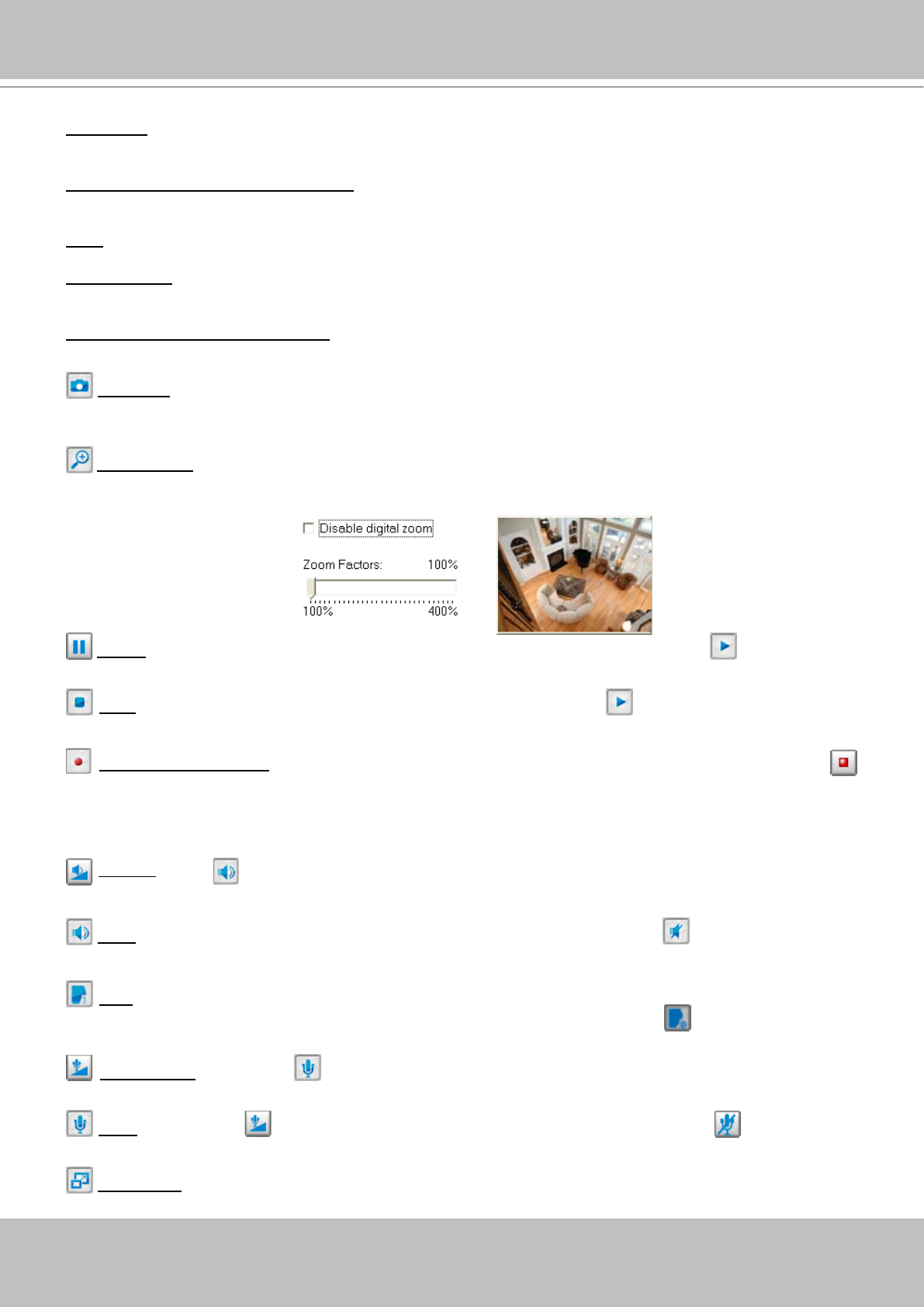

Snapshot: Click this button to capture and save still images� The captured images will be displayed

in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP

(*�bmp) format�

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation� The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen image�

Pause: Pause the transmission of the streaming media� The button becomes the Resume button

after clicking the Pause button�

Stop: Stop the transmission of the streaming media� Click the Resume button to continue

transmission�

Start MP4 Recording: Click this button to record video clips in MP4 file format� Press the

Stop MP4 Recording button to end recording� When you exit the web browser, video recording stops

accordingly. To specify the storage destination and the le name, please refer to MP4 Saving Options on

page 22 for details�

Volume: If the Mute function is not activated, move the slider bar to adjust the volume on the

local computer�

Mute: Turn off the volume on the local computer� The button becomes the Audio On button after

clicking the Mute button�

Talk: Click this button to talk to people around the Network Camera� Audio will project from

the external speaker connected to the Network Camera� Click this button again to end talking

transmission�

Mic Volume: When the Mute function is not activated, move the slider bar to adjust the

microphone volume on the local computer�

Mute: Turn off the Mic volume at local computer� The button becomes the Mic On button

after clicking the Mute button�

Full Screen: Click this button to switch to full screen mode� Press the “Esc” key to switch back to normal

mode�

VIVOTEK

20 - User's Manual

Go to: Once the Administrator has determined the list of preset positions, you can aim the camera using

this command� For more information, please refer to Camera Control on page 59�

■ The following window is displayed when the video mode is set to MJPEG:

Video Title: The video title can be congured. For more information, please refer to Video Settings on

page 51�

Time: Display the current time� For more information, please refer to

Video Settings on page 51�

Title and Time: The video title and time can be stamped on the streaming video� For more information,

please refer to

Video Settings on page 51�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

Snapshot: Click this button to capture and save still images� The captured images will be displayed

in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP

(*�bmp) format�

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation� The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen image�

Start MP4 Recording: Click this button to record video clips in MP4 file format� Press the

Stop MP4 recording button to end recording� When you exit the web browser, video recording stops

accordingly. To specify the storage destination and le name, please refer to MP4 Saving Options on

page 22 for details�

Full Screen: Click this button to switch to full screen mode� Press the “Esc” key to switch back to normal

mode�

Go to: Once the Administrator has determined the list of preset positions; you can aim the camera using

this command� For more information, please refer to Camera Control on page 59�

Time

Video Title

Title and Time

Video Control Buttons

Video 11:13:07 2008/10/01

Drop-down List of Preset Positions

VIVOTEK

User's Manual - 21

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the

local computer. When nished with the settings on this page, click Save on the bottom of the

page to enable the settings�

MPEG-4 Media Options

Select whether to stream video or audio data or both� This is enabled only when the video mode is set to

MPEG-4�

MPEG-4 Protocol Options

Depending on your network environment, there are four transmission modes for MPEG-4 streaming:

UDP unicast: This protocol allows for better real-time audio and video streams� However, network

packets may be lost due to network burst trafc and images may be broken. Activate the UDP connection

when occasions require time-sensitive responses and the video quality is less important� Note that each

unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up

to ten simultaneous accesses�

UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients

requesting streaming media� This helps to reduce the network transmission load of the Network Camera

while serving multiple clients at the same time� Note that to utilize this feature, the Network Camera must

be configured to enable multicast streaming at the same time� For more information, please refer to

RTSP Streaming on page 41�

TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video

quality� However, the real-time effect is not as good as that of the UDP protocol�

HTTP: This protocol allows for the same transmission quality as the TCP protocol without needing to

open specic ports for streaming under some network environments. Users inside a rewall can utilize

this protocol to allow streaming data through�

VIVOTEK

22 - User's Manual

MP4 Saving Options

Users can record live video as they are watching by clicking Start MP4 Recording on the main page�

Here, you can specify the storage destination and le name.

Folder: Specify the storage destination for the recorded video les.

File name prex: Enter the text that will be appended to the front of the video le name.

Add date and time sufx to the le name: Select this option to append the date and time to the end of the

le name.

CLIP_20080108-180853

Date and time sufﬁx

The format is: YYYYMMDD_HHMMSS

File name preﬁx

VIVOTEK

User's Manual - 23

Conguration

Click Configuration on the main page to enter the camera setting pages� Note that only

Administrators can access the conguration page.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with

minimal effort� To simplify the setting procedure, two types of user interfaces are available:

Advanced Mode for professional users and Basic Mode for entry-level users� Some advanced

functions (HTTPS/ Access list/ Homepage layout/ Application/ Recording/ System log/ View

parameters) are not displayed in Basic Mode�

If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the

conguration list to quickly switch to Advanced Mode.

In order to simplify the user interface, the detailed information will be hidden unless you click on

the function item. When you click on the rst sub-item, the detailed information for the rst sub-

item will be displayed; when you click on the second sub-item, the detailed information for the

second sub-item will be displayed and that of the rst sub-item will be hidden.

The following is the interface of the Basic Mode and the Advanced Mode:

Basic Mode

Click to switch to Advanced mode

Firmware Version

Configuration list

VIVOTEK

24 - User's Manual

Advanced Mode

Each function on the conguration list will be explained in the following sections. Those functions that are

displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up the advanced

functions, please click [Advanced Mode] on the bottom of the conguration list to quickly switch over.

System

This section explains how to configure the basic settings for the Network Camera, including

System, System Time, and DI/DO� When completed with the settings on this page, click Save at

the bottom of the page to enable the settings�

System

Host name: Enter the desired name for the Network Camera� The text will be displayed at the top of the

main page�

Turn off the LED indicators: If you do not want to let others know that the network camera is in operation,

you can select this option to turn off the LED indicators�

Click to switch to Basic mode

Firmware Version

Configuration list

VIVOTEK

User's Manual - 25

System Time

Keep current date and time: Select this option to preserve the current date and time of the Network

Camera� The Network Camera’s internal real-time clock maintains the date and time even when the

system power is turned off�

Sync with computer time: Select this option to synchronize the date and time of the Network Camera with

the local computer� The read-only date and time of the PC is displayed when updated�

Manual: The administrator can enter the date and time manually� Note that the date and time format is

[yyyy/mm/dd] and [hh:mm:ss]�

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically

querying an NTP Server�

NTP server: Assign the IP address or domain name of the time-server� Leaving the text box blank

connects the Network Camera to the default time servers�

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly

basis�

Time zone Advanced Mode : Select the appropriate time zone from the list� If you want to upload

Daylight Savings Time rules on the Maintenance page, please refer to Upload / Export Daylight Saving

Time Conguration File on page 84 for details�

DI and DO

Digital input: Select High or Low to dene the normal status for the digital input. The Network Camera

will report the current status�

Digital output: Select Grounded or Open to define normal status for the digital output� The Network

Camera will show whether the trigger is activated or not�

VIVOTEK

26 - User's Manual

Security

This section explains how to enable password protection and create multiple accounts�

Root Password

The administrator account name is “root”, which is permanent and can not be deleted� If you want to add

more accounts in the Manage User column, please set a password for the “root” account rst.

1� Type the password in both text boxes, then click Save to enable password protection�

2� A window will be prompted for authentication; type the correct user’s name and password in their

respective elds to access the Network Camera.

Manage Privilege Advanced Mode

Digital Output & PTZ control: You can modify the manage privilege of operators or viewers� Check or

uncheck the item, then click Save to enable the settings� If you give Viewers the privilege, Operators will

also have the ability to control the Network Camera through the main page� (Please refer to Main Page

on page 17�)

Allow anonymous viewing: If you check this item, any client can access the live stream without entering a

User ID and Password�

Manage User

Administrators can add up to 20 user accounts�

1� Input the new user’s name and password�

2� Select the privilege level for the new user account� Click Add to enable the setting�

Access rights are sorted by user privilege (Administrator, Operator, and Viewer)� Only administrators

can access the Conguration page. Operators cannot access the Conguration page but can use the

URL Commands to get and set the value of parameters� For more information, please refer to URL

Commands for the Network Camera on page 87� Viewers access only the main page for live viewing�

Here you also can change a user’s access rights or delete user accounts�

1� Select an existing account to modify�

2� Make necessary changes and click Update or Delete to enable the setting�

VIVOTEK

User's Manual - 27

HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode

This section explains how to enable authentication and encrypted communication over SSL

(Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher

security level�

Enable HTTPS

Check this item to enable HTTPS communication, then select a connection option: "HTTP & HTTPS"

or "HTTPS only". Note that you have to create and install a certicate rst in the second column before

clicking the Save button�

Create and Install Certicate Method

Before using HTTPS for communication with the Network Camera, a Certicate must be created rst.

There are three ways to create and install a certicate:

Create self-signed certificate automatically

1� Select this option�

2. In the rst column, check Enable HTTPS secure connection, then select a connection option: “HTTP

& HTTPS” or “HTTPS only”�

3� Click Save to generate a certicate.

VIVOTEK

28 - User's Manual

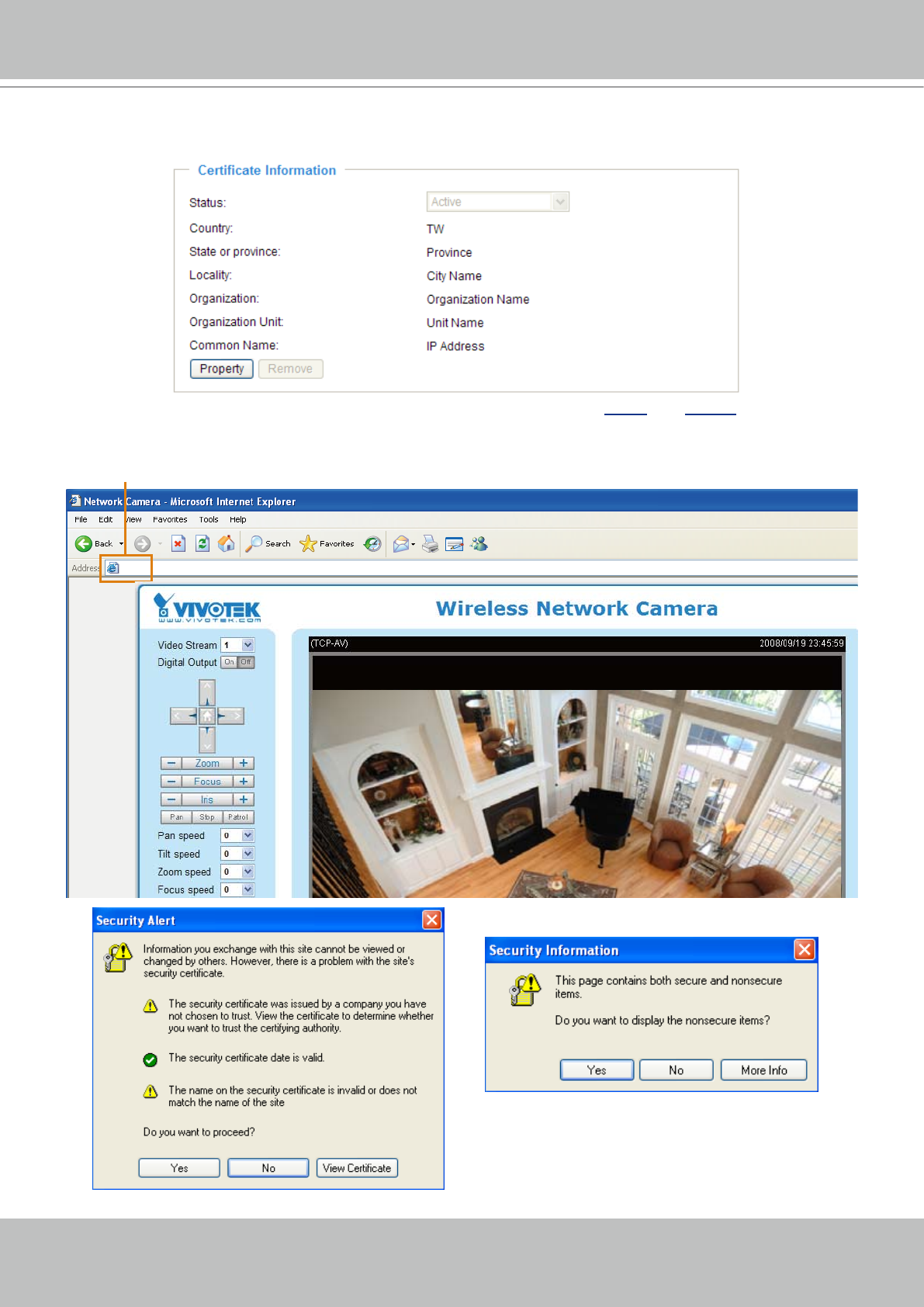

4. The Certicate Information will automatically de displayed in the third column as shown below. You can

click Property to view detailed information about the certicate.

5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the address

bar and press Enter on your keyboard� Some Security Alert dialogs will pop up� Click OK or Yes to

enable HTTPS�

https://192.168.5.151/index.html

https://

VIVOTEK

User's Manual - 29

Create self-signed certificate manually

1� Select this option�

2� Click Create to open a Create Certicate page, then click Save to generate the certicate.

3. The Certicate Information will automatically be displayed in the third column as shown below. You

can click Property to see detailed information about the certicate.

Create certificate and install : Select this option if you want to create an ofcial certicate issued by

a CA (Certicate Authority).

1� Select this option�

2� Click Create to open the Create Certicate page, then click Save to generate the certicate.

VIVOTEK

30 - User's Manual

3� If you see the following Information bar, click OK and click on the Information bar on the top of the

page to allow pop-ups�

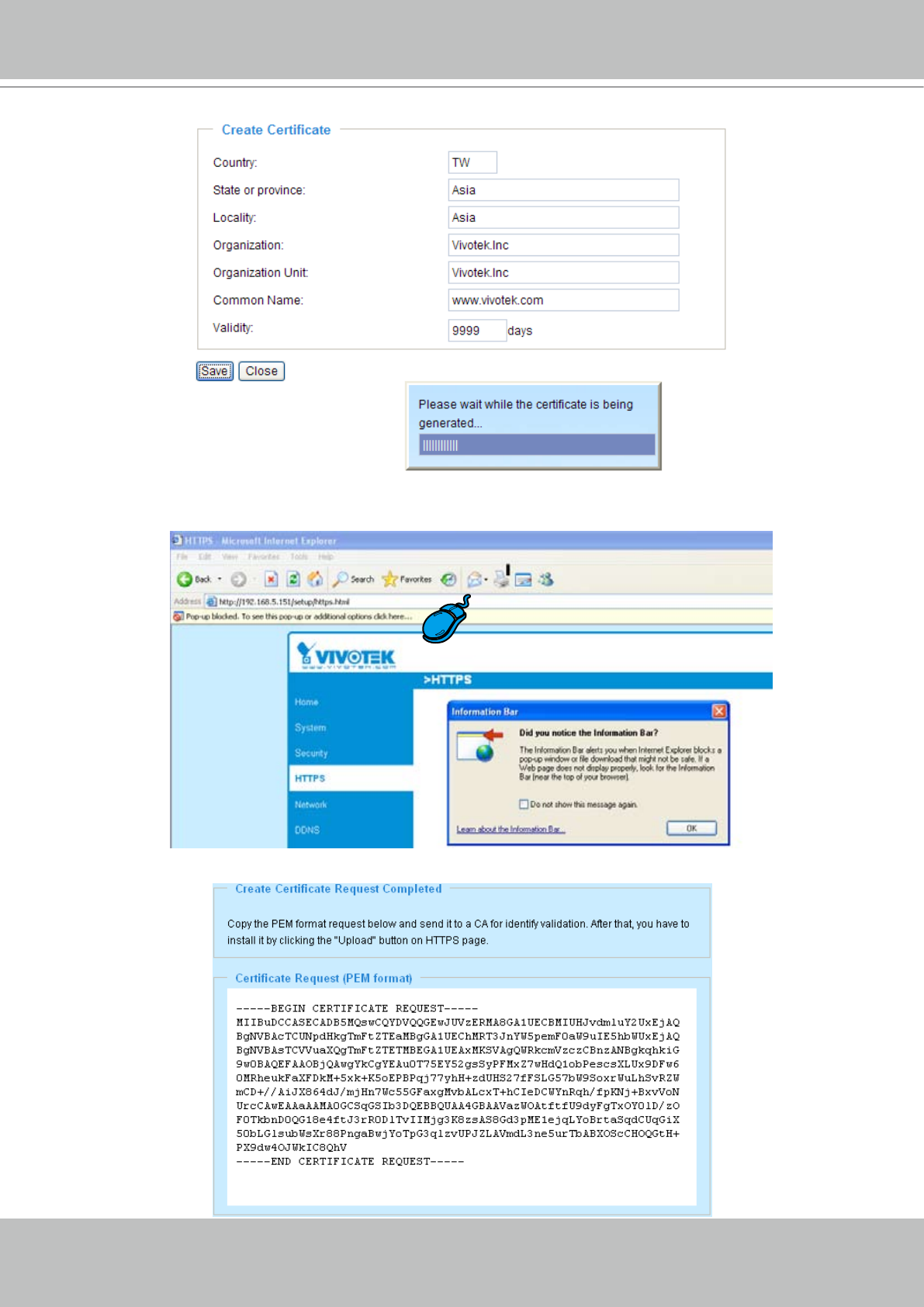

4. The pop-up window shows an example of a certicate request.

VIVOTEK

User's Manual - 31

5. Look for a trusted certicate authority that issues digital certicates. Enroll the Network Camera. Wait

for the certicate authority to issue a SSL certicate; click Browse... to search for the issued certicate,

then click Upload in the second column�

NOTE

► How do I cancel the HTTPS settings?

1� Uncheck Enable HTTPS secure connection in the rst column and click Save; a warning dialog will

pop up�

2� Click OK to disable HTTPS�

3� The webpage will redirect to a non-HTTPS page automatically�

► If you want to create and install other certificates, please remove the existing one. To remove the

signed certificate, uncheck Enable HTTPS secure connection in the first column and click Save�

Then click Remove to erase the certicate.

VIVOTEK

32 - User's Manual

Network

This section explains how to congure a wired network connection for the Network Camera.

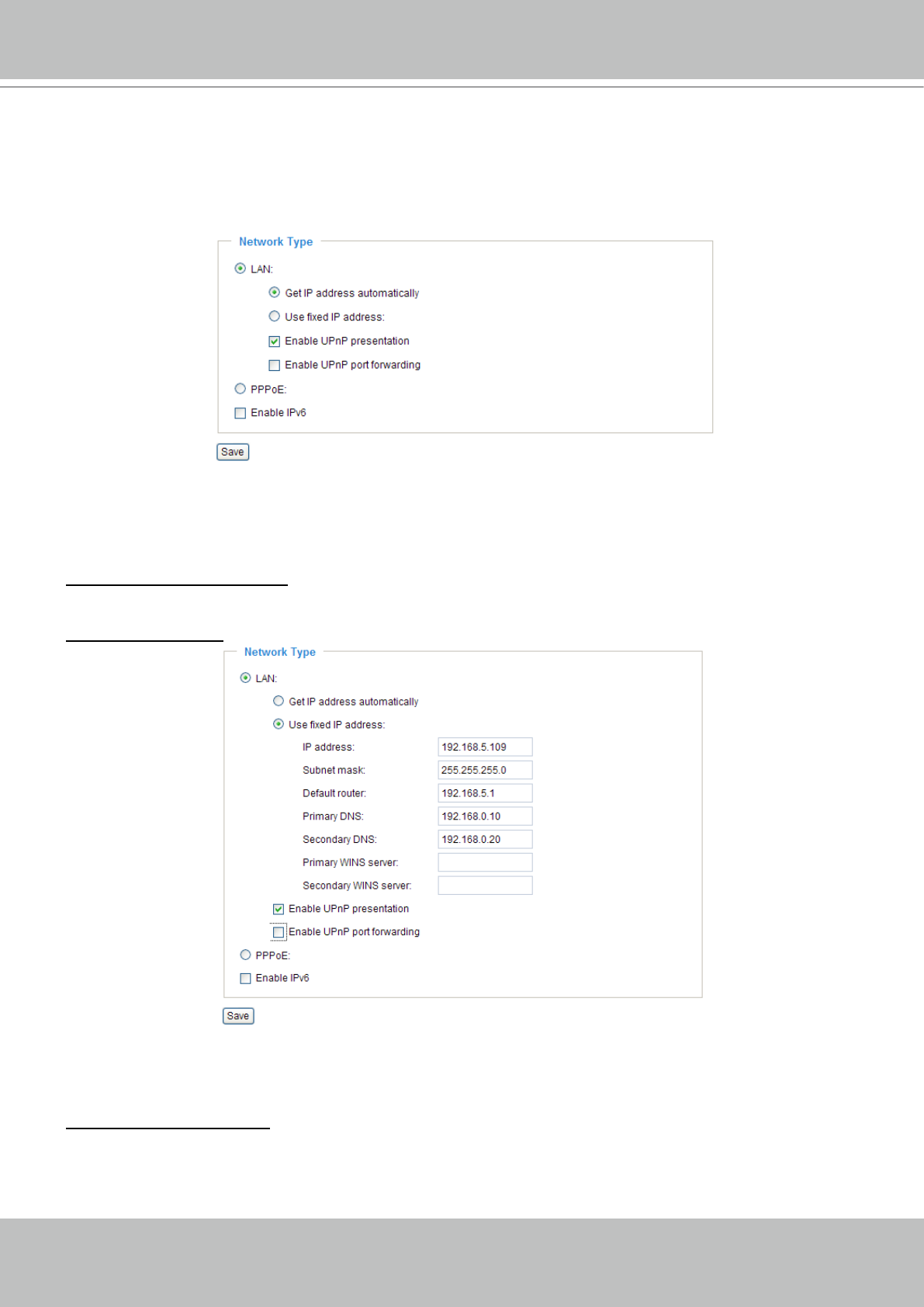

Network Type

LAN

Select this option when the Network Camera is deployed on a local area network (LAN) and is intended

to be accessed by local computers� The default setting for the Network Type is LAN� Rememer to click

Save when you complete the Network setting�

Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by

the DHCP server each time the camera is connected to the LAN�

Use xed IP address: Select this option to manually assign a static IP address to the Network Camera�

1� You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network

Camera on LAN� Please refer to Software Installation on page 11 for details�

2� Enter the static IP, Subnet mask, Default router, and Primary DNS provided by your ISP�

Enable UPnP presentation: Select this option to enable UPnPTM presentation for your Network Camera

so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras

will be listed in My Network Places� You can click the shortcut to link to the web browser� Currently,

UPnPTM is supported by Windows XP or later. Note that to utilize this feature, please make sure the

UPnPTM component is installed on your computer�

VIVOTEK

User's Manual - 33

Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to

allow the Network Camera to open ports on the router automatically so that video streams can be sent

out from a LAN� To utilize of this feature, make sure that your router supports UPnPTM and it is activated�

PPPoE (Point-to-point over Ethernet)

Select this option to congure your Network Camera to make it accessible from anywhere as long as

there is an Internet connection� Note that to utilize this feature, it requires an account provided by your

ISP�

Follow the steps below to acquire your Network Camera’s public IP address�

1� Set up the Network Camera on the LAN�

2. Go to Home > Conguration > Application > Server Settings (please refer to Server Settings on page

71) to add a new email or FTP server�

3. Go to Conguration > Application > Media Settings (please refer to Media Settings on page 74)� Select

System log so that you will receive the system log in TXT le format which contains the Network

Camera’s public IP address in your email or on the FTP server�

4. Go to Conguration > Network > Network Type. Select PPPoE and enter the user name and password

provided by your ISP� Click Save to enable the setting�

5� The Network Camera will reboot�

6� Disconnect the power to the Network Camera; remove it from the LAN environment�

NOTE

► If the default ports are already used by other devices connected to the same router, the Network

Camera will select other ports for the Network Camera�

► If UPnP

is not supported by your router, you will see the following message:

Error: Router does not support UPnP port forwarding.

Network Camera (192.168.5.151)

VIVOTEK

34 - User's Manual

► Steps to enable the UPnP

user interface on your computer:

Note that you must log on to the computer as a system administrator to install the UPnP

components�

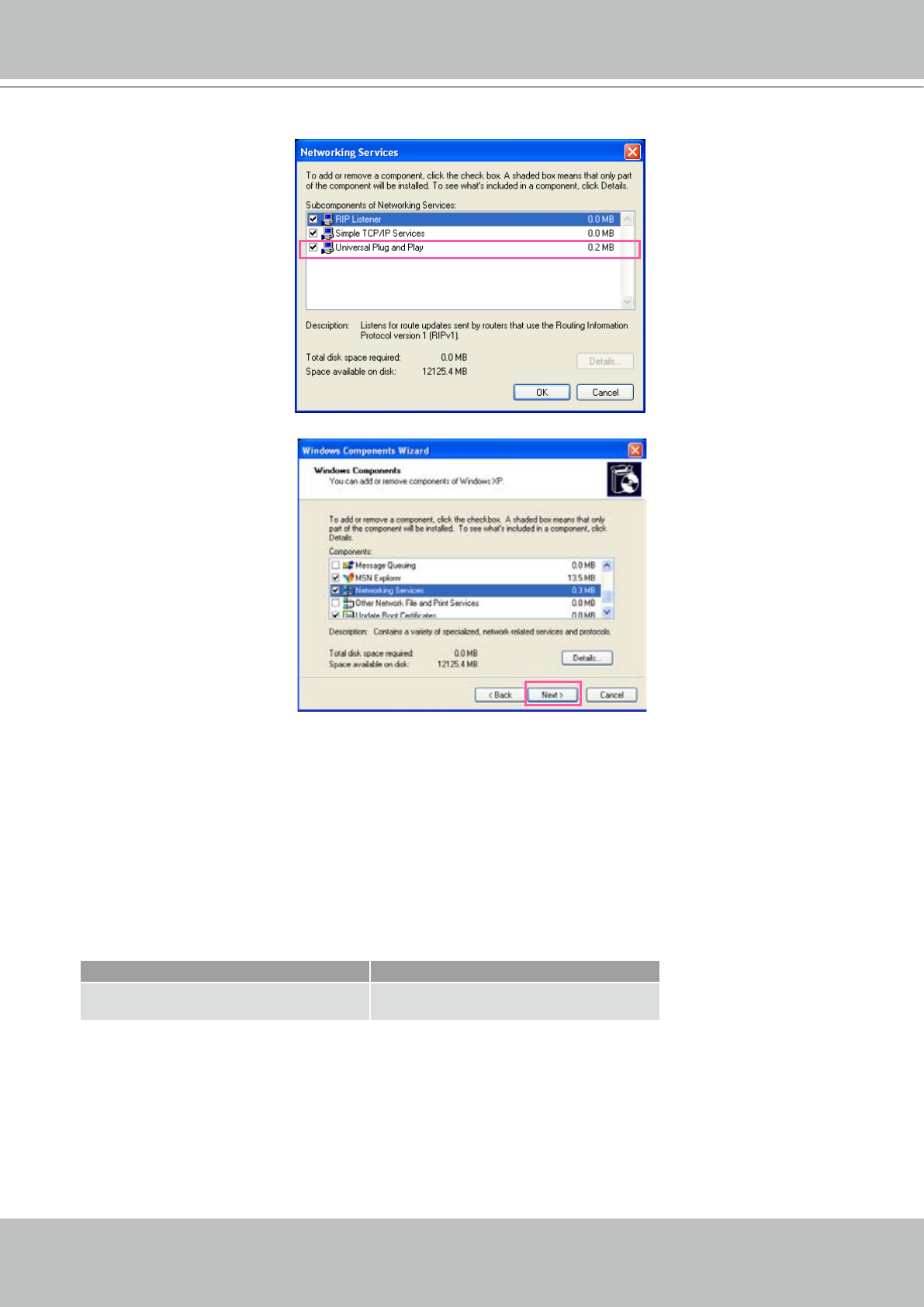

1� Go to Start, click Control Panel, then click Add or Remove Programs�

2� In the Add or Remove Programs dialog box, click Add/Remove Windows Components�

3�

In the Windows Components Wizard dialog box, select Networking Services and click Details�

VIVOTEK

User's Manual - 35

4� In the Networking Services dialog box, select Universal Plug and Play and click OK�

5� Click Next in the following window�

6� Click Finish� UPnP

is enabled�

► How does UPnP

work?

UPnP

networking technology provides automatic IP conguration and dynamic discovery of devices

added to a network. Services and capabilities offered by networked devices, such as printing and le

sharing, are available among each other without the need for cumbersome network conguration. In

the case of Network Cameras, you will see Network Camera shortcuts under My Network Places�

► Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the

router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network

Camera’s public address in order to access the Network Camera from the Internet� For example,

when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for

the Network Camera’s IP address�

From the Internet In LAN

http://203.67.124.123:8080 http://192.168.4.160 or

http://192.168.4.160:8080

► If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the

Network Camera to factory default; please refer to Restore on page 83 for details� After the Network

Camera is reset to factory default, it will be accessible on the LAN�

VIVOTEK

36 - User's Manual

Enable IPv6

Select this option and click Save to enable IPv6 settings�

Please note that this only works if your network environment and hardware equipment support IPv6� The

browser should be Microsoft® Internet Explorer 6�5, Mozilla Firefox 3�0 or above�

When IPv6 is enabled, by default, the network camera will listen to router advertisements and be

assigned with a link-local IPv6 address accordingly�

IPv6 Information: Click this button to obtain the IPv6 information as shown below�

If your IPv6 settings are successful, the IPv6 address list will listed in the pop-up window� The IPv6

address will be displayed as follows:

Link-global IPv6 address/network mask

Link-local IPv6 address/network mask

Refers to Ethernet

VIVOTEK

User's Manual - 37

Please follow the steps below to link to an IPv6 address:

1� Open your web browser�

2� Enter the link-global or link-local IPv6 address in the address bar of your web browser�

3� The format should be:

4� Press Enter on the keyboard or click Refresh button to refresh the webpage�

For example:

NOTE

► If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage in

the following address format: (Please refer to HTTP on page 38 for detailed information�)

► If you choose PPPoE as the Network Type, the [PPP0 address] will show up in the IPv6 information

column as below�

Manually setup the IP address: Select this option to manually set up IPv6 settings if your network

environment does not have DHCPv6 server and router advertisements-enabled routers�

If you check this item, the following blanks will be displayed for you to enter the corresponding

information:

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/

IPv6 address

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080

IPv6 address Secondary HTTP port

VIVOTEK

38 - User's Manual

HTTP Advanced Mode

To utilize HTTP authentication, make sure that your have set a password for the Network Camera rst;

please refer to Security on page 26 for details�

Authentication: Depending on your network security requirements, the Network Camera provides two

types of security settings for an HTTP transaction: basic and digest�

If basic authentication is selected, the password is sent in plain text format and there can be potential

risks of being intercepted� If digest authentication is selected, user credentials are encrypted using MD5

algorithm and thus provide better protection against unauthorized accesses�

HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is

set to 8080� They can also be assigned to another port number between 1025 and 65535� If the ports are

incorrectly assigned, the following warning messages will be displayed:

To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used

to access the Network Camera� For example, when the HTTP port is set to 80 and the secondary HTTP

port is set to 8080, refer to the list below for the Network Camera’s IP address�

Access name for stream 1 / Access name for stream 2: The access name is used to differentiate the

streaming source�

When using Mozilla Firefox or Netscape to access the Network Camera and the video mode is set to

JPEG, users will receive video comprised of continuous JPEG images� This technology, known as “server

push”, allows the Network Camera to feed live pictures to Mozilla Firefox and Netscape�

In LAN

http://192.168.4.160 or

http://192.168.4.160:8080

VIVOTEK

User's Manual - 39

URL command -- http://<ip address>:<http port>/<access name for stream1 or stream2>

For example, when the Access name for stream 2 is set to video2�mjpg:

1� Launch Mozilla Firefox or Netscape�

2� Type the URL command in the address bar� Press Enter�

3� The JPEG images will be displayed in your web browser�

NOTE

► Microsoft

Internet Explorer does not support server push technology; therefore, using http://<ip

address>:<http port>/<access name for stream1 or stream2> will fail to access the Network Camera�

HTTPS

By default, the HTTPS port is set to 443� It can also be assigned to another port number between 1025

and 65535�

Two way audio

By default, the two way audio port is set to 5060� Also, it can also be assigned to another port number

between 1025 and 65535�

The Network Camera supports two way audio communication so that operators can transmit and receive

audio simultaneously� By using the Network Camera’s built-in or external microphone and an external

speaker, you can communicate with people around the Network Camera�

http://192.168.5.151/video2.mjpg

VIVOTEK

40 - User's Manual

Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way audio

function, make sure the video mode is set to “MPEG-4” on the Audio and Video Settings page and the

media option is set to “Video and Audio” on the Client Settings page� Please refer to Client Settings on

page 21 and Audio and Video Settings on page 51�

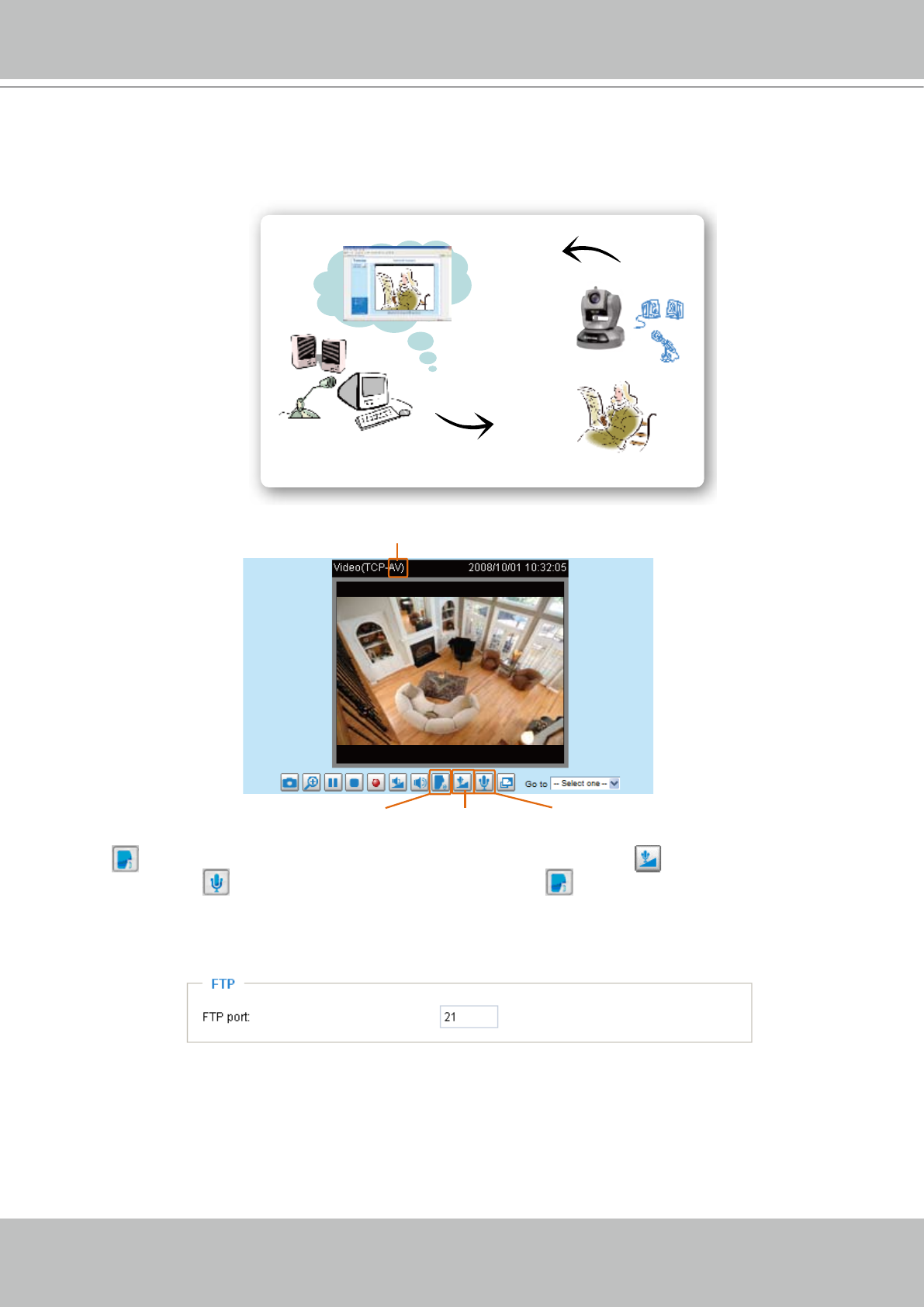

Click to enable audio transmission to the Network Camera; click to adjust the volume of

microphone; click to turn off the audio� To stop talking, click again�

FTP

The FTP server allows the user to save recorded video clips� You can utilize VIVOTEK Installation Wizard

2 to upgrade the rmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to

another port number between 1025 and 65535�

Audio transmitted from operators

Audio transmitted to operators

America Taiwan

Audio is being transmitted to the Network Camera

Mute

Mic Volume

Talk Button

VIVOTEK

User's Manual - 41

RTSP Streaming

To utilize RTSP streaming authentication, make sure that you have set a password for the Network

Camera rst; please refer to Security on page 26 for details�

Authentication: Depending on your network security requirements, the Network Camera provides three

types of security settings for streaming via RTSP protocol: disable, basic, and digest�

If basic authentication is selected, the password is sent in plain text format, but there can be potential

risks of it being intercepted� If digest authentication is selected, user credentials are encrypted using

MD5 algorithm, thus providing better protection against unauthorized access�

The availability of the RTSP streaming for the three authentication modes is listed in the following table:

Access name for stream 1 / Access name for stream 2: This Network camera supports dual streams

simultaneously� The access name is used to differentiate the streaming source�

If you want to use an RTSP player to access the Network Camera, you have to set the video mode to

MPEG-4 and use the following RTSP URL command to request transmission of the streaming data�

rtsp://<ip address>:<rtsp port>/<access name for stream1 or stream2>

For example, when the access name for stream 1 is set to live�sdp:

1� Launch an RTSP player�

2� Choose File > Open URL� A URL dialog box will pop up�

3� Type the URL command in the text box� For example:

4� The live video will be displayed in your player as shown

below�

rtsp://192.168.5.106:554/live.sdp

Quick Time player Real Player

Disable O O

Basic O O

Digest O X

Video 16:38:01 2008/01/03

VIVOTEK

42 - User's Manual

RTSP port /RTP port for video, audio/ RTCP port for video, audio

■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port

number is set to 554�

■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By

default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558�

■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by

monitoring Internet trafc volume. By default, the RTCP port for video is set to 5557 and the RTCP port

for audio is set to 5559�

The ports can be changed to values between 1025 and 65535� The RTP port must be an even number

and the RTCP port is the RTP port number plus one, and thus is always odd� When the RTP port

changes, the RTCP port will change accordingly�

If the RTP ports are incorrectly assigned, the following warning message will be displayed:

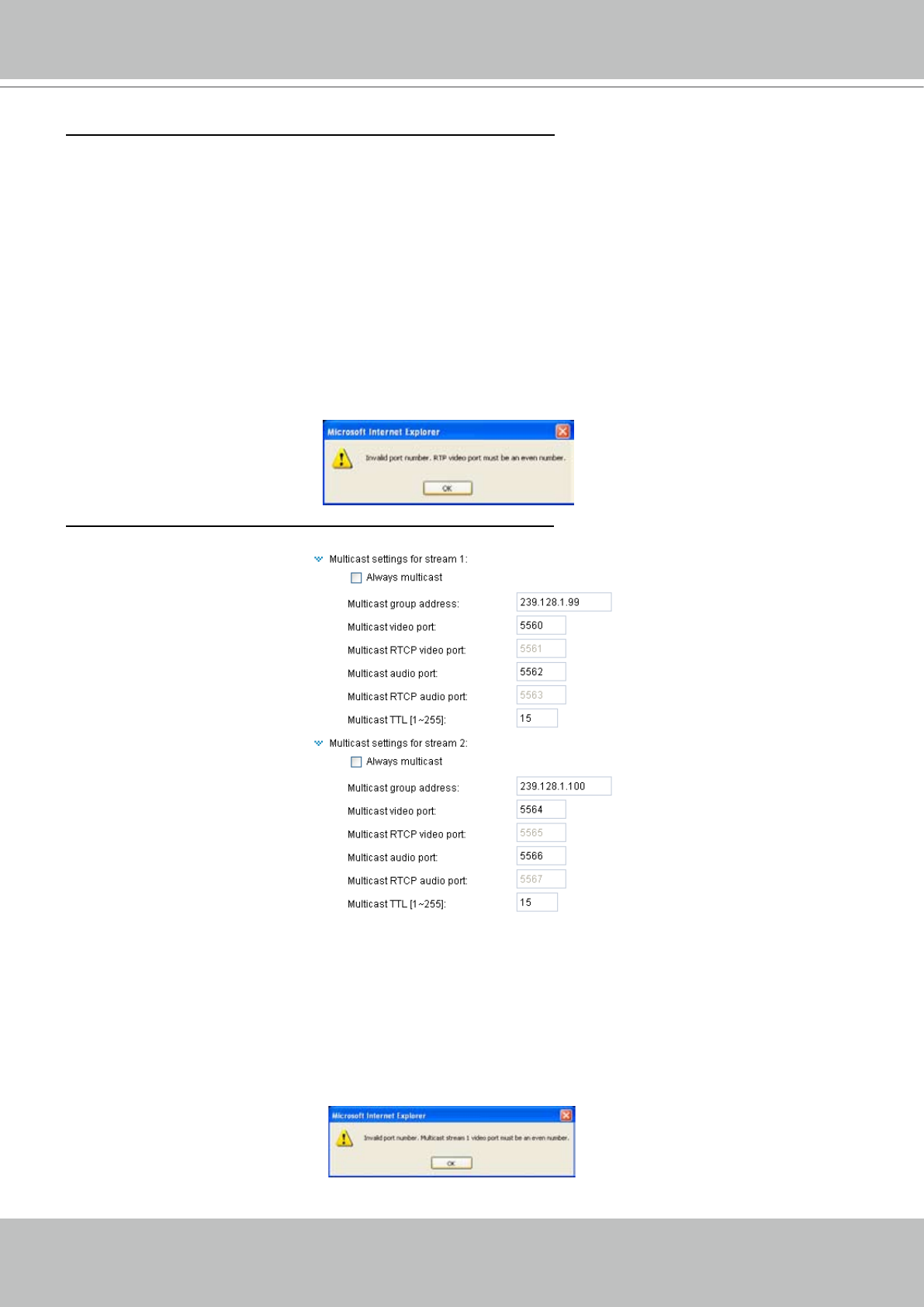

Multicast settings for stream 1 / Multicast settings for stream 2: Click the items to display the detailed

conguration information. Select the Always multicast option to enable multicast for stream 1 or stream 2.

Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other

hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at

the same time by requesting a copy from the multicast group address� Therefore, enabling multicast can

effectively save Internet bandwith�

The ports can be changed to values between 1025 and 65535� The multicast RTP port must be an even

number and the multicast RTCP port number is the multicast RTP port number plus one, and is thus

always odd� When the multicast RTP port changes, the multicast RTCP port will change accordingly�

If the multicast RTP video ports are incorrectly assigned, the following warning message will be

displayed:

Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range a

packet can be forwarded�

VIVOTEK

User's Manual - 43

Wireless LAN (PZ7112/PZ7122 only)

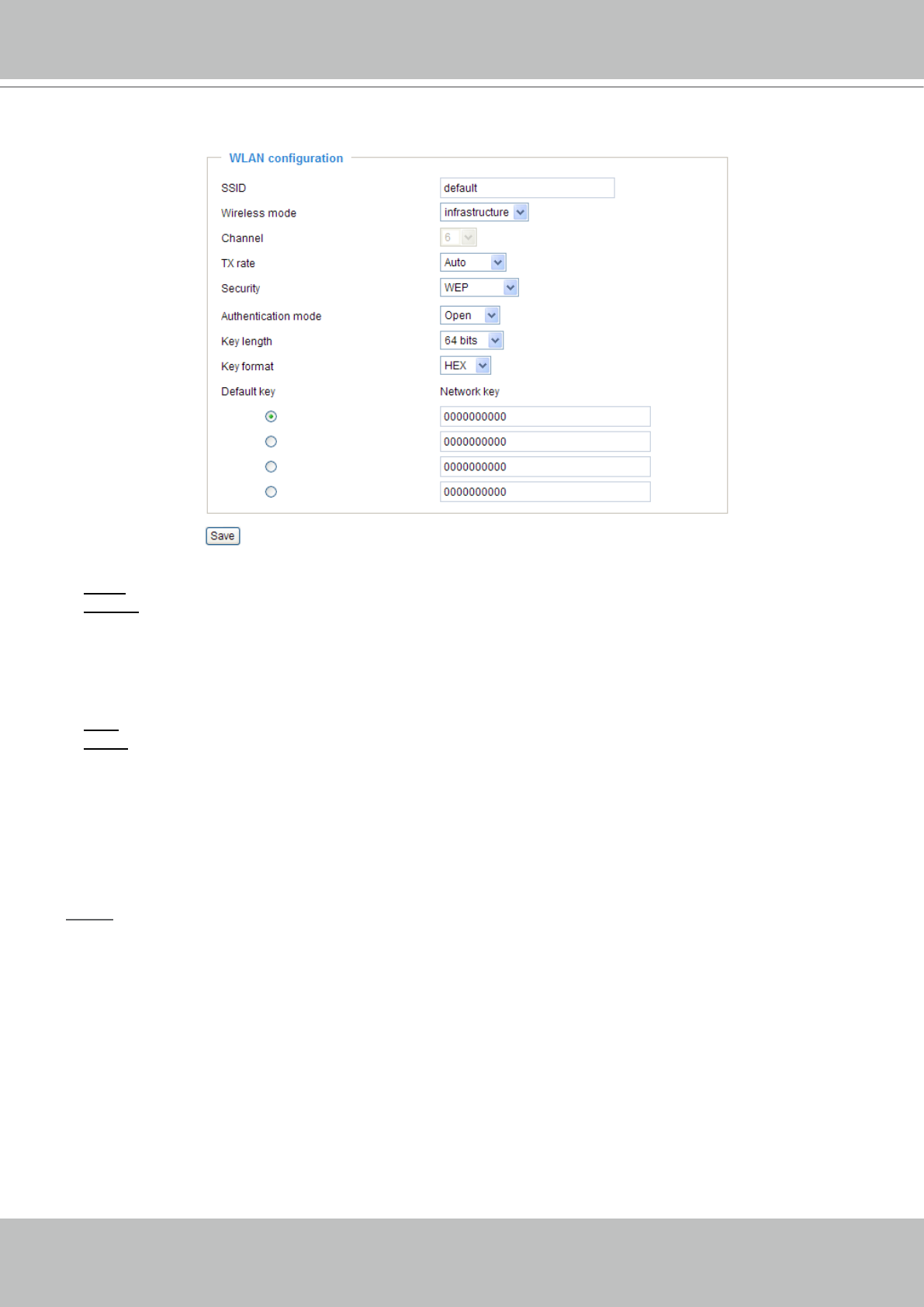

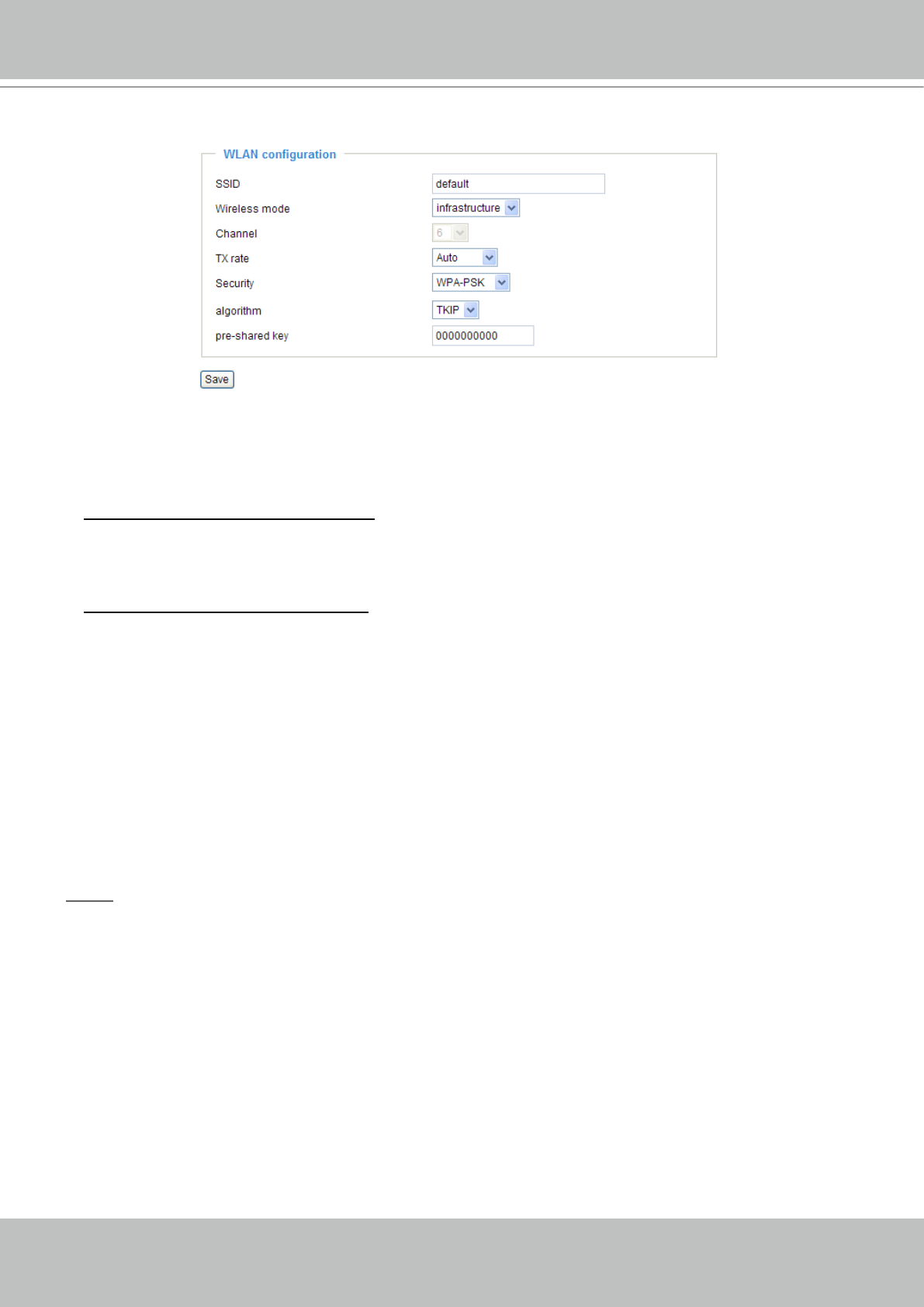

SSID (Service Set Identifier): This is the name that identifies a wireless network� Access Points and

wireless clients attempting to connect to a specic WLAN (Wireless Local Area Network) must use the

same SSID� The default setting is “default”� Note: The maximum length for an SSID is 32 single-byte

characters and cannot consist of “, <, >, or blank spaces�

Wireless mode: Click on the pull-down menu to select from the following options:

■ Infrastructure: Connect the Network Camera to the WLAN via an Access Point� (default setting)

■ Ad-Hoc: Connect the Network Camera directly to a host equipped with a wireless adapter in a peer-to-

peer environment�

Channel: While in infrastructure mode, the channel is selected automatically to match the channel setting

of the selected Access Point� In Ad-Hoc mode, the channel must be manually set to the same channel for

each wireless adapter� The default channel setting depends on the installed region�

TX rate: This eld is for selecting the maximum transmission rate over the network. The default setting is

“auto”, that is, the Network Camera will try to connect to other wireless devices with highest transmission

rate�

Security: Select the data encrypt method� There are four types, including: none, WEP, WPA-PSK, and

WPA2-PSK�

1� None: No data encryption�

VIVOTEK

44 - User's Manual

2� WEP (Wired Equivalent Privacy): This allows communication only with other devices with identical

WEP settings�

■ Authentication Mode: Choose one of the following modes� The default setting is “Open”�

Open – Communicates the key across the network�

Shared – Allows communication only with other devices with identical WEP settings�

■ Key length: The administrator can set the key length to 64 or 128 bits�

The default setting is “64 bits”�

■ Key format: Hexadecimal or ASCII. The fault setting is “HEX”.

HEX digits consist of the numbers 0~9 and the letters A-F�

ASCII is a code for representing English letters as numbers from 0-127 except “, <, > , and the space

character which are reserved�

■ Network Key: Enter a key in either hexadecimal or ASCII format�

You can select different key lengths, the acceptable input lengths are as follows:

64-bit key length: 10 Hex digits or 5 characters�

128-bit key length: 26 Hex digits or 13 characters�

NOTE

► When 22(“), 3C(<), or 3E(>) are input as network keys, the key format cannot be changed to ASCII

format�

VIVOTEK

User's Manual - 45

3� WPA-PSK: Use WPA (Wi-Fi Protected Access) pre-shared key�

More secure than WEP, the Wi-Fi Alliance developed WPA (Wi-Fi Protected Access) in 2003 to

address WEP’s weaknesses� Improvements included TKIP, which changes the encryption key for each

data transmission�

■ Algorithm: Choose one of the following algorithms for WPA-PSK and WPA2-PSK modes�

TKIP (Temporal Key Integrity Protocol): A security protocol used in IEEE 802�11 wireless networks�

TKIP is a “wrapper” that goes around the existing WEP encryption� TKIP is comprised of the same

encryption engine and RC4 algorithm dened for WEP; however, the key used for encryption in TKIP

is 128 bits long. This solves the rst problem of WEP: a short key length. (From Wikipedia)

AES (Advanced Encryption Standard): In cryptography, the Advanced Encryption Standard (AES), also

known as Rijndael, is a block cipher adopted as an encryption standard by the U�S� government�

As of 2006, AES is one of the most popular algorithms used in symmetric key cryptography� (From

Wikipedia)

■ Pre-shared Key: Enter a key in ASCII format� The length of the key can be between 8 to 63 characters�

4� WPA2-PSK: Use WPA2 pre-shared key�

This advanced protocol, certied through Wi-Fi Alliance’s WPA2 program, implements the mandatory

elements of 802�11i� In particular, it introduces a new AES-based algorithm, CCMP, that is considered

fully secure. From March 13, 2006, WPA2 certication is mandatory for all new devices wishing to be

certied by the Wi-Fi Alliance as “Wi-Fi CERTIFIED.” (From Wikipedia)

NOTE

► After wireless congurations are completed, click Save and the camera will reboot� Wait for the live

image ito be reloaded to your browser� For VIVOTEK 7000-series cameras, you have to unplug the

power and Ethernet cables from the camera; then re-plug the power cable to the camera� The camera

will switch to wireless mode�

► Some invalid settings may cause the system to fail to respond. Change the conguration settings only

if necessary and consult with your network supervisor or experienced users for correct settings� Once

the system has lost contact, please refer to Maintenance on page 83 for reset and restore procedures�

VIVOTEK

46 - User's Manual

DDNS

This section explains how to configure the dynamic domain name service for the Network

Camera� DDNS is a service that allows your Network Camera, especially when assigned with a

dynamic IP address, to have a xed host and domain name.

DDNS: Dynamic domain name service

Enable DDNS: Select this option to enable the DDNS setting�

Provider: Select a DDNS provider from the provider drop-down list�

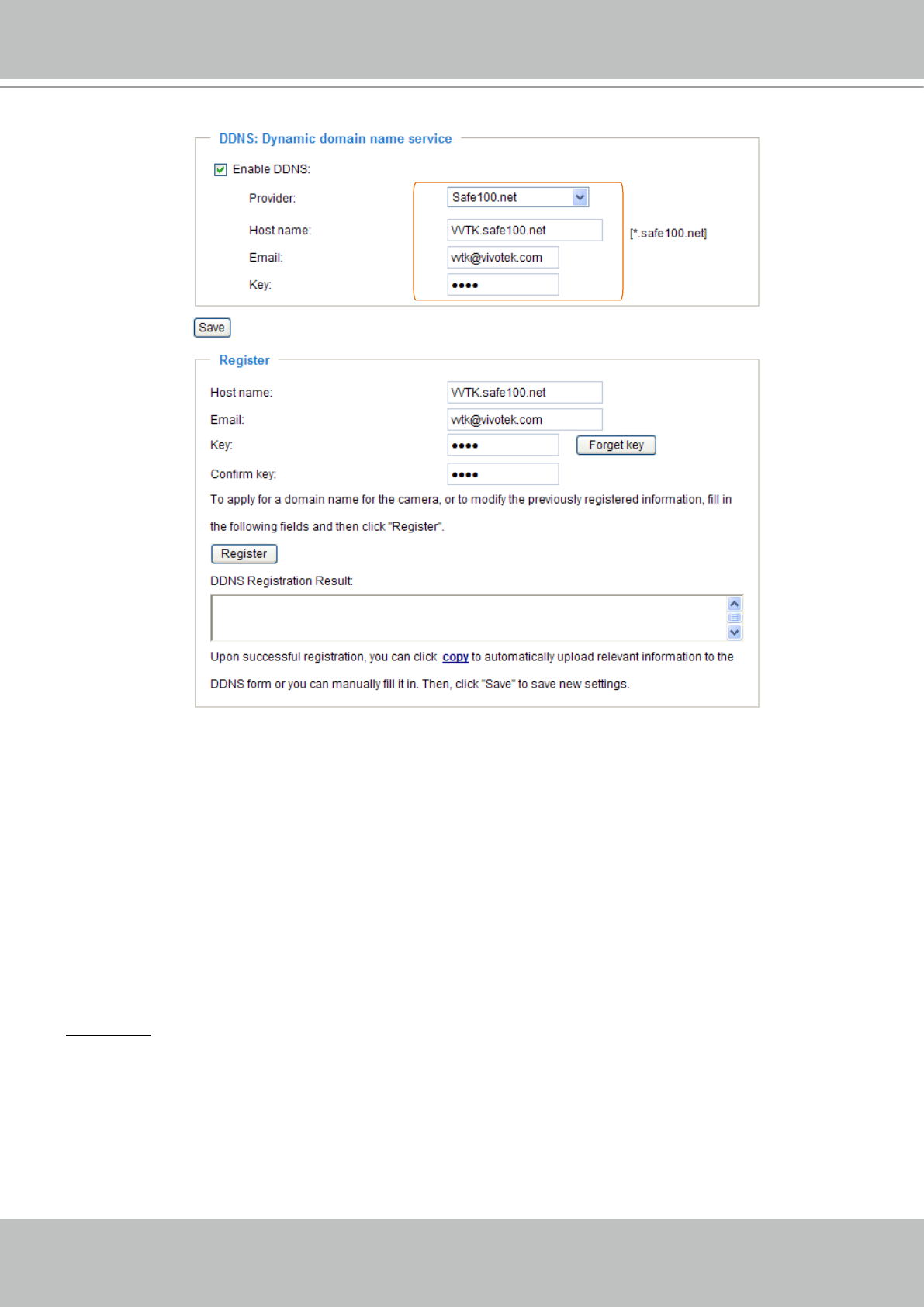

VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is

recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the Internet�

Additionally, we offer other DDNS providers, such as Dyndns�org(Dynamic), Dyndns�org(Custom), TZO�

com, DHS�org, CustomSafe100, dyn-interfree�it�

Note that before utilizing this function, please apply for a dynamic domain account rst.

■ Safe100�net

1� In the DDNS column, select Safe100.net from the drop-down list� Click I accept after reviewing the

terms of the Service Agreement�

2. In the Register column, ll in the Host name (xxxx.safe100.net), Email, Key, and Conrm Key, then

click Register� After a host name has been successfully created, a success message will be displayed

in the DDNS Registration Result column�

3� Click Copy and all the registered information will automatically be uploaded to the corresponding elds

in the DDNS column at the top of the page as seen in the picture�

[Register] Successfully Your account information has

been mailed to registered e-mail address

VIVOTEK

User's Manual - 47

4� Select Enable DDNS and click Save to enable the setting�

■ CustomSafe100

VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system

integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system

integrators offer such services�

1� In the DDNS column, select CustomSafe100 from the drop-down list�

2. In the Register column, ll in the Host name, Email, Key, and Conrm Key; then click Register� After a

host name has been successfully created, you will see a success message in the DDNS Registration

Result column�

3� Click Copy and all for the registered information will be uploaded to the corresponding elds in the

DDNS column�

4� Select Enable DDNS and click Save to enable the setting�

Forget key: Click this button if you have forgotten the key to Safe100�net or CustomSafe100� Your

account information will be sent to your email address�

Refer to the following links to apply a dynamic domain account when selecting other DDNS

providers:

■ Dyndns�org(Dynamic) / Dyndns�org(Custom): visit http://www�dyndns�com/

■ TZO�com: visit http://www�tzo�com/

■ DHS�org: visit http://www�dhs�org/

■ dyn-interfree�it: visit http://dyn-interfree�it/

[Register] Successfully Your account information has

been mailed to registered e-mail address

VIVOTEK

48 - User's Manual

Access List Advanced Mode

This section explains how to control access permission by verifying the client PC’s IP address�

General Settings

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10

clients (including stream 1 and stream 2)� The default value is 10� If you modify the value and click Save,

all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick

Time Player)�

View Information: Click this button to display the connection status window showing a list of the current

connections� For example:

■ IP address: Current connections to the Network Camera.

■ Elapsed time: How much time the client has been at the webpage.

■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name

and password to access the live video� The user name will be displayed in the User ID column� If the

administrator allows clients to link to the webpage without a user name and password, the User ID

column will be empty�

There are some situations which allow clients access to the live video without a user name and

password:

1� The administrator does not set up a root password� For more information about how to set up a root

password and manage user accounts, please refer to Security on page 26�

2� The administrator has set up a root password, but set RTSP Authentication to “disable“� For more

information about RTSP Authentication, please refer to RTSP Streaming on page 41�

3� The administrator has set up a root password, but allows anonymous viewing� For more information

about Allow Anonymous Viewing, please refer to Security on page 26�

Connection status

192.168.3.25

61.22.15.3

192.168.1.147

IP address

45:00:34

00:10:09

12:20:34

Elapsed time

greg

anonymous

root

User ID

Add to Deny List DisconnectRefresh

VIVOTEK

User's Manual - 49

■ Refresh: Click this button to refresh all current connections.

■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List

to deny access� Please note that those checked connections will only be disconnected temporarily

and will automatically try to re-link again (IE Explore or Quick Time Player)� If you want to enable the

denied list, please check Enable access list ltering and click Save in the rst column.

■ Disconnect: If you want to break off the current connections, please select them and click this

button� Please note that those checked connections will only be disconnected temporarily and will

automatically try to re-link again (IE Explore or Quick Time Player)�

Enable access list ltering: Check this item and click Save if you want to enable the access list ltering

function�

Filter

There are two lists for permission control: Allowed list and Denied list� Only those clients whose IP

addresses are on the Allowed list and not on the Denied list can access the Network Camera� Please

note that the IPv6 access list column will not be displayed unless you enable IPv6 on the Network page�

For more information about IPv6 Settings, please refer to page 36 for detailed information�

■ Add a rule to Allowed/Denied list: Click Add to add a rule to Allowed/Denied list�

There are three types of rules for user to set up:

Single: This rule allows the user to add an IP address to the Allowed/Denied list�

For example:

VIVOTEK

50 - User's Manual

Network: This rule allows the user to assign a network address and corresponding subnet mask to the

Allow/Deny List�

For example:

Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List� This rule is

only applied to IPv4�

For example:

■ Delete Allowed/Denied list:

In the Delete Allowed List or Delete Denied List column, make a selection and click Delete�

NOTE

► For example, when the range of IP addresses in the allowed list is set from 1.1.1.0 to 192.255.255.255

and the range in the denied list is set from 1�1�1�0 to 170�255�255�255, only users’ IP located between

171�0�0�0 and 192�255�255�255 can access the Network Camera�

Administrator IP address

Always allow the IP address to access this device: You can check this item and add the Administrator’s

IP address in this eld to make sure the Administrator can always connect to the device.

Allowed

List

Denied

List

IP address 192�168�2�x will be bolcked�

VIVOTEK

User's Manual - 51

Audio and Video

This section explains how to cogure the audio and video settings of the Network Camera. It is

composed of the following two columns: Video Settings and Audio Settings�

Video Settings

Video title: Enter a name that will be displayed on the title bar of the live video�

Color: Select to display color or black/white video streams�

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image

flickering associated with fluorescent lights� Note that after the power line frequency is changed, you

must disconnect and reconnect the power cord of the Network Camera in order for the new setting to

take effect�

Video orientation: Flip--vertically reect the display of the live video; Mirror--horizontally reect the display

of the live video� Select both options if the Network Camera is installed upside-down (ex� on the ceiling)

to correct the image orientation�

Overlay title and time stamp on video: Select this option to place the video title and time on the video

streams�

10:32:05 2008/10/01

Video title

Title and Time

VIVOTEK

52 - User's Manual

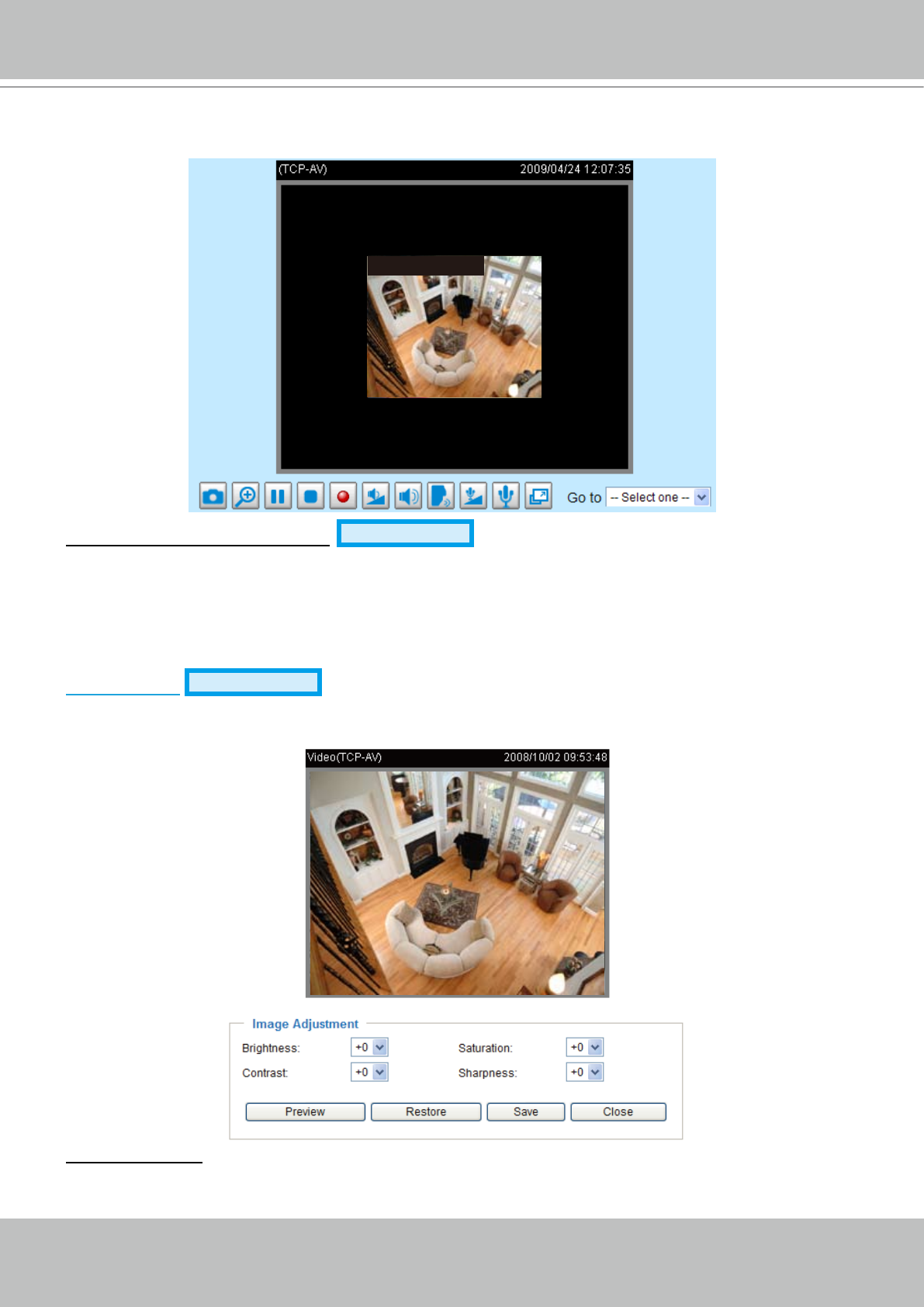

Note that when the frame size is set to 176 x 144 as shown in the picture below, only the time will be

stamped on the video streams�

Enable time shift caching stream Advanced Mode : Check this item to enable the time shift cache

stream on the Network Camera, which will stores video in the camera’s embedded memory for a period

of time depending on the cache memory of each Network Camera� This function can work seamlessly

with VIVOTEK’s ST7501 recording software� When an event occurs, the recording software can request

time shift cache stream from the camera, which allows the user to get an earlier video data�

Image Settings Advanced Mode

Click Image Settings to open the Image Settings page� On this page, you can tune the Brightness,

Saturation, Contrast, and Sharpness for the video�

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from -5 to +5. The default value is set to 0.

12:07:35 2009/04/24

VIVOTEK

User's Manual - 53

■ Saturation: Adjust the image saturation level, which ranges from -5 to +5. The default value is set to 0.

■ Contrast: Adjust the image contrast level, which ranges from -5 to +5. The default value is set to 0.

■ Sharpness:

Adjust the image sharpness level, which ranges from -3 to +3. The default value is set to +3.

You can click Preview to fine-tune the image, or click Restore to recall the original settings without

incorporating the changes� When completed with the settings on this page, click Save to enable the

setting and click Close to exit the page�

CCD Adjustment Advanced Mode

Click CCD settings to open the CCD Adjustment page� On this page, you can set the Auto electronic

shutter (AES), Auto tracking white balance, White balance control, Low lux mode, and BLC settings�

Auto electronic shutter (AES): The default iris setting of the CCD is fixed mode, and the AES option

will be 1/50 (1/60)� There are several options for AES: 1/50 (1/60), 1/100 (1/120), 1/250, 1/500, 1/1000,

1/200, and 1/4000� Faster electronic shutter would enable the Network Camera to capture fast-moving

objects more clearly. Once the shutter is selected as Auto, the iris of the CCD will become xed.

Auto tracking white balance: This option is usually selected when the Network Camera is placed in

outdoor environments� Adjusting the 0~8 level would help the Network Camera capturing video with

correct colors� The default value is set to 4�

White balance control: Select this option will disable Auto tracking white balance� This option is usually

selected when the Network Camera is placed in indoor environments� The administrator can adjust the

value for best color temperature: 3200k, 4000k, 4800k, 5600k, 6400k, 7200k, 8000k�

Low lux mode: Select this option would enable the Network Camera to capture clear images in poor

illuminative environments�

Auto switch to B/W in low lux mode: Select it to enable the Network Camera to automatically switch to B/

W in low lux mode�

VIVOTEK

54 - User's Manual

Enable BLC (Back Light Compensation): Select it when the object is too dark or too bright to be

recognized� It will give the captured images the necessary light compensation�

BLC sens level: Select 0~7 level to adjust the sensitivity of BLC detection� Select a higher level will raise

the sensitivity� The default value is set to 3�

BLC area selection: Click this button to open an area selection window� As the window shown below, the

video will be divided into 48 rectangle areas equally� Check some of the areas to enable BLC� Note that if

no area is selected, the Enable BLC option would be of no use�

The picture below illustrates the corresponding areas of the selection window� You can click Select All to

check all the areas in the window, or click Clear All to do vice versa� When completed with the settings

on this page, click Save to take effect and click Close to exit the page�

Back to the CCD Settings page, you can click Preview to ne-tune the image, or click Restore to recall

the original settings without incorporating the changes� When completed with the settings on this page,

click Save to take effect and click Close to exit the page�

Video quality settings for stream 1 / stream 2 Advanced Mode

The Network Camera offers two choices of video compression standards for real-time viewing: MPEG-4

and MJPEG�

Click the items to display the detailed conguration settings. You can set up two seperate streams for the

Network Camera for different viewing devices� For example, set a smaller frame size and lower bit rate

for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web

browsers�

If MPEG-4 mode is selected, it is streamed in RTSP protocol�

VIVOTEK

User's Manual - 55

There are four parameters provided in MPEG-4 mode which allow you to adjust the video performance:

■ Frame size

Select the video size� Note that a larger frame size takes up more bandwidth� The frame sizes are

selectable in the following resolutions:

NTSC PAL

704 x 480 704 x 576

CIF 352 x 240 352 x 288

QCIF 176 x 120 176 x 144

■ Maximum frame rate

This limits the maximal refresh frame rate per second� Set the frame rate higher for a smoother video

quality� The frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and

30fps� You can also select Customize and manually enter a value�

■ Intra frame period

Determine how often to plant an I frame� The shorter the duration, the more likely you will get better

video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period

from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds�

■ Video quality

A complex scene generally produces a larger le size, meaning that higher bandwidth will be needed

for data transmission� Therefore, if Constant bit rate is selected, the bandwidth utilization is xed at

a selected level, resulting in mutable video quality performance� The bit rates are selectable at the

following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps,

1Mbps, 2Mbps, 3Mbps, and 4Mbps� You can also select Customize and manually enter a value�

On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality;

bandwidth utilization is therefore unpredictable� The video quality can be adjusted to the following

settings: Medium, Standard, Good, Detailed, and Excellent� You can also select Customize and

manually enter a value�

If JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing

a moving effect similar to a lmstrip. Every single JPEG image transmitted guarantees the same image

quality, which in turn comes at the expense of variable bandwidth usage� Because the media contents

are a combination of JPEG images, no audio data is transmitted to the client�

There are three parameters provided in MJPEG mode to control the video performance:

■ Frame size

Select the video size� Note that a larger frame size takes up more bandwidth� The frame sizes are

selectable in the following resolutions:

NTSC PAL

704 x 480 704 x 576

CIF 352 x 240 352 x 288

QCIF 176 x 120 176 x 144

VIVOTEK

56 - User's Manual

■ Maximum frame rate

This limits the maximum refresh frame rate per second� Set the frame rate higher for smoother video

quality� The frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and

30fps� You can also select Customize and manually enter a value�

■ Video quality

The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and

Excellent� You can also select Customize and manually enter a value�

NOTE

►

Video quality and fixed quality refers to the compression rate, so a lower value will produce higher

quality�

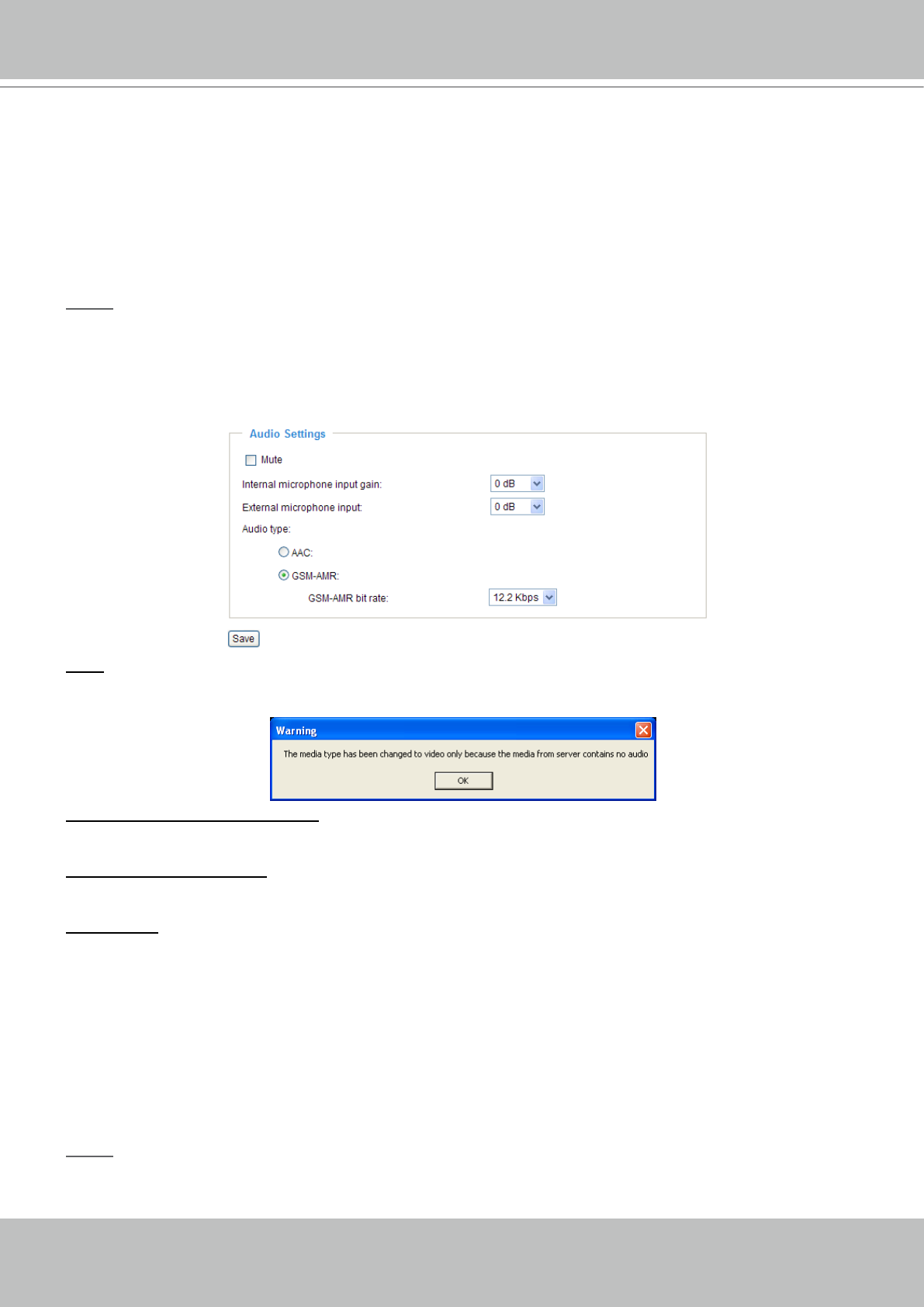

Audio Settings

Mute: Select this option to disable audio transmission from the Network Camera to all clients� Note that

if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the

Client Settings page� In that case, the following message is displayed:

Internal microphone input gain: Select the gain of the internal audio input according to ambient

conditions. Adjust the gain from +21 db (most sensitive) ~ -33 db (least sensitive).

External microphone input: Select the gain of the external audio input according to ambient conditions�

Adjust the gain from +21 db (most sensitive) ~ -33 db (least sensitive).

AAudio type: Select audio codec AAC or GSM-AMR and the bit rate�

■ AAC provides good sound quality at the cost of higher bandwidth consumption. The bit rates are

selectable from: 16Kbps, 32Kbps, 48Kbps, 64Kbps, 96Kbps, and 128Kbps�

■ GSM-ARM is designed to optimize speech quality and requires less bandwidth. The bit rates are

selectable from: 4�75Kbps, 5�15Kbps, 5�90Kbps, 6�7Kbps, 7�4Kbps, 7�95Kbps, 10�2Kbps, and

12�2Kbps�

When completed with the settings on this page, click Save to enable the settings�

NOTE

► The Network Camera offers two inputs to capture audio - internal microphone or external microphone.

The internal/external microphone switch is located on the back panel of the Network Camera�

VIVOTEK

User's Manual - 57

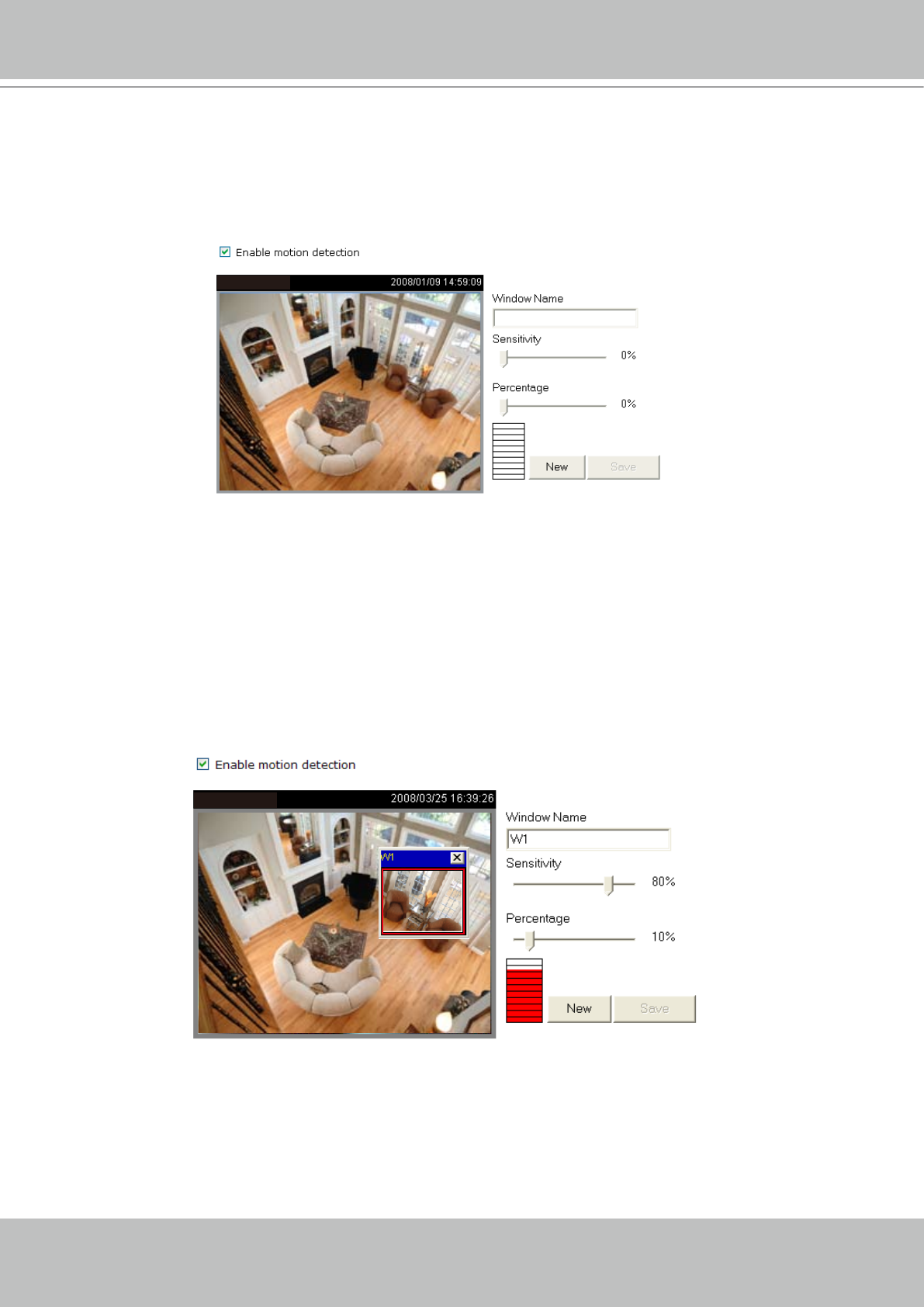

Motion Detection

This section explains how to congure the Network Camera to enable motion detection. A total

of three motion detection windows can be congured.

Follow the steps below to enable motion detection:

1� Click New to add a new motion detection window�

2� In the Window Name text box, enter a name for the motion detection window�

■ To move and resize the window, drag and drop your mouse on the window.

■ To delete window, click X on the top right corner of the window.

3� Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the

Sensitivity and Percentage slider bar�

4� Click Save to enable the settings�

5� Select Enable motion detection to enable this function�

For example:

The Percentage Indicator will rise or fall depending on the variation between sequential images� When

motions are detected by the Network Camera and are judged to exceed the defined threshold, the

red bar rises� Meanwhile, the motion detection window will be outlined in red� Photos or videos can be

captured instantly and congured to be sent to a remote server (Email, FTP) by utilizing this feature as a

trigger source� For more information on how to set an event, please refer to Application on page 65�

Video(TCP-AV)

VIVOTEK

58 - User's Manual

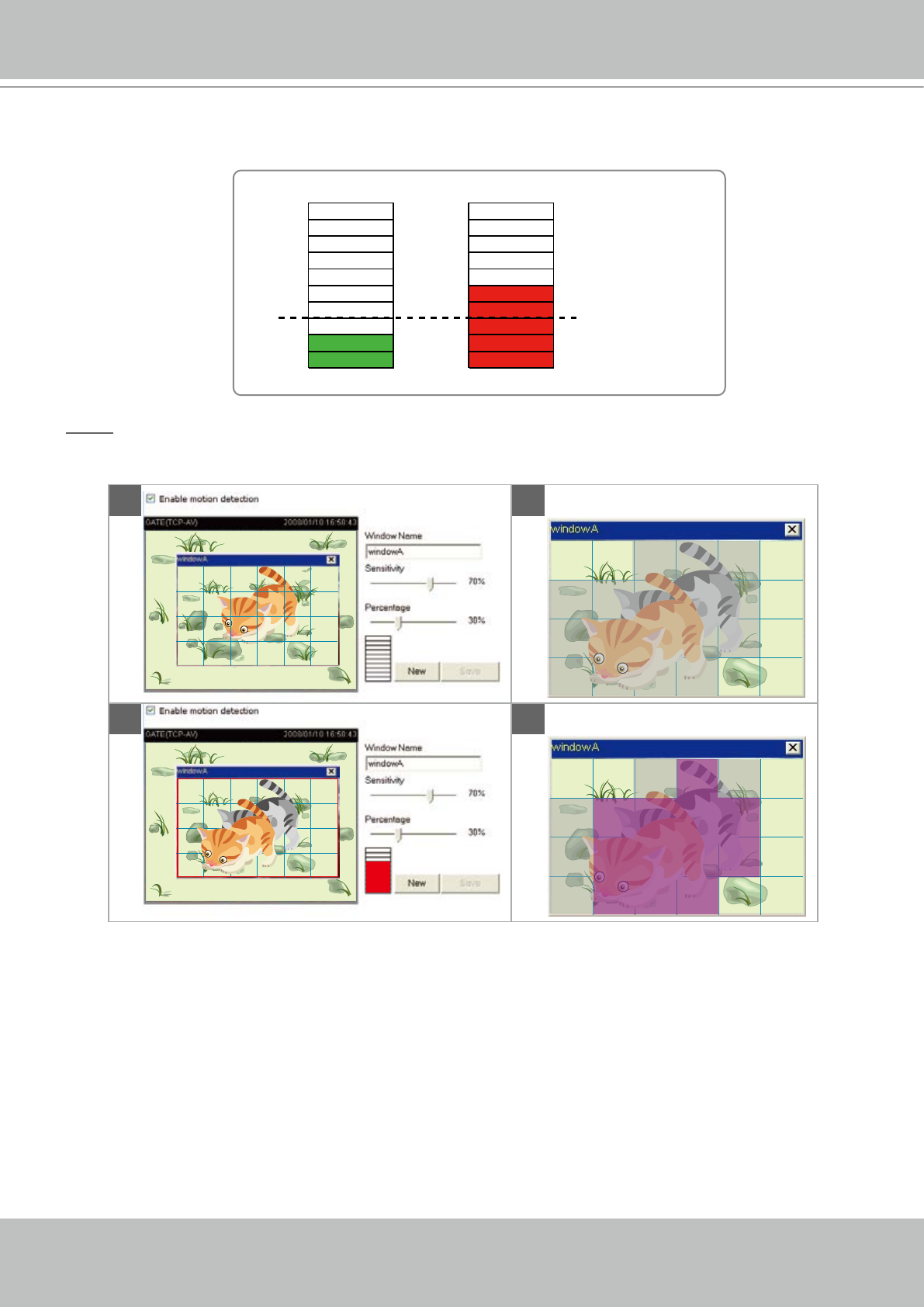

A green bar indicates that even though motions have been detected, the event has not been triggered

because the image variations still fall under the dened threshold.

NOTE

► How does motion detection work?

There are two motion detection parameters: Sensitivity and Percentage� In the illustration above,

frame A and frame B are two sequential images� Pixel differences between the two frames are

detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity

is a value that expresses the sensitivity to moving objects� Higher sensitivity settings are expected to

detect slight movements while smaller sensitivity settings will neglect them� When the sensitivity is set

to 70%, the Network Camera denes the pixels in the purple areas as “alerted pixels” (frame D).

Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion

detection window. In this case, 50% of pixels are identied as “alerted pixels”. When the percentage is

set to 30%, the motions are judged to exceed the dened threshold; therefore, the motion window will

be outlined in red�

For applications that require a high level of security management, it is suggested to use higher

sensitivity settings and smaller percentage values�

B D

Percentage = 30%

VIVOTEK

User's Manual - 59

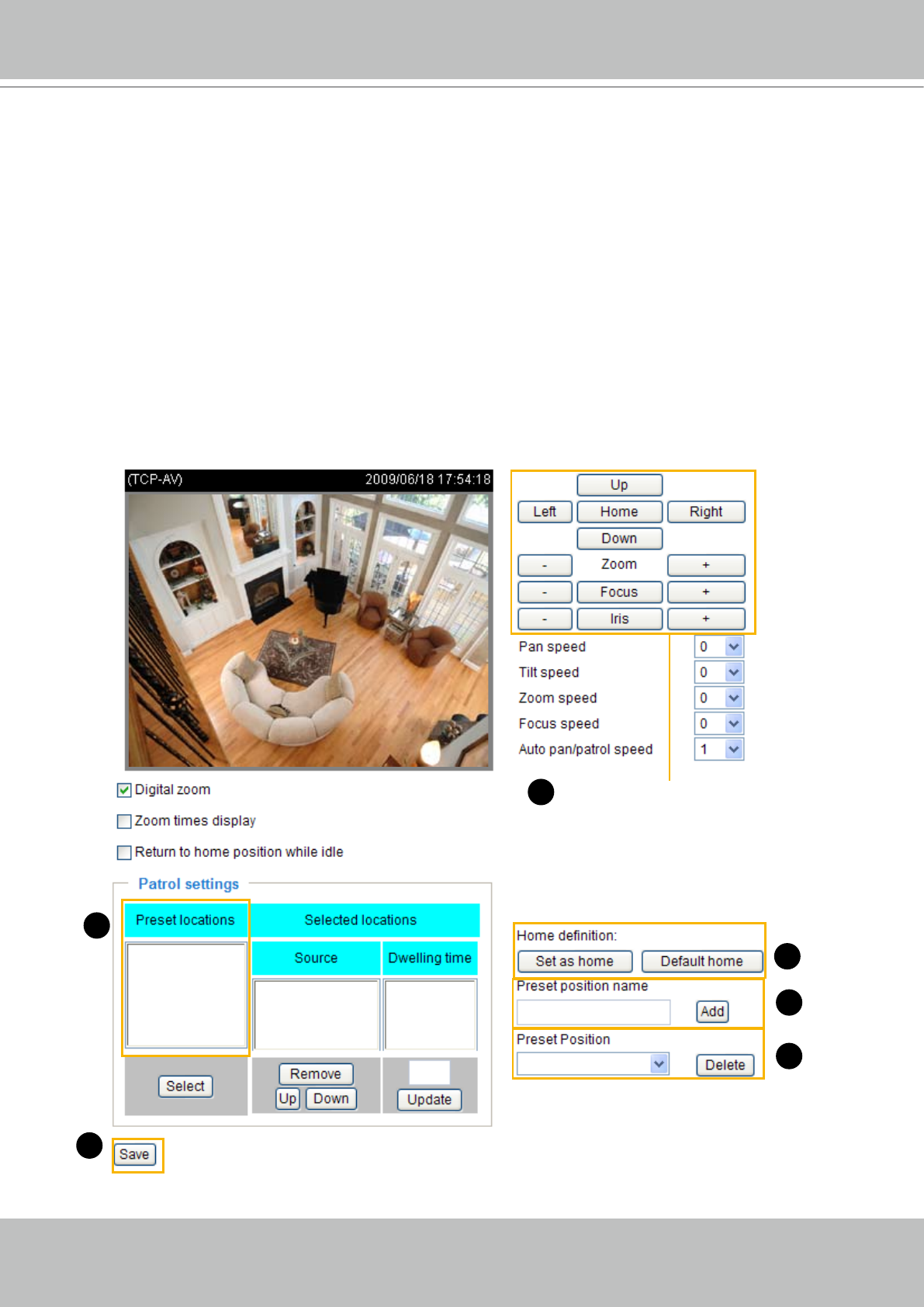

Camera Control

This section explains how to control the Network Camera’s Pan/Tilt/Zoom/Focus operation via

the control panel and how to preset positions�

Preset Locations

On this page, you can preset positions for the Network Camerato go to directly or patrol� A total of 128

preset positions can be congured.

Please follow the steps below to preset a position:

1� Adjust the shooting area to a desired position using the buttons on the right side of the window�

2� Click Set as home or Default home to dene your home position.

3� Enter a name for the preset position, which allows for up to forty characters� Click Add to enable the

settings� The preset positions will be displayed under the Preset Location list on the left-hand side�

4� To add additional preset positions, please repeat step 1~3�

5� To remove a preset position from the list, select it from the drop-down list and click Delete�

6� Click Save to enable the settings�

functions are the same

as the control panel on

home page

VIVOTEK

60 - User's Manual

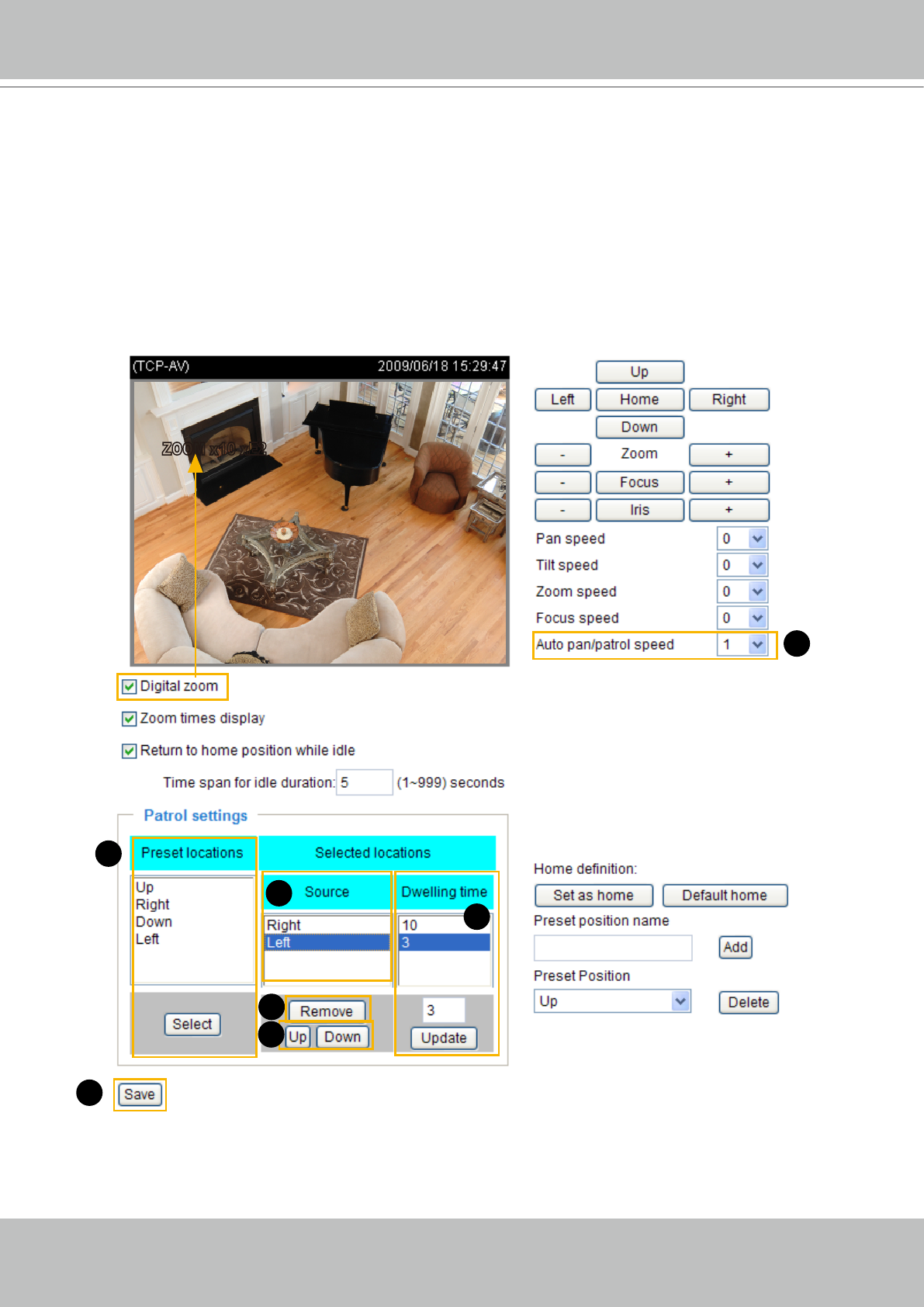

Patrol Settings

You can select preset locations for the Network Camera to patrol�

Please follow the steps below to set up a patrol schedule:

1� Click a preset location on the list and click Select�

2� The selected preset locations will be displayed on the Selected locations list�

3� Set the Dwelling time for the preset location during auto patrol� The default value is 10 seconds� You

can also manually set a value and click Update�

4� Repeat step 1 and 3 to select additional preset locations�

5� If you want to delete a selected location, select it from the list and click Remove�

6� Select a location and click Up or Down to rearrange the patrol order�

7� Adjust the Auto pan/patrol speed� (1~5 seconds)

8� Click Save to enable the settings�

ZOOM x10 xE2

VIVOTEK

User's Manual - 61

Digital Zoom

If you check this optionand click the Save button, the digital zoom function of CCD module will be

enabled�

Zoom Times Display

If you check this item and click the Save button, the zoom indicator will be displayed on the screen when

you zoom in/out as shown in the illustration above� Please remember to click Save to enable the settings�

Return to Home Position while Idle

If you select this option, the Network Camera will automatically return to the home position after idling for

a specic time span. Please remember to click Save to enable the settings�

■ The Preset Locations will be displayed on the Home page:

■ Click Go to: The Network Camera will move to the preset location�

■ Click Patrol: The Network Camera will patrol among the selected preset positions (from right to left) for

once�

Digital Zoom

Optical Zoom

ZOOM x10 xE2

VIVOTEK

62 - User's Manual

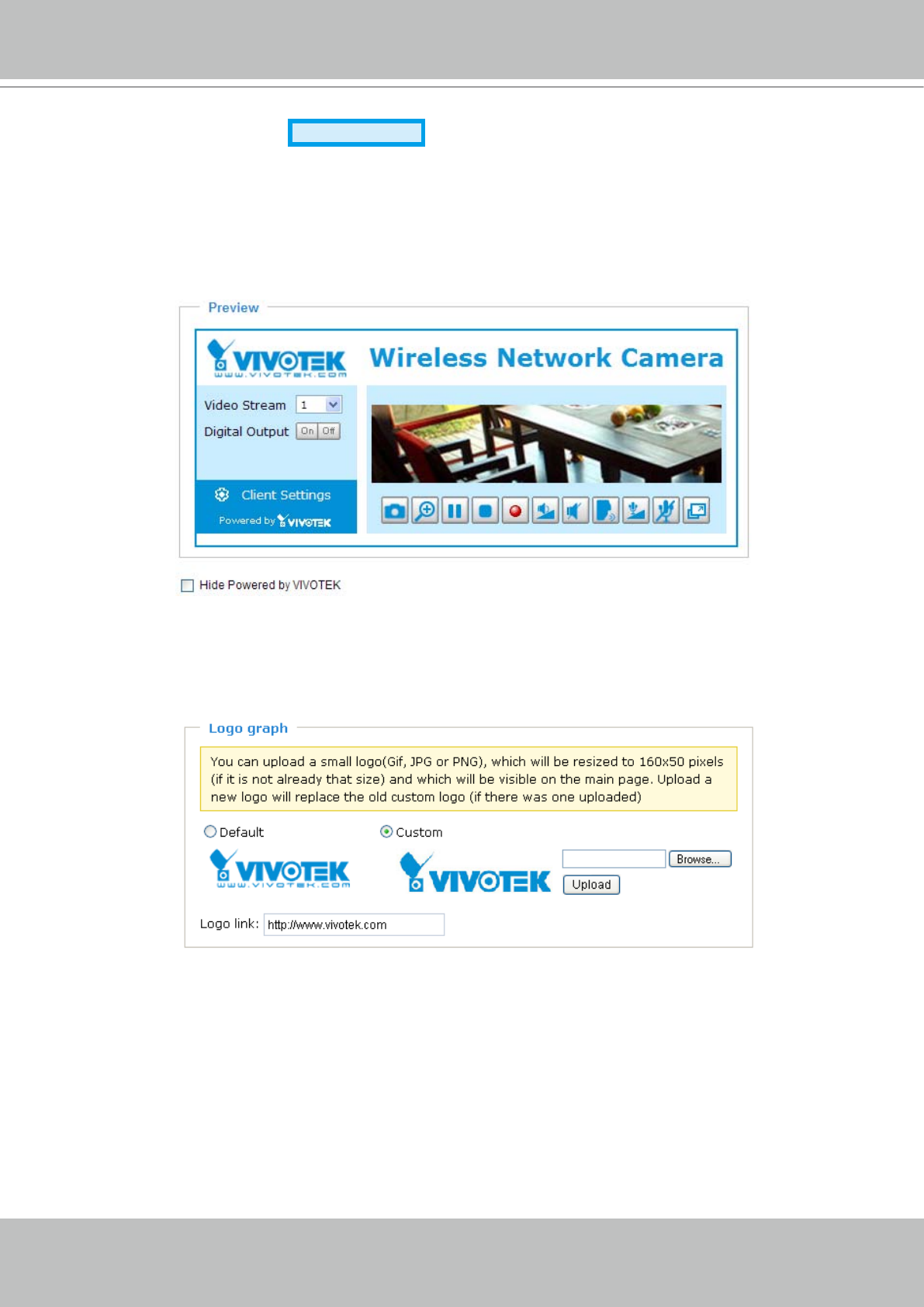

Homepage Layout Advanced Mode

This section explains how to set up your own customized homepage layout�

Preview

This column shows the settings of your homepage layout� You can manually select the background and

font colors in Theme Options, the third column on this page� The settings will automatically show up in

this Preview eld. The following shows the homepage using the default settings:

■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.

Logo

Here you can change the logo at the top of your homepage�

Follow the steps below to upload a new logo:

1� Click Custom and the Browse eld will appear.

2. Select a logo from your les.

3� Click Upload to replace the existing logo with a new one�

4� Enter a website link if necessary�

5� Click Save to enable the settings�

VIVOTEK

User's Manual - 63

Theme Options

Here you can change the color of your homepage layout� There are three types of preset patterns for you

to choose from� The new layout will simultaneously appear in the Preview led. Click Save to enable the

settings�

Font Color of the Video

Title

Font color

Background Color of the

Control Area

Font Color of the Configuration Area

Background Color of the

Configuration Area

Background Color of the

Video Area

Frame Color

Preset Patterns

VIVOTEK

64 - User's Manual

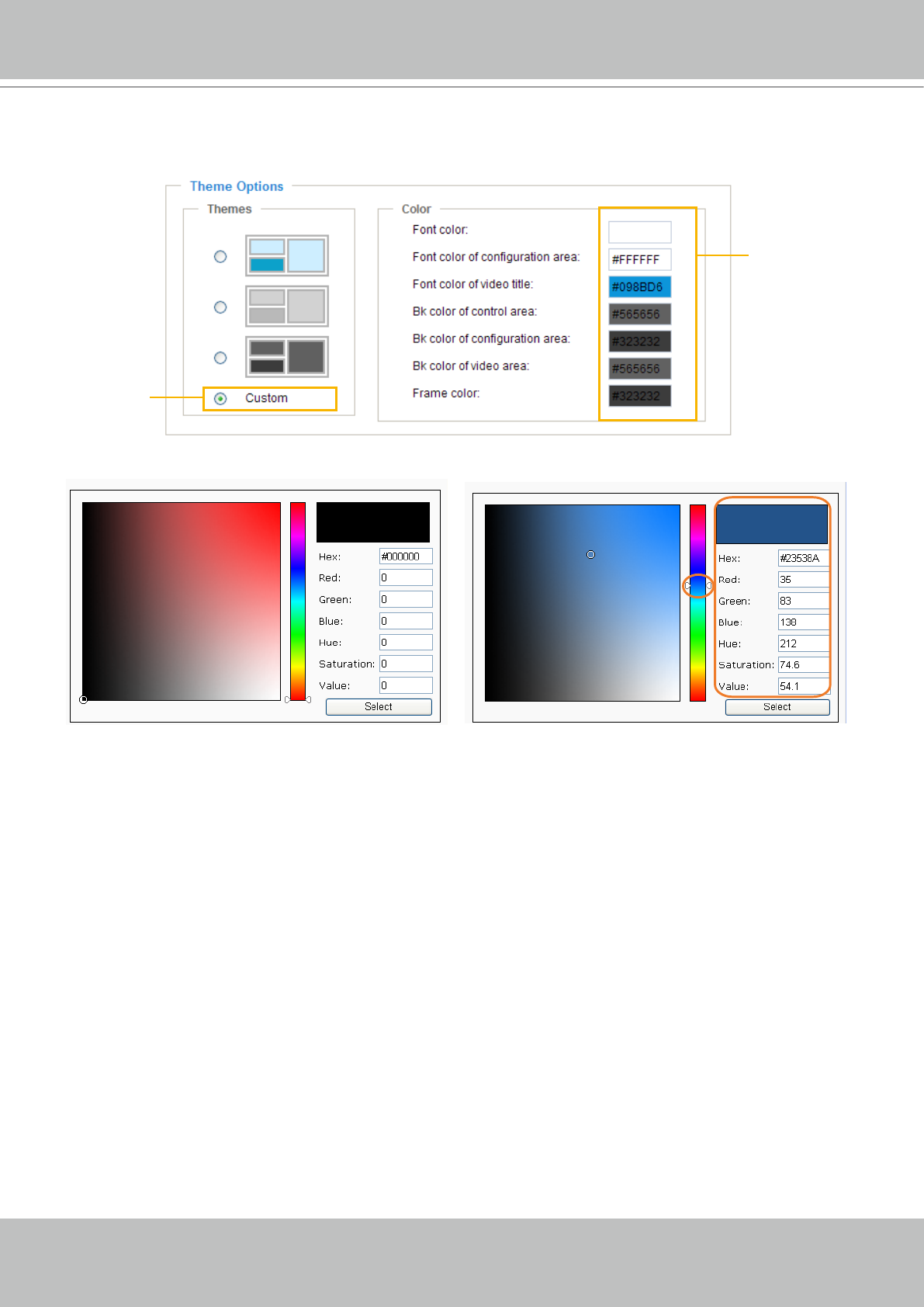

■ Follow the steps below to set up the customed homepage:

1� Click Custom on the left column�

2. Click the eld where you want to change the color on the right column.

3� The palette window will pop up as shown below�

4� Drag the slider bar and click on the left square to select a desired color�

5. The selected color will show up in the corresponding elds and in the Preview column�

6� Click Save to enable the settings�

Color Selector

Custom

Pattern

VIVOTEK

User's Manual - 65

Application Advanced Mode

This section explains how to congure the Network Camera to react in response to particular

situations (event)� A typical application is that when a motion is detected, the Network Camera

sends buffered images to a FTP server or e-mail address as notications.

Customized Script

This function allows you to upload a sample script (.xml le) to the webpage, which will save your time on

conguring the settings. Please note that there is a limited number of customized scripts you can upload;

if the current amount of customized scripts has reached the limit, an alert message will pop up� If you

need more information, please ask for VIVOTEK’s technical support�

ex. Motion detection,

Periodically, Digital input,

System reboot

Event Trigger

ex. Snapshot, video clips,

system log, digital output

ex. Email, FTP, HTTP server,

network storage,

CF card

Media

(what to send)

Server

(where to send)

Action

(what to do)

In the illustration on the right, an event can be triggered

by many sources, such as motion detection or external

digital input devices� When an event is triggered, you

can specify what type of action that will be performed�

You can configure the Network Camera to send

snapshots or videos to your email address or FTP site�

Click to modify the

script online

Click to upload a le

VIVOTEK

66 - User's Manual

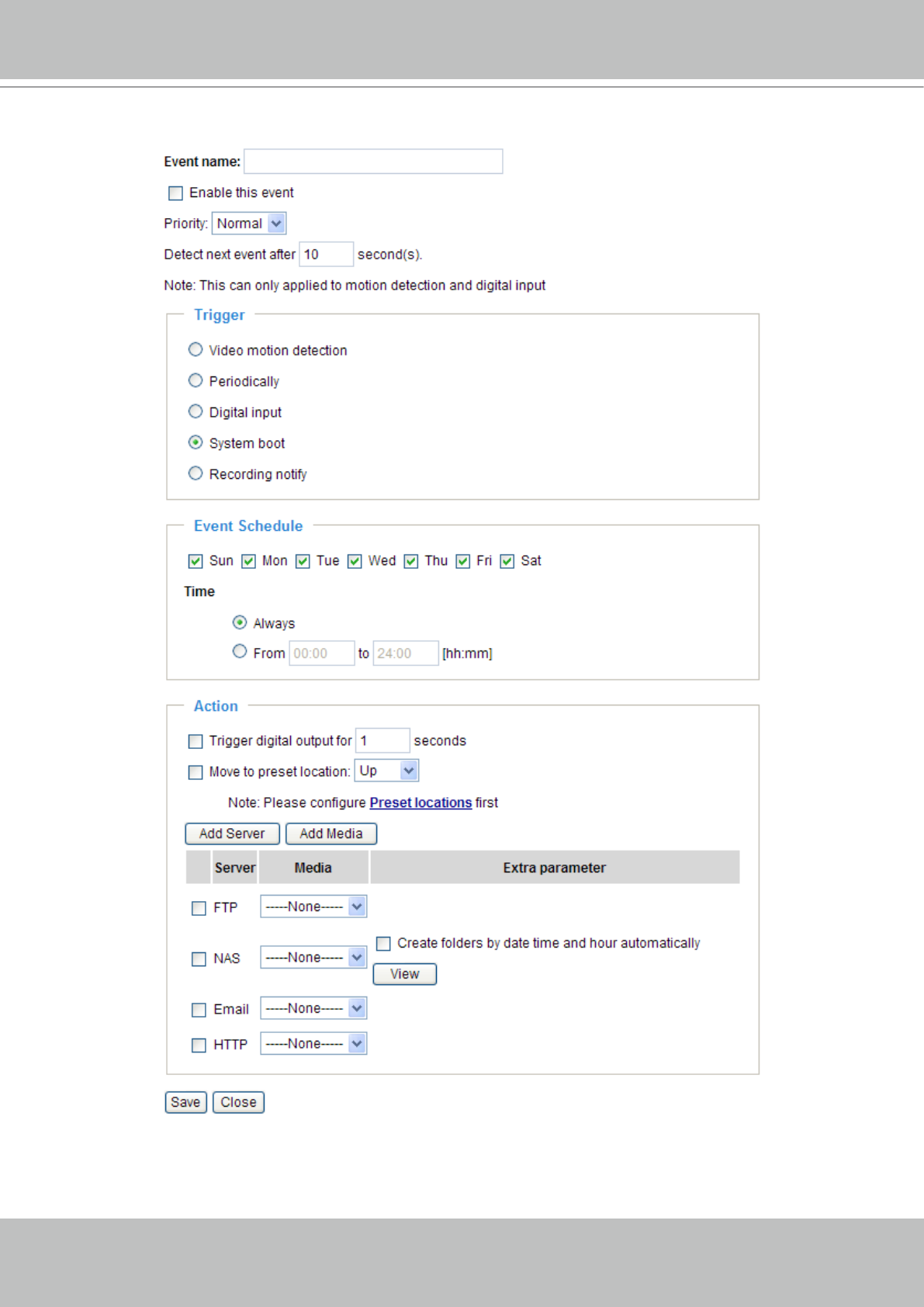

Event Settings

In the Event Settings column, click Add to open the Event Settings page� On this page, you can

arrange three elements -- Trigger, Schedule, and Action to set an event� A total of 3 event settings can be

congured.

Event name: Enter a name for the event setting�

Enable this event: Select this option to enable the event setting�

Priority: Select the relative importance of this event (High, Normal, or Low)� Events with a higher priority

setting will be executed rst.

Detect next event after seconds: Enter the duration in seconds to pause motion detection after a

motion is detected�

VIVOTEK

User's Manual - 67

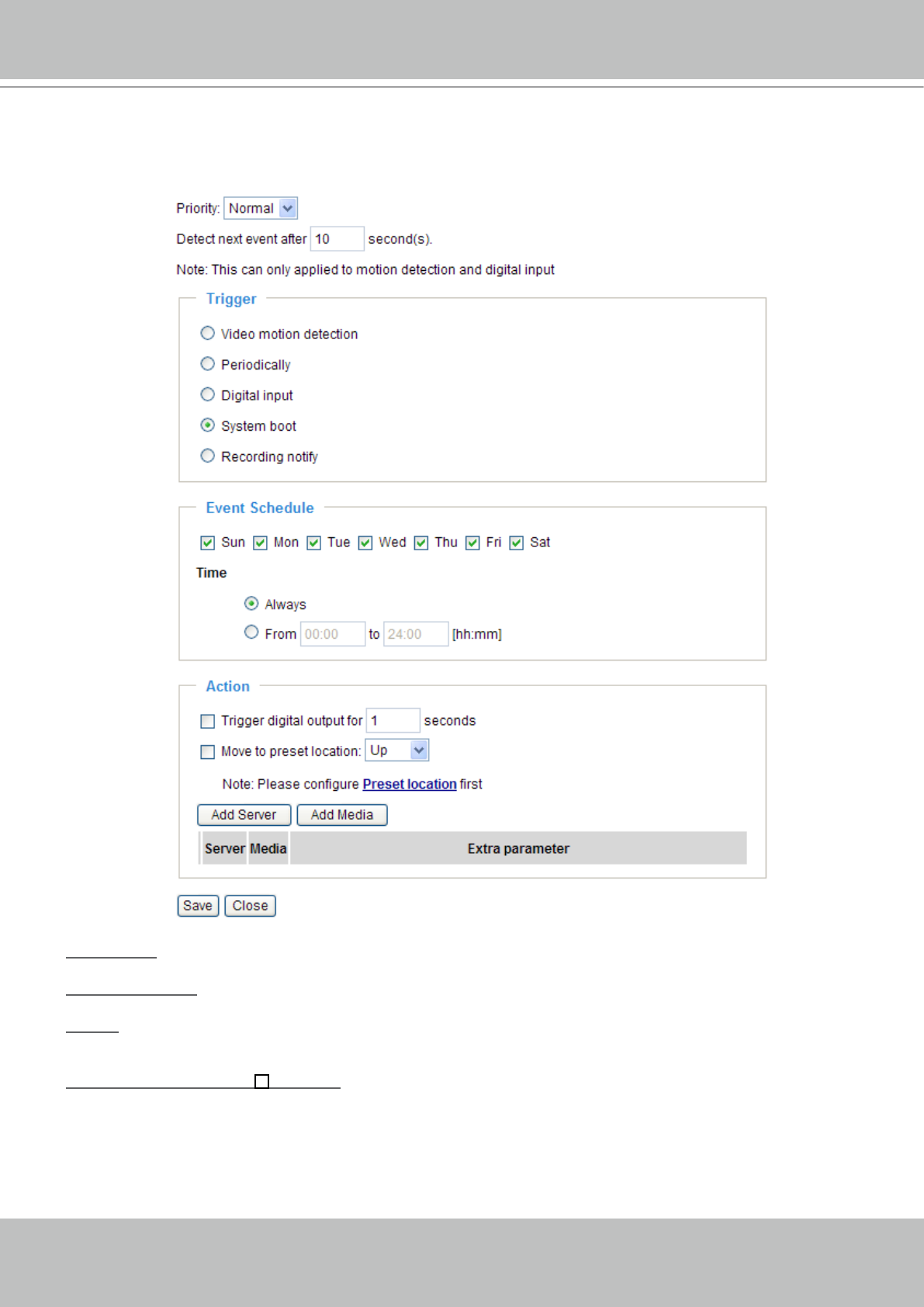

An event is an action initiated by a user-defined trigger source; it is the causal arrangement of the

following three elements: Trigger, Event Schedule, and Action�

Trigger

This is the cause or stimulus which denes when to trigger the Network Camera. The trigger source can

be congured to use the Network Camera’s built-in motion detection mechanism or external digital input

devices�

There are several choices of trigger sources as shown below�

Select the items to display the detailed

conguration options.

■ Video motion detection

This option makes use of the built-in motion detection mechanism as a trigger source� To enable this

function, you need to congure a Motion Detection Window rst. For more information, please refer to

Motion Detection on page 57 for details�

■ Periodically

This option allows the Network Camera to trigger periodically for every other dened minute. Up to 999

minutes are allowed�

■ Digital input

This option allows the Network Camera to use an external digital input device or sensor as a trigger

source� Depending on your application, there are many choices of digital input devices on the market

which helps to detect changes in temperature, vibration, sound and light, etc�

■ System boot

This option triggers the Network Camera when the power to the Network Camera is disconnected�

■ Recording notify

This option allows the Network Camera to trigger when the recording disk is full or when recording

starts to rewrite older data� If you want receive Recording notify message, please refer to page 76

for detailed information�

VIVOTEK

68 - User's Manual

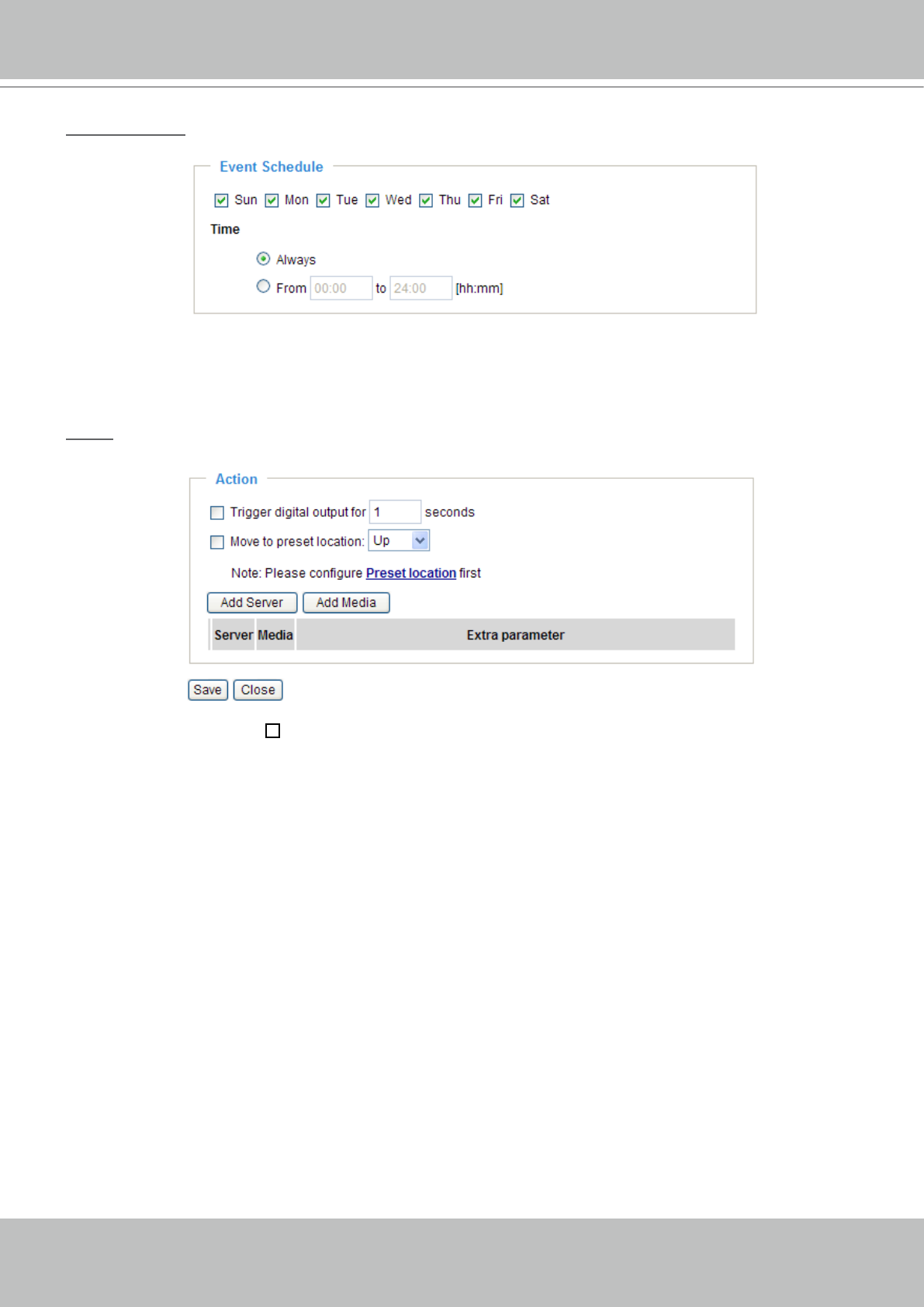

Event Schedule

Specify the period for the event�

■ Select the days of the week.

■ Select the recording schedule in 24-hr time format.

Action

Dene the actions to be performed by the Network Camera when a trigger is activated.

■ Trigger digital output for seconds

Select this option to turn on the external digital output device when a trigger is activated� Specify the

length of the trigger interval in the text box�

■ Move to preset location

Select this option, the Network Camera will move to the preset location when a trigger is activated�

Please setup the preset locations first� Please refer to Preset Locations on page 59 for detailed

information�

To set an event with recorded video or snapshots, it is necessary to congure the server and

media settings so that the Network Camera will know what action to take (such as which server

to send the media files to) when a trigger is activated�

■ Add Server / Add Media

Click Add Server to configure Server Settings� For more information, please refer to Server Settings

on page 71�

Click Add Media to configure Media Settings� For more information, please refer to Media Settings on

page 74�

VIVOTEK

User's Manual - 69

Here is an example of Event Settings page:

When completed, click Save to enable the settings and click Close to exit Event Settings page� The new

event settings / server settings / media settings will appear in the event drop-down list on the Application

page�

VIVOTEK

70 - User's Manual

Here is an example of Application page with an event setting:

When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will

automatically send snapshots via e-mail�

If you want to stop the event trigger, you can click ON to turn it to OFF status or click Delete to remove

the event setting�

To remove a server setting from the list, select a server name from the drop-down list and click Delete�

Note that only when the server setting is not being applied to an event setting can it be deleted�

To remove a media setting from the list, select a media name from the drop-down list and click Delete�

Note that only when the media setting is not being applied to an event setting can it be deleted�

VIVOTEK

User's Manual - 71

Server Settings

Click Add Server on Event Settings page to open the Server Setting page� On this page, you can specify

where the notication messages are sent when a trigger is activated. A total of 5 server settings can be

congured.

Server name: Enter a name for the server setting�

Server Type

There are four choices of server types available: Email, FTP, HTTP, and Network storage�

Select the item

to display the detailed conguration options. You can congure either one or all of them.

Email: Select to send the media les via email when a trigger is activated.

■ Sender email address: Enter the email address of the sender.

■ Recipient email address: Enter the email address of the recipient.

■ Server address: Enter the domain name or IP address of the email server.

■ User name: Enter the user name of the email account if necessary.

■ Password: Enter the password of the email account if necessary.

■ Server port: The default mail server port is set to 25. You can also manually set another port.

If your SMTP server requires a secure connection (SSL), check This server requires a secure

connection (SSL).

To verify if the email settings are correctly congured, click Test� The result will be shown in a pop-up

window� If successful, you will also receive an email indicating the result�

Click Save to enable the settings, then click Close to exit the page�

VIVOTEK

72 - User's Manual

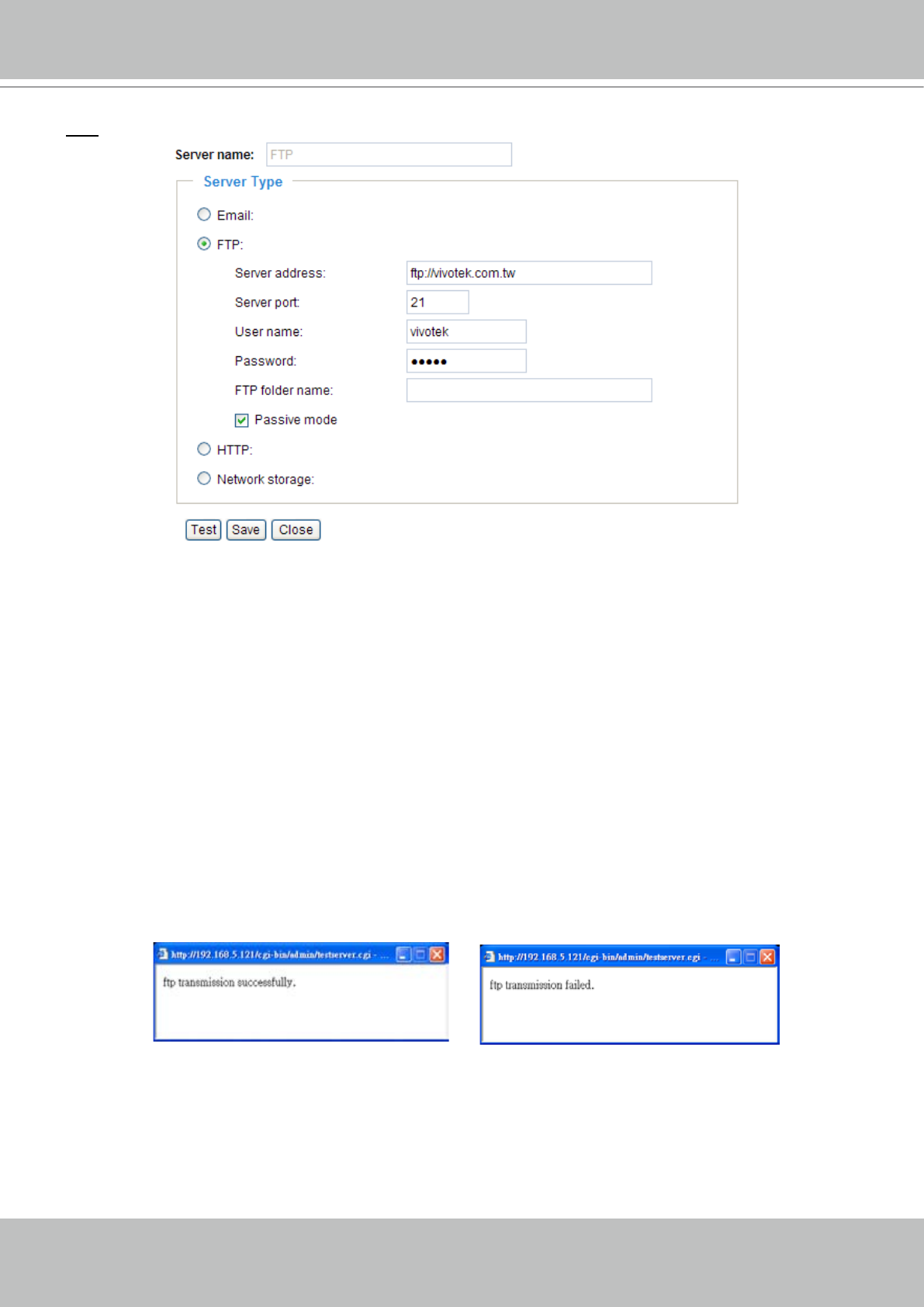

FTP: Select to send the media les to an FTP server when a trigger is activated.

■ Server address: Enter the domain name or IP address of the FTP server.

■ Server port

By default, the FTP server port is set to 21� It can also be assigned to another port number between

1025 and 65535�

■ User name: Enter the login name of the FTP account.

■ Password: Enter the password of the FTP account.

■ Remote folder name

Enter the folder where the media le will be placed. If the folder name does not exist, the Network

Camera will create one on the FTP server�

■ Passive mode

Most firewalls do not accept new connections initiated from external requests� If the FTP server

supports passive mode, select this option to enable passive mode FTP and allow data transmission to

pass through the rewall.

To verify if the FTP settings are correctly congured, click Test� The result will be shown in a pop-up

window as shown below. If successful, you will also receive a test.txt le on the FTP server.

Click Save to enable the settings, then click Close to exit the page�

VIVOTEK

User's Manual - 73

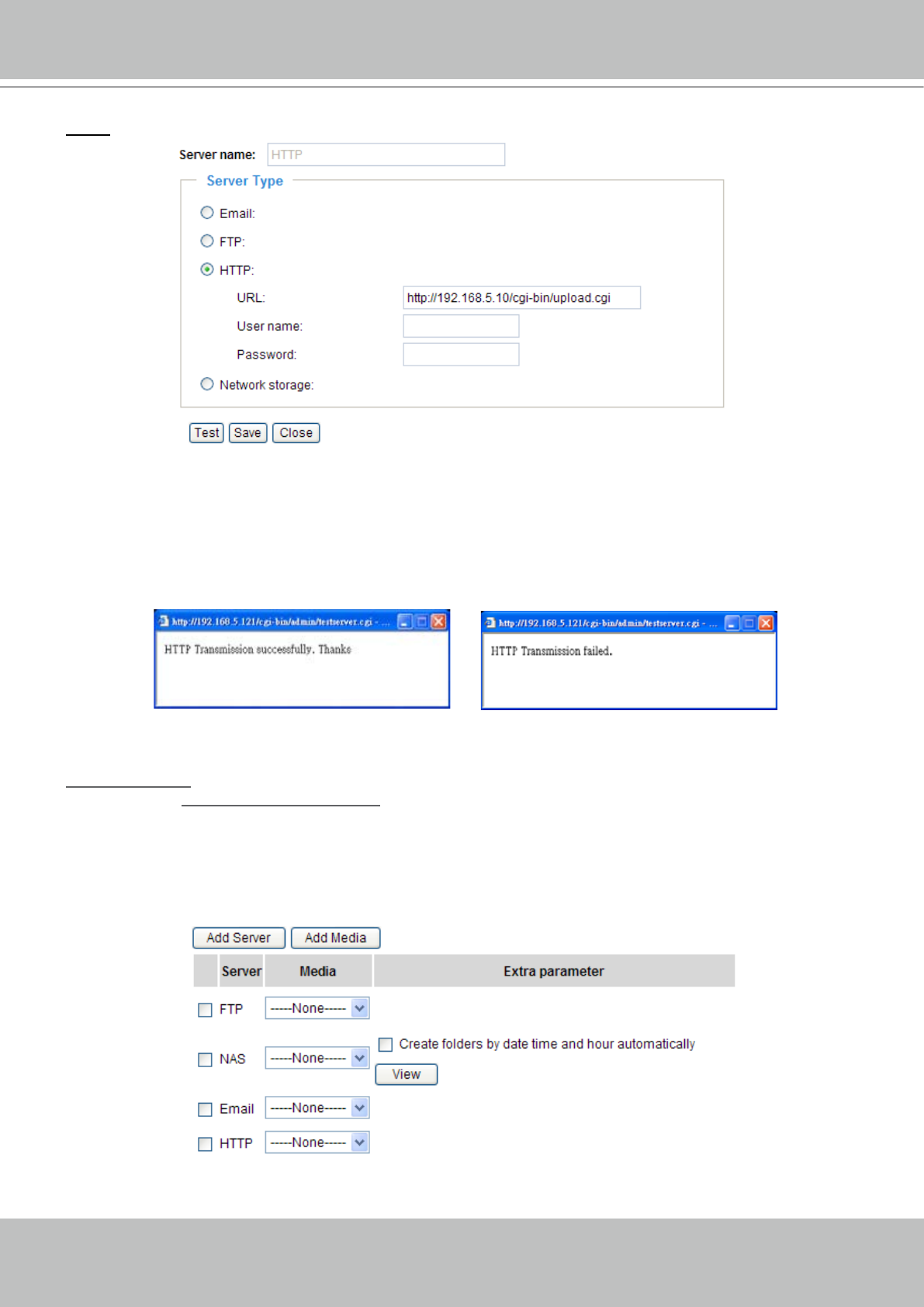

HTTP: Select to send the media les to an HTTP server when a trigger is activated.

■ URL: Enter the URL of the HTTP server.

■ User name: Enter the user name if necessary.

■ Password: Enter the password if necessary.

To verify if the HTTP settings are correctly congured, click Test� The result will be shown in a pop-up

window as below. If successful, you will receive a test.txt le on the HTTP server.

Click Save to enable the settings, then click Close to exit the page�

Network storage: Select to send the media les to a network storage location when a trigger is activated�

Please refer to Network Storage Setting on page 78 for details�

Click Save to enable the settings, then click Close to exit the page�

When completed, the new server settings will automatically be displayed on the Event Settings page�

For example:

VIVOTEK

74 - User's Manual

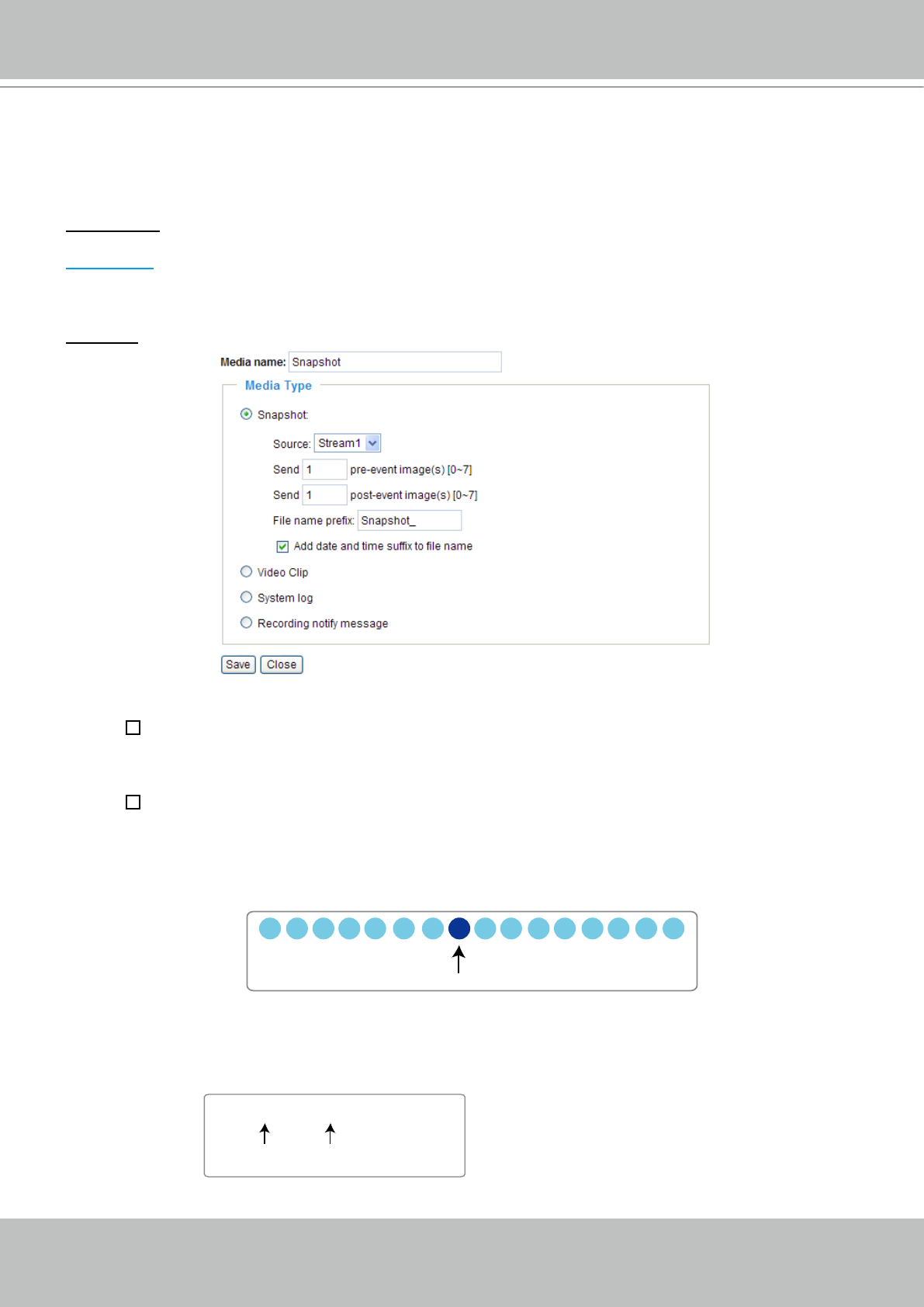

Media Settings

Click Add Media on the Event Settings page to open the Media Settings page� On this page, you can

specify the type of media that will be sent when a trigger is activated� A total of 5 media settings can be

congured.

Media name: Enter a name for the media setting�

Media Type

There are three choices of media types available: Snapshot, Video clip, and System log�

Select the item

to display the detailed conguration options. You can congure either one or all of them.

Snapshot: Select to send snapshots when a trigger is activated�

■ Source: Select to take snapshots from stream 1 or stream 2.

■ Send pre-event images

The Network Camera has a buffer area; it temporarily holds data up to a certain limit� Enter a number

to decide how many images to capture before a trigger is activated� Up to 7 images can be generated�

■ Send post-event images

Enter a number to decide how many images to capture after a trigger is activated� Up to 7 images can

be generated�

For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15

images are generated after a trigger is activated�

■ File name prex

Enter the text that will be appended to the front of the le name.

■ Add date and time sufx to the le name

Select this option to add a date/time sufx to the le name.

For example:

Click Save to enable the settings, then click Close to exit the page�

1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.

10 pic. 11 pic. 10 pic. 12 pic. 13 pic. 14 pic. 15 pic.

Trigger Activation

Snapshot_20080104_100341

Date and time sufﬁx

The format is: YYYYMMDD_HHMMSS

File name preﬁx

VIVOTEK

User's Manual - 75

Video clip: Select to send video clips when a trigger is activated�

■ Source: Select to record video clips from stream 1 or stream 2.

■ Pre-event recording

The Network Camera has a buffer area; it temporarily holds data up to a certain limit� Enter a number

to decide the duration of recording before a trigger is activated� Up to 9 seconds can be set�

■ Maximum duration

Specify the maximum recording duration in seconds� Up to 10 seconds can be set�

For example, if pre-event recording is set to five seconds and the maximum duration is set to ten

seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated�

■ Maximum le size

Specify the maximum le size allowed.

■ File name prex

Enter the text that will appended to the front of the le name.

For example:

Click Save to enable the settings, then click Close to exit the page�

System log: Select to send a system log when a trigger is activated�

Click Save to enable the settings, then click Close to exit the page�

Video_20080104_100341

Date and time sufﬁx

The format is: YYYYMMDD_HHMMSS

File name preﬁx

1 sec. 2 sec. 3 sec. 4 sec. 5 sec. 6 sec. 7 sec. 8 sec. 9 sec. 10 sec.

Trigger Activation

VIVOTEK

76 - User's Manual

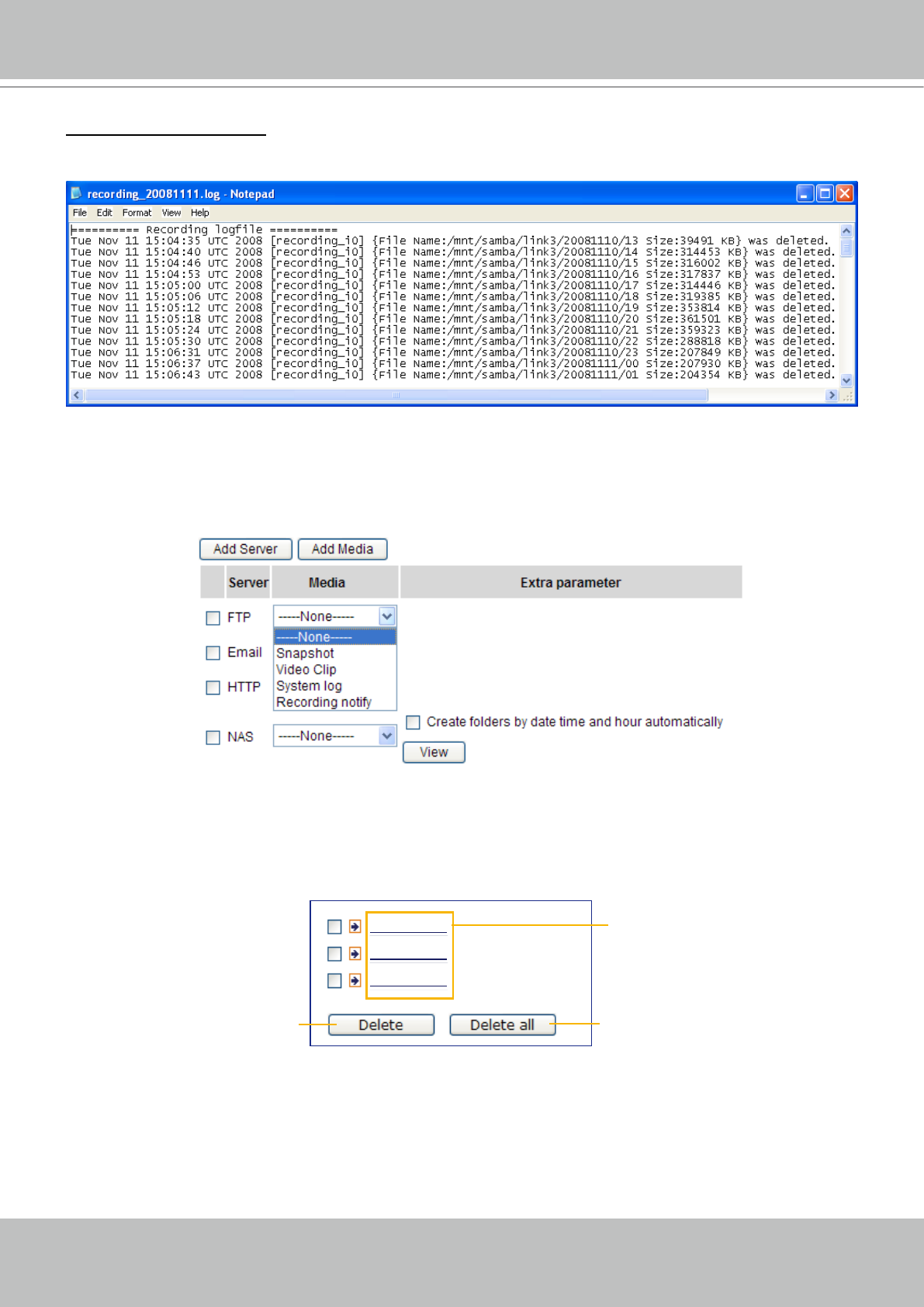

Recording notify message: Select to send a recording notication message when a trigger is activated.

The following is an example of a recording notication message (.txt le), which shows a list of deleted

previously-recorded data due to cycle recording�

When completed, click Save to enable the settings and click Close to exit this page� The new media

settings will appear on the Event Settings page�

You can continue to select a server and media type for the event�

■ Create folders by date, time, and hour automatically: If you check this item, the system will generate

folders automatically by date�

■ View: Click this button to open a le list window. This function is only for Network Storage.

The following is an example of a le destination with video clips:

20081120

20081121

20081122

Click to delete selected items Click to delete all recorded data

The format is: YYYYMMDD

Click to open the directory

VIVOTEK

User's Manual - 77

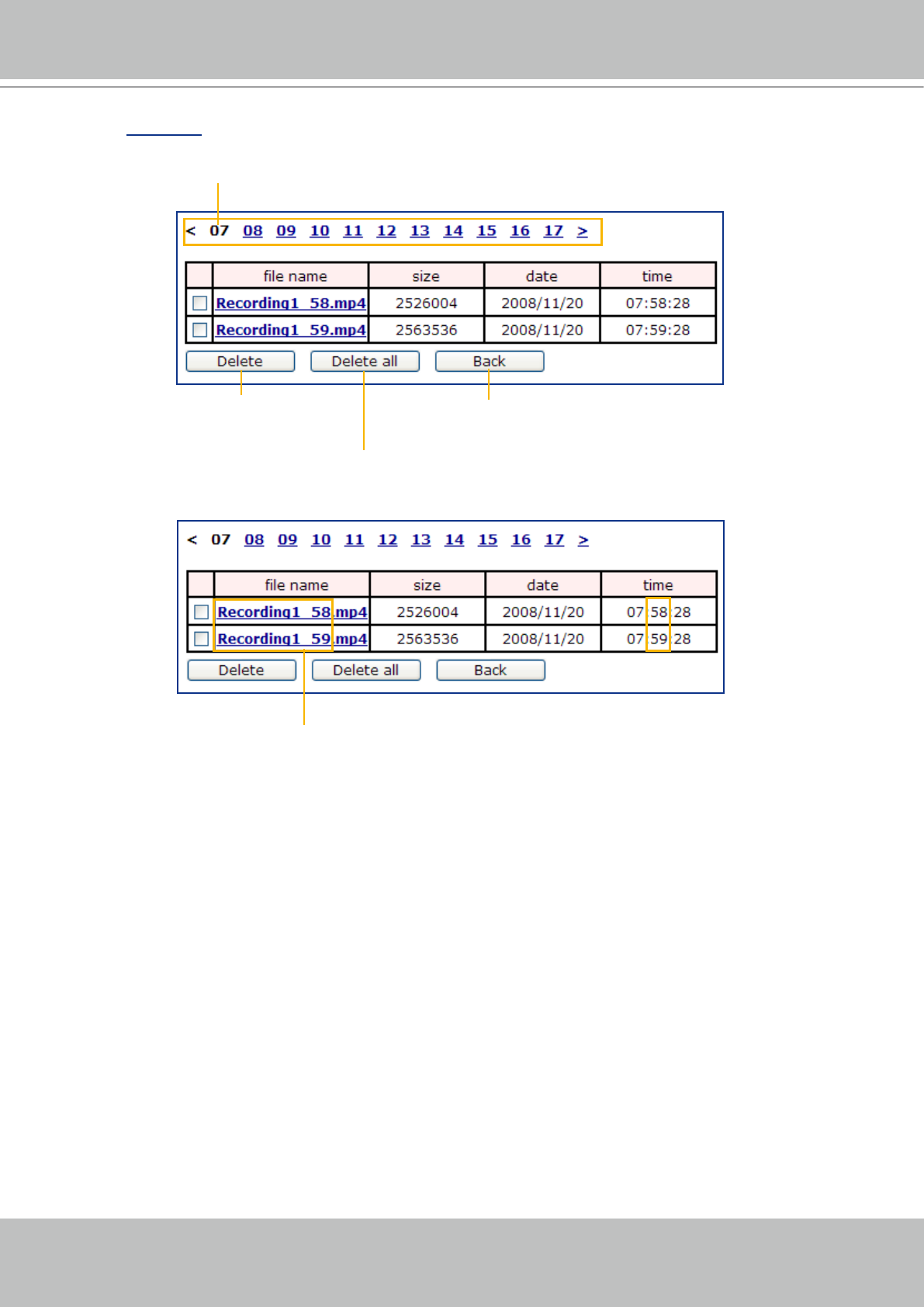

Click 20081120 to open the directory:

Click to delete

selected items

Click to delete all

recorded data

Click to go back to the previous

level of the directory

The format is: HH (24r)

Click to open the le list for that hour

The format is: File name prex + Minute (mm)

You can set up the le name prex on Media Settings page.

Please refer to page 74 for detailed information�

VIVOTEK

78 - User's Manual

Recording Advanced Mode

This section explains how to congure the recording settings for the Network Camera.

Recording Settings

NOTE

► Before setting up this page, please set up the Network Storage on the Server Settings page rst.

Network Storage Setting

Click Server to open the Server Settings page and follow the steps below to set up:

1� Fill in the information for your server�

For example:

2� Click Test to check the setting� The result will be shown in the pop-up window�

Network storage path

(\\server name or IP address\folder name)

User name and password for your server

VIVOTEK

User's Manual - 79

If successful, you will receive a test.txt le on the network storage server.

3� Enter a server name�

4� Click Save to complete the settings and click Close to exit the page�

Recording Settings

Click Add to open the recording setting page� On this page, you can define the recording source,

recording schedule and recording capacity. A total of 2 recording settings can be congured.

Recording name: Enter a name for the recording setting�

Enable this recording: Select this option to enable video recording�

Priority: Select the relative importance of the recording setting (High, Normal, and Low)�

VIVOTEK

80 - User's Manual

Source: Select the recording source (stream 1 or stream 2)�

Recording Schedule: Specify the recording duration�

■ Select the days of the week.

■ Select the recording start and end times in 24-hr time format.

Destination: You can select the network storage to store the recorded video les.

Capacity: You can choose either the “entire free space available” or “limit the recording size”� The

recording size limit must be larger than the reserved amount for cyclic recording�

File name prex: Enter the text that will be appended to the front of the le name.

Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest le

will be overwritten by the latest one� The reserved amount is reserved for cyclic recording to prevent

malfunction� This value must be larger than 15 MBytes�

If you want to enable recording notication, please click Application to set up� Please refer to Trigger >

Recording notify on page 67 for detailed information�

When completed, select Enable this recording� Click Save to enable the setting and click Close to exit

this page. When the system begins recording, it will send the recorded les to the Network Storage.

The new recording name will appear in the drop-down list on the recording page as shown below�

To remove a recording setting from the list, select a recording name from the drop-down list and click

Delete�

■ Click Video (Name): Opens the Recording Settings page to modify�

■ Click ON (Status): The Status will become OFF and stop recording�

■ Click NAS (Destination): Opens the le list of recordings as shown below. For more information about

folder naming rule, please refer to page 77 for details�

20081120

20081121

20081122

VIVOTEK

User's Manual - 81

System Log Advanced Mode

This section explains how to configure the Network Camera to send the system log to the

remote server as backup�

Remote Log

You can congure the Network Camera to send the system log le to a remote server as a log backup.

Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log

messages from the Network Camera� An example is Kiwi Syslog Daemon� Visit http://www�kiwisyslog�

com/kiwi-syslog-daemon-overview/�

Follow the steps below to set up the remote log:

1� In the IP address text box, enter the IP address of the remote server�

2� In the port text box, enter the port number of the remote server�

3� When completed, select Enable remote log and click Save to enable the setting�

Current Log

This column displays the system log in chronological order� The system log is stored in the Network

Camera’s buffer area and will be overwritten when reaching a maximum limit�

VIVOTEK

82 - User's Manual

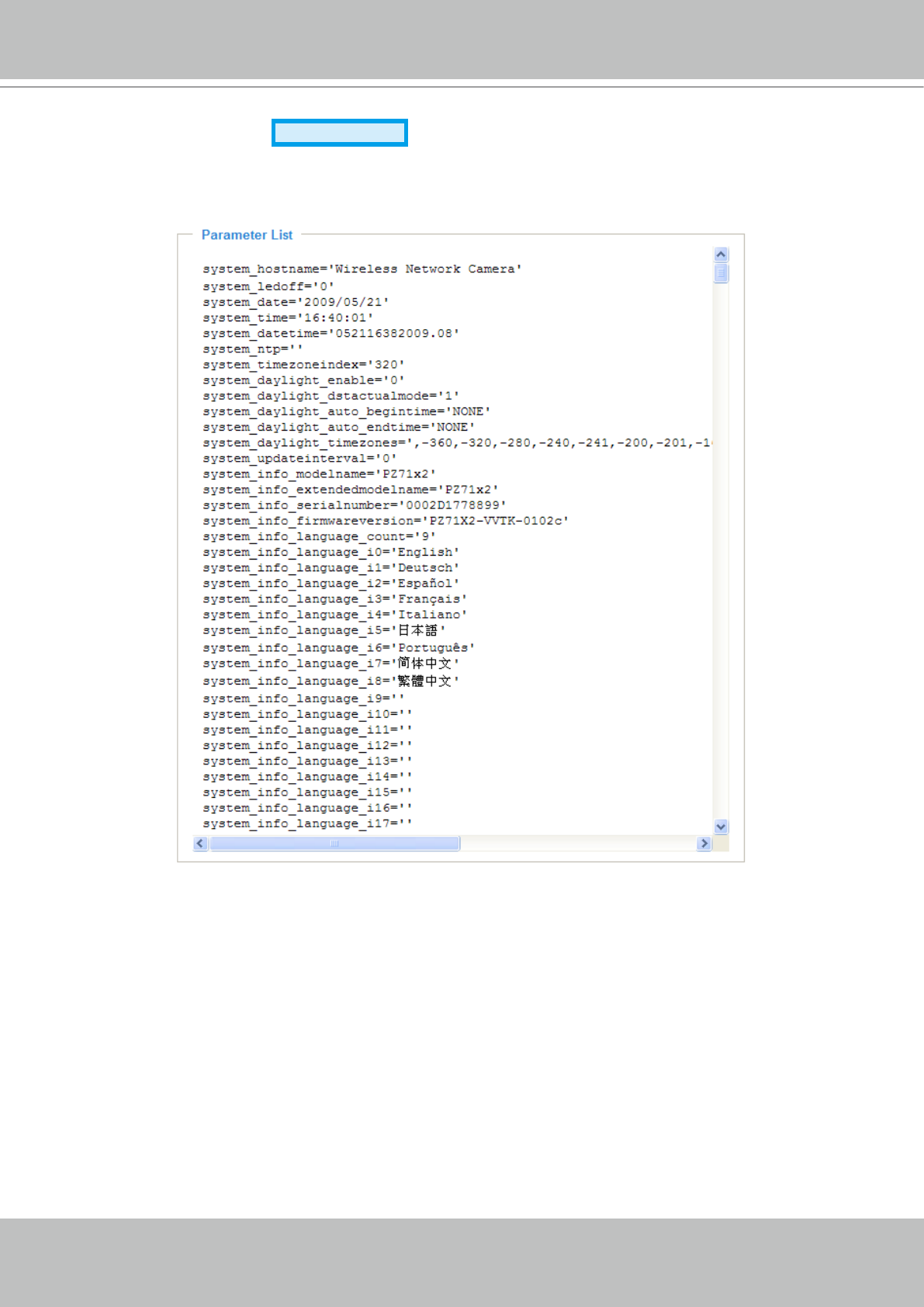

View Parameters Advanced Mode

The View Parameters page lists the entire system’s parameters in alphabetical order� If you

need technical assistance, please provide the information listed on this page�

VIVOTEK

User's Manual - 83

Maintenance

This chapter explains how to restore the Network Camera to factory default, upgrade rmware

version, etc�

Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete� When

completed, the live video page will be displayed in your browser� The following message will be displayed

during the rebooting process�

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the

address eld to resume the connection.

Restore

This feature allows you to restore the Network Camera to factory default settings�

Network Type: Select this option to retain the Network Type settings� (Please refer to Network Type on

page 32�)

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings� (Please refer to

System on page 24�)

Custom Language: Select this option to retain the Custom Language settings�

If none of the options is selected, all settings will be restored to factory default�

The following message is displayed during the restoring process�

Calibrate

This feature re-calibrate the home position to the default center to recover the any displacement caused

by external forces. Please note that there is no conrm message box after clicking on Calibrate, and the

Network Camera will calibrate immediately�

VIVOTEK

84 - User's Manual

Export / Upload Files Advanced Mode

This feature allows you to Export / Upload daylight saving time rules, custom language les, and setting

backup les.

Export daylight saving time conguration le: Click to set the start and end time of DST�

Follow the steps below to export:

1. In the Export les column, click Export to export the daylight saving time conguration le from the

Network Camera�

2. A le download dialog will pop up as shown below. Click Open to review the XML le or click Save to

store the le for editing.

3. Open the le with Microsoft® Notepad and locate your time zone; set the start and end time of DST�

When completed, save the le.

In the example below, DST begins each year at 2:00 a�m� on the second Sunday in March and ends at

2:00 a.m. on the rst Sunday in November.

VIVOTEK

User's Manual - 85

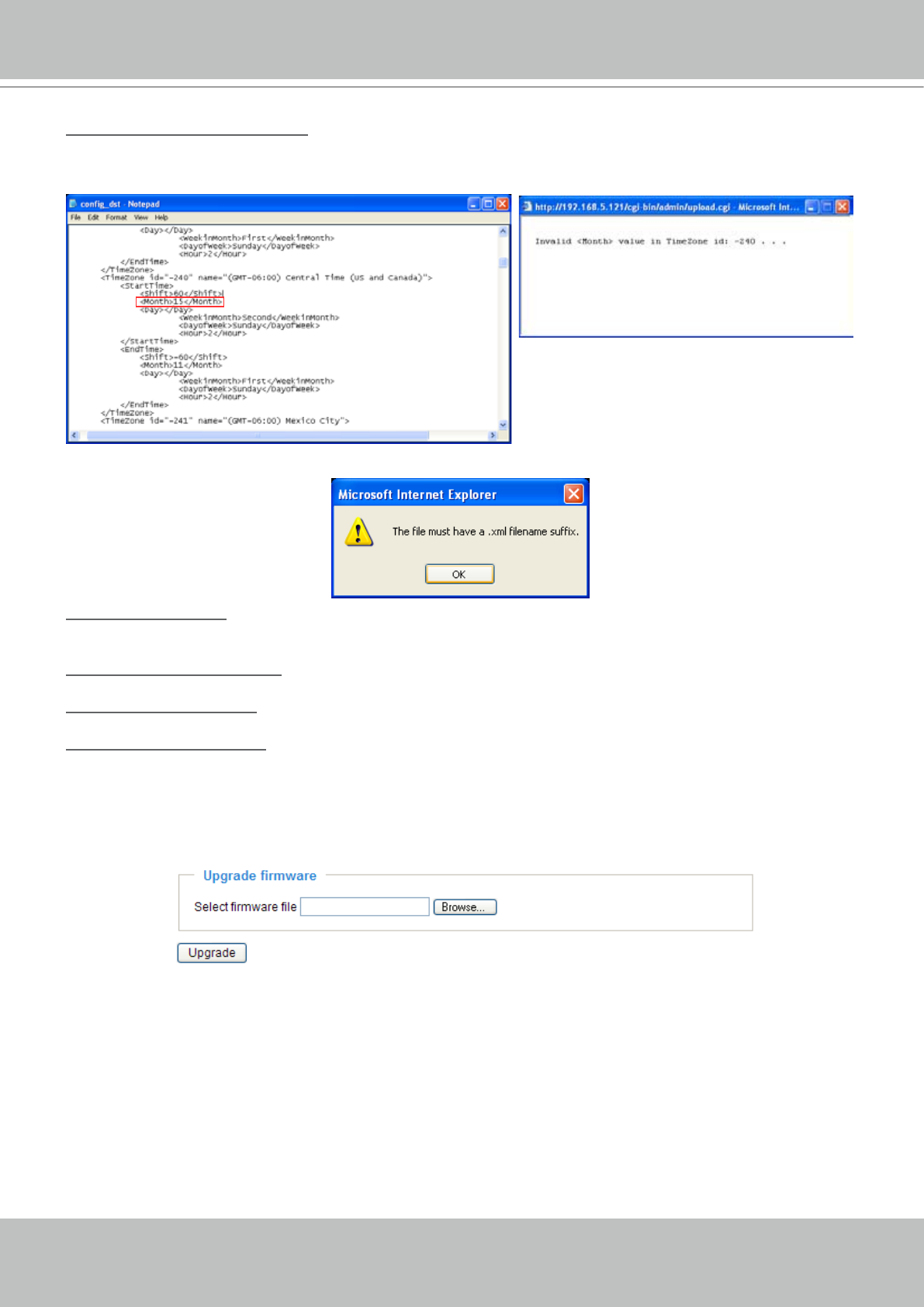

Upload daylight saving time rule: Click Browse… and specify the XML le to upload.

If the incorrect date and time are assigned, you will see the following warning message when uploading

the le to the Network Camera.

The following message is displayed when attempting to upload an incorrect le format.

Export language file: Click to export language strings� VIVOTEK provides nine languages: English,

Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文�

Upload custom language le: Click Browse… and specify your own custom language le to upload.

Export setting backup le: Click to export all parameters for the device and user-dened scripts.

Upload setting backup le: Click Browse… to upload a setting backup le. Please note that the model

and rmware version of the device should be the same as the setting backup le. If you have set up a

xed IP or other special settings for your device, it is not suggested to upload a settings backup le.

Upgrade Firmware

This feature allows you to upgrade the firmware of your Network Camera� It takes a few minutes to

complete the process�

Note: Do do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the rmware:

1. Download the latest rmware le from the VIVOTEK website. The le is in .pkg le format.

2� Click Browse… and specify the rmware le.

3� Click Upgrade� The Network Camera starts to upgrade and will reboot automatically when the upgrade

completes�

If the upgrade is successful, you will see “Reboot system now!! This connection will close”� After that, re-

access the Network Camera�

VIVOTEK

86 - User's Manual

The following message is displayed when the upgrade has succeeded�

The following message is displayed when you have selected an incorrect rmware le.

Reboot system now!!

This connection will close.

Starting firmware upgrade...

Do not power down the server during the upgrade.

The server will restart automatically after the upgrade is

completed.

This will take about 1 - 5 minutes.

Wrong PKG file format

Unpack fail

VIVOTEK

User's Manual - 87

Appendix

URL Commands for the Network Camera

Overview

For some customers who already have their own web site or web control application, the Network

Camera/Video Server can be easily integrated through URL syntax� This section specifies the external

HTTP-based application programming interface� The HTTP-based camera interface provides the

functionality to request a single image, control camera functions (PTZ, output relay etc�), and get and set

internal parameter values� The image and CGI-requests are handled by the built-in Web server�

Style Convention

In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that

is to be replaced with either a value or a string� When replacing the text string, the angle brackets

should also be replaced� An example of this is the description of the name for the server, denoted with

<servername> in the URL syntax description below, that is replaced with the string myserver in the URL

syntax example further down in the page�

URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced

syntax as shown below� For example, name of the server is written as <servername> and is intended to

be replaced with the name of the actual server� This can either be a name, e�g�, "mywebcam" or "thecam�

adomain�net" or the associated IP number for the server, e�g�, 192�168�0�220�

Syntax:

http://<servername>/cgi-bin/viewer/video�jpg

Description of returned data is written with "Return:" in bold face followed by the returned data in a box� All data

returned as HTTP formatted, i�e�, starting with the string HTTP is line separated with a Carriage Return and Line

Feed (CRLF) printed as \r\n�

Return:

HTTP/1�0 <HTTP code> <HTTP text>\r\n

URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box

with the example�

Example: request a single snapshot image

http://mywebserver/cgi-bin/viewer/video�jpg

VIVOTEK

88 - User's Manual

General CGI URL Syntax and Parameters

CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI

request includes internal camera parameters, these parameters must be written exactly as they are named in the camera

or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file

extension .cgi is required.

Syntax:

http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>

[?<parameter>=<value>[&<parameter>=<value>...]]

Example: Set digital output #1 to active

http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1

Security Level

SECURITY LEVEL SUB-DIRECTORY DESCRIPTION

0 anonymous Unprotected.

1 [view] anonymous, viewer, dido,

camctrl

1. Can view, listen, talk to camera.

2. Can control DI/DO, PTZ of the camera.

4 [operator] anonymous, viewer, dido,

camctrl, operator

Operator access rights can modify most of the camera’s parameters

except some privileges and network options.

6 [admin] anonymous, viewer, dido,

camctrl, operator, admin

Administrator access rights can fully control the camera’s

operations.

7 N/A Internal parameters. Unable to be changed by any external

interfaces.

Get Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]

[&<parameter>…]

http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]

[&<parameter>…]

VIVOTEK

User's Manual - 89

http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]

[&<parameter>…]

http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]

[&<parameter>…]

Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all

the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be

returned.

When querying parameter values, the current parameter values are returned.

A successful control request returns parameter pairs as follows:

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/html\r\n

Context-Length: <length>\r\n

\r\n

where <parameter pair> is

<parameter>=<value>\r\n

[<parameter pair>]

<length> is the actual length of content.

Example: Request IP address and its response

Request:

http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/html\r\n

Context-Length: 33\r\n

\r\n

network.ipaddress=192.168.0.123\r\n

Set Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

VIVOTEK

90 - User's Manual

Syntax:

http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>

[&<parameter>=<value>…][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>

[&<parameter>=<value>…][&update=<value>] [&return=<return page>]

http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>

[&<parameter>=<value>…][&update=<value>] [&return=<return page>]

http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>

[&<parameter>=<value>…][&update=<value>] [&return=<return page>]

PARAMETER VALUE DESCRIPTION

<group>_<name> value to assigned Assign <value> to the parameter <group>_<name>.

update <boolean> Set to 1 to update all fields (no need to update parameter in each group).

return <return page> Redirect to the page <return page> after the parameter is assigned. The

<return page> can be a full URL path or relative path according to the

current path. If you omit this parameter, it will redirect to an empty page.

(Note: The return page can be a general HTML file (.htm, .html) or a

VIVOTEK server script executable (.vspx) file. It cannot be a CGI command

or have any extra parameters. This parameter must be placed at the end of

the parameter list

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/html\r\n

Context-Length: <length>\r\n

\r\n

where <parameter pair> is

<parameter>=<value>\r\n

[<parameter pair>]

Only the parameters that you set and are readable will be returned.

Example: Set the IP address of server to 192.168.0.123:

Request:

http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123

VIVOTEK

User's Manual - 91

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/html\r\n

Context-Length: 33\r\n

\r\n

network.ipaddress=192.168.0.123\r\n

Available parameters on the server

Valid values:

VALID VALUES DESCRIPTION

string[<n>] Text strings shorter than ‘n’ characters. The characters “,’, <,>,& are invalid.

password[<n>] The same as string but displays ‘*’ instead.

integer Any number between (-231 – 1) and (231 – 1).

positive integer Any number between 0 and (232 – 1).

<m> ~ <n> Any number between ‘m’ and ‘n’.

domain name[<n>] A string limited to a domain name shorter than ‘n’ characters (eg. www.ibm.com).

email address [<n>] A string limited to an email address shorter than ‘n’ characters (eg. joe@www.ibm.com).

ip address A string limited to an IP address (eg. 192.168.1.1).

mac address A string limited to contain a MAC address without hyphens or colons.

boolean A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or Disable].

<value1>,

<value2>,

<value3>,

…

Enumeration. Only given values are valid.

blank A blank string.

everything inside <> A description

positive Integer Any number between 0 and (232 – 1)

integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the

server.

text SQLite data type. The value is a text string, stored using the database encoding (UTF-8,

UTF-16BE or UTF-16-LE).

coordinate x, y coordinate (eg. 0,0)

window size window width and height (eg. 800x600)

NOTE: The camera should not be restarted when parameters are changed.

VIVOTEK

92 - User's Manual

Group: system

NAME VALUE SECURITY

(get/set)

DESCRIPTION

hostname string[40] 1/6 Host name of server

(Network Camera,

Wireless Network Camera)

ledoff <boolean> 6/6 Turn on (0) or turn off (1) all led indicators.

date <yyyy/mm/dd>,

keep,

auto

6/6 Current date of system. Set to ‘keep’ to keep date

unchanged. Set to ‘auto’ to use NTP to synchronize date.

time <hh:mm:ss>,

keep,

auto

6/6 Current time of the system. Set to ‘keep’ to keep time

unchanged. Set to ‘auto’ to use NTP to synchronize time.

datetime <MMDDhhmmYYYY

.ss>

6/6 Another current time format of the system.

ntp <domain name>,

<ip address>,

<blank>

6/6 NTP server.

*Do not use “skip to invoke default server” for default

value.

timezoneindex -480 ~ 520 6/6 Indicate timezone and area.

-480: GMT-12:00 Eniwetok, Kwajalein

-440: GMT-11:00 Midway Island, Samoa

-400: GMT-10:00 Hawaii

-360: GMT-09:00 Alaska

-320: GMT-08:00 Las Vegas, San_Francisco,

Vancouver

-280: GMT-07:00 Mountain Time, Denver

-281: GMT-07:00 Arizona

-240: GMT-06:00 Central America, Central Time, Mexico

City, Saskatchewan

-200: GMT-05:00 Eastern Time, New York, Toronto

-201: GMT-05:00 Bogota, Lima, Quito, Indiana

-180: GMT-04:30 Caracas

-160: GMT-04:00 Atlantic Time, Canada, La Paz,

Santiago

-140: GMT-03:30 Newfoundland

-120: GMT-03:00 Brasilia, Buenos Aires,

Georgetown, Greenland

-80: GMT-02:00 Mid-Atlantic

-40: GMT-01:00 Azores, Cape_Verde_IS.

0: GMT Casablanca, Greenwich Mean Time: Dublin,

VIVOTEK

User's Manual - 93

Edinburgh, Lisbon, London

40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm,

Vienna, Madrid, Paris

41: GMT 01:00 Warsaw, Budapest, Bern

80: GMT 02:00 Athens, Helsinki, Istanbul, Riga

81: GMT 02:00 Cairo

82: GMT 02:00 Lebanon, Minsk

83: GMT 02:00 Israel

120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St.

Petersburg, Nairobi

121: GMT 03:00 Iraq

140: GMT 03:30 Tehran

160: GMT 04:00 Abu Dhabi, Muscat, Baku, Tbilisi,

Yerevan

180: GMT 04:30 Kabul

200: GMT 05:00 Ekaterinburg, Islamabad, Karachi,

Tashkent

220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi

230: GMT 05:45 Kathmandu

240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka,

Sri Jayawardenepura

260: GMT 06:30 Rangoon

280: GMT 07:00 Bangkok, Hanoi, Jakarta, Krasnoyarsk

320: GMT 08:00 Beijing, Chongging, Hong Kong, Kuala

Lumpur, Singapore, Taipei

360: GMT 09:00 Osaka, Sapporo, Tokyo, Seoul, Yakutsk

380: GMT 09:30 Adelaide, Darwin

400: GMT 10:00 Brisbane, Canberra, Melbourne,

Sydney, Guam, Vladivostok

440: GMT 11:00 Magadan, Solomon Is., New Caledonia

480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka,

Marshall Is.

520: GMT 13:00 Nuku'Alofa

daylight_enable <boolean> 6/6 Enable automatic daylight saving time in time zone.

daylight_dstactualmode <boolean> 6/7 Check if current time is under daylight saving time.

daylight_auto_begintime string[19] 6/7 Display the current daylight saving start time.

(product dependent)

daylight_auto_endtime string[19] 6/7 Display the current daylight saving end time.

(product dependent)

VIVOTEK

94 - User's Manual

updateinterval 0,

3600,

86400,

604800,

2592000

6/6 0 to Disable automatic time adjustment, otherwise, it

indicates the seconds between NTP automatic update

intervals.

restore 0,

7/6 Restore the system parameters to default values after

<value> seconds.

reset 0,

7/6 Restart the server after <value> seconds if <value> is

non-negative.

restoreexceptnet <Any value> 7/6 Restore the system parameters to default values except

(ipaddress, subnet, router, dns1, dns2, pppoe).

This command can cooperate with other

“restoreexceptXYZ” commands. When cooperating with

others, the system parameters will be restored to the

default value except for a union of the combined results.

restoreexceptdst <Any value> 7/6 Restore the system parameters to default values except

all daylight saving time settings.

This command can cooperate with other

“restoreexceptXYZ” commands. When cooperating with

others, the system parameters will be restored to

default values except for a union of combined results.

restoreexceptlang <Any Value> 7/6 Restore the system parameters to default values except

the custom language file the user has uploaded.

This command can cooperate with other

“restoreexceptXYZ” commands. When cooperating with

others, the system parameters will be restored to the

default value except for a union of the combined results.

Subgroup of system: info (The fields in this group are unchangeable.)

NAME VALUE SECURITY

(get/set)

DESCRIPTION

modelname string[40] 0/7 Internal model name of the server (eg. IP7139)

serialnumber <mac address> 0/7 12 characters MAC address (without hyphens).

firmwareversion string[40] 0/7 Firmware version, including model, company, and

version number in the format:

<MODEL-BRAND-VERSION>

language_count <integer> 0/7 Number of webpage languages available on the server.

language_i<0~(count-1)> string[16] 0/7 Available language lists.

customlanguage_maxcount <integer> 0/7 Maximum number of custom languages supported on

the server.

VIVOTEK

User's Manual - 95

customlanguage_count <integer> 0/7 Number of custom languages which have been

uploaded to the server.

customlanguage_i<0~(ma

xcount-1)>

string 0/7 Custom language name.

Group: status

NAME VALUE SECURITY

(get/set)

DESCRIPTION

videomode_c0 ntsc,

pal

4/7 The actual modulation type

(videoin.type=0).

di_i<0~(ndi-1)> <boolean> 1/7 0 => Inactive, normal

1 => Active, triggered

do_i<0~(ndo-1)> <boolean> 1/7 0 => Inactive, normal

1 => Active, triggered

onlinenum_rtsp integer 6/7 Current number of RTSP connections.

onlinenum_httppush integer 6/7 Current number of HTTP push server connections.

eth_i0 <string> 1/99 Get network information from mii-tool.

Group: di_i<0~(ndi-1)>

NAME VALUE SECURITY

(get/set)

DESCRIPTION

normalstate high,

low

1/1 Indicates open circuit or closed circuit (inactive

status)

Group: do_i<0~(ndo-1)>

NAME VALUE SECURITY

(get/set)

DESCRIPTION

normalstate open,

grounded

1/1 Indicate open circuit or closed circuit (inactive

status)

Group: security

NAME VALUE SECURITY

(get/set)

DESCRIPTION

privilege_do view, operator, admin 6/6 Indicate which privileges and above can control

digital output

privilege_camctrl view, operator, admin 6/6 Indicate which privileges and above can control PTZ

user_i0_name root 6/7 User name of root

user_i<1~20>_name string[64] 6/7 User name

user_i0_pass password[64] 6/6 Root password

VIVOTEK

96 - User's Manual

user_i<1~20>_pass password[64] 7/6 User password

user_i0_privilege admin 6/7 Root privilege

user_i<1~20>_

privilege

viewer,

operator,

admin

6/6 User privilege

Group: network

NAME VALUE SECURITY

(get/set)

DESCRIPTION

type lan,

pppoe

6/6 Network connection type.

resetip <boolean> 6/6 1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP

server at next reboot.

0 => Use preset ipaddress, subnet, rounter, dns1, and dns2.

ipaddress <ip address> 6/6 IP address of server.

subnet <ip address> 6/6 Subnet mask.

router <ip address> 6/6 Default gateway.

dns1 <ip address> 6/6 Primary DNS server.

dns2 <ip address> 6/6 Secondary DNS server.

wins1 <ip address> 6/6 Primary WINS server.

wins2 <ip address> 6/6 Secondary WINS server.

Subgroup of network: ipv6

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enable <boolean> 6/6 Enable IPv6.

addonipaddress <ip address> 6/6 IPv6 IP address.

addonprefixlen 0~128 6/6 IPv6 prefix length.

addonrouter <ip address> 6/6 IPv6 router address.

addondns <ip address> 6/6 IPv6 DNS address.

allowoptional <boolean> 6/6 Allow manually setup of IP address setting.

Subgroup of network: ftp

NAME VALUE SECURITY

(get/set)

DESCRIPTION

port 21, 1025~65535 6/6 Local ftp server port.

VIVOTEK

User's Manual - 97

Subgroup of network: http

NAME VALUE SECURITY

(get/set)

DESCRIPTION

port 80, 1025 ~ 65535 6/6 HTTP port.

alternateport 1025~65535 6/6 Alternate HTTP port.

authmode basic,

digest

1/6 HTTP authentication mode.

s0_accessname string[32] 1/6 HTTP server push access name for stream 1.

s1_accessname string[32] 1/6 HTTP server push access name for stream 2.

anonymousviewing <boolean> 1/6 Enable anoymous streaming viewing.

Subgroup of network: https

NAME VALUE SECURITY

(get/set)

DESCRIPTION

port 443, 1025 ~ 65535 6/6 HTTPS port.

Subgroup of network: rtsp

NAME VALUE SECURITY

(get/set)

DESCRIPTION

port 554, 1025 ~ 65535 1/6 RTSP port.

anonymousviewing <boolean> 1/6 Enable anoymous streaming viewing.

authmode disable,

basic,

digest

1/6 RTSP authentication mode.

s0_accessname string[3b;42] 1/6 RTSP access name for stream1.

s1_accessname string[32] 1/6 RTSP access name for stream2.

s0_audiotrack <integer> 6/6 The current audio track for stream1.

-1 => audio mute

s1_audiotrack <integer> 6/6 The current audio track for stream2.

-1 => audio mute

Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count

NAME VALUE SECURITY

(get/set)

DESCRIPTION

alwaysmulticast <boolean> 4/4 Enable always multicast.

ipaddress <ip address> 4/4 Multicast IP address.

videoport 1025 ~ 65535 4/4 Multicast video port.

audioport 1025 ~ 65535 4/4 Multicast audio port.

ttl 1 ~ 255 4/4 Mutlicast time to live value.

VIVOTEK

98 - User's Manual

Subgroup of network: sip

NAME VALUE SECURITY

(get/set)

DESCRIPTION

port 554, 1025 ~ 65535 6/6 SIP port.

(capability.protocol.sip=1)

Subgroup of network: rtp

NAME VALUE SECURITY

(get/set)

DESCRIPTION

videoport 1025 ~ 65535 6/6 Video channel port for RTP.

(capability.protocol.rtp_unicast=1)

audioport 1025 ~ 65535 6/6 Audio channel port for RTP.

(capability.protocol.rtp_unicast=1)

Subgroup of network: pppoe

NAME VALUE SECURITY

(get/set)

DESCRIPTION

user string[128] 6/6 PPPoE account user name.

pass password[64] 6/6 PPPoE account password.

Group: wireless (only in PZ71x2)

NAME VALUE SECURITY

(get/set)

DESCRIPTION

ssid string[32] 6/6 SSID for wireless lan settings.

The valid characters are [A-Z] [a-z] [0-9] [/] [.] [_] [=] [ ]

[-] [+] [*].

wlmode Infra,

Adhoc

6/6 Wireless mode.

Infra: Infrastructure

channel 1~11 or

1 ~ 13 or

10~11 or

10~13 or

1~14

6/6 USA and Canada

Europe

Spain

France

All

txrate 0 ~ 12 6/6 0 -> Auto

1 -> 1Mbps

2 -> 2Mbps

3 -> 5.5Mbps

4 -> 11Mbps

5 -> 6Mbps

6 -> 9Mbps

VIVOTEK

User's Manual - 99

7 -> 12Mbps

8 -> 18Mbps

9 -> 24Mbps

10 -> 36Mbps

11 -> 48Mbps

12 -> 54Mbps

encrypt 0~3 6/6 Encryption method (product dependent):

0=> NONE,

1 => WEP,

2 => WPA,

3 => WPA2PSK

authmode OPEN, SHARED 6/6 Authentication mode.

keylength 64, 128 6/6 Key length in bits.

keyformat HEX, ASCII 6/6 Key1 ~ key4 presentation format.

keyselect 1 ~ 4 6/6 Default key number.

key1 password [32] 6/6 WEP key1 for encryption.

The valid characters are [A-Z] [a-z] [0-9].

key2 password [32] 6/6 WEP key2 for encryption.

The valid characters are [A-Z] [a-z] [0-9].

key3 password [32] 6/6 WEP key3 for encryption.

The valid characters are [A-Z] [a-z] [0-9].

key4 password [32] 6/6 WEP key4 for encryption.

The valid characters are [A-Z] [a-z] [0-9].

domain ‘U’ for USA

‘C’ for Canada

‘E’ for Euro

‘S’ for Spain

‘F’ for France

‘I’ for Isrel

‘A’ for All

6/7 Wireless domain.

algorithm AES, TKIP 6/6 Algorithm

presharedkey password [63] 6/6 WPA mode pre-shared key.

The valid characters are [A-Z] [a-z] [0-9].

Group: ipfilter

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enable <boolean> 6/6 Enable access list filtering.

admin_enable <boolean> 6/6 Enable administrator IP address.

VIVOTEK

100 - User's Manual

admin_ip String[44] 6/6 Administrator IP address.

maxconnection 1~10 6/6 Maximum number of concurrent streaming

connection(s).

allow_i<0~9>_start 1.0.0.0 ~

255.255.255.255

6/6 Allowed starting IPv4 address for connection.

allow_i<0~9>_end 1.0.0.0 ~

255.255.255.255

6/6 Allowed ending IPv4 address for connection.

deny_i<0~9>_start 1.0.0.0 ~

255.255.255.255

6/6 Denied starting IPv4 address for connection.

deny_i<0~9>_end 1.0.0.0 ~

255.255.255.255

6/6 Denied ending IPv4 address for connection.

ipv6_allow_i<0~9> String[44] 6/6 Allowed IPv6 address for connection.

ipv6_deny_i<0~9> String[44] 6/6 Denied IPv6 address for connection.

Group: videoin_c<0~(n-1)> for n channel products, m is stream number

NAME VALUE SECURITY

(get/set)

DESCRIPTION

whitebalancemode 0~1 4/4 0: auto tracking white balance

1: white balance control

autotrackingwhitebalance 0~8 4/4 Adjust colors by setting different levels. Set

videoin_c0_whitebalancemode to 0 before setting this

parameter.

whitebalancecontrol 0~8 4/4 Set different levels to meet different color temperatures

(3200K~9600K).

Set whitebalancemode to 1 before setting this parameter.

irislevel 1 ~ 8 4/4 Iris level when connect to auto iris lens. 8 => most

brightness, 1 => most darkness

autoiris 0~1 4/4 set 1 to enable auto iris, set 0 to disable auto iris

autoelectronicshutter 0~7 4/4 Set electronica shutter speed. Set 0 for auto shutter, set 1

for fixed at 1/60 (1/50). Bigger value, faster shutter.

enableblc 0~1 4/4 Enable backlight compensation

lowluxmode 0~1 4/4 Turn off or on low lux mode

obwlowluxmode 0~1 4/4 Turn on or off black/white video in low lux mode

blcarea_i<0~5> 0~7 4/4 Set back light compensation level

blcsenslevel 0~7 4/4 Set back light compensation level

VIVOTEK

User's Manual - 101

NAME VALUE SECURITY

(get/set)

DESCRIPTION

color 0, 1 4/4 0 =>monochrome

1 => color

flip <boolean> 4/4 flip the image

mirror <boolean> 4/4 mirror the image

text string[16] 1/4 enclosed caption

imprinttimestamp <boolean> 4/4 Overlay time stamp on video

s<0~(m-1)>_codectype mpeg4, mjpeg 4/4 video codec type

s<0~(m-1)>_resolution QCIF,

(176x120,ntsc)

(176x144,pal)

C I F,

(352x240,ntsc)

(352x288,pal)

4CIF,

(704x480,ntsc)

(704x576,pal)

4/4 Video resolution in pixel

s<0~(m-1)>_mpeg4_intraperiod 250, 500, 1000,

2000, 3000,

4000

4/4 The period of intra frame in milliseconds

s<0~(m-1)>_mpeg4_ratecontrolmode cbr, vbr 4/4 cbr, constant bitrate

vbr, fix quality

s<0~(m-1)>_mpeg4_quant 0~5 4/4 quality of video when choosing vbr in

“ratecontrolmode”.

0 is customized manual input setting.

1 is worst quality and 5 is the best quality.

s<0~(m-1)>_mpeg4_quantlevel 1~31 4/4 The specific quality parameter of the Mpeg4

encoder.

1 = best quality, 31 = worst quality.

s<0~(m-1)>_mpeg4_bitrate 1000~4000000 4/4 Set bit rate in bps when choose cbr in

“ratecontrolmode”

s<0~(m-1)>_mpeg4_maxframe 1~25,

26~30 (only for

NTSC)

4/4 set maximum frame rate in fps (for MPEG-4)

s<0~(m-1)>_mjpeg_quant 0 ~ 5 4/4 quality of jpeg video.

0 is customized manual input setting.

1 is worst quality and 5 is the best quality.

VIVOTEK

102 - User's Manual

s<0~(m-1)>_mjpeg_quantlevel 10~200 4/4 The specific quality parameter of the JPEG

encoder.

10 = best quality, 200 = worst quality.

s<0~(m-1)>_mjpeg_maxframe 1~25,

26~30

(only for NTSC)

4/4 set maximum frame rate in fps (for JPEG)

Group: audioin_c<0~(n-1)> for n channel products

NAME VALUE SECURITY

(get/set)

DESCRIPTION

mute 0, 1 4/4 Enable audio mute.

gain 0~45 4/4 Gain of line input

gain2 0~45 4/4 Gain of external microphone input

s<0~(m-1)>_codectype aac4, gamr 4/4 Set audio codec type for input.

s<0~(m-1)>_aac4_bitrate 16000,

32000,

48000,

64000,

96000,

128000

4/4 Set AAC4 bitrate in bps.

s<0~(m-1)>_gamr_bitrate 4750,

5150,

5900,

6700,

7400,

7950,

10200,

12200

4/4 Set AMR bitrate in bps.

Group: image_c<0~(n-1)> for n channel products

NAME VALUE SECURITY

(get/set)

DESCRIPTION

brightness -5 ~ 5 4/4 Adjust brightness of image according to mode settings.

saturation -5 ~ 5 4/4 Adjust saturation of image according to mode settings.

contrast -5 ~ 5 4/4 Adjust contrast of image according to mode settings.

sharpness -3 ~ 3 4/4 Adjust sharpness of image according to mode settings.

VIVOTEK

User's Manual - 103

Group: timeshift, c for n channel products, m is stream number

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enable <boolean> 4/4 Enable time shift streaming.

c<0~(n-1)>_s<0~(m-1)>_allow <boolean> 4/4 Enable time shift streaming for specific stream.

Group: motion_c<0~(n-1)> for m profile and n channel product

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enable <boolean> 4/4 Enable motion detection.

win_i<0~2>_enable <boolean> 4/4 Enable motion window 1~3.

win_i<0~2>_name string[14] 4/4 Name of motion window 1~3.

win_i<0~2>_left 0 ~ 320 4/4 Left coordinate of window position.

win_i<0~2>_top 0 ~ 240 4/4 Top coordinate of window position.

win_i<0~2>_width 0 ~ 320 4/4 Width of motion detection window.

win_i<0~2>_height 0 ~ 240 4/4 Height of motion detection window.

win_i<0~2>_objsize 0 ~ 100 4/4 Percent of motion detection window.

win_i<0~2>_sensitivity 0 ~ 100 4/4 Sensitivity of motion detection window.

Group: ddns

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enable <boolean> 6/6 Enable or disable the dynamic DNS.

provider Safe100,

DyndnsDynamic,

DyndnsCustom,

TZO,

DHS,

DynInterfree,

CustomSafe100

6/6 Safe100 => safe100.net

DyndnsDynamic => dyndns.org (dynamic)

DyndnsCustom => dyndns.org (custom)

TZO => tzo.com

DHS => dhs.org

DynInterfree =>dyn-interfree.it

CustomSafe100 =>

Custom server using safe100 method

<provider>_hostname string[128] 6/6 Your dynamic hostname.

<provider>_username

string[64] 6/6 Your user or email to login to the DDNS service provider

<provider>_password

key

string[64] 6/6 Your password or key to login to the DDNS service provider.

<provider>_serverna

string[128] 6/6 The server name for safe100.

(This field only exists if the provider is customsafe100)

VIVOTEK

104 - User's Manual

Group: upnppresentation

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enable <boolean> 6/6 Enable or disable the UPNP presentation service.

Group: upnpportforwarding

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enable <boolean> 6/6 Enable or disable the UPNP port forwarding service.

upnpnatstatus 0~3 6/7 The status of UpnP port forwarding, used internally.

0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port

forwarding

Group: syslog

NAME VALUE SECURITY

(get/set)

DESCRIPTION

enableremotelog <boolean> 6/6 Enable remote log.

serverip <IP address> 6/6 Log server IP address.

serverport 514, 1025~65535 6/6 Server port used for log.

level 0~7 6/6 Levels used to distinguish the importance of the

information:

0: LOG_EMERG

1: LOG_ALERT

2: LOG_CRIT

3: LOG_ERR

4: LOG_WARNING

5: LOG_NOTICE

6: LOG_INFO

7: LOG_DEBUG

Group: camctrl_c<0~(n-1)> for n channel product

NAME VALUE SECURITY

(get/set)

DESCRIPTION

panspeed -5 ~ 5 1/4 Pan speed

tiltspeed -5 ~ 5 1/4 Tilt speed

zoomspeed -5 ~ 5 1/4 Zoom speed

autospeed 1 ~ 5 1/4 Auto pan speed

focusspeed -5 ~ 5 1/4 Auto focus speed

axisx -6790 ~ 6790 1/7 Axis X coordinate, used internally.

VIVOTEK

User's Manual - 105

axisy -786 ~ 1572 1/7 Axis Y coordinate, used internally.

axisz 4096 ~ 8859 1/7 Axis Z coordinate, used internally.

returnhome 0,1 1/4 Enable/disable auto return home while idle

returnhomeinterval 1 ~ 999 1/4 Wait interval return home

defaulthome 0,1 1/4 This field tells system to use default home position or not.

osdzoom 0,1 1/4 Enable zoom times display

digitalzoom 0,1 1/4 Enable digital zoom

preset_i<0~19>_name string[40] 1/4 Name of the preset location.

preset_i<0~19>_pan -6790 ~ 6790 1/4 The axis x coordinate of each preset location

preset_i<0~19>_tilt -786 ~ 1572 1/4 The axis y coordinate of each preset location

preset_i<0~19>_zoom 4096 ~ 8859 1/4 The axis z coordinate of each preset location

patrol_i<0~39>_name string[40] 1/4 The name of patrol location

patrol_i<0~39>_

dwelling

0 ~ 999 1/4 The dwelling time of each patrol location

Group: layout

NAME VALUE SECURITY

(get/set)

DESCRIPTION

logo_default <boolean> 1/6 0 => Custom logo

1 => Default logo

logo_link string[40] 1/6 Hyperlink of the logo

logo_powerbyvvtk_hidden <boolean> 1/6 Hide Powered by VIVOTEK

theme_option 1~4 1/6 1~3: One of the default themes.

4: Custom definition.

theme_color_font string[7] 1/6 Font color

theme_color_configfont string[7] 1/6 Font color of configuration area.

theme_color_titlefont string[7] 1/6 Font color of video title.

theme_color_controlbackground string[7] 1/6 Background color of control area.

theme_color_configbackground string[7] 1/6 Background color of configuration area.

theme_color_videobackground string[7] 1/6 Background color of video area.

theme_color_case string[7] 1/6 Frame color

Group: capability

NAME VALUE SECURITY

(get/set)

DESCRIPTION

api_httpversion 0100a 0/7 The HTTP API version.

bootuptime <positive integer> 0/7 Server bootup time.

nir 0, 0/7 Number of IR interfaces.

VIVOTEK

106 - User's Manual

npir 0,

0/7 Number of PIRs.

ndi 0,

0/7 Number of digital inputs.

ndo 0,

0/7 Number of digital outputs.

naudioin 0,

0/7 Number of audio inputs.

naudioout 0,

0/7 Number of audio outputs.

nvideoin <positive integer> 0/7 Number of video inputs.

nmediastream <positive integer> 0/7 Number of media stream per channels.

nvideosetting <positive integer> 0/7 Number of video settings per channel.

naudiosetting <positive integer> 0/7 Number of audio settings per channel.

nuart 0,

0/7 Number of UART interfaces.

ptzenabled <positive integer> 0/7 An 32-bit integer, each bit can be set separately as

follows:

Bit 0 => Support camera control function;

0(not support), 1(support)

Bit 1 => Built-in or external camera;

0(external), 1(built-in)

Bit 2 => Support pan operation, 0(not support),

1(support)

Bit 3 => Support tilt operation; 0(not support),

1(support)

Bit 4 => Support zoom operation;

0(not support), 1(support)

Bit 5 => Support focus operation;

0(not support), 1(support)

Bit 6 => Support iris operation;

0(not support), 1(support)

Bit 7 => External or built-in PT; 0(built-in), 1(external)

Bit 8 => Invalidate bit 1 ~ 7;

0(bit 1 ~ 7 are valid),

1(bit 1 ~ 7 are invalid)

Bit 9 => Reserved bit; Invalidate lens_pan, Lens_tilt,

lens_zoon, lens_focus, len_iris.

0(fields are valid),

VIVOTEK

User's Manual - 107

1(fields are invalid)

lens_pan <positive integer> 0/7 A 32-bit integer, each bit can be set separately as

follows:

Bit 0 => Support pan.

Bit 1 => Support pan in UI.

Bit 2 => External or built-in pan function; 0(built-in),

1(external).

lens_tilt <positive integer> 0/7 A 32-bit integer, each bit can be set separately as

follows:

Bit 0 => Support tilt.

Bit 1 => Support tilt in UI.

Bit 2 => External or built-in tilt function; 0(built-in),

1(external).

lens_zoom <positive integer> 0/7 A 32-bit integer, each bit can be set separately as

follows:

Bit 0 => Support zoom

Bit 1 => Support zoom in UI

Bit 2 => External or built-in zoom function; 0(built-in),

1(external).

lens_focus

0/7 A 32-bit integer, each bit can be set separately as

follows:

Bit 0 => Support focus.

Bit 1 => Support focus in UI.

Bit 2 => External or built-in focus function; 0(built-in),

1(external).

Bit 3 => Support auto focus in UI.

lens_iris <positive integer> 0/7 A 32-bit integer, each bit can be set separately as

follows:

Bit 0 => Support iris.

Bit 1 => Support iris in UI.

Bit 2 => External or build-in iris function; 0(build-in),

1(external).

Bit 3 => Support auto iris in UI.

npreset <positive integer> 0/7 Number of preset locations.

protocol_https < boolean > 0/7 Indicate whether to support HTTP over SSL.

protocol_rtsp < boolean > 0/7 Indicate whether to support RTSP.

protocol_sip <boolean> 0/7 Indicate whether to support SIP.

protocol_maxconnection <positive integer> 0/7 The maximum allowed simultaneous connections.

protocol_maxgenconnect

ion

<positive integer> 0/7 The maximum general streaming connections .

VIVOTEK

108 - User's Manual

protocol_maxmegaconne

ction

<positive integer> 0/7 The maximum megapixel streaming connections.

protocol_rtp_multicast_

scalable

<boolean> 0/7 Indicate whether to support scalable multicast.

protocol_rtp_multicast_

backchannel

<boolean> 0/7 Indicate whether to support backchannel multicast.

protocol_rtp_tcp <boolean> 0/7 Indicate whether to support RTP over TCP.

protocol_rtp_http <boolean> 0/7 Indicate whether to support RTP over HTTP.

protocol_spush_mjpeg <boolean> 0/7 Indicate whether to support server push MJPEG.

protocol_snmp <boolean> 0/7 Indicate whether to support SNMP.

protocol_ipv6 <boolean> 0/7 Indicate whether to support IPv6.

videoin_type 0, 1, 2 0/7 0 => Interlaced CCD

1 => Progressive CCD

2 => CMOS

videoin_resolution <a list of available

resolution

separated by

commas>

0/7 Available resolutions list.

videoin_maxframerate <a list of available

maximum frame

rate separated by

commas>

0/7 Available maximum frame list.

videoin_codec <a list of available

codec types

separated by

commas>

0/7 Available codec list.

videoout_codec <a list of the

available codec

types separated by

commas)

0/7 Available codec list.

audio_aec <boolean> 0/7 Indicate whether to support acoustic echo cancellation.

audio_extmic <boolean> 0/7 Indicate whether to support external microphone input.

audio_linein <boolean> 0/7 Indicate whether to support external line input.

audio_lineout <boolean> 0/7 Indicate whether to support line output.

audio_headphoneout <boolean> 0/7 Indicate whether to support headphone output.

audioin_codec <a list of the

available codec

types separated by

commas)

0/7 Available codec list.

VIVOTEK

User's Manual - 109

audioout_codec <a list of the

available codec

types separated by

commas)

0/7 Available codec list.

uart_httptunnel <boolean> 0/7 Indicate whether to support HTTP tunnel for UART

transfer.

camctrl_privilege <boolean> 0/7 Indicate whether to support “Manage Privilege” of PTZ

control in the Security page.

transmission_mode Tx,

Rx,

Both

0/7 Indicate transmission mode of the machine: TX =

server, Rx = receiver box, Both = DVR.

network_wire <boolean> 0/7 Indicate whether to support Ethernet.

network_wireless <boolean> 0/7 Indicate whether to support wireless.

wireless_802dot11b <boolean> 0/7 Indicate whether to support wireless 802.11b+.

wireless_802dot11g <boolean> 0/7 Indicate whether to support wireless 802.11g.

wireless_beginchannel 1 ~ 14 0/7 Indicate the begin channel of wireless network

wireless_endchannel 1 ~ 14 0/7 Indicate the end channel of wireless network

wireless_encrypt_wep <boolean> 0/7 Indicate whether to support wireless WEP.

wireless_encrypt_wpa <boolean> 0/7 Indicate whether to support wireless WPA.

wireless_encrypt_wpa2 <boolean> 0/7 Indicate whether to support wireless WPA2.

derivative_brand <boolean> 0/7 Indicate whether to support the upgrade function for the

derivative brand. For example, if the value is true, the

VVTK product can be upgraded to VVXX.

(TCVV<->TCXX is excepted)

evctrlchannel <boolean> 0/7 Indicate whether to support HTTP tunnel for

event/control transfer.

joystick <boolean> 0/7 Indicate whether to support joystick control.

Group: event_customtaskfile_i<0~2>

PARAMETER VALUE SECURITY

(get/set)

DESCRIPTION

name string[41] 6/6 Custom script identification of this entry.

date string[17] 6/6 Date of custom script.

time string[17] 6/6 Time of custom script.

Group: event_i<0~2>

PARAMETER VALUE SECURITY

(get/set)

DESCRIPTION

name string[40] 6/6 Identification of this entry.

VIVOTEK

110 - User's Manual

enable 0, 1 6/6 Enable or disable this event.

priority 0, 1, 2 6/6 Indicate the priority of this event:

“0” = low priority

“1” = normal priority

“2” = high priority

delay 1~999 6/6 Delay in seconds before detecting the next event.

trigger boot,

di,

motion,

seq,

recnotify,

6/6 Indicate the trigger condition:

“boot” = System boot

“di”= Digital input

“motion” = Video motion detection

“seq” = Periodic condition

“recnotify” = Recording notification.

di <integer> 6/6 Indicate which DI detects.

This field is required when trigger condition is “di”.

One bit represents one digital input. The LSB indicates DI 0.

mdwin <integer> 6/6 Indicate which motion detection windows detect.

This field is required when trigger condition is “md”.

One bit represents one window.

The LSB indicates the 1st window.

For example, to detect the 1st and 3rd windows, set mdwin as 5.

inter 1~999 6/6 Interval of snapshots in minutes.

This field is used when trigger condition is “seq”.

weekday <integer> 6/6 Indicate which weekday is scheduled.

One bit represents one weekday.

bit0 (LSB) = Saturday

bit1 = Friday

bit2 = Thursday

bit3 = Wednesday

bit4 = Tuesday

bit5 = Monday

bit6 = Sunday

For example, to detect events on Friday and Sunday, set

weekday as 66.

begintime hh:mm 6/6 Begin time of the weekly schedule.

endtime hh:mm 6/6 End time of the weekly schedule.

(00:00 ~ 24:00 sets schedule as always on)

action_do_i<0~(ndo-1)>_e

nable

0, 1 6/6 Enable or disable trigger digital output.

action_do_i<0~(ndo-1)>_d

uration

1~999 6/6 Duration of the digital output trigger in seconds.

VIVOTEK

User's Manual - 111

action_goto_enable 0,1 6/6 Enable/disable ptz goto preset on event triggered.

action_goto_name string[40] 6/6 Preset name that ptz goto on event triggered.

action_server_i<0~4>_ena

ble

0, 1 6/6 Enable or disable this server action.

The default value is 0.

action_server_i<0~4>_me

dia

NULL, 0~4 6/6 Index of the attached media.

action_server_i<0~4>_dat

efolder

<boolean> 6/6 Enable this to create folders by date, time, and hour

automatically.

Group: server_i<0~4>

PARAMETER VALUE SECURITY

(get/set)

DESCRIPTION

name string[40] 6/6 Identification of this entry

type email,

ftp,

http,

6/6 Indicate the server type:

“email” = email server

“ftp” = FTP server

“http” = HTTP server

“ns” = network storage

http_url string[128] 6/6 URL of the HTTP server to upload.

http_username string[64] 6/6 Username to log in to the server.

http_passwd string[64] 6/6 Password of the user.

ftp_address string[128] 6/6 FTP server address.

ftp_username string[64] 6/6 Username to log in to the server.

ftp_passwd string[64] 6/6 Password of the user.

ftp_port 0~65535 6/6 Port to connect to the server.

ftp_location string[128] 6/6 Location to upload or store the media.

ftp_passive 0, 1 6/6 Enable or disable passive mode.

0 = disable passive mode

1 = enable passive mode

email_address string[128] 6/6 Email server address.

email_sslmode 0, 1 6/6 Enable support SSL.

email_port 0~65535 6/6 Port to connect to the server.

email_username string[64] 6/6 Username to log in to the server.

email_passwd string[64] 6/6 Password of the user.

email_senderemail string[128] 6/6 Email address of the sender.

email_recipientemail string[128] 6/6 Email address of the recipient.

ns_location string[128] 6/6 Location to upload or store the media.

ns_username string[64] 6/6 Username to log in to the server.

ns_passwd string[64] 6/6 Password of the user.

ns_workgroup string[64] 6/6 Workgroup for network storage.

VIVOTEK

112 - User's Manual

Group: media_i<0~4> (media_freespace is used internally.)

PARAMETER VALUE SECURITY

(get/set)

DESCRIPTION

name string[40] 6/6 Identification of this entry

type snapshot,

systemlog,

videoclip,

recordmsg

6/6 Media type to send to the server or store on the server.

snapshot_source <integer> 6/6 Indicate the source of media stream.

0 means the first stream.

1 means the second stream and etc.

snapshot_prefix string[16] 6/6 Indicate the prefix of the filename.

snapshot_datesuffix 0, 1 6/6 Add date and time suffix to filename:

1 = Add date and time suffix.

0 = Do not add.

snapshot_preevent 0 ~ 7 6/6 Indicates the number of pre-event images.

snapshot_postevent 0 ~ 7 6/6 The number of post-event images.

videoclip_source <integer> 6/6 Indicate the source of media stream.

0 means the first stream.

1 means the second stream and etc.

videoclip_prefix string[16] 6/6 Indicate the prefix of the filename.

videoclip_preevent 0 ~ 9 6/6 Indicates the time for pre-event recording in seconds.

videoclip_maxduration 1 ~ 10 6/6 Maximum duration of one video clip in seconds.

videoclip_maxsize 50 ~ 1500 6/6 Maximum size of one video clip file in Kbytes.

Group: recording_i<0~1>

PARAMETER VALUE SECURITY

(get/set)

DESCRIPTION

name string[40] 6/6 Identification of this entry.

enable 0, 1 6/6 Enable or disable this recording.

priority 0, 1, 2 6/6 Indicate the priority of this recording:

“0” indicates low priority.

“1” indicates normal priority.

“2” indicates high priority.

source <integer> 6/6 Indicate the source of media stream.

0 means the first stream.

1 means the second stream and etc.

limitsize 0,1 6/6 0: Entire free space mechanism

1: Limit recording size mechanism

VIVOTEK

User's Manual - 113

cyclic 0,1 6/6 0: Disable cyclic recording

1: Enable cyclic recording

notify 0,1 6/6 0: Disable recording notification

1: Enable recording notification

notifyserver 0~31 6/6 Indicate which notification server is scheduled.

One bit represents one application server (server_i0~i4).

bit0 (LSB) = server_i0.

bit1 = server_i1.

bit2 = server_i2.

bit3 = server_i3.

bit4 = server_i4.

For example, enable server_i0, server_i2, and server_i4

as notification servers; the notifyserver value is 21.

weekday <interger> 6/6 Indicate which weekday is scheduled.

One bit represents one weekday.

bit0 (LSB) = Saturday

bit1 = Friday

bit2 = Thursday

bit3 = Wednesday

bit4 = Tuesday

bit5 = Monday

bit6 = Sunday

For example, to detect events on Friday and Sunday, set

weekday as 66.

begintime hh:mm 6/6 Start time of the weekly schedule.

endtime hh:mm 6/6 End time of the weekly schedule.

(00:00~24:00 indicates schedule always on)

prefix string[16] 6/6 Indicate the prefix of the filename.

cyclesize 20~ 6/6 The maximum size for cycle recording in Kbytes when

choosing to limit recording size.

reserveamount 15~ 6/6 The reserved amount in Mbytes when choosing cyclic

recording mechanism.

dest cf,

0~4

6/6 The destination to store the recorded data.

“0~4” means the index of the network storage.

Group: path

NAME VALUE SECURITY

(get/set)

DESCRIPTION

encoder1_start <boolean> 7/7 Specify the HTTP push server is active for stream 1

encoder2_start <boolean> 7/7 Specify the HTTP push server is active for stream 2

VIVOTEK

114 - User's Manual

Group: https

NAME VALUE SECURITY

(get/set)

DESCRIPTION

connect 1025 ~ 65535 7/7 Specify the stunnel connect port.

enable <boolean> 6/6 To enable or disable secure HTTP.

policy <Boolean> 6/6 If the value is 1, it will force HTTP connection redirect to

HTTPS connection

method auto,

manual,

install

6/6 auto => Create self-signed certificate automatically.

manual => Create self-signed certificate manually.

install => Create certificate request and install.

status -2 ~ 1 6/6 Specify the https status.

-2= Invalid public key

-1 = Waiting for certificate

0 = Not installed

1= Active

countryname string[2] 6/6 Country name in the certificate information.

stateorprovincename string[128] 6/6 State or province name in the certificate information.

localityname string[128] 6/6 The locality name in the certificate information.

organizationname string[64] 6/6 Organization name in the certificate information.

unit string[32] 6/6 Organizational unit name in the certificate information.

commonname string[64] 6/6 Common name in the certificate information.

validdays 0 ~ 9999 6/6 Valid period for the certification.

Drive the digital output

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>]

[&do3=<state>][&do4=<state>][&return=<return page>]

Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.

PARAMETER VALUE DESCRIPTION

0 – Inactive, normal state

do<num> 0, 1

1 – Active, triggered state

VIVOTEK

User's Manual - 115

return <return page> Redirect to the page <return page> after the parameter is assigned.The

<return page> can be a full URL path or relative path according to the

current path. If you omit this parameter, it will redirect to an empty page.

Example: Drive the digital output 1 to triggered state and redirect to an empty page.

http://myserver/cgi-bin/dido/setdo.cgi?do1=1

Query Status of the Digital Input

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]

If no parameter is specified, all of the digital input statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: <length>\r\n

\r\n

[di0=<state>]\r\n

[di1=<state>]\r\n

[di2=<state>]\r\n

[di3=<state>]\r\n

where <state> can be 0 or 1.

Example: Query the status of digital input 1 .

Request:

http://myserver/cgi-bin/dido/getdi.cgi?di1

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: 7\r\n

\r\n

di1=1\r\n

VIVOTEK

116 - User's Manual

Query Status of the Digital Output

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]

If no parameter is specified, all the digital output statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: <length>\r\n

\r\n

[do0=<state>]\r\n

[do1=<state>]\r\n

[do2=<state>]\r\n

[do3=<state>]\r\n

where <state> can be 0 or 1.

Example: Query the status of digital output 1.

Request:

http://myserver/cgi-bin/dido/getdo.cgi?do1

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: 7\r\n

\r\n

do1=1\r\n

Capture Single Snapshot

Note: This request requires Normal User privileges.

Method: GET/POST

Syntax:

VIVOTEK

User's Manual - 117

http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>]

[&quality=<value>]

If the user requests a size larger than all stream settings on the server, this request will fail.

PARAMETER VALUE DEFAULT DESCRIPTION

channel 0~(n-1) 0 The channel number of the video source.

resolution <available

resolution>

0 The resolution of the image.

quality 1~5 3 The quality of the image.

The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and

quality of the image will be set according to the video settings on the server.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: image/jpeg\r\n

[Content-Length: <image size>\r\n]

Account Management

Note: This request requires Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/editaccount.cgi?

method=<value>&username=<name>[&userpass=<value>][&privilege=<value>]

[&privilege=<value>][…][&return=<return page>]

PARAMETER VALUE DESCRIPTION

Add Add an account to the server. When using this method, the “username”

field is necessary. It will use the default value of other fields if not

specified.

Delete Remove an account from the server. When using this method, the

“username” field is necessary, and others are ignored.

method

edit Modify the account password and privilege. When using this method, the

“username” field is necessary, and other fields are optional. If not

specified, it will keep the original settings.

VIVOTEK

118 - User's Manual

username <name> The name of the user to add, delete, or edit.

userpass <value> The password of the new user to add or that of the old user to modify.

The default value is an empty string.

<value> The privilege of the user to add or to modify.

viewer Viewer privilege.

operator Operator privilege.

privilege

admin Administrator privilege.

return <return page> Redirect to the page <return page> after the parameter is assigned.The

<return page> can be a full URL path or relative path according to the

current path. If you omit this parameter, it will redirect to an empty page.

System Logs

Note: This request require Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/syslog.cgi

Server will return the most up-to-date system log.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: <syslog length>\r\n

\r\n

<system log information>\r\n

Upgrade Firmware

Note: This request requires Administrator privileges.

Method: POST

Syntax:

http://<servername>/cgi-bin/admin/upgrade.cgi

Post data:

fimage=<file name>[&return=<return page>]\r\n

VIVOTEK

User's Manual - 119

\r\n

Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated.

Camera Control

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>]｛ [&move=<value>] or

[&focus=<value>] or [&iris=<value>] or [&speedpan=<value>] or [&speedtilt=<value>] or [&speedzoom=<value>] or

[&speedapp=<value>] or [&auto=<value>] or [&zoom=<value>] or [&zooming=<value>] or

[&vx=<value>&vy=<value>&vs=<value>] ｝[&return=<return page>]

PARAMETER VALUE DESCRIPTION

channel <0~(n-1)> Channel of video source.

camid 0,<positive integer> Camera ID.

home Move to camera to home position.

up Move camera up.

down Move camera down.

left Move camera left.

move

right Move camera right.

speedpan -5 ~ 5 Set the pan speed.

speedtilt -5 ~ 5 Set the tilt speed.

speedzoom -5 ~ 5 Set the zoom speed.

speedapp 1 ~ 5 Set the auto pan/patrol speed.

pan Auto pan.

patrol Auto patrol.

auto

stop Stop camera.

wide Zoom larger view with current speed.

tele Zoom further with current speed.

zoom

stop Stop zoom.

wide Zoom without stopping for larger view with current speed. zooming

tele Zoom without stopping for further view with current speed.

vx <integer , excluding 0>

vy <integer>

The slope of movement = vy/vx, used for joystick control.

VIVOTEK

120 - User's Manual

vs 0 ~ 7 Set the speed of movement, “0” means stop.

auto Auto focus.

far Focus on further distance.

focus

near Focus on closer distance.

auto Let the Network Camera control iris size.

open Manually control the iris for bigger size.

iris

close Manually control the iris for smaller size.

define Set current position as home position sethome

default Using default home position

calibrate go Recalibrate the home position to the default center

return <return page> Redirect to the page <return page> after the parameter is assigned.The

<return page> can be a full URL path or relative path according to the

current path. If you omit this parameter, it will redirect to an empty page.

Recall

Note: This request requires Viewer privileges.

Method: GET

Syntax:

http://<servername>/cgi-bin/camctrl/recall.cgi?

recall=<value>[&channel=<value>][&return=<return page>]

PARAMETER VALUE DESCRIPTION

recall Text string less than 30 characters One of the present positions to recall.

channel <0~(n-1)> Channel of the video source.

return <return page> Redirect to the page <return page> after the parameter is assigned.The

<return page> can be a full URL path or relative path according to the

current path. If you omit this parameter, it will redirect to an empty page.

Preset Locations

Note: This request requires Operator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>]

VIVOTEK

User's Manual - 121

[&addpos=<value>][&delpos=<value>][&return=<return page>]

PARAMETER VALUE DESCRIPTION

addpos <Text string less than 30

characters>

Add one preset location to the preset list.

channel <0~(n-1)> Channel of the video source.

delpos <Text string less than 30

characters>

Delete preset location from preset list.

return <return page> Redirect to the page <return page> after the parameter is assigned.The

<return page> can be a full URL path or relative path according to the

current path. If you omit this parameter, it will redirect to an empty page.

System Information

Note: This request requires Normal User privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/sysinfo.cgi

Server will return the system information. In HTTP API version 2, the CapVersion will be 0200. All fields in the previous

version (0100) are obsolete. Please use “getparam.cgi?capability” instead.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: <system information length>\r\n

\r\n

Model=<model name of server>\r\n

CapVersion=0200\r\n

PARAMETER(supported capability

version)

VALUE DESCRIPTION

Model system.firmwareversion Model name of the server.

Ex:IP3133-VVTK-0100a

CapVersion MMmm, MM is major version from 00 ~ 99

mm is minor version from 00 ~ 99

ex: 0100

Capability field version.

VIVOTEK

122 - User's Manual

IP Filtering

Note: This request requires Administrator access privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/ipfilter.cgi?

method=<value>&[start=<ipaddress>&end=<ipaddress>][&index=<value>]

[&return=<return page>]

PARAMETER VALUE DESCRIPTION

addallow Add allowed IP address range to the server. Start and end parameters must be specified. If

the index parameter is specified, it will try to add starting from the index position.

adddeny Add denied IP address range to the server. Start and end parameters must be specified. If

the index parameter is specified, it will try to add starting from the index position.

deleteallow Remove allowed IP address range from server. If start and end parameters are specified, it

will try to remove the matched IP address. If index is specified, it will try to remove the

address from given index position. [start, end] parameters have higher priority then the

[index] parameter.

Method

deletedeny Remove denied IP address range from server. If start and end parameters are specified, it

will try to remove the matched IP address. If index is specified, it will try to remove the

address from given index position. [start, end] parameters have higher priority then the

[index] parameter.

start <ip address> The starting IP address to add or to delete.

end <ip address> The ending IP address to add or to delete.

index <value> The start position to add or to delete.

return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can

be a full URL path or relative path according to the current path. If you omit this parameter,

it will redirect to an empty page.

Get SDP of Streams

Note: This request requires Viewer access privileges.

Method: GET/POST

Syntax:

http://<servername>/<network_rtsp_s<0~m-1>_accessname>

VIVOTEK

User's Manual - 123

“m” is the stream number.

“network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of

network: rtsp” for setting the accessname of SDP.

You can get the SDP by HTTP GET.

Open the Network Stream

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<0~m-1>_accessname>

For RTSP (MP4), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

For details on streaming protocol, please refer to the “control signaling” and “data format” documents.

VIVOTEK

124 - User's Manual

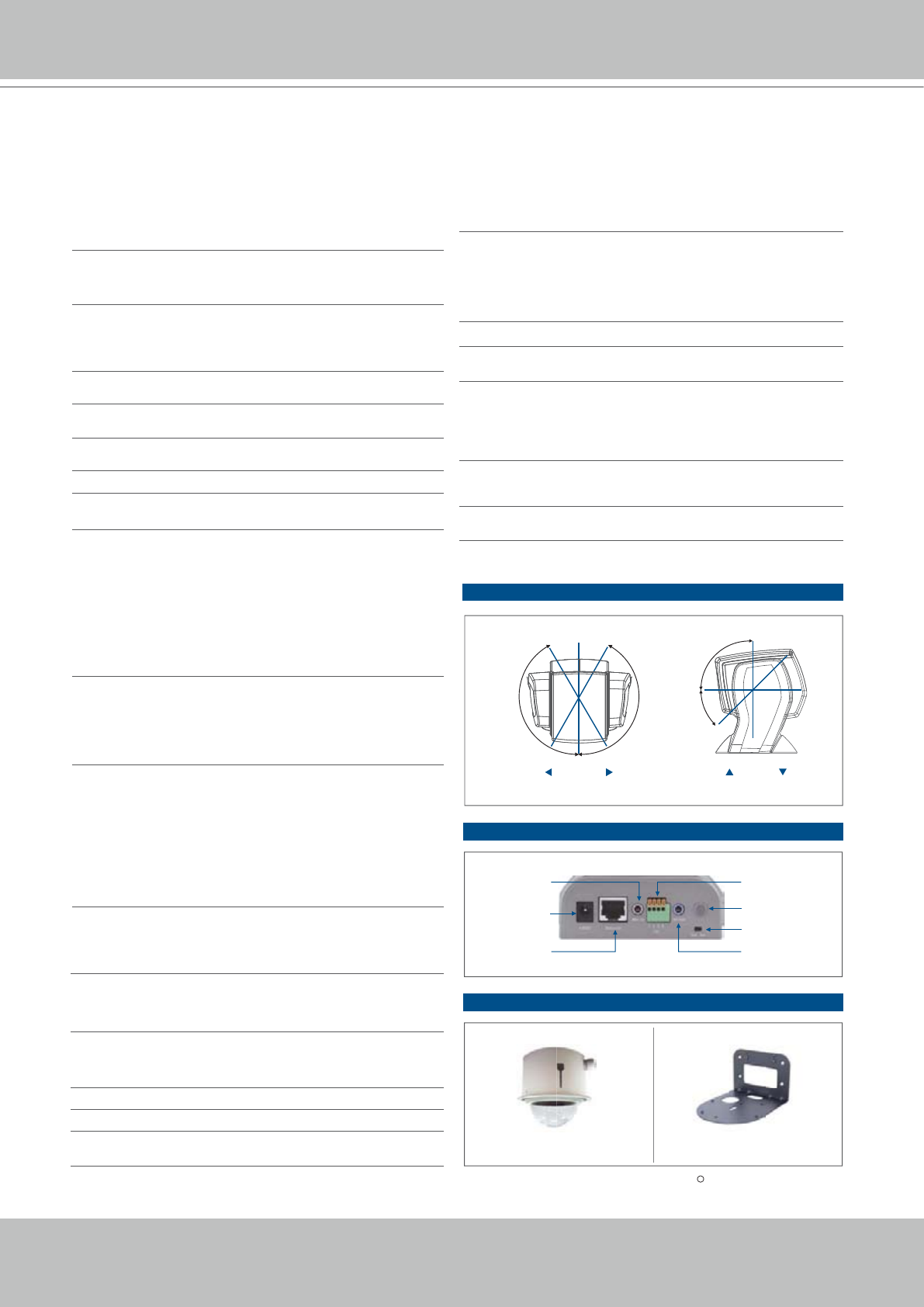

Technical Specications

External View

．CE, LVD, FCC, VCCI, C-Tick

．CPU: Bach SoC

．Flash: 8MB

．RAM: 64MB + 32MB

．Embedded OS: Linux 2.6

．PZ7111 (NTSC CCD, PoE)

．PZ7121 (PAL CCD, PoE)

．PZ7112 (NTSC CCD, WLAN)

．PZ7122 (PAL CCD, WLAN)

．10x optical zoom lens, f = 4.2 ~ 42 mm, F1.8 (wide),

F2.9 (tele), auto-iris, auto focus

．1/60 sec. to 1/10,000 sec. (PZ7111/PZ7112)

．1/50 sec. to 1/10,000 sec. (PZ7121/PZ7122)

．4.9°~ 46°(horizontal)

．3.6°~ 35°(vertical)

．1/4” CCD sensor in D1 resolution

．1.5 Lux / F1.8 (typical)

．0.05 Lux / F1.8 (low light mode)

Speciﬁcations

Networking

Alarm and

Event Management

Security

Users

Dimension

Weight

LED Indicator

Power

Approvals

Operating Environments

System

Models

Lens

．Pan range: 300°(-150°~ +150°)

．Tilt range: 135°(-45°~ +90°)

．10x optical zoom, 10x digital zoom

．Auto pan mode

．Auto patrol mode

Pan/Tilt/Zoom

Shutter Time

Image Sensor

Angle of View

Minimum

Illumination

Video

Image Settings

Audio

Viewing System

Requirements

Installation, Management,

and Maintenance

Applications

．10/100 Mbps Ethernet, RJ-45

．Built-in 802.11b/g WLAN (PZ7112/PZ7122)

．Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,

DDNS and PPPoE

．Triple-window video for motion detection

．One D/I and one D/O for external sensor and alarm

．Event notification using HTTP, SMTP or FTP

．Local recording of MP4 files

．Multi-level user access with password protection

．IP address filtering

．Wireless: WEP, WPA-PSK, WPA2 (PZ7112/PZ7122)

．HTTPS encrypted data transmission

．Live viewing for up to 10 clients

．Ø105 mm x 120 mm

．Net: 391 g (PZ7111/PZ7121)

．Net: 408 g (PZ7112/PZ7122)

．System power and status indicator

．System activity and network link indicator

．12V DC

．Power consumption: Max. 12 W

(PZ7111/7121)

．Power consumption: Max. 13 W

(PZ7112/7122)

．802.3af compliant Power-over-Ethernet

(PZ7111/PZ7121)

．Temperature: 0 ~ 50 °C (32 ~ 122 °F)

．Humidity: 20% ~ 80% RH

．Compression:

GSM-AMR speech encoding, bit rate:

4.75 kbps to 12.2 kbps

MPEG-4 AAC audio encoding, bit rate:

16 kbps to 128 kbps

．Interface:

Built-in microphone

External microphone input

Audio output

External/Internal microphone switch

．Supports two-way audio via SIP protocol

．Supports audio mute

．Compression: MJPEG & MPEG-4

．Streaming:

Simultaneous dual streams

MPEG-4 streaming over UDP, TCP, HTTP or HTTPS

MPEG-4 multicast streaming

MJPEG streaming over HTTP or HTTPS

．Supports 3GPP mobile surveillance

．Frame rates:

MPEG-4: Up to 30/25 fps at 704x480/704x576

MJPEG: Up to 30/25 fps at 704x480/704x576

．Interface:

AV output

．Adjustable image size, quality and bit rate

．Time stamp and text caption overlay

．Flip & mirror

．Configurable brightness, contrast, saturation,

sharpness and white balance

．ATW/AWB, AES/ALC

．BLC (Backlight Compensation)

．OS: Microsoft Windows 2000/XP/Vista

．Browser: Mozilla Firefox, Internet Explorer

6.x or above

．Cell phone: 3GPP player

．Real Player: 10.5 or above

．Quick Time: 6.5 or above

．SDK available for application development

and system integration

Warranty ．24 months

．Installation Wizard 2

．16-CH recording software

．Supports firmware upgrade

Pan/Tilt Range

P/N: 011001601 Ver 2�1

Pan:300°

。

150 150

。

Tilt:135°

。

Power Cord

Socket

Ethernet 10/100

RJ45 Socket

MIC In General I/O

Terminal Block

AV Out

External/Internal

MIC Switch

Antenna

(PZ7112/7122 only)

Mounting KitEnclosure

Accessories

Distributed by:

6F, No.192, Lien-Cheng Rd., Chung-Ho, Taipei County, Taiwan

Tel: +886 2 8245 5282|Fax: +886 2 8245 5532|E-mail: sales@vivotek.com

VIVOTEK USA, INC.

470 Lakeside Drive Suite C, Sunnyvale, CA 94085 USA

Tel: 408-773-8686 | Fax: 408-773-8298 | E-mail: salesusa@vivotek.com

VIVOTEK

User's Manual - 125

Technology License Notice

MPEG-4 AAC Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY

NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE,

OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION,

PLEASE REFER TO HTTP://WWW�VIALICENSING�COM�

MPEG-4 Visual Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE

PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE

WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT

WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/

OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO�

NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE� ADDITIONAL INFORMATION

INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY

BE OBTAINED FROM MPEG LA, LLC� PLEASE REFER TO HTTP://WWW�MPEGLA�COM�

AMR-NB Standard

THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT� WITH

RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY:

TELEFONAKIEBOLAGET ERICSSON AB: US PAT� 6192335; 6275798; 6029125; 6424938; 6058359� NOKIA

CORPORATION: US PAT� 5946651; 6199035� VOICEAGE CORPORATION: AT PAT� 0516621; BE PAT� 0516621;

CA PAT� 2010830; CH PAT� 0516621; DE PAT� 0516621; DK PAT� 0516621; ES PAT� 0516621; FR PAT� 0516621;

GB PAT� 0516621; GR PAT� 0516621; IT PAT� 0516621; LI PAT� 0516621; LU PAT� 0516621; NL PAT� 0516621;

SE PAT 0516621; US PAT 5444816; AT PAT� 819303/AT E 198805T1; AU PAT� 697256; BE PAT� 819303; BR PAT�

9604838-7; CA PAT� 2216315; CH PAT� 819303; CN PAT� ZL96193827�7; DE PAT� 819303/DE69611607T2; DK

PAT� 819303; ES PAT� 819303; EP PAT� 819303; FR PAT� 819303; GB PAT� 819303; IT PAT� 819303; JP PAT� APP�

8-529817; NL PAT� 819303; SE PAT� 819303; US PAT� 5664053� THE LIST MAY BE UPDATED FROM TIME TO

TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR’S WEBSITE AT

HTTP://WWW�VOICEAGE�COM�

VIVOTEK

126 - User's Manual

Electromagnetic Compatibility (EMC)

FCC Statement

This device compiles with FCC Rules Part 15� Operation is subject to the following two conditions�

■ This device may not cause harmful interference, and

■ This device must accept any interference received, including interference that may cause undesired

operation�

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful

interference in a residential installation� This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications� However, there is no guarantee that interference will not occur in a partial

installation� If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna�

■ Increase the separation between the equipment and receiver�

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected�

■ Consult the dealer or an experienced radio/TV technician for help�

Shielded interface cables must be used in order to comply with emission limits�

CE Mark Warning

This is a Class B product� In a domestic environment, this product may cause radio interference, in which

case the user may be required to take adequate measures�

This device (PZ7112/PZ7122) complies with the essential requirements of the R&TTE Directive 1999/5/

EC� The following test methods have been applied in order to prove presumption of conformity with the

essential requirements of the R&TTE Directive 1999/5/EC�

This device (PZ7112/PZ7122) is a 2�4 GHz wideband transmission system (transceiver), intended for use

in all EU member states and EFTA countries, except in France and Italy where restrictive use applies�

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain

authorization to use the device for setting up outdoor radio links and/or for supplying public access to

telecommunications and/or network services�

This device (PZ7112/PZ7122) may not be used for setting up outdoor radio links in France and in some

areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483�5 MHz�

For detailed information the end-user should contact the national spectrum authority in France�

Liability

VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right

to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty

of any kind with regard to the material contained within this document, including, but not limited to, the

implied warranties of merchantability and fitness for any particular purpose�

Vivotek PZ7112 User Manual To The 6449b416 0e8b 45c0 9fa0 54bcb8fd372b

Navigation menu

Versions of this User Manual:

Views

Navigation
