22 Series
Exit device
2 • VonDuprin22Series
Introduction
Exit devices are a critical part of the Fire and Life Safety egress system and will
provide safe and reliable service when properly applied and maintained.
Von Duprin designs and manufactures exit devices in accordance to ISO 9001
Quality Management System and meets or exceeds accepted U.S. domestic and
International standards. All 22 Series exit devices are UL listed for Panic Hardware or
Fire Hardware, and are certified to ANSI A156.3, Grade 1. Consult your local
consultant or the Von Duprin factory for current listings.
It is intended that the information included in this publication, when properly used,
will provide clear and reliable guidelines to the proper general selection and
application. However, the scope of the information is necessarily limited.
VON DUPRIN
Administrative oces
2720 Tobey Dr.
Indianapolis, IN 46219
Customer service
877-671-7011
800-999-0328 - Fax
Technical support
877-671-7011
VonDuprin22Series • 3
Table of contents
Exit hardware
Rim devices
22 8
22 Trim 9
Surface mounted
Vertical rod devices
2227 12
2227 Trim 13
Fire hardware
Rim devices
22-F 10
22-F Trim 11
Surface mounted
Vertical rod devices
2227-F 14
2227-F Trim 15
4 • VonDuprin22Series
Optionsandaccessories
Additional
information
ANSI Function, grade & type
Device, latch and rod dimensions

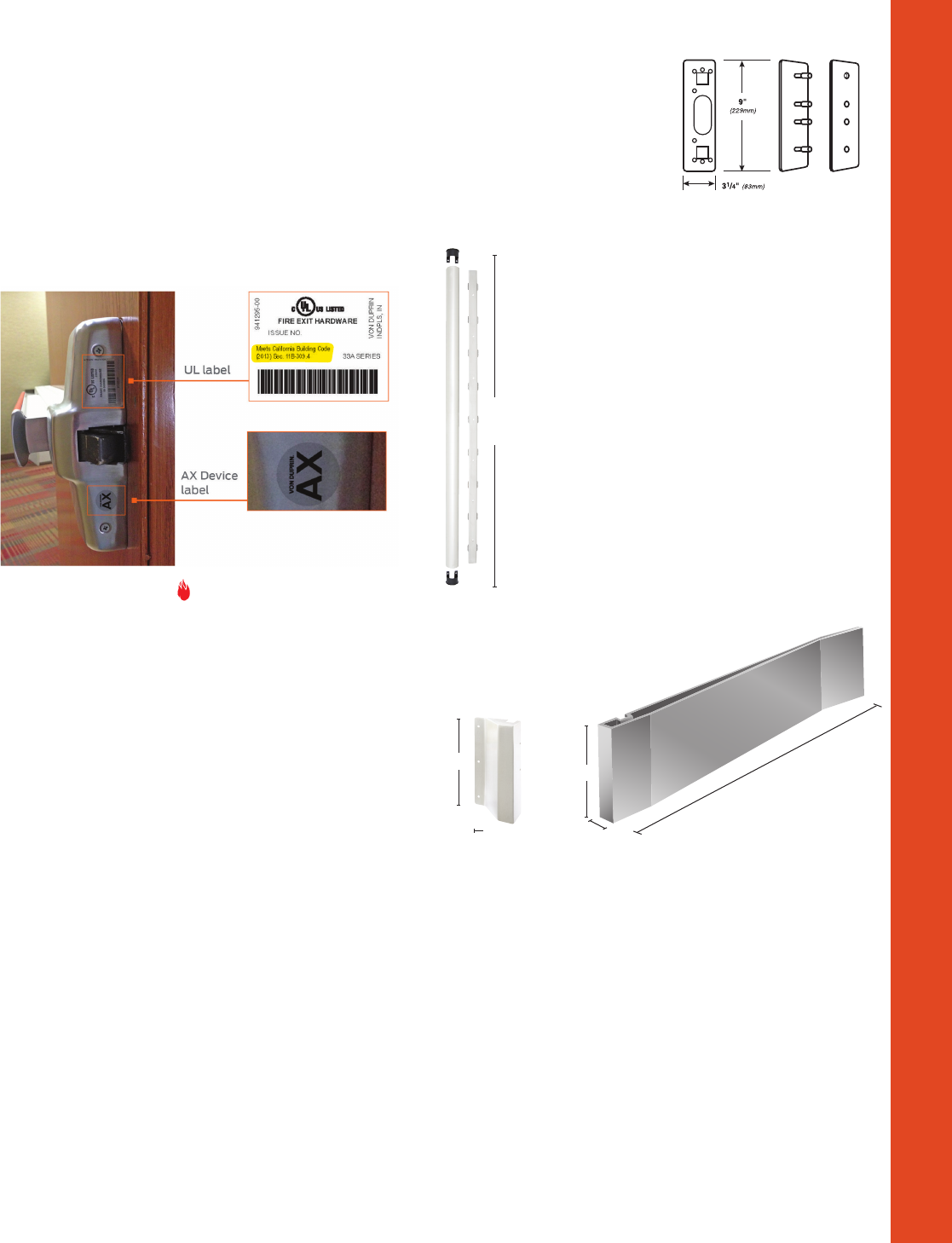

UL fire labeling and opening size
How-to-order information
Popular double door applications
Nomenclature
Finishes Standard finishes
Trim
selection

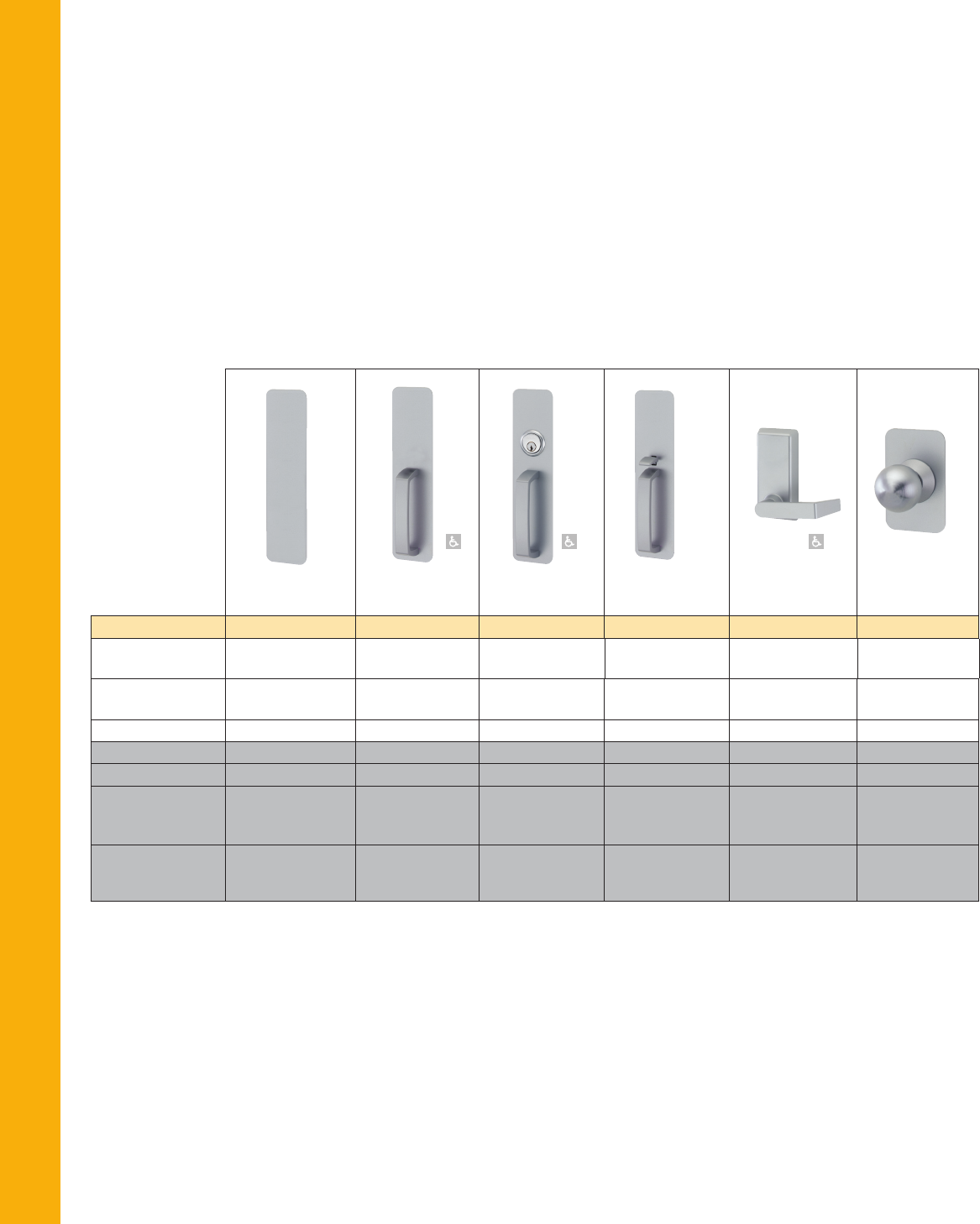

Optional trim
Lever designs
Operation options
Strike options/
Stile information

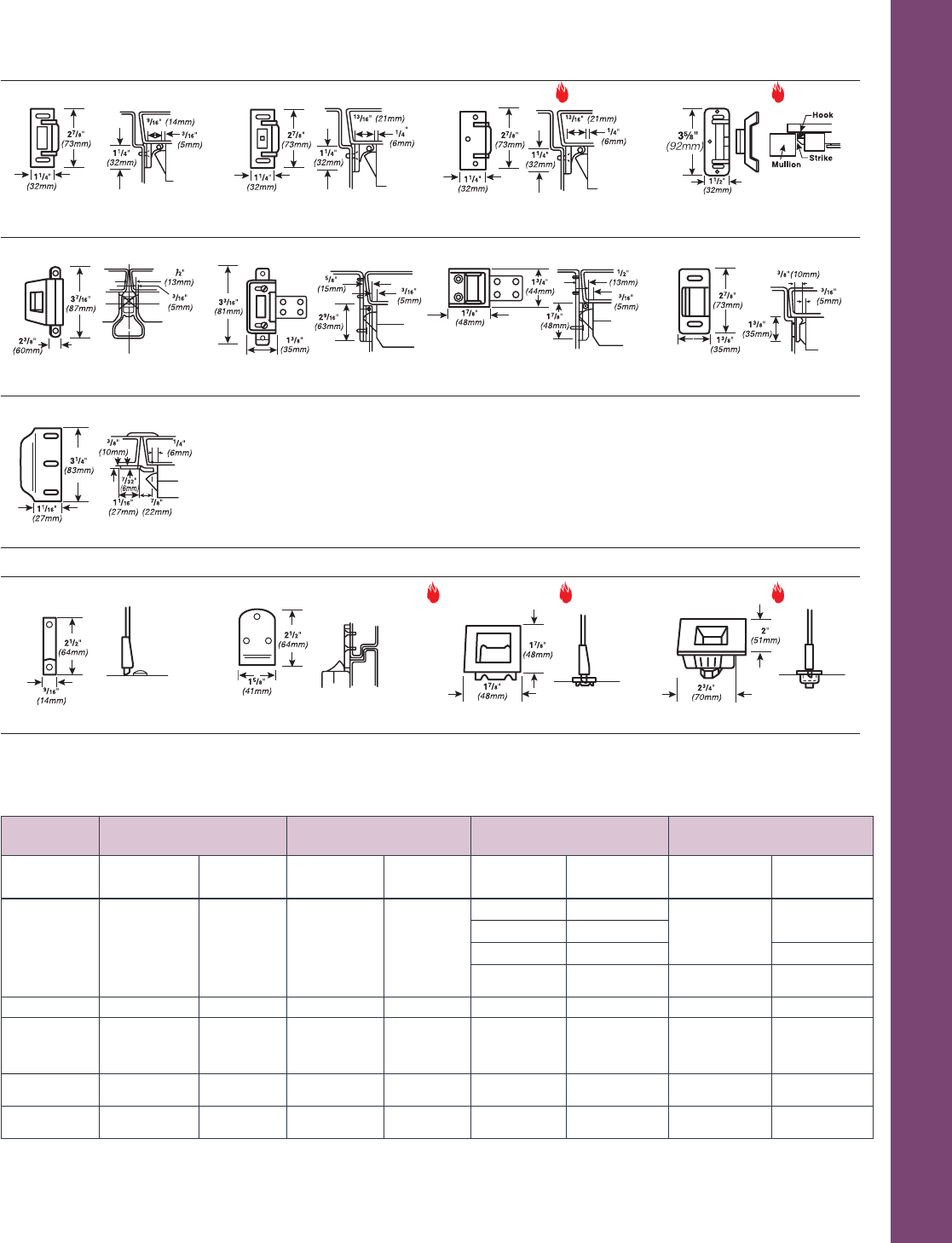

Strikes
Stiles
Mechanical options LBR – Less bottom rod
LD – Less dogging
PL – Pullman latch
AX – Accessible device

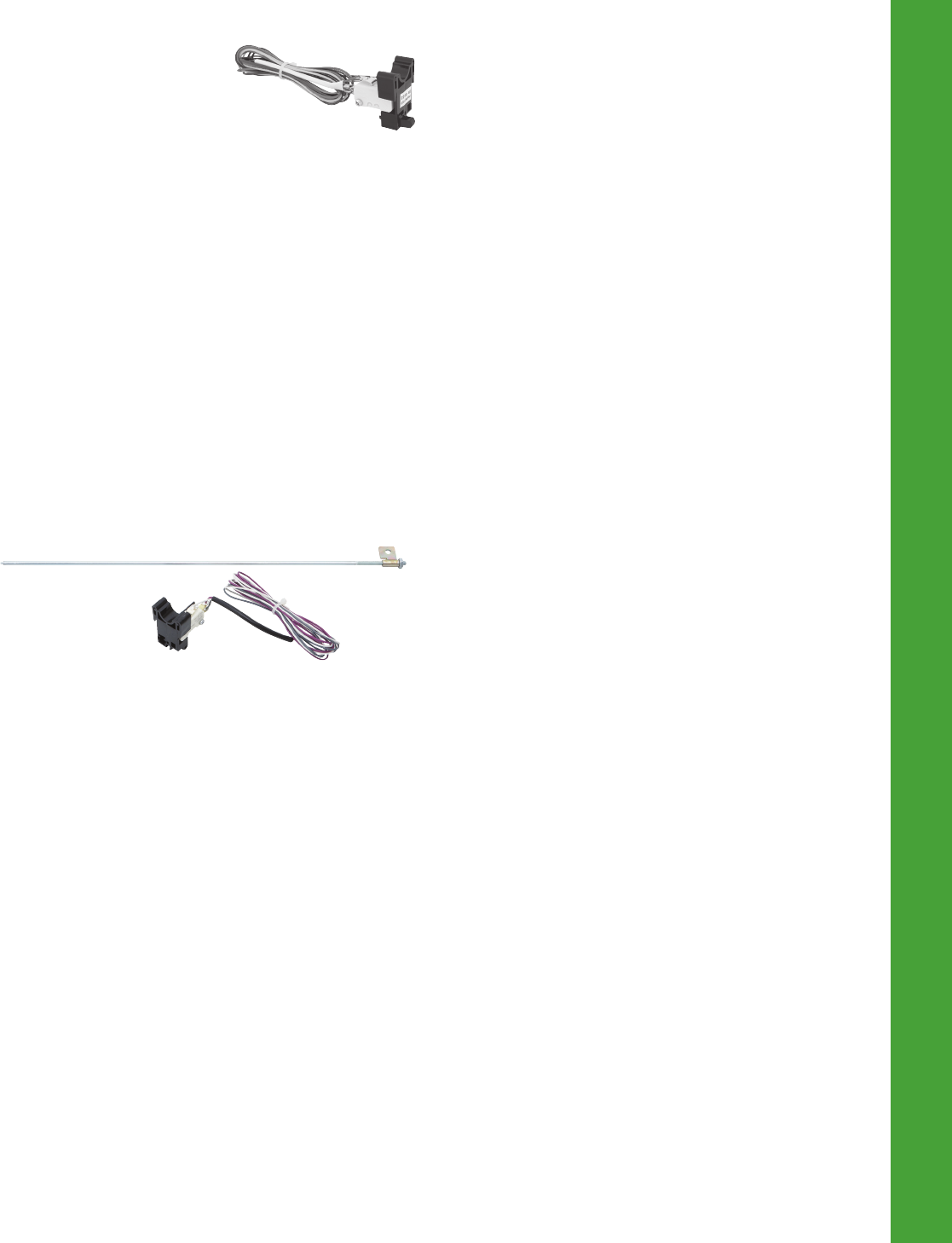

Electrical accessories ALK – Alarm kit
LX – Latch bolt monitoring
RX – Request to exit
RX2 – Double request to exit
CON – Allegion Connect
Device
accessories
Cover plate kit

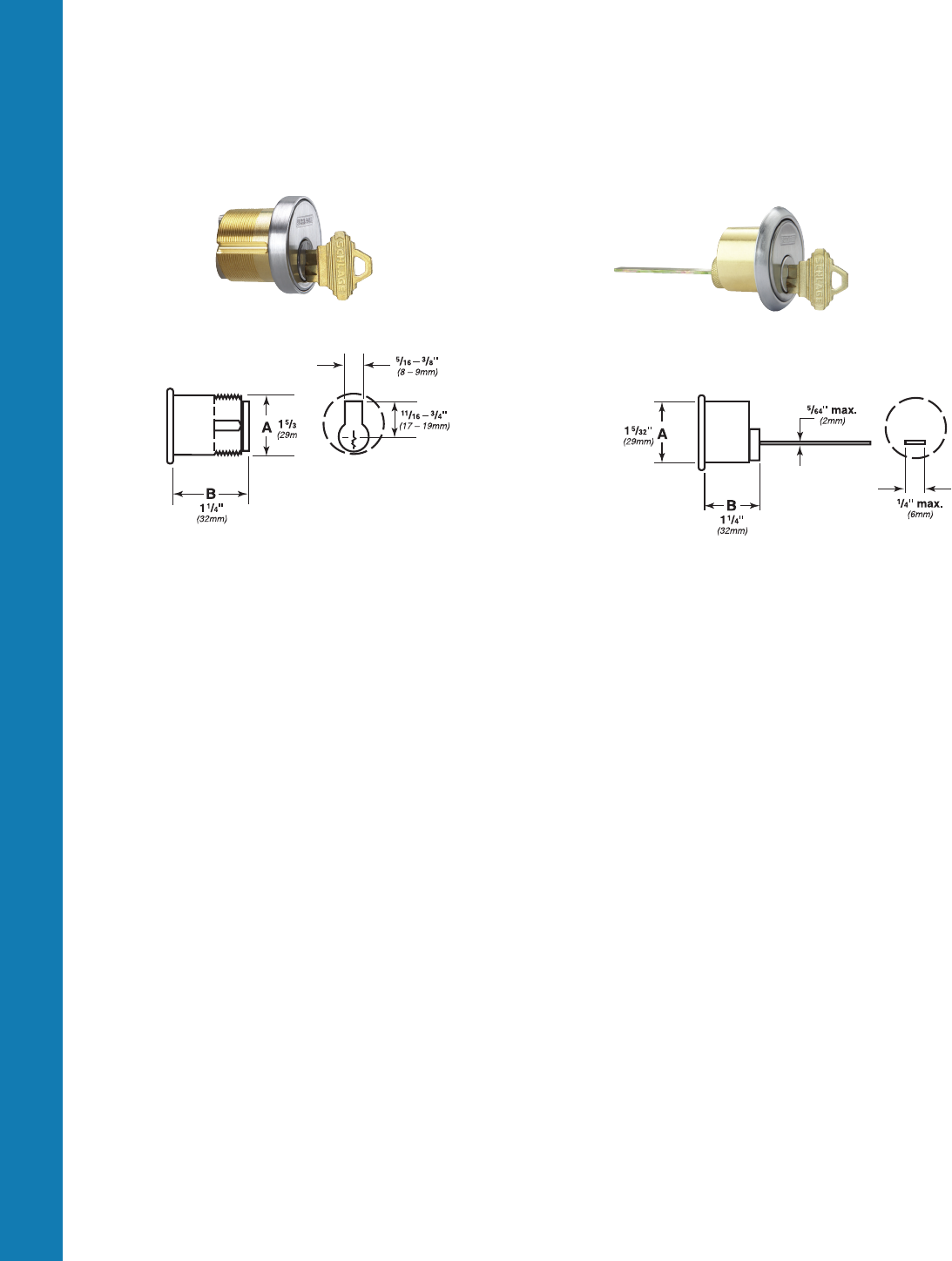

Cylinders
EPT – Electrical power transfer
GBK – Glass bead kit

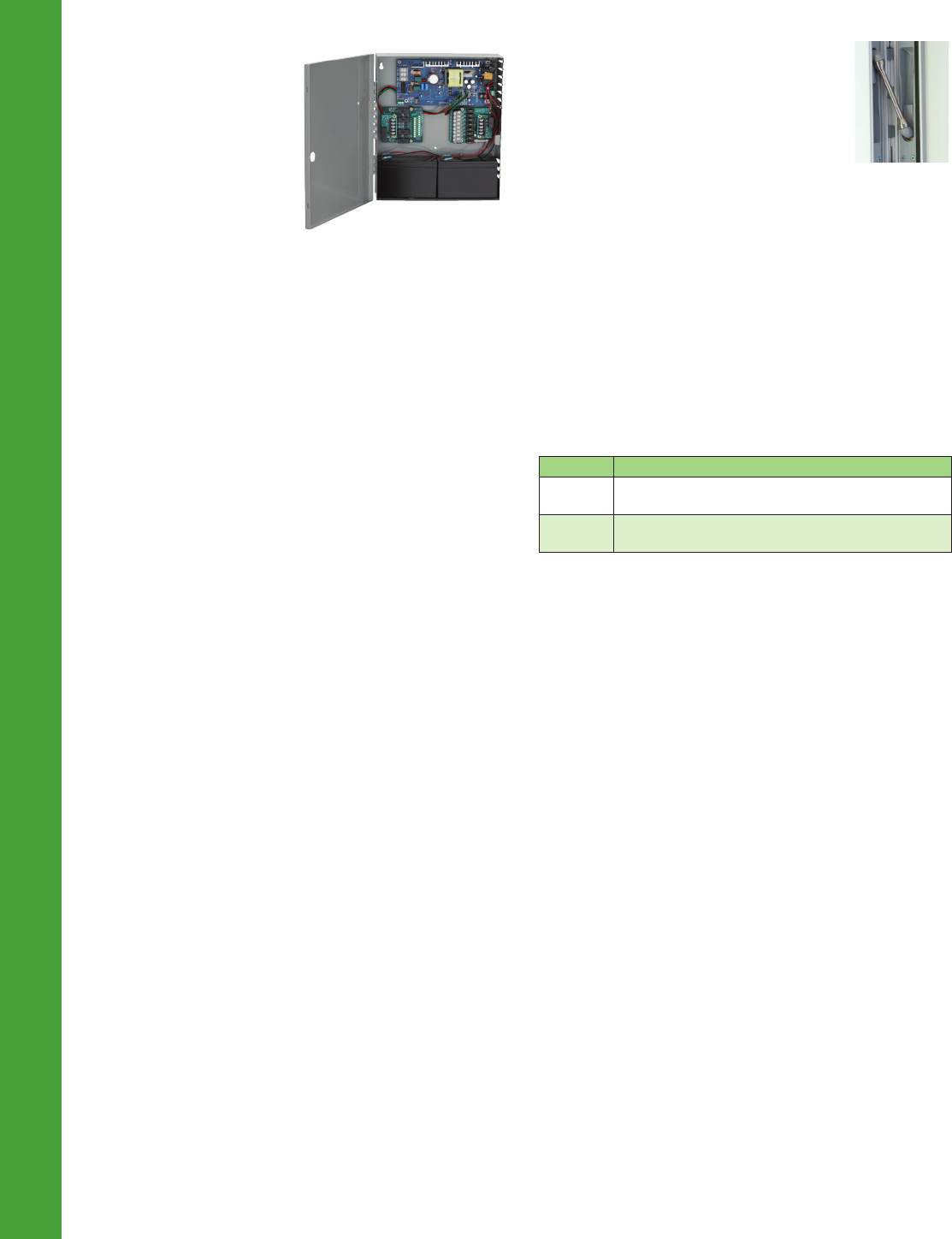

PS902 –
Alarm kit power supply
Rod and latch guards
Symbols
Indicates fire rated application Indicates ADA products
Continuing commitment to quality.
Applications & trim
operation
Double door applications
Door handing
Outside trim operation
Lever styles
VonDuprin22Series • 5
Nomenclature–howtoorder
LD
LX
LXLC
RX
RXLC
RX2
AX
Less dogging
Latchbolt monitor switch
L
atchbolt monitor switch, low current
Request to exit
Request to exit, low current
Double request to exit
Accessible device
22 22 Series
None
27
Rim device
Surface mounted vertical rod device
DT
EO
K
K-BE
L
L-BE
NL
NL-OP
TP
TP-BE
Dummy trim
Exit only
Knob (Classroom)
Knob - blank escutcheon
Lever (Classroom) (L-NL not available)
Lever - blank escutcheon (Passage)
Night latch (Key retracts latchbolt)
Night latch cylinder assembly, optional pull
Thumbpiece
Thumbpiece - blank escutcheon
(Passage)
None Panic exit device
FFire exit device
Finishes SP28, SP313
LHR
RHR
Le hand reverse
Right hand reverse
XX
06 (Standard)
03
17
LBR
SNB
ALK
GBK
CYL
PL
SEC
CON
Less bottom rod
Sexbolts
Alarm kit
Glass bead kit
Cylinder
Pullman latch
Security screws
Optional trim
Optional strike
Allegion Connect
Door width 3' (Standard), advise if different
Only available up to 48"
Door height 7' (Standard), advise if different
Door thickness 1¾" (Standard), up to 2 ¹⁄4"
Door/frame material
HM
WD
AL
Hollow metal (standard)
Wood (standard)
Aluminum
Device ctr. Line See specifications, advise if
different than standard
Door applicaion
SGL
PR
DE
Single (standard for rim)
Pair (standard for surface vertical)
Double egress (surface vertical)
Door listing 3 Hour
1¹⁄2 Hour
1 Hour
45 Minute
20 Minute
RX 22 27 L F SP28 RHR 06 ALK 3'
6 • VonDuprin22Series

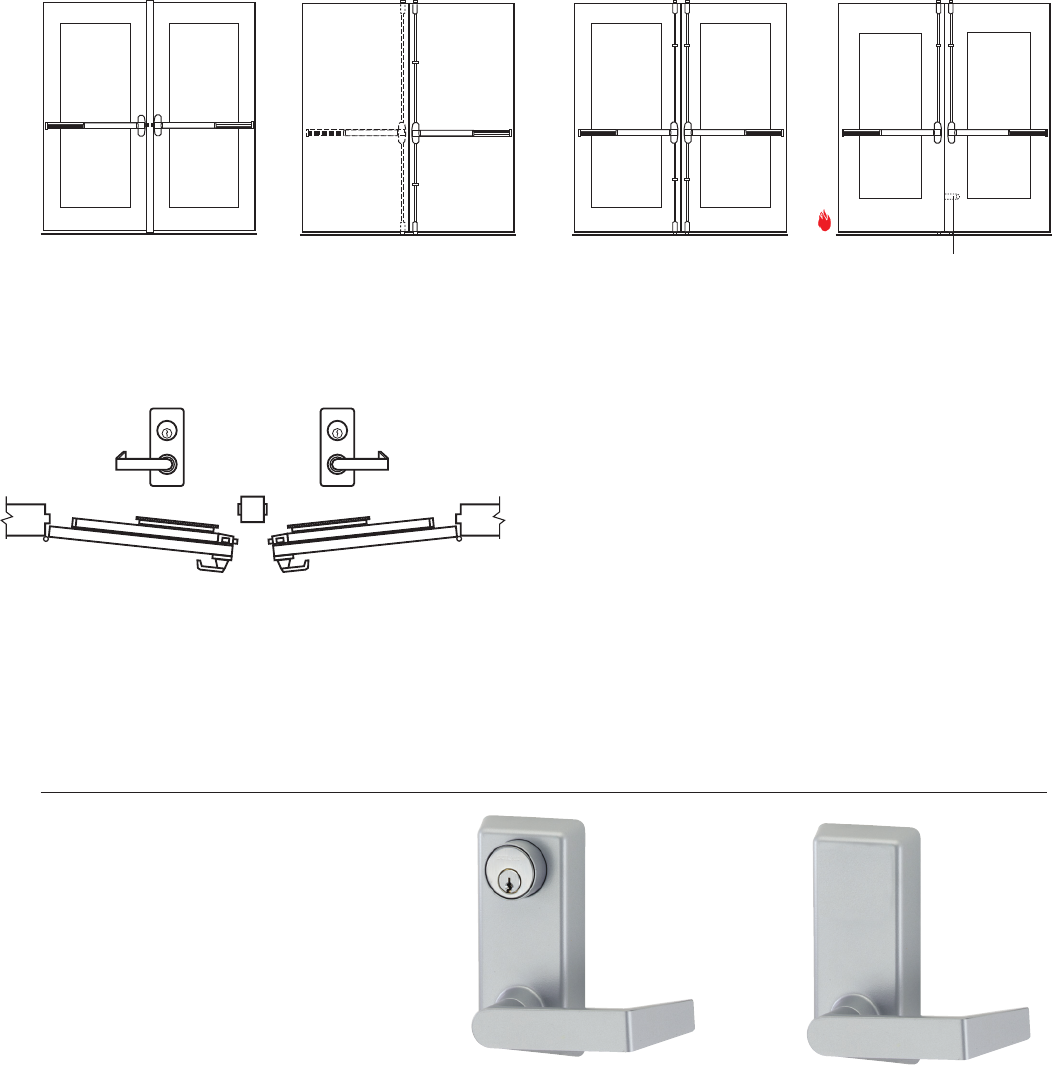

Two rim devices with mullion—same
direction, panic or fire device
Two surface mounted vertical rod
devices—same direction (do not use
with overlapping astragal)
Two vertical rods—double egress,
panic or fire device (LBR-F device can
be used on double-egress)
Two FEH verticle rods with auxilary
fire pin-LBR option (Don’t use
overlapping astragal on pair swinging
same direction)
Auxiliary fire pin
Features
n Bi directional lever rotation
n Field reversible handing
Standard operation
Key locks and unlocks lever.
Blank escutcheon
Lever always active. BE sux,
e.g., 230L-BE.
Populardoubledoorapplications
Le hand
reverse
orientation
LHR
(Le hand reverse)
RHR
(Right hand reverse)
Outside
Right hand
reverse
orientation
Left Hand-Reverse
Orientation
LHR
(Left hand reverse)
RHR
(Right hand reverse)
Outside
Right Hand-Reverse
Orientation
Door handing
Double door applications
Lever trim operationStandard trim
Outsidetrimoperation
VonDuprin22Series • 7
Standard levers
Leverstyles
03
Knurling available
06
Default lever
Knurling available
17
Knurling available
8 • VonDuprin22Series

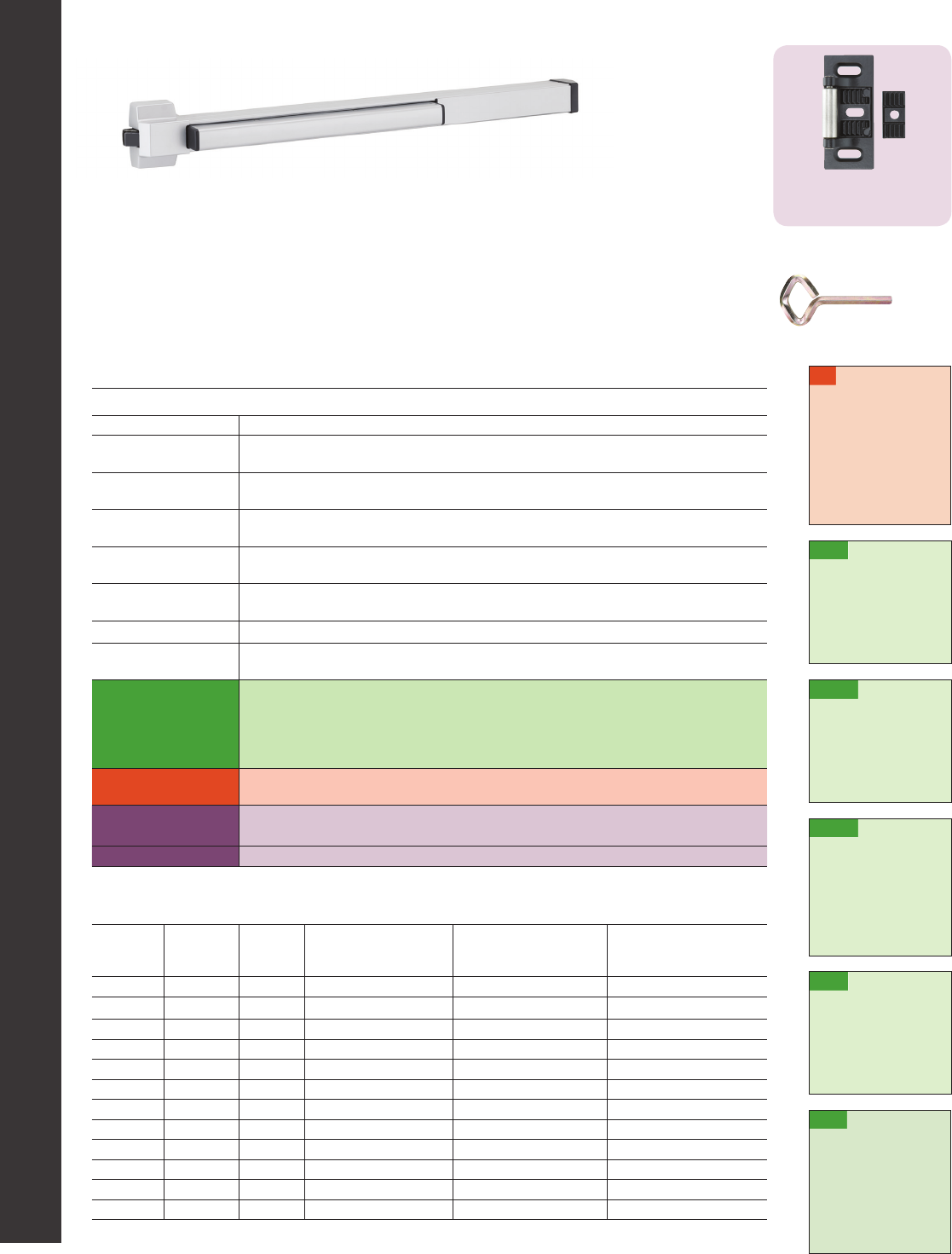

22Rimexitdevice
22Rimexitdevice
Specifications
Device functions Ships ready for all functions, EO, DT, NL, TP, K, L
Device lengths 3' (914 mm) see minimum door opening chart at bottom of page
4' (1219 mm) see minimum door opening chart at bottom of page
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with mullion
Center case
dimensions
4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case
dimensions
2" (51 mm) x 3 3/4" (95 mm)
Projection push bar Push bar neutral - 3 3/4" (95 mm)
push bar depressed - 3" (76 mm)
Latch bolt Deadlocking, 3/4" (19 mm) throw
Fasteners &
sex bolts (SNB)
Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors
optional SNB available for device
Electric options LX latchbolt monitor switch
RX pushpad monitor switch
RX2 double pushpad monitor switch
ALK alarm exit kit
CON Allegion Connect
Mechanical
options
GBK glass bead kit
AX accessible device
Dogging feature Hex key dogging standard
Dogging options LD less dogging
Strikes 299 – Dull black
22 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit
Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161*
cutouts. Fits door stiles as narrow as 3 13/16" (97 mm). The device is non-handed.
Finishes – SP28 & SP313.
*Not applicable with all strike and mullion combinations, consult factory.
The 299 Strike
ships standard, optional
strikes available
Hex key dogging comes standard
on 22 Rim exit device
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
RX2
Double pushpad
monitor switch
• Uses two RX
switches
LX
Latchbolt monitor
switch
• Signals use of
opening
• SPDT Switch to
monitor latchbolt
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
Minimum door opening chart
Stop
height Strike Single
door
Double door
w/mullion
Minimum door
opening for
3' device*
Minimum door
opening w/ALK*
1/2" 299 Yes —26.500" (673mm) 33.250" (845mm)
1/2"1439 Yes —25.687" (652mm) 32.437" (824mm)
1/2" 299 — 4754/4854/4954 27.000" (686mm) 33.750" (857mm)
1/2" 299 — 5654 25.812" (656mm) 32.562"(827mm)
1/2"1408 —5754 25.750" (679mm) 32.500" (826mm)
1/2"1606 — 1654 26.562" (675mm) 33.312" (846mm)
5/8" 299 Yes —26.750" (679mm) 33.500"(851mm)
5/8"1439 Yes — 25.937" (659mm) 32.687" (830mm)
5/8" 299 — 4754/4854/4954 27.125" (689mm) 33.875" (860mm)
5/8" 299 — 5654 26.687" (678mm) 33.437" (849mm)
5/8"1408 —5754 25.875" (657mm) 32.625" (829mm)
5/8"1606 —1654 26.687" (678mm) 33.437" (849mm)
*For 4' device, add 6" (152mm)
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all

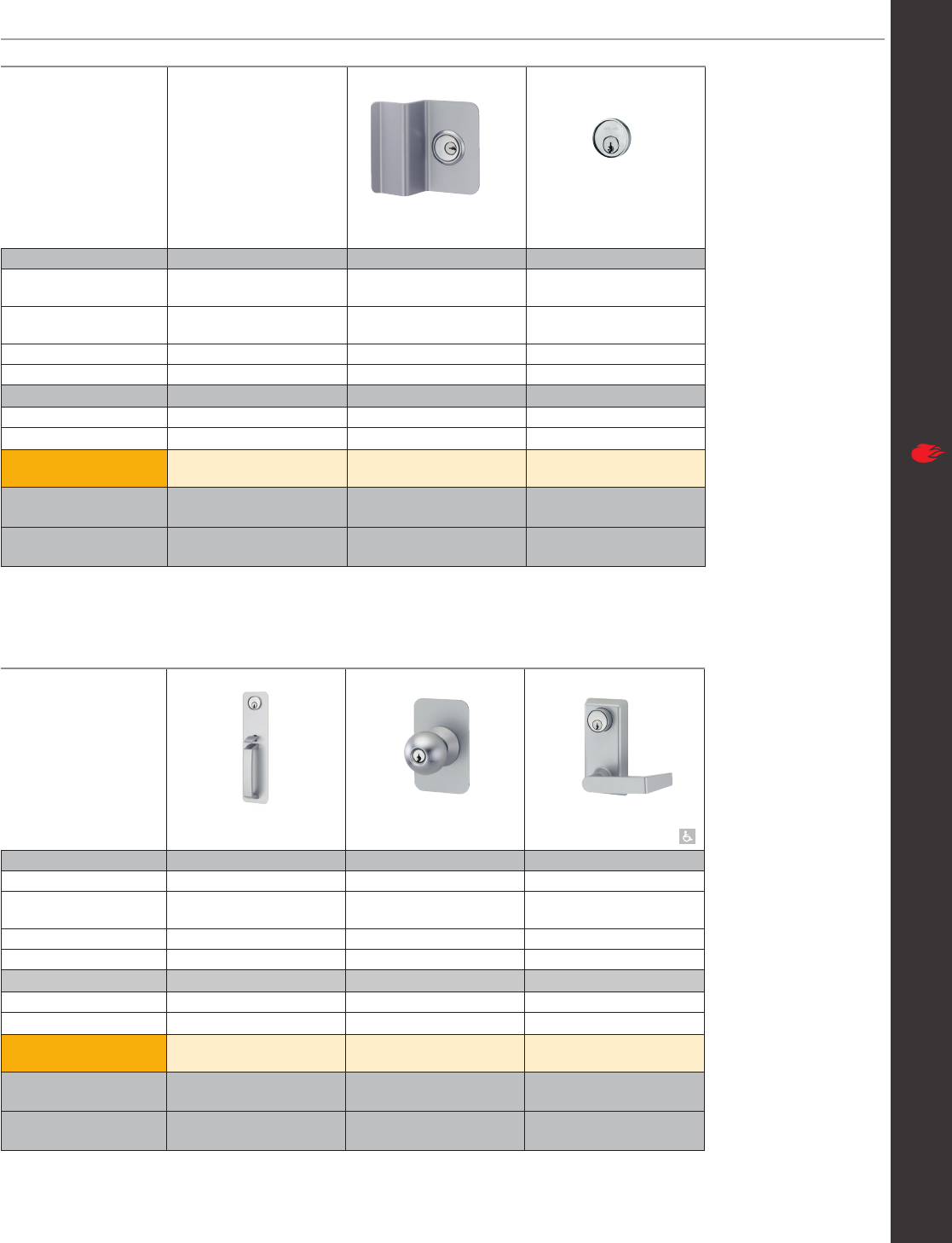

the way to the
power supply
VonDuprin22Series • 9
22Rimexitdevice

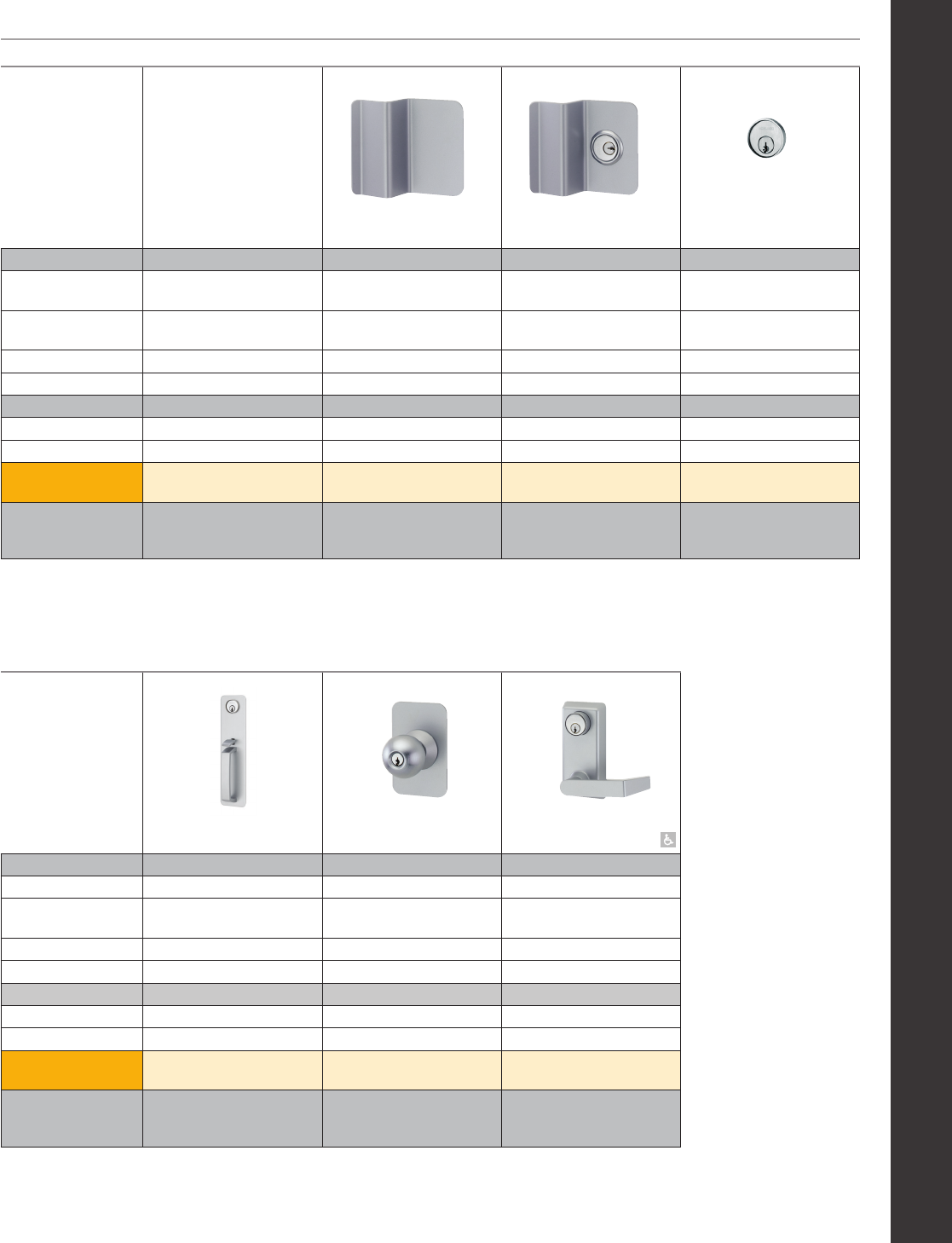

Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 22EO 22DT 22NL 22NL-OP
Trim description —210DT* 210NL* 110NL-MD*
110NL-WD*
Escutcheon plate
size —5 3/8" x 4 25/32" x 3/32"
(137 x 121 x 2 mm)
5 3/8" x 4 25/32" x 3/32"
(137 x 121 x 2 mm) —
Pull center to center ————
Projection — 1 31/32" (42 mm) 1 31/32" (42 mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim 230EO 230DT 230NL —
Optional #425 sex
bolt quantity for
device
6 (with no trim)
2 (with EO trim) 226
*ANSI/BHMA A156.3 (2001) Grade 1 trim
Thumbpiece
Key Locks & Unlocks
Knob
Key Locks & Unlocks
Lever
Key Locks & Unlocks
Product description 22TP 22K 22L
Trim description 230TP* 210K 230L*
Escutcheon plate
size
3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 4 25/32" x 3/32"
(76 x 121 x 2 mm)
3" x 6 3/8" x 15/16"
(76 x 162 x 24 mm)
Pull center to center 5 1/2" (140 mm) — —
Projection 2" (51 mm) 2 15/16" (75 mm) 2 5/8" (67 mm)
ANSI function 05 08 08
Cylinder type 1 1/4" Mortise Furnished 1 1/4" Mortise
Handing ———
Optional trim 230TP-BE 210K-BE 230L-BE
Optional #425 sex
bolt quantity for
device
222
*ANSI/BHMA A156.3 (2008) Grade 1 trim
EO DT NL NL-OP
TP K L
Continuing commitment to quality.
10• VonDuprin22Series

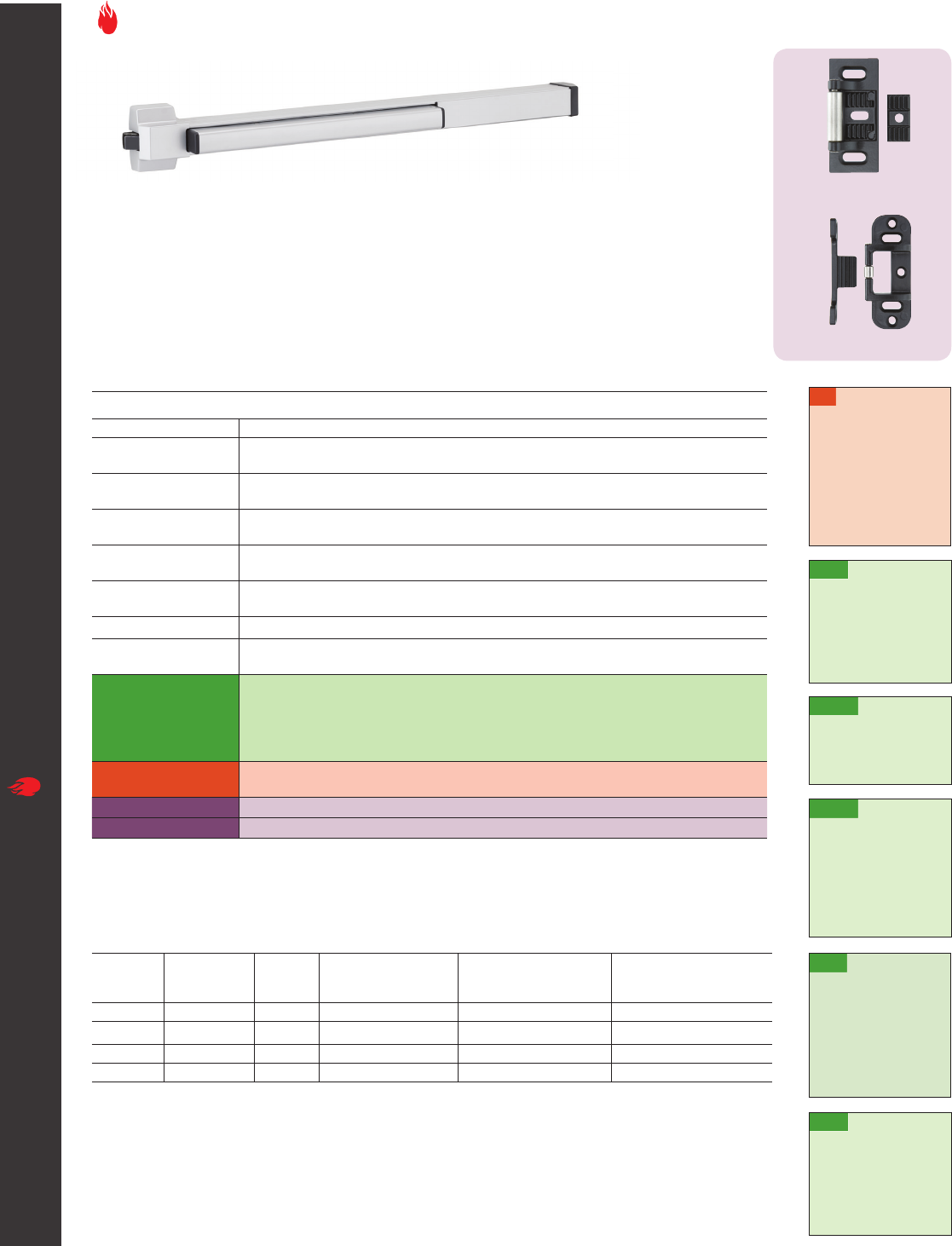

22-FRimreexitdevice
22-FRimreexitdevice
Specifications
Device functions Ships ready for all functions, EO, DT, NL, TP, K, L
Device lengths 3' (914 mm) see minimum door opening chart at bottom of page
4' (1219 mm) see minimum door opening chart at bottom of page
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with mullion
Center case
dimensions
4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case
dimensions
2" (51 mm) x 3 3/4" (95 mm)
Projection push bar Push bar neutral - 3 3/4" (95 mm)
Push bar depressed - 3" (76 mm)
Latch bolt Deadlocking, 3/4" (19mm) throw
Fasteners &
Sex bolts (SNB)
Includes 13/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors
Optional SNB available for device (see next page for quantities)
Electric options LX latchbolt monitor switch
RX pushpad monitor switch
RX2 double pushpad monitor switch
ALK alarm exit kit
CON Allegion Connect
Mechanical options GBK glass bead kit
AX accessible device
Dogging feature No mechanical dogging
Strikes 299F, 499F for mullions – Dull black
22-F Rim fire exit devices for all types of single doors up to 4' x 8' (1219 mm x 2438 mm) or 8' x 8'
(2438 mm x 2438 mm) double doors with 9954 or 9854 mullion, UL listed for Fire Exit Hardware.
Devices are ANSI A156.3 – 2008 Grade 1. Fits door stiles as narrow as 4 3/8" (111 mm). The device is
non-handed.
Finishes – SP28 & SP313.
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
RX2
Double pushpad
monitor switch
• Uses two RX
switches
LX
Latchbolt monitor
switch
• Signals use of
opening
• SPDT Switch to
monitor latchbolt
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
Minimum door opening chart
Stop
height Strike Single
door
Double door
w/mullion
Minimum door
opening for
3' device*
Minimum door
opening w/ALK*
1/2" 299F/499F Yes —26.500" (673 mm) 33.250" (845 mm)
1/2" 299F/499F —KR/9854/9954 27.000" (686 mm) 33.750" (857 mm)
5/8" 299F/499F Yes —26.750" (679 mm) 33.500" (851mm)
5/8" 299F/499F —KR/9854/9954 27.125" (689 mm) 33.875" (860 mm)
*For 4' device, add 6" (152 mm)
The 299F Strike ships standard,
optional strikes available
499F Strike with
9854/9954 Mullion
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
VonDuprin22Series • 11
22-FRimreexitdevice
Standard trim
No outside trim
Exit only
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 22EO-F 22NL-F 22NL-OP-F
Trim description —210NL** 110NL-MD**
110NL-WD**
Escutcheon plate size —5 3/8" x 4 25/32" x 3/32"
(137 x 121 x 2 mm) —
Pull center to center ———
Projection — 1 31/32" (42 mm) —
ANSI function 01 03 03
Cylinder type —Rim Rim
Handing ———
Optional trim 230EO 230NL —
* Optional #425 sex bolt
quantity for device
6 (with no trim)
2 (with EO trim) 2 6
* Additional 425 SNB
for 499F strike 222
*Sex Bolts are required for wood fire doors
**ANSI/BHMA A156.3 (2008) Grade 1 trim
Thumbpiece
Key Locks & Unlocks
Knob
Key Locks & Unlocks
Lever
Key Locks & Unlocks
Product description 22TP-F 22K-F 22L-F
Trim description 230TP** 210K 230L**
Escutcheon plate size 3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 4 25/32" x 3/32"
(76 x 121 x 2 mm)
3" x 6 3/8" x 15/16"
(76 x 162 x 24 mm)
Pull center to center 5 1/2" (140 mm) — —
Projection 2" (51 mm) 2 15/16" (75 mm) 2 5/8" (67 mm)
ANSI function 05 08 08
Cylinder type 1 1/4" Mortise Furnished 1 1/4" Mortise
Handing ———
Optional trim 230TP-BE 210K-BE 230L-BE
* Optional #425 sex bolt
quantity for device 222
* Additional 425 SNB
for 499F strike 222
*Sex Bolts are required for wood fire doors
**ANSI/BHMA A156.3 (2008) Grade 1 trim
EO NL NL-OP
TP K L
Continuing commitment to quality.
12 • VonDuprin22Series
2227Surfacemountedverticalroddevice
2227Surfacemountedverticalroddevice
Specifications
Device functions Ships ready for all functions, EO, DT, NL, TP, K, L
Device lengths 3' (914 mm) see minimum door opening chart at bottom of page
4' (1219 mm) see minimum door opening chart at bottom of page
Door height 7' (2134 mm) standard door height
extension rods available for door heights up to 10' (3048mm)
12" (205 mm), door height
36" (914 mm), door height
Device centerline
from finished floor
39 13/16" (1011 mm)
Center case
dimensions
4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case
dimensions
2" (51 mm) x 3 3/4" (95 mm)
Projection push bar Push bar neutral - 3 3/4" (95 mm)
Push bar depressed - 3" (76 mm)
Door undercut 1/4" (7 mm) from finished floor recommended ,
3/4" (19mm) maximum or 1/8" (3mm) from threshold
Latch bolt Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
Fasteners &
sex bolts (SNB)
Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB
available for device.
Electric options LX latchbolt monitor switch
RX pushpad monitor switch
RX2 double pushpad monitor switch
ALK alarm exit kit
CON Allegion Connect
Mechanical
options
PL pullman latch
GBK glass bead kit
RG rod guards
LG latch guards
Dogging feature Hex key dogging standard
Dogging options LD less dogging
Strikes 299 – Dull black
Bottom 248L-4 and 304L – unfinished
2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for
Panic Exit Hardware. Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with
86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.
Finishes – SP28 & SP313.
Hex key dogging comes standard
on 2227 Surface mounted vertical
rod device
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
RX2
Double pushpad
monitor switch
• Uses two RX
switches
LX
Latchbolt monitor
switch
• Signals use of
opening
• SPDT Switch to
monitor latchbolt
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
Minimum door opening chart
Stop
height Strike Single
door
Double door
w/mullion
Minimum door
opening for
3' device*
Minimum door
opening w/ALK*
1/2" N/A Yes Vert. x Vert. 25.875" (657 mm) 32.625" (829 mm)
5/8"N/A Yes Vert. x Vert. 26.000" (664 mm) 32.750" (832 mm)
*For 4' device, add 6" (152 mm)
299 Top strike
248L4
Bottom strike
for use with
flat threshold
304L
Bottom strike Bottom latch
Top latch
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin22Series • 13
2227Surfacemountedverticalroddevice
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 2227EO 2227DT 2227NL 2227NL-OP
Trim description —210DT* 210NL* 110NL-MD*
110NL-WD*
Escutcheon plate
size —5 3/8" x 4 25/32" x 3/32"
(137 x 121 x 2 mm)
5 3/8" x 4 25/32" x 3/32"
(137 x 121 x 2 mm) —
Pull center to center ————
Projection — 1 31/32" (42 mm) 1 31/32" (42 mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim 230EO 230DT 230NL —
Optional #425 sex
bolt quantity for
device
6 (with no trim)
2 (with EO trim) 226
*ANSI/BHMA A156.3 (2008) Grade 1 trim
Thumbpiece
Key Locks & Unlocks
Knob
Key Locks & Unlocks
Lever
Key Locks & Unlocks
Product description 2227TP 2227K 2227L
Trim description 230TP* 210K 230L*
Escutcheon plate
size
3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 4 25/32" x 3/32"
(76 x 121 x 2 mm)
3" x 6 3/8" x 15/16"
(76 x 162 x 24 mm)
Pull center to center 5 1/2" (140 mm) — —
Projection 2" (51 mm) 2 15/16" (75 mm) 2 5/8" (67 mm)
ANSI function 05 08 08
Cylinder type 1 1/4" Mortise Furnished 1 1/4" Mortise
Handing ———
Optional trim 230TP-BE 210K-BE 230L-BE
Optional #425 sex
bolt quantity for
device
222
*ANSI/BHMA A156.3 (2008) Grade 1 trim
EO DT NL NL-OP
TP K L
Continuing commitment to quality.
14 • VonDuprin22Series

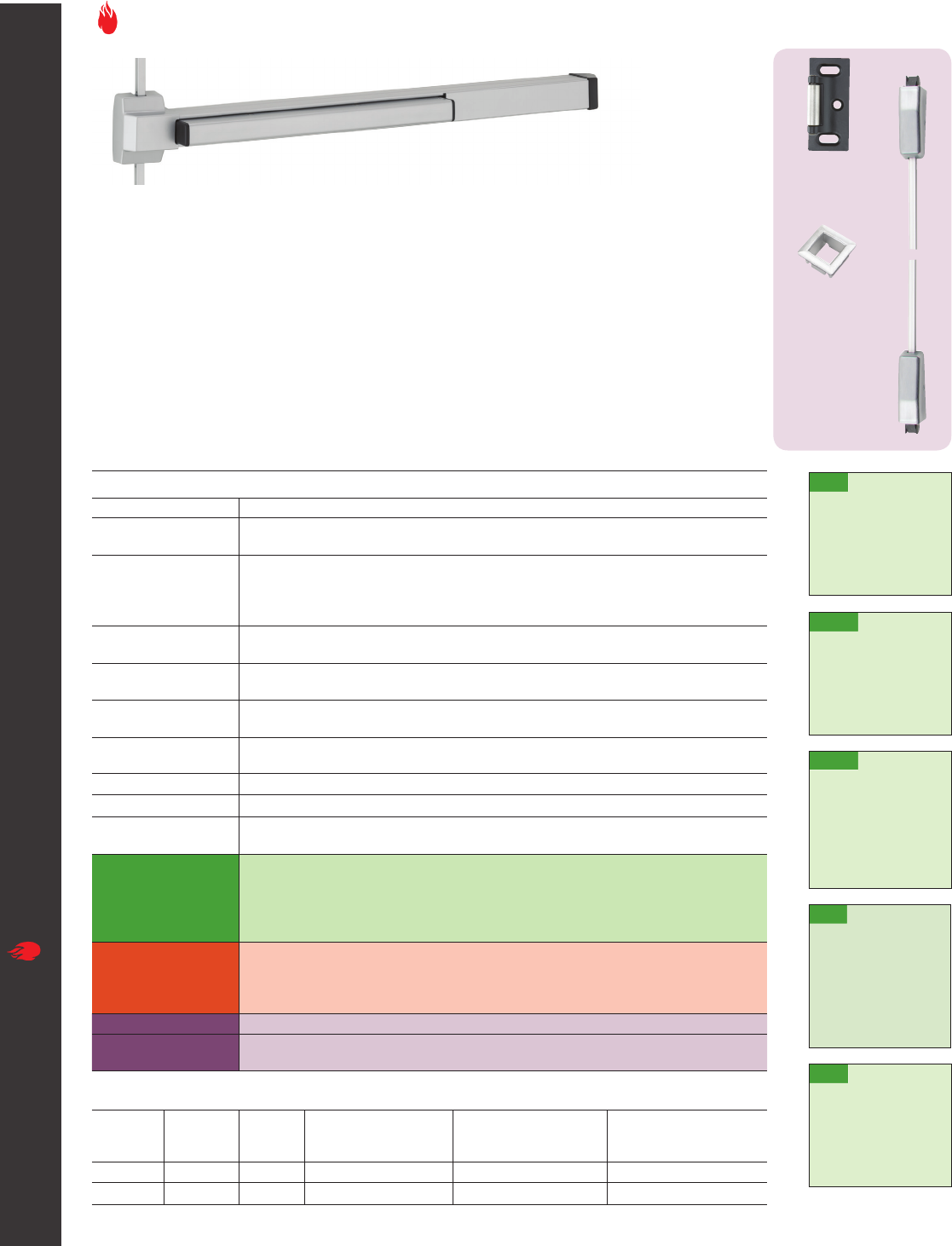

2227-FSurfacemountedverticalrodreexitdevice
2227-FSurfacemountedverticalrodreexitdevice
Specifications
Device functions Ships ready for all functions, EO, DT, NL, TP, K, L
Device lengths 3' (914 mm) see minimum door opening chart at bottom of page
4' (1219 mm) see minimum door opening chart at bottom of page
Door height 7' (2134 mm) standard door height
extension rods available for door heights up to 10' (3048mm)
12" (205 mm), door height
36" (914 mm), door height
Device centerline
from finished floor
39 13/16" (1011 mm)
Center case
dimensions
4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case
dimensions
2" (51 mm) x 3 3/4" (95 mm)
Projection push bar Push bar neutral - 3 3/4" (95 mm)
Push bar depressed - 3" (76 mm)
Door undercut 1/4" (7 mm) from finished floor recommended
Latch bolt Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
Fasteners &
sex bolts (SNB)
Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB
available for device.
Electric options LX latchbolt monitor switch
RX pushpad monitor switch
RX2 double pushpad monitor switch
ALK alarm exit kit
CON Allegion Connect
Mechanical
options
PL pullman latch
GBK glass bead kit
RG rod guards
LG latch guards
Dogging feature No mechanical dogging
Strikes Top 299F – (499F LBR) – Dull black
Bottom 304L – Unfinished
2227-F Surface mounted vertical rod fire exit device for pairs of doors up to 8' x 10'
(2438 mm x 3048 mm), UL listed for Fire Exit Hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Fits door stiles as narrow as 3 5/8" (92 mm). See opposite page for available outside trim and device
functions. The device is non-handed.
Finishes – SP28 & SP313.
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
RX2
Double pushpad
monitor switch
• Uses two RX
switches
LX
Latchbolt monitor
switch
• Signals use of
opening
• SPDT Switch to
monitor latchbolt
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
Minimum door opening chart
Stop
height Strike Single
door
Double door
w/mullion
Minimum door
opening for
3' device*
Minimum door
opening w/ALK*
1/2" N/A Yes Vert. x Vert. 25.875" (657 mm) 32.625" (829 mm)
5/8"N/A Yes Vert. x Vert. 26.000" (664 mm) 32.750" (832 mm)
*For 4' device, add 6" (152 mm)
299F Top strike
304L
Bottom strike
Bottom latch
Top latch
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin22Series • 15
2227Surfacemountedverticalrodreexitdevice
Standard trim
No outside trim
Exit only
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 2227EO-F 2227NL-F 2227NL-OP-F
Trim description —210NL** 110NL-MD**
110NL-WD**
Escutcheon plate size —5 3/8" x 4 25/32" x 3/32"
(137 x 121 x 2 mm) —
Pull center to center ———
Projection — 1 31/32" (42 mm) —
ANSI function 01 03 03
Cylinder type —Rim Rim
Handing ———
Optional trim 230EO 230NL —
* Optional #425 sex bolt
quantity for device
6 (with no trim)
2 (with EO trim) 2 6
* Additional 425 SNB for
499F strike 222
*Sex Bolts are required for wood fire doors
**ANSI/BHMA A156.3 (2008) Grade 1 trim
Thumbpiece
Key locks & unlocks
Knob
Key locks & unlocks
Lever
Key locks & unlocks
Product description 2227TP-F 2227K-F 2227L-F
Trim description 230TP** 210K 230L**
Escutcheon plate size 3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 4 25/32" x 3/32"
(76 x 121 x 2 mm)
3" x 6 3/8" x 15/16"
(76 x 162 x 24 mm)
Pull center to center 5 1/2" (140 mm) — —
Projection 2" (51 mm) 2 15/16" (75 mm) 2 5/8" (67 mm)
ANSI function 05 08 08
Cylinder type 1 1/4" Mortise Furnished 1 1/4" Mortise
Handing ———
Optional trim 230TP-BE 210K-BE 230L-BE
* Optional #425 sex bolt
quantity for device 222
* Additional 425 SNB for
499F strike 222
*Sex Bolts are required for wood fire doors
**ANSI/BHMA A156.3 (2008) Grade 1 trim
EO NL NL-OP
TP K L
Continuing commitment to quality.
16 • VonDuprin22Series
22Optionaltrim
22Optionaltrim
Exit only
plate
Dummy trim
pull when dogged
Night latch
key retracts
latch bolt
Thumbpiece blank
escutcheon
always operable, no
cylinder
Lever blank
escutcheon
always operable,
no cylinder
Knob blank
escutcheon
always operable,
no cylinder
Trim description 230EO 230DT** 230NL** 230TP-BE** 230L-BE** 210K-BE
Escutcheon plate
size
3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 12 1/16" x 3/32"
(76 x 306 x 2 mm)
3" x 6 3/8" x 15/16"
(76 x 162 x 24 mm)
3" x 4 25/32" x 3/32"
(76 x 121 x 2 mm)
Pull center to
center — 5 1/2" (140 mm) 5 1/2" (140 mm) 5 1/2" (140 mm) — —
Projection —2" (51 mm) 2" (51 mm) 2" (51 mm) 2 5/8" (67 mm) 2 15/16" (75 mm)
ANSI function 01 02 03 — — —
Cylinder type —Rim — —
* Optional #425
sex bolt quantity
for device
2 2 6 — 2 2
* Additional 425
SNB for 499F
strike
2 2 2 2 2 2
*Sex Bolts are required for wood fire doors
**ANSI/BHMA A156.3 (2008) Grade 1 Trim
210 Series trim
The 210DT and 210NL have a heavy 10 gauge (2.4mm) stainless
steel escutcheon. Rim Cylinder must be ordered separately for
the 210NL trim. The 210K knob trim has a 10 gauge (2.4mm)
steel escutcheon and uses the Schlage “A” orbit knob with six pin
“C” keyway.
230 Series trim
The 230EO, 230DT, 230NL and 230TP have a heavy 10 gauge
(2.4mm) steel escutcheon. The 230L has a cast zinc 3/4" (19mm)
depth escutcheon. #06 lever style furnished standard, #03 and
#17 optional style levers are available. 230L furnished RHR if
handing is not specified. Cylinder must be ordered separately for
the 230NL, 230TP and 230L trims.
110NL Cylinder kit
Cylinder kit is available MD for metal doors or WD for wood
doors. Metal door application supplied standard if door material
is not specified. When ordering with device, specify function
NL-OP. Rim Cylinder must be ordered separately.
Continuing commitment to quality.
Continuing commitment to quality.
Continuing commitment to quality.
EO DT NL TP-BE L-BE K-BE
VonDuprin22Series • 17
Strikeoptions/Doggingoptions
22Strike/Stileinformation
Strikes for rim devices
264 299 299F 499F
Projection 9/16" (14 mm) Projection 13/16" (21 mm) Projection 13/16" (21 mm) Projection 15/16" (24 mm)
1408 1410–Integral Stop 1439–Blade Stop*** 1606
Used with 5754 Mullion
One per pair of doors Projection 1/2" (13 mm) Projection 1/2" (13 mm) Projection 3/8" (10 mm)
1609**
(Not fire rated; requires coordinates)
Strikes for vertical rod devices
248L-4 260U-Flush transom only 304L 385A
Projection 3/8" (10 mm) Projection 3/8" (10 mm) Mortise 13/16" (21 mm) Mortise 2 1/12" (64 mm)
Strikes 264, 299, 299F and 499F also available for vertical rod devices.
Device
type
Standard
single door
Standard
double door
OPTIONAL
single door
OPTIONAL
double door
Strike Stile Application* Stile Strike Stile Application* Stile
22 299 4 3/4" (121 mm) 299 x 4954 4 3/4" (121 mm)
1439 3 3/16" (97 mm) 299 w/5654 4 1/4" (108 mm)
1410 3 3/16" (97 mm) 1408 w/5754 3 3/16" (97 mm)
1606 3 15/16" (100 mm) 1606 w/1654 4 1/4" (108 mm)
— — 1609 w/vertical
rod** 43 1/8" (111 mm)
22-F 299F 4 3/8" (111 mm) 499F x 9954 4 7/8" (124 mm) — — — —
2227 Latch
Retraction
299 (Top)
299 (Middle)
304L/284-L
(Bottom)
3 5/8" (92 mm) Two Vertical
Rods 3 5/8" (92 mm) 260U Top
385A Bottom 3 5/8" (92 mm) Two Vertical Rods 3 5/8" (92 mm)
2227 Pullman
Latch
299 (Top)
284-L (Bottom) 3 5/8" (92 mm) Two Vertical
Rods 3 5/8" (92 mm) 260U Top 3 5/8" (92 mm) Two Vertical Rods 3 5/8" (92 mm)
2227-F 299 (Top)
304L (Bottom) 3 5/8" (92 mm) Two Vertical
Rods 3 5/8" (92 mm) 260U-SS 4" 4" 4"
*Mullion information, refer to General and Auxiliary Catalog.
**Not for UL Fire exit hardware. Must be used with a coordinator.
***Replaces 1409 Strike
Note: On a Rim/Vertical rod application for a pair of doors, the 1609 strike extends off the edge of the door into the opening.
18
18 • VonDuprin22Series
22Electricaloptions
22Electricaloptions
EPT Electrical power transfer
Electric Power Transfer provides a means of
transferring electrical power from a door frame
to the edge of a swinging door. The units are
completely concealed when the door is in the
closed position, and are ideal for installations
involving abuse or heavy trac.
Two models are available; EPT-2, two 18 gauge wires and EPT-10,
ten 24 gauge wires.
Door applications:
up to 5" butt hinges – 180˚ swing,
5 ½" butt hinges – 130˚ swing,
6" butt hinges – 110˚ swing,
3/4" butt offset pivots 180˚ swing.
Swing clear hinge – 90° max. swing
Finishes to order, specify:
SP28 (sprayed aluminum) 1. EPT-2 or EPT-10.
SP313 (sprayed duranodic). 2. Finish, SP28 or SP313.
Dimensions
Housing 9" x 1 1/4" x 1 5/8" (229mm x 32mm x 38 mm)
EPT-2 Two 18 gauge wires, Up to 2 AMPS @ 24 VDC
with a 16 amp maximum surge
EPT-10 Ten 24 gauge wires, up to 1 amp @ 24 VDC
with a 16 amp maximum surge
Power supplies
PS902
Overview:
The PS902 is an AC power
supply that provides 24 VDC
power to operate the ALK alarm
kit. The unit will power up to 6
alarm kits.
Note: PS902-BB provides power in case of
an AC power failure.
19
VonDuprin22Series • 19
22Electricaloptions
22Electricaloptions
RX Request to exit
The RX (Request to exit) feature is
used to signal the use of an opening. This
device is equipped with one internal SPDT switch
which monitors the pushpad.
The device can be connected to a security console, or may be
used as a single door alarm when used with a horn and power
supply.
The RX switch option should not be used to control a load, but as
a signalling switch (0.5 amps. resisitive maximum).
The RX switch is available in a low current (LC) switch. Most
commonly used in computer operated monitoring systems.
To order, specify:
• Standard – Use prefix RX, example RX22EO
• Low Current – Use prefix RX-LC, example RX-LC22EO
RX2 Double request to exit
The RX2 feature uses two RX switches.
To order, specify:
• Standard – Use prefix RX2, example RX22EO
LX Latchbolt monitoring
The LX feature is used to signal the use of an opening. This
device is equipped with one internal SPDT switch which monitors
the latch bolt.
The device can be connected to a security console, or may be
used as a single door alarm when used with a horn and power
supply.
The LX switch option should not be used to control a load, but as
a signalling switch (0.5 amps. resistive maximum).
The LX switch is available in a low current (LC) switch. Most
commonly used in computer operated monitoring systems.
To order, specify:
• Standard – use prefix LX, example LX22EO
• Low Current – use prefix LX-LC, example LX-LC22EO
Electrical rating for all switches:
• Standard – up to 0.5 Amp @ 24VDC Maximum
• Low Current (LC) - up to 0.5 Amp @ 24VDC Maximum
Note: All switches can be either factory or field installed
ALK Alarm kit
The ALK battery alarm kit is a simple yet effective way to deter
unauthorized use of an opening. While the exit device is still a
means of egress, the ALK kit contains an internal horn. When the
touch bar is depressed, the horn sounds to provide an audible
means of signaling that the opening has been violated. The
alarm kit can be armed or disarmed by key. The horn is rated at
85 decibel.
For hardware applications
The assembly includes both a 24VDC Input and External Inhibit
standard. The External Inhibit provides remote arming and
dis-arming.
The key switch uses a standard 1 1/4" (32mm) mortise cylinder
with a straight cam (Schlage 20-001, B502-191 cam). The unit
operates on one standard 9-volt alkaline battery. When the
battery is weak, the horn will emit an intermittent low battery
alert signal.
The alarm can automaticaly re-arm with a 1.5, 3 or 4.5 minute
time delay upon request.
Alarm kits are available with a choice of two switch kits, RX or
LX. RX monitors the touchpad and is furnished standard. LX
optional latch bolt monitoring is recommended for use with
surface vertical rod exit devices or when alarm needs to sound
from both the exit device and trim side of the door. Specify
ALK-LX.
The ALK includes a 6" x 20" decal for application on door
“EMERGENCY EXIT ONLY. ALARM WILL SOUND.
To order, specify:
1. Standard, ALK
2. If AR desired, specify AR 1.5, 3 or 4.5
Minimum door opening sizes on ALK applications
Refer to device pages 8, 10, 12, and 14.
20
20• VonDuprin22Series
22Electricaloptions

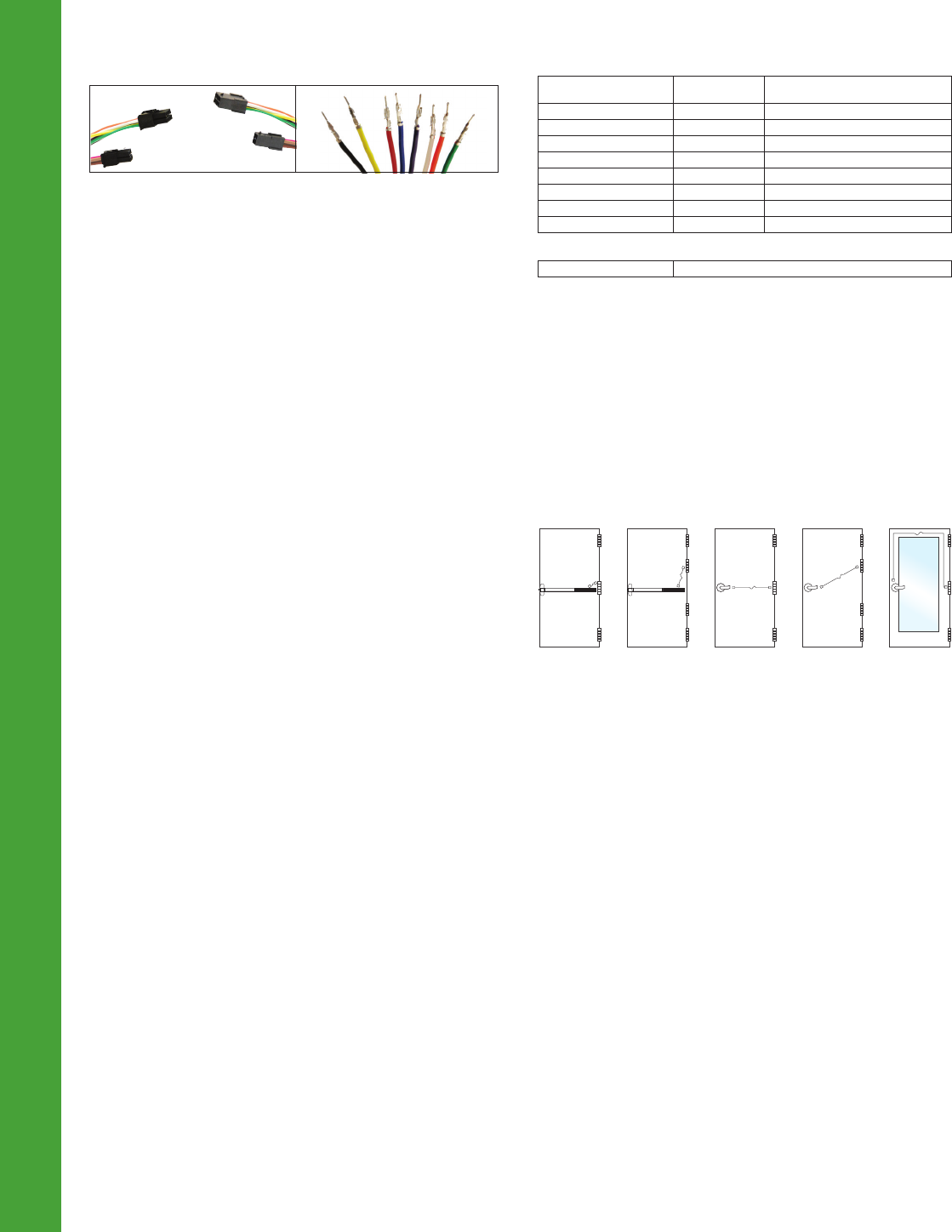

Allegion Connect
]
Allegion’s cross-category Connect features common interconnect
components to our electrified options. Allegion Connect is a quick
and easy way to connect power sources; all the way from your
power supply to locking device. There is no wire cutting; reducing
installation and maintenance time ultimately cutting cost. Aer
installation, Allegion’s Connect continues to provide benefits
throughout the lifetime of the opening by offering a service kit
for repairs or modifications in the future.
Features and benefits
• Quick: common connections reducing installation time
• Perfect Connections: these factory installed connectors
ensure the right wires match up every time
• Protective: the connectors protect the connection points
throughout the installation process and lifetime of the opening
• Interchangeable: all Allegion Connect products utilize the
same connectors
• Maintenance: you no longer need to cut away wire to
disconnect Allegion products, also available is a service kit
specifically for Connect products.
How to order
1. Specify CON for Connect electronic options
Example: RX-22-EO-CON (22 Series with RX switch and connectors).
2. Specify harness length; Consult door manufacturer for harness length
3. Specify Von Duprin EPT10-CON or Ives 7200 power transfer hinge
Wire run options
Harness length Connectors
on both ends
Connectors on one end,
crimped pins on the other end
6 Inches CON-6 CON-6P
12 Inches CON-12 CON-12P
26 Inches CON-26 CON-26P
32 Inches CON-32 CON-32P
38 Inches CON-38 CON-38P
44 Inches CON-44 CON-44P
50 Inches CON-50 CON-50P
192 Inches CON-192 CON-192P
Power Supply Wire Harness = Connectors on one end, stripped leads on the other end,
offering a direct connection to the power supply
6 Inches CON-6W - wire extension to power supply
Consult door manufacturer for harness length requirements.
Note: You will need to purchase a separate wiring harness to go from exit device to hinge/
EPT and an additional harness to go from hinge/EPT to power supply or access control
system. Harness part numbers with ordering information can be located in the Schlage,
Von Duprin and Falcon pricebooks. A service kit is available for order in the Schlage, Von
Duprin and Falcon pricebooks. Included in this kit are male end plugs, female end plugs
and pins to customize harnesses to your application.
Note: Must be ordered with exit devices and locks
22Electricaloptions
21
VonDuprin22Series • 21
Latch guard
12"
3' or 4'
21/4" 3' = 33 1/8"
4' = 45 1/8"
10"
Extended latch guard
4 3/8"
Mechanicaloptions&accessories
22Options&accessories
AX Accessible device
The AX device is a UL certified exit device designed to meet the
progressive requirements of the California Building Code for
accessible openings. This device meets the 5 lbs of operating
force requirement called for in chapter 11B-309.4. The AX device
also exceeds ANSI/BHMA requirements. Available devices
include: AX22 Series, AX22-F Series. Additionally, all AX devices
will be shipped with a new UL label clearly stating “Meets
California building Code (2013) Sec. 11B-309.4” and an “AX”
identifier label on device center case. See images below for
reference.
Note: device shown below for reference is a 98 Series exit device.
LBR Less bottom rod
LBR option for fire exit devices is available using a spring loaded
auxiliary fire pin installed in the lower door edge. When exposed
to heat the auxiliary fire pin releases, keeping the doors in
alignment and closed during a fire.
LBR devices must be ordered in pairs of vertical rod devices, or
must be used in conjunction with an approved automatic or
constant latching flush bolt.
LD Less dogging
Less dogging is available on all 22 Series panic exit devices.
To order, use prefix LD. Example LD22EO
PL Pullman latch
Pullman latches are always extended and are most commonly
used in conjunction with electric strikes and LBR-less bottom rod
applications. Not available with fire rated exit devices. Pullman
latches do not deadlock and are not recommended for
applications where security may be compromised. When the PL
is specified the standard latches are replaced with Pullman style
latches at an additional charge. See Pricebook for details.
GBK Glass bead kit
Glass bead kits are used on doors with raised glass beads. Each
kit consists of 1/4" (6 mm) shim sets. GBK for surface vertical rod
devices ship with 1/8" (3 mm) shims for rod guides. Shims are not
required for top and bottom latches
To order, specify:
1. With device specify GBK in device description
2. To order separately, specify model 22GBK-R (rim),
22GBK-499F (rim), 22GBK-SV (vertical rod)
3. Finish, SP28 or SP313
Center Case Hinge Side Case
229 Cover plate kit
Cover plate kit contains inside
and outside plates for hinge
stile cutouts, an inside plate
for the lock stile, and
necessary screws. Plates are
designed to cover cutouts
required by most existing exit
device installations.
RG-27 Vertical rod and latch guard
RG-27 Series vertical rod and latch guards protect the
bottom rods of exit devices from the damaging impacts
of carts or gurneys passing through doors. (If bottom
rods become damaged, the exit device will not function
as intended and can jeopardize the ability to exit safely
during an emergency.)
In addition to protecting the vertical rod, the guard
provides a smooth, unobstructed surface so the door can
be pushed open easily with the bumpers of a wheelchair.
The latch guard portion is 10" high. The standard latch
guard features a 45° ramp. The extended latch guard
offers a continuous ramp in 3' or 4' widths.
All stainless steel construction in US32D finish. Latch
guards can cover latches as large as
1 1/4"W x 10"H x 1 7/8" projection.
Models
RGO Rod guard only (Projection 1 3/16")
RG-27 Rod and latch guard
RG-27-3 3' (914 mm) Rod Guard and Extended
Latch Guard
RG-27-4 4' (1219 mm) Rod Guard and Extended
Latch Guard
LGO Latch guard only
LGO-3 3' (914 mm) Extended latch guard only
LGO-4 4' (1219 mm) Extended latch guard only
Note: Not for use on wood fire doors, except with SLM (special laminate material)
blocking.
To order, specify:
1. Model number.
2. Handing (except on RGO).
3. Door material if other than Hollow Metal.
4. Optional sex bolt mounting available.
Rod guard
36"
(914
mm)
22
22• VonDuprin22Series
Deviceoptions&accessories
22Deviceoptions&accessories
Cylinders
Cylinders are not furnished with device or trim and must be
specified when ordering. Refer to trim pages for cylinder type.
Mortise — 3215 (Schlage 20-001, B502-191 cam) Rim — 3216 (Schlage 20-022 cam)
23
VonDuprin22Series • 23

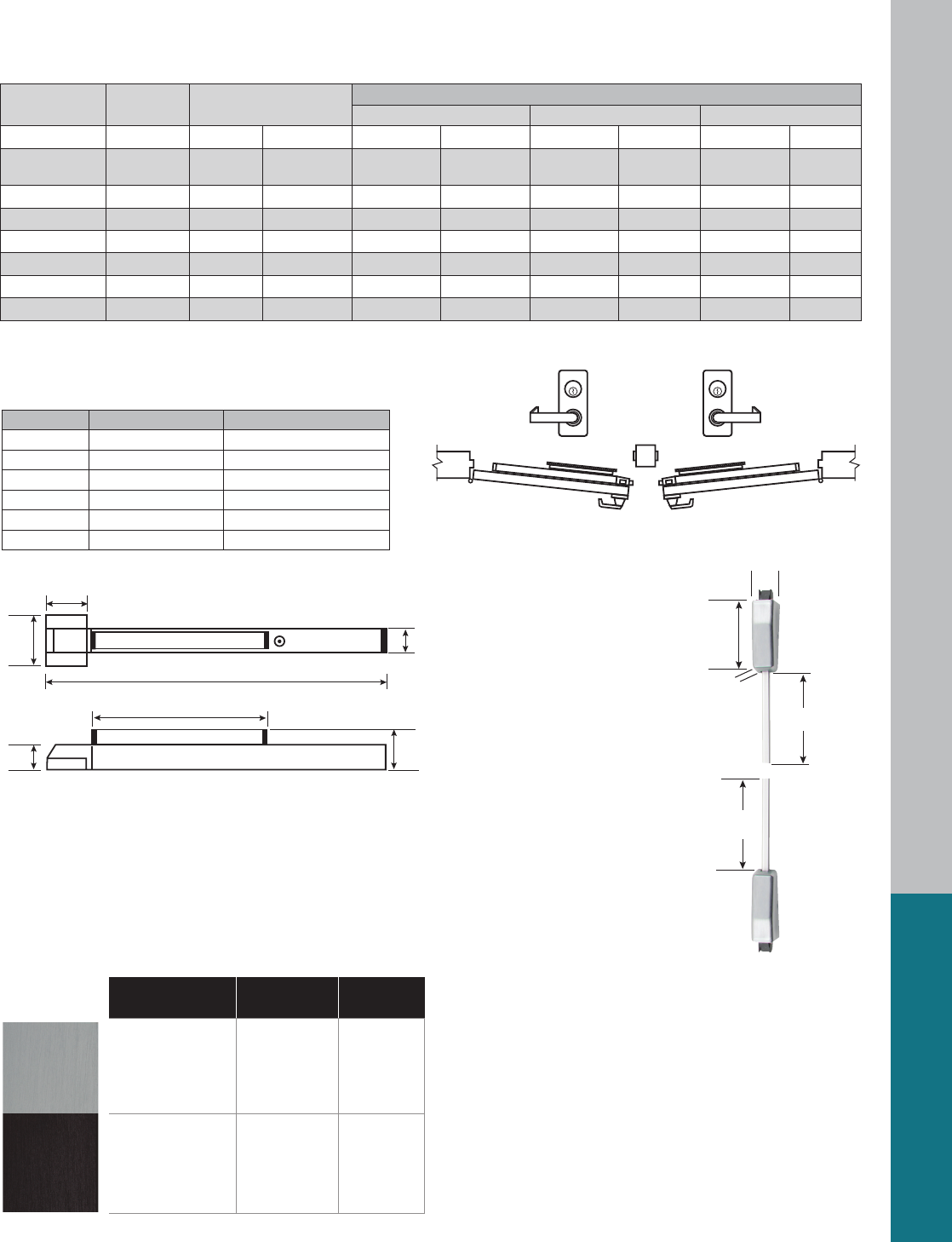

FinishesAdditionalinformation
Finishes
ULListings,grade,type,functionoptions&dimensions
ANSI Function, grade & type
*UL listing for wood doors may be for a specific door manufacturer.
Consult wood door manufacturers for current UL listings.
** Currently, no door manufacturers offer a listing over 90 minutes
with doors swinging same direction.
Function Grade 1 type 1 Grade 1 type 2
01 22EO & 22EOF 2227EO & 227EO-F
02 22DT 2227DT
03 22NL & 22NL-F 2227NL & 2227NL- F
05 22TP & 22TP-F 2227TP & 2227TP-F
08 22K & 22K-F 2227K & 2227K-F
08 22L & 22L-F 2227L & 2227L-F
UL Listed — Fire exit hardware label/opening size
Exit device
Door
material Single door
Double door
With mullion Same direction** Double egress
22-F HM 3 Hour 4' x 8' 3 Hour 8' x 8' — — — —
22-F WD 90
Minute 4' x 8' 90 Minute 8' x 8' — — — —
2227-F HM ————90 Minute*8' x 10' 3 Hour 8' x 10'
2227-F WD ————20 Minute*8' x 10' 90 Minute* 8' x 9'
2227-F WD ————90 Minute*8' x 9' — —
2227-F-LBR HM ————90 Minute*8' x 10' 3 Hour 8' x 10'
2227-F-LBR WD ————20 Minute*8' x 10' 90 Minute* 8' x 9'
2227-F-LBR WD ————90 Minute*8' x 9' — —
Vertical rod dimensions
Vertical rods are 1/2" (13 mm)
square tubing
Dimensions
Le hand
reverse
orientation
LHR
(Le hand reverse)
RHR
(Right hand reverse)
Outside
Right hand
reverse
orientation
Door handing
3' (914mm) 331/8" (841mm)
4' (1219mm) 451/8" (1146mm)
3' (914mm) 18" (457mm)
4' (1219mm) 24" (610mm)
41/4"
(108mm)
23/4"
(60mm)
33/4"
(95mm)
Neutral
3" (76mm)
Depressed
2"
(51mm)
23/4" (70mm)
2 1/8"
(54mm)
1 1/2"
(38mm)
4 1/2"
(114mm)
37 7/16"
(951mm)
37 7/16""
(951mm)
* Note: Durable powder coated finishes available at specific special request. PLEASE CONTACT FACTORY.
Finishes*
Color US Number BHMA
Number
Sprayed
aluminum SP28 689
Sprayed dark
bronze SP313 695
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 8,000 people and sells products in more than 120 countries
across the world. Allegion comprises more than 25 global brands, including
strategic brands CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
.
For more, visit www.allegion.com
About Allegion
© 2014 Allegion
006588, Rev. 11/14
www.allegion.com/us
