98/99™
Series
Exit devices
2 • Von Duprin 98/99 Series
99 Series features grooved mechanism case.
Introduction
Exit devices are a critical part of the fire and life safety egress system and will provide safe and
reliable service when properly applied and maintained. Von Duprin designs and manufactures
exit devices in accordance to ISO 9001 Quality Management System and meets or exceeds
accepted U.S. domestic and International standards. All 98 and 99 Series exit devices are UL
listed for panic hardware or fire hardware, and are certified to ANSI A156.3, 2008, Grade 1.
Many models are also certified for Hurricane Resistant Applications. Consult your local Security
& Safety consultant (SSC) or the Von Duprin factory for current listings.
It is intended that the information included in this publication, when properly used, will provide
clear and reliable guidelines to the proper general selection and application. However, the
scope of the information is necessarily limited.
VON DUPRIN
Administrative Oces
2720 Tobey Dr.
Indianapolis, IN 46219
Customer Service
877-671-7011
800-999-0328 - Fax
Technical Support
877-671-7011
Latch bolt
Deadlocking latchbolt provides security and
improved performance at standard device cost.
The Quiet One®
A fluid damper decelerates the
pushpad on its return stroke and
eliminates most noise associated
with exit device operations.
Furnished on all 98/99™ Series
exit devices.
Von Duprin exit devices are available in two external surface styles, designated 98 and 99 Series.
98 Series features smooth mechanism case.
Von Duprin 98/99 Series • 3
Fire exit hardware
Rim devices
98-F/99E-F 10
Trim 11
Mortise lock devices
9875-F/9975-F 14
Trim 15
Surface mounted
Vertical rod devices
9827-F/9927-F 18
Trim 19
Three-point latching devices
9857-F/9957-F 22
Trim 23

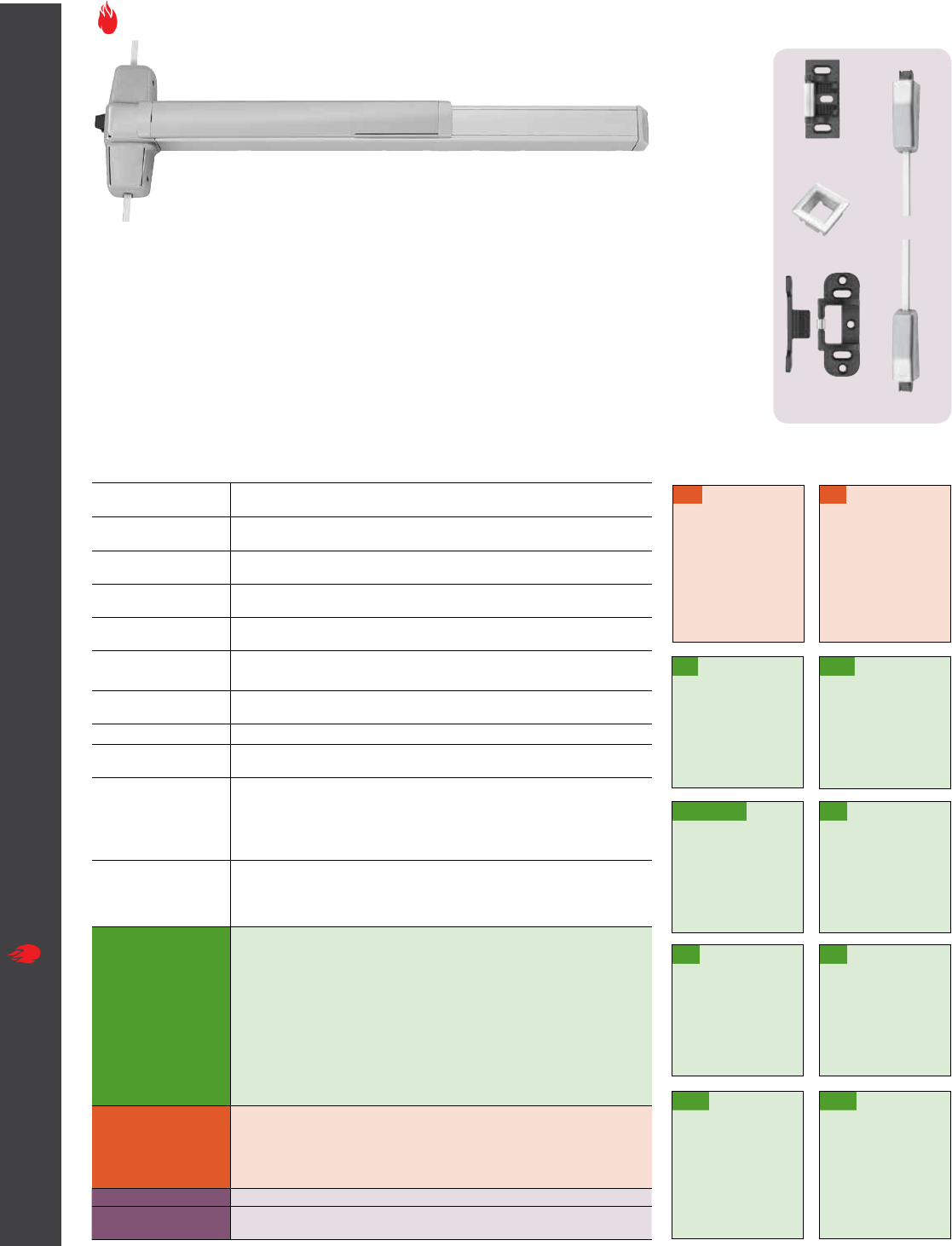

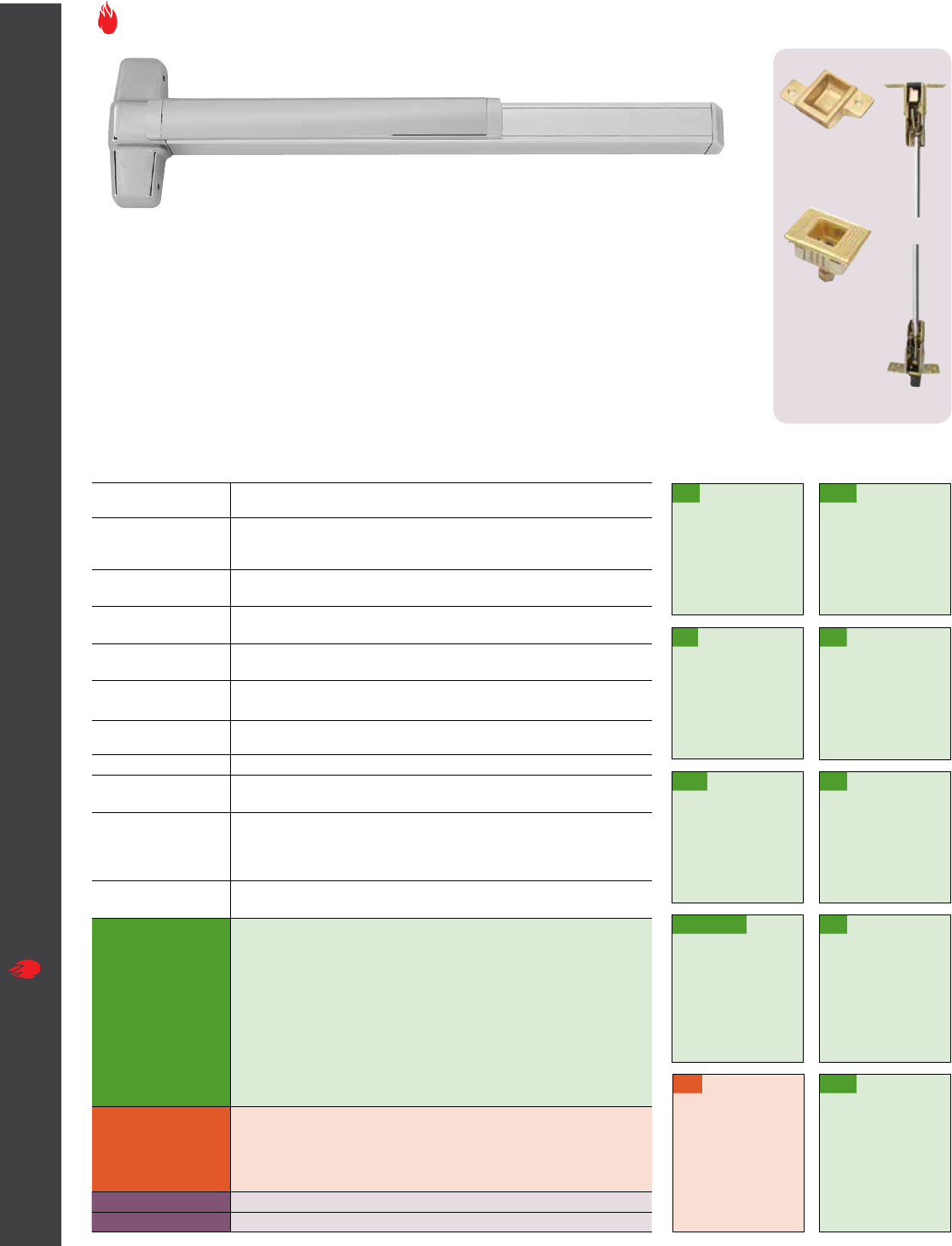

Concealed vertical
rod devices
9847-F/9947-F 26
Trim 27
9848-F/9948-F 30
Trim 31

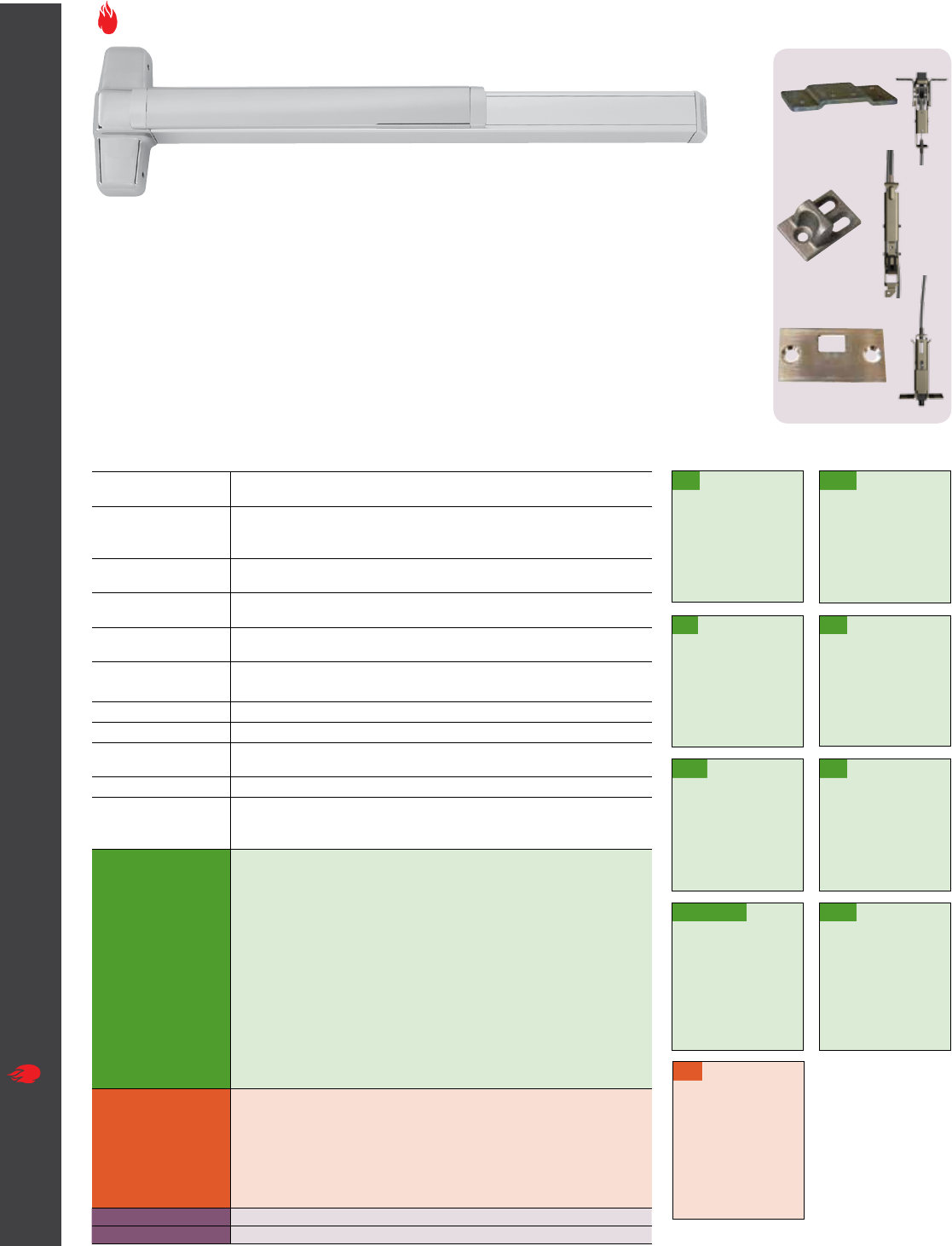

Concealed vertical
cable devices
9849-F/9949-F 34
Trim 35
Wood door concealed
vertical rod devices
9847WDC-F/9947WDC-F 38
Trim 39
Wood door concealed
vertical cable devices
9849WDC-F/9949WDC-F 42
Trim 43
Table of contents
Exit hardware
Rim devices
98/99E 8
Trim 9

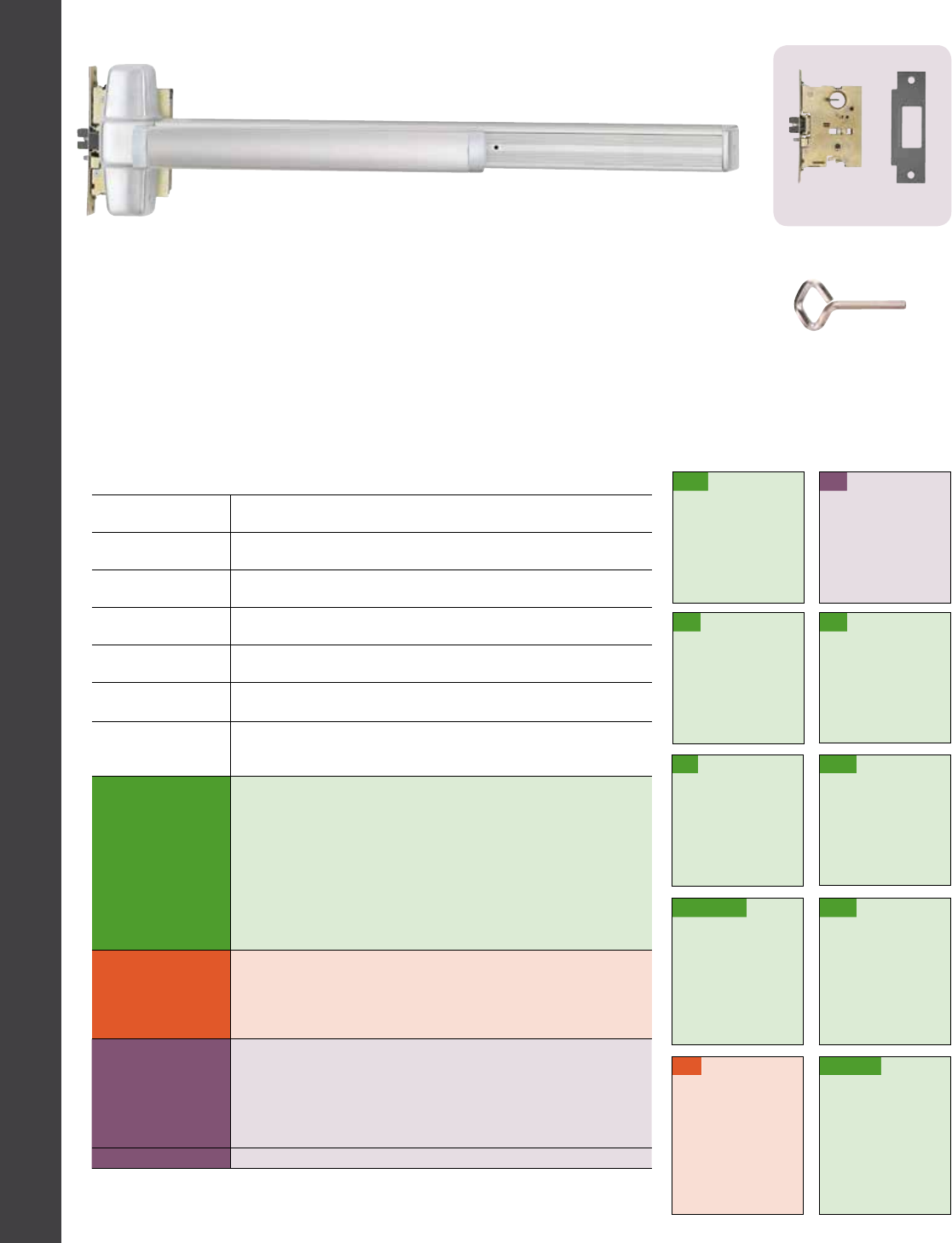

Mortise lock devices
9875/9975 12
Trim 13
Surface mounted
Vertical rod devices
9827/9927 16
Trim 17
Three-point latching devices
9857/9957 20
Trim 21
Concealed vertical
rod devices
9847/9947 24
Trim 25
9848/9948 28
Trim 29
Concealed vertical
cable devices
9849/9949 32
Trim 33
Wood door concealed
vertical rod devices
9847WDC/9947WDC 36
Trim 37
Wood door concealed
vertical cable devices
9849WDC/9949WDC 40
Trim 41
4 • Von Duprin 98/99 Series
Options and accessories
Symbols
Indicates fire rated application Indicates ADA products
Continuing commitment to quality.
Additional
information
ANSI Function, grade & type
Ul fire labeling and opening size
Finishes Standard & special finishes

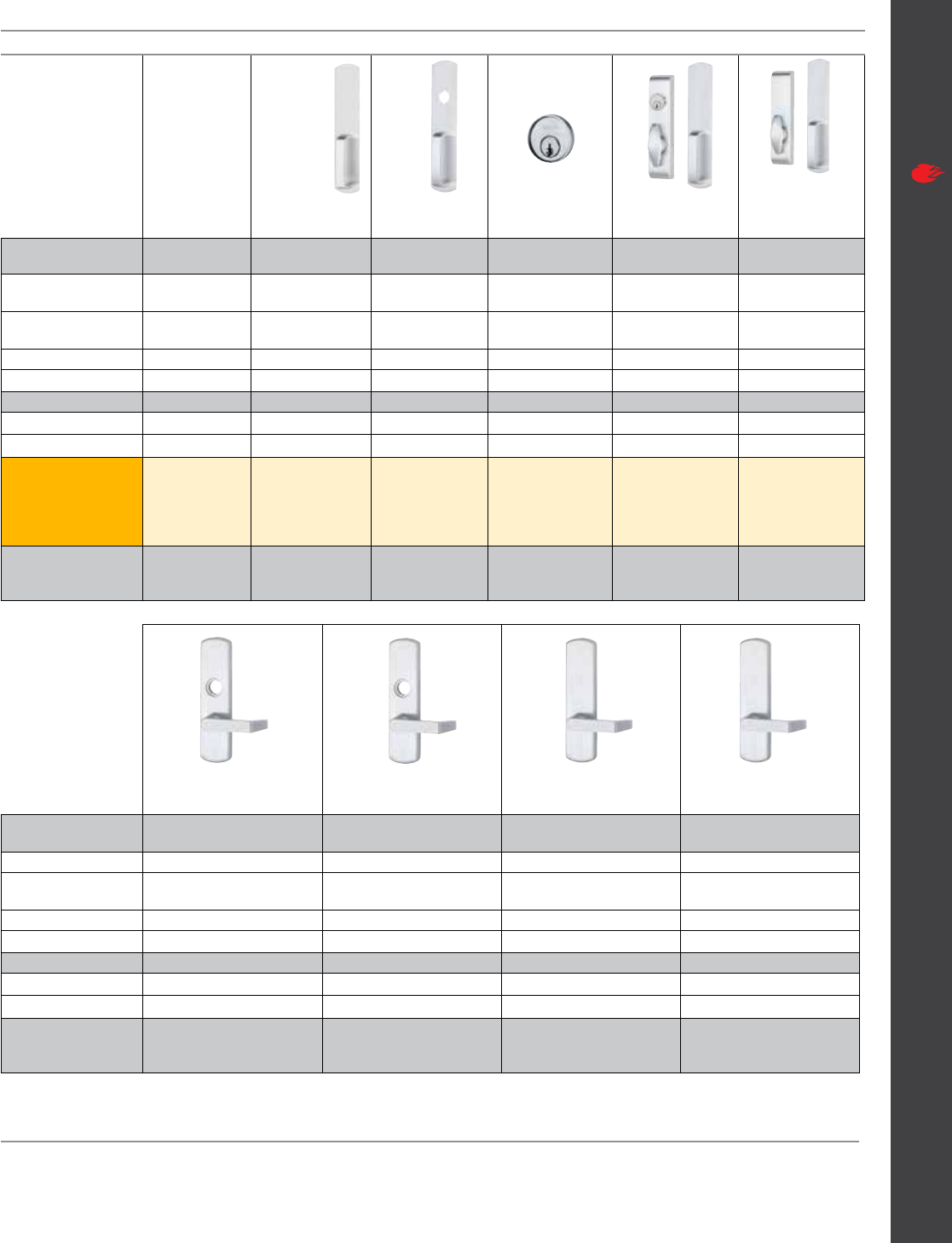

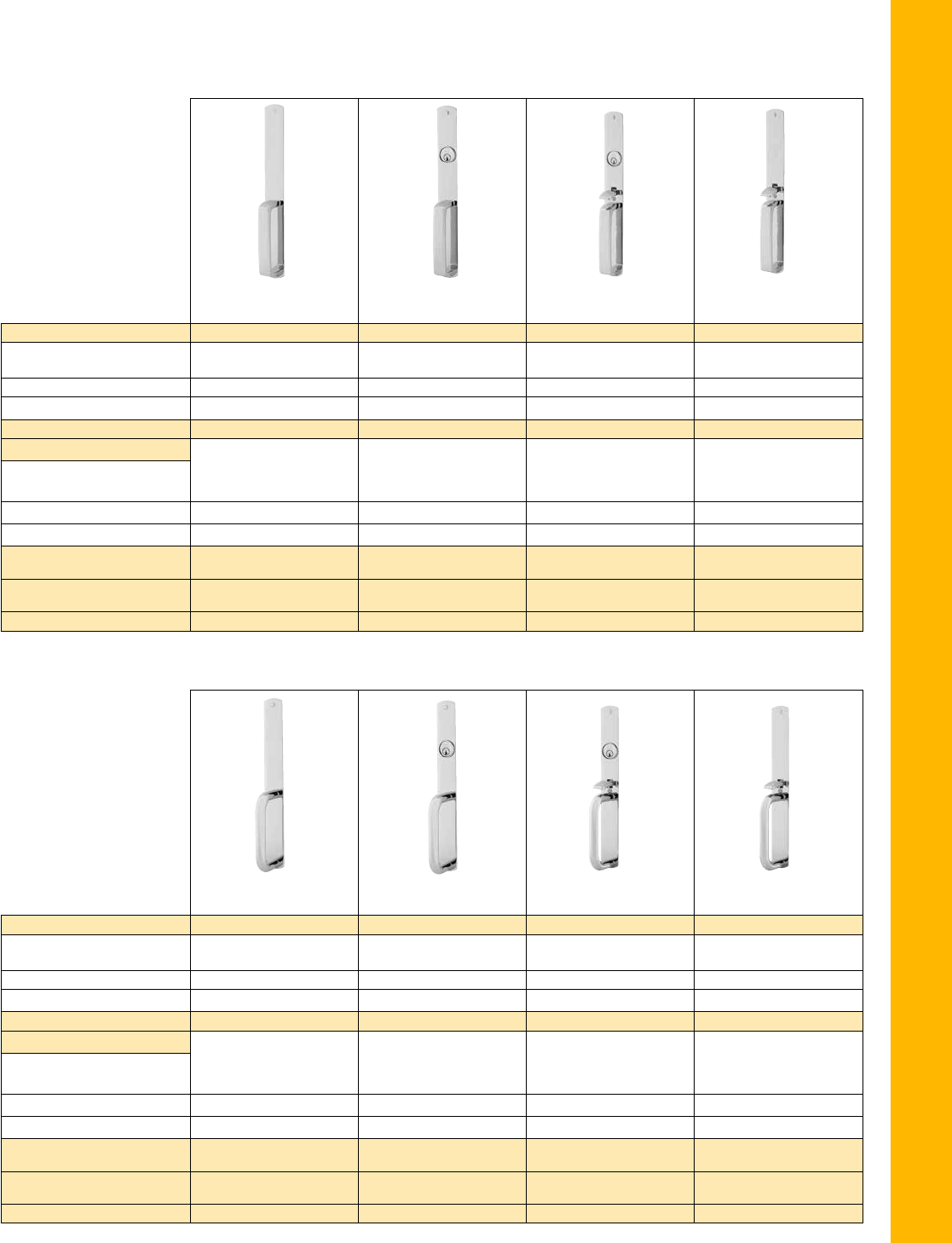

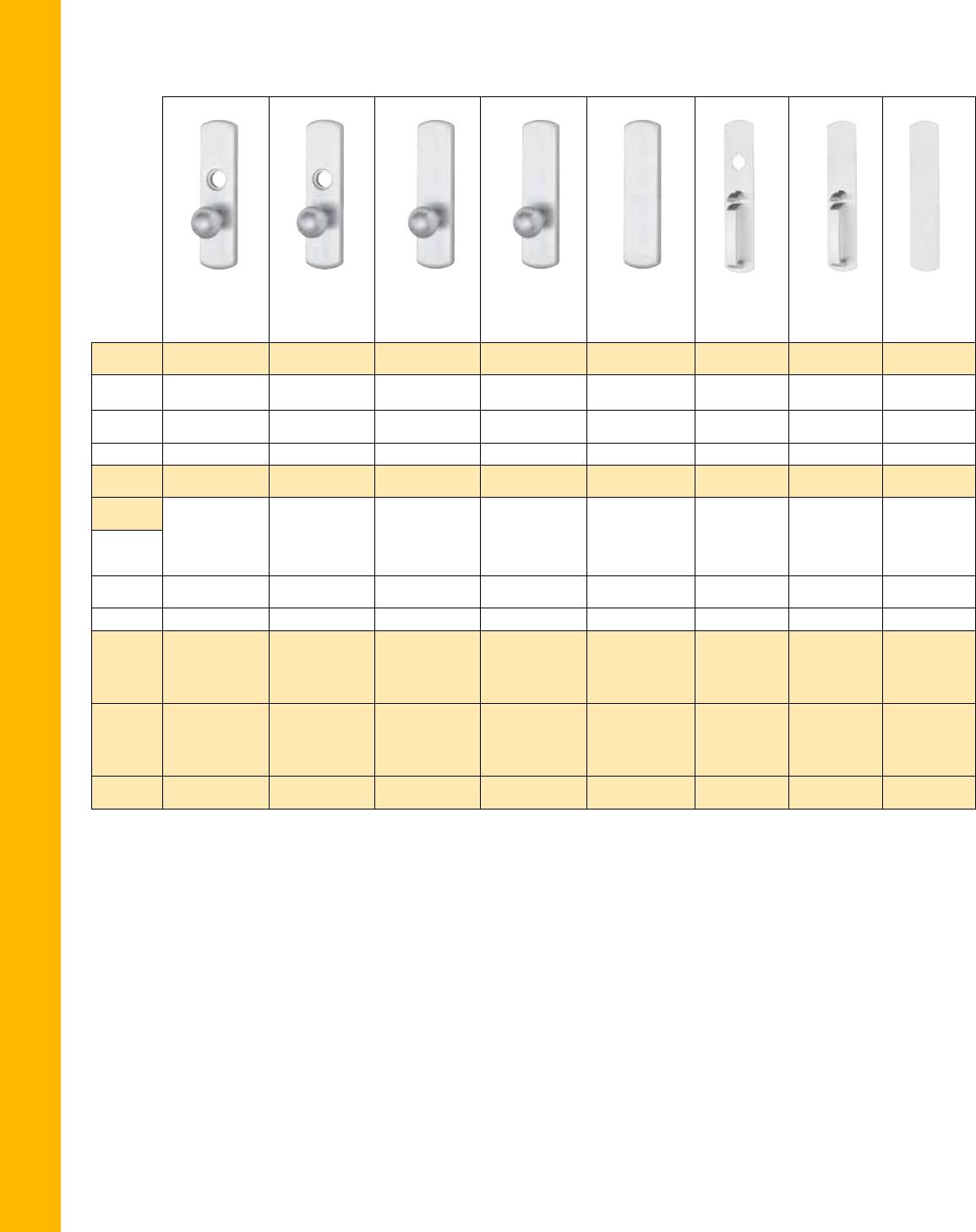

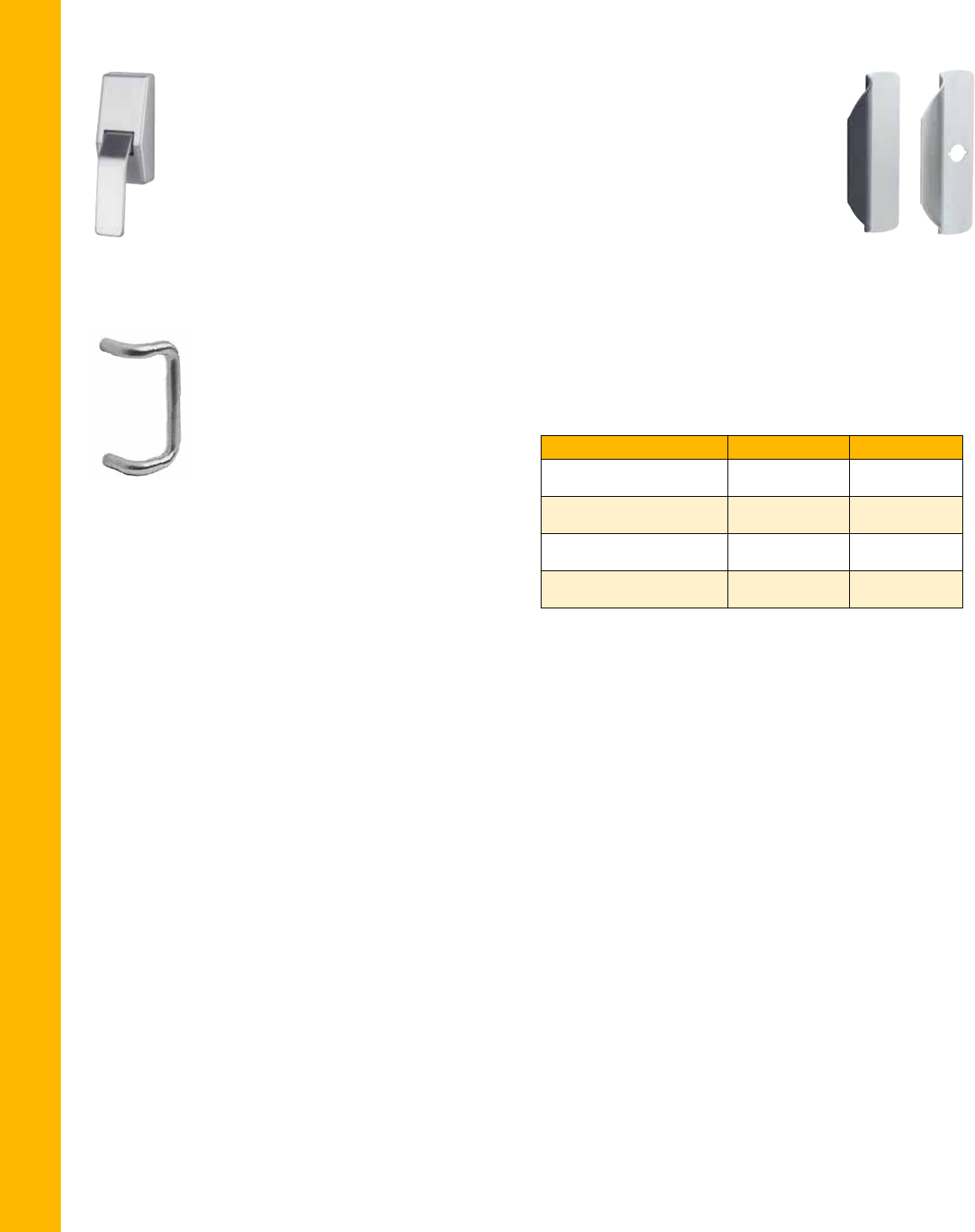

Trim
options
Knob
Thumbpiece
Lever
Electrified outside lever trim (E996L)
Breakaway lever
Thumbturn control
Hospital pull
Offset pull
Vandal resistant pull
AD-Series adaptable electronic trim
Strike
options

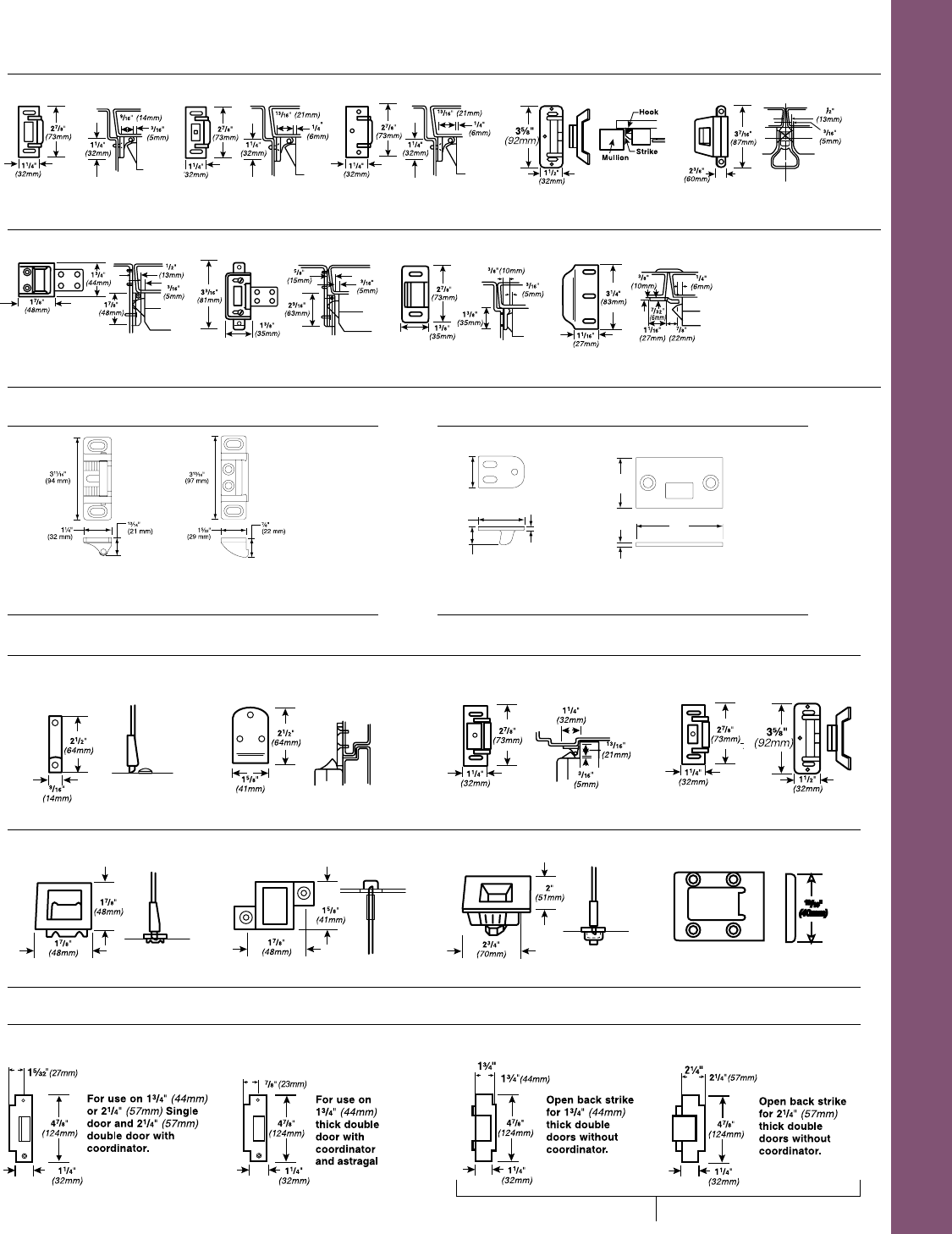

Strike/Stile information
Strikes

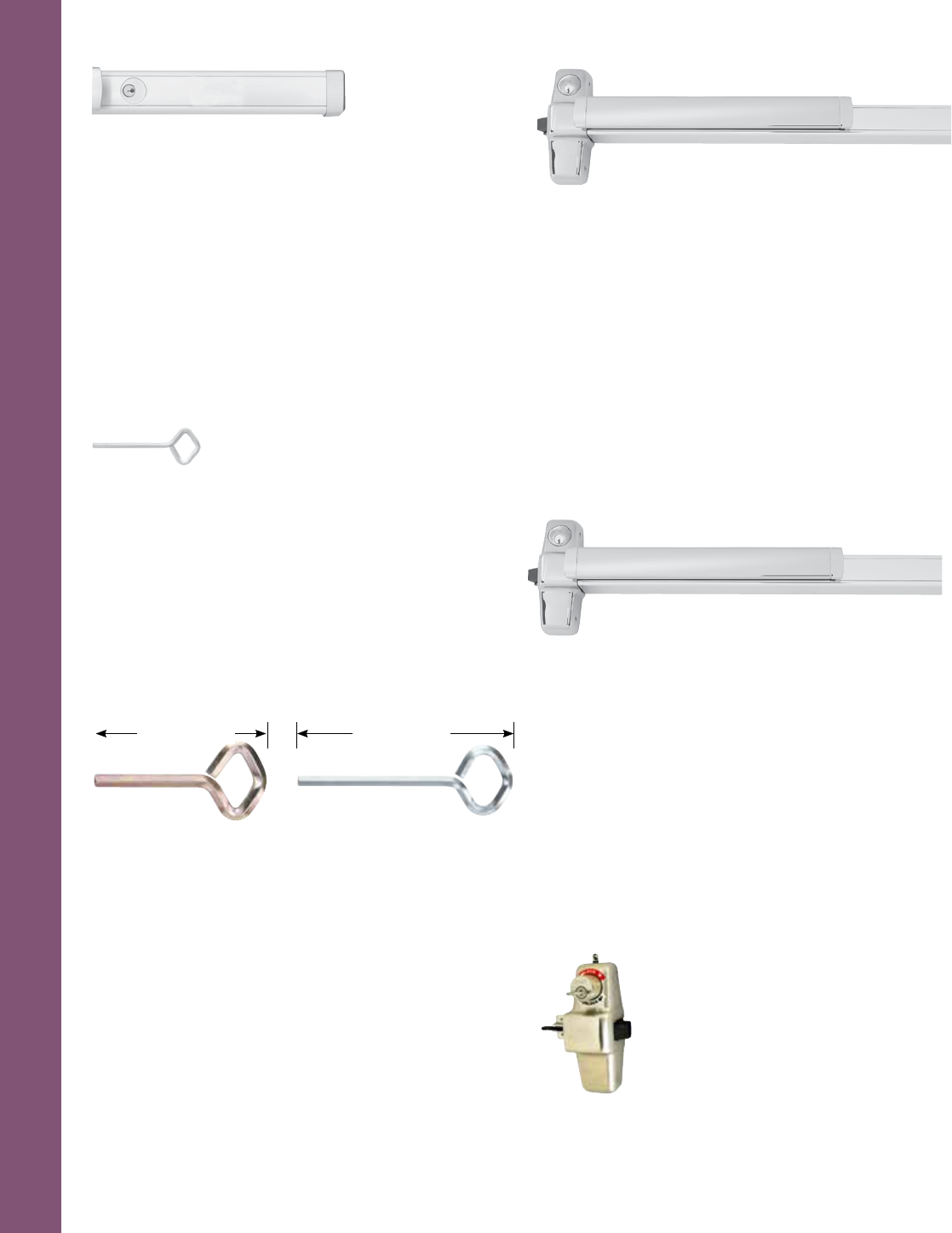

Dogging
options
Cylinder dogging
Hex key dogging
Less dogging
Dogging keys
Special center case dogging
Double cylinder
Applications
& trim
operation
Single & double door applications
Door handing
Outside trim operation
Lever styles
Mechanical
options
XP98/99 rim exit device
WS Surface vertical rod exit device
Less bottom rod

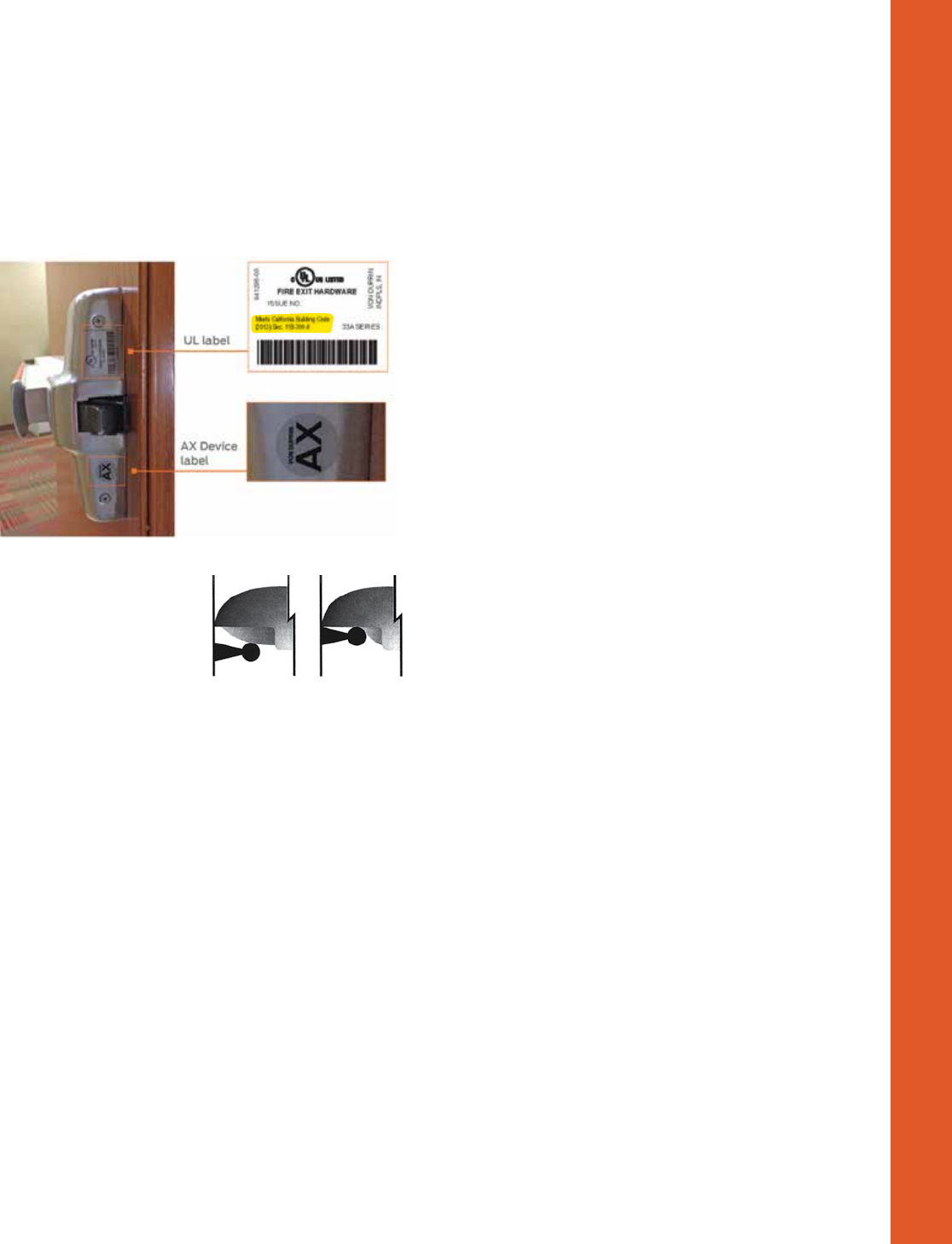

AX Accessible device
Pullman latch
Dummy push pad

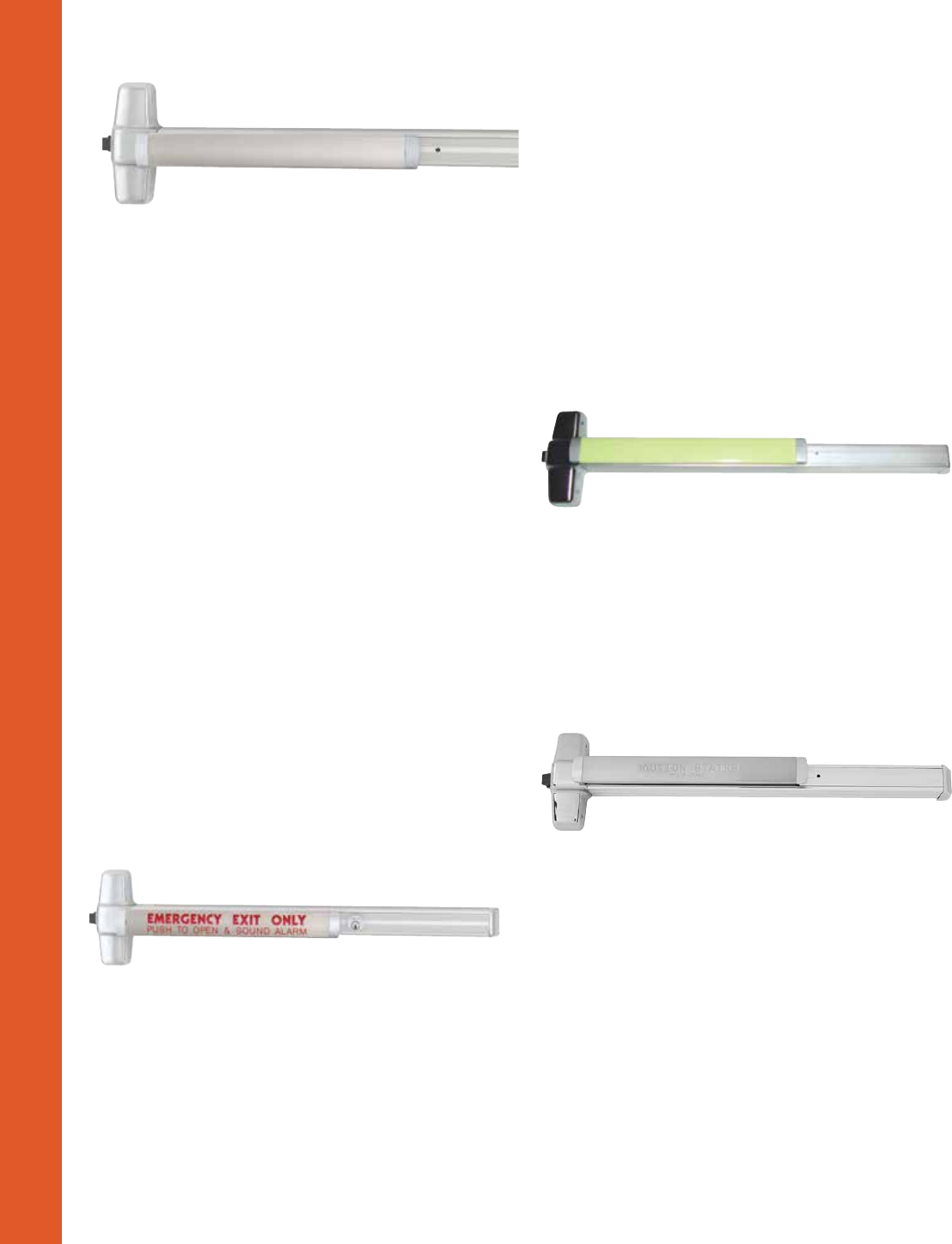

Braille, embossed, knurled and safety glow
(Luminescent) touchpads
Pneumatic
options
Pneumatic controlled exit devices
Pneumatic power transfer
Electrical
options
RX Request to exit
LX Latchbolt monitoring
SS Signal switch
CX Chexit®
ALK Alarm kit

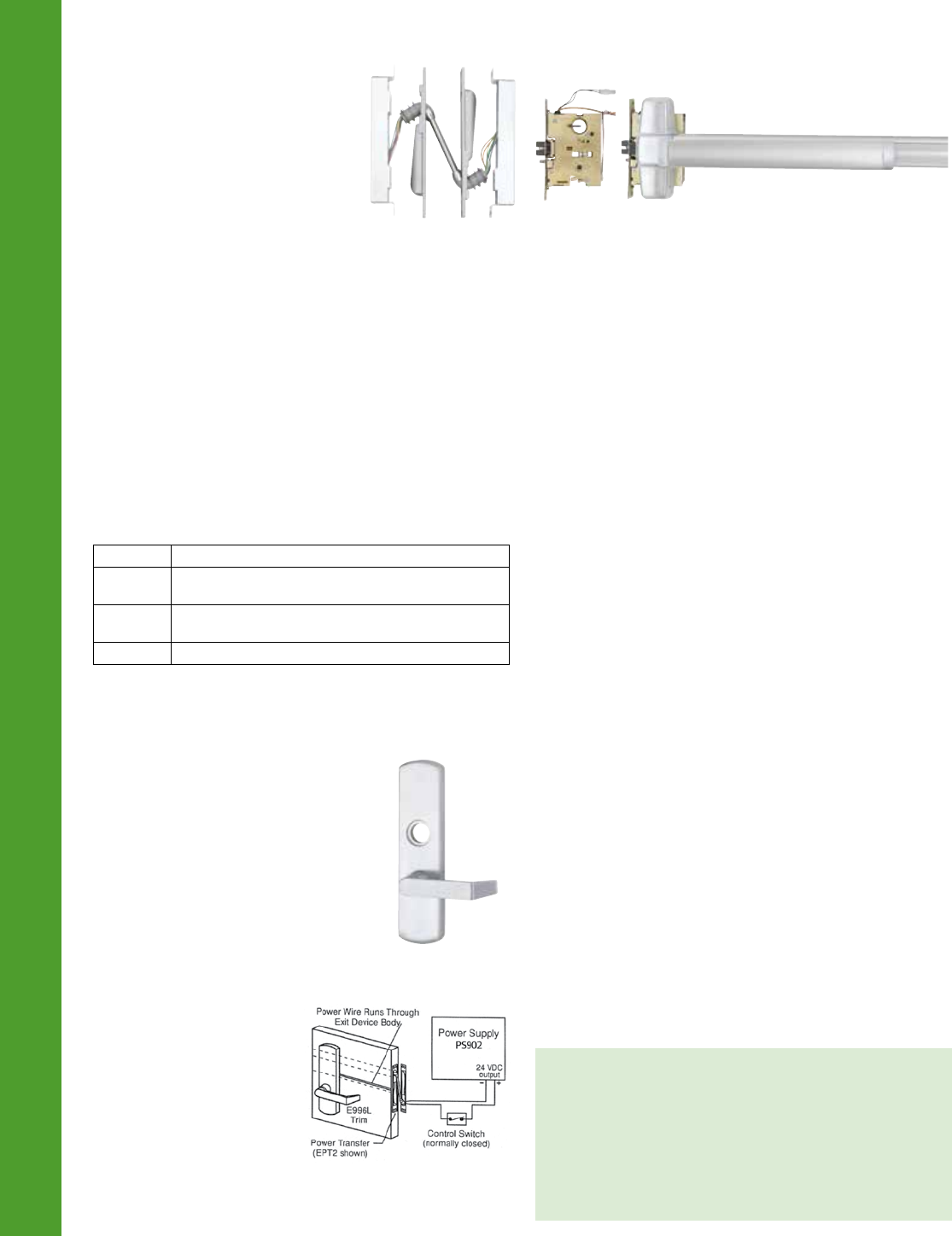

E Electric mortise lock device
EL Electric latch retraction
QEL Quiet electric latch retraction
CON Allegion Connect
Electrical
accessories

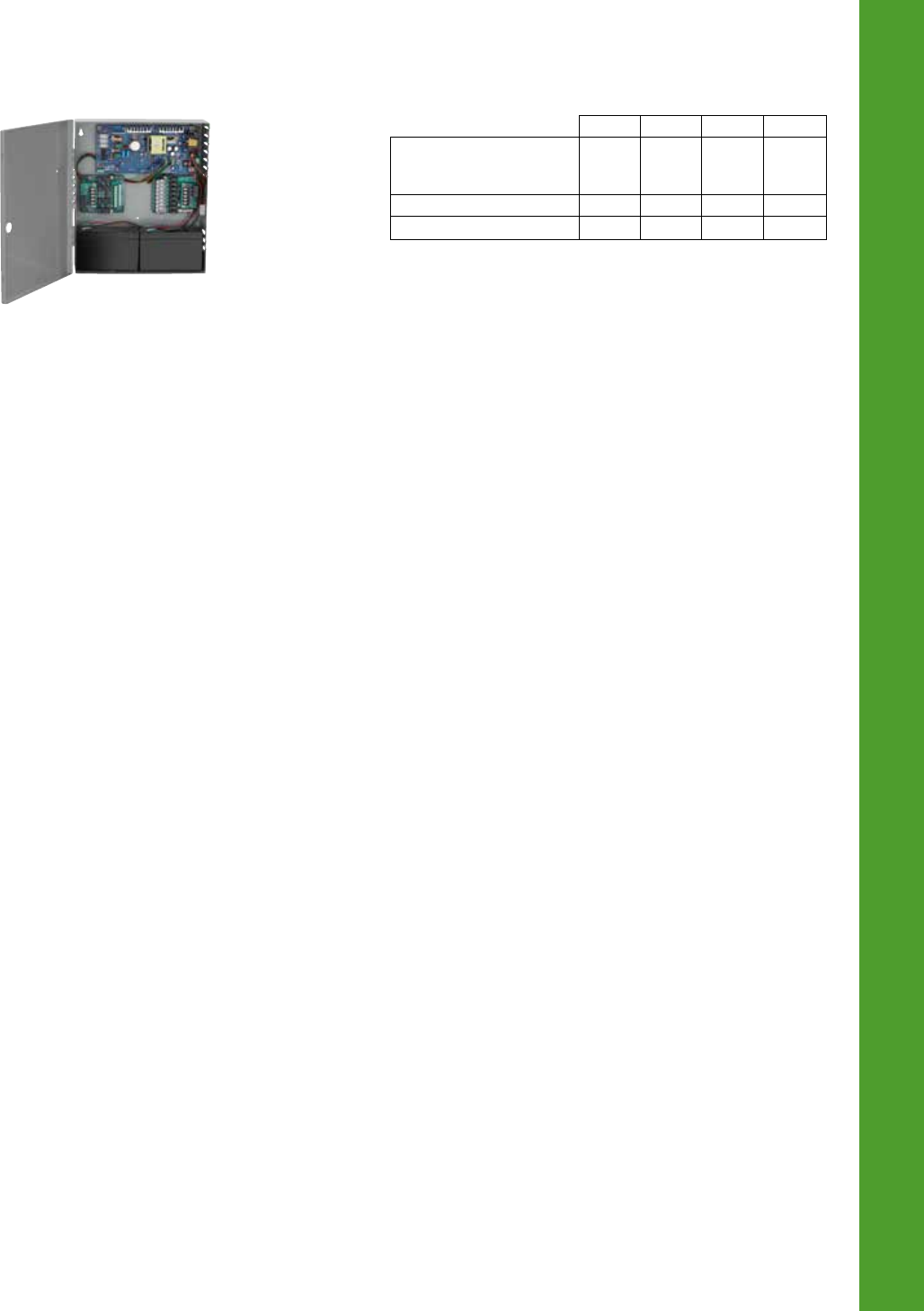

Power supplies
Electric power transfer
Device
accessories
Glass bead kit
Vertical rod and latch guard

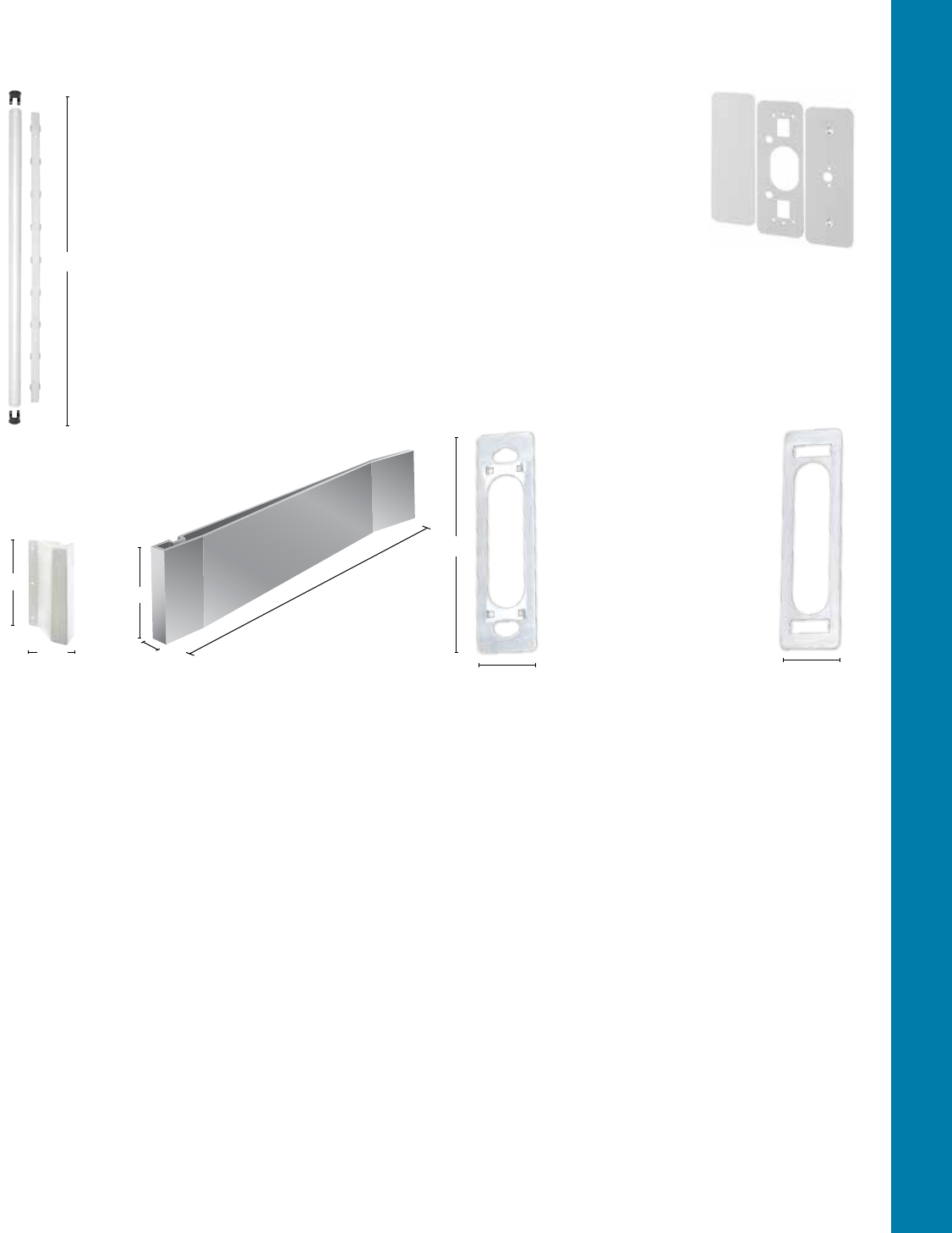

Cover plate kits
Cylinders
Mullions

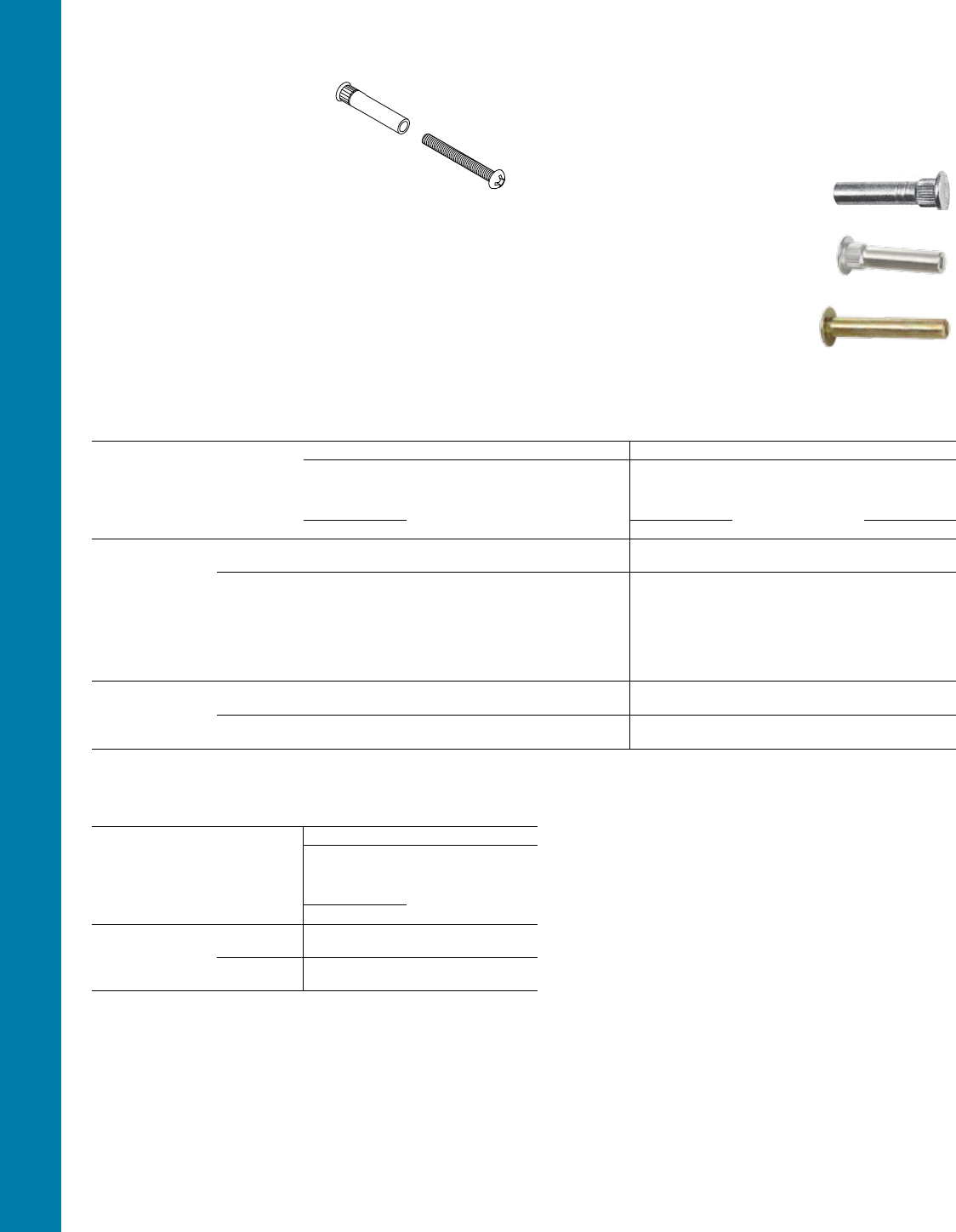

Sex bolts
Von Duprin 98/99 Series • 5
Nomenclature – how to order
EL 99 27 -L -16 -F LBR 3' US3 RHR
None
SD
CD
Standard
Special dogging R/VR - panic only
Cylinder dogging - panic only
CX
E
QEL
EL
LX
RX
RX2
SS
AX
Chexit
Electric locking mortise/lever
Quiet electric latch retraction
Electric latch retraction
Latch bolt monitoring
Request to exit
Double request to exit
Signal switch
Accessible device
PL
PN
WS
XP
Pullman latch
Pneumatic latch retraction
Surface vertical rod exit device
Heavy protection - rim
WS Tornado & hurricane tested
98
99
Series 98-smooth
Series 99-grooved
None
27
47
47WDC
48
49
49WDC
57
75
Rim device
Surface mounted vertical rod device
Concealed vertical rod device
Concealed vertical rod wood door device
Concealed vertical rod device
Concealed vertical cable device
Concealed vertical cable wood door device
Three-point latch device
Mortise lock device
AD
DT
EO
HL
K
K-BE
K-DT
K-NL
L
L-BE
L-DT
L-NL
NL
NL-OP
TL
TL-BE
TP
TP-BE
AD Trim (to come from client)
Dummy trim
Exit only
Hospital pull trim
Knob
Knob - blank escutcheon
Knob, rigid - dummy trim
Knob, rigid - night latch
Lever (classroom)
Lever - blank escutcheon
Lever, rigid - dummy trim
Lever, rigid - night latch
Night latch
Night latch cylinder assembly, optional pull
Turn lever
Turn lever - blank escutcheon
Thumbpiece
Thumbpiece - blank escutcheon
XX Lever style 06 standard
Optional 01, 02, 03, 05, 07, 12 (Handed),
16 (Omega), 17, 18, Accent, Asti, Merano, St. Annes
FFire exit device
-2 Double cylinder (rim & mortise only)
LBR
LBL
SG
Less bottom rod
Less bottom latch
Safety glow (luminescent) touchpad
ALK
ALK-AR1
ALK-AR3
ALK-AR6
CON
Alarm kit
Auto-reset 1 1/2 minute alarm kit
Auto-reset 3 minute alarm kit
Auto-reset 4 1/2 minute alarm kit
Allegion Connect
2'
3'
4'
2' Device (2' door size) 27, 47 or 49 only
3' Device (2' 4"– 3' door size)
4' Device (2' 10"– 4' door size)

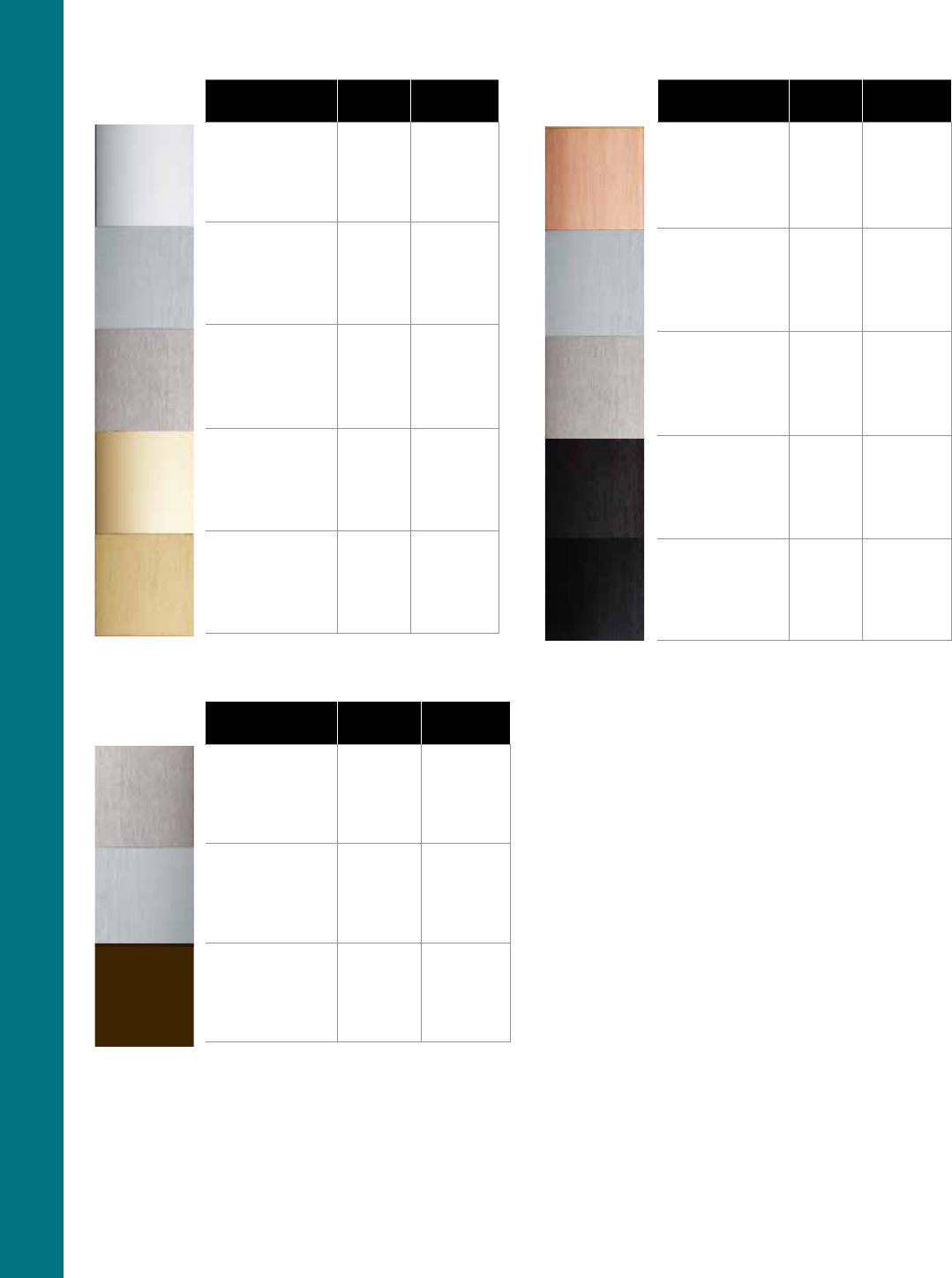

Finishes US3, US4, US10, US26, US26D, US28, 313, 315
US32D – 98 ONLY
-AM Antimicrobial (available US26D and US32D)
-LHR
-RHR
Le hand reverse
Right hand reverse
6 • Von Duprin 98/99 Series

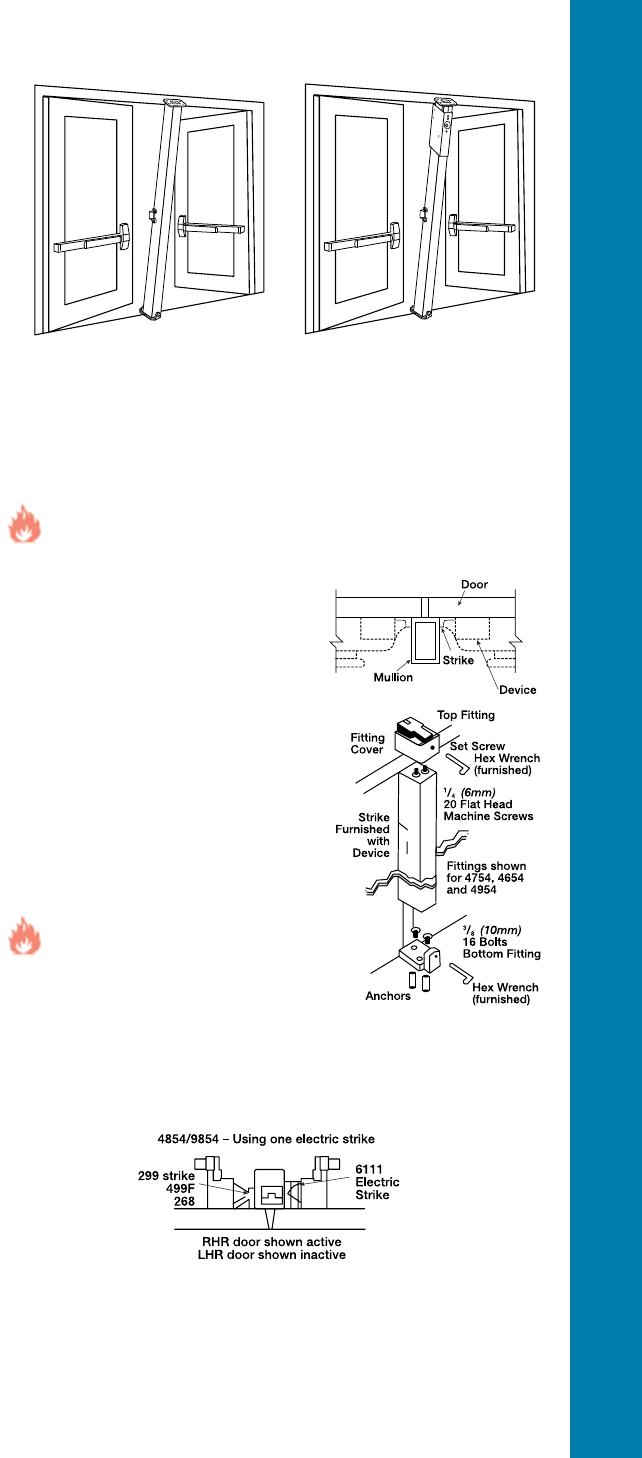

Popular double door applications
Mortise lock and surface mounted or
concealed vertical cable/rod device
combination—same direction
Single mortise
lock device
Single door applications
Door handing
Two surface mounted vertical rod
devices—same direction (do not use
with overlapping astragal)
Two rim devices with mullion—
same direction
Single rim device
Two fire exit hardware vertical
cables/rods with auxilary fire
latch-LBR option
Two vertical rods—double egress
Two concealed vertical cables/rods
Left Hand-Reverse
Orientation
LHR
(Left hand reverse)
RHR
(Right hand reverse)
Outside
Right Hand-Reverse
Orientation
Le hand-reverse
orientation
Right hand-reverse
orientation
(Le hand-reverse) (Right hand-reverse)
Outside
Double door applications

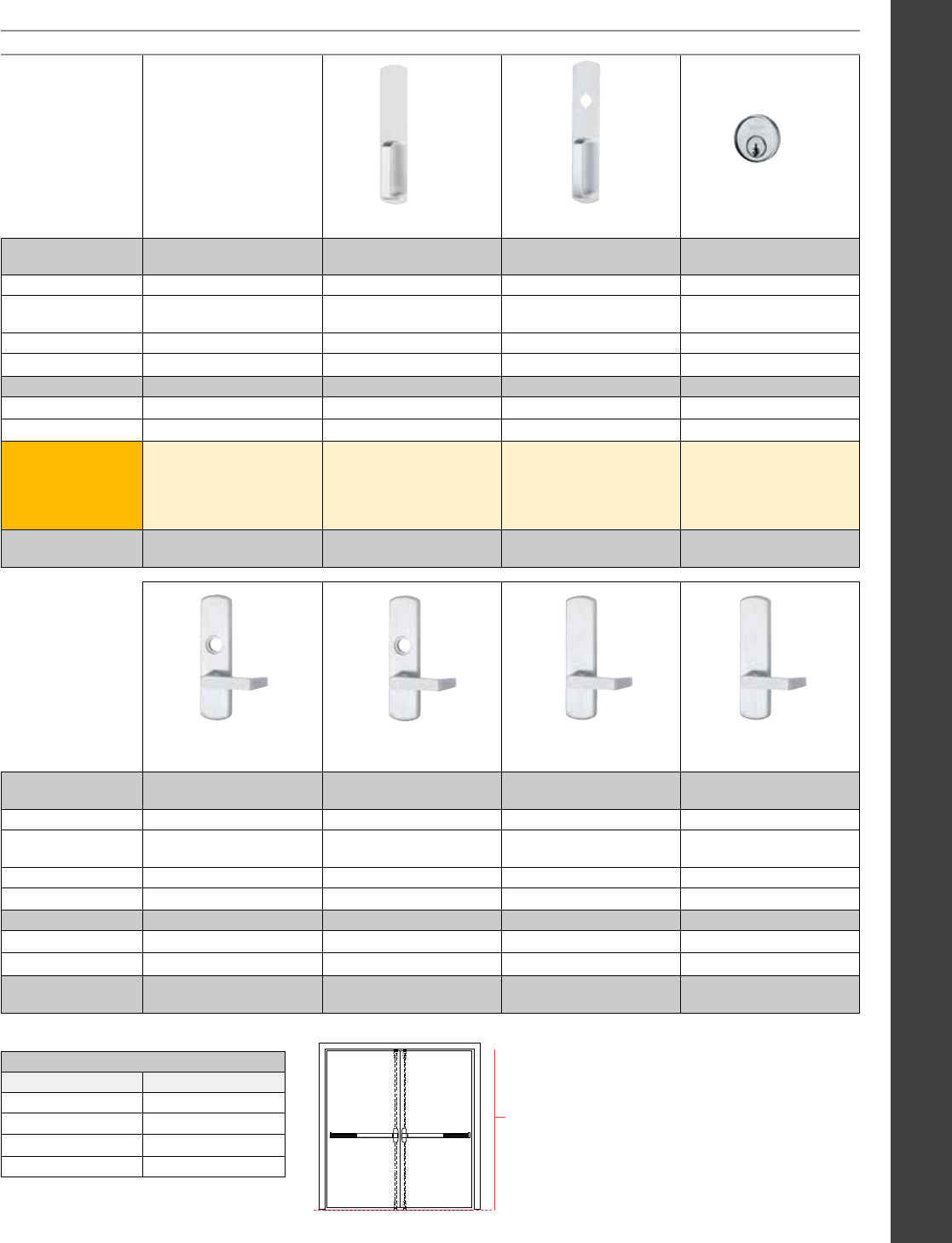

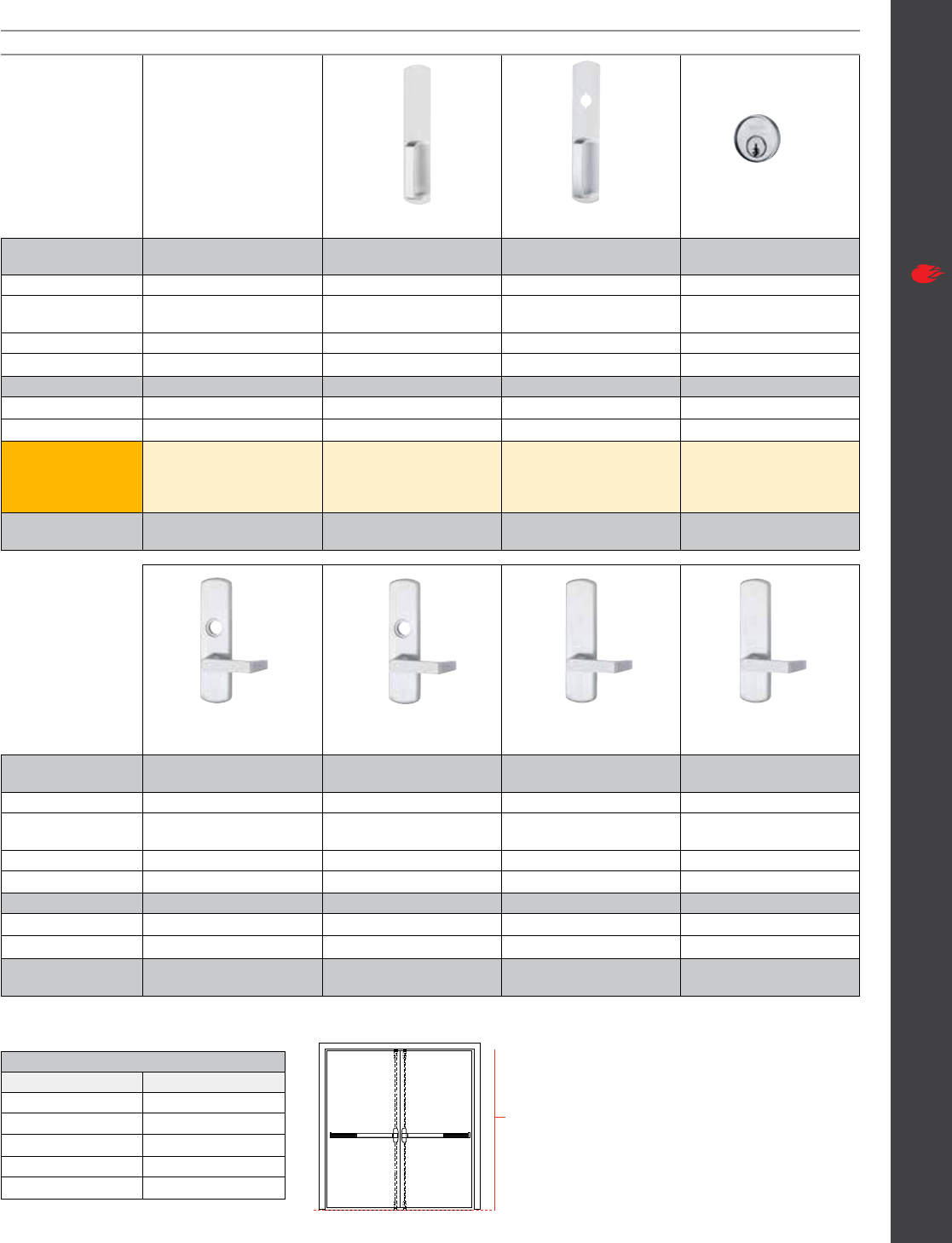

Trim operation lever or knob
996L Breakaway™ lever
Standard Blank escutcheonNight latch Dummy
Key locks and unlocks lever or knob. e.g.,
996L (Classroom)
Lever or knob always active. Use BE
sux, e.g., 996L-BE. (Passage)
Key retracts latch bolt. Lever or knob
is rigid. Use NL sux, e.g. 996LNL.
(Storeroom)
Lever or knob rigid for pull
operation. Use DT sux, e.g.,
996L-DT.
374T/376T Series thumbturn control
Standard operation, key locks and
unlocks thumbturn. Optional operation,
key unlocks thumbturn, re-locks when
key is removed. This operation is
created by changing the cylinder plate
included with control. Use 1 1/4" mortise
cylinder with a straight cam. Schlage
cam reference B502-191. Use with a pull
trim (990DT pictured).
Outside trim operation
The 996L Breakaway trim has become the
standard lever trim offering on the
98L/99L Series devices. The Breakaway
design is especially effective in areas
where vandalism to door hardware is a
problem. The design intent is to discourage
costly repairs from becoming necessary.
The Breakaway feature is not available on
the NL (night-latch) or DT (dummy trim)
versions.
Von Duprin 98/99 Series • 7

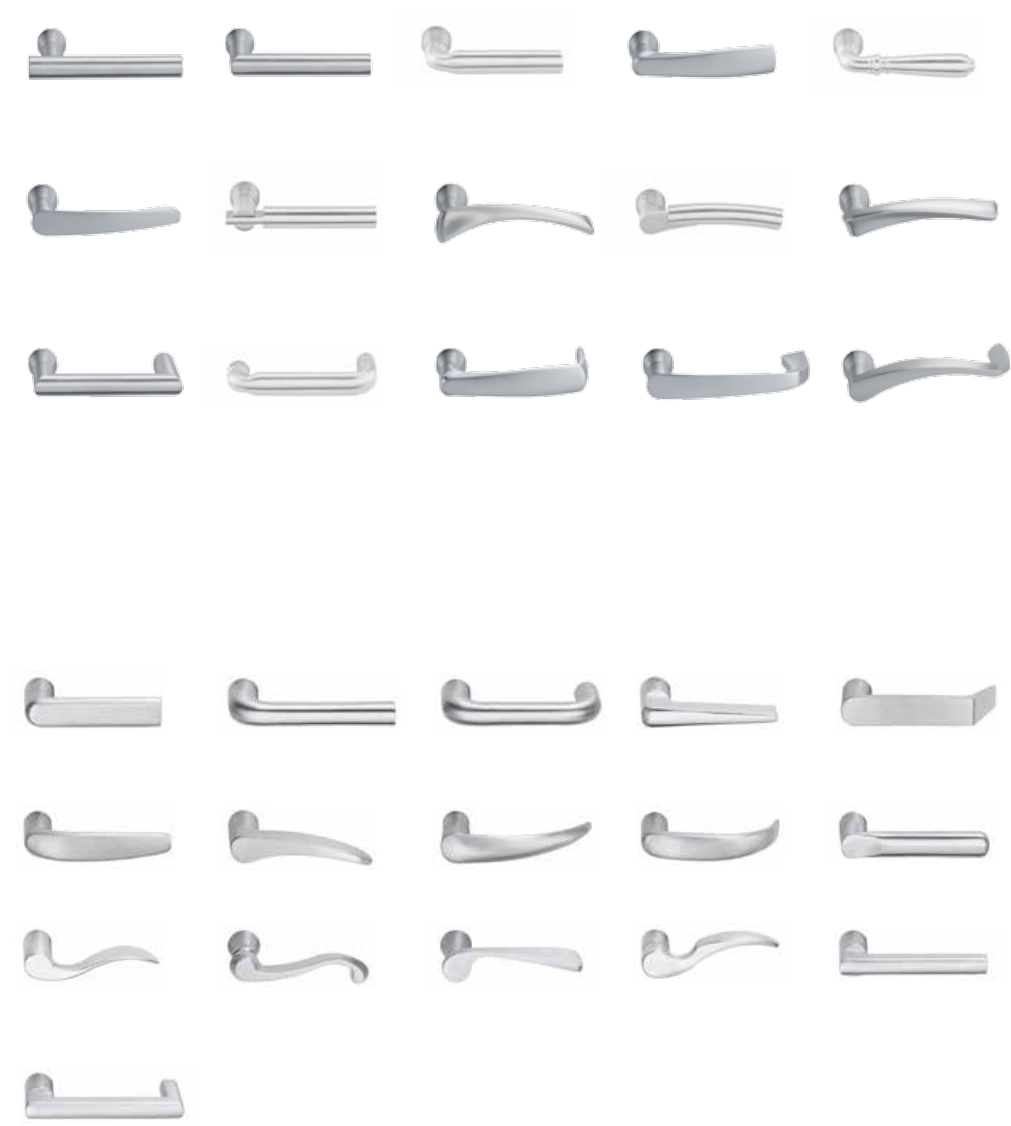

Decorative levers
Lever styles
M51
Knurling available
M52
Knurling available
M53 M54 M55
M56 M57 •• M61
(Handed)
M62 ••
(Handed)
M63
(Handed)
M81
Knurling available
M82 M83 M84 M85
(Handed)
01 02
Knurling available
03*
Knurling available
05 06*
Default lever
Knurling available
07 12
(Handed)
16
(Omega)
17*
Knurling available
18
ACC
(Accent)
(Handed)
AST
(Asti)
(Handed)
MER
(Merano)
(Handed)
STA
(St. Annes)
(Handed)
LAT*
Latitude
LON*
Longitude
Standard Levers
•• Available in Stainless Steel substrate ONLY.
*Available in Stainless Steel - specify SS when ordering
8 • Von Duprin 98/99 Series

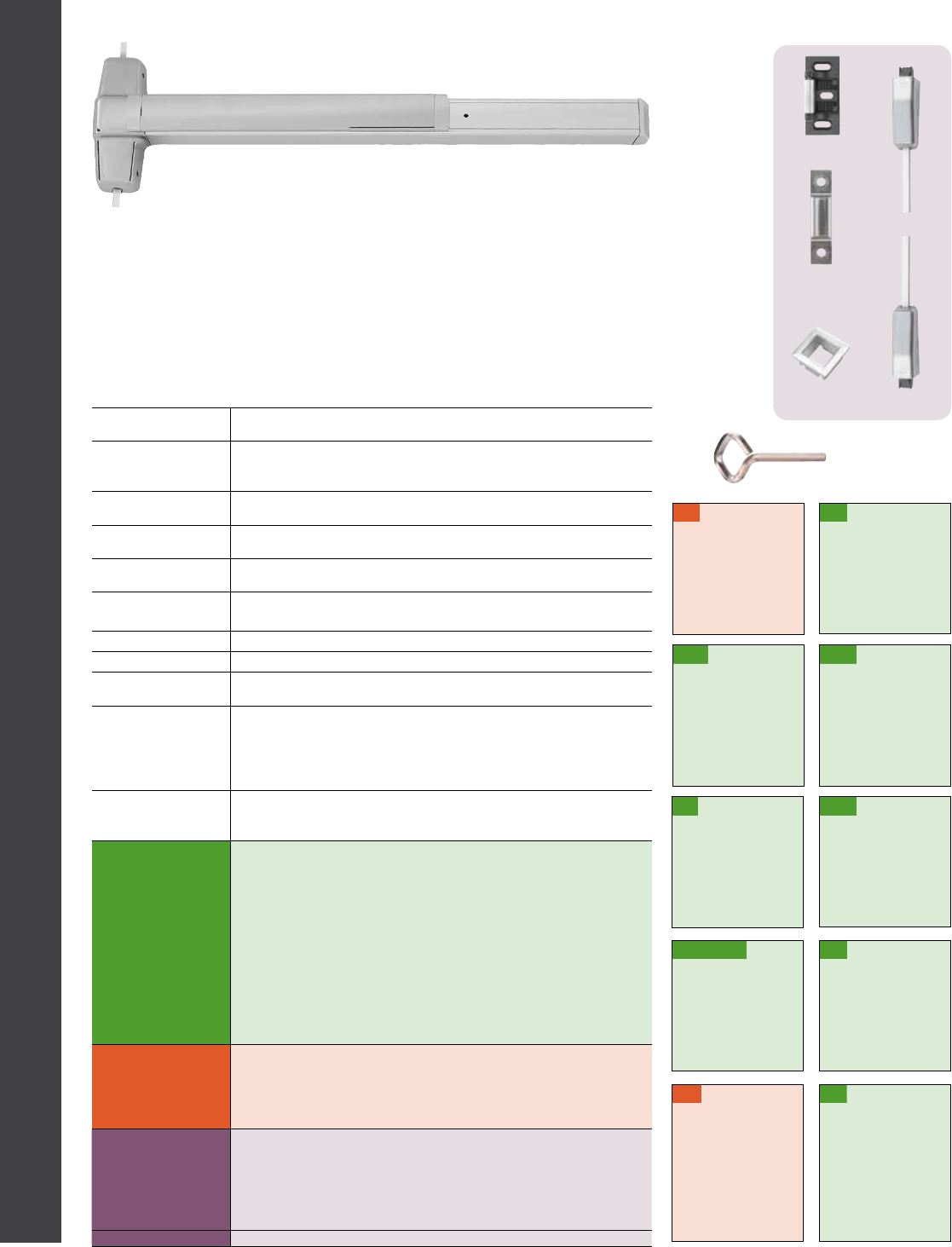

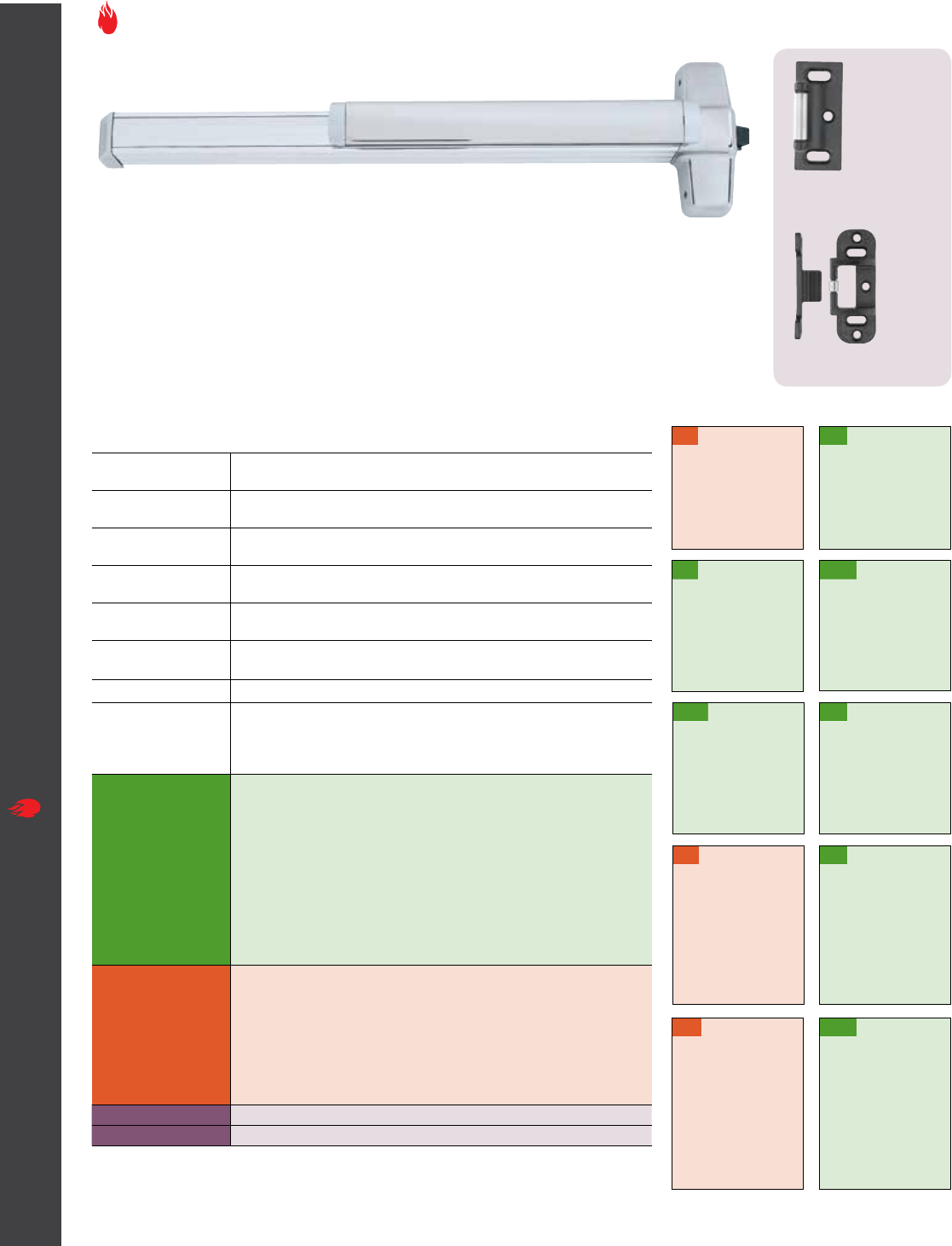

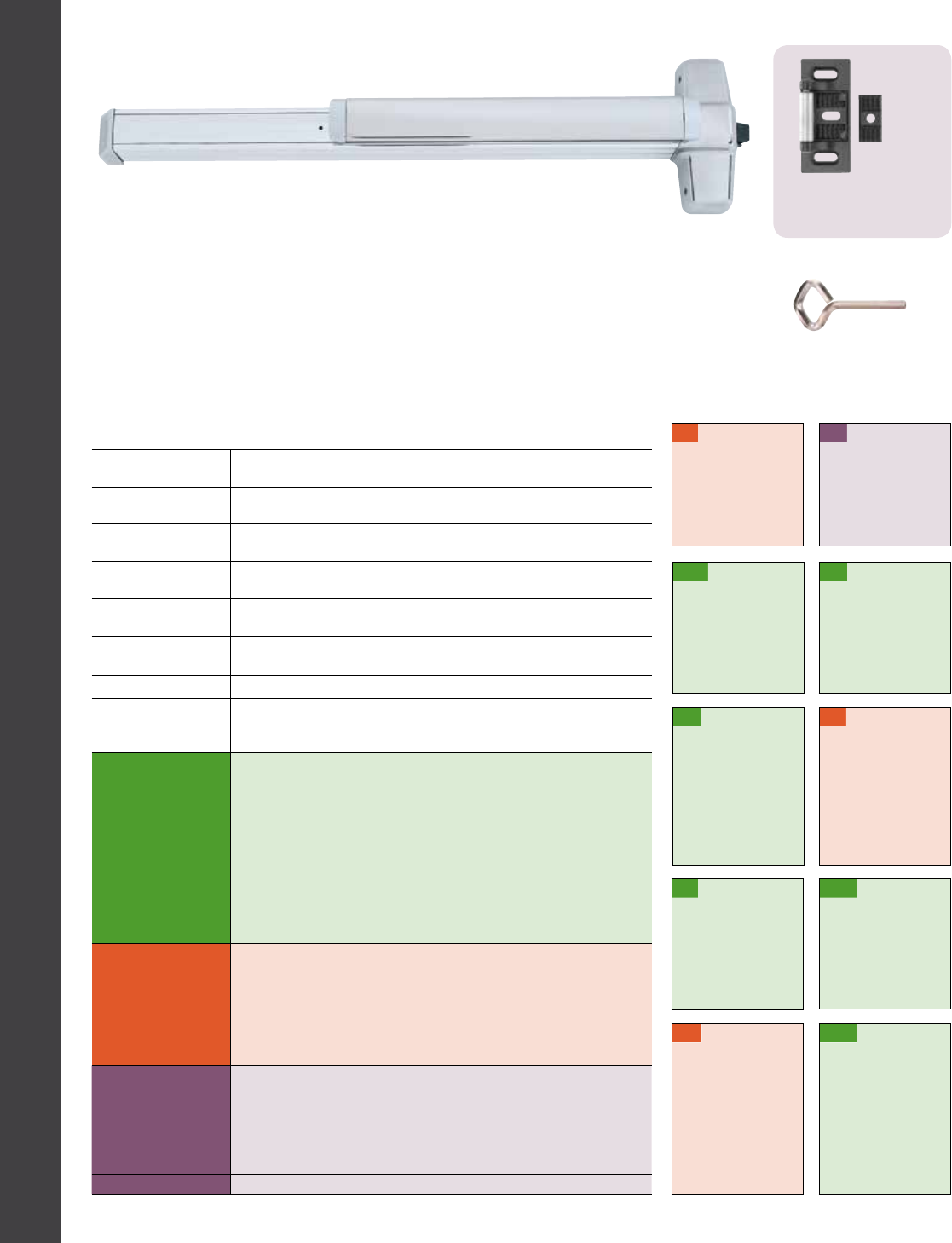

98/99 Rim exit device
98/99 Rim exit device
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic
exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 98 device has a smooth mechanism
case and the 99 device has a grooved case. The rim device is non-handed except when the following
device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). See

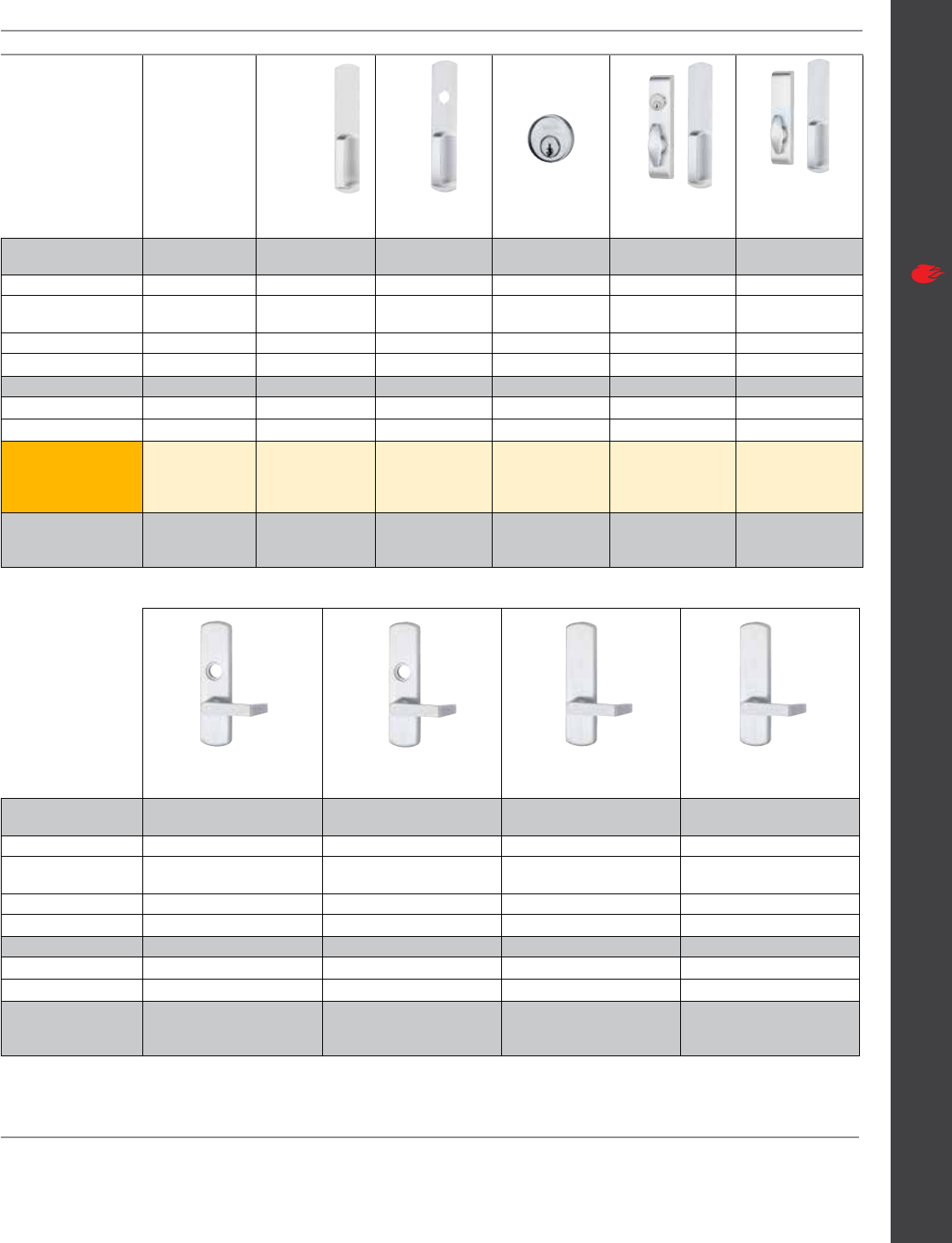

Opposite page for available outside trim and device functions. Covers stock hollow metal doors with
86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Hex key dogging comes standard
on 98/99 Rim exit devices
The 299 Strike ships
standard, optional strikes
available

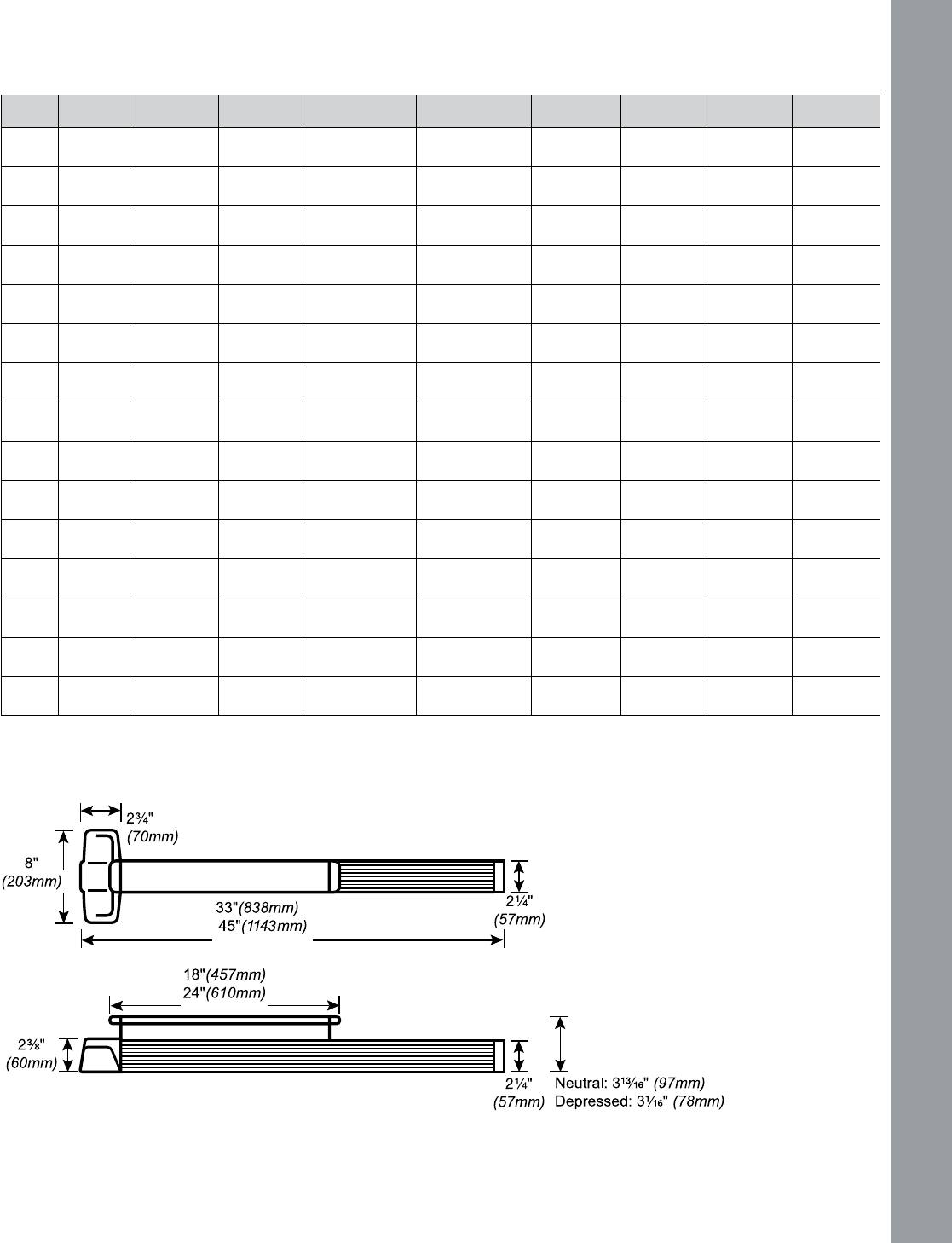

Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with mullion
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking, 3/4" (19mm) throw
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick
metal or wood doors. Optional 425 SNB available,
see page 9 for quantities.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric locking & unlocking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
-2 Double cylinder
AX Accessible device
GBK Glass bead kit
PN Pneumatic latch retraction
XP Extra protection
SNB Sex bolts
SEC Security screws
Dogging feature Hex key dogging standard
Dogging options CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes 299 – Dull black
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
XP
Extra protection
• 90˚ latch-to-
strike contact
• Force resistance
of 2,000+ lbs.
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires 1 1/4"
mortise cylinder
with inverted cam
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Von Duprin 98/99 Series • 9

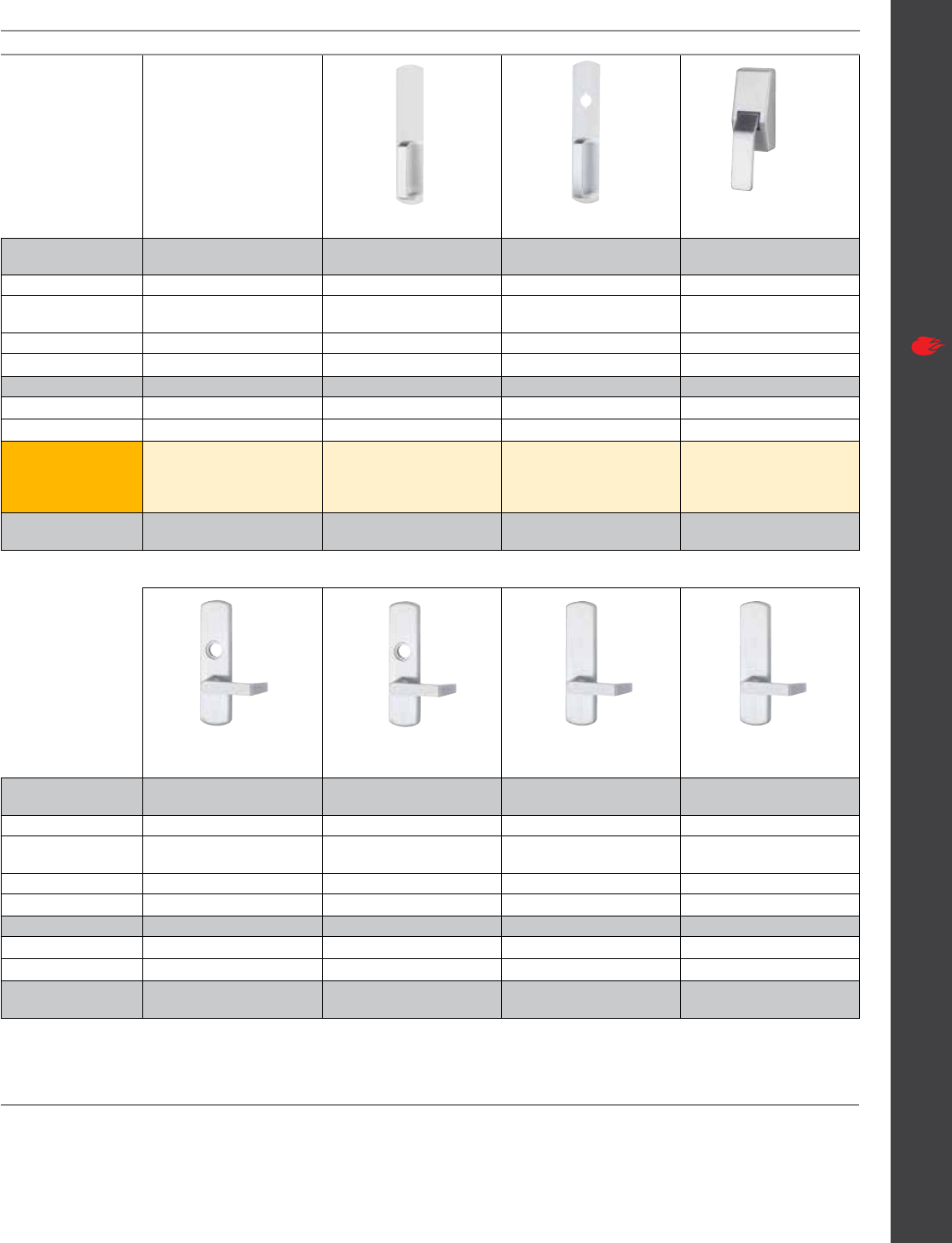

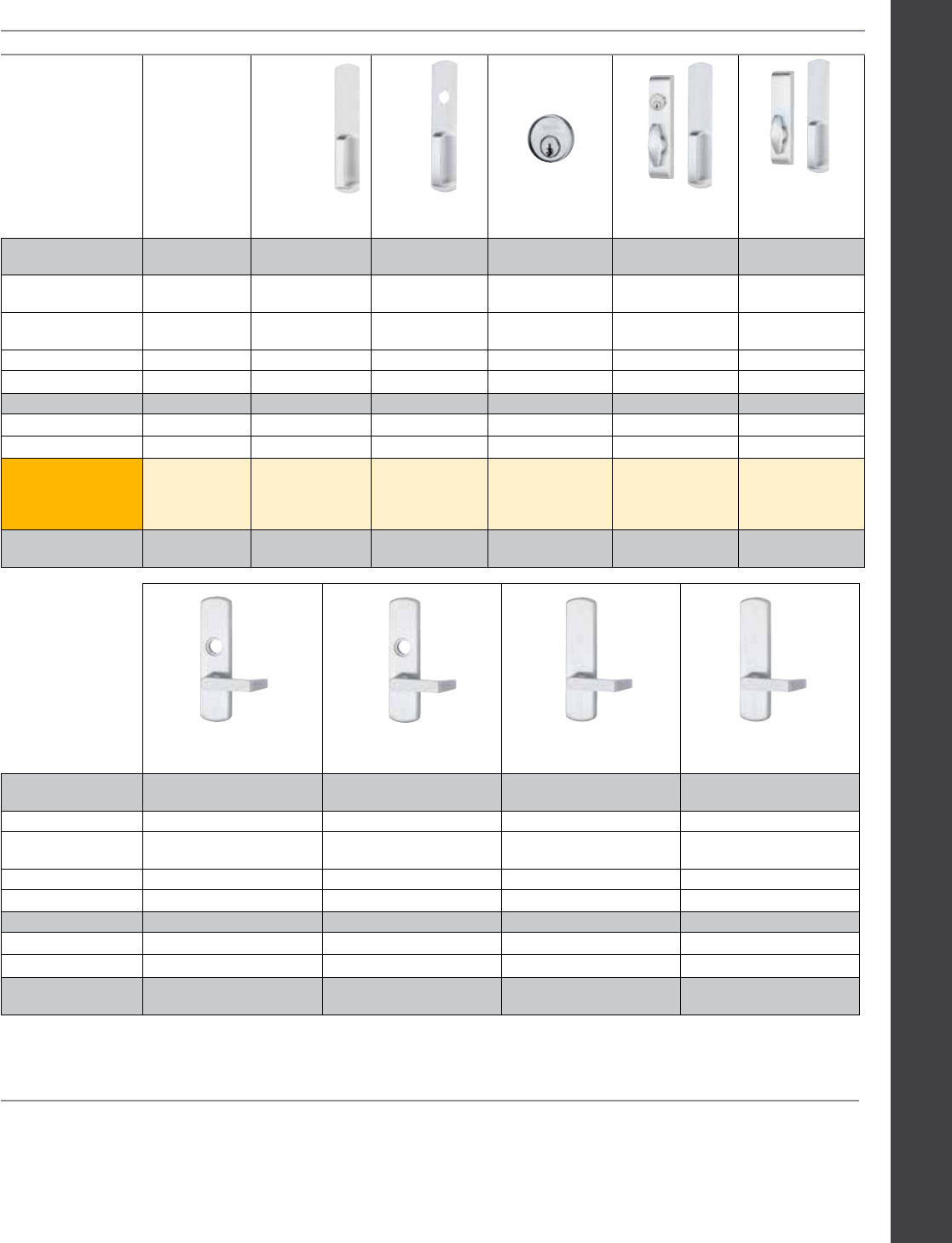

Notes

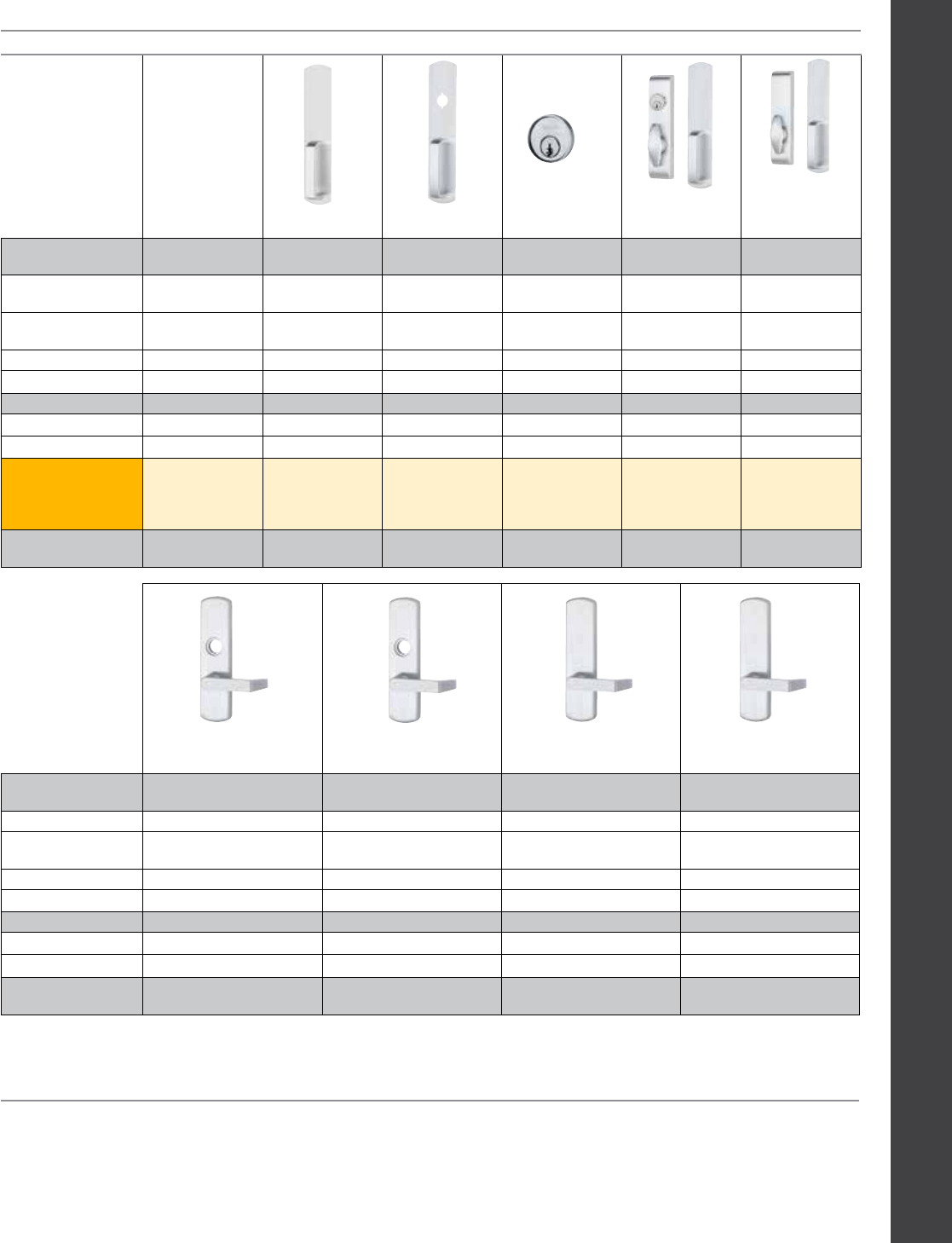

98/99 Rim exit device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 98EO
99EO
98DT
99DT
98NL
99NL
98NL-OP
99NL-OP
Trim description —990DT 990NL-R/V 110NL-MD
110NL-WD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 98L
99L
98L-NL
99L-NL
98L-BE
99L-BE
98L-DT
99L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
10 • Von Duprin 98/99 Series

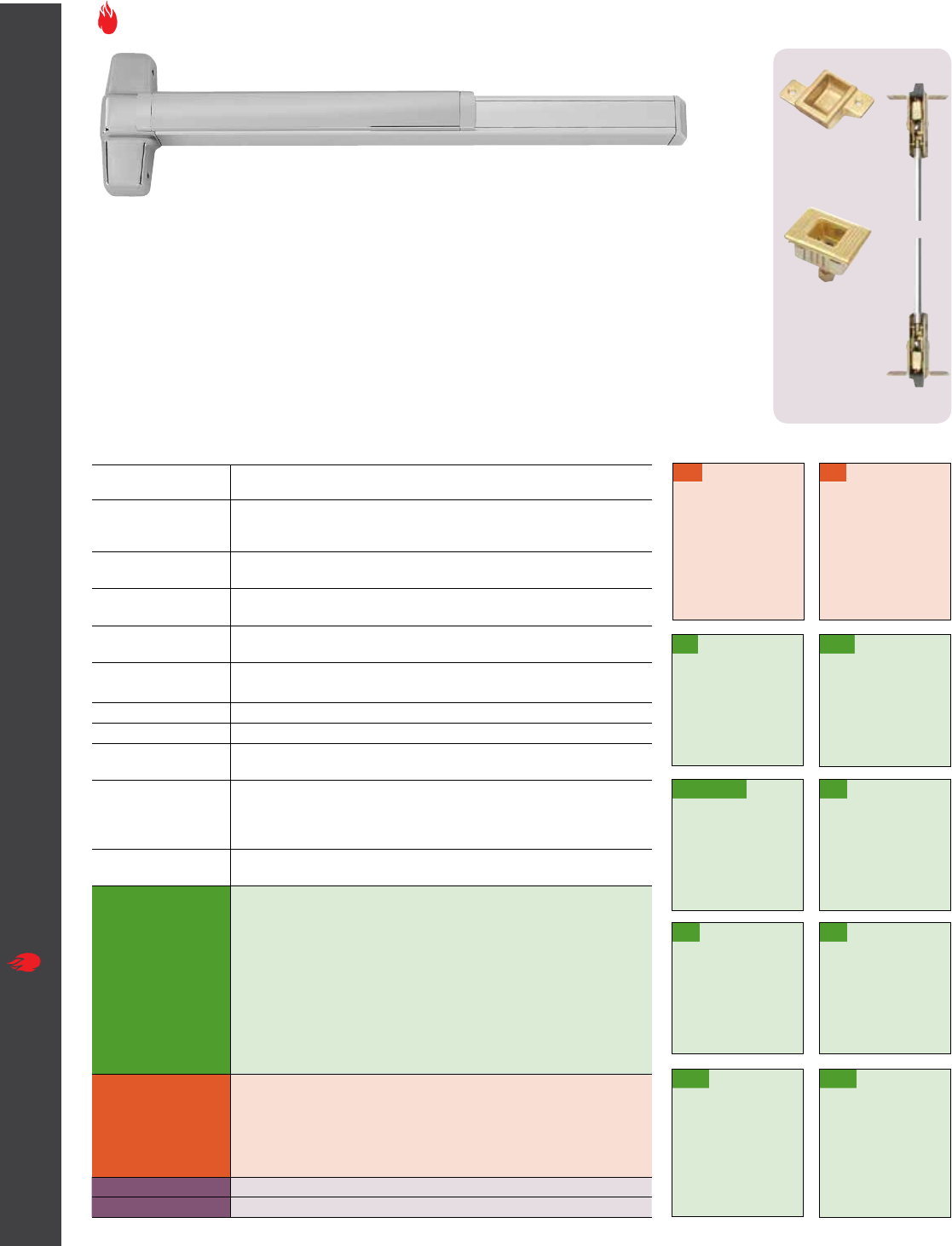

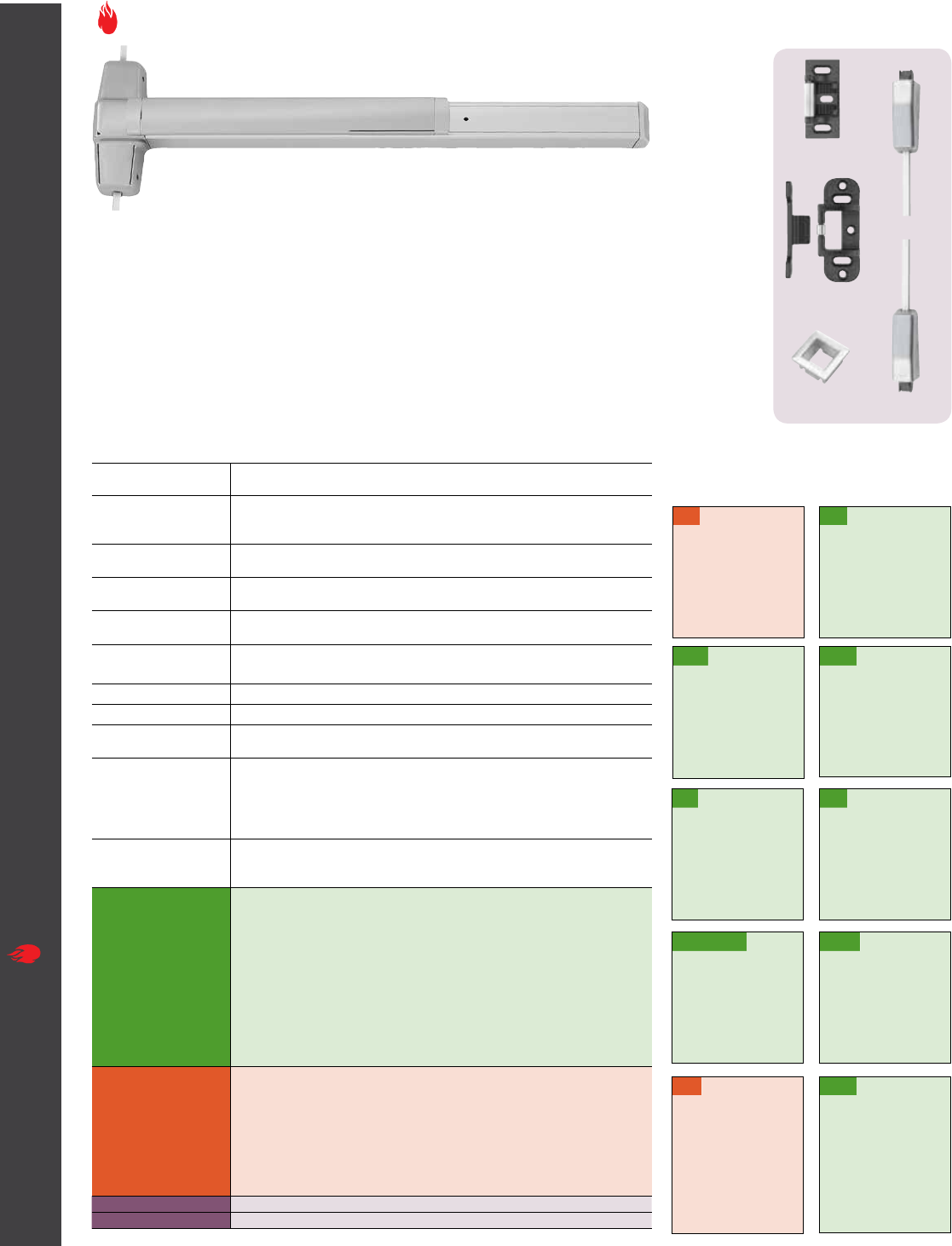

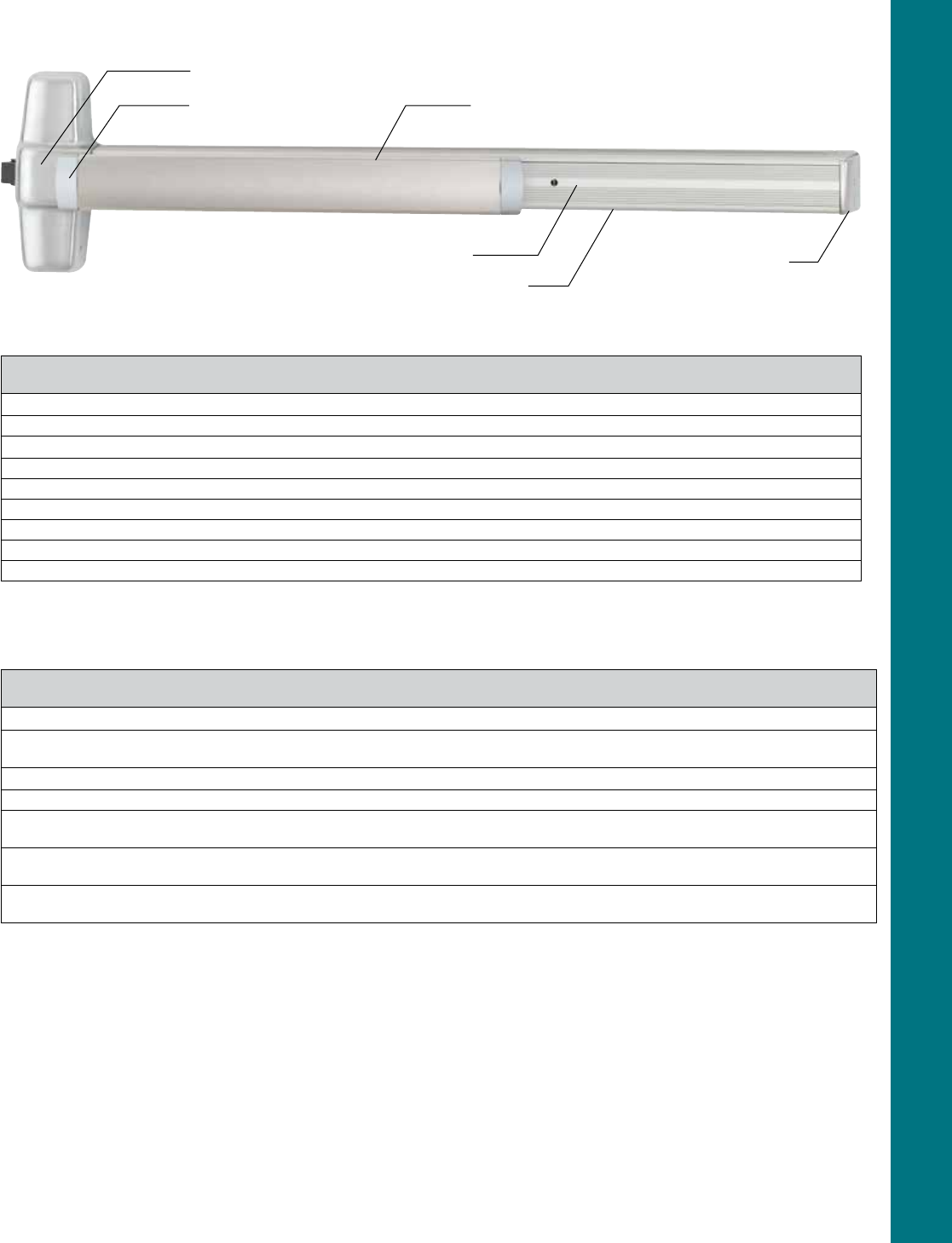

98-F/99-F Rim exit device
98-F/99-F Rim exit device
98-F and 99-F Rim fire exit devices for all types of single doors up to 4' x 10' (1219mm x 3048mm)
or 8' x 10' (2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for fire exit
hardware. See page 68 for detailed information on UL listed fire exit hardware label and door
opening size information. Devices are ANSI A156.3 – 2008 Grade 1. The 98-F device has a smooth
mechanism case and the 99-F device has a grooved case. The rim device is non-handed except
when the following device options are used: -2 (double cylinder) or SS (signal switch). See opposite
page for available outside trim and device functions.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with mullion
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking, 3/4" (19mm) throw
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick
metal or wood doors. Optional 425 SNB available for metal
doors. 425 & 825 SNB required on wood doors without SLM
blocking. See page 11 for quantities.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric locking & unlocking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
-2 Double cylinder
AX Accessible device
GBK Glass bead kit
PN Pneumatic latch retraction
XP Extra protection
SNB Sex bolts
SEC Security screws
SLM Special Laminate Material Blocking
Dogging option No mechanical dogging. EL and QEL option available
Strikes 299F – Dull black, 499F with mullions
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
SG
Safety glow
• Shows exit door
location in
darkness or
smoke
• Developed to
meet MEA
standards
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
XP
Extra protection
• 90˚ latch-to-
strike contact
• Force resistance
of 2,000+ lbs.
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
The 299F Strike ships standard,
optional strikes available
499F Strike with
9854/9954 mullion
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 11

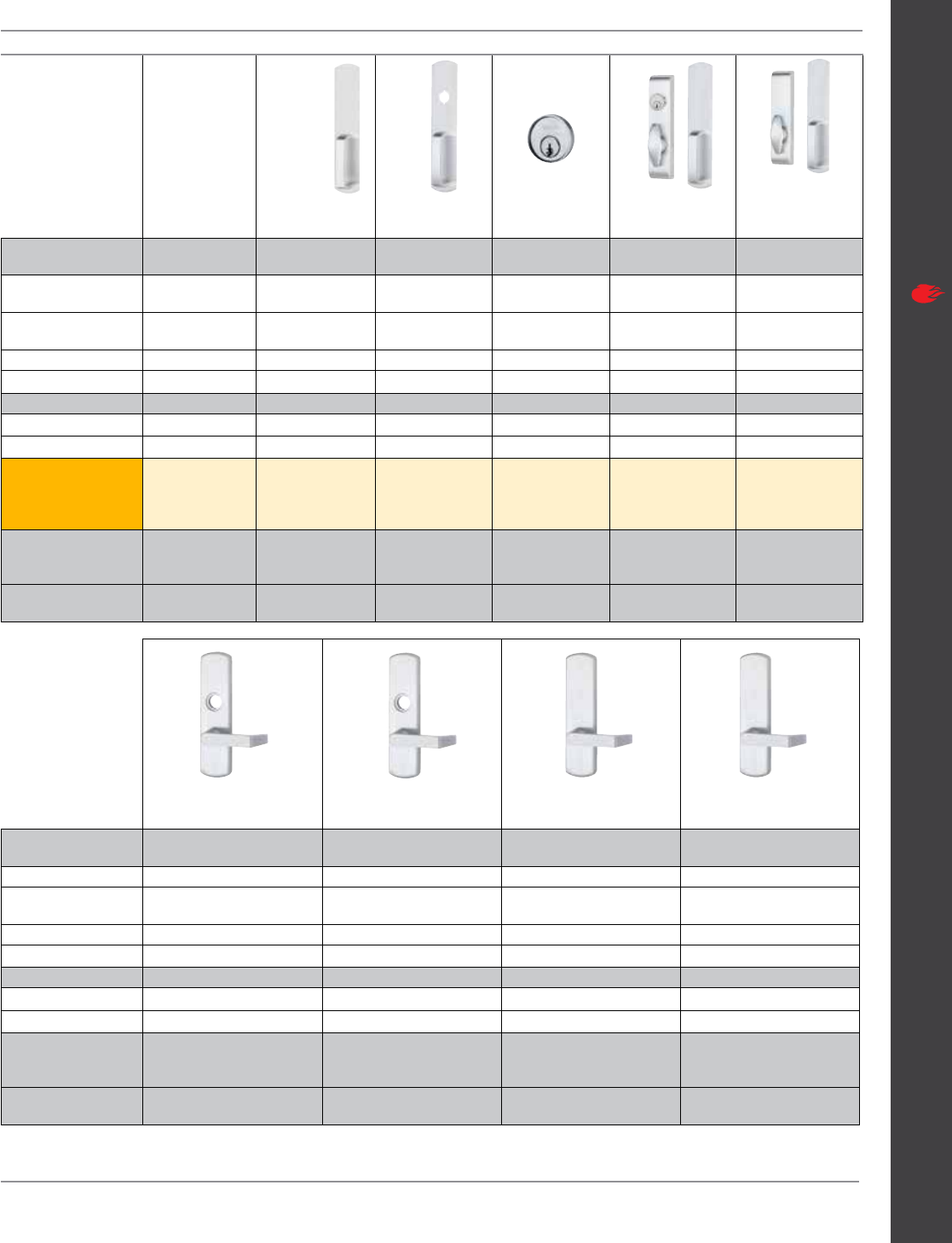

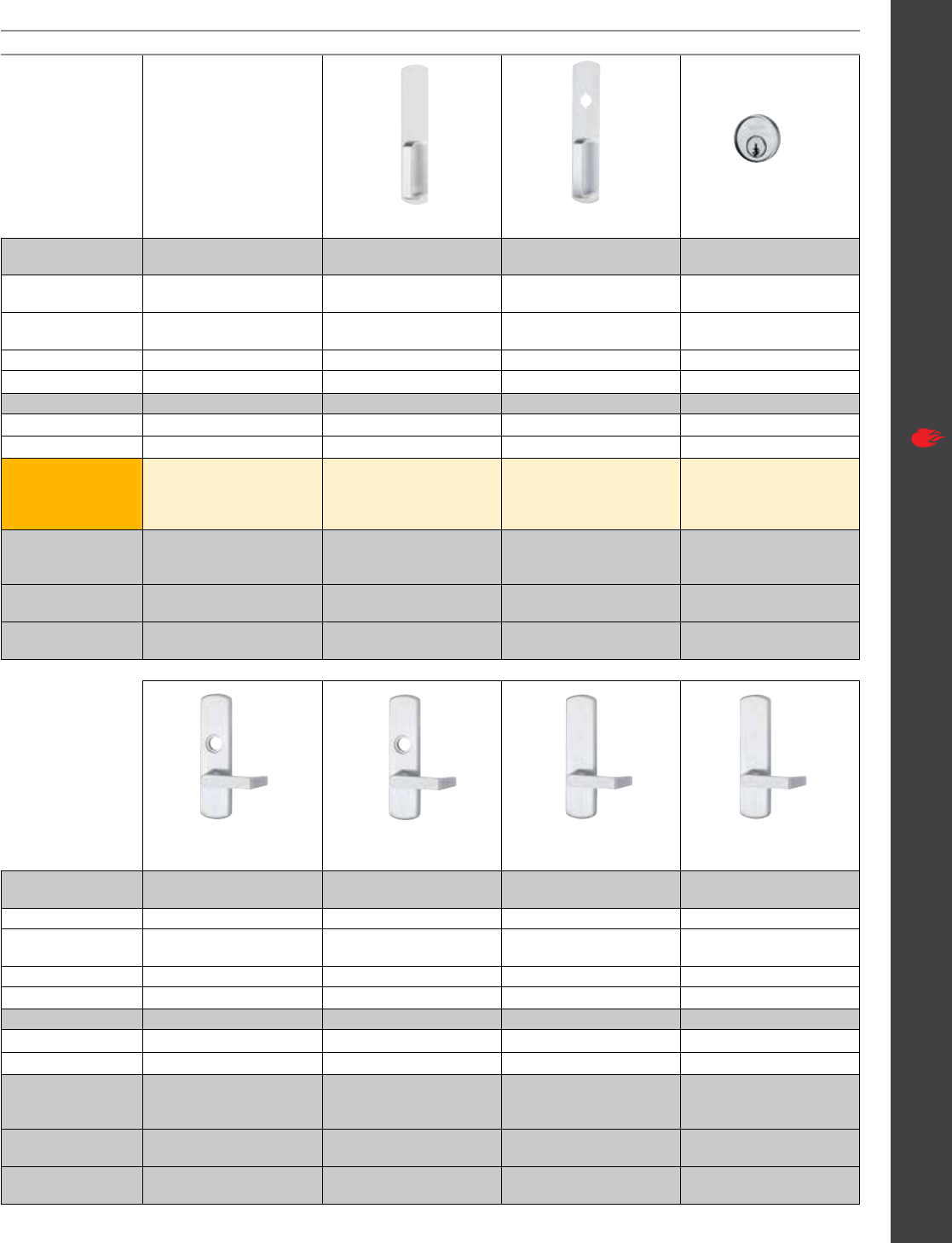

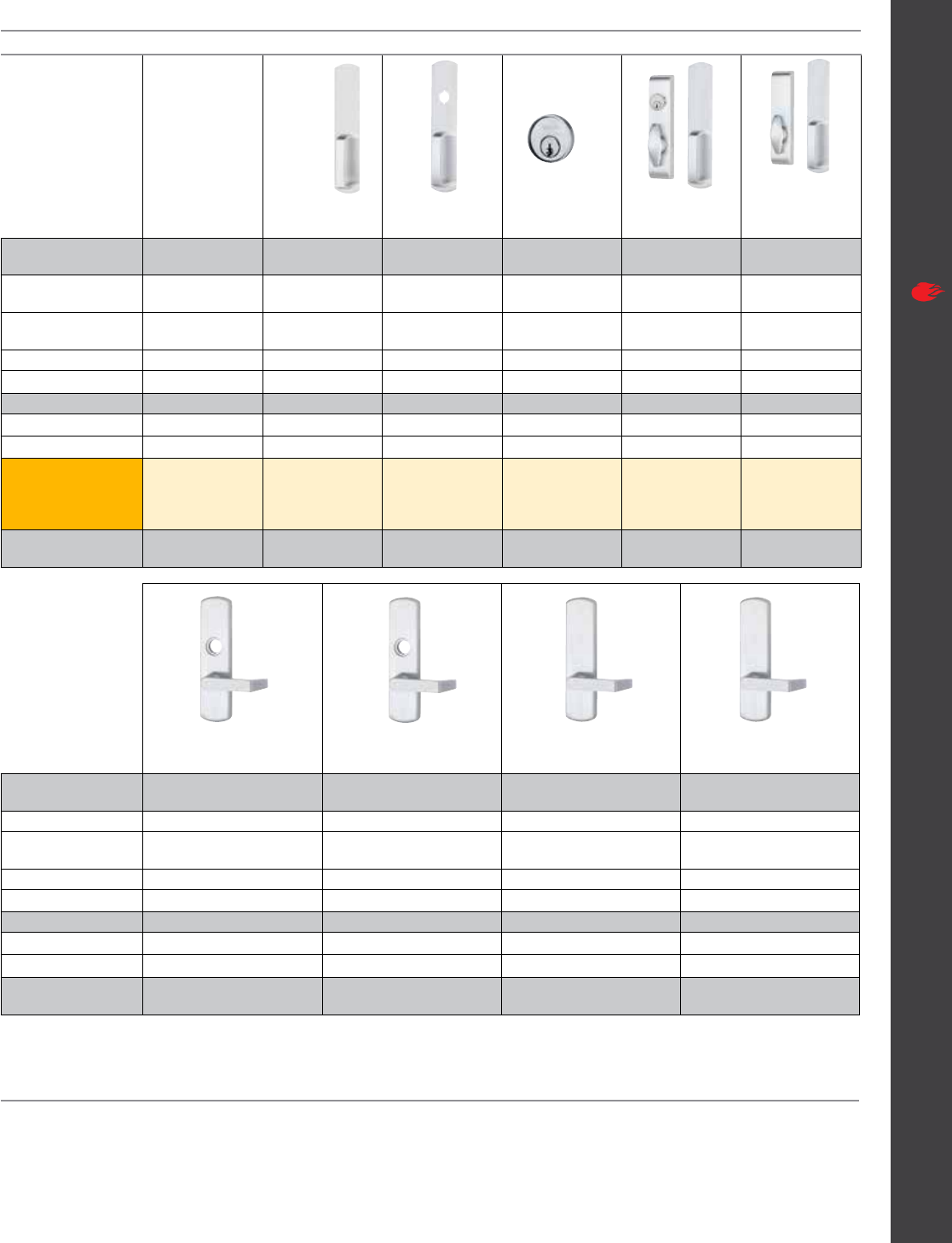

98-F/99-F Rim exit device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 98EO-F
99EO-F
98DT-F
99DT-F
98NL-F
99NL-F
98NL-OP-F
99NL-OP-F
Trim description —990DT 990NL-R/V 110NL-MD
110NL-WD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
#425 SNB optional
- HMD req. WD w/o
SLM pkg.
2222
#825 SNB req. WD
w/o SLM pkg. 2 (if using trim) 222
#425 SNB req.
w/ 499F 2222
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
(not recommended for fire device)
Product description 98L-F
99L-F
98L-NL-F
99L-NL-F
98L-BE-F
99L-BE-F
98L-DT-F
99L-DT-F
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
#425 SNB optional
- HMD req. WD w/o
SLM pkg.
2222
#825 SNB req. WD
w/o SLM pkg. 2 (if using trim) 222
#425 SNB req.
w/ 499F 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
12 • Von Duprin 98/99 Series

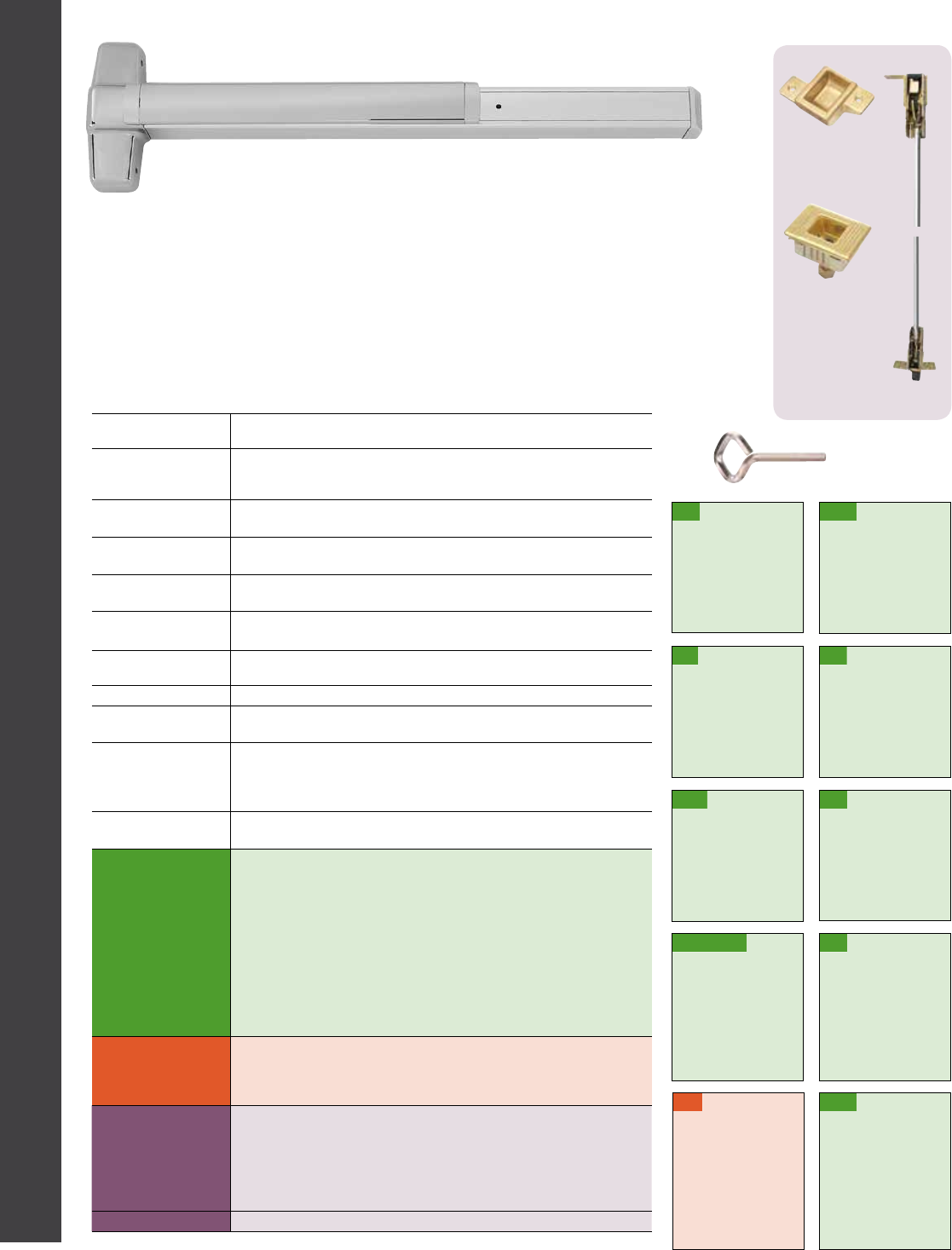

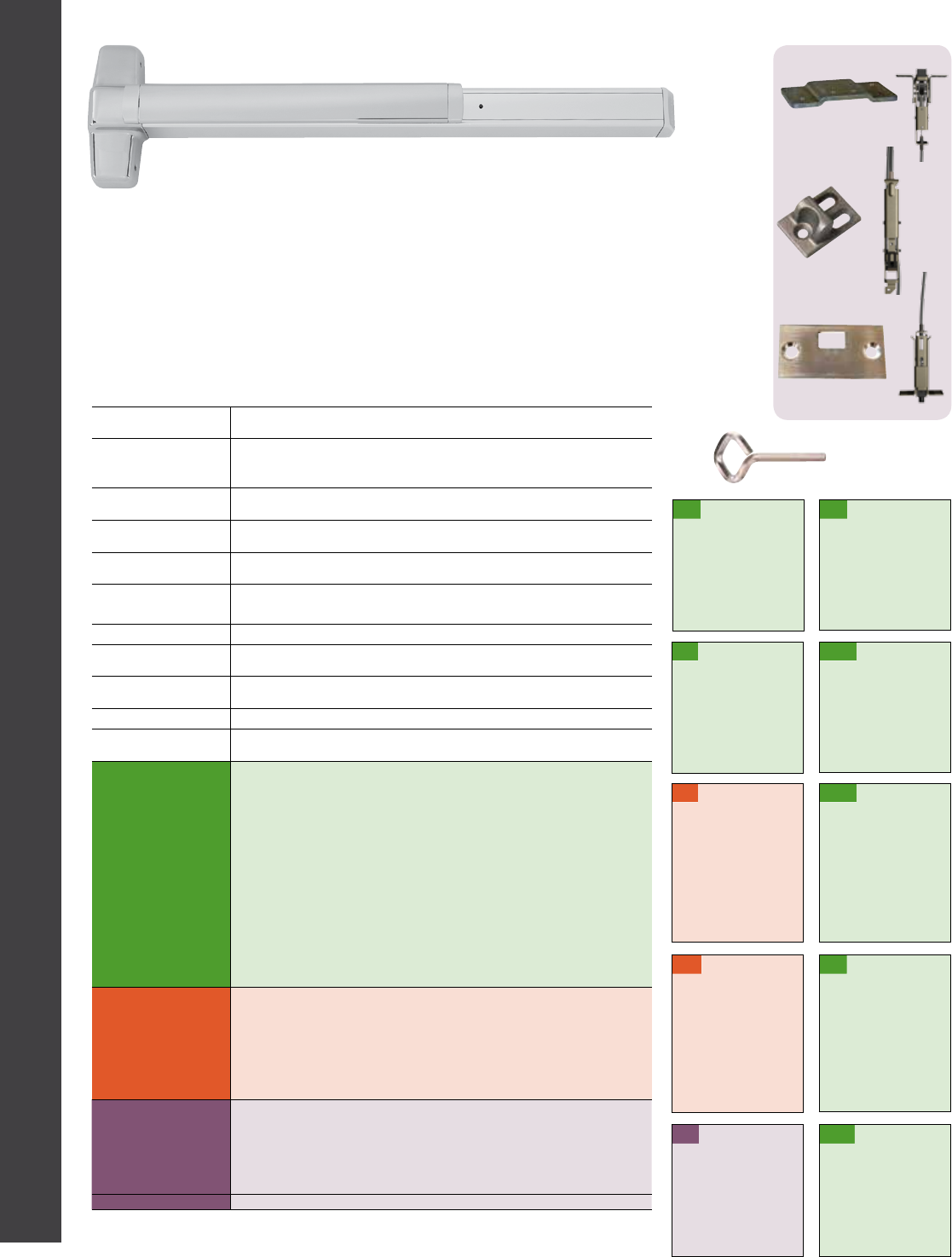

9875/9975 Mortise lock device
9875/9975 Mortise lock device
9875/9975 Mortise lock device for all types of single or double doors, UL listed for Panic exit
hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and
door stiles as narrow as 4 3/4" (121mm). The 9875 device has a smooth mechanism case and the
9975 device has a grooved case. The mortise lock device is non-handed except when the following
device options are used: -2 (double cylinder) or SS (signal switch). See opposite page for available
outside trim and device functions.
The 7500 Mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible
without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a
faceplate with an adjustable bevel.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with mullion
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick
metal or wood doors. Optional 425 SNB available, see page 13
for quantities.
Electric options RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric locking & unlocking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
-2 Double cylinder
GBK Glass bead kit
PN Pneumatic latch retraction
SNB Sex bolts
SEC Security screws
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes 575 – Dull Black
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
SS 7500
Signal switch
• Signals
unauthorized use
of an opening
• Switch makes
latch bolt
tamper-resistant
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
7500 Mortise
Lock
575 Strike
Hex key dogging comes standard on
9875/9975 Mortise Lock Devices
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires 1 1/4"
mortise cylinder
with inverted cam
E (E7500)
Electric mortise
lock device
• Remains latched
while unlocked
• Remote electrical
control
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 13
9875/9975 Mortise lock device

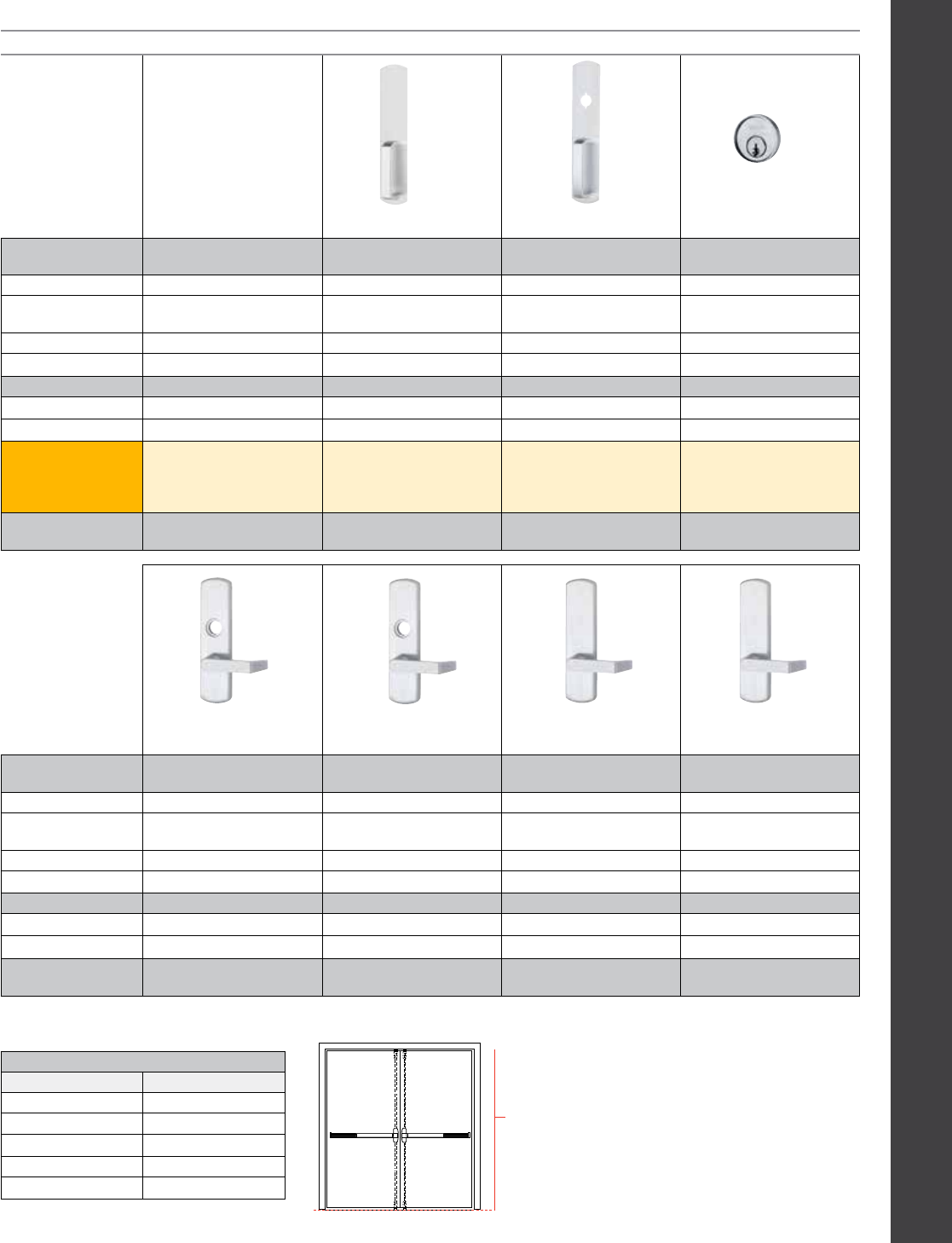

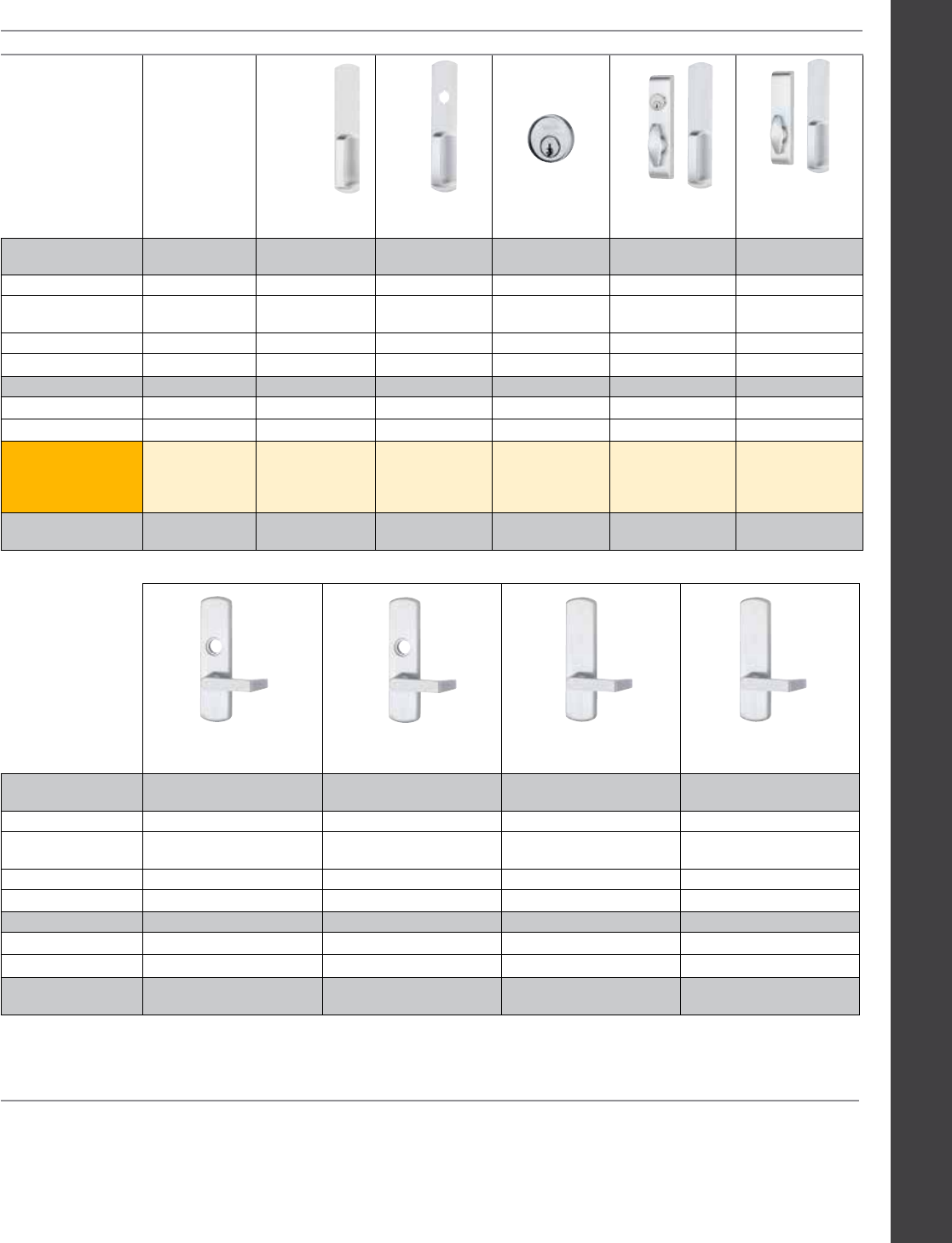

Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for fire device)
Night latch
Key retracts latchbolt
Hospital latch
Key locks & unlocks
Product description 9875EO
9975EO
9875DT
9975DT
9875NL
9975NL
9875HL
9975HL
Trim description —990DT 990NL-M HL6M
Escutcheon plate
size —3" x 14 3/16" x 3/32"
(76x360x2mm)
3" x 14 3/16" x 3/32"
(76x360x2mm)
2 9/16" x 5 1/2" x 2 5/8"
(65x140x67mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) –
Projection —2" (51mm) 2" (51mm) 2 5/8" (67mm)
ANSI function 01 02 03 —
Cylinder type ——1 1/4" Mortise 1 1/4" Mortise
Handing
Optional trim x990EO
x996EO
x996K-DT
x996L-DT)
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9875L
9975L
9875L-NL
9975L-NL
9875L-BE
9975L-BE
9875L-DT
9975L-DT
Trim description 996L-M* 996L-NL-M 996L-BE-M* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type 1 1/4" Mortise 1 1/4" Mortise — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL HL
14 • Von Duprin 98/99 Series
9875-F/9975-F Mortise lock re exit device
9875-F/9975-F Mortise lock re exit device
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw.
Device lengths 3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with mullion
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick
metal or wood doors. Optional 425 SNB available for metal
doors. 425 & 825 SNB required on wood doors without SLM
blocking. See page 11 for quantities.
Electric options RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric locking & unlocking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
-2 Double cylinder
GBK Glass bead kit
PN Pneumatic latch retraction
SNB Sex bolts
SEC Security screws
SLM Special Laminate Material Blocking
Dogging option No Mechanical Dogging. EL and QEL option available
Strikes 575 – Dull Black
SS 7500
Signal switch
• Signals
unauthorized use
of an opening
• Switch makes
latch bolt
tamper-resistant
E (E7500)
Electric mortise
lock device
• Remains latched
while unlocked
• Remote electrical
control
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
SG
Safety glow
• Shows exit door
location in
darkness or
smoke
• Developed to
meet MEA
standards
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
7500 Mortise
Lock
575 Strike
9875-F/9975-F Fire exit mortise lock devices for all types of single doors up to 4' x 10' (1219mm x
3048mm) or 8' x 10' (2438mm x 3048mm) double doors installations, UL listed for fire exit
hardware; See page 68 for detailed information on UL listed fire exit hardware label and door
opening size information. Devices are ANSI A156.3 – 2008 Grade 1. Fits door stiles as narrow as 4 3/4"
(121mm). The 9875-F device has a smooth mechanism case and the 9975-F device has a grooved
case. The mortise lock device is non-handed except when the following device options are used: -2
(double cylinder) or SS (signal switch) devices. See opposite page for available outside trim and
functions.
The 7500 Mortise lock is equipped with 3/4" (19mm) anti-friction latch bolt which is field reversible
without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a
faceplate with an adjustable bevel.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 15
9875-F/9975-F Mortise lock re exit device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for fire device)
Night latch
Key retracts latchbolt
Hospital latch
Key locks & unlocks
Product description 9875EO-F
9975EO-F
—
—
9875NL-F
9975NL-F
9875HL-F
9975HL-F
Trim description —990DT 990NL-M HL6M
Escutcheon plate
size —3" x 14 3/16" x 3/32"
(76x360x2mm)
3" x 14 3/16" x 3/32"
(76x360x2mm)
2 9/16" x 5 1/2" x 2 5/8"
(65x140x67mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) –
Projection —2" (51mm) 2" (51mm) 2 5/8" (67mm)
ANSI function 01 02 03 —
Cylinder type ——1 1/4" Mortise 1 1/4" Mortise
Handing
Optional trim x990EO
x996EO
x996K-DT
x996L-DT)
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
(not recommended for fire device)
Product description 9875L-F
9975L-F
9875L-NL-F
9975L-NL-F
9875L-BE-F
9975L-BE-F
—
—
Trim description 996L-M* 996L-NL-M 996L-BE-M* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type 1 1/4" Mortise 1 1/4" Mortise — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL HL
16 • Von Duprin 98/99 Series

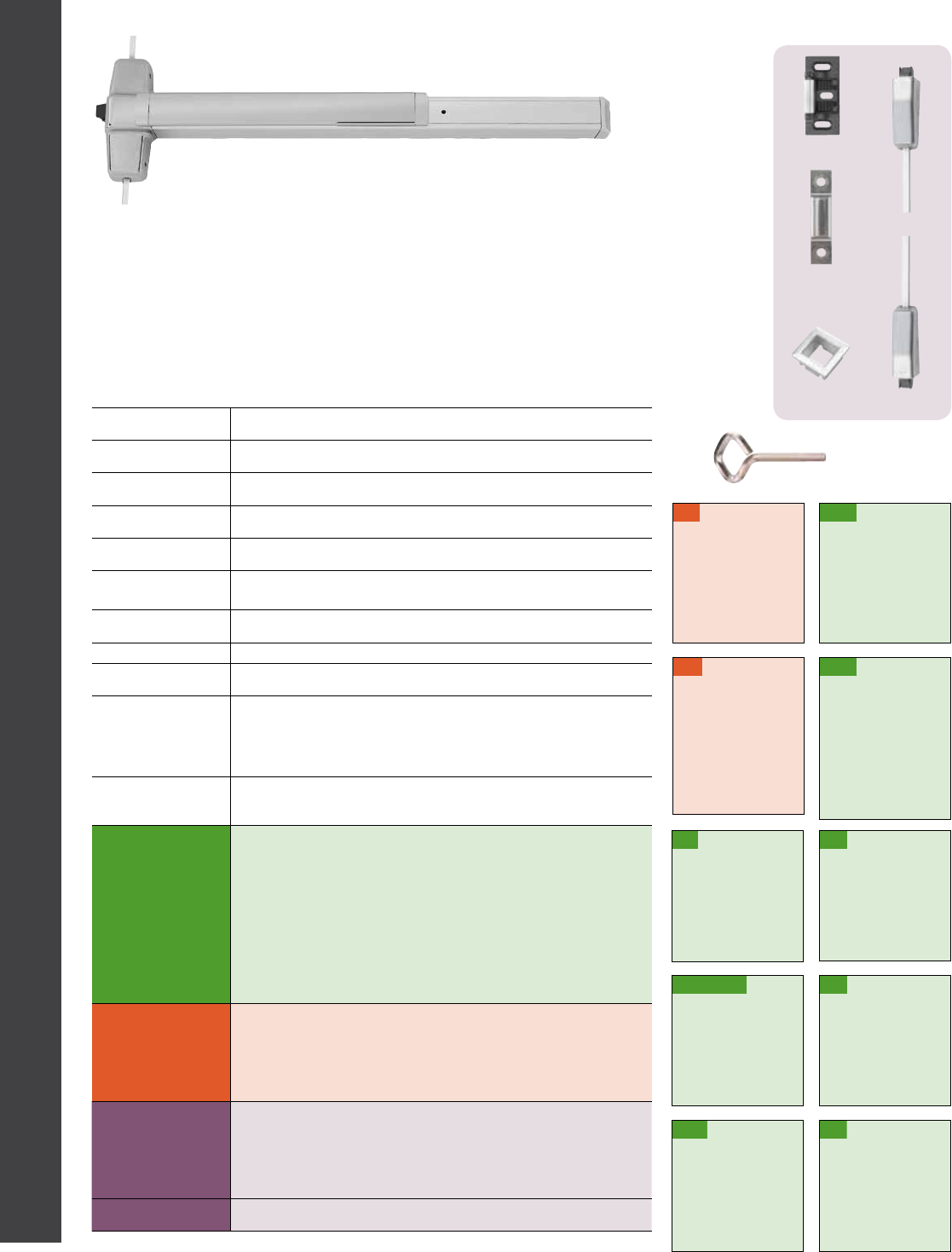

9827/9927 Surface mounted vertical rod device
9827/9927 Surface mounted vertical rod device
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for
panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with
86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved
case. The surface vertical rod device is non-handed except when the following device options are
used: SD (special dogging), or SS (signal switch). See opposite page for available outside trim and
functions.Vertical rod and latch guards are available to protect the bottom rod of the exit device from
damage by impacts of carts or gurneys passing through doors.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt, 5/8" (16mm) throw
Door undercut 1/4" (7mm) recommended
Top & bottom
Latch case
4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods 1/2" square tubing, standard rods accommodate 7' (2134mm)
doors. Top rod length: 34 15/16" (887mm); Bottom rod length:
31 1/2" (794mm) Extension rods available in 1' (205mm) or 3'
(914mm) for doors over 7'. One piece top rod is available for 8'
(2438mm) and 10' (3048mm) doors.
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal or wood doors, and 325 SNB for top and bottom latch.
Optional 425 SNB available.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
PN Pneumatic latch retraction
LBR Less bottom rod
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PL Pullman latch
WS Tornado and hurricane tested
SNB Sex bolts
SEC Security screws
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top - 299 – Dull black, Bottom – 248L4 & 304L - Unfinished
SS
Signal switch
• Signals
unauthorized use
of an opening
• Switch makes
latch bolt
tamper-resistant
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9827/9927
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
WS
Windstorm
• Severe weather
certified/tested
• FEMA and ICC
compliant
• Tornado &
hurricane tested
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
299 Top strike
248L4 Bottom
Strike for use with
flat threshold
304L
Bottom strike
Top latch
Bottom latch
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 17
9827/9927 Surface mounted vertical rod device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9827EO
9927EO
9827DT
9927DT
9827NL
9927NL
9827NL-OP
9927NL-OP
9827TL
9927TL
9827TL-BE
9927TL-BE
Trim description —990DT 990NL-R/V 110NL-MD
110NL-WD 374T X 990DT 374T-BE X
990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —1 11/16" x 7 1/2" x 7/8"
(43x191x22mm)
1 11/16" x 7 1/2" x 7/8"
(43x191x22mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) ———
Projection —2" (51mm) 2" (51mm) — 3 1/4" (83mm) 3 1/4" (83mm)
ANSI function 01 02 03 03 11 or 12 16
Cylinder type ——Rim Rim 1 1/4" Mortise —
Handing ——————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9827L
9927L
9827L-NL
9927L-NL
9827L-BE
9927L-BE
9827L-DT
9927L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
18 • Von Duprin 98/99 Series

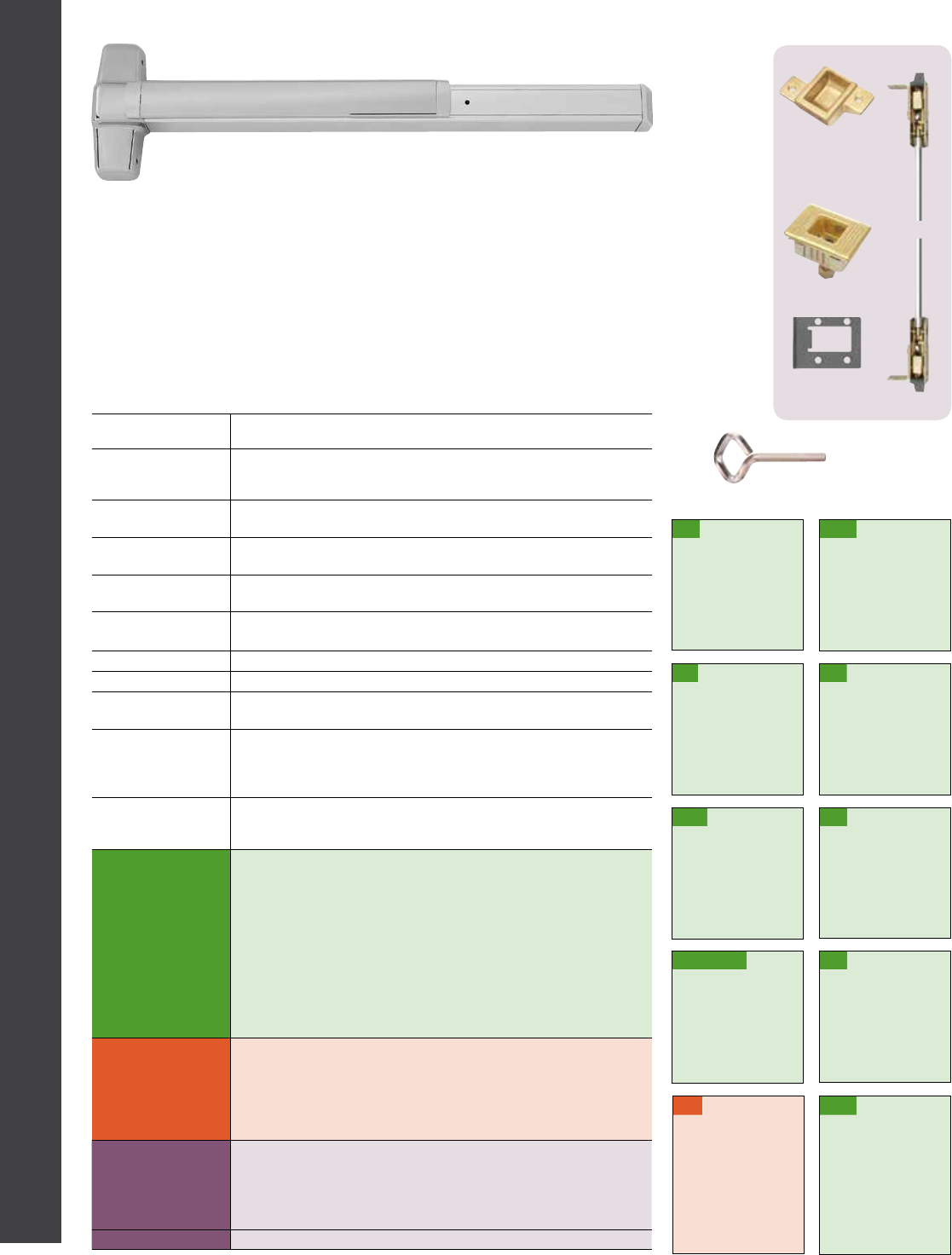

9827-F/9927-F Surface mounted vertical rod device
9827-F/9927-F Fire exit surface mounted vertical rod device pairs of doors up to 8' x 10'
(2438mm x 3048mm) , UL listed for fire exit hardware. See page 68 for detailed information on
UL listed fire exit hardware label and door opening size information. Devices are ANSI A156.3 –
2008 Grade 1. The 9827-F device has a smooth mechanism case and the 9927-F device has a
grooved case. The surface vertical rod device is non-handed except when the following device
options are used: SS (signal switch). See opposite page for available outside trim and device
functions. Vertical rod and latch guards are available to protect the bottom rod of the exit device
from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be
used on hollow metal or tin clad composite fire doors.
Finishes – US3, US4, US10, US26, US26D, US28 & 313. US15 and US32D available with 98
Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt, 5/8" (16mm) throw
Door undercut 1/4" (7mm) recommended
Top & bottom
Latch case
4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods 1/2" square tubing, standard rods accommodate 7' (2134mm)
doors. Top rod length: 34 15/16" (887mm); Bottom rod length:
31 1/2" (794mm) Extension rods available in 1' (205mm) or 3'
(914mm) for doors over 7'. One piece top rod is available for 8'
(2438mm) and 10' (3048mm) doors.
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal or wood doors, and 325 SNB for top and bottom latch.
Optional 425 SNB available.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
LBR Less bottom rod
PL Pullman latch
WS Tornado and hurricane tested
SNB Sex bolts
SEC Security screws
SLM Special laminate material blocking
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top – 299F (499F LBR) Dull black, Bottom – 304L - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
WS
Windstorm
• Severe weather
certified/tested
• FEMA and ICC
compliant
• Tornado &
hurricane tested
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LBR
Less bottom rod
• Available with UL
Fire Label
• For pairs of
vertical rod
devices
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
299 Top strike
499F
Top strike - LBR
304L
Bottom strike
Top latch
Bottom latch
9827-F/9927-F Surface Mounted Vertical Rod Fire Device
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 19
9827-F/9927-F Surface mounted vertical rod device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for
fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9827EO-F
9927EO-F
—
—
9827NL-F
9927NL-F
9827NL-OP-F
9927NL-OP-F
9827TL-F
9927TL-F
9827TL-BE-F
9927TL-BE-F
Trim description —990DT 990NL-R/V 110NL-MD
110NL-WD 374T X 990DT 374T-BE X
990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —1 11/16" x 7 1/2" x 7/8"
(43x191x22mm)
1 11/16" x 7 1/2" x 7/8"
(43x191x22mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) ———
Projection —2" (51mm) 2" (51mm) —2" (51mm) 2" (51mm)
ANSI function 01 02 03 03 11 or 12 16
Cylinder type ——Rim Rim 1 1/4" Mortise —
Handing ——————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
(not recommended for fire device)
Product description 9827L-F
9927L-F
9827L-NL-F
9927L-NL-F
9827L-BE-F
9927L-BE-F
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
20 • Von Duprin 98/99 Series

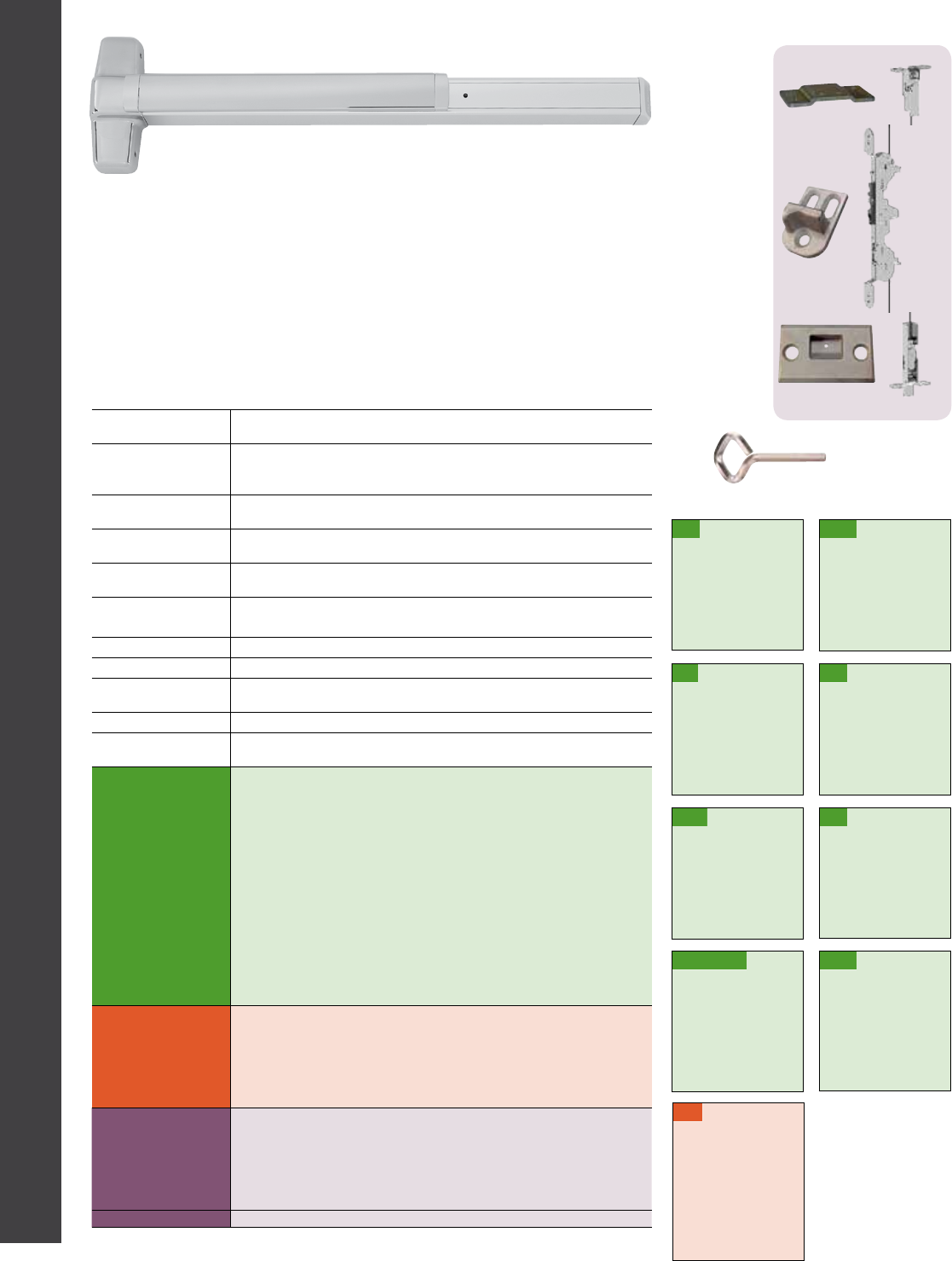

9857/9957 Three-point latching device
9857/9957 Three-point latching device
9857/9957 Three-point latching device for all types of single or double doors, UL listed for panic
exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or
161 cutouts. The 9857 device has a smooth mechanism case and the 9957 device has a grooved case.
The three-point latching device is non-handed except when the following device options are used:
SD (special dogging), or SS (signal switch). See opposite page for available outside trim and
functions. Vertical rod and latch guards are available to protect the bottom rod of the exit device
from damage by impacts of carts or gurneys passing through doors.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
3913/16" (1011 mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt, 5/8" (16mm) throw
Deadlocking rim bolt, 3/4" (19mm) throw
Door undercut 1/4" (7mm) recommended
Top & bottom
Latch case
4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods 1/2" square tubing, standard rods accommodate 7' (2134mm)
doors. Top rod length: 34 15/16" (887mm); Bottom rod length:
31 1/2" (794mm) Extension rods available in 1' (205mm) or 3'
(914mm) for doors over 7'. One piece top rod is available for 8'
(2438mm) and 10' (3048mm) doors.
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal or wood doors, and 325 SNB for top and bottom latch.
Optional 425 SNB available.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
PL Pullman latch
WS Tornado and hurricane tested
SNB Sex bolts
SEC Security screws
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top & middle – 299 - Dull black
Bottom – 248L4 & 304L - Unfinished
SS
Signal switch
• Signals
unauthorized use
of an opening
• Switch makes
latch bolt
tamper-resistant
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9857/9957
Three-point latching
devices
WS
Windstorm
• Severe weather
certified/tested
• FEMA and ICC
compliant
• Tornado &
hurricane tested
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
299 Top & middle
strike
248L4 Bottom
Strike for use with
flat threshold
304L
Bottom strike
Top latch
Bottom latch
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 21
9857/9957 Three-point latching device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for
fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9857EO
9957EO
9857DT
9957DT
9857NL
9957NL
9857NL-OP
9957NL-OP
9857TL
9957TL
9857TL-BE
9957TL-BE
Trim description —990DT 990NL-R/V 110NL-MD
110NL-WD 374T X 990DT 374T-BE X 990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) —2" (51mm) 2" (51mm)
ANSI function 01 02 03 03 11 or 12 16
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9857L
9957LF
9857L-NL
9957L-NL
9857L-BE
9957L-BE
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
22 • Von Duprin 98/99 Series
9857-F/9957-F Three-point latching re exit device
9857-F/9957-F Fire exit three-point latching device for all types of single doors up to 4' x 8'
(1219mm x 2438mm) or up to 8' x 8'(2438mm x 2438mm) double doors with 9954 or 9854
mullion, UL listed for fire exit hardware. See page 68 for detailed information on UL listed fire
exit hardware label and door opening size information. Devices are ANSI A156.3 – 2008 Grade 1.
The 9857-F device has a smooth mechanism case and the 9957-F device has a grooved case.
The three-point latch device is non-handed except when the following device option is used:
SS (signal switch). See opposite page for available outside trim and device functions. Vertical
rod and latch guards are available to protect the bottom rod of the exit device from damage by
impacts of carts or gurneys passing through doors.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313,
315 & 643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
3913/16" (1011 mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt, 5/8" (16mm) throw
Deadlocking rim bolt, 3/4" (19mm) throw
Door undercut 1/4" (7mm) recommended
Top & bottom
Latch case
4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods 1/2" square tubing, standard rods accommodate 7' (2134mm)
doors. Top rod length: 34 15/16" (887mm); Bottom rod length:
31 1/2" (794mm) Extension rods available in 1' (205mm) or 3'
(914mm) for doors over 7'. One piece top rod is available for 8'
(2438mm) and 10' (3048mm) doors.
Fasteners & sex
bolts (SNB)
Includes screw pack for 13/4" (44mm) and 2 1/4" (57mm) thick
metal or wood doors, and 325 SNB for top and bottom latch.
Optional 425 SNB available for metal doors. 425 SNB required
on wood doors without SLM blocking.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
SNB Sex bolts
SEC Security screws
SLM Special laminate material blocking
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top & middle – 299 - Dull black
Bottom – 304L - Unfinished
299 Top & middle
strike
304L
Bottom strike
Top latch
Bottom latch
499F Rim Strike
for Mullion
Applications
9857-F/9957-F Three-point latching re exit device
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
RG
Rod guard
• Protection from
carts/gurneys
• Eases wheelchair
access
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 23
9857-F/9957-F Three-point latching re exit device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for
fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9857EO-F
9957EO-F
9857DT-F
9957DT-F
9857NL-F
9957NL-F
9857NL-OP-F
9957NL-OP-F
9857TL-F
9957TL-F
9857TL-BE-F
9957TL-BE-F
Trim description —990DT 990NL-R/V 110NL-MD
110NL-WD 374T X 990DT 374T-BE X 990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) —2" (51mm) 2" (51mm)
ANSI function 01 02 03 03 11 or 12 16
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
6 2 2 6 2 2
#425 SNB req.
w/ 499F 2 2 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9857L-F
9957L-F
9857L-NL-F
9957L-NL-F
9857L-BE-F
9957L-BE-F
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
2222
#425 SNB req.
w/ 499F 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
Notes
24 • Von Duprin 98/99 Series

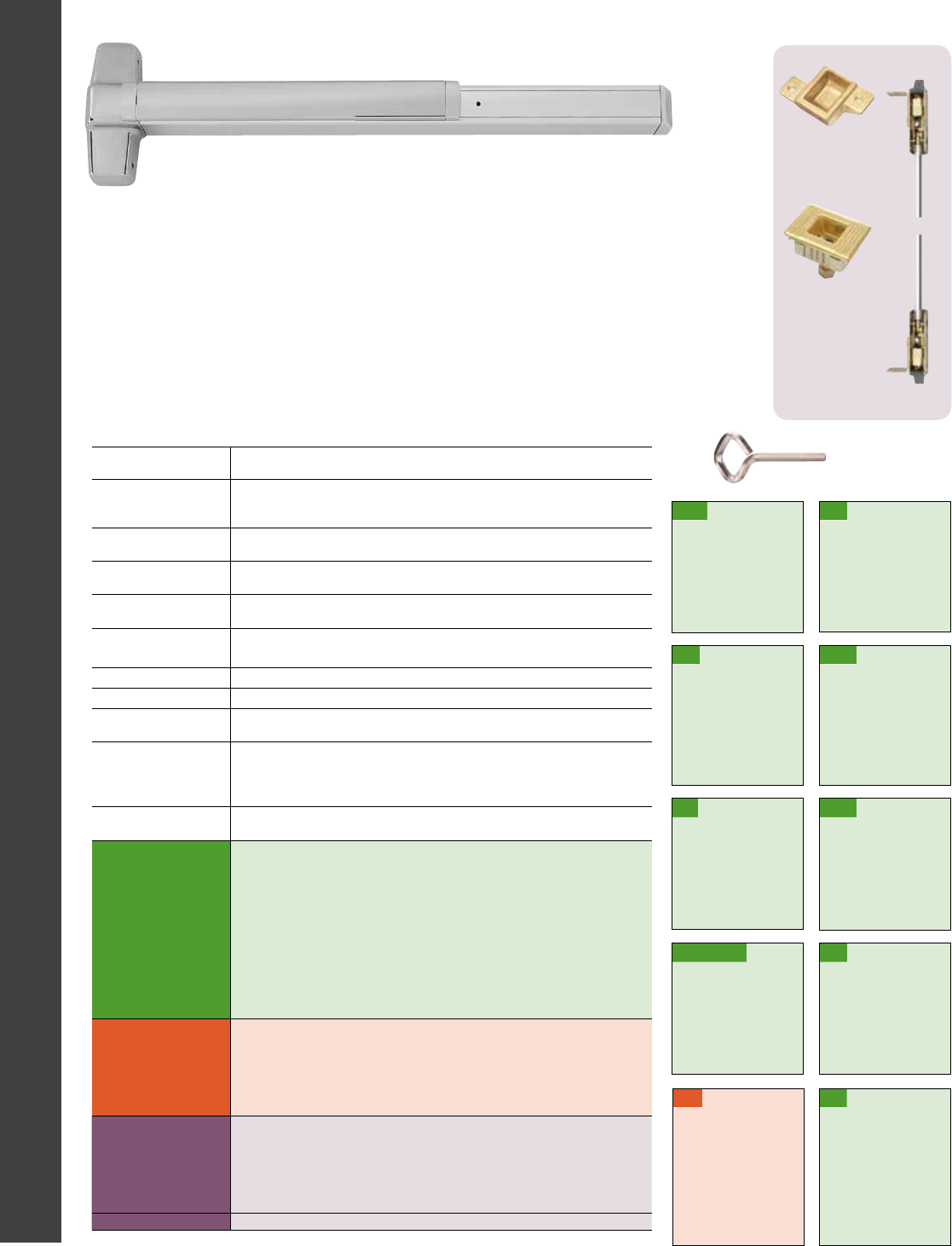

9847/9947 Concealed vertical rod device
9847/9947 Concealed vertical rod device
9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for
panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 9847 device has a smooth
mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is
non-handed except when the following device options are used: SD (special dogging), or SS (signal
switch). See opposite page for available outside trim and device functions.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Adjustable from 355/8" (905mm) to 495/8" (1260mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt, 5/8" (16mm) throw
Door undercut 1/4" (7mm) recommended
Top & bottom
Latch case
4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods Round 2-piece adjustable rods – Top rod adjustable from 6'8"
(2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8"
(905 mm) to 49 5/8" (1260 mm). Extension rod kits available for
doors over 8'4" (2533mm).
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal doors. Optional 425 SNB available.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
LBR Less bottom rod
PL Pullman latch
SNB Sex bolts
SEC Security screws
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top – 338 - Unfinished, Bottom – 385A - Unfinished
DI
Dogging indicator
• Monitor dogging
status without a
control panel
• Red indicator
light shows
visibility to
dogging from
over 75 feet
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9847/9947
Concealed vertical rod
devices
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
338
Top Strike
385A
Bottom Strike
Top Latch
Bottom Latch
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 25
9847/9947 Concealed vertical rod device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for
fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9847EO
9947EO
9847DT
9947DT
9847NL
9947NL
9847NL-OP
9947NL-OP
9847TL
9947TL
9847TL-BE
9947TL-BE
Trim description —990DT 990NL-R/V 110NL-MD 376T X 990DT 374T-BE X 990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) —2" (51mm) 2" (51mm)
ANSI function 01 02 03 03 11 or 12 16
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9847L
9947LF
9847L-NL
9947L-NL
9847L-BE
9947L-BE
9847L-DT
9947L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
26 • Von Duprin 98/99 Series
9847-F/9947-F Concealed vertical rod re exit device
9847-F/9947-F Fire exit concealed vertical rod device for use on pairs of doors up to 8' x 10'
(2438mm x 3048mm) , UL listed for fire exit hardware. See page 68 for detailed information on
UL listed fire exit hardware label and door opening size information. Devices are ANSI A156.3
– 2008 Grade 1. The 9847-F device has a smooth mechanism case and the 9947-F device has a
grooved case. The concealed vertical rod device is non-handed except when the following device
option is used: SS (signal switch) devices. See opposite page for available outside trim and
functions.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313,
315 & 643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Adjustable from 355/8" (905mm) to 495/8" (1260mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt, 5/8" (16mm) throw
Door undercut 1/4" (7mm) recommended
Top & bottom
Latch case
3 3/4" x 1 1/2" x 1" (95mm x 38mm x 25mm)
Vertical rods Round 2-piece adjustable rods – Top rod adjustable from 6'8"
(2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8"
(905 mm) to 49 5/8" (1260 mm). Extension rod kits available for
doors over 8'4" (2533mm).
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal doors. Optional 425 SNB available.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
LBR Less bottom rod
PN Pneumatic latch retraction
GBK Glass bead kit
SNB Sex bolts
SEC Security screws
SLM Special laminate material blocking
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top – 338 - Unfinished, Bottom – 385A - Unfinished
9847-F/9947-F Concealed vertical rod re exit device
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
RG
Rod guard
• Protection from
carts/gurneys
• Eases wheelchair
access
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
338
Top Strike
385A
Bottom Strike
Top Latch
Bottom Latch
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 27
9847-F/9947-F Concealed vertical rod re exit device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for
fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9847EO-F
9947EO-F
—
—
9847NL-F
9947NL-F
9847NL-OP-F
9947NL-OP-F
9847TL-F
9947TL-F
9847TL-BE-F
9947TL-BE-F
Trim description —990DT 990NL-R/V 110NL-MD 376T X 990DT 374T-BE X 990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) —2" (51mm) 2" (51mm)
ANSI function 01 02 03 03 11 or 12 16
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9847L-F
9947L-F
9847L-NL-F
9947L-NL-F
9847L-BE-F
9947L-BE-F
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
Notes
28 • Von Duprin 98/99 Series
9848/9948 Concealed vertical rod device
9848/9948 Concealed vertical rod device
9848/9948 Concealed vertical rod device for use on single or double metal doors, UL listed for
panic exit hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Devices are ANSI A156.3
– 2008 Grade 1. The 9848 device has a smooth mechanism case and the 9948 device has a grooved
case. The concealed vertical rod device is non-handed except when the following device options are
used:SD (special dogging), or SS (signal switch). See opposite page for available outside trim and
functions.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Adjustable from 355/8" (905mm) to 495/8" (1260mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top bolt, 3/4" (19mm) throw
Deadlocking bottom bolt, 1 1/2" (38mm) throw
Door undercut 3/4" (19mm) maximum, more than 1/4" minimum
Top & bottom
Latch case
4 1/4" x 1 1/2" x 1 1/8" (107mm x 38mm x 28mm)
Vertical rods Round 2-piece adjustable rods – Top rod adjustable from 6'8"
(2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8"
(905 mm) to 49 5/8" (1260 mm). Extension rod kits available for
doors over 8'4" (2533mm).
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal doors. Optional 425 SNB available.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
SNB Sex bolts
SEC Security screws
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top – 338 - Unfinished, Bottom – 385A - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9848/9948
Concealed vertical rod
devices
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
338
Top Strike
385A
Bottom Strike
Top Latch
Bottom Latch
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
SS
Signal switch
• Signals
unauthorized use
of an opening
• Switch makes
latch bolt
tamper-resistant
SG
Safety glow
• Shows exit door
location in
darkness or
smoke
• Developed to
meet MEA
standards
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 29
9848/9948 Concealed vertical rod device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9848EO
9948EO
9848DT
9948DT
9848NL
9948NL
9848NL-OP
9948NL-OP
9848TL
9948TL
9848TL-BE
9948TL-BE
Trim description —990DT 990NL-R/V 110NL-MD 374T X 990DT 374T-BE X 990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) — 3 1/4" (83mm) 3 1/4" (83mm)
ANSI function 01 02 03 03 11 —
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9848L
9948LF
9848L-NL
9948L-NL
9848L-BE
9948L-BE
9848L-DT
9948L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
30 • Von Duprin 98/99 Series
9848-F/9948-F Concealed vertical rod re exit device
9848-F/9948-F Concealed vertical rod device for use on pairs of doors up to 8' x 10'
(2438mm x 3048mm), UL listed for fire exit hardware. See page 68 for detailed information on
UL listed fire exit hardware label and door opening size information. Devices are ANSI A156.3 –
2008 Grade 1. The 9848-F device has a smooth mechanism case and the 9948-F device has a
grooved case. The concealed vertical rod device is non-handed except when the following device
option is used: SS (signal switch). See opposite page for available outside trim and functions.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313,
315 & 643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Adjustable from 355/8" (905mm) to 495/8" (1260mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top bolt, 3/4" (19mm) throw
Deadlocking bottom bolt, 1 1/2" (38mm) throw
Door undercut 3/4" (19mm) maximum, more than 1/4" minimum
Top & bottom
Latch case
4 1/4" x 1 1/2" x 1 1/8" (107mm x 38mm x 28mm)
Vertical rods Round 2-piece adjustable rods – Top rod adjustable from 6'8"
(2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8"
(905 mm) to 49 5/8" (1260 mm). Extension rod kits available for
doors over 8'4" (2533mm).
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal doors. Optional 425 SNB available.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
SNB Sex bolts
SEC Security screws
SLM Special laminate material blocking
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top – 338 - Unfinished, Bottom – 385A - Unfinished
9848-F/9948-F Concealed vertical rod re exit device
338
Top Strike
385A
Bottom Strike
Top Latch
Bottom Latch
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
SS
Signal switch
• Signals
unauthorized use
of an opening
• Switch makes
latch bolt
tamper-resistant
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 31
9848-F/9948-F Concealed vertical rod re exit device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for
fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9848EO-F
9948EO-F
—
—
9848NL-F
9948NL-F
9848NL-OP-F
9948NL-OP-F
9848TL-F
9948TL-F
9848TL-BE-F
9948TL-BE-F
Trim description —990DT 990NL-R/V 110NL-MD 374T X 990DT 374T-BE X 990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) — 3 1/4" (83mm) 3 1/4" (83mm)
ANSI function 01 02 03 03 11 —
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
(not recommended for fire device)
Product description 9848L-F
9948L-F
9848L-NL-F
9948L-NL-F
9848L-BE-F
9948L-BE-F
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
Notes
32 • Von Duprin 98/99 Series
9849/9949 Concealed vertical cable device
9849/9949 Concealed vertical cable device
9849/9949 Concealed vertical cable device for use on single or double metal doors, UL listed for
panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 9849 device has a smooth
mechanism case and the 9949 device has a grooved case. The concealed vertical cable device is
non-handed except when the following device options are used: SD (special dogging), or SS (signal
switch). See opposite page for available outside trim and device functions.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt, 1/2" (13mm) throw
Door undercut 3/4" (19mm) maximum
(24231516 spacer block kit needed for 3/4" undercut)
Top & bottom
latch case
5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cable 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal doors. Optional 425 SNB available.
Electric options ALK Alarm exit kit
CX Chexit delayed exit
E Electric unlocking and locking trim
EL Electric latch retraction
HD-EL Electric latch retraction w/ hex dogging
QEL Quiet electric latch retraction
*LX Latchbolt monitor switch
RX2 Double pushpad monitor switch
RX996L Trim monitor switch
RX Pushpad monitor switch
RXLC Pushpad monitor switch - low current
SS Signal switch
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
LBL Less bottom latch
AX Accessible device (LBL only)
PN Pneumatic latch retraction
SEC Security screws
SG Safety glow
SNB Sex bolts
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top - 249 – Unfinished, Bottom – 349 - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9849/9949
concealed vertical cable
devices
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires
standard 1 1/4"
mortise cylinder
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
Top latch
Center
slide
249
Top strike
338
Top strike
retrofit bracket
349
Bottom strike Bottom latch
*For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor
latchbolt condition.
DI
Dogging indicator
• Monitor dogging
status without a
control panel
• Red indicator
light shows
visibility to
dogging from
over 75 feet
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
Von Duprin 98/99 Series • 33
9849/9949 Concealed vertical cable device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 9849EO
9949EO
9849DT
9949DT
9849NL
9949NL
9849NL-OP
9949NL-OP
Trim description —990DT 990NL-R/V 110NL-MD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9849L
9949L
9849L-NL
9949L-NL
9849L-BE
9949L-BE
9849L-DT
9949L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
Standard door opening height
Feet Inches
6'8" 80"
7' 84"
8' 96"
9' 108"
10' 120"
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door opening height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
34 • Von Duprin 98/99 Series
9849/9949 Concealed vertical cable device for use on single or double metal doors, UL listed for
panic exit hardware. See page 68 for detailed information on UL listed fire exit hardware label and
door opening size information. Devices are ANSI A156.3 – 2008 Grade 1. The 9849 device has a
smooth mechanism case and the 9949 device has a grooved case. The concealed vertical cable
device is non-handed except when the following device options are used: SD (special dogging),
or SS (signal switch). See opposite page for available outside trim and device functions.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315
& 643E. US15 and US32D available with 98 Series only.
Top latch
Center
slide
249
Top strike
338
Top strike
retrofit bracket
349
Bottom strike Bottom latch
*For 98/9949 devices, LX switch monitors trim input or
electric dogging of EL/QEL devices. LX switch does not
monitor latchbolt condition.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt, 5/8" (16mm) throw
Door undercut 3/4" (19mm) maximum
(24231516 spacer block kit needed for 3/4" undercut)
Top & bottom
Latch case
5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cable 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
metal doors. Optional 425 SNB available.
Electric options ALK Alarm exit kit
CX Chexit delayed exit
E Electric unlocking and locking trim
EL Electric latch retraction
HD-EL Electric latch retraction w/ hex dogging
QEL Quiet electric latch retraction
*LX Latchbolt monitor switch
RX2 Double pushpad monitor switch
RX996L Trim monitor switch
RX Pushpad monitor switch
RXLC Pushpad monitor switch - low current
SS Signal switch
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
LBL Less bottom latch
AX Accessible device (LBL only)
PN Pneumatic latch retraction
SEC Security screws
SG Safety glow
SNB Sex bolts
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top – 249 - Unfinished, Bottom – 349 - Unfinished
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
SS
Signal switch
• Signals
unauthorized use
of an opening
• Switch makes
latch bolt
tamper-resistant
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
9848-F/9948-F Concealed vertical rod re exit device
9849-F/9949-F Concealed vertical cable re exit device
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
Von Duprin 98/99 Series • 35
9848-F/9948-F Concealed vertical rod re exit device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 9849EO-F
9949EO-F
—
—
9849NL-F
9949NL-F
9849NL-OP-F
9949NL-OP-F
Trim description —990DT 990NL-R/V 110NL-MD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
(not recommended for fire device)
Product description 9849L-F
9949L-F
9849L-NL-F
9949L-NL-F
9849L-BE-F
9949L-BE-F
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
Standard door opening height
Feet Inches
6'8" 80"
7' 84"
8' 96"
9' 108"
10' 120"
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door opening height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
36 • Von Duprin 98/99 Series
9847WDC/9947WDC Wood door concealed vertical rod device
9847WDC/9947WDC Wood door concealed vertical rod device
9847WDC/9947WDC Concealed vertical rod device for use on single or double wood doors, UL listed
for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 9847WDC device has a smooth
mechanism case and the 9947WDC device has a grooved case. The concealed vertical rod device is
non-handed except when the following device options are used: SD (special dogging), or SS (signal
switch). See opposite page for available outside trim and functions.
Scalp plate – Device is furnished standard with an 8" (203mm) long scalp plate for easy access to
rods.
Note: Do not use on pair of doors with 9875/9975.
Finishes – US3, US4, US10, US26, US26D, US28 & 313. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Adjustable from 355/8" (905mm) to 495/8" (1260mm)
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top bolt, 5/8" (16mm) throw
Door undercut 1/4" (7mm) maximum
Top & bottom
Latch case
3 3/4" x 1 1/2" x 1" (95mm x 38mm x 25mm)
Vertical rods Round 2-piece adjustable rods – Top rod adjustable from 6'8"
(2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8"
(905 mm) to 49 5/8" (1260 mm). Extension rod kits available for
doors over 8'4" (2533mm).
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
wood doors. 425 SNB required on wood doors without SLM
blocking.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
PL Pullman latch
LBR Less bottom rod
SNB Sex bolts
SEC Security screws
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top – 338 - Unfinished, Bottom – 385A - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9847/9947
Wood door concealed
vertical rod devices
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
338
Top Strike
385A
Bottom Strike
Top Latch
Bottom Latch
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
PL
Pullman latch
• Not for use with
Fire Exit
Hardware
283 Top Strike
for use with wood
frames
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 37
9847WDC/9947WDC Wood door concealed vertical rod device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9847WDC-EO
9947WDC-EO
9847WDC-DT
9947WDC-DT
9847WDC-NL
9947WDC-NL
9847WDCNL-OP
9947WDCNL-OP
9847WDC-TL
9947WDC-TL
9847WDC-TL-BE
9947WDC-TL-BE
Trim description —990DT 990NL-R/V 110NL-WD 376TWDC x
990DT
376TWDC-BE x
990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) —2" (51mm) 2" (51mm)
ANSI function 01 02 03 03 11 or 12 16
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9847WDC-L
9947WDC-L
9847WDC-L-NL
9947WDC-L-NL
9847WDC-L-BE
9947WDC-L-BE
9847WDC-L-DT
9947WDC-L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
38 • Von Duprin 98/99 Series
9847WDC-F/9947WDC-F Fire exit concealed vertical rod device for use on pairs of doors up to
8'0" x 9' 3" (2438mm x 2819mm) double wood doors, UL listed for fire exit hardware. See page 68
for detailed information on UL listed fire exit hardware label and door opening size information.
Devices are ANSI A156.3 – 2008 Grade 1. The 9847WDC-F device has a smooth mechanism case and
the 9947WDC-F device has a grooved case. The concealed vertical rod device is non-handed except
when the following device options are used: SS (signal switch). See Opposite page for available
outside trim and functions.
Scalp Plate – Device is furnished standard with an 8" (203mm) long scalp plate for easy access
to rods. Note: Do not use on pair of doors with 9875-F/9975-F.
Finishes – US3, US4, US10, US26, US26D, US28 & 313. US15 and US32D available with 98 Series
only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt, 5/8" (16mm) throw
Door undercut 1/4" (7mm) maximum
Top & bottom
Latch case
3 3/4" x 1 1/2" x 1" (95mm x 38mm x 25mm)
Vertical rods Round 2-piece adjustable rods – Top rod adjustable from 6'8"
(2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8"
(905 mm) to 49 5/8" (1260 mm). Extension rod kits available for
doors over 8'4" (2533mm).
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
wood doors. 425 SNB required on wood doors without SLM
blocking.
Electric options LX Latchbolt monitor switch
RX Pushpad monitor switch
RX2 Double pushpad monitor switch
E Electric unlocking and locking trim
EL Electric latch retraction
QEL Quiet electric latch retraction
SS Signal switch
CX Chexit delayed exit
ALK Alarm exit kit
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
PN Pneumatic latch retraction
PL Pullman latch
LBR Less bottom rod
SNB Sex bolts
SEC Security screws
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top – 338 - Unfinished, Bottom – 385A - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
9847WDC-F/9947WDC-F Wood door concealed vertical rod re device
9847WDC-F/9947WDC-F Wood door concealed vertical rod re device
338
Top Strike
385A
Bottom Strike
Top Latch
Bottom Latch
283 Top Strike
for use with wood
frames
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 39
9847WDC-F/9947WDC-F Wood door concealed vertical rod re device
9847WDC-F/9947WDC-F Wood door concealed vertical rod re device
Notes
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Thumbturn
Key locks & unlocks
(use with DT trim)
Thumbturn
Blank escutcheon
always operable
(no cylinder)
(use with DT trim)
Product description 9847WDC-EO-F
9947WDC-EO-F
9847WDC-DT-F
9947WDC-DT-F
9847WDC-NL-F
9947WDC-NL-F
9847WDCNL-OP-F
9947WDCNL-OP-F
9847WDC-TL-F
9947WDC-TL-F
9847WDC-TL-BE-F
9947WDC-TL-BE-F
Trim description —990DT 990NL-R/V 110NL-WD 376TWDC x
990DT
376TWDC-BE x
990DT
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) — — —
Projection —2" (51mm) 2" (51mm) —2" (51mm) 2" (51mm)
ANSI function 01 02 03 03 11 —
Cylinder type — — Rim Rim 1 1/4" Mortise —
Handing — — — — — —
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x996L-NL
x696NL
x697NL
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
6 2 2 6 2 2
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9847WDC-L-F
9947WDC-L-F
9847WDC-L-NL-F
9947WDC-L-NL-F
9847WDC-L-BE-F
9947WDC-L-BE-F
9847WDC-L-DT-F
9947WDC-L-DT-F
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
#425 SNB optional
- HMD req. WD
w/o SLM pkg.
2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP TL TL-BE
40 • Von Duprin 98/99 Series
9849WDC/9949WDC Wood door concealed vertical cable device
9849WDC/9949WDC Wood door concealed vertical cable device
9849WDC/9949WDC Concealed vertical cable device for use on single or double wood doors, UL
listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 9847WDC device has a
smooth mechanism case and the 9947WDC device has a grooved case. The concealed vertical cable
device is non-handed except when the following device options are used: SD (special dogging), or SS
(signal switch). See Opposite page for available outside trim and functions.
Scalp Plate – Device is furnished standard with an 8" (203mm) long scalp plate for easy access to
cables.
Note: Do not use on pair of doors with 9975 devices.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt. 1 1/2" (38mm) throw
Door undercut 3/8" undercut (10mm)
Top & bottom
Latch case
5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
wood doors. 425 SNB required on wood doors without SLM
blocking.
Electric options ALK Alarm exit kit
CX Chexit delayed exit
E Electric unlocking and locking trim
EL Electric latch retraction
HD-EL Electric latch retraction w/ hex dogging
QEL Quiet electric latch retraction
*LX Latchbolt monitor switch
RX2 Double pushpad monitor switch
RX996L Trim monitor switch
RX Pushpad monitor switch
RXLC Pushpad monitor switch - low current
SS Signal switch
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
LBL Less bottom latch
PN Pneumatic latch retraction
SEC Security screws
SG Safety glow
SNB Sex bolts
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top - 249 – Unfinished, Bottom – 349 - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9849/9949
Wood door concealed
vertical cable devices
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
Top latch
Center
slide
249
Top strike
338
Top strike
retrofit bracket
349
Bottom strike Bottom latch
*For 98/9949 devices, LX switch
monitors trim input or electric
dogging of EL/QEL devices. LX
switch does not monitor
latchbolt condition.
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 41
9849WDC/9949WDC Wood door concealed vertical cable device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 9849WDC-EO
9949WDC-EO
9849WDC-DT
9949WDC-DT
9849WDC-NL
9949WDC-NL
9849WDC-NL-OP
9949WDC-NL-OP
Trim description —990DT 990NL-R/V 110NL-WD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9849WDC-L
9949WDC-L
9849WDC-L-NL
9949WDC-L-NL
9849WDC-L-BE
9949WDC-L-BE
9849WDC-L-DT
9949WDC-L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
Standard door opening height
Feet Inches
6'8" 80"
7' 84"
8' 96"
9' 108"
10' 120"
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door opening height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
42 • Von Duprin 98/99 Series
9849WDC-F/9949WDC-F Fire exit concealed vertical cable device for use on pairs of doors up to
8'0" x 8' 0" (2438mm x 2438mm) double wood doors, UL listed for fire exit hardware. See page 68 for
detailed information on UL listed fire exit hardware label and door opening size information. Devices are
ANSI A156.3 – 2008 Grade 1. The 9849WDC-F device has a smooth mechanism case and the
9949WDC-F device has a grooved case. The concealed vertical cable device is non-handed except
when the following device options are used: SS (signal switch). See opposite page for available outside
trim and functions.
Scalp Plate – Device is furnished standard with an 8" (203mm) long scalp plate for easy access
to cables.
Note: Do not use on pair of doors with 9975 devices.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt, 1 1/2" (38mm) throw
Door undercut 3/8" undercut (10mm)
Top & bottom
Latch case
5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
wood doors. 425 SNB required on wood doors without SLM
blocking.
Electric options ALK Alarm exit kit
CX Chexit delayed exit
E Electric unlocking and locking trim
EL Electric latch retraction
HD-EL Electric latch retraction w/ hex dogging
QEL Quiet electric latch retraction
*LX Latchbolt monitor switch
RX2 Double pushpad monitor switch
RX996L Trim monitor switch
RX Pushpad monitor switch
RXLC Pushpad monitor switch - low current
SS Signal switch
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
LBL Less bottom latch
PN Pneumatic latch retraction
SEC Security screws
SG Safety glow
SNB Sex bolts
SLM Special laminate material blocking
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top – 249 - Unfinished, Bottom – 349 - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
9849WDC-F/9949WDC-F Wood door concealed vertical rod re device
9849WDC-F/9949WDC-F Wood door concealed vertical cable re device
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
Top latch
Center
slide
249
Top strike
338
Top strike
retrofit bracket
349
Bottom strike Bottom latch
*For 98/9949 devices, LX switch monitors trim input or
electric dogging of EL/QEL devices. LX switch does not
monitor latchbolt condition.
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 43
9849WDC-F/9949WDC-F Wood door concealed vertical cable re device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 9849WDC-EO-F
9949WDC-EO-F
—
—
9849WDC-NL-F
9949WDC-NL-F
9849WDC-NL-OP-F
9949WDC-NL-OP-F
Trim description —990DT 990NL-R/V 110NL-WD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
(not recommended for fire device)
Product description 9849WDC-L-F
9949WDC-L-F
9849WDC-L-NL-F
9949WDC-L-NL-F
9849WDC-L-BE-F
9949WDC-L-BE-F
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
Standard door opening height
Feet Inches
6'8" 80"
7' 84"
8' 96"
9' 108"
10' 120"
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door opening height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
44 • Von Duprin 98/99 Series
9850WDC/9950WDC Wood door concealed vertical cable device
9850WDC/9950WDC Wood door concealed vertical cable device
9850WDC/9950WDC Concealed vertical cable device for use on single or double wood doors,
UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 9850WDC device has
a smooth mechanism case and the 9950WDC device has a grooved case. The concealed vertical cable
device is non-handed except when the following device options are used: SD (special dogging),
or SS (signal switch). See Opposite page for available outside trim and functions.
Scalp Plate – Device is furnished standard with an 15" (381 mm) long scalp plate for easy access
to cables.
Note: Do not use on pair of doors with 9975 devices.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315
& 643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt. 1 1/2" (38mm) throw
Door undercut 3/4" (19mm) maximum
Top & bottom
Latch case
5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
wood doors.
Electric options ALK Alarm exit kit
CX Chexit delayed exit
E Electric unlocking and locking trim
EL Electric latch retraction
HD-EL Electric latch retraction w/ hex dogging
QEL Quiet electric latch retraction
*LX Latchbolt monitor switch
RX2 Double pushpad monitor switch
RX996L Trim monitor switch
RX Pushpad monitor switch
RXLC Pushpad monitor switch - low current
SS Signal switch
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
LBL Less bottom latch
PN Pneumatic latch retraction
SEC Security screws
SG Safety glow
SNB Sex bolts
Dogging feature Hex key dogging standard
Dogging option CD Cylinder dogging
SD Special center case dogging
LD Less dogging
DI Dogging indicator
CI Cylinder dogging indicator
Strikes Top - 249 – Unfinished, Bottom – 450 - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
Hex key dogging comes
standard on 9850/9950
Wood door concealed
vertical cable devices
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
*For 98/9950WDC devices, LX
switch monitors trim input or
electric dogging of EL/QEL
devices. LX switch does not
monitor latchbolt condition.
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Top latch
Center
slide
249
Top strike
338
Top strike
retrofit bracket
450
Bottom strike Bottom latch
Von Duprin 98/99 Series • 45
9850WDC/9950WDC Wood door concealed vertical cable device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 9850WDC-EO
9950WDC-EO
9850WDC-DT
9950WDC-DT
9850WDC-NL
9950WDC-NL
9850WDC-NL-OP
9950WDC-NL-OP
Trim description —990DT 990NL-R/V 110NL-WD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
Product description 9850WDC-L
9950WDC-L
9850WDC-L-NL
9950WDC-L-NL
9850WDC-L-BE
9950WDC-L-BE
9850WDC-L-DT
9950WDC-L-DT
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
Standard door opening height
Feet Cable tolerance
6'8" - 7' 72" - 84"
7'1" - 8' 85" - 96"
8'1" - 9' 97" - 108"
9'1" - 10' 109" - 120"
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door opening height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
46 • Von Duprin 98/99 Series
9850WDC-F/9950WDC-F Fire exit concealed vertical cable device for use on pairs of doors up to 8'
x 9' 3" (2438mm x 2819mm) double wood doors, UL listed for fire exit hardware. See page 72 for
detailed information on UL listed fire exit hardware label and door opening size information. Devices are
ANSI A156.3 – 2001 Grade 1. The 9850WDC-F device has a smooth mechanism case and the
9950WDC-F device has a grooved case. The concealed vertical cable device is non-handed except
when the following device options are used: SS (signal switch). See opposite page for available outside
trim and functions.
Scalp Plate – Device is furnished standard with an 15" (381 mm) long scalp plate for easy access to
cables.
Note: Do not use on pair of doors with 9975 devices.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 &
643E. US15 and US32D available with 98 Series only.
Specifications
Device functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove
NL drive screw from device.
Device lengths 2' 2" (610 mm) Door size (shipped less UL label)
3' 2'4' to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
395/8" (1006 mm) Standard
Center case
dimensions
8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking top & bottom bolt, 1 1/2" (38mm) throw
Door undercut 3/4" (19mm) maximum
Top & bottom
Latch case
5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick
wood doors.
Electric options ALK Alarm exit kit
CX Chexit delayed exit
E Electric unlocking and locking trim
EL Electric latch retraction
HD-EL Electric latch retraction w/ hex dogging
QEL Quiet electric latch retraction
*LX Latchbolt monitor switch
RX2 Double pushpad monitor switch
RX996L Trim monitor switch
RX Pushpad monitor switch
RXLC Pushpad monitor switch - low current
SS Signal switch
WP-RX Waterproof request to exit
CON Allegion Connect
Mechanical
options
GBK Glass bead kit
LBL Less bottom latch
PN Pneumatic latch retraction
SEC Security screws
SG Safety glow
SNB Sex bolts
SLM Special laminate material blocking
Dogging option No mechanical dogging. EL and QEL option available
Strikes Top – 249 - Unfinished, Bottom – 450 - Unfinished
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode
by key
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage
for mechanical or
pneumatic
dogging
E (E996L)
Electrified
breakaway lever
• Electried remote
locking/unlocking
• Standard in fail
safe condition
QEL
Quiet electric
latch retraction
• Bolt retraction via
switch
• Converts exit
door to push-pull
operation
CX
Chexit delayed
exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
9850WDC-F/9950WDC-F Wood door concealed vertical rod re device
9850WDC-F/9950WDC-F Wood door concealed vertical cable re device
LX
Latchbolt monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor latch bolt
Top latch
Center
slide
249
Top strike
338
Top strike
retrofit bracket
450
Bottom strike Bottom latch
*For 98/9950 devices, LX switch monitors trim input or
electric dogging of EL/QEL devices. LX switch does not
monitor latchbolt condition.
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Von Duprin 98/99 Series • 47
9850WDC-F/9950WDC-F Wood door concealed vertical cable re device
Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
(not recommended for fire device)
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 9850WDC-EO-F
9950WDC-EO-F
—
—
9850WDC-NL-F
9950WDC-NL-F
9850WDC-NL-OP-F
9950WDC-NL-OP-F
Trim description —990DT 990NL-R/V 110NL-WD
Escutcheon plate
size —3" x 14 13/16" x 3/32"
(76x360x2mm)
3" x 14 13/16" x 3/32"
(76x360x2mm) —
Pull center to center — 5 1/2" (140mm) 5 1/2" (140mm) —
Projection —2" (51mm) 2" (51mm) —
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ————
Optional trim x990EO
x996EO
x996K-DT
x996L-DT
x996L-DT
x696DT
x697DT
x996K-NL
x996L-NL
x996L-NL
x696NL
x697NL
Optional #425 SNB
quantity for device 6 2 2 6
Lever
Key locks & unlocks
Lever – night latch
Key retracts latchbolt
Lever – blank escutcheon
Always operable (no cylinder)
Lever dummy trim
pull when dogged
(not recommended for fire device)
Product description 9850WDC-L-F
9950WDC-L-F
9850WDC-L-NL-F
9950WDC-L-NL-F
9850WDC-L-BE-F
9950WDC-L-BE-F
—
—
Trim description 996L-R/V* 996L-NL-R/V 996L-BE-R/V* 996L-DT
Escutcheon plate
size
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
2 3/4" x 10 3/4" x 27/32"
(70x273x21mm)
Pull center to center ————
Projection 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm) 2 7/8" (73mm)
ANSI function 08 03 14 02
Cylinder type Rim Rim — —
Handing Handed/Reversible Handed/Reversible Handed/Reversible Handed/Reversible
Optional #425 SNB
quantity for device 2222
* Electrified lever operation available
EO
LL-NL L-BE L-DT
DT NL NL-OP
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door opening height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
Standard door opening height
Feet Cable tolerance
6'8" - 7' 72" - 84"
7'1" - 8' 85" - 96"
8'1" - 9' 97" - 108"
9'1" - 10' 109" - 120"
48 • Von Duprin 98/99 Series
Trim options
98/99 Optional trim
Knob, exit only and thumbpiece trim – 990 & 996K
Knob
Key locks & unlocks
Knob – night latch
Key retracts
latchbolt
Knob – blank
escutcheon
Always operable
(no cylinder)
Knob – dummy
trim
Pull when dogged Exit only plate
Thumbpiece
Key locks &
unlocks
Thumbpiece
blank
escutcheon
Always operable
(no cylinder) Exit only plate
Trim
description 996K 996K-NL 996K-BE 996K-DT 996EO 990TP 990TP-BE 990EO
Escutcheon
plate size 23/4" x 103/4" x 27/32"
(70x273x21mm)
23/4" x 103/4" x 27/32"
(70x273x21mm)
23/4" x 103/4" x 27/32"
(70x273x21mm)
23/4" x 103/4" x 27/32"
(70x273x21mm)
23/4" x 103/4" x 27/32"
(70x273x21mm)
3" x 143/16" x 3/32"
(76x360x2mm)
3" x 143/16" x 3/32"
(76x360x2mm)
3" x 143/16" x 3/32"
(76x360x2mm)
Pull center
to center ————— 51/2" (140mm) 51/2" (140mm) 51/2" (140mm)
Projection 31/4" (83mm) 31/4" (83mm) 31/4" (83mm) 31/4" (83mm) —2" (51mm) 2" (51mm) Z
ANSI
function 08 09 14 02 01 05 14 14
Cylinder
type
Rim or
vertical rod
device
Rim Rim ——— Rim — —
Mortise lock
device 11/4" Mortise 11/4" Mortise — 11/4" Mortise — —
Handing — — — — — — — —
#425 SNB
optional-
HMD req.
WD w/o
SLM pkg.
2 2 2 2 2 2 2 2
#825 SNB
req. WD w/o
SLM pkg F
Rim device
ONLY
2 2 2 2 2 2 2 2
#425 SNB
req. w/499F 2 2 2 2 2 2 2 2
KK-NL K-BE K-DT EO TP TP-BE EO
Von Duprin 98/99 Series • 49
98/99 Optional trim
Trim options
Optional trims – 696
Optional trims – 697
Dummy trim
Pull when dogged
(not recomended for fire device)
Night latch
Key retracts latchbolt
Thumbpiece
Key locks & unlocks
Thumbpiece – blank
escutcheon
Always operable (no cylinder)
Trim description 696DT 696NL 696TP 696TP-BE
Escutcheon plate size 23/4" x 103/4" x 27/32"
(70x273x21mm)
23/4" x 103/4" x 27/32"
(70x273x21mm)
15/8" x 131/2" x 3/16"
(41x343x5mm)
15/8" x 131/2" x 3/16"
(41x343x5mm)
Pull center to center 51/2" (140mm) 51/2" (140mm) 51/2" (140mm) 51/2" (140mm)
Projection 2 1/6" (52mm) 2 1/6" (52mm) 2 1/6" (52mm) 2 1/6" (52mm)
ANSI function 02 03 05 15
Cylinder type
Rim or vertical
rod device —Rim Rim —
Mortise lock device — 11/4" Mortise 11/4" Mortise —
Handing ————
#425 SNB optional-HMD req.
WD w/o SLM pkg. 2222
#825 SNB req. WD w/o SLM
pkg F Rim device ONLY 2222
#425 SNB req. w/499F 2222
Dummy trim
Pull when dogged
(not recomended for fire device)
Night latch
Key retracts latchbolt
Thumbpiece
Key locks & unlocks
Thumbpiece –
blank escutcheon
Always operable (no cylinder)
Trim description 697DT 697NL 697TP 697TP-BE
Escutcheon plate size 23/4" x 103/4" x 27/32"
(70x273x21mm)
23/4" x 103/4" x 27/32"
(70x273x21mm)
15/8" x 131/2" x 3/16"
(41x343x5mm)
23/4" x 103/4" x 27/32"
(70x273x21mm)
Pull center to center 51/2" (140mm) 51/2" (140mm) 51/2" (140mm) 51/2" (140mm)
Projection 3" (76mm) 3" (76mm) 3" (76mm) 3" (76mm)
ANSI function 02 03 05 15
Cylinder type
Rim or vertical
rod device —Rim Rim —
Mortise lock device — 11/4" Mortise 11/4" Mortise —
Handing ————
#425 SNB optional-HMD req.
WD w/o SLM pkg. 2222
#825 SNB req. WD w/o SLM
pkg F Rim device ONLY 2222
#425 SNB req. w/499F 2222
(3/4"
diameter
pull) (19mm)
(3/4"
diameter
pull) (19mm)
DT
DT
NL
NL
TP
TP
TP-BE
TP-BE
50 • Von Duprin 98/99 Series
Trim options
98/99 Optional trim
Model For use with Size
VR910DT & VR914DT 98/99 Rim or
vertical rod device
51/2" (133mm) w
x 11" (279mm) h
VR910NL & VR914NL 98/99 Rim or
vertical rod device
51/2" (133mm) w
x 11" (279mm) h
VR910M-DT & VR914M-DT 9875/9975
Mortise device
7 1/4" (184mm) w
x 11" (279mm) h
VR910M-NL & VR914M-NL
Handing required
9875/9975
Mortise device
7 1/4" (184mm) w
x 11" (279mm) h
• Meets ANSI/BHMA 156.13, Trim security test and
California State Accessibility Standards Title 24.
• 1 1/2" (38mm) clearence from grip to door,
total projection 1 7/8" (48mm)
• Consult the IVES catalog for complete product information.
Vandal resistant trim: IVES VR910 & VR914 Series
VR910 grip coated in black plastisol for soer
touch and resilience to temperature extremes.
Grip designed for comfortable operation.
VR914 grip in all stainless steel.
Features:
• Stainless steel construction, 11 gauge
(0.120" thick)
• Finish: US32D, only
• Thru-bolts and rugged mounting screws for
maximum fastening strength.
• Built-in lock protector prevents vandalism to
mortise latchbolt (available on certain models).
• Extra-tough stainless steel cylinder collar prevents pipe wrench
or similar tool from damaging cylinder. Tapered design
prevents side impacts from transferring directly to cylinder.
Collar spins freely.
• Furnished with mounting screws for door thicknesses
of 1 3/4" to 2 1/4"
HL6 Hospital pull
Von Duprin and Glynn-Johnson have collaborated on
an exit device trim that answers the problem of
accessibility and performance. Using the Von Duprin
98/9975 mortise lock exit device along with the
Glynn-Johnson HL6 push/pull latch, Allegion has
created an exit device with mortise lock durability
that utilizes a fully ADA compliant Pull paddle trim.
The 98/9975HL device is available in all standard
architectural finishes. Consult the Glynn-Johnson
catalog for complete product information.
392-7 Offset pull
The 392-7 Offset pull is 3/4₄" round stainless
steel, with a 7" center to center which matches
the 98/99 center case. Oen used with a night
latch operation. 3 1/2" (89mm) offset with 1 1/2₂"
(38mm) clearance.
Von Duprin 98/99 Series • 51
98/99 Optional trim
Trim options
This page intentionally le blank
52 • Von Duprin 98/99 Series
Trim options
Schlage AD-Series
Standalone
Standalone locks are a cost-effective solution for doors that do
not require real-time monitoring. The AD-Series standalone
solution provides:
• Upgradability
• Improved credential management
• Audit trail reports
Schlage offers two AD-Series standalone solutions to fit your
environment:
AD-200 Access rights are stored on the lock
AD-250 Access rights are stored on the magnetic stripe credential
Chassis
• Cylindrical
• Mortise
• Mortise deadbolt
• Exit trim*
Locking functions
• Classroom/Storeroom
• Oce
• Privacy
• Apartment
Certifications
• ANSI/BMHA A156.25 • ADA
• ANSI/BHMA Grade 1 • FCC part 15
• UL 294 Listed • RoHS
• UL 10C • FIPS 201-1 (AD-301 and AD-401)
Complete your system
Complete your AD-Series system with readers and credentials,
biometric hand geometry readers, system components, HHD
programming device and other wireless accessories.
* See AD-Series exit trim compatibility Datasheet for complete list of compatability by
manufacturer.
Warm Tone Finishes
Lever styles
Cool Tone Finishes
Credential reader options
AD-Series electronic locks are compatible with many different
brands and technologies of credentials.
• Multi-technology
(reads 125 kHz prox and 1
3.56 MHz smart)
+ KEYPAD
• Magnetic stripe
(insertion)
+ KEYPAD
• Magnetic stripe
(swipe)
+ KEYPAD
• Keypad
Communications options
Networked
In facilities where increased monitoring and control are needed,
a networked solution is essential. The AD-Series networked
options feature:
• Open architecture platform
• Acceptable reader technology
• Real-time monitoring
The AD-Series networked lock is available in either a wireless or
hardwired configuration to fit your application needs.
AD-300 Networked hardwired locks
AD-301 Networked hardwired FIPS 201-1 compliant locks
AD-400 Networked wireless locks
AD-401 Networked wireless FIPS 201-1 compliant locks
Sparta Rhodes Athens Tubular
605 606 612 643e
Bright brass Satin brass Satin bronze Aged bronze
619 625 626 626AM
Satin nickel Bright Satin chrome Satin chrome
chrome with antimicrobial
AD-Series adaptable electronic locks
The AD-Series was designed to be the right choice for today,
and is ready to adapt to whatever the future
holds.
There are a variety of options that allow you
to select the AD-Series electronic lock that’s
right for you, and a wide selection of
features that can be configured in the field
to further customize each opening. When
your needs change in the future, the
innovative modular design of the AD-Series
allows you to easily upgrade the credential
reader or networking option, and adapt to
emerging technologies using your existing
chassis – all without taking the lock off the door. This means
that you can be confident that your choice of the AD-Series is
right for today, and that your investment will be protected into
the future.
Von Duprin 98/99 Series • 53
Schlage CO-Series
Trim options
CO-Series electronic locks from Schlage
In the world of standalone electronic locks, nothing compares to
the CO-Series from Schlage. And because CO-Series
locks offer a wide variety of options, it’s easy to find
the right solution for any facility. For openings with a
relatively small number of users, we recommend the
C0-100. It’s an oine keypad programmable lock. For
larger applications try the CO-200 or CO-250. They’re
computer programmable locks that can provide audit
trails. They also offer dual credential options
(card+PIN) that provide an even greater level of
security.
Compatible
The CO-Series was designed to easily integrate into
your facility. It can work in conjunction with Schlage and
Locknetics electronic locks and offers expanded cylinder, exit
device, and credential compatibility.
Class
CO-100
• Manually programmable • User rights stored on the lock
• Keypad only
CO-200 (shown)
• Computer or manually programmable
• User rights stored on the lock
CO-250
• Computer programmable • User rights stored on the card
Readers
• Keypad
• Magnetic stripe (swipe)
• Proximity
• Magnetic stripe plus keypad (swipe)
• Proximity plus keypad
Chassis
• Cylindrical
• Mortise
• Mortise deadbolt
• Exit Trim
Power
• 4 standard off the shelf (AA) batteries
Functions
• Classroom/storeroom
• Privacy
• Oce
Reliable
When it comes to securing your facility, you can’t afford to take
chances. CO-Series locks are tested to the highest quality and
reliability standards in the industry, including:
• NSI/BHMA A156.25 & ANSI/BHMA Grade 1
• UL 294
• UL 10C
• ADA
Credential compatibility
The CO-Series is compatible with many different brands
and credential technologies.
For customers with an installed base of iButtons®, a combo
proximity keyfob with iButton option is available to make an easy
transition to proximity technology.
Lever styles
Sparta Rhodes Athens Tubular
Warm tone finishes
605 606 612 643e
Bright brass Satin brass Satin bronze Aged bronze
Cool tone finishes
619 625 626 626AM
Satin nickel Bright Satin chrome Satin chrome
chrome with antimicrobial
Exit device compatibility*
Rim SVR CVR/CVC Mortise
Von Duprin 98/99 &
98/99 XP 4 4 4 4
Von Duprin 22/22F 4 4
Falcon 25 4
* See AD-Series Exit trim compatibility datasheet for complete list of compatability by
manufacturer.
Cylinder compatibility
Full size
key-in-lever
6 pin
Full size
key-in-lever
7 pin
FSIC
6 & 7 pin
SFIC
6 & 7 pin
Schlage l l l
Falcon s Q
Sargent®
(10L + 11L full size) s s s
Corbin Russwin®s s
Yale® (includes
Medeco 31*0100
FSIC)
s s
Best®s
l = with cylinder or less cylinder options
s = less cylinder only
Q = less cylinder, only with Sparta and Rhodes levers
Note: See price book for specific configurations
54
54 • Von Duprin 98/99 Series
Strike options / Dogging options
98/99 Strike/Stile information
Device type Standard
single door
Standard
double door
Optional
single door
Optional
double door
Strike Trim/Stile
Strike
w/
mullion* Trim/Stile Strike Trim/stile
Strike
w/mullion* Trim/Stile
98/99 299
990/996 696/697 990/996 696/697 990/996 696/697 990/996 696/697
4 1/2"
(114mm)
4 3/8"
(111mm)
299 x
4954 4 7/8"
(124mm)
4 3/4"
(121mm)
1439 or
1410
3 13/16"
(97mm)
3 13/16"
(97mm)
299 x 5654 4 7/16"
(113mm)
4 1/4"
(108mm)
1408 x 5754 3 13/16"
(97mm)
3 13/16"
(97mm)
1606 4 1/16"
(103mm)
3 15/16"
(100mm) 1606 x 1654 4 3/8"
(112mm)
4 1/4"
(108mm)
XP 98/99 909 909 x
4954-XP — — — — — —
98-F/99-F 299F 4 1/2"
(114mm)
4 3/8"
(111mm)
499F x
9954 4 7/8"
(124mm)
4 3/4"
(121mm)
— — — 499F x 9854
KR9954 — —
XP98-F/XP99-F 909 954 x
9954-XP — — — — — —
9875
9975 575 4 3/4"
(121mm)
4 3/4"
(121mm) 575-2 — — — — — 576A-576B 4 3/4"
(121mm)
4 3/4"
(121mm)
9875-F
9975-F 575 4 3/4"
(121mm)
4 3/4"
(121mm) 575-2 — — — — — 576A-576B 4 3/4"
(121mm)
4 3/4"
(121mm)
9857
9957
299 (Top)
299 (Middle)
304L/284-L
(Bottom)
4 1/2"
(114mm)
4 3/8"
(111mm)
299 x
4954
4 7/8"
(124mm)
4 3/4"
(121mm)
1439 or
1410
3 13/16"
(97mm)
3 13/16"
(97mm)
299 x 5654 4 7/16"
(113mm)
4 1/4"
(108mm)
1408 x 5754 3 13/16"
(97mm)
3 13/16"
(97mm)
1606 4 1/16"
(103mm)
3 15/16"
(100mm) 1606 x 1654 4 3/8"
(112mm)
4 1/4"
(108mm)
9857-F
9957-F
299 (Top)
299F (Middle)
304L (Bottom)
4 1/2"
(114mm)
4 3/8"
(111mm)
299F
499F x
9954
304L
4 7/8"
(124mm)
4 3/4"
(121mm) — — — — — —
Strike Application Trim/Stile Optional strike Application Trim/Stile
990/996 696/697 990/996 696/697
9827
9927
Latch retraction
299 (Top)
304L/248-L-4
(Bottom)
Single door 3 11/16"
(94mm)
3 5/8"
(92mm)
260U (Top)
385A (Bottom) Single door 3 11/16"
(94mm)
3 5/8"
(92mm)
PL9827/PL9927
Pullman latch
299 (Top)
304L/248-L-4
(Bottom) Two vertical rod devices 3 11/16"
(94mm)
3 5/8"
(92mm)
Two vertical
rod devices
3 11/16"
(94mm)
3 5/8"
(92mm)
9827-F
9927-F
299 (Top)
304L (Bottom)
260U (Stainless)
385A (Bottom)
9847
9947
9848
9948
338 (Top)
385A (Bottom)
Vertical rod with
Mortise lock device
4 3/4"
(121mm)
4 3/4"
(121mm) 304L (Bottom)
Vertical rod
with
Mortise lock
device
4 3/4"
(121mm)
4 3/4"
(121mm)
9847-F
9947-F
9848-F
9948-F
338 (Top)
385A (Bottom)
Two vertical rods 4 1/4"
(108mm)
4 1/8"
(105mm)
304L (Bottom)
Two vertical
rods
4 1/4"
(108mm)
4 1/8"
(105mm)
Vertical rod with
Mortise lock device
4 3/4"
(121mm)
4 3/4"
(121mm)
Vertical rod
with
Mortise lock
device
4 3/4"
(121mm)
4 3/4"
(121mm)
9847WDC
9947WDC
338 (Top)
385A (Bottom)
Single door 4 1/4"
(108mm)
4 1/4"
(108mm)
304L
Single door 4 1/4"
(108mm)
4 1/4"
(108mm)
Two vertical rod devices 4 1/4"
(108mm)
4 1/4"
(108mm)
Two vertical
rod devices
4 1/4"
(108mm)
4 1/4"
(108mm)
Vertical rod with
Mortise lock device
4 3/4"
(121mm)
4 3/4"
(121mm)
Vertical rod
with
Mortise lock
device
4 3/4"
(121mm)
4 3/4"
(121mm)
9847WDC-F
9947WDC-F
338 (Top)
385A (Bottom) Two vertical rod devices 4 1/4"
(108mm)
4 1/4"
(108mm) 304L Two vertical
rod devices
4 1/4"
(108mm)
4 1/4"
(108mm)
9849
9949
9849
9949
249 (Top)
349 (Bottom)
Vertical cable with
Mortise lock device
4 3/4"
(121mm)
4 3/4"
(121mm) —
Vertical
cable with
Mortise lock
device
4 3/4"
(121mm)
4 3/4"
(121mm)
9849-F
9949-F
9849-F
9949-F
249 (Top)
349 (Bottom)
Two vertical cables 4 1/4"
(108mm)
4 1/4"
(108mm)
—
Two vertical
cable
4 1/4"
(108mm)
4 1/8"
(105mm)
Vertical cable with
Mortise lock device
4 3/4"
(121mm)
4 3/4"
(121mm)
Vertical
cable with
Mortise lock
device
4 3/4"
(121mm)
4 3/4"
(121mm)
9849WDC
9949WDC
249 (Top)
349 (Bottom)
Single door 4 1/4"
(108mm)
4 1/4"
(108mm)
—
Single door 4 1/4"
(108mm)
4 1/4"
(108mm)
Two vertical
Cable
devices
4 1/4"
(108mm)
4 1/4"
(108mm)
Two vertical cable devices 4 1/4"
(108mm)
4 1/4"
(108mm)
Vertical cable with
Mortise lock device
4 1/4"
(108mm)
4 1/4"
(108mm)
Vertical
cable with
Mortise lock
device
4 3/4"
(121mm)
4 3/4"
(121mm)
9849WDC-F
9949WDC-F
249 (Top)
349 (Bottom) Two vertical cable devices 4 1/4"
(108mm)
4 1/4"
(108mm) —
Two Vertical
Cable
Devices
4 1/4"
(108mm)
4 1/4"
(108mm)
55
Von Duprin 98/99 Series • 55
98/99 Strike information
Strike options / Dogging options
Strikes for rim devices
264 299 299F 499F 1408
Projection 9/16" (14mm) Projection 13/16" (21mm) Projection 13/16" (21mm) Projection 15/16" (24mm) One per pair of doors
1439–Blade stop 1410–Integral stop 1606 1609
Projection 1/2" (13mm) Projection 1/2" (13mm)
Projection 3/8" (10mm)
Panic devices only
– Requires coordinator
– For panic exit application only, not fire rated
XP Strikes for rim devices
909 954
Projection 13/16" (21mm)
Projection 7/8" (22mm)
- For fire rated double door
applications
Strikes for vertical cable devices
249 - Top strike 349 - Bottom strike
Projection 9/16" (14mm) Projection 1/8" (3mm)
Strikes for vertical rod devices
248L-4 260U-Flush transom panic only
260U-F-Flush transom fire only
299 299F
Projection 3/8" (10mm) Projection 3/8" (10mm) Projection 13/16" (21mm) Projection 13/16" (21mm)
304L 338 385A 283
Projection 13/16" (21mm) Mortise 5/8" (16mm) Mortise 2 1/2" (64mm)
For use with WDC devices
when used with wood frames
Strikes for mortise rod devices
575 575-2 576A 576B
– Not for use with astragals
– For use on wood doors,
contact door manufacturer
– Acceptable for 90 minute
pair of hollow metal doors
.
1"
(25 mm)
1¹⁄₂"
(38 mm)
¹⁄₈"
(3 mm)
⁹⁄₁₆"
(14 mm)
249
¹⁄₈"
(3 mm)
1¹⁹⁄₃₂"
(40 mm)
2³⁄₄"
(70 mm)
349
56
56 • Von Duprin 98/99 Series
Strike options / Dogging options
98/99 Dogging options
CD Cylinder dogging
Cylinder dogging is available on all 98/99™ Panic exit devices
to replace the standard hex key dogging. Unit requires a standard
1 1/4" (32mm) mortise cylinder with an inverted straight cam
(Schlage Cam B502-191 reference).
To order, specify:
• Use prefix, CD, example CD99L
CDK Cylinder dogging kit*
For field conversion, a cylinder dogging conversion kit is
available.
Order: 99CDK or 98CDK, specify finish.
*Cannot be added to fire exit hardware.
HDK Hex key dogging kit*
For field conversion, a hex key dogging conversion kit is available.
Order: 99HDK or 98HDK, specify finish.
*Cannot be added to fire exit hardware.
LD Less dogging
Less dogging is available in all 98/99™ Panic exit devices to
remove the dogging option.
To order, specify:
• Use prefix LD, example LD99L
SD Special center case dogging
Special cylinder dogging in the center case is available for Chexit,
EL, QEL, ALK panic devices to allow for mechanical push/pull
operation. With this option, the latchbolt is held retracted and
pushbar is still operable. Specify handing—RHR or LHR.
SD requires 1 3/4" (32mm) mortise cylinder with an inverted
straight cam. (Schlage cam reference B502-191.)
Note: Available on Rim and Vertical Rod Panic Exit Devices only.
To Order, Specify:
• Use prefix SD, example SD99L and Handing
• Not for 98/9975 Devices
Double cylinder
Double cylinder features an inside key cylinder which locks or
unlocks the outside trim and an outside key cylinder which
retracts the latch bolt only (Night latch function). Available on
rim or mortise lock device.
Rim requires two rim type cylinders. Mortise device requires 1 rim
cylinder and 1 mortise cylinder 11/4" with a straight cam. (Schlage
cam reference B502-191.)
Available functions are thumbpiece, knob or lever.
To order, specify:
1. Sux-2 with device/trim number, example 99TP-2.
2. Handing required, LHR or RHR.
-2SI Double cylinder with security indicator
The Von Duprin Classroom Security Indicator provides an at-a-
glance verification of the locked/unlocked status of the door
from inside of the room. This option can be ordered as a new
product or as a retrofit conversion kit to an existing 98/99 device.
Indicator in Unlocked state presents a 1/2" x 1/2" metal flag (white
background with black icon) at top of device head. Indicator in
Locked state has no flag present.
To order, specify:
1. Sux-2SI with device/trim number, example
99L-2SI.
2. Handing required, LHR or RHR.
Dog keys
Dog key (old style) Dog key (standard)
2 3/16" (56mm)
7/32" (6mm) hex
2 3/4" (70mm)
5/32" (4mm) hex
57
Von Duprin 98/99 Series • 57
98/99 Electrical options
Electrical options & accessories
RX Request to exit
The RX (2xit) feature is used to signal the use of an opening.
This device is equipped with one internal SPDT switch which
monitors the pushpad.
The device can be connected to a security console, or may be
used as a single door alarm when used with a horn and power
supply.
The RX switch option should not be used to control a load, but
as a signalling switch (0.5 amps. resisitive maximum).
The RX switch is available in a low current (LC) switch. Most
commonly used in computer operated monitoring systems.
To order, specify:
• Standard – use prefix RX, example RX99EO
• Low Current – use prefix RX-LC, example RX-LC98EO
RX2 Double request to exit
The RX2 feature uses two RX switches.
To order, specify:
• Standard – Use prefix RX2, example RX299EO
WP-RX Waterproof request to exit
LX Latchbolt monitoring
The LX feature is used to signal the use of an opening. This
device is equipped with one internal SPDT switch which
monitors the latch bolt.
The device can be connected to a security console, or may be
used as a single door alarm when used with a horn and power
supply.
The LX switch option should not be used to control a load, but
as a signalling switch (0.5 amps. resistive maximum).
The LX switch is available in a low current (LC) switch. Most
commonly used in computer operated monitoring systems.
To order, specify:
• Standard – Use prefix LX, example LX99EO
• Low Current – Use prefix LX-LC, example LX-LC98EO
Electrical rating for all switches:
• Standard – 2 Amp maximum @ 24VDC
• Low Current (LC) - below 50 Milliamps @ 24VDC
Note: All switches can be either factory or field installed
Popular SS application
Unauthorized use of this opening will activate the local horn. The
key switch permits inhibiting this system for authorized entry.
SS Signal switch
Monitors pushpad and latch bolt
The SS feature is used to signal the unauthorized use of an
opening. This device is equipped with two internal SPDT
switches. One switch monitors both the pushpad and the latch
bolt assembly, making the latch bolt tamper resistant, for
positive security. An additional SPDT switch is connected to the
1 1/4" (32mm) mortise cylinder with straight cam for alarm
“bypass.” (Schlage cam reference B502-191). The device can be
connected to a security console, or may be used as a single door
alarm when used with a horn and power supply.
Pushpad reads: “Emergency Exit ONLY – Push To Open And
Sound Alarm.” Pushpad is only available in US32D finish with red
silk-screened lettering.
The SS mortise lock device is furnished with both the signal
switch device and the SS7500 mortise lock. The SS7500 mortise
lock has the versatility and advantages of the 7500 lock with the
addition of signalling functions to monitor latch bolt operation
and the trim locking function. The SS7500 mortise lock is
supplied standard with the SS mortise lock device.
To order, specify:
1. Prefix SS, example SS99L.
2. Handing required, LHR or RHR.
Electrical ratings:
Up to 2.0 AMPS @ 24VDC
58
58 • Von Duprin 98/99 Series
Electrical options & accessories

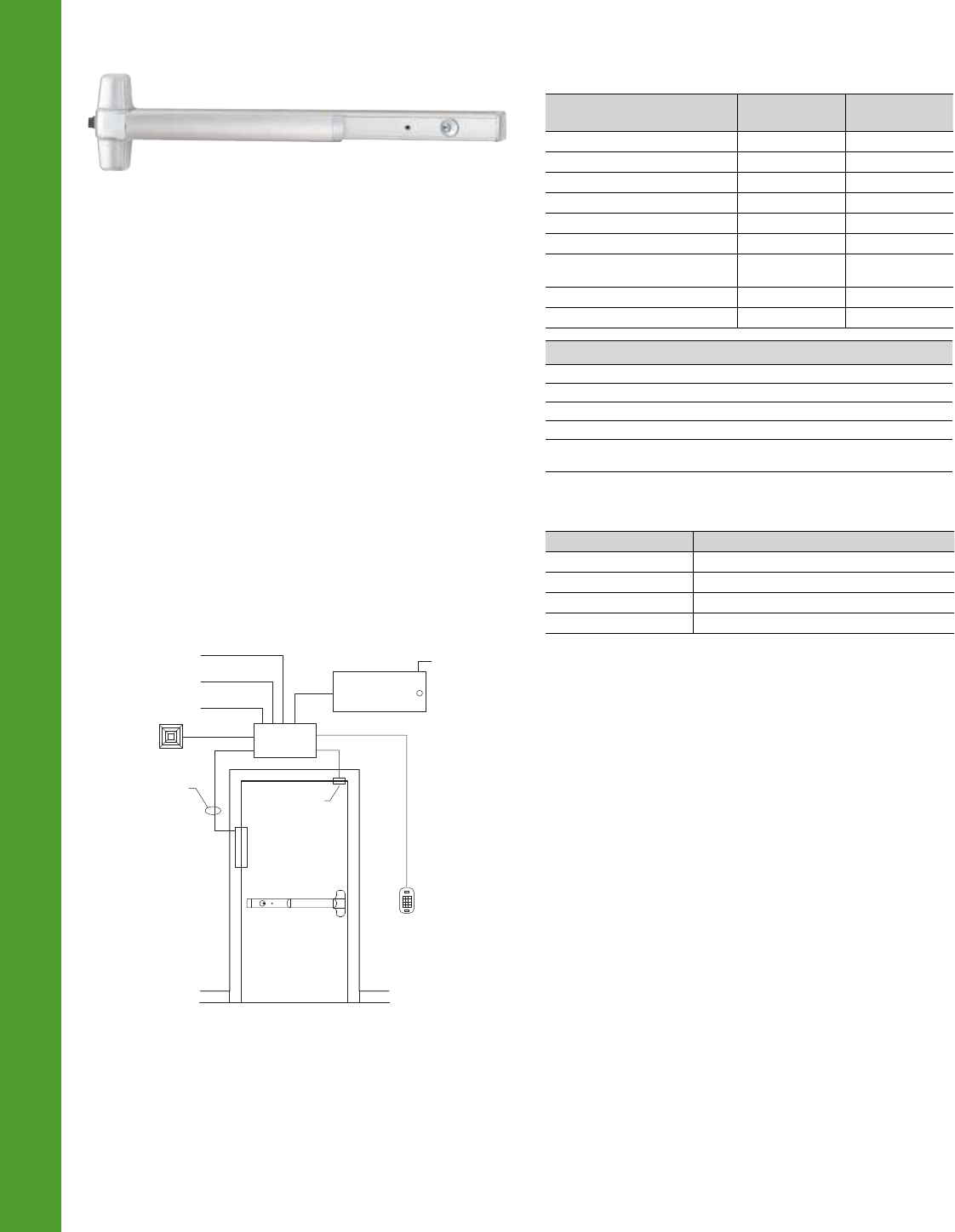

98/99 Chexit device
CX The Chexit® (with motor driven blocking actuator)*
The Von Duprin Chexit device is designed for controlled egress
applications. It meets both life safety and security needs, as well as
the requirements of NFPA 101 for "Special Locking Arrangement"
and IBC "Special Egress-Control Devices". All control inputs,
auxiliary locking, local alarm and remote signaling outputs are
self-contained in the Chexit assembly. Numerous configurable
options allow the device to be customized for the specific code or
application requirements. The standard Chexit device sounds an
alarm and keeps the door secured for 15 seconds following an exit
attempt with immediate release upon fire.
The Chexit device includes a 6" x 20" decal for application on door.
“PUSH UNTIL ALARM SOUNDS.
DOOR CAN BE OPENED IN 15 SECONDS”
Minimum door opening sizes for CX devices
Consult factory for other size requirements.
Device 3' (914mm)
Length
4' (1219mm)
Length
CX98/98-F/99/99-F 2'10 3/4" (883mm) 3'4 3/4" (1035mm)
CX-XP98/XP98-F/XP99/XP99-F 2'10 3/4" (883mm) 3'4 3/4" (1035mm)
CX9827/9827-F/9927/9927-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX9847/9847-F/9947/9947-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX9848/9848-F/9948/9948-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX9849/9849-F/9949/9949-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX9850/9850WDC-F/
9950/9950WDC-F
2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX9857/9857-F/9957/9957-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX9875/9875-F/9975/9975-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
Chexit typical applications
Chexit single door with options – The Chexit is used as an access
control device. The card reader allows access. Also shown in this
application is an external horn and door position switch. The auxiliary
horn is used for increased volume in remote locations. Using a door
position switch gives added security to the opening in case the door
is not reclosed.
With the Chexit disarmed, the opening functions as a normal exit
device. If card readers are required on both sides of the door, the
normally closed contacts of the readers should be wired in series.
Figure 1. Riser Diagram, Single Door
Specifications / Power supply requirements*
Input voltage – 24VDC
Input current inrush – 1.25A
Input current holding – 390mA
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally
closed dry contacts.
**Note: PS902 is not to
be used for double door
Chexit applications.
Power supply information for CX devices
with motor driven blocking actuator*.
Power supply Maximum number of devices
PS902 (up to 2 amps) 1 Chexit device
PS904 (up to 4 amps) 3 Chexit devices
PS906 (up to 6 amps) 4 Chexit devices
PS914 (up to 4 amps) 4 Chexit devices
When powering multiple components, verify that the amperage requirements of all
components combined does not exceed the power supply output rating, see table above
for output ratings. Consult Installation Instructions for proper wire gauge and wire run
requirements. Exceeding the recommended devices and/or not following Installation
Instructions may void your warranty. Call Customer Care at 877-671-7011 or visit the
Allegion website for more information - www.us.allegion.com.
How to order*
To order, specify:
1. Prefix product description number “CX”.
Example: CX99L
2. Specify option (see options on page 60).
Example: CX-RCM or CD-CX
3. Door size other than 3' (914mm).
4. Door thickness other than 1 3/4" (45mm).
5. Finish.
6. Handing, LHR or RHR. Required with “CD” option.
*Note: Chexit devices built aer August 24, 2015 are built using motor driven blocking
actuators that have decreased power supply and operating requirements. The
information listed in this catalog references the power supply and operating requirements
that are needed for the new products with motor driven blocking actuators. For
information on devices built previous to August 24, 2015, please contact Customer Care at
877-671-7011.
AC input
(See power supply instructions
for AC input requirements)
2 x
14
2 x 18 AWG
2 x
14
AWG
8 x 18 AWG
To fire alarm contact
2 x 18 AWG
2 x 18 AWG
2 x 18 AWG
(plus power if required)
2 x 18 AWG
To secure status
1 x 18 AWG
Gang group (optional)
Chexit
DPS
Junction
box
EPT10
Card
Reader
902, 904, 906,
or 914 Power
supply
Remote
Alarm
Figure 1. Riser Diagram, Single Door
**
59
Von Duprin 98/99 Series • 59
Electrical options & accessories
98/99 Chexit, RCM and DE5300 features
The Chexit, Remote Chexit Module (RCM) or DE5300 devices
have several features and options available to fit your
applications. See below for more information.
Inputs & Outputs
Fire Alarm Input
This input releases the door immediately upon a fire alarm
allowing immediate egress. The Internal Alarm can be silenced
during a fire input via an onboard switch setting.
Inhibit Input (Access Control)
This optional input is provided to allow authorized egress or
entry when the device is Armed using an external card reader,
Key Switch, etc. It also allows remote reset of the Chexit, RCM or
DE5300 in an alarmed condition. The ability to reset alarms with
the inhibit input can be disabled via an onboard switch setting.
Door Position Switch Input
An optional Door Position Switch (DPS) can provide door
position status to Chexit, RCM or DE5300 for additional security,
ensuring that the door is closed, and can cause alarm when the
door is le or forced open.
Gang Bus
The Gang bus allows a Chexit, RCM or DE5300 device to signal
other Chexit, RCM or DE5300 devices when it enters the Release
Delay, allowing multiple doors to release at the same time in an
emergency. Up to 8 devices may be connected to the Gang Bus.
Alarm Relay Contacts
The Alarm Relay contacts are provided as a means to control a
Remote Alarm, such as a horn or lamp, or signal an external
monitor. The contacts can be configured with a jumper as
Normally Open or Normally Closed, and become active upon
entering an alarmed condition.
Secure Relay Contacts
The Secure Relay contacts are provided as a means to signal an
external monitor. The contacts can be configured as Normally
Open or Normally Closed with a jumper, and become active
when the DPS indicates the door is closed and the Push Pad is
locked.
Delays
Release Delay
When the Push Pad is pushed and the Nuisance Delay expires,
the Chexit, RCM or DE5300 enters the Release Delay with alarm.
During the Release Delay, the Internal Alarm sounds, the Alarm
Relay activates, and the Chexit/RCM keeps the Push Pad or
DE5300 magnetic lock, locked for 15 seconds (less any time
already elapsed during the Nuisance Delay). Once started, the
Release Delay sequence will not stop and the devices will unlock.
Nuisance Delay
When a Chexit, RCM or DE5300 is located in a public area, it can
be desirable to limit false releases when the Push Pad is
accidently pushed. The Nuisance Delay is the brief time a Push
Pad can be accidently pushed before the Release Delay
sequence starts. If the Nuisance Time is set to 0 seconds the
Chexit, RCM or DE5300 will enter Release Delay as soon as the
Push Pad is pushed (when armed). Setting the Nuisance Time to
1, 2, or 3 seconds allows the Push Pad to be pressed for 1 to 3
seconds before the Chexit, RCM or DE5300 goes into Release
Delay. If the Nuisance Audio and Nuisance Delay are both on, the
Internal Alarm will pulse during the Nuisance Delay. The Alarm
Relay does not activate during the Nuisance Delay. If the Push
Pad is released before the Nuisance Delay expires, the Chexit,
RCM or DE5300 will remain armed.
Rearm Delay
The Rearm Delay is the amount of time aer the Key Switch or
Inhibit Input is deactivated to when the device rearms. It is
designed to give someone time to pass through the door before
rearming occurs. The Rearm Time can be changed via the
onboard switch settings from 0 and 28 seconds in 2 second
increments. If the Rearm Time is set to 30 seconds and a DPS is
used, if the door is opened and the Rearm Time expires, there will
be no alarm. The Chexit, RCM or DE5300 will rearm aer the
door is closed. If the door never opens, the Chexit, RCM or
DE5300 will rearm aer 30 seconds. If not using a DPS, the
Chexit, RCM or DE5300 will always rearm in 30 seconds.
DPS Delay
If the DPS detects that the door closed during the Rearm Delay,
the Chexit, RCM or DE5300 ends the Rearm Delay and allows 2
seconds for the latch to clear the strike before rearming.
Interface
Key Switch
The Key Switch provides the means to Arm or Disarm/Reset the
Chexit, RCM or DE5300. Turning the Key Switch clockwise
initiates the Rearm Delay, and turning the Key Switch counter-
clockwise Disarms/Resets the Chexit, RCM or DE5300. The Key
Switch allows the key to be removed in either the Arm or the
Disarm/Reset position.
Status Indicator
The red Status Indicator displays the status of the Chexit, RCM or
DE5300. The Status Indicator flashes slow if the Chexit, RCM or
DE5300 is armed, flashes fast in an alarmed mode, is off when
inhibited and on solid during Rearm Delay.
Internal Alarm
The Internal Alarm sounds the status of the Chexit, RCM or
DE5300. The Internal Alarm sounds continuously during and
aer a fire alarm or a Release Delay, pulses fast during the
Nuisance Delay or a tamper and pulses slow during Disarmed
Powerup mode.
Settings
Armed Powerup
When set to OFF, a power disruption and power return will put
the Chexit, RCM or DE5300 in a disarmed, unlocked alarm mode.
Trim Fail Safe / Fail Secure (FS/FSE)
The trim input power can be set to FS (Fail Safe; locked when
energized, unlocked when deenergized or during power failure) or
FSE (Fail Secure; unlocked when energized, locked when
deenergized or during power failure).
The trim must be bought or modified to physically function as FS
or FSE. This on board setting only selects the trim input power.
60
60 • Von Duprin 98/99 Series
Electrical options & accessories

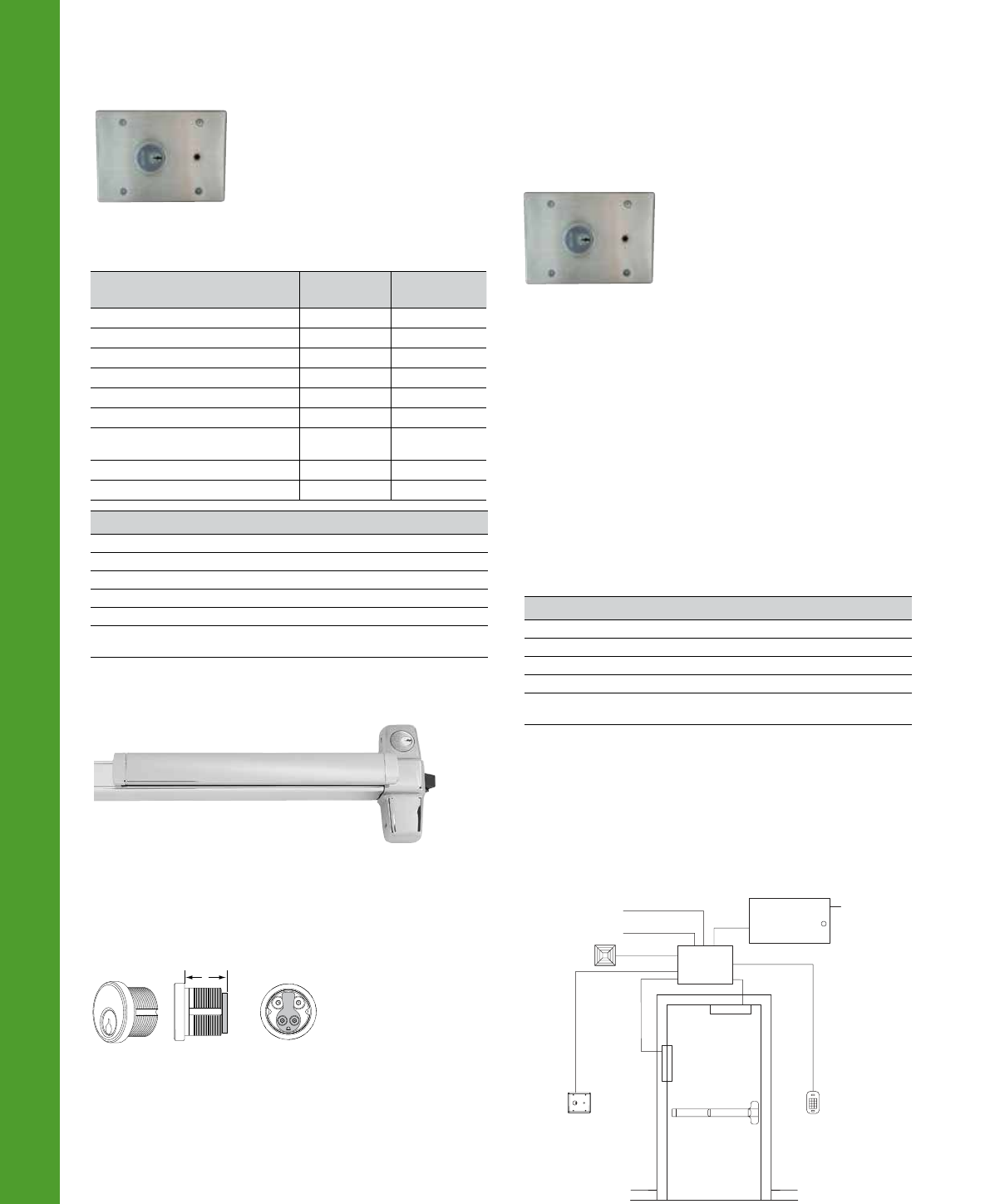

98/99 Chexit options
DE5300 Delayed Egress System — is designed for controlled
egress applications when used in conjunction with a magnetic
lock. It meets both life safety and security needs, as well as the
requirements of NFPA for "Special Locking Arrangement" and
IBC "Special Egress-Control Devices". All control units, auxiliary
locking, local alarm and remote signaling outputs are self-
contained in the DE5300 assembly.
The DE5300 is commonly used on
narrow stile doors where a standard or
narrow stile Chexit is not practical.
DE5300 Delayed Exit System uses a
Chexit logic board and a Von Duprin
RX-LC (low current request to exit)
panic device to control a Schlage
Electronics Direct Hold Magnetic Lock.
The Chexit module for the DE5300 is installed in a control box
and mounted in the wall adjacent to the door. Features and
functions of the standard Chexit exit device are available on the
DE5300.
The DE5300 device includes a 6" x 20" decal for application
on door.
“PUSH UNTIL ALARM SOUNDS.
DOOR CAN BE OPENED IN 15 SECONDS”
Cylinders — Cylinders are not furnished with the DE5300 and
must be specified when ordering. Use 11/4” mortise cylinder with
compression ring K510-406 with straight cam and orient cam as
shown. Schlage cylinder 20-001-114 recommended for the device
and the CD cylinder dogging option. See Schlage Pricebook for
additional information.
How to order
To order, specify:
1. DE5300
2. M420/P, M450/P, or M490/P magnetic lock (order direct
from Schlage Electronics).
3. RX-LC 22/33A/35A/98/99 device.
4. PS900 Series
5. EPT-2/10
RCM Module
Specifications / Power supply requirements
Size - 3.75" x 5.57" x 2.50"
Input voltage – 24VDC
Input current – 1A
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally
closed dry contacts.
RCM Remote Chexit Module — is designed to provide the
concept of the Chexit delayed exit system for door sizes smaller
than the standard Chexit device can accommodate. The Chexit
module is installed in a control box and
mounted in a remote location. Features
and functions of the standard Chexit
exit device are available on the Remote
Chexit Module.
DE5300 Module
Cylinder dogging — Special center case cylinder dogging option
is available to allow push/pull operation of the Chexit, when
disarmed and used in a heavy trac area. Prefix device with “CD”
and specify handing.
DE5300 Delayed Egress System
9
Use 11/4” mortise cylinder with compression ring
K510-406 with straight cam and orient cam as shown.
Schlage cylinder 20-001-114 recommended.
Schlage 20-001-114 shown
Standard cam configuration
(Shown with key removed)
1¹⁄₁₆" (27 mm)
Maximum
X
CAUTION
Dimension X as shown above must be no more
than 11/16” or damage to product may occur.
Figure 1. Riser Diagram, Single Door
AC input
(See power supply instructions
for AC input requirements)
2 x
18
2 x 18 AWG
15 x 18 AWG
2 x 18 AWG
To fire alarm contact
2 x 18 AWG
2 x 18 AWG
2 x 18 AWG
(plus power if required)
5 x 18 AWG
To secure status
DE5300 RXLC Exit Device
Magnetic Lock
Junction
box
EPT2/10
Card Reader
1.
See step 6l for conduit knockout
locations
that can be used.
2. Trim wires not shown on diagram,
add them as needed.
902, 904, 906,
or 914 Power
supply
Remote Alarm
Figure 1. Riser Diagram, Single Door
Cylinders — Cylinders are not furnished with the Chexit device
and must be specified when ordering. Use 11/4” mortise cylinder
with compression ring K510-406 with straight cam and orient
cam as shown. Schlage cylinder 20-001-114 recommended for
the device and the CD cylinder dogging option. See Schlage
Pricebook for additional information.
How to order*
See Chexit "How to order" on page 58.
*Note: RCM modules built aer August 24, 2015 are built using motor driven
blocking actuators that have decreased power supply and operating requirements.
The information listed in this catalog references the power supply and operating
requirements that are needed for the new products with motor driven blocking actuators.
For information on devices built previous to August 24, 2015, please contact
Customer Care at 877-671-7011.
Specifications / Power supply requirements*
Size – 3.75" x 5.57" x 2.50"
Input voltage – 24VDC
Input current inrush – 1.25A
Input current holding – 390mA
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally
closed dry contacts.
Minimum door opening sizes for RCM devices
Consult factory for other size requirements.
Device 3' (914mm)
Length
4' (1219mm)
Length
CX-RCM 98/98-F/99/99-F 2'5" (737mm) 2'11" (889mm)
CX-RCM XP98/XP98-F/XP99/XP99-F 2'5" (737mm) 2'11" (889mm)
CX-RCM 9827/9827-F/9927/9927-F 2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM 9847/9847-F/9947/9947-F 2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM 9848/9848-F/9948/9948-F 2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM 9849/9849-F/9949/9949-F 2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM 9850/9850WDC-F/
9950/9950WDC-F
2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM 9857/9857-F/9957/9957-F 2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM 9875/9875-F/9975/9975-F 2'5 1/2" (743mm) 2'11 1/2" (902mm)
61
Von Duprin 98/99 Series • 61

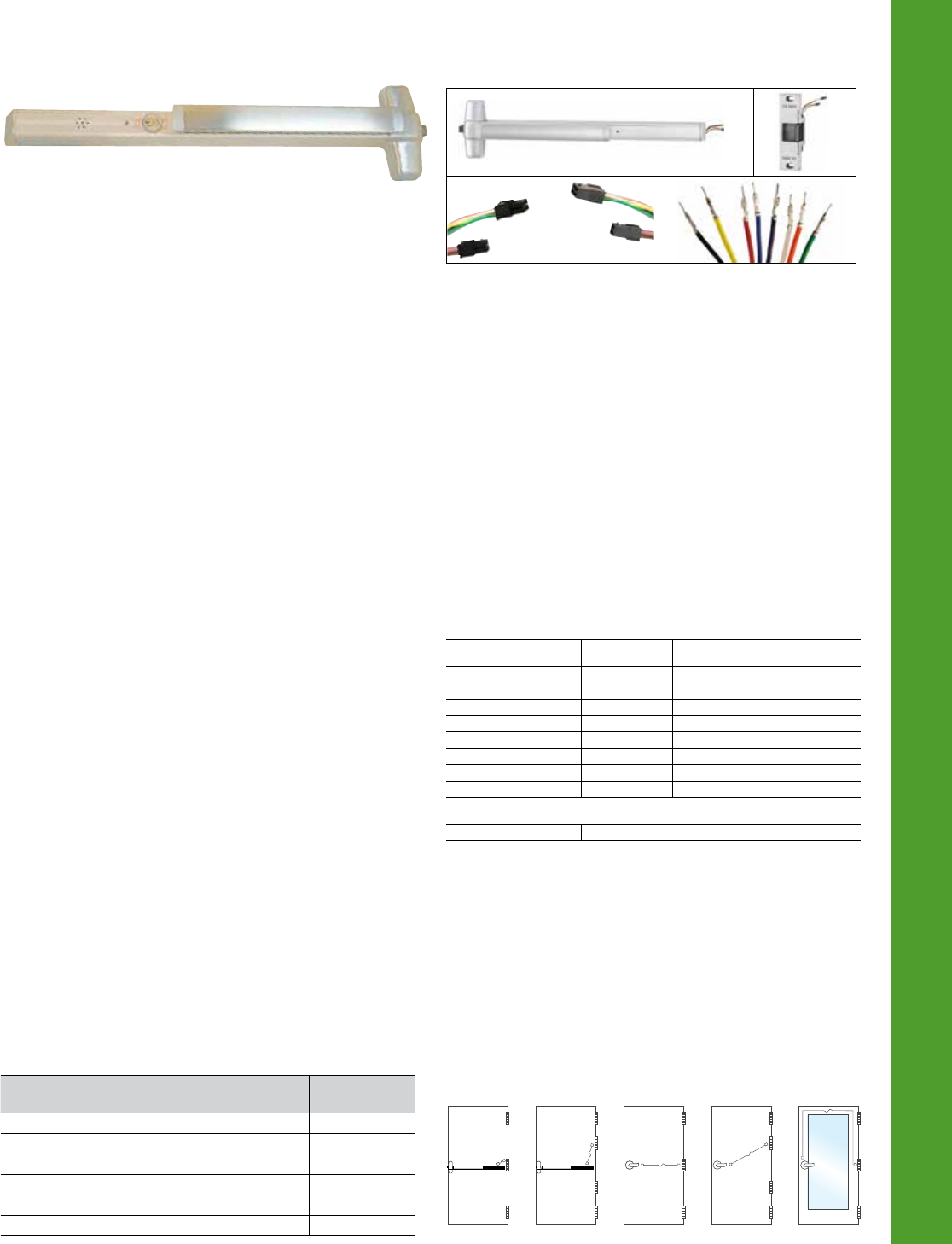

Allegion Connect
Allegion’s cross-category Connect features common interconnect
components to our electrified options. Allegion Connect is a quick
and easy way to connect power sources; all the way from your
power supply to locking device. There is no wire cutting; reducing
installation and maintenance time ultimately cutting cost. Aer
installation, Allegion’s Connect continues to provide benefits
throughout the lifetime of the opening by offering a service kit
for repairs or modifications in the future.
Features and benefits
• Quick: common connections reducing installation time
• Perfect Connections: these factory installed connectors
ensure the right wires match up every time
• Protective: the connectors protect the connection points
throughout the installation process and lifetime of the opening
• Interchangeable: all Allegion Connect products utilize the
same connectors
• Maintenance: you no longer need to cut away wire to
disconnect Allegion products, also available is a service kit
specifically for Connect products.
98/99 Electrical options
Electrical options & accessories
How to order
1. Specify CON for Connect electronic options
Example: EL-99-EO-CON (99 Series Electrified Latching exit only
with Connect connectors)
2. Specify harness length; Consult door manufacturer for harness length
3. Specify Von Duprin EPT10-CON or Ives 7200 power transfer hinge
Wire run options
Harness length Connectors
on both ends
Connectors on one end,
crimped pins on the other end
6 Inches CON-6 CON-6P
12 Inches CON-12 CON-12P
26 Inches CON-26 CON-26P
32 Inches CON-32 CON-32P
38 Inches CON-38 CON-38P
44 Inches CON-44 CON-44P
50 Inches CON-50 CON-50P
192 Inches CON-192 CON-192P
Power Supply Wire Harness = Connectors on one end, stripped leads on the other end,
offering a direct connection to the power supply
6 Inches CON-6W - wire extension to power supply
Consult door manufacturer for harness length requirements.
Note: You will need to purchase a separate wiring harness to go from exit device to hinge/
EPT and an additional harness to go from hinge/EPT to power supply or access control
system. Harness part numbers with ordering information can be located in the Schlage,
Von Duprin and Falcon pricebooks. A service kit is available for order in the Schlage, Von
Duprin and Falcon pricebooks. Included in this kit are male end plugs, female end plugs
and pins to customize harnesses to your application.
Note: Must be ordered with exit devices and locks
ALK Alarm kit
ALK Alarm kit is a simple yet effective way to deter unauthorized
use of an opening. While the exit device is still a means of egress,
the ALK kit contains an internal horn. When the touch bar is
depressed, the horn sounds to provide an audible means of
signaling that the opening has been violated. The alarm kit can
be armed or disarmed by key thus allowing the exit device to be
set in an armed or disarmed mode. The horn is rated at 85
decibels.
For Hardware Applications
The assembly includes both a 24VDC Input and External Inhibit
standard. The External Inhibit provides remote arming and
dis-arming.
The key switch uses a standard 1 1/4" (32mm) mortise cylinder
with a straight cam (Schlage 20-001, B502-191 cam). The unit
operates on one standard 9-volt alkaline battery. When the
battery is weak, the horn will emit an intermittent low battery
alert signal.
The alarm can automaticaly re-arm with a 1.5, 3 or 4.6 minute
time delay upon request.
Alarm kits are available with a choice of two switch kits, RX or
LX. RX monitors the touchpad and is furnished standard. LX
optional latch bolt monitoring is recommended for use with
surface vertical rod exit devices or when alarm needs to sound
from both the exit device and trim side of the door. Specify
ALK-LX.
Note: For latch bolt monitoring on a 98/9975 with ALK, specify a SS7500 lock. LX switch
not available for 98/9975 devices.
The ALK is available in two styles, 99ALK, grooved cover and
98ALK, smooth cover.
The ALK includes a 6" x 20" decal for application on door
“EMERGENCY EXIT ONLY. ALARM WILL SOUND. ”SS push bar
trim can be used instead of the door decal, specify SS push bar
trim when ordering the device.
When the ALK is used, standard dogging is removed. If cylinder
dogging is required there are two choices. Special center case
dogging is available or for 3' or 4' doors. The ALK can be moved
to the hinge side of the device and standard cylinder dogging can
be added.
To Order, Specify:
1. Standard, 98 ALK
2. Cylinder Dogging, CD98 ALK
3. Special center case dogging, SD98 ALK
4. If AR desired, specify AR 1.5, 3 or 4.5
Minimum door opening sizes on ALK applications
Device 3' (914mm)
Length
4' (1219mm)
Length
98/98-F/99/99-F 2'10" (864mm) 3'4" (1016mm)
9875/9875-F/9975/9975-F 2'10" (864mm) 3'4" (1016mm)
9827/9827-F/9927/9927-F 2'10" (864mm) 3'4" (1016mm)
9857/9857-F/9957/9957-F 2'10" (864mm) 3'4" (1016mm)
9847/9847-F/9947/9947-F 2'9" (838mm) 3'3" (991mm)
9848/9848-F/9948/9948-F 2'9" (838mm) 3'3" (991mm)
62
62 • Von Duprin 98/99 Series
Electrical options & accessories
98/99 Electrical options

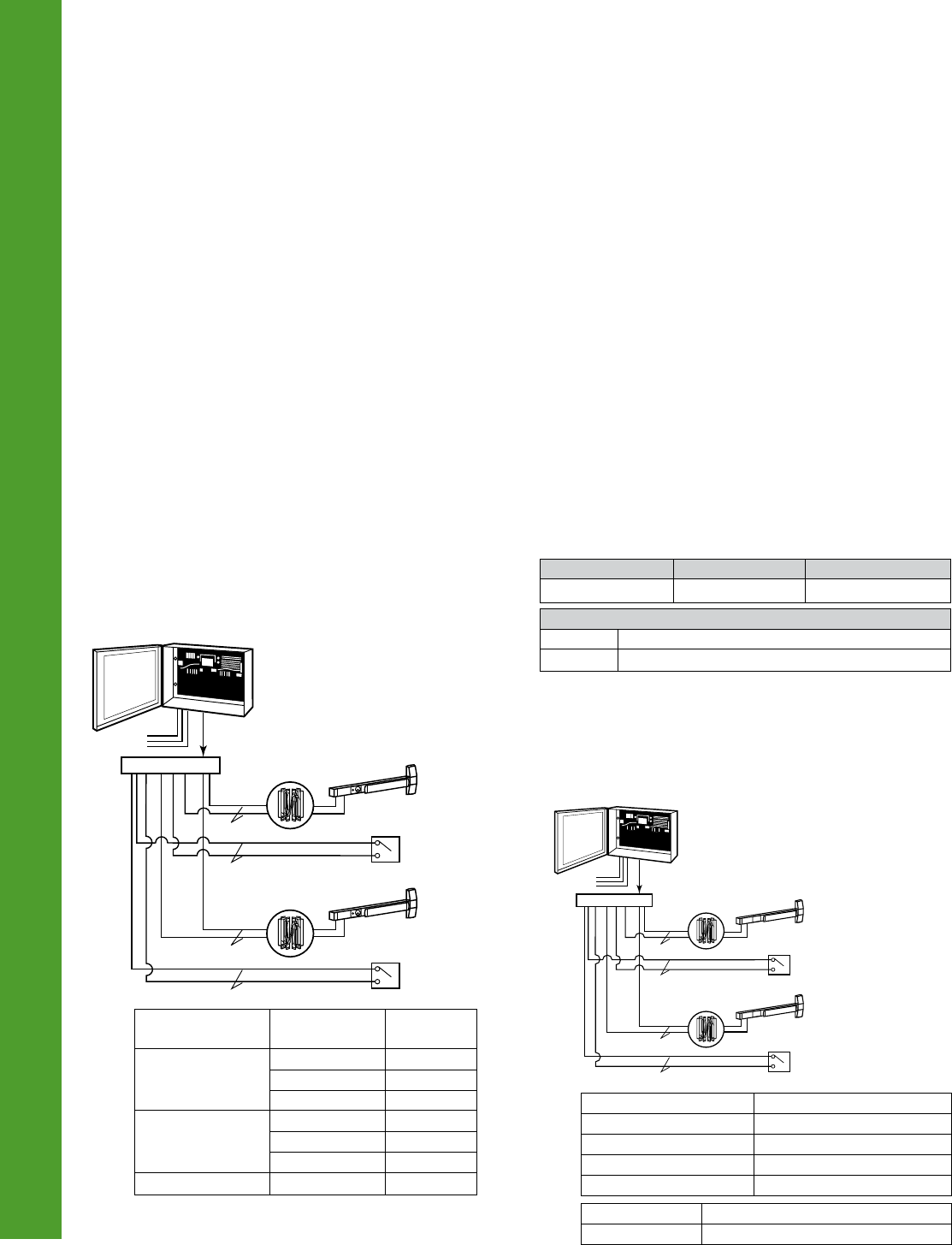

EL Electric latch retraction
The EL feature allows for the remote unlatching of exit devices. A
control station operator can flip a switch to retract the latch bolt
and immediately change an exit door to push-pull operation. A
powerful, continuous duty solenoid retracts the latch bolt, either
for momentary unlatching, or for extended periods of time. The
EL feature is an alternative to manual dogging.
If manual hex-key dogging is required, specify HD-EL. If cylinder
dogging is required, the standard cylinder dogging is not
available, but special center case dogging is available, specify
SD-EL. SD-EL is not available on the 9875 or 9975 devices.
EL devices are also useful with automatic door operators, and
may be applied to fire-rated applications when under the control
of an automatic fire alarm system.
UL approved for Class II circuit applications.
The EL option does not include the power transfer from door to
frame, the power supply, or the control operator. Refer to EPT-2
power transfer and the PS914 power supply.
The PS914 with the 9002RS option card is the minimum option
card required. Other option cards available for other functions,
see PS914 power supply for additional information.
Solenoid specifications: Solenoid resistance:
Continuous duty – 24 VDC -grn-yel 1.2 – 2.2 OHMS
Current inrush – 16 Amps -grn-org 100 – 150 OHMS
Current holding – 0.3 Amps
To order, specify:
Standard – use prefix EL, example EL99L.
Hex Key dogging – Use prefix HD-EL, example HD-EL99L
special center case dogging – Use prefix SD-EL, example
SD-EL99L
EL #2
EL #1
PS872 Wiring
SC I1 O1 I2 O2 GND EPT-2
EPT-2
Input #2
(Required for
independent
operation only).
Input #1
a*
a*
b*
b*
120/240
VAC
Popular EL application
Power supply PS914-2RS
Electric power transfer EPT-2 or EPT-10
Von Duprin
exit device
EL Wire
length (feet)1
Wire gauge
(AWG)
EL 98/99 Rim
0-500 12
0-300 14
0-200 16
a*
All other 98/99EL
device types
0-250 12
0-150 14
0-100 16
b*Control Switch 0-1200 18
1. Wire lengths include an EPT, Door loop, electric hinge or pivot and are
measured one way between the PS914/option board and the device.
2. Table is applicable to devices that have shipped aer August 2012.
QEL Quiet electric latch retraction
The QEL feature allows for the remote unlatching of exit devices.
A control station operator can flip a switch to retract the latch
bolt and immediately change an exit door to push-pull operation.
Different than the popular EL, the QEL quiet operation is
achieved using an electric drive motor which retracts the latch
bolt either momentary unlatching or for extended periods of
time. This feature is an alternative to manual dogging.
If cylinder dogging is required, the standard cylinder dogging is
not available, but special center case dogging is available,
specify
SD-QEL. SD-QEL is not available on the 9875 or 9975 devices.
QEL devices are also useful with automatic door operators, and
may be applied to fire-rated applications when under the control
of an automatic fire alarm system.
UL approved for Class II circuit applications.
The QEL option does not include the power transfer from door to
frame, the power supply, or the control operator. Refer to EPT-2
power transfer and the PS902 or 914 power supply.
The PS902/914 with the 2RS, 4RL or 4R board is the minimum
required. Other option boards available for other functions, see
PS902/914 power supply for additional information.
The QEL has a low in rush current, so it can be used with
standard Schlage power supplies. Calculate the peak current
draw of all devices in the system to determine the required
amperage of the supply.
The -2RS option board is designed to control two electric latch
retraction devices and provide time delay between the firing of
outputs is required. The power transfer is also sold separately.
To order, specify:
Standard — use prefix QEL, example QEL99L.
Special center case dogging — use prefix SD-QEL,
example SD-QEL99L
QEL #2
QEL #1
PS872 Wiring
SC I1 O1 I2 O2 GND EPT-2
EPT-2
Input #2
(Required for
independent
operation only).
Input #1
a*
a*
b*
b*
120/240
VAC
Popular application
Power supply PS902-2RS
Electric power transfer EPT-2 or EPT-10
QEL Electrical load
Voltage 24VDC
Current 1.0 A Inrush (0.5 sec.) / 0.14 A Holding
a*Distance (one-way) Wire gauge
200´ 18 AWG
320´ 16 AWG
500´ 14 AWG
800´ 12 AWG
b*Wire selection Switch wire size
1200 . Max. 18 gauge standard
Schlage PS902 Schlage PS904 Schlage PS906
up to 2 amps up to 4 amps up to 6 amps
63
Von Duprin 98/99 Series • 63
Power Supplies
Series PS902/914
Overview:
The PS900 Series is a consolidated line of power supplies and
accessories that offer enhanced flexibility and functionality
specific to the changing needs of the access control market. The
PS900 Series can be used in a variety of applications to convert
high voltage AC power into the low voltage DC outputs required
by most access control devices. The PS900 Series protects
devices downstream by providing Class 2*, filtered and regulated
power. The full line is UL294 certified.
Note: PS906 can provide Class 2 rated outputs when used with 900-8P distribution
board.
Features:
• Constant output rating at both 12 VDC and 24 VDC provides
superior performance ; includes field selectable jumper
• Polarized connectors for option boards eliminate need for
racks and side connectors
• Flat mounting of option boards provides easier access to
terminal blocks for connection of electrified devices
• High voltage protective cover
• Battery back-up board auto-selects voltage
• Fire alarm relay can be configured to provide either switched
or un-switched outputs from a power supply
• PS914 designed with high in rush current for powering
electrified panic devices
• Universal 120-240 VAC input
• Low voltage DC, regulated and filtered
• Electronic power limiting foldback circuit for AC current
overload protection
• Fused primary input
• AC status monitor- isolated SPDT contacts
• AC input and DC output LED status indicators
• Cover mounted AC input indication
• Hinged cover with lock down screws
Certifications:
• UL 294 certified—the standard for access control
• Class 2 rated*
* Except PS906, output rating exceeds Class 2 power limits
Once power is converted to low voltage DC, the PS900 Series
offers a variety of distribution options, including basic fuse
protection, simple relay, and advanced logic providing complex
sequencing and timing functions.
* PS906 can provide Class 2 rated outputs when used with 900-8P distribution board.
PS902 PS904 PS906 PS914
Number of connectors on
power supply for the
following:
2 amps 4 amps 6 amps 4 amps
Distribution boards 1 2 3 2
Battery back-up board 11 1 1
Note: One fire alarm board can be connected directly to the PS902. If a fire alarm board is
desired for the PS904, PS906 or PS914 it can be connected to
a distribution board.
Applications:
The PS900 Series of power supplies works with many electrified
devices including Schlage electromagnetic locks, Schlage
AD-Series hardwired locks, Schlage electrified mechanical locks,
Von Duprin electrified strikes , Von Duprin exit devices, and many
other brands.
Accessories:
The Schlage PS900 Series features seven option boards for use
in a variety of applications. All Schlage PS900 Series power
supplies option boards are UL 294 certified.
Option boards:
900-4R: 4 relay controlled output board to power multiple
devices
900-4RL: 4 relay distribution board with logic is field
configurable for time delay function, auto operator, security
interlock
900-8F: Provides 8 individually fuse-protected outputs, giving
the flexibility to power multiple devices and provide another layer
of protection
900-FA: Emergency interface relay integrates with fire alarm and
is used to cut power in case of emergency
900-BB: Battery backup
900-2RS: 2 relay EL panic device control board (PS914 only)
900-BBK: Battery backup kit includes two 7A/hr batteries and
provides up to four hours of backup power when cycled every 5
minutes at full load
98/99 Electrical options
Electrical options & accessories
64
64 • Von Duprin 98/99 Series
Electrical options & accessories
98/99 Electrical options
EPT Electrical power transfer
PNT Pneumatic transfer
Electric Power Transfer provides a means
of transferring electrical power from a
door frame to the edge of a swinging
door. The units are completely concealed
when the door is in the closed position,
and are ideal for installations involving
abuse or heavy trac.
Two models are available; EPT-2, two 18
gauge wires and EPT-10, ten 24 gauge wires. The EPT-2 and
EPT-10 are U/L listed as “miscellaneous door accessory”.
UL Listed for use on firedoors
Door applications:
up to 5" butt hinges – 180˚ swing,
5 1/2" butt hinges – 130˚ swing,
6" butt hinges – 110˚ swing,
3/4" butt offset pivots 180˚ swing.
Not for use with swing clear hinges or center-hung pivots.
Finishes
SP28 (sprayed aluminum)
SP313 (sprayed duranodic).
Dimensions
Housing 9" x 1¹|₄" x 1⁵|₈" (229mm x 32mm x 38mm)
EPT-2 Two 18 gauge wires, Up to 2 AMPS @ 24VDC, with
a 16 AMPS Maximum Surge
EPT-10 Ten 24 gauge wires, Up to 1 AMPS @ 24VDC, with a
16 AMPS Maximum Surge
PNT-1 ⁵|₃₂" Tubing
To order, specify:
1. EPT-2 ,EPT-10 or PNT-1.
2. Finish, SP28 or SP313.
E996L Electrified breakaway lever
E996L Electrified lever trim provides
remote locking and unlocking.
Furnished standard in fail safe (FS)
condition, can be field converted to
fail secure (FSE) where allowed.
E996L is furnished standard with
cylinder operation for nightlatch (NL) function,
or with blank escutcheon (BE).
Specification:
Solenoid – continuous duty 24VDC
Solenoid draw – 0.22 amp.
To order, specify:
1. Use “E” prefix, example E996L.
When ordering with the exit
device specify trim series with
prefix “E”, example 9927L-BE
3' US26D E996.
2. Device type, R/V (rim/surface
vertical rod/concealed vertical
rod) or M (mortise).
3. RHR furnished standard if not
specified, field reversible.
4. Lever style (06 lever furnished standard).
Other levers, no extra charge.
E Electric mortise lock device
The electric mortise lock device has all the versatility and
advantages of the standard mortise lock device, plus the
advantage of being electrically controlled by a remote switching
device, an access control system or an automatic fire alarm
system. The device features the E7500 mortise lock. The E7500
controls the locking of the outside trim. When unlocked, the door
remains latched, preserving the fire rating of the door and making
it particularly useful where codes permit locking but require
unlocking during a fire emergency. The outside trim cylinder
retracts the latch bolt for mechanical override, night latch
function. Only available with TP, K or L functions.
The E7500 lock contains a SPDT signal to monitor the outside
trim condition (locked or unlocked) and a second SPDT signal
switch to monitor the latch bolt.
Standard features:
• Field reversible handing
• 24 VDC continuous duty solenoid
Optional features:
• Fail safe (locked when energized, unlocked when de-
energized or during power failure). Specify with sux “FS.”
• Fail secure (unlocked when energized, locked when de-
energized or during power failure). Specify with sux “FSE”
• 24 VAC (with SO option)
• 12 VDC
• 12 VAC (with SO option)
Note: Some Fire codes will require “Fail Safe” (FS) operation for stairwell doors.Be sure to
specify the correct operation for your application.
Electrical specifications:
• Solenoid — .60 AMPS @ 12VDC
.30 AMPS @ 24VDC
• Each switch — Up to 2.0 AMPS @ 24VDC Maximum
The E option does not include the power transfer from door to
frame, the power supply or the control operator. (Refer to EPT-10
and PS902 or PS914 power supply)
To order, specify:
1. Use prefix “E,” example E9975.
2. FS or FSE
3. Voltage and current.
Electric mortise lock device
Adaptable for openings where continuous latching is required
while the trim may be electrically locked or unlocked from a
remote location—stairwells, exterior doors, etc.
Minimum system requirements:
• PS902
• EPT-10
65
Von Duprin 98/99 Series • 65
98/99 Mechanical options
Mechanical options & accessories
AX Accessible device
The AX device is a UL certified exit device designed to meet the
progressive requirements of the California Building Code for
accessible openings. This device meets the 5 lbs of operating
force requirement called for in chapter 11B-309.4. The AX device
also exceeds ANSI/BHMA requirements. Available devices
include: AX98/99, AX98/99-F, AX98/9949LBL, AX98/9949-F
LBL, AX98/9949-F LBLAFL. Additionally, all AX devices will be
shipped with a new UL label clearly stating “Meets California
building Code (2013) Sec. 11B-309.4” and an “AX” identifier label
on device center case. See images below for reference.
XP Extra performance
For increased security the
XP98/99 Rim exit device has
a static load force resistance
of more than 2,000 pounds,
twice that of standard rim exit
devices. The two-piece latch
bolt forms a 90° latch-to-
strike contact. The “smart” latch changes shape when subjected
to external forces. This design enables the exit door to withstand
an external attack and remain secure. Additionally, the patented
latch bolt design provides a greater, longer-lasting latch bolt to
strike contact which is not easily affected by the twisting motion
of a weakened frame, resulting in an opening that will remain
strong.
With a door loaded to 250 pounds, XP98/99 requires less than
40 pounds of pressure to open, 25% less than the safety code
requires.
XP98/99 is available for panic or fire exit hardware applications.
Dimensions, finishes and trim options are equal to the standard
98/99 series rim exit device.
Note: The 909 strike is to be used for all applications.
The exception occurs with the use of fire rated double door applications, in this instance
the 954 strike is required.
WS Surface vertical rod one-point
and three-point exit devices
WS Multi-point exit devices for tornado application devices
WS98/9927 (one- point) and WS98/9957 (three-point) surface
vertical rod exit devices are designed, tested and certified to
comply with the Federal Emergency Management Agency's
publication FEMA 361- Design and Construction Guidance for
Community Safe Rooms.
UL Listing – panic hardware UL 305; and fire exit hardware UL 10C:
WS98/9927:
3 hour pairs of doors double egress, 90 minutes
swinging same direction, 8'0" x 8'0" BHMA Grade 1,
ANSI A156.3-2001
WS98/9957:
3 hours single doors, 4'0" x 8'0" BHMA Grade 1,
ANSI A156.3-2001
Windstorm ratings:
WS98/9927:
Miami-Dade County/FBC compliance to TAS
201, TAS 202, TAS 203; design load rating +150/-150 PSF
(245 MPH wind zone); Enhanced Hurricane Protection
(EHPA) ASTM E1996, ANSI/ICC 500 (245 MPH wind
zone).
UL-FEMA 361 certified 8'0" x 8'0" pairs, swinging same
direction and 4'0" x 8'0" single non-fire rated flush
hollow metal. UL-ANSI/ICC 500 certified for F5 tornado
applications.
WS98/9957:
UL-FEMA 361 certified 4'0" x 8'0" single flush hollow
metal (fire-rated and panic). UL-ANSI/ICC 500 certified
for F5 tornado applications.
These devices are listed with Steelcra Paladin™ PW-Series doors
for tornados, and Steelcra H-Series doors hurricane applications.
To order, specify: WS prefix, example WS9927-F
LBR Less bottom rod, panic and fire rated
LBR option is available, using a spring loaded auxiliary latch bolt
installed in the lower door edge. When exposed to heat the
auxiliary latch bolt releases, keeping the doors in alignment and
closed during a fire. UL listed 3 hours on hollow metal doors double
egress, 90 minute swinging same direction, and 20 minutes wood
doors (consult wood door manufacturer). Fits door stiles as narrow
as 3 5/8".
LBR devices must be ordered in pairs or must be used in
conjunction with an approved automatic or constant latching
flush bolt.
PL Pullman latch
When PL is specified the standard latches are replaced with
pullman style latches. Pullman latches are always extended and
are most commonly used in conjunction with electric strikes and
LBR-less bottom rod application. Not available with Fire rated
devices.
Not recommended where security is of the utmost importance since latches do not
deadlock.
66
66 • Von Duprin 98/99 Series
Mechanical options & accessories
98/99 Mechanical options
PN Pneumatic controlled exit devices
The PN feature provides remote latch bolt retraction in
hazardous areas where electrically operated devices would not
be permitted. The pneumatic solenoid will retract the latch bolt
for momentary or prolonged periods. PN exit devices are
particularly suited for use with automatic door operators. The PN
feature is available on both Panic and fire exit hardware devices.
The PN feature includes a special actuating linkage that gives
building owners the option of mechanically or pneumatically
dogging the exit device. If manual hex-key dogging is required,
specify HD-PN (Dogging the device, whether mechanically or
pneumatically, makes the device function as a push/pull unit and
reduces the wear on its moving parts.) If cylinder dogging is
required, the standard cylinder dogging is not available, but
special center case dogging is available, specify SD-PN. SD-PN is
not available on the 9875 or 9975 devices.
When activated pneumatically, the latch bolt(s) of the exit
device retract in 1/2₂ to 11/2 seconds. This pneumatic operation
uses air pressure ranging from 50 to 100 pounds per square inch.
This product will function only when it is part of a pneumatic
system (air compressor, air lines, pneumatic system, etc.).
Contact LCN for correct control boxes.
To order, specify:
• Standard — Use prefix PN, example PN99NL
• Hex Key Dogging — Use prefix HD-PN, example HD-PN99NL
• Special Center Case Dogging (handing is required, specify
RHR or LHR) — Use prefix SD-PN, example SD-PN99NL
PNT pneumatic transfer
Pneumatic controls
PNT-1 is available for pneumatic latch retraction exit devices.
Appearance and dimensions are identical to EPT models.
RSS Red Silk Screen
Red silkscreen lettering on touchpad trim. - "Emergency Exit
Only, Push To Open And Sound Alarm". This comes standard on
SS devices.
To order, specify: Sux RSS, 9927L-RSS RHR
Dummy pushpad
The 330 dummy pushpad is designed as a companion unit for all
99 devices. The 350 dummy pushpad is a companion unit for all
98 devices. The pushpad is rigid or nonfunctioning. A push/pull
operation can be accomplished by using 990DT, 996DT trim or
any Ives Pull.
The 330/350 can be equipped with a functional pushpad and
will accommodate an RX or WP-RX switch. Specify RX-330.
May also be equipped with the RX2, double RX switch. Specify
RX2-330
To order, specify:
1. 330 or 350.
2. Size 3' or 4' (914mm or 1219mm)
3. Finish, US3, US4, US10, US26, US26D, US28, 313 & 315.
US32D – 350 only.
4. Specifiy RX, WP-RX or RX-2 if desired.
SG Safety glow
Self-illuminating touchpad defines the location of the exit door
in dark or smoke-filled area. The safety glow coating is a special
powder coat finish that glows brightly during low or no light
conditions. This coating was developed to meet MEA standards
where luminescent exit door markings are required in
commercial facilities. There are no batteries or electronics, the
coating is charged when exposed to light.
To order, specify: Sux SG, EL 9927L-SG
Braille, embossed and knurled touchpads
Braille touchpad embossed with the standard message
“CAUTION STAIRWELL” in braille and raised letters provides
assistance to persons with impaired vision. Letters are 1/2"
(13mm) high and braille is #2, raised height is 3/32" (2mm). Other
messages are available on special order, limited to 20 characters
per line.* To order, specify: Sux BR, EL9927L-BR
Embossed touchpad is embossed with the word “PUSH”.
To order, specify: Sux EMB, EL9927L-EMB
Knurled touchpad is to provide warning to persons with impaired
vision. To order, specify: Sux PBKN, EL9927L-PBKN
Consult factory for availability.
* Image shown is a special order.
67
Von Duprin 98/99 Series • 67
98/99 Device options & accessories
Device options & accessories
Latch guard
12"
3' or 4'
2 1/4"
10"
RG-27 Vertical rod and latch guard
Series RG-27 Vertical rod and latch guards protect the
bottom rods of exit devices from the damaging
impacts of carts or gurneys passing through doors. (If
bottom rods become damaged, the exit device will
not function as intended and can jeopardize the
ability to exit safely during an emergency.)
In addition to protecting the vertical rod, the guard
provides a smooth, unobstructed surface so the door
can be pushed open easily with the bumpers of a
wheelchair. The latch guard portion is 10" high. The
standard latch guard features a 45° ramp. The
extended latch guard offers a continuous ramp in 3'
or 4' widths.
All stainless steel construction in US32D finish.
Latch guards can cover latches as large as
1 1/4"W x 10"H x 1 7/8" projection.
Models
RGO Rod guard only (projection 1 3/16")
RG-27 Rod and latch guard
RG-27-3 3' (914mm) Rod guard and extended latch guard
RG-27-4 4' (1219mm) Rod guard and extended latch guard
LGO Latch guard only
LGO-3 3' (914mm) Extended latch guard only
LGO-4 4' (1219mm) Extended latch guard only
When using on wood fire doors, high density block is required.
To order, specify:
1. Model number.
2. Handing (except on RGO).
3. Door material if other than hollow metal.
4. Optional sex bolt mounting available.
997 Cover plate kit
For 98/99 rim device, kit
contains inside and outside
plates for hinge stile cutouts,
an inside plate for the lock stile,
and necessary screws. Plates
are designed to cover cutouts
required by most existing exit
device installations.
Specify finish.
Rod guard
Extended latch guard
4 3/8"
WDA Cover plate kit
For wood door applications, used to cover up
door preparations for control, also prevents the
control from boring into the wood door. Finished
to match control.
GBK Glass bead kit
Glass bead conversion kits are available for all 98/99™ Series
devices for use on doors with raised glass beads. Each kit
consists of 1/4" (6mm) shim sets. GBK for surface vertical rod
ships with 1/8" shims for rod guides.
To order, specify:
1. 99GBK
2. Device type (rim, mortise, surface vertical rod, concealed
vertical rod)
3. Wood door, when used with concealed vertical Rod
4. When used with 330/350 Dummy pusher, order two hinge
stile shims.
36"
#10WDA Cover plate kit for 370
series controls
#33A-WDA Cover plate kit for 360
series controls
7 7/8"
2 1/16"
7 7/8"
2 1/16"
13/4" (44mm)
9"
(229mm)
68
68 • Von Duprin 98/99 Series
Device options & accessories
98/99 Device options & accessories
Cylinders
Cylinders are not furnished with device or trim and must be specified when ordering. Refer to trim pages for cylinder type.
Mortise — 3215 (Schlage 20-001, B502-191 cam) Rim — 3216 (Schlage 20-022 cam)
Dogged (inverted) cam
For cylinder dogging
or 360L
Undogged cam (standard operations)
For standard trim functions
or 360L-NL
69
Von Duprin 98/99 Series • 69
98/99 Device options & accessories
Device options & accessories
Removable mullions Keyed removable steel mullions
Mullions
Removable steel mullions provide single door
performance in double door openings with rim devices.
Mullions are easily removed by loosening bottom set screw
and removing top fitting cover. The top mullion fitting is
attached to the frame and is concealed by the fitting cover.
Steel mullions are 2" (51mm) wide and 3" (76mm) deep, with
a wall thickness of 1/8" (3mm).
Mullions are shipped with mounting screws and prepared for
strikes. Strikes are not included except where indicated.
Steel mullions are available in SP28 and SP313 finishes.
Consult factory for other powder coat finish options.
KR – Keyed removable steel mullions make removal faster
and easier by a single operation of the mortise cylinder. Once
mullion is removed, large equipment or furniture can freely
pass through the opening. The unit will self lock when re-
installed, without the use of the cylinder key. Uses a 1 1/4"
mortise cylinder with a straight cam (Schlage cam reference
B502-191). Cylinders are sold separately. Prefix mullion model
with “KR”.
Removable aluminum mullions are 1 1/16" (27mm) wide on face
closest to the door and 23/8" (60mm) at the widest point. The
depth is 3 1/8" (79mm) with a wall thickness of 1/8" (3mm).
Aluminum mullions are available in US4, US10, US28, 313 and
315 finishes. Consult factory for other powder coat finish
options. Aluminum mullion are not available keyed removable.
Stock hollow metal applications for devices mounted to cover
ANSI 161 cutouts are higher than the standard mullion strike
location. Consult the factory for special strike preparation or
order a blank mullion. See below.
Blank mullions are furnished without strike preparation. They
are used to mount devices at a strike height different from the
standard mullion preparation.
To order, specify:
1. For keyed Removable option on steel mullions, prefix
model number with “KR”
2. Model number
3. Height of opening
4. Finish
5. Handing if required
6. Centerline deviation (refer to device template for standard
centerline)
7. Strikes, when required, should be ordered with device
Steel mullions
1654 Prepared for two 1606 strikes. If 1606 strikes are not
specified on the order, two per mullion will be added.
Additional charges apply.
4954 Prepared for 264 or 299 strikes. For use with all Von
Duprin Panic rim devices.
9954 Prepared for and must be used with two 268 strikes
(88-F device), or two 499F (22-F, 98-F, 99F devices).
UL fire labeled mullion for
up to 3 hour opening using
Von Duprin fire exit rim
devices. This mullion is not
easily removed due to
special fittings.
98-F and 99-F devices are
rated up to 10'0" (3048
mm).
Note: If 268 or 499F strikes are not specified on the
order, two per mullion will be added. Additional
charges apply.
4754 Prepared for two 4263
monitor strikes.
4854 Prepared for one 299 and
one 6111 electric strike.
Indicate handing for electric
strike.
9854 Prepared for one 268 or
499F strike and one 6111
electric strike. Indicate
handing for electric strike. UL fire labelled mullion for up
to 3 hour openings up to 8' x 8' (2438mm x 2438mm)
using Von Duprin fire exit rim devices
70
70 • Von Duprin 98/99 Series
325 sex bolts used on surface Vertical Latches.
425 sex bolts are required for 98/99 Series fire rated devices
when used on wood door applications. When wood doors are
specified for these devices, sex bolts will be added to the device
application unless SLM blocking package is specified.
825 sex bolts are required with 98-F/99-F rim
devices on wood door applications using NL,
TP, K and L outside trims. Two 825 sex bolts
will be added to the device application unless
SLM blocking package is specified.
To order, specify:
1. Model number
2. Quantity (2 per package)
3. Finish
4. Door thickness other than 1 3/4" (44mm)
Device options & accessories
98/99 Device options & accessories
Sex bolts
Sex bolts when ordered with devices
may be furnished with screw lengths
different than shown in Column B.
Below, Column B indicates popular
sizes. Sex Bolts ordered separately
are not furnished with screws. If
screws are required refer to chart
below and order screws by
description as a separate item. Other screw lengths may be used
based on minimum and maximum allowable thread
engagement, shown in column “C.” Quantity required — refer to
device section, quantities differ depending on outside trim.
Rim, mortise and concealed vertical
Center case Hinge case
Device
type
Door
thickness Sex bolt B
C
Thread
engagement
min. – max
Sex bolt B
C
Thread
engagement
min. – max
no. AScrew no. AScrew
98, 9827, 9827-F,
9875, 9875-F, 9847,
9847-F, 9847WDC,
9849, 9849-F
99, 9927, 9927-F,
9975, 9975-F,
9947, 9947-F,
9949, 9949F,
98/9949WDC,
98/9949WDC-F
1 3/4" (44mm) 425 1 9/16"10-24 x 1" PPHMS 9/32" – 1 9/16" 425 1 9/16"10-24 x 1" PPHMS 9/32" – 1 9/16"
2 1/4" (57mm) 425 1 9/16"10-24 x 1 1/2" PPHMS 9/32" – 1 9/16" 425 1 9/16"10-24 x 11/2" PPHMS 9/32" – 1 9/16"
98-F, 99-F*
1 3/4" (44mm) 425
825A*
1 9/16"
1 13/16"
10-24 x 1" PPHMS
10-24 x 3/4" PPHMS
9/32" – 1 9/16" 425 1 9/16"10-24 x 3/4" PPHMS ⁹9/32" – 1 9/16"
2 1/4" (57mm) 425
825B*
1 9/16"
25/16"
10-24 x 1 1/2" PPHMS
10-24 x 3/4" PPHMS
9/32" – 1 9/16" 425 1 9/16"10-24 x 11/4" PPHMS 9/32" – 1 9/16"
* For use with outside trims, see page XX for details
Surface vertical rod - latches only
Latch case
Device
type
Door
thickness Sex bolt B
no. AScrew
9827/9927/9827F,
9927F 1 3/4" (44mm) 325 1 9/16"1/4 - 20 x 3/4" FPHMS
2 1/4" (57mm) 325 1 9/16"1/4 - 20 x 1/4" FPHMS
PPHMS – Pan phillips head machine screw
UFPHMS – Undercut flat phillips head machine screw
* For use with outside trims.
325
425
825
71
Von Duprin 98/99 Series • 71
98/99 Function, grade, type options
Additional information
ANSI Function, grade & type
Dimensions
Function Grade 1,
type 1
Grade 1,
type 2
Grade 1,
type 3
Grade 1,
type 7
Grade 1,
type 7
Grade 1,
type 8
Grade 1,
type 8
Grade 1,
type 8
Grade 1,
type 9
198EO & F
99EO & F
9827EO & F
9927EO & F
9875EO & F
9975EO & F
9847WDCEO & F
9947WDCEO & F
9849WDCEO & F
9949WDCEO & F
9847EO & F
9947EO & F
9848EO & F
9948EO & F
9849EO & F
9949EO & F
9857EO & F
9957EO & F
298DT
99DT
9827DT
9927DT
9875DT
9975DT
9847WDCDT
9947WDCDT
9849WDCDT
9949WDCDT
9847DT
9947DT
9848DT
9948DT
9849DT
9949DT
9857DT
9957DT
398NL & F
99NL & F
9827NL & F
9927NL & F
9875NL & F
9975NL & F
9847WDCNL & F
9947WDCNL & F
9849WDCNL & F
9949WDCNL & F
9847NL & F
9947NL & F
9848NL & F
9948NL & F
9849NL & F
9949NL & F
9857NL & F
9957NL & F
398K-NL & F
99K-NL & F
9827K-NL & F
9927K-NL & F
9875K-NL & F
9975K-NL & F
9847WDCK-NL & F
9947WDCK-NL & F
9849WDCK-NL & F
9949WDCK-NL & F
9847K-NL & F
9947K-NL & F
9848K-NL & F
9948K-NL & F
9849K-NL & F
9949K-NL & F
9857K-NL & F
9957K-NL & F
398L-NL & F
99L-NL & F
9827L-NL & F
9927L-NL & F
9875L-NL & F
9975L-NL & F
9847WDCL-NL & F
9947WDCL-NL & F
9849WDCL-NL & F
9949WDCL-NL & F
9847L-NL & F
9947L-NL & F
9848L-NL & F
9948L-NL & F
9849L-NL & F
9949L-NL & F
9857L-NL & F
9957L-NL & F
598TP & F
99TP & F
9827TP & F
9927TP & F
9875TP & F
9975TP & F
9847WDCTP & F
9947WDCTP & F
9849WDCTP & F
9949WDCTP & F
9847TP & F
9947TP & F
9848TP & F
9948TP & F
9849TP & F
9949TP & F
9857TP & F
9957TP & F
798TP-2 & F
99TP-2 & F
9875TP-2 & F
9975TP-2 & F
898K & F
99K & F
9827K & F
9927K & F
9875K & F
9975K & F
9847WDCK & F
9947WDCK & F
9849WDCK & F
9949WDCK & F
9847K & F
9947K & F
9848K & F
9948K & F
9849K & F
9949K & F
9857K & F
9957K & F
898L & F
99L & F
9827L & F
9927L & F
9875L & F
9975L & F
9847WDCL & F
9947WDCL & F
9849WDCL & F
9949WDCL & F
9847L & F
9947L & F
9848L & F
9948L & F
9849L & F
9949L & F
9857L & F
9957L & F
10 98K-2 & F
99K-2 & F
9875K-2 & F
9975K-2 & F
10 98L-2 & F
99L-2 & F
9875L-2 & F
9975L-2 & F
11 12 9827TL & F
9927TL & F
9847WDC & F
9947WDC & F
9849WDC & F
9949WDC & F
9847TL & F
9947TL & F
9848 & F
9948& F
9849 & F
9949& F
9857TL & F
9957TL & F
14 98K-BE & F
99K-BE & F
9827K-BE & F
9927K-BE & F
9875K-BE & F
9975K-BE & F
9847WDCK-BE & F
9947WDCK-BE & F
9849WDCK-BE & F
9949WDCK-BE & F
9847K-BE & F
9947K-BE & F
9848K-BE & F
9948K-BE & F
9849K-BE & F
9949K-BE & F
9857K-BE & F
9957K-BE & F
14 98L-BE & F
99L-BE & F
9827L-BE & F
9927L-BE & F
9875L-BE & F
9975L-BE & F
9847WDCL-BE & F
9947WDCL-BE & F
9849WDCL-BE & F
9949WDCL-BE & F
9847L-BE & F
9947L-BE & F
9848L-BE &F
9948L-BE & F
9849L-BE &F
9949L-BE & F
9857L-BE & F
9957L-BE & F
16 9827TL-BE & F
9927TL-BE & F
9847WDC & F
9947WDC & F
9849WDC & F
9949WDC & F
9847TL-BE & F
9947TL-BE & F
9848 & F
9948 & F
9849 & F
9949 & F
9857TL-BE & F
9957TL-BE & F
72
72 • Von Duprin 98/99 Series
UL Listed fire exit hardware label and opening size
Exit device
Door
material Single door
Double door
With 9954
mullion
With 9854
mullion
With kr9954
mullion
With kr9854
mullion
V x v
same direction
V x mortise
same direction
V x v
double egress
98-F
99-F Metal 3 Hour
4' x 10'
3 Hour
8' x 10'
3 Hour
8' x 10'
3 Hour
8' x 8'
3 Hour
8' x 8' — — —
9875-F
9975-F Metal 3 Hour
4' x 10' ————— 3 Hour
8' x 10' —
9827-F
9927-F Metal —————90 Minute*
8' x 10'
3 Hour
8' x 10'
3 Hour
8' x 10'
9827LBR-F
9927LBR-F Metal —————90 Minute*
8' x 10' —3 Hour
8' x 10'
9857-F
9957-F Metal 3 Hour
4' x 8'
3 Hour
8' x 8'
3 Hour
8' x 8'
3 Hour
8' x 8'
3 Hour
8' x 8' — — —
9847-F
9947-F Metal —————90 Minute*
8' x 10'
3 Hour
8' x 10'
3 Hour
8' x 10'
9847LBR-F
9947LBR-F Metal —————90 Minute*
8' x 10' —3 Hour
8' x 10'
9848-F
9948-F Metal —————90 Minute*
8' x 10'
3 Hour
8' x 10'
3 Hour
8' x 10'
9849-F
9949-F Metal —————90 Minute*
8' x 10'
3 Hour
8' x 10'
3 Hour
8' x 10'
9849LBL-F
9949LBL-F Metal —————90 Minute*
8' x 10' —3 Hour
8' x 10'
* Currently, no door manufacturers offer a listing over 90 minutes with doors swinging same direction.
Consult wood door manufacturers for current UL listings.
Additional information
UL Listing for re exit hardware
73
Von Duprin 98/99 Series • 73
98/99 Finishes
Finishes
Touch bar trim options — Knurled
Embossed “Push”
Braille (Caution-Stairwell), satin stainless steel only
RSS, US32D only, red silk screen lettered “EMERGENCY EXIT ONLY – PUSH TO OPEN AND SOUND ALARM.”
* US32D and US15—available on 98 Series only
** Other custom logo touchbar trim and RAL color combinations available - consult factory
A. Center case cover
B. Touch bar end cap C. Touch bar trim
D. Cover plate
F. Mechanism case
E. Mechanism end cap
Finishes
Color US
number
BHMA
number A, B, E CD & F
Bright brass US3 605 Bright brass Bright brass US3, 605 Buffed anodized
Satin brass US4 606 Bright brass Satin brass US4, 606 Anodized
Satin bronze US10 612 Plated Satin bronze US10, 612 Anodized
Bright chrome US26 625 Plated Bright stainless steel US32, 629 Buffed anodized
Satin chrome US26D 626 Plated Satin stainless steel US32D, 630 Anodized
Satin stainless steel*US32D 630 Stainless steel Satin stainless steel US32D, 630 Anodized
Aluminum, anodized US28 628 Powder coat Satin stainless steel US32D, 630 Anodized
Duranodic dark bronze 313 710 Powder coat Powder coat Powder coat
Black 315 622 Powder coat Powder coat Powder coat
Special Finishes
Color US
number
BHMA
number A, B, E CD & F
Satin bronze, oil-rubbed US10B 613 Oil-rubbed, US10B Oil-rubbed, US10B Powder coat
Powder coat** RAL # –Powder coat Satin stainless steel US32D, 630
(unless specified to match device) Powder coat
Bright bronze US9 611 Plated Bright bronze US9, 611 Buffed anodized
Satin nickel * US15 619 Plated, clear powder Satin stainless steel US32D Anodized
Aged bronze 643E – – Relieved aged bronze Relieved aged bronze Aged bronze, no
relief
Satin chrome
(antimicrobial) U26D-AM 626-AM AM Clear over chrome AM Clear over satin stainless steel
US32D, 630
AM Clear over
anodized
Satin stainless steel
(antimicrobial) US32D-AM 630-AM AM Clear over stainless
steel
AM Clear over Satin Stainless Steel
US32D, 630
AM Clear over
anodized
74
74 • Von Duprin 98/99 Series
Finishes*
Color US
number
BHMA
number
Chromium,
polished US26 625
Anodized,
aluminum US28 628
Chromium, dull US26D 626
Brass, polished US3 605
Brass, dull US4 606
Special finishes
Color US
number
BHMA
number
Satin chrome,
Antimicrobial
US26D-
AM 626-AM
Satin stainless
steel,
antimicrobial
US32D-
AM 630-AM
Aged bronze
643e – –
Color US
number
BHMA
number
Bronze, dull US10 612
Satin nickel
Available for
35A ONLY
US15 619
Satin stainless
steel US32D 630
Duranodic
dark bronze 313 710
Black 315 711
Pushpad options — Knurled
Embossed “Push”
Braille (Caution-Stairwell), satin stainless steel only
RSS – (Emergency Exit – Push to open and sound alarm) – Red Silkscreen lettering on US32D
* Note: Durable powder coated finishes available at specific special request. PLEASE CONTACT FACTORY.
Finishes
98/99 Finishes
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 8,000 people and sells products in more than 120 countries
across the world. Allegion comprises more than 25 global brands, including
strategic brands CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
.
For more, visit www.allegion.com
About Allegion
© 2015 Allegion
006590, Rev. 07/15
www.allegion.com/us

Navigation menu
