*911030-00*

911030-00

Printed in U.S.A.

911030-00 Rev. 3/16-c

General Information

The Von Duprin Chexit device is designed for controlled egress applications. It meets both life safety and security needs, as well as

the requirements of NFPA101 for “Special Locking Arrangement” and IBC “Special Egress-Control Devices”. All control inputs, auxiliary

locking, local alarm and remote signaling outputs are self-contained in the Chexit assembly. Numerous eld congurable options allow

the device to be customized for the specic code or application requirements. The standard Chexit device sounds an alarm and keeps

the door secured for 15 seconds following an exit attempt with immediate release upon re.

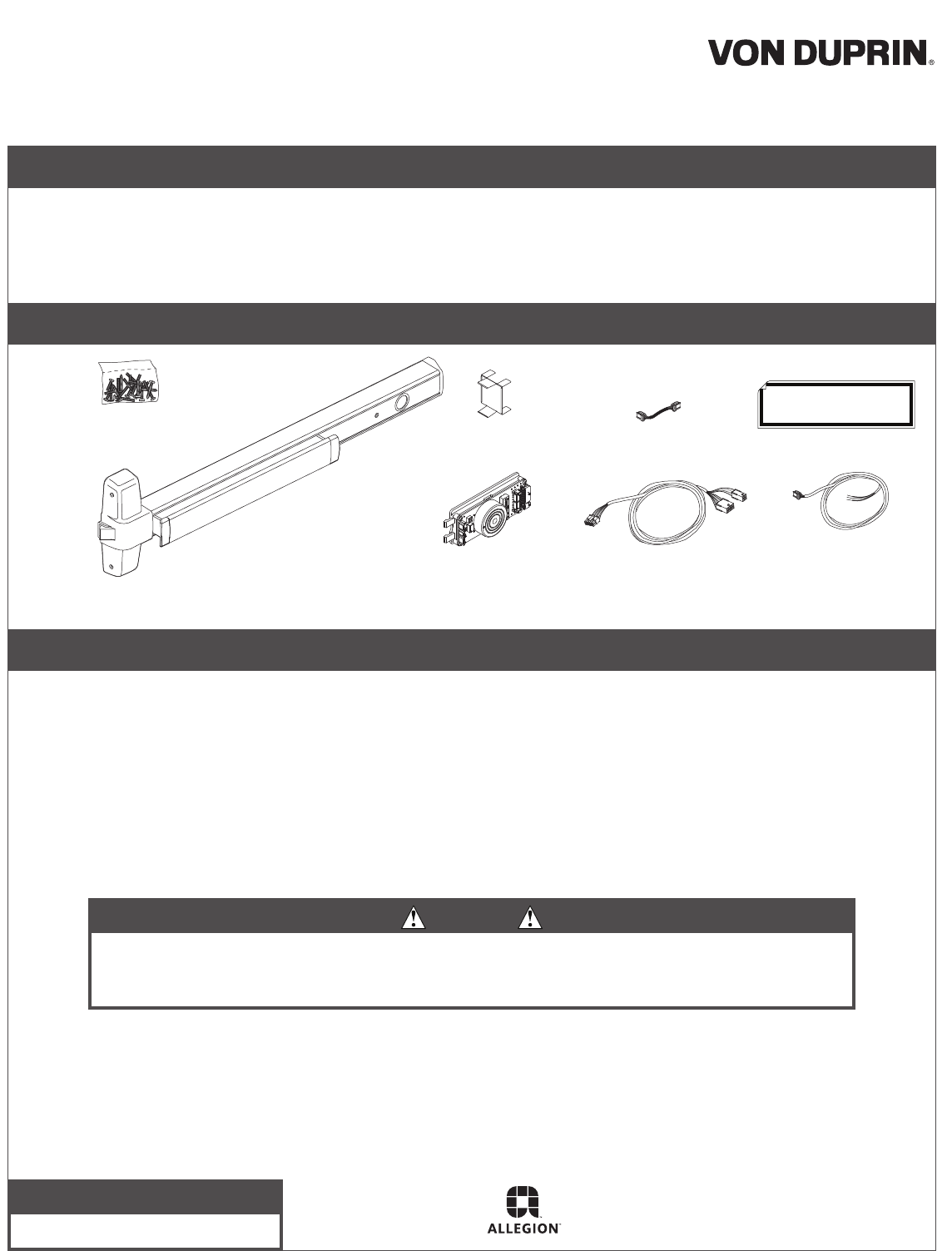

Parts Included

PUSH UNTIL ALARM SOUNDS

DOOR CAN BE OPENED

IN 15 SECONDS

Controlled Egress Device

(CX98/99 Rim shown)Module

Blocking Device Cable

Wire Guard

Security Screw Pack

(Install as required)

Trim Device

Cable*

Field Wiring Cable

Door Sign

*Included when ordering with an E7500, E996L, E360L-BE or RX996L-M.

Table of Contents

Basic Features........................................................................... 2

Installation Components ............................................................ 3

Electrical Specications ............................................................. 3

Typical Wiring Diagrams ............................................................ 4

Single Door ............................................................................. 4

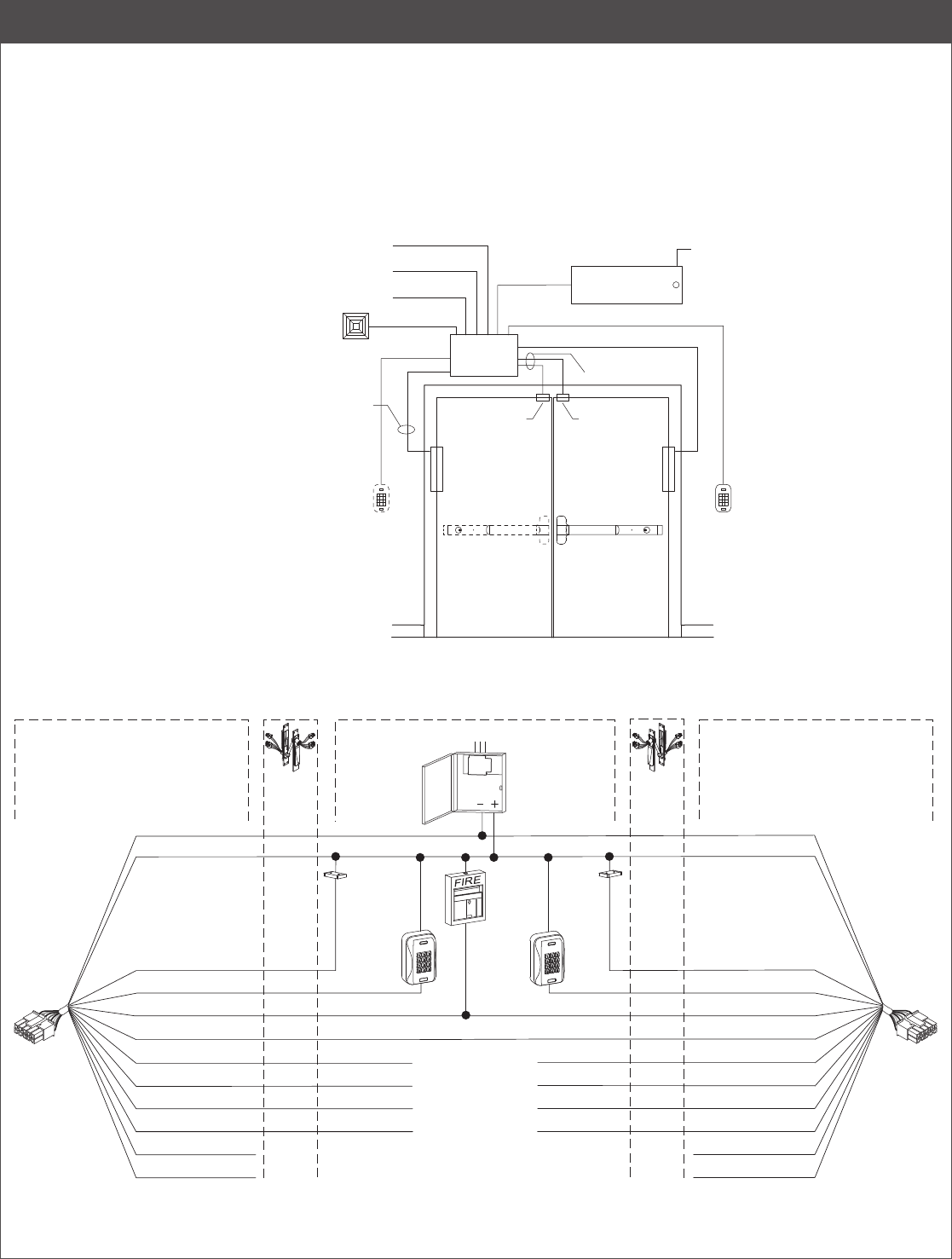

Double Door ........................................................................... 5

Double-Egress Door ............................................................... 6

Electrical Trim ......................................................................... 7

Retrot Wiring ............................................................................ 7

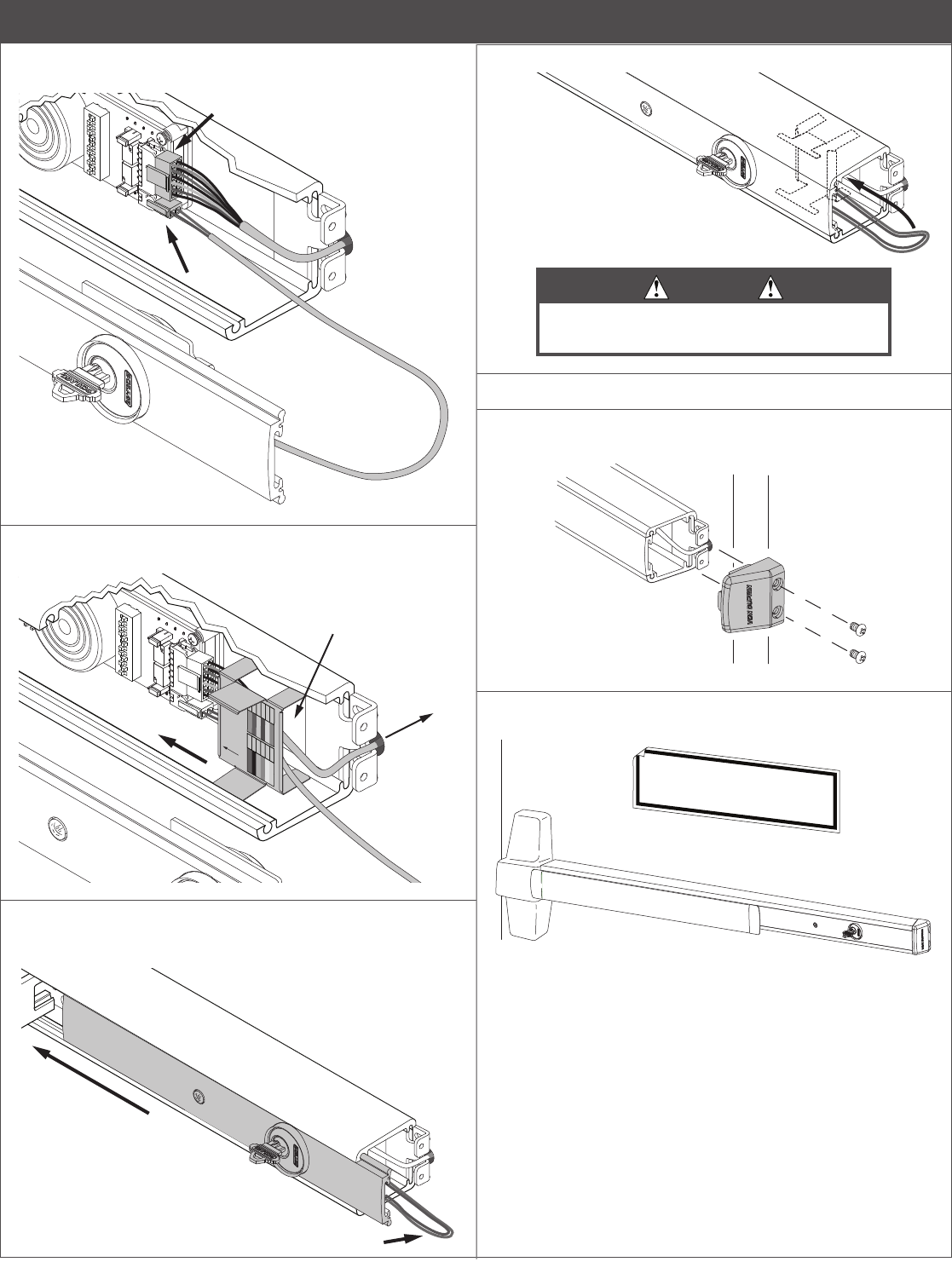

Installation ................................................................................. 8

Basic Functional Test ............................................................... 11

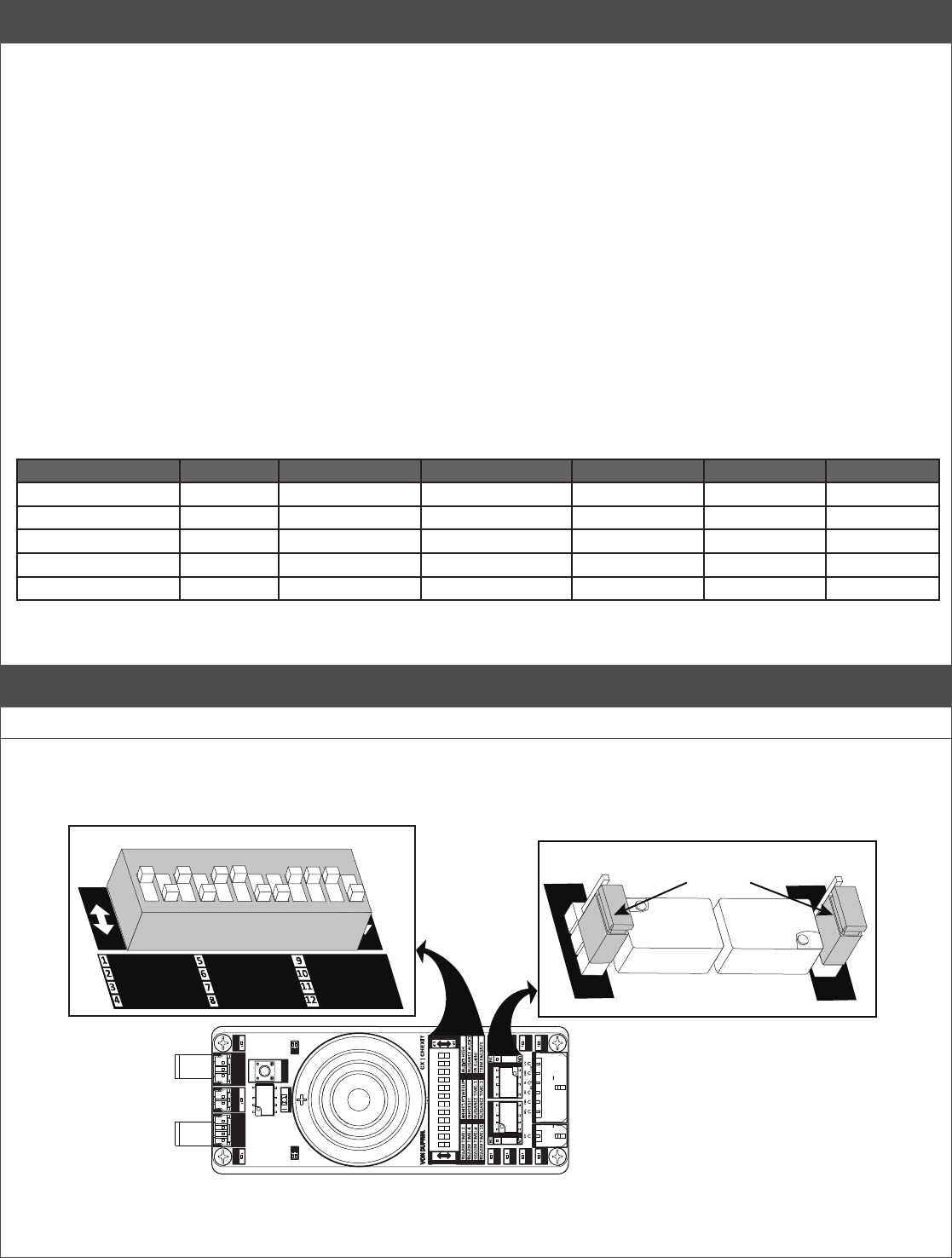

Module Setup .......................................................................... 11

Onboard Switch Settings Table ............................................... 12

Advanced Function Test .......................................................... 13

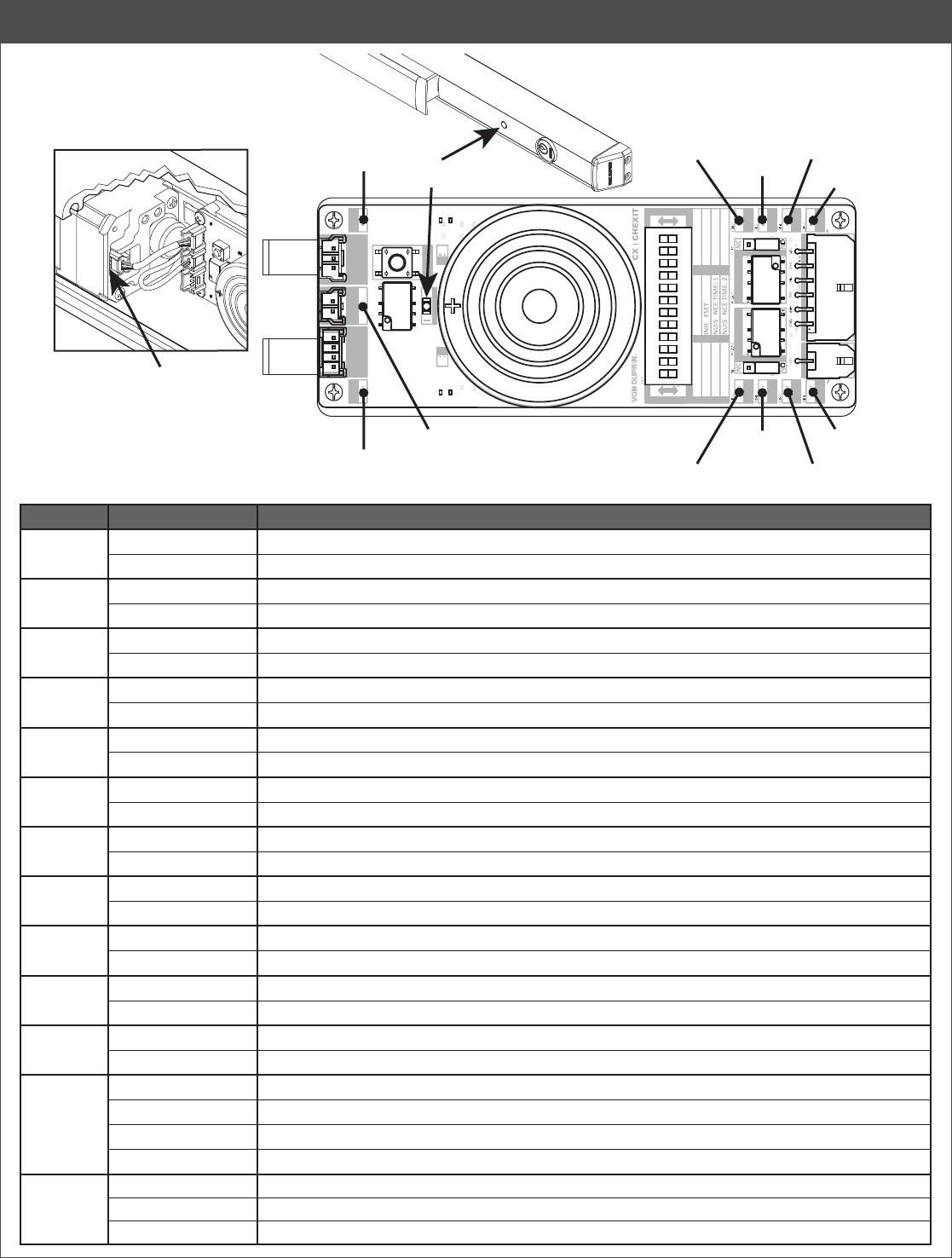

Onboard Indicators .................................................................. 14

Troubleshooting ....................................................................... 15

WARNING

• Donotexceedratedspecications.

• TheChexitdevicemustbeinstalledinaccordancewiththeseinstructionsbyaqualiedelectrician.

• Wiringandapplicationsmustbeinaccordancewithalllocalcodesandregulations.

Wiring and Conguration Installation Instructions

CustomerService

1-877-671-7011 www.allegion.com/us

Chexit (CX)

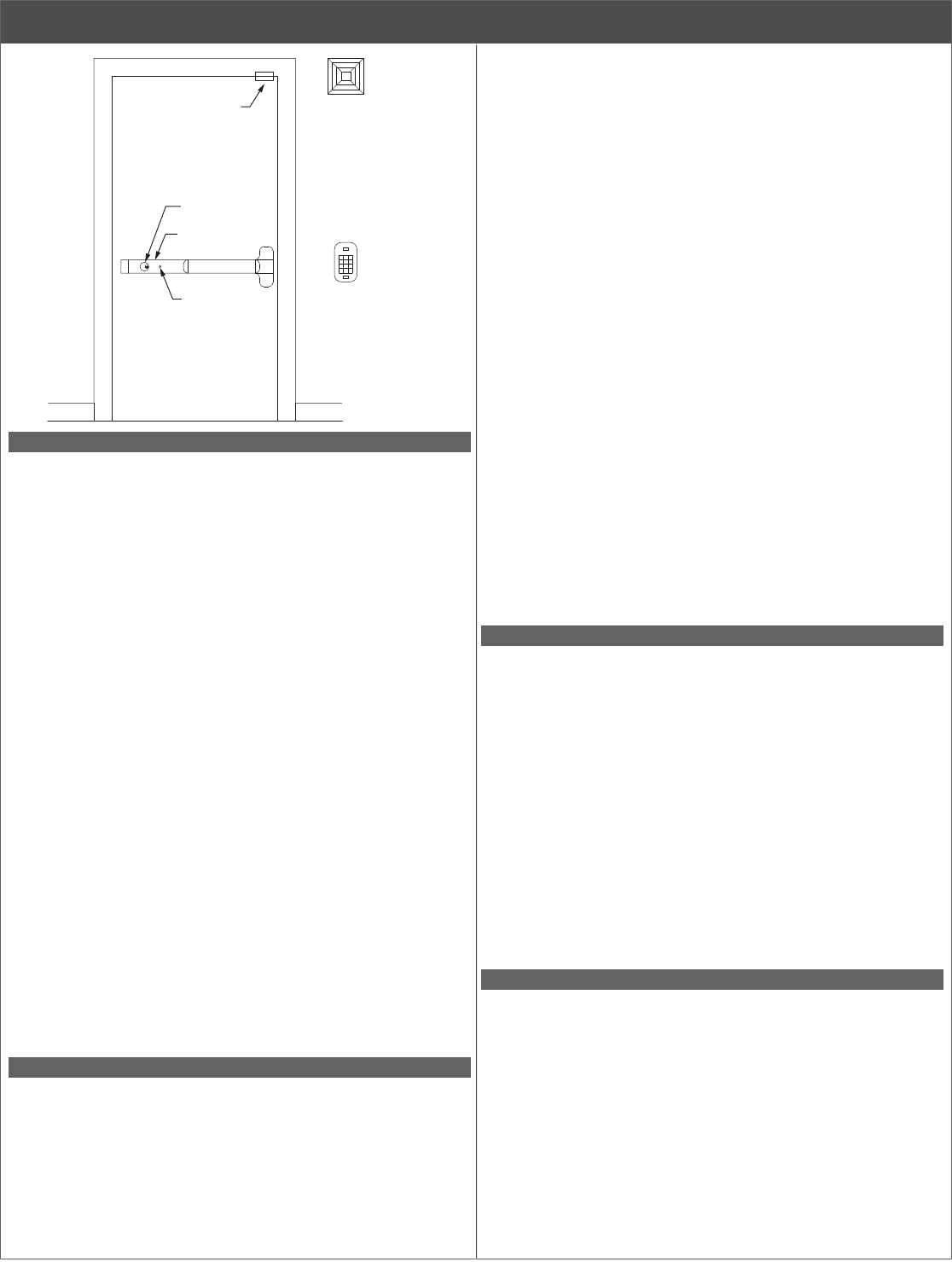

1 Basic Features

Door Position Switch

Internal Alarm

Status Indicator Inhibit Device

(Card Reader)

Remote Alarm

Key Switch

Inputs&Outputs

FireAlarmInput

This input releases the door immediately upon a re alarm,

allowing immediate egress. The Internal Alarm can be silenced

during a re input via an onboard switch setting.

InhibitInput(AccessControl)

This optional input is provided to allow authorized egress or entry

when the device is Armed using an external card reader, Key

Switch, etc. It also allows remote reset of the Chexit in an alarmed

condition. The ability to reset alarms with the inhibit input can be

disabled via an onboard switch setting.

DoorPositionSwitchInput

An optional Door Position Switch (DPS) can provide door position

status to Chexit for additional security, ensuring that the door is

closed, and can cause alarm when the door is left or forced open.

GangBus

The Gang bus allows a Chexit device to signal other Chexit

devices when it enters the Release Delay, allowing multiple doors

to release at the same time in an emergency. Up to 8 devices may

be connected to the Gang bus.

AlarmRelayContacts

The Alarm Relay contacts are provided as a means to control

a Remote Alarm, such as a horn or lamp, or signal an external

monitor. The contacts can be congured with a jumper as Normally

Open or Normally Closed, and become active upon entering an

alarmed condition.

SecureRelayContacts

The Secure Relay contacts are provided as a means to signal an

external monitor. The contacts can be congured as Normally Open

or Normally Closed with a jumper, and become active when the

DPS indicates the door is closed and the Push Pad is locked.

Delays

ReleaseDelay

When the Push Pad is pushed and the Nuisance Delay expires, the

Chexit enters the Release Delay with alarm. During the Release

Delay, the Internal Alarm sounds, the Alarm Relay activates, and

the Chexit keeps the Push Pad locked for 15 seconds (less any

time already elapsed during the Nuisance Delay). Once started,

the Release Delay sequence will not stop and the Chexit will

unlock.

NuisanceDelay

When a Chexit is located in a public area, it can be desirable to

limit false releases when the Push Pad is accidentally pushed. The

Nuisance Delay is the brief time a Push Pad can be accidentally

pushed before the Release Delay sequence starts. If the Nuisance

Time is set to 0 seconds, the Chexit will enter Release Delay

as soon as the Push Pad is pushed (when armed). Setting the

Nuisance Time to 1, 2, or 3 seconds allows the Push Pad to be

pressed for 1 to 3 seconds before the Chexit goes into Release

Delay. If the Nuisance Audio and Nuisance Delay are both on, the

Internal Alarm will pulse during the Nuisance Delay. The Alarm

Relay does not activate during the Nuisance Delay. If the Push

Pad is released before the Nuisance Delay expires, the Chexit will

remain armed.

RearmDelay

The Rearm Delay is the amount of time after the Key Switch or

Inhibit Input is deactivated to when the device rearms. It is designed

to give someone time to pass through the door before rearming

occurs. The Rearm Time can be changed via the onboard switch

settings from 0 to 28 seconds in 2 second increments.

If the Rearm Time is set to 30 seconds and a DPS is used, if the

door is opened and the Rearm Time expires, there will be no

alarm. The Chexit will rearm after the door is closed. If the door

never opens, the Chexit will rearm after 30 seconds.

If not using a DPS, the Chexit will always rearm in 30 seconds.

DPSDelay

If the DPS detects that the door closed during the Rearm Delay,

the Chexit ends the Rearm Delay and allows 2 seconds for the

latch to clear the strike before rearming.

Interface

KeySwitch

The Key Switch provides the means to Arm or Disarm/Reset the

Chexit. Turning the Key Switch clockwise initiates the Rearm

Delay, and turning the Key Switch counter-clockwise Disarms/

Resets the Chexit. The Key Switch allows the key to be removed

in either the Arm or the Disarm/Reset position.

StatusIndicator

The red Status Indicator displays the status of the Chexit. The

Status Indicator ashes slow if the Chexit is armed, ashes fast in

an alarmed mode, is off when inhibited and on solid during Rearm

Delay.

InternalAlarm

The Internal Alarm sounds the status of the Chexit. The Internal

Alarm sounds continuously during and after a re alarm or a

Release Delay, pulses fast during the Nuisance Delay or a tamper

and pulses slow during Disarmed Powerup mode.

Settings

ArmedPowerup

When set to OFF, a power disruption and power return will put the

Chexit in a disarmed, unlocked alarm mode.

TrimFailSafe/FailSecure(FS/FSE)

The trim input power can be set to FS (Fail Safe; locked when

energized, unlocked when deenergized or during power failure)

or FSE (Fail Secure; unlocked when energized, locked when

deenergized or during power failure).

The trim must be bought or modied to physically function as FS or

FSE. This onboard setting only selects the trim input power.

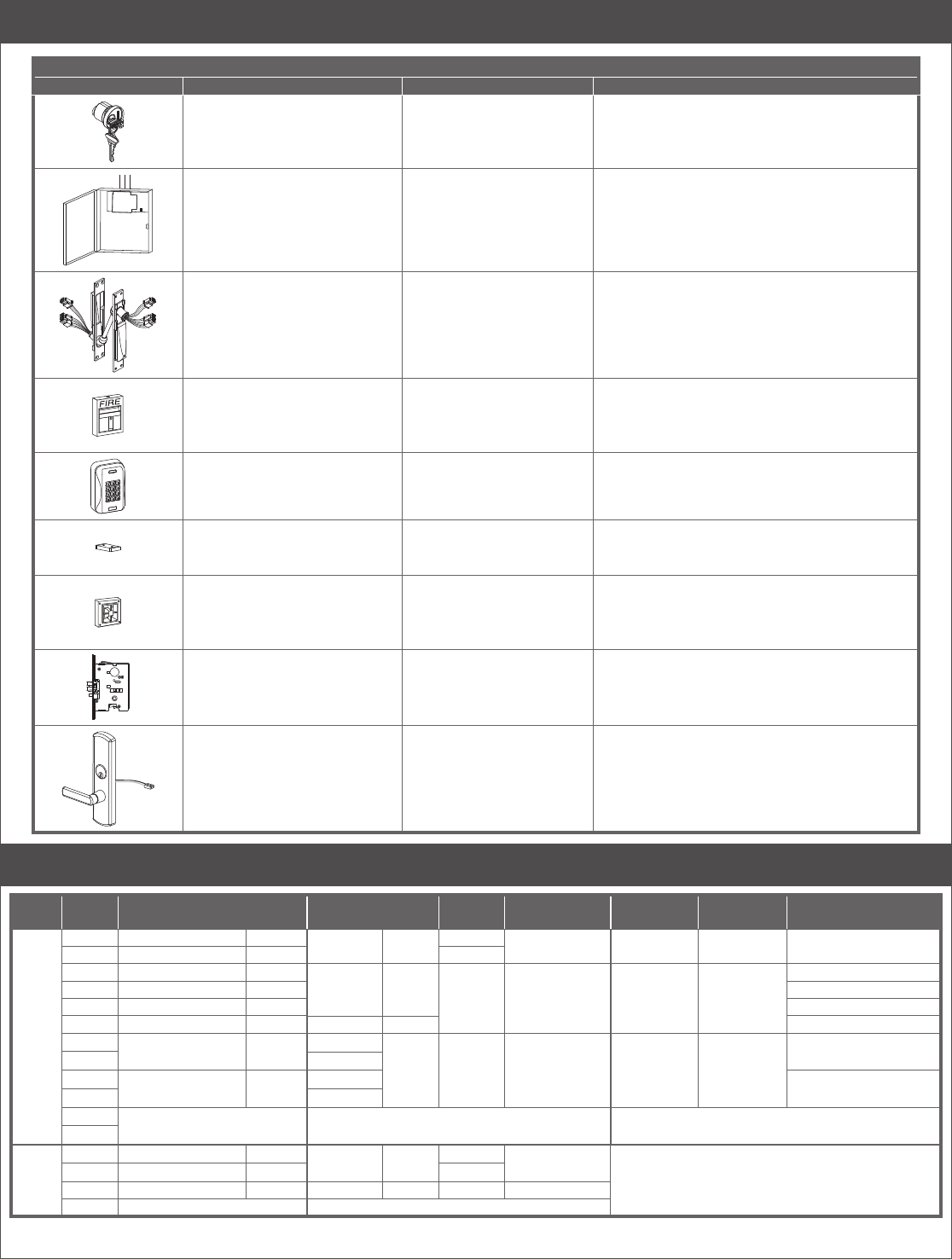

2 Installation Components

Table1.1InstallationComponents

Picture Component Function Optional/Required

1Z\v" Mortise Cylinder

(with straight cam and

Z\v” spacer)

Provides means to use

the Key Switch. Required

Power Supply

PS902, PS904, PS906, or

PS914

Provides power to Chexit. Required

Power Transfer

(EPT10-CON shown)

Provides means to

transfer electrical power

and signals through frame

to door.

Required

EPT10-CON Recommended

Door loop or electric hinge can also be used.

Fire Alarm

(NCcontacts)

Provides re alarm status

to Chexit so that it can

unblock Push Pad in case

of re alarm.

Required

Multiple Fire Alarms can be used in series.

Inhibit (Access Control) Device

(Card Reader, Key Switch,

etc.) (NCcontacts)

Provides additional means

of signaling an authorized

access to Chexit.

Optional

Multiple Inhibit Devices can be used in series.

If not used, connect green wire to red wire.

Door Position Switch

(NCcontacts)

Provides door position

status to Chexit for

additional security.

Optional

If not used, connect orange wire to red wire.

Remote Alarm

Provides an additional

alarm that may be louder

or located in a remote

location.

Optional

If not used, insulate blue and brown wires

separately.

Electric Mortise Lock

(E7500)

(FS or FSE)

Provides means for Chexit

to control entry through

the door.

Optional

(Included with CXE9975L)

Electric Trim

(E996L shown, or E360L-BE)

(FS or FSE)

Provides means for Chexit

to control entry through

the door.

Optional

3 Electrical Specications

Cable Wire

Color

SignalDescription SignalType Voltage

Rating

Current

Rating

WireGauge

Minimum

WireLength

Maximum

One-WayMeasurement

FromPowerTransferTo

Field

Wiring

Red 24 VDC 24 VDC Power Input 24 VDC

390 mA Holding*

1.25 A Inrush*

18 AWG

14 AWG

200 feet

500 feet Power Supply

Black Ground GND Ground

Yellow Fire Alarm FA

NC Input 24 VDC 10 mA 22 AWG 1000 feet

Fire Alarm

Green Inhibit INH Inhibit Device

Orange

Door Position Switch

DPS Door Position Switch

Gray Gang GNG Active Low Bus Ganged Chexit Device

Blue Alarm Relay ALM COM Relay

Contact

Output

24 VDC 1 A 22 AWG 100 feet

Remote Alarm or

External Monitor

Brown NO or NC

White Secure Relay SEC COM External Monitor

Violet NO or NC

Tan Not Used Not Used Not Used

Pink

Trim

Device

Yellow 24 VDC 24 VDC Power Output 24 VDC 1 A Trim Device Cable

(Included when ordered with

an E7500, E996L, RX996L-M or E360L)

Blue Locking Ground LGND Ground

Green Request to Enter REN NO Input 24 VDC 10 mA

Black Not Used Not Used

*Includes current from Chexit device only (does not include current from optional components such as Inhibit Device, Remote Alarm, or Trim Device)

4 Typical Wiring Diagrams

Single Door

• The Chexit is used as a controlled egress device with access control.

• The Inhibit Device (card reader) provides additional means of signaling an authorized access to Chexit.

• The Remote Alarm is used as an additional alarm in a remote location.

• Using a door position switch gives added security in case the door is not closed or is forced open.

• The Push Pad releases immediately when the Fire Alarm is active.

• If card readers are required on both sides of the door, the normally closed contacts of the readers should be wired in series.

AC input

(See power supply instructions

for AC input requirements)

2 x

2 x 18 AWG

2 x

AWG

8 x 18 AWG

To fire alarm contact

2 x 18 AWG

(plus power if required)

2 x 18 AWG

To secure status

1 x 18 AWG

Gang group (optional)*

Chexit

DPS

Junction

box

EPT10-CON

Card

Reader

902, 904, 906,

or 914 Power

supply

Remote

Alarm

*Gang option:

-All Chexits in the gang

group must have a common

DC GND connecting them.

-Up to 8 devices can be

ganged together.

Figure 1. Riser Diagram, Single Door

902, 904,

906, or 914

Power

Supply

GND 24 VDC

AC input

Door Side

}Secure Relay

Contacts

Gang Bus

(Insulate wire if not used)

Black (GND)

Red (24VDC)

Orange (DPS)

Green (lNH)

Yellow (FA)

Gray (GNG)

Blue (ALM C)

Brown (ALM NO/NC)

White (SEC C)

Violet (SEC NO/NC)

Tan (Not Used)

Pink (Not Used)

**If not used, short across wires

Fire

Alarm

Contacts

(NC)

**DPS

Contacts

(NC)

**Card

Reader

Contacts

(NC)

Figure 2. Point-To-Point Diagram, Single Door

EPT10-CON Frame Side

External Horn

4 Typical Wiring Diagrams, continued

Double Door Application - Rim/Vertical

• Both doors open in the same direction and each is equipped with a Chexit.

• The two Chexits are connected (ganged) by the gray (GNG) wires. (Ifnotused,insulatethesewiresseparately.)

• When one Chexit is set into Release Delay (activated by Push Pad), the other also goes into Release Delay and both unlock after the

Release Delay.

• A re alarm unlocks both doors immediately.

• An external inhibit device (card reader contacts) also unlocks both doors at the same time.

• After an inhibit signal from the card reader, the door that was used rearms both doors 2 seconds after closing.

4 x 14 AWG

2 x 18 AWG

2 x 14 AWG

8 x 18 AWG

2 x 14 AWG, 8 x 18 AWG

To fire alarm contact

To secure status

1 x 18 AWG

Gang group (optional)*

*Gang option:

-All Chexits in the gang

group must have a common

DC GND connecting them.

-Up to 8 devices can be

ganged together.

Chexit Chexit

DPS DPS

Junction

box

EPT10-CON EPT10-CON

Card

Reader

904, 906, or 914

Power supply

Remote

Alarm

2 x 18 AWG

Figure 3. Riser Diagram, Double Door

2 x 18 AWG

(plus power if required)

AC input

(See power supply instructions

for AC input requirements)

GND

Alarm Relay

Contacts

Not Used

Black (GND)

Red (24VDC)

Orange (DPS)

Green (INH)

Yellow (FA)

Gray (GNG)

Blue (ALM C)

Brown (ALM NC/NO)

White (SEC C)

Violet (SEC NC/NO)

Tan (Not Used)

Pink (Not Used)

Fire

Alarm

Contacts

(NC)

**DPS

Contacts

(NC) **Card

Reader

Contacts

(NC)

Figure 4. Point-To-Point Diagram, Double Door

}

904, 906,

or 914

Power Supply

AC input

24VDC

Secure Relay

Contacts

Not Used

Black (GND)

Red (24VDC)

Orange (DPS)

Green (INH)

Yellow (FA)

Gray (GNG)

Blue (ALM C)

Brown (ALM NC/NO)

White (SEC C)

Violet (SEC NC/NO)

Tan (Not Used)

Pink (Not Used)

**DPS

Contacts

(NC)

**If not used, short across wires

Door Side Door SideFrame Side EPT10-CON

EPT10-CON

4 Typical Wiring Diagrams, continued

Vertical - Double-Egress Doors

• Pair of doors open in opposite directions and each is equipped with a Chexit.

• The two Chexits are connected (ganged) by the gray (GNG) wires. (Ifnotused,insulatethesewiresseparately.)

• When one Chexit is set into Release Delay (activated by Push Pad), the other also goes into Release Delay and both unlock after the

Release Delay.

• A re alarm unlocks both doors at the same time immediately.

• An external inhibit device (card reader contacts) also unlocks each door individually.

• After an external inhibit, the door that was used rearms 2 seconds after closing.

4 x 14 AWG

2 x 18 AWG

2 x 14 AWG

8 x 18 AWG

2 x 14 AWG, 8 x 18 AWG

To fire alarm contact

To secure status

1 x 18 AWG

Gang group (optional)*

Chexit

(outside)

Chexit

(inside)

DPS DPS

Junction

box

EPT10-CON EPT10-CON

Card

Reader

(inside)

Card

Reader

(outside)

*Gang option:

- All Chexits in the gang group must have a

common DC GND connecting them.

- Up to 8 devices can be ganged together.

- See section 1, Basic Feature, Gang Bus to

determine if this feature is needed for the

double egress application.

904, 906, or 914

Power supply

Remote Alarm

2 x 18 AWG

Figure 5. Riser Diagram, Double-Egress Doors

2 x 18 AWG

(plus power if required)

2 x 18 AWG

(plus power if required)

AC input

(See power supply instructions

for AC input requirements)

GND

Alarm Relay

Contacts

Not Used

Black (GND)

Red (24VDC)

Orange (DPS)

Green (INH)

Yellow (FA)

Gray (GNG)

Blue (ALM C)

Brown (ALM NC/NO)

White (SEC C)

Violet (SEC NC/NO)

Tan (Not Used)

Pink (Not Used)

Fire

Alarm

Contacts

(NC)

**DPS

Contacts

(NC)

**Card

Reader

Contacts

(NC)

Figure 6. Point-To-Point Diagram, Double-Egress Doors

**Card

Reader

Contacts

(NC)

}

904, 906,

or 914

Power Supply

AC input

24VDC

Secure Relay

Contacts

Not Used

Black (GND)

Red (24VDC)

Orange (DPS)

Green (INH)

Yellow (FA)

Gray (GNG)

Blue (ALM C)

Brown (ALM NC/NO)

White (SEC C)

Violet (SEC NC/NO)

Tan (Not Used)

Pink (Not Used)

**DPS

Contacts

(NC)

**If not used, short across wires

Door Side Door SideFrame Side EPT10-CON

EPT10-CON

5 Typical Wiring Diagram for Electric Trim Function

This section describes the option of adding an electrical trim function to the Chexit installation.

5a Controlled entry application (E996L Trim – FSE shown)

NOTE: Set onboard switch setting

#12 to OFF position (FSE)

Insulate unused wires

Module

E996L Trim

Solenoid

GRN(REN)

BLU(LGND)

BLK(GND)

YEL(24VDC)

RENREXBP

TRIM

ACTUATOR

BLOCKING

ACTUATOR

RESET

BLOCKING

DEVICE

RESET

TRIM

DEVICE

REX RENBLK

STATUS

Access control to the CX (not shown) inhibits the CX and unlocks

the outside FSE (Fail Secure) trim to allow entry. For access control

wiring, see previous wiring diagrams.

5b Controlled entry application (E7500 Mortise Lock)

NOTE: Set onboard switch setting

#12 to OFF(FSE) or ON(FS) position

to match the mortise lock function.

Insulate

unused

wires

Module

E7500

Solenoid

BLK

GRN(REN)

BLU(LGND)

BLK(GND)

YEL(24VDC)

RED

BLU

VIO

WHT

GRY

YEL

RENREXBP

TRIM

ACTUATOR

BLOCKING

ACTUATOR

RESET

BLOCKING

DEVICE

RESET

TRIM

DEVICE

REX RENBLK

STATUS

Access control to the CX (not shown) inhibits the CX and unlocks

the E7500 mortise lock to allow entry. The E7500 can be either FS

(Fail Safe) or FSE (Fail Secure). For access control wiring, see

previous wiring diagrams.

5c Free entry application (RX996L-M + 98/99 Mortise

device)

Insulate unused wires Module

RX996L-M YEL

RED

BLU GRN(REN)

BLU(LGND)

BLK(GND)

YEL(24VDC)

RENREXBP

TRIM

ACTUATOR

BLOCKING

ACTUATOR

RESET

BLOCKING

DEVICE

RESET

TRIM

DEVICE

REX RENBLK

STATUS

RX trim is not locked and allows entry at all times. The trim inhibits

the CX using the REN function during entry. This application is only

used on a CX9975 mortise device.

6 Retrot Wiring

On the discontinued Chexit device, the Door Position Switch, Card reader and Fire Alarm contacts were tied to the white SC wire. On the

new Chexit device, these contacts are wired to the red 24VDC wire (see wiring diagrams below).

LCaution:DonotconnectthegrayandvioletwiresofthediscontinuedChexitdevicetothegrayandvioletwiresofthenew

Chexitdevice.ThediscontinuedandnewChexitdevicescannotbegangedtogether.

NEW

CHEXIT DEVICE

DISCONTINUED

CHEXIT DEVICE

Black

(GND)

Red (24VDC)

Orange

(DPS)

Green (INH)

Yellow (FA)

Gray (GNG)

Blue (ALM C)

Brown

(ALM NC/NO)

White

(SEC C)

Violet

(SEC NC/NO)

Tan (Not Used)

Pink (Not Used)

Fire

Alarm

Contacts

(NC)

DPS

Contacts

(NC)

Card

Reader

Contacts

(NC)

EPT10

Black

Red (24VDC)

Orange

(DPS)

Green (EI)

Yellow (FA)

Gray (CM+)

Blue (ALM C)

Brown

(ALM NO)

White

(SC)

Violet

(CM-)

Fire

Alarm

Contacts

(NC)

See

Notes

See

Notes

Card

Reader

Contacts

(NC)

DPS

Contacts

(NC)

EPT10

7 Installation

7a Disconnect Power

To avoid risk of shock, disconnect AC power from power supply

before proceeding with this installation. If using battery backup

option, unplug all four wires from battery terminals.

7b If installed, remove end cap, cover plate and end cap

bracket.

End cap

bracket

End cap

Cover

plate

7c Drill 5/8” diameter wire access hole in surface of door.

5/8”

7/16”

diameter

7d Route eld wiring cable through hole and connect

wires to EPT10 / 10-CON power transfer (see EPT

instructions as needed).

EPT10-CON shown

Cut the connectors if

EPT10-CON is not used.

7e Slide module into exit device case as shown.

BLOCKING

ACTUATOR

7f Install end cap bracket.

7g Connect blocking device cable to motor and to 3-pin

connector on module. Connect 2-pin cable from under

motor to Request-to-Exit connector labeled “REX” on

module.

BLOCKING

ACTUATOR

2-Pin

Connector

3-Pin

Connector

If removal is needed, press

release tab on connector.

7 Installation, continued

7g (cont)

LIfusingelectrictrim(E996L/E360L-BE),installelectric

trimperinstructionsincludedwithtrim.Routetrimwires

throughtheCXdeviceasshown.

Trim Device

Cable

Trim Device Cable

(included with trim)

Keep cables routed to

the side of device.

Make connections here

per the wiring diagram.

LIfusingelectricmortiselock(E7500orSS7500monitor

mortiselock),installlockperinstructionsincludedwith

lock.Routelockwiresthroughthedoorasshown.

Routed from E7500/SS7500

Mortise Lock

Keep cables routed to

the side of device.

Make connections here

per the wiring diagram.

Trim Device

Cable

7h Refer to Section 11, Advanced Function Test table –

Electric Trim for trim lock/unlock function.

7i Push toward motor until module snaps into place.

Snap into

place

If board removal is

needed, insert flathead

screwdriver between

board and motor ONLY

in areas shown and pry

until board disengages

from bracket.

DO NOT pry

in this area.

Pry here

BLOCKING

DEVICE

RESET

TRIM

DEVICE

REX RENBLK

STATUS

7j Use 11/4” mortise cylinder with compression ring

K510-406 with straight cam and orient cam as shown.

Schlage cylinder 20-001-114 recommended.

Schlage 20-001-114

shown

Standard cam configuration

(Shown with key removed)

1¹⁄₁₆" (27 mm)

Maximum

Compression/Blocking

ring shown installed

on cylinder

CAUTION

DimensionXasshownabovemustbenomore

than11/16”ordamagetoproductmayoccur.

7k Remove and discard cylinder plug from key switch

assembly. Keep key switch cable routed as shown.

Remove

Cylinder Plug

Ensure Key Switch Cable

is routed here

7l Install mortise cylinder. Verify cylinder cam operates

key switch properly.

Orient cylinder as shown

or unit will not operate

CAUTION

Label may be

removed now

CAUTION

INSTALL CYLINDER

POSITIONED AS SHOWN

AND CHECK CAM ACTION

INSTALL WIRE GUARD BEFORE

INSTALLING KEY CYLINDER

(CX DEVICE ONLY)

972900-00

MAXIMUM X

DIMENSION

TO BE

1¹⁄₁₆"

(27 mm)

7 Installation, continued

7m Connect eld wiring cable and key switch cable to

module as shown.

7n Slide wire guard into case end and above key switch

cable until making contact with module.

RED 24V BLUE AL

BLACK GND BROWN AL

GREEN INH WHITE SE

ORANGE DPS VIOLET SEC

YELLOW FA TAN N/A

GREY GNG PINK N/A

WIRE COLOR CHART

www.allegion.com/us

Install this bracket

after cables are

plugged into the

CX Module

Push excess

cable into door.

If trim is used, cover its

cable with wire guard also.

7o While keeping tension on the key switch cable and

pushing wires at against door, slide cover plate fully

into place.

Tension

7p Place excess wire beneath wire guard.

CAUTION

Verifycylindercammovesfreelyanddoes

notcontactmoduleoranywiring.

7q Complete eld wiring per wiring diagrams in section 4.

7r Install end cap.

LSeepages11through14beforeinstallingendcap

If required use security

screws on end cap and

centercase.

7s Remove backing from sign and put sign on door above

Chexit device (sign is in cardboard tube).

PUSH UNTIL ALARM SOUNDS

DOOR CAN BE OPENED

IN 15 SECONDS

LLocatesignperlocalcode.

8 Basic Functional Test

This test is to be performed with Chexit switches in default settings and with door closed. Follow the instructions below and verify that

the Chexit performs as described.

Note: If at any time the Internal Alarm sounds and you wish to silence it, turn the Key Switch counter-clockwise.

TestPowerup

1. Turn the Key Switch clockwise. Then turn the power supply ON which causes the Chexit to enter ArmedMode (Status Indicator is

ashing slow).

2. Turn the Key Switch counter-clockwise to put the Chexit into Disarmed/ResetMode (Status Indicator is OFF).

3. Turn the Key Switch clockwise which causes the Chexit to enter RearmDelayMode (Status Indicator is ON for 10 seconds - this time

is adjustable).

4. After RearmDelayMode expires, the Chexit will enter ArmedMode (Status Indicator is ashing slow).

TestDelayedEgress

5. Conrm that the Chexit is in ArmedMode per step 4.

6. Push the Push Pad and verify that it is locked (it will not push down).

Chexit will immediately begin sounding the Internal Alarm and enter ReleaseDelayMode for 15 seconds (Status Indicator is

ashing fast and Internal Alarm is ON).

7. After the ReleaseDelayMode expires, the Chexit will enter ReleasedMode (Status Indicator is ashing fast and the Internal Alarm is

ON).

The Push Pad will be unlocked (you can now push it down and open the door).

Mode Push pad Electric Trim Status Indicator Internal Alarm Secure Relay Alarm Relay

Armed Locked Locked Slow Flash (2) Off On Off

RearmDelay Unlocked Unlocked On Off Off Off

ReleaseDelay Locked Locked Fast Flash (2) On On On

Released Unlocked Off (1) Fast Flash (2) On Off On

Disarmed/Reset Unlocked Locked Off Off Off Off

(1) Trim will be Locked or Unlocked depending on if the Trim is Fail Secure or Fail Safe (and if the Trim Fail Safe onboard switch setting

is set to OFF or ON)

(2) SLOW FLASH = 1 per second, FAST FLASH = 4 per second

9 Module Setup

9a Remove Cover Plate for access to Module as needed.

9b Set the Relay Jumpers and Onboard Switch Settings for desired device functionality.

• Position the Alarm Relay Jumper and Secure Relay Jumper to NO or NC.

• Position each Onboard Switch Setting to ON or OFF.

- Refer to Onboard Switch Settings Table on next page for detailed description of each setting.

REN

REXBP

TRIM

ACTUATOR

BLOCKING

ACTUATOR

RESET

OFF

SS EA

EI FA

DPS

GNG

PWR

OFF

RE-ARM TIME: 4

RE-ARM TIME: 2

RE-ARM TIME: 8

RE-ARM TIME: 16

INH RESET

ARMED POWERUP

NUISANCE TIME: 1

NUISANCE TIME: 2

NUISANCE AUDIO

AUDIO HIGH

FA AUDIO

NC SS RELAY EA RELAY

TRIM FAILSAFE

SEC ALM

GNG

PWR

SECURE RELAY

SETTINGS

OFF

ALARM RELAY

INH

DPS

KEY

KEY SWITCH FIELD WIRING

BLOCKING

DEVICE

RESET

TRIM

DEVICE

REX RENBLK

STATUS

Jumpers

Secure Relay (SEC)

Jumper

Alarm Relay (ALM)

Jumper

Jumpers shown in Normally Open position

OFF

RE-ARM TIME: 2

RE-ARM TIME: 4

RE-ARM TIME: 8

RE-ARM TIME: 16

ARMED POWERUP

INH RESET

NUISANCE TIME:1

NUISANCE TIME:2

AUDIO HIGH

NUISANCE AUDIO

FA AUDIO

TRIM FAILSAFE

OFF

1234567891011 12

Default factory settings shown

10 Onboard Switch Settings Table

Switch Numbers Switch Position Onboard Settings Specications Description

1234

1-4

Rearm Time

OFF OFF OFF OFF 0

Rearm Time

(seconds)

The delay time initiated after the

INH or KEY goes inactive (back

to normal position) before the

Chexit rearms, allowing a person

to exit or enter without an alarm

through an unlocked door.

ON OFF OFF OFF 2

OFF ON OFF OFF 4

ON ON OFF OFF 6

OFF OFF ON OFF 8

ON*OFF*ON*OFF*10

OFF ON ON OFF 12

ON ON ON OFF 14

OFF OFF OFF ON 16

ON OFF OFF ON 18

OFF ON OFF ON 20

ON ON OFF ON 22

OFF OFF ON ON 24

ON OFF ON ON 26

OFF ON ON ON 28

ON ON ON ON 30 (Innite)

Armed Powerup

OFF Chexit powers up into Disarmed Powerup Mode (unlocked

with alarm sounding).

If the Chexit is Armed and there

is a power outage, then upon

power restoration, the Chexit

will either power up into Armed

Mode or Disarmed Powerup

Mode with alarm sounding.

ON*

Chexit powers up into Armed Powerup Mode (locked).

INH (Access

Control) Reset

OFF All alarms reset by KEY only (meaning user must be at the

door to manually reset). Selects what action is allowed to

reset an alarm condition.

ON*All alarms reset by KEY OR INH (INH allows any access

control user to reset the alarm at the door or remotely).

7-8

Nuisance Time

7 8

The delay time the Push Pad

can be pushed without starting

the release sequence. It is used

to prevent accidental bumps

from triggering the alarm.

OFF*OFF*0

Nuisance Time

(seconds)

ON OFF 1

OFF ON 2

ON ON 3

Audio High

OFF Sets Internal Alarm to Low. Selects between High and Low

audio levels during alarm.

ON*Sets Internal Alarm to High.

Nuisance Audio

OFF Internal Alarm OFF during Nuisance Delay (if Nuisance Delay

is enabled).

Selects whether Internal Alarm is

ON or OFF during the Nuisance

Delay (if Nuisance Delay is

enabled).

ON*Internal Alarm ON during Nuisance Delay (If Nuisance Delay

is enabled).

FA Audio

OFF Internal Alarm OFF during Fire Alarm. Selects whether the Internal

Alarm ON or OFF during a Fire

Alarm.

ON*Internal Alarm ON during Fire Alarm.

Trim Fail Safe

OFF*Trim is selected to be Fail Secure (FSE). Matches FSE or FS trim to

Chexit trim device output.

ON Trim is selected to be Fail Safe (FS).

*Defaultsettings

Consult AHJ or local building codes for onboard switch settings.

11 Advanced Function Test

Chart below shows the various Modes of the Chexit. Follow the steps below the chart to check each Mode.

Mode Push Pad Electric Trim Status Indicator Internal Alarm Secure Relay Alarm Relay

Armed Locked Locked Slow Flash (3) Off On Off

Disarmed Powerup Unlocked Locked Slow Flash (3) Slow Pulse (4) Off Off

Inhibited Unlocked Unlocked Off Off Off Off

Rearm Delay Unlocked Unlocked On Off Off Off

DPS Delay Unlocked Locked On Off Off Off

Nuisance Delay Locked Locked Slow Flash (3) Fast Pulse (2) (4) On Off

Release Delay Locked Locked Fast Flash (3) On On On

Released Unlocked Off (1) Fast Flash (3) On Off On

Tamper Unlocked Locked Fast Flash (3) Fast Pulse (4) Off On

Disarmed/Reset Unlocked Locked Off Off Off Off

(1) Electric Trim will be Locked or Unlocked based on whether the Trim Fail Safe onboard setting is set to OFF or ON

(2) Audio may be turned OFF through Nuisance Audio onboard switch setting

(3) SLOW FLASH = 1 per second, FAST FLASH = 4 per second

(4) SLOW PULSE = 1 per second, FAST PULSE = 4 per second

TestPowerup

1. Ensure that the Key Switch is turned clockwise. Turn the Power Supply ON.

-If the Armed Powerup onboard switch setting is ON (default) the Chexit will enter ArmedMode.

-Note: If the Armed Powerup onboard switch setting is OFF the Chexit will enter DisarmedPowerupMode.

2. Turn the Key Switch counter-clockwise to put the Chexit into Disarmed/ResetMode.

3. Turn the Key Switch clockwise to arm the Chexit.

-If the Rearm Time onboard switch setting is ON (default = 10 seconds), the Chexit will enter RearmDelayMode.

After RearmDelayMode expires, the Chexit will enter ArmedMode.

-If the Rearm Time onboard switch setting is OFF, the Chexit will enter ArmedModewithout a delay.

TestDelayedEgress

4. Conrm that the Chexit is in ArmedMode.

5. Push and hold the Push Pad.

-If the Nuisance Time onboard switch setting is OFF, the Chexit will immediately enter ReleaseDelayMode.

-The Chexit will release in 15 seconds.

-If the Nuisance Time onboard switch setting is ON, the Chexit will enter NuisanceDelayMode.

-If the Nuisance Audio onboard switch setting is ON, the Internal Alarm will pulse fast.

-If the Nuisance Audio onboard switch setting is OFF, the Internal Alarm will not sound.

-If the Push Pad is released before the Nuisance Delay expires, the Chexit will go back to ArmedMode.

-If the Push Pad is held until the Nuisance Time expires, the Chexit will enter ReleaseDelayMode.

After the Release Time expires, the Chexit will enter ReleasedMode.

The Chexit will release in 15 seconds, less the Nuisance Time already elapsed.

6. Repeat Step 2 and Step 3 to make the Chexit return to ArmedMode.

TestAccessControl

7. Conrm that the Chexit is in ArmedMode.

8. Activate the Inhibit (INH) Input to make the Chexit enter InhibitedMode.

9. Release the Inhibit (INH) Input.

-If the Rearm Time onboard switch setting is ON (default = 10 seconds), the Chexit will enter RearmDelayMode.

-If the door is opened and closed before the Rearm Time expires, the Chexit will enter DPSDelayMode.

The Chexit will enter ArmedMode in 2 seconds.

-If the door is left open and the Rearm Time expires, the Chexit will enter ReleasedMode.

-If the Rearm Time onboard switch setting is OFF.

-If the door is closed, the Chexit will go back to ArmedMode.

-If the door is left open the Chexit will enter TamperMode.

TestFireAlarm

10. Conrm that the Chexit is in ArmedMode.

11. Activate the FA input to make the Chexit enter ReleasedMode.

-If the FA Audio onboard switch setting is ON, the Internal Alarm will sound.

-If the FA Audio onboard switch setting is OFF, the Internal Alarm will not sound.

12. Repeat Step 2 and Step 3 to make the Chexit return to ArmedMode.

12 Onboard Indicators

SEC ALM

GNG

PWR

SECURE RELAY

SETTINGS

A FA AUDIO

TRIM FAILSAFE

NUISANCE AUDIO

AUDIO HIGH

OFF

ARMED POWERUP

REARM TIME:16

REARM TIME: 8

REARM TIME: 4

REARM TIME: 2 5

ALARM RELAY

INH

DPS

KEY

KEY SWITCH FIELD WIRING

BLOCKING

DEVICE

RESET

TRIM

DEVICE

REX RENBLK

STATUS

Blocked

(Green)

Request-to-Exit

(Red)

Status

(Red)

Gang

(Red)

Power

(Green)

Fire Alarm

(Red)

Alarm Relay

(Red)

Request-to-Enter

(Red)

Key Switch

(Red)

Door Position Switch

(Red)

Inhibit

(Red)

Secure Relay

(Green)

Motor Status LED

(Green-Armed)

(Red-Tamper)

Signal Indication Description

PWR OFF Power is OFF

ON Power is ON

KEY OFF Key Switch turned clockwise (Arm)

ON Key Switch turned counter-clockwise (Disarm/Reset)

GNG OFF No Gang signal (Inactive)

ON Gang signal (Active)

FA OFF Fire Alarm contacts closed (Inactive)

ON Fire Alarm contacts open (Active)

DPS OFF Door Position Switch closed (Door Closed)

ON Door Position Switch open (Door Open)

INH OFF Inhibit contacts closed (Inactive)

ON Inhibit contacts open (Active)

SEC OFF Chexit not secure (Relay contact state depends on Secure Relay NO/NC jumper setting)

ON Chexit secure

ALM OFF Chexit not in alarm (Relay contact state depends on Alarm Relay NO/NC jumper setting)

ON Chexit in alarm condition

BLK OFF Push Pad is unlocked

ON Push Pad is locked

REX OFF Push Pad is not pushed (Inactive)

ON Push Pad is pushed (Active)

REN OFF Request-to-Enter contacts open (Inactive)

ON Request-to-Enter contacts closed (Active)

STATUS

OFF Chexit is in Disarmed/Reset Mode or in Inhibited Mode

SLOW FLASH Chexit is in Armed Mode or in Disarmed Powerup Mode

FAST FLASH Chexit is in Release Delay Mode or Released Mode

ON Chexit is in Rearm Delay Mode or DPS Delay Mode

MOTOR

STATUS

OFF Push pad is not blocked/unlocked

GREEN Push pad is blocked/locked

SLOW FLASH RED Overvoltage

13 Troubleshooting

Normal Chexit operation:

-After turning the Key Switch clockwise to Arm, the Chexit will wait the selected Rearm Time (red Status Indicator is ON).

-At the end of this delay, the Chexit will lock the Push Pad (red Status Indicator is ashing slow) indicating the Chexit is Armed.

-To trigger delayed egress, push the Push Pad in. The Chexit will sound an Internal Alarm (red Status Indicator is ashing fast).

-At the end of the Release Delay, the Push Pad will unlock allowing exit. The Internal Alarm will continue until the Chexit is reset with

the Key Switch or Inhibit Input (if INH Reset onboard switch setting is ON).

Most wiring issues can be diagnosed by observing the Module’s onboard LED indicators (see section 12, Onboard Indicators).

An Armed Chexit’s LED’s should appear as:

Status LED - ashing slow

PWR, SEC and BLK - ON (PWR LED is on when power is applied to the Module and is independent of any switch positions)

All other LED’s - OFF

StatusIndicatorashingfastorInternalAlarmpulsingfast is 4 times per second. StatusIndicatorashingsloworInternalAlarm

pulsingslow is 1 time per second. StatusIndicatorONorInternalAlarmON means on continuously.

With 24VDC applied to the Chexit, turn the Key Switch clockwise to Arm and note the possible symptoms below.

Symptoms Possible Cause Solution

Push Pad is NOT locked.

Internal Alarm is NOT

sounding.

Module PWR (Power) LED

is OFF.

Power supply is not

supplying any voltage.

Check power supply output voltage at the

supply and at the Chexit.

Power supply voltage is too

low.

Check power supply output voltage is

24VDC.

Field wiring connection is

broken.

Verify the power wiring has continuity from

power supply to the Module.

Power supply is reverse

polarity.

Verify proper color code is used to supply

power to Chexit (see section 4, point-to-

point diagrams).

Module Status Indicator is

ON. Rearm Delay is active.

Verify proper rearm delay setting (see

section 9 and 10, switches 1-4). If set to 30

see section 1, "Rearm Delay".

Module Status Indicator

ashes once.

INH (access control) wiring/

connection is open. Verify the INH wiring continuity.

INH (access control) is active

(contacts open).

Verify the access control device is using

normally closed contacts (see section 4,

point-to-point diagrams).

Push Pad is NOT locked.

Internal Alarm is ON.

Module Status Indicator is

ashing fast.

Module FA (Fire Alarm)

LED is ON.

Module ALM (Alarm) LED

is ON.

FA wiring/connection is open. Verify the FA wiring has continuity from FA

contacts to Module.

FA is active (contacts open). Verify the FA contacts are closed when

there is no re alarm.

Module Status Indicator is

ashing fast.

Module GNG (Gang) LED

is ON.

Module ALM (Alarm) LED

is ON.

GNG wire is shorted to the

power supply ground.

Find and remove short.

Insulate any unused GNG wire.

13 Troubleshooting, continued

Symptoms PossibleCause Solution

When Arming, Release

Delay starts immediately.

Push Pad is rst Locked

and then releases after

15 seconds.

Internal Alarm is ON.

Module Status Indicator is

ashing fast.

Module REX (Req. to EXIT)

LED is ON.

Module ALM (Alarm) LED

is ON.

Push Pad is not returning to

the full extended position.

Pull Push Pad out fully and verify this

corrected the problem. Check for dirt and

rubbing around the Push Pad area. Check

for full latch bolt extension (see section 12,

REX LED indication).

REX cable is disconnected Plug in REX cable (see section 7, step 7g)

REX wiring/connector is

defective.

Check for broken wiring from the REX

connector to the REX switch under the

Push Pad.

REX switch is defective.

Verify the REX switch is closed when the

Push Pad is fully extended. If still open,

replace switch.

When Arming, Push Pad

remains unlocked.

Internal Alarm is pulsing fast

Module Status Indicator is

ashing fast.

Module DPS (Door Pos.

Switch) LED is ON.

Module ALM (Alarm) LED

is ON.

DPS switch contact is open.

Close the door, if open. Verify the DPS

contacts are closed when the door is

closed.

DPS wiring/connection is

open.

With door closed, verify the DPS wiring has

continuity from DPS contacts to Module.

When Arming, Push Pad

remains unlocked.

Internal alarm is pulsing fast

after 2 seconds.

Module Status Indicator

is ashing fast after 2

seconds.

Module BLK (Blocking) LED

is OFF.

Motor Status LED is OFF.

Module ALM (Alarm) LED

is ON.

CX motor cable is

disconnected.

Plug in CX motor cable (see section 7, step

7g).

CX motor wiring/connection

is open. Check for broken wiring in the motor cable.

CX motor assembly is

defective. Call customer service.

On a rim or vertical rod

device, the latch bolt can’t

extend.

Door is not closed enough for proper

latching. Make necessary mechanical

adjustments to latch properly.

If using a vertical rod device and arming

with door open, the latch bolts are held

retracted.

On any device, the Push Pad

is held in.

Verify the Push Pad is extending fully (see

REX) above

After a power outage and

power is restored, Push

Pad remains unlocked (Key

Switch is in Armed position -

clockwise).

Internal Alarm is pulsing

slow.

Module Status Indicator is

ashing slow.

Module ALM (Alarm) LED

is ON.

The Chexit is not self arming

after a power outage. Chexit

onboard switch #5 (Armed

Power Up) is set to OFF.

Some jurisdictions require the Chexit to

be disarmed and alarming to be manually

reset only after a power loss. For those

jurisdictions, the Module switch #5 is set to

OFF (see section 9 and 10, switch 5).

Trim is locked when it

should be unlocked.

Trim is unlocked when it

should be locked.

Trim switch setting is

incorrect.

Incorrect trim type. Verify if

FS (Fail Safe) or FSE (Fail

Secure) is being used.

Select the correct trim switch setting to

match the trim being used (see section 9

and 10, switch 12).

Install the correct trim type.

Von Duprin Chexit Wiring Instructions 2016 New Chexitwiringinstructions2016

Navigation menu

Versions of this User Manual:

Views

Navigation
