33A/35A
™
Series
Exit devices
2 • VonDuprin33A/35ASeries
Introduction
The proper selection and application of exit hardware, in addition to safety, are major concerns
to all responsible manufacturers. Exit devices are a critical part of a door opening or access
system and will provide safe and reliable service when properly applied and maintained. It is
the policy of Von Duprin to design and manufacture exit devices to a high standard of quality
and reliability in accordance with accepted U.S. domestic and international standards.
It is intended that the information included in this publication, when properly used, will provide
clear and reliable guidelines to the proper general selection and application. However, the
scope of the information is necessarily limited.
Von Duprin pushpad exit devices are available in two external surface styles, designated 33A Series and 35A Series.
The two styles are mechanically and dimensionally identical and provide a wide selection of appearance options.
VON DUPRIN
Administrative Oces
2720 Tobey Dr.
Indianapolis, IN 46219
Customer Service
877-671-7011
800-999-0328 - Fax
Technical Support
877-671-7011

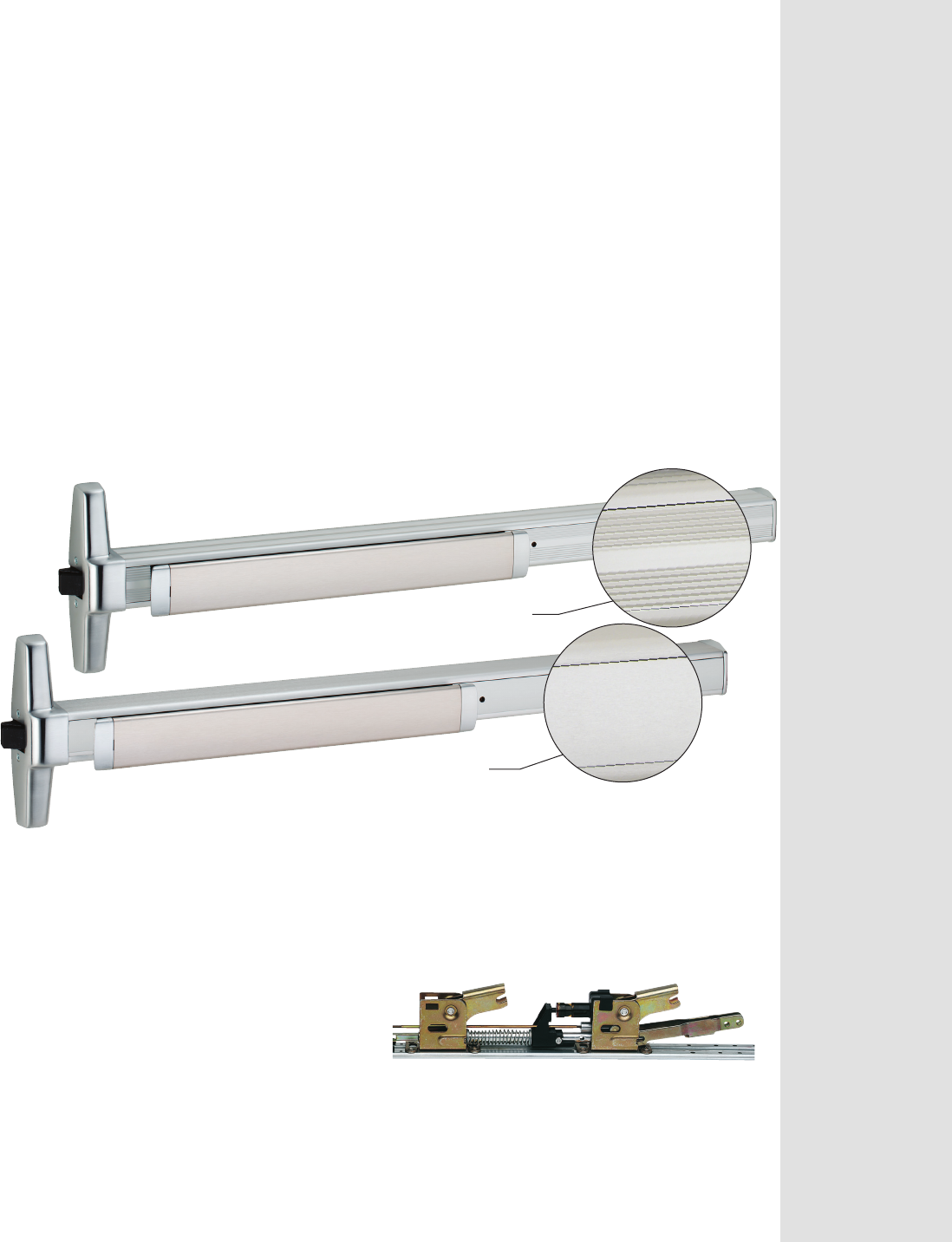

33A Series features grooved mechanism case.
The Quiet One®
A fluid damper decelerates the pushpad on its return
stroke and eliminates most noise associated with
exit device operations. Furnished on all 33A/35A
Series exit devices.
35A Series features smooth mechanism case.
VonDuprin33A/35ASeries•3
Table of contents
Exit hardware
Rim devices
33A/35A 8
Trim 9
Surface mounted

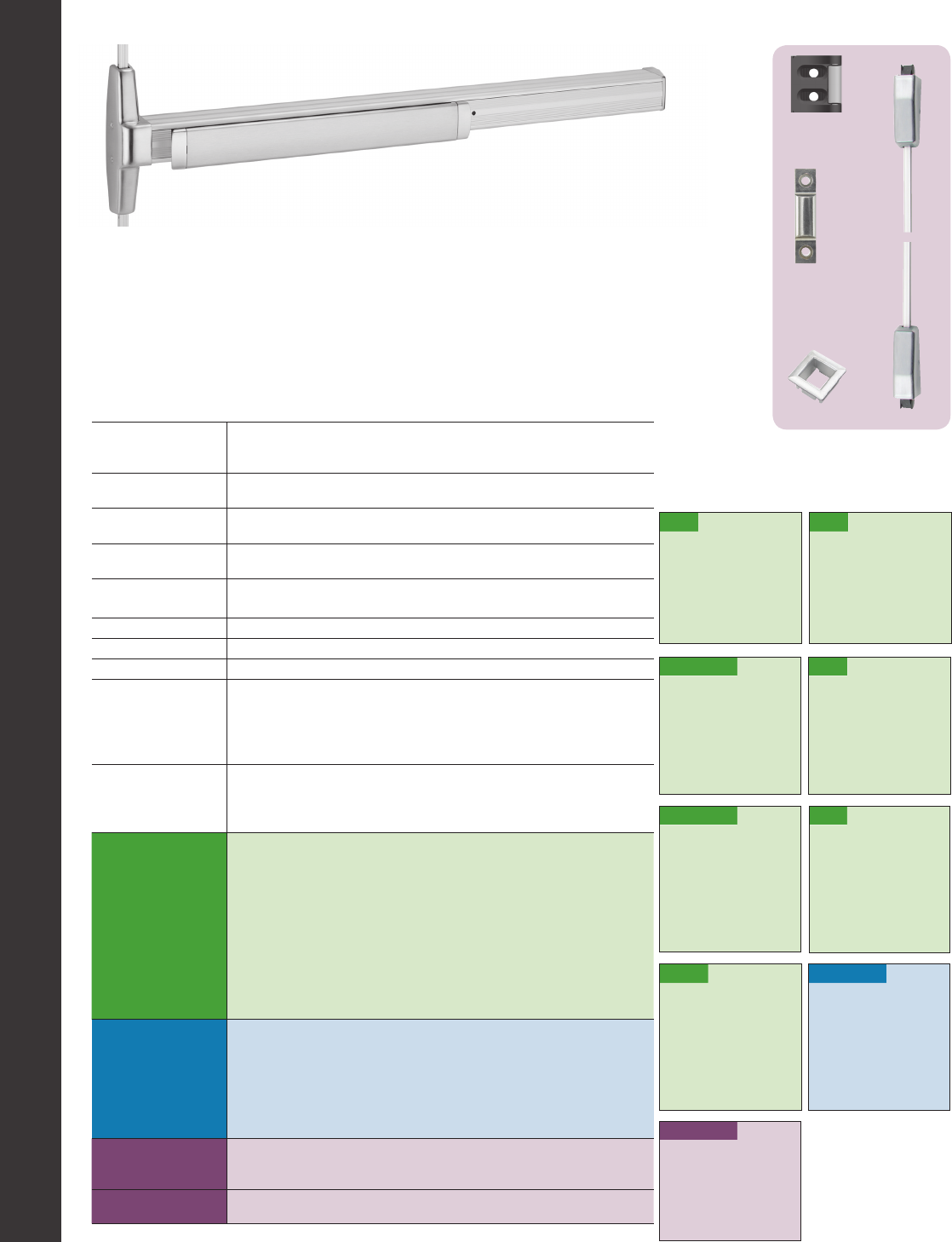

Vertical rod devices
3327A/3527A 12
Trim 13

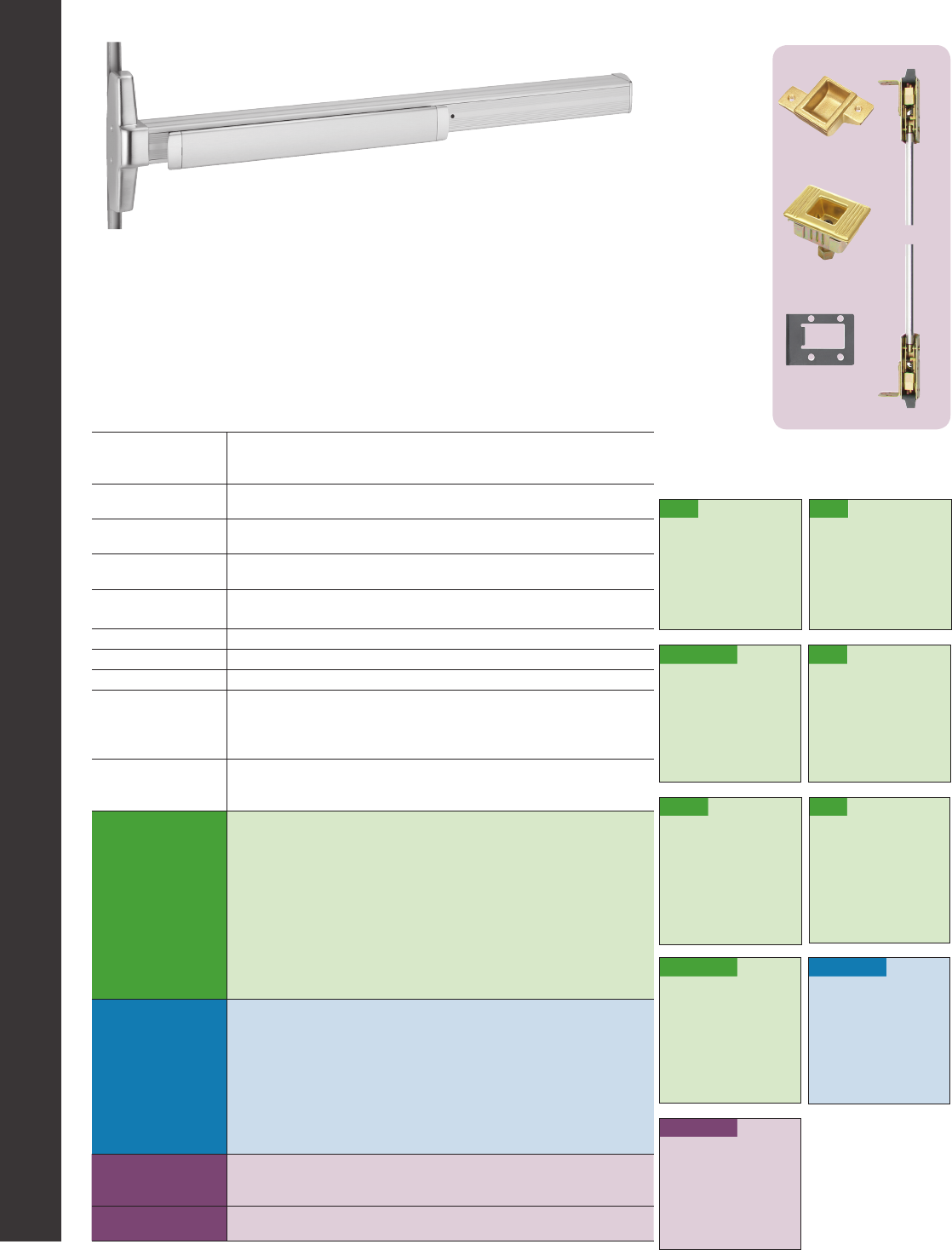

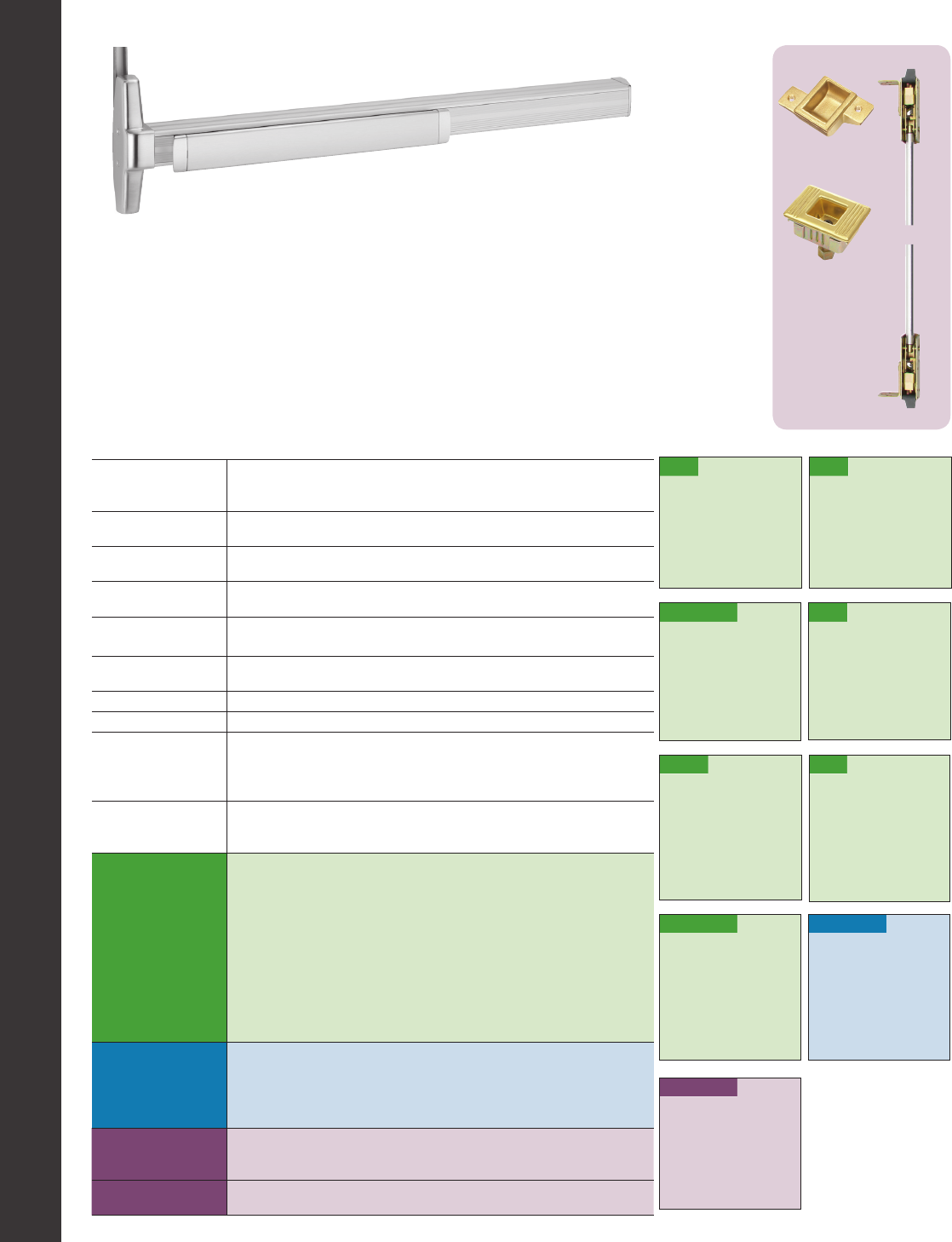

Concealed vertical
rod devices
3347A/3547A 16
Trim 17
3348A/3548A 20
Trim 21
3349A/3549A 24
Trim 25
3350A/3550A 28
Trim 29
Fire exit hardware
33A-F/35A-F 10
Trim 11

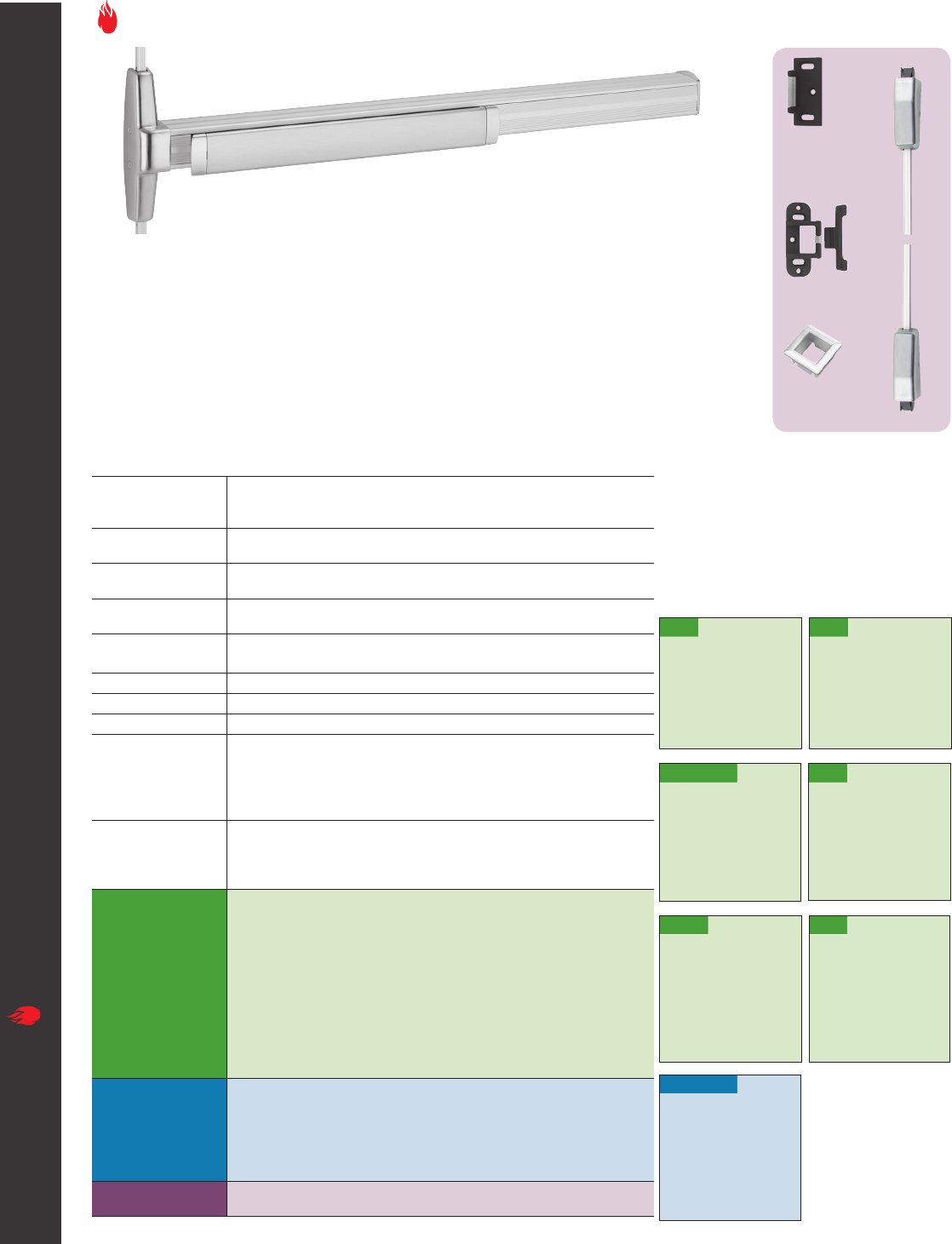

3327A-F/3527A-F 14
Trim 15

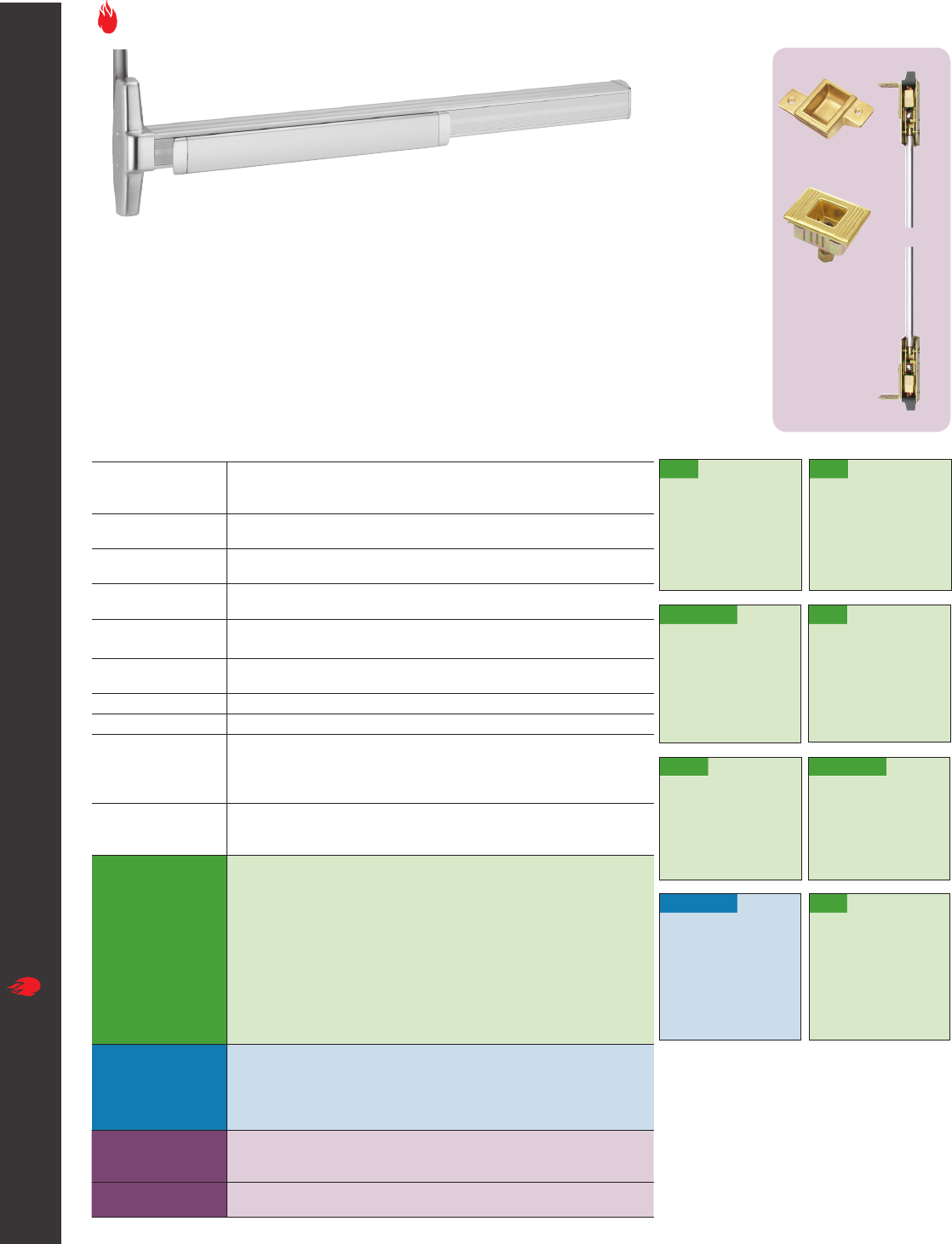

3347A-F/3547A-F 18
Trim 19
3348A-F/3548A-F 22
Trim 23
3349A-F/3547A-F 26
Trim 27
3350A-F/3550A-F 30
Trim 31

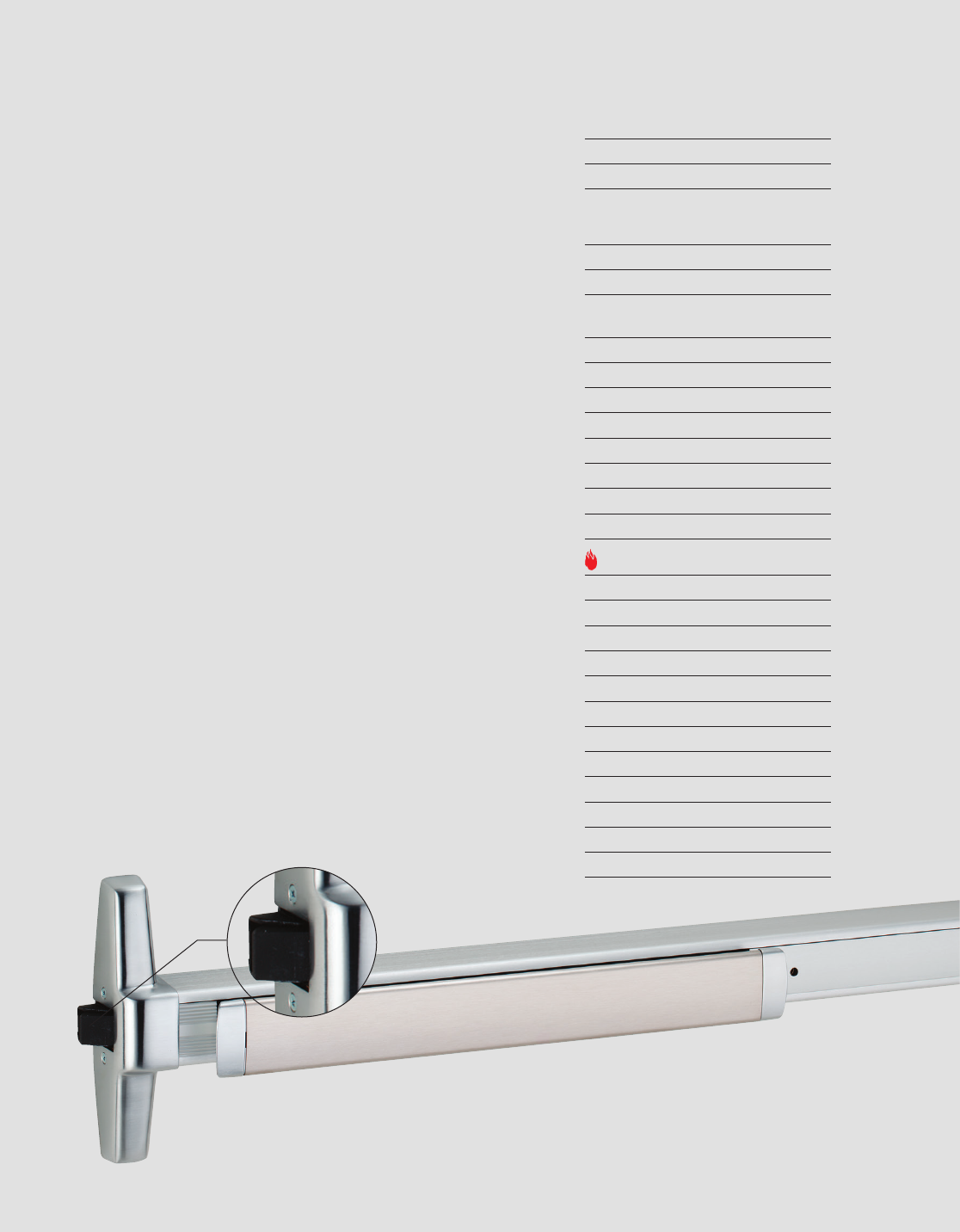

Latch bolt
(33A Rim device shown)
Deadlocking latchbolt
Deadlocking latchbolt prevents forced latchbolt
retraction providing higher security for your openings.
4 • VonDuprin33A/35ASeries
Optionsandaccessories
Additional
information
ANSI Grade, type & function
Device dimensions
Finishes
Fire label ratings/applications
Handing
How-to-order information
Nomenclature
Popular double door applications
Minimum stile information

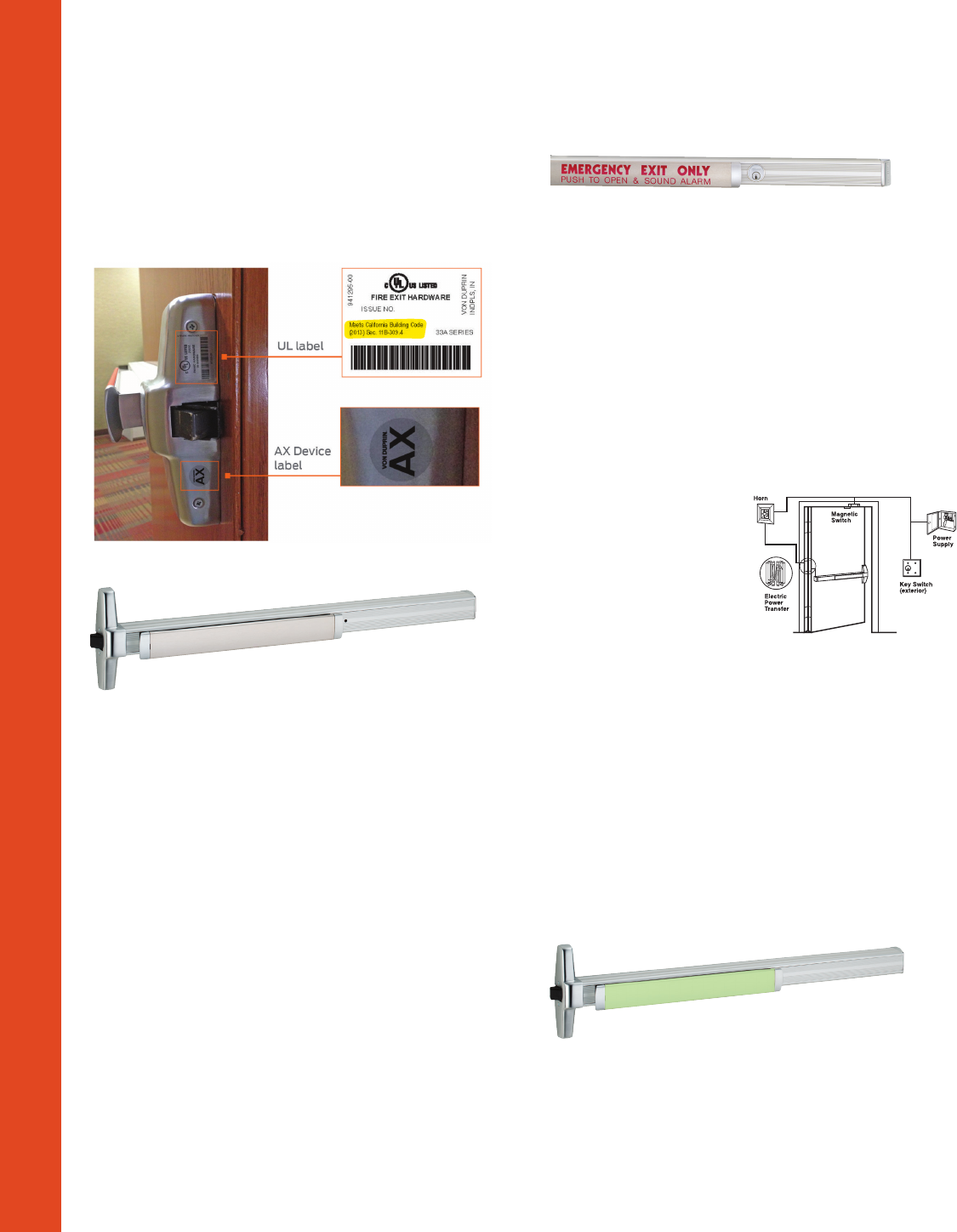

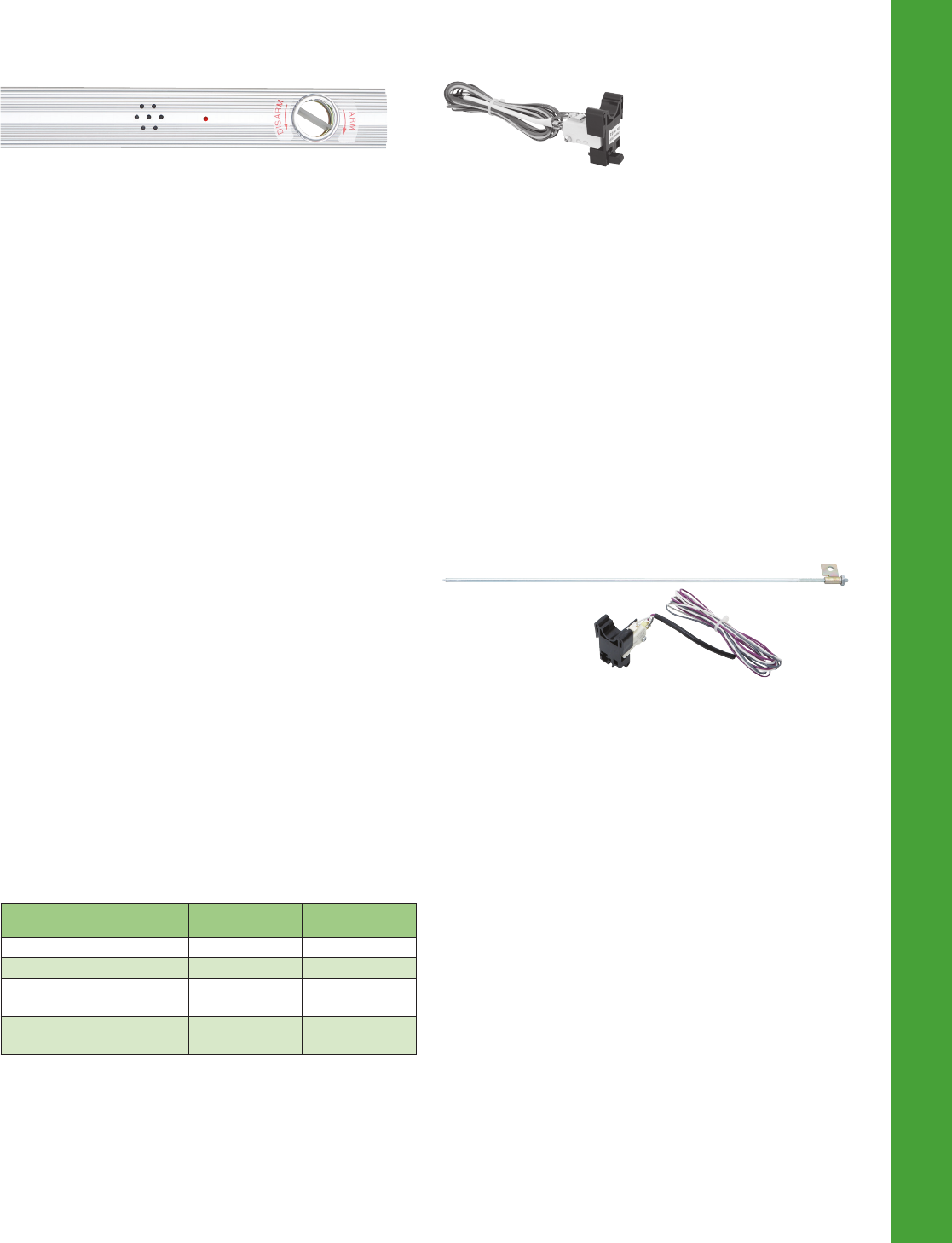

Electrical options ALK Exit alarm kit

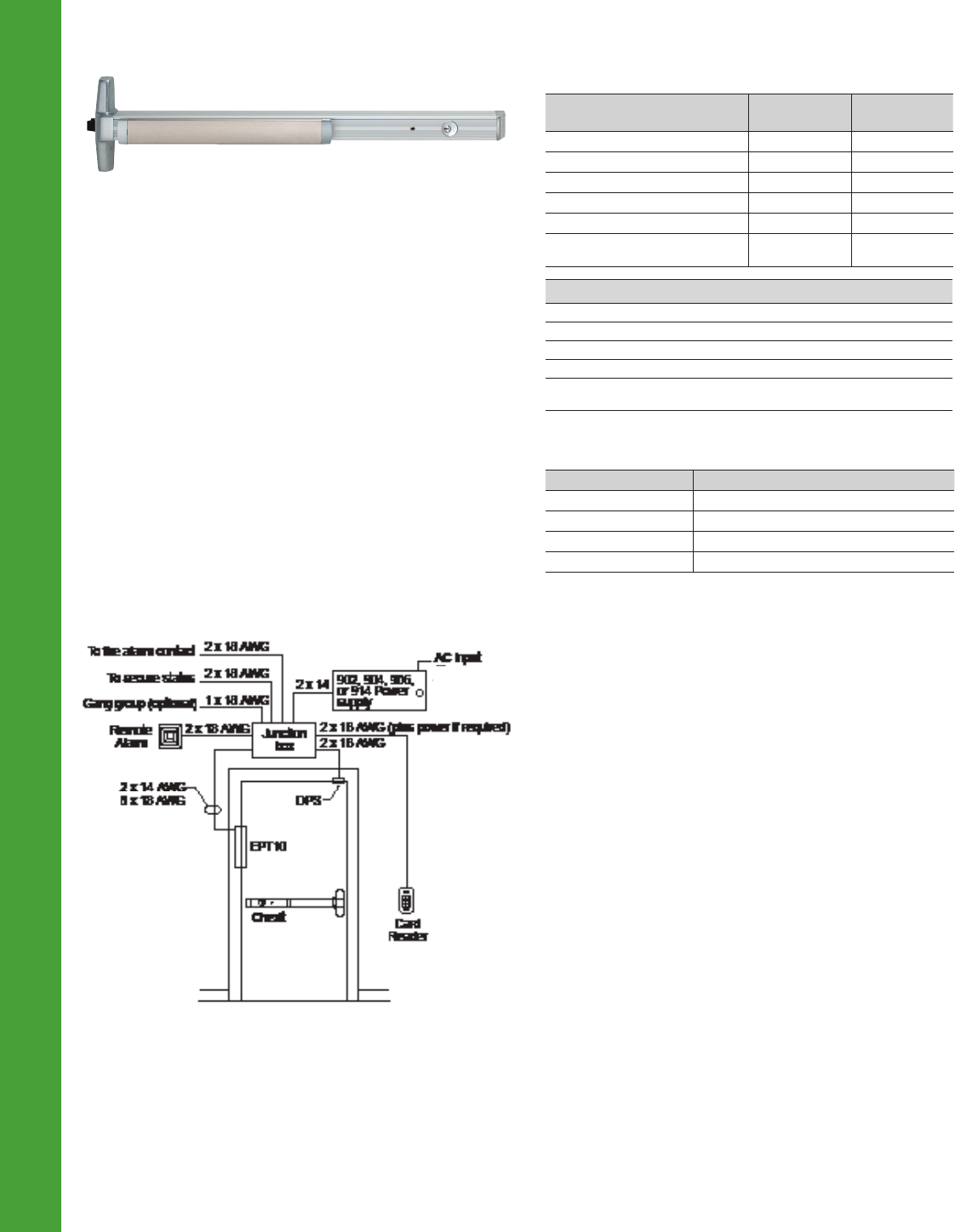

CX Chexit delayed exit
RX Request to exit
WP-RX Request to exit
E-Tri m
LX Latch bolt monitoring
EL Electric latch retraction
QEL Electric latch retraction
SS Signal switch
PN Pneumatic
LBR/LBL Less bottom rod/latch
PL Pullman Latch
RG-27 Vertical rod and latch guard
Dummy pushpad
CD Cylinder dogging
CDK, HDK Cylinder dogging
and Hex key dogging kits
GBK Glass bead kit

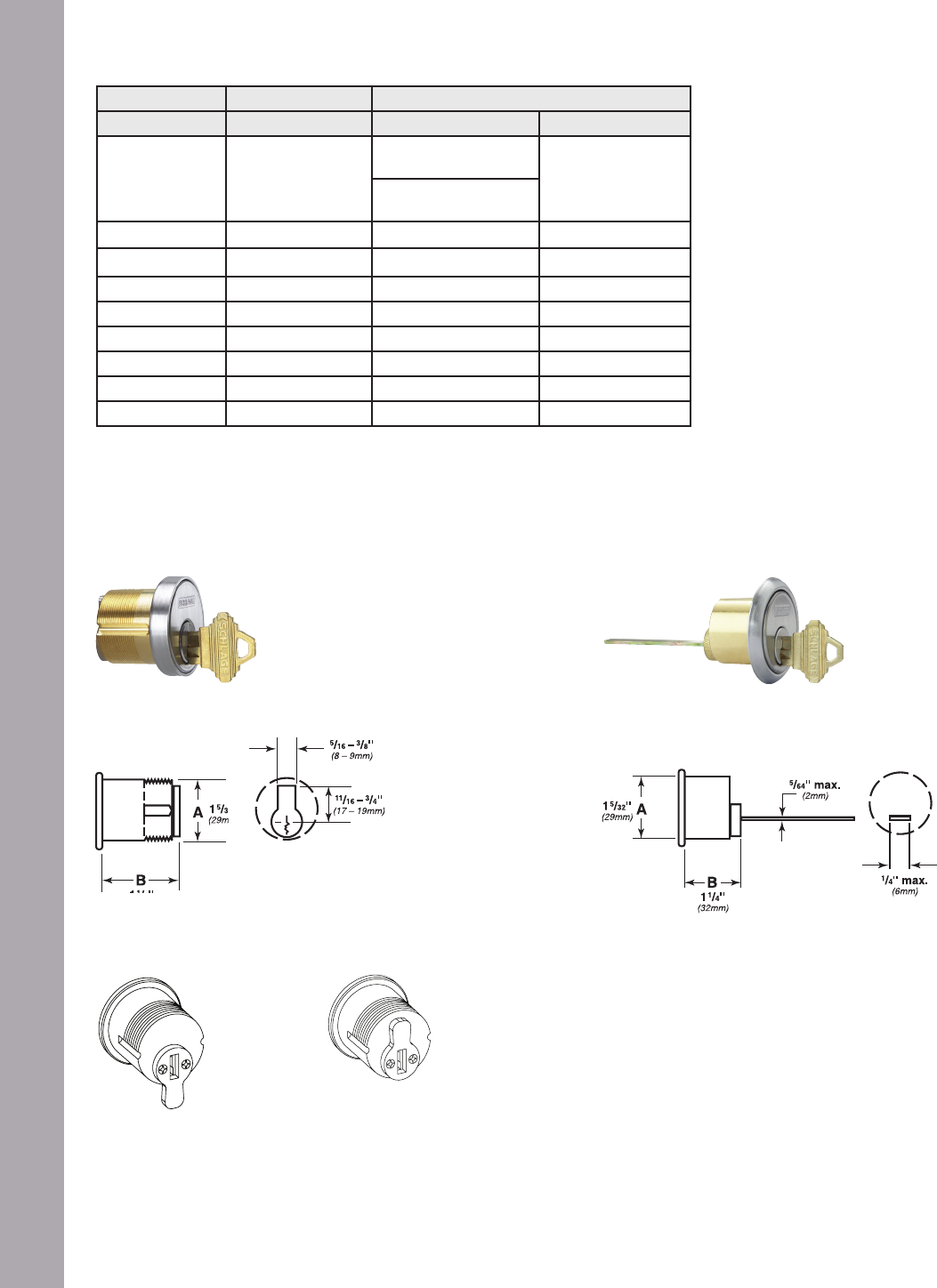

Cylinders
CON Allegion Connect

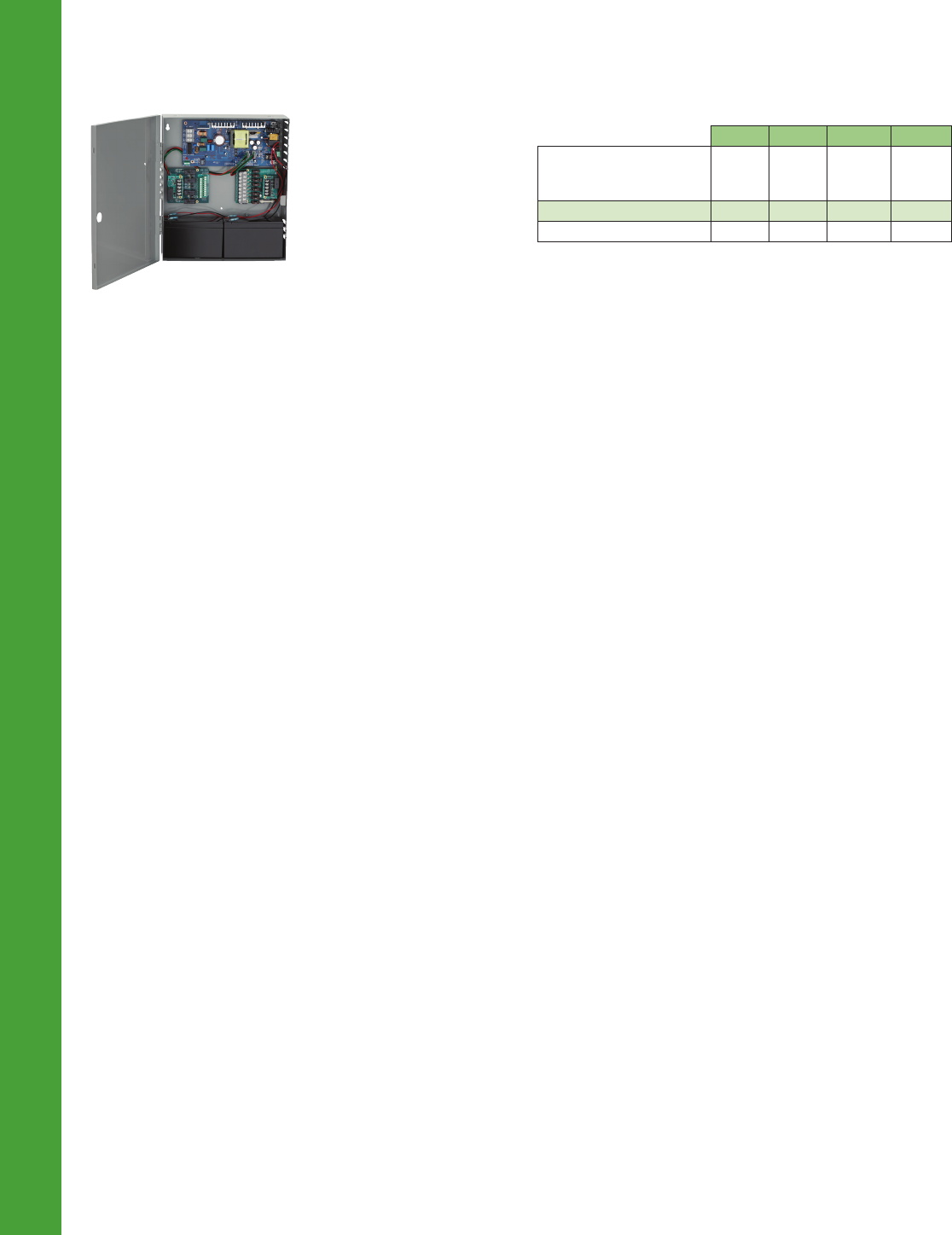

Electrical accessories Power supplies
PS902
PS914
EPT Electric power transfer
Symbols
Indicates fire rated application Indicates ADA products
Continuing commitment to quality.

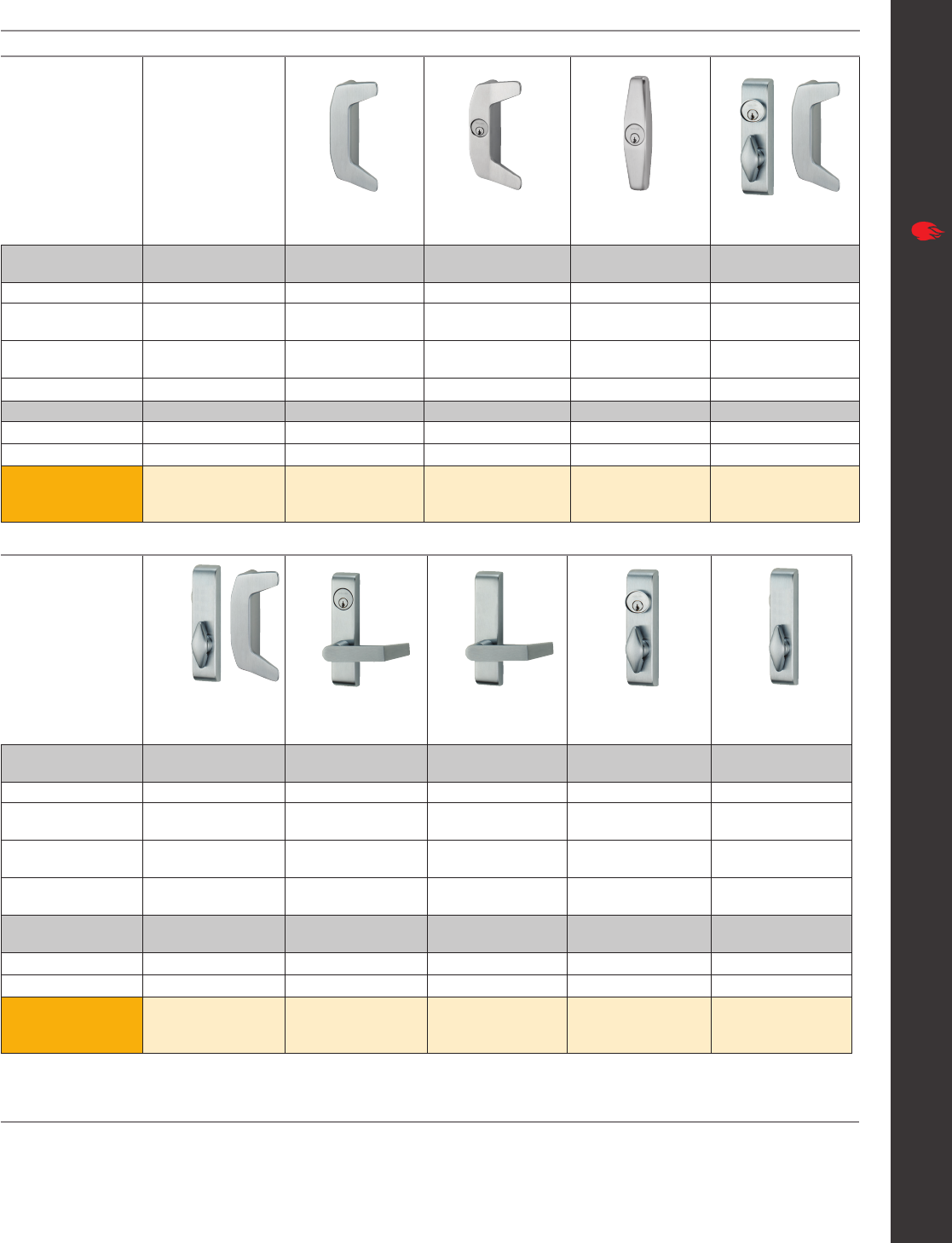

Applications & trim
operation

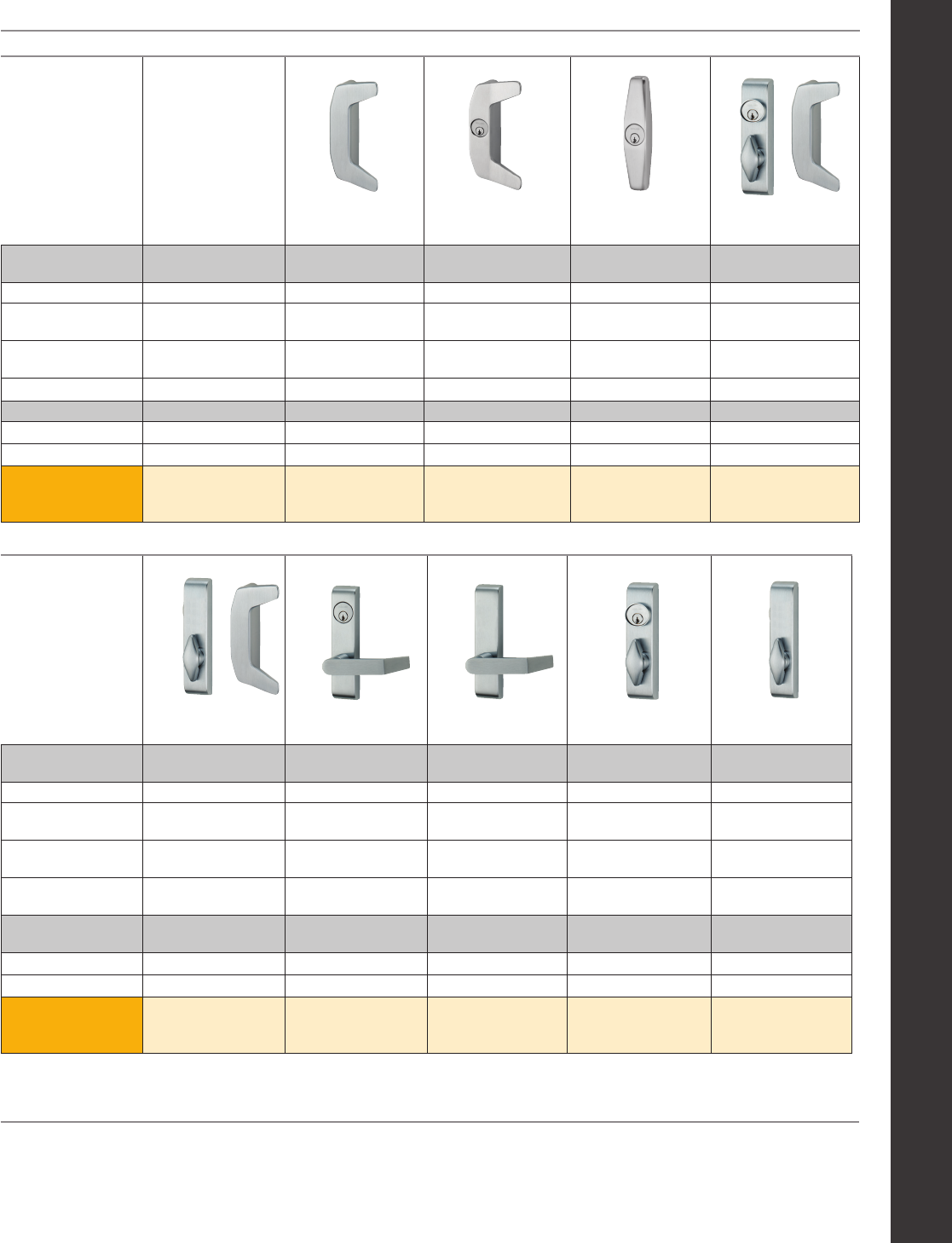

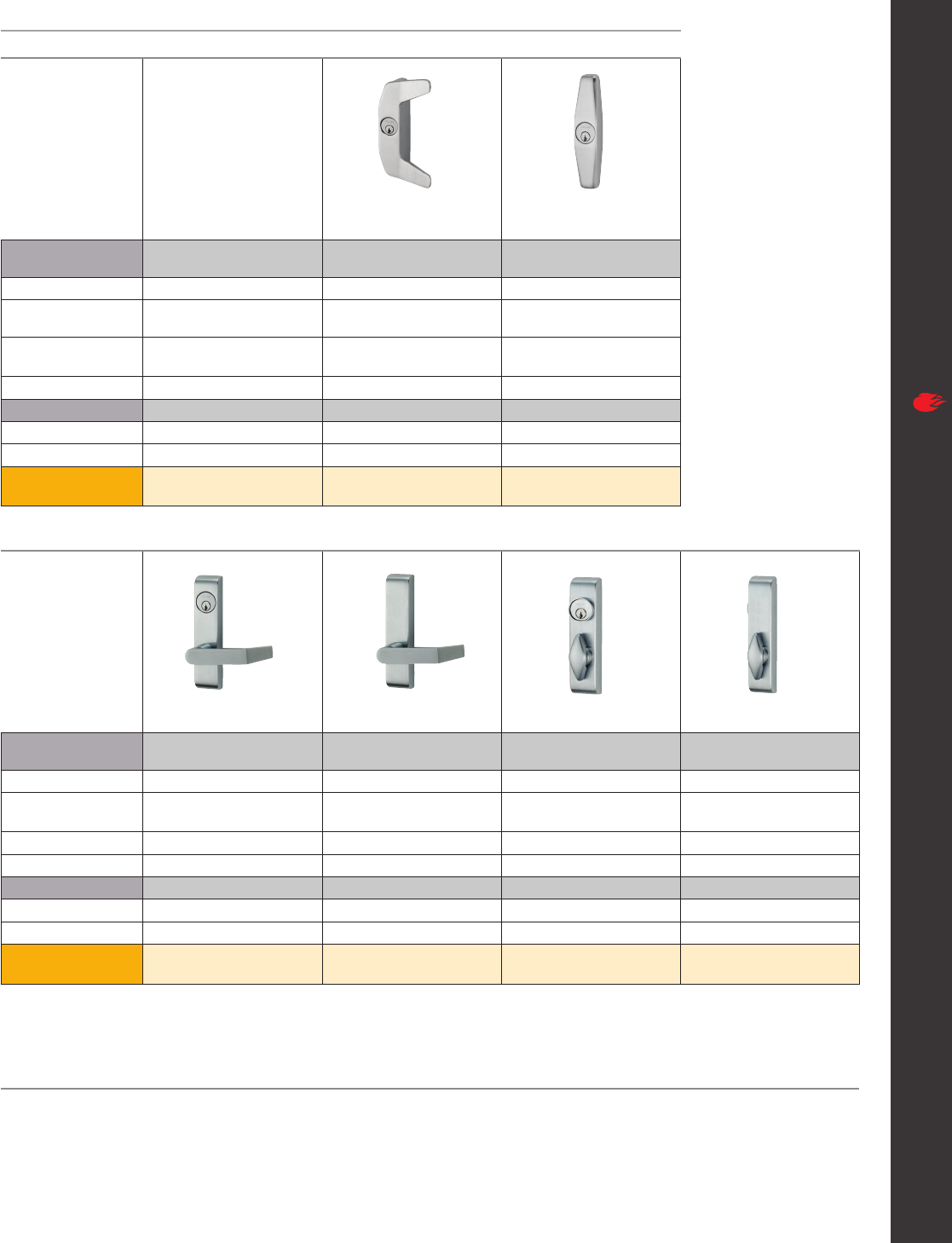

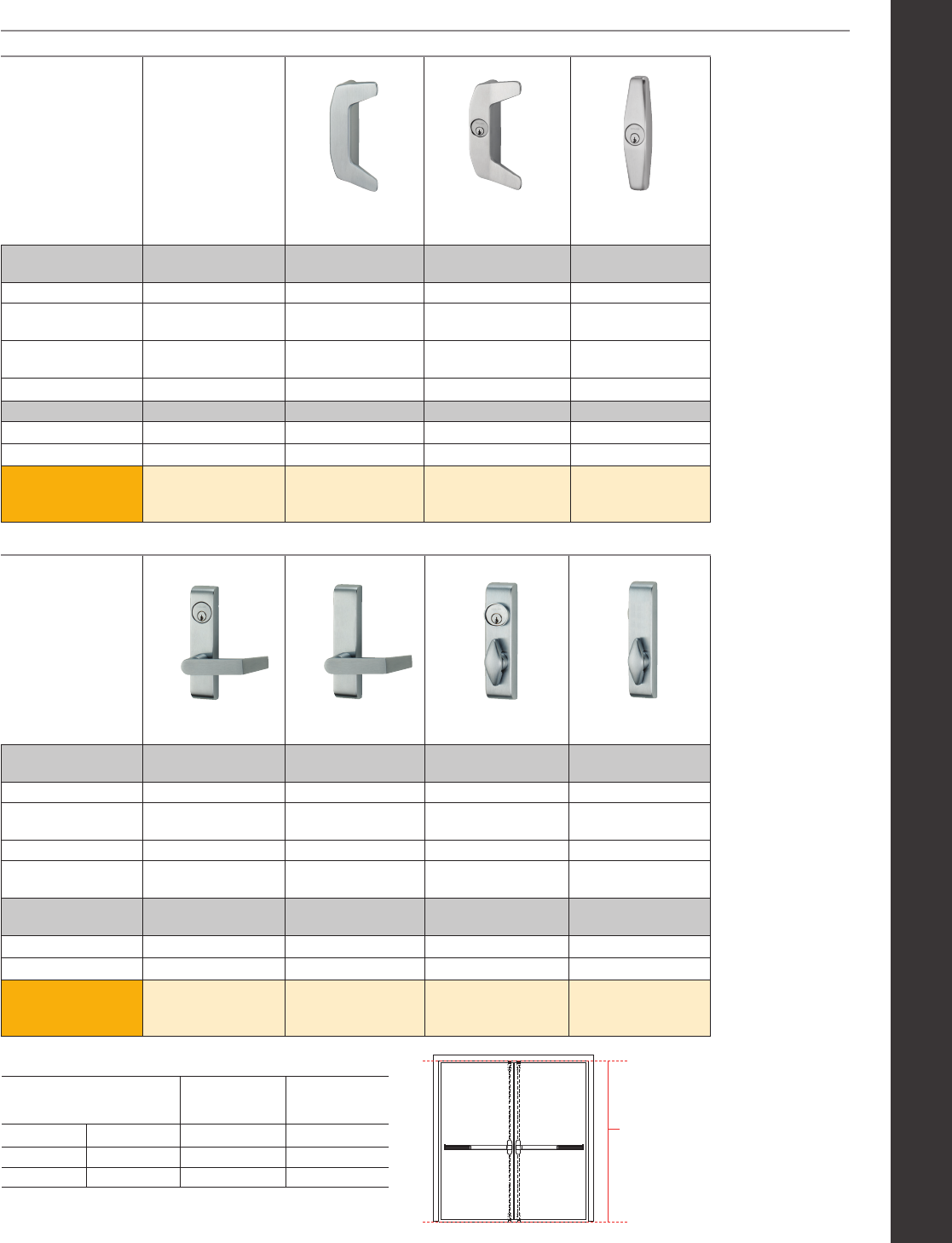

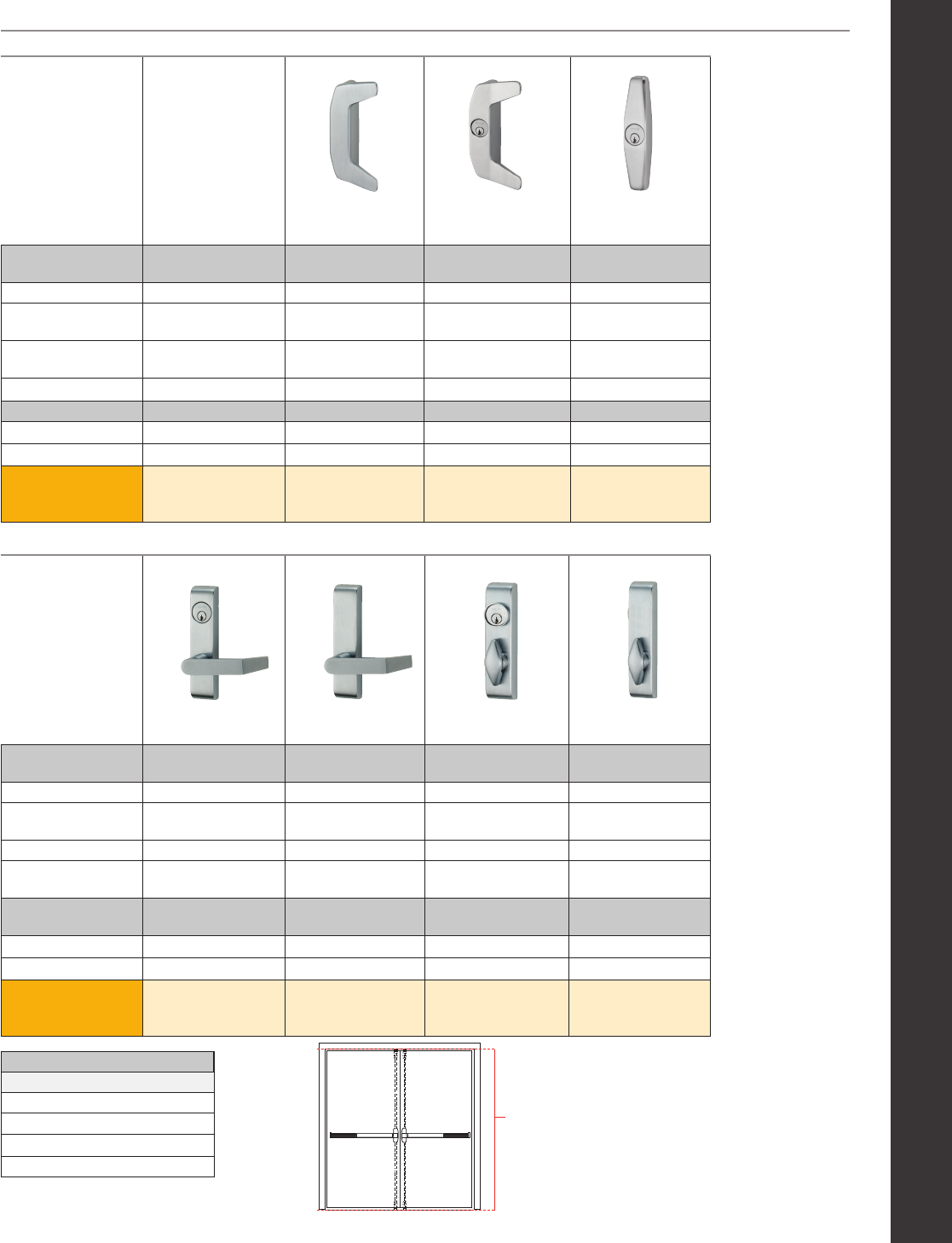

Trim selection

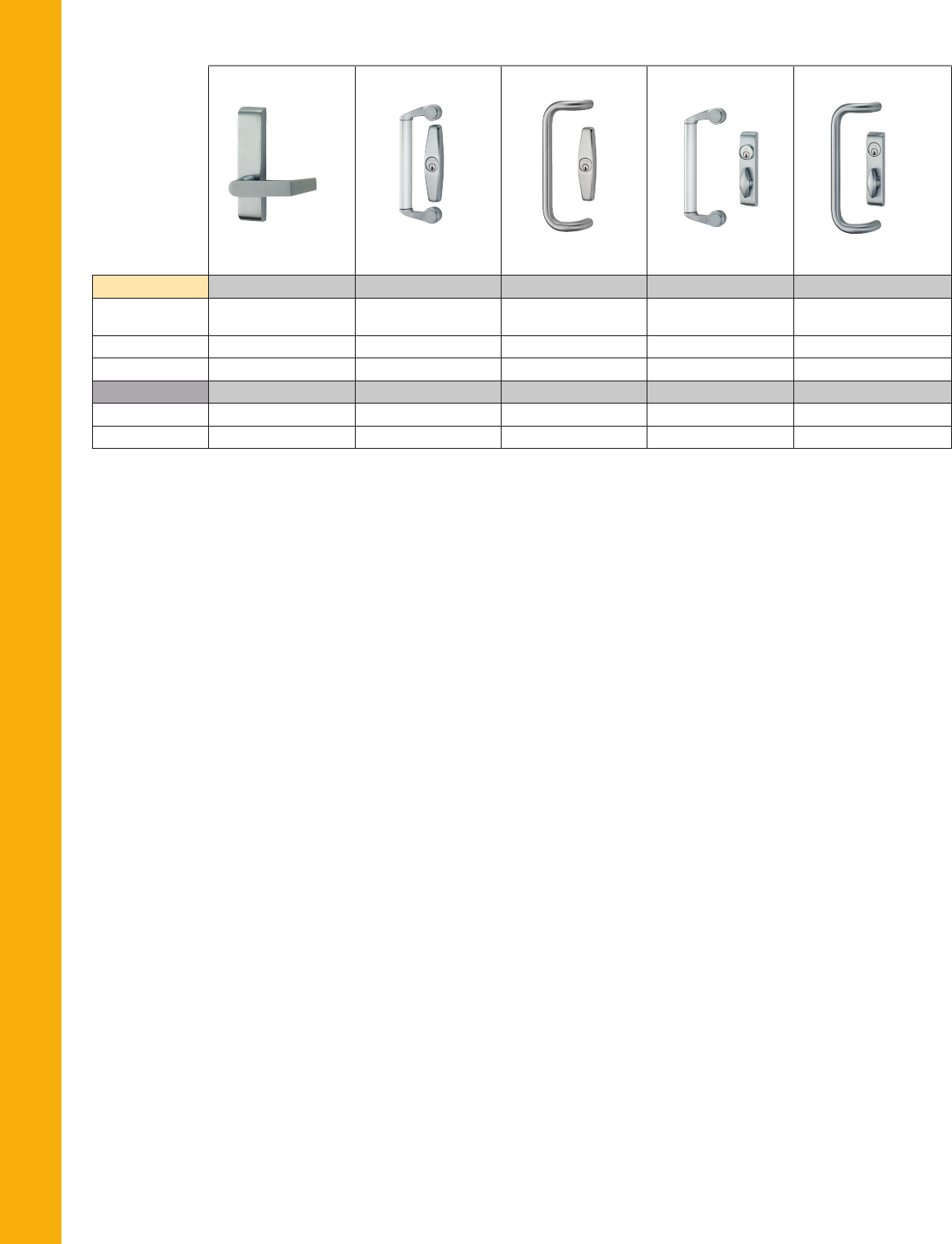

Optional trim
Trim
options
Optional levers

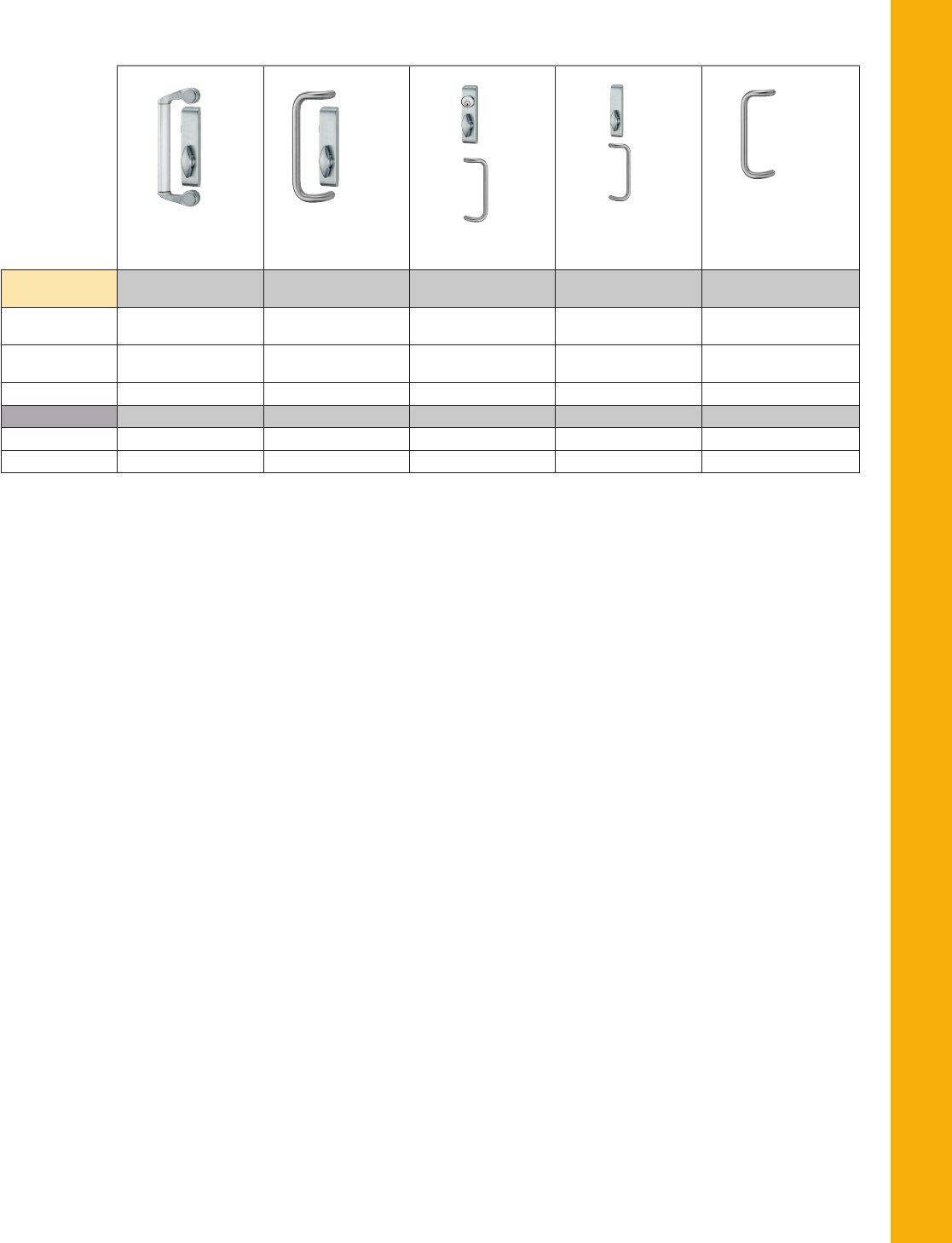

Optional trim
Trim selection
Operation options

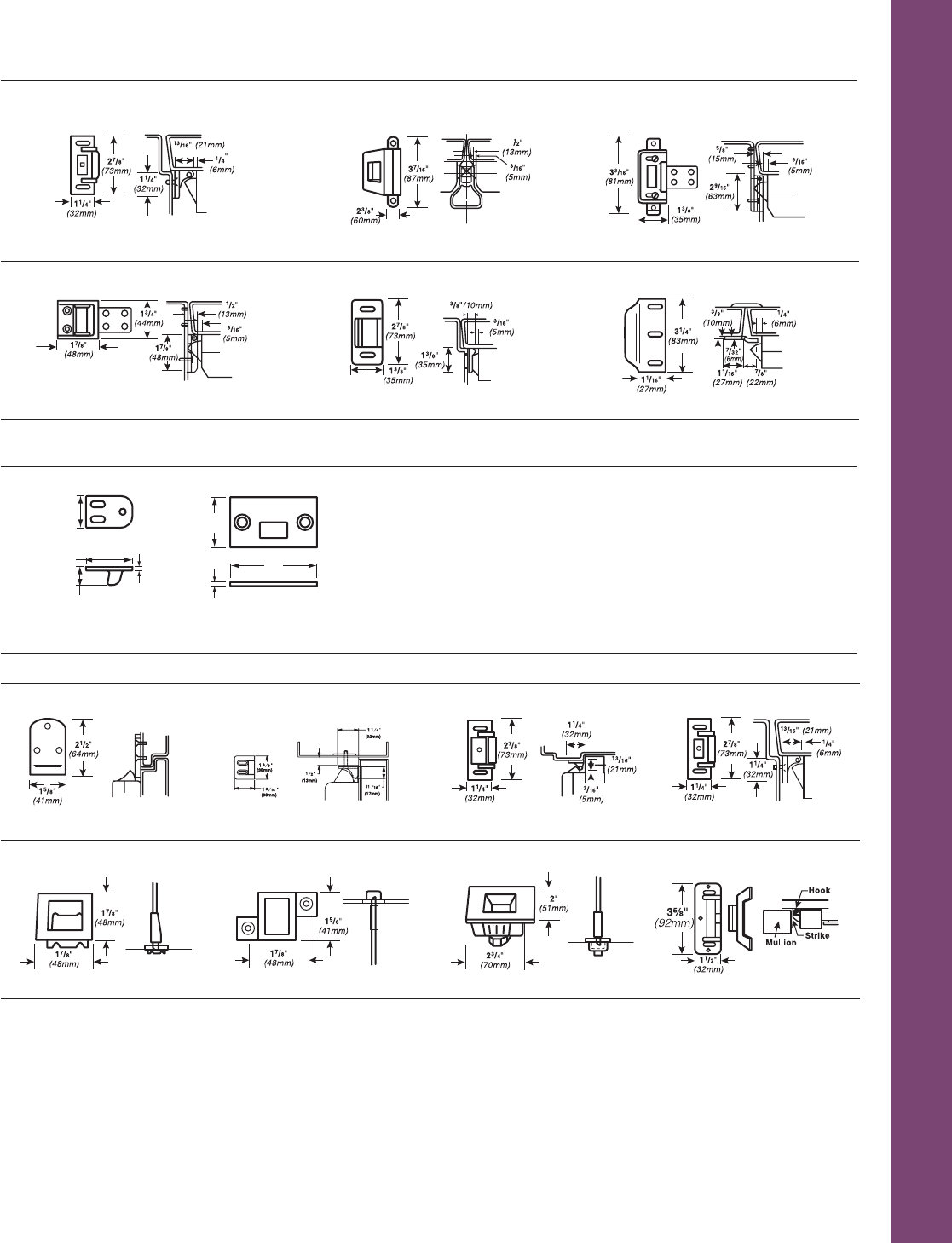

Strike options Optional strikes
Howtoorderinformation
Rim devices, specify:
1. Exit device model number with trim selection. Examples: 33A-EO
(exit only with no outside trim). 33A-NL (includes 386NL trim).
33A-NL-OP (includes the 388 trim less pull).
2. Size 4' (1219mm) for door sizes 2' 10" (940mm) to 4' (1219mm).
Size 3' (914mm) for door sizes 2' 4" (792mm) to 3' (914mm) is
shipped standard.
3. Door thickness if other than 1 3/4" (44mm).
4. Door and frame material if other than aluminum.
5. Finish, see page 38.
6. Handing required on “L”, “SS”, or “386NL”. Specify LHR or RHR.
See page 7.
Vertical rod devices, specify:
1. Exit device model number with trim selection. Examples: 3327A-
EO (exit only with no outside trim.) 3327A-TL-OP (includes
360T Control) 3327A-TL (includes 374T and 386DT).
2. Size 2' (1219mm) for door sizes 2' (610mm).
Size 3' (914mm) for door sizes 2' 2" (792mm) to 3' (914mm) is
shipped standard.
Size 4' (1219mm) for door sizes 2' 8" (940mm) to 4' (1219mm).
3. Door thickness if other than 1 3/4" (44mm).
4. Door height if greater than 7' (2134mm) surface vertical rod
device (8' 4" for concealed devices) or extension rods will be
supplied.
5. Door and frame material if other than aluminum or hollow
metal.
6. Finish, see page 38.
7. Handing required on “L”, “SS”, or “386NL”. Specify LHR or RHR.
See page 7.
Pullman latches are optional for 3327A/3527A and 3347A/3547A
devices. Latchbolts remain extended at all times. Specify “Pullman
Latch” when required.
Device trim, cross-reference*:
33/35 Devices Status 33A/35A Devices
333NL-TP Replaced 386NL
333DT Replaced 386DT
337NL-TP Replaced 386NL
337DT Replaced 386DT
334 Replaced 388
334 x 550 Replaced 388 x 550
370L Replaced 360L
370T Replaced 360T
372L Replaced 360L
374T x 333DT Replaced 374T x 386DT
— New 374T x 392-6
376T x 337DT Replaced 376T x 386DT
—New 376T x 392-6
3308NL Obsolete —
3308DT Obsolete —
—New 388 x Ives 8190
Series Pull
—New 360T x Ives 8190
Series Pull
*New trims not compatible with old devices, neither are old trims with new devices.
VonDuprin33A/35ASeries•5
Nomenclature–howtoorder
CD
CX
EL
HD-EL
QEL
HH
LD
LX
LX-LC
LX-RX
LX-RX-LC
PL
PN
RX
RX-LC
RX2
SS
AX
WP-RX
Cylinder dogging - panic only
Chexit delayed egress
Electric latch retraction
Electric latch retraction with hex dogging
Quiet electric latch
Hurricane
Less dogging
Latchbolt monitoring
Latch bolt monitor low current
Latchbolt monitor / request to exit
Latchbolt monitor / request to exit low current
Pullman latch
Pneumatic
Request to exit
Request to exit low current
Request to exit double switch
Signal switch
Accessible device
Waterproof request to exit
EL 33 27A -L -16 -F LBR 3' US3 RHR
35A
33A
Series 35A-smooth
Series 33A-grooved
A
27A
47A
48A
49A
Rim device
Surface mounted vertical rod device
Concealed vertical rod device
Concealed vertical rod device
Concealed vertical cable device
DT
EO
L
L-BE
L-DT
L-NL
NL
NL-OP
T
TL
T-BE
TL-BE
Dummy trim
Exit only
Lever (classroom)
Lever-blank escutcheon (passage)
Lever-dummy trim
Rigid Lever - Night latch (key retracts latchbolt)
Night latch (key retracts latchbolt)
Night latch cylinder assembly – optional pull
Thumbturn
Turn Lever
Thumbturn-blank escutcheon
Turn Lever-blank escutcheon (Passage)
XX
Lever Style 06 standard
Optional 01, 02, 02KN, 03, 03KN, 05, 06KN,
07, 12 (handed), 16, 17, 17KN, 18, ACC, AST,
MER, STA
FFire Exit Device - Rim, 27A, 47A, 48A, 49A Only
LBR
LBL
ALK
ALK-AR1
ALK-AR3
ALK-AR6
CON
Less Bottom Rod
Less Bottom Latch
Standard Alarm Kit
Auto-Reset 1 1/2 minute alarm kit
Auto-Reset 3 minute alarm kit
Auto-Reset 4 1/2₂ minute alarm kit
Allegion Connect
2'
3'
4'
2' Device (2' Door Size) 27A, 47A or 49A only
3' Device (2' 4"– 3' Door Size)
4' Device (2' 10"– 4' Door size)
Finishes US3, US4, US10, US15 (35A only), US26,
US26D, US26D-AM, US28, 313, 315
HR Handing – RHR or LHR
6 • VonDuprin33A/35ASeries

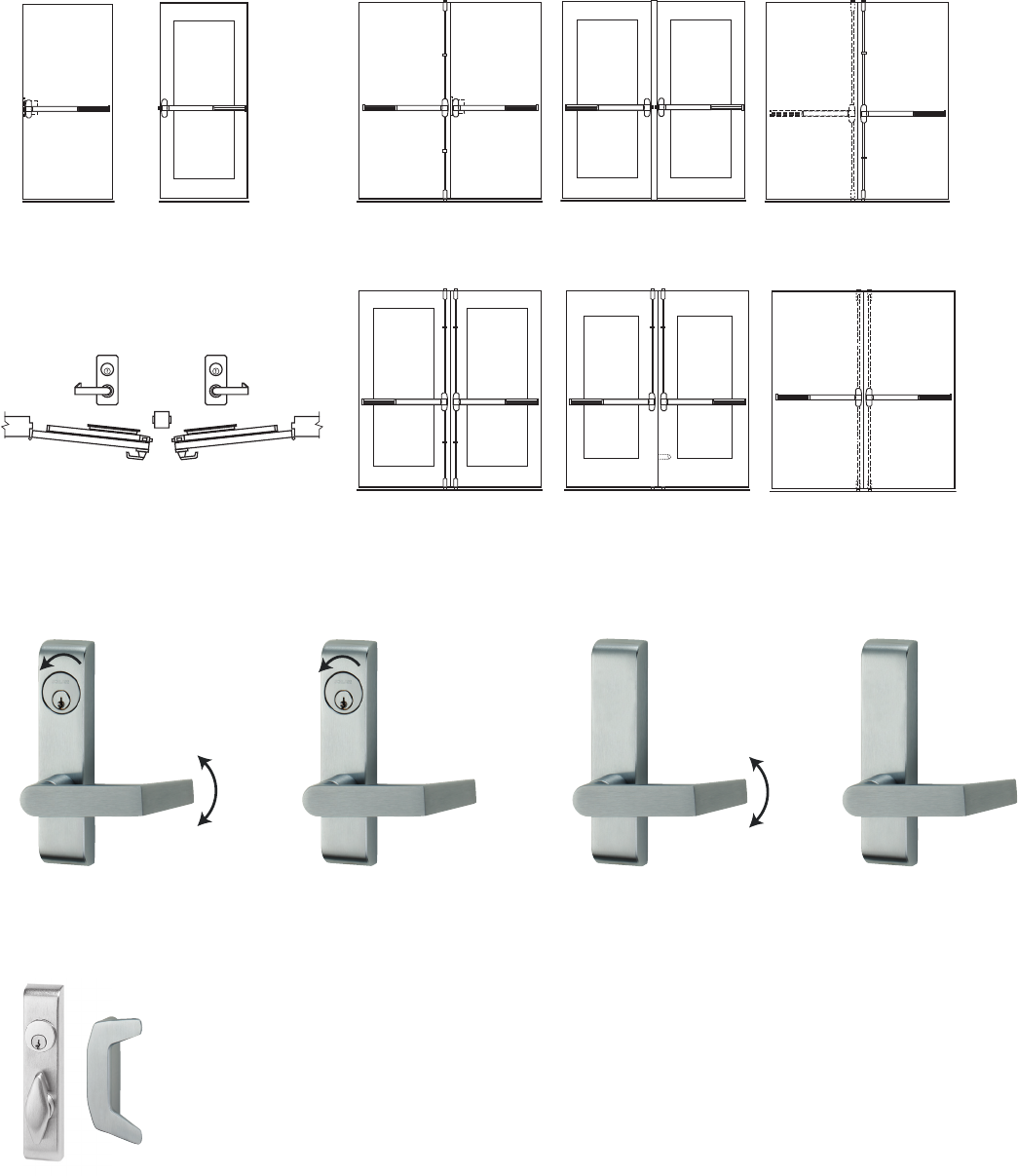

Populardoubledoorapplications
Trim Operation lever
Standard Blank escutcheonNight latch Dummy
Key locks and unlocks lever.
e.g., 360L (Classroom)
Lever always active.
Use BE sux,
e.g., 360L-BE. (Passage)
Key unlocks lever, lever is
relocked when key is
removed. Use NL sux, e.g.
360LNL. (Storeroom)
Lever is rigid for pull
operation. Use DT sux,
e.g., 360L-DT.
374T/376T Series thumbturn control
Standard operation, key locks and
unlocks thumbturn. Optional
operation, key unlocks thumbturn,
re-locks when key is removed. This
operation is created by changing
the cylinder plate included with
control. Use 1 1/2" mortise cylinder
with a straight cam. Schlage cam
reference B502-191. Not available
for 3349/3549 devices.
E360 Series controls
The E360 series controls provide the same choice of lever or
thumbturn control of the 33A/35A Series exit device. Additionally,
these trims have the advantage of being electrically controllable by a
remote switching device, an access control system or automatic fire
alarm system. The trim operates with a rotary solenoid that controls
the locking cam the same way the standard cylinder works. These
trims are available as –BE (Blank Escutcheon) function only. These
trims are designed for use with the rim, surface vertical and concealed
vertical 33A/35A Series exit device.
No cylinder override.
Options:
• Available in all device finishes
• 24VDC Solenoid (.5 amp draw)
• Fail Safe (FS) or Fail Secure (FSE)
• Blank Escutcheon (BE) only
To order, specify:
1. FSE or FS
2. Handing - (Lever control)
field reversible
3. EPT-2/EPT-10 Power
Transfer or Electric Hinge
will be used
Mortise lock and surface mounted or
concealed vertical cable/rod device
combination—same direction
Single mortise
lock device
Single door applications
Door handing
Two surface mounted vertical rod
devices—same direction (do not use
with overlapping astragal)

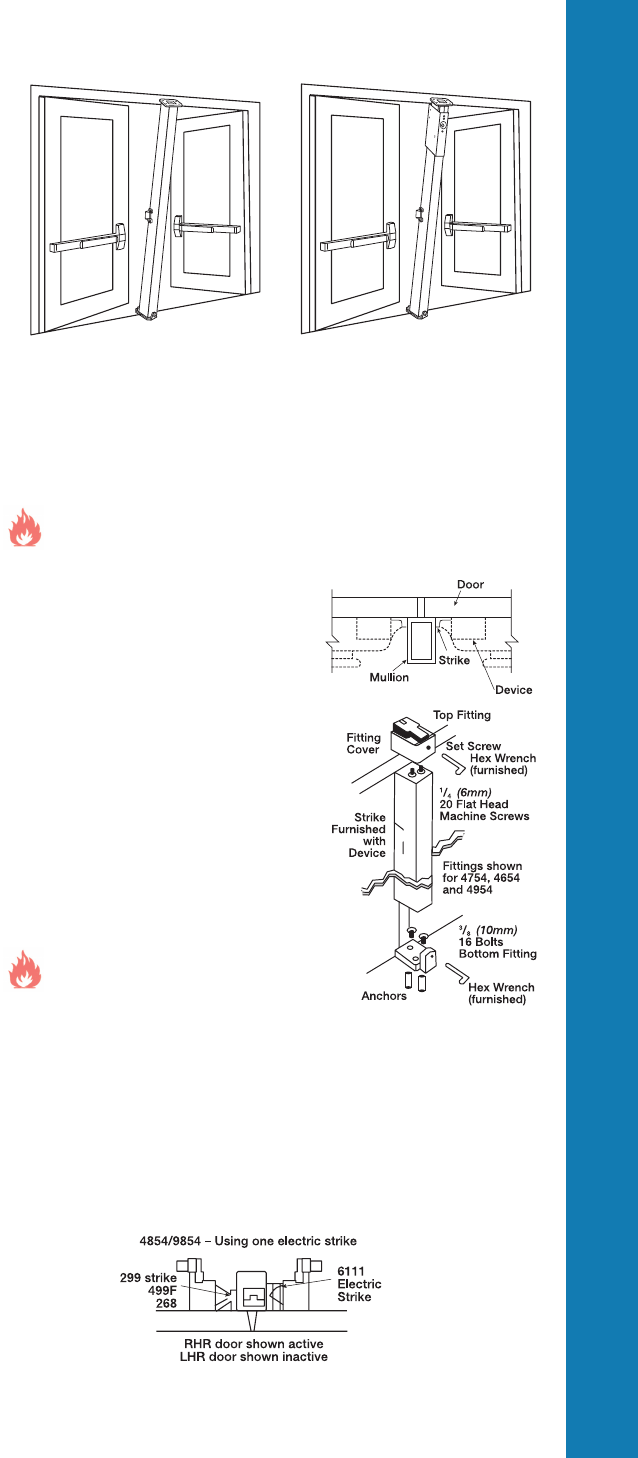

Two rim devices with mullion—
same direction
Single rim device
Two Fire Exit Hardware vertical
cables/rods with auxilary fire
latch-LBR option
Two vertical rods—double egress
Two concealed vertical cables/rods
Left Hand-Reverse
Orientation
LHR
(Left hand reverse)
RHR
(Right hand reverse)
Outside
Right Hand-Reverse
Orientation
Le hand-reverse
orientation
Right hand-reverse
orientation
(Le hand-reverse) (Right hand-reverse)
Outside
Double door applications
VonDuprin33A/35ASeries•7

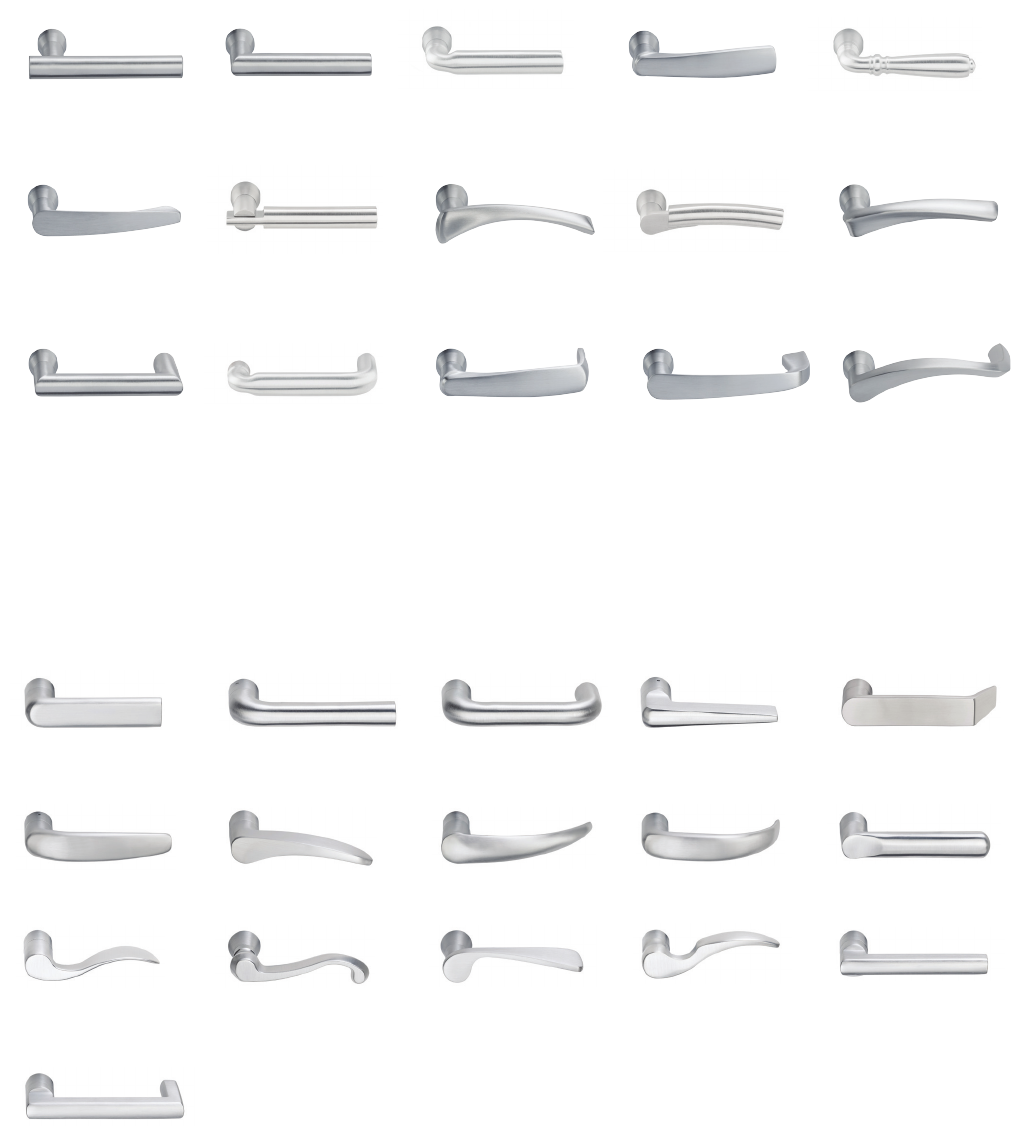

Leverstyles
M51
Knurling available
M52
Knurling available
M53 M54 M55
M56 M57 •• M61
(Handed)
M62 ••
(Handed)
M63
(Handed)
M81
Knurling available
M82 M83 M84 M85
(Handed)
01 02
Knurling available
03*
Knurling available
05 06*
Default lever
Knurling available
07 12
(Handed)
16
(Omega)
17*
Knurling available
18
ACC
(Accent)
(Handed)
AST
(Asti)
(Handed)
MER
(Merano)
(Handed)
STA
(St. Annes)
(Handed)
LAT*
Latitude
LON*
Longitude
Standard Levers
•• Available in Stainless Steel substrate ONLY.
*Available in Stainless Steel - specify SS when ordering
8 • VonDuprin33A/35ASeries

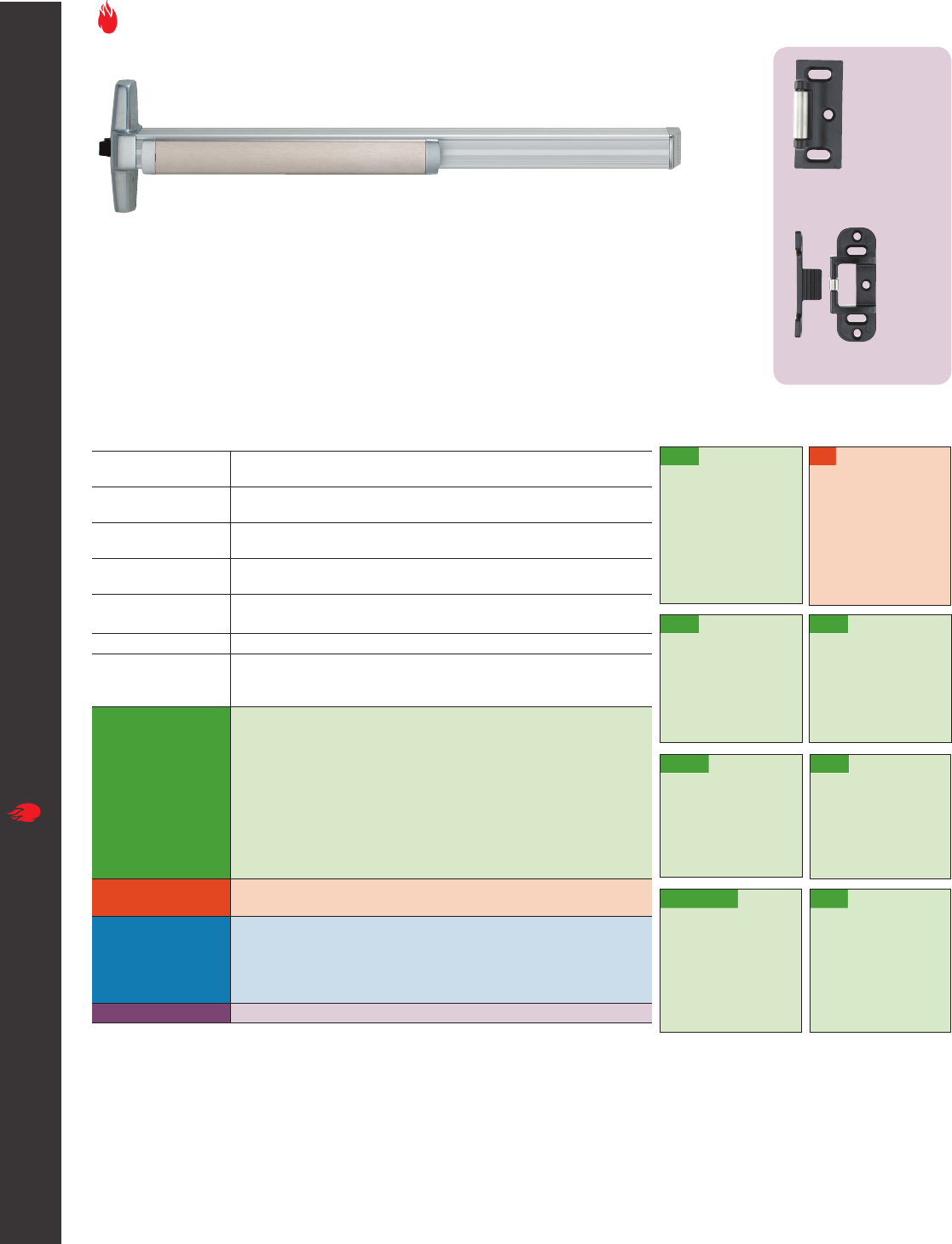

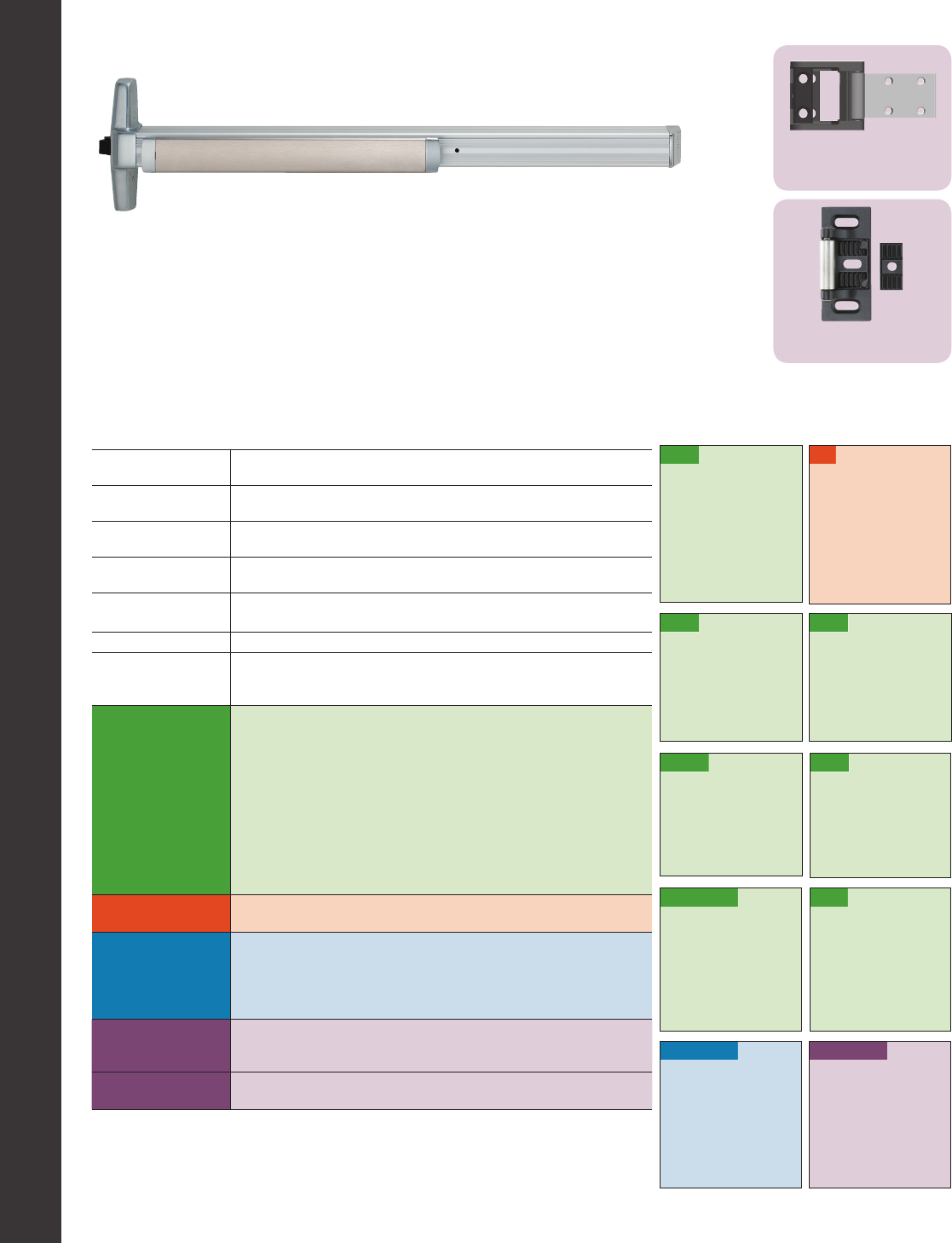

33A/35ARimdevice
33A/35ARimdevice

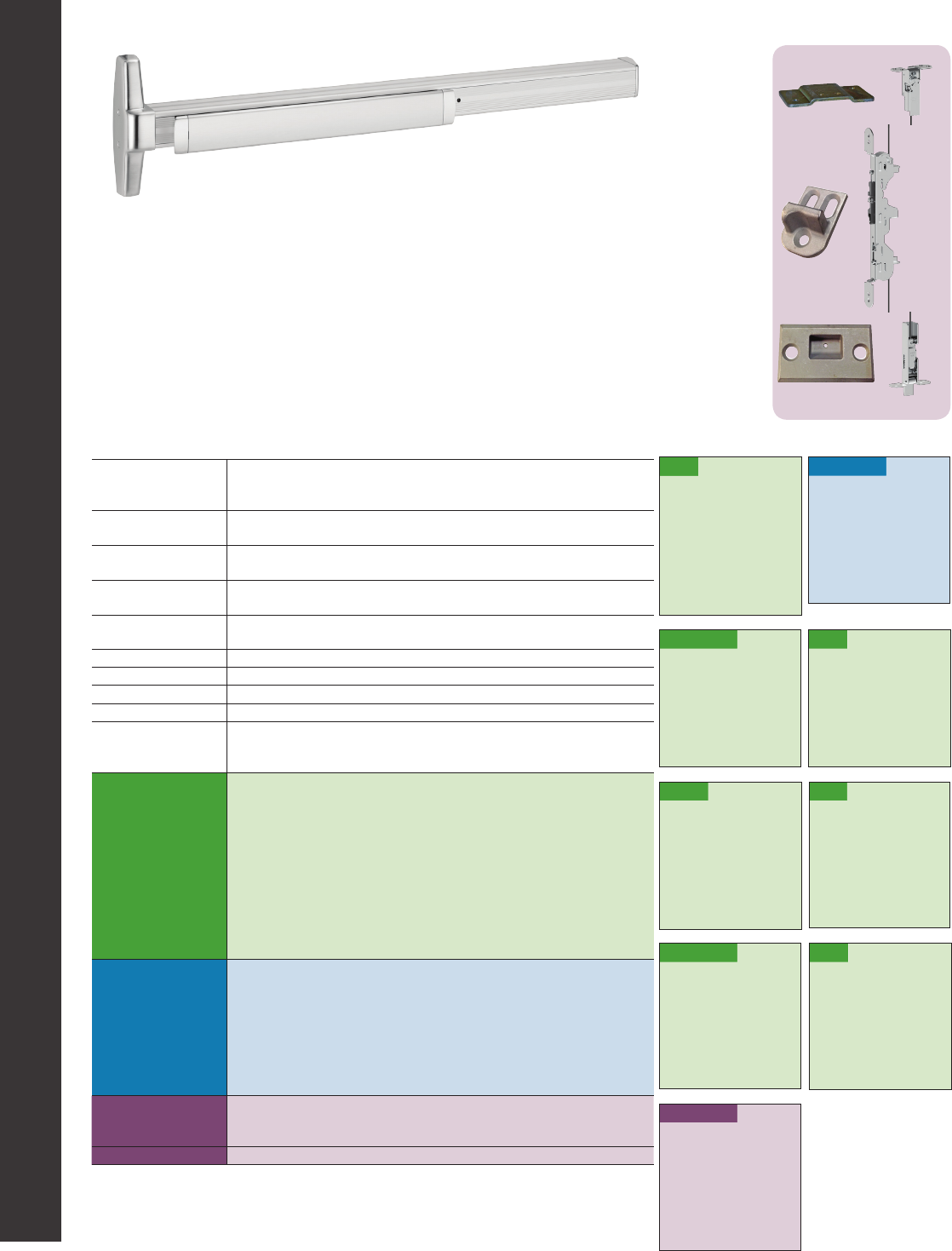

Specifications
Device lengths 3' 2' 4" to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with Mullion
Center case
dimensions
8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar Neutral – 3 13/16" (97 mm)
Pushbar Depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking, 3/4" (19mm) throw
Fasteners & sex
bolts (SNB)
Includes 13/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Mechanical
options
AX Accessible device
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
SG Safety glow
SEC Security screws
SNB Sex bolts
Dogging feature Hex Dogging standard
CD Cylinder dogging
LD Less dogging
Strikes 1439 – Dull black
Optional strikes
33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware.
Devices are ANSI A156.3 – 2014 Grade 1. The 35A has a smooth mechanism case and the 33A has
grooved case. The rim device is non-handed except when the SS (signal switch) option is used.
See opposite page for available outside trim and device functions.
33A/35A fits door stiles as narrow as 1 3/4” (44mm). Newly designed device has a one piece center
case cover.
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires standard
1 1/4" mortise
cylinder
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
CX
Chexit delayed exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
1439 Roller ships standard,
optional strikes available
299 Strike needs to be specified
for Hollow Metal Frames
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin33A/35ASeries•9

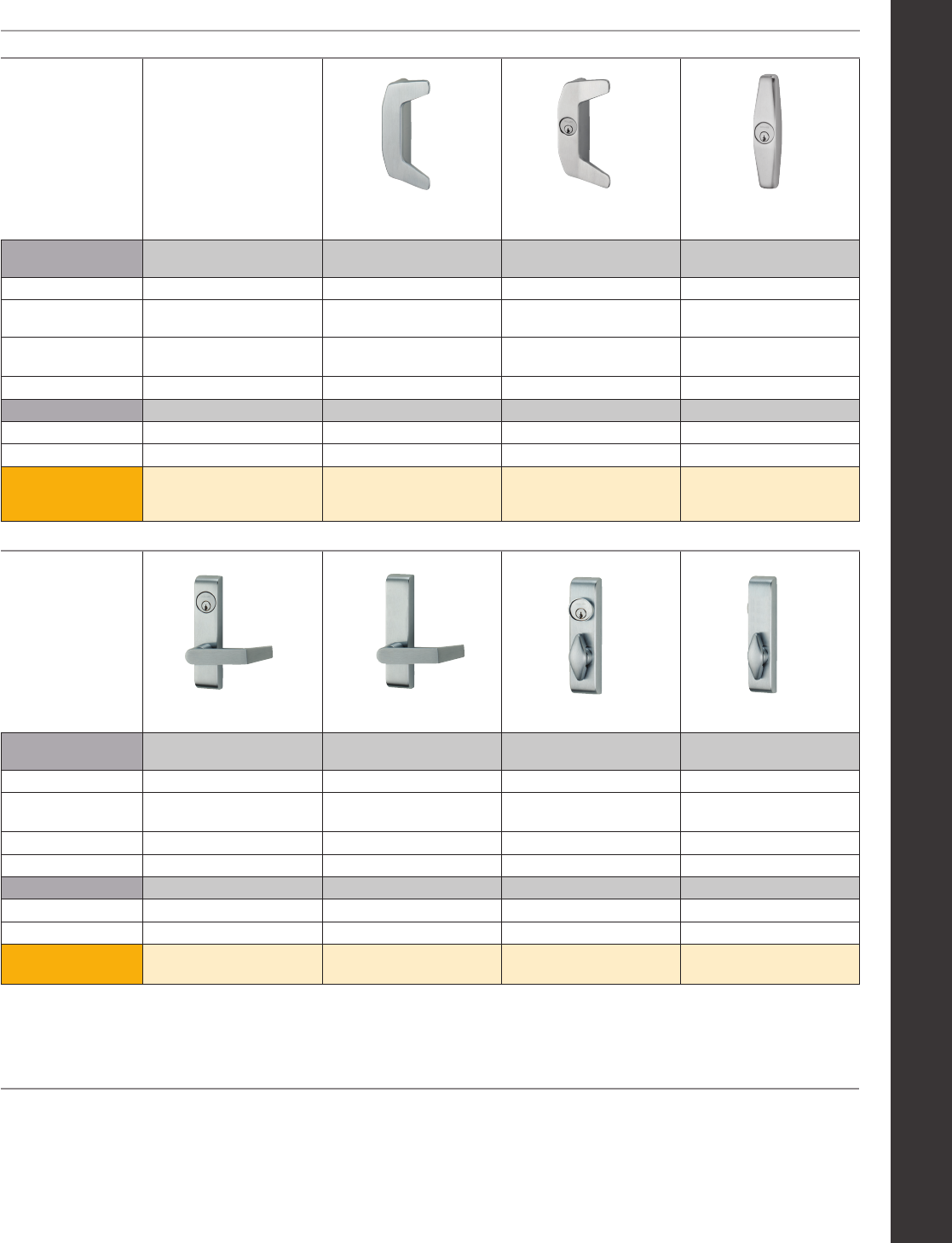

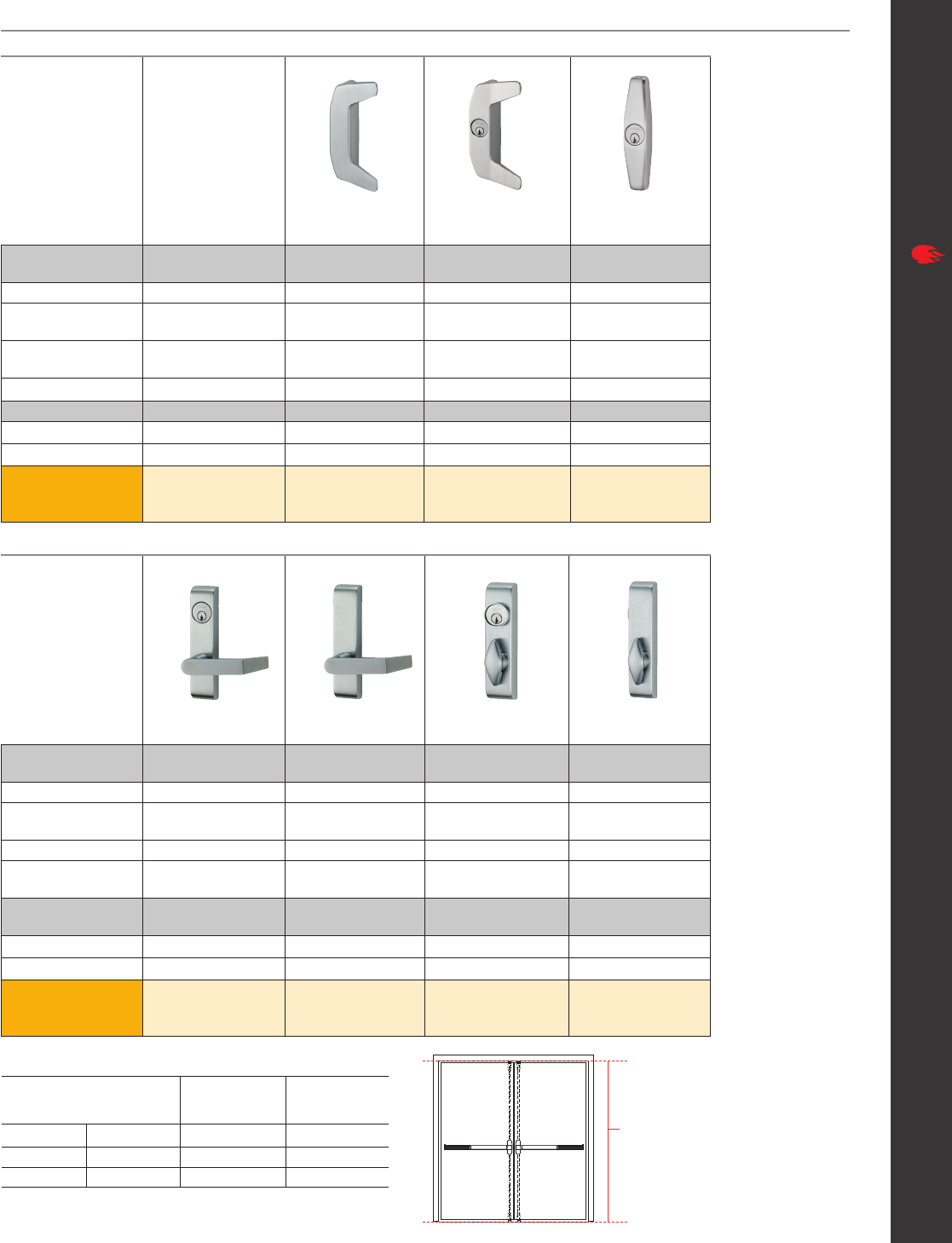

Standard trim
No outside trim
Exit only
Dummy trim
Pull when dogged
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 33A-EO
35A-EO
33A-DT
35A-DT
33A-NL
35A-NL
33A-NL-OP
35A-NL-OP
Trim description —386DT 386NL 388
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 1/2" x 1 11/16"
(190x43mm)
Grip size —8¹⁄₂" x 4⁵⁄₁₆"
(216x110mm)
8¹⁄₂" x 4⁵⁄₁₆"
(216x110mm) —
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm)
ANSI function 01 02 03 03
Cylinder type ——Rim Rim
Handing ——Handed —
Optional trim
—
x360L-DT
x550DT
x IVES 8190
—x550DT
x IVES 8190 10"
Notes
Lever
Key Locks and Unlocks
Lever Blank Escutcheon
Always Operable (No Cylinder)
Thumbturn
Key Locks and Unlocks
Thumbturn
Always Operable (No Cylinder)
Product description 33A-L
35A-L
33A-L-BE
35A-L-BE
33A-T
35A-T
33A-T-BE
35A-T-BE
Trim description 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7¹⁄₂" x 1¹¹⁄₁₆" x ⁷⁄₈"
(190x43x22mm)
Grip size ————
Projection 3" (76mm) 3" (76mm) 1 13/16" (46mm) 1 13/16" (46mm)
ANSI function 08 or 09 field selectable —11 or 12 field selectable —
Cylinder type 1 1/4" Mortise —1 1/4" Mortise —
Handing Handed/Reversible Handed/Reversible — —
Optional trim —E360L-BE —E360T-BE
Note: 360L & 360T used on wood door require the 33A-WDA cover plate
EO
L
DT
L-BE
NL
T
NL-OP
T-BE
33A/35ARimdevicetrim
33A/35ARimreexitdevice
33A-F/35A-FRimreexitdevice
Specifications
Device lengths 3' 2' 4" to 3' (711mm to 914 mm) Door size
4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline
from finished floor
39 13/16" (1011 mm)
39 11/16" (1008 mm) with Mullion
Center case
dimensions
8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar Neutral – 3 13/16" (97 mm)
Pushbar Depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking, 3/4" (19mm) throw
Fasteners & sex
bolts (SNB)
Includes 13/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Mechanical
options
AX Accessible device
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
SG Safety glow
SEC Security screws
SNB Sex bolts
Strikes 299F – Dull black, 499F with mullions

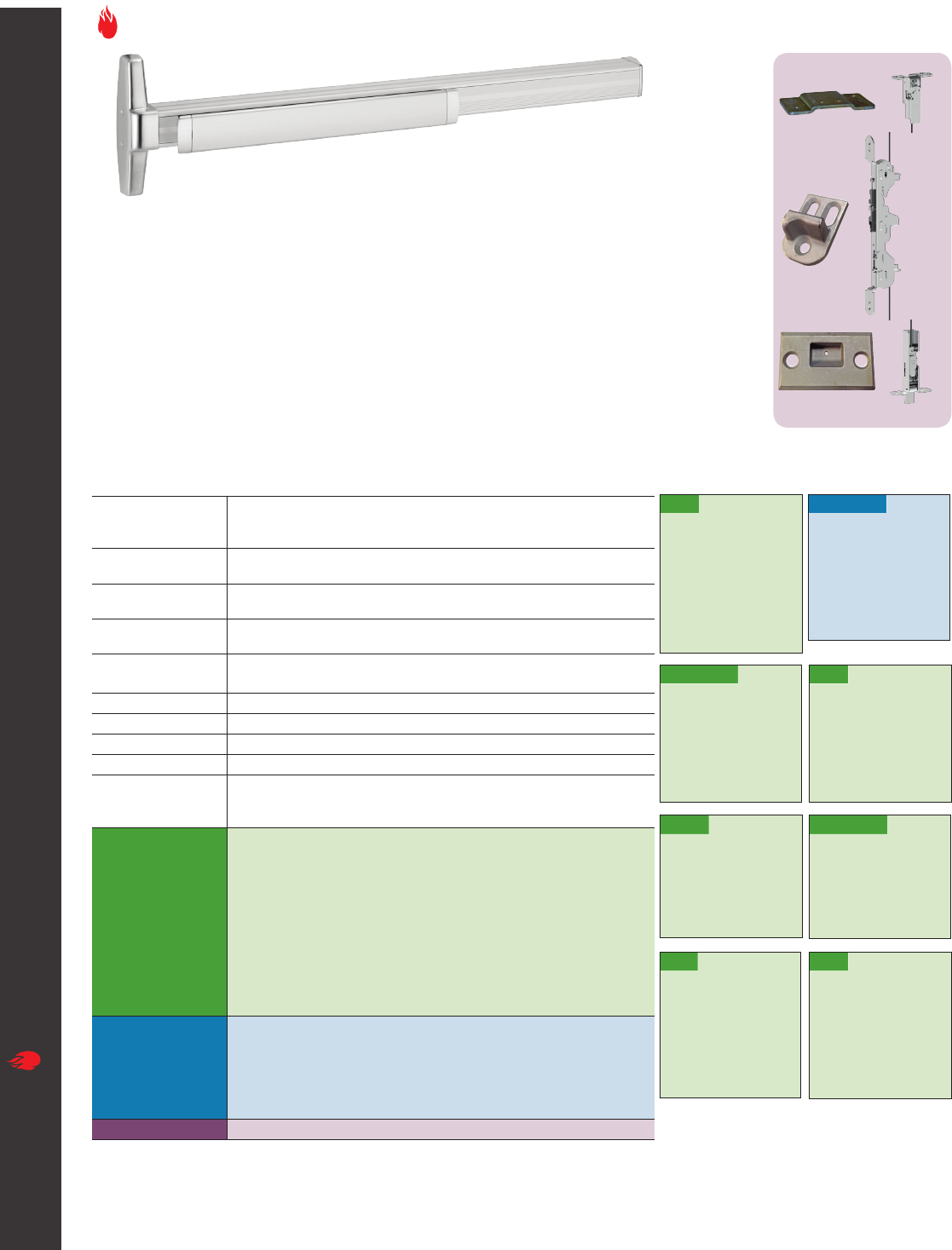

33A-F and 35A-F for all types of single and double fire rated doors with mullion, UL listed for Fire Exit
Hardware. See page 47 for detailed information on UL listed fire exit hardware label and door
opening size information. Devices are ANSI A156.3 – 2014 Grade 1. The 35A has a smooth mechanism
case and the 33A has grooved case. The rim device is non-handed except when the SS (signal
switch) option is used. See opposite page for available outside trim and device functions.
33A/35A fits door stiles as narrow as 1 3/4” (44mm).
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
CX
Chexit delayed exit
• Meets NFPA 101
requirements
• Self-contained
controls, locking,
alarm
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
10• VonDuprin33A/35ASeries
The 299F Strike ships standard
499F Strike with
9854/9954 mullion
Standard trim
No outside trim
Exit only
Night latch
Key retracts latchbolt
Night latch
Key retracts latchbolt
optional pull required
Product description 33A-EO-F
35A-EO-F
33A-NL-F
35A-NL-F
33A-NL-OP-F
35A-NL-OP-F
Trim description —386NL 388
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 1/2" x 1 11/16"
(190x43mm)
Grip size —8¹⁄₂" x 4⁵⁄₁₆"
(216x110mm) —
Projection — 2 7/16" (62mm) 1" (25mm)
ANSI function 01 03 03
Cylinder type —Rim Rim
Handing —Handed —
Optional trim ——x550DT
x IVES 8190 10"
Notes
Lever
Key Locks and Unlocks
Lever Blank Escutcheon
Always Operable (No Cylinder)
Thumbturn
Key Locks and Unlocks
Thumbturn
Always Operable (No Cylinder)
Product description 33A-L-F
35A-L-F
33A-L-BE-F
35A-L-BE-F
33A-T-F
35A-T-F
33A-T-BE-F
35A-T-BE-F
Trim description 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7¹⁄₂" x 1¹¹⁄₁₆" x ⁷⁄₈"
(190x43x22mm)
Grip size ————
Projection 3" (76mm) 3" (76mm) 1 13/16" (46mm) 1 13/16" (46mm)
ANSI function 08 or 09 field selectable —11 or 12 field selectable —
Cylinder type 1 1/4" Mortise —1 1/4" Mortise —
Handing Handed/Reversible Handed/Reversible — —
Optional trim —E360L-BE —E360T-BE
Note: 360L & 360T used on wood door require the 33A-WDA cover plate
EO
LL-BE
NL
T
NL-OP
T-BE
33A/35ARimreexitdevicetrim
VonDuprin33A/35ASeries•11
12 • VonDuprin33A/35ASeries

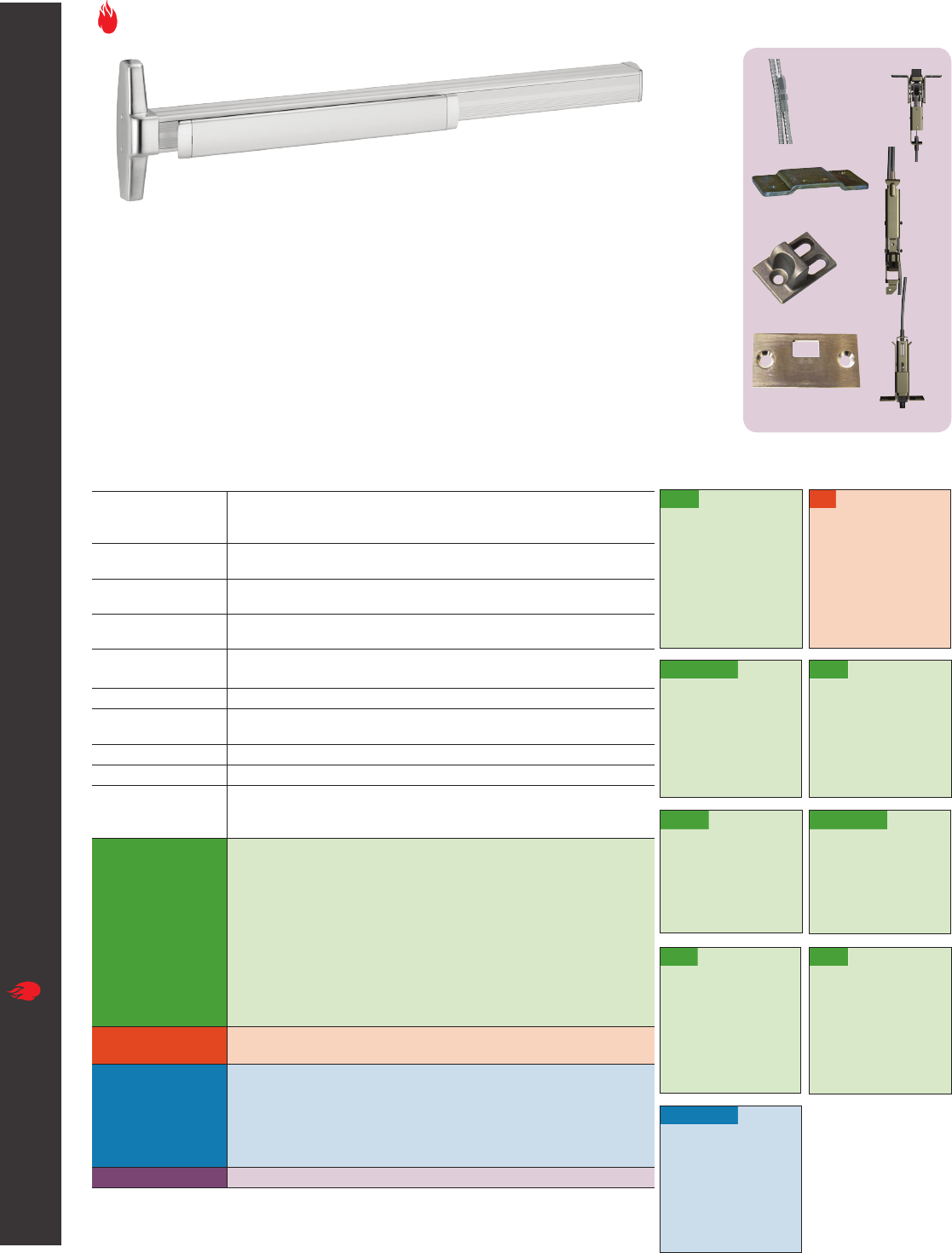

3327A/3527ASurfacemountedverticalroddevice
3327A/3527ASurfacemountedverticalroddevice
3327A and 3527A for all types of single and double doors, UL listed for panic exit hardware. Devices
are ANSI A156.3 – 2008 Grade 1. The 3527A has a smooth mechanism case and the 3327A has
grooved case. The surface vertical rod device is non-handed except when the SS (signal switch)
option is used. See opposite page for available outside trim and device functions.
3327A/3527A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece
center case cover.
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires standard
1 1/4" mortise
cylinder
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
DI
Dogging Indicator
• Monitor dogging
status without a
control panel
• Red indicator light
shows visibility to
dogging from over
75 feet
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
Top Latch
Bottom Latch
266 Top Strike
248L-4 Bottom
Strike for use
with Threshold
304L

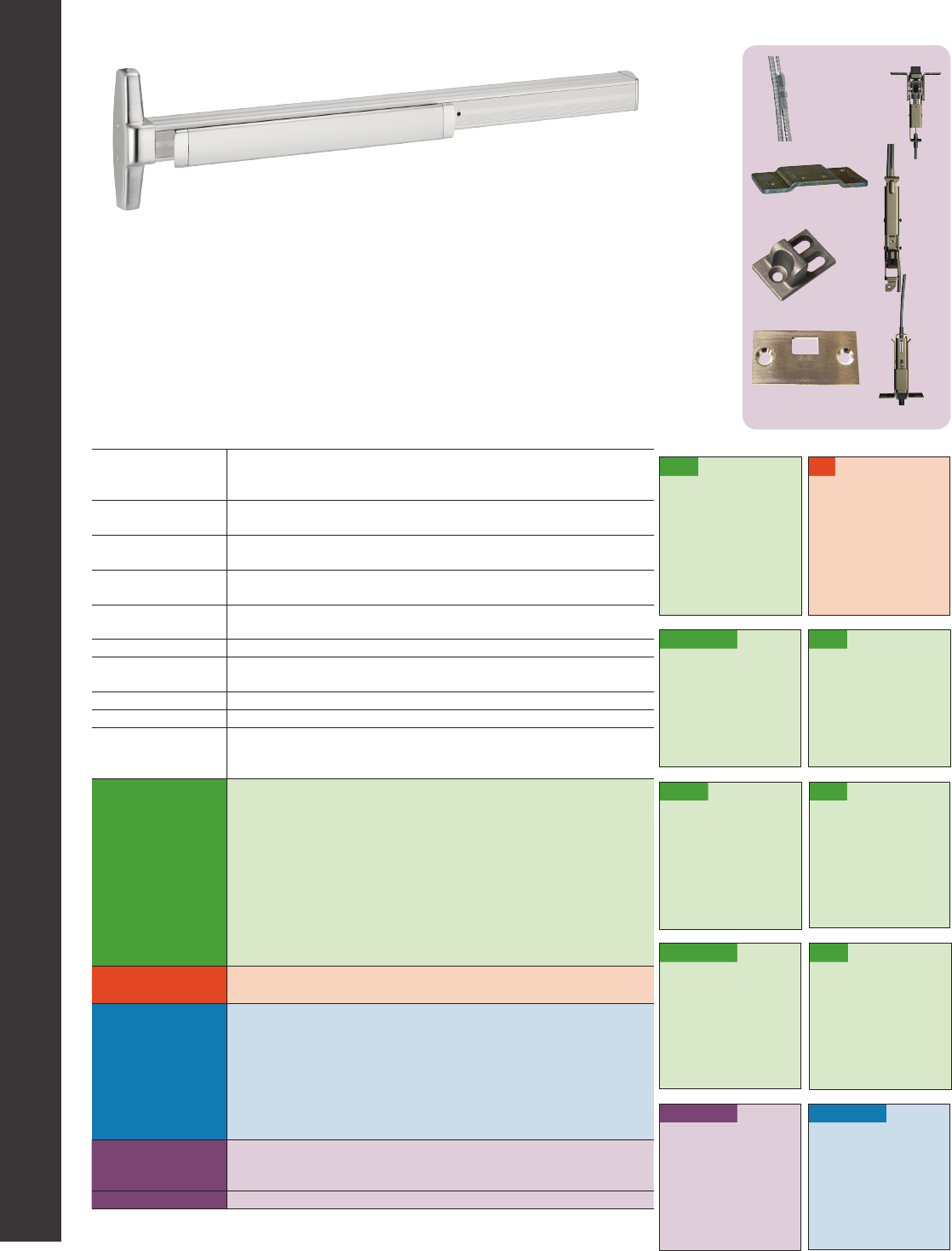

Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw
Door undercut 1/4" (7mm)
Top & bottom latch 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods 1/2" square tubing, standard rods accommodate 7'(2134mm) door
Top rod length is 34 15/16" (887mm)
Bottom rod length is 31 1/4" (794mm)
Extension rods available 1' (205mm) or 3' (914mm) for doors over 7'
One piece top rod available for 8' (2438mm) -10' (3048mm) door
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
#325 SNB furnished for top and bottom latches
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PL Pullman latch
PN Pneumatic
LBR Less bottom rod
SG Safety glow
SEC Security screws
SNB Sex bolts
Dogging feature Hex dogging standard
CD Cylinder dogging
LD Less dogging
Strikes Top – 266 – Dull black, bottom – 248L4 & 304L – Unfinished
Optional strikes
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin33A/35ASeries•13
3327A/3527ASurfacemountedverticalroddevice
Notes
Thumbturn-blank
escutcheon always
operable (no cylinder)
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
Thumbturn always
operable (no cylinder)
Product description 3327A-TL-BE
3527A-TL-BE
3327A-L
3527A-L
3327A-L-BE
3527A-L-BE
3327A-T
3527A-T
3327A-T-BE
3527A-T-BE
Trim description 374T-BE x 386 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size 8 1/2" x 4 5/16"
(216x110mm) — — — —
Projection 113/16"
(46mm)
3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function
—
08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type —1 1/4" Mortise —1 1/4" Mortise —
Handing —Handed/Reversible Handed/Reversible — —
Optional Trim
x 392-6 —E360L-BE —E360T-BE
Note: 360L & 360T used on wood door require the 33A-WDA cover plate 374T used on wood door require #10-WDA cover plate
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Thumbturn
key locks & unlocks
Product description 3327A-EO
3527A-EO
3327A-DT
3527A-DT
3327A-NL
3527A-NL
3327A-NL-OP
3527A-NL-OP
3327A-TL
3527A-TL
Trim description —386DT 386NL 388 374T x 386
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 1/2" x 1 11/16" x 7/8"
(190x43mmx22mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) — —
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm) 1 13/16" (46mm)
ANSI function 01 02 03 03 11-12 field selectable
Cylinder type — — Rim Rim 1 1/4" Mortise
Handing — — Handed — —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10" x 392-6
EO
TL-BE LL-BE TT-BE
DT NL NL-OP TL
14 • VonDuprin33A/35ASeries
3327A-F/3527A-FSurfacemountedverticalrodreexitdevice
3327A-F and 3527A-F for all types of double doors up to 8' x 10' (2438mm x 2540mm), UL listed for
Fire Exit Hardware. See page 47 for detailed information on UL listed fire exit hardware label and door
opening size information. Devices are ANSI A156.3 – 2008 Grade 1. The 3527A-F has a smooth
mechanism case and the 3327A-F has grooved case. The surface vertical rod device is non-handed
except when the SS (Signal Switch) option is used. See opposite page for available outside trim and
device functions.
3327A-F/3527A-F fits door stiles as narrow as 2 3/16" (56 mm). Newly designed device has a one piece
center case cover.
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
Top latch
Bottom latch
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw
Door undercut 1/4" (7mm)
Top & bottom latch 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods 1/2" square tubing, standard rods accommodate 7'(2134mm) door
Top rod length is 34 15/16" (887mm)
Bottom rod length is 31 1/4" (794mm)
Extension rods available 1' (205mm) or 3' (914mm) for doors over 7'
One piece top rod available for 8' (2438mm) -10' (3048mm) door
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
#325 SNB furnished for top and bottom latches
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
LBR Less bottom rod
SG Safety glow
SEC Security screws
SNB Sex bolts
Strikes Top – 266 – Dull black, bottom – 248L4 & 304L – Unfinished
Optional strikes
3327A-F/3527A-FSurfacemountedverticalrodreexitdevice
299F Top strike
499F (LBR only)
304L Bottom
strike for use
with threshold
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin33A/35ASeries•15
3327A-F/3527A-FSurfacemountedverticalrodreexitdevice
Notes
Thumbturn-blank
escutcheon always
operable (no cylinder)
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
(behind C/Case)
Thumbturn always
operable (no cylinder)
(behind C/Case)
Product description 3327A-TL-BE-F
3527A-TL-BE-F
3327A-L-F
3527A-L-F
3327A-L-BE-F
3527A-L-BE-F
3327A-T-F
3527A-T-F
3327A-T-BE-F
3527A-T-BE-F
Trim description 374T-BE x 386 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size 8 1/2" x 4 5/16"
(216x110mm) — — — —
Projection 27/16"
(62mm)
3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function
—
08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type —1 1/4" Mortise —1 1/4" Mortise —
Handing —Handed/Reversible Handed/Reversible — —
Optional Trim
x 392-6 —E360L-BE —E360T-BE
Note: 360L & 360T used on Wood Door require the 33A-WDA cover plate 374T used on Wood Door require #10-WDA cover plate
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
(not recommended for
fire device)
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Thumbturn
key locks & unlocks
Product description 3327A-EO-F
3527A-EO-F
3327A-DT-F
3527A-DT-F
3327A-NL-F
3527A-NL-F
3327A-NL-OP-F
3527A-NL-OP-F
3327A-TL-F
3527A-TL-F
Trim description —386DT 386NL 388 374T x 386
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
7 1/2" x 1 11/16" x 7/8"
(190x43mmx22mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —8 1/2" x 4 5/16"
(216x110mm)
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm) 1 13/16" (46mm)
ANSI function 01 02 03 03 11-12 field selectable
Cylinder type — — Rim Rim 1 1/4" Mortise
Handing — — Handed — —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10" x 392-6
EO
TL-BE LL-BE TT-BE
DT NL NL-OP TL
16 • VonDuprin33A/35ASeries

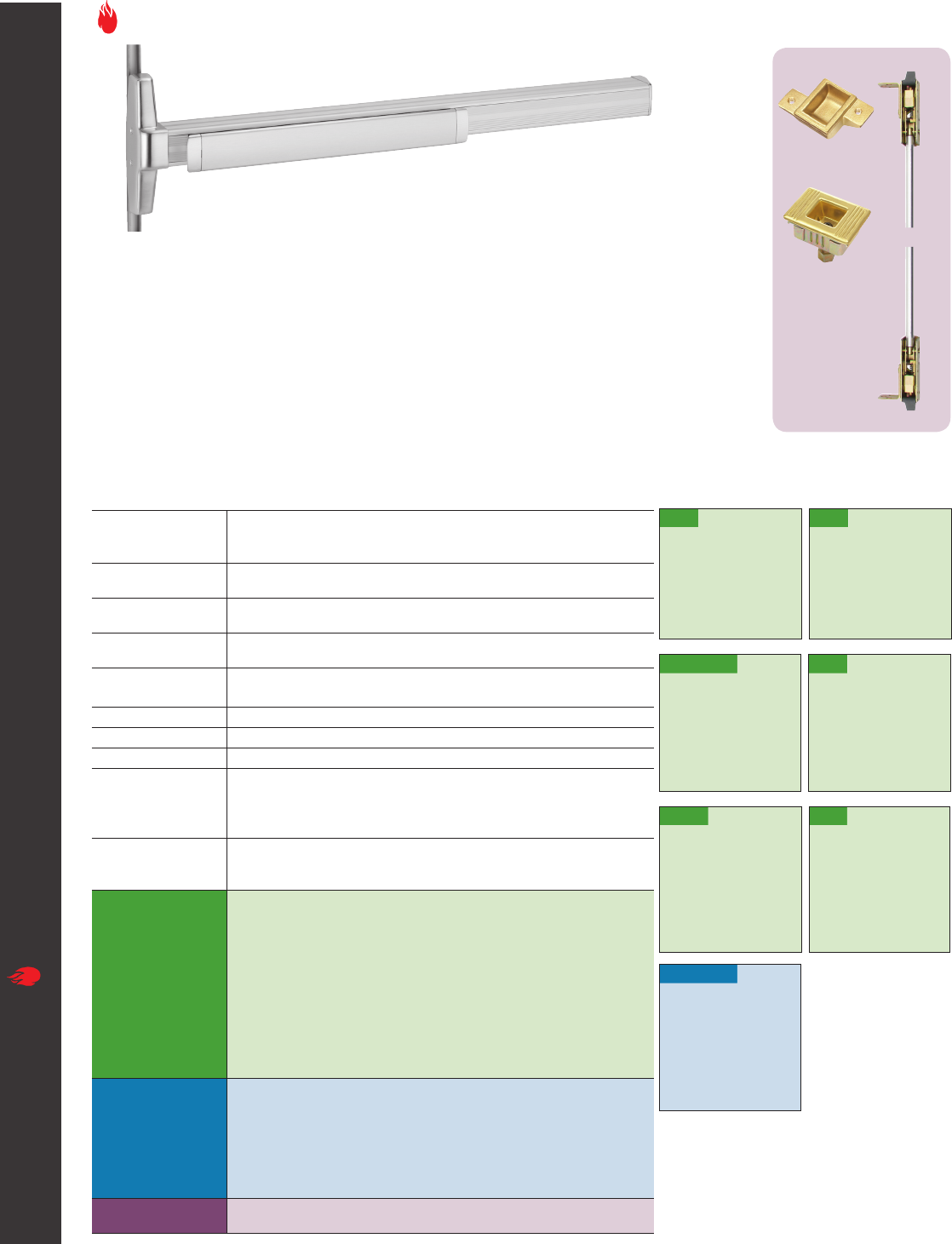

3347A/3547AConcealedverticalroddevice
3347A/3547AConcealedverticalroddevice
3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices
are ANSI A156.3 – 2008 Grade 1. The 3547A has a smooth mechanism case and the 3347A has
grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch)
option is used. See opposite page for available outside trim and device functions.
3347A/3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4"
(102mm). Newly designed device has a one piece center case cover.
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires standard
1 1/4" mortise
cylinder
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw
Door undercut 1/4" (7mm)
Top & bottom latch 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)
Vertical rods Round 2 piece adjustable rods
Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
Extension rod kits available for doors over 8'4" (2533mm)
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PL Pullman latch
PN Pneumatic
HH Hurricane
INS-2/INS-4 Insulclad kits 1/2" / 1/4" panels
LBR Less bottom rod
SG Safety glow
SEC Security screws
SNB Sex bolts
Dogging feature Hex dogging standard
CD Cylinder dogging
LD Less dogging
Strikes Top – 388 – Unfinished, bottom – 385A – Unfinished
Optional strikes
DI
Dogging Indicator
• Monitor dogging
status without a
control panel
• Red indicator light
shows visibility to
dogging from over
75 feet
338 Top strike
385A Bottom
strike
283 Top strike
for use with
wood frames
Bottom latch
Top latch
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin33A/35ASeries•17
3347A/3547AConcealedverticalroddevice
Notes
Thumbturn-blank
escutcheon always
operable (no cylinder)
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
Thumbturn always
operable (no cylinder)
(behind C/Case)
Product description 3347A-TL-BE
3547A-TL-BE
3347A-L
3547A-L
3347A-L-BE
3547A-L-BE
3347A-T
3547A-T
33477A-T-BE
35477A-T-BE
Trim description 376T-BE x 386 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size 8 1/2" x 4 5/16"
(216x110mm) — — — —
Projection 27/16"
(62mm)
3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function
—
08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type —1 1/4" Mortise —1 1/4" Mortise —
Handing —Handed/Reversible Handed/Reversible — —
Optional trim
x 392-6 —E360L-BE —E360T-BE
Note: 360L & 360T used on wood door require the 33A-WDA cover plate 374T used on wood door require #10-WDA cover plate
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Thumbturn
key locks & unlocks
Product description 3347A-EO
3547A-EO
3347A-DT
3547A-DT
3347A-NL
3547A-NL
3347A-NL-OP
3547A-NL-OP
3347A-TL
3547A-TL
Trim description —386DT 386NL 388 376T x 386
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
7 1/2" x 1 11/16" x 7/8"
(190x43mmx22mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —8 1/2" x 4 5/16"
(216x110mm)
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm) 1 13/16" (46mm)
ANSI function 01 02 03 03 11-12 field selectable
Cylinder type — — Rim Rim 1 1/4" Mortise
Handing — — Handed — —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10" x 392-6
EO
TL-BE LL-BE TT-BE
DT NL NL-OP TL
18 • VonDuprin33A/35ASeries
3347A-F/3547A-FConcealedverticalrodreexitdevice
3347A-F and 3547A-F for all types of double doors up to 8' x 10' (2438mm x 2540mm), UL listed for
fire exit hardware. See page 47 for detailed information on UL listed fire exit hardware label and door
opening size information. Devices are ANSI A156.3 – 2008 Grade 1. The 3547A-F has a smooth
mechanism case and the 3347A-F has grooved case. The concealed vertical rod device is non-
handed except when the SS (Signal Switch) option is used. See opposite page for available outside
trim and device functions.
3347A-F/3547A-F fits door stiles as narrow as 3 1/2" (90mm). Newly designed device has a one piece
center case cover.
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw
Door undercut 1/4" (7mm)
Top & bottom latch 4 1/2" x 2 7/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods Round 2 piece adjustable rods
Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
Extension rod kits available for doors over 8'4" (2533mm)
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
HH Hurricane
LBR Less bottom rod
SG Safety glow
SEC Security screws
SNB Sex bolts
Strikes Top – 388 – Unfinished, bottom – 385A – Unfinished
Optional strikes
338 Top strike
385A Bottom
strike
Bottom latch
Top latch
3347A-F/3547A-FConcealedverticalrodreexitdevice
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin33A/35ASeries•19
3347A-F/3547A-FConcealedverticalrodreexitdevice
Notes
Thumbturn-blank
escutcheon always
operable (no cylinder)
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
(behind C/case)
Thumbturn always
operable (no cylinder)
(behind C/case)
Product description 3347A-TL-BE-F
3547A-TL-BE-F
3347A-L-F
3547A-L-F
3347A-L-BE-F
3547A-L-BE-F
3347A-T-F
3547A-T-F
3347A-T-BE-F
3547A-T-BE-F
Trim description 376T-BE x 386 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size 8 1/2" x 4 5/16"
(216x110mm) — — — —
Projection 27/16"
(62mm)
3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function
—
08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type —1 1/4" Mortise —1 1/4" Mortise —
Handing —Handed/Reversible Handed/Reversible — —
Optional trim
x 392-6 —E360L-BE —E360T-BE
Note: 360L & 360T used on wood door require the 33A-WDA cover plate 374T used on wood door require #10-WDA cover plate
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
(not recommended
for fire device)
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Thumbturn
key locks & unlocks
Product description 3347A-EO-F
3547A-EO-F
3347A-DT-F
3547A-DT-F
3347A-NL-F
3547A-NL-F
3347A-NL-OP-F
3547A-NL-OP-F
3347A-TL-F
3547A-TL-F
Trim description —386DT 386NL 388 376T x 386
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
7 1/2" x 1 11/16" x 7/8"
(190x43mmx22mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —8 1/2" x 4 5/16"
(216x110mm)
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm) 1 13/16" (46mm)
ANSI function 01 02 03 03 11-12 Field selectable
Cylinder type — — Rim Rim 1 1/4" Mortise
Handing — — Handed — —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10" x 392-6
EO
TL-BE LL-BE TT-BE
DT NL NL-OP TL
20• VonDuprin33A/35ASeries
3348A/3548AConcealedverticalroddevice
3348A/3548AConcealedverticalroddevice
3348A and 3548A for hollow metal single and double doors, UL listed for panic exit hardware.
Devices are ANSI A156.3 – 2008 Grade 1. The 3548A has a smooth mechanism case and the 3348A
has grooved case.The concealed vertical rod device is non-handed except when the SS (Signal
Switch) option is used. See opposite page for available outside trim and device functions.
3348A/3548A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece
center case cover.
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires standard
1 1/4" mortise
cylinder
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm) Standard, adjustable from 35 5/8" (905mm)
to 49 5/8" (1260mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 3/4" (19mm) throw
Deadlocking anti-friction top & bottom bolt 1 1/2" (38mm) throw
Door undercut 3/4" (19mm)
Top & bottom latch 4 1/2" x 2 7/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods Round 2 piece adjustable rods
Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
Extension rod kits available for doors over 8'4" (2533mm)
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
SG Safety glow
SEC Security screws
SNB Sex bolts
Dogging feature Hex dogging standard
CD Cylinder dogging
LD Less dogging
Strikes Top – 388 – Unfinished, bottom – 385A – Unfinished
Optional strikes
DI
Dogging Indicator
• Monitor dogging
status without a
control panel
• Red indicator light
shows visibility to
dogging from over
75 feet
338 Top strike
385A bottom
strike
Bottom latch
Top latch
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin33A/35ASeries•21
3348A/3548AConcealedverticalroddevice
Notes
Thumbturn-blank
escutcheon always
operable (no cylinder)
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
Thumbturn always
operable (no cylinder)
Product description 3348A-TL-BE
3548A-TL-BE
3348A-L
3548A-L
3348A-L-BE
3548A-L-BE
3348A-T
3548A-T
3348A-T-BE
3548A-T-BE
Trim description 376T-BE x 386 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size 8 1/2" x 4 5/16"
(216x110mm) — — — —
Projection 27/16"
(62mm)
3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function
—
08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type —1 1/4" Mortise —1 1/4" Mortise —
Handing —Handed/Reversible Handed/Reversible — —
Optional trim
x 392-6 —E360L-BE —E360T-BE
Note: 360L & 360T used on wood door require the 33A-WDA cover plate 374T used on wood door require #10-WDA cover plate
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Thumbturn
key locks & unlocks
Product description 3348A-EO
3548A-EO
3348A-DT
3548A-DT
3348A-NL
3548A-NL
3348A-NL-OP
3548A-NL-OP
3348A-TL
3548A-TL
Trim description —386DT 386NL 388 376T x 386
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
7 1/2" x 1 11/16" x 7/8"
(190x43mmx22mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —8 1/2" x 4 5/16"
(216x110mm)
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm) 1 13/16" (46mm)
ANSI function 01 02 03 03 11-12 Field selectable
Cylinder type — — Rim Rim 1 1/4" Mortise
Handing — — Handed — —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10" x 392-6
EO
TL-BE LL-BE TT-BE
DT NL NL-OP TL
22• VonDuprin33A/35ASeries
3348A-F/3548A-FConcealedverticalrodreexitdevice
3348A-F and 3548A-F for hollow metal single and double doors up to 8' x 10' (2438mm x
2540mm), UL listed for fire exit hardware. See page 47 for detailed information on UL listed fire exit
hardware label and door opening size information. Devices are ANSI A156.3 – 2008 Grade 1. The
3548A-F has a smooth mechanism case and the 3348A-F has grooved case. The concealed vertical
rod device is
non-handed except when the SS (Signal Switch) option is used. See opposite page for available
outside trim and device functions.
3348A-F/3548A-F fits door stiles as narrow as 3 1/2" (90mm). Newly designed device has a one piece
center case cover.
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm) Standard, Adjustable from 35 5/8" (905mm)
to 49 5/8" (1260mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 3/4" (19mm) throw
Deadlocking anti-friction top & bottom bolt 1 1/2" (38mm) throw
Door undercut 3/4" (19mm)
Top & bottom latch 4 1/4" x 1 1/2" x 1 1/8" (108mm x 38mm x 29mm)
Vertical rods Round 2 piece adjustable rods
Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
Extension rod kits available for doors over 8'4" (2533mm)
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
LX Latchbolt monitoring
LX-RX Request to exit / latchbolt monitoring
RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
SG Safety glow
SEC Security screws
SNB Sex bolts
Dogging feature Hex dogging standard
CD Cylinder dogging
LD Less dogging
Strikes Top – 388 – Unfinished, bottom – 385A – Unfinished
Optional strikes
338 Top strike
385A bottom
strike
Bottom latch
Top latch
3348A-F/3548A-FConcealedverticalrodreexitdevice
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
SG
Safety glow
• Self illuminating
touchpad
• No batteries or
electronics
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
VonDuprin33A/35ASeries•23
3348A-F/3548A-FConcealedverticalrodreexitdevice
Notes
Thumbturn-blank
escutcheon always
operable (no cylinder)
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
(behind C/Case)
Thumbturn always
operable (no cylinder)
(behind C/Case)
Product description 3348A-TL-BE-F
3548A-TL-BE-F
3348A-L-F
3548A-L-F
3348A-L-BE-F
3548A-L-BE-F
3348A-T-F
3548A-T-F
3348A-T-BE-F
3548A-T-BE-F
Trim description 376T-BE x 386 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size 8 1/2" x 4 5/16"
(216x110mm) — — — —
Projection 27/16"
(62mm)
3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function
—
08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type —1 1/4" Mortise —1 1/4" Mortise —
Handing —Handed/Reversible Handed/Reversible — —
Optional trim
x 392-6 —E360L-BE —E360T-BE
Note: 360L & 360T used on wood door require the 33A-WDA cover plate 374T used on wood door require #10-WDA cover plate
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
(not recommended
for fire device)
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Thumbturn
key locks & unlocks
Product description 3348A-EO-F
3548A-EO0F
3348A-DT-F
3548A-DT-F
3348A-NL-F
3548A-NL-F
3348A-NL-OP-F
3548A-NL-OP-F
3348A-TL-F
3548A-TL-F
Trim description —386DT 386NL 388 376T x 386
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
7 1/2" x 1 11/16" x 7/8"
(190x43mmx22mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —8 1/2" x 4 5/16"
(216x110mm)
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm) 1 13/16" (46mm)
ANSI function 01 02 03 03 11-12 field selectable
Cylinder type — — Rim Rim 1 1/4" Mortise
Handing — — Handed — —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10" x 392-6
EO
TL-BE LL-BE TT-BE
DT NL NL-OP TL
24• VonDuprin33A/35ASeries
3349A/3549AConcealedverticalcabledevice
3349A/3549AConcealedverticalcabledevice
3349A and 3549A for hollow metal single and double doors, UL listed for panic exit hardware.
Devices are ANSI A156.3 – 2008 (LBL option 2014) Grade 1. The 3549A has a smooth mechanism
case and the 3349A has grooved case. The concealed vertical cable device is non-handed except
when the SS (signal switch) option is used. See opposite page for available outside trim and device
functions.
3349A/3549A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece
center case cover.
Finishes – US3, US3A, US4, US4A, US10, US15 (3549 Only), US26, US26D, US26D-AM
Antimicrobial, US28, 313, 315 and 643E.
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires standard
1 1/4" mortise
cylinder
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 1/2" (13mm) throw
Door undercut 3/4" (19mm) Maximum - 24231516 Spacer block kit needed
for 3/4" (19mm) undercut
Top & bottom latch 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
*LX Latchbolt monitoring
*LX-RX Request to exit / latchbolt monitoring
*RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Mechanical
options
AX Accessible device
Miscellaneous
options
GBK Glass bead kit
PL Pullman latch
PN Pneumatic
INS-2/INS-4 Insulclad Kits 1/2" / 1/4" panels
LBL Less bottom latch
SG Safety glow
SEC Security screws
SNB Sex bolts
Dogging feature Hex dogging standard
CD Cylinder dogging
LD Less dogging
Strikes Top – 249 Bottom – 349
DI
Dogging Indicator
• Monitor dogging
status without a
control panel
• Red indicator light
shows visibility to
dogging from over
75 feet
*For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices.
LX switch does not monitor latchbolt condition.
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
Bottom latch
Top latch
Center
slide
249 Top strike
338 Filler plate
(retrofit bracket)
349 Bottom
Strike
Cable detail
VonDuprin33A/35ASeries•25
3349A/3549AConcealedverticalcabledevice
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
(behind C/case)
Thumbturn always
operable (no cylinder)
(behind C/case)
Product description 3349A-L
3549A-L
3349A-L-BE
3549A-L-BE
3349A-T
3549A-T
3349A-T-BE
3549A-T-BE
Trim description 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size — — — —
Projection 3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function 08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type 1 1/4" Mortise —1 1/4" Mortise —
Handing Handed/Reversible Handed/Reversible — —
Optional trim
—E360L-BE —E360T-BE
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Product description 3349A-EO
3549A-EO
3349A-DT
3549A-DT
3349A-NL
3549A-NL
3349A-NL-OP
3549A-NL-OP
Trim description —386DT 386NL 388
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm)
ANSI function 01 02 03 03
Cylinder type — — Rim Rim
Handing — — Handed —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10"
EO
LL-BE TT-BE
DT NL NL-OP
*Default door opening height. Specify door opening height if other than the default.
For door heights less than 6'10" and greater than 10', contact our Customer Care
department to discuss your specific application needs.
Door opening height
is distance from bottom
of frame header
to finished floor.
See table on le for standard offering.
Nominal door
opening height
Top ca ble
part number
Bottom cable
part number
*82" - 96" *6'10" - 8' 47250175 47250178
>96" - 110" >8'0" - 9' 2" 47250176 47250179
>110" - 120" >9'2" - 10' 47250177 47250180
26• VonDuprin33A/35ASeries
AX
Accessible device
• UL certied to
meet new 5 lb.
maximum
operating force
requirement
• Exceeds ANSI/
BHMA
requirements
3349A-F/3549A-FConcealedverticalcablereexitdevice
3349A-F and 3549A-F for hollow metal single and double doors up to 8' x 10' (2438mm x
2540mm), UL listed for fire exit hardware. See page 47 for detailed information on UL listed fire exit
hardware label and door opening size information. Devices are ANSI A156.3 – 2008 (LBL option
2014) Grade 1. The 3549A-F has a smooth mechanism case and the 3349A-F has grooved case.
The concealed vertical cable device is non-handed except when the SS (signal switch) option is
used. See opposite page for available outside trim and device functions.
3349A-F/3529A-F fits door stiles as narrow as 3 1/2" (90mm). Newly designed device has a one piece
center case cover.
Finishes – US3, US3A, US4, US4A, US10, US15 (3549 Only), US26, US26D, US26D-AM
Antimicrobial, US28, 313, 315 and 643E.
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm) Standard
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 1/2" (13mm) throw
Door undercut 3/4" (19mm) Maximum - 24231516 Spacer block kit needed
for 3/4" (19mm) undercut
Top & bottom latch 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
*LX Latchbolt monitoring
*LX-RX Request to exit / latchbolt monitoring
*RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Mechanical
options
AX Accessible device
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
LBL Less bottom latch
SG Safety glow
SEC Security screws
SNB Sex bolts
Strikes Top – 249 Bottom – 349
Bottom latch
Top latch
Center
slide
249 Top strike
338 Filler plate
(retrofit bracket)
349 Bottom
Strike
*For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices.
LX switch does not monitor latchbolt condition.
3349A-F/3549A-FConcealedverticalcablereexitdevice
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
SG
Safety glow
• Self illuminating
touchpad
• No batteries or
electronics
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Cable detail
VonDuprin33A/35ASeries•27
3349A-F/3549A-FConcealedverticalcablereexitdevice
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
(behind C/case)
Thumbturn always
operable (no cylinder)
(behind C/case)
Product description 3349A-L-F
3549A-L-F
3349A-L-BE-F
3549A-L-BE-F
3349A-T-F
3549A-T-F
3349A-T-BE-F
3549A-T-BE-F
Trim description 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size — — — —
Projection 3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function 08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type 1 1/4" Mortise —1 1/4" Mortise —
Handing Handed/Reversible Handed/Reversible — —
Optional trim
—E360L-BE —E360T-BE
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Product description 3349A-EO-F
3549A-EO-F
3349A-DT-F
3549A-DT-F
3349A-NL-F
3549A-NL-F
3349A-NL-OP-F
3549A-NL-OP-F
Trim description —386DT 386NL 388
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm)
ANSI function 01 02 03 03
Cylinder type — — Rim Rim
Handing — — Handed —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10"
EO
LL-BE TT-BE
DT NL NL-OP
*Default door opening height. Specify door opening height if other than the default.
For door heights less than 6'10" and greater than 10', contact our Customer Care
department to discuss your specific application needs.
Door opening height
is distance from bottom
of frame header
to finished floor.
See table on le for standard offering.
Nominal door
opening height
Top ca ble
part number
Bottom cable
part number
*82" - 96" *6'10" - 8' 47250175 47250178
>96" - 110" >8'0" - 9' 2" 47250176 47250179
>110" - 120" >9'2" - 10' 47250177 47250180
28• VonDuprin33A/35ASeries
3350AWDC/3550AWDCConcealedverticalcabledevice
3350AWDC/3550AWDCWooddoorconcealedverticalcabledevice
3350AWDC and 3550AWDC for use on single and double wood doors, UL listed for panic exit
hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 3549A has a smooth mechanism case and
the 3350AWDC has grooved case. The concealed vertical cable device is non-handed except when
the SS (signal switch) option is used. See opposite page for available outside trim and device
functions.
3350AWDC/3550AWDC fits door stiles as narrow as 2 1/8" (44 mm).
Scalp Plate – Device is furnished standard with an 15" (381 mm) long scalp plate for easy access
to cables.
Finishes – US3, US3A, US4, US4A, US10, US15 (3550AWDC Only), US26, US26D, US26D-AM
Antimicrobial, US28, 313, 315 and 643E.
CD
Cylinder dogging
• Replaces hex key
dogging
• Requires standard
1 1/4" mortise
cylinder
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm)
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 1/2" (13mm) throw
Door undercut 3/4" (19mm) Maximum
Top & bottom latch 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
*LX Latchbolt monitoring
*LX-RX Request to exit / latchbolt monitoring
*RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PL Pullman latch
PN Pneumatic
INS-2/INS-4 Insulclad Kits 1/2" / 1/4" panels
LBL Less bottom latch
SG Safety glow
SEC Security screws
SNB Sex bolts
Dogging feature Hex dogging standard
CD Cylinder dogging
LD Less dogging
Strikes Top – 150 Bottom – 450
DI
Dogging Indicator
• Monitor dogging
status without a
control panel
• Red indicator light
shows visibility to
dogging from over
75 feet
*For 33/3550AWDC devices, LX switch monitors trim input or electric dogging of EL/QEL devices.
LX switch does not monitor latchbolt condition.
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Top latch
Center
slide
150
Top strike
338 Filler plate
(retrofit bracket)
450
Bottom strike Bottom latch
VonDuprin33A/35ASeries•29
3349A/3549AConcealedverticalcabledevice
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
(behind C/case)
Thumbturn always
operable (no cylinder)
(behind C/case)
Product description 3350AWDC-L
3550AWDC-L
3350AWDCA-L-BE
3550AWDC-L-BE
3350AWDC-T
3550AWDC-T
3350AWDC-T-BE
3550AWDC-T-BE
Trim description 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size — — — —
Projection 3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function 08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type 1 1/4" Mortise —1 1/4" Mortise —
Handing Handed/Reversible Handed/Reversible — —
Optional trim
—E360L-BE —E360T-BE
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Product description 3350AWDC-EO
3550AWDC-EO
33950AWDC-DT
3550AWDC-DT
3350AWDC-NL
3550AWDC-NL
3350AWDC-NL-OP
3550AWDC-NL-OP
Trim description —386DT 386NL 388
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm)
ANSI function 01 02 03 03
Cylinder type — — Rim Rim
Handing — — Handed —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10"
EO
LL-BE TT-BE
DT NL NL-OP
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door Opening Height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
Standard door opening height
Feet (Inches)
6'8" - 7' (72" - 84")
7'1" - 8' (85" - 96")
8'1" - 9' (97" - 108")
9'1" - 10' (109" - 120")
30• VonDuprin33A/35ASeries
3350AWDC-F/3550AWDC-FConcealedverticalcablereexitdevice
3350AWDC-F and 3550AWDC-F for use on single and double wood doors up to 8' x 10' (2438mm x
2540mm), UL listed for fire exit hardware. See page 47 for detailed information on UL listed fire exit
hardware label and door opening size information. Devices are ANSI A156.3 – 2008 Grade 1.
The 3550AWDC-F has a smooth mechanism case and the 3350AWDC-F has grooved case.
The concealed vertical cable device is non-handed except when the SS (signal switch) option
is used. See opposite page for available outside trim and device functions.
3350AWDC-F/3550AWDC-F fits narrow stile doors.
Scalp Plate – Device is furnished standard with an 15" (381 mm) long scalp plate for easy access
to cables.
Finishes – US3, US3A, US4, US4A, US10, US15 (3550AWDC Only), US26, US26D, US26D-AM
Antimicrobial, US28, 313, 315 and 643E.
Specifications
Device lengths 2' 2' (610 mm) Door size
3' 2'4" to 3' (660mm to 914 mm) door size
4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline
from finished floor
39 13/16" (1006mm) Standard
Center case
dimensions
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case
dimensions
2 1/4" x 2 1/4" (57mm x 57mm)
Projection Pushbar neutral – 3 13/16" (97 mm)
Pushbar depressed – 3 1/16" (78 mm)
Latch bolt Deadlocking anti-friction top & bottom bolt 1/2" (13mm) throw
Door undercut 3/4" (19mm) Maximum
Top & bottom latch 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
Vertical cables 7/32" (6mm) Diameter stainless steel cables
Fasteners & sex
bolts (SNB)
Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Electric options ALK Alarm kit
CX Chexit delayed exit
EL Electric latch retraction
HD-EL Electric latch retraction with hex dogging
QEL Quiet electric latch retraction
RX Request to exit, WP-RX waterproof option
*LX Latchbolt monitoring
*LX-RX Request to exit / latchbolt monitoring
*RX-LC, LX-LC, LX-RX-LC Low current option for RX, LX, LX-RX
SS Signal switch
CON Allegion Connect
Miscellaneous
options
GBK Glass bead kit
PN Pneumatic
LBL Less bottom latch
SG Safety glow
SEC Security screws
SNB Sex bolts
Strikes Top – 150 Bottom – 450
*For 33/3550AWDC devices, LX switch monitors trim input or electric dogging of EL/QEL devices.
LX switch does not monitor latchbolt condition.
3350AWDC-F/3550AWDC-FConcealedverticalcablereexitdevice
E (E360L)
Electric lever trim
• Electried remote
locking/unlocking
• Fail safe & fail
secure options
available
• No key override
SG
Safety glow
• Self illuminating
touchpad
• No batteries or
electronics
PN
Pneumatic latch
retraction
• For areas where
electrical devices
banned
• Special linkage for
mechanical or
pneumatic dogging
EL
Electric latch
retraction
• Enables remote
unlatching
• Alternative to
manual dogging
QEL
Quiet electric latch
retraction
• Bolt retraction via
switch
• Converts exit door
to push-pull
operation
RX
Pushpad monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor pushpad
ALK
Alarm exit kit
• Unauthorized
opening triggers
85-decibel horn
• Set in armed or
disarmed mode by
key
CON
Allegion
Connectors
• Common
connectors to
connect various
door hardware all
the way to the
power supply
Top latch
Center
slide
150
Top strike
338 Filler plate
(retrofit bracket)
450
Bottom strike Bottom latch
VonDuprin33A/35ASeries•31
3349A-F/3549A-FConcealedverticalcablereexitdevice
Lever
key locks and unlocks
Lever blank escutcheon
always operable
(no cylinder)
Thumbturn
key locks and unlocks
(behind C/case)
Thumbturn always
operable (no cylinder)
(behind C/case)
Product description 3350AWDC-L-F
3550AWDC-L-F
3350AWDC-L-BE-F
3550AWDC-L-BE-F
3350AWDC-T-F
3550AWDC-T-F
3350AWDC-T-BE-F
3550AWDC-T-BE-F
Trim description 360L 360L-BE 360T 360T-BE
Base size 7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
7 1/2" x 1 11/16" x 7/8"
(190x43x22mm)
Grip size — — — —
Projection 3"
(76mm)
3"
(76mm)
113/16"
(46mm)
113/16"
(46mm)
ANSI function 08 or 09 field
selectable —11 or 12 field
selectable —
Cylinder type 1 1/4" Mortise —1 1/4" Mortise —
Handing Handed/Reversible Handed/Reversible — —
Optional trim
—E360L-BE —E360T-BE
Standard trim
Exit only
no outside trim
Dummy trim
pull when dogged
Night latch
key retracts
latchbolt
Night latch
key retracts latchbolt
optional pull required
Product description 3350AWDC-EO-F
3550AWDC-EO-F
3350AWDC-DT-F
3550AWDC-DT-F
3350AWDC-NL-F
3550AWDC-NL-F
3350AWDC-NL-OP-F
3550AWDC-NL-OP-F
Trim description —386DT 386NL 388
Base size —7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 5/8"
(190x41mm)
7 15/32" x 1 11/16"
(190x43mm)
Grip size —8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) —
Projection — 2 7/16" (62mm) 2 7/16" (62mm) 1" (25mm)
ANSI function 01 02 03 03
Cylinder type — — Rim Rim
Handing — — Handed —
Optional trim
—
x 360L-DT
x 550DT
x IVES 8190
—x 550DT
x IVES 8190 10"
EO
LL-BE TT-BE
DT NL NL-OP
Note: Non-standard sizes available with extended lead time. Consult Customer Care for more information 1-877-671-7011.
Door opening height
is measured from finished floor
to frame rabbet on door side.
See table on le for standard offering.
Standard door opening height
Feet (Inches)
6'8" - 7' (72" - 84")
7'1" - 8' (85" - 96")
8'1" - 9' (97" - 108")
9'1" - 10' (109" - 120")
32• VonDuprin33A/35ASeries
33A/35ATrimselection
33A/35AOptionaltrim
Lever
Pull when dogged
Night latch
key retracts latchbolt
Night Latch
key retracts latchbolt
Thumbturn
key locks & unlocks
Thumbturn
key locks & unlocks
Trim description 360L-DT 388 x 550DT 388 x IVES 8190 10" 360T x 550DT 360T x IVES 8190 10"
Base size 7 1/2 x 1 11/16" x 7/8"
(190x43mmx22mm)
7 1/2 x 1 11/16"
(190x43mm)
7 1/2 x 1 11/16"
(190x43mm)
7 1/2 x 1 11/16" x 7/8"
(190x43mmx22mm)
7 1/2 x 1 11/16" x 7/8"
(190x43mmx22mm)
Grip size —10" center to center 10" center to center 10" center to center 10" center to center
Projection 3" (76mm) 1" (25mm) 1" (25mm) 1 13/16" (46mm) 1 13/16" (46mm)
ANSI function 02 03 03
11/12 Field selectable 11/12 Field selectable
Cylinder type —Rim Rim 1 1/4" Mortise 1 1/4" Mortise
Handing Handed / Reversible ————
VonDuprin33A/35ASeries•33
33A/35AOptionaltrim
33A/35AOptionaltrim
Thumbturn-blank
escutcheon always
operable (no cylinder)
Thumbturn-blank
escutcheon always
operable (no cylinder)
Thumbturn
key locks & unlocks
Thumbturn-blank
escutcheon always
operable (no cylinder) Offset pull
Trim description 360T-BE x 550 DT 360T-BE x 8190 10" 374T/376T x 8190
10"
374T-BE/376T-BE x
8190 10" 392-6
Base size 7 1/2 x 1 11/16" x 7/8"
(190x43mmx22mm)
7 1/2 x 1 11/16" x 7/8"
(190x43mmx22mm)
7 1/2 x 1 11/16" x 7/8"
(190x43mmx22mm)
7 1/2 x 1 11/16" x 7/8"
(190x43mmx22mm)
7 x 3 1/2" x 3/4"
(178x89mmx19mm)
Grip size 11 9/16" center to
center 1" center to center 8 1/2" x 4 5/16"
(216x110mm)
8 1/2" x 4 5/16"
(216x110mm) 61/4" center to center
Projection 113/16" (46mm) 113/16" (46mm) 113/16" (46mm) 113/16" (46mm) 21/4"
ANSI function ——11-12 Field selectable — —
Cylinder type ——1 1/4" Mortise — —
Handing —————
Note: 360L & 360T used on Wood Door require the 33A-WDA cover plate
376T used on Wood Door require #10-WDA cover plate
34
34• VonDuprin33A/35ASeries
33A/35AStrike/Stileinformation
33A/35AStrike/Stileinformation
Device
type
Standard
single door
Standard
double door
Optional
single door
Optional
double door
Strike Stile Strike
w/mullion Stile Strike Stile Strike
w/mullion Stile
33A
35A 1439 2" (51mm) 1408 x 5754 2" (51mm)
299
1410
1606
23/4" (70mm)
1 3/4" (44mm)
21/2" (64mm)
299 x 5654
299 x 4954
1606 x 1654
25/8" (67mm)
35/16" (84mm)
23/4" (70mm)
3327A
3527A
266 (Top)
304L (Bottom)
248-L (Bottom)
2 1/8" (54mm)
266 (Top)
304L (Bottom)
248-L (Bottom)
1 3/4" (44mm)
299 (Top)
385A (Bottom) 31/8" (79mm) 299 (Top)
385A (Bottom) 31/8" (79mm)
260U (Top)
385A (Bottom) 21/8" (54mm) 260U (Top)
385A (Bottom) 21/8" (54mm)
3327A-F
3527A-F — — 299F (Top)
304L (Bottom) 2 3/16" (56mm) — — — —
3327A-LBR-F — —
499F (Top)
(Req. auxiliary
fire latch)
3 5/8" (92mm) — — — —
3347A
3547A
3348A
3548A
338 (Top)
385A (Bottom) 21/8" (54mm) 338 (Top)
385A (Bottom) 1 3/4" (44mm) 304L (Bottom) 21/2" (64mm) 304L (Bottom) 21/2" (64mm)
3347A-F
3547A-F
3348A-F
3548A-F
— — 338 (Top)
385A (Bottom) 31/2" (89mm) — — 304L (Bottom) 31/2" (89mm)
3347A-LBR
3547A-LBR
3348A-LBR
3548A-LBR
338 (Top) 21/2" (64mm) 338 (Top) 21/2" (64mm) — — — —
3347A-LBR-F
3547A-LBR-F — — 338 (Top) 35/8" (92mm) — — — —
3349A
3549A
249 (Top)
349 (Bottom) 21/2" (64mm) 249 (Top)
349 (Bottom) 1 3/4" (44mm) — — — —
3349A-F
3549A-F — — 249 (Top)
349 (Bottom) 31/2" (89mm) — — — —
3349A-LBL
3549A-LBL 249 (Top) 21/2" (64mm) 249 (Top) 21/2" (64mm) — — — —
3349A-LBL-F
3549A-LBL-F — — 249 (Top) 35/8" (92mm) — — — —
35
VonDuprin33A/35ASeries•35
33A/35AStrike/Stileinformation
33A/35AStrike/Stileinformation
Strikes for rim devices
299 1408 1410 — Integral stop
Projection 13/16" (21mm) One per pair of doors - use with 5754 Mullion only Projection 1/2" (13mm)
1439 1606 1609
Projection 1/2" (13mm) Projection 3/8" (10mm) For rim/vertical rod combination -not fire rated
Strikes for vertical rod devices
260U-Flush transom only 266 299 299F
Projection 3/8" (10mm) Projection 1 1/4" (32mm) Projection 13/16" (21mm) Projection 13/16" (21mm)
304L 338 385A 499F
Mortise 13/16" (21mm) Mortise 5/8" (16mm) Mortise 2 1/2" (64mm) Projection 13/16" (21mm)
Strikes for vertical cable devices
249 - Top strike
Projection 9/16" (14mm)
349 - Bottom strike
Projection 1/8" (3mm)
1"
(25 mm)
1¹⁄₂"
(38 mm)
¹⁄₈"
(3 mm)
⁹⁄₁₆"
(14 mm)
249
¹⁄₈"
(3 mm)
1¹⁹⁄₃₂"
(40 mm)
2³⁄₄"
(70 mm)
349
36
36• VonDuprin33A/35ASeries

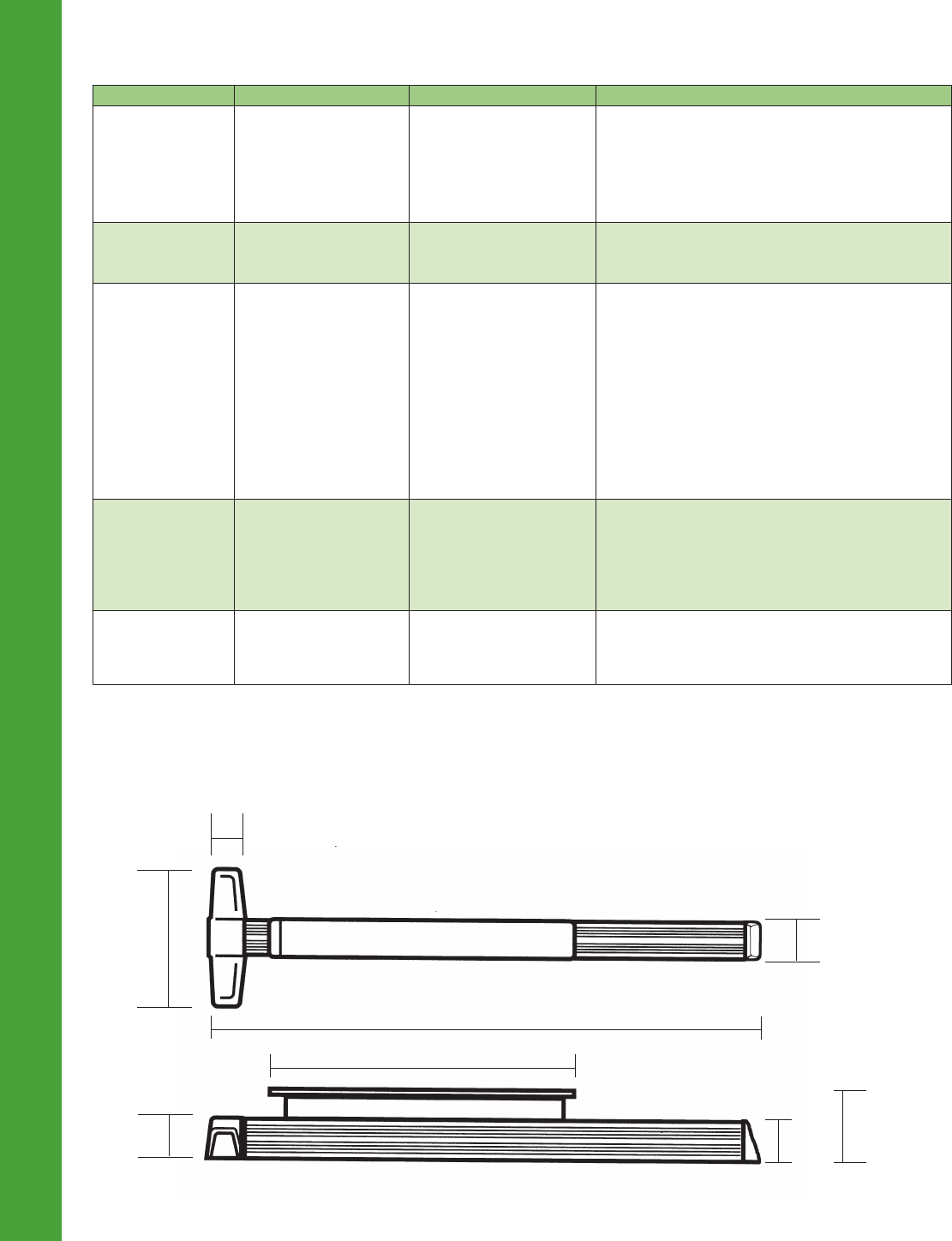

Grade,typeandfunctionoptions
Grade,typeandfunctionoptions
ANSI function, grade & type
Dimensions
Function Grade 1, type 4 Grade 1, type 5 Grade 1, type 6, 7 & 8
01 33AEO
35AEO
3327A-EO
3327A-EO-F
3527A-EO
3527A-EO-F
3347A-EO 3547A-EO
3347A-EO-F 3547A-EO-F
3348A-EO 3548A-EO
3348A-EO-F 3548A-EO-F
3349A-EO 3549A-EO
3349A-EO-F 3549A-EO-F
02 33A-DT
35A-DT
3327A-DT
3527A-DT
3347A-DT 3547A-DT
3348A-DT 3548A-DT
3349A-DT 3549A-DT
03 33A-NL
33A-NL-OP
35A-NL
35A-NL-OP
3327A-NL-OP
3527A-NL-OP
3327A-NL-OP-F
3527A-NL-OP-F
3527A-NL
3327A-NL-F
3527A-NL
3527A-NL-F
3347A-NL-OP 3547A-NL-OP
3347A-NL-OP-F 3547A-NL-OP-F
3348A-NL-OP 3548A-NL-OP
3348A-NL-OP-F 3548A-NL-OP-F
3347A-NL 3547A-NL
3347-NL-F 3547-NL-F
3348-NL 3548-NL
3348-NL-F 3548-NL-F
3349A-NL-OP 3549A-NL-OP
3349A-NL-OP-F 3549A-NL-OP-F
3349A-NL 3549A-NL
3349A-NL-F 3549A-NL-F
08-09 33A-L
35A-L
3327A-L
3327A-L-F
3527A-L
3527A-L-F
3347A-L 3547A-L
3347A-L-F 3547A-L-F
3348A-L 3548A-L
3348A-L-F 3548A-L-F
3349A-L 3549A-L
3349A-L-F 3549A-L-F
11-12 33A-TL
35A-TL
3327A-TL
3327A-TL-F
3527A-TL
3527A-TL-F
3347A-TL 3547A-TL
3347A-TL-F 3547A-TL-F
3348A-TL 3548A-TL
3348A-TL-F 3548A-TL-F
1 9/16"
(40mm)
2 13/32"
(62mm)
8 3/16"
(208mm)
2 3/16"
(56mm)
2 1/4"
(57mm)
Neutral: 3 13/16" (97mm)
Depressed: 33 13/16" (78mm)
35 3/8" (838mm)
47 3/8" (1118mm)
18" (457mm)
24" (610mm)
37
VonDuprin33A/35ASeries•37
33A/35AElectricaloptions
33A/35AElectricaloptions
RX Request to exit
The RX feature is used to signal the use of an opening.
This device is equipped with one internal SPDT switch which
monitors the pushpad.
The device can be connected to a security console, or may be
used as a single door alarm when used with a horn and power
supply. A continuous current electric transfer must be used for
transferring power from the frame to the door.
The RX switch option should not be used to control a load, but as
a signalling switch (0.5 amps. resistive maximum). The RX
switch is available in a low current (LC) switch. Most commonly
used in computer operated monitoring systems.
To order, specify:
1. Standard – Use prefix RX, example RX33AEO
2. Low Current – Use prefix RX-LC, example RX-LC35AEO
RX2 Double request to exit
The RX2 feature uses 2 RX switches.
To order, specify:
1. Standard – Use prefix RX2, example RX233AEO
LX Latch Bolt monitoring
The LX feature is used to signal the use of an opening. This
device is equipped with one internal SPDT switch which monitors
the latch bolt. The device can be connected to a security console,
or may be used as a single door alarm when used with a horn and
power supply. A continuous current electric transfer must be
used for transferring power from the frame to the door.
The LX switch option should not be used to control a load, but as
a signalling switch (0.5 amps. resistive maximum).
The LX switch is available in a low current (LC) switch. Most
commonly used in computer operated monitoring systems.
To order, specify:
1. Standard – Use prefix LX, example LX33AEO
2. Low Current – Use prefix LX-LC, example LX-LC35AEO
Electrical rating for all switches:
• Standard – 2 Amp maximum @ 24VDC
• Low Current (LC) - below 50 Milliamps @ 24VDC
Note: All switches can be either factory or field installed
ALK Alarm kit
The ALK battery alarm kit is a simple yet effective way to deter
unauthorized use of an opening. While the exit device is still a
means of egress, the ALK kit contains an internal horn. When the
touch bar is depressed, the horn sounds to provide an audible
means of signaling that the opening has been violated. The
alarm kit can be armed or disarmed by key. Thus allowing the exit
device to be set in an armed or disarmed mode. The horn is rated
at 85 decibel.
The key switch uses a standard 1 1/4" (32mm) mortise cylinder
with a straight cam (Schlage Cam reference B502-191). The unit
operates on one standard 9-volt alkaline battery. When the
battery is weak, the horn will emit an intermittent low battery
alert signal.
Also can be powered using the PS902 power supply. See PS902
for additional information. Alarm kits are available with a choice
of two switch kits, RX or LX. RX monitors the touchpad and is
furnished standard. LX optional latch bolt monitoring is
recommended for use with surface vertical rod exit devices.
Specify ALK-LX.
The ALK is available in two styles, 33A ALK, grooved cover and
35A ALK, smooth cover.
The ALK includes “EMERGENCY EXIT ONLY. ALARM WILL
SOUND” decal for application on door, or the RSS push bar trim
can be used instead of the door decal,specify RSS push bar trim.
The External Inhibit comes standard on Von Duprin exit devices.
External Inhibit (EI) allows for the use of external switch to be
used to arm, disarm and reset the alarm. Auto Reset (AR) is an
option that rearms the alarm aer a preset time. AR is available
in three field selectable times – 1¹⁄₂, 3 or 4¹⁄₂ minutes.
When the ALK is used, standard dogging is removed. If cylinder
dogging is required for 3' or 4' doors the ALK can be moved to the
hinge side of the device and standard cylinder dogging can be
added.
To order, specify:
1. Standard, 33A ALK
2. Cylinder Dogging, CD33A ALK
Minimum door sizes
Device 3' (914mm)
Length
4' (1219mm)
Length
33A/35A 2'9" (838mm) 3'3" (991mm)
3327A/3527A 2'8" (813mm) 3'2" (966mm)
3347A/3347A-F
3547A/3547A-F 2'8" (813mm) 3'2" (966mm)
3348A/3348A-F
3548A/3548A-F 2'8" (813mm) 3'2" (966mm)
38
38• VonDuprin33A/35ASeries

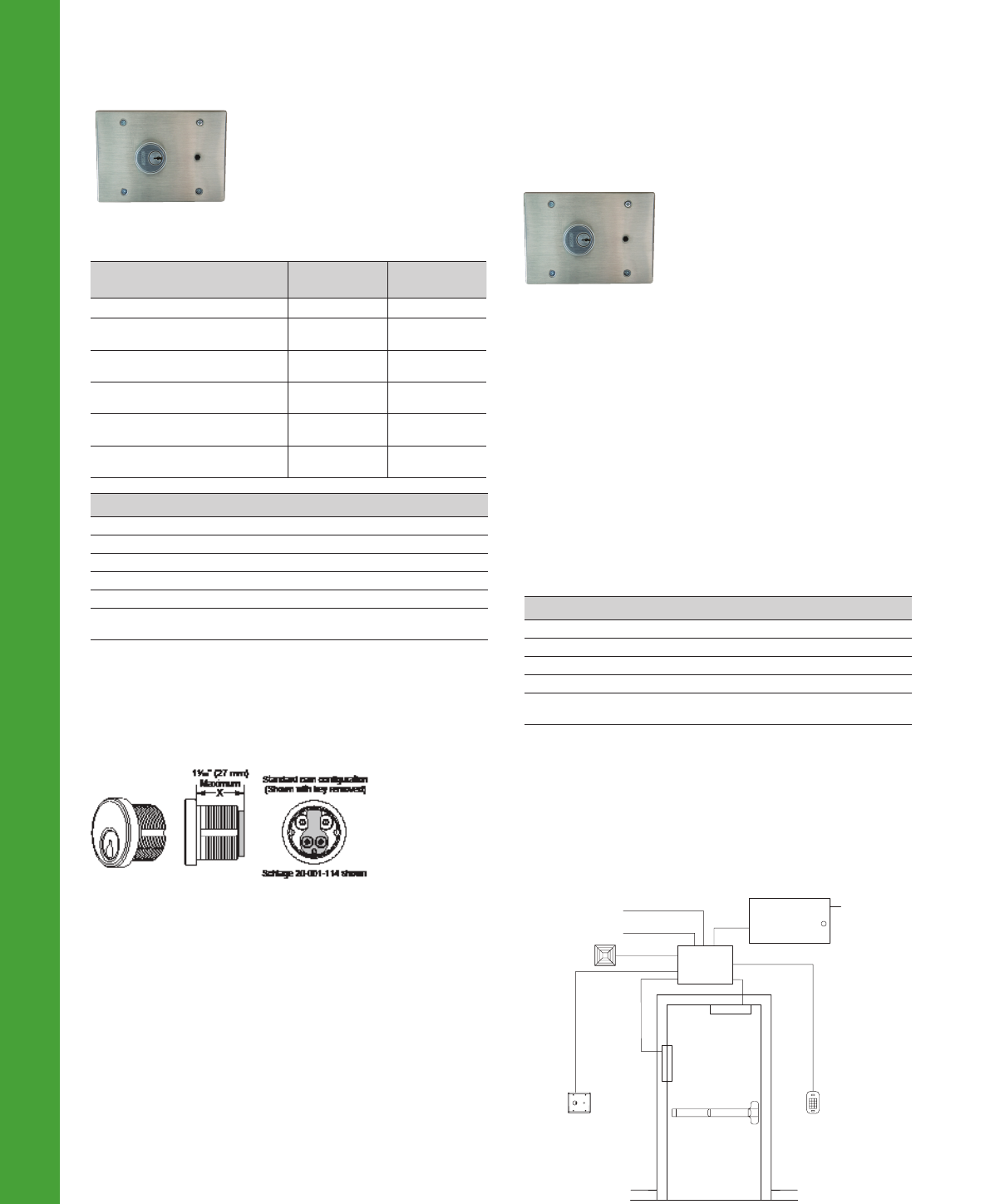

33A/35AChexitdevice
CX The Chexit® (withmotordrivenblockingactuator)*
The Von Duprin Chexit device is designed for controlled egress
applications. It meets both life safety and security needs, as well as
the requirements of NFPA 101 for "Special Locking Arrangement"
and IBC "Special Egress-Control Devices". All control inputs,
auxiliary locking, local alarm and remote signaling outputs are
self-contained in the Chexit assembly. Numerous configurable
options allow the device to be customized for the specific code or
application requirements. The standard Chexit device sounds an
alarm and keeps the door secured for 15 seconds following an exit
attempt with immediate release upon fire.
The Chexit device includes a 6" x 20" decal for application on door.
“PUSH UNTIL ALARM SOUNDS.
DOOR CAN BE OPENED IN 15 SECONDS”
Minimum door opening sizes for CX devices
Consult factory for other size requirements.
Device 3' (914mm)
Length
4' (1219mm)
Length
CX33A/35A 2'10 3/4" (883mm) 3'4 3/4" (1035mm)
CX3327A/3327A-F/3527A/3527A-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX3347A/3347A-F/3547A/3547A-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX3348A/3348A-F/3548A/3548A-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX3349A/3349A-F/3549A/3549A-F 2'10 1/4" (870mm) 3'4 1/4" (1022mm)
CX3350/3350WDC-F/
3550/3550WDC-F
2'10 1/4" (870mm) 3'4 1/4" (1022mm)
Chexit typical applications
Chexit single door with options – The Chexit is used as an access
control device. The card reader allows access. Also shown in this
application is an external horn and door position switch. The auxiliary
horn is used for increased volume in remote locations. Using a door
position switch gives added security to the opening in case the door
is not reclosed.
With the Chexit disarmed, the opening functions as a normal exit
device. If card readers are required on both sides of the door, the
normally closed contacts of the readers should be wired in series.
Figure 1. Riser Diagram, Single Door
Specifications / Power supply requirements*
Input voltage – 24VDC
Input current inrush – 1.25A
Input current holding – 390mA
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally
closed dry contacts.
**Note:PS902isnotto
beusedfordoubledoor
Chexitapplications.
Power supply information for CX devices
with motor driven blocking actuator*.
Power supply Maximum number of devices
PS902 (up to 2 amps) 1 Chexit device
PS904 (up to 4 amps) 3 Chexit devices
PS906 (up to 6 amps) 4 Chexit devices
PS914 (up to 4 amps) 4 Chexit devices
When powering multiple components, verify that the amperage requirements of all
components combined does not exceed the power supply output rating, see table
above for output ratings. Consult Installation Instructions for proper wire gauge and
wire run requirements. Exceeding the recommended devices and/or not following
Installation Instructions may void your warranty. Call Customer Care at 877-671-7011
or visit the Allegion website for more information - www.us.allegion.com.
How to order*
To order, specify:
1. Prefix product description number “CX”.
Example: CX33A-L
2. Specify option (see options on page 38).
Example: CX-RCM
3. Door size other than 3' (914mm).
4. Door thickness other than 1 3/4" (45mm).
5. Finish.
*Note: Chexit devices built aer August 24, 2015 are built using motor driven blocking
actuators that have decreased power supply and operating requirements. The
information listed in this catalog references the power supply and operating
requirements that are needed for the new products with motor driven blocking
actuators. For information on devices built previous to August 24, 2015, please contact
Customer Care at 877-671-7011.
**
Electricaloptions&accessories
39
VonDuprin33A/35ASeries•39
33/35Chexit,RCMandDE5300features
The Chexit, Remote Chexit Module (RCM) or DE5300 devices
have several features and options available to fit your
applications. See below for more information.
Inputs & Outputs
Fire Alarm Input
This input releases the door immediately upon a fire alarm
allowing immediate egress. The Internal Alarm can be silenced
during a fire input via an onboard switch setting.
Inhibit Input (Access Control)
This optional input is provided to allow authorized egress or
entry when the device is Armed using an external card reader,
Key Switch, etc. It also allows remote reset of the Chexit, RCM or
DE5300 in an alarmed condition. The ability to reset alarms with
the inhibit input can be disabled via an onboard switch setting.
Door Position Switch Input
An optional Door Position Switch (DPS) can provide door
position status to Chexit, RCM or DE5300 for additional security,
ensuring that the door is closed, and can cause alarm when the
door is le or forced open.
Gang Bus
The Gang bus allows a Chexit, RCM or DE5300 device to signal
other Chexit, RCM or DE5300 devices when it enters the Release
Delay, allowing multiple doors to release at the same time in an
emergency. Up to 8 devices may be connected to the Gang Bus.
Alarm Relay Contacts
The Alarm Relay contacts are provided as a means to control a
Remote Alarm, such as a horn or lamp, or signal an external
monitor. The contacts can be configured with a jumper as
Normally Open or Normally Closed, and become active upon
entering an alarmed condition.
Secure Relay Contacts
The Secure Relay contacts are provided as a means to signal an
external monitor. The contacts can be configured as Normally
Open or Normally Closed with a jumper, and become active
when the DPS indicates the door is closed and the Push Pad is
locked.
Delays
Release Delay
When the Push Pad is pushed and the Nuisance Delay expires,
the Chexit, RCM or DE5300 enters the Release Delay with alarm.
During the Release Delay, the Internal Alarm sounds, the Alarm
Relay activates, and the Chexit/RCM keeps the Push Pad or
DE5300 magnetic lock, locked for 15 seconds (less any time
already elapsed during the Nuisance Delay). Once started, the
Release Delay sequence will not stop and the devices will unlock.
Nuisance Delay
When a Chexit, RCM or DE5300 is located in a public area, it can
be desirable to limit false releases when the Push Pad is
accidently pushed. The Nuisance Delay is the brief time a Push
Pad can be accidently pushed before the Release Delay
sequence starts. If the Nuisance Time is set to 0 seconds the
Chexit, RCM or DE5300 will enter Release Delay as soon as the
Push Pad is pushed (when armed). Setting the Nuisance Time to
1, 2, or 3 seconds allows the Push Pad to be pressed for 1 to 3
seconds before the Chexit, RCM or DE5300 goes into Release
Delay. If the Nuisance Audio and Nuisance Delay are both on, the
Internal Alarm will pulse during the Nuisance Delay. The Alarm
Relay does not activate during the Nuisance Delay. If the Push
Pad is released before the Nuisance Delay expires, the Chexit,
RCM or DE5300 will remain armed.
Rearm Delay
The Rearm Delay is the amount of time aer the Key Switch or
Inhibit Input is deactivated to when the device rearms. It is
designed to give someone time to pass through the door before
rearming occurs. The Rearm Time can be changed via the
onboard switch settings from 0 and 28 seconds in 2 second
increments. If the Rearm Time is set to 30 seconds and a DPS is
used, if the door is opened and the Rearm Time expires, there will
be no alarm. The Chexit, RCM or DE5300 will rearm aer the
door is closed. If the door never opens, the Chexit, RCM or
DE5300 will rearm aer 30 seconds. If not using a DPS, the
Chexit, RCM or DE5300 will always rearm in 30 seconds.
DPS Delay
If the DPS detects that the door closed during the Rearm Delay,
the Chexit, RCM or DE5300 ends the Rearm Delay and allows 2
seconds for the latch to clear the strike before rearming.
Interface
Key Switch
The Key Switch provides the means to Arm or Disarm/Reset the
Chexit, RCM or DE5300. Turning the Key Switch clockwise
initiates the Rearm Delay, and turning the Key Switch counter-
clockwise Disarms/Resets the Chexit, RCM or DE5300. The Key
Switch allows the key to be removed in either the Arm or the
Disarm/Reset position.
Status Indicator
The red Status Indicator displays the status of the Chexit, RCM or
DE5300. The Status Indicator flashes slow if the Chexit, RCM or
DE5300 is armed, flashes fast in an alarmed mode, is off when
inhibited and on solid during Rearm Delay.
Internal Alarm
The Internal Alarm sounds the status of the Chexit, RCM or
DE5300. The Internal Alarm sounds continuously during and
aer a fire alarm or a Release Delay, pulses fast during the
Nuisance Delay or a tamper and pulses slow during Disarmed
Powerup mode.
Settings
Armed Powerup
When set to OFF, a power disruption and power return will put
the Chexit, RCM or DE5300 in a disarmed, unlocked alarm mode.
Trim Fail Safe / Fail Secure (FS/FSE)
The trim input power can be set to FS (Fail Safe; locked when
energized, unlocked when deenergized or during power failure) or
FSE (Fail Secure; unlocked when energized, locked when
deenergized or during power failure).
The trim must be bought or modified to physically function as FS
or FSE. This on board setting only selects the trim input power.
Electricaloptions&accessories
40
40• VonDuprin33A/35ASeries
33A/35AChexitoptions
DE5300 Delayed Egress System — is designed for controlled
egress applications when used in conjunction with a magnetic
lock. It meets both life safety and security needs, as well as the
requirements of NFPA for "Special Locking Arrangement" and
IBC "Special Egress-Control Devices". All control units, auxiliary
locking, local alarm and remote signaling outputs are self-
contained in the DE5300 assembly.
The DE5300 is commonly used on
narrow stile doors where a standard or
narrow stile Chexit is not practical.
DE5300 Delayed Exit System uses a
Chexit logic board and a Von Duprin
RX-LC (low current request to exit)
panic device to control a Schlage
Electronics Direct Hold Magnetic Lock.
The Chexit module for the DE5300 is installed in a control box
and mounted in the wall adjacent to the door. Features and
functions of the standard Chexit exit device are available on the
DE5300.
The DE5300 device includes a 6" x 20" decal for application
on door.
“PUSH UNTIL ALARM SOUNDS.
DOOR CAN BE OPENED IN 15 SECONDS”
Cylinders — Cylinders are not furnished with the DE5300 and
must be specified when ordering. Use 11/4” mortise cylinder with
compression ring K510-406 with straight cam and orient cam as
shown. Schlage cylinder 20-001-114 recommended for the device
and the CD cylinder dogging option. See Schlage Pricebook for
additional information.
How to order
To order, specify:
1. DE5300
2. M420/P, M450/P, or M490/P magnetic lock (order direct
from Schlage Electronics).
3. RX-LC 22/33A/35A/98/99 device.
4. PS900 Series
5. EPT-2/10
Specifications / Power supply requirements
Size - 3.75" x 5.57" x 2.50"
Input voltage – 24VDC
Input current – 1A
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally
closed dry contacts.
RCM Remote Chexit Module — is designed to provide the
concept of the Chexit delayed exit system for door sizes smaller
than the standard Chexit device can accommodate. The Chexit
module is installed in a control box and
mounted in a remote location. Features
and functions of the standard Chexit
exit device are available on the Remote
Chexit Module.
DE5300 Module
DE5300DelayedEgressSystem
Figure 1. Riser Diagram, Single Door
AC input
(See power supply instructions
for AC input requirements)
2 x
18
2 x 18 AWG
15 x 18 AWG
2 x 18 AWG
To fire alarm contact
2 x 18 AWG
2 x 18 AWG
2 x 18 AWG
(plus power if required)
5 x 18 AWG
To secure status
DE5300 RXLC Exit Device
Magnetic Lock
Junction
box
EPT2/10
Card Reader
1.
See step 6l for conduit knockout
locations
that can be used.
2. Trim wires not shown on diagram,
add them as needed.
902, 904, 906,
or 914 Power
supply
Remote Alarm
Figure 1. Riser Diagram, Single Door
Cylinders — Cylinders are not furnished with the Chexit device
and must be specified when ordering. Use 11/4” mortise cylinder
with compression ring K510-406 with straight cam and orient
cam as shown. Schlage cylinder 20-001-114 recommended for
the device and the CD cylinder dogging option. See Schlage
Pricebook for additional information.
How to order*
See Chexit "How to order" on page 36.
*Note: RCM modules built aer August 24, 2015 are built using motor driven blocking
actuators that have decreased power supply and operating requirements. The
information listed in this catalog references the power supply and operating requirements
that are needed for the new products with motor driven blocking actuators. For
information on devices built previous to August 24, 2015, please contact Customer Care
at 877-671-7011.
Specifications / Power supply requirements*
Size – 3.75" x 5.57" x 2.50"
Input voltage – 24VDC
Input current inrush – 1.25A
Input current holding – 390mA
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally
closed dry contacts.
Minimum door opening sizes for RCM devices
Consult factory for other size requirements.
Device 3' (914mm)
Length
4' (1219mm)
Length
CX-RCM33A/35A 2'5" (737mm) 2'11" (889mm)
CX-RCM3327A/3327A-F
/3527A/3527A-F
2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM3347A/3347A-F
/3547A/3547A-F
2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM3348A/3348A-F
/3548A/3548A-F
2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX-RCM3349A/3349A-F
/3549A/3549A-F
2'4 1/2" (724mm) 2'10 1/2" (876mm)
CX3350/3350WDC-F/
3550/3550WDC-F
2'4 1/2" (724mm) 2'10 1/2" (876mm)
Electricaloptions&accessories
RCM Module
41
VonDuprin33A/35ASeries•41
Electricaloptions&accessories
33A/35AElectricaloptions

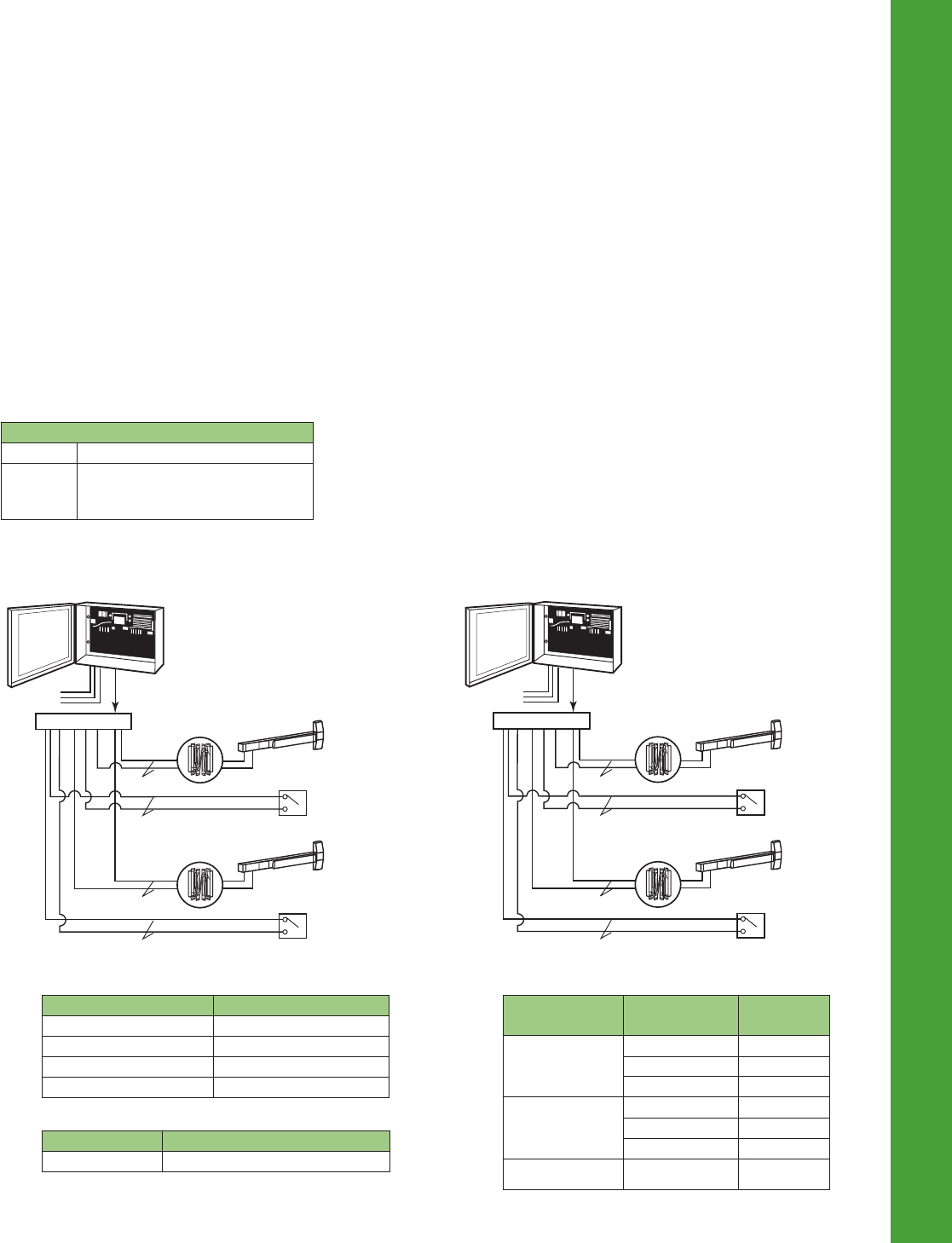

EL Electric latch retraction
The EL feature allows for the remote unlatching of exit devices.
A control station operator can flip a switch to retract the latch
bolt and immediately change an exit door to push-pull
operation. A powerful, continuous duty solenoid retracts the
latch bolt, either for momentary unlatching, or for extended
periods of time. The EL feature is an alternative to manual
dogging. If manual hex-key dogging is required, specify HD-EL.
EL devices are also useful with automatic door operators, and
may be applied to fire-rated applications when under the
control of an automatic fire alarm system. UL approved for
Class II circuit applications.
The EL option does not include the power transfer from door
to frame, the power supply, or the control operator. Refer to
EPT-2 power transfer and the PS914 power supply.
The PS914 with the 900-2RS option card is minimum option
card required. Other option cards available for other functions,
see PS914 power supply for additional information.
Solenoid specifications:
Continuous Duty – 24 VDC
Current Inrush – 16 Amps
Current Holding – 0.3 Amps
To order, specify:
1. Standard – Use prefix EL, example EL33AL
2. Hex Key dogging – Use prefix HD-EL, example HD-EL33AL
Popular EL application
Von Duprin
exit device
EL Wire
length (feet)1
Wire gauge
(AWG)
EL 33A/35A Rim
0-500 12
0-300 14
0-200 16
a* All other
EL33A/35A
device types
0-250 12
0-150 14
0-100 16
b* Control Switch 0-1200 18
EL Device wire selection size
120
VAC
QEL #2
QEL #1
PS872 Wiring
SC I1 O1 I2 O2 GND EPT-2
EPT-2
Input #2
(Required for
independent
operation only).
Input #1
a*
a*
b*
b*
120/240
VAC
QEL Quiet electric latch retraction
The QEL feature allows for the remote unlatching of exit devices.
A control station operator can flip a switch to retract the latch
bolt and immediately change an exit door to push-pull operation.
Different than the popular EL, the QEL quiet operation is
achieved using an electric drive motor which retracts the latch
bolt either momentary unlatching or for extended periods of
time. This feature is an alternative to manual dogging.
QEL devices are also useful with automatic door operators, and
may be applied to fire-rated applications when under the control
of an automatic fire alarm system.
UL approved for Class II circuit applications.
The QEL option does not include the power transfer from door to
frame, the power supply, or the control operator. Refer to EPT-2
power transfer and the PS902 or 914 power supply.
The PS902/914 with the 2RS, 4RL or 4R board is the minimum
required. Other option boards available for other functions, see
PS902/914 power supply for additional information.
QEL Electrical load
Voltage 24VDC
Current 1.0 A Inrush (0.5 sec.)
0.14 A Holding
2.0 A Calibrate (3 sec. one time)
To order, specify:
1. Standard – Use prefix QEL, example QEL33A-L.
Popular QEL application
a* Distance (one-way) Wire Gauge
200 . 18 AWG
320 . 16 AWG
500 . 14 AWG
800 . 12 AWG
b* Wire selection Switch wire size
1200 . Max. 18 gauge standard
Popular application
Power supply PS902-2RS
Electric power transfer EPT-2 or
EPT-10
QEL Device wire selection size
QEL #2
QEL #1
PS872 Wiring
SC I1 O1 I2 O2 GND EPT-2
EPT-2
Input #2
(Required for
independent
operation only).
Input #1
a*
a*
b*
b*
120/240
VAC
1. Wire lengths include an EPT, Door loop, electric hinge or pivot and are measured one
way between the PS914/option board and the device.
2. Table is applicable to devices that have shipped aer August 2012.
Popular application
Power supply PS914-2RS
Electric power transfer EPT-2 or
EPT-10
42
42• VonDuprin33A/35ASeries
33A/35AElectricaloptions
33A/35AElectricalaccessories
Power supplies
Series PS902/914
Overview:
The PS900 Series is a consolidated line of power supplies and
accessories that offer enhanced flexibility and functionality
specific to the changing needs of the access control market. The
PS900 Series can be used in a variety of applications to convert
high voltage AC power into the low voltage DC outputs required
by most access control devices. The PS900 Series protects
devices downstream by providing Class 2*, filtered and regulated
power. The full line is UL294 certified.
Note: PS906 can provide Class 2 rated outputs when used with 900-8P
distribution board.
Features:
• Constant output rating at both 12 VDC and 24 VDC provides
superior performance ; includes field selectable jumper
• Polarized connectors for option boards eliminate need for
racks and side connectors
• Flat mounting of option boards provides easier access to
terminal blocks for connection of electrified devices
• High voltage protective cover
• Battery back-up board auto-selects voltage
• Fire alarm relay can be configured to provide either switched
or un-switched outputs from a power supply
• PS914 designed with high in rush current for powering
electrified panic devices
• Universal 120-240 VAC input
• Low voltage DC, regulated and filtered
• Electronic power limiting foldback circuit for AC current
overload protection
• Fused primary input
• AC status monitor- isolated SPDT contacts
• AC input and DC output LED status indicators
• Cover mounted AC input indication
• Hinged cover with lock down screws
Certifications:
• UL 294 certified—the standard for access control
• Class 2 rated*
* Except PS906, output rating exceeds Class 2 power limits
Once power is converted to low voltage DC, the PS900 Series
offers a variety of distribution options, including basic fuse
protection, simple relay, and advanced logic providing complex
sequencing and timing functions.
* PS906 can provide Class 2 rated outputs when used with 900-8P distribution board.
PS902 PS904 PS906 PS914
Number of connectors on
power supply for the
following:
2 amps 4 amps 6 amps 4 amps
Distribution boards 1 2 3 2
Battery back-up board 1 1 1 1
Note: One fire alarm board can be connected directly to the PS902. If a fire alarm board is
desired for the PS904, PS906 or PS914 it can be connected to
a distribution board.
Applications:
The PS900 Series of power supplies works with many electrified
devices including Schlage electromagnetic locks, Schlage
AD-Series hardwired locks, Schlage electrified mechanical locks,
Von Duprin electrified strikes , Von Duprin exit devices, and many
other brands.
Accessories:
The Schlage PS900 Series features seven option boards for use
in a variety of applications. All Schlage PS900 Series power
supplies option boards are UL 294 certified.
Option boards:
900-4R: 4 relay controlled output board to power multiple
devices
900-4RL: 4 relay distribution board with logic is field
configurable for time delay function, auto operator, security
interlock
900-8F: Provides 8 individually fuse-protected outputs, giving
the flexibility to power multiple devices and provide another layer
of protection
900-FA: Emergency interface relay integrates with fire alarm
and is used to cut power in case of emergency
900-BB: Battery backup
900-2RS: 2 relay EL/QEL panic device control board
(PS914 only)
900-BBK: Battery backup kit includes two 7A/hr batteries and
provides up to four hours of backup power when cycled every 5
minutes at full load
43
VonDuprin33A/35ASeries•43
33A/35AElectricalaccessories
33A/35AElectricalaccessories

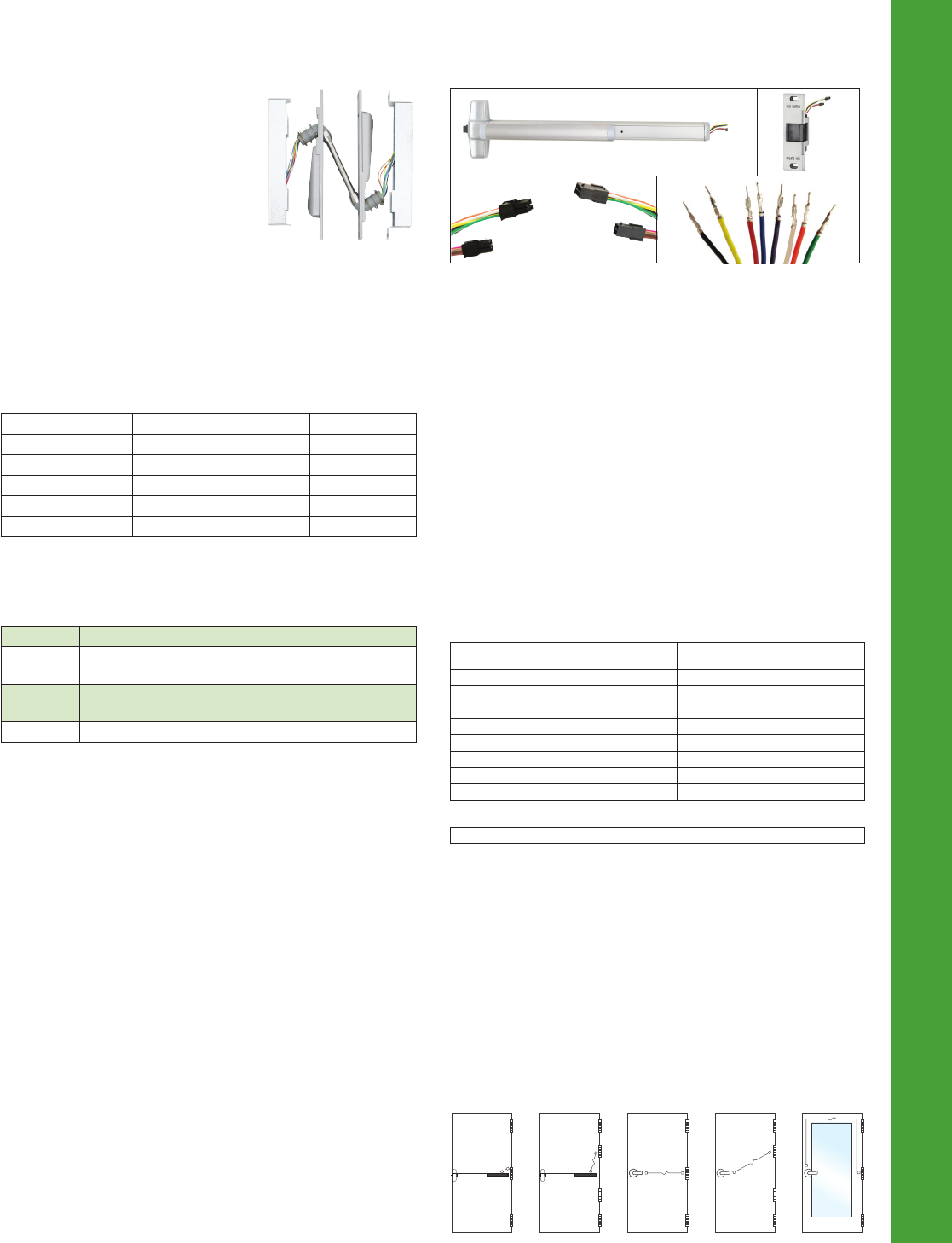

EPT Electrical power transfer
PNT Pneumatic transfer
Electric power transfer provides a means
of transferring electrical power from a
door frame to the edge of a swinging
door. The units are completely
concealed when the door is in the closed
position, and are ideally suite for
installations involving abuse or heavy
trac.
Two models are available; EPT-2, two 18
gauge wires and EPT-10, ten 24 gauge wires. The EPT-2 and
EPT-10 are U/L listed as “miscellaneous door accessory”.
Pneumatic controls
PNT-1 is available for pneumatic latch retraction exit devices.
Appearance and dimensions are identical to EPT models.
UL Listed for use on firedoors
Door applications:
Degree of opening Hinge type Door thickness
0-180 Up to 5" butt hinges 1 3/4"
0-180 Up to 3/4" offest pivots 1 3/4"
0-130 5 1/2" butt hinges 1 3/4"
0-110 6" butt hinges 1 3/4"
0-90 Swing clear hinges 1 3/4"
Finishes
SP28 (sprayed aluminum)
SP313 (sprayed duranodic).
Dimensions
Housing 9" x 1 1/4" x 1 5/8" (229mm x 32mm x 38mm)
EPT-2 Two 18 gauge wires, Up to 2 AMPS @ 24VDC, with
a 16 AMPS Maximum Surge
EPT-10 Ten 24 gauge wires, Up to 1 AMPS @ 24VDC, with a
16 AMPS Maximum Surge
PNT-1 5/32" Tubing
To order, specify:
1. EPT-2 ,EPT-10 or PNT-1.
2. Finish, SP28 or SP313.
Allegion Connect
Allegion’s cross-category Connect features common interconnect
components to our electrified options. Allegion Connect is a quick
and easy way to connect power sources; all the way from your
power supply to locking device. There is no wire cutting; reducing
installation and maintenance time ultimately cutting cost. Aer
installation, Allegion’s Connect continues to provide benefits
throughout the lifetime of the opening by offering a service kit
for repairs or modifications in the future.
Features and benefits
• Quick: common connections reducing installation time
• Perfect Connections: these factory installed connectors
ensure the right wires match up every time
• Protective: the connectors protect the connection points
throughout the installation process and lifetime of the opening
• Interchangeable: all Allegion Connect products utilize the
same connectors
• Maintenance: you no longer need to cut away wire to
disconnect Allegion products, also available is a service kit
specifically for Connect products.
How to order
1. Specify CON for Connect electronic options
Example: EL-35-EO-CON (35 Series Electrified Latching exit only
with Connect connectors)
2. Specify harness length; Consult door manufacturer for harness length
3. Specify Von Duprin EPT10-CON or Ives 7200 power transfer hinge
Wire run options
Harness length Connectors
on both ends
Connectors on one end,
crimped pins on the other end
6 Inches CON-6 CON-6P
12 Inches CON-12 CON-12P
26 Inches CON-26 CON-26P
32 Inches CON-32 CON-32P
38 Inches CON-38 CON-38P
44 Inches CON-44 CON-44P
50 Inches CON-50 CON-50P
192 Inches CON-192 CON-192P
Power Supply Wire Harness = Connectors on one end, stripped leads on the other end,
offering a direct connection to the power supply
6 Inches CON-6W - wire extension to power supply
Consult door manufacturer for harness length requirements.
Note: You will need to purchase a separate wiring harness to go from exit device to hinge/
EPT and an additional harness to go from hinge/EPT to power supply or access control
system. Harness part numbers with ordering information can be located in the Schlage,
Von Duprin and Falcon pricebooks. A service kit is available for order in the Schlage, Von
Duprin and Falcon pricebooks. Included in this kit are male end plugs, female end plugs
and pins to customize harnesses to your application.
Note: Must be ordered with exit devices and locks
44
44• VonDuprin33A/35ASeries
33A/35AMechanicaloptions
33A/35AMechanicaloptions
AX Accessible device
The AX device is a UL certified exit device designed to meet the
progressive requirements of the California Building Code for
accessible openings. This device meets the 5 lbs of operating
force requirement called for in chapter 11B-309.4. The AX device
also exceeds ANSI/BHMA requirements. Available devices
include: AX33/35A, AX33/35A-F, AX33/3549A LBL,
AX33/3549A-F LBL, AX33/3549A-F LBLAFL. Additionally, all AX
devices will be shipped with a new UL label clearly stating “Meets
California building Code (2013) Sec. 11B-309.4” and an “AX”
identifier label on device center case. See images below for
reference.
PN Pneumatic controlled exit devices
The PN feature provides remote latch bolt retraction in hazardous
areas where electrically operated devices would not be permitted.
The pneumatic solenoid will retract the latch bolt for momentary
or prolonged periods. PN exit devices are particularly suited for
use with automatic door operators. The PN feature is available on
both Panic and fire exit hardware devices.
The PN feature includes a special actuating linkage that gives
building owners the option of mechanically or pneumatically
dogging the exit device. If manual hex-key dogging is required,
specify HD-PN (Dogging the device, whether mechanically or
pneumatically, makes the device function as a push/pull unit and
reduces the wear on its moving parts.) If cylinder dogging is
required, the standard cylinder dogging is not available.
When activated pneumatically, the latch bolt(s) of the exit device
retract in 1/2₂ to 11/2 seconds. This pneumatic operation uses air
pressure ranging from 50 to 100 pounds per square inch.
This product will function only when it is part of a pneumatic
system (air compressor, air lines, pneumatic system, etc.).
Contact LCN for correct control boxes.
To order, specify:
• Standard — Use prefix PN, example PN99NL
• Hex Key Dogging — Use prefix HD-PN, example HD-PN33ANL
• Special Center Case Dogging (handing is required, specify RHR
or LHR) — Use prefix SD-PN, example SD-PN33ANL
PNT pneumatic transfer
Pneumatic controls
PNT-1 is available for pneumatic latch retraction exit devices.
Appearance and dimensions are identical to EPT models.
RSS Red Silk Screen
Red silkscreen lettering on touchpad trim. - "Emergency Exit
Only, Push To Open And Sound Alarm". This comes standard
on SS devices.
To order, specify: Sux RSS, 3327L-RSS RHR
WH Weep holes
WH is available for all 98/99 Series exit devices. Weep holes
are ideal for devices that are mounted to exterior doors that
can be exposed to rain and other elements. Hole spacing on 3'
and 4' devices devices are every 6" on center. A 3 foot device
will have 5 holes, are 4 foot device will have 7 holes.
To order, specify: Sux WH, 33A-EO-WH
SS Signal switch
Monitors pushpad and latch bolt
The SS feature is used to signal the unauthorized use of an
opening. This device is
equipped with two internal
SPDT switches. One switch
monitors both the pushpad
and the latch bolt assembly,
making the latch bolt tamper
resistant, for positive security.
An additional SPDT switch is
connected to the 1 1/4"
(32mm) mortise with straight
cam for alarm “bypass.” (Schlage cam reference B502-191).
The device can be connected to a security console, or may be
used as a single door alarm when used with a horn and power
supply. A continuous current electric transfer must be used for
transferring power from the frame to the door.
To order, specify:
1. Prefix SS, example SS33AL
2. Handing Required, LHR or RHR
Electrical ratings:
Up to 2.0 AMPS @ 24VDC
Popular SS application
Unauthorized use of this opening will activate the local horn.
The key switch permits inhibiting this system for authorized
entry.
SG Safety glow
Self-illuminating touchpad defines the location of the exit
door in dark or smoke-filled area. The Safety Glow coating is a
special powder coat finish that glows brightly during low or no
light conditions. This coating was developed to meet MEA
standards where luminescent exit door markings are required
in commercial facilities. There are no batteries or electronics,
the coating is charged when exposed to light.
To order, specify: Sux SG, EL 3327A-SG
45
VonDuprin33A/35ASeries•45
33A/35AMechanicaloptions
Dogging options
LD Less dogging
Less Dogging is available in all 33A/35A Panic Exit devices to
remove the dogging option.
To order, specify: 1. Use prefix LD, example LD33AL
CD Cylinder dogging
Cylinder dogging is available on all 33A/35A Panic Exit devices
to replace the standard hex key dogging. Unit requires a
standard 1¹⁄₄" (32mm) mortise cylinder with a straight cam
(Schlage Cam B502-191 reference).
To order, specify: 1. Use prefix, CD, example CD33AL
CDK Cylinder dogging kit
For field conversion, a cylinder dogging conversion kit is
available. Cannot be added to fire exit hardware.
Order: 33A/99CDK or 35A/98CDK, specify finish
Dummy pushpad
The 330 dummy pushpad is designed as a companion unit for
all 33A devices. The 350 dummy pushpad is a companion unit
for all 35A devices. The pushpad is rigid or nonfunctioning. A
push/pull operation can be accomplished by using 386DT,
360L-DT, 550DT, 392-6 trim or any Ives Pull.
The 330/350 can be equipped with a functional pushpad and
will accommodate an RX switch. Specify RX-330. May also be
equipped with the RX2, double RX switch. Specify RX2-330
To order, specify:
1. 330 or 350
2. Size 3' or 4' (914mm or 1219mm)
3. Finish, US3, US4, US10, US26, US26D, US28, 313AN, 315AN,
350 Only US32D.
33A/35AMechanicaloptions
46
46• VonDuprin33A/35ASeries
Deviceoptions&accessories
33A/35ADeviceoptions&accessories

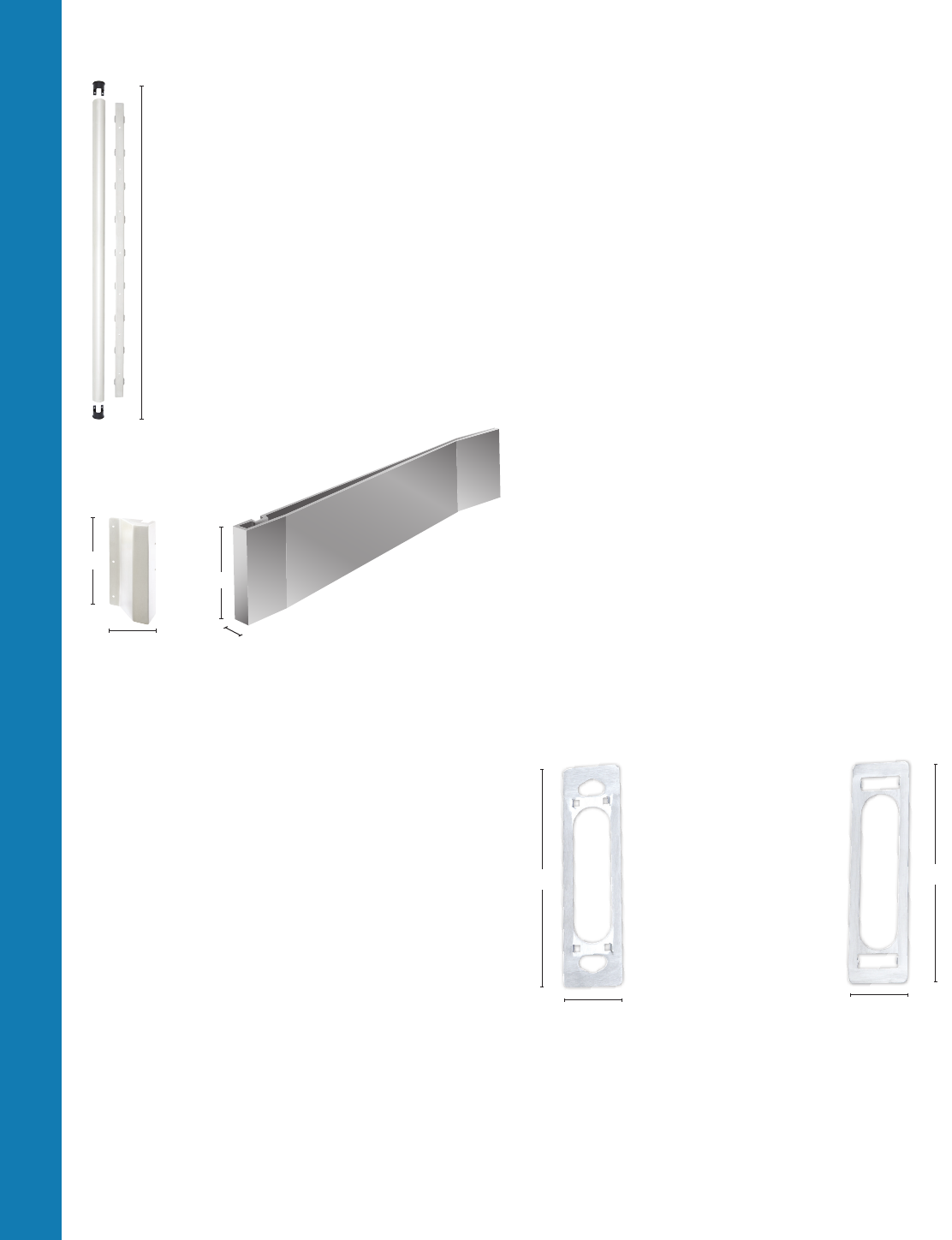

RG-27 Vertical rod and latch guard
Series RG-27 Vertical rod and latch guards protect the
bottom rods of exit devices from the damaging
impacts of carts or gurneys passing through doors.
(If bottom rods become damaged, the exit device will
not function as intended and can jeopardize the
ability to exit safely during an emergency.)
In addition to protecting the vertical rod, the guard
provides a smooth, unobstructed surface so the door
can be pushed open easily with the bumpers of a
wheelchair. The latch guard portion is 10" high. The
standard latch guard features a 45° ramp. The
extended latch guard offers a continuous ramp in 3' or
4' widths.
All stainless steel construction in US32D finish. Latch
guards can cover latches as large as 1 1/4"W x 10"H x
1 7/8" projection.
Models
RGO Rod guard only (Projection 1 3/16")
RG-27 Rod and latch guard
RG-27-3 3' (914mm) Rod guard and extended latch guard
RG-27-4 4' (1219mm) Rod guard and extended latch guard
LGO Latch guard only
LGO-3 3' (914mm) Extended latch guard only
LGO-4 4' (1219mm) Extended latch guard only
Note: Wood doors - Can be used on fire doors with high density blocking with
sheet metal screws. For non-fire rated wood doors use sex bolt.
To order, specify:
1. Model number.
2. Handing (except on RGO).
3. Door material if other than Hollow metal.
4. Optional sex bolt mounting available.
LBR/LBL Less bottom rod/Less bottom latch
LBR/LBL option is available, using a spring loaded auxiliary latch
bolt installed in the lower door edge. When exposed to heat the
auxiliary latch bolt releases, keeping the doors in alignment and
closed during a fire. UL listed 3 hours on hollow metal doors
double egress, 90 minute swinging same direction, and 20
minutes wood doors (consult wood door manufacturer).
Fits door stiles as narrow as 3 5/8".
LBR/LBL devices must be ordered in pairs or must be used in
conjunction with an approved automatic or constant latching
flush bolt.
LBR/LBL used on non-fire rated devices, the spring loaded
auxiliary latch bolt is not required. Device is supplied less bottom
rod, latch and strike.
PL Pullman latch
When PL is specified the standard latches are replaced with
pullman style latches. Pullman latches are always extended and
are most commonly used in conjunction with electric strikes and
LBR-less bottom rod application. Not available with Fire rated
devices. Not recommended where security is of the utmost since
latches do not deadlock.
GBK Glass bead kit
Glass bead conversion kits are available for all 33A/35A Series
devices for use on doors with raised glass beads. Each kit
consists of 1/4" (6mm) shim sets. GBK for Surface vertical rod
ships with 1/8" shims for rod guides.
To order, specify:
1. 33AGBK
2. Device type (Rim, mortise, surface vertical rod, concealed
vertical rod)
3. Wood door, when used with concealed vertical rod
WDA Cover plate kit
For wood door applications, used to cover up door preparations
for control, also prevents the control from boring into the wood
door. Finished to match control.
Latch Guard
12"
2 1/4"
10"
Rod Guard
Extended latch guard
#10WDA Cover plate kit for
370 Series controls
#33A-WDA Cover plate kit for
360 Series controls
7 7/8"
2 1/16"
7 7/8"
2 1/16"
4 3/8"
47
VonDuprin33A/35ASeries•47
Deviceoptions&accessories
33A/35ADeviceoptions&accessories
Removable mullions Keyed removable steel mullions
Mullions
Removable steel mullions provide single door
performance in double door openings with rim devices.
Mullions are easily removed by loosening bottom set screw
and removing top fitting cover. The top mullion fitting is
attached to the frame and is concealed by the fitting cover.
Steel mullions are 2" (51mm) wide and 3" (76mm) deep, with
a wall thickness of 1/8" (3mm).
Mullions are shipped with mounting screws and prepared for
strikes. Strikes are not included except where indicated.
Steel mullions are available in SP28 and SP313 finishes.
Consult factory for other powder coat finish options.
KR – Keyed removable steel mullions make removal faster
and easier by a single operation of the mortise cylinder. Once
mullion is removed, large equipment or furniture can freely
pass through the opening. The unit will self lock when re-
installed, without the use of the cylinder key. Uses a 1 1/4"
mortise cylinder with a straight cam (Schlage cam reference
L583-475). Cylinders are sold separately. Prefix mullion model
with “KR”.
Removable aluminum mullions are 1 1/16" (27mm) wide on face
closest to the door and 23/8" (60mm) at the widest point. The
depth is 3 1/8" (79mm) with a wall thickness of 1/8" (3mm).
Aluminum mullions are available in US4, US10, US28, 313 and
315 finishes. Consult factory for other powder coat finish
options. Aluminum mullions are not available keyed
removable.
Stock hollow metal applications for devices mounted to cover
ANSI 161 cutouts are higher than the standard mullion strike
location. Consult the factory for special strike preparation or
order a blank mullion. See below.
Blank mullions are furnished without strike preparation. They
are used to mount devices at a strike height different from the
standard mullion preparation.
To order, specify:
1. For keyed Removable option on steel mullions, prefix
model number with “KR”
2. Model number
3. Height of opening
4. Finish
5. Handing if required
6. Centerline deviation (refer to device template for standard
centerline)
7. Strikes, when required, should be ordered with device
Steel mullions
1654 Prepared for two 1606 strikes. If 1606 strikes are not
specified on the order, two per mullion will be added.
Additional charges apply.
4954 Prepared for 264 or 299 strikes. For use with all Von
Duprin Panic rim devices.
9954 Prepared for and must be used with two 268 strikes
(88-F device), or two 499F (22-F, 33A-F, 35A-F, 98-F,
99F devices).
UL fire labeled mullion for
up to 3 hour opening using
Von Duprin fire exit rim
devices. This mullion is not
easily removed due to
special fittings.
33A-F and 35A-F devices
are rated up to 10'0" (3048
mm).
Note: If 268 or 499F strikes are not specified on the
order, two per mullion will be added. Additional
charges apply.
4754 Prepared for two 4263
monitor strikes.
4854 Prepared for one 299 and
one 6111 electric strike.
Indicate handing for
electric strike.
9854 Prepared for one 268 or
499F strike and one 6111
electric strike. Indicate handing for electric strike. UL fire
labelled mullion for up to 3 hour openings up to 8' x 8'
(2438mm x 2438mm) using Von Duprin fire exit rim
devices
Aluminum mullions
5654 Prepared for two 299 strikes.
5754 Prepared for 1408 double strike.
48
48• VonDuprin33A/35ASeries
Additionalinformation
33A/35AAdditionalinformation
UL Listed — Fire exit hardware label/Opening size
Single door Double door
Exit device Same direction Double egress
33A/35A-F 3 Hour 4' x 10' 3 Hour 8' x 8' (w/
KR98/9954 mullion)
–
3 Hour 8' x 10' (w/
98/9954 mullion)
3327A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
3527A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
3347A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
3547A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
3348A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
3548A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
3349A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
3549A-F –90 Min. 8' x 10' 3 Hour 8' x 10'
Cylinders
Cylinders are not furnished with device or trim and must be specified when ordering. Refer to trim pages for cylinder type.
Mortise — 3215 (Schlage 20-001, B502-191 cam) Rim — 3216 (Schlage 20-022 cam)
Dogged (inverted) cam
For cylinder dogging
or 360L
Undogged cam (standard operations)
For standard trim functions
or 360L-NL
When using the 3347A-F and 3547A-F in a wood door application, consult wood
door manufacturers for current UL listings.
49
VonDuprin33A/35ASeries•49
33A/35AFinishes
Pushpad Options — Knurled
Embossed “Push”
Braille (Caution-Stairwell), satin stainless steel only
RSS – (Emergency Exit – Push to open and sound alarm) – Red Silkscreen lettering on US32D
* NOTE: Durable powder coated nishes available at specic special request. PLEASE CONTACT FACTORY.

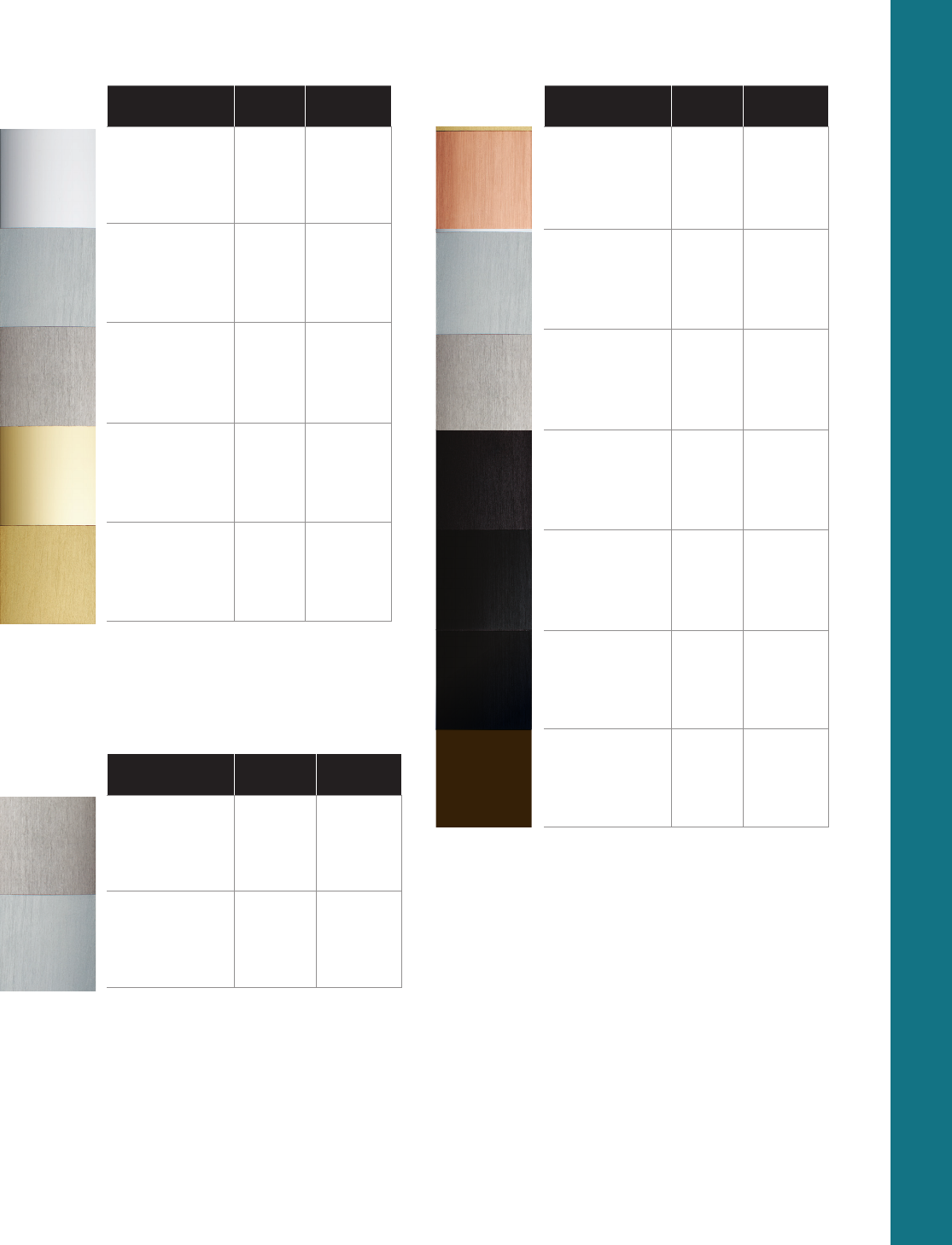

Finishes
Finishes*
Color US
number
BHMA
number
Chromium,
polished US26 625
Anodized,
aluminum US28 628
Chromium, dull US26D 626
Brass, polished US3 605
Brass, dull US4 606
Special finishes
Color US
number
BHMA
number
Satin chrome,
Antimicrobial
US26D-
AM 626-AM
Satin stainless
steel,
antimicrobial
US32D-
AM 630-AM
Color US
number
BHMA
number
Bronze, dull US10 612
Satin nickel
Available for
35A ONLY
US15 619
Satin stainless
steel US32D 630
Duranodic
dark bronze 313 710
Black, painted
(not flat powder) SPBLK 693
Flat Black US19/
315 622/711
Aged bronze –643e
© 2017 Allegion
006593, Rev. 04/17
www.allegion.com/us
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading
brands like CISA®
, Interflex®
, LCN®
, Schlage®
, SimonsVoss® and Von Duprin®.
Focusing on security around the door and adjacent areas, Allegion produces
a range of solutions for homes, businesses, schools and other institutions.
Allegion is a $2 billion company, with products sold in almost 130 countries.
For more, visit www.allegion.com
About Allegion
