88 Series
Exit device
2 • VonDuprin88Series
Introduction
The proper selection and application of exit hardware, in addition to safety, are major concerns
to all responsible manufacturers. Exit devices are a critical part of a door opening or access
system and will provide safe and reliable service when properly applied and maintained. It is the
policy of Von Duprin, to design and manufacture exit devices to a high standard of quality and
reliability in accordance with the accepted U.S. Domestic and international standers. All 88
Series exit devices are UL listed for Accident Hazard and Fire Exit Hardware, and are tested in
accordance to ANSI A156.3, 2008, Grade I.
Unusual operating conditions and environments and other external influences can affect the
proper application of the products represented. Modifications of these products will also affect
UL listings. It is recommended that whenever an unusual application condition exists, or when
any modification of a product is considered, our engineers review the application. Application
engineering services are available to help ensure proper selection or to review any areas where
users of Von Duprin products may have questions.
It is intended that the information included in this publication, when properly used, will provide
clear and reliable guidelines to the proper general selection and application. However, the scope
of the information is necessarily limited.
VON DUPRIN
Administrative Oces
2720 Tobey Dr.
Indianapolis, IN 46219
Customer Service
877-671-7011
800-999-0328 - Fax
Technical Support
877-671-7011
VonDuprin88Series • 3

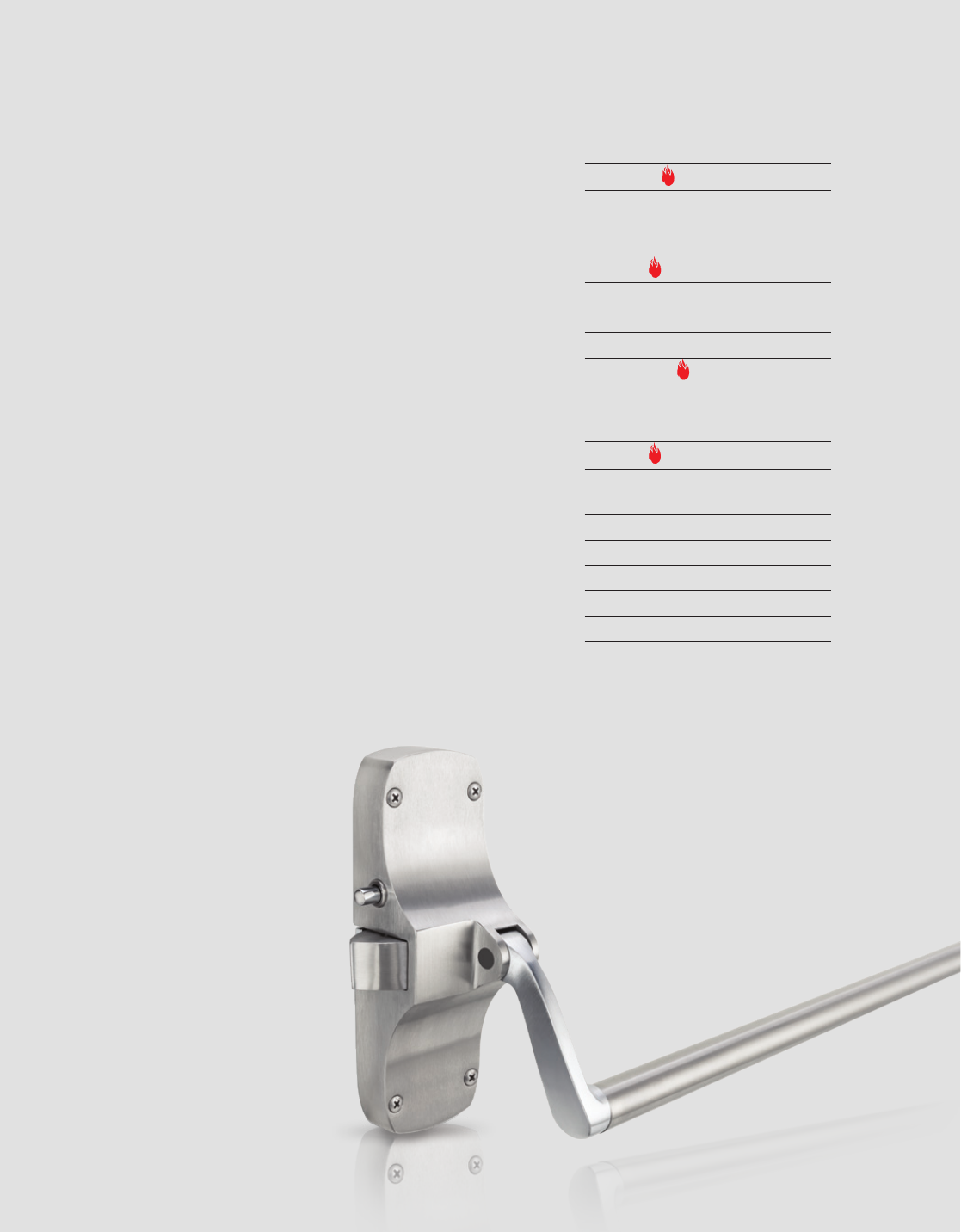

Table of contents
Exit hardware
Rim devices
88 Rim 8
88 Rim Fire 10
Mortise lock exit devices
8875 12
8875 Fire 14
Surface mounted
vertical rod exit devices
8827 16
8827 Rim Fire 18
Concealed mounted
vertical rod exit devices
8847 Fire 20
Trim options 22
Strike options 24
Electrical options 26
Accessories 27
UL Listing 29
Finishes 31
4 • VonDuprin88Series
Optionsandaccessories
Trim options
Additional
information
ANSI grade, type & function
Function conversion kit
UL listed - fire exit hardware label opening
Strike options/
Stile information
Strike application/minimum stile
strikes for rim devices
Electrical
accessories
E8875
E373l-BE
Finishes Standard & special finishes
Applications &
trim operation
Double door applications
Door handing
Outside trim operation
Lever styles Device
accessories
Axle security pin
Cover plates
Cylinders
Optional levers
Power supplies
Vertical rod and latch guard
Symbols
Indicates fire rated application indicates ADA products
Continuing commitment to quality.
VonDuprin88Series • 5
Howtoorder
Vertical rod devices, specify:
1. Exit device number with trim selection. Examples: 8827EO
(Exit only, no outside trim). 8827TP (Includes 880TP
thumbpiece trim). 8827TP x 608 TP (Includes the optional
608TP thumbpiece trim).
2. Door width of greater than 4' (1219 mm).
3. Door thickness if other than 1 3/4" (44 mm).
4. Door and frame material if other than hollow metal.
5. Door height if greater than 7' (2134 mm), extension rods must
be ordered. (One piece top rod available)
6. Finish
7. Handing, LHR or RHR, required on “L” function. Specify LHR or
RHR. See diagram below.
8. “SNB” when using sex nuts and bolts..
Pullman latches are optional for 8827 devices. Latchbolts
remain extended at all times. Specify “Pullman Latch” when
required. (Normally used with an electric strike and less bottom
rod)
Rim and mortise lock devices, specify:
1. Exit device model number with trim selection. Examples: 88EO
(Exit only with no outside trim). 88TP (Includes standard
880TP thumbpiece trim). 88TP x 608TP (Includes the
optional 608TP thumbpiece trim).
2. Door width if greater than 4' (1219 mm).
3. Door thickness if other than 1 3/4" (44 mm).
4. Door and frame material if other than hollow metal.
5. Finish
6. Handing required on “L” function, “F” fire devices. Specify LHR
or RHR. See diagram below.
7. “SNB” when using sex nuts and bolts.
EElectric unlocking
PL Pullman latch
(8827 Devices non-fire rated only)
88 88 Series
None
27
47
75
Rim device
Surface mounted vertical rod device
Concealed vertical rod device
Mortise lock device
DT
EO
K
L
NL
TL
TP
Dummy trim
Exit only
Knob
Lever
Night latch
Turn lever
Thumbpiece
BE Blank escutcheon
FFire exit device
E 88 75 TP BE F
6 • VonDuprin88Series
Mortise – 3215 (Schlage
B502-191 cams)
Rim – 3216
Mortise lock and vertical rod device
combination — same direction

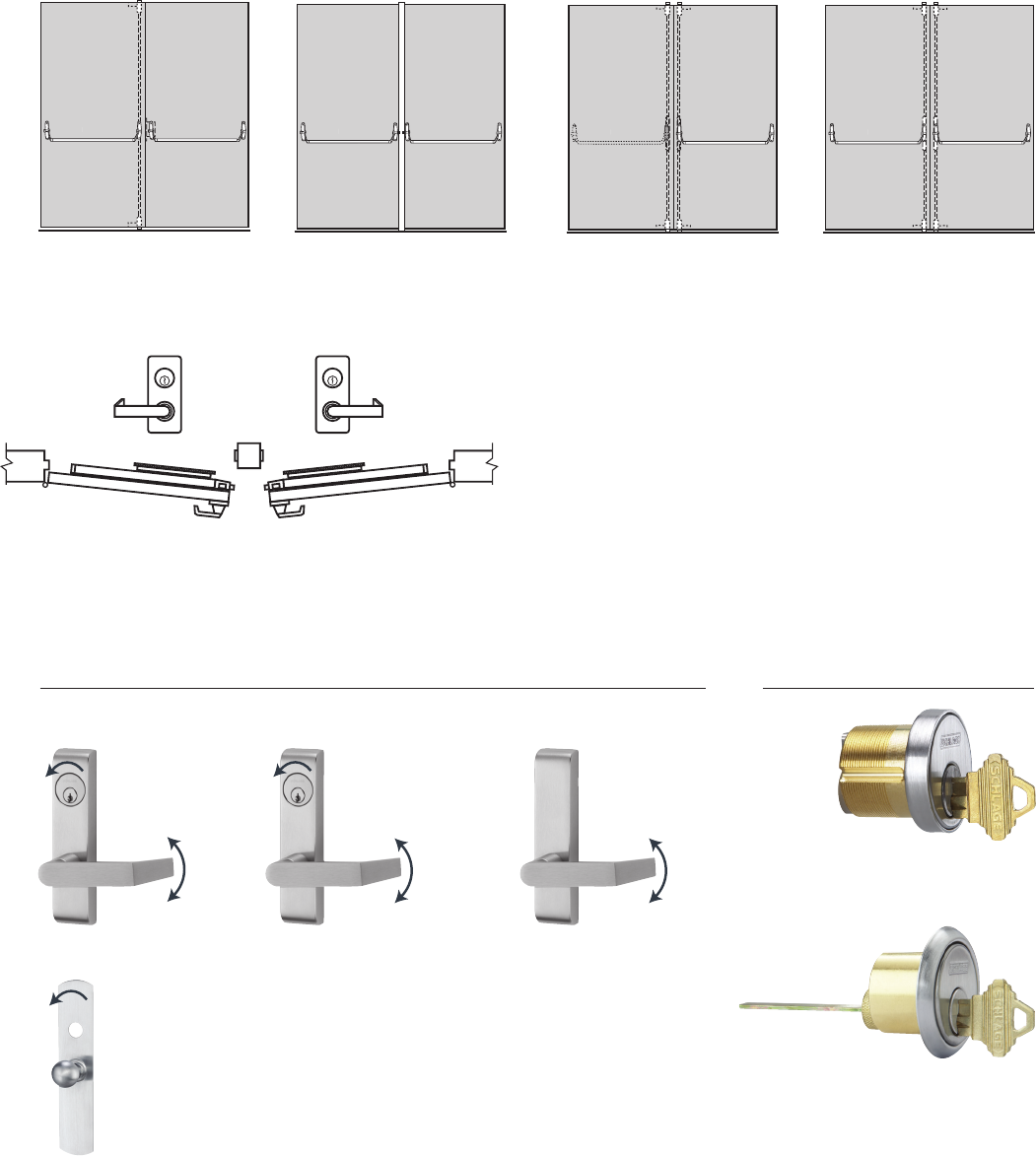

Two vertical rods — double egressTwo rim devices with mullion — same
direction
Two vertical rod devices — same
direction (do not use with overlapping
astragal)
Populardoubledoorapplications
Le hand
reverse
orientation
LHR
(Le hand reverse)
RHR
(Right hand reverse)
Outside
Right hand
reverse
orientation
Left Hand-Reverse
Orientation
LHR
(Left hand reverse)
RHR
(Right hand reverse)
Outside
Right Hand-Reverse
Orientation
Door handing
Double door applications
Key retracts latch bolt, knob is rigid.
K-NL function trim is locked
when key is removed.
Available with 88 Rim only.
To order trim, specify 880K-NL-R.
Cylinderoptions
Trim operation lever
Standard operation Blank escutcheonNL Function
Key locks and unlocks lever. Lever always active. BE sux,
E.G., 371L-BE.
Lever will be locked when
key is removed.
Outsidetrimoperation
VonDuprin88Series • 7

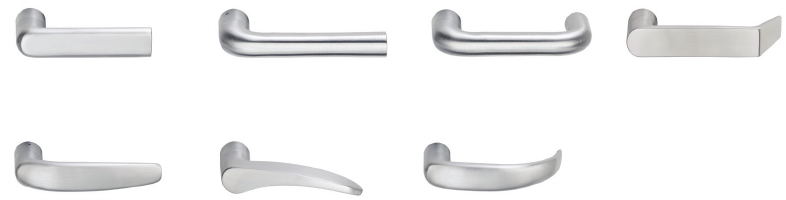

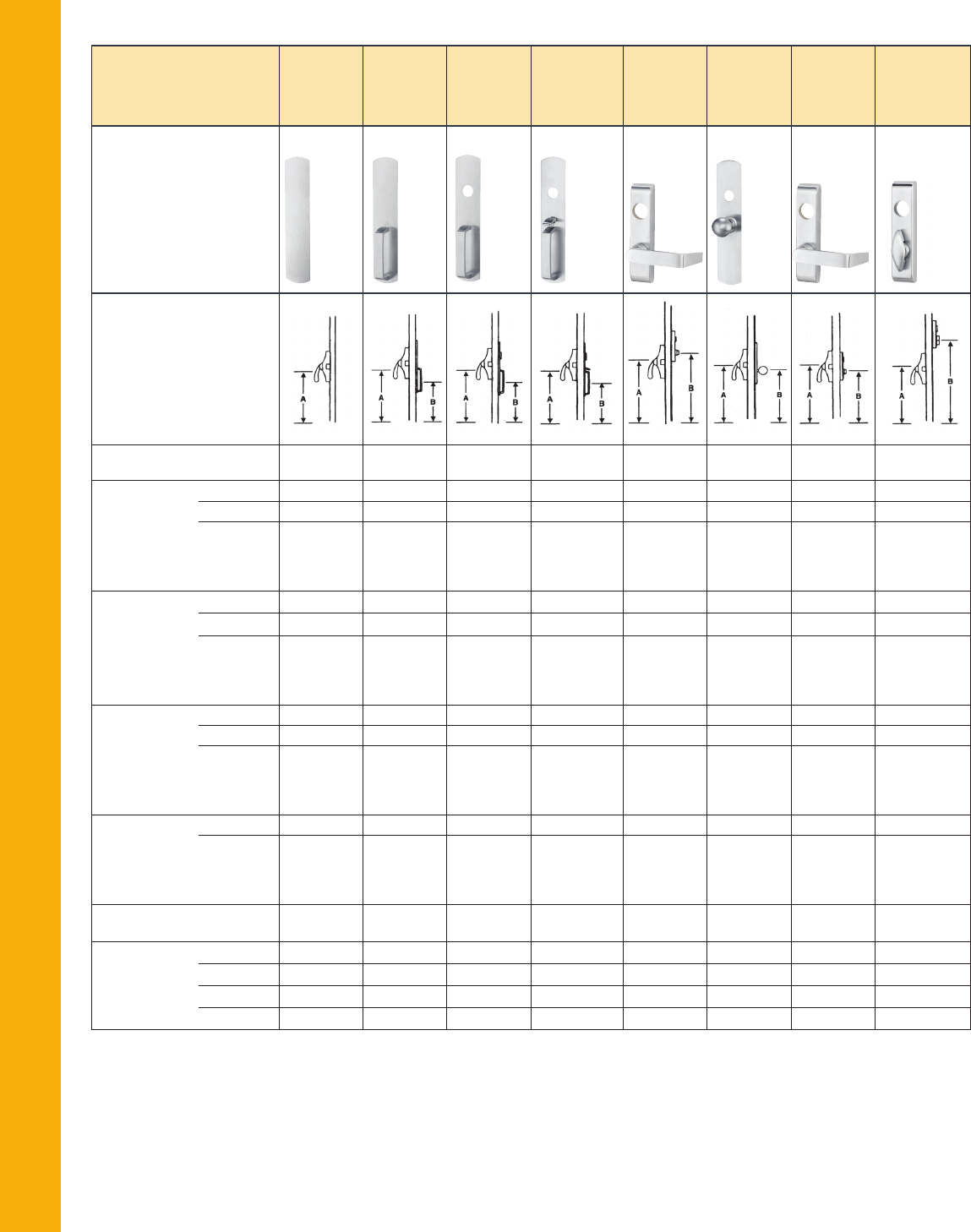

Standard levers
Leverstyles
01 02
Knurling available
03*
Knurling available
06*
Default lever
Knurling available
07 12
(Handed)
17*
Knurling available
8 • VonDuprin88Series

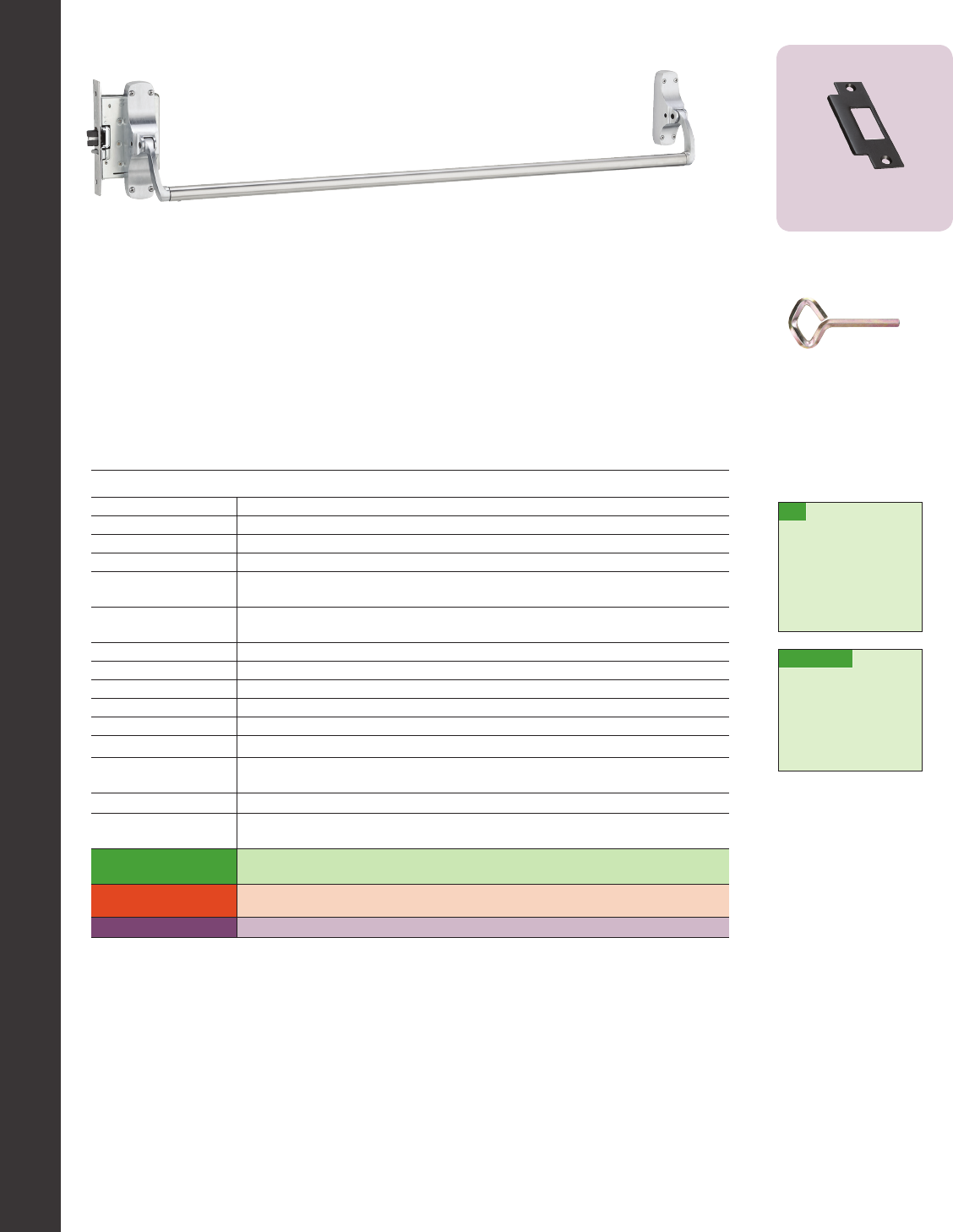

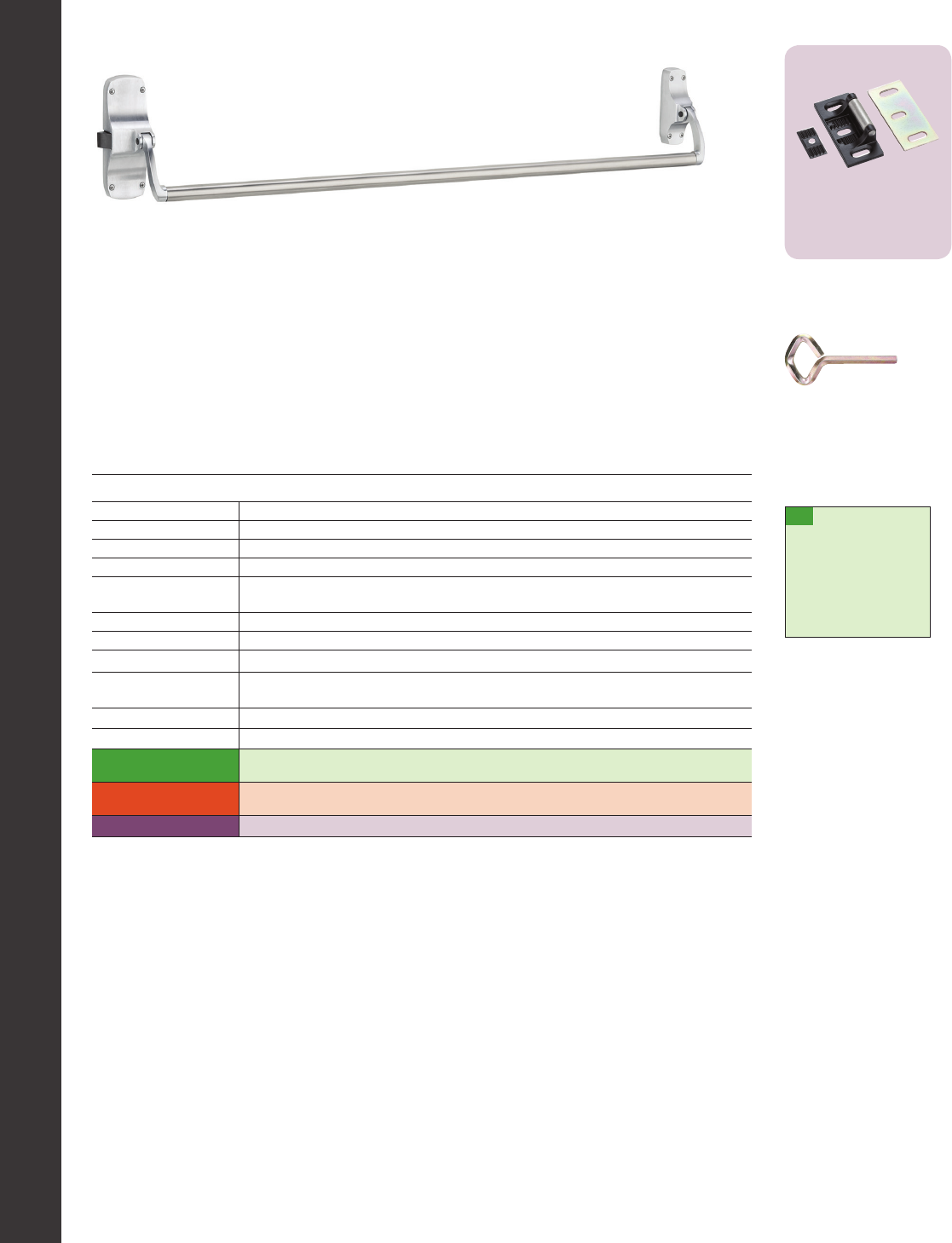

88Rimexitdevice
88Rimexitdevice
Specifications
Device functions Device ships EO, DT, NL, TP, L, K
Handing Field reversible
Crossbar length 42" (1067 mm) field sizeable
Device centerline 39 13/16"
Crossbar centerline
to finished floor
36 13/16" (935 mm) at center
Lock stile case 8 1/4" X 2 3/4" x 15/16" (210 mm x 70 mm x 24 mm)
Hinge stile case 6" X 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing 1" (25 mm) outside diameter
Projection Neutral – 4 3/4" (121 mm)
Depressed – 4" (102 mm)
Latch bolt 3/4" (19 mm), throw
Fasteners All necessary mounting fasteners are included.
Electrical options RX Crossbar monitor switch in end case
E Electric unlocking (BE trim only)
Mechanical options RCB Reinforced crossbar
KN Knurled crossbar
Strikes 299 - Dull black
* Not applicable with all strike and mullion combinations, consult factory.
88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard
installations. Covers stock hollow metal doors with 86 or 161* cutouts. This device is field reversible.
Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK
Hex key dogging comes
standard on 88 Rim exit
devices
The 299 Strike
ships standard, optional
strikes available
RX
Crossbar monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor crossbar
VonDuprin88Series • 9
88Rimexitdevice

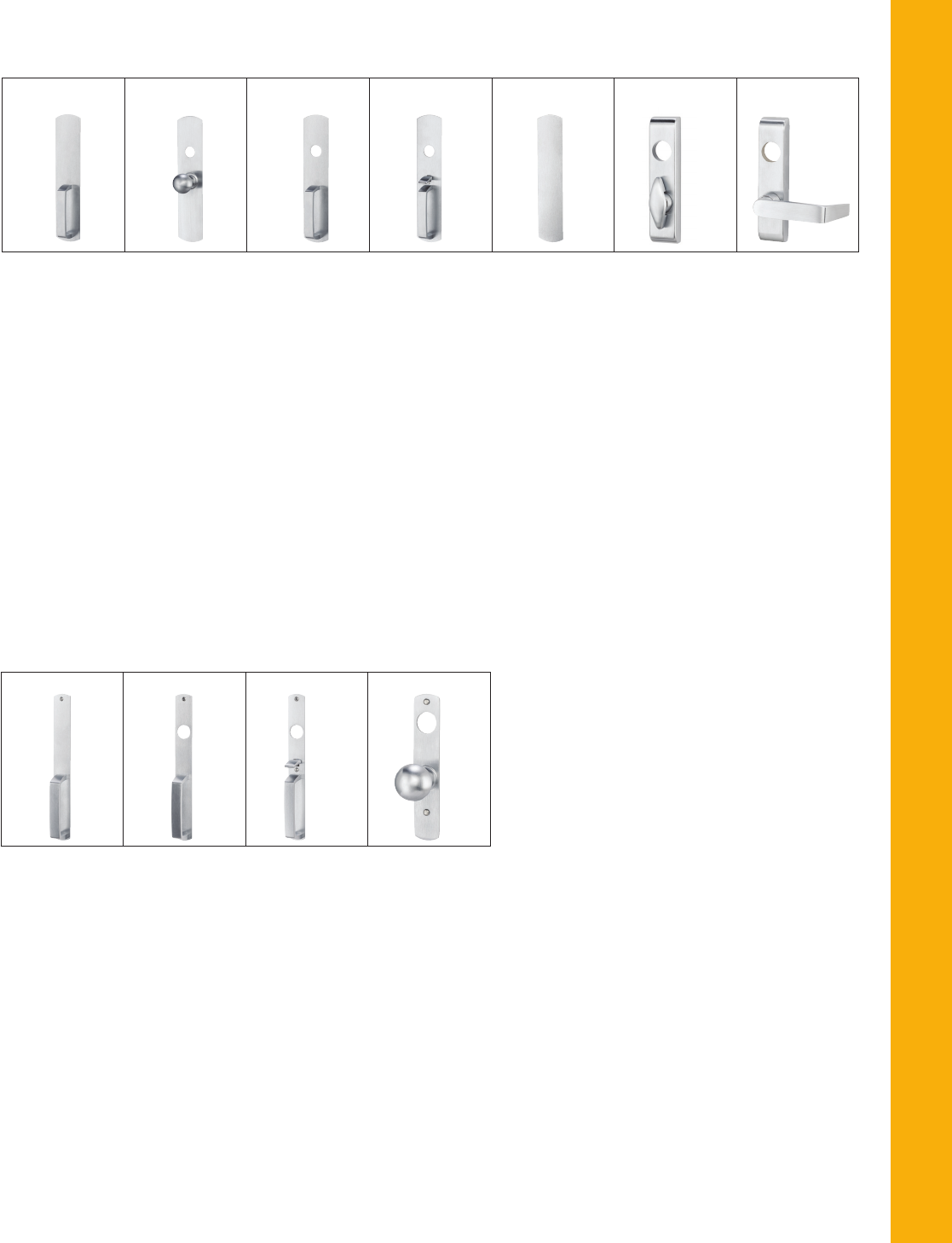

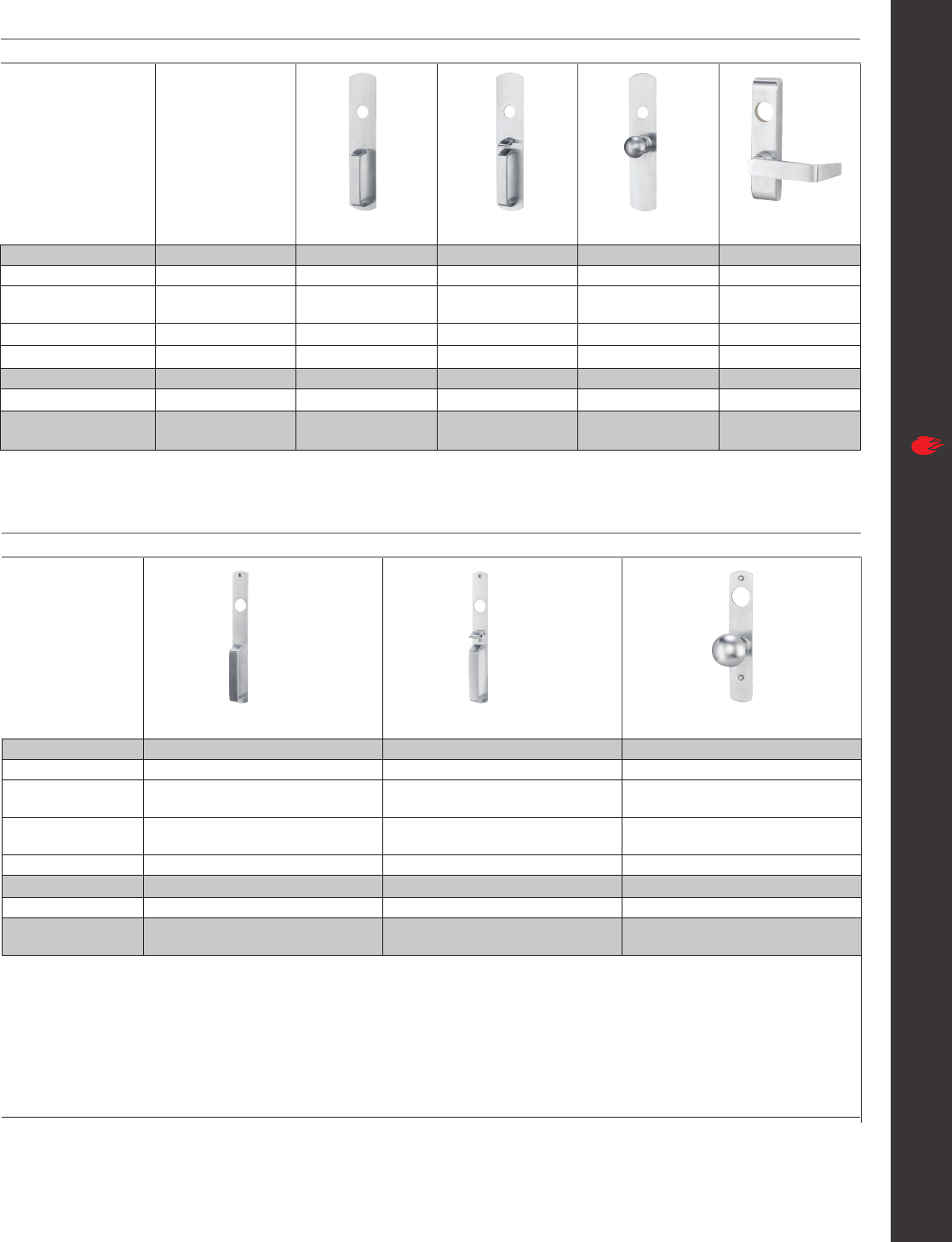

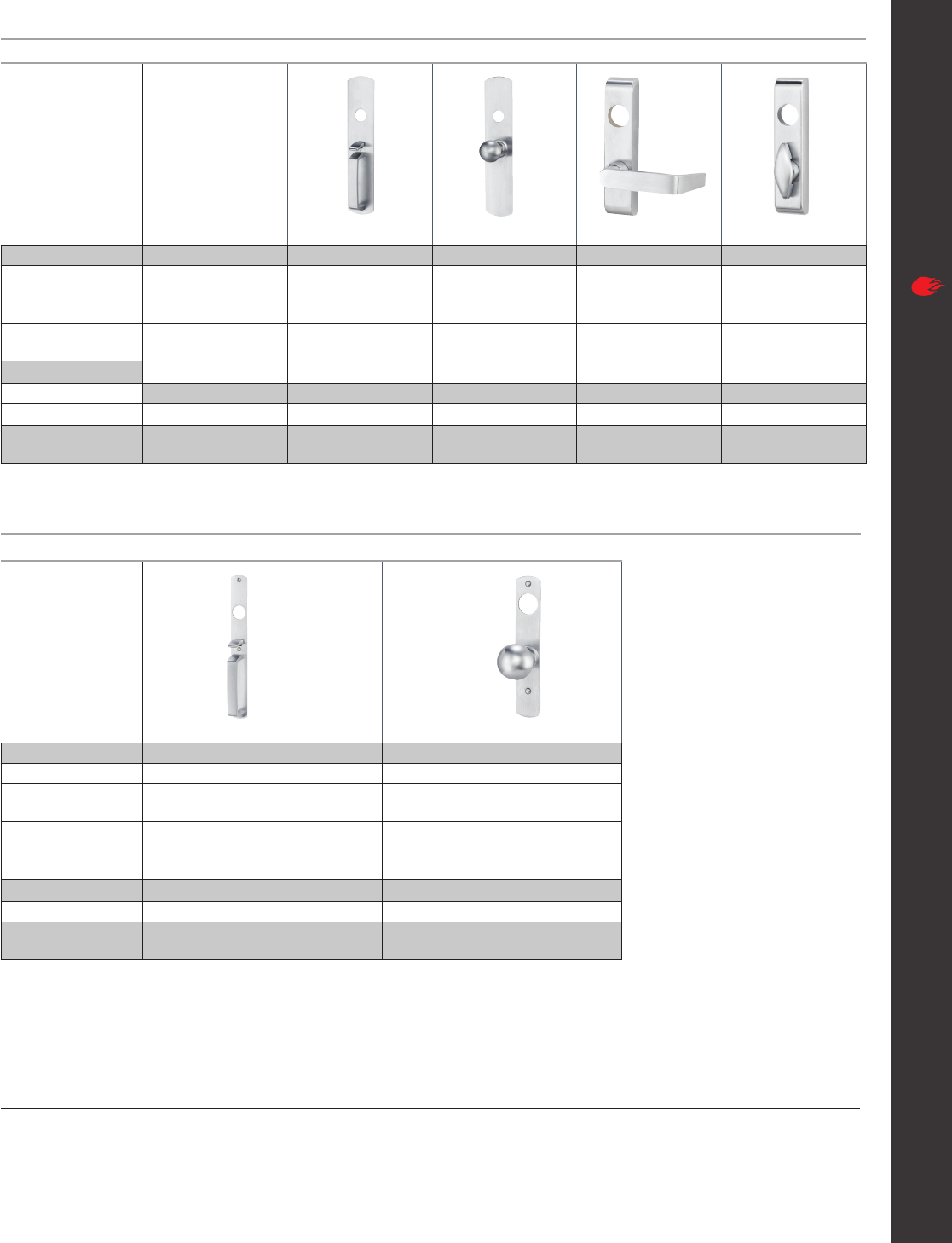

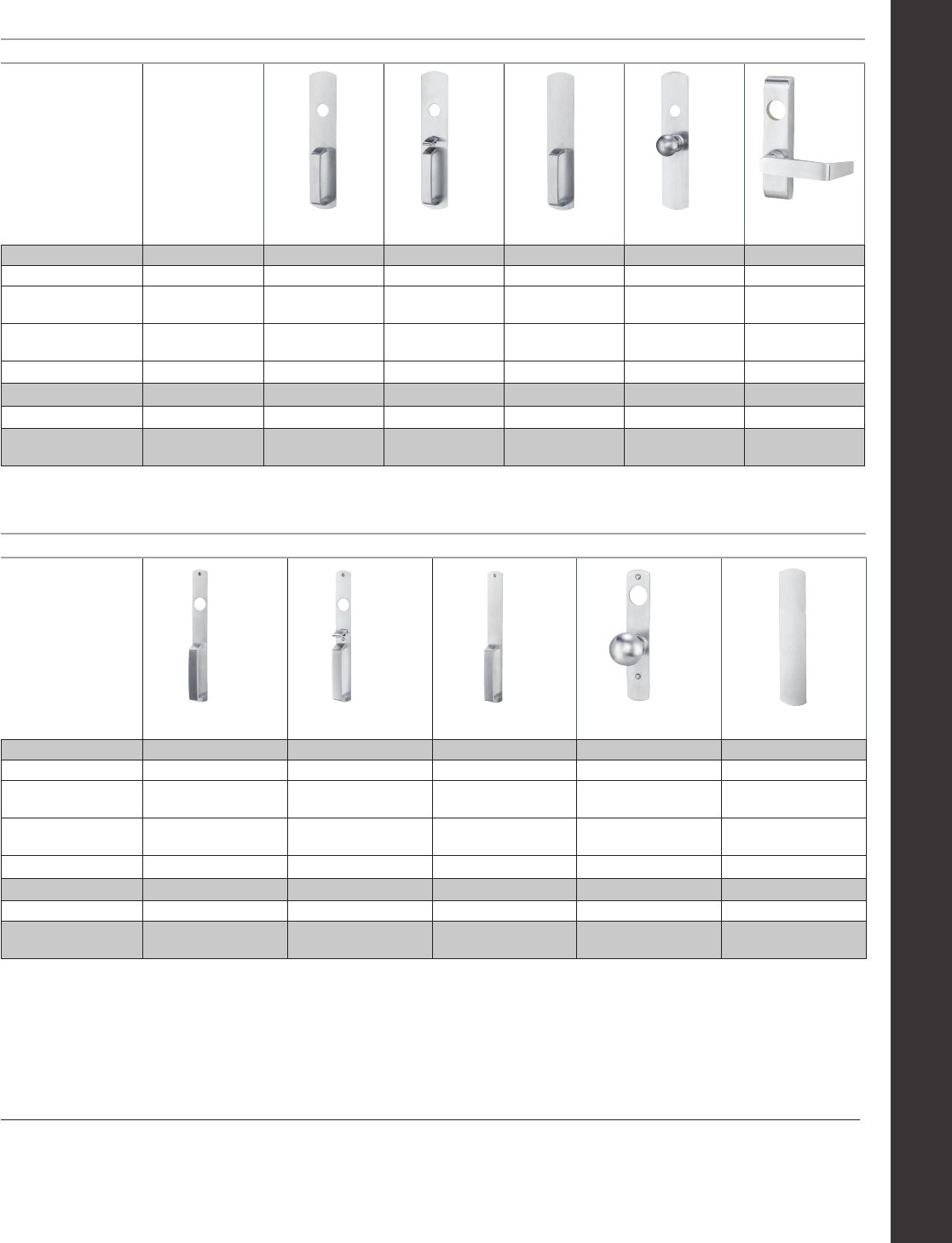

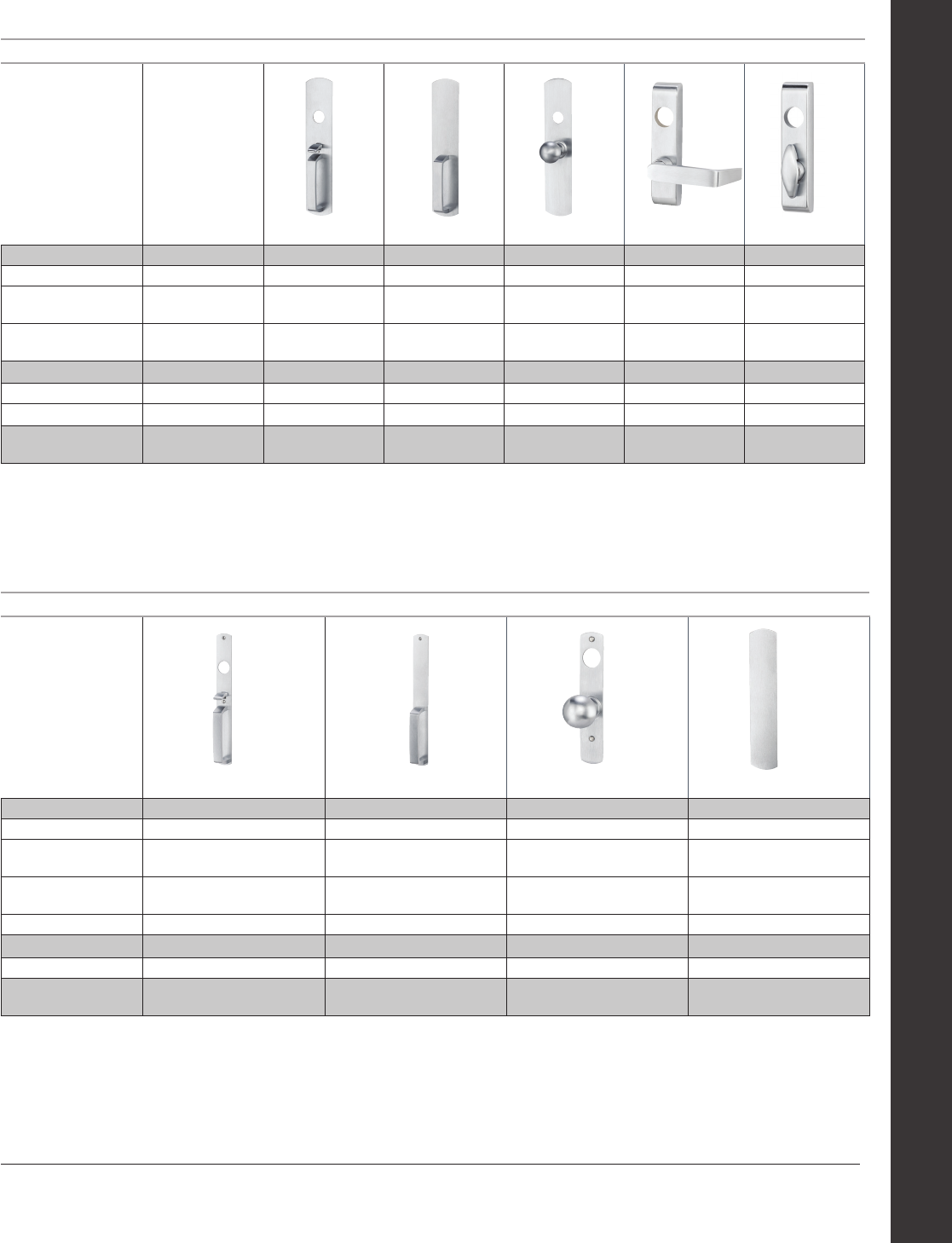

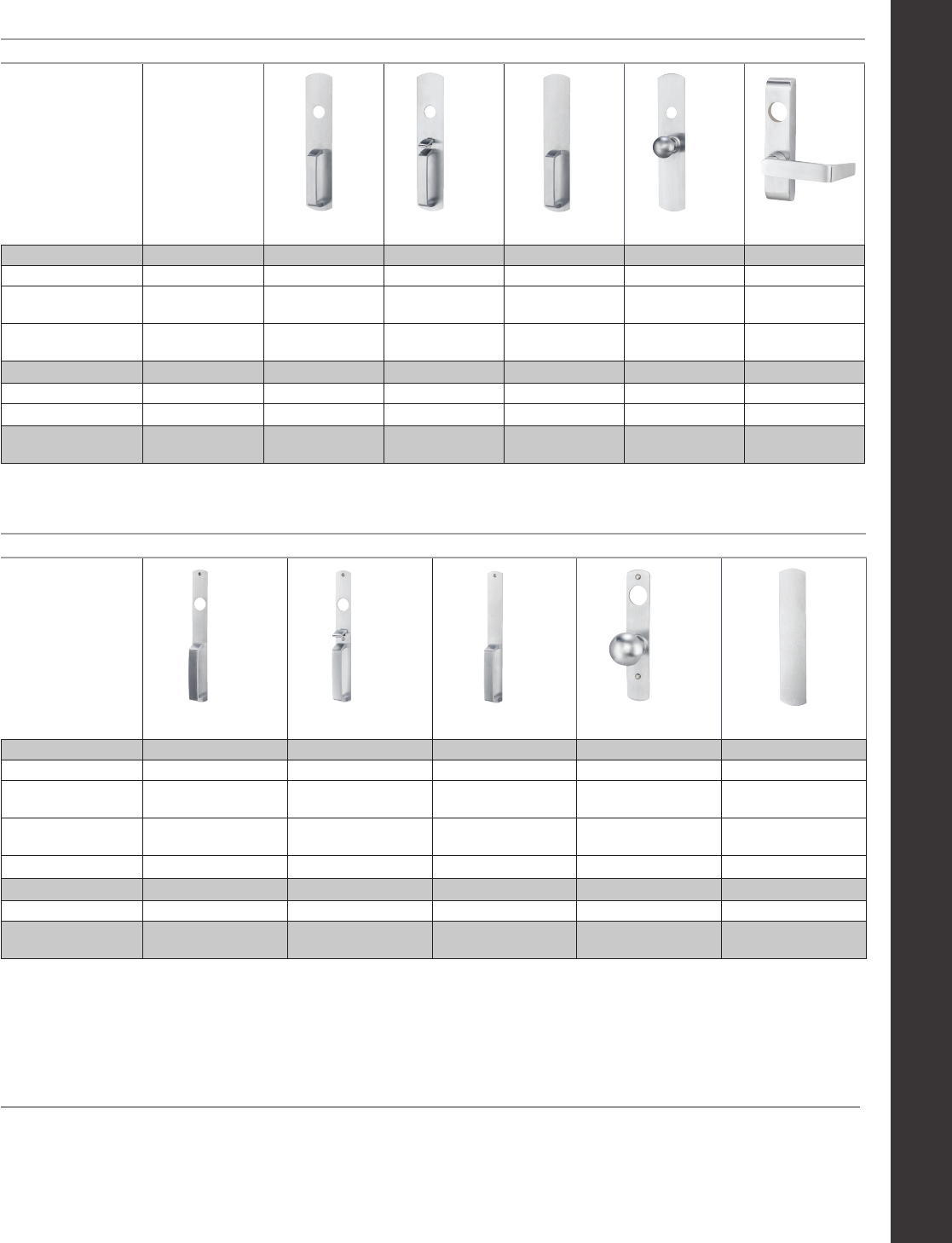

Standard trims
Exit only
Night latch
Key retracts latchbolt
Key locks
thumbpiece
Dummy trim
Pull when dogged Key locks knob
Key locks lever
#06 Standard
Product description 88EO 88NL 88TP 88DT 88K1,2,3 88L1,2,4,5,6,7
Trim description —880NL-R 880TP-R 880DT-R 880K-R 373L
Escutcheon
plate size —3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"
Grip mounting
center — 5 1/2" 5 1/2" 5 1/2" — 6 1/4"
Projection —2" 2" 2" 2 3/4" 2 5/8"
ANSI function 01 03 05 02 08 08/09
Cylinder type —Rim Rim —Rim 11/4" Mortise
Sex bolt quantity
#425 (optional) 844444
Optional trims
Night latch
Key retracts latchbolt
Key locks
thumbpiece
Dummy trim
Pull when dogged Key locks knob Exit only
Product description 88NL x 608NL 88TP x 608TP 88DT x 608DT 88K x 606K1,2,3,5 88L x 880EO
Trim description 608NL-R 608TP-R 608DT-R 606K-R 880EO-R
Escutcheon
plate size 15/8" x 131/2" x 3/16" 15/8" x 131/2" x 3/16" 15/8" x 131/2" x 3/16" 15/8" x 83/4" x 3/16"3" x 143/16" x 3/32"
Grip mounting
center 51/2" 51/2" 51/2" — —
Projection 21/6" 21/6" 21/6" 23/4" —
ANSI function 03 05 02 08 01
Cylinder type Rim Rim —Rim —
Sex bolt quantity
#425 (optional) NR NR NR NR 4
1 If no cylinder operation is required, specify “BE” blank escutcheon, trim always operable; example 88TP-BE.
2 Matching dummy trim available,use sux “DT”; example 88K-DT.
3 Night latch function available, order 88NL x 880K-R rigid.
4 When using sex bolts, an 889 cover plate is required. See page 24.
5 When using on wood doors without sex bolts, “WDA” cover plate is required. See page 24.
6 Not available with E88.
7 The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used).
NR-Not recommended
Notes
EO
EO
DT
DT K
NL TP K
NL TP
L
10• VonDuprin88Series

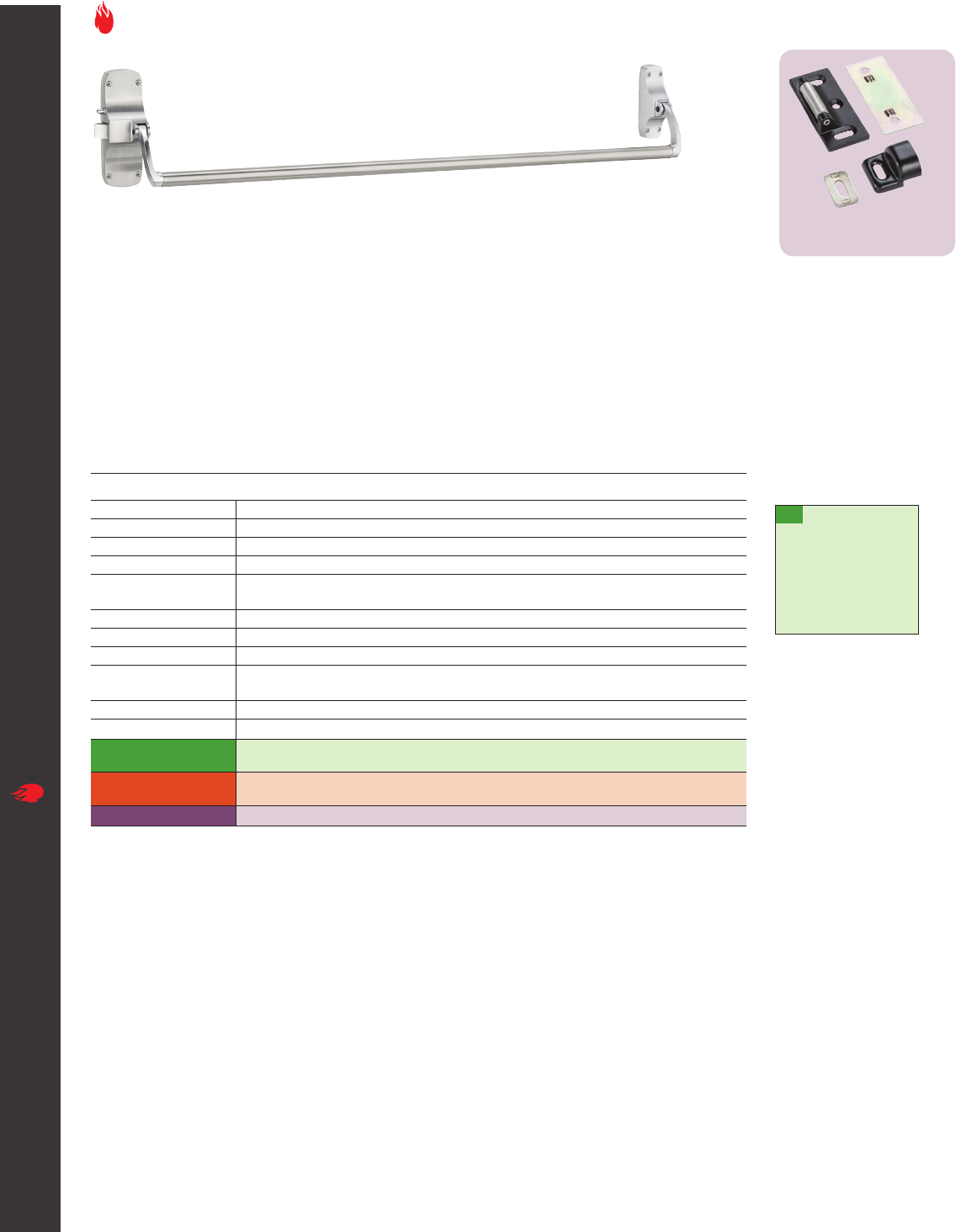

88-FRimreexitdevice
88-FRimreexitdevice

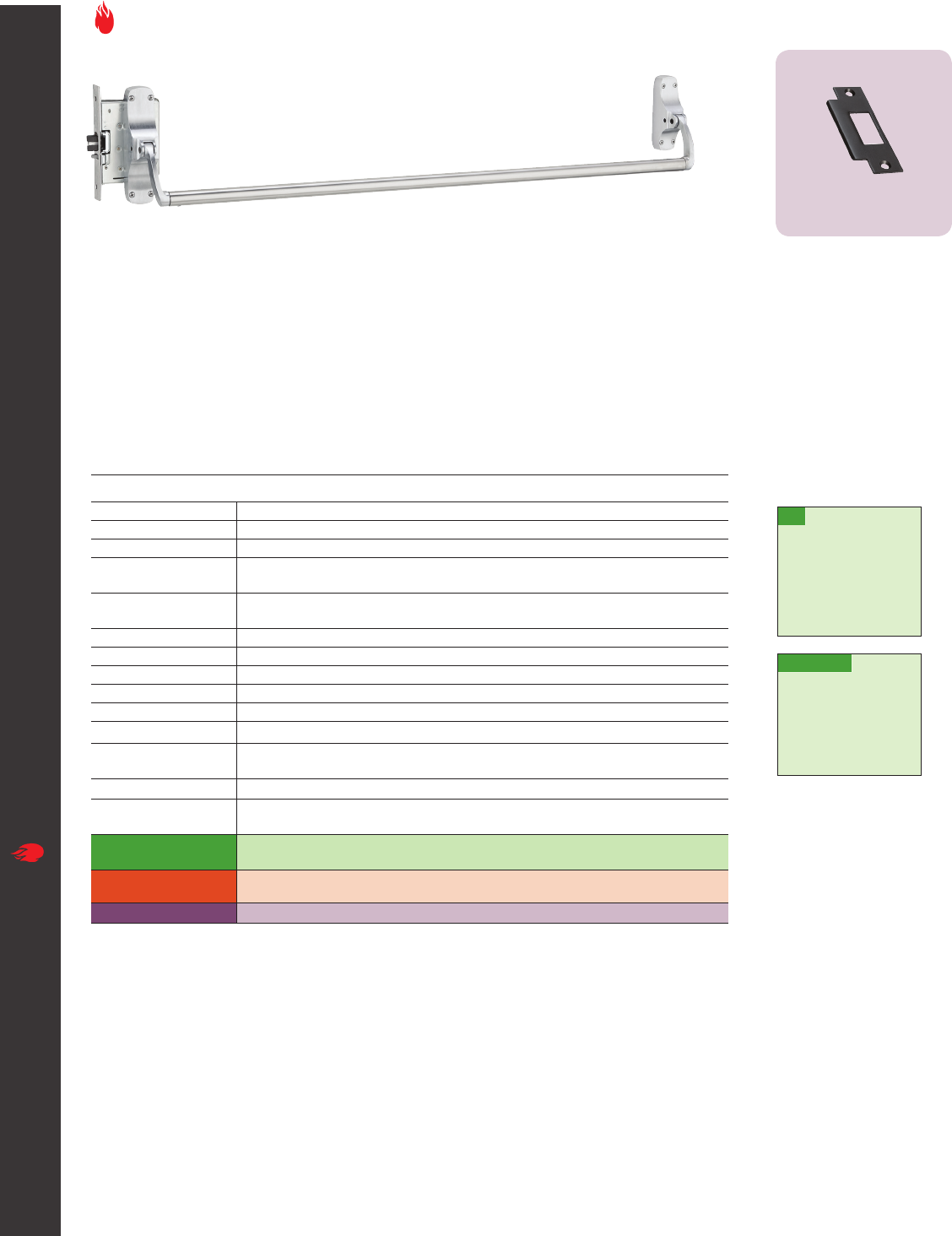

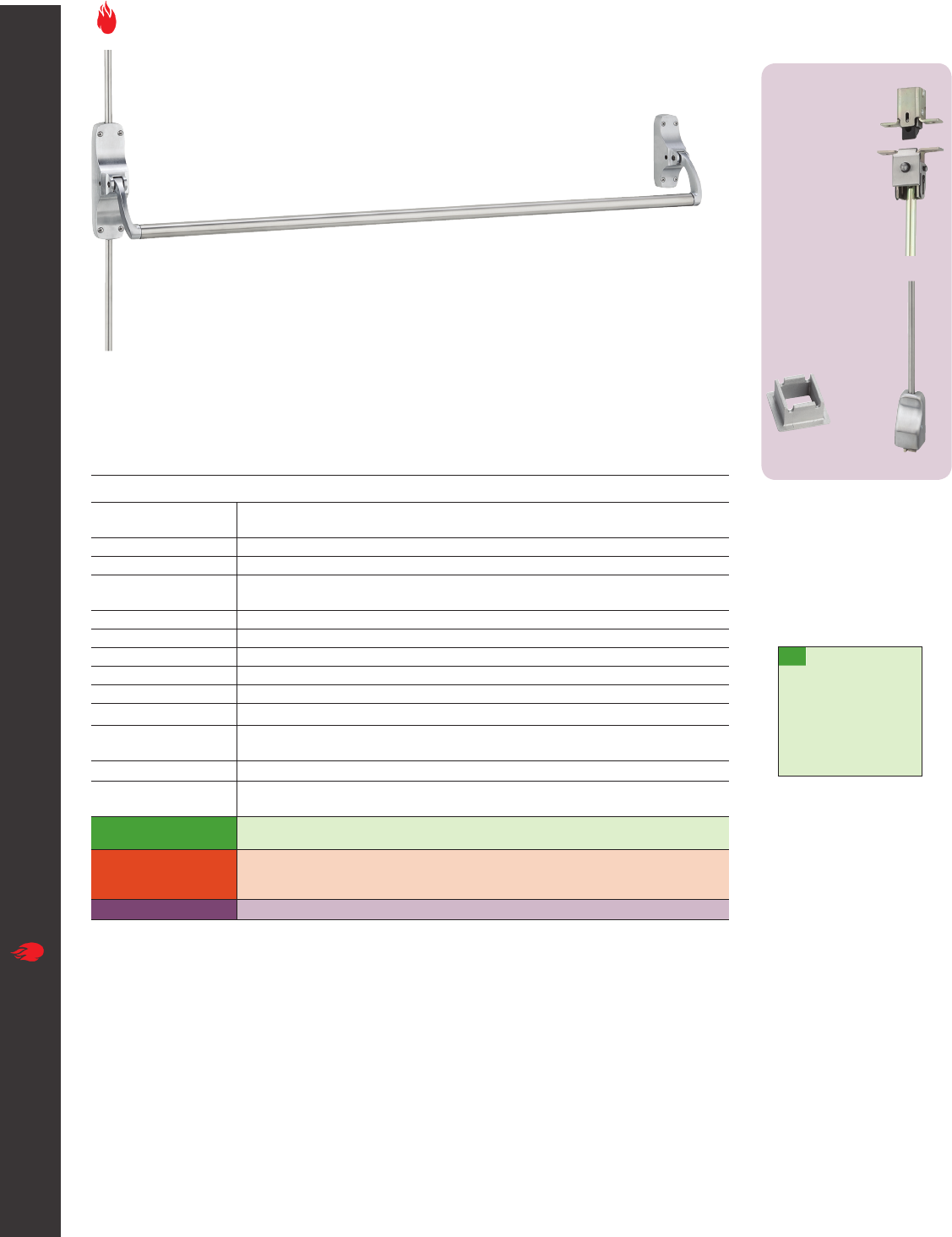

88-F fire exit rim devices for all types of 4' X 8' (1219 mm X 2438 mm) single and
8' X 8' (2438 mm x 2438 mm) double doors with 9954 mullion, UL listed, 3 hours.
This device is handed.
Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK
Specifications
Device functions Device ships EO, NL, TP, L, K
Handing Handed
Crossbar length 42" (1067 mm) field sizable
Device centerline 39 13/16"
Crossbar centerline
to finished floor 36 13/16" (935 mm) at center
Lock stile case 8 1/4" X 2 3/4" x 15/16" (210 mm x 70 mm x 24 mm)
Hinge stile case 6" X 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing 1" (25 mm) outside diameter
Projection Neutral – 4 3/4" (121 mm)
Depressed – 4" (102 mm)
Latch bolt Deadlocking – 3/4” (19 mm), throw
Fasteners All necessary mounting fasteners are included.
Electrical options RX Crossbar monitor switch in end case
E Electric unlocking (BE trim only)
Mechanical options RCB Reinforced crossbar
KN Knurled crossbar
Strikes 268 - Dull black
The 268 Strike
ships standard, optional
strikes available
RX
Crossbar monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor crossbar
VonDuprin88Series • 11
88-FRimreexitdevice
Standard trims
Exit only
Night latch
Key retracts latchbolt
Key locks
thumbpiece Key locks knob
Key locks lever
#06 Standard
Product description 88EO-F 88NL-F 88TP-F188K-F1,5 88L-F 1,2,3,4
Trim description —880NL-R 880TP-R 880K-R 373L
Escutcheon
plate size —3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"
Grip mounting center — 5 1/2" 5 1/2" — —
Projection —2" 2" 2 3/4"2 5/8"
ANSI function 01 03 05 08 08/09
Cylinder type —Rim Rim Rim 1 1/4" Mortise
Sex bolt quantity
#425 (optional)684444
EO NL TP K L
Optional trims
Night latch
Key retracts latchbolt Key locks thumbpiece Key locks knob
Product description 88NL-F x 608NL 88TP-F x 608TP 88K-F x 606K1,3
Trim description 608NL-R 608TP-R 606K-R
Escutcheon plate
size 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 13 1/2" x 3/16"
Grip mounting
center 5 1/2" 5 1/2" —
Projection 2 1/6" 2 1/6" 2 3/4"
ANSI function 03 05 08
Cylinder type Rim Rim Rim
Sex bolt quantity
#425 (optional)6NR NR NR
1 If no cylinder operation is required, specify “BE” blank escutcheon, trim always operable; example 88TP-F-BE.
2 When using on composite or wood doors, an 889 cover plate is required. See page 24.
3 Not available wtih E88-F.
4 The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used).
5 Night Latch Function available, order 88NL-F x 880K-R Rigid.
6 Sex bolts must be used on wood or composite fire doors.
NR-Not recommended
Notes
LNL TP
12 • VonDuprin88Series
8875Mortiselockexitdevice
8875Mortiselockexitdevice
8875 mortise lock devices or all types of single or double doors, UL listed for accident hazard
installations. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4 3/4" (121 mm).
This device is field reversible but comes handed from factory. The 7500 mortise lock is equipped with a
3/4" (19 mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It
has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Field
selection of functions are furnished standard. TP and K function may be field selected by turning down
a set screw in mortise lock body. Electric locking or unlocking options are available.
Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK
The 575 Strike
ships standard.
Hex key dogging comes
standard on 8875 Series
mortise lock exit devices
Specifications
Device functions Device ships EO, DT, NL, TP, K, L
Handing Handed
Crossbar length 42" (1067 mm) field sizable
Device centerline 39 13/16"
Crossbar centerline
to finished floor
36 13/16" (935 mm) at center
Latch bolt height to
finished floor
40 3/32" (1018 mm) at center
Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
Faceplate 1 1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
Cylinder backset 2 3/4" (70 mm)
Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing 1" (25 mm) outside diameter
Projection Neutral – 4 7/8" (124 mm)
Depressed – 4" (102 mm)
Latchbolt Deadlocking - 3/4" (19mm) throw
Fasteners and sex
bolts (SBN)
Includes screw pack for 1 3/4" (44 mm) and 2 1/4"
(57 mm) thick metal or wood doors. Sex nuts and bolts included.
Electric options RX Crossbar monitor switch
E8875 Electric mortise lock device
Mechanical options RCB Reinforced crossbar
KN Knurled crossbar
Strikes 575 - Dull black
RX
Crossbar monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor crossbar
E8875
Electric mortise
lock device
• Controls locking of
the outside trim
VonDuprin88Series • 13
8875Mortiselockexitdevice
Standard trims
Exit only
Night latch
Key retracts latchbolt
Key locks
thumbpiece
Dummy trim
Pull when dogged Key locks knob
Key locks lever
#06 Standard
Product description 8875EO 8875NL 8875TP18875DT 8875K1,2 8875L1,2,3,4,5,6
Trim description —880NL-M 880TP-M 880DT-M 880K-M 373L
Escutcheon
plate size —3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"
Grip mounting
center — 5 1/2" 5 1/2" 5 1/2" — 6 1/4"
Projection —2" 2" 2" 2 3/4" 2 5/8"
ANSI function 01 03 05 02 08 08/09
Cylinder type — 1 1/4" Mortise 1 1/4" Mortise — 1 1/4" Mortise 1 1/4" Mortise
Sex bolt quantity
#425 (optional) 844444
Optional trims
Night latch
Key retracts latchbolt
Key locks
thumbpiece
Dummy trim
Pull when dogged Key locks knob Exit only
Product description 8875NL x 608NL 8875TP x 608TP 8875DT x 608DT 8875K x 606K1,2 8875L x 880EO
Trim description 608NL-M 608TP-M 608DT-M 606K-M 880EO-M
Escutcheon
plate size 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 8 3/4" x 3/16"3" x 14 3/16" x 3/32"
Grip mounting
center 5 1/2" 5 1/2" 5 1/2"— —
Projection 2 1/6" 2 1/6" 2 1/6"2 3/4"—
ANSI function 03 05 02 08 01
Cylinder type 1 1/4" Mortise 1 1/4" Mortise — 1 1/4" Mortise —
Sex bolt quantity
#425 (optional) NR NR NR NR 4
1If no cylinder operation is required, specify “BE” blank escutcheon, trim always operable; example 8875TP-BE.
2Matching dummy trim available,use sux “DT”; example 8875K-DT.
3When using sex bolts, an 889 cover plate is required. See page 24.
4When using on wood doors without sex bolts, “WDA” cover plate is required. See page 24.
5The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used).
6When used with E8875, no cylinder operation is available. Control furnished “BE”.
NR-Not recommended
Notes
EO
EO
DTNL TP K L
NL TP KDT
14 • VonDuprin88Series
8875-FMortiselockreexitdevice
8875-FMortiselockreexitdevice
8875-F mortise lock fire exit devices for all types of 4' X 8' (1219 mm X 2438 mm) single and
8' X 8' (2438 mm x 2438 mm), UL listed, 3 hours. Fits door stiles as narrow as 4 3/4" (121 mm).
The 7500 mortise lock is field reversible without removing the lock from the door. It has a non-
handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Field selection of
functions are furnished standard. TP and K function may be field selected by turning down a set
screw in mortise lock body. Electric locking or unlocking options are available.
Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK
The 575 Strike
ships standard.
Specifications
Device functions Device ships EO, NL, TP, K, L
Crossbar length 42" (1067 mm) field sizable
Device centerline 39 13/16"
Crossbar centerline
to finished floor
36 13/16" (935 mm) at center
Latch bolt height to
finished floor
40 3/32" (1018 mm) at center
Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
Faceplate 1 1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
Cylinder backset 2 3/4" (70 mm)
Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing 1" (25 mm) outside diameter
Projection Neutral – 4 7/8" (124 mm)
Depressed – 4" (102 mm)
Latchbolt Deadlocking - 3/4" (19mm) throw
Fasteners and sex
bolts (SBN)
Includes screw pack for 1 3/4" (44 mm) and 2 1/4"
(57 mm) thick metal or wood doors. Sex nuts and bolts included.
Electric options RX Crossbar monitor switch
E8875 Electric mortise lock device
Mechanical options RCB Reinforced crossbar
KN Knurled crossbar
Strikes 575 - Dull black
RX
Crossbar monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor crossbar
E8875
Electric mortise
lock device
• Controls locking of
the outside trim
VonDuprin88Series • 15
8875-FMortiselockreexitdevice
Standard trims
Exit only
Night latch
Key retracts latchbolt
Key locks
thumbpiece Key locks knob
Key locks lever
#06 Standard
Product description 8875EO-F 8875NL-F 8875TP-F18875K-F18875L-F1,2,3,4
Trim description —880NL-M 880TP-M 880K-M 373L
Escutcheon
plate size —3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32" 1 11/16" x 7 1/2" x 7/8"
Grip mounting
center — 5 1/2" 5 1/2" — —
Projection —2" 2" 2 3/4" 2 5/8"
ANSI function 01 03 05 08 08/09
Cylinder type — 1 1/4" Mortise 1 1/4" Mortise 1 1/4" Mortise 1 1/4" Mortise
Sex bolt quantity
#425 (optional) 84444
Optional trims
Night latch
Key retracts latchbolt
Key locks
thumbpiece Key locks knob
Product description 8875NL-F x 608NL 8875TP-F x 608TP18875K-F x 606K1
Trim description 608NL-M 608TP-M 606K-M
Escutcheon
plate size 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 13 1/2" x 3/16"
Grip mounting
center 5 1/2" 5 1/2" —
Projection 2 1/6" 2 1/6" 2 3/4"
ANSI function 03 05 08
Cylinder type 1 1/4" Mortise 1 1/4" Mortise 1 1/4" Mortise
Sex bolt quantity
#425 (optional) NR NR NR
1 If no cylinder operation is required, specify “BE” blank escutcheon, trim always operable; example 8875TP-F-BE.
2 When using on composite or wood doors, an 889 cover plate is required. See page 24.
3 The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used).
4 When used with E8875-F, no cylinder operation is available. Control furnished “BE”.
5 Sex bolts must be used on wood or composite fire doors.
NR-Not recommended
Notes
EO
L
NL TP K L
NL TP
16 • VonDuprin88Series

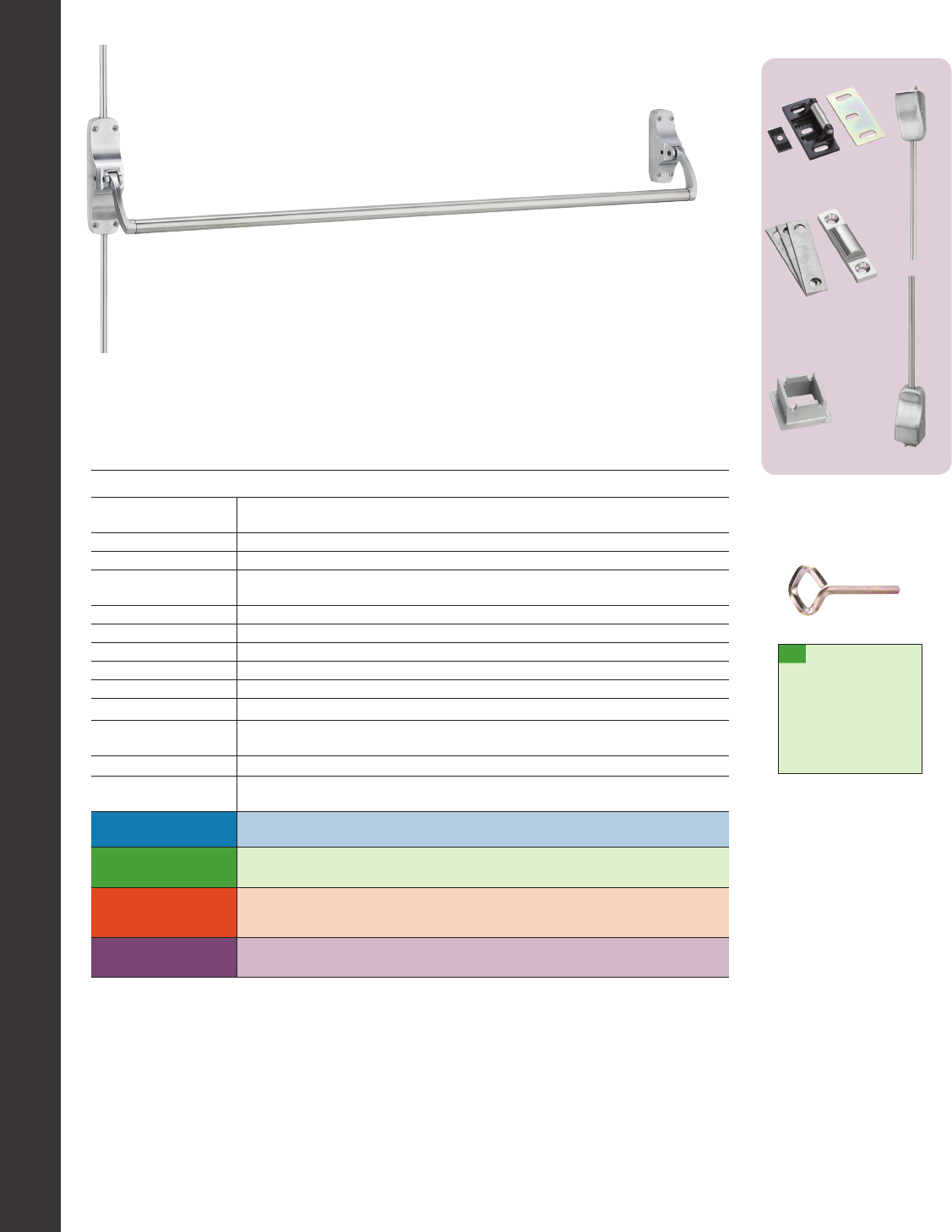

8827Surfacemountedverticalrodexitdevice
8827Surfacemountedverticalrodexitdevice
8827 surface mounted vertical rod devices for all types of single and double doors, UL listed for
accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as
narrow as 2 1/2" (90 mm). This device is field sizable.
Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK
299 Top strike
248L-4
Bottom strike
for use with
flat threshold
Top latch
Bottom latch
Specifications
Device functions Field reversible
Device ships EO, DT, TP, K, L, TL
Crossbar length 42" (1067 mm) field sizable
Device centerline 3913/16"
Crossbar centerline
to finished floor
36 13/16" (935 mm) at center
Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
Faceplate 1 1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
Cylinder backset 2 3/4" (70 mm)
Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing 1" (25 mm) outside diameter
Projection Neutral – 4 7/8" (124 mm)
Depressed – 4" (102 mm)
Latchbolt 5/8" (16mm) throw
Fasteners and sex
bolts (SBN)
Includes screw pack for 1 3/4" (44 mm) and 2 1/4"
(57 mm) thick metal or wood doors. Sex nuts and bolts included.
Rods/Latch guards LBR (Less bottom rod) available for use with electric strike mounted
in header and device supplied with pullman latch.
Electrical options RX Crossbar monitor switch in end case
E Electric unlocking (BE trim only)
Mechanical options RCB Reinforced crossbar
KN Knurled crossbar
PL Pullman latch top and bottom
Strikes Top 299 - Dull black
Bottom 248L-4 and 304L - unfinished
Note: Maximum door undercut, 1/4" (6mm).
Hex key dogging comes
standard on 8827 Series
surface mounted vertical
rod exit device
304L
Bottom strike
RX
Crossbar monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor crossbar
VonDuprin88Series • 17
8827Surfacemountedverticalrodexitdevice
Standard trims
Exit only Key locks thumbpiece Pull when dogged Key locks knob
Key locks lever #06
Standard
Key locks thumbturn
(Pull required)
Product description 8827EO 8827TP1,2 8827DT 8827K1,2,3 8827L1,2,4,5,6 8827TL1,5,6
Trim description —880TP-V 880DT-V 880K-V 373L 377T x 880DT-V
Escutcheon
plate size —3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32"11 1/16" x 7 1/2" x 7/8"11 1/16" x 7 1/2" x 7/8"
Grip mounting
center — 5 1/2" 5 1/2" — — —
Projection —2" 2" 2 3/4" 2 5/8" 1 13/16"
ANSI function 01 05 02 08 08/09 11/12
Cylinder type —Rim —Rim 1 1/4" Mortise 1 1/4" Mortise
Sex bolt quantity
#425 (optional) 16 12 12 12 12 12
Optional trims
Key locks
thumbpiece
Dummy trim
Pull when dogged Key locks knob Exit only
Product description 8827TP x 608TP1,3 8827DT x 608DT 8827K x 606K1,3 8827L x 880EO
Trim description 608TP-V 608DT-V 606K-V 880EO-V
Escutcheon
plate size 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 8 3/4" x 3/16"3" x 14 3/16" x 3/32"
Grip mounting
center 5 1/2" 5 1/2" — —
Projection 2 1/6" 2 1/6" 2 3/4" —
ANSI function 03 02 08 01
Cylinder type Rim —Rim —
Sex bolt quantity
#425 (optional) NR NR NR 12
1 If no cylinder operation is required, specify “BE” blank escutcheon, trim always operable; example 8827TP-BE.
2 Matching dummy trim available,use sux “DT”; example 8827K-DT.
3 Can be furnished with NL action, thumbpiece or knob operates only when key is used. Use sux NL; example 8827TP-NL.
4 When using sex bolts, an 889 cover plate is required. See page 24.
5 When using on wood doors without sex bolts, “WDA” cover plate is required. See page 24.
6 The 373L and 377T are shipped L or TL. An NL cylinder plate is also furnished standard (for operation only when key is used).
NR-Not recommended
Notes
EO DTTP
TP DT KEO
K L T
18 • VonDuprin88Series

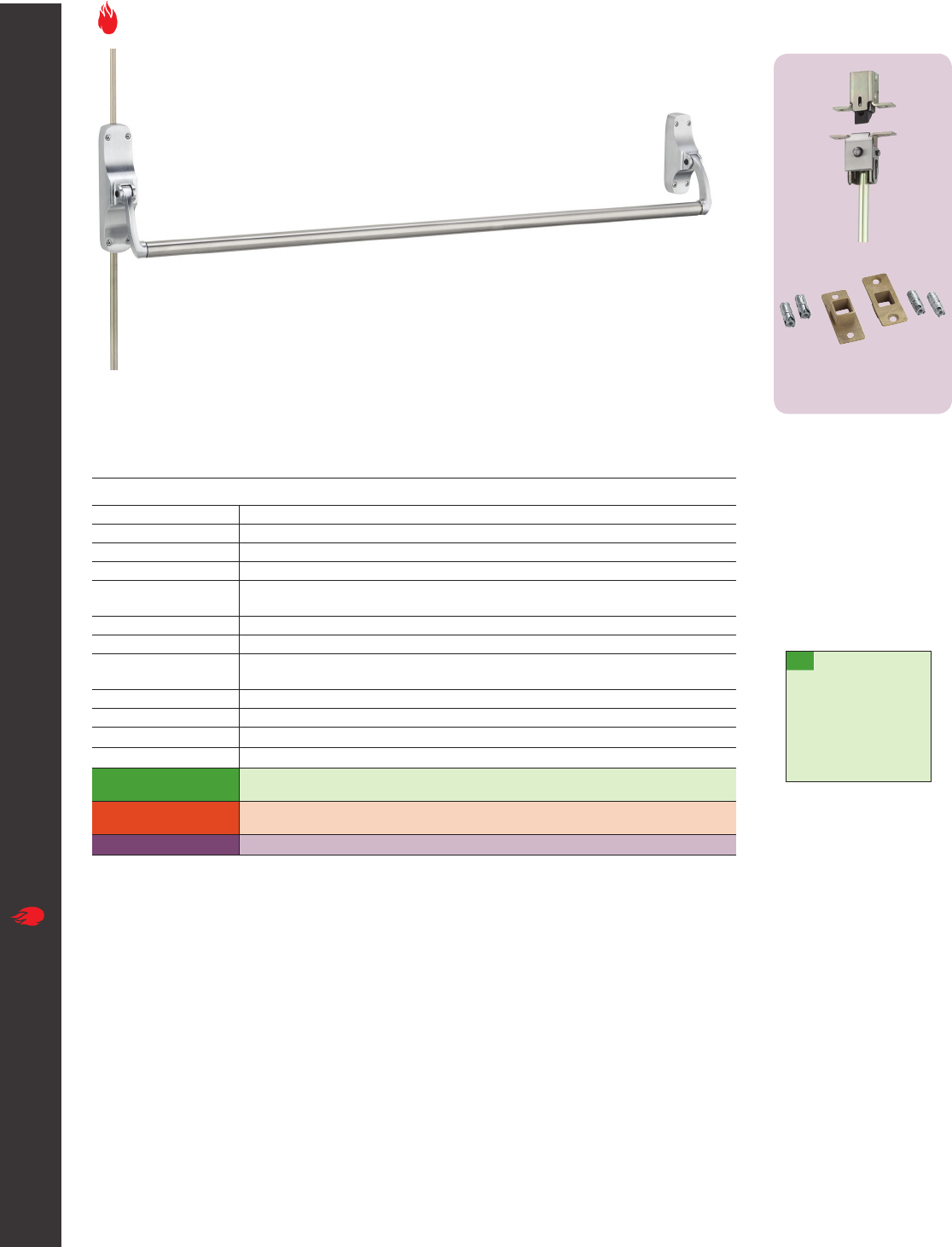

8827-FSurfacemountedverticalrodreexitdevice
8827-FSurfacemountedverticalrodreexitdevice
8827-F surface mounted vertical rod devices for all types of 8' X 8' (2438 mm x 2438 mm),
UL listed, 3 hours. Fits door stiles as narrow as 3 3/4" (95 mm). This device is field reversible.
Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK
Specifications
Device functions Field reversible
Device ships EO, TP, K, L, TL
Crossbar length 42" (1067 mm) field sizable
Device centerline 3913/16"
Crossbar centerline
to finished floor
36 13/16" (935 mm) at center
Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
Faceplate 1 1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
Cylinder backset 2 3/4" (70 mm)
Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing 1" (25 mm) outside diameter
Projection Neutral – 4 7/8" (124 mm)
Depressed – 4" (102 mm)
Latchbolt 5/8" (16mm) throw
Fasteners and sex
bolts (SBN)
Includes screw pack for 1 3/4" (44 mm) and 2 1/4"
(57 mm) thick metal or wood doors. Sex nuts and bolts included.
Electrical options RX Crossbar monitor switch in end case
E Electric unlocking (BE trim only)
Mechanical options RGB Reinforced crossbar
KN Knurled crossbar
PL Pullman latch top and bottom
Strikes Bottom - 304L
304L
Bottom Strike
Top Latch
Bottom Latch
RX
Crossbar monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor crossbar
VonDuprin88Series • 19
8827-FSurfacemountedverticalrodreexitdevice
Standard trims
Exit only Key locks thumbpiece Key locks knob
Key locks lever
#06 Standard
Key locks
thumbturn
(Pull required)
Product description 8827EO-F 8827TP-F1,5 8827K-F1,5 8827L-F1,2,4 8827TL-F1,2,4
Trim description —880TP-V 880K-V 373L 377T x 880DT-V
Escutcheon
plate size —3" x 14 3/16" x 3/32"3" x 14 3/16" x 3/32" 1 11/16" x 7 1/2" x 7/8" 1 11/16" x 7 1/2" x 7/8"
Grip mounting
center —51/2" ———
Projection —2" 2 3/4" 2 5/8" 1 13/16"
ANSI function 01 05 08 08/09 11/12
Cylinder type —Rim Rim 1 1/4" Mortise 1 1/4" Mortise
Sex bolt quantity
#425 (optional)616 12 12 12 12
Optional trims
Key locks thumbpiece Key locks knob
Product description 8827TP-F x 608TP 8827K-F x 606K1
Trim description 608TP-V 606K-V
Escutcheon
plate size 1 5/8" x 13 1/2" x 3/16" 1 5/8" x 8 3/4" x 3/16"
Grip mounting
center 5 1/2" —
Projection 2 1/6" 2 3/4"
ANSI function 05 08
Cylinder type Rim Rim
Sex bolt quantity
#425 (optional) NR NR
1 If no cylinder operation is required, specify “BE” blank escutcheon, trim always operable; example 8827TP-F-BE.
2 When using on composite or wood doors, an 889 cover plate is required. See page 24.
3 When using on wood doors “WDA” cover plate is required. See page 24.
4 The 373L and 377T are shipped L or TL. An NL cylinder plate is also furnished standard (for operation only when key is used).
5 Can be furnished with NL action, thumbpiece of knob operates nly when key is used. Used sux NL; example 8827TP-NL-F.
6 Sex bolts must be used on wood or composite fire doors.
NR-Not recommended
Notes
TP
TP K
EO K L T
20• VonDuprin88Series
8847-FConcealedverticalrodreexitdevice
8847-FConcealedverticalrodreexitdevice
8847-F fire exit concealed vertical rod devices for all types of 8" x 8" (2438 mm x 2438 mm)
double metal doors, UL listed, 3 hours and fits door stiles as narrow as 4 3/4" (121mm).
Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK
Specifications
Device functions EO, L, TL
Handing Field reversible
Crossbar length 42" (1067 mm) field sizable
Device centerline 39 13/16"
Crossbar centerline
to finished floor
36 13/16" (935 mm) at center
Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar projection Neutral – 4 7/8" (124 mm)
Depressed – 4" (102 mm)
Crossbar tubing 1" (25 mm) outside diameter
Vertical rod 3/8" (10 mm) hexagon
Latchbolt 5/8" (16mm) throw
Fasteners All necessary mounting fasteners are included.
Electrical options RX Crossbar monitor switch in end case
E Electric unlocking (BE trim only)
Mechanical options RCB Reinforced crossbar
KN Knurled crossbar
Strikes 301L Strike-bottom
301L
RX
Crossbar monitor
switch
• Signals use of an
opening
• SPDT switch to
monitor crossbar
VonDuprin88Series • 21
8847-FConcealedverticalrodreexitdevice

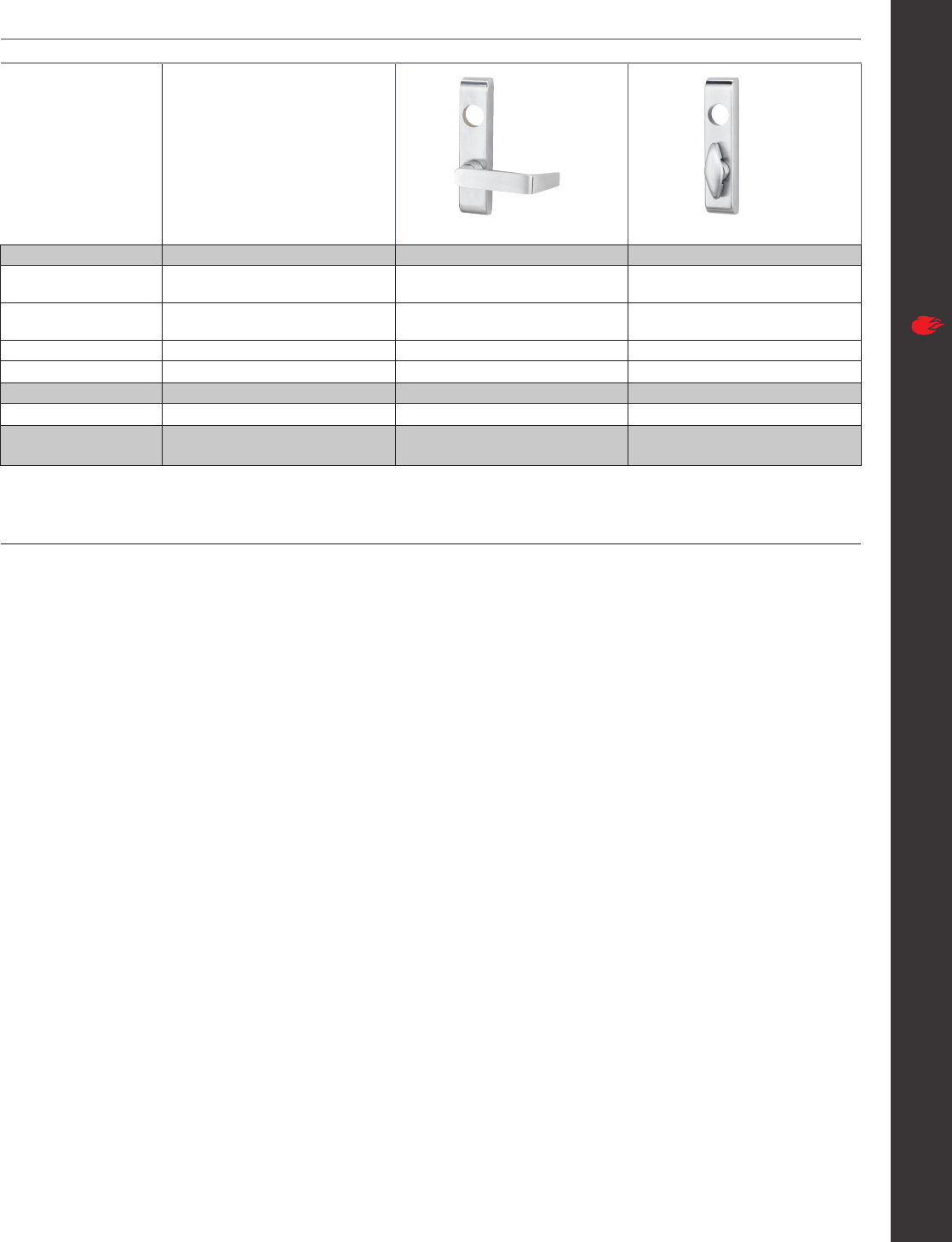

Standard trims
Exit only Key locks knob
Key locks lever
#06 Standard
Product description 8847EO-F 8847L-F1,2 8847TL-F1,2
Trim description — 371L 376T
x 880DT-V-SA
Escutcheon
plate size — 1 11/16" x 7 1/2" x 7/8" 1 11/16" x 7 1/2" x 7/8"
Grip mounting center ———
Projection — 2 5/8" 1 13/16"
ANSI function 01 08/09 11/12
Cylinder type — 1 1/4" Mortise 1 1/4" Mortise
Sex bolt quantity #425
(optional)6444
1 If no cylinder operation is required, specify “BE” blank escutcheon, trim always operable; example 8847L-F-BE.
2 The 371 and 376T are shipped L or TL. An NL cylinder plate is also furnished standard (for operation nly when key is used).
Notes
EO L T
22• VonDuprin88Series
Trimoptions
Trimoptions
Function 01
Exit only
02
Pull when
dogged
03
Key
retracts
latch bolt
05
Key retracts
thumbpiece
06
Key locks
lever
08
Key locks
knob
08
Key locks
lever
11/12
Key locks
thumbturn
Trim number and
dimensions
880EO 880DT 880NL 880TP 371-L 880K 373-L 377T or
376T x
880DT-V
Device/trim center line
to finished floor
Projection —2"
(51 mm)
2"
(51 mm)
2"
(51 mm)
2 5/8"
(67 mm)
2 3/4"
(70 mm)
2 5/8"
(67 mm)
1 13/16"
(46 mm)
Rim Panic 880EO 88DT 88NL 88TP —88K 88L —
Fire 88EO-F —88NL-Fp88TP-Fp—88K-Fp88L-Fn—
Ctr. line
A 39 13/16
(1011 mm)
—
A 39 13/16
(1011 mm)
B 33 11/32
(847mm)
A 39 13/16
(1011 mm)
B 33 11/32
(847mm)
A 39 13/16
(1011 mm)
B 33 11/32
(847mm)
—
A 39 13/16
(1011 mm)
B 36 13/16
(935 mm)
A 39 13/16
(1011 mm)
B 36 13/16
(935 mm)
—
Mortise lock
Panic 8875EO 8875DT 8875NL 8875TP — 8875K 8875L —
Fire 8875EO-F —8875NL-F 8875TP-F —8875K-F 8875L-F —
Ctr. line
A 39 13/16
(1011 mm)
—
A 39 13/16
(1011 mm)
B 33 1/2
(851 mm)
A 39 13/16
(1011 mm)
B 33 1/2
(851 mm)
A 39 13/16
(1011 mm)
B 33 1/2
(851 mm)
—
A 39 13/16
(1011 mm)
B 38 9/16
(979 mm)
A 39 13/16
(1011 mm)
B 38 9/16
(979 mm)
—
Surface
mounted
vertical rod
Panic 8827EO 8827DT —8827TP —8827K 8827L 8827TL
Fire 8827EO-F ——8827TP-F —8827K-F 8827L-F 8827TL-F
Ctr. line
A 39 13/16
(1011 mm)
—
A 39 13/16
(1011 mm)
B 33 1/2
(851 mm)
—
A 39 13/16
(1011 mm)
B 33 1/2
(851 mm)
—
A 39 13/16
(1011 mm)
B 38 5/16
(973 mm)
A 39 13/16
(1011 mm)
B 38 5/16
(973 mm)
A 39 13/16
(1011 mm)
B 53 1/2
(1359 mm)
Concealed
vertical rod
Fire 8847EO-F ——— 8847L-F ——8847TL-F
Ctr. line
A 39 13/16
(1011 mm)
—
———
A 39 13/16
(1011 mm)
B 41 11/16
(1059 mm)
— —
A 39 13/16
(1011 mm)
B 53 1/2
(1359 mm)
Additional snb
requirements 4/8/16 4, 12 44, 12 44, 12 4, 12 4
Cylinder type
required
Rim ——Rim Rim —Rim Mortise —
Mortise ——Mortise Mortise —Mortise Mortise —
Vert. rod ———Rim —Rim Mortise Mortise
C.V.R. ———— Mortise ——Mortise
p Requires stainless steel trim for wood or composite fire doors.
n Requires 889 Plate for wood or composite fire doors.
Note: 8827-F uses 377T, 8847-F uses 376T.
VonDuprin88Series • 23
Trimoptions
Trimoptions
373L/371L Series trim
Lever control has a forged brass 7/8" (22 mm) thick escutcheon.
An NL cylinder plate is included for lever operation only when key
is used. BE blank escutcheon is available, specify 373L-BE.
606K Series trim
Narrow design knob trim 3/16" (5 mm) thick brass, bronze, or
stainless steel 3/16" (5 mm) escutcheon.
880 Series trim
Heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel.
Available functions: 880DT, 880K, 880NL, and 880TP. Optional
880EO exit only trim plate is available. To order with the exit
device, specify 88EOx880EO.
* 880 Stainless Steel Trim used with fire rated rim device on wood doors.
377T Series trim
Thumbturn control has a forged brass 7/8" (22 mm) thick
escutcheon. Oen used with DT trim or pull. An NL cylnder plate
is included for thumbturn operation only when key is used. BE
blank escutcheon is available, specify 377T-BE
608 Series trim
Narrow design 3/16" (5 mm) thick brass, bronze, or stainless steel
with flat pull grip. Available functions: 608DT, 608NL, and
608TP. When ordering with the exit device, specify
88NLx608NL.
Standard trim
Optional trim
880DT
3" x 14 3/16"
880K
3" x 14 3/16"
880NL
3" x 14 3/16"
880TP
3" x 14 3/16"
880EO
3" x 14 3/16"
377T
1 11/16" x 7 1/2"
373L
1 11/16" x 7 1/2"
608DT 608NL 608TP 606K
24
24• VonDuprin88Series
Strikeoptions/Stileinformation
Strike/Stileinformation
*Use for rim/vertical rod combination — consult factory.
**Use for rim/vertical rod combination on stock hollow metal doors — consult factory.
***For mullion information, refer to the General and Auxiliary catalog.
Device
type
Standard
single door
Standard
double door
OPTIONAL
single door
OPTIONAL
double door
Strike Stile Strike
w/mullion Stile Strike Stile Strike
w/mullion*** STILE
88 299 4⁄"
(111 mm) 299 x 4954 4 ⁄"
(119 mm)
264 4⁄"
(105 mm)
299 x
5254/5654
4⁄"
(105 mm)
1409 33⁄"
(86 mm)
264 x
5254/5654 4" (107 mm)
264 x 4954 4⁄"
(113 mm)
1606
3
⁄
"
(100 mm)
1606 x 1654 4⁄"
(108 mm)
— — 1609* 4" (107 mm)
— — 1610** 4⁄"
(113 mm)
88-F 268 4⁄"
(111 mm) 268 x 9954 4⁄"
(119 mm) — — — —
8875
STRIKE STILE STRIKE STILE STRIKE STILE STRIKE STILE
575 4⁄"
(121 mm) — — — — 575-2
576A-576B
4 ⁄"
(121 mm)
8875-F 575 4⁄"
(121 mm) — — — — 575-2
576A-576B
4⁄"
(121 mm)
8827
STRIKE STILE STRIKE STILE
299 (top) Single door 2⁄"
(71 mm) 260U (top) Single Door 2 1⁄"
(71 mm)
Latch
retraction 304L/248L-4 (bottom)
Two vertical
rod devices
2⁄"
(64 mm) 385A (bottom) Two Vertical
Rod Devices
2⁄"
(64 mm)
Vertical rod
w/mortise
lock device
4⁄"
(121 mm)
Vertical Rod
w/Mortise
Lock Device
4⁄"
(121 mm)
8827-F Sot latch (top)
(bottom) 304L
Two vertical
rod devices
3 ⁄"
(95 mm)
385A (bottom)
Vertical rod
w/mortise
lock device
4 ⁄"
(121 mm)
8847-F Sot Latch (Top)
301L (Bottom)
Two vertical
rod devices
4 ⁄"
(121 mm)
Vertical rod
w/mortise
lock device
4 ⁄"
(121 mm)
Strike application/Minimum stile
VonDuprin88Series • 25

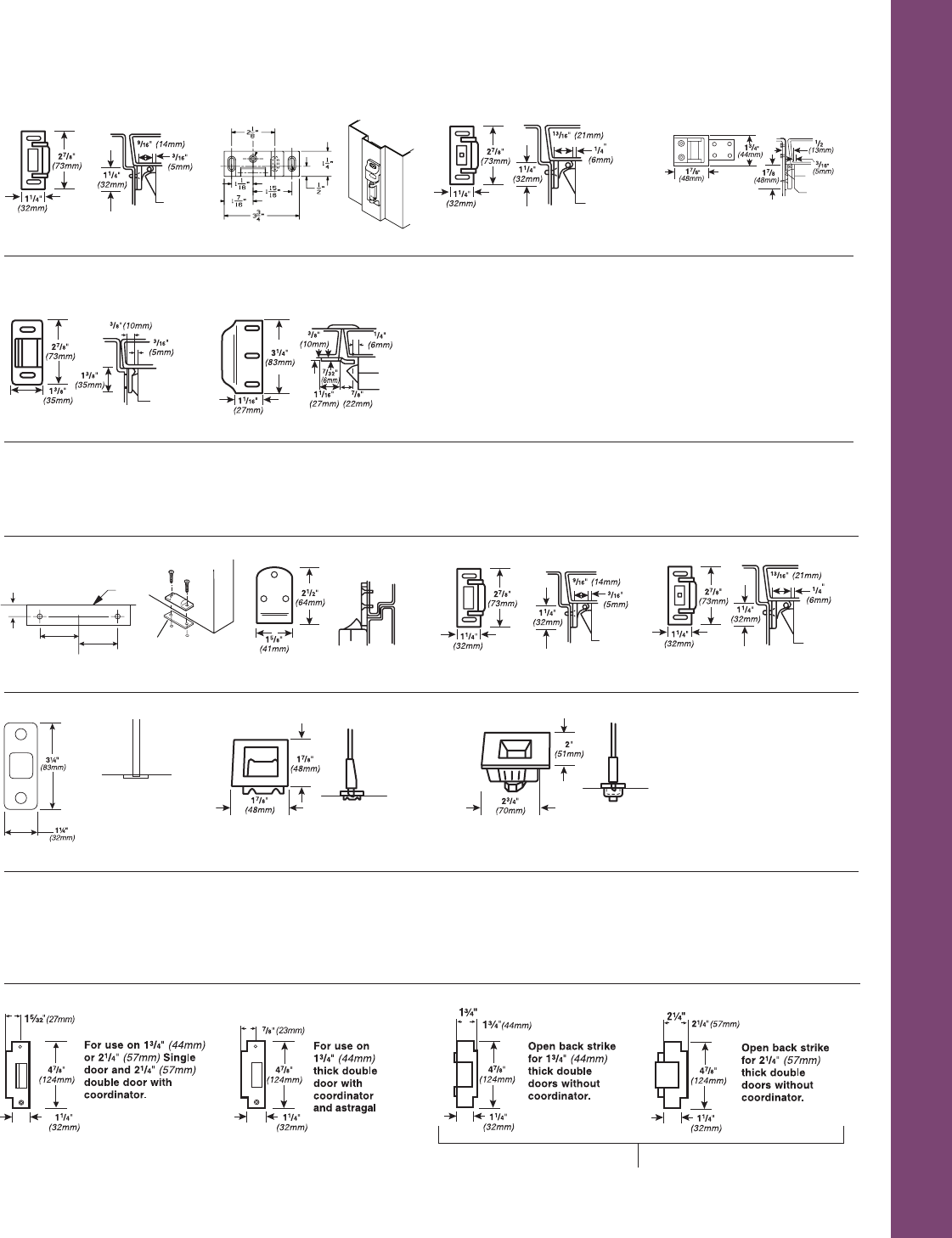

Strikeoptions
Strikes for rim devices
575 575-2 576A 576B
Strikeoptions
Strikes for rim devices
– Not for use with astragals
– For use on wood doors,
contact door
manufacturer
– Acceptable for 90 minute
pair of hollow metal doors
264 268 299 1409 — Blade stop
Projection 9/16" (14 mm) Projection 13/16" (21 mm) Projection 13/16" (21 mm) Projection 1/2" (13 mm)
1606
1609
For rim/vertical rod, panic only
consult factory
Projection 3/8" (10 mm)
Strikes for vertical rod devices
248L-4 260U – Flush transom only 264 299
Projection 3/8" (10 mm) Projection 3/8" (10 mm) Projection 5/8" (16 mm) Mortise 2 1/2" (64 mm)
301L 304L 385A
Mortise 3/4" (19 mm) Mortise 13/16" (21 mm) Mortise 2 1/2" (64 mm)
9/32”
15/16”
15/16”
Fold
here
Shim (as needed
to engage latch)
26
26• VonDuprin88Series
88Electricaloptions
88 Electrical options
E8875 Electric mortise lock device
The E8875 electric mortise lock device has all the versatility and
advantages of the 8875 mortise lock device, plus the advantage
of being electrically controllable by a remote switching device, an
access control or automatic device, or an automatic fire alarm
system. The E8875 feature controls the locking of the outside
trim. When unlocked, the door remains latched, preserving the
fire rating of the door and making it particularly useful where
codes permit locking, but require unlocking during a fire
emergency. Key override is an NL type function.
Standard features:
• Field reversible mortise lock
• 24 VDC continuous duty solenoid
• Tamper resistant (auxiliary dead latch)
• Silent operation
• Corrosion resistant
• Signaling functions
• Key mechanically retracts latchbolt
Optional features:
• Fail safe (locked when energized, unlocked when
de-energized or during power failure, specify with
sux “FS”).
• Fail secure (unlocked when energized — specify with sux
“FSE”). Outside trim automatically relocks, unless held
unlocked electrically.
• 24 VAC (by adding SO option).
• 12 VDC or 12 VAC with SO option.
To order, specify:
1a. E8875 or E8875F.
1b. E7500 (if lock only is required).
2. FS or FSE.
3. Voltage.
4. Handing, LHR or RHR
5. Outside trim. “TP”, “TP-BE”, “K”, “K-BE” or “L-BE” function
only. When using with “L” function, no cylinder operation is
available. Outside control is furnished “BE”.
Adaptable for openings where continuous latching is required
while the trim may be electrically locked or unlocked from a
remote location — stairwells, exterior doors, etc.

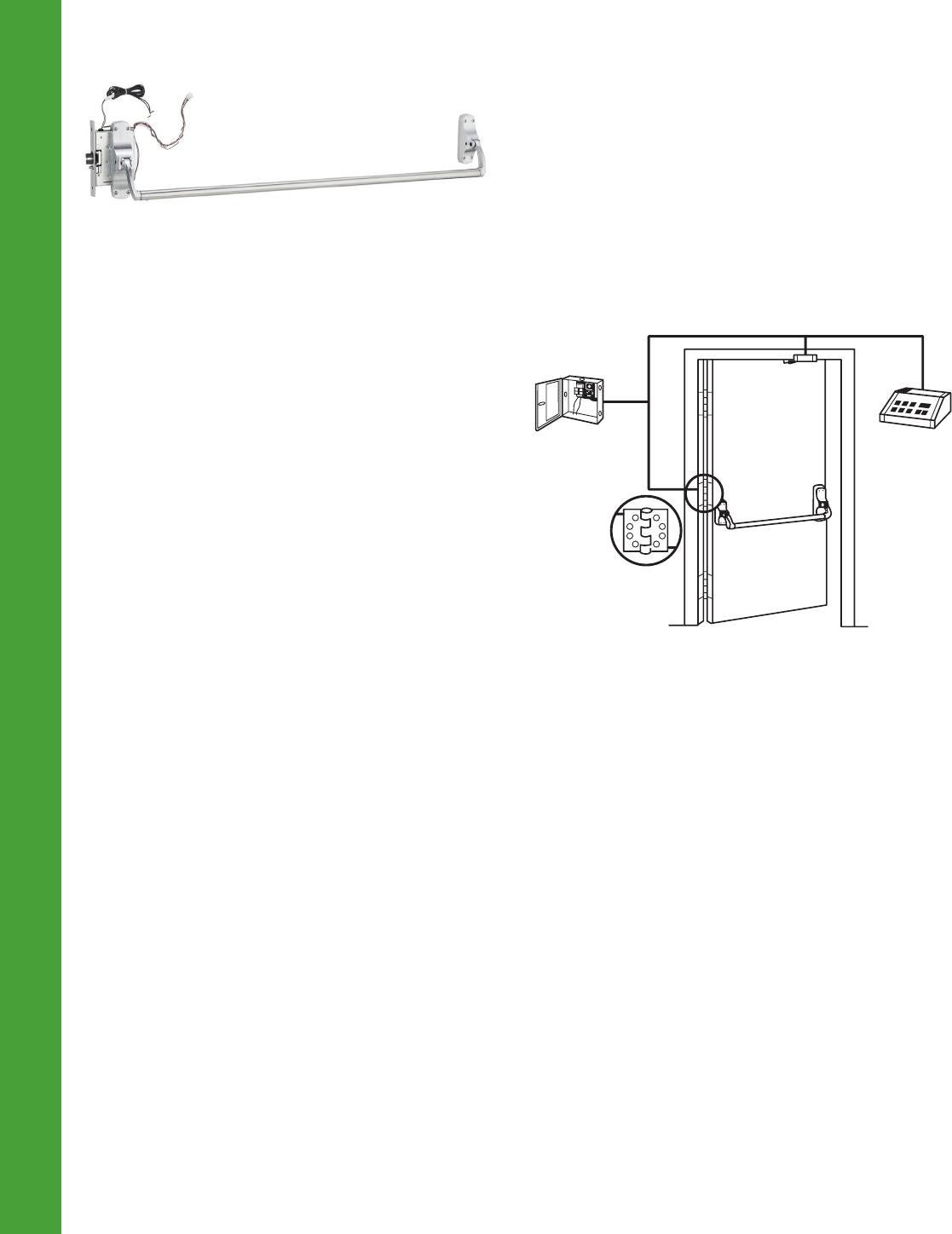

Magnetic
switch
Power
supply PS-902
Electric
feed-through
hinge
Desk
console
E - Electric unlocking of outside trim (BE only)
Available in Fail Secure (FSE) or Fail Safe (FS) options. 24VDC
furnished as standard, 12 VDC available.
To order, specify:
1. E prefix:
-E371L-BE / E376L-BE = for use with concealed
vertical rods
-E373L-BE = for use with rim, surface vertical
and mortise lock devices
2. FS or FSE
3. Voltage
4. Handing, LHR or RHR
VonDuprin88Series • 27
88Deviceoptions&accessories
88Deviceoptions&accessories
27
Latch guard
12"
3' or 4'
2 1/4"
10"

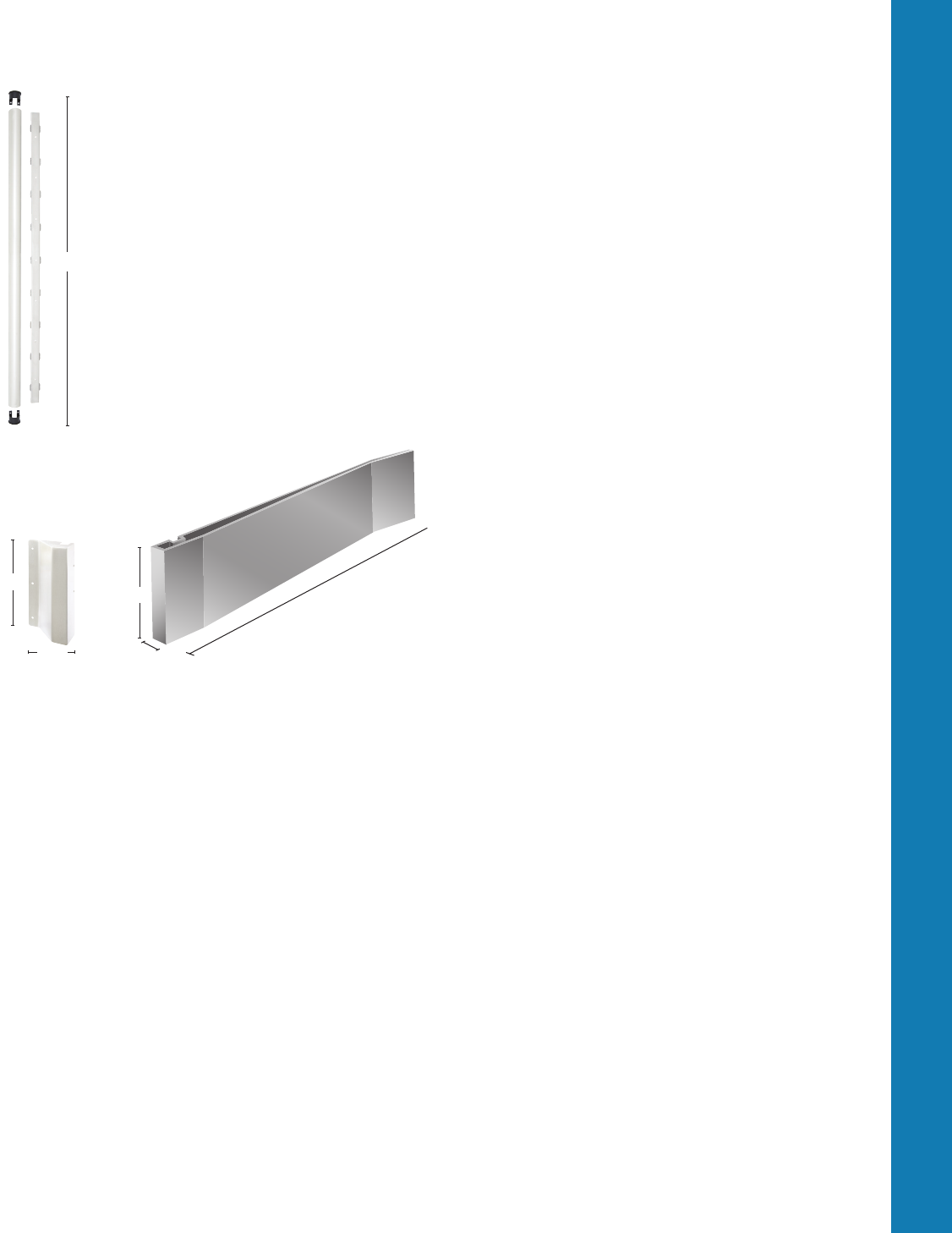

RG-27 Vertical rod and latch guard
Series RG-27 Vertical rod and latch guards protect the
bottom rods of exit devices from the damaging
impacts of carts or gurneys passing through doors. (If
bottom rods become damaged, the exit device will
not function as intended and can jeopardize the
ability to exit safely during an emergency.)
In addition to protecting the vertical rod, the guard
provides a smooth, unobstructed surface so the door
can be pushed open easily with the bumpers of a
wheelchair. The latch guard portion is 10" high. The
standard latch guard features a 45° ramp. The
extended latch guard offers a continuous ramp in 3'
or 4' widths.
All stainless steel construction in US32D finish. Latch
guards can cover latches as large as
1 1/4"W x 10"H x 1 7/8" projection.
Models
RGO Rod guard only (projection 1 3/16")
RG-27 Rod and latch guard
RG-27-3 3' (914mm) Rod guard and extended latch guard
RG-27-4 4' (1219mm) Rod guard and extended latch guard
LGO Latch guard only
LGO-3 3' (914mm) Extended latch guard only
LGO-4 4' (1219mm) Extended latch guard only
When using on wood fire doors, high density block is required.
To order, specify:
1. Model number.
2. Handing (except on RGO).
3. Door material if other than hollow metal.
4. Optional sex bolt mounting available.
Rod guard
Extended latch guard
4 3/8"
36"
28
28• VonDuprin88Series
Deviceoptions&accessories
Deviceoptions&accessories
Axle security pin
Non-removable security pin can be inserted into lever arm axle to
prevent tampering or removal of lever arm.
To order, specify
Part Number 033022 (package of 50).

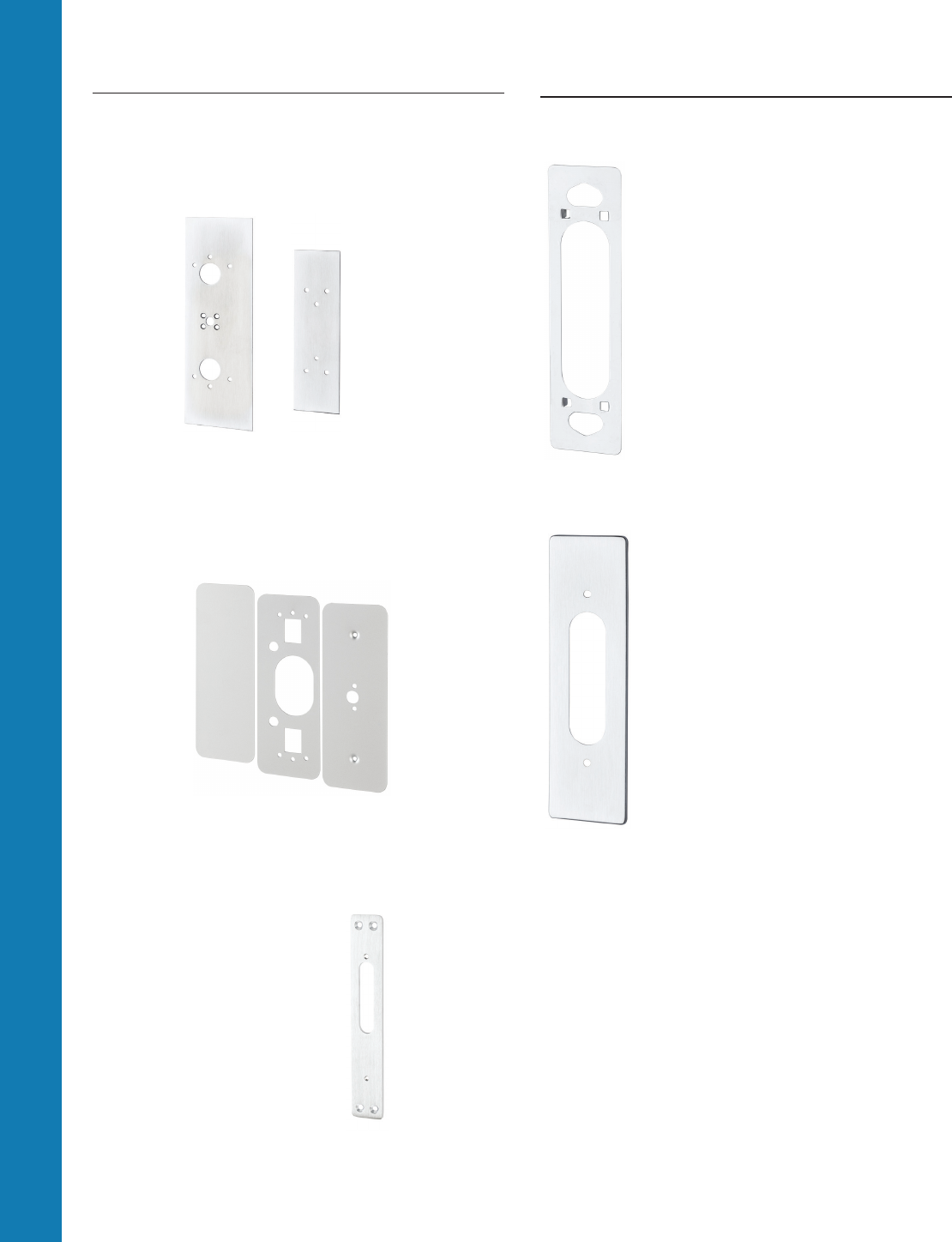

Cover plate kits
Device Controls
#10 WDA Kit
Required when 373L or 377T controls
are used on wood doors with the
following devices: 88L, 8827L,
8827TL, 8827TL-F, or 8875L (kit
covers cutout and prevents control
from damaging door).
889 Kit
Required when 373L controls are
used with sex bolts (sex bolts must
be used on wood or composite fire
doors). Four studs on cover plate
allow through-bolting to the device
center case.
13/4" (44mm)
9" (229mm)
4" (102mm)
12" (305mm) 9" (229mm)
21/2" (64mm)
882 Kit
For use to cover mortise lock or discontinued device
cut-outs. Specify finish.
887 Kit
Required for 88 rim/8827 vertical rod device combinations
on pairs of doors with ANSI 161 cutout. (The 88 rim device
backset is increased and exposes the 161 cutout when used
with 8827).
888 Kit
Required for 8875 mortise or 8827 vertical rod devices on
doors with ANSI 161 cutouts (device center case will not
cover stock cutout).
To order, specify:
1. Kit number.
2. Finish.
3. Device type (889 kit only).
15/8" (41mm)
10" (254mm)
15/8" (41mm)
10" (254mm)
889 Kit
15/8" (41mm)
10" (254mm)
#10 WDA Kit
VonDuprin88Series • 29
Additionalinformation
Additionalinformation
UL Listed — Fire exit hardware label/opening size
Double door
Exit device Single door With mullion Same direction
vert./vert.
Same direction vert/
mortise
Double egress
88-F 3 Hour 4' X 8' 3 Hour 8' X 8' — — —
8875-F 3 Hour 4' X 10' — — 3 Hour 8' X 10' —
8827-F — — 90 Min. 8' X 8' 3 Hour 8' X 8' 3 Hour 8' X 8'
8847-F — — 90 Min. 8' X 8' 3 Hour 8' X 8' 3 Hour 8' X 8
ANSI Function, grade & type
Function Grade 1 type 1 Grade 1 type 2 Grade 1 type 3 Grade 1 type 8
01 88EO, 88EO-F 8827EO, 8827EO-F 8875EO, 8875EO-F 8847EO-F
02 88DT 8827DT 8875DT —
03 88NL, 88NL-F —8875NL, 8875NL-F —
05 88TP, 88TP-F 8827TP, 8827TP-F 8875TP, 8875TP-F —
06 —8827TP-NL, 8827TP-NL-F
08 88K, 88K-F, 88L,
88L-F
8827K, 8827K-F
8827L, 8827L-F
8875K, 8875K-F 8875L,
8875L-F 8847L-F
09 88L-NL, 88L-NL-F 8827K-NL, 8827K-NL-F,
8827L-NL, 8827L-NL-F 8875L-NL, 8875L-NL-F 8847L-NL-F
09 — 8827TL-NL,
8827TL-NL-F —8847TL-NL-F
11-12 —8827TL, 8827TL-F —8847TL-F
30
30• VonDuprin88Series
Additionalinformation
Additionalinformation
Device type Kit Converts from – Converts to – Use with trim
88 CK-NL TP, K NL 880NL-R
CK-TP EO, DT, NL, K TP 880TP-R
CK-K/L EO, DT, NL, TP K880K-R
CK-K/L EO, DT, NL, TP L373L x 889 Plate (NL, DT, TP)
88F CK-NL-F TP-F, K-F NL-F 880NL-R
CK-TP-F EO-F, NL-F, K-F TP-F 880TP-R
CK-K/L-F EO-F, NL-F, TP-F K-F 880K-R
CK-K/L-F EO-F, NL-F, TP-F L-F 373L x 889 Plate (NL, DT, TP)
8827, 8827-F CK27-TP EO, DT, K (std. or fire) TP (std. or fire) 880TP-V
CK27-K/L EO, DT, TP (std. or fire) K (std. or fire) 880K-V
CK27-K/L EO, DT, TP (std. or fire) L (std. or fire) 373L x 889 Plate (NL, DT, TP)
CK27-TP-NL EO, DT, K (std. or fire) TP-NL 880TP-V
CK27-K-NL EO, DT, K (std. or fire) K-NL 880K-V
Function conversion kits
Conversion kits are required for 88 rim and 8827 devices. To convert functions on 8847 and 8875 devices, only new trim is required.
The 8875 mortise lock is field convertible for function.
VonDuprin88Series • 31
Finishes
88Seriesnishes
* Note: Durable powder coated finishes available at specific special request. PLEASE CONTACT FACTORY.
Finishes*
Color US Number BHMA
Number
Chromium,
polished US26 625
Chromium, dull US26D 626
Brass, polished US3 605
Brass, dull US4 606
Bronze,
dull-oxidized US10B 613
Bronze, dull US10 612
Sprayed black SPBLK
32• VonDuprin88Series
Notes
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 8,000 people and sells products in more than 120 countries
across the world. Allegion comprises more than 25 global brands, including
strategic brands CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
.
For more, visit www.allegion.com
About Allegion
© 2014 Allegion
005966, Rev. 11/14
www.allegion.com/us

Navigation menu
