Voxware BTH430 Bluetooth Modular Headset, Single-Ear (Mono) User Manual BT HD 1 USER gUIDE

Voxware, Inc. Bluetooth Modular Headset, Single-Ear (Mono) BT HD 1 USER gUIDE

Users Manual

BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 0
Quick Start Guide
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 1
Contents
Thank You ..................................................................................................................................................... 2
Please Read this Owner’s Guide .................................................................................................................. 2
Features ........................................................................................................................................................ 2
Charge the Battery ....................................................................................................................................... 3
Connecting Headset to Device ..................................................................................................................... 4
Pairing ........................................................................................................................................................... 4
Position the Boom ........................................................................................................................................ 5
Adjust Headband .......................................................................................................................................... 5
Headband Disassembly ................................................................................................................................ 6
Install Windscreen and Ear Cushion ............................................................................................................ 6
Understanding LED Lights and Tones .......................................................................................................... 7
Cleaning and Maintenance .......................................................................................................................... 7
Troubleshooting ........................................................................................................................................... 8
Battery Safety Guidelines ............................................................................................................................ 9
Safety and Regulatory Information ........................................................................................................... 10
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 2
Thank You
We appreciate your purchase of the Voxware™ BTH430 Bluetooth® Headset. This rugged wireless
Headset combines high-quality audio performance, environmental durability, and lightweight comfort
without sacrificing stability during active use.
Please Read this Owner’s Guide
Please take the time to follow the instructions in this owner’s guide carefully. It will help you set up and
operate your Headset properly and enjoy its advanced features. Please save this guide for future
reference.

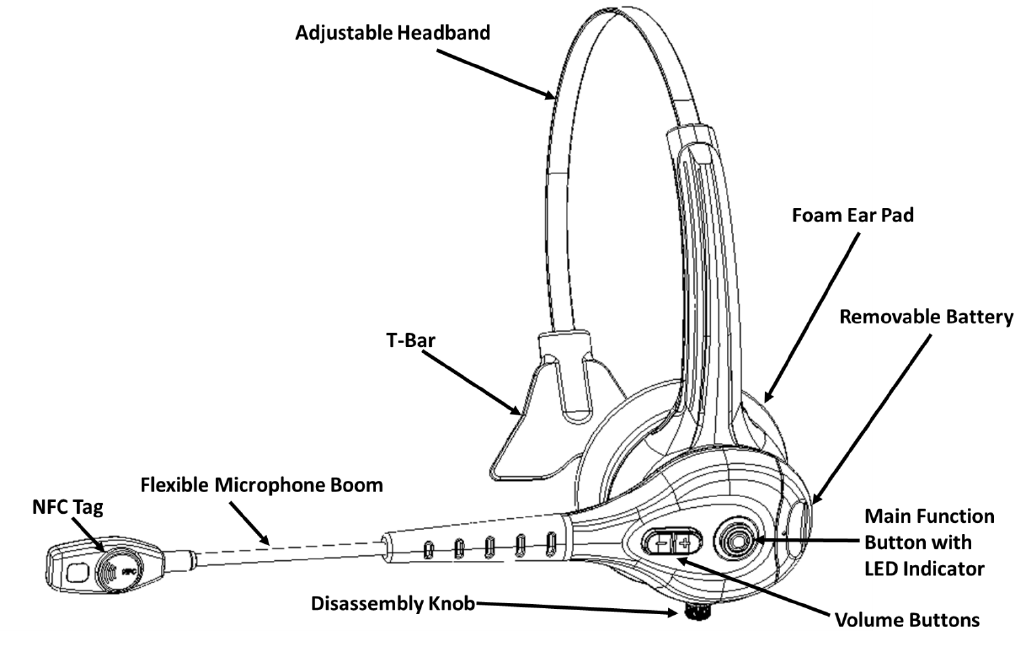

Features
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 3
1

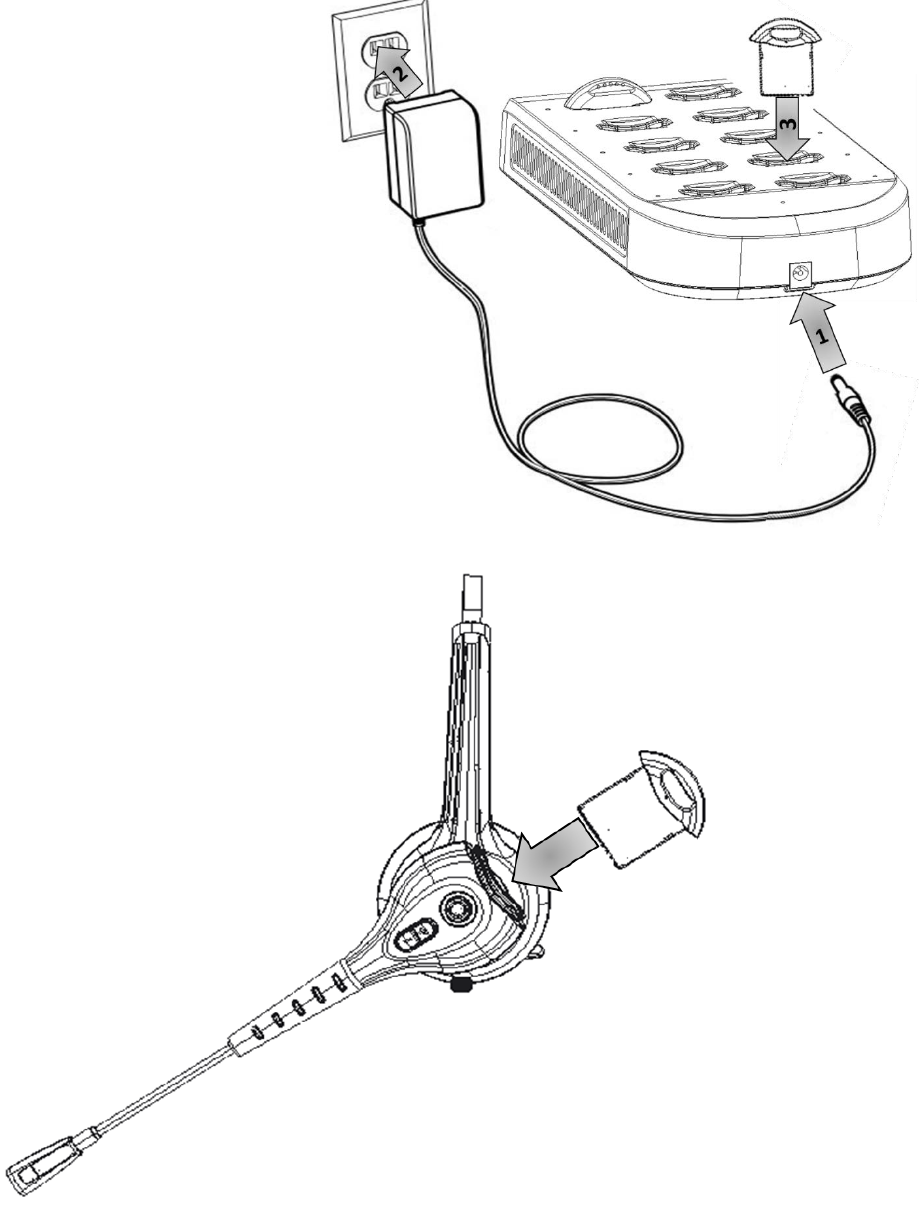

Charge the Battery
1. Insert plug into charger.
2. Insert Multi-Country AC adapter
into power outlet.
3. Insert Battery into the charger.
Charge for 3 hours prior to use.
Insert the Battery
1. Insert battery into headset until firmly seated.
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 4
Connecting Headset to Device
To use the BTH430 Headset with a Bluetooth Device (or “Host”), such as a mobile computer or industrial
tablet, you must first establish a wireless connection between the Headset and the intended Device.
This process is called “Pairing”.
Note: In order to avoid accidently pairing the Headset to multiple Devices, Headset may only be
paired to one device at a time.
Pairing
The Headset may be paired with Bluetooth devices in the following three ways:
1. Touch-to-Pair with devices supporting an NFC Connection.
2. Scan-to-Pair with devices supporting Bluetooth Mac Address Scanning.
3. Standard Bluetooth pairing where the headset is discovered by the Host.
Headset must be within close proximity of the host to complete pairing. To initiate pairing, Headset
must be powered off. If the headset is on, turn off by pressing the Multi-Function Button for 2 seconds.
Initiate headset pairing by pressing the Multi-Function Button for 12 seconds until you hear “Pairing”
and the LED alternately flashes red and blue.
1. For Touch-to-Pair, touch Headset NFC tag, located in the microphone assembly, to NFC tag of Host.
2. For Scan-to-Pair, activate Host scanning function and scan Headset Bluetooth Mac Address Barcode
Label.
3. For Standard Bluetooth pairing, use the Host’s Bluetooth search and pairing functionality (refer to
the Host documentation if necessary) and select “BTH430”. If necessary, enter four zeros (0000) for
the passcode and accept connection.
Once successfully paired, you will hear “Pairing Successful” and the LED will flash blue, once every two
seconds indicating the Headset and Host are connected. The Headset may be paired to a new Host
using the above procedure. Note that this will undo the pairing to the current Host.
Once the Headset and Host have been paired, the Headset and Host will automatically reconnect the
next time they are both powered on and in close proximity to each other.
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 5

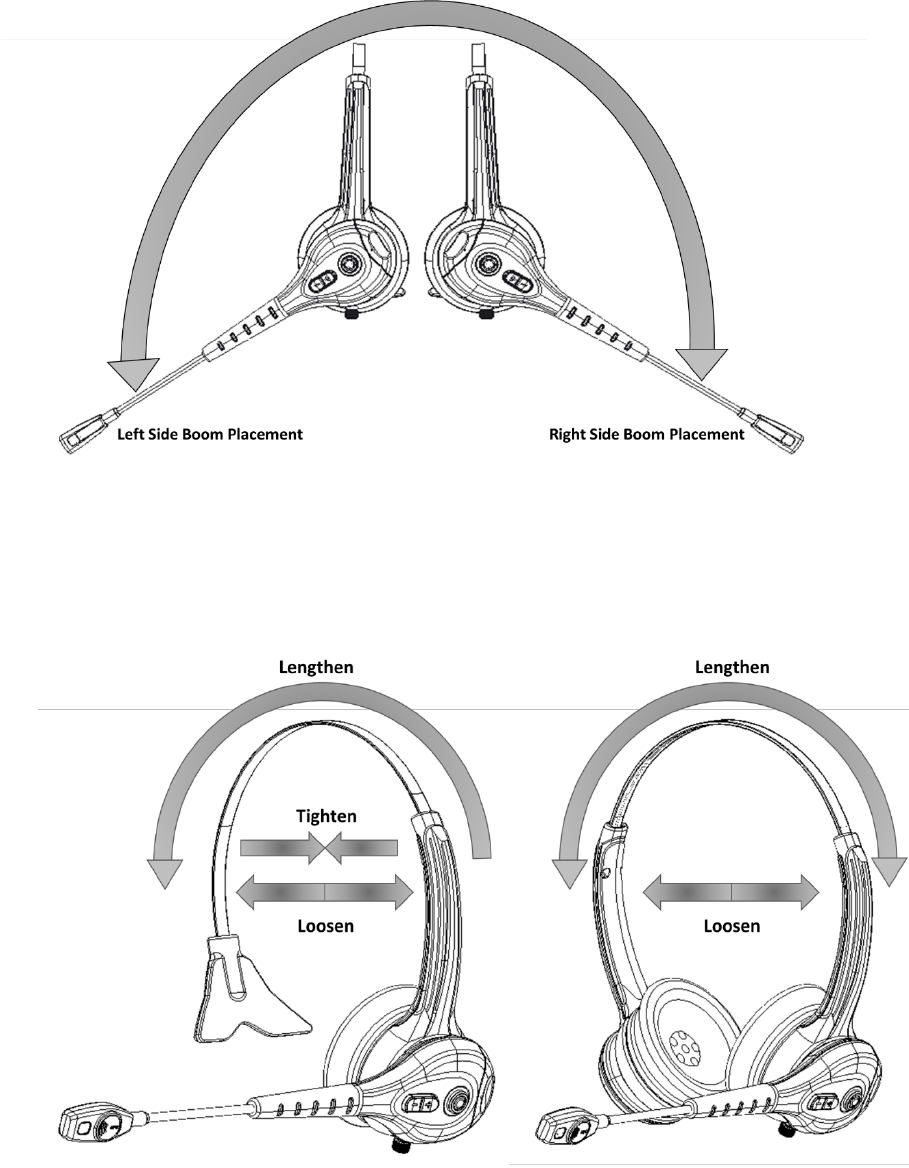

Position the Boom
Do not rotate the boom beyond the stop point.
*Applies to Mono and Binaural Model. The Behind the Neck model has only left side boom placement.
Adjust Headband
The headband can be squeezed for a tighter or a looser fit to the head. The stainless steel head band
will click as it is positioned into place. When adjusting the headband:
• Position the ear pad in the center of the ear.
• Position the T-Bar above the ear, half way between the top of the ear and the top of the head.
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 6

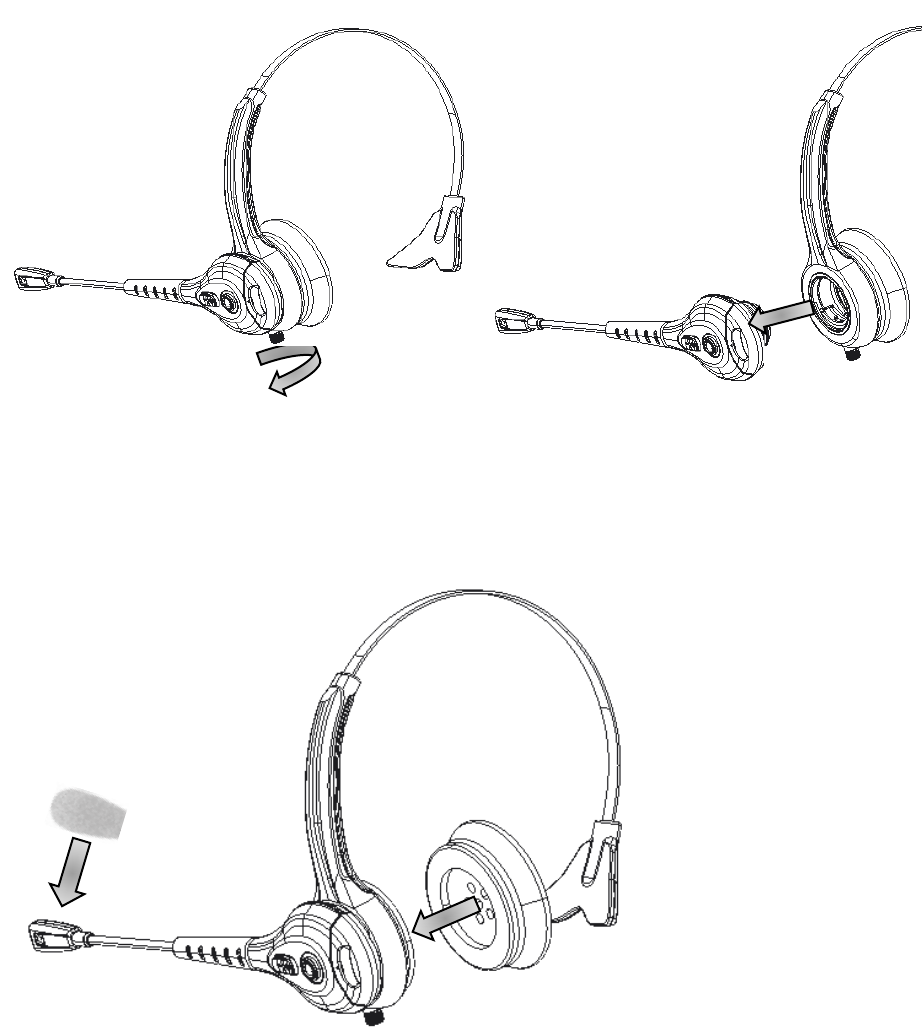

Headband Disassembly
1. Loosen the Headband Set Screw Counterclockwise
2. Remove Bluetooth Headset Module from Headband Module
Install Windscreen and Ear Cushion
2.
1.
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 7
Understanding LED Lights and Tones
Primary Features
Headset Control
Tones
Pairing
With Power Off, Press Multi-
Function Button for 4 Seconds
“Pairing”
Pairing Complete
Automatic
“Pairing Successful”
Power On
Press Multi-Function Button for 2
Seconds
“Power On”
Power Off
Press Multi-Function Button for 2
Seconds
“Power Off” or
4 Note Falling Scale
Volume
Press Volume + or Volume - to
Increase or Decrease Volume
< Increase Volume
>Decrease Volume
Connected
Automatic
Double Short
Connection Lost
Automatic
“Lost Connection”
Clear Paired Device List
Press Multi-Function and
Volume- for 7 Seconds
Double Low
Low Battery Warning
Automatic
“Low Battery”
Low Battery Shutdown
Automatic
4 Descending
Auto Shutdown
Automatic
4 Descending
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Voxware™ is under license. Other trademarks and trade names
are those of their respective owners.
Cleaning and Maintenance
To maintain the BTH430 Headset we suggest the following guidelines:
• Do not expose the Headset to harsh chemicals or cleaning agents.
• The Battery must be fully inserted and locked into place in order for it to become IP67
Waterproof. Do NOT immerse the Headset in water beyond 3 feet (1 meter) for beyond 30
minutes per IP-67 Specifications.
• If the Headset becomes dirty, wipe it with a soft damp cloth. Do not use soap, cleaning fluids or
chemicals.
• Keep dust, dirt and debris out of the Headset Battery Slot and the Battery Charger Slots.
• When handling the Headset Battery, keep the Battery Contacts free of dirt, grease, oil and other
substances that can affect the Battery from making proper contact with the Headset or Charger.
• Battery contacts must be covered with protective sleeve to prevent short circuit and discharge
after the Battery is removed from the headset.
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 8
Troubleshooting
Operation
Problem
Possible Solution
Operating
Headset will not Turn On
Make sure Battery is fully seated in
Headset.
Make sure Battery is charged by placing
Battery in Battery Charger and following
the Battery charging instructions.
Pairing
Does not Pair
Headset should be off when beginning
pairing process.
Make sure intended Bluetooth Device is
on.
Make sure Headset is within 12 inches of
intended Bluetooth Device.
Make sure you select “ModCom One” on
your Bluetooth Device search menu.
Headset appears to be paired but
cannot communicate with intended
Bluetooth Device
Headset may be connected with different
Bluetooth Device.
1. Make sure intended Bluetooth
Device is within 12 inches of
Headset.
2. Make sure all other non-intended
Bluetooth Devices are 6 feet away
from Headset.
3. Turn off Headset and start pairing
process again.
Charging Battery
Battery does not seat properly in the
Charging Slot
Rotate Battery and re-insert into Charging
Slot.
No LEDs Light on Charger when
Battery is inserted
Check Power Cable connection to Charger.
Battery may be faulty. Replace Battery.
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 9
Battery Safety Guidelines
• The area in which the Batteries are charged should be clear of debris and combustible materials
or chemicals. Improper Battery use may result in a fire, explosion, or other hazard.
• To charge the Headset Battery, the Battery and Charger temperatures must be between 41°F –
95°F (5°C – 35°C).
• Do not use incompatible Batteries and/or Chargers. Use of an incompatible Battery or Charger
may present a risk of fire, explosion, leakage, or other hazard. If you have any questions about
the compatibility of a Battery or a Charger, contact your Distributor Customer Support.
• Do not disassemble, open, crush, bend, deform, puncture, or shred.
• Severe impact from dropping any Battery-Operated Device on a hard surface could cause the
Battery to overheat.
• Do not short circuit a Battery or allow metallic or conductive objects to contact the Battery
terminals. Use the supplied protective Battery Sleeve when Battery is removed from Headset.
• Do not modify or remanufacture, attempt to insert foreign objects into the Battery, immerse or
expose to water or other liquids, or expose to fire, explosion, or other hazard.
• Do not leave or store the Battery in or near areas that might get very hot, such as in a parked
vehicle, near a radiator or other heat source.
• Do not place Battery into a microwave oven, conventional oven, toaster oven, washer, dryer,
dishwasher, or other mechanical devices.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable Batteries.
• Do not dispose of Batteries in fire.
• Seek medical advice immediately if a Battery has been swallowed.
• In the event of a Battery leak, do not allow the liquid to come in contact with the skin or eyes. If
contact is made, wash the affected area with large amounts of water and seek medical advice.
• If you suspect damage to your Headset or Battery, contact your Distributor Customer Support to
arrange for inspection.
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 10
Safety and Regulatory Information
• Warnings for use of Wireless Devices. Please
observe all warning notices with regard to the
usage of wireless devices.
• Potentially Hazardous Atmospheres –
Vehicles Use. You are reminded of the need
to observe restrictions on the use of radio
devices in fuel depots, chemical plants etc.
and areas where the air contains chemicals or
particles (such as grain, dust, or metal
powders) and any other area where you
would normally be advised to turn off your
vehicle engine.
• Potentially Hazardous Atmospheres – Fixed
Installations. You are reminded of the need to
observe restrictions on the use of radio devices
in fuel depots, chemical plants etc. and areas
where the air contains chemicals or particles
(such as grain, dust, or metal powders).
• Contains small parts which can be a choking
hazard.
• Not suitable for children under age 3.
• This product contains magnets which can be
harmful to pacemakers, or similar medical
devices.
• To reduce the risk of fire or electrical shock, do
not expose the product to rain or moisture.
• As with any electronic products, use care not
to spill liquids into any part of the system.
Liquids can cause a failure and/or a fire hazard.
• Do not place any naked flame sources, such as
lighted candles, on or near the apparatus.
• Use caution when using your headset while
operating a vehicle or engaging in any activity
that requires your full attention. Check and
follow local laws regarding mobile phone and
headset use. Some jurisdictions impose
specific limitations, such as single earpiece
configuration, on the use of such products
while driving.
• Sounds that you rely on as reminders or
warnings may sound different when using a
headset. Be aware of how these sounds may
vary in character so you can recognize them as
needed.
• Do not leave a battery on prolonged charge
when not in use.
CAUTION:
Do not make modifications to the headset or
accessories. Unauthorized alterations may
compromise safety, regulatory compliance,
and product performance and warranty.
• Long-term exposure to loud music may cause
hearing damage. It is best to avoid extreme
volume when using a headset, especially for
extended periods.
• Use only with the supplied power supply
meeting local regulatory requirements (ex.
UL, CSA, VDE, CCC).
• Use caution when using a Headset while
operating a motor vehicle or anywhere the
inability to hear outside sounds may present a
danger to you or others.
• The BTH430 Headset does not require
scheduled cleaning. Should cleaning be
necessary, simply wipe the outside surfaces
with a soft damp cloth.
Regulatory Information
All Voxware™ devices are designed to be
compliant with rules and regulations in the
locations they are sold and will be labeled as
required. This regulatory information applies to
Model number BTH430.
International
This device complies with internationally
recognized standards covering human exposure
to electromagnetic fields from radio devices.
Wireless Device Country Approvals
Regulatory markings, subject to certification,
are applied to the device signifying the radio
(s) is/are approved for use in the following
countries: United States, Canada, and Europe.
Note: Europe includes Austria, Belgium,
Bulgaria, Czech Republic, Cyprus, Denmark,
Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania, Luxembourg, Malta,
BTH430 Quick Start Guide v.1
Part No: BTH4XX Manual v1.0 11
Netherlands, Norway, Poland, Portugal,
Romania, Slovak Republic, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CE NOTICE TO USERS
Voxware, Inc.™ hereby declares that this
product is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC, 2011/65/EU and all other
applicable EU directive requirements.
FCC NOTICE TO USERS
This device complies with FCC and Industry
Canada RF radiation exposure limits set forth
for general population. It must not be
co-located or be operating in conjunction with
any other antenna or transmitter.
In the United States:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, this is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, you are encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the Headset Charger to an outlet on
a different circuit than the one to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly
approved by Voxware, Inc.™ could void the
user’s authority to operate this equipment.
In USA and Canada:
This device complies with part 15 of the FCC
rules and Industry Canada license-exempt RSS
standard(s). Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes:
1. l'appareil ne doit pas produire de
brouillage, et
2. l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en
compromettre le functionnement.
This class B digital apparatus complies with
CAN ICES-3 (B) / NMB-3 (B)
Waste Electrical and Electronic Equipment
This symbol on the product or on its packaging
indicates that this product must not be
disposed of with your other household waste.
Instead, it is your responsibility to dispose of
your waste equipment by handing it over to a
designated collection point for the recycling of
waste electrical and electronic equipment. The
separate collection and recycling of your waste
equipment at the time of disposal will help to
conserve natural resources and ensure that it is
recycled in a manner that protects human
health and the environment. For more
information about where you can drop off your
waste equipment for recycling, please contact
your local city/town office or the distributer
where you purchased your equipment.

Navigation menu
