Directed Passive Keyless Entry System (PKE) Keyfob
Model PKETR1
© 2012 Directed, Vista, CA
PKETR1 2012-07-18
3
© 2012 Directed. All rights reserved.
Contents
Government regulations .....................................................................................4
Warning! Safety first .........................................................................................6
Important information ........................................................................................6
System maintenance ..................................................................................6
Maximize the performance of your system ...................................................6
PKE Key Fob (PKETR1) .......................................................................................7
Using the system ...............................................................................................8
Automatic unlocking and locking of the vehicle.............................................8
Manual unlocking and locking of the vehicle ................................................8
Enabling/Disabling valet mode ..................................................................9
Sleep mode............................................................................................10
Glossary of terms ............................................................................................11
Limited lifetime consumer warranty ....................................................................12
4© 2012 Directed. All rights reserved.
Government regulations
This device complies with Part 15 of FCC rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television,
which can be determined by turning the equipment Off and ON, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
To satisfy FCC RF exposure compliance requirements, this device should be used
in hand-held, hand operated configurations only. This device is designed to be
used in a person’s hands and its operating configurations do not support normal
transmissions while it is carried in pockets or holsters next to a persons’ body.
5
© 2012 Directed. All rights reserved.
This device complies with the Industry Canada Radio Standards Specification
RSS 210. Its use is authorized only on a no-interference, no-protection basis;
in other words, this device must not be used if it is determined that it causes
harmful interference to services authorized by IC. In addition, the user of this
device must accept any radio interference that may be received, even if this
interference could affect the operation of the device.
Warning:
The installation of this product must only be performed by technicians who
are trained or certified by Directed dealers. Changes or modifications not
expressly approved by the party responsible for compliance could void the
user’s authority to operate this device.
6© 2012 Directed. All rights reserved.
Warning! Safety first
The following safety warning must be observed at all times:
Due to the complexity of this system, installation of this product must only be
performed by an authorized Directed dealer.
Important information
Congratulations on the purchase of your state-of-the-art Passive Keyless Entry
System (PKE). Due to the complexity of this system, it must be installed by an
authorized dealer only. Installation of this product by anyone other than an au-
thorized dealer voids the warranty. All dealers are provided with a preprinted
dealer certificate to verify authorization.
By carefully reading this Owner’s Guide prior to using your system, you will
maximize the use of this system and its features. You can print additional or
replacement copies of this manual by accessing our web site at
www.xpresskit.com.
System maintenance
The system requires no specific maintenance. Your remote is powered by a
small coin cell lightweight 3-volt lithium battery (CR2032) that lasts approxi-
mately 3 years under normal use. When the battery begins to weaken, the
operating range is reduced.
Maximize the performance of your system
Never put the key fob together with a cellphone as this may affect the range
and its performance.
7
© 2012 Directed. All rights reserved.

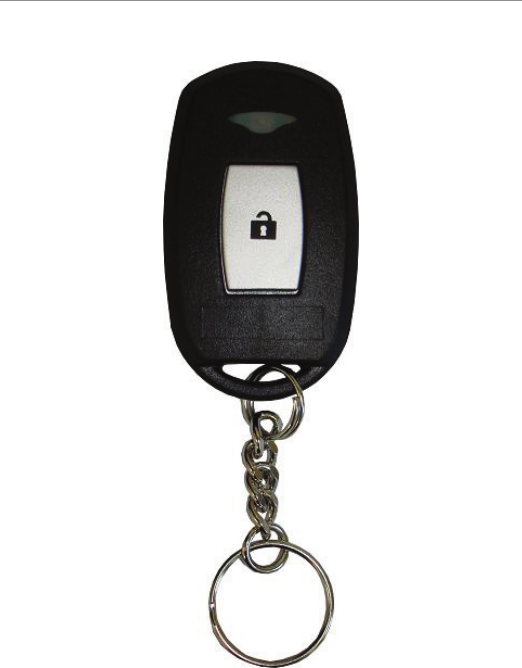

PKE Key Fob (PKETR1)
8© 2012 Directed. All rights reserved.
Using the system
Automatic unlocking and locking of the vehicle
Passive door unlocking
The key fob LED will start flashing green once you have entered the active
zone. The doors will be automatically unlocked and the starter kill (optional)
will be disarmed.
Note: The unlock operation may be delayed when approaching the vehicle
immediately after a remote start command has been sent.
Passive door locking
The key fob LED will start flashing red once you have left the active zone. The
doors will be automatically locked and the starter kill (optional) will be armed.
The key fob LED will turn ON solid red for 1 second to confirm when the doors
have been locked.
Starter kill output (optional)
When the optional starter kill feature is installed and active, it will interrupt the
starter wire of the vehicle when doors are locked; thus preventing vehicle theft
by not allowing the vehicle to be started.
Note
: This feature is optional and must be configured by the installer (optional
parts and extra labor required).
The optional starter kill is disabled as soon as the doors are unlocked by the
PKE system. It can also be disabled with a toggle switch installed somewhere
in the vehicle. Refer to your authorized dealer for the location.
Manual unlocking and locking of the vehicle
Although the PKE system allows for automatic locking and unlocking of the ve-
hicle when you approach and leave the active zone, it also offers the flexibility
of manually locking and unlocking doors with the remote.
9
© 2012 Directed. All rights reserved.
Manual unlocking
Press and hold the button until the LED on the remote flashes red. The park-
ing lights will flash twice to confirm the doors have been unlocked.
Manual locking
Press and release the button for 1 second. The LED on the remote will flash
red indicating that the command is being sent, and the parking lights will flash
once to confirm the doors have been locked.
Note: When installed with certain remote starter models, the doors might not
locks when the vehicle is running by the key.
Enabling/Disabling valet mode
Valet mode can be enabled and disabled using the following procedure.
When the feature is enabled, the automatic locking/unlocking operation upon
entering the active zone will be disabled. However, manual locking/unlocking
of the vehicle is possible in valet mode, as long as the ignition is off.
Enable valet mode
Within the active zone, quickly press and release the key fob button twice,
then press and hold until the remote LED flashes red to confirm the system has
entered valet mode. The key fob LED will no longer flash to indicate whether
you are in the active zone or not.
Disable valet mode
Within the active zone, quickly press and release the key fob button twice,
then press and hold until the remote LED flashes red to confirm the system has
exited valet mode. The key fob LED will flash to indicate whether you are in the
active zone or not.
10 © 2012 Directed. All rights reserved.
Sleep mode
For security reasons, your PKE system is in sleep mode while the vehicle is in
motion.
Turning the sleep mode ON
In order to prolong the key fob battery life, the PKE system will enter sleep
mode once the user is in the vehicle, all the doors are closed and the brake
pedal is depressed (a valid key fob must be inside the vehicle).
Warning: Failure to execute these steps, while the key fob is present in the
vehicle, may cause its battery to be drained prematurely, and consequently
your keys may become locked inside the vehicle.
Turning the sleep mode OFF
The PKE system will exit sleep mode and will return to normal operation when
a door is opened.
Note
: This feature is automatically enabled/disabled every time vehicle is in
use. It does not affect the user's experience.
11
© 2012 Directed. All rights reserved.
Glossary of terms
Key Fob: The functions of the Passive Keyless Entry (PKE) system are contained
on a key fob or built into the ignition key handle itself. A key fob is by defini-
tion a key chain.
LED: A light used to indicate the status of your system. It is located on your
remote.
PKE: Passive Keyless Entry.
Starter Kill: An interrupt controlled by the PKE system which prevents the
vehicle’s starter from cranking whenever the system is locked.
12 © 2012 Directed. All rights reserved.
Limited lifetime consumer warranty
Directed promises to the original purchaser to repair or replace (at Directed’s election)
with a comparable reconditioned model any Directed unit (hereafter the “unit”), excluding
without limitation the siren, the remote transmitters, the associated sensors and accessories,
which proves to be defective in workmanship or material under reasonable use during the
lifetime of the vehicle provided the following conditions are met: the unit was purchased
from an authorized Directed dealer, the unit was professionally installed and serviced by
an authorized Directed dealer; the unit will be professionally reinstalled in the vehicle in
which it was originally installed by an authorized Directed dealer; and the unit is returned
to Directed, shipping prepaid with a legible copy of the bill of sale or other dated proof
of purchase bearing the following information: consumer’s name, telephone number and
address; the authorized dealers name, telephone number and address; complete product
description, including accessories; the year, make and model of the vehicle; vehicle license
number and vehicle identification number. All components other than the unit, including
without limitation the siren, the remote transmitters and the associated sensors and acces-
sories, carry a one-year warranty from the date of purchase of the same. ALL PRODUCTS
RECEIVED BY DIRECTED FOR WARRANTY REPAIR WITHOUT PROOF OF PURCHASE
WILL BE DENIED. This warranty is non-transferable and is automatically void if: the original
purchaser has not completed the warranty card and mailed it within ten (10) days from the
date of purchase to the address listed on the card; the unit’s date code or serial number is
defaced, missing or altered; the unit has been modified or used in a manner contrary to
its intended purpose; the unit has been damaged by accident, unreasonable use, neglect,
improper service, installation or other causes not arising out of defects in materials or con-
struction. The warranty does not cover damage to the unit caused by installation or removal
of the unit. Directed, in its sole discretion, will determine what constitutes excessive damage
and may refuse the return of any unit with excessive damage.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUDING
BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF
MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND WARRANTY OF NON-
INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED; AND
DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME
FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS
OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. DIRECTED
SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS AGAINST POSSIBLE
THEFT. DIRECTED IS NOT OFFERING A GUARANTEE OR INSURANCE AGAINST
VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS;
AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUDING
WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM. THIS
WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR
REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND.
IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY,
THE VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN
THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED
SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE
PRICE OF THE UNIT. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES
WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGE TO VEHICLE, DAMAGES FOR THE LOSS OF TIME,
LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER
A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE SUBJECT TO
THE CONDITIONS AS DESCRIBED HEREIN. THIS WARRANTY IS VOID IF THE UNIT
HAS NOT BEEN PURCHASED FROM DIRECTED, OR AN AUTHORIZED DIRECTED
DEALER, OR IF THE UNIT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE,
NEGLIGENCE, ACTS OF GOD, NEGLECT, IMPROPER SERVICE, OR OTHER CAUSES
NOT ARISING OUT OF DEFECT IN MATERIALS OR CONSTRUCTION.
Some states do not allow limitations on how long an implied warranty will last or the exclu-
sion or limitation of incidental or consequential damages. This warranty gives you specific
legal rights and you may also have other rights that vary from State to State.
This warranty is only valid for sale of product(s) within the United States of America.
Product(s) sold outside of the United States of America are sold “AS-IS” and shall have NO
WARRANTY, express or implied. This product may be covered by a Guaranteed Protection
Plan (“GPP”). See your authorized Directed dealer for details of the plan or call Directed
Customer Service at 1-800-876-0800.
Make sure you have all of the following information from your authorized Directed dealer:
A clear copy of the sales receipt, showing the following:
• Date of purchase
• Your full name and address
• Authorized dealer’s company name and address
• Type of alarm installed
• Year, make, model and color of the automobile
• Automobile license number
• Vehicle identification number
• All security options installed on automobile
• Installation receipts
920-0003 06-06
PKETR1 2012-07-18
Vista, CA 92081
www.directed.com
© 2012 Directed—All rights reserved
The company behind this system is Directed
Since its inception, Directed has had one purpose, to provide consumers
with the finest vehicle security and car stereo products and accessories avail-
able. The recipient of nearly 100 patents and Innovations Awards in the
field of advanced electronic technology.
Directed is ISO 9001 registered.
Quality Directed products are sold and serviced throughout North America
and around the world.
Call (800) 274-0200 for more information about our products and services.
Designed and Engineered in the USA
