WALTOP RSKT06 Bluetooth Pen Pad; Bluetooth Tablet II User Manual

WALTOP International Corp. Bluetooth Pen Pad; Bluetooth Tablet II Users Manual

Users Manual

Pen Pad Users Manual RSK-T06
1The R&TTE Directive We, the manufacturer (WALTOP International Corp.) hereby declare that this equipment (Bluetooth Pen Pad- Flying Pad), model RSK-T06 is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC. FCC Caution This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditionsThis device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set for the fore an uncontrolled environment.This Transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.Any changes or modications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.1.2.•••
2Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. ••••
3ContentsThe R&TTE Directive 1FCC Caution 1Federal Communication Commission Interference Statement 2Introduction 4Hardware introduction 4Function introduction 5How to change the battery 5How to replace the Pen Rell 6Software Introduction of Bluetooth Pen Pad Manager 7Wireless mode 8Wired mode 8LED Indicator information 8USB mode 9Important information for you to read! 10Installation 11Wired mode 11Wireless mode 12How to Unpairing 27Troubleshooting 29Product Specication 31Bluetooth Pen Pad 31Maintenance 33Environment 34———————————
4IntroductionThank you for purchasing this product. Bluetooth Pen Pad provides two modes of connection with a PC: Wireless mode and wired mode. Both modes provide a convenient working environment. Please note that the setup procedures are different from wired and wireless mode and these will be stressed through this manual. Hardware introduction —Battery coverPad “USB portPower ButtonUnpairing (press 5 seconds to unpair)Macro keyPen Slot

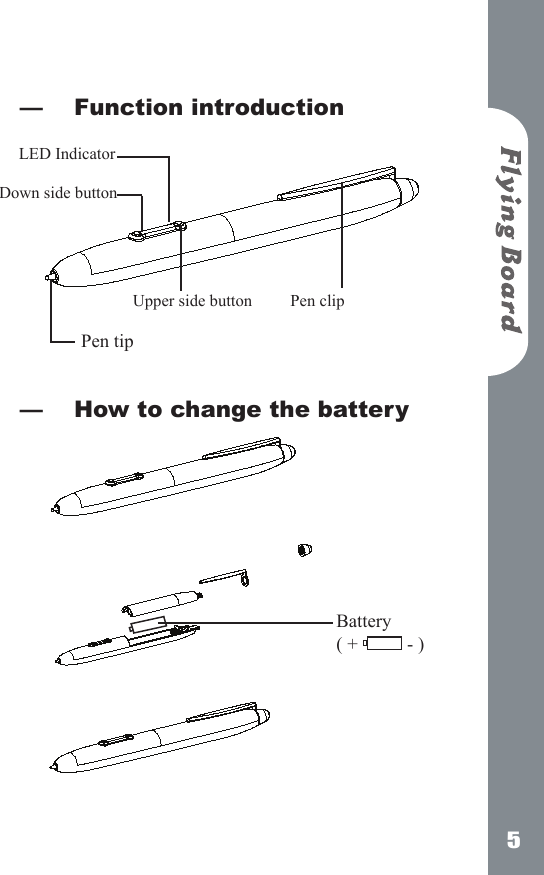

5Function introduction Upper side button Pen clipDown side buttonLED IndicatorHow to change the battery——Pen tip Battery( + - )
6How to replace the Pen RellPull out the used pen tip with the Rell Tweezers provided. Insert the Pen Rell to the pen. Press rmly on a hard surface for 5 seconds till the Pen Rell is locked. —1.2.3.

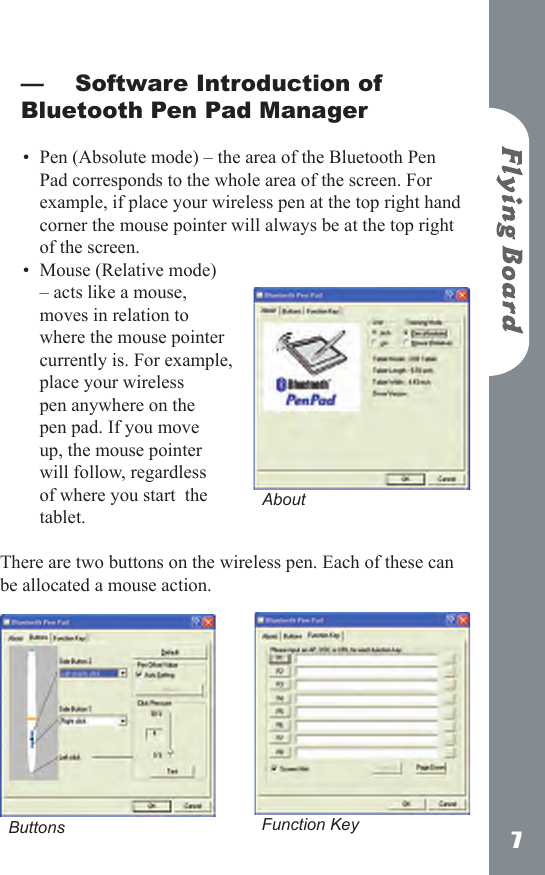

7Software Introduction of Bluetooth Pen Pad Manager Pen (Absolute mode) – the area of the Bluetooth Pen Pad corresponds to the whole area of the screen. For example, if place your wireless pen at the top right hand corner the mouse pointer will always be at the top right of the screen.Mouse (Relative mode) – acts like a mouse, moves in relation to where the mouse pointer currently is. For example, place your wireless pen anywhere on the pen pad. If you move up, the mouse pointer will follow, regardless of where you start the tablet. There are two buttons on the wireless pen. Each of these can be allocated a mouse action.—••AboutButtons Function Key

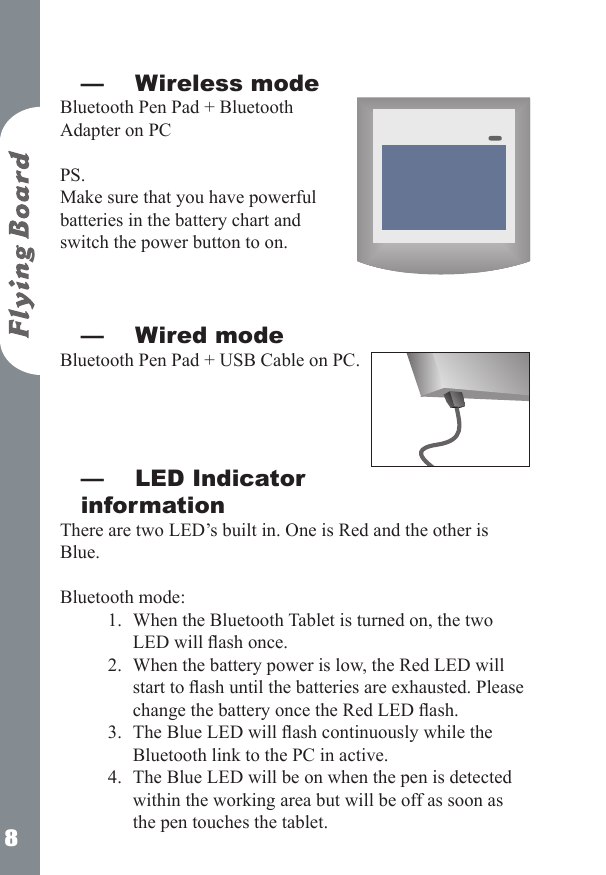

8Wireless modeBluetooth Pen Pad + Bluetooth Adapter on PC PS. Make sure that you have powerful batteries in the battery chart and switch the power button to on. Wired modeBluetooth Pen Pad + USB Cable on PC. LED Indicator informationThere are two LED’s built in. One is Red and the other is Blue. Bluetooth mode: When the Bluetooth Tablet is turned on, the two LED will ash once.When the battery power is low, the Red LED will start to ash until the batteries are exhausted. Please change the battery once the Red LED ash. The Blue LED will ash continuously while the Bluetooth link to the PC in active.The Blue LED will be on when the pen is detected within the working area but will be off as soon as the pen touches the tablet. ———1.2.3.4.
9USB modeWhen the USB cable is initially connected to the Tablet, the Red LED will ash once and the Blue LED will ash continuously. The Blue LED will be on when the pen is detected within the working area but will be off as soon as the pen touches the tablet. Bluetooth Mode USB modePower on( Bluetooth mode) Blue ash onceRed ash once Red ash once Blue ash continuously Working Blue ash continuouslyBlue ash continuouslyPen within working area Blue light Blue lightPen tip on the working area of tablet off offLow battery Red light --—1.2.USB cable plugged (USB mode)
10Important information for you to read! Bluetooth Pen Pad ships with a bundled Broadcom IC Bluetooth device and WIDCOMM Bluetooth Software. We do not test with Bluetooth software from other manufactures, but in many cases, Our Bluetooth Pen Pad will work well with these third party Bluetooth software packages if their device support WIDCOMM Bluetooth Software version 5.0.1.1600. The Important factors to consider are the source of the Bluetooth software and the version of the Bluetooth software. Nowadays, there are two major Bluetooth suppliers of Bluetooth software for computers running Microsoft Windows. One is Microsoft. Microsoft provides Bluetooth software that run only on Windows XP Service Pack 2 (you have updated your XP to XP Service Pack 2). The other is WIDCOMM. WIDCOMM provides Bluetooth software that runs on all current versions of Microsoft Windows. As a result, we would like to recommend you to install WIDCOMM Bluetooth software in Windows 2000 and XP. Once your computer system is Windows XP Service Pack 2, we would suggest you to adopt Microsoft Bluetooth software directly. Our Bluetooth Pen Pad tested with bundled Bluetooth Adapter under WIDCOMM Bluetooth software version 5.0.1.1600. It is possible that our Bluetooth Pen Pad will attempt to use existing Bluetooth software and fail, although we have not yet seen this particular circumstance. There is a possible workaround to this situation: Remove your current Bluetooth
11software and then, install the WIDCOMM Bluetooth software that shipped with the released CD in the package. Installation Please insert the CD-Rom in the package into your CD-ROM Device. The software will automatically begin. There are three parts in AUTO RUN. One is Bluetooth Pen Pad Driver, another is Bluetooth Software and the other is Application software.The following guideline is to teach you how to make Bluetooth Pen Pad work in different mode and under different OS systems. Wired modeYou only need to install Bluetooth Pen Pad Driver and plug USB cable to your PC directly. STEP 1 Software installation Please install Bluetooth Pen Pad Driver. Click “Bluetooth Pen Pad Manager “to start installation Click “ Next” Click “Finish” —a.b.c.

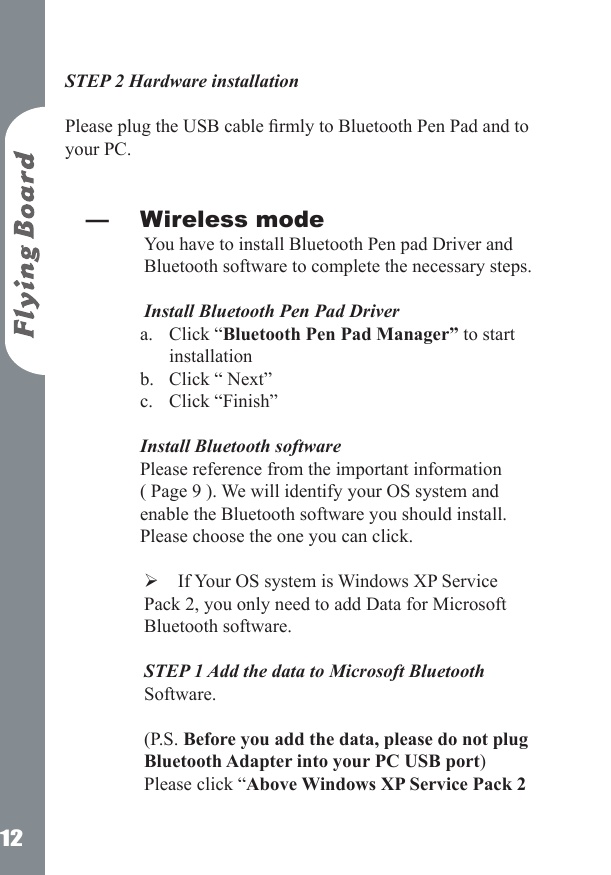

12STEP 2 Hardware installation Please plug the USB cable rmly to Bluetooth Pen Pad and to your PC. Wireless modeYou have to install Bluetooth Pen pad Driver and Bluetooth software to complete the necessary steps. Install Bluetooth Pen Pad DriverClick “Bluetooth Pen Pad Manager” to start installation Click “ Next” Click “Finish” Install Bluetooth software Please reference from the important information ( Page 9 ). We will identify your OS system and enable the Bluetooth software you should install. Please choose the one you can click.  If Your OS system is Windows XP Service Pack 2, you only need to add Data for Microsoft Bluetooth software. STEP 1 Add the data to Microsoft Bluetooth Software. (P.S. Before you add the data, please do not plug Bluetooth Adapter into your PC USB port) Please click “Above Windows XP Service Pack 2 —a.b.c.

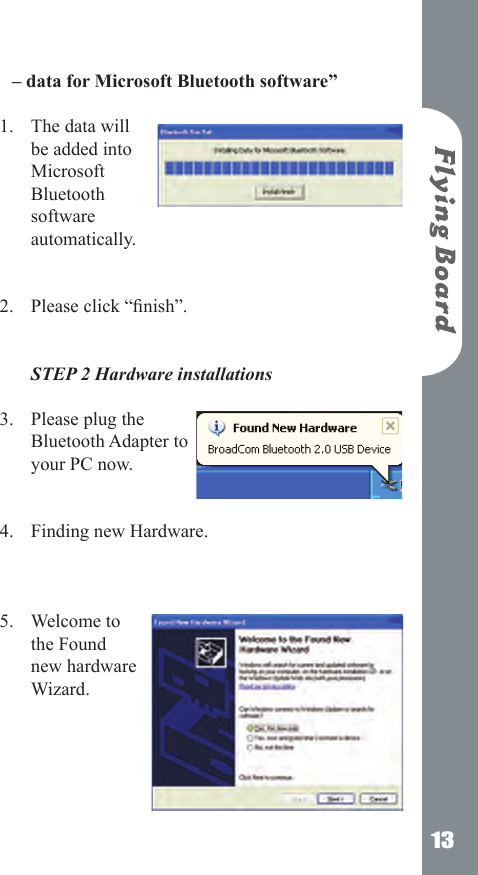

13– data for Microsoft Bluetooth software” The data will be added into Microsoft Bluetooth software automatically. Please click “nish”. STEP 2 Hardware installations Please plug the Bluetooth Adapter to your PC now. Finding new Hardware. Welcome to the Found new hardware Wizard. 1.2.3.4.5.

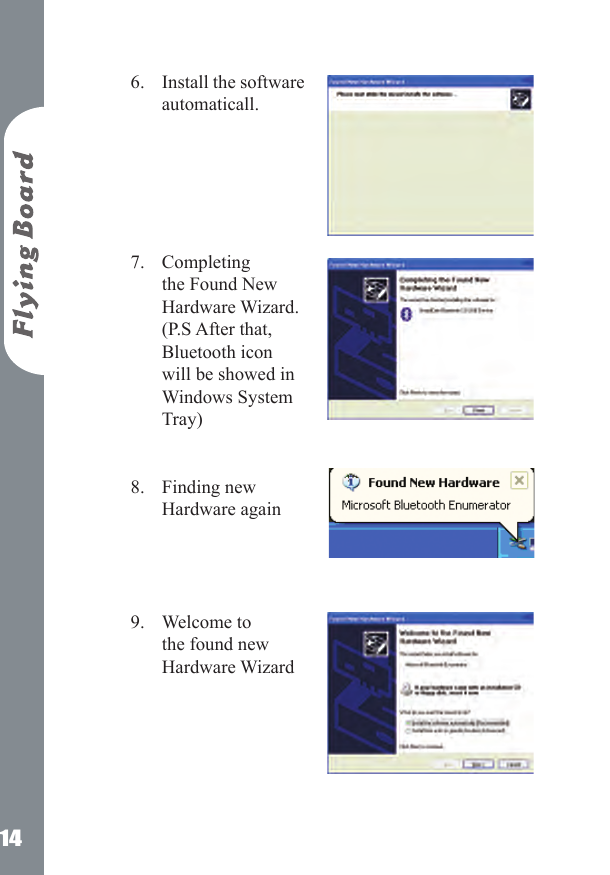

14Install the software automaticall. Completing the Found New Hardware Wizard. (P.S After that, Bluetooth icon will be showed in Windows System Tray) Finding new Hardware again Welcome to the found new Hardware Wizard 6.7.8.9.

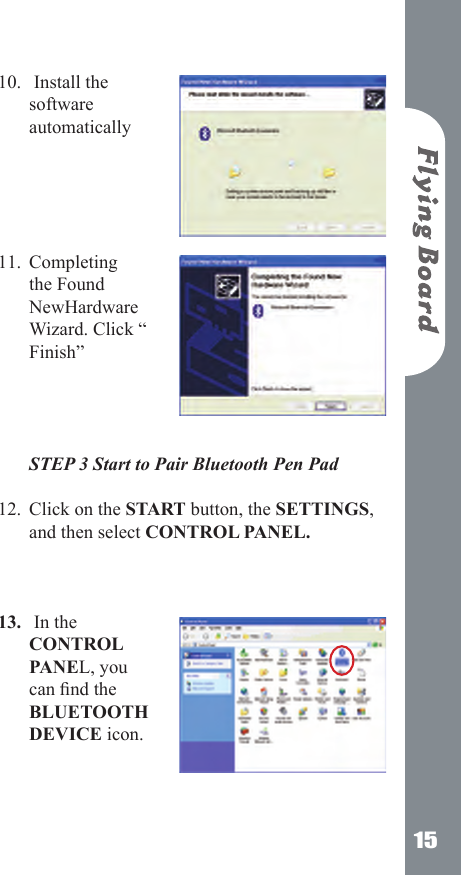

15 Install the software automatically Completing the Found NewHardware Wizard. Click “ Finish” STEP 3 Start to Pair Bluetooth Pen Pad Click on the START button, the SETTINGS, and then select CONTROL PANEL. In the CONTROL PANEL, you can nd the BLUETOOTH DEVICE icon. 10.11.12.13.

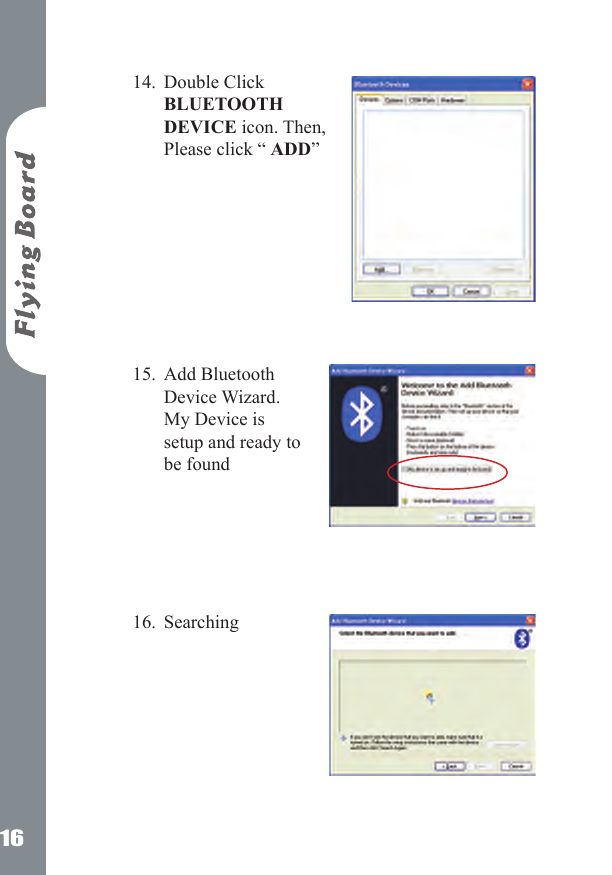

16Double Click BLUETOOTH DEVICE icon. Then, Please click “ ADD” Add Bluetooth Device Wizard. My Device is setup and ready to be found Searching 14.15.16.

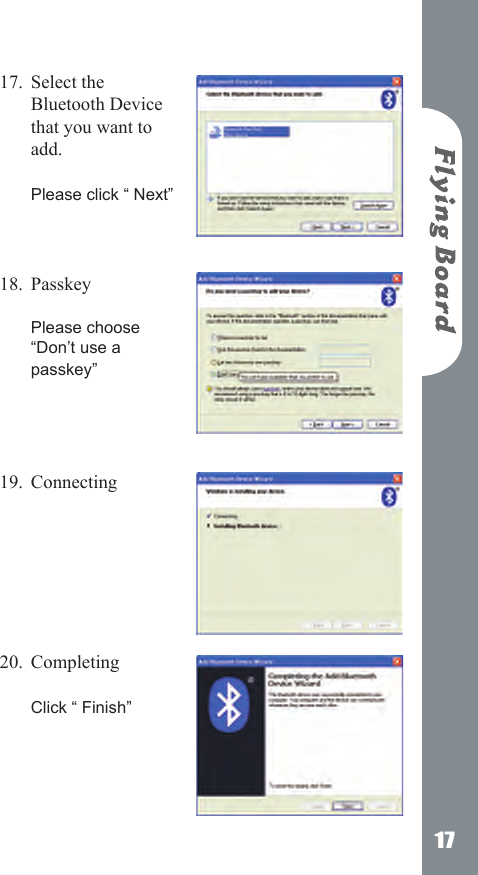

17Select the Bluetooth Device that you want to add. Please click “ Next” Passkey Please choose “Don’t use a passkey” Connecting Completing Click “ Finish” 17.18.19.20.

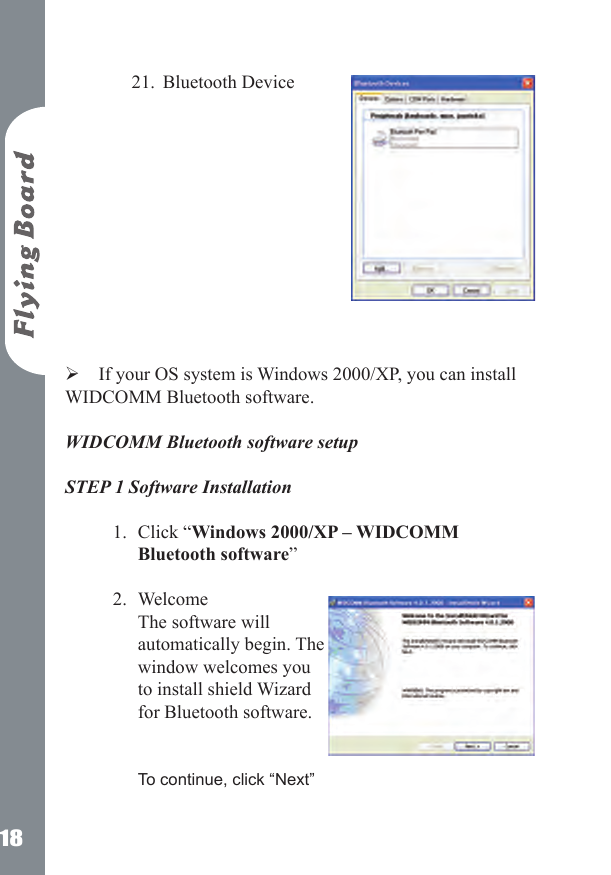

18Bluetooth Device  If your OS system is Windows 2000/XP, you can install WIDCOMM Bluetooth software. WIDCOMM Bluetooth software setup STEP 1 Software Installation Click “Windows 2000/XP – WIDCOMM Bluetooth software” Welcome The software will automatically begin. The window welcomes you to install shield Wizard for Bluetooth software. To continue, click “Next” 21.1.2.

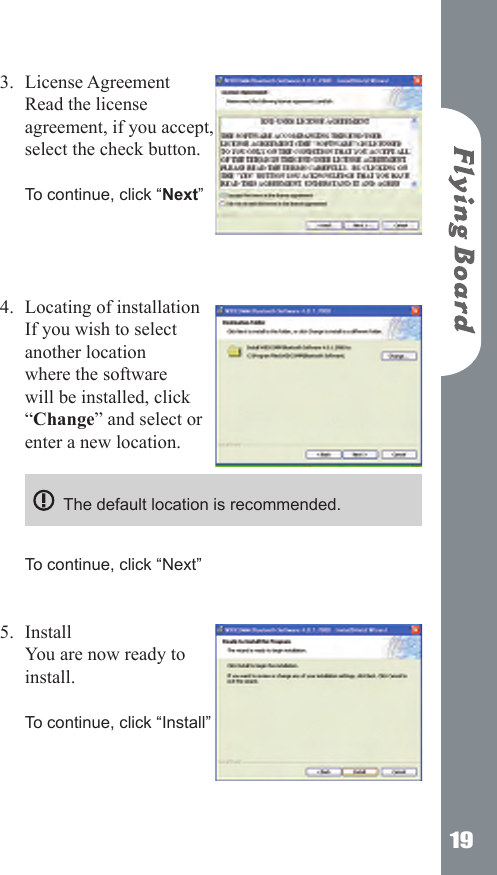

19License Agreement Read the license agreement, if you accept, select the check button. To continue, click “Next” Locating of installation If you wish to select another location where the software will be installed, click “Change” and select or enter a new location. The default location is recommended. To continue, click “Next” Install You are now ready to install. To continue, click “Install” 3.4.5.

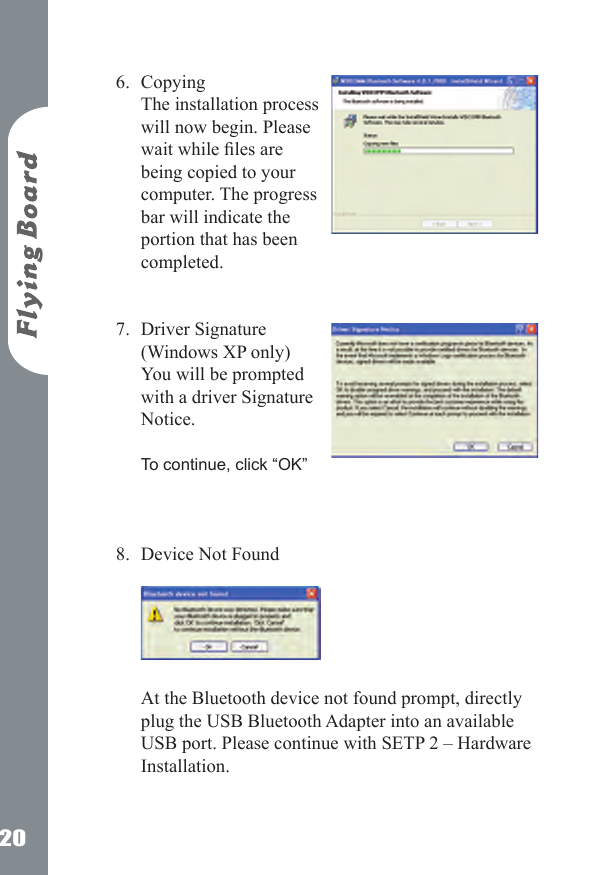

20Copying The installation process will now begin. Please wait while les are being copied to your computer. The progress bar will indicate the portion that has been completed. Driver Signature (Windows XP only) You will be prompted with a driver Signature Notice. To continue, click “OK” Device Not Found At the Bluetooth device not found prompt, directly plug the USB Bluetooth Adapter into an available USB port. Please continue with SETP 2 – Hardware Installation. 6.7.8.
21STEP 2 Bluetooth Adapter Hardware Installations If you have successfully inserted the WIDCOMM Bluetooth software pleases continue.The green LED (light) on the device will be lit, if Bluetooth Adapter is successfully inserted. To continue, click “OK ” Finish Now you have completed the installation of the WIDCOMM Bluetooth software. To nish the installation, click “Finish”. Restart Windows If you have not been prompted, please restart windows. If the software and hardware installation are successful, you will see a Bluetooth with white Bluetooth icon in the Windows System Tray. A blinking green LED on the Bluetooth Adapter is also successful part of the installation. 9.10.11.

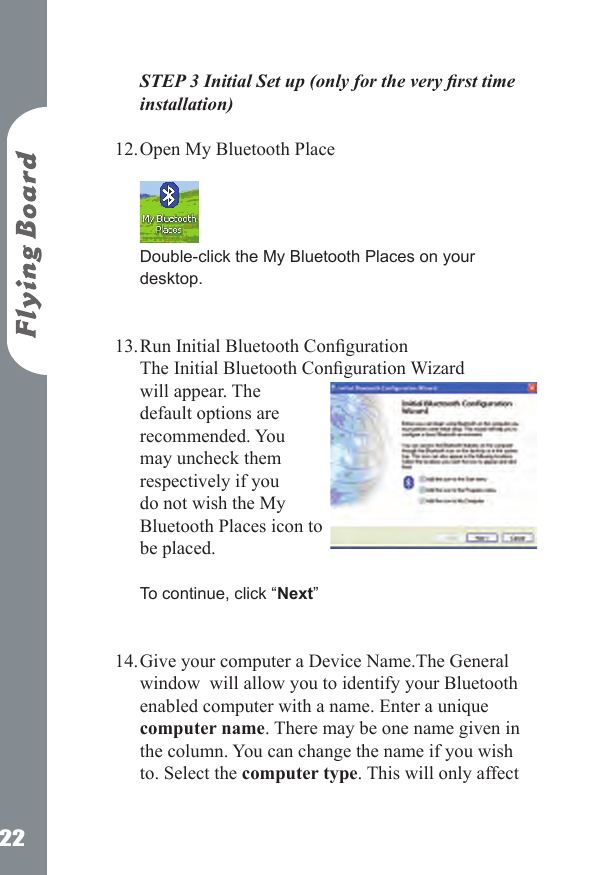

22STEP 3 Initial Set up (only for the very rst time installation) Open My Bluetooth Place Double-click the My Bluetooth Places on your desktop. Run Initial Bluetooth Conguration The Initial Bluetooth Conguration Wizard will appear. The default options are recommended. You may uncheck them respectively if you do not wish the My Bluetooth Places icon to be placed. To continue, click “Next” Give your computer a Device Name.The General window will allow you to identify your Bluetooth enabled computer with a name. Enter a unique computer name. There may be one name given in the column. You can change the name if you wish to. Select the computer type. This will only affect 12.13.14.

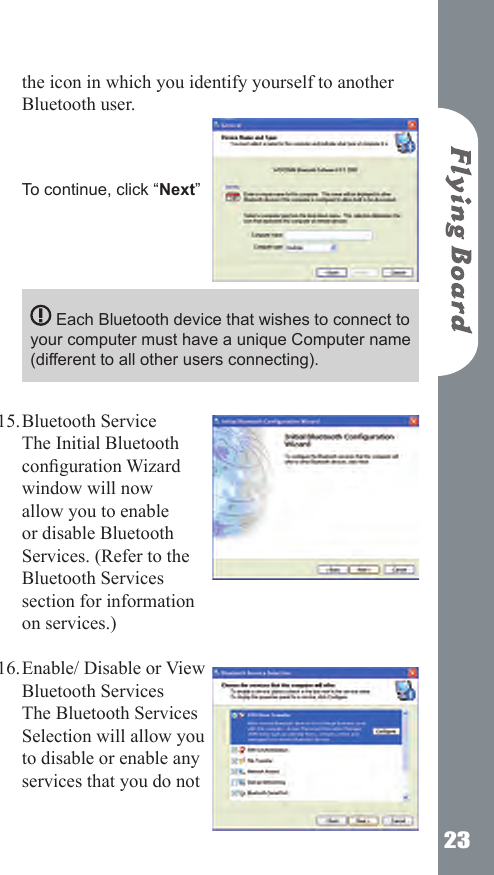

23the icon in which you identify yourself to another Bluetooth user. To continue, click “Next” Each Bluetooth device that wishes to connect to your computer must have a unique Computer name (different to all other users connecting). Bluetooth Service The Initial Bluetooth conguration Wizard window will now allow you to enable or disable Bluetooth Services. (Refer to the Bluetooth Services section for information on services.) Enable/ Disable or View Bluetooth Services The Bluetooth Services Selection will allow you to disable or enable any services that you do not 15.16.

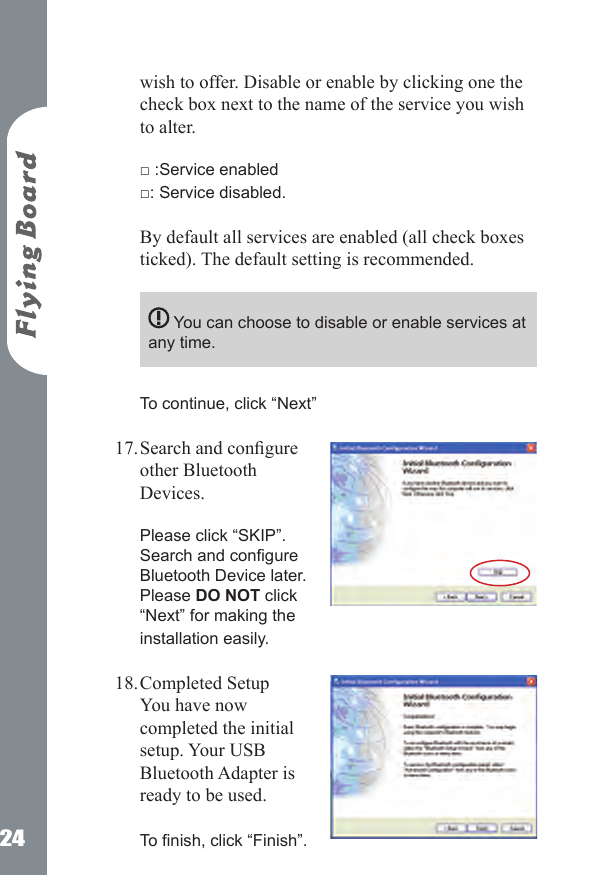

24wish to offer. Disable or enable by clicking one the check box next to the name of the service you wish to alter. □ :Service enabled □: Service disabled. By default all services are enabled (all check boxes ticked). The default setting is recommended. You can choose to disable or enable services at any time. To continue, click “Next” Search and congure other Bluetooth Devices. Please click “SKIP”. Search and congure Bluetooth Device later. Please DO NOT click “Next” for making the installation easily. Completed Setup You have now completed the initial setup. Your USB Bluetooth Adapter is ready to be used. To nish, click “Finish”. 17.18.

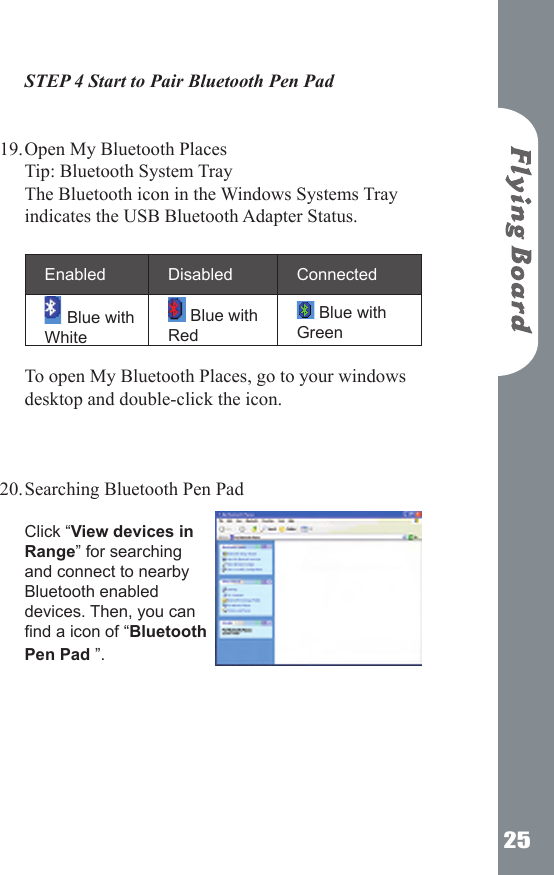

25STEP 4 Start to Pair Bluetooth Pen Pad Open My Bluetooth Places Tip: Bluetooth System Tray The Bluetooth icon in the Windows Systems Tray indicates the USB Bluetooth Adapter Status. Enabled Disabled Connected Blue with White Blue with Red Blue with Green To open My Bluetooth Places, go to your windows desktop and double-click the icon. Searching Bluetooth Pen Pad Click “View devices in Range” for searching and connect to nearby Bluetooth enabled devices. Then, you can nd a icon of “Bluetooth Pen Pad ”. 19.20.

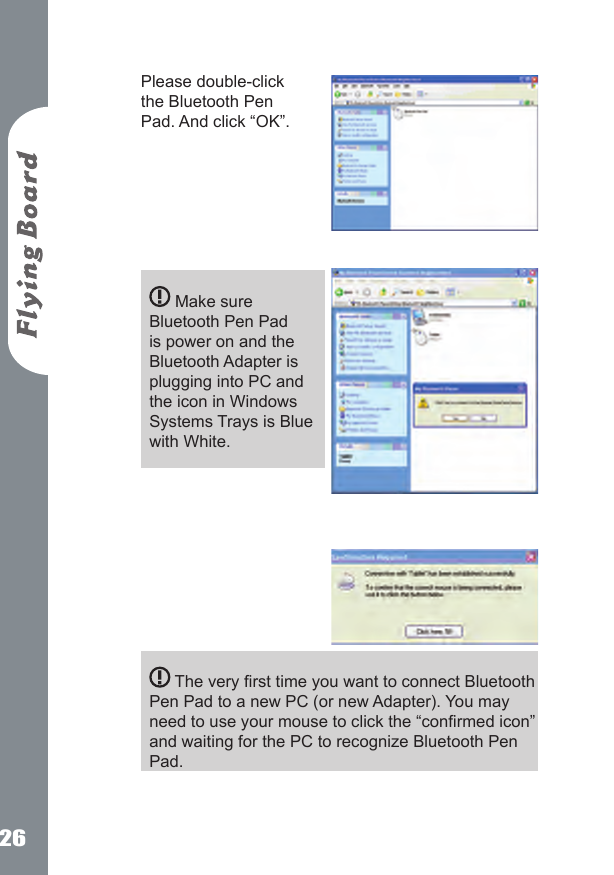

26Please double-click the Bluetooth Pen Pad. And click “OK”. Make sure Bluetooth Pen Pad is power on and the Bluetooth Adapter is plugging into PC and the icon in Windows Systems Trays is Blue with White. The very rst time you want to connect Bluetooth Pen Pad to a new PC (or new Adapter). You may need to use your mouse to click the “conrmed icon” and waiting for the PC to recognize Bluetooth Pen Pad.

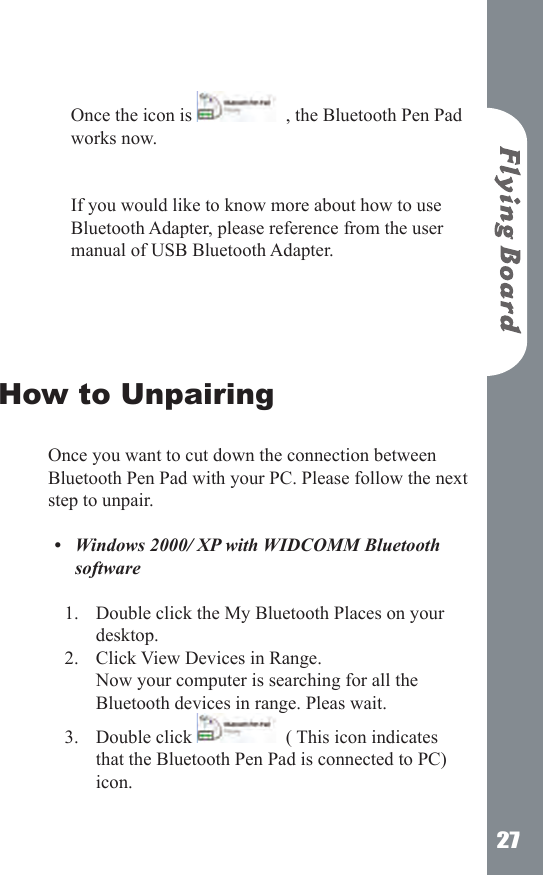

27 Once the icon is , the Bluetooth Pen Pad works now. If you would like to know more about how to use Bluetooth Adapter, please reference from the user manual of USB Bluetooth Adapter. How to Unpairing Once you want to cut down the connection between Bluetooth Pen Pad with your PC. Please follow the next step to unpair.Windows 2000/ XP with WIDCOMM Bluetooth software Double click the My Bluetooth Places on your desktop.Click View Devices in Range. Now your computer is searching for all the Bluetooth devices in range. Pleas wait.Double click ( This icon indicates that the Bluetooth Pen Pad is connected to PC) icon. •1.2.3.

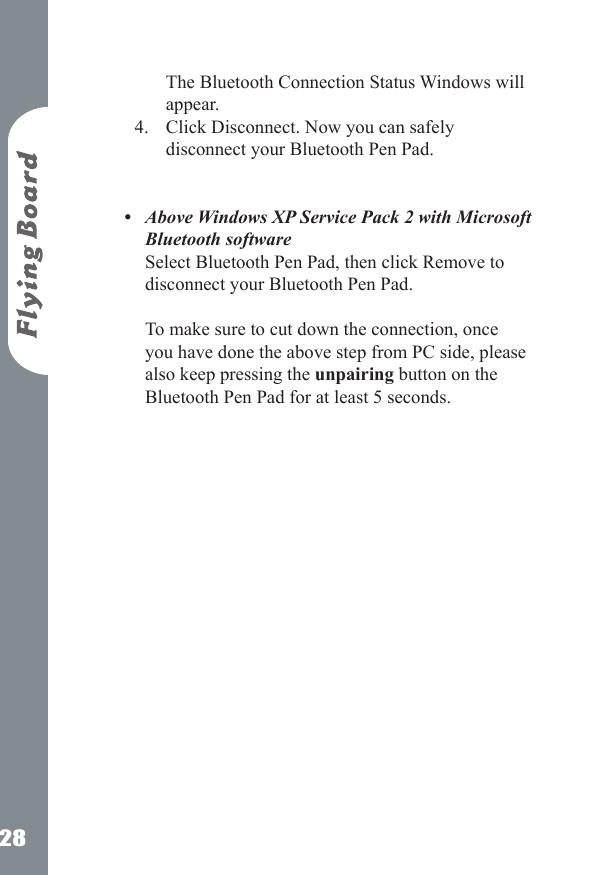

28The Bluetooth Connection Status Windows will appear.Click Disconnect. Now you can safely disconnect your Bluetooth Pen Pad. Above Windows XP Service Pack 2 with Microsoft Bluetooth software Select Bluetooth Pen Pad, then click Remove to disconnect your Bluetooth Pen Pad. To make sure to cut down the connection, once you have done the above step from PC side, please also keep pressing the unpairing button on the Bluetooth Pen Pad for at least 5 seconds. 4.•

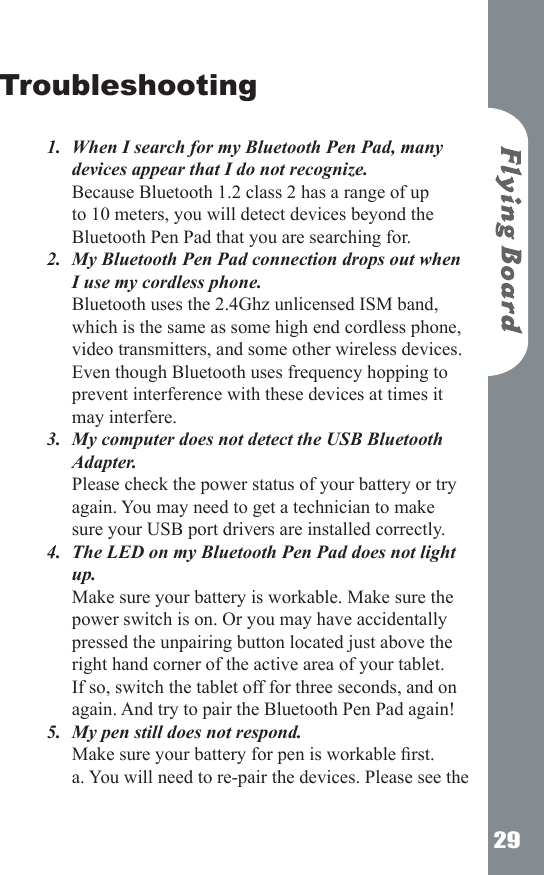

29Troubleshooting When I search for my Bluetooth Pen Pad, many devices appear that I do not recognize. Because Bluetooth 1.2 class 2 has a range of up to 10 meters, you will detect devices beyond the Bluetooth Pen Pad that you are searching for.My Bluetooth Pen Pad connection drops out when I use my cordless phone. Bluetooth uses the 2.4Ghz unlicensed ISM band, which is the same as some high end cordless phone, video transmitters, and some other wireless devices. Even though Bluetooth uses frequency hopping to prevent interference with these devices at times it may interfere. My computer does not detect the USB Bluetooth Adapter. Please check the power status of your battery or try again. You may need to get a technician to make sure your USB port drivers are installed correctly. The LED on my Bluetooth Pen Pad does not light up. Make sure your battery is workable. Make sure the power switch is on. Or you may have accidentally pressed the unpairing button located just above the right hand corner of the active area of your tablet. If so, switch the tablet off for three seconds, and on again. And try to pair the Bluetooth Pen Pad again! My pen still does not respond. Make sure your battery for pen is workable rst. a. You will need to re-pair the devices. Please see the 1.2.3.4.5.

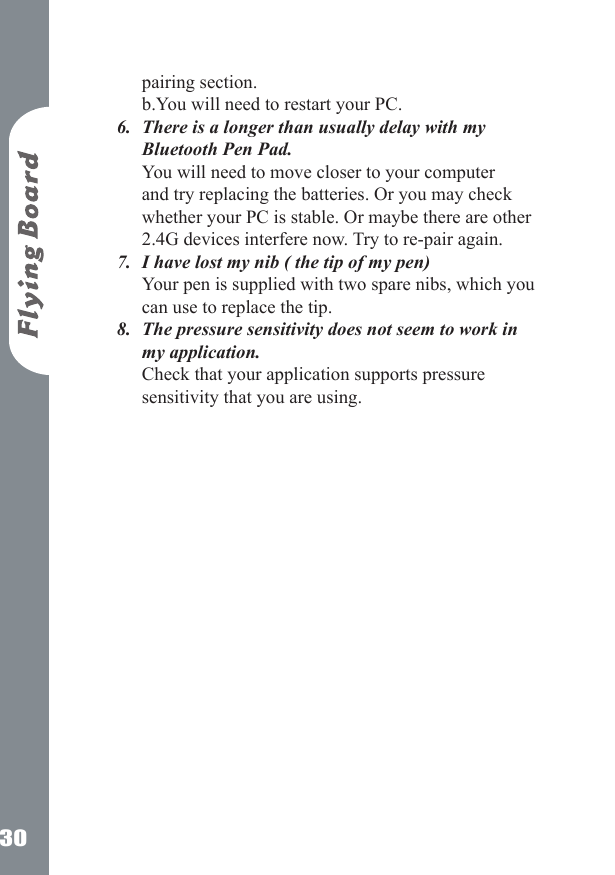

30pairing section. b.You will need to restart your PC.There is a longer than usually delay with my Bluetooth Pen Pad. You will need to move closer to your computer and try replacing the batteries. Or you may check whether your PC is stable. Or maybe there are other 2.4G devices interfere now. Try to re-pair again.I have lost my nib ( the tip of my pen) Your pen is supplied with two spare nibs, which you can use to replace the tip. The pressure sensitivity does not seem to work in my application. Check that your application supports pressure sensitivity that you are using.6.7.8.

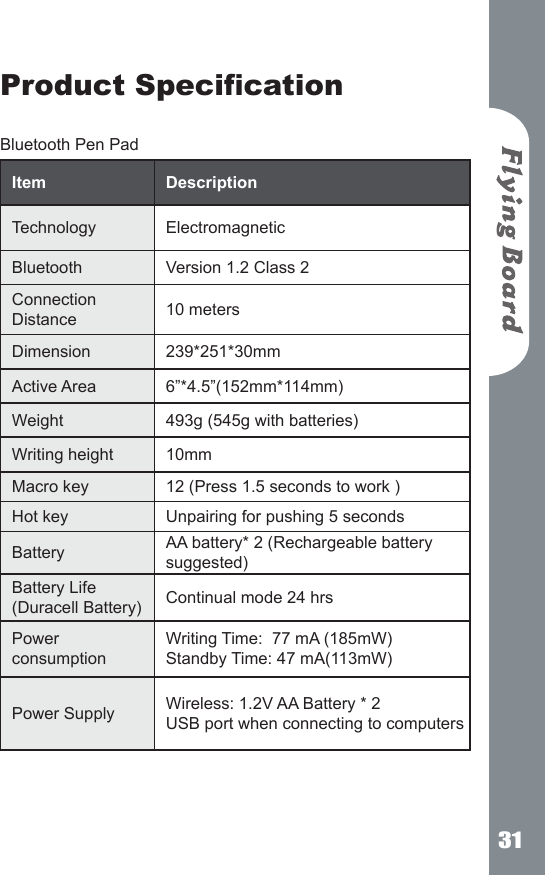

31Product Specication Bluetooth Pen PadItem DescriptionTechnology ElectromagneticBluetooth Version 1.2 Class 2Connection Distance 10 metersDimension 239*251*30mmActive Area 6”*4.5”(152mm*114mm)Weight 493g (545g with batteries)Writing height 10mm Macro key 12 (Press 1.5 seconds to work ) Hot key Unpairing for pushing 5 secondsBattery AA battery* 2 (Rechargeable battery suggested)Battery Life (Duracell Battery) Continual mode 24 hrsPower consumptionWriting Time: 77 mA (185mW)Standby Time: 47 mA(113mW)Power Supply Wireless: 1.2V AA Battery * 2 USB port when connecting to computers

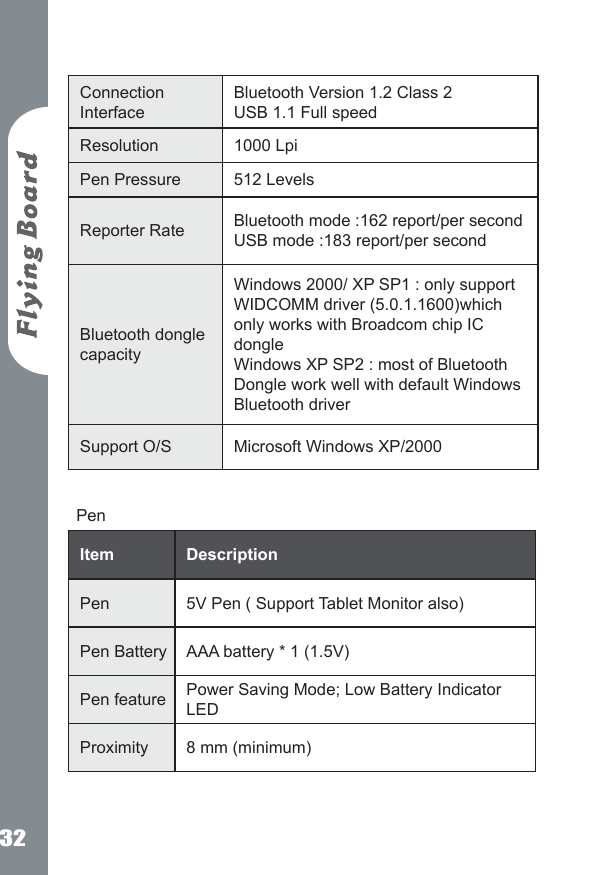

32Connection InterfaceBluetooth Version 1.2 Class 2 USB 1.1 Full speedResolution 1000 LpiPen Pressure 512 LevelsReporter Rate Bluetooth mode :162 report/per secondUSB mode :183 report/per secondBluetooth dongle capacity Windows 2000/ XP SP1 : only support WIDCOMM driver (5.0.1.1600)which only works with Broadcom chip IC dongle Windows XP SP2 : most of Bluetooth Dongle work well with default Windows Bluetooth driver Support O/S Microsoft Windows XP/2000 PenItem DescriptionPen 5V Pen ( Support Tablet Monitor also)Pen Battery AAA battery * 1 (1.5V)Pen feature Power Saving Mode; Low Battery Indicator LEDProximity 8 mm (minimum)
33Maintenance Do not drop, puncture or disassemble the tablet.Remove batteries during long periods between uses.Avoid all contact with water and dry hands before using.Do not expose the tablet to high temperature or leave it in direct sunlight. Avoid pressing hard on the tablet body. 1.2.3.4.5.

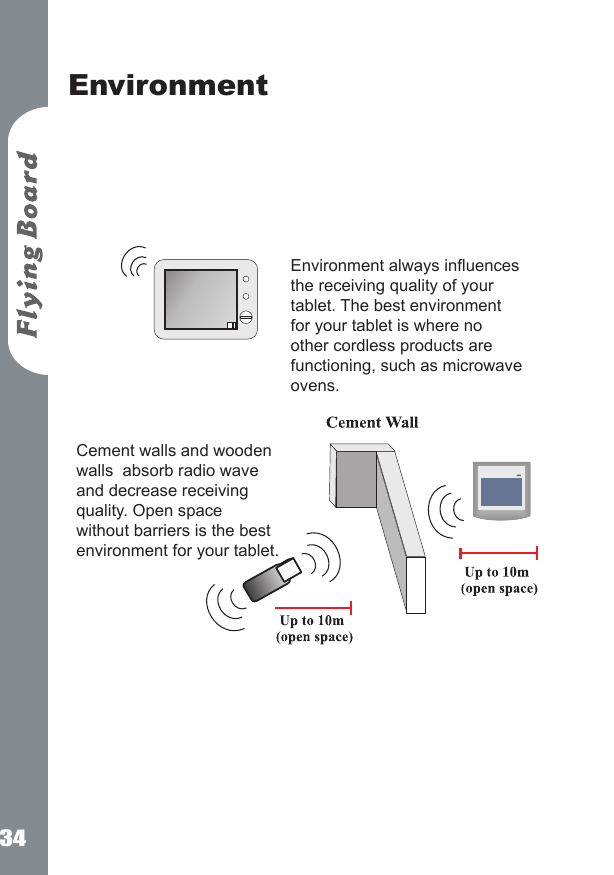

34EnvironmentEnvironment always inuences the receiving quality of your tablet. The best environment for your tablet is where no other cordless products are functioning, such as microwave ovens.Cement walls and wooden walls absorb radio wave and decrease receiving quality. Open space without barriers is the best environment for your tablet.
82-910W02110-000v1.0
