2.4G Wireless Mouse Instruction Book
1) Specifications
(1) Frequency Band： 2.4GHz ISM band
(2)Carrier Frequency： 2402~2480 MHz
(3)Number of Channel： 40 channels
(4) Rated Voltage: 3.0V / 2*AAA
(5)Rated Current: 10 mA
(6)Modulation Type： GFSK
(7)Mode of operation ： half duplex
(8)Bit Rate of Transmission： 1Mbps
(9)Antenna Type： PCB Antenna
(10)Antenna gain： 0 dBi
(11)Operating Temperature Range： 0~40 °C
(12)Air-protocol length: ____14~26 Bytes____
(13)Bandwidth:____2MHz____ sensitivity: -85dBm
(14)Transceiver Distance: ____10m______
(15) Mouse MCU Oscillator : 16MHz
(16) Operation System: Windows98/2000/XP / Vista/Windows7 system
2.Operation Instruction
(1)Standby Mode：If the mouse does not moved or operated in 5 seconds, it will
turn into standby mode and the power consumption decreases by half.
(2)Sleep mode :If the standby mode lasts 5 minutes, the mouse will turn into
sleep mode and the power consumption decreases to 1/10. It will moved or any
of its 3 buttons is pressed.
(3)Power Off: If you will not use your mouse in a long time,you may turn your
power switch to off side to save the battery power.

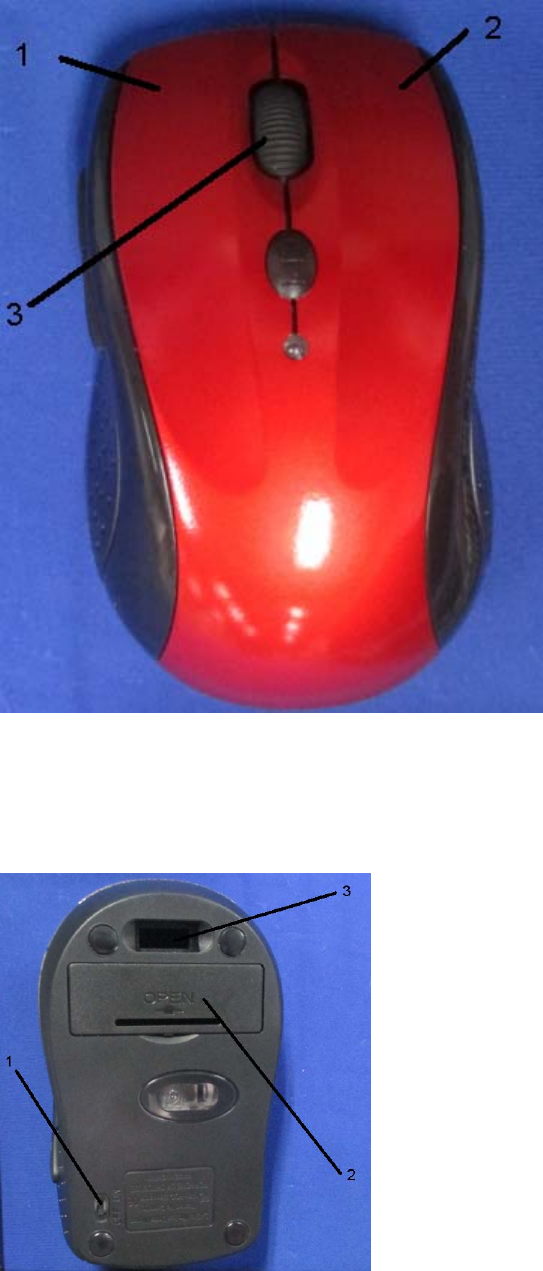

3.Pieces
z Mouse Front View:
1. Left click
2. Right click
3. Scroll wheel
z Mouse Back View:
1. On/off Switch
2. Battery cover
3. USB Receiver Storage
4.Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules.Operation is subject to the
following two conditions; (1)This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Warning:Changes or modifications made to this device not expressly approved by
SHENZHEN WEIKING TECHNOLOGY CO.,LTD may void the FCC authorization
to operate this device.
Note: The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
