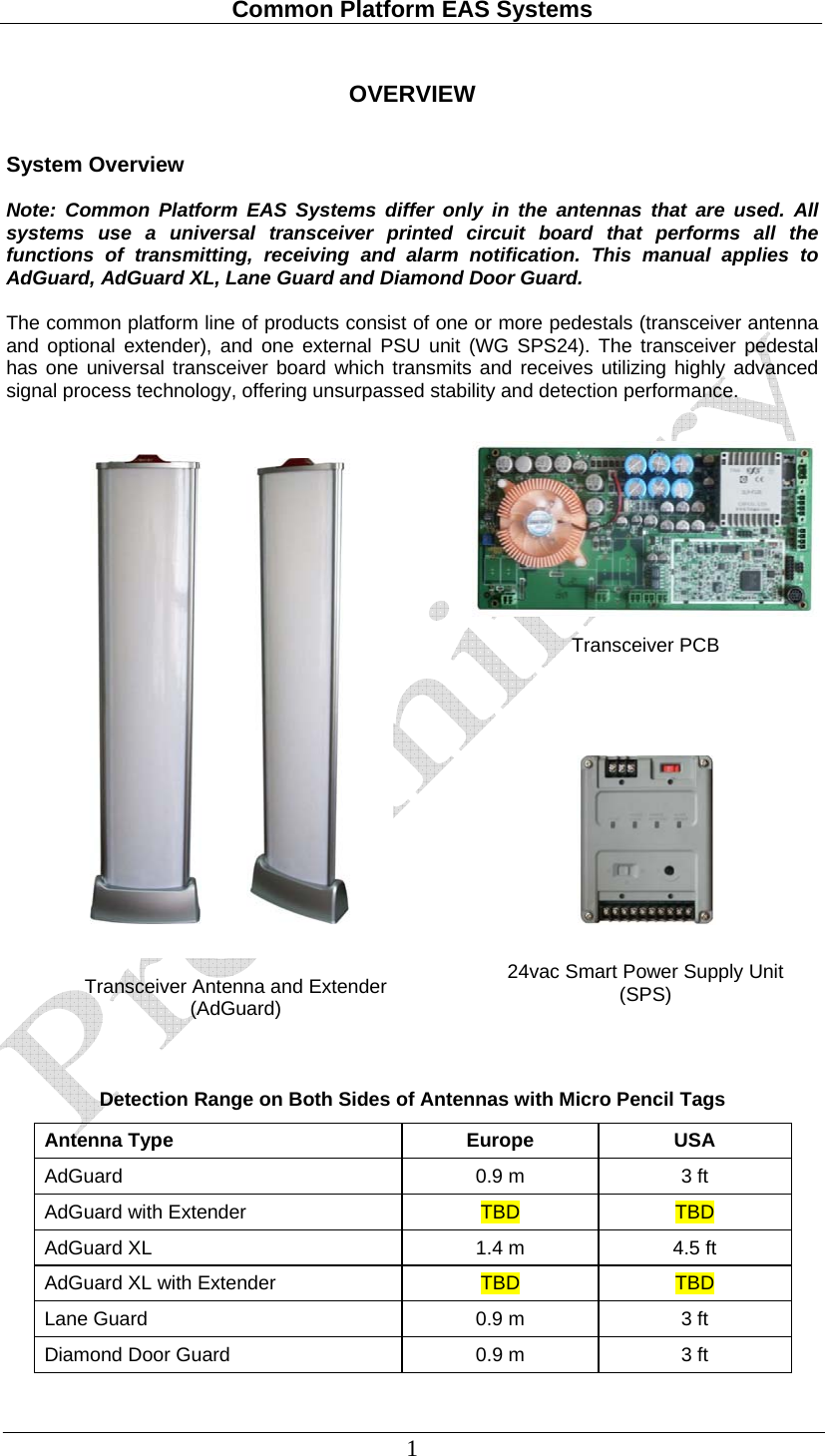

Common Platform EAS Systems 1 OVERVIEW System Overview Note: Common Platform EAS Systems differ only in the antennas that are used. All systems use a universal transceiver printed circuit board that performs all the functions of transmitting, receiving and alarm notification. This manual applies to AdGuard, AdGuard XL, Lane Guard and Diamond Door Guard. The common platform line of products consist of one or more pedestals (transceiver antenna and optional extender), and one external PSU unit (WG SPS24). The transceiver pedestal has one universal transceiver board which transmits and receives utilizing highly advanced signal process technology, offering unsurpassed stability and detection performance. Detection Range on Both Sides of Antennas with Micro Pencil Tags Antenna Type Europe USA AdGuard 0.9 m 3 ft AdGuard with Extender TBD TBD AdGuard XL 1.4 m 4.5 ft AdGuard XL with Extender TBD TBD Lane Guard 0.9 m 3 ft Diamond Door Guard 0.9 m 3 ft 24vac Smart Power Supply Unit (SPS) Transceiver Antenna and Extender(AdGuard) Transceiver PCB

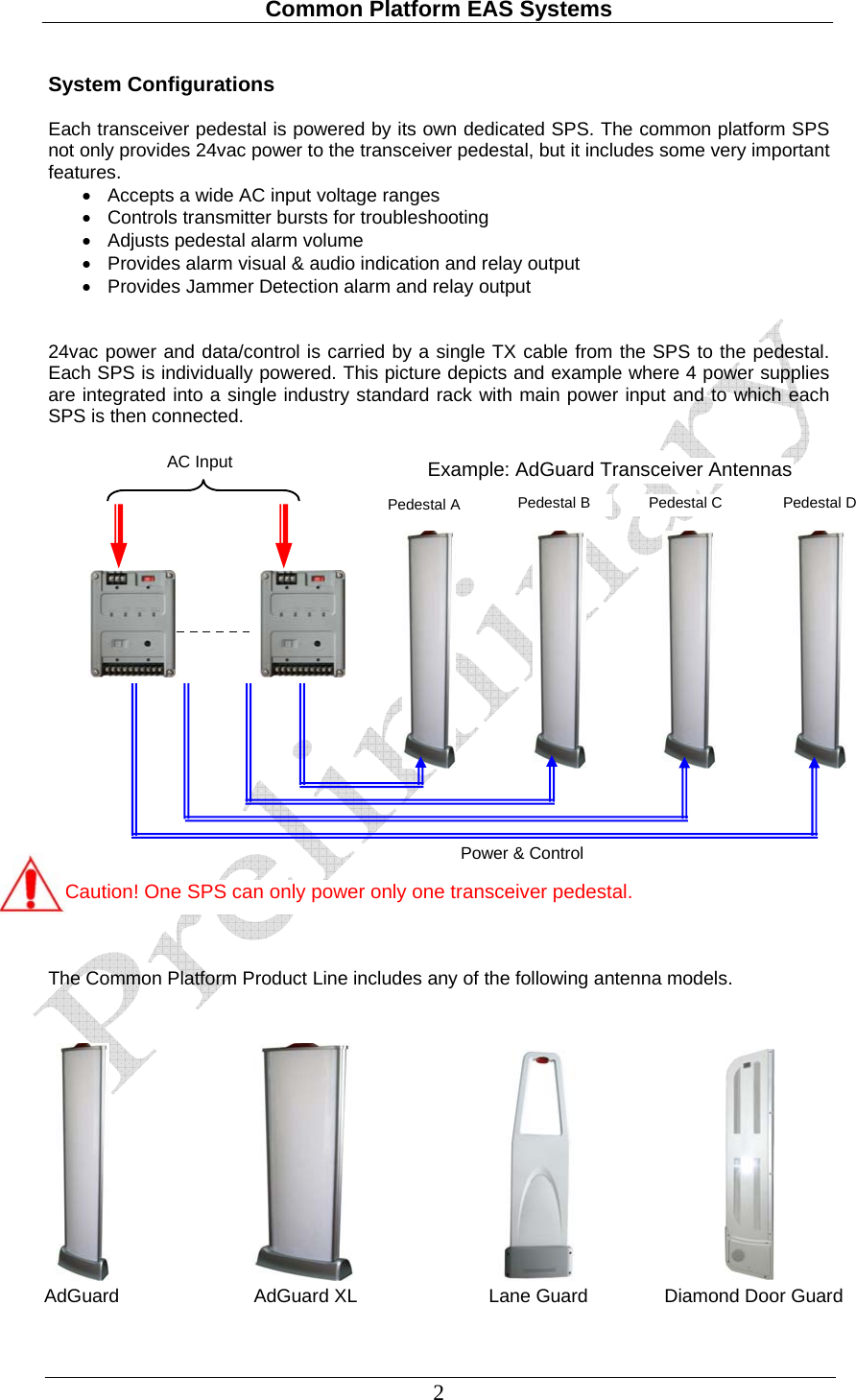

Common Platform EAS Systems 2 System Configurations Each transceiver pedestal is powered by its own dedicated SPS. The common platform SPS not only provides 24vac power to the transceiver pedestal, but it includes some very important features. • Accepts a wide AC input voltage ranges • Controls transmitter bursts for troubleshooting • Adjusts pedestal alarm volume • Provides alarm visual & audio indication and relay output • Provides Jammer Detection alarm and relay output 24vac power and data/control is carried by a single TX cable from the SPS to the pedestal. Each SPS is individually powered. This picture depicts and example where 4 power supplies are integrated into a single industry standard rack with main power input and to which each SPS is then connected. The Common Platform Product Line includes any of the following antenna models. Example: AdGuard Transceiver Antennas Pedestal A Pedestal B Pedestal C Pedestal D Power & ControlAdGuard AdGuard XL Diamond Door GuardLane GuardCaution! One SPS can only power only one transceiver pedestal. AC Input

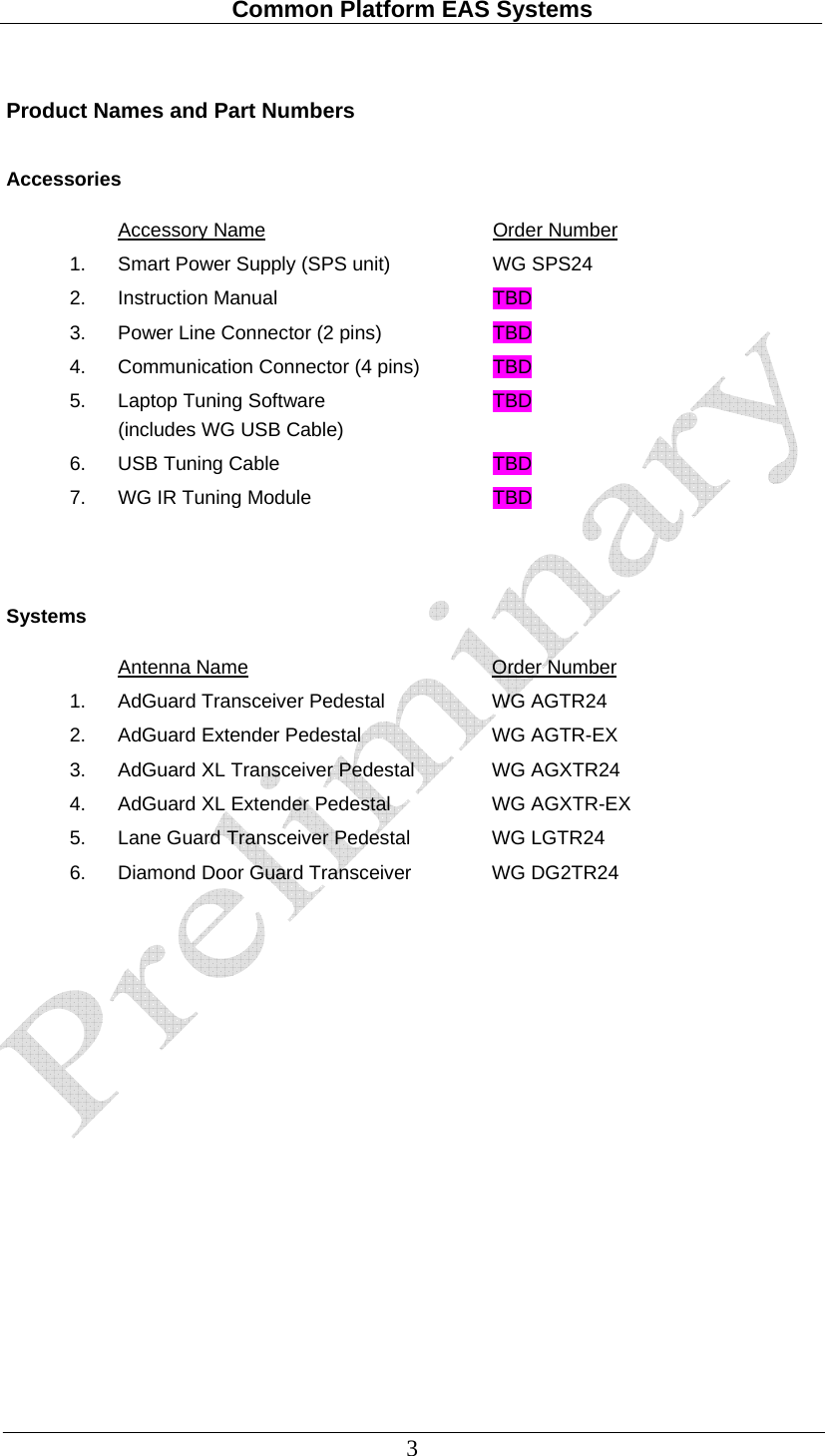

Common Platform EAS Systems 3 Product Names and Part Numbers Accessories Accessory Name Order Number 1. Smart Power Supply (SPS unit) WG SPS24 2. Instruction Manual TBD 3. Power Line Connector (2 pins) TBD 4. Communication Connector (4 pins) TBD 5. Laptop Tuning Software (includes WG USB Cable) TBD 6. USB Tuning Cable TBD 7. WG IR Tuning Module TBD Systems Antenna Name Order Number 1. AdGuard Transceiver Pedestal WG AGTR24 2. AdGuard Extender Pedestal WG AGTR-EX 3. AdGuard XL Transceiver Pedestal WG AGXTR24 4. AdGuard XL Extender Pedestal WG AGXTR-EX 5. Lane Guard Transceiver Pedestal WG LGTR24 6. Diamond Door Guard Transceiver WG DG2TR24

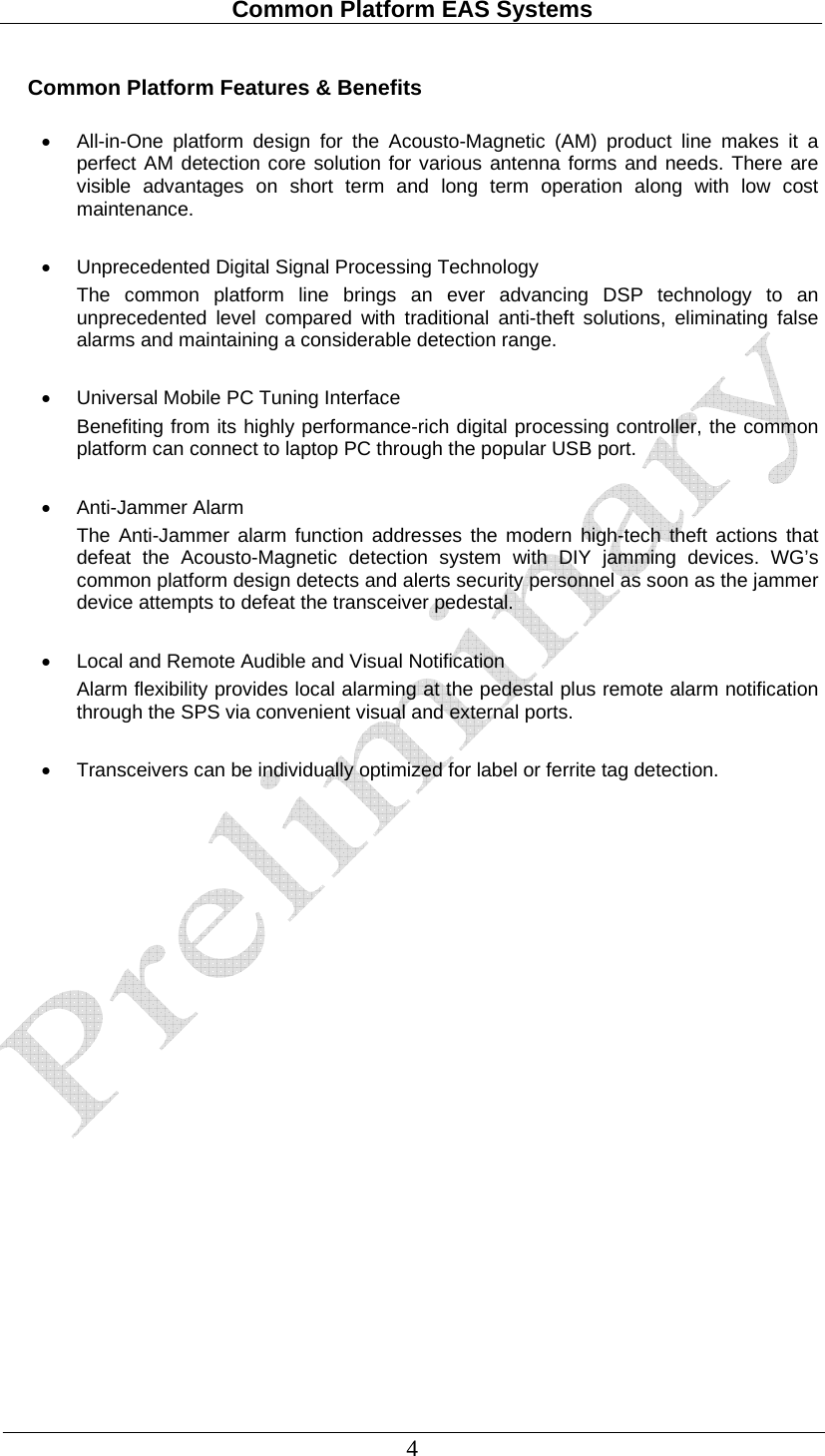

Common Platform EAS Systems 4 Common Platform Features & Benefits • All-in-One platform design for the Acousto-Magnetic (AM) product line makes it a perfect AM detection core solution for various antenna forms and needs. There are visible advantages on short term and long term operation along with low cost maintenance. • Unprecedented Digital Signal Processing Technology The common platform line brings an ever advancing DSP technology to an unprecedented level compared with traditional anti-theft solutions, eliminating false alarms and maintaining a considerable detection range. • Universal Mobile PC Tuning Interface Benefiting from its highly performance-rich digital processing controller, the common platform can connect to laptop PC through the popular USB port. • Anti-Jammer Alarm The Anti-Jammer alarm function addresses the modern high-tech theft actions that defeat the Acousto-Magnetic detection system with DIY jamming devices. WG’s common platform design detects and alerts security personnel as soon as the jammer device attempts to defeat the transceiver pedestal. • Local and Remote Audible and Visual Notification Alarm flexibility provides local alarming at the pedestal plus remote alarm notification through the SPS via convenient visual and external ports. • Transceivers can be individually optimized for label or ferrite tag detection.

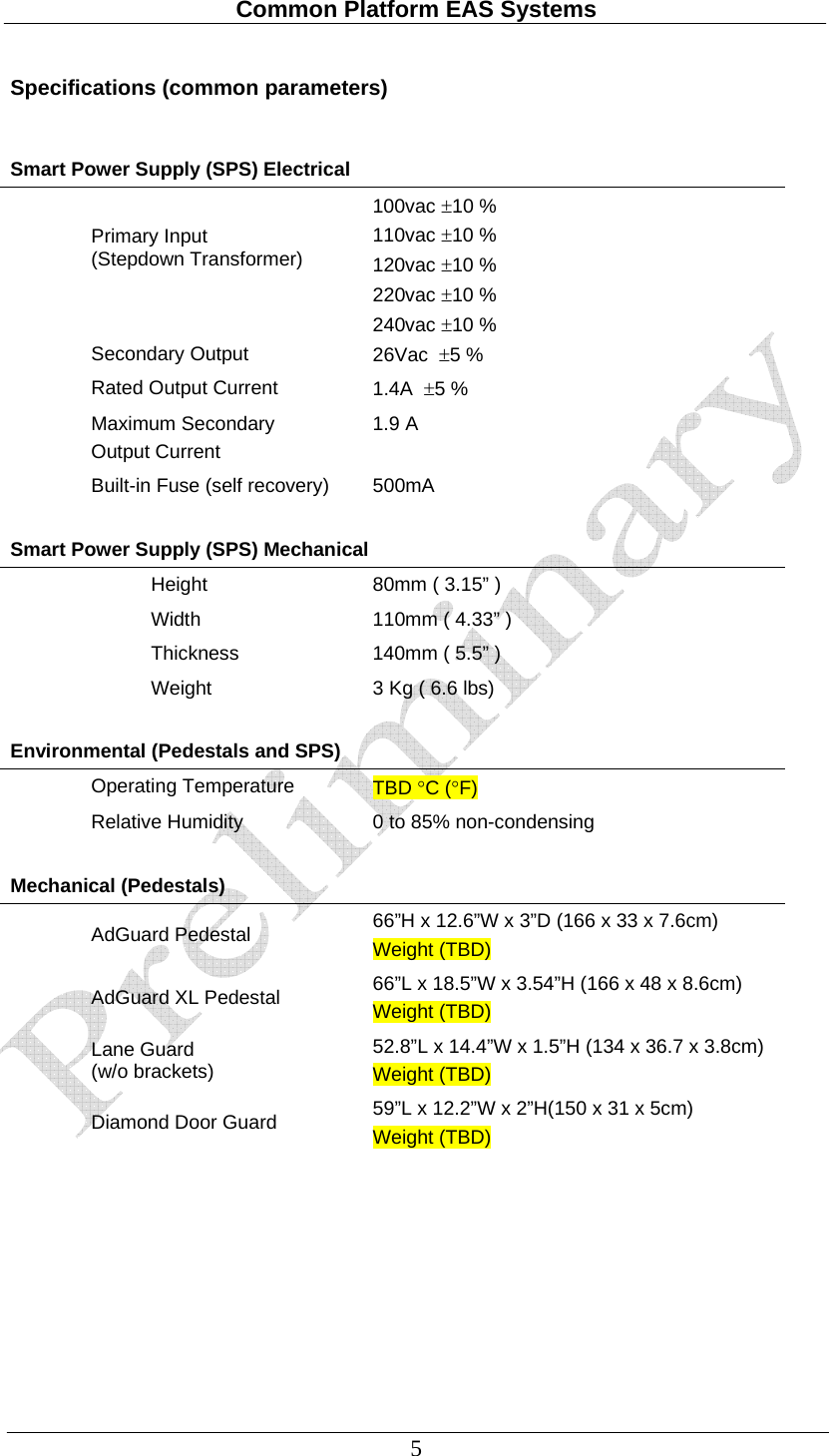

Common Platform EAS Systems 5 Specifications (common parameters) Smart Power Supply (SPS) Electrical Primary Input (Stepdown Transformer) 100vac ±10 % 110vac ±10 % 120vac ±10 % 220vac ±10 % 240vac ±10 % Secondary Output 26Vac ±5 % Rated Output Current 1.4A ±5 % Maximum Secondary Output Current 1.9 A Built-in Fuse (self recovery) 500mA Smart Power Supply (SPS) Mechanical Height 80mm ( 3.15” ) Width 110mm ( 4.33” ) Thickness 140mm ( 5.5” ) Weight 3 Kg ( 6.6 lbs) Environmental (Pedestals and SPS) Operating Temperature TBD °C (°F) Relative Humidity 0 to 85% non-condensing Mechanical (Pedestals) AdGuard Pedestal 66”H x 12.6”W x 3”D (166 x 33 x 7.6cm) Weight (TBD) AdGuard XL Pedestal 66”L x 18.5”W x 3.54”H (166 x 48 x 8.6cm) Weight (TBD) Lane Guard (w/o brackets) 52.8”L x 14.4”W x 1.5”H (134 x 36.7 x 3.8cm) Weight (TBD) Diamond Door Guard 59”L x 12.2”W x 2”H(150 x 31 x 5cm) Weight (TBD)

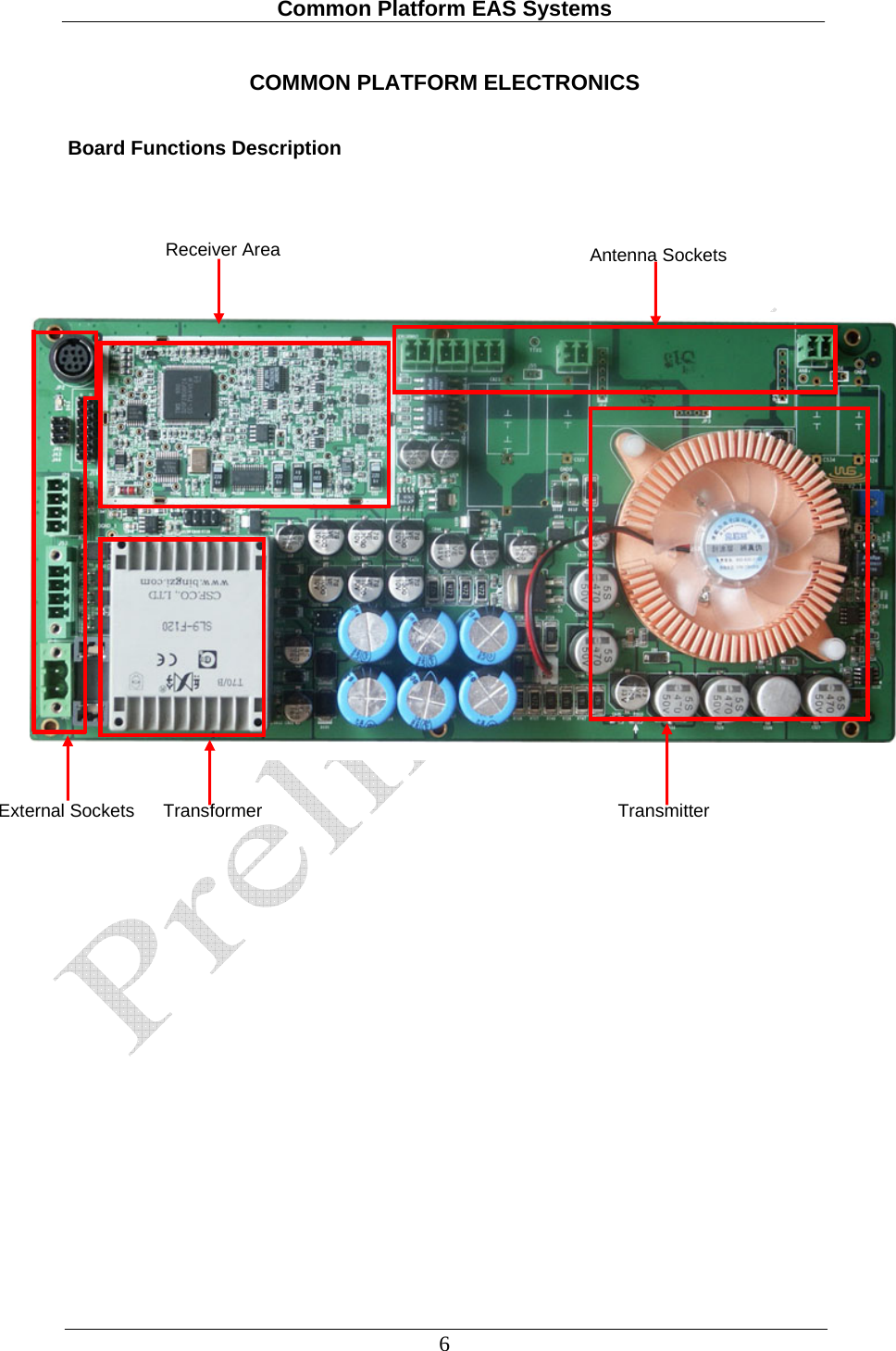

Common Platform EAS Systems 6 COMMON PLATFORM ELECTRONICS Board Functions Description Antenna Sockets Transmitter Transformer External Sockets Receiver Area

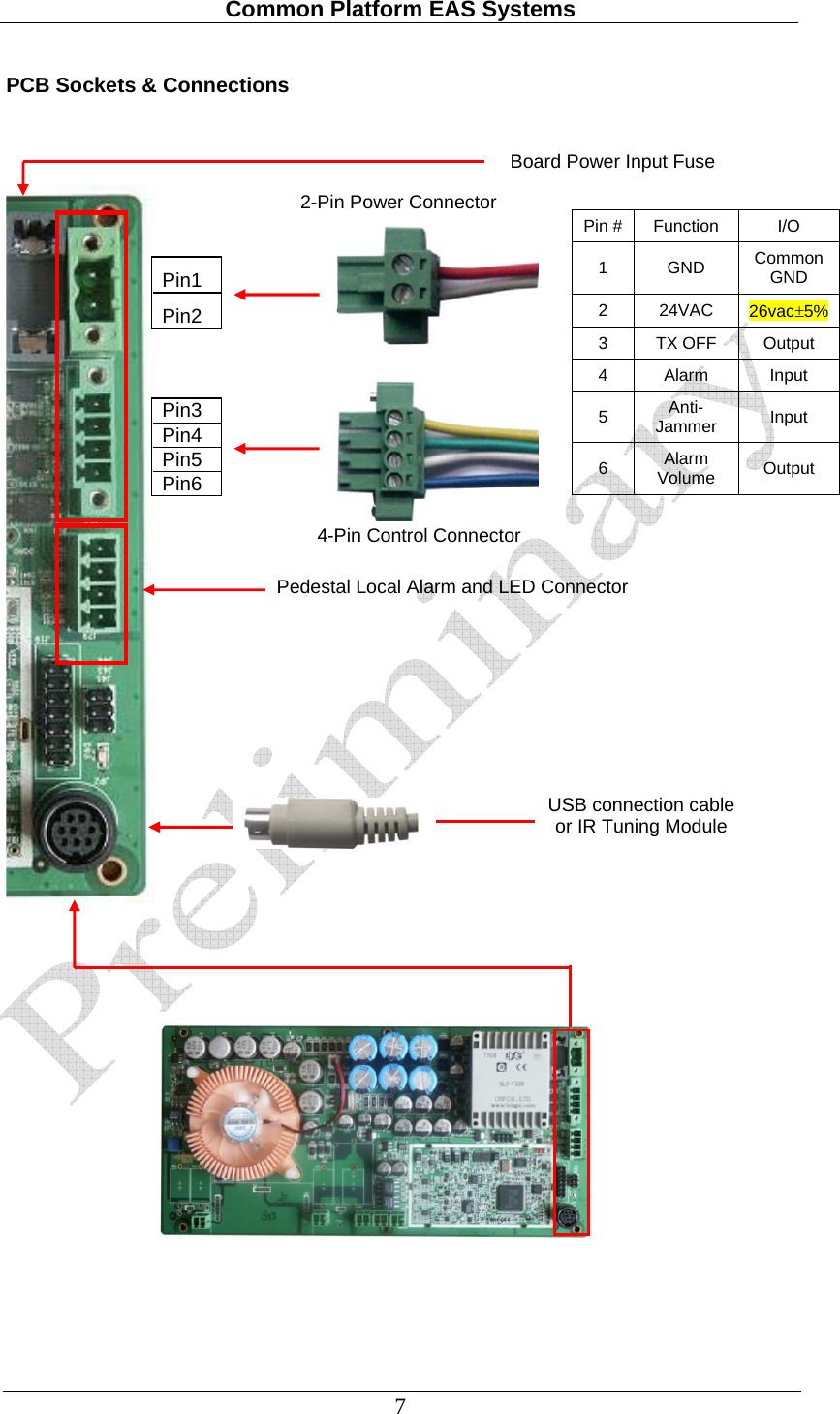

Common Platform EAS Systems 7 PCB Sockets & Connections Board Power Input Fuse 2-Pin Power Connector 4-Pin Control Connector Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin # Function I/O 1 GND Common GND 2 24VAC 26vac±5% 3 TX OFF Output 4 Alarm Input 5 Anti-Jammer Input 6 Alarm Volume Output Pedestal Local Alarm and LED Connector USB connection cable or IR Tuning Module

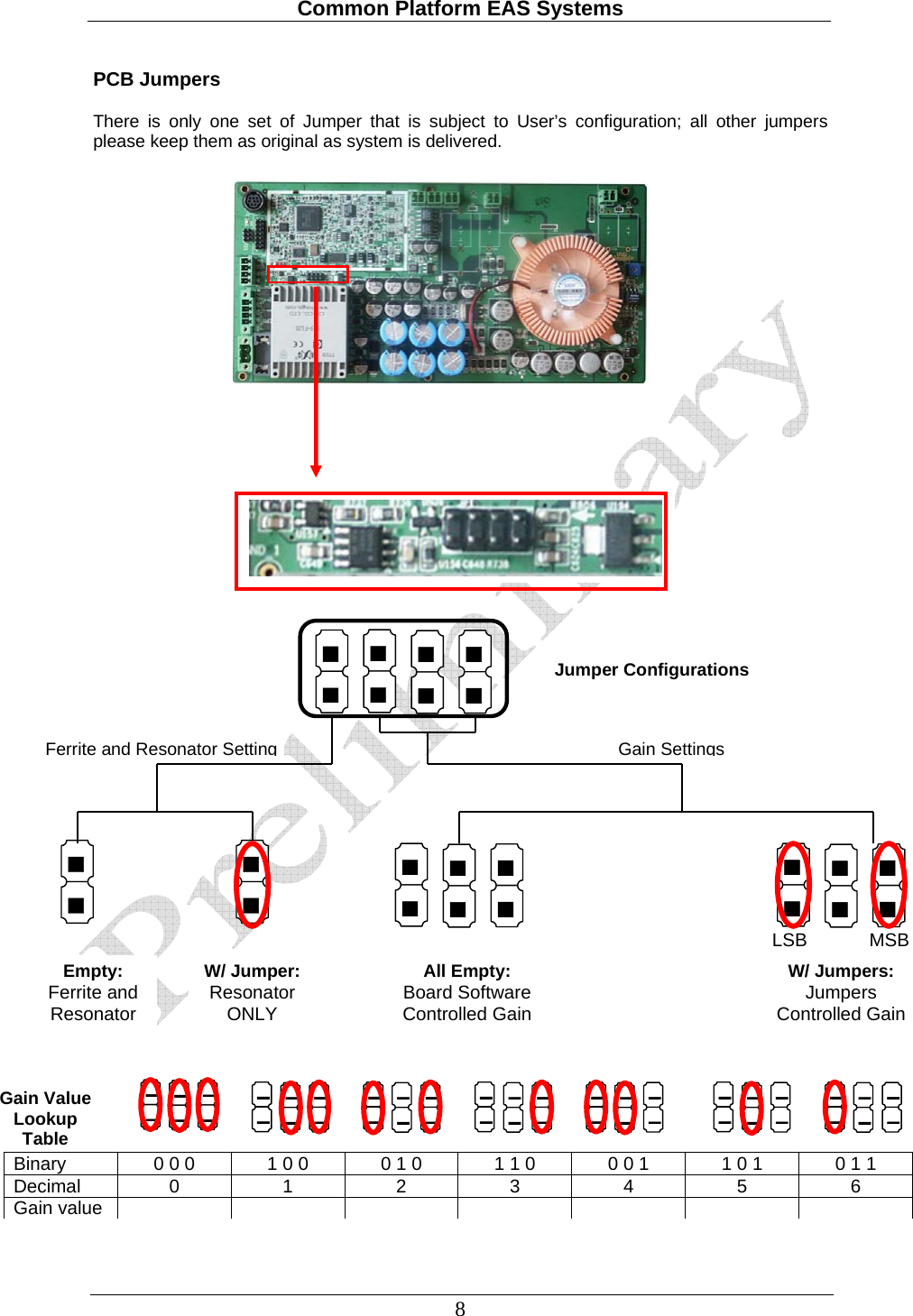

Common Platform EAS Systems 8 PCB Jumpers There is only one set of Jumper that is subject to User’s configuration; all other jumpers please keep them as original as system is delivered. Jumper Configurations ■■■■■■■■Gain Settings Ferrite and Resonator Setting ■■■■Empty: Ferrite and Resonator W/ Jumper: Resonator ONLY ■■■■■■All Empty:Board Software Controlled Gain■■■■■■W/ Jumpers:Jumpers Controlled Gain Binary 0 0 0 1 0 0 0 1 0 1 1 0 0 0 1 1 0 1 0 1 1 Decimal 0 1 2 3 4 5 6 Gain value LSB MSB■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■Gain Value Lookup Table

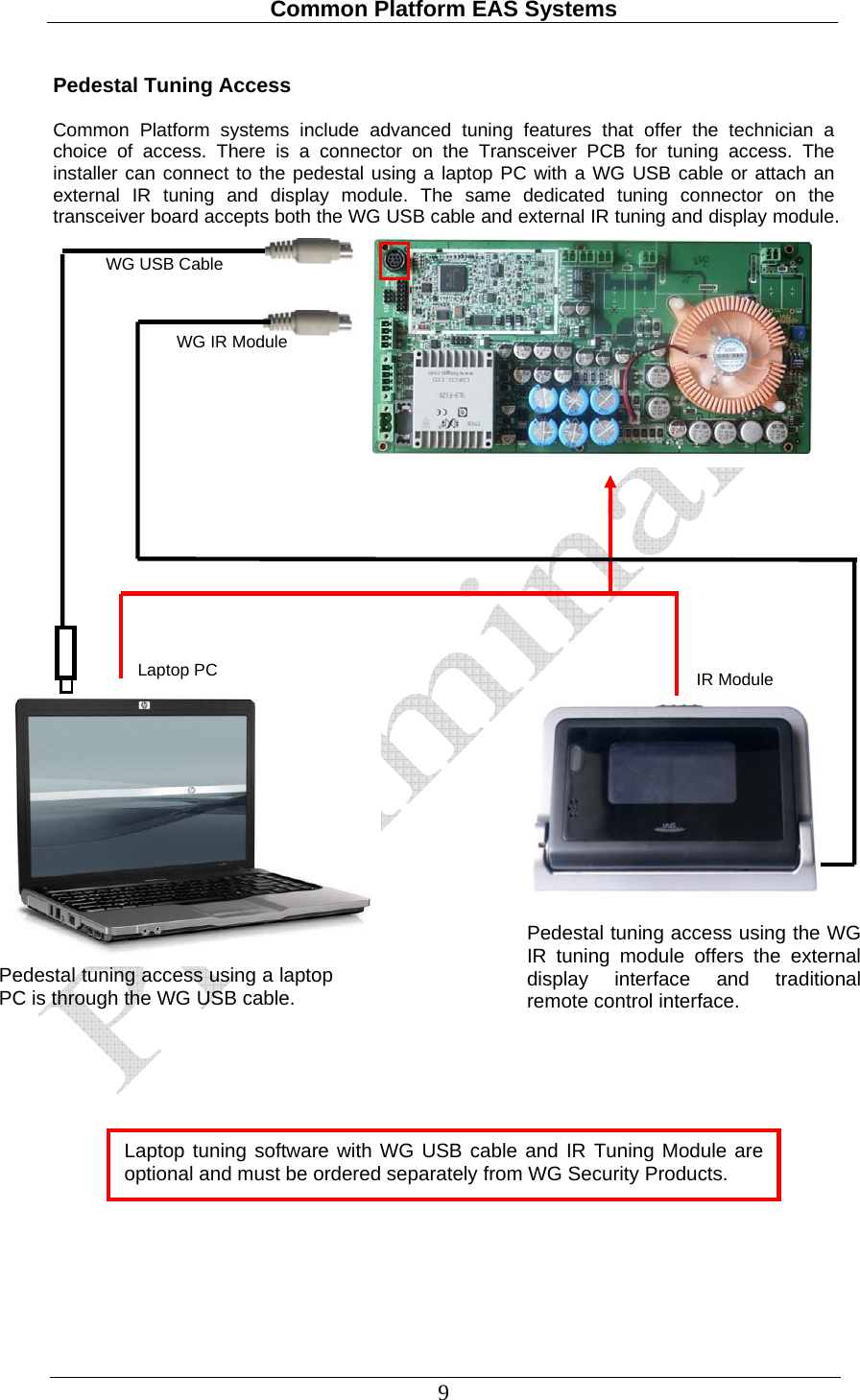

Common Platform EAS Systems 9 Pedestal Tuning Access Common Platform systems include advanced tuning features that offer the technician a choice of access. There is a connector on the Transceiver PCB for tuning access. The installer can connect to the pedestal using a laptop PC with a WG USB cable or attach an external IR tuning and display module. The same dedicated tuning connector on the transceiver board accepts both the WG USB cable and external IR tuning and display module. Pedestal tuning access using the WG IR tuning module offers the external display interface and traditional remote control interface. Pedestal tuning access using a laptop PC is through the WG USB cable. WG USB Cable Laptop tuning software with WG USB cable and IR Tuning Module are optional and must be ordered separately from WG Security Products. WG IR Module Laptop PC IR Module

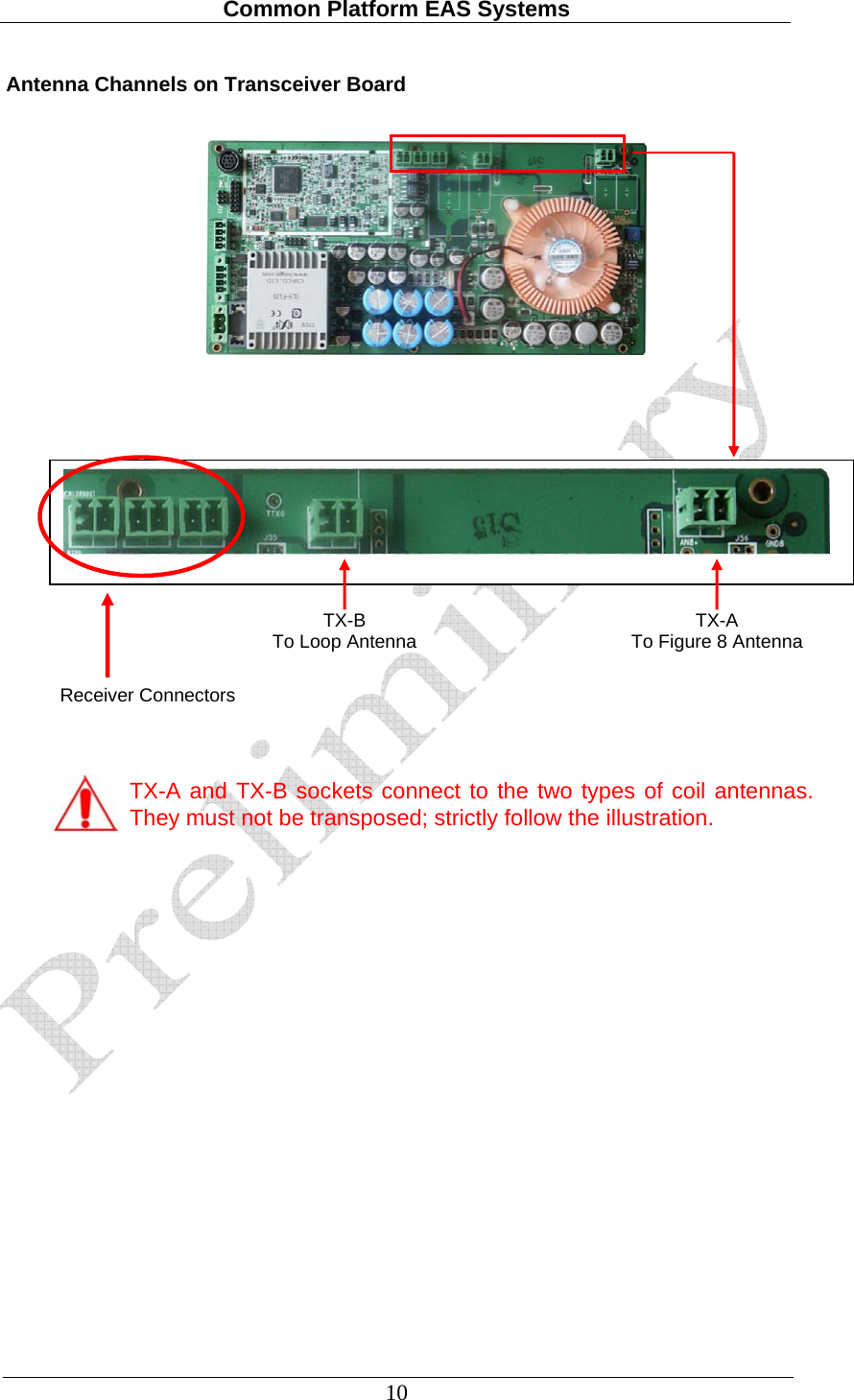

Common Platform EAS Systems 10 Antenna Channels on Transceiver Board TX-A and TX-B sockets connect to the two types of coil antennas. They must not be transposed; strictly follow the illustration. Receiver Connectors TX-A To Figure 8 Antenna TX-B To Loop Antenna

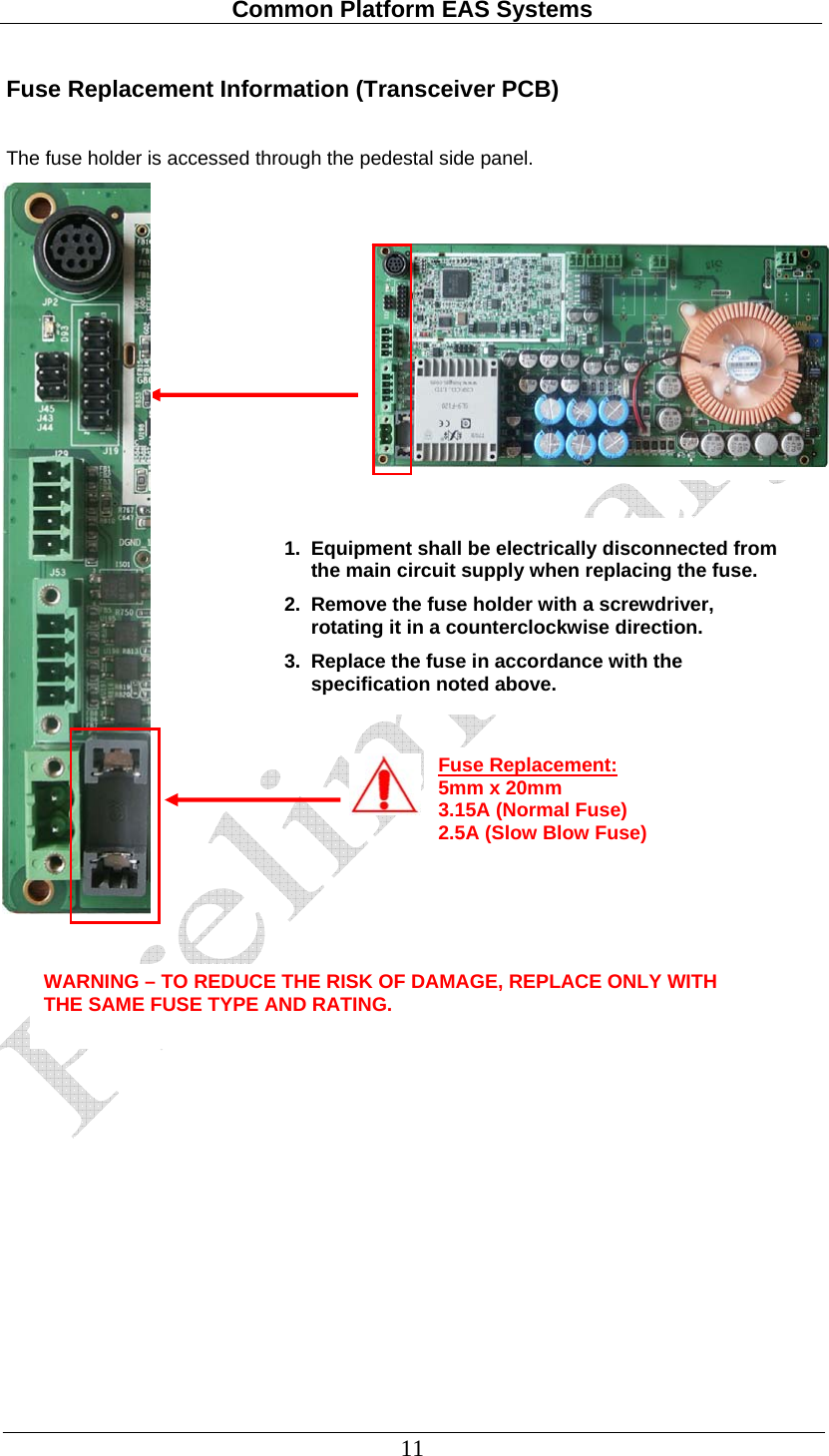

Common Platform EAS Systems 11 Fuse Replacement Information (Transceiver PCB) The fuse holder is accessed through the pedestal side panel. 1. Equipment shall be electrically disconnected from the main circuit supply when replacing the fuse. 2. Remove the fuse holder with a screwdriver, rotating it in a counterclockwise direction. 3. Replace the fuse in accordance with the specification noted above. WARNING – TO REDUCE THE RISK OF DAMAGE, REPLACE ONLY WITH THE SAME FUSE TYPE AND RATING. Fuse Replacement:5mm x 20mm 3.15A (Normal Fuse) 2.5A (Slow Blow Fuse)

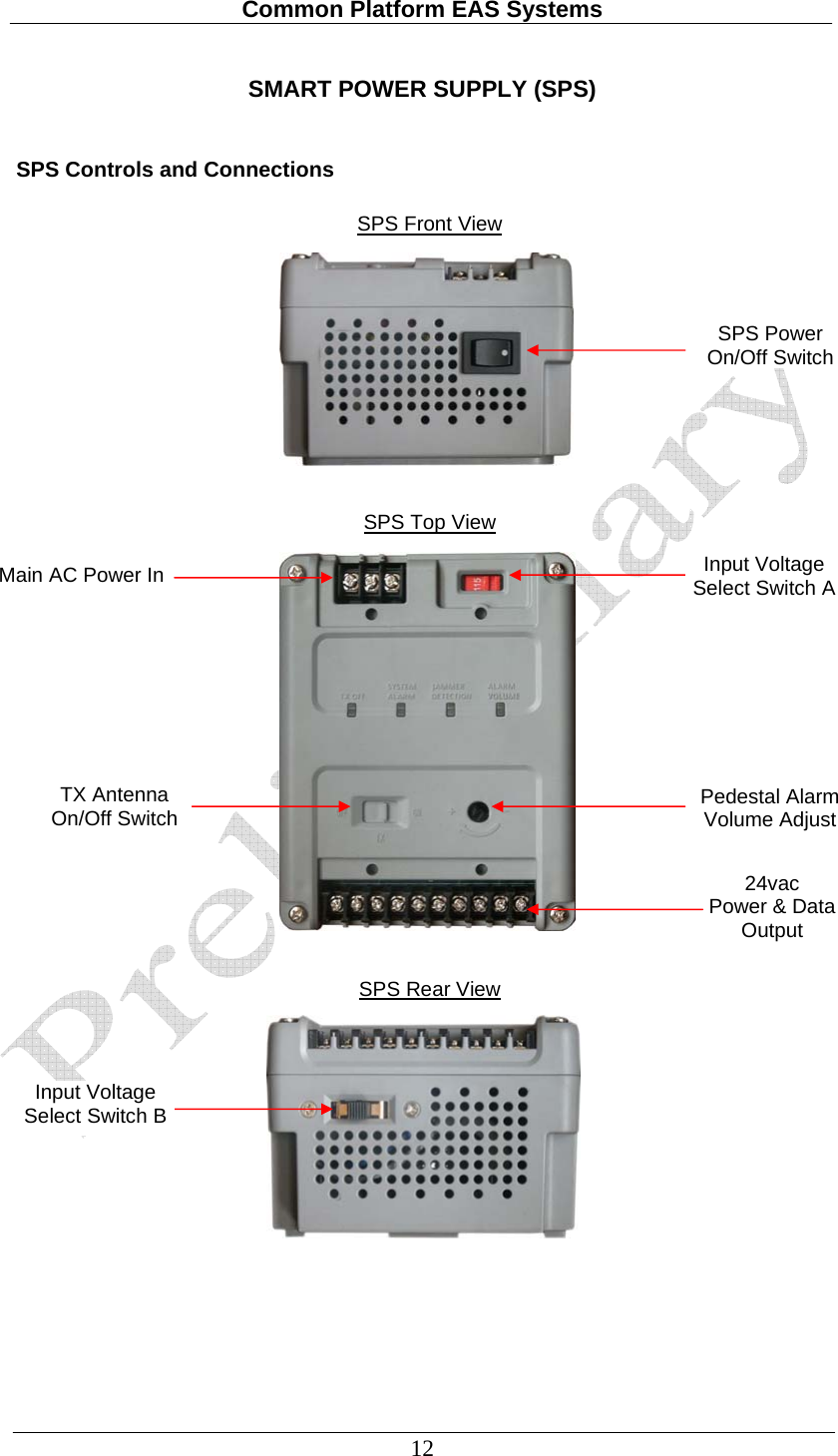

Common Platform EAS Systems 12 SMART POWER SUPPLY (SPS) SPS Controls and Connections SPS Power On/Off SwitchMain AC Power In 24vac Power & Data Output Input Voltage Select Switch AInput Voltage Select Switch B SPS Front ViewSPS Top View SPS Rear ViewPedestal Alarm Volume Adjust TX Antenna On/Off Switch

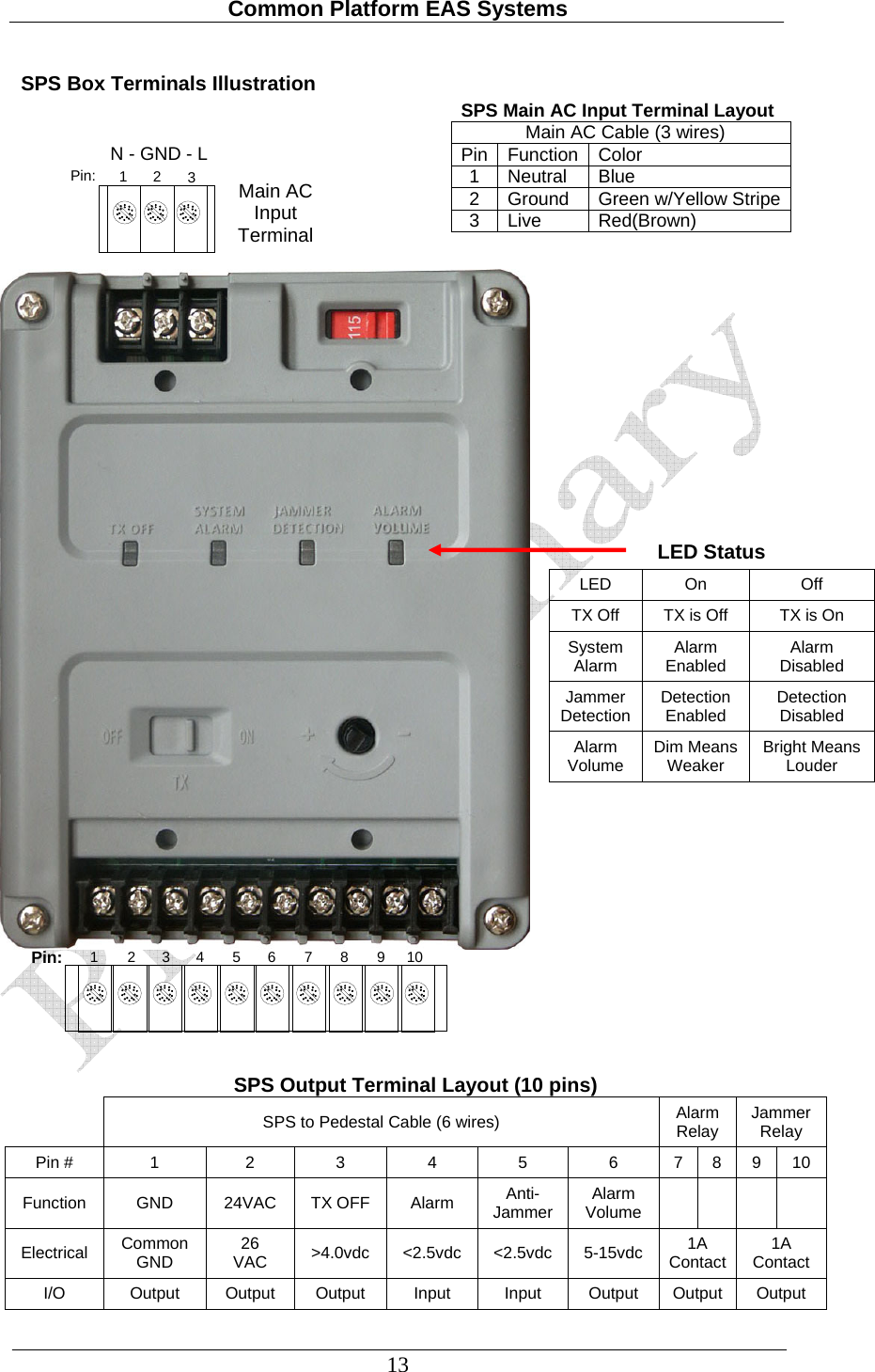

Common Platform EAS Systems 13 SPS Box Terminals Illustration SPS Output Terminal Layout (10 pins) SPS to Pedestal Cable (6 wires) Alarm Relay Jammer Relay Pin # 1 2 3 4 5 6 7 8 9 10 Function GND 24VAC TX OFF Alarm Anti- Jammer Alarm Volume Electrical Common GND 26 VAC >4.0vdc <2.5vdc <2.5vdc 5-15vdc 1A Contact 1A Contact I/O Output Output Output Input Input Output Output Output SPS Main AC Input Terminal Layout Main AC Cable (3 wires) Pin Function Color 1 Neutral Blue 2 Ground Green w/Yellow Stripe3 Live Red(Brown) 1 2 3 N - GND - L Main AC Input Terminal 1 2 3 4 5 6 7 8 9 10LED Status LED On Off TX Off TX is Off TX is On System Alarm Alarm Enabled Alarm Disabled Jammer Detection Detection Enabled Detection Disabled Alarm Volume Dim Means Weaker Bright Means Louder Pin:Pin:

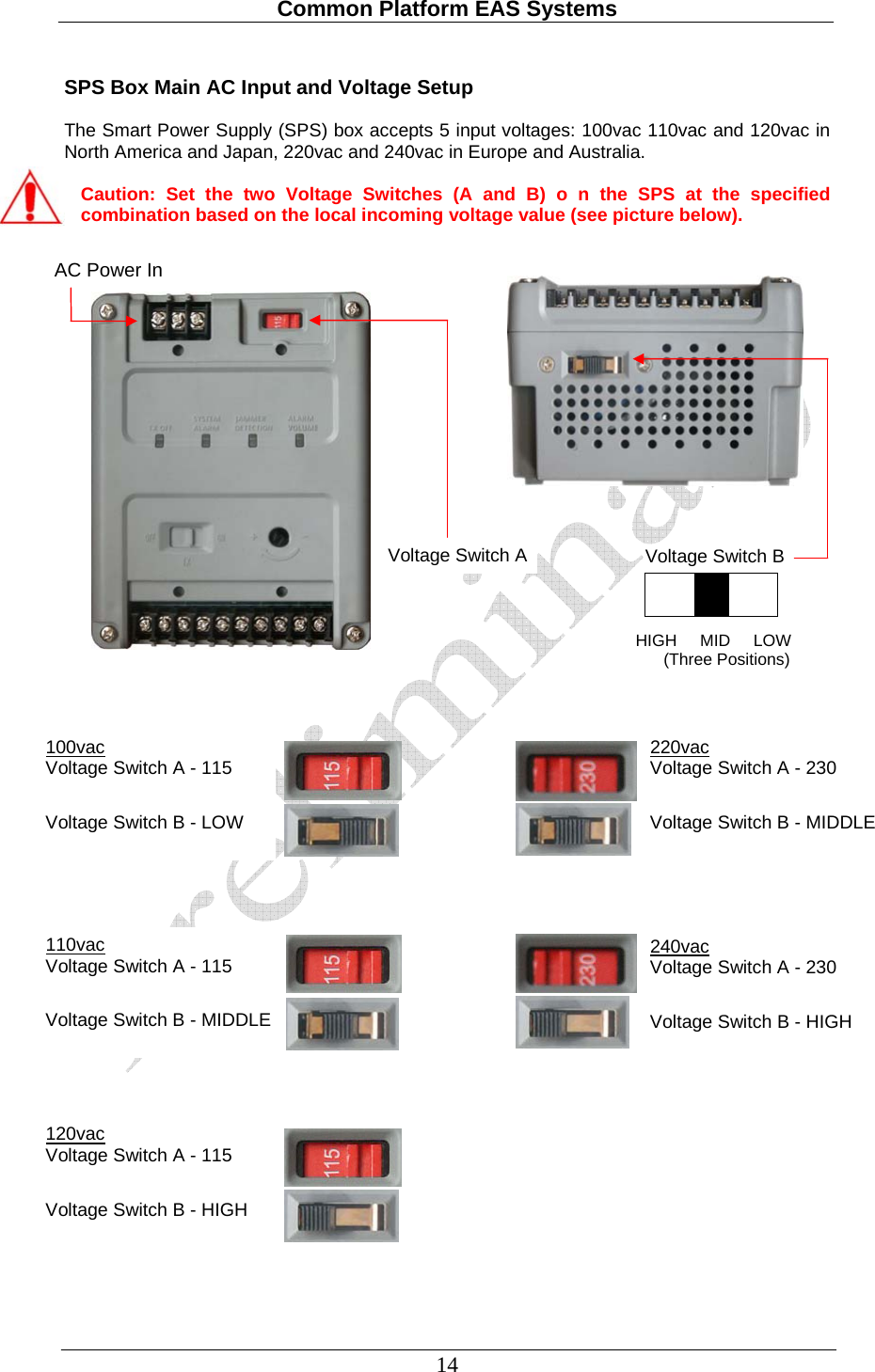

Common Platform EAS Systems 14 SPS Box Main AC Input and Voltage Setup The Smart Power Supply (SPS) box accepts 5 input voltages: 100vac 110vac and 120vac in North America and Japan, 220vac and 240vac in Europe and Australia. Caution: Set the two Voltage Switches (A and B) o n the SPS at the specified combination based on the local incoming voltage value (see picture below). Voltage Switch B HIGH MID LOW (Three Positions) AC Power In 100vac Voltage Switch A - 115 Voltage Switch B - LOW 110vac Voltage Switch A - 115 Voltage Switch B - MIDDLE 120vac Voltage Switch A - 115 Voltage Switch B - HIGH 220vac Voltage Switch A - 230 Voltage Switch B - MIDDLE 240vac Voltage Switch A - 230 Voltage Switch B - HIGH Voltage Switch A

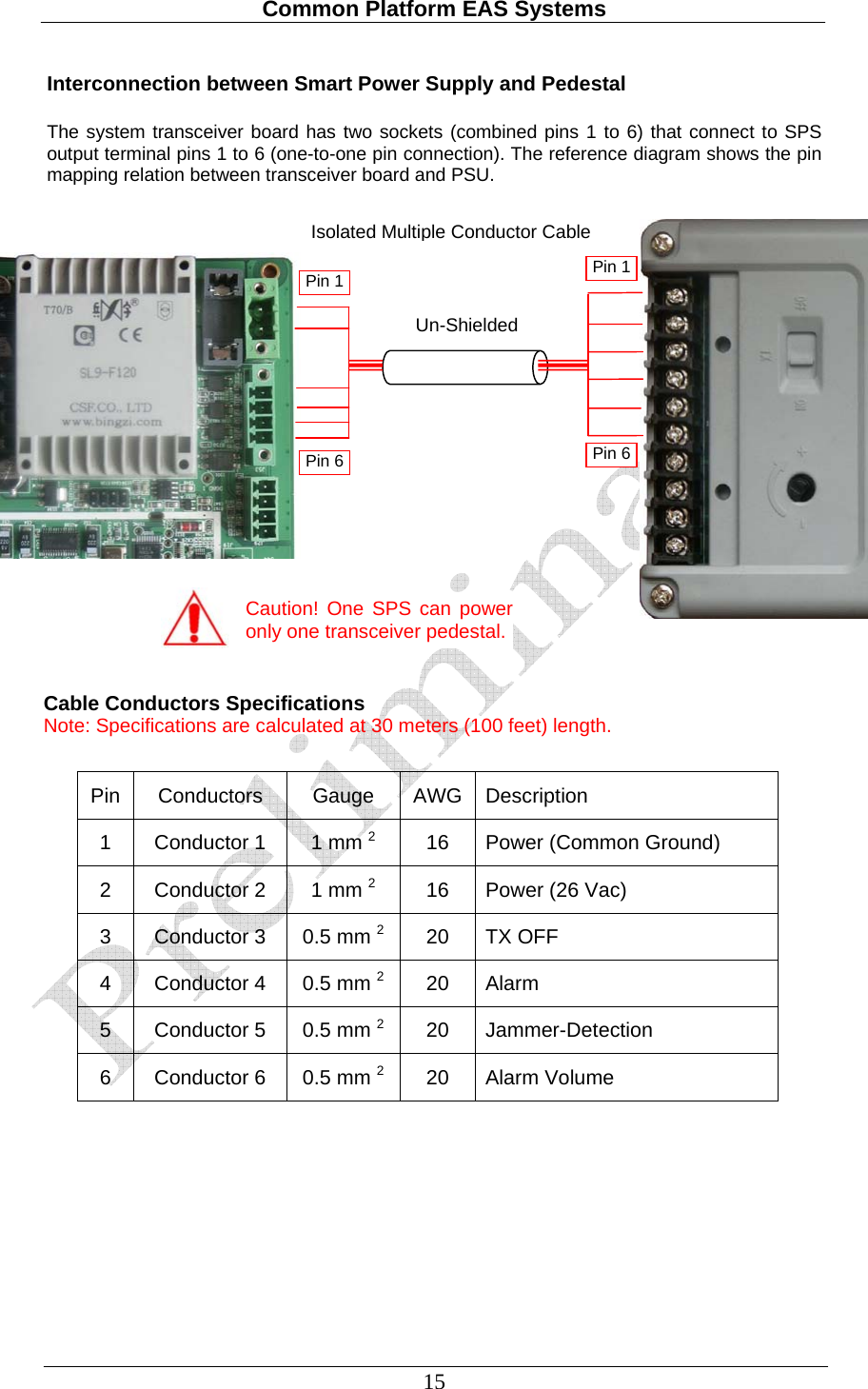

Common Platform EAS Systems 15 Interconnection between Smart Power Supply and Pedestal The system transceiver board has two sockets (combined pins 1 to 6) that connect to SPS output terminal pins 1 to 6 (one-to-one pin connection). The reference diagram shows the pin mapping relation between transceiver board and PSU. Pin 1Pin 6Pin 6Pin 1Isolated Multiple Conductor CableUn-ShieldedCable Conductors Specifications Note: Specifications are calculated at 30 meters (100 feet) length. Pin Conductors Gauge AWG Description 1 Conductor 1 1 mm 2 16 Power (Common Ground) 2 Conductor 2 1 mm 2 16 Power (26 Vac) 3 Conductor 3 0.5 mm 2 20 TX OFF 4 Conductor 4 0.5 mm 2 20 Alarm 5 Conductor 5 0.5 mm 2 20 Jammer-Detection 6 Conductor 6 0.5 mm 2 20 Alarm Volume Caution! One SPS can poweronly one transceiver pedestal.

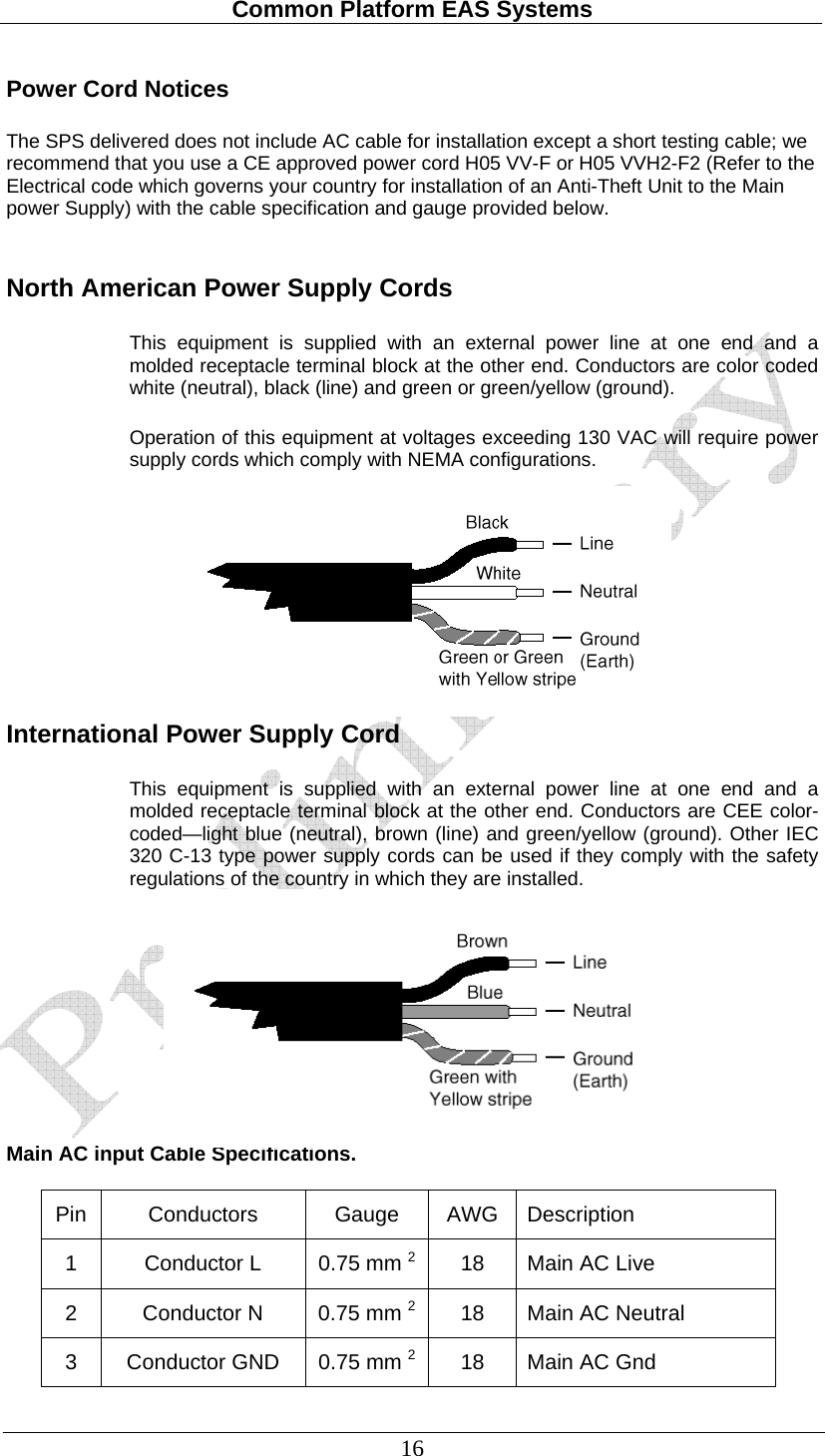

Common Platform EAS Systems 16 Power Cord Notices The SPS delivered does not include AC cable for installation except a short testing cable; we recommend that you use a CE approved power cord H05 VV-F or H05 VVH2-F2 (Refer to the Electrical code which governs your country for installation of an Anti-Theft Unit to the Main power Supply) with the cable specification and gauge provided below. North American Power Supply Cords This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are color coded white (neutral), black (line) and green or green/yellow (ground). Operation of this equipment at voltages exceeding 130 VAC will require power supply cords which comply with NEMA configurations. International Power Supply Cord This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are CEE color-coded—light blue (neutral), brown (line) and green/yellow (ground). Other IEC 320 C-13 type power supply cords can be used if they comply with the safety regulations of the country in which they are installed. Main AC input Cable Specifications. Pin Conductors Gauge AWG Description 1 Conductor L 0.75 mm 2 18 Main AC Live 2 Conductor N 0.75 mm 2 18 Main AC Neutral 3 Conductor GND 0.75 mm 2 18 Main AC Gnd

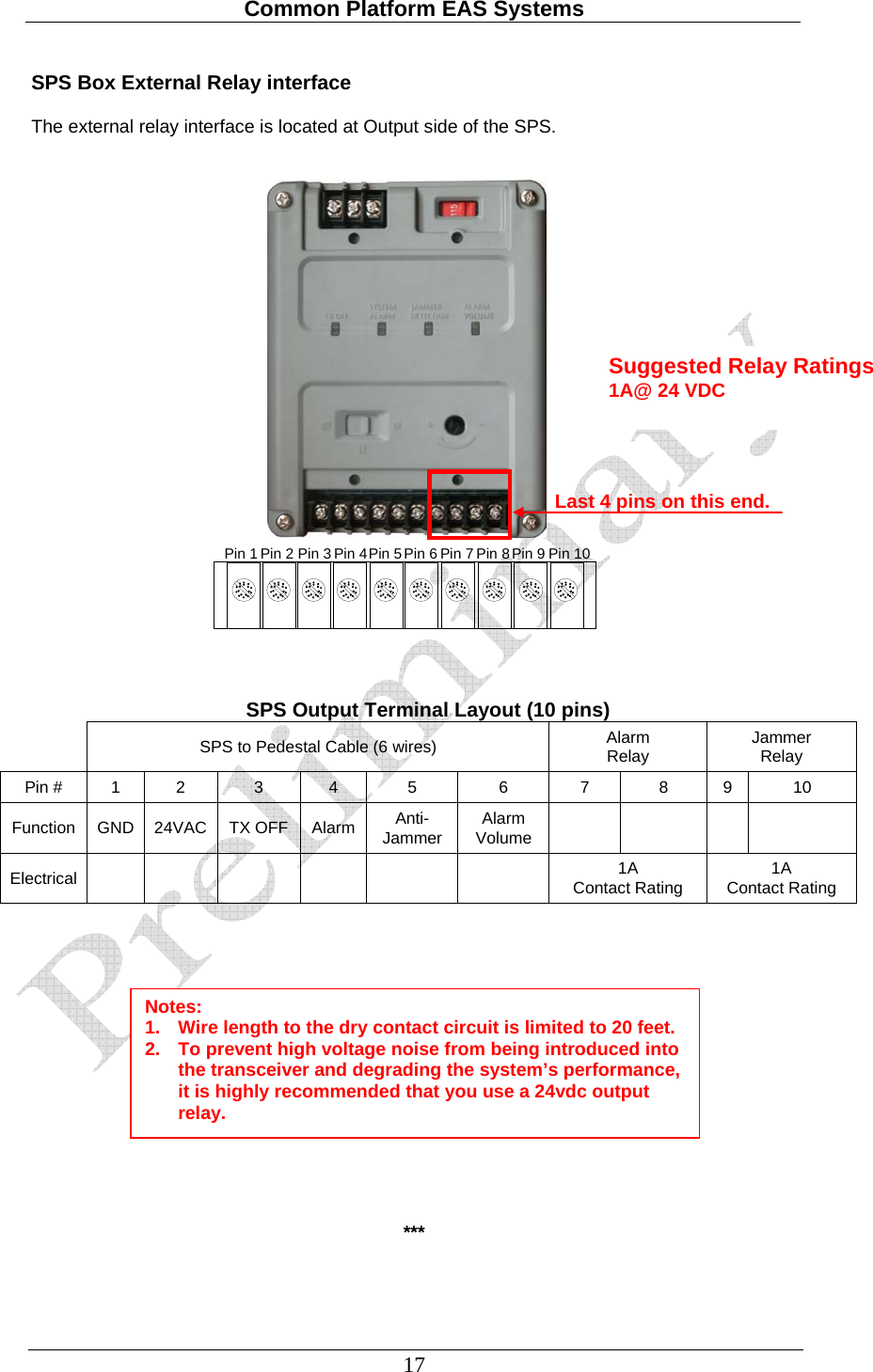

Common Platform EAS Systems 17 SPS Box External Relay interface The external relay interface is located at Output side of the SPS. *** Suggested Relay Ratings 1A@ 24 VDC Notes: 1. Wire length to the dry contact circuit is limited to 20 feet. 2. To prevent high voltage noise from being introduced into the transceiver and degrading the system’s performance, it is highly recommended that you use a 24vdc output relay. Last 4 pins on this end. Pin 1 Pin 2 Pin 3 Pin 4Pin 5Pin 6 Pin 7 Pin 8Pin 9 Pin 10SPS Output Terminal Layout (10 pins) SPS to Pedestal Cable (6 wires) Alarm Relay Jammer Relay Pin # 1 2 3 4 5 6 7 8 9 10 Function GND 24VAC TX OFF Alarm Anti- Jammer Alarm Volume Electrical 1A Contact Rating 1A Contact Rating
