WINIA Electronics 7NF0015 DVD Recorder + VCR User Manual DWL71D1D RV4000 GB
Dongbu Daewoo Electronics Corporation DVD Recorder + VCR DWL71D1D RV4000 GB
User Manual
DVD Recorder + VCR
RV4000
User Manual
POWER
PLAY/PAUSE STOP REW FF DVD• VCR
REC
CH
VCR
EJECT
VCR VCRDVD DVD
ONE-TOUCH COPY
DUAL
RV4000 DVD RECORDER +VCR
DVD
EJECT
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지A
INTRODUCTION
1
Important Safeguards
Important Safeguards
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and servicing instructions in
the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
WARNING:
Do not install this equipment in a confined space such as a bookcase or
similar unit.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to
Article 820-40 of the National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as
practical.
CAUTION:
This DVD Recorder+VCR employs a Laser System. To ensure proper use of this product, please read this
owner’s manual carefully and retain for future reference. Should the DVD Recorder+VCR require maintenance,
contact an authorized service center. Use of controls, adjustments, or the performance of procedures other than
those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do
not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION:
The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as
vases, should be placed on the apparatus.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are expressly approved in the instruction manual. The user
could lose the authority to operate this equipment if an unauthorized change or modification is made.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지1
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S
MANUAL AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE
REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in
electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the
following procedures for installation, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
2
Important Safeguards
IMPORTANT SAFETY INSTRUCTIONS
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the product is operated in a residential installation. This product generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this product does cause harmful interference to radio or television reception, which can
be determined by turning the product off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the product and receiver.
- Connect the product into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC COMPLIANCE:
The responsible party for this product’s compliance is: GoVideo, 7835 East McClain Drive, Scottsdale, AZ
85260, USA.
SERIAL NUMBER:
The serial number is found on the back of the DVD Recorder+VCR. This number is for this unit only. You should
record requested information here and retain this guide as a permanent record of your purchase.
Model No. ___________________________________
Serial No. ___________________________________
1 Read these instructions.
All these safety and operating instructions
should be read before the product is operated.
2 Keep these instructions.
The safety, operating and use instructions should
be retained for future reference.
3 Heed all warnings.
All warnings on the product and in the operating
instructions should be adhered to.
4 Follow all instructions.
All operating and use instructions should be
followed.
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지2
INTRODUCTION
3
5 Do not use this product near water.
For example: near a bath tub, wash bowl, kitchen
sink, laundry tub, in a wet basement; or near a
swimming pool; and other areas located near
water.
6 Clean only with dry cloth.
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from overheating.
The openings should never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a
built-in installation such as a bookcase or rack
unless proper ventilation is provided or the
manufacturer’s instructions have been adhered
to.
8
Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatuses (including amplifiers) that produce
heat.
9
Make sure that rating of your household
electricity supply matches that shown on the
back of your product.
10
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the product.
11
Only use attachments/ accessories specified by
the manufacturer.
12

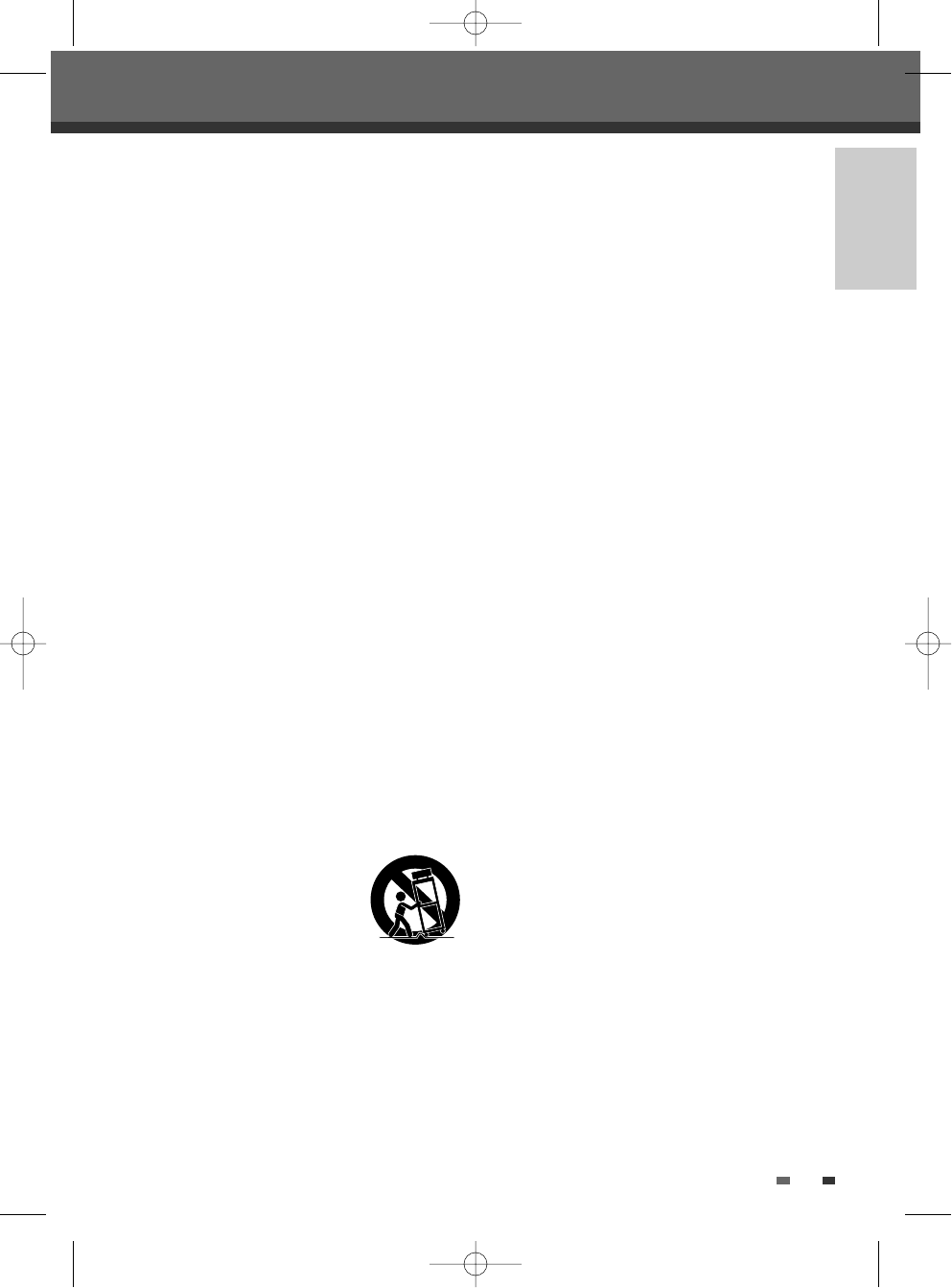

Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
apparatus. When a cart is used,
use caution when moving the
cart/ product combination to avoid injury from
tip-over.
13
Unplug this product during lightning storms or
when unused for long periods of time.
14
Refer all servicing to qualified service personnel.
Servicing is required when the product has been
damaged in any way, such as: Power-supply cord
or plug is damaged; liquid has been spilled or
objects have fallen into the product; the product
has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15
Do not connect the product to the power supply
if you have just moved it from a cold environment
to a warm room. This can lead to condensation
inside the product, which can damage it. Wait
for approx. 2 hrs for it to reach room
temperature.
16
Make sure the product is placed at least 10 cm
apart from other home appliances or obstacles to
ensure sufficient ventilation.
17
This product is designed to work continuously.
Switching if off(stand-by mode) does not
disconnect if from the mains. To disconnect if
from the mains you have to unplug it.
Important Safeguards
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지3
4
Table of Contents
Table of Contents
Important Safeguards _________________________1
Table of Contents ______________________________4
Overview ______________________________________5

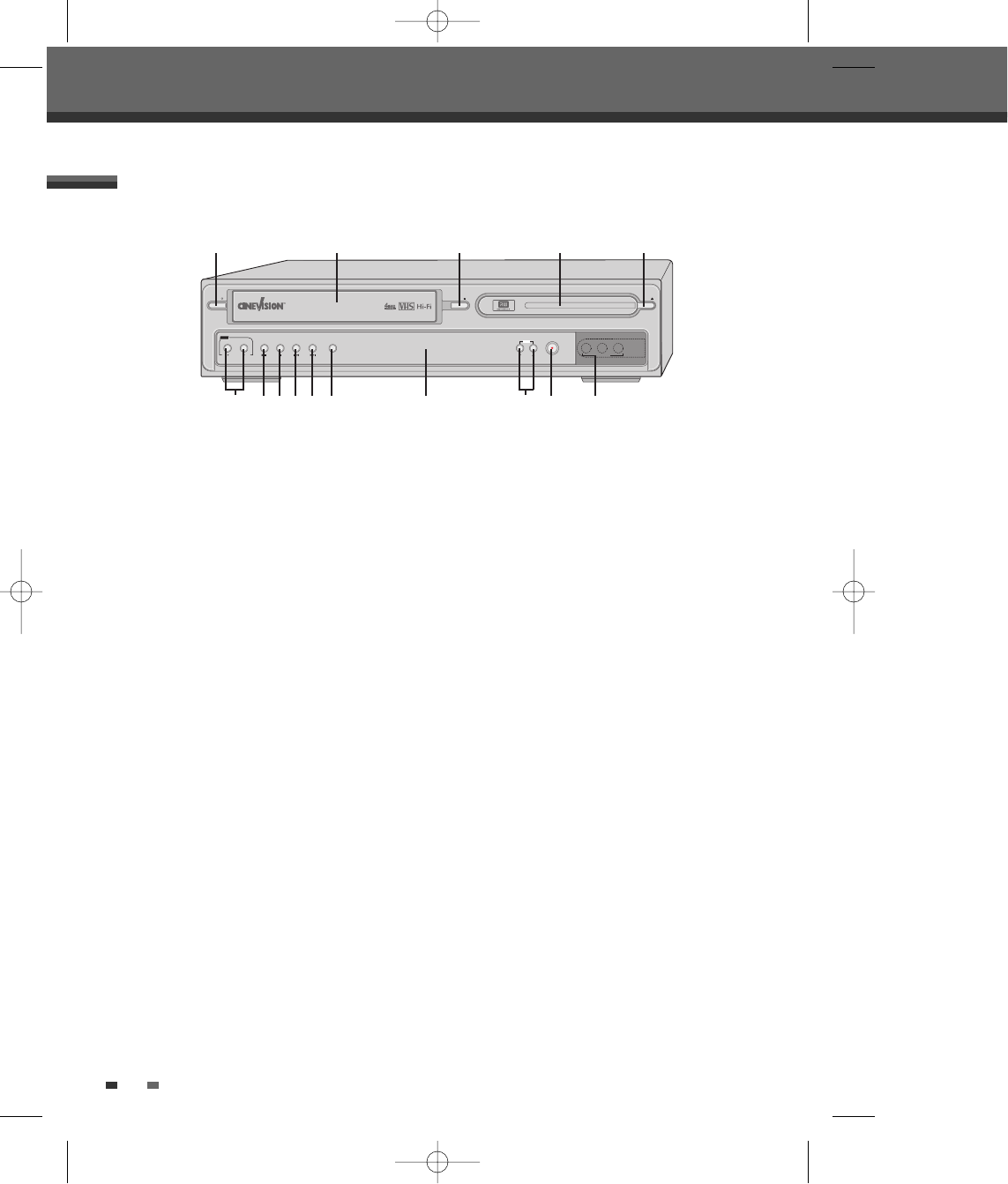

Identification of Controls_______________________10
INTRODUCTION

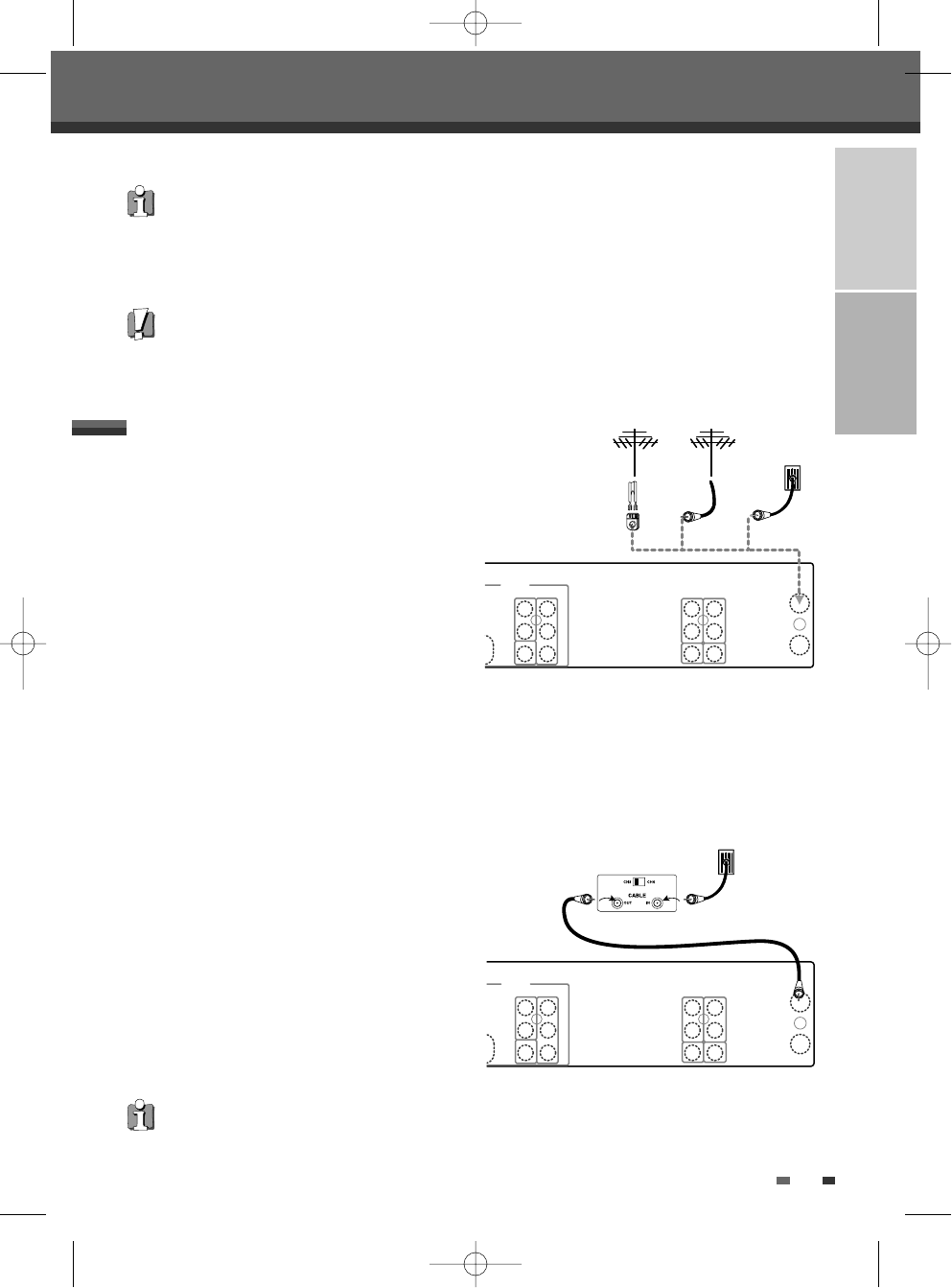

Connecting Antenna/Cable ____________________15

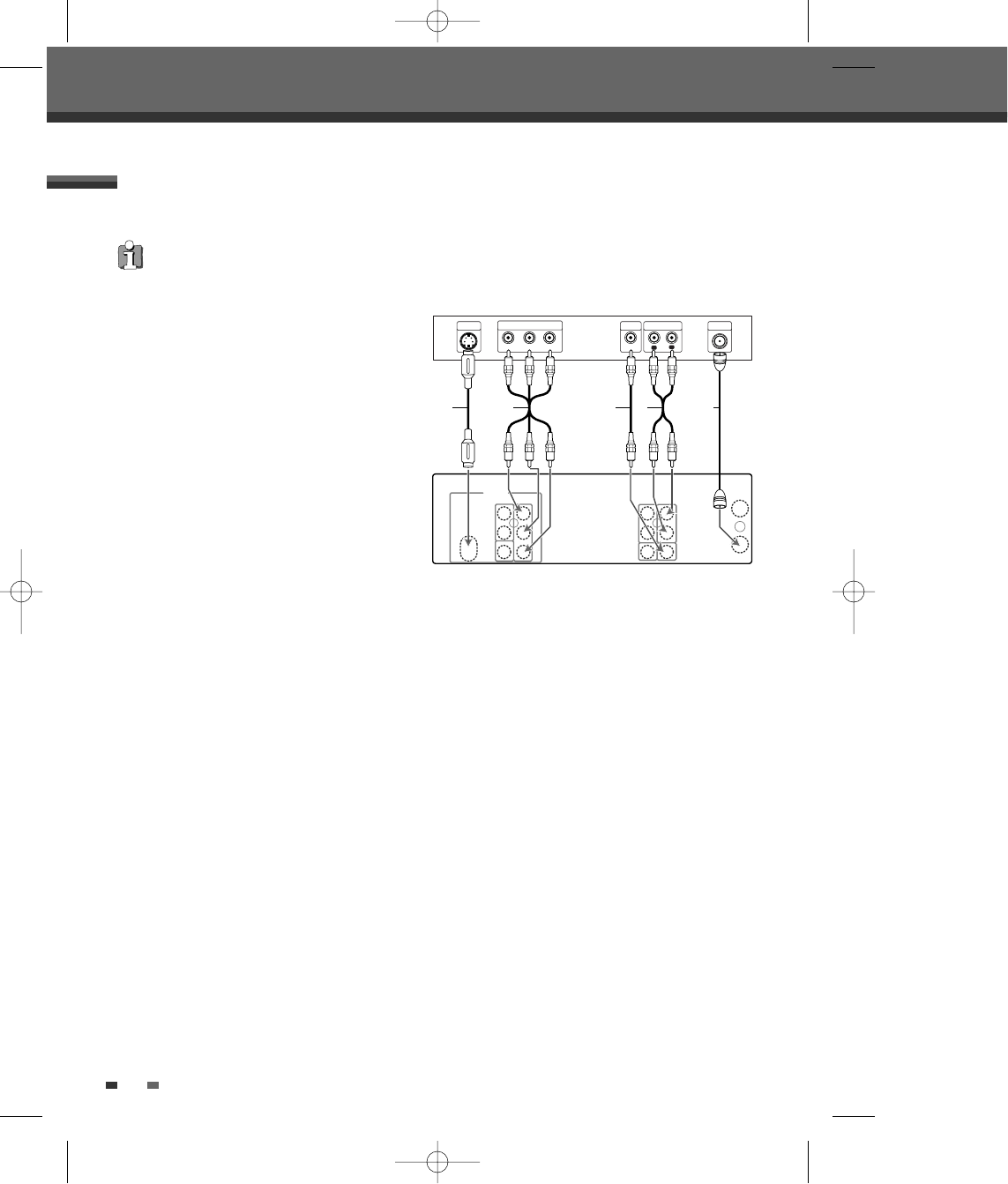

Connecting a TV _______________________________16
Connecting an Amplifier/Receiver _____________18
Connecting Optional Equipment ______________19
CONNECTIONS
Initial Installation ______________________________20
Initial Setup____________________________________22
Setup Menu Overview 22
Menu Navigation 22
INSTALLATION Settings 22
RECORDING OPTIONS Settings 25
LANGUAGE Settings 26
PREFERENCE / Video Settings 27
PREFERENCE / Audio Settings 28
PREFERENCE / Parental Controls 30
Various PREFERENCE Settings 32
System Information 34
Restore Defaults 34
On-Screen Display Overview __________________35
SETUP
DVD Playback _________________________________38
VCR Playback _________________________________41
PLAYBACK
Basic Recording________________________________45
Recording from TV 45
One Touch Record (OTR) 46
Checking the Recording Time 46
To Pause the Recording 46
One Touch Copy - DVD to VHS 47
One Touch Copy - VHS to DVD 48
Timer Recording _______________________________49
Recording from an External Input _____________51
RECORDING
DISC Initialize __________________________________52
Disc Menu _____________________________________52
Editing _________________________________________56
EDITING
Troubleshooting _______________________________58
Technical Specifications ________________________61
REFERENCE
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지4
INTRODUCTION
5
Overview
Overview
DVD, DVD+R, DVD+RW?
What is a DVD?
DVD (Digital Versatile Disc) is a new storage medium that combines the convenience of the compact disc with
the latest digital video technology. DVD video uses modern MPEG2 data compression technology that enables
an entire feature film to be stored on a single five inch disc.
How good is the resolution of DVD compared with VHS?
The razor-sharp digital images have a resolution of more than 500 lines of 720 pixels per line. This is more than
twice as high as VHS and is even better than the laser disc. Its picture quality is easily comparable to the digital
masters produced in recording studios.
What can DVD+RW do?
DVD+ReWritable uses phase change media, the same technology on which rewritable CDs are based. A high-
performance laser is used to change the reflective properties of the recording layer; this process can be
repeated more than a thousand times.
What can the DVD+R do?
DVD+R (write-once DVD). Unlike a DVD+RW disc, this disc can only be written to once. If it is not finalized after
a recording, further recordings can be added to it. Old recordings can be later deleted but they can no longer be
overwritten. The deleted recordings (titles) are marked 'deleted title'.
Before this disc can be played in a DVD player, it must be finalized in the DVD Recorder+VCR. Once this process
is complete, no further recordings can be added.
What can my DVD recorder do?
Your DVD Recorder+VCR is a machine for recording and playing back digital video discs with ‘two-way‘
compatibility with the universal DVD video standard. This means:
• existing DVD video discs can be played on the recorder.
• recordings made on your DVD Recorder+VCR can be played on other DVD video players and DVD ROM
drives.
Regional code
If the region number described on the DVD disc does not correspond to the
Region number of this player, the player will not play this disc.
1
ALL
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지5
6
Overview
Disc-related Terms
Title (DVD only)
The main film content or accompanying feature content or music album. Each title is assigned a title reference
number enabling you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several
chapters. Each chapter is assigned a number to enable you to easily locate the chapter you want. Depending on
the disc, chapters may not be labeled.
Track (Audio CD only)
Sections of a picture or a musical piece on an audio CD. Each track is assigned a number, enabling you to easily
locate the track you want.
Which discs you can use
The following discs can be used in your DVD Recorder+VCR for playback and recording:
Playback and recording
DVD+RW (Digital Versatile Disc + ReWritable)
DVD+R (Digital Versatile Disc + Write-Once)
Playback only:
DVD Video (Digital Versatile Disc)
DVD-R (DVD-Recordable) : These discs can only be played back if the recording was made in video mode and
the recording was finalized.
DVD-RW (DVD-Rerecordable) : These discs can only be played back if the recording was made in video mode
and the recording was finalized.
Audio CD (Compact Disc Digital Audio)
Video CD (format 2.0)
Super Video CD
CD-R (CD recordable) Audio/ MP3 contents
CD-RW (CD rewritable) Audio/ MP3 contents
Not all recordable CD may be played by your player.
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지6
INTRODUCTION
7
Overview
Notes for Recording
• The recording times shown are not exact because the DVD Recorder+VCR uses variable bit-rate video
compression. This means that the exact recording time will depend on the material being recorded.
• When recording a TV broadcast, if the reception is poor or the picture contains interference, the recording
times may be shorter.
• The disc which is recorded in high speed (over or equal to 2X speed) may be unrecognized.
• If you record still pictures or audio only, the recording time may be longer.
• The displayed times for recording and time remaining may not always add up to exactly the length of the
disc.
• The recording time available may decrease if you heavily edit a disc.
• When using a DVD+R disc, you can keep recording until the disc is full, or until you finalize the disc. Before
you start a recording session, check the amount of recording time left on the disc.
Recording TV Audio Channels
The DVD Recorder+VCR can record one or two channel audio. For TV broadcasts, this usually means mono or
stereo, but some programs are broadcast with a main and a SAP (Secondary Audio Program) audio channel.
You can record either the main audio or the SAP audio.
Restrictions on Video Recording
• You cannot record copy-protected video using this DVD Recorder+VCR. Copy-protected video includes DVD-
Video discs and some satellite broadcasts. If copy-protected material is encountered during a recording,
recording will pause or stop automatically and an error message will be displayed on-screen.
• Video that is ‘copy-once only’ can only be recorded using a DVD+RW discs with CPRM (see below).
Copyright Notice
• Audio and video recordings you make using the DVD Recorder+VCR are for your personal use only. You may
not sell, lend or rent them to other people.
• This product incorporates copyright protection technology that is protected by method claims of certain
U.S.patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
corporation. Reverse engineering or disassembly is prohibited.
About DVD Recording
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지7
8
Overview
Handling the Unit
When shipping the unit
The original shipping carton and packing materials come in handy. For maximum protection, re-pack the
unit as it was originally packaged at the factory.
When setting up the unit
The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position
the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products
in contact with the unit for a long period of time. They will leave marks on the surface.
Cleaning the Unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild
detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage
the surface of the unit.
To obtain a clear picture
The DVD Recorder+VCR is a high-tech, precision device. If the optical pick-up lens and disc drive parts are
dirty or worn, the picture quality will be poor. Regular inspection and maintenance are recommended after
every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your
nearest dealer.
Remote Control Operation Range
Point the remote control at the remote sensor and press the buttons.
Distance: About 23 ft (7 m) from the front of the remote sensor.
Angle: About 30° in each direction of the front of the remote sensor.

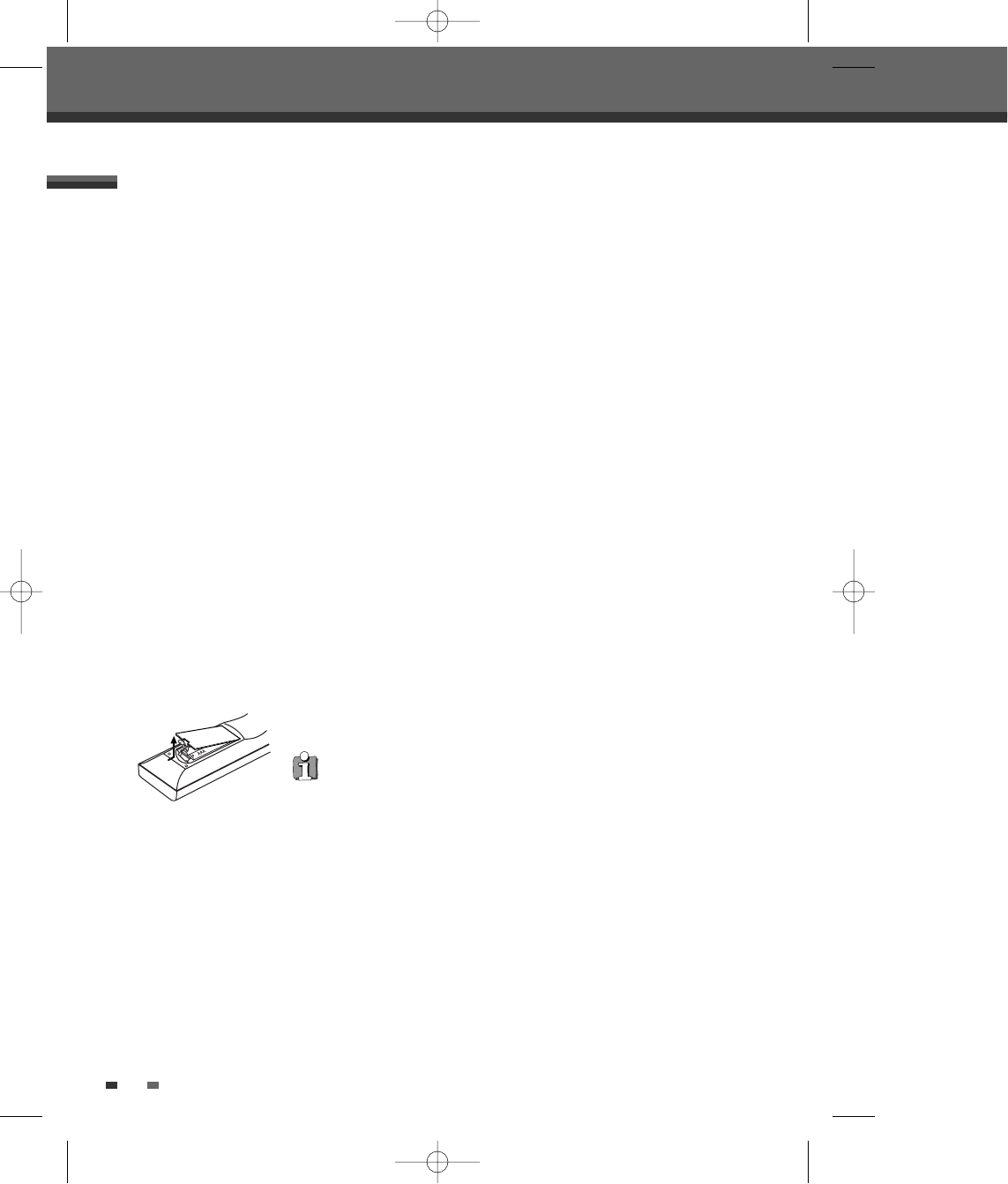

Remote Control Battery Installation
Detach the battery cover on the rear of the remote control, and insert two size
AAA batteries with and aligned correctly.
Caution
Do not mix old and new batteries. Never mix different types of batteries (standard,
alkaline, etc.).
Precautions
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지8
INTRODUCTION
9
Overview

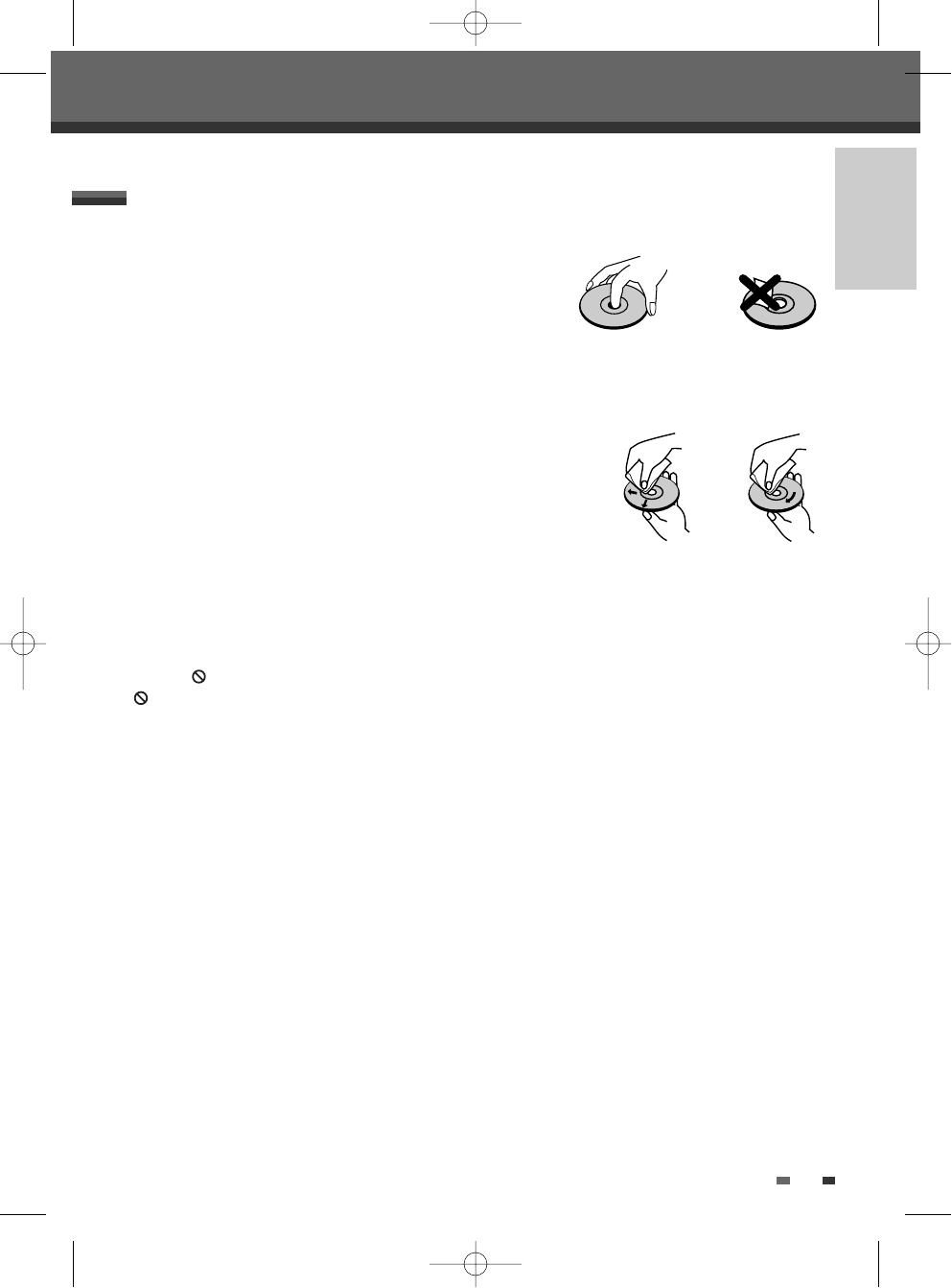

Handling Discs
Do not touch the playback side of the disc. Hold the disc by the edges
so that fingerprints will not get on the surface. Do not stick paper or
tape on the disc.
Storing Discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct
sunlight, as there may be a considerable temperature increase inside the car.
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and
sound distortion. Before playing, clean the disc with a clean cloth.
Wipe the disc from the center outward.
Do not use strong solvents such as alcohol, benzine, thinner,
commercially available cleaners, or anti-static spray intended for older
vinyl records.
Notes on Discs
About the Symbol
‘ ‘ may appear on the TV screen during operation. This icon means the function explained in this owner’s
manual is not available on that specific disc.
About Symbols
NoYes
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지9
10
Identification of Controls
Identification of Controls
!
POWER
Switches the DVD Recorder+VCR ON and OFF.
@
Cassette Compartment (VCR deck)
Insert a video cassette here.
#
EJECT (VCR)
Ejects the tape in the VCR deck.
$
Disc Tray (DVD deck)
Insert a disc here.
%
EJECT (DVD)
Opens or closes the disc tray.
^
ONE TOUCH COPY
Copies from DVD to VCR (or from VCR to DVD).
&
PLAY/PAUSE
Starts playback of a disc or tape. Pauses playback
or recording temporarily.
*
STOP
Stops playback.
(
REW
DVD: Fast reverse search.
VCR: Rewinds the tape during Stop mode. Press
during Play mode for fast reverse picture search.
)
FF
DVD: Fast forward search.
VCR: Advances the tape during Stop mode. Press
during Play mode for fast forward picture search.
1
SELECT DVD/VCR
Toggles control between the DVD deck and the
VCR deck.
2
Front Panel Display
Shows the current status of the DVD
Recorder+VCR.
3
CH …/†
Scans up or down through memorized channels or
move up and down when in DVD navigation
menu.
4
REC
Starts recording. Press repeatedly to set the
recording time. Lights red when the DVD
Recorder+VCR is under recording.
5

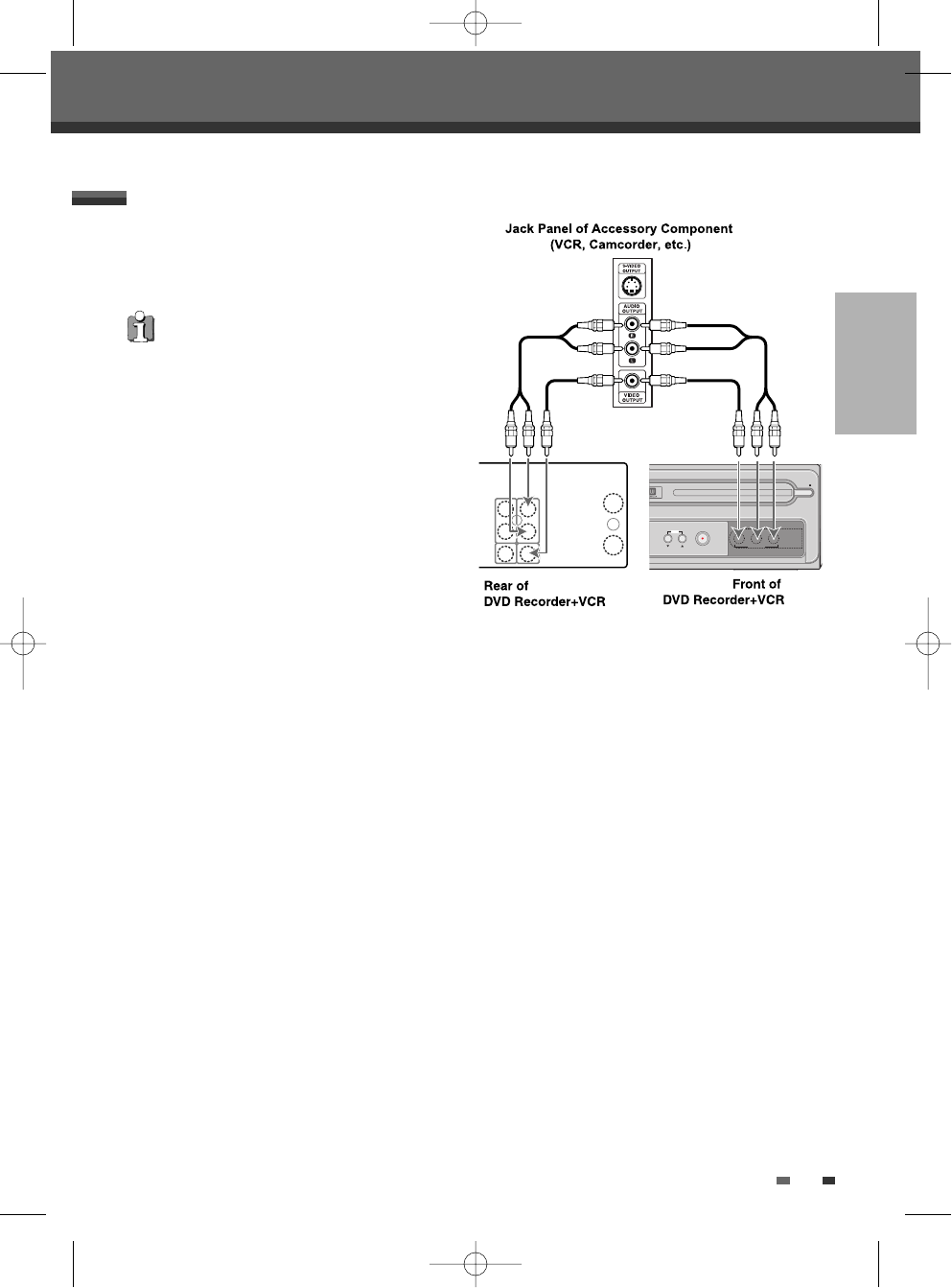

LINE1 (VIDEO, L-AUDIO-R)
Connects to the audio/video output of an external
source (VCR, Camcorder, etc.).
POWER
PLAY/PAUSE STOP REW FF DVD• VCR
REC
CH
VCR
EJECT
VCR VCRDVD DVD
ONE-TOUCH COPY
DUAL
DVD RECORDER +VCR
DVD
EJECT
L – AUDIO – R
LINE IN 1
VIDEO
! @ # $ %
^ 3
&*() 1 2 4 5
Front Panel
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지10
INTRODUCTION
11
Identification of Controls
Front Panel Display
!Indicates a VHS tape is inserted in the VCR deck.
@Circle : Indicates VCR is under recording process.
Clock : Indicates VCR Timer recording is set.
#Indicates that a stereo broadcast is being
received.
$Indicates when a Second Audio Program (SAP)
broadcast is being received.
%Indicates when the DVD Recorder+VCR is playing
or recording a tape in Hi-Fi.
^Indicates the DVD Recorder+VCR is in TV mode
(as set by the TV/VCR button).
&Indicates current Repeat mode.
*Indicates when the DVD Recorder+VCR is locked.
(Indicates when the DVD Recorder+VCR sends
video in Progressive Scan mode.
)
Disc Type indicators
Indicates the type of disc loaded.
1Circle : Indicates DVD+R(+RW) is under recording
process.
Clock : Indicates DVD Timer recording is set.
2Indicates a disc is inserted in the DVD deck.
3Indicates the current Recording mode.
4Indicates AM or PM.
5
Front Panel Display Message
Indicates clock, total playing time, elapsed time,
remaining time, title number, chapter/track
number, channel, VCR counter etc.
63D : Indicates the audio is virtual surround.
dts : Indicates audio material of DVD disc is dts.
Dolby : Indicates audio material of DVD disc is
Dolby Digital.
! @ # $ % ^ & * ( ) 1 2
3 4 5 6
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지11
12
Identification of Controls

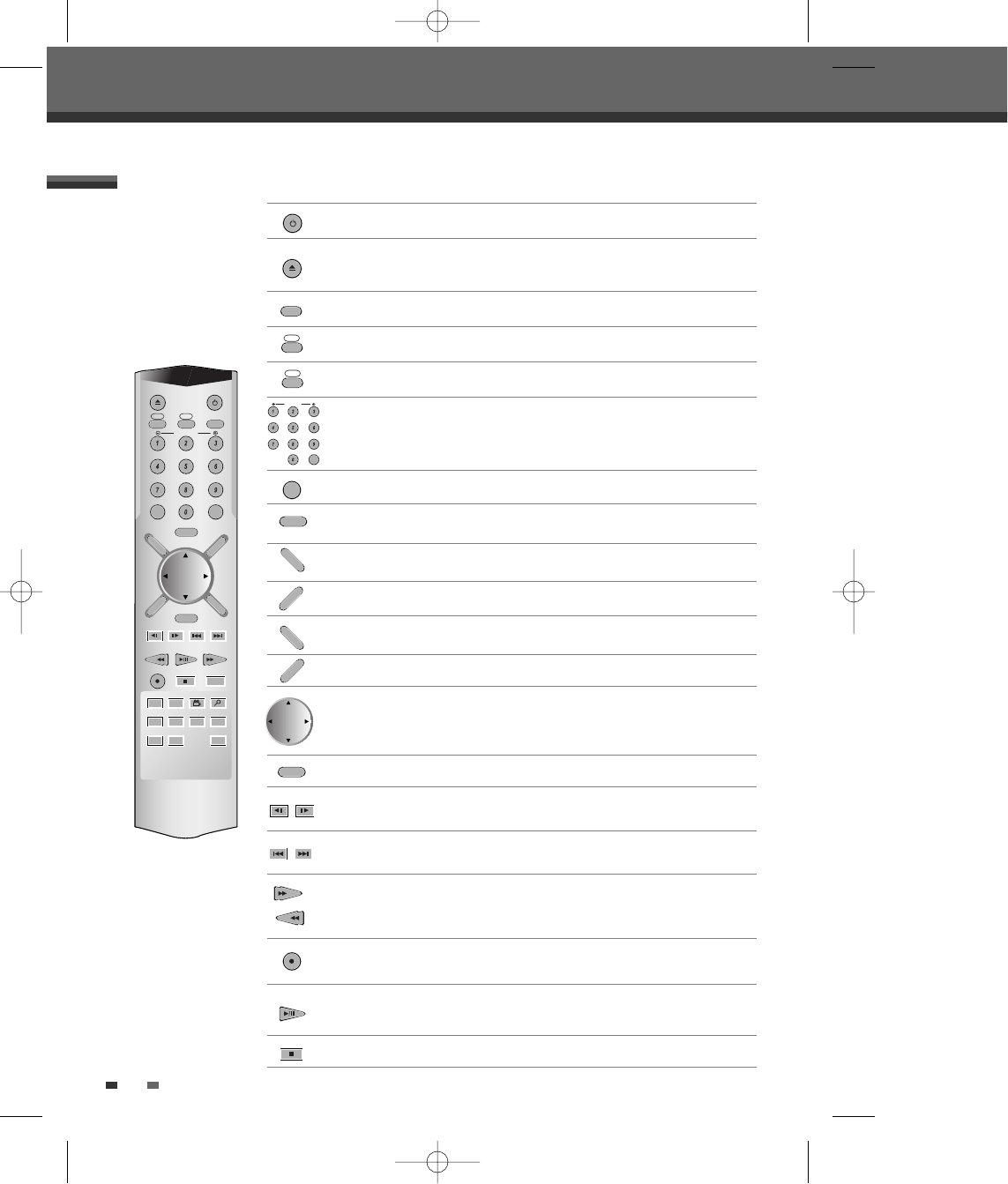

Remote Control
POWEREJECT
TV VIEWDVD
TRACKING
INPUT
MENU
SETUP
EDIT
DISPLAY
ENTER
SLOW–
REW
REC
AUDIO SUBTITLE ANGLE ZOOM
REPEAT A-B SEARCH P.SCAN
TITLE CLEAR TIMER
STOP REC SPEED
PLAY/PAUSE FF
SLOW+ PREV NEXT
CH+
CH–
VCR
TV/VCR 100+
POWER
Turns DVD Recorder+VCR on and off.
EJECT
- Opens and closes disc tray in DVD mode.
- Ejects tape in VCR deck in VCR mode.
TV VIEW
Changes to channel view.
DVD
Selects DVD mode.
VCR
Selects VCR mode.
INPUT
Switches the DVD Recorder+VCR input to Tuner, LINE1, LINE2
TV/VCR
Switches between the DVD Recorder+VCR tuner and your TV tuner.
SETUP
ENTER
W+ PR
Displays or exits Setup menu.
DISPLAY
Displays or exits some information about the loaded disc, VHS or viewing
channel.
EDIT
Edits the chapters or splits the titles of DVD+R(+RW).
Confirms menu selections.
CH+
CH–
- œ √…† : Selects menu options.
- CH(+/–) : Selects channels.
MENU
Accesses menus on DVD discs.
TRACKING
100+
- Selects numbered options in menus.
- Selects TV channels.
- Manually adjusts tracking.
REC
Starts recording. Press repeatedly to set the recording time. For more
details, Refer to One Touch Record(OTR) in page 46.
PLAY/PAUSE
- Starts playback.
- Pauses playback or recording temporarily. Press again to exit Pause mode.
STOP
Stops playback or recording.
FF
- DVD: Searches backward/forward.
- VCR: Rewinds/advances during Stop mode. Press during Play mode for
fast reverse/forward picture search.
REW
SLOW–
SLOW+
Increases or decreases the slow motion speed when playing DVD or VHS
tape.
PREV
NEXT
Skips to next chapter/track. Skips to next or previous chapter/track.
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지12

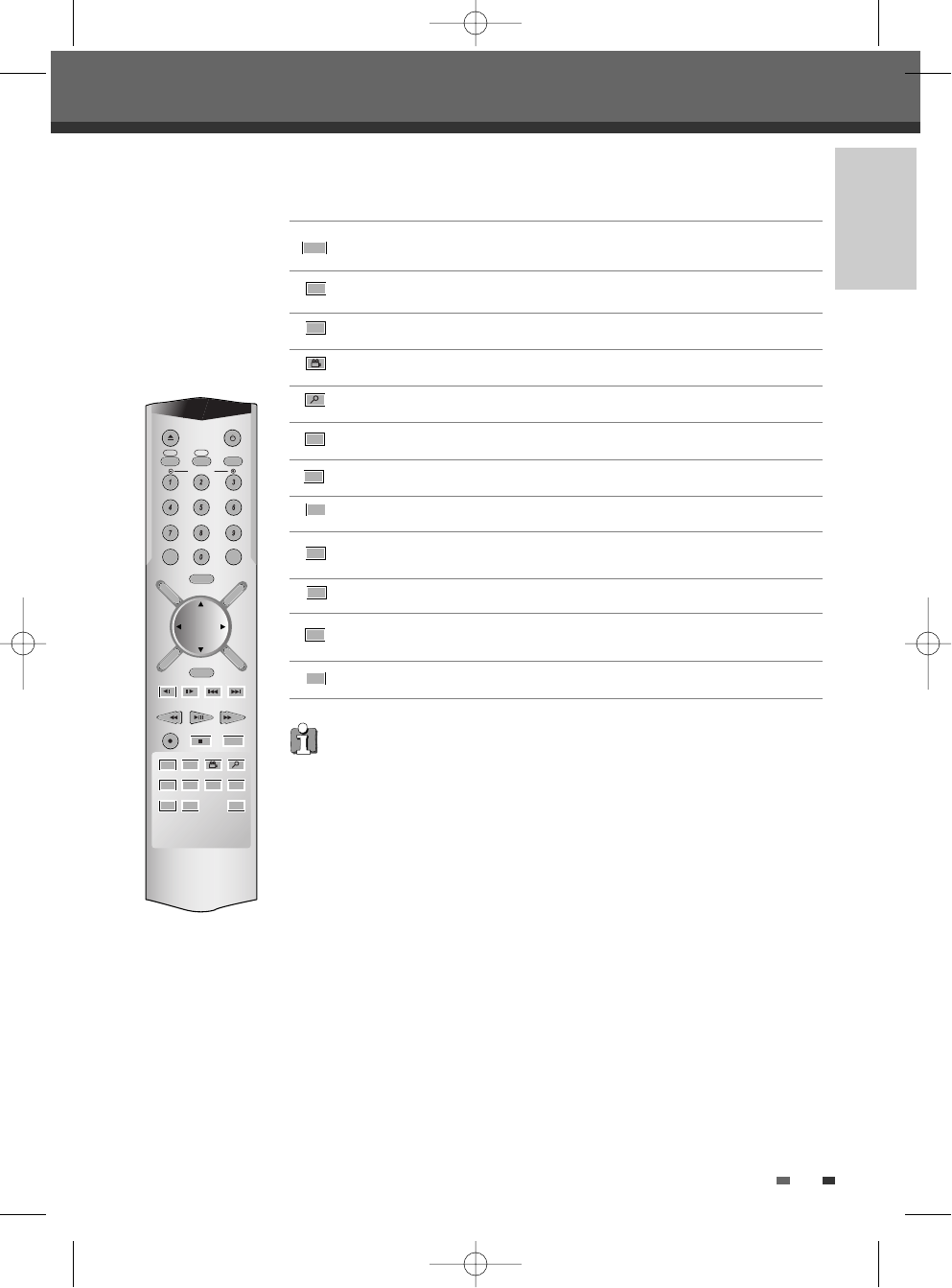

INTRODUCTION
13
TITLE
Displays disc’s Title menu, if available.
Identification of Controls
REC SPEED
Selects Recording mode: - DVD : HQ (1hr), SP (2hrs), EP (4hrs) or SLP (6hrs).
- VCR : SP or SLP.
CLEAR
Reset the counter in the VCR mode.
TIMER
Displays Timer Recording menu.
AUDIO
Selects an audio language(DVD), audio channel(CD) or audio type
(Broadcast).
SUBTITLE
Selects a subtitle language.
ANGLE
Selects a DVD camera angle, if available.
ZOOM
Enlarges DVD video image.
REPEAT
Repeats chapter, track, title or all.
A-B
Repeats sequence between two points (A and B).
P.SCAN
Switches between Progressive Scan mode and Interlace Scan mode. This
function is activated only when the key is pressed for 3 seconds.
SEARCH
Changes a title or a chapter.
POWEREJECT
TV VIEWDVD
TRACKING
INPUT
MENU
SETUP
EDIT
DISPLAY
ENTER
SLOW–
REW
REC
AUDIO SUBTITLE ANGLE ZOOM
REPEAT A-B SEARCH P.SCAN
TITLE CLEAR TIMER
STOP REC SPEED
PLAY/PAUSE FF
SLOW+ PREV NEXT
CH+
CH–
VCR
TV/VCR 100+
Progressive Scan
If your TV system supports Progressive Scan, you can view high quality video by changing
the DVD Recorder+VCR set to send video as Progressive Scan mode. If the TV system
does not support Progressive Scan mode, Never try to change to Progressive scan mode.
If you changed the TV Scan mode by mistake, press [P.SCAN] key for 3 seconds then it
will be restored.
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지13
!
AC Power Cord
Plug into a power outlet.
@
AUDIO OUT (L, R)
Connect to a TV or other equipment with audio
inputs.
#
COMPONENT/PROGRESSIVE VIDEO OUT (Y Pb Pr)
Connect to a TV with Component (Y Pb Pr) inputs.
$
AV OUT (VIDEO, L-AUDIO-R)
Connect to a TV with video and audio inputs.
%
LINE2 (VIDEO, L-AUDIO-R)
Connect to the audio/video output of an external
source (VCR, Camcorder, etc.).
^
RF IN (FROM ANT.)
Connect to your antenna or cable TV outlet.
&
RF OUT (TO TV)
Connect to a TV with an RF coaxial input.
*
COAXIAL (Digital Audio Out)
Connect to an amplifier with a coaxial digital
audio input.
(
S-VIDEO OUT
Connect to a TV with an S-Video Input.

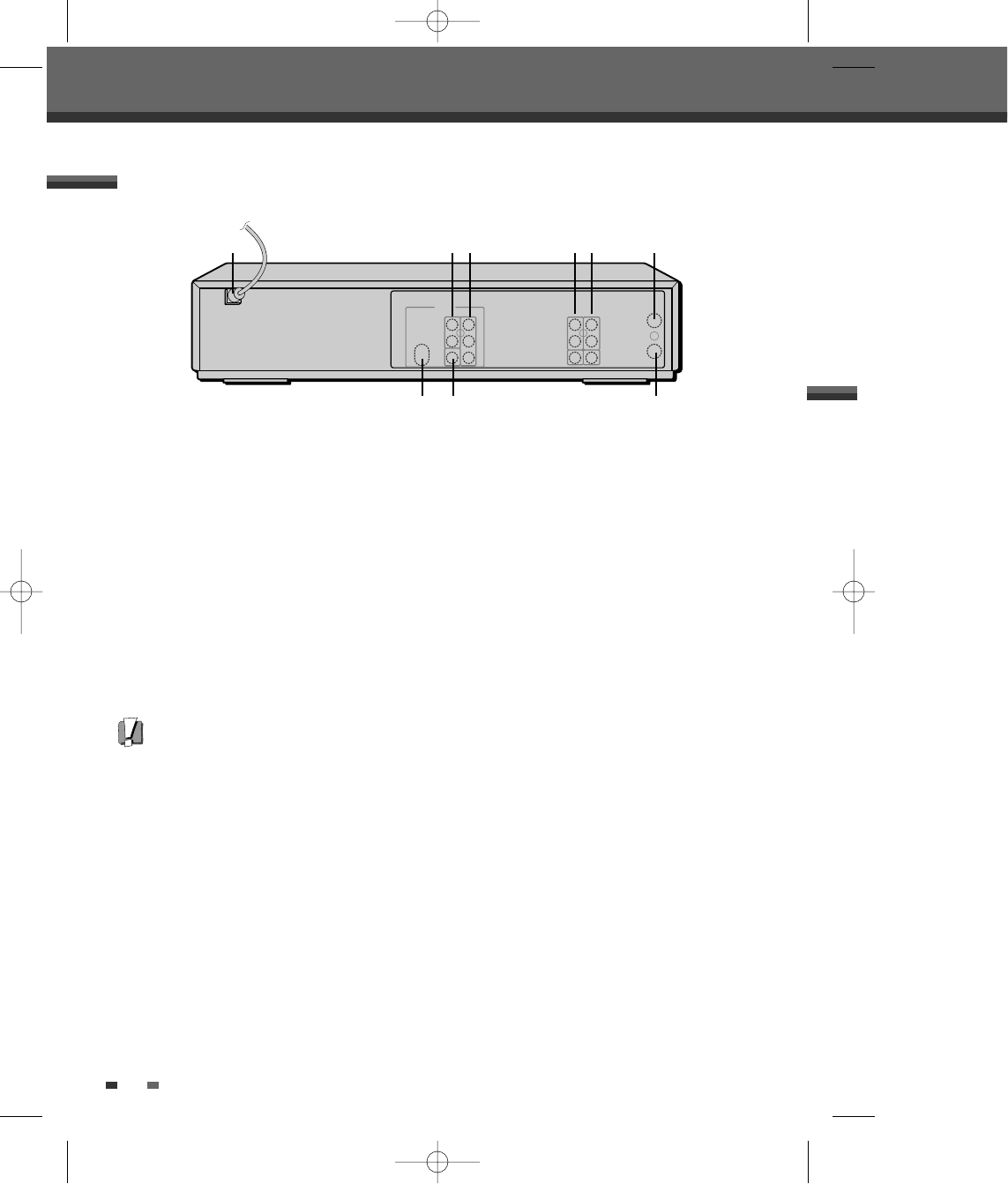

Rear panel
14
Identification of Controls
S-VIDEO
OUT
OUT
DIGITAL
AUDIO OUT
AUDIO OUT COMPONENT OUT LINE 2
AUDIO
VIDEO
L
R
L
R
COAXIAL
Y
Pb
Pr
RF OUT
ANT. IN
DVD & VCR OUT
! @# $% ^
( * &
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the
DVD Recorder+VCR.
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지14
INTRODUCTION
15
Connections
Connections
Connecting Antenna/Cable
CONNECTIONS
1
Disconnect the antenna/cable from the rear of your
TV.
2
Identify the type of cable from your antenna. If it is
a round cable as illustrated, it is a 75 ohm coaxial
antenna cable. This cable will connect directly to
the jack marked RF IN (FROM ANT.) on the DVD
Recorder+VCR.
Cable Service Without Cable Box
If your cable wire is connected to your TV without a converter or descrambler box, unscrew the wire from your
TV and attach it to the RF IN (FROM ANT.) jack on the DVD Recorder+VCR.
Use the supplied coaxial cable to connect between the DVD Recorder+VCR’s OUT (TO TV) jack and the 75 ohm
antenna input jack on your TV. With this connection, you can receive all midband, superband, and hyperband
channels (all cable channels).
Cable Service With Cable Box
If a cable box is required in your cable system, follow
the instructions shown below. This hookup permits both
TV and DVD Recorder+VCR operation.
To view or record a CATV channel:
1
Tune the TV to the correct video input channel.
2
Set the DVD Recorder+VCR to the output channel of
the cable box using the [CH …/†] or the [0-9] keys
on your DVD Recorder+VCR (e.g., CH3).
3
Select the channel you wish to view on the cable
box.
• There are a variety of ways to connect the DVD Recorder+VCR to your TV and other equipment. Use only one of
the connections described below. Whichever TV connection you use will work with all input sources.
• Please refer to the manuals for your TV, VCR, stereo system or other devices as necessary to make the best
connections.
• For better sound reproduction, connect the DVD Recorder+VCR’s AUDIO OUT jacks to the audio in jacks of your
amplifier, receiver, stereo or audio/video equipment. See ‘Connecting an Amplifier/Receiver‘ on page 18.
If you are using a cable box to tune channels, it is not necessary to run Auto Channel Search as indicated on page 23.
Caution
• Make sure the DVD Recorder+VCR is connected directly to the TV, and the TV is set to the correct video input.
• Do not connect the DVD Recorder+VCR’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.
• Do not connect the DVD Recorder+VCR via your VCR. The DVD image could be distorted by the copy protection
system.
DEO
T
OUT
DIGITAL
AUDIO OUT
AUDIO OUT COMPONENT OUT LINE 2
AUDIO
VIDEO
L
R
L
R
COAXIAL
Y
Pb
Pr
RF OUT
ANT. IN
DVD & VCR OUT
Antenna Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not supplied)
Cable TV
Wall Jack
OR OR
Rear of DVD Recorder+VCR
EO
T
OUT
DIGITAL
AUDIO OUT
AUDIO OUT COMPONENT OUT LINE 2
AUDIO
VIDEO
L
R
L
R
COAXIAL
Y
Pb
Pr
RF OUT
ANT. IN
DVD & VCR OUT
Cable TV
Wall Jack
Back Panel of
Typical Cable Box
Rear of DVD Recorder+VCR
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지15
Choose one of the following TV connections, depending on the capabilities of your equipment.
RF Coaxial Connection
Connect the RF OUT (TO TV) jack on the DVD
Recorder+VCR to the antenna in jack on your TV using
the supplied 75-ohm coaxial cable (R). If you use this
connection, tune your TV to the DVD Recorder+VCR’s
RF output channel (CH 3 or 4).
How to set the DVD Recorder+VCR’s RF output channel
Press [SETUP] and select Modulator out then press
[ENTER] to change the RF out channel. For details
refer to page 24.
Audio/Video Connection
1
Connect the VIDEO OUT jack on the DVD
Recorder+VCR to the video in jack on your TV
using the supplied video cable (V).
2
Connect the Left and Right AUDIO OUT jacks
from the DVD Recorder+VCR to the left/right audio in jacks on your TV using the supplied audio cables (A).
S-Video Connection
1
Connect the S-VIDEO OUT jack on the DVD Recorder+VCR to the S-Video in jack on your TV using an S-
Video cable (S).
2
Connect the Left and Right AUDIO OUT jacks from the DVD Recorder+VCR to the left/right audio in jacks on
your TV using the supplied audio cables (A).
Component Video Connection
1
Connect the COMPONENT/PROGRESSIVE VIDEO OUT jacks on the DVD Recorder+VCR to the corresponding
in jacks on your TV using a Y Pb Pr cable (C) if the component (Y, Pb, Pr) is available on your TV.
2
Connect the Left and Right AUDIO OUT jacks from the DVD Recorder+VCR to the left/right audio in jacks on
your TV using the supplied audio cables (A).
Connecting a TV
16
Connections
All video signals are available from all video outputs.
That means that whichever TV connection you use, it will
work with all input sources, including VHS out of the Component/Progressive Video Output.
ANTENNA
INPUT
L
R
Y
Pb
Pr
COMPONENT/PROGRESSIVE VIDEO INPUT
AUDIO INPUT
VIDEO
INPUT
S-VIDEO
INPUT
Rear of TV
S-VIDEO
OUT
OUT
DIGITAL
AUDIO OUT
AUDIO OUT COMPONENT OUT LINE 2
AUDIO
VIDEO
L
R
L
R
COAXIAL
Y
Pb
Pr
RF OUT
ANT. IN
DVD & VCR OUT
Rear of DVD Recorder+VCR
R
S AVC
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지16
CONNECTIONS
17
Progressive Scan Connection
• If your television is a high-definition or ‘digital ready‘ television, you may take advantage of the DVD
Recorder+VCR’s Progressive Scan output for the highest video resolution possible.
• If your TV does not accept the Progressive Scan format, the picture will appear scrambled.
1
Connect the COMPONENT/PROGRESSIVE VIDEO OUT jacks on the DVD Recorder+VCR to the corresponding
in jacks on your TV using an optional Y Pb Pr cable (C).
2
Connect the Left and Right AUDIO OUT jacks from the DVD Recorder+VCR to the left/right audio in jacks on
your TV using the supplied audio cables (A).
• Be sure to set the DVD Recorder+VCR to the Progressive Scan mode by pressing [P.SCAN] for 3 seconds on the
remoter control or changing the Scan mode in the Setup Menu; See page 27.
• Progressive Scan does not work with the RF, Audio/Video or S-Video connections.
Connections
DWL71D1D_RV4000(GB) 04.6.1 1:45 AM 페이지17
18
Connections

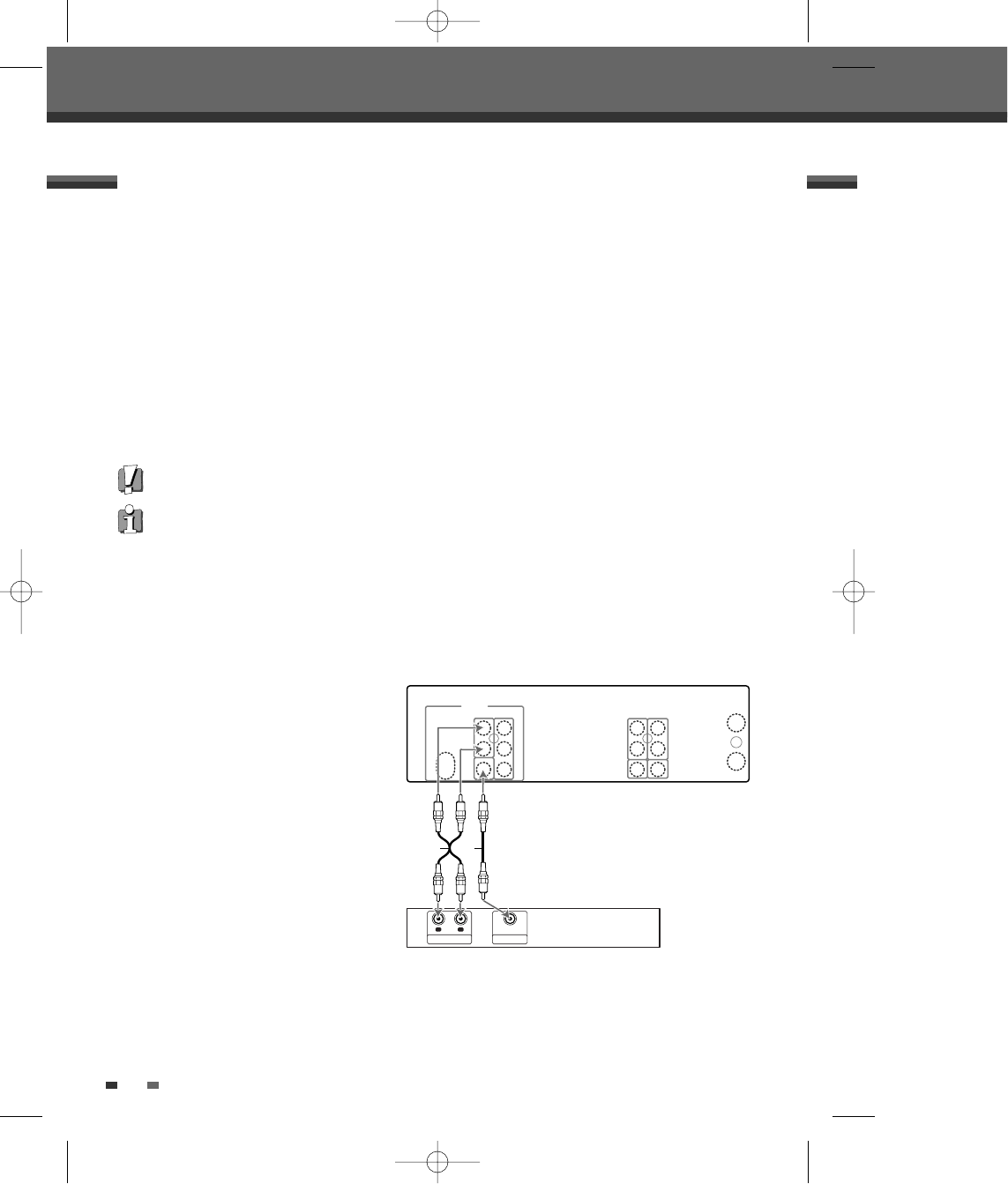

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/ Pro Logic
Connect the Left and Right AUDIO OUT jacks on the DVD Recorder+VCR to the left and right audio in jacks on
your amplifier, receiver, or stereo system, using the supplied audio cables (A).
Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped
with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)
1
Connect one of the DVD Recorder+VCR’s DIGITAL AUDIO OUT jacks (OPTICAL O or COAXIAL X) to the
corresponding in jack on your amplifier. Use an optional digital (optical O or coaxial X) audio cable.
2
You will need to activate the DVD Recorder+VCR’s digital output; see ‘AUDIO Settings‘ on page 28.
Digital Multi-Channel Sound?
A digital multi-channel connection provides the best sound quality. For this you need a multi-channel
audio/video receiver that supports one or more of the audio formats supported by your DVD Recorder+VCR
(MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.
Connecting an Amplifier/Receiver
Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.
• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce
a strong, distorted sound or no sound at all.
• 5.1 channel digital surround sound via the digital connection can only be obtained if your receiver is equipped with
a digital multi-channel decoder.
• To see the audio format of the current DVD on the on-screen display, press [AUDIO].
The DVD Recorder+VCR does not perform internal (2- channel) decoding of DTS sound tracks. To enjoy DTS multi-
channel surround, you must connect the DVD Recorder+VCR to a DTS compatible receiver via one of the DVD
Recorder+VCR’s digital audio outputs.
Amplifier (Receiver)
R
L
AUDIO INPUT DIGITAL INPUT
COAXIAL
S-VIDEO
OUT
OUT
DIGITAL
AUDIO OUT
AUDIO OUT COMPONENT OUT LINE 2
AUDIO
VIDEO
L
R
L
R
COAXIAL
Y
Pb
Pr
RF OUT
ANT. IN
DVD & VCR OUT
Rear of DVD Recorder+VCR
A X
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지18
CONNECTIONS
19
Connections
REC
CH
DVD RECORDER +VCR
DVD
EJECT
L – AUDIO – R
LINE IN 1
VIDEO
To receive audio/video signal from other equipment,
connect the LINE1 or LINE2 jacks on the DVD
Recorder+VCR to the audio/video out jacks on your
external component, using optional audio/video cables.
Connecting Optional Equipment
If you use the S-VIDEO jack on the front panel, there is
no signal output from the front panel VIDEO jack.
OUT LINE 2
AUDIO
VIDEO
L
R
RF OUT
ANT. IN
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지19
After successfully connecting your DVD Recorder+VCR to the TV set and other
devices, this chapter will show you how to start the initial installation.
1
Welcome message displays on the screen. Check the aerial cable
connected correctly.
2
Select the desired language for the on-screen menu using […/†]. Press
[ENTER] to confirm.
3
Select the desired disc menu language using […/†]. Press [ENTER] to
confirm.
4
Select the disc playback audio language using […/†]. Press [ENTER] to
confirm.
Initial Installation
20
Initial Installation
Initial Installation
Installation
Please select your language to begin auto
install procedure:
English
Spanish
French
Instructions
Enter-Confirm Setup-Exit Move …†
Installation
Please select disc menu language:
Default
English
Spanish
French
Italian
Japanese
Chinese
Instructions
Enter-Confirm Setup-Exit Move …†
Installation
Please select disc play back audio
language:
Default
English
Spanish
French
Italian
Japanese
Chinese
Instructions
Enter-Confirm Setup-Exit Move …†
Installation
Welcome.
Press [Enter] to begin auto channel search.
Ensure aerial is connected.
Instructions
Setup-Exit
You must follow the initial installation process because the DVD Recorder+VCR
also record time and date. If you skip this process you shall encounter this
process after your set is powered on.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지20
SETUP
21
5
Select the disc playback subtitle language using […/†]. Press [ENTER] to
confirm.
6
Select the desired type of signal using […/†]. Press [ENTER] to confirm.
7
The DVD Recorder+VCR detects the signals automatically and registers
them.
8
After finishing channel search, set the clock.
9
Use [œ/√] to move to other positions and use […/†] to change the
value.
10
After setting the clock, press [ENTER] to confirm. If you cancel the process
during Installation operation, you should do the same procedure again.
Initial Installation
Installation
Please select disc play back subtitle
language:
Default
English
Spanish
French
Italian
Japanese
Chinese
Off
Instructions
Enter-Confirm Setup-Exit Move …†
Installation
What type of signal are you using?
Cable TV
Antenna
Detect Automatically
Instructions
Enter-Confirm Setup-Exit Move …†
Installation
Searching for available TV stations:
2 channels found
Please wait...
Instructions
Setup-Exit
Set Clock
Please set the clock:
Time : 12 : 00 AM
Date : Jan / 01 / 2005 (SAT)
Instructions
Enter-Confirm Setup-Exit Move …†
…
†
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지21
The DVD Recorder+VCR Setup menu includes system settings in six categories such as Installation, Recording
Options, Languages, Preferences, System Info and Restore Defaults. Press [SETUP] and [œ/√] on the remote
control to view the first and second levels of the Setup menu.
Setup Menu Overview
22
1
Press [SETUP].
The Setup menu appears.
2
Use [œ/√] to select the desired option.
3
While the desired item is selected, press […/†] to move to the second level.
4
Press [ENTER] to move to the third level.
5
Use […/†] to select the desired setting then press [ENTER] to confirm your selection.
Some items require additional steps. Press [SETUP] at any time to return to the previous menu.
6
Press [SETUP] to exit the Setup menu.
Menu Navigation
Tuning Band
1
Press [SETUP].
The Setup menu appears.
2
Use [œ/√] to select the ‘Installation‘ option.
3
While the ‘Installation‘ option is selected, press [†] to select
the ‘TV/CATV‘ option.
4
Press [ENTER] to move to the second level.
5
Use […/†] to select the tuning band option (TV or CATV)
then press [ENTER].
TV:
If you are using a standard antenna to receive channels.
CATV:
If you are using basic cable to receive channels.
INSTALLATION Settings
Initial Setup
Initial Setup
Installation
TV/CATV CATV
Auto Channel Search
Add/Remove Channels
Modulator Out CH3
Set Clock
Instructions
Enter-Confirm Setup-Exit
Move …†
Select The TV
Standard
TV
CATV
If the input signal mode is other than channel, like LINE1 and LINE2, tuning band is not changed.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지22
SETUP
23
Initial Setup
Auto Channel Search
The DVD Recorder+VCR is equipped with a frequency synthesized tuner capable
of receiving up to 181 channels. These include VHF channels 2-13, UHF channels
14-69 and CATV channels 1-125.
Preparation:
Connect the DVD Recorder+VCR to the desired type of antenna or cable TV
system, as shown in ‘Connecting Antenna/Cable‘ on page 15.
1
Follow steps 1-2 as shown under Tuning Band.
2
While the ‘Installation‘ option is selected, press […/†] to select the ‘Auto
Channel Search‘ option.
3
Press [ENTER] to begin the channel search.
The tuner will automatically search for all available channels in your area
and place them in the tuner’s memory.
After the Auto Channel Set is complete, follow the instructions at left to make sure
the Tuning Band is set correctly (TV or CATV).
Add/Remove Channels
This feature allows you to manually add or delete channels from your
channel list.
1
Follow steps 1-2 as shown under Tuning Band.
2
Use […/†] to select the ‘Add/Remove Channels‘ option.
3
Press [ENTER]. The Channel Edit menu appears.
4
Use […/†] to select a channel then toggle the add/delete selection
by pressing [ENTER].
5
Press [SETUP] to exit the edit menu.
Installation
TV/CATV CATV
Auto Channel Search
Add/Remove Channels
Modulator Out CH3
Set Clock
Instructions
Enter-Confirm Setup-Exit
Move …†
Installation
Searching for available TV stations:
5 channels found
Please wait...
Instructions
Setup-Exit
Installation
TV/CATV CATV
Auto Channel Search
Add/Remove Channels
Modulator Out CH3
Set Clock
Instructions
Enter-Confirm Setup-Exit
Move …†
Channel 0 0 1
Enter-Add/Remove Setup-Exit
Change Channel …†
…
†
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지23
Set Clock
1
Follow steps 1-2 as shown under Tuning Band.
2
Use […/†] to select the ‘Set Clock‘ option.
3
Press [ENTER]. The Set Clock menu appears.
4
Enter the necessary information for date and time.
œ/√(left/right): Moves the cursor to the previous or next column.
…/†(up/down): Changes the setting at the current cursor position.
5
Press [ENTER] to confirm your setting, then press [SETUP] to exit the Setup
menu.
24
Initial Setup
Modulator Out
This feature allows you to manually add or delete channels from
your channel list.
1
Follow steps 1-2 as shown under Tuning Band.
2
Use […/†] to select the ‘Modulator Out‘ option.
3
Press [ENTER] to move the third level.
4
Use […/†] to select the modulator out channel between
‘CH3’ and ‘CH4’.
5
Press [ENTER] to confirm.
Installation
TV/CATV CATV
Auto Channel Search
Add/Remove Channels
Modulator Out CH3
Set Clock
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Output
Channel
CH3
CH4
Installation
TV/CATV CATV
Auto Channel Search
Add/Remove Channels
Modulator Out CH3
Set Clock
Instructions
Enter-Confirm Setup-Exit
Move …†
Set Clock
Please set the clock:
Time : 12 : 00 AM
Date : Jan / 01 / 2005 (SAT)
Instructions
Enter-Confirm Setup-Exit Move …†
…
†
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지24
SETUP
25
Initial Setup
VCR Record Quality
You can set the default VCR recording quality to SP (Standard
Play) or SLP (Super Long Play). SP is higher quality, but SLP
provides 3 times the recording time;
e.g., a 2 hour tape will record for 6 hours in SLP mode.
Follow the same procedure as the DVD Record Quality.
Auto Chapter
During recording, chapter markers are added automatically at
fixed intervals. You can set this interval to 5 minutes, 10 minutes
or 15 minutes. To turn off automatic chapter marking, select ‘Off‘.
Follow the same procedure as the DVD Record Quality.
DVD Record Quality
You can set the default DVD recording quality to: HQ (High, 1
hr/disc), SP (Standard, 2 hrs/disc), EP (Low, 4 hrs/disc) or SLP
(Very Low, 6hrs/disc).
1
Press [SETUP].
The Setup menu appears.
2
Use [œ/√] to select the ‘Recording Options‘ option.
3
While the ‘Recording Options‘ is selected, press [†] to
select the ‘DVD Record Quality‘ option.
4
Press [ENTER] to move to the second level.
5
Use […/†] to to select the desired Record Quality (SP, SLP, EP, HQ).
6
Press [ENTER] to confirm your selection, then press [SETUP] to exit the menu.
RECORDING OPTIONS Settings
Recording Options
DVD Record Quality HQ
VCR Record Quality SLP
Auto Chapter Off
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Record
Quality
SLP
EP
SP
HQ
Recording Options
DVD Record Quality HQ
VCR Record Quality SLP
Auto Chapter Off
Instructions
Enter-Confirm Setup-Exit
Move …†
Select VCR
Quality
SLP
SP
Recording Options
DVD Record Quality HQ
VCR Record Quality SLP
Auto Chapter Off
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Auto
Chapter
Off
5min
10min
15min
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지25
26
Initial Setup
OSD Language
Select a language for the DVD Recorder+VCR Setup menu and
on-screen displays.
1
Press [SETUP]. The Setup menu appears.
2
Use [œ] and [√] to select the ‘Language‘ option.
3
While the ‘Language‘ is selected, press [†] to select the
‘OSD Language‘ option.
4
Press [ENTER] to move to the second level.
5
Use […/†] to select the desired language.
6
Press [ENTER] to confirm your selection, then press [SETUP] to
exit the menu.
DISC Menu/Audio/Subtitle Language
Select your preferred language for Disc Menus, Audio
soundtracks, and Subtitles.
Default :
The disc’s default language is selected.
Follow the same procedure as the OSD Language.
LANGUAGE Settings
Language
OSD Language English
Menu Language Default
Subtitle Language Default
Audio Language Default
Instructions
Enter-Confirm Setup-Exit
Move …†
Select OSD
Language
English
Spanish
French
Language
OSD Language English
Menu Language Default
Subtitle Language Default
Audio Language Default
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Menu
Language
Default
English
Spanish
French
Language
OSD Language English
Menu Language Default
Subtitle Language Default
Audio Language Default
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Subtitle
Language
Default
English
Spanish
French
Language
OSD Language English
Menu Language Default
Subtitle Language Default
Audio Language Default
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Audio
Language
Default
English
Spanish
French
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지26
SETUP
27
Initial Setup
1
Press [SETUP].
2
Use [œ/√] to select the ‘Preference‘ option.
3
While the ‘Preference‘ option is selected, press [†] to select the ‘Video‘
option.
3
Press [ENTER]. Video sub menu appears.
TV Aspect Ratio
1
Use […/†] to select ‘TV Aspect‘ while Video submenu
displays.
2
Press [ENTER] or [√] to go to the second level.
3
Use […/†] to select the desired TV Aspect.
4
Press [ENTER] to confirm your selection.
5
Press [SETUP] to exit the menu.
4:3 LB :
Select when a standard 4:3 TV is connected. Displays
theatrical images with masking bars above and below the picture.
4:3 PS :
Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both
sides of the picture are cut off.
16:9 :
Select when a 16:9 wide screen TV is connected.
Auto :
Convert to the appropriate aspect ratio automatically.
Scan Mode
Progressive Scan Video provides the highest picture quality with
reduced flickering.
• If you are using the COMPONENT/PROGRESSIVE VIDEO OUT
jacks, but are connecting the DVD Recorder+VCR to a
standard (analog) television, select Scan Mode as Interlace.
• If you are using the COMPONENT/PROGRESSIVE VIDEO OUT
jacks for connection to a TV or monitor that is compatible
with a Progressive Scan signal, select Scan Mode as
Progressive.
Follow the same procedure as TV Aspect Ratio to change the Scan Mode.
Caution
Once the setting for Progressive Scan output is entered, an image will only be visible on a Progressive Scan compatible
TV or monitor. Press [P.SCAN] on the Remote Control for 3 seconds.
PREFERENCE / Video Settings
Preference
Video
Audio
Parental Controls
Auto Play
Auto Clock
VCR
Instructions
Enter-Confirm Setup-Exit
Move …†
Video
TV Aspect Auto
Scan Mode Interlace
Instructions
Enter-Confirm Setup-Exit Move …†
Select Picture
Format
4:3 LB
4:3 PS
16:9
Auto
Video
TV Aspect Auto
Scan Mode Interlace
Instructions
Enter-Confirm Setup-Exit Move …†
Select Scan
Mode
Interlace
Progressive
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지27
Follow the same procedure as Video Settings to select Audio Settings option.
Digital Output
1
Use […/†] to select ‘Digital Output‘ while Audio submenu
displays.
2
Press [ENTER] or [√] to go to the second level.
3
Use […/†] to select the desired output type.
4
Press [ENTER] to confirm your selection.
5
Press [SETUP] to exit the menu.
Off
No signal will be output from the Digital Audio Out jacks.
LPCM
Select when connected to a 2 channel digital stereo amplifier. The DVD Recorder+VCR's digital audio signal will
be output in the PCM 2ch format when you play a DVD (or VHS) recorded with a Dolby Digital (only for DVD) or
MPEG soundtrack. If the DVD is recorded with a DTS sound track then you can hear no sound.
Bitstream
Select when connected to a proper decoder such as Dolby Digital decoder or DTS decoder (or an amplifier or
other equipment with the proper decoder).
Dynamic Range
While watching DVD movies, you may wish to compress the
dynamic range of the audio output (the difference between the
loudest and quietest passages). This allows you to listen to a
movie at a lower volume without losing clarity of sound. Set
‘Dynamic Range‘ to Low or High for this effect.
Follow the same procedure as ‘Digital Output‘ to change the
Dynamic Range.
28
Initial Setup
Audio
Digital Output Off
Dynamic Range Off
Virtual Surround Off
VCR Reception Stereo
Tape Play Back Hi-Fi
Instructions
Enter-Confirm Setup-Exit Move …†
Select Digital
Output
Off
Bitstream
LPCM
Audio
Digital Output Off
Dynamic Range Off
Virtual Surround Off
VCR Reception Stereo
Tape Play Back Hi-Fi
Instructions
Enter-Confirm Setup-Exit Move …†
Select Dynamic
Range
Off
Low
High
PREFERENCE / Audio Settings
Preference
Video
Audio
Parental Controls
Auto Play
Auto Clock
VCR
Instructions
Enter-Confirm Setup-Exit
Move …†
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지28
SETUP
29
Initial Setup
Virtual Surround
A simulated 3D effect from two speakers by selecting between
Low or High.
Follow the same procedure as ‘Digital Output‘ to change the
Virtual Surround option.
VCR Reception
Select the appropriate option for the VCR recording source among
th e Stereo, Mono, SAP.
Follow the same procedure as ‘Digital Output‘ to change the VCR
Reception audio.
Tape Play Back
The menu display is dependent on the VCR Reception.
Follow the same procedure as ‘Digital Output‘ to change the Tape
Play Back option.
Audio
Digital Output Off
Dynamic Range Off
Virtual Surround Off
VCR Reception Stereo
Tape Play Back Hi-Fi
Instructions
Enter-Confirm Setup-Exit Move …†
Select VCR
Reception
Stereo
Mono
SAP
Audio
Digital Output Off
Dynamic Range Off
Virtual Surround Off
VCR Reception Stereo
Tape Play Back Hi-Fi
Instructions
Enter-Confirm Setup-Exit Move …†
Select Tape
Playback
Hi-Fi
Mix
Linear
Audio
Digital Output Off
Dynamic Range Off
Virtual Surround Off
VCR Reception Stereo
Tape Play Back Hi-Fi
Instructions
Enter-Confirm Setup-Exit Move …†
Select Virtual
Surround
Off
On
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지29
Set Parental Level
The Lock feature allows you to prevent DVDs from being played based on their
ratings or to have certain discs played with alternative scenes. You can change
the parental level from 1 to 8.
1
Press [SETUP].
2
Use [œ/√] to select the ‘Preference‘ option.
3
While the ‘Preference‘ option is selected, press [†] to select the ‘Parental
Controls‘ option.
4
Password Input dialog will appear. Enter a 4-digit password using the 0-9
buttons. When you have not entered a password yet, Enter a 4-digit
password and confirm again.
5
After setting up the password, press [ENTER] while 'Set Parental Level' is
selected.
6
Password input dialog that is different from before is displayed. Input the
password you changed before.
7
Use […/†] to select the desired parental level and press [ENTER] to
confirm.
Off :
If you select Unlock, the Lock feature is not active. The disc will play in
full.
Level 1 to 8:
Some discs contain scenes not suitable for children. If you set a
rating for the DVD Recorder+VCR, all scenes with the same rating or lower
will be played. Higher rated scenes will not be played unless an alternative
scene is available on the disc. The alternative must have the same rating or
a lower one. If no suitable alternative is found, playback will stop. You must
enter the 4-digit password or change the rating level in order to play the disc.
30
Initial Setup
Preference
Video
Audio
Parental Controls
Auto Play
Auto Clock
VCR
Instructions
Enter-Confirm Setup-Exit
Move …†
• The initial password is ‘0000‘. Use this at first.
• Change the password different from 0000 to change the parental level.
Parental Control
Set Parental Level Off
Change Password
Instructions
Enter-Confirm Setup-Exit Move …†
Change Password
Current Code _ _ _ _
Enter New Code _ _ _ _
Confirm Code _ _ _ _
Instructions
Setup-Exit
PREFERENCE / Parental Controls
Password
Enter Password * * _ _
Instructions
Setup-Exit
Parental Control
Set Parental Level Off
Change Password
Instructions
Enter-Confirm Setup-Exit Move …†
Select the
parental level
Level6
Level5
Level4
Level3
†
…
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지30
8
Press [ENTER] to confirm your rating selection, then press [SETUP] to exit
the menu.
SETUP
31
Parental Control
Set Parental Level Level3
Change Password
Instructions
Enter-Confirm Setup-Exit Move …†
Change Password
1
While the ‘Preference‘ option is selected, press [†] to select the ‘Parental
Controls‘ option.
2
Press [ENTER]. ‘Parental Controls‘ sub menu appears.
3
Use […/†] to select the ‘Change Password‘ then press [ENTER].
4
Change Password submenu will appear. Enter 4-digit current password then
press [ENTER].
5
Enter a new 4 -digit password, then press [ENTER]. And re-enter the new
password for confirmation then press [ENTER].
Parental Control
Set Parental Level Off
Change Password
Instructions
Enter-Confirm Setup-Exit Move …†
Change Password
Current Code * * * *
Enter New Code * * * *
Confirm Code * * _ _
Instructions
Setup-Exit
Master Password
If you forget your password, press 3,3,0,8 on the remote controller and press
[ENTER].
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지31
32
Auto Play
This enables the DVD Recorder+VCR to skip the opening title and
play a DVD main title automatically when it goes on with a disc is
inserted in the tray.
1
Use […/†] to select ‘Auto Play’ option.
2
Press [ENTER] or [√] to go to the second level.
3
Use […/†] to change the ‘Auto Play Status’.
4
Press [ENTER] to confirm.
Though AutoPlay is set, The DVD Recorder+VCR may play other
title than the main title in some DVDs. In this case, set the Auto
Play off then play the disc.
Auto Clock
Auto clock enables the DVD Recorder+VCR to set the clock
whenever it is off in Standby mode.
Follow the same procedure as Auto play to set the ‘Auto Clock’
status.
Preference
Video
Audio
Parental Controls
Auto Play
Auto Clock
VCR
Instructions
Enter-Confirm Setup-Exit
Move …†
Preference
Video
Audio
Parental Controls
Auto Play
Auto Clock
VCR
Instructions
Enter-Confirm Setup-Exit
Move …†
Select AutoPlay
Status
Off
On
Select Auto
Clock Status
Off
On
Various PREFERENCE Settings
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지32
SETUP

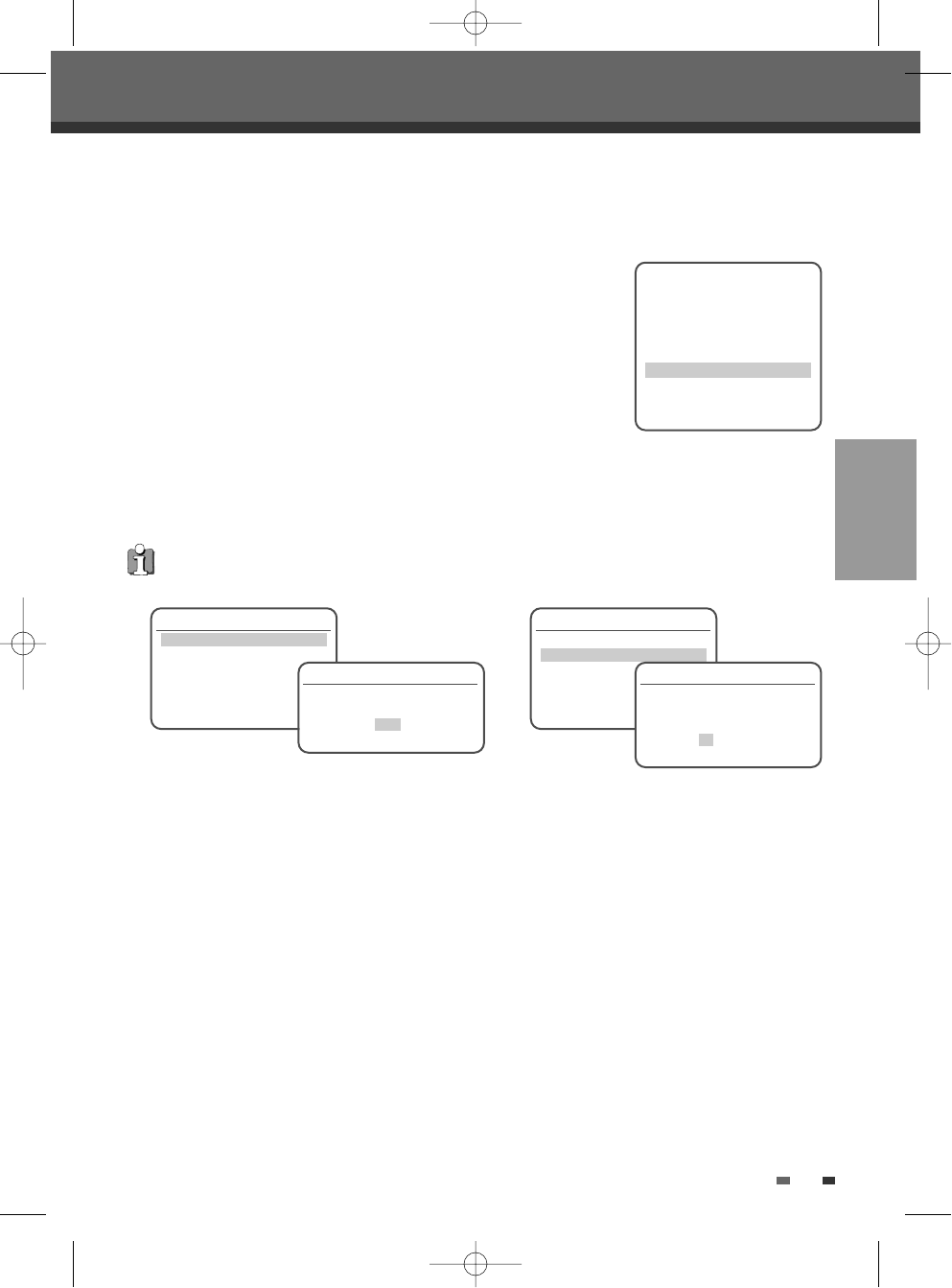

33
Initial Setup
VCR
This enables index search and go to search.
1
While the ‘preference’ option is selected, press [†] to move to the second
level.
2
Use […/†] to select ‘VCR’ menu.
3
Press [ENTER] then a sub menu appears.
4
You can select ‘Index Search’ or ‘Go-To Search’.
5
If you select ‘Index Search’ and press [ENTER], a sub menu appears. Use
[…/†] to change index number you want to search and press [REW] or [FF].
6
If you select ‘Go-To Search’ and press [ENTER], a sub menu appears. Use […/†] to change the timer
number and press [REW] or [FF].
Preference
Video
Audio
Parental Controls
Auto Play
Auto Clock
VCR
Instructions
Enter-Confirm Setup-Exit
Move …†
VCR
Index Search
Go-To Search
Instructions
Enter-Confirm Setup-Exit Move …†
VCR
Index Search
Go-To Search
Instructions
Enter-Confirm Setup-Exit Move …†
Index Search
Press REW or FF to begin search
or enter a specific Index number
– –
Setup-Exit
Go-To Search
Current Tape Counter is
– :––:––
Press REW or FF to go to
– : – – : 00
Setup-Exit
VCR menu is activated only when a video cassette tape is inserted.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지33
• Some options cannot be reset, including Movie Rating,
Password, and Country Code.
• After Restoring Defaults the set reboots automatically and the Installation menu appears. You must set the
country, language, auto channel and clock again.
If you wish, you can reset the DVD Recorder+VCR to its original
factory settings.
1
Press [SETUP].
2
Use [œ/√] to select the ‘Restore Defaults‘ option.
3
Press [ENTER].
4
The Initialize menu will appear. Use the […/†] buttons to
select ‘Yes‘ and press [ENTER].
System Information
34
Initial Setup
This is System Information which A/S Engineer can refer to when your set is out
of order.
System Info
Chipset EP Set 1.0
Main Build DR3-1.0.2
Micom Software 0.0.0
DVD Navigation 1.0.0
Instructions
Enter-Confirm Setup-Exit
Move …†
Restore Defaults
Restore Defaults
If you select this function all
settings will be removed and
the product will be set into
initial (factory) mode.
Instructions
Enter-Confirm Setup-Exit
Move …†
Are you sure you want to restore
default settings?
Yes
No
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지34
SETUP
35

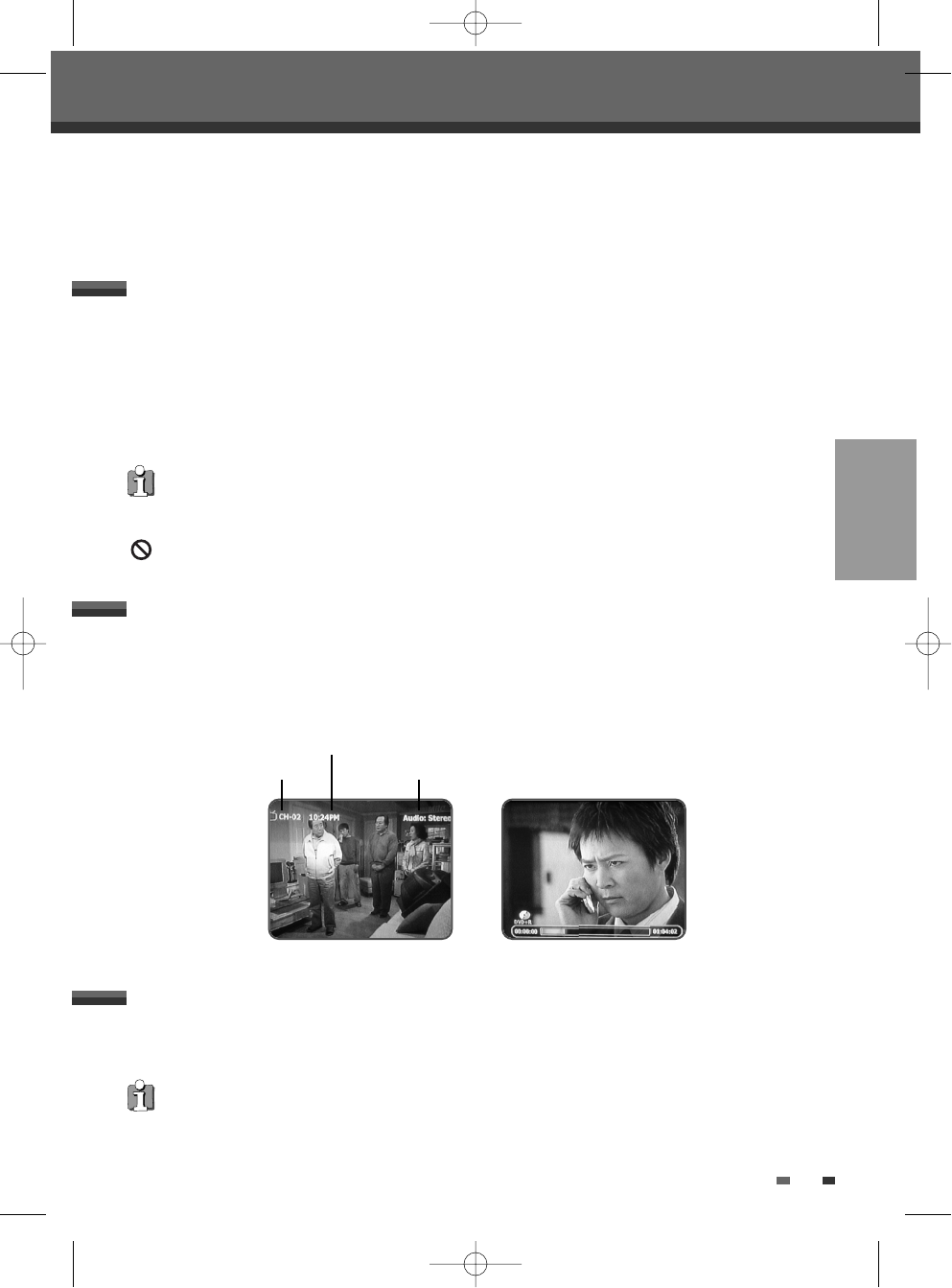

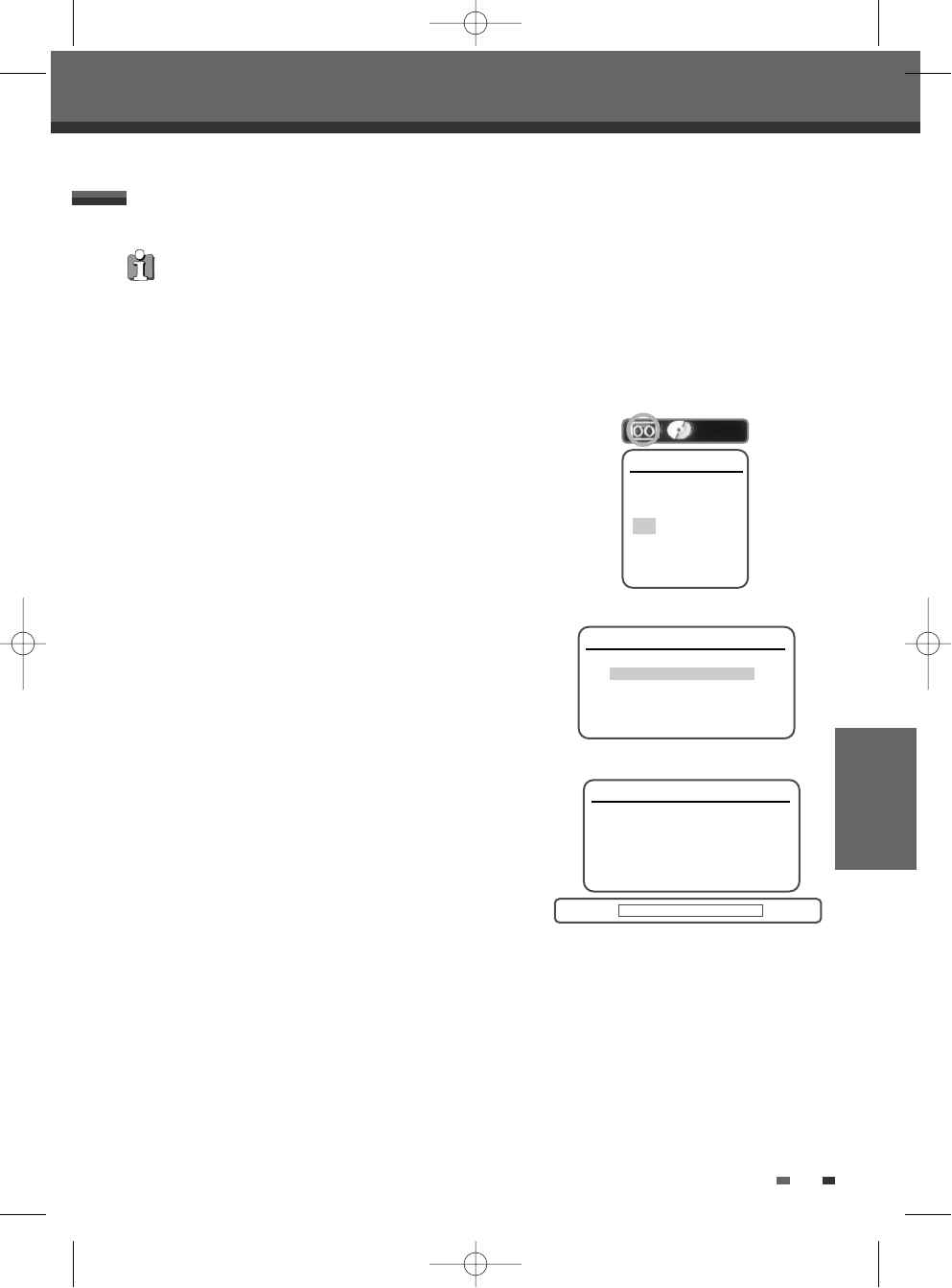

On-Screen Display Overview
On-Screen Display Overview
The On-Screen Display provides feedback on the status of the DVD Recorder+VCR and/or the currently loaded
disc or tape. To access the On-Screen Display (or OSD), press the [DISPLAY] button.
To display information about the currently loaded disc or tape:
On-screen display operation
1
Press [DISPLAY] repeatedly to display/change the information displayed on-screen.
2
To remove the on-screen display, press [DISPLAY] repeatedly until it disappears.
See the descriptions from current page to the next page for detailed explanations of on-screen displays for
each media type.
Temporary Feedback Icons
Action prohibited or not available
While watching TV, press [DISPLAY] to display/remove the on-screen display.
When there is no rewritable DVD disc inserted, you would see a screen like the following:
When a DVD+R or DVD+RW disc is inserted, the disc information is displayed at the first key input. If you press
again then the TV information is displayed.
Displaying Disc Information
Displaying TV Information
Changing TV Channels
Some discs may not provide all the features shown in the on-screen display examples.
If no disc is playing, you can change TV channels using the [0-9] or [CH +/-] buttons on the remote control or [CH
…/†] buttons on the front panel.
Antenna channels are numbered 2 through 69. Cable channels are numbered 1 through 125.
audio output signal
current date and time
channel number
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지35
Some TV programs are broadcast with both a main and a Secondary Audio Program (SAP). You can change the
TV audio using the [AUDIO] button.
Press [AUDIO] repeatedly to change the TV audio, according to Broadcast audio signal as shown below.
• STEREO+SAP Audio Signal
Stereo ➝ SAP ➝ Mono ➝ Stereo
• STEREO Audio Signal
Stereo ➝ L ➝ R ➝ Mono ➝ Stereo
• SAP Audio Signal
Mono ➝ SAP ➝ Mono
• MONO Audio Signal
Mono
The current audio channel is displayed on-screen.
• If SAP is selected, but there is no SAP channel being broadcast, you will still hear the main audio channel.
• If the sound is poor quality when set to Stereo, you can often improve it by changing to Mono.
• When an external input is selected, the audio channel can be switched only to Stereo.
Title
Shows the current title number and total number of titles, and skips to the desired title number.
1
Press [DISPLAY] during playback. The on-screen display appears on the TV screen.
2
Use […†] to select the ‘Title‘ icon on the on-screen display. Press [ENTER] to display a sub menu.
3
Use […†] to change the numbers.
4
Press [ENTER] to confirm.
36
On-Screen Display Overview
With a DVD disc inserted and played, press [DISPLAY] to show the information of the
current disc.
While the disc information is displayed, press [DISPLAY] again to show the disc
remaining time.
Changing TV Audio Channel
OSD Menu Options for DVD
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지36
SETUP
37
On-Screen Display Overview
Chapter
Shows the current chapter number and total number of chapters, and skips to the desired chapter number.
1
Press [DISPLAY] during playback. The on-screen display appears on the TV screen.
2
Use […†] to select the ‘Chapter‘ icon on the on-screen display. Press [ENTER] to display a sub menu.
3
Use […†] to change the numbers.
4
Press [ENTER] to confirm.
Angle
Shows the current angle number and total number of angles, and changes the angle number.
1
Press [DISPLAY] during playback. The on-screen display appears on the TV screen.
2
Use […†] to select the ‘Angle‘ icon on the on-screen display. Press [ENTER] to display a sub menu.
3
Use […†] to change the numbers.
4
Press [ENTER] to confirm.
Audio
Shows the current audio soundtrack language, encoding method, and channel number, and changes the setting.
1
Press [DISPLAY] during playback. The on-screen display appears on the TV screen.
2
Use […†] to select the ‘Audio‘ icon on the on-screen display. Press [ENTER] to display a sub menu.
3
Use […†] to change the numbers.
4
Press [ENTER] to confirm.
Subtitle
Shows the current subtitle language, and changes the setting.
1
Press [DISPLAY] during playback. The on-screen display appears on the TV screen.
2
Use […†] to select the ‘Subtitle‘ icon on the on-screen display. Press [ENTER] to display a sub menu.
3
Use […†] to change the numbers.
4
Press [ENTER] to confirm.
Elapsed
Shows the elapsed playing time, and skips to the desired time.
1
Press [DISPLAY] during playback. The on-screen display appears on the TV screen.
2
Use […†] to select the ‘Elapsed’ icon on the on-screen display. Press [ENTER] to search time. Then sub
menu appears.
3
Use […†] to change the numbers and use
[œ √]
to move to other time position.
4
Within 7 seconds, press [ENTER] to confirm the start time. Playback starts from the selected time on the
disc.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지37
38
DVD Playback
DVD Playback
1
Press the [DVD] button to set the remote control to operate the DVD deck.
Turn the TV on and select the video input source connected to the DVD Recorder+VCR.
Audio system: Turn the audio system on and select the input source connected to the DVD Recorder+VCR.
2Press [EJECT] to open the disc tray.
3Load your disc in the tray with the playback side down.
4Press [EJECT] to close the tray.
5
READING appears on the front panel display, and playback starts automatically. If playback does not start,
press [PLAY (
√
)]. In some cases, the Disc menu might appear instead.
Playing a DVD+R(+RW)
When a DVD+RW or unfinalized DVD+R is inserted, no title is played automatically but TV channel displays on
the screen.
If you want to play a title in the DVD+R(+RW), you must press [DISC MENU] or [PLAY] to display the disc menu
at first. Select a title to play then press [ENTER].
Playing a DVD
If a Disc menu is displayed
A Disc menu may be displayed when you load a DVD. Use the [
œ √…†
] buttons to select the title/chapter you want
to view, then press [ENTER] to start playback. Press [TITLE] or [DISC MENU] to return to the Disc menu.
• If the Parental Lock feature is set and the disc is not within the current Movie Rating setting, the 4-digit code
must be entered and/or the disc must be authorized; see ‘Movie Rating‘ on page 30.
• The DVD Recorder+VCR will not play discs with Region codes different from the DVD Recorder+VCR. The Region
code for this DVD Recorder+VCR is 1 (one).
• Unless stated otherwise, all operations described use the remote control. Some features may also be available in
the Setup menu.
• A disc which is recorded with ripped source may not be played.
• A disc which is recorded by computer with high speed(over or equal to 2x) may not be recognized.
Still Picture and Frame-by-Frame Playback
1
Press [PLAY/PAUSE] during playback. The DVD Recorder+VCR will go into Pause mode.
2
You can back up or advance the picture frame-by-frame by pressing [FF (√√ )] repeatedly during Pause
mode.
Fast Forward/Backward
1
Press [REW (œœ )] or [FF (√√ )] during playback. The DVD Recorder+VCR will go into Search mode.
2
Press [REW] or [FF] to select the desired speed: √√ X2, √√ X4, √√ X8, √√ X16, √√ X32,
√
(forward) or
œ
, œœ X2, œœ X4, œœ X8, œœ X16, œœ X32 (backward).
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지38
39
DVD Playback
Zoom
The Zoom function allows you to magnify the video image and scroll around the enlarged image.
1
Press [ZOOM] during Play mode or Pause mode to activate the Zoom function.
Each press of the [ZOOM] button changes Zoom level as follows: X1 (normal size) ➝X2 ➝X4 ➝X1
(normal size)
2
Use the
[œ √…†]
buttons to scroll around the zoomed picture.
3
To resume normal playback, press [ZOOM] repeatedly until the X1 (normal picture) appears.
Repeat
1
To repeat the currently playing chapter, press [REPEAT]. REPEAT CHAPTER appears on the TV screen.
2
To repeat the currently playing title, press [REPEAT] a second time. REPEAT TITLE appears on the TV
screen.
3
To repeat the whole disc, press [REPEAT] a third time. REPEAT DISC appears on the TV screen.
4
You can play in other modes like Repeat A-B, Shuffle, Scan by pressing [REPEAT] repeatedly.
The Zoom function may not work on some DVDs.
PLAYBACK
The Camera Angle icon is displayed on the TV screen when alternate angles are available.
Changing the Audio Language
Press [AUDIO] then press
[œ √]
repeatedly during playback to hear a different audio language or audio track.
Subtitles
Press [SUBTITLE] then press
[œ √]
repeatedly during playback to select among all available subtitle languages.
Camera Angle
If a DVD contains scenes recorded at different camera angles, you can select among these angles during
playback.
Press [ANGLE] then press
[œ √]
repeatedly during playback to select the desired angle.
The number of the current angle appears on the TV screen.
You can repeat some section with the start point when ‘Repeat A-‘ displays on the screen. To mark end point, press [A-
B]. Press [A-B] again to repeat the section.
Slow playback in the reverse mode is not supported.
Slow Motion
Press [SLOW+] to enter the Slow Motion mode. The default speed is 1/2. When you press [SLOW+] repeatedly,
the speed will be 1/4, 1/8 and normal speed.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지39
40
DVD Playback
Search
1
Press [SEARCH] to display Search menu.
2
Use
[œ √]
to move to the Title(T) or Chapter(C) and use […†] to change the title or
chapter number.
Selecting Titles
When a disc has more than one title, you can select another title as follows:
1
Press [DISPLAY] and use […†] to select the Title icon. Press [ENTER] then a submenu appears. Use […†]
to select the title number and press [ENTER] to confirm.
Selecting Chapters
When a title on a disc has more than one chapter, you can select another chapter as follows:
1
Press [PREV (§)] or [NEXT (∞)] briefly during playback to select the next chapter or the previous chapter.
2
To skip directly to any chapter during playback, press [DISPLAY]. Use […†] to select the Chapter icon, then
press [ENTER] to display a submenu. Use […†] to select the chapter number and press [ENTER] to confirm.
Disc Menus
Many DVDs contain Disc menus that allow you to access special features. To open a Disc menu, press [MENU].
Then use the [0-9] buttons to directly select the desired option, or use the […†] buttons to highlight your
selection and press [ENTER].
1
Press [MENU]. The Disc menu is displayed.
2
To exit the Disc menu, press [STOP] or [TV VIEW].
Title Menus
1
Press [TITLE]. If the current title has a menu, the Title menu will appear on the TV screen. Otherwise, the
Disc menu may appear.
2
The Title menu may contain camera angles, spoken languages and subtitle options, as well as the chapters
for the title.
T/ C
31
…
†
œ √
A-B
You can repeat some section using 2 methods. The first one is described in the ‘Repeat‘. The second one is by
pressing [A-B] on the remote controller.
1
Press [PLAY/PAUSE] to prepare start point (A) to be repeated.
2
Press [A-B] to mark start point.
3
Press [PLAY/PAUSE] to continue playing.
4
Press [A-B] to mark end point (B).
5
Press [A-B] again to start repeating.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지40
PLAYBACK
41
Press the VCR button to set the remote control to operate the VCR deck.
Turn the TV on and select the video input source connected to the DVD Recorder+VCR.
Audio system: Turn the audio system on and select the input source connected to the DVD Recorder+VCR.
Before You Begin
Preparation:
Turn on the TV.
Tune the TV to the DVD Recorder+VCR output channel (CH 3 or 4) or select the video input connected to the
DVD Recorder+VCR.
1Insert a prerecorded video cassette.
If the DVD Recorder+VCR is powered off, it will powered up automatically.
Make sure the TIMER indicator on the front panel display is not lit. If it is, press [POWER] once.
If a tape without a safety tab is inserted, the DVD Recorder+VCR will start playback automatically.
2Press [PLAY].
PLAY icon appears on the TV screen. It is not necessary to select the tape speed (SP, SLP) for playback. It
will be automatically selected by the DVD Recorder+VCR.
3Press [STOP] to stop playback.
STOP icon appears on the TV screen. If the tape reaches the end before [STOP] is pressed, the DVD
Recorder+VCR will automatically stop, rewind and eject the tape.
Playing a VHS Tape
Auto Tracking
The automatic tracking function adjusts the picture to remove snow or streaks. It works in the following cases:
• When a tape is played for the first time.
• When the tape speed (SP, SLP) changes.
• When streaks or snow appear because of scratches on the tape.
Manual Tracking
If noise appears on the screen during playback, press either [TRACKING +/-] on the remote control until the
noise on the screen is reduced.
• In case of vertical jitter, adjust these controls very carefully.
• Tracking is automatically reset to normal when the tape is ejected or the power cord is unplugged for more
than 3 seconds.
Tracking Control
VCR Playback
VCR Playback
If the DVD Recorder+VCR is powered up by inserting video cassette, it will not start playback automatically.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지41
Notes on special playback features
Horizontal lines (noise bars) will appear on the TV screen. This is normal.
The audio is automatically muted during special playback modes, so there is no sound during search, slow motion, etc.
During high-speed picture search, a short time is needed to stabilize tape speed when re-entering Play mode. Slight
interference may be observed during this time.
Fast Forward/Backward
This function lets you visually search forward and backward for a desired scene on your tape.
1
Press [REW] or [FF] during playback.
Search mode will be activated.
If the DVD Recorder+VCR is left in Search mode for more than 3 minutes, the DVD Recorder+VCR will
automatically enter Play mode to protect the tape and video heads.
2
To return to normal playback, press [PLAY].
Still Picture
1
Press [PLAY/PAUSE] during playback.
A still picture appears on the TV screen.
If a still picture vibrates vertically, stabilize it by using [TRACKING +/-] on the remote control.
If the DVD Recorder+VCR is left in Still mode for more than 5 minutes, the DVD Recorder+VCR will
automatically enter Stop mode to protect the tape and video heads.
2
To return to normal playback, press [PLAY].
Slow Motion
1
Press [SLOW+] for Slow Motion playback.
2
For Slower speed press [SLOW+] repeatedly and for faster slow mode speed press [SLOW–] repeatedly.
Counter Memory Function
This is useful if there is a section of tape you want to view immediately after recording or if you want to return
to the same point several times.
1
Begin recording or playing a tape.
2
At the point you want to locate later, reset the real-time counter to 0:00:00 by pressing [CLEAR]. Continue
to play or record.
3
Press [STOP] when recording or playback finishes.
4
You can make the tape automatically stop when the counter returns to about ‘0:00:00‘ by setting the
counter to ‘0:00:00‘ in the ‘Go to Search‘ function of the ‘Setup’ ➝‘Preference’ ➝‘VCR’.
Special Playback Features
42
VCR Playback
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지42
PLAYBACK
43
VCR Playback

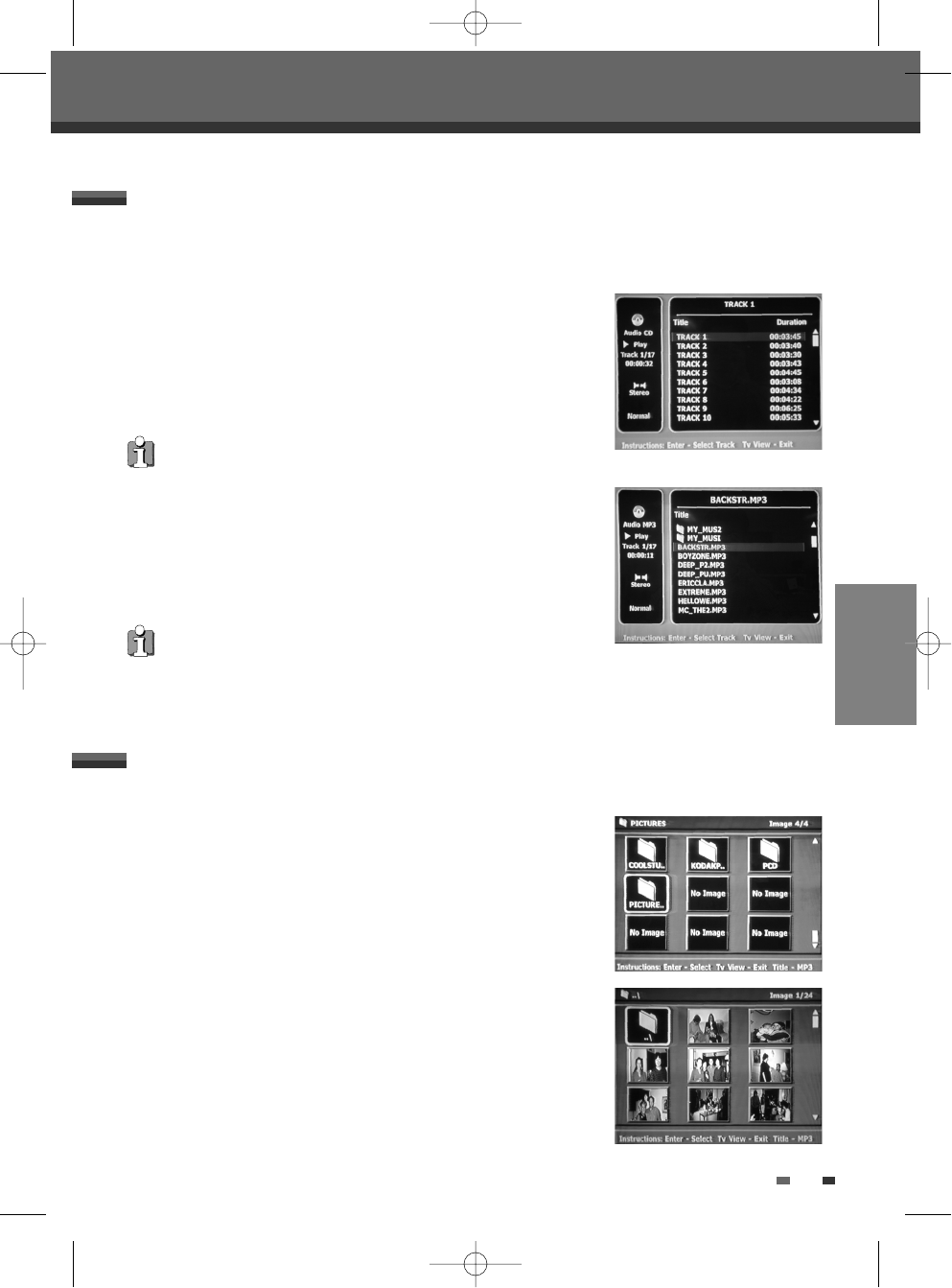

The DVD Recorder+VCR can play audio CD and MP3 files on CD-ROM, CD-
R or CD-RW discs. Before playing MP3 files, read ‘Notes on MP3
Recordings‘ at right.
1
Insert the CD disc and close the tray. The Audio CD or MP3 CD menu
appears on the TV screen after detecting the CD.
2
Use […†] to select a track or a file then press [PLAY] or [ENTER].
During playback, the current track's elapsed playing time will appear
on the front panel display and menu. Playback will stop at the end of
the disc.
3
While playing Audio CD, use [FF] or [REW] key to fast speed(2x)
playback.
4
Use [PLAY/PAUSE] to pause the playback while the disc is played.
5
To stop playback at any time, press [STOP].
Audio CD/MP3 PLAYBACK
• Press [REPEAT] key to repeat a track(file) and press again to repeat a
whole disc.
• If the disc contains jpeg files as well as mp3 files, you can change play
mode to display jpeg image files by pressing [TITLE] key.
On the MP3 CD menu, you can display the folders on the disc. Use [
…†œ
√
] to select the folder icon on the MP3 cd menu then press [ENTER] or
[PLAY]. Also you can display only tracks in the folders. Use [
…†œ √
] to
select a folder then press [ENTER].
••• Audio CD •••
••• MP3 •••
The DVD Recorder+VCR can display JPEG file and Kodak Picture CD.
1
Insert the CD disc and close the tray. The JPEG CD or Kodak Picture
CD folder tree appears.
2
If there are some folders which contain JPEG file (e.x. pictures for
Kodak Picture CD), select the folder using [
…†œ √
] and press
[ENTER] to get in.
JPEG / Kodak Picture CD PLAYBACK
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지43
44
VCR Playback

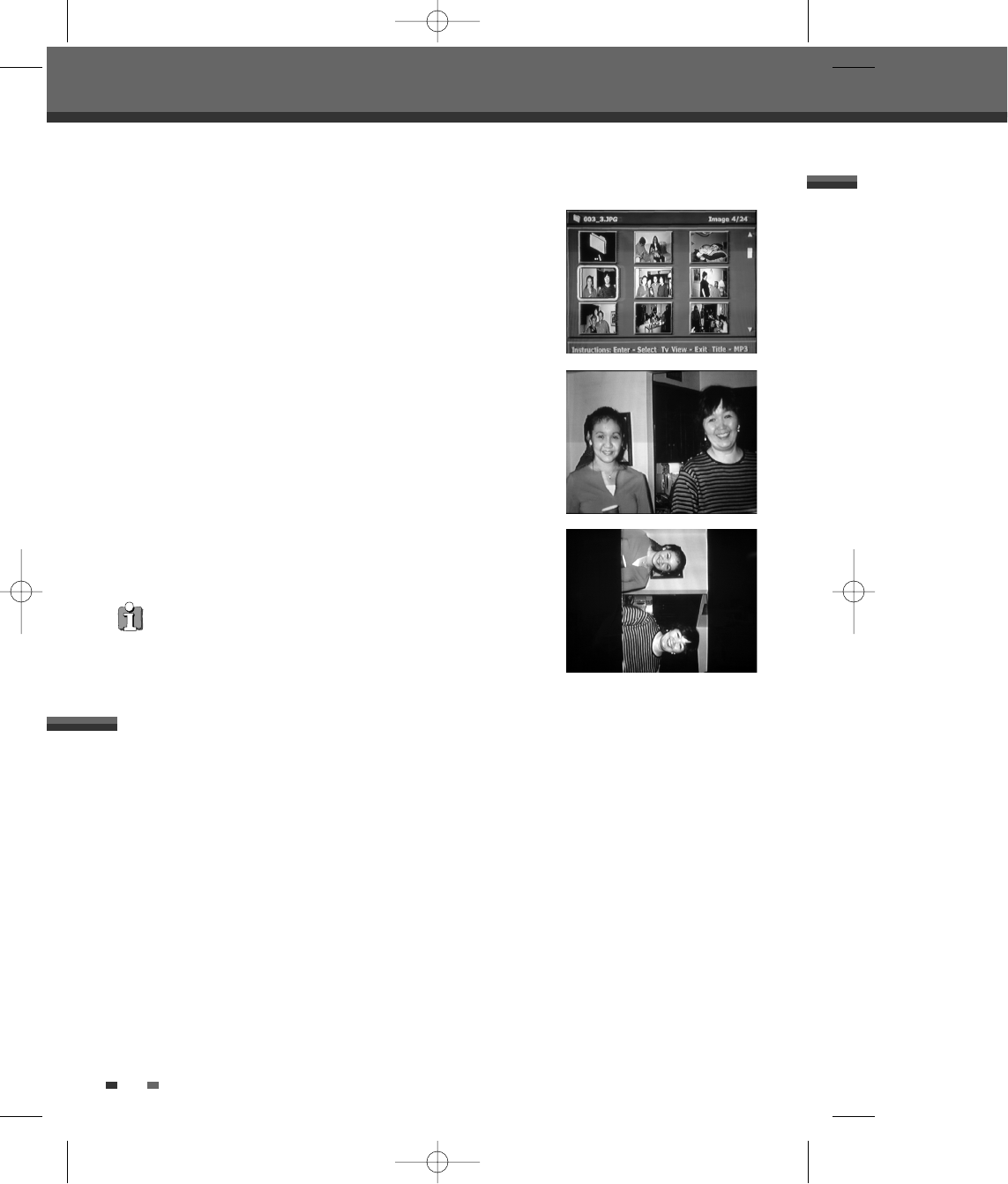

3
Select the thumbnail you want to display using [
…†œ √
] and press
[ENTER].
4
The full size image will be displayed and slide show starts
automatically with the time interval of 10 seconds.
5
Press [NEXT] or [PREV] key to go to the next or previous image
immediately.
6
Press [
√
] (or [
œ
]) to rotate the image (counter) clockwise.
7
Press [STOP] to quit the slideshow.
• If the disc contains mp3 files as well as jpeg files, you can change play
mode to play mp3 files by pressing [TITLE] key.
• When a CD contains mp3 files and jpeg files, the default play mode is
jpeg image file.
You can enjoy slide show while listening the music.
1
Prepare a CD which contain mp3 files as well as JPEG files.
2
Insert the disc and play an mp3 file.
3
Press [TITLE] key while playing the mp3 file to change the play mode. Music will not stop.
4
Find image files and start slideshow by selecting a file and pressing [ENTER].
5
Slide Show starts and music will not stop. You can enjoy the slide show while listening music.
Slide Show while playing mp3 files
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지44
PLAYBACK RECORDING
45
Follow the instructions below to record a TV program.
1Turn on the DVD Recorder+VCR and load a recordable disc or tape.
Make sure your TV input is set to view the DVD Recorder+VCR.
2Set the desired Recording mode by pressing [REC MODE] repeatedly.
DVD: HQ (High Quality - 1hr/disc), SP (Standard Quality - 2hrs/disc), EP (Extended Play - 4 hrs/disc), SLP
(Very Low Quality - 6hrs/disc)
VCR: SP (Standard Play), SLP (Super Long Play - 3times SP)
3If your DVD Recorder+VCR does not show TV program, press [TV VIEW] on the remote. Use the [CH …/ †] to
change the TV channel you wish to record.
4Press [AUDIO] to select the audio channel to record (Stereo, SAP, or Mono).
The table below shows what audio channel will be recorded with different settings and different types of
broadcasts.
The last column (Monitor Audio) shows what you will hear during recording. For example, if the TV
broadcast is in Stereo, then setting the DVD Recorder+VCR to Stereo will record the broadcast in Stereo,
and the Monitor Audio will also be in Stereo.
• If you set the audio channel to SAP, but no SAP channel is broadcast, the main audio (Mono or Stereo) will
be recorded.
5Press [REC (●)] once.
Recording will start. The REC indicator lights on the front panel display.
Recording continues until you press [STOP] or the disc is full.
To record for a fixed length of time, see One Touch Record at next page.
6Press [STOP (■)] to stop recording.
Recording from TV
Basic Recording
Basic Recording
• The maximum number of DVD titles is 99. If the DVD Recorder+VCR is powered off during DVD recording, the
recording will not be saved.
• If DVD+RW or unfinalized DVD+R disc is inserted in the tray, no title is played automatically after loading is
finished.
• In the case of virgin DVD+R(+RW) disc, it may takes up to 7 minutes for post processing after recording.
Broadcast Audio Monitor
L Ch R Ch Audio
MONO MONO MONO MONO MONO
STEREO L R STEREO
Left L L Left
Right L R Right
MONO MONO MONO MONO
MONO MONO MONO MONO
SAP SAP SAP SAP
STEREO L R STEREO
STEREO+SAP SAP SAP SAP SAP
MONO MONO MONO MONO
TV Broadcast
STEREO
MONO+ SAP
Selected Audio
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지45
Total time and recorded time are displayed on the TV screen after pressing [DISPLAY] key twice. And recorded
time is displayed on the front panel display.
Checking the Recording Time
46
1
Press [PLAY/PAUSE] to pause the disc during recording.
2
When you want to continue recording, press [PLAY/PAUSE] or [REC (●)].
To Pause the Recording
Basic Recording
Note
• To quit the One Touch Recording, press [STOP] for 3 seconds.
• The DVD Recorder+VCR will automatically power off when the One Touch Recording ends.
Tip (VCR mode only)
Always use [PLAY/PAUSE] for best results when making changes during recording .
For example: To change channels during recording, first press [PLAY/PAUSE] to put the unit in Pause mode. Then select
the desired channel on the DVD Recorder+VCR, and press [PLAY/PAUSE] again to resume recording.
• VCR and DVD cannot be recorded at the same time.
• While VCR is under recording, DVD playback is possible. But while DVD is under recording, all the VCR function is
deactivated.
One Touch Recording allows you add recording time in fixed increments at the touch of a button.
1Follow steps 1-4 under Recording from TV.
2Press [REC (●)] repeatedly to set the length of the recording.
Recording starts after the first press. Each subsequent press increases the recording time by 15 minutes
(DVD, to a maximum of 240 minutes) within the available space or 30 minutes (VCR, to a maximum of 540
minutes). The recording time is displayed on the front panel display.
One Touch Record (OTR)
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지46
You can copy the contents of a DVD to a VHS tape using the [DVD ➝VCR] button.
1Insert a Disc.
Insert the disc you wish to copy in the DVD deck and close the disc tray.
2Insert a VHS Tape.
Insert a blank VHS videotape into the VCR deck.
3Select DVD mode by pressing [DVD] on the remote control or
pressing [DVD/VCR] on the front panel.
4Find the place on the DVD (or Disc) from which you want to start
recording using the [PLAY] and [PAUSE] functions.
For best results, pause playback at the point from which you
want to record.
5Press [DVD ➝VCR] on the front panel.
The Copy to VCR menu appears.
6Press [REC SPEED] to select the desired Record Mode:
• SP (Standard Play)
• SLP (Super Long Play, 3 times SP).
7Press [ENTER] to start copying.
8Stop the Copy Process
To stop copying at any other time, press [STOP]. You must stop
the Copy process manually when the DVD movie ends, or the
unit may replay and record over and over again.
RECORDING
47
One Touch Copy - DVD to VHS
Basic Recording
If the DVD you are attempting to copy is copy-protected, you will not be able to copy the disc. It is not permitted to
copy Macrovision encoded DVDs. ‘Copy-protected. Cannot record.‘ is displayed on the TV screen.
Copy to Tape
Choose speed then
press COPY:
SLP
SP
DVD Status
■Stop – : – – : – –
Record
Preparing the disc for recording...
Please wait a moment...
Instructions
Setup-Exit
Record
Stopping the recording & updating
the disc. This may take a few
minutes. Please wait...
Instructions
Setup-Exit
00:00:32 02:03:27
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지47
48
Basic Recording

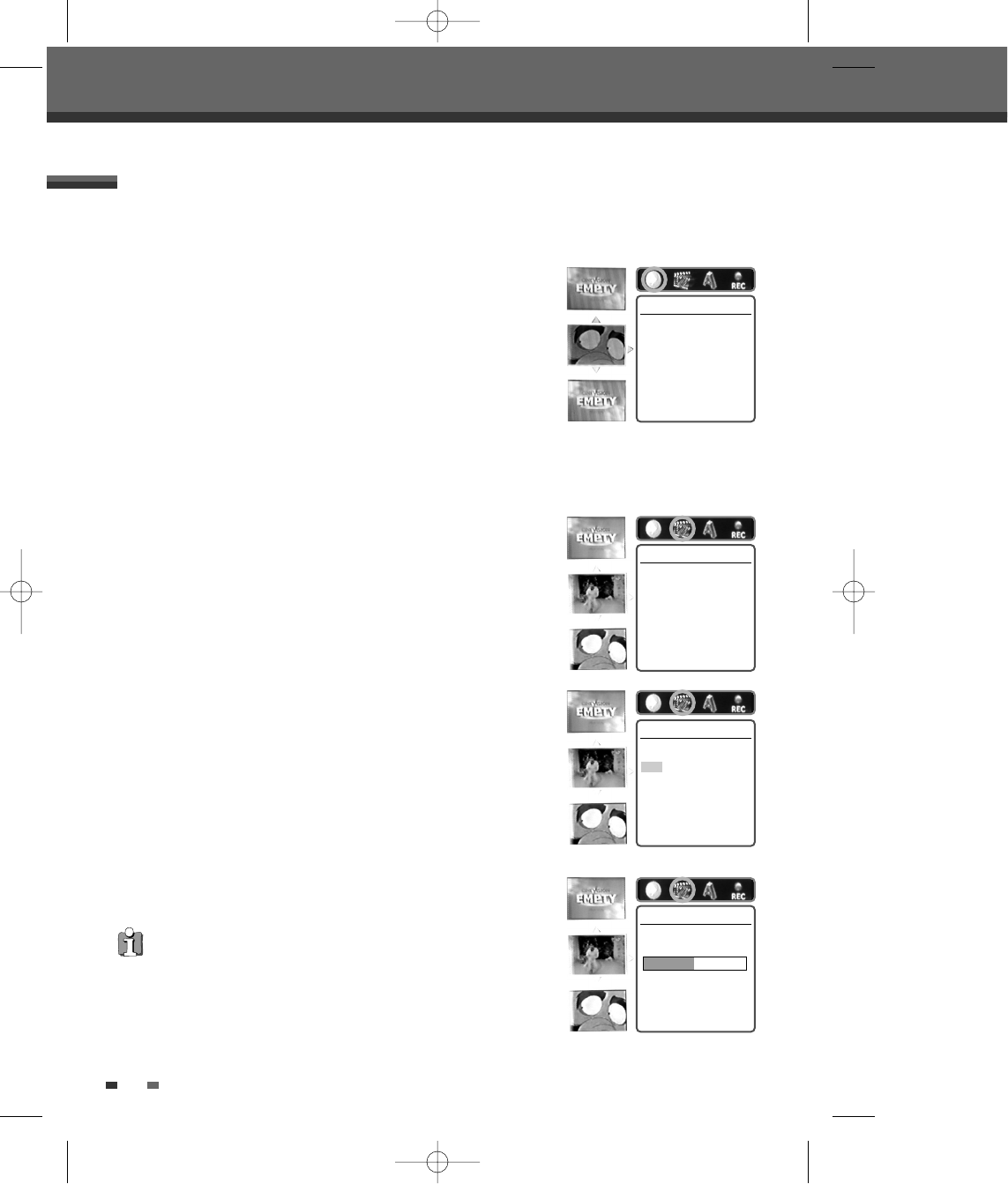

You can copy the contents of a VHS tape to a DVD+R or DVD+RW using the [VCR ➝DVD] button. This allows
you to archive your old VHS tapes to DVD.
1Insert a VHS Tape.
Insert the VHS videotape you wish to copy into the VCR deck.
2Insert a DVD+R or DVD+RW disc.
Insert a blank DVD+R or DVD+RW disc in the DVD deck and close the disc tray.
3Select VCR mode by pressing [VCR] on the remote control or
pressing [DVD/VCR] on the front panel.
4Find the place on the VHS tape from which you want to start
recording using the [PLAY], [FF], [REW] and [PAUSE] functions.
For best results, pause playback at the point from which you
want to record.
5Press [VCR ➝DVD] on the front panel.
The Copy to DVD menu appears.
6Press [REC SPEED] to select the desired Record Mode:
• HQ (High Quality, 1 hr/disc)
• SP (Standard Quality, 2 hrs/disc)
• EP (Extended Play, 4 hrs/disc)
• SLP (Very Low Quality, 6 hrs/disc)
7Press [ENTER] to start copying.
8Stop the Copy Process
To stop copying at any other time, press [STOP].
Copying will stop automatically when the VHS tape ends.
One Touch Copy - VHS to DVD
If the VHS videotape you are attempting to copy is copy-protected, you will not be able to copy the tape. It is not
permitted to copy Macrovision encoded tapes.
When using a DVD+RW disc, you must initialize before copying; see
page 52.
Copy to Disc
Choose quality then
press COPY:
HQ
SP
EP
SLP
DVD Status
■Stop 0 : 00 : 10
Copy to Disc
Stopping the copy & updating
the disc. This may take a few
minutes. Please wait...
Instructions
Setup-Exit
00:00:32 02:03:27
DVD COPY
00:00:32 02:03:27
TAPE COPY
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지48
RECORDING
49
The Timer Recording function allows you to record up to 8 programs within a period of one month.
1Insert recordable media such as DVD+R ,DVD+RW, recordable VHS tape.
2Press [TIMER].
The ‘Timer Recording’ menu appears.
Use […†] to move to a timer recording slot, and press [ENTER] to modify it.
If you did not set the clock of DVD Recorder+VCR, set the clock at first to do
timer recording.
• Media - Choose desired media between DVD and VHS using […†].
• Ch. – Choose the desired channel, or one of the external inputs from which
to record.
• Date – Choose a date up to 1 month in advance, or select a daily or weekly
program.
• Start Time – Set the recording start time.
• End Time – Set the recording end time.
• Mode – Choose a Record mode.
DVD: HQ, SP, SLP or EP
VCR: SP, SLP
3Enter the necessary information for your Timer Recording(s).
•
œ √
– Moves the cursor left/right
• …† – Changes the setting at the current cursor position
• Press [SETUP] to exit the Timer Record menu.
• Press [ENTER] after filling in all the program information.
• Press [TIMER] to display the Timer Record List.
4Press [ENTER] to save the program.
The Timer Record List will appear.
5Press [SETUP] to exit the Timer Record List.
6Timer indicator will light or blinking. Power Off the DVD Recorder+VCR to start
the Timer Recording.
Note
• The Timer indicator lights on the front panel display when the DVD Recorder+VCR is ready for the Timer Recording
and powered off.
• If the Disc and Tape indicator are blinking, if any of the following meets.
– The DVD Recorder+VCR is not powered off.
– No recordable disc or tape is inserted.
• The DVD Recorder+VCR will record the audio according to the current TV tuner setting (Stereo, Mono or SAP). Use
the [AUDIO] button to set the audio before switching the DVD Recorder+VCR to Standby mode.
• The DVD Recorder+VCR will automatically power off when the Timer Recording ends.
• There is a short delay when a timer recording finishes to confirm the recorded program. If two timer recordings
are set to record sequentially (one right after the other), the very beginning of the later program may not be
recorded.
Timer Recording
Timer Recording
Timer Recording
CH No. Date Start End Mode
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
Instructions
Enter-Edit Setup-Exit Move …†
Edit Timer
Media
CH No. CH-03
Date Jan/02 Sun
Start 01:36 AM
End 02:36 AM
Mode HQ
Repeat Once
Delete
Instructions
Enter-Save Setup-Exit
Timer Recording
CH No. Date Start End Mode
CH03 01/02
01:36AM 02:36AM
HQ
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
---- --/-- --:-- --:-- ---
Instructions
Enter-Edit Setup-Exit Move …†
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지49
50
Timer Recording
Even if a Timer Recording is set, the DVD Recorder+VCR will not record if:
• No disc is loaded.
• A non-recordable disc is loaded.
• DISC Lock is set to ON in the DISC Settings menu; see page 53.
• There are already 99 titles recorded on the disc.
You cannot enter a Timer Recording if:
• The DVD Recorder+VCR is powered on.
• A recording is already under way.
• The start time has already passed.
• Eight Timer Recordings have already been set.
If two or more Timer Recordings overlap:
• The earlier program takes priority.
• When the earlier program finishes, the later program starts.
• If two programs are set to start at exactly the same time, the program entered first takes priority.
Confirmation is not possible when:
• The DISC Protect setting is set to ON.
• There are already 99 titles recorded on the disc.
If the disc is damaged, the recording may not complete successfully, even if the Check field shows ‘Rec. OK‘.
Timer Recording Troubleshooting
You can clear a Timer Recording any time before the recording actually starts.
• Use […†] to select the program you want to erase on the Timer Recorder List, then press [ENTER] to
modify it. Use […†] to select 'Delete' then press [ENTER].
Canceling a Timer Recording
After a Timer Recording has started, you can still cancel the program by pressing [STOP] for 3 seconds.
Stopping a Timer Recording in Progress
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지50
RECORDING
51
You can record from an external component, such as a camcorder or VCR, connected to any of the DVD
Recorder+VCR’s external inputs.
1Make sure the component you want to record from is connected properly to the DVD Recorder+VCR; see pages
15 and 18.
2Use [ …†] to select the external input to record from.
• Tuner: Built-in tuner
• LINE1 : Audio/Video or S-Video Input on front panel
• LINE2 : Audio/Video Input on back panel
3Load a recordable disc or tape.
4Set the desired Recording mode by pressing [REC MODE] repeatedly.
DVD: SP (Standard Quality - 2hrs/disc), EP (Extended Play - 4 hrs/disc, HQ (High Quality - 1hr/disc), SLP
(Very Low Quality - 6hrs/disc)
VCR: SP (Standard Play), SLP (Super Long Play -3times SP)
5Press [REC (●)] once.
Recording will start. The REC indicator lights on the front panel display.
Recording continues until you press [STOP] or the disc is full.
To record for a fixed length of time, see ‘One Touch Record‘ on page 46.
6Press [STOP (■)] to stop recording.
Recording from External Components
Note
If your source is copy-protected, you will not be able to record it using the DVD Recorder+VCR. See ‘Copyright Notice‘
on page 7 for more details.
Recording from an External Input
Recording from an External Input
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지51
For recordable DVD media, such as DVD+R and DVD+RW, you can manage the disc using Disc Menu.
Disc menu for DVD+R let you finalize or rename the disc. For DVD+RW you can erase, lock (unlock) and make
the disc compatible.
Information / Erase the disc (DVD+RW)
1
Press [MENU] to go to disc menu mode.
2
In the DVD disc menu mode, press […] to move to the disc top menu.
3
Press [√] then Disc Menu appears.
4
Disc Menu shows you the disc information like disc type, number of
recordings, total title, free space, etc.
5
Use [œ/√] to select ‘Erase the disc’ menu.
6
If you want to erase the whole disc, press [ENTER].
7
For confirmation, select Yes or No for erasing. If you select ‘Yes’ and press
[ENTER], all the contents in the disc will be lost.
52
• If you load a blank DVD+R(+RW) disc, it will be initialized.
• If you press [REC] while initialization is under process, Disc preparing message will appear and you should
wait for some seconds.
• If you load a DVD+RW that has already been used you can record a program immediately.
DISC Initialize
Disc Menu
Information
Type DVD+RW
Recordings 5
Total Title 00:57:57
Free Space 01:48:48
Finalized -
Locked No
Compatible Yes
Instructions
Setup-Exit
Erase the disc
Erase the disc?
All recordings will be lost.
Yes
No
Instructions
Enter-Confirm Move …†
Editing
Editing
DVD+R disc cannot be locked (unlocked) or erased.
Erase the disc
Press [Enter] if you want
to erase the disc. All
existing recordings will
be cleared.
Instructions
Enter-Confirm
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지52
EDITING
53
Editing
Lock/Unlock Disc (DVD+RW)
If you want to prevent a disc from accidental recording, editing or erasing, you can lock the disc. If you can also
make the disc unlock.
1
Use […] to go to top menu.
2
Press [√] to display Disc Information Menu.
3
Use [œ/√] to select ‘Lock/Unlock Disc’.
4
Press [ENTER] as described on the screen.
5
You can see the current disc status (Locked or Unlocked).
6
You can change the disc status by selecting ‘Yes’ and pressing [ENTER].
7
Changing Disc Status bar will appear. This process takes some seconds.
8
After the process ends the menu disappears automatically.
Lock/Unlock Disc
Press [Enter] to lock the
disc. This prevents future
disc operations or
recordings.
Instructions
Enter-Confirm
Lock/Unlock Disc
Disc is unlocked.
Do you want to lock it?
Yes
No
Instructions
Enter-Confirm Move …†
Lock/Unlock Disc
Changing disc lock status.
Please wait a moment....
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지53
54
Editing
Once you have finalized a DVD+R disc, you cannot edit or record anything else on that disc.
• ‘Finalize (Make Compatible)’ can take up to 3-4 minutes depending on the type of disc, how much is recorded on
the disc, and the number of titles on the disc.
• A DVD+RW disc edited in the DVD Recorder+VCR will seem not edited if you do not 'make compatible'.
Finalize (Make Compatible)
Finalizing a DVD+R ‘locks’ its recordings in place so the disc can be played on most standard DVD players or
computers equipped with DVD-ROM drives.
'Make Compatible' for a DVD+RW will automatically create a menu screen for navigating the disc. This menu
screen is accessible by pressing [DISC MENU] or [TITLE].
1
Use […] to go to top menu.
2
Press [√] to display Disc Information Menu.
3
Press [√] and select ‘Finalize’ (‘Make Compatible’ for
DVD+RW).
4
Press [ENTER] as described on the screen.
5
Select 'Yes' using […] and press [ENTER] to finalize the disc
(make the disc compatible in the case of DVD+RW).
6
Press [ENTER] again.
7
Press [SETUP] to go to the top disc menu.
Make Compatible
Press [Enter] to make any
previous title editing
compatible with your DVD
player.
Instructions
Enter-Confirm
Make Compatible
Make disc compatible with
your DVD player.
Yes
No
Instructions
Enter-Confirm Move …†
Make Compatible
Finished.
This Disc should already
be compatible.
ok
Instructions
Enter-Confirm Move …†
Finalize
Press [Enter] to make any
previous title editing
compatible with your DVD
player.
Instructions
Enter-Confirm
Finalize
Make disc compatible with
your DVD player.
Yes
No
Instructions
Enter-Confirm Move …†
Finalize
Finished.
This Disc should already
be compatible.
ok
Instructions
Enter-Confirm Move …†
••• DVD+R disc ••• ••• DVD+RW disc •••
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지54
EDITING
55
Editing
Change Disc Name
The default disc name is MY DVD. You can change the name to what you want.
1
Use […] to go to top menu.
2
Press [√] to display Disc Information Menu.
3
Press [√] and ‘Change Disc Name’.
4
Press [ENTER] as described on the screen.
5
You can see Keyboard Menu.
6
Use
[œ √…†]
to select and press [ENTER] to change the name of the disc.
CLR : Clear the disc name
SP : Space
DEL : Delete a character
SAVE : Save the disc name
7
Press [ENTER] again.
8
To save the name of the disc, select ‘SAVE’ and press [ENTER].
Change Disc Name
Problem.
This disc is locked. It
cannot be renamed.
ok
Instructions
Enter-Confirm Move …†
Change Disc Name
MY DVD
CLR SP DEL SAVE
123 4 5 6 7 8 90
ABC D E F G H I J
KLMNOPQRST
UVWXYZ().,
:;&
Enter-Confirm Move …†
Change Disc Name
Press [Enter] to change
the disc name.
Instructions
Enter-Confirm
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지55
For the titles recorded in a DVD+R ,RW media, you can manage them using title menu.
Play A title
For the recorded title you can play the title using title menu.
1
Press [MENU] to display disc menu.
2
Select a title you want to manage using [
…†
].
3
Press [
√
] to display title menu.
4
Select ‘Play a title’ using [
œ √
] .
5
Press [ENTER] to play the title.
Erase Title
1
Follow the sequences from 1 to 3 of the ‘Play a title‘.
2
Select ‘Erase Title‘ using [
œ √
].
3
Press [ENTER] to erase the title.
4
Select 'Yes' and press [ENTER] to confirm.
5
Erase progress bar will be displayed. It may takes several seconds.
6
After erasing is completed, the erased title remains as empty title.
Title Menu
56
Editing
You can erase a title only for DVD+RW.
Play Title
Press [Enter] to begin
playback of title.
Instructions
Enter-Confirm
Erase Title
Press [Enter] to erase
this title.
Instructions
Enter-Confirm
Erase Title
Would you like to Erase
the title?
Yes
No
Instructions
Enter-Confirm Move …†
Erase Title
Title is being erased.
Please wait a moment...
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지56
EDITING
57
Change Name
1
Follow the sequences from 1 to 3 of the ‘Play a title‘.
2
Select ‘Change Name’ using [
œ √
] .
3
Press [ENTER] to change the title name.
4
Key matrix will be displayed. Use [
œ √…†
] to select a character or
function and press [ENTER].
CLR : Clear the whole title.
SP : Make a space
DEL : Delete a character
SAVE : Save the title name
5
After new title name is completed, select ‘SAVE’ and press [ENTER].
Record Option
1
Follow the sequences from 1 to 3 of the ‘Play a title‘.
2
Select ‘Record Options’ using [
œ √
] and press [ENTER].
3
According to the Disc Type (DVD+R, DVD+RW) and whether the title is
blank or not, 'append', 'overwrite' or 'make a new title' is supported.
Select the preferred item and press [ENTER].
For DVD+R
The last recorded title : You can make new recording appended to the
last or as a new title.
Others : You can record a new title to the end of the
disc.
For DVD+RW
The last blank title : You can record a new title to the end of the disc.
The last recorded title : You can overwrite the title then stop.
You can overwrite the title and record plus remaining disc.
You can append to the title.
Others : Overwrite the title then stop
Overwrite the title and record plus remaining disc.
Editing
Change Name
Press [Enter] to change
the title name.
Instructions
Enter-Confirm
Record Options
Press [Enter] to select
a method for overwriting
this title.
Instructions
Enter-Confirm
Change Name
TITLE
CLR SP DEL SAVE
123 4 5 6 7 8 90
ABC D E F G H I J
KLMNOPQR ST
UVWX Y Z ( ) . ,
:;&
Enter-Confirm Move …†
Record Options
Overwrite this title
then stop
plus remaining disc
Instructions
Enter-Confirm Move …†
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지57
58
When you insert a DVD+R or DVD+RW disc already recorded by your DVD Recorder+VCR, you can edit titles and
chapters.
To edit the recorded title, press [EDIT] with any title selected when disc menu is displayed.
The selected title will be played automatically by [EDIT] key.
Titles and Chapters
When you insert a DVD+R or DVD+RW disc already recorded by your DVD Recorder+VCR, all the titles within
that disc appear. If there are some chapters you can skip to the next or previous chapter by pressing [NEXT] or
[PREV].
You can also see how many chapters exist in a title by pressing [DISPLAY] during playback.
Titles in the disc’s content contain one or more chapters. When you insert an title, all the chapters within that
title also appear.
In other words, titles in the Playlist behave exactly as chapters on a DVD disc.
Title
You can search a title by selecting ‘Title’ menu.
1
Use […†] to select title.
2
Press [ENTER] then sub menu appears.
3
Use […†] to change the title number then press [ENTER].
Chapter
You can search a chapter by selecting ‘Chapter’ menu.
1
Use […†] to select Chapter.
2
Press [ENTER] then sub menu appears.
3
Use […†] to change the chapter number then press [ENTER].
Edit Markers
You can add a chapter marker anywhere in a title during playback.
Once the chapter is marked, you can use the chapter search feature.
You can Add/Delete a chapter marker or delete all chapter markers in a title.
You can insert up to 999 chapter markers in both the contents.
1
Use […†] to select ‘Edit Markers’.
2
Press [ENTER] then sub menu appears.
3
Use […†] to select various chapter marker mode.
4
Press [ENTER] to confirm.
Editing
Editing
DVD Edit
Title 1 of 2
Chapter 1 of 11
Edit Markers
Unhide Chapter
Change Index Picture
Split Title
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Title
1 of 2
…
†
DVD Edit
Title 1 of 2
Chapter 1 of 11
Edit Markers
Unhide Chapter
Change Index Picture
Split Title
Instructions
Enter-Confirm Setup-Exit
Move …†
Select Chapter
1 of 11
…
†
DVD Edit
Title 1 of 2
Chapter 1 of 11
Edit Markers
Unhide Chapter
Change Index Picture
Split Title
Instructions
Enter-Confirm Setup-Exit
Move …†
Choose the edit
Function
Add
Delete
Delete All
After editing is completed, DVD+RW disc is not compatible to the DVD player. Do 'make compatible' to make edition
effective.
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지58
EDITING
59
Unhide Chapters
This hide or unhide a chapter. After hiding a chapter, the chapter is not deleted
but only hided. If a chapter is hided then it shows "Unhide chapter" and vice
versa.
Change Index Picture
Each title displayed in the Playlist menu is represented by a thumbnail picture
taken from the start of that title or chapter. If you prefer, select a different still
picture from within a title.
1
Use […†] to select ‘Change Index Picture’.
2
Press [ENTER] then sub menu appears.
3
Use […†] to select ‘Yes’ if you prefer.
4
Press [ENTER] when the preferred picture is on the TV screen.
Split Title
This splits a title into two titles.
1
Use […†] to select 'Split Title'.
2
Press [ENTER] then a sub menu appears.
3
Use […†] to select 'Yes' if you prefer.
4
Press [ENTER] to confirm. It may takes a few minutes to split a title.
Editing
DVD Edit
Title 1 of 2
Chapter 1 of 11
Edit Markers
Unhide Chapter
Change Index Picture
Split Title
Instructions
Enter-Confirm Setup-Exit
Move …†
DVD Edit
Title 1 of 2
Chapter 1 of 11
Edit Markers
Unhide Chapter
Change Index Picture
Split Title
Instructions
Enter-Confirm Setup-Exit
Move …†
Change Picture
Are you sure?
Yes
No
DVD Edit
Title 1 of 2
Chapter 1 of 11
Edit Markers
Unhide Chapter
Change Index Picture
Split Title
Instructions
Enter-Confirm Setup-Exit
Move …†
Split the title
in two?
Yes
No
Split Title
Splitting title into 2 titles.
Please wait a moment....
Instructions
Setup-Exit
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지59
60
Check the following guide for the possible cause of a problem before contacting customer support.
No power.
No picture.
No sound.
Playback picture is poor.
DVD Recorder+VCR does
not start playback.
Picture from external input
is distorted.
Some channels are skipped
over when using [CH…†].
Picture or sound of
broadcasting channel is
weak or missing.
Camcorder image not shown.
The power cord is disconnected.
The TV is not set to receive DVD
Recorder+VCR signal output.
The video cable is not connected
securely.
The TV power is turned off.
The equipment connected with the
audio cable is not set to receive
DVD Recorder+VCR signal output.
The audio cables are not connected
securely.
The power of the equipment
connected with the audio cable is
turned off.
The audio connecting cord is
damaged.
The disc is dirty.
Tape heads are dirty.
Tape is a rental or was recorded on
another VCR.
No disc is inserted.
No tape is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the
guide.
The disc is dirty.
The Movie Rating level is set.
The video signal from the external
component is copy-protected.
The skipped channels were deleted
with the CH. Add/Del feature.
Antenna or cables are loose.
Wrong Tuning Band is selected in
the DVD Recorder+VCR Setup menu.
Camcorder is off.
Plug the power cord into the wall outlet
securely.
Select the appropriate video input on the
TV so the picture from the DVD
Recorder+VCR appears on the TV screen.
Connect the video cable securely.
Turn on the TV.
Select the correct input mode on the
audio receiver so you can listen to the
sound from the DVD Recorder+VCR.
Connect the audio cable securely.
Turn on the equipment connected with
the audio cable.
Replace it with a new one.
Clean the disc.
Clean video heads.
Use [Tracking +/–] for manual tracking
adjustment while tape is playing.
Insert a disc or tape. (Check that the disc
indicator on the front panel display is lit.)
Insert a playable disc. (Check the disc
type, color system, and regional code.)
Place the disc with the playback side
down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Movie Rating function or
change the rating level.
You cannot connect via the DVD
Recorder+VCR. Connect the component
directly to your TV.
Use the CH. Add/Del feature to restore
channels. See ‘Add/Remove Channels‘ on
page 23.
Tighten connections or replace cable.
Try all ‘Tuning Band‘ options; see page
20 for details.
Turn camcorder on and operate properly.
Troubleshooting
Troubleshooting
Symptom Cause Solution
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지60
REFERENCE
61
Troubleshooting
Camcorder image via A/V
input to DVD Recorder+VCR
is not shown on TV screen.
Can’t play disc recorded
on this DVD Recorder+VCR
on another DVD player.
Cannot record or did not
record successfully.
Timer Recording not
possible.
Stereo Audio Record and/or
Playback not present.
Remote control does not
work properly.
DVD Recorder+VCR’s source is not
set to LINE1/LINE2 composite, AV2
S-Video.
The disc was not finalized or not
compatible for DVD+RW.
Some players will not play even a
finalized disc.
Discs recorded with copy-once
material cannot be played on other
players.
The remaining blank space on the
disc is insufficient.
The source you are trying to record
is copy-protected.
When setting the recording
channel, the channel is tuned on the
TV’s own tuner.
Clock in DVD Recorder+VCR is not
set to correct time.
Timer has been programmed
incorrectly.
TIMER indicator light does not
appear after programming timer.
TV is not Stereo-compatible.
Broadcast program is not in stereo
format.
DVD Recorder+VCR A/V Out jacks
are not connected to TV A/V In
jacks.
DVD Recorder+VCR Audio/Video Out
is not selected for viewing at the TV.
DVD Recorder+VCR’s TV audio
channel is set to SAP or MONO.
The remote control is not pointed at
the remote sensor of the DVD
Recorder+VCR.
The remote control is too far from
the DVD Recorder+VCR.
There is an obstacle in the path of
the remote control and the DVD
Recorder+VCR.
The batteries in the remote control
are exhausted.
Use INPUT to select AV input channel
(LINE1/LINE2 composite, LINE2 S-Video).
Finalize the disc; see page 54.
No solution.
No solution.
Use another disc.
You cannot record the source.
Select the channel on the DVD
Recorder+VCR’s built-in TV tuner.
Set clock to correct time. See ‘Set Clock‘
on page 24.
Reprogram Timer. See ‘Timer Recording‘
on page 49.
Reprogram Timer.
No solution.
No solution.
Make A/V connections. Stereo is
available only via A/V output from DVD
Recorder+VCR.
Select AUX or A/V source as TV input.
Set TV audio channel mode to Stereo.
See ‘Changing TV Audio Channel‘ on
page 36.
Point the remote control at the remote
sensor of the DVD Recorder+VCR.
Operate the remote control within 23 ft
(7m).
Remove the obstacle.
Replace the batteries with new.
Symptom Cause Solution
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지61
62
When the DVD Recorder+VCR is moved from a cold
place to a warm place.
Under extremely humid conditions.
Keep the DVD Recorder+VCR plugged into an AC
power outlet with POWER On. This will help prevent
condensation.
When condensation has occurred, wait a few hours
for the DVD Recorder+VCR to dry before using it.
Moisture Condensation
Troubleshooting
Moisture condensation can occur: In locations where moisture condensation may occur:
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지62
REFERENCE
63
General
Power requirements AC 120V, 60 Hz
Power consumption 34W
Dimensions (approx.) 16.9 x 3.54 x 14.0 inches (430 x 91 x 354 mm) (w x h x d)
Mass (approx.) 13.5 lbs (6.18 kg)
Operating temperature 41°F to 95°F (5°C to 35°C)
Operating humidity 5% to 90%
Signal system NTSC
Recording
Recording formats DVD Video Recording, DVD-VIDEO
Recordable discs DVD+R, DVD+RW
Recordable time DVD ; Approx. 1 hour (HQ mode), 2 hours (SP mode), 4 hours (EP mode),
6 hours (SLP mode)
VCR ; SP: 2 hours (T-120), SLP: 6 hours (T-120)/8 hours (T-160)
Video recording format
Sampling frequency 27MHz
Compression format MPEG 2
Audio recording format
Sampling frequency 48kHz
Compression format Dolby Digital
VCR Specifications
Head system 4 Head Video, 2 Head Hi-Fi helical scan azimuth system
Timer 12-hour display type with AM, PM
Tape speed SP: 33.35 mm/sec, SLP: 16.67 mm/sec, EP: 11.12 mm/sec
Tape width 12.7 mm
Rewind time less than 2 minutes (T-120)
Antenna 75 ohms (VHF/UHF)
VHF output signal Channel 3 or 4 (Switchable)
Channel coverage VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
Frequency range 20Hz to 20kHz
Signal-to-noise ratio 43 dB
Dynamic range 75 dB
Channel separation 45 dB
DVD Specifications
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 95 dB
Harmonic distortion Less than 0.008%
Dynamic range More than 90 dB
Inputs
ANTENNA IN Antenna or CATV input, 75 Ω
VIDEO IN 1.0 Vp-p 75 Ω, sync negative, RCA jack x 2
AUDIO IN -6 dBm more than 47 k, RCA jack (L, R) x 2
Technical Specifications
Technical Specifications
DWL71D1D_RV4000(GB) 04.6.1 1:46 AM 페이지63
64
Video cable ............................................. 1
Audio cable ............................................. 1
RF 75ΩCoaxial Cable ............................ 1
Blank DVD+R disc ................................... 2
Remote control ....................................... 1
Batteries ................................................. 2
Manufactured under license from Dolby Laboratories. ‘Dolby‘, ‘Pro Logic‘ and the double-D symbol are
trademarks of Dolby Laboratories.
DTS and DTS Digital Out are registered trademarks of Digital Theater Systems, Inc.
Accessories
Technical Specifications
Outputs
VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1
S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(PROGRESSIVE SCAN) (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1
Audio output (analog audio) 1.1 Vrms (1 kHz, -6 dB), 600 Ω, RCA jack (L, R) x 2
RF OUT Channel 3 or 4 (Switchable)
Design and specifications are subject to change without notice.
