Selection of Multimedia
Input Signal
31
When connecting PC, STB, DVD with Multimedia

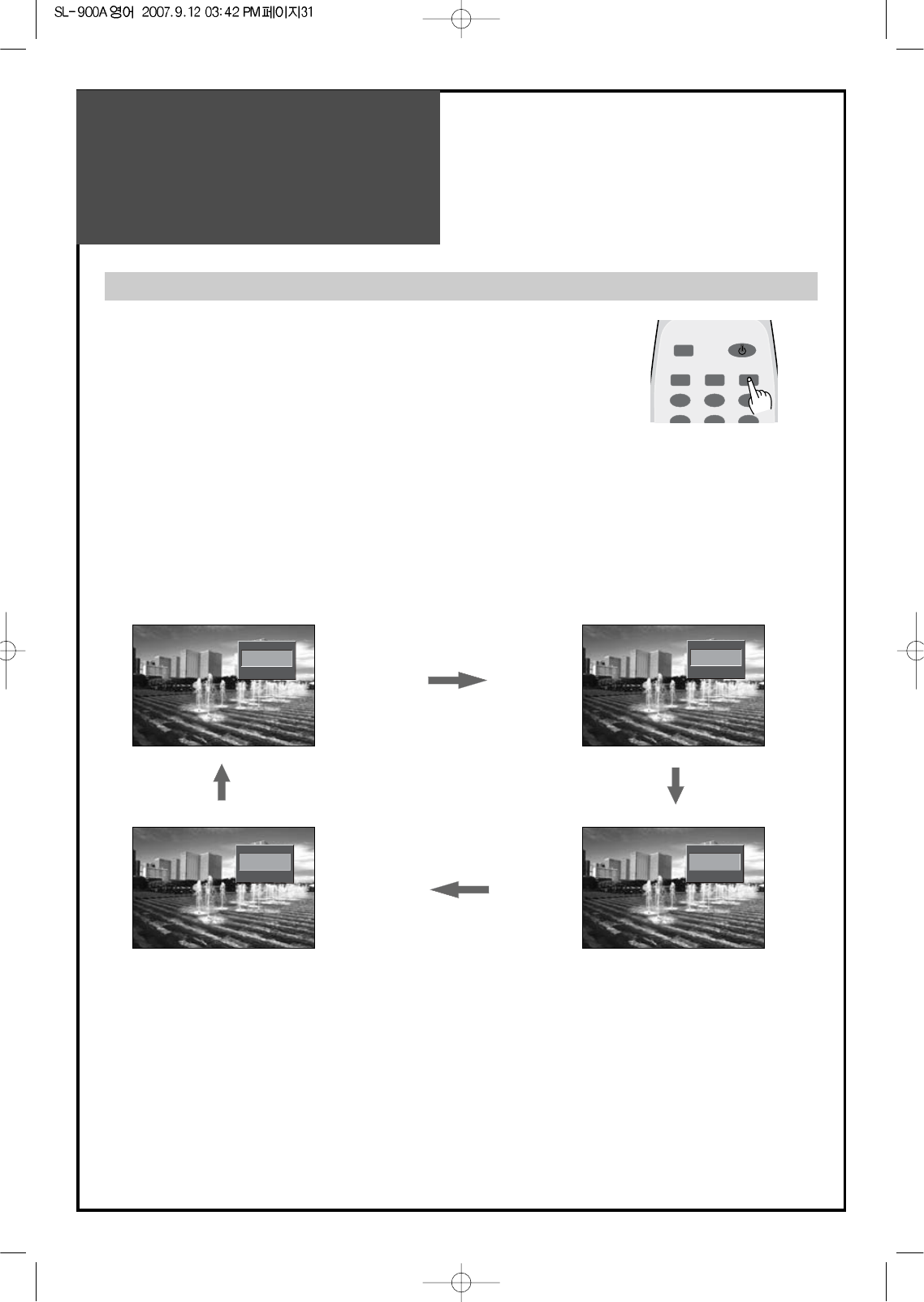

1. Pressing the "MULTIMEDIA" button on the remote controller.
• Screen changes as follows whenever pressing the “MULTIMEDIA” button.
Comp.1 => Comp.2 => HDMI => PC => Comp.1
Note:
• If sound signal is mono method, connect it to the L-terminal of the sound
input terminal.
DISPLAY
GUIDE TV/VIDEO
MULTIMEDIA
POWER
123
456
PC Comp.1
Comp.2
HDMI
Selection of Multimedia
Input Signal
32
1. If the message ‘No signal’ appears on the screen, adjust the PC output to a format listed in the Multimedia
Input table.
Multimedia Input Format
HDMI & PC mode
Note :
1. When you connect with component, PC (D-Sub), and HDMI, you must check the input resolution of
external devices.
2. So if this mode is used at PC mode, the screen can be enlarged.
Resolution V-freq HDMI PC(D-Sub) Component Standard
640 X 480 60Hz O O X VESA Standard
75Hz O O X VESA Standard
800 X 600 60Hz O O X VESA Standard
75Hz O O X VESA Standard
1024 X 768 60Hz O O X VESA Standard
75Hz O O X VESA Standard
1280 X 768 60Hz O O X VESA Standard
75Hz O O X VESA Standard
1280 X 1024 60Hz O O X VESA Standard
75Hz O O X VESA Standard
720 X 480i 60Hz X X O
720 X 480p 60Hz O O O
1280 X 720p 60Hz O O O
1920 X 1080i 60Hz O O O
1920 X 1080p 60Hz O O O
Picture Adjustment
33
Note :
• 16:9 : 16:9 will display a true 16:9 (anamorphic) picture with no aspect
distortions.
• 4:3 : General TV screen currently broadcasted.
• LB(16:9) : Enlarge vertical size of the 16:9 picture.
• LBS(16:9) : Move the LB(16:9) picture to the upper direction.
• LB(16:9) and LBS(16:9) screen are not available in PC and HDMI mode.
• "Screen Size" function is not available in PIP mode.

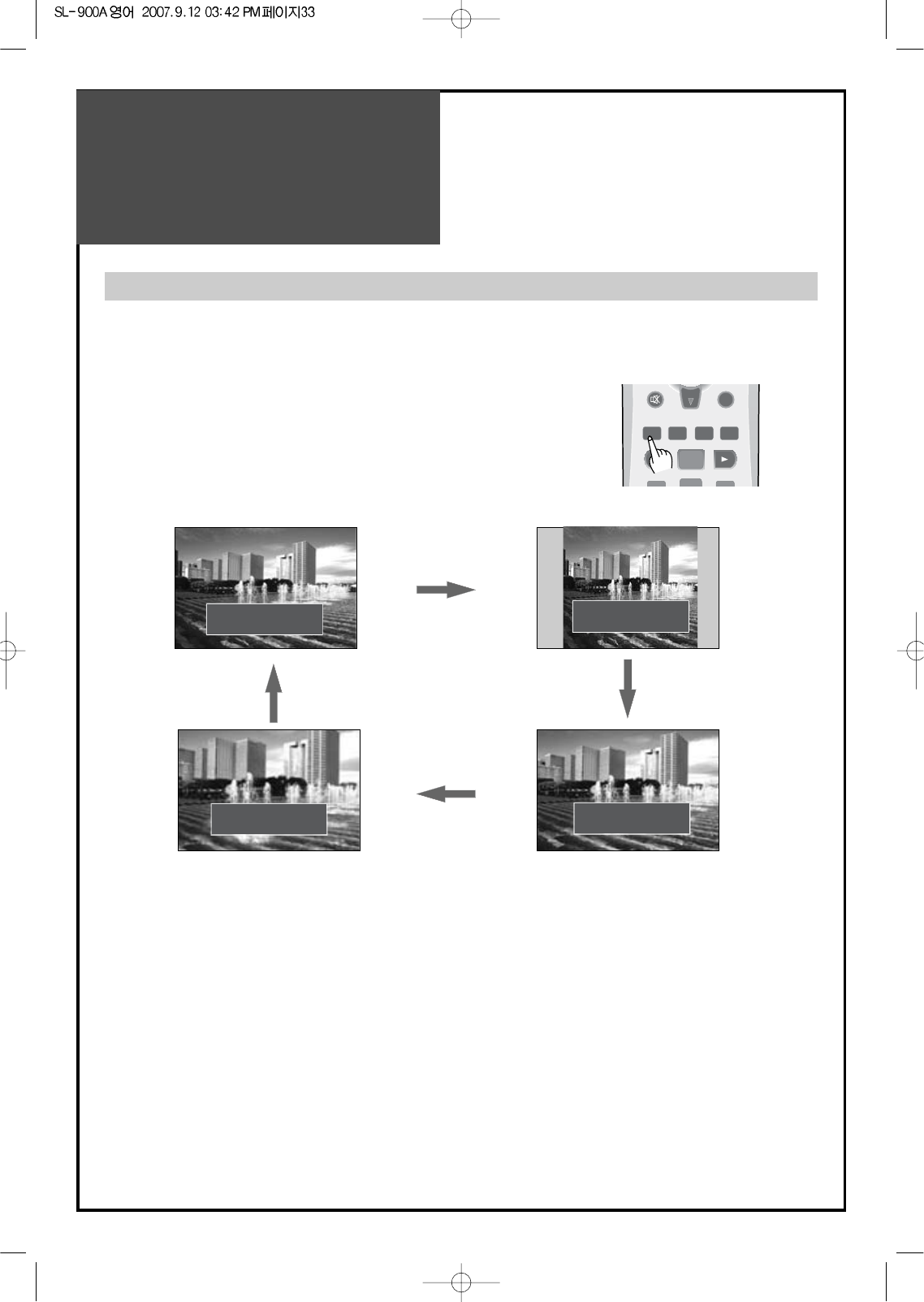

Adjustment of Aspect ratio in TV/Video/Component mode
1. Press the "SCREEN SIZE" button
• The screen changes as below whenever pressing the "SCREEN
SIZE" button.
16:9 => 4:3 => LB[16:9] => LBS[16:9] => 16:9
16 : 9
MUTE
SCREEN
SIZE CAPTION
PIP CH PIP CH
PIP
SWAP SOURCE POSITION
SLEEP
CH
STILL
ADD/
ERASE
LB(16:9)
LBS(16:9)
4 : 3
Picture Adjustment
34
Note.
• You can adjust the PC menu only in the PC mode.
• During the Auto Adjust, you must not alter a screen on the monitor.
• During a moving picture, Auto Adjust is liable to incorrectly work. So you must execute Auto Adjust on a
still image.
• When Auto Adjust is not working correctly, you can adjust with H. Position, V. Position, Frequency and
Phase.
Adjustment of the screen in the PC mode

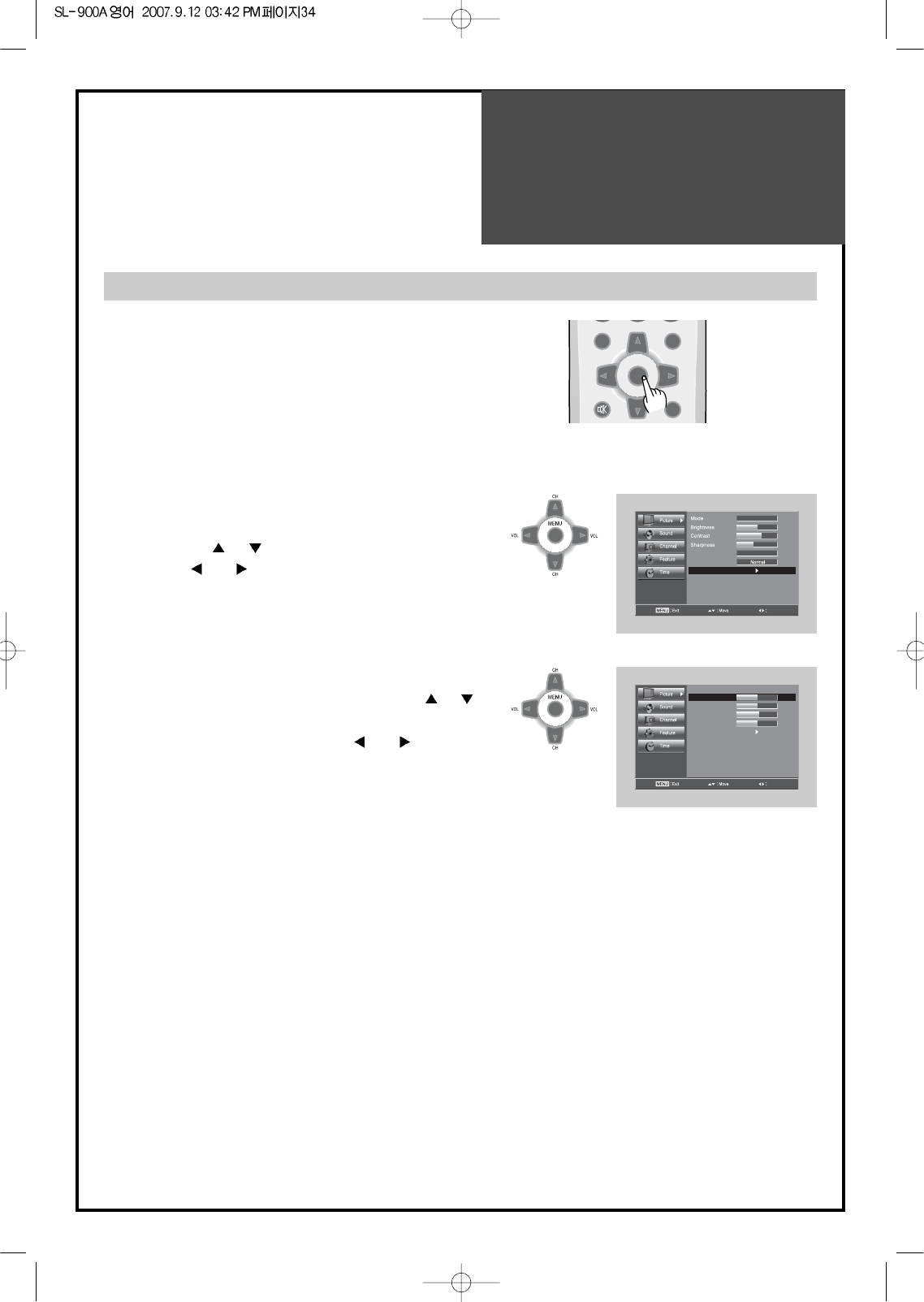

1. Select Picture by pressing the "Menu" button.
• The menu screen appears as follows.
2. Select PC Screen Mode
• Move to PC Screen Mode in the Picture menu by
pressing the ” CH ” buttons.
• Press the ” VOL ” button.
Color temp
PC Screen Mode
Off
N.R
User
Select
50
60
6
3. Select and adjust each items.
• Move to item what you want by pressing the ” CH ”
button.
• Adjust each items by pressing the ” VOL ” button.
Auto Set
Phase
H. Position
V. Position
PC Screen Mode
Frequency
Adjust
50
50
60
100
MENU
FAV
PREV.CH
MUTE
VOL VOL
CH
CH
STILL
Picture Adjustment
35
- The user may select various screens designed for a good picture without adjusting the brightness, contrast
or color individually.
Note.
• Normal : For a highly defined image in a normally bright room
• Dynamic : For a clear-cut image emphasizing high contrast for sports viewing
• Cinema : Ideal for movies
• User : Allows the user to customize settings as desired
Color temp
Off
GR
N.R
Dynamic
Adjust
43
80
60
10
Color temp
Off
GR
N.R
Cinema
Adjust
50
60
50
6
Color temp
Off
GR
N.R
Adjust
45
70
55
8
Color temp
Off
GR
N.R
User
Adjust
50
60
60
6

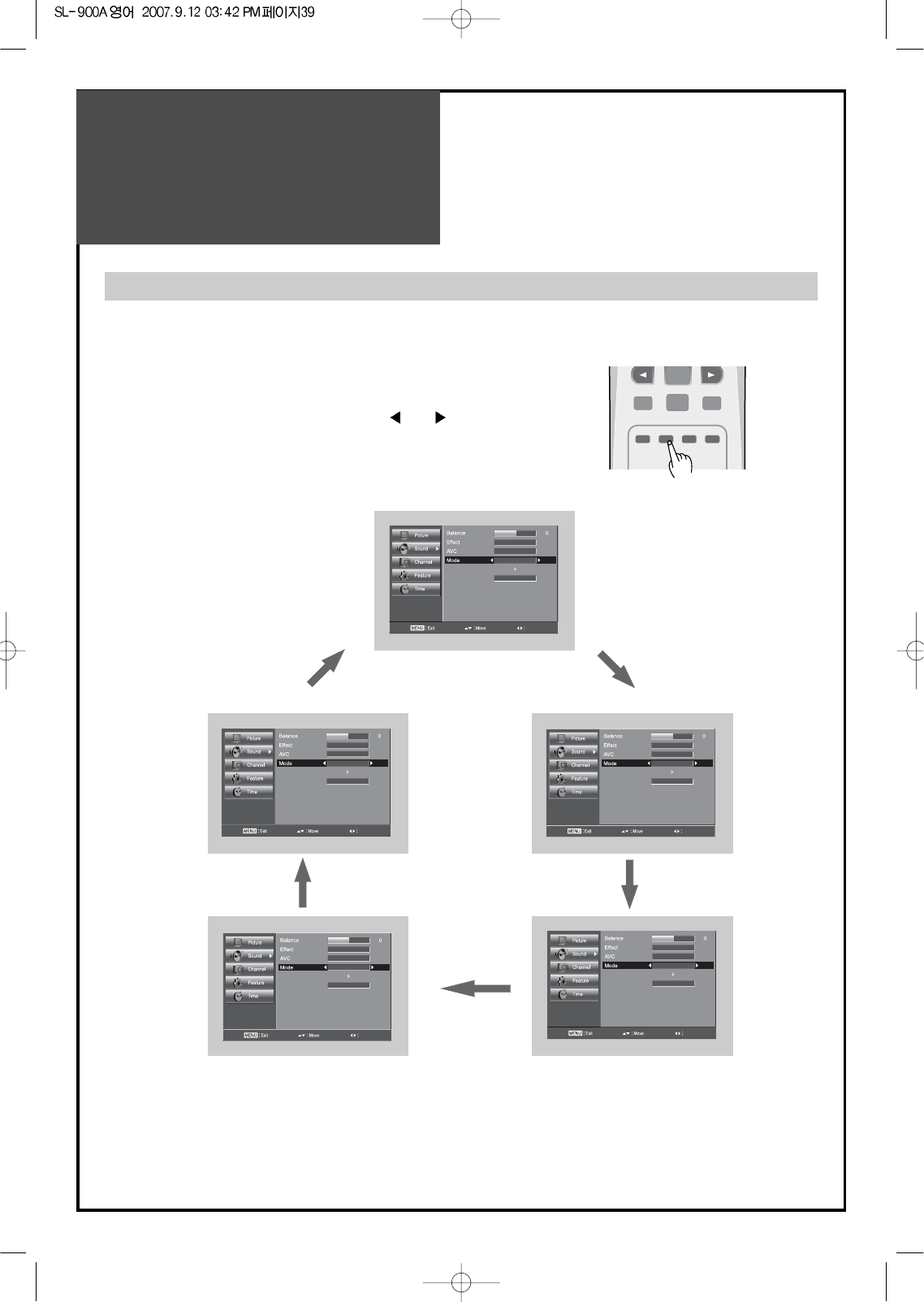

When setting up various screen modes

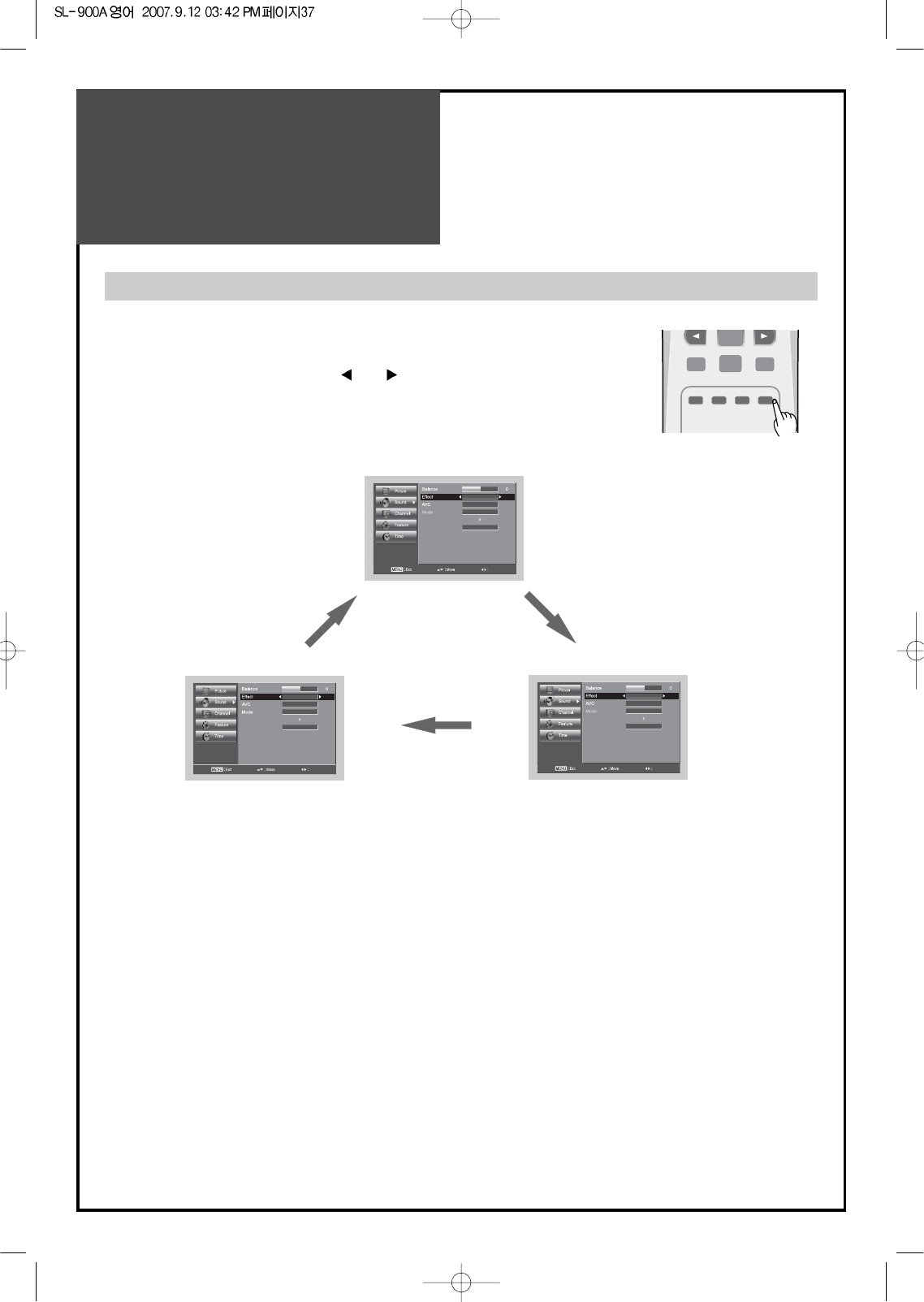

1. Picture Mode selects what you want.
• Move to Mode in the Picture menu and Select desirable mode using the
”VOL ” buttons.
• Or press the “PICTURE MODE” button, then the screen status changes as
followed: Normal => Dynamic => Cinema => User => Normal
• The screen adjustment status changes as the following screens are
displayed sequentially whenever pressing the “PICTURE MODE” button.
• The screen returns to the mode prior to turning power off when then
turning power on again.
CC
SWAP
P.MODE S.MODE S.EFFECT
MTS
SOURCE POSITION

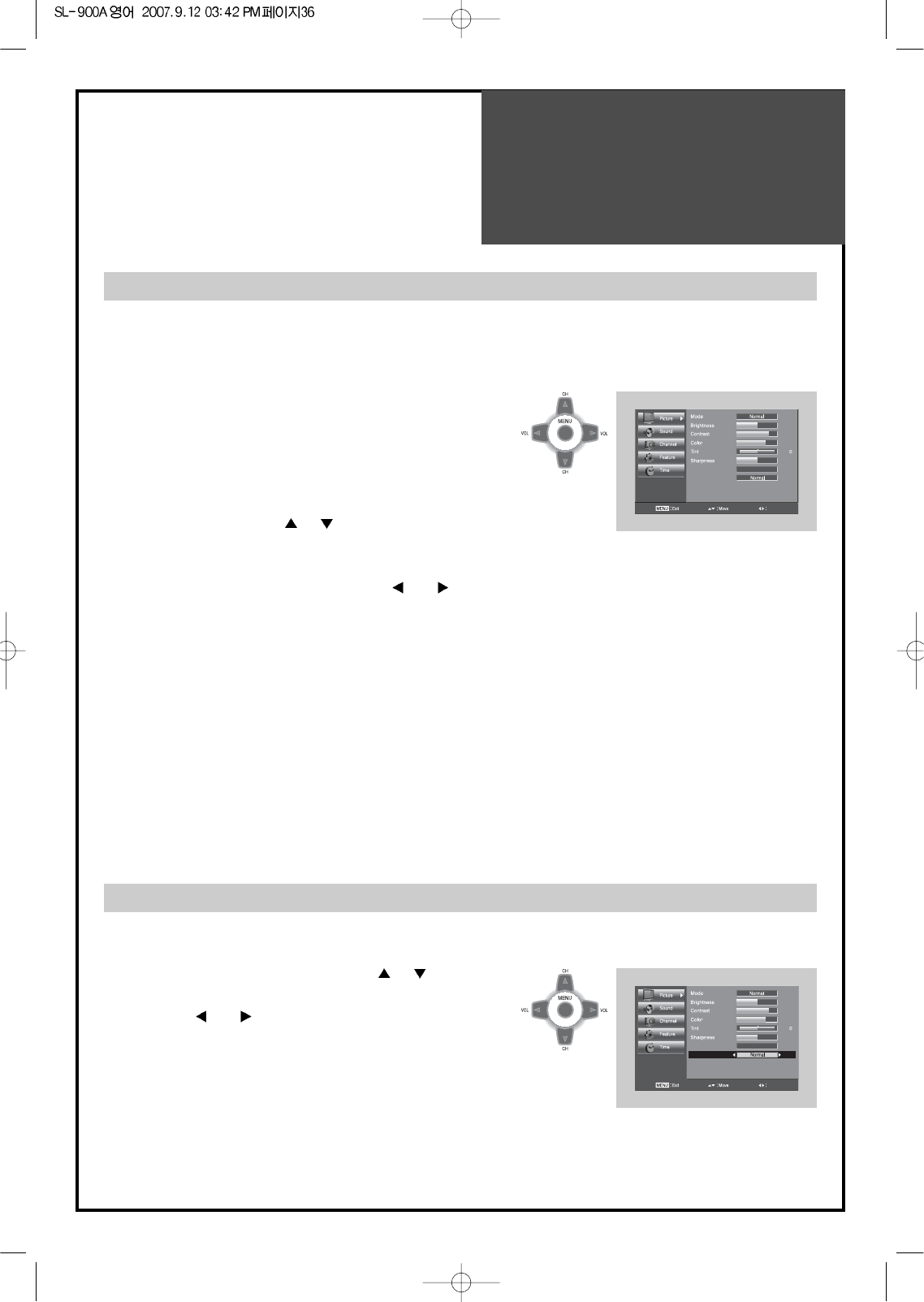

Picture Adjustment
36
- You can enjoy various screens by adjusting Brightness, Contrast, Color, Sharpness, etc to the user’s taste.
- Through color temperature control, you can change the tone of color
Color temp
Off
GR
N.R
Select
45
70
55
8
Color temp
Off
GR
N.R
Adjust
45
70
55
8

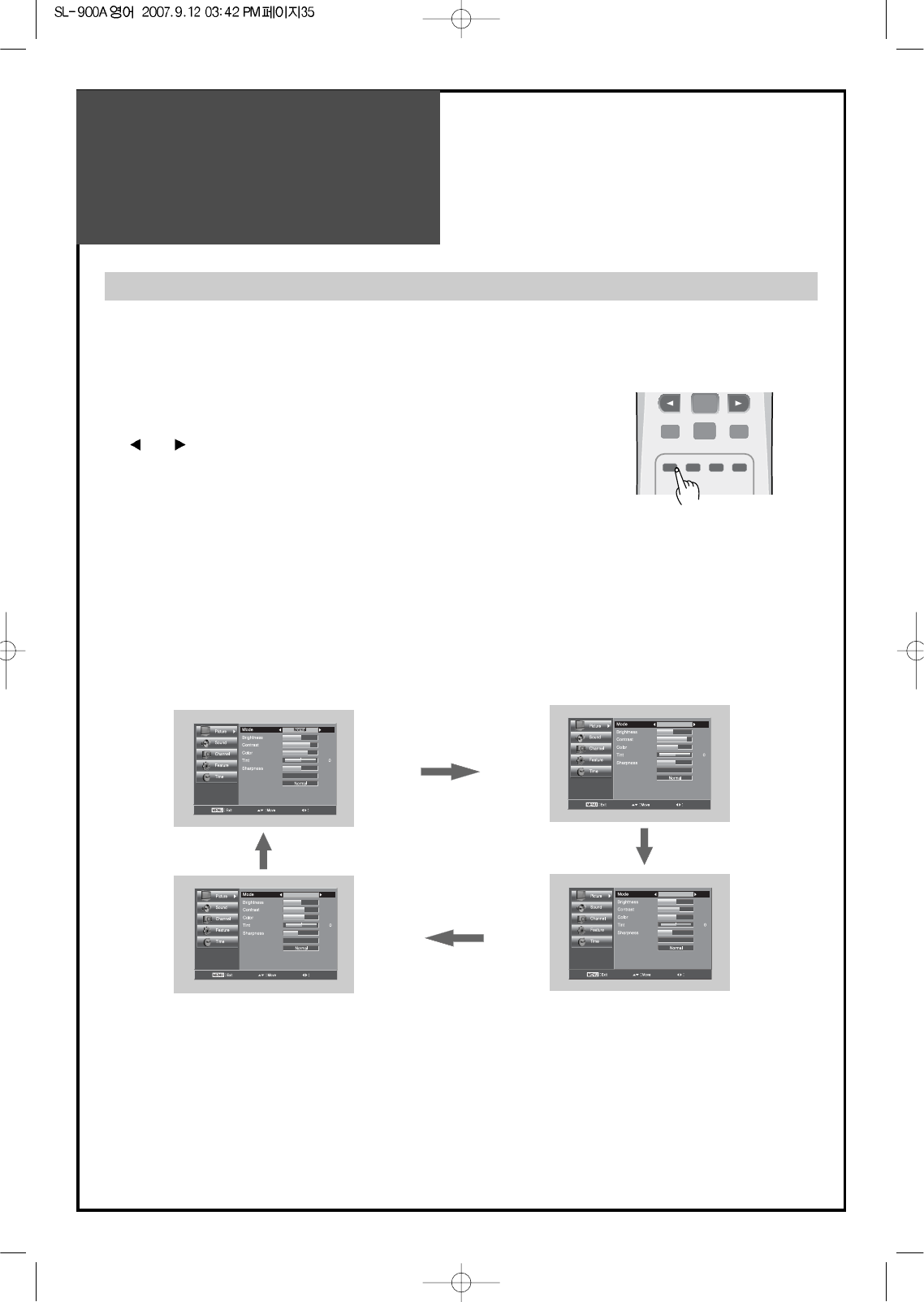

When adjusting the screen to taste
1. Select Picture by pressing the “Menu” button.
• The menu screen appears as follows.
2. Select and adjust each items.
• Move to the PICTURE menu.
• Whenever pressing the ” CH ” button, you can
select in order of Brightness, Contrast, Color, Tint,
Sharpness and Noise Reduction.
• You can adjust all items by pressing the ” VOL ”
buttons
Note:
• Brightness : Adjust the whole of screen brighter or darker.
• Contrast : Adjust difference between brightness and darkness between objects and background on the screen.
• Color : Adjust color thinly or thickly.
• Tint : Adjust the natural tint of the image.
• Sharpness : Adjust outline of the screen smoothly or sharply.
• N . R : Reduce the noise in the picture due to poor reception or poor picture quality (Only IN TV (Analog
mode) and AV1/2 mode).
Note:
• Tint actives when receiving a NTSC signal.
• The adjusted levels are stored automatically in User mode.
1. Move to the Color Temp. menu with ”CH ”
buttons.
• Using the ” VOL ” buttons, select the desired Color
Temperature.
Note:
• Normal : Normal White
• Warm : Reddish white
• Cool : Bluish white
Adjustment of Color Temperature in TV
Sound Adjustment
37
When selecting various sound Effects
1. Sound mode selects what you want.
• Move to Effect in the Sound menu.
• Select desirable Effect using the ” VOL ” buttons.
• Or press the “S.EFFECT” button, then the sound status changes as followed:
Off => Voice Effect => Dynamic Bass => Off
Adjust
Equalizer
On
Off
Normal
Speaker
BBE
Adjust
Equalizer
On
Off
Normal
Speaker
Off
Adjust
Equalizer
On
Off
Normal
Speaker
M. Voice
Note.
• Voice Effect : Allows human voice to be heard more clearly.
• Dynamic Bass : Suitable for the bass effect.
SWAP
P.MODE S.MODE S.EFFECT
MTS
SOURCE POSITION

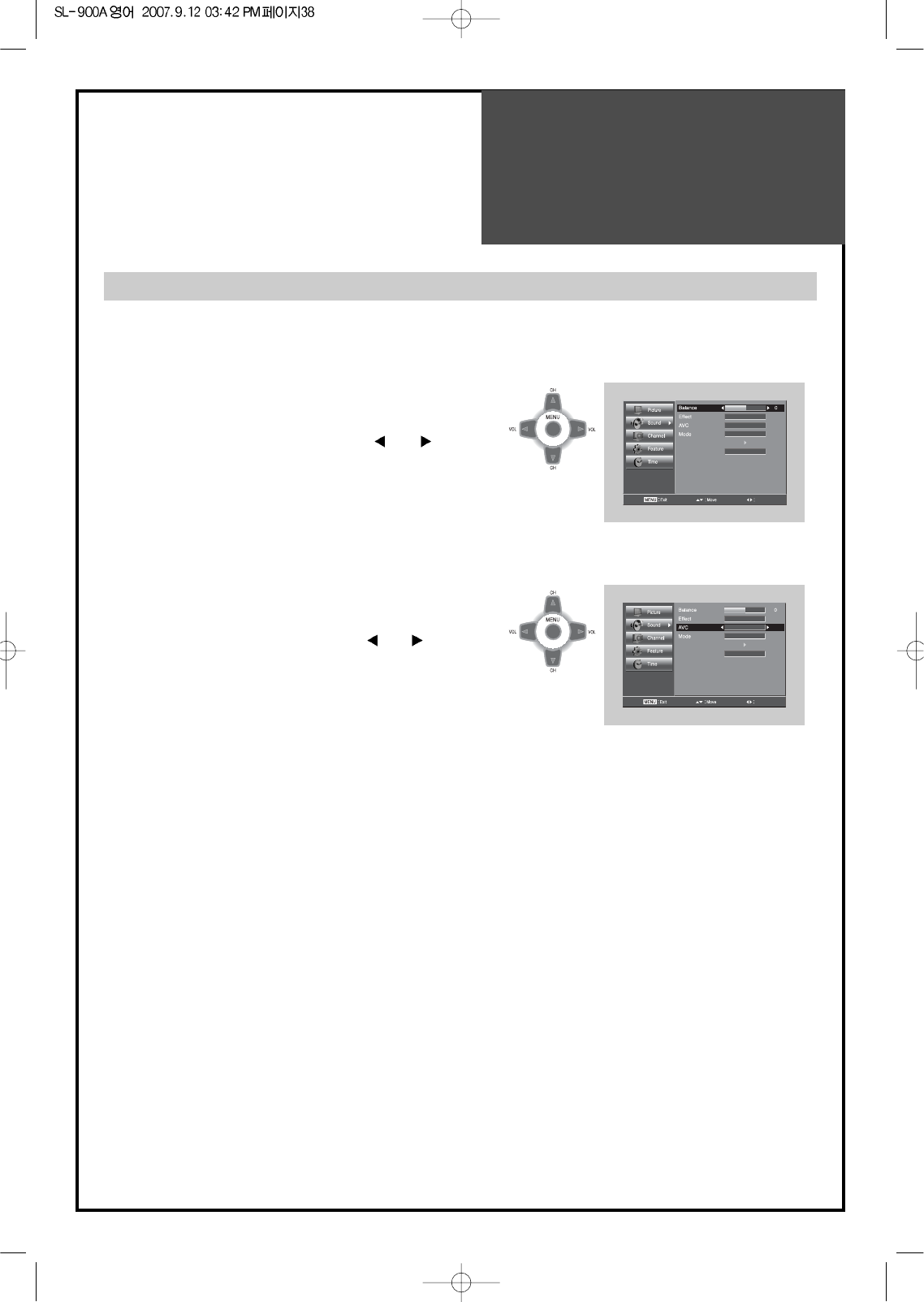

Sound Adjustment
38
When adjusting sound to taste
1. Adjust the Balance
• Move to Balance in the Sound menu.
• Adjust the balance level by using the ” VOL ” buttons.
Adjust
Equalizer
On
Off
Normal
Speaker
Off
2. Select AVC (Auto Volume Control)
• Move to AVC in the Sound menu.
• Select either AVC On/Off using the ” VOL ”
buttons.
Adjust
Equalizer
On
Off
Normal
Speaker
Off
- The user can enjoy various sounds by adjusting Balance, AVC, Effect, Equalizer and Digital Volume.
Sound Adjustment
39
Adjust
Equalizer
On
Off
User
Speaker
Off
Adjust
Equalizer
On
Off
News
Speaker
Off
Adjust
Equalizer
On
Off
Normal
Speaker
Off
Adjust
Equalizer
On
Off
Movie
Speaker
Off
Adjust
Equalizer
On
Off
Music
Speaker
Off
When adjusting sound to taste
3. Sound mode selects what you want.
• Move to Mode in the Sound menu.
• Select desirable Sound mode using the ” VOL ” buttons.
• Or press the “SOUND MODE” button, then the sound status
changes as followed:
Normal => Movie => Music => News => User => Normal
Note :
• "Mode" function is available when the Effect is Off.
SWAP
P.MODE S.MODE S.EFFECT
MTS
SOURCE POSITION
Sound Adjustment
40

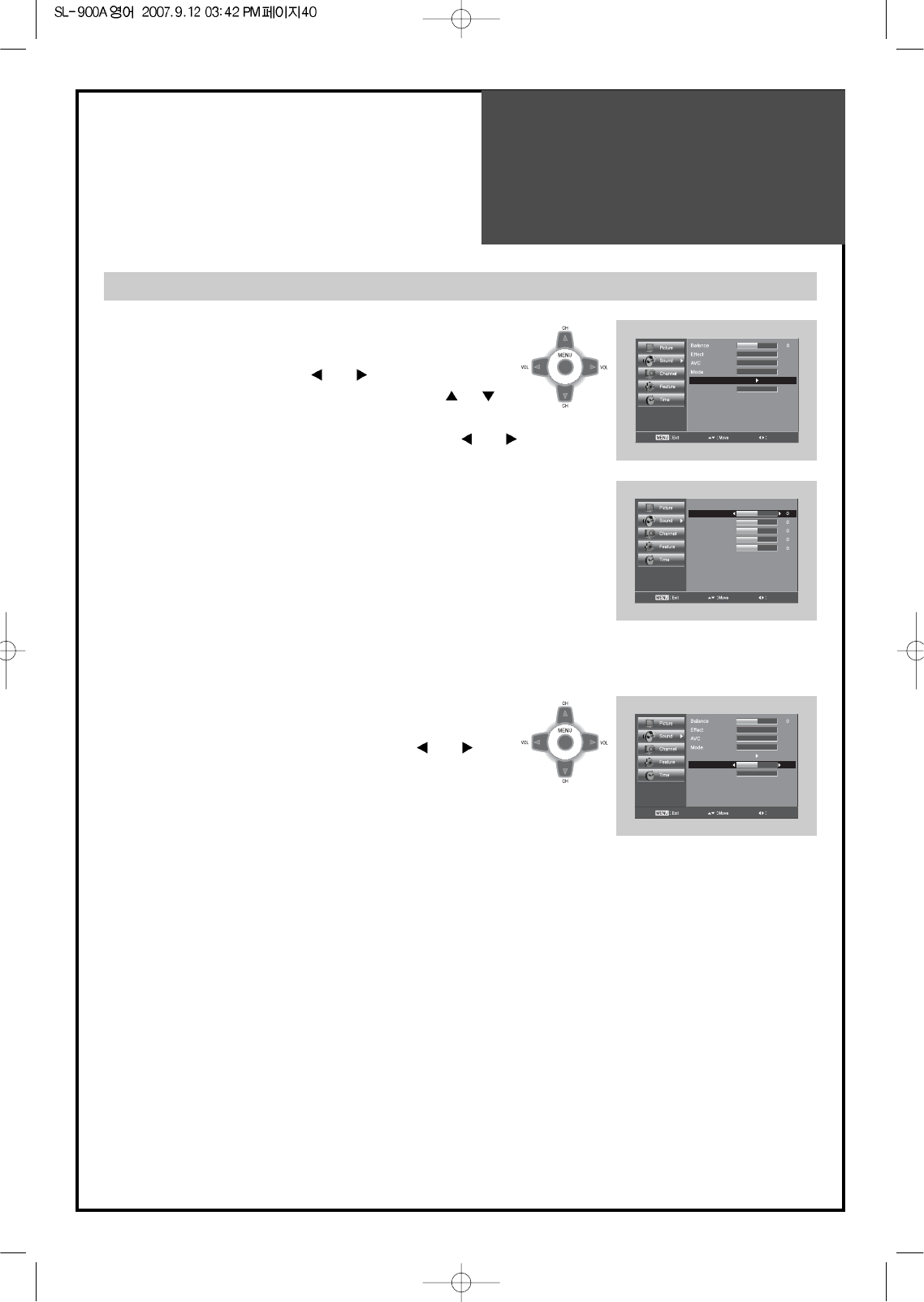

When adjusting sound to taste
4. Adjust the audio Equalizer
• Move to Mode in the Sound menu.
• Select User mode using the ” VOL ” buttons.
• Select and use the relevant frequency by pressing the
”CH ”
buttons.
• You can adjust the degree of the frequency by using the
” VOL ”
buttons.
5. Adjust the Digital Volume (Digital TV mode only)
• Move to Digital volume in the Sound menu.
• Adjust the Digital volume level by using the ” VOL ”
buttons.
Note:
• Equalizer adjustment is available in User mode.
• Equalizer: High quality sound range adjustment method used
for audio product.
100/330 Hz: Low sound range
1/1.3 kHz: Middle sound range
10 kHZ: High sound range
Note:
• Digital volume is available in DTV mode.
Adjust
Equalizer
17
Off
User
Digital Vol.
On
Speaker
Off
Select
Equalizer
On
Off
User
Speaker
Off
Adjust
100 Hz
330 Hz
1 kHz
3.3 kHz
10 kHz
Equalizer Setting
Sound Adjustment
41
Note: The availability of these additional audio tracks depends on the program.
• In DTV broadcast reception, you can select audio tracks
(simultaneous translations of the program into foreign
languages) by pressing the “MTS” button.

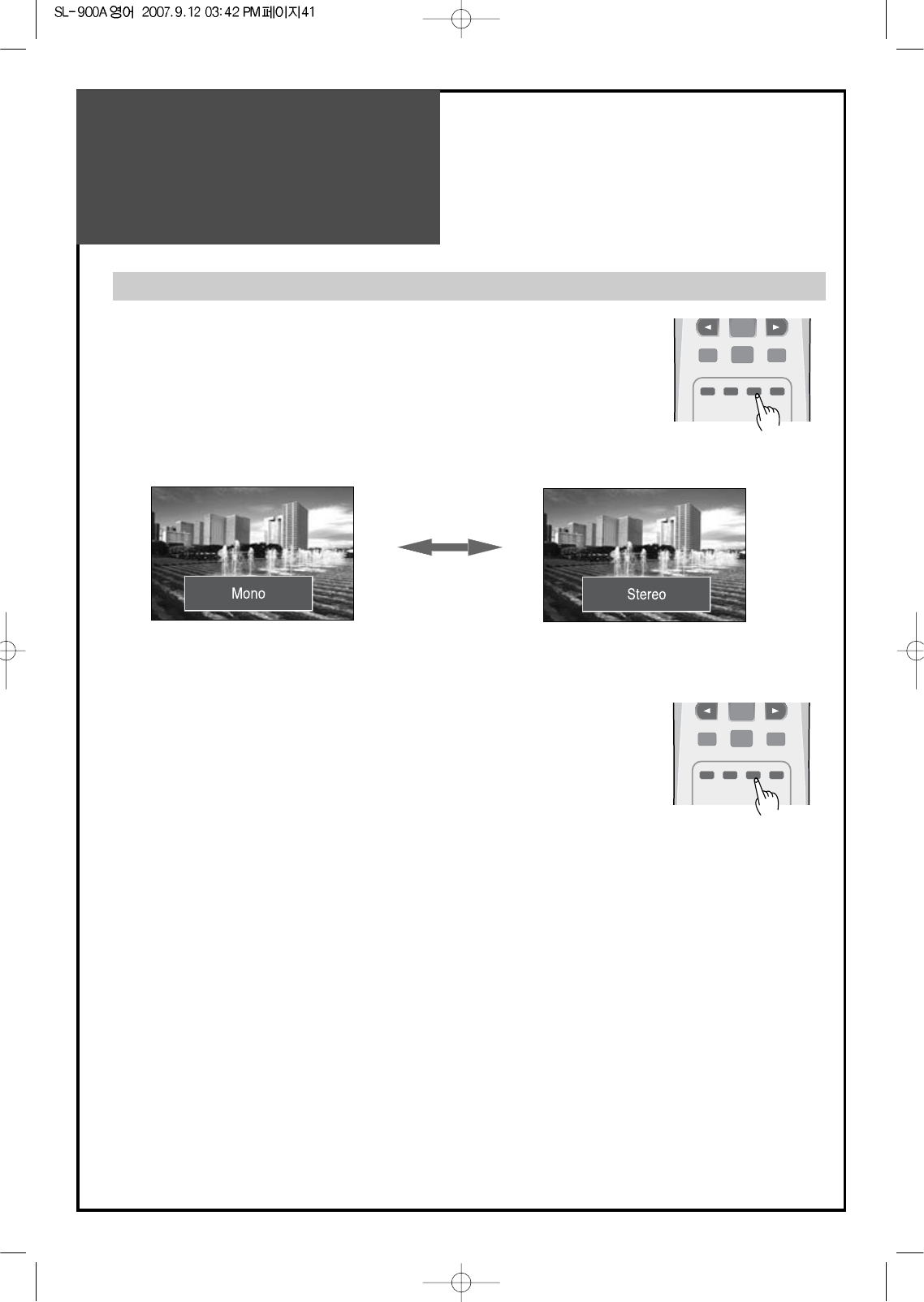

Choosing a Multi-Channel Sound (MTS) in analog and digital
1. Mono Sound Selection (Mono/Stereo/Mono&SAP/Stereo&SAP) – Analog
TV Mode
• In Stereo reception if the stereo is weak, you can switch to MONO by
pressing the “MTS” button. Then the OSD character will be change to
“Mono”.
In Mono reception the depth of sound is improved.
• To switch back to stereo, press the “MTS” button again.
Note: The availability of these additional audio tracks depends on the program.
2. Audio track Selection – Digital TV Mode
SWAP
P.MODE S.MODE S.EFFECT
MTS
SOURCE POSITION
SWAP
P.MODE S.MODE S.EFFECT
MTS
SOURCE POSITION
Features -
Closed Caption
42
Select
Caption
PIP
Background 7
Language
MGDI plus
Parental Control
ISM
Initialize
On
English
Off
CC on Mute
Adjust
Note.
• The Closed Caption feature doesn’t work in Component, HDMI and PC modes
• Closed Caption: The availability of captions depends on the program being broadcast
CC1 : The Primary Synchronous Caption Service. These are captions in the primary language that
must be in sync with the sound, preferably matched to a specific frame.
CC2 : The Special Non-Synchronous Use Captions.
This channel carries data that is intended to augment information carried in the program.
CC3 : Secondary Synchronous Caption Service.
Alternate program-related caption data, typically second language captions.
CC4 : Special Non-Synchronous Use Captions. Similar to CC2.
• The Closed Caption feature doesn’t work in PIP/POP mode.
Viewing Closed Caption (On-Screen Text Messages) - Analog

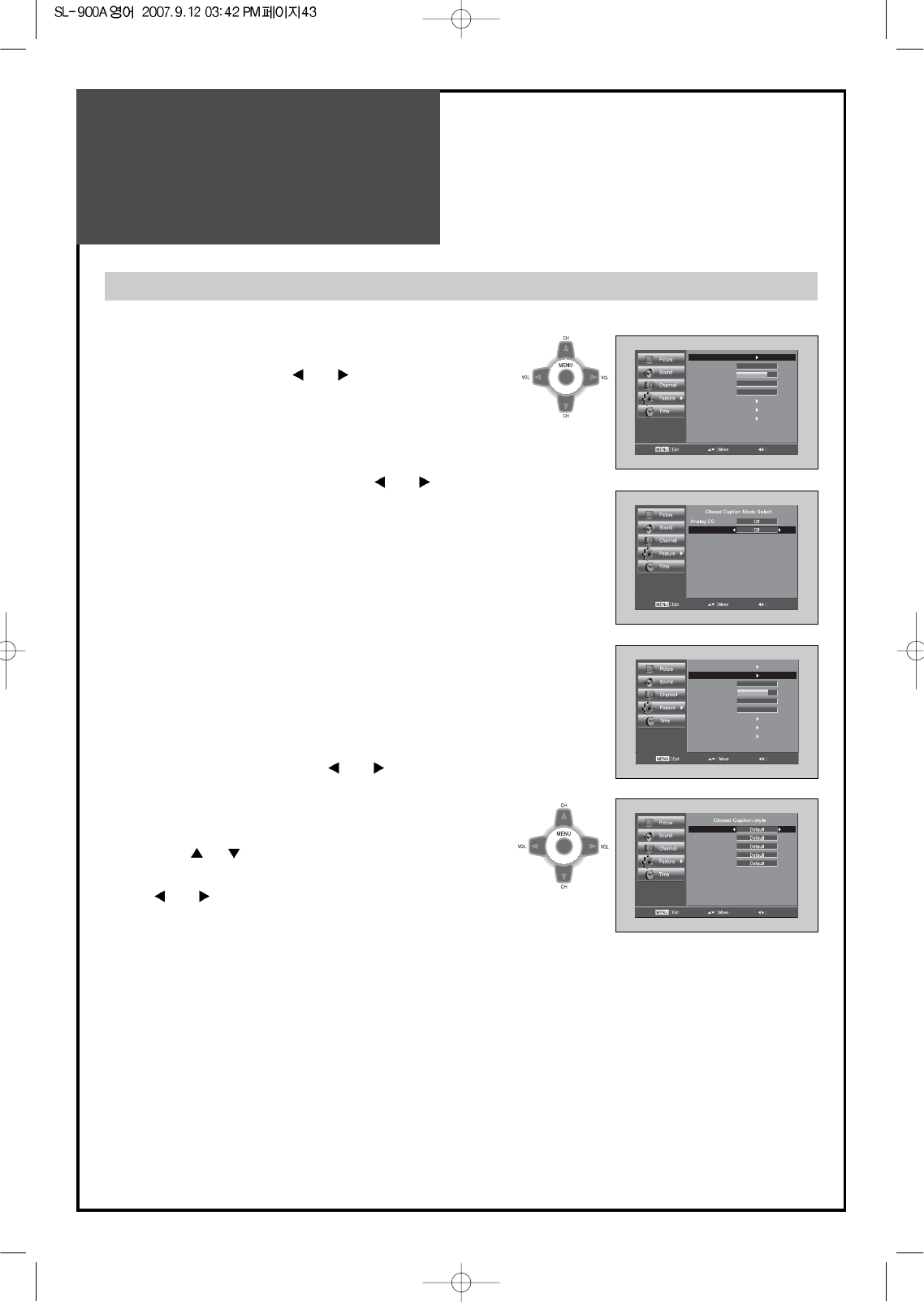

1. Caption mode selects what you want.
• Move to Caption in the Features menu.
• Select Caption using the ” VOL ” buttons.
• Select desirable Analog CC using the ” VOL ” buttons.
• The Analog CC changes as followed:
Off => CC1 => CC2 => CC3 => CC4 => TX1 => TX2 => TX3 => TX4
Features -
Closed Caption
43
Select
Caption
PIP
Background 7
Language
MGDI plus
Parental Control
ISM
Initialize
On
English
Off
CC on Mute
Adjust
Select
Caption
Caption Style
PIP
Background 7
Language
MGDI plus
Parental Control
ISM
Initialize
On
English
Off
Text Size
Text Font
Text Font
BG Color
BG Opacity
Adjust
1. Caption mode selects what you want.
• Move to Caption in the Features menu.
• Select Caption using the ” VOL ” buttons.
• Select desirable Digital CC using the ” VOL ”
buttons.
• The Digital CC changes as followed:
Off => Service1~6 => CC1~4 => Off
2. Caption Style selects what you want. (In Digital TV
mode Only)
• Move to Caption Style in the Features menu.
• Select Caption Style using the ” VOL ” buttons.
• Press the ” CH ” buttons to select the desired sub-
menu options (see options below), and then presses
the ” VOL ” buttons.
Note:
• Service 1~6 in digital caption mode may not be
available depending on the broadcast.
Note:
• The Closed Caption feature doesn’t work in PIP/POP mode.
• The digital caption feature is available only in Digital TV mode.
• The availability of captions depends on the program being broadcast.
• Default means to follow the standard set by the broadcaster.
• Text Size: This option consists of Default, Small, Standard, and Large. The default is Standard.
• Text Font: This option consists of Default, Font1~7. You can change the font you want. The default is Style 0.
• Text Color: This option consists of Default, Black, White, Red, Green, Blue, Yellow, Magenta, and Cyan. You can
change the color of the letter. The default is White.
• BG Color: This option consists of Default, Black, White, Red, Green, Blue, Yellow, Magenta, and Cyan. You can
change the background color of the caption. The default is Black.
• BG Opacity: This option consists of Default, Light, and Transparent. You can change the Background opacity of the
caption.
Viewing Closed Caption (On-Screen Text Messages) - Digital
Features -
PIP/POP
44

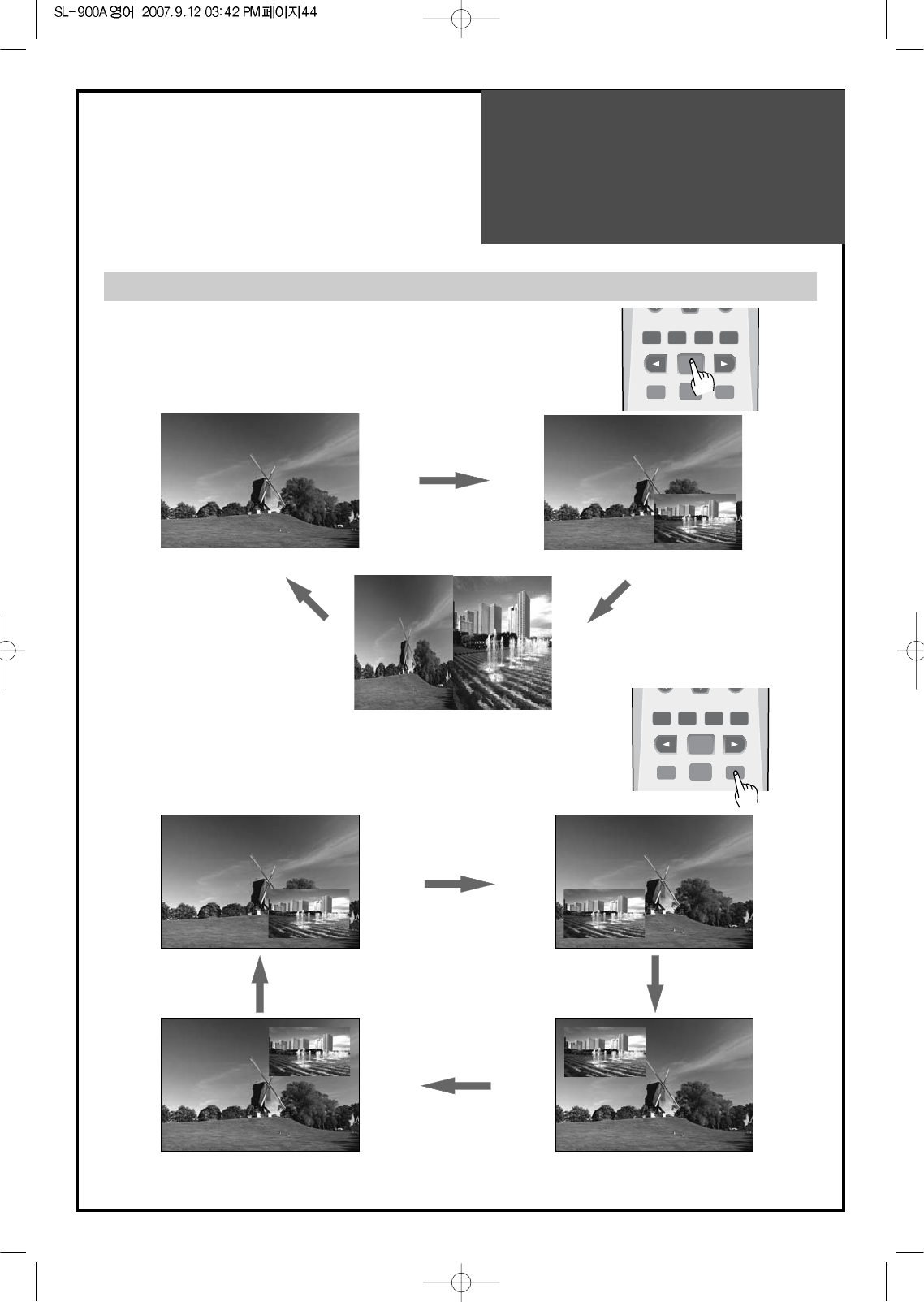

1. Watching PIP/POP
• By pressing the “PIP” button on the remote controller
repeatedly, you can select one of the following settings:
• If you want to change the position of sub picture, press the
“POSITION” button.
PIP (Picture-In-Picture) / POP (Picture-Of-Picture)
SCREEN
SIZE CAPTION
PIP CH PIP CH
PIP
SWAP SOURCE POSITION
SLEEP
CH
ADD/
ERASE
SCREEN
SIZE CAPTION
PIP CH PIP CH
PIP
SWAP SOURCE POSITION
SLEEP
CH
ADD/
ERASE
Features -
PIP/POP
45
PIP (Picture-In-Picture) / POP (Picture-Of-Picture)

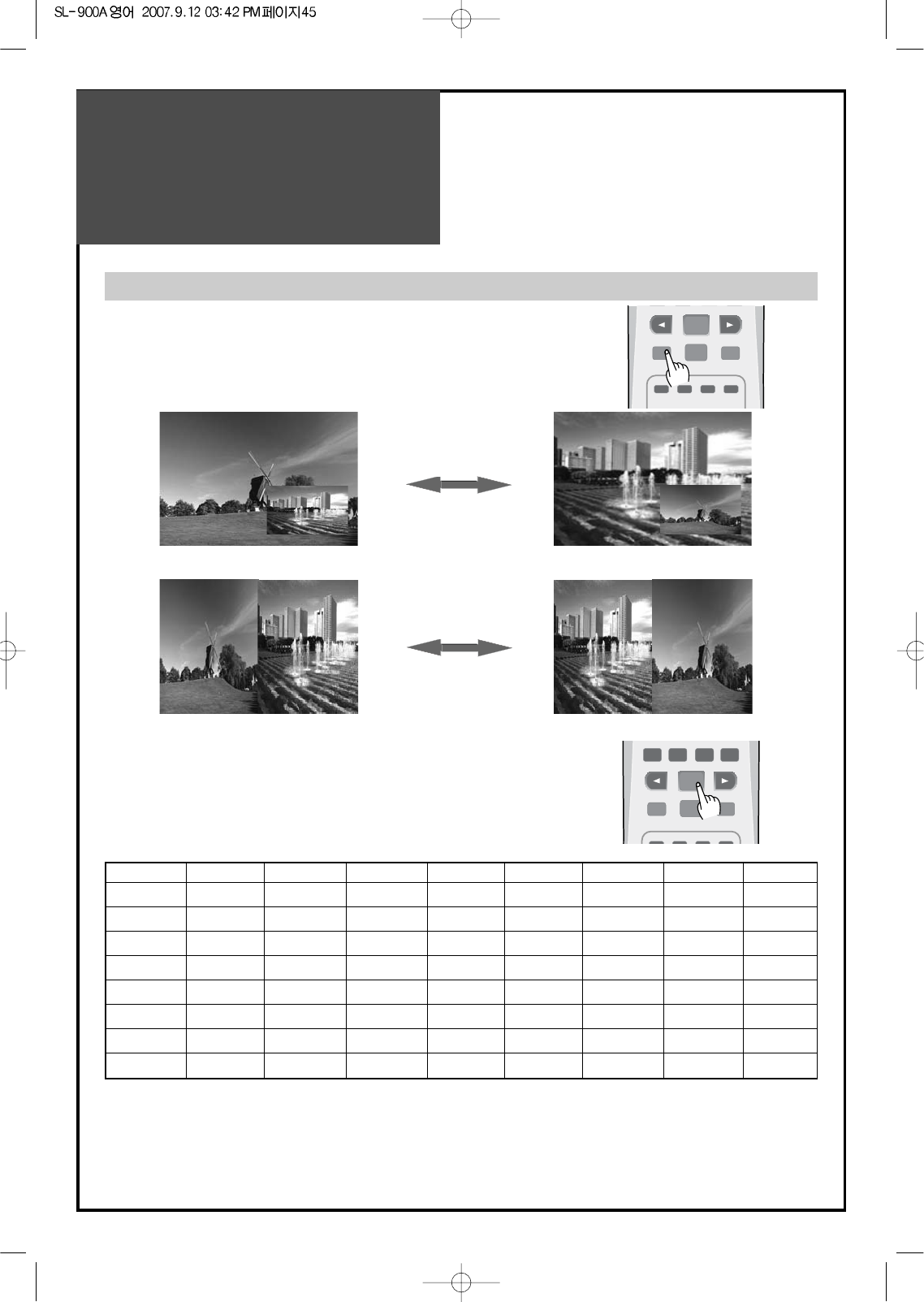

• If you want to swap main for sub, press the “SWAP” button.
To swap main for sub change as followed: PIP/POP table
• If you want to change sub screen input, press the “SOURCE” button.
Sub screen change as followed: PIP/POP table
• POP is available only in PC mode.(PIP is not available in PC mode.)
PIP/POP mode table.
Main\Sub ATV DTV Video1 Video2 Comp.1 Comp.2 HDMI PC
ATV X X X X X X O X
DTV X X O O O O X X
Video1 X O X X X X O X
Video2 X O X X X X O X
Comp.1 X O X X X X O X
Comp.2 X O X X X X O X
HDMI O X O O O O X X
PC X O X X X X O X
SIZE CAPTION
PIP CH PIP CH
PIP
SWAP SOURCE POSITION
SLEEP
ADD/
ERASE
PIP CH PIP CH
PIP
SWAP
P.MODE S.MODE S.EFFECT
MTS
SOURCE POSITION
Features -

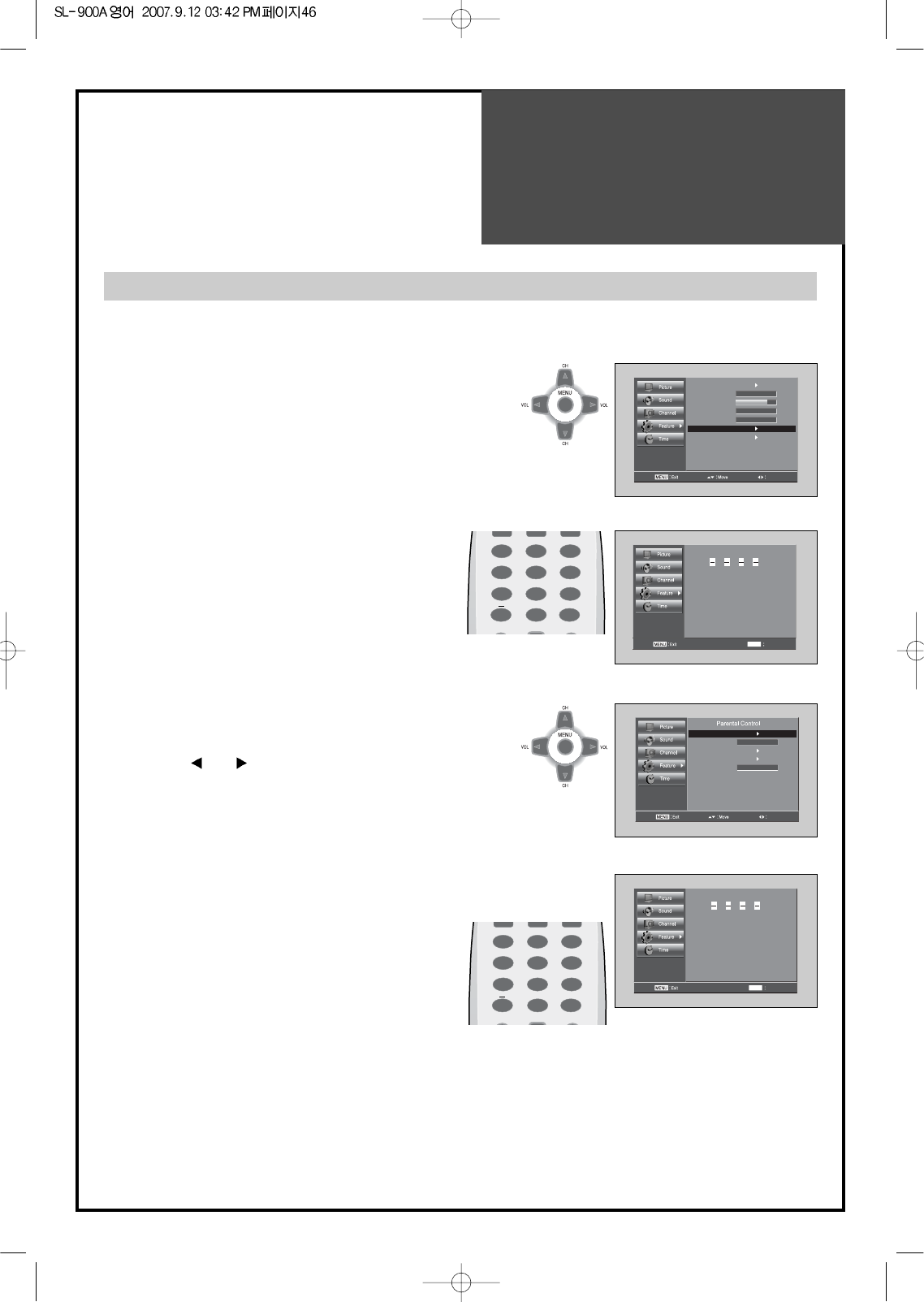

Parental Control
46
Select
Caption
PIP
Background 7
Language
MGDI plus
Parental Control
Initialize
On
English
Off
Adjust0~9
Enter Password
Select
Change Password
Block Off
Unblock
Movie Rating
TV Rating
NO Rating
Adjust0~9
Enter a New Password
1. Setting up your password
• Move to Parental control in the Features menu.
• The message “Enter password” will appear. Enter
your 4 digit password
Note:
• The default password of a new TV set is “2-2-1-1”.
• Move to Change Password in the Parental Control
• Press the ” VOL ” buttons to change the
password.
• The Change password screen will appear. Choose
any 4 digits for new password and enter them.
Note:
• If you forget the password, you must call the Service Center.
Adjustment of Parental Control
- The Parental control feature automatically looks out programs that are deemed inappropriate for children.
- "Parental control" function is not available in PIP/POP mode.
FAV
PREV.CH CH
OK
123
456
78
0
9
FAV
PREV.CH CH
OK
123
456
78
0
9

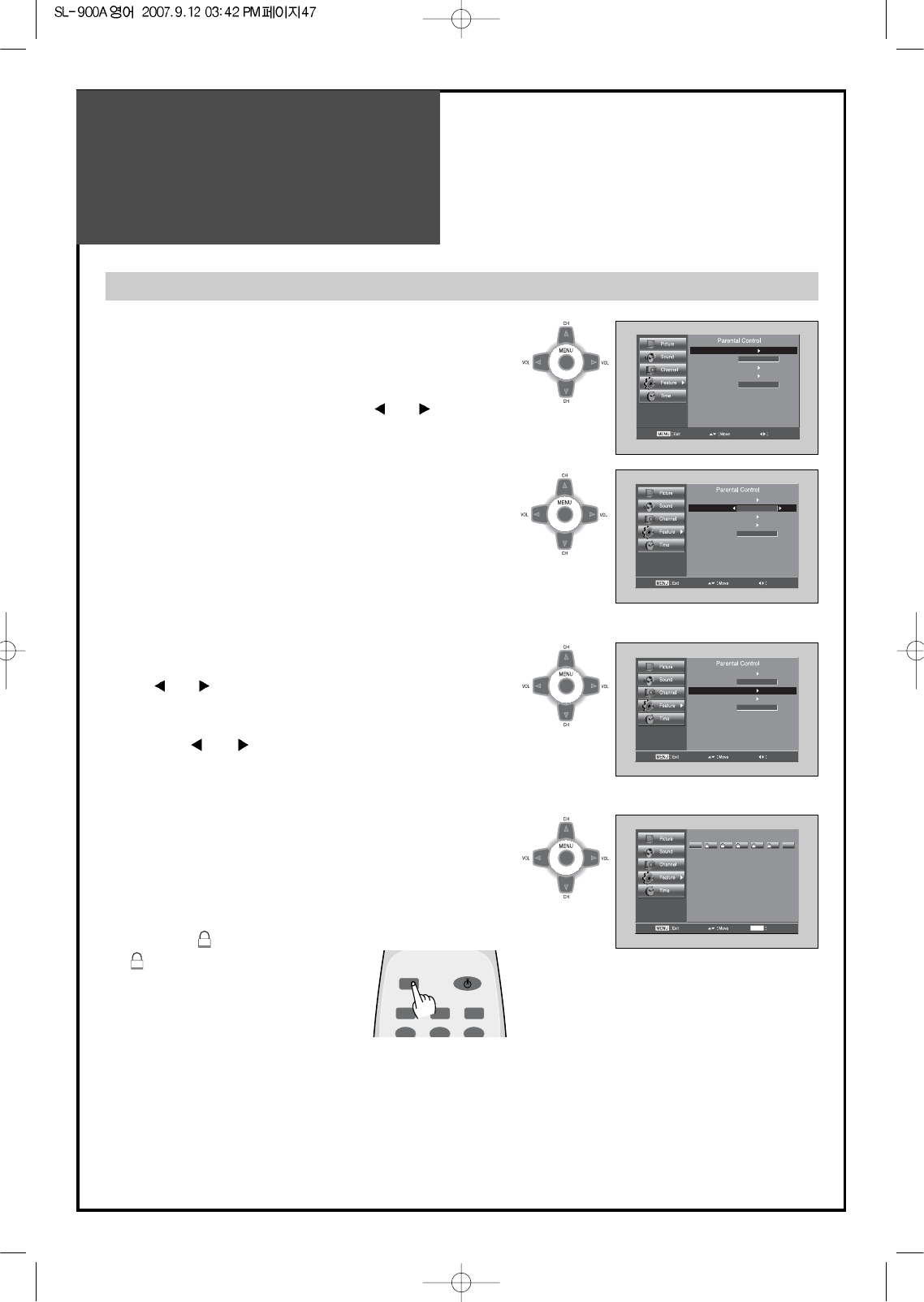

Features -
Parental Control
47
Select
Change Password
Block Off
Unblock
Movie Rating
TV Rating
NO Rating
Adjust
Change Password
Block Off
Unblock
Movie Rating
TV Rating
NO Rating
Select
Change Password
Block Off
Unblock
Movie Rating
TV Rating
NO Rating
2. Setting up Block
• Move to Block in the Parental Control
• Select either On or Off using ing the ” VOL ” buttons.
Select
GPG NC NRRX
PG13
Movie Rating
DISPLAY
DISPLAY
GUIDE TV/VIDEO
MULTIMEDIA
POWER
123
Adjustment of Parental Control
3. Setting up Movie ratings
• Move to Movie ratings in the Parental Control and press
the ” VOL ” buttons.
• The Movie ratings screen will appear.
Press the ” VOL ” buttons to select the MPAA categories:
G: General audience
PG: Parental guidance
PG-13: Viewers 14 and over
R: Mature audience
NC: No children under age 17
X: Adults only
NR: Not rated
• Press the “DISPLAY” button. Depending on your existing
setup, the “ “ symbol will be selected. (blank = unblocked
“ “ = Blocked)
Note:
• The Parental Control will automatically block any
categories that are “more restrictive”. For example, if you
block PG-13 category, then R, NC and X will automatically
be blocked also.

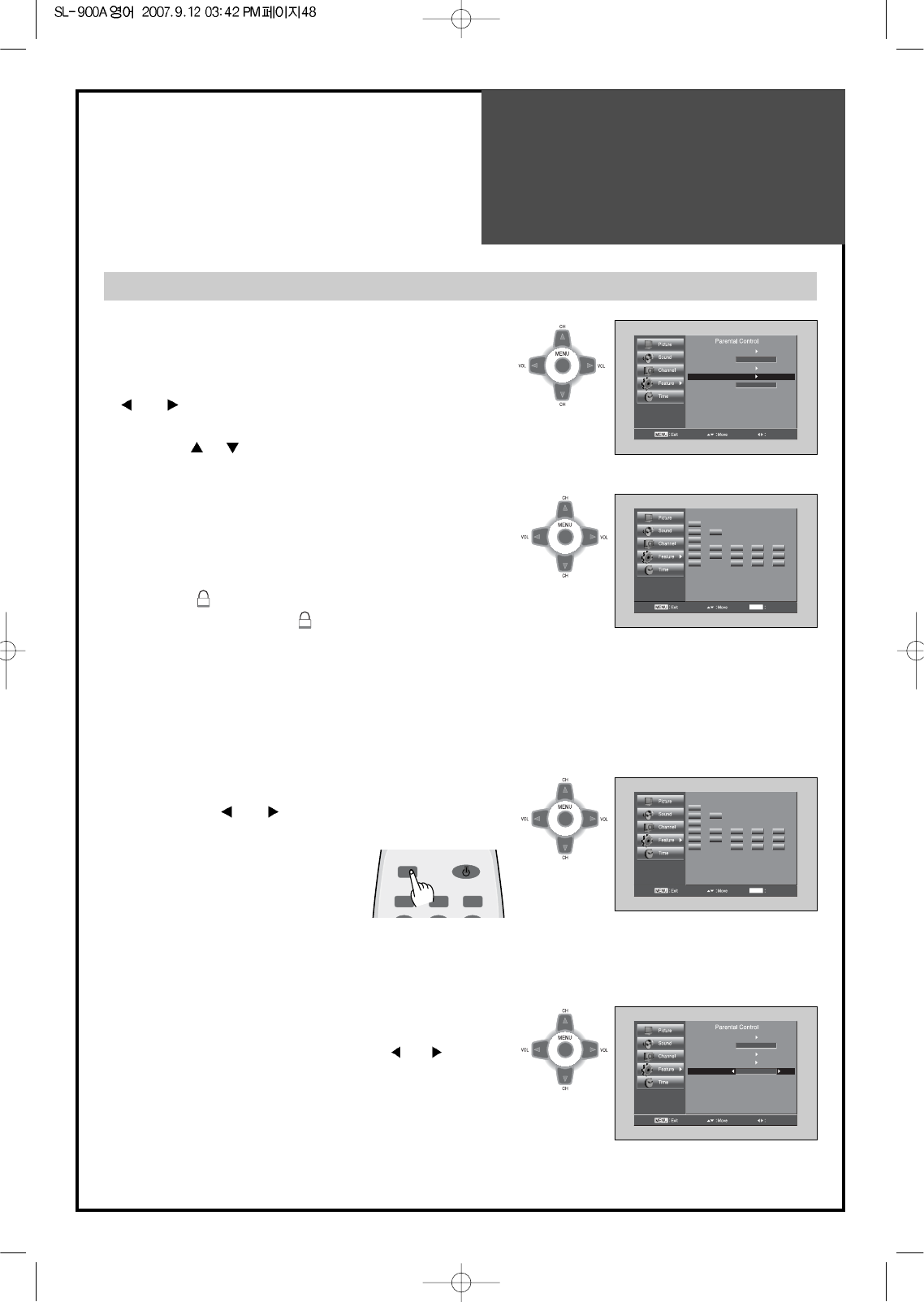

Features -
Parental Control
48
4. Setting up TV Rating
• Move to Block and select Block to On.
• Move to TV Rating in the Parental Control and press the ”
VOL ” buttons.
• The TV Rating screen will appear.
Press the ” CH ” buttons to select one of the six aged
based categories:
Y: Young children
14: Viewers 14 and over
Y7: Children 7 and over
MA: Mature audience
G: General audience
PG: Parental guidance
• Press the “DISPLAY” button. Depending on your existing
setup, the “ “ symbol will be selected. (blank =
Unblocked “ “ = Blocked)
Note:
• The Y, Y7, G, PG, 14 and MA have additional options.
FV: Fantasy violence / D: Sexually Suggestive Dialog / L: Adult Language / S: Sexual situation / V: Violence
•
The Parental Control will automatically block certain categories that are “more restrictive”. For example, if you block “Y”
category, then Y7 will automatically be blocked. Similarly, if you block the G category, then all the categories in the “young
adult” group will be blocked (G, PG, 14, and MA). The Sub-ratings (D, L, S, and V) work together similarly.
Select
Y
Y7
G
PG
14
MA
FV
D L S V
DLSV
LSV
TV Rating
DISPLAY
Select
Change Password
Block Off
Unblock
Movie Rating
TV Rating
NO Rating
Select
Y
Y7
G
PG
14
MA
FV
D L S V
DLSV
LSV
TV Rating
DISPLAY
• Select on of these TV-Ratings(Y, Y7, G, PG, 14 and MA)
and press the ” VOL ” buttons.
• Press the “DISPLAY” button to select the sub-rating.
5. Setting up No Rating
• Move to No Rating in the Parental Control.
• Select either Block or Unblock using the
” VOL ”
buttons.
Note:
• The Parental Control will automatically block irregular
categories when No rating is setting.
Note:
• The Parental Control will automatically block certain categories that are “more restrictive”. For example,
if you block “L” subrating in PG, then the L sub-rating in 14 and MA will automatically be blocked
Adjust
Change Password
Block Off
Unblock
Movie Rating
TV Rating
NO Rating
Adjustment of Parental Control
DISPLAY
GUIDE TV/VIDEO
MULTIMEDIA
POWER
Features -
ETC
49
Adjust
Caption
PIP
Background
Language
MGDI plus
Parental Control
Initialize
On
English
Off
7
Adjust
Caption
PIP
Background
Language
MGDI plus
Parental Control
Initialize
On
English
Off
7

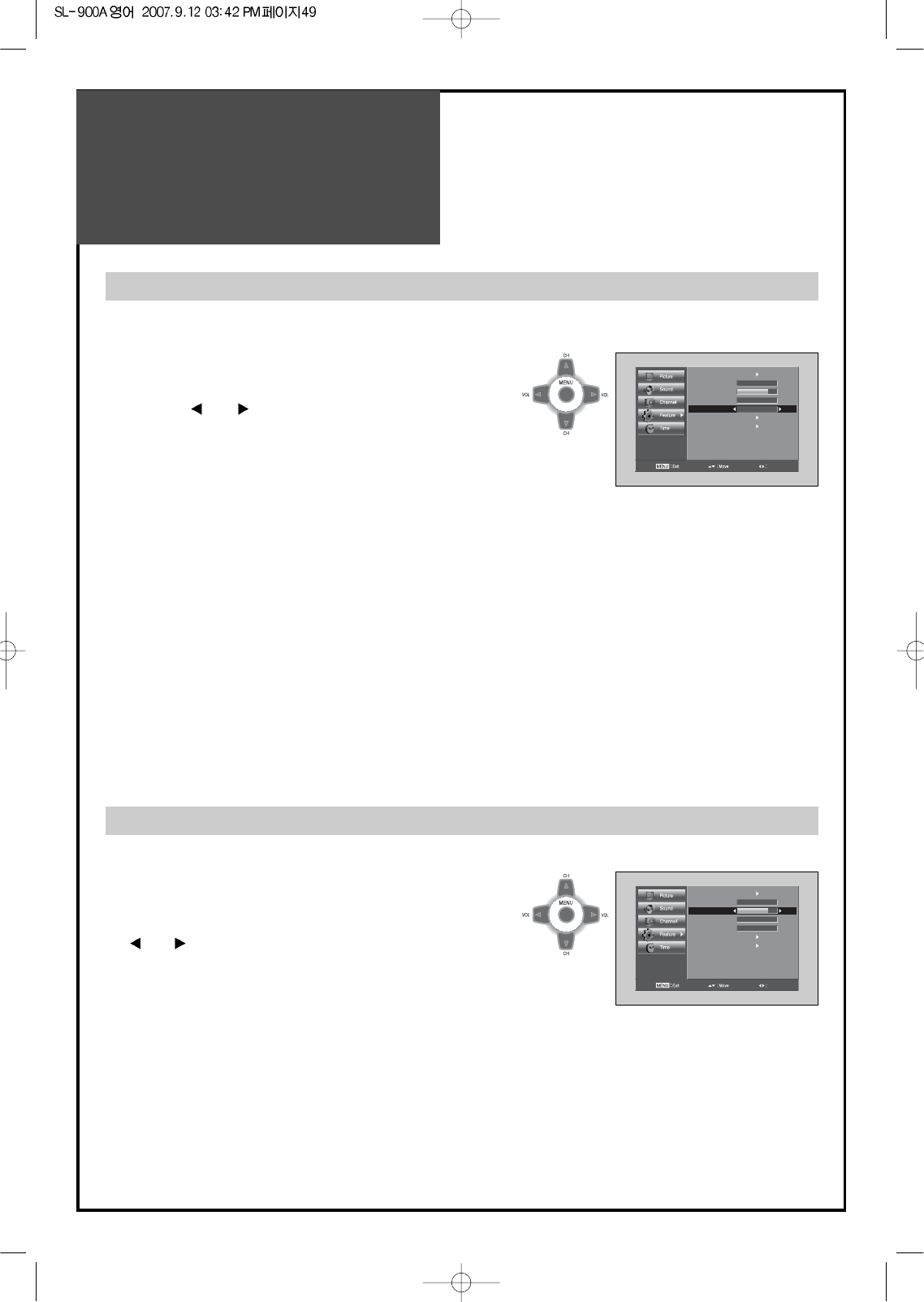

1. Setup of MGDi plus
• Move to MGDi plus in the Features menu.
• Press the ” VOL ” buttons, and then MGDi plus mode
is On.
• Press the “MENU” buttons, and then MGDi plus mode is
Off.

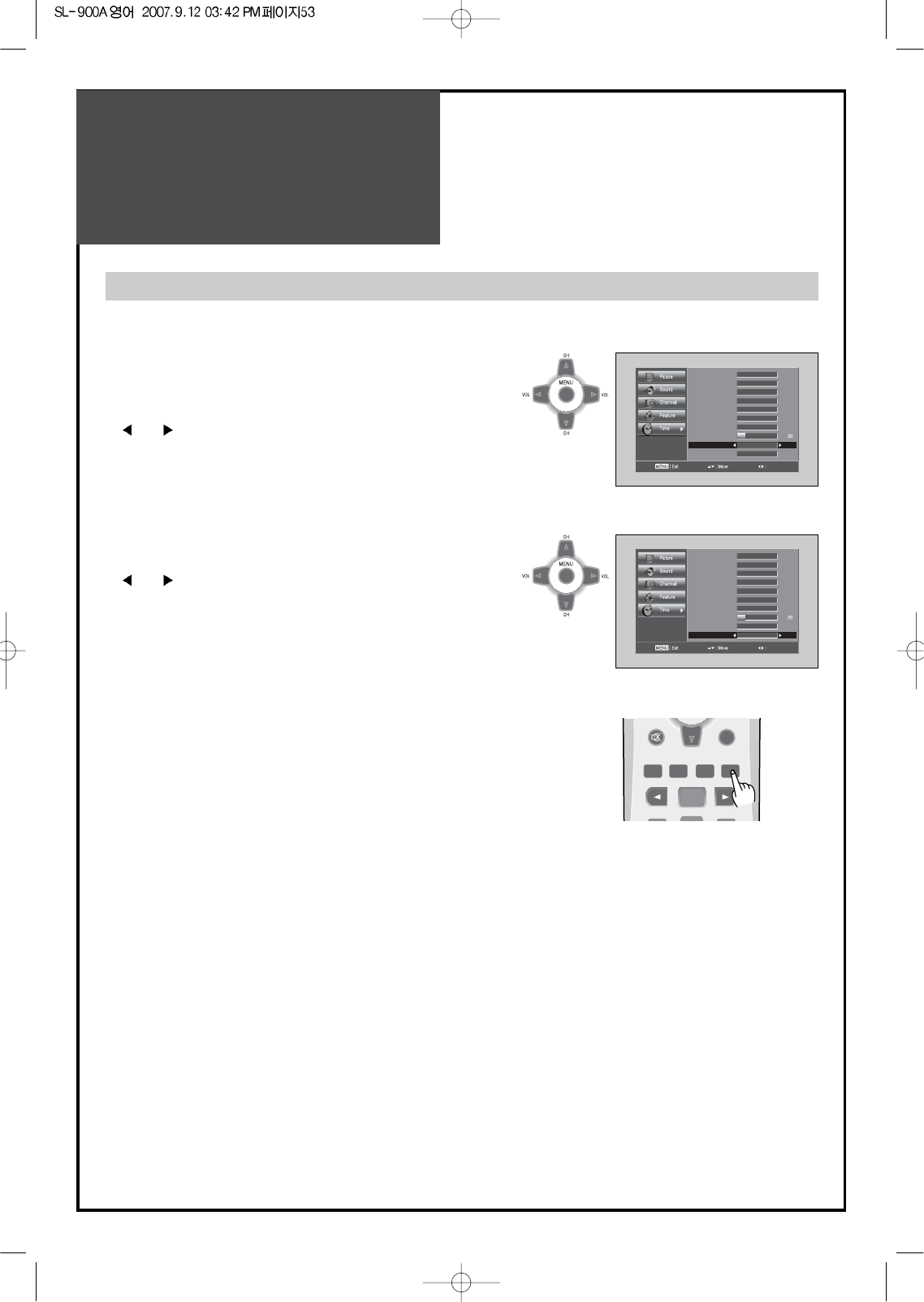

1. Setup of Menu Opacity
• Move to Background in the Features menu.
• Adjust the translucent level of OSD background using the
”VOL ” buttons.
Note:
• DAEWOO's new technology, MGDI plus, brings viewers more
detailed, clearer and more natural image with picture
compensation algorithm.
• MGDi plus is not available in PC and HDMI mode.
When viewing how MGDi improves the picture.
When adjusting the transparency of the menu screen

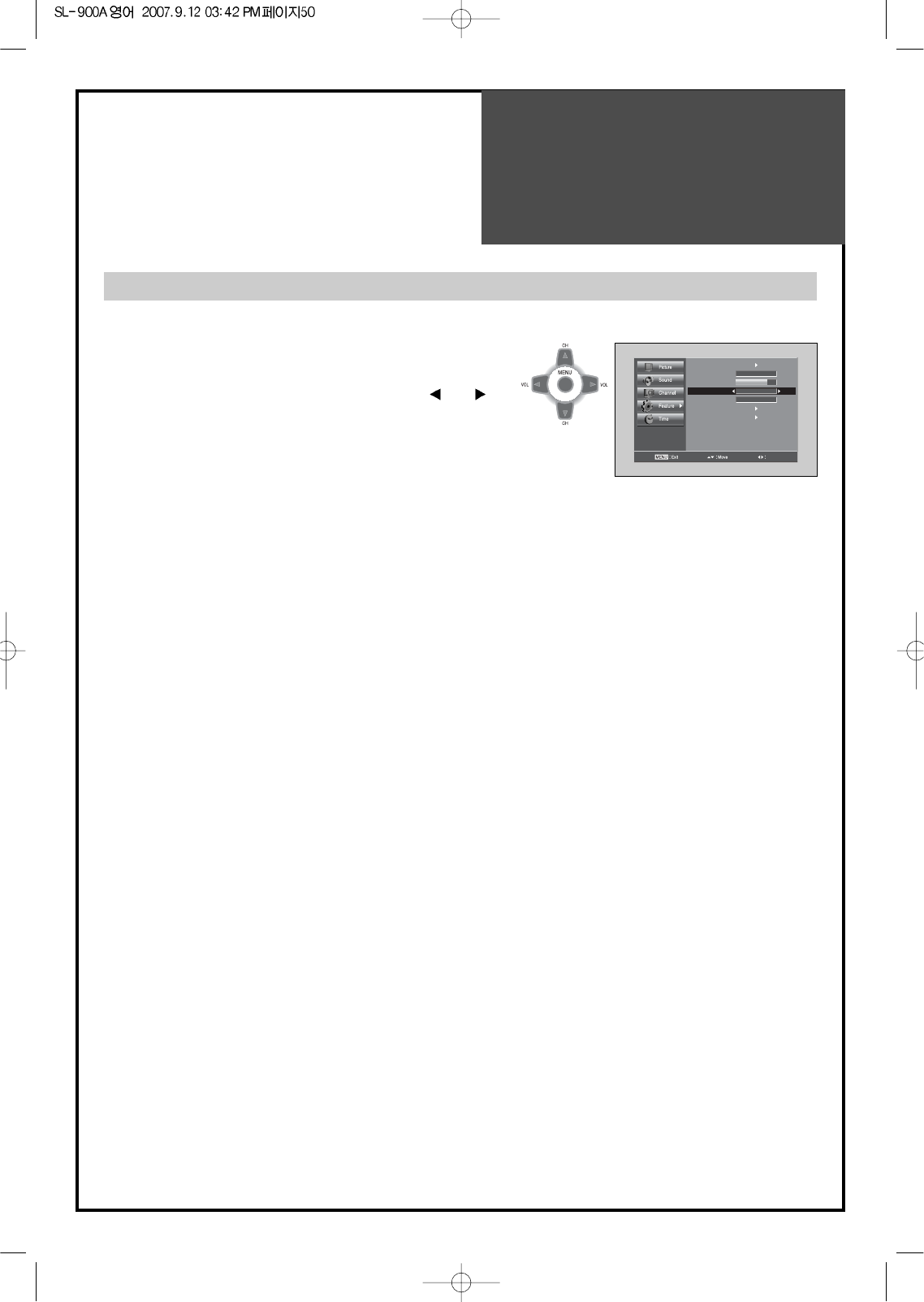

Features -
ETC
50
Selection of Language
Adjust
Caption
PIP
Background
Language
MGDI plus
Parental Control
Initialize
On
English
Off
7
1. Select Language
• Move to Language in the Features menu.
• Select your desired language by pressing the ” VOL ”
button. Then it will be setting automatically.
• The language change as the followed:
English => Français => Español => English
Time Setting
51
Adjust
Clock
Auto Clock On
Off
Off
Off
2
Eastern
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST

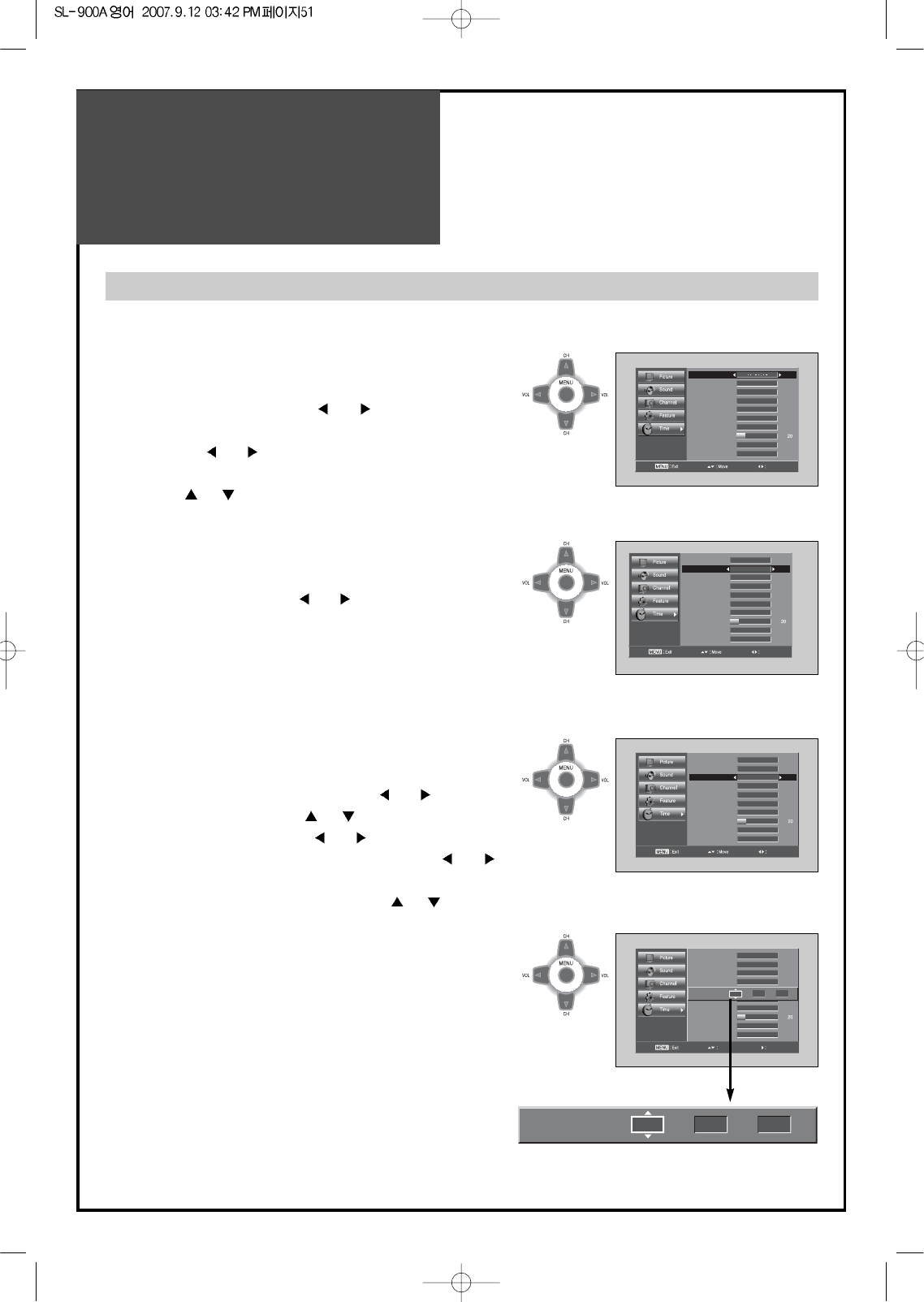

1. Setting the Clock
• Move to Clock in the Time menu.
• To go to the Clock, press the
” VOL ”
buttons.
• Place the cursor to AM / PM / Hour / Min. / Month / Day
/Year. with
” VOL ”
buttons.
• Set the AM / PM / Hour / Min. / Month / Day /Year.
with the ” CH ” buttons and then presses the “MENU”
button to complete.
2. Setup of Auto Clock
• Move to Auto Clock in the Time menu.
•
Select "On / Off" using the ” VOL ” buttons.
Note:
• Information of Auto Clock is required to DTV signal.
3. Setting the Off Timer/ Off Time Setup
• Move to Off Timer in the Time menu.
• Select the Off timer to “On” using the
” VOL ”
button.
• Move to Off Time with the ” CH ” buttons.
• To go to Off Time, press the
” VOL ”
buttons.
• Place the cursor to AM/PM / Hour / Min. with
” VOL ”
buttons.
• Set the AM/PM / Hour / Min. with the ” CH ” buttons
and then press the “MENU” button to complete.
Note:
• Confirm the Current Time is set. The Off Timer is only
available when the Current Time is set.
• The set will be turned off at selected time.
• If adjusted once, the Off Time continues to operate
everyday unless canceling setup or turn the AC power off.
Adjust
Clock
Auto Clock On
Off
Off
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
Adjust
Clock
Auto Clock On
On
Off
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
MoveAdjust
Clock
Auto Clock On
On
Off
Off
2
Eastern
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake CH.
Wake Vol.
Time zone
DST
Off Time AM 12 00
Adjustment of Time
Off Time 12 00AM
Time Setting
52
Adjust
Clock
Auto Clock On
On
On
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
Adjust
Clock
Auto Clock On
On
On
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
Adjust
Clock
Auto Clock On
On
On
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
Adjust
Clock
Auto Clock On
On
On
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
4. Setting the Wake Timer / Wake Time / Wake CH / Wake
Volume
• Move to Wake Timer in the Time menu.
• Select the Wake Timer to "On" using the
” VOL ”
button.
• Move to Wake Time with the ” CH ” buttons.
• To go to Wake Time, press the
” VOL ”
buttons.
• Place the cursor to AM/PM / Hour / Min. with
” VOL ”
buttons.
• Set the AM/PM / Hour / Min. with the ” CH ” buttons
and then press the “MENU” button to complete.
• Move to Wake CH. in the Time menu.
•
Select the Wake CH. to desirable Channel using the ” VOL ”
buttons.
• Move to Wake Vol. in the Time menu.
•
Select the Wake Vol. to desirable Volume using the ” VOL ”
buttons.
Note:
• Confirm the Current Time is set. The Wake Timer is only available when the Current Time is set.
• The set will be turned on at selected time.
•
If adjusted once, the Wake Time continues to operate everyday unless canceling setup or turn the AC power off.
• It is a convenient method to wake you up in the morning
Adjustment of Wake Time
Time Setting
53
Adjust
Clock
Auto Clock On
On
On
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
5. Setting the Timezone and DST
• Move to Timezone in the Time menu.
• Select the Timezone to desirable Timezone using the
”
VOL ”
button.
• The Timezone change as the followed:
Central => Mountain => Pacific => Alaska => Hawaii =>
Newf. => Atlantic => Eastern => Central
• Move to DST in the Time menu. and select On, Off with
”
VOL ”
buttons.
Note: Timezone and DST is available in Auto Clock mode
6. Press the "SLEEP" button
• By pressing the “SLEEP” button on the remote controller
repeatedly, you can select one of the following settings:
Sleep Timer: Off => 15 => 30 => 60 => 90 => 120 => Off
• The set will turn off after the time you select.
Note:
• If an active signal is not present for about 30 minutes, the
set will automatically turn to Stand-by mode.
Adjust
Clock
Auto Clock On
On
On
Off
2
Eastern
AM 12:00
AM 12:00
AM 12:00
Off Timer
Off Time
Wake Timer
Wake Time
Wake CH.
Wake Vol.
Time zone
DST
Adjustment of Off Time
MUTE
SCREEN
SIZE CAPTION
PIP CH PIP CH
PIP
SWAP SOURCE POSITION
SLEEP
CH
STILL
ADD/
ERASE
Channel Banner
54
DISPLAY
GUIDE TV/VIDEO
MULTIMEDIA
POWER
123
456
1. General Information
Channel Mode: Display the current channel mode (Air/Cable/DTV).
Channel Number: Displays the current channel number.
Channel Name: Displays the current channel name. (Digital TV mode only)
Program Name: Displays the current program name. (Digital TV mode only)
Program information: Displays the current program information. (Digital TV mode only)
Program time: Display the current / next program time (start ~ end). (Digital TV mode only)
Icon: Displays the service items (Channel State, Screen Size, Audio Service, Dolby Digital, Favorite
Channel, and ETC) in the current program.
Note: Owing to our policy of continuous improvement, the availability of icon which depends upon
the program may change.
Current time: Displays the current time.

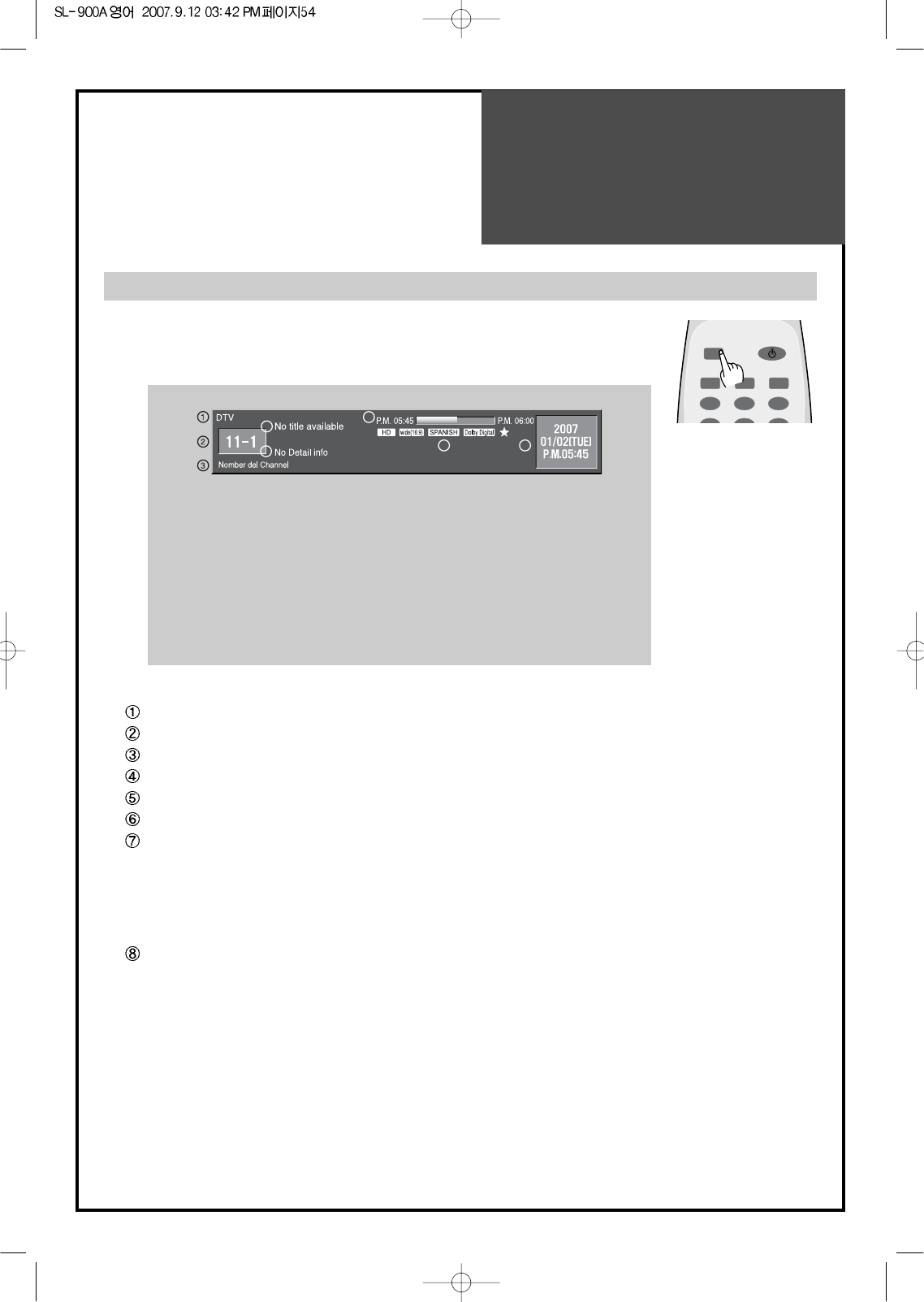

Channel Banner
- The channel banner displays information about a channel number, name,
broadcasting time, audio service and more. You can see this banner by pressing
“DISPLAY” button on the Remote Control.
4
5
6
78
Channel Banner
55
Electronic Program Guide (EPG) (Digital TV mode only)
- The DTV Electronic Program Guide (EPG) displays program information
about each channel, up to seven days ahead.
- You can edit your own profiles, and record programs.
- By pressing the “GUIDE” button to access EPG directly, you can see all
channels broadcasting now.
Note:
• The EPG channel is only available when watching DTV channels.
DISPLAY
GUIDE TV/VIDEO
MULTIMEDIA
POWER
123
456
1. Select a desired channel
• Select a channel with the ” CH ” buttons.
• Press the “GUIDE” button and move a program with the ” CH ”
buttons.
• If you need detail information, press the
” VOL
” button.
Program Guide
12:45 pm Mon May 1
Service
10:00 am DTV Program
11:00 am DTV Program
12:00 pm DTV Program
01:00 pm DTV Program
02:00 pm DTV Program
03:00 pm DTV Program
06:00 pm DTV Program
08:00 pm DTV Program
09:00 pm DTV Program
10:00 pm DTV Program
14-1
[P.M. 12 : 00 ~ P.M. 01 : 00]

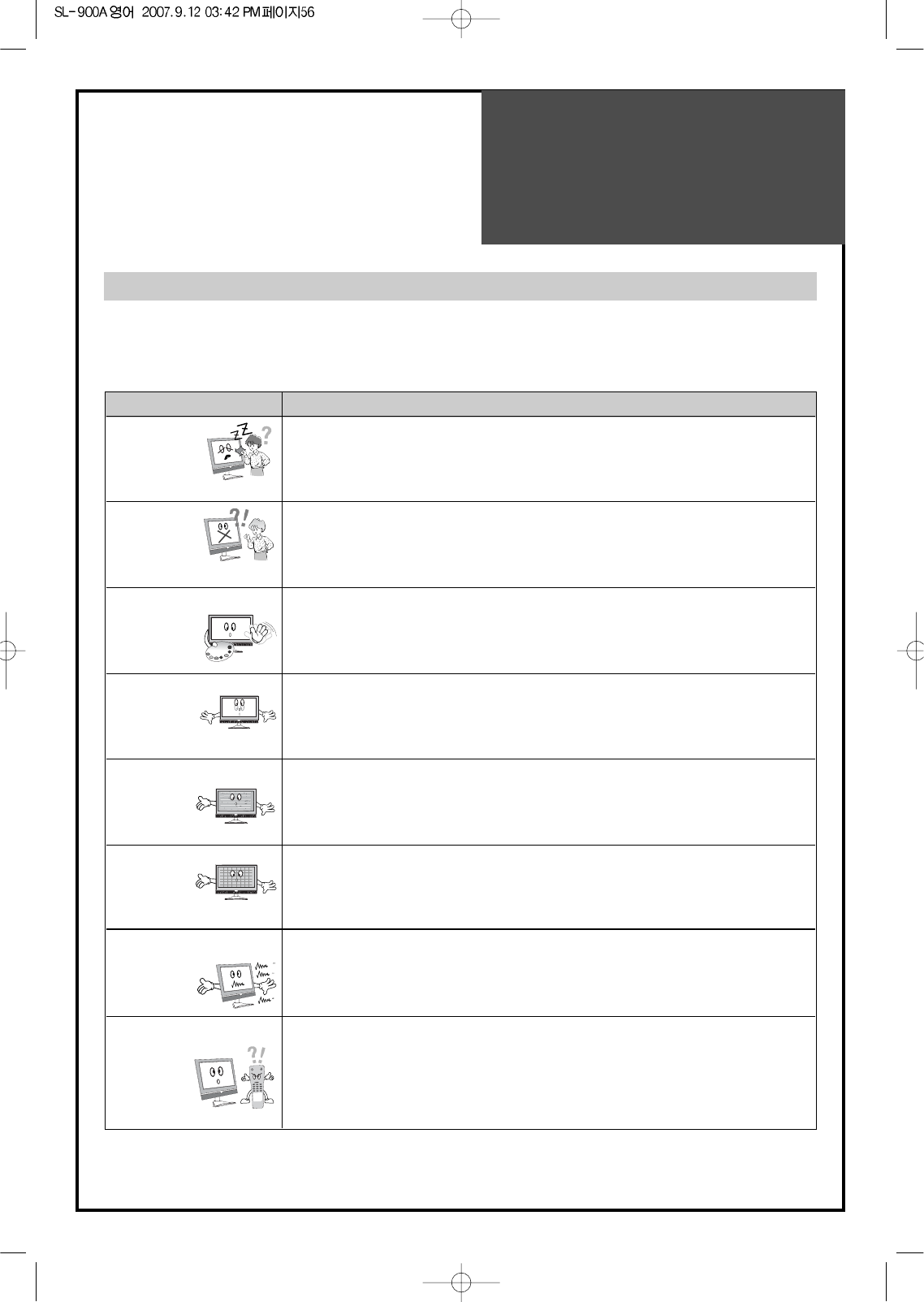

Troubleshooting
56
Please check the following items before asking for repair service.
Symptoms and Solutions
Symptom Check items
Neither picture - Check the contact of sockets is all right.
nor sound - Check the TV main power is on.
Picture is OK - Check the Volume control is set to minimum or mute.
but no sound
Sound is OK, but - Check the colour control and adjust it properly.
no colour. - Check the program is in colour and not in black & white.
The picture has - Check the antenna is installed correctly and if not, adjust the overlapped
image. antenna toward the broadcasting station.
Picture has “snow - Check the antenna or its connection is correct and if not, correct the
noise”. antenna fault or connection cable fault.
- Check if car traffic or neon sign disturbs the sound effect.
Stripes on - Check the susceptible interference by other electronic devices such
picture. as radio and television and keep magnetic or electronic devices
away from the TV.
Bad stereo or Dual - Long distance from the station or other radio waves can generate
sound. bad sound reception. If so, change the mode to Mono.
Remote control - Check if the batteries in the Remote control are dead.
does not - Check if any object between IR sensor of the TV and the Remote
work. control does not obstruct.
123
456
789
POWER
MUTE
PREV
.CH
0
100
57
Troubleshooting
In Digital TV mode
• AFTER SALES SERVICE
Do not hesitate to contact your retailer or service agent if a change in the perfomance of your product
indicates that a faulty condition may be present.
Some Problems will only occur when viewing DTV channels.
Due to the different techniques involved in digital reception, DTV signal quality can be poor even if you
appear to have a strong signal when viewing analogue programs.
The DTV system requires a good quality signal to provide the best picture. When viewing analogue
pictures, interference such as signal reflection from nearby buildings or mountains causes ‘ghosting’, but
still provides a viewable picture. For the DTV system, Interference such as this can disrupt the flow of data
causing the picture to appear to be made up of large blocks, or to freeze intermittently. If the picture
disappears completely, this could mean that signal quality is very poor. If this happens often, you may need
to improve your aerial system to provide a better signal. This TV contains a complex microprocessor which
enables you to view enhanced digital services. Occasionally this device may need to be reset. This can be
done by pressing the stand-by button on your remote control or the power switch on the front panel.
SYMPTOM CHECKS
Check that DTV transmissions are available from
the transmitter you are currently using. If not, try
directing the aerial at another local transmitter.
No DTV Channels listed in the TV Guide after Auto Setup
Check analogue transmissions. If picture quality
is poor, you will need to improve or change your
aerial system to receive DTV channels. Consult a
local installer.
Blocky interference. Blocky interference indicates that the signal
quality is poor.
Picture freezes intermittently. You should consider improving your aerial
system.
To check the quality of your signal use the Signal
strength (See page 29)
SYMPTOM CHECKS
- Check the resolution and frequency of your PC.
Then, adjust them to optimum condition for LCD TV.
“NO SIGNAL” appears on the screen. - Refer to the table of PC mode input format. (If
registered resolution and Frequency on the table no
listed then no picture will be displayed.)
“Not available” appears on the screen. - Ensure that the signal cable is firmly connected to PC
and TV.
Image is not clear. - Adjust the PHASE control.
Image is not centered. - Run the Auto setup.
In PC mode
58
Standard of
Product
Owing to our policy of continuous improvement, specifications may change.
Model C32HDGB C37HDGB C42HDGB
LCD Panel Screen Size 32” 37” 42”
Aspect Ratio 16:9 16:9 16:9
Resolution 1366 x 768 (WXGA) 1366 x 768 (WXGA) 1366 x 768 (WXGA)
Pixel Pitch 170.25 x 510.75 x RGB 0.200 x 0.600 mm x RGB 0.227 x 0.681mm x RGB
Contrast Ratio 3000:1 3000:1 3000:1
Dimension(W x H x D) Set Dimension 806 x 626.5 x 230mm 940 x 720 x 328.5mm 1060 x 823 x 328mm
Power Consumption Max. 120W 150W 200W
TV System NTSC, ATSC
Power Source 120V~, 60Hz
Limited
Warranty
59
Daewoo Electronics America Inc. warrants this product to be free from defects in material and
workmanship and agrees to remedy any such defect.
This warranty covers 1 year labor and 1 year parts from the date of original purchase.
This warranty applies only to product purchased from authorized DEAM dealer and used within the
boundaries of U.S.A.
This warranty does not apply to product that has been improperly installed, subjected to usage for
which the product was not designed, misused or abused, damaged during transportation, or which has
been altered or repaired in any way that affects the reliability or detracts from its performance.
How you get warranty service
Warranty service can only be provided by an authorized DEAM service center. For the closest
authorized service center to you, please contact your Dealer. In order to receive warranty service you
must provide the authorized service center with a copy of proof of purchase, signifying the date of
purchase and the name of the Dealer from whom you purchased the product.
Statutory warranties
The purchase may have rights under existing provincial or federal laws, and where any terms of this
warranty are prohibited by such laws, they are deemed null and void, but the remainder of the
warranty shall remain in effect.
If you require further assistance, please call:
1-877-393-7823(1-877-DWESVC3)
www.e-daewoo.com
P/N : 48586900E100-R0
