AM/FM Stereo Radio and
Bluetooth® Wireless Technology
AM/FM Stereo Radio and
Bluetooth® Wireless Technology
LIMITED WARRANTY
Printed in China
Craig warrants this product to be free from manufacturing defects in material and
workmanship under normal use for a period of 90 days from date of purchase. If service
is required, please return the product to the store where it was purchased for exchange; or,
pack the unit in the original packing material with all accessories if applicable, a copy of
your sales receipt and a Cashier’s check or Money Order for $15.00 (to cover shipping and
handling costs) payable to Craig Electronics Inc. For consumers in Canada, please make
sure that the cashier check or money order is redeemable through a U.S. bank. Ship your
product freight pre-paid. Your unit will be repaired, replaced or if the unit can not be
repaired or replaced, a refund will be forwarded to you within four weeks of receipt of
your unit. Please ship your unit to:
Craig Electronics Inc.
1160 NW 163 Drive
Miami, Fl 33169
This warranty is void if the product has been: a) Used in a commercial application or
rental. b) Damaged through misuse, negligence, or abuse. c) Modified or repaired by
anyone other than an authorized Craig service center. d) Damaged because it is improperly
connected to any other equipment.
Note: This warranty does not cover: a) Ordinary adjustments as outlined in the Owner’s
Manual which can be performed by the customer. b) Damage to equipment not properly
connected to the product. c) Any cost incurred in shipping the product for repair. d) Damage
to the product not used in the USA.
This warranty is not transferable and only applies to the original purchase. Any implied
warranties, including the warranty of merchantability, are limited in duration to the period
of this expressed warranty and no warranty whether expressed or implied shall apply to
the product thereafter.
Under no circumstance shall Craig be liable for any loss or consequential damage arising
out of the use of this product. This warranty gives specific legal rights. However, you may
have other rights which may vary from state to state. Some states do not allow limitations
on implied warranties or exclusion of consequential damage. Therefore, these restrictions
may not apply to you.
To Obtain Service on your Product
email:service@craigelectronics.com
CM427BT-WC-E0BS1-A0US
594 x 210 mm
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
approved in the instruction manual. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
31
32
33
6
7
8
9
10
11
12
25
26
27
30
28
35
29
13
14 15 16 17 18 19
22
23
24
21
20
1
2
3
36
37
4
5
34 34

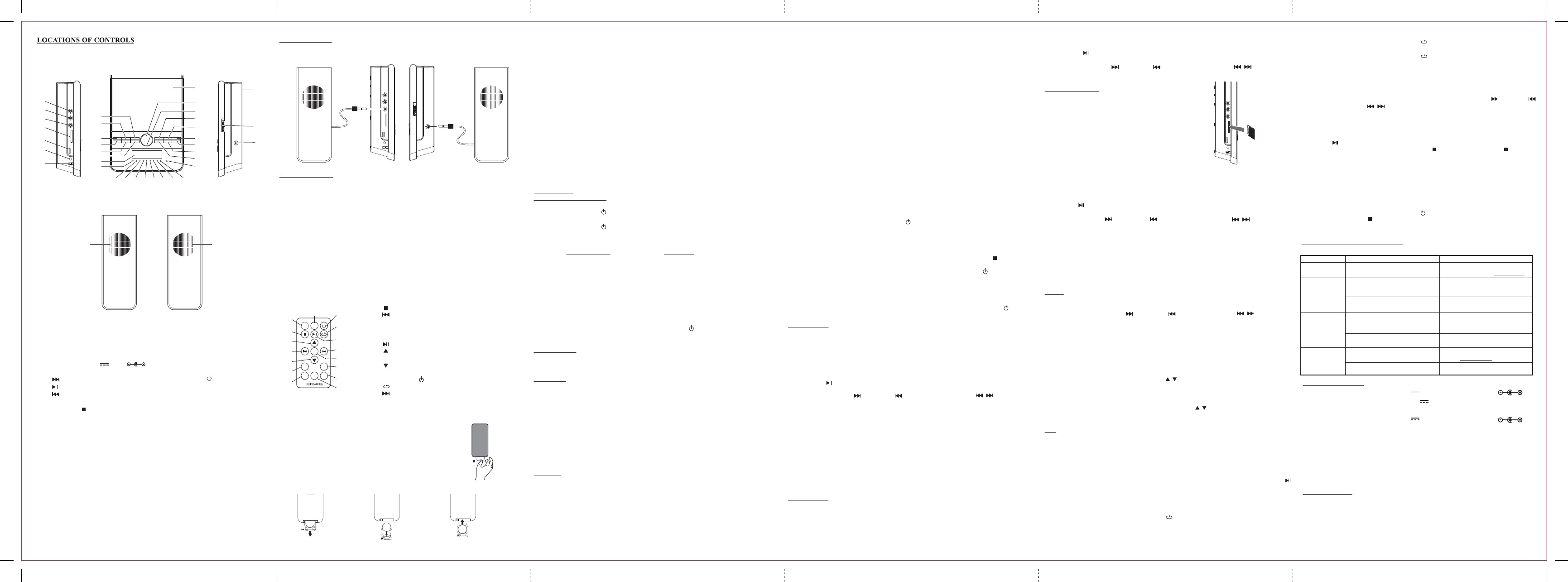

21. IR (REMOTE RECEIVER)
22. PROG/M/TIME SET
(Program/Memory/Time Set)
BUTTON
23. REPEAT BUTTON
24. FUNCTION/ (Standby)
BUTTON
25. ALARM 2 BUTTON
26. ALARM 1 BUTTON
27. SLEEP BUTTON
28. VOL -/MIN (Volume down/Minute
set) BUTTON
29. VOL+/HOUR (Volume up/Hour
set) BUTTON
30. CD DOOR
31. CD DOOR OPEN SWITCH
32. SPEAKER R JACK
33. BATTERY DOOR (on the rear)
34. SPEAKERS
35. PROG (Program) INDICATOR
36. SD Card SLOT
37. USB PORT
1. AUX IN JACK
2. PHONE JACK
3. SPEAKER L JACK
4. DC IN JACK (DC 5.9V; )
5. ANT (FM ANTENNA)
6. / TUNE + BUTTON
7. (Play/Pause) BUTTON
8. / TUNE - BUTTON
9. M - (Memory down) BUTTON
10. SNOOZE / (Stop) BUTTON
11. M + (Memory up) BUTTON
12. LED DISPLAY
13. STANDBY INDICATOR
14. SLEEP INDICATOR
15. SNOOZE INDICATOR
16. REP (Repeat) INDICATOR
17. CD INDICATOR
18. FM INDICATOR
19. AM INDICATOR
20. AUX INDICATOR
CONNECTIONS:
Connect the small plug from the speakers to the Speaker Jacks on the side of main unit as the figure
below:
POWER SOURCE:
MAIN UNIT:
Connect the small plug of supplied AC/DC Adaptor to the DC IN Jack on the Left side of the unit
then plug the AC/DC Adaptor to a wall outlet having AC 100-240V~; 50/60Hz.
NOTES:
1. The AC/DC Adaptor is intended to be correctly orientated in a vertical or floor mount
position.
2. If the AC/DC Adaptor is disconnected or if there is a power failure, this electronic clock is
designed to continue operating internally (without showing the time on the Clock Display)
with 1 x 9V battery (not included). Install the batteries as follows:
• Open the battery door on the rear of the unit by presses the tabs and then lifting it.
• Install a 9V battery to the battery cap. (Alkaline batteries are recommended for longer
playing time.)
• Replace the battery door.
REMOTE CONTROL:
• First Time Use
Remove and discard the insulation film as the figure on the right.
• Replacing the button cell when it is consume:
1. Push and slide out the battery holder as figure 1 below.
2. Replace the button cell with new CR2025 button cell as the polarity
markings on the rear of the Remote Control.
3. Close the battery holder.
REMOTE CONTROL:
BATTERY PRECAUTIONS
Follow these Battery Precaution when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery
compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries
with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of
time, remove the battery to prevent damage or injury from possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture.
(Follow battery manufacturer’s directions.)
6. Do not dispose of battery in fire. Battery may explodes or leak.
7. Clean the battery contacts and also those of the device prior to battery installation.
8. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it
can cause severe internal burn in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not close
securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
OPERATION:
GENERAL OPERATION:
1. Connect the unit to AC power as previously instructed.
2. Press the FUNCTION/ (Standby) Button on the unit or Remote Control to turn on the unit
from standby mode.
3. Press the FUNCTION/ (Standby) Button repeatedly to switch to desired playback mode.
The correspondent indicator will illuminate (or appear on the LED Display ) with your
selection (see list below):
Playback Mode: Indicators:
CD CD Indicator will illuminate
Radio FM Band FM Indicator will illuminate
Radio AM Band AM Indicator will illuminate
BT (Bluetooth) “bt” will appear on the display
USB “USb” will appear on the display
SD Card “Sd” will appear on the display
AUX (in) AUX Indicator will illuminate
4. During playback, press the VOL +/HOUR or VOL -/MIN Buttons on the unit (or the VOL
+/H or VOL -/M Buttons on the Remote Control) to adjust volume level as desired.
5. When finished listening, press and hold the FUNCTION/ (Standby) Button on the unit or
Remote Control approximate 1 second to turn the unit to standby mode.
PHONE JACK:
For private listening, insert the 3.5mm plug of the earphone/headphone (not included) to the
PHONES Jack on the left side of unit. The speaker will disconnect automatically.
TIME SET:
To set or reset the actual time:
1. In Standby mode, press the PROG/M/TIME SET Button on the unit or press the TIME SET
Button on the Remote Control to enter to time set mode. Time on display will blink.
2. Press the VOL +/HOUR Button on the unit or the VOL +/H button on the Remote Control to
set hour.
(Make sure the PM Indicator on the display is illuminate if the time is PM and not light if the
time is AM).
3. Press the VOL -/MIN Button on the unit or the VOL -/M button on the Remote Control to set
minute.
4. When finished, press the PROG/M/TIME SET Button on the unit or press the TIME SET
Button on the Remote Control to save the settings, time on display will stop blinking.
ALARM :
To set or reset the alarm time:
Alarm 1 setting:
1. In Standby mode, press and hold the ALARM 1 Button on the unit or Remote Control, alarm
1 time will appear on the display and blink.
2. Press the VOL +/HOUR Button on the unit or VOL+/H Button on the Remote Control to set
hour.
(Make sure PM Indicator is illuminate if the alarm time is PM and not light if the alarm time
is AM).
Craig CM427BT (Eng)_102016_r8 • 13/12/2016 • AT~(594x210mm)
3. Press the VOL -/MIN Button on the unit or VOL-/M Button on the Remote Control to set
minute.
4. Press ALARM 1 Button again to save the setting and exit. The display will resume to actual
time.
5. After setting:
• Press the ALARM 1 Button once to activate the alarm function and set the wake up mode to
buzz. AL 1 Indicator will illuminate.
• Press the ALARM 1 Button twice to activate the alarm function and set the wake up mode
to CD.
• Press the ALARM 1 Button three times to activate the alarm function and set the wake up
mode to Radio FM Band.
• Press the ALARM 1 Button four times to activate the alarm function and set the wake up
mode to Radio AM Band.
• Press the ALARM 1 Button five times to turn off alarm. AL 1 Indicator will not light.
Alarm 2 setting:
Same as Alarm 1 settings. But, press the ALARM 2 Button instead of ALARM 1 Button.
Important Notes:
1. Alarm will not operation when the unit is in power on mode.
2. If radio was selected, received the desired radio station before activate alarm. Make sure the
volume was set to suitable level. Otherwise, when Alarm goes off, no sound output from the
speaker or sound weak.
Shut off alarm:
When alarm goes off, press the FUNCTION/ (Standby) Button on the unit or Remote Control
to shut it off. Alarm will turn on again on next day. To turn off alarm completely (alarm will not
turn on next day), press the Alarm 1 or 2 Button repeatedly until the correspondence alarm indicator
turned off.
Snooze:
The alarm can be temporarily turned off manually by pressing the SNOOZE/ Button on the
unit or SNOOZE Button on Remote Control; the alarm will turn back on automatically nine
(9) minutes later. This feature can be repeated until the the FUNCTION/ (Standby) Button
on the unit or Remote Control was pressed.
Sleep Timer:
In the power on mode, press the SLEEP Button to activate the sleep function, SLEEP time will
appear on the display. Press the SLEEP Button repeatedly to set the sleep timer to 15– 120 minutes
as desire. To turn off the sleep timer before time up, press and hold the FUNCTION/ (Standby)
Button to power off the unit.
BT (Bluetooth):
The first time you use the unit or pair it to a new Bluetooth Device, pair it as follows:
1. Power on the unit from standby mode and enter to BT (Bluetooth) mode as previously
instructed. “bt” will appear on the display and blink.
2. Power on the external BT Device and enter to BT searching mode. Start pairing following
on screen instructions from the external BT Device. After pairing, the “bt” on the display
will stop blinking.
3. Plays the music in the paired BT Device as usual.
4. During playback:
• Press the Button on the unit or Remote Control to pause: press again to resume normal
playback.
• Press the TUNE +/ or TUNE -/ Buttons on the unit or the Buttons on the
Remote Control to skip tracks.
Notes:
• When the external Bluetooth Device searched the unit, our model number “CM427BT”
will appear on the display of external Bluetooth Device.
• Pairing code “0000” or “1234” may need to enter.
Normal operation after pairing:
1. Power on the external BT Device and enter to BT mode.
2. Power on the unit from standby mode and enter to BT (Bluetooth) mode as previously
instructed. “bt” will appear on the display and blink.
3. Wait a few seconds until the unit is auto paired to the external BT Device, “bt” on display
will stop blinking.
4. Plays the music in the paired BT Device as usual
USB Playback:
1. Insert the USB Device (up to 32 GB; with MP3 files) into the USB Port on the Left side
of the unit.
2. Power on the unit from standby mode and enter to USB (playback) mode as previously
instructed. “USb” will appear on the display and blink.
3. Wait a few seconds, “USb” on display will stop blinking and the unit will start to plays the
MP3 files in the USB Device automatically.
4. During playback:
• Press the Button on the unit or Remote Control to pause: press again to resume normal
playback.
• Press the TUNE +/ or TUNE -/ Buttons on the unit or the Buttons on the
Remote Control to skip tracks.
SD Card Playback:
1. Insert the SD Card (up to 32 GB; with MP3 files)
into the SD Card Slot with contact fingers face to
rear on the Left side of the unit as the figure on the right:
2. Power on the unit from standby mode and enter to SD Card (playback) mode as previously
instructed. “Sd” will appear on the display and blink.
3. Wait a few seconds, “Sd” on display will stop blinking and the unit will start to plays the
MP3 files in the SD Card automatically.
4. During playback:
• Press the Button on the unit or Remote Control to pause: press again to resume normal
playback.
• Press the TUNE +/ or TUNE -/ Buttons on the unit or the Buttons on the
Remote Control to skip tracks.
Notes:
A. When inserting the USB Device/SD Card, make sure the direction you selected is correct.
Never insert violently to avoid damaging the USB Device; SD Card or the unit. If it doesn’t
work, please check if the direction is correct.
B. Please download the MP3 files into the USB Device/SD Card through the Computer before
insert into the unit
Radio:
1. Power on the unit from standby mode and enter to Radio AM or FM Band as desire. The
AM or FM Indictors will illuminate.
2. Press and hold the TUNE-/ or TUNE +/ Buttons on the unit or Button on the
Remote Control to auto search and plays the previous/next available radio stations. The
frequency of it will shows on the display.
3. Repeat the same procedure until the desired station was searched.
Radio stations presetting:
1. Receive the desired radio station as the previously procedure.
2. Press the PROG/M/TIME SET Button on the unit or MEM/PROG Button on the Remote Control,
"P XX" (XX is the current program number) will appear on the display and blinking.
3. Press the M - or M + Button on the unit or Button on the Remote Control repeatedly to
select the program number (P 01 – P 20) you want stored to. Then press the PROG/M/TIME
SET Button on the unit or MEM/PROG Button on the Remote Control again to store it.
4. Repeat the same procedures until all the desired radio stations were stored into the program list.
5. After settings, press the M- or M+ Button on the unit or Button on the Remote Control to
select the desired stored radio station to play.
CD:
CD Playback:
1. Open the CD door by slide the CD OPEN Switch upward. Place a CD disc on the center spindle,
with the printed label side up.
2. Close the CD Door.
3. Power on the unit from standby mode and enter to CD (playback) mode as the previously
instructed. “- -“ will appear on the display and blink.
4. Wait a few seconds until the total number of tracks appears on the display. Then press the
Button on the unit or Remote Control to start playback.
Repeat Playback:
During CD playback:
• Press the REPEAT Button on the unit or the Button on the remote control once to play
current track repeatedly. The REP Indicator will illuminate and blink.
• Press the REPEAT Button on the unit or the Button on the Remote Control twice to
play all the tracks on the current disc repeatedly. The REP Indicator will stop blinking.
• Press the REPEAT Button on the unit or the Button on the Remote Control three times
to cancel repeat playback. The REP Indicator will turn off.
Programmed Playback:
1. In stop playback mode, press the PROG/M/TIME SET Button on the unit or MEM PROG
Button on the Remote Control, “01” will appear on the display.
2. Select the first specific track to be programmed by pressing the TUNE+/ or TUNE -/
Buttons on the unit or / Button on the Remote Control.
3. Press the PROG/M/TIME SET Button on the unit or MEM/PROG Button on the Remote
Control again to store the selected track into the memory. The PROG Indicator will illuminate
and blink.
4. Repeat same steps until all the specific tracks stored into the memory.
5. Press the (Play/Pause) Button on the unit or Remote Control to start playback.
6. To stop program playback, press the SNOOZE / Button on the unit or the Button on
the Remote Control twice. The PROG Indicator will turn off.
AUX (in):
To listen the music from the external audio device such as MP3 Player; Discman; iPods ... etc
as follows:
1. Connected the external audio device by an audio connection cable with 3.5mm stereo plug
on both ends (Cable not included).
2. Insert one end to the AUX IN Jack on the left of unit. Insert the other end to the Phones
Jack; Line Out Jack or AUX Out Jack on the external audio device.
3. Power on the unit by press the FUNCTION/ (Standby) Button.
4. Press the FUNCTION/ (Standby) Button repeatedly until the AUX Indicator illuminate.
1
12
13
2
3
10
4
5
87
14
9
15
16
11
6
SNOOZE
SLEEP
MEM
PROG
VOL-/M VOL+/H
ALARM 2ALARM 1
TIME SET
1. SNOOZE BUTTON
2. (Stop) BUTTON
3. BUTTON
4. VOL-/M (Volume down/Minute set) BUTTON
5. TIME SET BUTTON
6. SLEEP BUTTON
7. (Play/Pause) BUTTON
8. (Memory Up) BUTTON
9. MEM PROG (Memory/Program Set) BUTTON
10. (Memory Down) BUTTON
11. ALARM 1 BUTTON
12. FUNCTION/ (Standby) BUTTON
13. (Repeat) BUTTON
14. BUTTON
15. VOL+/H (Volume up/Hour set) BUTTON
16. ALARM 2 BUTTON
CR 2025
( + )
Fig. 2 Fig. 3
CR 2025
( + )
Fig. 1
CR 2025
( + )
MAIN UNIT:
SPECIFICATIONS :
Power Source: DC 5.9V, 1.2A, Center positive
Clock Back Up: 1x DC 9V battery (not included)
Power source of AC/DC Adaptor: AC 100-240V~, 50/60Hz, 0.3A
Output of the AC/DC Adaptor: DC 5.9V, 1.2A, Center positive
Audio Power: 1.2W per Channel
Impendence of Speakers: 8 Ohm; 2W x 2
Radio Band Coverage: AM 520 - 1710 KHz
FM 87.5 - 108 MHz
BT version: 3.0
BT Operation Distance: 96 Feet in opera area
ACCESSORIES:
1x User’s Manual
1x Remote Control (Uses 1 x CR2025 Button Cell, included)
1x AC/DC Adaptor
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE
WITHOUT NOTICE
TROUBLE SHOOTING GUIDE
Check the following before requesting service:
/
/
/
/
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
No power
No sound or
sound weak
AC Power cord had not connected Connect the AC/DC Adaptor to wall outlet
and the unit as section: POWER SOURCE
Increase the volume by press
VOL +/HOUR
Button on the unit or press the
VOL +/H Button on the Remote Control
Rise the volume level of the paired /
connected device
Reduce the volume level by press the
VOL -/MIN Button on the unit or press the
VOL -/M Button on the Remote Control
Reduce the volume level of the
connected/paired device
Pair the external BT Device to the unit as
section: BT (Bluetooth)
Volume of the unit was set to
minimum position
Volume level of paired / connected
device is in low level
Volume level too high
Volume level of the connected
paired device too high
The external BT Device had NOT paired
to the unit
The external BT device too far from the
unit
Sound distortion
BT not
functioning Place the external BT device close to
the unit
/
/
594 x 210 mm
