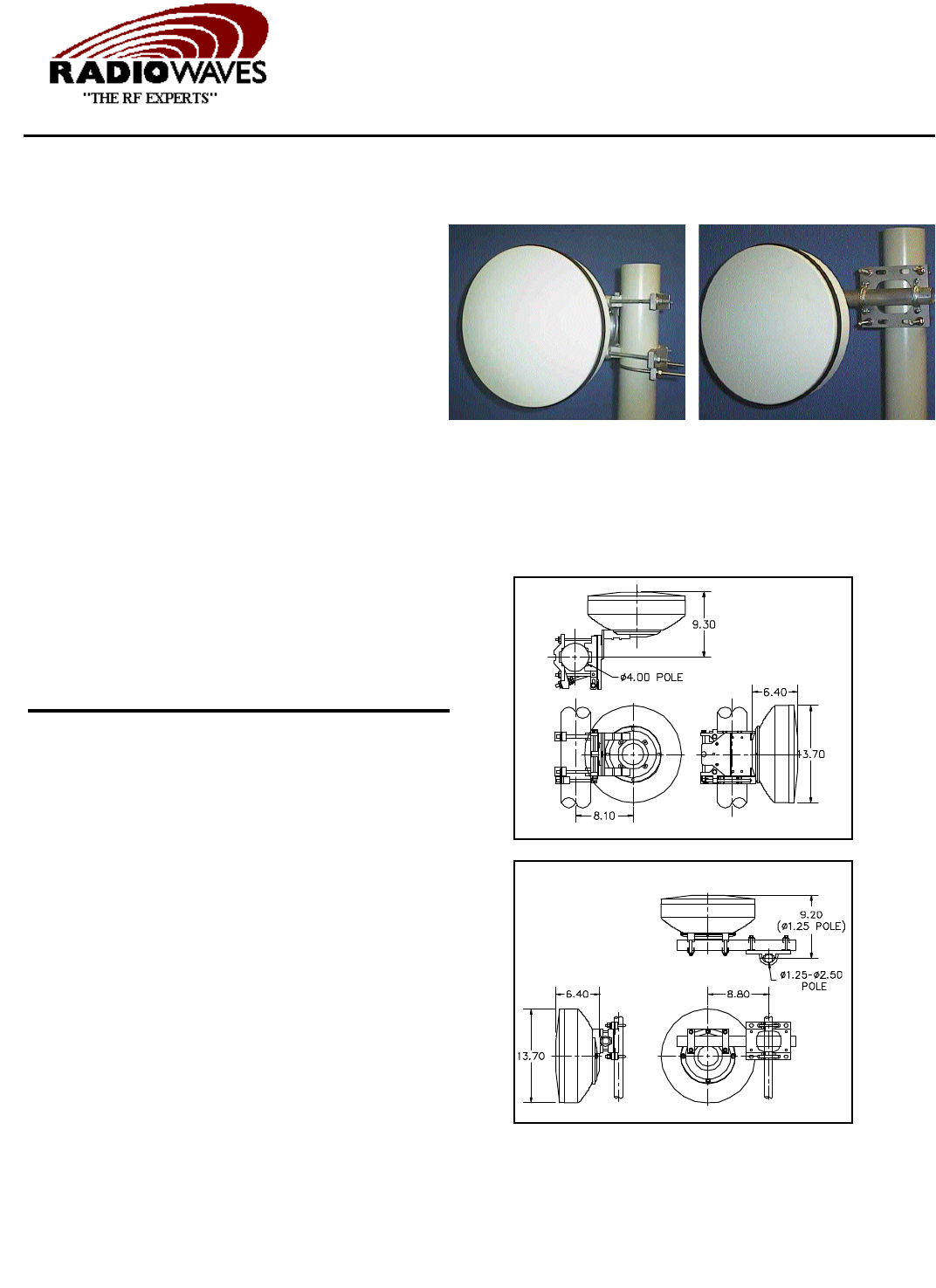

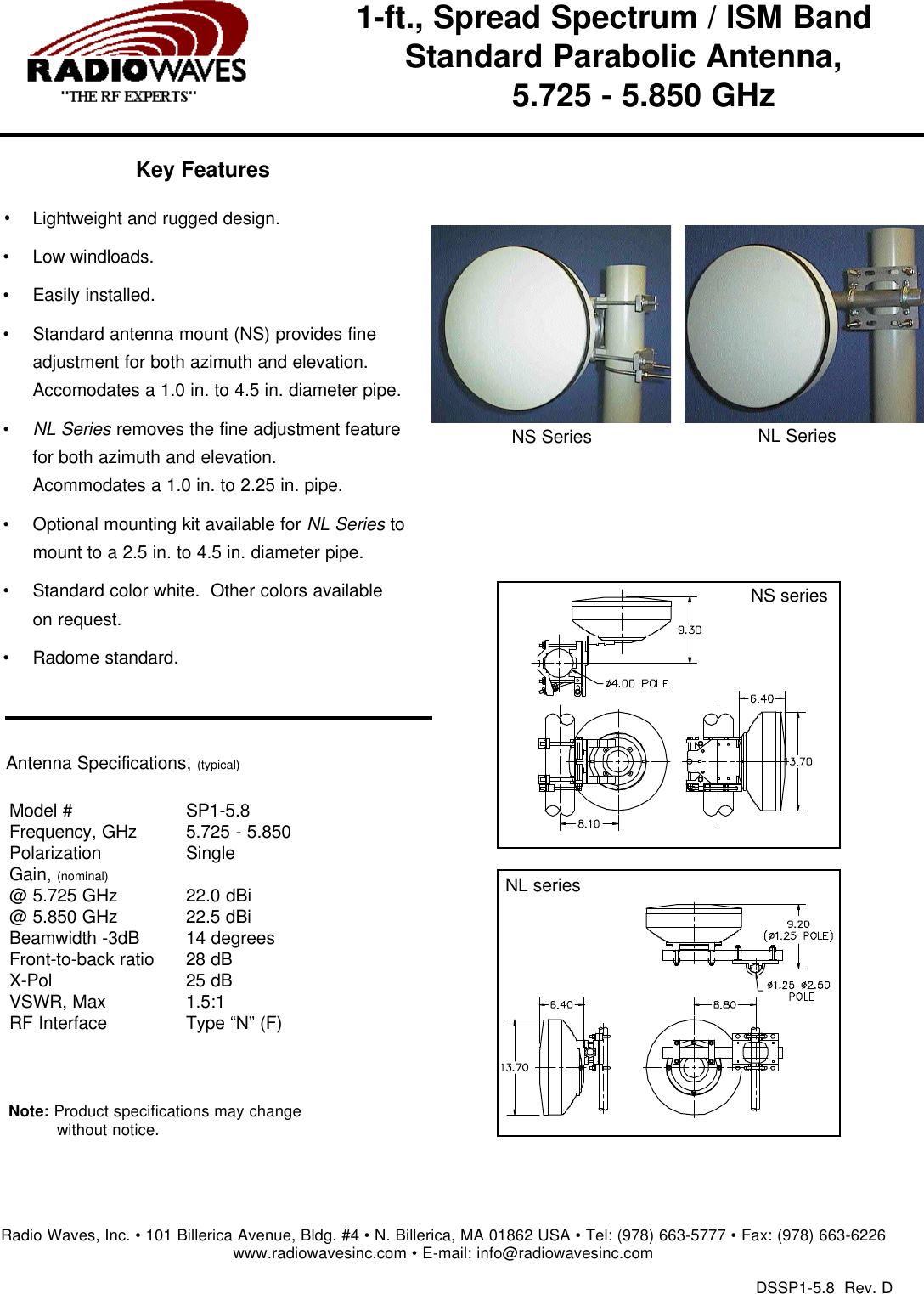

Radio Wave antenna info

1-ft., Spread Spectrum / ISM Band
Standard Parabolic Antenna,
5.725 - 5.850 GHz
Antenna Specifications,(typical)
Model #
Frequency, GHz
Polarization
Gain, (nominal)
@ 5.725 GHz
@ 5.850 GHz
Beamwidth -3dB
Front-to-back ratio
X-Pol
VSWR, Max
RF Interface
SP1-5.8
5.725 - 5.850
Single
22.0 dBi
22.5 dBi
14 degrees
28 dB
25 dB
1.5:1
Type “N” (F)
Note: Product specifications may change
without notice.
DSSP1-5.8 Rev. D
Radio Waves, Inc. • 101 Billerica Avenue, Bldg. #4 • N. Billerica, MA 01862 USA • Tel: (978) 663-5777 • Fax: (978) 663-6226
www.radiowavesinc.com • E-mail: info@radiowavesinc.com
Key Features
•Lightweight and rugged design.
•Low windloads.
•Easily installed.
•Standard antenna mount (NS) provides fine
adjustment for both azimuth and elevation.
Accomodates a 1.0 in. to 4.5 in. diameter pipe.
•NL Seriesremoves the fine adjustment feature
for both azimuth and elevation.
Acommodates a 1.0 in. to 2.25 in. pipe.
•Optional mounting kit available for NL Seriesto
mount to a 2.5 in. to 4.5 in. diameter pipe.
•Standard color white. Other colors available
on request.
•Radome standard.
NS series
NS SeriesNL Series
NL series
