WOOSIM SYSTEMS PORTI-P340 Thermal Printer User Manual P340
Woosim System Inc. Thermal Printer P340
Users Manual
MODEL PORTI-P340
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th, 448,
Gasan-Dong, GeumChun-Ku, Seoul,
Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL: http://www.woosim.com
All specifications are subjected to change without notice
http://www.woosim.com
2007-10-26
2
All specifications are subjected to change without notice
C
Co
op
py
yr
ri
ig
gh
ht
t
PORTI-P340 THERMAL PRINTER operator’s manual.
Copyright ⓒ2007 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of Woosim Systems Inc.
And may not be reproduced in whole or in part without the prior written permission of
Woosim System Inc.
Trademark
a registered trademark of Woosim Systems Inc.
All other trademark are the properties of their respective companies.
Caution
Some semiconductor devices are easily damaged by static electricity. You should
turn the printer “OFF”, before you connect or removed the cable on the rear side, in
order to guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the printer “OFF”
Notice
The contents of this manual are subject to change without notice.
"Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment."
http://www.woosim.com
2007-10-26
3
Introduction
The PORTI-P340 is an extremely simple and functional thermal printer.
It is the ideal solution for applications which require the immediate printing of data on
a paper, whether they be of an industrial,professional or laboratory nature.
Medical analyzer, Industrial instrument, Recorder, Geological analyzer, Underground
analyzer, Chemical analyzer, Metallic analyzer, etc.
The general features of PORTI-P340 printer are as follows:
X Ultra small size rack mount printer.
X Very silent printing thru direct thermal printing method.
X High speed(40mm/sec)
X UART interface
X Support text and graphic printing.
X Support bit-image(logo) download.
X Easier paper loading by CLAMSHELL design.
X Easier maintenance with self-diagnostics.
X Flow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer.
Note
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable
protection against farmful interference in a residential installation. Thes equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interfrernce to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause farmful interference to radio or television reception , which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
reciver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
http://www.woosim.com
2007-10-26
4
O
Op
pe
er
ra
at
ti
in
ng
g
P
Pr
re
ec
ca
au
ut
ti
io
on
ns
s
Please follow the precautions below to enjoy and maintain the full
performance of the printer.
X Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows :
◆ Operating temperature : -10°C to 40 °C
◆ Relative humidity : 10% to 90% (no condensation)
● Do not install the printer near devices that generate strong
electromagnetic fields such as a copy machine.
● Do not remove or reinstall the communication cable during
printing or transmission.
http://www.woosim.com
2007-10-26
5
CONTENTS
1. Outline ............................................................................................................................................6
1.1. Model classifications .................................................................................................................6
1.2. Product Part Number System.....................................................................................................6
1.3. Specifications ............................................................................................................................7
2. Setting up the printer ....................................................................................................................8
2.1. Printer & Accessories ................................................................................................................8
2.2. Printer Features..........................................................................................................................9
2.3. Installation ...............................................................................................................................10
2.4. Replacing paper roll.................................................................................................................11
2.5. Set operation mode ..................................................................................................................12
2.6. Specified power supply ...........................................................................................................15
3. Interface........................................................................................................................................16
3.1. UART ......................................................................................................................................16
4. Using the printer..........................................................................................................................17
4.1. Control panel ...........................................................................................................................17
4.2. The self test..............................................................................................................................18
5. Consumable Parts........................................................................................................................19
5.1. Recommended paper ...............................................................................................................19

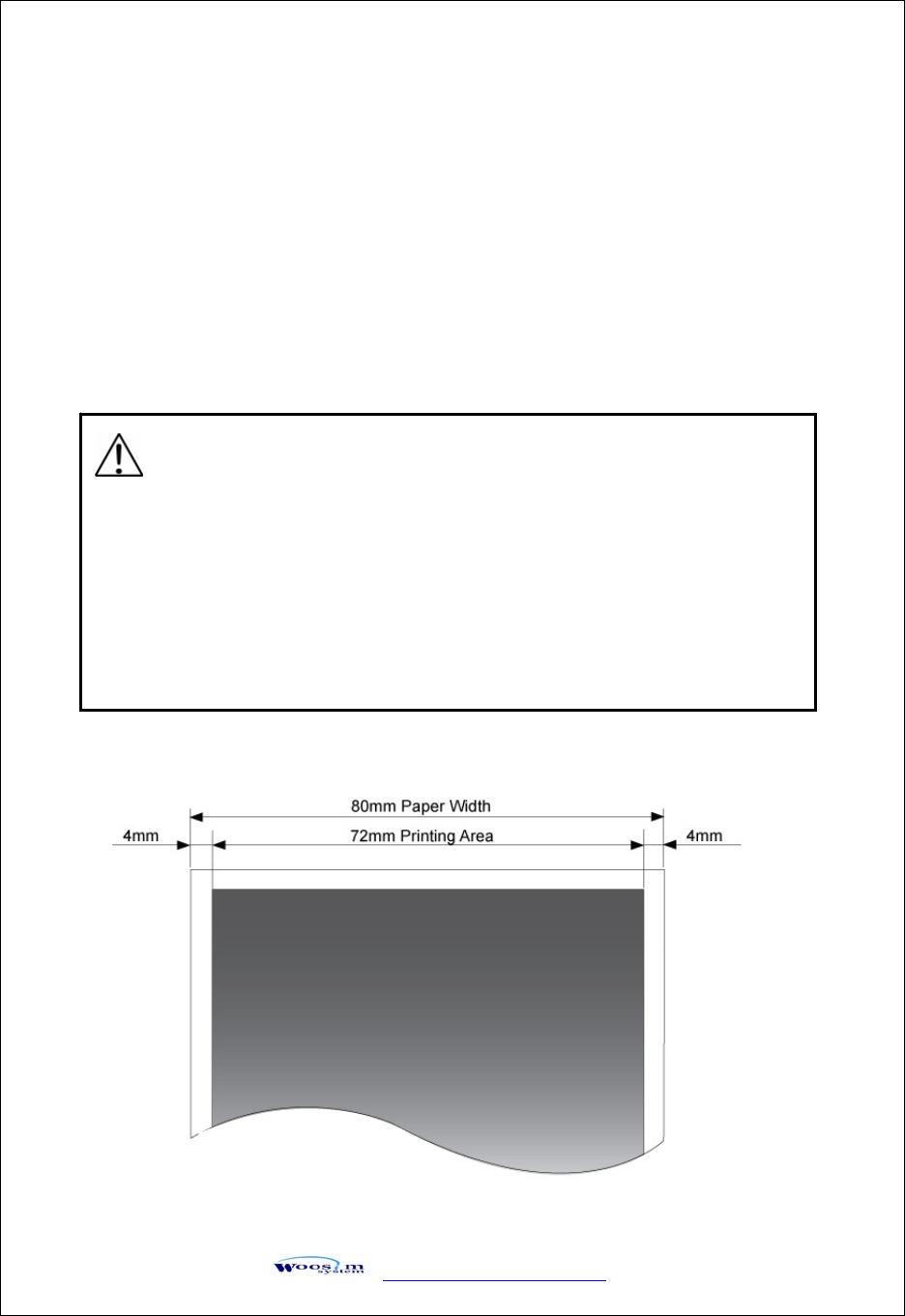

5.2 Printing position .......................................................................................................................19
http://www.woosim.com
2007-10-26
6
1
1.
.
O
Ou
ut
tl
li
in
ne
e
1.1. Model classifications
1.2. Product Part Number System
PORTI–P340 ( ) ( )
Model name
Interface
None : UART
Power
None : DC 9V
Model name / Interface Spec.
Example) 1. PORTI-S40 Serial/Bluetooth Part No. ⇒ S40/A1
2. PORTI-SC30 Bluetooth Only Part No. ⇒ SC30/Z1
S40
SC30
W25
.
.
.
Wired Wireless
A RS-232C 1 Bluetooth
B TTL 2 IrDA
C USB 3 HPIR
D RS-485 0 None
E Parallel
Z None
http://www.woosim.com
2007-10-26
7
1.3. Specifications
Item Specification
Print method Direct thermal line printing
Characters per line 64cpl (MAX)
Character size Eng. : 9×24dots, 12×24dots Kor. : 16×24dots, [24×24dots]
Resolution 203dpi, 8dots/mm
Print width 3-inch (72mm, 576dots)
Print speed 40mm/sec
Dimension 110 × 77.7 × 48 mm
Weight 300g (including paper roll)
Interface UART
Paper roll Thermal paper roll (80mm wide, 38ø)
Barcodes PDF417(2-dimension), Code128, Code39, I2/5, Code93
UPC, EAN(KAN, JAN), CODABAR
Receive buffer size 10K bytes
Note Printing speed may be slower, depending on the data
transmission speed and the combination of control commands.
Input Power 9VDC, Standby 60mA and Max 3A
Temperature
-10°C ~ 40°C (operating)
-10°C ~ 70°C (storage)
Environment
conditions Humidity
30% - 80% (operating)
10% - 90% (storage)
Mechanical 37,000,000 lines
MCBF (Mean Cycle
Between failure) Head Approximately 50 Km
http://www.woosim.com
2007-10-26
8
2
2.
.
S
Se
et
tt
ti
in
ng
g
u
up
p
t
th
he
e
p
pr
ri
in
nt
te
er
r

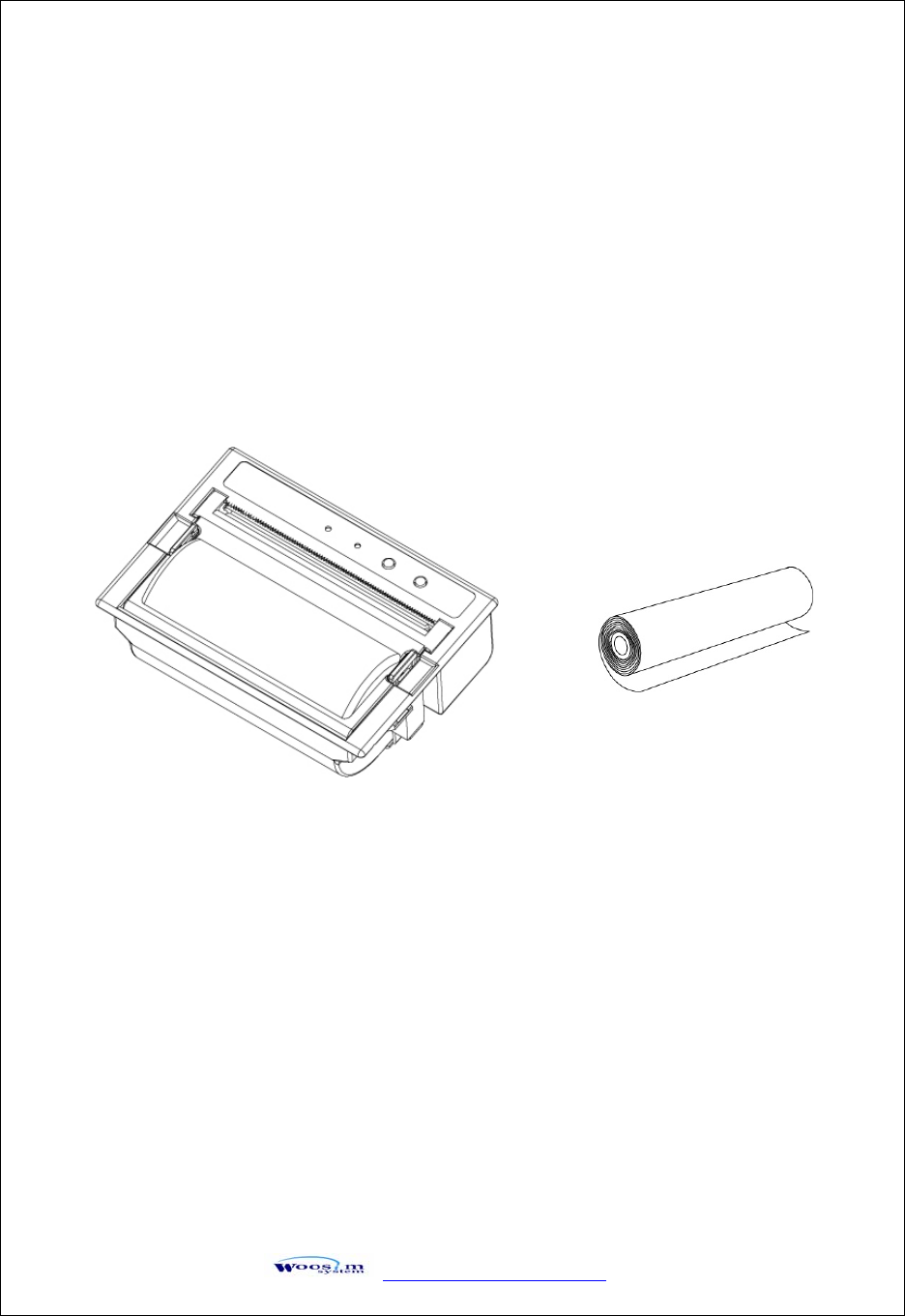

2.1. Printer & Accessories
When unpacking your printer box make sure it contains the printer and all accessories.
If any accessories are missing or damage, please contact your dealer for assistance.
Roll paper
PORTI-P340
http://www.woosim.com
2007-10-26
9

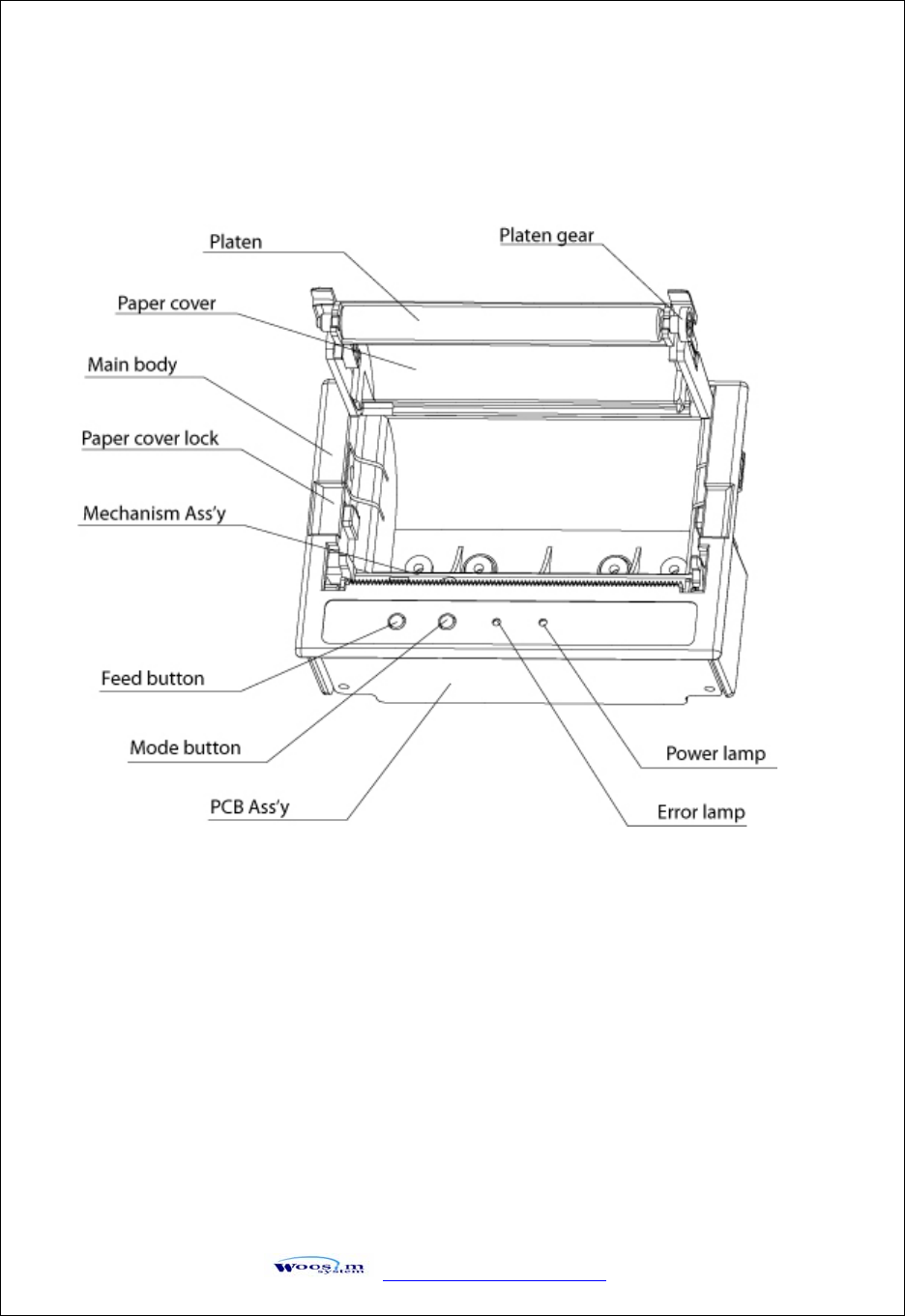

2.2. Printer Features
http://www.woosim.com
2007-10-26
10

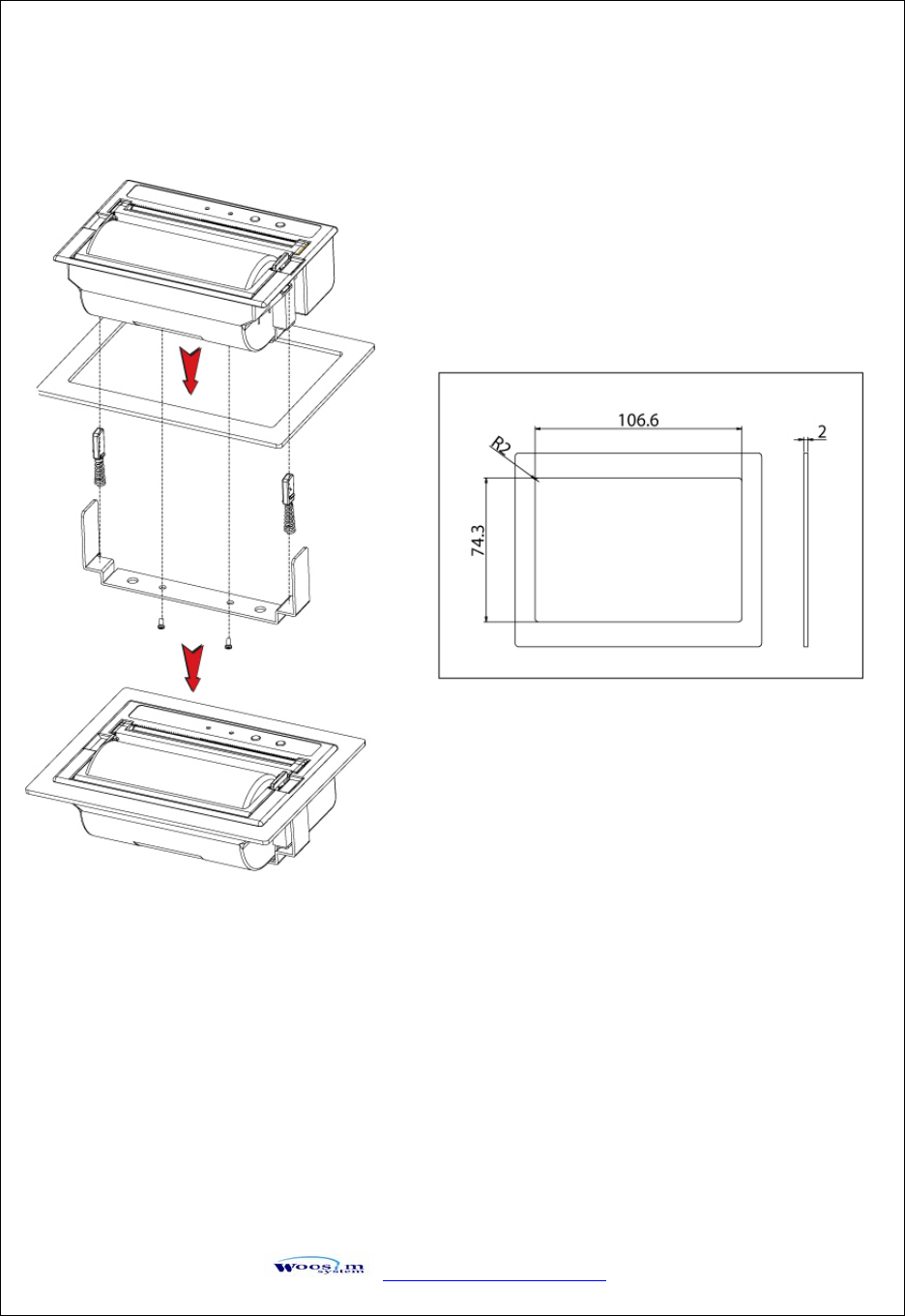

2.3. Installation
http://www.woosim.com
2007-10-26
11

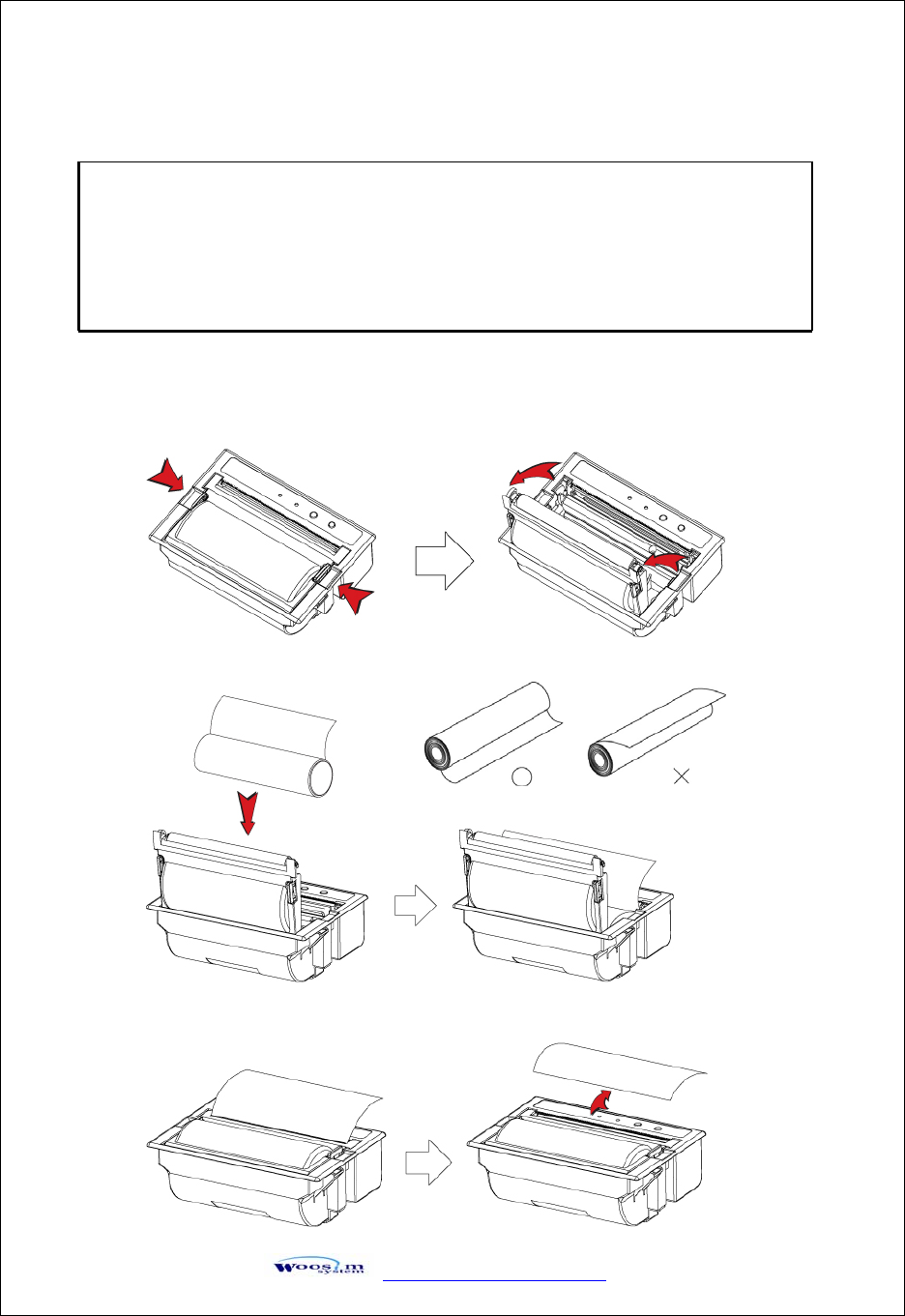

2.4. Replacing paper roll
Note : Be sure to use paper rolls that meet the specifications.
Do not use paper rolls that have the paper glued to the
core because the printer cannot detect the paper end
correctly.
1. Make sure that the printer is not receiving data; otherwise, data may be lost.
2. Open the paper roll cover using your finger on both side of printer and remove
the remaining paper.
3. Insert a new paper roll as shown.
4. Tear the excess paper off using the edge of paper door as a tear bar.
http://www.woosim.com
2007-10-26
12

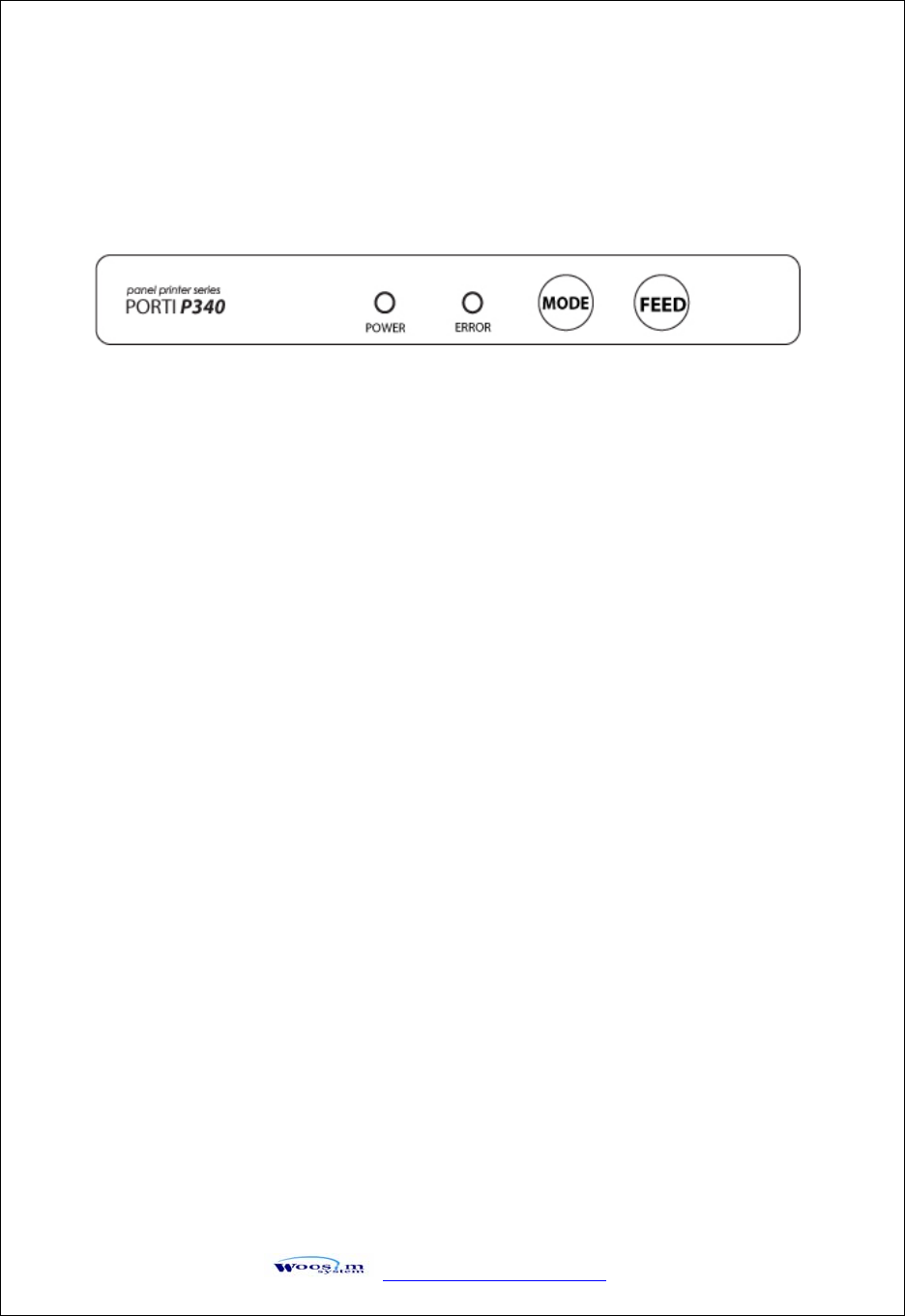

2.5. Set operation mode
1. Press the Mode Button until the Error Lamp twinkles 5 times
2. Change the mode and option using the Mode Button and the Feed Button according to the
MODE code(Table1)
z Feed button : use for changing MODE status
z Mode button : use for changing OPTION status
[Example]
The defaults of the printer are:RS-232C/9600 BPS/8 DATA BIT/NO PARITY/ DENSITY LOW
If a user wants to modify the defaults with
RS-232C / 38400 BPS/7 DATA BIT/ EVEN PARITY / DENSITY HIGH
Press the Mode Button until the Error Lamp twinkles 5 times and release the button.
→ You will see the Power Lamp twinkles one time and
the Error Lamp twinkles 1 time.
→ This mode is RS-232C mode.
Press the Feed button one time, the Power Lamp twinkles twice and the Error Lamp
winkles 4 times.
→ Press the Mode Button one time, the Error Lamp twinkles 5 times and press
the Mode Button one more time, the Error Lamp twinkles 6 times.
(The baud rate has set to 38,400 bps)
Press the Feed Button one time, the Power Lamp twinkles 3 times and
the Error Lamp twinkles 2 times.
→ Press the Mode Button one time, the Error Lamp twinkles one time.
(The Data Bit has set to 7 data bit.)
Press the Feed Button one time, the Power Lamp twinkles 4 times and
the Error Lamp twinkles 1 time.
http://www.woosim.com
2007-10-26
13
→ Press the Mode Button one time, the Error Lamp twinkles 2 times.
(The Parity bit has set to even parity bit.)
Press the Feed Button one time, the Power Lamp twinkles 5 times and
the Error Lamp twinkles 1 time.
→ Press the Mode Button one time, the Error Lamp twinkles 2 times after
then press the Mode Button again, the Error Lamp will twinkle 3 times
(The density has set to High)
If all mode have set, press the Mode Button and the Feed button at the same time after then
release the buttons at the same time.
The printer will print out the mode status which has modified.
(RS-232C/ 38,400 BPS/ 7 DATA BIT/ EVEN PARITY/ DENSITY HIGH)
If the status is not correct, please try it again according to the procedure.
http://www.woosim.com
2007-10-26
14
MODE POWER Lamp
(Green)
ERROR Lamp
(Red) Option
1 UART
Communication
Port 1 2 Protocol UART
1 9600 bps
2 19200 bps
3 38400 bps
4 57600 bps
Baud Rate 2
5 115200 bps
1 7 Data bit
Data Bit 3 2 8 Data bit
1 No Parity
2 Even Parity
Parity Bit 4
3 Odd Parity
1 1 Stop Bit
Stop Bit 5 2 2 Stop Bit
1 Density Low
2 Density Medium
Density 6
3 Density High
1 No use
Mark 7 2 Use
1 Low
2 Medium1
3 Medium2
Sensor 8
4 High
TABLE 1
http://www.woosim.com
2007-10-26
15
2.6. Specified power supply
The following specifications are requested for power supply.
Input : DC 9V / Max 3A
Avoid using power supply which its power capacity of power current is extremely high.
http://www.woosim.com
2007-10-26
16
3
3.
.
I
In
nt
te
er
rf
fa
ac
ce
e

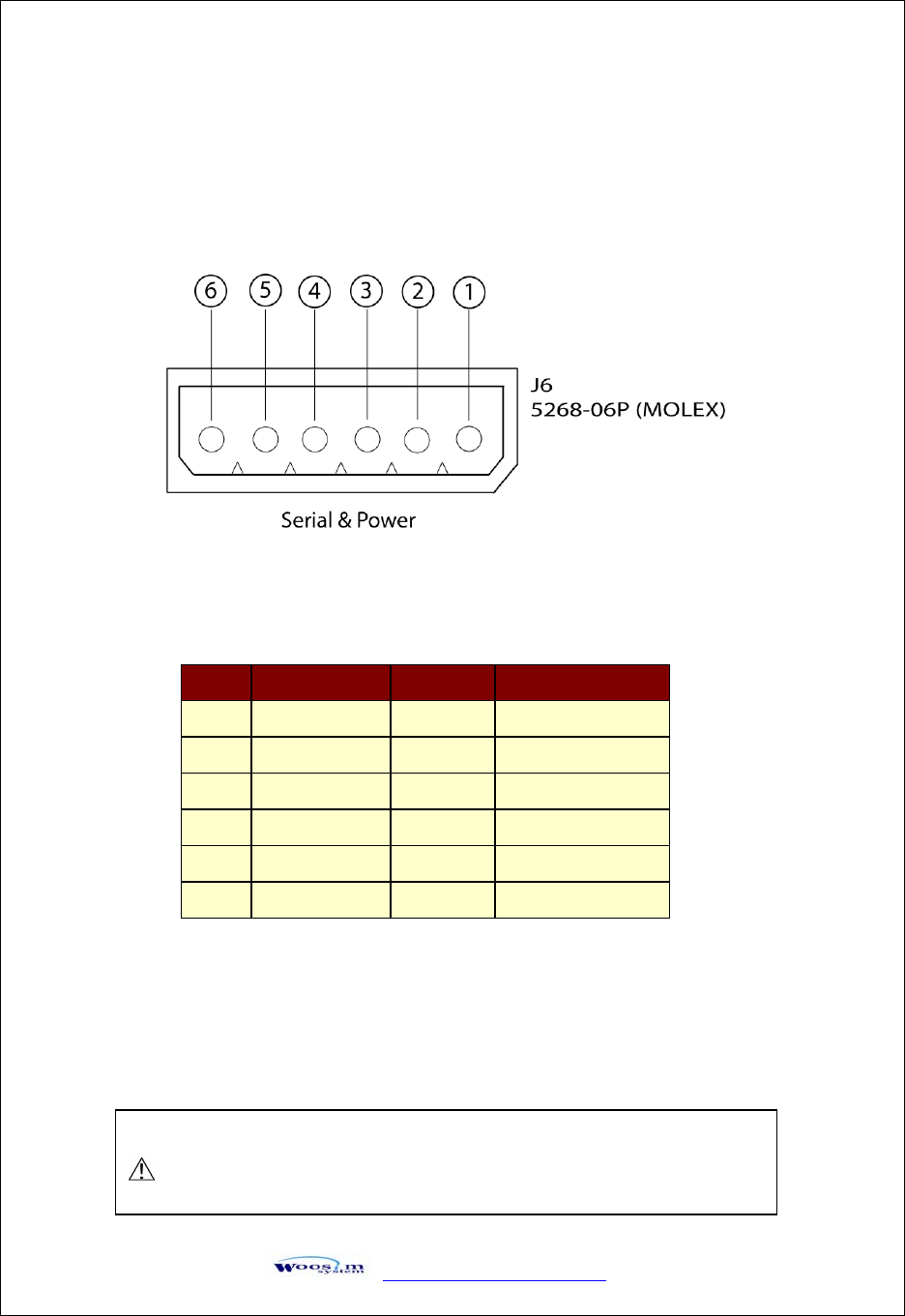

3.1. UART
The PORTI-P340 printer has UART interface and power connector is connected by 6 pin
female connector.
In the following table, the signals present on the connector are listed:
Pin no. Signal name Direction Function
1 INPUT 9VDC/3A
2 TxD Output Transmit Data
3 RxD Input Receive Data
4 N.C
5 N.C
6 GND Ground
<J6 : MOLEX (5268-06P)>
Applicable connector : MOLEX 5264-06P or equivalent.
WARNING
A wrong connection of power supply connector could be damage the printer.
http://www.woosim.com
2007-10-26
17
4
4.
.
U
Us
si
in
ng
g
t
th
he
e
p
pr
ri
in
nt
te
er
r
4.1. Control panel
X Button
- FEED : When the printer is on, paper can be feed manually by pressing and
holding the FEED button for more than one second.
- MODE : MODE Button is for use to change communication mode.
Do not operate the mode button without instructions.
X Panel lamp
- Power(Green) : Printer is ON and ready to receive data.
- Error (Red) : Indicates a fault condition or a printer error.
(i.e : no paper, paper cover opened. etc.)
http://www.woosim.com
2007-10-26
18
4.2. The self test
The Self-Test checks whether the printer has any problems. If the printer does not
function properly, contact your dealer. For Self-Test, turn on the power while holding
down the FEED Button. The Self-Test checks the following :
1) Make sure paper roll has been installed properly.
2) The Self-Test prints the current printer status, which provides the control
ROM version and the communication method setting.
3) After printing the current printer status, Self-Test will print a pattern using the
built-in character set.
4) The Self-Test automatically ends.
The printer is ready to receive data as soon as it complete the Self-Test.
http://www.woosim.com
2007-10-26
19
5
5.
.
C
Co
on
ns
su
um
ma
ab
bl
le
e
P
Pa
ar
rt
ts
s
5.1. Recommended paper
5.2 Printing position
Type : Thermal Paper
Paper width : 80mm
Paper thickness : 60±5㎛
Outer diameter : Ø38mm or less
Recording side : Outside of roll
Cautions
1. Do not paste the paper to the core. And the roll paper which has
near end mark printing on its near end is recommended.
2. Chemicals or oil may change the color of paper, or printed characters may fade.
3. Change of paper color starts from approx . 70℃.
Pay attention to heat, humidity and sun light.
4. Color of paper may be changed by being scratched by nail or hard metal, etc.
