![](asset-1.png)
SERVICE/OPERATION
MANUAL
Form No. 001-683 FEB2305
Form No. 001-683 FEB2305
![](asset-2.png)
Table of Contents
INTRODUCTION
Spray & Stripe Speci cations 1
Safety Warnings 2
GETTING STARTED
How to Flush 7
Flushing 8
Setting Up 9
Pressure Relief Procedure 10
Daily Maintenance 10
Starting Up 11
Striping Operation 12

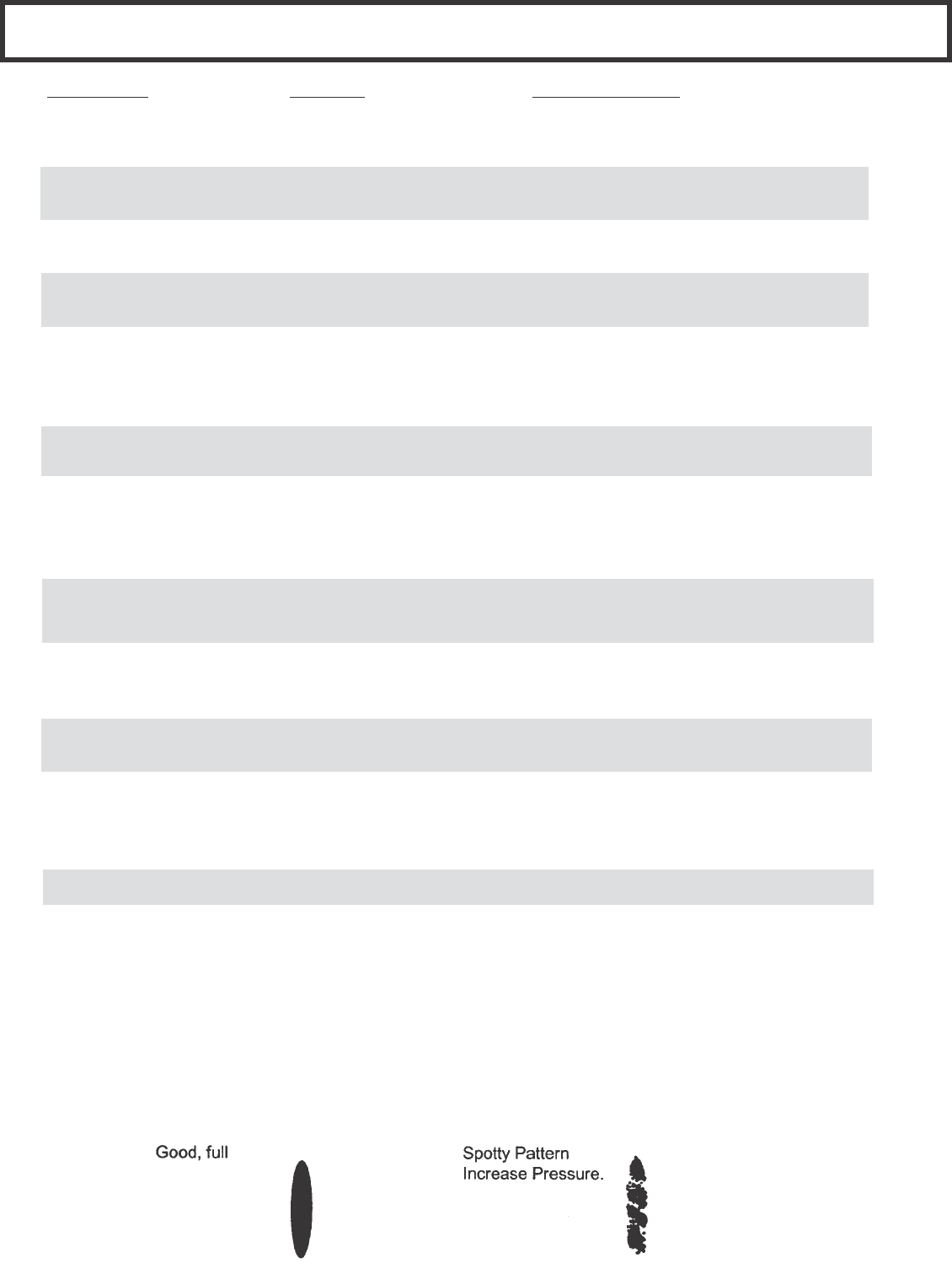

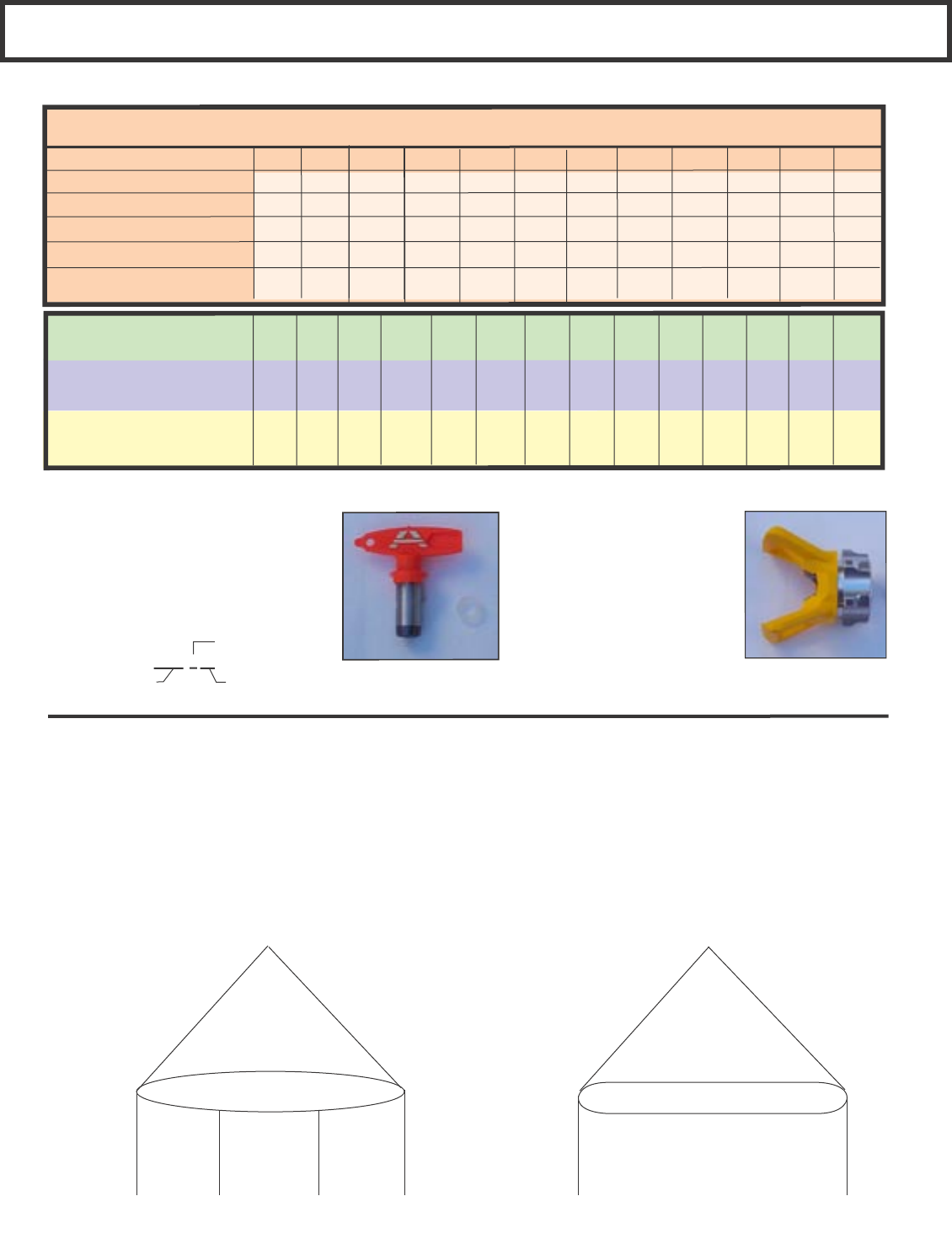

Striping Tip Guide 13
REPAIRS/MAINTENANCE
INSTRUCTIONS
Spray Gun Operation 14
Spray Gun Troubleshooting 15
Field Troubleshooting 16

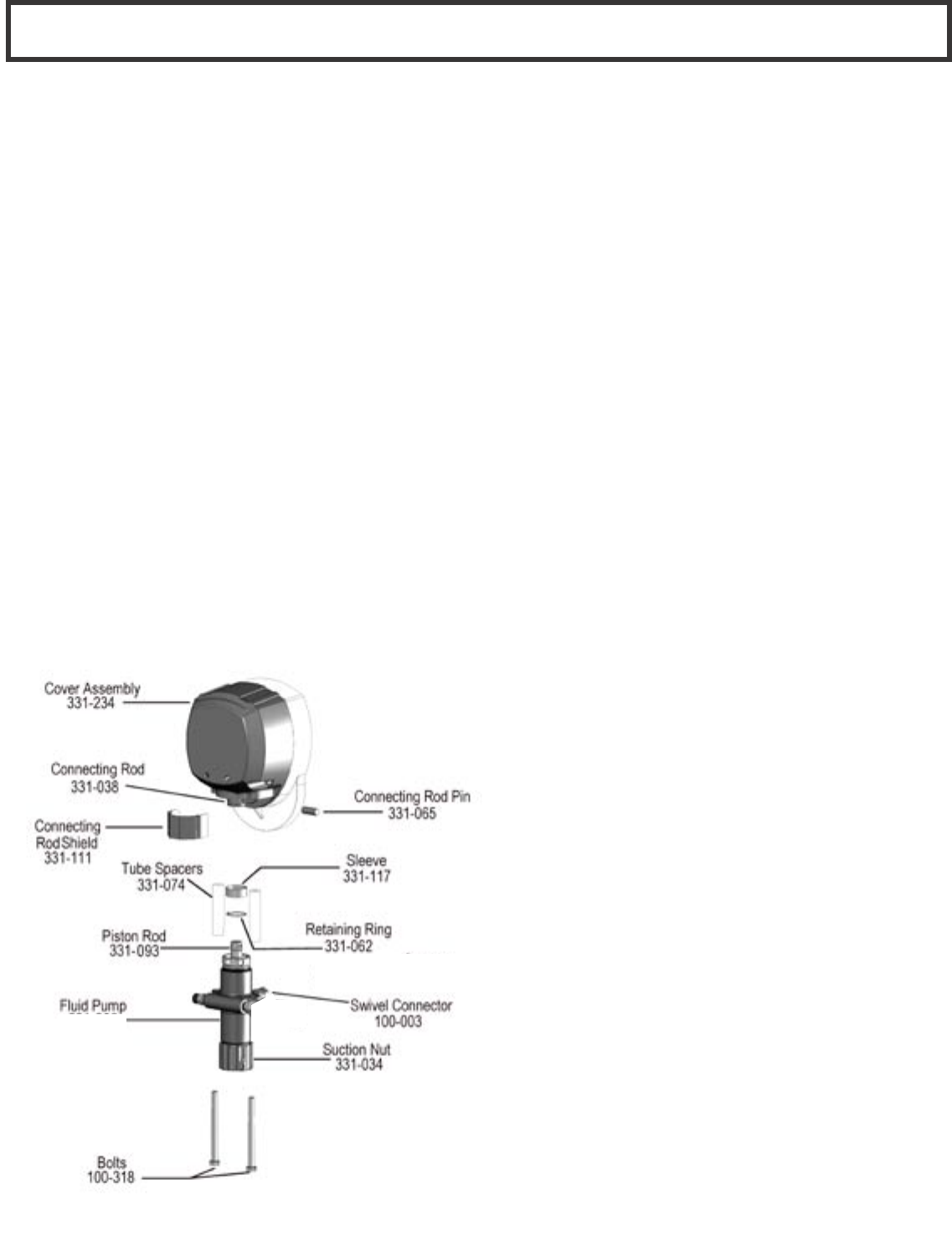

Servicing the Fluid Pump 17
Servicing the Piston Rod 18
Servicing the Suction Assembly 18
Packing Replacement 19
Inspection & Replacement of
Control Valve, Ball & Seat 21
PRODUCT DIAGRAMS & PARTS LISTS

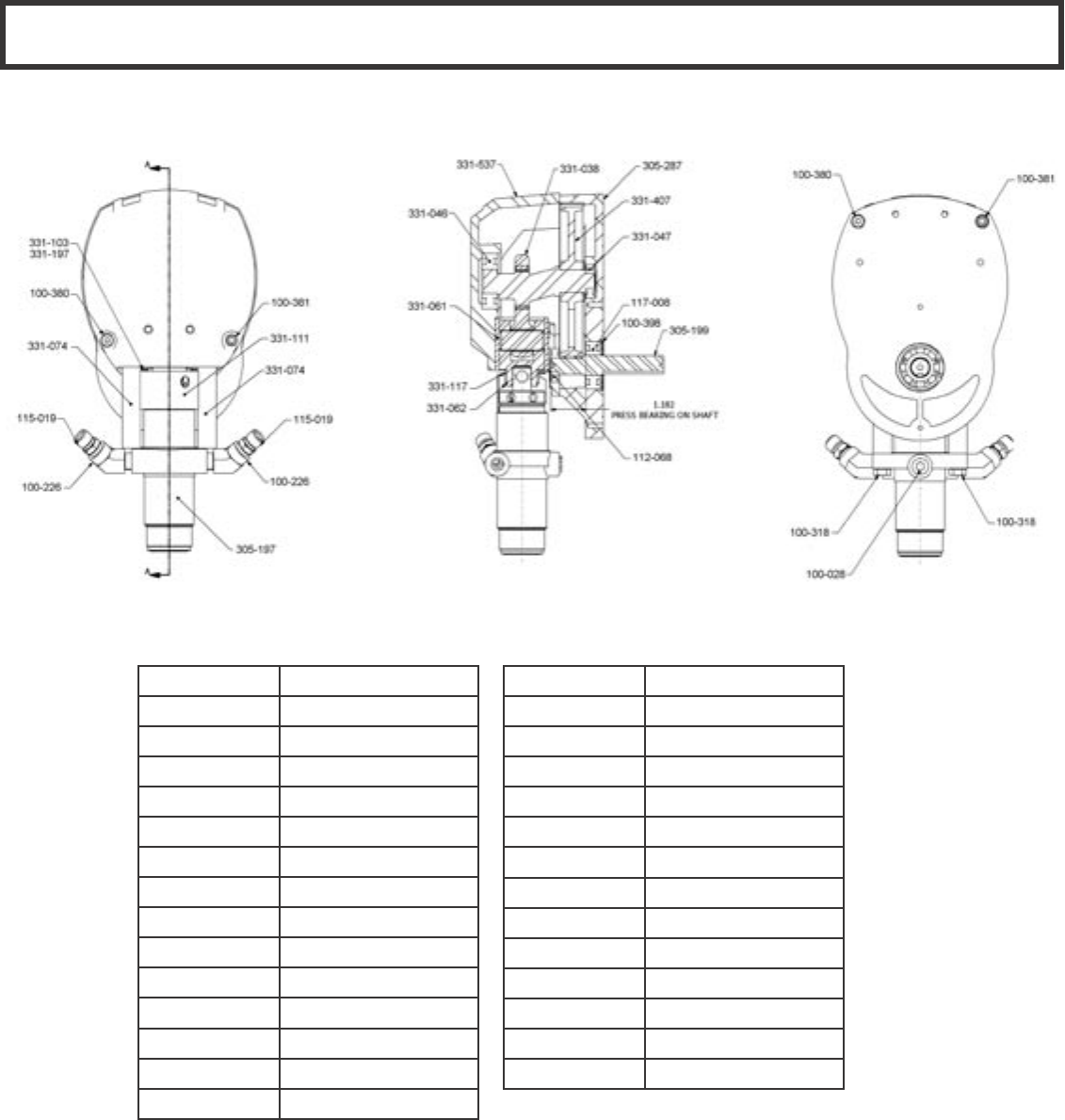

Gearbox Assembly 22
Gun Assembly 23

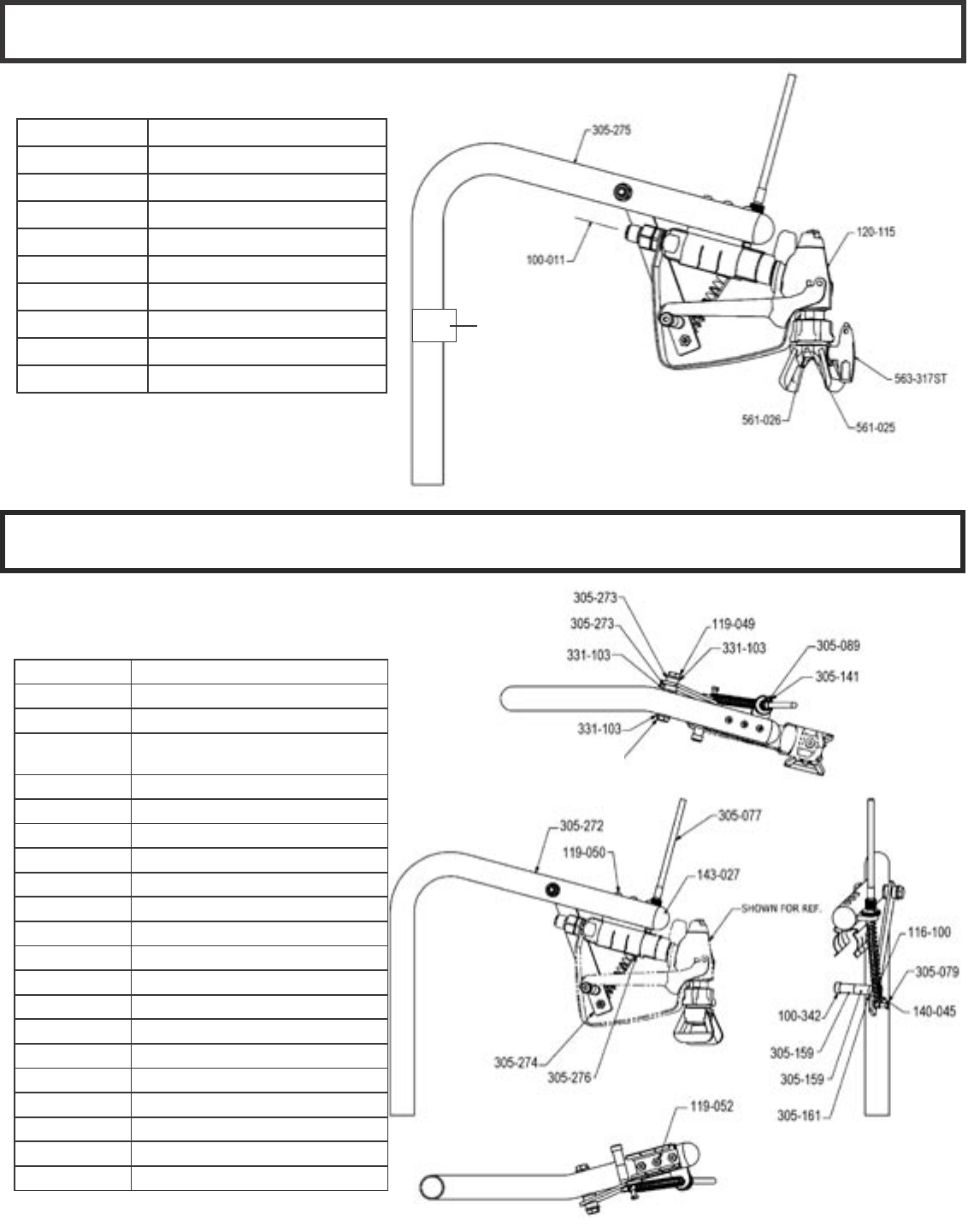

Gun Mount Assembly 23

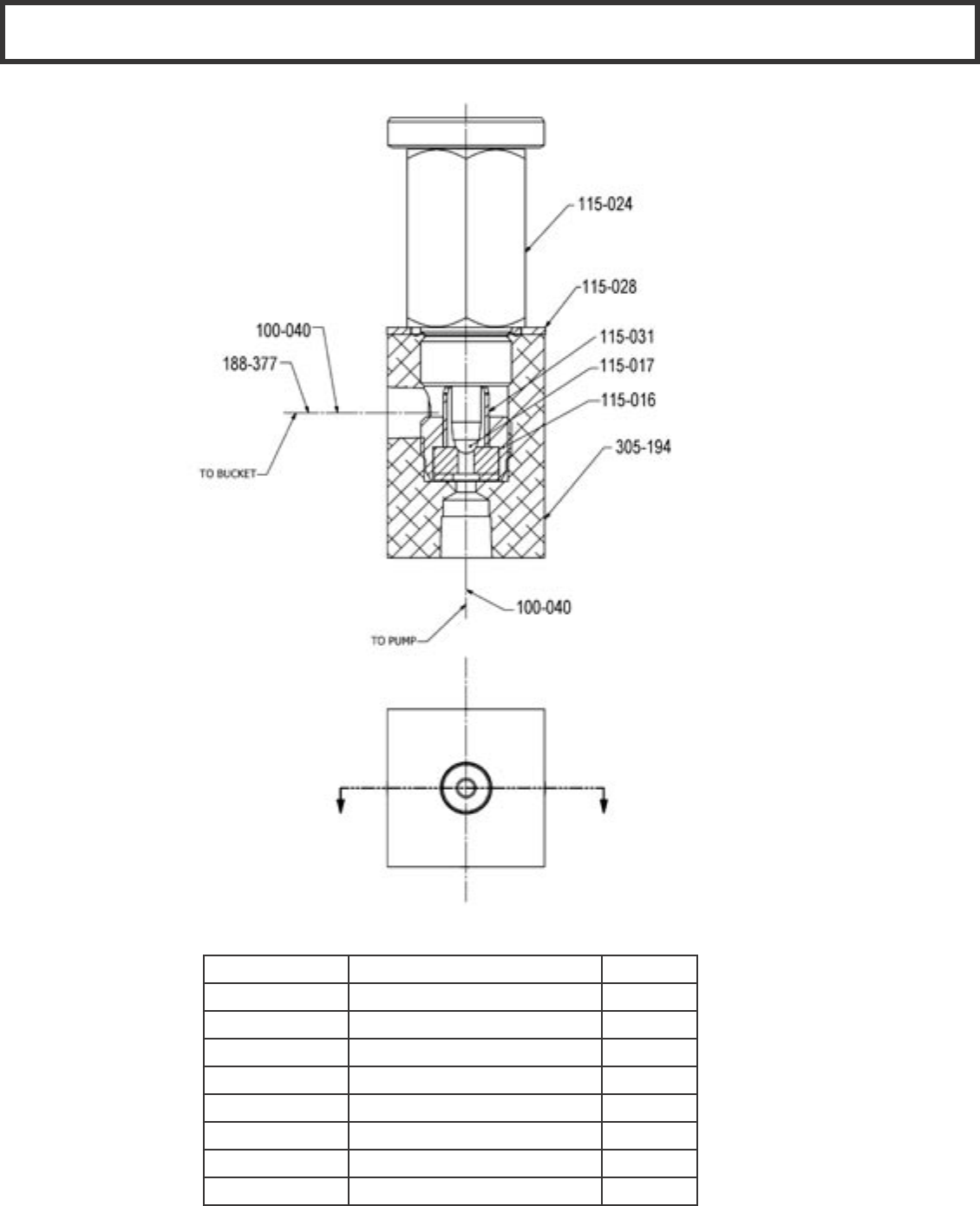

Bypass Valve Assembly 24

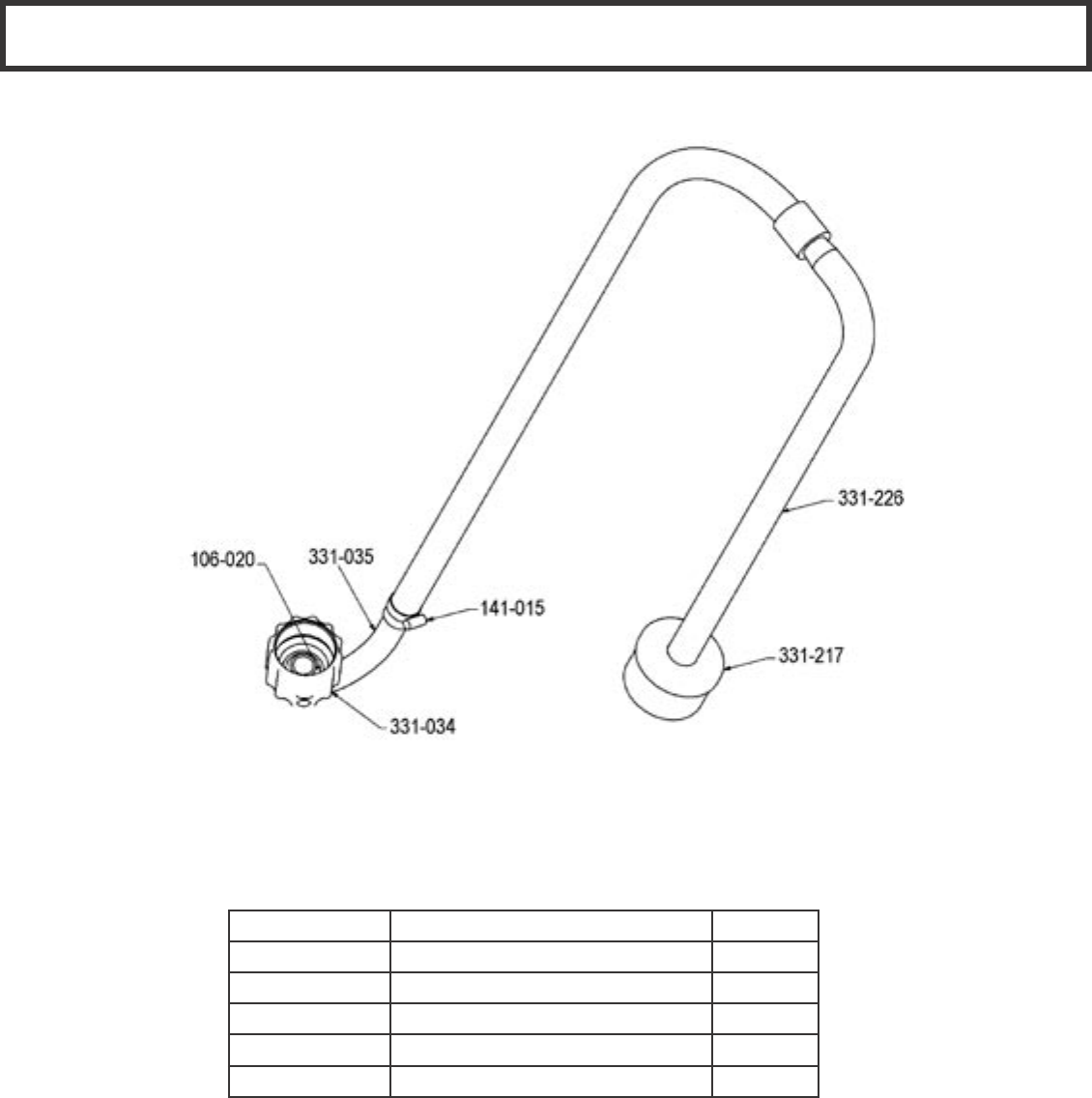

Suction Assembly 25
Frame Assembly 26
Manufactured by: AIRLESSCO BY DUROTECH CO.
P.O. Box 8006, Moorpark, CA. 93020-8006, Ship to: 5397 Commerce Ave.,
Moorpark, CA 93021 Tel: 805-523-0211 Fax: 805-523-1063
www.airlessco.com email: techsupport@airlessco.com
SUBJECT TO CHANGE WITHOUT NOTICE.
Copyright © 2005, All rights reserved.
P.O. Box 8006, Moorpark, CA. 93020-8006, Ship to: 5397 Commerce Ave.,
![](asset-3.png)
Before operating this unit, read and follow all safety warnings and
instructions related to the usage of this equipment. READ, LEARN,
and FOLLOW the Pressure Relief Procedure on Page 10 and
understand all warnings on pages 2 thru 6.
IMPORTANT WARNING !!
HANDLE THIS UNIT AS YOU WOULD A LOADED FIREARM!!
High pressure spray can cause extremely serious injury.
OBSERVE ALL WARNINGS!
All Service Procedures to be performed by an Authorized Airlessco Service Center ONLY.
NO MODIFICATIONS or alterations of any Airlessco Equipment or part is allowed.
Introduction
1
INTRODUCTION
Model 3500 Speci cations:
Part # 305-240 (Fixed front wheel model)
305-245 (Front swivel wheel model)
Max Pressure 0-2500 PSI (170 Bar)
Max Output 0.62 GPM (2.35 Litres/min.)
Max Tip 1 gun @ 0.027 inch. 1 x 12” (30cm) line
Motor Output Honda 3 hp
Model 3000 Specifications:
Part # 305-229
Max Pressure 0-2500 PSI (170 Bar)
Max Output .62 GPM (2.35 Litres/min.)
Max Tip 1 gun @ 0.027 inch 1 x 8" (30cm) line
Motor Output Briggs & Stratton 3.5 hp
The heart of the Spray & Stripe series
is the time tested and contractor proven
Airlessco “LP” piston paint pump. Designed
for spraying 1700 gallons per year, this
pump is used daily by thousands of painting
professionals worldwide--with a reputation for
trouble free performance that’s unmatched in
the industry.
They’re small, compact, easy to use, and
quick to clean. Even changing colors is
a breeze. Stripe with water-based paints
made for traf c lines or athletic elds. A
professional quality spray gun is mounted on
a multi-position spray arm. Their balance
and light weight make them ideal for a one-
man operation.
A quick release of the spray gun from
its mount lets you paint using stencils, or
utilize the 50' of supplied hose and the spray
gun to paint with exterior latex and enamel
paints.
Flexibility makes the Spray & Stripe
popular with cities, school districts, and
sports programs for parking lot or athletic
eld striping, and for use as a mobile airless
spraying station. It’s perfect for painting

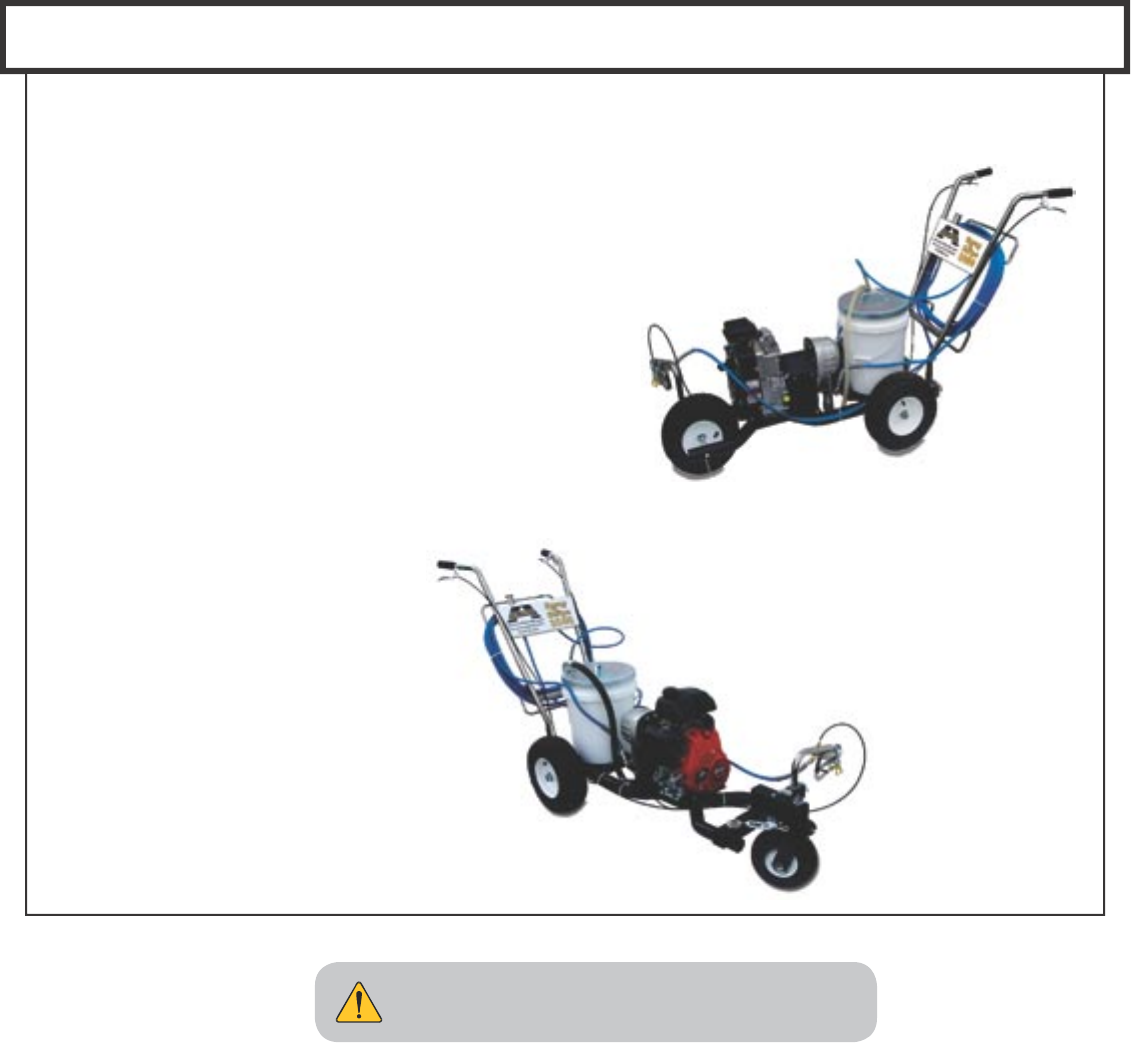

fences, buildings, and covering graf ti. Part #305-245
Spray & Stripe 3500 shown has
the optional Front Swivel Wheel
with RADIUS MEMORY™
![](asset-4.png)
TIP GUARD
ALWAYS have the tip guard in place on the spray gun while spraying. The tip guard alerts you to the injection hazard and helps
prevent accidentally placing your ngers or any part of your body close to the spray tip.
SPRAY TIP SAFETY
Use extreme caution when cleaning or changing spray tips. If the spray tip clogs while spraying, engage the gun safety latch
immediately.
• ALWAYS follow the PRESSURE RELIEF PROCEDURE and then remove the spray tip to clean it.
• NEVER wipe off build up around the spray tip.
• ALWAYS remove tip & tip guard to clean AFTER pump is turned off and the pressure is relieved by following the
PRESSURE RELIEF PROCEDURE.
KEEP CLEAR OF MOVING PARTS
Keep clear of moving parts when starting or operating the sprayer. Do not put your ngers into any openings to avoid
amputation by moving parts or burns from hot parts.
Precaution is the best insurance against an accident.
When starting the engine, maintain a safe distance from moving parts of the equipment.
Before adjusting or servicing any mechanical part of the sprayer, follow the PRESSURE RELIEF PROCEDURE, and remove
the ignition cable from the spark plug to prevent accidental starting of the sprayer.
ALWAYS INSPECT SPRAYING AREA
• ALWAYS keep spraying area free from obstructions.
• ALWAYS make sure area has good ventilation to safely remove vapors and mists.
• NEVER keep ammable material in spraying area.
• NEVER spray in vicinity of open ame or other sources of ignition.

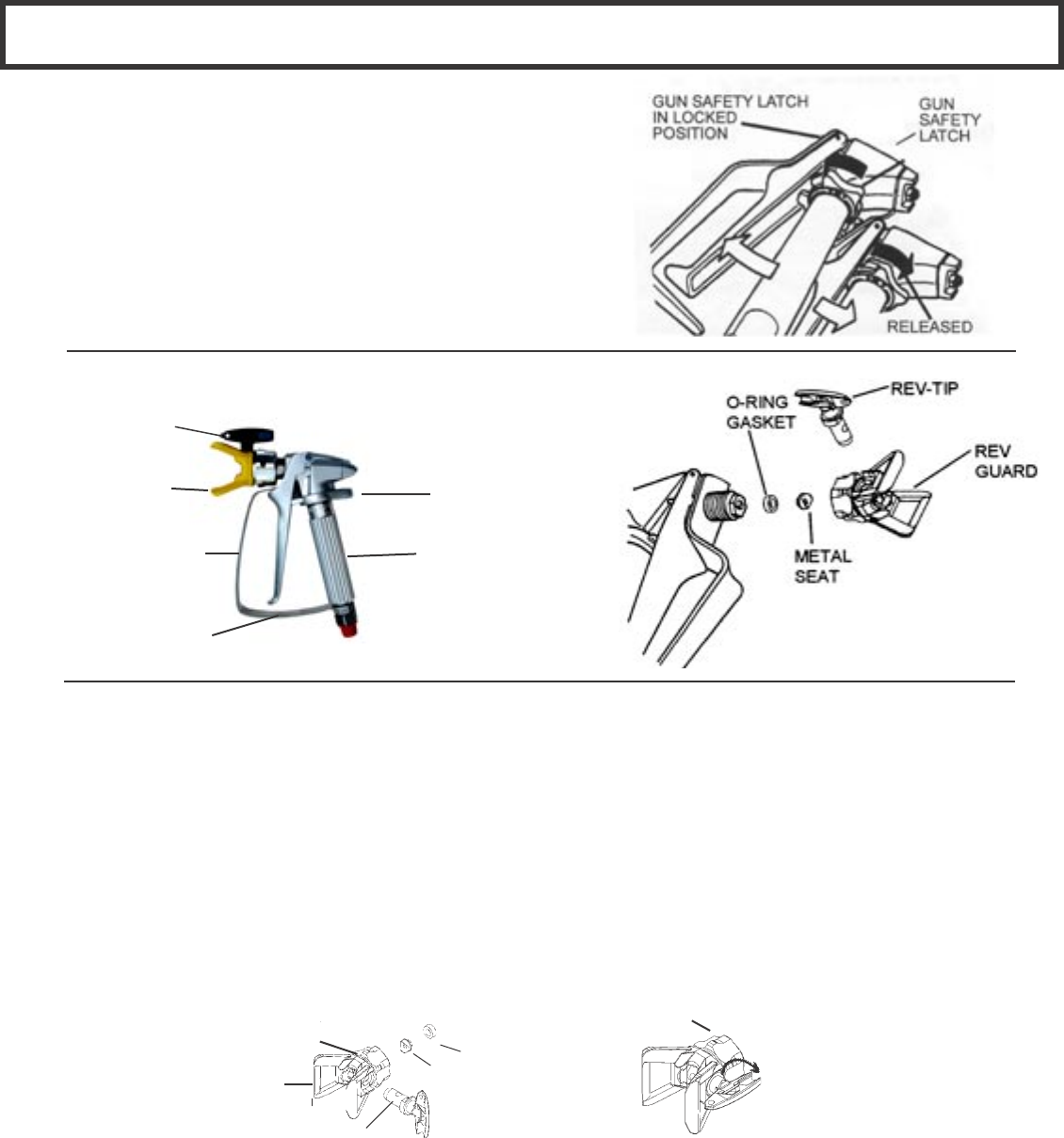

SPRAY GUN SAFETY
• ALWAYS set safety lock on the gun in "LOCKED" position when not in use and before servicing or cleaning.
• NEVER remove or modify any part of the gun.
• ALWAYS REMOVE SPRAY TIP when cleaning. Flush unit with LOWEST POSSIBLE PRESSURE.
• ALWAYS check operation of all gun safety devices before each use.
• Be very careful when removing the spray tip or hose from gun. A plugged line contains uid under pressure. If the tip or
line is plugged, follow the PRESSURE RELIEF PROCEDURE as outlined on page 10.
Safety Warnings
Keep all labels on the unit clean and readable. Replacement labels are available from the manufacturer.
LABELING
Hazardous uid or toxic fumes can cause serious injury or death if splashed in eyes or on skin, inhaled or swallowed. Know
the hazards of the uid you are using. Store & dispose of hazardous uids according to manufacturer, local, state & national
guidelines. ALWAYS wear protective eye wear, gloves, clothing and respirator as recommended by uid manufacturer.
TOXIC FLUID HAZARD
2
![](asset-5.png)
Safety Warnings
Fluids under high pressure from spray or leaks can penetrate the skin and cause extremely serious
injury, including the need for amputation.
• NEVER point the spray gun at anyone or any part of the body.
• NEVER put hands or ngers over the spray tip. Do not use a rag or any other material over your ngers. Paint will
penetrate through material and into the hand.
• NEVER try to stop or deect leaks with your hand or body.
• NEVER try to "blow back" paint, this is not an air spray sprayer.
• ALWAYS have gun tip guard in place when spraying.
• ALWAYS lock gun trigger when you stop spraying.
• ALWAYS remove tip from the gun to clean it.
• ALWAYS follow the PRESSURE RELIEF PROCEDURE, as shown on page 10, before cleaning or removing the
spray tip or servicing any system equipment.
• ALWAYS Be sure equipment safety devices are operating properly before each use.
• ALWAYS tighten all uid connections before each use.
MEDICAL TREATMENT
If any uid appears to penetrate your skin, get EMERGENCY CARE AT ONCE. DO NOT TREAT AS A SIMPLE CUT.
* Go to an emergency room immediately.
* Tell the doctor you suspect an injection injury.
* Tell him what kind of material you were spraying with and have him read NOTE TO PHYSICIAN.
HIGH PRESSURE SPRAY CAN CAUSE EXTREMELY SERIOUS INJURY.
OBSERVE ALL WARNINGS.
MEDICAL ALERT - Airless Spray Wounds NOTE TO PHYSICIAN:
If any uid appears to penetrate your skin, get Injection in the skin is a traumatic injury.
EMERGENCY MEDICAL CARE AT ONCE. DO It is important to treat the injury surgically
NOT TREAT AS A SIMPLE CUT. Tell the doctor as soon as possible. DO NOT DELAY treatment
exactly what uid was injected. Have him read to research toxicity. Toxicity is a concern with
the following "NOTE TO PHYSICIAN". some exotic coatings injected directly into the
bloodstream. Consultation with a plastic surgeon or
reconstructive hand surgeon may be advisable.
INJECTION HAZARD
GENERAL PRECAUTIONS
• NEVER alter equipment in any manner. • NEVER smoke while in spraying area.
• NEVER spray highly ammable materials. • NEVER use around children.
• NEVER allow another person to use sprayer unless they are thoroughly instructed on safety use and
given this operators manual to read.
• ALWAYS wear a spray mask, gloves and protective eye wear while spraying.
• ALWAYS ensure re extinquishing equipment is readily available and properly maintained.
NEVER LEAVE SPRAYER UNATTENDED WITH PRESSURE IN THE SYSTEM.
FOLLOW PRESSURE RELIEF PROCEDURES ON PAGE 10.
3
![](asset-6.png)
AVOID COMPONENT RUPTURE
This sprayer operates at 2500 psi (170 bar). Always be sure that all components and accessories have a
maximum working pressure of at least 3000 psi to avoid rupture which can result in serious bodily injury
including injection and property damage.
• NEVER leave a pressurized sprayer unattended to avoid accidental operation of it which could result in serious
bodily injury.
• ALWAYS follow the PRESSURE RELIEF PROCEDURE whenever you stop spraying and before adjusting,
removing or repairing any part of the sprayer.
• NEVER alter or modify any part of the equipment to avoid possible component rupture which could result in
serious bodily injury and property damage.
• NEVER use weak, damaged or non-conductive paint hoses. Do not allow kinking or crushing of hoses or allow
it to vibrate against rough, sharp or hot surfaces. Before each use, check hoses for damage and wear and ensure
all uid connections are secure.
• REPLACE any damaged hose. NEVER use tape or any device to mend the hose.
• NEVER attempt to stop any leakage in the line or ttings with your hand or any part of the body. Turn off the
unit and release pressure by following PRESSURE RELIEF PROCEDURE on page 10.
• ALWAYS use approved high pressure ttings and replacement parts.
• ALWAYS ensure re extinquishing equipment is readily available and properly maintained.
Safety Warnings
GROUNDING
Ground the sprayer and other components in the system to reduce the risk of static sparking, re or
explosion which can result in serious bodily injury and property damage.
Always ground all of these components:
• Fluid Hose: use only grounded hoses.
• Spray gun or dispensing valve: grounding is obtained through connection to a properly
grounded uid hose and pump.
• Object being sprayed: according to your local code.
• All solvent pails used when ushing should only be metal pails which are conductive.
Once each week, check electrical resistance of hose (when using multiple hose assemblies, check
overall resistance of un-pressurized hose must not exceed 29 megohms (max) for any coupled length
or combination of hose lengths. If hose exceeds these limits, replace it immediately.
Never exceed 300 Ft. (150 m.) overall combined hose length to assure electrical continuity.
Do not use halogenated solvents in this system. The prime valve, 2 gun manifold and most
airless guns have aluminum parts and may explode. Cleaning agents, coatings, paints or
adhesives may contain halogenated hydrocarbon solvents. DON'T TAKE CHANCES!
Consult your material suppliers to be sure. Some of the most common of these solvents are:
Carbontetrachloride, Chlorobenzene, Dichloroethane, Dichloroethyl Ether, Ethylbromide,
Ethylchloride, Tethrachloethane. Alternate valves and guns are available
if you need to use these solvents.
4
![](asset-7.png)
WHEN ADDING FUEL
• Turn engine OFF and let engine cool at least 2
minutes before removing gas cap.
• Fill fuel tank outdoors or in well ventilated area.
• Do not overll fuel tank. Fill tank to
approximately1 inches below top of neck to
allow for fuel expansion.
• Keep gasoline away from sparks, open ames,
pilot lights, heat and other ignition sources.
• Check fuel lines, tank, cap and ttings frequently
for cracks or leaks. Replace if necessary.
PREVENT STATIC SPARKING FIRE/ EXPLOSIONS
ALWAYS be sure all equipment and objects being sprayed are properly grounded. Always ground sprayer, paint
bucket and object being sprayed. See "grounding" on page 4 for detailed grounding information.
Vapors created when spraying can be ignited by sparks. To reduce the risk of re, do not plug in or unplug any
electrical cords in an enclosed spray area,. This can create sparks when there is any chance of igniting vapors still
in the air. Follow the coating & solvent manufacturers safety warnings and precautions.
Use only conductive uid hoses for airless applications. Be sure gun is grounded through hose connections. Check
ground continuity in hose & equipment. Overall (end to end) resistance of un-pressurized hose must not exceed 29
megohms for any coupled length or combination of hose length. Use only high pressure airless hoses with static
wire approved for 3000 psi.
WHEN SPRAYING & CLEANING WITH FLAMMABLE PAINTS OR PAINT THINNERS:
1. When spraying with ammable liquids, unit must be located a minimum of 25 feet away from spraying area
in a well ventilated area. Ventilation must be sufcient enough to prevent the accumulation of vapors.
2. To eliminate electrostatic discharge, ground the spray unit, paint bucket and spraying object. Use only high
pressure airless hoses approved for 3000 psi which is conductive.
3. Remove spray tip before cleaning gun and hose. Make contact of gun with bucket and spray without the tip in
a well ventilated area, into the grounded steel bucket.
4. Never use high pressure in the cleaning process. USE MINIMUM PRESSURE.
5. Do not smoke in spraying/cleaning area.
GAS ENGINE PRECAUTIONS
Important: United States Government safety standards have been adopted under the Occupational
Safety & Health Act. These standards, particularly the General Standards, Part 1910, & the
Construction Standards, part 1926 should be consulted.
FLUSHING
Reduce risk of injection injury, static sparking or splashing by following the specic cleaning procedure on page 7.
• ALWAYS follow the PRESSURE RELIEF PROCEDURE on page 10.
• ALWAYS remove the spray tip before ushing. Hold a metal part of the gun rmly to the side of a metal pail and
use the lowest possible uid pressure during ushing.
• NEVER use cleaning solvents with ash points below 140º F. Some of these are: acetone, benzene, ether,
gasoline and naphtha. Consult your supplier to be sure.
• NEVER smoke in the spraying/cleaning area.
Safety Warnings
WHEN STARTING ENGINE
• Make sure spark plug, mufer, fuel cap and air cleaner
are in place.
• Do not crank engine with spark plug removed.
• If fuel spills, wait until it evaporates before starting
engine.
• If engine oods, set choke to OPEN/RUN
position, place throttle in FAST and crank until
engine starts.
WHEN OPERATING EQUIPMENT
• Do not tip engine or equipment at angle which
causes gasoline to spill.
5
Gasoline & its vapors are extremely
ammable & explosive.
Fire or explosion can cause severe burns or death.
![](asset-8.png)
WHEN TRANSPORTING EQUIPMENT
• Transport with fuel tank EMPTY or with fuel shut-off
valve OFF.
WHEN STORING GASOLINE OR EQUIPMENT WITH
FUEL IN TANK
• Store away from furnaces, stoves, water heaters and
other appliances that have pilot lights or other ignition
source. They can ignite gasoline vapors.
Starting engine creates sparking.
Sparking can ignite nearby ammable gases.
Explosion and re could result.
• If there is natural or LP gas leakage in area, do not
start engine.
• Do not use pressurized starting uids because vapors
are ammable.
Rapid retraction of starter cord (kickback) will pull
hand and arm toward engine faster than you can let go.
Broken bones, fractures, bruises or sprains could result.
• When starting engine, pull cord slowly until resistance is
felt, then pull rapidly.
• Remove all external equipment/engine loads before starting
engine.
• Direct coupled equipment components such as, but not
limited to, blades, impellors, pulleys, sprockets, etc. must
be securely attached.
Rotating parts can contact or entangle hands, feet,
hair, clothing or accessories.
Traumatic amputation or severe laceration can result.
• Operate equipment with guards in place.
• Keep hands and feet away from rotating parts.
• Tie up long hair and remove jewelry.
• Do not wear loose tting clothing, dangling drawstrings or
items that could become caught.
Engines give off carbon monoxide, an odorless,
colorless, poison gas.
Breathing carbon monoxide can cause nausea,
fainting or death.
• Start and run engine outdoors.
• Do not start or run engine in enclosed area, even if doors or
windows are open.
Safety Warnings
Running engines produce heat. Engine parts,
especially mufers, become extremely hot.
Severe thermal burns can occur on contact.
Combustible debris, such as leaves, grass, brush,
etc. can catch re.
• Allow mufer, engine cylinder and ns to cool before
touching.
• Remove accumulated combustibles from mufer area and
cylinder area.
• Install and maintain in working order a spark arrester
before using equipment on forest covered, grass covered
and brush covered unimproved land. The state of
California requires this (Section 4442 of the California
Public Resources Code). Other states may have similar
laws. Federal laws apply on federal land.
Unintentional sparking can result in re
or electric shock.
Unintentional start up can result in entanglement,
traumatic amputation, or lacerations.
BEFORE PERFORMING ADJUSTMENTS OR
REPAIRS
• Disconnect spark plug wire and keep it away from
spark plug.
• Disconnect battery at negative terminal (only
engines with electric start).
WHEN TESTING FOR SPARK
• Use approved spark plug tester.
• Do not check for spark with spark plug removal.
6
![](asset-9.png)

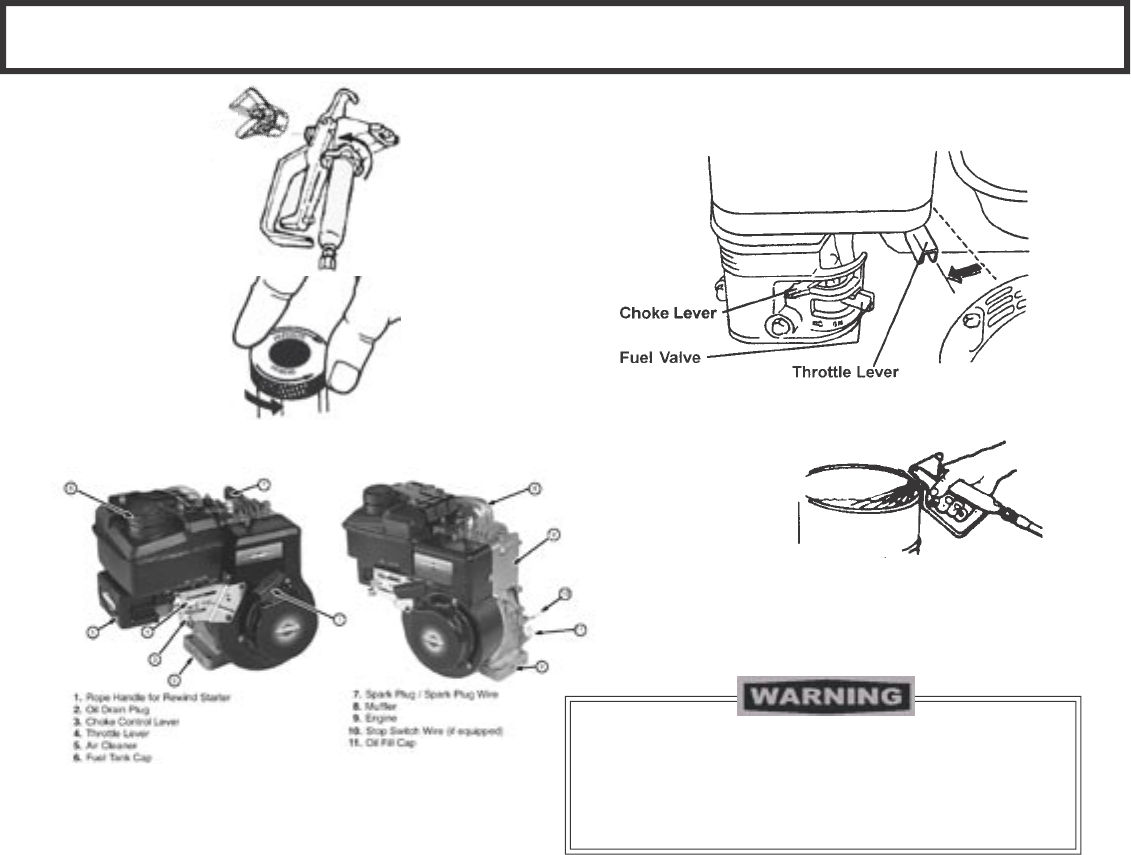

How to Flush
FIGURE 1
LOCK TRIGGER TO
REMOVE SPRAY TIP
1. Be sure the gun safety latch is engaged and there is
no spray tip in the gun. Refer to Fig. 1. Refer to your
separate instruction manual provided with your gun
on its safety features and how to engage safety latch.
2. Pour enough clean, compatible solvent (or water when
using water-base paint) into a large, empty metal pail to
ll the pump and hoses.
3. Place the suction tube into the pail
4. Turn the control valve to the prime position or fully
counterclockwise. Refer to Fig. 2.
5. Turn the engine ON/OFF switch to ON.
6. Move the choke to the closed position.
7. Move the throttle lever slightly to the FAST position.
8. Turn the fuel valve ON (Honda only). Pull the start rope.
Pull the engine over against compression stroke and then
let the rope rewind slowly into the starter. Pull rmly and
rapidly to start the engine. Do NOT drop the rope. Hold
onto the handle while rewinding, or the rope may rewind
improperly and jam the assembly. If the engine does not
start, open the choke half way. If the engine oods, open
the choke all the way and continue cranking.
9. After the engine is warm, gradually open the choke
lever, increase the RPM of engine by squeezing the
throttle control trigger on the handlebars.
10. Point the gun into the metal pail and hold a metal part of
the gun rmly against the pail Refer to g. 4.
11. Disengage the gun safety latch and squeeze the gun
trigger. Turn the control valve clockwise just enough
to move liquid at low pressure.
12. Allow the pump to operate until clean solvent comes
from the gun.
13. Release the trigger and engage the gun safety latch.
14. If you are going to start spraying, place the pump or
suction tube into the supply container. Release the
gun safety latch and trigger the gun into another
empty, metal container, holding a metal part of the
gun rmly against the metal pail (Fig. 4) and force
the solvent from the pump and hose. When paint
starts coming from the gun, turn control valve to
prime or fully counter clockwise position and engage
the gun safety latch.
15 . If you are going to store the sprayer, remove the
suction tube or pump from the solvent pail force the
solvent from the pump and hose. Engage the gun
safety latch and refer to the “Storage” Procedure on
page 8.
16 . Whenever you shut off the sprayer follow the
Pressure Relief Procedure warning on page 10.
To reduce the risk of static sparking, which can
cause re or explosion, always hold a metal
part of the gun rmly against the metal pail
when ushing. This also reduces splashing.
Refer to Fig.4.
Maintain rm metal
to metal contact
between gun and container.
CONTROL VALVE
FIGURE 3 - Briggs Engine FIGURE 4
FIGURE 2
7
FIGURE 3 - Honda Engine
![](asset-a.png)
1. New Sprayer
Your Airlessco unit was factory tested in an antifreeze solution which was left in the pump.
Before using oil-base paint, ush with mineral spirits only. Before using water-base paint
ush with soapy water, then do a clean water ush.
2. Changing Colors
Flush with a compatible solvent such as mineral spirits or water.
3. Changing from Water-Base to Oil-Base Paint
Flush with soapy water, then mineral spirits.
4. Changing from Oil-Base to Water-Base Paint
Flush with mineral spirits, followed by soapy water, then do a clean water ush.
5. Storage
Oil-base paint: Flush with mineral spirits.
Water-base paint: Flush with water, then mineral spirits and leave the pump, hose and gun
lled with mineral spirits. For longer storage, use mixture of mineral spirits and motor oil
(half & half). Shut off the sprayer, follow Pressure Relief Procedure on page 10
Flushing
Read prior to using your sprayer
8
![](asset-b.png)
Setting Up to Stripe or Spray
1. Connect the hose and gun.
a. If the hose is not already installed on the striper,
remove the plastic cap plug from the outlet tee
at the spray pump, and screw a conductive or grounded
3000 psi airless spray hose onto uid outlet.
b. Connect an airless spray gun to the other end of
the hose.
c. Do not use steel braided airless hose. Use nylon
braided airless hose only.
NOTE: Do not use thread sealer on swivel
unions as they are made to self-seal.
Use thread seal on tapered male threads only.
3. Grounding
A small steel chain grounding strap is installed at
the factory to prevent static build-up.
4. Flush the sprayer
As per "Flushing Procedure" in this manual.
2. Remove the snap-on cover plate
over the piston.
WARNING
To reduce the risk of static sparking, re or
explosion which can result in serious bodily
injury and property damage, always ground
the sprayer and system components and the
object being sprayed, as instructed in the
safety warning section of this manual.
9
3. Fill the packing nut/wet cup with 5 drops
of Airlessco Throat Seal Oil (TSO) and
then reinstall snap-on piston cover plate
Failure to lubricate the piston properly
with throat seal oil can cause premature
wear and damage to piston and packings.
![](asset-c.png)
Pressure Relief Procedure
1. Keep the displacement pump packing nut/wet cup lubricated with Airlessco TSO (Throat Seal Oil) at all
times. The TSO helps protect the rod and the packings.
2. Inspect the packing nut daily. Your pump has a patented Triple Life Packing System. Packing life will be
extended a minimum of three times if the following "Packing Adjustment" procedure is followed:
If seepage of paint into the packing nut and/or movement of the piston upward is found
(while not spraying), the packing nut should be tightened enough to stop leakage only, but
not any tighter. Overtightening will damage the packings and reduce the packing life.
3. Tighten suction nut daily.
Daily Maintenance
10
To avoid possible serious bodily injury, including injection, always follow this procedure
whenever the sprayer is shut off, when checking or servicing it, when installing or changing
the tips, whenever you stop spraying or when you are instructed to relieve the pressure.

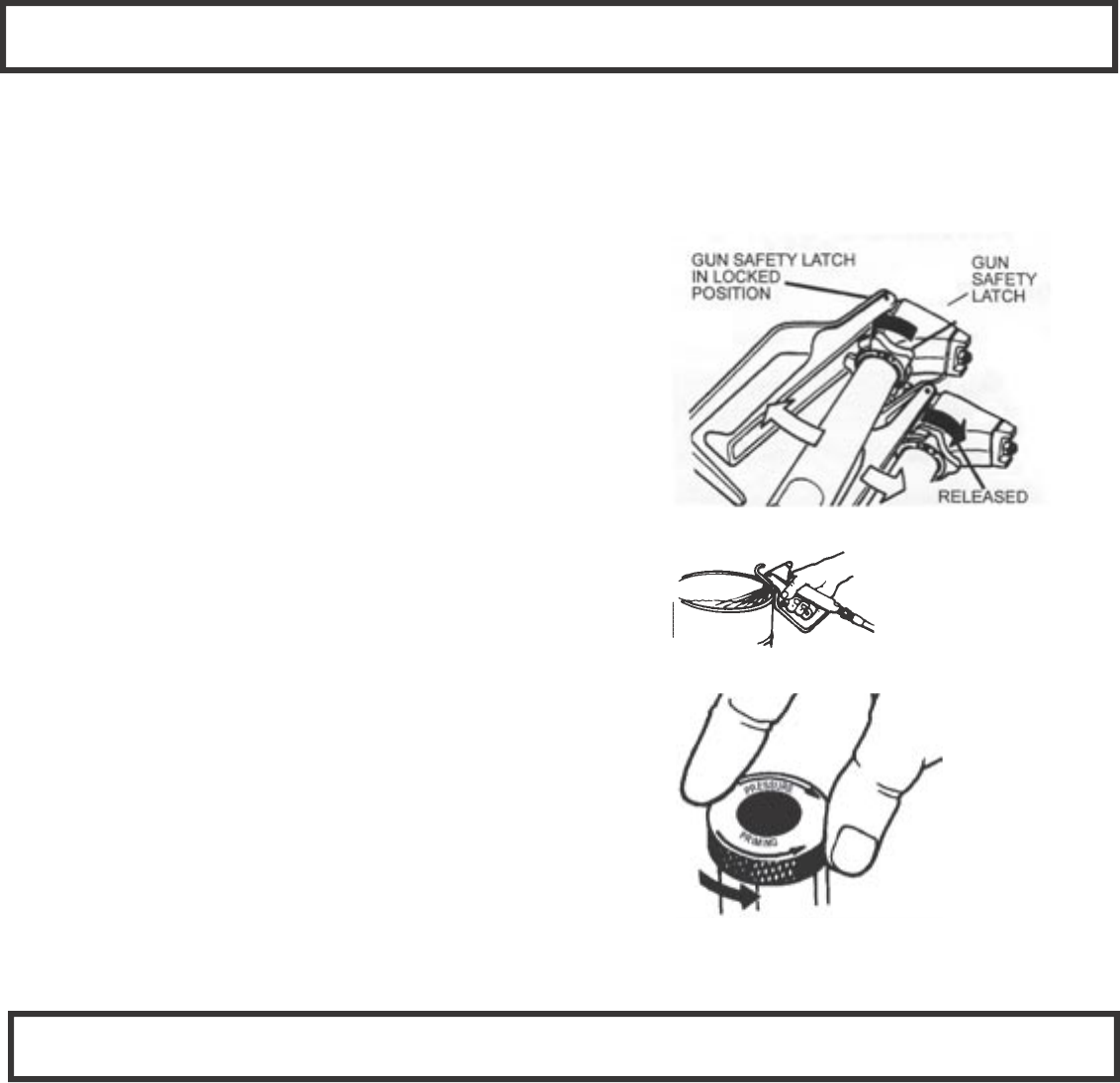

1. Engage gun safety latch. Refer to instruction
manual provided with your gun on its
safety features and how to engage safety latch.
2. Turn engine off using OFF switch on the engine.
3. Disengage safety latch & trigger gun to relieve
residual uid pressure. Hold metal part of the gun
in contact with grounded metal pail.
4. Re-engage gun safety latch.
5. Turn Control Valve (Prime/Pressure Relief Valve)
as shown open (priming) to relieve uid pressure.
![](asset-d.png)
Starting Up
1. Learn how to operate the control valve.
The control valve sets the prime or pressure position as well as the
spraying pressure. When the valve is fully counter-clockwise the unit
is in the prime position. As the control valve is turned clockwise,
the unit’s output pressure to the gun is gradually increased until
the control valve is fully clockwise and the unit is at it’s maximum
output pressure of 2500 psi. This will fully atomize any stain or paint
without needing to dilute the material.
To stop the unit in an emergency or
before performing any service or
maintenance procedure follow the
Pressure Relief Procedure on page 10
to relieve the uid pressure.
d. Install spray tip onto gun.
e. If so equipped, turn engine switch to ON position, then
pull starter rope vigorously until engine starts.
e. Turn Control Valve clockwise to the desired spray
pressure required to properly atomize your material
(Sprayer is limited to a maximum of 2500 psi).
f . Disengage the gun safety lock and you are ready to
start spraying.
5. Adjusting the Pressure
a. Turn the Control Valve clockwise to increase
pressure and counterclockwise to decrease pressure.
If you spray into the paint bucket,
always use the lowest spray pressure
and maintain rm metal to metal
contact between gun and container.
Operating the sprayer at higher engine RPM or
higher pressure than needed wastes material,
causes early tip wear and shortens engine and
sprayer pump life!
FOLLOW “PRESSURE RELIEF PROCEDURES”
ON PAGE 10 WHENEVER YOU:
- are instructed to relieve pressure
- stop spraying
- checking or servicing any of the system equipment.
- install or clean the spray tip.
b. Always use the lowest pressure and engine RPM
necessary to completely automize the material.
c. If wider coverage is needed, use a larger tip rather than
increasing the pressure.
d. Check the spray pattern. The tip size and angle
determines the pattern width and ow rate.
e. A trigger locking button is provided on the engine
speed and spray gun actuation levers to prevent hand
cramping and user fatigue during extended striping
sessions.
11
HANDLE THE SPRAY SYSTEM AS YOU
WOULD A LOADED FIREARM!!
2. Prepare the Material
a. Prepare the material according to the manufacturer’s
material recommendations.
b. Place the suction tube into the material container.
3. Starting the Sprayer
(see Figure above)
a. Pressure Control Knob must be in the low pressure
position.
b. Control Valve must be open to the priming position or
fully counterclockwise.
c. Follow the procedure under “How to Flush”, Steps 6
through 12.
![](asset-e.png)
Striping Operation
1. Choose handle location
The choices are, installing the handle opposite of the single wheel
assembly (standard set up) or placing the handle directly over the single
wheel assembly. The handle location is really a matter of personal
preference, however having the handle away from the single wheel
assembly allows for easier loading/unloading from a van.
2. Cable Tension Adjustment
Once the handle and gun arm assemblies are set up to the preferred
positions, pressurize the unit and trigger each gun to ensure that they
activate and release correctly. If not, adjust the cable tension as follows:
a. Locate the adjustment knobs on the base of the gun trigger, where the
cable connects to the gun trigger assembly.
b. Loose the locking nut & move the adjusting screw until the slack has
been removed from the cable.
c. Tighten locking nut and retest gun triggers for proper function.
Note: There is an additional cable adjustment where the cable
attaches to the gun holder assembly. Use only if the gun
trigger adjustment is insufcient.
5. Miscellaneous Operations
CURBS: To paint at a 90 degree angle to spray the sides of curbs install
a part # 032-028 swivel between gun head and tip guard and aim guard
sideways towards the curb.
WIDE STRIPES: Install wider fan striping tips and raise the gun height
to achieve the desired width line.
STENCILS: Install standard spray tip on the outer gun. Rotate gun to
remove from the gun holder and use the gun to spray within your stencils.
Use of an extension pole will make this job a lot easier on the operators
back and is highly reccomended.
STANDARD PAINTING: Install the appropriate size and type of paint
spraying tip (standard paint spray, “W” wide pattern, or “Fine Finish”).
Remove gun and spray just as you do for stencils. Additional paint hose
may be required depending on the distance between the job and the
equipment.
12
![](asset-f.png)
Striping Tip Guide
STRIPING TIPREGULAR PAINTING SPRAY TIP
UNIFORM PATTERN
LIGHTHEAVY
Striping Tips should not be used for regular spraying. Striping tips are designed for a single pass
application, while spray tips are designed for the 1/3 overlap technique used for spray painting.
Spray Tip Replacement: During use high pressure will cause the orifice to grow larger. This destroys the flat
spray pattern or will leave tailing or two heavy lines on the outside of the pattern. When this ocurs replace the
spray tip or excessive paint will be wasted.
STRIPING TIP - ORIFICE SIZE (Inches)
in (mm) .009 .011 .013 .015 .017 .019 .021 .023 .025 .027 .031 .035
1-2 25-51 113ST 115ST 117ST 119ST
2-4 51-102 215ST 217ST 219ST 221ST
4-6 102-152 315ST 317ST 319ST 321ST
6-8 152-203
Striping Paint
Oil Base Oil Base Latex Latex Latex Latex LatexLatex
Rev-TipTM for Striping
Fan Width (6” from surface)
REV-GUARDTM
Super Compact
P.N. 561-001
11/16-16 “F” Thread. Fits:
Airlessco, and some ASM,
Wagner, and Campbell Hausfeld.
P.N. 561-002
7/8-14 “G” Thread.
Fits some: Graco, Wagner,
Titan, Airlessco.
560-215
REV-TIPTM Orifice Size
1/2 Fan Width
Sample:
REV-TIPTM
for Striping
P.N. 562-xxxST
Includes Rev-TipTM, Metal Seal
& O-Ring Seal.
(water @ 2000psi, 138 bar)
(latex paint @ 2000psi,
138 bar/1.36 spec. gr.)
*Pump will support tip worn to next larger size.
Water Flow Rate (gpm) .12 .18 .24 .31 .38 .47 .57 .67 .77 1.03 1.31 1.63 1.80
(lpm) .49 .69 .91 1.17 1.47 1.79 2.15 2.54 2.96 3.90 4.98 6.17 6.81
Paint Flow Rate (gpm) .10 .15 .21 .27 .33 .40 .49 .58 .66 .88 1.12 1.39 1.54
(lpm) .38 .57 .79 1.02 1.25 1.51 1.85 2.20 2.50 3.33 4.24 5.26 5.83
Pump Minimum (gpm) .25 .25 .33 .40 .50 .60 .75 .88 1.0 1.25 1.5 2.0 2.2
Output* (lpm) 1.0 1.0 1.25 1.5 1.9 2.3 2.8 3.3 3.8 4.7 5.7 7.5 8.2
LIGHT
13
![](asset-10.png)
Spray Gun Operation
Reversible
Spray Tip
Tip Guard
Trigger Guard
MAJOR COMPONENTS OF SPRAY GUN &
REVERSIBLE REV-TIP™
SPRAY GUN
Attach spray gun to airless unit and tighten ttings securely.
Set the gun safety latch. (Also may be called gun safety
lock, or trigger lock)
* The gun safety latch should always be set when the gun is
not being triggered.
Read all warnings and safety precautions supplied with the
spray gun and in product manual.
SPRAY TIP ASSEMBLY
1. Be sure the pressure relief procedure is followed
before assembling tip and housing to the gun.
2. Insert REV-TIP™ cylinder into the REV-GUARD™
(guard housing assembly).
3. Guide the metal seat into REV-GUARD™ (guard
housing assembly) through the retaining nut and turn
until it seats against the cylinder.
4. Insert the O-Ring gasket onto the metal seat so that it
ts into the grooves.
5. Finger tighten REV-GUARD™ retaining nut onto the gun.
6. Turn guard in the desired position.
7. Completely tighten the retaining nut.
O-Ring Gasket
Metal Seat
REV-TIP™ Cylinder
Retaining Nut
Spray Position Shown
Reverse to
Unplug
REV-GUARD™
Guard Housing Assembly
TO REMOVE CLOGS FROM SPRAY TIP
1. Lock gun safety latch.
2. Turn REV-TIP™ handle 180 degrees.
3. Disengage trigger lock and trigger gun into
the pail.
4. If the REV-TIP™ handle appears locked
(resists turning), loosen the retaining nut. The
handle will now turn easily.
5. Engage gun safety latch and return handle to
the spray position.
Retaining Nut
CLEANING SPRAY GUN
CLEANING FILTER IN GUN HANDLE
Immediately after the work is nished, ush the gun out
with a solvent. Brush pins with solvent and oil them
lightly so they will not collect dried paint.
To clean the lter, use a brush dipped in an appropri-
ate solvent. Change or clean lters at least once a day.
Some types of latex may require a lter change after
four hours of operation.
Gun Handle. Unscrew
from gun head to service
lter inside.
Gun Safety
Latch or Lock
CLOGGED FLAT TIP
Should the spray tip become clogged, relieve
pressure from hose by following the "Pressure Re-
lief Procedure." Secure gun with the safety latch,
take off guard, take out the tip, soak in appropriate
solvent & clean with a brush. (Do not use a needle
or sharp pointed instrument to clean the tip. The
tungsten carbide is brittle and can chip.)
™
14
Press up here & pull gently
to remove trigger guard
![](asset-11.png)
Spray Gun Troubleshooting
DEFECTS CAUSE CORRECTION
Coarse spray Low pressure Increase the pressure
Excessive fogging High pressure Reduce pressure for satisfactory pattern
(overspray) Material too thin Use less thinner
Pattern too wide Spray angle too large Use smaller spray angle tip
Pattern too narrow Spray angle too small Use larger spray angle tip. (If coverage is OK,
try tip in same nozzle group)
Too much material Tip size too large Use next smaller tip
Material too thin
Pressure too high Reduce pressure
Too little material Tip size too small Use next larger tip
Material too thick
Thin distribution in Worn tip Change for new tip
center of pattern Wrong tip Use tip with a smaller spray angle
"horns"
Thick skin on work Material too viscous Thin material
Application too heavy Reduce pressure and/or use smaller tip
Coating fails to Material too viscous Thin material
close & smooth over
Spray pattern irregular, Orice clogged Clean carefully
deected Tip damaged Replace with new tip
Craters or pock marks Solvent balance Use 1-3% "short" solvents remainder "long"
solvents. (This is most likely to happen with
material of low viscosity, lacquers etc.)
Bubbles on work Contamination or dust Clean surface to be sprayed
Clogged screens Extraneous material Clean screen
in paint.
Coarse pigments Use coarse screen if orice size allows
Poorly milled pigments Use coarser screen, larger orice tips. Obain ball
(paint pigments glocculate milled paint. If thinner was added, test to see if a
cover screen. Incompatible drop on top of paint mixes or attens out on
paint mixture & thinners. on the surface. If not, try different thinner
in fresh batch of paint.
TEST THE PATTERN
15
![](asset-12.png)
Field Troubleshooting
PROBLEM CAUSE SOLUTION
Unit doesn't prime Airleak due to:
• Loose Suction Nut • Tighten Suction Nut
• Worn O-Rings • Replace O-Ring (106-011) on
suction seat, & O-Ring (106-
020) below suction seat
• Hole in Suction Hose • Replace Suction Hose (331-290)
Stuck or Fouled Balls Service outlet valve suction
assembly
Unit primes but has no Pressure set too low Turn up pressure
or poor pressure
Filter(s) are clogged Clean or replace gun lter, inlet
lter and/or manifold lter
Outlet Valve fouled/worn Service outlet valve
Prime/Pressure Relief valve Clean or replace primve valve
bypassing
Packings and/or piston worn • Tighten packing nut
• Repack unit
Unit does not maintain Blown spray tip Replace spray tip
good spraying pressure
Packings and/or piston worn Repack unit
Upper Seat worn Replace upper seat
16
![](asset-13.png)
17

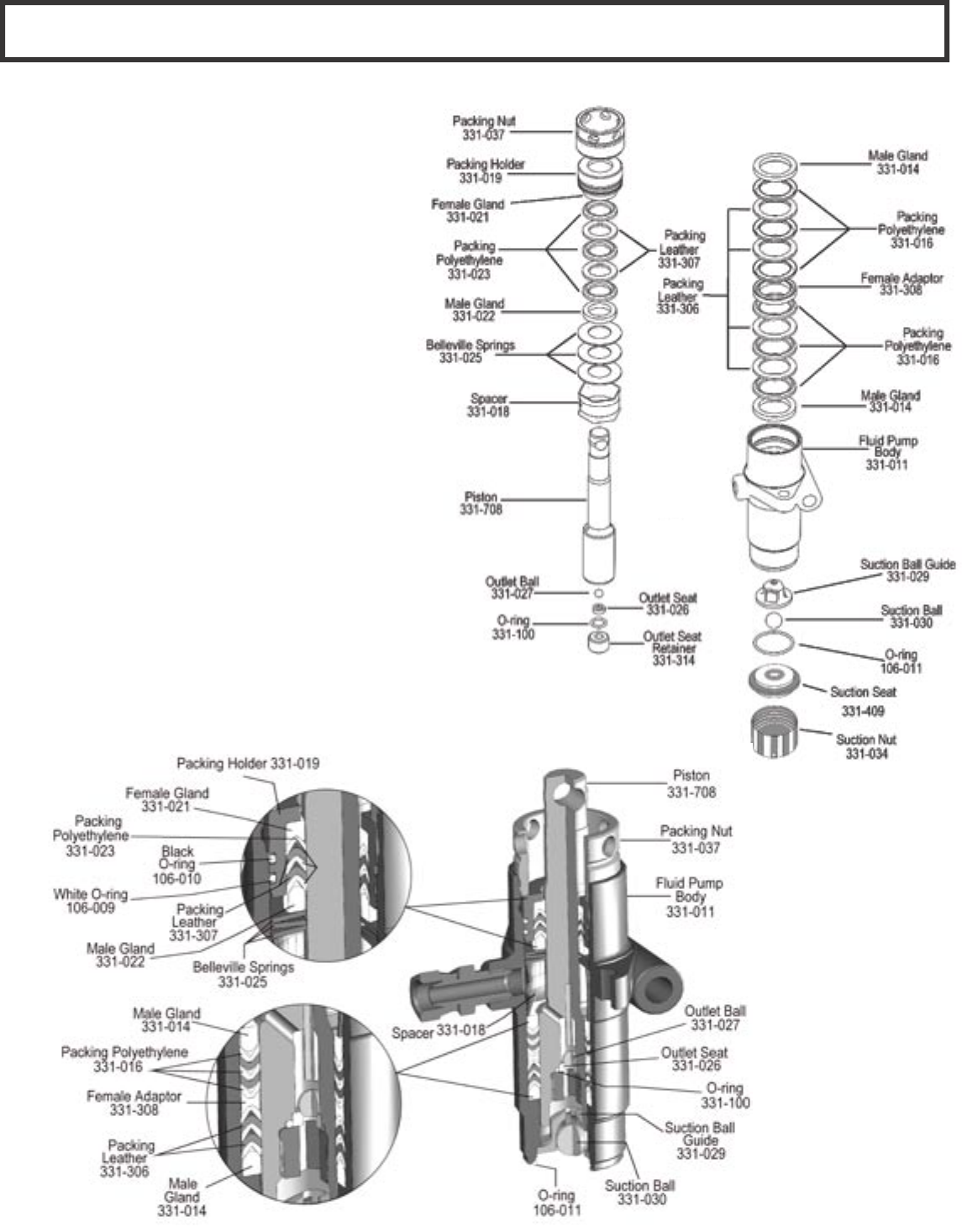

Refer to Figure 1
1. Follow the Pressure Relief Procedure on page 10.
2. Flush the material you are spraying out of the machine.
3. Remove the connecting rod shield (331-111).
4. Move the piston rod (331-093) to its lowest position
by cycling pump slowly.
5. Remove the retaining ring (331-062) from the
connecting rod (331-038) and slide the sleeve (331-
117) down revealing the connecting rod pin (331-065).
6. Remove the suction tube assembly from the uid
pump (331-209) by unscrewing the suction nut
(331-034) with the packing adjustment tool.
7. Using a 1/2” wrench unscrew the two bolts (100-318)
from the cover assembly (331-234). The uid pump
(331-209) will be hanging loosely at this point.
8. Remove the connecting rod pin (331-065) out of
the connecting rod (331-038), allowing the removal
of the uid pump (331-209) from the machine.
FIGURE 1
Servicing the Fluid Pump
Fluid Pump Disconnect Fluid Pump Reinstall
Refer to Figure 1 & 4
1. Loosen the packing nut and ensure that the piston rod
(331-093) is in its upper position in the uid pump body
(331-011). Slip the sleeve (331-117) & the retaining
ring (331-062) over the piston rod.
2. Push the piston rod up into the connecting rod (331-
038) & align the holes. Insert the connecting rod pin
(331-065) through the connecting rod & piston. Slip
the sleeve up over the connecting rod pin and insert
the retaining ring into the groove on the connecting rod.
3. Push the two bolts (100-318) through the tube spacers
(331-074) & screw them into the cover assembly (331-
234). Using a 1/2” wrench, tighten the two bolts evenly
(alternating between them) until you reach 20 ft-lbs.
4. Reassemble lower suction valve assembly by placing
the suction seat (331-409), O-ring (106-011), suction
ball (331-030) & suction ball guide (331-029) in the
suction nut (331-034) & screw onto uid pump body.
5. Start the machine and operate slowly to check the piston
rod for binding. Adjust the two bolts, holding the uid
pump body to the cover assembly, if necessary. This
will eliminate any binding.
6. Tighten the packing nut clockwise until resistance is
felt against the Belleville Springs, then go 3/4 of a turn
more. Put ve drops of Airlessco Throat Seal Oil into the
packing nut.
7. Run the machine at full pressure for several minutes.
Release the pressure by following the Pressure Relief
Procedure & readjust the packing nut per step 6 above.
8. Install the connecting rod shield (331-111) so that the
small hole is in the upper right hand corner.
331-209
![](asset-14.png)
Servicing the Piston Rod - Outlet Valve
331-196
331-195
Piston
DISASSEMBLY OF THE OUTLET VALVE
REFER TO FIGURE 3
1. Disconnect the Fluid Pump following instructions on page 17 .
2. Place piston holder (331-195) in a vise. Slide piston into
the holder & lock in place with a 3/8” dowel (331-196).
3. Use a 1/4” allen wrench to unscrew the outlet seat retainer
(331-026) from the piston.
4. Remove the outlet seat (331-026), O-ring (331-100) and
outlet ball (331-027).
5. Inspect outlet ball & seat for wear. Replace as necessary.
6. While piston is still locked in the holder, install parts
back into the piston in the following order:
ball, outlet seat and O-ring
Before reinstalling the outlet seat support, apply two drops of
Loctite No. 242 (blue) on the threads & torque to 20 ft-lbs.
Servicing the Suction Assembly
REFER TO FIGURE 4
1. Un-thread and remove suction nut from the uid pump body.
2. Remove suction seat (331-409), O-ring (106-011), suction ball
(331-030) and suction retainer (331-029).
3. Clean all parts and inspect them for wear or damage, replacing
parts as needed.
4. Clean inside of the uid pump body.
5. Reassemble lower suction valve assembly by placing the
suction seat (331-409), O-ring (106-011), suction ball (331-030)
& suction ball guide (331-029) in the suction nut (331-034) &
FIGURE 3
FIGURE 4
18
NOTE: Airlessco LP pump tool kit 188-197 is suggested for this task.
Kit includes: Packing Tightening Bar (189-211), Packing Removal Tool (331-153),
Piston Holder (331-195), 3/8” dowel (331-196).
![](asset-15.png)
Packing Replacement Procedures
19
Fluid Pump Removal - Refer to Figure 1
1. Follow the Pressure Relief Procedure on page 9.
2. Flush material you are spraying out of the machine.
3. Remove the connecting rod shield (331-111).
4. Move the piston rod (331-093) to its lowest position by
cycling pump slowly.
5. Remove the retaining ring (331-062) from the connecting
rod (331-038) and slide the sleeve (331-117) down
revealing the connecting rod pin (331-065).
6. Remove the suction tube assembly from the uid pump
(331-209) by unscrewing the suction nut (331-034) with the
packing adjustment tool.
7. Using a 1/2” wrench unscrew the two bolts (100-318) from
the cover assembly (331-234). The uid pump (331-209)
will be hanging loosely at this point.
8. Remove the connecting rod pin (331-065) out of the
connecting rod (331-038), allowing the removal of the uid
pump (331-209) from the machine.
Disassembly of the Fluid Pump - Figure 6
1. Unscrew & remove the packing nut (331-037).
2. Push the piston rod (331-708) down through the packings
& out of the pump.
3. Now push the packing removal tool (331-465) up through
the pump & remove from the top bringing packings, spacer
& springs along with it, leaving uid body (331-011) empty.
*Make sure all old packings & glands have been removed from uid pump.
4. Clean inside of uid body (331-011).
5. Disassemble all parts & clean for reassembly. Discard any
old packings.
6. Lubricate leather packing in lightweight oil for 10 minutes
prior to reassembly.
Disassembly of the Outlet Valve - Figure 3
1. Place piston holder (331-195) in a vise. Slide piston into the
holder & lock in place with a 3/8” dowel.
2. Use a 1/4” allen wrench to unscrew the outlet seat retainer
(331-026) from the piston.
3. Remove the outlet seat (331-026), O-ring (331-100) and
outlet ball (331-027).
4. Inspect outlet ball & seat for wear. Replace as necessary.
5. While piston is still locked in the holder, install parts back into
the piston in the following order:
ball, outlet seat and O-ring
Before reinstalling the outlet seat support, apply two drops of
Loctite No. 242 (blue) on the threads & torque to 20 ft-lbs.
Replacement Instructions:
((
(
REASSEMBLY - Figure 5 & 6
1. Take lower male gland (331-014) & place it down on
the at side.
2. Take three of the lower polyethylene packings (331-016) & two
of the leather packings (331-306) & place onto the male gland in
the following order with the inverted side down :
Polyethylene, leather, polyethylene, leather, polyethylene.
3. Take the female adaptor (331-305), which is inverted on both
sides , & place it on top of your assembled lower packings.
4. Follow step 2 above with your packings inverted side up.
5. Take the second lower male gland and place it on top of your
assembled packings with the rounded side down.
6. Take assembled glands & packings (13 pieces) & slide on to the
lower half of the piston.
7. Take the spacer (331-018) & slide over the top of the piston (it
doesn’t matter which direction it sits), falling onto lower packings.
8. Take three Belleville Springs (331-025) & slide over the top of
the piston in the following order:
* First spring, curve facing down
* Second spring, curve facing up
* Third spring, curve facing down
9. Take the upper male gland (331-022) & place it rounded side up.
10. Take three upper polyethylene packings (331-023) & two leather
packings (331-307) & assemble with inverted side down ,
on to the male gland in the following order:
polyethylene, leather, polyethylene, leather, polyethylene.
11. Take upper female gland (331-021) & place on top of the assembled
upper packings with the inverted side down.
12. Take assembled upper glands & packings (7 pieces) & slide on
over the top of the piston, making sure inverted sides are down.
13. Take the packing holder (331-019) & replace the white O-ring
(106-009) & the black O-ring (106-010) with new ones from the
packing kit.
14. Slide the packing holder over the top of the upper packings
so they t inside.
15. Lubricate inside of the uid pump body & the outside of the
packings with a light weight oil.
16. Slide completed assembly into uid pump body (331-011).
* To keep packings secured in correct position, hold the pump body
upside down & push the completed assembly upwards into the pump
body. Once placed inside, tilt pump body back up to keep all pieces in.
17. Tighten packing nut (331-037) onto the top of the uid pump
body & tighten until you feel slight resistance against the
Belleville Springs (331-025). Using the Packing Adjustment Tool
(189-211), tighten another 3/4 of a turn.
Fluid Pump Reinstallation - Figure 1 & 4
1. Loosen packing nut & ensure that the piston rod (331-093) is in
its upper position in the uid pump body (331-011). Slip the
sleeve (331-117) & the retaining ring (331-062) over the piston rod.
2. Push piston rod up into the connecting rod (331-038) & align the
holes. Insert the connecting rod pin (331-065) through the
connecting rod & piston. Slip the sleeve up over the connecting
rod pin & insert retaining ring into the groove on the connecting rod.
![](asset-16.png)
FIGURE 5
Packing Replacement Procedures
FIGURE 6
20
3. Push the two bolts (100-318) through the tube spacers
(331-074) & screw into the cover assembly (331-234).
Using a 1/2” wrench, tighten the two bolts evenly
(alternating between them) until you reach 20 ft-lbs.
4. Reassemble lower suction valve assembly by placing
the suction seat (331-409) O-ring (106-011), suction
ball (331-030) and suction ball guide (331-029) in the
suction nut (331-034) & screw onto the uid pump body.
5. Start the machine & operate slowly to check the piston
rod for binding. Adjust the bolts, holding the uid
pump body to the cover assembly, if necessary. This
will eliminate any binding.
76 Tighten packing nut clockwise until resistance is felt
against the Belleville Springs, then go 3/4 of a turn
more. Put ve drops of Airlessco Throat Seal Oil
into the packing nut.
7. Run the machine at full pressure for several minutes.
Release the pressure by following the Pressure Relief
Procedure & readjust the packing nut per step 6 above.
8. Install the connecting rod safety shield
(Fig. 1 Part # 331-111) so that the small hole is in the
upper right hand corner.
![](asset-17.png)
Inspection & Replacement of Control Valve, Ball & Seat
1. Use a wrench to unscrew the control valve with ring seal.
2. Make sure that the control valve knob turns freely and that its stem is not worn unevenly, mushroomed or otherwise
damaged.
3. Remove TC guide, verify that it is unbroken, clean and notch side is up.
4. Remove control ball. Inspect for any cuts, scratches, chips, rust or other damage.
5. Use a 7/16” allen wrench to unscrew the control seat from the valve body. Clean seat and inspect bevel edge for damage.
Also ensure that the gasket on the underside of the seat is intact.
6. If no obvious damage to the control ball and seat, place ball into seat and ll with water. If water leaks out between ball
and seat, they must be replaced.
7. Replace control valve, ball, seat and/or TC guide as necessary.
8. Clean and inspect valve body opening, where the control seat was installed.
9. Grease valve body opening with multipurpose grease.
10. Screw control seat into valve body and torque to 85 ft-lbs.
11. Place TC guide into control seat with notched side up.
12. Drop control ball into TC guide.
13. Screw control valve with ring seal into pump head. Torque to 15 ft-lbs.
14. If a new control valve, ball or seat is installed, complete the Pressure Calibration Procedure.
A repair kit with the control ball and seat is available as KIT-3-3100.
21
DO NOT USE THIS PROCEDURE WITHOUT A TEST GAUGE!
1. Install a gun, exible airless hose and Airlessco part # 111-045 glycerin lled test gauge onto unit.
2. Prime unit.
3. Turn the control valve knob fully clockwise (maximum pressure setting).
4. Read the gauge, it should be approximently 2500 PSI.
5. If maximum pressure is incorrect, remove the black plastic cap from the control valve knob. Insert a 3/16” allen
wrench into the control valve knob set screw, turn clockwise to increase pressure and counter-clockwise to decrease
pressure. Replace black plastic cap.
6. NEVER set the maximum pressure above 2500 PSI.
Pressure Control Calibration
![](asset-18.png)
Gear Box Assembly - Part No. 305-196
22
Part Number Description
100-004 90 Degree Elbow
100-028 Pipe Plug
100-318 HXHD Screw
100-332 Retaining Ring
100-380 Screw
100-381 Screw
100-398 Retaining Ring
112-068 Ball Bearing
115-019 Hose Connector
117-008 Ball Bearing
305-197 Paint Pump Ass’y
305-199 Shaft Pinion
305-287 Machined End Bell
331-038 Crosshead Ass’y
Part Number Description
331-046 Ball Bearing
331-047 Ball Bearing
331-061 Sleeve Bearing
331-062 Retaining Ring
331-074 Spacer
331-103 Flat Washer
331-111 Front Shield
331-117 Sleeve
331-197 FLPHHD Screw
331-407 Crank Ass’y
331-537 Machined Cover
* Not Shown
331-132 Grease
![](asset-19.png)
Spray Gun Assembly - Part No. 305-280
Gun Mount Assembly - Part No. 305-275
-
23
Part Number Description
100-011 Airless 1/4” x 50’ Hose
116-103 Cable Retainer Spring
120-115 008 Silver Gun w/o Tip
305-275 Gun Mount Ass’y
305-280 Spray Gun Assembly
561-025 Rev-Tip Male Seal
561-026 Rev- Tip Seal
563-317ST Striping Tip
560-517 Painting Tip (not installed)
116-103
Part Number Description
100-342 .321 x 1.25 LG. Screw
116-100 Compression Spring
119-049 HexScrew .25-20UNC-2A x 1.88
LG.
119-050 Screw Pan HD
119-052 Hex Lock Nut
136-217 Jam Nut .250 nylon locking
140-045 Jam Nut .250
143-027 Ball Guide
305-077 Cable Ass’y
305-079 Wire Swivel Ass’y
305-089 Cable Sleeve
305-141 Cable Adjustor
305-142 Lever Ass’y
305-159 Sleeve Bearing
305-161 Spacer
305-272 Gun Mount Tube
305-273 Spacer .250
305-274 Trigger Lever
305-276 Spring Clip
331-103 Flat Washer 1/4
136-217
![](asset-1a.png)
Bypass Valve Assembly Part No. 305-264
Part Number Description Qty.
100-040 Hose, Whip 2
115-016 Control Valve Seat Ass’y 1
115-017 Ball 1
115-024 Unloader Valve 1
115-028 Stat-O-Seal 1
115-031 Guide T.C. 1
188-377 Return Tube 1
305-194 PR Regulator Housing 1
24
![](asset-1b.png)
Suction Assembly Part No. 331-290
Part Number Description Qty.
106-020 Teon O-Ring 1
141-015 Hose Clamp (some models only) 1
331-034 Suction Nut 1
331-035 Suction Elbow 1
331-217 Suction Filter 1
25
![](asset-1c.png)
Frame Assembly Part No. 305-213
Part Number Description Qty.
100-317 Nut 5/16-18 Centerlock 4
100-320 Wing Screw, 3/8 1
100-370 Screw, Hex Cap 2
113-031 Spacer, 5/8 x 1.00 2
113-032 Axel, 13” 1
119-026 Screw Hex Hd 3
136-131 Chain Sash 1
136-133 Key Ring 1
139-053 Handle, Striper 1
140-029 Washer, Flat, 5/16 8
143-028 Washer, Flat, 5/8 2
143-029 Set Collar 4
Part Number Description Qty.
301-165 Wheel 3
301-170 Axel, 22 5/8” 1
301-547 Screw, HXHD 4
305-051M Clamp 3
305-058 Rubber Grip 2
305-105 Ass’y Lever 1
305-108 Clamp Plate 3
305-262 Bucket Base 1
305-269 Engine Mount 1
305-270 Striper Frame 1
305-271 Spacer, 5/8 x 3.00 1
305-286 Cable Guide Plate 1
26
301-533 Paint Bucket Lid
![](asset-1d.png)
REV-GUARD
™
Part # 560-xxx REV-TIP for
Spray Painting
562-xxxST REV-TIP for
Striping
POSI-LOC™ SYSTEM
Snap in centering of tip.
No leaks, splashback or mess.
SEAL LOCATING HANDLE
Tip handle simplifies installing
& aligning the seal.
EASIEST ASSEMBLY
Fewer parts - Less complicated
takes only seconds!
INTERCHANGEABLE
Can be used with most tip guards.
HIGHEST QUALITY CARBIDE
Aerodynamic Non Drip Guard
Finger Tight Nut
Requires Hand Tight Nut
Snap Tight Tip Lock
Low Profile Guard
Seal Orientation Slot
Tip Handle Hole for Stringer
No Seal Blow-By When Tip
is Not in Centered Position (1)
Seal Orientation Tool
on Tip Handle
Non Pin Diffuser (2)
Hardened Cylinder
Long Life Metal Seal
Short Fluid Path (3)
Tips Fit Graco Bases
Seal Installer on Tip
7/8 & 11/16 Gun Thread
Working Pressure Rating
AIRLESSCO
REV-TIP™COMPETITOR
B
COMPETITOR
A
COMPETITOR
C
Working
Pressure
Unknown
5000 PSI
4050 PSI
5000 PSI
(1) Uncontrolled Spray Back Toward User (2) No Pattern Distortion From Pin
(3) No Spitting
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
nnn
PRODUCT FEATURE
nn
n
Part # 560-xxx REV-TIP for
562-xxxST REV-TIP for
Part # 560-xxx REV-TIP for
■ Airfoil shape for a clean,
no-drip application
■ Finger-tight nut, no tools
required
■ More compact size to use
in tight areas
Micro-ground for extra long life,
consistent tip size & pat tern.
STRINGER HOLE
Hang tip from hole for cleaning
SINGLE-SEAL
Metal seal - no leaks - sprays all coat ings.
Reversible
REV-TIP
™
Spray Gun & Hose
Spray PacksSpray Packs
Spray Packs
Spray Packs
Copyright © 2004 Airlessco by Durotech Co. All rights reserved. Product specifications subject to change witout notice.
Easy to install & align!
Each tip individually tested!
Order #
561-002 REV-GUARD™ with 561-001 REV-GUARD™
with 7/8-14 (G) Thread with 11/16-16 (F) Thread
See Airlessco REV-TIP™ Brochure (Form 001-449) for
current listings of available tip sizes including “W” wide
and FINE FINISH tips for Spraying, & Striping tips.
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Cuts Cleaning Time
& Saves Paint !
Part # 170-005
Simple to Use...Fast to Finish!
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Part No: 002-013 Spray Pack includes:
120-504 ProLight Convertible 4/2-Finger Gun
100-011 50’ x 1/4” Hi-Flex Airless Hose
Part No: 002-025 Spray Pack includes:
120-502 ProLight 502 Flat Handle Gun
100-011 50’ x 1/4” HI-Flex Airless Hose
Part No: 002-015 Spray Pack includes:
120-554 008 Silver 4-Finger Gun
100-011 50’ x 1/4” Hi-Flex Airless Hose
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
Quick Flush
NEW!
Simple to Use...Fast to Finish!
Connect adapter to any “F” or
“G” thread airless spray gun &
to a garden hose. Lock trigger
open, turn on water ow to
back ush paint into the original
bucket for reuse while cleaning
gun, hose, and pump.
![](asset-1e.png)

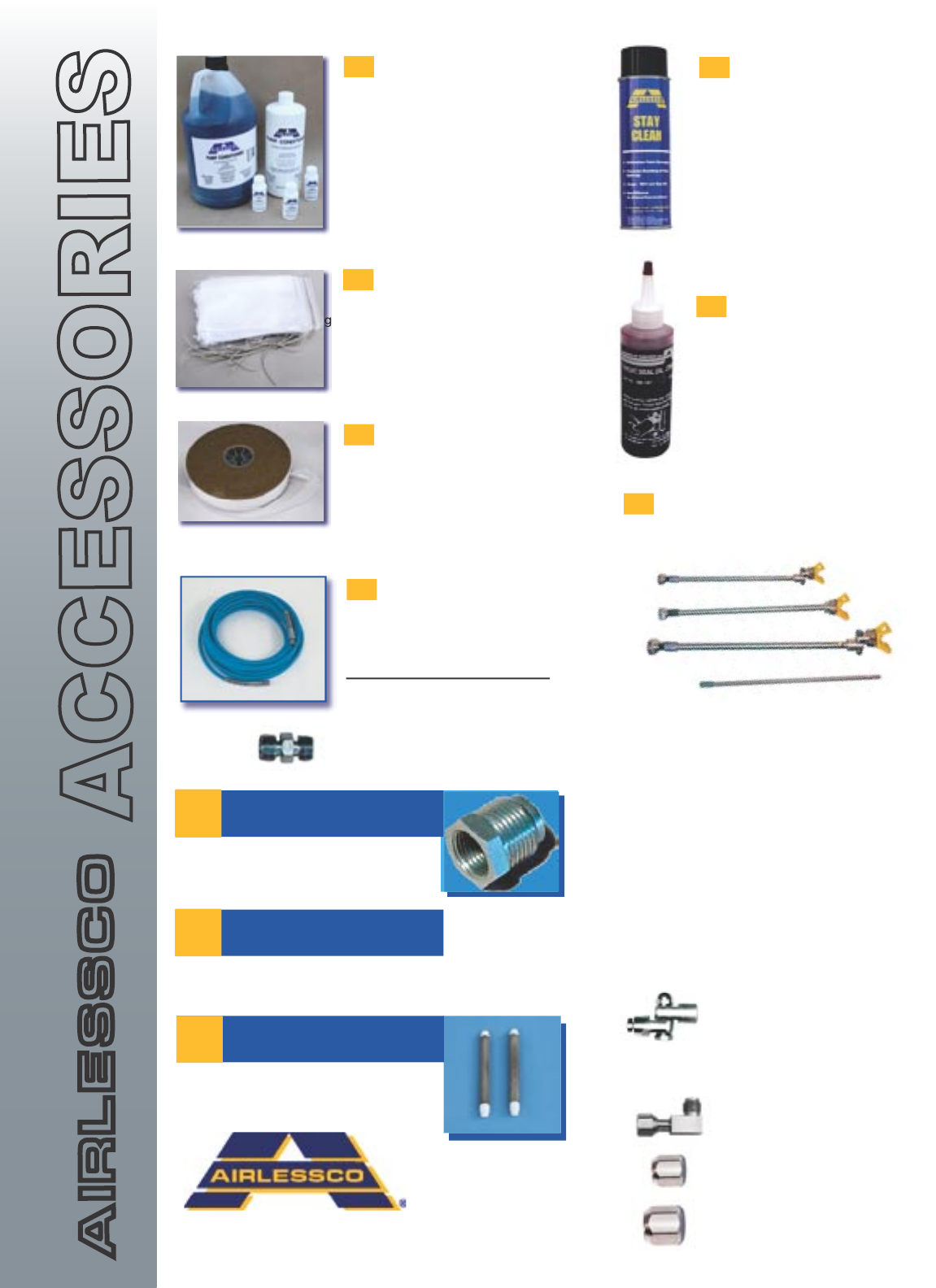

XTEND-A-POLE SYSTEM
Tip Extensions - Complete with
Patented SPRAY CLEAN REV-GUARD
TIP EXTENSIONS, “G” THREAD
032-170 6” Long
032-171 12” Long
032-172 18” Long
032-173 24” Long
SWIVEL EXTENSION, “G” THREAD
032-184 36” Long
EXTENSIONS (BARE POLES)
Add Tip Extension or Swivel Extension
to create desired length
032-053 24” Long
032-054 36” Long
SWIVEL “G” THREAD
032-035 7/8" - 14 Swivel
ADAPTERS
90° Pole to Gun Adapter
032-042
Gun Nut “F” Thread 11/16-16
032-010
Gun Nut “G” Thread
032-011
AIRLESSCO
Strong yet flexible, suitable for
airless equipment up to 3300 PSI
Part No:
100-012 3/16” Whip Hose, 4 Ft.
100-011 1/4” Hose, 50 Ft.
100-023 3/8” Hose, 50 Ft.
100-037 1/2” Hose, 50 Ft.
100-010 1/4" Hose Connector
100-009 3/8" Hose Connector
SPRAY TIP ADAPTER
032-012 "F to G" gun adapter to attach
Graco® tips to Airlessco 007 Spray Guns.
120-090CX Coarse
120-090FX Fine
120-088 Filter Spring
ACCESSORIES
GUN FILTERS
STAY CLEAN
™
Spray protectant for your machine
to to prevent paint from sticking to it.
114-030 20 oz. can
THROAT SEAL OIL
Used in the wet cup of a piston pump
to prevent paint from drying on the
piston & causing damage to the upper
packing. Use with all piston pumps.
188-187 6 oz. Bottle
188-392 1 qt. Bottle
PUMP CONDITIONER
Should be used on piston pumps
between uses to prevent paint from
drying on the piston & causing
packing wear.
010-001 Display of 48 - 1 oz. bottles
010-009 1 quart bottle
010-019 1 Gallon bottle
Case order quantity: 12 on quarts, 4 on gallons
PAINT STRAINERS
Prefilter your paint using strainer
bags. One dozen per pack.
100-064 Used to cover suction filter
100-065 5 Gallon strainer
HOSE COVER
4 mil clear poly protects your
airless hose from paint and
abrasion damage. Comes in 1000'
roll with perforations each 50'.
100-219 Hose Cover Roll
100-426 Case of 6 Rolls
bags. One dozen per pack.
For a complete listing of all available accessories see
the Airlessco Accessories Catalog, Part # 001-357.
HIGH PRESSURE HOSE
Standard Tip Extension
Swivel Extension
Swivel Extension
Bare Pole
Flat Tip Washers
120-008 Flat Tip Washer
120-090 Flat Tip Washers 25 Pack
