Wanlida Group MGX-0550 GPS User Manual 1

Wanlida Group Co., Ltd. GPS 1

USERS MANUAL

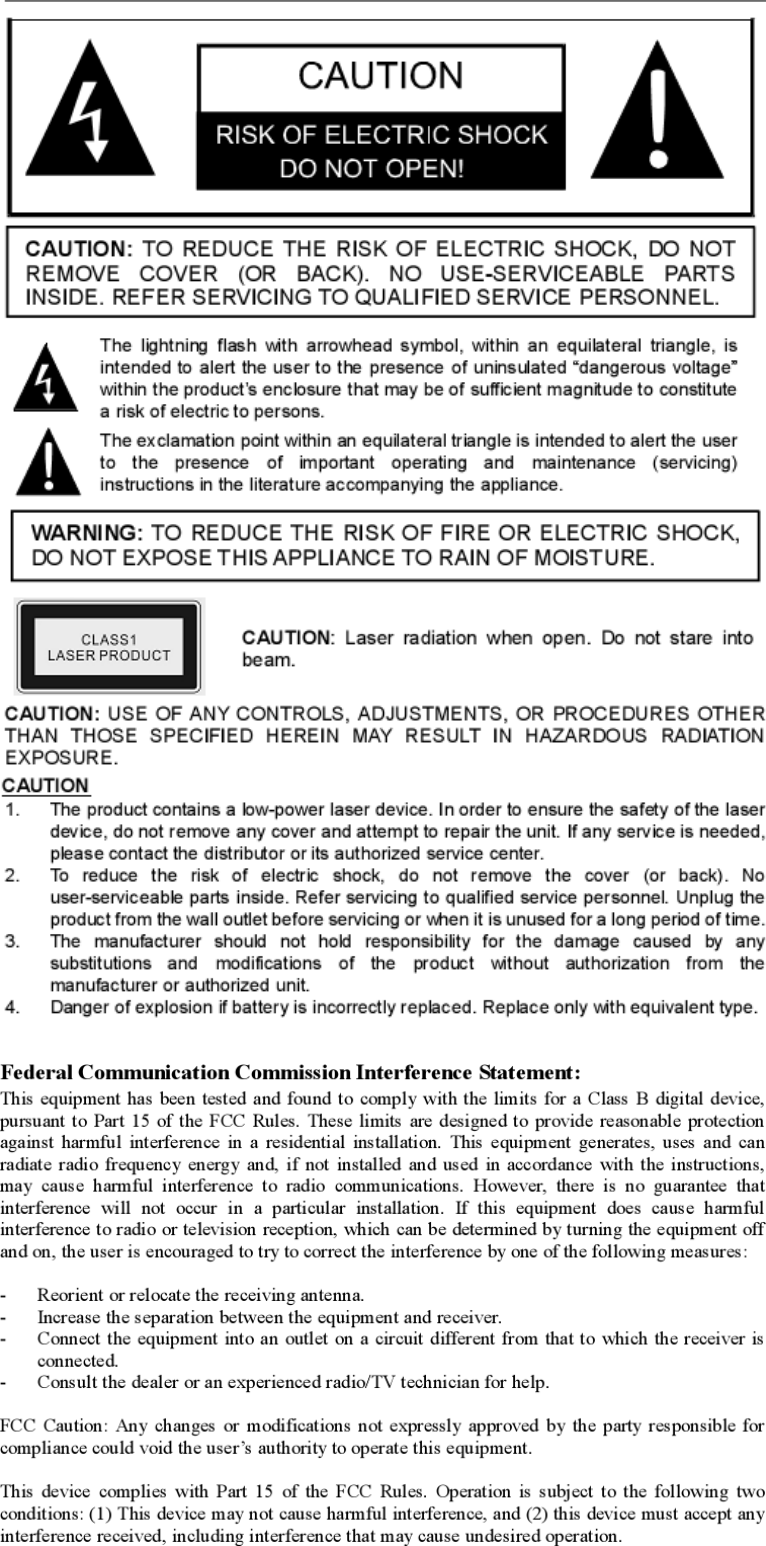

2WARNING The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. NOTES1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do not put product on bed, sofa or anything that blocks ventilation. Install according to the manufacturer s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 9. Read, heed and follow all instructions to ensure correct and safe installation and interconnection of the apparatus; 10. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus; 11. The mains socket-outlet shall be installed near the apparatus and the mains plug shall remain readily operable; 12. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 13. Only use attachments/accessories specified by the manufacturer. 14. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 15. Unplug the apparatus during lightning storms or when unused for long periods of time. 16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Note: Do not touch the color TFT LCD screen by hand directly. Important Safety InstructionsIMPORTANTFORLASERPRODUCTS1. CLASS 1 LASER PRODUCT2. DANGER: Visible laser radiation when open andinterlock failed or defeated. Avoid direct exposure tobeam.3. CAUTION: Do not open the top cover. There are no userserviceable parts inside the unit. Leave all servicing toqualified service personnel.

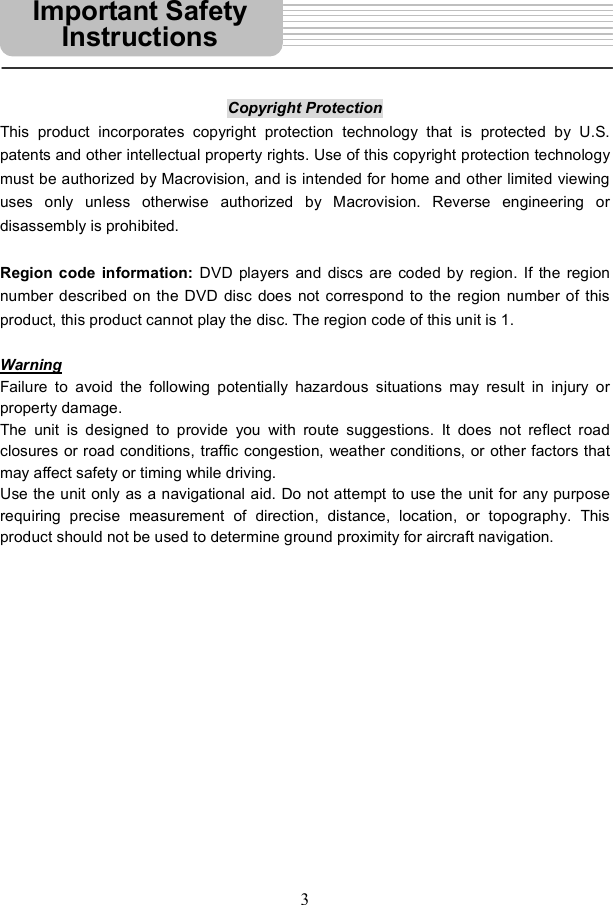

3Copyright Protection This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. Region code information: DVD players and discs are coded by region. If the region number described on the DVD disc does not correspond to the region number of this product, this product cannot play the disc. The region code of this unit is 1. WarningFailure to avoid the following potentially hazardous situations may result in injury or property damage. The unit is designed to provide you with route suggestions. It does not reflect road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety or timing while driving. Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose requiring precise measurement of direction, distance, location, or topography. This product should not be used to determine ground proximity for aircraft navigation. Important Safety Instructions
4Navigation FunctionHigh-quality audio and videoAdvanced Playing FunctionsOther Special FunctionsExcellent Sound: Dolby Decoder deliversgreat sound. AV Input: External Audio, Video input canbe connected to most external AV sources. AV Output: Analog Audio output and videooutput.High Resolution: MPEG-2 decodingformat achieves more than 500 lines ofhorizontal resolution.On-screen Display: You can choose fromEnglish, Spanish or French etc. for theOn-screen Display language. Compatibility: Compatible with DVD,CD, CD-R, CD-RW, and Picture CD.Particular Performance: Multi-speed,fast forward, fast backward and slowforward.Search by Time: Search for a certaintrack of a disk by selected time.Last Memory Playback: Memorize thestopped playback track and continueplaying disk from this spot when power isrestored if the disc tray is not opened.Special Functions: Supports screenimage inverse function, multi-languagescaption, and multi-angles.Features Navigation Function: The unit is designed to provide you with route suggestions. It supports voice navigation.Power Adapter Switch: Automaticallyadapts to voltage requirements in U.S andothercountries.SD Card and USB Input: designed with SDcard and USB ports, can be connected toSD card or other USB device for file loading.FM radio: support 87.5-95.0MHz FM radiofunction.Parental-lock Features: Supports to lockout certain scenes of the disc, or lock out thewhole disc depending on the contents of thedisc.

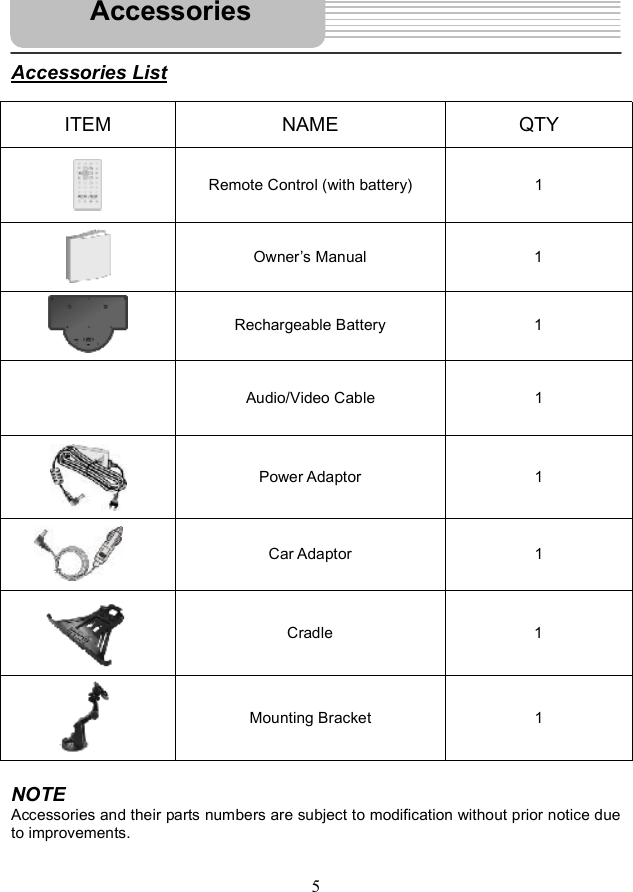

5Accessories ListITEM NAME QTY Remote Control (with battery) 1 Owner s Manual 1 Rechargeable Battery 1 Audio/Video Cable 1 Power Adaptor 1 Car Adaptor 1 Cradle 1 Mounting Bracket 1 NOTEAccessories and their parts numbers are subject to modification without prior notice due to improvements. Accessories

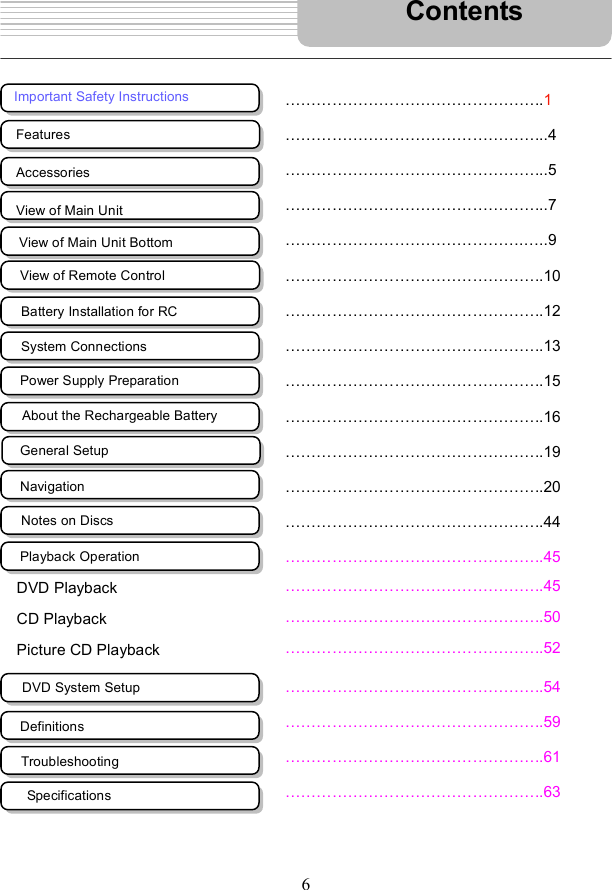

6DVD Playback CD Playback Picture CD Playback Contents !!!!!!!!!!!!!!!!..1!!!!!!!!!!!!!!!!...4!!!!!!!!!!!!!!!!...5!!!!!!!!!!!!!!!!...7!!!!!!!!!!!!!!!.!..9!!!!!!!!!!!!!!!!..10!!!!!!!!!!!!!!!!..12!!!!!!!!!!!!!!!!..13!!!!!!!!!!!!!!!!..15!!!!!!!!!!!!!!!!..16!!!!!!!!!!!!!!!!..19!!!!!!!!!!!!!!!!..20!!!!!!!!!!!!!!!!..44!!!!!!!!!!!!!!!!..45!!!!!!!!!!!!!!!!..45!!!!!!!!!!!!!!!!..50!!!!!!!!!!!!!!!!..52!!!!!!!!!!!!!!!!..54!!!!!!!!!!!!!!!!..59!!!!!!!!!!!!!!!!..61!!!!!!!!!!!!!!!!..63Important Safety Instructions FeaturesDefinitionsTroubleshooting DVD System Setup View of Main Unit Bottom View of Remote Control General Setup Navigation Notes on Discs Playback Operation System Connections Battery Installation for RC Power Supply Preparation About the Rechargeable BatteryAccessoriesView of Main Unit Specifications
71. Speakers 2. LCD Screen 3. Mode button Press to enter DVD, AV In or GPS mode. 4. BACK button In the map view, press to return to the previous menu. 5. Adjusting Knob In the map view, used to zoom in or zoom out the map. In the DVD mode, used to select items. 6. MAP button Press to display the map on the screen. 7. SETUP button Press to enter or exit the general menu. 8. DC 12V Input JackUsed to connect to the power adaptor, including the car adaptor.9. AV OUT jack Connected to the external AV device for audio and video output. 10. AV IN jack Connected to the external AV signal source for audio and video input. View of Main Unit

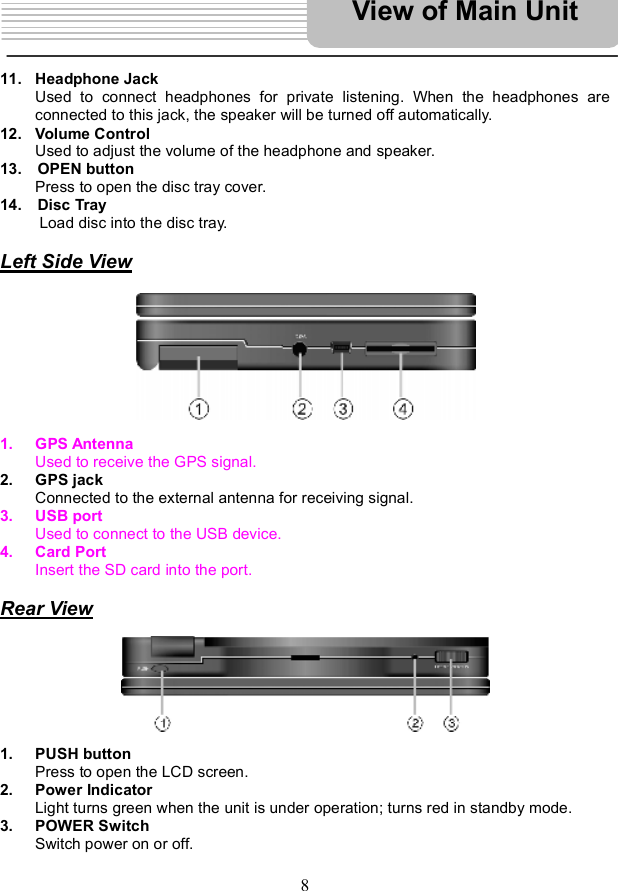

811. Headphone Jack Used to connect headphones for private listening. When the headphones are connected to this jack, the speaker will be turned off automatically. 12. Volume Control Used to adjust the volume of the headphone and speaker. 13. OPEN button Press to open the disc tray cover. 14. Disc Tray Load disc into the disc tray. Left Side View1. GPS Antenna Used to receive the GPS signal. 2. GPS jack Connected to the external antenna for receiving signal. 3. USB port Used to connect to the USB device. 4. Card Port Insert the SD card into the port. Rear View1. PUSH button Press to open the LCD screen. 2. Power Indicator Light turns green when the unit is under operation; turns red in standby mode. 3. POWER Switch Switch power on or off. View of Main Unit

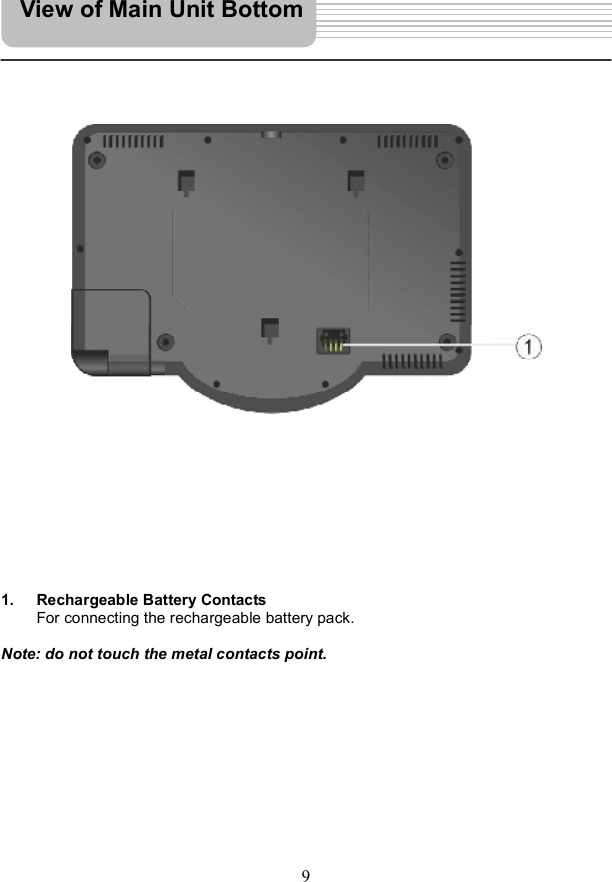

91. Rechargeable Battery Contacts For connecting the rechargeable battery pack. Note: do not touch the metal contacts point. View of Main Unit Bottom

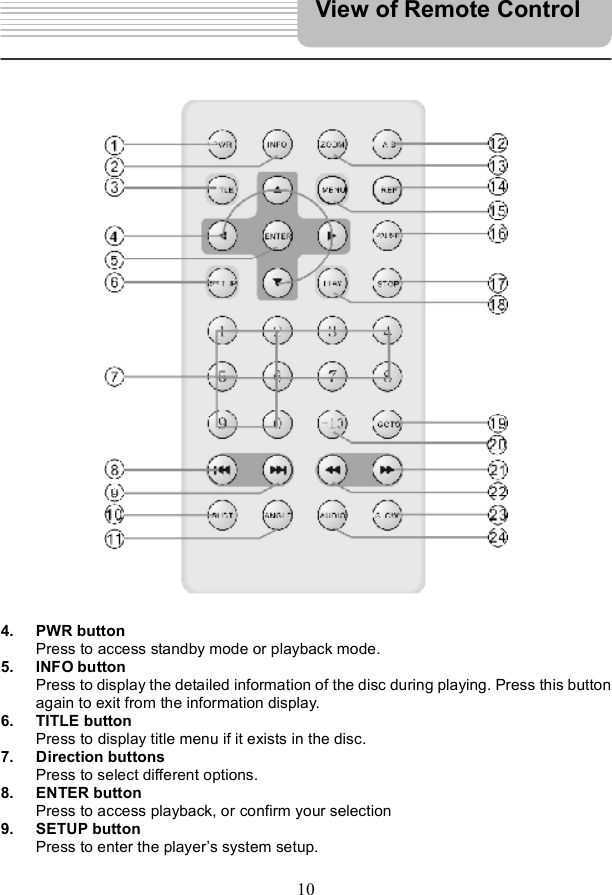

104. PWR button Press to access standby mode or playback mode. 5. INFO button Press to display the detailed information of the disc during playing. Press this button again to exit from the information display. 6. TITLE button Press to display title menu if it exists in the disc. 7. Direction buttons Press to select different options. 8. ENTER button Press to access playback, or confirm your selection 9. SETUP button Press to enter the player s system setup. View of Remote Control

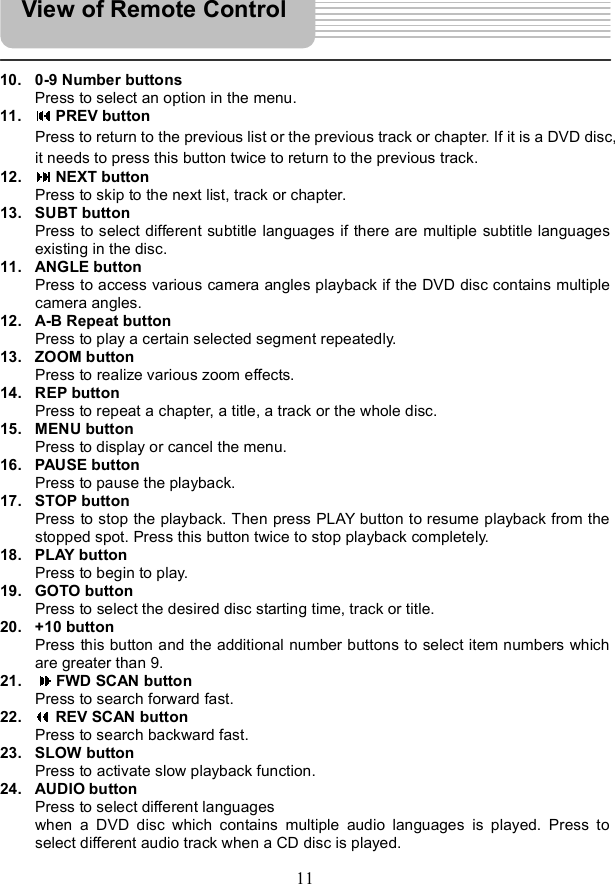

1110. 0-9 Number buttons Press to select an option in the menu. 11. PREV button Press to return to the previous list or the previous track or chapter. If it is a DVD disc, it needs to press this button twice to return to the previous track. 12. NEXT button Press to skip to the next list, track or chapter. 13. SUBT button Press to select different subtitle languages if there are multiple subtitle languages existing in the disc. 11. ANGLE button Press to access various camera angles playback if the DVD disc contains multiple camera angles. 12. A-B Repeat button Press to play a certain selected segment repeatedly. 13. ZOOM button Press to realize various zoom effects. 14. REP button Press to repeat a chapter, a title, a track or the whole disc. 15. MENU button Press to display or cancel the menu. 16. PAUSE button Press to pause the playback. 17. STOP button Press to stop the playback. Then press PLAY button to resume playback from the stopped spot. Press this button twice to stop playback completely. 18. PLAY button Press to begin to play. 19. GOTO button Press to select the desired disc starting time, track or title. 20. +10 button Press this button and the additional number buttons to select item numbers which are greater than 9. 21. FWD SCAN button Press to search forward fast. 22. REV SCAN button Press to search backward fast. 23. SLOW button Press to activate slow playback function. 24. AUDIO button Press to select different languages when a DVD disc which contains multiple audio languages is played. Press to select different audio track when a CD disc is played. View of Remote Control

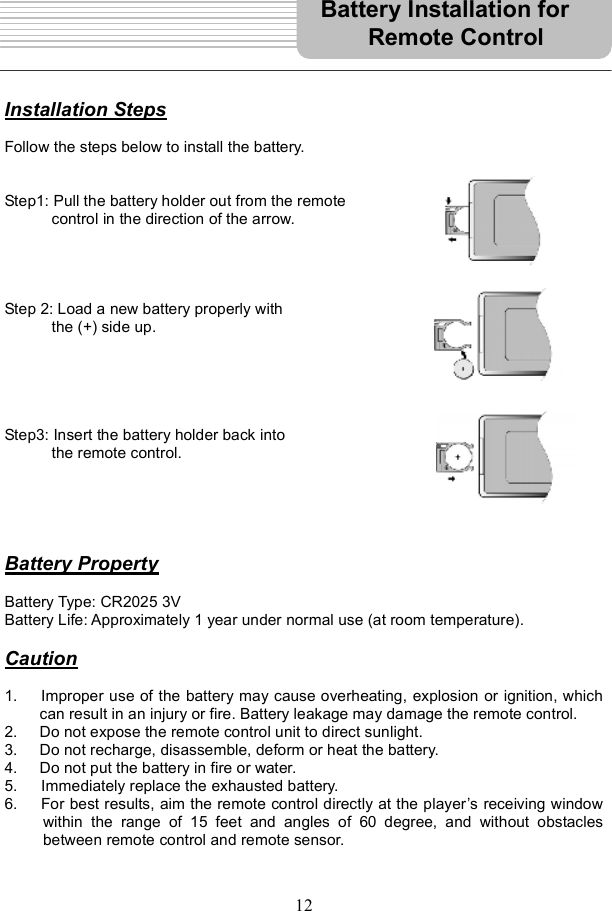

12Installation StepsFollow the steps below to install the battery. Step1: Pull the battery holder out from the remote control in the direction of the arrow. Step 2: Load a new battery properly with the (+) side up. Step3: Insert the battery holder back into the remote control. Battery PropertyBattery Type: CR2025 3V Battery Life: Approximately 1 year under normal use (at room temperature). Caution1. Improper use of the battery may cause overheating, explosion or ignition, which can result in an injury or fire. Battery leakage may damage the remote control. 2. Do not expose the remote control unit to direct sunlight. 3. Do not recharge, disassemble, deform or heat the battery. 4. Do not put the battery in fire or water. 5. Immediately replace the exhausted battery. 6. For best results, aim the remote control directly at the player s receiving window within the range of 15 feet and angles of 60 degree, and without obstacles between remote control and remote sensor. Battery Installation for Remote Control

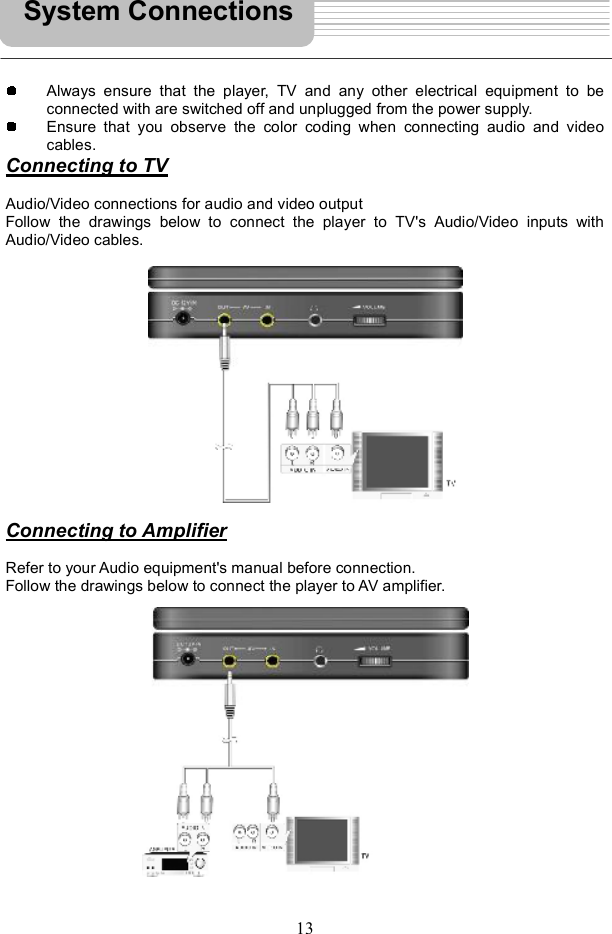

13Always ensure that the player, TV and any other electrical equipment to be connected with are switched off and unplugged from the power supply. Ensure that you observe the color coding when connecting audio and video cables.Connecting to TVAudio/Video connections for audio and video output Follow the drawings below to connect the player to TV's Audio/Video inputs with Audio/Video cables. Connecting to AmplifierRefer to your Audio equipment's manual before connection. Follow the drawings below to connect the player to AV amplifier. System Connections

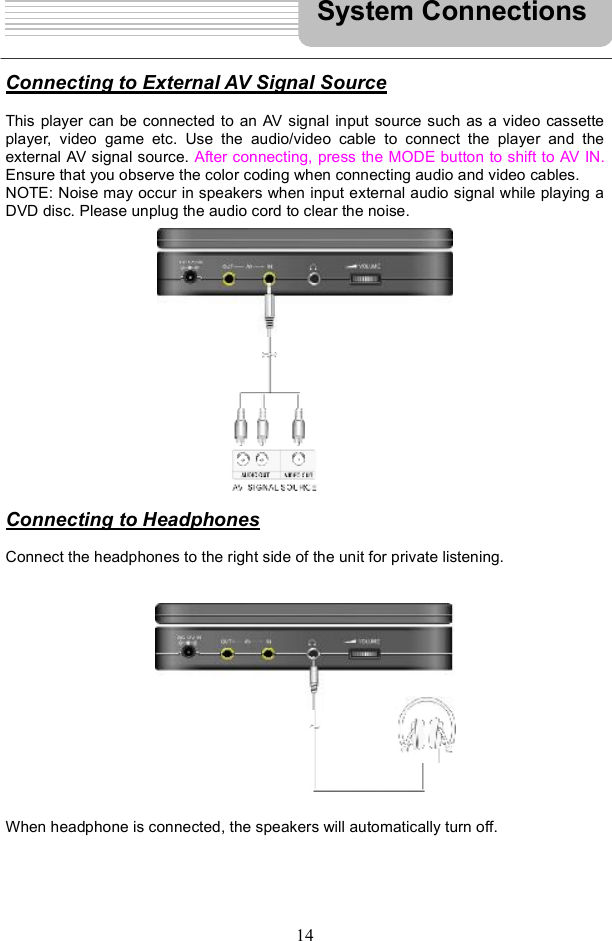

14Connecting to External AV Signal SourceThis player can be connected to an AV signal input source such as a video cassette player, video game etc. Use the audio/video cable to connect the player and the external AV signal source. After connecting, press the MODE button to shift to AV IN. Ensure that you observe the color coding when connecting audio and video cables. NOTE: Noise may occur in speakers when input external audio signal while playing a DVD disc. Please unplug the audio cord to clear the noise. Connecting to HeadphonesConnect the headphones to the right side of the unit for private listening. When headphone is connected, the speakers will automatically turn off. System Connections

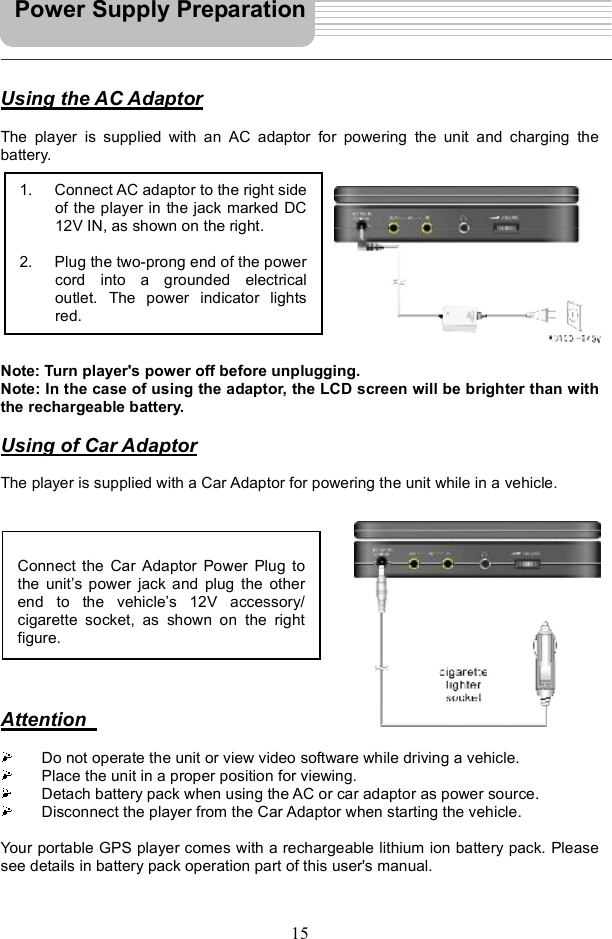

15Using the AC AdaptorThe player is supplied with an AC adaptor for powering the unit and charging the battery. Note: Turn player's power off before unplugging. Note: In the case of using the adaptor, the LCD screen will be brighter than with the rechargeable battery.Using of Car AdaptorThe player is supplied with a Car Adaptor for powering the unit while in a vehicle. AttentionDo not operate the unit or view video software while driving a vehicle. Place the unit in a proper position for viewing. Detach battery pack when using the AC or car adaptor as power source. Disconnect the player from the Car Adaptor when starting the vehicle. Your portable GPS player comes with a rechargeable lithium ion battery pack. Please see details in battery pack operation part of this user's manual. Power Supply Preparation 1. Connect AC adaptor to the right sideof the player in the jack marked DC12V IN, as shown on the right. 2. Plug the two-prong end of the powercord into a grounded electricaloutlet. The power indicator lightsred.Connect the Car Adaptor Power Plug tothe unit s power jack and plug the otherend to the vehicle s 12V accessory/cigarette socket, as shown on the rightfigure.

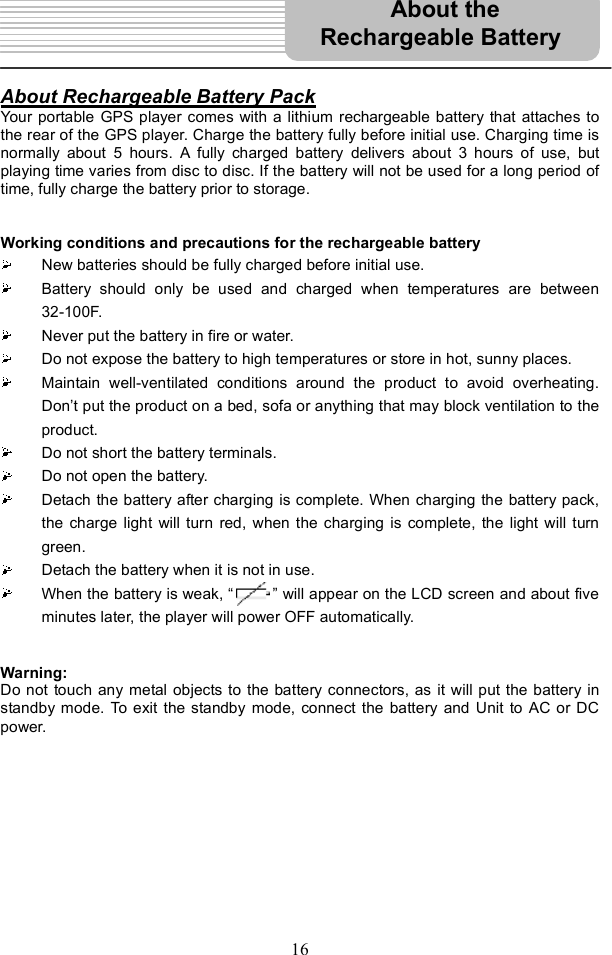

16About Rechargeable Battery PackYour portable GPS player comes with a lithium rechargeable battery that attaches to the rear of the GPS player. Charge the battery fully before initial use. Charging time is normally about 5 hours. A fully charged battery delivers about 3 hours of use, but playing time varies from disc to disc. If the battery will not be used for a long period of time, fully charge the battery prior to storage. Working conditions and precautions for the rechargeable battery New batteries should be fully charged before initial use. Battery should only be used and charged when temperatures are between 32-100F. Never put the battery in fire or water. Do not expose the battery to high temperatures or store in hot, sunny places. Maintain well-ventilated conditions around the product to avoid overheating. Don t put the product on a bed, sofa or anything that may block ventilation to the product.Do not short the battery terminals. Do not open the battery. Detach the battery after charging is complete. When charging the battery pack, the charge light will turn red, when the charging is complete, the light will turn green.Detach the battery when it is not in use. When the battery is weak, " # will appear on the LCD screen and about five minutes later, the player will power OFF automatically. Warning: Do not touch any metal objects to the battery connectors, as it will put the battery in standby mode. To exit the standby mode, connect the battery and Unit to AC or DC power. About the Rechargeable Battery

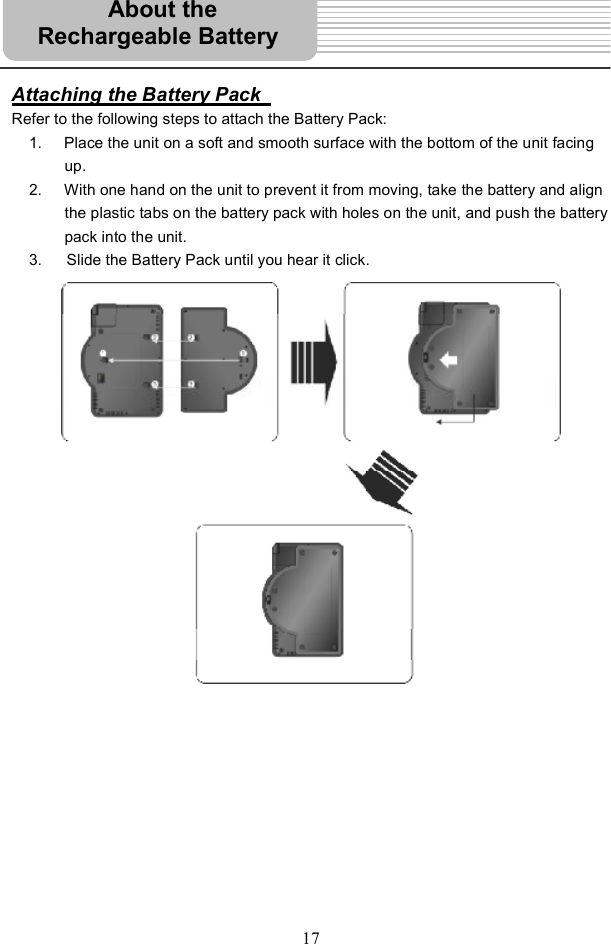

17Attaching the Battery Pack Refer to the following steps to attach the Battery Pack: 1. Place the unit on a soft and smooth surface with the bottom of the unit facing up.2. With one hand on the unit to prevent it from moving, take the battery and align the plastic tabs on the battery pack with holes on the unit, and push the battery pack into the unit. 3. Slide the Battery Pack until you hear it click. About the Rechargeable Battery

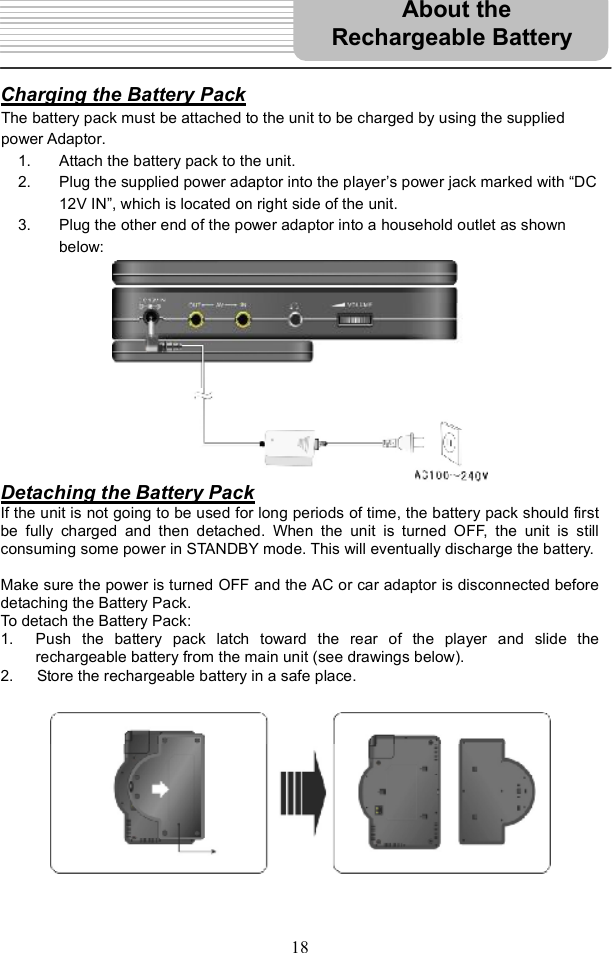

18Charging the Battery PackThe battery pack must be attached to the unit to be charged by using the supplied power Adaptor. 1. Attach the battery pack to the unit. 2. Plug the supplied power adaptor into the player s power jack marked with "DC 12V IN#, which is located on right side of the unit. 3. Plug the other end of the power adaptor into a household outlet as shown below: Detaching the Battery PackIf the unit is not going to be used for long periods of time, the battery pack should first be fully charged and then detached. When the unit is turned OFF, the unit is still consuming some power in STANDBY mode. This will eventually discharge the battery. Make sure the power is turned OFF and the AC or car adaptor is disconnected before detaching the Battery Pack. To detach the Battery Pack: 1. Push the battery pack latch toward the rear of the player and slide the rechargeable battery from the main unit (see drawings below). 2. Store the rechargeable battery in a safe place.About the Rechargeable Battery

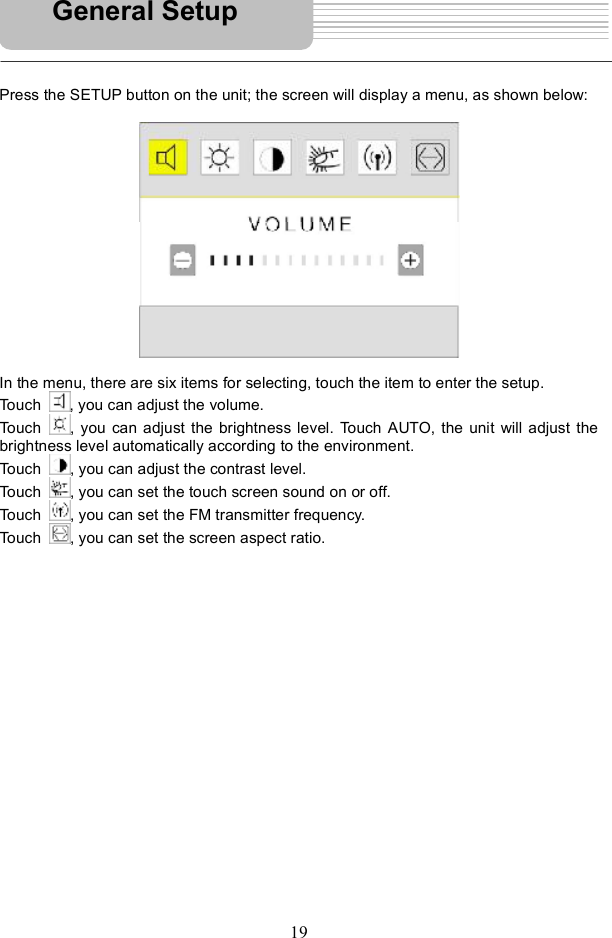

19Press the SETUP button on the unit; the screen will display a menu, as shown below: In the menu, there are six items for selecting, touch the item to enter the setup. Touch , you can adjust the volume. Touch , you can adjust the brightness level. Touch AUTO, the unit will adjust the brightness level automatically according to the environment. Touch , you can adjust the contrast level. Touch , you can set the touch screen sound on or off. Touch , you can set the FM transmitter frequency. Touch , you can set the screen aspect ratio. General Setup
20Preparation:1. Connect to power supply. 2. Turn on the unit, and press the MODE button to shift to GPS mode. 3. Press the MAP button to display the map on the screen. Map DescriptionRefer to the below descriptions for the buttons and icons on the map screen. Indicates in Car mode. It shows your current location or your last known GPS location (when there is no valid GPS information at this time) while in Navigation Mode. or indicates in Pedestrian Mode. shows your current location while in Navigation Mode. shows your last known GPS location while in Navigation Mode. When there is no valid GPS information at this time. (or in Pedestrian Mode) shows the Origin in Free Map Browsing mode.Tap on the map to enter the main menu. Tap on the map to switch on/off the speaker. Tap or to zoom in/out the map. The color of these buttons changes as the background varies. Tap to show your current driving or walking direction in the Navigation mode. The distance scale is located in the top-left corner of the screen. GPS status is shown in the bottom status bar. Special features of and or icons The three icons have the capability to automatically change its appearance so that you will be informed of several important navigation conditions: The icons indicate if you are in Car or Pedestrian mode. The icon indicates if you are driving at high or low speeds. The icon becomes elongated at higher speeds and wider at lower speeds. The icons display a shadow that shows the position of the Sun. This is especially important if you are using this unit in Pedestrian mode. By positioning yourself so that the shadow that you cast is in the same position as the shadow on the screen, you can be assured that you are walking in the right direction. Navigation
21The icons shadow disappears during night driving. Main MenuTap on the map to enter the main menu. The screen will display as below: Tap to switch the screen to the map view. Tap to cancel the current route. After that, the previously calculated route will be cleared from the map view and you can plan a new route. To quit the navigation application, tap button. Navigate to an Address(or Intersection)In the main menu, tap "Enter Address# to open the entering address menu. As shown below: The default order for entering your destination is City Street NumberEnter City Name Enter the first the first few characters of the city name by tapping the keyboard. The scroll list, which is displayed below your input characters, will update accordingly. You can also display the expanded list on the screen and hide the soft keyboard by tapping the button. Navigation

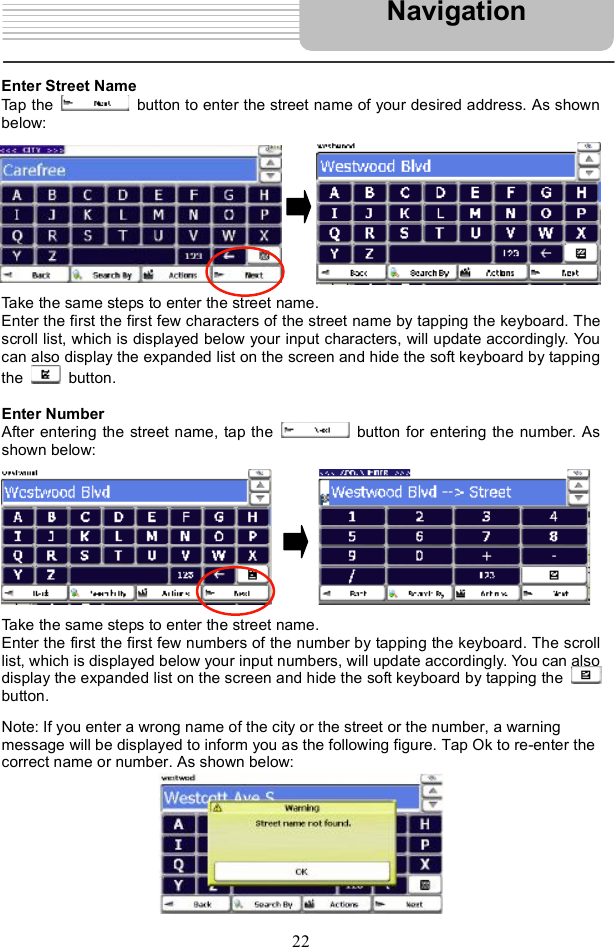

22Enter Street Name Tap the button to enter the street name of your desired address. As shown below: Take the same steps to enter the street name. Enter the first the first few characters of the street name by tapping the keyboard. The scroll list, which is displayed below your input characters, will update accordingly. You can also display the expanded list on the screen and hide the soft keyboard by tapping the button. Enter Number After entering the street name, tap the button for entering the number. As shown below: Take the same steps to enter the street name. Enter the first the first few numbers of the number by tapping the keyboard. The scroll list, which is displayed below your input numbers, will update accordingly. You can also display the expanded list on the screen and hide the soft keyboard by tapping the button.Note: If you enter a wrong name of the city or the street or the number, a warning message will be displayed to inform you as the following figure. Tap Ok to re-enter the correct name or number. As shown below: Navigation

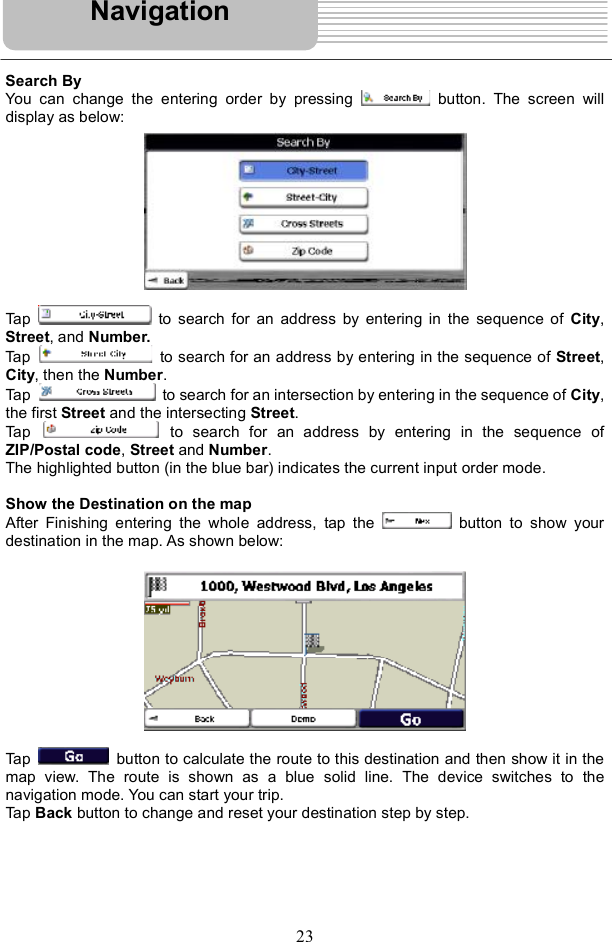

23Search By You can change the entering order by pressing button. The screen will display as below: Tap to search for an address by entering in the sequence of City,Street, and Number. Tap to search for an address by entering in the sequence of Street,City, then the Number.Tap to search for an intersection by entering in the sequence of City,the first Street and the intersecting Street.Tap to search for an address by entering in the sequence of ZIP/Postal code,Street and Number.The highlighted button (in the blue bar) indicates the current input order mode. Show the Destination on the map After Finishing entering the whole address, tap the button to show your destination in the map. As shown below: Tap button to calculate the route to this destination and then show it in the map view. The route is shown as a blue solid line. The device switches to the navigation mode. You can start your trip. Tap Back button to change and reset your destination step by step. Navigation

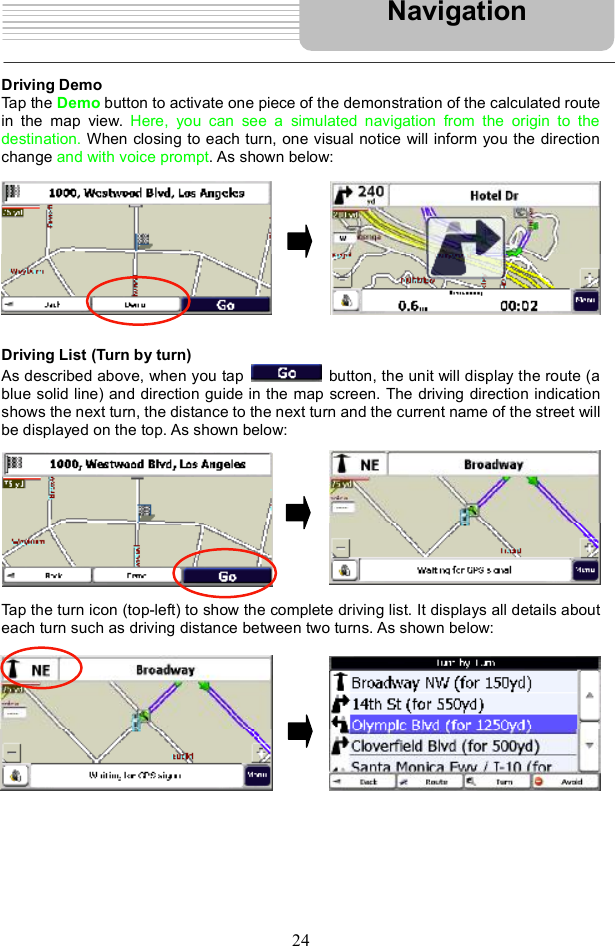

24Driving Demo Tap the Demo button to activate one piece of the demonstration of the calculated route in the map view. Here, you can see a simulated navigation from the origin to the destination. When closing to each turn, one visual notice will inform you the direction change and with voice prompt. As shown below: Driving List (Turn by turn)As described above, when you tap button, the unit will display the route (a blue solid line) and direction guide in the map screen. The driving direction indication shows the next turn, the distance to the next turn and the current name of the street will be displayed on the top. As shown below: Tap the turn icon (top-left) to show the complete driving list. It displays all details about each turn such as driving distance between two turns. As shown below: Navigation
25In the driving list, you can see the route overview by tapping button. It shows the detailed in formation of the current route including the distance, the time to travel and the destination address. As shown below: The icon represents the origin of the route and the icon is for the destination. Or see the one certain turn by tapping one turn in the turn-by-turn menu and then tap button. As shown below: Press to view the prior or next turn. If you want to avoid one turn, select it and tap button in the turn-by-turn menu. The route will be recalculated to avoid your desired turn and shown in the map view. Navigation

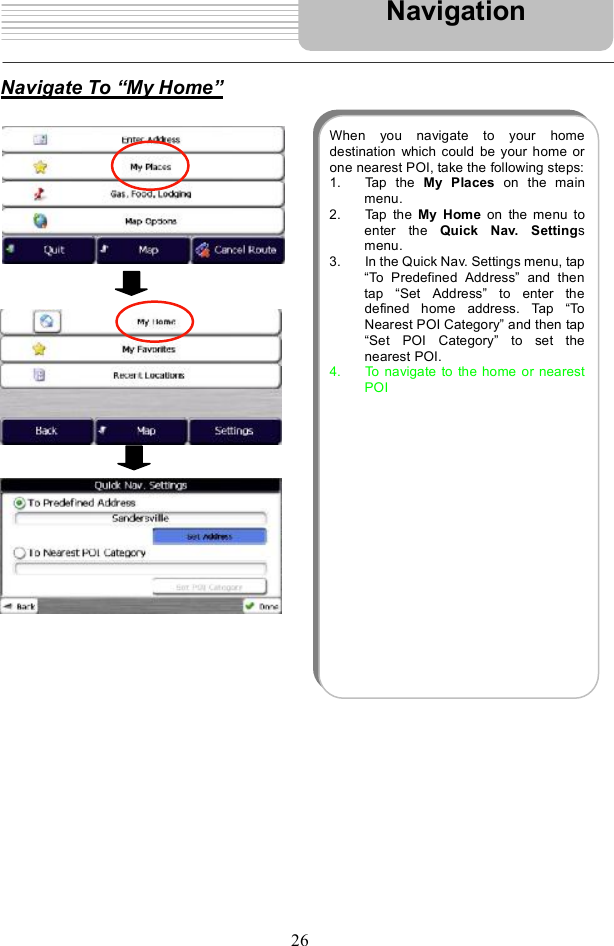

26Navigate To My Home!NavigationWhen you navigate to your homedestination which could be your home orone nearest POI, take the following steps: 1. Tap the My Places on the mainmenu.2. Tap the My Home on the menu toenter the Quick Nav. Settingsmenu.3. Inthe Quick Nav. Settings menu, tap"To Predefined Address#and thentap "Set Address#to enter thedefined home address. Tap "ToNearest POI Category#and then tap"Set POI Category#to set thenearest POI. 4. To navigate to the home or nearestPOI

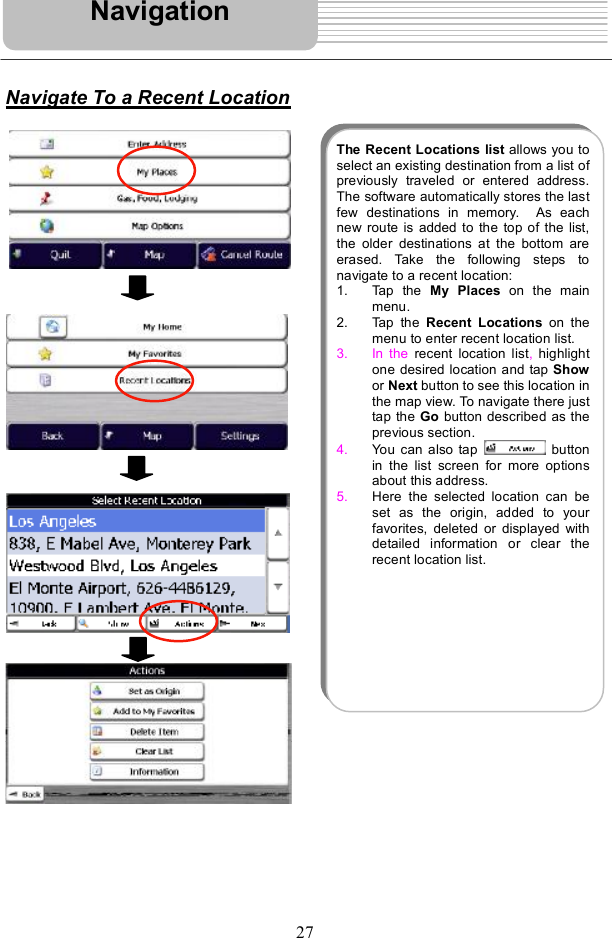

27Navigate To a Recent LocationNavigationThe Recent Locations list allows you toselect an existing destination from a list ofpreviously traveled or entered address.The software automatically stores the lastfewdestinations in memory. As eachnew route is added to the top of the list,the older destinations at the bottom areerased. Take the following steps tonavigate to a recent location: 1. Tap the My Places on the mainmenu.2. Tap the Recent Locations on themenu to enter recent location list. 3. In the recent location list,highlightone desired location and tap Showor Next button to see this location inthe mapview. To navigate there justtap the Go button described as theprevious section.4. You can also tap buttonin the list screen for more optionsabout this address.5. Here the selected location can beset as the origin, added to yourfavorites, deleted or displayed withdetailed information or clear therecent location list.
28Navigate To a Point of Interest (POI)NavigationThe Points of Interest (POI) list is acollection of potential destinations ofinterest in predefined categories. POIsare identified on the map by various icons(eg: Gas Station). POI navigation isespecially handy when you need to find afacility, attraction or amenity by categoryor type. Take the followingsteps tonavigate to a POI: 1. Tap the Gas, Food, Lodging on themain menu. 2. Tap your desired categoryin thePOI category menu or just tap Morebutton to the enrter category list. 3. In POI category list, scroll the listand highlight the desired POIcategory and tap Next to show POIlist in a certain area.4. Before you press the Next button,you can define the searching areafor the selected POI categoryTap button, the SearchNear menu will appears forsearching POIs. The defaultsearching area is the whole map.More options are available such asthe center and radius. The centercan be the current location,destination or other address. Thesearching radiusis 3, 25, 50 milesor the whole map. The selected POI category can beshown or hiddenin the map bytapping or button. Tap to save your selection.

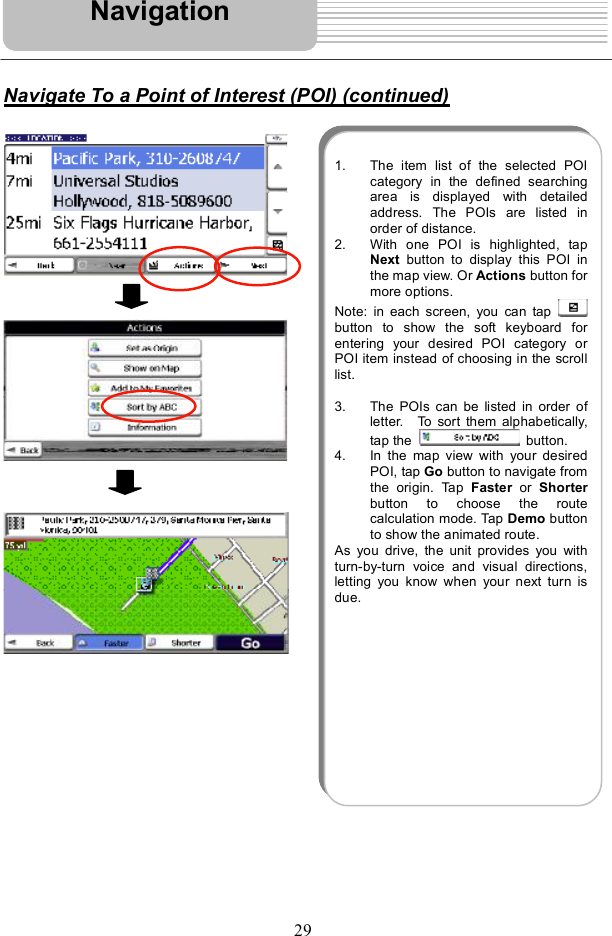

29Navigate To a Point of Interest (POI) (continued)Navigation1. The item list of the selected POIcategory in the defined searchingarea is displayed with detailedaddress. The POIs are listed inorder of distance. 2. With one POI ishighlighted, tapNext button to display this POI inthe map view. Or Actions button formore options. Note: in each screen, you can tap button to show the soft keyboard forentering your desired POI category orPOI item instead of choosing in the scrolllist.3. The POIs can be listed in order ofletter. To sort them alphabetically,tap the button.4. In the map view withyour desiredPOI, tap Go button to navigate fromthe origin. Tap Faster or Shorterbutton to choose the routecalculation mode. Tap Demo buttonto show the animated route.As you drive, the unitprovides you withturn-by-turn voice and visual directions,letting you know when your next turn isdue.

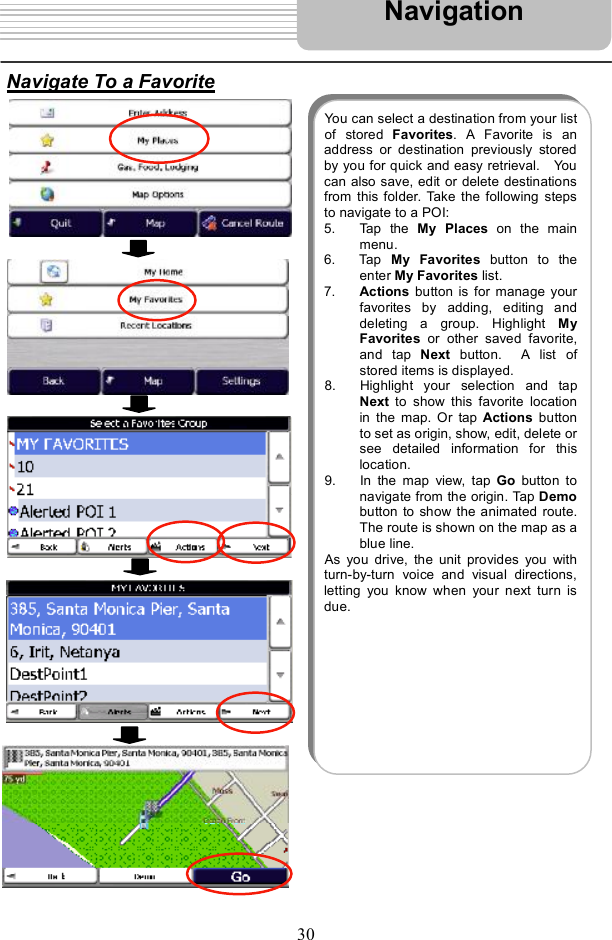

30Navigate To a FavoriteNavigationYou can select a destination from your listof stored Favorites. A Favorite is anaddress or destination previously storedby you for quick and easy retrieval. Youcan also save, edit or delete destinationsfrom this folder. Take the followingstepsto navigate to a POI: 5. Tap the My Places on the mainmenu.6. Tap My Favorites button to theenter My Favorites list. 7. Actions button is for manage yourfavorites by adding, editinganddeleting a group. Highlight MyFavorites or other saved favorite,and tap Next button. A list ofstored items is displayed.8. Highlight your selection and tapNext to show this favoritelocationin the map. Or tap Actions buttonto set as origin, show, edit, delete orsee detailed informationfor thislocation. 9. In the map view, tap Go button tonavigate from the origin. Tap Demobutton to show the animated route.The route is shown on the map as ablue line.As you drive, the unitprovides you withturn-by-turn voice and visual directions,letting you know when your next turn isdue.
31Save To Favorites ListNavigationWhen selecting a Destination which youmay use regularly, you can save it to yourpersonalized Favorites list. Take thefollowing steps to save to favorites list: First method: 1. On the map, tap any point in themap screen, a context menuappears. You can add this desiredlocation to "My favorites# list. Tapthe Add To My Favorites. 2. In the favorites editingmenu, youcan set the name of this favoritelocation and the favorite group toadd in by tapping or . Tap button to save your settings. Second method: 10. In the main menu, tap My Places11. Tap MyFavorites. Then tapActions button to add one newgroup. The name and symbol foryour favorites can be set in thefollowing screen.12. Press button tosave thenew favorite group.Your favorite destination has now beenstored for future use.
32Navigate To a Point on the MapNavigationYou can navigate to any point on the mapby tapping its location directly on the mapscreen. This featureis especially handywhen you want to navigate to a specificpoint you see on the map, but you don thave its street address. Take the followingsteps to navigate to a point on the map: 3. Scroll or drag the map to a specificpoint, and then tap the desiredlocation.4. A dialog box (See Figure 24)displays the address of that point,and lets you select whether youwant to navigate to it ( ), addthe point to your Favorites, or set itas your Origin (if you are in PlannerMode).5. To clear the cursor dialog,just tapthe screen again. 6. If you need to reset the point ofOrigin, tap the map screen to openthe Cursor Dialog, and select SetAs Origin. All new routecalculations will use this as thestarting point, but only if you are inPlanner Mode. In NavigationMode, your current GPS location isalways your Origin.

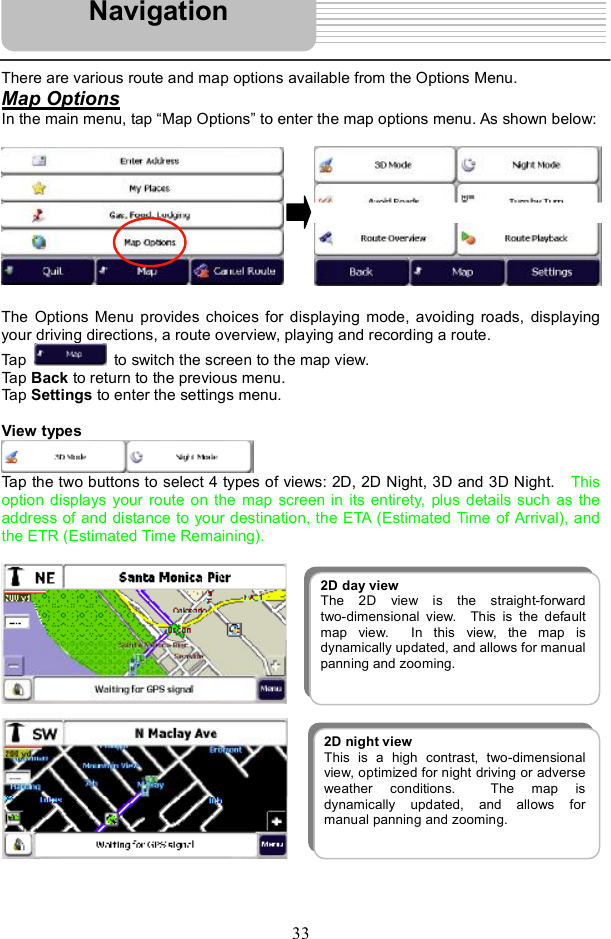

33There are various route and map options available from the Options Menu. Map OptionsIn the main menu, tap "Map Options# to enter the map options menu. As shown below: The Options Menu provides choices for displaying mode, avoiding roads, displaying your driving directions, a route overview, playing and recording a route. Tap to switch the screen to the map view. Tap Back to return to the previous menu. Tap Settings to enter the settings menu. View types Tap the two buttons to select 4 types of views: 2D, 2D Night, 3D and 3D Night. This option displays your route on the map screen in its entirety, plus details such as the address of and distance to your destination, the ETA (Estimated Time of Arrival), and the ETR (Estimated Time Remaining).Navigation2D day view The 2D view is the straight-forwardtwo-dimensional view. This is the defaultmap view. In this view, the map isdynamically updated, and allows for manualpanning and zooming.2D night view This is a high contrast, two-dimensional view, optimized for night driving or adverse weather conditions. The map is dynamically updated, and allows formanual panning and zooming.

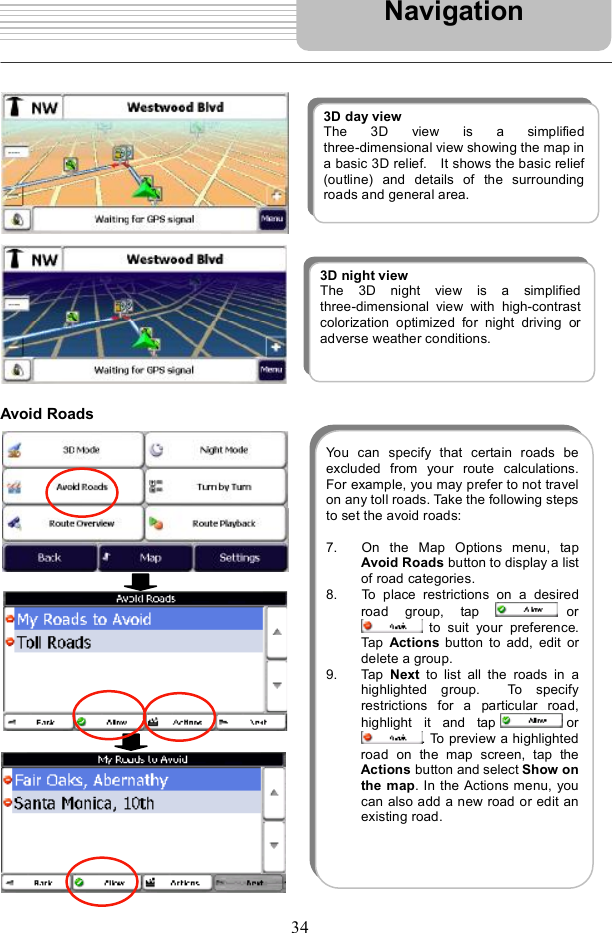

34Avoid Roads Navigation3D day view The 3D view is a simplifiedthree-dimensional view showing the map ina basic 3D relief. It shows the basic relief(outline) and details of the surroundingroads and general area.3D night view The 3D night view is a simplifiedthree-dimensional view with high-contrastcolorization optimized for night driving oradverse weather conditions.You can specify that certain roads beexcluded from your route calculations.For example, you may prefer to not travelon any toll roads. Take the following stepsto set the avoid roads: 7. On the Map Options menu, tapAvoid Roads button to display a listof road categories. 8. To place restrictions on a desiredroad group, tap orto suit your preference.Tap Actions button to add, edit ordelete a group. 9. Tap Next to list all the roads in ahighlighted group. To specifyrestrictions for a particular road,highlight it and tap or. To preview a highlightedroad on the map screen, tap theActions button and select Show onthe map. In the Actions menu, youcan also add a new road or edit anexisting road.

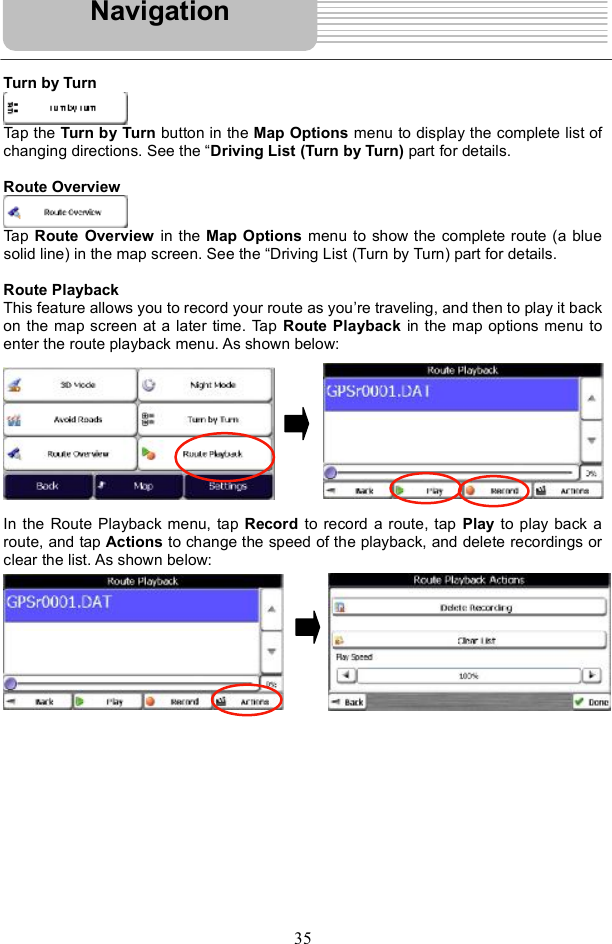

35Turn by Turn Tap the Turn by Turn button in the Map Options menu to display the complete list of changing directions. See the "Driving List (Turn by Turn) part for details. Route Overview Tap Route Overview in the Map Options menu to show the complete route (a blue solid line) in the map screen. See the "Driving List (Turn by Turn) part for details. Route Playback This feature allows you to record your route as you re traveling, and then to play it back on the map screen at a later time. Tap Route Playback in the map options menu to enter the route playback menu. As shown below: In the Route Playback menu, tap Record to record a route, tap Play to play back a route, and tap Actions to change the speed of the playback, and delete recordings or clear the list. As shown below: Navigation

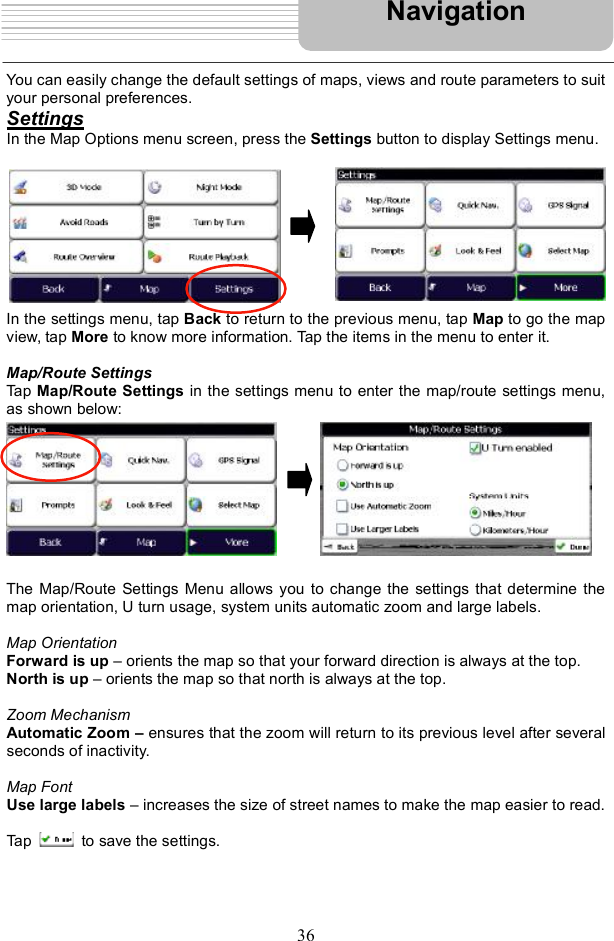

36You can easily change the default settings of maps, views and route parameters to suit your personal preferences. SettingsIn the Map Options menu screen, press the Settings button to display Settings menu. In the settings menu, tap Back to return to the previous menu, tap Map to go the map view, tap More to know more information. Tap the items in the menu to enter it. Map/Route Settings Tap Map/Route Settings in the settings menu to enter the map/route settings menu, as shown below: The Map/Route Settings Menu allows you to change the settings that determine the map orientation, U turn usage, system units automatic zoom and large labels. Map OrientationForward is up $ orients the map so that your forward direction is always at the top. North is up $ orients the map so that north is always at the top. Zoom MechanismAutomatic Zoom ensures that the zoom will return to its previous level after several seconds of inactivity. Map Font Use large labels $ increases the size of street names to make the map easier to read. Tap to save the settings. Navigation
37Quick Nav. Settings Tap Quick Nav. in the settings menu to enter the quick Nav. settings menu, as shown below: To define your desired home destination, you can enter an address or the Nearest POI. For example, you can enter your home address here for quick navigation. See "Navigate to My Home# for the specific operation. GPS Settings Tap GPS Signal in the settings menu to enter the quick GPS Signal settings menu, as shown below: To view your GPS status and configuration, tap the GPS Signal button in the Settings menu. GPS off button allows you to browse the map freely without acquiring GPS signal. The icon for your current location is changed as well. See the below map view for details: Navigation

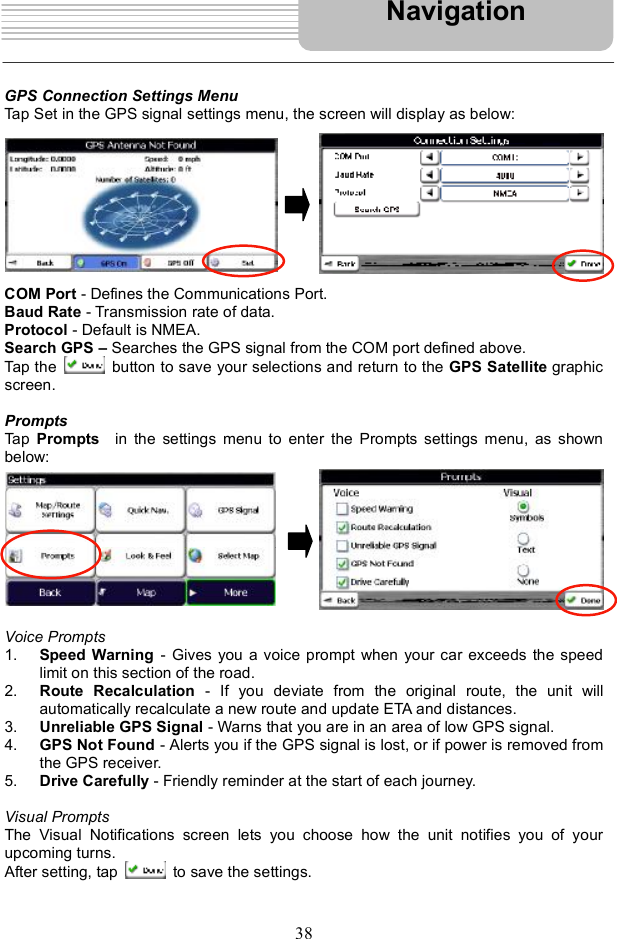

38GPS Connection Settings Menu Tap Set in the GPS signal settings menu, the screen will display as below: COM Port - Defines the Communications Port. Baud Rate - Transmission rate of data. Protocol - Default is NMEA. Search GPS Searches the GPS signal from the COM port defined above. Tap the button to save your selections and return to the GPS Satellite graphic screen.PromptsTap Prompts in the settings menu to enter the Prompts settings menu, as shown below: Voice Prompts1. Speed Warning - Gives you a voice prompt when your car exceeds the speed limit on this section of the road. 2. Route Recalculation - If you deviate from the original route, the unit willautomatically recalculate a new route and update ETA and distances. 3. Unreliable GPS Signal - Warns that you are in an area of low GPS signal. 4. GPS Not Found - Alerts you if the GPS signal is lost, or if power is removed from the GPS receiver. 5. Drive Carefully - Friendly reminder at the start of each journey. Visual Prompts The Visual Notifications screen lets you choose how the unit notifies you of your upcoming turns. After setting, tap to save the settings. Navigation

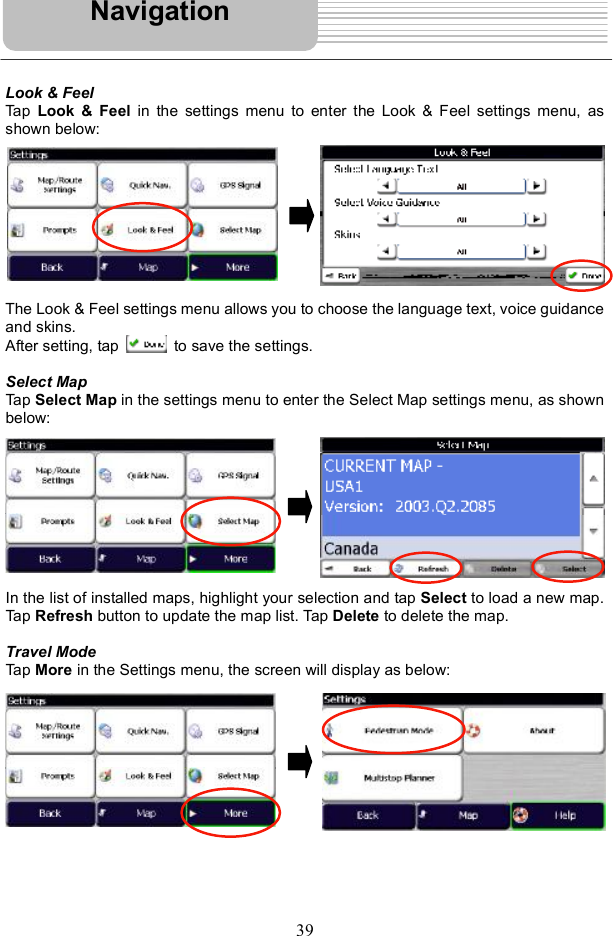

39Look & Feel Tap Look & Feel in the settings menu to enter the Look & Feel settings menu, as shown below: The Look & Feel settings menu allows you to choose the language text, voice guidance and skins. After setting, tap to save the settings. Select Map Tap Select Map in the settings menu to enter the Select Map settings menu, as shown below: In the list of installed maps, highlight your selection and tap Select to load a new map. Tap Refresh button to update the map list. Tap Delete to delete the map. Travel Mode Tap More in the Settings menu, the screen will display as below: Navigation
40orIn the menu, tap Pedestrian Mode or Vehicle Mode. In Pedestrian Mode, the navigation radius is restricted to 10 kilometers (6 miles) and some functions are not available, such as Turn by Turn,Avoid Roads and Route overview.Routing Mode Navigation Mode $ Provides voice instructions as you drive. This mode is the one you will use most frequently. The unit uses the satellite-based global positioning system (GPS) to constantly detect your current position. As you drive, your location is compared to the destination you have chosen and you will be constantly provided with accurate driving directions. Even if you accidentally drive off course, the unit will direct you back on track. Planner Mode $ Displays a route on the map. You set an origin and a destination, and the unit displays a map that shows you the route. In this mode of operation, the satellite-based global positioning system (GPS) is not used. Your current position is not detected and the unit does not keep track of your driving progress. Use Planner Mode for trip planning. AboutTap About in the menu, the screen will display software version and details about your Destinator application. Multistop Planner Trip planning is useful when you have more than one destination along your route When you tap , the Route is calculated in stages, from the departure point to the first stop. Once you ve reached the first stop, the route is recalculated to the second stop, and then recalculated to the third stop, and so on. Tap Multistop Planner in the menu, the screen will display as below: The scroll list shows the list of existing trips. If this is the first time you are using Multistop Planner, you will need to create a Multistop route to store your trip details. You can use any name. For an example, you enter My plan trip.By tapping Actions button, you can add, edit or delete a Multistop route. Navigation

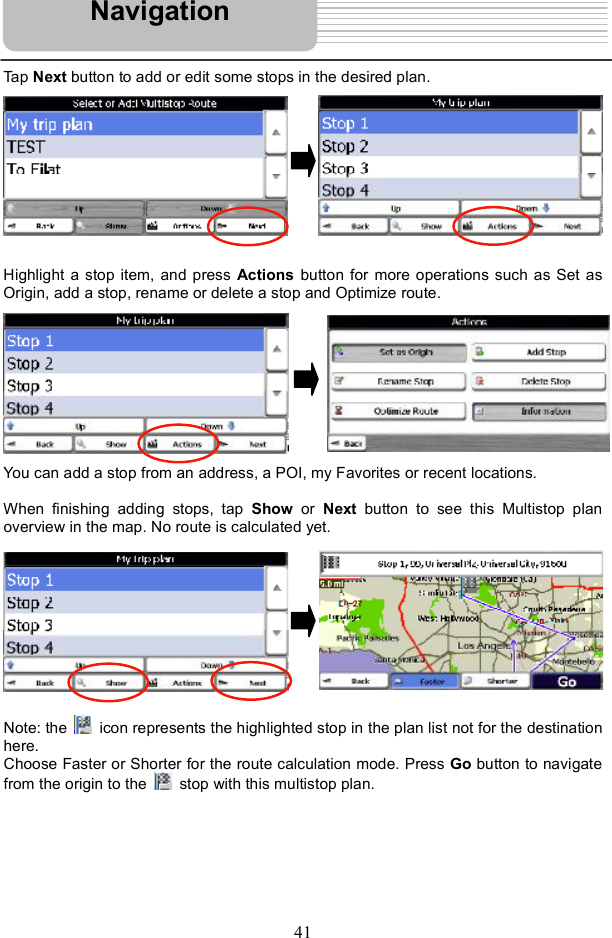

41Tap Next button to add or edit some stops in the desired plan. Highlight a stop item, and press Actions button for more operations such as Set as Origin, add a stop, rename or delete a stop and Optimize route. You can add a stop from an address, a POI, my Favorites or recent locations. When finishing adding stops, tap Show or Next button to see this Multistop plan overview in the map. No route is calculated yet. Note: the icon represents the highlighted stop in the plan list not for the destination here. Choose Faster or Shorter for the route calculation mode. Press Go button to navigate from the origin to the stop with this multistop plan. Navigation

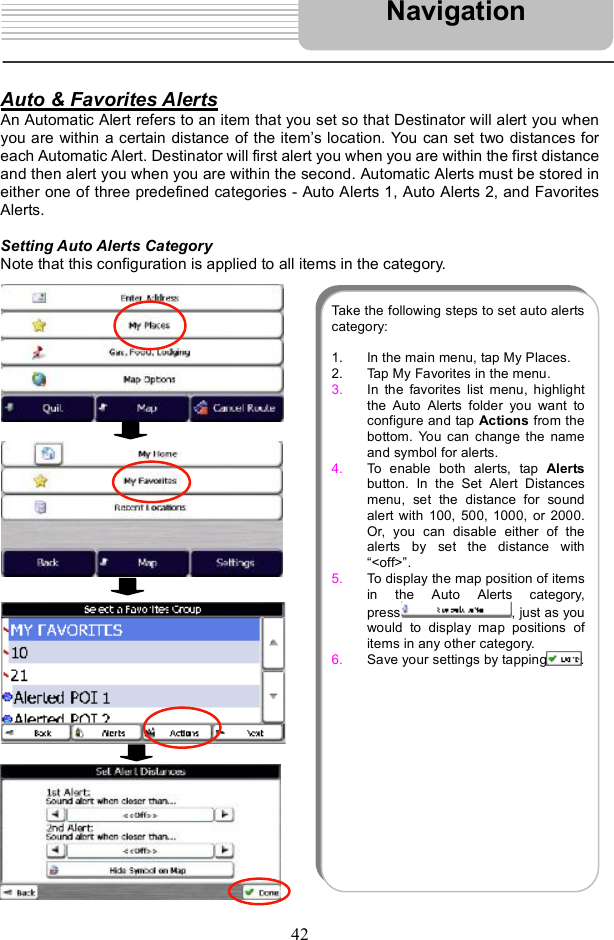

42Auto & Favorites AlertsAn Automatic Alert refers to an item that you set so that Destinator will alert you when you are within a certain distance of the item s location. You can set two distances for each Automatic Alert. Destinator will first alert you when you are within the first distance and then alert you when you are within the second. Automatic Alerts must be stored in either one of three predefined categories - Auto Alerts 1, Auto Alerts 2, and Favorites Alerts. Setting Auto Alerts Category Note that this configuration is applied to all items in the category. NavigationTake the followingsteps to set auto alertscategory: 1. In the main menu, tap My Places. 2. Tap My Favorites in the menu. 3. In the favorites list menu, highlightthe Auto Alerts folder you want toconfigure and tap Actions from thebottom. You can change the nameand symbol for alerts.4. To enable both alerts, tap Alertsbutton. In the Set Alert Distancesmenu, set the distance for soundalert with 100, 500, 1000, or 2000.Or, you can disable either of thealerts by set the distance with"<off>#. 5. To display the map position of itemsin the Auto Alerts category,press , just as youwould to display map positions ofitems in any other category.6. Save your settings by tapping .

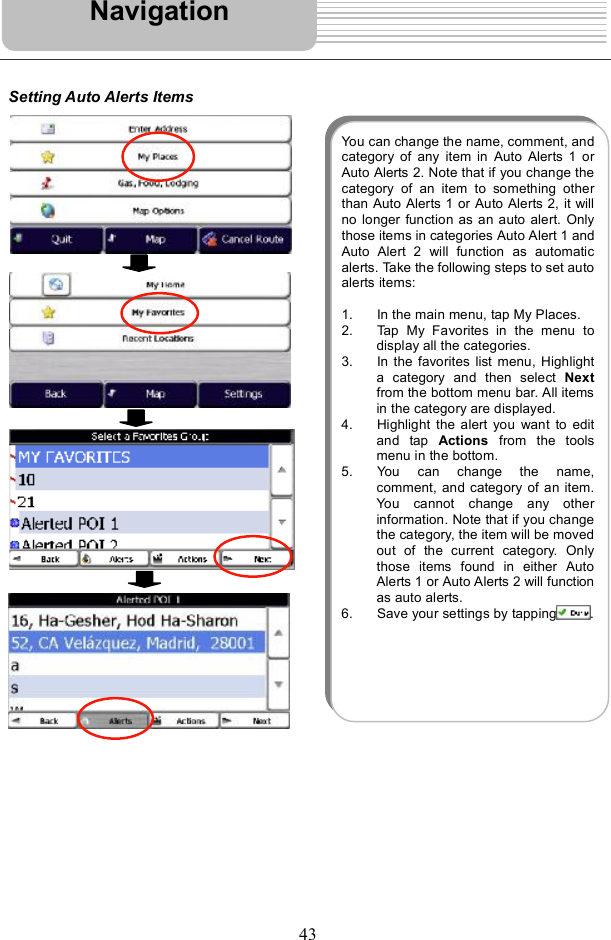

43Setting Auto Alerts Items NavigationYou can change the name, comment, andcategory of any item in Auto Alerts 1 orAuto Alerts 2. Note that if you change thecategory of an item to something otherthan Auto Alerts 1 or Auto Alerts 2, it willno longer function as an auto alert. Onlythose items in categories Auto Alert 1 andAuto Alert 2 will function as automaticalerts. Take the followingsteps to set autoalerts items: 1. In the main menu, tap My Places. 2. Tap My Favorites in the menu todisplay all the categories. 3. In the favorites list menu,Highlighta category and then select Nextfrom the bottom menu bar. All itemsin the category are displayed. 4. Highlight the alert you want to editand tap Actions from the toolsmenu in the bottom. 5. You can change the name,comment, and category of an item.You cannot change any otherinformation. Note that if you changethe category, the item will be movedout of the current category. Onlythose items found in either AutoAlerts 1 or Auto Alerts 2 will functionas auto alerts. 6. Save your settings by tapping .
44Compatible Disc Formats DISC LOGO DIAMETER PLAYBACK TIME/ PLAYABLE SIDES 133 min (SS-SL) 242 min (SS-DL) 266 min (DS-SL) 12cm484 min (DS-DL) 41 min (SS-SL) 75 min (SS-DL) 82 min (DS-SL) DVD8cm150 min (DS-DL) 12cm 74 min CD8cm 20 min JPEG 12cmOperation methods of some DVD discs are specified by the software manufacturer. Please refer to the instructions of those discs. Care of DiscsHolding Discs CleaningWhen loading or removing discs, donot touch their playing surfaces as the right figure. Fingerprints or stain on the disc may affect the quality of sound and picture. To clean your discs, use a soft clean cloth to wipe them. Ifnecessary, moisten a soft cloth with diluted neutral detergent to removeheave dirt or fingerprints. Do not wipe in a circular direction as the figure in the right middle(concentric scratches on the disc groove tend to cause noise). Gentlywipe from the center of the disc to the outer edge as the right figure.Notes on Discs

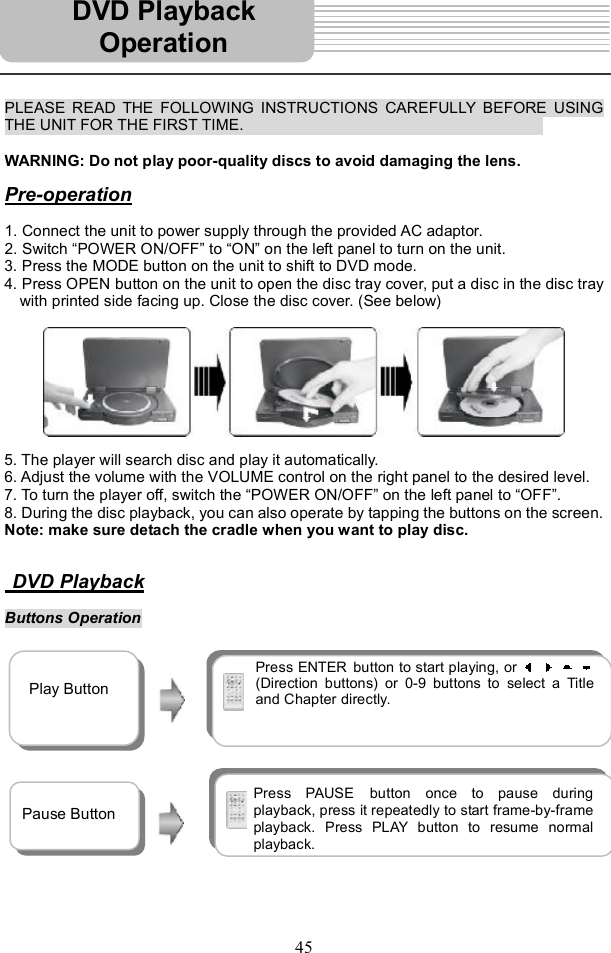

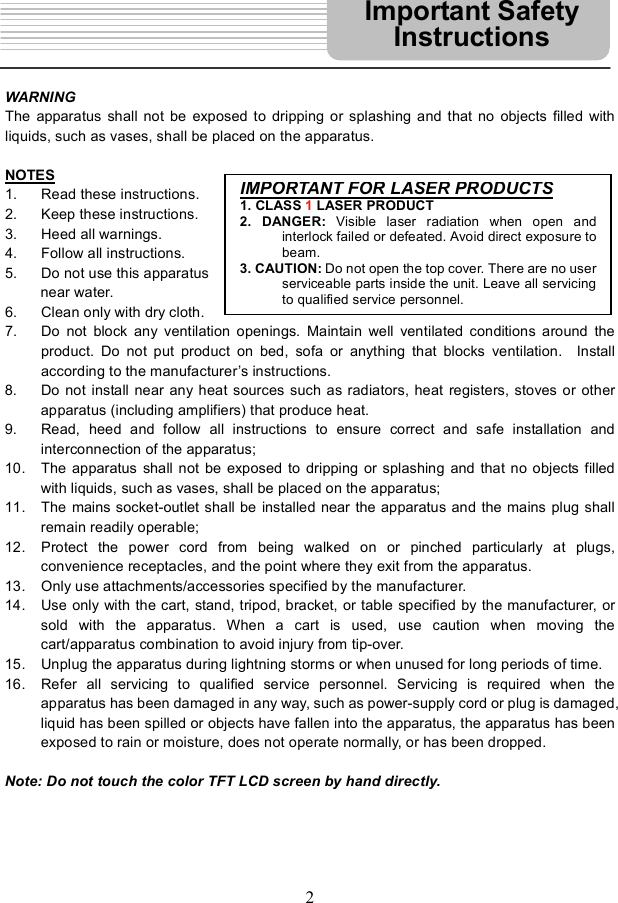

45PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE UNIT FOR THE FIRST TIME. WARNING: Do not play poor-quality discs to avoid damaging the lens. Pre-operation1. Connect the unit to power supply through the provided AC adaptor. 2. Switch "POWER ON/OFF# to "ON# on the left panel to turn on the unit. 3. Press the MODE button on the unit to shift to DVD mode. 4. Press OPEN button on the unit to open the disc tray cover, put a disc in the disc tray with printed side facing up. Close the disc cover. (See below) 5. The player will search disc and play it automatically. 6. Adjust the volume with the VOLUME control on the right panel to the desired level. 7. To turn the player off, switch the "POWER ON/OFF# on the left panel to "OFF#. 8. During the disc playback, you can also operate by tapping the buttons on the screen. Note: make sure detach the cradle when you want to play disc. DVD PlaybackButtons Operation DVD Playback OperationPressENTERbutton to start playing,or(Direction buttons) or 0-9 buttons to select a Titleand Chapter directly. Play Button Pause Button Press PAUSEbutton once to pause duringplayback, press it repeatedly to start frame-by-frameplayback. Press PLAY buttonto resume normalplayback.
46Stop Button TITLE button Press TITLE button during play. The title menu willappear on the screen. Press (direction buttons) to select the titleor disc menu item you wish to play, then pressENTER button to confirm your selection. Or press0-9 buttons to select the item you prefer directly. DVD Playback OperationDuring playback,pressSTOPbuttononce to stopplaying, then press PLAYbutton to resume normalplayback from the stopped point. Press STOP buttontwice repeatedly to stop playback completely. Thenwhen you press PLAY button, the player will playfrom the beginning. Zoom button Press ZOOM button repeatedly to shift amongZOOM 2, ZOOM 3, ZOOM 4, ZOOM 1/2, ZOOM1/3, ZOOM 1/4 and ZOOM OFF modes. A-B Button Press A-B button once to set the starting point A, press it again to set the end point B. Then the player will play the segment between A and B continuously. Press this button third time to stop the A-B repeat. MENU button Press MENUbutton during play. The rootmenu willappear on the screen. Press (direction buttons) to select the itemyou wish to play, then press ENTER button toconfirm your selection. Or press 0-9 buttons to selectthe item you prefer directly.

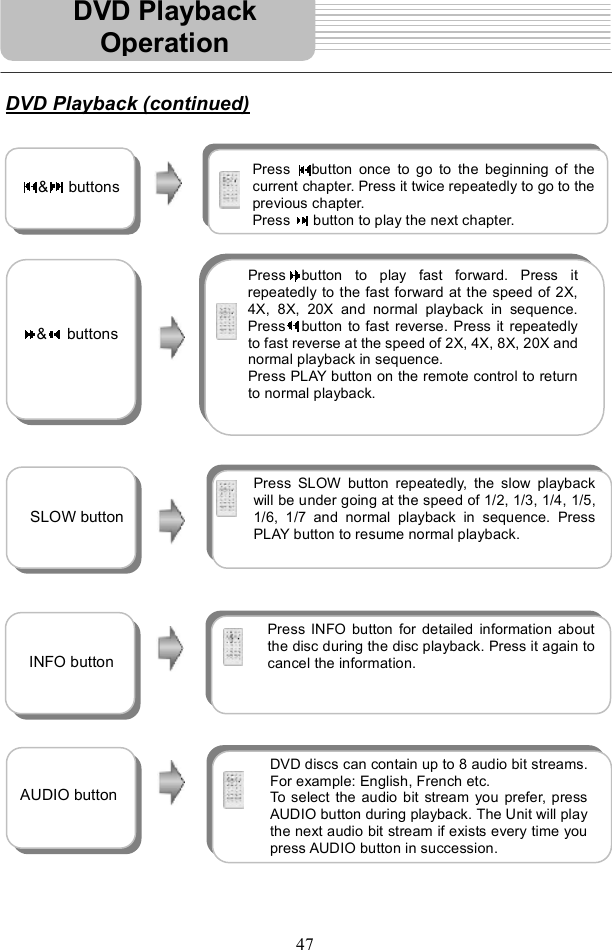

47DVD Playback (continued)& buttons Press button once to go to the beginning of thecurrent chapter. Press it twice repeatedly to go to theprevious chapter. Press button to play the next chapter.& buttons SLOW buttonPress SLOW button repeatedly, the slow playbackwill be under going at the speed of 1/2, 1/3, 1/4, 1/5,1/6, 1/7 and normal playback in sequence. PressPLAY button to resume normal playback.AUDIO buttonDVD discs can contain up to 8 audio bit streams.For example: English, French etc. To select the audio bit stream you prefer, pressAUDIO button during playback. The Unit will playthe next audio bit stream if exists every time youpress AUDIO button in succession. Press button to play fast forward. Press itrepeatedly to the fast forward at the speed of 2X,4X, 8X, 20X and normal playback in sequence.Press button to fast reverse. Press it repeatedlyto fast reverse at the speed of 2X, 4X, 8X, 20X andnormal playback in sequence. Press PLAY button on the remote controlto returnto normal playback. INFO buttonPress INFO button for detailed information about the disc during the disc playback. Press it again to cancel the information. DVD Playback Operation

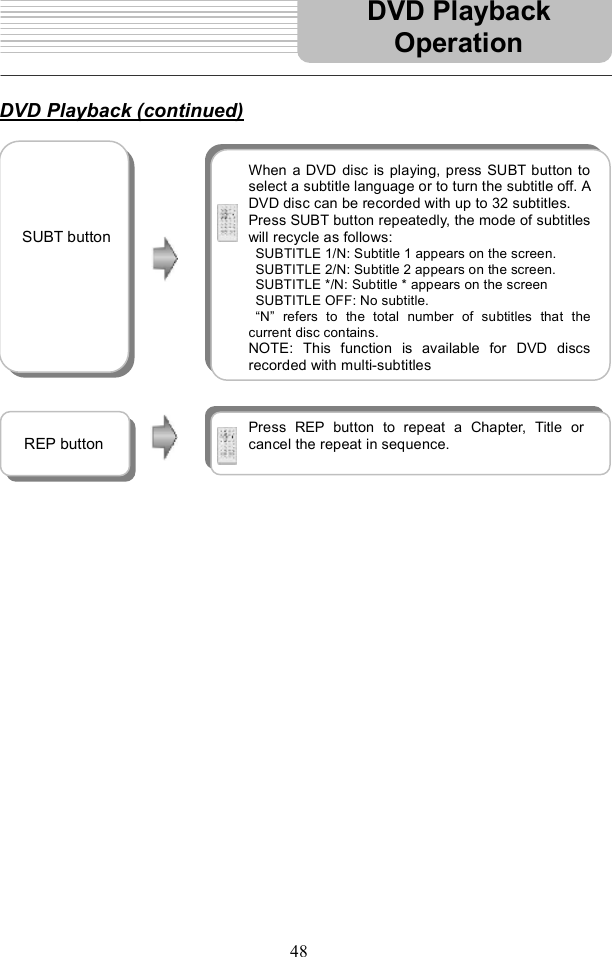

48DVD Playback (continued)When a DVD disc is playing, press SUBT button toselect a subtitle language or to turn the subtitle off. ADVD disc can be recorded with up to 32 subtitles. Press SUBT button repeatedly, the mode of subtitleswill recycle as follows: SUBTITLE 1/N: Subtitle 1 appears on the screen. SUBTITLE 2/N: Subtitle 2 appears on the screen. SUBTITLE */N: Subtitle * appears on the screen SUBTITLE OFF: No subtitle. "N# refers to the total number of subtitles that thecurrent disc contains. NOTE: This function is available for DVD discsrecorded with multi-subtitlesSUBT buttonREP button Press REP button to repeat a Chapter, Title orcancel the repeat in sequence. DVD Playback Operation
49 Press ANGLE button to play the disc in multi-angle.Multi-angle means that a scene is shot from differentangle so that audience can watch from any angle, likethe drawings below: If there are multiple angles in a scene, you can usethe ANGLE button to select the angle you like toenjoy. Press the ANGLE button repeatedly to viewfrom different angle. NOTE: This function is only available for the DVD discthat coded with multi-angles. DVD Playback (continued)Press GOTO button to select desired disc title, chapter or time. Use or direction button to select TT, CH orTIME.Use 0-9 number buttons to enter the desired title, chapter or time directly, press the ENTER button to confirm, Then the player will begin playing from the selected title, chapter or time. Press it repeatedly to cancel the item. GOTO button DVD Playback OperationANGLE button

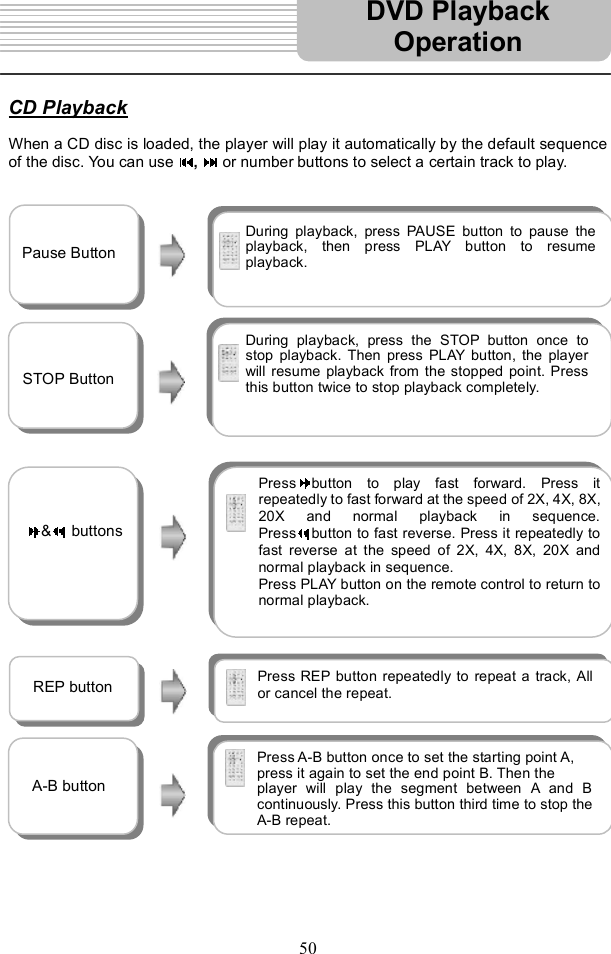

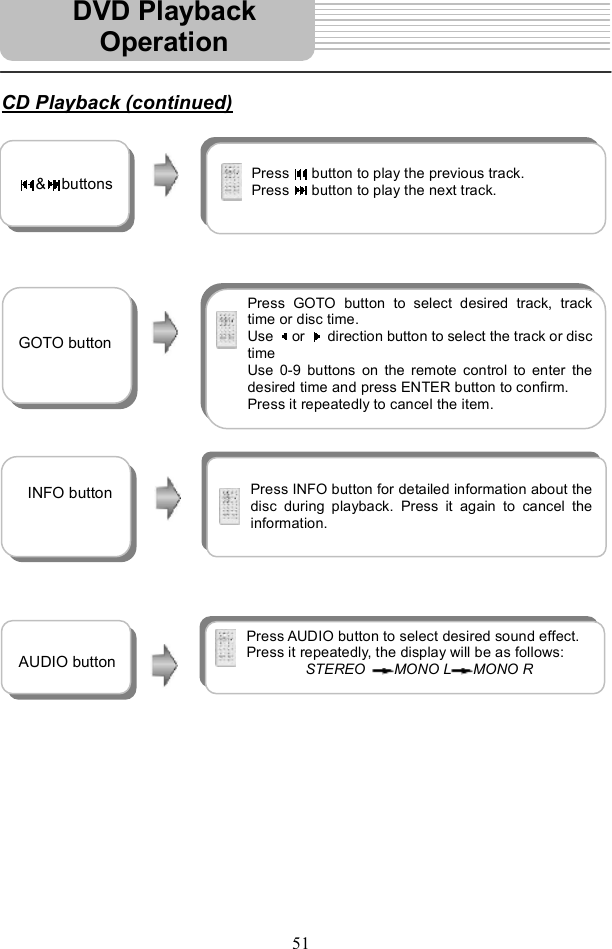

50CD PlaybackWhen a CD disc is loaded, the player will play it automatically by the default sequence of the disc. You can use ,ornumberbuttons to select a certain track to play. DVD Playback OperationPause Button During playback,pressPAUSEbuttonto pause theplayback, then press PLAY button to resumeplayback. Press button to play fast forward. Press itrepeatedly to fast forward at the speed of 2X, 4X, 8X,20X and normal playback in sequence.Press button to fast reverse. Press it repeatedly tofast reverse at the speed of 2X, 4X, 8X, 20X andnormal playback in sequence. Press PLAY button on the remote controlto return tonormal playback. & buttons REP button Press REP button repeatedly to repeat a track, Allor cancel the repeat. STOPButtonDuring playback,pressthe STOP buttononce tostop playback. Then press PLAY button, the playerwill resume playback from the stopped point. Pressthis button twice to stop playback completely. A-B button Press A-B button once to set the starting point A, press it again to set the end point B. Then the player will play the segment between A and B continuously. Press this button third time to stop the A-B repeat.
51CD Playback (continued)GOTO button Press GOTO button to select desired track, tracktime or disc time. Use or direction button to select the track or disctimeUse 0-9 buttons on the remote control to enter thedesired time and press ENTER button to confirm. Press it repeatedly to cancel the item. Press INFO button for detailed informationabout thedisc during playback. Press it again to cancel theinformation.INFO button AUDIO button Press AUDIO button to select desired sound effect. Press it repeatedly, the display will be as follows: STEREO MONO L MONO R DVD Playback Operation&buttons Press button to play the previous track. Press button to play the next track.

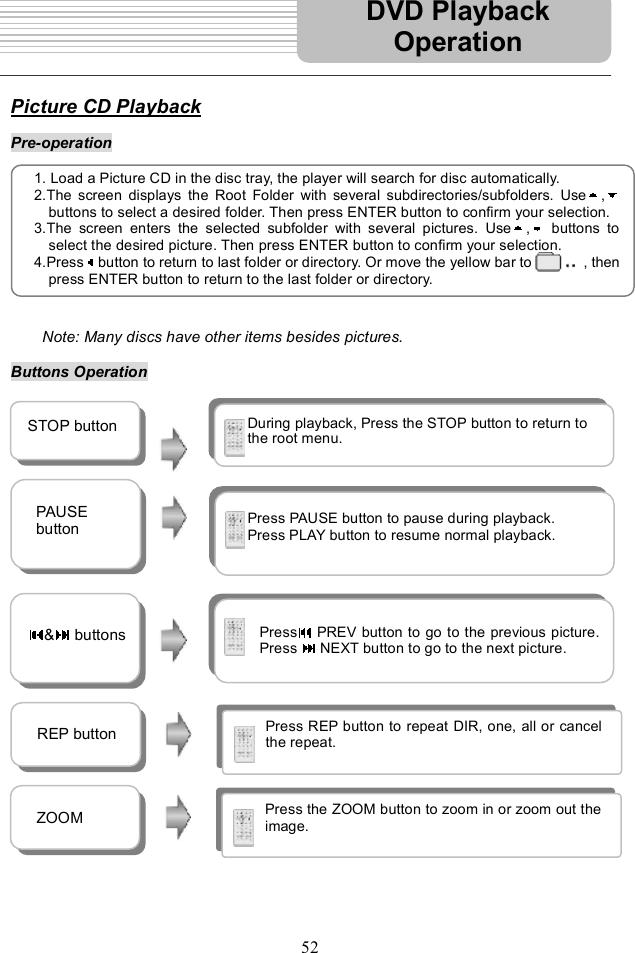

52Picture CD PlaybackPre-operationNote: Many discs have other items besides pictures. Buttons OperationDVD Playback Operation1. Load a Picture CD in the disc tray, the player will search for disc automatically. 2.The screen displays the Root Folder with several subdirectories/subfolders. Use ,buttons to select a desired folder. Then press ENTER button to confirm your selection. 3.The screen enters the selected subfolder with several pictures. Use , buttons toselect the desired picture. Then press ENTERbutton to confirm your selection. 4.Press button to return to last folder or directory. Or move the yellow bar to , thenpress ENTER button to return to the last folder or directory. &buttons Press PREV button to go to the previous picture.Press NEXT button to go to the next picture.STOP button During playback, Press the STOP button to return tothe root menu. PAUSEbutton Press PAUSE button to pause during playback. Press PLAY button to resume normal playback.REP button Press REP button to repeat DIR, one, all or cancelthe repeat. ZOOM Press the ZOOM button to zoom in or zoom out theimage.
53During browsing a picture, you can use direction buttons , , , to rotate thecurrent picture. Press button to rotate the current picture clockwise, as following drawings: Press button to rotate the current picture anti-clockwise, as following drawings: Press button to rotate the current picture flip vertical, as following drawings: Press button to rotate the current picture flip horizontal, as following drawings: Picture CD Playback (continued)Press GOTO button to select the desired folder orpicture.Press 0-9 buttons to select your favorite folder orpicture directly. GOTO button Picture Rotate DVD Playback Operation

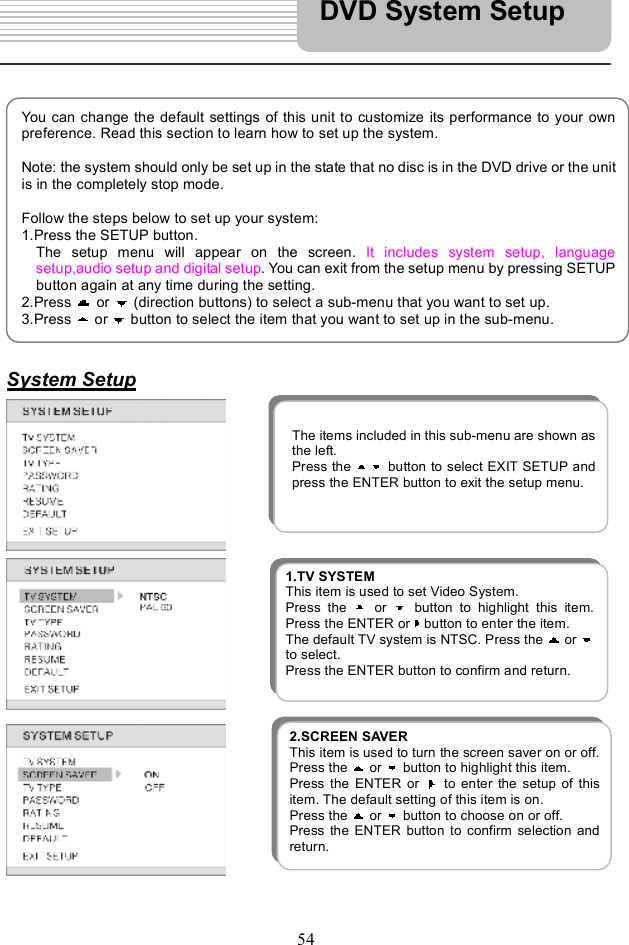

54System SetupYou can change the default settings of this unit to customize its performance to your ownpreference. Read this section to learn how to set up the system. Note: the system should only beset up in the state that no disc is in the DVD drive or the unitis in the completely stop mode. Follow the steps below to set up your system: 1.Press the SETUP button. The setup menu will appear on the screen. It includes system setup, languagesetup,audio setup and digital setup. You can exit from the setup menu by pressing SETUPbutton again at any time during the setting. 2.Press or (direction buttons) to select a sub-menu that you want to set up. 3.Press or button to select the item that you want to set up in the sub-menu. 1.TV SYSTEM This item is used to set Video System. Press the or button to highlight this item.Press the ENTER or button to enter the item. The default TV system is NTSC. Press the or to select. Press the ENTER button to confirm and return.2.SCREEN SAVER This item is used to turn the screen saver on or off. Press the or button to highlight this item. Press the ENTER or to enter the setup of thisitem. The default setting of this item is on. Press the or button to choose on or off. Press the ENTER button to confirm selection andreturn.The items included in this sub-menu areshown as the left. Press the button to select EXIT SETUP and press the ENTER button to exit the setup menu. DVD System Setup
553.TV TYPE This item is used to set TV display mode. Press the or button to highlight this item.Press the ENTER or button to enter the item. It includes 4:3PS, 4:3LB and 16:9, 4:3PS bydefault.Press the or button to choose the proper one.Press the ENTER button to confirm your selectionand return. Note: Select Normal/PS or Normal/LB when a 4:3TV is connected. SelectWide when a 16:9 wide screen TV isconnected.4. PASSWORD Parental control is protected by password. Thisitem is used to change the password of the parentalcontrol. The default password is 0000.Press the or button to highlight this item. Press the ENTER or button to enter the item. Choose a password most suitable for you. Press the ENTER button to confirm your enter.5. RATING DVD discs are rated according to their contents,and their settings vary from disc to disc. Thefunction of this item is to set parental control. Youcan lock out certain scenes of the discs, or lock outthe whole disc depending on thecontents of thedisc after setting this item. The default level isAdult.Press or button to highlight this item. Press ENTER or to enter the setup of this item. Then the item will show as the left. Press the or button to choose the proper one.Pressthe ENTER button to confirm your selection.Input the password. (See password)and press theENTER button again to return to the preview menu.DVD System Setup

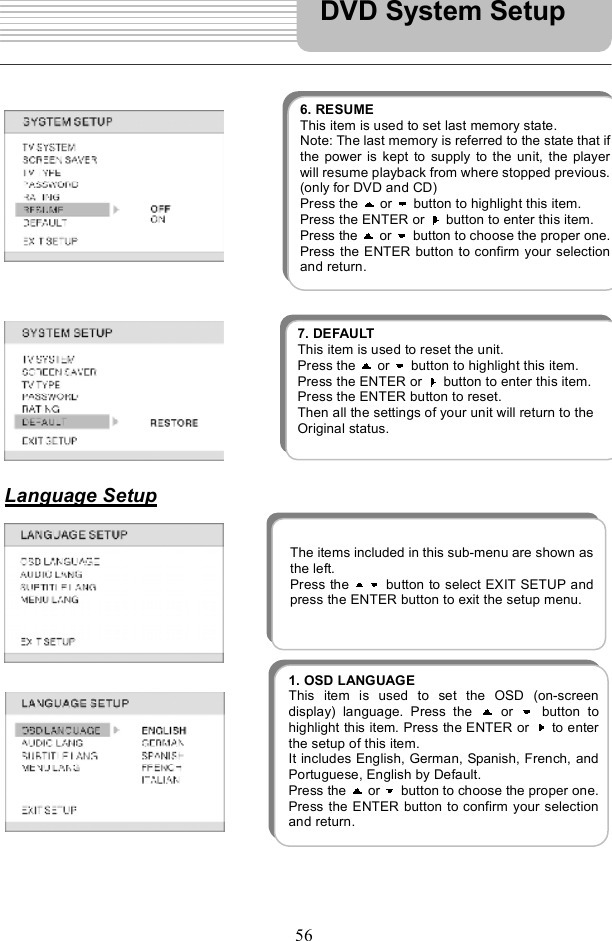

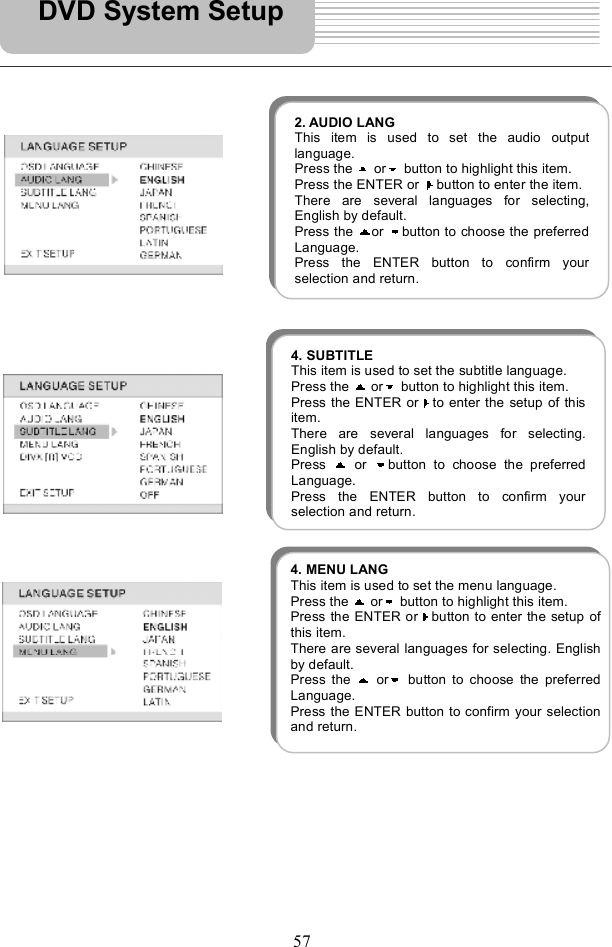

56Language SetupDVD System Setup 1. OSD LANGUAGE This item is used to set the OSD (on-screendisplay) language. Press the or button tohighlight this item. Press the ENTER or to enterthe setup of this item. It includes English, German, Spanish, French, andPortuguese, English by Default. Press the or button to choose the proper one.Press the ENTER button to confirm your selectionand return. 6. RESUME This item is used to set last memory state. Note: The last memory is referred to the state that ifthe power is kept to supply to the unit, the playerwill resumeplayback from where stopped previous.(only for DVD and CD) Press the or button to highlight this item. Press the ENTER or button to enter this item. Press the or button to choose the proper one.Press the ENTER button to confirm your selectionand return. The items included in this sub-menu areshown as the left. Press the button to select EXIT SETUP and press the ENTER button to exit the setup menu. 7. DEFAULT This item is used to reset the unit. Press the or button to highlight this item. Press the ENTER or button to enter this item. Press the ENTER button to reset. Then all the settings of your unit will return to the Original status.
574. SUBTITLE This item is used to set the subtitle language. Press the or button to highlight this item. Press the ENTER or to enter the setup of thisitem.There are several languages for selecting.English by default. Press or button to choose the preferredLanguage.Press the ENTER button to confirm yourselectionand return.4. MENU LANG This item is used to set the menu language. Press the or button to highlight this item. Press the ENTER or button to enter the setup ofthis item. There are several languages for selecting. Englishby default.Press the or button to choose the preferredLanguage.Press the ENTER button to confirm your selectionand return. 2.AUDIO LANGThis item is used to set the audio outputlanguage.Press the or button to highlight this item. Press the ENTER or button to enter the item. There are several languages for selecting,English by default. Press the or button to choose the preferredLanguage.Press the ENTER button to confirm yourselectionand return.DVD System Setup

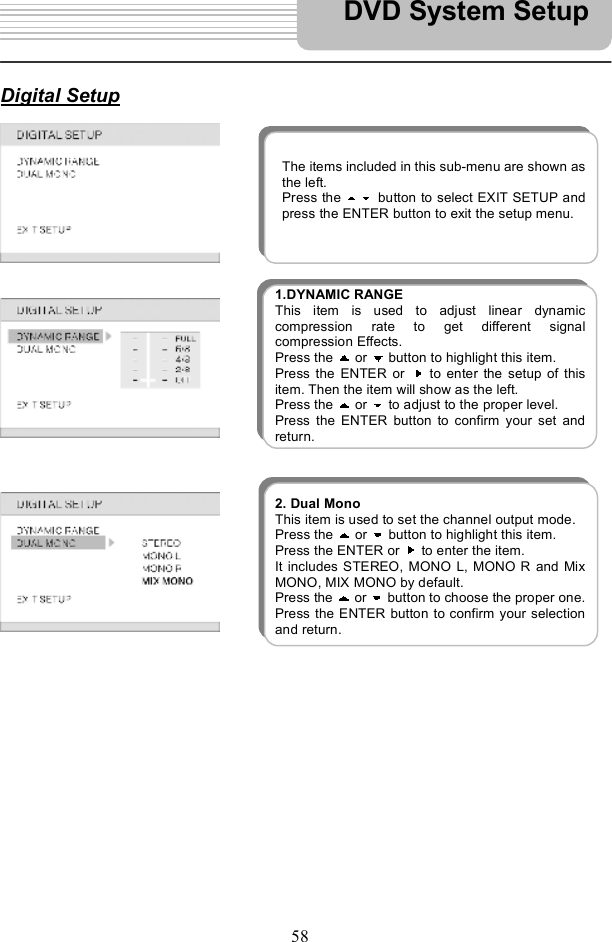

58Digital Setup1.DYNAMIC RANGE This item is used to adjust linear dynamiccompression rate to get different signalcompression Effects. Press the or button to highlight this item. Press the ENTER or to enter the setup of thisitem. Then the item will show as the left. Press the or to adjust to the proper level. Press the ENTER button to confirm your set andreturn.2. Dual Mono This item is used to set the channel output mode. Press the or button to highlight this item. Press the ENTER or to enter the item. It includes STEREO, MONO L, MONO R and MixMONO, MIX MONO by default. Press the or button to choose the proper one.Press the ENTER buttonto confirm your selectionand return. The items included in this sub-menu areshown as the left. Press the button to select EXIT SETUP and press the ENTER button to exit the setup menu. DVD System Setup

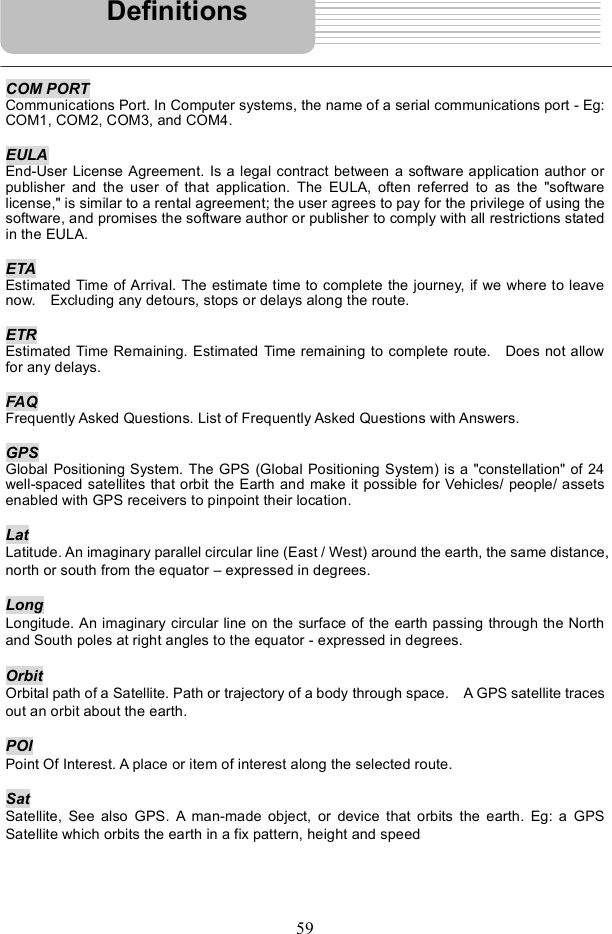

59COM PORT Communications Port. In Computer systems, the name of a serial communications port - Eg: COM1, COM2, COM3, and COM4. EULAEnd-User License Agreement. Is a legal contract between a software application author or publisher and the user of that application. The EULA, often referred to as the "software license," is similar to a rental agreement; the user agrees to pay for the privilege of using the software, and promises the software author or publisher to comply with all restrictions stated in the EULA. ETA Estimated Time of Arrival. The estimate time to complete the journey, if we where to leave now. Excluding any detours, stops or delays along the route. ETREstimated Time Remaining. Estimated Time remaining to complete route. Does not allow for any delays. FAQ Frequently Asked Questions. List of Frequently Asked Questions with Answers. GPS Global Positioning System. The GPS (Global Positioning System) is a "constellation" of 24 well-spaced satellites that orbit the Earth and make it possible for Vehicles/ people/ assets enabled with GPS receivers to pinpoint their location. LatLatitude. An imaginary parallel circular line (East / West) around the earth, the same distance, north or south from the equator $ expressed in degrees. LongLongitude. An imaginary circular line on the surface of the earth passing through the North and South poles at right angles to the equator - expressed in degrees. Orbit Orbital path of a Satellite. Path or trajectory of a body through space. A GPS satellite traces out an orbit about the earth. POI Point Of Interest. A place or item of interest along the selected route. SatSatellite, See also GPS. A man-made object, or device that orbits the earth. Eg: a GPS Satellite which orbits the earth in a fix pattern, height and speed Definitions
60SDSecure Digital memory card. A Secure Digital (SD) card is a tiny flash memory card used to make data storage portable among various devices. TTDTotal Time Duration. The projected total time the trip is calculated to take - does not allow for any detours or other delays.Dolby Digital Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can reproduce from one to 5.1 discrete channels of excellent quality audio. Letterbox screen This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running along the top and bottom. Pan & Scan screen This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides. Title, Chapter (DVD) DVDs are divided into some large sections (titles) or some small sections (chapters). Each section is numbered: these numbers are called "Title number" or "Chapter number". Title 1 Title 2 Chapter1 Chapter 1 Chapter2 !! !! Track (CD) CDs are divided into some sections (tracks). Each section is numbered; these numbers are called "Track number". Track 1 Track 2 Track 3 !! JPEG JPEG is a common picture format that has small file size and low quality loss rate of picture. Hundreds of pictures can be stored in a disc in this format. In order to utilize real digital album, use film to make a "PICTURE CD" in JPEG format. Definitions

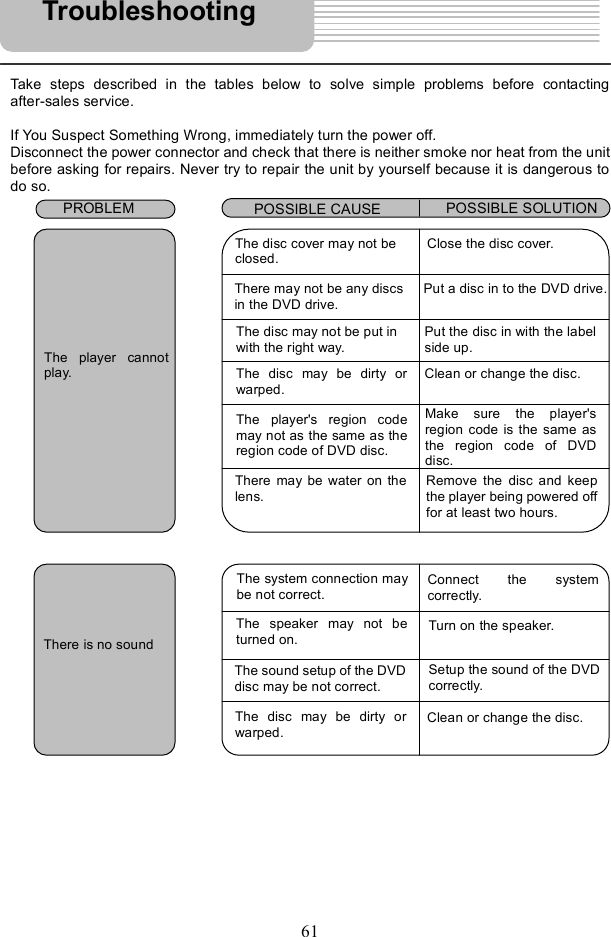

61Take steps described in the tables below to solve simple problems before contacting after-sales service. If You Suspect Something Wrong, immediately turn the power off. Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit by yourself because it is dangerous to do so. Troubleshooting PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The player cannotplay. The disc cover may not be closed.Close the disc cover. There may not be any discs in the DVD drive.Put a disc in to the DVD drive.The disc may not be put in with the right way.Put the disc in with the labelside up.The disc may be dirty orwarped.Clean or change the disc.The player's region codemay not as the same astheregion code of DVD disc.Make sure the player's region code is the same as the region code of DVD disc.There may be water on the lens.Remove the disc and keepthe player being powered offfor at least two hours.There is no sound The system connection maybe not correct.Connect the system correctly.The speaker may not beturned on.Turn on the speaker.The sound setup of the DVDdisc may be not correct.Setup the sound of the DVDcorrectly.The disc may be dirty orwarped.Clean or change the disc.
62Other possibilities: Static or other external interference may cause the player function abnormally. In order to recover normal status, please unplug the power-supply cord and then plug it into the outlet again to reset the player. If the problems still exist, please cut off the power supply and consult your service center or the qualified technician. Troubleshooting PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION There is no picture.The LCD may be off or notbe in correct video mode.Turn on the LCD and choose the correct video mode.The system connection maybe not correct.Connect the system correctly.The unit may be not in AVout mode.Switch AV tab on the bottom of the unit to out.Poor AV performance. The disc may be dirty orwarped.Clean or change the disc.The remote controldoes not workThere may be some obstructions between the remote control and the player.Remove the obstruction between the remote control and the player.The remote control may notbe pointed at the player.Point the remote control atthe player directly.The batteries of remotecontrol may be out of poweror weak.Make sure the polarity ofeach battery is correct.The batteries of remotecontrol may not be insertedcorrectly.Replace the batteries.

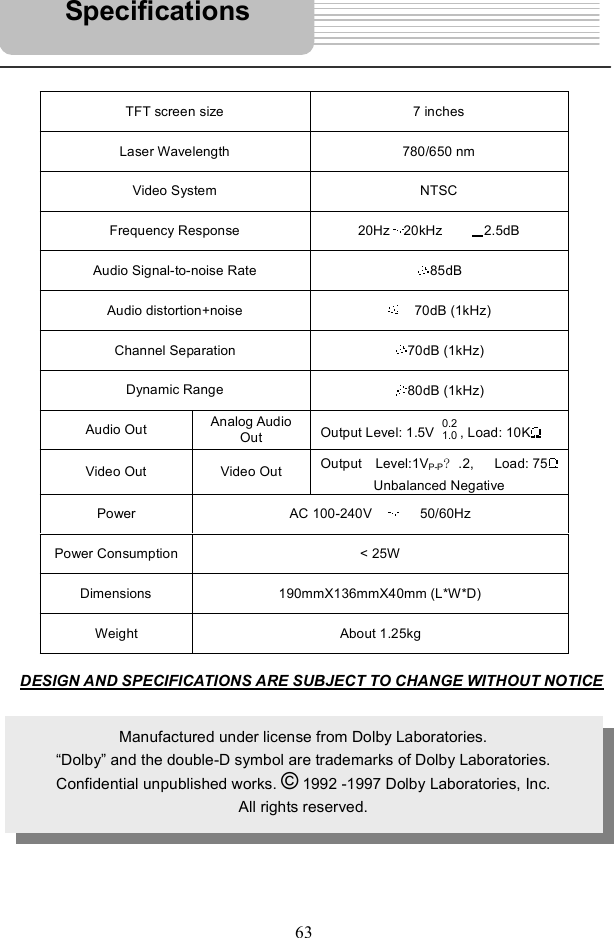

63DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICETFT screen size 7 inches Laser Wavelength 780/650 nm Video System NTSC Frequency Response 20Hz 20kHz 2.5dBAudio Signal-to-noise Rate 85dBAudio distortion+noise 70dB (1kHz) Channel Separation 70dB (1kHz) Dynamic Range 80dB (1kHz) Audio Out Analog Audio Out Output Level: 1.5V 0.2 1.0 , Load: 10KVideo Out Video Out Output Level:1VP-P .2, Load: 75?Unbalanced NegativePower AC 100-240V 50/60Hz Power Consumption < 25W Dimensions 190mmX136mmX40mm (L*W*D) Weight About 1.25kg Manufactured under license from Dolby Laboratories. "Dolby# and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992 -1997 Dolby Laboratories, Inc. All rights reserved. Specifications
