Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 1 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

\

EDGE Wireless

De-manufacturing

Instructions

Document Number: 480-2521-001

Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 2 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

1.0 Purpose

This instruction defines the de-manufacturing process for the recovery of this product

family as it pertains to recycling of the major product components.

2.0 Scope

This instruction applies to the following product family and family part numbers.

Product Family Name Family part #’s (not necessarily inclusive)

Firebox X Edge Wireless • Firebox X5W; all revisions

• Firebox X15W; all revisions

• Firebox X50W; all revisions

Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 3 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

3.0 Instruction

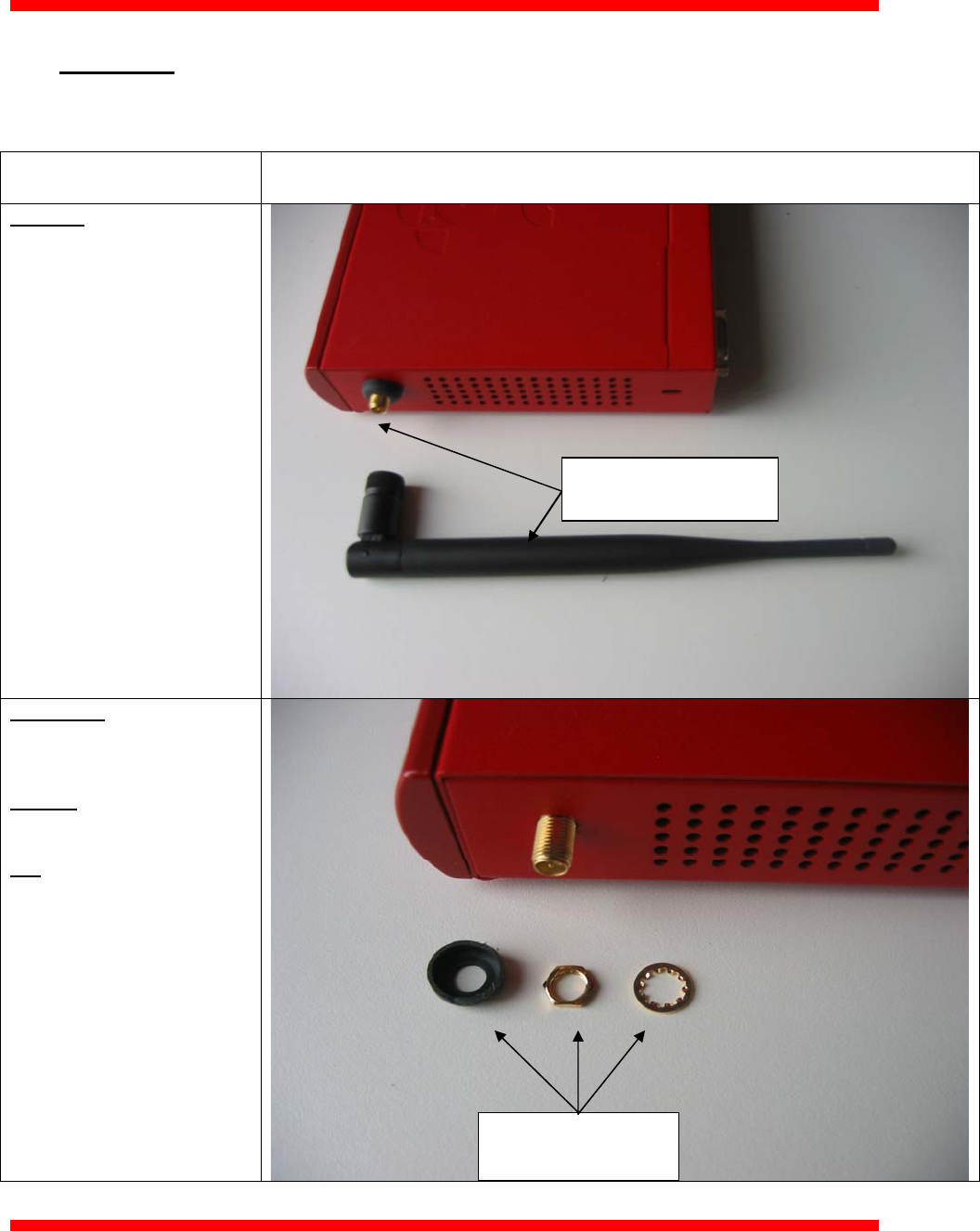

3.1 -Remove wireless antenna and antenna hardware

3.2 -Remove labels, rubber feet and screw, and separate top from bottom

Material removed (P/N

& material type) Instruction visual

Antenna

1305-002 - TPE, PC,

reverse SMA connector, RG-

178 coaxial cable; 2.4Ghz; 2

ea.

Post cover

1366-001- Rubber -

Santoprene 10155A

Washer

No p/n - Gold plated brass

Nut

No p/n - Gold plated brass

Remove antenna by

unscrewing from chassis

p

ost

,

2 sides

Remove post cover and

hardware; 2 sides

Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 4 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

Material removed (P/N

& material type) Instruction visual

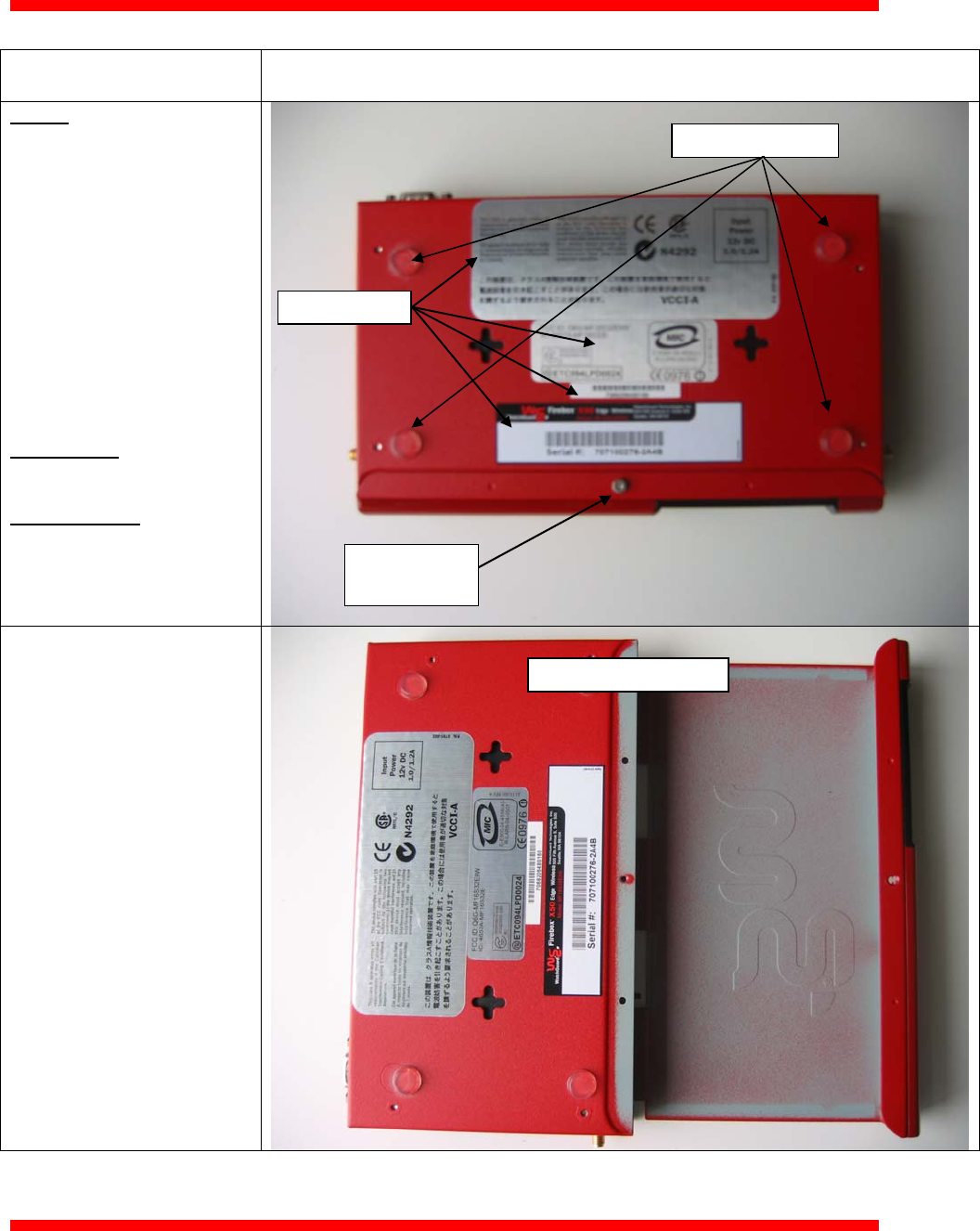

Labels

Cert. label:

1791-0xx – Metalized

poly-film

Serial number:

1789-00x – Poly-film

Transmit Cert/FCC/CE:

2111-00x – Metalized

Poly-film

Made in Taiwan (if appl):

1794-00x - Metalized

poly-film

CM identifier:

No p/n – Poly-film

Rubber Feet

1422-002 - Polyurethane

Remove screw

2130-002 - Torx pin-head

security screw; stainless

steel

Remove labels

Remove screw,

security head

Remove rubber feet

Separate top from bottom

Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 5 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

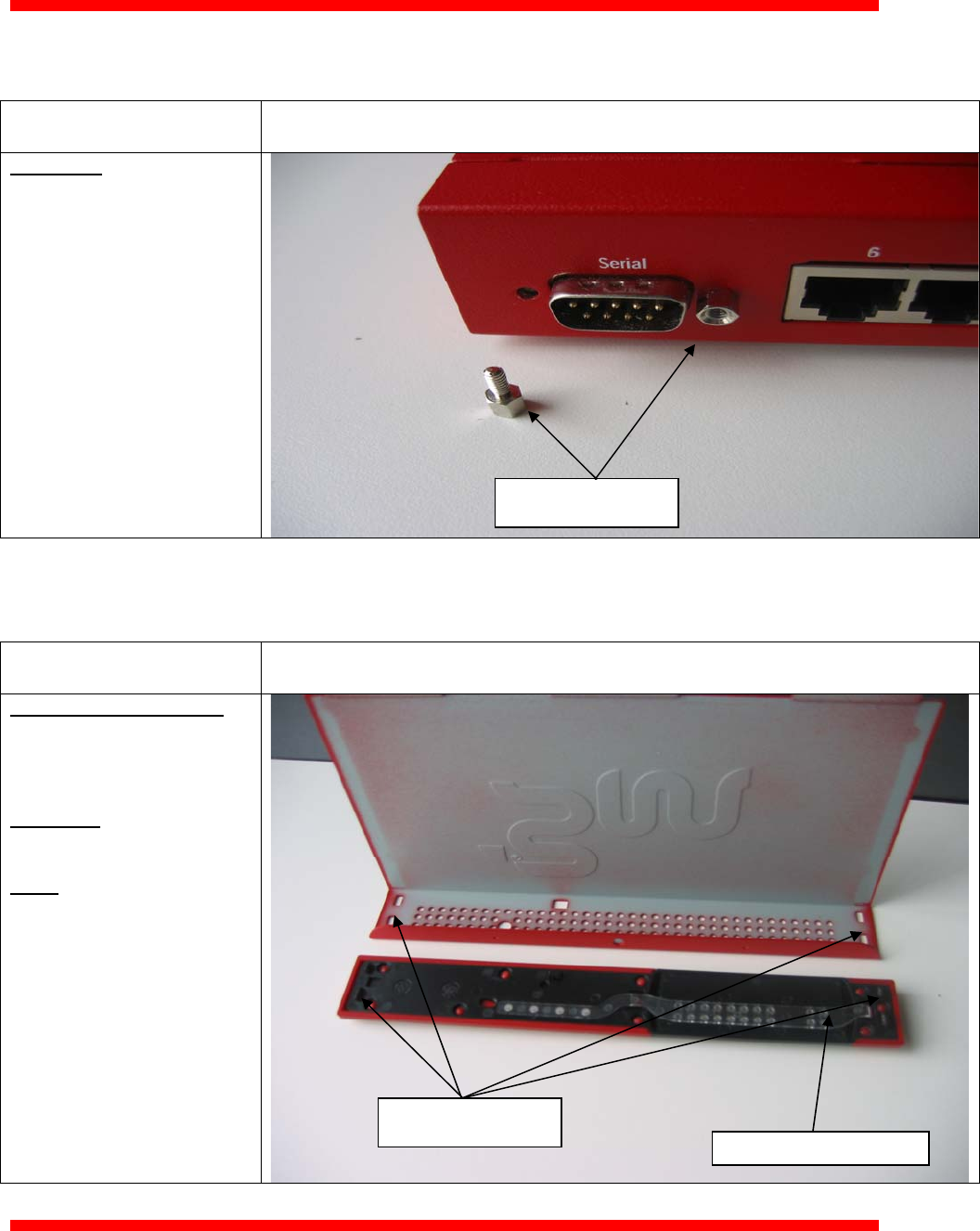

3.3 – Remove serial connector standoffs

3.4 – Remove bezel from unit top - depress tabs to disengage; remove light pipe

from bezel

Material removed (P/N

& material type) Instruction visual

Stand-offs

No p/n – Hex-head;

stainless steel

Material removed (P/N

& material type) Instruction visual

Painted metal enclosure

1768-001 - 22Ga. EG

w/powder coat (Interpon 700

-epoxy/polyester)

Light-pipe

1587-001 - PC

Bezel

1590-001 - PC/ABS

Remove stand-offs

Depress tabs to

disengage Remove light pipe; clear PC

Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 6 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

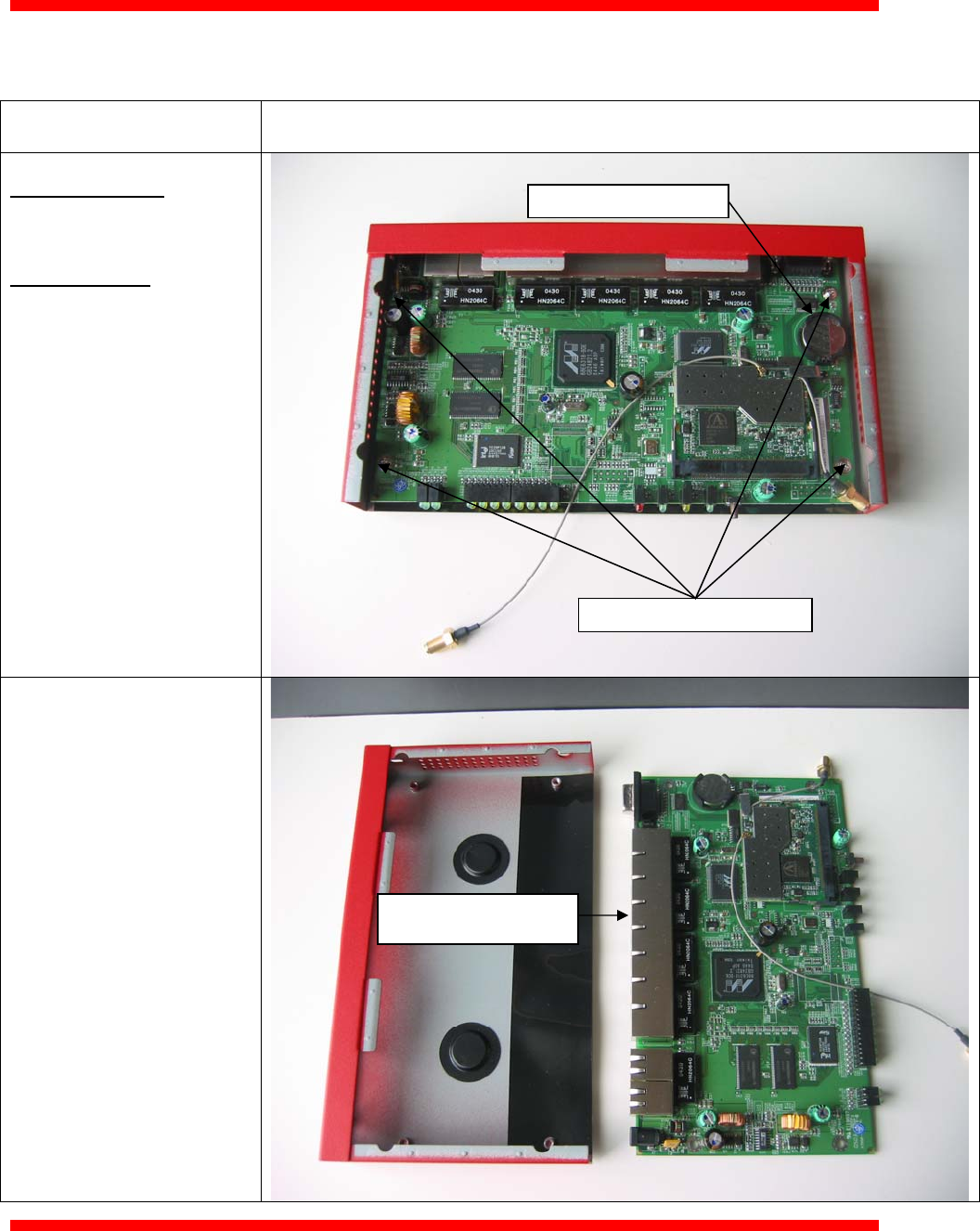

3.5 –Remove battery; remove screws and separate main PCBA from chassis

bottom

3.6 –Remove insulator shields from bottom chassis

Material removed (P/N

& material type) Instruction visual

Battery –coin cell

0301-001– Manganese

oxide / Lithium CR2032

Remove screws

0863-002 - Phillips head,

stainless steel, 4 ea.

Remove battery from clip

Remove PCBA screws -4 ea.

Separate PCBA from

chassis bottom

Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 7 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

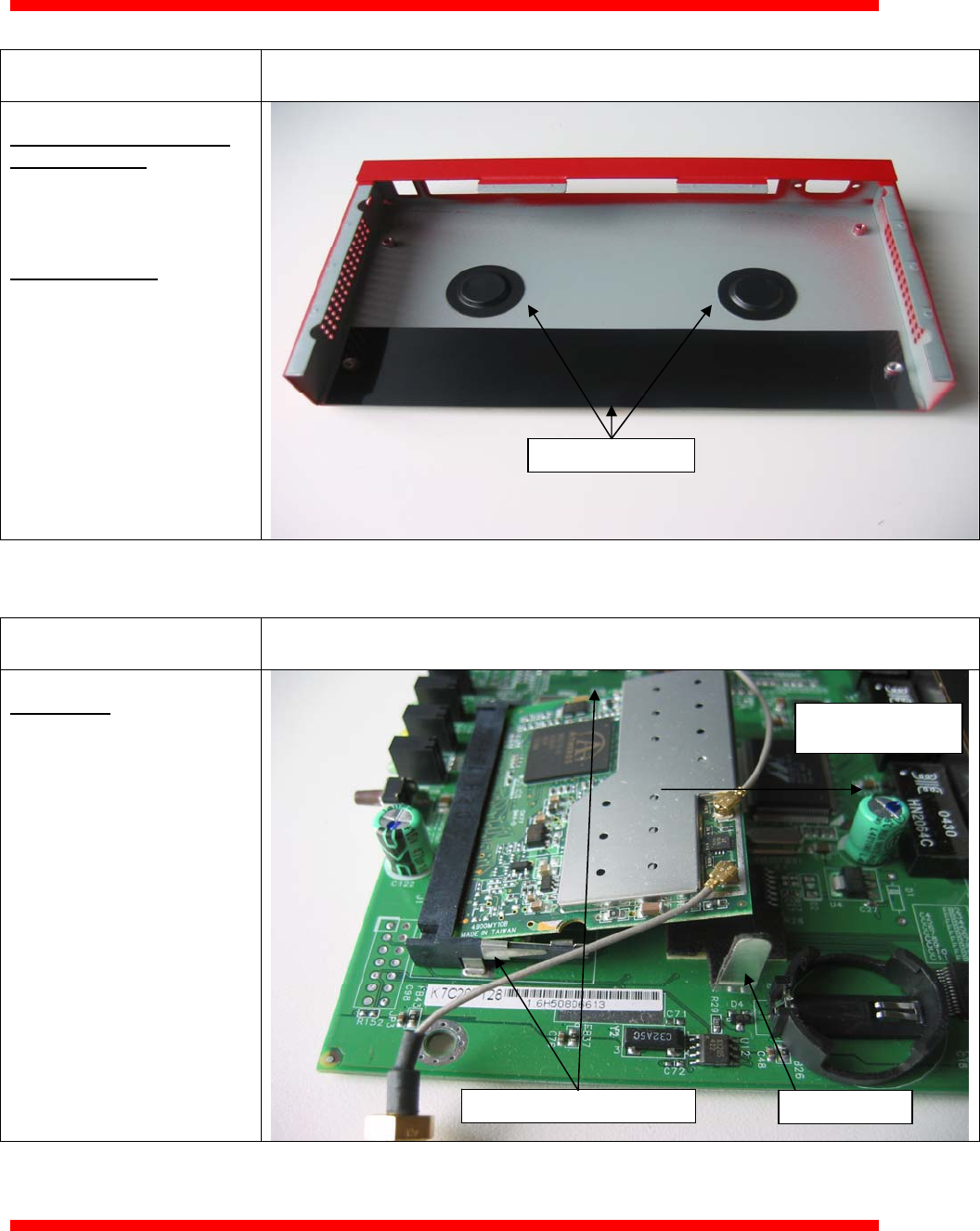

3.7 –Bend RF PCBA clip (up) and remove RF PCBA from main PCBA

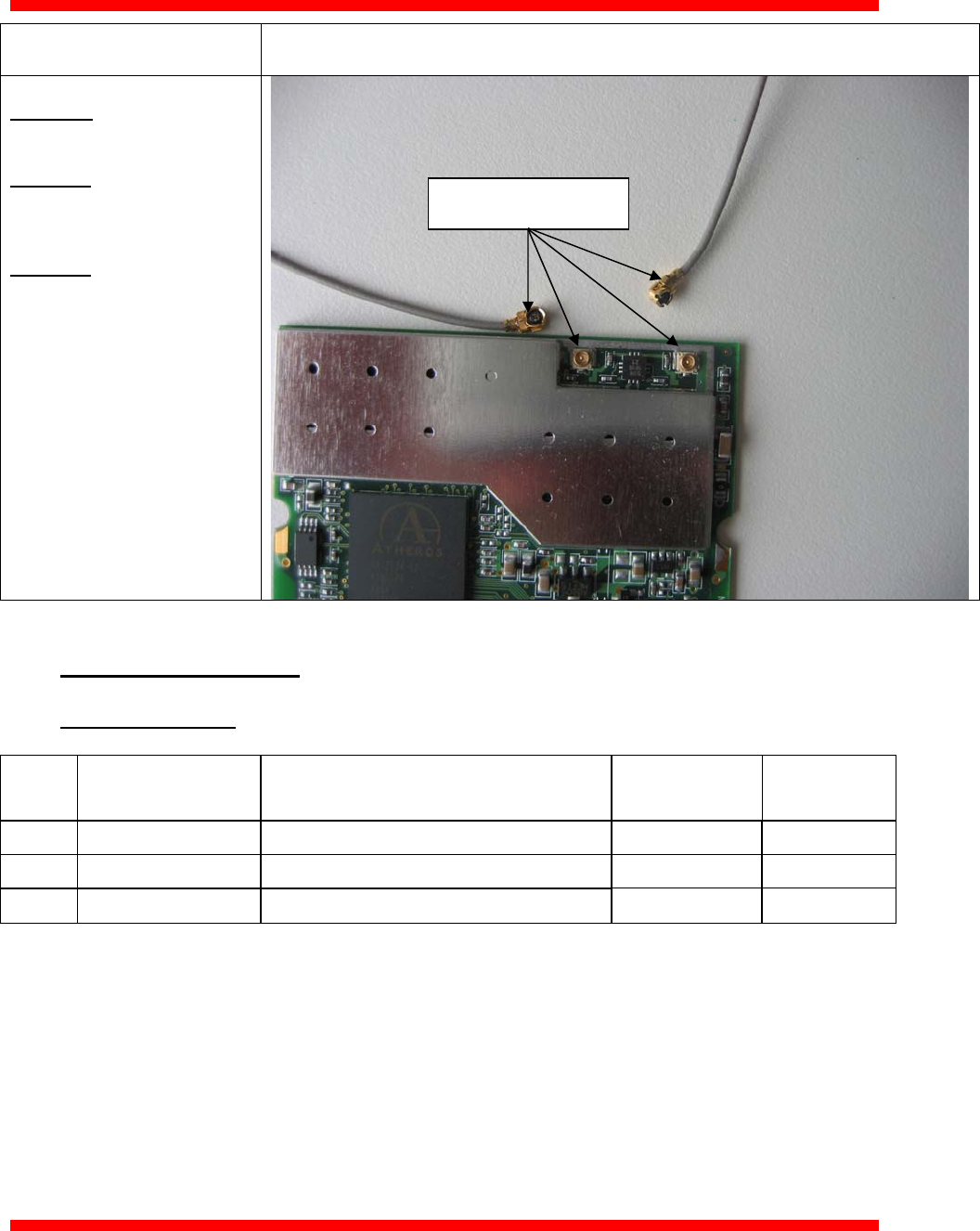

3.8 –Disconnect RF cables from RF PCBA

Material removed (P/N

& material type) Instruction visual

Painted metal enclosure;

chassis bottom

1769-001 - 22Ga. EG

w/powder coat (Interpon 700

-epoxy/polyester)

Insulator shields

1780-001 - Insulator,

31.3mm round, Mylar, 2 ea.

1767-001 - Insulator,

42x221mm, Mylar, 1 ea.

Material removed (P/N

& material type) Instruction visual

Main PCBA

1724-001 - Printed circuit

assembly

Remove EMI shields

Bend clip up

Release connector, 2 sides

Remove RF PCBA

by pulling out

Design for Manufacturing and Environment Document

WatchGuard Technologies. Doc #480-2521-001 Rev. A Page 8 of 8

Authorization and Revision History for this document is available in the WatchGuard ECO system

4.0 Applicable Documents

5.0 Revision History

REV.

NO. REV. DATE REVISED SECTION REASON ECO#

A 10/10/2005 n/a Initial Release 0712

Material removed (P/N

& material type) Instruction visual

RF PCBA

1771-001 - RF PCBA

RF Cable

1772-001 - Coaxial cable

assembly. 6cm

RF Cable

1772-002 - Coaxial cable

assembly. 19.5cm

Remove RF Cables from

RF PCBA
