Users Manual
WS-410AD Metro Access
Point Installation Guide
June 2007
Copyright Notice
©2006 Wavion, Inc. All rights reserved. Wavion is a registered trademark of Wavion in the
United States and certain other jurisdictions. Specifications are subject to change without
notice. Loctite is a registered trademark of Loctite Corporation, USA.
FCC Notice to Users and Operators
This equipment has been tested and found to comply with the limits for a digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at his own expense. (If this equipment does cause interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to correct the interference by using one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
Installation Guide
Contents
FCC Notice to Users and Operators ................................. 2
Chapter 1 ABOUT THIS GUIDE ...........................................5
Preface .............................................................................. 5
Conventions ....................................................................... 5
Contacting Technical Support................................................ 6
Chapter 2 INTRODUCTION .................................................7
Chapter 3 INSTALLING THE WAVION WS-410 METRO ACCESS
POINT .............................................................9
Important Safety Instructions............................................. 10
Preparing for Installation.................................................... 11
Installation Hardware and Tools.................................... 11
Choosing a Location.................................................... 12
Preparing the Site....................................................... 12
Power Source Options ................................................. 12
Safety Precautions...................................................... 13
Mounting Strategies........................................................... 13
Using Hose Clamps............................................................ 14
Mounting on a Pole, or Streetlight ....................................... 15
Metal or Wood Pole Mounting ....................................... 16
Wood Brace Mounting.................................................. 19
Streetlight Mounting ................................................... 20
Grounding the Wavion WS-410 ........................................... 23
Grounding the Data Protection Device ........................... 25
Connecting Antennas......................................................... 27
Connecting Power.............................................................. 28
Connecting to AC Power (Category C)............................ 28
Connecting to Streetlight Power (Category C)................. 31
Connecting a Data Port ...................................................... 33
Connecting Peripherals....................................................... 37
PoE Power Sourcing Power Output ................................ 38
RJ45 Pin Descriptions for Data Connection ..................... 38
Using a Backhaul Unit ................................................. 38
Safety Information for the Wavion WS-410........................... 39
Service Instructions........................................................... 40
4Wavion Networks
Chapter 4 POWER CONSUMPTION .....................................41
Chapter 5 PRODUCT SPECIFICATION..................................43
Chapter 6 ANTENNA SPECIFICATIONS AND PATTERNS ...........47
SF-245W 2.4GHz Omnidirectional Antenna..................... 48
MT_342015NV_SN_035_EL 2.4 GHz Antenna................. 48
Chapter 7 INSTALLATION ACCESSORIES .............................53
Power Cable ..................................................................... 54
Ethernet Cables ................................................................ 54
Lightning Protection........................................................... 54
Power Over Ethernet.......................................................... 55
Client Connectivity ............................................................ 55
Chapter 8 AC WIRING DIAGRAMS ....................................57
AC Wiring Photoelectric Power Tap....................................... 58
AC Wiring Power Cable 120VAC, 15A Plug............................. 60
Chapter 9 WIND LOADING CONSIDERATIONS......................61
Chapter 10 BACKHAUL UNIT INSTALLATION INSTRUCTIONS....63
ACRONYMS..............................................................65
Installation Guide 5
CHAPTER 1
About This Guide
Preface
This guide details the Wavion WS-410 installation procedures. The intended audience of this
document is trained technical professionals.
Conventions
The exclamation point within a triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
The lightning flash with an arrowhead symbol within a triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.
The notebook is intended to alert the user of a note containing further
information.
About This Guide
6Wavion Networks
Contacting Technical Support
For technical support, contact Wavion using these methods:
Address: Wavion Technical Support
Wavion Inc.
1190 Saratoga Avenue
San Jose, California 95129
USA
Telephone: +1-408-261-7000
Fax: +1-408-261-7001
Email: support@wavion.net
Web: www.wavion.net
Installation Guide 7
CHAPTER 2
Introduction
The WS410 is a new category of Wi-Fi Access Point designed from the ground up for metro-
Wi-Fi deployments. It is based on six antennas and radios and custom-built ASICs, utilizes
Wavion's powerful multi-antenna signal processing technologies, and provides significant
performance gains to off-the-shelf 802.11 standards-based Wi-Fi clients.
The WS410 may be mounted on streetlights or rooftops and may be easily interfaced with
either wired internet connections, wireless mesh or backhaul equipment. Multiple power
options are provided for maximum flexibility.
Complete management of the WS410 is provided through SNMP, a graphical user interface,
and SYSLOG services.
The WS-410 Wi-Fi Access Point uses six omni-directional antennas and beam-forming
technology in order to provide significant performance gains to off-the-shelf 802.11
standards-based Wi-Fi clients.
Introduction
8Wavion Networks
Installation Guide 9
CHAPTER 3
Installing the Wavion WS-410 Metro Access
Point
This guide explains how to safely install the Wavion WS-410 Metro Access Point. The
following topics are covered in this chapter:
•Important Safety Instructions on page 10
•Preparing for Installation on page 11
•Mounting Strategies on page 13
•Using Hose Clamps on page 14
•Mounting on a Pole, or Streetlight on page 14
•Grounding the Wavion WS-410 on page 22
•Connecting Antennas on page 26
•Connecting Power on page 27
•Connecting a Data Port on page 32
•Connecting Peripherals on page 36
•Safety Information for the Wavion WS-410 on page 38
•Service Instructions on page 39
Installing the Wavion WS-410 Metro Access Point
10 Wavion
Important Safety Instructions
WARNING: It is illegal to modify the construction of this product. Modifying the
operating frequency or enhancing the transmit output power through the use of
external amplifiers or other equipment is specifically disallowed by the
“Telecommunications Act.”
WARNING: This device is for outdoor or indoor use with conditions that no harmful
interference to authorized radio stations results from the operation of this device.
This device shall not influence aircraft security and/or interfere with legal
communications as defined in the “Telecommunications Act.” If this device is found to
cause interference, the operator of this equipment shall cease operating this device
immediately until no interference is achieved.
NOTE: This device must be installed by a trained professional, value added reseller or
systems integrator who is familiar with RF planning issues and the regulatory limits
in the United States of America.
CAUTION: Read and save these instructions. Heed all warnings. Follow all
instructions.
CAUTION: Do not defeat the safety purpose of the grounding. Only use attachments/
accessories specified by the manufacturer.
CAUTION: Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way. For example, if
the power-supply cord or plug is damaged, liquid has been spilled on the
apparatus, objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, it does not operate normally, or has been
dropped.
WARNING: Risk of personal injury or death when installing this device! There is a risk
of personal injury or death if the WS-410 antennas come near electric power lines.
Carefully read and follow all instructions in this manual. By nature of the installation,
you may be exposed to hazardous environments and high voltage. Use caution when
installing the outdoor system.
WARNING: This apparatus must be connected to earth ground.
WARNING: Do not open the unit. There is a risk of electric shock inside.
CAUTION: You are cautioned that any change or modification not expressly approved
in this manual could void your authority to operate this equipment.
CAUTION: There are no user-serviceable parts inside. All service must be performed
by qualified personnel.
CAUTION: The RJ45 connectors of your Wavion WS-410 may source DC power on
pins 4,5 and 7,8. The IEE 802.3 standards allow for pins 4,5 and 7,8 to be used for
Power Over Ethernet. Some products may be incompatible with the Wavion Power
Over Ethernet capability.
Installing the Wavion WS-410 Metro Access Point
Installation Guide 11
Preparing for Installation
The Wavion WS-410 must be installed by a trained professional, or systems integrator who is
familiar with RF planning issues and regulatory limits as defined by the governing body of the
country in which the unit will be installed.
The following lists the equipment required for installation and explains how to prepare the
installation site.
Installation Hardware and Tools
Wavion provides the following accessories to install the Wavion WS-410:
•One pole bracket
•Two 3-6-inch diameter worm drive hose clamps
•Seven 8mm stainless steel hex head machine bolts
You must supply the following tools:
•Allen wrench - 4mm and 5mm
•1/4-inch flat blade screwdriver
•Wood brace mounting only: four 5/8-inch diameter, 3-inch long lag bolts
CAUTION: Only UL listed parts and components will be used for installation. Use UL
listed devices having an environmental rating equal to or better than the enclosure
rating to close all unfilled openings.
CAUTION: To maintain Overvoltage (Installation) Category II, install a suitable surge
suppressor device in the branch circuit to limit expected transients to Overvoltage
Category II values. The limits are based on IEC60664 and are also located in Table
2H of UL60950 (for mains 110V, the transient rating is 1500V).
CAUTION: The WS-410 must be installed only with the equipped antennas.
CAUTION: A minimum distance of 40cm from the WS410's antenna should be kept
when the system is operated.
CAUTION: Read and save these instructions. Heed all warnings. Follow all
instructions.
WARNING: Do not modify the construction of this product. Modifying the operating
frequency or enhancing the transmit output power through the use of external
amplifiers or other equipment is illegal.
WARNING: This device is for use outdoors or indoors on the condition that operation
of this device causes no harmful interference to authorized radio stations. This device
shall not influence aircraft security and/or interfere with legal communications. If this
device is found to cause interference, the operator of this equipment shall cease
operating this device immediately.
Installing the Wavion WS-410 Metro Access Point
12 Wavion
Choosing a Location
The Wavion WS-410 is a radio device and susceptible to interference that can reduce
throughput and range. To ensure the best performance follow these guidelines:
•Direct line-of-sight operation is preferred.
•It is recommend not to install the WS-410 near devices operating in the 2.4 GHz
frequency range.
Preparing the Site
When installing the Wavion WS-410, you must follow the appropriate electrical and building
codes to ensure sage and durable wiring. Follow the National Electrical Code (NEC)
requirements, unless local codes in your area take precedence over the NEC code. For
installations that have 10/100 Base-T Category 5 network cables attached to the Wavion WS-
410, there is a distance limit of 100m maximum between devices for 10/100BaseT operation.
Please refer to standards for building entrance protection.
Power Source Options
The Wavion WS-410 supports the following options for connecting to a power source:
•AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 110-220 VAC, 50/60
Hz. See Chapter 7: Installation Accessories on page 53 for details.
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 53 for
details.
•The WS-410 can be powered by a Wavion Injector connected to Ethernet port B (ETH B).
See Chapter 7: Installation Accessories on page 53 for details.
WARNING: 480 VAC power source is supported by a WS-410 unit only by using a
special street light step down power tap. See Chapter 7: Installation
Accessories on page 53.
WARNING: Use only a rated power source to connect the AC powered outdoor
system. Do not connect to a power source of different voltage.
CAUTION: You must always install an external grounding wire. You must also ground
the outdoor data protection device to a bonded pipe or ground rod. Perform a simple
continuity check between the WS-410 and the ground termination point to confirm.
Make sure that grounding is complete before you connect power to the Wavion WS-
410.
Installing the Wavion WS-410 Metro Access Point
Installation Guide 13
Safety Precautions
Installing the Wavion WS-410 can be very hazardous. Take precautions to avoid the
following:
•Exposure to high voltage lines
•Contact with AC wiring
•Injuries from dropped tools and equipment
•Falls when working at heights or with ladders
Mounting Strategies
Consider the available mounting structures and antenna clearance when choosing a
mounting location. The Wavion WS-410 should always be mounted with the top of the unit
parallel to the ground, and with the antennas pointing upward and clear of obstruction.
It is recommended to attach ground and data cables to the WS-410 prior to mounting.
Before mounting the WS-410, read the wiring instructions in Grounding the Wavion WS-
410 on page 22 and Connecting a Data Port on page 32.
NOTE: The WS-410 should be mounted with at least 4 ft of clearance around the
antennas to eliminate potential interference from the mounting structure.
Installing the Wavion WS-410 Metro Access Point
14 Wavion

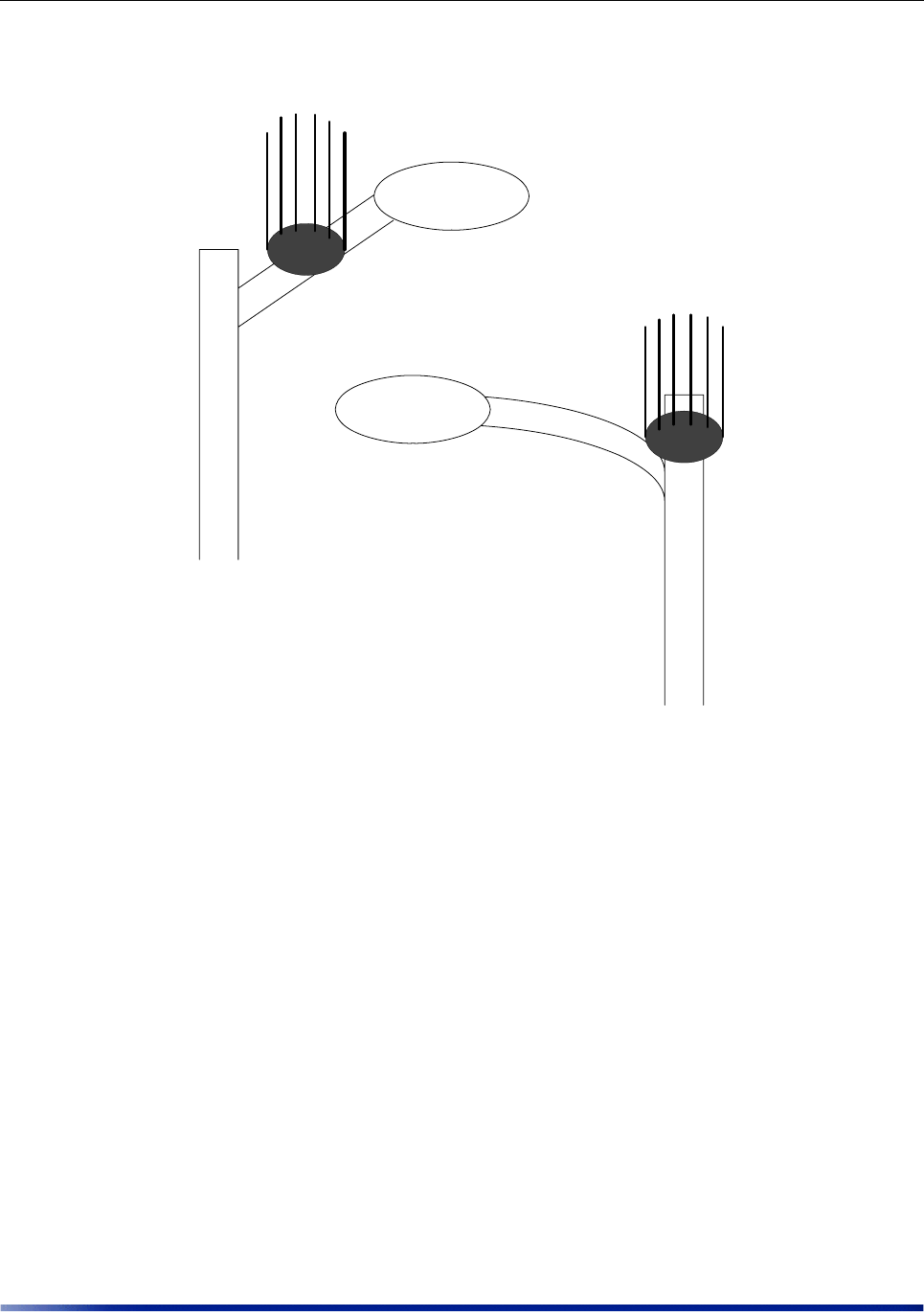

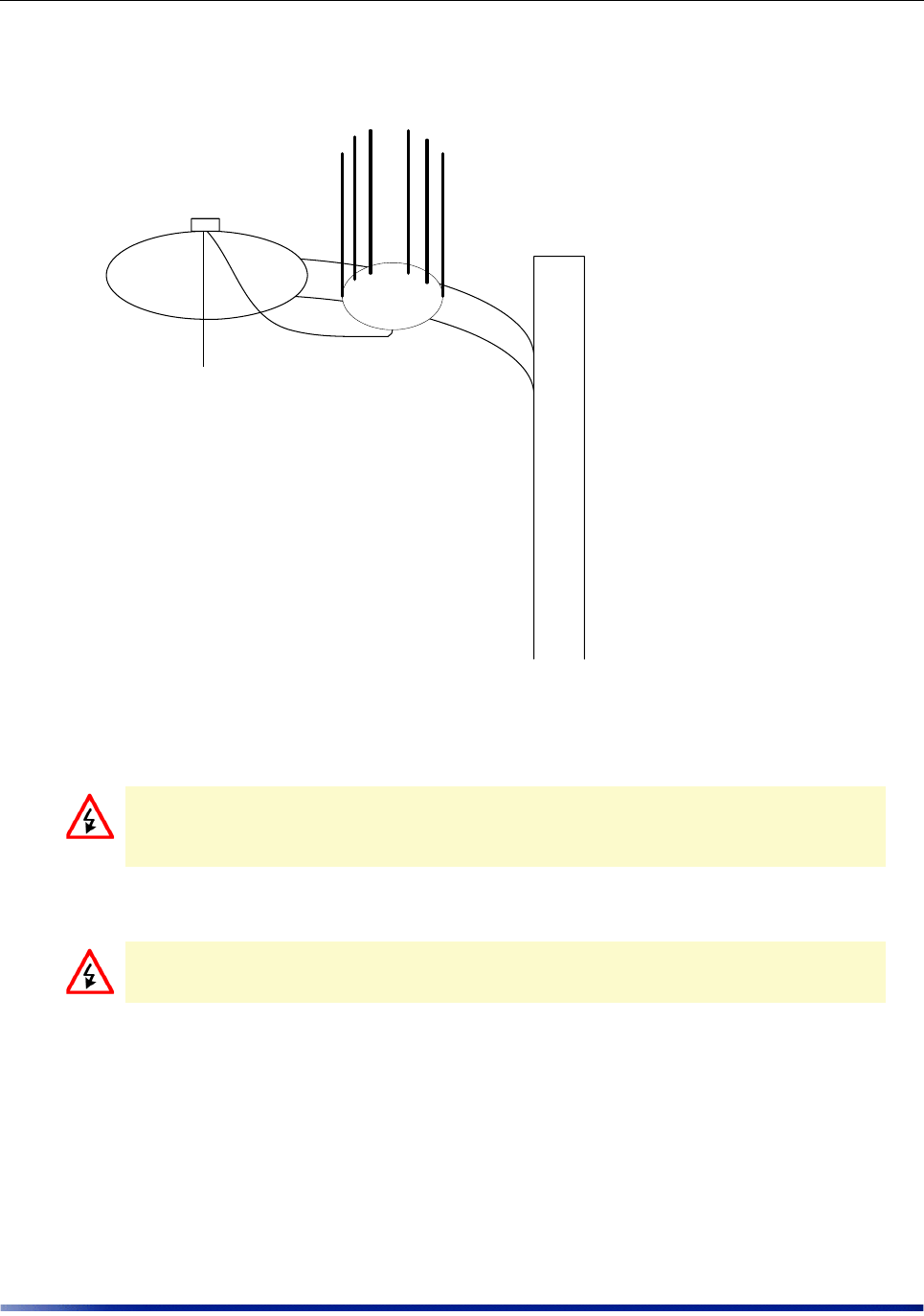

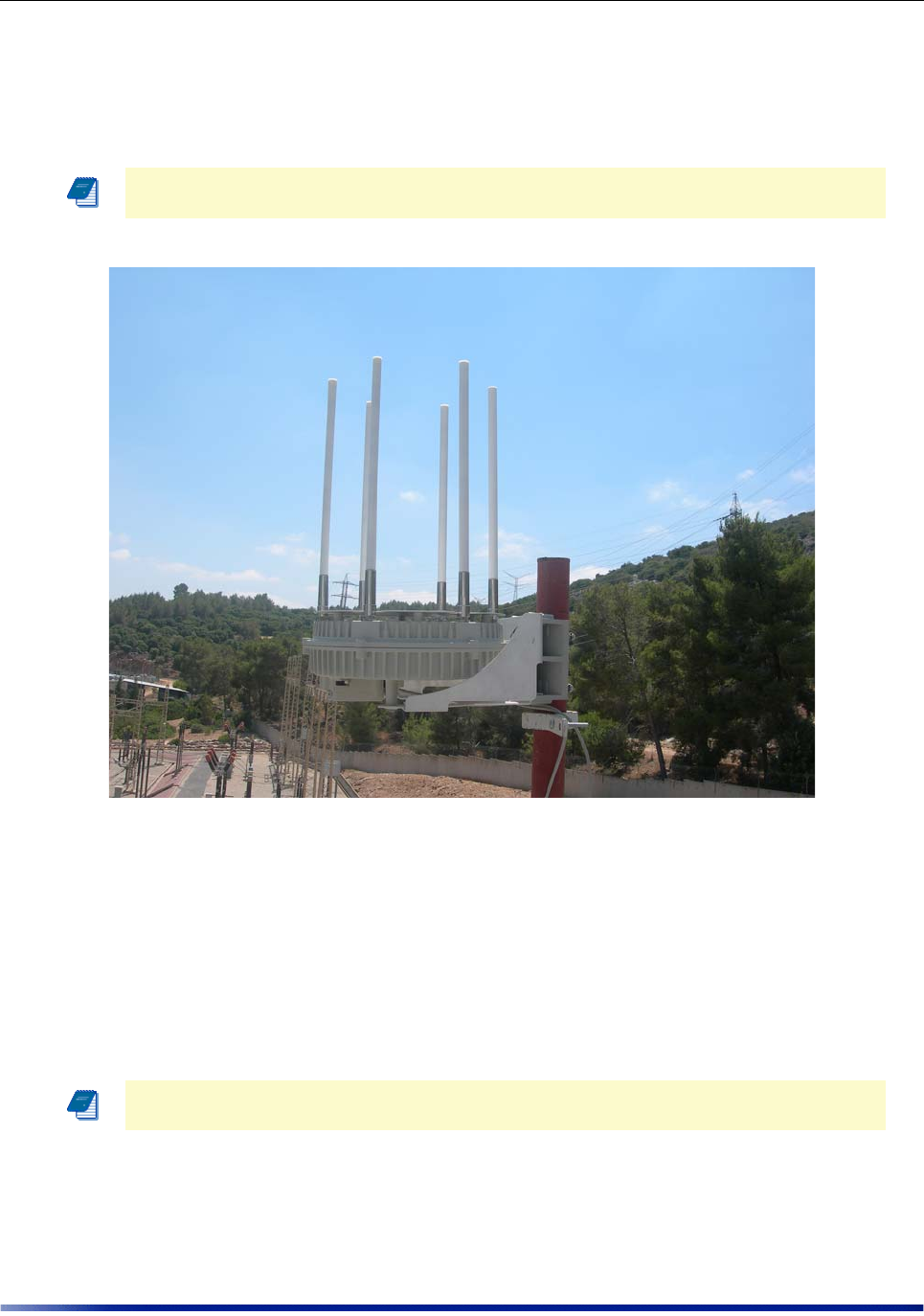

Figure 3.1. demonstrates acceptable options for mounting on a streetlight. In both cases the
WS-410 is mounted to ensure clearance for the antennas above the height of the streetlight.
Figure 3.1. Example Mounting Locations on a Streetlight
Using Hose Clamps

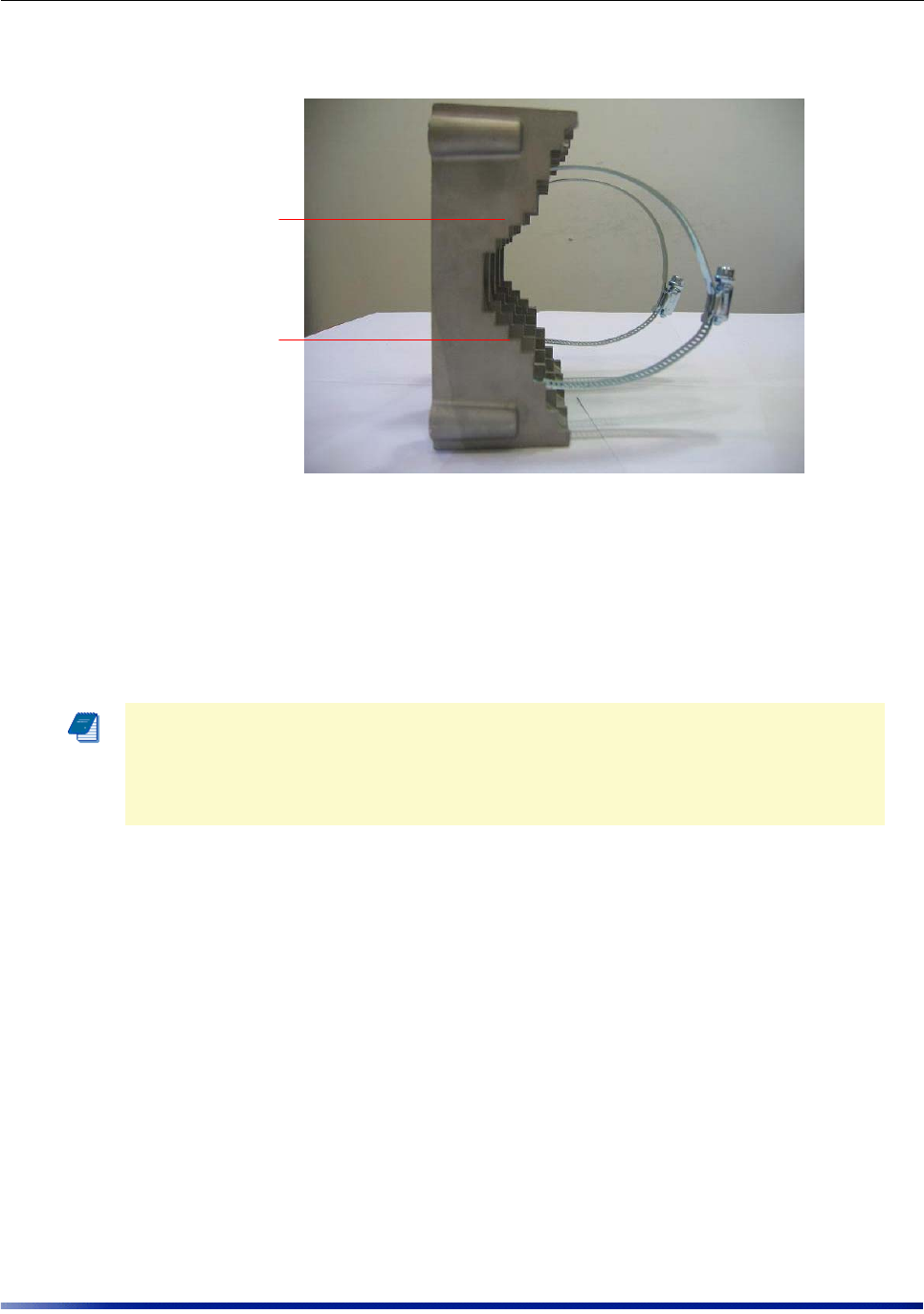

Hose clamps are used by the mounting assembly to secure the WS-410 to the mounting
structure. Figure 3.2 demonstrates how to correctly use the hose clamps. The bands must be
threaded through slots in the pole bracket, and then attached to either a vertical or a
horizontal pole and tightened.
Antennas clear of any
obstruction
Antennas clear of any
obstruction
Installing the Wavion WS-410 Metro Access Point
Installation Guide 15
There are three slots inside the pole bracket that can used to thread each hose clamp.
Choose the slot that is appropriate for the size of the pole.
Figure 3.2. Using Hose Clamps
Mounting on a Pole, or Streetlight
The following explains how to mount the Wavion WS-410 on a pole, tower, or streetlight. It is
recommended to mount the WS-410 on aluminum or galvanized steel structures.
NOTE: The Wavion WS-410 must be mounted with the top of the unit parallel with
the ground and with the antennas pointing upward.
NOTE: Before mounting the WS-410, read the wiring instructions in Grounding the
Wavion WS-410 on page 22 and Connecting a Data Port on page 32.
NOTE: Mounting to wood, concrete, or painted poles requires primary grounding for
the unit. Check the national electrical codes in your area for specific rules.
Bands threaded
through inner
slots
Installing the Wavion WS-410 Metro Access Point
16 Wavion
Metal or Wood Pole Mounting
Figure 3.3 shows the correct way to mount the Wavion WS-410 on an outdoor metal or wood
pole.
Figure 3.3. Mounting on a Pole
To mount the Wavion WS-410 on a metal or wood pole
1. Choose a mounting location. You can attach the WS-410 to any pole or pipe with diameter
of 3-10 inches.
2. Slip the bands of the hose clamps through the inner slots of the pole bracket. Choose the
slot that is appropriate for the diameter of the mast.
3. Use the hose clamps to fasten the pole bracket to the pole.
4. Attach the back plate to the hose bracket as labeled #1 in Figure 3.4
NOTE: Antennas must be higher than the top of the pole and clear of any
obstructions.
NOTE: The hose clamps supplied support a mast diameter of 3-6 inches. You can
supply your own hose clamps if you need a different size.
Installing the Wavion WS-410 Metro Access Point
Installation Guide 17
5. Insert the six flathead bolts into the holes in the back plate labeled #2 in Figure 3.4 and
tighten.

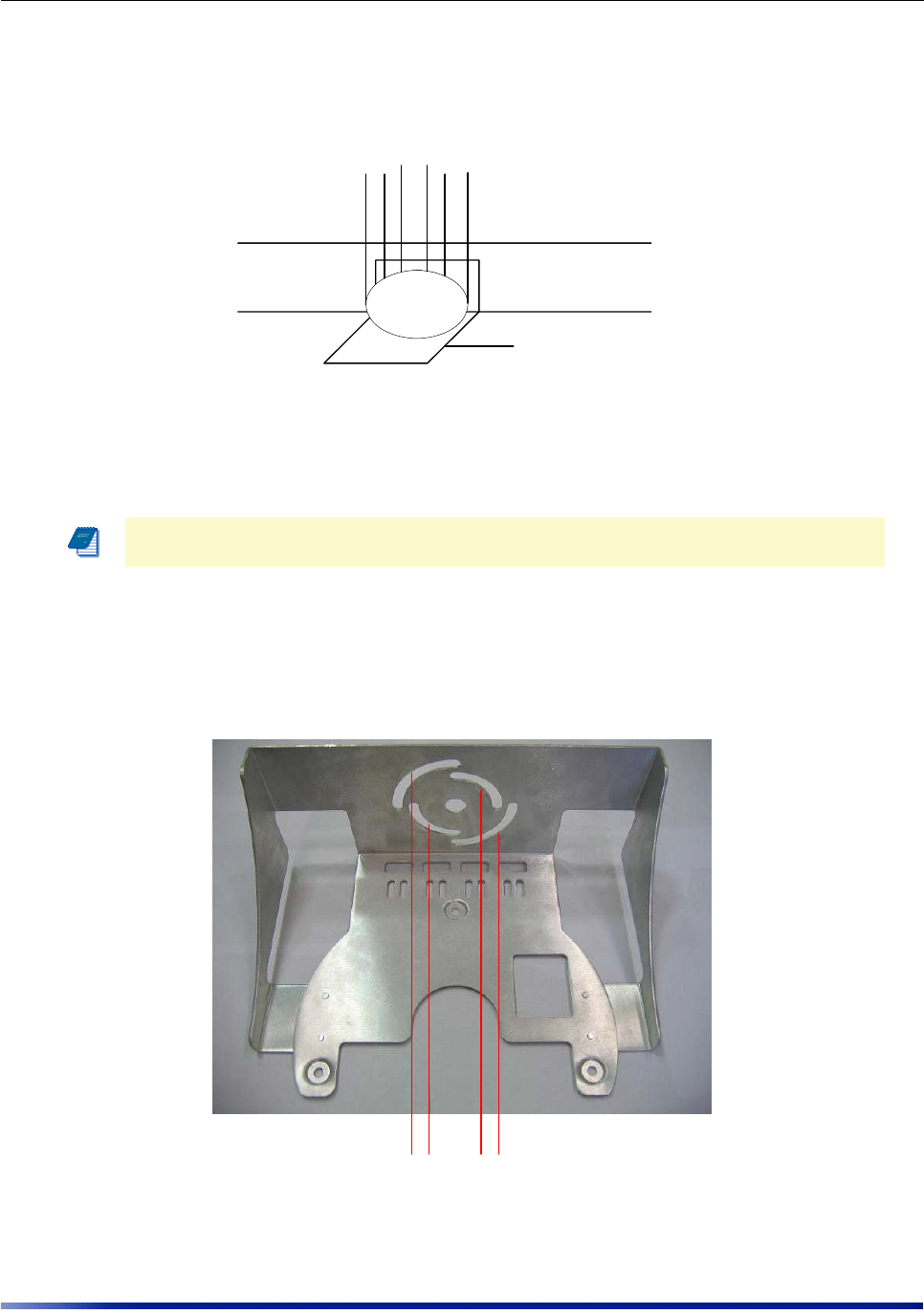

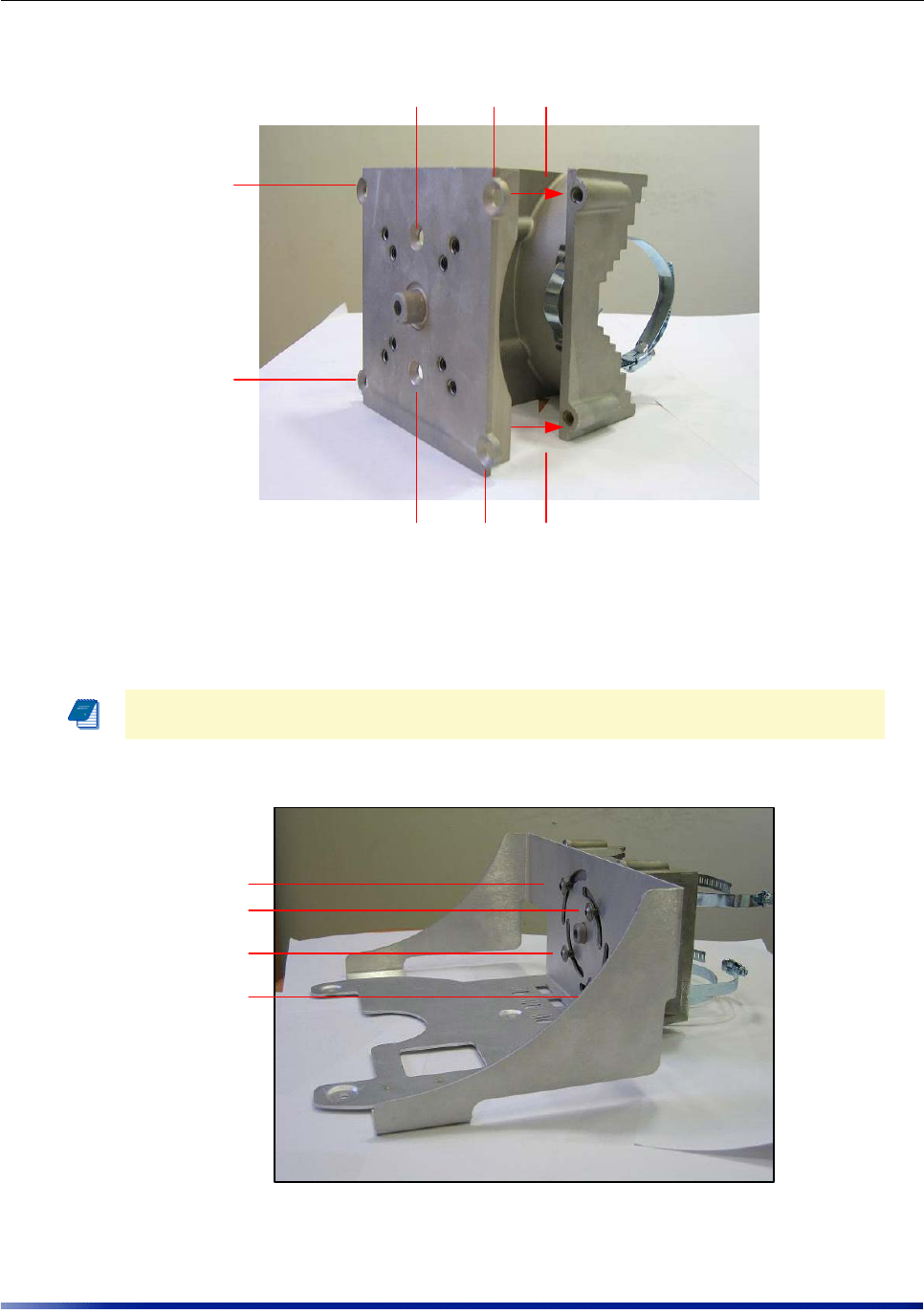

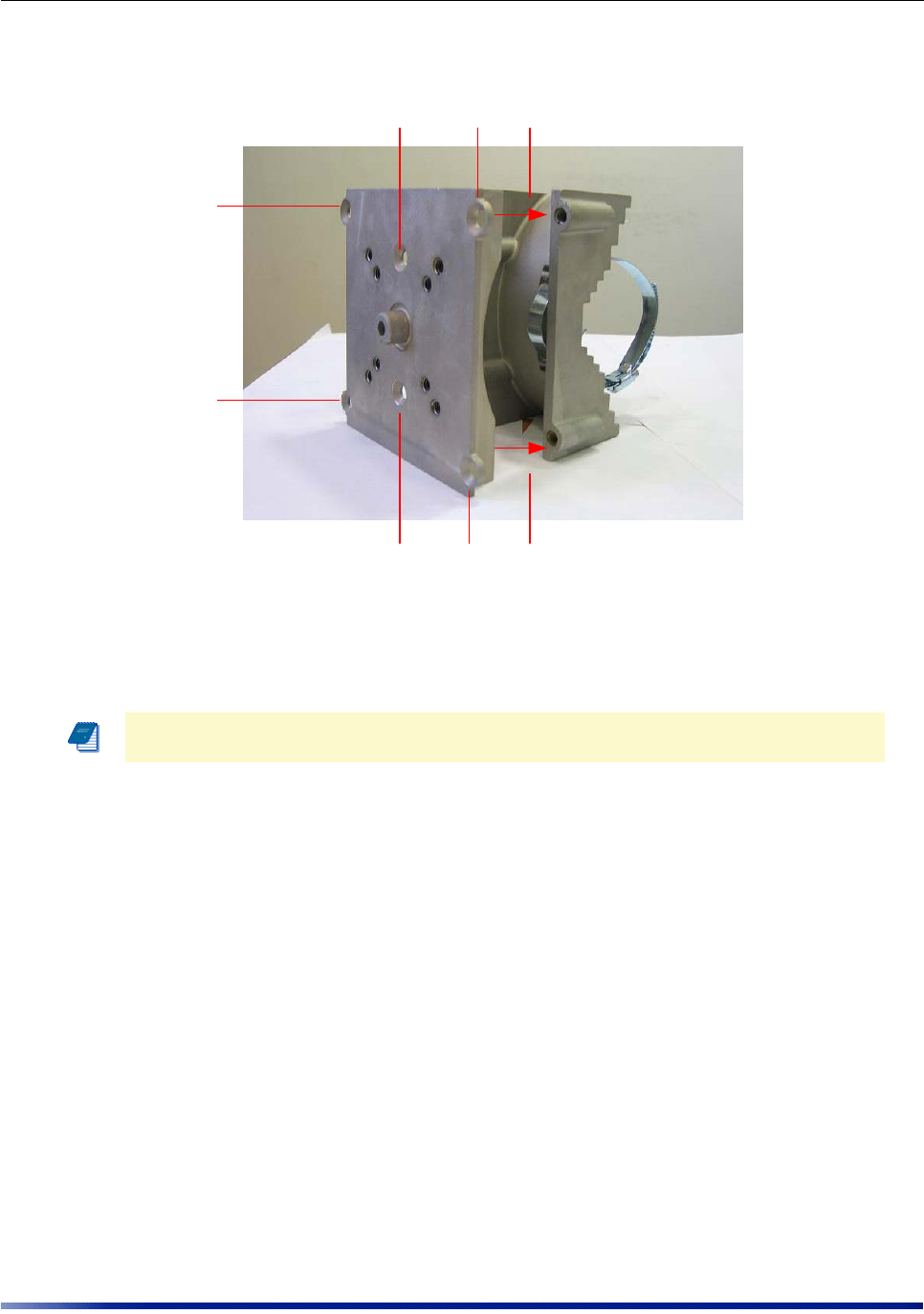

Figure 3.4. Attaching the Back Plate to the Pole Bracket
6. Attach the tray to the back plate as shown in Figure 3.5.
NOTE: The tray must be parallel to the ground. The tray can be rotated to obtain the
correct position.
2
22
2
2
2
1
1
Installing the Wavion WS-410 Metro Access Point
18 Wavion
7. Insert the four 8mm stainless steel hex head bolts into the tray as shown below and
tighten. Use a 5mm Allen wrench to tighten the bolts.

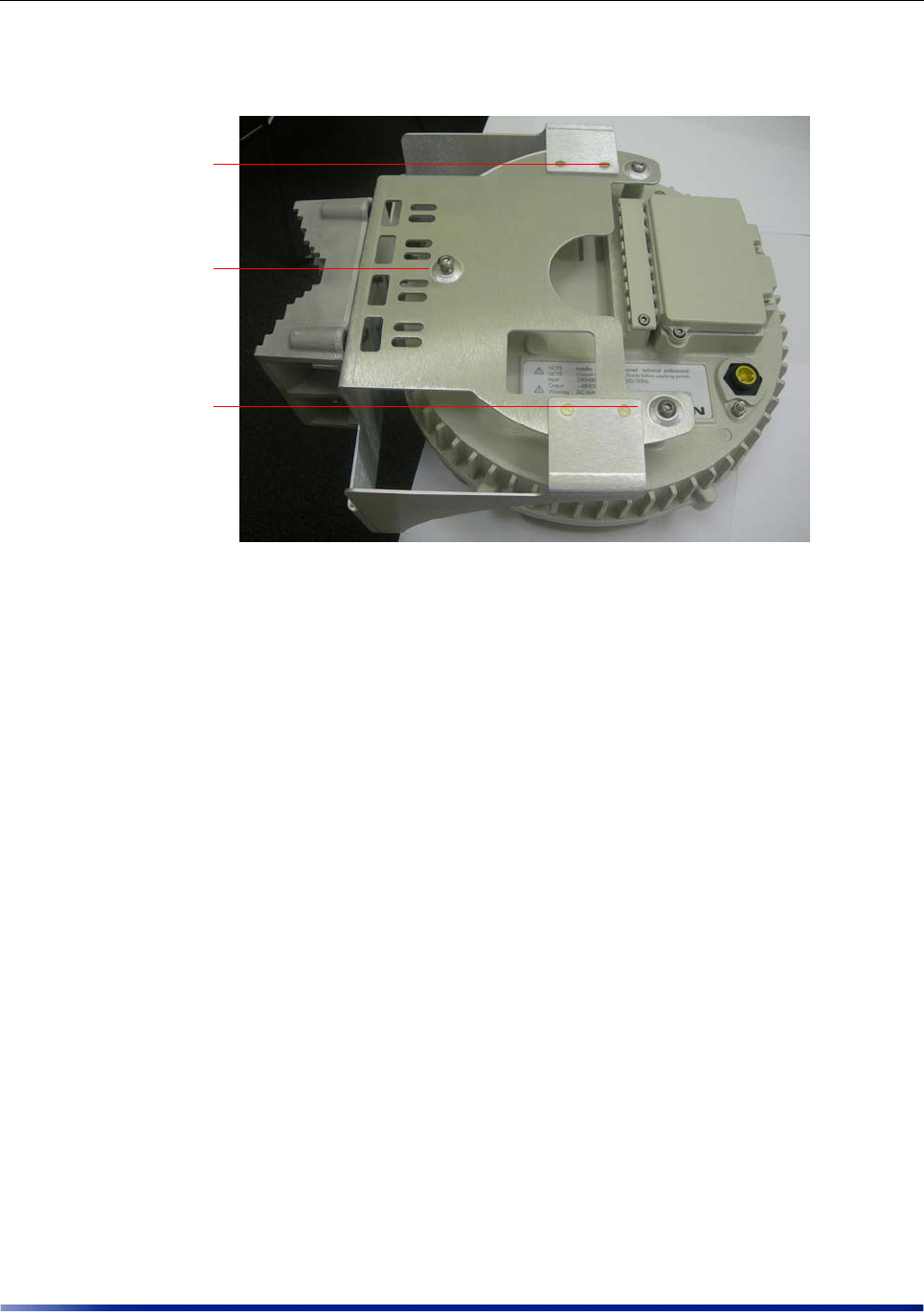

Figure 3.5. Attaching the Tray to the Back Plate
8. Slide the WS-410 onto the tray. Insert three 8mm stainless steel hex head bolts from
underneath the tray into the WS-410. Use a 5mm Allen wrench to tighten the bolts.
Figure 3.6. Attaching the WS-410 to the Tray
To continue installing the WS-410, see Grounding the Wavion WS-410 on page 22
Insert bolts
Insert
bolts
Installing the Wavion WS-410 Metro Access Point
Installation Guide 19
Wood Brace Mounting
You can mount the tray directly onto a wood brace without using pole hose clamps.
Figure 3.7. Wood Brace Mounting Option
You can attach the WS-410 to any wood brace.
To mount the Wavion WS-410 on a wood brace
1. Select a mounting location.
2. Attach the tray directly to the wood brace using four 5/8 inch diameter, 3 inch long lag
bolts as shown in Figure 3.8. Use an appropriate Allen wrench to tighten the bolts. Make
sure that the wood brace is level.
Figure 3.8. Tray Mount for Wood Brace
NOTE: Before attaching the WS-410 make sure that the wood can support the WS-
410 weight plus wind loading. Please see Chapter 9 for wind loading considerations.
Wood brace
Tray
WS-410
Insert bolts
Installing the Wavion WS-410 Metro Access Point
20 Wavion
3. Slide the WS-410 onto the tray. Insert three 8mm stainless steel hex head machine bolts
from underneath the tray into the WS-410. Use a 5mm Allen wrench to tighten the bolts.
Figure 3.9. Attaching the WS-410 to the Tray
To continue installing the WS-410, see Grounding the Wavion WS-410 on page 22.
Streetlight Mounting
You can mount the Wavion WS-410 on the horizontal or angled arm of a streetlight.
To mount the Wavion WS-410 on a streetlight
1. Choose a mounting location. You can attach the WS-410 to any streetlight arm with
diameter of 3 to 10 inches.
2. Slip the bands of the hose clamps through the inner slots of the pole bracket. Choose the
slot that is appropriate for the diameter of the mast.
3. Use the hose clamps to fasten the pole bracket to the pole.
4. Attach the back plate to the pole bracket as labeled #1 in Figure 3.10
NOTE: The hose clamps supplied supports a mast diameter of 3-6 inches. You can
supply your own hose clamps is you need a different size.
Insert
bolts
Installing the Wavion WS-410 Metro Access Point
Installation Guide 21
5. Insert the six bolts into the holes in the back plate labeled #2 in Figure 3.10 and tighten.
Figure 3.10. Attaching the Back Plate to the Pole Bracket
6. Attach the tray to the back plate as shown in Figure 3.11.
7. Insert four 8mm stainless steel hex head machine bolts into the tray. Tighten the bolts
using a 5mm Allen wrench.

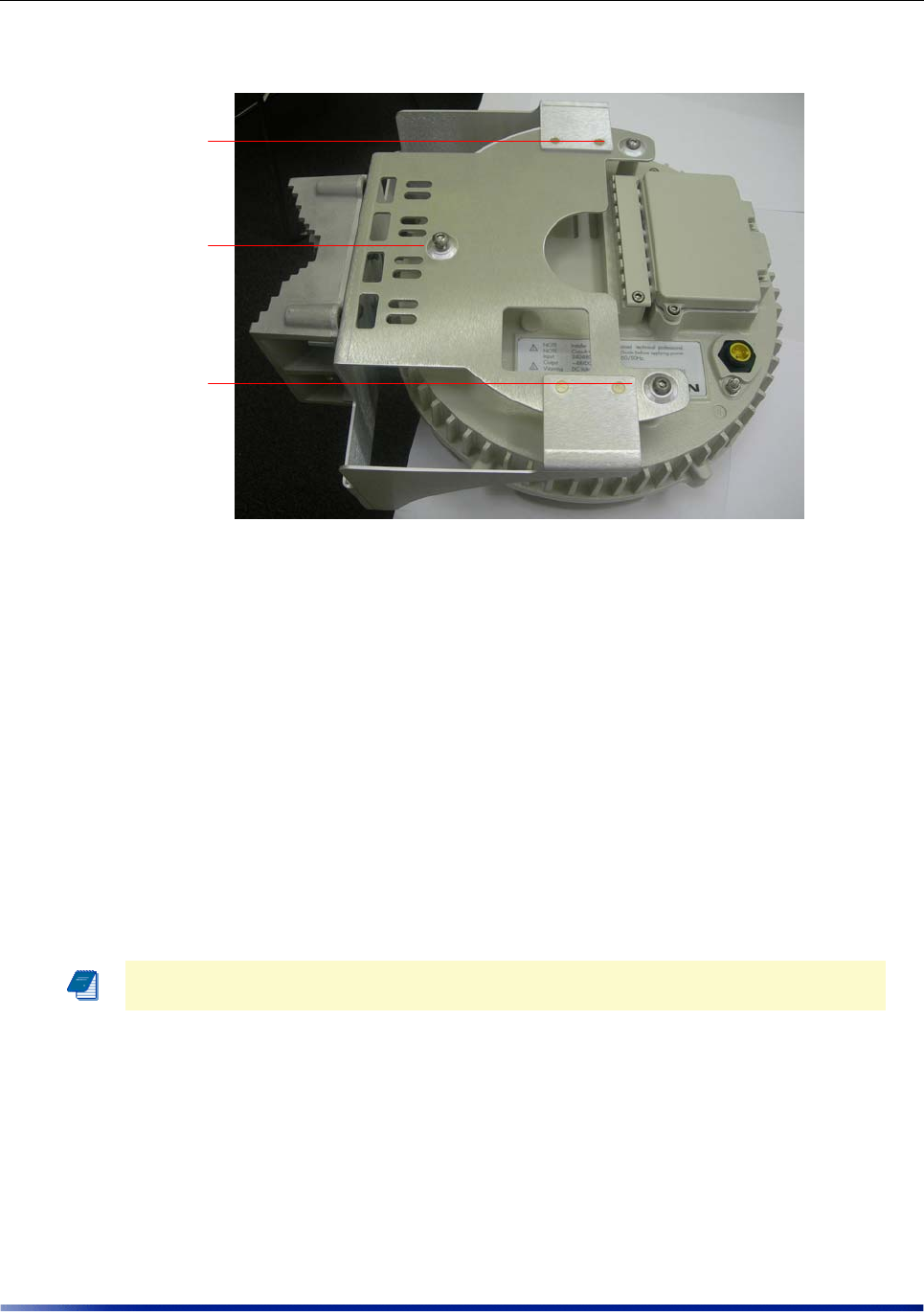

Figure 3.11. Attaching the Tray to the Back Plate
NOTE: The tray must be parallel to the ground. The tray can be rotated to obtain the
correct position.
2
22
2
2
2
1
1
Insert bolts
Installing the Wavion WS-410 Metro Access Point
22 Wavion
8. Slide the WS-410 onto the tray. Insert 3 8mm stainless steel hex head machine bolts from
underneath the tray into the WS-410 and tighten the bolts. Tighten the bolts using a 5mm
Allen wrench.
Figure 3.12. Attaching the WS-410 to the Tray
To continue installing the WS-410, see Grounding the Wavion WS-410 on page 22.
Insert
bolts
Installing the Wavion WS-410 Metro Access Point
Installation Guide 23
Grounding the Wavion WS-410

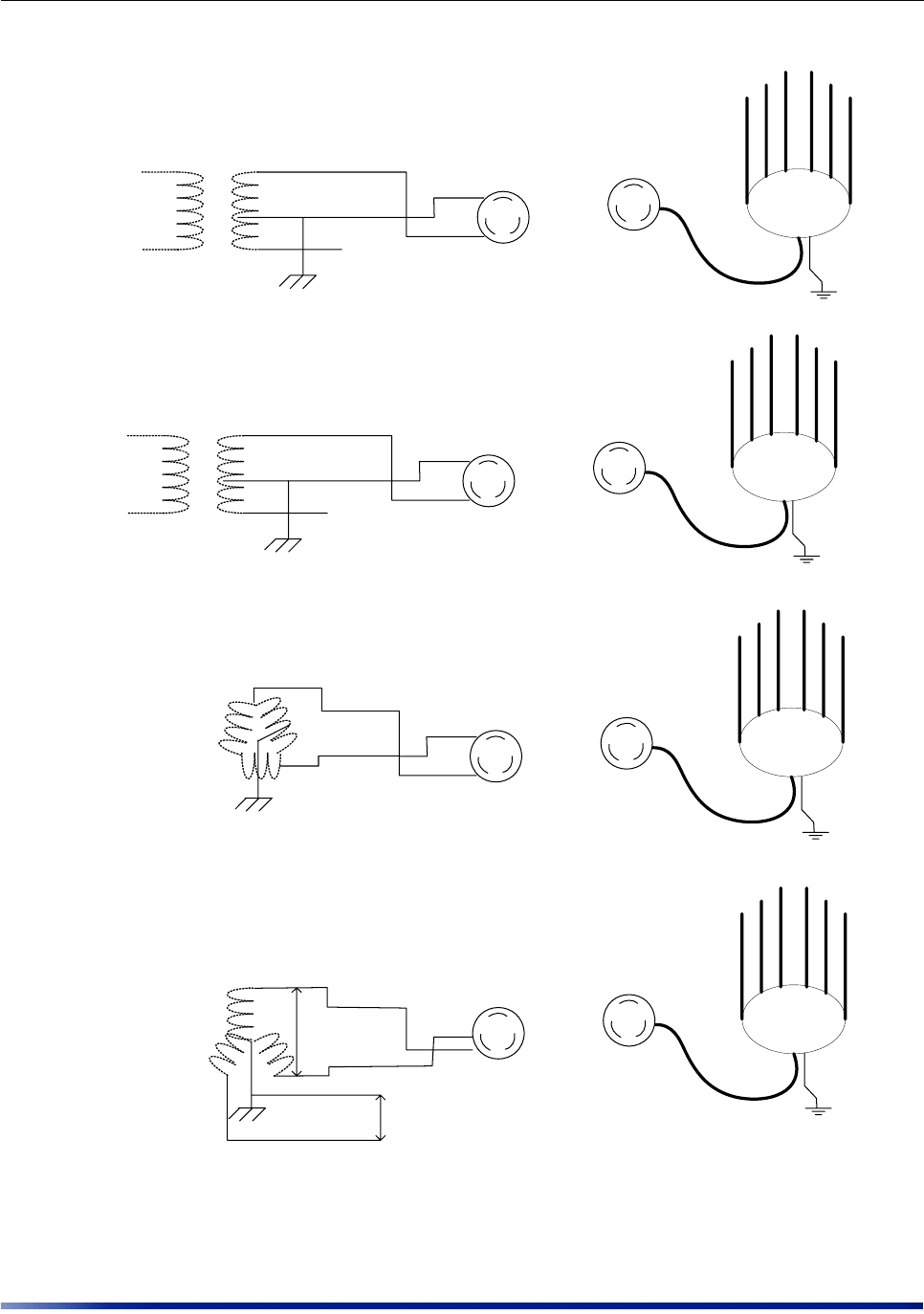

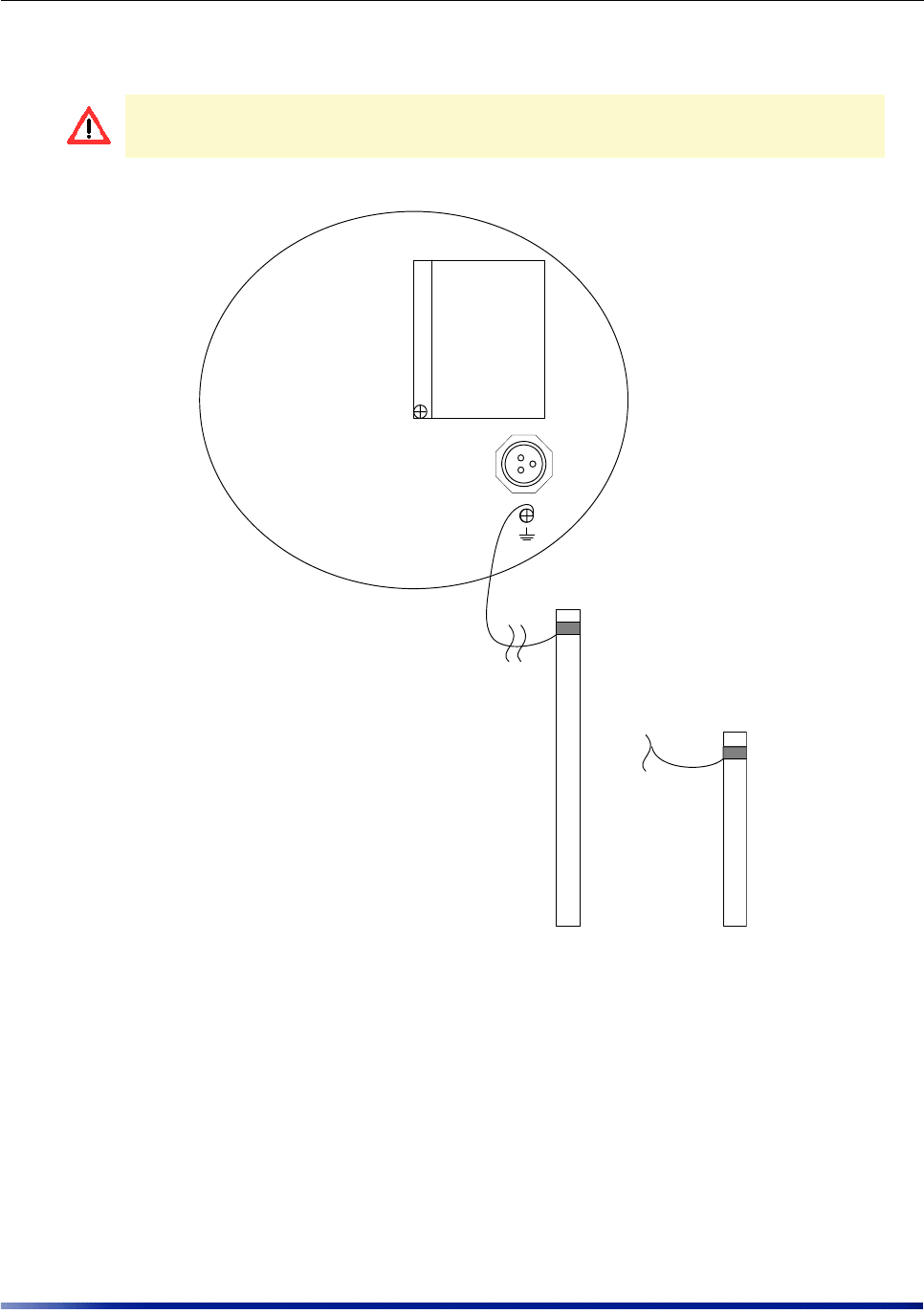

The method for grounding the Wavion WS-410 is shown in the figure below.
Figure 3.13. Grounding Method
CAUTION: You must always install an external grounding wire. You must also ground
the outdoor data protection device to a ground rod or a bonded pipe. Make sure you
have completed grounding before you connect power to the WS-410.
Grounding
screw
10 AWG wire to
ground
Grounding strap
on pipe or
grounding rod
Installing the Wavion WS-410 Metro Access Point
24 Wavion
To ground the Wavion WS-410

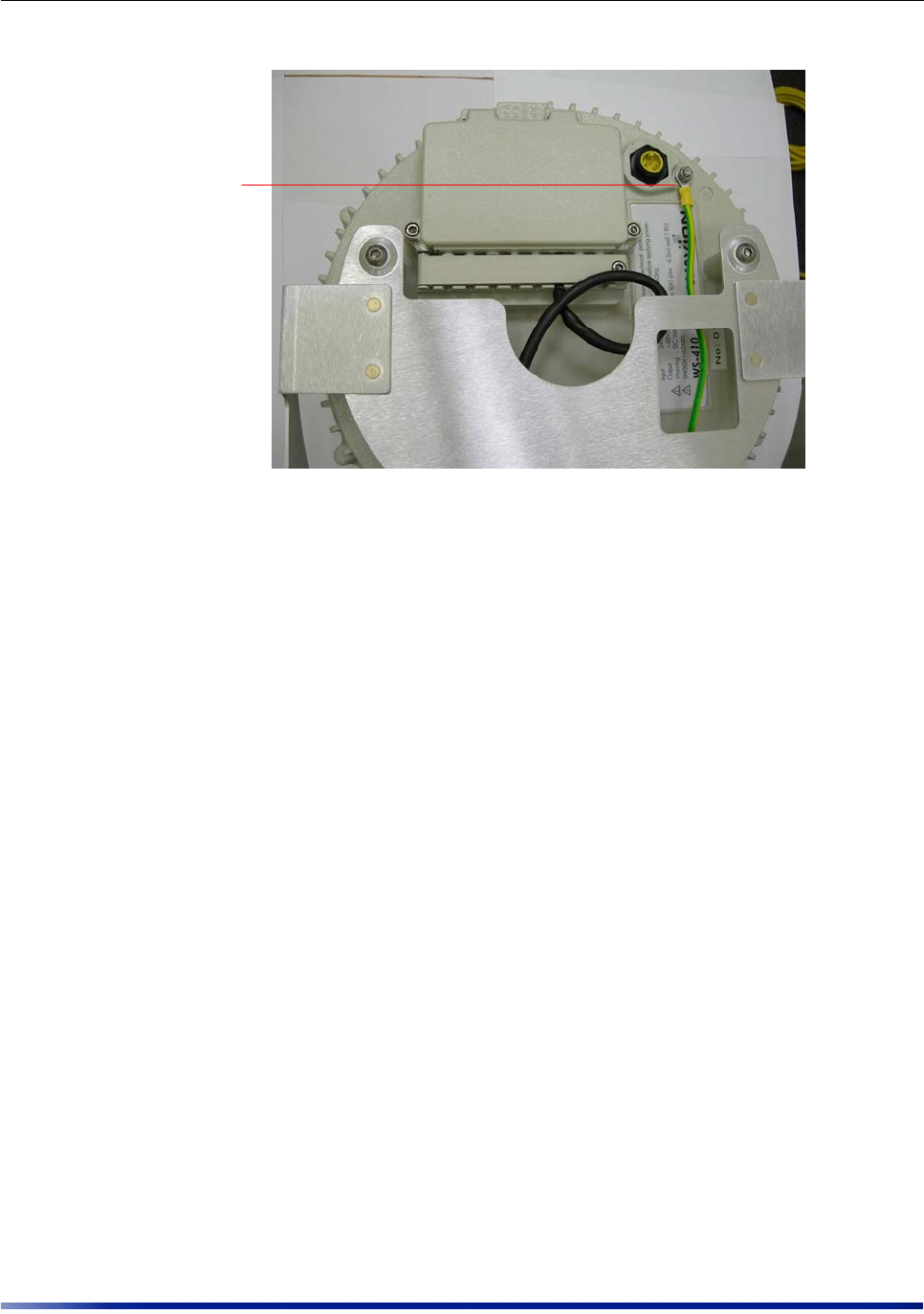

1. Remove the nut and star washers from the grounding screw.

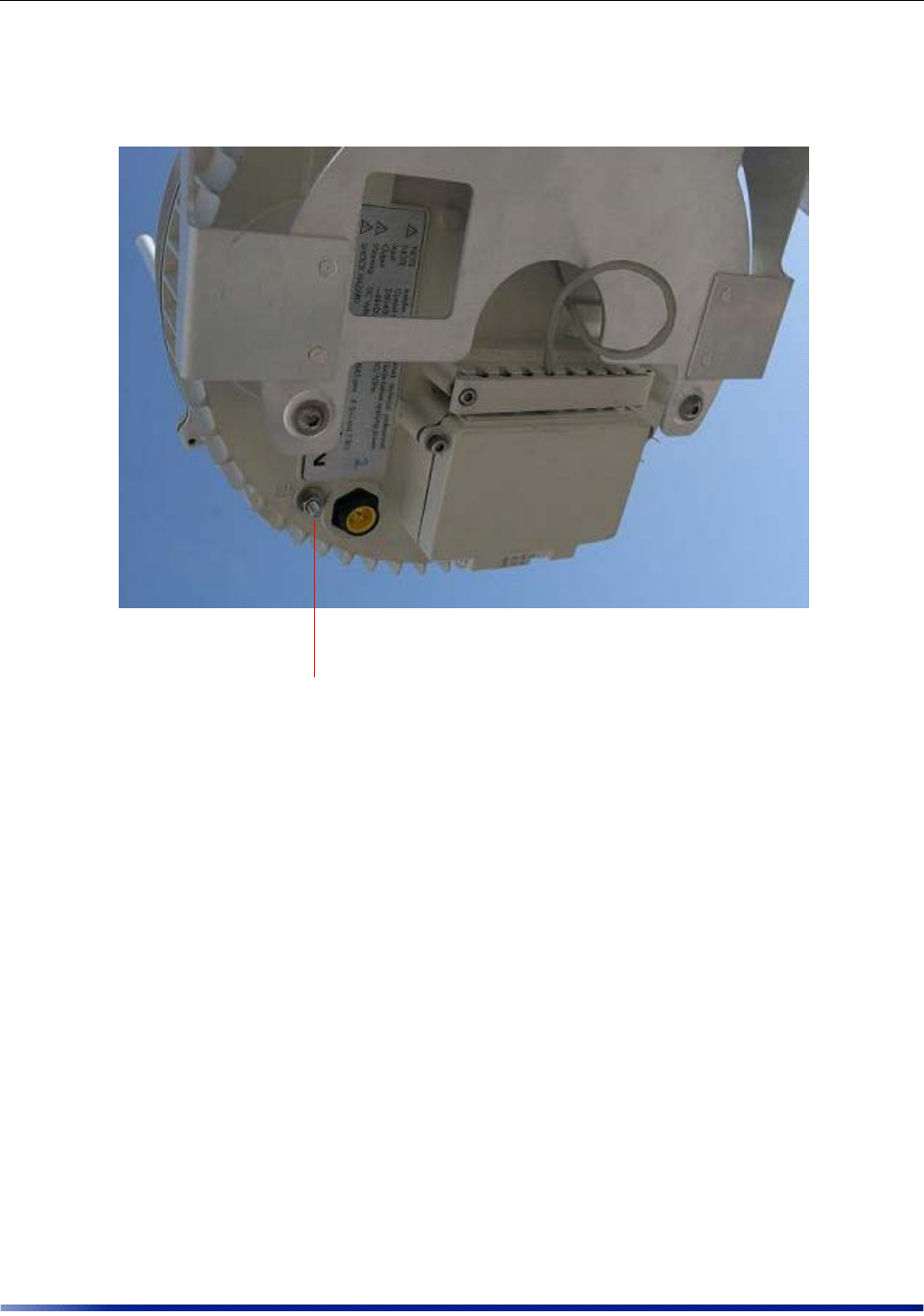

Figure 3.14. Grounding Screw
2. Attach one star washer to the grounding screw.
Grounding screw
Installing the Wavion WS-410 Metro Access Point
Installation Guide 25

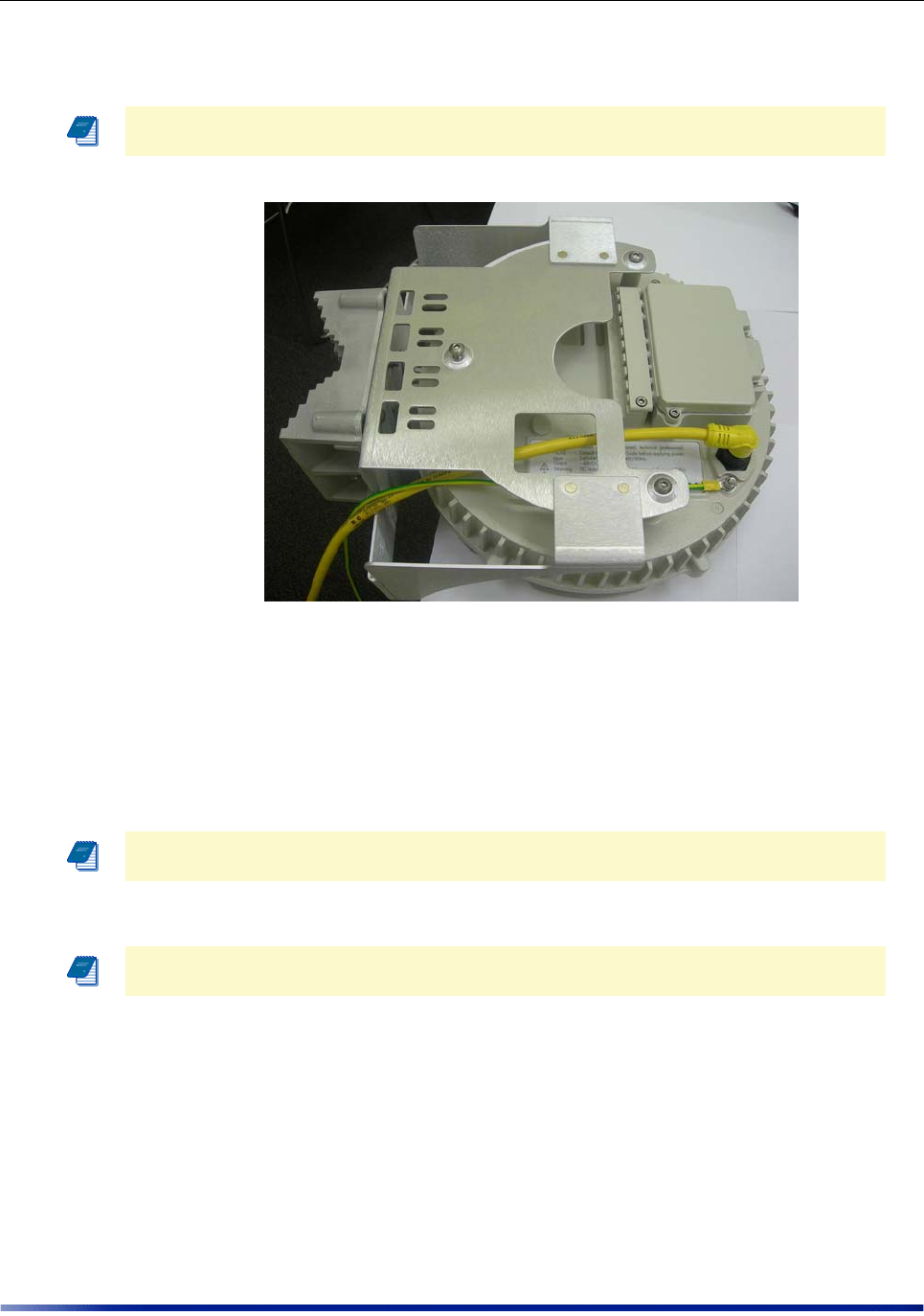

3. Attach #10 AWG bare copper wire with an M6 terminal ring to the grounding screw.
4. Attach the second star washer and tighten the nut.
5. Attach the other end of the grounding wire to a grounding strap that is attached to a
grounded surface or other earth ground (for example, a grounding rod).
Grounding the Data Protection Device
The grounding method for an indoor data protection device is shown in Figure 3.15.
To ground an indoor data protection device
1. Position the protection device as close to the entrance of the building entrance as possible.
2. Attach a length of #10 AWG bare copper wire to the ground post on the data protection
device.
3. Attach the other end of the grounding wire to the ground connection of an electrical outlet
or a grounded water pipe.
Attach wire to
grounding
screw
Installing the Wavion WS-410 Metro Access Point
26 Wavion

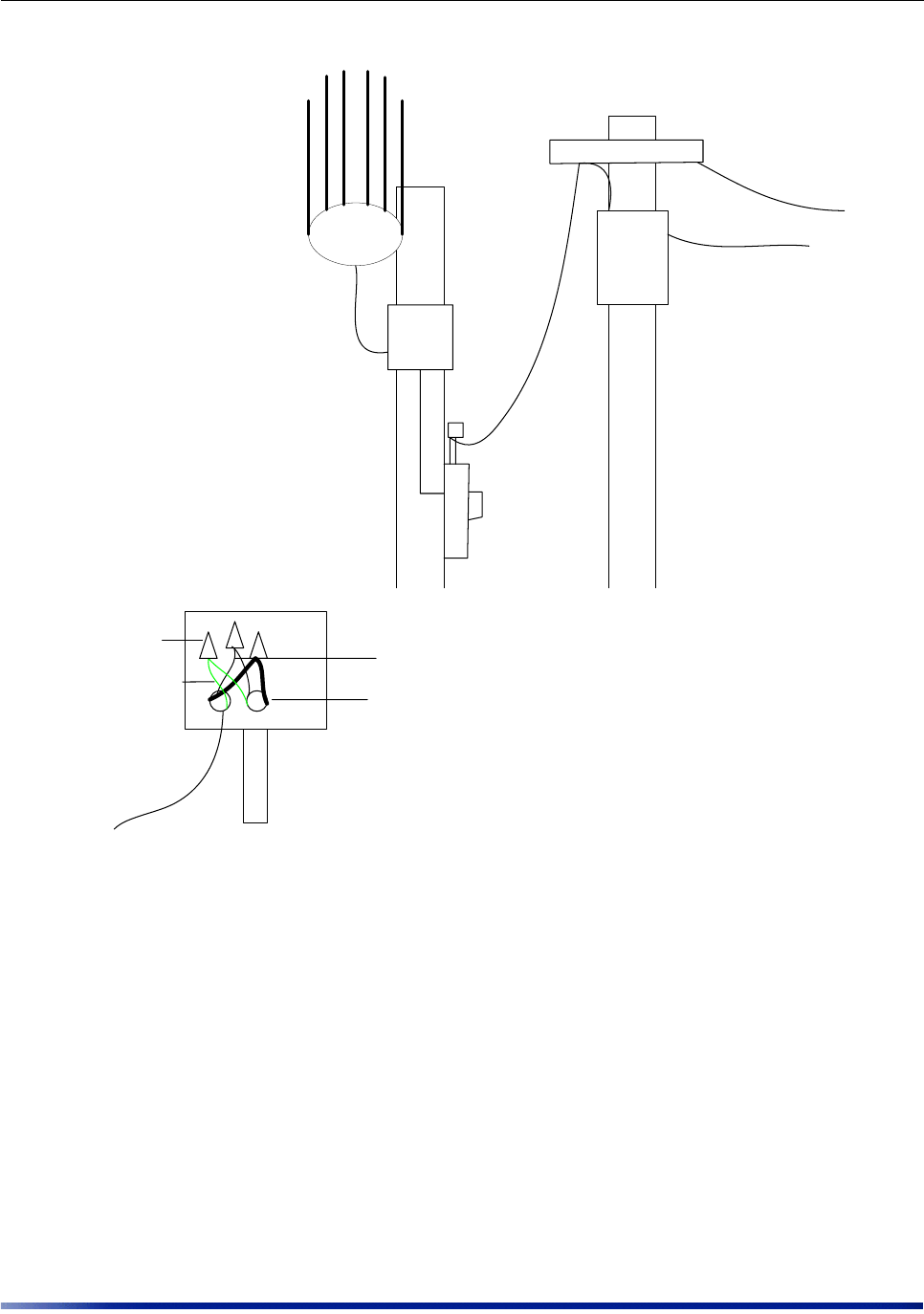

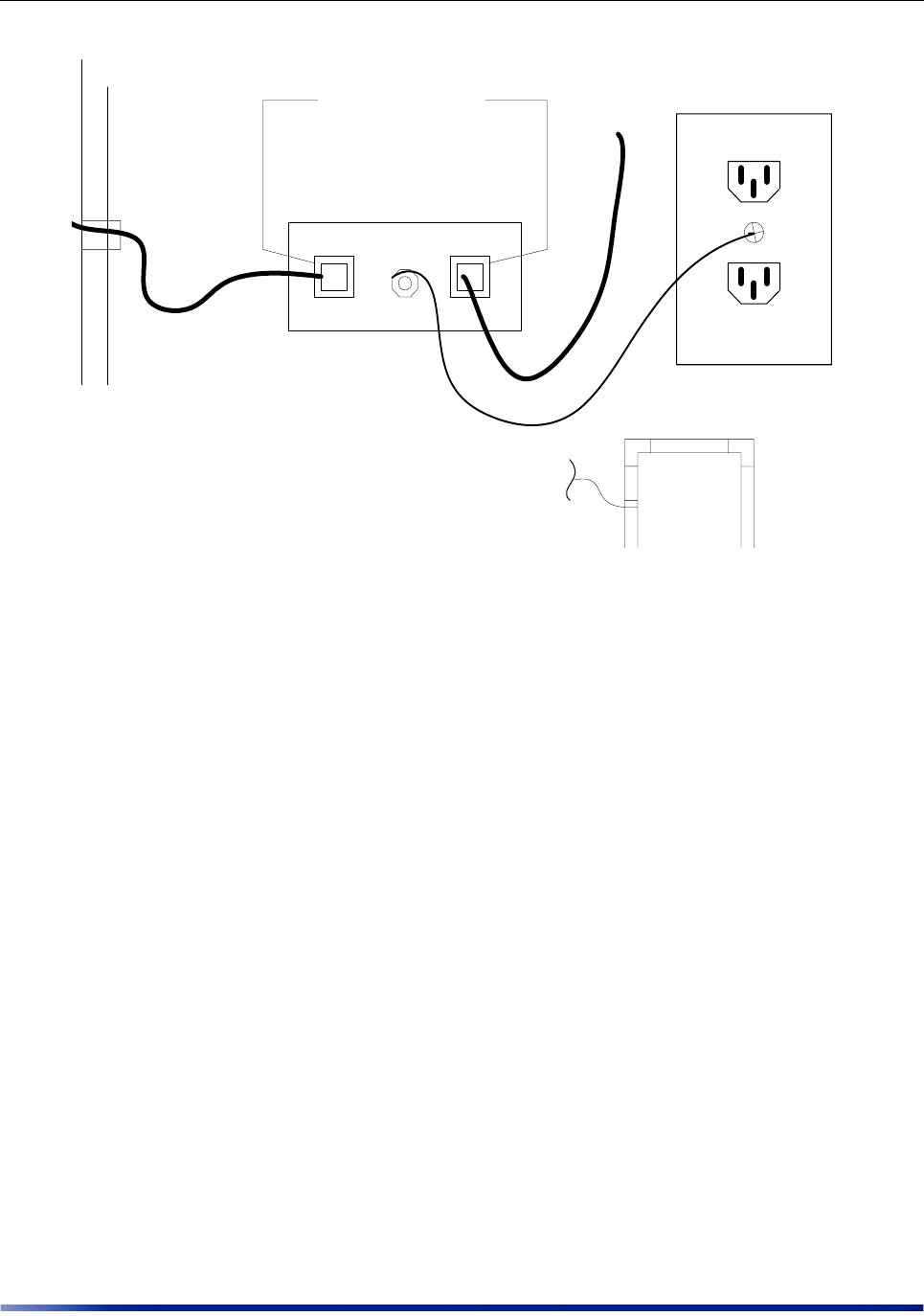

Figure 3.15. Grounding the Indoor Network Protection Unit
Indoor network
protection unit
Data cable
enters building
wall through
conduit
To network
Grounding wire to
electrical outlet ground or
water pipe
10 AWG wire
to ground
Shielded RJ45 ports
Installing the Wavion WS-410 Metro Access Point
Installation Guide 27
Connecting Antennas
This section explains how to connect the six antennas to the WS-410. In order for the
WS-410 to work properly, six antennas must be connected.
Screw each of the 6 antennas into the an N-Type connectors on the WS-410.
Figure 3.16. Connecting the Antennas

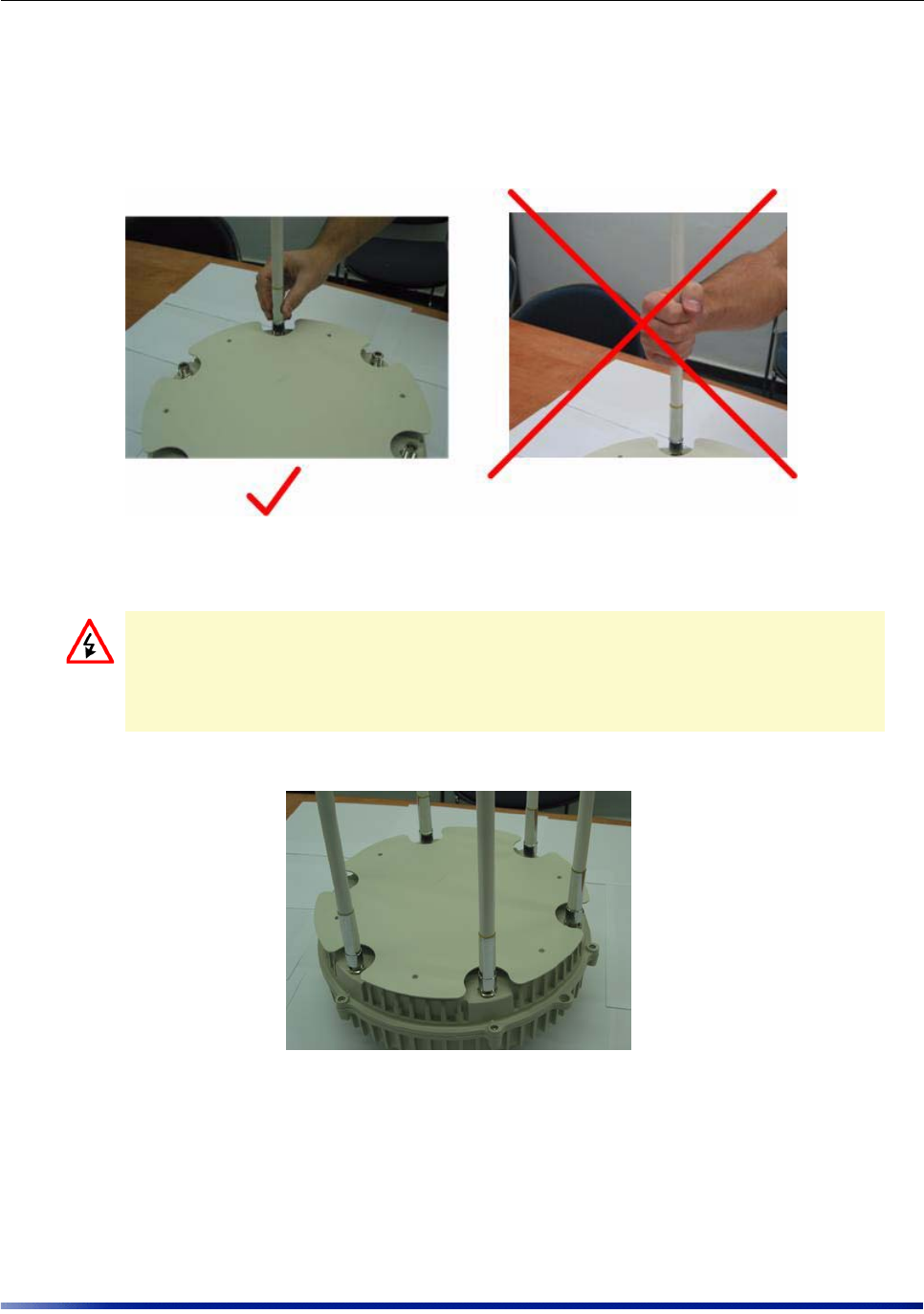

The successful insertion of six antennas should look as follows.
WARNING: Only connect the unit to the power supply once all the antennas are
connected.
WARNING: Use caution when connecting the antennas. Undue haste can damage the
unit.
WARNING: Do not screw in the antenna when holding the top section of the antenna.
You will most likely damage the antenna.
Installing the Wavion WS-410 Metro Access Point
28 Wavion
Connecting Power
The following describes how to connect the WS-410 to power. There are three options for
connecting the Wavion WS-410 to a power source:
•AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 110-220 VAC, 50/60
Hz. Chapter 7: Installation Accessories on page 53 for details.
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 53
for details.
•Wavion injector connected to Ethernet port B (ETH B). See Chapter 7: Installation
Accessories on page 53 for details.
Connecting to AC Power (Category C)
The AC power connections for a Category C AC power source are shown in Figure 3.17.
WARNING: Turn the power off before working on an electrical circuit. Turn off the
breaker to the circuit you plan to work on. Post a sign on the service panel so nobody
tries to reconnect power while you are working on the circuits. Double-check the
circuit with a circuit tester before you touch it to make sure the correct breaker has
been disconnected.
CAUTION: You must always install an external grounding wire. Perform a simple
continuity check between the WS-410 and the ground termination point to confirm.
You must also ground the outdoor data protection device to a ground rod or a bonded
pipe. Make sure you have completed grounding before you connect power to the WS-
410.
Installing the Wavion WS-410 Metro Access Point
Installation Guide 29

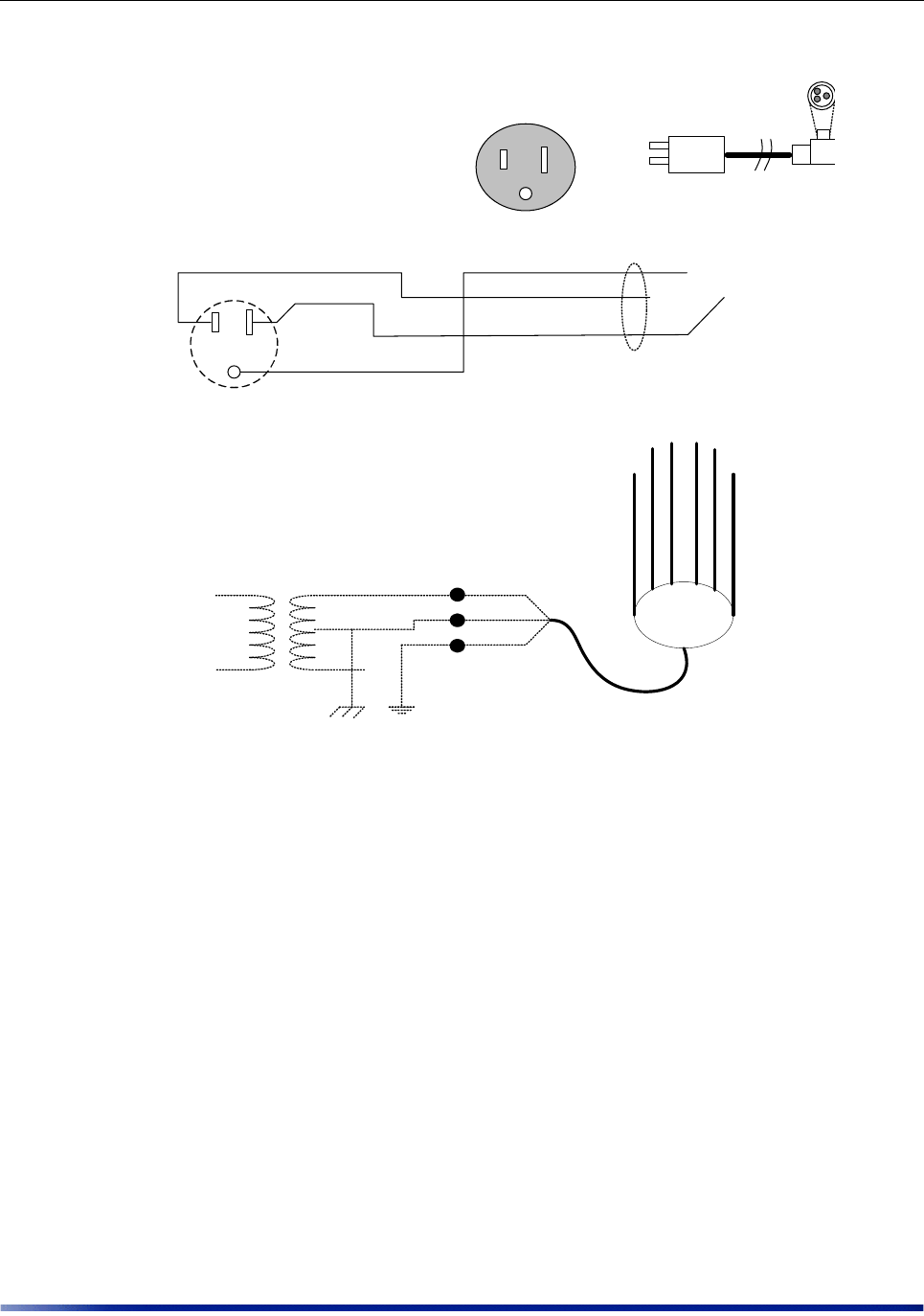

Figure 3.17. Connecting Category C AC Power
To connect an AC power source
1. Verify that the service voltage is the following:
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 53 for
details.
2. Make sure the power is turned off on the designated circuits.
3. Install a 1/2 inch liquid-tight conduit from the building entrance point to within 3 feet of
the outdoor system.
4. Run 3-wire AC service through the conduit.
AC power
from meter
To outdoor unit
AC wiring in junction box
according with WS-410
power supply
To power source
Black wire
White wire
Green wire
Wire nuts
Installing the Wavion WS-410 Metro Access Point
30 Wavion
5. Connect the conduit to a junction box. The conduit and junction box must be IEEE/ANSI
compliant and suitable for outdoor use.
6. Connect the AC cable to the WS-410 and tighten the nut.
7. Connect the Wavion WS-410 to one of the following power sources:
•AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 110-220 VAC, 50/60
Hz. See Chapter 7: Installation Accessories on page 53 for details.
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 53 for
details.
8. Reenergize the circuit and check that the power to the WS-410 turns on.
NOTE: Data and power must not be enclosed in the same conduit.
NOTE: If the street light is sourcing 480VAC, a special step-down power tap adaptor
must be used.
NOTE: The Wavion WS-410 is equipped with additional AC surge protection and fuse
branch circuit protection. AC current protection of 20Amp should be installed.
Connect
the AC
cable
Installing the Wavion WS-410 Metro Access Point
Installation Guide 31

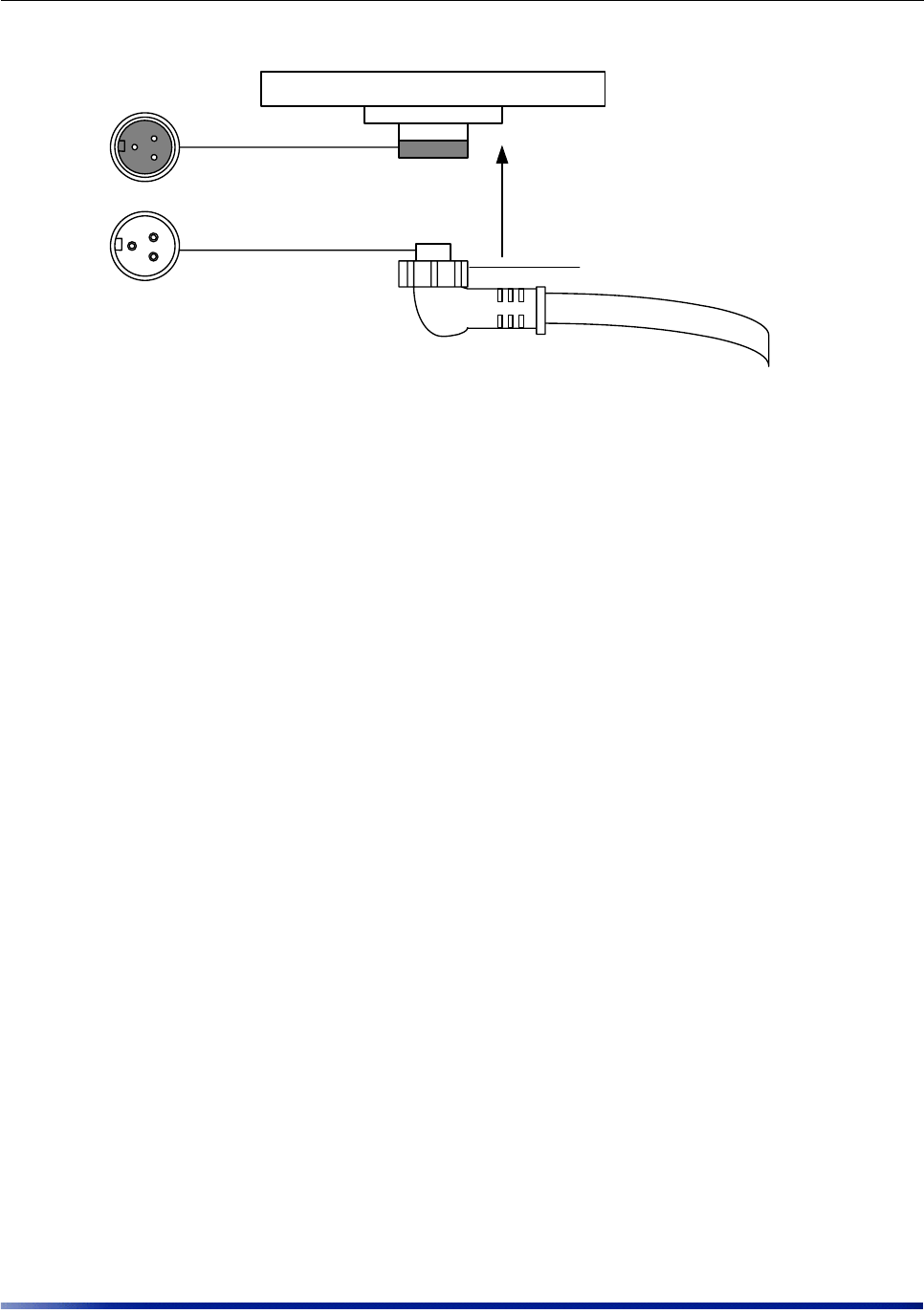

Figure 3.18. Connecting the AC Power Cable
Connecting to Streetlight Power (Category C)
The following describes the power connections for Category C streetlight power. For outdoor
lighting commonly used by utilities, use the 3-prong NEMA twist-lock adapter with twist-lock
style photoelectric controls. The street light adapter uses a 3-pronged NEMA twist-lock
adapter that is installed between the outdoor lighting control and its fixture. The NEMA twist-
lock adapter is designed to be used with UL 773 listed outdoor lighting controls operating
with the following:
Tighten nut to secure
power connection
Installing the Wavion WS-410 Metro Access Point
32 Wavion
NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 53 for
details.
Figure 3.19. Connecting Streetlight Power
To connect a streetlight power source
1. Verify that the service voltage is the following:
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 53 for
details.
2. Make sure that the power is turned off on the designated circuits.
3. Remove the photosensor from the streetlight.
WARNING: Connect the WS410 only to a twist-lock style outdoor lighting control
powered by 100-240 VAC 50/60 Hz. Do not connect it to twist-lock style outdoor
lighting controls powered by higher voltage. If the street light is sourcing 480VAC, a
special step-down power tap adaptor must be used.
WARNING: Be extremely careful when connecting to Category C streetlight power.
AC power from
power adapter on
photosensor
Installing the Wavion WS-410 Metro Access Point
Installation Guide 33
4. Connect the NEMA 3 prong plug from the Wavion WS-410 to the photosensor connector on
the streetlight.
5. Connect the photosensor to the top of the NEMA 3 prong plug.
6. Connect the AC plug to the WS-410 and tighten by hand.
7. Reenergize the circuit and confirm that the power to the WS-410 comes on.
Connecting a Data Port
The Wavion WS-410 is equipped with four RJ45 connectors. The bottom two ports are for
engineering use only. Typically, you will connect to the ETH A port. Use the ETH B port if you
are connected to a backhaul unit for which you have to supply power. Only one port is active
at any time.
NOTE: The Wavion WS-410 is equipped with additional AC surge protection and fuse
branch circuit protection. AC current protection of 20Amp should be installed.
NOTE: Do not leave connectors open to the environment. Cover connectors with the
closure cap when not in use and tighten the cap. See Chapter 7: Installation
Accessories on page 53.
NOTE: Use only shielded Cat5e cable rated for outdoor use. See Chapter 7:
Installation Accessories on page 53 for details. The shields of the Cat5 cable
must be properly terminated and bonded to the unit and to the protective earth (PE)
at the building entrance. This provides protection against the risk of fire, electrical
hazard and ensures the reliable operation of this equipment,
NOTE: National Electrical Codes (NEC) Article 800 requires the use of an Agency
Listed (UL/CSA) Building Entrance Protector for all power and communications cables
entering a building. Article 800 is intended to protect the building and occupants
from fires caused by transient voltage and current surges.
WARNING: DC voltage may be present on Ethernet B pins 4,5 (+) and 7,8 (-)
NOTE: This is not a mid-span powered device. Do not attempt to daisy-chain Power
Over Ethernet devices.
Installing the Wavion WS-410 Metro Access Point
34 Wavion
The figures below show the options for routing cables to the Wavion WS-410. Connect the
Ethernet cable to the appropriate data port (ETH A or ETH B).
Figure 3.20. Data Port Connection Options
When connecting to the Ethernet port, if you need to terminate the Ethernet cable, use a
standard RJ45 termination. Use a shielded RJ45 plug and be sure to connect the shield of the
Ethernet cable to the shield of the RJ 45 plug.
To connect to the data port
1. Make sure that the power is turned off for the designated circuits.
2. Run shielded Category 5 Ethernet cable appropriate for outdoor use from a data
protection unit to the Wavion WS-410.
ETH A port
ETH B port
Installing the Wavion WS-410 Metro Access Point
Installation Guide 35
3. Connect one end of the Category 5 cable to the data protection unit.

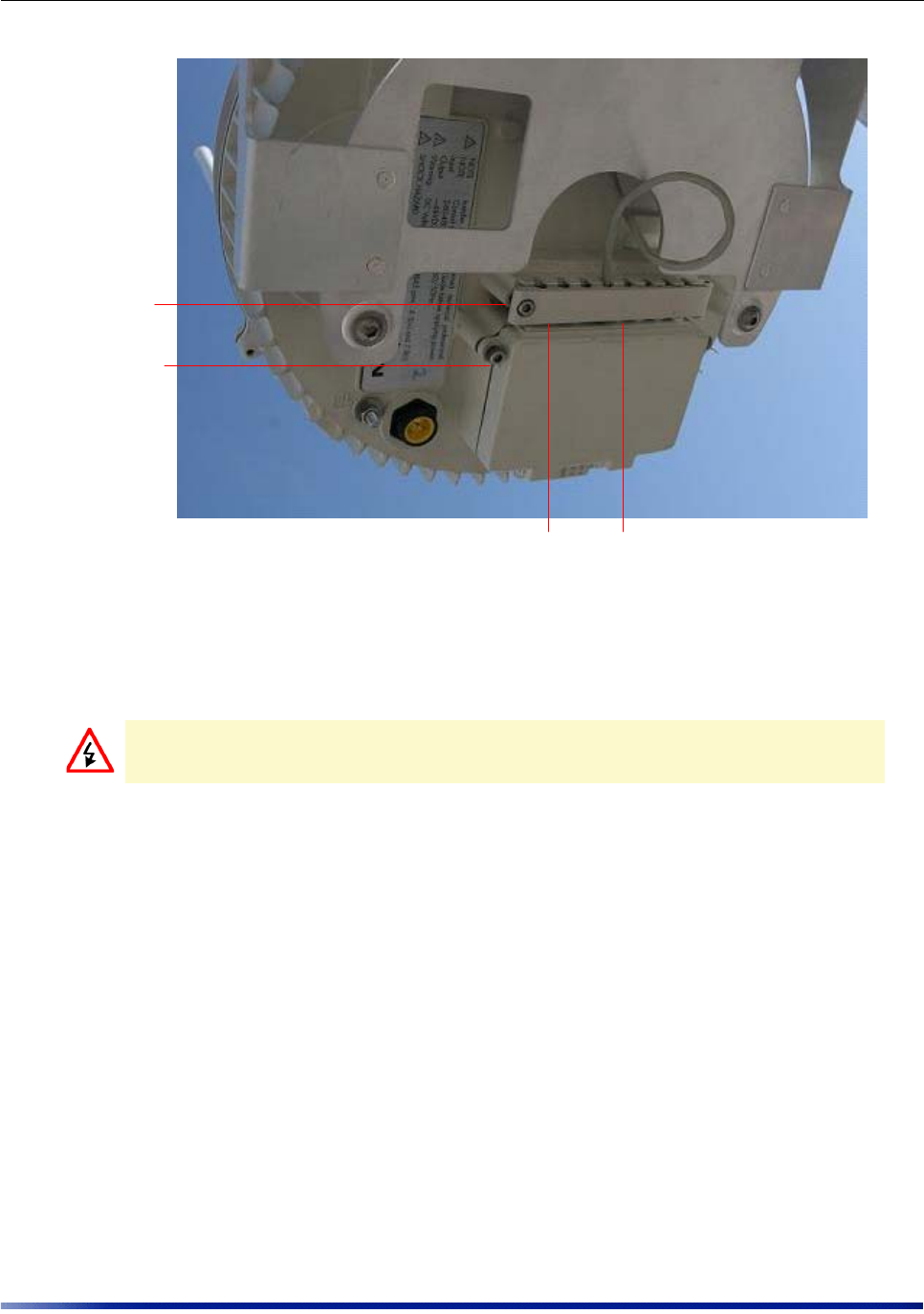

4. Open the connector access cover on the bottom of the WS-410 by unscrewing the two
bolts.
5. Open the strip next to the connector access cover by unscrewing the bolt.

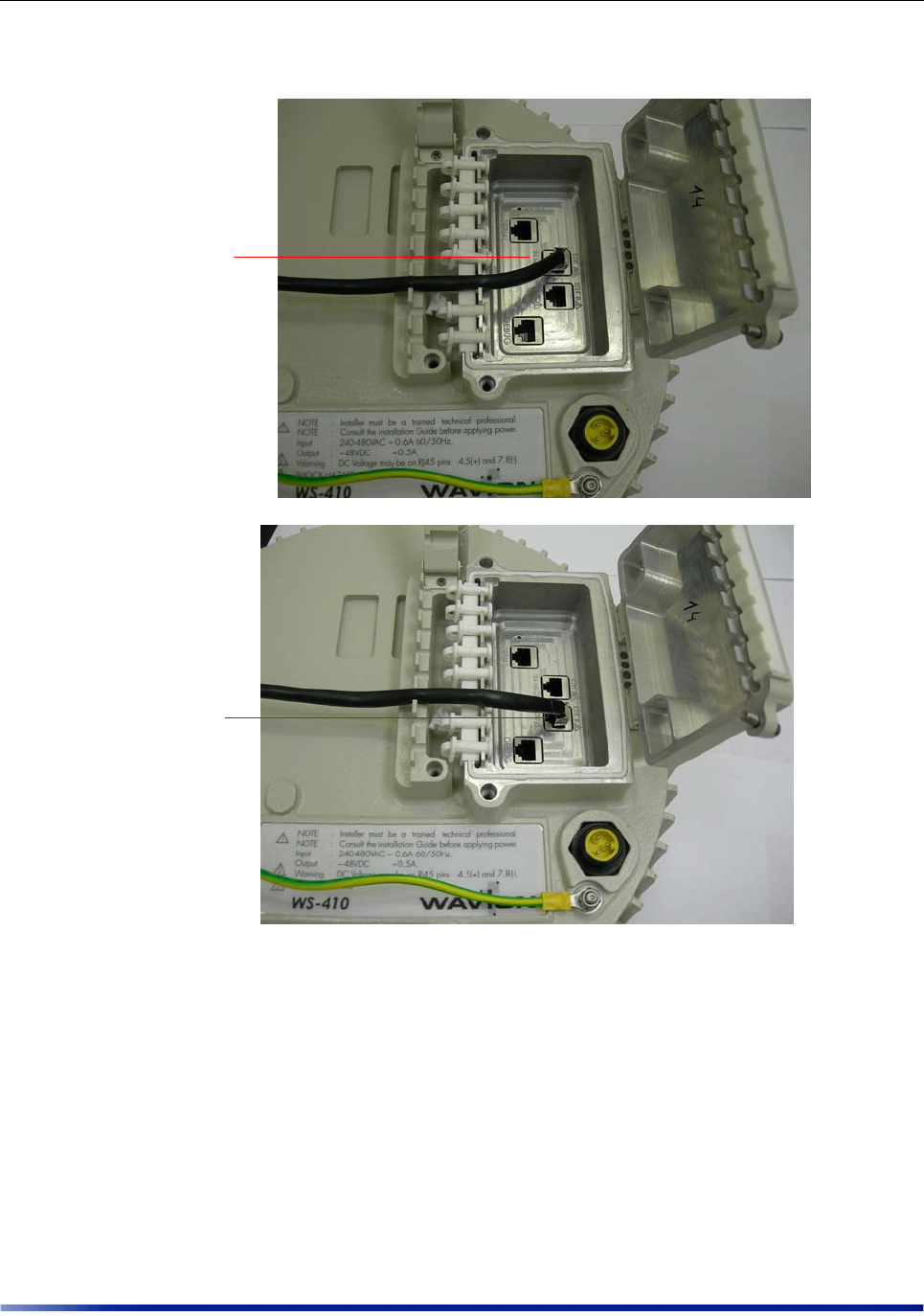

Figure 3.21. Opening the Strip and Connector Access Cover

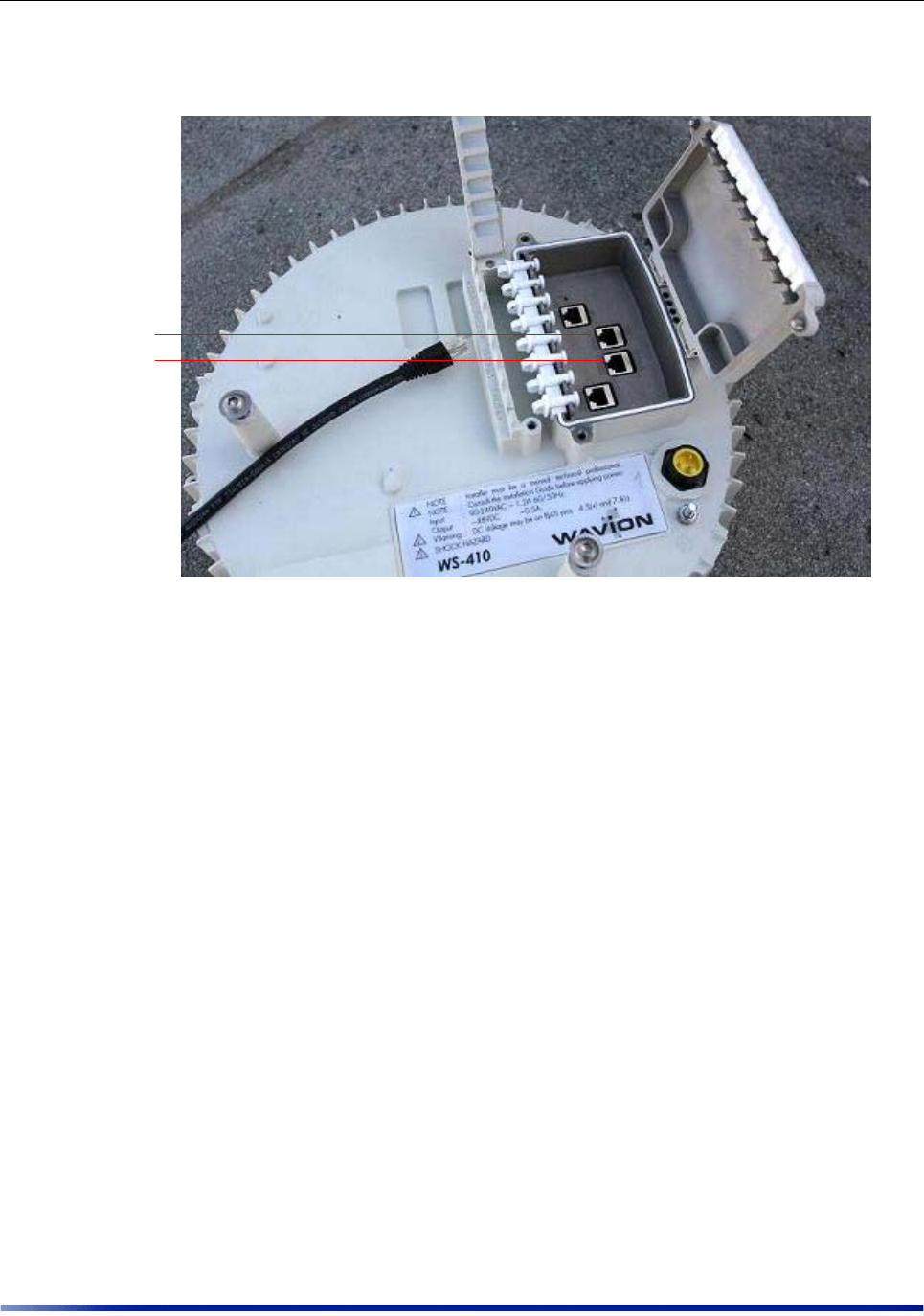

6. Select the slot that matches the diameter of the Ethernet cable and remove the rubber
plug.
Figure 3.22. Removing the Plug Matching the Diameter of the Cable
Strip
Connector
access cover
Select and
remove plug with
matching
diameter to the
Ethernet cable
Installing the Wavion WS-410 Metro Access Point
36 Wavion
7. Connect the cable ends on the WS-410 to the ETH A port or to the ETH B port if you are
using a backhaul unit that requires a power supply. Use a shielded RJ45 8-pin modular
plug to terminate the cables at the desired lengths.
8. Make sure that the protection unit is properly grounded.
9. Apply silicon across the rubber plugs.
10.Close the strip and tighten the bolt using the 4mm Allen wrench.
11.Close the connector access cover and tighten the bolts using the 4mm Allen wrench. This
ensures a watertight seal.
ETH A port
ETH B port
Installing the Wavion WS-410 Metro Access Point
Installation Guide 37
12.Apply silicon in the gap between the strip and the connector access cover.

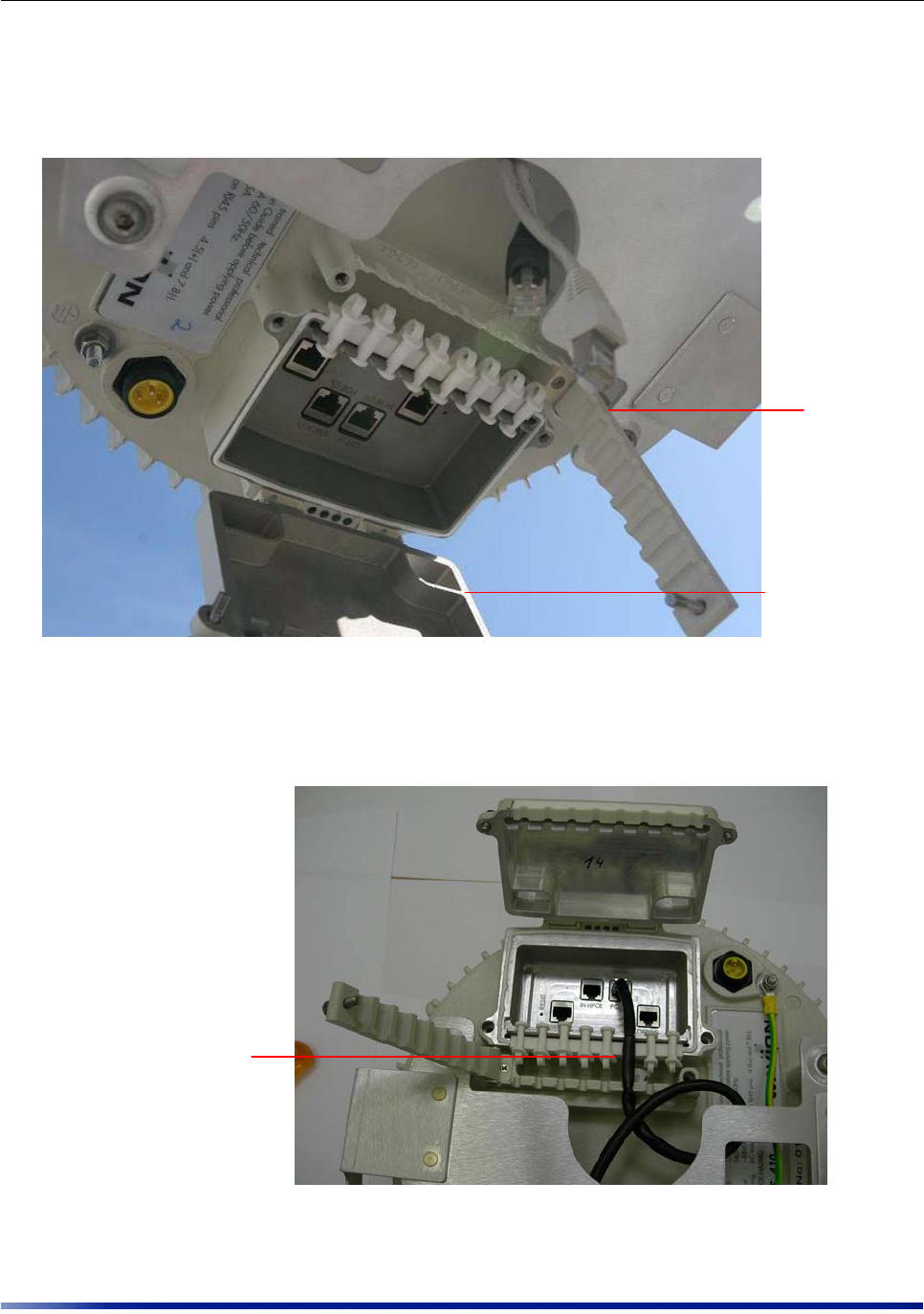

Figure 3.23. Closing the Covers
13.Create a drip loop of at least 10 inches by looping the cables back to the tray and using a
tie wrap to secure.
Connecting Peripherals
The WS-410 can source DC power on the Ethernet B connector pins 4,5 and 7,8, This allows
the WS-410 to power a backhaul device.
WARNING: If you are using a Wavion Injector, make sure you are not supplying
power to the injector until you insert the RJ45 connector into its socket, or you may
risk electric shock.
Close
connector
access cover
Close strip
Apply silicon
Installing the Wavion WS-410 Metro Access Point
38 Wavion
PoE Power Sourcing Power Output
RJ45 Pin Descriptions for Data Connection
Using a Backhaul Unit
If the installation location does not provide a place to connect to the internet (for example,
on an electricity pole), you need to use a backhaul unit.
There are two types of backhaul units:
•A backhaul unit that provides its own power
•A backhaul unit that uses power supplied by the WS-410
Voltage Max Power Output
48VDC 30W
24VDC 24W
NOTE: Two different WS410 product versions are available. One supports only PoE
48VDC output and the second one supports both 24 or 48VDC PoE output selectable
from the product’s management GUI.
NOTE: PoE can only be supported if the WS-410 is powered by AC voltage input.
NOTE: Use only shielded Cat5e cable rated for outdoor use. Chapter 7: Installation
Accessories on page 53 for details. For protection against risk of fire, electrical
hazard and to ensure the reliable operation of this equipment, the shields of the Cat5
cable must be properly terminated and bonded to the unit and to the protective earth
(PE) at the building entrance.
Pin T/R Signal Color Description
1 T TXD+ Orange-White TX Data 10/100BaseT
2 R TXD- Orange TX Data 10/100BaseT
3 T RXD+ Green-White RX Data 10/100BaseT
4 R PoE+ Blue Power output, 24/48 Vdc (+)
5 T PoE+ Blue-White Power output, 24/48 Vdc (+)
6 R RXD- Green RX Data 10/100BaseT
7 T PoE- Brown-White Power output, 24/48 Vdc (-)
8 R PoE- Brown Power output, 24/48 Vdc (-)
NOTE: The antennas on the WS-410 must be higher than the antennas on the
backhaul unit.
Installing the Wavion WS-410 Metro Access Point
Installation Guide 39
The following backhaul unit can be powered by the WS-410:
•Motorola Canopy uses 24VDC PoE input voltage. Please use the correct WS410 product
version to power the Canopy unit.
•Alvarion VL uses 48VDC PoE input voltage (Please refer to Chapter 7: Installation
Accessories on page 53 for details on connecting the Alvarion unit to the WS410)
Safety Information for the Wavion WS-410
The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has
adopted a safety standard for human exposure to RF electromagnetic energy emitted by FCC
certified equipment. Proper operation of the Wavion WS-410 according to the instructions
found in this manual results in user exposure that is substantially below the FCC
recommended limits.
Follow these guidelines to ensure safe operation of the Wavion WS-410:
•Do not touch or move the antennas while the unit is transmitting or receiving.
•Make sure the antennas are connected when operating the radio or attempting to transmit
data, otherwise, the radio may be damaged.
•Do not hold the antenna to be close to or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
•The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
•The use of wireless devices in hazardous locations is limited to the constraints posed by
the safety directors of such environments.
•The use of wireless devices in hospitals is restricted to the limits set forth by each
hospital.
•Do not operate a portable transmitter near unshielded blasting caps or in an explosive
environment.
•The Wavion WS-410 must be used only with Wavion approved components and antennas.
F
WARNING: Make sure the backhaul unit has the correct voltage appropriate for the
installation.
NOTE: When using a backhaul unit that uses power supplied by the WS-410,
connect the Ethernet cable to the port labeled ETH B.
NOTE: When using a Wavion injector, the WS-410 cannot supply power to the
backhaul unit.
NOTE: Make sure to use the correct part number for the backhaul unit to avoid
causing damage to the unit.
Installing the Wavion WS-410 Metro Access Point
40 Wavion
Service Instructions
The Wavion WS-410 contains no user serviceable parts inside.
Installation Guide 41
CHAPTER 4
Power Consumption
This chapter describes the power consumption details for the WS-410. The power
consumption of the WS410 varies according to the operational conditions and data
transmission rates.
The table below shows the overall maximum power consumption under different conditions.
WS410 Input
Voltage
WS410 Input
Power when PoE
output is not used
WS410 (Max)
Input Power
when a 24VDC
PoE output is
used
WS410 (Max)
Input Power
when a 48VDC
PoE output is
used
110 VAC 50/60 Hz 40W 72W 74W
220 VAC 50/60 Hz 44W 78W 81W
Power Consumption
42 Wavion
Installation Guide 43
CHAPTER 5
Product Specification
The tables in this chapter contain specifications for the Wavion WS-410.
* RX Sensitivity
Wireless Specifications
IEEE 802.11b/g compliant
Frequency band 2.4 - 2.483 GHz
Modulation •802.11b: DSSS (DBPSK, DQPSK, CCK)
•802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK)
TX Power Maximum 802.11b and 802.11g
Beamformer Directed Power EIRP + Beamfroming gain: 42.5dBm
EIRP Calculations Antenna Gain - 7.5 dBi
Total EIRP - 3.5 dBm
RX Sensitivity* 802.11b and 802.11g
Antenna Array Six 7.5dBi omni-directional antennas
-105.5 dBm @ 1 Mbps
-103 dBm @ 2 Mbps
-100.5 dBm @ 5.5 Mbps
96 dBm @ 11 Mbps
-102.5 dBm @ 6 Mbps
-100.5 dBm @ 9 Mbps
-99.5 dBm @ 12 Mbps
-98 dBm @ 18 Mbps
-95 dBm @ 24 Mbps
-92 dBm @ 36 Mbps
-88 dBm @ 48 Mbps
-86 dBm @ 54 Mbps
Product Specification
44 Wavion
Networking and QoS Specifications
Full 802.11b/g client compatibility
16 VLANs
16 SSIDs
Security Specifications
Packet filtering via layer 2 & 3
WEP (64 bit or 128 bit)
WPA:
Encryption: WEP or TKIP
Authentication: Pre-Shared Key or 802.1x with RADIUS Server (EAP-TLS, PEAP, EAP-
TTLS)
VPN pass-through and tagging
HTTPS for web-based management tools
Management Specifications
Web based configuration and management too
SNMPv2 with standard and Wavion MIB support
Configuration save and restore
Network and client statistics
Physical Specifications
Network Interfaces •Auto-sensing 10/100 Ethernet
•Input from Wavion Injector
Auxiliary Network Interface •For connection to a backhaul interface where PoE to
the backhaul device is required.
•Auto-sensing 10/100 Ethernet
•Input/Output Power over Ethernet
Power Input •Weather-tight power connector plug for 100-240
VAC power input
•Power from a Wavion Injector (ETH B port only)
Indicator Lights •Two Ethernet port LED indicators
•System Status LED indicator
•RF channel status indicator
Physical Dimensions Base:
•Diameter - 13in (33cm)
•Height - 5in (12cm)
Antenna Array:
•Height - 17in (43cm)
Weight: 20lbs (8kg)
Product Specification
Installation Guide 45
Power Specifications
Power Input •100 - 240 VAC weather-proof power cable, 50/60 Hz
with standard AC connector or street light NEMA
photo-electric control power tap
•55VDC, supplied over Ethernet from Wavion injec-
tor.
Input Power Consumption •Power from Wavion Injector 35W @ 55VDC
•For AC input see Chapter 4: Power Consumption on
page 41
Output Power over Ethernet
Option For powering an external device:
•48VDC, 0.6A max.
•24DC, 1A max.
Environmental Specifications
Operating Temperature Range -40°C to +50°C
Storage Temperature Range -45°C to +85°C
Weather Rating IP65
Wind Survivability 165 mph
Salt and Fog Rust Resistance MIL-STD-810F 509.4
Shock and Vibration ESTI 300-192-4 spec T41.E
Transportation ISTA2A
Approvals
RF FCC CFR part 15, Class C
Safety TUVus
EMC 47 CFR Part 15, Sub Part B, Class B (USA)
Product Specification
46 Wavion
Installation Guide 47
CHAPTER 6
Antenna Specifications and Patterns
The chapter describes antenna specifications and patterns for the antennas supplied with the
Wavion WS-410.
Antenna Specifications and Patterns
48 Wavion
SF-245W 2.4GHz Omnidirectional Antenna
MT_342015NV_SN_035_EL 2.4 GHz Antenna

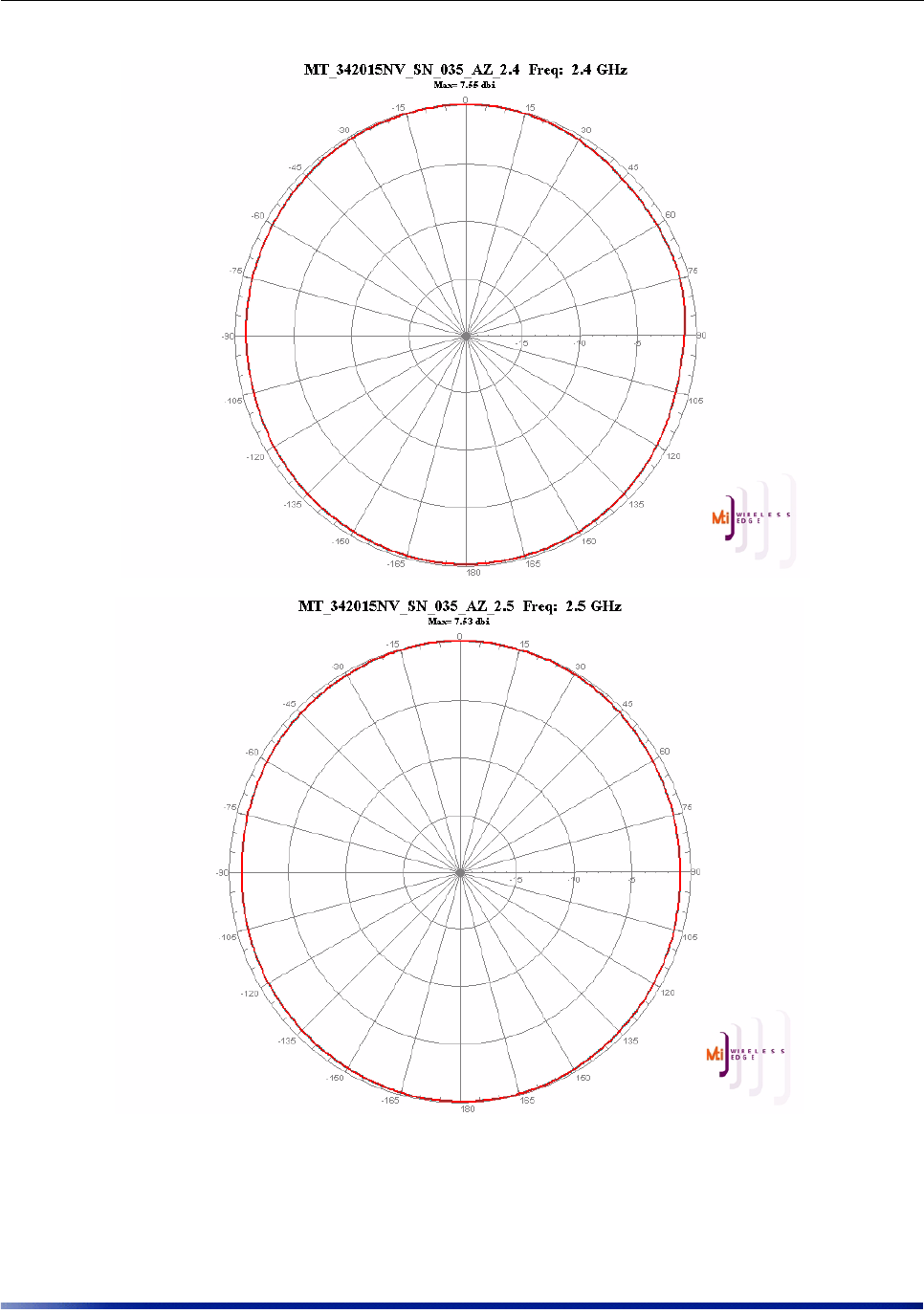

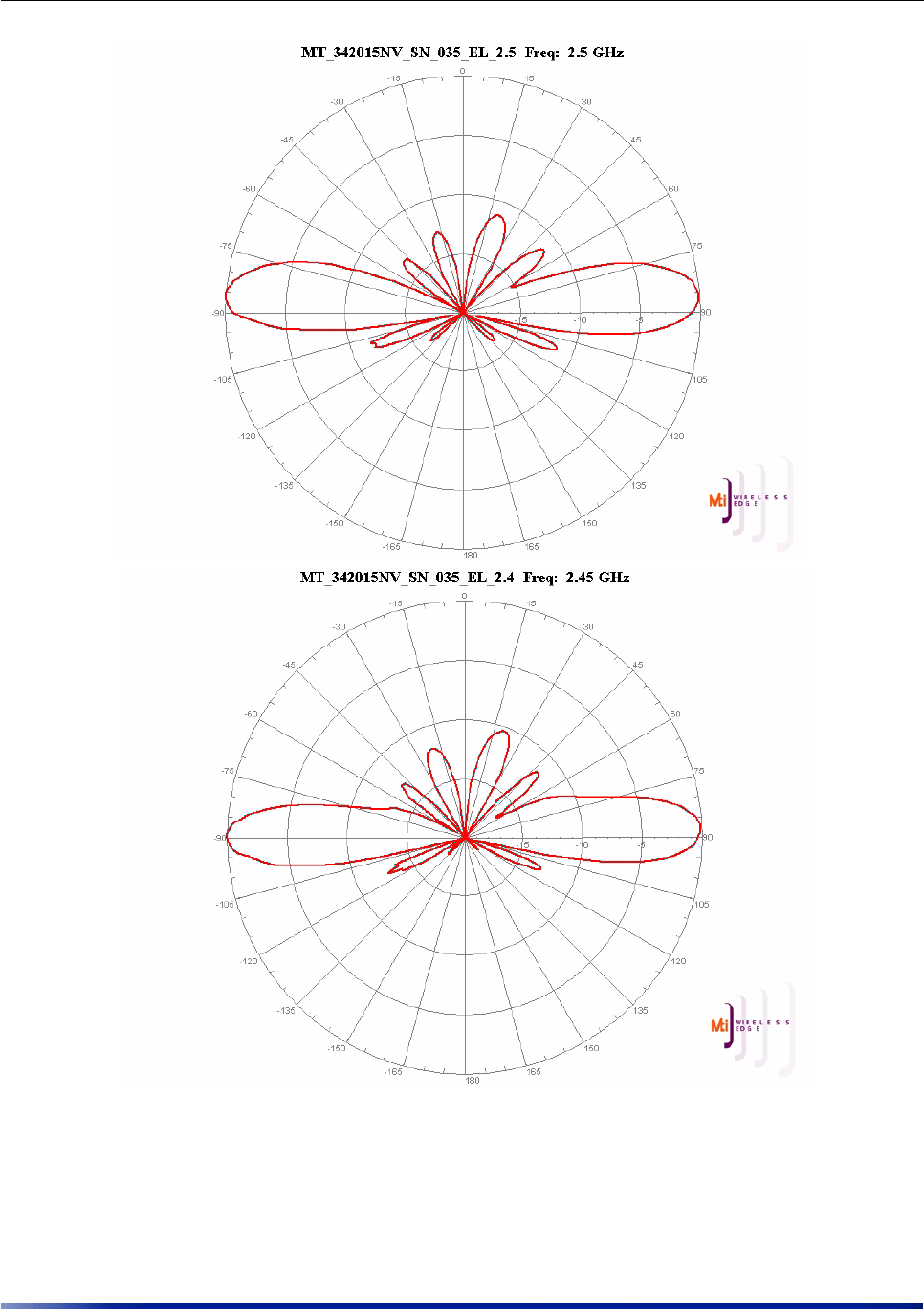

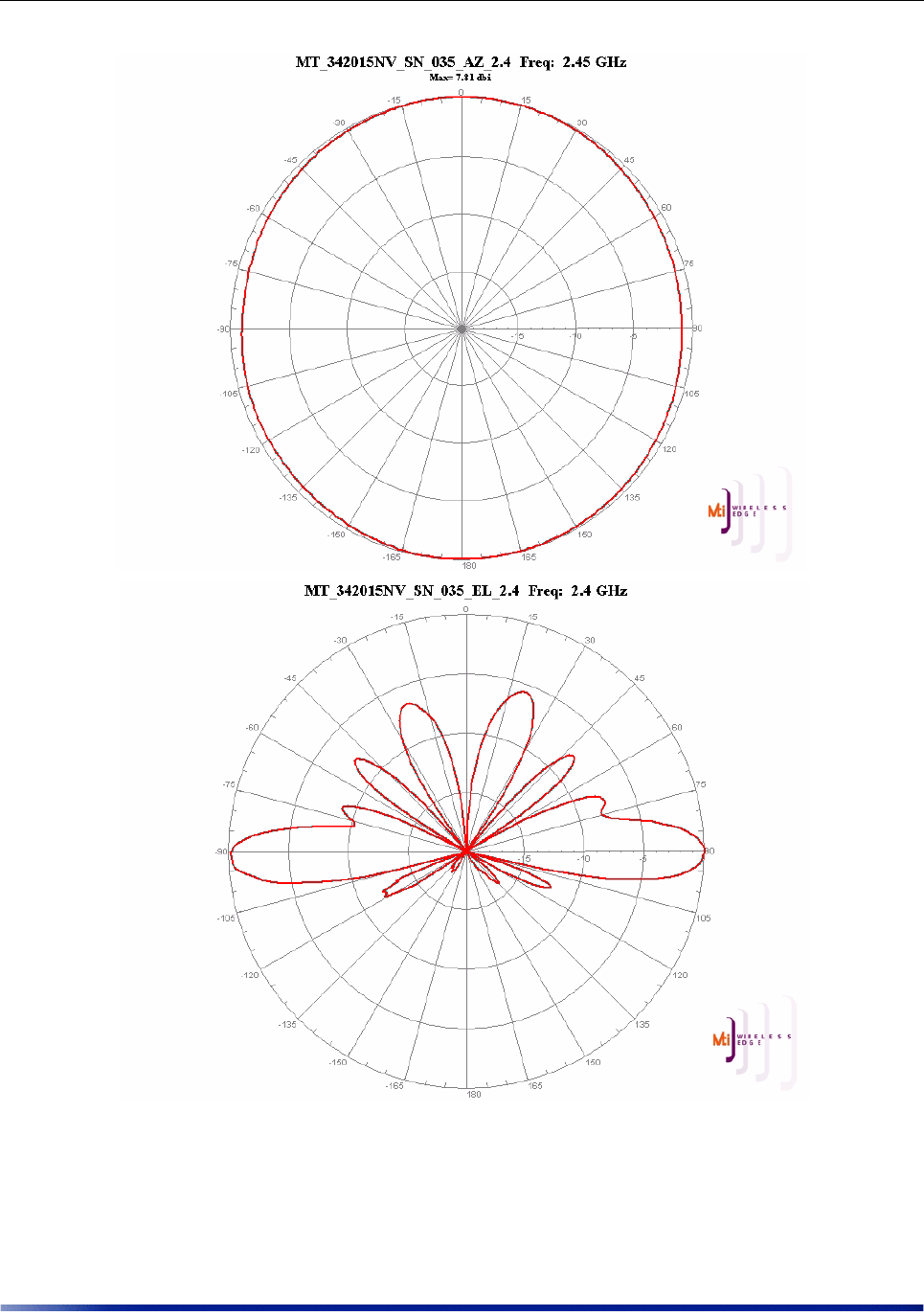

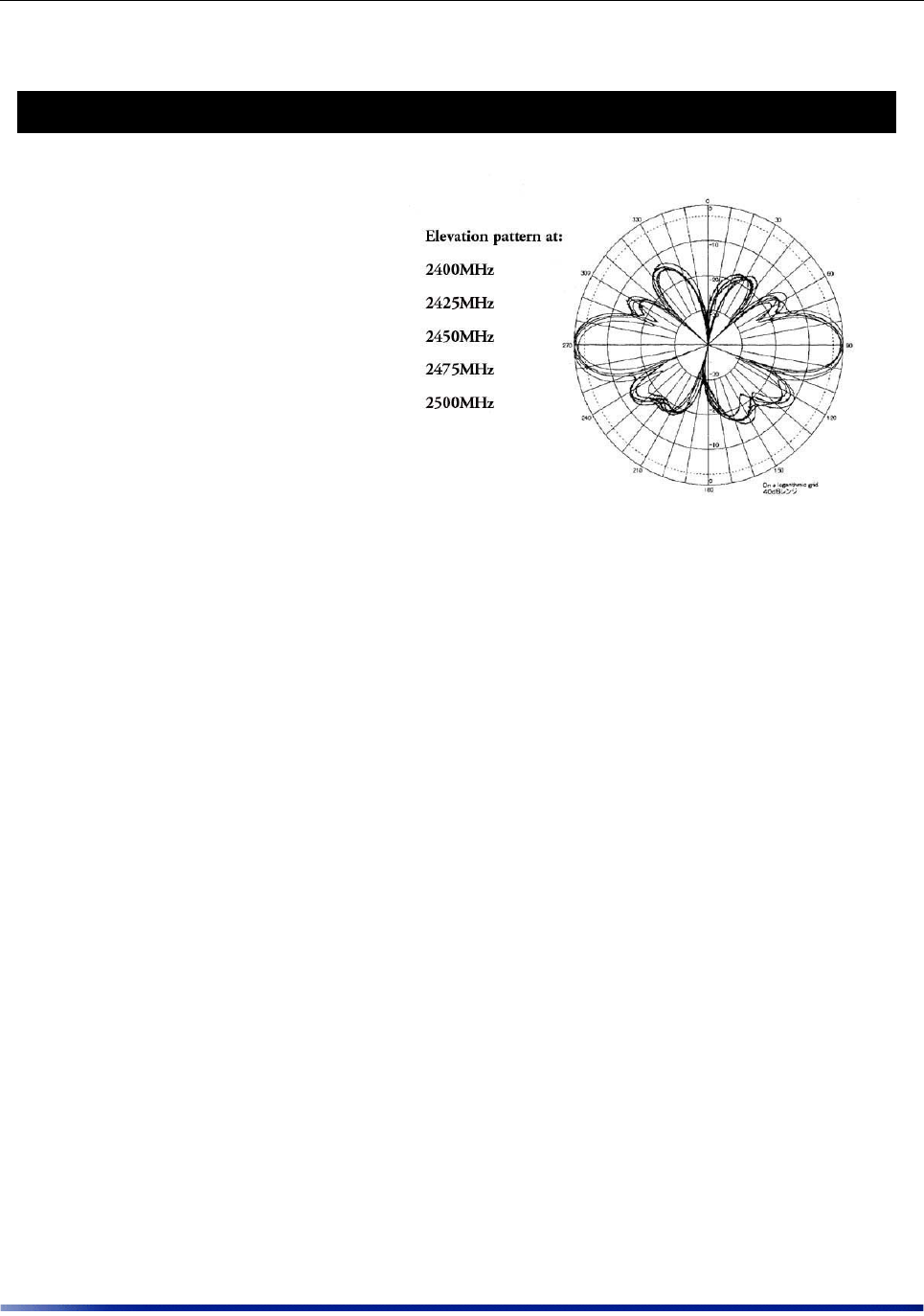

The following describes the patterns for the antenna:
Specifications Pattern
2400-2500MHz
Gain: 7.4dBi
Length: 17.5 inches
Weight: 4.7 oz
-3dB Beam-width: 20 degrees
Cross Polar Rejection: 15dB +
Max Power: 50 watts
Max wind survival: 150MPH +
Wind Load: 7.1 sq in
Connector: Integral N-male
Radome: White UV stabilized
fiberglass
Mast mounting hardware optional
Mobile lip mount optional
Mobile permanent mount optional
Antenna Specifications and Patterns
Installation Guide 49
Antenna Specifications and Patterns
50 Wavion
Antenna Specifications and Patterns
Installation Guide 51
Antenna Specifications and Patterns
52 Wavion
Installation Guide 53
CHAPTER 7
Installation Accessories
This chapter describes the accessories available for the WS-410 and ordering information.
The following topics are covered in this chapter:
•Power Cable on page 54
•Ethernet Cables on page 54
•Lightning Protection on page 54
•Power Over Ethernet on page 54
•Client Connectivity on page 55
Installation Accessories
54 Wavion
Power Cable
Ethernet Cables
Lightning Protection
Power Over Ethernet
Power Tap Option for 270-480 VAC Street Light
Description Part Number
Power Cable for Wavion Switch 410, 110 VAC, 20 feet WS410PC-01-GE-AA
Power Cable for Wavion Switch 410, 110 VAC, 6 feet. WS410PC-02-GE-AA
Power Cable for Wavion Switch 410, 110 VAC, 20 feet (INTL) WS410PC-03-GE-AA
Power Cable for Wavion Switch 410, 110 VAC, 6 feet (INTL) WS410PC-04-GE-AA
Street Light Power Tap for Wavion Switch 410, 110/220 VAC, 30 feet WS410PT-01-GE-AA
Street Light Power Tap for Wavion Switch 410, 110/220 VAC, 6 feet WS410PT-02-GE-AA
Closure Caps for Plugs and Receptacles. An all-weather cover/cup for the
AC power connector, to be used when no AC power is required WS410CC-01-GE-AA
Description Manufacturer Part
Number Distributor Contact
Information Order
Number
Outdoor CAT5 4-
pair data cable Belden 7929A Anixter www.anixter.com
Outdoor CAT5e
double jacket 4-
pair data cable
Teldor 8393204101 G.Bares Tel: +972-(4)-
8215450
Description Manufacturer Part
Number Distributor Contact
Information Order
Number
Data protection
device Hyperlink HGLN-CAT5-1 www.hyperlinktec
h.com
Description Part Number
Wavion Injctor for powering the WS410 over an Ethernet cable. Output
55VDC, 1A. WS410PI-03-GE-AA
Description Manufacturer Part
Number Distributor Contact
Information Order
Number
AC step down
from 270-
480VAC to 110
or 220VAC.
Fisher-Pierce FP289 family http://
www.fisherpierce
olc.com/pdf/
FP289-
StepDown.pdf
See web
site.
Installation Accessories
Installation Guide 55
Client Connectivity
Description Manufacturer
Alvarion - Use Alvarion Indoor-Outdoor CAT 5e cable with pin crossing (pin 5 of the
WS-410 PoE connector goes to pin 7 of Alvarion RJ45 connector, pin 7 of the WS-410
PoE connector goes to pin 5 of the Alvarion RJ45 connector)
See Installation
Guide
Motorola (Canopy) - Use outdoor CAT 5e cable with spare pin crossing (pin 4 5 of the
WS-410 PoE connector goes to pin 7 8 Motorola RJ45 connector respectively)
(pin 7 8 of the WS-410 PoE connector goes to pin 4 5Motorola RJ45 connector
respectively)
Installation Accessories
56 Wavion
AC Wiring Diagrams
58 Wavion

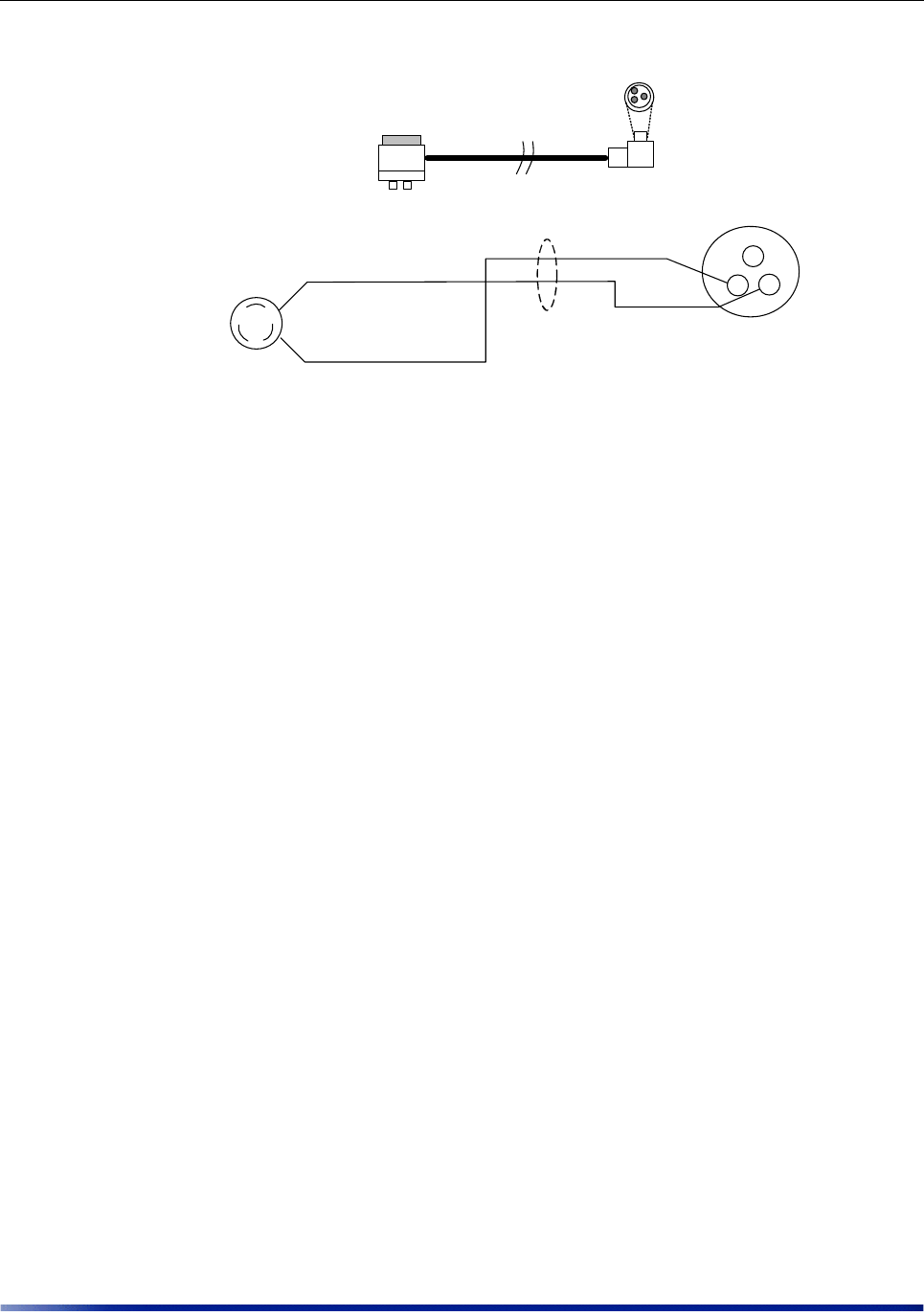

AC Wiring Photoelectric Power Tap
23
11-Green
1-Black
1-White
WS410PT-02-GE-AA (6') or
WS410PT-01-GE-AA (30')
Photoelectric Power-Tap
Power Input Cable
2Wire - 100-240VAC
NEMA Plug - UL Standard
773 Plug-in looking type
for photocontrols in use
with area lighting
Length: 4' or 20'
16/2 SOOW
Carol P-7K-123033 MSHA or equal
Black
White
L2/N
North
AC Wiring Diagrams
Installation Guide 59
Figure 8.24. AC Wiring Photoelectric Power Tap
L1
L2
Protective Earth
Black
White WS-410
North North
L1
N
Power-Tap single phase - two wire service
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
N
L1
L2
Protective Earth
Black
Red WS-410
North North
L1
L2
Power-Tap single phase - two wire service
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
L2
L1
L2
Protective Earth
Black
White WS-410
North North
L1
L2
Three phase - two wire service (Delta)
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
L2
L1
L2
Protective Earth
Black
Red
WS-410
North North
L1
L2
208Vac three phase - two wire service
(grounded-Wye)
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
L2
Black
L1
Black
L1
Black
L1
277 Vac
L3
N
480 Vac
AC Wiring Diagrams
60 Wavion
AC Wiring Power Cable 120VAC, 15A Plug
Figure 8.25. AC Wiring Power Cable 120VAC, 15A Plug
L1 Black
L2/N White
Protective Earth Green or
Green/Yellow
White
Black
Green or Green/Yellow
WS410PC-04-GE-AA (6') or
WS410PC-03-GE-AA (20')
Overvoltage Category 2 or IEEE/ANSI
C62.41 Category B Power Electrical
Service Cable 3Wire - 120Vac
Black White
Green
Length: 3' to 30'
16/3 S00W
WS-410
120Vac single phase: three wire service
L1
L2
Neutral
Black
White
Green
Black (L1)
White (N)
Green
Protective Earth Input Power Cable
Installation Guide 61
CHAPTER 9
Wind Loading Considerations
This chapter describes wind loading considerations for the WS-410.
The Wavion WS-410 weighs approximately 16 lbs, including all mounting hardware. When
the Wavion WS-410 is mounted on a pole, the sail area of the WS-410 is approximately 1
square foot. The Wavion WS-410 can load a pole with a maximum load of 3400 Newton in
wind conditions of 165mph.
NOTE: It is recommended to evaluate the static and dynamic load bearing
capabilities for each assembly and installation individually. It is your
responsibility to evaluate the load bearing capabilities of the structure.
Wind Loading Considerations
62 Wavion
Installation Guide 63
CHAPTER 10
Backhaul Unit Installation Instructions
This chapter describes how to install a backhaul unit with the WS-410.
Use the assembly equipment provided with the backhaul unit to install. Wavion does not
provide brackets or mounting equipment for the backhaul unit. Make sure the WS-410 is
installed in a higher position then the backhaul unit so the antennas are unobstructed. If the
backhaul unit is powered externally, connect to the Ethernet A port. If the backhaul unit is
not powered externally, connect to the Ethernet B port.
WARNING: Disconnect power to the WS-410 before connecting the backhaul
unit.
NOTE: Make sure to use the correct Wavion part number for each backhaul
unit
Backhaul Unit Installation Instructions
64 Wavion
Installation Guide 65
Acronyms
Acronym Description
2P Two-Phase or Split Phase
2W Two-Wire
3W Three-Wire
AC Alternating Current
ANSI American National Standards Institute
AWG American Wire Gauge
CCelsius
CAT Category
CCK Complementary Code Keying
CFR Code of Federal Regulations
CSA Canadian Standard Association
dB Decibels
dBi Decibels Relative to an Isotropic Radiator
DBPSK Differential-Binary Phase-Shift Keying
DC Direct Current
DQPSK Differential-Quadrature Phase-Shift Keying
DSSS Direct-Sequence Spread Spectrum
EMC Electromagnetic Compatibility
EN IEC standard
ESD Electrostatic Discharge
FCC Federal Communications Commission
Hz Hertz
HPoE High Power over Ethernet
IEEE Institute of Electrical and Electronics Engineers
IP67 Ingress Protection Standard
ISTA International Safe Transit Association
LAN Local Area Network
Mbps Megabits Per Second
MHz Megahertz
Acronyms
66 Wavion
MIL-STD Military Standard
NNeutral
NEC National Electrical Codes
NEMA National Electrical Manufacturers Association
OFDM Orthongonal Frequency Division Multiplexing
PPhase
PE Protective Earth
PoE Power over Ethernet
RJ45 Registered Jack 45
RSS Received Signal Strength
Rx Receive
RXD Receive Data
TUV Technical Inspection Association
Tx Transmit
TXD Transmit Data
UL Underwriters Laboratories
VAC Voltage (Alternating Current)
VCCI Voluntary Control Council for Interference
VDC Voltage (Direct Current)
W Watts
Acronym Description
