Wayne Dalton KYE5-3720 Door Control Transmitter User Manual EX 03123 Q3 KEP3 Owners Manual
Wayne Dalton Corporation Door Control Transmitter EX 03123 Q3 KEP3 Owners Manual
Users Manual
![](/img.php?id=524121&img=bg1.png)
Locate Keyless Entry Unit: within sight of door,
at a minimum height of 5 feet so it cannot be
reached by small children, and away from all
moving parts of the door.
Choose a convenient location that does not
interfere with the normal opening and closing
operation of the door, such as the door jamb.
CAUTION: The keypad
should be mounted a
minimum of 5 feet from
the floor to keep it out
of the reach of small
children.
Two screws are included
for proper mounting into
wood or other similar
material. If you're
mounting into some other
material, consult a
building contractor to
insure proper hardware is
used for a secure
mounting.

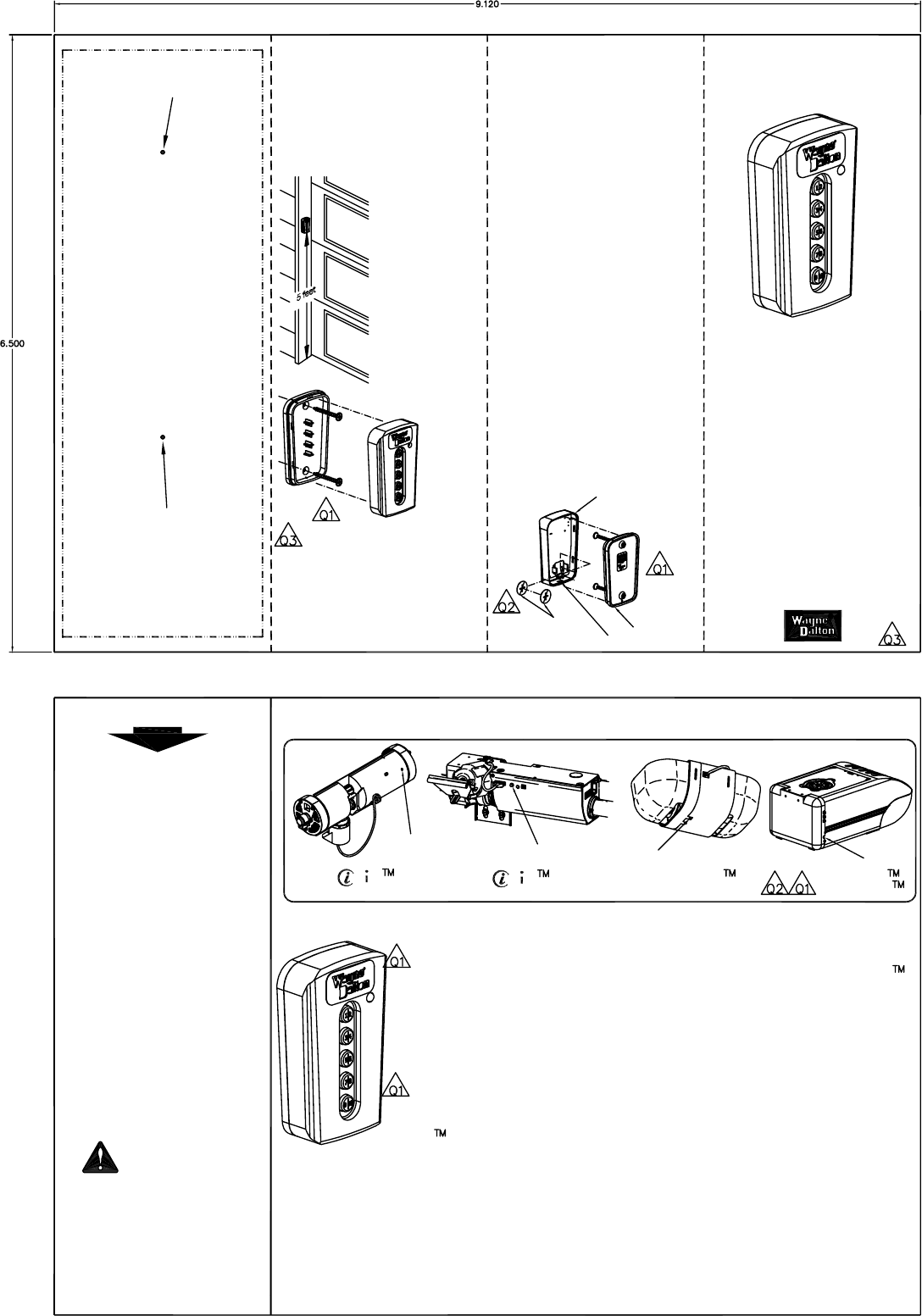

Drilling Template
For Keyless Entry
Once you
have
determined
the
mounting
location,
use the
drilling
template
to
determine
hole
positions
and drill a
5/64" pilot
hole
Snap open the Keyless Entry case with a coin.
Separate the front case from the back case.
Mount the back case and secure with screws
provided. Do not over tighten the screws as
this may bend or damage the back case. Install
and snap the front case onto the back case.
Remove paper backing from "Changing
Personal Identification Number" label and apply
label to a clean surface inside garage.
The following explains how your Keyless Entry
can be used to OPEN, CLOSE, START, and
STOP your door.
Enter your 5-digit PIN (personal identification
number); door will begin to move
1.
NOTE: If you inadvertently enter an incorrect
code, the door will not move To Reset, press
and hold the "7/8" and "9/0" buttons for 2
seconds and reenter your PIN number.
Unit remains active for next 25 sec.
Pressing any key, will stop the door if
opening, and stop or reverse the door if
closing.
2.
Your new Model 3966 Wireless Keyless Entry
contains a state-of-the-art wireless digital
transmitter capable of operating an unlimited
number of compatible garage door openers.
For added security, your Wireless Keyless Entry
utilizes a "rolling code" technology that, each
time the transmitter communicates with the
receiver, sets a new code, selecting from
millions of combinations, reducing the possibility
of electronic equipment causing unwanted
access.
For proper operation it is important that
you follow the programming directions
and sequence as written.
PLEASE READ ALL INSTRUCTIONS
THOROUGHLY TO FAMILIARIZE
YOURSELF WITH THE PROGRAMMING
PROCEDURE BEFORE BEGINNING.
SAVE THESE INSTRUCTIONS FOR
REFERENCE WHENEVER YOU WISH
TO CHANGE YOUR PERSONAL
IDENTIFICATION NUMBER (PIN)
Before your Wireless Keypad will be able
to operate the opener, there are several
programming steps that have to be
completed.
FCC WARNING
To comply with FCC rules, adjustment or
modification of transmitter is prohibited.
THERE ARE NO USER SERVICEABLE
PARTS EXCEPT FOR BATTERY
REPLACEMENT.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Always keep moving door in sight and
away from people and objects until it is
completely closed. NO ONE SHOULD
CROSS THE PATH OF THE MOVING
DOOR.
Never let children operate or play with
door controls. Keep all controls away
from children.
WARNING
Programming or Changing Personal Identification Number
A. With new installations, it is recommended that the keyless entry be programmed
before mounting to wall, otherwise proceed to step B.
B. Unit should be programmed with garage door in the down position. For the iDrive
openers, pull the emergency disconnect handle to the manual operated position (lower
position).
C. Press the program button on the garage door opener to switch the opener to the
transmitter learn mode (see illustrations above). Opener will remain in the learn mode
for at least 30 seconds.
D. Press the desired five digit PIN (PERSONAL IDENTIFICATION NUMBER) number,
(example: 1-2-3-4-5). Garage door opener should beep or lamp should blink. For the
iDrive openers, return the emergency disconnect handle to the motor operated
position (upper position). Wait 5 seconds and press any button; the door should
move. Programming is now complete.
Under normal operating conditions, the
battery should be changed once every 12
months. Dispose of used batteries
properly. To replace battery perform the
following steps:
A. Snap open case with a coin and remove
old batteries.
B. Replace batteries (two CR2032 or
equivalent) and snap case together.
(2) Coin Cells
Batteries (CR2032)
NOTE: IF, AT ANY TIME, AN ERROR WAS MADE IN ENTERING THE CODES, SIMPLY PRESS AND
HOLD BOTH THE "7/8" AND "9/0" BUTTONS FOR 2 SECONDS TO RESET THE KEYLESS ENTRY.
REPEAT THE ABOVE PROCEDURES.
Note: One 3966 Keyless Entry can be programmed to open multiple garage door openers. To program
for additional openers, repeat steps A thru D above except input a different five digit PIN number for each
additional opener.
Pre-drill a 5/64 pilot
hole 3/4" deep
Pre-drill a 5/64 pilot
hole 3/4" deep
Wayne-Dalton Corp.
One Door Drive Mt. Hope, OH 44660
888-827-3667
Mounting MODEL 3966
Wireless Keyless Entry System
How Your Keyless Entry
Operates Your Opener
Battery Replacement
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a residential environment. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
START HERE
dr ve DoorMaster Quantum
program button
Torsion
dr ve
program button
program button
program button
NOTE: With new installations, it is
recommended that the keyless entry be
programmed before mounting to wall.
ClassicDrive
Front Case
Rear Case
Coin Slot
3/4" deep for the two mounting screws.
