User’s Guide for Model DRW328 v2091-01Eagle 3 ProQuadcopter Drone with WiFi Camera
Warnings & PrecautionsImportant Safety Instructions• Readandfollowallinstructions.• Keeptheseinstructionsforfuturereference.• HeedallWarnings.• Intendedforchildrenages14andhigher.Adultsupervisionisrequired.• Onlyuseattachments/accessoriesspeciedbythemanufacturer.• Beforeying,alwayscheckthebody,rotors,andbatteryforanydamageorobstructions.• Batteryshouldbefreefromcracksorswelling.• Keeptherotorsclearofanyobstructionsandbodypartstoavoidpotentialdamageandinjury.• Manufactureranddealerassumenoliabilityforaccidentaldamagesfromimproperuseorinstallationofparts,orfromdamageincurredfromwornorbrokenparts.• Pilotsareresponsiblefortheiractionsandanydamagecausedfromimproperuse.• Pilotsshouldkeepthecraftinsightatalltimesduringight.Ifyoulosesightofthecraftatanytime,powerdownandceaseightimmediately.• Onlyyinlarge,openareasthatarefreefromobstaclesorpotentialhazards,suchastrees,powerlines,ceilingfans,andthelike.• Flyingoverbodiesofwaterisnotrecommended.• Flyingatnightisnotrecommended.• Nevertrytoretrievethecraftfromareasyoucannotsafelyreach,suchasrooftopsortrees.• Neverlaunchthecraftfromyourhand.• Neverleavethecraftunattendedwhileitispoweredonorwhilethebatteryischarging.FCC Warnings Warning:Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:• Reorientorrelocatethereceivingantenna.• Increasetheseparationbetweentheequipmentandreceiver.• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.Additional Warnings & Precautions• WARNING:Toreducetheriskofreorelectricshock,donotexposethisapparatustorain,moisture,dripping,orsplashing.• CAUTION:Useofcontrolsoradjustmentsorperformanceofproceduresotherthanthosespeciedmayresultinpersonalinjury.• WARNING:Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.• CAUTION:Dangerofexplosionifbatteryisincorrectlyreplaced.Replaceonlywiththesameorequivalenttype.• Lithiumbatteries,likeallrechargeablebatteries,arerecyclableandshouldberecycledordisposedofaccordingtostateandlocalguidelines.Theyshouldneverbedisposedofinnormalhouseholdwaste,andtheyshouldneverbeincinerated,astheymightexplode.Contactyourlocalgovernmentfordisposalorrecyclingpracticesinyourarea.• WARNING:Shockhazard-DoNotOpen.• Batteryshallnotbeexposedtoexcessiveheatsuchassunshine,re,orthelike.• Keepnewandusedbatteriesawayfromchildren.Ifthebatterycompartmentdoesnotclosesecurely,stopusingtheproductandkeepitawayfromchildren.• Ifyouthinkbatteriesmighthavebeenswallowedorplacedinsideanypartofthebody,seekimmediatemedicalattention.• Donotmixoldandnewbatteries.• Completelyreplacealloldbatterieswithnewones.• Donotmixalkaline,standard(carbon-zinc),orrechargeable(ni-cad,ni-mh,etc)batteries.• Batteriesshouldberecycledordisposedofasperstateandlocalguidelines.This wifi drone complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This Remote Control complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter
3Table of ContentsEagle 3 Pro WiFi DroneFAA Information: Flying Your Drone Under the Special Rule for Model Aircraft – 4Features – 4Includes – 4Diagram & Specifications – 5AssemblyRotor Guards – 6Landing Struts – 6Camera Adjustment – 6Remote ControlFunctions – 7Battery Installation – 8Charging the BatteryInformation & Procedure – 9FlyingRemote Link & Calibration – 10Flight Controls – 11When You’re Finished Flying – 11Trim Adjustment & Countering Drift – 12Gyroscope Recalibration – 13Remote Trim Reset – 13Tips for Safe Operation – 14Speed Setting – 14Headless Mode – 14Auto-Spin – 15Flips – 15Sky Rider View AppFree Download – 16Connect to WiFi – 16Smartphone Holder – 17Virtual Reality Mode – 17Parts & RepairParts Replacement – 18Rotor Replacement – 18TroubleshootingTroubleshooting Guide – 19Customer SupportContact Information – 20International Support – 20Warranty – 20

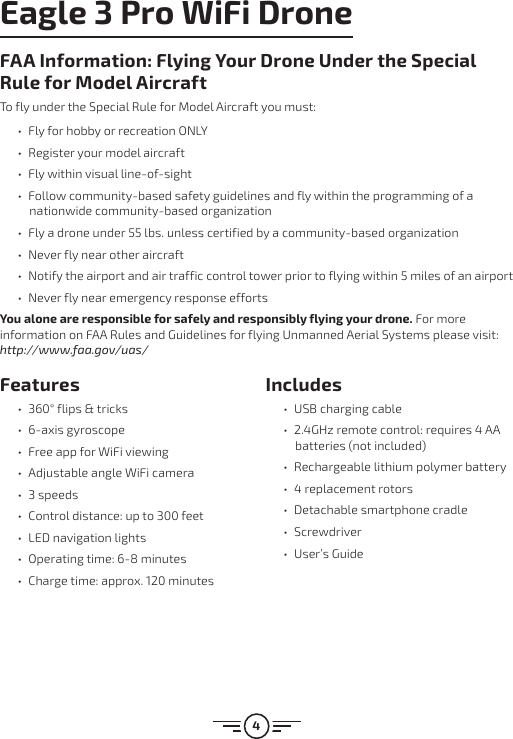

4Features •360° flips & tricks •6-axis gyroscope •Free app for WiFi viewing •Adjustable angle WiFi camera •3 speeds •Control distance: up to 300 feet •LED navigation lights •Operating time: 6-8 minutes •Charge time: approx. 120 minutesIncludes •USB charging cable •2.4GHz remote control: requires 4 AA batteries (not included) •Rechargeable lithium polymer battery •4 replacement rotors •Detachable smartphone cradle •Screwdriver •User’s GuideEagle 3 Pro WiFi DroneFAA Information: Flying Your Drone Under the Special Rule for Model AircraftTo fly under the Special Rule for Model Aircraft you must: •Fly for hobby or recreation ONLY •Register your model aircraft •Fly within visual line-of-sight •Follow community-based safety guidelines and fly within the programming of a nationwide community-based organization •Fly a drone under 55 lbs. unless certified by a community-based organization •Never fly near other aircraft •Notify the airport and air traffic control tower prior to flying within 5 miles of an airport •Never fly near emergency response effortsYou alone are responsible for safely and responsibly flying your drone. For more information on FAA Rules and Guidelines for flying Unmanned Aerial Systems please visit: http://www.faa.gov/uas/
5Diagram & Specifications •Dimensions: 280x280x107mm/11x11x4.2 in. (LWH) •Weight: 191g/6.73oz/0.42lbCamera (underside)Rotor GuardRotorLanding SkidLED LightsBlue LEDs indicate the front of the craft. Green flashing LEDs indicate the rear of the craft.Battery Compartment (rear)

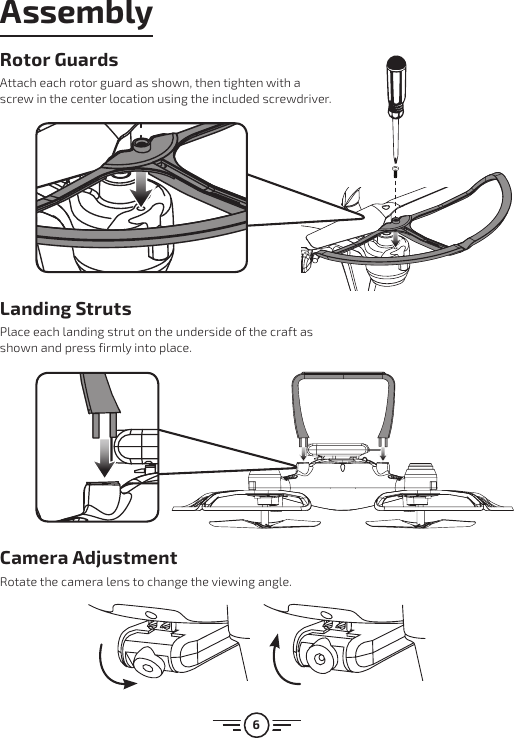

6Camera AdjustmentRotate the camera lens to change the viewing angle.AssemblyLanding StrutsPlace each landing strut on the underside of the craft as shown and press firmly into place.Rotor GuardsAttach each rotor guard as shown, then tighten with a screw in the center location using the included screwdriver.

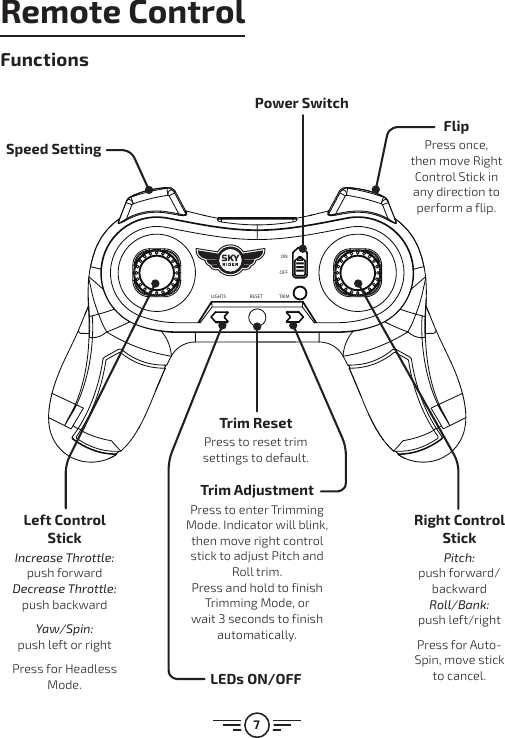

7LIGHTS RESET TRIMONOFFTrim AdjustmentPress to enter Trimming Mode. Indicator will blink, then move right control stick to adjust Pitch and Roll trim. Press and hold to finish Trimming Mode, or wait 3 seconds to finish automatically.Trim ResetPress to reset trim settings to default.LEDs ON/OFFLeft Control StickIncrease Throttle:  push forward Decrease Throttle:  push backwardYaw/Spin:  push left or rightPress for Headless Mode.Speed SettingRight Control StickPitch:  push forward/backward Roll/Bank:  push left/rightPress for Auto-Spin, move stick to cancel.FlipPress once, then move Right Control Stick in any direction to perform a flip.Power SwitchRemote ControlFunctions

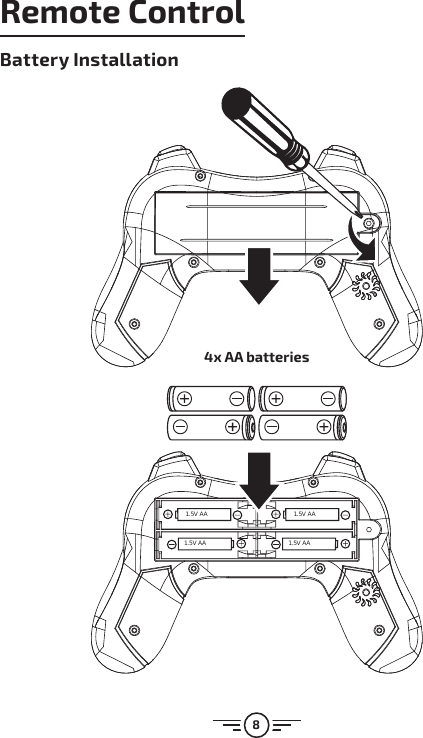

81.5V AA 1.5V AA1.5V AA 1.5V AA1.5V AA 1.5V AA1.5V AA 1.5V AA4x AA batteriesBattery InstallationRemote Control

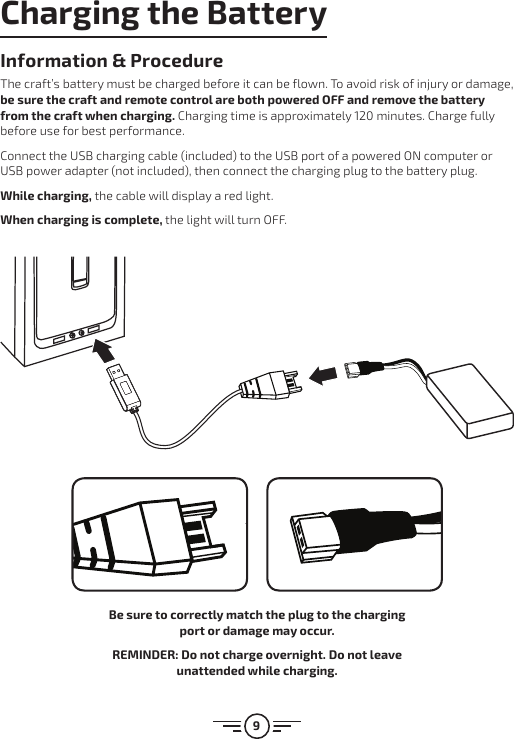

9Charging the BatteryInformation & ProcedureThe craft’s battery must be charged before it can be flown. To avoid risk of injury or damage, be sure  the craft and remote control are both powered OFF and remove the battery from the craft when charging. Charging time is approximately 120 minutes. Charge fully before use for best performance.Connect the USB charging cable (included) to the USB port of a powered ON computer or USB power adapter (not included), then connect the charging plug to the battery plug. While charging, the cable will display a red light. When charging is complete, the light will turn OFF.Be sure to correctly match the plug to the charging port or damage may occur.REMINDER: Do not charge overnight. Do not leave unattended while charging.
10FlyingStep 1Power ON the craft and place it on a flat surface. This is necessary for the craft’s gyroscopes to properly align. The lights on the craft will blink as it searches for a signal from the remote.Be sure the craft and yourself are facing the same forward direction, this will help with orientation while flying.Step 2Power ON the remote. The light on the remote will blink as it searches for the signal from the craft. An audible chime will sound when the remote and the craft have linked.Step 3Push the Left Control Stick (throttle) fully forward, wait for a chime to sound, then pull the stick fully rearward, and wait for a second chime. When this last chime has sounded the craft is ready to fly.FrontRemote Link & CalibrationBefore flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate.Begin with the battery installed, the battery compartment closed, and the craft and remote powered OFF.LIGHTS RESET TRIMONOFF

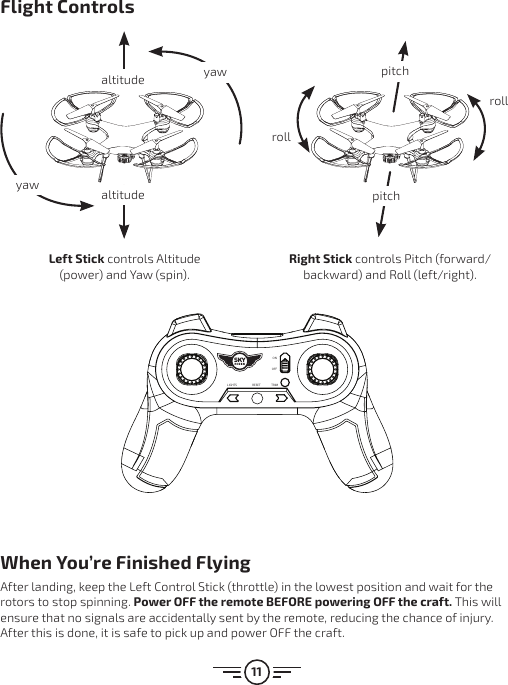

11When You’re Finished Flying After landing, keep the Left Control Stick (throttle) in the lowest position and wait for the rotors to stop spinning. Power OFF the remote BEFORE powering OFF the craft. This will ensure that no signals are accidentally sent by the remote, reducing the chance of injury. After this is done, it is safe to pick up and power OFF the craft.altitude pitchaltitude pitchrollrollyawyawLIGHTS RESET TRIMONOFFRight Stick controls Pitch (forward/backward) and Roll (left/right).Left Stick controls Altitude (power) and Yaw (spin).Flight Controls
12Trim Adjustment & Countering DriftEven after a craft is calibrated, it may still drift while airborne. To counter this effect you can adjust the trim for better control. However, adjusting the trim may not entirely eliminate drifting. Air currents and other factors can still affect the craft’s handling.Making Trim AdjustmentsPress the Trim button to enter Trimming Mode, indicated by a blinking indicator light on the remote. While in Trimming Mode, move the Right Control Stick ONCE in the opposite direction of the drift. For example, if the craft is drifting forward, enter Trimming Mode and pull rearward on the stick to correct. If the craft is drifting right, pull left. The remote will chime once for each adjustment. It may take multiple adjustments to set the trim to your liking.When you are finished, press the Trim button to exit Trimming Mode. You can also wait 3 seconds and Trimming Mode will finish automatically. To avoid potential damage, adjust the trim while attempting a stable hover and adjust one trim setting at a time to avoid confusion. Note: While in Trimming Mode, the Right Control Stick only makes trim adjustments and does not control the direction of the craft. You must exit Trimming Mode to resume normal flight controls. The Left Control Stick is not affected by Trimming Mode.LIGHTS RESET TRIMONOFFPress to enter and exit Trimming Mode.Move Right Control Stick to adjust Pitch and Roll trim. Remote will chime once for each adjustment.Flying

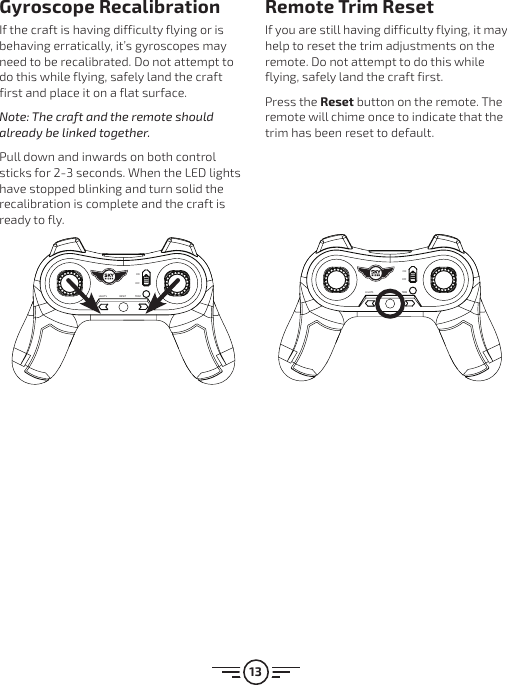

13LIGHTS RESET TRIMONOFFLIGHTS RESET TRIMONOFFGyroscope RecalibrationIf the craft is having difficulty flying or is behaving erratically, it’s gyroscopes may need to be recalibrated. Do not attempt to do this while flying, safely land the craft first and place it on a flat surface. Note: The craft and the remote should already be linked together.Pull down and inwards on both control sticks for 2-3 seconds. When the LED lights have stopped blinking and turn solid the recalibration is complete and the craft is ready to fly.Remote Trim ResetIf you are still having difficulty flying, it may help to reset the trim adjustments on the remote. Do not attempt to do this while flying, safely land the craft first.Press the Reset button on the remote. The remote will chime once to indicate that the trim has been reset to default.

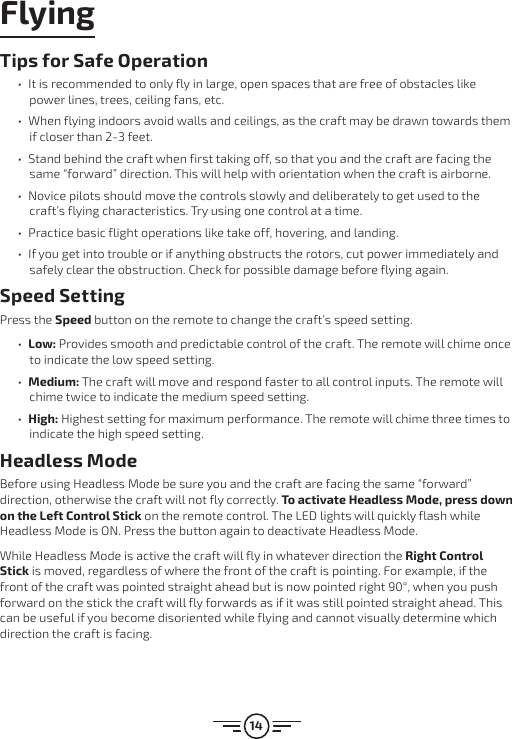

14Tips for Safe Operation •It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. •When flying indoors avoid walls and ceilings, as the craft may be drawn towards them if closer than 2-3 feet. •Stand behind the craft when first taking off, so that you and the craft are facing the same “forward” direction. This will help with orientation when the craft is airborne.  •Novice pilots should move the controls slowly and deliberately to get used to the craft’s flying characteristics. Try using one control at a time.  •Practice basic flight operations like take off, hovering, and landing. •If you get into trouble or if anything obstructs the rotors, cut power immediately and safely clear the obstruction. Check for possible damage before flying again. Speed SettingPress the Speed button on the remote to change the craft’s speed setting. •Low: Provides smooth and predictable control of the craft. The remote will chime once to indicate the low speed setting.  •Medium: The craft will move and respond faster to all control inputs. The remote will chime twice to indicate the medium speed setting.  •High: Highest setting for maximum performance. The remote will chime three times to indicate the high speed setting.Headless ModeBefore using Headless Mode be sure you and the craft are facing the same “forward” direction, otherwise the craft will not fly correctly. To activate Headless Mode, press down on the Left Control Stick on the remote control. The LED lights will quickly flash while Headless Mode is ON. Press the button again to deactivate Headless Mode. While Headless Mode is active the craft will fly in whatever direction the Right Control Stick is moved, regardless of where the front of the craft is pointing. For example, if the front of the craft was pointed straight ahead but is now pointed right 90°, when you push forward on the stick the craft will fly forwards as if it was still pointed straight ahead. This can be useful if you become disoriented while flying and cannot visually determine which direction the craft is facing.Flying

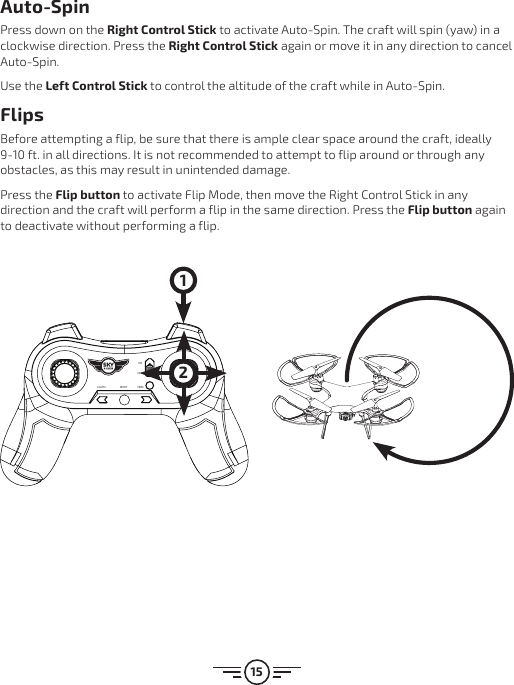

15Auto-SpinPress down on the Right Control Stick to activate Auto-Spin. The craft will spin (yaw) in a clockwise direction. Press the Right Control Stick again or move it in any direction to cancel Auto-Spin.Use the Left Control Stick to control the altitude of the craft while in Auto-Spin.FlipsBefore attempting a flip, be sure that there is ample clear space around the craft, ideally 9-10 ft. in all directions. It is not recommended to attempt to flip around or through any obstacles, as this may result in unintended damage. Press the Flip button to activate Flip Mode, then move the Right Control Stick in any direction and the craft will perform a flip in the same direction. Press the Flip button again to deactivate without performing a flip.LIGHTS RESET TRIMONOFF 21

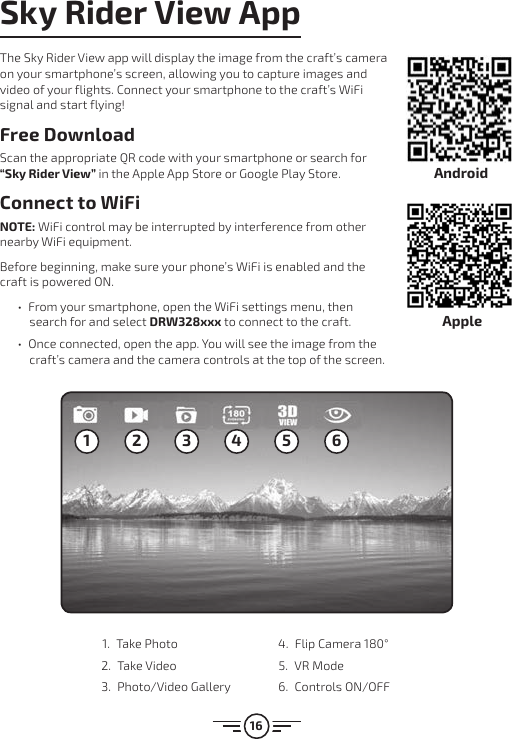

16Sky Rider View AppThe Sky Rider View app will display the image from the craft’s camera on your smartphone’s screen, allowing you to capture images and video of your flights. Connect your smartphone to the craft’s WiFi signal and start flying!Free DownloadScan the appropriate QR code with your smartphone or search for “Sky Rider View” in the Apple App Store or Google Play Store.Connect to WiFiNOTE: WiFi control may be interrupted by interference from other nearby WiFi equipment. Before beginning, make sure your phone’s WiFi is enabled and the craft is powered ON.  •From your smartphone, open the WiFi settings menu, then search for and select DRW328xxx to connect to the craft.  •Once connected, open the app. You will see the image from the craft’s camera and the camera controls at the top of the screen.1 2 3 4 5 61.  Take Photo2.  Take Video 3.  Photo/Video Gallery 4.  Flip Camera 180°5.  VR Mode6.  Controls ON/OFFAndroidApple

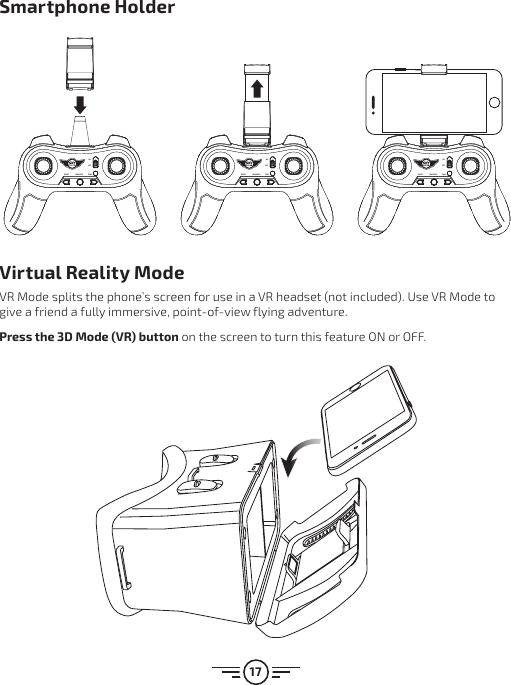

17Virtual Reality ModeVR Mode splits the phone’s screen for use in a VR headset (not included). Use VR Mode to give a friend a fully immersive, point-of-view flying adventure.Press the 3D Mode (VR) button on the screen to turn this feature ON or OFF.Smartphone HolderRESETHEADLESS TRIMONOFFRESETHEADLESS TRIMONOFFRESET HEADLESS TRIMONOFFRESET HEADLESS TRIMONOFFRESETHEADLESS TRIMONOFFRESETHEADLESS TRIMONOFFRESET HEADLESS TRIMONOFFRESET HEADLESS TRIMONOFFRESETHEADLESS TRIMONOFFRESETHEADLESS TRIMONOFFRESET HEADLESS TRIMONOFFRESET HEADLESS TRIMONOFF

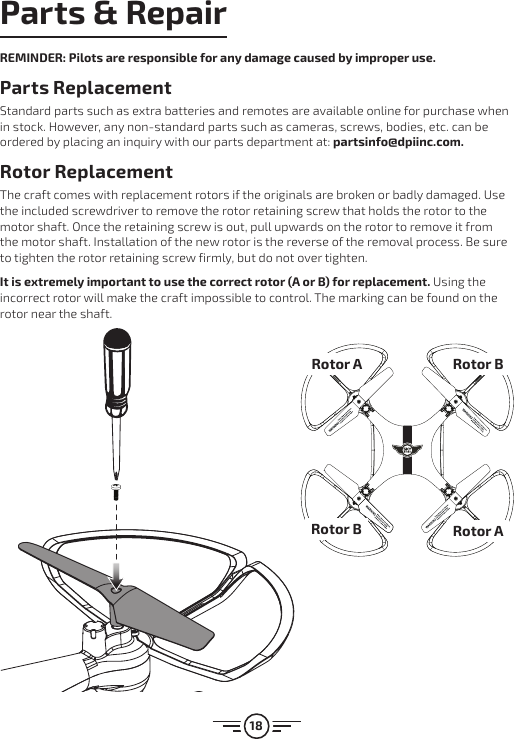

18Parts & RepairREMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com.Rotor ReplacementThe craft comes with replacement rotors if the originals are broken or badly damaged. Use the included screwdriver to remove the rotor retaining screw that holds the rotor to the motor shaft. Once the retaining screw is out, pull upwards on the rotor to remove it from the motor shaft. Installation of the new rotor is the reverse of the removal process. Be sure to tighten the rotor retaining screw firmly, but do not over tighten. It is extremely important to use the correct rotor (A or B) for replacement. Using the incorrect rotor will make the craft impossible to control. The marking can be found on the rotor near the shaft.Rotor ARotor BRotor BRotor A

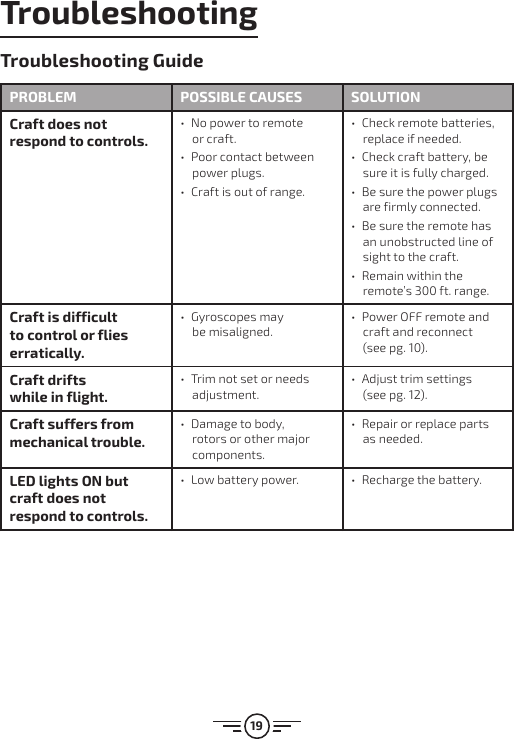

19Troubleshooting GuideTroubleshootingPROBLEM POSSIBLE CAUSES  SOLUTIONCraft does not respond to controls. •No power to remote  or craft. •Poor contact between power plugs. •Craft is out of range. •Check remote batteries, replace if needed. •Check craft battery, be sure it is fully charged. •Be sure the power plugs are firmly connected. •Be sure the remote has an unobstructed line of sight to the craft. •Remain within the remote’s 300 ft. range.Craft is difficult to control or flies erratically. •Gyroscopes may  be misaligned. •Power OFF remote and craft and reconnect (see pg. 10).Craft drifts  while in flight. •Trim not set or needs adjustment. •Adjust trim settings  (see pg. 12).Craft suffers from mechanical trouble. •Damage to body, rotors or other major components. •Repair or replace parts as needed.LED lights ON but craft does not respond to controls. •Low battery power.  •Recharge the battery.
20International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.comPara descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.comPour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.comContact Information Website: www.gpx.comEmail Support: prodinfo@dpiinc.comEmail Parts: partsinfo@dpiinc.comPhone Support: 1-888-999-4215Warranty See included 30 Day Warranty for warranty information. Warranty and the most up-to-date version of this User’s Guide can also be found at: www.gpx.comProtect for Today Sustain for TomorrowMade   GreenCopyright © 2018 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.Customer Support
