Model No. 831.150462

Serial No.

Write the serial number in the space

above for reference,

Serial Number Decal (under seat)

EXERCISE:

EQUIPMENT

HELPLINE!

1-800-736-6879

SEARS, ROEBUCK AND CO.,

HOFFMAN ESTATES, IL

60179

PATENT PENDING

USER'SMANUAL

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

Warning Decal Placement ................................................................ 2

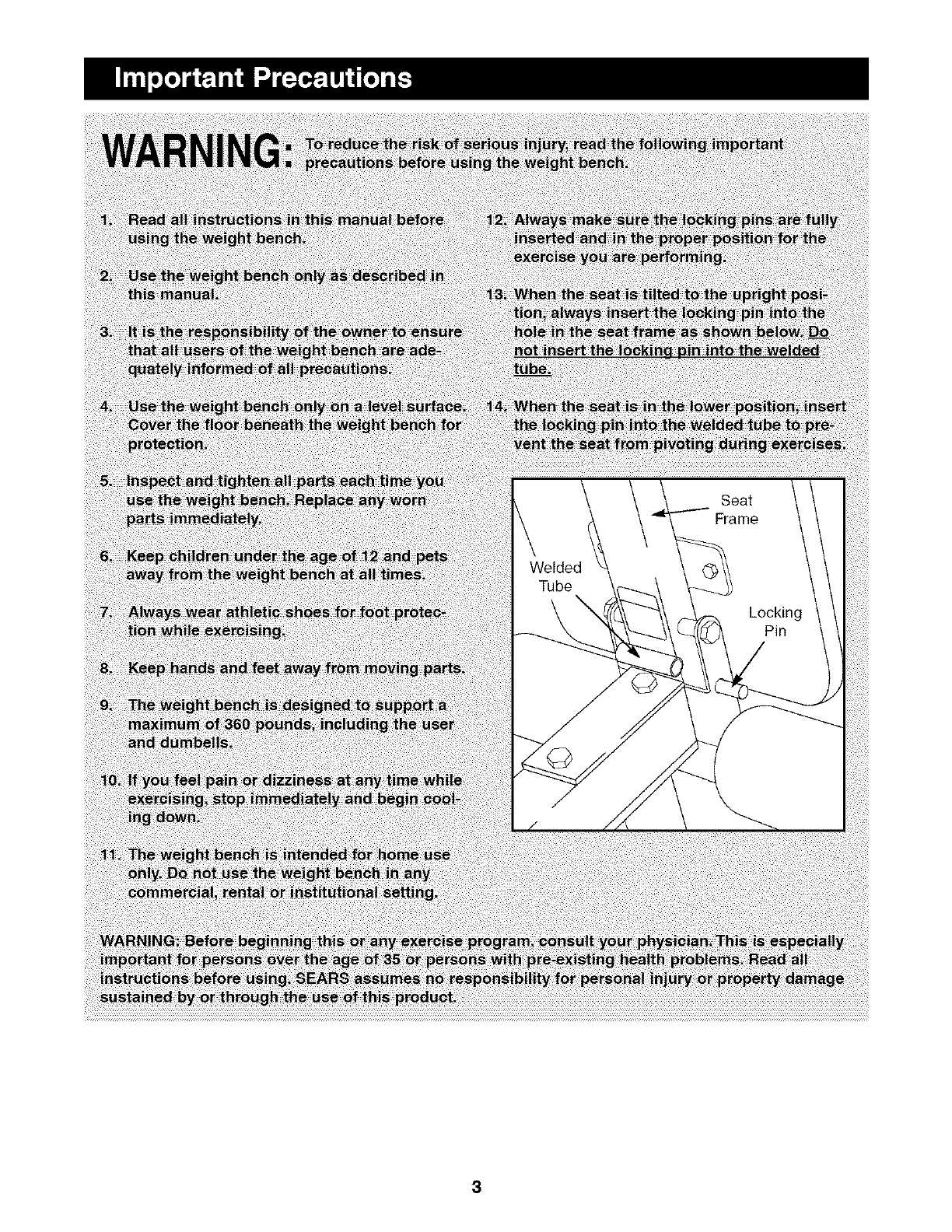

Important Precautions ................................................................... 3

Before You Begin ....................................................................... 4

Assembly ............................................................................ 5

Adjusting the Weight Bench ............................................................... 9

Exercise Guidelines .................................................................... f 0

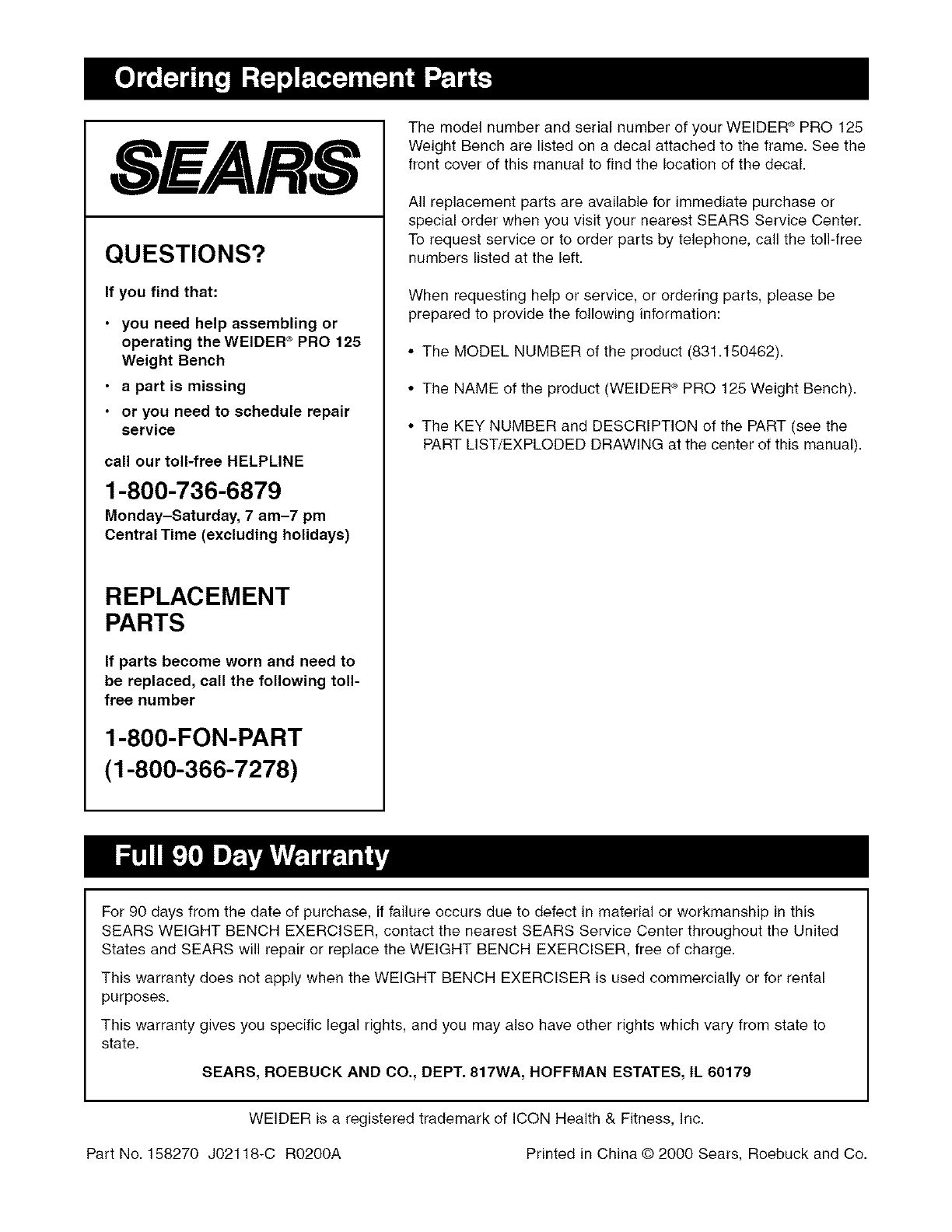

Ordering Replacement Parts ...................................................... Back Cover

Full 90 Day Warranty ............................................................ Back Cover

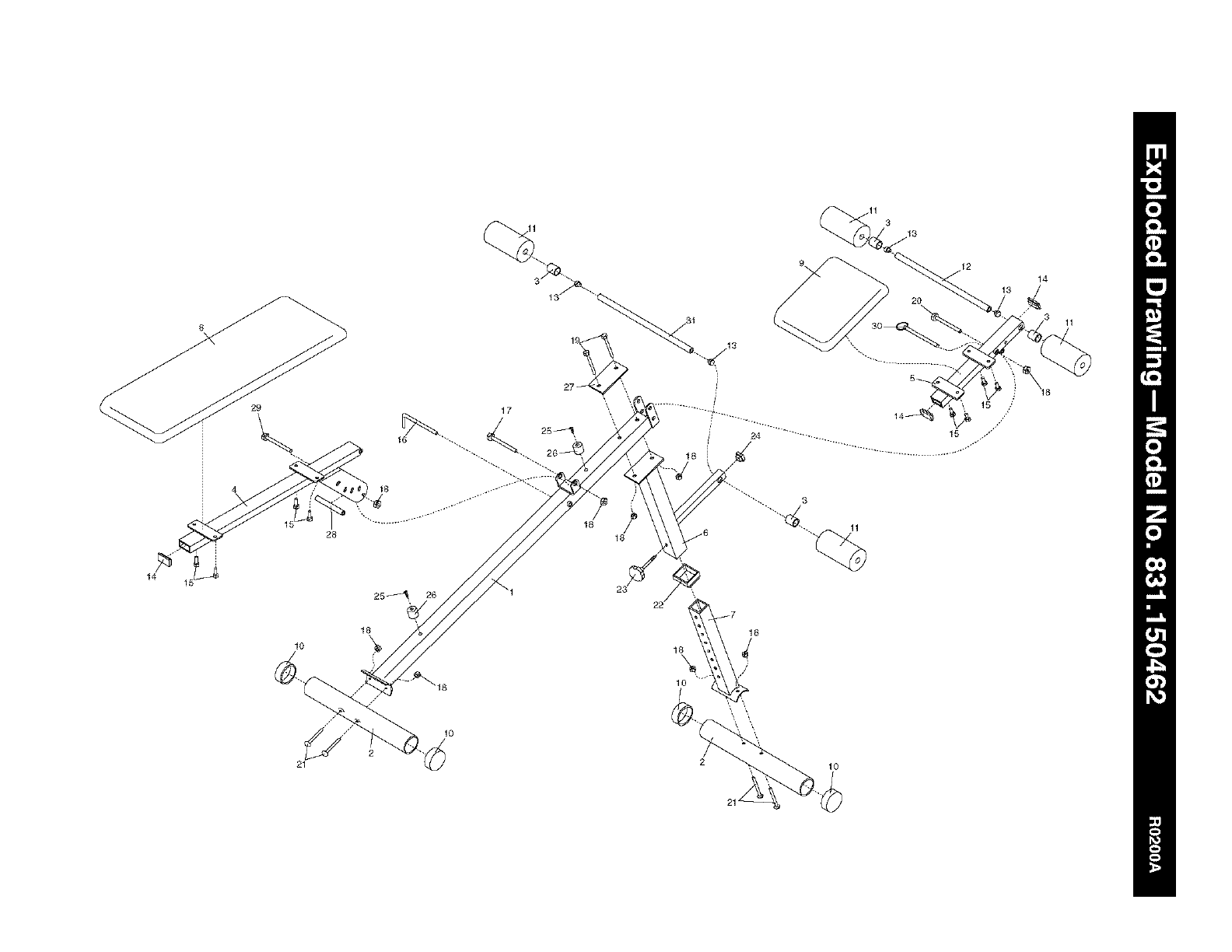

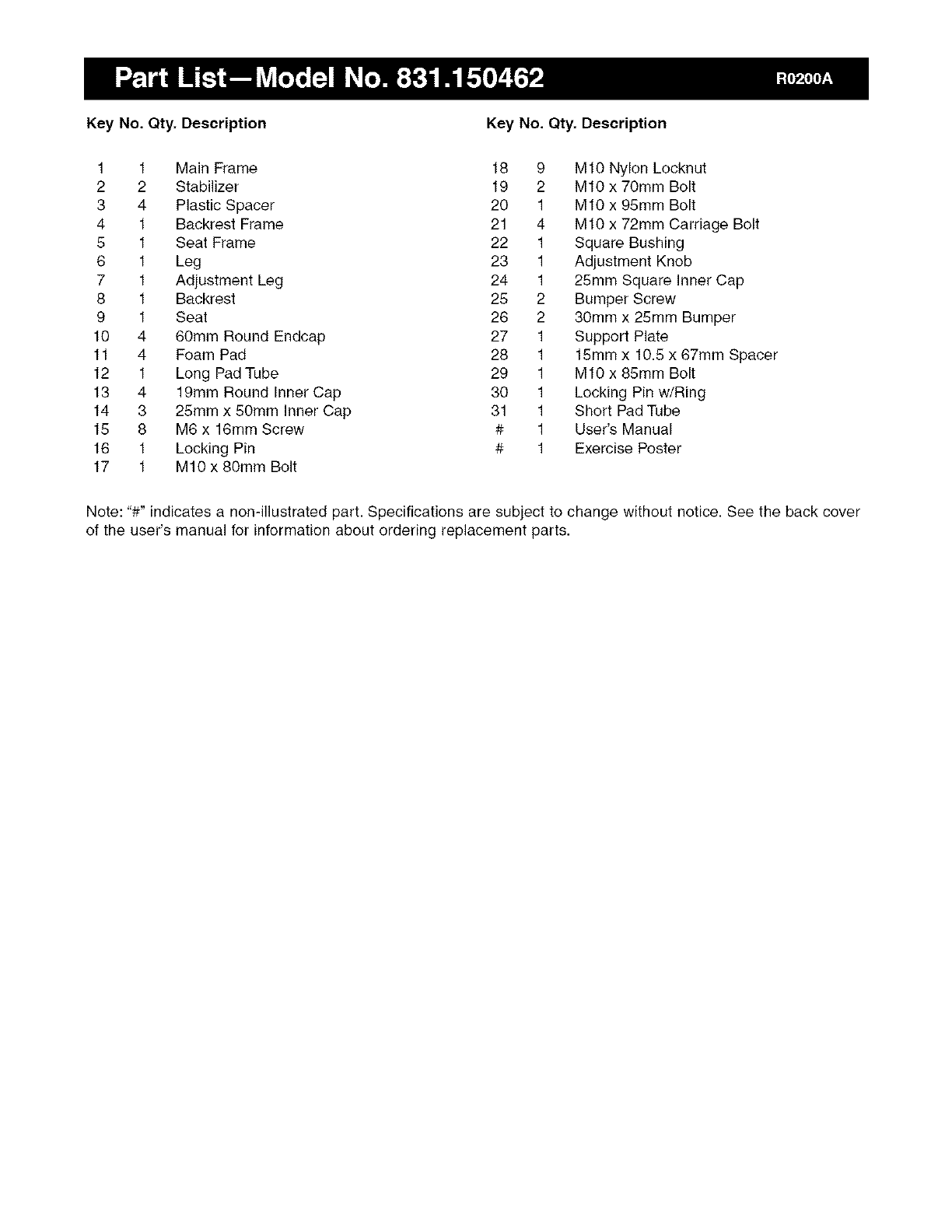

Note: A Part List, Exploded Drawing and Part Identification Chart is attached to the center of this manual.

Remove these four pages before beginning assembly.

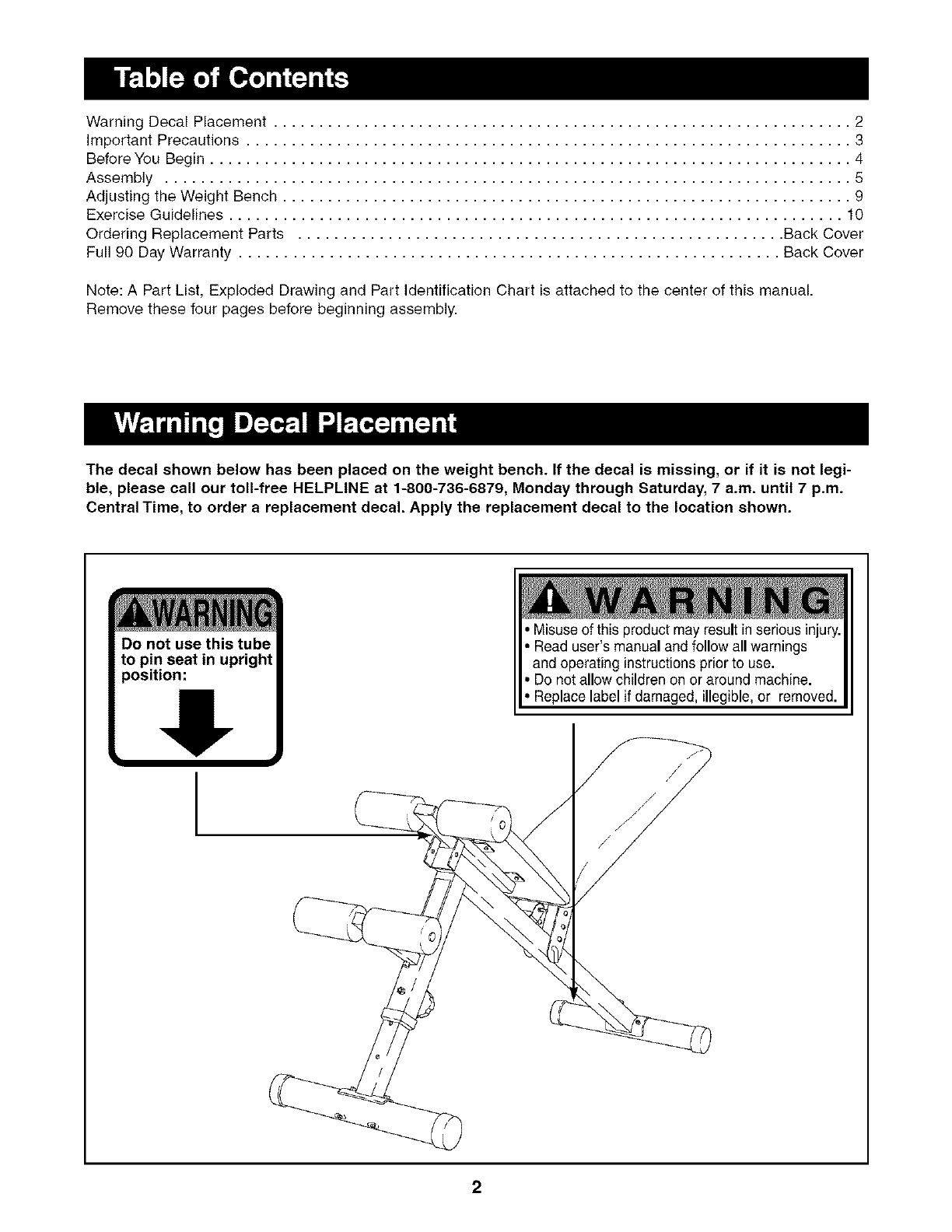

The decal shown below has been placed on the weight bench. If the decal is missing, or if it is not legi-

ble, please call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m.

Central Time, to order a replacement decal. Apply the replacement decal to the location shown.

Do not use this tube

to pin seat in upright

position: Do not allow children on or around machine.

Replace label if damaged, illegible, or removed.

Thank you for selecting the versatile WELDER ® PRO

125 Weight Bench.The WELDER c_PRO 125 is

designed to help you develop every major muscle

group of the body. Whether your goal is a shapely fig-

ure, dramatic muscle size and strength or a healthier

cardiovascular system, the PRO 125 Weight Bench will

help you achieve the specific results you want.

For your benefit, read this manual carefully before

using the WELDER®PRO 125 Weight Bench. If you

have additional questions, please call our toIFfree

HELPLINE at 1-800-736-6879, Monday through

Saturday, 7 a.m. until 7 p.m. Central Time (excluding

holidays). To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number is 831.150462. The serial number

can be found on a decal attached to the WELDER ®

PRO 125 Weight Bench (see the front cover of this

manual).

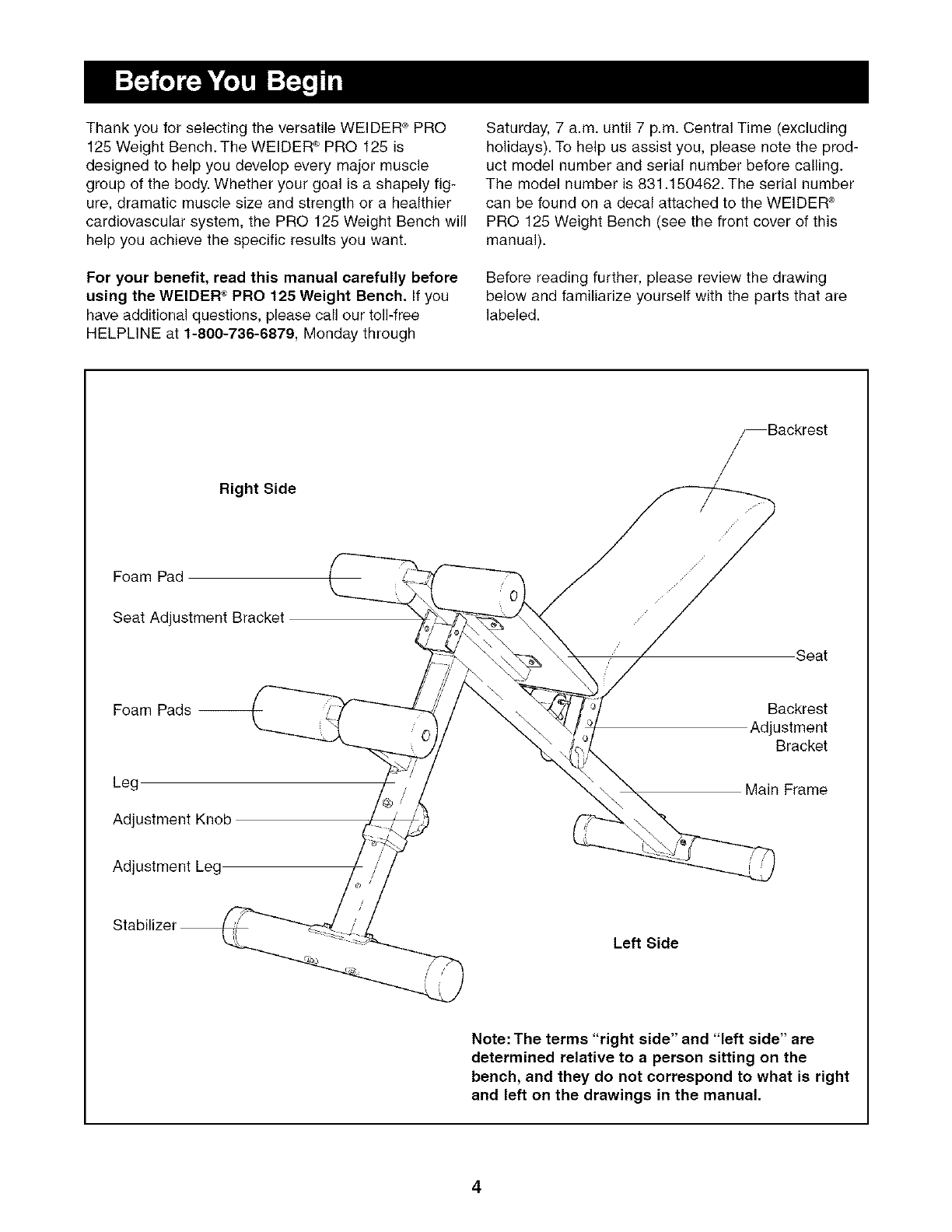

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Right Side

Foam Pad

Seat Adjustment Bracket

Seat

Foam Pads--

Leg

Adjustment Knob

Adjustment Leg

Backrest

Adjustment

Bracket

Main Frame

Left Side

Note: The terms "right side" and "left side" are

determined relative to a person sitting on the

bench, and they do not correspond to what is right

and left on the drawings in the manual.

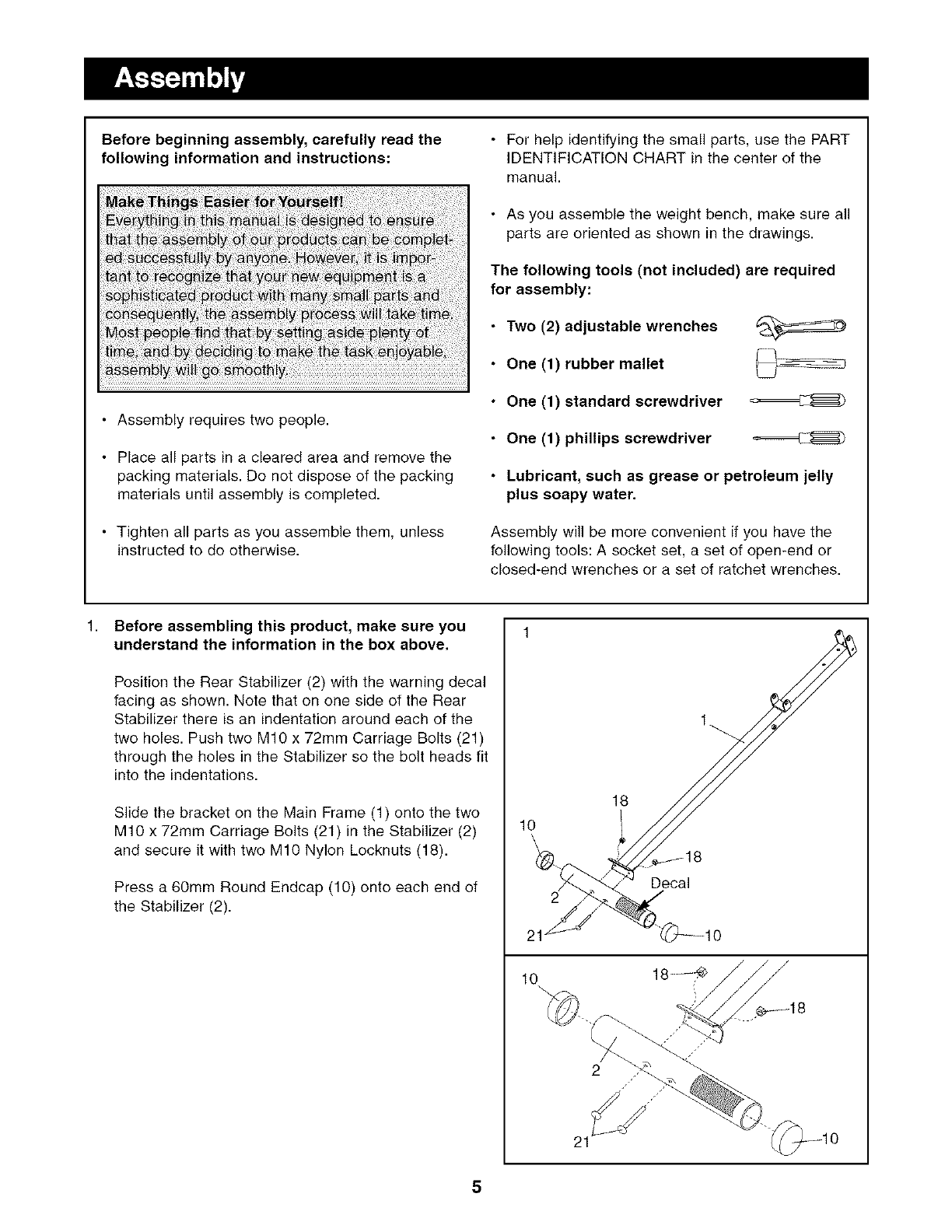

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

• Tighten all parts as you assemble them, unless

instructed to do otherwise.

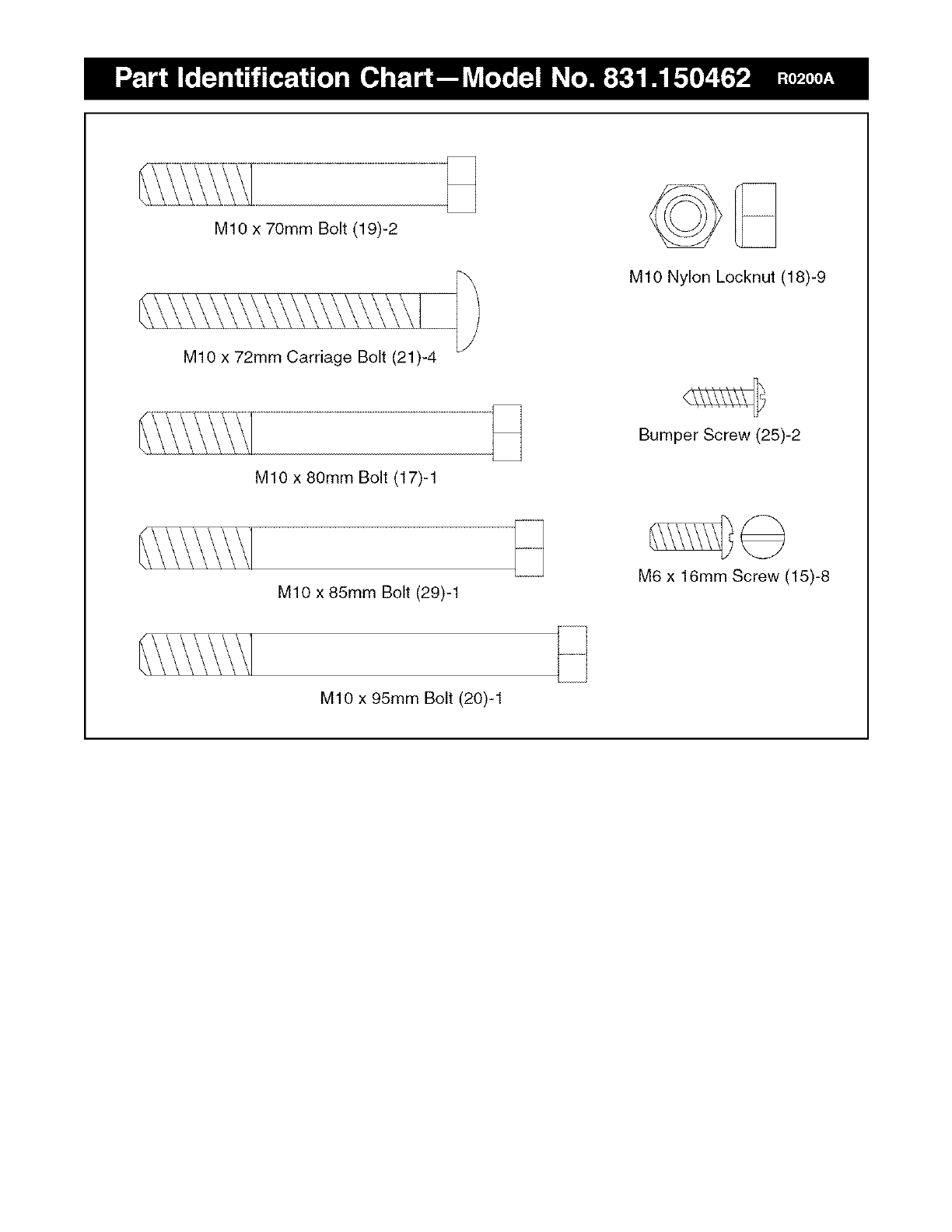

•For help identifying the small parts, use the PART

IDENTIFICATION CHART in the center of the

manual.

• As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

The following tools (not included) are required

for assembly:

•Two (2) adjustable wrenches

• One (1) rubber mallet

•One (1) standard screwdriver

•One (1) phillips screwdriver

•Lubricant, such as grease or petroleum jelly

plus soapy water.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches or a set of ratchet wrenches.

1, Before assembling this product, make sure you

understand the information in the box above.

Position the Rear Stabilizer (2) with the warning decal

facing as shown. Note that on one side of the Rear

Stabilizer there is an indentation around each of the

two holes. Push two M10 x 72mm Carriage Bolts (21)

through the holes in the Stabilizer so the bolt heads fit

into the indentations.

Slide the bracket on the Main Frame (1) onto the two

M10 x 72mm Carriage Bolts (21) in the Stabilizer (2)

and secure it with two M10 Nylon Locknuts (18).

Press a 60mm Round Endcap (10) onto each end of

the Stabilizer (2).

21_ .....

Decal

2. 2 19

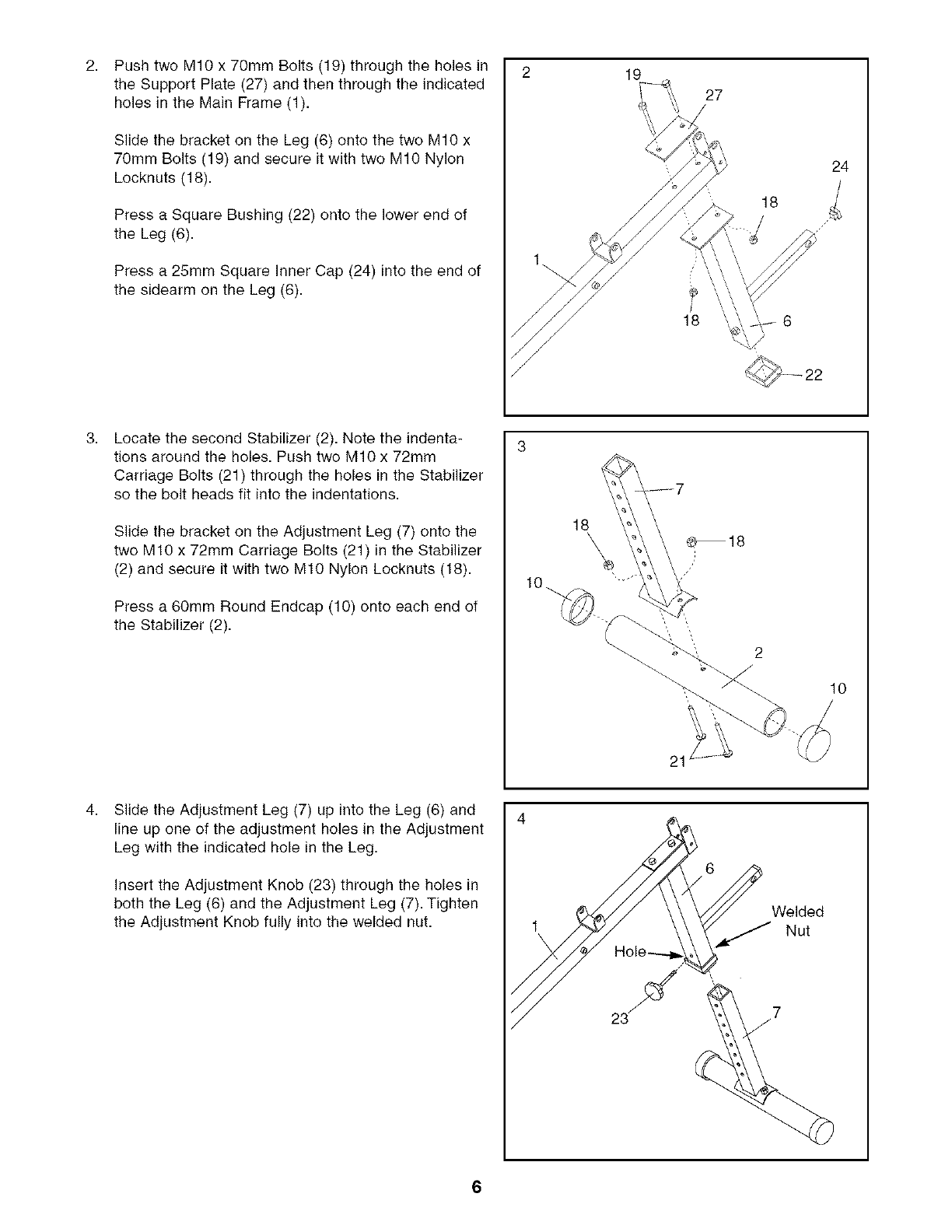

Push two M10 x 70mm Bolts (19) through the holes in

the Support Plate (27) and then through the indicated

holes in the Main Frame (1).

Slide the bracket on the Leg (6) onto the two M10 x

70mm Bolts (19) and secure it with two M10 Nylon

Locknuts (18).

Press a Square Bushing (22) onto the lower end of

the Leg (6).

Press a 25mm Square Inner Cap (24) into the end of

the sidearm on the Leg (6).

3, Locate the second Stabilizer (2). Note the indenta-

tions around the holes. Push two M10 x 72mm

Carriage Bolts (21) through the holes in the Stabilizer

so the bolt heads fit into the indentations.

Slide the bracket on the Adjustment Leg (7) onto the

two M10 x 72mm Carriage Bolts (21) in the Stabilizer

(2) and secure it with two M10 Nylon Locknuts (18).

Press a 60mm Round Endcap (10) onto each end of

the Stabilizer (2).

4, Slide the Adjustment Leg (7) up into the Leg (6) and

line up one of the adjustment holes in the Adjustment

Leg with the indicated hole in the Leg.

Insert the Adjustment Knob (23) through the holes in

both the Leg (6) and the Adjustment Leg (7). Tighten

the Adjustment Knob fully into the welded nut.

Welded

Nut

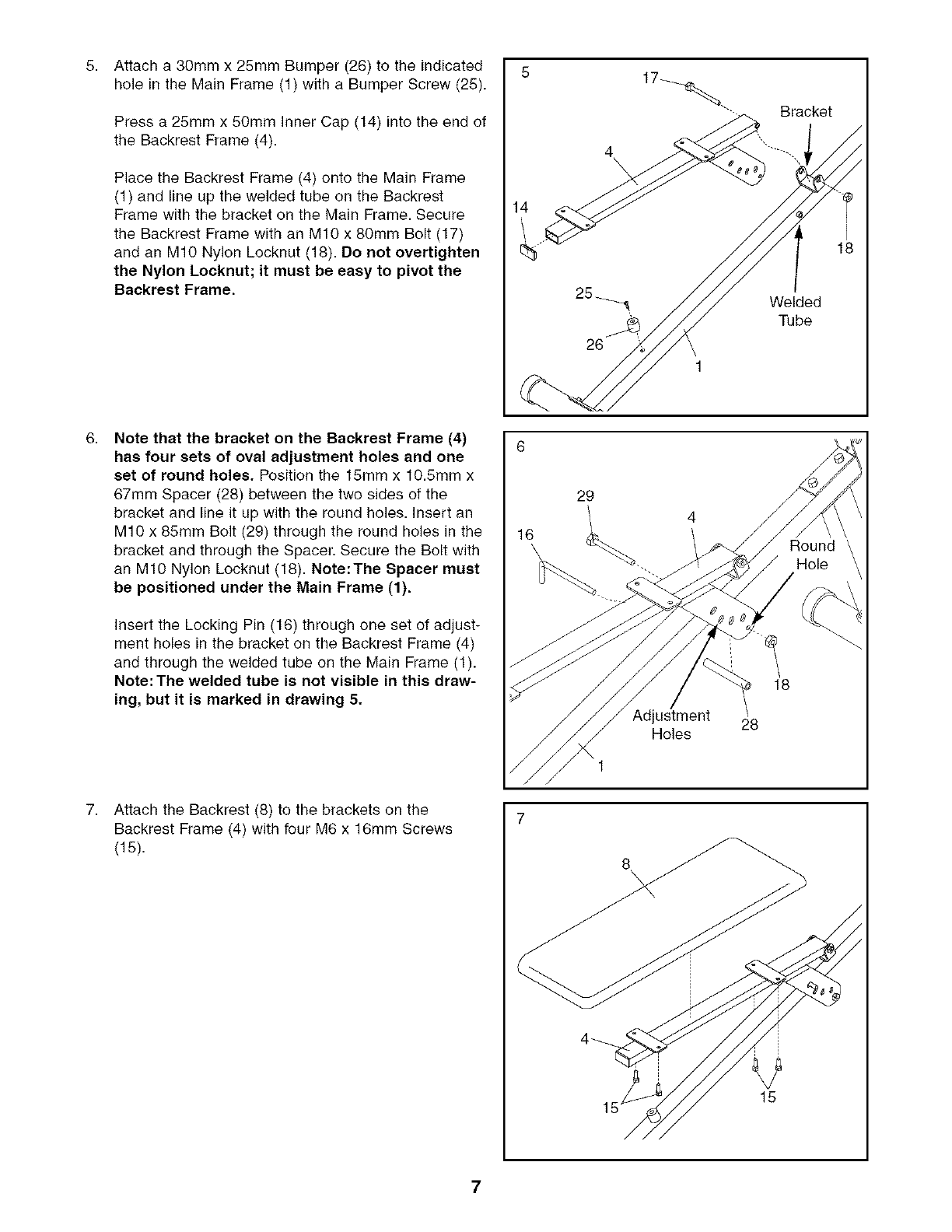

6, Attach a 30mm x 25mm Bumper (26) to the indicated

hole in the Main Frame (1) with a Bumper Screw (25).

Press a 25mm x 50mm Inner Cap (14) into the end of

the Backrest Frame (4).

Place the Backrest Frame (4) onto the Main Frame

(1) and line up the welded tube on the Backrest

Frame with the bracket on the Main Frame. Secure

the Backrest Frame with an M1O x 80mm Bolt (17)

and an M10 Nylon Locknut (18). Do not overtighten

the Nylon Locknut; it must be easy to pivot the

Backrest Frame. 25_

Bracket

Welded

Tube

6, Note that the bracket on the Backrest Frame (4)

has four sets of oval adjustment holes and one

set of round holes. Position the 15mm x 1O.Smm x

67mm Spacer (28) between the two sides of the

bracket and line it up with the round holes. Insert an

M10 x 85mm Bolt (29) through the round holes in the

bracket and through the Spacer. Secure the Bolt with

an M10 Nylon Locknut (16). Note:The Spacer must

be positioned under the Main Frame (1).

Insert the Locking Pin (16) through one set of adjust-

ment holes in the bracket on the Backrest Frame (4)

and through the welded tube on the Main Frame (1).

Note:The welded tube is not visible in this draw-

ing, but it is marked in drawing 5.

Adjustment

Holes

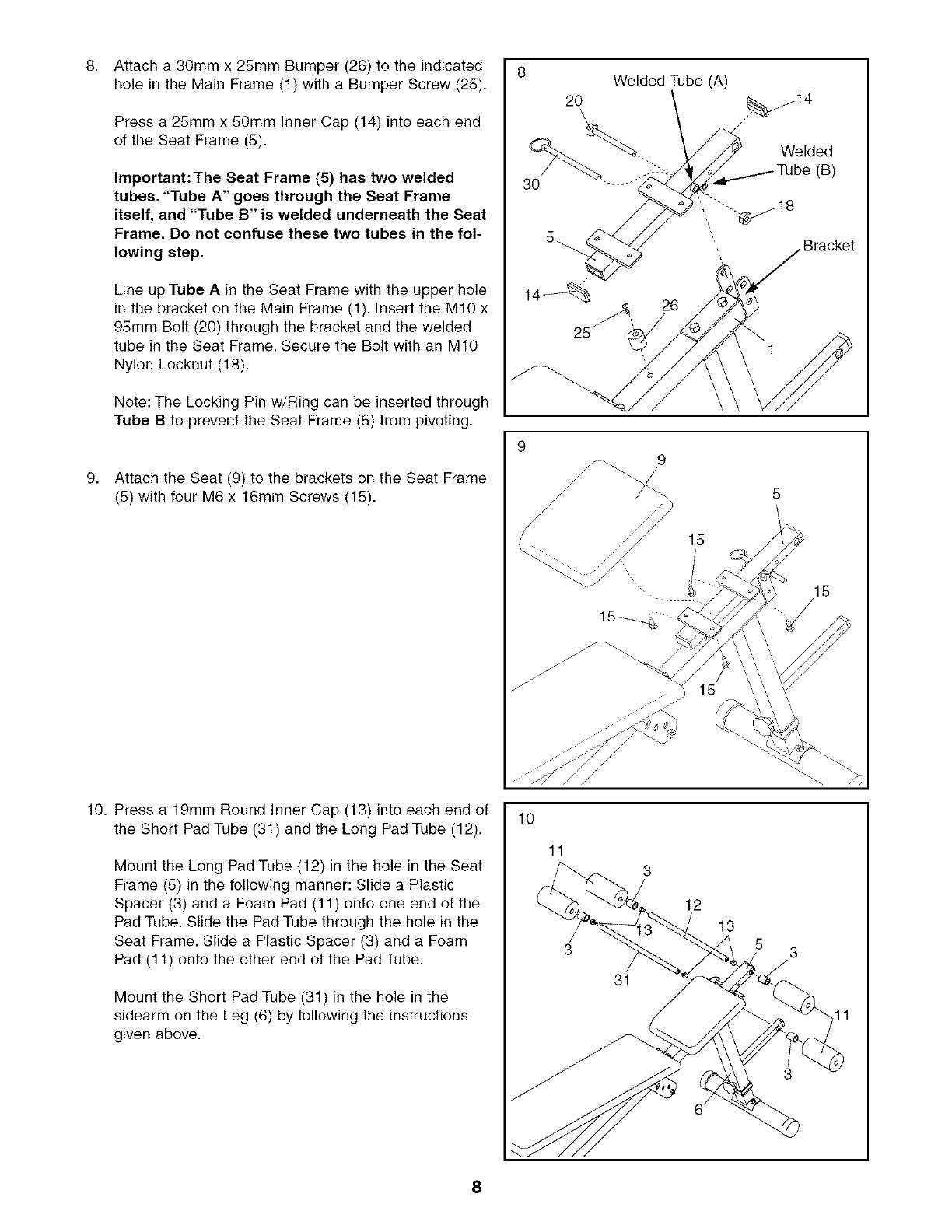

7, Attach the Backrest (8) to the brackets on the

Backrest Frame (4) with four M6 x 16ram Screws

(15). 8

Attach a 30ram x 25mm Bumper (26) to the indicated

hole in the Main Frame (1) with a Bumper Screw (25).

Press a 25mm x 50mm Inner Cap (14) into each end

of the Seat Frame (5).

Important: The Seat Frame (5) has two welded

tubes, "Tube A" goes through the Seat Frame

itself, and "Tube B" is welded underneath the Seat

Frame, Do not confuse these two tubes in the fol-

lowing step,

Line up Tube A in the Seat Frame with the upper hole

in the bracket on the Main Frame (1). Insert the M10 x

95mm Bolt (20) through the bracket and the welded

tube in the Seat Frame. Secure the Bolt with an M10

Nylon Locknut (18).

Note: The Locking Pin w/Ring can be inserted through

Tube B to prevent the Seat Frame (5) from pivoting.

Attach the Seat (9) to the brackets on the Seat Frame

(5) with four M6 x 16mm Screws (15).

Welded Tube (A)

20 % 14

,,, Welded

.... (B)

Bracket

10. Press a 19ram Round Inner Cap (13) into each end of

the Short Pad Tube (31) and the Long Pad Tube (12).

Mount the Long Pad Tube (12) in the hole in the Seat

Frame (5) in the following manner: Slide a Plastic

Spacer (3) and a Foam Pad (11) onto one end of the

Pad Tube. Slide the Pad Tube through the hole in the

Seat Frame. Slide a Plastic Spacer (3) and a Foam

Pad (11) onto the other end of the Pad Tube.

Mount the Short Pad Tube (31) in the hole in the

sidearm on the Leg (6) by following the instructions

given above.

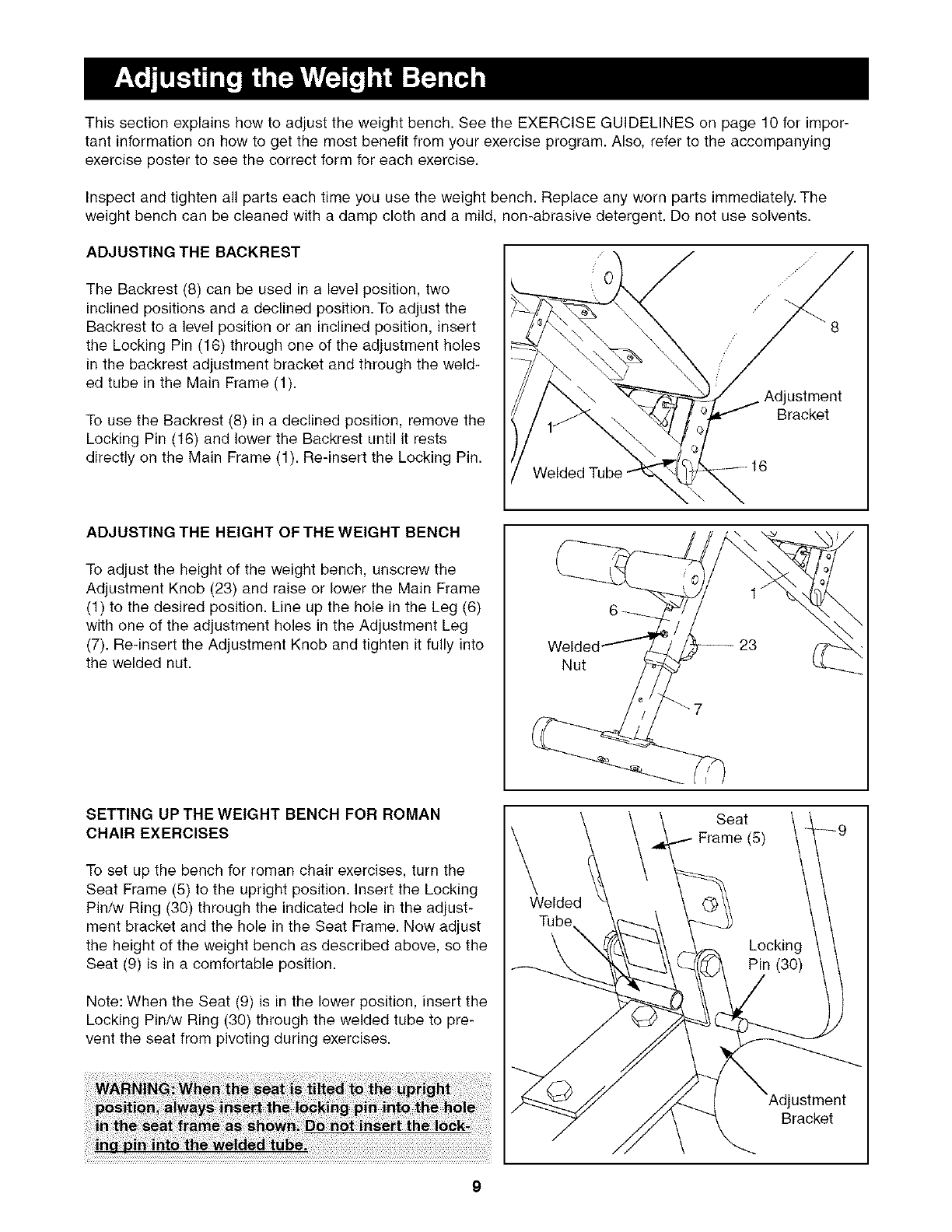

This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 10 for impor-

tant information on how to get the most benefit from your exercise program. Also, refer to the accompanying

exercise poster to see the correct form for each exercise.

Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The

weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

ADJUSTING THE BACKREST

The Backrest (8) can be used in a level position, two

inclined positions and a declined position. To adjust the

Backrest to a level position or an inclined position, insert

the Locking Pin (16) through one of the adjustment holes

in the backrest adjustment bracket and through the weld-

ed tube in the Main Frame (1).

To use the Backrest (8) in a declined position, remove the

Locking Pin (16) and lower the Backrest until it rests

directly on the Main Frame (1). Re-insert the Locking Pin. Welded Tube -

Jstment

Bracket

ADJUSTING THE HEIGHT OF THE WEIGHT BENCH

To adjust the height of the weight bench, unscrew the

Adjustment Knob (23) and raise or lower the Main Frame

(1) to the desired position. Line up the hole in the Leg (6)

with one of the adjustment holes in the Adjustment Leg

(7). Re-insert the Adjustment Knob and tighten it fully into

the welded nut.

SETTING UP THE WEIGHT BENCH FOR ROMAN

CHAIR EXERCISES

To set up the bench for roman chair exercises, turn the

Seat Frame (5) to the upright position. Insert the Locking

Pin/w Ring (30) through the indicated hole in the adjust-

ment bracket and the hole in the Seat Frame. Now adjust

the height of the weight bench as described above, so the

Seat (9) is in a comfortable position.

Note: When the Seat (9) is in the lower position, insert the

Locking Pin/w Ring (30) through the welded tube to pre-

vent the seat from pivoting during exercises.

Nut

Welded

ustment

Bracket

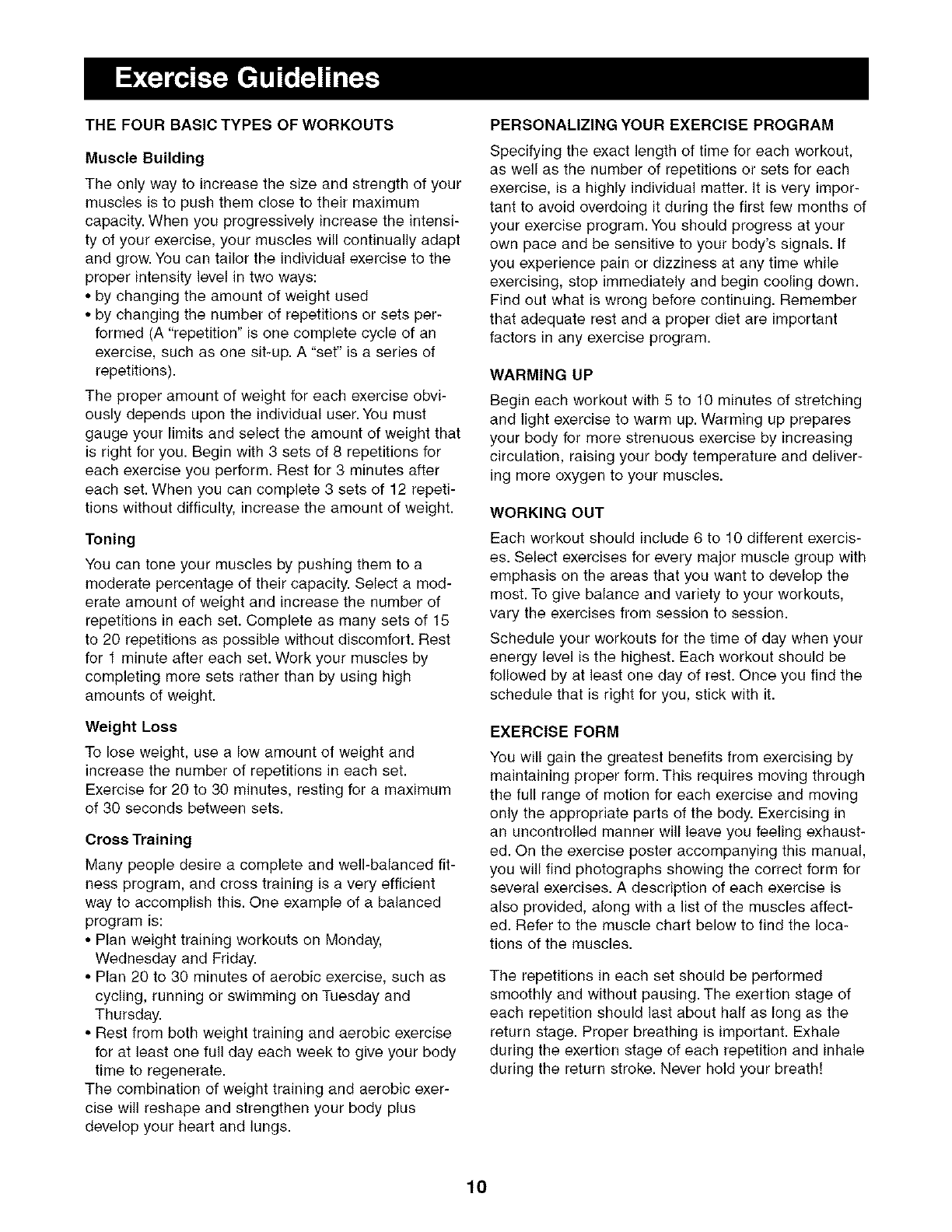

THEFOURBASICTYPESOFWORKOUTS

MuscleBuilding

Theonlywaytoincreasethesizeandstrengthofyour

musclesisto pushthemclosetotheirmaximum

capacity.Whenyouprogressivelyincreasetheintensi-

tyofyourexercise, your muscles will continually adapt

and grow. You can tailor the individual exercise to the

proper intensity level in two ways:

•by changing the amount of weight used

• by changing the number of repetitions or sets per-

formed (A "repetition" is one complete cycle of an

exercise, such as one sit-up. A "set" is a series of

repetitions).

The proper amount of weight for each exercise obvi-

ously depends upon the individual user. You must

gauge your limits and select the amount of weight that

is right for you. Begin with 3 sets of 8 repetitions for

each exercise you perform. Rest for 3 minutes after

each set. When you can complete 3 sets of 12 repeti-

tions without difficulty, increase the amount of weight.

Toning

You can tone your muscles by pushing them to a

moderate percentage of their capacity. Select a mod-

erate amount of weight and increase the number of

repetitions in each set. Complete as many sets of 15

to 20 repetitions as possible without discomfort. Rest

for 1 minute after each set. Work your muscles by

completing more sets rather than by using high

amounts of weight.

Weight Loss

To lose weight, use a low amount of weight and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Many people desire a complete and well-balanced fit-

ness program, and cross training is a very efficient

way to accomplish this. One example of a balanced

program is:

• Plan weight training workouts on Monday,

Wednesday and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

cycling, running or swimming on Tuesday and

Thursday.

• Rest from both weight training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of weight training and aerobic exer-

cise will reshape and strengthen your body plus

develop your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Specifying the exact length of time for each workout,

as well as the number of repetitions or sets for each

exercise, is a highly individual matter. It is very impor-

tant to avoid overdoing it during the first few months of

your exercise program. You should progress at your

own pace and be sensitive to your body's signals. If

you experience pain or dizziness at any time while

exercising, stop immediately and begin cooling down.

Find out what is wrong before continuing. Remember

that adequate rest and a proper diet are important

factors in any exercise program.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group with

emphasis on the areas that you want to develop the

most. To give balance and variety to your workouts,

vary the exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

You will gain the greatest benefits from exercising by

maintaining proper form. This requires moving through

the full range of motion for each exercise and moving

only the appropriate parts of the body. Exercising in

an uncontrolled manner will leave you feeling exhaust-

ed. On the exercise poster accompanying this manual,

you will find photographs showing the correct form for

several exercises. A description of each exercise is

also provided, along with a list of the muscles affect-

ed. Refer to the muscle chart below to find the loca-

tions of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath!

You should rest for a short period of time after each

set. The ideal resting periods are:

• Rest three minutes after each set for a muscle build-

ing workout

• Rest one minute after each set for a toning workout

• Rest 30 seconds after each set for a weight loss

workout

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout is

very effective for increasing flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. List

the date, the exercises performed, the weight plus the

numbers of sets and repetitions completed. Record

your weight and key body measurements at the end

of every month.

Remember, the key to achieving the greatest results

is to make exercise a regular and enjoyable part of

your everyday life.

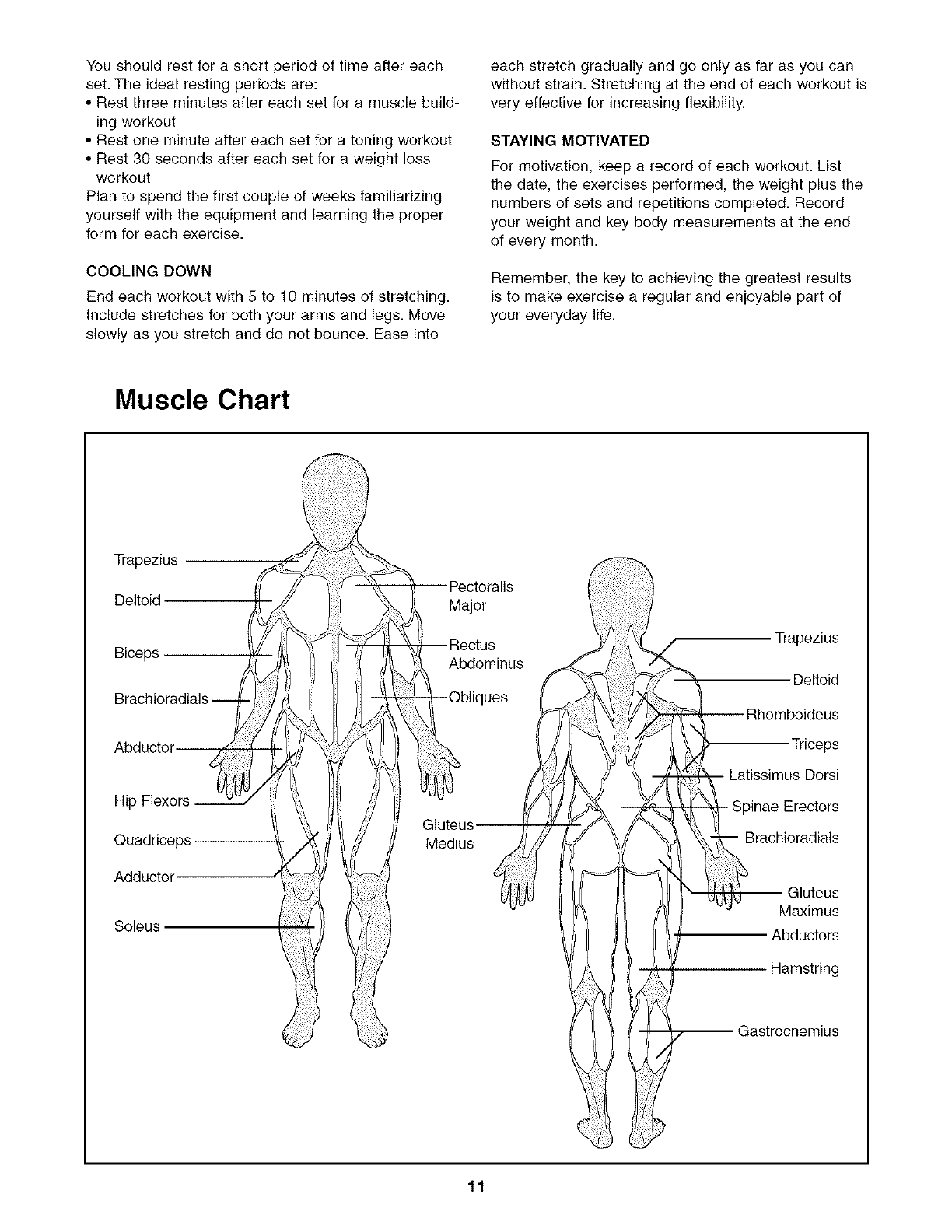

Muscle Chart

Trapezius

Deltoid

Biceps

Brachioradials --

Abductor /

Hip Flexors

Quadriceps

Adductor

Soleus

Major

Abdominus

Gluteus

Medius

Trapezius

Deltoid

Triceps

-Latissimus Dorsi

Spinae Erectors

-- Brachioradials

Gluteus

l_u Maximus

Abduc_rs

Hamstring

MIOx 70mmBolt(19)-2

MIOx 72mmCarriageBolt(21)-4

MIOx 80mmBolt (17)-1

MIO x 85mmBolt(29)-1

MIOx 95mmBolt(20)-1

MIO NylonLocknut(18)-9

BumperScrew(25)-2

M6x 16mmScrew(15)-8

Key No. Qty. Description Key No. Qty. Description

1 1 Main Frame 18 9 M10 Nylon Locknut

2 2 Stabilizer 19 2 M10 x 70mm Bolt

3 4 Plastic Spacer 20 1 M10 x 95mm Bolt

4 1 Backrest Frame 21 4 M10 x 72mm Carriage Bolt

5 1 Seat Frame 22 1 Square Bushing

6 1 Leg 23 1 Adjustment Knob

7 1 Adjustment Leg 24 1 25mm Square Inner Cap

8 1 Backrest 25 2 Bumper Screw

9 1 Seat 26 2 30mm x 25mm Bumper

10 4 60mm Round Endcap 27 1 Support Plate

11 4 Foam Pad 28 1 15ram x 10.5 x 67mm Spacer

12 1 Long Pad Tube 29 1 M10 x 85mm Bolt

13 4 19mm Round Inner Cap 30 1 Locking Pin w/Ring

14 3 25mm x 50mm Inner Cap 31 1 Short Pad Tube

15 8 M6 x 16mm Screw # 1 User's Manual

16 1 Locking Pin # 1 Exercise Poster

17 1 M10 x 80mm Bolt

Note: "#" indicates a nonqllustrated part. Specifications are subject to change without notice. See the back cover

of the user's manual for information about ordering replacement parts.

2 10

SEARS

QUESTIONS?

If you find that:

• you need help assembling or

operating theWEIDER c_PRO 125

Weight Bench

•a part is missing

•or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday-Saturday, 7 am-7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need to

be replaced, call the following toll-

free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your WELDER _ PRO 125

Weight Bench are listed on a decal attached to the frame. See the

front cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordering parts, please be

prepared to provide the following information:

•The MODEL NUMBER of the product (831.150462).

• The NAME of the product (WELDER ®PRO 125 Weight Bench).

• The KEY NUMBER and DESCRIPTION of the PART (see the

PART LIST/EXPLODED DRAWING at the center of this manual).

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT BENCH EXERCISER, contact the nearest SEARS Service Center throughout the United

States and SEARS will repair or replace the WEIGHT BENCH EXERCISER, free of charge.

This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for rental

purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

WELDER is a registered trademark of ICON Health & Fitness, Inc.

Weider 831150462 User Manual PRO 125 Manuals And Guides L0807008

WEIDER Weight System Manual L0807008 WEIDER Weight System Owner's Manual, WEIDER Weight System installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
