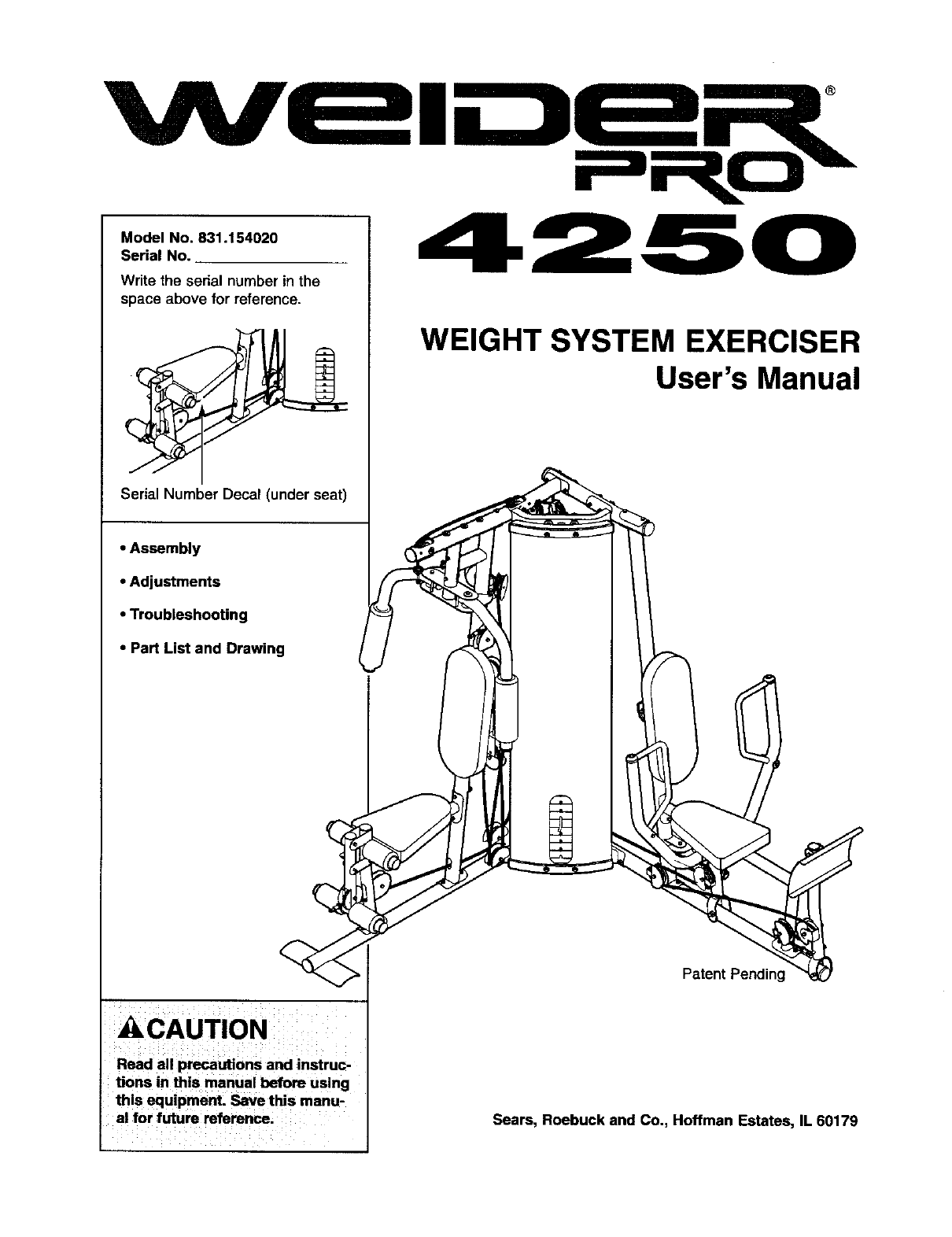

I®

Model No. 831.154020

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal (under seat)

• Assembly

•Adjustments

•Troubleshooting

•Part List and Drawing

WEIGHT SYSTEM EXERCISER

User's Manual

Patent Pending

_i_CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

al for future reference. Sears, Roebuck and Co., Hoffman Estates, IL 60179

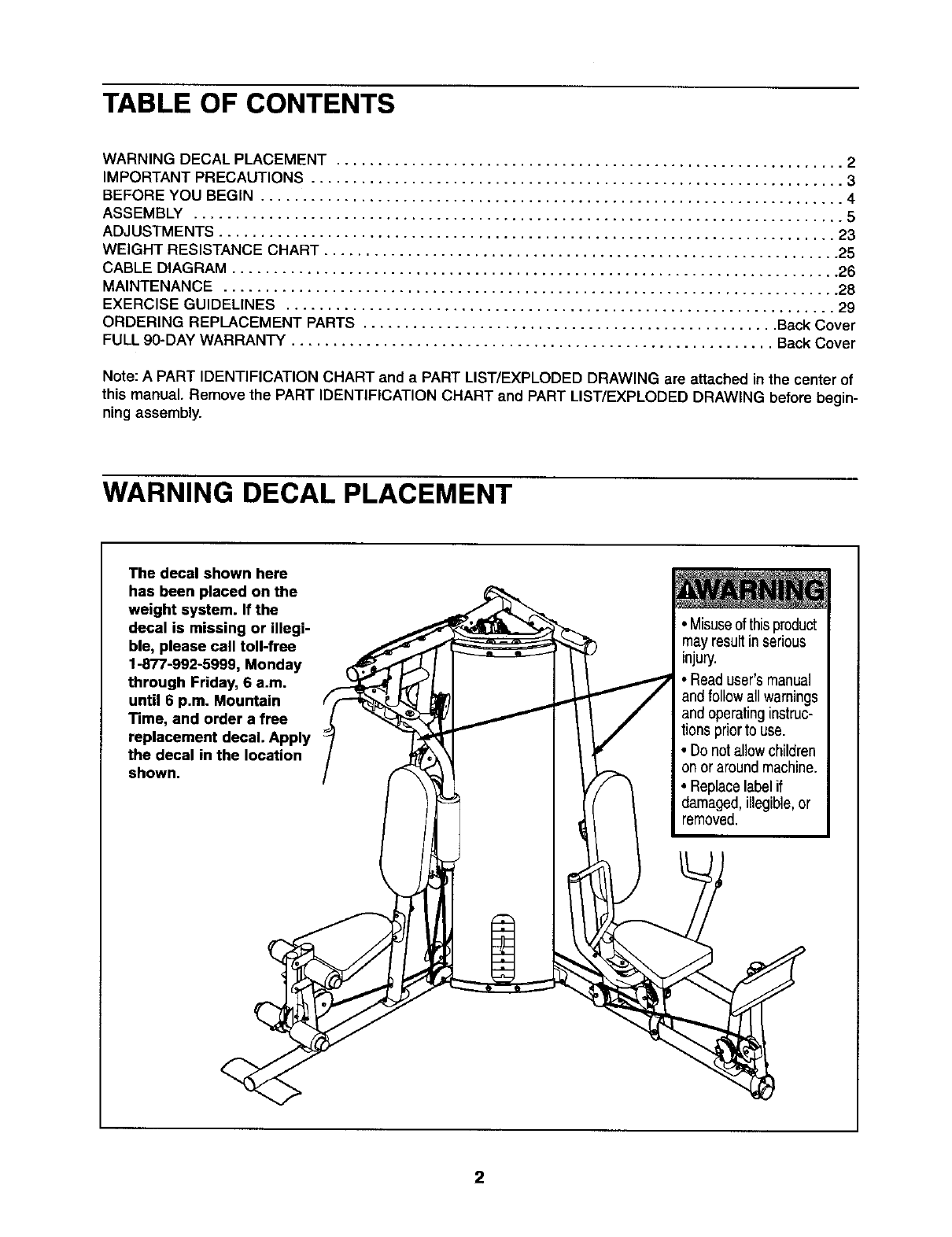

TABLE OF CONTENTS

WARNING DECAL PLACEMENT ............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY .............................................................................. 5

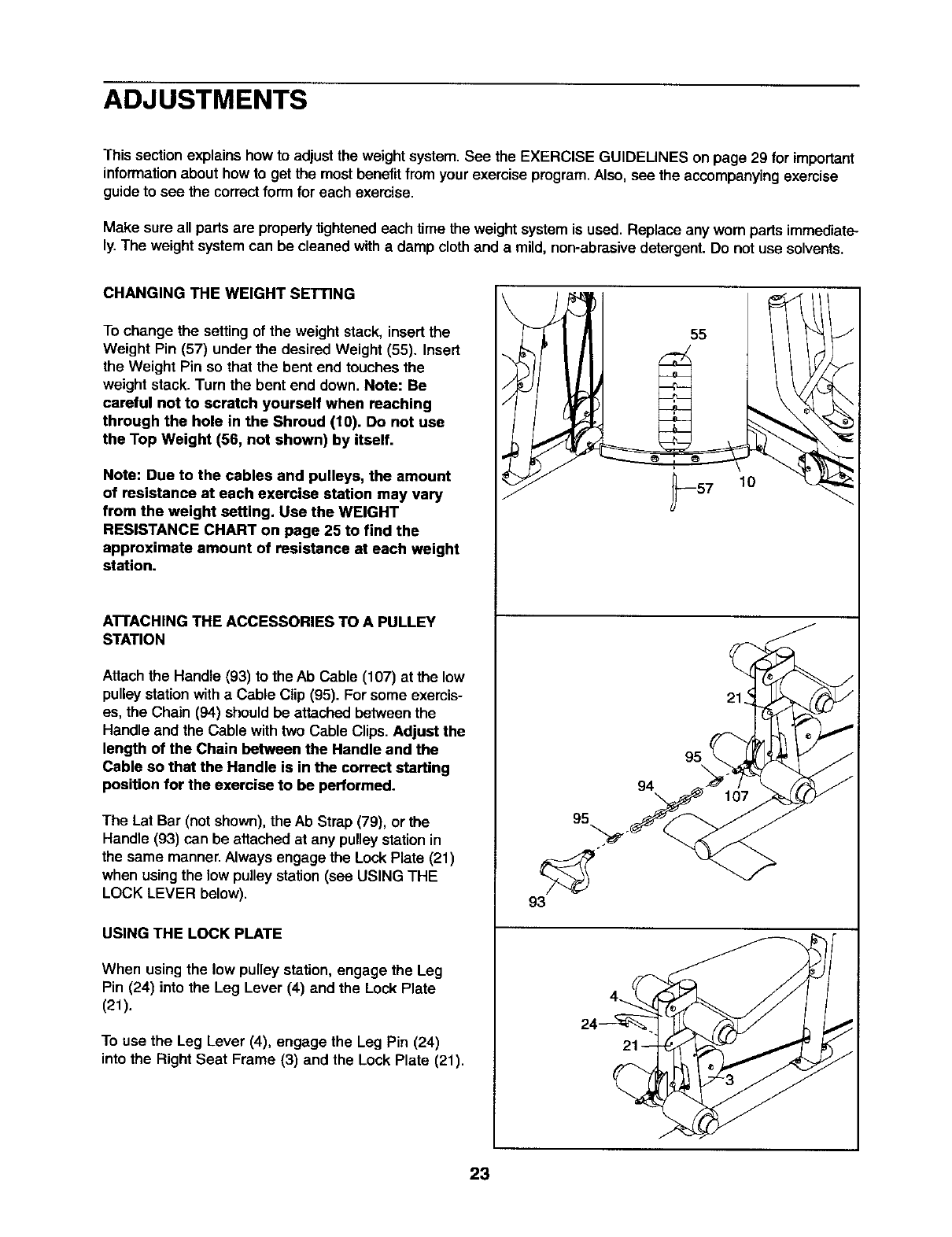

ADJUSTMENTS .......................................................................... 23

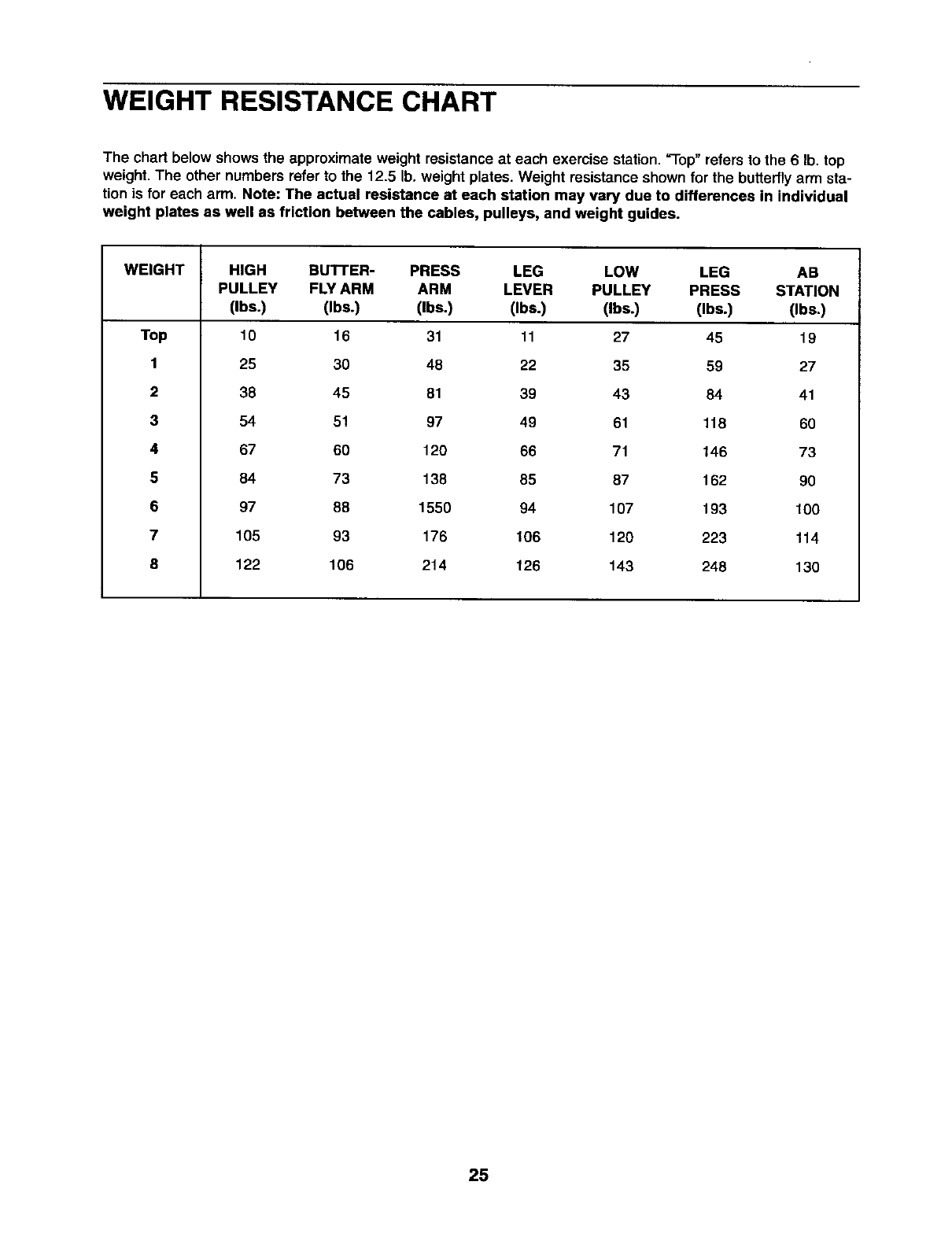

WEIGHT RESISTANCE CHART .............................................................. 25

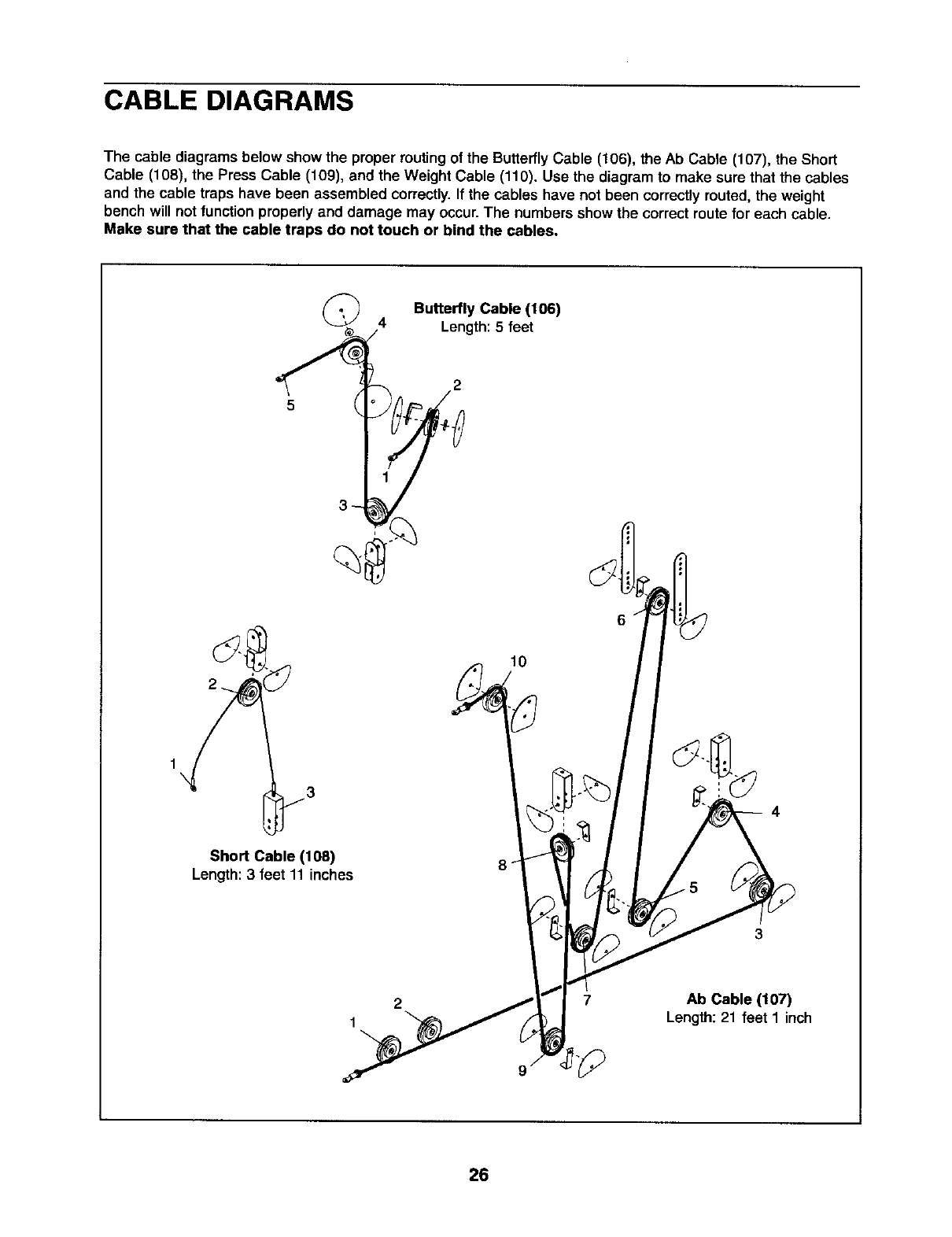

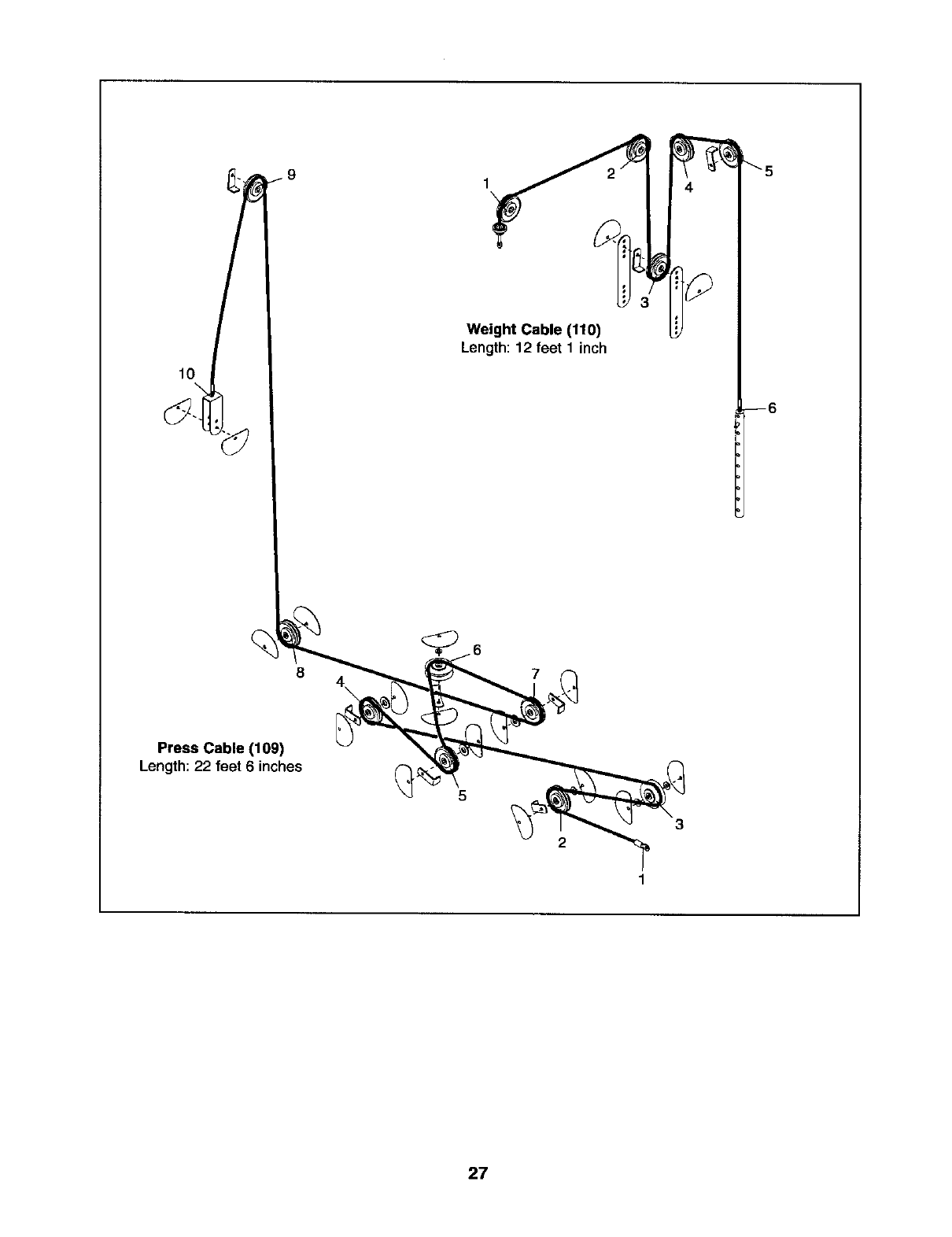

CABLE DIAGRAM ......................................................................... 26

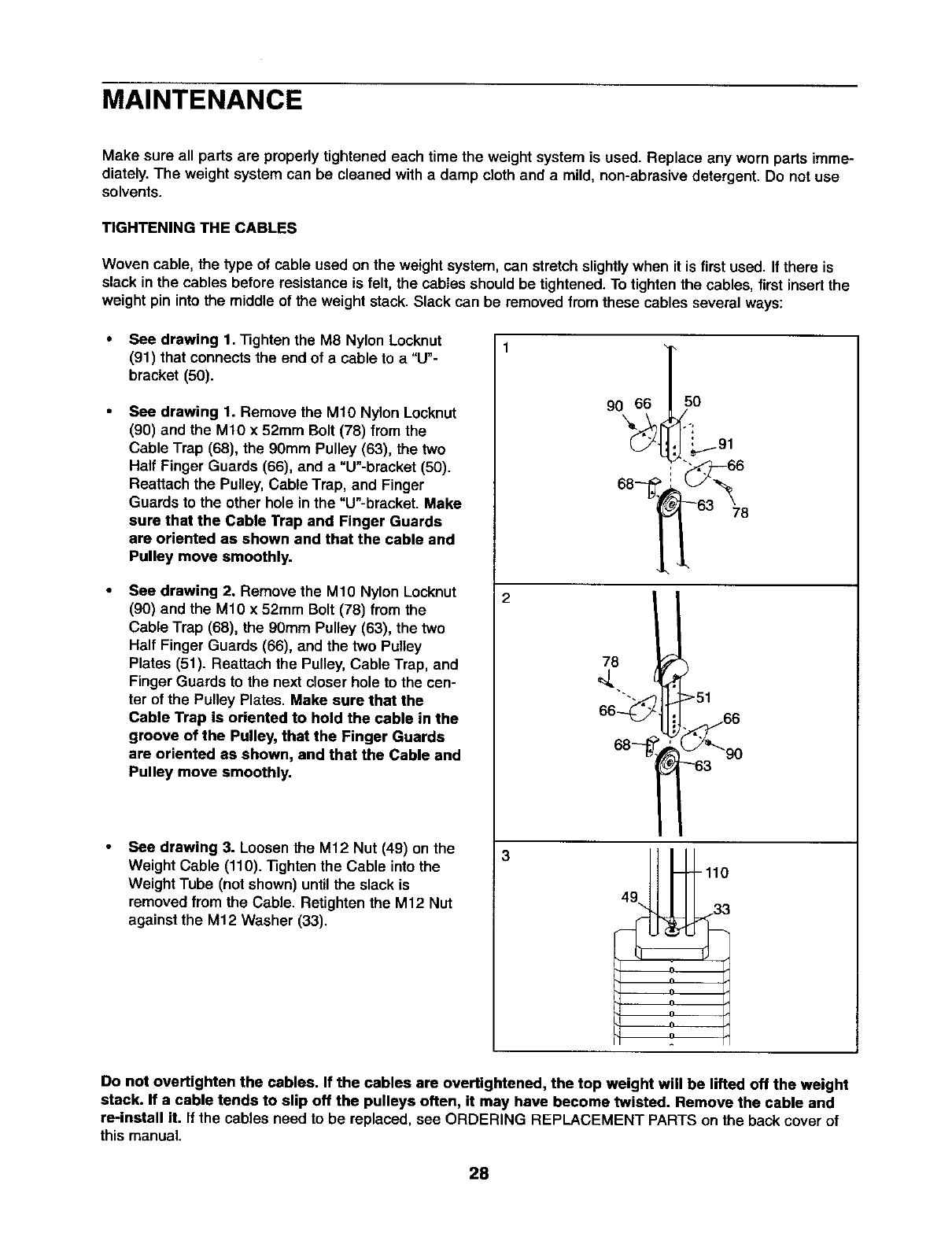

MAINTENANCE .......................................................................... 28

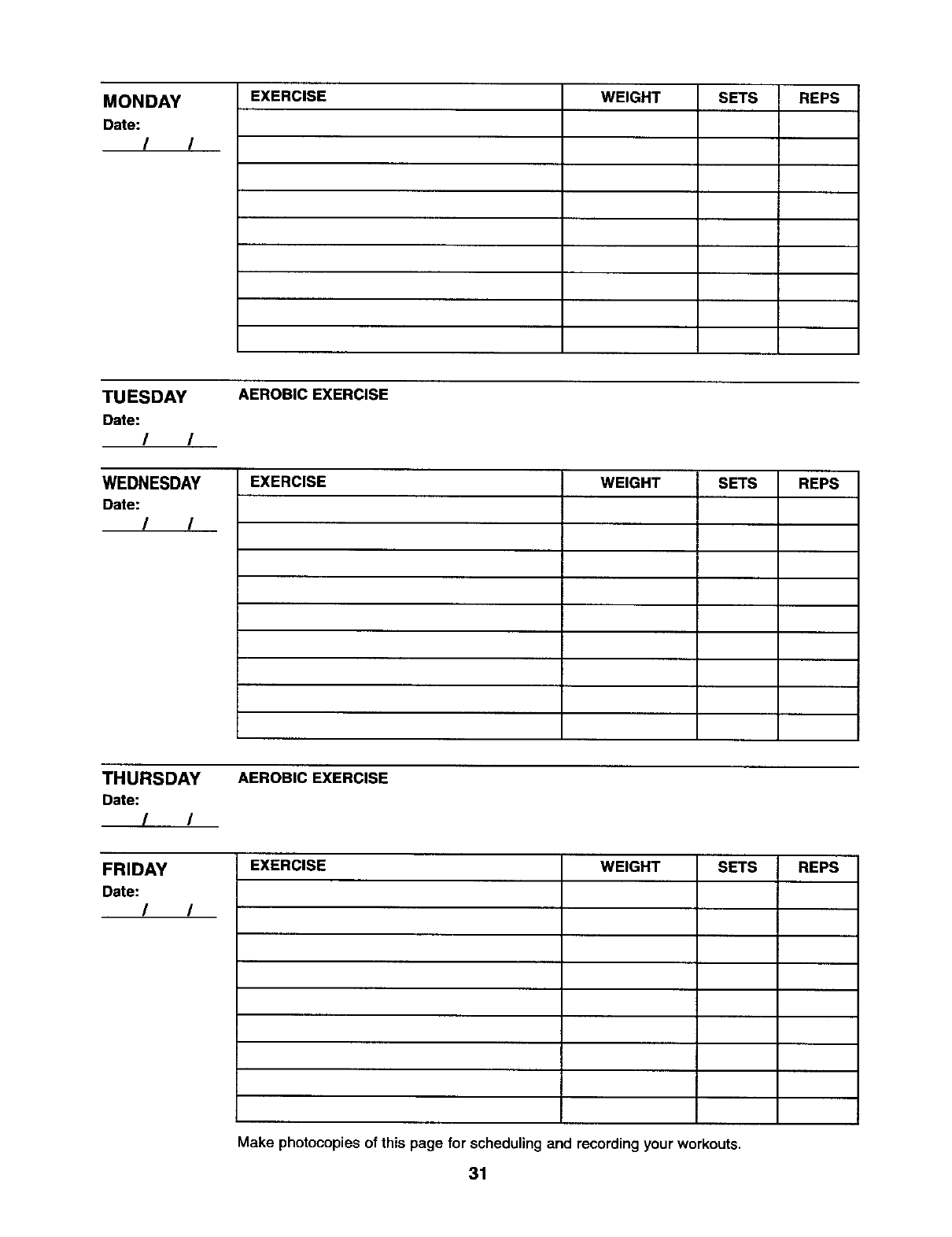

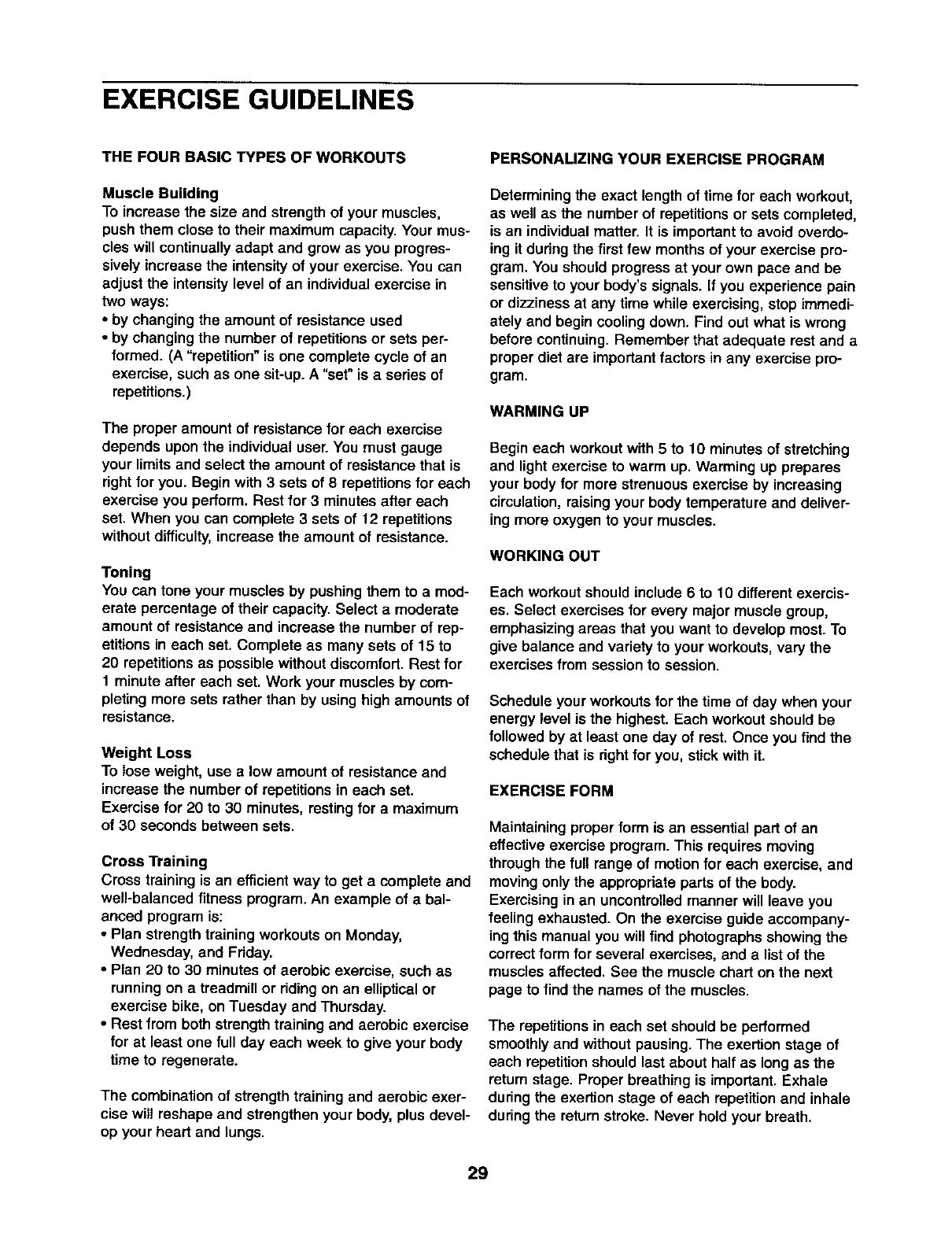

EXERCISE GUIDELINES .................................................................. 29

ORDERING REPLACEMENT PARTS .................................................. Back Cover

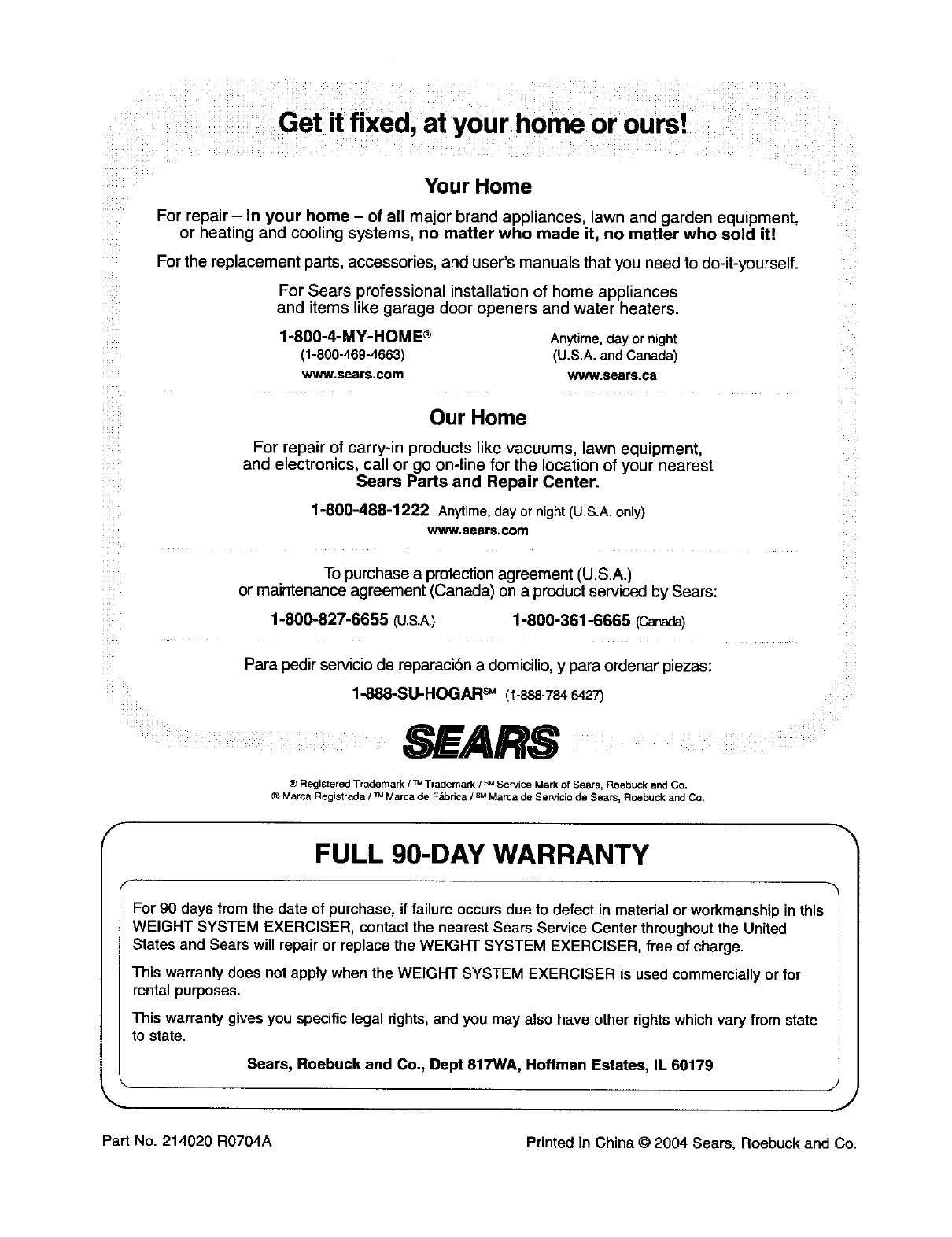

FULL 90-DAY WARRANTY .......................................................... Back Cover

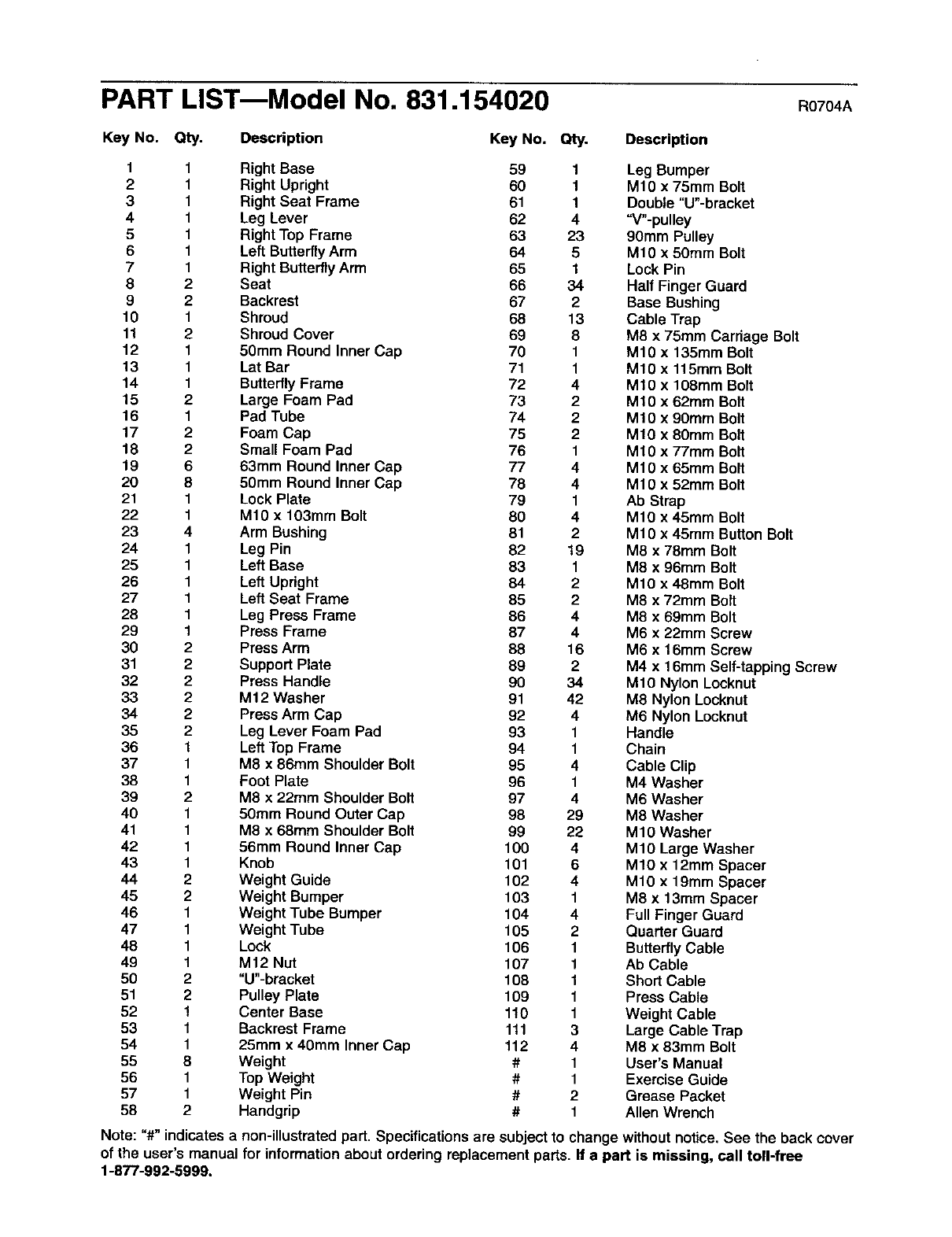

Note: APART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly.

WARNING DECAL PLACEMENT

The decal shown here

has been placed on the

weight system. If the

decal is missing or illegi-

ble, please call toll-free

1-877-992-5999, Monday

through Friday, 6 a.m.

until 6 p.m. Mountain

Time, and order a free

replacement decal. Apply

the decal in the location

shown.

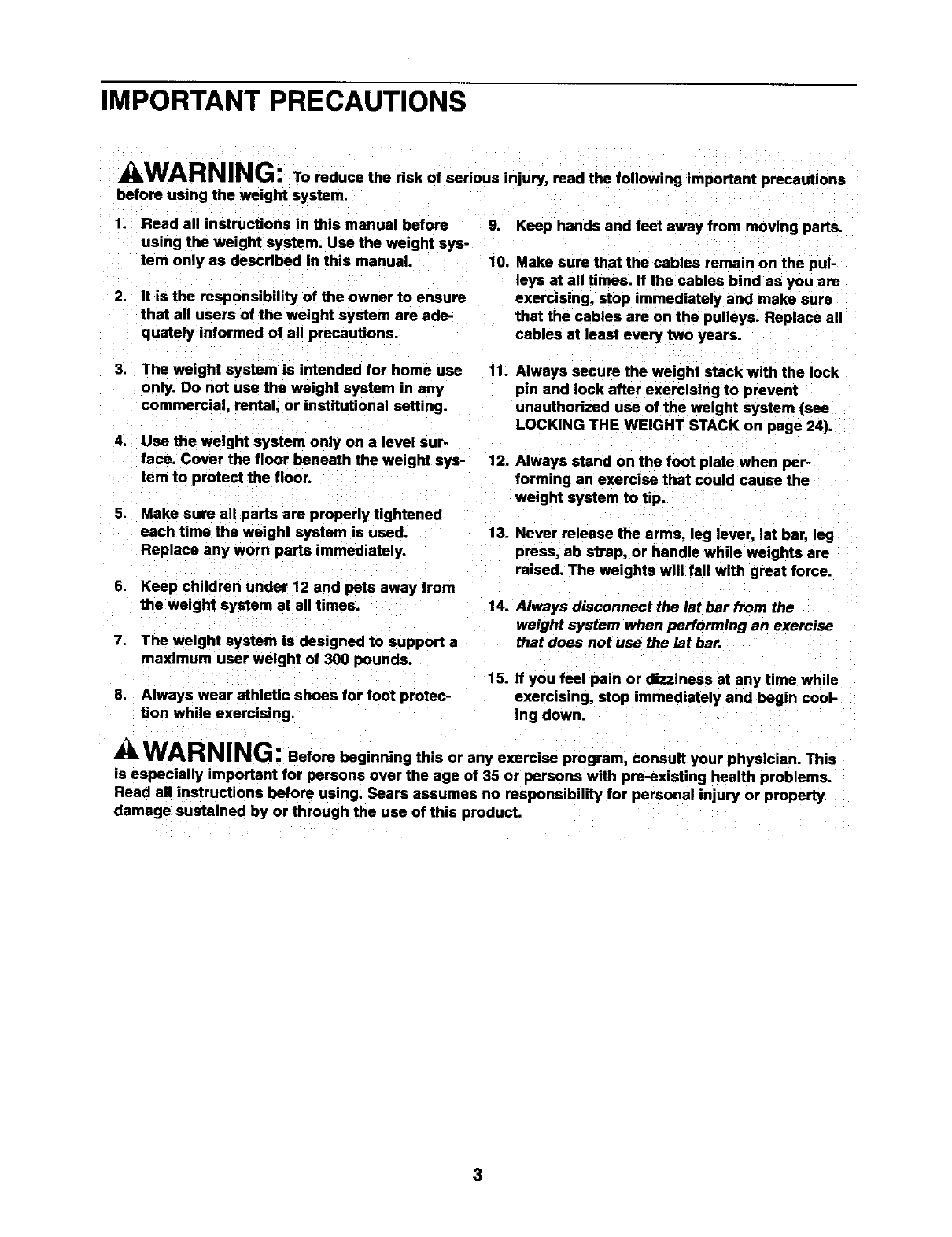

IMPORTANT PRECAUTIONS

_WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

Read all instructions in this manual before

using the weight system. Use the weight sys-

tem only as described in this manual.

It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

9. Keep hands and feet away from moving parts.

10. Make sure that the cables remain on the pul-

leys at all times. If the cables bind as you are

exercising, stop immediately and make sure

that the cables are on the pulleys. Replace all

cables at least every two years.

3. The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

4. Use the weight system only on a level sur-

face. Cover the floor beneath the weight sys-

tem to protect the floor.

11. Always secure the weight stack with the lock

pin and lock after exercising to prevent

unauthorized use of the weight system (see

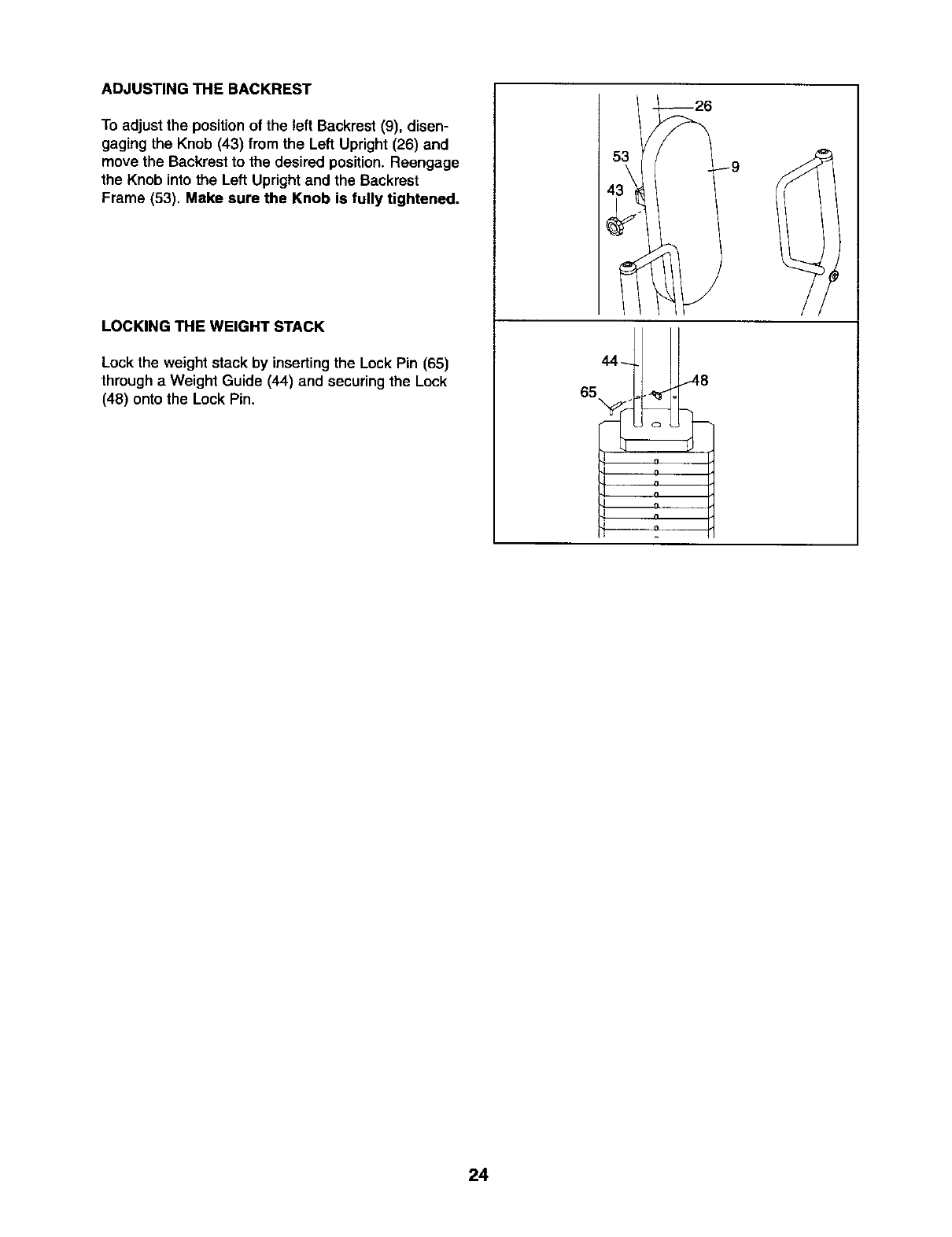

LOCKING THE WEIGHT STACK on page 24).

12. Always stand on the foot plate when per-

forming an exercise that could cause the

weight system to tip.

Make sure all parts are properly tightened

each time the weight system is used.

Replace any wom parts immediately.

Keep children under 12 and pets away from

the weight system at all times.

The weight system is designed to support a

maximum user weight of 300 pounds.

Always wear athletic shoes for foot protec-

tion while exercising.

13. Never release the arms, leg lever, lat bar, leg

press, ab strap, or handle while weights are

raised. The weights will fall with great force.

14. Always disconnect the fat bar from the

weight system when performing an exercise

that does not use the lat bar.

15. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

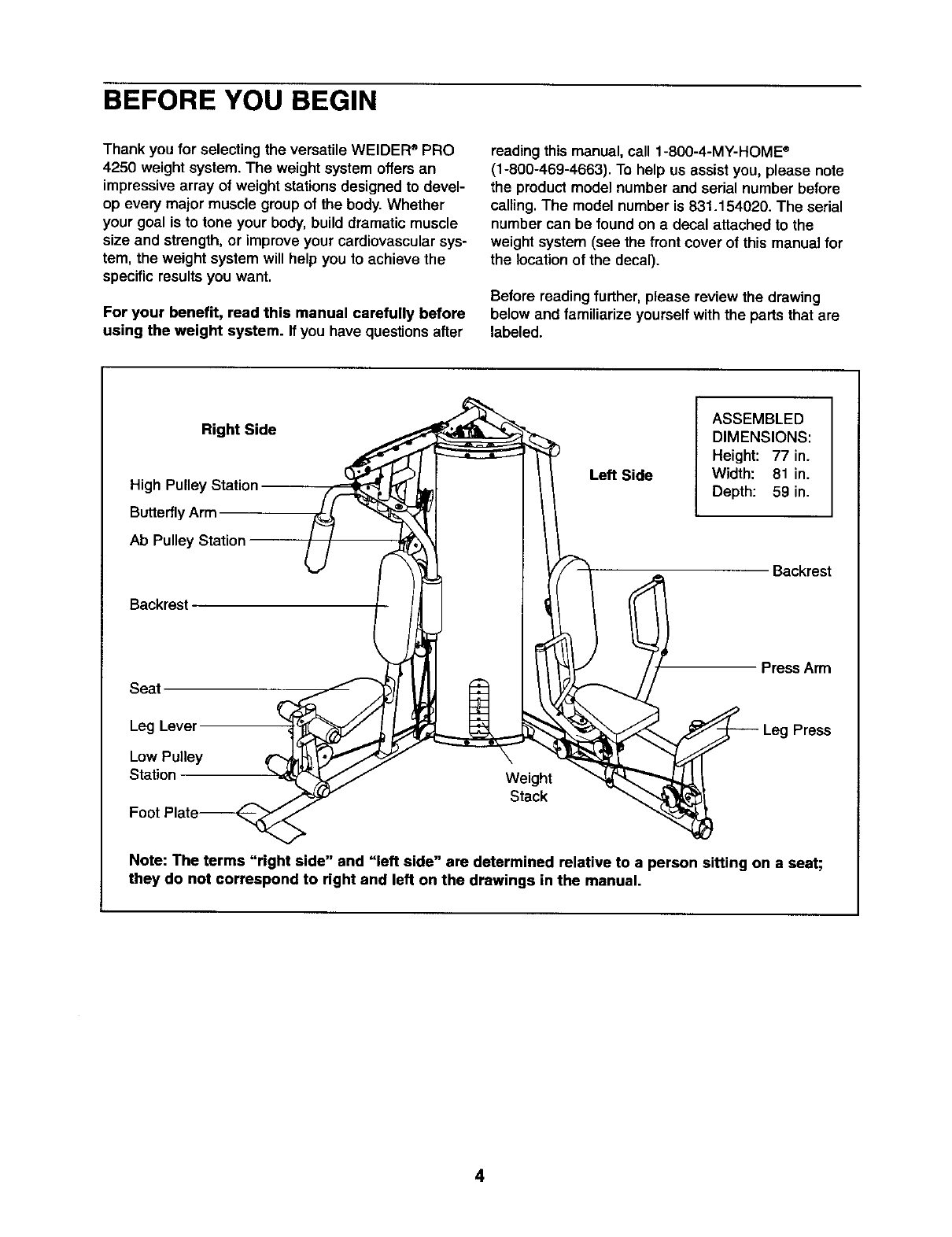

BEFORE YOU BEGIN

Thank you for selecting the versatile WELDER" PRO

4250 weight system. The weight system offers an

impressive array of weight stations designed to devel-

op every major muscle group of the body. Whether

your goal is to tone your body, build dramatic muscle

size and strength, or improve your cardiovascular sys-

tem, the weight system will help you to achieve the

specific results you want.

For your benefit, read this manual carefully before

using the weight system. If you have questionsafter

reading this manual, call 1-800-4-MY-HOME ®

(1-800-469-4663). To help us assist you, please note

the producl model number and serial number before

calling. The model number is 831.154020. The serial

number can be found on a decal attached to the

weight system (see the front cover of this manual for

the location of the decal).

Before reading further, please review the drawing

below and familiarize yourself with the pads that are

labeled.

Right Side

High Pulley Station

Butterfly Arm

Ab Pulley Station

Backrest

Seat

Leg Level

Low Pulley

Station Weight

Stack

ASSEMBLED

DIMENSIONS:

Height: 77 in.

Left Side Width: 81 in.

Depth: 59 in,

Backrest

Press Arm

Press

Note: The terms "right side" and "left side" are determined relative to a person sitting on a seat;

they do not correspond to right and left on the drawings in the manual.

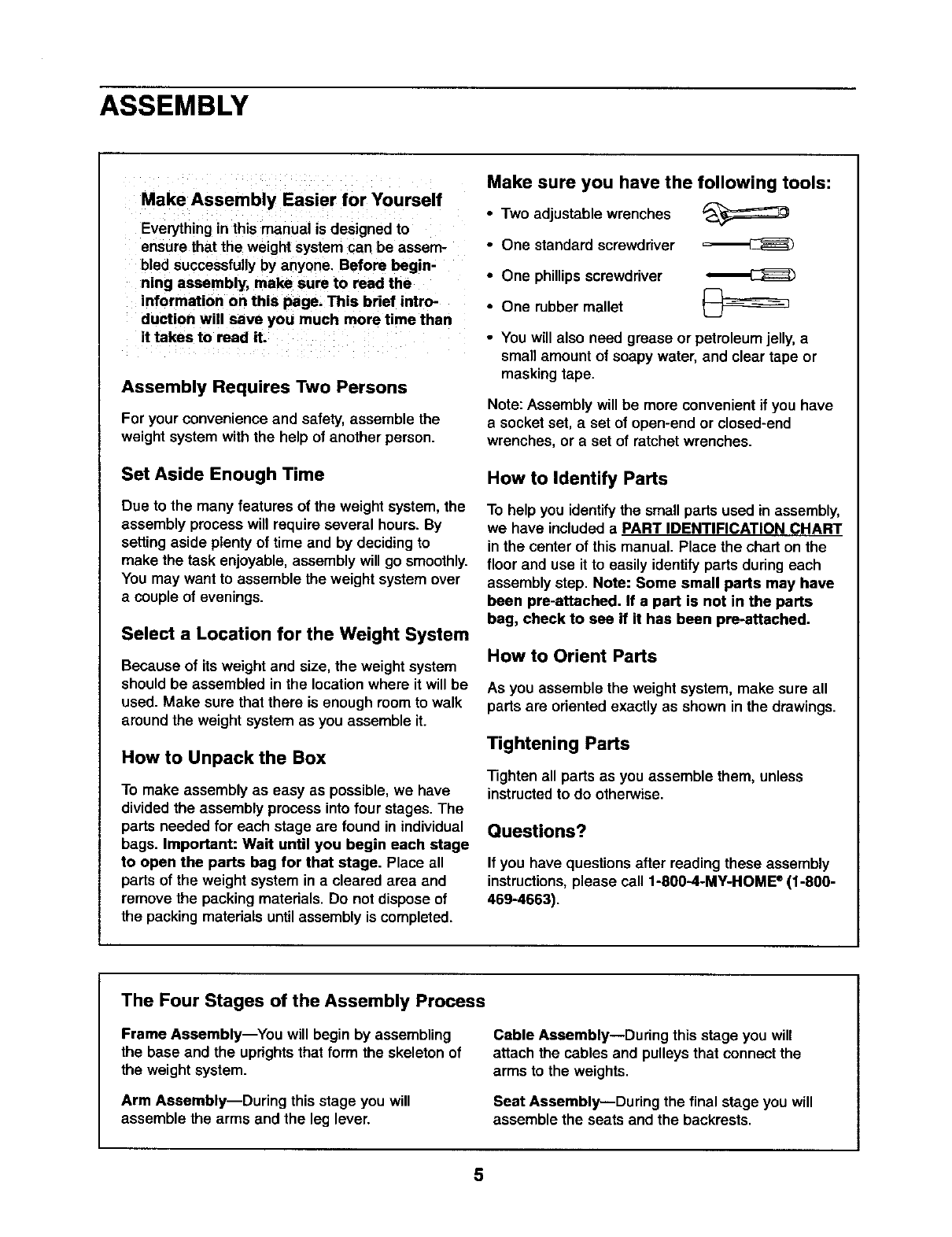

ASSEMBLY

Make Assembly Easier for Yourself

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by anyone, Before begin-

ning assembly, make sure to read the

information on this page. This brief intro-

duction will save you much more time than

it takes to read it.

Assembly Requires Two Persons

For your convenience and safety, assemble the

weight system withthe help of another person.

Set Aside Enough Time

Due to the many features of the weight system, the

assembly process will require several hours. By

setting aside plenty of time and by deciding to

make the task enjoyable, assembly will go smoothly.

You may want to assemble the weight system over

a couple of evenings.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the weight system as you assemble it.

How to Unpack the Box

To make assembly as easy as possible, we have

divided the assembly process into four stages. The

parts needed for each stage are found in individual

bags. Important: Wait until you begin each stage

to open the parts bag for that stage. Place all

parts of the weight system in a cleared area and

remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

Make sure you have the following tools:

•Two adjustable wrenches

• One standard screwdriver

•One phillips screwdriver

• One rubber mallet

• You will also need grease or petroleum jelly, a

small amount of soapy water, and clear tape or

masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

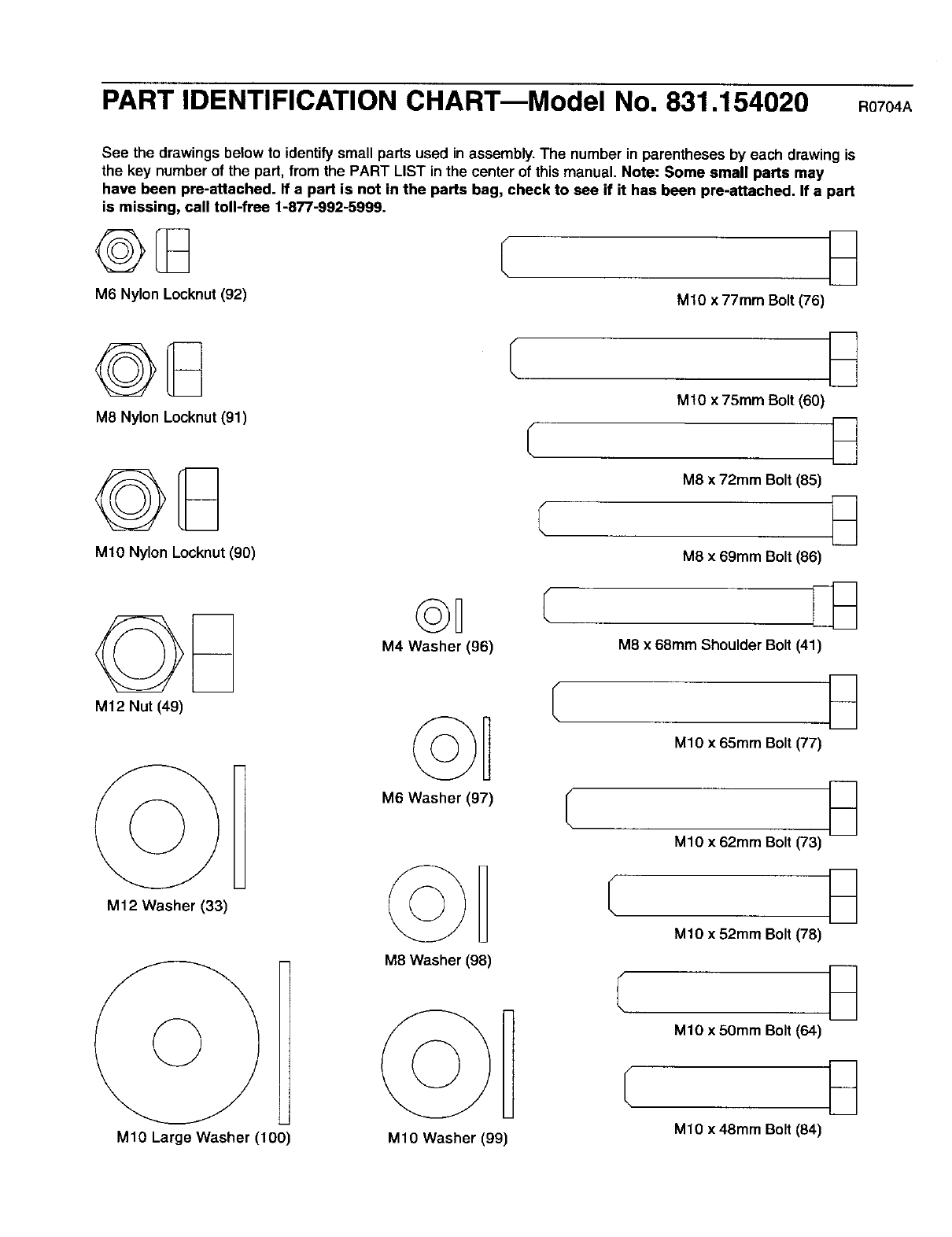

How to Identify Parts

To help you identifythe small parts used in assembly,

we have included aPART IDENTIFICATION CHART

in the center of this manual. Place the chart on the

floor and use it to easily identifyparts during each

assembly step. Note: Some small parts may have

been pre-attached. If a part is not in the parts

bag, check to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure all

pads are odented exactly as shown in the drawings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructedto do otherwise.

Questions?

If you have questions after reading these assembly

instructions, please call 1-800-A-MY-HOME" (1-800-

469-4663).

The Four Stages of the Assembly Process

Frame Assembly--You will begin by assembling

the base and the updghts that form the skeleton of

the weight system.

Arm Assembly--During this stage you will

assemble the arms and the leg lever.

Cable Assembly--During this stage you will

attach the cables and pulleys that connect the

arms to the weights.

Seat Assembly--During the final stage you will

assemble the seats and the backrests.

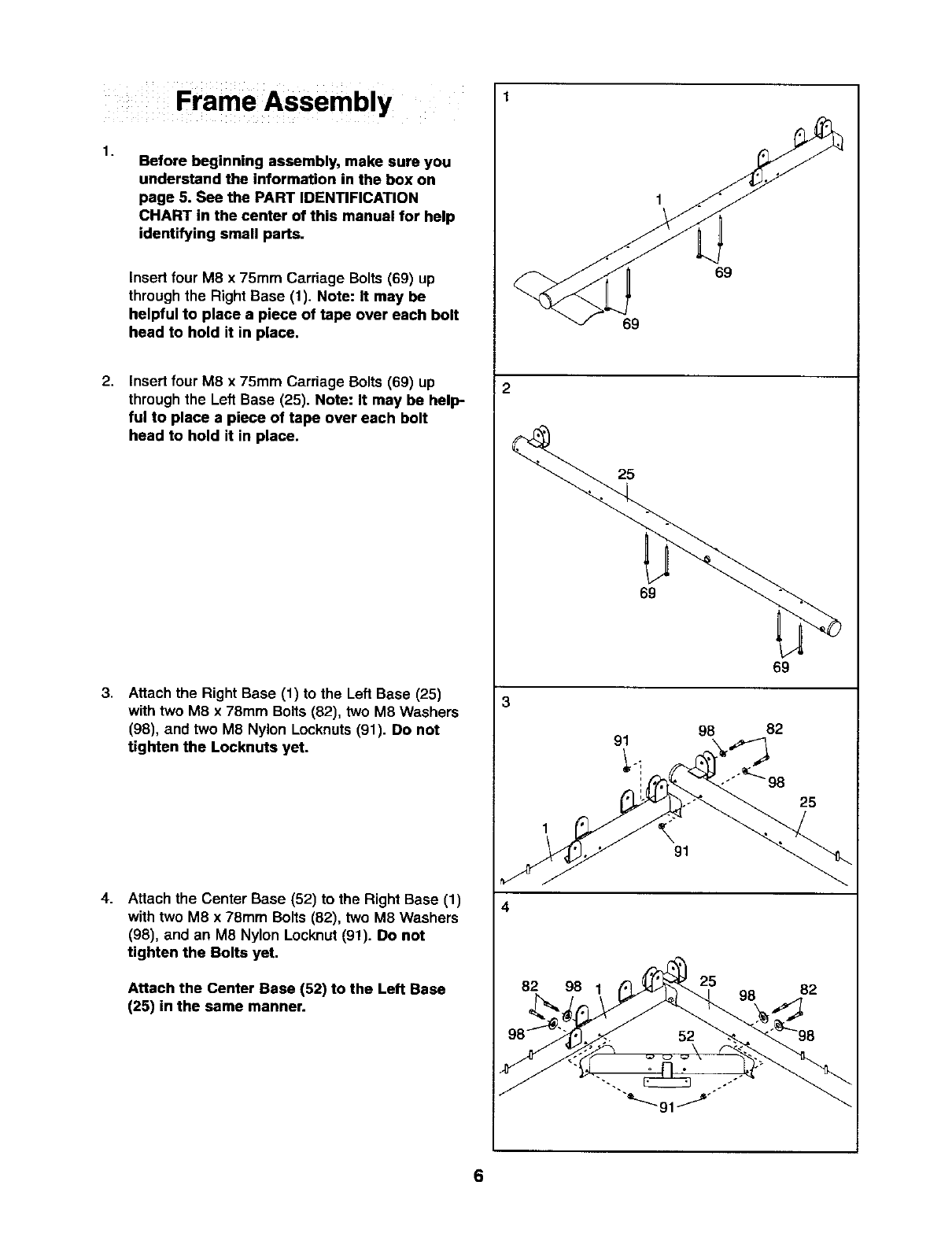

1. Before beginning assembly, make sure you

understand the information in the box on

page 5. See the PART IDENTIFICATION

CHART in the center of this manual for help

identifying small parts.

Insert four M8 x 75mm Carriage Bolts (69) up

through the Right Base (1). Note: It may be

helpful to place a piece of tape over each bolt

head to hold it in place.

2, Insert four M8 x 75mm Carriage Bolts (69) up

throughthe Left Base (25). Note: It may be help

ful to place a piece of tape over each bolt

head to hold it in place.

3. Attach the Right Base (1) to the Left Base (25)

with two M8 x78mm Bolts (82), two M8 Washers

(98), and two M6 Nylon Locknuts (91). Do not

tighten the Locknuts yet.

4. Attach the Center Base (52) to the Right Base (1)

with two M8 x 78ram Bolts (82), two M8 Washers

(98), and an M8 Nylon Locknut (91). Do not

tighten the Bolts yet.

Attach the Center Base (52) to the Left Base

(25) in the same manner.

98 1 25 98

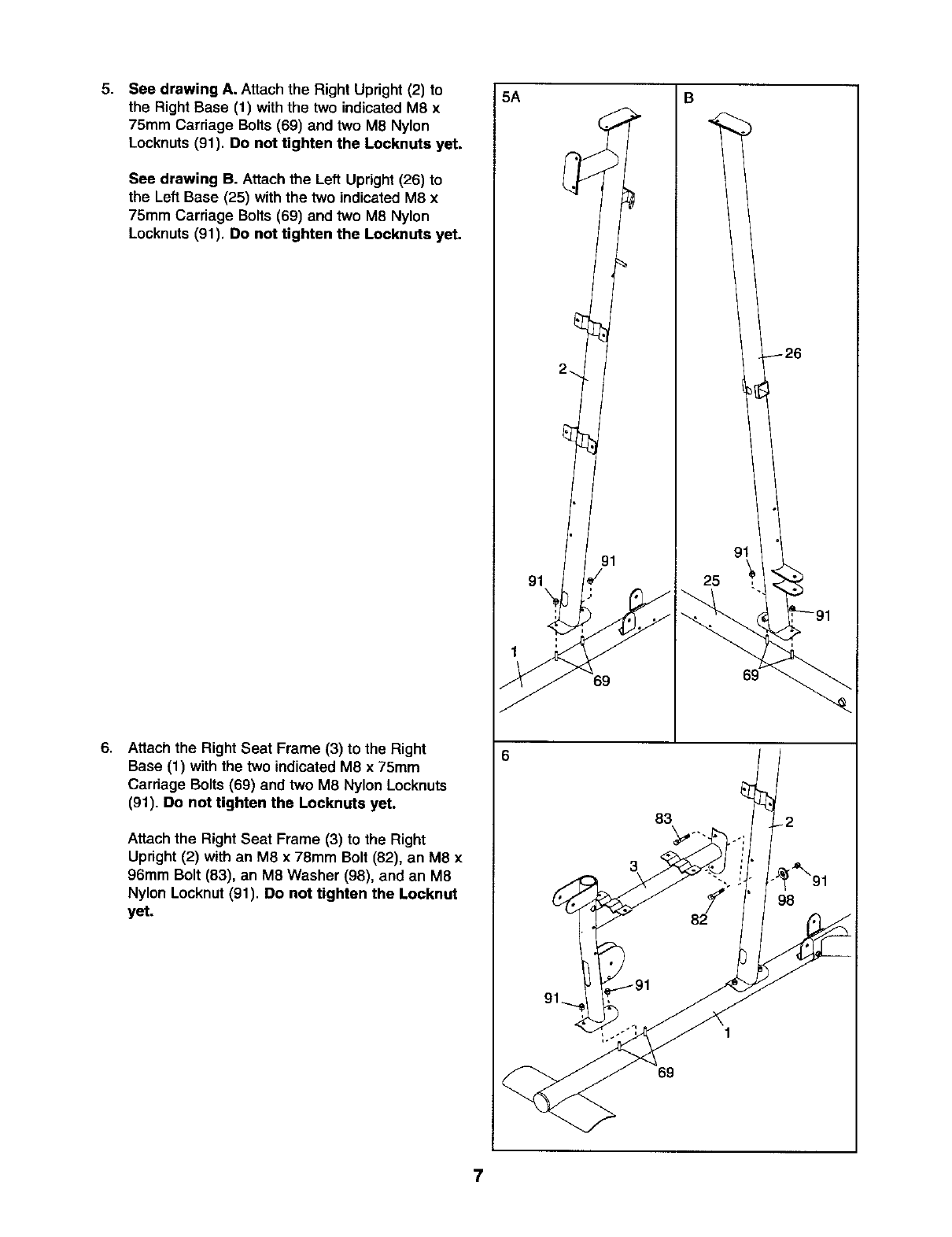

See drawing A. Attachthe Right Upright (2) to

the Right Base (1) with the two indicated M8 x

75ram Carriage Bolts (69) and two M6 Nylon

Locknuts (91). Do not tighten the Locknuts yet.

See drawing B. Attach the Left Upright (26) to

the Left Base (25) with the two indicated M8 x

75mm Carriage Bolts (69) and two M8 Nylon

Locknuts(91). Do not tighten the Locknuts yet.

Attach the Right Seat Frame (3) to the Right

Base (1) with the two indicated M8 x75mm

Carriage Bolts (69) and two M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet.

Attach the Right Seat Frame (3) to the Right

Upright (2) with an M8 x 78mm Bolt (82), an M8 x

96mm Bolt (83), an M8 Washer (98), and an M8

Nylon Locknut (91). Do not tighten the Locknut

yet.

25 91

83 .-2

3 "i

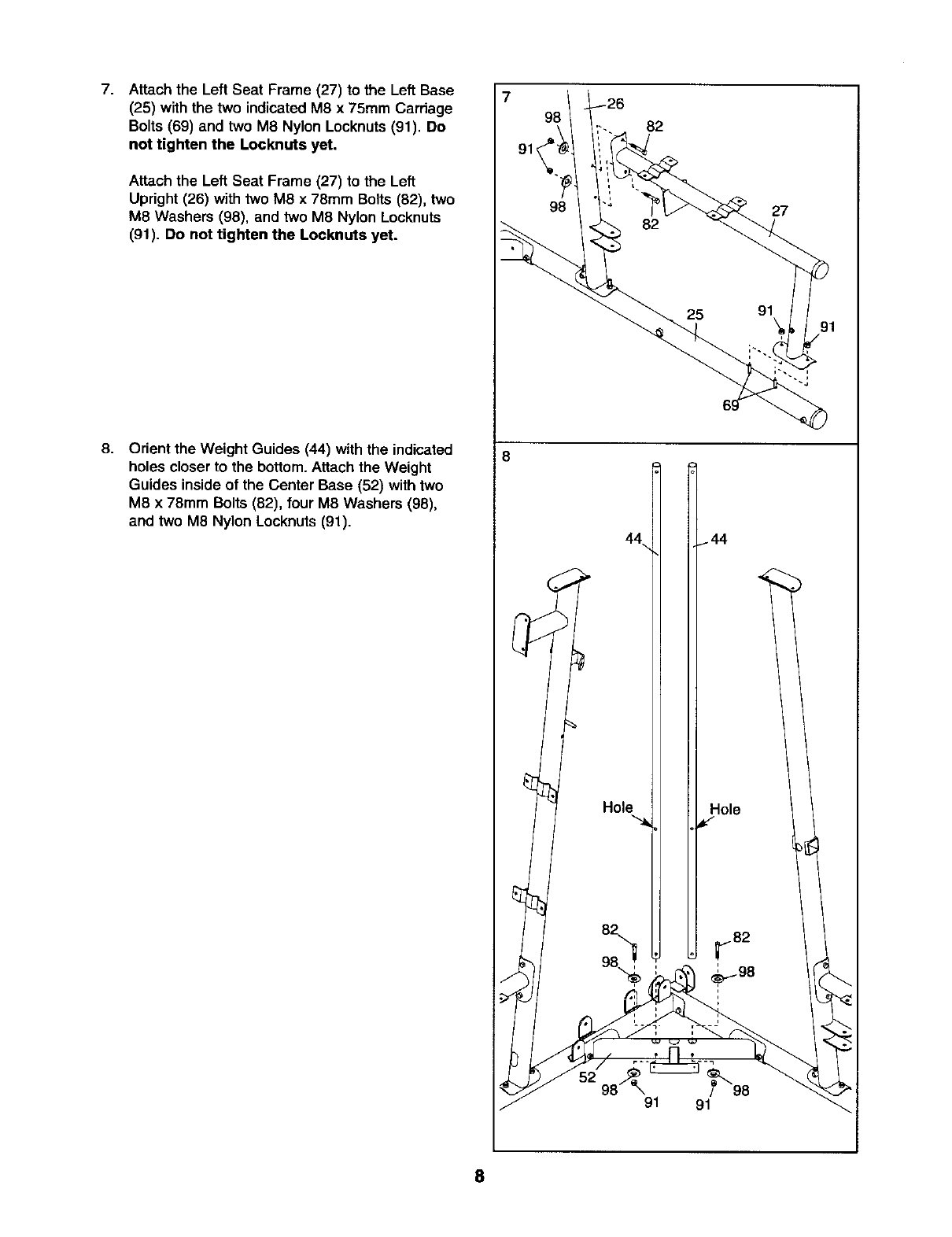

Attach the Left Seat Frame (27) to the Left Base

(25) with the two indicated M8 x 75mm Carriage

Bolts (69) and two M8 Nylon Locknuts (91). Oo

not tighten the Locknuts yet.

Attach the Left Seat Frame (27) to the Left

Upright (26) with two M8 x 78ram Bolts (82), two

M8 Washers (98), and two M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet.

Orient the Weight Guides (44) withthe indicated

holes closer to the bottom. Attach the Weight

Guides inside of the Center Base (52) with two

M8 x 78mm Bolts (82), four M8 Washers (98),

and two M8 Nylon Locknuts (91).

98 82

44... .44

Hole Hole

9. 9

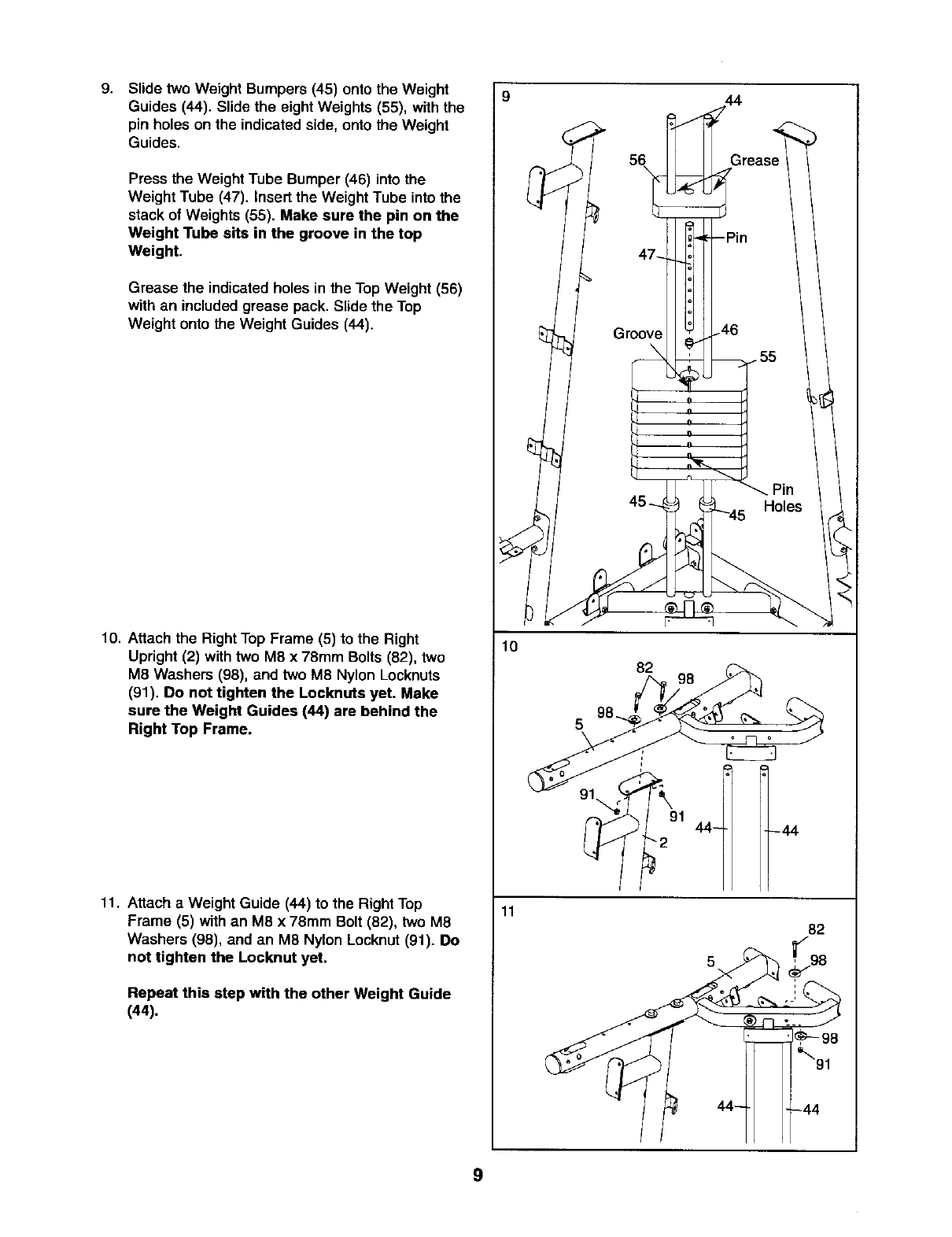

Slide two Weight Bumpers (45) onto the Weight

Guides (44). Slide the eight Weights (55), with the

pin holes on the indicated side, onto the Weight

Guides.

Press the Weight Tube Bumper (46) into the

Weight Tube (47). Insert the Weight Tube into the

stack of Weights (55). Make sure the pin on the

Weight Tube sits in the groove in the top

Weight.

Grease the indicated holes in the Top Weight (56)

with an included grease pack. Slide the Top

Weight onto the Weight Guides (44).

10. Attach the Right Top Frame (5) to the Right

Upright (2) with two M8 x 78mm Bolts (82), two

M8 Washers (98), and two M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet. Make

sure the Weight Guides (44) are behind the

Right Top Frame.

11. Attach a Weight Guide (44) to the Right Top

Frame (5) with an M8 x 78mm Bolt (82), two M8

Washers (98), and an M8 Nylon Locknut (91). Do

not tighten the Locknut yet.

Repeat this step with the other Weight Guide

(44).

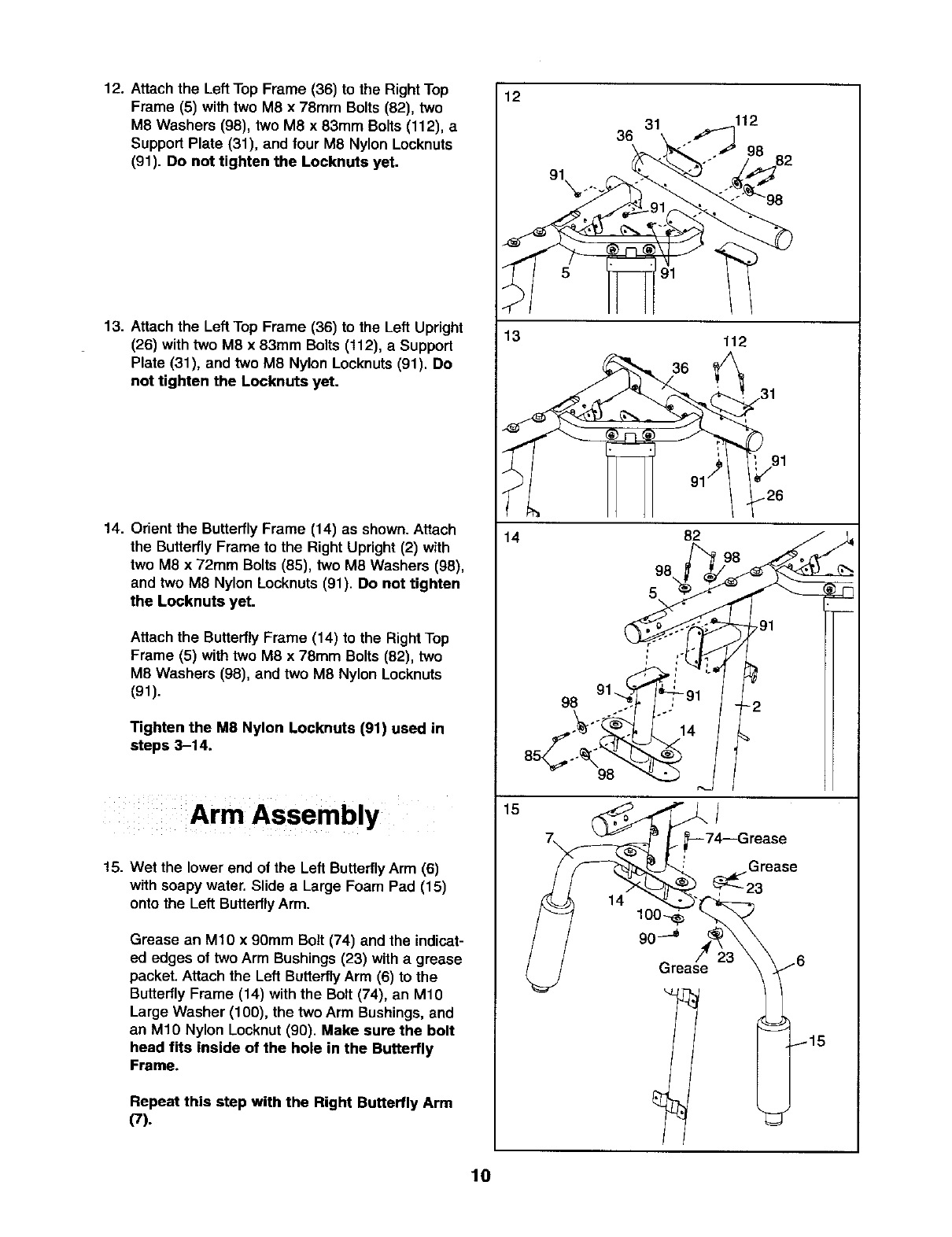

12. Attach the Left Top Frame (36) to the Right Top

Frame (5) with two M8 x 78mm Bolts (82), two

M8 Washers (98), two M8 x 83mm Bolts (112), a

Support Plate (31), and four M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet.

13. Attach the Left Top Frame (36) to the Left Upright

(26) with two M8 x 83mm Bolts (112), a Support

Plate (31), and two M8 Nylon Locknuts (91). Do

not tighten the Locknuts yet.

14. Orient the ButterflyFrame (14) as shown. Attach

the Butterfly Frame to the Right Upright (2) with

two M8 x 72mm Bolts (85), two M8 Washers (98),

and two M8 Nylon Locknuts (91). Do not tighten

the Locknuts yet.

Attach the Butterfly Frame (14) to the Right Top

Frame (5) withtwo M8 x 78mm Bolts (82), two

M8 Washers (98), and two M8 Nylon Locknuts

(91).

Tighten the M8 Nylon Locknuts (91) used in

steps 3-14.

Arm Assembly

15. Wet the lower end of the Left Butterfly Arm (6)

with soapy water. Slide aLarge Foam Pad (15)

onto the Left Butterfly Arm.

Grease an M10 x 90mm Bolt (74) and the indicat-

ed edges of two Arm Bushings (23) with a grease

packet. Attach the Left Butterfly Arm (6) to the

Butterfly Frame (14) with the Bolt (74), an M10

Large Washer (100), the two Arm Bushings, and

an M10 Nylon Locknut (90). Make sure the bolt

head fits inside of the hole in the Butterfly

Frame.

Repeat this step with the Right Butterfly Arm

(7).

31 112

36 98

5 91

13 112

91/' /:_

14 82

Grease

14 100-

90--_

Grease

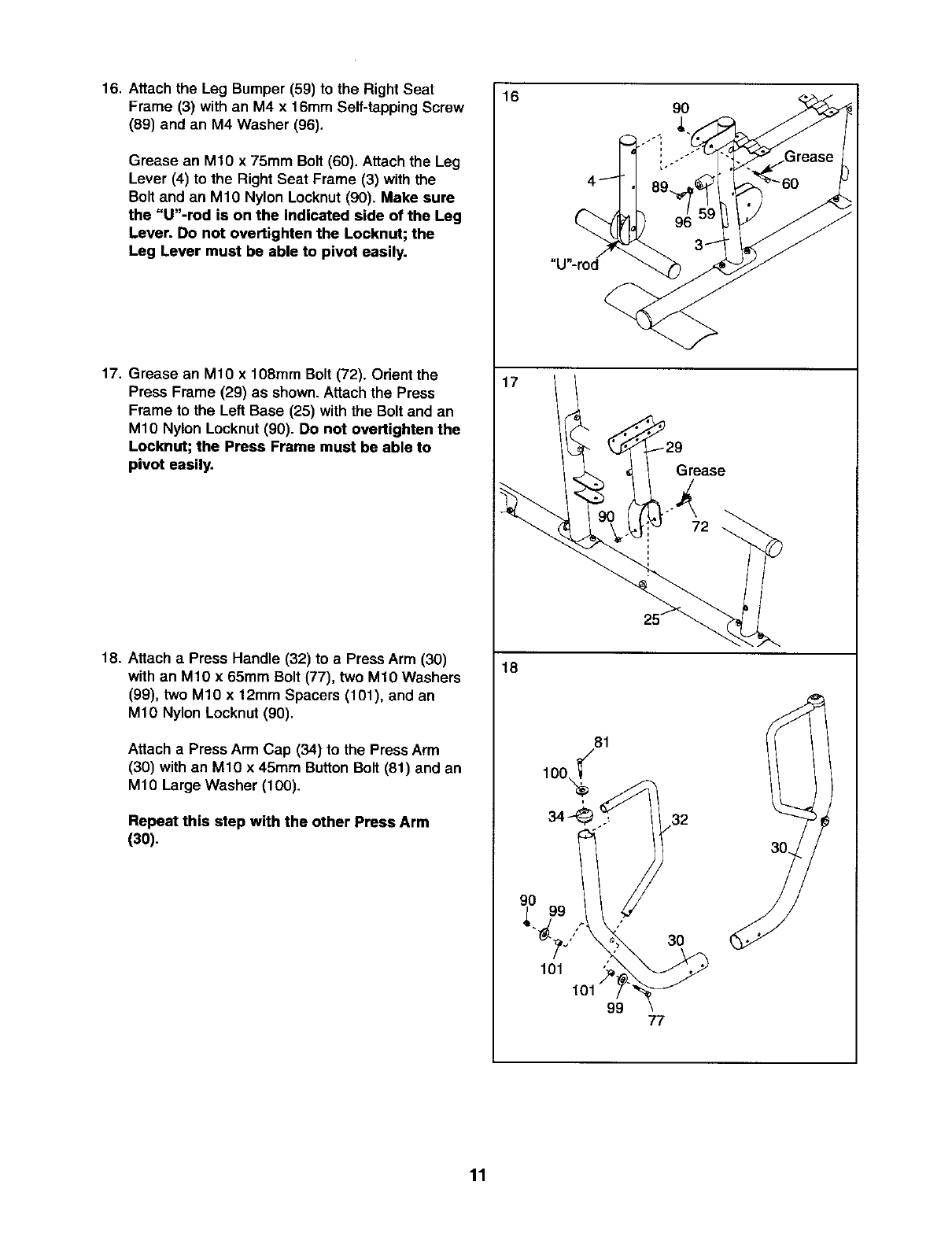

16. Attach the Leg Bumper (59) to the Right Seat

Frame (3) with an M4 x 16mm Self-tapping Screw

(89) and an M4 Washer (96).

Grease an M10 x 75mm Bolt (60). Attach the Leg

Lever (4) to the Right Seat Frame (3) with the

Bolt and an M10 Nylon Locknut (90). Make sure

the "U"-rod is on the indicated side of the Leg

Lever. Do not overtighten the Locknut; the

Leg Lever must be able to pivot easily.

17, Grease an M10 x 108mm Bolt (72). Orient the

Press Frame (29) as shown.Attach the Press

Frame to the Left Base (25) with the Bolt and an

M10 Nylon Locknut(90). Do not overtighten the

Locknut; the Press Frame must be able to

pivot easily.

18. Attach a Press Handle (32) to a Press Arm (30)

with an M10 x 65mm Bolt (77), two M10 Washers

(99), two M10 x 12mm Spacers (101), and an

M10 Nylon Locknut (90).

Attach a Press Arm Cap (34) to the Press Arm

(30) with an M10 x 45mm ButtonBolt (81) and an

M10 Large Washer (100).

Repeat this step with the other Press Arm

(30).

100

101

101 99

Grease

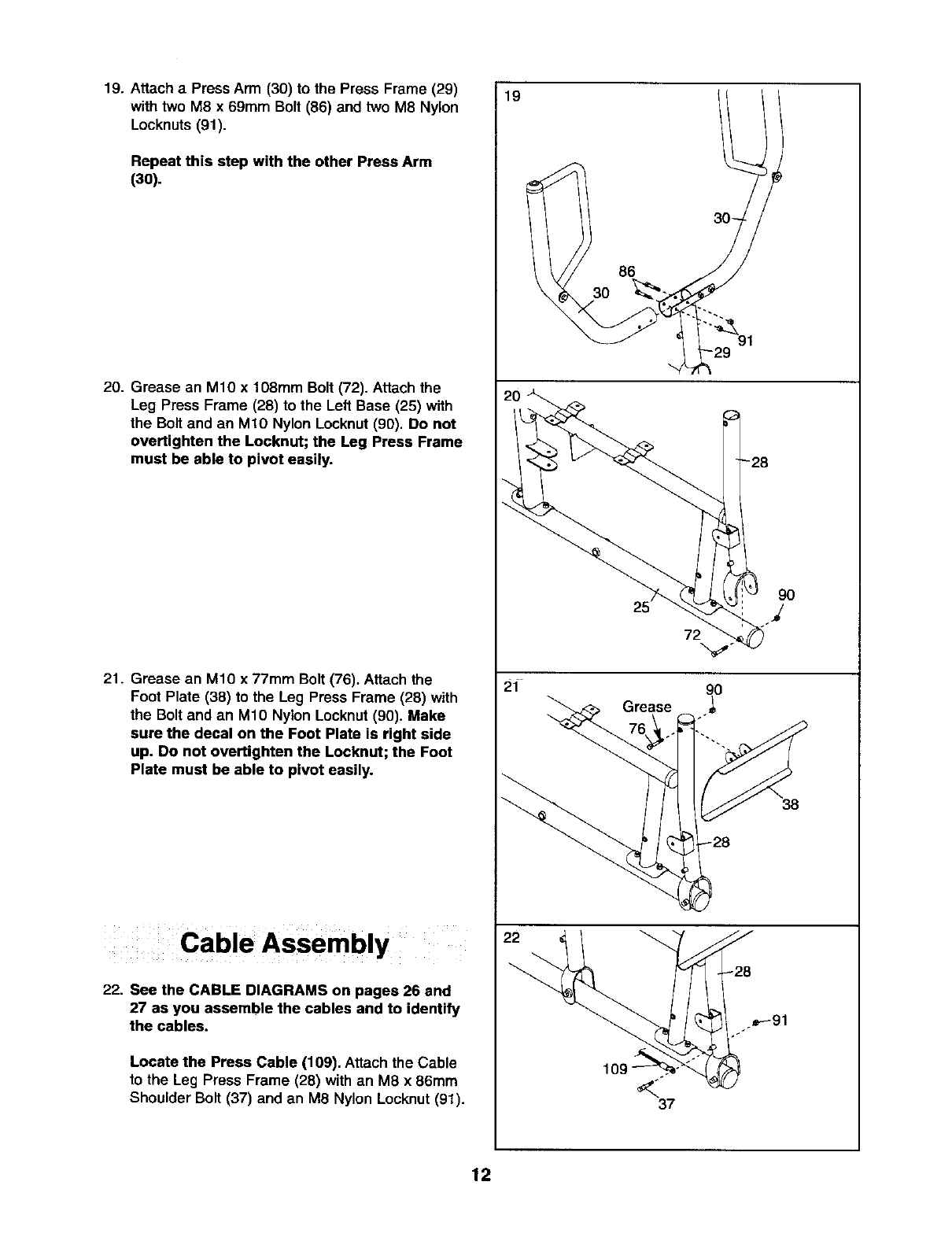

19. Attach aPress Arm (30) to the Press Frame (29)

with two M8 x69mm Bolt (86) and two M8 Nylon

Locknuts (91).

Repeat this step with the other Press Arm

(30).

20. Grease an M10 x 108mm Bolt (72). Attach the

Leg Press Frame (28) to the Left Base (25) with

the Bolt and an M10 Nylon Locknut (90). Do not

overtighten the Locknut; the Leg Press Frame

must be able to pivot easily.

21. Grease an M10 x 77mm Bolt (76). Attach the

Foot Plate (38) to the Leg Press Frame (28) with

the Bolt and an M10 Nylon Locknut (90). Make

sure the decal on the Foot Plate is right side

up. Do not overtighten the Locknut; the Foot

Plate must be able to pivot easily.

Cable Assembly

22. See the CABLE DIAGRAMS on pages 26 and

27 as you assemble the cables and to identify

the cables.

Locate the Press Cable (109). Attach the Cable

to the Leg Press Frame (28) with an M8 x 86mm

Shoulder Bolt (37) and an M8 Nylon Locknut (91).

Grease

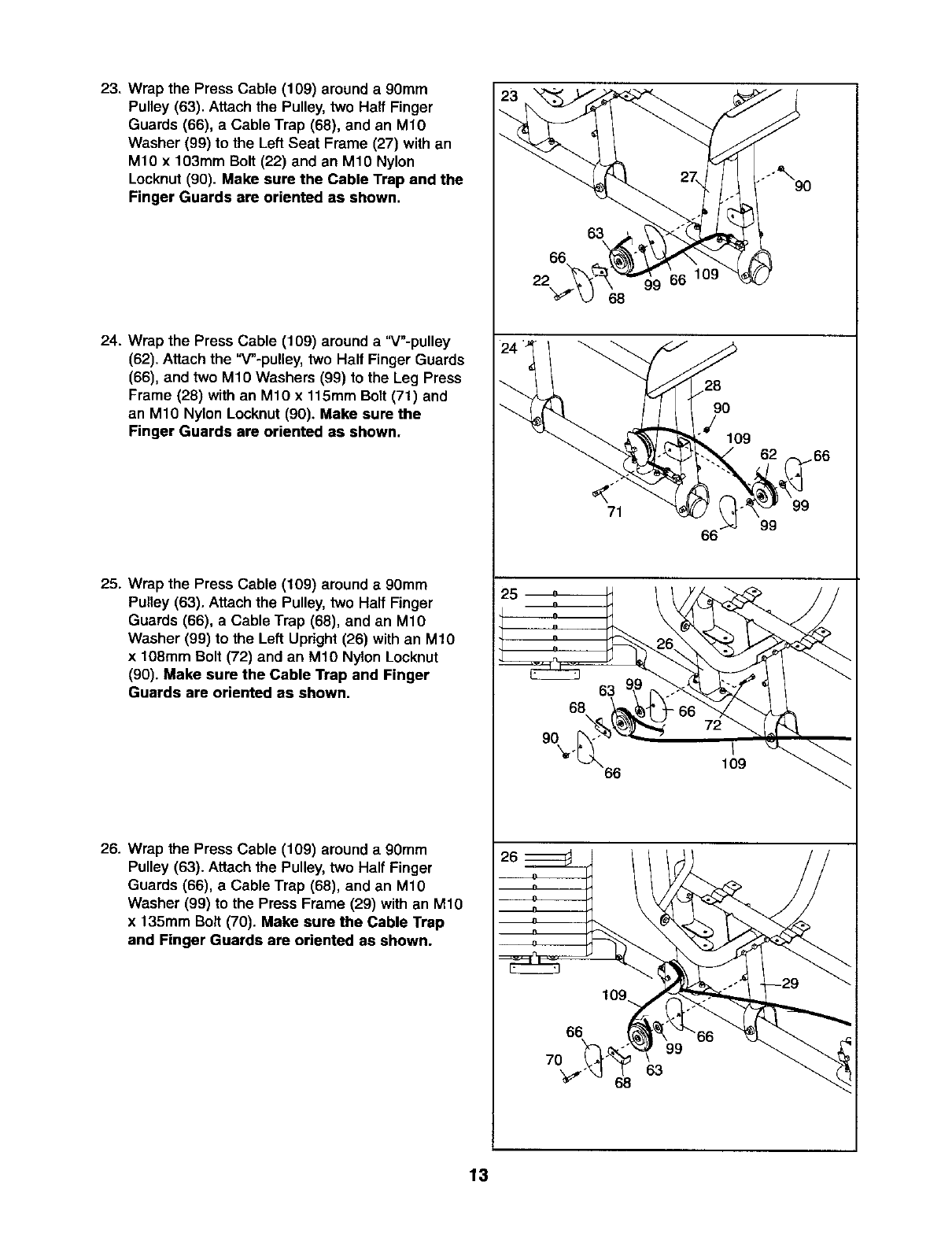

23. Wrap the Press Cable (109) around a 90mm

Pulley (63). Attach the Pulley, two Half Finger

Guards (66), a Cable Trap (68), and an M10

Washer (99) to the Left Seat Frame (27) with an

M10 x 103ram Bolt (22) and an M10 Nylon

Locknut (90). Make sure the Cable Trap and the

Finger Guards are oriented as shown.

24. Wrap the Press Cable (109) around a "V"-pulley

(62). Attach the "V_-pulley, two Half Finger Guards

(66), and two M10 Washers (99) to the Leg Press

Frame (28) with an M10 x 115mm Bolt (71) and

an M10 Nylon Locknut (90). Make sure the

Finger Guards are oriented as shown.

25. Wrap the Press Cable (109) around a 90mm

Pulley (63). Attach the Pulley,two Half Finger

Guards (66), a Cable Trap (68), and an M10

Washer (99) to the Left Upright (26) with an M10

x 108mm Bolt (72) and an M1O Nylon Locknut

(90). Make sure the Cable Trap and Finger

Guards are oriented as shown,

26. Wrap the Press Cable (109) around a 90mm

Pulley (63). Attach the Pulley, two Half Finger

Guards (66), a Cable Trap (68), and an M10

Washer (99) to the Press Frame (29) with an M10

x135mm Bolt (70). Make sure the Cable Trap

and Finger Guards are oriented as shown.

"90

71 _ '_"_99 99

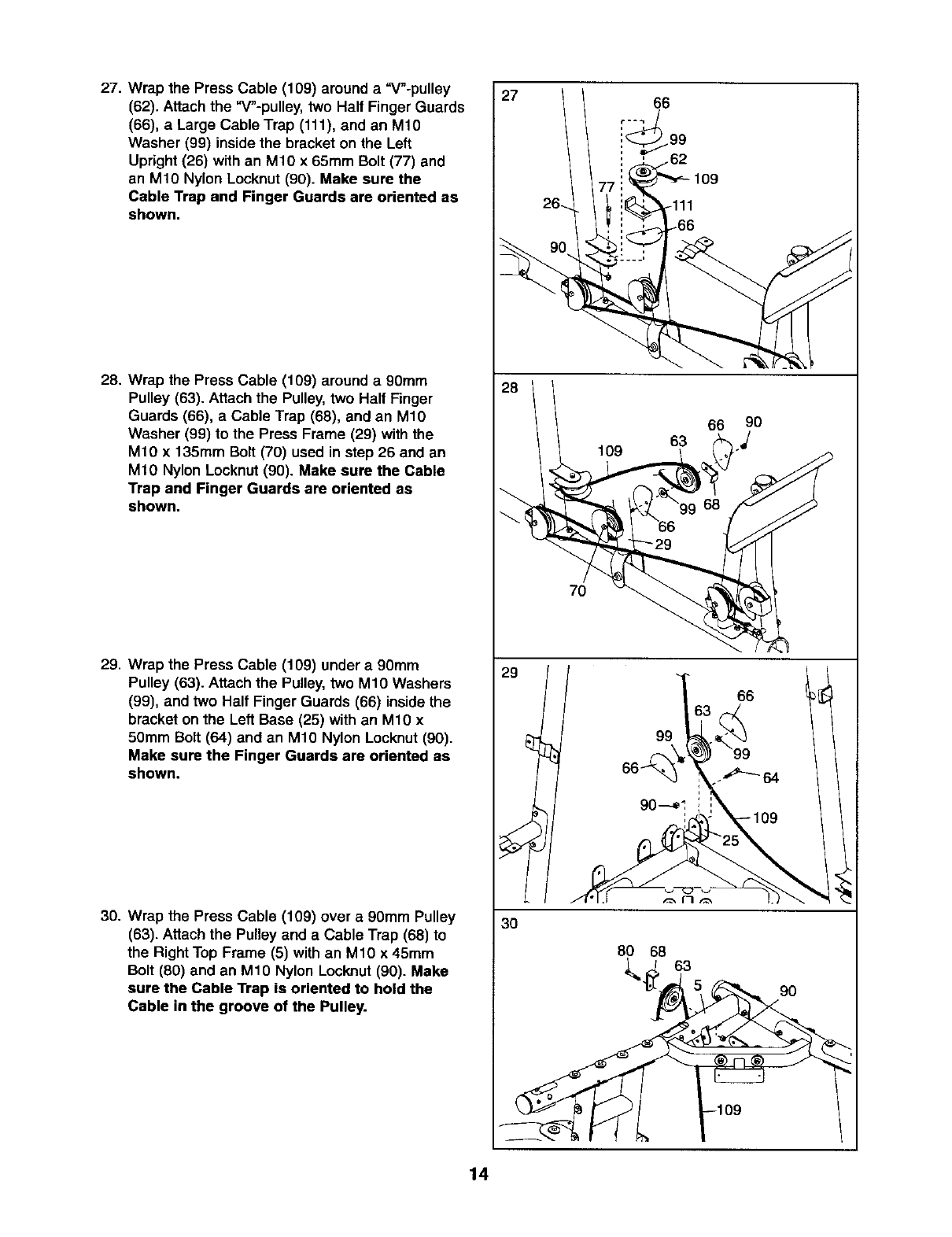

27. Wrap the Press Cable (109) around a "W-pulley

(62). Attach the "W-pulley, two Half Finger Guards

(66), a Large Cable Trap (111), and an M10

Washer (99) inside the bracket on the Left

Upright (26) with an M10 x 65mm Bolt (77) and

an MIO Nylon Locknut (90). Make sure the

Cable Trap and Finger Guards are oriented as

shown.

28. Wrap the Press Cable (109) around a90mm

Pulley (63). Attach the Pulley, two Half Finger

Guards (66), a Cable Trap (68), and an M10

Washer (99) to the Press Frame (29) with the

M10 x 135mm Bolt (70) used in step 26 and an

M10 Nylon Locknut (90). Make sure the Cable

Trap and Finger Guards are oriented as

shown.

29. Wrap the Press Cable (109) under a 90mm

Pulley (63). Attach the Pulley,two M10 Washers

(99), and two Half Finger Guards (66) insidethe

bracket on the Left Base (25) with an M10 x

50mm Bolt (64) and an M10 Nylon Locknut(90).

Make sure the Finger Guards are oriented as

shown.

30. Wrap the Press Cable (109) over a 90mm Pulley

(63). Attach the Pulley and a Cable Trap (68) to

the Right Top Frame (5) with an M10 x 45mm

Bolt (80) and an M10 Nylon Lock,nut (90). Make

sure the Cable Trap is oriented to hold the

Cable in the groove of the Pulley.

27 66

i 99

, i

109

63 66 90

80 68

_63

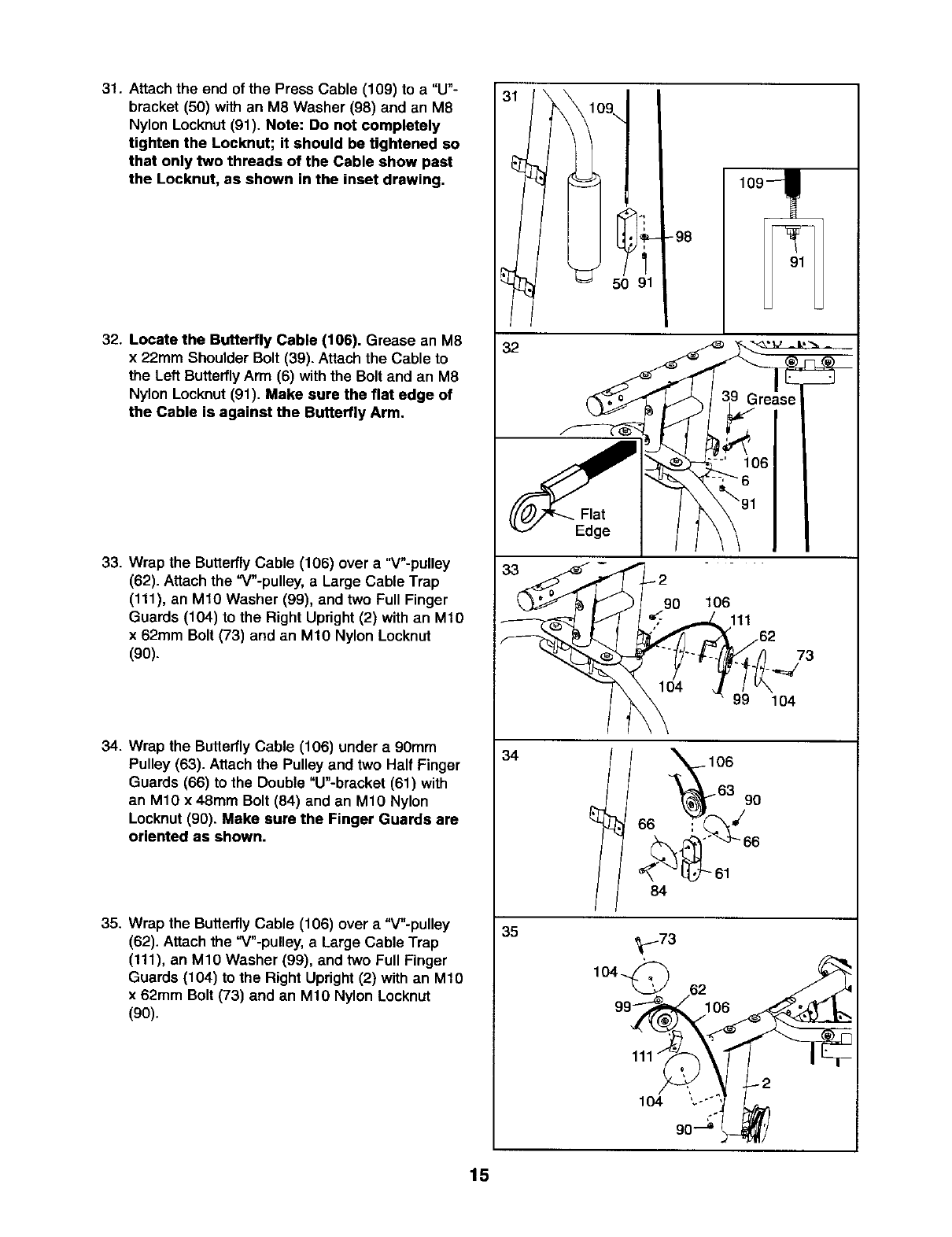

3!. Attach the end of the Press Cable (109) to a "U"-

bracket (50) with an M8 Washer (98) and an M8

Nylon Locknut (91). Note: Do not completely

tighten the Locknut; it should be tightened so

that only two threads of the Cable show past

the Locknut, as shown in the inset drawing.

32. Locate the Butterfly Cable (106). Grease an M8

x22mm Shoulder Bolt (39). Attach the Cable to

the Left ButterflyArm (6) withthe Bolt and an M8

Nylon Locknut (91). Make sure the flat edge of

the Cable is against the Butterfly Arm.

33. Wrap the Butterfly Cable (106) over a "V"-pulley

(62). Attach the "V"-pulley, a Large Cable Trap

(111), an M10 Washer (99), and two Full Finger

Guards (104) to the Right Upright (2) with an M10

x 62mm Bolt (73) and an M10 Nylon Locknut

(9O).

34. Wrap the Butterfly Cable (106) under a 90mm

Pulley (63). Attach the Pulley and two Half Finger

Guards (66) to the Double "U"-bracket (61) with

an M10 x 48mm Bolt (84) and an M10 Nylon

Locknut (90). Make sure the Finger Guards are

oriented as shown.

35. Wrap the Butterfly Cable (106) over a "V"-pulley

(62). Attach the "V"-pulley, a Large Cable Trap

(111), an M10 Washer (99), and two Full Finger

Guards (104) to the Right Upright (2) with an M10

x 62mm Bolt (73) and an M10 Nylon Locknut

(90).

Flat

Edge

90 106111

99 104

--_106

_63 90

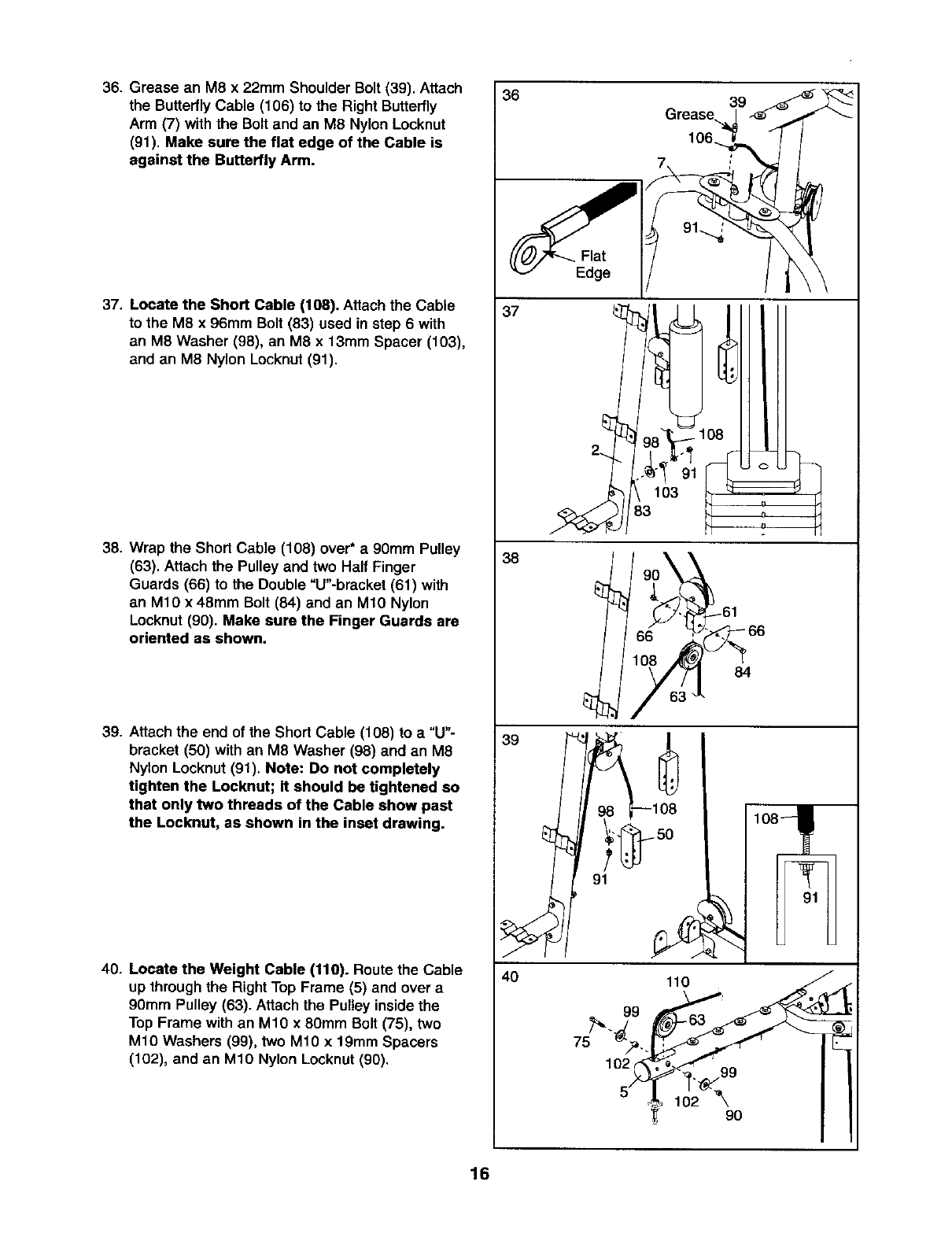

36. Grease an M8 x22mm Shoulder Bolt (39). Attach

the ButterflyCable (106) to the Right Butterfly

Arm (7) with the Bolt and an M8 Nylon Locknut

(91). Make sure the flat edge of the Cable is

against the Butterfly Arm.

37. Locate the Short Cable (108). Attach the Cable

to the M8 x 96mm Bolt (83) used in step 6 with

an M8 Washer (98), an M8 x 13ram Spacer (103),

and an M8 Nylon Locknut(91).

38. Wrap the Short Cable (108) over* a 90mm Pulley

(63). Attach the Pulley and two Half Finger

Guards (66) to the Double "U"-bracket (61) with

an M10 x 48mm Bolt (84) and an M10 Nylon

Locknut (90). Make sure the Finger Guards are

oriented as shown.

39. Attach the end of the Short Cable (108) to a "U"-

bracket (50) with an M8 Washer (98) and an M8

Nylon Locknut (91). Note: Do not completely

tighten the Locknut; it should be tightened so

that only two threads of the Cable show past

the Locknut, as shown in the inset drawing.

40. Locate the Weight Cable (110). Route the Cable

up throughthe Right Top Frame (5) and over a

90mm Pulley (63). Attach the Pulley insidethe

Top Frame with an M10 x 80mm Bolt (75), two

M10 Washers (99), two M10 x 19mm Spacers

(102), and an M10 Nylon Locknut (90).

2-_

Grease._

91...4

_0, [J

38 1

--108

1o,

110

75 _. _f_'_ r

102 99

5162-\ 90

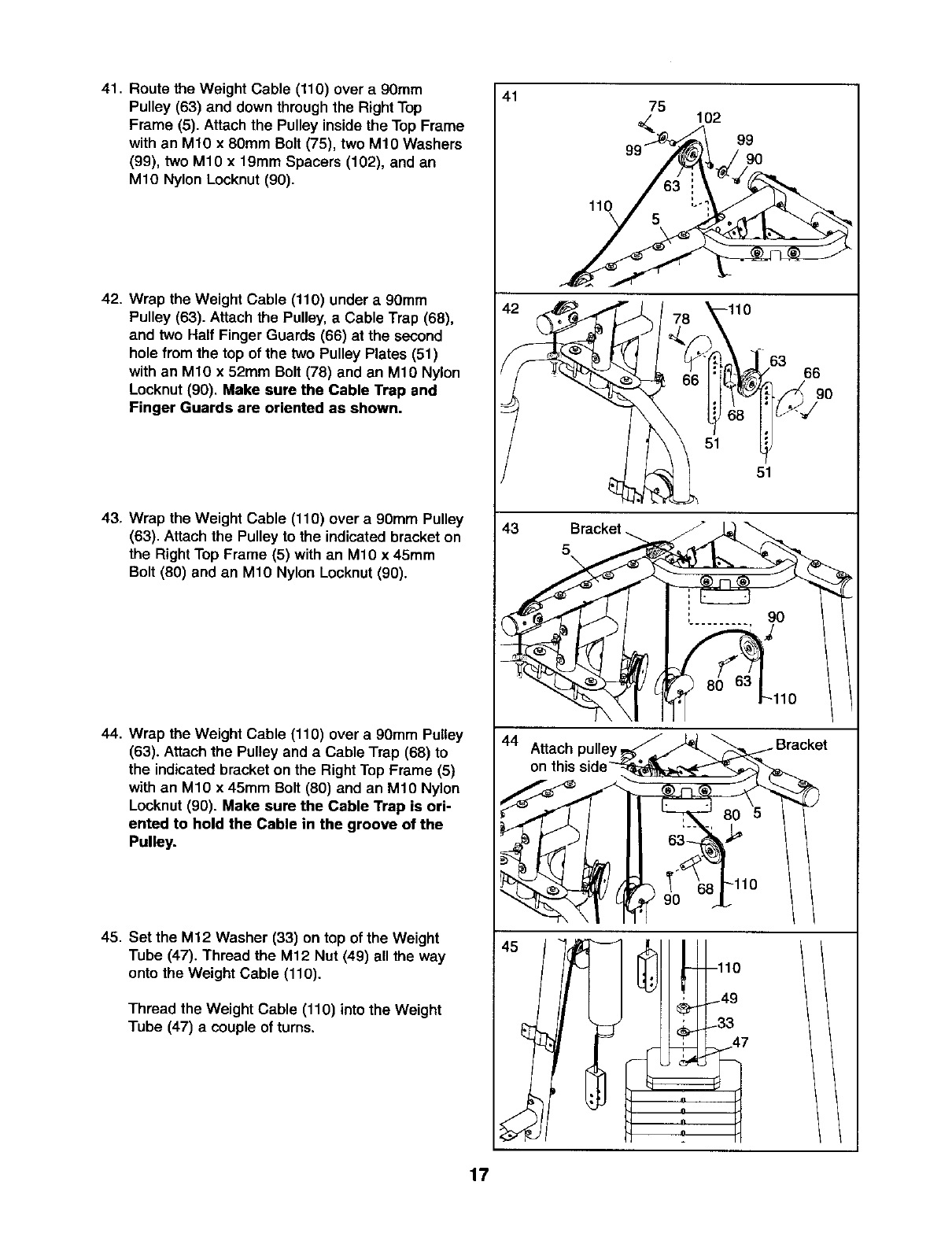

41. Route the Weight Cable (110) over a 90mm

Pulley (63) and down through the Right Top

Frame (5). Attach the Pulley insidethe Top Frame

with an M10 x 80mm Bolt (75), two M10 Washers

(99), two M10 x 19mm Spacers (102), and an

M10 Nylon Locknut (90).

42. Wrap the Weight Cable (110) under a 90mm

Pulley (63). Attach the Pulley, aCable Trap (68),

and two Half Finger Guards (66) at the second

hole from the top of the two Pulley Plates (51)

with an M10 x 52ram Bolt (78) and an M10 Nylon

Locknut(90). Make sure the Cable Trap and

Finger Guards are oriented as shown.

43. Wrap the Weight Cable (110) over a 90mm Pulley

(63). Attach the Pulley to the indicated bracket on

the Right Top Frame (5) with an M10 x 45ram

Bolt (80) and an M10 Nylon Locknut (90).

44. Wrap the Weight Cable (110) over a90mm Pulley

(63). Attach the Pulley and a Cable Trap (68) to

the indicated bracket on the Right Top Frame (5)

with an M10 x 45mm Bolt (80) and an M10 Nylon

Locknut(90). Make sure the Cable Trap is ori-

ented to hold the Cable in the groove of the

Pulley.

45. Set the M12 Washer (33) on top of the Weight

Tube (47). Thread the M12 Nut (49) all the way

onto the Weight Cable (110).

Thread the Weight Cable (110) into the Weight

Tube (47) a couple of turns.

110

43 Bracket

44 A_ach _y!

102 99

51 f

110

•110

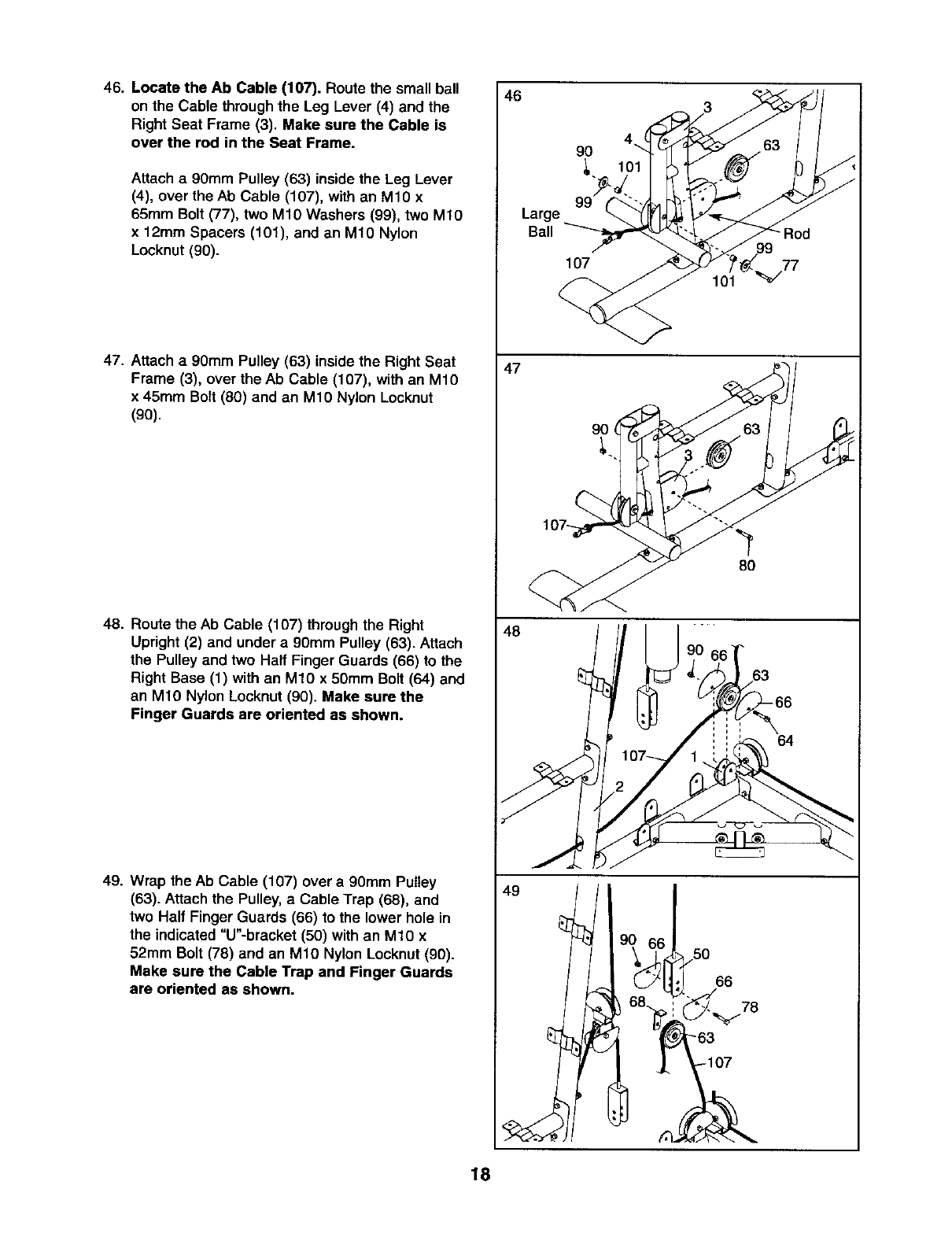

46. Locate the Ab Cable (107). Route the small ball

on the Cable throughthe Leg Lever (4) and the

Right Seat Frame (3). Make sure the Cable is

over the rod in the Seat Frame.

Attach a 90mm Pulley (63) insidethe Leg Lever

(4), over the Ab Cable (107), with an M10 x

65ram Bolt (77), two M10 Washers (99), two M10

x 12ram Spacers (101), and an M10 Nylon

Locknut (90).

47. Attach a 90mm Pulley (63) insidethe Right Seat

Frame (3), over the Ab Cable (107), with an M10

x 45ram Bolt (80) and an M10 Nylon Locknut

(90).

48. Route the Ab Cable (107) throughthe Right

Upright (2) and under a 90mm Pulley (63). Attach

the Pulley and two Half Finger Guards (66) to the

Right Base (1) with an M10 x 50mm Bolt (64) and

an M10 Nylon Locknut (90). Make sure the

Finger Guards are oriented as shown,

49. Wrap the Ab Cable (107) over a 90mm Pulley

(63). Attach the Pulley, a Cable Trap (68), and

two Half Finger Guards (66) to the lower hole in

the indicated "U"-bracket (50) with an M10 x

52mm Bolt (78) and an M10 Nylon Locknut (90).

Make sure the Cable Trap and Finger Guards

are oriented as shown.

Large

Ball

107

101

.78

-63

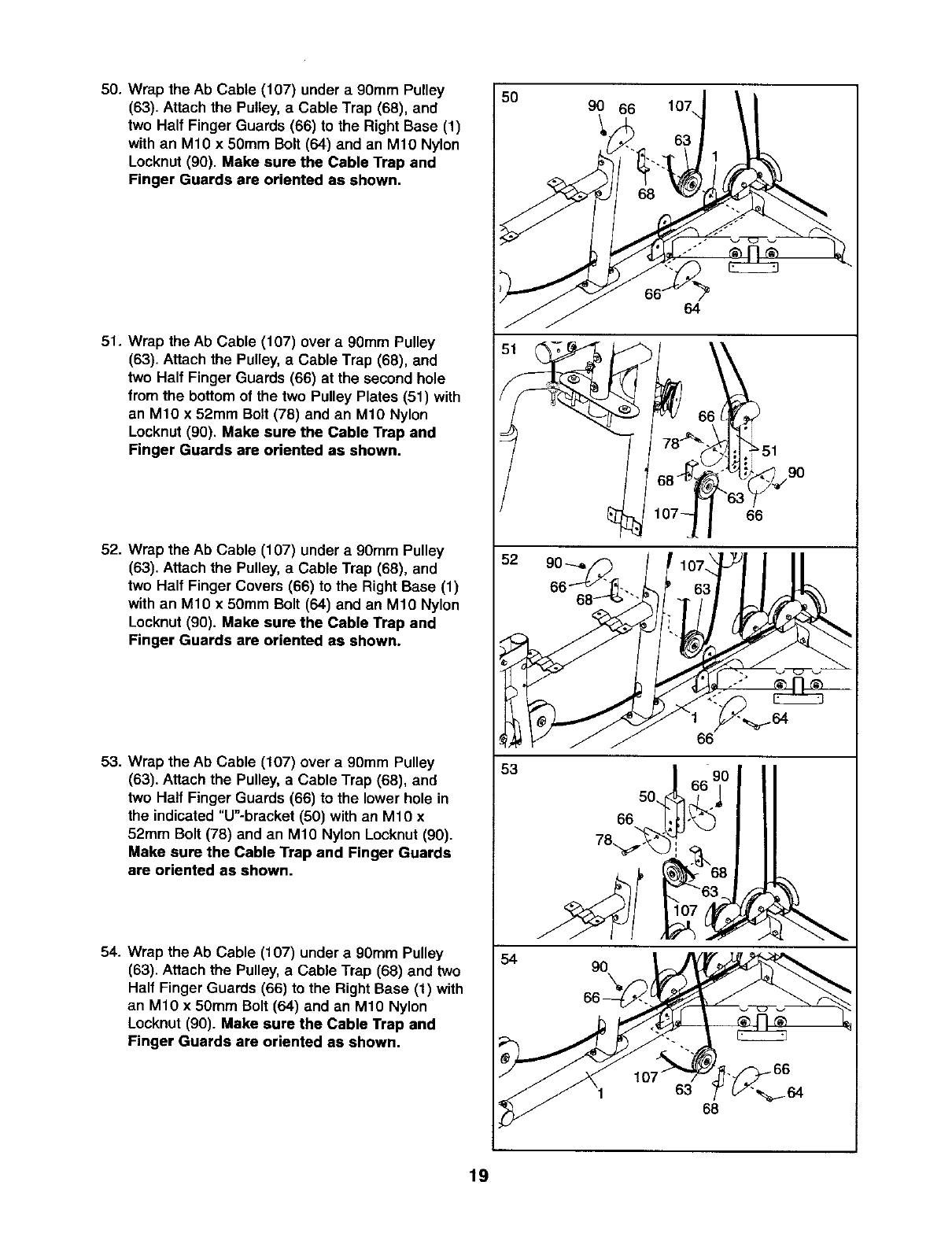

50. Wrap the Ab Cable (107) under a 90mm Pulley

(63). Attach the Pulley, a Cable Trap (68), and

two Half Finger Guards (66) to the Right Base (1)

with an M10 x 50ram Bolt (64) and an M10 Nylon

Locknut(90). Make sure the Cable Trap and

Finger Guards are oriented as shown,

51. Wrap the Ab Cable (107) over a 90mm Pulley

(63). Attach the Pulley, a Cable Trap (68), and

two Half Finger Guards (66) at the second hole

from the bottom of the two Pulley Plates (51) with

an M10 x 52mm Bolt (78) and an M10 Nylon

Locknut(90). Make sure the Cable Trap and

Finger Guards are oriented as shown.

52. Wrap the Ab Cable (107) under a 90mm Pulley

(63). Attach the Pulley, a Cable Trap (68), and

two Half Finger Covers (66) to the Right Base (1)

with an M10 x 50mm Bolt (64) and an M10 Nylon

Locknut (90). Make sure the Cable Trap and

Finger Guards are oriented as shown.

53. Wrap the Ab Cable (107) over a 90mm Pulley

(63). Attach the Pulley, a Cable Trap (68), and

two Half Finger Guards (66) to the lower hole in

the indicated "U"-bracket (50) with an M10 x

52ram Bolt (78) and an M10 Nylon Locknut (90).

Make sure the Cable Trap and Finger Guards

are oriented as shown.

54. Wrap the Ab Cable (107) under a90ram Pulley

(63). Attach the Pulley,a Cable Trap (68) and two

Half Finger Guards (66) to the Right Base (1) with

an M10 x 50ram Bolt (64) and an M10 Nylon

Locknut (90). Make sure the Cable Trap and

Finger Guards are oriented as shown.

90 66

78\

78_

107-

"_,_j., 90

63 66

.64

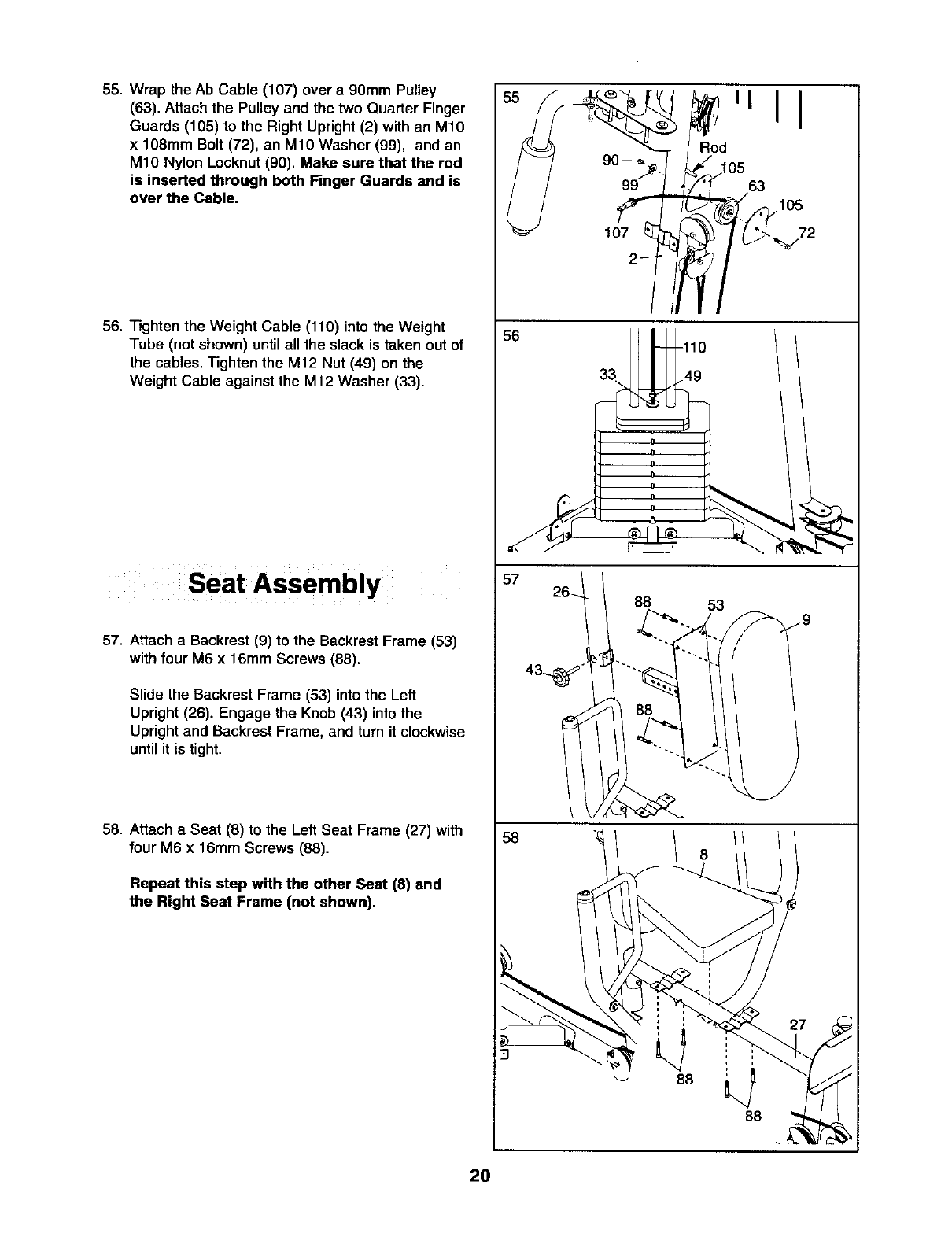

55. Wrap the Ab Cable (107) over a 90mm Pulley

(63). Attach the Pulley and the two Quarter Finger

Guards (105) to the Right Upright (2) with an M10

x 108mm Bolt (72), an M10 Washer (99), and an

M10 Nylon Locknut(90). Make sure that the rod

is inserted through both Finger Guards and is

over the Cable.

56. Tighten the Weight Cable (110) into the Weight

Tube (not shown) until all the slack is taken out of

the cables. Tighten the M12 Nut (49) on the

Weight Cable against the M12 Washer (33).

Seat Assembly

57. Attach a Backrest (9) to the Backrest Frame (53)

with four M6 x 16mm Screws (88).

Slide the Backrest Frame (53) into the Left

Upright (26). Engage the Knob (43) into the

Upright and Backrest Frame, and turn it clockwise

until it is tight.

58. Attach aSeat (8) to the Left Seat Frame (27) with

four M6 x 16ram Screws (88).

Repeat this step with the other Seat (8) and

the Right Seat Frame (not shown).

99 L,..,_r 63

1 _-'.J._72

33_ 11°

88 53

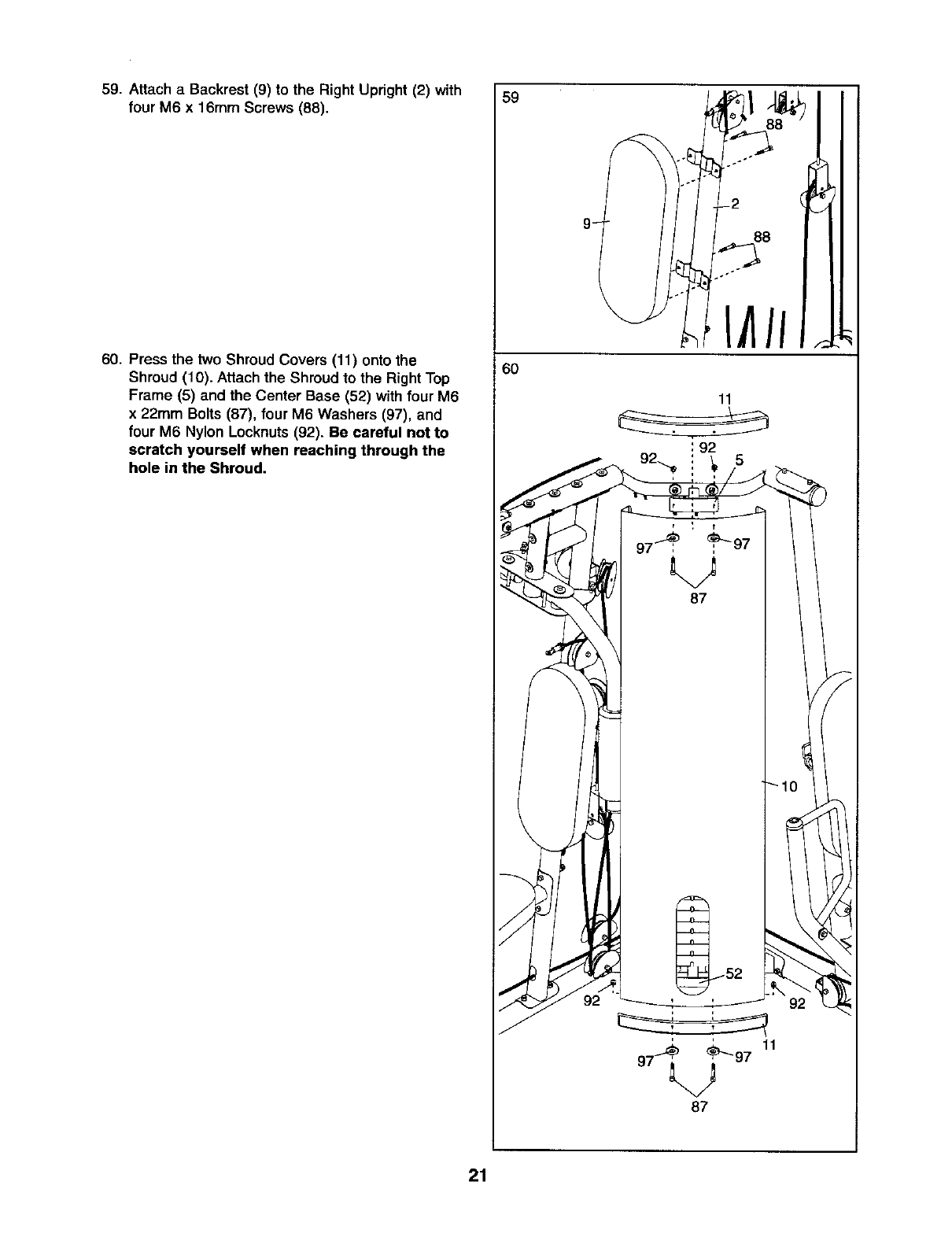

59. Attach a Backrest (9) to the Right Upright (2) with

four M6 x 16ram Screws (88).

60. Press the two Shroud Covers (11) onto the

Shroud (10). Attach the Shroud to the Right Top

Frame (5) and the Center Base (52) with four M6

x 22mm Bolts (87), four M6 Washers (97), and

four M6 Nylon Locknuts (92). Be careful not to

scratch yourself when reaching through the

hole in the Shroud.

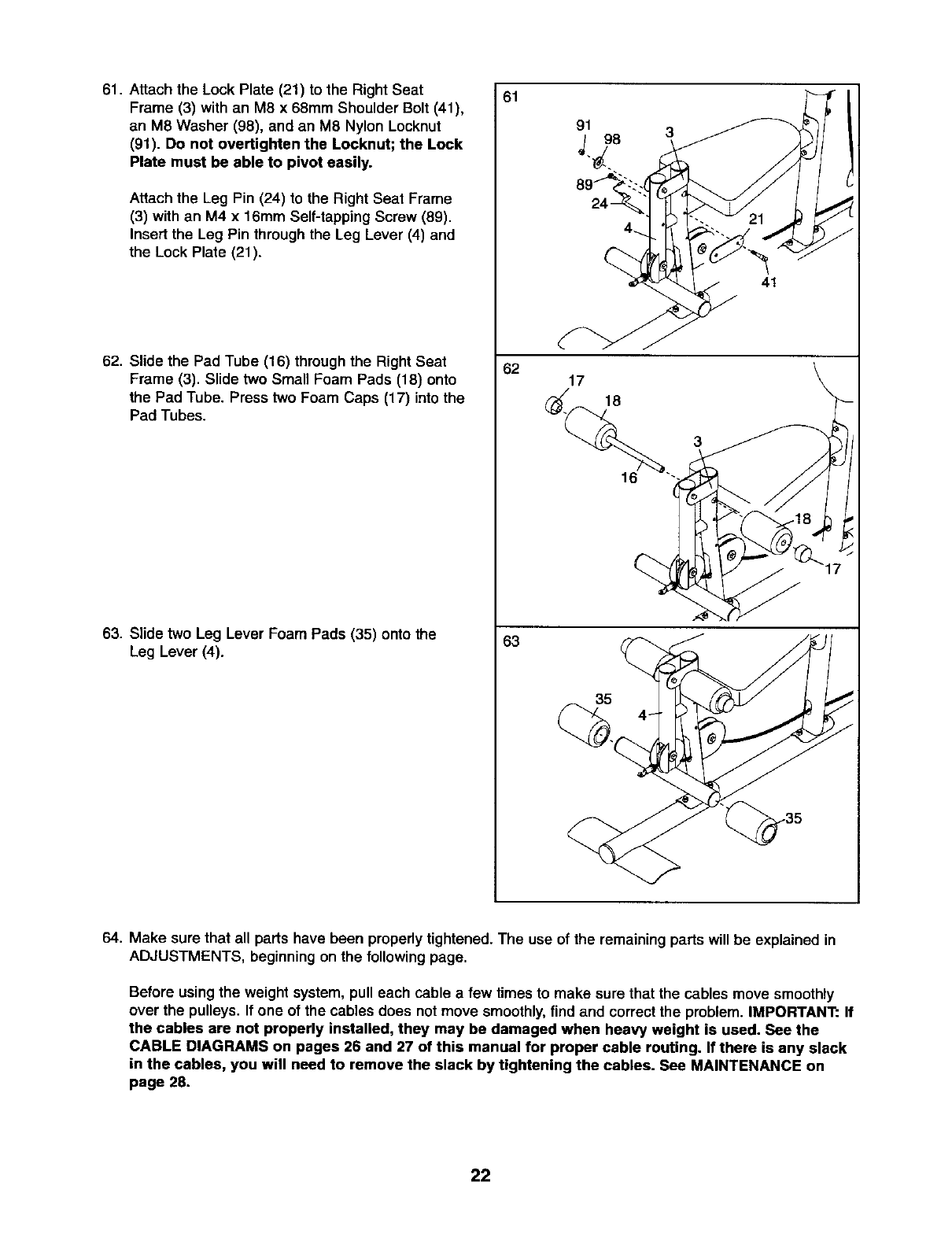

61. Attach the Lock Plate (21) to the Right Seat

Frame (3) with an M8 x 68mm Shoulder Bolt (41),

an M8 Washer (98), and an M8 Nylon Locknut

(91). Do not overtighten the Locknut; the Lock

Plate must be able to pivot easily.

Attach the Leg Pin (24) to the Right Seat Frame

(3) with an M4 x 16mm Self-tapping Screw (89).

Insert the Leg Pin through the Leg Lever (4) and

the Lock Plate (21).

62. Slide the Pad Tube (16) throughthe Right Seat

Frame (3). Slide two Small Foam Pads (18) onto

the Pad Tube. Press two Foam Caps (17) into the

Pad Tubes.

63. Slide two Leg Lever Foam Pads (35) onto the

Leg Lever (4).

64. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

ADJUSTMENTS, beginning on the following page.

Before usingthe weight system, pull each cable afew times to make sure that the cables move smoothly

over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If

the cables are not properly installed, they may be damaged when heavy weight is used. See the

CABLE DIAGRAMS on pages 26 and 27 of this manual for proper cable routing. If there is any slack

in the cables, you will need to remove the slack by tightening the cables. See MAINTENANCE on

page 28.

ADJUSTMENTS

This section explains how to adjust the weightsystem. See the EXERCISE GUIDELINES on page 29 for important

information about how to get the most benefit from your exerciseprogram. Also, see the accompanying exercise

guide to see the correct form for each exemise.

Make sure all partsare properly tightened each time the weight systemis used. Replace any worn parts immediate-

ly.The weight system can be cleaned witha damp clothand a mild, non-abrasivedetergent.Do not usesolvents.

CHANGING THE WEIGHT SETTING

To change the setting of the weight stack, insed the

Weight Pin (57) under the desired Weight (55). Insert

the Weight Pin so that the bent end touches the

weight stack. Turn the bent end down. Note: Be

careful not to scratch yourself when reaching

through the hole in the Shroud (10). Do not use

the Top Weight (56, not shown) by itself.

Note: Due to the cables and pulleys, the amount

of resistance at each exercise station may vary

from the weight setting. Use the WEIGHT

RESISTANCE CHART on page 25 to find the

approximate amount of resistance at each weight

station.

ATTACHING THE ACCESSORIES TO A PULLEY

STATION

Attach the Handle (93) to the Ab Cable (107) at the low

pulley station with a Cable Clip (95). For some exercis-

es, the Chain (94) should be attached between the

Handle and the Cable with two Cable Clips. Adjust the

length of the Chain between the Handle and the

Cable so that the Handle is in the correct starting

position for the exercise to be performed.

The Lat Bar (not shown), the Ab Strap (79), or the

Handle (93) can be attached at any pulley station in

the same manner. Always engage the Lock Plate (21)

when using the low pulley station (see USING THE

LOCK LEVER below).

USING THE LOCK PLATE

When using the low pulley station, engage the Leg

Pin (24) into the Leg Lever (4) and the Lock Plate

(21).

To use the Leg Lever (4), engage the Leg Pin (24)

into the Right Seat Frame (3) and the Lock Plate (21).

710

ADJUSTING THE BACKREST

To adjust the positionof the left Backrest (9), disen-

gaging the Knob (43) from the Left Upright (26) and

move the Backrest to the desired position. Reengage

the Knob into the Left Upright and the Backrest

Frame (53). Make sure the Knob is fully tightened.

LOCKING THE WEIGHT STACK

Lock the weight stack by insertingthe Lock Pin (65)

through a Weight Guide (44) and securing the Lock

(48) onto the Lock Pin.

83//

44 _ .

/48

H °

WEIGHT RESISTANCE CHART

The chart below shows the approximate weight resistance at each exercise station. "Top" refersto the 6 lb. top

weight. The other numbers refer to the 12.5 lb. weight plates. Weight resistance shown for the butterfly arm sta-

tion is for each arm. Note: The actual resistance at each station may vary due to differences in individual

weight plates as well as friction between the cables, pulleys, and weight guides.

WEIGHT BUTI'ER- PRESS

FLY ARM ARM

(Ibs.) (Ibs.)

Top

HIGH LEG LOW LEG AB

PULLEY LEVER PULLEY PRESS STATION

(Ibs.) (Ibs.) (Ibs.) (Ibs.) (Ibs.)

10 16 31 11 27 45 19

25 30 48 22 35 59 27

38 45 81 39 43 84 41

54 51 97 49 61 118 60

67 60 120 66 71 146 73

84 73 138 85 87 162 90

97 88 1550 94 107 193 tO0

105 93 176 106 120 223 114

122 106 214 126 143 248 130

CABLE DIAGRAMS

The cable diagrams below show the proper routing of the Butterfly Cable (106), the Ab Cable (107), the Short

Cable (108), the Press Cable (109), and the Weight Cable (110). Use the diagram to make sure that the cables

and the cable traps have been assembled correctly. If the cables have not been correctly routed, the weight

bench will not function properly and damage may occur. The numbers show the correct route for each cable.

Make sure that the cable traps do not touch or bind the cables.

Butterfly Cable (106)

4 Length:5feet

Short Cable (108)

Length:3 feet 11 inches

27Ab Cable (107)

Length: 21 feet 1 inch

Weight Cable (110)

Length:12 feet 1 inch

4_"_5

--6

Press Cable (109)

Length: 22 feet 6 inches

MAINTENANCE

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts imme-

diately. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use

solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight system, can stretchslightlywhen it is first used. If there is

slack inthe cables before resistance is felt, the cables should be tightened.To tighten the cables, fimt insertthe

weight pin into the middle of the weight stack. Slack can be removedfrom these cables several ways:

See drawing 1. Tighten the M8 Nylon Locknut

(91) that connects the end of a cable to a "U"-

bracket (50).

See drawing 1. Remove the M10 Nylon Locknut

(90) and the M10 x 52mm Bolt (78) from the

Cable Trap (68), the 90mm Pulley (63), the two

Half Finger Guards (66), and a "U"-bracket (50).

Reattach the Pulley,Cable Trap, and Finger

Guards to the other hole in the "U"-bracket. Make

sure that the Cable Trap and Finger Guards

are oriented as shown and that the cable and

Pulley move smoothly.

See drawing 2. Remove the M10 Nylon Locknut

(90) and the M10 x 52mm Bolt (78) from the

Cable Trap (68), the 90ram Pulley (63), the two

Half Finger Guards (66), and the two Pulley

Plates (51). Reattach the Pulley, Cable Trap, and

Finger Guards to the next closer hole to the cen-

ter of the Pulley Plates. Make sure that the

Cable Trap is oriented to hold the cable in the

groove of the Pulley, that the Finger Guards

are oriented as shown, and that the Cable end

Pulley move smoothly.

See drawing 3. Loosen the M12 Nut (49) on the

Weight Cable (110). "13ghtenthe Cable into the

Weight Tube (not shown) until the slack is

removed from the Cable. Retighten the M12 Nut

against the M12 Washer (33).

68--___3_78

49L_3110

Do not overtighten the cables. If the cables are overtightened, the top weight will be lifted off the weight

stack. If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and

re-install it. If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of

this manual.

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strengthof your muscles,

push them close to their maximum capacity. Your mus-

cles will continuallyadapt and grow as you progres-

sively increase the intensityof your exemise. You can

adjust the intensitylevel of an individualexercise in

two ways:

•by changing the amount of resistance used

•by changing the number of repetitionsor sets per-

formed. (A "repetition"is one complete cycle of an

exercise, such as one sit-up. A "set" is a series of

repetitions.)

The proper amount of resistance for each exercise

depends uponthe individualuser. You must gauge

your limits and select the amount of resistance that is

rightfor you. Begin with 3 sets of 8 repetitionsfor each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty,increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitionsas possible withoutdiscomfort.Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by usinghigh amounts of

resistance.

Weight Loss

To lose weight, use alow amount of resistance and

increase the number of repetitionsin each set.

Exercise for 20 to 30 minutes, restingfor a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

•Plan strength trainingworkoutson Monday,

Wednesday, and Fdday.

•Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or ridingon an ellipticalor

exercise bike, on Tuesday and Thursday.

•Rest from both strength trainingand aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitionsor sets completed,

is an individualmatter. It is importantto avoid overdo-

ing it dudng the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body's signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin coolingdown. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and lightexercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation,raisingyour body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workoutshould include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercisesfrom session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

throughthe full range of motionfor each exercise, and

movingonly the apprepdate parts of the body.

Exercisingin an uncontrolledmanner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographsshowingthe

correct form for several exercises, and a listof the

muscles affected. See the muscle chart on the next

page to find the names of the muscles.

The repetitions in each set should be performed

smoothlyand withoutpausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

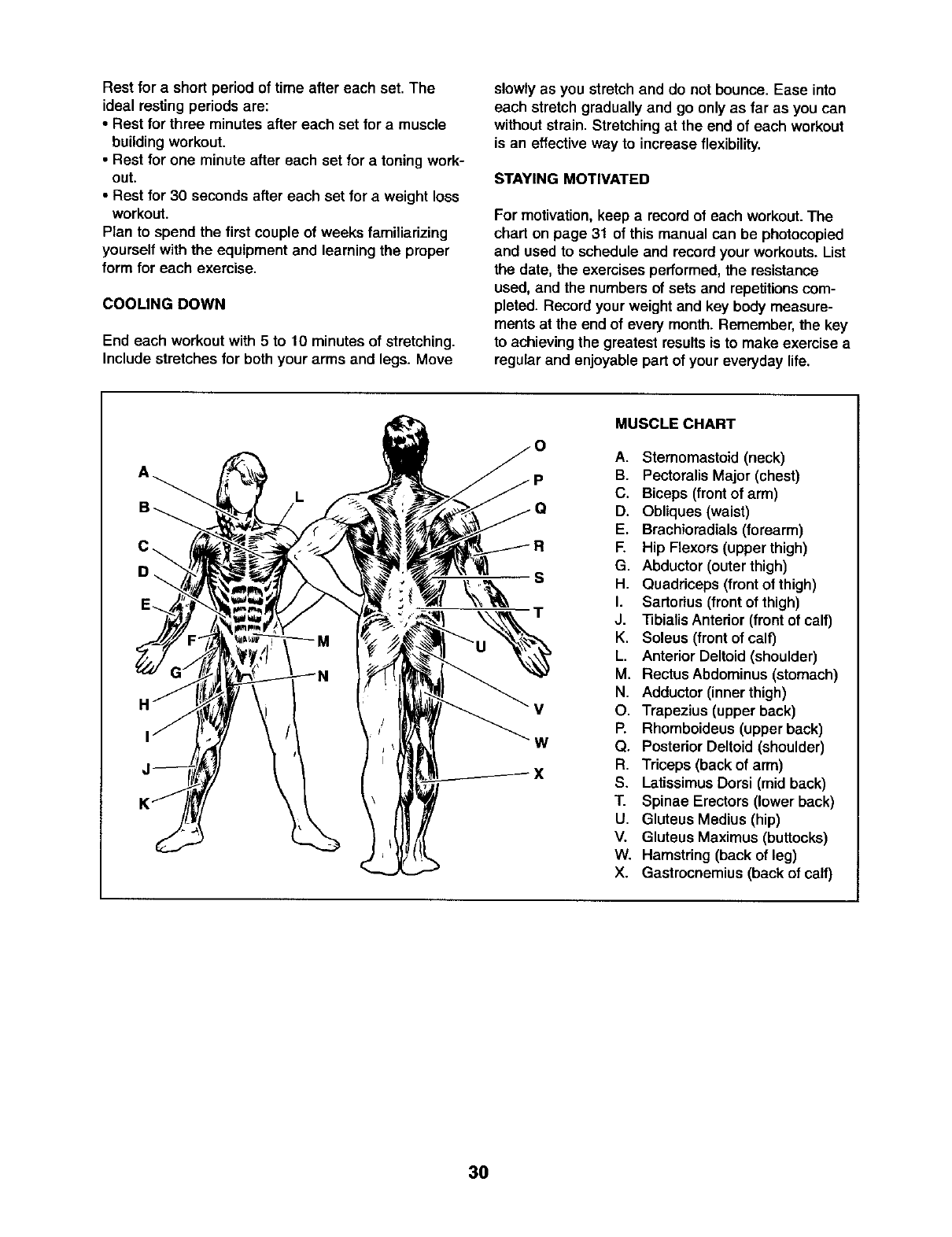

Rest for a short period of time after each set. The

ideal resting periods are:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each sat for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. The

chart on page 31 of this manual can be photocopied

and used to schedule and record your workouts. List

the date, the exercises performed, the resistance

used, and the numbers of sets and repetitions com-

pleted. Record your weight and key body measure-

ments at the end of every month. Remember, the key

to achieving the greatest results is to make exercise a

regular and enjoyable part of your everyday life.

MUSCLE CHART

A. Starnomastoid (neck)

B. Pactoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. RectusAbdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

MONDAY

Date:

! /

EXERCISE WEIGHT SETS REPS

TUESDAY

Date:

l /

WEDNESDAY

Date:

/ /

AEROBIC EXERCISE

EXERCISE WEIGHT SETS REPS

THURSDAY

Date: !/

AEROBIC EXERCISE

FRIDAY EXERCISE WEIGHT SETS REPS

Date:

l l

Make photocopies of this page for scheduling and recording your workouts,

PART IDENTIFICATION CHART--Model No. 831.154020 R0704A

See the drawings below to identifysmall parts used inassembly. The number in parentheses by each drawing is

the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts may

have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached. If a part

is missing, call toll-free 1-877-992-5999.

M6 Nylon Locknut (92) M10 x 77ram Bolt (76)

M8 Nylon Locknut (91)

M10 Nylon Locknut (90)

M12 Nut (49)

M12 Washer (33)

M10 Large Washer (100

M4 Washer (96)

M6 Washer (97)

©H

M8 Washer (98)

M10 Washer (99)

M10 x 75mm Bolt (60)

M8 x 72ram Bolt (85)

M8 x 69mm Bolt (86)

M8 x 68mm Shoulder Bolt (41)

M10 x 65mm Bolt (77)

M10 x 62mm Bolt (73)

M10 x 52mm Bolt (78)

M10 x 50mm Bolt (64)

M10 x 48mm Bolt (84)

PART LISTmModel No. 831.154020 RoT04A

Key No. Qty. Description Key No. Qty. Description

1 1 Right Base 59 1 Leg Bumper

21 Right Upright 60 1 M10 x 75mm Bolt

3 1 Right Seat Frame 61 1 Double "U"-bracket

4 1 Leg Lever 62 4 "V"-pulley

5 1 Right Top Frame 63 23 90mm Pulley

61Left ButterflyArm 64 5M10 x 50mm Bolt

7 1 Right Butterfly Arm 65 1 Lock Pin

8 2 Seat 66 34 Half Finger Guard

9 2 Backrest 67 2 Base Bushing

10 1 Shroud 68 13 Cable Trap

11 2 Shroud Cover 69 8 M8 x 75ram Carriage Bolt

12 1 50mm Round Inner Cap 70 1 M10 x 135mm Bolt

13 1 Lat Bar 71 1 M10 x 115mm Bolt

14 1 Butterfly Frame 72 4 M10 x 108ram Bolt

15 2 Large Foam Pad 73 2 M10 x 62ram Bolt

16 1 Pad Tube 74 2 M10 x 90ram Bolt

17 2 Foam Cap 75 2 M10 x 80ram Bolt

18 2 Small Foam Pad 76 1 M10 x 77ram Bolt

19 6 63mm Round Inner Cap 77 4 M10 x 65ram Bolt

20 8 50mm Round Inner Cap 78 4 M10 x 52ram Bolt

21 1 Lock Plate 79 1 Ab Strap

22 1 M10 x 103ram Bolt 80 4 M10 x 45ram Bolt

23 4 Arm Bushing 81 2 M10 x 45mm Button Bolt

24 1 Leg Pin 82 19 M8 x 78ram Bolt

25 1 Left Base 83 1 M8 x 96ram Bolt

26 1 Left Upright 84 2 M10 x 48mm Bolt

27 1 Left Seat Frame 85 2 M8 x 72mm Bott

28 1 Leg Press Frame 86 4 M8 x 69mm Bolt

29 1 Press Frame 87 4 M6 x 22mm Screw

30 2 Press Arm 88 16 M6 x 16mm Screw

31 2 Support Plate 89 2 M4 x16mm Self-tapping Screw

32 2 Press Handle 90 34 M10 Nylon Locknut

33 2 M12 Washer 91 42 M8 Nylon Locknut

34 2 Press Arm Cap 92 4 M6 Nylon Locknut

35 2 Leg Lever Foam Pad 93 1 Handle

36 1 Left Top Frame 94 1 Chain

37 1 M8 x 86mm Shoulder Bolt 95 4 Cable Clip

38 1 Foot Plate 96 1 M4 Washer

39 2 M8 x 22ram Shoulder Bolt 97 4 M6 Washer

40 1 50mm Round Outer Cap 98 29 M8 Washer

41 1 M8 x 68mm Shoulder Bolt 99 22 M10 Washer

42 1 56mm Round Inner Cap 100 4 M10 Large Washer

43 1 Knob 101 6 M10 x 12mm Spacer

44 2 Weight Guide 102 4 M10 x 19mm Spacer

45 2 Weight Bumper 103 1 M8 x 13mm Spacer

46 1 Weight Tube Bumper 104 4 Full Finger Guard

47 1 Weight Tube 105 2 Quarter Guard

48 1 Lock 106 1Butterfly Cable

49 1 M12 Nut 107 1 Ab Cable

50 2 "U"-bracket 108 1 Short Cable

51 2 Pulley Plate 109 1 Press Cable

52 1 Center Base 110 1 Weight Cable

53 1 Backrest Frame 111 3 Large Cable Trap

54 1 25ram x 40mm Inner Cap 112 4 M8 x 83mm Bolt

55 8 Weight # 1 User's Manual

56 1 Top Weight # 1 Exercise Guide

57 1 Weight Pin # 2 Grease Packet

58 2 Handgrip # 1 Allen Wrench

Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice.See the back cover

of the user's manual for information about ordering replacement parts. If a part is missing, call toll-free

1-877-992-5999.

99_

102

15 ,p

107

105

19_

_63

'leo

78 63

Get it fixed, at your home or ours!

Your Home

For repair - in your home - of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®

(1-800-469-4663)

www.sears.com

Anytime, day or night

(U.S.A. and Canada)

WWW.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime,day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced oy Sears:

1-800-827-6655 (U.S./_) 1-800-361-6665 (Canada)

Para pedir servicio de reparacibn a domicilio, y para ordenar piezas:

1-888-SU-HOGAR s" (1-888-784-6427)

SEARS

®Registered Trademark /TMTrademark /sa Service Mark of Sears, Roebuck and Co.

®Marca Registrada /TMMarca de Fdbrica /su Mama de Servicio de Sears, Roebuck and Co.

FULL 90-DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship inthis

WEIGHT SYSTEM EXERCISER, contact the nearest Sears Service Center throughout the United

States and Sears will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.

This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears, Roebuck and Co., Dept 817WA, Hoffman Estates, IL 60179

-j

Weider 831154020 User Manual PRO 4250 Manuals And Guides L0410176

WEIDER Weight System Manual L0410176 WEIDER Weight System Owner's Manual, WEIDER Weight System installation guides

831.154020 L0410176

Navigation menu

Versions of this User Manual:

Views

Navigation
