USERʼS MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete cus-

tomer satisfaction. If you have

questions, or if parts are missing,

DO NOT CONTACT THE STORE;

please contact Customer Care.

IMPORTANT: You must note the

product model number and

serial number (see the drawing

above) before contacting us:

CALL TOLL-FREE:

1-877-992-5999

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.weiderservice.com

www.weiderfitness.com

Model No. WEBE1998.0

Serial No.

Write the serial number in the

space above for future reference.

Serial

Number

Decal

2

WARNING DECAL PLACEMENT

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

PARTIDENTIFICATIONCHART ..............................................................5

ASSEMBLY ...............................................................................6

ADJUSTMENT ...........................................................................10

EXERCISEGUIDELINES ...................................................................11

PARTLIST ..............................................................................14

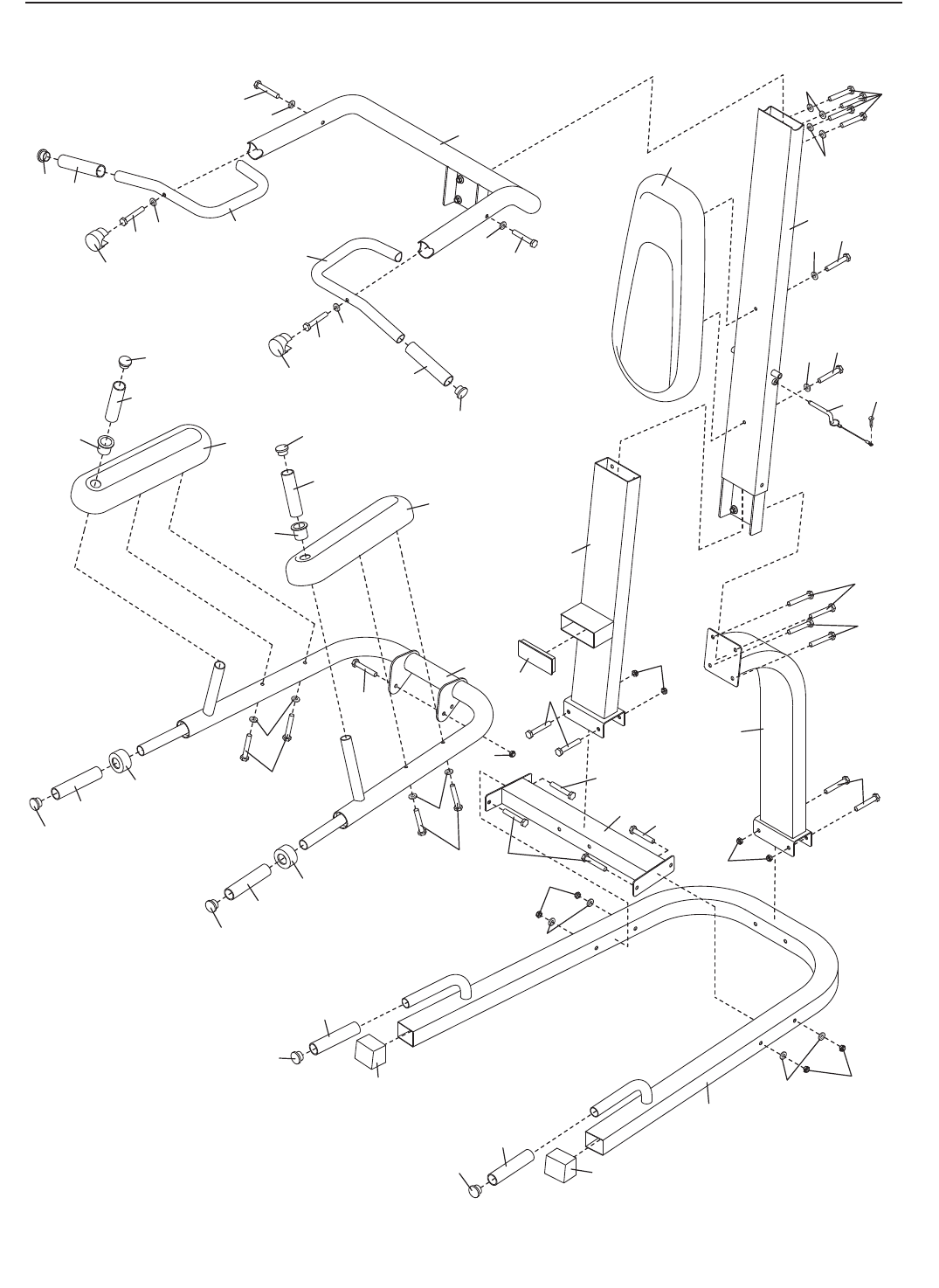

EXPLODEDDRAWING ....................................................................15

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

This drawing shows the location(s) of the warn-

ing decal(s). If a decal is missing or illegible,

call the telephone number on the front

cover of this manual and request a free

replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not

be shown at actual size.

3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise tower before using your exercise

tower. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the exercise tower are ade-

quately informed of all precautions.

3. Your exercise tower is intended for home

use only. Do not use your exercise tower in

a commercial, rental, or institutional setting.

4.

Keep the

exercise tower

indoors, away from

moisture and dust. Place the

exercise tower

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around the

exer-

cise tower

to mount, dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your exercise tower at all times.

7. Your exercise tower should not be used by

persons weighing more than 300 lbs.

(136 kg).

8. Wear appropriate exercise clothes while

exercising; do not wear loose clothes that

could become caught on your exercise

tower. Always wear athletic shoes for foot

protection while exercising.

9. The exercise tower is not designed to be

used with weights. Do not use weights or

other forms of resistance with the exercise

tower.

10. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

11. Use your exercise tower only as described in

this manual.

4

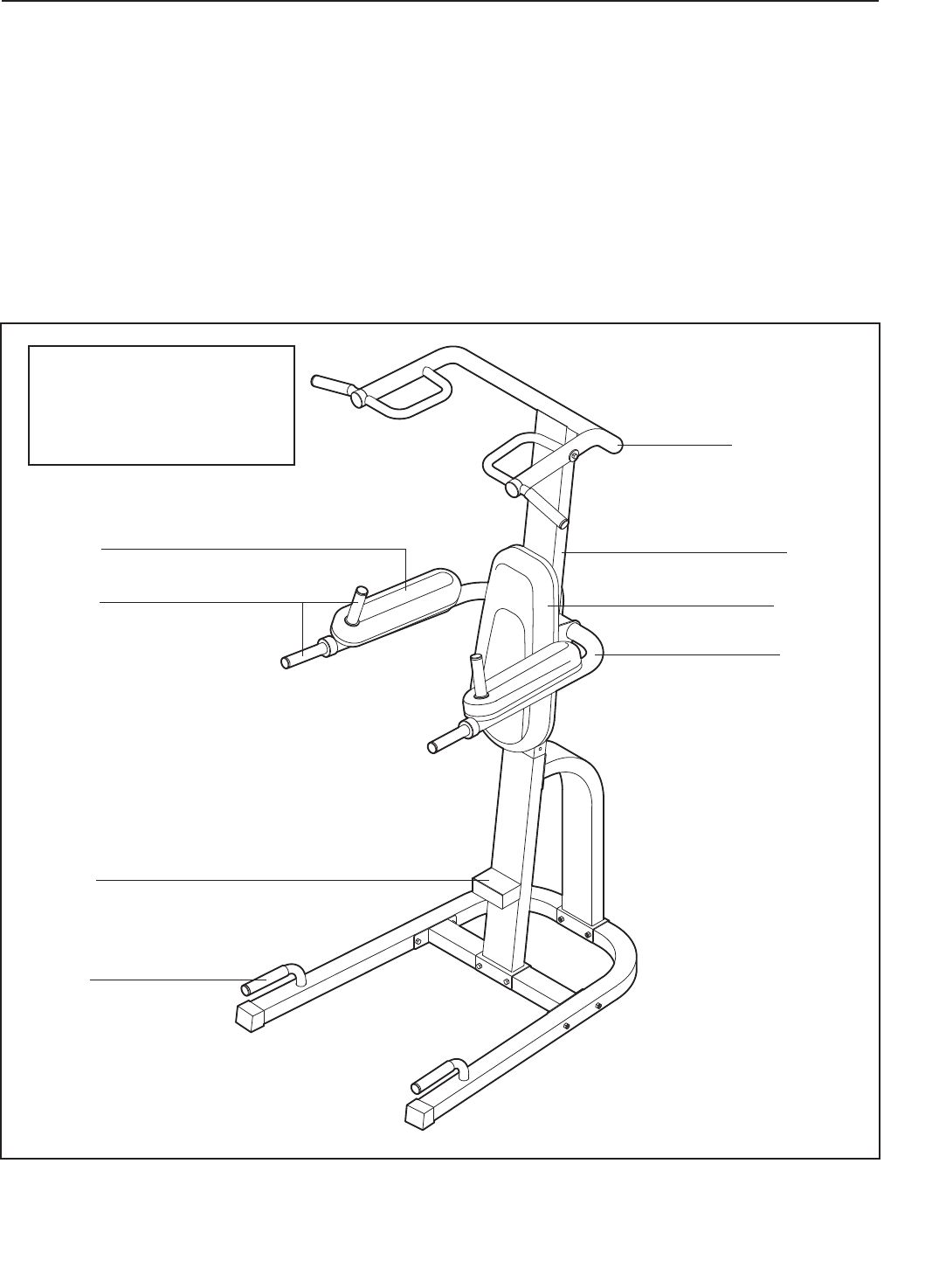

Pull-up Frame

Arm Pad

Dip Arm

Footrest

Backrest

Handles

Handle

Upright

BEFORE YOU BEGIN

ASSEMBLED DIMENSIONS:

Height: 7 ft. (213 cm)

Width: 3 ft. 5 in. (104 cm)

Depth: 3 ft. 8 in. (112 cm)

Thank you for selecting the versatile WEIDER CLUB™

290 POWER TOWER. The exercise tower is

designed to develop the muscles of the upper body.

Whether your goal is to tone your body, build dramatic

muscle size and strength, or improve your cardiovas-

cular system, the exercise tower will help you to

achieve the specific results you want.

For your benefit, read this manual carefully before

you use the exercise tower. If you have questions

after reading this manual, please see the front cover of

this manual. To help us assist you, note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

To avoid a registration fee for any service needed

under warranty, you must register the exercise

tower at www.weiderservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. Note: Some small parts

may have been preattached. If a part is not in the hardware kit, check to see if it has been preattached.

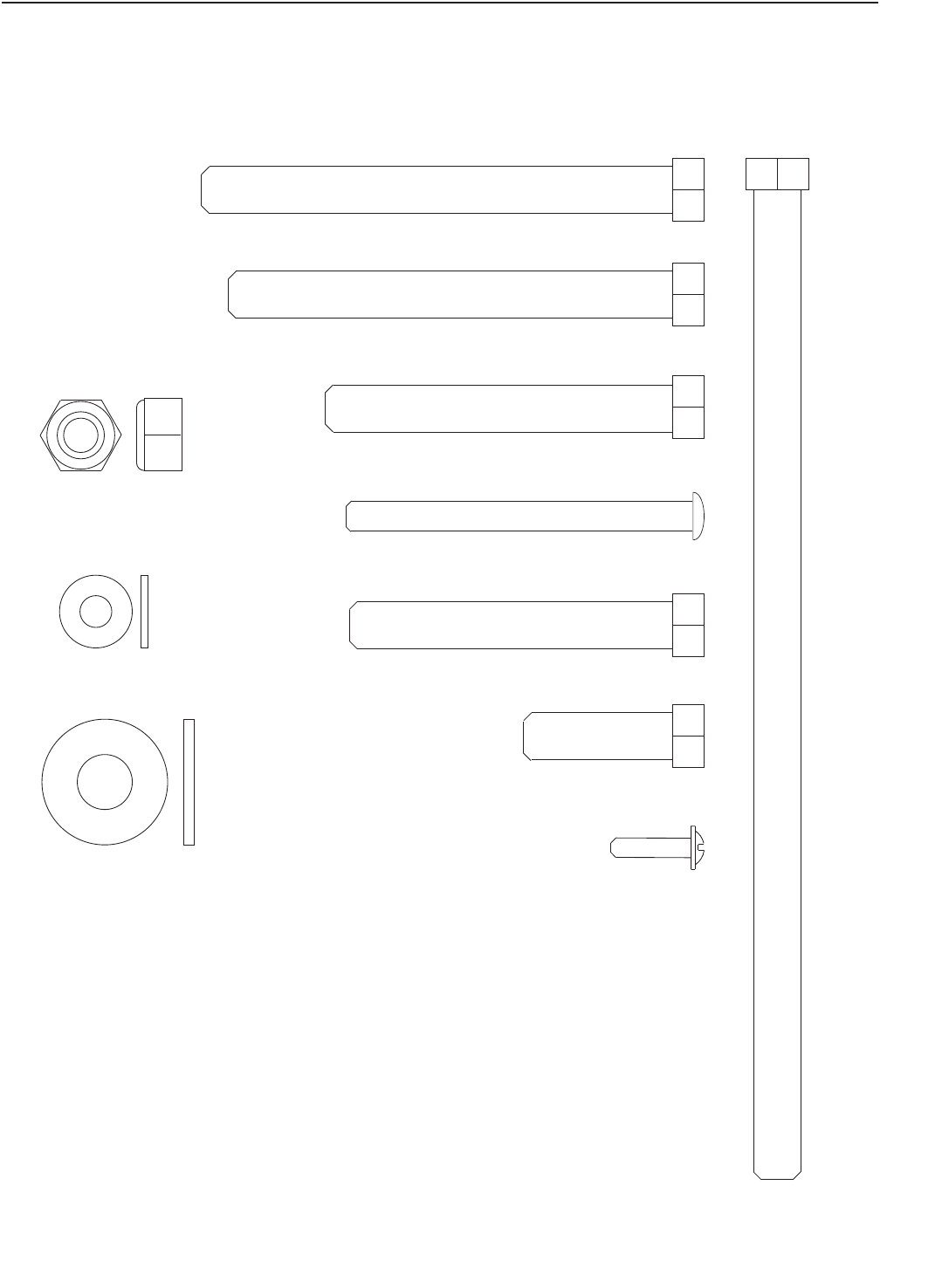

PART IDENTIFICATION CHART

M10 x 90mm Bolt (26)

M10 x 30mm

Screw (27)

M10 x 200mm Bolt (31)

M10 x 95mm Bolt (10)

M10 x 65mm Screw (30)

M10 x 70mm Screw (29)

M10 Locknut (23)

M4 x 16mm

Self-tapping

Screw (8)

M6 Washer (25)

M

M6 x 70mm Screw (28)

M10 Washer (24)

5

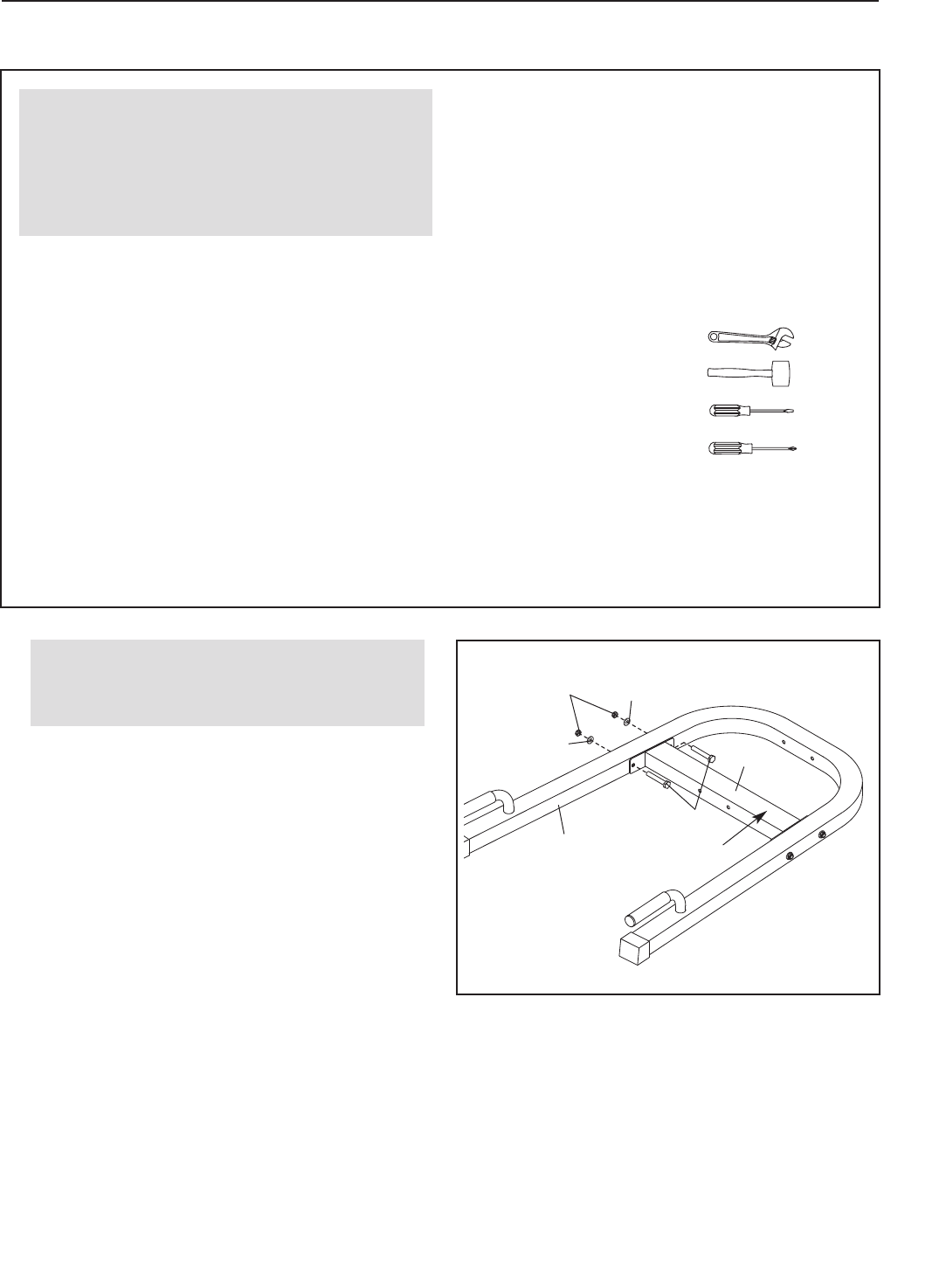

1.

Orient the Center Base (2) so that the warning

decal is in the position shown. Attach one side of

the Center Base to the Base (1) with two M10 x

90mm Bolts (26), two M10 Washers (24), and two

M10 Locknuts (23). Do not tighten the

Locknuts yet.

Repeat this step for the other side of the

Center Base (2).

Before beginning assembly, make sure you

understand the information in the box

above.

1

23

1

2

Decal

24

24

26

6

ASSEMBLY

Before beginning assembly, carefully read the

following information and instructions:

• To hire an authorized service technician to

assemble the exercise tower, call 1-800-445-

2480.

• Assembly requires two persons.

• Because of its size, the exercise tower should be

assembled in the location where it will be used.

Make sure that there is enough clearance to walk

around the exercise tower as you assemble it.

• For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•As you assemble the exercise tower, make sure

all parts are oriented as shown in the drawings.

• Tighten all parts as you assemble them, unless

instructed to do otherwise.

• Assembly requires the following tools:

two adjustable wrenches

one rubber mallet

one standard screwdriver

one Phillips screwdriver

Assembly may be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Assembly Easier

Everything in this manual is designed to ensure

that the exercise tower can be assembled suc-

cessfully by almost anyone. By setting aside

plenty of time, assembly will go smoothly.

7

10

23

2

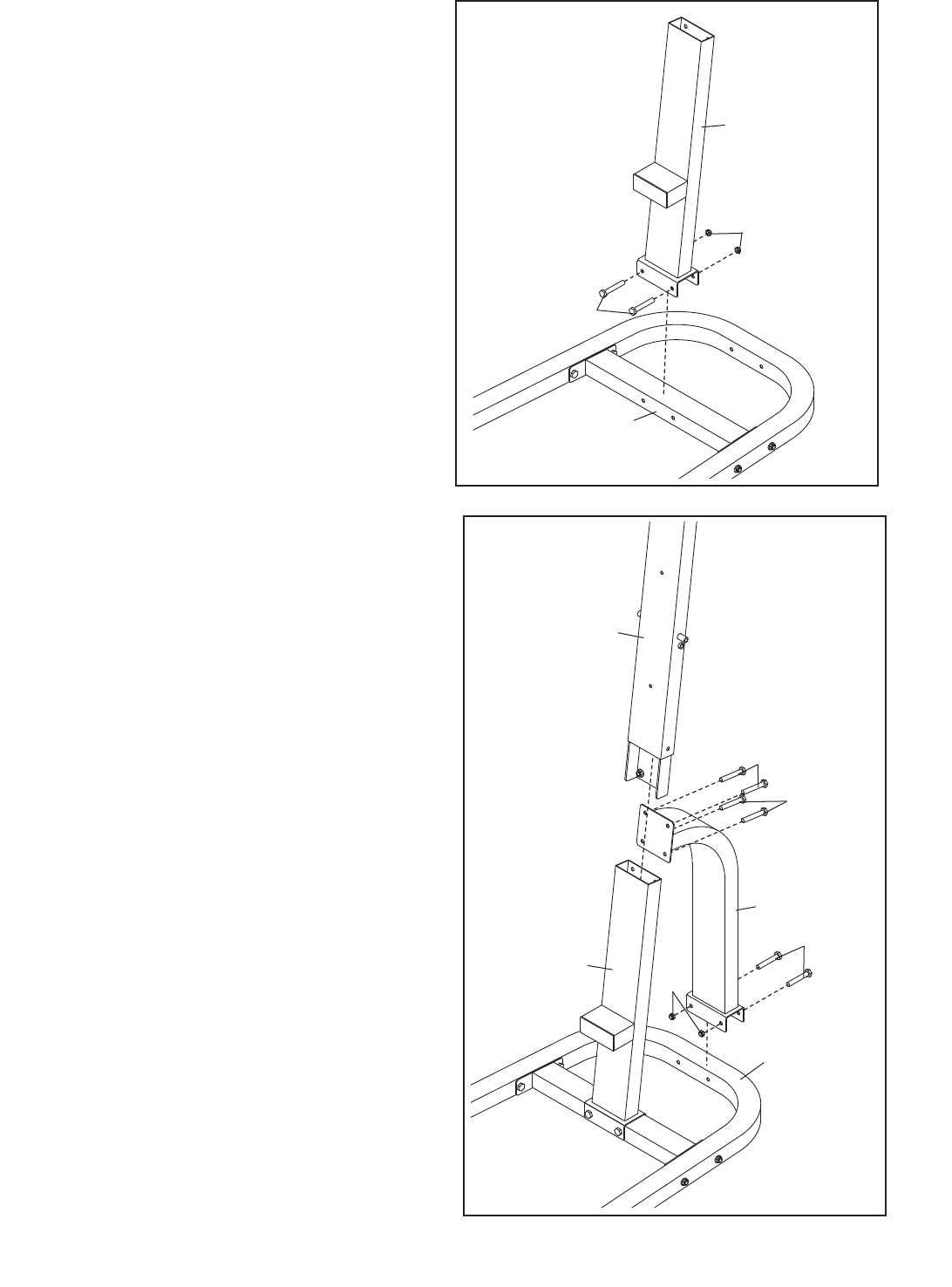

3. Attach the Upright Support (5) to the Base (1)

with two M10 x 90mm Bolts (26) and two M10

Locknuts (23). Do not tighten the Locknuts yet.

Insert the Upright (4) into the Upright Base (3).

Attach the Upright and the Upright Support (5) to

the Upright Base with four M10 x 30mm Screws

(27).

See steps 1–3. Tighten the M10 Locknuts (23).

2

3

2. Attach the Upright Base (3) to the Center Base

(2) with two M10 x 95mm Bolts (10) and two

M10 Locknuts (23). Do not tighten the

Locknuts yet.

3

4

1

26

5

23

3

27

27

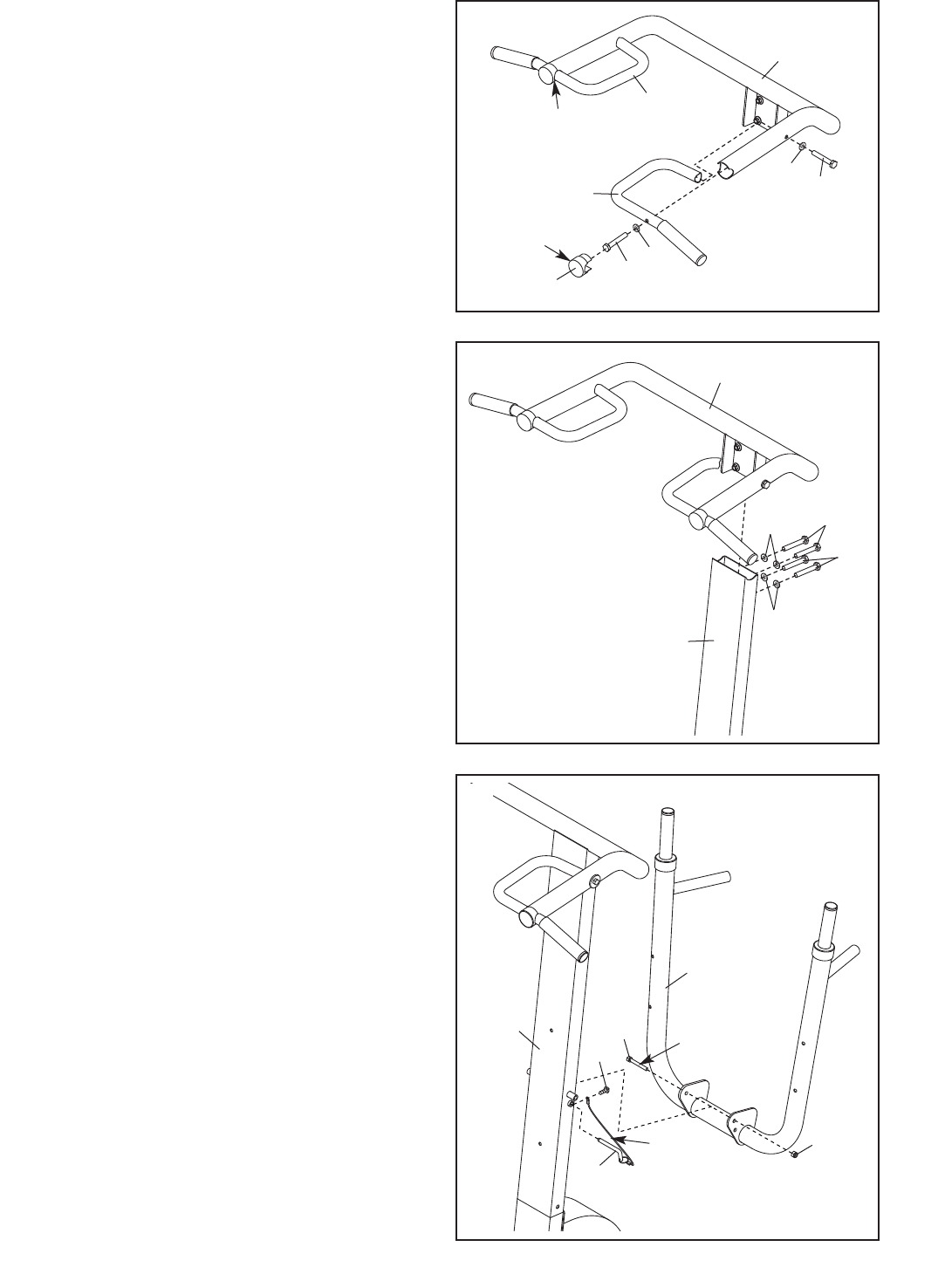

4. Attach the Left Handle (12) to the Pull-up Frame

(6) with an M10 x 65mm Screw (30), an M10 x

70mm Screw (29), and two M10 Washers (24).

Press a 50mm Round Inner Cap (14) into the

Pull-up Frame. Make sure that the thick side of

the Round Inner Cap is on the side shown.

Attach the Right Handle (13) in the same way.

5. Insert the Pull-up Frame (6) into the Upright (4).

Attach the Pull-up Frame with four M10 x 30mm

Screws (27) and four M10 Washers (24).

12

13

6

24 29

24

30

14

Thick

Side

Thick

Side

4

27

27

24

24

4

6

5

6

22

Grease

Tether

31

7

4

23

8

6. Apply a small portion of the included grease to

the M10 x 200mm Bolt (31). Attach the Dip Arm

(7) to the Upright (4) with the Bolt and an M10

Locknut (23). Do not overtighten the Locknut;

the Dip Arm must pivot easily. Pivot the Dip

Arm to the horizontal position.

Attach the tether on the Pin (22) to the Upright (4)

with an M4 x 16mm Self-tapping Screw (8). Insert

the Pin into the Upright.

8

9

7

21

19 11

Handle

15

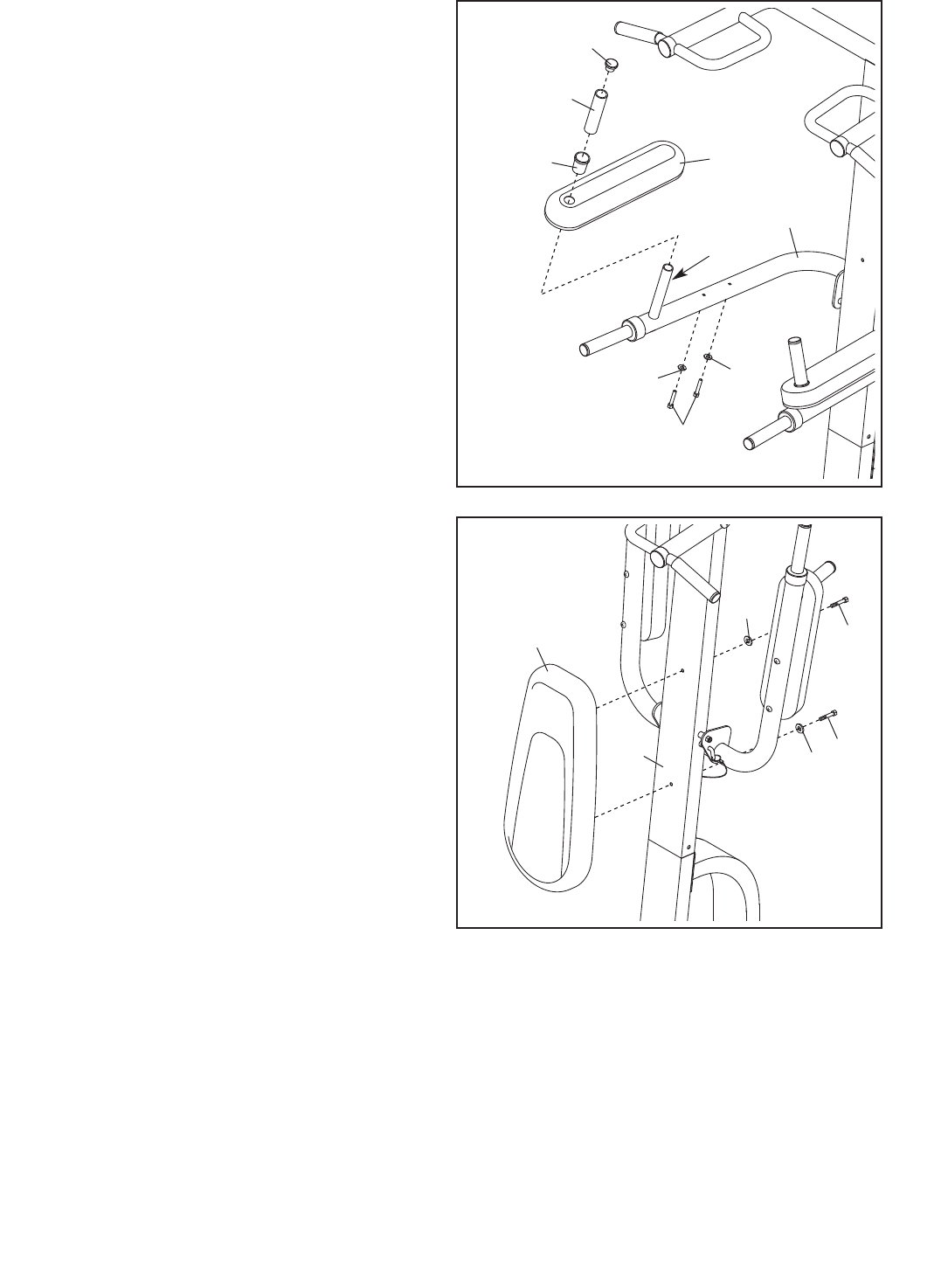

8. Attach the Backrest (9) to the Upright (4) with two

M6 x 70mm Screws (28) and two M6 Washers (25).

9. Make sure that all parts have been properly

tightened before you use the exercise tower.

28

25

25

7

7. Attach an Armrest (11) to the Dip Arm (7) with two

M6 x 70mm Screws (28) and two M6 Washers (25).

Wet a Short Foam Grip (21) and the indicated

handle on the Dip Arm (7) with soapy water. Press

an Armrest Cap (19), the Short Foam Grip, and a

28mm Round Inner Cap (15) onto the handle on

the Dip Arm.

Repeat this step for the other side of the Dip

Arm (7).

8

4

9

28

25

25

28

10

This section explains how to adjust the exercise tower. See the EXERCISE GUIDELINES on page 11 for impor-

tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying

exercise guide to see the correct form for several exercises.

Make sure all parts are properly tightened each time the exercise tower is used. Replace any worn parts immedi-

ately. The exercise tower can be cleaned with a damp cloth and a mild, non-abrasive detergent; do not use sol-

vents.

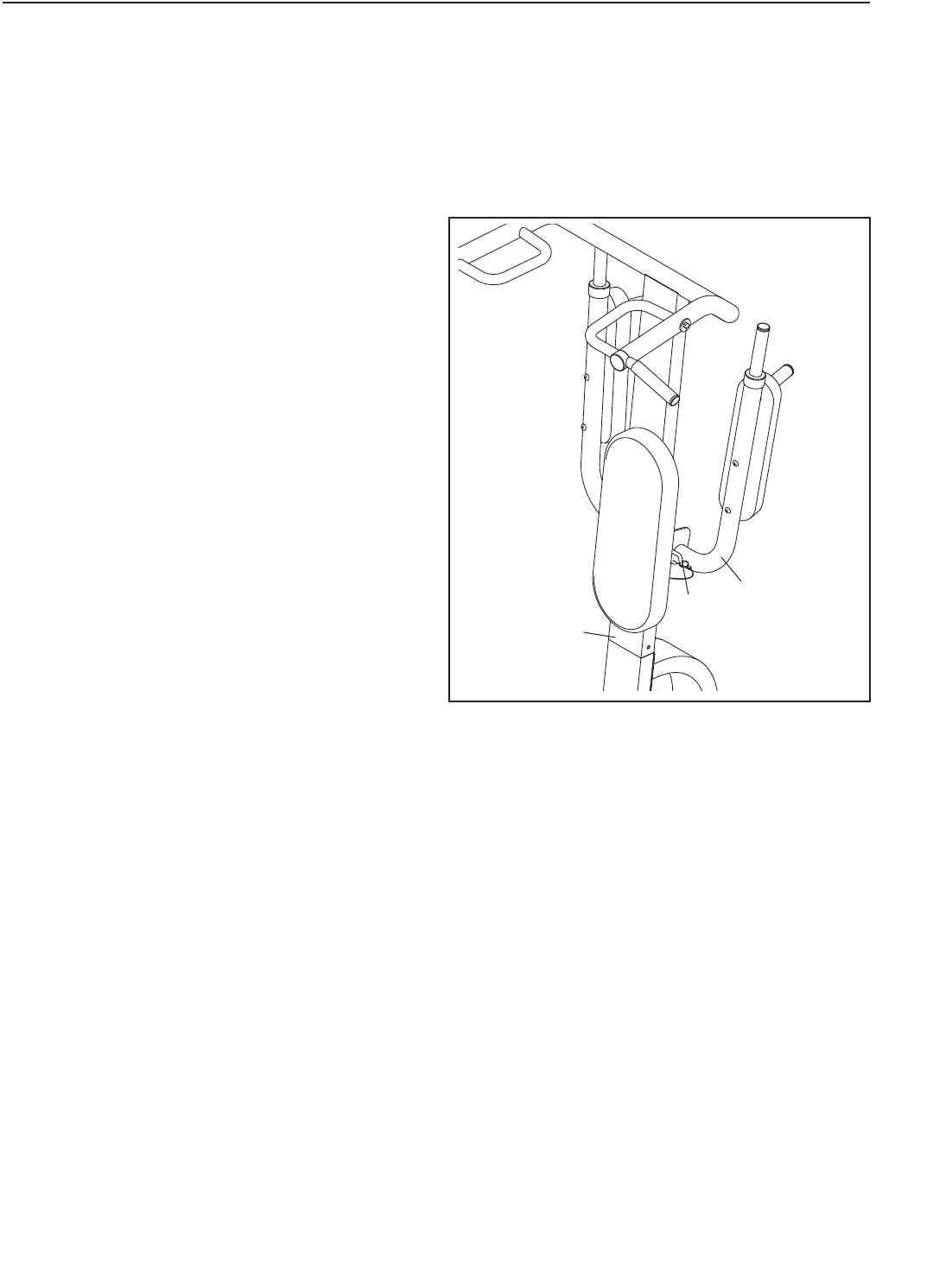

ADJUSTING THE DIP ARM

To adjust the Dip Arm (7) to the up or down position,

first remove the Pin (22). Move the Dip Arm to the

new position and reinsert the Pin into the Dip Arm.

Note: The Pin must be inserted into the Dip Arm

and the Upright (4) when the Dip Arm is in the up

position, as shown in the drawing. The Pin will be

behind the Upright when the Dip Arm is in the

down position.

7

22

4

ADJUSTMENT

11

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of resistance used

• by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program follows:

• Plan strength training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical exer-

ciser or exercise cycle, on Tuesday and Thursday.

• Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the appropriate length of time for each

workout, and the numbers of repetitions and sets to

complete, is an individual matter. Avoid overdoing it

during the first few months of your exercise program.

Progress at your own pace and be sensitive to your

bodyʼs signals. If you experience pain or dizziness

while exercising, stop immediately and cool down.

Find out what is wrong before continuing. Remember

that adequate rest and a proper diet are important fac-

tors in any exercise program.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature, and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from workout to workout.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled way will leave you feel-

ing exhausted. On the exercise guide accompanying

this manual you will find photographs showing the cor-

rect form for several exercises, and a list of the mus-

cles affected. See the muscle chart on the next page

to find the names of the muscles.

12

O

P

Q

R

S

T

U

V

X

W

N

M

J

G

F

H

I

K

E

C

D

B

A

L

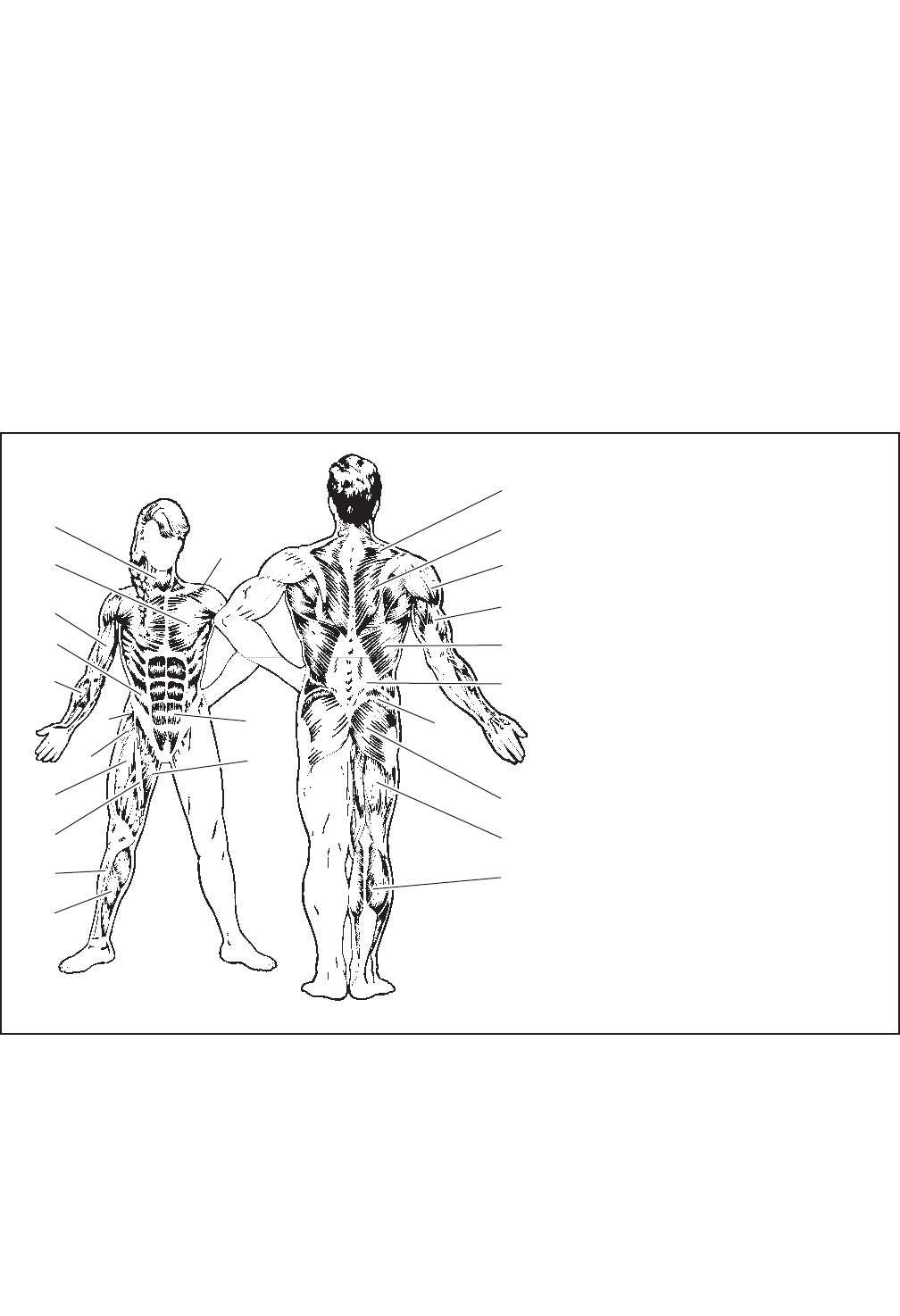

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. Rectus Abdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

The repetitions in each set should be performed

smoothly and without pausing. The exertion stroke of

each repetition should last about half as long as the

return stroke. Proper breathing is important. Exhale

during the exertion stroke of each repetition and

inhale during the return stroke. Never hold your

breath.

Rest for a short period of time after each set. The

ideal resting periods follow:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. Write

the date, the exercises performed, the resistance

used, and the numbers of sets and repetitions com-

pleted. Record your weight and key body measure-

ments at the end of every month. The key to achieving

the greatest results is to make exercise a regular and

enjoyable part of your everyday life.

13

EXERCISE LOG

Make copies of this page, and use the copies to schedule and record your strength and aerobic workouts.

Scheduling and recording your workouts will help you to make exercise a regular and enjoyable part of your life.

Exercise Lbs. Sets Reps Exercise Lbs. Sets Reps

1.6.

2. 7.

3. 8.

4. 9.

5. 10.

Exercise Time Distance Speed

Strength

Date:

Exercise Lbs. Sets Reps Exercise Lbs. Sets Reps

1. 6.

2. 7.

3. 8.

4. 9.

5. 10.

Exercise Lbs. Sets Reps Exercise Lbs. Sets Reps

1. 6.

2. 7.

3. 8.

4. 9.

5. 10.

Strength

Date:

Strength

Date:

Aerobic

Date:

Exercise Time Distance Speed

Aerobic

Date:

Exercise Time Distance Speed

Aerobic

Date:

Note: Specifications are subject to change without notice. See the back cover of this manual for information

about ordering replacement parts. *These parts are not illustrated.

PART LIST—Model No. WEBE1998.0 R1108A

Key No. Qty. Description Key No. Qty. Description

11Base

21Center Base

31 Upright Base

41Upright

51Upright Support

61Pull-up Frame

71Dip Arm

81M4 x 16mm Self-tapping Screw

91Backrest

10 2 M10 x 95mm Bolt

11 2 Armrest

12 1 Left Handle

13 1 Right Handle

14 2 50mm Round Inner Cap

15 8 28mm Round Inner Cap

16 2 70mm x 50mm Outer Cap

17 1 50mm x 127mm Inner Cap

18 2 50mm Round Outer Cap

19 2 Armrest Cap

20 6 Long Foam Grip

21 2 Short Foam Grip

22 1 Pin

23 9 M10 Locknut

24 12 M10 Washer

25 6 M6 Washer

26 6 M10 x 90mm Bolt

27 8 M10 x 30mm Screw

28 6 M6 x 70mm Screw

29 2 M10 x 70mm Screw

30 2 M10 x 65mm Screw

31 1 M10 x 200mm Bolt

*—Userʼs Manual

* — Exercise Guide

*—Grease Packet

14

5

1

2

3

4

6

7

9

11

11

12

13

14

15

15

15

15

15

15

15

16

16

17

15

18

18

19

19

20

20

20

20

20

20

21

21 22

14

26

23

23

23

23

24

24

24

24

24

24

25

25

25

25

26

26

10

26

23

27

27

27

24

28

28

29

29

30

30

31

28

28

8

24

EXPLODED DRAWING—Model No. WEBE1998.0 R1108A

15

Part No. 273533 R1108A Printed in China © 2008 ICON IP, Inc.

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

•the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING

near the end of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days

from the date of purchase.

This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to

repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All

repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to

a service center, freight charges to and from the service center will be the customerʼs responsibility. For

replacement parts shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip

charge. This warranty does not extend to any damage to a product caused by or attributable to freight

damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized

service center; products used for commercial or rental purposes; or products used as store display

models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or

other consequential damages of whatsoever nature. Some states do not allow the exclusion or limita-

tion of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties

of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms

set forth herein. Some states do not allow limitations on how long an implied warranty lasts.

Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
