Well Communication AWR-8210 ADSL Wireless Router User Manual AWR 8210 Manual

Well Communication Corporation ADSL Wireless Router AWR 8210 Manual

Manual

1
Table of Contents
Specification -----------------------------------------------------------------------------------------------------3
Package Contents ---------------------------------------------------------------------------------------------4
Hardware Connecting ----------------------------------------------------------------------------------------5
LED Indicators --------------------------------------------------------------------------------------------------6
General Setting-------------------------------------------------------------------------------------------------7
Status ------------------------------------------------------------------------------------------------------12
Router -----------------------------------------------------------------------------------------------12
ADSL------------------------------------------------------------------------------------------------13
PPP --------------------------------------------------------------------------------------------------14

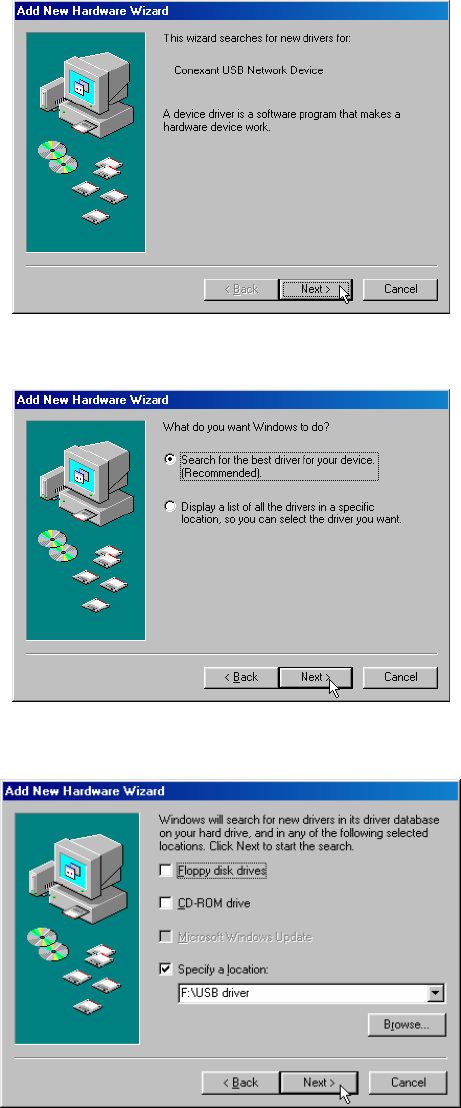

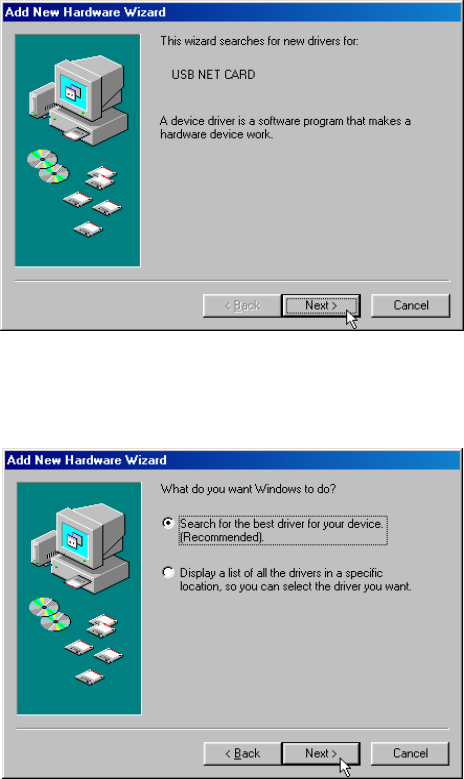

USB Driver Procedures ------------------------------------------------------------------------------------15

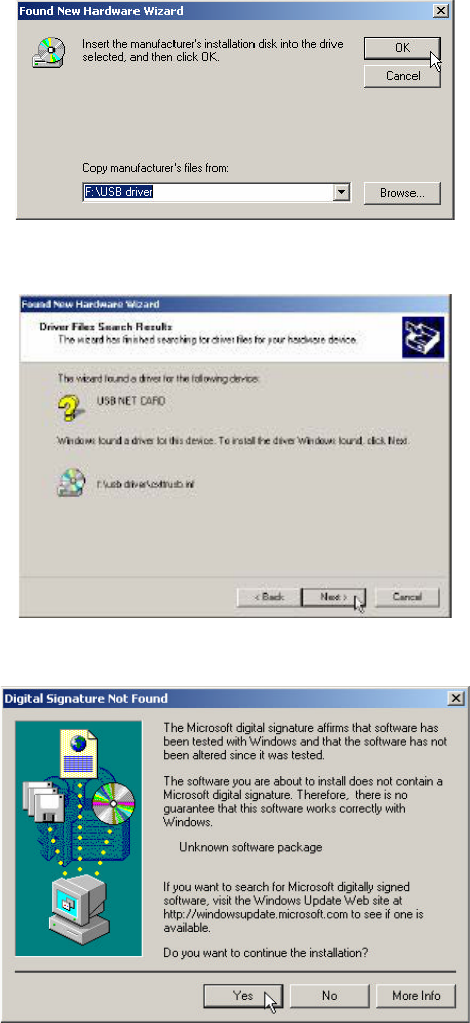

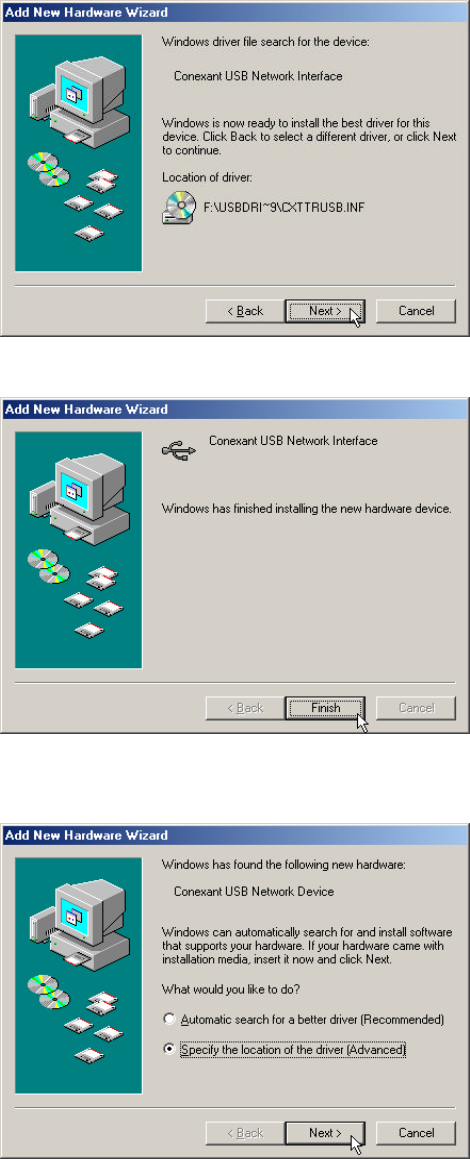

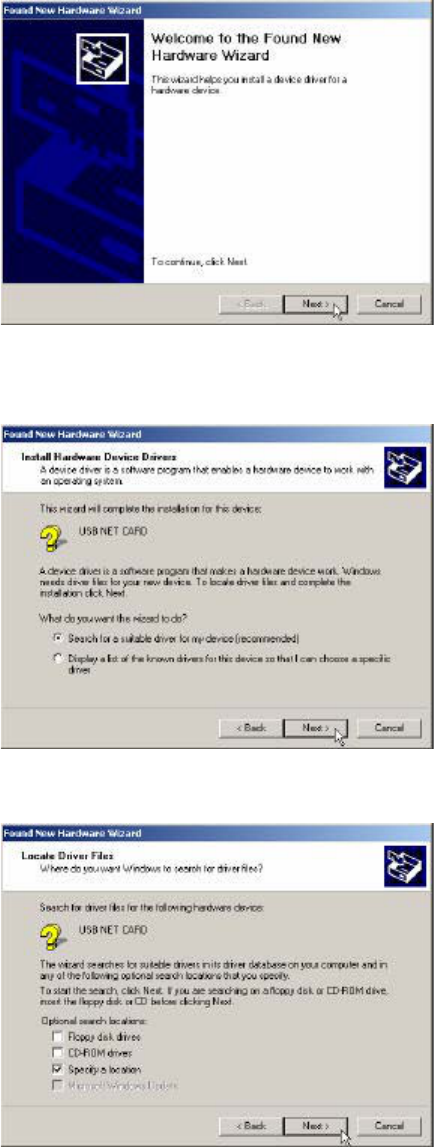

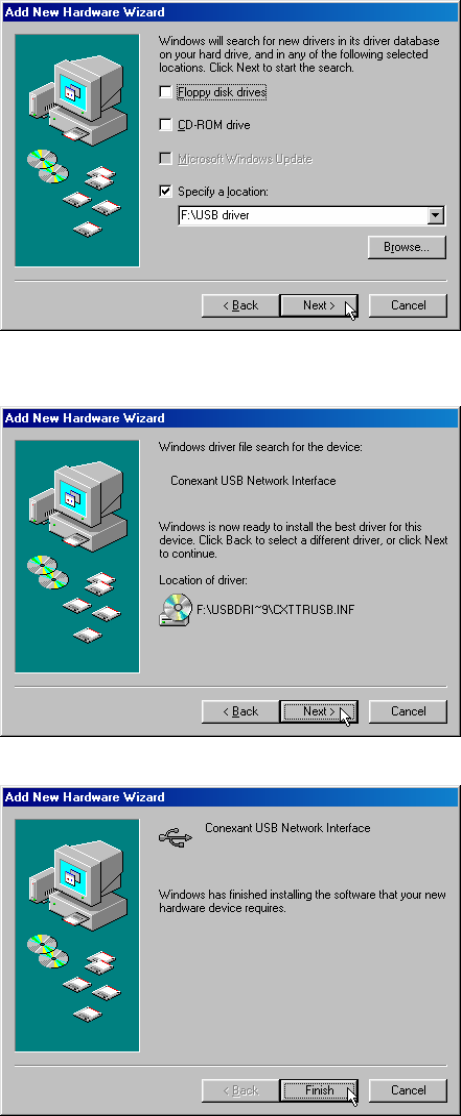

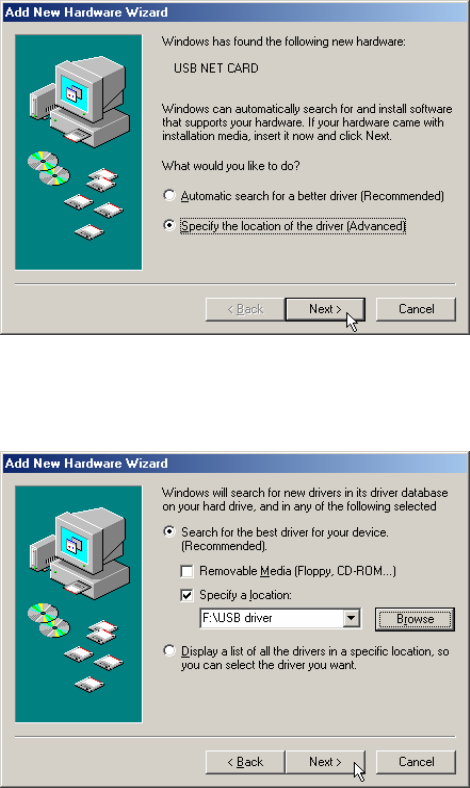

Installation USB Driver Procedures -------------------------------------------------------------15

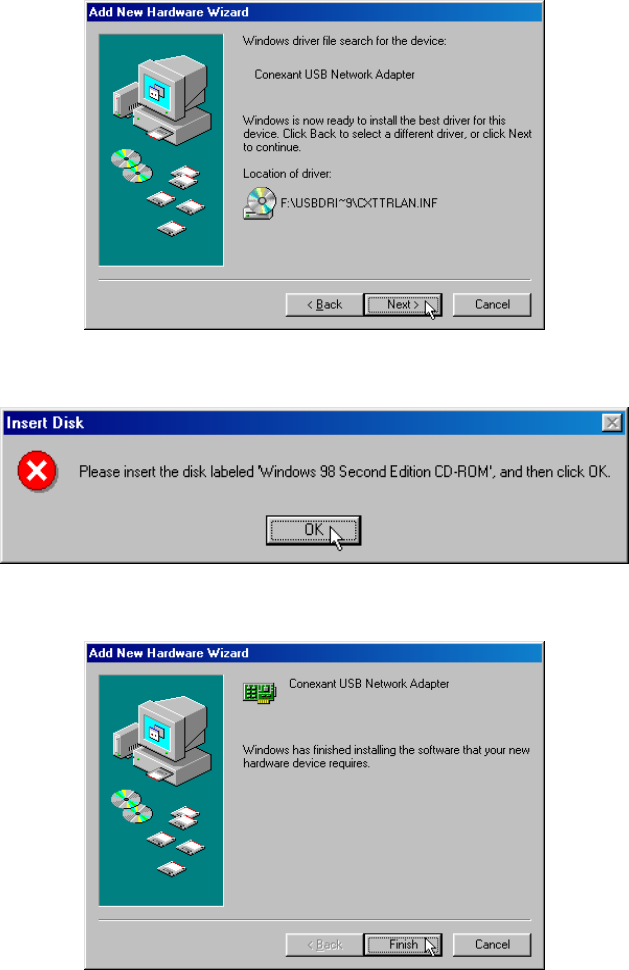

Microsoft Windows 98SE---------------------------------------------------------------------15
Microsoft Windows 2000----------------------------------------------------------------------20
Microsoft Windows ME ------------------------------------------------------------------------23

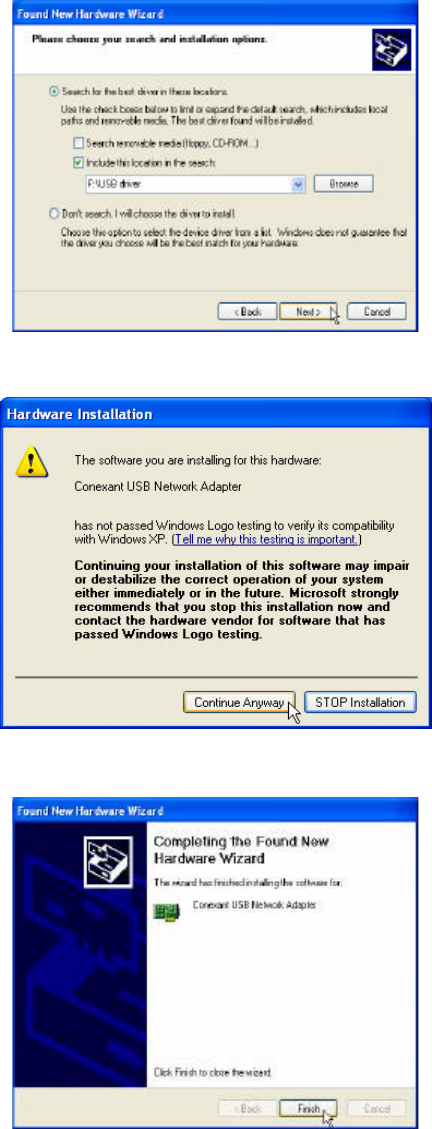

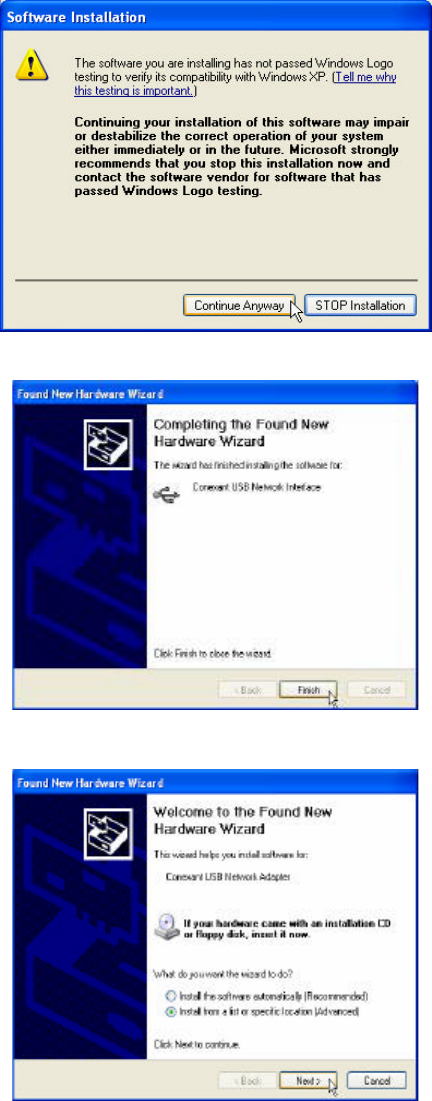

Microsoft Windows XP ------------------------------------------------------------------------27

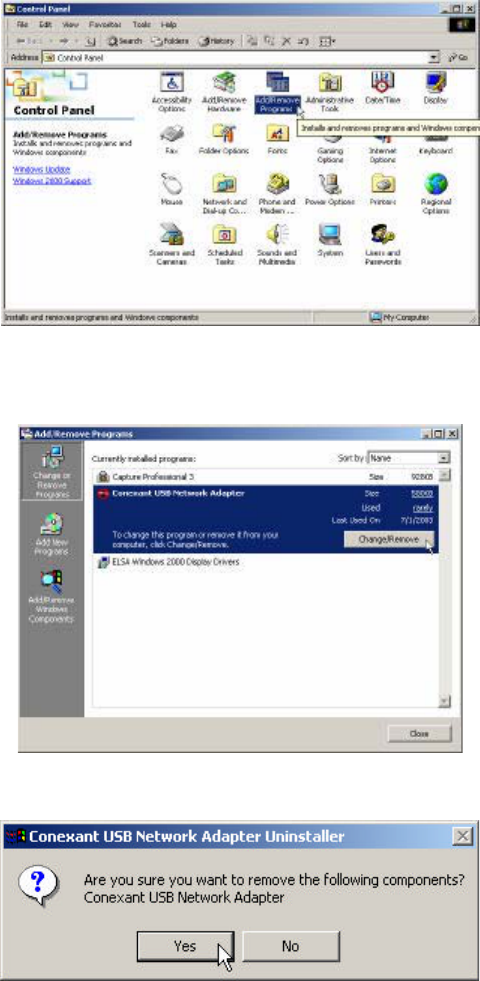

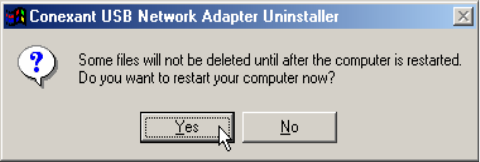

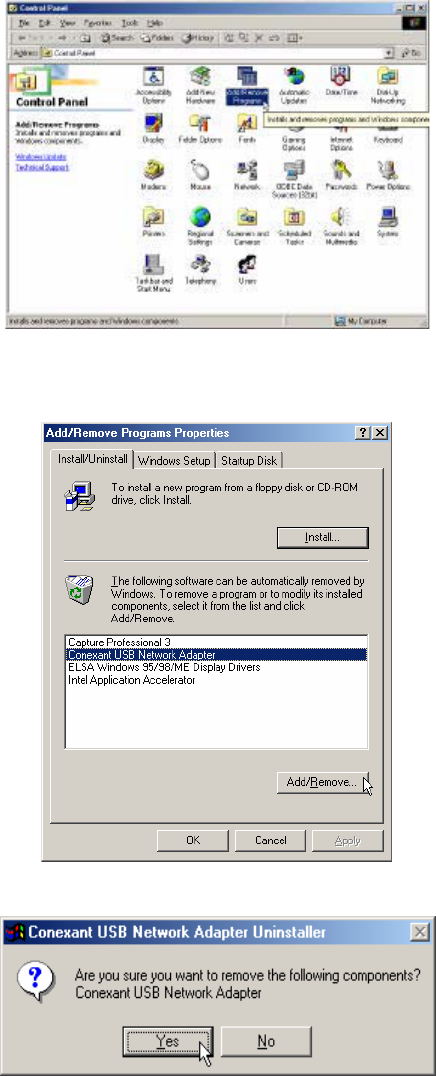

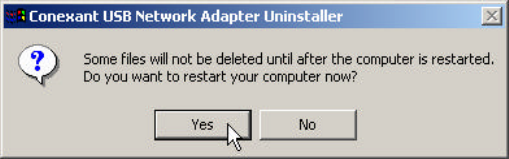

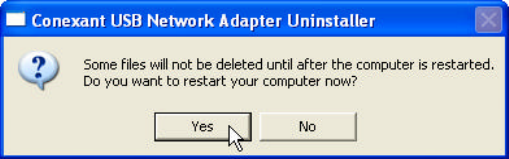

Uninstallation USB Driver Procedures ---------------------------------------------------------30
Microsoft Windows 98SE---------------------------------------------------------------------30
Microsoft Windows 2000----------------------------------------------------------------------32
Microsoft Windows ME ------------------------------------------------------------------------34
Microsoft Windows XP ------------------------------------------------------------------------36
Advanced Setting --------------------------------------------------------------------------------------------38
ADMINISTRATION------------------------------------------------------------------------------------38

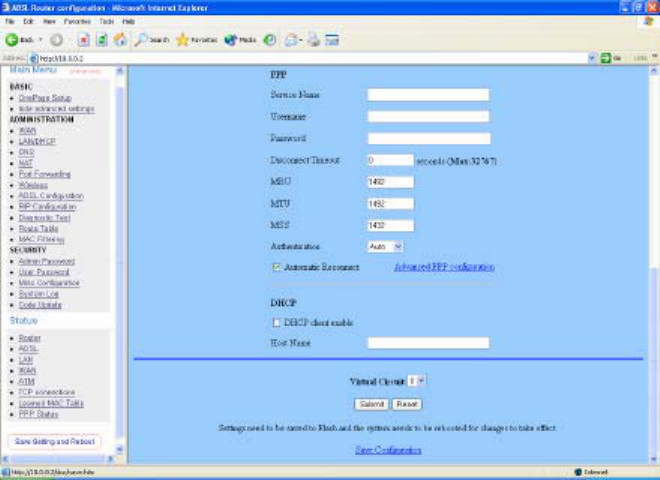

WAN -------------------------------------------------------------------------------------------------38

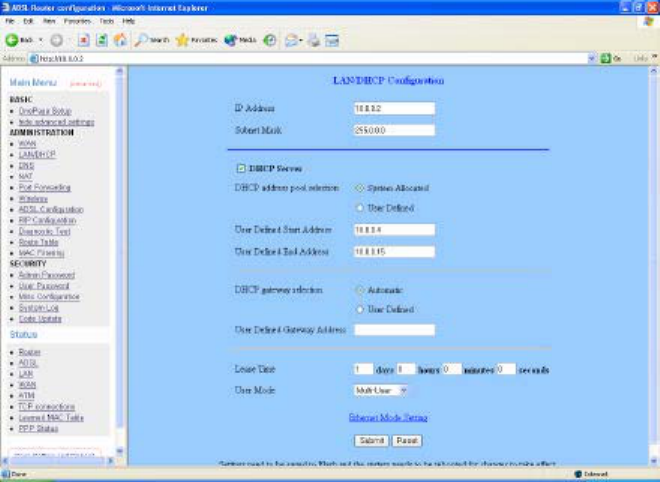

LAN/DHCP ----------------------------------------------------------------------------------------42

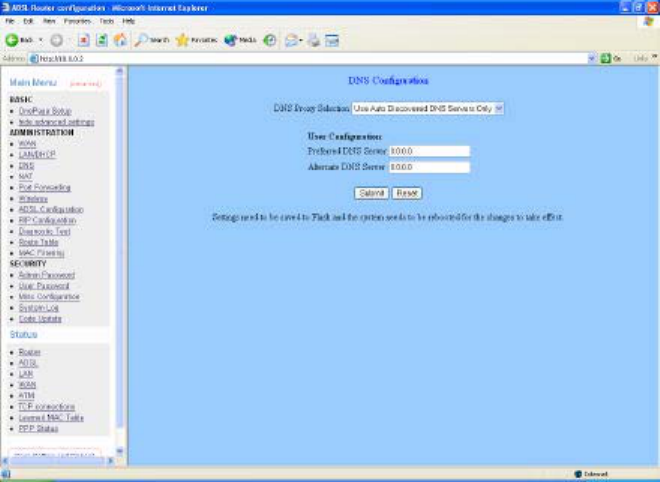

DNS--------------------------------------------------------------------------------------------------43

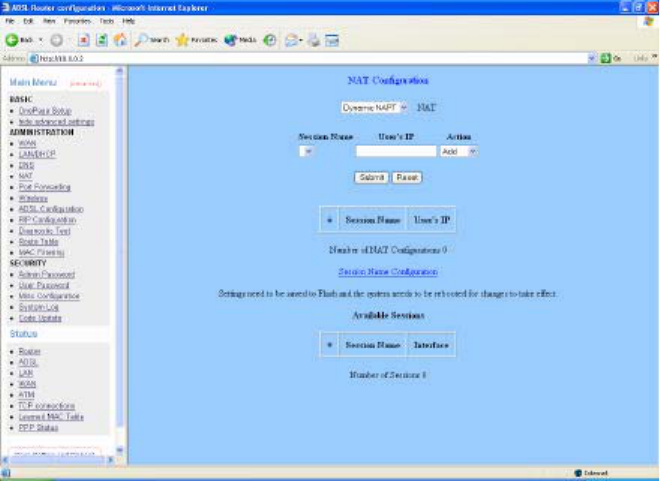

NAT --------------------------------------------------------------------------------------------------44

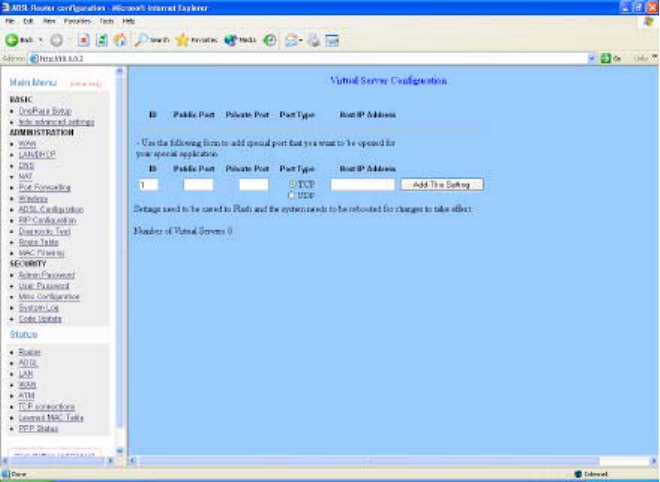

Port Forwarding----------------------------------------------------------------------------------46

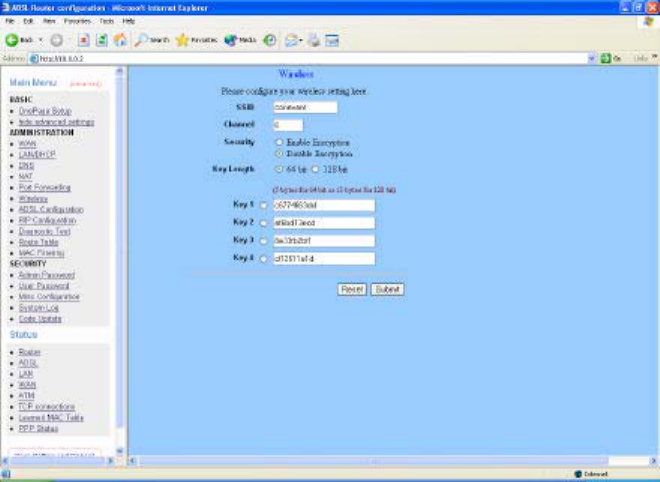

Wireless --------------------------------------------------------------------------------------------47

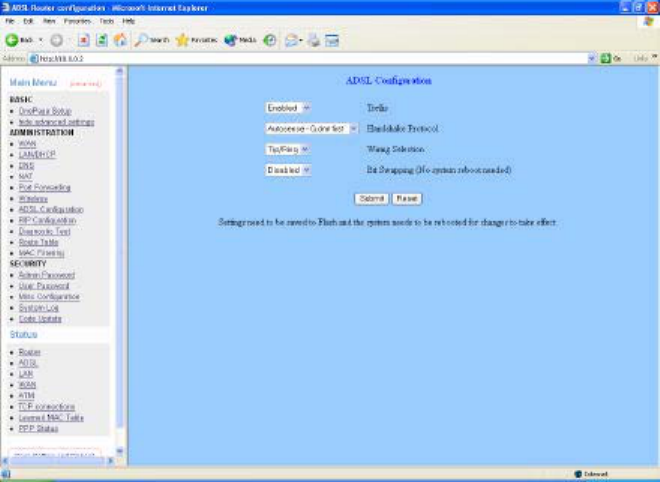

ADSL Configuration ----------------------------------------------------------------------------48

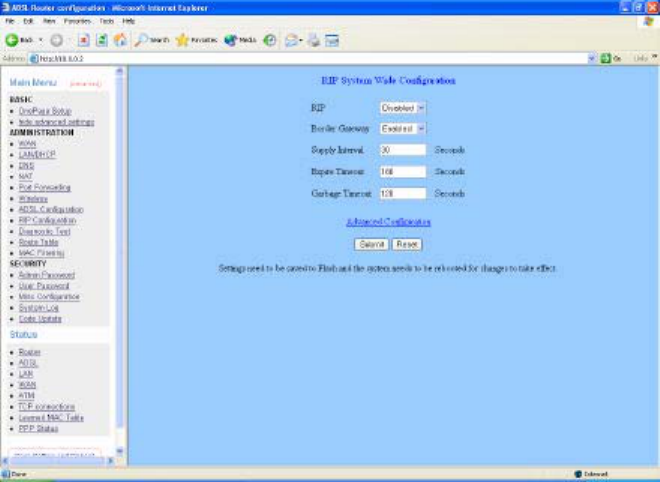

RIP Configuration -------------------------------------------------------------------------------49

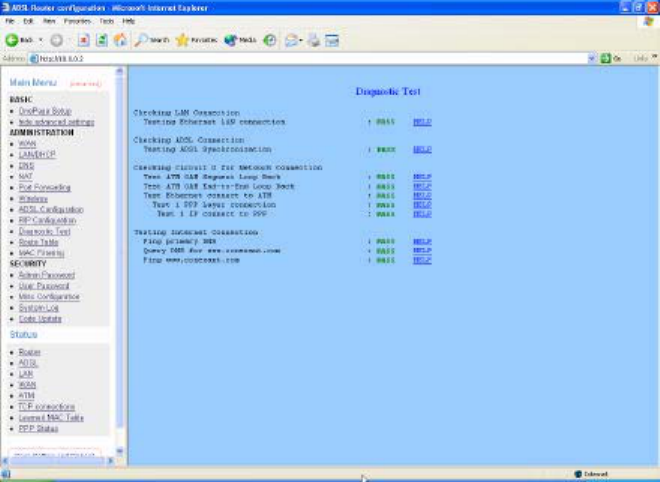

Diagnostic Test-----------------------------------------------------------------------------------50

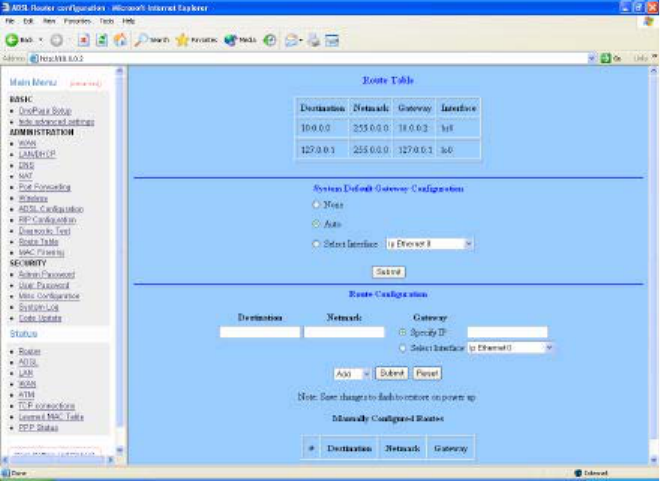

Router Table --------------------------------------------------------------------------------------52
MAC Filtering -------------------------------------------------------------------------------------53
SECURITY-----------------------------------------------------------------------------------------------54

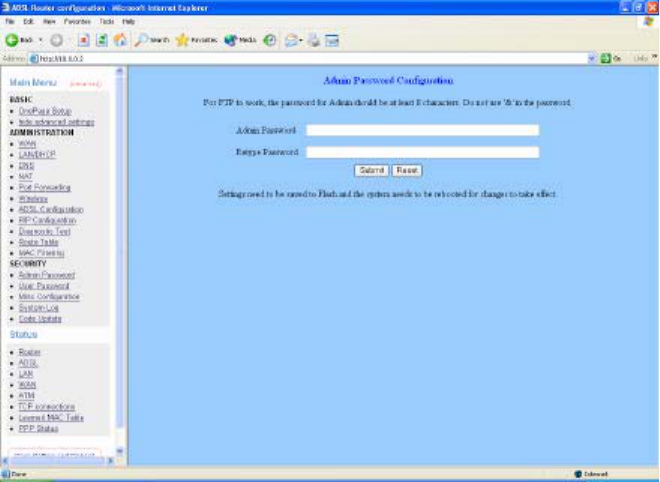

Admin Password --------------------------------------------------------------------------------54
2

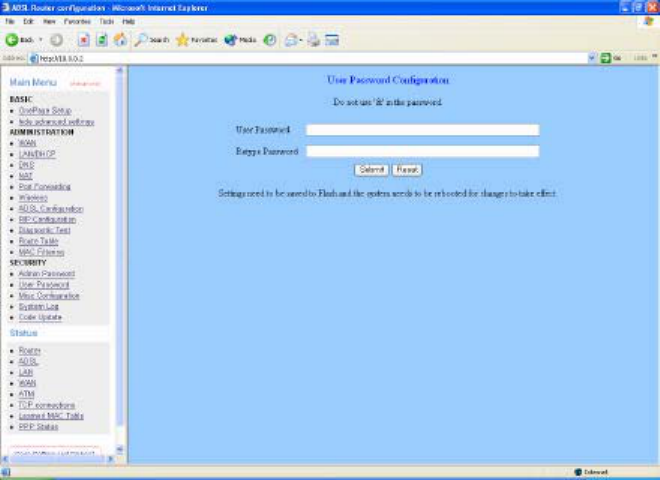

User Password-----------------------------------------------------------------------------------55

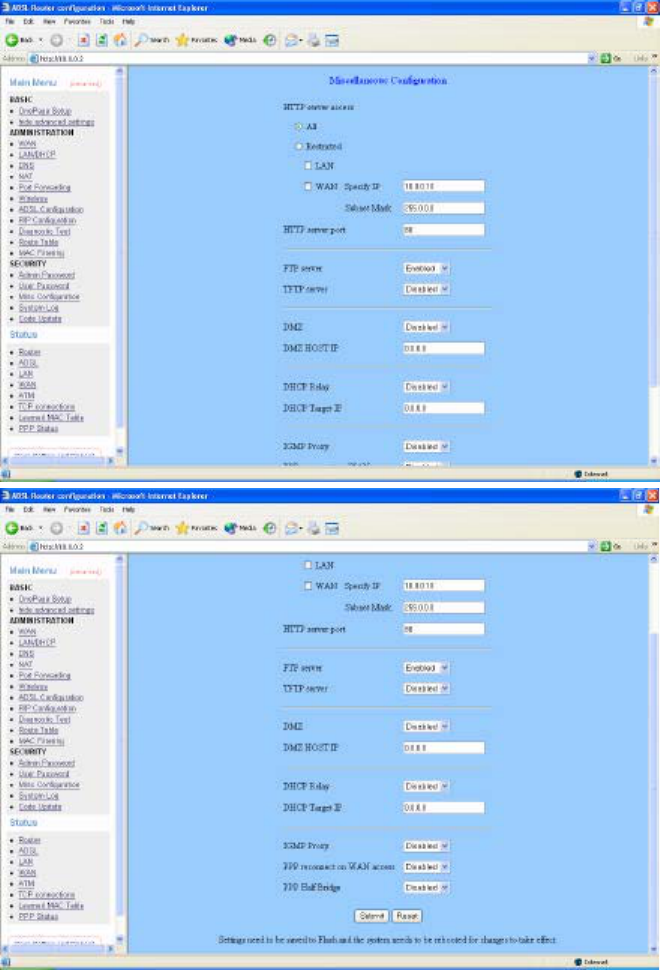

Misc Configuration------------------------------------------------------------------------------56

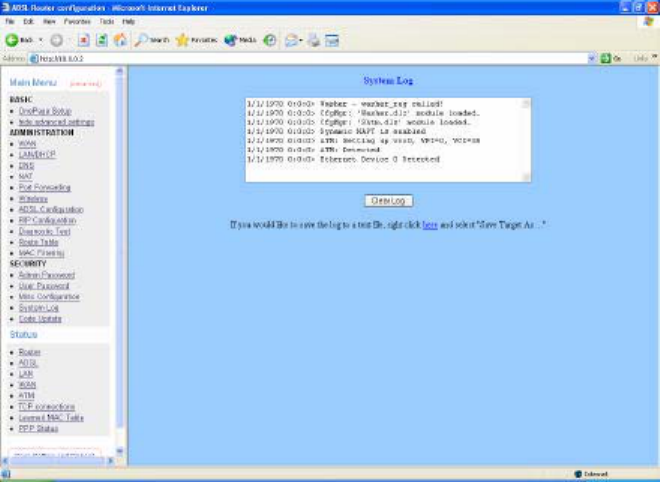

System Log ---------------------------------------------------------------------------------------58

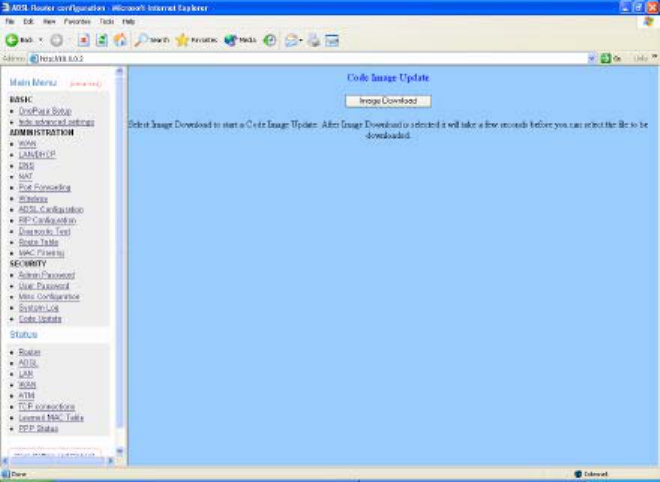

Code Update--------------------------------------------------------------------------------------59
Status ------------------------------------------------------------------------------------------------------60
Router -----------------------------------------------------------------------------------------------60
ADSL------------------------------------------------------------------------------------------------61
LAN --------------------------------------------------------------------------------------------------62
WAN -------------------------------------------------------------------------------------------------63

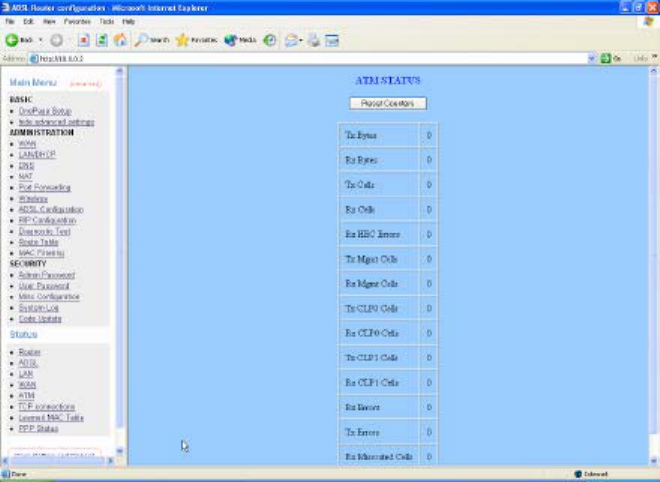

ATM--------------------------------------------------------------------------------------------------64

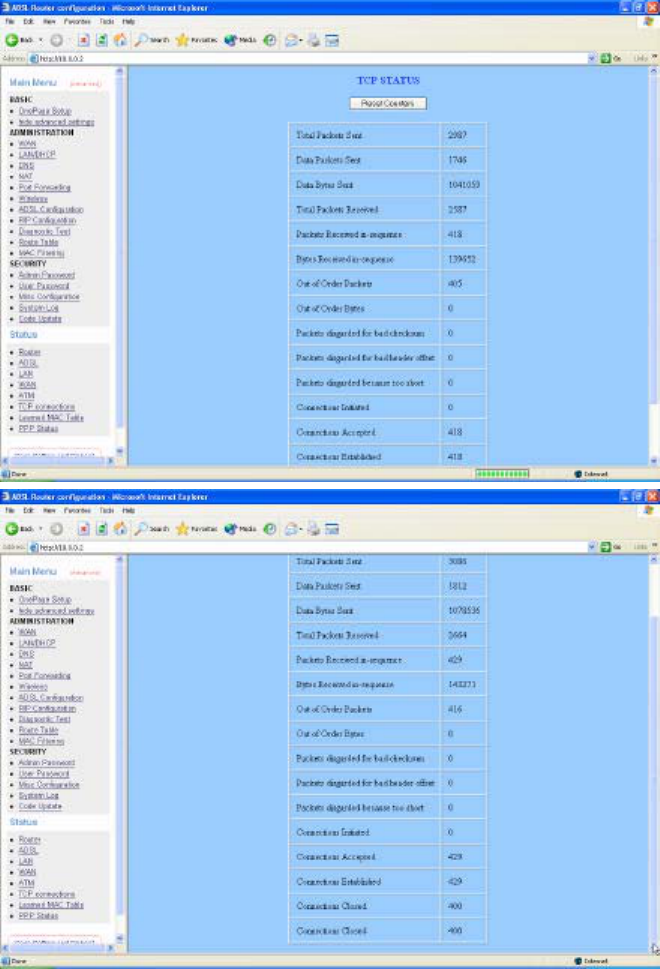

TCP connections --------------------------------------------------------------------------------65
Learned MAC Table ----------------------------------------------------------------------------66
PPP Status ----------------------------------------------------------------------------------------67
3
Specification
Specification Model Name: 1 Port ADSL Wireless Router Annex A / Annex B/UR2
Chipset ADSL Wireless Router Chip:(CX82310-14/24)
ARM940T Processor
Line Connection RJ-11(2 wires) Line/Phone ,USB, RJ-45 (4 port) , RS -232CConnection
Features
High speed Asymmetric Digital Subscriber Line (ADSL) connection to the telephone line
Complete USB ADSL modem solution
DMT modulation and demodulation
Supports splitter less ADSL implementation
Tone detection for low power mode
ATM SAR performed in software driver
Compliant with ADSL standards Full-rate ANSI T1.413 Issue 2 and ITU G.dmt (G.992.1) standards
Splitter less ITU G.lite (G.992.2) specification
Full-rate adaptive modem Maximum downstream rate of 8 Mbps
Maximum upstream rate of 1 Mbps
G.lite adaptive modem Maximum downstream rate of 1.5 Mbps
Maximum upstream rate of 512 Kbps
WAN Mode Support PPP over ATM (RFC 2364)
PPP over Ethernet (RFC 2516)
LAN Mode Support Bridged/routed Ethernet over ATM (RFC 2684/1483)
Classical IP over ATM (RFC 1577) and PPP over Ethernet (RFC 2516)
Bridge Mode Support Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1D)
Supports up to 128 MAC learning addresses
Router Mode Support
IP routing-RIPv2 (backward compatible with RIPv1)
Static routing
DHCP (Dynamic Host Configuration Protocol) Server and Client
NAPT (Network Address and Port Translation)
NAT (Network Address Translation)
ICMP (Internet Control Message Protocol)
Simultaneous USB and Ethernet operation
IGMP (Internet Group Management Protocol)
Ethernet Interface Compatible with IEEE 802.3 standard
10/100 Mbps auto selection
802.11b/b+ interface
(Option)
Support for Intersil PRISM-based designs (11Mbps)
Connects to an 802.11b PCMCIA card
128-bit and 64-bit WEP support
Support for TI DSSS Technology designs (22Mbps)
Connects to an 802.11b+ PCMCIA card
256-bit and 128-bit and 64-bit WEP support
USB host Inerface Compliant with USB Specification, Revision 1.1
PTT and Safety FCC Part 15/Part 68, CE
OS WIN 98SE ; WIN 2000ΙWIN MEΙWIN XP
System Requirement PII-266 + 32M RAM
Power
External AC adapter
Input: 90-120V or 200-240V , 50/60Hz
Output: 9VAC/800mA
LED Indication Power, Ready, Showtime, TXD/RXD, Speed 10M/100M, Link/Activity
Antenna 2 Antenna Optional
SIZE 196mm * 150.5mm
Software Upgrade Upgrade by USB port
4

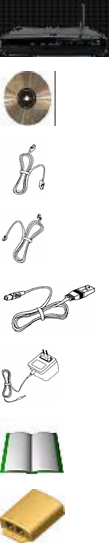

Package Contents
ADSL Wireless Router
CD-ROM containing Manual
Ethernet Cable (CAT5 UTP Straight -Through)
ADSL Cable (Standard telephone cable)
USB Cable (Optional)
Power Adapter
Quick Installation Guide hardcopy
Splitter (Optional)
5

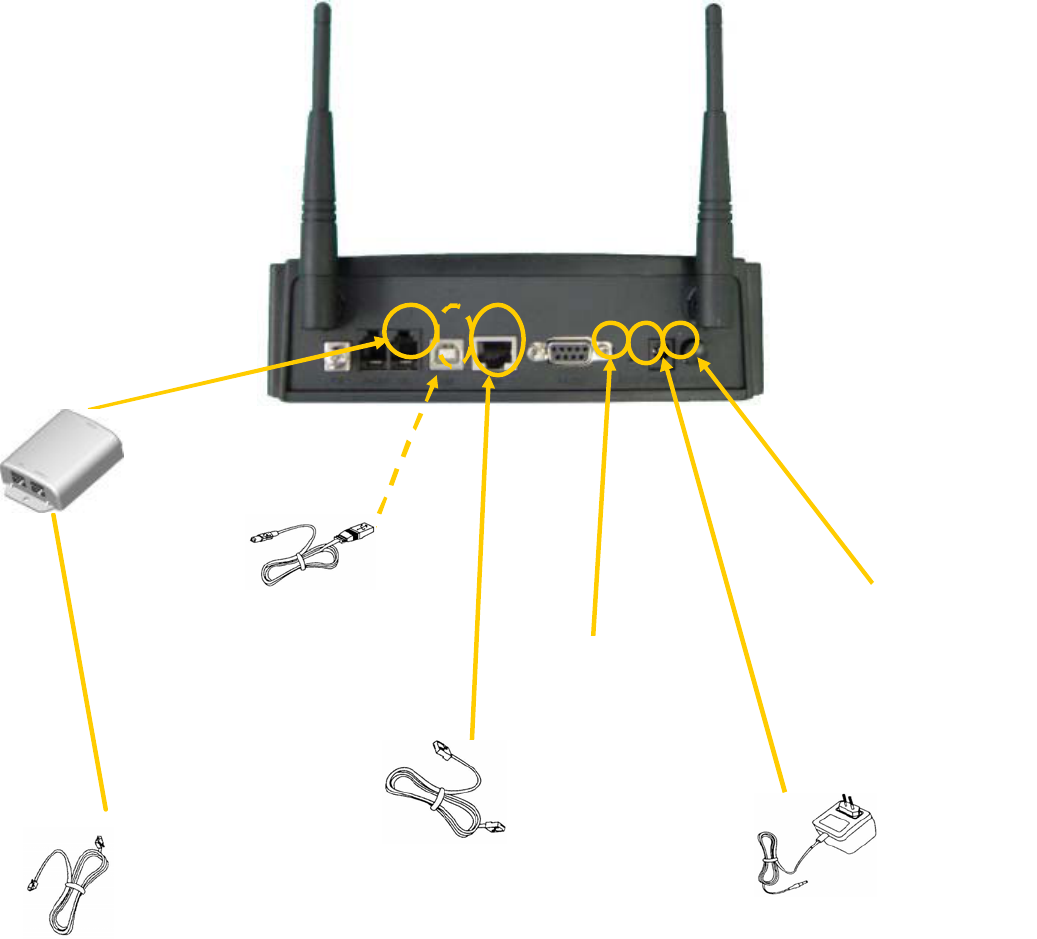

Hardware Connecting
1 Port ADSL
Wireless Router
Factory Reset button
Power Switch
RJ-11
A
DSL
p
ort connect
ADSL cable here
RJ-45 Ethernet
p
ort connect
Ethernet cable here
USB Cable
(
O
p
tional
)
Splitter (optional and
changes depending on
country specification)
Power Adapter
(
9VAC/800mA
)
Power cord connect here
6

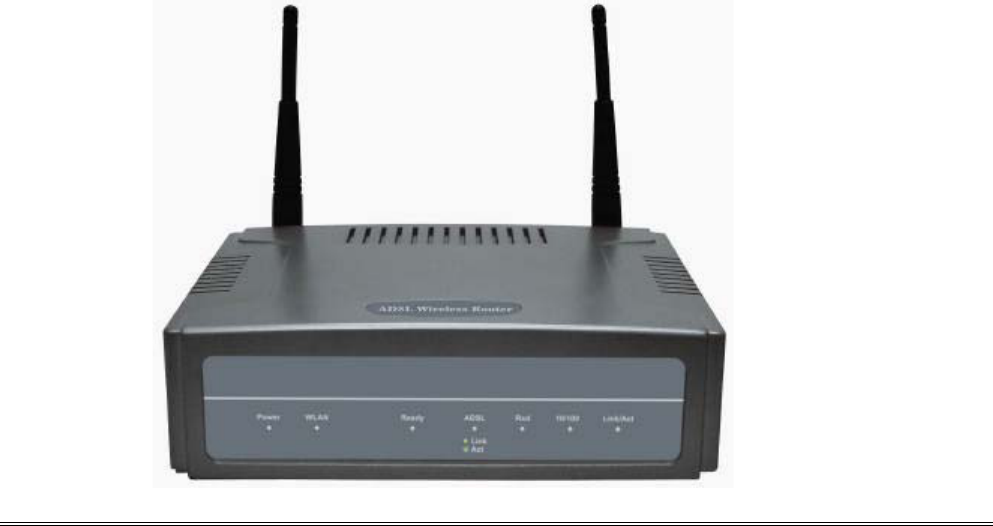

LED Indicators
The LED Indicators are located on the front of the unit, they are green in color. The
meanings are as follows:
Label Meaning Status Indicates
Power Power On Power is on
Off Power is off
WLAN Wireless LAN Flashing Check wireless device.
Ready Ready Flashing Unit is powered up correctly when pulsing
steadily. ON or OFF during reboot or when unit
switched OFF. If ON or OFF permanently then
there is an error. Tr
y
p
owerin
g
unit OFF then ON
after a minute.
ADSL Link Link A valid ADSL connection.
Active Act An active WAN session.
Rxd WAN Receive
Data
Flashing Flashes when receiving or sending data on the
WAN port.
10/100 Transfer speed 10 Off
100 On
Link/Act Link On Indicates a link to your LAN or Network card is
active.
Active Flashing Flashes when data is being sent or received on
the LAN connection.
1 Port ADSL
Wireless Router
7
General Setting
You can use the RJ 45 cable or the USB cable connect to the ADSL Wireless Router.
If you use the USB cable connect to the ADSL Wireless Router, about the USB driver
install steps please see as chapter “ USB Driver Procedure” .
Move your cursor as following sequenceStart \ Settings \ Control
Panel and click Control Panel. Then double-click on the Network Connections
In the LAN or High-Speed Internet window, right -click on icon
corresponding to your network interface card (NIC) and select Properties.(This
icon may be labeled Local Area Connection).

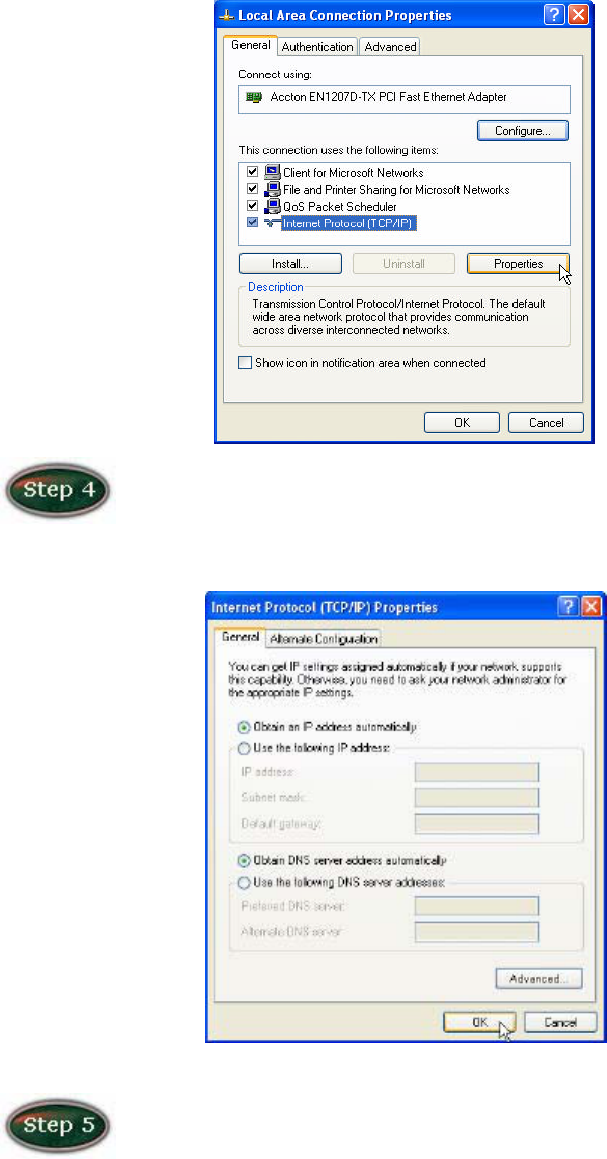

In the General Tab of the Local Area Connection Properties menu.
8
Highlight Internet Protocol (TCP/IP) under “ This connection uses the following
items.” by click on it once. Click on the Properties button.
Select Obtain an IP Address automatically: by clicking once in the
circle. Click OK button to confirm and save your changes, and the close the
Control Panel.

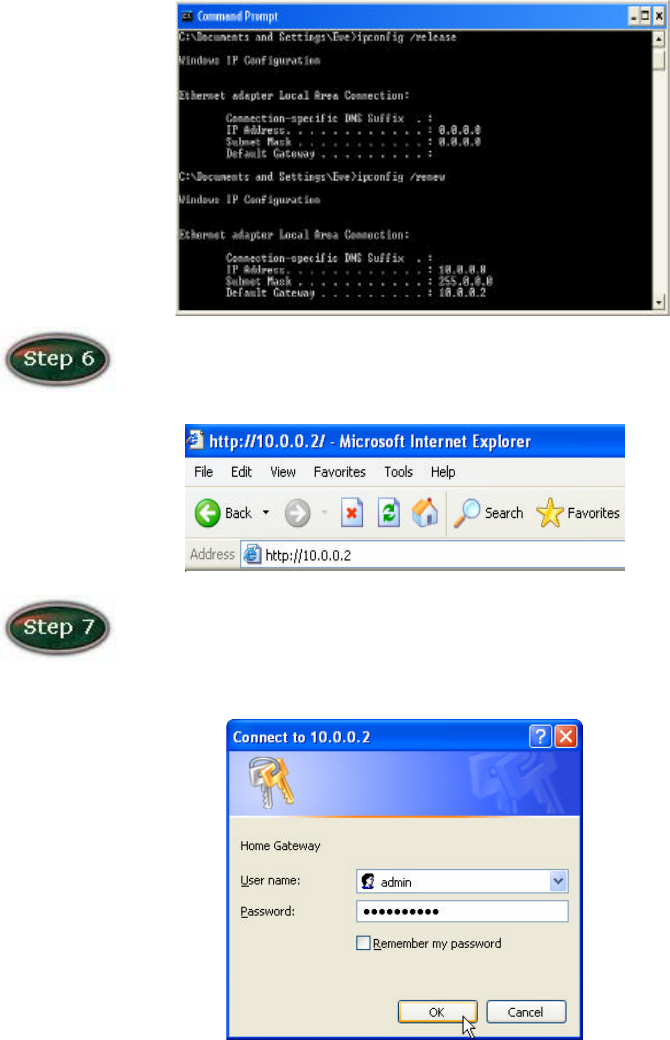

Release IP & Renew IP, then Check Default Gateway:10.0.0.2.
9
Launch your PC web browser and enter the URL: http://10.0.0.2.
In the User name/Password prompt, please type in admin/epicrouter
as default.
10

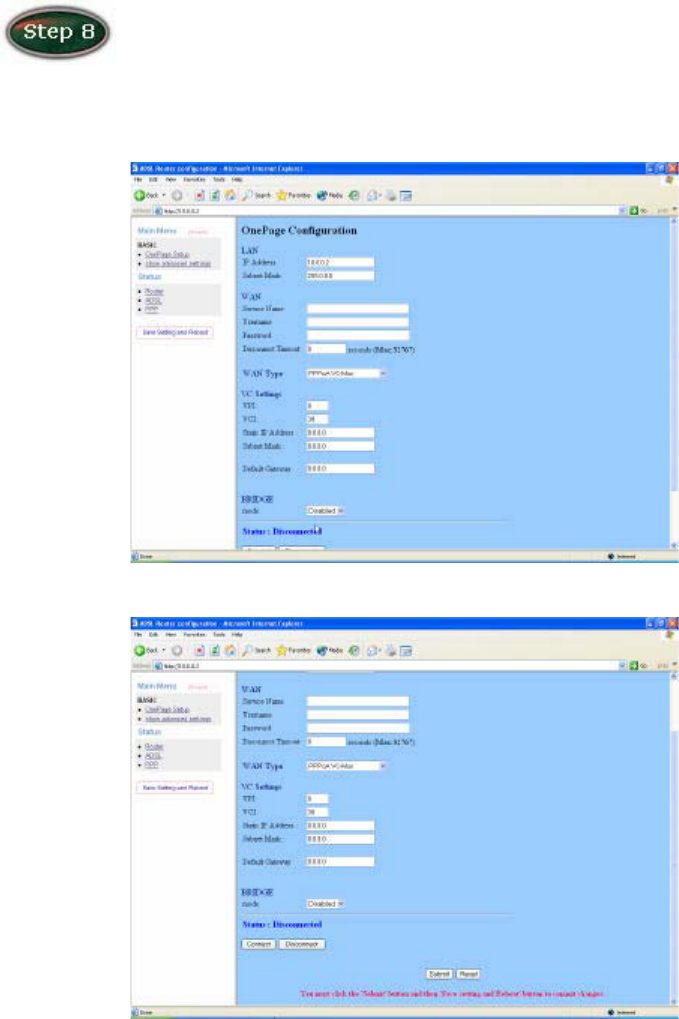

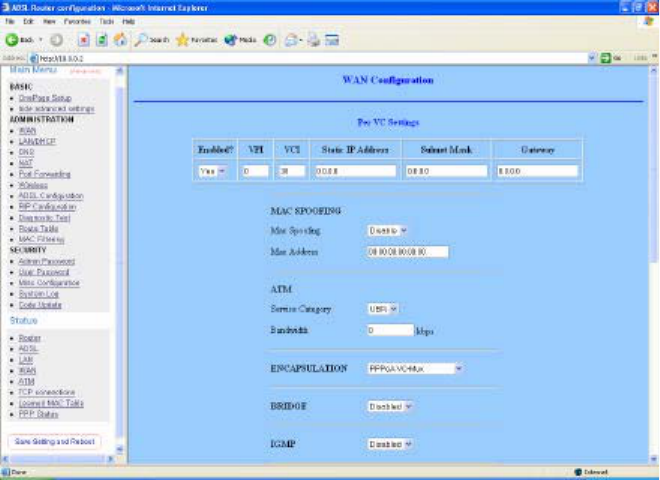

Please wait for the SETUP page to appear. Selection WAN Type
follow as Table-1 configuration default is PPPoA VC -Mux. Then click the Submit
and Save Setting and Reboot button. You can now start browsing the web
through the ADSL device.
11
Table-1 Configuration
WAN
Configuration
Bridge Mode Router Mode
(PPPoA/PPPoE)
Router Mode
(Dynamic IP)
Router Mode
(Static IP)
IP address N/A Automatically
assigned by ISP
Automatically
assigned by ISP
Provided by ISP
Subnet Mask N/A Automatically
assigned by ISP
Automatically
assigned by ISP
Provided by ISP
WAN Type 1483 Bridged
IP LLC,
1483 Bridged
IP VC-Mux
PPPoA
LLC/VC- Mux,
PPPoE
LLC/VC- Mux
1483
Bridged/Routed
IP LLC,
1483
Bridged/Routed
VC-Mux,
Classical IP over
ATM
1483
Bridged/Routed
IP LLC,
1483
Bridged/Routed
VC-Mux,
Classical IP over
ATM
Bridge Enabled Disabled Disabled Disabled
PPP Service N/A Provided by ISP N/A N/A
PPP User
name
N/A Provided by ISP N/A N/A
PPP
Password
N/A Provided by ISP N/A N/A
DHCP Client
enable
Unchecked Unchecked Checked Unchecked
12
Status
Router

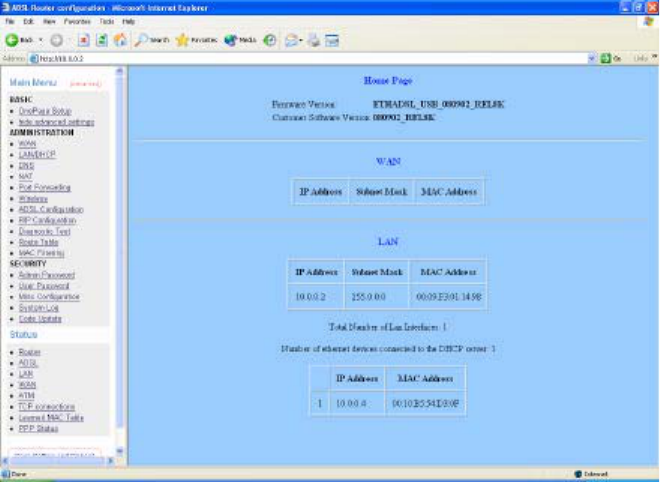

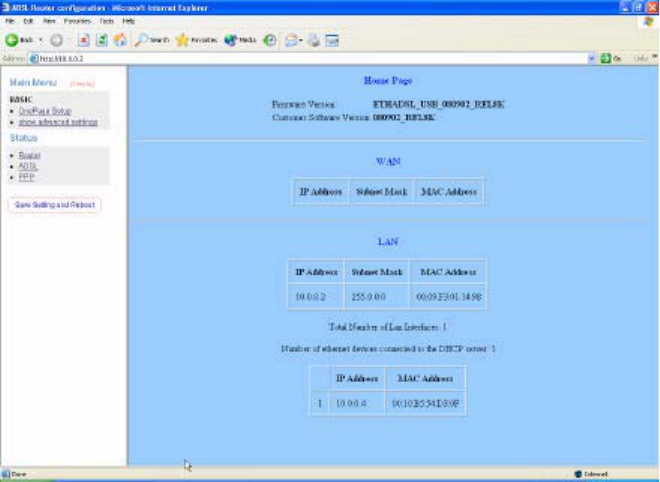

The Bridge page shows the Firmware Version and WAN and LAN interface status.
Firmware Version: This field displays the Firmware Version number.
WAN: These fields display the IP Address, Subnet Mask, MAC Address for WAN
interface.
LAN: These fields display the IP Address, Subnet Mask, MAC Address for LAN
interface.
Number of Ethernet devices connected to the DHCP server: This field displays the
number of DHCP clients connected to the ADSL Wireless Router. It also shows
the IP address and MAC address of the attached DHCP clients.
13

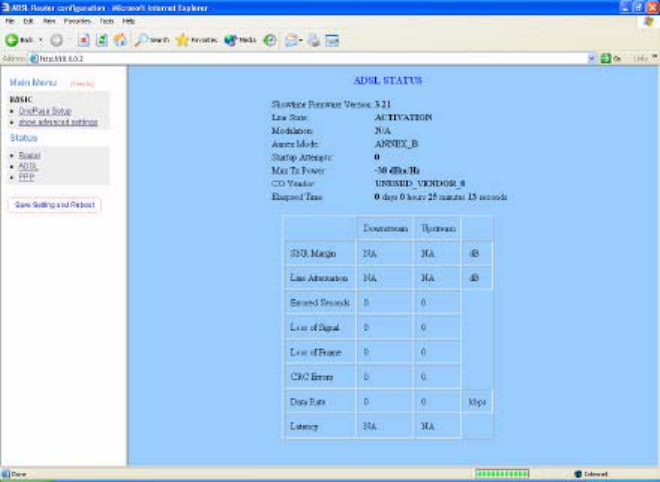

ADSL

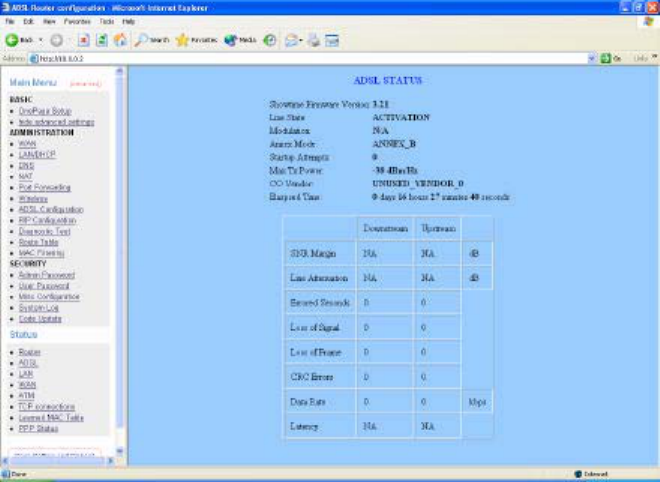

The ADSL Status page shows the ADSL physical layer status.
Showtime Firmware Version: This field displays the ADSL data pump firmware
version number.
Line State: This field displays the ADSL connection process and status.
Modulation: This field displays the ADSL modulation status for G. dmt or T1.413.
Annex Mode: This field displays the ADSL Annex modes for Annex A or Annex B.
Startup Attempts: This field displays the ADSL connection attempts after loss of
showtime.
Max Tx Power: This field displays the transmit output power level of the CPE.
CO Vendor: This field displays the Central Office DSLAM vendor name. If available.
Elaspsed Time: This field displays the time of the modem has been in operation.
14
PPP

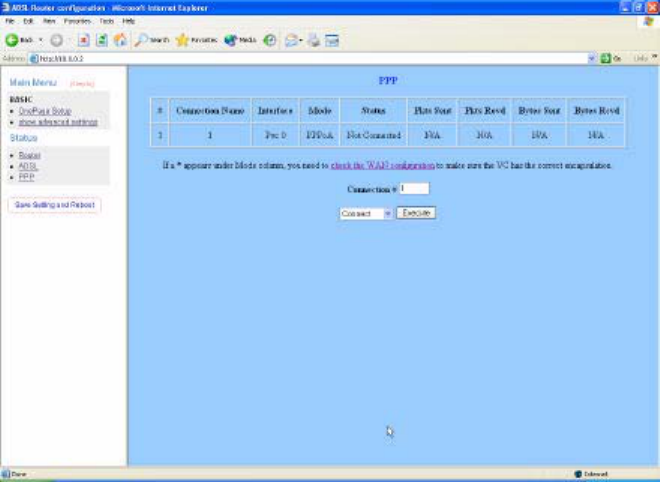

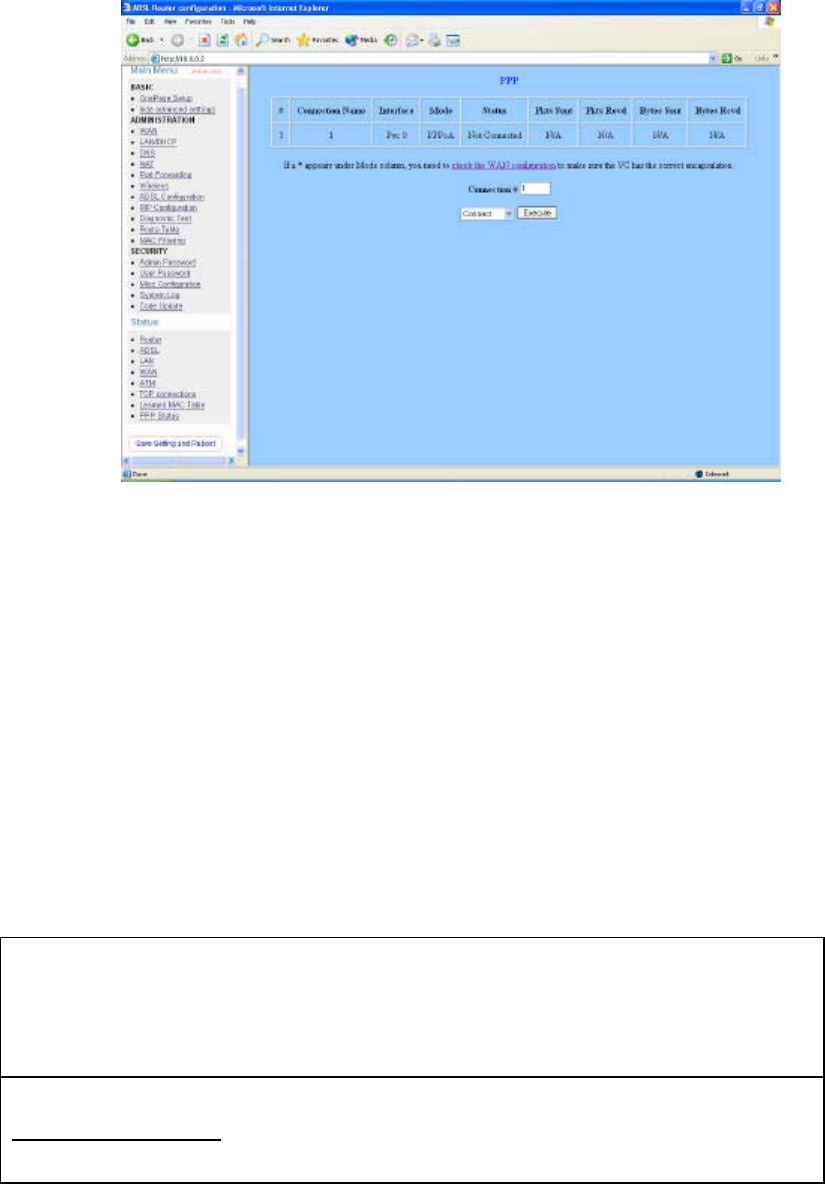

The PPP Status page shows the status of PPP for each PPP iterface. See PPP.
These fields display the following information on each PPP interface:
Connection Name (user defined)
Interface (PVC)
Mode (PPPoE or PPPoA)
Status (Connected or Not Connected)
Packets Sent
Packets Received
Bytes Sent
Byte Received
Connect and Disconnect: Each PPP session can be individually controlled,
simply enter the desired connection number into the “ Connection #” field and select
either connect or disconnect from the drop down menu and click on the “ Execute”
button.
15
USB Driver Procedures
Installation USB Driver Procedures
You can use the RJ 45 cable or the USB cable connect to the ADSL Wireless Router.
If you use the USB cable connect to the ADSL Wireless Router, about the USB driver
install steps please see as below: (Only for 1 Port ADSL Wireless Router)
Microsoft Windows 98SE
1. Please insert the driver CD supplied when you see the message of USB NET
CARD appearing on the screen, then click Next.
2. Select Search for the best driver for your device. [Recommended] and click
Next.
3. Select Specify a location and type in the path of CD-ROM drive (for example
16
F:\USB driver), click Next.
4. Windows has found the driver for the Conexant USB Network Interface and
click Next.
5. The installation has been done, click Finish.
17
6. Windows has found the driver for the Conexant USB Network Device. and
click Next.
7. Select Search for the best driver for your device. [Recommended] and click
Next.
8. Select Specify a location and use Browse to open the file of F:\USB driver ,
click Next.
18
9. Windows has found the driver for the Conexant USB Network Adapter and
click Next.
10. Please insert the disk labeled Windows 98 Second Edition CD-ROM’ , then
click OK.
11. Windows has finished installing the software that your new hardware device
requires. and click Finish.
19

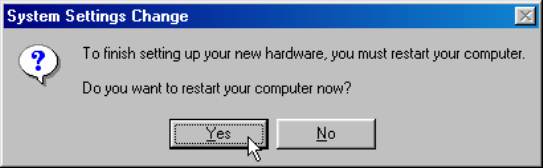

12. Click Yes. restart your computer now.
20
Microsoft Windows 2000
1. Please insert the driver CD into CD-ROM drive and click Next.
2. Select Search for a suitable driver for my device [recommended] and click
Next.
3. Select Specify a location and click Next.
21
4. Use Browse to open the file of F:\USB driver, click OK.
5. Click Next.
6. Click Yes.
22
7. The installation has been done, click Finish.
8. Click Yes.
23
Microsoft Windows ME
1. Please insert the driver CD supplied when you see the message of USB NET
CARD appearing on the screen, select Specify the location of the driver
(Advanced), then click Next.
2. Select Search for the best driver for your device. [Recommended] and
check Specify a location, then type in the path of CD-ROM drive (for example
F:\USB driver) and click Next.
24
3. Windows has found the driver for the Conexant USB Network Interface and click
Next.
4. The installation has been done, click Finish.
5. Windows has found the driver for the Conexant USB Network Device. Select
Specify the location of the driver (Advanced) and click Next.

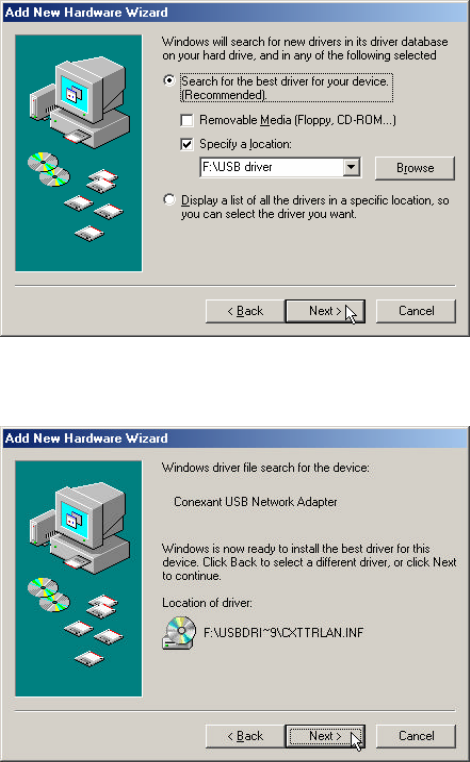

6. Select Search for the best driver for your device. [Recommended] and
25
check Specify a location, then type in the path of CD-ROM drive (for example
F:\USB driver) and click Next.
7. Windows has found the driver for the Conexant USB Network Adapter and
click Next.
26

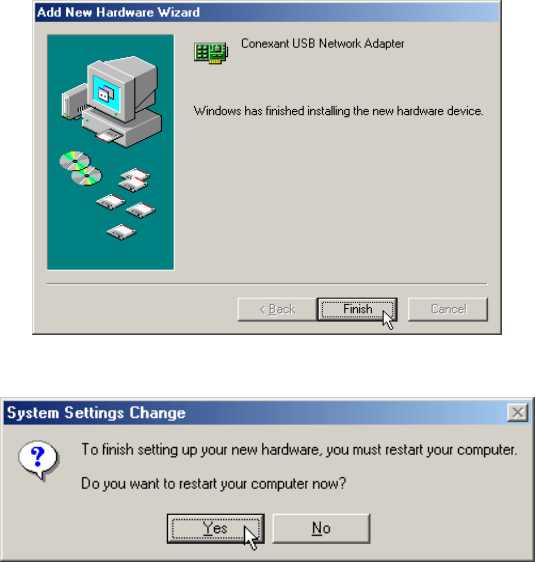

8. Windows has finished installing the new hardware device. and click Finish .
9. Click Yes. restart your computer now.
27
Microsoft Windows XP

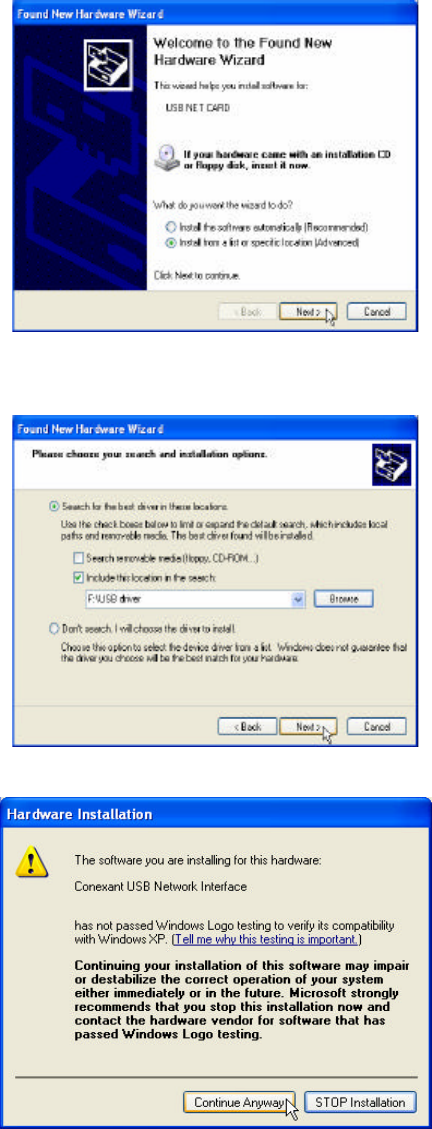

1. Please insert the driver CD into CD-ROM drive and select Install from a list or
specific location (Advanced) then click Next .
2. Select Include this location in the search and type in the path of CD-ROM
drive (for example F:\USB driver), then click Next.
3. Click Continue Anyway.
4. Click Continue Anyway.
28
5. The installation has been done, click Finish.
6. The select Install from a list or specific location (Advanced) then click Next .
29
7. Select Include this location in the search and type in the path of CD-ROM
drive (for example F:\USB driver), then click Next.
8. Click Continue Anyway.
9. The installation has been done, click Finish.
30
Uninstallation USB Driver Procedures
Microsoft Windows 98SE

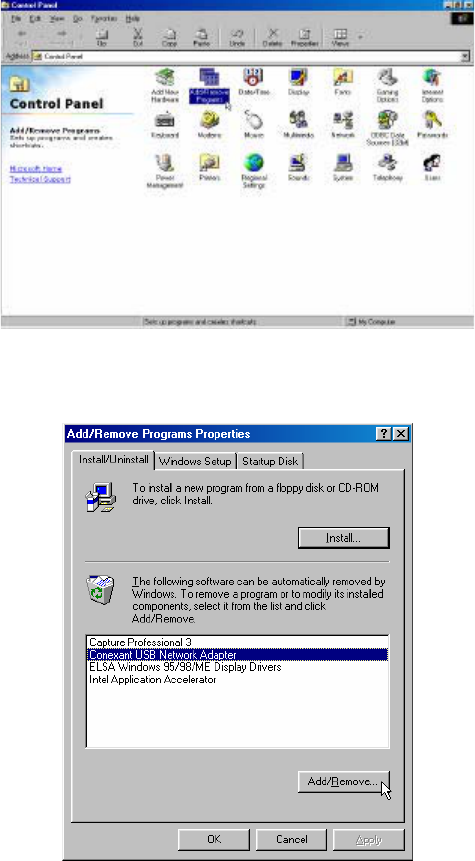

1. Move your cursor as following sequence Start \ Settings \ Control Panel and
click Control Panel. Then double-click on the Add/Remove Programs icon.
2. Select Conexant USB Network Adapter from the list and then click the
Add/Remove button.
31

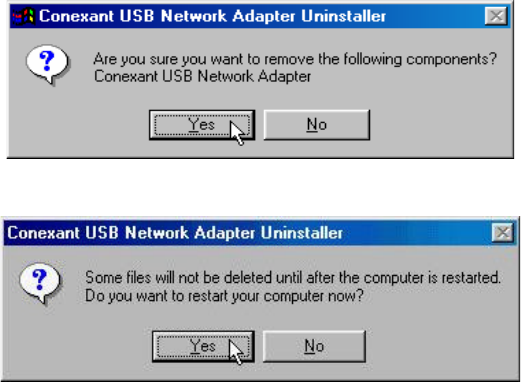

3. Click Yes to remove the USB device.
4. Click Yes to restart your computer.
32
Microsoft Windows 2000
1. Move your cursor as following sequence Start \ Settings \ Control Panel and
click Control Panel. Then double-click on the Add/Remove Programs icon.
2. Select Conexant USB Network Adapter from the list and then click the
Change/Remove button.
3. Click Yes to remove the USB device.
33
4. Click Yes to restart your computer.
34
Microsoft Windows ME
1. Move your cursor as following sequence Start \ Settings \ Control Panel and
click Control Panel . Then double-click on the Add/Remove Programs icon.
2. Select Conexant USB Network Adapter from the list and then click the
Add/Remove button.
3. Click Yes to remove the USB device.
35
4. Click Yes to restart your computer.
36
Microsoft Windows XP

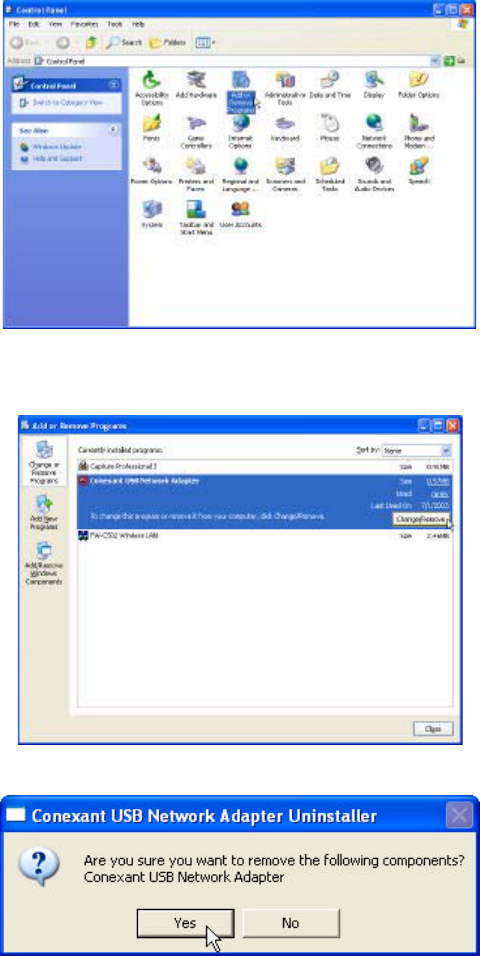

1. Move your cursor as following sequence Start \ Settings \ Control Panel and
click Control Panel. Then double-click on the Add or Remove Programs icon.
2. Select Conexant USB Network Adapter from the list and then click the
Change/Remove button.
3. Click Yes to remove the USB device.
37
4. Click Yes to restart your computer.
38
Advanced Setting
ADMINISTRATION
The links under the Administration column are associated to the pages that represent
the configurations of system and interfaces.
Note: When the configurations are changed, please click the Save Setting and Reboot
button.
WAN
The WAN configuration page allows the user to set the configuration for WAN/ADSL
ports .
39
Per VC Settings
Enabled: This also should be left at the default setting Enabled. This enables the
PVC used for the initial connection.
VPI: If instructed to change this, type in the VPI value for the initial connection (using
PVC 0). Default = 0.
VCI: If instructed to change this, type in the VCI value for the initial connection (using
PVC 0). Default = 38.
MAC Spoofing:MAC Spoofing is developed to solve the scenario when the ISP only
recognizes one MAC address. Copy the ISP-recognized MAC address here.
ATM
Service Category: UBR and CBR are supported from the ATM.
Bandwidth: Bandwidth setting takes effect only when the CBR is selected. The
maximum available bandwidth is from the upstream data rate of ADSL status
page.
ENCAPSULATION: Selection follow as Table-1 Configuration
BRIDGE: Enabling bridge mode will place the unit into Transparent bridge mode (like
a Ethernet ADSL modem) to use this mode you should also set your WAN type to
a Bridging option (e.g RFC1482 Bridge using LLC).
IGMP: IGMP relay/proxy specification and environment:
Support IGMP proxy/relay function for ADSL modem, based on the following
requirement and case:
40
On CO side, there must be at least one IGMP querier (router) present. IGMP
querier will send IGMP query packet. The ADSL modem is responsible to relay
these IGMP query to Ethernet.
End-user multicast application device send IGMP report while receiving IGMP
query or being activated by user, the ADSL modem should be responsible to
proxy (that is, change source IP to ADSL modem’s WAN IP) the IGMP report to
ADSL WAN side, include all PVCs. The same case is for IGMP leave packet.
Not necessary to relay multicast routing between two ADSL PVCs or two
interfaces in LAN side.
Special purpose multicast packet (such as RIP 2 packet) should run without
interference.
Table-2
Rx Entity Packet Class TTL Action Note s
ADSL IGMP query 1 Relay to Ethernet
IGMP report 1 Ignore
IGMP leave 1 Ignore
General Multicast IP - Relay it to Ethernet.
Ethernet IGMP query 1 Ignore
IGMP report 1 Relay to all ADSL PVC
IGMP leave 1 Relay to all ADSL PVC
General Multicast IP - Ignore
PPP: The current release supports multiple PPP sessions per PVC. The PPP
configuration in the WAN configuration page is for the first PPP session for each
PVC. The predefined PPP Account Name (Account ID) is “ Simple PPP Account
0” for PVC0 and predefined PPP Connection Name is “ Simple PPP Session 0” for
PVC0. For the other PVC X, the predefined account name and connection name
will be Simple PPP Account X and Simple PPP Session X. X is the PVC number
from 1 to 7.
It can support up to total of 16 PPP sessions, and each PVC can support up to 8
PPP sessions, The multiple PPP sessions may be configured with any
combination over 8 PVCs.
Service Name: The service name of PPP is required by some ISPs. If the ISP does
not provide the Service Name, please leave it blank.
Username: Your user name provided by your ISP.
41
Password: Your password provided bye your ISP.
Disconnect Timeout: The Disconnect Timeout allows the user to set the specific
period of time to disconnect from the ISP. The default is 0, which means never
disconnect from the ISP.
MRU: Maximum Receive Unit indicates the peer of PPP connection the maximum size
of the PPP information field this device can be received. The default value is 1492
and is used in the beginning of the PPP negotiation. In the normal negotiation, the
peer will accept this MRU and will not send packet with information field larger
than this value.
MTU: Maximum Transmission Unit indicates the network stack of any packet is larger
than this value will be fragmented before the transmission. During the PPP
negotiation, the peer of the PPP connection will indicates its MRU and will be
accepted. The actual MTU of the PPP connection will be set to the smaller one of
MTU and the peer’ s MRU. The default is value 1492.
MSS: Maximum Segment Size is t he largest size of data that TCP will send in a single
IP packet. When a connection is established between a LAN client and a host in
the WAN side, the LAN client and the WAN host will indicate their MSS during the
TCP connection handshake. The default value is 1432.
Automatic Reconnect: When it is checked, it will maintain the PPP connection all the
time. If the ISP shut down the PPP connection, it will automatically reconnect
PPP session.
DHCP: Use Table-1 to configure a valid setting for each PVC.
Host Name: Required by some ISPs. If the ISP does not provided the Host name,
please leave it blank.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
42
LAN/DHCP
The LAN configuration page allows you to s et the configuration for the LAN port.
LAN IP Address & Subnet Mask: The default is 10.0.0.2 and 255.0.0.0 you can
change it to another private IP address, such as 211.22.10.191 and
255.255.255.0. For most configurations it is recommended to leave it as default.
DHCP Server: System Allocated. The DHCP address pool is based on LAN port IP
address plus 12 IP address. For example, the LAN IP address is 10.0.0.2; the
DHCP address pool is at the range of 10.0.0.3 to 10.0.0.14.
User Defined: The DHCP address pool is at the range of User Defined Start Address
and User Defined End Address. The maximum pool size can be 253 IP
address:255 total IP address-1 broadcast address-1 LAN port IP address.
DHCP Gateway Selection: The default setting for the DHCP Gateway Selection is
Automatic” . The user can select the “ User Defined” to specify “ User Defined
Gateway Address” . The DHCP server will issue the “ User Defined Gateway
Address” to the LAN DHCP client.
Lease time: The lease time is the amount of time of a network user will be allowed to
connect with DHCP server. If all fields are 0, the allocated IP address will be
effective forever.
User mode: Under the Single User mode, the DHCP server only allocates one IP
address to local PC. Under the Multiple User mode, the DHCP server allocates
the IP addresses specified by the DHCP address pool.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
43
DNS
The DNS Configuration page allows you to set the configuration of DNS proxy.
Disable DNS Proxy: The LAN port does not process the DNS query message. For
the DHCP requests from local PCs, the DHCP server will set the user-configured
preferred DNS sever or alternate DNS server whichever is available as the DNS
server. Then all DNS query messages will be directly sent to the DNS servers.
Use Auto Discovered DNS Servers Only: The DNS proxy will store the DNS server
IP addresses obtained from DHCP client or PPP into the table. And all DNS query
messages will be sent to one of the dynamically obtained DNS servers.
Use User Configured DNS Servers Only: The DNS proxy will use the
user-configured preferred DNS server and alternate DNS server. And all DNS
query message will be sent to one of DNS servers.
Auto Discovery + User Configured: The DNS proxy’s table has all the IP addresses
of dynamically obtained and user configured DNS servers.
User Configuration: Place your primary and secondary DNS addresses here.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
44
NAT
The NAT Configuration page allows users to set the configuration for the Network
Address Translation. The default setting is Dynamic NAPT. It provides dynamic
Network Address Translation capability between LAN and multiple WAN connections,
and the LAN traffic is routed to appropriate WAN connections based on the destination
IP address and Route Table. This eliminates the need for the static NAT session
configuration between multiple LAN clients and multiple WAN connections.
When the Dynamic NAPT is chosen, there is no need to configure the NAT Session
and NAT Session Name Configuration.
The NAT option only maps single WAN IP address to the local PC IP address. It is
peer-to-peer mapping. (1x1) For each WAN interface, only one local PC IP address
can be associated with each WAN interface. Click the link Session Name
Configuration to add the session name for WAN interface.
The NAPT option only maps single WAN IP address to many local PCs IP address.
(1xN). It is the multiple-mapping mechanism. For each WAN Interface, more than one
local PC can be associated with one WAN Interface. Click the link Session Name
Configuration to add the session name for WAN interface.
Session Name: This field allows the user to select the session form the configured
NAT Session Name Configuration.
User’ s IP: This field allows the user to assign the IP address to map the
corresponding NAT/NAPT sessions.
Session Name Status will be displayed at the middle of this page to show the
corresponding Session Name with its IP address.
45
Number of NAT Configurations:This field displays the total number of NAT
Sessions is entered.
Available Sessions Status will be displayed at the end of this page to show all the
Session Name with its WAN Interface.
Interface: This field allows the user to choose specific WAN Interface (PVC or PPP
Session) for NAT Session.
Number of Session: This field displays the total number of NAT Sessions Name is
entered.
46
Port Forwarding
The Port Forwarding Configuration page allows the user to set the configuration for
Port Forwarding. By default all UDP/TCP ports are protected from intrusion. If any
specific local PCs need to be mapped to the UDP/TCP port on WAN side, please input
the mappings here.
Public Port: This field allows the user to enter the port number of the Public Network.
Private Port: This field allows the user to enter the port number of the Private
Network.
Host IP Address: This field allows the user to enter the private network IP address for
the particular server.
47
Wireless
Wireless Access Point builds a wireless LAN and can let all PCs equipped with IEEE
802.11b wireless network adaptor connect to your Intranet.
SSID:This is the name of the wireless LAN. All the devices in the same
wireless LAN should have the same SSID.
Channel:The channel used by the wireless LAN. All devices in the same
wireless LAN should use the same channel.
Security: Enable or disable Wireless encryption.
Disable Encryption
Enable Encryption.
Key Length: You can select the Key Length for encryption, 64 bit or 128 bit.
Key 1~Key 4: The key used to encryption data transmitted in the wireless network.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
48
ADSL Configuration
The ADSL Configuration page allows the user to set the configuration for ADSL
protocols.
Trellis: This field allows the user to enable or disable the Trellis Code. By default, it is
always enabled.
Handshake Protocol: This field allows the user to select the ADSL handshake
protocol.
Wiring Selection: This field allows the user to enter the wiring selection for the RJ-11.
Tip/Rip is the default for the board without the inner/outer pair relay.
Bit Swapping: This field allows the user to enable or disable the upstream bit
swapping.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
49
RIP Configuration
The RIP Per Interface Configuration page allows the user to set the configuration for
each Interface (PVCs, PPP Sessions, USB and LAN).
Interface: This field allows the user to choose the Interface (PVCs, PPP Sessions,
USB and LAN), for the RIP to be configured.
Enable: This field allows the us er to Enable (Yes) or Disable (No) the Specified
interface for RIP.
Supplier: This field allows the user to select the Supplier Mode (RIP Transmit).
Disabled: The supplier transmit is disabled.
V1 BC: The supplier transmits in RIPv1 Broadcast.
V2 BC: The supplier transmits in RIPv2 Broadcast.
V2 MC: The supplier transmits in RIPv2 Multicast.
Listener: This field allows the user to select the Listener Mode (RIP Receive).
V1: The listener receives the RIPv1 only.
V2: The listener receives the RIPv2 only.
V1+V2: This listener receives the both RIPv1 and RIPv2.
Supplier and Listener are based on section 4.1 “ Compatibility Switch” in RFC 1723.
Current RIP Settings: This field displays the each interface’s RIP status.
50
Diagnostic Test
The Diagnostic Test page shows the test results for the physical layer and protocol
layer for both LAN and WAN sides.
Testing Ethernet LAN Connection: This test checks the Ethernet LAN interface
connection.
Testing ADSL Synchronization: This test checks the ADSL showtime. If this test
returns FAIL, all other tests will be skipped.
Test ATM OAM segment Loop Back: This test sends ATM OAM F5 Segment
loop-back request cells to the CO. This test will pass if response cell is received.
Some service providers might not support this test. If this test fails consistently
and the ADSL modem does not seem to be working, make sure the VPI and VCI
are configured correctly.
Test ATM OAM End-to-End Loop Back: This test sends ATM OAM F5 End to End
loop back request cells to the CO. This test will pass if response cell is received.
Some service providers might not support this test. If this test return FAIL
consistently and the ADSL modem does not seem to be working, make sure the
VPI and VCI are configured correctly.
Test Ethernet Connect to ATM: This test checks the ATM AAL5 module is loaded
correctly.
Test PPP Layer Connection: This test checks the PPP authentication.
Test IP Connect to PPP: This test checks a valid IP address assigned from the
service provider. Please note that on some ADSL services this test may fail
despite the fact that you have connected correctly.
51
Ping Primary DNS: This test checks the primary DNS can be reached through pin
request.
Query DNS for www.conexant.com : This test checks the host name can be resolved
to IP address though domain name servers.
Ping www.conexant.com : This test checks the specified host can be reached
through pin request.
52
Router Table
The Router Table page displays routing table and allows the user to manually enter
the routing entry. The routing table will display the routing status of Destination,
Netmask, Gateway and Interface. The interface br0 means the USB interface; Io0
means the loopback interface and ppp1 means the PPP interface. The Gateway is the
learned Gateway.
53

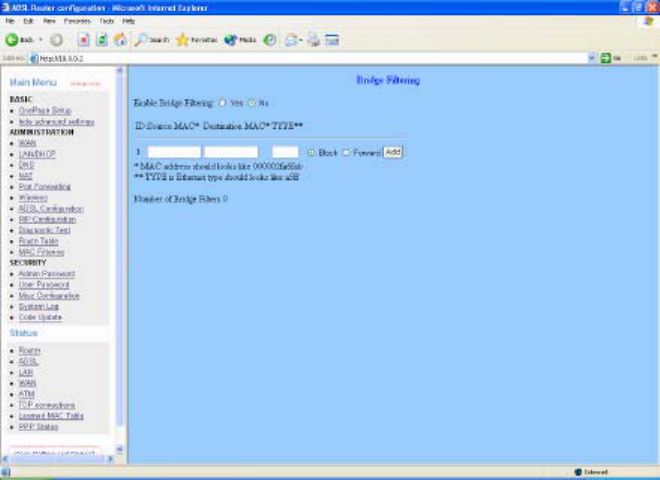

MAC Filtering
The MAC Filtering configuration page allows the user to set the configuration of IP
filtering. Enable and Disable MAC Filtering by selecting the “ Yes” or “ No” radio
buttons.
Source MAC: When the bridge filtering is enabled, enter the Source MAC address,
select Block and click Add. Then all incoming WAN and LAN Ethernet packets
matched with this source MAC address will be filtered out. If the Forward is
selected, then the packets will be forwarded to the destination PC.
Destination MAC: When the bridge filtering is enabled, enter the Destination MAC
address, select Block and click Add. Then all incoming WAN and LAN Ethernet
packets matched with this destination MAC address will be filtered out. If the
Forward is selected, then the packets will be forwarded to the destination PC.
Type: Enter the hexadecimal number for the Ethernet type field in Ethernet_II packets.
54
SECURITY
Admin Password
The Admin Password Configuration page allows the user to set the password for
administrator.
The Admin Password is the same as the FTP password and must be at least
8-characters long for the FTP function to work.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
55
User Password
The User Password Configuration page allows the Admin user to set the password for
the general user. When logged in as a general user you can view the basic status of
the ADSL Wireless Router but you can’ t make critical changes to the unit.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
56
Misc Configuration
The Miscellaneous Configuration allows the user to set all the miscellaneous
configurations.
HTTP server access: This field allows the user to configure the Web pages can be
accessed from.
ALL: When this field is checked, it allows both WAN and LAN access to the Web
pages.
Restricted LAN: This field allows the Web pages access from LAN side.
Restricted WAN Specified IP & Subnet Mask: This field allows the Web access from
57
WAN side with a specify IP and Subnet Mask.
HTTP server port: This field allows the user to specify the port of the Web access.
FTP server: This field allows the user to Enable or Disable the FTP connection. If you
want FTP access from the WAN side you must ensure there are no port forwards
for port 21.
TFTP server: This field allows the user to Enable or Disable the TFTP connection.
DMZ: A DMZ (De-Militarized Zone) is added between a protected network and an
external network, in order to provide an additional layer of security. When there is
a suspected packet coming from WAN, the firewall will forward this packet to the
DMZ host.
DMZ Host IP: The IP address of the DMZ host at LAN side.
DHCP Relay: If it is enabled, the DHCP requests from local PCs will forward to the
DHCP server runs on the WAN side of a network. To have this function working
properly, please disable the NAT to run on router mode only, disable the DHCP
server on the LAN port, and make sure the routing table has the correct routing
entry.
DHCP Target IP: The DHCP server runs on WAN side.
IGMP Proxy: Here is the global setting for IGMP Proxy. If it is enabled, then the
enabled IGMP Proxy on WAN PVCs will be working. Otherwise, no WAN PVC
can have IGMP Proxy working on it.
PPP connect on WAN access: If it is enabled, the PPP session will be automatically
established when there is packet wants to go out the WAN.
PPP Half Bridge: When the PPP Half Bridge is enabled, only one PC is able to
access the Internet and the DHCP server will duplicate the WAN IP address from
the ISP to the local client PC. Only the PC with the WAN IP address can access
the Internet. This function should only be used if one computer will be allowed to
connect to the internet (E.G a Software firewall computer or Proxy server).
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
58
System Log
The System Log page shows the events triggered by the system.
To clear the System Log simply click on the Clear Log button.
59
Code Update
The code Update page allows the user to upload new firmware to the ADSL Wireless
Router.
To upload new firmware:
1. Download the latest firmware image from the website.
2. Save the file to your Desktop or other location.
3. Select the Browse button and locate the file saved in step 2.
4. Click on the Update button to start the process.
5. Once the upgrade has been completed the router will need to reboot.
60
Status
Router
The Router page shows the firmware versions and WAN and LAN interface status.
Firmware Version: This field displays the Firmware Version number.
WAN: These fields display the IP Address, Subnet Mask, MAC Address for WAN
interface.
LAN: These fields display the IP Addres s, Subnet Mask, MAC Address for LAN
interface.
Number of Ethernet Devices Connected to the DHCP Server: This field display the
number of DHCP clients connected to the ADSL Wireless Router.
61
ADSL
The ADSL Status page shows the ADSL physical layer status.
Showtime Firmware Version: This field displays the ADSL data pump firmware
version number.
Line State: This field displays the ADSL connection process and status.
Modulation: This field displays the ADSL modulation status for G.dmt or T1.413.
Annex Mode: This field displays the ADSL Annex modes for Annex A or Annex B.
Startup Attempts: This field displays the ADSL connection attempts after loss of
showtime.
Max Tx Power: This field displays the transmit output power level of the CPE.
Co Vendor: This field displays the Central Office DSLAM vendor name. If available.
Elaspsed Time: This field displays the time of the modem has been in operation.
62

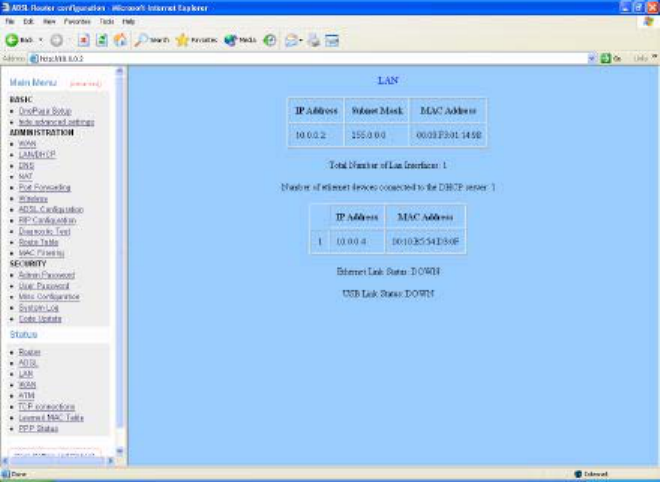

LAN
The LAN page shows the information and status of LAN port, DHCP client table,
Ethernet link and USB link.
LAN: These fields display the IP Address, Subnet Mask and MAC Address for the
LAN interface.
Number of Ethernet Devices Connected to the DHCP Server: These fields display
the number of connections to the DHCP server as well as the DHCP client table
with the assigned IP addresses and MAC addresses.
Ethernet Link Status: This field displays the link up or down for the Ethernet.
USB Link Status: This field displays the link up or down for the USB.
63

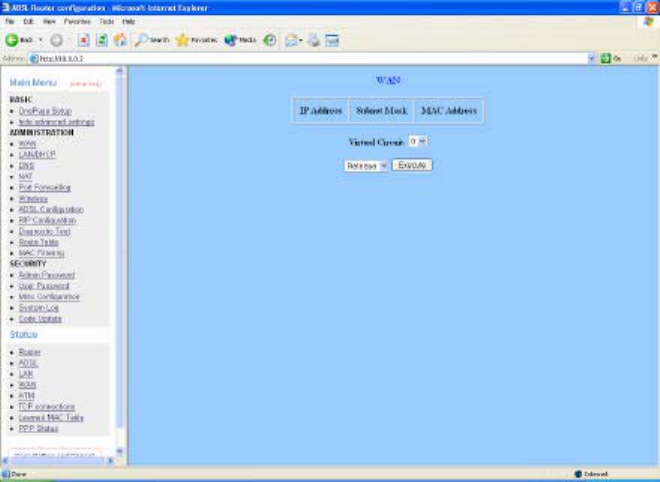

WAN
The WAN Status page shows the information and status of WAN PVCs.
WAN: These fields display the IP Address, Subnet Mask and MAC Address for the
WAN (ADSL) interface. Use the Virtual Circuit selection to selection different PVC
for status display.
64
ATM
The ATM Status page shows the information of ATM cells.
65
TCP connections
The TCP Status page shows the statistics for all TCP connections.
66

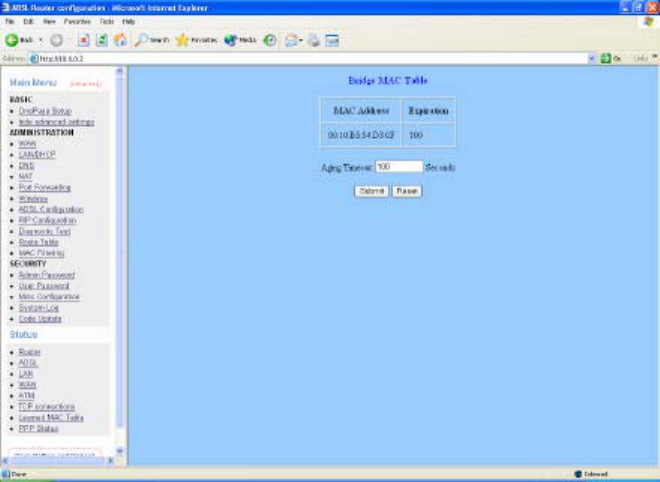

Learned MAC Table
The Learned MAC Table page shows the current learned Bridge MAC table.
Aging Timeout: This field allows the user to enter the update period for the MAC
table.
Note: Click the Submit button to save the settings in temporary memory. If you
changes the configurations.
67
PPP Status
The PPP Status page shows the status of PPP for each PPP interface.
PPP: These fields display the following information on each PPP interface:
Connection Name (user defined)
Interface (PVC)
Mode (PPPoE or PPPoA)
Status (Connected or Not Connected)
Packets Sent
Packets Received
Bytes Sent
Bytes Received.
Connect and Disconnect: This field allows the user to manually connect/disconnect
the PPP connection for each PPP interface. In another word, each PPP session
can be connected and disconnected individually.
CAUTION: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to operate the equipment.
Prohibition of co-location
This device must not be co-located or operating in conjunction with any other antenna
68
or transmitter
Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any
changes or modifications (including the antennas) made to this device that are not
expressly approved by the manufacturer may void the user’ s authority to operate the
equipment. The manufacturer is not responsible for any radio or television interference
caused by unauthorized modification of this device, or the substitution of the
connecting cables and equipment other than manufacturer specified. It is the
responsibility of the user to correct any interference caused by such unauthorized
modification, substitution or attachment. Manufacturer and its authorized resellers or
distributors will assume no liability for any damage or violation of government
regulations arising from failing to comply with these guidelines.
69
CAUTION: To maintain compliance with FCC’ s RF exposure guidelines, this equipment
should be installed and operated with minimum distance 20cm between the radiator
and your body. Use on the supplied antenna. Unauthorized antenna, modification, or
attachments could damage the transmitter and may violate FCC regulations.
MPE Statement (Safety Information)
Your device contains a low power transmitter. When device is transmitted it sends out Radio
Frequency (RF) signal.
Safety Information
In order to maintain compliance with the FCC RF exposure guidelines, this equipment should
be installed and operated with minimum distance 20cm between the radiator and your body.
Use only with supplied antenna. Unauthorized antenna, modification, or attachments could
damage the transmitter and may violate FCC regulations.

Navigation menu
