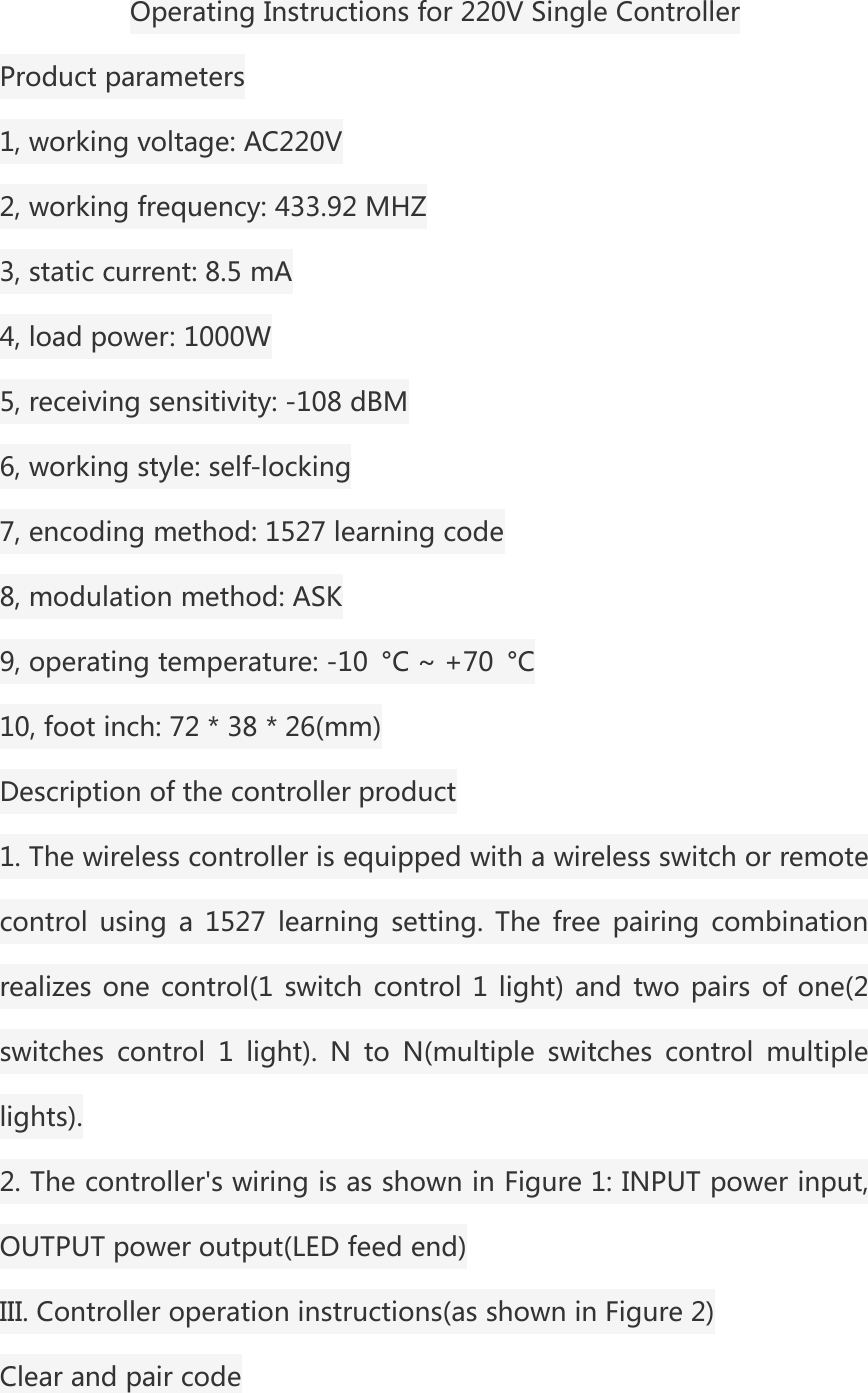

Operating Instructions for 220V Single ControllerProduct parameters1, working voltage: AC220V2, working frequency: 433.92 MHZ3, static current: 8.5 mA4, load power: 1000W5, receiving sensitivity: -108 dBM6, working style: self-locking7, encoding method: 1527 learning code8, modulation method: ASK9, operating temperature: -10 °C ~ +70 °C10, foot inch: 72 * 38 * 26(mm)Description of the controller product1. The wireless controller is equipped with a wireless switch or remotecontrol using a 1527 learning setting. The free pairing combinationrealizes one control(1 switch control 1 light) and two pairs of one(2switches control 1 light). N to N(multiple switches control multiplelights).2. The controller's wiring is as shown in Figure 1: INPUT power input,OUTPUT power output(LED feed end)III. Controller operation instructions(as shown in Figure 2)Clear and pair code

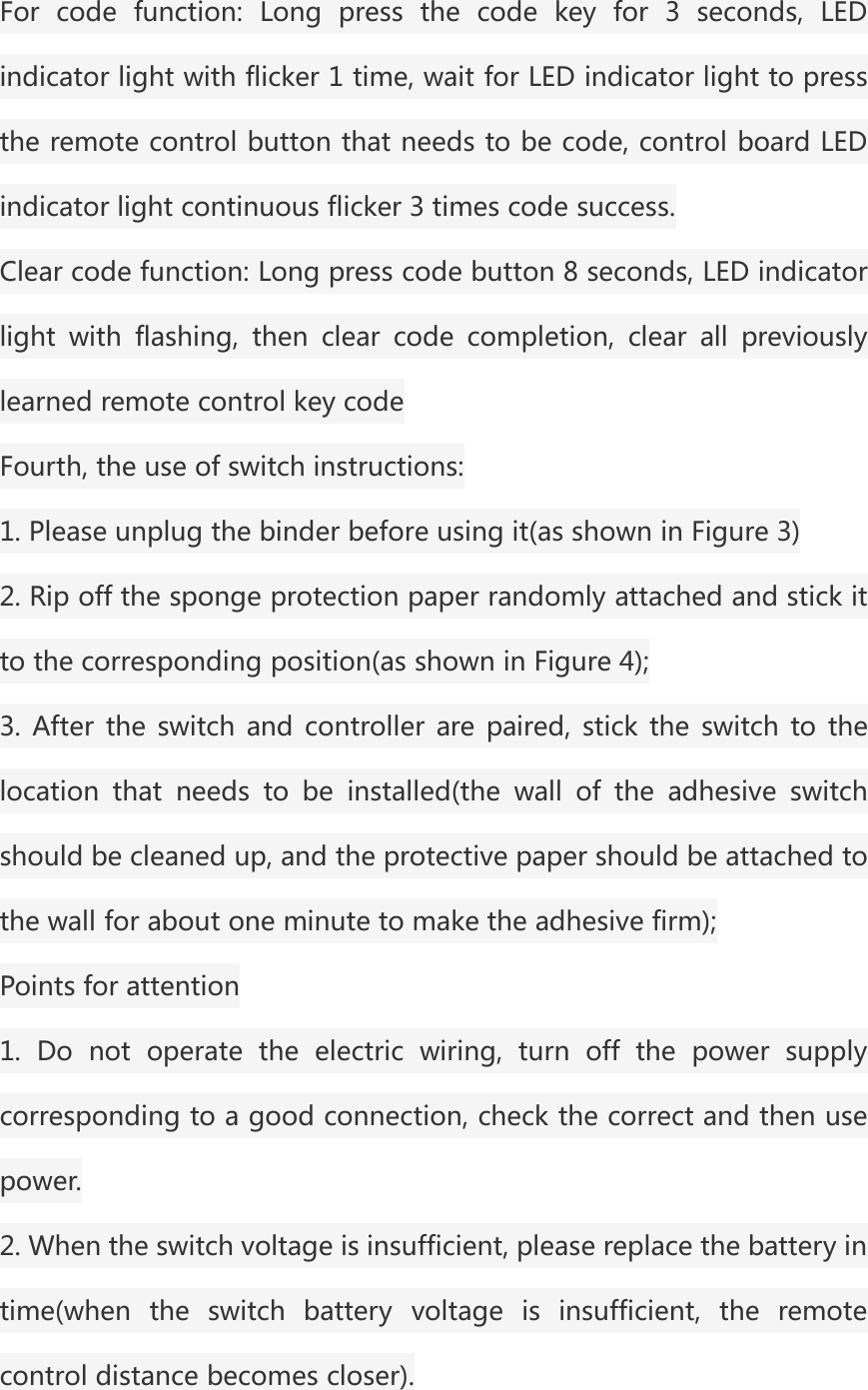

For code function: Long press the code key for 3 seconds, LEDindicator light with flicker 1 time, wait for LED indicator light to pressthe remote control button that needs to be code, control board LEDindicator light continuous flicker 3 times code success.Clear code function: Long press code button 8 seconds, LED indicatorlight with flashing, then clear code completion, clear all previouslylearned remote control key codeFourth, the use of switch instructions:1. Please unplug the binder before using it(as shown in Figure 3)2. Rip off the sponge protection paper randomly attached and stick itto the corresponding position(as shown in Figure 4);3. After the switch and controller are paired, stick the switch to thelocation that needs to be installed(the wall of the adhesive switchshould be cleaned up, and the protective paper should be attached tothe wall for about one minute to make the adhesive firm);Points for attention1. Do not operate the electric wiring, turn off the power supplycorresponding to a good connection, check the correct and then usepower.2. When the switch voltage is insufficient, please replace the battery intime(when the switch battery voltage is insufficient, the remotecontrol distance becomes closer).

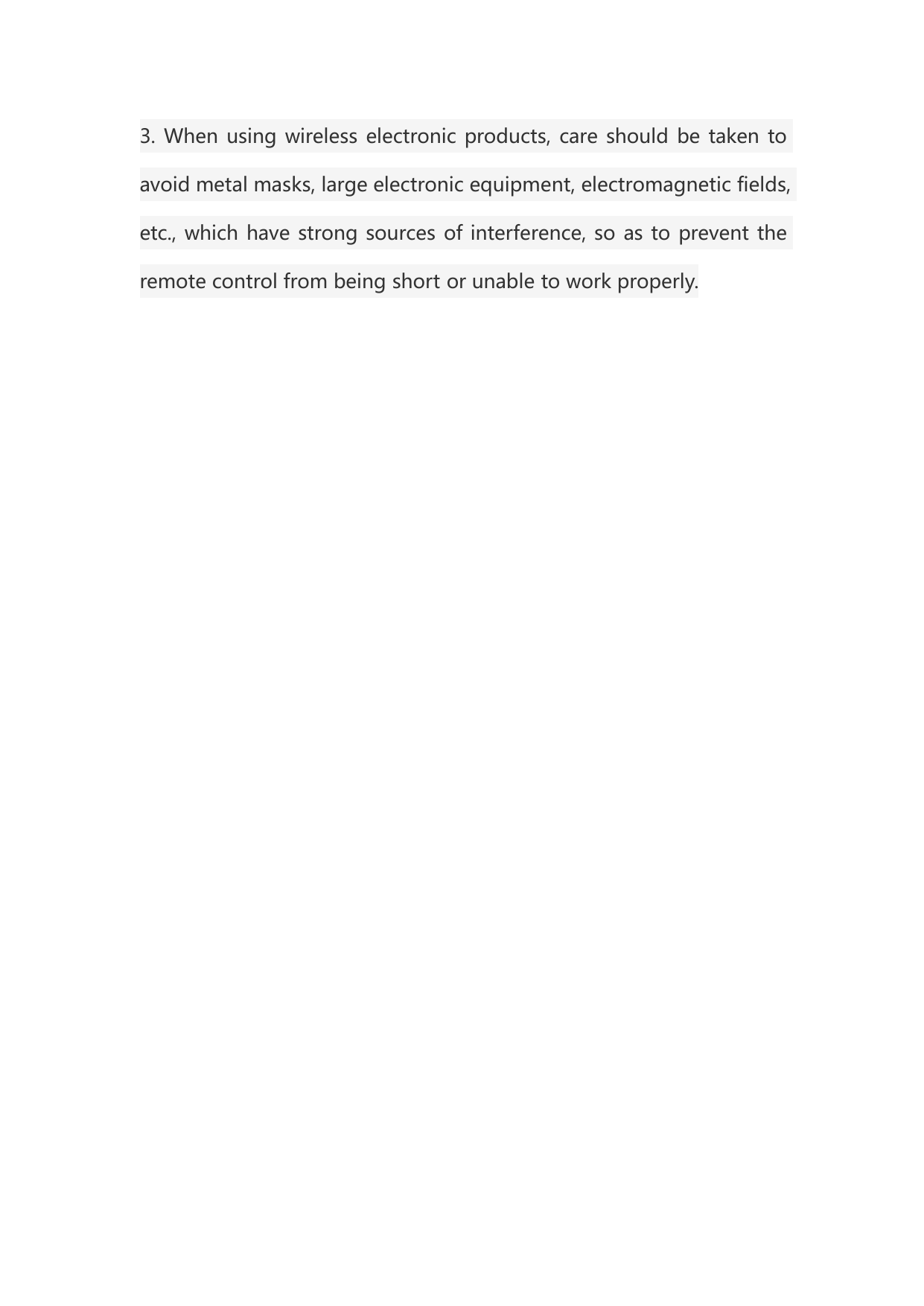

3. When using wireless electronic products, care should be taken toavoid metal masks, large electronic equipment, electromagnetic fields,etc., which have strong sources of interference, so as to prevent theremote control from being short or unable to work properly.

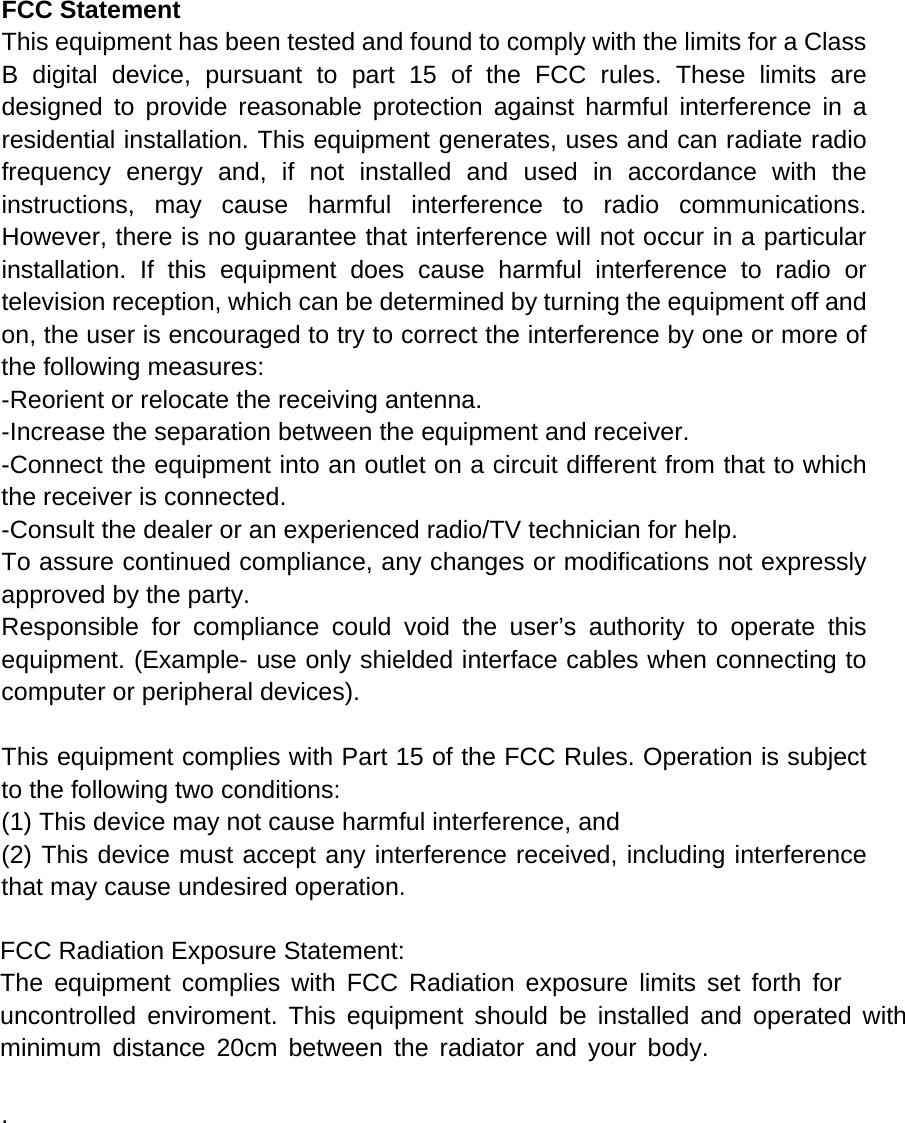

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth foruncontrolled enviroment. This equipment should be installed and operated withminimum distance 20cm between the radiator and your body. .
