Westel Wireless Systems CI00063 UHF BASE STATION TRANSCEIVER User Manual MANUAL APPENDIX A

Westel Wireless Systems Pty Ltd UHF BASE STATION TRANSCEIVER MANUAL APPENDIX A

MANUAL APPENDIX A

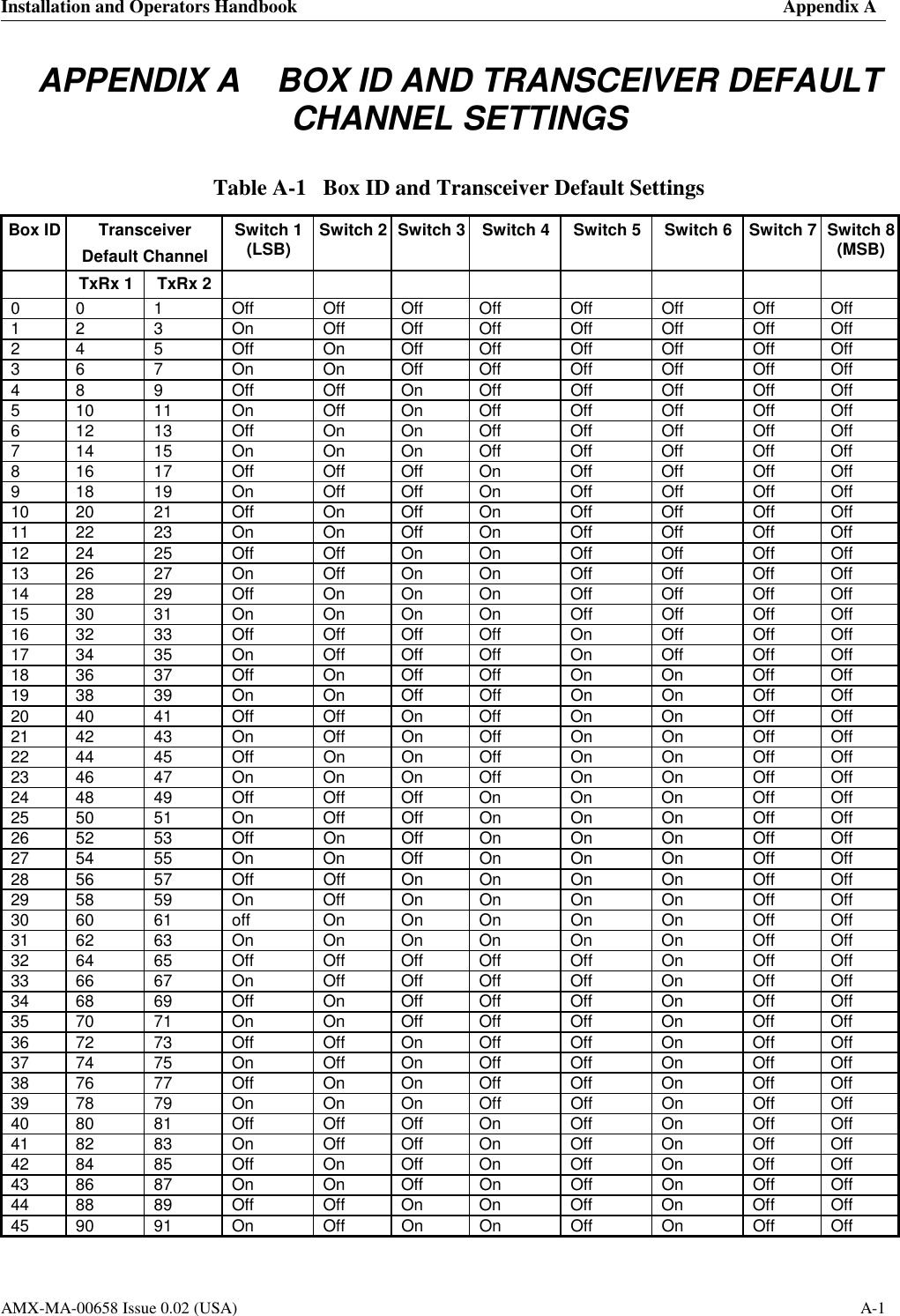

Installation and Operators Handbook Appendix A AMX-MA-00658 Issue 0.02 (USA) A-1 APPENDIX A BOX ID AND TRANSCEIVER DEFAULT CHANNEL SETTINGS Table A-1 Box ID and Transceiver Default Settings Box ID Transceiver Default Channel Switch 1 (LSB) Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 (MSB) TxRx 1 TxRx 2 0 0 1 Off Off Off Off Off Off Off Off 1 2 3 On Off Off Off Off Off Off Off 2 4 5 Off On Off Off Off Off Off Off 3 6 7 On On Off Off Off Off Off Off 4 8 9 Off Off On Off Off Off Off Off 5 10 11 On Off On Off Off Off Off Off 6 12 13 Off On On Off Off Off Off Off 7 14 15 On On On Off Off Off Off Off 8 16 17 Off Off Off On Off Off Off Off 9 18 19 On Off Off On Off Off Off Off 10 20 21 Off On Off On Off Off Off Off 11 22 23 On On Off On Off Off Off Off 12 24 25 Off Off On On Off Off Off Off 13 26 27 On Off On On Off Off Off Off 14 28 29 Off On On On Off Off Off Off 15 30 31 On On On On Off Off Off Off 16 32 33 Off Off Off Off On Off Off Off 17 34 35 On Off Off Off On Off Off Off 18 36 37 Off On Off Off On On Off Off 19 38 39 On On Off Off On On Off Off 20 40 41 Off Off On Off On On Off Off 21 42 43 On Off On Off On On Off Off 22 44 45 Off On On Off On On Off Off 23 46 47 On On On Off On On Off Off 24 48 49 Off Off Off On On On Off Off 25 50 51 On Off Off On On On Off Off 26 52 53 Off On Off On On On Off Off 27 54 55 On On Off On On On Off Off 28 56 57 Off Off On On On On Off Off 29 58 59 On Off On On On On Off Off 30 60 61 off On On On On On Off Off 31 62 63 On On On On On On Off Off 32 64 65 Off Off Off Off Off On Off Off 33 66 67 On Off Off Off Off On Off Off 34 68 69 Off On Off Off Off On Off Off 35 70 71 On On Off Off Off On Off Off 36 72 73 Off Off On Off Off On Off Off 37 74 75 On Off On Off Off On Off Off 38 76 77 Off On On Off Off On Off Off 39 78 79 On On On Off Off On Off Off 40 80 81 Off Off Off On Off On Off Off 41 82 83 On Off Off On Off On Off Off 42 84 85 Off On Off On Off On Off Off 43 86 87 On On Off On Off On Off Off 44 88 89 Off Off On On Off On Off Off 45 90 91 On Off On On Off On Off Off

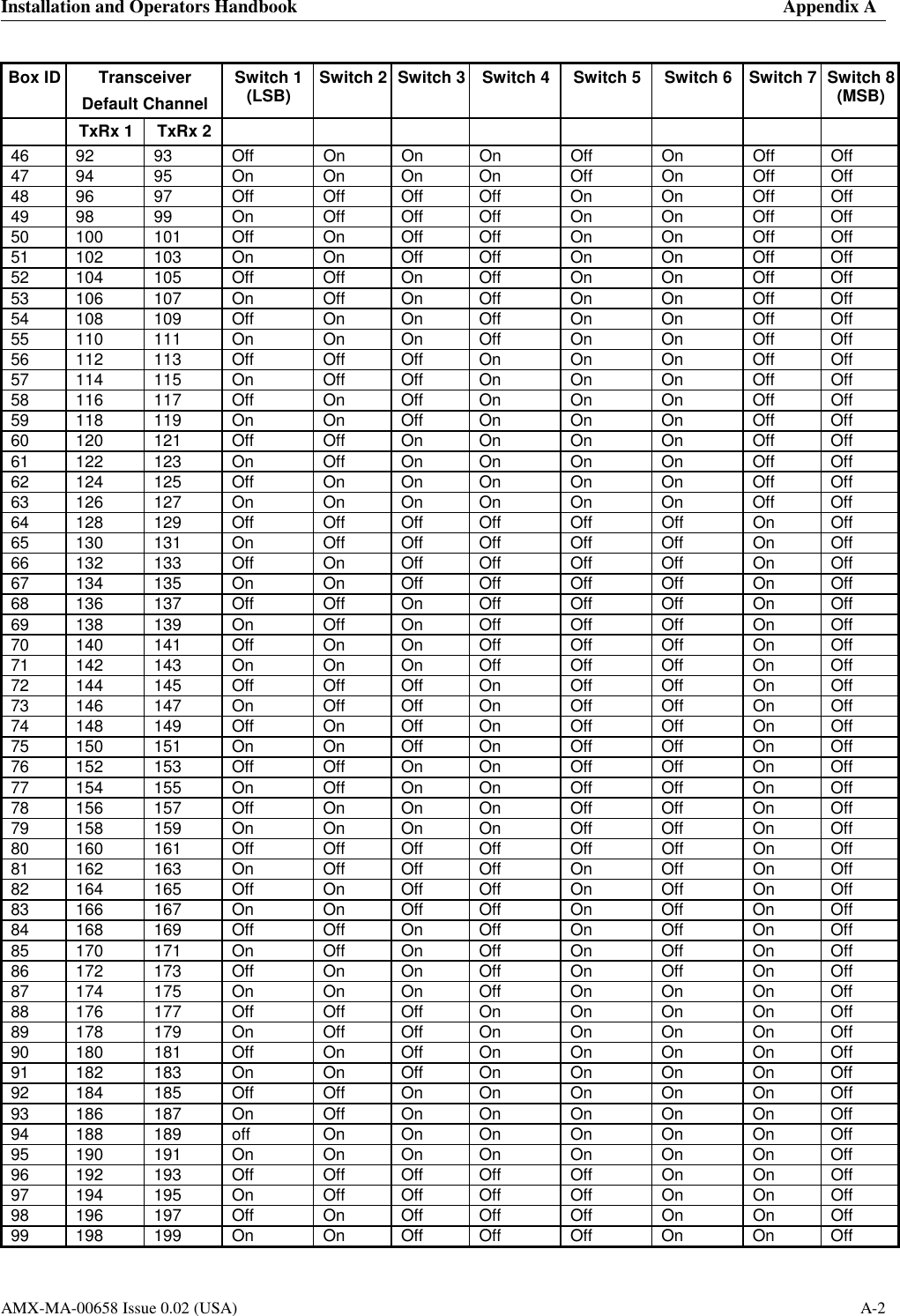

Installation and Operators Handbook Appendix A AMX-MA-00658 Issue 0.02 (USA) A-2 Box ID Transceiver Default Channel Switch 1 (LSB) Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 (MSB) TxRx 1 TxRx 2 46 92 93 Off On On On Off On Off Off 47 94 95 On On On On Off On Off Off 48 96 97 Off Off Off Off On On Off Off 49 98 99 On Off Off Off On On Off Off 50 100 101 Off On Off Off On On Off Off 51 102 103 On On Off Off On On Off Off 52 104 105 Off Off On Off On On Off Off 53 106 107 On Off On Off On On Off Off 54 108 109 Off On On Off On On Off Off 55 110 111 On On On Off On On Off Off 56 112 113 Off Off Off On On On Off Off 57 114 115 On Off Off On On On Off Off 58 116 117 Off On Off On On On Off Off 59 118 119 On On Off On On On Off Off 60 120 121 Off Off On On On On Off Off 61 122 123 On Off On On On On Off Off 62 124 125 Off On On On On On Off Off 63 126 127 On On On On On On Off Off 64 128 129 Off Off Off Off Off Off On Off 65 130 131 On Off Off Off Off Off On Off 66 132 133 Off On Off Off Off Off On Off 67 134 135 On On Off Off Off Off On Off 68 136 137 Off Off On Off Off Off On Off 69 138 139 On Off On Off Off Off On Off 70 140 141 Off On On Off Off Off On Off 71 142 143 On On On Off Off Off On Off 72 144 145 Off Off Off On Off Off On Off 73 146 147 On Off Off On Off Off On Off 74 148 149 Off On Off On Off Off On Off 75 150 151 On On Off On Off Off On Off 76 152 153 Off Off On On Off Off On Off 77 154 155 On Off On On Off Off On Off 78 156 157 Off On On On Off Off On Off 79 158 159 On On On On Off Off On Off 80 160 161 Off Off Off Off Off Off On Off 81 162 163 On Off Off Off On Off On Off 82 164 165 Off On Off Off On Off On Off 83 166 167 On On Off Off On Off On Off 84 168 169 Off Off On Off On Off On Off 85 170 171 On Off On Off On Off On Off 86 172 173 Off On On Off On Off On Off 87 174 175 On On On Off On On On Off 88 176 177 Off Off Off On On On On Off 89 178 179 On Off Off On On On On Off 90 180 181 Off On Off On On On On Off 91 182 183 On On Off On On On On Off 92 184 185 Off Off On On On On On Off 93 186 187 On Off On On On On On Off 94 188 189 off On On On On On On Off 95 190 191 On On On On On On On Off 96 192 193 Off Off Off Off Off On On Off 97 194 195 On Off Off Off Off On On Off 98 196 197 Off On Off Off Off On On Off 99 198 199 On On Off Off Off On On Off

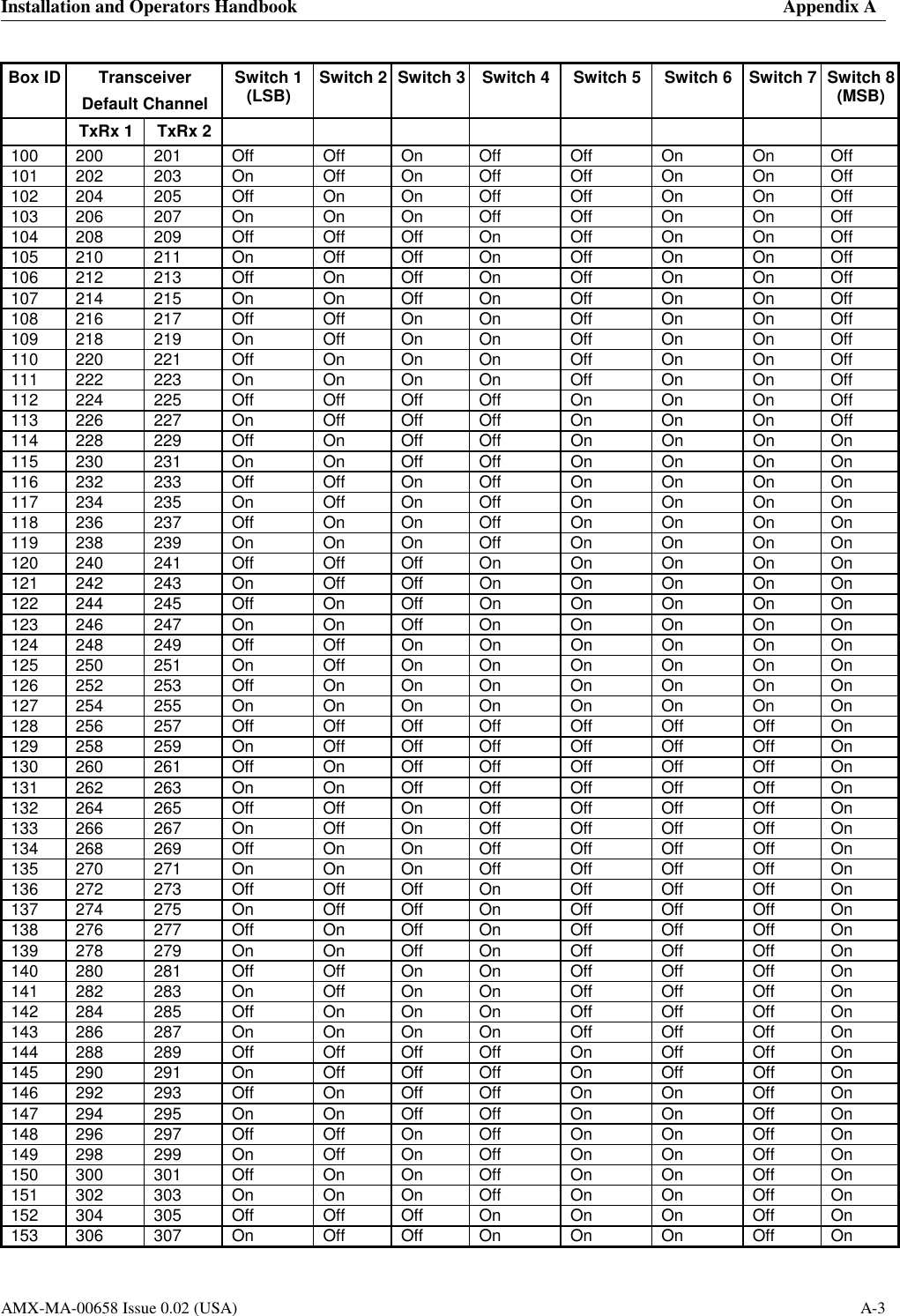

Installation and Operators Handbook Appendix A AMX-MA-00658 Issue 0.02 (USA) A-3 Box ID Transceiver Default Channel Switch 1 (LSB) Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 (MSB) TxRx 1 TxRx 2 100 200 201 Off Off On Off Off On On Off 101 202 203 On Off On Off Off On On Off 102 204 205 Off On On Off Off On On Off 103 206 207 On On On Off Off On On Off 104 208 209 Off Off Off On Off On On Off 105 210 211 On Off Off On Off On On Off 106 212 213 Off On Off On Off On On Off 107 214 215 On On Off On Off On On Off 108 216 217 Off Off On On Off On On Off 109 218 219 On Off On On Off On On Off 110 220 221 Off On On On Off On On Off 111 222 223 On On On On Off On On Off 112 224 225 Off Off Off Off On On On Off 113 226 227 On Off Off Off On On On Off 114 228 229 Off On Off Off On On On On 115 230 231 On On Off Off On On On On 116 232 233 Off Off On Off On On On On 117 234 235 On Off On Off On On On On 118 236 237 Off On On Off On On On On 119 238 239 On On On Off On On On On 120 240 241 Off Off Off On On On On On 121 242 243 On Off Off On On On On On 122 244 245 Off On Off On On On On On 123 246 247 On On Off On On On On On 124 248 249 Off Off On On On On On On 125 250 251 On Off On On On On On On 126 252 253 Off On On On On On On On 127 254 255 On On On On On On On On 128 256 257 Off Off Off Off Off Off Off On 129 258 259 On Off Off Off Off Off Off On 130 260 261 Off On Off Off Off Off Off On 131 262 263 On On Off Off Off Off Off On 132 264 265 Off Off On Off Off Off Off On 133 266 267 On Off On Off Off Off Off On 134 268 269 Off On On Off Off Off Off On 135 270 271 On On On Off Off Off Off On 136 272 273 Off Off Off On Off Off Off On 137 274 275 On Off Off On Off Off Off On 138 276 277 Off On Off On Off Off Off On 139 278 279 On On Off On Off Off Off On 140 280 281 Off Off On On Off Off Off On 141 282 283 On Off On On Off Off Off On 142 284 285 Off On On On Off Off Off On 143 286 287 On On On On Off Off Off On 144 288 289 Off Off Off Off On Off Off On 145 290 291 On Off Off Off On Off Off On 146 292 293 Off On Off Off On On Off On 147 294 295 On On Off Off On On Off On 148 296 297 Off Off On Off On On Off On 149 298 299 On Off On Off On On Off On 150 300 301 Off On On Off On On Off On 151 302 303 On On On Off On On Off On 152 304 305 Off Off Off On On On Off On 153 306 307 On Off Off On On On Off On

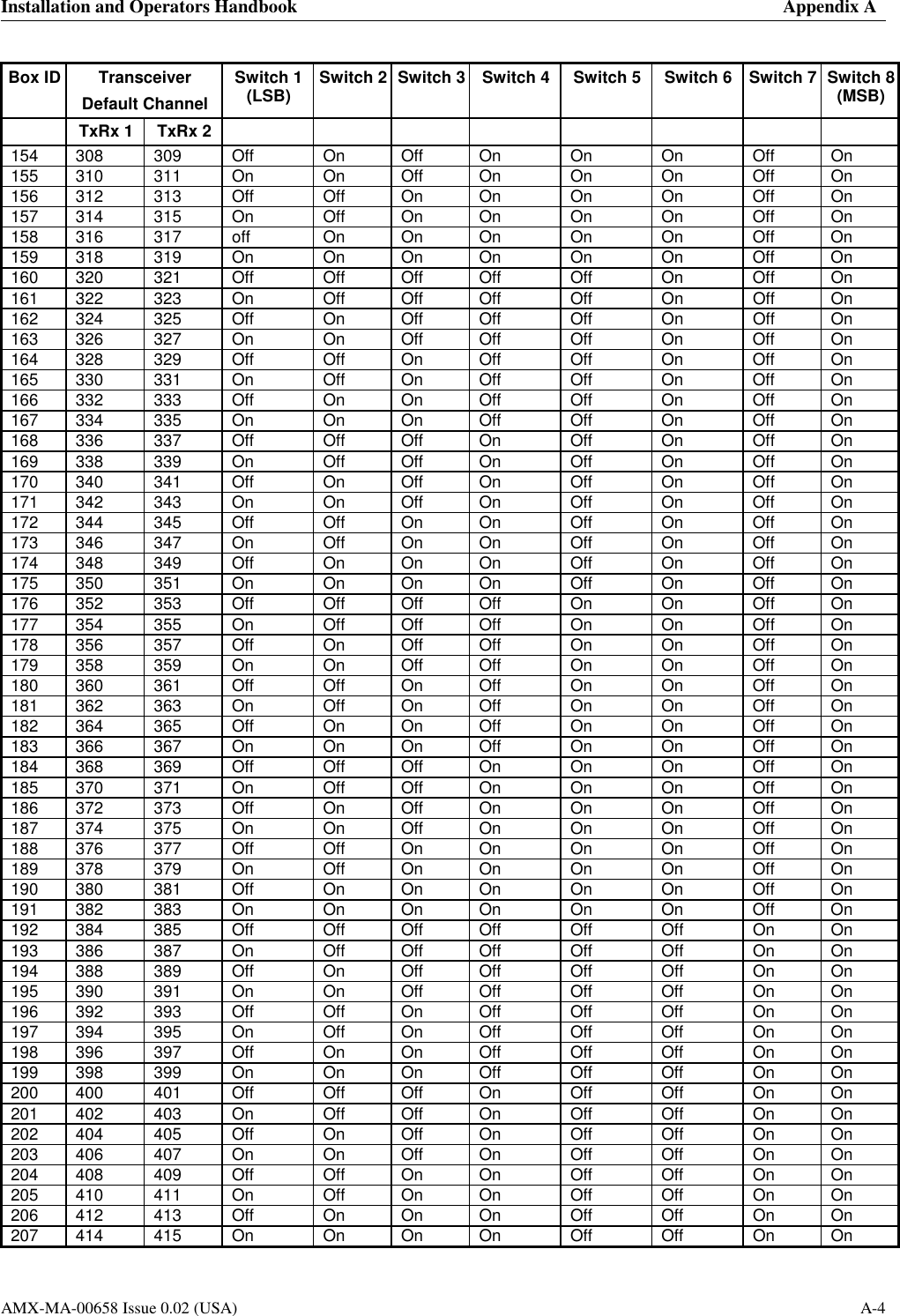

Installation and Operators Handbook Appendix A AMX-MA-00658 Issue 0.02 (USA) A-4 Box ID Transceiver Default Channel Switch 1 (LSB) Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 (MSB) TxRx 1 TxRx 2 154 308 309 Off On Off On On On Off On 155 310 311 On On Off On On On Off On 156 312 313 Off Off On On On On Off On 157 314 315 On Off On On On On Off On 158 316 317 off On On On On On Off On 159 318 319 On On On On On On Off On 160 320 321 Off Off Off Off Off On Off On 161 322 323 On Off Off Off Off On Off On 162 324 325 Off On Off Off Off On Off On 163 326 327 On On Off Off Off On Off On 164 328 329 Off Off On Off Off On Off On 165 330 331 On Off On Off Off On Off On 166 332 333 Off On On Off Off On Off On 167 334 335 On On On Off Off On Off On 168 336 337 Off Off Off On Off On Off On 169 338 339 On Off Off On Off On Off On 170 340 341 Off On Off On Off On Off On 171 342 343 On On Off On Off On Off On 172 344 345 Off Off On On Off On Off On 173 346 347 On Off On On Off On Off On 174 348 349 Off On On On Off On Off On 175 350 351 On On On On Off On Off On 176 352 353 Off Off Off Off On On Off On 177 354 355 On Off Off Off On On Off On 178 356 357 Off On Off Off On On Off On 179 358 359 On On Off Off On On Off On 180 360 361 Off Off On Off On On Off On 181 362 363 On Off On Off On On Off On 182 364 365 Off On On Off On On Off On 183 366 367 On On On Off On On Off On 184 368 369 Off Off Off On On On Off On 185 370 371 On Off Off On On On Off On 186 372 373 Off On Off On On On Off On 187 374 375 On On Off On On On Off On 188 376 377 Off Off On On On On Off On 189 378 379 On Off On On On On Off On 190 380 381 Off On On On On On Off On 191 382 383 On On On On On On Off On 192 384 385 Off Off Off Off Off Off On On 193 386 387 On Off Off Off Off Off On On 194 388 389 Off On Off Off Off Off On On 195 390 391 On On Off Off Off Off On On 196 392 393 Off Off On Off Off Off On On 197 394 395 On Off On Off Off Off On On 198 396 397 Off On On Off Off Off On On 199 398 399 On On On Off Off Off On On 200 400 401 Off Off Off On Off Off On On 201 402 403 On Off Off On Off Off On On 202 404 405 Off On Off On Off Off On On 203 406 407 On On Off On Off Off On On 204 408 409 Off Off On On Off Off On On 205 410 411 On Off On On Off Off On On 206 412 413 Off On On On Off Off On On 207 414 415 On On On On Off Off On On

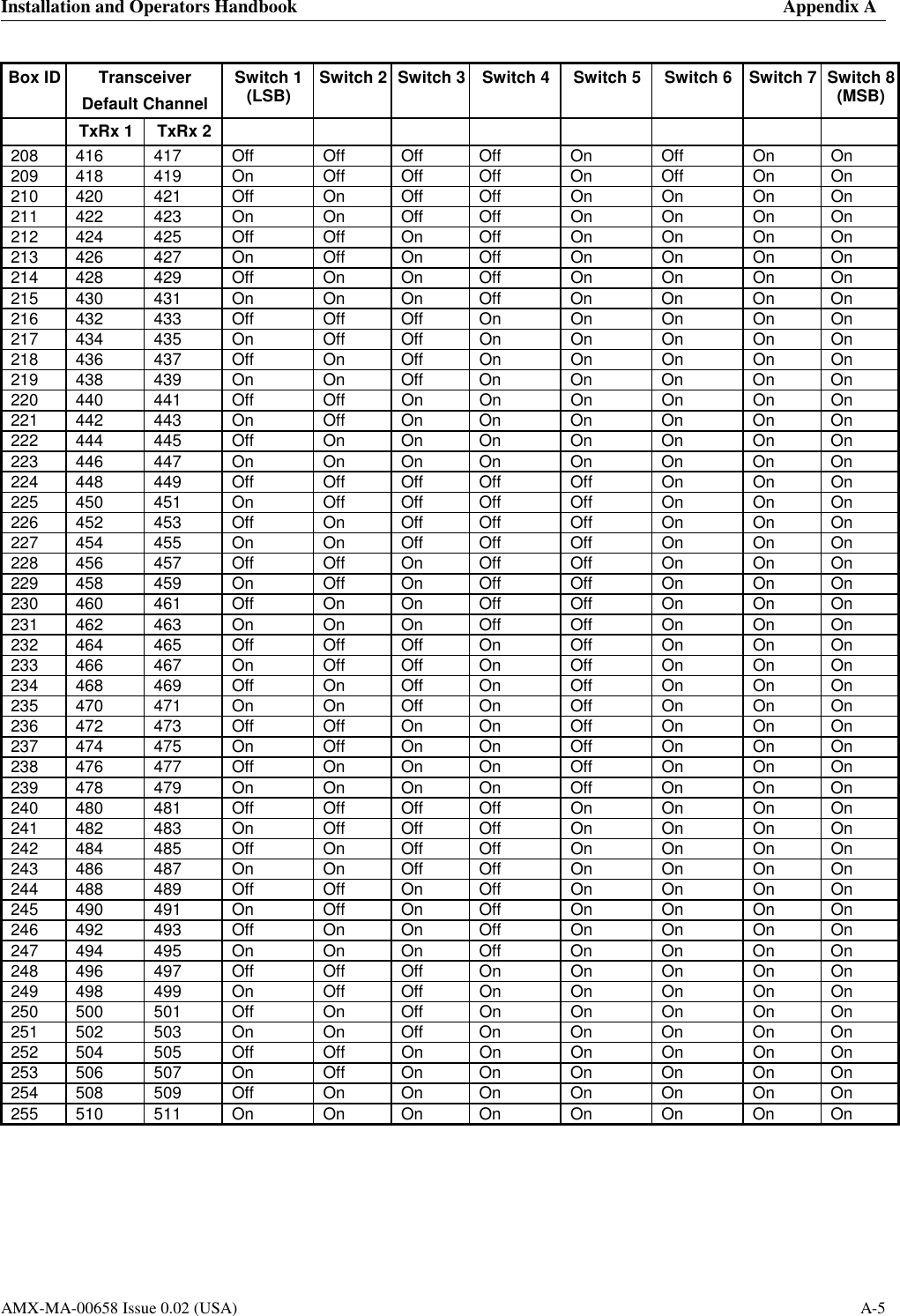

Installation and Operators Handbook Appendix A AMX-MA-00658 Issue 0.02 (USA) A-5 Box ID Transceiver Default Channel Switch 1 (LSB) Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 (MSB) TxRx 1 TxRx 2 208 416 417 Off Off Off Off On Off On On 209 418 419 On Off Off Off On Off On On 210 420 421 Off On Off Off On On On On 211 422 423 On On Off Off On On On On 212 424 425 Off Off On Off On On On On 213 426 427 On Off On Off On On On On 214 428 429 Off On On Off On On On On 215 430 431 On On On Off On On On On 216 432 433 Off Off Off On On On On On 217 434 435 On Off Off On On On On On 218 436 437 Off On Off On On On On On 219 438 439 On On Off On On On On On 220 440 441 Off Off On On On On On On 221 442 443 On Off On On On On On On 222 444 445 Off On On On On On On On 223 446 447 On On On On On On On On 224 448 449 Off Off Off Off Off On On On 225 450 451 On Off Off Off Off On On On 226 452 453 Off On Off Off Off On On On 227 454 455 On On Off Off Off On On On 228 456 457 Off Off On Off Off On On On 229 458 459 On Off On Off Off On On On 230 460 461 Off On On Off Off On On On 231 462 463 On On On Off Off On On On 232 464 465 Off Off Off On Off On On On 233 466 467 On Off Off On Off On On On 234 468 469 Off On Off On Off On On On 235 470 471 On On Off On Off On On On 236 472 473 Off Off On On Off On On On 237 474 475 On Off On On Off On On On 238 476 477 Off On On On Off On On On 239 478 479 On On On On Off On On On 240 480 481 Off Off Off Off On On On On 241 482 483 On Off Off Off On On On On 242 484 485 Off On Off Off On On On On 243 486 487 On On Off Off On On On On 244 488 489 Off Off On Off On On On On 245 490 491 On Off On Off On On On On 246 492 493 Off On On Off On On On On 247 494 495 On On On Off On On On On 248 496 497 Off Off Off On On On On On 249 498 499 On Off Off On On On On On 250 500 501 Off On Off On On On On On 251 502 503 On On Off On On On On On 252 504 505 Off Off On On On On On On 253 506 507 On Off On On On On On On 254 508 509 Off On On On On On On On 255 510 511 On On On On On On On On
