USERS MANUAL
CSI-CPBH-MG-C4, CSI-CPBH-MG-P4,
CSI-CPBH-MG-C2/P2, CSI-CPBH-MG-AW4,
CSI-CPBH-MG-C2/AW2, CSI-CPBH-MG-P2/AW2,
CSI-CPBH-MO-C4, CSI-CPBH-MO-P4,
CSI-CPBH-MO-C2/P2, CSI-CPBH-MO-AW4,
CSI-CPBH-MO-C2/AW2, CSI-CPBH-MO-P2/AW2,
CSI-CPBH-MX-C4, CSI-CPBH-MX-P4,
CSI-CPBH-MX-C2/P2, CSI-CPBH-MX-AW4 ,
CSI-CPBH-MX-C2/AW2, CSI-CPBH-MX-P2/AW2,
This page intentionally left blank.
Table of Contents
Product Registration Information .................................................................................................................................................................... 4
Document Purpose / Intended Users ............................................................................................................................................................. 4
Radio and Television Interference .................................................................................................................................................................. 4
Application ...................................................................................................................................................................................................... 4
Safety Guidelines ........................................................................................................................................................................................... 4
Important Safety Information .......................................................................................................................................................................... 4
Acronyms and De• nitions ...............................................................................................................................................................................5
Product Introduction ....................................................................................................................................................................................... 5
Functional Overview ....................................................................................................................................................................................... 6
Electrical Characteristics ................................................................................................................................................................................ 6
Mechanical Speci• cations ..............................................................................................................................................................................6
AC Power Speci• cations ................................................................................................................................................................................6
Environmental Requirements ......................................................................................................................................................................... 6

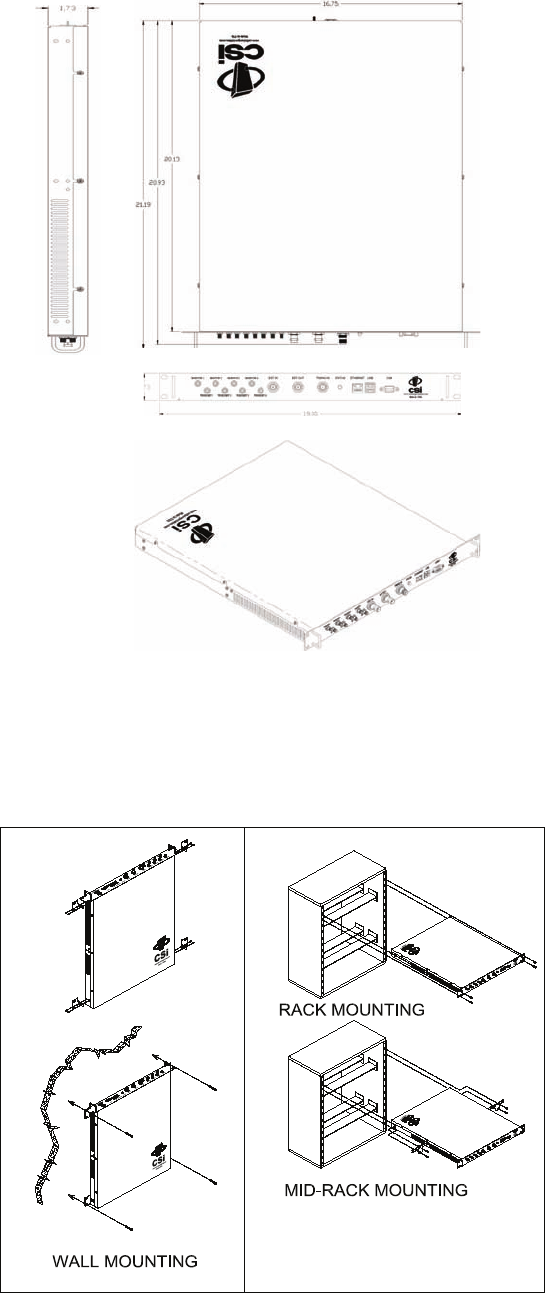

Mechanical Drawing ...................................................................................................................................................................................... 7
System Set-Up Considerations ...................................................................................................................................................................... 7
Mounting the Co-Pilot Beacon ........................................................................................................................................................................ 7
Typical Co-Pilot/BTS Interconnection with Internal CDMA Timing (MO Series) ............................................................................................. 8

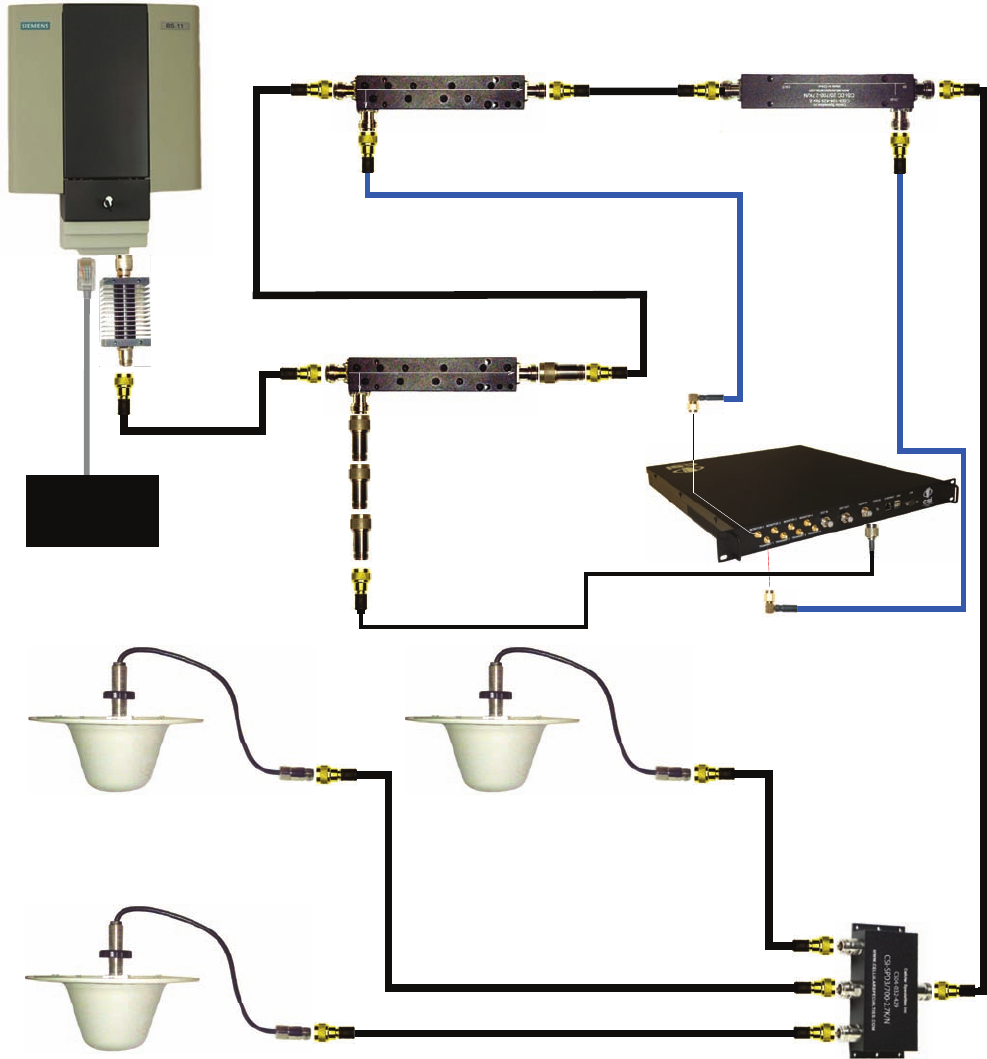

Typical Co-Pilot/Repeater Interconnection with Internal GPS Timing (MG Series) ........................................................................................ 9
Typical Co-Pilot/Repeater Interconnection with External TM-4 (MX Series) ................................................................................................ 10
Optional Accessories .................................................................................................................................................................................... 11
Important Installation Notes .......................................................................................................................................................................... 11
Powering Up the Unit.................................................................................................................................................................................... 11
Local Communication Interface Ports........................................................................................................................................................... 11
EIA232 Pin Speci• cations ............................................................................................................................................................................ 12
USB Interface ............................................................................................................................................................................................... 12
Ethernet ........................................................................................................................................................................................................ 12
Monitoring & Alarms ..................................................................................................................................................................................... 12
Text Menu Interface ...................................................................................................................................................................................... 13
Local Access................................................................................................................................................................................................. 13
User Interface ............................................................................................................................................................................................... 15

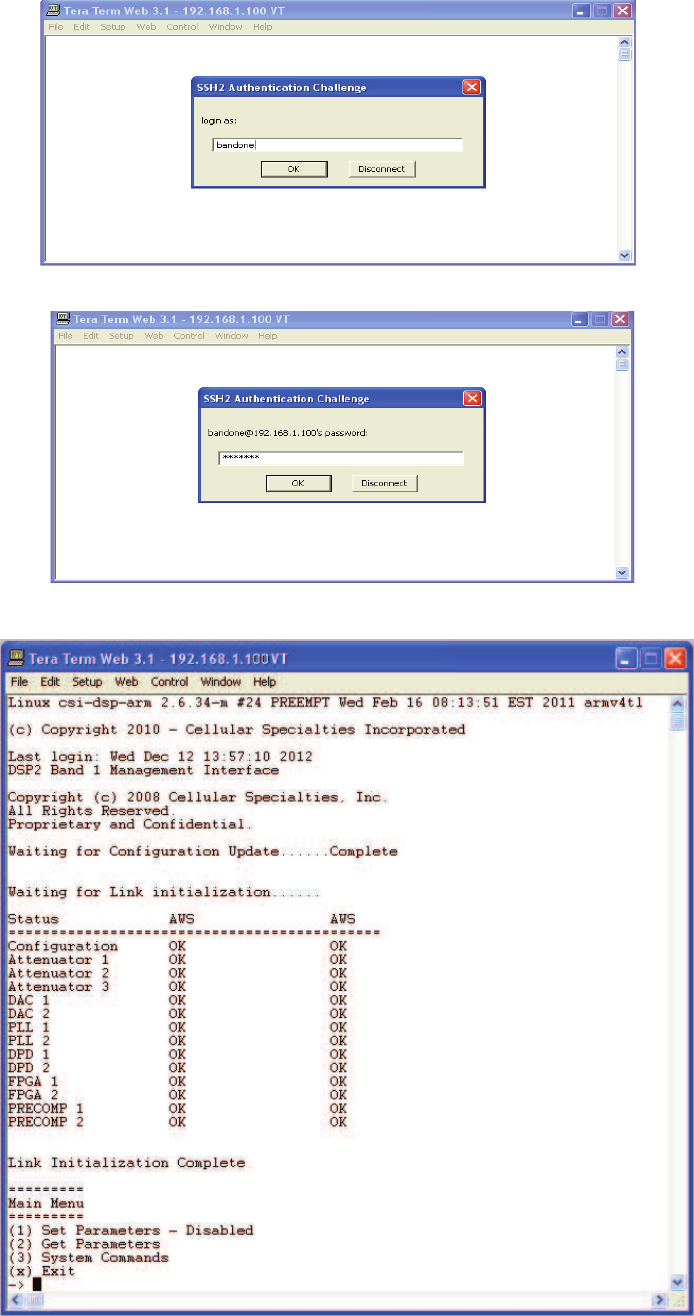

Login ............................................................................................................................................................................................................. 15
Main Menu .................................................................................................................................................................................................... 15
Telnet Session (Remote Access) .................................................................................................................................................................. 16

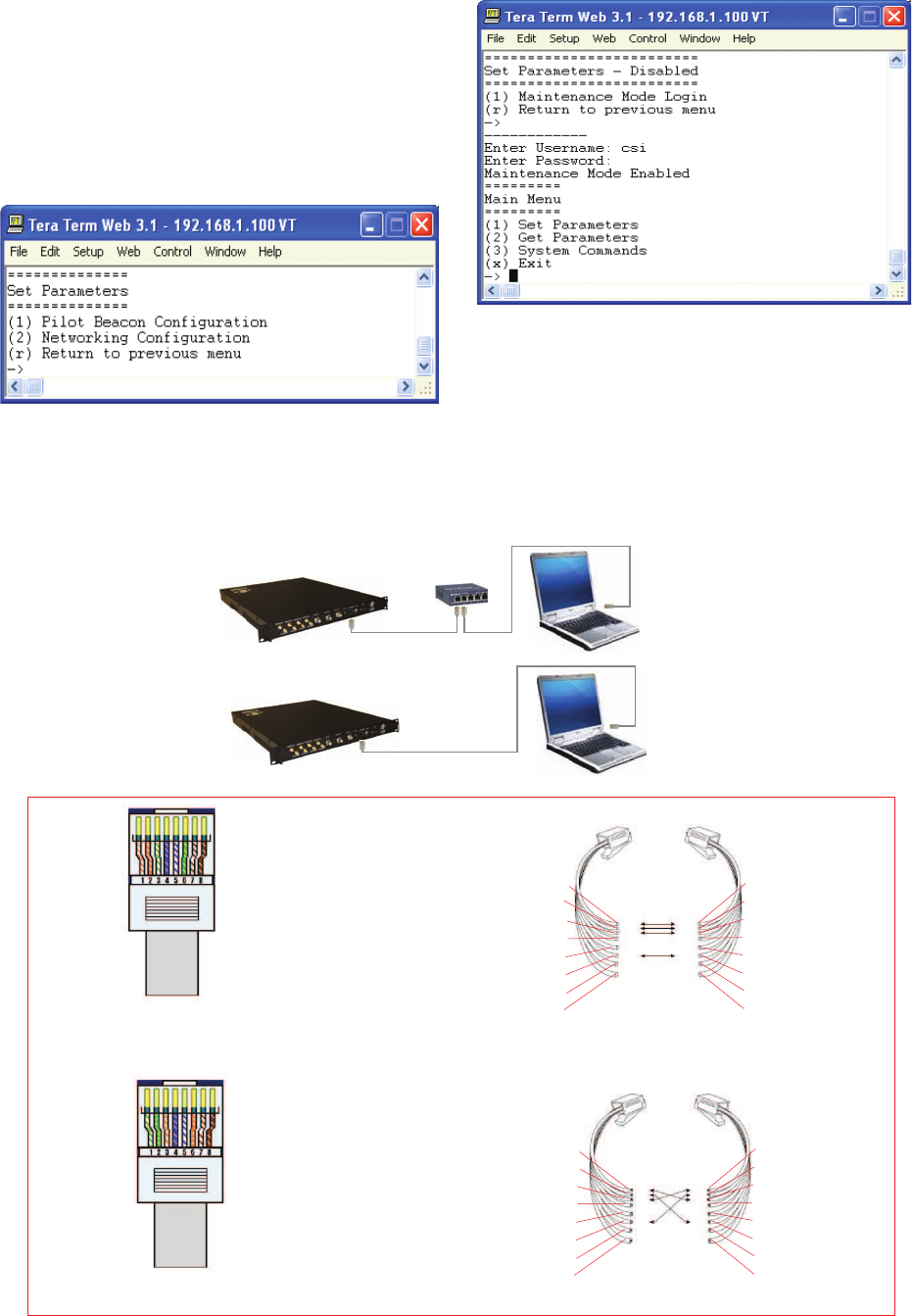

Set Parameters Menu................................................................................................................................................................................... 16
Set Parameters Menu................................................................................................................................................................................... 19

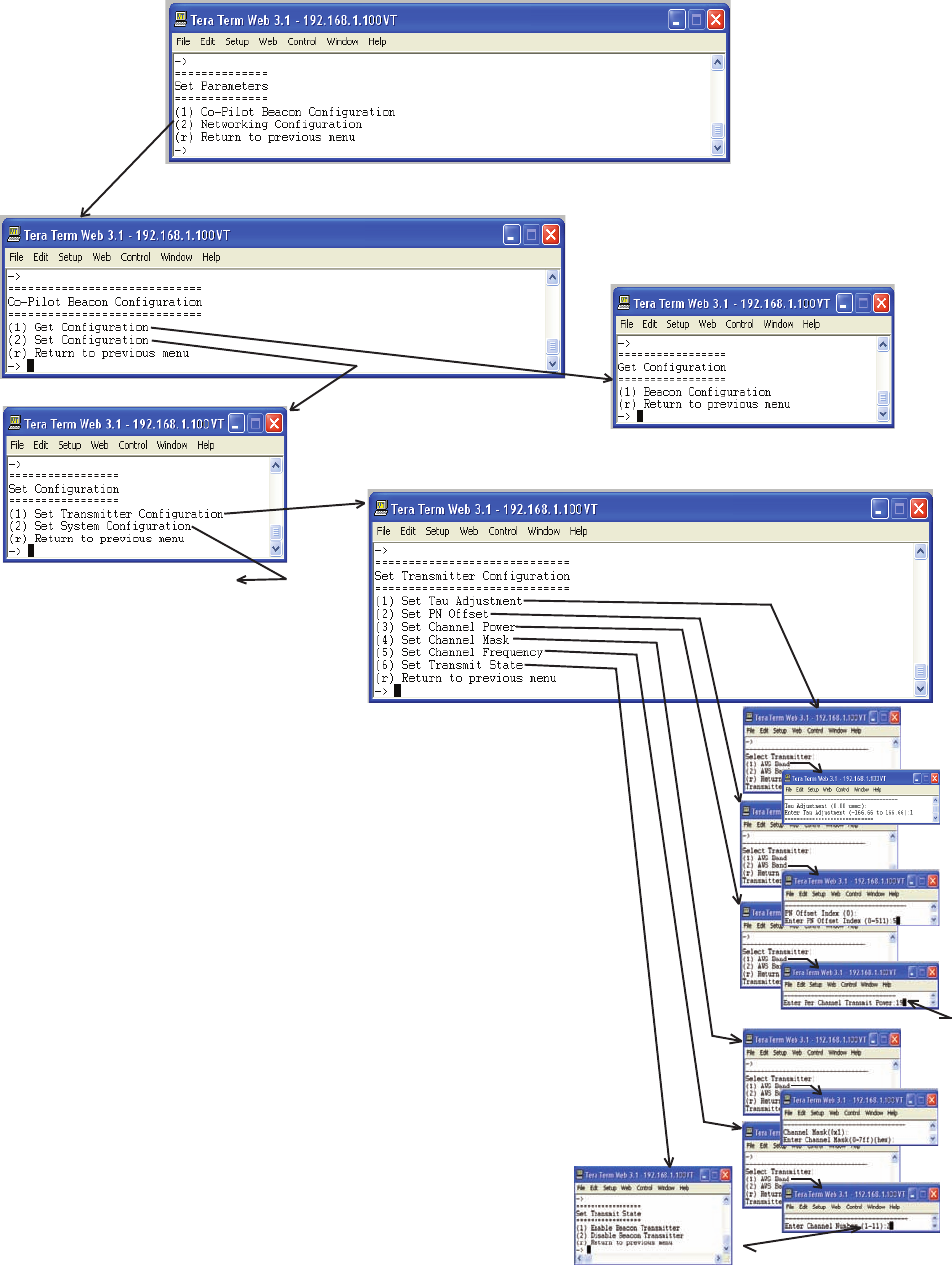

Co-Pilot Beacon Con• guration ..................................................................................................................................................................... 20
Transmitter Con• guration ............................................................................................................................................................................. 20

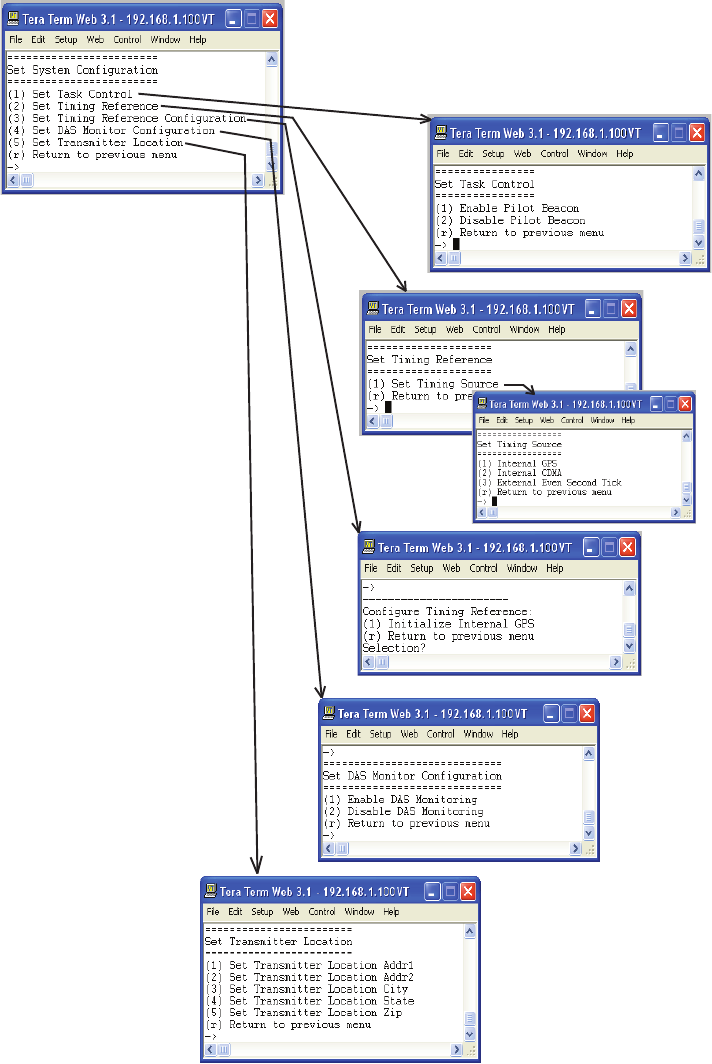

System Con• guration ................................................................................................................................................................................... 21
Networking Con• guration ............................................................................................................................................................................. 22

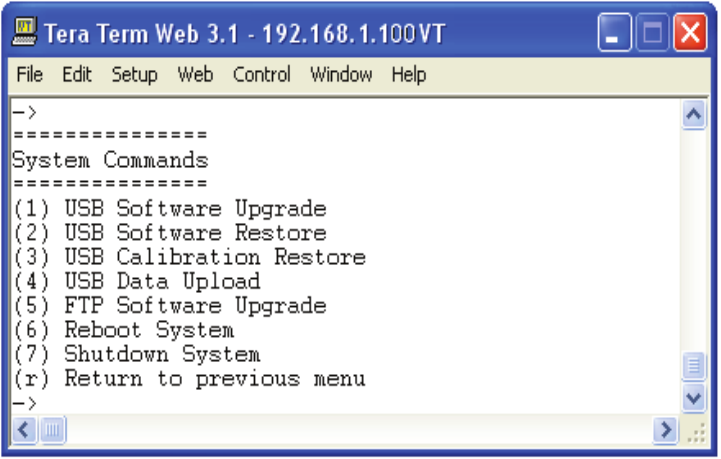

System Commands ...................................................................................................................................................................................... 23
Key Features ................................................................................................................................................................................................ 24
Multiple Beacon Con• guration...................................................................................................................................................................... 24
Detected RF Power Shutdown ..................................................................................................................................................................... 24
Timing Reference Source ............................................................................................................................................................................. 24
Control Parameter Details ............................................................................................................................................................................ 24
Master Shutdown.......................................................................................................................................................................................... 24
Timing Reference Selection ......................................................................................................................................................................... 24
Channel Frequency Numbers....................................................................................................................................................................... 25
Signal Transmit Enables ............................................................................................................................................................................... 25
PN Offset ...................................................................................................................................................................................................... 26
Tau (Delay Correction).................................................................................................................................................................................. 26
Co-pilot beacon Per Channel Transmit Power ............................................................................................................................................. 26
Composite Transmit Power .......................................................................................................................................................................... 26
Manual Shutdown ......................................................................................................................................................................................... 26
Auto Shutdown Enable ................................................................................................................................................................................. 26
Auto Shutdown Threshold ............................................................................................................................................................................ 26
Index..............................................................................................................................................................................................................30
-4-
This guide should be applied whenever a need exists to add pilot beacon capability to an existing system or when this capability is being
included with a new installation.
The general safety information in this guideline applies to both operating and service personnel. Speci! c warnings and cautions will be
found in other parts of this manual where they apply, but may not appear in this summary. Failure to comply with these precautions or
speci! c warnings elsewhere in the manual violates safety standards of design, manufacture, and intended use of equipment. Cellular
Specialties, Inc. assumes no liability for the customer’s failure to comply with these requirements:
Grounding
This pilot beacon system is designed to operate from 100-240 VAC and should always
be operated with the ground wire properly connected. Do not remove or otherwise alter the
grounding lug on the power cord.
Explosive Atmospheres
To avoid explosion or ! re, do not operate this product in the presence of " ammable
gases or fumes.
Lightning Danger
Do not install or make adjustments to this unit during an electrical storm. Use of a suitable lightning arrester, such as CSI’s model
number CSI-CAP, is very strongly recommended.
No User Serviceable Parts Inside
HAZARDOUS VOLTAGES ARE PRESENT WHEN THE COVER IS REMOVED. Opening the chassis will void your warranty. If you
suspect a malfunction with this product, call your dealer or the Cellular Specialties Support Line at: (603) 626-6677, Toll Free (USA)
1-877-844-4274.
The purpose of this document is to provide a step-by-step procedure to help the experienced technician/engineer install and commission
an in-building wireless enhancement pilot beacon system. Following the procedures outlined will minimize risks associated with modifying
a live system and prevent service interruptions. This document assumes the technician/engineer understands the basic principles and
functionality involved with the system. It is geared to the practical concerns of the installer.
Antennas used for the purpose of radiating signals indoors are limited to a maximum gain of 3 dBi. Each antenna must be positioned to
observe minimum separation requirements from all users and bystanders. The following guidelines should be used when considering
separation distances.
INDOOR antennas must be placed such that, under normal conditions, personnel cannot come within 20 cm (~8.0 in.) from any inside
antenna. Adhering to this minimum separation will ensure that the employee or bystander cannot exceed RF exposures beyond the maxi-
mum permissible limit as de! ned by section 1.1310 i.e. limits for General Population/Uncontrolled Exposure.
Document Purpose / Intended Users
Application
Safety Guidelines
Important Safety Information
Product Registration Information
DISCLAIMER: All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties, Inc. (CSI), but Cellular Specialties makes
no warranty with respect thereto, including without limitation any results that may be obtained from the products described herein or the infringement by such products of
any proprietary rights of any persons. Use or application of such information or statements is at the users sole risk, without any liability on the part of Cellular Specialties,
Inc. Nothing herein shall be construed as licence or recommendation for use, which infringes upon any proprietary rights of any person. Product material and speci! cations
are subject to change without notice. Cellular Specialties’ standard terms of sale and the speci! c terms of any particular sale apply.
The serial number may be found on the label on the bottom panel near the power
connectors. Note this number below. Retain this manual, along with proof of pur-
chase, to serve as a permanent record of your purchase.
MODEL NUMBER SERIAL NUMBER PURCHASE DATE
POINT OF SALE COMPANY
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a resi-
dential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Changes and Modi! cations not expressly approved by Cellular Specialties, Inc. can void your authority to operate this equipment under
Federal Communications Commission’s rules.
Radio and Television Interference
-5-
The pilot beacon generator facilitates E911 and other location based services (LBS) for in building and/or DAS based installations of
CDMA2000/1xEV-DO cellular networks. In these situations the normal methods based for location determination, direct reception of
GPS by the mobile station or triangulation using the signals from multiple base stations, do not work. Signals from the GPS system are
suf• ciently weak that even if the mobile station’s GPS receiver might ultimately be able to lock on to the satellites, the acquisition time will
be too long. And since indoor service is typically provided either by a single strong local cell or by using a repeater, there aren’t multiple
signals on which to triangulate while DAS based deployments result in too many signals with indeterminate timing. By placing a pilot
signal at a known PN offset the LBS algorithm can quickly and reliably be made aware that it is within a speci• c building or other location
where normal location determining solutions are ineffective. This information can be used to aid the GPS receiver in acquiring signals if
they are present or be used as a position report directly until more accurate information becomes available.
3GPP2 The standards body comprised of representatives of interested companies that is responsible for the development
and maintenance of the operational standards for the CDMA2000 system. Http://www.3gpp2.org
AGC Automatic Gain Control
CDMA Code Division (or, Domain) Multiple Access: The general term for the technology used in the CDMA2000 system as
well as others. Also a shorthand reference to the CDMA2000 system and its derivatives such as 1xEV-DO
Chip A single element, a ‘1’ or a ‘0’, of the PN Sequence in a CDMA system. The chip rate for the CDMA2000 system is
1.2288 Mchips/second.
CSI Cellular Specialties Incorporated
DAS Distributed Antenna System
ERP Effective Radiated Power
EST Even Second Tick: In the CDMA2000 cellular system all time values are referenced to the start of the even seconds
of time as indicated by GPS.
FCC Federal Communications Commission
FPGA Field Programmable Gate Array
GPS Global Positioning System
IF Intermediate Frequency
LED Light Emitting Diode
NEMA National Electrical Manufacturers Association
PA Power Ampli• er
PN Pseudo random Number: A number chosen by some algorithm that approximates a random process. Can be short
for “PN Sequence”, “PN Number”, or “PN Offset” when discussing the CDMA2000 system.
PN Number In the CDMA2000 system only a subset of the possible PN Offsets are used for base station identi• cation. Each of
these allowed offsets is given a unique number from 0 to 511.
PN Offset In the CDMA2000 System each base station is identi• ed by the offset in time from the EST at which the start of the
Pilot PN Sequence occurs. The offset is speci• ed in terms of number of chips.
PN Sequence A sequence of pseudo random numbers. In the CDMA2000 system several such sequences are used. The one
relevant to ICEBreaker is the Pilot, or Short, sequence which is a 215 element long sequence of ones and zeros.
PPS Pulse per Second: Refers the pulse repetition rate of the timing signal used as a time reference.
RF Radio Frequency
SBC Single Board Computer
Tau Timing Offset or Delay Adjustment: In the CDMA2000 system the timing of the downlink signal is required to be
aligned with the EST as it is transmitted from the antenna. Tau allows the timing of the internal PN Sequence to
be adjusted to compensate for the delays of the base station hardware such that the timing will be correct at the
antenna
USB Universal Serial Bus
Acronyms and Defi nitions
Product Introduction
-6-
Functional Overview
Color Satin Black
Weight 8.4lbs / 3.8kg
Thermal Management Fan Cooled
Surface Coating Powder Coat
Parameter Specifi cation Notes
Pilot Beacon Size
Height 1.73 in.
Width 19.00 in.
Depth 18.02 in.
Mechanical Specifi cations
AC Voltage 100 - 240 VAC External Power Supply
AC Power Frequency 47 - 63 Hz
AC Current 1.7 Amps @ 120 VAC
0.9 Amps @ 230 VAC
Heat Output 500 BTU/Hr
Relative Humidity 5% to 95% Non-condensing
Temperature Range -30° to +48°C
(-22° to +118°F)
AC Power Specifi cations
Parameter Specifi cation Notes
Environmental Requirements
Parameter Specifi cation Notes
Electrical Characteristics
Characteristic Performance Limit
Number of Bands per Beacon 1
CDMA Band Class 0 (Cell), 1 (PCS) and 15 (AWS)
Max # Simultaneous Channels/Beacon 8 (Cell) 11 (PCS and AWS)
Number of Unique PN Offsets/Beacon 1
Composite TX Power +20 dBm
Spurious Emissions Limits < -45 dBc Δf .75 to 1.98 MHZ
< -60 dBc Δf 1.98 to 4.0 MHZ
< -65 dBc Δf 4.0 to 16 MHZ
< -75 dBc Δf > 16 MHZ
Carrier Frequency Accuracy 20 Hz (.2 ppm) Cell Band
40 Hz (.2 ppm) PCS Band
45 Hz (.2 ppm) AWS Band
When locked to GPS
Pilot Timing Jitter < 10 nsec rms, <50 nsec peak
Rho > 0.98
Tau Adjustment Range - 166.7 to + 166.7 µsec (+/- 25.6 CDMA chips)
Tau Adjustment Resolution 20 nsec (one 40th of a CDMA chip)
-7-
Mechanical Drawing
All cables should be checked for shorts and opens. Also verify that there are no cables with loose or poor connections. It is critical that
the installer contact the service provider before the system is turned on.
The following diagram illustrates the best method for mounting the pilot beacon to a wall in an typical installation.
System Set-Up Considerations
Mounting the Co-Pilot Beacon
-8-
+9.6dBm +9.0dBm
-10.4dBm
Directional Coupler 2 (-20dB)
+8.9dBm +8.3dBm
-15.1dBm
Directional Coupler 3 (-20dB)
+20.0dBm
BTS
Co-Pilot Beacon (MO Series)
Equipped with Praecis II CDMA
Timing Module
-10.5dBm
+20.0dBm
-0.1dBm
-15.2dBm
-50.2dBm
DAS
RF
Jumper
NM-NM
RF Jumper
NM-NM
IN OUT
-20dB
RF Jumper
NM-SMAM
RF
Jumper
NM-SMAM
-15.8dBm
-15.9dBm
IN
OUT -20dB
See note 4
Network
IN OUT
-30dB
Directional Coupler 1 (-30dB)
RF Jumper
NM-NM
+19.9dBm
20dB Fixed
Attenuator
RF Jumper
NM-TNCM
-10.1dBm
-60.1dBm
+9.7dBm
-16.0dBm
+19.9dBm
-68.5dBm
-16.2dBm
-138.5dBm
-138.6dBm
20dB Fixed
Attenuator
See note 6
Notes:
1. It is recommended that all unused ports be terminated at 50 ohms. When properly terminated, the possibility of false shutdown is minimized because high reflections at open
ports are eliminated.
2. The values shown in this drawing are only an example. Power levels encountered at each installation may require different coupling, pads, and threshold values.
3. This example assumes a BTS with power at the output set to 40dBm, co-pilot beacon output set at 20dBm.
4. Threshold Power Level in this example is set to -20dBm (Approximately 10dB below the power level at the monitor input.)
5. DAS Power Detection and Shutdown functionality:
- If RF Detector measures Input power lower than the Threshold Power Level set by
the user, then the Co-Pilot Beacon’s RF power output will be shut down.
- An alarm occurs. (Delay approximately one second on-off and one second off-on.
6. Co-pilot beacon signal reflecting back to the input of the CDMA timing source must never be allowed to exceed -124dBm.
-60.2dBm
10dB Fixed
Attenuator
10dB Fixed
Attenuator
20dB
Fixed
Attenuator
Typical Co-Pilot/BTS Interconnection with Internal CDMA Timing (MO Series)
-9-

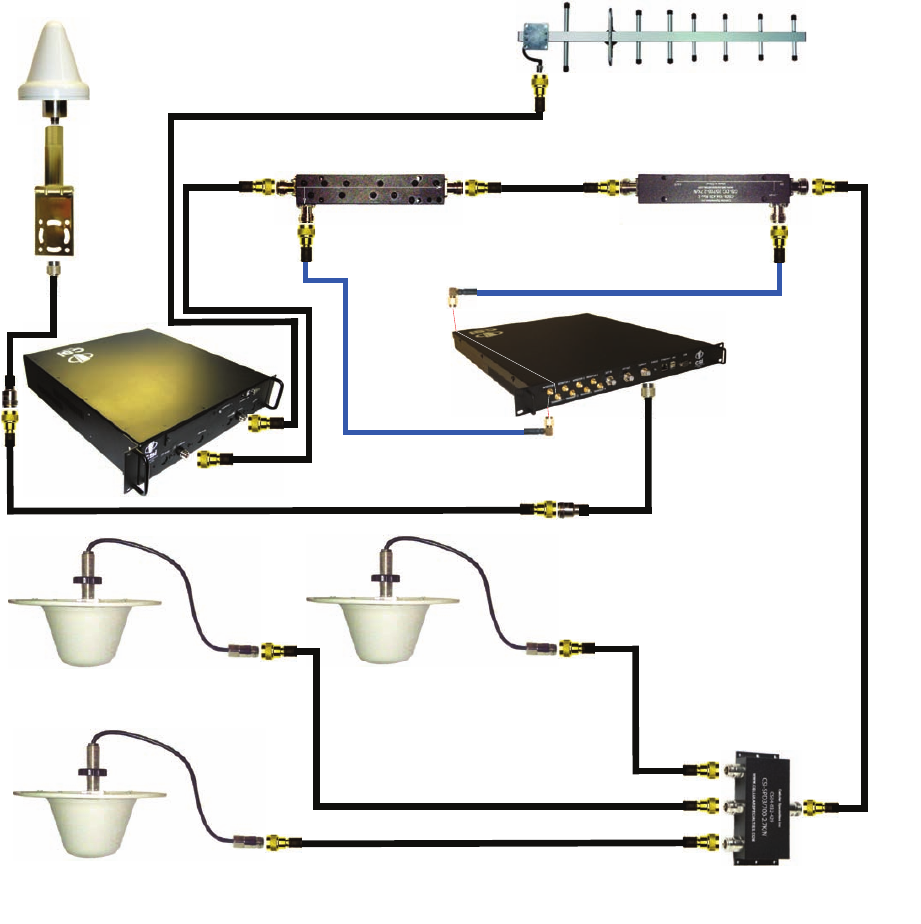

Typical Co-Pilot/Repeater Interconnection with Internal GPS Timing (MG Series)
+9.9dBm +9.3dBm
-10.1dBm
Directional Coupler 1 +9.2dBm +8.6dBm
-15.1dBm
Directional Coupler 2
+10.0dBm
Donor
-75.0dBm
-10.2dBm
-0.1dBm
-15.2dBm
-50.2dBm
DAS
IN OUT
-20dB
+19.9dBm
-15.8dBm
-15.9dBm
IN
OUT -20dB
See note 4
GPS Antenna
Antenna
Bracket
RF
Jumper
NF-TNCM
RF Jumper
NM-SMAM
RF Jumper
NM-SMAM
+20.0dBm
RF Jumper
NF-TNCM
RF
Jumper
NM-NM
RF
Jumper
NM-NM
Co-Pilot Beacon (MG Series)
Equipped with Trimble Embedded
GPS Timing Receiver
Notes:
1. It is recommended that all unused ports be terminated at 50 ohms. When properly terminated, the possibility of false shutdown is minimized because
high reflections at open ports are eliminated.
2. The values shown in this drawing are only an example. Power levels encountered at each installation may require different coupling, pads, and threshold
values.
3. This example assumes -75dBm input at the repeater, repeater gain set to 85dB, co-pilot beacon output set at 20dBm and use of 20dB directional
couplers with 20dB coupling, and assumed 15dB worst case directivity.
4. Threshold Power Level in this example is set to -20dBm (Approximately 10dB below the power level at the monitor input.)
5. DAS Power Detection and Shutdown functionality:
- If RF Detector measures Input power lower than the Threshold Power Level set by the user, then the Co-Pilot Beacon’s
RF power output will be shut down.
- An alarm occurs. (Delay approximately one second on-off and one second off-on.
Repeater
-10-

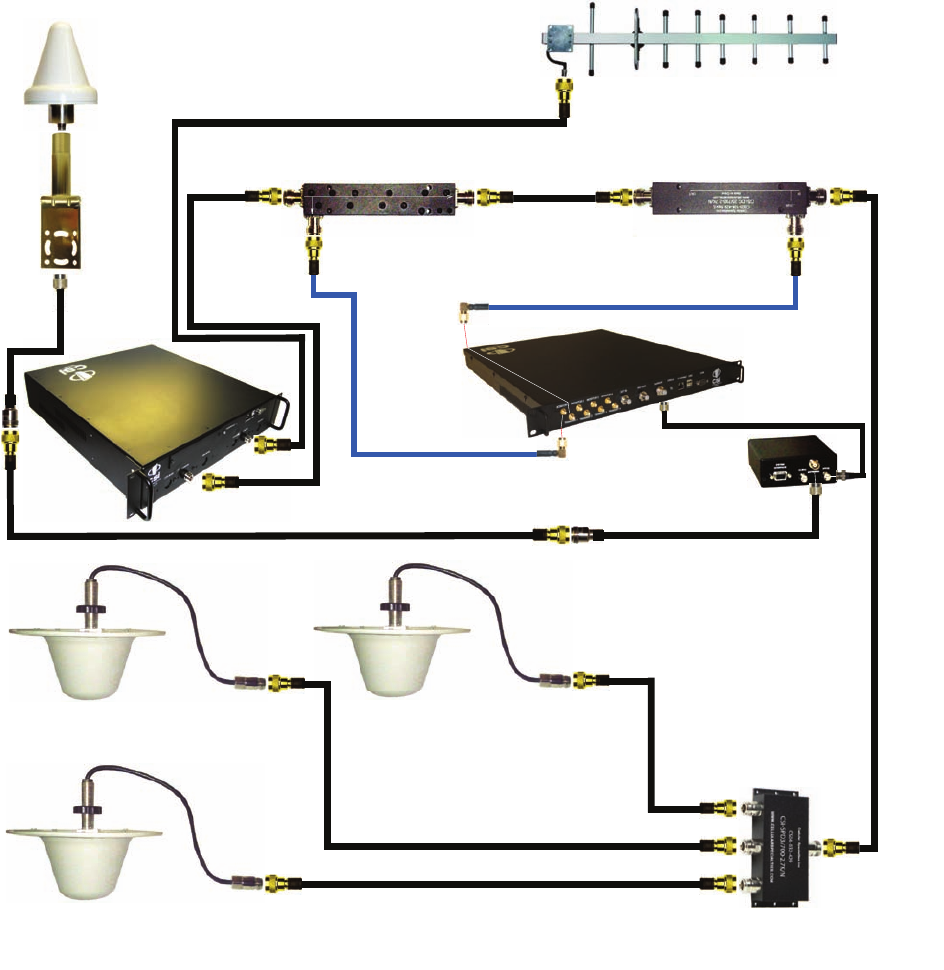

+9.9dBm +9.3dBm
-10.1dBm
Directional Coupler 1 +9.2dBm +8.6dBm
-15.1dBm
Directional Coupler 2
+10.0dBm
Donor
-75.0dBm
-10.2dBm
-0.1dBm
-15.2dBm
-50.2dBm
DAS
IN OUT
-20dB
+19.9dBm
-15.8dBm
-15.9dBm
IN
OUT -20dB
See note 4
GPS Antenna
Antenna
Bracket
RF
Jumper
NF-TNCM
RF Jumper
NM-SMAM
RF Jumper
NM-SMAM
+20.0dBm
RF Jumper
NF-TNCM
RF Jumper
NM-NM
RF
Jumper
NM-NM
Co-Pilot Beacon (MX Series)
Notes:
1. It is recommended that all unused ports be terminated at 50 ohms. When properly terminated, the possibility of false shutdown is minimized because high
reflections at open ports are eliminated.
2. The values shown in this drawing are only an example. Power levels encountered at each installation may require different coupling, pads, and threshold values.
3. This example assumes -75dBm input at the repeater, repeater gain set to 85dB, co-pilot beacon output set at 20dBm and use of 20dB directional couplers with
20dB coupling, and assumed 15dB worst case directivity.
4. Threshold Power Level in this example is set to -20dBm (Approximately 10dB below the power level at the monitor input.)
5. DAS Power Detection and Shutdown functionality:
- If RF Detector measures Input power lower than the Threshold Power Level set by
the user, then the Co-Pilot Beacon’s RF power output will be shut down.
- An alarm occurs. (Delay approximately one second on-off and one second off-on.
Repeater
RF Jumper
BNCM-TNCM
TM-4
Typical Co-Pilot/Repeater Interconnection with External TM-4 (MX Series)
-11-
During Power up, the pilot beacon will require approximately three minutes for the internal computer to boot up. During this time the LED
on the front panel may light and go out several times. When boot is complete and no alarm conditions exist, the LED indicators will be
illuminated green.
Do not unplug the unit while it is in the boot up process!
Powering Up the Unit
To allow monitoring and control, the pilot beacon is equipped with four ports that provide external communication access (1 Ethernet
CAT-5, 1 DB-9 serial, and 2 USB). The Ethernet, CAT-5 port is provided as a primary communications port to the PC. One serial inter-
face, COM 1, can provide communications to local PC. The USB interface provides a means to download ! les from a memory device.
The DB-9 pin assignments of COM 1 conform to the standard Electronic Industries Association (EIA232) speci! cation. A diagram of the
pin descriptions is provided on the next page for reference.
Connecting a null modem cable to the COM 1 port and using a terminal emulation program with a PC will allow communication to the
control processor’s Text Menu Interface (TMI) for trouble shooting and advanced diagnostics. Call CSI technical support for assistance if
you need to access these advanced features or for further information.
The proprietary external GPS receiver connection is made at the port labeled “GPS”. Do not connect other devices or non-straight-
through serial extension cables to this port. Place the GPS receiver in a location with the best view of the unobstructed sky that is
possible, although a 100% open view of the sky is not necessary to achieve a stable time lock.
Local Communication Interface Ports
• The installer should refer to the Safety Guidelines section and the Important Safety Information section for proper antenna selection and
installation. To avoid serious injury or death and damage to the pilot beacon, do not install server antennas near overhead power lines or
high power components. Allow enough distance so that if antennas should fall they will not come in contact with those components.
• Close proximity to the server antennas with the pilot beacon in operation may expose the user or installer to RF ! elds that exceed FCC
limits for human exposure.
WARNING! PILOT BEACON AND/OR HANDSET DAMAGE MAY OCCUR IF A HANDSET IS CONNECTED DIRECTLY TO THE
PILOT BEACON OR THE COAX THAT LEADS TO THE PILOT BEACON.
Important Installation Notes
A complete line of accessories is available from Cellular Specialties, Inc. Check with your CSI distributor for any additional items needed.
Below are just a few examples suitable for most in-building needs.
• Directional Couplers
6dB - model number: CSI-DC6/700-2.7K/N
10dB - model number: CSI-DC10/700-2.7K/N
15dB - model number: CSI-DC15/700-2.7K/N
20dB - model number: CSI-DC20/700-2.7K/N
30dB - model number: CSI-DC30/700-2.7K/N
Battery backup, 4 hr Single band
2 hour dual band - model number: CS48-985-601
• Power Dividers
2:1 - model number: CSI-SPD2/700-2.7K/N
3:1 - model number: CSI-SPD3/700-2.7K/N
4:1 - model number: CSI-SPD4/700-2.7K/N
• Grounding Kit - model number: CSI-GKIT
• Lightning Arrestor - model number: CSI-CAP
• Inside Omnidirectional Antenna
Quad-band - model number: CSI-AO/700/2.7K/3
Optional Accessories
Warning: Power supply cable connector is keyed for proper orientation and is designed to lock into place.
Keyed for proper
alignment, do not
force connector
into place.
-12-

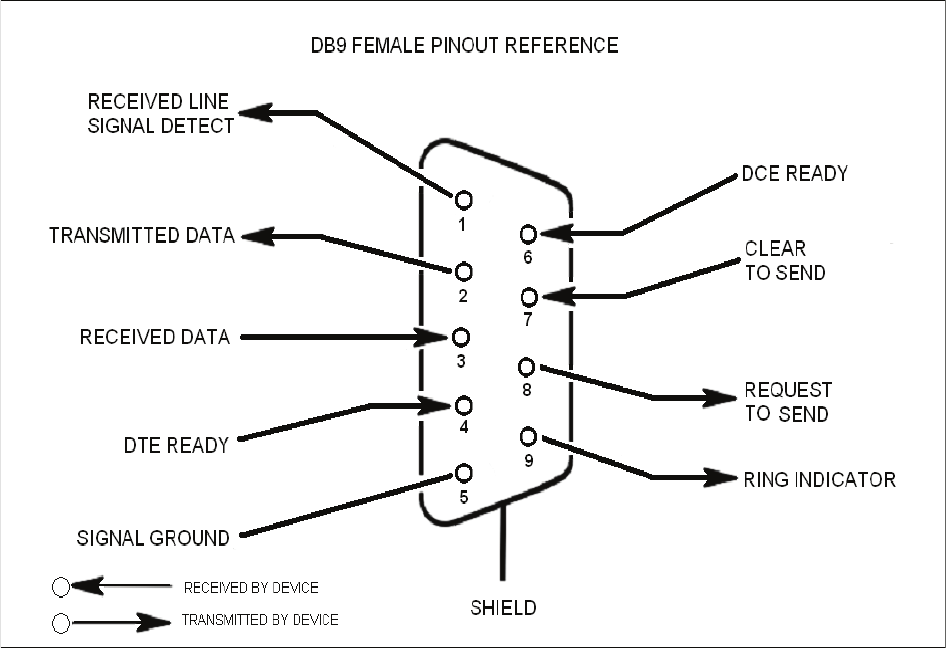

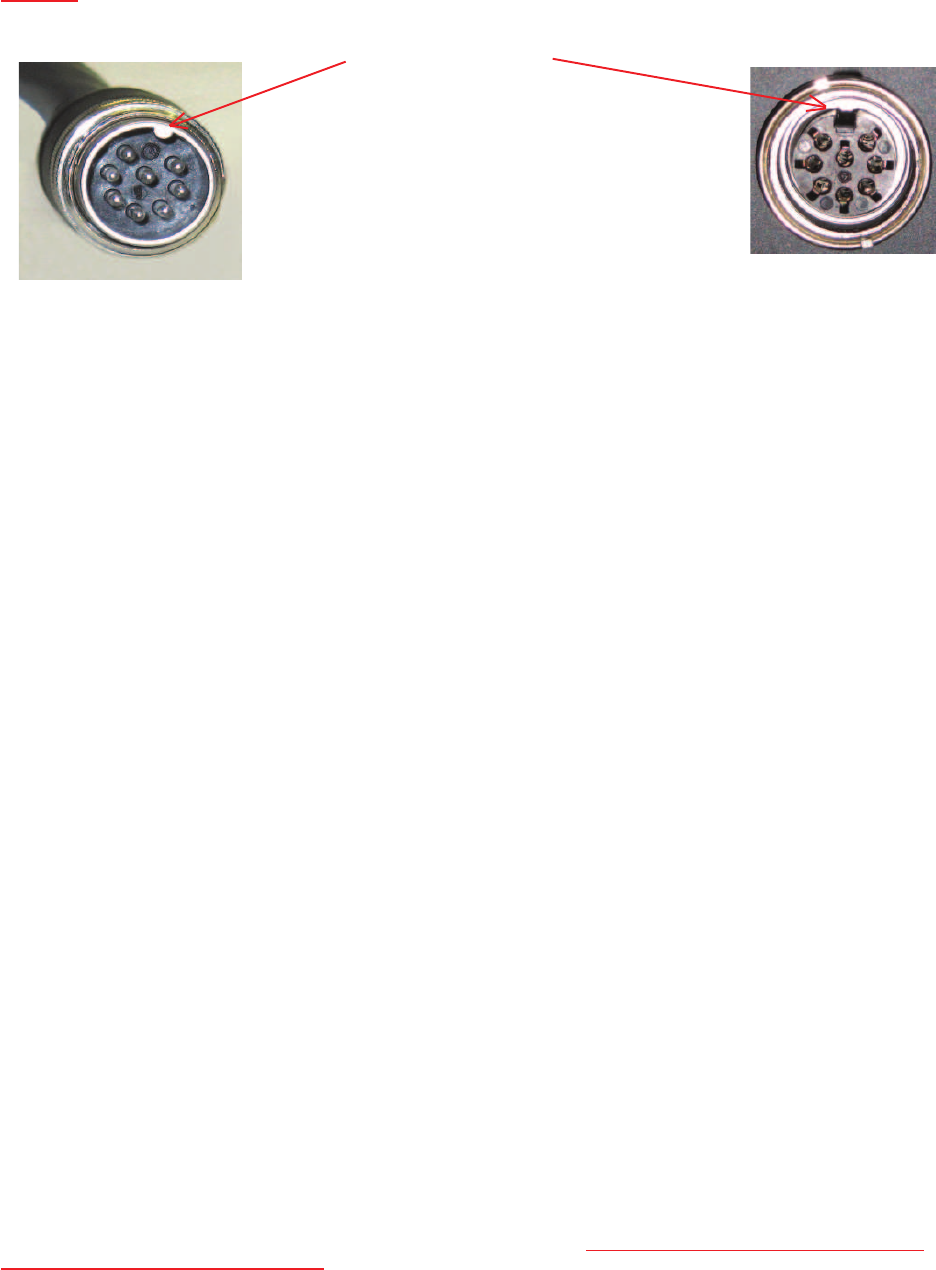

EIA232 Pin Specifi cations
The diagram above is for reference only, it’s intended to provide a quick source for pinout information in the event it should be neces-
sary to adapt your serial cable because of an unusual connector con• guration. In the vast majority of cases this information will not be
needed.
There are no physical connections provided to exclusively and speci• cally communicate system or alarm status. Information with regard
to system or alarm status is provided by the GUI accessible via the communication ports described earlier.
The Universal Serial Bus (USB) interface conforms to Intel’s Universal Host Controller Interface (UHCI) version 1.1 dated March 21,
1996. This interface will support data transfer rates up to 12 Mbps and can be used for software updates.
The Ethernet AUI conforms to IEEE 802.3 and is capable of supporting 10/100 Mbps communications speeds. This port is used to pro-
vide access to the UI.
USB Interface
Ethernet
Monitoring & Alarms
-13-
Text Menu Interface
Figure 1
Figure 2

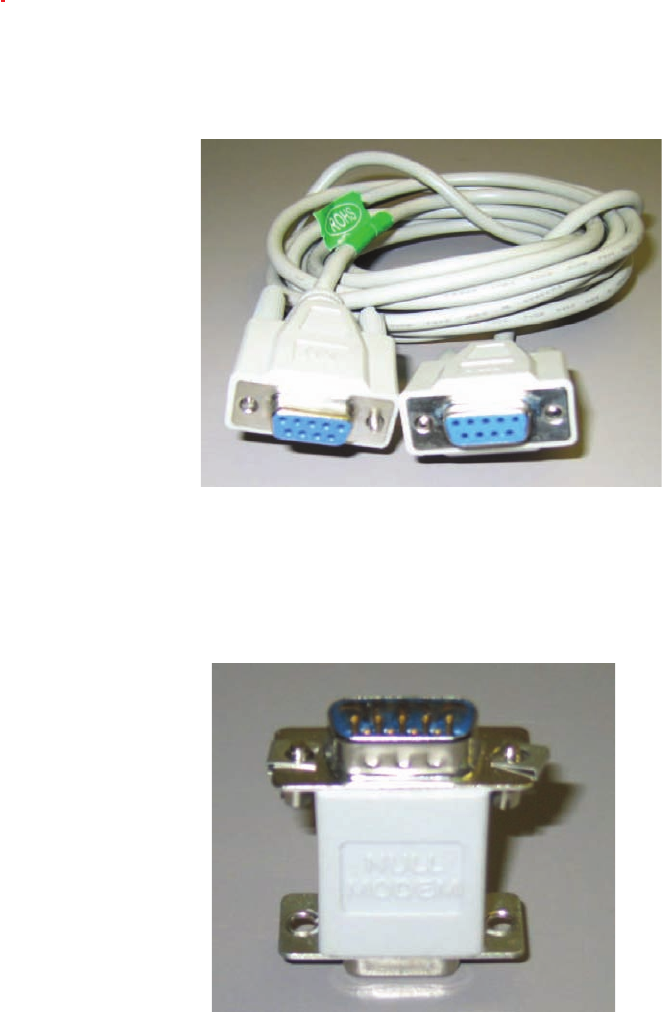

Local access to the pilot beacon TMI, also known as the console interface, is made by connecting a serial cable (optional), as shown
in ! gure 1, from the serial connector of the laptop the serial port on the bottom end panel of the pilot beacon. This connector is labeled
COM In some cases, if the gender of the connector is not the same as shown in ! gure 1, a null modem adapter (optional) as shown in
! gure 2 may also be required.
Local Access
-14-

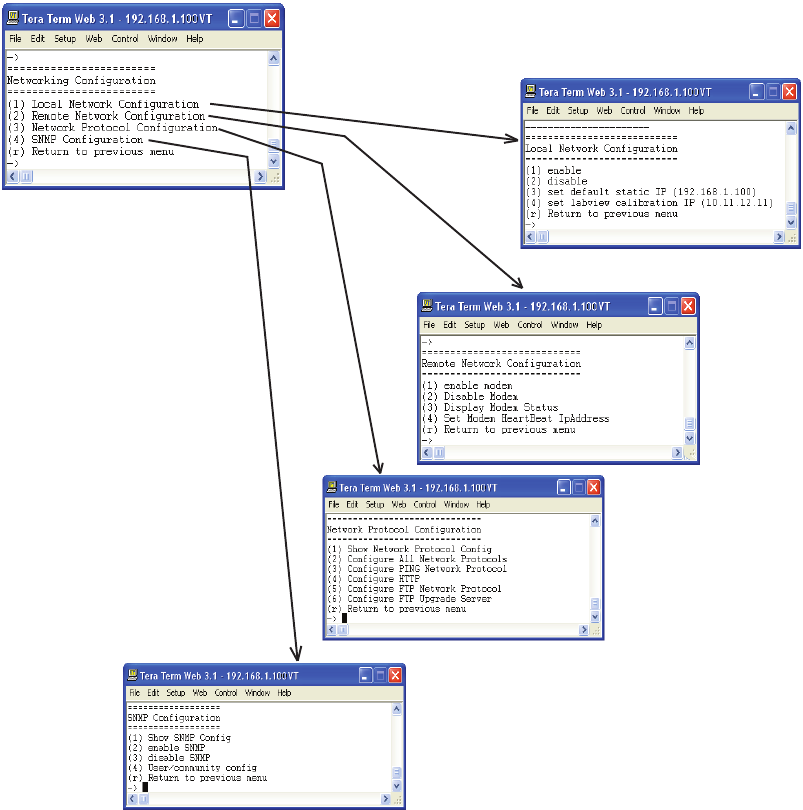

Pressing “OK” will open up a blank dialog screen. Go to the setup
dropdown menu and select Serial port to make changes to the serial
port setup.

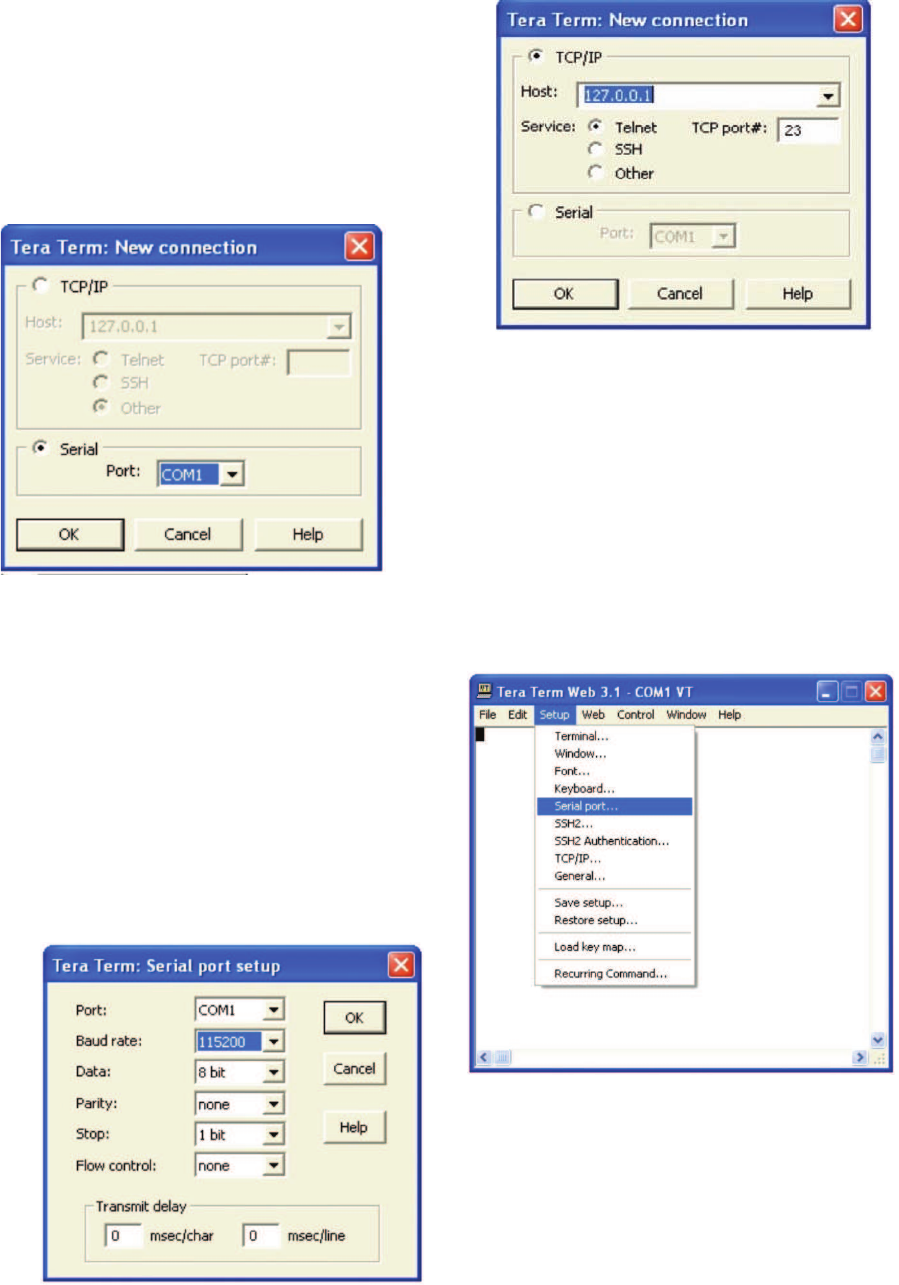

Con• gure the terminal program for the correct COM port, in this
case COM 1 and 115200 baud rate as shown below.
Many terminal emulation programs will work if properly con• gured. In the
following description, “TeraTerm” is used to establish the TMI session.
This program is readily available via the Internet and is free from Ayera
Technologies at: http://www.ayera.com/teraterm/
TeraTerm Pro Web works on Windows 95/98, 2000, XP. Here is the latest
TeraTerm Pro Web release: Version 3.1.3, October 8, 2002. ttpro313.zip
When the program is started, the following screen is displayed.
Select the Serial radio button and press OK as shown below.
Note: It may be necessary, in the System Properties section of the control panel; using Device
Manager to determine what COM port your computer uses for the communications port. In this case it is COM 1. This is not to be con-
fused with the serial port on the bottom panel of the repeater labeled COM 1.
-15-
User Interface

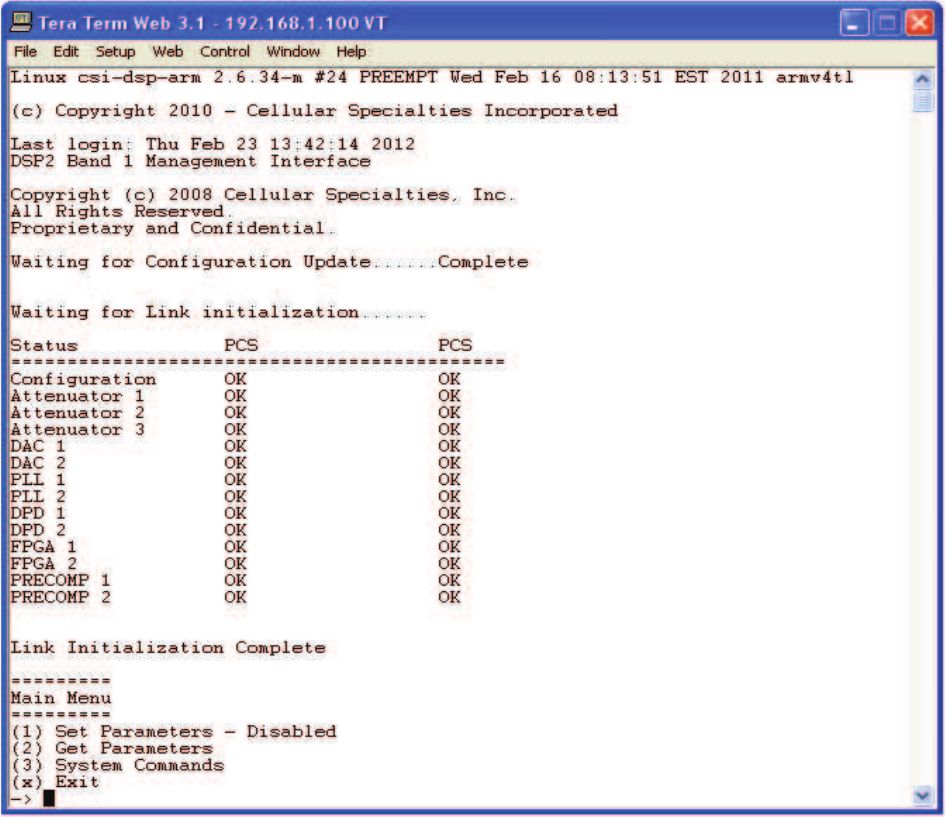

Upon successful login the unit displays the main menu.
Main Menu
Once the unit has completed its boot up and link initialization phases it will display the login prompt. The username is “bandone” for the
!
rst two beacons and “bandtwo” for the second two beacons. The password is “csi1234”.
Login
-16-
The diagram below shows the normal use of Crossed and Straight cables.
Straight Cable
Crossed Cable
Telnet Session (Remote Access)

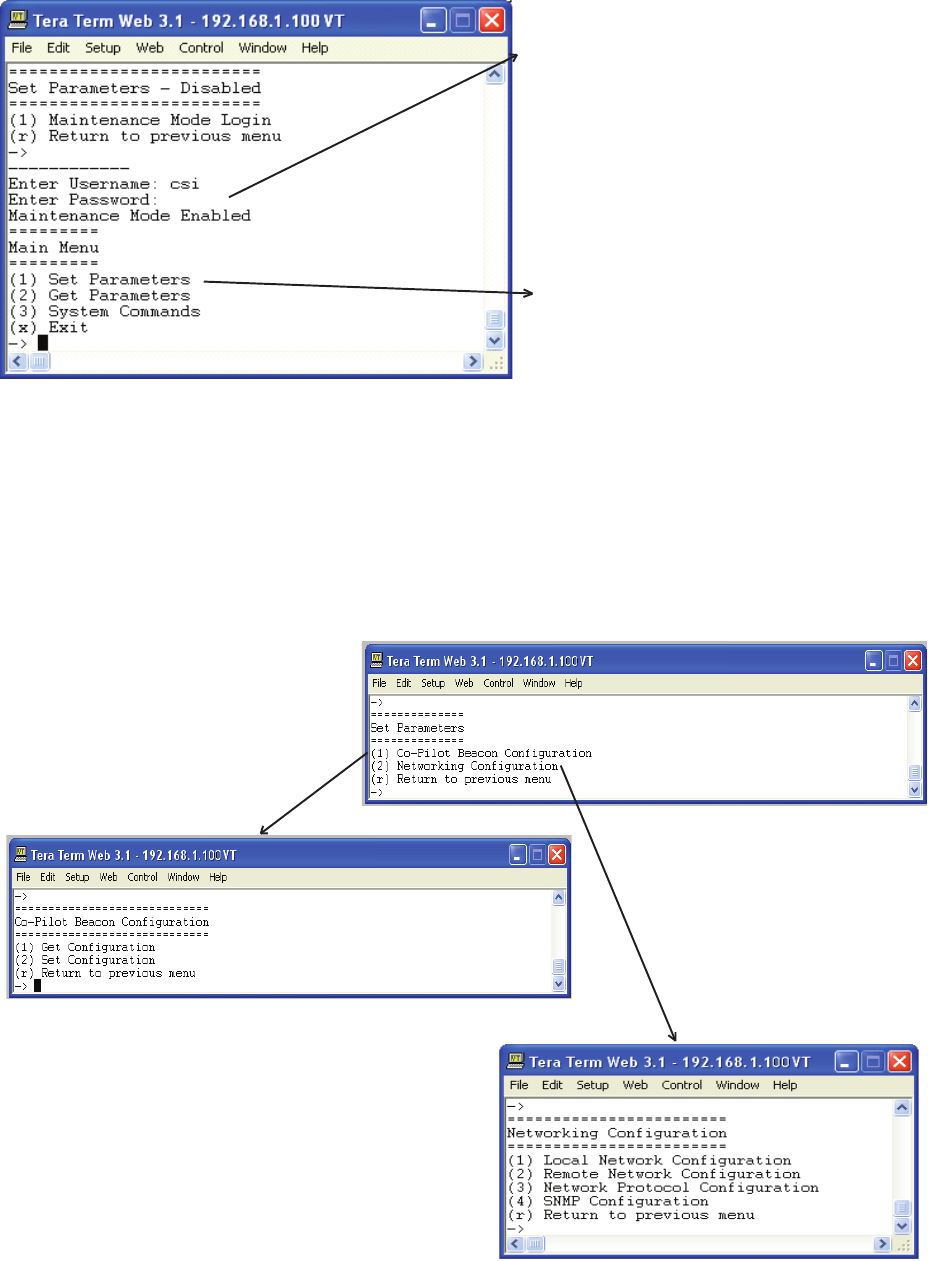

Set Parameters Menu
Once the maintenance mode login is performed successfully the
main menu will be displayed again but without the “(Disabled)”
quali! er on the “Set Parameters” choice.
When “Set Parameters” is ! rst selected the unit will ask for
the maintenance mode login. (The default username for the
maintenance mode is “csi” and the password is “csi1234”.)
Straight Cable
Straight Cable
Crossed Cable
PC
PC
Hub or
Switch
Co-Pilot
Beacon
Co-Pilot
Beacon
Pin # Signal AT&T 258A
1 Transmit+ White/Orange
2 Transmit- Orange/White
or Orange
3 Receive+ White/Green
4 N/A Blue/White
or Blue
5 N/A White/Blue
6 Receive- Green/White
or Green
7 N/A White/Brown
8 N/A Brown/White
or Brown
Pin # Signal AT&T 258A
1 Receive+ White/Orange
2 Receive- Orange/White
or Orange
3 Transmit+ White/Green
4 N/A Blue/White
or Blue
5 N/A White/Blue
6 Transmit- Green/White
or Green
7 N/A White/Brown
8 N/A Brown/White
or Brown
A B
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
-17-

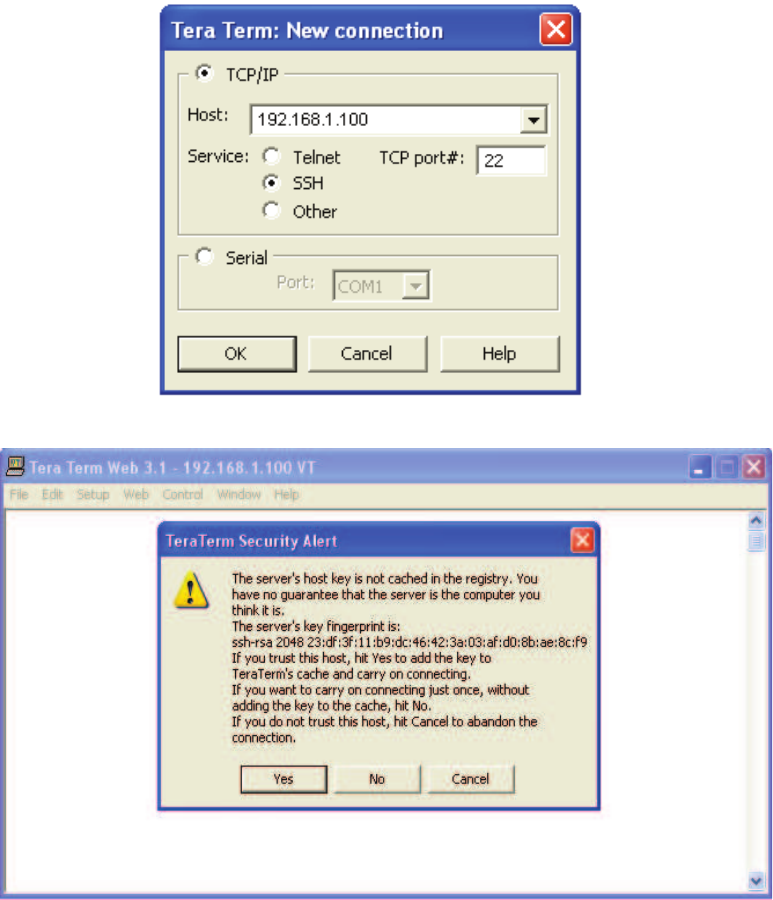

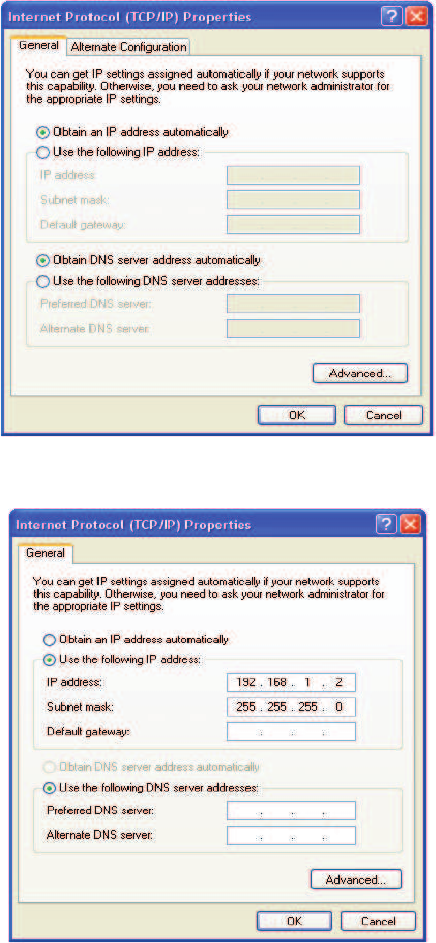

Remote access to the repeater may be gained through a LAN connection and a terminal emulation program for TCP/IP. As with the se-
rial connection, many terminal emulation programs will work, if properly con• gured. In the following description, “TeraTerm” is used to
establish the Telnet session. Also, it will be required that the network con• guration of the computer and the repeater being controlled be
set up with the same Sub Net and Sub Net Mask in order to establish a link. In other words, the IP addresses of both the computer used
and the repeater must use the same group of IP address number sets. For example, the repeater ships with the default IP address of
192.168.1.100 and a Sub Net Mask of 255.255.255.0. In order to connect, the computer to be used for the link would normally need an IP
address of something like 192.168.1.12 with a Sub Net Mask of 255.255.255.0, the same Sub Net Mask as the repeater. In this example
note: the last digit of the IP address may be any number except 1,100 and 255. Con• guring your PC is normally fairly straight forward
but it does vary somewhat with the operating system involved. If you require assistance, contact your IT department and they will be able

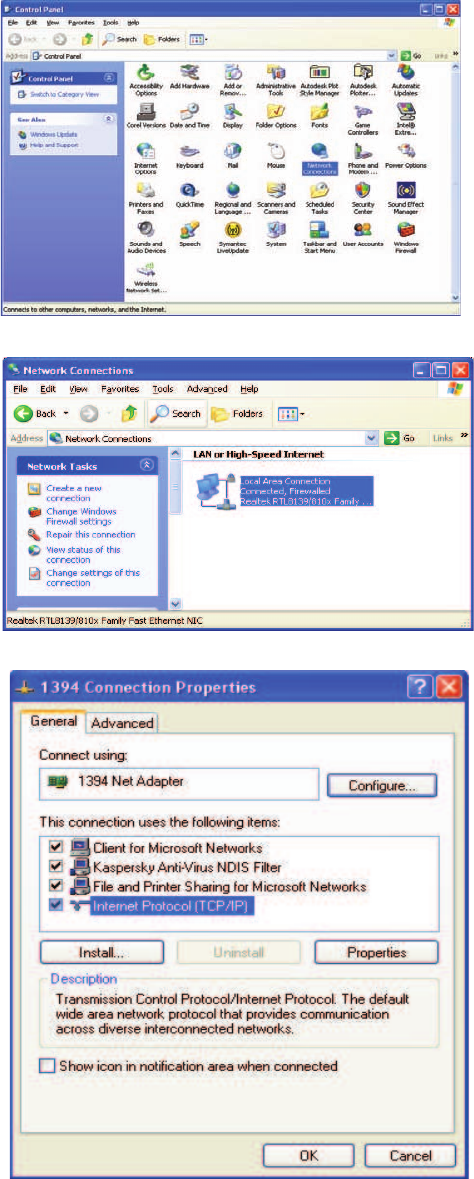

to set up your PC for you or you may review the Additional Tips Section at the end of the manual.
When the TeraTerm program is started, the following screen is displayed. Change the default host IP address to the IP address of the
repeater to be controlled. In the case of a new install, the default address is 192.168.1.100 and has been assigned at the factory. Select
the service Telnet. The TCP Port must be 23.
Pressing the “OK” button will display the security alert shown below.
Click the yes button and the • rst SSH2 Authentication Challenge screen is displayed. The user then types the username in the space
provided. In multi beacon units, each set of beacons are changed independently and requires an independent login. To make changes
default user names are “bandone” for the • rst two beacons and “bandtwo” for the second two beacons respectively .
-18-
In the • eld provided, type the user name for the beacon to be changed. The default password is “csi1234” for all beacons. After typing
the password press OK and the main menu will be displayed as shown next.
Press OK after entering the user name and the second SSH2 Authentication Challenge will be displayed.
-19-
Set Parameters Menu
Once the maintenance mode login is performed
successfully the main menu will be displayed again
but without the “(Disabled)” quali• er on the “Set
Parameters” choice.
When “Set Parameters” is • rst selected the unit will ask
for the maintenance mode login. (The default username
for the maintenance mode is “csi” and the password is
“csi1234”.)
Selection of option 1 will display the Co-Pilot Con• guration Menu. Option 2 displays the Networking Con• guration Menu. These menus
allow the user to choose set up options menus that are fairly self explanatory but are displayed in the following pages for clari• cation.
-20-
Co-Pilot Beacon Confi guration
Selecting option 1 will display the
current beacon con• guration but does
not allow the user to change any setting.
Acceptable power range is 0-20
Selection of option 2 allows for the
setting of Transmitter and System
Con• guration.
* Note Top line parenthesis shows
current value. Bottom line shows
range of acceptable values.
*
*
*
Acceptable channel range
See next page for the Set System
Con• guration selections.
When selecting each option on
the Set Transmitter Con• guration
menu the user is presented with
the Select Transmitter menu
• rst to allow for the selection of
transmitter for this section of the
unit.
Transmitter Confi guration
-21-
System Confi guration
-22-
Networking Confi guration
If the user is unclear about the network con• guration that should be used for setup of the Co-Pilot Beacon, he or she should contact the
Network Administrator for information with regard to the speci• c network settings.
-23-
System Commands
The System Commands Menu will allow the user to upgrade and restore the unit OS, restore factory calibration settings, upload new data
• les, upgrade FTP software, reboot and shutdown the system.
-24-
Key Features
Multiple Beacon Confi
guration
Each unit contains four independent beacons. These can be all in the same band or two of one band and two of another.
Detected RF Power Shutdown
The product contains an RF power detector for each transmitter that can be used to sense the power being transmitted by the DAS.
Loss of the DAS requires that the beacon be shut down in order to provide some possibility for mobile devices to connect to the low level
signal of the macro network.
The shutdown threshold is set by the user. When the detected power falls below the set threshold the transmit power of all beacons is
shut down and an alarm is issued. When the power rises above the threshold the beacons are turned back on.
Timing Reference Source
A GPS derived timing reference is always required for the proper operation of the Co-co-pilot beacon. That timing reference can be
provided by one of the following:
• An optional internal GPS receiver
• An optional internal CDMA timing receiver
• The CSI supplied external CDMA Timing Reference Receiver
• The CSI supplied external precision GPS Timing Reference (Spectrum Instruments TM-4)
• Any user-supplied GPS Receiver capable of providing a TTL compatible even second tick aligned to GPS (not UTC)
time.
Control Parameter Details
Master Shutdown
The Master Shutdown shuts down the transmissions from all beacons in the product.
Timing Reference Selection
There are three alternatives for the timing reference source and all beacons in the product use the same reference.
• Internal GPS
• Internal CDMA
• External Even Second Sync
The choices that are available will depend on the product type as follows:
-MX- “External” only
-MG- “External” and “Internal GPS”
-MO- “External” and “Internal CDMA
The default choice will also depend on the product type as follows:
-MX- “External”
-MG- “Internal GPS”
-MO- “Internal CDMA
Selecting “Internal GPS” enables the use of the internal GPS receiver. An appropriate antenna with a clear view of the sky must be
connected to the “Timing In” connector of the Co-pilot beacon. This choice is only available if the unit includes the optional GPS timing
reference.
Selecting “Internal CDMA” enables the use of the internal CDMA receiver. Either an appropriate antenna, or a cable carrying a valid
CDMA Base Station signal, must be connected to the “Timing In” connector of the Co-pilot beacon. This choice is only available if the unit
includes the optional CDMA timing reference.
Selecting “External Even Second” enables the use of a TTL compatible even second pulse via the “EST In” connector of the Co-Co-pilot
beacon. The rising edge of the pulse is used as the time reference and must be aligned with the start of the even second of GPS (not
UTC) Time.
The even second tick provided by the selected Timing Reference will appear on the “EST Out” connector.
-25-
Each co-pilot beacon can transmit up to eleven simultaneous CDMA2000 signals. The carrier frequency for each signal is set by entering
the desired CDMA channel number for that signal.
Thus, there are eleven Channel Number • elds, one for each of the possible signals.
The CDMA channel number is a unit less integer value
The range is 1 to 799 and then 991 to 1023 for cell band, 1 to 1199 for PCS band, and 25 to 875 for AWS band. Duplicate channel num-
bers are not allowed.
The default values for a Cell Band beacon are:
Signal 1: CDMA Channel 384
Signal 2: CDMA Channel 425
Signal 3: CDMA Channel 466
Signal 4: CDMA Channel 507
Signal 5: CDMA Channel 548
Signal 6: CDMA Channel 589
Signal 7: CDMA Channel 770
Signal 8: CDMA Channel 1
Signal 9: CDMA Channel 9
Signal 10: CDMA Channel 10
Signal 11: CDMA Channel 11
The default values for PCS and AWS Band beacons are:
Signal 1: CDMA Channel 1
Signal 2: CDMA Channel 2
Signal 3: CDMA Channel 3
Signal 4: CDMA Channel 4
Signal 5: CDMA Channel 5
Signal 6: CDMA Channel 6
Signal 7: CDMA Channel 7
Signal 8: CDMA Channel 8
Signal 9: CDMA Channel 9
Signal 10: CDMA Channel 10
Signal 11: CDMA Channel 11
Each of the eleven signals for a given beacon can be individually turned on or off. There is one transmit enable • eld for each signal.
The default values for a Cell Band beacon are:
Signal 1: Enabled
Signal 2 Enabled
Signal 3: Enabled
Signal 4: Enabled
Signal 5: Enabled
Signal 6: Enabled
Signal 7: Enabled
Signal 8: Disabled
Signal 9: Disabled
Signal 10: Disabled
Signal 11: Disabled
The default values for PCS and AWS Bands beacons are:
Signal 1: Disabled
Signal 2 Disabled
Signal 3: Disabled
Signal 4: Disabled
Signal 5: Disabled
Signal 6: Disabled
Signal 7: Disabled
Signal 8: Disabled
Signal 9: Disabled
Signal 10: Disabled
Signal 11: Disabled
Channel Frequency Numbers
Signal Transmit Enables
-26-
PN Offset
Each beacon has its own PN Offset. The PN Offset is a unitless integer value with a range of 0 to 511. The default value is zero.
Tau (Delay Correction)
There is a single Tau value for each beacon in a given product unit. Tau is a real value in units of microseconds with a range of -166.7 to
+166.7 μsec and one decimal place of precision. Internally the value will be rounded to the nearest 1/40th of a CDMA chip.
Co-pilot beacon Per Channel Transmit Power
This setting controls the CDMA Channel Power output by a given Co-pilot beacon for each carrier. All enabled carriers are transmitted at
the same power level. The total transmit power will be the sum of the power of all enable carriers. The user must set this power level such
that the total transmit power does not exceed the specifi ed maximum transmit power for the Co-pilot beacon.
The Output Power is specifi ed in dBm with a range of 0.0 to 20.0 and a resolution of 0.5.
Composite Transmit Power
Composite output power is a display only fi eld. The value is calculated from the Per Channel Tx Power and the number of channels that
are enabled.
Manual Shutdown
Manual Shutdown allows the user to shut down transmission from the given beacon
Auto Shutdown Enable
The detected power shutdown feature can be enabled or disabled.
Auto Shutdown Threshold
The shutdown threshold is entered in units of dBm.
The allowable range is -26 to +4 dBm
Detected Power
Detected power is a display only fi eld that displays the current reading of the power detector for the given beacon. The measured power
is displayed in units of dBm and has a range of -30 to +10.
-27-
Instructions to change TCP/IP settings on your Windows computer.
Click in the Network Connections Icon in the Control Panel. See below.
Right click on Local Area Connection - and select “Properties”.
Scroll down to “Internet Protocol (TCP/IP) and click on the “Properties” button.
Additional Tips
-27-
If you are set up to use DHCP, the window shown below will be displayed.
Select “Use the following IP address:” and enter “192.168.1.2.” The subnet mask should automatically populate to “255.255.255.0”.
Nothing else will need to be chosen or entered. Click “OK”, then “OK again and retry connection.
A crossover Ethernet cable (supplied) must be used for Web Interface access. As a reminder, you must verify the Ethernet port on your
laptop is powered. If your laptop is on battery power, the Ethernet port may be inactive by default. If this is the case simply plug in the
laptop to a 110vac source or change the power settings to enable the Ethernet port when the laptop is using battery power.
-29-
Seller warrants that its products are transferred rightfully and with good
title; that its products are free from any lawful security interest or other lien
or encumbrance unknown to Buyer; and that for a period of one year from
the date of installation or fi fteen months from the date of original shipment,
whichever period expires fi rst, such products will be free from defects in
material and workmanship which arise under proper and normal use and
service. Buyer’s exclusive remedy hereunder is limited to Seller’s correc-
tion (either at its plant or at such other place as may be agreed upon be-
tween Seller and Buyer) of such defects by repair or replacement at no cost
to Buyer. Transportation costs in connection with the return of products
to Seller’s plant or designated facility shall be paid by Buyer. The provi-
sions of this warranty shall be applicable with respect to any product which
Seller replaces pursuant to it. SELLER MAKES NO WARRANTY, EXPRESS
OR IMPLIED, OTHER THAN AS SPECIFICALLY STATED ABOVE. EXPRESS-
LY EXCLUDED ARE THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR PURPOSE. THE FOREGOING SHALL CONSTITUTE ALL
OF SELLER’S LIABILITY (EXCEPT AS TO PATENT INFRINGEMENT) WITH
RESPECT TO THE PRODUCTS. IN NO EVENT SHALL SELLER BE LIABLE
FOR SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INSTALLA-
TION COSTS, LOST REVENUE OR PROFITS, OR ANY OTHER COSTS OF
ANY NATURE AS A RESULT OF THE USE OF PRODUCTS MANUFACTURED
BY THE SELLER, WHETHER USED IN ACCORDANCE WITH INSTRUCTIONS
OR NOT. UNDER NO CIRCUMSTANCES SHALL SELLER’S LIABILITY TO
BUYER EXCEED THE ACTUAL SALES PRICE OF THE PRODUCTS PROVID-
ED HEREUNDER. No representative is authorized to assume for Seller any
other liability in connection with the products.
One Year Limited Warranty
Industry Certifi cations/Registration Numbers NVRCSI-CPBRW-CP, NVRCSI-CPBRW-AW
UL - Power Supply: UL60950-1
-30-
Index
A
AC Current 6
AC Power Frequency 6
AC Power Speci•
cations 6
Acronyms and De• nitions 5
AC Voltage 6
Additional Tips 27
Application 4
Auto Shutdown Enable 26
Auto Shutdown Threshold 26
B
Box Weight 6
C
Channel Frequency Numbers 25
Composite Transmit Power 26
Control Parameter Details 24
Co-Pilot Beacon Con• guration 20
Co-pilot beacon Per Channel Transmit Power 26
D
Depth 6
Detected Power 26
Detected RF Power Shutdown 24
E
EIA232 Pin Speci• cations 12
Environmental Requirements 6
Explosive Atmospheres 4
F
Functional Overview: 6
G
Grounding 4
H
Height 6
I
Important Installation Notes 11
Industry Certi• cations/Registration Numbers 29
K
Key Features 24
L
Lightning Danger 4
Limited Warranty 29
Local Communication Interface Ports 11
Login 15
M
Main Menu 15
Manual Shutdown 26
Master Shutdown 24
Mechanical Drawing 7
Mechanical Speci• cations 6
Monitoring & Alarms 12
Multiple Beacon Con• guration 24
N
Networking Con• guration 22
null modem adapter 13
O
Optional Accessories 11
P
PN Offset 26
Powering Up the Unit 11
Power supply cable connectors 11
Product Introduction 5
Product Registration Information 4
R
Relative Humidity 6
S
serial cable 13
Set Parameters Menu 16, 19
Signal Transmit Enables 25
Surface Coating 6
System Commands 23
System Con• guration 21
System Set-Up Considerations 7
T
Tau (Delay Correction) 26
TCP/IP settings 27
Telnet Session 16
Telnet Session (Remote Access) 16
Temperature Range 6
terminal emulation programs 14
Text Menu Interface 13
Thermal Management 6
Timing Reference Selection 24
Timing Reference Source 24
Transmitter Con• guration 20
U
UL - Power Supply 29
USB Interface 12
User Interface 15
W
Warranty 29
Web based GUI Session 13
Width 6
-31-
Notes
Notes
Notes
Notes
Notes
960-1146-002 rev 004
