Whirlpool Microwave Development GH4155 Microwave Oven User Manual
Whirlpool Microwave Products Development Limited. Microwave Oven Users Manual
Users Manual
MICROWAVE HOOD
COMBINATION
Use & Care Guide
For questions about features, operation/performance
parts, accessories or service, call: 1-800-253-1301.
or visit our website at...
www.whirlpool.com
Table of Contents .......................................2
8204919/4619-652-64141
®
Model GH4155XP
2
TABLE OF CONTENTS
MICROWAVE OVEN SAFETY........................................................3
Electrical Requirements ...............................................................5

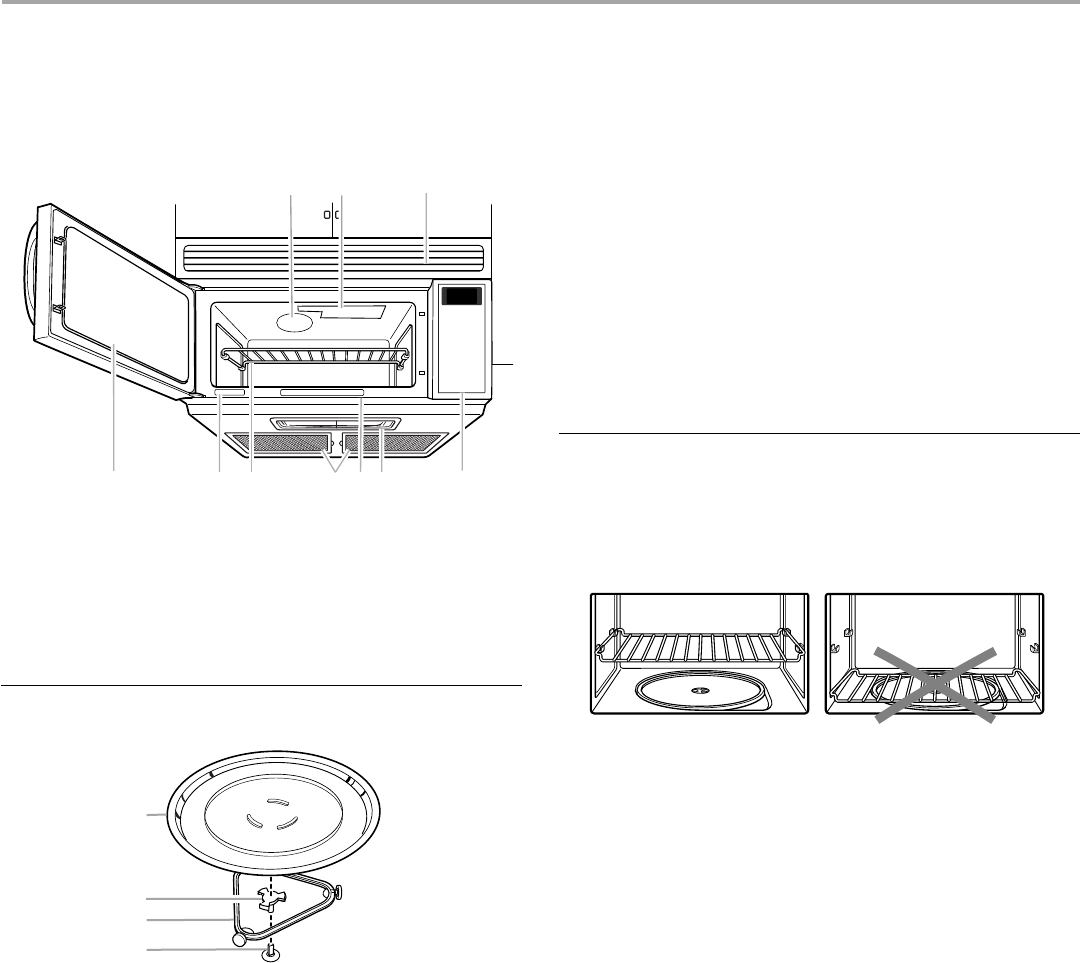

PARTS AND FEATURES................................................................6
Turntable ......................................................................................6

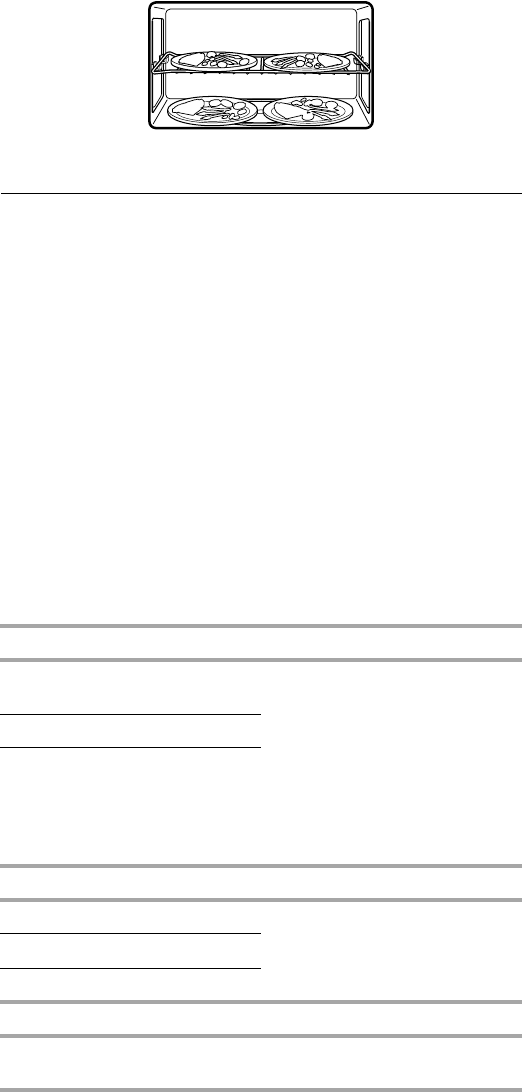

Cooking Rack...............................................................................6

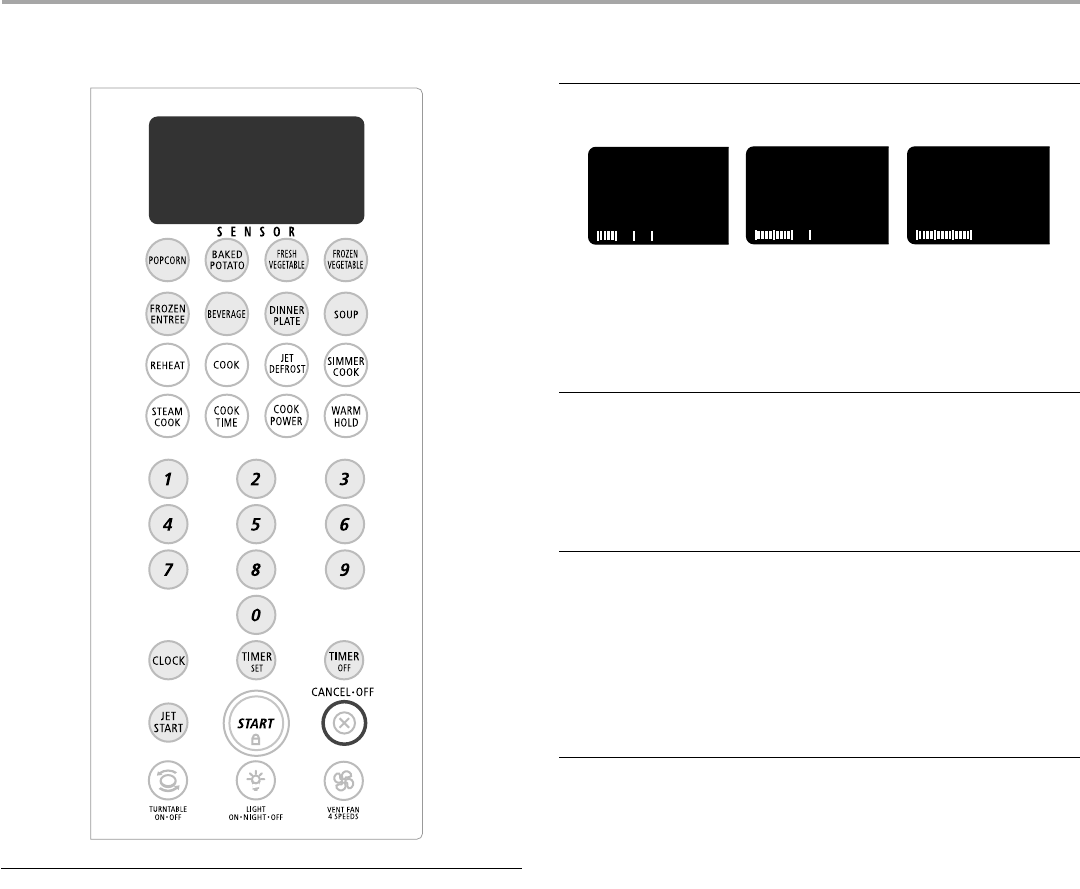

MICROWAVE OVEN CONTROL....................................................7
Display..........................................................................................7
Progress Bar.................................................................................7
Number Codes.............................................................................7
Start..............................................................................................7
JET START™ Feature ..................................................................7
Cancel-Off ....................................................................................8
Clock ............................................................................................8
Tones............................................................................................8
Timer.............................................................................................8
Child Lock ....................................................................................8
Vent Fan .......................................................................................8
Cooktop Light...............................................................................8
Demo Mode..................................................................................8
MICROWAVE OVEN USE ..............................................................9
Food Characteristics....................................................................9
Cooking Guidelines......................................................................9
Cookware and Dinnerware ..........................................................9
Aluminum Foil and Metal ...........................................................10
Cooking Power...........................................................................10
Cooking ......................................................................................11
Sensor Cooking..........................................................................11
Preset Cooking...........................................................................12
Cooking in Stages......................................................................12
Reheating ...................................................................................12
Defrosting...................................................................................13

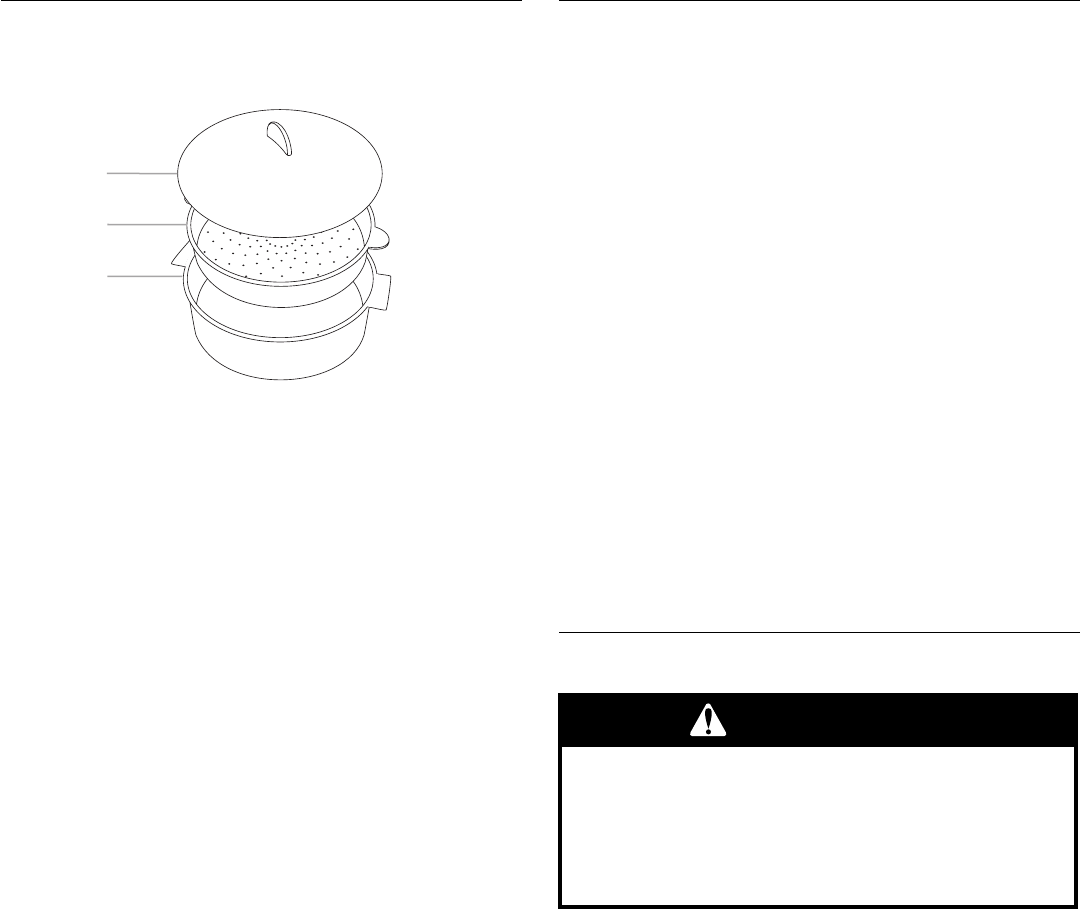

Steaming ....................................................................................14
Simmering ..................................................................................14
Warm Hold .................................................................................14
MICROWAVE OVEN CARE..........................................................15
General Cleaning........................................................................15

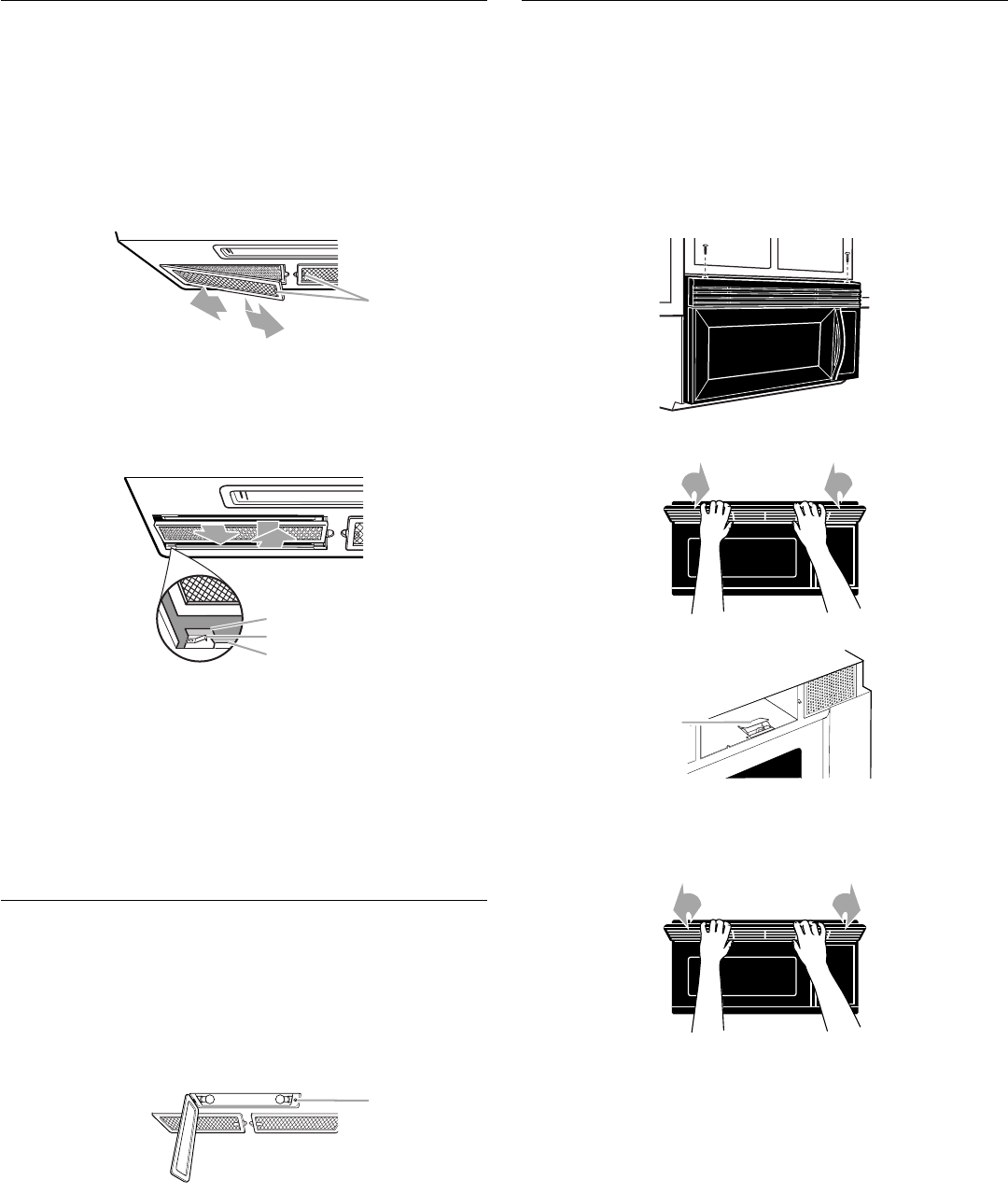

Replacing Filters.........................................................................16
Replacing Cooktop Light ...........................................................16
Replacing Microwave Oven Light..............................................16
TROUBLESHOOTING ..................................................................17
ASSISTANCE OR SERVICE.........................................................18
Replacement Parts & Accessories.............................................18
WARRANTY ..................................................................................20
®
3
MICROWAVE OVEN SAFETY
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or
“WARNING.” These words mean:
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of burns, electric
shock, fire, injury to persons, or exposure to excessive
microwave energy:
■Read all instructions before using the microwave
oven.
■Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found in this section.
■The microwave oven must be grounded. Connect
only to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found in this section and in the
provided Installation Instructions.
■Install or locate the microwave oven only in
accordance with the provided Installation Instructions.
■Some products such as whole eggs in the shell and
sealed containers – for example, closed glass jars –
are able to explode and should not be heated in the
microwave oven.
■Use the microwave oven only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in the microwave oven. This type
of oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
■As with any appliance, close supervision is necessary
when used by children.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
■Do not operate the microwave oven if it has a
damaged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
■The microwave oven should be serviced only by
qualified service personnel. Call an authorized
service company for examination, repair, or
adjustment.
■See door surface cleaning instructions in the
“Microwave Oven Care” section.
■To reduce the risk of fire in the oven cavity:
– Do not overcook food. Carefully attend the
microwave oven when paper, plastic, or other
combustible materials are placed inside the oven
to facilitate cooking.
– Remove wire twist-ties from paper or plastic bags
before placing bags in oven.
– If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power cord,
or shut off power at the fuse or circuit breaker panel.
– Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
4
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Suitable for use above both gas and electric cooking
equipment.
■
Intended to be used above ranges with maximum
width of 36 inches.
■
Clean Ventilating Hoods Frequently - Grease should
not be allowed to accumulate on hood or filter.
■
When flaming foods under the hood, turn the fan on.
■
Use care when cleaning the vent-hood filter.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the filter.
■
■
■
■
■
■
■
Do not cover or block any openings on the
microwave oven.
Do not store this microwave oven outdoors. Do not
use the microwave oven near water - for example,
near a kitchen sink, in a wet basement, or near a
swimming pool, or similar locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not let cord hang over edge of table or counter.
Do not mount over a sink.
Oversized foods or oversized metal utensils should not
be inserted in the microwave oven as they may create
a fire or risk of electric shock.
Do not clean with metal scouring pads. Pieces can
burn off the pad and touch electrical parts involving a
risk of electric shock.
Do not use paper products when appliance is
operated in the “PAN BROWN” mode (on models
with this feature).
Do not store any materials, other than manufacturer’s
recommended accessories, in this oven when not in
use.
Do not cover racks or any other part of the oven with
metal foil. This will cause overheating of the oven.
■
■
■
■
■
Do not store anything directly on top of the microwave
oven when the microwave oven is in operation.
■
To reduce the risk of injury to persons:
■Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is not
always present. THIS COULD RESULT IN VERY HOT
LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
– Do not overheat the liquid.
– Stir the liquid both before and halfway through
heating it.
– Do not use straight-sided containers with narrow
necks.
– After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
– Use extreme care when inserting a spoon or other
utensil into the container.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door
open since open-door operation can result in
harmful exposure to microwave energy. It is
important not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the oven front
face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by
anyone except properly qualified service personnel.
5
Electrical Requirements
Observe all governing codes and ordinances. A 120 Volt, 60 Hz,
AC only, 15- or 20-amp fused electrical supply is required. (A
time-delay fuse or circuit breaker is recommended.) It is
recommended that a separate circuit serving only this appliance
be provided.

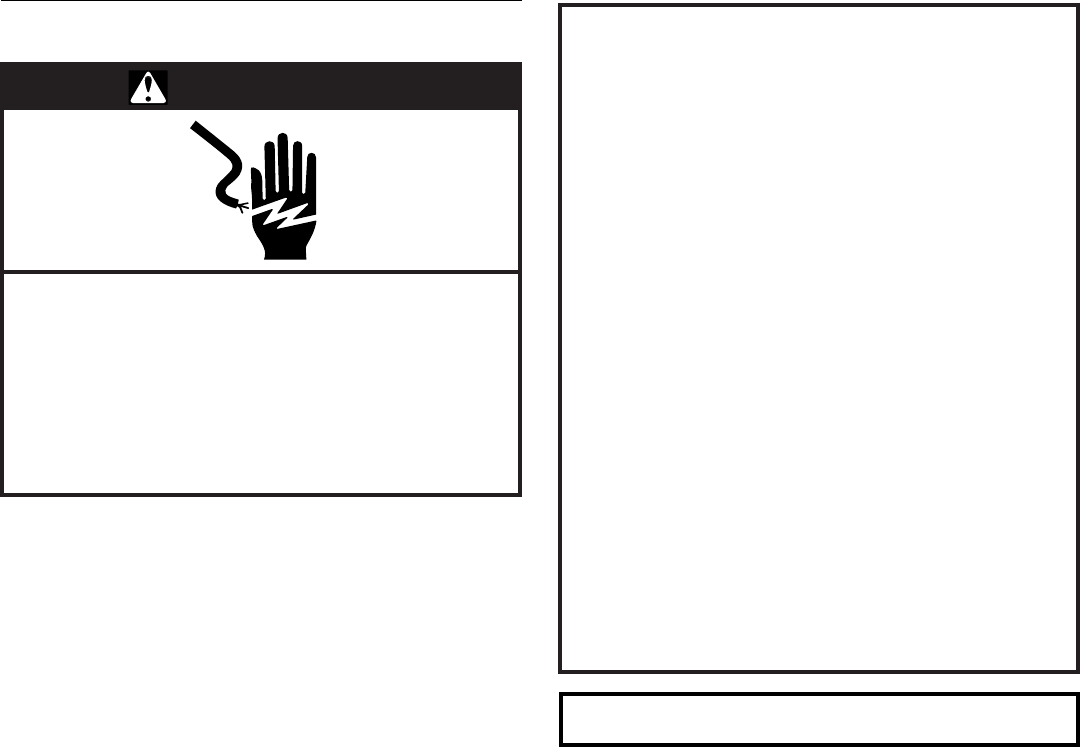

WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Do not use an extension cord.
Do not use an adapter.
Do not remove ground prong.
GROUNDING INSTRUCTIONS
■ For all cord connected appliances:
The microwave oven must be grounded. In the event
of an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire for
the electric current. The microwave oven is equipped
with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING:
Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the
grounding
instructions
are not completely understood
, or if doubt exists as to
whether the microwave oven is properly grounded.
■ For a permanently connected appliance:
This appliance must be connected to a grounded,
metallic, permanent wiring system, or an equipment
grounding conductor should be run with the circuit
conductors and connected to the equipment
grounding terminal or lead on the appliance.
Do not use an extension cord. If the power supply cord
is too short, have a qualified electrician or serviceman
install an outlet near the microwave oven.
SAVE THESE INSTRUCTIONS
This device complies with Part 18 of the FCC Rules.
6
PARTS AND FEATURES
This manual may cover several different models. The model you
have purchased may have some or all of the features shown here.
The appearance of your particular model may differ slightly from
the illustrations in this manual.
Turntable
The turntable can rotate in either direction to help cook food
more evenly. Do not operate the oven without the turntable in
place. See “Assistance or Service” to reorder any of the parts.
To Install:
1. Remove tape from the hub.
2. Place the support on the oven cavity bottom.
3. Place the turntable on the support.
Fit the raised, curved lines in the center of the turntable
bottom between the three spokes of the hub. The rollers on
the support should fit inside the turntable bottom ridge.
Turning Off the Turntable
The turntable can be turned off (except during an auto function).
This is helpful when cooking with plates that are larger than the
turntable or when cooking with two 10¼" (26 cm) plates that are
side by side.
To Turn Off: Touch TURNTABLE ON-OFF. A “turntable off” icon
will appear in the display. The turntable will turn back on
automatically when cooking is over or CANCEL-OFF is touched.
Cooking Rack
The cooking rack is ideal for two-level cooking. It provides extra
cavity space for cooking 2 or more containers at the same time.
Insert the rack securely into the rack supports on the side walls of
the oven. See “Assistance or Service” section to reorder rack.
■Rack will become hot. Always use oven mitts or pot holders
when handling.
■Do not allow the rack to touch the inside cavity walls, ceiling
or floor.
■Do not store the rack in the oven. Damage to the oven could
result if someone accidentally turns on the oven.
■Use the rack only when cooking on two levels.
■Do not use metal cookware, utensils, or a browning dish with
the rack.
■Do not let food container on rack touch the top or sides of the
oven.
■Do not place popcorn bags on rack.
■Do not cook food directly on the rack. Always use a
microwave-safe container.
■The rack is designed specifically for this oven. Do not attempt
to use any other rack in this oven.
■Clean rack supports often (see “General Cleaning” section).
Damage to the oven could result due to soil buildup.
A. Microwave Inlet Cover
B. Microwave Oven Light
C. Vent Grille
D. Metal Shielded Window
E. Model and Serial Number Plate
F. Cooking Rack
G. Charcoal and Grease Filters
(shipped in oven cavity)
H. Cooking Guide Label
I. Cooktop Light
J. Control Panel
Parts and Features not shown
Turntable
Steamer Vessel
A. Turntable
B. Hub
C. Support
D. Shaft
ABC
GFD JIHE
A
B
C
D
7
MICROWAVE OVEN CONTROL
Display
When power is first supplied to the microwave oven, a “:” will
blink on the display. Touch CANCEL-OFF to stop the blinking.
If the “:” blinks on the display at any other time, a power failure
has occurred. Touch CANCEL-OFF and reset the clock if needed.
If “RETRY” blinks on the display for 1 second, an invalid value
has been entered. Retry your entry.
When the microwave oven is in use, the display shows cooking
power, quantities, weights and/or prompts. When the microwave
oven is not in use, the display shows the time of day or Timer
countdown.
Progress Bar
The progress bar is a visual picture of the estimated running time
of a cooking cycle. It will appear during Cook, JET DEFROST™
feature, Reheat and Sensor One Touch functions. The lines in
each of the segments will light from left to right as the time nears
the end. When all 12 lines (all 3 segments) are lit, the cooking
cycle is complete.
Number Codes
The microwave oven is preset with shortcut number codes. A
number code includes one or more of the following: cooking
power, cook time and food quantity or weight. See the charts in
the “Cooking” and/or “Reheating” sections for additional
information.
Start
The START pad begins any function. If not touched within
5 seconds after touching a pad, “START?” will appear on the
display as a reminder. If not touched within 1 minute after
touching a pad, the display will return to the time of day mode
and the programmed function will be canceled.
If cooking is interrupted, touching START will resume the preset
cycle.
JET START™ Feature
The JET START™ control will start any function. If not touched
within 5 seconds after touching a pad, “START?” will appear on
the display as a reminder. If not touched within 5 minutes after
touching a pad, the display will return to the time of day mode
and the programmed function will be canceled.
If cooking is interrupted, touching the JET START™ control will
resume the preset cycle.
The JET START™ control, touched by itself, will automatically
start the microwave oven for a 30 second cook time at 100%
cooking power.
The JET START™ control, touched while the microwave oven is
operating in any cook function, will add 30 seconds of cook time
at the cook power currently in use. Each touch of the JET
START™ console pad will add 30 additional seconds of cook
time.
8
Cancel-Off
The CANCEL-OFF pad stops most functions except for the
Timer, Child Lock and Demo Mode.
The microwave oven will also turn off when the door is opened.
Close the door and touch START to resume the cycle.
Clock
This is a 12-hour clock and does not show a.m. or p.m.
To Set:
The microwave oven and timer must be off.
1. Touch CLOCK.
2. Touch the number pads to set the time of day.
3. Touch CLOCK or START.
To Remove:
1. Touch CLOCK.
2. Touch 0.
3. Touch CLOCK.
The time will disappear, and “:” will appear on the display.
Tones
Tones are audible signals, indicating the following:
One tone
■Valid entry (short tone)
■End of Timer countdown (long tone)
Two tones
■Reminder, repeat each minute after the end-of-cycle tones
■End of stage in multistage cooking
■Turn food during defrost cycle (short tones)
■Hidden feature has been entered or exited
Three tones
■Invalid entry
Four tones
■End of cycle
To Turn Off/On Valid Entry Tones: Touch and hold the number
pad “1” for 5 seconds until 2 tones sound. Repeat to turn tones
back on.
To Turn Off/On All Tones: Touch and hold the number pad “2”
for 5 seconds until 2 tones sound. Repeat to turn tones back on.
Timer
The Timer can be set in minutes and seconds, up to 99 minutes
99 seconds and counts down the set time.
NOTE: The Timer does not start or stop the microwave oven.
When the Timer is in use, the microwave oven can also operate.
To see the countdown for 5 seconds when the microwave oven is
in use, touch TIMER SET.
To Set:
1. Touch TIMER SET.
If no action is taken after 1 minute, the display will return to
the time of day mode.
2. Touch the number pads to set the length of time.
3. Touch TIMER SET or START.
If not touched within 5 seconds, “START?” will appear on the
display. If not touched within 1 minute, the display will return
to the time of day mode and the programmed function will be
canceled.
When the set time ends, “END” will appear on the display and
1 tone will sound.
4. Touch TIMER OFF at any time to cancel the Timer.
The length of time can be changed during the countdown by
repeating the above steps.
Child Lock
The Child Lock shuts down the control panel pads to prevent
unintended use of the microwave oven.
When the control is locked, only the Vent Fan and Light pads will
function.
To Lock/Unlock Control: The microwave oven and Timer must
be off. Touch and hold START for 5 seconds until 2 tones sound
and a lock icon appears on the display. Repeat to unlock and
remove the lock icon from display.
Vent Fan
The vent fan has 4 speeds ranging from 4 (fastest) to 1 (slowest).
Zero (0) is off.
To protect the microwave oven, if the temperature from the range
or cooktop below the microwave oven gets too hot, the vent fan
will automatically turn on at speed 4. It may stay on for up to
1 hour to cool the microwave oven. When this occurs, the Vent
Fan pad will not function.
To Turn Vent Fan On/Off: Repeatedly touch the VENT FAN
4 SPEEDS pad to cycle through the four speeds 4, 3, 2 and 1 and
off, 0. “FAN” and the selected number will appear on the display
for 2 seconds.
Cooktop Light
The cooktop light has 3 settings: on, night and off.
To Turn On/Night/Off: Touch LIGHT ON-NIGHT-OFF repeatedly
to cycle through settings.
Demo Mode
The Demo Mode is ideal for learning how to use the microwave
oven. When set, functions can be entered without actually turning
on the magnetron. The microwave oven light will come on, the
fan will run and, if on, the turntable will rotate.
To Turn On/Off: The microwave oven and Timer must be off.
Touch and hold TIMER OFF for 5 seconds until 2 tones sound
and “d” appears on the display. Repeat to turn off and remove
“d” from the display.
9
MICROWAVE OVEN USE
A magnetron in the oven produces microwaves which reflect off
the metal floor, walls and ceiling and pass through the turntable
and appropriate cookware to the food. Microwaves are attracted
to and absorbed by fat, sugar and water molecules in the food,
causing them to move, producing friction and heat which cooks
the food.
■Do not lean on or allow children to swing on the oven door.
■Do not operate microwave oven when it is empty.
■The turntable must be in place and correct side up when
oven is in use. Do not use if turntable is chipped or broken.
See “Assistance or Service” section to reorder.
■Baby bottles and baby food jars should not be heated in the
oven.
■Clothes, flowers, fruit, herbs, wood, gourds, paper, including
brown paper bags and newspaper should not be dried in the
oven.
■Do not use the microwave oven for canning, sterilizing or
deep frying. The oven cannot maintain appropriate
temperatures.
■Paraffin wax will not melt in the oven because it does not
absorb microwaves.
■Use oven mitts or pot holders when removing containers from
oven.
■Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly firm. Let potatoes
stand for 5 minutes. They will finish cooking while standing.
■Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst. Cover
poached eggs and allow a standing time.
Food Characteristics
When microwave cooking, the amount, size and shape, starting
temperature, composition and density of the food affect cooking
results.
Amount of Food
The more food heated at once, the longer the cook time. Check
for doneness and add small increments of time if necessary.
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
Composition and Density
Foods high in fat and sugar will reach a higher temperature and
heat faster than other foods. Heavy, dense foods, such as meat
and potatoes, require a longer cook time than the same size of a
light, porous food, such as cake.
Cooking Guidelines
Covering
Covering food helps retain moisture, shorten cook time and
reduce spattering. Use the lid supplied with cookware. If a lid is
not available, wax paper, paper towels or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be turned
back at one corner to provide an opening to vent steam.
Condensation on the door and cavity surfaces is normal during
heavy cooking.
Stirring and Turning
Stirring and turning redistributes heat evenly to avoid
overcooking the outer edges of food. Stir from outside to center.
If possible, turn food over from bottom to top.
Arranging
If heating irregularly shaped or different sized foods, the thinner
parts and smaller sizes should be arranged toward the center. If
cooking several items of the same size and shape, place them in
a ring pattern, leaving the center of the ring empty.
Piercing
Before heating, use a fork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places to
allow steam to vent.
Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones and foods such as chicken
wings, leg tips and fish tail. See “Aluminum Foil and Metal” first.
Standing Time
Food will continue to cook by the natural conduction of heat even
after the microwave cycle ends. The length of standing time
depends on the volume and density of the food.
Cookware and Dinnerware
Cookware and dinnerware must fit on the turntable. Always use
oven mitts or pot holders when handling because any dish may
become hot from heat transferred from the food. Do not use
cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
MATERIAL RECOMMENDATIONS
Aluminum Foil,
Metal See “Aluminum Foil and Metal” section.
Browning Dish Bottom must be at least ³⁄₁₆" (5 mm) above
the turntable. Follow manufacturer’s
recommendations.
Ceramic Glass,
Glass Acceptable for use.
China,
Earthenware Follow manufacturer’s recommendations.
10
To Test Cookware or Dinnerware for Microwave Use:
1. Put cookware or dinnerware in oven with 1 cup (250 mL) of
water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
Aluminum Foil and Metal
Always use oven mitts or pot holders when removing dishes from
the microwave oven.
Aluminum foil and some metal can be used in the oven. If not
used properly, arcing (a blue flash of light) can occur and cause
damage to the oven.
OK for Use
Racks and bakeware supplied with the oven (on some models),
aluminum foil for shielding, and approved meat thermometers
may be used with the following guidelines:
■Never allow aluminum foil or metal to touch the inside cavity
walls, ceiling or floor.
■Always use the turntable.
■Never allow contact with another metal object during
cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-
approved meat thermometers, skewers, twist ties, foil liners such
as sandwich wrappers, staples and objects with gold or silver
trim or a metallic glaze should not be used in the oven.
Cooking Power
Many recipes for microwave cooking specify which cooking
power to use by percent, name or number. For example,
70%=7=Medium-High.
Use the following chart as a general guide for the suggested
cooking power of specific foods.
Melamine Follow manufacturer’s recommendations.
Paper Towels,
Dinnerware,
Napkins
Use nonrecycled and those approved by
the manufacturer for microwave oven use.
Plastic Wraps,
Bags, Covers,
Dinnerware,
Containers
Use those approved by the manufacturer
for microwave oven use.
Pottery and Clay Follow manufacturer’s recommendations.
Styrofoam* Do not use in oven.
Straw, Wicker,
Wooden
Containers
Do not use in oven.
Wax Paper Acceptable for use.
MATERIAL RECOMMENDATIONS
PERCENT/
NAME NUMBER USE
100%, High
(default setting) 10 Quick heating convenience
foods and foods with high water
content, such as soups,
beverages and most
vegetables.
90% 9 Cooking small tender pieces of
meat, ground meat, poultry
pieces and fish fillets.
Heating cream soups.
80% 8 Heating rice, pasta or
casseroles.
Cooking and heating foods that
need a cook power lower than
high. For example, whole fish
and meat loaf.
70%,
Medium-High 7 Reheating a single serving of
food.
60% 6 Cooking sensitive foods such as
cheese and egg dishes,
pudding and custards.
Cooking non-stirrable
casseroles, such as lasagna.
50%, Medium 5 Cooking ham, whole poultry and
pot roasts.
Simmering stews.
40% 4 Melting chocolate.
Heating bread, rolls and
pastries.
30%, Medium-
Low, Defrost 3 Defrosting bread, fish, meats,
poultry and precooked foods.
20% 2 Softening butter, cheese, and
ice cream.
10%, Low 1 Taking chill out of fruit.
11
Cooking
To Use:
1. Touch COOK TIME.
Touch number pads to enter cooking time.
2. Touch COOK POWER.
Touch number pad to enter power level, if other than 100%.
3. Touch START.
The display will count down the cook time.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
4. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
The cook time and power may be changed after touching START
without interrupting cooking.
To Change Cook Time: Touch COOK TIME. The countdown will
freeze for a few seconds. Enter the new cook time and touch
START or wait a few seconds for the countdown to resume.
To Change Cook Power: Touch COOK POWER repeatedly to
scroll through the cook power levels. Touch START.
Sensor Cooking
A sensor in the microwave oven detects humidity released from
the food and automatically sets a cooking time based on the food
being cooked.
Use the following chart as a guide for the food pads.
*Do not use regular paper bags or glassware. Listen for popping
to slow to 1 pop every 1 or 2 seconds, then stop the cycle. Do
not try to pop unpopped kernels. Use fresh bags of popcorn for
optimal results. Cooking results may vary by brand and fat
content.
To Use Sensor Cooking:
Before using, make sure the microwave oven has been plugged
in for at least 3 minutes, the room temperature is not above 95°F
(35°C) and the outside of the container and microwave oven
cavity are dry.
1. Touch one of the SENSOR pads (named in chart).
The microwave oven will automatically turn on after a short
delay. The progress bar will show the approximate time
remaining.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
2. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
The cook time (except POPCORN) can be changed for
20 seconds after touching a pad.
To Change Cook Time: Touch COOK POWER repeatedly to
scroll through “MORE,” “LESS” or “NORML” time.
FOOD SERVING SIZE INSTRUCTIONS
*Popcorn 3.5 oz (100 g)
3 oz (85 g)
1.2-1.75 oz
(34-50 g)
Pop only one package at a
time.
Baked
Potato 1-4 medium,
10-13 oz
(283-369 g) each
Pierce each one several
times with a fork. Place on
turntable around edges, at
least 1" (2.5 cm) apart. At
the end of cooking, let stand
5 minutes.
Fresh
Vegetables 1-4 cups
(250 mL-1 L) Moisten and place in
microwavable container.
Cover with plastic wrap and
vent. Stir and let stand
2-3 minutes.
Frozen
Vegetables 1-4 cups
(250 mL-1 L) Remove from package.
Place in microwavable
container. Cover with plastic
wrap and vent. Stir and let
stand 2-3 minutes.
Frozen
Entree 10-20 oz
(283-567 g) Remove from package.
Loosen cover on three sides.
If not in microwavable
container, place on plate,
cover with plastic wrap and
vent.
Beverage 1 or 2, 8-oz
(250 mL) cups Do not cover. The diameter
of the cup’s opening will
affect how it heats. A smaller
diameter opening may
become hotter.
Dinner Plate 1 serving
(1 plate), 8-16 oz
(227-454 g)
Place food on plate, cover
with plastic wrap and vent.
Soup 1-4 cups
(250 mL-1 L) Place in microwavable
container, cover with plastic
wrap and vent.
FOOD SERVING SIZE INSTRUCTIONS
12
Preset Cooking
Times and cooking power have been preset for specific
microwavable foods. Use the following chart as a guide.
*Differences in the amount of fat, meat, thickness, and curing
process affect results. Average is 16 slices per pound.
To Use Preset Cooking:
1. Touch COOK.
2. Touch number pad from chart
or
Touch COOK repeatedly to scroll through foods.
3. Touch number pads to enter quantity, except for Rice.
4. Touch START.
The display will count down the cook time.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
5. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
To Change Cook Time: Touch COOK POWER repeatedly to
scroll through “MORE,” “LESS” or “NORML” time.
Cooking in Stages
The microwave oven can be set to cook at different cooking
powers for various lengths of time, up to 3 stages.
Sensor cooking cannot be done in stages.
To Cook in Stages:
1. Touch COOK TIME.
2. Touch number pads to enter length of time to cook during the
first stage.
3. Touch COOK POWER.
4. Touch the number pad(s) using the Cooking Power chart to
set the cooking power for the 1st stage.
5. Repeat steps 1-4 for the 2nd and 3rd stages.
6. Touch START.
The display will count down each of the cook times. The
numbers “1,” “2” and “3” will appear on the display during
their respective stages.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
7. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
The cook time and cook power of the cycling stage can be
changed after touching START without interrupting cooking.
To Change Cook Time: Touch COOK TIME. The countdown will
freeze for a few seconds. Enter the new cook time and touch
START or wait a few seconds for the countdown to resume.
To Change Cook Power: Touch COOK POWER repeatedly to
scroll through the cook power levels. Touch START.
Reheating
Times and cooking power have been preset for reheating specific
foods. Use the following chart as a guide.
To Use Reheat:
1. Touch REHEAT.
2. Touch number pad from chart
or
Touch REHEAT repeatedly to scroll through foods.
3. Touch number pads to enter quantity.
4. Touch START.
The display will count down the reheat time.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
5. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
To Change Cook Time: Touch COOK POWER repeatedly to
scroll through “MORE,” “LESS” or “NORML” time.
FOOD PAD QUANTITY/INSTRUCTIONS
Rice (sensor) 1 0.5-2 cups (125-500 mL)/
Use dish with loose-fitting lid.
Let stand 5 minutes after
cooking.
Canned Vegetables 2 1-4 cups (250 mL-1 L)/
Place in microwavable
container. Cover with plastic
wrap and vent.
Bacon* 3 1-6 slices, average thickness
Instant Cereal 4 1-4 servings
French Toast,
frozen 5 1-4 pieces/
Place on paper towel.
FOOD PAD QUANTITY/INSTRUCTIONS
Pizza Slice (sensor) 1 1-3 slices, 4 oz (113 g) each/
Place on paper towel.
Sauce (sensor) 2 1-4 cups (250 mL-1 L)/
Place in microwavable
container. Cover with plastic
wrap and vent.
Casserole 3 1-4 cups (250 mL-1 L)/
Place in microwavable
container. Cover with plastic
wrap.
Baked Goods
(example: medium
muffin or bagel)
4 1-6 pieces, 2 oz (57 g) each/
Place on paper towel.
13
Two or More Plates
Two 10¼" (26 cm) plates may be heated side by side, or 1 dish
larger than the turntable, plus 2 plates on the rectangular cooking
rack. For best results, halfway through heating, turn the plates (or
larger dish) halfway around, and switch plates between top and
bottom (if heating more than 2 plates). See “Cooking Rack”
section.
The turntable must be turned off while heating 2 bottom plates or
1 larger dish. See “Turntable” section.
Defrosting
The JET DEFROST™ feature can be used or the microwave oven
can be manually set to defrost.
■Food should be 0°F (-18°C) or colder at defrosting for optimal
results.
■Unwrap foods and remove lids (from fruit juice) before
defrosting.
■Shallow packages will defrost more quickly than deep blocks.
■Separate food pieces as soon as possible during or at the
end of cycle for more even defrosting.
■Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips and fish tails. See “Aluminum Foil
and Metal” first.
The JET DEFROST™ system has 3 categories: Meat, Poultry and
Fish. It should not be used for food left outside the freezer more
than 20 minutes and frozen ready-made food. Use the following
chart as a guide.
To Use JET DEFROST™ System:
1. Touch the JET DEFROST pad.
2. Touch 1 for Meat, 2 for Poultry or 3 for Fish
or
Touch JET DEFROST pad repeatedly to scroll through foods.
3. Touch the number pads to enter the weight.
Meats and Poultry can be set from 0.2 to 6.6 lb (90 g to 3 kg).
Fish can be set from 0.2 to 4.4 lb (90 g to 2 kg).
4. Touch START.
The display will count down the defrost time.
About halfway through defrosting, “TURN” will appear on the
display while the oven continues to operate. Open door, turn
food, close door, then press START to resume.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
5. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
To Change Cook Time: Touch COOK POWER repeatedly to
scroll through “MORE,” “LESS” or “NORML” time.
To Defrost Manually:
1. Touch COOK TIME.
2. Touch the number pads to set a length of time to defrost.
3. Touch COOK POWER.
4. Touch number pad 3.
5. Touch START.
The display will count down the defrost time.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
6. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
MEAT
Beef: ground, steaks, roast,
stew The narrow or fatty areas of
irregular shaped cuts should
be shielded with foil before
defrosting.
Do not defrost less than ¹⁄₄ lb
(113 g) or two 4 oz (113 g)
patties.
Place all meats in
microwavable baking dish.
Lamb: stew and chops
Pork: chops, ribs, roasts,
sausage
POULTRY
Chicken: whole and cut up Place in microwavable baking
dish, chicken breast side up.
Remove giblets from whole
chicken.
Cornish hens
Turkey: breast
FISH
Fillets, Steaks, Whole,
Shellfish Place in microwavable baking
dish.
14
Steaming
Use the steamer vessel, (provided with the microwave oven) with
the STEAM COOK™ feature to steam foods.
See “General Cleaning” section for additional information.
■The steamer vessel will become hot. Always use oven mitts
or pot holders when handling.
■Do not use in a conventional or combination-type oven, with
Crisp or Grill functions or on electric or gas burners.
■To avoid scratching, use plastic utensils.
■Do not overfill. One-half full is recommended.
Cooking Cover: Always use when cooking. Place directly over
the colander and dish or just the dish.
Colander: Use for foods such as fish, vegetables and potatoes.
Do not use with foods such as rice, pasta and white beans. When
using, place directly over the dish.
Dish: Use for foods such as rice and pasta.
To Use STEAM COOK™ System:
Before using, make sure the microwave oven has been plugged
in for 3 minutes and fill the dish with at least ¹⁄₄ cup (60 mL) of
water when using the colander. More water may be needed when
not using the colander. Place steamer vessel on center of the
turntable.
1. Touch STEAM COOK pad.
2. Touch number pads to enter length of time to steam.
3. Touch START.
“BOIL” will appear on the display. When water begins to boil
the display will count down the steam time.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
4. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
Simmering
Use Simmer Cook for foods such as soups, casseroles, stews
and other liquid food. It can also be used to cook pasta.
To Use Simmer Cook:
Before using, make sure the microwave oven has been plugged
in for at least 3 minutes, add ¹⁄₄ to ¹⁄₂ cup (60 to 125 mL) of water
to vegetables and cover dish with its lid, not plastic wrap.
1. Touch SIMMER COOK.
2. Touch the number pads to set a length of time to simmer.
3. Touch START.
“BOIL” will appear on the display. When water begins to boil
the display will count down the simmer time.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
4. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
Simmering Pasta
Use a container large enough to cover food completely with
water. Add 1 tbsp (15 mL) oil to water. Place container and water
in the microwave oven and follow the above steps, setting a
simmer time of 1 second. When time ends, remove the container
from the microwave oven, remove the lid, place food in the water,
re-cover, replace in oven and then follow the above steps setting
the desired simmer time.
Warm Hold
Hot cooked food can be kept warm in the microwave oven. Warm
Hold can be used by itself or can be programmed to follow a
cooking cycle. Opening the door during Warm Hold will cancel
the function.
To Use:
Put hot cooked food in the oven. Cover plates of food and foods
that were cooked covered. Pastries, pies, turnovers, etc. should
remain uncovered.
1. Touch WARM HOLD.
2. Touch START.
“WARM” will appear on the display and the warm time will
count down.
When the cycle ends, “END” will appear in the display, 4 end-
of-cycle tones will sound, and then reminder tones will sound
every minute.
3. Touch CANCEL-OFF or open the door to clear the display
and/or stop reminder tones.
To set at end of cycle: Touch WARM HOLD while setting a
cooking cycle before touching START, or during cooking.
A.Cooking cover
B. Colander
C.Dish
A
B
C
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour
before or after cooking.
Doing so can result in food poisoning or
sickness.
15
MICROWAVE OVEN CARE
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the oven is cool. Always follow label instructions on cleaning
products.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
GREASE FILTERS
Do not use ammonia or corrosive cleaning agents such as lye-
based oven cleaners.
■Hot water and mild detergent:
Soak filters, then scrub and swish to remove embedded dirt
and grease. Rinse well and shake to dry.
■Dishwasher:
Wash separately, not with dirty dishes, because food can be
trapped in the filters.
OVEN CAVITY
Do not use soap-filled scouring pads, abrasive cleaners, steel-
wool pads, gritty washcloths or some recycled paper towels.
Damage may occur.
The area where the oven door and frame touch when closed
should be kept clean.
Average soil
■Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
Heavy soil
■Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven.
Steam will soften soil. Rinse with clean water and dry with
soft, lint-free cloth.
Odors
■Lemon juice or vinegar:
Heat 1 cup (250 mL) of water with 1 tbsp (15 mL) of either
lemon juice or vinegar for 2 to 5 minutes in oven.
Microwave Inlet Cover
The microwave inlet cover (see “Parts and Features”) should be
kept clean to avoid arcing and oven damage.
■Wipe with wet cloth.
OVEN DOOR AND EXTERIOR
The area where the oven door and frame touch when closed
should be kept clean.
■Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
■Glass cleaner and paper towels or nonabrasive plastic
scrubbing pad:
Apply glass cleaner to towel, not directly to surface.
STEAMER VESSEL
■Soft brush, if necessary, to clean holes.
■Dishwasher:
The steamer vessel is dishwasher safe.
Stubborn Stains
To remove stains such as tomato sauce, use a nonabrasive
cleanser, a no-scratch pad, or a solution of dishwasher
detergent and water (¼ cup [60 mL] detergent to 1 cup
[250 mL] warm water).
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
■Mild cleanser and scouring pad
■Dishwasher
COOKING RACK
Do not use abrasive cleansers or scrubbers.
■Mild cleanser, water and washcloth
■Do not place in dishwasher.
RACK SUPPORTS
Clean often to avoid soil buildup. Soil buildup may lead to arcing
and cause damage to the oven.
Do not attempt to remove supports from cavity walls.
Do not use soap-filled scouring pads, abrasive cleaners, steel-
wool pads, gritty washcloths or some recycled paper towels.
■Mild, nonabrasive soap or detergent and washcloth,
toothbrush or cotton swab:
Rinse with clean water and dry with soft, lint-free cloth.
16
Replacing Filters
The grease filters should be removed and cleaned at least once a
month. The charcoal filters cannot be washed and should be
replaced every 6 to 12 months. Do not operate the microwave
oven without the filters in place. See “Assistance or Service” to
reorder filters. See “General Cleaning” for cleaning instructions.
To Remove:
1. Remove the grease filters by pushing up and sliding to the
side. Pull tab down until the filter drops out.
A. Tabs
2. Remove charcoal filters by pushing the back of each filter
away from you until the front of the filter slides off the front
lower lip. Swing the front of the filter down and slide out.
To Replace:
1. Replace charcoal filters by positioning the filter at the back of
the opening and resting it on the springs. While pushing the
filter into the springs, position the front of filter between the
front upper and lower lips.
2. Replace grease filters by inserting one end into the frame.
Swing other side up and slide into position.
Replacing Cooktop Light
The cooktop light is a candelabra base bulb. See “Assistance or
Service” section to reorder.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Remove the bulb cover mounting screw.
A. Mounting screw
3. Replace light. Close bulb cover. Replace mounting screw.
4. Plug in microwave oven or reconnect power.
Replacing Microwave Oven Light
The microwave oven light is a candelabra base bulb. It will
automatically come on when the door is opened and when the
microwave oven is operating. See “Assistance or Service”
section to reorder.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Remove the 2 outer vent grille mounting screws located
above the cover.
3. Tip the grille forward, then lift out to remove.
4. Lift up the bulb cover.
A. Bulb cover
5. Replace light. Close bulb cover.
6. Reattach vent grille. Replace the mounting screws.
7. Plug in microwave oven or reconnect power.
A. Upper lip
B. Spring
C. Lower lip
A
A
B
C
A
A
17
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Nothing will operate
■Has a household fuse blown or has the circuit breaker
tripped?
Replace the fuse or reset the circuit.
■Is the appliance wired properly?
See Installation Instructions.
Oven will not operate
■Is the door completely closed?
Firmly close door.
■Is a spacer (on some models) attached to the inside of the
door?
Remove spacer, then firmly close door.
■Is the electronic oven control set correctly?
See “Microwave Oven Control” section.
■On some models, is the Child Lock set?
See “Child Lock” section.
■Is the magnetron working properly?
Try to heat 1 cup (250 mL) of cold water for 2 minutes at
100% cooking power. If water does not heat, call for service.
See “Assistance or Service” section.
Oven makes humming noise
■This is normal and occurs when the power supply switches
the magnetron on and off.
Oven door looks wavy
■This is normal and will not affect performance.
Turntable will not operate
■Is the turntable properly in place?
Make sure turntable is correct side up and is sitting securely
on the turntable support.
■Is the turntable support operating properly?
Remove turntable. Remove and replace turntable support.
Replace turntable. Place 1 cup (250 mL) of water on the
turntable, then restart oven. If it still is not working, call for
service. See “Assistance or Service” section. Do not operate
the oven without turntable and turntable support working
properly.
Turntable rotates both directions
■This is normal and depends on motor rotation at the
beginning of the cycle.
Display shows messages
■Is the display showing “:”?
There has been a power failure or the clock time has been
turned off. See “Display” section to clear display. See “Clock”
section to reset the clock or to turn it on.
■Is the display showing a letter followed by a number?
See “Display” section to clear. If it reappears, call for service.
See “Assistance or Service” section.
Display shows time countdown, but is not operating
■Is the Timer in use?
See “Timer” section.
■On some models, is the Demo Mode in use?
See “Demo Mode” section.
Tones are not sounding
■Are tones turned off?
See “Tones” section.
Steam is coming from the vent grille
■Some steam is normal.
Fan running slower than usual
■Has the oven been stored in a cold area?
The fan will run slower until the oven warms up to normal
room temperature.
Cooking times seem too long
■Is the cooking power set properly?
See “Cooking Power” section.
■Are large amounts of food being heated?
Larger amounts of food need longer cooking times.
■Is the incoming voltage less than specified in “Microwave
Oven Safety?”
Have a qualified electrician check the electrical system in the
home.
Radio or TV Interference
■Is the microwave oven plugged into the same outlet?
Try a different outlet.
■Is the radio or TV receiver near the microwave oven?
Move the receiver away from the microwave oven, or adjust
the radio or TV antenna.
■Are the microwave oven door and sealing surfaces clean?
Make sure these areas are clean.
18
ASSISTANCE OR SERVICE
Before calling for assistance or service, please check
“Troubleshooting.” It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
use only FSP® replacement parts. FSP® replacement parts will fit
right and work right because they are made with the same
precision used to build every new WHIRLPOOL® appliance.
To locate FSP® replacement parts in your area, call our Customer
Interaction Center telephone number or your nearest Whirlpool
designated service center.
In the U.S.A.
Call the Whirlpool Customer Interaction Center
toll free: 1-800-253-1301.
Our consultants provide assistance with:
■Features and specifications on our full line of appliances.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
■Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool designated service technicians
are trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
Whirlpool Brand Home Appliances
Customer Interaction Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
Replacement Parts & Accessories
Turntable
Part No. 4393799
Turntable Support and Rollers
Part No. 8184102
Turntable Rollers
Part No. 4393861
Turntable Hub
Part No. 8183949
Cooking Rack
Part No. 8183813
Steamer Vessel
Part No. 8184864
Grease Filters
Part No. 8169758
Charcoal Filters
Part No. 4393791
Cooktop and Microwave
Light Bulb
Part No. 4393681
19
Notes
WHIRLPOOL
®
MICROWAVE HOOD COMBINATION WARRANTY
ONE-YEAR FULL WARRANTY
For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool Corporation will pay for FSP® replacement parts and repair labor costs to correct defects in
materials or workmanship. Service must be provided by a Whirlpool designated service company.
SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON MAGNETRON TUBE
In the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions
attached to or furnished with the product, Whirlpool Corporation will pay for FSP® replacement parts for the microwave magnetron tube
if defective in materials or workmanship.
Whirlpool Corporation will not pay for:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or
correct house wiring, or to replace owner-accessible light bulbs and filters.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God or use of products not
approved by Whirlpool Corporation.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Replacement parts or repair labor costs for units operated outside the United States.
7. Any labor costs during the limited warranty period.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not
apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.
Outside the 50 United States, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another
warranty applies.
If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found
by checking the “Assistance or Service” section or by calling the Whirlpool Customer Interaction Center, 1-800-253-1301 (toll-free),
from anywhere in the U.S.A.
5/00
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your appliance to
better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label/plate, located on your appliance as shown in the
“Parts and Features” section.
Dealer name____________________________________________________
Address ________________________________________________________
Phone number__________________________________________________
Model number __________________________________________________
Serial number __________________________________________________
Purchase date __________________________________________________
8204919/4619-652-64141
© 2004 Whirlpool Corporation.
All rights reserved. ® Registered Trademark/TM Trademark of Whirlpool, U.S.A.
*Styrofoam is a Registered Trademark of The Dow Chemical Company. 2/04
Printed in China
