TABLE OF CONTENTS
WARRANTY.....................................................................................3
PROTECTION AGREEMENTS.......................................................3
MICROWAVE HOOD COMBINATION SAFETY ...........................4
Electrical Requirements................................................................5

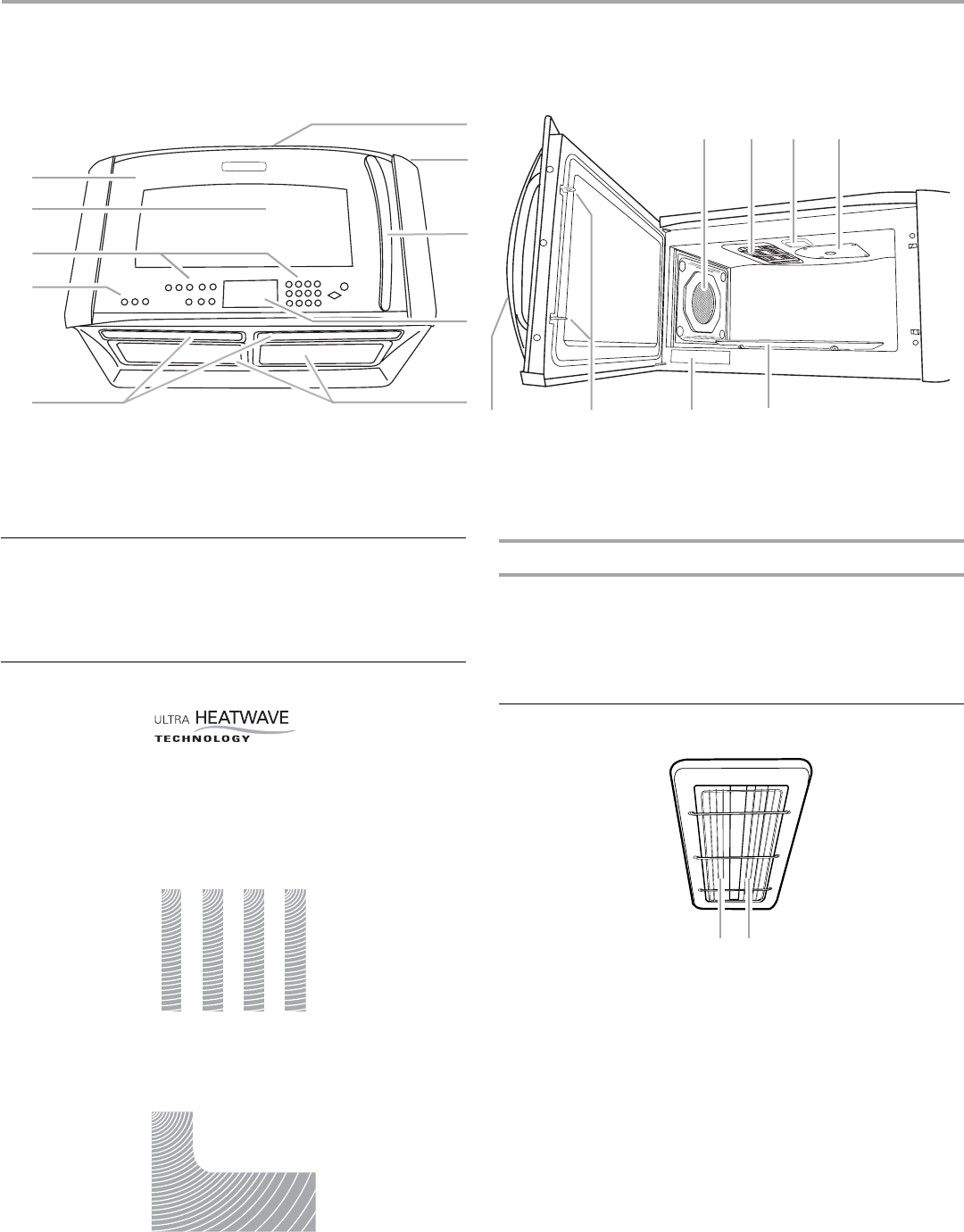

PARTS AND FEATURES ................................................................6
Microwave Oven Cavity Coating..................................................6
Ultra Heatwave Technology™ .....................................................6
Grill Element .................................................................................6
Convection Element and Fan.......................................................7

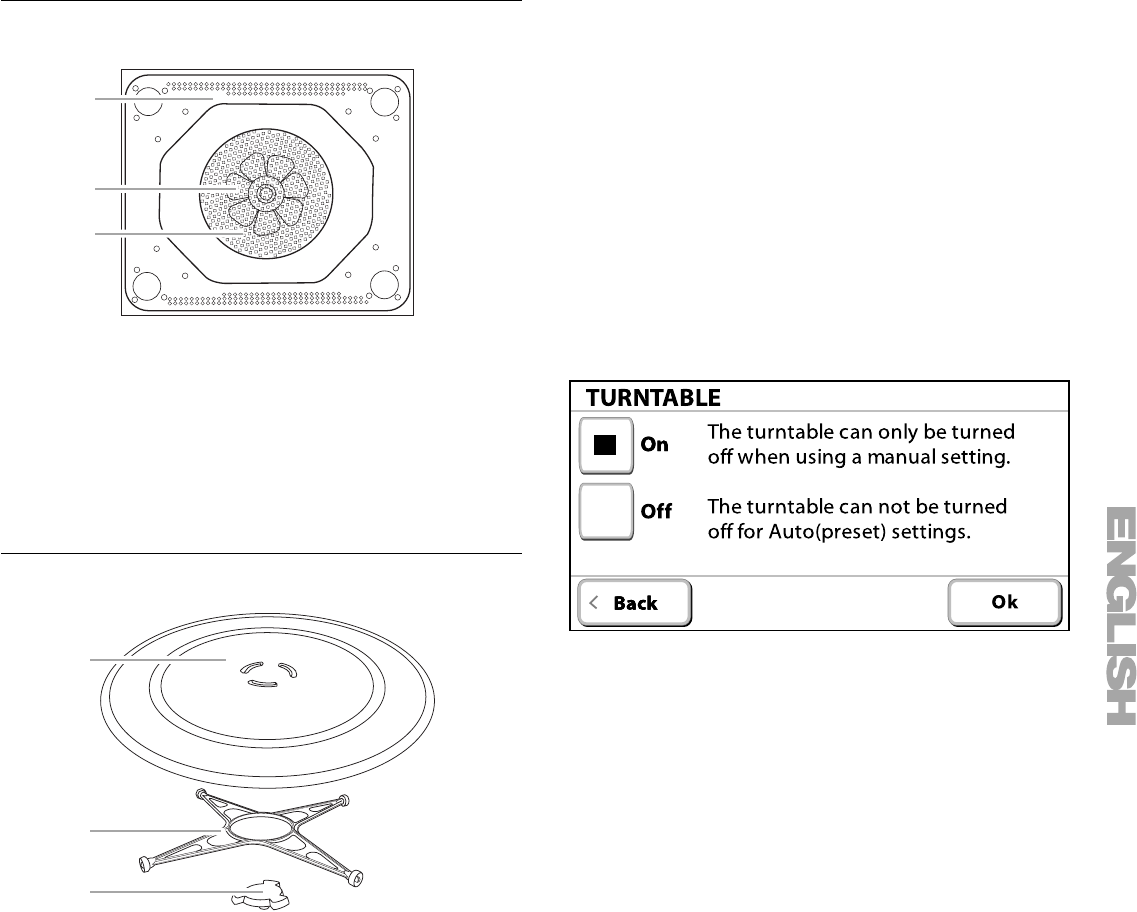

Turntable.......................................................................................7

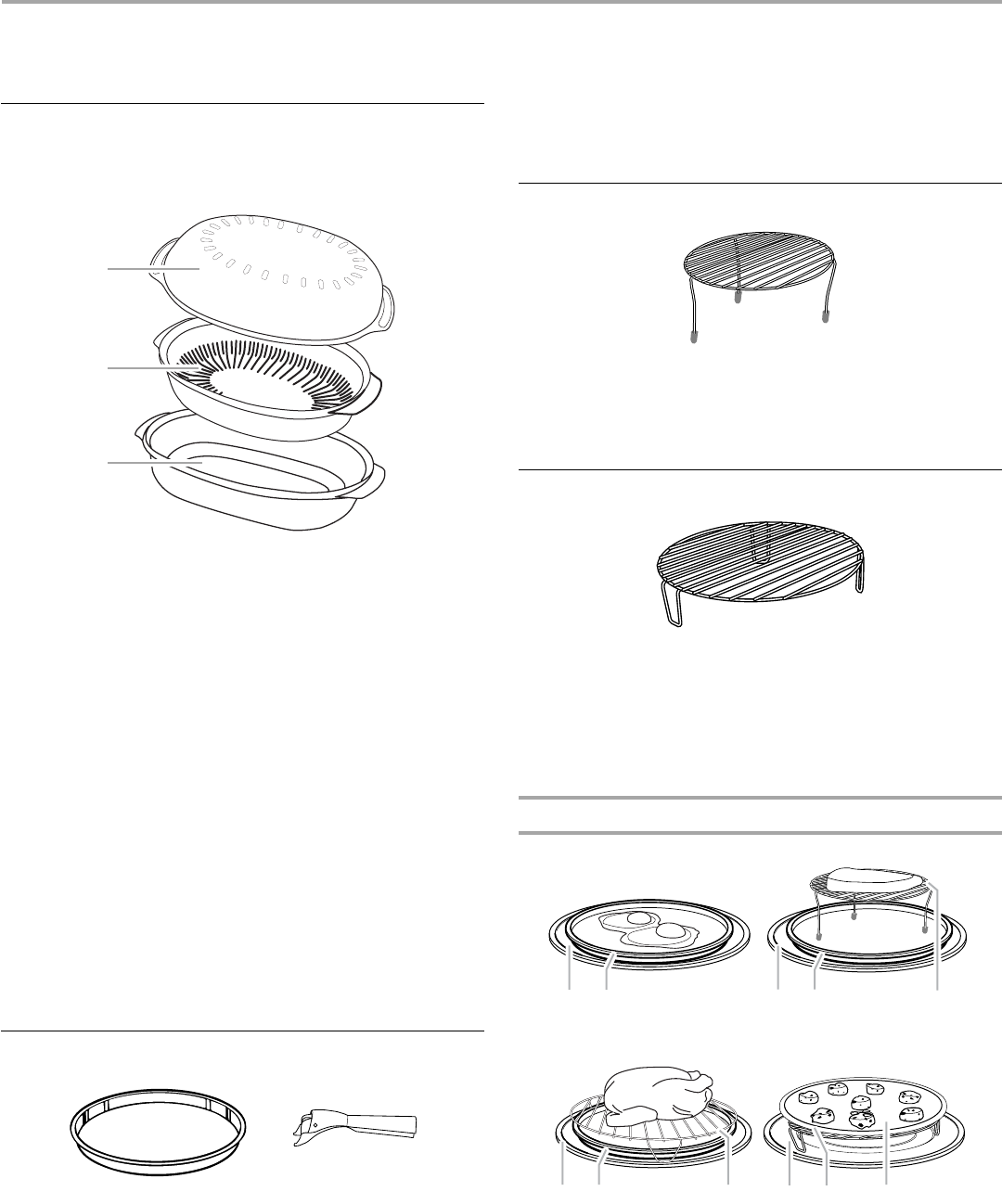

ACCESSORIES ...............................................................................8
Steamer Vessel.............................................................................8
Browning Pan and Handle ...........................................................8
Grill Rack ......................................................................................8
Convection Rack ..........................................................................8
MICROWAVE OVEN CONTROL....................................................9

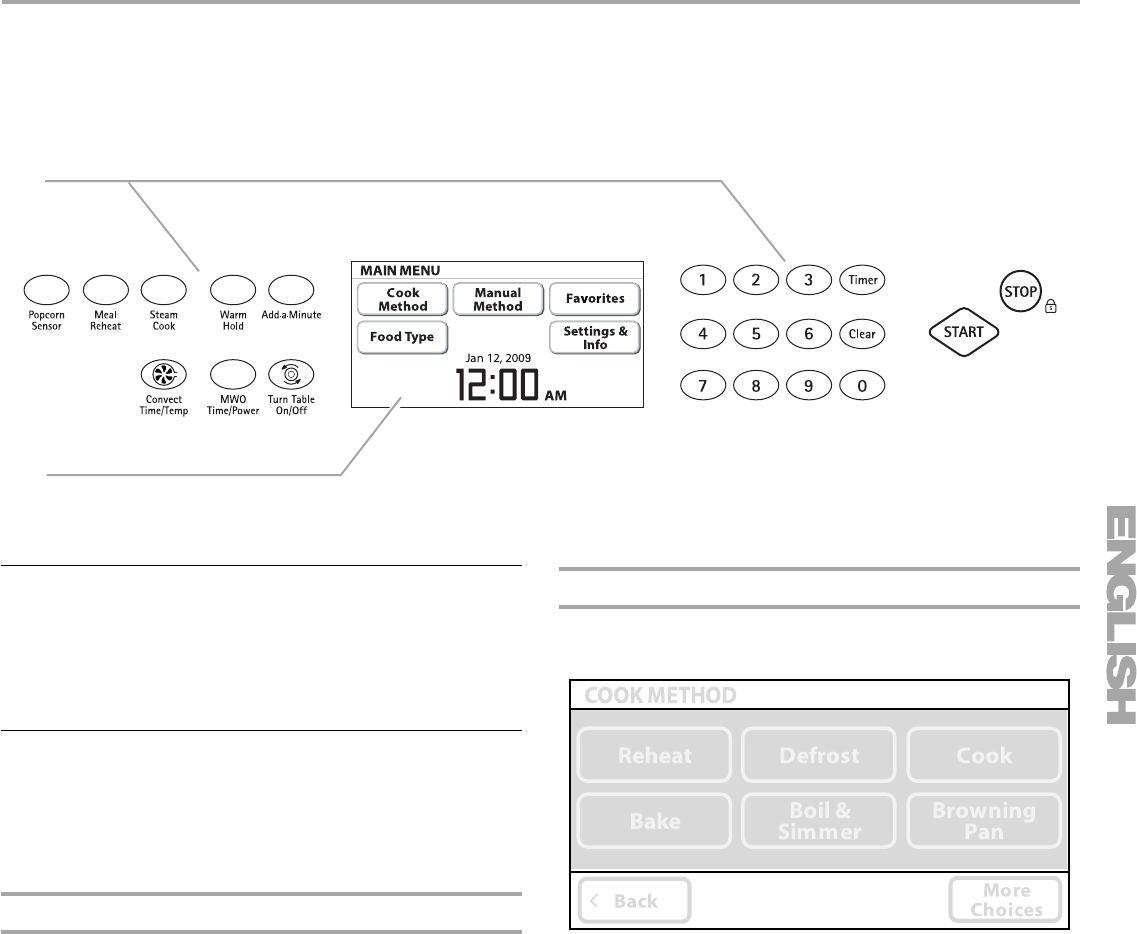

Control Panel................................................................................9

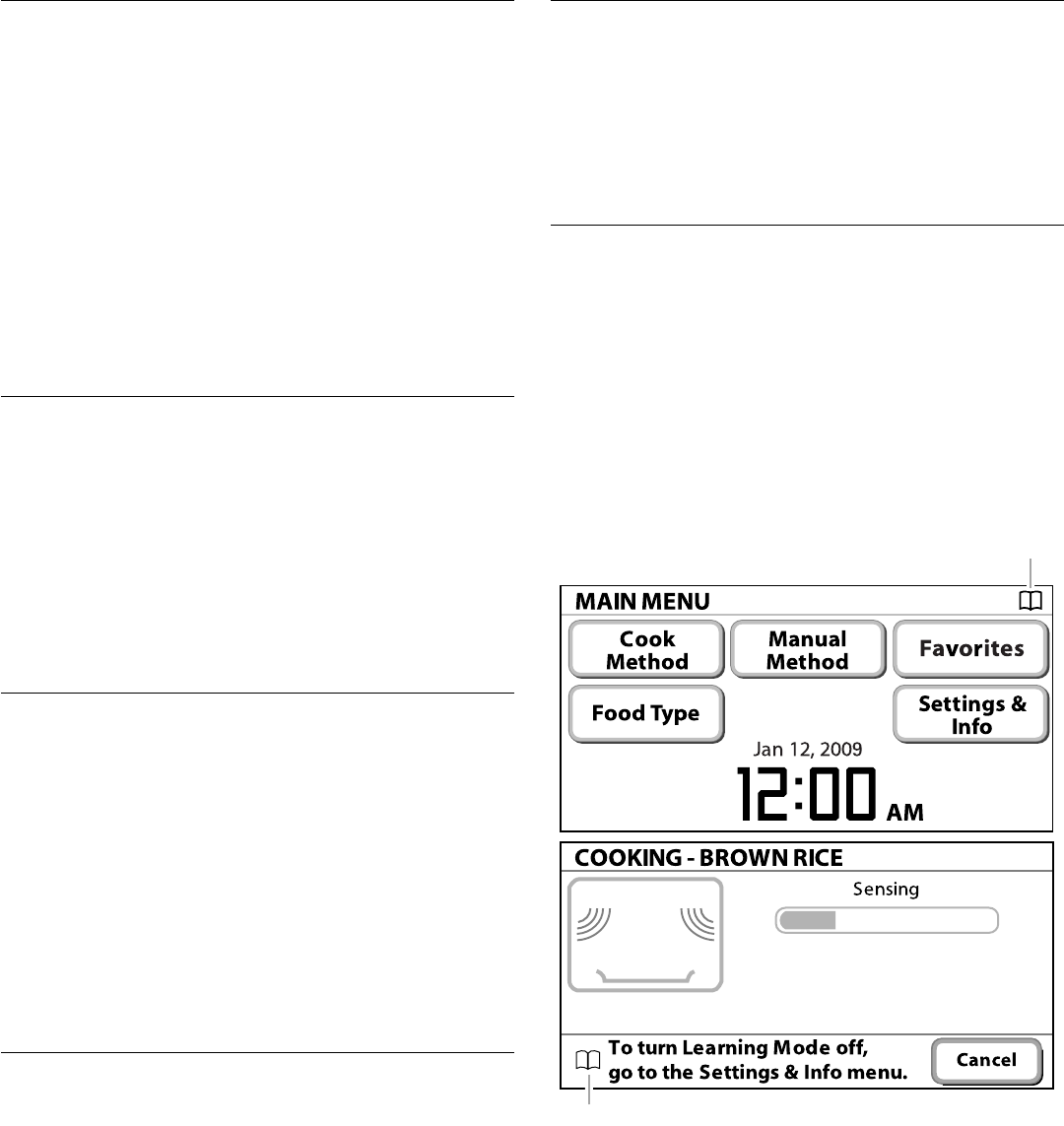

Interactive Touch Display.............................................................9

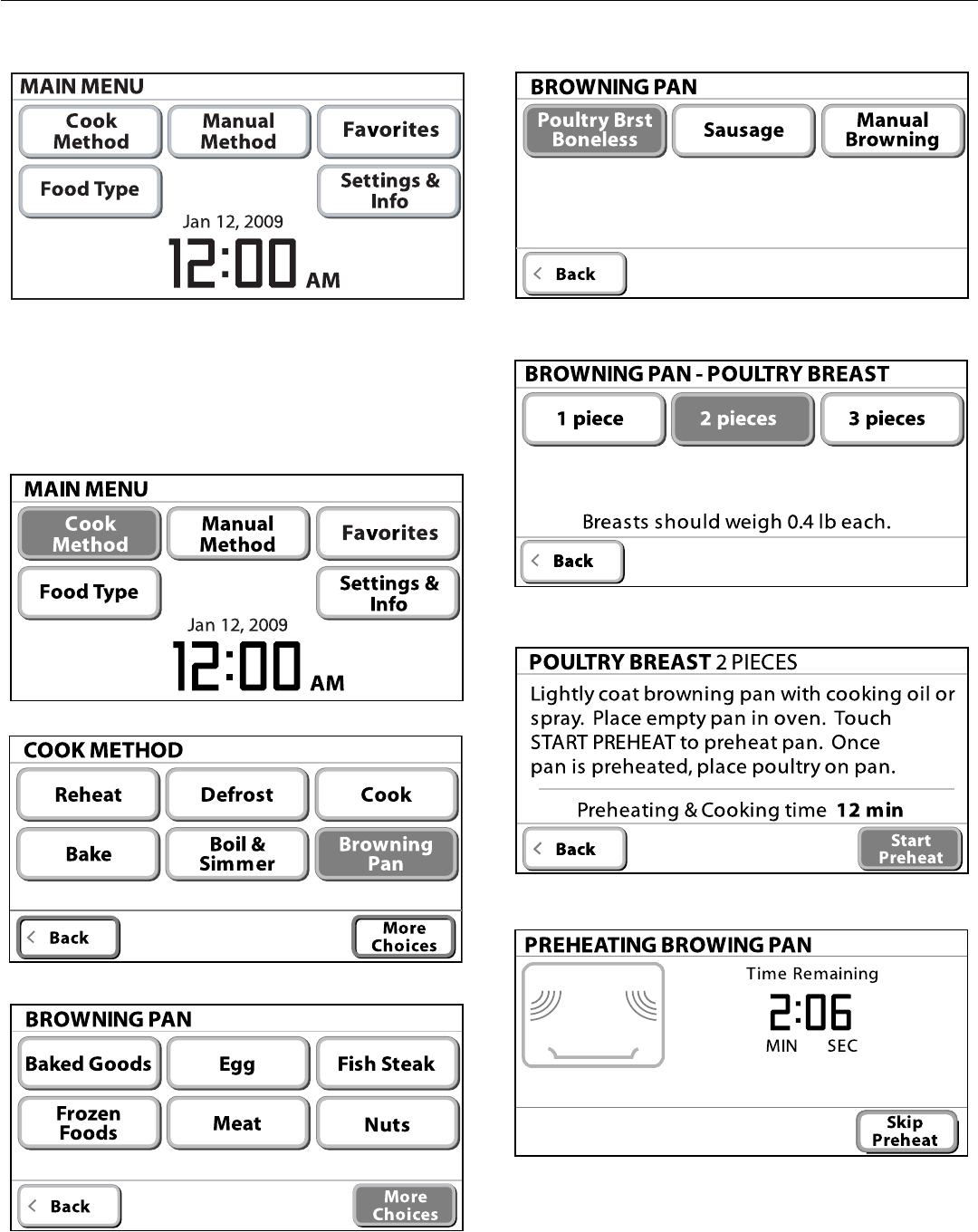

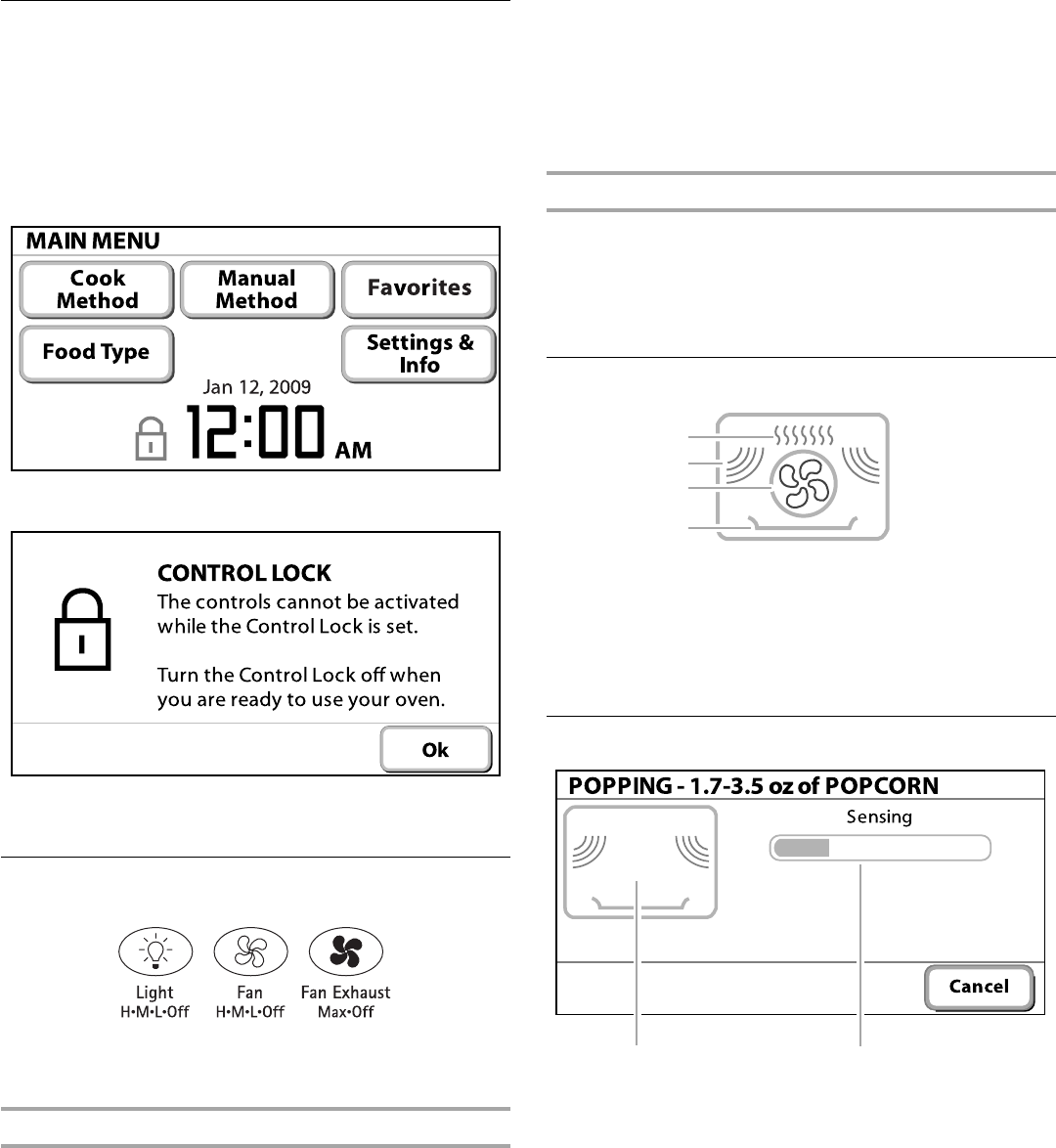

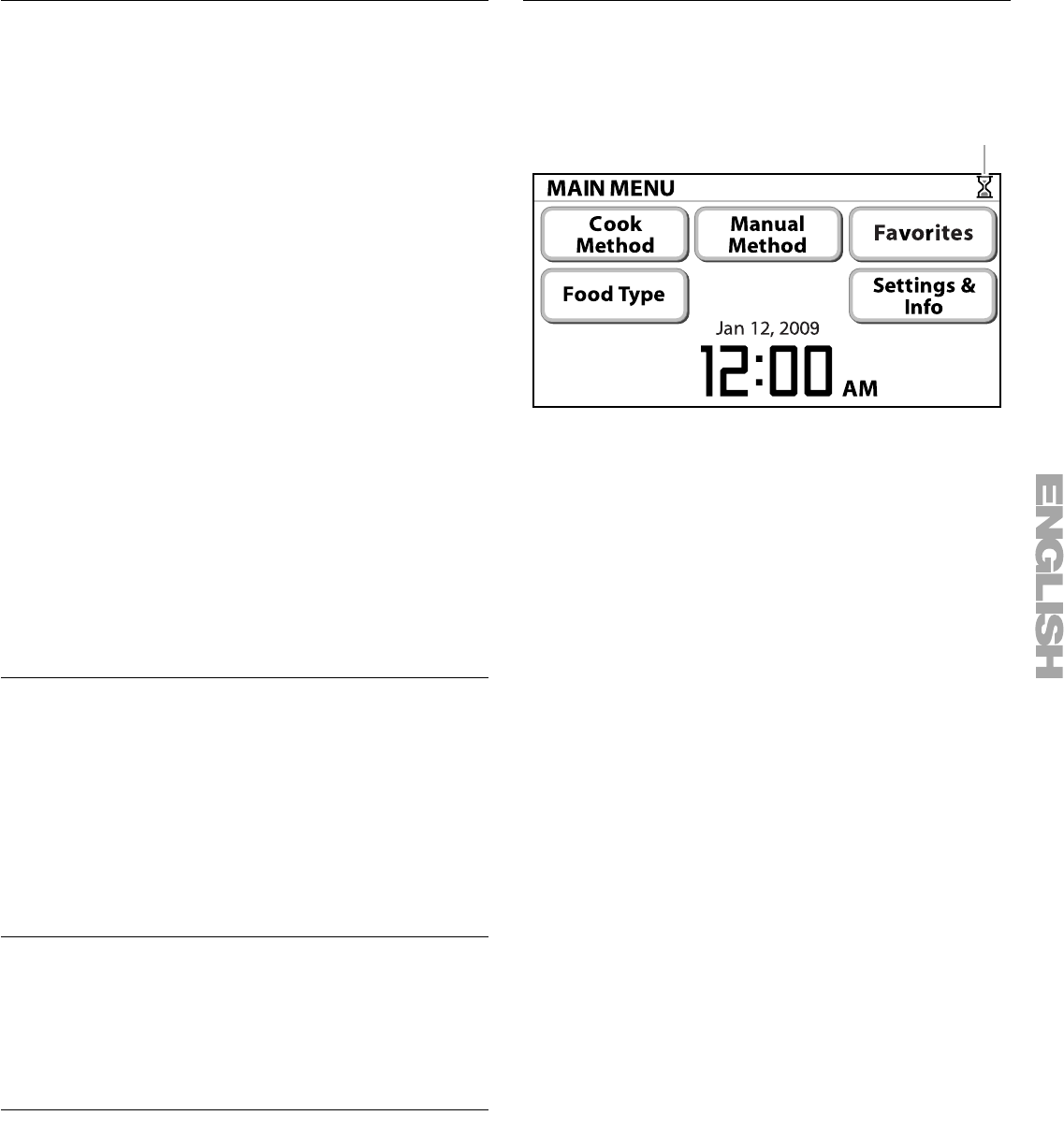

Main Menu................................................................................. 10
Settings & Info ........................................................................... 11
Clock.......................................................................................... 12
Date ........................................................................................... 12
Demo Mode............................................................................... 12
Display Backlight....................................................................... 12
Display Contrast ........................................................................ 12
Learning Mode........................................................................... 12
Tones ......................................................................................... 13
Start ........................................................................................... 13
Stop ........................................................................................... 13
Clear........................................................................................... 13
Timer.......................................................................................... 13
Control Lock .............................................................................. 14
Vent Fan and Cooktop Lights ................................................... 14
Cooking Animation .................................................................... 14
Progress Bar.............................................................................. 14
MICROWAVE OVEN USE............................................................ 15
Food Characteristics ................................................................. 15
Cooking Guidelines ................................................................... 15
Cookware and Dinnerware........................................................ 15
Aluminum Foil and Metal........................................................... 16
Microwave Cooking Power ....................................................... 16
MANUAL COOKING .................................................................... 17
Add a Minute ............................................................................. 17
MWO Time/Power Cooking ...................................................... 17
Convect Time/Temp Cooking ................................................... 17
Manual Method Cooking........................................................... 18
Cooking in Stages (or steps) ..................................................... 18
Raising (Proofing) Bread............................................................ 19
Warm Hold................................................................................. 19
PROGRAMMED COOKING......................................................... 20
Convection Cooking.................................................................. 20
Combination Cooking................................................................ 20
Sensor Cooking ......................................................................... 20
Preheating.................................................................................. 20
Doneness................................................................................... 20
Popcorn Sensor......................................................................... 21
Using Food Type ....................................................................... 21
Using Cook Method .................................................................. 21
Reheat........................................................................................ 21
Defrost ....................................................................................... 22
Cook........................................................................................... 22
Bake........................................................................................... 22
Boil & Simmer ............................................................................ 23
Browning Pan ............................................................................ 23
Grill............................................................................................. 24
Melt ............................................................................................ 24
Roast.......................................................................................... 24
Soften......................................................................................... 24
Steam Cook............................................................................... 25

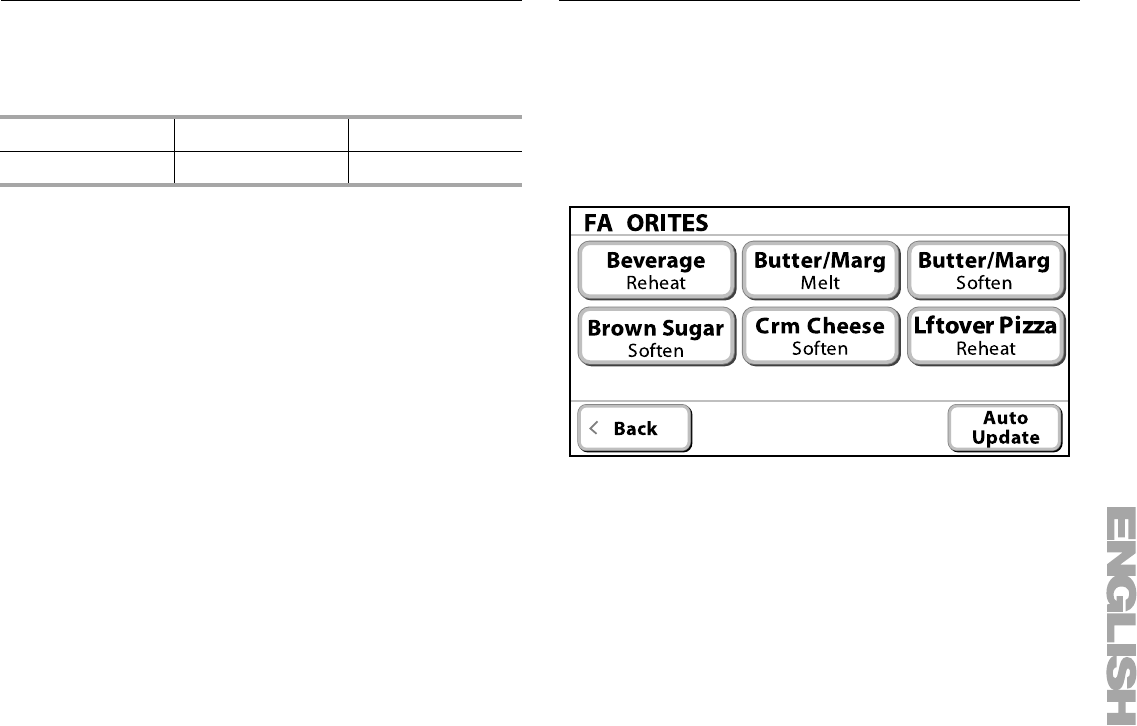

Favorites Menu .......................................................................... 25
Food Type Chart........................................................................ 26
Cook Method Chart................................................................... 28
MICROWAVE OVEN CARE ......................................................... 32
General Cleaning ....................................................................... 32

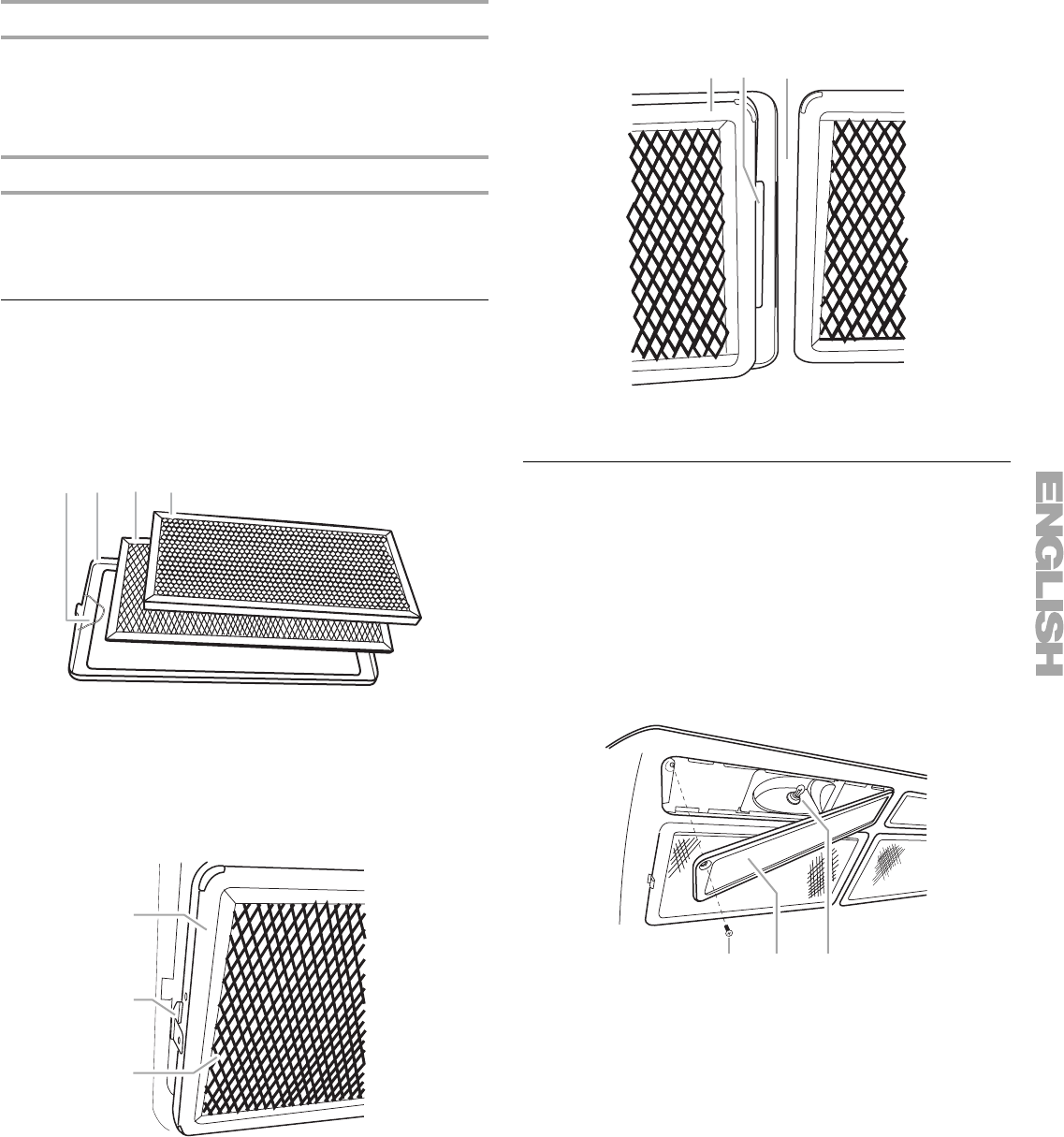

Replacing Filters ........................................................................ 33
Replacing Cooktop Light........................................................... 33
Replacing Microwave Oven Light ............................................. 34
Replacement Parts .................................................................... 34
TROUBLESHOOTING.................................................................. 35
SERVICE NUMBERS ...............................................BACK COVER
3
KENMORE ELITE®
APPLIANCE WARRANTY
ONE YEAR LIMITED WARRANTY
When installed, operated and maintained according to all
instructions supplied with the product, if this appliance fails due
to a defect in material or workmanship within one year from the
date of purchase, call 1-800-4-MY-HOME® to arrange for free
repair.
FIVE-YEAR LIMITED WARRANTY ON THE MAGNETRON
For five years from the date of purchase, when this speed cook
oven is installed, operated and maintained according to all
instructions supplied with the product, Sears will replace the
magnetron free of charge due to defective materials or
workmanship.
If this appliance is used for other than private family purposes,
this warranty applies for only 90 days from the date of purchase.
THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL
AND WORKMANSHIP. SEARS WILL NOT PAY FOR:
1. Expendable items that can wear out from normal use,
including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product
installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed,
operated or maintained according to all instructions supplied
with the product.
5. Damage to or failure of this product resulting from accident,
abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of
detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from
unauthorized modifications made to this product.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF
REMEDIES
Customer’s sole and exclusive remedy under this limited
warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a
particular purpose, are limited to one year or the shortest period
allowed by law. Sears shall not be liable for incidental or
consequential damages. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential
damages, or limitations on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may
not apply to you.
This warranty applies only while this appliance is used in the
United States and Canada.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Sears, Roebuck and Co.
Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2B8
PRODUCT RECORD
Record your complete model number, serial number, and
purchase date. You can find this information on the model and
serial number label located on the product.
Have this information available to help you obtain assistance or
service more quickly whenever you contact Sears concerning
your appliance.
Model number __ __ __. __________________________________________
Serial number___________________________________________________
Purchase date __________________________________________________
Save these instructions and your sales receipt for future
reference.
PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. You r ne w
Kenmore® product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That’s when
having a Master Protection Agreement can save you money and
aggravation.
The Master Protection Agreement also helps extend the life of
your new product. Here’s what the Agreement* includes:
✔Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles, no
functional failure excluded from coverage— real protection.
✔Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you can
trust will be working on your product.
✔Unlimited service calls and nationwide service, as often as
you want us, whenever you want us.
✔“No-lemon” guarantee – replacement of your covered
product if four or more product failures occur within twelve
months.
✔Product replacement if your covered product can’t be fixed.
✔Annual Preventive Maintenance Check at your request – no
extra charge.
✔Fast help by phone – we call it Rapid Resolution – phone
support from a Sears representative on all products. Think of
us as a “talking owner’s manual.”
✔Power surge protection against electrical damage due to
power fluctuations.
✔$250 Food Loss Protection annually for any food spoilage
that is the result of mechanical failure of any covered
refrigerator or freezer.
✔Rental reimbursement if repair of your covered product takes
longer than promised.
✔10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we will
provide a full refund. Or, a prorated refund anytime after the
product warranty period expires. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
U.S.A. call 1-800-4-MY-HOME®.
4
MICROWAVE HOOD COMBINATION SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
When using electrical appliances basic safety precautions should be followed, including the following:
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of burns, electric
shock, fire, injury to persons, or exposure to excessive
microwave energy:
■ Read all instructions before using the microwave oven.
■ Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found in this section.
■ The microwave oven must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found in this section and in the
provided Installation Instructions.
■ Install or locate the microwave oven only in
accordance with the provided Installation Instructions.
■ Some products such as whole eggs in the shell and
sealed containers – for example, closed glass jars –
are able to explode and should not be heated in the
microwave oven.
■ Use the microwave oven only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in the microwave oven. This type
of oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
■ As with any appliance, close supervision is necessary
when used by children.
■ Do not operate the microwave oven if it has a
damaged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
■ The microwave oven should be serviced only by
qualified service personnel. Call an authorized service
company for examination, repair, or adjustment.
■ See door surface cleaning instructions in the
“Microwave Oven Care” section.
■ To reduce the risk of fire in the oven cavity:
– Do not overcook food. Carefully attend the microwave oven
when paper, plastic, or other combustible materials are placed
inside the oven to facilitate cooking.
– Remove wire twist-ties from paper or plastic bags before
placing bags in oven.
– If materials inside the oven ignite, keep oven door closed, turn
oven off, and disconnect the power cord, or shut off power at
the fuse or circuit breaker panel.
– Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity when
not in use.
■ Liquids, such as water, coffee, or tea are able to be overheated
beyond the boiling point without appearing to be boiling. Visible
bubbling or boiling when the container is removed from the
microwave oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
– Do not overheat the liquid.
– Stir the liquid both before and halfway through heating it.
– Do not use straight-sided containers with narrow necks.
– After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
– Use extreme care when inserting a spoon or other utensil into
the container.
■ Oversized foods or oversized metal utensils should not be
inserted in the microwave oven as they may create a fire or risk
of electric shock.
■ Do not clean with metal scouring pads. Pieces can burn off the
pad and touch electrical parts involving a risk of electric shock.
5
Electrical Requirements
Observe all governing codes and ordinances.
Required:
■A 120 Volt, 60 Hz, AC only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Recommended:
■A time-delay fuse or time-delay circuit breaker.
■A separate circuit serving only this microwave oven.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■ Suitable for use above both gas and electric cooking
equipment.
■ Intended to be used above ranges with maximum width of
36" (91.44 cm).
■ Clean Ventilating Hoods Frequently - Grease should not
be allowed to accumulate on hood or filter.
■ Do not use paper products when appliance is operated in
convection, combination, grill or “PAN BROWN” mode (on
models with such features).
■ Do not store any materials, other than manufacturer’s
recommended accessories, in this oven when not in use.
■ Do not store anything directly on top of the microwave
oven when the microwave oven is in operation.
■ When flambeing foods under the hood, turn the fan on.
■ Use care when cleaning the vent-hood filter. Corrosive
cleaning agents, such as lye-based oven cleaners, may
damage the filter.
■ Do not cover or block any openings on the microwave oven.
■ Do not store this microwave oven outdoors. Do not use the
microwave oven near water - for example, near a kitchen
sink, in a wet basement, or near a swimming pool, or similar
locations.
■ Do not immerse cord or plug in water.
■ Keep cord away from heated surfaces.
■ Do not let cord hang over edge of table or counter.
■ Do not mount over a sink.
■ Do not cover racks or any other part of the oven with metal
foil. This will cause overheating of the oven.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there
is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■ For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.
This device complies with Part 18 of the FCC Rules.
6
PARTS AND FEATURES
This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The
appearance of your particular model may differ slightly from the illustrations in this manual.
Microwave Oven Cavity Coating
The microwave oven has a durable, nonstick coating that resists
soil buildup by making cleaning easier than in conventional
microwave ovens. See “General Cleaning” section for cleaning
instructions.
Ultra Heatwave Technology™
The microwave system uses ULTRA HEATWAVE
TECHNOLOGY™, which delivers a constant stream of
microwave power–true high, medium and low power.
Typically, microwave ovens operate on HIGH power only. For
example, to achieve a 50% power level (“medium”) in a typical
microwave oven, the microwave oven operates 50% of the time
at HIGH power and 50% of the time OFF.
In contrast, microwave ovens utilizing ULTRA HEATWAVE
TECHNOLOGY™ deliver the selected power level continuously.
This constant stream of microwave power helps to minimize
overcooking of foods and messy food spatters.
Sensor Cooking
The microwave system with ULTRA HEATWAVE
TECHNOLOGY™ features sensor cooking functions. A humidity
sensor in the microwave oven cavity detects moisture and
humidity emitted from food as it heats. The sensor adjusts
cooking times to various types and amounts of food. Sensor
cooking takes the guesswork out of microwave cooking.
Grill Element
The microwave oven uses a 1,000-watt halogen bulb with a
500-watt quartz bulb to serve as the grill element for various
cooking functions.
When the element is in use, the halogen bulb glows very brightly,
while the glow of the quartz bulb is barely – if at all – visible.
(See “Troubleshooting” for quartz bulb testing.) The microwave
oven cavity and door will become hot. The use of oven mitts is
recommended.
A. Microwave oven door
B. Window
C. Control panel
D. Lights and Vent Fan buttons
E. Halogen cooktop lights (2)
F. Exhaust vent (for recirculation) (top
surface of microwave oven)
G. Intake vent
H. Door handle
I. Interactive touch display
J. Grease and charcoal filters (2 each)
K. Convection element and fan (behind
screen)
L. Grill element
M. Microwave oven light
N. Microwave inlet cover
O. Door lock system
P. Model and serial number plate
Q. Turntable
A
B
C
D
E
F
G
H
I
J
K L M N
H O P Q
TM
A. Halogen bulb
B. Quartz bulb
AB
7
Convection Element and Fan
The microwave oven’s convection system is composed of a
convection element, which heats in conjunction with the
convection fan for true convection cooking. The convection
system is embedded in the wall of the microwave oven cavity,
behind the screen. See “Parts and Features.” The microwave
oven cavity and door will become hot. The use of oven mitts is
recommended.
Turntable
The turntable can rotate in either direction to help cook food
more evenly. For best cooking results, do not operate the
microwave oven without having the turntable in place. To order
any of the parts, call 1-800-4-MY-HOME®. See “Replacement
Parts” section for part numbers.
To Install:
1. Place the support on the microwave oven cavity bottom.
2. Place the turntable on the support.
Fit the raised, curved lines in the center of the turntable
bottom between the three spokes of the hub. The rollers on
the support should fit inside the turntable bottom ridge.
Turning Off the Turntable
The turntable can be turned off for manual cooking cycles only.
This is helpful when cooking with plates that are larger than the
turntable, or when cooking with two plates that are side by side.
When the manual cycle is over, the turntable will automatically
default to the “ON” mode.
To Tur n O n/ Off:
1. Touch TURNTABLE (ON/OFF).
The display shows the Turntable On/Off screen.
2. Select “Off,” then touch “Ok.”
The turntable off indicator will appear on the display.
Repeat to turn the turntable back on.
A. Screen
B. Convection fan (behind screen)
C. Convection element (behind fan)
A. Glass turntable
B. Support
C. Hub
A
B
C
A
B
C
8
ACCESSORIES
The following accessories have been provided with your new microwave oven. Any of the parts may be ordered for replacement.
Steamer Vessel
Use the steamer vessel with the Steam Cook feature or Boil &
Simmer feature to steam or simmer foods. See “Steam Cook”
and/or “Boil & Simmer” sections.
■The steamer vessel will become hot. Always use oven mitts
or pot holders when handling.
■To avoid damage to the steamer vessel, do not use in a
conventional- or combination-type oven, with “Browning
Pan” or “Grill” functions, any convection function or on
electric or gas burners.
■To avoid scratching, use plastic utensils.
■Do not overfill. Using 1¹⁄₄ cup (300 mL) of water in base is
recommended.
Lid: Always use when cooking. Place directly over the insert and
base or just the base.
Insert: Use when steam cooking to keep foods such as fish and
vegetables out of water. Place insert with food directly over base.
Do not use when simmering.
Base: For steam cooking, place water in base. For simmering
foods such as rice, potatoes, pasta and vegetables, place food
and water/liquid in base.
To order any of the parts, call 1-800-4-MY-HOME®. See
“Replacement Parts” section for part numbers. See “General
Cleaning” section for cleaning instructions.
Browning Pan and Handle
The browning pan, with its nonstick surface and detachable
handle, has been specially designed for microwave use, and is
ideal for pan-frying (pan-browning) foods in the microwave oven.
See “Browning Pan” section. The browning pan is also ideal for
some baking and roasting functions, and is used as a drip pan
under the grill or convection racks during grilling or roasting
cycles. See “Bake” and “Roast” sections.
Use the handle to grasp the pan. Place gripping end on the edge
of pan, squeeze handle and lift pan. To order any of the parts, call
1-800-4-MY-HOME®. See “Replacement Parts” section for part
numbers.
Grill Rack
The tall grill rack is designed for grilling in the microwave oven.
See “Grill” section. Place the grill rack securely on browning pan,
the browning pan on the turntable, and position food on grill rack.
To order any of the parts, call 1-800-4-MY-HOME®. See
“Replacement Parts” section for part numbers. See “General
Cleaning” for cleaning instructions.
Convection Rack
The short convection rack is designed to be used with the
convection element and fan for true convection cooking. See
“Bake” and “Roast” sections. Place the convection rack on the
turntable, and position dish with food on the rack. If food is
placed directly on the rack, the browning pan may be placed
under the rack to catch drippings. To order any of the parts, call
1-800-4-MY-HOME®. See “Replacement Parts” section for part
numbers. See “General Cleaning” for cleaning instructions.
Rack and Pan Configurations
A. Lid
B. Insert
C. Base
A
B
C
Browning Pan Feature Grill Feature
Roast Feature Bake Feature
A. Turntable
B. Browning pan
C. Grill rack (tall)
D. Convection rack (short)
E. Cookie sheet (not provided)
A B A B C
A B D
A D E
9
MICROWAVE OVEN CONTROL
The microwave oven’s controls are accessed through its control panel and interactive touch display.
NOTE: Due to the sensitivity of the control panel, we have provided special instructions for cleaning the panel as well as the touch
screen display. See “General Cleaning” section for cleaning instructions.
Control Panel
The control panel houses basic controls and one-touch
automatic function controls. The control pads are very sensitive,
and require only a light touch to activate.
For more information about the individual controls, see their
respective sections in this manual.
Interactive Touch Display
The display area functions as both a display and an interactive,
menu-driven touch control. It is designed to be easily navigable,
guiding you through the menus, offering multiple selections,
accepting your input and executing your commands. It also
provides instructions, tips, and graphics.
Display
When power is first supplied to the microwave oven, the
welcome screen appears, asking whether you would like to set
the clock. Touch “Yes” and set the clock (see “Clock” section), or
touch “No” and the time will default to 12:00 p.m. If the welcome
screen appears at any other time, a power failure has occurred.
Reset the clock if needed.
When the microwave oven is not in use (in standby mode), the
display shows the Main Menu and the date and time of day, if
they are set to be displayed. See “Clock” and “Date” sections.
After 2 minutes of inactivity, the display will go into sleep mode.
See “Display Backlight” section.
During programming, the display shows menus, servings and
weights, cooking time/power/temperature settings, preheating
instructions, and/or cookware and preparation instructions.
During a cooking cycle, the display shows progress bar (sensor
functions only, see “Progress Bar” section), cooking animation
(see “Cooking Animation” section), and the countdown of cook
time remaining. The display will also give prompts to tend to the
food during certain automatic cycles.
Touch Screen
The LCD touch screen is used to make menu selections, adjust
settings and input commands.
Menu selections and input adjustments are made in the center
portion of the screen, and the command inputs (start, continue,
back, cancel, etc.) are made in the bottom portion of the screen.
Screen titles and descriptions are displayed in the top portion of
the screen, which accepts no input. A light- to medium-pressure
touch of the fingertip will activate the menu choice.
A. Control panel
B. Interactive touch display
A
B
A. Title/description region
B. Menu and selection/settings input region
C. Command input region
A
B
C
10
Main Menu
The Main Menu is displayed on the default screen.
From the Main Menu, all automatic cooking programs can be
activated; all manual cooking can be programmed; settings can
be adjusted; and instructions, preparation and tips can be
accessed.
The following demonstrates how to pan brown 2 boneless
chicken breasts, using the Cook Method menus, starting from the
Main Menu:
1. On Main Menu, touch “Cook Method.”
2. On Cook Method screen, touch “Browning Pan.”
3. On Browning Pan screen, touch “More Choices.”
4. On next Browning Pan screen, touch “Poultry Brst Boneless.”
5. On Browning Pan-Poultry Breast screen, touch “2 pieces.”
Weight guidelines appear below the quantity selections.
6. On Poultry Breast screen, follow the instructions, then touch
“Start Preheat.”
While the browning pan preheats, the cooking animation and
countdown are active in the display.
11
7. When preheating is finished, follow the instructions on the
Preheat Finished screen, then touch “Continue.”
If more or less cook time is desired, adjust doneness before
touching “Continue.”
While the poultry breasts are being pan browned, the cooking
animation and countdown are active in the display.
About halfway through the cycle, the microwave oven will
stop, and the display will direct you to turn over the poultry
breasts.
8. Touch “Continue” to resume pan browning.
When the cycle is over, the Finished screen appears.
If you would like to either add more time or keep the food
warm, you may do so at this time.
9. If the doneness is satisfactory, touch “Cancel” to return to the
default screen.
The same cooking can also be accomplished using the “Food
Type” menus instead of the “Cook Method” menu.
1. On Main Menu, touch “Food Type,” then “More Choices.”
2. Touch “Poultry,” then “More Choices.”
3. Touch “Poultry Breast: Pan Brown.”
This takes you to the same Browning Pan-Poultry Breast
screen as in the Cook Method sequence.
4. Follow steps 4-8 in Cook Method sequence.
See “Learning Mode” section to see how to practice navigating
through the menus without turning on the microwave generator.
Settings & Info
Microwave oven features may be activated and/or changed, and
display characteristics may be adjusted using the “Settings &
Info” menu. Following is a brief description of each option.
1. On Main Menu, touch “Settings & Info.”
2. Touch desired option (touch “More Choices” for more
categories), then follow the instructions on the screen to
select and/or adjust settings.
OPTION SETTING
Clock ■Adjust time: set or hide clock.
See “Clock” section.
Date ■Set date: month, day and year.
■Hide date.
See “Date” section.
Demo
Mode
■View sales demonstration.
See “Demo Mode” section.
Display
Backlight
■Set backlight brightness: reduce after
2 minutes or turn off after 2 minutes.
See “Display Backlight” section.
Display
Contrast
■Set level of contrast between minimum and
maximum using “+” and “-” controls.
See “Display Contrast” section
Hints View comprehensive lists of hints for general
operation and care of microwave oven:
■Cleaning: cavity, control panel, odors and
turntable.
■Cookware: covers, depth, materials and
shape.
■Convection Conversion: baking and roasting.
■Food: eggs, moisture, quantity and shape.
■Methods: arranging, covering, defrosting,
standing and proofing dough.
■Power levels: list of microwave power levels
and sample foods for each.
Learning
Mode
■Turn on or off.
See “Learning Mode” section.
Volume ■Set tone volume using “+” and “-” controls.
See “Tones” section.
12
Clock
This is a standard 12-hour clock (12:00 AM-11:59 PM). When
power is first supplied to the microwave oven, or after a power
failure, the “Welcome” screen will appear, asking whether you
would like to set the clock. If you choose to set the clock at that
time, the display will take you directly to the Clock screen. If you
choose not to set the clock, the time of day will default to
12:00 p.m., and the clock will be displayed and continue to keep
time.
To Set Clock:
1. On Main Menu, touch “Settings & Info.”
2. On Settings & Info screen, touch “Clock.”
3. On Clock screen, set the time of day and date, if desired, and
select AM or PM.
To Hide Clock: On Clock screen, touch “Hide Clock.” The
display will immediately return to the Main Menu.
Date
The date may be set and displayed on the Main Menu screen.
The default setting is Jan. 1.
To Set Date:
1. On Main Menu, touch “Settings & Info.”
2. On Settings & Info screen, touch “Date.”
3. On Date screen, use number pads to set the month, day and
year.
To Hide Date: On Date screen, touch “Hide Date.” The display
will immediately return to the Main Menu. Repeat to display the
date.
Demo Mode
The Demo Mode highlights the features and capabilities of the
microwave oven in a slide show on the display.
To Activate Demo Mode:
1. On the Main Menu, touch “Settings & Info.”
2. On Settings & Info screen, touch “Demo Mode.”
The demonstration immediately begins. You can move
forward or back in the demonstration by touching “Next
Page” or “Back,” or wait for the screen to advance. When the
demonstration is over, it automatically loops back to the
beginning and starts again.
3. Touch “Cancel” on the touch screen, or touch STOP
control to cancel Demo Mode and return the display to the
Main Menu.
Display Backlight
Display backlight may be set to reduce brightness or to turn off
during sleep mode.
Sleep mode is an energy-saving feature that darkens the display
backlight after 2 minutes of inactivity. During sleep mode, only
the time and date are visible, along with instruction to touch the
display to reactivate the Main Menu.
To Set Display Backlight:
1. On Main Menu, touch “Settings & Info.”
2. Touch “Display Backlight.”
3. Select setting: reduce after 2 minutes or off after 2 minutes.
4. Touch “OK.”
Display Contrast
Display contrast has numerous settings, ranging from minimum
to maximum.
To Set Display Contrast:
1. On Main Menu, touch “Settings & Info.”
2. Touch “Display Contrast.”
3. Using “+” and “-” controls, increase or decrease the contrast.
4. Tou c h “ O K .”
Learning Mode
The Learning Mode is ideal for learning how to use the
microwave oven. When set, functions can be entered, with real
displays and tones, without actually turning on the microwave
generator (magnetron), grill element or convection element. While
functions are operating in the Learning Mode, the microwave
oven light will come on, the fan will run, and the turntable will
rotate (if set ON).
While the Learning Mode is active, the Learn indicator is visible in
the upper, right title area, or at the bottom command input area.
The indicator is visible while the microwave oven is in standby
mode, during programming, and during Settings & Info menu
navigation. During a “practice” cooking cycle, the Learn indicator
is visible in the lower, left command input area.
To Activate Learning Mode:
1. On the Main Menu, touch “Settings & Info.”
2. On Settings & Info screen, touch “More Choices.”
3. Tou c h “ L e a r n i n g Mo d e . ”
4. Touch “On” or “Off” to set.
5. Tou c h “ O K .”
A. Indicators for Learning Mode
A
A
13
Tones
Tones are audible signals, indicating the following:
One Tone
■Valid entry (short tone)
Two To n es
■Between stages (short tones)
■Reminder, repeat each minute for 10 minutes after the end-
of-cycle tones
■End of Timer countdown
■Hidden feature entered or exited (very short, quick tones)
Three Tones
■Invalid entry (very short, quick tones)
■Retry Error
Four Tones
■End of cycle (2 short tones, followed by 2 longer tones)
■Interruption, tend to food (short tones)
■Attention - door needs to be opened and closed
To Ad j us t To ne Volu m e:
1. On Main Menu, touch “Settings & Info.”
2. On Settings & Info screen, touch “More Choices.”
3. Touch “Volume.”
4. Using “+” and “-” controls, increase or decrease the volume
setting, or turn the tones off.
5. Touch “Ok.”
Start
The START control will start any function.
If non-sensor cooking is interrupted, touching the START control
pad will resume the preset cycle.
If the microwave oven has not been in use and the door has not
been opened in the past 5 minutes, the cooking function will not
start. Open and close the door, then touch START to start or
resume the cooking cycle.
For added convenience, the “Start” touch pad is also available on
some display screens, and provides the same function as the
START control pad.
Stop
The STOP control stops all functions except for the Timer and
Learning Mode, and cancels programming in progress.
The microwave oven will also turn off when the door is opened.
Close the door and touch START control or “Continue” on the
touch screen to resume the cycle. A sensor cooking cycle may
not be resumed if interrupted by opening the door.
Clear
During programming, the CLEAR control changes the numeric
programming values, such as minutes, seconds and cook power
that are active in the display to their default value. For example,
while entering a cook time, touching CLEAR will change the time
you have already entered to “0:00.” The CLEAR control gives an
invalid signal (see “Tones” section) if touched during cooking.
Timer
The Timer can be set in minutes and seconds, up to 99 minutes,
and counts down the set time.
NOTE: The Timer does not start or stop the microwave oven.
While the Timer is in use, the microwave oven can still operate.
During a microwave oven operation, the Timer countdown will be
minimized. If the Timer ends while microwave oven is still
operating, the end-of-Timer tones will sound, and the set
operating mode will remain active on the screen.
To Set Timer:
1. Touch TIMER control.
2. Using the number pads, enter desired time in minutes and
seconds, and then touch “Start Timer.”
The countdown will be in full screen view.
3. Touch “Ok” to minimize the timer.
To see the countdown in full screen view, touch TIMER control.
The time can be reset during the countdown by touching TIMER,
entering a new time, then touching “Ok,” or the START control.
To Cancel: Touch TIMER control, then touch “Cancel Timer.”
A. Timer indicator
A
14
Control Lock
The Control Lock disables all controls to avoid unintended use of
the microwave oven. The only control that will function while the
Control Lock is active is the STOP pad on the control panel.
Control Lock activation is possible only when the display is at the
Main Menu.
To Activate Control Lock: Touch and hold STOP control for
5 seconds. Two tones will sound, and the display will show the
padlock icon.
If any controls are touched while the Control Lock is active, the
“Control Lock” reminder screen appears for 5 seconds.
To Deactivate Control Lock: Touch and hold STOP control for
5 seconds. Two tones will sound, and the padlock icon will be
removed from the display.
Vent Fan and Cooktop Lights
The microwave oven’s hood controls, on the left side of the
control panel (see “Parts and Features”) operate the vent fan and
cooktop lights.
Vent Fan
The vent fan has 3 regular speeds: high, medium and low. The
vent fan also has a max speed, which is the highest speed.
To avoid damage to the microwave oven, the vent fan will
automatically turn on at high speed if the temperature from the
cooking surface below gets too hot. It may stay on for up to 1
hour to cool the microwave oven. When this occurs, the vent fan
cannot be turned off. After the microwave oven has cooled, the
vent fan will automatically turn off.
The vent fan will automatically turn on at low speed during
convection or grill cooking, and may stay on for up to 10 minutes
after the cycle has ended.
NOTE: For optimal vent system performance, turn on the vent
fan before using the cooking surface below. This will maximize
steam capture.
To Operate Vent Fan: Touch FAN control repeatedly to cycle
through the settings: high, medium, low and off. Touch
FAN EXHAUST control to turn on the max speed. The status will
be displayed for a few seconds while the settings are being
adjusted.
Cooktop Lights
The cooktop lights have 3 brightness settings: high, medium and
low. The low setting may be appropriate for night light use.
To Turn Light On/Off: Touch LIGHT control repeatedly to cycle
through the settings: high, medium, low and off. The status will
be displayed for a few seconds while the settings are being
adjusted.
Cooking Animation
The cooking animation appears during any cooking cycle,
whether automatic or manual. The animation shows what type of
cooking is taking place.
Progress Bar
The progress bar is a visual picture of the estimated running time
of a sensor cooking cycle. It will appear at the beginning of
sensor cooking functions. A horizontal bar appears below the
word “Sensing,” and shows progress by the darkening of the bar
left to right. Some time after the progress bar appears, it may be
replaced by “Maximum Time Remaining” indicator and the
estimated remaining time, which may fluctuate often. When
sensing is finished, “Time Remaining” will appear with the actual
remaining cook time.
The progress bar will also appear during microwave oven
preheating.
A. Cooking with grill element
B. Cooking with microwaves
C. Cooking with convection
D. Turntable icon
A. Cooking animation
B. Progress bar
A
B
C
D
A B
15
MICROWAVE OVEN USE
A magnetron in the microwave oven produces microwaves which
reflect off the metal floor, walls and ceiling and pass through the
turntable and appropriate cookware to the food. Microwaves are
attracted to and absorbed by fat, sugar and water molecules in
the food, causing them to move, producing friction and heat
which cooks the food.
■To avoid damage to the microwave oven, do not lean on or
allow children to swing on the microwave oven door.
■To avoid damage to the microwave oven, do not operate
microwave oven when it is empty.
■Baby bottles and baby food jars should not be heated in
microwave oven.
■Clothes, flowers, fruit, herbs, wood, gourds, paper, including
brown paper bags and newspaper, should not be dried in
microwave oven.
■Paraffin wax will not melt in the microwave oven because it
does not absorb microwaves.
■Use oven mitts or pot holders when removing containers from
microwave oven.
■Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly firm. Let potatoes
stand for 5 minutes. They will finish cooking while standing.
■Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst, requiring
significant cleanup of microwave oven cavity. Cover poached
eggs and allow a standing time.
Food Characteristics
When microwave cooking, the amount, size and shape, starting
temperature, composition and density of the food affect cooking
results.
Amount of Food
The more food heated at once, the longer the cook time needed.
Check for doneness and add small increments of time if
necessary.
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
Composition and Density
Foods high in fat and sugar will reach a higher temperature, and
will heat faster than other foods. Heavy, dense foods, such as
meat and potatoes, require a longer cook time than the same size
of a light, porous food, such as cake.
Cooking Guidelines
Covering
Covering food helps retain moisture, shorten cook time and
reduce spattering. Use the lid supplied with cookware. If a lid is
not available, wax paper, paper towels or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be turned
back at one corner to provide an opening to vent steam.
Condensation on the door and cavity surfaces is normal during
heavy cooking.
Stirring and Turning
Stirring and turning redistribute heat evenly to avoid overcooking
the outer edges of food. Stir from outside to center. If possible,
turn food over from bottom to top.
Arranging
If heating irregularly shaped or different sized foods, arrange the
thinner parts and smaller sized items toward the center. If
cooking several items of the same size and shape, place them in
a ring pattern, leaving the center of the ring empty.
Piercing
Before heating, use a fork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places to
allow steam to vent.
Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones and foods such as chicken
wings, leg tips and fish tail. See “Aluminum Foil and Metal” first.
Standing Time
Food will continue to cook by the natural conduction of heat even
after the microwave cooking cycle ends. The length of standing
time depends on the volume and density of the food.
Cookware and Dinnerware
Cookware and dinnerware must fit on the turntable. Always use
oven mitts or pot holders when handling because any dish may
become hot from heat transferred from the food. Do not use
cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
MATERIAL RECOMMENDATIONS
Aluminum Foil,
Metal
See “Aluminum Foil and Metal” section.
Browning Dish Bottom must be at least 3/16" (5 mm)
above the turntable. Follow manufacturer’s
recommendations.
Ceramic Glass,
Glass
Acceptable for use.
China,
Earthenware
Follow manufacturer’s recommendations.
Melamine Follow manufacturer’s recommendations.
16
To Test Cookware or Dinnerware for Microwave Use:
1. Place cookware or dinnerware in microwave oven with 1 cup
(250 mL) of water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
Aluminum Foil and Metal
Always use oven mitts or pot holders when removing dishes from
the microwave oven.
Aluminum foil and some metal can be used in the microwave
oven. If not used properly, arcing (a blue flash of light) can occur
and cause damage to the microwave oven.
OK for Use
Racks and bakeware supplied with the microwave oven (on some
models), aluminum foil for shielding, and approved meat
thermometers may be used with the following guidelines:
■To avoid damage to the microwave oven, do not allow
aluminum foil or metal to touch the inside cavity walls,
ceiling or floor.
■Always use the turntable.
■To avoid damage to the microwave oven, do not allow
contact with another metal object during microwave cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-
approved meat thermometers, skewers, twist ties, foil liners
such as sandwich wrappers, staples and objects with gold or
silver trim or a metallic glaze should not be used in the
microwave oven.
For Use with Convection System
Any ovenproof bakeware may be used during Manual Bake
cycles, but only microwave-safe, ovenproof bakeware may be
used for combination (microwaves + convection) cycles. Follow
instructions on the display during convection programming.
■Use only ovenproof cookware for all convection (baking and
roasting) cycles. See “Bake” and “Roast” sections.
■Do not use metal bakeware during stage cooking. See
“Cooking in Stages” section.
■Do not use metal bakeware during combination cycles. Some
automatic Cook, Bake and Roast programs use combination
cooking. Follow instructions on the display during
programming. Manual Roast may also be programmed for
combination cooking.
■Use only microwave-safe, ovenproof cookware for all non-
Bake convection or combination cycles.
For Use with Grill Element
Use only microwave-safe, ovenproof cookware, such as glass or
ceramic glass, for automatic Grill and Manual Grill cycles.
■Do not place cookware on grill rack.
■Place cookware directly on the turntable. Cookware may be
used under the grill rack to catch drippings.
Microwave Cooking Power
Many recipes for microwave cooking specify which cooking
power to use by percent, name or number. For example,
70%=Medium-High.
Use the following chart as a general guide for the suggested
cooking power of specific foods.
Paper: Towels,
Dinnerware,
Napkins
Use nonrecycled and those approved by
the manufacturer for microwave oven use.
Plastic: Wraps,
Bags, Covers,
Dinnerware,
Containers
Use those approved by the manufacturer
for microwave oven use.
Pottery and Clay Follow manufacturer’s recommendations.
Silicone
Bakeware
Follow manufacturer’s recommendations.
Straw, Wicker,
Wooden
Containers
Do not use in microwave oven.
Wax Paper Acceptable for use.
MATERIAL RECOMMENDATIONS
PERCENT/NAME USE
100%, High (default
setting)
Quick heating convenience foods and
foods with high water content, such as
soups, beverages and most vegetables.
90% Cooking small tender pieces of meat,
ground meat and poultry pieces.
Heating cream soups.
80% Heating rice, pasta or stirrable
casseroles.
Cooking and heating foods that need a
cook power lower than high, such as
meat loaf.
70%,
Medium-High
Reheating a single serving of food.
Cooking fish fillets.
60% Cooking sensitive foods such as cheese
and egg dishes, pudding and custards.
Cooking non-stirrable casseroles, such
as lasagna.
50%, Medium Cooking ham, whole poultry, whole fish
and pot roasts.
Simmering stews.
40% Heating bread, rolls and pastries.
30%, Medium-Low Melting chocolate, butter and
marshmallows.
20% Defrosting bread, fish, meats, poultry and
precooked foods.
Softening ice cream, butter and cheese.
10%, Low Taking chill out of fruit.
17
MANUAL COOKING
Add a Minute
The ADD-A-MINUTE control automatically starts the microwave
oven at 100% power for 1 minute, and adds 1 minute of cook
time, up to 10 minutes, with each additional touch of the control.
Time may be added in 1-minute increments by touching
ADD-A-MINUTE, or by minutes and seconds using the interactive
touch screen display. Cook power or cook time may be changed
after cooking begins by using the “Adjust Settings” control. While
settings are being adjusted, the countdown freezes, and then
resumes when adjustments are made.
MWO Time/Power Cooking
The MWO TIME/POWER control is for manual microwave-only
cooking.
To Use MWO TIME/POWER:
1. Place food on the turntable, and close the door.
2. Touch MWO TIME/POWER control pad.
3. Use number pads to enter the cook time in minutes and
seconds.
If using 100% cooking power, skip Step 3.
4. Touch “Cook Power: 100%,” and then use number pads to
adjust the power level, between 10% and 100%.
5. Touch “Start” on the touch screen, or START control.
The display will count down the cook time.
During the countdown, cook time and/or cooking power may
be changed by touching “Adjust Settings” on the touch
screen, and following the prompts.
When the cycle ends, the end-of-cycle tones will sound,
followed by reminder tones.
6. Touch STOP control or open the door to stop reminder tones.
The display will return to the Main Menu after STOP control is
touched.
Convect Time/Temp Cooking
The CONVECT TIME/TEMP control is for manual convection or
combination cooking.
The cook time may be set in hours and minutes. The temperature
may be set from 100°F (38°C) to 450°F (232°C) in 5-degree
increments.
NOTE: The microwave cooking power may be set to 0%, 10%,
20% or 30%. The default power is 0%.
To U s e :
1. Place food on the turntable, and close the door.
2. Touch CONVECT TIME/TEMP control.
3. Use number pads to enter the cook time in hours and
minutes.
4. Touch “Temp: 350°,” and then use number pads to enter
temperature, if cooking at a temperature other than the
default 350°F (177°C).
5. For microwave-assisted convection cooking, enter power
level (10%-30%). Default power is 0%.
6. Touch “Start Preheat” on the touch screen to preheat empty
microwave oven. If preheat is not needed, touch “Skip
Preheat” after the microwave oven starts.
The display will count down the cook time.
During the countdown, cook time, temperature and/or
cooking power may be changed by touching “Adjust
Settings” on the touch screen, and adjusting the remaining
time and/or the cooking power.
When the cycle ends, the end-of-cycle tones will sound,
followed by reminder tones.
7. Touch STOP control or open the door to stop reminder tones.
The display will return to the Main Menu after STOP control is
touched.
18
Manual Method Cooking
The Manual Method control on the Main Menu is for manual
cooking by cooking method. There are 12 methods from which to
choose. Some of the methods have set power levels that cannot
be changed. Use the following chart as a guide.
To U s e :
1. Place food on the turntable, and close the door.
2. Touch “Manual Method” on the Main Menu.
3. Select a method from the chart.
4. Follow instructions on the display to program cooking time,
temperature and/or cooking power.
5. Touch “Start” on the touch screen, or START control.
The display will count down the cook time.
During the countdown, cook time and some cooking powers
and/or temperatures may be changed by touching “Adjust
Settings” on the touch screen, and adjusting the remaining
time, cooking power and/or temperature.
When the cycle ends, the end-of-cycle tones will sound,
followed by reminder tones.
6. Touch STOP control or open the door to stop reminder tones.
The display will return to the Main Menu after STOP control is
touched.
Cooking in Stages (or steps)
Manual cooking may be done in stages (or steps), up to 4 stages
total. The first stage may be programmed using any of the
manual controls. The stages may be reviewed at any time during
programming and/or cooking by touching “Review Steps” on the
touch screen.
Convection cooking cannot be done in stages.
NOTE: Manual Defrost can be programmed only as the 1st stage,
and is not available for subsequent stage programming.
To Cook in Stages:
1. Follow steps 1-4 in “MWO Time/Power Cooking,”
or
follow steps 1-4 in “Manual Method Cooking.”
2. Touch “Add A Step” on the touch screen.
3. Select cook method, and follow screen prompts to program
the next stage.
4. Repeat steps 2 and 3 to program each additional stage.
5. Touch “Start” on the touch screen, or START control.
The display will show the cycling stage’s cook time and
cooking power, and will count down each stage in turn.
During the countdown, cook time and/or cooking power for
the cycling stage may be changed by touching “Adjust
Settings” on the touch screen, and following the prompts.
Each stage will immediately follow the previous stage, and
between cycle tones will sound when each new stage begins.
When the cycle ends, the end-of-cycle tones will sound,
followed by reminder tones.
6. Touch STOP control or open the door to stop reminder tones.
The display will return to the Main Menu after STOP control is
touched.
METHOD COOK
WITH
COOKWARE POWER/TEMP
SETTINGS
Reheat Microwaves
only
Microwave-
safe
10-100%; 100%
default
Defrost Microwaves
only
Microwave-
safe
20% only
Cook Microwaves
only
Microwave-
safe
10-100%; 100%
default
Bake Convection
only
Ovenproof,
convection
rack
100°F (38°C)-
450°F (232°C);
350°F (177°C)
default
Grill Grill and
microwaves
Ovenproof,
microwave-
safe, grill rack,
Browning Pan
0-40%; 0%
default
Melt Microwaves
only
Microwave-
safe
30% only
Roast Convection,
microwaves
Ovenproof,
microwave-
safe,
convection
rack, Browning
Pan
225°F (107°C)-
450°F (232°C);
325°F (163°C)
default
0-30%; 0%
default
Boil &
Simmer
Microwaves
only
Microwave-
safe; Steamer
Vessel
Enter desired
time.
Browning
Pan
Microwaves
only
Browning Pan 80% only
Soften Microwaves
only
Microwave-
safe
20% only
Steam Cook Microwaves
only
Microwave-
safe; Steamer
Vessel
Enter desired
time.
Keep Warm Microwaves
only
Microwave-
safe
10% only
19
Raising (Proofing) Bread
This microwave oven can be used to proof bread using the
convection system.
First Proofing:
Place dough in a lightly greased ovenproof bowl, and cover
loosely with shortening-coated wax paper.
1. Place a shallow, ovenproof container, such as a pie plate,
filled with 2 cups (500 mL) boiling water on the turntable.
2. Place the convection rack on the turntable, and then place
the bowl of dough on the convection rack and close the door.
3. Touch “Manual Method” on the Main Menu, then select
“Bake.”
4. Follow instructions on the display to program the proofing
time (about 45 minutes).
5. Touch “Temp 350°,” and then set a temperature of 100°F
(38°C) using the number pads.
6. Touch “Start Preheat,” and then touch “Skip Preheat.”
7. Touch “Start” on the touch screen, or START control.
The display will count down the proofing (baking) time.
Check dough after 20 to 25 minutes. Let dough rise until
nearly doubled in size. Proofing time may vary depending on
the type and quantity of dough. Proofing time may be
changed during the countdown by touching “Adjust
Settings,” and then following the instructions on the display.
When the cycle ends, the end-of-cycle tones will sound,
followed by reminder tones.
When proofing is done, remove bowl of bread dough and
water container.
8. Touch STOP to return the display to the Main Menu.
Second Proofing:
Shape dough, place in baking pan(s), and then cover loosely with
plastic wrap sprayed with cooking spray.
1. Place ovenproof container filled with 2 cups (500 mL) boiling
water on the turntable.
2. Place bread pan(s) on the convection rack and close the door.
3. Follow steps 3 through 7 outlined in “First Proofing.”
When proofing is done, remove the bread dough and water
container.
Reset microwave oven to preheat for baking bread. Before
baking, remove plastic wrap from bread dough.
Warm Hold
Hot cooked food can be kept warm in the microwave oven. The
Warm Hold function uses 10% cook power. Warm Hold can be
used by itself, or it can be programmed to follow a cooking cycle.
■Cover plates of food.
■Cover foods that were covered while being cooked.
■For best results, do not cover baked goods such as pastries,
pies, turnovers, etc.
To U s e :
1. Place hot cooked food on the turntable, and close the door.
2. Touch Warm Hold control.
3. Adjust warm time, if desired.
4. Touch “Start” on the touch screen, or START control.
The display will count down the warm time.
During the countdown, warm time may be changed by
touching “Adjust Settings” on the touch screen, and adjusting
the remaining time.
When the cycle ends, the end-of-cycle tones will sound,
followed by reminder tones.
5. Touch STOP control or open the door to stop reminder tones
and return to the Main Menu.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
20
PROGRAMMED COOKING
Convection Cooking
During convection cycles, the convection element heats the air in
the microwave oven cavity, and the convection fan circulates the
hot air. The constantly moving air surrounds the food to heat the
outer portion quickly.
See “Food Type Chart” for automatic convection cycles (Bake or
Roast).
Convection cooking may also be done manually. Use convection
cooking for items such as pies, breads, cookies, cakes and pizza.
See “Manual Cooking” section for instructions.
Manual convection cooking may be used to proof bread. See
“Raising (Proofing) Bread” section for instructions.
NOTES:
■Use the provided convection rack.
■Do not cover the turntable or convection rack with foil, as it
interferes with the circulation of hot air.
■Do not use light plastic containers, plastic wrap or paper
products. All ovenproof cookware or metal utensils can be
used in convection cooking. (Round pizza pans are excellent
cooking utensils for many convection-only items.) Metal
utensils cannot be used in microwave or combination
cooking.
■No special techniques are needed to adapt standard oven
recipes to convection cooking, although some cooking times
might need to be shortened, and some temperatures
adjusted.
■This microwave oven may be preheated in the same way that
a standard oven is preheated. (Most recipes for baked goods
call for preheating.)
Combination Cooking
Combination cooking uses microwaves in addition to the
convection system to cook or roast foods more quickly than with
convection alone.
Combination cooking may also be done manually. Use
combination cooking for items such as roasts, meat loaf,
lasagna, casseroles and whole chicken. See “Manual Method
Cooking” or “Convect Time/Temp” sections for instructions.
NOTES:
■Do not use metal cookware or utensils during combination
cooking.
■Meats may be roasted directly on the convection rack. Use
the browning pan to catch drippings.
■Less tender cuts of beef can be roasted and tenderized using
oven cooking bags.
■Check for doneness after the cycle has ended. If the food is
not completely done, let it stand in the microwave oven for a
few minutes to finish cooking.
■During any automatic or manual combination cycle, no more
than 30% microwave power is used.
Sensor Cooking
Some automatic cycles are sensor cycles. See “Cook Method
Chart.” No amounts need to be entered. A sensor in the
microwave oven detects humidity released from the food as it
heats, and adjusts the cook time accordingly. The progress bar
appears during sensing (see “Progress Bar” section).
Many sensor cycles require the covering of foods. The provided
steamer vessel has a loose-fitting lid, which allows enough steam
to escape to be detected by the sensor. When covering foods
with plastic wrap, be sure to leave a large enough vent opening to
allow the steam to escape.
NOTES:
■The microwave oven should be plugged in for at least
2minutes.
■The microwave oven cavity and the exterior of the cooking
container should be dry.
■The room temperature should not exceed 95°F (35°C).
■If the door is opened during a sensor cycle, sensing will stop
and the program will be canceled.
■For optimal performance, wait at least 30 minutes after
convection cooking or grill cooking before sensor cooking.
Preheating
Preheating of the microwave oven is programmed in some
automatic convection cycles. After the microwave oven is
preheated, it will maintain the set preheat temperature until the
door is opened to add food. Preheating may be skipped after it
has started by touching “Skip Preheat” on the touch screen,
adding food, and then touching “Continue.”
Preheating of the browning pan is programmed in many
automatic cooking cycles. This preheating phase may also be
skipped by touching “Skip Preheat.”
For optimal results, we recommend completing the preheating
phase of each cycle in which preheating is programmed.
However, preheating of the microwave oven would not be
necessary when baking consecutive batches, such as cookies,
as the microwave oven would already be hot.
Doneness
Doneness for food items may be adjusted for most automatic
cycles. Before starting a cycle, touch “Doneness” on the touch
screen, and adjust the doneness with “+” (more done) or “-” (less
done) controls. The “+” control adds to, and the “-” control
subtracts from the recommended default cook time.
The more done and less done settings in most foods for which
doneness may be adjusted are equal. That is, the same amount
of time may be added to or subtracted from the cycle. Some of
the Meat and Poultry cycles have only the more done settings.
21
Popcorn Sensor
Popcorn is a sensor function. The sensor determines the
appropriate popping time of commercially packaged
microwavable popcorn.
The sensor will determine accurate popping times for bag sizes:
3.5 oz (99 g), 3.0 oz (85 g) or 1.75 oz (50 g). For bag sizes not
listed in this section, follow directions on the package.
NOTE: During Popcorn function, as with all microwave cooking
functions, the microwave oven should be attended at all times.
Listen for popping to slow to 1 pop every 1 or 2 seconds, then
stop the cycle.
■For best results, do not place bag on convection rack or grill
rack.
■To avoid damage to the microwave oven, do not use regular
paper bags or glassware.
■Pop only 1 package of popcorn at a time.
■Follow manufacturer’s instructions when using a microwave
popcorn popper.
■For best cooking results, do not try to pop unpopped kernels.
■Use fresh bags of popcorn for optimal results.
■Cooking results may vary by brand and fat content.
To Use Popcorn Sensor:
1. Place popcorn bag on the turntable and close the door.
2. Touch POPCORN SENSOR control.
The microwave oven will start automatically. The display will
show when the microwave oven is sensing, and will start
counting down the time when sensing has finished.
When the cycle ends, the end-of-cycle tones will sound,
followed by reminder tones.
3. Touch STOP control or open the door to stop reminder tones.
The display will return to the Main Menu after STOP control is
touched.
Using Food Type
The Food Type menu has 12 methods from which to choose.
This menu allows you to choose what specific food item you
want to cook, and then choose how you would like to cook it, if
there is more than 1 cook method available. All cook methods
and foods are available through this menu.
See “Food Type Chart” in this manual, or review your Quick
Reference Guide for all of the food items and programmed
cycles.
See “Main Menu” section for an example of how using the Food
Type menu works.
To U se: Place food on the turntable, and close the door. Touch
“Food Type” on Main Menu, select your food category, and then
follow the screen prompts to select your specific food item and
cook method, and to start the cycle.
Using Cook Method
The Cook Method menu has 11 methods from which to choose.
This menu allows you to start with the type of cooking you want,
and then choose your specific food item. All food items are
available through this menu.
See each method’s respective section in this manual for method
details.
See “Cook Method Chart” for all of the programmed cycles.
See “Main Menu” section for an example of how using the Cook
Method menu works.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, select your desired method, and
then follow the screen prompts to select your food item and to
start the cycle.
Reheat
The Reheat menu has a selection of main food categories, plus a
shortcut to Manual Reheat (see “Manual Method Cooking”
section).
Reheat uses only microwaves to heat the food.
See “Cook Method Chart” for food item details, such as specific
food items available, sensor functions and amounts.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “Reheat,” and then follow
screen prompts to make your selections, prepare your food and/
or microwave oven for reheating, and start the cycle.
Breakfast Food Dairy/Dessert Frozen Food
Liquids Snacks Vegetable
Bread Casserole Fish/Seafood
Grains (Pasta/Rice) Meat Poultry
Reheat Defrost Cook
Bake Boil & Simmer Browning Pan
Grill Melt Roast
Soften Steam Cook
Beverage Casserole Leftover Meal
Muffin Pizza Leftover Roll
Sauce Soup Manual Reheat
22
Defrost
The Defrost menu has a selection of main food categories, plus a
shortcut to Manual Defrost (see “Manual Method Cooking”
section).
Defrost uses only microwaves to defrost the food.
Defrost should not be used for food left out of the freezer for
more than 20 minutes, or for frozen ready-made food.
■Food should be 0°F (-18°C) or colder at the time the cycle is
started for optimal results. How foods are stored can affect
results.
■Unwrap foods and remove lids (for example, from fruit juice
containers) before defrosting.
■Shallow packages will defrost more quickly than thick blocks.
■Separate food pieces as soon as possible during or at the
end of the cycle for more even defrosting.
■Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips and fish tails. See “Aluminum Foil
and Metal” first.
See “Cook Method Chart” for specific food items and amounts.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “Defrost,” and then follow
screen prompts to make your selections, and to start the cycle.
Defrost programs are set by the weight of the food item in
pounds and/or ounces. If the weight is not known, touch “Weight
Unknown” on the touch screen, and follow the prompts.
Preparation instructions for each food item will be displayed
while you are programming the cycle.
Cook
The Cook menu has a selection of main food categories, plus a
shortcut to manual Cook (see “Manual Method Cooking”
section).
Cook may use microwaves, convection system and/or grill
elements, as well as special cookware for various programs.
See “Cook Method Chart” for food item details, such as sensor
functions, convection functions and amounts.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “Cook,” and then follow
screen prompts to make your selections, prepare your food and/
or microwave oven for cooking, and start the cycle.
Bake
The Bake menu has a selection of main food categories, plus a
shortcut to Manual Bake (see “Manual Method Cooking”
section).
Bake may use the convection system with or without microwaves
to bake your food.
See “Cook Method Chart” for specific food items and amounts.
You will need to use your provided convection rack. Ovenproof,
microwave-safe bakeware may be used during any of the Bake
cycles. The screen prompts give instruction for each food item,
and its appropriate bakeware. See “Cookware and Dinnerware”
section.
■The microwave oven cavity and door will become hot during
the Bake cycle. The use of oven mitts is recommended.
■The convection rack and any cookware or bakeware will
become very hot. Use oven mitts to remove the hot rack and
cookware from the microwave oven to a heat-safe surface.
■While the convection system is in use, the cooling fan turns
on and stays on for up to 10 minutes after the cycle is over.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “Bake,” and then follow
screen prompts to make your selections, prepare your food and/
or microwave oven for baking, and start the cycle.
After Baking
The food, convection rack, microwave oven cavity and door will
be very hot. The microwave oven’s cooling fan will stay on until
the microwave oven cools.
Bread Fish/Seafood Meat
Poultry Manual Defrost
Casserole Cereal/Oatmeal Couscous
Egg Fish/Seafood Frozen Food
Instant Mac &
Cheese
Meat Pasta
Poultry Rice Vegetable
Manual Cook
Angel Food Cake Biscuit, Refrigerated Bread
Brownies Cookies Muffin
Pie Pot Pie Quiche
Roll, Refrigerated Soufflé Manual Bake
23
Boil & Simmer
The Boil & Simmer menu has a selection of main food categories,
plus a shortcut to Manual Boil & Simmer (see “Manual Method
Cooking” section).
Boil & Simmer is a sensor function, and uses only microwaves to
simmer your food.
See “Cook Method Chart” for specific food items and amounts.
■Follow recommended water and food amounts that appear
on the display.
■Use the provided steamer vessel base and lid, or a
microwave-safe dish with a loose-fitting lid.
■For best results, do not use plastic wrap as a cover during the
Boil & Simmer cycle.
■Do not remove the lid while the dish is still in the microwave
oven, as the rush of steam will disrupt the sensor readings.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “Boil & Simmer,” and then
follow screen prompts to make your selections, prepare your
food for simmering, and start the cycle.
Simmering Pasta
The water will need to boil before adding the pasta. Place the
dish of water, covered, in the microwave oven and begin the
cycle. When the water boils, the microwave oven will stop and
prompt you to add the pasta. If manually simmering, place the
covered dish of water in the microwave oven, and set a simmer
time of 1 second. The water will start to boil, the 1-second
simmer time will end, and the microwave oven will stop.
Using oven mitts, gently remove the covered dish of boiling
water, add the pasta, re-cover, place the dish back in the
microwave oven and continue the cycle.
Simmering Rice
Place food and water/liquid, covered, in the microwave oven and
begin the cycle. The sensor determines when the water starts to
boil, and figures the simmer time, which will begin counting down
in the display.
Browning Pan
The Browning Pan menu has a selection of main food categories,
plus a shortcut to Manual Browning Pan (see “Manual Method
Cooking” section).
Browning Pan function uses microwaves, and sometimes the grill
element. Microwaves quickly heat the pan, while the grill element
browns (or crisps) the food from above.
Some Browning Pan cycles are programmed to preheat the
empty pan for 3 minutes before cooking begins. When the
preheating cycle is complete, the microwave oven will stop and
prompt you to add the food to the browning pan. The microwave
oven may prompt you to turn over the food during the cycle.
See “Cook Method Chart” for specific food items and amounts.
■Microwave oven cavity and door will become very hot during
the Browning Pan cycle. The use of oven mitts is
recommended.
■The browning pan will become very hot. Use oven mitts to
grasp and remove the pan from the microwave oven. To avoid
damage, do not place hot browning pan directly on heat-
sensitive surfaces.
■Use detachable handle when handling hot browning pan.
■Do not use plastic utensils on the browning pan, as it
becomes very hot quickly and could melt the utensils.
■To avoid scratching the browning pan, do not use metal
utensils.
■To avoid damage to the browning pan, do not use in any
other microwave oven or in a standard thermal oven.
■Do not place the browning pan on the grill rack or the
convection rack. Always use the turntable as a support for
the pan.
■For best results, coat the browning pan lightly with cooking
oil to make removing food and cleaning the pan easier.
■When the grill element is in use, the cooling fan turns on and
stays on for up to 10 minutes after the cycle is over.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “Browning Pan,” and then
follow screen prompts to make your selections, prepare the food
and/or browning pan for cooking, and start the cycle.
Couscous Dried Pasta Fresh Pasta
Rice Manual
Boil & Simmer
Baked Goods Egg Fish Steak
Frozen Food Meat Nuts
Poultry Breast
Boneless Sausage Manual
Browning Pan
24
Grill
The Grill menu has a selection of main food categories, plus a
shortcut to Manual Grill (see “Manual Method Cooking” section).
Grill uses the grill element and microwaves to grill your food.
See “Cook Method Chart” for specific food items and amounts.
■Microwave oven cavity and door will become very hot during
the Grill cycle. The use of oven mitts is recommended.
■The grill rack and browning pan will become very hot. Use
oven mitts to grasp and remove the pan from the microwave
oven. To avoid damage, do not place hot browning pan
directly on heat-sensitive surfaces.
■Use the grill rack to place food closer to the grill element for
faster grilling.
■Use the browning pan to catch drippings. Do not place the
browning pan on the grill rack.
■Place grill rack securely on browning pan, and place both on
the turntable. Then position food directly on rack.
■The turntable must be turned on when using the grill rack.
■For best results, apply light amount of cooking oil to grill rack.
■When the grill element is in use, the cooling fan turns on and
stays on for up to 10 minutes after the cycle is over.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “More Choices,” and then
“Grill.” Follow screen prompts to make your selections, prepare
your food for grilling, and start the cycle.
After Grilling
The food, grill rack, browning pan, microwave oven cavity and
door will be very hot. Using oven mitts, grasp the browning pan
securely with both hands, and remove it with the grill rack and
food still in place to a heat-safe surface.
When handling the hot browning pan, use the detachable handle.
The microwave oven’s cooling fan will stay on until the microwave
oven is cooled.
Melt
The Melt menu has a selection of main food categories, plus a
shortcut to Manual Melt (see “Manual Method Cooking” section).
Melt uses only microwaves to melt your food.
See “Cook Method Chart” for specific food items and amounts.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “More Choices,” and then
“Melt.” Follow screen prompts to make your selections, prepare
your food and/or microwave oven for cooking, and start the
cycle.
Roast
The Roast menu has a selection of main food categories, plus a
shortcut to Manual Roast (see “Manual Method Cooking”
section).
Roast uses microwaves and the convection system to roast your
food.
See “Cook Method Chart” for specific food items and amounts.
■The microwave oven cavity and door will become hot during
the Roast cycle. The use of oven mitts is recommended.
■The convection rack and browning pan will become very hot.
Use oven mitts to remove the hot rack and browning pan
from the microwave oven. To avoid damage, do not place hot
browning pan directly on heat-sensitive surfaces.
■Do not use metal cookware during the Roast cycle.
■Use the provided convection rack and browning pan.
■Place the browning pan under the convection rack to catch
the drippings.
■While the convection system is in use, the cooling fan turns
on and stays on for up to 10 minutes after the cycle is over.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “More Choices,” and then
touch “Roast.” Follow screen prompts to make your selections,
prepare your food and/or microwave oven for roasting, and start
the cycle.
After Roasting
The food, convection rack, browning pan, microwave oven cavity
and door will be very hot. Using oven mitts, grasp the browning
pan securely with both hands, and remove it with the convection
rack and food still in place to a heat-safe surface.
When handling the hot browning pan, use the detachable handle.
The microwave oven’s cooling fan will stay on until the microwave
oven is cooled.
Soften
The Soften menu has a selection of main food categories, plus a
shortcut to Manual Soften (see “Manual Method Cooking”
section).
Soften uses only microwaves to soften your food.
See “Cook Method Chart” for specific food items and amounts.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “More Choices,” and then
“Soften.” Follow screen prompts to make your selections,
prepare your food and/or microwave oven for cooking, and start
the cycle.
Beef Kabobs Chicken,
Bone-In Fish Steak
Hamburger Patty Pork Chops Shrimp
Steak Vegetable Manual Grill
Butter/Margarine Caramel Cheese
Chocolate Marshmallow Manual Melt
Beef Roast Cornish Hen Pork Chops
Pork Roast Shrimp Steak
Turkey Breast,
Bone-In Whole Chicken Manual Roast
Brown Sugar Butter/Margarine Caramel Dip
Cream Cheese Frozen Juice Ice Cream
Manual Soften
25
Steam Cook
The Steam Cook menu has a selection of main food categories,
plus a shortcut to Manual Steam Cook (see “Manual Method
Cooking” section).
Steam Cook is a sensor function, and uses only microwaves to
steam your food.
See “Cook Method Chart” for specific food items and amounts.
■Use the provided steamer vessel and its lid. Place 1¹⁄₄ cups
(300 mL) water in the base, place food in the insert, place the
insert in the base and cover.
■Do not remove the lid while the vessel is inside the microwave
oven, as the rush of steam will disrupt the sensor readings.
■The steamer vessel will become hot. Always use oven mitts
or pot holders when handling.
■To avoid scratching, use plastic utensils.
■Do not overfill. One-half full is recommended.
■Follow directions on the display.
To U se: Place food on the turntable, and close the door. Touch
“Cook Method” on Main Menu, touch “More Choices,” and then
“Steam Cook.” Follow screen prompts to make your selections,
prepare the food for steaming, and start the cycle.
Favorites Menu
The Favorites menu displays the 6 most used automatic cooking
programs. This provides you with your own customized menu,
which is easily accessible from the Main Menu.
The programs are shown in order of frequency of use. The food
type is shown first on the selection pad, followed on the next line
by the cook method. Following is the default Favorites menu
screen:
To Update Favorites Menu: On the Favorites screen, touch
“Auto Update.” The microwave oven shows the 6 programs used
most frequently since the last time the menu was updated.
Fish Fillet Fresh Vegetable Frozen Vegetable
Shrimp Manual Steam
V
26
Food Type Chart
Use this chart as a reference for menu items available in the “Food Type” menu
BREAKFAST FOOD
Bacon Grits Oatmeal
Cook Quick Instant
Cereal Instant - Cook - Cook
Cook Regular Regular
Egg - Cook - Cook
Fried Hash Brown Quiche
- Cook or Browning Pan Cook or Browning Pan Bake
Omelet Hot Wheat Sausage
- Cook or Browning Pan Cook Cook or Browning Pan
Poached Muffin Soufflé
- Cook Fresh Bake
Scrambled - Bake, Browning Pan or Reheat
- Cook Frozen
- Defrost or Reheat
DAIRY/DESSERT
Angel Food Cake Cheese Marshmallows
Bake Melt Melt
Brown Sugar Chocolate Nuts
Soften Melt Browning Pan
Brownies Cookies Pie
Bake or Browning Pan Bake or Browning Pan Fresh
Butter/Margarine Cream Cheese -Bake
Melt or Soften Soften Frozen
Caramel Ice Cream -Bake
Melt Soften Soufflé
Caramel Dip Bake
Soften
FROZEN FOOD
Frozen Entrée Garlic Bread Pot Pie
Regular (8-20 oz [227-567 g]) Bake Bake
- Cook Hash Brown Poultry
Large (40 oz [1.1 kg]) Cook or Browning Pan Defrost
- Cook Pie Soup
Family Size (60 oz [1.7 kg]) Bake Reheat
- Cook Pizza Vegetable
Fish Kids Pizza 5" Cook or Steam Cook
Fillet, Breaded - Cook
- Cook Pizza Roll
Fillet, Non-breaded - Cook
- Defrost or Cook Rising Crust
Fish Stick - Cook or Browning Pan
- Cook Thin Crust
French Toast - Cook or Browning Pan
Cook or Browning Pan
LIQUIDS
Beverage Sauce Soup, Thick
Reheat Thick Reheat
Frozen Juice -Reheat Soup, Thin
Soften Thin Reheat
Soup, Frozen -Reheat
Reheat
27
SNACKS
Burrito Kids Pizza 5" Pizza Roll
Cook Cook Cook
Cheese Sticks Marshmallow Potato Nuggets
Cook Melt Browning Pan
French Fries Pizza, Leftover Snack Pocket
Browning Pan Reheat Cook
Instant Macaroni & Cheese
Cook
VEGETABLE
Canned Vegetable Fresh Vegetable (cont’d) Fresh Vegetable (cont’d)
Cook Corn on the Cob Potato Baked/Sweet
Fresh Vegetable - Cook or Steam Cook - Cook
Asparagus Green Beans Red Potato, New
- Cook or Steam Cook - Cook or Steam Cook - Steam Cook
Broccoli Mushroom Spinach
- Cook or Steam Cook - Cook or Grill - Cook or Steam Cook
Carrots Onion Summer Squash/Zucchini
- Cook or Steam Cook - Grill - Cook or Steam Cook
Cauliflower Pepper Tomato
- Cook or Steam Cook - Grill - Grill
Frozen Vegetable
Cook or Steam Cook
BREAD
Bagel French Toast Muffin
Small Cook or Browning Pan Fresh
-Defrost Loaf Bread - Reheat, Bake or Browning Pan
Medium Frozen Frozen
-Defrost -Defrost -Reheat or Defrost
Large Garlic Bread Roll
- Defrost - Bake Fresh/Leftover
Biscuit, Refrigerated Quick - Reheat
Large - Defrost or Bake Frozen
- Bake or Browning Pan Yeast - Reheat, Defrost or Bake
Regular - Defrost or Bake Large, Refrigerated
- Bake or Browning Pan - Bake
Regular, Refrigerated
-Bake
CASSEROLE
Lasagna Pasta Casserole Vegetable Casserole
Cook Cook Cook
Leftover Casserole Potato Casserole
Reheat Cook
FISH/SEAFOOD
Fish Fillet Fish Steak Scallops
Fresh Defrost, Cook or Grill Defrost
- Cook or Steam Cook Fish Stick, Frozen Shrimp
Frozen, Breaded Cook Defrost, Grill, Roast or Steam Cook
- Cook
Frozen, Non-Breaded
- Defrost or Cook
28
Cook Method Chart
Use this chart as a reference for menu items and amounts available in the “Cook Method” menu.
GRAINS: PASTA/RICE
Canned Pasta Pasta Rice
Cook Dried Pasta (cont’d) Brown Rice Instant
Couscous - Penne Cook
Boil & Simmer Cook Brown Rice Long Grain
Grits - Rotini Cook
Quick Cook White Rice Instant
- Cook - Spaghetti Cook
Regular Cook White Rice Long Grain
- Cook Fresh Pasta Cook
Instant Macaroni & Cheese - Linguine White Rice Short Grain
Cook Cook Cook
Pasta - Ravioli
Dried Pasta Cook
- Fettuccine - Tortellini
Cook Cook
- Macaroni
Cook
MEAT
Beef Hot Dog Pork (cont’d)
Beef Kabobs Cook Ham Steak
-Grill Lamb Chops - Cook
Ground Beef Defrost, Roast or Grill Pork Chops
- Defrost or Cook Meatballs - Defrost, Grill or Roast
Hamburger Patty Cook or Browning Pan Pork Roast
- Cook or Grill Pork -Roast
Meat Loaf Bacon Sausage
- Cook - Cook Browning Pan
Roast Beef Ham Slice
- Roast - Cook
Steak
Defrost, Grill or Roast
POULTRY
Cornish Hen Chicken Tenders Poultry Breast, Pan Brown
Roast Cook Browning Pan
Chicken Nuggets Chicken Wings Poultry Breast, Poached
Cook Cook Cook
Chicken, Bone-In Ground Poultry Turkey Breast, Bone-In
Defrost, Cook or Grill Defrost or Cook Roast
Chicken, Boneless Whole Chicken
Defrost or Cook Roast
REHEAT
Beverage Roll
1 or 2 cups (250-500 mL) Fresh: 1-6 rolls
Casserole, Leftover Frozen: 1-6 rolls
1-4 cups (250 mL-1 L) Sauce
Meal (dinner plate) Thick: senses 1-4 cups (250 mL-1 L)
1 meal (sensor) Thin: senses 1-4 cups (250 mL-1 L)
2 meals Soup
Muffin Frozen: 1-4 cups (250 mL-1 L)
Fresh: 1-6 muffins Thick: senses 1-4 cups (250 mL-1 L)
Frozen: 1-6 muffins Thin: senses 1-4 cups (250 mL-1 L)
Pizza Leftover Manual Reheat
1-3 slices
29
DEFROST
Bread Meat
0.1-2.0 lbs (45-900 g) 0.1-6.5 lbs (45 g-2.9 kg)
Weight Unknown Weight Unknown
-Bagel -Chops
small: 2-8 bagels small: 1-6 pieces
medium: 1-6 bagels medium: 1-6 pieces
large: 1-6 bagels large: 1-4 pieces
- Muffin - Ground: 1, 2, 3 or 4 cups (250, 500, 750 mL or 1 L)
small: 4, 6, 8, 10, 12, 14 or 16 muffins - Steak
medium: 1-6 muffins small: 1-6 pieces
large: 1-6 muffins medium: 1-4 pieces
- Roll large: 1 or 2 pieces
small: 2-7 rolls Poultry
medium: 1-6 rolls 0.1-6.5 lbs (45 g-2.9 kg)
large: 1-6 rolls Weight Unknown
Fish/Seafood - Breast: 1-6 pieces
0.1-4.5 lbs (45 g-2.0 kg) - Ground: 1, 2, 3 or 4 cups (250, 500, 750 mL or 1 L)
Weight Unknown - Pieces
- Fillet: 1-6 pieces small: 1-6 pieces
- Shrimp: 1-4 cups (250 mL-1 L) medium: 1-4 pieces
- Scallops: 1-4 cups (250 mL-1 L) large: 1-4 pieces
- Steak: 1-4 pieces Manual Defrost
COOK
Casserole Frozen Food (cont’d)
Pasta Casserole: 1.5 or 2.0 qt (1.4 or 1.9 L) Frozen Pizza
Potato Casserole: 1.5 or 2.0 qt (1.4 or 1.9 L) - Kids Pizza 5"
Vegetable Casserole: 1.5 or 2.0 qt (1.4 or 1.9 L) - Pizza Roll: 1-4 servings
Cereal/Oatmeal - Rising Crust: 6" - 12" (15.2-30.5 cm)
Grits - Thin Crust: 6" - 12" (15.2-30.5 cm)
- Quick: senses 1-4 servings Frozen Vegetable: senses 2-6 cups (500 mL-1.5 L)
- Regular: senses 1-4 servings Hash Brown: 1-4 patties
Hot Wheat: 1-4 servings Snack Pocket: 1 or 2 servings
Instant Cereal: 1-4 servings Meat
Oatmeal Bacon: 2-4 slices
- Instant: 1-4 servings Ground Beef: 0.5, 1.0, 1.5 or 2.0 lbs (227, 454, 680 or 907 g)
- Regular: 1-4 servings Ham Slice: 1-4 slices
Couscous Ham Steak: 4-8 oz (113-227 g)
senses 1-4 servings Hamburger Patty: 1-4 patties
Egg Hot Dog: 1-4 hot dogs
Fried: 1-4 eggs Meat Loaf: 1.0, 1.5 or 2.0 lbs (454, 680 or 907 g)
Omelet: 2-4 eggs Meatballs: 0.5 or 1.0 lb (227 or 454 g)
Poached: 1-4 eggs Sausage: 2-10 links
Scrambled: 1-4 eggs Pasta
Fish/Seafood Canned Pasta: senses 1-4 servings
Fish Fillet Dried Pasta
- Fresh: senses 0.5-2.0 lbs (227-907 g) - Fettuccine: senses 2-8 oz (57-227 g)
- Frozen, Breaded: 1-4 servings - Macaroni: senses 0.5-2.0 cups (125-500 mL)
- Frozen, Non-breaded: 1-6 pieces - Penne: senses 0.5-2.0 cups (125-500 mL)
Fish Steak: 0.5-1.0 lb (227-454 g) - Rotini: senses 0.5-2.0 cups (125-500 mL)
Fish Stick, Frozen: 1-4 servings (6-18 sticks) - Spaghetti: senses 2-8 oz (57-227 g)
Frozen Food Fresh Pasta
Burrito: 1 or 2 burritos - Linguine: senses 9 or 18 oz (255 or 510 g)
Cheese Sticks: 1-4 servings - Ravioli: senses 9 or 18 oz (255 or 510 g)
Fish/Seafood - Tortellini: senses 9 or 18 oz (255 or 510 g)
- Fish Fillet, Breaded: 1-4 servings Instant Mac & Cheese: 1-2 servings
- Fish Fillet, Non-Breaded: 1-6 pieces Lasagna: 8" x 8" (22.9 x 33.0 cm) or 9" x 13" (20.3 x 33.0 cm)
- Fish Stick: 1-4 servings (6-18 pieces) Pasta Casserole: 1.5 or 2.0 qt (1.4 or 1.9 L)
French Fries: 1-3 servings
French Toast: 1-4 pieces
Frozen Entrée
- Regular: senses 8-20 oz (227-567 g)
- Large: 40 oz (1.1 kg)
- Family: 60 oz (1.7 kg)
30
COOK (cont’d)
Poultry Vegetable
Chicken Nuggets: 1-4 servings (4-16 pieces) Canned Vegetable: 8-32 oz (237-946 mL)
Chicken Fresh Vegetable
- Bone-In: 0.5-3.5 lbs (227 g-1.5 kg) - Asparagus: senses 8-16 oz (227-454 g)
- Boneless: 0.2-2.0 lbs (90-907 g) - Broccoli: senses 1-6 cups (250 mL-1.5 L)
Chicken Tenders: 1-4 servings - Carrots: senses 1-6 cups (250 mL-1.5 L)
Chicken Wings: 1-4 servings - Cauliflower: senses 1-6 cups (250 mL-1.5 L)
Ground Poultry: 0.5, 1.0, 1.5 or 2.0 lbs (227, 454, 680 or 907 g) - Corn on the Cob: senses 1-4 ears
Poultry Breast Boneless - Green Beans: senses 1-6 cups (250 mL-1.5 L)
- Pan Brown: 1-3 pieces - Mushroom: senses 1-6 cups (250 mL-1.5 L)
- Poached: 0.2-1.5 lbs (90-680 g) - Potato, Baked/Sweet: senses 1-4 potatoes
Rice - Spinach: senses 2-6 cups (500 mL-1.5 L)
Brown Rice Instant: senses 0.5-2.0 cups (125-500 mL) - Summer Squash/Zucchini: senses 1-6 cups (250 mL-1.5 L)
Brown Rice Long Grain: senses 0.5-2.0 cups (125-500 mL) Frozen Vegetable: senses 2-6 cups (500 mL-1.5 L)
White Rice Instant: senses 0.5-2.0 cups (125-500 mL) Vegetable Casserole: 1.5-2.0 qt (1.4-1.9 L)
White Rice Long Grain: senses 0.5-2.0 cups (125-500 mL) Manual Cook
White Rice Short Grain: senses 0.5-2.0 cups (125-500 mL)
BAKE
Angel Food Cake Pie
1 cake Fresh: 9" (22.9 cm)
Biscuit, Refrigerated Frozen: 9" (22.9 cm)
Large: 5 or 8 biscuits Pot Pie
Regular: 5 or 10 biscuits 1 or 2 pies
Bread Quiche
Garlic Bread: 8-10 oz (227-283 g) loaf 9" (22.9 cm)
Quick: 1 or 2 loaves Roll, Refrigerated
Yeast: 1 or 2 loaves Large: 5 or 6 rolls
Brownies Regular: 4 or 8 rolls
8" x 8" (20.3 x 20.3 cm) or 9" x 13" (22.9 x 33.0 cm) Soufflé
Cookies 1 soufflé (2.0 qt [1.9 L])
1 cookie sheet Manual Bake
Muffin
6 or 12 muffins
BOIL & SIMMER
Couscous Fresh Pasta
senses 1-4 servings Linguine: senses 9 or 18 oz (255 or 510 g)
Dried Pasta Ravioli: senses 9 or 18 oz (255 or 510 g)
Fettuccine: senses 2-8 oz (57-227 g) Tortellini: senses 9 or 18 oz (255 or 510 g)
Macaroni: senses 0.5-2.0 cups (125-500 mL) Rice
Penne: senses 0.5-2.0 cups (125-500 mL) Brown Rice Instant: senses 0.5-2.0 cups (125-500 mL)
Rotini: senses 0.5-2.0 cups (125-500 mL) Brown Rice Long Grain: senses 0.5-2.0 cups (125-500 mL)
Spaghetti: senses 2-8 oz (57-227 g) White Rice Instant: senses 0.5-2.0 cups (125-500 mL)
White Rice Long Grain: senses 0.5-2.0 cups (125-500 mL)
White Rice Short Grain: senses 0.5-2.0 cups (125-500 mL)
Manual Boil & Simmer
BROWNING PAN
Baked Goods Frozen Food
Biscuit Cheese Sticks: 1-4 servings
- Large: 5 or 8 biscuits Chicken Nuggets: 1-4 servings (4-16 pieces)
- Regular: 5 or 10 biscuits Chicken Tenders: 1-4 servings
Brownies: 20 oz (567 g) package Fish
Cookies: 4, 6 or 8 cookies - Fillet, Frozen, Breaded: 1-4 servings
Muffins: 4, 6 or 8 muffins - Fish Stick Frozen: 1-4 servings (6-18 pieces)
Roll, Refrigerated French Fries: 1-3 servings
- Large: 5 or 6 rolls French Toast: 1-4 pieces
- Regular: 4 or 8 rolls Hash Brown: 1-4 patties
Egg Pizza
Fried: 1-4 eggs - Rising Crust: 6"-11" (15.2-27.9 cm)
Omelet: 2-4 eggs - Roll: 1-4 servings
Fish Steak - Thin Crust: 6"-12" (15.2-30.5 cm)
0.5-1.0 lb (227-454 g) Potato Nuggets: 1-4 servings
Sausage: 2-10 links
31
BROWNING PAN (cont’d)
Meat Nuts
Bacon: 2-4 slices 0.5, 1.0, 1.5 or 2 cups (125, 250, 375 or 500 mL)
Ham Slice: 1-4 slices Poultry Breast, Boneless
Ham Steak: 4-8 oz (113-227 g) 1-3 pieces, 0.4 lb (113 g) each
Hamburger Patty: 1-4 patties, 0.3 lb (136 g) each Sausage
Meatballs: 0.5-1.0 lbs (227-454 g) 2-10 links
Manual Browning Pan
GRILL
Beef Kabobs Shrimp
1-4 servings 5-8 oz (142-227 g)
Chicken, Bone-In Steak
1 or 2 pieces, 0.8 lb (363 g) each 1 steak, 0.7-1.0 lb (318-454 g), 1/2" (13 mm) thick
Fish Steak Vegetable
1 or 2 steaks, 1" (2.4 cm) thick Mushroom: 1-3 servings; 5-6, 10-12 or 15-18 pieces
Hamburger Patty Onion: 1 or 2 servings, 5-6 or 10-12 pieces
1-4 patties Pepper: 1 or 2 servings, 1 or 2 halves
Pork Chops Summer Squash: 1 or 2 servings
1 or 2 chops Tomato: 2 or 4 halves
Manual Grill
MELT
Butter/Margarine Chocolate
0.5, 1.0, 1.5 or 2 sticks or 1-8 tbs (15-120 mL) 1-12 oz (28-340 g) or 0.5, 1.0, 1.5 or 2.0 cups
Caramel (125, 250, 375 or 500 mL)
7 or 14 oz (199 or 397 g) Marshmallow
Cheese 5 or 10 oz (142 or 283 g)
8 or 16 oz (227 or 454 g) Manual Melt
ROAST
Beef Roast Shrimp
2.0-5.0 lbs (907 g-2.3 kg) 5-8 oz (142-227 g)
Cornish Hen Steak
1.0-2.5 lbs (454 g-1.1 kg) 1 steak, 0.7-1.0 lb (318-454 g), 1/2" (13 mm) thick
Pork Chops Turkey Breast, Bone-In
1 or 2 chops 3.0-6.0 lbs (1.4-2.7 kg)
Pork Roast Whole Chicken
2.0-5.0 lbs (907 g-2.3 kg) 2.5-6.0 lbs (1.1-2.7 kg)
Manual Roast
SOFTEN
Brown Sugar Frozen Juice
0.5, 1.0, 1.5 or 2.0 cups (125, 250, 375 or 500 mL) 6, 12 or 16 oz (170, 340 or 454 g)
Butter/Margarine Ice Cream
0.5, 1.0, 1.5 or 2 sticks or 1-8 tbs (15-120 mL) 16, 32 or 64 oz (473, 946 mL or 1.9 L)
Cream Cheese Manual Soften
3 or 8 oz (85 or 227 g)
STEAM COOK
Fish Fillet Fresh Vegetable (cont’d)
senses 0.5-2.0 lbs (227-907 g) Red Potato, New: senses 2-6 cups (500 mL-1.5 L)
Fresh Vegetable Spinach: senses 4-8 cups (1-2 L)
Asparagus: senses 8-16 oz (227-454 g) Summer Squash/Zucchini: senses 2-6 cups (500 mL-1.5 L)
Broccoli: senses 2-6 cups (500 mL-1.5 L) Frozen Vegetable
Carrots: senses 2-6 cups (500 mL-1.5 L) senses 2-6 cups (500 mL-1.5 L)
Cauliflower: senses 2-6 cups (500 mL-1.5 L) Shrimp
Corn on the Cob: senses 2-4 ears senses 5-10 oz (142-283 g)
Green Beans: senses 2-6 cups (500 mL-1.5 L) Manual Steam Cook
32
MICROWAVE OVEN CARE
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on
cleaning products.
Soap, water and a soft cloth or sponge are suggested unless otherwise noted.
GREASE FILTERS
Do not use ammonia or corrosive cleaning agents such as lye-
based oven cleaners.
■Hot water and mild detergent:
Soak filters, then scrub and swish to remove embedded dirt
and grease. Rinse well and shake to dry.
■Dishwasher:
Wash separately, not with dirty dishes, because food can be
trapped in the filters.
NOTE: Some discoloration of the filters may occur after
cleaning them in the dishwasher. This is normal, and will not
affect the performance of the grease filters.
MICROWAVE OVEN CAVITY AND DOOR
The gray finish inside the microwave oven cavity is a durable,
nonstick coating that makes soils easier to remove.
To avoid damage to the microwave oven cavity, do not use metal
or sharp utensils or scrapers, soap-filled scouring pads, abrasive
cleaners, steel-wool pads, gritty washcloths or some recycled
paper towels. If damage occurs, special touch-up paint may be
applied. Call 1-800-4-MY-HOME® to order. See “Replacement
Parts” section for part number.
The inside of the door should be cleaned after every use in order
to avoid accumulation of “baked-on” food.
The area where the microwave oven door and frame touch when
closed should be kept clean.
Average soil
■Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
Heavy soil
■Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave
oven. Steam will soften soil. Rinse with clean water and dry
with soft, lint-free cloth.
Odors
■Lemon juice or vinegar:
Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either
lemon juice or vinegar for 2 to 5 minutes in microwave oven.
Microwave Inlet Cover
To avoid arcing and damage to the microwave oven, the
microwave inlet cover (see “Parts and Features”) should be kept
clean.
■Wipe with wet cloth.
CONTROL PANEL/INTERACTIVE TOUCH DISPLAY
Activate the Control Lock to avoid touch screen activation during
cleaning. See “Control Lock” section.
To avoid damage to the control panel/touch display, do not use
abrasive cleaners, steel-wool pads or gritty washcloths.
Use gentle pressure when wiping the touch screen.
■Glass cleaner and soft cloth:
Apply glass cleaner to soft cloth, not directly on panel.
■Mild soap, water and soft washcloth
MICROWAVE OVEN DOOR AND EXTERIOR
The area where the microwave oven door and frame touch when
closed should be kept clean.
■Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
■Glass cleaner and paper towels or nonabrasive plastic
scrubbing pad:
Apply glass cleaner to towel, not directly to surface.
Stainless Steel (on some models)
To avoid damage to the microwave oven door and exterior, do
not use soap-filled scouring pads, abrasive cleaners, steel-wool
pads, gritty washcloths or some paper towels. Rub in direction of
grain.
■Stainless Steel Cleaner and Polish (not included):
Call 1-800-4-MY-HOME® to order. See “Replacement Parts”
section for part number.
■Liquid detergent or all-purpose cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
■Vinegar for hard water spots
STEAMER VESSEL
■Soft brush, if necessary, to clean holes in steamer insert.
■Dishwasher
Stubborn Stains
To remove stains such as tomato sauce, use a nonabrasive
cleanser, a no-scratch pad, or a solution of dishwasher detergent
and water (1/4 cup [60 mL] detergent to 1 cup [250 mL] warm
water).
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
■Mild cleanser and scouring pad
■Dishwasher
33
BROWNING PAN
To avoid damage to the browning pan, do not use abrasive
cleansers or scrubbers.
■Mild cleanser, water and washcloth
■Dishwasher
CONVECTION and GRILL RACKS
Dishwasher cleaning is not recommended. To avoid damage to
the convection and grill racks, do not use abrasive cleansers or
scrubbers.
■Mild soap, water and washcloth

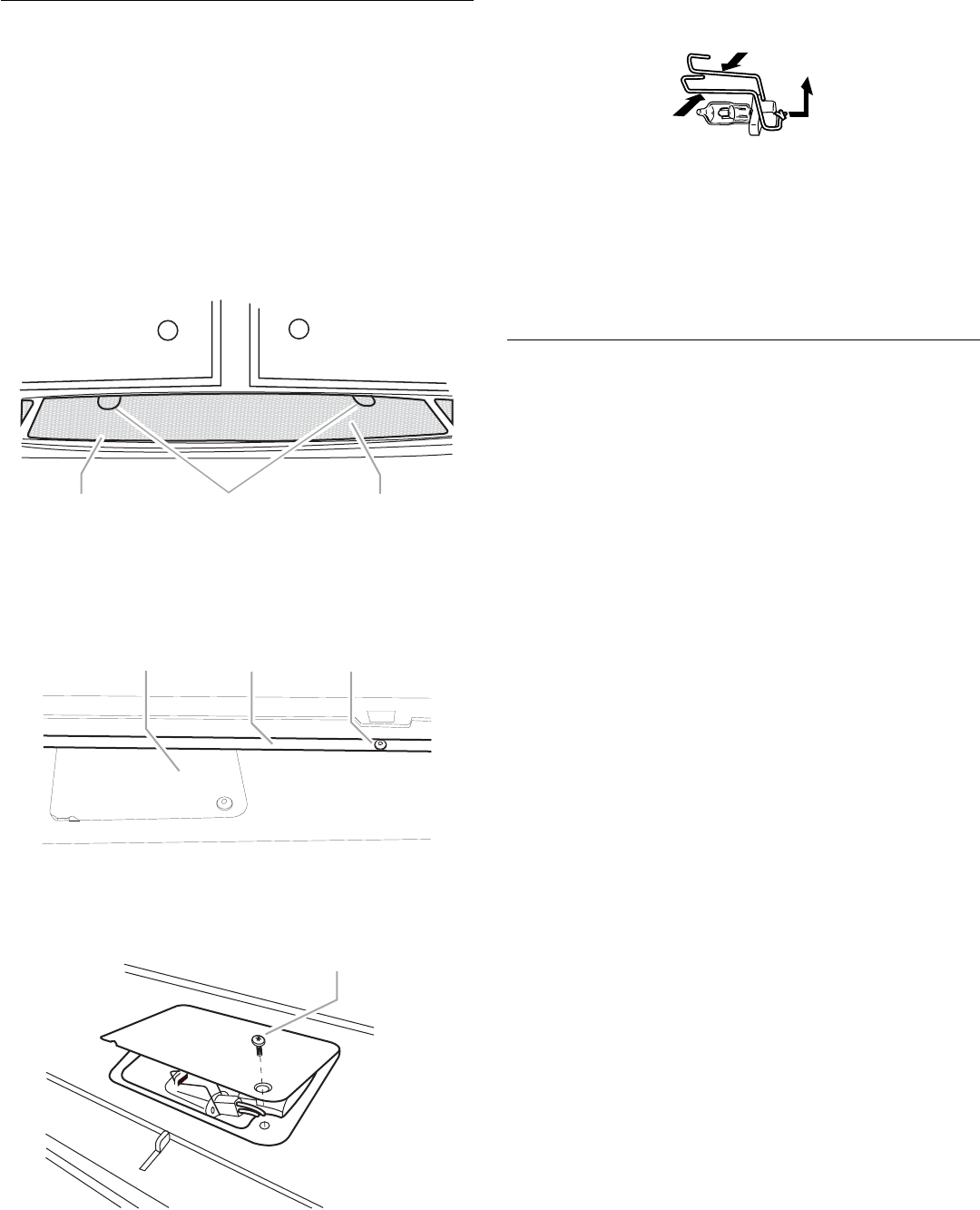

Replacing Filters
The grease filters should be removed and cleaned at least once a
month. The charcoal filters cannot be washed and should be
replaced every 6 to 12 months. Do not operate the microwave
oven without the filters in place. To order any of the parts, call
1-800-4-MY-HOME®. See “Replacement Parts” section for part
numbers. See “General Cleaning” for cleaning instructions.
To Remove/Replace:
1. Squeeze the small tab on the outer edge of the filter frame
inward, and pull down until the frame and filters drop out.
2. Replace the filters by inserting the wide tab of the filter frame
into the inner portion of the filter housing, then swinging the
outside of the frame up until it fits into place.
Replacing Cooktop Light
The cooktop light consists of two 10W low-voltage halogen
capsule bulbs. To order any of the parts, call
1-800-4-MY-HOME®. See “Replacement Parts” section for part
numbers.
You will need a TORX®† T10 screwdriver to remove the bulb cover
mounting screw.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Remove bulb cover mounting screw, and gently open cover.
3. Remove the burned-out bulb.
4. Replace bulb, using a tissue or wearing clean cotton gloves
to handle the bulb. Do not touch bulb with bare fingers.
5. Close bulb cover and replace mounting screw.
6. Plug in microwave oven or reconnect power.
A. Retaining spring
B. Filter frame
C. Grease filter
D. Charcoal filter
A. Filter frame
B. Small tab
C. Grease filter
A B C D
A
B
C
A. Filter frame
B. Wide tab
C. Microwave oven bottom
A. Mounting screw
B. Bulb cover lens
C. Halogen bulb
A B C
†®TORX is a registered trademark of Acument Intellectual Properties, LLC
A B C
34
Replacing Microwave Oven Light
The microwave oven light is a 10W low-voltage halogen capsule
bulb. It will automatically come on when the door is opened and
when the microwave oven is operating. To order any of the parts,
call 1-800-4-MY-HOME®. See “Replacement Parts” section for
part numbers.
You will need a TORX®† T10 screwdriver to remove the bulb cover.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Gently pull vent screen rings and lift the screen off the
exhaust vent at the top of the microwave oven.
If using recirculating exhaust venting, skip Step 3.
3. For wall or roof venting, remove the vent deflector by
removing the mounting screws (1 from each end), and lifting
out the vent deflector.
4. Remove the bulb cover mounting screw, then lift cover.
5. Remove the burned-out bulb by squeezing the wire clip
together, pulling to the right and lifting.
6. Replace bulb, using tissue or wearing clean cotton gloves to
handle bulb. Do not touch bulb with bare fingers.
7. Close bulb cover, and fasten with screw.
If using recirculating exhaust venting, skip Step 8.
8. For wall or roof venting, replace the vent deflector removed in
Step 3.
9. Replace vent screen.
10. Plug in microwave oven or reconnect power.
Replacement Parts
Replacement parts can be ordered by calling
1-800-4-MY-HOME®, and referencing these part numbers:
Cleaning and Maintenance Supplies
A. Vent screen
B. Rings
C. Bulb cover (under screen)
A. Bulb cover
B. Vent deflector
C. Vent deflector mounting screws (2)
A. Bulb cover mounting screw
†®TORX is a registered trademark of Acument Intellectual Properties, LLC
A B C
A B C
A
Tur ntable
Part Number 8205992
Turntable Support and Rollers
Part Number 8206222
Tur ntable Hub
Part Number 8205994
Grill Rack (tall)
Part Number 8206264
Convection Rack (short)
Part Number 8205995
Steamer Vessel
Part Number W10231552
Browning Pan
Part Number 8205996
Browning Pan Handle
Part Number W10120838
Grease Filters (2)
Part Number W10120839
Charcoal Filters (2)
Part Number W10231551
Cooktop and Microwave Oven
Light
Part Number 8204670
Heavy Duty Degreaser
Part Number 31552
All-Purpose Appliance Cleaner
Part Number 31682
Stainless Steel Cleaner and
Polish
Part Number 31462
Cavity Touch Up Paint
Part Number 8204955
35
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Nothing will operate
■Has a household fuse blown, or has a circuit breaker
tripped?
Replace the fuse or reset the circuit breaker. If the problem
continues, call an electrician.
■Is the microwave oven wired properly?
See Installation Instructions provided with your microwave
oven.
Microwave oven will not operate
■Is the magnetron working properly?
Try to heat 1 cup (250 mL) of cold water for 2 minutes at
100% cooking power. If water does not heat, try the steps
below. If microwave oven still does not operate, contact a
Sears trained specialist. See back cover.
■Is the door completely closed?
Firmly close door.
■Is a packaging spacer (on some models) attached to the
inside of the door?
Remove packaging spacer, then firmly close door.
■Is the electronic microwave oven control set correctly?
See “Microwave Oven Control” section.
■Is the Control Lock set?
See “Control Lock” section.
■Is the Learning Mode activated?
See “Learning Mode” section.
■Does the display show a message about opening the
door?
The door has been closed for an extended period of time
(about 5 minutes) after adding food and before starting the
microwave oven. Open and close the door, then start the
cycle.
Microwave oven door looks wavy
■This is normal and will not affect performance.
Turntable will not operate
■Has tape been removed from turntable hub?
Remove tape. See “Turntable” section.
■Is the turntable properly in place?
Make sure turntable is correct side up and is sitting securely
on the turntable support.
■Is the turntable support operating properly?
Remove turntable. Remove and clean turntable support and
rollers. Replace turntable support. Replace turntable. Place
1 cup (250 mL) of water on turntable, then restart microwave
oven. If it still is not working, contact a Sears trained
specialist. See back cover. Do not operate the microwave
oven without turntable and turntable support working
properly.
Turntable alternates rotation directions
■This is normal and depends on motor rotation at the
beginning of the cycle.
Display shows time countdown, but is not operating
■Is the Timer in use?
See “Timer” section.
■Is the Learning Mode in use?
See “Learning Mode” section.
Steam is coming from the vent screen
■Some steam is normal.
Fan running after cooking is finished
■This is normal for convection and grill use. The fan may run
for up to 10 minutes after the cycle ends to cool the
microwave oven.
Fan running slower than usual
■Has the microwave oven been stored in a cold area?
The fan will run slower until the microwave oven warms up to
normal room temperature.
36
Fan running during cooktop usage
■This is normal. The microwave oven’s cooling fan, which is
separate from the vent fan, automatically comes on during
microwave oven operation to cool the microwave oven. Both
the vent fan and the cooling fan may also automatically come
on and cycle on and off to cool the microwave oven’s
controls while the cooktop below is being used.
Cooking times seem too long
■Is the cooking power set properly?
See “Microwave Cooking Power” section.
■Are large amounts of food being heated?
Larger amounts of food need longer cooking times.
■Is the incoming voltage less than specified in “Microwave
Hood Combination Safety?”
Have a qualified electrician check the electrical system in the
home.
Odor coming from microwave oven during convection
cooking
■This is normal for the first few convection cycles. The odor
will dissipate with repeated use.
Quartz bulb does not appear to be on
■This is not unusual. See “Grill Element” section.
■Is the element still working properly?
To check proper operation of elements, place 2 slices of
bread on the tall grill rack, place the rack on the turntable and
close the door. Program the microwave oven using Manual
Grill – without microwaves – for 4 minutes (see “Manual
Method Cooking” section). The bread should toast dark
brown. If the bread does not toast, contact a Sears trained
specialist. See back cover.
Radio, TV or cordless phone interference
■Is the radio or TV receiver near the microwave oven?
Move the receiver away from the microwave oven, or adjust
the radio or TV antenna.
■Are the microwave oven door and sealing surfaces clean?
Make sure these areas are clean.
■Is the cordless phone frequency 2.4 GHz?
Some 2.4 GHz-based cordless phones and home wireless
networks may experience static or noise while the microwave
oven is on. Use a corded phone or a different frequency
cordless phone, or avoid using these items during microwave
oven operation.
37
