ETHOS – Quick Start Guide
1
Contents
1. Introduction....................................................... 3
2. Notice of content and ownership ...................... 5
3. Your MI Smartphone ......................................... 9
4. Getting started ................................................ 16
5. Settings ............................................................ 20
6. Applications & widgets .................................... 26
7. Accessories in the box ..................................... 32
8. Common issues and solutions ......................... 35
9. Additional safety instructions .......................... 40
10. Safety information regarding radiation ........... 43
11. Warranty ......................................................... 45
ETHOS – Quick Start Guide
2
Support & information
In chapter 8 you will find a list of frequently reported
issues, possible causes and potential solutions. Please
check this list first when you experience problems with
your device.
More information and answers to frequently asked
questions can be found on our website:
www.mobile-initiative.com
Still need help? Please send an email to
support@mobile-initiative.com and our
knowledgeable Support Team will assist you.
>Please note: Information regarding radiation and SAR
can be found in this Quick Start Guide (chapter 10) or on
our website (www.mobile-initiative.com).
ETHOS – Quick Start Guide
3
1. Introduction
Congratulations! Choosing the MI ETHOS smartphone
was an excellent decision.
The ETHOS is an Android 8.1 smartphone with many
extra features.
Besides your current SIM card, you can add an
additional, second SIM card that – as an example – will
enable you to call, text and surf the web cheaply when
being abroad. This is not mandatory. Also, you can
choose the SIM-slot you prefer to use.
The 5.45” 18:9 HD+ touchscreen lets you enjoy photos,
videos and thousands of applications available for
download at the Google Play Store
The use of modern, wireless technology allows you to
be online everywhere. This might be through the
advanced 4G-LTE and 3G technology, or simply at
home, through your personal Wi-Fi connection.
Your smartphone comes with a Stereo headset. Besides
enabling you to call hands-free, this headset is
exceptionally fit for playing music and movies.
ETHOS – Quick Start Guide
4
List of technical specifications
5.45 inch 18:9 HD+ IPS-LCD touchscreen
Android 8.1
GSM 850/900/1800/1900 MHz
WCDMA/UMTS 850/1700/1900 MHz
LTE BAND2/BAND4/BAND5/BAND7/BAND12
3G/4G Internet (where available and with the
applicable GSM operator and service plan)
Dual SIM: Dual-Standby / One-Talk (SIM cards not
included)
Fingerprint control
13 MP AF-camera with LED-flash (rear)
5 MP FF-camera (front)
GPS / A-GPS
Wi-Fi b/g/n
Portable hotspot functionality (tethering)
16 GB storage memory (approx. 14 GB available)
Memory card slot (up to 32 GB; not included)
2 GB RAM
1.3 GHz Quad-Core processor
Bluetooth 4.0
Access to thousands of apps through (for instance)
the Google Play Store
ETHOS – Quick Start Guide
5
2. Notice of content and
ownership
Copyright © 2018 Mobile Initiative. All rights reserved.
The full and total contents of this documentation is
protected by copyright laws. Any form of reproduction,
transference, distribution or saving of the contents of
this document, be it partly or wholly, without prior
consent in writing from MI, is prohibited.
Mobile Initiative and the "MI" logo are registered
trademarks of Mobile Initiative and are protected by all
applicable laws. Other product- or company names
within this document that are noted as such are
trademarks or trade names of the respective owners.
Bluetooth is a registered trademark of Bluetooth SIC,
Inc.
MI has reviewed the contents of this documentation
with regard to accuracy, but they may, nevertheless,
contain errors or unintentional omissions.
MI reserves the right to modify or enhance all products
described in this document, and to revise this
documentation without prior notice.
This documentation was supplied to serve as a user
guide exclusively for MI mobile phones and contains no
clarification with regard to hardware- or software
ETHOS – Quick Start Guide
6
configurations of the products described within this
document. The availability of specific products or
expansions may vary depending on your location. For
additional information, please refer to your nearest MI
dealer or at www.mobile-initiative.com
Several functionalities described within this document
refer to network services and require support by your
network- or service provider. Please refer to either of
them for specific information regarding these
functionalities.
This device may contain parts, technology or software
upon which the export regulations and local laws of
specific countries apply. Exporting, when in
contradiction with local laws, is prohibited.
Before using this device, please thoroughly acquaint
yourself with the contents of the following "Safety and
user instructions" and the chapters "Additional safety
instructions" and "Safety information regarding
radiation and SAR".
ETHOS – Quick Start Guide
7
Safety and user instructions
EXPANSIONS
Only use approved
expansions. Do not
connect any
incompatible
products.
POWER DOWN
ABOARD
AIRPLANES
Wireless devices
may cause
electromagnetic
disturbances in
airplanes.
CONNECTING TO
OTHER DEVICES
Is only permitted in
Safe Areas.
SAVE THE
ENVIRONMENT
The battery must be
recycled or
disposed of
properly, according
to local laws and
regulations and
always kept
separate from
household waste.
BACK-UP COPIES
Remember to make
copies or written
notes of important
information, such as
passwords or
parameters of
network providers.
KEEP CHILDREN
SAFE
Keep every small
item of the device,
such as memory
cards, out of reach
of children.
ETHOS – Quick Start Guide
8
Prior to using this device for the first time, make
yourself acquainted with all safety- and user
instructions:
• Keep this manual stored properly so that you
may consult it easily at a later time. Carefully
follow the notifications supplied within this
manual.
• Follow all instructions for use and operation
carefully.
• Before cleaning the device, unplug it from any
and all electrical outlets. Do not use liquid
solvents or products in aerosol. Clean the device
with a soft and slightly moist cloth.
• Do not use the device near water, near a
bathtub, wash-basin or sink, in a moist
basement or near a swimming pool.
• To insert the battery, SIM card and accessories,
follow the instructions of your vendor and only
use accessories that were recommended by the
vendor of this device.
ETHOS – Quick Start Guide
9
3. Your MI Smartphone
Preparing for first use
Before you begin, make sure the phone is switched off
and the charger is not connected.
Now follow all steps described below to insert the SIM
card(s) and battery.
>Please note: Damage caused by not carefully inserting
the SIM card(s) and/or the battery is not covered by our
Limited Warranty (see chapter 12).

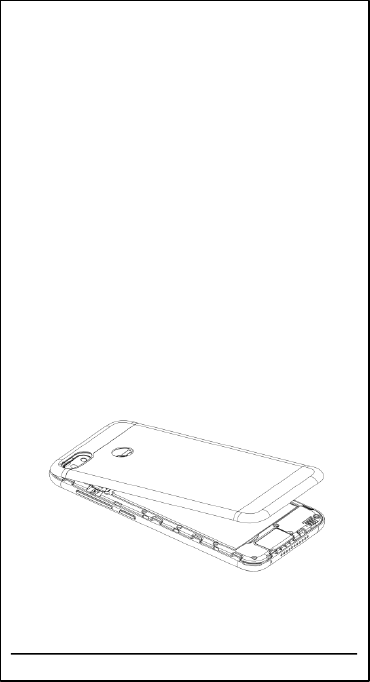

Step 1: Open the rear panel:
ETHOS – Quick Start Guide
10

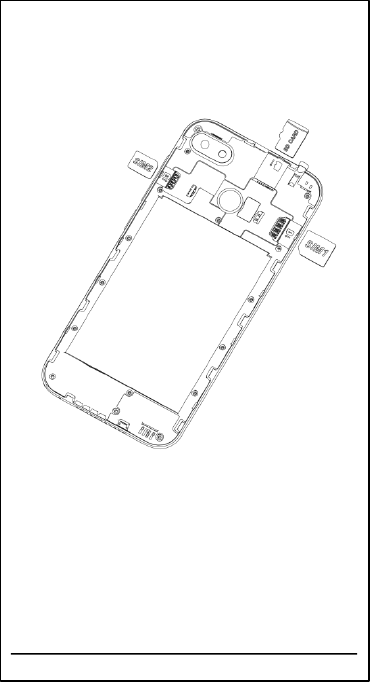

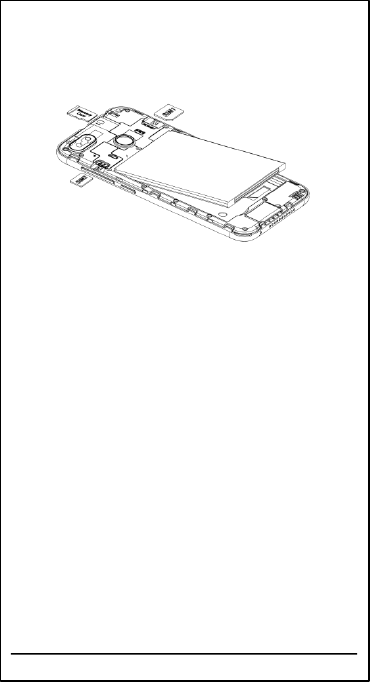

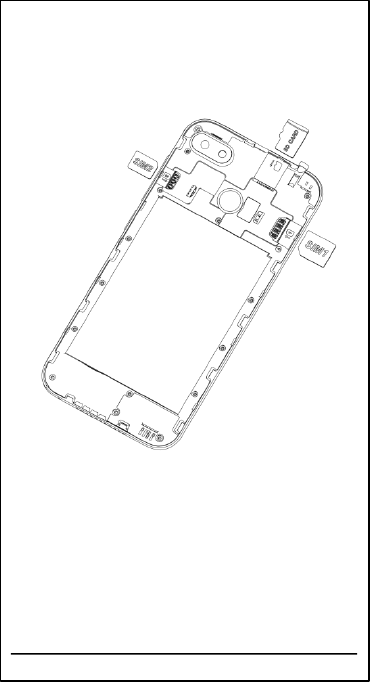

Step 2 Insert your SIM card(s) and Memory card.
SIM1 Micro-SIM:
>Please note: SIM card 1 should be placed "chip down",
i.e. with the small copper plate facing downwards.
ETHOS – Quick Start Guide
11

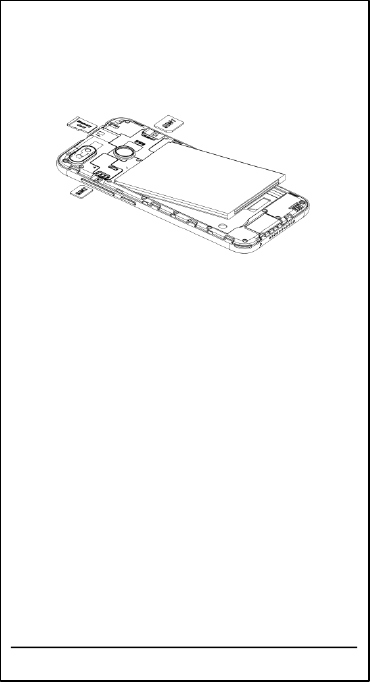

SIM2 Nano-SIM:
SIM card 2 should be placed "chip-down", i.e. with the
small copper plate facing downwards.
ETHOS – Quick Start Guide
12
Memory Card:
>Please note: A Memory card should be placed on the
top side of the phone. Using a Memory card is highly
recommended.
>Please note: SIM- and Memory cards are not included.
ETHOS – Quick Start Guide
13
Step 3 Insert the battery:
The battery should be placed with the coper plates to
the copper connectors inside the phone.
Make sure the (+) and (-) symbol is facing UP.
Step 4 Close the rear panel, by first placing the
top-side, then closing the cover by pressing it
carefully along the sides. You might hear a clicking
sound.
>Please note: Repeatedly opening and closing the rear
panel will eventually lead to a poor fit of the cover.
ETHOS – Quick Start Guide
14

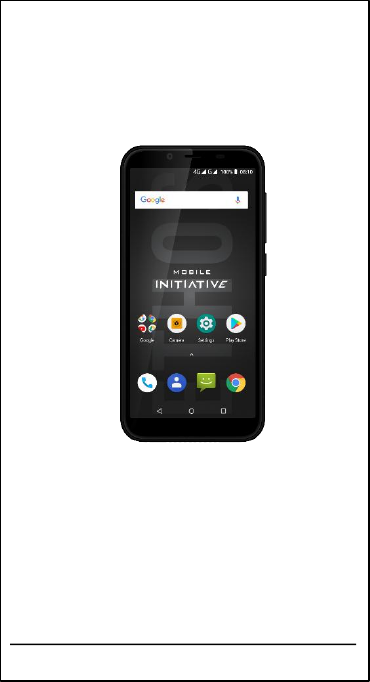

Your device
Front view:
1
2
1. Volume button (Up / Down)
2. Power button
ETHOS – Quick Start Guide
15
Using the buttons
1 Volume button: The volume button adjusts the
sound levels. When in a call or listening to music,
the speaker output will be adapted when using this.
2 Power button: Use the power button to switch the
phone on or off. If the phone is switched on, a quick
press on the power button will automatically put
the device in standby mode (or bring it back to
active mode). Keep the power button pressed and a
menu will appear.
Home button: Pressing this button will bring you
back to the default (home) screen at all times. Keeping
the button pressed, will open Google quick launcher.
Menu button: Depending on what application
you are using, the menu button will bring up the extra
functionalities and/or actions, for instance brings up
your recently used apps, allowing you to switch
between apps rapidly.
Back button: This one always leads you back to the
previous screen.
ETHOS – Quick Start Guide
16
4. Getting started
When you switch on your phone for the first time, you
will be given a number of questions in order to
configure the device to your liking.
1 | Select the language you wish to use.
2 | Connect to a wireless network. If, at this time,
connection is not possible, press "Skip".
3 | Log in with your Google account, create one or
skip the section.
Remark: We highly recommend you to add an account
as this will open a world to app’s and online backup.
4 | Determine whether or not you want to allow
Google to use your current location for various uses
5 | Enter your name so that it can be used
(automatically) in various applications.
6 | Select "Finish" once you've configured the phone
to your liking.
Android will now offer you some tips and tricks on how
to use your smartphone. Enjoy!
ETHOS – Quick Start Guide
17

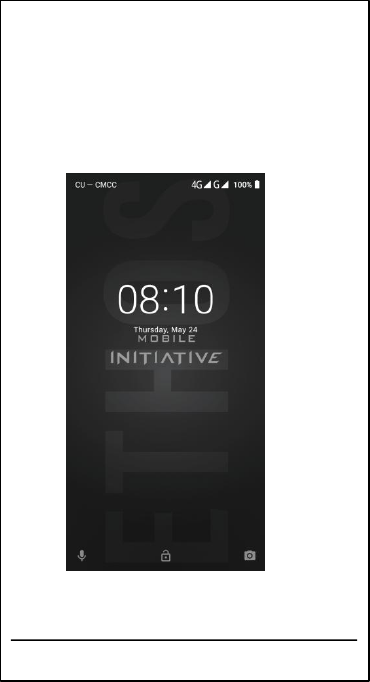

Unlocking the screen
Drag the circle to the "opened padlock" icon to unlock
your smartphone.
ETHOS – Quick Start Guide
18

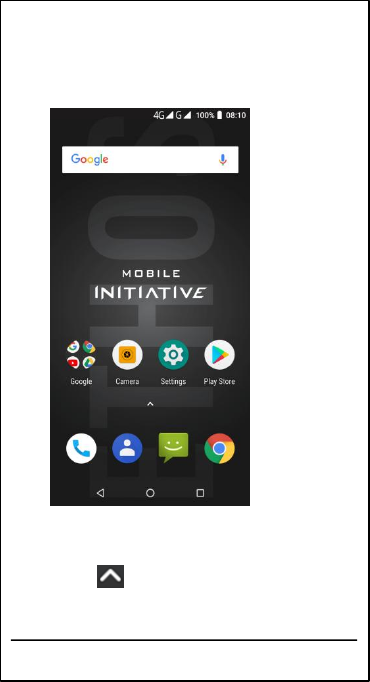

The Home screen
When in the Home (default) screen, you can change
the background image by placing your finger on an
empty spot and holding it there for a moment.
By touching and holding your finger on an icon (rather
than tapping it), you can move the icon or delete it, by
dragging it to the top of the screen.
ETHOS – Quick Start Guide
19
Pressing the button will bring you to the main
menu. You may transfer an icon to your home screen
by touching and holding it for some seconds.
ETHOS – Quick Start Guide
20

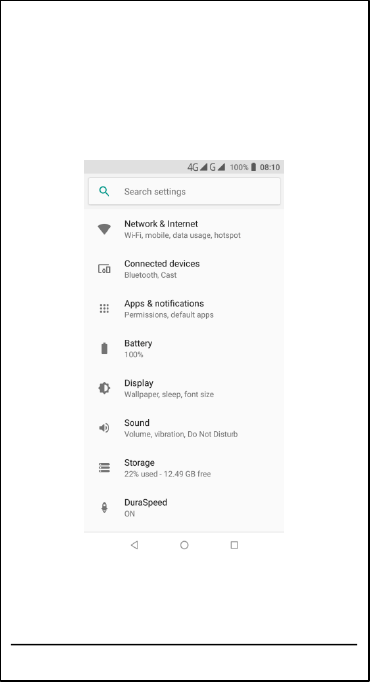

5. Settings
By clicking "Settings" in the main menu the following
menu will appear:
ETHOS – Quick Start Guide
21
Networks & Internet
Wi-Fi | Here you can enable/disable the device to look
for and connect to available Wi-Fi networks. Tapping
"Wi-Fi" will display the available networks, and – if
needed – enter a password.
Wi-Fi calling
When you are in an area with less mobile network
coverage, Wi-Fi calling will bring a steady solution.
This option will only be available when supported by
your operator and if you are connected to a Wi-Fi
network. To activate;
Enter the Wi-Fi menu -> Wi-Fi preferences -> Advanced
-> Wi-Fi calling -> Enable Wi-Fi calling.
Hotspot | Switch the Hotspot function to ON, so you
can share your internet connection with different
devices. Please be aware this can cause a High data use.
SIM cards | Here you can determine which SIM cards
to activate and which to disable. The "Roaming"
settings can be found here, as well as the option to
select which SIM card is to be used for which service.
Data usage | Here you can check and manage (limit!)
the amount of MB's you consume. >Please note: This
functionality provides an indication; you actually may
be using more (or less).
ETHOS – Quick Start Guide
22
Airplane mode | Here you can put the phone in
"Airplane mode", which disables all wireless
communication to and from the device. Other options
are to set up a VPN connection, or to turn your phone
into a Wi-Fi hotspot by enabling tethering.
Connected devices
Bluetooth | Here you can enable/disable the device's
ability to look for and pair with other available
Bluetooth-enabled devices. Tapping the menu soft-
button will display advanced options.
Apps
This feature shows which applications are installed and
allows you to delete these, if necessary. You can also
copy applications from your phone to your Memory
Card by selecting "Memory card".
Battery
This option visualizes which applications consume most
of the battery power. It will allow you to adapt the use
of these applications to a longer standby time.
Display
Here you can adjust all settings related to the screen,
such as brightness level, auto standby time and
whether or not the display rotates along with the
phone's position.
ETHOS – Quick Start Guide
23
Sound
This setting enables you to activate or adjust an audio
profile. To activate a profile, simply tap the circle next
to the profile name. To adjust the general, tap the
button next to the “general profile”. Now you can
change, for example, the ringtone and its volume.
Storage & USB
Here you can check the amount of space left on your
telephone and Memory card. This option also visualizes
what uses up most of the available memory.
Remark: We strongly advise you to add a memory card,
so you can choose to use the memory card as your
default write disk.
DuraSpeed
Here you can check what app’s can run in the
background.
Security & location
Location | Here you can adjust the settings with
regards to your location information. Additional GPS
settings can be managed by tapping "Mode". Activating
"High Accuracy" will accelerate location pin-
pointing. >Please note: High accuracy and Battery
saving mode make use of the internet. Depending on
your provider, additional charges may apply.
ETHOS – Quick Start Guide
24
Security | Manage here the security settings of your
device. A couple of submenus:
- Screen lock: Here you can choose how you would
like to lock your screen.
- Encryption: Protect your phone with a PIN.
- SIM card lock: Set, enable or disable the PIN of
your SIM card(s).
- Device administration: View or deactive device
administrator and allow installation of apps from
unknown resource.
Users & accounts
This option displays which accounts have been
configured on your phone. You may also view and
change the settings of the various accounts. It is also
possible to add an account, by tapping "+". Follow the
instructions and make sure you are connected to the
internet. >Please note: "Synchronization" makes use of
the internet. Depending on your provider, additional
charges may apply.
System
Language & input| Pick the language in which you like
the phone to operate, in which you prefer to write
messages and manage the spelling checker.
Backup & reset | Here you can customize the way your
data is being backed up and reset the phone back to
factory settings. >Resetting to factory settings means
ETHOS – Quick Start Guide
25
erasing a lot – if not all – of your data on the device. We
strongly recommend to back up your data on a Memory
card or computer prior to picking this option.
ETHOS – Quick Start Guide
26
6. Applications & widgets
Applications
Your phone comes with a number of standard
applications, better known as "apps". In this chapter
we will explain to you what the most important apps
can do for you.
Phone
In the bottom left corner of your home screen you will
find the telephone icon. Tapping it will open the phone
app through which you can make calls.
ETHOS – Quick Start Guide
27

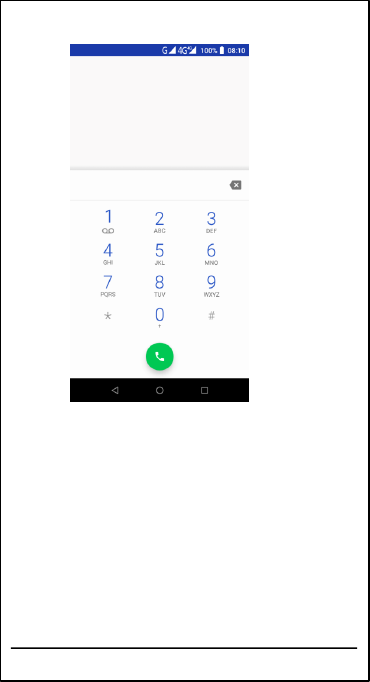

This is the screen that allows you to enter a phone
number directly.
Tapping the clock symbol will bring up the call history.
>Tip: Once you start dialing a number, the
corresponding sequence of numbers in your contact list
will appear in the top of your screen. You may also
enter a name, like 5646 for "JOHN".
ETHOS – Quick Start Guide
28

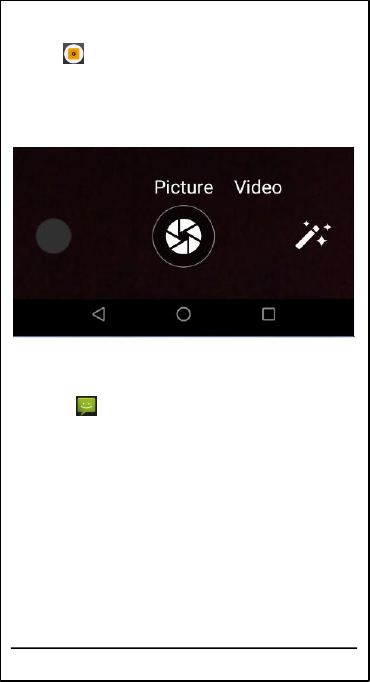

Camera
Tapping the camera icon will open the camera
application.
You take a picture by tapping the circle button.
Messages
The 'text balloon' icon brings up the "Messages" menu.
Tapping the icon in the bottom-left corner starts a new
conversation.
Search within your messages by tapping the little
magnifying glass in the bottom-right corner.
If you're still working on a conversation, it will appear
on the screen.
ETHOS – Quick Start Guide
29
>Tip: Android does not deal with individual messages –
all messages are displayed as if they form a
conversation. Therefore, you see what has already been
discussed before.
>Tip: To delete a conversation, simply put your finger on
the conversation, hold it there until a trash can icon
appears, then tap that icon.

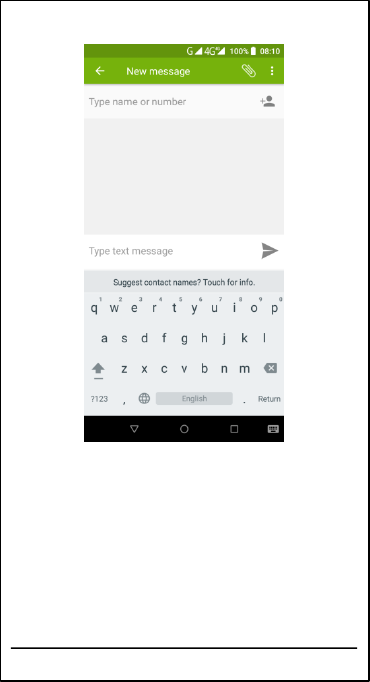

As soon as you start a new or continue an existing
message, the keyboard will appear:
ETHOS – Quick Start Guide
30
At the line on top of your screen, you can enter a
phone number. If you wish to add one or more
contacts out of your phone book, tap the contact icon
on the right-hand side of the top line.
To start composing a message, tap the line right above
the keyboard. By tapping the icon of a folded paper
plane, the message will be sent.
ETHOS – Quick Start Guide
31
Widgets
Android 8.1 offers a huge number of widgets – a kind
of app that can be put on your main screen. To put a
widget there, long press on an empty space of the
home screen then tap "Widgets". By sliding your finger
left and right, you can scroll through all widgets.
Tapping and holding a widget for some seconds
enables you to drag it to the main screen and
determine where to place it.
>Remark: In some cases, an app has its own widget. If
this is so, these Widgets will be shown in this menu as
well.
>Remark: Of some widgets the size can be adjusted. To
adjust the size, simply tap and hold the widget in the
main menu. After a moment, four small squares are
displayed that let you adjust the size of the widget.
ETHOS – Quick Start Guide
32
7. Accessories in the box
USB cable
With the included USB cable, you can charge the
battery of your device or connect your phone to a
computer.
• Charging the battery: First connect the (included)
wall plug charger to the USB connector of the
cable and insert the mini-USB connector into the
USB port of your phone. Lastly, plug the charger
into a wall socket.
• Connecting to a computer: Before you start,
make sure your phone is switched off. Now insert
the mini-USB connector into the USB port of your
phone, then plug the standard USB connector at
other end of the cable into the appropriate USB
port of a computer. Lastly, switch on your phone.
When you want to disconnect, we strongly advise
you to make sure the hardware (phone) is
removed safely, i.e. through the "remove
hardware safely" option of your computer. Doing
it differently, might damage the data on your
phone.
While your phone is connected to a computer, the
battery is being charged as well.
ETHOS – Quick Start Guide
33
>Please note: Never allow Windows to format the
memory of your smartphone. This could damage the
internal memory of your phone beyond repair. The
same goes for formatting your Memory card: use your
smartphone to do this or use a compatible Memory
card reader.
Charger and battery
Only use the included charger and always in a dry
environment. Keep it away from liquids in order to
prevent damage to your charger. Short-circuiting may
cause fire, personal injuries and increases the risk of an
explosion. If you still would like to use a different
charger, please consult your retailer first.
Charging a new or a completely depleted battery may
take up to 12 hours. Make sure to keep your phone
connected to the charger and do not unplug until fully
charged.
This smartphone comes with an original battery. Using
any battery other than the original could result in
irreparable damage. In case of a defective battery,
please contact your retailer to obtain a replacement. If
you remove the battery, don't leave it lying around and
keep it safe.
ETHOS – Quick Start Guide
34
>Please note: Chapter 10 ("Additional safety
instructions") contains more information about the
battery and how to use it.
Headset
The included headset allows you to call handsfree, but
it's also exceptionally fit for playing music and movies.
ETHOS – Quick Start Guide
35
8. Common issues and Solutions
Issue
Potential causes and solutions
The device does
not switch on
- The battery is not charged. -
The battery is not properly
inserted.
The battery does
not charge
- The battery is depleted and
needs to be charged for a
prolonged period of time. -
Charger or USB cable is
defective.
- Battery is defective.
A SIM error
occurs
- The SIM card has gotten dirty
and therefore cannot be read
properly.
- The SIM card is not properly
inserted (see also chapter 3 for
proper SIM insertion). - The
SIM card is
damaged/defective. Please
contact your provider.
>Please note: This also applies
to SIM2.
ETHOS – Quick Start Guide
36
The signal is
poor
- Check whether the on-screen
signal indicator shows more
than two bars. If this is not the
case, you are in a location with
poor reception.
> Please note: This also applies
to SIM2.
It is not possible
to make a call
- "Caller ID" is disabled and
your provider does not allow
anonymous calling.
- There is a strong source of
disruption in the vicinity. - You
may have set limitations in the
settings for calling. - Your
provider has not yet activated
your SIM card.
It is not possible
to make a call
- "Caller ID" is disabled and
your provider does not allow
anonymous calling.
- There is a strong source of
disruption in the vicinity. - You
may have set limitations in the
settings for calling. - Your
provider has not yet activated
your SIM card.
ETHOS – Quick Start Guide
37
Unable to
connect to a
network
- The network's signal is poor or
there are strong disruptions
nearby.
- The SIM card is not properly
inserted (see also chapter 3 for
proper SIM insertion). - The
SIM card is damaged/defective.
Please contact your provider.
- "Airplane mode" is activated,
all wireless communications
are disabled. Next to the time
indicator, one or two airplane
icons are displayed.
The phone is not
able to establish
a (3G/4G)
internet
connection
- Check with your provider if
"data" is part of your bundle. -
Make sure "data connection" is
enabled on your phone. -
Obtain the correct APN
settings (on the website of
your network provider) and set
your phone accordingly. Go to:
Settings > More > Mobile
networks > Access Point
Names.
- In case you use the services
of an MVNO provider, make
sure "roaming" is activated. Go
to: Settings > SIM
management > Roaming.
ETHOS – Quick Start Guide
38
My pictures are
too dark
- Check your camera settings.
- The environment does not
have sufficient light.
My pictures are
blurry.
- Make sure the object you're
trying to take a picture of does
not move.
- While taking a picture, hold
your phone still.
- The environment does not
have sufficient light.
My Memory
card is not
accepted or is
showing
incorrect storage
capacity
- Make sure you use a
compatible Memory card, of
which the capacity does not
exceed 32 GB.
- Make sure the card is properly
formatted
(FAT16/FAT32 file system, not
NTFS).
The battery
drains too
quickly
Smartphones are heavy
consumers when it comes to
energy. Therefore, the
operational battery time is
highly dependent on how the
phone is used. On average, it's
not uncommon a smartphone
needs to be recharged by the
end of the day.
ETHOS – Quick Start Guide
39
The phone fails
to connect to
my Bluetooth car
kit / The
connection is not
stable
- Use your car kit to connect to
your smartphone, or the other
way around.
- Update the car kit software
(automatically).
- Adjust the car kit settings so
that it's only used for speech
and not for the media player
and/or data exchange.
The Bluetooth-
car kit fails to
import
phonebook data
Make sure to accept the "PBAP
request" immediately after the
Bluetooth connection has been
established and mark the
checkbox "Do not ask again".
The GPS-
functionality is
not working
properly / I do
not get a GPS fix
- Check if "GPS" is enabled. -
Windshields with heat
protection, windshield heating,
multi-story buildings or heavy
forestation are known to
scramble GPS or block it
altogether.
- Try to establish a GPS
connection outside, in an open
field. After approximately 10
minutes, you should have a fix.
ETHOS – Quick Start Guide
40
9. Additional safety instructions
Local laws and regulations
Take into account possible special laws and regulations
that might apply to the place in which you use your
smartphone.
Volume
To prevent hearing impairment, make sure to keep the
volume of earphones to a responsible level.
Pacemakers
People carrying a pacemaker need to follow these
instructions:
• When the phone is switched on, always maintain
a distance of at least 15 cm from the pacemaker.
• Never carry the phone in a breast pocket.
• When making calls, hold the phone to your right
ear (opposite the pacemaker).
Hearing aid devices
Your phone may cause interference with certain
hearing aid devices. If this is the case, please contact
the manufacturer of the hearing device.
Precautions for using your battery and charger
The battery charge depends on the network you use,
the phone settings and the environment in which the
phone is used. The battery is generally good for over 2-
ETHOS – Quick Start Guide
41
4 hours of calling time, whilst standby time usually lasts
from 24-72 hours.
Prior to removing the battery, make sure the phone is
switched off and not connected to a battery charger.
Under no circumstance use a charger or battery that is
damaged in any way.
When using the phone in the vicinity of a base-station
of a network, power usage will decrease. The battery
time in which a device can remain in standby mode or
be operational for calling is strongly affected by the
strength of the signal of the mobile network.
Charging time depends on the remaining battery power,
the type of battery and the charger used for charging
the battery. A battery may be charged and discharged
hundreds of time, but it will become worn out over
time. Obtain a new battery as soon as you notice a
decrease in standby or calling times.
Unplug the charger when it is not being used. Do not
leave the smartphone attached to the charger for a
period exceeding 48 hours straight. Overcharging may
drastically decrease battery life. Even when unused, a
fully charged battery will slowly get depleted.
Make sure both the positive battery pole (+) as well as
the negative battery pole (-) connect with the contacts
in the smartphone when installing the battery.
ETHOS – Quick Start Guide
42
Do not short-circuit the battery. Unexpected short
circuitry may occur when a metal object, such as a coin,
clamp, or pen makes a direct connection between the
positive pole (+) and the negative pole (-) of the battery
(the poles are the copper strips on the battery).
Do not put discarded batteries in fire. Dispose of
batteries according to local law. Do not dispose
batteries with the regular household waste.
In case your phone, battery or charger gets wet, do not
attempt to dry it in a heating device, such as a dryer or
a microwave oven. Doing so, may cause burn wounds
or lead to swelling or even explosion of the phone,
battery, charger, or the heating device used.
Contact your nearest service centre to get help when
your phone, battery or charger does not function
properly.
>Please note: MI hereby declares to repudiate all
responsibility for any direct or collateral damage that
results from failure to comply to one or more of the
instructions above or incorrectly executed procedures.
ETHOS – Quick Start Guide
43
10. Safety information regarding
radiation
MI mobile phones meet the requirements for the FCC
marking, also with regard to radiation. Your MI
smartphone is equipped with multiple senders and
receivers (GSM/UMTS/WiFi). The design of your device
is such, that it meets FCC-requirements.
Radio waves influence the human body, they are
absorbed within the body and converted to warmth.
SAR values express the extent to which this takes place.
SAR is the acronym for Specific Absorption Rate.
In order to obtain the most objective frame of SAR
values, different means of measuring are employed.
The object is to determine the amount of Watts that
are absorbed per Kg of body mass, averaged over 10
grams of body-tissue. The CE-marking requires this
value to not exceed 2.0 W/Kg.
Testing for SAR-values is performed under the
following conditions:
• At the highest permitted level of transmitter
power output that the equipped sender is
capable to transmit on the various frequencies.
• At the least favorable circumstances possible in
everyday normal use, for example when the
device is held close to the head.
ETHOS – Quick Start Guide
44
Your device was designed to use only the power
necessary to remain in contact with the network. Since
SAR-test protocol regulations require testing and
measuring SAR-values at maximum transmitter power
output, the actual amount of radiation will be lower
than the SAR-value that this device is specified with.
This value is strongly influenced by the network
reception on your location.
To obtain the SAR-value of your device, please consult
our website www.mobile-initiative.com.
ETHOS – Quick Start Guide
45
11. Warranty
The Manufacturer's Limited Warranty of Mobile
Initiative for mobile equipment sold in the United
States, is valid from January 1st, 2018.
Manufacturer's Limited Warranty
This Limited Warranty does not affect your legal
(statutory) rights under your applicable national laws
relating to the sale of consumer products.
Mobile Initiative provides this Limited Warranty to
Person who has purchased the "MI" product(s)
included in the sales package ("Product").
"MI" warrants to you that during the warranty period
"MI" or an "MI" authorized service company will in a
commercially reasonable time remedy defects in
materials, design and workmanship free of charge by
repairing or, should "MI" in its absolute discretion
deem it necessary, replacing the Product in accordance
with this Limited Warranty (unless otherwise required
by law). This Limited Warranty is only valid and
enforceable in the country where you have purchased
the Product provided that it is intended for sale in that
country.
ETHOS – Quick Start Guide
46
Warranty Period
The warranty period starts at the time of Product’s
original purchase by the first end-user. The Product
may consist of several different parts and different
parts may be covered by a different warranty period
(hereinafter "Warranty Period"). The different
Warranty Periods are: Twelve (12) months for the
mobile device and six (6) months for accessories
(whether included in the sales package of the mobile
device or sold separately), such as battery, charger,
headset, USB cable.
As far as your national laws permit, the Warranty
Period will not be extended or renewed or otherwise
affected due to subsequent resale, "MI" authorized
repair or replacement of the Product. However,
repaired part(s) will be warranted for the remainder of
the original Warranty Period or for thirty (30) days
from the date of repair, whichever is longer.
How do get Warranty Service?
In order to make a claim of a Defect, you must contact
MI by email or phone during the Warranty Period to
explain the Defect and to obtain an RMA number
(Return Merchandise Authorization) if necessary. If
approved You must return the Hardware during the
Warranty Period, along with the printed online RMA
form explaining of the Defect and your return address,
ETHOS – Quick Start Guide
47
accompanied by the IMEI number of the Products and
sales receipt or comparable proof of sale showing the
original date of purchase and the seller's name and
address to the address provided by the service center.
If “MI” determines that the Product is not covered by
this Limited Warranty, you must pay all parts, shipping,
and labor charges for the repair or return of the
Product.
What is not covered?
1. This Limited Warranty does not cover user manuals
or any third-party software, settings, content, data
or links, whether included/downloaded in the
Product, whether included during instalment,
assembly, shipping or at any other time in the
delivery chain or otherwise and in any way acquired
by you. To the extent permitted by applicable law(s),
"MI" does not warrant that any "MI" software will
meet your requirements, will work in combination
with any hardware or software applications provided
by a third party, that the operation of the software
will be uninterrupted or error free or that any
defects in the software are correctable or will be
corrected.
2. Furthermore, this Limited Warranty does not cover:
• Normal wear and tear (including, without
limitation, wear and tear of camera lenses,
batteries or displays);
ETHOS – Quick Start Guide
48
• Defects caused by rough handling (including,
without limitation, defects caused by sharp items,
by bending, compressing or dropping, etc.);
• Defects or damage caused by misuse of the
Product, including use that is contrary to the
instructions provided by "MI" (e.g. as set out in
the Product’s user guide) and/or other acts
beyond the reasonable control of "MI";
3. This Limited Warranty does not cover defects or
alleged defects caused by the fact that the Product
was used with, or connected to, a product,
accessories, software and/or service not
manufactured, supplied or authorized by "MI" or was
used otherwise than for its intended use. Defects can
be caused by viruses from your or from a third
party’s unauthorized access to services, other
accounts, computer systems or networks. This
unauthorized access can take place through hacking,
password-mining or through a variety of other
means.
4. This Limited Warranty does not cover defects caused
by the fact that the battery has been short-circuited
or by the fact that the seals of the battery enclosure
or the cells are broken or show evidence of
tampering or by the fact that the battery has been
used in equipment other than those for which it has
been specified.
ETHOS – Quick Start Guide
49
5. This Limited Warranty does not apply if the Product
has been opened (excepting the (re-) placement of
the battery or SIM card), modified or repaired by
anyone other than an authorized service centre, if it
is repaired using unauthorized spare parts or if the
Product´s serial number, the mobile accessory date
code or the IMEI number has been removed, erased,
defaced, altered or are illegible in any way and this
shall be determined in the sole discretion of "MI".
6. This Limited Warranty does not apply if the Product
has been exposed to moisture, to dampness or to
extreme thermal or environmental conditions or to
rapid changes in such conditions, to corrosion, to
oxidation, to spillage of food or liquid or to influence
from chemical products.
Other important notes
A third party, independent operator provides the SIM
card and cellular and/or other network or system on
which the Product operates. Therefore, "MI" will not
accept responsibility under this warranty for the
operation, availability, coverage, services or range of
the cellular or other network or system. Before the
Product can be repaired or replaced, the operator may
need to unlock any SIM-lock or other lock that may
have been added to lock the product to a specific
network or operator. If this is the case, please contact
your operator to unlock the product.
ETHOS – Quick Start Guide
50
Please remember to make back-up copies or keep
written records of all important content and data
stored in your Product, because content and data may
be lost during repair or replacement of the Product.
"MI", in a manner consistent with the provisions of the
section entitled "Limitation of MI’s Liability" below,
shall not under any circumstances be liable, either
expressly or impliedly, for any damages or losses of any
kind whatsoever resulting from loss of, damage to, or
corruption of, content or data during repair or
replacement of the Product.
All parts of the Product or other equipment that "MI"
has replaced shall become the property of "MI". If the
returned Product is found not to be covered by the
terms and conditions of the Limited Warranty, "MI"
and its authorized service companies reserve the right
to charge a handling fee. When repairing or replacing
the Product, "MI" may use products or parts that are
new, equivalent to new or re-conditioned.
Your Product may contain country specific elements,
including software. If the Product has been re-exported
from its original destination country to another country,
the Product may contain country specific elements that
are not considered to be a defect under this Limited
Warranty.
ETHOS – Quick Start Guide
51
Limitation of "MI's" responsibility
This Limited Warranty is your sole and exclusive
remedy against "MI" and "MI's” sole and exclusive
liability in respect of defects in your Product.
This Limited Warranty replaces all other "MI"
warranties and liabilities, whether oral, written,
(nonmandatory) statutory, contractual, in tort or
otherwise, including, without limitation, and where
permitted by applicable law, any implied conditions,
warranties or other terms as to satisfactory quality or
fitness for purpose.
However, this Limited Warranty will not exclude nor
limit:
1) Any arbitrary legal (statutory) rights that you have
under applicable national laws;
2) Any arbitrary right that you may have against the
seller of the product.
To the extent permitted by applicable law(s) "MI" does
not assume any liability for loss of or damage to or
corruption of data, for any loss of profit, loss of use of
Products or functionality, loss of business, loss of
contracts, loss of revenues or loss of anticipated
savings, increased costs or expenses or for any indirect
loss or damage, consequential loss or damage or
special loss or damage.
ETHOS – Quick Start Guide
52
To the extent permitted by applicable law, "MI’s”
liability shall be limited to the purchase value of the
Product.
Google, Android, Google Play and other marks are
trademarks of Google LLC.
Recommendation & contact details
Your Product is a sophisticated electronic device. "MI"
strongly encourages you to familiarize yourself with the
user guide and instructions provided with and for the
Product.
Service Hotline:
Service email: support@mobile-initiative.com
Website: www.mobile-initiative.com
2018© MOBILE INITIATIV
FCC RF EXPOSURE INFORMATION:
WARNING!! Read this information before using your
phone
In August 1986 the Federal Communications
Commission (FCC) of the United States with its action in
Report and Outer FCC 96-326 adopted an updated
safety standard for human exposure to radio frequency
(RF) electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the
safety standard previously set by both U.S. and
international standards bodies. The design of this
phone complies with the FCC guidelines and these
international standards. Use only the supplied or an
approved antenna. Unauthorized antennas
modifications, or attachments could impair call quality,
damage the phone, or result in violation of FCC
regulations. Do not use the phone with a damaged
antenna. If a damaged antenna comes into contact with
the skin, a minor burn may result. Please contact your
local dealer for replacement antenna.
BODY-WORN OPERATION:
This device was tested for typical body-worn operations
with the back/front of the phone kept 5mm from the
body. To comply with FCC RF exposure requirements, a
minimum separation distance of 5mm must be
maintained between the user's body and the
back/front of the phone, including the antenna. Third-
party belt-clips, holsters and similar accessories
containing metallic components shall not be used.
Body-worn accessories
that cannot maintain 5mm separation distance
between the user’s body and the back/front of the
10mm
10mm
10mm
phone, and have not been tested for typical body-worn
operations may not comply with FCC RF exposure limits
and should be avoided.
For more information about RF exposure, please visit
the FCC website at www.fcc.gov
Your wireless handheld portable telephone is a low
power radio transmitter and receiver. When it is ON, it
receives and also sends out radio frequency (RF) signals.
In August, 1996, the Federal Communications
Commissions (FCC) adopted RF exposure guidelines
with safety levels for hand-held wireless phones. Those
guidelines are consistent with the safety standards
previously set by both U.S. and international standards
bodies:
<ANSIC95.1> (1992) / <NCRP Report 86> (1986) /
<ICNIRP> (1999)
Those standards were based on comprehensive and
periodic evaluations of the relevant scientific literature.
For example, over 120 scientists, engineers, and
physicians from universities, government health
agencies, and industry reviewed the available body of
research to develop the ANSI Standard (C95.1).
Nevertheless, we recommend that you use a hands-
free kit with your phone (such as an earpiece or
headset) to avoid potential exposure to RF energy. The
design of your phone complies with the FCC guidelines
(and those standards).
Use only the supplied or an approved replacement
antenna. Unauthorized antennas, modifications, or
attachments could damage the phone and may violate
FCC regulations.
NORMAL POSITION:
Hold the phone as you would any other telephone with
the antenna pointed up and over your shoulder.
RF Exposure Information:
This product is compliance to FCC RF Exposure
requirements and refers to FCC website
https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.c
fm search for FCC ID: 2AP7L-ETHOS to gain further
information include SAR Values.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: The manufacturer is not responsible for any
radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications
could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help
Do not use the device with the environment which
below minimum -10℃ or over maximum 50℃, the
device may not work.
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Ad Hoc function is supported but not able to operate
on non-US frequencies.

Navigation menu
