Wi Gear MA110 Bluetooth adapter to use with an Apple iPod. User Manual Manual2 ai

Wi-Gear Inc. Bluetooth adapter to use with an Apple iPod. Manual2 ai

users manual

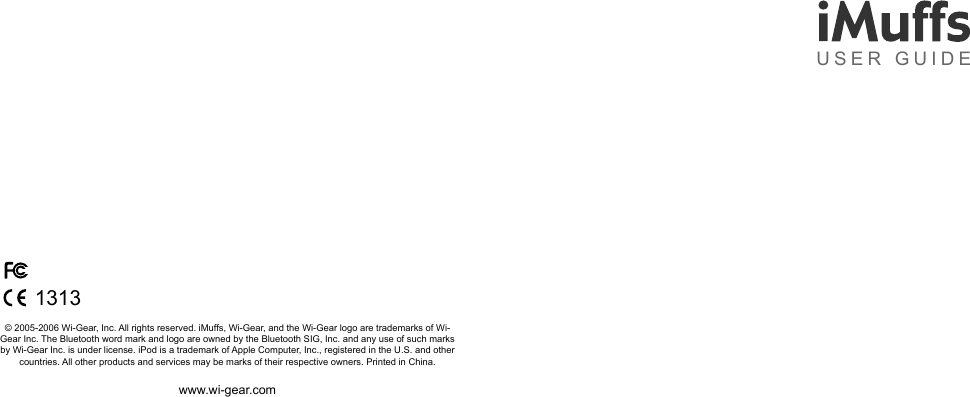

© 2005-2006 Wi-Gear, Inc. All rights reserved. iMuffs, Wi-Gear, and the Wi-Gear logo are trademarks of Wi-Gear Inc. The Bluetooth word mark and logo are owned by the Bluetooth SIG, Inc. and any use of such marks by Wi-Gear Inc. is under license. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. All other products and services may be marks of their respective owners. Printed in China.www.wi-gear.comUSER GUIDE1313

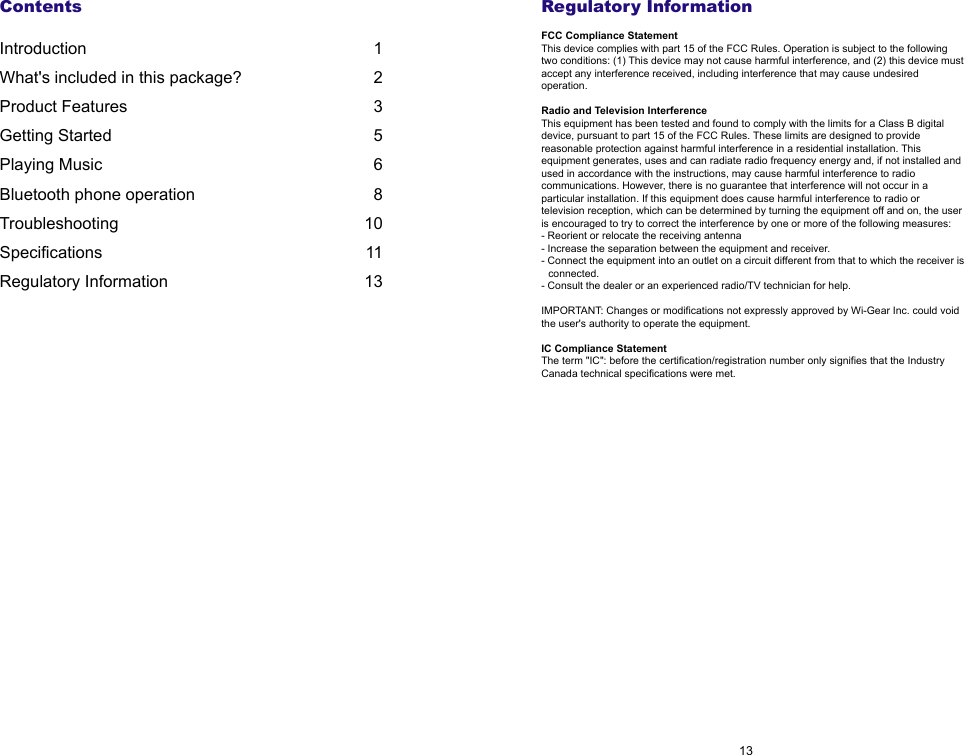

Regulatory InformationFCC Compliance StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Radio and Television InterferenceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.IMPORTANT: Changes or modifications not expressly approved by Wi-Gear Inc. could void the user's authority to operate the equipment.IC Compliance StatementThe term "IC": before the certification/registration number only signifies that the Industry Canada technical specifications were met.13ContentsIntroduction 1What's included in this package?  2Product Features  3Getting Started  5Playing Music  6Bluetooth phone operation  8Troubleshooting  10Specifications  11Regulatory Information  13

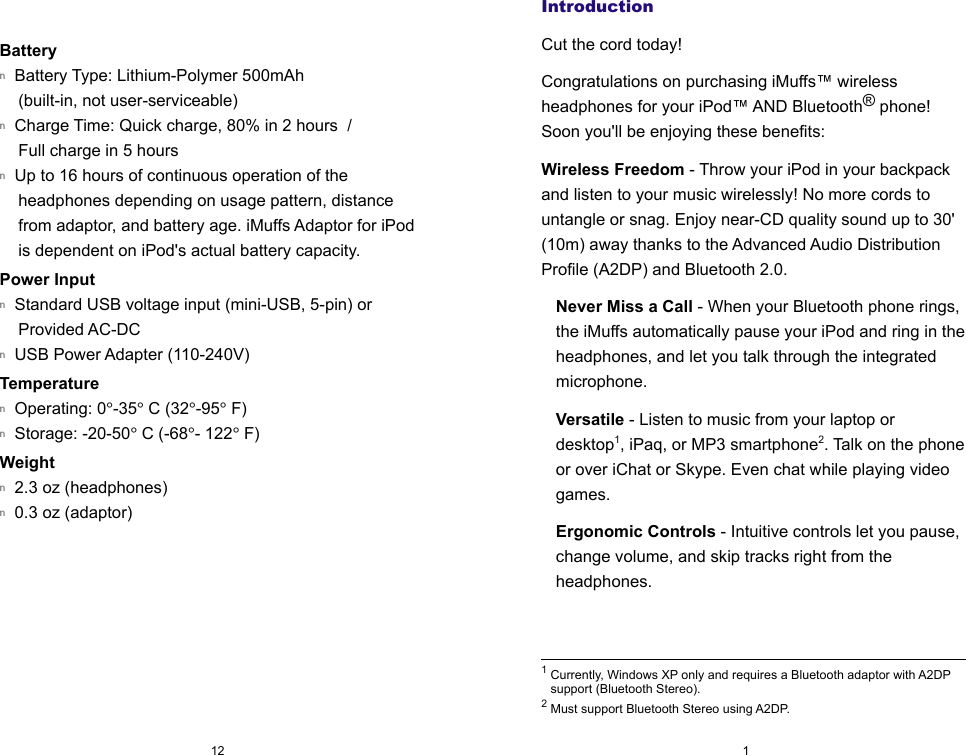

IntroductionCut the cord today!Congratulations on purchasing iMuffs™ wireless headphones for your iPod™ AND Bluetooth® phone! Soon you'll be enjoying these benefits:Wireless Freedom - Throw your iPod in your backpack and listen to your music wirelessly! No more cords to untangle or snag. Enjoy near-CD quality sound up to 30' (10m) away thanks to the Advanced Audio Distribution Profile (A2DP) and Bluetooth 2.0.Never Miss a Call - When your Bluetooth phone rings, the iMuffs automatically pause your iPod and ring in the headphones, and let you talk through the integrated microphone.Versatile - Listen to music from your laptop or desktop1, iPaq, or MP3 smartphone2. Talk on the phone or over iChat or Skype. Even chat while playing video games.Ergonomic Controls - Intuitive controls let you pause, change volume, and skip tracks right from the headphones.1 Currently, Windows XP only and requires a Bluetooth adaptor with A2DP support (Bluetooth Stereo).2 Must support Bluetooth Stereo using A2DP.Batteryn  Battery Type: Lithium-Polymer 500mAh (built-in, not user-serviceable)n  Charge Time: Quick charge, 80% in 2 hours  /  Full charge in 5 hoursn  Up to 16 hours of continuous operation of the headphones depending on usage pattern, distance from adaptor, and battery age. iMuffs Adaptor for iPod is dependent on iPod's actual battery capacity.Power Inputn  Standard USB voltage input (mini-USB, 5-pin) or Provided AC-DC  n  USB Power Adapter (110-240V) Temperaturen  Operating: 0°-35° C (32°-95° F)n  Storage: -20-50° C (-68°- 122° F)Weightn  2.3 oz (headphones)n  0.3 oz (adaptor)112

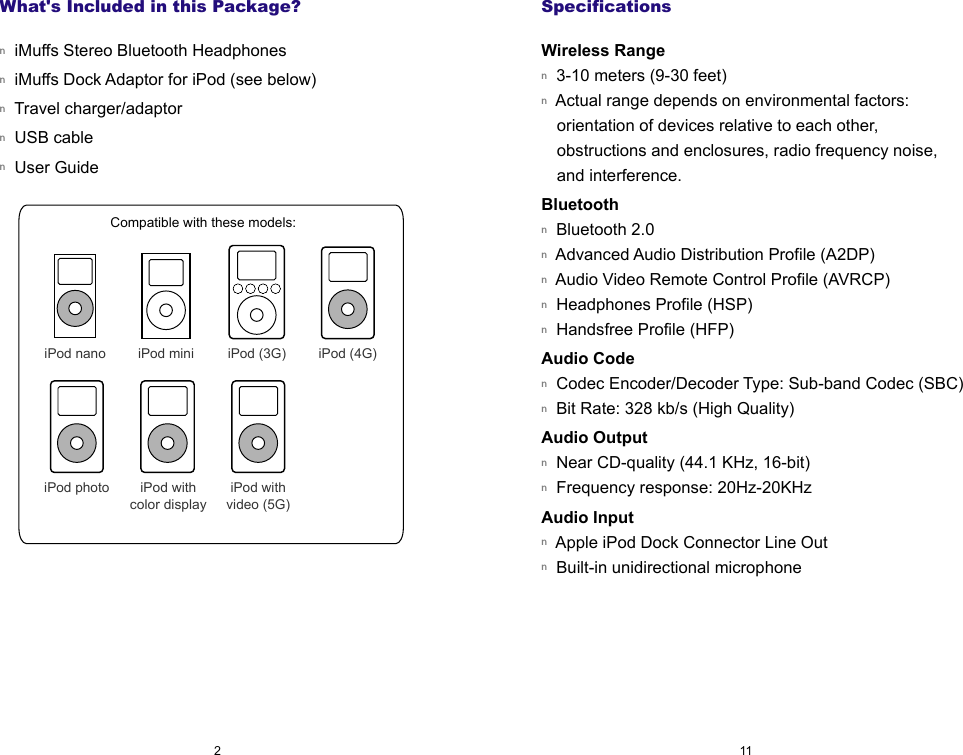

SpecificationsWireless Rangen  3-10 meters (9-30 feet)n  Actual range depends on environmental factors: orientation of devices relative to each other, obstructions and enclosures, radio frequency noise, and interference.Bluetoothn  Bluetooth 2.0n  Advanced Audio Distribution Profile (A2DP)n  Audio Video Remote Control Profile (AVRCP)n  Headphones Profile (HSP)n  Handsfree Profile (HFP)Audio Coden  Codec Encoder/Decoder Type: Sub-band Codec (SBC)n  Bit Rate: 328 kb/s (High Quality) Audio Outputn  Near CD-quality (44.1 KHz, 16-bit)n  Frequency response: 20Hz-20KHzAudio Input n  Apple iPod Dock Connector Line Outn  Built-in unidirectional microphoneWhat's Included in this Package?n  iMuffs Stereo Bluetooth Headphonesn  iMuffs Dock Adaptor for iPod (see below)n  Travel charger/adaptorn  USB cablen  User Guide   112iPod (4G)iPod mini iPod (3G)Compatible with these models:iPod nanoiPod withvideo (5G)iPod withcolor displayiPod photo

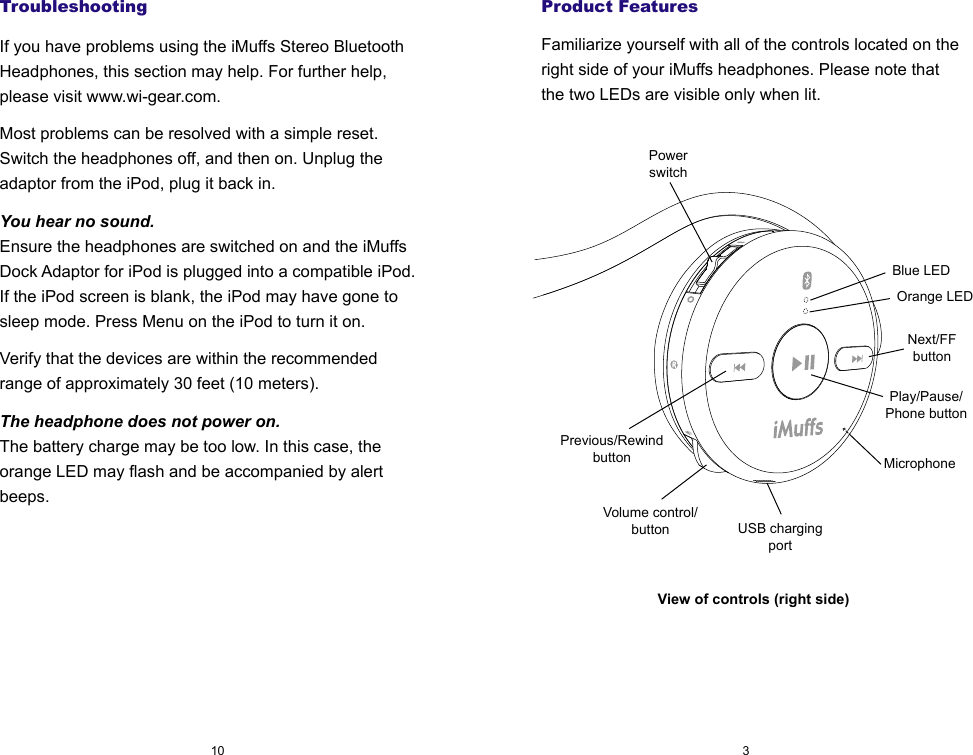

TroubleshootingIf you have problems using the iMuffs Stereo Bluetooth Headphones, this section may help. For further help, please visit www.wi-gear.com.Most problems can be resolved with a simple reset. Switch the headphones off, and then on. Unplug the adaptor from the iPod, plug it back in.You hear no sound.Ensure the headphones are switched on and the iMuffs Dock Adaptor for iPod is plugged into a compatible iPod. If the iPod screen is blank, the iPod may have gone to sleep mode. Press Menu on the iPod to turn it on.Verify that the devices are within the recommended range of approximately 30 feet (10 meters).The headphone does not power on.The battery charge may be too low. In this case, the orange LED may flash and be accompanied by alert beeps.310Product FeaturesFamiliarize yourself with all of the controls located on the right side of your iMuffs headphones. Please note that the two LEDs are visible only when lit.View of controls (right side)Blue LEDOrange LEDNext/FFbuttonPrevious/RewindbuttonPowerswitchUSB chargingportVolume control/buttonMicrophonePlay/Pause/Phone button

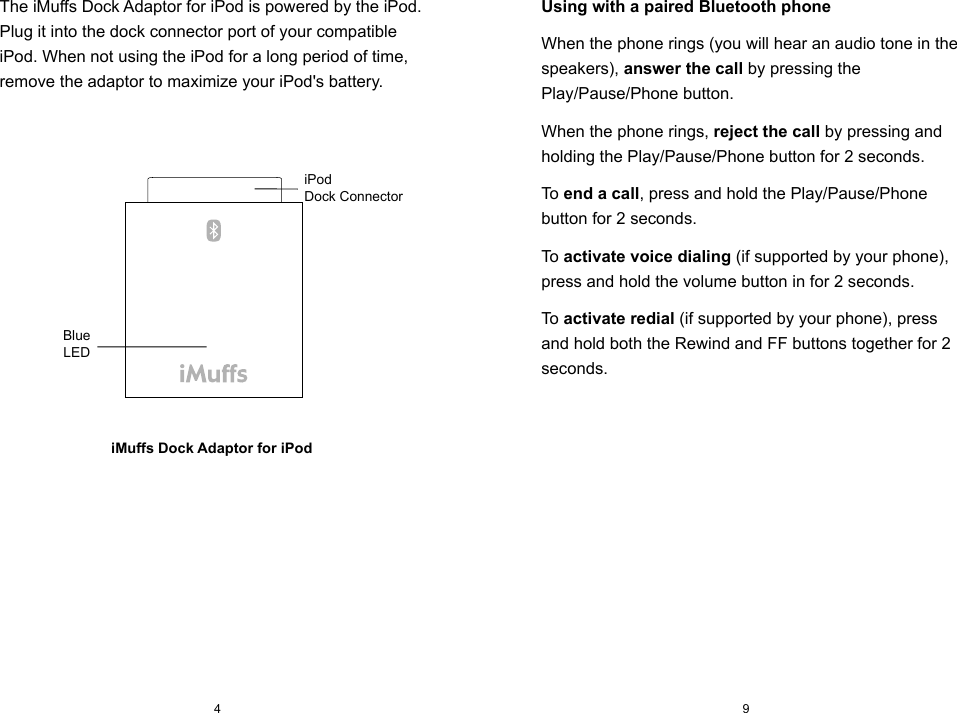

The iMuffs Dock Adaptor for iPod is powered by the iPod. Plug it into the dock connector port of your compatible iPod. When not using the iPod for a long period of time, remove the adaptor to maximize your iPod's battery.iMuffs Dock Adaptor for iPod94Using with a paired Bluetooth phoneWhen the phone rings (you will hear an audio tone in the speakers), answer the call by pressing the Play/Pause/Phone button.When the phone rings, reject the call by pressing and holding the Play/Pause/Phone button for 2 seconds.To end a call, press and hold the Play/Pause/Phone button for 2 seconds.To activate voice dialing (if supported by your phone), press and hold the volume button in for 2 seconds.To activate redial (if supported by your phone), press and hold both the Rewind and FF buttons together for 2 seconds.iPod Dock ConnectorBlueLED
Bluetooth Phone OperationYour iMuffs headphones work with Bluetooth-enabled phones. However, you will first need to pair the headphones with your Bluetooth phone before they work.Pairing with a Bluetooth phone1. Unplug the adaptor from your iPod, and make sure your iMuffs headphones are powered off. Make sure that the Bluetooth phone is nearby.2. Initiate "Discover" mode in your Bluetooth phone, according to your phone's user manual.3. On the headphones, press and hold the volume button in while switching the power on. This will initiate the "Discoverable" mode in the headphones. The blue LED will begin double-flashing.4. If asked for a PIN, enter "0000" (four zeros).5. If the pairing process is successful, the blue LED on the headphones will stop flashing and stay on for 3 seconds.58Getting StartedYour iMuffs headphones are powered by a built-in rechargeable battery. Before using your iMuffs for the first time, you should fully charge the battery.Charging1. Plug the smaller end of the USB cable into the USB charging port located at the bottom of the right ear cup of the headphones.2. Plug the other end of the USB cable into an open USB port on your computer or into the travel charger and then plug the travel charger into an outlet.3. The orange LED indicator lights up while the headphones are charging.4. The orange LED indicator will turn off when the battery is fully charged.5. Unplug the USB cable from the headphones.When the battery is low, the orange LED will flash, and an alert will sound in the speakers indicating that you need to recharge the headphones.

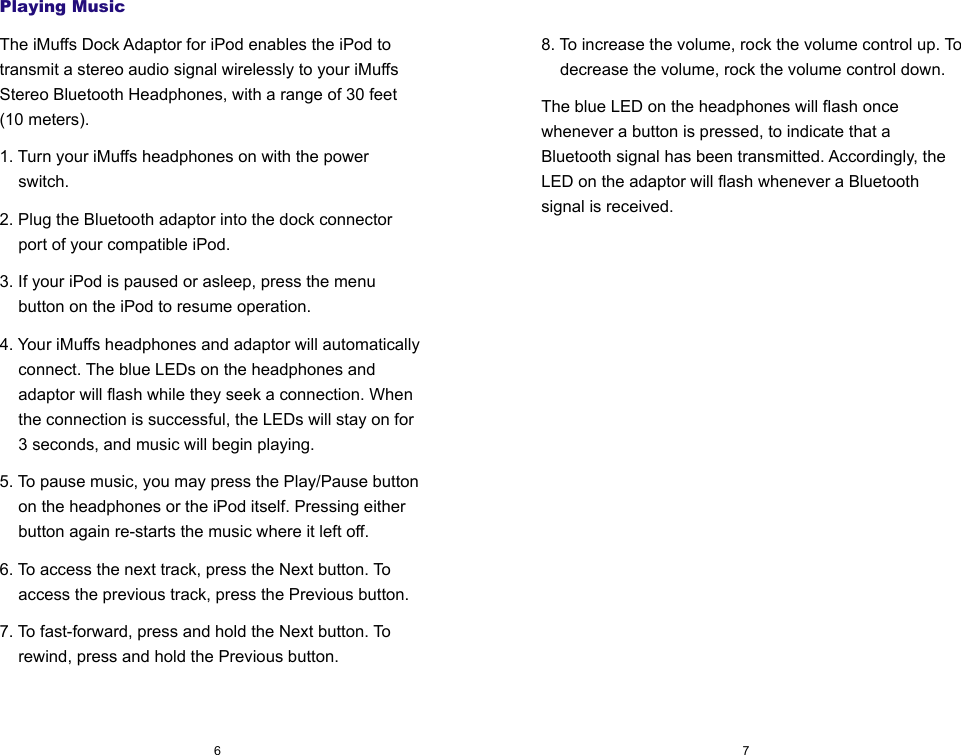

Playing MusicThe iMuffs Dock Adaptor for iPod enables the iPod to transmit a stereo audio signal wirelessly to your iMuffs Stereo Bluetooth Headphones, with a range of 30 feet (10 meters).1. Turn your iMuffs headphones on with the power switch.2. Plug the Bluetooth adaptor into the dock connector port of your compatible iPod.3. If your iPod is paused or asleep, press the menu button on the iPod to resume operation.4. Your iMuffs headphones and adaptor will automatically connect. The blue LEDs on the headphones and adaptor will flash while they seek a connection. When the connection is successful, the LEDs will stay on for 3 seconds, and music will begin playing.5. To pause music, you may press the Play/Pause button on the headphones or the iPod itself. Pressing either button again re-starts the music where it left off.6. To access the next track, press the Next button. To access the previous track, press the Previous button.7. To fast-forward, press and hold the Next button. To rewind, press and hold the Previous button.768. To increase the volume, rock the volume control up. To decrease the volume, rock the volume control down.The blue LED on the headphones will flash once whenever a button is pressed, to indicate that a Bluetooth signal has been transmitted. Accordingly, the LED on the adaptor will flash whenever a Bluetooth signal is received.
