Wi Lan EB04 Wireless Ethernet Bridge, AWE 120-58 MKIII User Manual 120 58
Wi Lan Inc Wireless Ethernet Bridge, AWE 120-58 MKIII 120 58
Wi Lan >
Manual
![](/img.php?id=242993&img=bg1.png)
AWE 120-58
Advanced Wireless
Ethernet Bridge
User Guide
APR 2002 Rev 3
Important
You can obtain the latest customer documentation for this product by visiting our
web site at
www.wi-lan.com
. Click on
Support
➔
Customer Documentation
. Updated
information will be posted regularly on this site and can be downloaded via the
Internet.
![](/img.php?id=242993&img=bg4.png)
APR 2002 Rev 03
i
Contents
Contents ...............................................................................................i
Important Information .................................................................... vii
Safety Considerations ......................................................................................................................vii
Warning Symbols Used in this Book ...........................................................................................vii
Notices ................................................................................................ix
Copyright Notice ..............................................................................................................................ix
Regulatory Notice .............................................................................................................................ix
Other Notices .....................................................................................................................................x
Warranty & Repair .............................................................................................................................x
Customer Support Contacts ...........................................................................................................x
Distributor Technical Support .......................................................................................................xi
Wi-LAN Product Information ........................................................................................................xi
Publication History ............................................................................................................................xi
Description ..........................................................................................1
Features ................................................................................................................................................1
About Spread Spectrum ....................................................................................................................1
About AWE Units 2
Some System Applications ................................................................................................................3

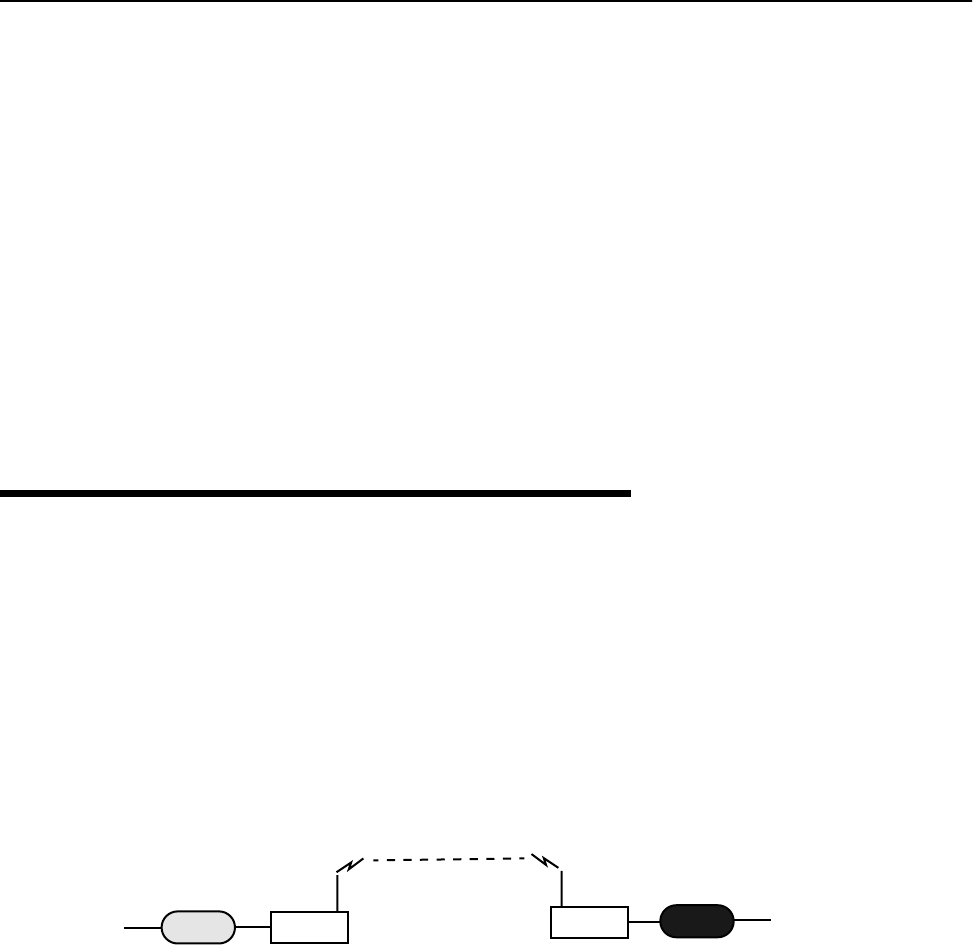

Making a Simple Wireless Bridge 3
Creating a Simple Wireless Network 3

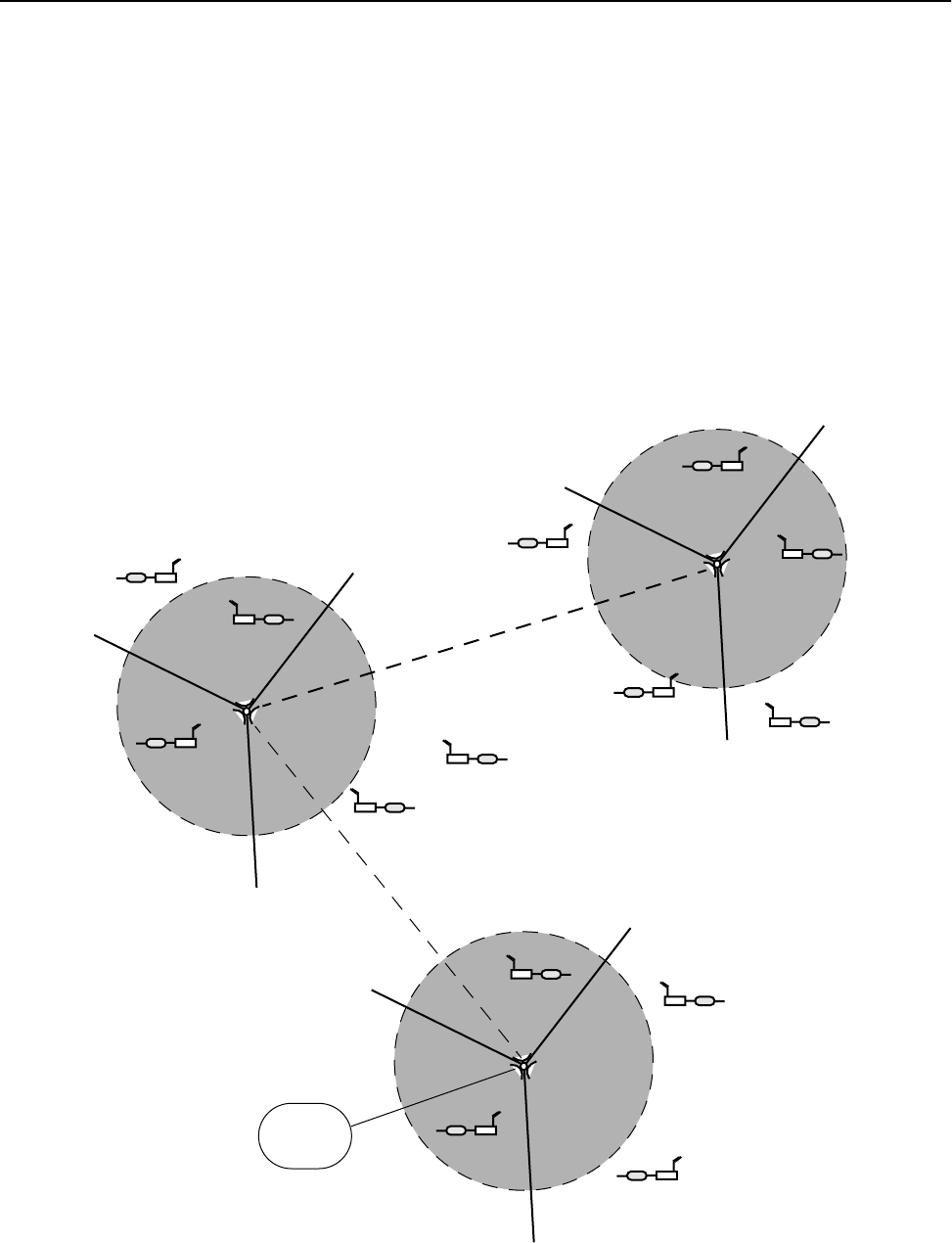

Creating a Network with Cells 5
Using a Repeater Base 6
Building a WAN 6
Hardware Description ......................................................................................................................7
AWE 120–58 Specifications .............................................................................................................9
![](/img.php?id=242993&img=bg5.png)
ii
AWE 120-58 User Guide
Installation ......................................................................................... 11
Overview ............................................................................................................................................11
Checking the Shipping Contents 12
Tools and Equipment 12
1 Obtain Network Plan ..................................................................................................................13
2 Assemble Units ..............................................................................................................................13
3 Configure Units .............................................................................................................................15
Configuring a Base Station 15
Configuring a Remote Unit 18
4 Bench Test Units ...........................................................................................................................20
Establishing a Basic RF Link 20
Testing the Link and Adjusting Tx Power 22
Performing Simple Network Tests 24
5 Install Units .....................................................................................................................................26
Point-to-Multipoint Installation 27
Co-Location Installation 27
6 Test Network ................................................................................................................................27
Adding to a Network ......................................................................................................................27
Preventative Maintenance
and Monitoring ..................................................................................................................................28
Configuration .................................................................................... 29
Overview ............................................................................................................................................29
Main Menu 29
Accessing the Main Menu ...............................................................................................................30
Accessing the Main Menu with HyperTerminal® 30
Accessing Units via telnet 31

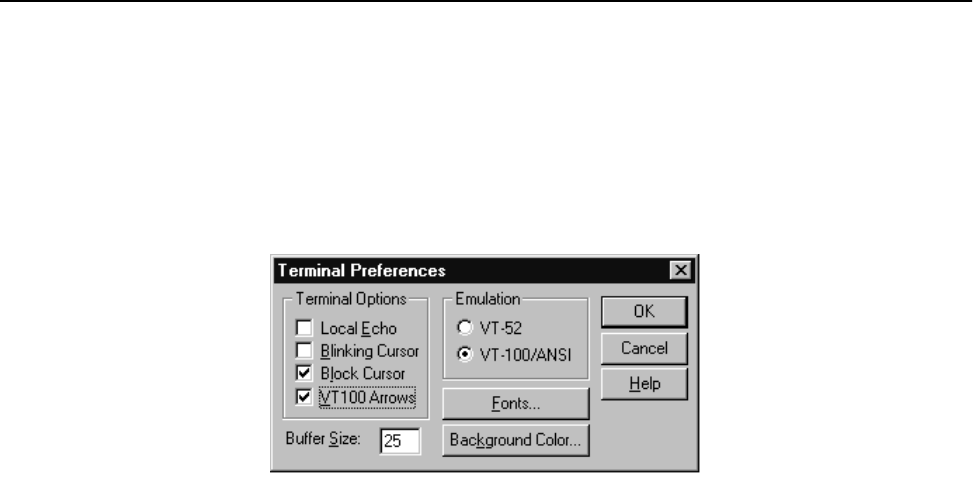

Setting VT100 Arrows 32
Configuring with the Main Menu ..................................................................................................33
Accessing Help 33
Unit Identification .............................................................................................................................35
Viewing Unit Identification 35
Assigning Unit Identification Information 36
Hardware/Software Revision .........................................................................................................37
Viewing System Revision Information 37
System Software ROM Images ......................................................................................................38
Viewing System Software ROM Images 38
System Current Status ....................................................................................................................39
Viewing System Current Status 39
Network Configuration ..................................................................................................................40
Viewing Internet IP Addresses and Subnet Mask 40
![](/img.php?id=242993&img=bg6.png)
APR 2002 Rev 03
iii
Setting the Internet IP Address 42
Setting the IP Subnet Mask 42
Setting the Default Gateway IP Address 43
Setting the SNMP NMS Trap IP Address (future) 43
Setting the MAC Filter Entry Age Time Minutes 43
Enabling MAC Address Filtering 44
IP Filter Configuration .................................................................................................................... 45
Viewing IP Filter Configuration 46
Enabling IP Packet Filtering 48
Enabling IP Address Filtering 48
Setting Default IP Address Filtering 48
Setting Up IP Address Filter 49
VLAN Configuration ....................................................................................................................... 50
Viewing VLAN Configuration 50
Port Configuration 50
Press Esc to exit the menu 52
Setting the Default VLAN ID 52
Setting the Port Link Type 52
Setting the Port Priority 53
Setting the Port Acceptable Frame Type 53
Enabling Port Ingress Filtering 54
Enabling Port Egress Filtering 54
VLAN Registration Configuration 55
Creating/Modifying a VLAN Registration Entry 56
Deleting a VLAN Registration Entry 57
Displaying the VLAN Registration Table 58
Below is a sample table:
58
MAC Address Filter Configuration 58
Creating/Modifying a MAC Address Filter Entry 59
Removing a MAC Address Filter Entry 60
Displaying the MAC Address Filter Table 61
Below is a sample table:
61
Traffic Class Configuration 61
Á To view the Traffic Class Configuration menu 62
Assigning Packet Priority to Traffic Classes 62
Spanning Tree Configuration 62
Á To view the Spanning Tree Configuration menu 63
Enabling Spanning Tree 64
Setting the Bridge Priority 65
Setting Port Priority 65
Setting Port Path Cost 66
RF Station Configuration ............................................................................................................... 67
Viewing Current RF Station Configuration 67
Setting the Operating Mode 68
Setting Test Mode Timer Minutes 71
Performing Link Monitor Test (Normal Mode) 72
Performing Transmit and Receive Tests 75
Setting the RF Transmit Status 77
Setting the Link Monitor Period 78
Setting Maximum Remote Distance (Base Station Only) 79
Setting Link Monitor Remote Station Rank 81
Adjusting Throttling (Remote Station Only) 82
![](/img.php?id=242993&img=bg7.png)
iv
AWE 120-58 User Guide
Setting Tx Power Automatically (Remote Station Only) 83
Adjusting User Output Power Ceiling (Remote Station Only) 86
Setting Signal Margin (Remote Station Only) 87
Viewing Current Output Power Level Adjust 88
Radio Module Configuration ..........................................................................................................89
Viewing the Radio Module Configuration 89
Setting Config Test Minutes 92
Setting the Station Type 93
Setting the Station Rank 94
Setting the Center Frequency 95
Setting Security Passwords 98
Setting the Scrambling Code 99
Setting the Acquisition Code 100
Adjusting the Tx Power Level 101
Setting a Base to Repeater Mode (Base Station Only) 102
Setting System Symmetry Type (Base Station Only) 104
Setting Dynamic Polling Level (Base Station Only) 105
Setting Remote Unit RF Group 106
Rebooting and Saving RF Module Configurations 109
RF/Ethernet Statistics ................................................................................................................... 111
Viewing RF/Ethernet Statistics 111
System Security .............................................................................................................................. 114
Viewing System Security 114
Assigning Community Names 116
Setting Menu Passwords 117
Allowing Remote Access and Configuration 119
Setting the Auto Logout Minutes 120
System Commands ........................................................................................................................ 121
Viewing System Command Menu 121
Setting Default System Image 122
Setting the Reboot System Image 123
Rebooting the Current Image 123
Restoring Factory Configurations 124
Resetting Radio and Ethernet Statistics 125
Link Monitor Display .................................................................................................................... 126
Viewing Link Monitor Statistics 126
Logout .............................................................................................................................................. 127
Logging Out 127
Command Line Interface ............................................................................................................. 128
Troubleshooting ............................................................................. 129
Administrative Best Practices ..................................................................................................... 129
Troubleshooting Areas ................................................................................................................ 130
Troubleshooting Chart 131
Appendix A: Planning Your Wireless Link .................................. 135
![](/img.php?id=242993&img=bg8.png)
APR 2002 Rev 03
v
Planning the Physical Layout .......................................................................................................135
Determine the Number of Remotes 135
Ensure LOS and Determine Coverage Area 135
Measure the Distance Between Units 136
Determine Shelter, Power and Environmental Requirements 136
Determining Antenna
and Cable Requirements .............................................................................................................. 136
Determining Unit Configuration Settings ................................................................................ 137
Calculating a Link Budget ............................................................................................................. 137
Link Budget Example ..................................................................................................................... 141
Antenna Basics ............................................................................................................................... 142
Antenna Parameters 142
Implementation Considerations 143
Wi-LAN Approved Antennas 144
Antenna Installation Factors 145
Installing Antennas 146
Fine-tuning Antennas 147
Co-locating Units 147
Appendix B: Using HyperTerminal ..............................................149
Starting HyperTerminal ................................................................................................................ 149
Determining the Communications Port ................................................................................... 150
Appendix C: Configuring a Simple Data Network ......................151
Checking Network Adaptor Installation .................................................................................. 151
Configuring the Network ............................................................................................................152
Enabling Sharing on the Hard Disk Drive ................................................................................155
Appendix D: SNMP ........................................................................157
About SNMP MIB ..........................................................................................................................157
Wi-LAN Object Identifier Nodes .............................................................................................. 158
Using SNMP ....................................................................................................................................158
Using Object Identifier Nodes ...................................................................................................159
Appendix E: Configuration Via the Web .....................................171
Overview ......................................................................................................................................... 171
Accessing the Web Pages 171
Web Interface 171
Appendix F: Upgrading Software .................................................175
![](/img.php?id=242993&img=bg9.png)
vi
AWE 120-58 User Guide
Obtaining New Software Images ............................................................................................... 175
Downloading Image Software ..................................................................................................... 175
Activating New Software Images ............................................................................................... 177
Removing Old Software Images ................................................................................................. 177
Appendix G: Network Plan Template ......................................... 179
Base Station Information ............................................................................................................. 179
Remote Unit Information and Link Budget ............................................................................. 181
Index ................................................................................................ 183
![](/img.php?id=242993&img=bga.png)
APR 2002 Rev 03
vii
Important Information
Please be aware of the following information about the AWE 120-58.
• Tx power of remote units can be monitored and adjusted automatically.
• Center frequency is typed into a data field (rather than selected from a list). Available center fre-
quencies range from 5.7410 GHz to 5.8338 GHz in 400 kHz steps.

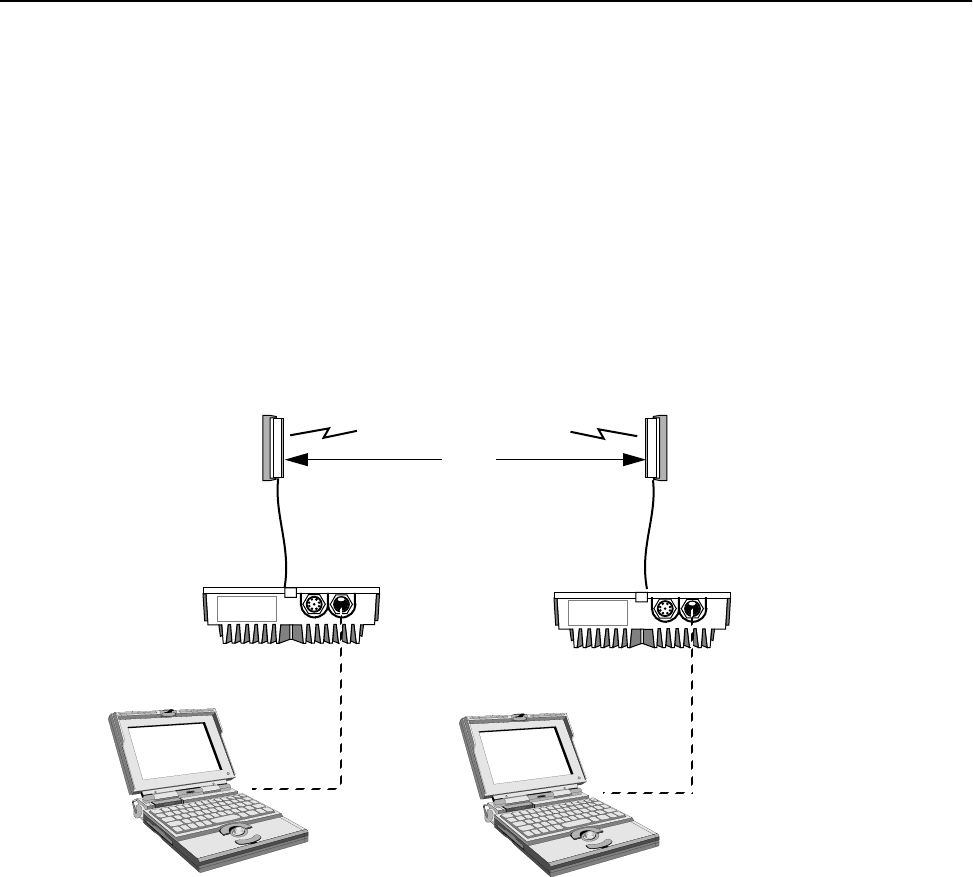

• Indoor antennas are not supplied. To test and configure units you need to purchase a Bench Test
Kit (9000-0034). For bench testing, antennas must be separated by at least 2 meters.
Safety Considerations
This documentation must be reviewed for familiarization with the product, instructions, and safety symbols
before operation.
Verify that a uninteruptable safety earth ground exists from the mainpower source and the product’s ground
circuitry.
Verify that the correct AC power source is available for the AC adapter to produce TBD Vdc output from the
adapter.
Disconnect the product from operating power before cleaning.
Warning Symbols Used in this Book
WARNING: Bodily injury or death may result from failure to heed a WARNING.
Do not proceed beyond a WARNING until the indicated conditions are fully understood and
met.
! CAUTION: Damage to equipment may result from failure to heed a caution.
Do not proceed beyond a CAUTION until the indicated conditions are fully understood and
met.
Important: Indicates important information to be aware of which may affect the completion of
a task or successful operation of equipment.
WARNING
!
!
![](/img.php?id=242993&img=bgb.png)
Important Information
viii
AWE 120-58 User Guide
All antennas and equipment must be installed by a knowledgeable and
professional installer.
! CAUTION
Never operate a unit without an antenna, dummy load, or terminator
connected to the antenna port.
Operating a unit without an antenna, dummy load, or terminator connected
to the antenna port can permanently damage a unit.
Important
Antennas must be selected from a list of Wi-LAN approved antennas.
See
Wi-LAN Approved Antennas
, page 144 for list.
![](/img.php?id=242993&img=bgc.png)
APR 2002 Rev 03
ix
Notices
Copyright Notice
Copyright© 2001 Wi-LAN, Inc.
All rights reserved.
This guide and the application and hardware described herein are furnished under license and are subject to a
confidentiality agreement. The software and hardware can be used only in accordance with the terms and
conditions of this agreement.
No part of this guide may be reproduced or transmitted in any form or by any means—electronic,
mechanical, or otherwise, including photocopying and recording—without the express written permission of
Wi-LAN, Inc.
While every effort has been made to ensure that the information contained in this guide is correct, Wi-LAN,
Inc. does not warrant the information is free of errors or omissions.
Information contained in this guide is subject to change without notice.
Regulatory Notice
The AWE 120-58 product presented in this guide complies with the following regulations and/or regulatory
bodies.
• RSS-210 of Industry Canada (www.ic.gov.ca)
• FCC Part 15 (www.fcc.gov)
Operation is subject to the following two conditions.
• This device may not cause interference
• This device must accept any interference, including interference that may cause undesired operation
of the device
This equipment generates, uses, and radiates radio frequency and, if not installed and used in accordance with
this guide, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
![](/img.php?id=242993&img=bgd.png)
Notices
x
AWE 120-58 User Guide
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following methods.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect equipment to an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
• Selecting and testing different channels, if employing 5.8 GHz equipment
As the AWE 120-58 is used on a license-exempt, non-frequency coordinated, unprotected spectrum
allocation, and thus can be subject to random unidentified interference, applications must not be those of a
primary control where a lack of intercommunication could cause danger to property, process, or person. An
alternative fail-safe should be designed into any system to ensure safe operation or shut down, should
communication be lost for any reason.
Other Notices
• Changes or modifications to the equipment not expressly approved by Wi-LAN, Inc., could void the
user’s authority to operate the equipment.
• Appropriately shielded remote I/O serial cable with the metal connector shell and cable shield
properly connected to chassis ground shall be used to reduce the radio frequency interference.
• Radio frequency exposure limits may be exceeded at distances closer than 23 centimeters from the
antenna of this device.
• All antenna installation work shall be carried out by a knowledgeable and professional installer.
• Use only a power adapter approved by Wi-LAN.
Warranty & Repair
Please contact the party from whom you purchased the product for warranty and repair information.
Wi-LAN provides no direct warranty to end users of this product.
Customer Support Contacts
Users of Wi-LAN equipment who require technical assistance must contact their reseller or distributor. For
information on distributors in your area, please visit www.wi-lan.com/channel.
![](/img.php?id=242993&img=bge.png)
Distributor Technical Support
APR 2002 Rev 03
xi
Distributor Technical Support
Distributors may contact Wi-LAN’s Technical Assistance Center (TAC) for technical support on Wi-LAN
products. When requesting support, please have the following information available:
• Description of the problem
• Configuration of the system, including equipment models, versions and serial numbers.
• Antenna type and transmission cable lengths
• Site information, including possible RF path problems (trees, buildings, other RF equipment in the
area)
• Configuration of units (base, remote, channels used, etc.) and Link Monitor statistics
Contact Wi-LAN’s Technical Assistance Center at the numbers listed below.
Wi-LAN Product Information
To obtain information regarding Wi-LAN products, contact the Wi-LAN distributor in your region, call
1-800-258-6876 to speak with a Wi-LAN sales representative or visit our web site at www.wi-lan.com.
Publication History
Canada and USA Call toll free: 1-800-258-6876
Business hours: 7:30 a.m. to 4:30 p.m. Mountain Standard Time (GMT-7:00)
International Call: 1-403-204-2767
Business hours: 7:30 a.m. to 4:30 p.m. Mountain Standard Time (GMT-7:00)
All locations Send an e-mail message to:
techsupport@wi-lan.com
Revision Date Description
Rev 1 APR 2002 Initial release of manual.
![](/img.php?id=242993&img=bgf.png)
Notices
xii
AWE 120-58 User Guide
![](/img.php?id=242993&img=bg10.png)
APR 2002 Rev 03
1
Description
Features
The AWE 120-58 advanced wireless Ethernet bridge provides high-speed, wireless connectivity at a fraction
of the cost of wired solutions. It operates over the 5.7250 – 5.8500 GHz ISM radio band and has a maximum
raw wireless data rate of 12 Mbps.
• Provides wireless connectivity at speeds up to eight times faster than regular T1 lines, making the
AWE 120-58 ideal for providing high-speed Ethernet access or for wirelessly extending existing
communications infrastructures.
• Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint networks (if all remotes have
clear line of sight to the base station and to each other). Contentionless polling ensures efficient access to
remote data networks.
• Is self-contained and easy to use. Simply connect an AWE unit to each LAN segment, and the unit
automatically learns where nodes are located on the network and performs dynamic packet filtering to
ensure the local LAN traffic does not overload the wireless connection.
• Uses Wi-LAN's patented Multi-Code Direct Sequence Spread Spectrum (MC-DSSS) technology, which
makes the unit spectrally efficient and resistant to interference. MC-DSSS technology increases data
throughput by as much as ten times compared to traditional spread spectrum technology.
• Other features include automatic Tx power level adjustment, IP address filtering, throughput throttling and
monitoring, high security and reliability, and a flash-code upgrade path. SNMP, telnet and RS-232
management enable users to manage, configure and monitor their wireless network with ease.
• VLAN compliant—supports transparent forwarding of VLAN-tagged frames (increased frame size
supported) and remote management of units within a VLAN environment (i.e. units connected via trunk
links). Supports VLAN tag insertion/removal and VLAN supporting protocols (802.1D, 802.1P, GVRP).
About Spread Spectrum

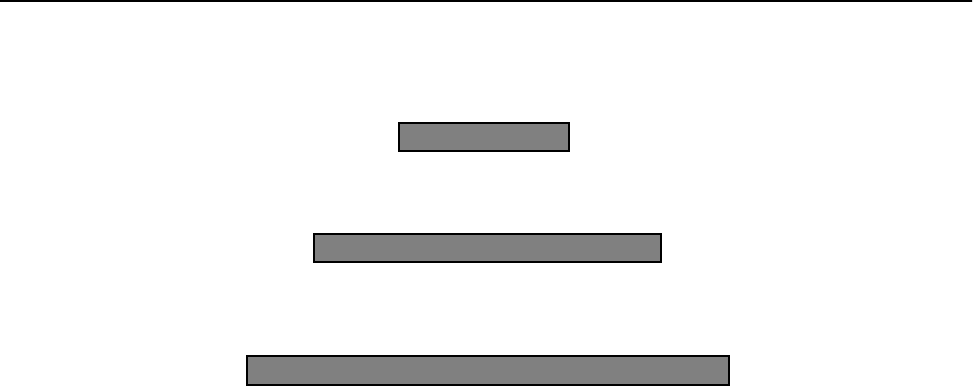

Three frequency bands (called the ISM bands) are allocated in Canada and the United States to a radio
technique known as spread spectrum communication. The bands are located at 900MHz, 2.4 GHz, and 5.8
GHz (shown in the following illustration). The AWE 120-58 operates with spread spectrum technology over
the 5.7250 – 5.850 GHz band.
![](/img.php?id=242993&img=bg11.png)
Description
2
AWE 120-58 User Guide

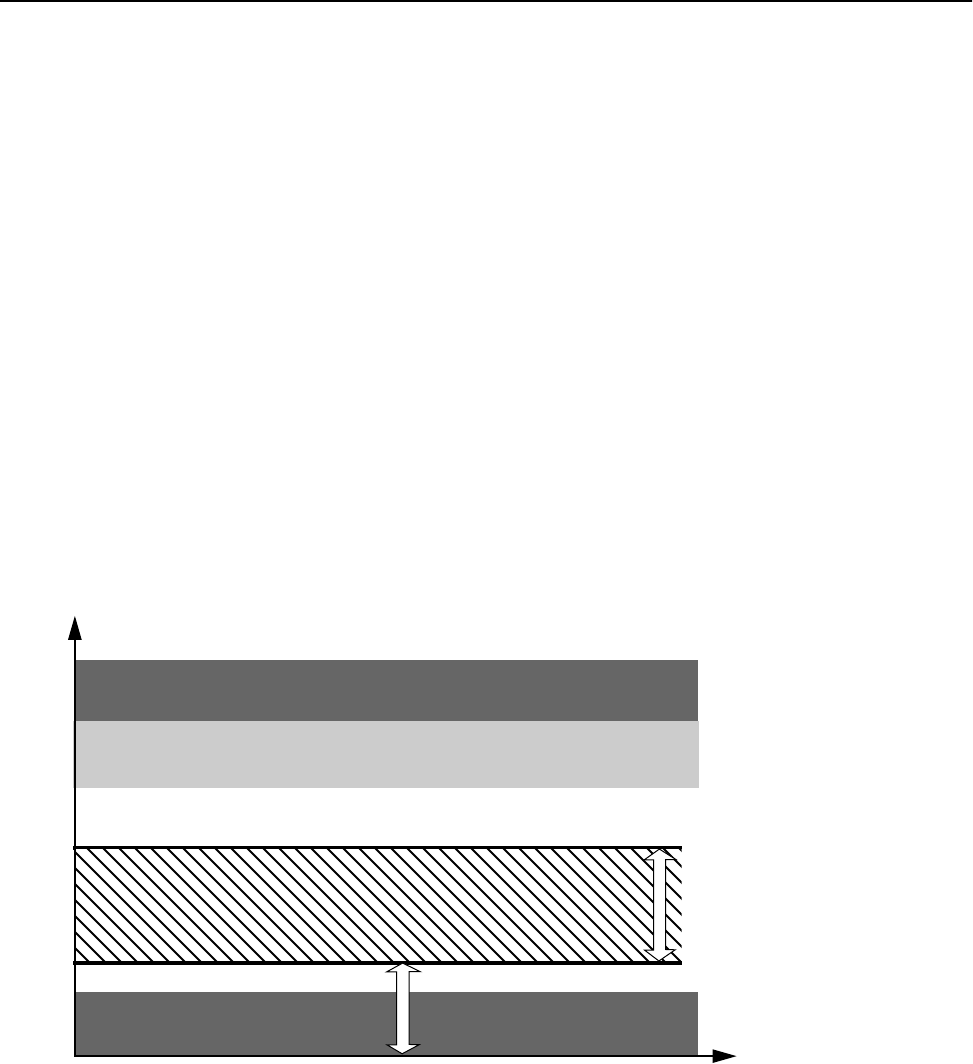

License-Free ISM Bands
Direct Sequence Spread Spectrum (DSSS) technology converts a data stream into packets and spreads the
packets across a broad portion of the RF band. The particular spread pattern depends upon a code. With
multi-code DSSS (MC-DSSS), multiple codes and spread patterns are employed. A spread spectrum receiver
reconstructs the signal and interprets the data.
Some advantages of DSSS are as follows:
• Resistant to interference: DSSS overcomes medium levels of interference and multipath problems.
• Security: There must be a decoder at the receiving end to recover data (an AWE can only talk to
another AWE). Data is transmitted at irregular time intervals.
• Low probability of detection: Due to a low amplitude signal and wide bandwidth.
• No license fee: A license fee is not required if used in the specified radio bands and the transmitter
power is limited.
About AWE Units
AWE 120-58 units can function as base stations, remote units or repeater bases.
Base Station:
One unit in your wireless network must be a base station. A base station acts as the central
control unit of the wireless network. The base station polls all remote units and controls how traffic is routed
to and from remotes. The base usually connects to a major access point of the wired network. The antenna of
the base station must be capable of transmitting and receiving radio signals to and from all the remote units in
a system. If remotes are spread over a large area, an omni-directional antenna is usually required. See
Configuring a Base Station
, page 15 for information about setting up a base station.
900 MHz
2.4 GHz
5.8 GHz
26 MHz Wide
83.5 MHz Wide
125 MHz Wide
902 MHz 928 MHz
2.4 GHz 2.4835 GHz
5.725 GHz 5.85 GHz
![](/img.php?id=242993&img=bg12.png)
Some System Applications
APR 2002 Rev 03
3
Remote Units:
Remote units receive and transmit wireless data to the base station. You need at least one
remote unit for each wireless link. Remotes can limit the amount of data passed by the remote (a function
called throttling), and they can filter data packets based on their IP address. If remote units communicate only
with the base station, their antennas can be more directional and have higher gains than base antennas. See
Configuring a Remote Unit
, page 18 for information about setting up a remote unit.

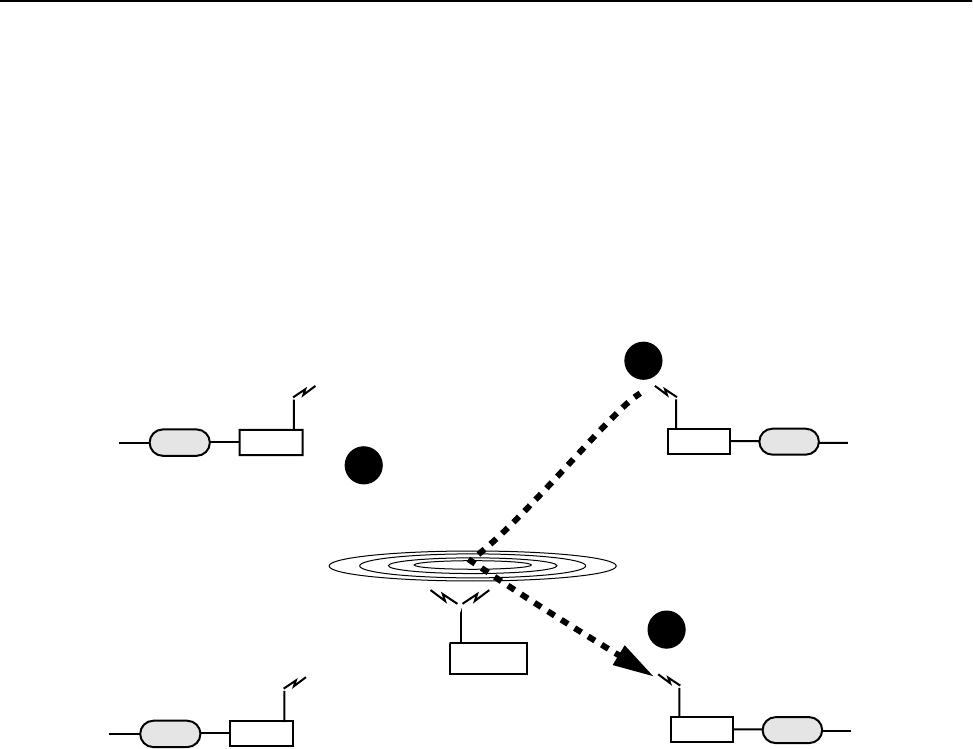

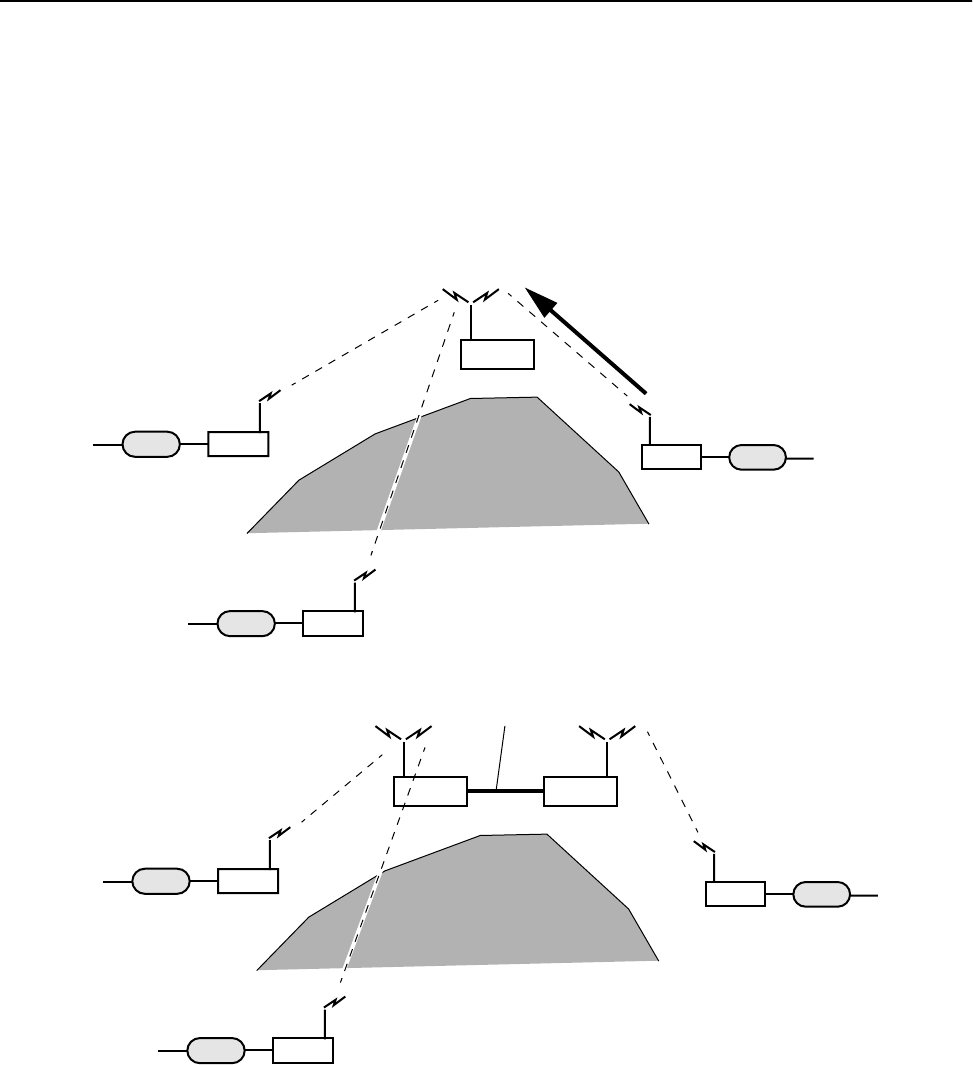

Repeater Base:
A base station can be configured as a repeater base. A repeater is needed when remote
units cannot communicate directly with each other, but direct transfers of data between them are necessary
(as in a true WAN). When configured as a repeater, the base station passes data packets between remote
stations based on the remote group status and a list of MAC (Media Access Control) addresses that the base
station automatically builds. A single repeater uses a method called “store and forward” to receive data from
the originating remote and to pass data to the destination remote. See
Setting a Base to Repeater Mode
(Base Station Only)
, page 102 for more information. Two units can also be employed as a dual unit repeater
(back-to-back) configuration that maximizes data throughput.
Some System Applications
You can build a wireless network from AWE units and various other components such as cables and antennas.
The following section shows some simple examples of AWE applications.
Making a Simple Wireless Bridge
The simplest example of using a AWE 120-58 is a point-to-point wireless bridge that connects two wired
network segments or LANs. Two AWE units are required: a base station and a remote unit.

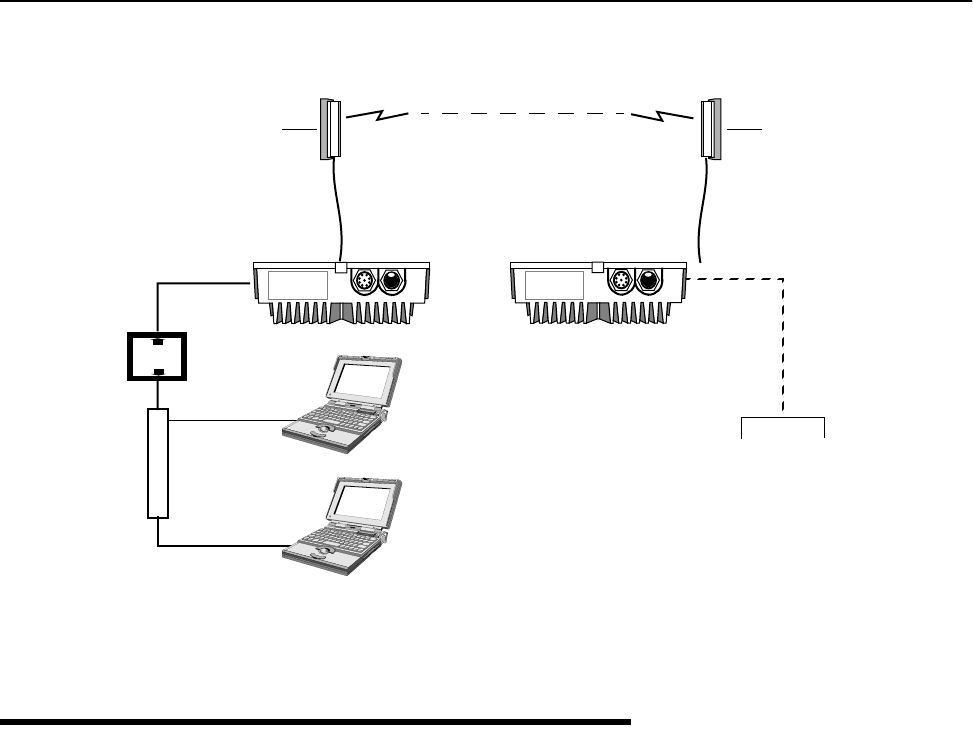

Point-to-Point Wireless Bridge
Creating a Simple Wireless Network
You can create a point-to-multipoint wireless network by adding several remote units to a base station. A
base station can support up to 1000 remotes, however, Wi-LAN recommends no more than 225 remotes per
base station to ensure high levels of data throughput. See
Determine the Number of Remotes
, page 135
for more information.
Base
Wired Network
RemoteRouter
Main Wired Network
Router
Hub
Switch
Firewall
Switch
Hub
Firewall
Wireless Link
![](/img.php?id=242993&img=bg13.png)
Description
4
AWE 120-58 User Guide

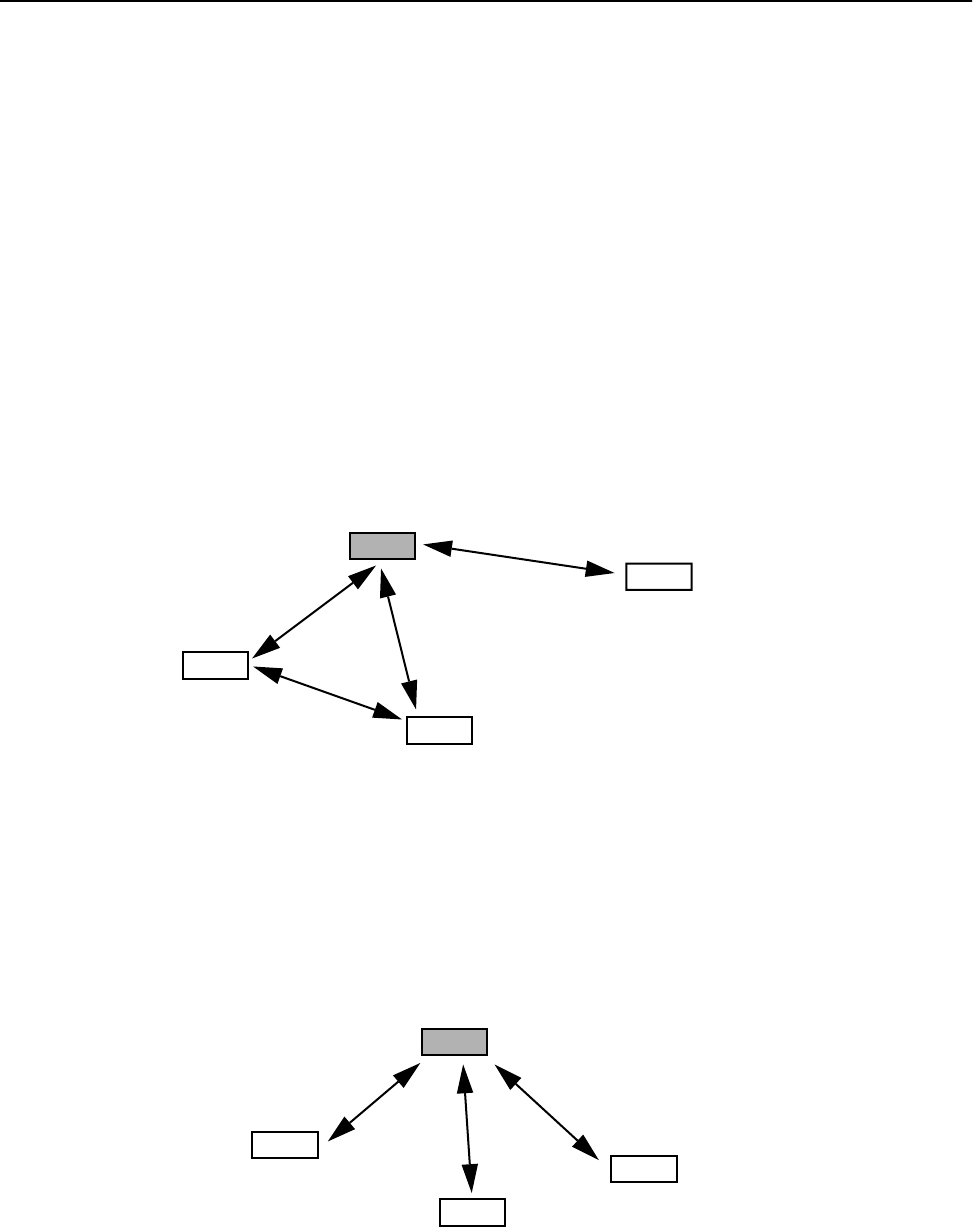

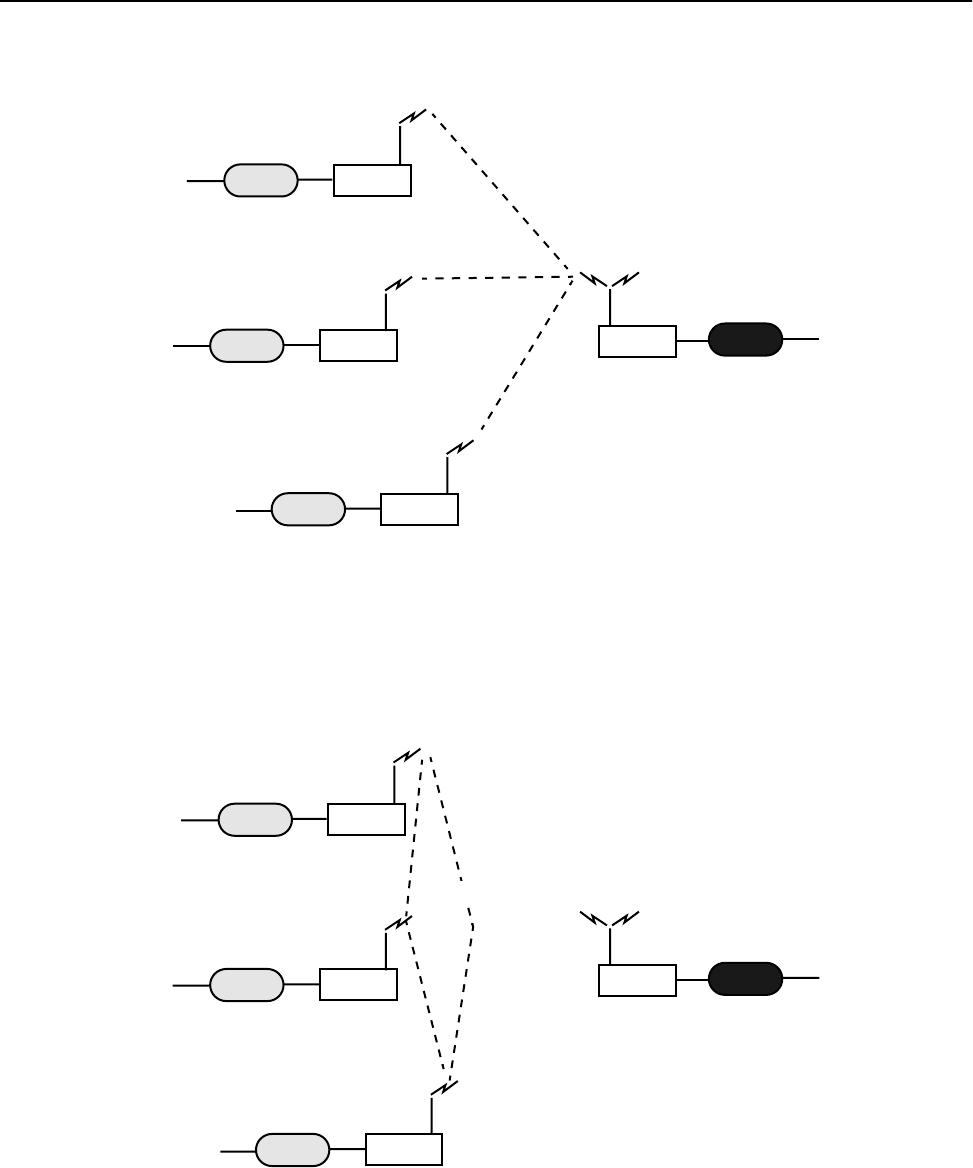

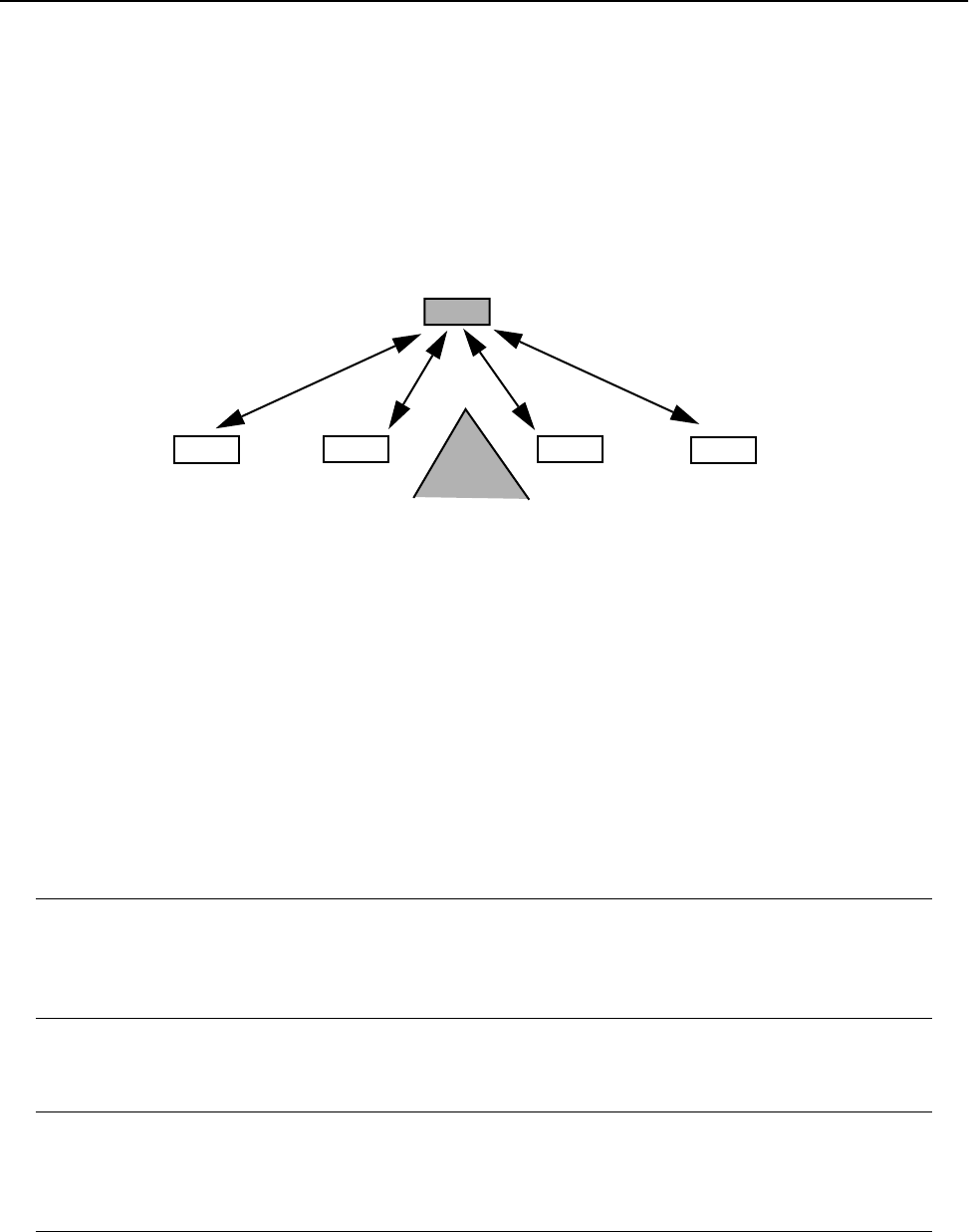

Point-to-Multipoint Wireless Network
Direct remote-to-remote communication can occur if a direct RF link can be established between remotes,
and if remotes are in the same RF group.
Remote-to-Remote Communication
Base
RemoteRouter
RemoteRouter
Wired Network
Wired Network
Wired Network
RemoteRouter
Main Wired Network
Router
Hub
Switch
Hub
Switch
Firewall
Firewall
Switch
Hub
Firewall
Switch
Hub
Firewall Wireless Links
Base station polls
Remote Units
Base
Remote
Remote
Remote
Main Wired Network
Remotes must be in the same
RF group to communicate
directly
Wireless Links
![](/img.php?id=242993&img=bg14.png)
Some System Applications
APR 2002 Rev 03
5
Creating a Network with Cells
Cells or data nodes can be created with AWE units to maximize coverage, minimize interference, and
increase data throughput. Directional antennas are mounted on a mast to divide cells into sectors.Each sector
is connected to an antenna and a base station. Directional antennas increase signal gain within the sector and
increase the distance possible between base stations and remotes. Center frequency, acquisition code and
antenna polarization techniques are used to isolate sectors. The increase in data rate depends on the number
of sectors. For example, the data rate of Cell 1 in the diagram below is 36 Mbps (12 Mbps x 3 sectors). Cells
are distributed across a service area and can be linked to each other via a wireless link or a fiber optic cable.
Implementing a network with cells requires comprehensive network planning and site preparation. Please
contact Wi-LAN for information about creating a network with cells.
LAN with Cells and Sectors
Fiber Optic Cable or Wireless Link
Cell 1
Cell 2
In this example, cells are divided into120 degree sectors.
Cells are linked to other cells by a wired or wireless link.
Remote
Remote
Remote Remote
Remote
Remote
Remote
Remote
Remote
Remote
Base
Stations (3)
Base
Stations (3)
Cell 3
Remote
Remote
Remote
Remote
Base
Stations (3)
Internet
Fiber Optic Cable or Wireless Link
![](/img.php?id=242993&img=bg15.png)
Description
6
AWE 120-58 User Guide
Using a Repeater Base
A base station can function as a repeater to enable wireless data communication around physical obstacles
such as tall buildings or mountains. The repeater passes data around the obstacle to any remote in the same
RF group. The single unit repeater slows data throughput due to the “store and forward” process where each
packet is handled twice. A dual unit repeater does not slow data throughput.
Base Station as a Repeater
Building a WAN
LAN segments can be linked with AWE units to build a WAN (Wide Area Network). Wi-LAN networks are
installed in many locations around the world. You can contact Wi-LAN for help designing your network.
Remote
Wired Network
Wired Network
Remote
Repeater
Wireless Links
Wired Network
Remote
1
2
3
Mountain
Single Unit Repeater
Dual Unit Repeater
Remote
Wired Network
Wired Network
Remote
Wireless Links
Wired Network
Remote
1
2
3
Mountain
Base Base
Ethernet
![](/img.php?id=242993&img=bg16.png)
Hardware Description
APR 2002 Rev 03
7
Hardware Description
The AWE 120-58 unit has two connector ports located on the access panel. One port receives Power and
Ethernet via a special connector cable (see below). The second port provides Serial management access.
Access Panel
The access panel connectors are further described below
The top panel for a unit with a separate antenna connection is shown below. It contains a cover plate with an
N-type antenna connector. An integrated antenna may alternatively replace this cover plate, providing a direct
RF connection.
Power/Ethernet Port 8-pin male connector. A matching connector cable is provided with your
shipping package
Serial Port 5-pin female connector. A matching connector cable is available separately
(not provided with your shipping package)
Power/Ethernet Port
Serial Port
![](/img.php?id=242993&img=bg17.png)
Description
8 AWE 120-58 User Guide

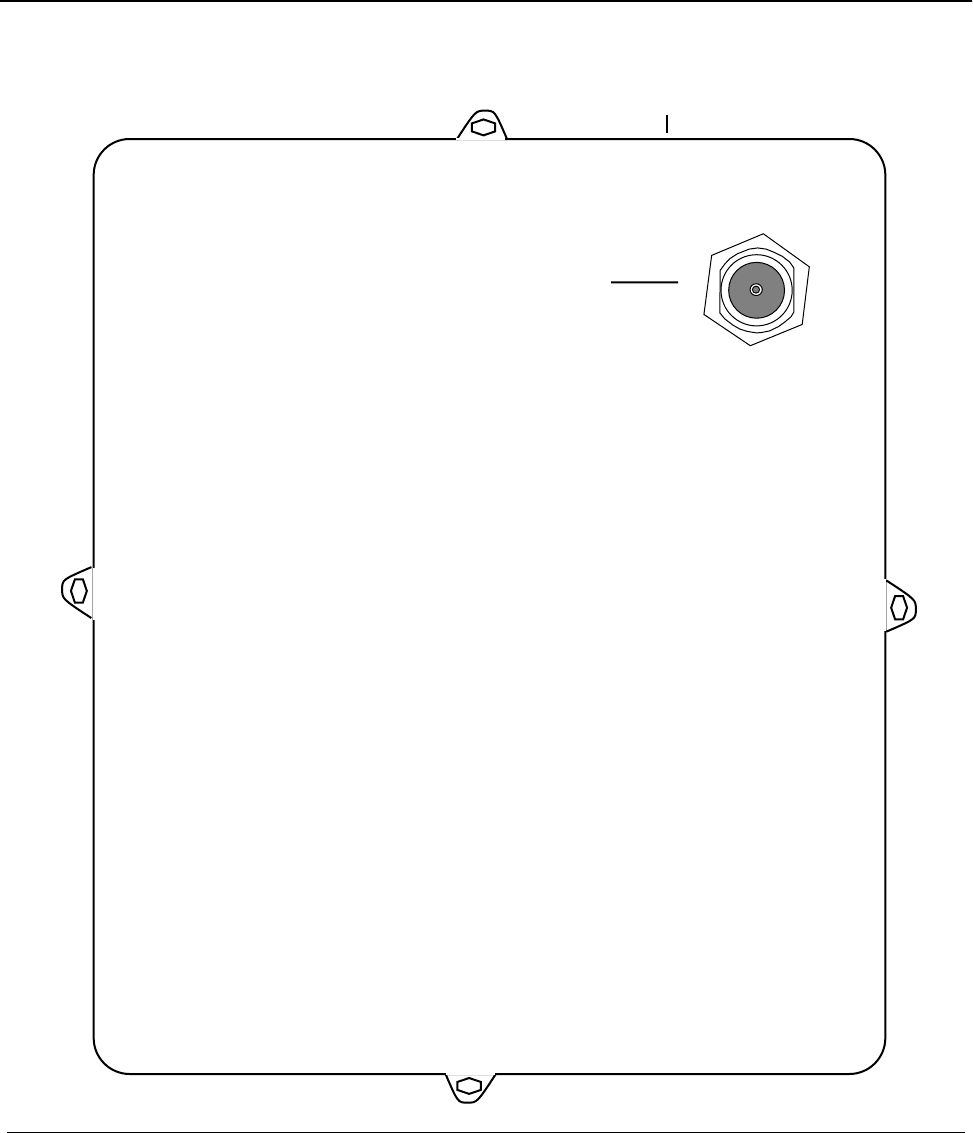

Top Panel
Antenna N-type female connector antenna port is located at the top right of the top
panel. This port may be connected to an antenna directly or through a 50
ohm coaxial cable
Antenna
Port
Cover Plate
![](/img.php?id=242993&img=bg18.png)
AWE 120–58 Specifications
APR 2002 Rev 03 9
AWE 120–58 Specifications
General Specifications
Modulation Method: Multi-Code Direct Sequence Spread Spectrum (MC-DSSS), time
division duplexing (TDD)
Wireless Data Rate: 12 Mbps raw data rate/up to 10.2 Mbps operational
RF Frequency Range: 5.725 - 5.850 MHz (unlicensed ISM band)
Power Requirements: TBD Vdc (via 110/240 VAC 50/60 Hz adaptor)
15W maximum power consumption
Physical (for units with integrated
antenna):
Size (W x L x H): 30.5 x 30.5 x 8.4 centimeters
(12 x 12 x 3.3 inches)
Weight: 3.6kg (7.9 lb.)
Physical (for units with separate
antenna):
Size (W x L x H): 8.6 x 10.3 x 8.1 centimeters
(8.6 x 10.3 x 3.2inches)
Weight: 3 kg (6.6 lb.)
Radio Specifications
Antenna Connector: N-type female (for units with separate antenna)
Max. Transmit Output Power: +21 dBm +/– 1 dBm (after unit temperature is settled)1
Receiver Sensitivity: Better than – 80 dBm (1 x 10–6 BER) mid-channel1l
Processing Gain: >10 dB
System Gain Better than 101 +/– 1 dB
Center Frequency 5.7410 GHz–5.8338 GHz in 400 kHz steps

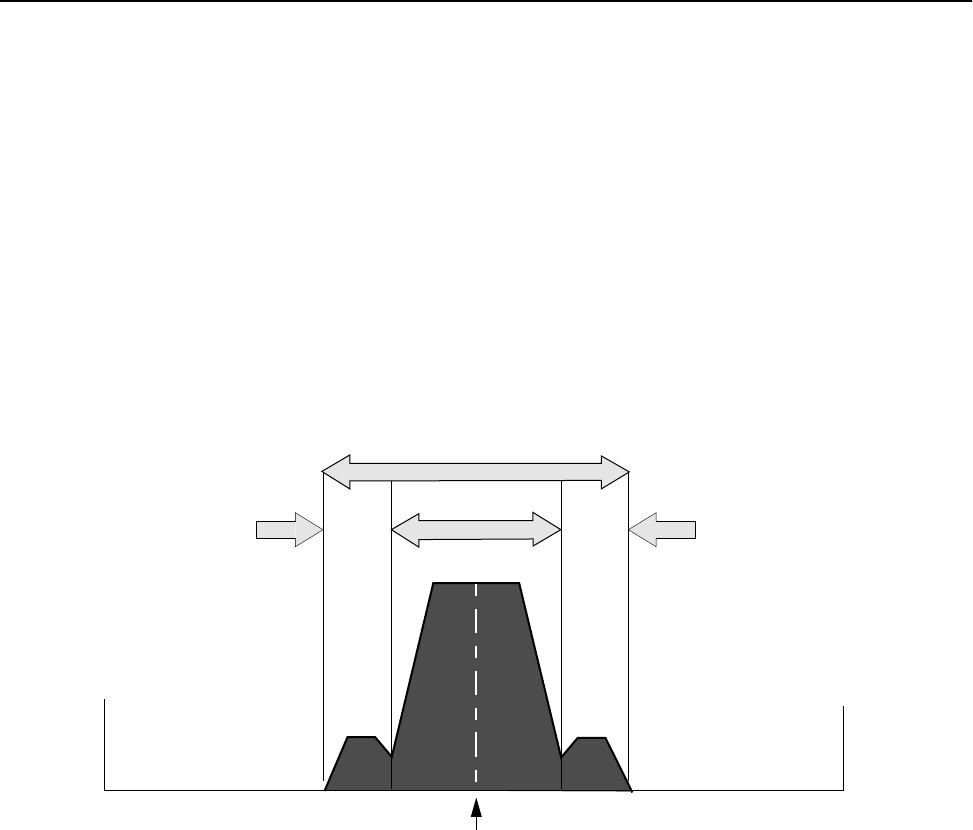

Bandwidth 33 MHz null to null
1
Transmit Power and Sensitivity specifications are for mid-channel
and room temperature. Across frequency and temperature range,
these specifications are within +/– 2 dBm
Network Support
Packet Format: IEEE 802.3 and Ethernet II
(High-level protocol transparent)
LAN Connection: 10/100BaseT (auto negotiates)
Bridge Functionality: Local Packet Filtering (self-learning)
Static IP address filtering
Dynamic polling of remotes
User configurable data rate (throttling)
Software is upgradeable online via ftp
![](/img.php?id=242993&img=bg19.png)
Description
10 AWE 120-58 User Guide
Wireless Networking
Protocols
Network Topologies: Point-to-Point, Point-to-Multipoint, Multipoint-to-Multipoint
Repeater Mode: User Configurable
Private Network User configurable using repeater and RF Group
RF Collision Management: Dynamic Polling with Dynamic Time Allocation
Security
Data Scrambling: User Configurable
Data Security Password: Security password of up to 20 bytes in length
(1048 combinations)
Configuration, Management, and Diagnostics
Configuration Methods: Web, SNMP, telnet and RS-232 Serial Port
SNMP: Version I compliant (RFC 1157), MIB standard and enterprise
(RFC 1213)
Management Port Functionality: Supports system configuration, security, access control,
wireless LAN diagnostics and management, menu-driven
ASCII interface via RS-232 DB-9 connector
Environment
Units are fully weather proof.The operating ambient
temperature range is from -40º to 60º Celsius.
![](/img.php?id=242993&img=bg1a.png)
APR 2002 Rev 03 11
Installation
Overview
This section explains how to install AWE units. You will first assemble, configure and test units in a controlled
environment so that any problems can be solved easily, and then install units in the field. By going through this
process, you will ensure a successful installation, save time spent on-site, and reduce travel from site to site.
The following basic process should be followed.
1. Obtain your network plan (see Appendix G: Network Plan Template on page 179 ), equipment and
tools.
2. Assemble units.
—Check the contents of each AWE shipping package to ensure that you have received the required parts.
—Connect an indoor antenna or dummy load, connect the power supply unit and check the power.
3. Configure units—Set unit parameters according to the network plan.
4. Bench test units—Test basic RF and network operation of units in a controlled environment.
5. Install units—Place the tested units in their field locations and connect them to antennas, the wired
network, and power. Install the ferrite block around the 10/100BaseT Ethernet cable.
6. Test Network—Test the operation of the installed network.
Obtain
Assemble
Configure
Install
1
2
3
5
Network Plan
Test
6
Bench Test
4
Units
Units
Units
Units
Network
![](/img.php?id=242993&img=bg1b.png)
Installation
12 AWE 120-58 User Guide
Checking the Shipping Contents
Check the contents of each AWE shipping package to ensure that you have received all the materials. Note
that there are two possible packages available for units shipped with or without an integrated antenna. Verify
the package type you ordered and refer to the appropriate list(s) below.
Common items for both shipping packages include:
• AWE unit
• Power supply (includes one (1) Power Inserter Unit and one (1) Power/Ethernet cable)
• Unit mounting accessories (includes four (4) lock washers, four (4) lock nuts, four (4) flat washers,
four (4) threaded rods, and two (2) clamping plates)
• Two (2) end caps
• Installation and Configuration Guide (CDROM or hardcopy)
• Warranty Card
If you ordered the integrated antenna shipping package, the following additional item(s) should be included:

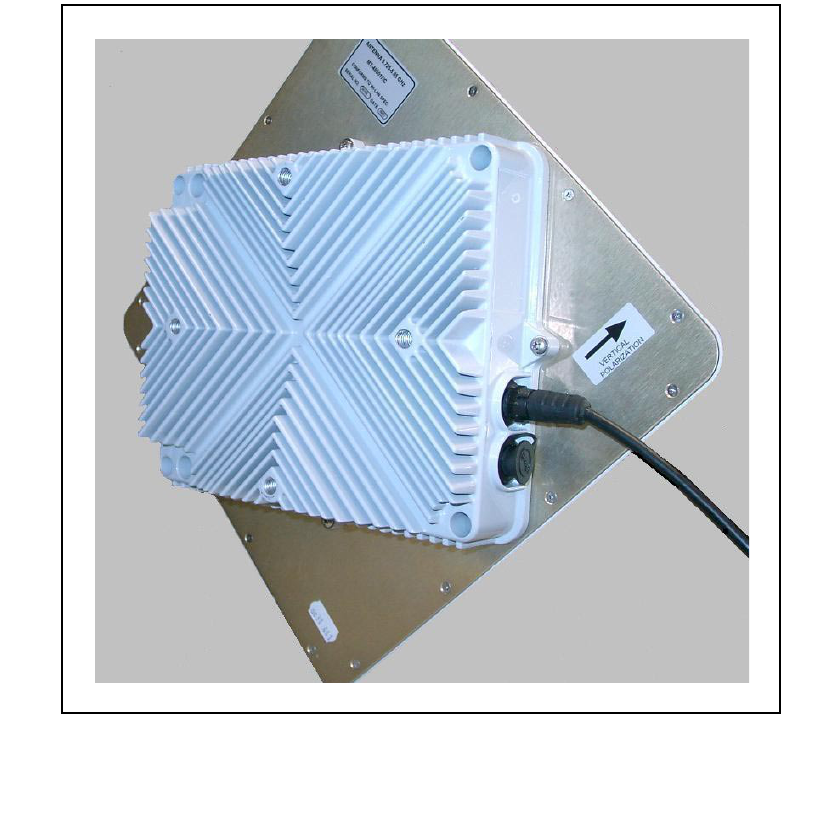

• TilTek 23 dBi integrated antenna
Otherwise, the following additional item(s) should be included:
• Cover plate
If any of the above items are not included in the AWE 120-58 shipping package, contact Wi-LAN customer
support.
You may also require the following items.
• Cable, straight-through Ethernet RJ45, when connecting a unit to a hub
• Cable, crossover Ethernet cable RJ45, when connecting directly to the Ethernet port of a PC
• AWE 120-58 Serial cable (DB9 female connector to AWE 120-58 5-pin male connector)
• DB9 to DB25 serial adaptor
You can purchase these items and other parts from Wi-LAN or any authorized supplier.
Tools and Equipment
Ensure that you have all the required parts and equipment specified in the network plan. You will require a
laptop PC with HyperTerminal® or other terminal emulation software and RS-232 cable to install and
configure units. You may require a spectrum analyzer, Site Master® communication test set, digital multimeter,
2-way radios, binoculars, strobe lights, ladder, and weatherproof caulking.
If your unit contains a separate antenna connection, additional equipment is required to perform RF link
bench tests. The following examples and illustrations assume a separate antenna is used. If your unit contains
an integrated antenna, additional equipment may be required for antenna mounting.
![](/img.php?id=242993&img=bg1c.png)
1 Obtain Network Plan
APR 2002 Rev 03 13
1 Obtain Network Plan
The network plan describes the network in detail, including the following.
• Type and number of units
• Physical layout
• Configuration settings for each unit
• Site names, IP addresses and links
• Antenna types, RF cables and cable lengths, surge suppressors, terminators
• Network cable types and lengths
• Grounding kits and backup power requirements
• Link budget
• Floor plans and equipment cabinet requirements
A plan should be completed before any equipment is installed in the field. See Appendix A: Planning Your
Wireless Link , page 135 and Appendix G: Network Plan Template on page 179 for more information about
network plans.
2 Assemble Units
➧ To assemble a unit and check the power
1. Connect the indoor antenna to the Antenna port on the top panel of the unit.
Note: Indoor antenna may be different from the illustration.
! CAUTION
Never operate a unit without an antenna, dummy load, or terminator
connected to the antenna port.
Operating a unit without an antenna, dummy load, or terminator connected
to the antenna port can permanently damage a unit.
! CAUTION
The AWE 120-58 must be connected only to a Wi-LAN Power Inserter Unit
to provide appropriate power (and Ethernet)
![](/img.php?id=242993&img=bg1d.png)
Installation
14 AWE 120-58 User Guide

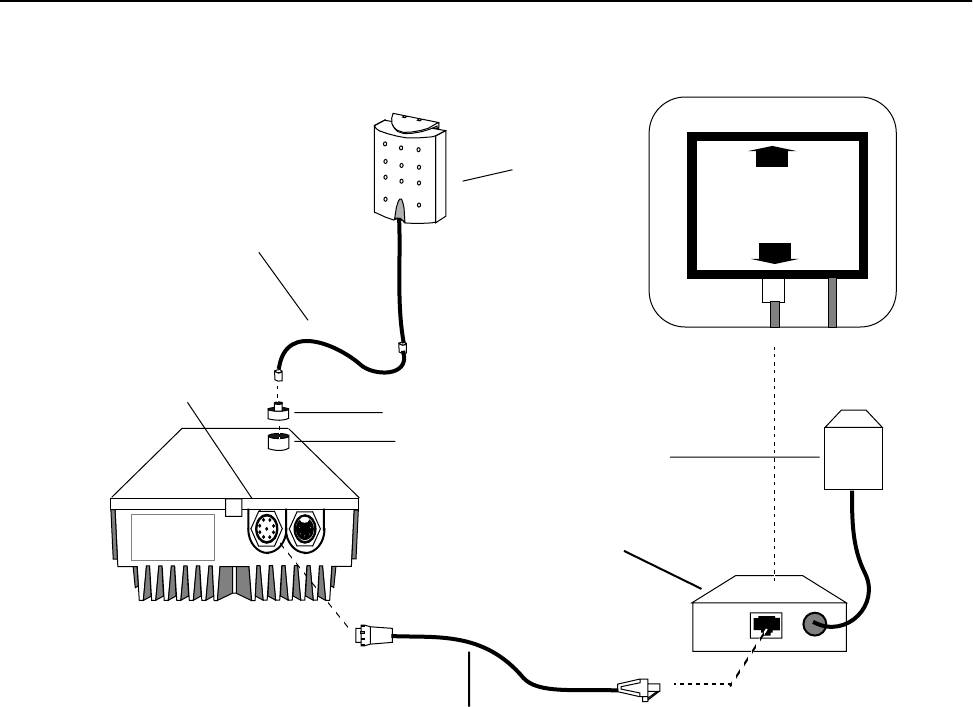

Antenna and Power Connections
2. Check the power
a) Plug the 8-pin female connector on the Power/Ethernet cable into the unit’s Power/Ethernet port
b) Plug the RJ45 connector on the Power/Ethernet cable into the Power Inserter Unit’s RJ45 port
labelled “To radio” (see above diagram)
c) Plug the TBD VDC Power Adaptor on the Power Inserter Unit into the AC power outlet.
The Power LED on the Power Inserter Unit displays GREEN if power is correctly supplied to the
unit. Otherwise, the LED displays ORANGE.
If the Power LED does not display GREEN, check your AC power source and the power supply unit.
Verify the Power/Ethernet cable is connected to the correct RJ45 port on the Power Inserter Unit
and that a secure connection is made with the 120-58 Power/Ethernet port.
Indoor
Antenna
Coaxial Cable
SMA to N-type Adaptor
Antenna port
Power Inserter
Power / Ethernet Cable
Power / Ethernet port
Top View Detail
Power Adaptor
To radio
To LAN
![](/img.php?id=242993&img=bg1e.png)
3 Configure Units
APR 2002 Rev 03 15
3 Configure Units
This section describes how to configure a base station and a remote unit, which are the basic units required
for a point-to-point wireless link. Once you have configured and tested this basic equipment, you can
configure and test all remaining units. See Configuration , page 29 for detailed information about
configuration settings.
Configuring a Base Station
When you configure a unit as a base station, you need to perform the following tasks.
• Check the Network Configuration information of the unit
• Set the Station Type of the unit to “Base Station”
• Assign the Station Rank (# equal to or greater than the number of remote units)
• Choose a Center Frequency (must be the same for all units in network)
• Select an Acquisition Code (must be the same for all units in network)
• Set Tx Power Level Adjust initially to “0 dB”
• Set the security passwords (must be the same for all units in network)
• Change the default menu passwords
These tasks are described below in detail.
➧ To configure a unit as a base station
1. Connect a PC to the AWE unit that will be the base station. Connect the COM port of the PC to the
serial port of the AWE via an AWE 120-58 Serial cable.

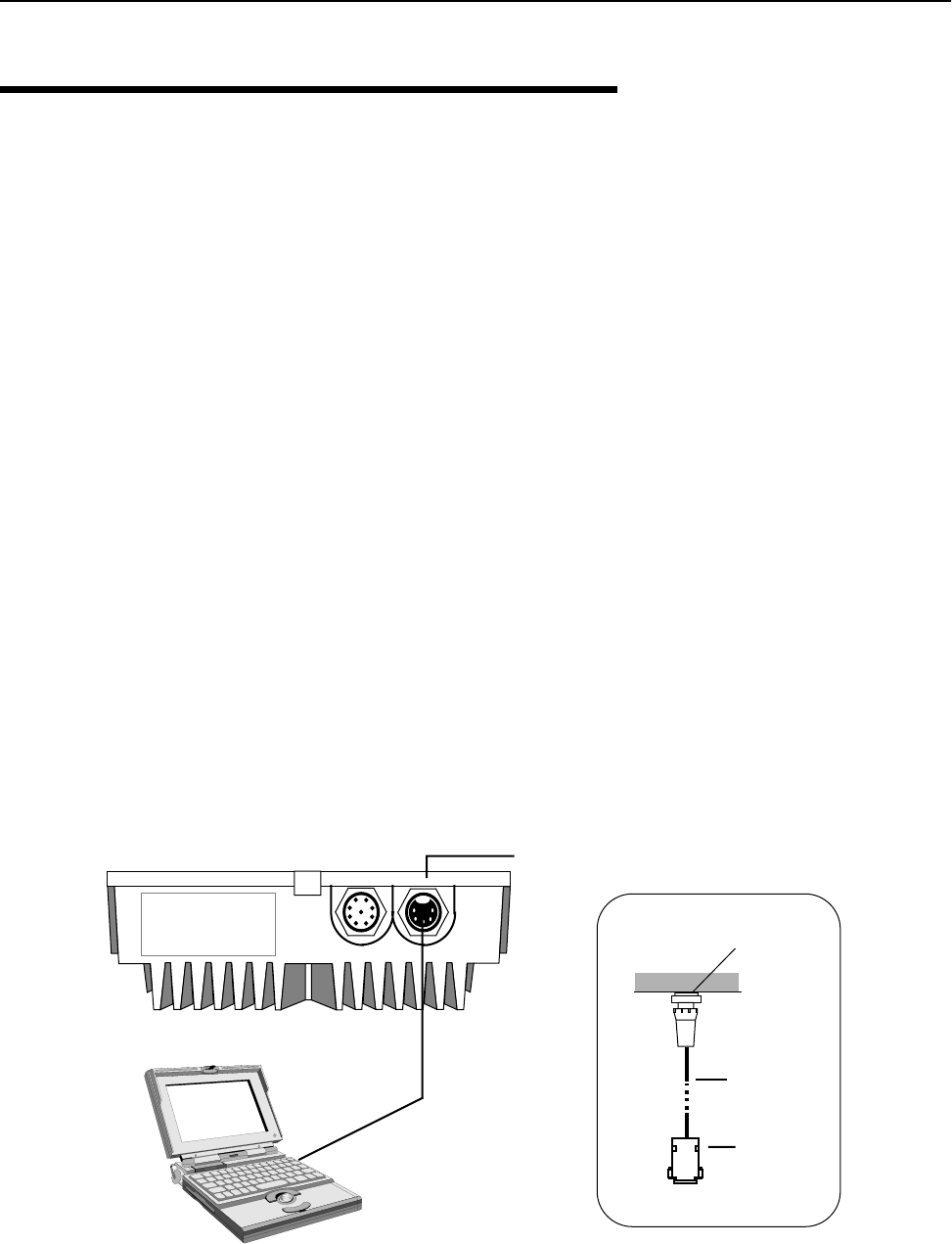

Connecting PC to Serial Port
AWE Unit
PC
RS-232 Serial Cable
to PC COM port
Serial Port
(See detail)
Detail
AWE
Serial Port
DB9
(female)
AWE 120-58
Serial cable
![](/img.php?id=242993&img=bg1f.png)
Installation
16 AWE 120-58 User Guide
2. Start HyperTerminal® (see Appendix B: Using HyperTerminal , page 149 for details) or another
terminal emulation program such as Tera Term™. Use the following communication settings: 9600 bps, 8
bits, no parity, 1 stop bit, no flow control.
3. Press Enter. The AWE 120-58 Login window is displayed.
4. Type the default password (supervisor) and press Enter. The Main Menu is displayed.
Note: supervisor enables you to change the configuration settings with the Main Menu. See Setting
Menu Passwords , page 117 for more information about menu passwords.
Main Menu
5. Select Network Configuration. Check the network configuration information, the IP address and
subnet mask settings. If necessary, change settings to match the network plan.
Wi-LAN AWE 120-58 Login
S/N: Serial-Number
MAC Address: 001030000000
Software: Rev 4.0.0 (Apr 20 2002 10:13:37)
Hardware: Rev 4.0.0 (4MB SDRAM, 2MB Intel Flash)
Enter Password:
Wi-LAN AWE 120-58 Main Menu
-> Unit Identification
Hardware/Software Revision
System Software ROM Images
Current System Status
Network Configuration
IP Filter Configuration
VLAN Configuration
RF Station Configuration
Radio Module Configuration
RF/Ethernet Statistics
System Security
System Commands
Link Monitor Display
Logout
How to Use the Main Menu
• To select an item from the Main
Menu or a sub-menu, press the
keyboard arrow keys to
move the cursor –> next to the
item.
Press the Enter key to
open the data entry field.
• To scroll through items in the data
entry field, press .
Press to select an item
from the field.
• To exit from a menu, press the Esc
key.
Enter
Enter
Esc
![](/img.php?id=242993&img=bg20.png)
3 Configure Units
APR 2002 Rev 03 17
6. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration window is displayed.
• Select Station Type. Choose Base Station.
• Select Station Rank. Enter the total number of remote units in your wireless network. For
example, if you have only one remote unit, enter “1”. If there are 20 remote units, enter “20”.
• Choose a Center Frequency. Enter the value of the center frequency (range is 57410–58338
in 400 kHz steps). All wireless units must be set to the same center frequency.
• Select Security Password x. Enter security passwords (each password can be up to eight
digits long in hexadecimal) for the unit. All units in the same network must have the same set of
security passwords.
• Select Scrambling Code. Enter a hexadecimal value or leave the default at “0”. All units in the
same network must have the same scambling code.
• Select Acquisition Code. Enter a value from 0–15. (All units in the same network must have
the same acquisition code.)
• Select Config Test Minutes. Enter a time in minutes, for example, 10. The unit will automat-
ically reboot when this time period expires, and uses the settings stored in flash memory instead of
current settings.
• Select Tx Power Level Adjust. Choose an initial value of 0 dB, which means no Tx power
attenuation.
• Select Reboot New RF configuration and press Enter. The unit reboots and the Login
window is displayed.
7. Log in to the unit. (Type supervisor for the password). The Main Menu is displayed.
8. Select Radio Module Configuration and press Enter. The Radio Module Configuration window
is displayed.
H - Help Radio Module Configuration
New Current Flash
Station Type -> Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg21.png)
Installation
18 AWE 120-58 User Guide
• Select Save Current Config to Flash and press Enter. The new settings are stored in flash mem-
ory and displayed on the menu. The word appears on the screen.
9. Press Esc to go back to the Main Menu.
10. Select Logout to exit or press Esc.
Note: At this time you may want to finish configuring the base station according to the network plan. See
Configuration , page 29 for instructions about viewing and changing various settings.
Configuring a Remote Unit
When you configure a unit as a remote unit, you need to do the following tasks.
• Check the Network Configuration information of the unit
• Set the Station Type of the unit to “Remote Unit”
• Assign the Station Rank (polling ID # of the remote unit)
• Select a Center Frequency (must be the same for all units in network)
• Select an Acquisition Code (must be the same for all units in network)
• Set Tx Power Level Adjust initially to “0 dB”
• Set the security passwords (must be the same for all units in network)
• Change the default menu passwords
These tasks are described below in detail.
➧ To configure a unit as a remote unit
1. Connect a PC to a AWE remote unit. Connect the COM port of the PC to the Serial port of the remote
unit via an AWE 120-58 Serial cable. See Configuring a Base Station , page 15 for cabling diagram.
2. Start HyperTerminal® or other terminal emulation program (see Appendix B: Using HyperTerminal ,
page 149). Use the following communication settings: 9600 bps, 8 bits, no parity, 1 stop bit, no flow
control.
3. Press Enter. The AWE 120-58 Login window is displayed.
4. Type the default password supervisor and press Enter. The Main Menu is displayed.
5. Select Network Configuration. Check the IP settings. If necessary, change the settings to match
the network plan.
6. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration window is displayed.
Success
![](/img.php?id=242993&img=bg22.png)
3 Configure Units
APR 2002 Rev 03 19
• Select Station Type. Choose Remote Unit.
• Select Station Rank. Enter the rank number of the remote unit. Enter a number from 1–1000.
• Choose a Center Frequency. Enter the value of the center frequency (range is 57410–58338
in 400 kHz steps). All wireless units must be set to the same center frequency.
• Select Security Password x. Enter security passwords (each password can be up to eight
digits long in hexadecimal) for the unit. All units in the same network must have the same set of
security passwords.
• Select Scrambling Code. Enter a hexadecimal value or leave the default at “0”. All units in the
same network must have the same scambling code.
• Select Acquisition Code. Enter a value from 0–15. (All units in the same network must have
the same acquisition code.)
• Select Config Test Minutes. Enter a time in minutes, for example, 10. The unit will automat-
ically reboot when this time period expires, and uses the settings stored in flash memory instead of
current settings.
• Select Tx Power Level Adjust. Choose an initial value of 0 dB, which means no Tx power
attenuation.
• Select Remote Unit RF Group. Enter a value from 0–63. (For testing purposes, you may leave
the value = 0.)
• Select Reboot New RF configuration and press Enter. The unit reboots and the Login
window is displayed.
7. Log in to the unit. (Type supervisor for the password). The Main Menu is displayed.
8. Select Radio Module Configuration and press Enter. The Radio Module Configuration window
is displayed. The settings under Current change to values that were in the New column.
9. Select Save Current Config to Flash and press Enter. The new settings are stored in flash
memory and displayed on the menu. The word appears on the screen.
H - Help Radio Module Configuration
New Current Flash
Station Type -> Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
Success
![](/img.php?id=242993&img=bg23.png)
Installation
20 AWE 120-58 User Guide
10. Press Esc to go back to the Main Menu .
11. Select Logout to exit.
Note: At this time you may want finish configuring the unit according to your network plan. See
Configuration , page 29 for instructions about viewing and changing various settings.
4 Bench Test Units
In this section, you will perform the following tasks:
• Ensure that a basic RF link exists between a base station and a remote unit.
• Test the basic link with Link Monitor and adjust Tx power level.
• Perform some simple network tests.
Establishing a Basic RF Link
This test ensures that a basic RF link exists between a base station and a remote unit.
Tip: First configure one unit as a base station, and then use it to test all the remote units.
➧ To establish a basic RF link
1. Ensure that one unit is configured to a base station, select a center frequency and set the test minutes.
See Configuring a Base Station , page 15.
2. Ensure that the other unit(s) are configured as remote units with the center frequency the same as the
base station. See Configuring a Remote Unit , page 18.
3. Place the base station and a remote unit at least two meters apart with a clear line of sight between
antennas. Point the antennas toward each other.
Important
The quality of your digital data transmission depends greatly on the quality of your RF
link. Always try to establish a high-quality RF link first. A high-quality RF link will
result in high-quality data transmissions and a low BER. A low-quality RF link will result
in low-quality data transmissions and a high bit error rate (BER). Digital data can always
be sent across a high-quality RF link. If the RF link is of poor quality, data either cannot
be sent at all or will contain too many errors to be useful.
![](/img.php?id=242993&img=bg24.png)
4 Bench Test Units
APR 2002 Rev 03 21
Basic Test Setup
4. Power up the base station. The power LED on the Power Inserter Unit should be GREEN.
5. Power up the remote unit. The power LED on the Power Inserter Unit should be GREEN.
Next, you will test the link with the Link Monitor test and adjust the Tx power level to obtain a fade margin
of 15–30 dB.
2 m
minimum
Base Unit Remote Unit
Indoor
Antenna
Indoor
Antenna
Coax Adapter Cable
Coax Adapter Cable
![](/img.php?id=242993&img=bg25.png)
Installation
22 AWE 120-58 User Guide
Testing the Link and Adjusting Tx Power
A basic RF link is established when the base station and remote unit can receive and transmit data to each
another. Once you have established a basic RF link, you test the link by running the Link Monitor test and
viewing the link statistics, and you adjust the Tx Power of the base and remote units to obtain a 15–30 dB
fade margin.
➧ To test the RF link and adjust Tx power
1. Connect the test PC to the serial port of the base station or remote unit. See Connecting PC to Serial
Port , page 15.
2. Log in to the unit and go to the Main Menu.
3. Select RF Station Configuration and press Enter. The RF Station Configuration window is
displayed.
• Select Operating Mode. Press the arrow keys to select Normal mode.
• Select RF Transmit Status. Select unblocked.
• Select Link Monitor Remote Station Rank. Enter the rank of the unit that you want to
link test. (The rank is the identification number of the unit. The rank of a remote can be any num-
ber from 1 – 1000. The rank number of the base station equals the number of remote units. See
Setting the Station Rank , page 94.)
• Select Output Power Control Mode. Choose off.
• Select Signal Margin and enter an initial value of 15.
• Select Link Monitor Period. Enter a link monitor period of 1. (A value of 1 means that 50%
of available data packets will carry test data. The higher the period number, the fewer the number
of data packets that will carry test data. See Setting the Link Monitor Period , page 78 for more
H - Help RF Station Configuration
Operating Mode -> Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 1
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg26.png)
4 Bench Test Units
APR 2002 Rev 03 23
information.) The Link Monitor test starts as soon as a non-zero value is entered in the
field.
4. From the Main Menu select Link Monitor Display and press Enter. The RF Background Link
Monitor Statistics window is displayed.
5. Check for the following statistics:
• Base to Remote BER = 0.0E+00
• Remote to Base BER = 0.0E+00
• Missed Packets = 0
• Base to Remote Corr Power between 15 – 50 dB
• Remote to Base Corr Power between 15 – 50 dB
6. If the Corr Power is <15 dB the receive signal is probably too weak to be useful. If the power is
>55 dB the receiving unit is probably being saturated. You can perform one of the following:
• decrease Tx power to achieve a Corr Power of 15 – 30 (see Adjusting the Tx Power Level , page
101).
• set Tx power automatically. See Setting Tx Power Automatically (Remote Station Only) ,
page 83.
• move the antennas further apart or adjust the antenna orientation to reduce the power level.
7. When you are finished viewing link monitor statistics, disable Link Monitor to remove the overhead test
data from the wireless link. To disable Link Monitor, select
RF Station Configuration from the Main Menu and press Enter. The RF Station Configuration
window is displayed.
8. Select Link Monitor Period and press Enter. The field is highlighted.
9. Type 0 in the field and press Enter. The link monitor test ends.
10. Press Esc to exit.
You have now established an RF link between two units, tested the ability of the link to carry test data, and
adjusted the Tx power level. Next, you connect the units to a network and perform some simple network
tests.
RF Background Link Monitor Statistics
Link Monitor Rank 1
Base to Remote BER 0.0E+00
Remote to Base BER 0.0E+00
Missed Packet Count 0
Base to Remote Env Power 27
Base to Remote Corr Power 28
Remote to Base Env Power 29
Remote to Base Corr Power 30
![](/img.php?id=242993&img=bg27.png)
Installation
24 AWE 120-58 User Guide
Performing Simple Network Tests
To test units within a simple network you require two AWE 120-58 units, a LAN connection, a PC and a
crossover Ethernet cable or hub connection.
➧ To perform a simple network test
1. Connect the Ethernet port of the PC to the base station’s Power Inserter Unit “To LAN” port. You can
either connect via a network hub or connect directly using an RJ45 crossover Ethernet cable.
2. Connect the remote unit to the network as described in Step 1.
Simple Network Test Setup
3. Power up both AWE units. The power LEDs on both the base station and remote unit Power Inserter
Units should be GREEN.
4. Configure the AWE units within your network. See Network Configuration , page 40 for information
about AWE Internet addresses. See Appendix C: Configuring a Simple Data Network , page 151 for
information about configuring simple peer-to-peer networks.
5. Create some network traffic to test the wireless link. For example, use ping or ftp put and get to
transfer large test files, in both directions, across the link. When the file transfer is done, ftp displays the
size of the file and the time it took to transfer the file. This information can be used to measure the data
throughput of the wireless link, and is very useful for troubleshooting.
Base Unit
PC
LAN
10/100 BaseT HUB
10/100 BaseT Cable
Direct 10/100 BaseT Cable (Crossover)
Cable connects to
Ethernet port via
(Straight
Through)
Cable
10/100 BaseT
2 m
minimum
Power Inserter Unit
Power / Ethernet cable
To radio
To LAN
![](/img.php?id=242993&img=bg28.png)
4 Bench Test Units
APR 2002 Rev 03 25
6. Test all units in the network.
ping
ftp
Using ping and ftp
From the command line prompt, type:
C:> ping IP Address
To connect to the node, from the DOS prompt, type:
C:> ftp IP Address
Example:
ping 192.163.2.88
Follow the instructions.
ftp> help
For instructions about using ftp, type “help”
at the ftp prompt.
![](/img.php?id=242993&img=bg29.png)
Installation
26 AWE 120-58 User Guide
5 Install Units
This section provides some guidelines about installing units in the field.
• Install the units at locations identified in the network plan.
• Verify that there is no interference at the site by performing spectrum sweeps with a spectrum
analyzer. Perform sweeps at various times of the day (for example, 9AM, noon, and 3 PM are peak
telephone traffic times.) If there are problems, contact the network planner, who may need to change
the system configuration or design.
• If test equipment is available, sweep antennas and cables with the Site Master® communications test
set before securing antennas and cables to towers, while they are on the ground and easy to access.
Sweeping helps to ensure that antennas and cables will operate as expected.
• Initially install equipment with flexibility—do not tie down cables, antennas should be free to move,
allow some slack in cables, avoid drilling and do not seal connections.
• Align antennas*. (Two people are required, one at the base station and one at the remote unit. When
in the field, you may require binoculars and 2-way radios to communicate.) When aligning antennas,
adjust the orientation of the remote antenna while running a link monitor test between the remote
and the base station. Adjust the antenna until you achieve the highest fade margin with no bit errors
(BER = 0). See Performing Link Monitor Test (Normal Mode) , page 72 for instructions. Repeat
the antenna alignment procedure for each remote.
• When antennas are aligned and cables are secured, sweep the antennas with the Site Master test set
a final time before connecting to AWE.
• Perform diagnostic tests on the installed system. Compare field results to bench test results using
ping, ftp, fade margins, etc. Document your results (these results will be very useful when
troubleshooting and monitoring the system’s performance).
• When the system works as specified, lock down and weatherproof all equipment and connections.
* The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance
of at least 2 metres from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
WARNING
All antennas must be professionally installed following accepted safety,
grounding, electrical, and civil engineering standards.
! CAUTION
Never operate a unit without an antenna, dummy load, or terminator
connected to the antenna port.
Operating a unit without an antenna, dummy load, or terminator connected
to the antenna port can permanently damage a unit.
!
![](/img.php?id=242993&img=bg2a.png)
6 Test Network
APR 2002 Rev 03 27
Point-to-Multipoint Installation
The procedure for installing a point-to-multipoint system is the same as the procedure for installing a point-
to-point system. Treat each link in a point-to-multipoint system as a single, point-to-point wireless link.
Co-Location Installation
When you install a system with sectors and co-located base stations (see Creating a Network with Cells ,
page 5 for an example), you install and test sectors as if they were point-to-point systems; however, in this
case you must ensure that individual sectors are not interfering with each other. Please contact Wi-LAN for
information about planning and installing co-located units.
• Align and test the first sector. Measure the fade margin and run the link monitor test. Document your
results, then turn off the radio in the first sector.
• Align and test the second sector. Measure the fade margin and run the link monitor test. Leave the
link monitor test running in the second sector.
• Turn on the radio in the first sector again and run the continuous transmit test. See Performing
Transmit and Receive Tests , page 75.
• Observe the BER and fade margin of the second sector radio. Look for changes to determine if the
first sector is interfering with the second sector.
• Repeat the tests for all sector/pair combinations.
6 Test Network
Run the link monitor test and other tests such as ping and ftp file transfers to verify network operation when
the units are installed in the field. See Performing Link Monitor Test (Normal Mode) , page 72.
Adding to a Network
Always add to your network one link or device at a time, working from a known base network. Measure and
document changes to the system and changes in performance. For example, you can transfer files with ftp
and measure the performance with LAN analyzer software. The key to a successful network is to proceed
one step at a time and to understand your network!
![](/img.php?id=242993&img=bg2b.png)
Installation
28 AWE 120-58 User Guide
Network Test Setup
Preventative Maintenance
and Monitoring
You should set up a preventative maintenance schedule for your network. Wi-LAN recommends that the
following preventative maintenance be performed at least semi-annually.
• Regularly run link monitor tests across the network and measure BER and fade margin. You can also
test the network with ping, ftp and file transfers. Other resources are available on the Internet that
can help you monitor the performance of your link.
• If you have SNMP application software, you can check unit operation from a remote location. See
Appendix D: SNMP , page 157 for more information.
If you have SNMP application software, you can check unit operation remotely. See Appendix D: SNMP ,
page 157 for more information.
You should periodically perform a physical inspection of each site.
• Check that antennas and cables are secure and have not become loose.
• Check for physical obstructions in the line-of-sight radio path, such as trees and buildings.
• Sweep antennas and cables to ensure that antennas and cables are intact and operating properly.
• Check that there are no water leaks in cabinets.
• Check weatherproofing.
• Check for new sources of electromagnetic interference.
Indoor
Antenna
Indoor
Antenna
Base Unit Remote Unit
LAN
10/100 BaseT HUB
PC with LAN analyzer software
PC
To radio
To LAN
Power Inserter Unit
![](/img.php?id=242993&img=bg2c.png)
APR 2002 Rev 03 29
Configuration
Overview
This section explains how to use the Main Menu to configure and test your AWE unit, and to obtain useful
statistical and maintenance information.
Main Menu
In this section, each item in the Main Menu is described in the order that it appears in the menu. Use the Main
Menu and your keyboard keys to select, view or change settings. Some items in the menu simply display
information, while others ask you to enter data or make a selection from a list.
Main Menu
Wi-LAN AWE 120-58 Main Menu
-> Unit Identification
Hardware/Software Revision
System Software ROM Images
Current System Status
Network Configuration
IP Filter Configuration
VLAN Configuration
RF Station Configuration
Radio Module Configuration
RF/Ethernet Statistics
System Security
System Commands
Link Monitor Display
Logout
![](/img.php?id=242993&img=bg2d.png)
Configuration
30 AWE 120-58 User Guide
Accessing the Main Menu
You can access the Main Menu of a AWE unit with a HyperTerminal® session (via the Serial port) or a telnet
session. Most instructions provided in this chapter assume that you have opened a HyperTerminal session.
You can also configure the AWE 120-58 remotely using a standard web browser (see Appendix I: Web page
Configuration) or with SNMP (Simple Network Management Protocol) client. See Appendix D: SNMP , page
157 for information about SNMP.
Accessing the Main Menu with HyperTerminal®
➧ To access the Main Menu with HyperTerminal
1. Disconnect power from the AWE unit.
2. Connect an AWE 120-58 Serial cable from a DB9 serial port on the PC to the Serial port on the AWE.
See Configuring a Base Station , page 15.
3. Start HyperTerminal or other a terminal emulation program on the PC. See Appendix B: Using
HyperTerminal .
4. Set the terminal emulation program to emulate a VT100 terminal with the following settings.
• COM port PC serial port connected to AWE unit
• Bits per second: 9600
• Data bits: 8
• Parity: none
• Stop bits: 1
• Flow control: none
5. Reconnect the power to the AWE unit.
6. Press Enter. The Wi-LAN AWE 120-58 Login menu is displayed.
Wi-LAN AWE 120-58 Login
S/N: Serial-Number
MAC Address: 001030000000
Software: Rev 4.0.0 (Apr 20 2000 10:13:37)
Hardware: Rev 4.0.0 (8MB SDRAM, 2MB Intel Flash)
![](/img.php?id=242993&img=bg2e.png)
Accessing the Main Menu
APR 2002 Rev 03 31
7. Type a default password (user or supervisor) or type your personal password if already have one.
The Main Menu is displayed.
Accessing Units via telnet
➧ To access units via telnet
1. Ensure that the unit’s Internet IP address has been configured, the unit has a working Ethernet
connection, and wire and remote access has been enabled (see Allowing Remote Access and
Configuration , page 119).
2. Ensure that the VT100 Arrows feature in your telnet session is enabled. See Setting VT100 Arrows ,
page 32.
3. From the DOS prompt, type
C:>telnet <IP address>
where <IP address> is the IP address of the unit that you want to configure.
4. Press Enter. The Login menu is displayed.
5. Type the default password (user or supervisor) or type your personal password.
The Main Menu is displayed.
Login Account Default Password Privileges
User user Read Only
Supervisor supervisor Read and Write
Wi-LAN AWE 120-58 Login
S/N: Serial-Number
MAC Address: 001030000000
Software: Rev 4.0.0 (Apr 20 2000 10:13:37)
Hardware: Rev 4.0.0 (8MB SDRAM, 2MB Intel Flash)
![](/img.php?id=242993&img=bg2f.png)
Configuration
32 AWE 120-58 User Guide
Setting VT100 Arrows
➧ To set the VT100 arrows in Microsoft telnet
1. In the active Microsoft telnet 1.0 session, select Terminal, Preferences from the menu bar. The
Terminal Preferences window is displayed.
2. Click the VT100 Arrows checkbox.
3. Click OK. The VT100 arrows are enabled in the telnet session.
You can now use the keyboard arrow keys to navigate the configuration menus.
![](/img.php?id=242993&img=bg30.png)
Configuring with the Main Menu
APR 2002 Rev 03 33
Configuring with the Main Menu
This section describes how to configure units with the Main Menu. Menu items are presented in the order
they appear in the menu shown below.
Main Menu
Accessing Help
On-screen help is available for items listed in the Main Menu.
➧ To access help
1. From the Main Menu, select an item from the list and press Enter. The screen for the item is displayed.
2. Press the “H” key on the keyboard . The Help Menu for the screen is displayed.
3. Place the cursor next to an item on the Help Menu and press Enter. The help text available for that
item is displayed.
Note: To navigate to the next page or to the previous page, press the up or down arrow keys on the key-
board or follow instructions given at the top of the screen.
4. Press Esc to exit to the Main Menu.
Wi-LAN AWE 120-58 Main Menu
-> Unit Identification
Hardware/Software Revision
System Software ROM Images
Current System Status
Network Configuration
IP Filter Configuration
VLAN Configuration
RF Station Configuration
Radio Module Configuration
RF/Ethernet Statistics
System Security
System Commands
Link Monitor Display
Logout
How to Use the Main Menu
• To select an item from the Main
Menu or a sub-menu, press the
keyboard arrow keys to
move the cursor –> next to the
item.
Press the Enter key to
open the data entry field.
• To scroll through items in the data
entry field, press .
Press to select an item
from the field.
• To exit from a menu, press the Esc
key.
Enter
Enter
Esc
![](/img.php?id=242993&img=bg31.png)
Configuration
34 AWE 120-58 User Guide
Example:
1. From the Main Menu place the cursor -> next to RF Station Configuration and press Enter.
The RF Station Configuration menu is displayed.
2. Press the “H” key on the keyboard. The Help screen for the menu is displayed.
3. Place the cursor next to an item on the Help Menu and press Enter. The help text for the item is
displayed on the screen.
4. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode -> Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 1
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
Esc - Exit Help
RF Station Configuration Help Menu
Operating Modes
-> RF Transmit Status
Link Monitor Period
Test Mode Timer Minutes
Maximum Remote Distance
Link Monitor Remote Station Rank
Throttling
Output Power Control Mode
User Output Power Adjust Ceiling
Signal Margin
Current Output Power Level Adjust
![](/img.php?id=242993&img=bg32.png)
Unit Identification
APR 2002 Rev 03 35
Unit Identification
Viewing Unit Identification
You can view a unit’s serial number, production date, and MAC address with the Unit Identification menu. The
fields are view only and are set at the factory.
You can also view the Unit Name/Description, Unit Location, and Contact Name. These fields are optional
and can be changed.
➧ To view unit identification information
1. From the Main Menu, select Unit Identification and press Enter. The Unit Identification menu is
displayed.
Serial Number Unique serial number of unit (Read Only)
Production Date Date unit was produced (Read Only)
Ethernet MAC Address Unique Ethernet MAC (Media Access Control)
address of the unit (Read Only)
Unit Name/Description Name of unit (optional)
Unit Location Location of unit (optional)
Contact Name Name of contact person (optional)
Unit Identification
Serial Number Serial-Number
Production Date Jun 07 2000
Ethernet MAC Address 001030000000
Unit Name/Description ->System Name
Unit Location System Location
Contact Name System Manager’s Name
![](/img.php?id=242993&img=bg33.png)
Configuration
36 AWE 120-58 User Guide
Assigning Unit Identification Information
You can assign a name, location and contact name to units. This information will help you to distinguish units
by physical location or by meaningful names rather than station rank only. Unit identification information is
optional.
➧ To assign or change unit identification information
1. From the Main Menu, select Unit Identification and press Enter. The Unit Identification menu is
displayed.
2. Select Unit Name/Description and press Enter. The data field highlights.
3. Type in a new name or description.
4. Press Enter. The new name or description is displayed in the data field.
5. Select Unit Location and press Enter. The data field highlights.
6. Type the location of the unit.
7. Press Enter. The new location appears in the data field.
8. Select Contact Name and press Enter. The data field highlights.
9. Type a contact or manager name.
10. Press Enter. The new name appears in the entry field.
11. Press Esc to exit to the Main Menu.
Unit Identification
Serial Number Serial-Number
Production Date 01-01-2000
Ethernet MAC Address 001030040502
Unit Name/Description -> System Name
Unit Location System Location
Contact Name System Manager’s Name
![](/img.php?id=242993&img=bg34.png)
Hardware/Software Revision
APR 2002 Rev 03 37
Hardware/Software Revision
Viewing System Revision Information
The System Revision Information window shows the revision information of the unit including memory
revision number, memory size, and software revision number.
➧ To view system revision information
1. From the Main Menu, select Hardware/Software Revision and press Enter. The System Revision
Information window is displayed. The menu is view only.
2. Press Esc to exit to the Main Menu.
Hardware Revision number of the unit, and the amount SDRAM and
FLASH memory available in the unit
ROM Size Amount of Flash read-only memory in the unit = 2 MB
RAM Size Amount of random-access memory in the unit = 8 MB
Software Revision number of the system image running on the unit,
the date of the revision, and the size of the image file (in
this example FACTORY-IMAGE is about 318 Kbytes)
File Name File name of the system image running on the unit
System Revision Information
Hardware Rev 4.0.0 (4MB SDRAM, 4MB Intel Flash)
ROM Size 0x200000
RAM Size 0x800000
Software Rev 4.0.0 (Wi-LAN AWE 120-58 WEBII)
Apr 20 2000 10:13:37
329868 Bytes
File Name FACTORY-IMAGE
![](/img.php?id=242993&img=bg35.png)
Configuration
38 AWE 120-58 User Guide
System Software ROM Images
Viewing System Software ROM Images
A ROM image is the software that a unit uses to operate. The System Software ROM Images window lists
software images currently available in the unit. New images can be loaded into a unit’s Flash ROM from an
outside source such as a PC. The example below shows that only the “Factory-Image” is available, however, in
the future other images may be available. If required, you can obtain a new image file from the Wi-LAN–see
Appendix F: Upgrading Software on page 175 for instructions. See Setting Default System Image , page
122 for instructions about selecting a default image.
➧ To view system software ROM images
1. From the Main Menu, select System Software ROM Images and press Enter. The System Software
ROM Images window is displayed. The window is view only.
2. Press Esc to exit to the Main Menu.
File Name Name(s) of system image file(s) stored in the unit. To add or
delete images you must use ftp. See Downloading Image
Software , page 175
Revision Revision number of the system image file.
Date Date image file was last revised
Time Time image file was last revised
Size Size of image file in bytes
Default Image Indicates which image file is the default. Default Image is used at
power up. See Setting Default System Image , page 122 to
modify default image
System Software ROM Images
File Name Revision Date Time Size Default Image
-------------------- -------- ----------- -------- ------ -------------
FACTORY-IMAGE 4.0.0 Apr 20 2002 10:13:37 306524 Current
![](/img.php?id=242993&img=bg36.png)
System Current Status
APR 2002 Rev 03 39
System Current Status
Viewing System Current Status
The System Current Status window provides administration information such as the amount of time a unit
has been running and login statistics.
➧ To view system current status
1. From the Main Menu, select System Current Status and press Enter. The System Current Status
window is displayed. The window is view only.
2. Press Esc to exit to the Main Menu.
Cumulative Run-Time Number of hours the system has been running since it
was manufactured
Information is required for maintenance purposes
Current Run-Time Time duration that has passed since the unit was last
reset or power cycled
Successful Logins Number of times that the configuration menus have
been successfully accessed
Unsuccessful Logins Number of times that access to the configuration
menus has failed
Local User Logged In Access level of the user currently logged into the
configuration menus via the RS-232
Telnet User Logged In Access level of the user currently logged into the
configuration menus via a telnet session
FTP User Logged In Access level of the user currently logged into the host
FTP server
System Current Status
Cumulative Run-Time Days: 0 Hours: 16
Current Run-Time Days: 0 00:38:38
Successful Logins 35
Unsuccessful Logins 1
Local User Logged In Supervisor
Telnet User Logged In None
FTP User Logged In None
![](/img.php?id=242993&img=bg37.png)
Configuration
40 AWE 120-58 User Guide
Network Configuration
Each AWE 120-58 unit in a system must have a valid Internet IP address and subnet mask to communicate via
TCP/IP. You will need to know this information to remotely manage units.
Viewing Internet IP Addresses and Subnet Mask
➧ To view the Internet IP addresses and subnet mask
1. From the Main Menu, select Network Configuration and press Enter. The Network Configuration
menu is displayed.
Internet IP Address IP address of unit
New Internet IP Address
(Reboot Reqd)
New IP address of unit
Required when changing IP address
Internet IP Subnet Mask Number used to determine if a node is part of LAN or
whether a transmission must be handled by router (the
subnet mask is logically ANDed with the IP address)
Default Gateway IP Address Address of the main entry point into the network
SNMP NMS Trap IP Address
(future)
NMS (network management system) trap address
Collects alarms and events and passes them to the
network administrator
MAC Filter Entry Age Time
Minutes
Number of minutes after which the MAC (Media Access
Control) filter entry will expire
H - Help Network Configuration
Internet IP Address 192.168.1.100
New IP Address (Reboot Reqd) -> 192.168.1.100
Internet IP Subnet Mask 255.255.255.0
Default Gateway IP Address 0.0.0.0
SNMP NMS Trap IP Address 0.0.0.0
MAC Filter Entry Age Time Minutes (1-60) 5
MAC Address Filtering On
Ethernet Link Parameters (Read-only)
Link Status Established
Duplex Mode Half-duplex
Speed 10 Mbps
Autonegotiation Complete
![](/img.php?id=242993&img=bg38.png)
Network Configuration
APR 2002 Rev 03 41
2. Press Esc to exit to the Main Menu.
MAC Address Filtering If enabled, the unit will not transmit packets received
from the Ethernet connection over the RF channel if the
destination is local
Link Status Integrity status for the Ethernet connection. Reported
status may be: Failure, or Established
Duplex Mode Current duplex type for the Ethernet connection. For
normal operation, Half-duplex is shown
Speed Current link speed for the Ethernet connection.
Reported status may be: 10 Mbps, or 100 Mbps
Autonegotiation Link negotiation status for the Ethernet connection.
Reported status may be: In Progress, or Complete.
![](/img.php?id=242993&img=bg39.png)
Configuration
42 AWE 120-58 User Guide
Setting the Internet IP Address
➧ To set the new Internet IP address
1. From the Main Menu, select IP Network Configuration and press Enter. The Network
Configuration menu is displayed.
2. Select New IP Address and press Enter. The data field highlights.
3. Type the unique Internet IP address for the unit.
4. Press the Enter key. The new Internet IP address appears in the New IP Address (Reboot
Reqd)field, but the old address remains in the upper field.
5. To save the changes, reboot the unit or power the unit down and up.
Setting the IP Subnet Mask
➧ To set the default IP subnet address
1. From the Network Configuration menu, select Internet IP Subnet Mask and press Enter. The
data field highlights.
2. Type the Internet IP subnet mask for the unit.
3. Press Enter. The Internet IP subnet mask appears in the field and is assigned to the unit.
4. Press Esc to exit to the Main Menu.
H - Help Network Configuration
Internet IP Address 192.168.1.100
New IP Address (Reboot Reqd) -> 192.168.1.100
Internet IP Subnet Mask 255.255.255.0
Default Gateway IP Address 0.0.0.0
SNMP NMS Trap IP Address 0.0.0.0
MAC Filter Entry Age Time Minutes (1-60) 5
MAC Address Filtering On
Ethernet Link Parameters (Read-only)
Link Status Established
Duplex Mode Half-duplex
Speed 100 Mbps
Autonegotiation Complete
![](/img.php?id=242993&img=bg3a.png)
Network Configuration
APR 2002 Rev 03 43
Setting the Default Gateway IP Address
You can define the IP address of the system gateway. This address designates the main entry point into the
network and is usually in the same subnetwork as the unit IP address.
➧ To set the default gateway IP address
1. From the Network Configuration menu, select Network Configuration. The Network
Configuration menu is displayed.
2. Select Default Gateway IP Address and press Enter. The data field highlights.
3. Type the default gateway IP address for the unit.
4. Press Enter. The default gateway IP address for the unit appears in the field.
5. Press Esc to exit to the Main Menu.
Setting the SNMP NMS Trap IP Address (future)
The SNMP (System Network Management Protocol) NMS (Network Management System) Trap IP address
identifies the IP address of the network manager. This address passes alarms or events from the unit to the
network manager. The network manager can define the types of traps or alarms that will be forwarded to the
IP address.
➧ To set the SNMP NMS trap IP address
1. From the Network Configuration menu, select SNMP NMS Trap IP Address and press Enter. The
data field highlights.
2. Type the SNMP NMS Trap IP address for the unit.
3. Press Enter. The SNMP NMS Trap IP address appears in the entry field and is applied to the unit.
4. Press Esc to exit to the Main Menu.
Setting the MAC Filter Entry Age Time Minutes
The MAC Filter Entry Age Time Minutes setting enables you to control the number of minutes after which the
MAC (Media Access Control) filter will expire. This feature enables you to set the MAC time period of a unit
to a value that is most compatible with the MAC time period of other devices on a network.
➧ To set the MAC Filter minutes
1. From the Network Configuration menu, select MAC Filter Entry Age Time Minutes and
press Enter. The data field highlights.
2. Type a value from 1–60 and press Enter. The number of minutes appears in the entry field and is applied
to the unit.
3. Press Esc to exit to the Main Menu.
![](/img.php?id=242993&img=bg3b.png)
Configuration
44 AWE 120-58 User Guide
Enabling MAC Address Filtering
➧ To enable MAC address filtering
1. From the Network Configuration menu, select MAC Address Filtering and press Enter. The data
field highlights.
2. Scroll to choose on or off and press Enter to enable or disable address filtering.
3. Press Esc to save the setting and exit to the Main Menu.
1. From the Main Menu, select IP Filter Configuration and press Enter.
The IP Filter Configuration menu is displayed.
H - Help IP Filter Configuration
IP Packet Filtering -> Off
IP Address Filtering On
Default IP Address Filtering Pass
Filter Entry Range (0-255) Base Address State
-------------- -------------- -------------- --------------
1 10 123.110.1.1 Pass
2 0 0.0.0.0 Pass
3 0 0.0.0.0 Pass
4 0 0.0.0.0 Pass
5 0 0.0.0.0 Pass
6 0 0.0.0.0 Pass
7 0 0.0.0.0 Pass
8 0 0.0.0.0 Pass
![](/img.php?id=242993&img=bg3c.png)
IP Filter Configuration
APR 2002 Rev 03 45
IP Filter Configuration
Two different IP filters are available: a packet filter, and an address filter. The IP packet filter determines which
type of packets are allowed to pass through a unit. If the IP Packet Filter is OFF, the unit passes all packets. If
the IP Packet Filter is ON, the unit passes only IP and ARP (Address Resolution Protocol) packets.
IP address filters are actually tables that contain lists of IP addresses. Data packets are either passed or
blocked depending on whether the packet IP address is listed in the table, the setting of “Default IP Address
Filtering” (pass or block), and the “State” setting of each filter.
Each IP address filter is defined by a range and a base value. IP address filtering improves system security and
helps manage data throughput.
IP Packet
Filtering
off (disabled) All packets are passed
on (enabled) Only IP (Internet Protocol) packets and ARP packets can pass
IP Address
Filtering
off (disabled) Packets from all LAN-side IP addresses can pass
on (enabled) Packets from all LAN-side IP addresses are subject to IP filter
Default IP
Address
Filtering
Pass
Block
If IP Address Filtering is off, this item is inactive.
If IP Address Filtering is on, this item specifies the action to take
when either no filter entry applies or where there is a conflict
between filters.
Filter Entry n= 1–8 Entry number of the filter. Up to eight filters can be created.
Range n = 0–255 Defines how many contiguous IP addresses are in the filter’s list
of addresses
Base Address n = lowest IP
Address
Lowest numbered address on the filter’s list of IP addresses
State Pass
Block
Disabled
Shows state of an individual filter. “Pass” allows packets to pass.
“Block” stops packets from passing. “Disabled” enables you to
make a particular filter inactive.

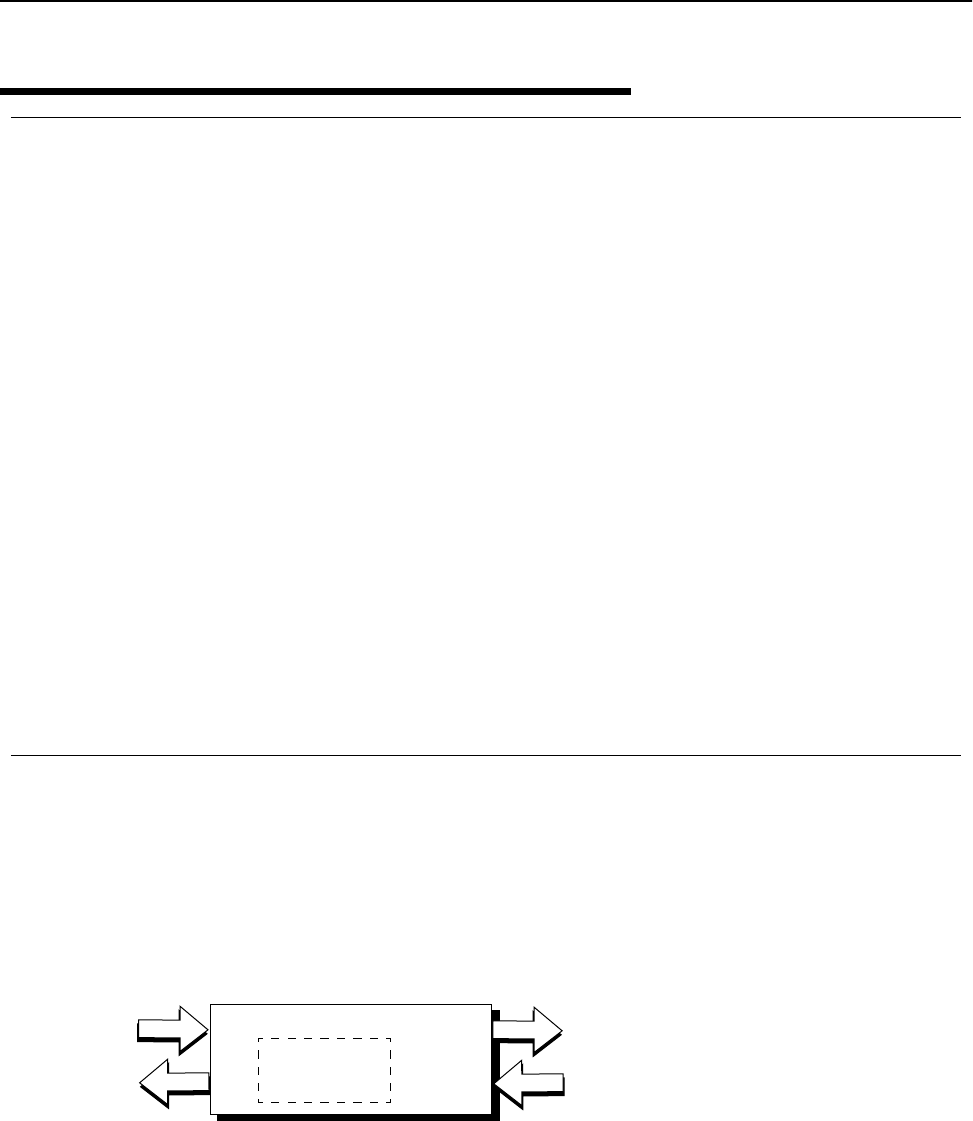

IP Address Filter Table
xxx.xx.xx.x
xxx.xx.xx.x
xxx.xx.xx.x
WireAir IP
Addresses
Data packets are blocked or passed
depending on whether the packet
address is listed in the IF filter
table and other filter settings
![](/img.php?id=242993&img=bg3d.png)
Configuration
46 AWE 120-58 User Guide
Viewing IP Filter Configuration
➧ To view current IP filter configuration
Two sample configurations below show how IP address-filtering works.
Example 1:
Filter 1 blocks all packets containing a LAN-side IP address in the range 192.168.1.1 to 192.168.1.100
inclusive.
Filter 2 passes all packets containing a LAN-side IP address in the range 192.168.1.51 to 192.168.1.60. Note
that this range partially overlaps the range of Filter 1, resulting in a conflict between filters. When a conflict
occurs, the action specified by Default IP Address Filtering takes precedent, which is “Pass”. Therefore all
packets with IP addresses that “overlap” will be passed.
All packets containing a LAN-side IP addresses not within either filter range are subject to the action
specified by Default IP Address Filtering (passed).
Example 2:
H - Help IP Filter Configuration
IP Packet Filtering -> off
IP Address Filtering on
Default IP Address Filtering Pass
Filter Entry Range (0-255) Base Address State
------------------- ------------------- ------------------- -------------------
1 100 192.168.1.1 Block
2 10 192.168.1.51 Pass
![](/img.php?id=242993&img=bg3e.png)
IP Filter Configuration
APR 2002 Rev 03 47
.
All packets containing a LAN-side IP addresses not within either filter range are subject to the action
specified by Default IP Address Filtering (blocked).
Filter 1 passes all packets containing a LAN-side IP address in the range 192.168.1.1 - 192.168.1.50 (except
for those IP addresses in the range specified in Filter 2).
Filter 2 blocks all packets with a LAN-side IP address in the range of 192.168.1.21 - 192.168.1.30,
Filter 3 passes all packets containing a LAN-side IP address in the range 192.168.1.101 - 192.168.1.110
(except for those IP addresses in the range specified in Filter Entry 4).
Filter 4 blocks all packets with a LAN-side IP address in the range of 192.168.1.105 – 192.168.1.106.
Filter 5 is disabled (not used).
All packets containing a LAN-side IP address for which no filter entry applies will be blocked.
Note: LAN-side IP address—If a packet arrives at the RF port, the LAN-side IP address is the destination IP
address contained within the packet. If a packet arrives on the Ethernet port, the LAN-side IP address is the
source IP address contained within the packet.
H - Help IP Filter Configuration
IP Packet Filtering -> off
IP Address Filtering on
Default IP Address Filtering Block
Filter Entry Range (0-255) Base Address State
------------------- ------------------- ------------------- -------------------
1 50 192.168.1.1 Pass
2 10 192.168.1.21 Block
3 10 192.168.1.101 Pass
4 2 192,168.1.105 Block
5 10 192.168.1.150 Disabled
![](/img.php?id=242993&img=bg3f.png)
Configuration
48 AWE 120-58 User Guide
Enabling IP Packet Filtering
IP Packet filtering should initially be set to off so you can start from a known state and observe changes that
result from using the IP packet filter.
➧ To enable or disable IP packet filtering
1. From the IP Filter Configuration menu, select IP Packet Filtering and press Enter. The data field
highlights.
2. Scroll to choose on or off and press Enter to enable or disable packet filtering.
3. Press Esc to save the setting and exit to the Main Menu.
Enabling IP Address Filtering
➧ To enable IP address filtering
1. From the IP Filter Configuration menu, select IP Address Filtering and press Enter. The data
field highlights.
2. Scroll to choose on or off and press Enter to enable or disable address filtering.
3. Press Esc to save the setting and exit to the Main Menu.
Setting Default IP Address Filtering
This setting is inactive unless IP Address filtering has been enabled.
➧ To set default IP address filtering
1. From the IP Filter Configuration menu, select Default IP Address Filtering and press Enter.
The data field highlights.
2. Scroll to choose Pass or Block and press Enter.
3. Press Esc to save the setting and exit to the Main Menu.
H - Help IP Filter Configuration
IP Packet Filtering -> off
IP Address Filtering on
Default IP Address Filtering Block
Filter Entry Range (0-255) Base Address State
------------------- ------------------- ------------------- -------------------
1 100 192.168.1.1 Pass
2 10 192.168.1.51 Block
![](/img.php?id=242993&img=bg40.png)
IP Filter Configuration
APR 2002 Rev 03 49
Setting Up IP Address Filter
➧ To set up an IP address filter
1. From the IP Filter Configuration menu, select Range in the Filter Entry 1 row and press Enter.
The data field in the Range column highlights.
2. Type the Range (a number from 0–255) of the filter and press Enter to close the data field.
3. Press the down arrow key to select Base Address and press Enter. The data field highlights.
4. Type the IP base address and press Enter.
5. Press the down arrow key to select State and press Enter.
6. Scroll through the list and choose Pass, Block or Disable. Press Enter to save the setting.
7. To add another filter, press the down arrow key to go to the next filter entry number and fill in the data
fields.
8. Press Esc to save the filter settings and exit to the Main Menu.
H - Help IP Filter Configuration
IP Packet Filtering -> off
IP Address Filtering on
Default IP Address Filtering Pass
Filter Entry Range (0-255) Base Address State
------------------- ------------------- ------------------- -------------------
1 -> 100 0.0.0.0 Pass
2 0 0.0.0.0 Pass
3 0 0.0.0.0 Pass
4 0 0.0.0.0 Pass
5 0 0.0.0.0 Pass
6 0 0.0.0.0 Pass
7 0 0.0.0.0 Pass
8 0 0.0.0.0 Pass
![](/img.php?id=242993&img=bg41.png)
Configuration
50 AWE 120-58 User Guide
VLAN Configuration
The VLAN Configuration menu provides links to sub-menus, each managing a subset of configurable VLAN
parameters. These sub-menus include: Port Configuration, VLAN Registration Configuration, MAC Address
Filter Configuration, Traffic Class Configuration, and Spanning Tree Configuration. A description of each sub-
menu is provided below.
Viewing VLAN Configuration
➧ To view the main VLAN configuration menu
1. From the Main Menu menu, select VLAN Configuration and press Enter. The VLAN Configuration
menu is displayed.
Port Configuration
The Port Configuration menu enables you to specify a default VLAN ID for this unit and port-specific
parameters that help define how this unit interacts with other VLAN-aware devices in the network. The
following parameters are configurable for each port (Ethernet port and RF port): Link Type, Priority,
Acceptable Frames, Ingress Filtering, and Egress Filtering. A description of each feature is provided below.
➧ To view the Port configuration menu
VLAN Configuration
-> Port Configuration
VLAN Registration Configuration
MAC Address Filter Configuration
Traffic Class Configuration
Spanning Tres Configuration
![](/img.php?id=242993&img=bg42.png)
VLAN Configuration
APR 2002 Rev 03 51
1. From the VLAN Configuration menu, select Port Configuration and press Enter. The Port
Configuration menu is displayed.
Default VLAN
ID
All untagged and priority tagged inbound packets are considered
members of this VLAN
Link Type Access All packets forwarded onto an access link are untagged
Trunk All packets forwarded onto a trunk link are VLAN-tagged
Hybrid Packets forwarded onto a hybrid link can be either tagged or
untagged, depending on the VLAN ID associated with the
packet. A registration table (described below) is used to
determine the tagging status for each outbound packet
Priority The default priority of untagged packets. If an inbound packet is
untagged, this priority is assigned to it. Packet priority is used
during the forwarding process to determine the order in which
packets are transmitted
Acceptable
Frames
All All inbound packets are processed
Tagged Only Only inbound packets that are VLAN-tagged are processed.
Untagged packets are dropped
Ingress
Enabled
Off All inbound packets are processed
On Only inbound packets containing a registered VLAN (with the
inbound port) are processed. Registration configuration
(described below) enables you to define which VLANs are
registered with each port
Egress Enabled Off All outbound packets are transmitted
On Only outbound packes containing a registered VLAN (with the
outbound port) are transmitted
H - Help Port Configuration
Default VLAN ID (1-4094) -> 1
Port Settings Ethernet Port RF Port
------------- ------------- -------------
Link Type Access Access
Priority (0-7) 0 0
Acceptable Frames All All
Ingress Enabled Off Off
Egress Enabled Off Off
![](/img.php?id=242993&img=bg43.png)
Configuration
52 AWE 120-58 User Guide
Press Esc to exit the menu
Setting the Default VLAN ID
➧ To set the default VLAN ID
1. From the Port Configuration menu, select Default VLAN ID in the Port Configuration menu and
press Enter. The data field in the Range column highlights.
2. Type the VLAN ID (a number from 1-4094) and press Enter to close the data field.
3. Press Esc to exit to the VLAN Configuration Menu.
Setting the Port Link Type
➧ To set a port link type
1. From the Port Configuration menu, select Link Type for the desired port and press Enter.
2. Select a setting from the list provided (Access , Trunk , or Hybrid ) and press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
H - Help Port Configuration
Default VLAN ID (1-4094) -> 1
Port Settings Ethernet Port RF Port
------------- ------------- -------------
Link Type Access Access
Priority (0-7) 0 0
Acceptable Frames All All
Ingress Enabled Off Off
Egress Enabled Off Off
H - Help Port Configuration
Default VLAN ID (1-4094) 1
Port Settings Ethernet Port RF Port
------------- ------------- -------------
Link Type -> Access Access
Priority (0-7) 0 0
Acceptable Frames All All
Ingress Enabled Off Off
Egress Enabled Off Off
![](/img.php?id=242993&img=bg44.png)
VLAN Configuration
APR 2002 Rev 03 53
Setting the Port Priority
➧ To set a port priority
1. From the Port Configuration menu, select Priority for the desired port and press Enter.
2. Type the priority setting (0-7) and press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
Setting the Port Acceptable Frame Type
➧ To specify the acceptable frame types for a port
1. From the Port Configuration menu, select Acceptable Frames for the desired port and press
Enter.
2. Select a setting from the list provided (All , Tagged Only ).
3. Press Esc to exit to the VLAN Configuration Menu.
H - Help Port Configuration
Default VLAN ID (1-4094) 1
Port Settings Ethernet Port RF Port
------------- ------------- -------------
Link Type Access Access
Priority (0-7) -> 0 0
Acceptable Frames All All
Ingress Enabled Off Off
Egress Enabled Off Off
H - Help Port Configuration
Default VLAN ID (1-4094) 1
Port Settings Ethernet Port RF Port
------------- ------------- -------------
Link Type Access Access
Priority (0-7) 0 0
Acceptable Frames -> All All
Ingress Enabled Off Off
Egress Enabled Off Off
![](/img.php?id=242993&img=bg45.png)
Configuration
54 AWE 120-58 User Guide
Enabling Port Ingress Filtering
➧ To enable ingress filtering on a port
1. From the Port Configuration menu, select Ingress Enabled for the desired port and press Enter.
2. Scroll to On and Press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
Enabling Port Egress Filtering
➧ To enable egress filtering on a port
1. From the Port Configuration menu, select Egress Enabled for the desired port and press Enter.
2. Scroll to On and Press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
H - Help Port Configuration
Default VLAN ID (1-4094) 1
Port Settings Ethernet Port RF Port
------------- ------------- -------------
Link Type Access Access
Priority (0-7) 0 0
Acceptable Frames All All
Ingress Enabled -> On Off
Egress Enabled Off Off
H - Help Port Configuration
Default VLAN ID (1-4094) 1
Port Settings Ethernet Port RF Port
------------- ------------- -------------
Link Type Access Access
Priority (0-7) 0 0
Acceptable Frames All All
Ingress Enabled Off Off
Egress Enabled -> On Off
![](/img.php?id=242993&img=bg46.png)
VLAN Configuration
APR 2002 Rev 03 55
VLAN Registration Configuration
The VLAN Registration Configuration menu enables you to create, modify or delete entries in the VLAN
Registration table as well as to specify this unit’s participation in the GARP VLAN Registration Protocol
(GVRP).
The VLAN Registration table is used to define the sets of VLANs that can be reached (or alternatively cannot
be reached) through individual ports of the unit. It is referenced by the following processes:
1. Ingress/Egress Filtering: If Ingress (Egress) filtering is enabled, the Registration Table is referenced to
determine whether a packet is processed or filtered on reception (transmission) based on the registration
status of the VLAN associated with it on the inbound (outbound) port.
2. Packet Forwarding on Hybrid Links: For hybrid links, the Registration Table determines for each
outbound packet whether VLAN tagging information is included with the packet, based on the destination
VLAN for the packet.
3. GARP VLAN Registration Protocol (GVRP): If GVRP is enabled, the Registration Table is
referenced to determine the registration status for a particular VLAN on each port. GVRP is explained
in more detail below.
➧ To view the VLAN Registration Configuration menu
1. From the VLAN Configuration menu, select VLAN Registration Configuration and press
Enter. The following menu is displayed:
GARP VLAN
Registration
Status
Off The unit does not participate in the GARP VLAN Registration
Protocol (GVRP)
On The unit participates in GVRP. This protocol allows GVRP-
aware devices to dynamically create and update their knowledge
of the sets of VLANs that can be reached through individual
ports
Create or
Modify a VLAN
Create a new entry in the VLAN Registration Table or modify an
existing one. A reboot is required to update the active
configuration
Delete VLAN(s) Remove a single entry or all entries from the VLAN Registration
Table. A reboot is required to update the active configuration
Show all VLANs Displays the VLAN Registration Table stored in the permanent
database. On startup, this table is used to create the active
configuration
H - Help Registration Configuration
GARP VLAN Registration Status -> Off
Create or Modify a VLAN Press Enter To Execute
Delete VLAN(s) Press Enter To Execute
Show all VLANs Press Enter To Execute
![](/img.php?id=242993&img=bg47.png)
Configuration
56 AWE 120-58 User Guide
Creating/Modifying a VLAN Registration Entry
➧ To create or modify an entry in the VLAN Registration Table
1. From the VLAN Registration Configuration menu, select Create or Modify a VLAN and press Enter.
2. Specify the entry settings desired from the menu displayed:
VLAN ID (1-
4094)
The VLAN ID of the entry to create or modify
Ethernet/RF
Port
Registration
Fixed The specified VLAN is registered on the given port. A packet
with this VLAN classification is always processed (on the port
specified)
Forbidden The specified VLAN is not registered on the given port. A
packet with this VLAN classification is filtered if either Ingress
or Egress Filtering is enabled (on the port specified)
Normal The registration status of the VLAN is to be determined by the
GVRP. If the protocol is enabled, this unit will communicate
with other GVRP-aware devices to determine if the specified
VLAN is connected via the given port
Ethernet/RF
Port Tagging
Untagged Packets associated with the specified VLAN are transmitted
untagged (on the port specified)
Tagged Packets associated with the specified VLAN are transmitted
tagged (on the port specified)
Create/Modify
VLAN
Update the Registration Table in the permanent database. A
reboot is required to update the active configuration
H - Help Registration Configuration
GARP VLAN Registration Status Off
Create or Modify a VLAN -> Press Enter To Execute
Delete VLAN(s) Press Enter To Execute
Show all VLANs Press Enter To Execute
H - Help Create/Modify a VLAN
VLAN ID (1-4094) -> 1
Ethernet Port Registration Normal
Ethernet Port Tagging Untagged
RF Port Registration Normal
RF Port Tagging Untagged
Create/Modify VLAN Press Enter to Execute
![](/img.php?id=242993&img=bg48.png)
VLAN Configuration
APR 2002 Rev 03 57
3. Select Create/Modify VLAN and press Enter. A status field will display indicating whether the entry
was created.
4. Press Esc to exit to the VLAN Configuration Menu.
Deleting a VLAN Registration Entry
➧ To delete one or more entries in the VLAN Registration Table
1. From the VLAN Registration Configuration menu, select Delete VLAN(s) and press Enter.
2. Specify the VLAN ID of the entry to delete if only one VLAN is to be removed:
VLAN ID (1-
4094)
The VLAN ID of the entry to delete
Delete VLAN A query into the VLAN Registration Table in the permanent
database is made for the specified VLAN. If an entry is found, it
is removed
Delete All
VLANs
All VLAN Registration entries in the permanent database (if any)
are removed, regardless of the VLAN ID specified above
H - Help Create/Modify a VLAN
VLAN ID (1-4094) -> 1
Ethernet Port Registration Normal
Ethernet Port Tagging Untagged
RF Port Registration Normal
RF Port Tagging Untagged
Create/Modify VLAN -> Press Enter to Execute
H - Help Registration Configuration
GARP VLAN Registration Status Off
Create or Modify a VLAN Press Enter To Execute
Delete VLAN(s) -> Press Enter To Execute
Show all VLANs Press Enter To Execute
Delete VLAN(s)
VLAN To Delete (1-4094) -> 1
Delete VLAN Press Enter To Execute
Delete All VLANs Press Enter To Execute
![](/img.php?id=242993&img=bg49.png)
Configuration
58 AWE 120-58 User Guide
3. Select Delete VLAN and press Enter if only one VLAN is to be removed. Otherwise, select Delete All
VLANs and Press Enter. A status field will display, indicating the status of the request issued
4. Press Esc to exit to the VLAN Configuration Menu.
Displaying the VLAN Registration Table
➧ To view the current VLAN Registration Table
1. From the VLAN Registration Configuration menu, select Show all VLAN(s) and press Enter.
Below is a sample table:
MAC Address Filter Configuration
The MAC Address Filter Configuration menu enables you to create, modify or delete entries in the MAC
Address Filter Table.
By creating a MAC address filter, you control whether this MAC address gains access to the network. The
filter you specify contains a control element for each port which defines the access level of the MAC address
for that port.
One example filter may be to block the relay of particular bridge protocol packets that use a known multicast
address. By specifying “Filter” access for each port, you can restrict these packets to the local LAN(s) from
which they originate.
➧ To view the MAC Address Filter Configuration menu
H - Help Registration Configuration
GARP VLAN Registration Status Off
Create or Modify a VLAN Press Enter To Execute
Delete VLAN(s) Press Enter To Execute
Show all VLANs -> Press Enter To Execute
Registration Entry Table
VLAN ID ETH Registration/Tagging RF Registration/Tagging
------- ------------------------ ------------------------
1 Normal / Untagged Normal / Untagged
2 Fixed / Tagged Fixed / Untagged
4094 Forbidden / Untagged Forbidden / Untagged
Static Registration Table Size: 3
![](/img.php?id=242993&img=bg4a.png)
VLAN Configuration
APR 2002 Rev 03 59
1. From the VLAN Configuration menu, select MAC Address Filter Configuration and press
Enter. The following menu is displayed:
Creating/Modifying a MAC Address Filter Entry
➧ To create or modify an entry in the MAC Address Filter Table
1. From the MAC Address Filter Configuration menu, select Create or Modify a VLAN and press Enter.
2. Specify the filter settings desired from the menu displayed:
Create or
Modify a MAC
Address Filter
Create a new entry in the MAC Address Filter Table or modify
an existing one. A reboot is required to update the active
configuration.
Delete MAC
Address
Filter(s)
Remove a single entry or all entries from the MAC Address
Filter Table. A reboot is required to update the active
configuration
Show all MAC
Address
Filters
Displays the MAC Address Filter Table stored in the permanent
database. On startup, this table is used to create the active
configuration
MAC Filter To
Create
The MAC address of the entry to create or modify (HEX
format). The destination MAC address for each outbound
packet is used to search through the MAC Address Filter table.
If an entry is found, the appropriate port control element
determines forwarding status
H - Help MAC Address Filter Configuration
Create or Modify a MAC Address Filter Press Enter To Execute
Delete MAC Address Filter(s) Press Enter To Execute
Show All MAC Address Filters Press Enter To Execute
H - Help MAC Address Filter Configuration
Create or Modify a MAC Address Filter -> Press Enter To Execute
Delete MAC Address Filter(s) Press Enter To Execute
Show All MAC Address Filters Press Enter To Execute
H - Help Create/Modify a MAC Address Filter
MAC Filter To Create -> 000000000000
Ethernet Port Membership Forward
RF Port Membership Forward
Create/Modify the MAC Filter Press Enter To Execute
![](/img.php?id=242993&img=bg4b.png)
Configuration
60 AWE 120-58 User Guide
3. Select Create/Modify the MAC Filter and press Enter. A status field will display indicating whether
the entry was created.
4. Press Esc to exit to the VLAN Configuration Menu.
Removing a MAC Address Filter Entry
➧ To remove one or more entries in the MAC Address Filter Table
1. From the MAC Address Filter Configuration menu, select Delete MAC Address Filter(s) and press
Enter.
2. Specify the MAC address of the entry to delete if only one entry is to be removed:
Port
Membership
(Ethernet/RF)
Forward Packets with a destination MAC address matching the MAC
filter address are forwarded on the given port
Filter Packets with a destination MAC address matching the MAC
filter address are filtered on the given port
Create/Modify
the MAC Filter
Update the MAC Filter Table in the permanent database. A
reboot is required to update the active configuration
MAC Filter To
Delete
The MAC Address of the entry to remove
Delete MAC
Filter
A query into the MAC Address Filter Table in the permanent
database is made for the specified MAC address. If an entry is
found, it is removed
H - Help Create/Modify a MAC Address Filter
MAC Filter To Create 000000000000
Ethernet Port Membership Forward
RF Port Membership Forward
Create/Modify the MAC Filter -> Press Enter To Execute
H - Help MAC Address Filter Configuration
Create or Modify a MAC Address Filter Press Enter To Execute
Delete MAC Address Filter(s) -> Press Enter To Execute
Show All MAC Address Filters Press Enter To Execute
H - Help Delete MAC Address Filter(s)
MAC Filter To Delete -> 000000000000
Delete MAC Filter Press Enter To Execute
Delete All MAC Filters Press Enter To Execute
![](/img.php?id=242993&img=bg4c.png)
VLAN Configuration
APR 2002 Rev 03 61
3. Select Delete MAC Filter and press Enter if only one entry is to be removed. Otherwise, select
Delete All MAC Filters and Press Enter. A status field will display, indicating the status of the request
issued
4. Press Esc to exit to the VLAN Configuration Menu.
Displaying the MAC Address Filter Table
➧ To view the current MAC Address Filter Table in the permanent database
1. From the MAC Address Filter Configuration menu, select Show All MAC Address Filters and press
Enter.
Below is a sample table:
Traffic Class Configuration
The Traffic Class Configuration menu enables you to specify the order in which outbound frames are
transmitted based on packet priority.
Two “traffic classes” are supported for each port, one class for “High” priority packets, another for “Low”
priority packets. Outbound packets placed into the “High” traffic class are transmitted before “Low” priority
packets during the forwarding process.
Through the configuration interface provided, you are able to assign different packet priorities to one of the
traffic classes supported. This process is further explained below.
Delete All MAC
Filters
All MAC Address Filter entries in the permanent database (if
any) are removed, regardless of the MAC Address specified
above
H - Help MAC Address Filter Configuration
Create or Modify a MAC Address Filter Press Enter To Execute
Delete MAC Address Filter(s) Press Enter To Execute
Show All MAC Address Filters -> Press Enter To Execute
MAC Address Filter Table
MAC Address Ethernet Port RF Port
------------- ------------- -------------
12345679ABC Forward Forward
DEF12345678 Filter Filter
Static Filter Table Size: 2
![](/img.php?id=242993&img=bg4d.png)
Configuration
62 AWE 120-58 User Guide
➧ To view the Traffic Class Configuration menu
1. From the VLAN Configuration menu, select Traffic Class Configuration and press Enter.
The following menu is displayed:
Assigning Packet Priority to Traffic Classes
➧ To assign a packet priority to a traffic class
1. In the Traffic Class Configuration menu, scroll to the particular packet priority for the desired port and
press Enter
2. Select the appropriate traffic class from the list provided and press Enter
3. Press Esc to exit to the VLAN Configuration Menu.
Spanning Tree Configuration
The Spanning Tree Configuration menu enables you to specify parameters that define this unit’s role in the
Spanning Tree Protocol.
The Spanning Tree Protocol is a link management protocol that enables path redundancy in a network while
preventing the occurrence of broadcast loops. Participants in the Spanning Tree Protocol communicate with
one another, together dynamically managing the network topology to ensure a loop-free configuration.
User Priority The packet priority. An inbound packet may contain a priority in
the range 0-7. If the packet is priority-tagged on reception, the
priority carried within the packet is used to determine which
traffic class it will be placed during the forwarding process. For
untagged inbound packets, the default priority (see Port
Configuration) is used
Ethernet Port/
RF Port
(Traffic
Classes)
The traffic class assignment is specified here
H - Help Traffic Class Configuration
User Priority Ethernet Port RF Port
------------- ------------- ------------
0 -> Low Low
1 Low Low
2 Low Low
3 Low Low
4 High High
5 High High
6 High High
7 High High
![](/img.php?id=242993&img=bg4e.png)
VLAN Configuration
APR 2002 Rev 03 63
In most cases, this unit need not be a participant in the Spanning Tree Protocol. This is further explained
below.
➧ To view the Spanning Tree Configuration menu
1. From the VLAN Configuration menu, select Spanning Tree Configuration and press Enter.
The following menu is displayed:
Spanning Tree
Status
Off This unit does not participate in the Spanning Tree Protocol;
Spanning Tree protocol packets are transparently bridged
On This unit is a participant in the Spanning Tree Protocol. Only
enable this if a redundant RF link is added to the network
Bridge
Priority
Specifies the bridge priority to be used by this unit in
communication with other Spanning Tree participants. This
parameter is used in part to determine the forwarding status of
each port
Port Priority
(Ethernet/RF)
Specifies the port-specific priority to be used by this unit in
communication with other Spanning Tree participants (on the
port specified). This parameter is used in part to determine
port forwarding status
Port Path Cost
(Ethernet/RF)
Specifies the port-specific path cost to be used by this unit in
communication with other Spanning Tree participants (on the
port specified). This parameter is used in part to determine
port forwarding status
Port State Blocking This port does not transmit any packets
Learning This port “learns” local traffic addresses, but does not transmit
any packets
H - Help Spanning Tree Configuration
Spanning Tree Status -> Off
Bridge Priority (0-65535) 32768
Ethernet Port Priority (0-255) 128
Ethernet Port Path Cost (1-65535) 128
RF Port Priority (0-255) 128
RF Port Path Cost (1-65535) 128
Read-only Parameters
Ethernet Port State Forwarding
RF Port State Forwarding
Root MAC Address 00103000000
![](/img.php?id=242993&img=bg4f.png)
Configuration
64 AWE 120-58 User Guide
If this unit participates in the Spanning Tree Protocol, the configurable parameters mentioned above, Bridge
Priority, Port Priority and Port Path Cost, are communicated to all other participants in the bridged network
in a Spanning Tree Protocol packet. Similarly, all other participants broadcast their parameters to this unit.
Based on this unit’s parameters and those received by other bridges, the network topology is created,
possibly with some ports on some devices (maybe one on this unit) being disabled to prevent the occurrence
of broadcast loops
If a change in topology is detected by any device, a notification message is broadcasted and the network, if
required, is re configured. This feature is particularly useful for critical links in which redundant paths exist. If
one link should go down, a change in topology is detected and a second “backup” link is brought online.
Enabling Spanning Tree
➧ To enable the Spanning Tree Protocol
1. From the Spanning Tree Configuration menu, select Spanning Tree Status and press Enter. The data
field highlights.
2. Press the arrow key until the “On” option is displayed and press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
Forwarding This port learns and transmits packets on this port. If this unit
does not participate in the Spanning Tree Protocol, each port
state is set to this value
Root MAC
Address
This is the “root” bridge in the existing network (if this unit is a
participant). The root bridge is responsible (among other things)
for broadcasting notification messages to all other participants
to ensure a loop-free network configuration
H - Help Spanning Tree Configuration
Spanning Tree Status -> On
Bridge Priority (0-65535) 32768
Ethernet Port Priority (0-255) 128
Ethernet Port Path Cost (1-65535) 128
RF Port Priority (0-255) 128
RF Port Path Cost (1-65535) 128
Read-only Parameters
Ethernet Port State Forwarding
RF Port State Forwarding
Root MAC Address 00103000000
![](/img.php?id=242993&img=bg50.png)
VLAN Configuration
APR 2002 Rev 03 65
Setting the Bridge Priority
➧ To set the Bridge Priority
1. From the Spanning Tree Configuration menu, select Bridge Priority and press Enter. The data field
highlights.
2. Enter a value in the range 0-65535 and press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
Setting Port Priority
➧ To set the priority of a port
H - Help Spanning Tree Configuration
Spanning Tree Status On
Bridge Priority (0-65535) -> 32768
Ethernet Port Priority (0-255) 128
Ethernet Port Path Cost (1-65535) 128
RF Port Priority (0-255) 128
RF Port Path Cost (1-65535) 128
Read-only Parameters
Ethernet Port State Forwarding
RF Port State Forwarding
Root MAC Address 00103000000
![](/img.php?id=242993&img=bg51.png)
Configuration
66 AWE 120-58 User Guide
1. From the Spanning Tree Configuration menu, select (Ethernet/RF) Port Priority and press Enter. The
data field highlights.
2. Enter a value in the range 0-255 and press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
Setting Port Path Cost
➧ To set the path cost for a port
1. From the Spanning Tree Configuration menu, select (Ethernet/RF) Port Path Cost and press Enter.
The data field highlights.
2. Enter a value in the range 1-65535 and press Enter.
3. Press Esc to exit to the VLAN Configuration Menu.
H - Help Spanning Tree Configuration
Spanning Tree Status On
Bridge Priority (0-65535) 32768
Ethernet Port Priority (0-255) -> 128
Ethernet Port Path Cost (1-65535) 128
RF Port Priority (0-255) 128
RF Port Path Cost (1-65535) 128
Read-only Parameters
Ethernet Port State Forwarding
RF Port State Forwarding
Root MAC Address 00103000000
H - Help Spanning Tree Configuration
Spanning Tree Status On
Bridge Priority (0-65535) 32768
Ethernet Port Priority (0-255) 128
Ethernet Port Path Cost (1-65535) -> 128
RF Port Priority (0-255) 128
RF Port Path Cost (1-65535) 128
Read-only Parameters
Ethernet Port State Forwarding
RF Port State Forwarding
Root MAC Address 00103000000
![](/img.php?id=242993&img=bg52.png)
RF Station Configuration
APR 2002 Rev 03 67
RF Station Configuration
The RF Station Configuration menu enables you to choose the operating mode, run some tests and optimize
the RF link. Four tests can be run from this menu: link monitor test, transmit test, and receive test. You can
optimize a link by setting the maximum remote distance to a remote and by controlling the rate of data
throughput (throttling). You can also block a unit so that it cannot pass any data.
Viewing Current RF Station Configuration
➧ To view the current RF station configuration
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
Operating Mode Three modes are available: Normal Mode, Receive
Test, and Transmit Test
RF Transmit Status Determines if data transmissions through the unit will
be blocked or passed
Link Monitor Period Period determines the amount of test data that is used
to test the link. The smaller the number, the larger the
amount of test data and test data overhead. A non-
zero value starts the link monitor test
H - Help RF Station Configuration
Operating Mode -> Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 1
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg53.png)
Configuration
68 AWE 120-58 User Guide
2. Press Esc to exit to the Main Menu.
Setting the Operating Mode
Three modes are available: Normal Mode (Link Monitor), Receive Test, and Transmit Test.
Test Mode Timer
Minutes
Maximum time in minutes that a unit will be allowed to
stay in test mode
Maximum Remote
Distance
Distance value compensates for polling delay due to
large distances
Link Monitor Remote
Station Rank
Rank (or ID number) of the remote that you want to
test
Throttle Enable Turns throttling (data throughput control) on or off
Throttle Level Determines the data rate of a remote unit. When
throttling is enabled, the data rate passed is equal to
the throttling level times 64 kbps
Output Power
Control Mode
Used to choose the output power mode: off, Auto
Output Power or Dynamic Output Power mode.
User Output Power
Adjust Ceiling
Used to limit the maximum transmit power output for
a remote unit
Signal Margin
(6-31) dB
Amount of dB of extra power at the receiver desired
above the noise floor
Current Output
Power Adjust
Displays real-time adjustments to output power in dB
while an Output Power Control Mode test mode is
running
Normal Mode Normal operating mode of a unit. Unit transmits and receives data in both
directions across the RF link. You can view the link statistics using Link
Monitor Display.
(Link Monitor is run with the unit set to Normal mode and Output Power
Control Mode set to “off”.)
Receive
Test
Receives test data only. Processes expected packet data and displays
statistics on RS-232 monitor. Use this mode to test a unit’s ability to receive
data.
Transmit
Test
Transmits test data only. Sends known packet data to the receiving unit. Use
this mode to test a unit’s ability to transmit data.
![](/img.php?id=242993&img=bg54.png)
RF Station Configuration
APR 2002 Rev 03 69
General Equipment Setup
The general equipment setup is shown below. The actual setup depends on which test you want to run and
how you want to run it. You will need at least one PC to perform the Link Monitor, Transmit, and Receive
tests.
• To perform the Link Monitor (Normal Mode) test you will connect a PC to either the base station or
a remote unit and run the Link Monitor test. You may then read the link statistics on the PC screen.
• To perform the Transmit Test, start the test from the PC.
• To perform the Receive Test you will connect a PC to the receiving unit and start the Transmit test at
the transmitting unit (using either a PC). Receive statistics are displayed on the PC screen.
General Equipment Setup
Before you run the LInk Monitor, Receive or Transmit tests, you should set the number of test minutes, as
described in Setting Test Mode Timer Minutes , page 71.
Base Unit Remote Unit
PC
AWE 120-58
Serial Cable
COM
Port
To Serial Port
2 m
minimum
PC
AWE 120-58
Serial Cable
COM
Port
To Serial Port
![](/img.php?id=242993&img=bg55.png)
Configuration
70 AWE 120-58 User Guide
➧ To set the operating mode
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Operating Mode and press Enter. The data field highlights.
3. Press the arrow keys to select the desired mode: Normal mode, Transmit mode, or Receive mode and
Press Enter.
H - Help RF Station Configuration
Operating Mode -> Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg56.png)
RF Station Configuration
APR 2002 Rev 03 71
Setting Test Mode Timer Minutes
Before you run any of these tests, you should set the maximum time, in minutes, that a unit will be allowed to
stay in test mode. When this time period expires, the AWE unit performs an automatic software reboot and
returns to Normal mode. (Test mode timer minutes setting applies only to Transmit Test and Receive Test
modes.)
Note: The test mode timer minutes can be changed only with this menu. This time period does not apply to
Normal mode or the Link Monitor test. See Command Line Interface , page 128.
➧ To set test mode timer minutes
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Test Mode Timer Minutes and press Enter. The data field highlights.
3. Type the desired time in minutes (1-1000). (20 minutes is a suggested starting value.)
4. Press Enter.
5. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) -> 10
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg57.png)
Configuration
72 AWE 120-58 User Guide
Performing Link Monitor Test (Normal Mode)
The link monitor test can be run from either a base station or a remote unit that is set to Normal Mode. The
test operates in parallel with the message stream, so it consumes some of the link’s total data capacity. You
can control the ratio of test data to message data (and thereby control the amount of test data overhead) by
setting the link monitor period. See Setting the Link Monitor Period , page 78 for more information.
Note: Link monitor test stays in effect even if you power cycle or reboot units, so you must turn it off using
the Link Monitor Period (0 = OFF) setting.
➧ To perform Link Monitor test from a base station
1. Connect the test PC to the Serial port of the base station. See General Equipment Setup , page 69.
2. Log in to the unit and go to the Main Menu.
3. Select RF Station Configuration and press Enter. The RF Station Configuration menu is
displayed.
4. Select Operating Mode and press Enter. The data field highlights.
5. Press the arrow keys to select Normal mode and press Enter.
6. Select RF Transmit Status and press Enter. The data field highlights.
7. Press the arrow keys to select unblocked and press Enter.
8. Select Output Power Control Mode and press Enter. Set it to off.
9. Select Link Monitor Period and press Enter. The data field highlights.
10. Type a link monitor period (1) and press Enter. Link Monitor starts as soon as a non-zero value is
entered in the field. (A setting of 1 means that 50% of all data is test data.)
H - Help RF Station Configuration
Operating Mode -> Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg58.png)
RF Station Configuration
APR 2002 Rev 03 73
11. View the link statistics. From the Main Menu select Link Monitor Display and press Enter. The RF
Link Monitor Statistics window is displayed.
12. Check for BER = 0.0E+00 and Corr Power between 15 – 50 dB. If the Corr Power is <15 dB the
receive signal is probably too weak. If the power is >55 dB the receiving unit is probably saturated. See
Viewing Link Monitor Statistics , page 126 for more information about Link Monitor Statistics.
If you have problems, ensure that the unit is configured to its basic default settings (see Restoring
Factory Configurations , page 124) and reconfigure the unit, or contact Wi-LAN Technical Assistance
Center.
13. When finished viewing link monitor statistics, disable Link Monitor to remove the test overhead data
from the RF link. Select RF Station Configuration from the Main Menu and press Enter. The RF
Station Configuration menu is displayed.
14. Select Link Monitor Period and press Enter. The field is highlighted.
15. Type 0 in the field and press Enter. The link monitor test ends.
16. Press Esc to exit.
➧ To perform Link Monitor test from a remote unit
1. Connect the test PC to the Serial port of the remote unit. See General Equipment Setup , page 69.
2. Log in to the unit and go to the Main Menu.
H - Help RF Link Monitor Statistics
Link Monitor Rank 1
Base to Remote BER 0.0E+00
Remote to Base BER 0.0E+00
Missed Packet Count 0
Base to Remote Env Power 27
Base to Remote Corr Power 28
Remote to Base Env Power 29
Remote to Base Corr Power 30
![](/img.php?id=242993&img=bg59.png)
Configuration
74 AWE 120-58 User Guide
3. Select RF Station Configuration and press Enter. The RF Station Configuration menu is
displayed.
4. Select Operating Mode and press Enter. The data field highlights.
5. Press the arrow keys to select Normal mode and press Enter.
6. Select RF Transmit Status and press Enter. The data field highlights.
7. Press the arrow keys to select unblocked and press Enter.
8. Select Output Power Control Mode and press Enter. Set it to off.
9. Select Link Monitor Period and press Enter. The data field highlights.
10. Type a link monitor period (1) and press Enter. Link Monitor starts as soon as a non-zero value is
entered in the field. (A setting of 1 means that 50% of all data is test data.)
11. View the link statistics. From the Main Menu select Link Monitor Display and press Enter. The RF
Link Monitor Statistics window is displayed.
H - Help RF Station Configuration
Operating Mode -> Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
RF Link Monitor Statistics
Link Monitor Rank 1
Base to Remote BER 0.0E+00
Remote to Base BER 0.0E+00
Missed Packet Count 0
Base to Remote Env Power 27
Base to Remote Corr Power 28
Remote to Base Env Power 29
Remote to Base Corr Power 30
![](/img.php?id=242993&img=bg5a.png)
RF Station Configuration
APR 2002 Rev 03 75
12. Check for BER = 0.0E+00 and Corr Power between 15 – 50 dB. If the Corr Power is <15 dB the
receive signal is probably too weak. If the power is >55 dB the receiving unit is probably saturated. See
Viewing Link Monitor Statistics , page 126 for more information about Link Monitor Statistics.
If you have problems, ensure that the unit is configured to its basic default settings (see Restoring
Factory Configurations , page 124) and reconfigure the unit or contact Wi-LAN customer support.
13. When you finish viewing link monitor statistics, disable Link Monitor to remove the test overhead data
from the RF link. Select RF Station Configuration from the Main Menu and press Enter. The RF
Station Configuration menu is displayed.
14. Select Link Monitor Period and press Enter. The field is highlighted.
15. Type 0 in the field and press Enter. The link monitor test ends.
16. Press Esc to exit.
Note: When testing, it is possible to run the link monitor in both directions over one link by enabling link
monitor on the base and the remote at the same time. This situation should be avoided during normal
operation because it causes needless overhead.
Performing Transmit and Receive Tests
When performing transmit or receive tests, one unit is set up to operate in Transmit Test mode and the other
unit is set up to operate in Receive Test mode. The transmitting unit sends packets of known data to the
receiving unit. The receiving unit analyzes the data and displays link statistics on the PC connected to the
Serial port.
➧ To set up the transmit unit
1. Connect a PC to the Serial port of the unit.
2. Log in to the unit and go to the Main Menu.
3. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
4. Select Operating Mode and press Enter. The field highlights.
5. Select Transmit Test and press Enter.
➧ To set up the receive unit
1. Connect a PC to the Serial port of the unit.
2. Log in to the unit and go to the Main Menu.
3. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
4. Select Operating Mode and press Enter. The field highlights.
5. Select Receive Test and press Enter. The screen clears and link statistics are displayed (if test packets
are received).Pressing the space bar switches the display between the menu interface and the statistics
update.
![](/img.php?id=242993&img=bg5b.png)
Configuration
76 AWE 120-58 User Guide
Link Statistics Example
6. Check for BER = 0.0E+00 and CorrP between 15 – 50 dB. If the CorrP is <15 dB the receive signal is
probably too weak. If the power is >55 dB the receiving unit is probably saturated.
If you have problems ensure that the unit is configured to its basic default settings (see Restoring
Factory Configurations , page 124) and reconfigure the unit, or contact Wi-LAN customer support.
BER Bit Error Rate
MPC Missed Packet Count
EnvP Envelope Power—the power of the received signal including noise,
measured in dB (0–63)
CorrP Correlation Power—the power of the received signal, excluding noise,
measured in dB (0–63)
- BER = 0.0E+00, MPC = 0, EnvP = 63, CorrP = 63
| BER = 0.0E+00, MPC = 0, EnvP = 63, CorrP = 63
Bit Error Rate Missed
Packet
Count
Envelope Power Correlation Power
Previous
Sample
Current
Sample
![](/img.php?id=242993&img=bg5c.png)
RF Station Configuration
APR 2002 Rev 03 77
Setting the RF Transmit Status
This setting can block a unit (or link) from carrying data traffic. It is used to disable units and to discontinue
service to customers, if necessary.
➧ To set RF transmit status
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select RF Transmit Status and press Enter. The data field highlights.
3. Select a setting.
4. Press Enter.
5. Press Esc to exit to the Main Menu.
unblocked Unit passes data in both directions (default setting)
blocked Does not pass data in either direction
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status -> unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 1
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg5d.png)
Configuration
78 AWE 120-58 User Guide
Setting the Link Monitor Period
The Link Monitor Period determines the ratio of test data to message data that is sent when you run the link
monitor test. The higher the period number, the smaller the ratio of test data to message data. The following
diagram shows the ratios of test data to link data

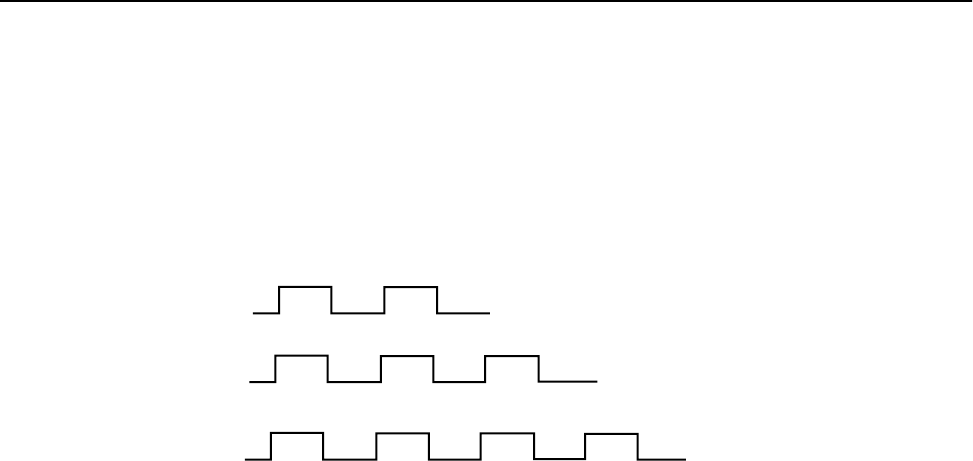

Link Monitor Period Settings
See Performing Link Monitor Test (Normal Mode) , page 72 for information about running the Link
Monitor test.
➧ To set link monitor period
Period Setting
Test Msg
1
2
3
Test Msg Msg
Test Msg Msg Msg
50% (1/2)
33.3% (1/3)
25% (1/4)
Packet Ratio
(Test/Link)
Test = test data
Msg = message data
![](/img.php?id=242993&img=bg5e.png)
RF Station Configuration
APR 2002 Rev 03 79
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Link Monitor Period and press Enter. The data field highlights.
3. Type the period setting (0=OFF, 1-10000)
4. Press Enter. The test starts as soon as a non-zero value is entered.
5. Press Esc to exit to the Main Menu.
Setting Maximum Remote Distance (Base Station Only)
The Maximum Remote Distance setting is used to optimize dynamic polling by compensating for time delays
caused by long distances between the sending unit and the receiving unit.
➧ To set the maximum remote distance
Important
In the base unit, the Maximum Remote Distance should always be set to the distance
between the base and the farthest remote
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) -> 1
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg5f.png)
Configuration
80 AWE 120-58 User Guide
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Maximum Remote Distance and press Enter. The data field highlights.
3. Press the arrow keys to set the distance of the furthest remote unit (5 km increments are used).
4. Press Enter.
5. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer (1-1000)mins 5
Base Station Only Parameters
Maximum Remote Distance -> 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg60.png)
RF Station Configuration
APR 2002 Rev 03 81
Setting Link Monitor Remote Station Rank
When you run the Link Monitor Test from a base station, you need to specify the rank (ID number) of the
remote that you want to test. When you run the link monitor test from a remote, there is only one base, so
the rank number does not need to be entered.
➧ To set the link monitor remote station rank
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Link Monitor Remote Station Rank and press Enter. The data field highlights.
3. Type the station rank (ID#) of the remote to test.
4. Press Enter.
5. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0-OFF, 1-10000) 0
Test Mode Timer Minutes (1-1000) 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank -> 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg61.png)
Configuration
82 AWE 120-58 User Guide
Adjusting Throttling (Remote Station Only)
Throttling enables you to control the rate that data passes though a remote, so data throughput can be
adjusted to make the data rate compatible with the rest of the system. Throttling restricts the flow of data
from air to wire or from wire to air. When throttling is enabled, the amount of data passed is equal to the
throttling level times 64 kbps, to a maximum of 6.4 Mbps. Throttling applies to both down link and up link
traffic, so a throttle level of 1 means the unit will pass 64 kbps in each direction. A throttle level of 100 means
that 100 x 64 kbps will be passed. When throttling is disabled, the unit uses the maximum available bandwidth.
The default setting is to disable throttling.
➧ To enable throttling
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Throttle Enable and press Enter. The data field highlights.
3. Scroll to select on or off, and press Enter.
4. Press Esc to exit to the Main Menu.
➧ To set the throttle level
1. Set Throttle Enable to on, then select Throttle Level from the RF Configuration menu and press
Enter. The data field highlights.
2. Type a value from 1–100 to select the data throughput rate (where 1 = 1 x 64 kbps, 50 = 50 x 64 kbps)
and press Enter.
3. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer (1-1000)mins 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable -> off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg62.png)
RF Station Configuration
APR 2002 Rev 03 83
Setting Tx Power Automatically (Remote Station Only)
Output Power Control Mode can be used to adjust a remote unit’s Tx power automatically. Three different
modes are available: off mode is selected to run Link Monitor in the usual manner (where Link Monitor tests
the link and collects statistical information). Automatic Output Power mode tests the link (with Link
Monitor) and automatically adjusts Tx power up or down based on measurements taken when the mode is
selected. Dynamic Output Power mode runs Link Monitor in the background and periodically adjusts Tx
power in response to the current radio conditions and environment. The amount of bandwidth (test
overhead) used for all modes is set with Link Monitor Period . (See Setting the Link Monitor Period ,
page 78).
How Automatic Output Power Adjustment Works
Link Monitor tests a link by sending test packets and measuring the link’s performance (in terms of BER and
power). The results of the test can be used to automatically adjust Tx power. Automatic power level
adjustment is explained below.
The maximum Tx power output (factory-set power ceiling ) of a unit is set at factory and cannot be
changed with configuration menus (for more information see Viewing Unit Identification , page 35). A
user-specified power ceiling or limit can be set by the user using User Output Power Adjust Ceiling on
the RF Station Configuration screen. The user-specified ceiling is the maximum Tx power level with which the
user allows the unit to operate.
The noise floor is the power level below which signal quality deteriorates rapidly due to random radio
interference causing the link to not function properly. Base Tx Power level is the starting power level or
"base" from which the adjustment is made. The operating Tx Power level is the sum of the base power
level and the signal margin (fade margin)—the signal margin is added to the Tx base power level and moves
with it. Both the base power level and the signal margin can be adjusted to reach the operating power level,
When a unit adjusts the power level, it begins at the base power level and runs Link Monitor. If no bit errors
occur and the power level is satisfactory, the unit automatically drops the Tx power level by one dB and runs
Link Monitor again. If no bit errors occur again and power level is adequate, it once again drops the Tx power
Noise Floor
Factory-set Power Ceiling
User-specified Power Ceiling
(Base Tx Power Level + Signal Margin)
Signal Power Signal Margin
Power Level
Base Tx PowerLevel
Automatic power adjustment
moves power level up and down
Operating Tx Power Level
0
![](/img.php?id=242993&img=bg63.png)
Configuration
84 AWE 120-58 User Guide
level by one dB and runs Link Monitor. This process repeats until a power level occurs where no bit errors
occur and power level is lowest. This level is the minimum power level required for operation and is displayed
numerically by Current Output Power Level Adjust on the screen. When the unit reaches this
level, Tx Power (seen on the Radio Module Configuration screen) is automatically reset to the new level.
(Below this level, BER and power levels are unsatisfactory for data communication). If the intitial base Tx
power level is below the noise floor, a unit will automatically increment the power level by one dB until the
BER and power level become satisfactory.
In short, two modes of automatic power level adjustment are available: automatic and dynamic.
Automatic Output Power mode: Power is monitored and automatically adjusted once when the
automatic output power mode is activated. The resulting output power value is saved and Output Power
Control Mode automatically returns to “off”.
Dynamic Output Power mode: Power is monitored and automatically adjusted periodically during
regular operation. Some bandwidth for data is lost due to test packet overhead—the amount of overhead is
determined by setting the Link Monitor Period (see Setting the Link Monitor Period , page 78). Dynamic
Output Power mode is not recommended in co-location situations.
Note: A unit will adjust the power output to compensate for noise problems, however if the noise floor is
too high the unit will not be able to establish an RF link. In this case, an RF spectrum analysis should be
performed to determine the cause of the problem.
Tx Power Adjust on the Radio Module Configuration screen is used to set the initial or base Tx power
level. After the level is set automatically, this value is automatically reset by the unit. The reset value can
be read by viewing Current Output Power Level Adjust on the RF Station Configuration screen, or by
viewing Tx Power Level Adjust on the Radio Module Configuration screen.
![](/img.php?id=242993&img=bg64.png)
RF Station Configuration
APR 2002 Rev 03 85
➧ To set the output power mode
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Output Power Control Mode and press Enter. The data field highlights.
3. Scroll to choose off, Auto Power Output or Dynamic Output Power and press Enter where
4. Press Esc to exit to the Main Menu.
off This setting should be set to “off” when running Link Monitor. If a
(non-zero) Link Monitor Period is specified, test packets are sent
and received across an RF link and link statistics are displayed
(view with Link Monitor Statistics screen). This mode can be used
for both base and remote units.
Automatic Output
Power
Remote-only mode in which a remote unit’s transmit power is
adjusted when the mode is selected. While in this mode, Link
Monitor statistics display “N/A”. Once the transmit power is
determined, the unit automatically goes back to “off” mode. A
Link Monitor Period of 5 is automatically used.
Dynamic Output
Power
Remote-only mode in which a remote unit’s transmit power is
continuously monitored and adjusted to accommodate RF link
disturbances. While in this mode, Link Monitor statistics display
“N/A”. Link Monitor Period must be specified by the user.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer (1-1000)mins 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode -> Dynamic Output Power
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg65.png)
Configuration
86 AWE 120-58 User Guide
Adjusting User Output Power Ceiling (Remote Station Only)
The output power ceiling is used to limit the maximum output transmit power of a remote unit. The value
entered cannot exceed the factory-set default value.
➧ To adjust the user output power ceiling
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed..
2. Select User Output Power Adjust Ceiling and press Enter. The data field highlights.
3. Press the down arrow key to scroll through the list. Select a values from 0 db (no power attenuation)
to –31 dB (maximum power attenuation) and press Enter.
4. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer (1-1000)mins 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -> -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg66.png)
RF Station Configuration
APR 2002 Rev 03 87
Setting Signal Margin (Remote Station Only)
The signal margin is the extra transmit power (measured in dB) desired for a remote unit with respect to the
base station noise floor. This value is used by Output Power Control test modes to set the transmit power.
For example, if set to 10 dB, an Output Power Control test mode will attempt to adjust the output transmit
power to a level at which the received signal at the base station is 10 dB greater than receiver sensitivity
threshold.
➧ To set the signal margin
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
2. Select Signal Margin and press Enter. The data field highlights.
3. Enter the ceiling value (from 6 to 31 dB) and press Enter.
4. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer (1-1000)mins 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg67.png)
Configuration
88 AWE 120-58 User Guide
Viewing Current Output Power Level Adjust
Current Output Power Level Adjust is a view-only information. It displays the current power
level adjustment, which was initially set using Tx Power Level Adjust. See Adjusting the Tx Power Level ,
page 101. This power level will be adjusted automatically when running one of the automatic power
adjustment modes. See Setting Tx Power Automatically (Remote Station Only) , page 83.
➧ To view the current output power
1. From the Main Menu, select and press Enter. The RF Station Configuration menu is displayed.
.
2. Read the current power level.
3. Press Esc to exit to the Main Menu.
H - Help RF Station Configuration
Operating Mode Normal Mode
RF Transmit Status unblocked
Link Monitor Period (0=OFF, 1-10000) 0
Test Mode Timer (1-1000)mins 5
Base Station Only Parameters
Maximum Remote Distance 5 Km
Link Monitor Remote Station Rank 1
Remote Station Only Parameters
Throttle Enable off
Throttle Level (1-100) 10 (640 kps)
Output Power Control Mode off
User Output Power Adjust Ceiling -5 dB
Signal Margin (6-31) dB 15
Current Output Power Level Adjust -21
![](/img.php?id=242993&img=bg68.png)
Radio Module Configuration
APR 2002 Rev 03 89
Radio Module Configuration
The Radio Module Configuration menu is used to change several key parameters, including station type,
station rank, and security passwords. Because these settings can affect service, they are changed in three
progessive stages: new, current, and flash. (New and current are for temporary storage, while flash is for
long-term storage.) The general procedure for changing settings with the Radio Module Configuration menu
follows.
1. View the current Radio Module Configuration menu. See Viewing the Radio Module Configuration ,
page 89.
2. Select Config Test Minutes. To begin, enter a time of 15–20 minutes. See Setting Config Test
Minutes , page 92.
3. Select a parameter and, if necessary, change the value in the “New column.
4. After making changes, select Reboot New RF Configuration and press Enter. The unit reboots
and the “New” settings become the “Current” settings of the unit. See Rebooting and Saving RF
Module Configurations , page 109.
5. If the unit operates as expected, you can save the current settings to “Flash”. See Rebooting and
Saving RF Module Configurations , page 109.
If current settings do not operate as expected, do not save them to “Flash”. Either change the current
settings or wait for the Config Test Minutes time period to expire. At expiry, the unit will
automatically reboot and revert to the last-saved flash memory settings. See Rebooting and Saving RF
Module Configurations , page 109.
Viewing the Radio Module Configuration
➧ To view the current radio module configuration
![](/img.php?id=242993&img=bg69.png)
Configuration
90 AWE 120-58 User Guide
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
Station Type Defines unit as either a base station or a remote station
Station Rank For a base station, the number of remotes that the base polls
For a remote, the polling ID # of the remote
Center Frequency Defines the channel the unit uses to transmit and receive
Security Password n Password(s) for the unit. A password up to eight digits long in
hexadecimal may be entered in each field
Scrambling Code Code used to scramble messages
Acquisition Code Code used to reduce system-induced interference in a multi-
sector system
Config Test Minutes Amount of time before unit returns to its pre-configuration state
Tx Power Level Adjust Reduces the power below maximum Tx power by the specified
amount in dB.
Repeater Mode Sets up a base station to pass data between remotes as well as
function as a control unit
System Symmetry Type Defines the amount of priority the base unit has when polling the
remotes
Dynamic Polling Level Number of polling cycles that inactive remote units are ignored by
the base station
H - Help Radio Module Configuration
New Current Flash
Station Type -> Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg6a.png)
Radio Module Configuration
APR 2002 Rev 03 91
2. Press Esc to exit to the Main Menu.
Remote Unit RF Group Identifies the group number of the remote unit
Remote units with same RF group number can communicate
directly with each other
Reboot new RF
configuration
Reboots unit to save New settings as Current settings
Save Current Config
to Flash
Stores current settings in flash memory
![](/img.php?id=242993&img=bg6b.png)
Configuration
92 AWE 120-58 User Guide
Setting Config Test Minutes
When changing Radio Module Configuration settings, you may enter settings that cause a unit or system to
not function as expected. If this happens, you can return to the last-saved settings if you first set the Config
Test Minutes test period . When this test period expires, the unit automatically reboots and returns to its
last-saved flash memory settings. The time period can be fixed from 1 to 120 minutes.
Tip: To begin, enter a time period of 30 minutes. If the time period is too short, you will not have enough
time to make configuration changes and save them to flash ROM. If the time period is long, you will have to
wait a long time before the unit automatically reboots and restores the settings to the original flash ROM
state.
➧ To set the config test timeout period
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Config Test Minutes and press Enter. The data field highlights.
3. Type the number of minutes (1-120) and press Enter. The number of minutes is stored in the New state.
4. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit will now use the current settings to operate, for the length of time
specified by Config Test Minutes.
5. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
6. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 0 0 0
Config Test Minutes (1-120) -> 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg6c.png)
Radio Module Configuration
APR 2002 Rev 03 93
Setting the Station Type
Each unit must be set up as either a base station or a remote station. In a given system there is only one base
station, but there can be numerous remote stations. (A base station can also be set up as a repeater base.)
You define the unit as a base station or remote unit by setting the Station Type.
➧ To set the station type
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Station Type and press Enter. The data field highlights.
3. Scroll to select the Station Type (base station or remote unit).
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” station type for the amount of time
specified by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type -> Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg6d.png)
Configuration
94 AWE 120-58 User Guide
Setting the Station Rank
Station Rank is defined two different ways, which depend on the station type: For a base station, rank is the
total number of remotes that a base will poll. For a remote unit, rank is a unique polling ID number that
identifies a remote to a base station.
When it polls remotes, the base station begins polling at the remote with rank number 1, then proceeds to
the remote with rank number 2, then goes to the remote with rank number 3, and so on. The base continues
polling remotes until it reaches the remote with the highest rank number. The base then repeats the polling
cycle.
Note: Dynamic polling gives you some control over the polling process. See Setting Dynamic Polling
Level (Base Station Only) , page 105.
➧ To set the station rank
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Station Rank (1-1000).
3. Type the rank (a number from 1–1000) of the station.
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” rank for the amount of time specified
by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) -> 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg6e.png)
Radio Module Configuration
APR 2002 Rev 03 95
Setting the Center Frequency
A center frequency defines the RF channel that a unit uses to transmit and receive. The AWE 120-58 can
operate at a center frequency ranging from 5.7410 GHz to 5.8338 GHz, in 400 kHz steps. All units in the
same system must be set to the same center frequency.
If you plan to co-locate AWE 120-58 systems, you will need to use more than one center frequency.You will
choose center frequencies that are well-separated from each other. The following section Choosing Center
Frequencies explains how to choose center frequencies.
Choosing Center Frequencies
A simplified diagram of the spectrum around a center frequency (when transmitting) is shown below.
Only the 33 MHz data region of the 66 MHz spectrum contains data; the remaining 16 MHz side lobes
contain no useful information (frequency ranges given are approximate).The side lobes operate at a much
lower power than the data region.
If only one center frequency is required, simply choose a frequency between 5.7410 GHz and 5.8338 GHz (in
400 kHz increments). You will probably choose a center frequency where the 5.8 GHz ISM band is cleanest,
meaning a frequency where no other people are transmitting.
If two or more AWE 120-58 systems must be co-located, center frequencies are selected that have as much
separation as possible so different systems do not interfere with each other. It is very important that the 33
MHz data regions of adjacent systems do not overlap. System performance is also better if the side lobes of
one system do not overlap the data region of another system. It does not matter if the side-lobes of two
systems overlap.
16 MHz16 MHz 33 MHz
Center Frequency
66 MHz
Data
SideSide
Center Frequency Spectrum
LobeLobe
Region
5.7410 GHz 5.8338 GHz
![](/img.php?id=242993&img=bg6f.png)
Configuration
96 AWE 120-58 User Guide

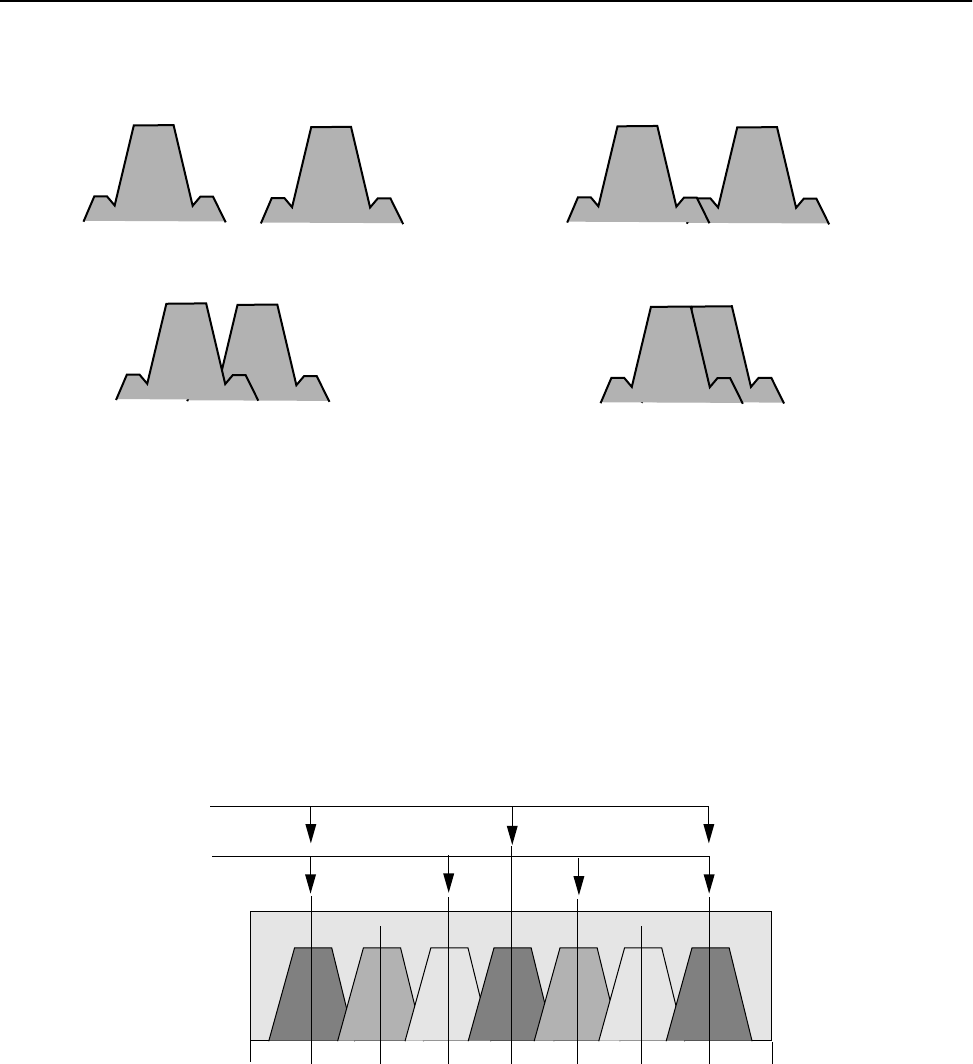

Some examples of center frequency separation and performance ratings are provided below.
These examples show that there is no benefit to separating the center frequencies of adjacent systems by
more than 66 MHz. 48 MHz of center frequency separation is more than adequate in most cases. Separation
of 33MHz is adequate for strong RF links, but weak signals will be degraded by the overlap of the side-lobes
into the data region. Overlapping of data regions is not recommended and will cause problems.
The following diagram shows seven different center frequencies in the 5.8 GHz ISM band that are spaced as
far apart as possible. You can choose your center frequencies from these sample schemes.
For best performance, choose center frequencies that are separated as much as possible and non-
overlapping. Three co-located system could use the A,D and G center frequencies. Frequencies B, D and F
would probably work equally as well. Four co-located systems could use the A, C, E and G frequencies.
Having more than four co-located systems would require careful radio network planning to ensure the
proper operation of each system.
Excellent Good
Fair Poor
5.7250
5.7410
5.7562
5.7718
5.7874
5.7803
5.8182
5.8338
5.8500
Center Frequency (GHz)
3 Systems
4 Systems
ABCDEFG
Sample Center Frequency Schemes for Co-located Systems
2 Systems
1 System
Choose two center frequencies
Choose any one center frequency
![](/img.php?id=242993&img=bg70.png)
Radio Module Configuration
APR 2002 Rev 03 97
➧ To set the center frequency
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Center Frequency and press Enter. The data field highlights.
3. Type the value of the RF center frequency. The value can range from 5.7410 GHz to 5.8338 GHz in steps
of 400 kHz. (Numbers are automatically rounded down to the nearest step.) All units in a system must
have the same center frequency.
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” center frequency for the amount of
time specified by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) -> 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg71.png)
Configuration
98 AWE 120-58 User Guide
Setting Security Passwords
Passwords are always exchanged between units when they communicate with each other. A set of five
security passwords is assigned to each unit. Each password may be up to 8 digits long in hexadecimal.The set
of passwords must be exactly the same for all units in a system. (A convenient, but non-secure option is to
set all passwords to “0”.) The more password levels you use, the greater the security of your system. For
example, using a set of five different passwords will result in a highly secure system. All units in the same
network must use the same set of security passwords.
➧ To set security passwords
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Security Password 1 and press Enter. The data field highlights.
3. Enter a password in Hex code and press Enter. The password is stored in the New state.
4. Select Security Password 2 and press Enter. The data field highlights.
5. Enter a different password in Hex code and press Enter. The password is stored in the New state.
6. Repeat this process until you complete all five password levels.
7. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” set of passwords for the amount of
time specified by Config Test Minutes.
8. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
9. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) -> 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg72.png)
Radio Module Configuration
APR 2002 Rev 03 99
Setting the Scrambling Code
To protect the privacy of a wireless link, units can scramble messages—the message content is rearranged so
that messages are difficult to read by unintended receivers. The scrambling code determines how messages
are scrambled by a unit. Only units with the same scrambling code as the originating unit can de-scramble and
read the message. The scrambling code can be 0-32 bits long. All units in the same wireless network must
have this setting set to the same value.
➧ To set scrambling codes
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Scrambling Code and press Enter. The data field highlights.
3. Type the code (hexidecimal number).
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” scrambling code for the amount of time
specified by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) -> 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg73.png)
Configuration
100 AWE 120-58 User Guide
Setting the Acquisition Code
An acquisition code is a unique code contained within the preamble of a transmitted message. Units search
the air for messages that begin with a particular acquisition code. Messages without the correct code are
treated as interference and are rejected by a unit. Messages with the correct code are accepted and
processed. Acquisition codes serve to isolate units from each other, especially when several units operate in
close proximity or at the same frequency in a multiple-sector or multi-cell environment. All units in the same
network must have the same acquisition code in order to communicate with each other.
➧ To set the acquisition code
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Acquisition Code and press Enter. The data field highlights.
3. Type the Acquisition code (0-15).
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” acquisition code for the amount of time
specified by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) -> 0 0 0
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg74.png)
Radio Module Configuration
APR 2002 Rev 03 101
Adjusting the Tx Power Level
Tx Power Level Adjust enables you to reduce the transmit power output level by up to 31 dB. For example,
selecting a value of 0 sets the transmit power to maximum power, while selecting a value of –31 sets the
transmit power to 31 dB below maximum power. The Tx power you set is the initial value only if you decide
to set Tx power automatically–the power level resets automatically during the test. See Setting Tx Power
Automatically (Remote Station Only) , page 83.
➧ To adjust the Tx power output level
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Tx Power Level Adjust and press Enter. The data field highlights.
3. Scroll through the list and press Enter to select a power attenuation level. Choose a value between 0
and –31, where 0 means no Tx power attenuation and –31 means Tx power is attenuated by 31 dB.
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” acquisition code for the amount of time
specified by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select g, Save
Current Config to Flash. See Rebooting and Saving RF Module Configurations , page 109.
7. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 0 0 0
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust -> 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg75.png)
Configuration
102 AWE 120-58 User Guide
Setting a Base to Repeater Mode (Base Station Only)
When repeater mode is enabled at a base station (Repeater Mode = on), the base acts as a repeater in
addition to performing its normal base station functions. As a repeater, the base station receives incoming
messages from remotes, stores them and broadcasts them to all remotes within RF range. Remotes belonging
to the same RF group (with the same RF Group number) can communicate via the repeater. (See Setting
Remote Unit RF Group , page 106 for information about RF groups.) The diagram below explains the
process.
Repeater Mode
When repeater mode is disabled (Repeater Mode = off), the base station functions normally (it polls remotes
and links the various segments of the network). By definition, Repeater Mode does not apply to units of RF
Group = 0.
Wired Network
Wired Network
Remote
Wired Network
Remote
RF Group n
Wired Network
Message is sent from
originating remote
Rank = 4
Message is stored
and broadcast
to all remotes in
Message is
received by
destination remote
1
2
3
n = 1– 63
RF Group n
n = 1–63
RF Group n
n = 1– 63
RF Group n
n = 1– 63
Base
Remote
Remote
Rank = 1
Rank = 2 Rank = 4
Rank = 3
(number of remote units)
RF Group n
Repeater Mode = on
(ID # of remote)
(ID # of remote) (ID # of remote)
(ID # of remote)
![](/img.php?id=242993&img=bg76.png)
Radio Module Configuration
APR 2002 Rev 03 103
➧ To set base to repeater mode
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Repeater Mode and press Enter. The data field highlights.
3. Scroll to select the desired setting where:
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” repeater mode for the amount of time
specified by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
off Base unit does not re-transmit messages
Default setting
on Base unit re-transmits messages received from one remote to other
remotes in the same RF group
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 0 0 0
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode -> off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg77.png)
Configuration
104 AWE 120-58 User Guide
Setting System Symmetry Type (Base Station Only)
System symmetry type fixes the priority of the base unit when it polls remotes. The default “asymmetric”
setting allots the base one time slot for each time a remote is polled—this setting is useful when the base is
the access point to a large network. The “symmetric” setting allots the base one time slot per polling cycle .
A symmetric system gives the base station the same polling priority as a remote unit.
➧ To set system symmetry type
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select System Symmetry Type and press Enter. The data field highlights.
3. Scroll to the desired setting where:
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” symmetry type for the amount of time
specified by Config Test Minutes.
6. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
asymmetric Base unit has higher priority than remotes: the base unit has one time slot
after every remote time slot
Default setting
symmetric Base unit has the same priority as all remotes: the base unit has one time
slot for every polling cycle
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 0 0 0
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type -> Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg78.png)
Radio Module Configuration
APR 2002 Rev 03 105
Setting Dynamic Polling Level (Base Station Only)
Dynamic polling improves system performance by reducing overhead due to idle remote units. A base station
automatically learns which remote stations are active and which are idle. The base station waits a brief time
period for a remote to respond to a poll. The remote either does not respond to the poll, or it responds with
a negative acknowledgement. The base then considers the remote to be idle. (This process is called dynamic
time allocation or DTA.) Idle remote units are ignored by the base station for the number of polling rounds
entered in the Dynamic Polling Level field. The higher the dynamic polling level, the more efficient the
throughput and the longer it takes to move a subscriber from an inactive state to an active state. Dynamic
Polling improves system performance whenever there is more than one remote. When there are a large
number of remotes system performance improves significantly.
Note: Polling level is set only at the base station.
➧ To set the dynamic polling level
1. From the Main Menu, select RF Station Configuration and press Enter. The RF Station
Configuration menu is displayed.
1. Select Dynamic Polling Level and press Enter. The data field highlights.
2. Type the desired polling level (1-100).
3. Press Enter. The new setting is displayed in the “New column.
4. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” dynamic polling level for the amount of
time specified by Config Test Minutes.
5. To save the current setting(s) to flash memory, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
6. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 0 0 0
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) -> 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg79.png)
Configuration
106 AWE 120-58 User Guide
Setting Remote Unit RF Group
The RF Group setting enables you to determine which units in a system can communicate with each other.
For example, in a system consisting of a base station and associated remotes, you can: 1) assign units to
different groups so that only members of the same group can communicate with each other and the base (an
open system); 2) isolate remotes so they cannot talk to other remotes, but can talk only to the base (a closed
system); 3) assign remote units to groups and configure the base station as a repeater (a closed system); and
4) combine closed units with open units in the same system. These configurations are explained below.
Remote units with the same RF group number (RF Group = 1– 63) can communicate directly with each other
and with the base station (if there is a line-of-sight RF path between units and base station Repeater Mode =
off.) An example is a company where the Human Resources department needs direct access to the Payroll
department, but the two departments must be isolated from other departments. Since HR and Payroll are in
the same RF group 14, they can talk directly to each other, but they cannot talk directly to other groups such
as R&D, which belongs to RF Group 20.
Example 1: Open System
Remote units configured as RF Group = 0 are independent, closed units. Closed units cannot talk directly to
each other, they can only talk directly to the base station. This setup acts to isolate remote units and the
associated LANs from each other. Example 2 shows a situation where independent companies are connected
wirelessly to a single base station and communication between the companies is prevented.
Example 2: Closed System
RF Group = 14
Base
Remote
RF Group = 14
Remote
Repeater
Mode = off
RF Group = 20
Remote
RF Group = n
n = 1 – 63
Human Resources
Payroll
R&D
Remote
RF Group = 0
RF Group = 0
Remote
Base
Repeater
Mode = off
Remote
RF Group = 0
RF Group = 0
Company 3
Company 2
Company 1
![](/img.php?id=242993&img=bg7a.png)
Radio Module Configuration
APR 2002 Rev 03 107
A repeater is used to bypass obstacles that block the RF path (for example, a mountain). When a base station
is set to repeater mode (Repeater Mode = on), it can pass data from remotes in an RF group to other
remotes in the same group. A system with a repeater is a closed system. Example 3 shows a repeater with
four remotes. All the remotes are in the same RF Group 4, so they can talk to each other via the repeater
base.
Example 3: Repeater Configuration (Closed System)
Closed remote units (RF Group = 0) can be combined with open remote units (RF Group = non-zero) within
the same system. In this case each group in the system behaves according to its RF Group characteristics:
closed remotes could communicate only with the base, remotes with the same (non-zero) group number
could communicate with each other, and remotes with different (non-zero) group numbers could not
communicate with each other. A base or repeater would not pass packets originating from a closed remote.
The following table summarizes the first three situations.
In a mixed system, each RF group behaves according to the RF Group characteristics assigned to it (0 =
closed, 1–63 = open; same non-zero group number = communication, different non-zero group number = no
communication).
Repeater Mode
(Base only)
RF Group
(Remote only)
System
Type System Characteristics
Repeater Mode =
off
1–63 Open Remotes can communicate directly with
the base and each other if remotes that
have the same non-zero RF group number
(if a LOS RF path can be established)
Repeater Mode =
off
0 Closed Remotes can communicate only with the
base station—they cannot talk to each
other
Repeater Mode =
on
1–63 Open Remotes cannot communicate directly with
each other, they can only communicate via
the repeater base with other remotes that
have the same RF group number
Closed
Remote Remote
Base
System
Repeater
Mode = on
RF Group = 4RF Group = 4
Remote
RF Group = 4
Remote
RF Group = 4
n = 1 – 63 n = 1 – 63 n = 1 – 63 n = 1 – 63
Mountain
No direct communcation
possible due to obstacle
![](/img.php?id=242993&img=bg7b.png)
Configuration
108 AWE 120-58 User Guide
➧ To set remote unit RF group
1. From the Main Menu, select RF Module Configuration and press Enter. The menu is displayed.
2. Select Remote Unit RF Group and press Enter. The data field highlights.
3. In the Remote Unit RF Group entry field, type the RF group number, using the following table as a guide.
4. Press Enter. The new setting is displayed in the “New column.
5. Select Reboot New RF Configuration and press Enter. The unit reboots and the AWE 120-58
Login menu is displayed. The unit now runs using the “Current” remote unit RF group for the amount
of time specified by Config Test Minutes.
6. To save the current setting(s) to FLASH, log in, go to the Main Menu, and select Radio Module
Configuration, Save Current Config to Flash. See Rebooting and Saving RF Module
Configurations , page 109.
7. Press Esc to exit to the Main Menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) -> 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg7c.png)
Radio Module Configuration
APR 2002 Rev 03 109
Rebooting and Saving RF Module Configurations
Because changes to radio module configuration settings can affect service in a wireless system, changes are
made in three progessive stages: new, current, and flash.
A reboot of a unit is required to save New settings as Current settings. If Current settings are valid (and do
not disrupt the system), they can be saved to Flash memory. If the changes disrupt the system, the original
configuration will be restored automatically when the Config Test Minutes period expires.
➧ To reboot a unit
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Reboot New RF configuration and press Enter. The unit reboots with the with new
settings and with the Config Test Minutes timeout period in effect. The new settings can be viewed in the
“Current” column of the Radio Module Configuration menu. The old, last-saved configuration remains
in Flash memory.
If the configuration is the one you want and the unit operates as intended, you can save the current
changes to “permanent” flash memory by selecting Save Current Config to Flash from the
Radio Module Configuration menu. When you save the current settings to “Flash” the new settings
overwrite the old flash memory settings.
New Intended configuration changes. Temporary memory storage.
Current Configuration actually running on the unit. Temporary memory storage.
Flash Configuration stored in FLASH memory. Long-term memory storage.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration -> Press Enter to Execute
Save Current Config to Flash Press Enter to Execute
![](/img.php?id=242993&img=bg7d.png)
Configuration
110 AWE 120-58 User Guide
➧ To save current configuration to FLASH
1. From the Main Menu, select Radio Module Configuration and press Enter. The Radio Module
Configuration menu is displayed.
2. Select Save Current Config to Flash.
3. Press Enter. The current configuration is saved to flash memory. A reboot is not required. The new flash
memory values are displayed in the “Flash” column of the menu.
H - Help Radio Module Configuration
New Current Flash
Station Type Remote Unit Remote Unit Remote Unit
Station Rank (1-1000) 1 1 1
Center Frequency (57410-58338) 5.7874 GHz 5.7874 GHz 5.7874 GHz
Security Password 1 (Hex) 1 1 1
Security Password 2 (Hex) 10 10 10
Security Password 3 (Hex) 100 100 100
Security Password 4 (Hex) 1000 1000 1000
Security Password 5 (Hex) 10000 10000 10000
Scrambling Code (Hex) 0 0 0
Acquisition Code (0-15) 1 1 1
Config Test Minutes (1-120) 30 30 30
Tx Power Level Adjust 0 dB 0 dB 0 dB
Base Station Only Parameters
Repeater Mode off off off
System Symmetry Type Asymmetric Asymmetric Asymmetric
Dynamic Polling Level (1-100) 1 1 1
Remote Station Only Parameters
Remote Unit RF Group (0-63) 0 0 0
Reboot New RF configuration Press Enter to Execute
Save Current Config to Flash -> Press Enter to Execute
![](/img.php?id=242993&img=bg7e.png)
RF/Ethernet Statistics
APR 2002 Rev 03 111
RF/Ethernet Statistics
Ethernet and RF statistics are useful for troubleshooting, monitoring link performance, and measuring
throughput. Ethernet and RF statistics are cumulative and increment until reset. The window is view only. See
Resetting Radio and Ethernet Statistics , page 125 for information about resetting RF/Ethernet statistics.
Viewing RF/Ethernet Statistics
➧ To view RF and Ethernet statistics
1. From the Main Menu, select RF/Ethernet Statistics and press Enter. The RF/Ethernet Statistics
window is displayed. The window is view only.
H - Help RF/Ethernet Statistics
Ethernet Receive Statistics Ethernet Transmit Statistics
Total Packets Received 0 Total Packets Transmitted 0
Packets For Local Host 0 Packets From Local Host 0
Receive Errors 0 Packets Dropped 0
Packets Dropped 0 Total KBytes Transmitted 0
Packets Discarded 0 Broadcast KBytes Transmitted 0
Total KBytes Received 0
Broadcast KBytes Received 0
RF Receive Statistics RF Transmit Statistics
Total Packets Received 0 Total Packets Transmitted 0
Packets For Local Host 0 Frames From Local Host 0
Packets Dropped 0 Packets Dropped 0
Packets Discarded 0
RF Super Frame Rx Statistics RF Super Frame Tx Statistics
Super Frames Received 0 Super Frames Transmitted 0
Receive Overrun Errors 0
Frame Control Word Errors 0
Header Checksum Errors 0 Throughput Statistics
Packet Control Word Errors 0 Ethernet-to-RF Throughput 0
Super Frame Length Errors 0 RF-to-Ethernet Throughput 0
![](/img.php?id=242993&img=bg7f.png)
Configuration
112 AWE 120-58 User Guide
.
Ethernet Receive
Total Packets Received Number of Ethernet packets from the Ethernet
connection
Packets For Local Host Number of Ethernet packets received from the Ethernet
connection which were destined for the AWE 120-58
unit’s TCP/IP stack
Receive Errors Number of Ethernet packets received with errors, for
example, runt (smaller than 64 bytes), jabber (larger than
1518 bytes), or overflow error
Packets Dropped Number of Ethernet packets dropped because the
wireless link is at capacity
Packets Discarded Number of Ethernet packets discarded as the result of
filtering
Total KBytes Received Total number of kbytes received from the Ethernet port
(broadcast and non-broadcast packets)
Broadcast KBytes
Received
Number of kbytes received from the Ethernet port
(broadcast packets only)
RF Receive
Total Packets Received Number of Ethernet packets received over RF
Packets For Local Host Number of Ethernet packets received over RF and
destined for the local host
Packets Dropped Number of Ethernet packets dropped because the
wireless link is at capacity
Packets Discarded Number of Ethernet packets discarded as the result of
filtering
RF Super Frame Rx
Super Frames Received Number of super frames received
Receive Overrun Errors Number of errors caused by receive buffer overrun
Frame Control Word
Errors
Number of errors caused by frame control word
problems
Header Checksum Word
Errors
Number of errors caused by receiving an invalid header
checksum
Packet Control Word
Errors
Number of errors caused by packet control word
problems
Super Frame Length
Errors
Number of errors caused by receiving an invalid super
frame length
![](/img.php?id=242993&img=bg80.png)
RF/Ethernet Statistics
APR 2002 Rev 03 113
2. Press Esc to exit to the Main Menu.
Ethernet Transmit
Total Packets
Transmitted
Number of Ethernet packets transmitted onto the
Ethernet connection
Packets From Local
Host
Number of Ethernet packets transmitted onto the
Ethernet connection which originated from the AWE unit’s
TCP/IP stack
Packets Dropped Number of Ethernet packets not transmitted due to some
error, for example, unable to transmit within 15 retries or
underflow error
Total KBytes
Transmitted
Total number of kbytes transmitted from the Ethernet port
(broadcast and non-broadcast packets)
Broadcast KBytes
Transmitted
Number of kbytes transmitted from the Ethernet port
(broadcast packets only)
RF Transmit
Total Packets
Transmitted
Number of Ethernet packets transmitted over RF
Frames From Local Host Number of Ethernet packets transmitted to RF from the
local host
Packets Dropped Number of packets dropped because of RF problems
RF S. F. Tx
Super Frames
Transmitted
Number of super frames transmitted
Throughput
Ethernet-to-RF
Throughput
Current data rate measured from wire to air
Resolution = 1 second
RF-to-Ethernet
Throughput
Current data rate measured from air to wire
Resolution = 1 second
![](/img.php?id=242993&img=bg81.png)
Configuration
114 AWE 120-58 User Guide
System Security
The System Security menu is used to control access to a AWE unit, including the following:
• Restrict access to a unit’s Main Menu with passwords
• Restrict SNMP read and write access with SNMP Community Name
• Enable or disable remote access via Ethernet
• Enable or disable remote access via a wireless link
• Determine the amount of time that a unit remains idle before it automatically logs out.
Viewing System Security
➧ To view system security settings
1. From the Main Menu select System Security and press Enter. The System Security menu is
displayed.
SNMP Community Name 1 Controls SNMP access to the AWE
Read access only
SNMP Community Name 2 Controls SNMP access to the AWE
Read and write access
Change User Password Changes user password to enable access to main menu
Read access only
Change Supervisor
Password
Changes supervisor password to enable access to main
menu. Read and write access
Ethernet Access to
Local Host
Allows remote access to unit to change configuration
settings via wire link with telnet or SNMP
H - Help System Security
SNMP Community Name 1 -> public
SNMP Community Name 2 netman
Change User Password Press Enter to change password
Confirm User Password Press Enter to confirm password
Change Supervisor Password Press Enter to change password
Confirm Supervisor Password Press Enter to confirm password
Ethernet Access to Local Host on
Wireless Access to Local Host on
Auto Logout Minutes (1-120) 10
![](/img.php?id=242993&img=bg82.png)
System Security
APR 2002 Rev 03 115
2. Press Esc to exit to the Main Menu.
Wireless Access to
Local Host
Allows remote access to unit to change configuration
settings via RF link with telnet or SNMP
Auto Logout Minutes Maximum time the system can remain idle before the
configuration menus close and the Login menu reappears
![](/img.php?id=242993&img=bg83.png)
Configuration
116 AWE 120-58 User Guide
Assigning Community Names
Community names can be used to control SNMP access to the AWE. Community Name 1 has read only
access, and Community Name 2 has both read and write access. An SNMP manager can access and configure
any AWE unit on the network as long as the unit has the correct community names and remote access is
enabled (see Allowing Remote Access and Configuration , page 119)
➧ To assign community names
1. From the Main Menu, select System Security and press Enter. The System Security menu is
displayed.
2. Select SNMP Community Name 1.
3. Type in name. (Valid community names are assigned using SNMP software.)
4. Press Enter. The new name appears in the entry field.
5. Select SNMP Community Name 2.
6. Type in name. (Valid community names are assigned using SNMP software.)
7. Press Enter. The new name appears in the entry field.
8. Press Esc to exit to the Main Menu.
! CAUTION
Default community names are presented in all Installation and Configuration guides
distributed by Wi-LAN. It is the responsibility of the customer to ensure that default
community names are changed to unique names at installation. Record all community
name changes
Community name Privileges Default value
SNMP Community Name 1 Read public
SNMP Community Name 2 Read and Write netman
H - Help System Security
SNMP Community Name 1 -> public
SNMP Community Name 2 netman
Change User Password Press Enter to change password
Confirm User Password Press Enter to confirm password
Change Supervisor Password Press Enter to change password
Confirm Supervisor Password Press Enter to confirm password
Ethernet Access to Local Host on
Wireless Access to Local Host on
Auto Logout Minutes (1-120) 10
![](/img.php?id=242993&img=bg84.png)
System Security
APR 2002 Rev 03 117
Setting Menu Passwords
You can use passwords to control access to the Main Menu. The default passwords are user, which allows
you to read configuration settings and supervisor, which allows you to change configuration settings.
➧ To change the user password
1. From the Main Menu, select System Security and press Enter. The System Security menu is
displayed.
2. Select Change User Password and press Enter. The data field highlights.
3. Type the new password and press Enter.
4. Select Confirm User Password and press Enter. The data field highlights.
5. Re-type the new password and press Enter. The change is saved when appears beside the
confirmation field.
6. Press Esc to exit to the Main Menu.
! CAUTION
The default passwords are printed in all customer documents distributed by Wi-LAN. It
is the responsibility of the customer to change the default passwords to unique
passwords during installation. Record all password changes. When you restore factory
configurations, the login passwords revert to the defaults.
H - Help System Security
SNMP Community Name 1 public
SNMP Community Name 2 netman
Change User Password -> Press Enter to change password
Confirm User Password Press Enter to confirm password
Change Supervisor Password Press Enter to change password
Confirm Supervisor Password Press Enter to confirm password
Ethernet Access to Local Host on
Wireless Access to Local Host on
Auto Logout Minutes (1-120) 10
Success
![](/img.php?id=242993&img=bg85.png)
Configuration
118 AWE 120-58 User Guide
➧ To change the supervisor password
1. From the Main Menu, select System Security and press Enter. The System Security menu is
displayed.
2. Select Change Supervisor Password and press Enter. The data field highlights.
3. Type the new password and press Enter.
4. Select Confirm Supervisor Password entry field and press Enter.
5. Re-type the new password and press Enter. The change is saved when appears beside the
confirmation field.
6. Press Esc to exit to the Main Menu.
H - Help System Security
SNMP Community Name 1 public
SNMP Community Name 2 netman
Change User Password -> Press Enter to change password
Confirm User Password Press Enter to confirm password
Change Supervisor Password Press Enter to change password
Confirm Supervisor Password Press Enter to confirm password
Ethernet Access to Local Host on
Wireless Access to Local Host on
Auto Logout Minutes (1-120) 10
Success
![](/img.php?id=242993&img=bg86.png)
System Security
APR 2002 Rev 03 119
Allowing Remote Access and Configuration
One way to control remote access to a unit’s configuration menu is by restricting the type of link that can be
used to make remote configuration changes. The default setting is to allow remote configuration changes with
both wired and wireless links using telnet or SNMP. However, you can enable or disable the type of link
independently with two settings: Ethernet Access to Local Host and Wireless Access to Local Host.
Note: Data will pass as usual between both units. These two settings only restrict remote access to the unit’s
configuration menu, depending on the type of link that exists between the remote terminal and the
unit–wired or wireless. Also, you cannot “ping” a unit if the link is disabled.
➧ To enable Ethernet and wireless access
1. From the Main Menu, select System Security and press Enter. The System Security menu is
displayed.
2. Select Ethernet Access to Local Host and press Enter. The data field highlights.
3. Select the desired setting, where:
4. Press Enter. The new value appears in the field.
5. Select Wireless Access to Local Host and press Enter. The data field highlights.
6. Select the desired setting where:
7. Press Enter. The new value appears in the field.
8. Press Esc to exit to the Main Menu.
on Enable configuration changes to the unit via the Ethernet
off Disable configuration changes to the unit via the Ethernet
on Enable configuration changes to the unit via the air
off Disable configuration changes to the unit via the air
H - Help System Security
SNMP Community Name 1 public
SNMP Community Name 2 netman
Change User Password Press Enter to change password
Confirm User Password Press Enter to confirm password
Change Supervisor Password Press Enter to change password
Confirm Supervisor Password Press Enter to confirm password
Ethernet Access to Local Host -> on
Wireless Access to Local Host on
Auto Logout Minutes (1-120) 10
![](/img.php?id=242993&img=bg87.png)
Configuration
120 AWE 120-58 User Guide
Setting the Auto Logout Minutes
You can specify the maximum time the system can remain idle before the configuration menus close and the
Login menu reappears. This feature ensures that the configuration menus close if a user forgets to exit.
Note: When the menus automatically timeout, the system may appear to be frozen. Press Enter to view the
Login menu, where you can login to the Main Menu.
➧ To set the automatic logout timeout period
1. From the Main Menu, select System Security and press Enter. The System Security menu is
displayed.
2. Select Auto Logout Minutes and press Enter. The data field highlights.
3. Type the maximum idle time period in minutes that can pass before the configuration menus close.
4. Press Enter. The new value appears in the field.
5. Press Esc to exit to the Main Menu.
H - Help System Security
SNMP Community Name 1 public
SNMP Community Name 2 netman
Change User Password Press Enter to change password
Confirm User Password Press Enter to confirm password
Change Supervisor Password Press Enter to change password
Confirm Supervisor Password Press Enter to confirm password
Ethernet Access to Local Host on
Wireless Access to Local Host on
Auto Logout Minutes (1-120) -> 10
![](/img.php?id=242993&img=bg88.png)
System Commands
APR 2002 Rev 03 121
System Commands
System image files contain the software that runs the unit. When you first power up the AWE unit, it runs
from the factory-image. With the System Commands menu you can choose the image file that a unit uses to
power up, and the image file that a unit uses when rebooted.
Viewing System Command Menu
➧ To view system security settings
1. From the Main Menu, select System Commands and press Enter. The System Commands menu is
displayed.
2. Press Esc to exit to the Main Menu.
Default System Image Default image file used at power up
Reboot a System Image Choose the image from which to reboot
Reboot Current Image Reboot unit from the current image
Restore Factory Config
and Reboot
Restore unit to default factory configuration and reboots unit
Reset Radio Statistics Reset RF statistics
Reset Ethernet
Statistics
Reset Ethernet statistics
H - Help System Commands
Default System Image -> FACTORY-IMAGE
Reboot a System Image FACTORY-IMAGE
Reboot Current Image Press Enter to Execute
Restore Factory Config and Reboot Press Enter to Execute
Reset Radio Statistics Press Enter to Execute
Reset Ethernet Statistics Press Enter to Execute
![](/img.php?id=242993&img=bg89.png)
Configuration
122 AWE 120-58 User Guide
Setting Default System Image
The default image is the image file that a unit uses when it powers up. If you have more than one image saved
on a unit, you can choose the default power up file.
➧ To set the default image
1. From the Main Menu, select System Commands and press Enter. The System Commands menu is
displayed.
2. Select Default System Image and press Enter. The data field highlights.
3. Scroll to select the image to use as the default.
4. Press Enter. The name of the new image file appears in the field. The image will be used the next time the
AWE is powered up.
5. Press Esc to exit to the Main Menu.
H - Help System Commands
Default System Image -> FACTORY-IMAGE
Reboot a System Image FACTORY-IMAGE
Reboot Current Image Press Enter to Execute
Restore Factory Config and Reboot Press Enter to Execute
Reset Radio Statistics Press Enter to Execute
Reset Ethernet Statistics Press Enter to Execute
![](/img.php?id=242993&img=bg8a.png)
System Commands
APR 2002 Rev 03 123
Setting the Reboot System Image
You can choose the system image that a unit uses when it is rebooted.
➧ To choose the reboot image
1. From the Main Menu, select System Commands and press Enter. The System Commands menu is
displayed.
2. Select Reboot a System Image and press Enter. The data field highlights.
3. Scroll to select the image to use when rebooting.
4. Press Enter. The name of the image file appears in the field. This image will be used the next time the
AWE is rebooted.
5. Press Esc to exit to the Main Menu.
Rebooting the Current Image
The Reboot Current Image command can be used when the IP address is changed. See Setting the Internet
IP Address , page 42.
➧ To reboot the current image
1. From the Main Menu, select System Commands and press Enter. The System Commands menu is
displayed.
2. Select Reboot Current Image and press Enter. The AWE reboots using the current image.
H - Help System Commands
Default System Image FACTORY-IMAGE
Reboot a System Image -> FACTORY-IMAGE
Reboot Current Image Press Enter to Execute
Restore Factory Config and Reboot Press Enter to Execute
Reset Radio Statistics Press Enter to Execute
Reset Ethernet Statistics Press Enter to Execute
H - Help System Commands
Default System Image FACTORY-IMAGE
Reboot a System Image FACTORY-IMAGE
Reboot Current Image -> Press Enter to Execute
Restore Factory Config and Reboot Press Enter to Execute
Reset Radio Statistics Press Enter to Execute
Reset Ethernet Statistics Press Enter to Execute
![](/img.php?id=242993&img=bg8b.png)
Configuration
124 AWE 120-58 User Guide
Restoring Factory Configurations
If necessary, you can restore the unit to its original factory configuration. This command puts the unit into a
known state, which can help you when troubleshooting, and also provides an easy way to remove custom
configuration settings when you deinstall a unit.
➧ To restore the factory configuration
1. From the Main Menu, select System Commands and press Enter. The System Commands menu is
displayed.
2. Select Restore Factory Configuration and Reboot and press Enter. The unit’s
configuration is restored to the original factory settings.
Important
When you restore factory configurations, the login passwords reset automatically to
default values (user and supervisor).
H - Help System Commands
Default System Image FACTORY-IMAGE
Reboot a System Image FACTORY-IMAGE
Reboot Current Image Press Enter to Execute
Restore Factory Config and Reboot -> Press Enter to Execute
Reset Radio Statistics Press Enter to Execute
Reset Ethernet Statistics Press Enter to Execute
![](/img.php?id=242993&img=bg8c.png)
System Commands
APR 2002 Rev 03 125
Resetting Radio and Ethernet Statistics
The statistics displayed in the RF/Ethernet Statistics window are cumulative, but can be reset to track specific
events and for troubleshooting. (See Viewing RF/Ethernet Statistics , page 111 for information about
viewing the statistics). For example, a suspected RF problem can be diagnosed by resetting the radio statistics
and simulating the situation suspected of causing the problem.
➧ To reset radio statistics
1. From the Main Menu, select System Commands.The System Commands menu is displayed.
2. Select Reset Radio Statistics and press Enter. The radio statistics in the RF/Ethernet Statistics
window reset to 0 when appears beside the enter field.
3. Press Esc to exit to the Main Menu.
To reset Ethernet statistics
1. From the Main Menu, select System Commands. The System Commands menu is displayed.
2. Select Reset Ethernet Statistics and press Enter. The Ethernet statistics in the RF/Ethernet
Statistics window are reset to 0 when appears beside the enter field.
3. Press Esc to exit to the Main Menu.
H - Help System Commands
Default System Image FACTORY-IMAGE
Reboot a System Image FACTORY-IMAGE
Reboot Current Image Press Enter to Execute
Restore Factory Config and Reboot Press Enter to Execute
Reset Radio Statistics -> Press Enter to Execute
Reset Ethernet Statistics Press Enter to Execute
Success
H - Help System Commands
Default System Image FACTORY-IMAGE
Reboot a System Image FACTORY-IMAGE
Reboot Current Image Press Enter to Execute
Restore Factory Config and Reboot Press Enter to Execute
Reset Radio Statistics Press Enter to Execute
Reset Ethernet Statistics -> Press Enter to Execute
Success
![](/img.php?id=242993&img=bg8d.png)
Configuration
126 AWE 120-58 User Guide
Link Monitor Display
Viewing Link Monitor Statistics
Link performance statistics such as envelope power, correlation power and bit error rate can be viewed while
the link monitor is running. Statistics are only available on the unit running the link monitor test. The window
is view only.
➧ To view link monitor statistics
1. From the Main Menu, select Link Monitor Display. The RF Link Monitor Statistics window is
displayed. The window is view only.
Link Monitor Rank When run from on the base unit, it is the rank number of
the remote unit whose link is being tested
When run from the remote unit, this field is zero, the
rank number of the base
Base to Remote BER Bit error rate from the base to the remote. Displays “N/
A” when the link monitor is not running
Remote to Base BER Bit error rate from the remote to the base. Displays
“N/A” when the link monitor is not running
Missed Packet Count Number of missed packets
Base to Remote Env Power Envelope power received at the remote (including noise,
measured in dB).
Base to Remote Corr Power Correlation power received at the remote (excluding
noise, measured in dB).
Remote to Base Env Power Envelope power received at the base (including noise,
measured in dB).
Remote to Base Corr Power Correlation power received at the base (excluding noise,
measured in dB)
H - Help RF Link Monitor Statistics
Link Monitor Rank 0
Base to Remote BER N/A
Remote to Base BER N/A
Missed Packet Count 0
Base to Remote Env Power 0
Base to Remote Corr Power 0
Remote to Base Env Power 0
Remote to Base Corr Power 0
![](/img.php?id=242993&img=bg8e.png)
Logout
APR 2002 Rev 03 127
Logout
Logging Out
There are two ways to log out of the main menu.
➧ To log out of the Main Menu
From the Main Menu, select Logout and press Enter.
or
1. Press the Esc key on the keyboard until you reach the wilan command line.
2. Type logout at the wilan> prompt.
3. Press Enter to log out.
Enter ESC to return to Main Menu
wilan> logout
![](/img.php?id=242993&img=bg8f.png)
Configuration
128 AWE 120-58 User Guide
Command Line Interface
You can perform some basic commands with the command line interface. Type commands from the prompt.
➧ To use the command line interface
1. Log in to the AWE unit. The Main Menu is displayed.
2. Press Esc. The wilan> prompt appears.
3. Type the command after the prompt and press Enter.
4. Press Esc to return to the Main Menu.
The following are some commands you can run with the command line interface.
Command Action Example
help show the following command summary
list:
menu cls dir del ping
logout exit quit
wilan>help menu
menu return to the configuration menus wilan>menu
cls clear the terminal screen wilan>cls
dir show a file directory wilan>dir
del delete a file wilan>del sample.txt
ping ping a remote IP address wilan>ping
198.168.200.5
logout log out of the command line interface
or
terminate a remote telnet session
wilan>logout
exit log out of the command line interface
or
terminate a remote telnet session
wilan>exit
quit log out of the command line interface
or
terminate a remote telnet session
wilan>quit
wilan>
![](/img.php?id=242993&img=bg90.png)
APR 2002 Rev 03 129
Troubleshooting
Administrative Best Practices
By performing some administrative best practices and preventative maintenance, you can prevent many
problems with your system, or become aware of minor problems before they become serious ones.
Wi-LAN recommends the following practices.
• Maintain the integrity of the system design when adding or changing a system. The introduction of
new elements to a system can cause problems unless the network plan is revised to take into account
the changes. For example, improper installation of a co-located antenna can add unwanted system
interference.
• Measure and document system performance at the time of the original installation.
• Monitor system performance regularly. Environmental change as well as normal wear and tear on
components can affect system performance.
• Perform preventative maintenance every 6 months. See Preventative Maintenance and
Monitoring , page 28 for information.
• After periods of extreme weather, perform link monitor tests to verify the system; inspect towers,
antennas, cables and connectors for damage.
• Change menu passwords so that only key personnel can reconfigure the system. See Setting Menu
Passwords , page 117.
• Keep records of recent changes. Especially document the addition of units, hardware and software
changes and changes to configuration settings. Configuration errors often cause other problems.
Current records can be compared with original installation records and function as a benchmark to
help you troubleshoot.
• Keep a log of past and present problems and solutions. Store the log on-site, if possible. The log
identifies common failure points and fixes.
• Before contacting Wi-LAN for customer support, document the symptoms of the problem and the
steps taken to diagnose and fix the problem. Record the current configuration of the system.
![](/img.php?id=242993&img=bg91.png)
Troubleshooting
130 AWE 120-58 User Guide
Troubleshooting Areas
There are five key areas to be aware of when troubleshooting.
Network Integrity: Continued performance and reliability of a network depends upon maintaining the
integrity of the network. If you change a network’s design, you will affect its operation. Be aware of recent
changes to your network.
Quality of RF link: Data communication depends first on the quality of the RF link. If you can establish and
maintain a high-quality RF link, then you can be sure the link will carry high-speed data. If the quality of the RF
link is degraded for some reason, the quality of the transmitted data will also degrade.
Radio Hardware:There are three basic parts to a AWE: radio unit, antenna feed (cable, connectors, surge
suppressors, patch cables etc.) and antenna. You can isolate faulty hardware using measurement and/or
replacement methods.
• Verify the radio unit with diagnostic tests (such as RSSI and link monitor tests), bench test a unit, or
replace a unit.
• Verify the antenna feed with a Site Master test set. Sweep cables, connectors and lightning suppressors,
or exchange these parts for known good parts.
• To verify the antenna you can sweep the antenna with the Site Master test set or exchange the antenna.
Correct Unit Configuration: Units must be configured correctly, according to the network plan.
Configuration errors can cause an inability to communicate or poor performance. The addition of units or
changes to your system may require you to change configuration settings.
Embedded Software: Operate with a proven software image. Download new software if you suspect that
a unit’s software is corrupted.
The following chart provides answers to some of the more common problems that can occur when installing
and using a AWE bridge.
![](/img.php?id=242993&img=bg92.png)
Troubleshooting Areas
APR 2002 Rev 03 131
Troubleshooting Chart
Indication Possible Cause Suggested Corrective Actions
High BER Signal strength is too low Perform RSSI test to determine fade margin
Align or change antennas or cables
Ensure LOS between antennas
Signal strength is too high Adjust antennas
Increase distance between units
Interference Change center frequency
Increase RF power
Change polarization of antennas
Physically isolate antenna from source of
interference or change physical location of
antenna
Bad radio (Tx/Rx) Bench test radio
Exchange radio
Bad antenna Visually inspect antenna for damage
Sweep antenna
Replace antenna
Bad cable Visually inspect cable
Replace cable
Bad connectors Visually inspect connectors
Replace cable/connectors
Noisy power supply Replace power supply unit
Temperature Determine ambient operating temperature is
too high or low
Increase or reduce ambient temperature.
Low signal strength/
fade margin
Bad radio Bench test radio
Replace radio
Bad antenna Visually inspect antenna for damage
Sweep antenna
Replace antenna
Poor antenna alignment Use RF diagnostics to re-align antenna
Bad cable Visually inspect cables/connectors
Replace cable/connectors
Bad surge suppressor Use voltmeter to check for open circuit
Replace surge suppressor.
Incorrect radio configuration Bench test radio to confirm configuration
Reconfigure radio
![](/img.php?id=242993&img=bg93.png)
Troubleshooting
132 AWE 120-58 User Guide
Indication Possible Cause Suggested Corrective Actions
No Fresnel zone clearance Increase antenna height to obtain clearance
Relocate antenna
Remove obstacles to LOS (line of sight)
Use repeater base configuration
Power supply problems Try a different AC circuit
Measure the power at the AC outlet
Measure the output from the power supply unit
Replace the power supply unit
High packet loss Signal strength too low Check for LOS between antennas
Check for obstacles in RF path
Check for interference
Realign antennas
Replace antenna
Interference Change center frequency
Increase RF power
Change polarization of antennas
Physically isolate antenna from source of
interference or change physical location of
antenna
Multipath interference Clear the Fresnel zone
Realign antennas
Relocate radio/antenna
Temperature Determine if ambient operating temperature is
too high or low
Increase or reduce ambient temperature
No communication
between units
Configuration problems Check the following configuration settings:
Rank number–Each unit must have a unique rank
number. Base station rank or remote rank may
be incorrect
Access code–Only units with same access code
can communicate
Scrambling code–Base station and remote units
must use same scrambling codes to decode
messages
Acquisition code–All units must have same
acquisition code to communicate
Center frequency–Units must have same center
frequency to communicate
![](/img.php?id=242993&img=bg94.png)
Troubleshooting Areas
APR 2002 Rev 03 133
Indication Possible Cause Suggested Corrective Actions
IP address/subnet mask–Incorrectly configured
IP addresses will result in units being unable to
communicate
Check that IP addresses are unique for each unit
within a subnet and the correct subnet mask is
being used
Antenna or cable failure or
damage
Visually inspect antenna and cables for damage
Sweep antenna and cables
Replace antenna or cables
Poor link
performance
Polling sequence Check polling round number. Higher polling
round number increase the delay between polls
for less active units
Distance Check the maximum remote distance
configuration setting
No LOS Check LOS between antennas
Excessive Bit errors and
processing errors
Multipath interference–align or relocate
antennas or radio
Signal absorption Check LOS for obstacles such as trees
Throttling level Check if throttling is correctly configured
(Control throttling by enabling or disabling
throttling and by modifying the throttling index)
Center frequency Set units from different systems in the same
geographic area to different center frequencies–
overlapping wavelengths from other systems will
degrade performance
Overpowering co-located
unit
Output power from one unit can overpower
another co-located radio, even if units operate
on different channels—lower unit power
SNMP can’t be
activated
IP filtering configured
incorrectly for SNMP
Change IP filtering to enable SNMP
Unable to access
main configuration
menu
Invalid passwords Contact Wi-LAN for information about how to
re-enter your system
Units will need to be reset
![](/img.php?id=242993&img=bg95.png)
Troubleshooting
134 AWE 120-58 User Guide
Indication Possible Cause Suggested Corrective Actions
Unit will not operate Faulty unit Bench test unit
Corrupt unit software Reload unit software
Point-point link is too
slow
Throttling level Check if throttling is correctly configured
Center frequency Set units from different systems in the same
geographic area to different center
frequencies—overlapping wavelengths from
other systems will degrade performance
Overpowering co-located
unit
Output power from one unit can overpower
another co-located radio, even if units operate
on different channels
Lower the power of the unit
![](/img.php?id=242993&img=bg96.png)
APR 2002 Rev 03 135
Appendix A: Planning Your Wireless Link
To ensure an effective and reliable wireless link, you first need to perform some network planning. This
section provides some general guidelines for planning a wireless link, including the following:
• Planning the physical layout of your system
• Determining antenna and cable requirements
• Determining configuration settings for units
• Calculating a link budget
Planning the Physical Layout
You need to plan the physical layout of your wireless system.
• Determine the number of remotes
• Ensure LOS (line-of-sight) exists between units and determine coverage areas
• Measure the distance between the base station and each remote unit
• Consider the need for equipment shelters, electrical power and environmental requirements
Determine the Number of Remotes
Since the 12 Mbps data rate is shared between all units, the fewer the number of remote units, the faster each
wireless link. Although a maximum of 1000 remotes is supported per base station, this number would result
in low data rates. Instead, to ensure high data rates, Wi-LAN suggests a standard where 75 remotes can
maintain constant 128 kbps communication with a base station. Since it is unlikely that all units will be active
at the same time, the total number of remotes for planning purposes can be increased by a factor of three, so
that a maximum of 225 (3 x 75) remotes per base station is recommended. This should enable all users to
easily achieve 128 kbps performance.
Ensure LOS and Determine Coverage Area
Ensure the availability of a clear, LOS (line-of-sight) radio path between base station and all its remotes. Plot
the coverage area of each base station on a map, and determine which base station will service which remote
unit. Plan some alternate links in case base station coverage areas overlap or if physical obstacles block the
radio path to some remotes.
![](/img.php?id=242993&img=bg97.png)
Appendix A: Planning Your Wireless Link
136 AWE 120-58 User Guide
Measure the Distance Between Units
Use a mapping method or GPS (global positioning system) to measure the distance between the base station
and each remote, and check the radio path to identify any obstructions in the LOS path between the two
antennas. Due to the high frequency and low output power permitted in the ISM bands, no obstructions can
exist between the base station and the remote unit.
Determine Shelter, Power and Environmental Requirements
AWE units must be located in a weatherproof environment (a room, EMS cabinet or shelter) with an ambient
temperature between 0º and 40º Celsius, and humidity from 0 to 95% non-condensing. Consider building,
electrical power, heating and air conditioning requirements.
Determining Antenna
and Cable Requirements
The signal from an indoor antenna can penetrate several walls, although metal obstructions or building
features such as elevator shafts can deflect or inhibit radio waves. On-site testing is advised because all
interiors are unique.
If you plan to install antennas outdoors you need to consider several factors.
• Ensure a clear line-of-sight radio path is available between each remote and its base station.
• Ensure that Fresnel zone clearances are met. Identify obstructions that could degrade link
performance now and in the future.
• Obtain permission from building owners if you intend to install the antenna on a rooftop
• Obtain 24-hour access to antennas, cables and equipment
• Determine antenna mounting positions: the final position should be selected to enable physical
shielding of the antenna at the back and sides from radio interference in the ISM band.
• Consider potential wind load and ice loading impact on the antenna
• Be aware of possible multipath effects: installing an antenna too close to reflective surfaces can cause
signal problems.
• Check local regulatory restrictions, such as height, on antenna mast usage in the identified location
• Ensure that your antenna is properly grounded and installed according to local electrical codes.
• Determine transmission cable lengths and plan cable routes. Minimize the length of the coaxial cable
because the longer the cable, the greater the cable losses.
• Calculate the fade margin—a minimum 15 dB fade margin is required to ensure the reliability of your
wireless link.
• Determine Ethernet cable lengths and plan cable routes.
More information about antennas is provided in Antenna Basics , page 142.
WARNING
Correct antenna installation is critical to the safe operation and performance of your system.
Antennas should always be professionally installed.
!
![](/img.php?id=242993&img=bg98.png)
Determining Unit Configuration Settings
APR 2002 Rev 03 137
Determining Unit Configuration Settings
Configuration settings of units should be determined before installation to ensure easy installation and to
reduce installation costs. An information sheet should be prepared for each unit that specifies the basic
configuration settings of that unit.
• Unit Name
• IP Address
• Subnet Mask
• Station Type
• Station Rank
• Center Frequency
• Security passwords
• Scrambling Code
• Acquisition Code
• Remote Unit RF Group
• Transmit Power Level
You may also specify other settings such as remote distance, IP filtering and throttling.
Calculating a Link Budget
Proper path planning ensures that each end of the RF link receives sufficient signal power to maintain the
desired Bit Error Rate (BER). The effectiveness and reliability of your RF link depends on several factors.
• Antenna gain and other characteristics
• Distance between antennas and obstructions in the RF path
• Location and height of antennas
• Length and type of coaxial cable connecting the unit to the antenna
These factors are considered when you calculate your link budget. The calculation indicates, on paper, if your
radio link is feasible over a given distance and path and if your RF link meets regulatory requirements. Link
budgets are typically expressed in decibels (dB).
The following variables are used to calculate the link budget.
Variable Description
System Gain Maximum path loss that the system can support for usable data transmission
EIRP (Effective
Isotropically
Radiated Power)
Power radiating from an antenna taking into account the output power from the
transmitter, connector losses, cable losses and antenna gain
Antenna Gain Gain of the antenna over a dipole (dBd) or theoretical (dBi)
Propagation Loss Signal loss experienced as it travels through the air, expressed in dB
![](/img.php?id=242993&img=bg99.png)
Appendix A: Planning Your Wireless Link
138 AWE 120-58 User Guide
Each variable is described below.
System Gain
The system gain of a radio system is the difference between the transmitted power and a receiver’s sensitivity
threshold. The system gain of the AWE 120-58 is calculated as follows.
Note: For the sake of simplicity, a Tx Power value of 20dBm is used in the following calculations.
To ensure reliable communications, the system gain plus all antenna gains must be greater than the sum of all
losses. For a reliable link, Wi-LAN recommends that the system gain plus all antenna gains be greater than the
sum of all losses by 15 dB. This amount is the fade margin.
EIRP (Effective Isotropically Radiated Power)
EIRP is the power that radiates from an antenna, taking into account the output power from the transmitter,
the connector and cable losses, and the antenna gain. Unlike the Tx output power of the devices, EIRP takes
account of antenna gain and cable losses. Antennas use directional gain to increase the effective radiated
power. Losses such as cable losses reduce the effective radiated power.
You calculate the EIRP as follows.
Fresnel Radius Distance around line-of-sight that must be clear of obstacles
Cable Loss Signal loss experienced as it passes through the coaxial cable, expressed in dB
Path Loss Total loss from one end of the path to the other. Includes propagation losses,
cable losses and any other losses that impact the system performance
Formula: System Gain = Transmission Power - Receiver Sensitivity @ 10-6 BER
Variables: Tx Power = 21 dBm
Receiver Sensitivity = –80 dBm (receiver sensitivity @ 10-6 BER)
Calculation: 21dBm – (–80) dBm = 101 dB
Formula: EIRP = Tx Power (dBm) - Cable Losses (dB) - Connector Losses (dB) + Antenna Gain (dBi)
Note: The FCC regulatory body has set the EIRP limit to +36 dBm for point-to-multipoint
applications per FCC 15.247(b)(3). For point-to-point applications EIRP can be >36 dBm
as per FCC 15.247(b)(3)(ii).
Visit www.fcc.gov for the most current information.
Industry Canada specifies the EIRP limit to ≤ 4W (+36 dBm) as per RSS-210, 6.2.2(o)(b)
for point-to-multipoint applications and 200W (+23 dBW) for point-to-point applications.
Visit www.ic.gc.ca for the most current information.
Variable Description
![](/img.php?id=242993&img=bg9a.png)
Calculating a Link Budget
APR 2002 Rev 03 139
Antenna Gain
To ensure the best range and interference suppression, the external antenna should be directional, focusing
the radio energy in one direction (toward the other end of the link) rather than onmi-directional. Use of a
directional antenna also reduces interference from other systems operating at the same frequency.
Note: In some situations, you may want to use an omni-directional antenna in your system design. For
example, you would use an omni-directional antenna for a base station with remote sites situated in a
360º path around it.
When you select a Wi-LAN approved antenna, pay particular attention to the gain specification. When you
select an antenna for a remote station, select an antenna with a gain that provides at least 15 dB fade margin.
Antenna gain is specified in either dBi or dBd. When an antenna is specified in dBd, add 2.14 dB to the value
to convert it to dBi.
Propagation Loss
Propagation loss is the attenuation (reduction) in RF signal energy as it travels through space. In most wireless
systems, losses through space are the major contributor to signal attenuation. When you know the intended
installation locations of the base and remote stations, determine the physical line of sight distance and then
calculate the RF attenuation as follows:
Fresnel Zone
It is essential that you locate your antennas at maximum above-ground height to ensure that all ground-based
obstructions are cleared from the Line of Sight path and the Fresnel Zone.
The Fresnel Zone is the expansion of the RF signal radio angles in the vertical plane near the middle of the RF
path.
Fresnel Zone
Formula: Attenuation (dB) for 5.8 GHz band = 108 dB + 20log(dkm)
where:
dkm = Distance in Kilometers
108 dB = Pathloss Constant in the 5.8 GHz band
First Fresnel Zone
Line of Sight
Fresnel Radius
Ground
The maximum
Fresnel Radius
indicates that this
path must be kept
clear of
obstructions.
![](/img.php?id=242993&img=bg9b.png)
Appendix A: Planning Your Wireless Link
140 AWE 120-58 User Guide
For the 5.8 GHz band, the approximate Fresnel Radius is calculated as follows.
Cable Loss
Cable and connector losses affect the operation of the wireless link and therefore should be kept to a
minimum by minimizing cable lengths and carefully selecting the type of cable. The two primary coaxial cable
specifications for the AWE 120-58 are:
• Cable must be 50 ohms nominal impedance
• Cable must be of a low loss type
The following is an example of cable loss ratings at 5.8 GHz.
Note: When you calculate path loss, you will add 1dB at each end of the link to compensate for connector
losses in addition to the cable loss value.
Path Loss
Path loss describes the total RF attenuation throughout the system from Tx antenna to Rx antenna. This
includes the losses as the RF signal travels through space plus Tx and Rx cable loss, and Tx and Rx connector
loss. Use the following formula to calculate path loss.
Once you know the path loss, you can compare the value to the system gain value. If the system gain value is
greater than the path loss, the link is feasible. See System Gain , page 138 for more information about system
gain.
Fade Margin
Fade margin is the amount by which the system gain plus the total antenna gain exceeds the path loss.
As calculated, the fade margin is the number of dB that the received signal strength exceeds the minimum
receiver sensitivity. You require some level of fade margin for any wireless system to compensate for RF path
fading due to weather conditions or multipath interference.
The Wi-LAN recommended fade margin for the AWE 120-58 is a minimum of 15 dB. The sum of the cable
losses, connector losses, propagation losses, and the 15 dB required fade margin should be less than the sum
of the system gain and antenna gain.
Formula: Fresnel Radius (meters)=
Cable Type LDF2-50 LDF4-50A LDF4.5-50
Loss (dB/meter) 0.32 0.22 0.16
Formula: Path Loss = Tx and Rx Cable Loss + Tx and Rx Connector Loss + Propagation Loss
Formula: Total antenna gain = Tx Antenna Gain + Rx Antenna Gain
2.2 dkm dkm 8.12⁄()
2
+
![](/img.php?id=242993&img=bg9c.png)
Link Budget Example
APR 2002 Rev 03 141
Link Budget Example
The values for cable and connector losses in this example are only for illustration. You will need to work these
out for your specific installations.
Formulas: System Gain + Antenna Gain ≥ Propagation Loss + Desired Fade Margin +
Cable Losses + Connector Losses
or
Actual Fade Margin ≥ System Gain + Antenna Gain – Propagation Loss
– Cable Losses – Connector Losses
and
Actual Fade Margin ≥ Desired Fade Margin
where:
System Gain = Tx Power – Rx Sensitivity
Antenna Gains = Tx Antenna Gain + Rx Antenna Gain
Cable Losses = Base Cable Losses + Remote Cable Losses
Connector Losses = Base System Connector Losses + Remote System
Connector Losses
Variables: Desired Fade Margin = 15 dB
Tx Power = 21 dBm
Rx Sensitivity = –80 dBm
Tx Antenna Gain = 27 dBi
Rx Antenna Gain = 27 dBi
Propagation Loss for desired range of 10km = 108 + 20 x log(10) = 128 dB
Tx Cable Losses (5m LDF2-50) = 5 * 0.32 = 1.6 dB
Rx Cable Losses (5m LDF2-50)= 5 * 0.32 = 1.6 dB
Tx Connector Losses = 1 dB
Rx Connector Losses = 1 dB
Variable
Calculations:
System Gain = 21 - (–80) = 101 dB
Antenna Gains = 27 + 27 = 54 dBi
Cable Losses = 1.6 + 1.6 = 3.2 dB
Connector Losses = 1 + 1 = 2 dB
Actual Fade
Margin
Calculation:
Actual Fade Margin = 101 + 54 – 128 – 3.2 – 2 = 21.8 dB
Analysis: A goal of Actual Fade Margin ≥ 15 dB is achieved.
![](/img.php?id=242993&img=bg9d.png)
Appendix A: Planning Your Wireless Link
142 AWE 120-58 User Guide
Antenna Basics
Antennas focus and absorb radio energy in specific directions, depending on their design. AWE 120-58
antennas must be tuned to 5.7250 – 5.8500 GHz.
This section contains basic information about antenna parameters and how to select and install antennas for
use in your wireless system. Antenna characteristics, mounting location, and correct operation of antennas
are critical to a wireless link.
Antenna Parameters
Parameter Description
Gain • Antennas have a gain associated with them, which is a measure of their ability to
amplify signals in their tuned band
• Antenna gain is achieved by focusing the signal. A higher gain antenna has a more
compressed signal
dBd vs. dBi • Antenna gain must be measured over a known reference and is often expressed as
either dBd or dBi
• dBd is antenna gain referenced over a half-wave dipole which is an antenna that has a
donut shaped radiation pattern
• dBi is antenna gain referenced over an isotropic radiator which is a theoretical
antenna that radiates equally in all directions (e.g. the sun)
• Wi-LAN references antenna gain in dBi. The conversion factor is 0 dBd = 2.14 dBi
Beamwidth • Describes how a signal spreads out from the antenna, and the range of the reception
area
• Beamwidth is measured between the points on the beam pattern at which the
power density is half of the maximum power. This is often referred to as the –3 dB
points
• A high gain antenna has a very narrow beamwidth and may be more difficult to align
Downtilt or
uptilt
• Some antennas have either an associated downtilt or an uptilt. The tilt further
focuses the signal downward or upward with respect to the horizon
• Tilt may be either electrically built into the antenna or achieved mechanically with
the mounting gear
• Downtilt or uptilt may be required when there is a significant deviation between the
elevation of the remote site(s) and the base site
F/B • Front-to-back ratio
• Directional antennas focus the signal in a forward path. Achieved by directing the
signal in one direction that reduces the signal in the opposite direction
• A higher gain antenna typically has a greater F/B ratio
![](/img.php?id=242993&img=bg9e.png)
Antenna Basics
APR 2002 Rev 03 143
Implementation Considerations
Some key items to consider when selecting and installing antennas for your wireless network follow.
XPD • Polarity and Cross-Polarization Discrimination (XPD)
• Antennas have an associated polarity, which is the orientation of the radiating
element with respect to earth
• Antennas are usually described as vertical, horizontal, or circularly polarized. The
polarity of all antennas used in a system must be the same
• Cross-Polarization Discrimination specifies the signal isolation achieved when the
receiving element is perpendicular to the radiating element. Can be advantageous
when co-locating radio systems
VSWR • Voltage standing wave ratio
• VSWR is the voltage ratio of minimum to maximum across a transmission line
• A VSWR of 2.0:1 or less in an antenna is considered effective. Most antennas have a
VSWR of 1.5:1
• For example, when using a radio with a 4 W output with an antenna VSWR of 1.5:1,
the reflected power will be 160 mW
Item Description
Absorption • Antennas mounted too close to “soft” objects, such as trees, may experience a
reduction in signal strength due to absorption
• Absorption is most often encountered in applications installed during the fall or
winter months, and the problem does not become evident until the spring
Diffraction • Diffraction occurs when a radio signal reflects or bounces off of a solid object
• Level of diffraction could lead to connectivity problems if the remaining signal level is
too low
• Two types of diffraction are shadowing and multipath
Shadowing • Shadowing is a form of diffraction that is typically caused when antennas are mounted
too close to a structure and they lose a portion of the signal lobe due to reflection.
The receive antenna is in a shadowed area
• To minimize shadowing, ensure that there is adequate height above structures when
mounting antenna equipment
Multipath
Interference
• Multipath is a form of diffraction in which the reflected signal arrives at the receiver
at different times which confuses the receiver
• Multipath may be interpreted as interference by the receive antenna and can result in
bit errors and processing delays
Parameter Description
![](/img.php?id=242993&img=bg9f.png)
Appendix A: Planning Your Wireless Link
144 AWE 120-58 User Guide
Wi-LAN Approved Antennas
Antennas must be selected from the following list of Wi-LAN approved antennas. Antennas must be
connected using transmission cables having the specified minimum lengths.
There are several factors to consider when choosing the right antenna for a wireless application. The
following are some initial questions you should ask before selecting an antenna.
• What is the operating frequency range?
• Will this be a point-to-point or point-to-multipoint application? Ensure that you consider if the
application will change in the future.
• What are the coverage requirements?
• What is the gain requirement?
• What is the elevation of the remote site(s) with respect to the base station and will additional
downtilt/uptilt be necessary at either the base or remote site to compensate?
• Will there be any obstructions in the path?
• Will systems be co-located? What polarity will be used?
• What are the regional environmental conditions? For example, is there windloading, salt air, excessive
moisture, ice buildup etc.?
• What is the antenna lifetime expectation?
• What are the site and mounting options?
• What are the restrictions in the locale regarding the effective radiated power permitted from the
antenna?
• Will antenna appearance be a factor?
Antenna
Description Number Gain
(dBi)
5.8 GHz Cushcraft directional planar S57212AMP 12 Note: 1 One of the following cables
with the specified minimum length
must be connected to the antenna:
5.8 GHz European 55 degree H-sector 1SA17-55H/449 117
5.8 GHz European 55 degree V-sector 1SA17-55V/450117
5.8 GHz MTI directional/flat planar MT-10010 32 LMR400 6 m
5.8 GHz MTI directional/flat planar MT-10011 28 LMR600 7 m
5.8 GHz TIL-TEK directional/dish TA-5224M 28.5 LMR900 13 m
5.8 GHz TIL-TEK directional/dish w/radome TA-5224MR 28.5 LDF4-50A 10 m
5.8 GHz TIL-TEKdirectional/dish TA-5248M 34.2 LDF4.5-50 13 m
5.8 GHz TIL-TEK directional/dish w/radome TA-5248MR 34.2
5.8 GHz TIL-TEK directional/dish TA-5272M 37.5
5.8 GHz TIL-TEK directional/dish w/radome TA-5272MR 37.5
![](/img.php?id=242993&img=bga0.png)
Antenna Basics
APR 2002 Rev 03 145
Antenna Installation Factors
Some factors you should consider when installing antennas into your wireless system are listed below.
Factor Description
Maximizing the
AWE 120-58’s
Capabilities
• Minimize obstructions in the radio path
• Line Of Sight (LOS) is crucial for reliability
• Ensure that equipment is installed correctly
• Ensure proper grounding, testing, and alignment of antennas
• Install in environmental conditions that are suitable for the AWE unit
• Select proper antennas and cable for the application
• Ensure sufficient gain for the intended application
Safety • Proper grounding of antenna apparatus in accordance with respective
Electrical Code(s) is crucial
• Wi-LAN recommends using a surge arrestor where the antenna cable
enters the building
• All installations should be completed by a qualified and competent RF
technical
EIRP • Effective Isotropically Radiated Power (EIRP)
• EIRP is the amount of power that is transmitted to the air from the
antenna
• EIRP levels depend on the power of the radio transmitter, the gain of the
antenna, and the losses incurred in the antenna cable
• EIRP must not exceed 4 W or 36 dBm in Canada and the United States for
point-to-multipoint applications.
Note: EIRP = Power out of unit – Power lost in cable + Gain in power from
Antenna
Fade Margin See Calculating a Link Budget , page 137
LOS • Line of Sight (LOS)
• LOS is a football shaped pattern known as the Fresnel Zone, which must
be kept clear of obstructions. See Fresnel Zone , page 139 for more
information
• Visual line of sight must be achieved. When standing at the antenna
position, you must be able to see the remote antenna
![](/img.php?id=242993&img=bga1.png)
Appendix A: Planning Your Wireless Link
146 AWE 120-58 User Guide
Minimal Clearance Above Obstructions
For the AWE 120-58, the absolute minimum clearance above obstructions requirements are as follows (in
meters):
@ 5.8 GHz
Some example clearance requirements for 5.8 GHz links follow.
Note: There is also a correction factor to compensate for curvature of the earth. This correction factor is
not required when the correction value is negligible < 10 km.
Installing Antennas
Antennas must be installed professionally to ensure that the antenna operates properly and follows accepted
safety, electrical, grounding and civil engineering standards.
Ensure the following conditions.
• Dipole antennas are oriented vertically (point up).
• Antennas for the system have the same polarity (vertical, horizontal or circular).
• Connectors attaching the coaxial cable to the antenna are properly weatherproofed.
• A drip loop is formed at the building entrance to prevent water flowing down the coaxial cable and
entering the installation building.
• The coaxial cable is secured to the supporting structure at one meter intervals to prevent wind
damage and frost loading problems.
• The antenna is firmly attached to the mast to prevent it from falling, yet has some flexibility so you
can move the antenna to fine-tune its position.
• The coaxial cable is connected to the antenna and to the Antenna port on both sides of the link (base
and remote stations).
• The antennas are grounded properly.
Distance
(km)
Clearance
(m)
Distance
(miles)
Clearance
(ft)
0.5 1.6 0.5 6.5
1 2.2 1 9.3
2 3.2 2 13.3
3 3.9 3 16.7
5 5.2 5 22.6
8 6.9 8 31.3
10 8.0 10 37.3
15 10.8 15 54.3
2.2md
km
×
![](/img.php?id=242993&img=bga2.png)
Antenna Basics
APR 2002 Rev 03 147
Fine-tuning Antennas
You can fine-tune the antennas by physically moving the antenna. When the remote antenna is correctly
aligned, the Air LED is orange, indicating communication with the base station. You can use the Receive and
Transmit Tests to test the link while adjusting the antennas to minimize BER and lost packets and maximize
received power. You can use the RSSI Test to maximize RSSI.
Once antennas are adjusted to maximize performance, secure them properly to the support structures.
Co-locating Units
When AWE antennas are located on the same mast, you must take care to ensure the output power from
one radio does not overpower another co-located bridge, even if the units are operating on different
channels. You may need to install a signal attenuator to lower transmit power, use antenna polarity to your
advantage, or adjust antenna uptilt or downtilt. Contact your distributor for antenna and installation
assistance when co-locating units.
![](/img.php?id=242993&img=bga3.png)
Appendix A: Planning Your Wireless Link
148 AWE 120-58 User Guide
![](/img.php?id=242993&img=bga4.png)
APR 2002 Rev 03 149
Appendix B: Using HyperTerminal
The Windows 95/98 operating system includes a terminal emulation program called HyperTerminal®. You can
use this program to access the AWE 120-58 configuration menus through the Serial port on the front of the
unit.
Note: Users of the Asian version of Windows can use Tera Term™ shareware (available on the Internet) to
configure the AWE 120-58.
Starting HyperTerminal
To start HyperTerminal
1. In Windows 95 or 98, from the Start menu, select Programs, Accessories, Communications,
HyperTerminal. The Connection Description window is displayed.
2. Select an icon for the HyperTerminal session and type a connection name.
3. Click OK. The Connect To window is displayed.
4. In the Connect using field, select the appropriate COM port.
5. Click OK. The COM Properties window is displayed.
6. Enter the following settings.
7. Click OK. The AWE - HyperTerminal window is displayed.
8. From the File menu, select Properties. The Properties window is displayed.
9. Click the Settings tab and then click ASCII Setup. The ASCII Setup window is displayed.
Bits per second 9600
Data bits 8
Parity None
Stop bits 1
Flow control None
![](/img.php?id=242993&img=bga5.png)
Appendix B: Using HyperTerminal
150 AWE 120-58 User Guide
10. In the ASCII Sending area, choose the following settings.
11. In the ASCII Receiving area, do the following.
12. Click OK. The ASCII Setup window closes.
13. Click OK. The Properties window closes.
14. Use a straight through RS-232 serial cable to connect the communications port of the PC to the DB9
connector on the unit.
15. Power up the unit.
16. Press Enter. The Configuration menu is displayed in the HyperTerminal window.
Determining the Communications Port
To set the communications port in the HyperTerminal session, you need to know which communications
port you are using on your computer. Most laptops are connected through COM 1, but PCs can use COM 1
through 3.
To determine the communications port
1. Right-click the My Computer icon on your desktop and from the shortcut menu, select Properties.
The System Properties window is displayed.
2. Click the Device Manager tab and click Ports (COM & LPT). A list of the available communications
ports appears.
3. Select the appropriate port for your HyperTerminal session.
Note: A connection to the Configuration menus will not be established if the wrong port is selected. If this
occurs, reconfigure the HyperTerminal to connect using another available communications port.
Send line ends with line feeds Clear the checkbox
Echo typed characters locally Clear the checkbox
Line delay Type 0
Character delay Type 0
Append line feeds to incoming line ends Click to select the checkbox
Force incoming data to 7-bit ASCII Clear the checkbox
Wrap lines that exceed terminal width Click to select the checkbox
![](/img.php?id=242993&img=bga6.png)
APR 2002 Rev 03 151
Appendix C: Configuring a Simple Data Network
This section describes how to set up a simple network to perform file transfers between two computers. You
need to perform the following tasks.
• Check the Network Adaptor Installation
• Configure the Network
• Enable the Sharing Feature on the Hard Disk Drive
Checking Network Adaptor Installation
To check the network adaptor installation
1. From Windows® choose the Start menu, select Settings, Control Panel. The Control Panel window
is displayed.
2. Double-click the System icon. The System Properties window is displayed.
3. Click the Device Manager tab.
4. Double-click Network Adapters. A list of installed devices is displayed.
5. Check for trouble indicators with the previously installed network adaptor(s).
6. Click OK. The Control Panel window is displayed.
![](/img.php?id=242993&img=bga7.png)
Appendix C: Configuring a Simple Data Network
152 AWE 120-58 User Guide
Configuring the Network
To configure the network
1. In the Control Panel window, double-click the Network icon. The Network window is displayed.
![](/img.php?id=242993&img=bga8.png)
Configuring the Network
APR 2002 Rev 03 153
2. In the list of network components area, double-click Client for Microsoft Networks. The Client for
Microsoft Networks Properties window is displayed.
Note: If Client for Microsoft Networks is not listed, click Add and select Client, Add, Microsoft, Client
for Microsoft Networks, and then click OK.
3. In the Client for Microsoft Networks Properties window, do the following tasks.
4. Click OK. The Client for Microsoft Networks Properties window closes.
Log on to Windows NT domain Clear the checkbox
Windows NT domain Clear the field
Logon and restore network connections Click the button
![](/img.php?id=242993&img=bga9.png)
Appendix C: Configuring a Simple Data Network
154 AWE 120-58 User Guide
5. In the Network window, double-click TCP/IP. The TCP/IP Properties window is displayed.
Note: If TCP/IP is not listed in the Network window, click Add and select Protocol, Add, Microsoft, TCP/
IP, and then click OK.
6. Click the IP Address tab.
7. Click Specify an IP Address, and type the following.
8. Click OK.
9. Click File and Print Sharing. The File and Print Sharing window is displayed.
10. Click to select the I want to be able to give others access to my files checkbox.
11. Click OK.
IP Address 196.2.2.1
Note: Increment the last digit by 1 (i.e. type 196.2.2.2) when configuring
the second computer
Subnet Mask 255.255.255.0
Note: This number is the same for both computers
![](/img.php?id=242993&img=bgaa.png)
Enabling Sharing on the Hard Disk Drive
APR 2002 Rev 03 155
12. In the Network window, click the Identification tab and type the following.
13. In the Network window, click the Access Control tab.
14. Click Share Level Access Control.
15. Click OK.
16. You are prompted to restart your computer.
17. Click Ye s . Wait for your computer to restart, then proceed with Enabling the Sharing Feature on the
Hard Disk Drive.
Enabling Sharing on the Hard Disk Drive
To enable the sharing feature on the hard disk drive
1. On the desktop, double-click My Computer. The My Computer window is displayed.
Computer Name Unique name for each computer. For example, computer 1
and computer 2
Workgroup Workgroup name. For example, Test
Note: All computers in the network must have the same workgroup
name
Computer Description Description of the type of computer used. For example, laptop or
desktop
![](/img.php?id=242993&img=bgab.png)
Appendix C: Configuring a Simple Data Network
156 AWE 120-58 User Guide
2. Right-click the hard disk drive icon (typically drive C:), and select Open. The Properties window is
displayed.
3. Click the Sharing tab, and choose the following:
4. Click OK.
5. Repeat this procedure for all PCs in the network.
Once all PCs in the network have been shared, you can view the network by double clicking the Network
Neighborhood icon that appears on each PC desktop.
Shared As Click the radio button
Share Name Type C
Comment Leave this field blank
Access Type Click to select Full
Passwords Leave these fields blank
![](/img.php?id=242993&img=bgac.png)
APR 2002 Rev 03 157
Appendix D: SNMP
About SNMP MIB
Three elements are required to use SNMP: agent software, management software and a MIB file. SNMP agent
software is contained in every AWE unit. Agent software enables a unit to interpret SNMP (Simple Network
Management Protocol) MIB (Management Information Block) commands.
SNMP management software is installed on a networked PC or workstation and enables a network
administrator to remotely manage AWE units. If you have SNMP manager software installed on a networked
PC or workstation, you can configure, monitor and control AWE units via the Ethernet or air. SNMP network
management software is available commercially and as shareware (for example, you can download a free
evaluation copy from www.mg-soft.com).
MIB is simply a list of objects that SNMP can monitor. You can download a proprietary Wi-LAN MIB file from
www.wi-lan.com or obtain a copy through the Wi-LAN Technical Assistance Center. The AWE 120-58 is MIB
version 2 compliant. After you download the MIB file, you must compile the file with the SNMP management
software compiler.
SNMP Elements
SNMP Element Description
Manager Software installed on the network’s host computer and
operated by the network administrator. From the host, the
Manager configures Agents or polls Agents for information
Agent Software that runs on each unit. An Agent accepts
configuration commands from the Manager and collects
network and terminal information specified in the MIB
Management Information Block (MIB) A database that is accessed by a specific set of commands
and executed using the SNMP manager. There is a standard
MIB and a Wi-LAN customized MIB that stores information
relevant to the operation of a wireless network
![](/img.php?id=242993&img=bgad.png)
Appendix D: SNMP
158 AWE 120-58 User Guide
Wi-LAN Object Identifier Nodes
The AWE 120-58 uses SNMP version 1, which is MIB 2 compliant. All OID (Object Identifier) nodes in the
AWE 120-58 private Wi-LAN MIB are numbered 1.3.6.1.4.1.2686.2.n where n is a private Wi-LAN MIB node
number or branch of nodes.
All nodes containing statistical information are cleared on power up and reset.
Values in all writeable nodes are stored in Flash memory and are retained until overwritten by the
administrator, even following power down or reset.
Using SNMP
Refer to the documentation provided with your SNMP application software for instructions about using
SNMP. The procedure for changing a unit’s configuration with SNMP is described below.
To change a configuration setting with SNMP
1. Change the parameter to a new value using the appropriate SNMP command.
2. Reboot the unit with the new configuration using the rebootNewRfConfig node command. See
System Commands , page 170.
3. Save the new configuration to the unit’s flash memory using the saveConfToFlash node command. See
System Commands , page 170.
From To Classification
1.3.6.1.4.1.2686.2.1.1 1.3.6.1.4.1.2686.2.1.104 Configuration
1.3.6.1.4.1.2686.2.1.100.1 1.3.6.1.4.1.2686.2.1.100.7 Configuration:
System Image List
1.3.6.1.4.1.2686.2.2.1 1.3.6.1.4.1.2686.2.2.7 System Status
1.3.6.1.4.1.2686.2.3.1 1.3.6.1.4.1.2686.2.3.32 Statistics
1.3.6.1.4.1.2686.2.4.1 1.3.6.1.4.1.2686.2.4.7 System Commands
![](/img.php?id=242993&img=bgae.png)
Using Object Identifier Nodes
APR 2002 Rev 03 159
Using Object Identifier Nodes
The following are descriptions of parameters and node addresses in the AWE 120-58 MIB.
Group Parameter Address/Node Syntax Access Description
Configuration serialNumber 1.3.6.1.4.1.2686.2.1.1 DisplayString
(0..15)
Read Only Unit Serial Number
productionDate 1.3.6.1.4.1.2686.2.1.2 DisplayString
(0..15)
Read Only Unit Date of Manufacture
macAddress 1.3.6.1.4.1.2686.2.1.3 PhysAddress Read Only Ethernet MAC Address
systemName 1.3.6.1.4.1.2686.2.1.4 DisplayString
(0..31)
Read/Write Unit System Name
unitLocation 1.3.6.1.4.1.2686.2.1.5 DisplayString
(0..31)
Read/Write User configurable Unit Location
contactName 1.3.6.1.4.1.2686.2.1.6 DisplayString
(0..31)
Read/Write User configurable Contact Name
config7 1.3.6.1.4.1.2686.2.1.7 INTEGER Read/Write Spare
config8 1.3.6.1.4.1.2686.2.1.8 INTEGER Read/Write Spare
config9 1.3.6.1.4.1.2686.2.1.9 INTEGER Read/Write Spare
ipAddress 1.3.6.1.4.1.2686.2.1.10 IpAddress Read Only Internet IP Address: default = 192.168.1.100
ipNewAddress 1.3.6.1.4.1.2686.2.1.11 IpAddress Read/Write New Internet IP Address
ipSubnetMask 1.3.6.1.4.1.2686.2.1.12 IpAddress Read/Write IP Subnet Mask: default = 255.255.255.0
ipGatewayAddr 1.3.6.1.4.1.2686.2.1.13 IpAddress Read/Write IP default gateway address (currently not used)
ipNetmanAddr 1.3.6.1.4.1.2686.2.1.14 IpAddress Read/Write SNMP network management station IP address
ipPacketFiltering 1.3.6.1.4.1.2686.2.1.15 INTEGER) Read/Write IP packet filtering:
0 = disabled, 1 = enabled
![](/img.php?id=242993&img=bgaf.png)
Appendix D: SNMP
160 AWE 120-58 User Guide
ipAddressFiltering 1.3.6.1.4.1.2686.2.1.16 INTEGER Read/Write IP address filtering:
0 = disabled, 1 = enabled
ipDefaultFiltering 1.3.6.1.4.1.2686.2.1.17 INTEGER Read/Write IP default filtering:
1 = pass, 2 = block
ipConfig 1.3.6.1.4.1.2686.2.1.18
ipFilter1Range 1.3.6.1.4.1.2686.2.1.18.1 INTEGER Read/Write IP address filter 1 range: 0-255
ipFilter1Base 1.3.6.1.4.1.2686.2.1.18.2 IpAddress Read/Write IP address filter 1 base address
ipFilter1State 1.3.6.1.4.1.2686.2.1.18.3 INTEGER Read/Write IP filter 1 state
0 = disabled, 1 = pass, 2 = block
ipFilter2Range 1.3.6.1.4.1.2686.2.1.18.4 INTEGER Read/Write IP address filter 2 range: 0-255
ipFilter2Base 1.3.6.1.4.1.2686.2.1.18.5 IpAddress Read/Write IP address filter 2 base address
ipFilter2State 1.3.6.1.4.1.2686.2.1.18.6 INTEGER Read/Write IP filter 2 state
0 = disabled, 1 = pass, 2 = block
ipFilter3Range 1.3.6.1.4.1.2686.2.1.18.7 INTEGER Read/Write IP address filter 3 range: 0-255
ipFilter3Base 1.3.6.1.4.1.2686.2.1.18.8 IpAddress Read/Write IP address filter 3 base address
ipFilter3State 1.3.6.1.4.1.2686.2.1.18.9 INTEGER Read/Write IP filter 3 state
0 = disabled, 1 = pass, 2 = block
ipFilter4Range 1.3.6.1.4.1.2686.2.1.18.10 INTEGER Read/Write IP address filter 4 range: 0-255
ipFilter4Base 1.3.6.1.4.1.2686.2.1.18.11 IpAddress Read/Write IP address filter 4 base address
ipFilter4State 1.3.6.1.4.1.2686.2.1.18.12 INTEGER Read/Write IP filter 4 state
0 = disabled, 1 = pass, 2 = block
ipFilter5Range 1.3.6.1.4.1.2686.2.1.18.13 INTEGER Read/Write IP address filter 5 range: 0-255
ipFilter5Base 1.3.6.1.4.1.2686.2.1.18.14 IpAddress Read/Write IP address filter 5 base address
ipFilter5State 1.3.6.1.4.1.2686.2.1.18.15 INTEGER Read/Write IP filter 5 state
0 = disabled, 1 = pass, 2 = block
Group Parameter Address/Node Syntax Access Description
![](/img.php?id=242993&img=bgb0.png)
Using Object Identifier Nodes
APR 2002 Rev 03 161
ipFilter6Range 1.3.6.1.4.1.2686.2.1.18.16 INTEGER Read/Write IP address filter 6 range: 0-255
ipFilter6Base 1.3.6.1.4.1.2686.2.1.18.17 IpAddress Read/Write IP address filter 6 base address
ipFilter6State 1.3.6.1.4.1.2686.2.1.18.18 INTEGER Read/Write IP filter 6 state
0 = disabled, 1 = pass, 2 = block
ipFilter7Range 1.3.6.1.4.1.2686.2.1.18.19 INTEGER Read/Write IP address filter 7 range: 0-255
ipFilter7Base 1.3.6.1.4.1.2686.2.1.18.20 IpAddress Read/Write IP address filter 7 base address
ipFilter7State 1.3.6.1.4.1.2686.2.1.18.21 INTEGER Read/Write IP filter 7 state
0 = disabled, 1 = pass, 2 = block
ipFilter8Range 1.3.6.1.4.1.2686.2.1.18.22 INTEGER Read/Write IP address filter 8 range: 0-255
ipFilter8Base 1.3.6.1.4.1.2686.2.1.18.23 IpAddress Read/Write IP address filter 8 base address
ipFilter8State 1.3.6.1.4.1.2686.2.1.18.24 INTEGER Read/Write IP filter 8 state
0 = disabled, 1 = pass, 2 = block
config19 1.3.6.1.4.1.2686.2.1.19 INTEGER N/A spare
config20 1.3.6.1.4.1.2686.2.1.20 INTEGER N/A spare
config21 1.3.6.1.4.1.2686.2.1.21 INTEGER N/A spare
config22 1.3.6.1.4.1.2686.2.1.22 INTEGER N/A spare
config23 1.3.6.1.4.1.2686.2.1.23 INTEGER N/A spare
config24 1.3.6.1.4.1.2686.2.1.24 INTEGER N/A spare
config25 1.3.6.1.4.1.2686.2.1.25 INTEGER N/A spare
config26 1.3.6.1.4.1.2686.2.1.26 INTEGER N/A spare
macFilterEntryAge 1.3.6.1.4.1.2686.2.1.27 INTEGER Read/Write MAC Filter Entry Age Time Minutes: 1-60
outputPowerControl 1.3.6.1.4.1.2686.2.1.28
outputPowerControl
Mode
1.3.6.1.4.1.2686.2.1.28.1 INTEGER Read/Write Output Power Control Mode
0 = off, 1 = dynamic, 2 = auto
Group Parameter Address/Node Syntax Access Description
![](/img.php?id=242993&img=bgb1.png)
Appendix D: SNMP
162 AWE 120-58 User Guide
signalMargin 1.3.6.1.4.1.2686.2.1.28.2 INTEGER Read/Write Signal margin (dB)
userOutputPower
AdjustCeiling
1.3.6.1.4.1.2686.2.1.28.3 INTEGER
(0 to -31)
Read/Write User output power upper limit adjust (dB)
currentTxPowerLevel 1.3.6.1.4.1.2686.2.1.28.4 INTEGER Read Only Data Transmit Output Power (dBm)
config29 1.3.6.1.4.1.2686.2.1.29 INTEGER Read/Write Spare
stationType 1.3.6.1.4.1.2686.2.1.30 INTEGER Read Only Current station type: 0 = remote, 1 = base
stationRank 1.3.6.1.4.1.2686.2.1.31 INTEGER Read Only Current station RF rank: 1 to 1000
Group Parameter Address/Node Syntax Access Description
![](/img.php?id=242993&img=bgb2.png)
Using Object Identifier Nodes
APR 2002 Rev 03 163
Group Parameter Address/Node Syntax Access Description
centerFreq 1.3.6.1.4.1.2686.2.1.32 INTEGER Read Only Current RF center frequency
(57410 to 58338)
securityWord1 1.3.6.1.4.1.2686.2.1.33 INTEGER Read Only Current RF security password 1
securityWord2 1.3.6.1.4.1.2686.2.1.34 INTEGER Read Only Current RF security password 2
securityWord3 1.3.6.1.4.1.2686.2.1.35 INTEGER Read Only Current RF security password 3
securityWord4 1.3.6.1.4.1.2686.2.1.36 INTEGER Read Only Current RF security password 4
securityWord5 1.3.6.1.4.1.2686.2.1.37 INTEGER Read Only Current RF security password 5
scramblingCode 1.3.6.1.4.1.2686.2.1.38 INTEGER Read Only Current RF scrambling code word
acquisitionCode 1.3.6.1.4.1.2686.2.1.39 INTEGER Read Only Current RF acquisition code (0-15)
configMinutes 1.3.6.1.4.1.2686.2.1.40 INTEGER Read Only Current RF configuration test minutes
(1-120)
repeaterMode 1.3.6.1.4.1.2686.2.1.41 INTEGER Read Only Current base station repeater mode:
0 = disabled, 1 = enabled
systemType 1.3.6.1.4.1.2686.2.1.42 INTEGER Read Only Current base station symmetry:
0 = asymmetric, 1 = symmetric
remoteGroup 1.3.6.1.4.1.2686.2.1.43 INTEGER Read Only Current RF group identifier:
0 = closed, 1 - 63 = special group
numOfPollRounds 1.3.6.1.4.1.2686.2.1.44 INTEGER Read Only Current Number of Polling Rounds (1-60)
txPwrLevelAdj 1.3.6.1.4.1.2686.2.1.45 INTEGER Read Only Current RF Tx Power Level Adjust (-31 to 0 dB)
defStationType 1.3.6.1.4.1.2686.2.1.46 INTEGER Read Only Default Station type: 0 = remote, 1 = base
defStationRank 1.3.6.1.4.1.2686.2.1.47 INTEGER Read Only Default Station RF Rank
![](/img.php?id=242993&img=bgb3.png)
Appendix D: SNMP
164 AWE 120-58 User Guide
Group Parameter Address/Node Syntax Access Description
defCenterFreq 1.3.6.1.4.1.2686.2.1.48 INTEGER Read Only FLASH RF center frequency
(57410 to 58338)
defSecurityWord1 1.3.6.1.4.1.2686.2.1.49 INTEGER Read Only Default RF security password 1
defSecurityWord2 1.3.6.1.4.1.2686.2.1.50 INTEGER Read Only Default RF security password 2
defSecurityWord3 1.3.6.1.4.1.2686.2.1.51 INTEGER Read Only Default RF security password 3
defSecurityWord4 1.3.6.1.4.1.2686.2.1.52 INTEGER Read Only Default RF security password 4
defSecurityWord5 1.3.6.1.4.1.2686.2.1.53 INTEGER Read Only Default RF security password 5
defScramblingCode 1.3.6.1.4.1.2686.2.1.54 INTEGER Read Only Default RF scrambling code word
defAcquisitionCode 1.3.6.1.4.1.2686.2.1.55 INTEGER Read Only Default RF acquisition code (0-15)
defConfigMinutes 1.3.6.1.4.1.2686.2.1.56 INTEGER Read Only Default RF configuration test minutes (1-120)
deRepeaterMode 1.3.6.1.4.1.2686.2.1.57 INTEGER Read Only Default base station repeater mode:
0 = disabled, 1 = enabled
defSystemType 1.3.6.1.4.1.2686.2.1.58 INTEGER Read Only Default base station symmetry type:
0 = asymmetric, 1 = symmetric
defRemoteGroup 1.3.6.1.4.1.2686.2.1.59 INTEGER Read Only Default RF group identifier:
0 = closed, 1 - 63 = special group
defNumOfPollRounds 1.3.6.1.4.1.2686.2.1.60 INTEGER Read Only Default Number of Polling Rounds (1-60)
defTxPwrLevelAdj 1.3.6.1.4.1.2686.2.1.61 INTEGER Read Only Default RF Tx Power Level Adjust (-31 to 0 dB)
newStationType 1.3.6.1.4.1.2686.2.1.62 INTEGER Read/Write New station type: 0 = remote, 1 = base
newStationRank 1.3.6.1.4.1.2686.2.1.63 INTEGER Read/Write New station RF rank (1-1000)
![](/img.php?id=242993&img=bgb4.png)
Using Object Identifier Nodes
APR 2002 Rev 03 165
Group Parameter Address/Node Syntax Access Description
newCenterFreq 1.3.6.1.4.1.2686.2.1.64 INTEGER Read/Write New RF center frequency
(57410 to 58338)
newSecurityWord1 1.3.6.1.4.1.2686.2.1.65 INTEGER Read/Write New RF security password 1
newSecurityWord2 1.3.6.1.4.1.2686.2.1.66 INTEGER Read/Write New RF security password 2
newSecurityWord3 1.3.6.1.4.1.2686.2.1.67 INTEGER Read/Write New RF security password 3
newSecurityWord4 1.3.6.1.4.1.2686.2.1.68 INTEGER Read/Write New RF security password 4
newSecurityWord5 1.3.6.1.4.1.2686.2.1.69 INTEGER Read/Write New RF security password 5
newScramblingCode 1.3.6.1.4.1.2686.2.1.70 INTEGER Read/Write New RF scrambling code word
newAcquisitionCode 1.3.6.1.4.1.2686.2.1.71 INTEGER Read/Write New RF acquisition code (0-15)
newConfigMinutes 1.3.6.1.4.1.2686.2.1.72 INTEGER Read/Write New RF configuration test minutes (1-120)
newRepeaterMode 1.3.6.1.4.1.2686.2.1.73 INTEGER Read/Write New base station repeater mode:
0 = disabled, 1 = enabled
newSystemType 1.3.6.1.4.1.2686.2.1.74 INTEGER Read/Write New base station symmetry type:
0 = asymmetric, 1 = symmetric
newRemoteGroup 1.3.6.1.4.1.2686.2.1.75 INTEGER Read/Write New RF group identifier:
0 = closed, 1 - 63 = special group
newNumOfPollRounds 1.3.6.1.4.1.2686.2.1.76 INTEGER Read/Write New Number of Polling Rounds (1-60)
newTxPwrLevelAdj 1.3.6.1.4.1.2686.2.1.77 INTEGER Read/Write New RF Tx Power Level Adjust (-31 to 0 dB)
stationMode 1.3.6.1.4.1.2686.2.1.78 INTEGER Read/Write Operating mode:
0 = normal, 1 = Rx Test,
2 = Tx Test, 3 = RSSI Test
rfTransmitStatus 1.3.6.1.4.1.2686.2.1.79 INTEGER Read/Write RF transmit status:
0 = blocked, 1 = unblocked
![](/img.php?id=242993&img=bgb5.png)
Appendix D: SNMP
166 AWE 120-58 User Guide
linkMonitorPeriod 1.3.6.1.4.1.2686.2.1.80 INTEGER Read/Write Link monitor period (0-10000):
0 = disabled, 1 - 10,000 = number of data
superframes per single test superframe
testModeTimer 1.3.6.1.4.1.2686.2.1.81 INTEGER Read/Write Test mode timer minutes (1-1000)
remoteDistance 1.3.6.1.4.1.2686.2.1.82 INTEGER Read/Write Maximum remote unit distance (km)
linkMonitorRank 1.3.6.1.4.1.2686.2.1.83 INTEGER Read/Write Link monitor remote station rank (1-1000)
throttleEnable 1.3.6.1.4.1.2686.2.1.84 INTEGER Read/Write Throttling enable:
0 = disabled, 1 = enabled
throttleLevel 1.3.6.1.4.1.2686.2.1.85 INTEGER Read/Write RF throttle level (1-50)
config86 1.3.6.1.4.1.2686.2.1.86 INTEGER Read/Write Spare
config87 1.3.6.1.4.1.2686.2.1.87 INTEGER Read/Write Spare
config88 1.3.6.1.4.1.2686.2.1.88 INTEGER Read/Write Spare
config89 1.3.6.1.4.1.2686.2.1.89 INTEGER Read/Write Spare
communityName1 1.3.6.1.4.1.2686.2.1.90 DisplayString
(0..15)
Read/Write Read-only access community name
Group Parameter Address/Node Syntax Access Description
Integer Distance
(km) Integer Distance
(km)
15735
2108 40
3159 45
4201050
5251150
6301260
![](/img.php?id=242993&img=bgb6.png)
Using Object Identifier Nodes
APR 2002 Rev 03 167
communityName2 1.3.6.1.4.1.2686.2.1.91 DisplayString
(0..15)
Read/Write Read-Write access community name
ethernetAccess 1.3.6.1.4.1.2686.2.1.92 INTEGER Read Only Ethernet access to local host:
0 = disabled, 1 = enabled
wirelessAccess 1.3.6.1.4.1.2686.2.1.93 INTEGER Read Only Wireless access to local host:
0 = disabled, 1 = enabled
config94 1.3.6.1.4.1.2686.2.1.94 INTEGER Read/Write Spare
currentImage 1.3.6.1.4.1.2686.2.1.95 DisplayString
(0..15)
Read Only Current system image file name
defaultImage 1.3.6.1.4.1.2686.2.1.96 DisplayString
(0..15)
Read/Write Selects specified system image file as default
prevDefaultImage 1.3.6.1.4.1.2686.2.1.97 DisplayString
(0..15)
Read Only Previous default system image file name
config98 1.3.6.1.4.1.2686.2.1.98 INTEGER Read/Write Spare
config99 1.3.6.1.4.1.2686.2.1.99 INTEGER Read/Write Spare
System Image
List
systemImageList 1.3.6.1.4.1.2686.2.1.100 SEQUENCE
OF
SystemImageE
ntry
not
accessible
System Image List Branch
systemImageNumber 1.3.6.1.4.1.2686.2.1.100.1 INTEGER Read Only System image number
systemImageName 1.3.6.1.4.1.2686.2.1.100.2 DisplayString(0
..15)
Read Only System image file name
systemImageRevn 1.3.6.1.4.1.2686.2.1.100.3 DisplayString(0
..15)
Read Only System image revision identifier
systemImageDate 1.3.6.1.4.1.2686.2.1.100.4 DisplayString(0
..15)
Read Only System image file date
systemImageTime 1.3.6.1.4.1.2686.2.1.100.5 DisplayString(0
..15)
Read Only Time system image file was last changed
Group Parameter Address/Node Syntax Access Description
![](/img.php?id=242993&img=bgb7.png)
Appendix D: SNMP
168 AWE 120-58 User Guide
systemImageSize 1.3.6.1.4.1.2686.2.1.100.6 INTEGER Read Only System image file size
systemImageText 1.3.6.1.4.1.2686.2.1.100.7 DisplayString(0
..15)
Read Only System image descriptive text
config101 1.3.6.1.4.1.2686.2.1.101 INTEGER Read/Write Spare
config102 1.3.6.1.4.1.2686.2.1.102 INTEGER Read/Write Spare
config103 1.3.6.1.4.1.2686.2.1.103 INTEGER Read/Write Spare
config104 1.3.6.1.4.1.2686.2.1.104 INTEGER Read/Write Spare
System Status totalHours 1.3.6.1.4.1.2686.2.2.1 Counter Read Only Cumulative run-time hours
systemHours 1.3.6.1.4.1.2686.2.2.2 Counter Read Only Current run-time hours since powerup
loginOkays 1.3.6.1.4.1.2686.2.2.3 Counter Read Only Number of successful logins
loginFails 1.3.6.1.4.1.2686.2.2.4 Counter Read Only Number of unsuccessful login attempts
localUser 1.3.6.1.4.1.2686.2.2.5 INTEGER Read Only Local user login status:
0 = none, 1 = user, 2 = supervisor
telnetUser 1.3.6.1.4.1.2686.2.2.6 INTEGER Read Only Telnet user login status:
0 = none, 1 = user, 2 = supervisor
ftpUser 1.3.6.1.4.1.2686.2.2.7 INTEGER Read Only FTP user login status:
0 = none, 1 = user, 2 = supervisor
Statistics etherRxTotalPkts 1.3.6.1.4.1.2686.2.3.1 Counter Read Only Total Ethernet packets received
etherRxLocalPkts 1.3.6.1.4.1.2686.2.3.2 Counter Read Only Ethernet packets received for local host
etherRxErrorPkts 1.3.6.1.4.1.2686.2.3.3 Counter Read Only Ethernet packets received in error
etherRxDroppedPkts 1.3.6.1.4.1.2686.2.3.4 Counter Read Only Number of received Ethernet packets dropped
etherRxDiscardPkts 1.3.6.1.4.1.2686.2.3.5 Counter Read Only Number of received Ethernet packets Discarded
etherRxTotalKbytes 1.3.6.1.4.1.2686.2.3.6 Counter Read Only Total Ethernet KBytes received since last reset
etherRxBcastKbytes 1.3.6.1.4.1.2686.2.3.7 Counter Read Only Ethernet KBytes received since last reset
Group Parameter Address/Node Syntax Access Description
![](/img.php?id=242993&img=bgb8.png)
Using Object Identifier Nodes
APR 2002 Rev 03 169
etherTxBTotalPkts 1.3.6.1.4.1.2686.2.3.8 Counter Read Only Total Ethernet packets transmitted
etherTxDroppedPkts 1.3.6.1.4.1.2686.2.3.9 Counter Read Only Ethernet transmit packets dropped
etherTxTotalKbytes 1.3.6.1.4.1.2686.2.3.10 Counter Read Only Total Ethernet KBytes transmitted since last reset
etherTxBcastKbytes 1.3.6.1.4.1.2686.2.3.11 Counter Read Only Ethernet broadcast KBytes transmitted since last
reset
rfRxTotalPkts 1.3.6.1.4.1.2686.2.3.12 Counter Read Only Total received RF packets
rfRxLocalPkts 1.3.6.1.4.1.2686.2.3.13 Counter Read Only Total received RF packets for local host
rfRxDroppedPkts 1.3.6.1.4.1.2686.2.3.14 Counter Read Only Number of received RF packets dropped
rfRxDiscardedPkts 1.3.6.1.4.1.2686.2.3.15 Counter Read Only Number of received RF packets discarded
rfTxTotalPkts 1.3.6.1.4.1.2686.2.3.16 Counter Read Only Total transmitted RF packets
rfTxLocalPkts 1.3.6.1.4.1.2686.2.3.17 Counter Read Only Number of transmitted local RF packets
rfTxDroppedPkts 1.3.6.1.4.1.2686.2.3.18 Counter Read Only Number of transmitted RF packets dropped
rfRxSframeCount 1.3.6.1.4.1.2686.2.3.19 Counter Read Only Total RF super frames received
rfRxOverrunErrors 1.3.6.1.4.1.2686.2.3.20 Counter Read Only Number of RF overrun errors
rfRxSFrameErrors 1.3.6.1.4.1.2686.2.3.21 Counter Read Only Number of RF super frame control word errors
rfRxChecksumErrors 1.3.6.1.4.1.2686.2.3.22 Counter Read Only Number of RF super frame header checksum
errors
rfRxPacketErrors 1.3.6.1.4.1.2686.2.3.23 Counter Read Only Number of RF packet control work errors
rfRxLengthErrors 1.3.6.1.4.1.2686.2.3.24 Counter Read Only Number of RF super frame length errors
rfTxSuperFrameCnt 1.3.6.1.4.1.2686.2.3.25 Counter Read Only Number of RF super frames transmitted
rfEtoIThroughput 1.3.6.1.4.1.2686.2.3.26 Counter Read Only Ethernet to RF throughput
rfItoEThroughput 1.3.6.1.4.1.2686.2.3.27 Counter Read Only RF to Ethernet throughput
statistics24 1.3.6.1.4.1.2686.2.3.28 Counter Spare
Group Parameter Address/Node Syntax Access Description
![](/img.php?id=242993&img=bgb9.png)
Appendix D: SNMP
170 AWE 120-58 User Guide
linkMonitorRank1 1.3.6.1.4.1.2686.2.3.29 INTEGER Read Only Link monitor remote station rank
linkMonRtoBber 1.3.6.1.4.1.2686.2.3.30 DisplayString
(0..8)
Read Only Link monitor remote to base bit error rate
linkMonBtoRber 1.3.6.1.4.1.2686.2.3.31 DisplayString
(0..8)
Read Only Link monitor base to remote bit error rate
linkMonMissPktCnt 1.3.6.1.4.1.2686.2.3.32 Counter Read Only Link monitor missed packet count
linMonEnvPBtoR 1.3.6.1.4.1.2686.2.3.33 INTEGER Read Only Link monitor base to remote envelope power
linkMonEnvPRtoB 1.3.6.1.4.1.2686.2.3.34 INTEGER Read Only Link monitor remote to base envelope power
linkMonCorrPBtoR 1.3.6.1.4.1.2686.2.3.35 INTEGER Read Only Link monitor base to remote correlation power
linkMonCorrPRtoB 1.3.6.1.4.1.2686.2.3.36 INTEGER Read Only Link monitor remote to base correlation power
System
Commands
rebootCurrent 1.3.6.1.4.1.2686.2.4.1 INTEGER Read/Write Reboot current system image:
1 = reboot
rebootImage 1.3.6.1.4.1.2686.2.4.2 DisplayString
(0..15)
Read/Write Reboot specified system image:
system image file name
rebootNewRfConfig 1.3.6.1.4.1.2686.2.4.3 INTEGER Read/Write Reboot new RF configuration:
1 = reboot
restFactConfReboot 1.3.6.1.4.1.2686.2.4.4 INTEGER Read/Write Restore factory configuration and reboot:
1 = restore
saveConfToFlash 1.3.6.1.4.1.2686.2.4.5 INTEGER Read/Write Save current configuration to flash:
1 = save
resetRadioStats 1.3.6.1.4.1.2686.2.4.6 INTEGER Read/Write Reset radio statistics:
1 = reset
resetEthernetStats 1.3.6.1.4.1.2686.2.4.7 INTEGER Read/Write Reset Ethernet statistics:
1 = reset
Group Parameter Address/Node Syntax Access Description
![](/img.php?id=242993&img=bgba.png)
APR 2002 Rev 03 171
Appendix E: Configuration Via the Web
Overview
The AWE 120-58 is remotely configurable via the Web using a standard Web browser. All configuration
parameters described in previous sections are configurable through this graphical interface.
This section explains the process of accessing the web pages provided and comments on the layout of these
pages, noting the differences between the Web interface and the menu interface.
Accessing the Web Pages
➧ To start a configuration session via the Web
1. On your PC, open a web browser application and specify the IP address of the unit you wish to access in
the URL field. For example, if the IP address of the unit is 192.168.1.100, the URL specified is: http://
192.168.1.100. Press Enter to load the page.
2. A login prompt should now appear, requesting for a user name and password. Leave the user name blank.
For the password field, enter the same password used to access the menu interface. Click on Enter to
submit your password.
3. If the password is accepted, the main web interface screen should appear. Follow the instructions
provided to continue your configuration session.
Web Interface
![](/img.php?id=242993&img=bgbb.png)
Appendix E: Configuration Via the Web
172 AWE 120-58 User Guide
Configuration Interface
The layout of Web pages provided mirrors the layout of the menu interface; parameters grouped together in
submenus described in previous sections are similarly grouped together in web “subpages”. Links to these
pages are provided after user authentication is complete via a menu bar.
Unit configuration is achieved by filling out forms provided by each configurable subpage. These pages are
accessed by clicking on appropriate links in the menu bar. Pressing a form submit button will send your entry
data to the unit for processing. Specified parameters are then updated (pending valid input and access
permission), and any requested tasks are run.
![](/img.php?id=242993&img=bgbc.png)
Overview
APR 2002 Rev 03 173
Differences Between the Menu Interface
The one appreciable difference between the menu interface and the Web interface is the statistics submenu.
For the Web interface, Link Monitor Statistics and RF/Ethernet Statistics, two distinct menus in the menu
interface, are combined into one subpage. The link for this page is Monitor Statistics, located in the menu
bar.
Within this subpage, a link to Real-Time Statistics is provided. Accessing this link will load a JAVA ™
applet. This applet will query the unit periodically and report back to you via a live-update graphical statistics
display.
Note: Depending on the version of your browser,the Real-Time Statistics link may prompt you to install a
JAVA™ Plug-in. If you receive this prompt and wish to load the Plug-in, your computer must have access to
the Internet.
![](/img.php?id=242993&img=bgbd.png)
Appendix E: Configuration Via the Web
174 AWE 120-58 User Guide
![](/img.php?id=242993&img=bgbe.png)
APR 2002 Rev 03 175
Appendix F: Upgrading Software
If necessary, you can upgrade the software of a AWE 120-58. This section explains how to use FTP to
download a new software image to a AWE unit.
Before you can download a new software image you need the following items.
• A copy of the software image file
• A PC connected to the AWE unit via the network
• Basic network software installed on your PC, including ftp, ping, telnet, SNMP manager (optional)
Obtaining New Software Images
New software image files are available from the Wi-LAN support web page at www.wilan.com.
Downloading Image Software
1. Obtain the new image files.
2. Open a DOS session on your PC. From Windows®, choose Start, Programs, MS-DOS Prompt.
3. Copy the new image files to a known directory, for example c:\wilan\images. (Create a new
directory if a suitable directory does not already exist.)
4. Go to the directory by typing cd c:\wilan\images and press Enter.
5. List the contents of the directory. Type dir and press Enter. The names of image files should be listed in
the directory.
C:> copy <image filename> c:\wilan\images
This directory is an example only.
![](/img.php?id=242993&img=bgbf.png)
Appendix F: Upgrading Software
176 AWE 120-58 User Guide
6. Type ftp <IP address> and press Enter where the IP address is the address of the AWE unit. The
PC connects to the unit.
Note: ftp must be installed on your PC.
7. Type "awe" and press Enter. The password prompt appears.
8. Type the supervisor password for the unit and press Enter. (Supervisor access is required to change unit
settings–see Setting Menu Passwords , page 117). The ftp> prompt appears.
9. After the ftp prompt, type the following “put” command.
Note: Leave a single space after “put.”
where
.Current directory that contains the image file (for example,
c:\wilan\images)
<image filename> Name of the image file
c:\wilan\images>ftp 192.168.3.85
Connected to 192.168.3.85
220 Wi-LAN AWE 120-58 Ethernet Bridge FTP Server
User (192.168.3.85(none)):
This IP address is an example only.
Enter the IP address of your unit.
c:\wilan\images>ftp 192.168.3.85
Connected to 192.168.3.85
220 Wi-LAN AWE 120-58 Ethernet Bridge FTP Server
User (192.168.3.85(none)):awe
331 Password required
Password:
ftp> put .\<image filename>
![](/img.php?id=242993&img=bgc0.png)
Activating New Software Images
APR 2002 Rev 03 177
10. Press Enter. The image file transfers from the PC to the unit. The status of the transfer, the file size and
the transfer time are displayed.
Tip: If you type ftp> help, online instructions for using ftp are displayed.
11. Type bye and press Enter to exit ftp and return to the DOS window.
12. Activate the new software image. See Activating New Software Images, below.
Activating New Software Images
After you download new image files to a unit, you need to configure the unit to operate from the new image
rather than from the current image. If you are on-site, you can use the Main Menu to select the default image.
See Setting Default System Image , page 122.
If you are at a remote location from the unit, you can use telnet to access the unit’s configuration menu or
use SNMP manager software (SNMP parameter = defaultImage) to choose the default image file. See
Appendix D: SNMP , page 157.
Removing Old Software Images
To delete old software images from a AWE unit, you must use ftp to connect to the unit, log in as a
“supervisor” and delete images using the “ftp delete” command. Images The amount of flash memory
available to store images is limited. To see the amount of memory available, see Viewing System Revision
Information , page 37.
ftp>put .\<image filename>
200 Port set okay
150 Opening binary mode connection
226 Transfer complete
10484 bytes sent in 0.11 seconds (95.31 Kbytes/sec)
ftp>bye
![](/img.php?id=242993&img=bgc1.png)
Appendix F: Upgrading Software
178 AWE 120-58 User Guide
![](/img.php?id=242993&img=bgc2.png)
APR 2002 Rev 03 179
Appendix G: Network Plan Template
The following template is suitable for planning a simple point-to-point or point-to-multipoint network. Fill out
the “Base Station” section once. Make copies and fill out the “Remote Unit and Link Budget” section once for
every remote unit.
Base Station Information
Configuration Information
Site Information
Base Station Name: Center Frequency:
IP Address: Security Passwords: 1___________________
2___________________
3___________________
4___________________
5___________________
Subnet Mask: Scrambling Code:
Station Type: Base Station Acquisition Code:
Station Rank: n = number of
remote units
Environment/shelter
AC power access
Grounding
Ethernet access
Notes:
![](/img.php?id=242993&img=bgc3.png)
Appendix G: Network Plan Template
180 AWE 120-58 User Guide
Antenna and Cable Requirements
Total number of remote units ______
Notes:
Antenna type
Model
Antenna mounting location
Transmission cable type
Length (m)
![](/img.php?id=242993&img=bgc4.png)
Remote Unit Information and Link Budget
APR 2002 Rev 03 181
Remote Unit Information and Link Budget
Path Information
Site Information
Remote Unit
Name:
Center Frequency:
IP Address Security
Passwords:
1___________________
2___________________
3___________________
4___________________
5___________________
Subnet Mask: Scrambling Code:
Station Type: Remote Unit Acquisition Code:
Rank: n = unit number
LOS Availability
Distance to Base Station
Fresnel Clearance Required
(m)
Calculated Fade Margin
Measured Fade Margin
Notes
Environment/Shelter
AC Power
Grounding
Ethernet access
Notes:
![](/img.php?id=242993&img=bgc5.png)
Appendix G: Network Plan Template
182 AWE 120-58 User Guide
Antenna and Cable Requirements
Link Budget Calculation
Antenna Type
Model
Antenna Mounting Location
Transmission Cable Type
Length (m)
Notes:
Formulas: System Gain + Antenna Gain ≥ Propagation Loss + Desired Fade Margin +
Cable Losses + Connector Losses
or
Actual Fade Margin ≥ System Gain + Antenna Gain – Propagation Loss
– Cable Losses – Connector Losses
and
Actual Fade Margin ≥ Desired Fade Margin
where:
System Gain = Tx Power – Rx Sensitivity
Antenna Gains = Tx Antenna Gain + Rx Antenna Gain
Cable Losses = Base Cable Losses + Remote Cable Losses
Connector Losses = Base System Connector Losses + Remote System
Connector Losses
Variables: (1) Tx Power = _____ dBm
(2) Rx Sensitivity = –81 dBm
(3) Tx Antenna Gain = _____ dBi
(4) Rx Antenna Gain = _____ dBi
(5) Propagation Loss for desired range of n km = ____ dB
(6) Tx Cable Losses = _____ dB
(7) Rx Cable Losses = _____ dB
(8) Tx Connector Losses = 1 dB
(9) Rx Connector Losses = 1 dB
Variable
Calculations:
(10) System Gain = (1) – (2) = _____ dB
(11) Antenna Gains = (3) + (4) = _____ dBi
(12) Cable Losses = (6) + (7) = _____ dB
(13) Connector Losses = (7) + (8) = 2 dB
Actual Fade
Margin
Calculation:
Actual Fade Margin = (10) + (11) – (5) – (12) – (13) = _____ dB
Analysis: A desired Actual Fade Margin ≥ 15 dB should be achieved
![](/img.php?id=242993&img=bgc6.png)
APR 2002 Rev 03 183
Index
A
absorption
and antennas 143
accessing
configuration menus 30—32
acquisition code 100
configuring 100
adding to your network 27
address
SNMP NMS trap IP address 43
adjusting Tx power level 101
administrative best practices 129
agents
SNMP 157
antennas 142—146
absorption 143
beamwidth 142
clearance requirements 146
cross-polarization discrimination 143
dBd vs. dBi 142
diffraction 143
downtilt 142
EIRP 145
fade margin 145
fine-tuning 147
front to back ratio 142
gain 137, 139, 142
installation factors 145
installing 146
list of approved 144
LOS 145
maximizing capabilities 145
minimal clearance 146
multipath interference 143
pre-installation 136
safety 145
selecting 144
shadowing 143
uptilt 142
voltage standing wave ratio 143
arrow keys
setting in telnet sessions 32
asymmetric
base station system type 104
attenuation
and antennas 139
auto logout minutes 120
automatic logout timeout 120
Automatic Output Power 83
automatic output power, explanation of 83
automatic Tx power adjust 83
B
base station
pre-configuration steps 15
repeater mode 103
setting 93
system symmetry type
asymmetric 104
symmetric 104
basic RF link 20
testing 22
basic test setup 21
beamwidth
and antennas 142
bench test 20
bench test kit
part number 12
best practices 129
bit error rate
display in link monitor 126
C
cable lengths
minimum for European antennas 144
cable loss
![](/img.php?id=242993&img=bgc7.png)
Index
184 AWE 120-58 User Guide
and link budget variables 138
cabling 9
calculating
EIRP 138
Fresnel radius 140
propagation loss 139
ceiling, user-specified power 83
center frequencies
configuring 97, 98
center frequency 97
choosing center frequencies 95
change user password 117, 118
changing configuration with SNMP 158
clearance requirements
antennas 146
closed system 106
co-located base stations, installing 27
command line 128
command line interface 128
community names 116
setting 35
config test timeout period 92
configuration menus
accessing 30
navigating 30
configuration settings
restoring factory configuration 124
configuring
acquisition code 100
base station
maximum remote distance 79
repeater mode 103
system symmetry type 104
center frequencies 97, 98
community names 35
default gateway IP address 43
default system image file 122
Ethernet access 119
IP settings 43
network configuring 156
networks 152, 155
operating mode 70
passwords
login 117
radios 89—110
rank 94
remote access 119
remote station
RF group 108
throttling 82
scrambling code 99
SNMP NMS trap IP address 43
station type 93
test mode timer 71
timeout
login 120
unit
identification 35
name 36
configuring with the Main Menu 33
connecting antenna and power 14
connecting PC to management port 15
contact name 35
contentionless polling 1
copyright notice ix
Corr Power 126
correlation power 126
and the link monitor display 126
cross-polarization discrimination
and antennas 143
cumulative run-time 39
current image
rebooting 123
current output power 88
current run-time 39
D
dBd
vs. dBi 142
default
IP gateway address 43
system image file 122
default image 122
descriptions of units
base station 2
remote unit 2
repeater 2
diffraction
and antennas 143
distance
setting maximum remote distance 79
downtilt
antennas 142
DTA 105
dual unit repeater 6
dyamic time allocation 105
Dynamic Output Power 83
dynamic polling level 105
![](/img.php?id=242993&img=bgc8.png)
APR 2002 Rev 03 185
E
EIRP
and link budget variables 137
antennas 145
calculating 138
enabling
sharing on hard disk 156
throttling 82
Env Power 126
envelope power 126
and the link monitor display 126
establishing a basic RF link 20
Ethernet
configuring access via 119
resetting statistics 125
viewing statistics 111
Ethernet statistics 111
F
factory configuration 124
restoring 124
fade margins
and antennas 145
features 1
field installation 26
filters
enabling IP address filtering 44, 48
setting IP address filter range 49
fine-tuning
antennas 147
Fresnel zone
illustration 139
radius calculation 139
front to back ratio
and antennas 142
ftp 27
upgrading software with 183
ftp user logged in 39
ftp, using 24
G
gateway IP address
setting default 43
general equipment setup for RF tests 69
getting help x
guidelines for field installation 26
H
help, accessing on-screen 33
hyperterminal
accessing menu with 30
starting 149
I
image files
rebooting current 123
setting default 122
viewing 38
installation
block diagram 11
description of block diagram 11
overview 11
installation guidelines 26
installing
antennas 145, 146
weatherproofing 136
installing units in the field 26
interference
multipath 143
internet IP
SNMP NMS trap address 43
internet IP address 42
IP address filtering 44, 48
IP filters 44
IP packet filtering 48
IP subnet address
setting default 42
L
link budgets
antenna gain 137
cable loss 138
EIRP 137
path loss 138
propagation loss 137
system gain 137
variables 137
link monitor
configuring for remote station 82
performing link monitor test 72, 73
setting link monitor period 78
setting remote station rank 81
viewing link statistics when testing RF link 23
viewing statistics 126
local user logged in 39
log out of the Main Menu 127
logging in to menus
using management port 31
logging out 127
![](/img.php?id=242993&img=bgc9.png)
Index
186 AWE 120-58 User Guide
login timeout
configuring 120
logging in after 120
LOS
antennas 145
M
MAC address 35
unit identification 35
MAC Filter Entry Age Time Minutes
setting 43
main menu 29
manager
SNMP 157
maximum remote distance 79
MC-DSSS technology 1
menu passwords 117
menus
accessing 30
navigating 30
MIB
SNMP 157
Wi-LAN nodes 158
minimal clearance
above obstructions 146
missed packet count 126
monitor
RS-232 link monitor 71
monitoring network 28
multipath interference 143
N
names
community 35
navigating
menus 30
network adaptor installation
checking 151
network configuring 156
network monitoring 28
network plan
obtaining 13
network plan template 187
network testing with ftp 27
new software images
activating 185
noise floor 83
normal operating mode 72, 73
notices
copyright ix
O
object identifier nodes
configuration 159
statistics 168
system image list 167
system status 168
using 159
OID nodes
Wi-LAN 158—170
open system 106
operating mode 70
configuring using menus 70, 71
original factory configuration 124
output power ceiling 86
output power, automatic 83
output power, dynamic 83
output power, viewing current 88
P
passwords 117
path loss
and link budget variables 138
physical layout
planning 135
ping, using 24
point-to-multipoint installation 27
point-to-multipoint wireless network 3
point-to-point wireless bridge 3
power ceiling 86
power level adjustment 101
pre-configure
pre-congifiguring units during installation 15
steps 15
prerequisites
antenna installation 136
network planning 135
preventative maintenance 28
product overview 1
production data 35
propagation loss
and link budget variables 137
calculating 139
put command
downloading new image files to unit 184
R
radio
configuring 89—110
resetting statistics 125
![](/img.php?id=242993&img=bgca.png)
APR 2002 Rev 03 187
setting station type 93
specifications 9
viewing statistics 111
radio module configuration 89
rank
configuring 94
reboot a unit 109
reboot current image 123
reboot image 123
rebooting 109
current image 123
new RF configuration 109
receive test 75
regulatory compliance ix
remote access
allowing 119
configuring 119
remote station
setting link monitor from 82
remote to base corr power 126
remote to base env power 126
remote unit
configuring 93
pre-configuration steps 18
remote unit RF group 108
remote-to-remote communication 4
repeater 6
repeater base 102
repeater mode 102
repeater mode and RF group setting 107
resetting
Ethernet statistics 125
radio/RF statistics 125
restoring
factory configuration settings 124
restoring factory configuration 124
RF
groups 108
resetting statistics 125
viewing statistics 111
RF group 108
RF network planning
overview 135, 183
physical layout 135
prerequisites 135
RF Station Configuration
normal mode 67
receive test 67
RSSI test 67
transmit test 67
RF Statistics 111
RF statistics 111
RF test equipment setup 69
RF transmit status 77
ROM
viewing images 38
ROM images 38
RSSI
RSSI mode
configuring
with menus 71
with mode button 34, 67, 76, 114, 121
S
safety
antennas 145
save current configuration to FLASH 110
scrambling code
configuring 99
scrambling codes 99
sectors 5, 27
security 114
community names 35
remote access 119
setting login timeouts 120
system 35, 114
security passwords 98
see install 9
selecting
antennas 144
serial number 35
set the operating mode 70
setting internet IP address 42
setting VT100 arrows 32
shadowing 143
signal margin 83
signal margin, setting 87
simple network test 24
simple network test setup 24
site master test set 26
SNMP
agents 157
manager 157
MIB 157
setting community names for 35
setting NMS trap IP address 43
SNMP application software 158
SNMP NMS trap address 43
setting 43
software upgrade 183
![](/img.php?id=242993&img=bgcb.png)
Index
188 AWE 120-58 User Guide
specifications 9
configuration 10
environment 10
general 9
network support 9
radio 9
security 10
wireless network protocols 10
spread spectrum, MCDSS 9
station rank 94
station type 93
statistics 111
resetting statistics 125
viewing Ethernet 111
viewing RF 111
successful logins 39
supervisor password 118
default 31
sweeping antennas 26
symmetric
base station system type 104
system
physical layout 135
security 114
system image files 121
setting the default 122
system symmetry type 104
T
telnet
accessing units with 31
setting arrow keys in sessions 32
telnet user logged in 39
template, network plan 187
test time minutes 71
testing with a simple wireless network 24
throttle enable 82
throttle level 82
throttling 82
configuring 82
timeouts
login 120
timer
test mode 71
transmit or receive tests 75
transmit test 75
trap address 43
troubleshooting x, 130
troubleshooting areas 130
troubleshooting chart 131
Tx power adjustment, automatic 83
Tx power level
adjustment 101
U
unit
identification 35
name 36
unit identification
contact name 35
MAC address 35
production date 35
serial number 35
unit location 35
unit name/description 35
unit location 35
unit name 35
unsuccessful logins 39
upgrading software 183
uptilt
antennas 142
user output power ceiling 86
user password 117
default 31
user-specified output power ceiling 83
V
variables
link budgets 137
view link monitor rank 126
view missed packet count 126
view remote to base BER 126
viewing
current radio module configuration 89
current system status 39
Ethernet statistics 111
IP addresses 40
link monitor statistics 126
radio/RF statistics 111
subnet mask 40
system revision information 37
system software ROM images 38
voltage standing wave ratio
and antennas 143
VT100 arrows 32
W
WAN
system configuration 30
weatherproofing 136
