Wi3-530 802.11b/g/n AP Module
User Manual
140-00205-100 Rev A
140-00205-100
Revision A
© 2012 Silex Technology America, Inc. All rights reserved.
February 2012
Silex Technology America SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS OF THIS PRODUCT FOR A PARTICULAR PURPOSE. Silex shall not be liable for any errors contained in this
manual or for any damages resulting from loss of use, data, profits, or any incidental or consequential damages arising from
the use of SILEX products or services. The information contained in this documentation is subject to change without notice.
Information and descriptions contained herein are the property of Silex. Such information and descriptions may
not be copied, disseminated, or distributed without the express written consent of Silex. This publication is
subject to change without notice.
Trademarks
ExtendView is a trademark of Silex Technology America, Inc. All other company or product names referenced
in this document may be trademarks or registered trademarks of their respective owners.
Silex Technology America, Inc.
www.silexamerica.com
Contents Silex Page 1
140-00205-100 Revision A
Contents
About This User Manual .............................................................................................................................................2
Safety Precautions ..................................................................................................................................................2
Emissions Disclaimer..............................................................................................................................................2
Chapter 1: Introduction ...............................................................................................................................................3
Chapter 2 Hardware Specifications/Compliance........................................................................................................5
FCC Information......................................................................................................................................................5
Information for Canadian Users (IC Notice)............................................................................................................6
Specifications ..........................................................................................................................................................7
Chapter 3 Installation..................................................................................................................................................8
Installation Requirements .......................................................................................................................................8
Installation Procedure .............................................................................................................................................8
Appendix A Antenna Information................................................................................................................................9
Antenna Specifications ...........................................................................................................................................9
Appendix B Silex Contact Information ......................................................................................................................11
Page 2 Silex About This User Guide
140-00205-100 Revision A
About This User Manual
This user manual provides detailed specifications, diagrams and additional information required to install the Wi3-
530 802.11b/g/n AP module into a product. The intended audiences are the developers and engineers
responsible for the integration of the module in another product.
Safety Precautions
To prevent damage to the WI3-530 module’s electronic circuit components, follow established
ESD practices and procedures for handling static-sensitive devices. All ESD-sensitive components must be
stored and shipped in ESD-conductive bags or bubble-wrap and labeled as such using the standardized
ESD adhesive warning label.
Ethernet electrical wiring must be at least 6 feet from bare power wiring or lightning rods and
associated wires, and at least 6 inches from other types of wire (antenna wires, doorbell wires, wires from
transformers to neon signs), steam or hot water pipes, and heating devices.
Protectors and grounding wire placed by the service provider must not be connected to, removed,
or modified by the customer.
Emissions Disclaimer
Final emission certification per FCC, IC, CE and other agency requirements are the responsibility of the OEM
(refer to chapter 2 for additional information).
Introduction Silex Page 3
140-00205-100 Revision A
Chapter 1: Introduction

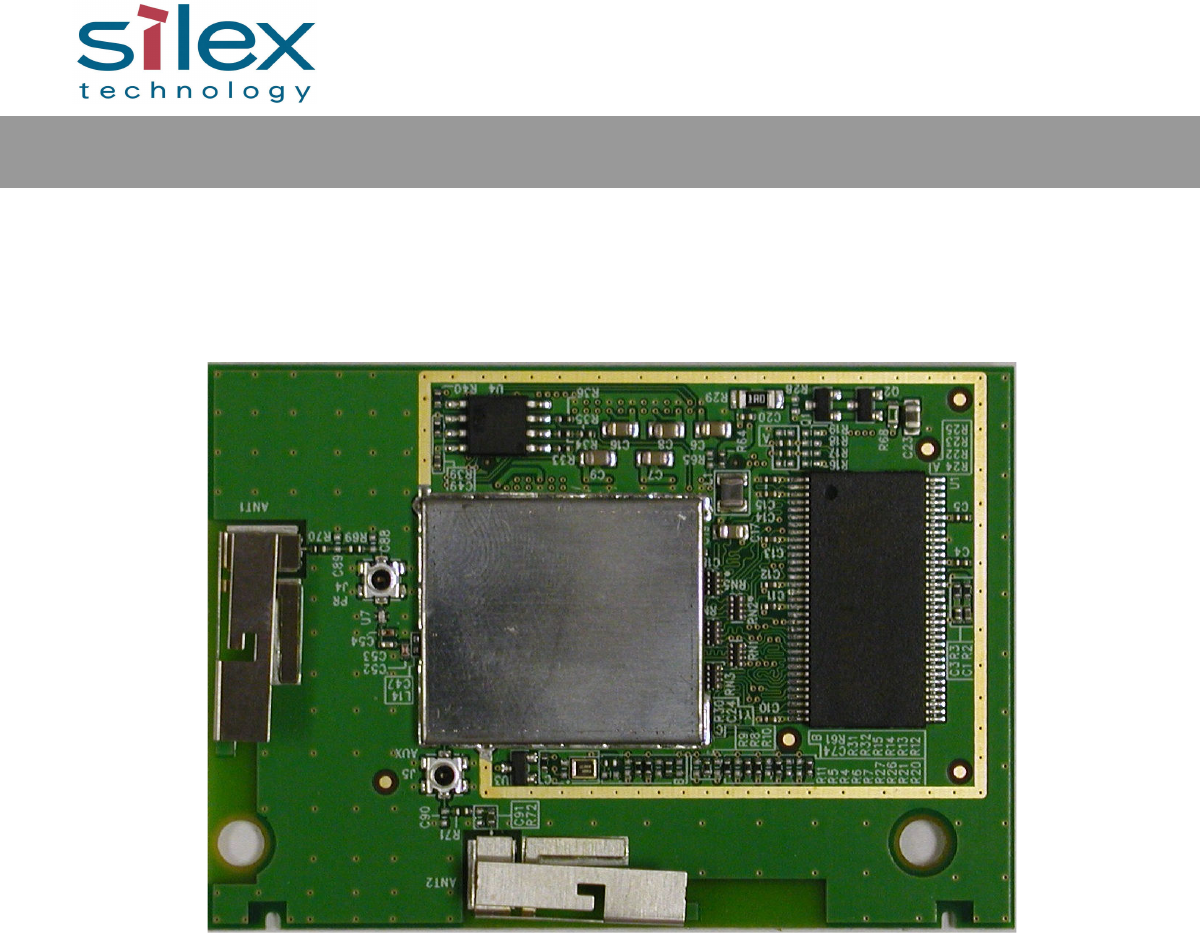

The WI3-530 is an 802.11b/g/n radio/baseband module in a 70 x 49 mm form factor. Designed for
wireless local area network (WLAN) access point applications.
WI3-530 features include:
• Highly Integrated Access Point System for 802.11b/g/n WLAN
• Integrated antennas with receive diversity support
• Integrated Atheros AR9331 Single Chip
• WEP, WPA (TKIP), WPA2 security
• Linux drivers available from Silex (porting will be required in most cases)

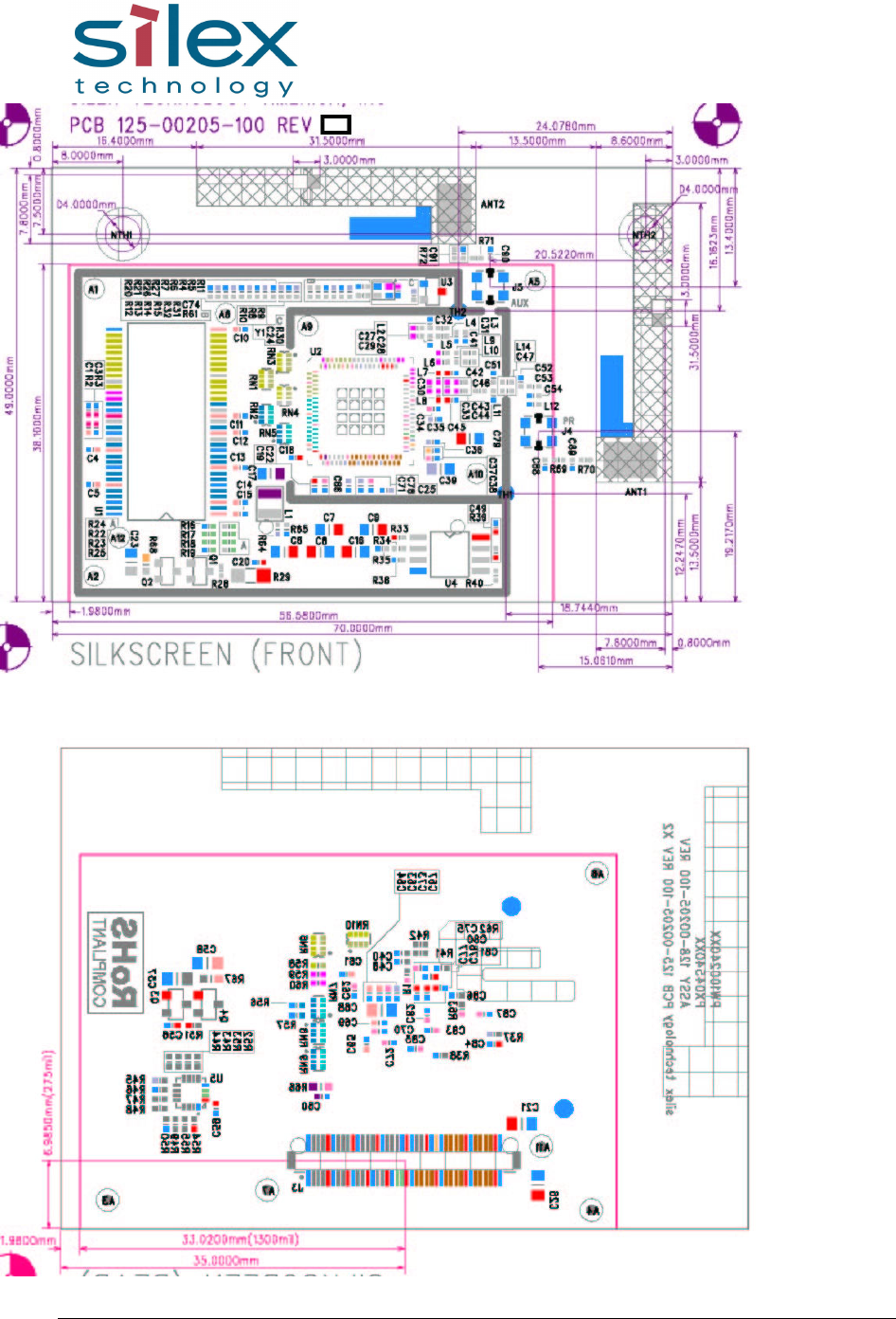

Page 4 silex Introduction
Revision A
Specifications/Compliance Silex Page 5
140-00205-100 Revision A
Chapter 2
Hardware Specifications/Compliance
FCC Information
FCC ID: AUH-1004-W530
NOTICE
In accordance with FCC Part 15, the WI3-530 is listed as a Modular Transmitter device. End products that
include the WI3-530 shall have the words “Contains Transmitter module FCC ID: AUH-1004-W530” or
“Contains FCC ID: AUH-1004-W530” on an exterior label.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply within the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a different circuit from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
The transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
The available scientific evidence does not show that any health problems are associated with using low
power wireless devices. There is no proof, however, that these low power wireless devices are absolutely
safe. Low power wireless devices emit low levels of radio frequency energy (RF) in the microwave range
while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to
low-level RF that does not produce heating effects causes no known adverse health effects. Many
studies of low-level RF exposures have not found any biological effects. Some studies have suggested
Page 6 Silex Specifications/Compliance
140-00205-100 Revision A
that some biological effects might occur, but such findings have not been confirmed by additional
research.
To satisfy RF exposure requirements, this device and its antenna(s) must operate with a separation
distance of at least 20 centimeters from all persons and must not be co-located or operated in conjunction
with any other antenna or transmitter. End-users must be provided with specific operating instructions for
satisfying RF exposure.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Information for Canadian Users (IC Notice)
IC:10251A-1004W530
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met. This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Regulations.
End products that include the WI3-530 shall have the words “Contains transmitter module IC: 10251A-
1004W530” or “Contains IC: 10251A-1004W530” on a visible exterior label.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and
away from windows to provide maximum shielding. Equipment that is installed outdoors is subject to
licensing.
This radio transmitter 10251A-1004W530 has been approved by Industry Canada to operate with the
antennas listed below, and having a maximum gain of 0 dB @ 2.4 GHz. Antennas not included in this list
or having a higher gain are strictly prohibited for use with this device. The required antenna impedance is
50 ohms.
• Ethertronics Prestta WLAN Embedded 50 Ohm Antenna, Part No. 1000146
Le présent émetteur radio 10251A-1004W530 a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance
requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
• Ethertronics Prestta WLAN Embedded 50 Ohm Antenna, Part No. 1000146
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
Specifications/Compliance Silex Page 7
140-00205-100 Revision A
interference to others, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (EIRP) is not more than required for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec
une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.
The available scientific evidence does not show that any health problems are associated with using low
power wireless devices. There is no proof, however, that these low power wireless devices are absolutely
safe. Low power wireless devices emit low levels of radio frequency energy (RF) in the microwave range
while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to
low-level RF that does not produce heating effects causes no known adverse health effects. Many
studies of low-level RF exposures have not found any biological effects. Some studies have suggested
that some biological effects might occur, but such findings have not been confirmed by additional
research.
Specifications
Operating environment: Temperature: 0º to +55ºC (32º to +131ºF)
Humidity: 20% to 80%
Storage environment: Temperature: -40º to +70ºC (-40º to +158ºF)
Humidity: 20% to 90%
Supply voltage: 3.3V ± 5%
Host interface: Proprietary 80-pin Header
IEEE 802.11b Frequency: 2412MHz-2462MHz
Transmission system: DSSS
Transmission speed: 1/2/5/11Mbps
Automatic detection
Channel: 1-11
IEEE 802.11g Frequency: 2412MHz-2462MHz
Transmission system: OFDM
Transmission speed: 6/9/12/18/24/36/48/54Mbps
Automatic detection
Channel: 1-11
IEEE 802.11n Frequency: 2412MHz-2462MHz
Transmission system: OFDM
Transmission speed: 7/14/21/28/43/57/65/72Mbps
Automatic detection
Channel: 1-11
Antenna Information Silex Page 8
140-00205-100 Revision A
Chapter 3
Installation
Installation Requirements
The WI3-530 must be installed in a device that contains a 80-pin header.
The WI3-530 has FCC/IC single modular approval, which can eliminate the need for you to obtain FCC
Part 15 Subpart C and RSS-210/GEN (intentional radiation) approvals for your device. In order to use this
FCC/IC single modular approval for the WI3-530, OEM integrators must:
1. Include “Contains transmitter module FCC ID: AUH-1004-W530, IC: 10251A-1004W530” or
“Contains FCC ID: AUH-1004-W530, IC: 10251A-1004W530” on the exterior label of your device.
2. fix the useable channels to 1 through 11 during the OEM manufacturing process for use in the
United States and Canada domain and disable any commands or menu selections in the web
interface so the channel selections or domains cannot be changed by the end user.
3. ensure the driver does not permit use of channels 12-14 in ad-hoc mode in the United States and
Canada by using the same disabling method.
4. include all required statements in your final product user’s manual (per 15.21, 15.27, 15.105,
RSS-GEN, RSS-210, etc) and final product labeling (per 15.19, RSS-GEN). Refer to FCC/IC
Information in previous chapter.
5. not provide instructions on how to remove or install the WI3-530 to your end users.
6. provide regulated +3.3 VDC +/- 5% power to the WI3-530.
If you do not follow the above instructions, then it is your responsibility to obtain the necessary FCC
approvals.
Installation Procedure
To install the WI3-530:
1. Be sure to use the proper antistatic handling techniques.
2. Connect the 80-pin header plug of the Wi3-530 into the 80-pin header receptacle (Hirose
DF12(3.0)-80DP-0.5V(86)) on your host platform.
3. Secure the Wi3-530 to your host platform with appropriate spacers, screws & nuts and other
means to hold the unit in place securely.
Antenna Information Silex Page 9
140-00205-100 Revision A
Appendix A
Antenna Information

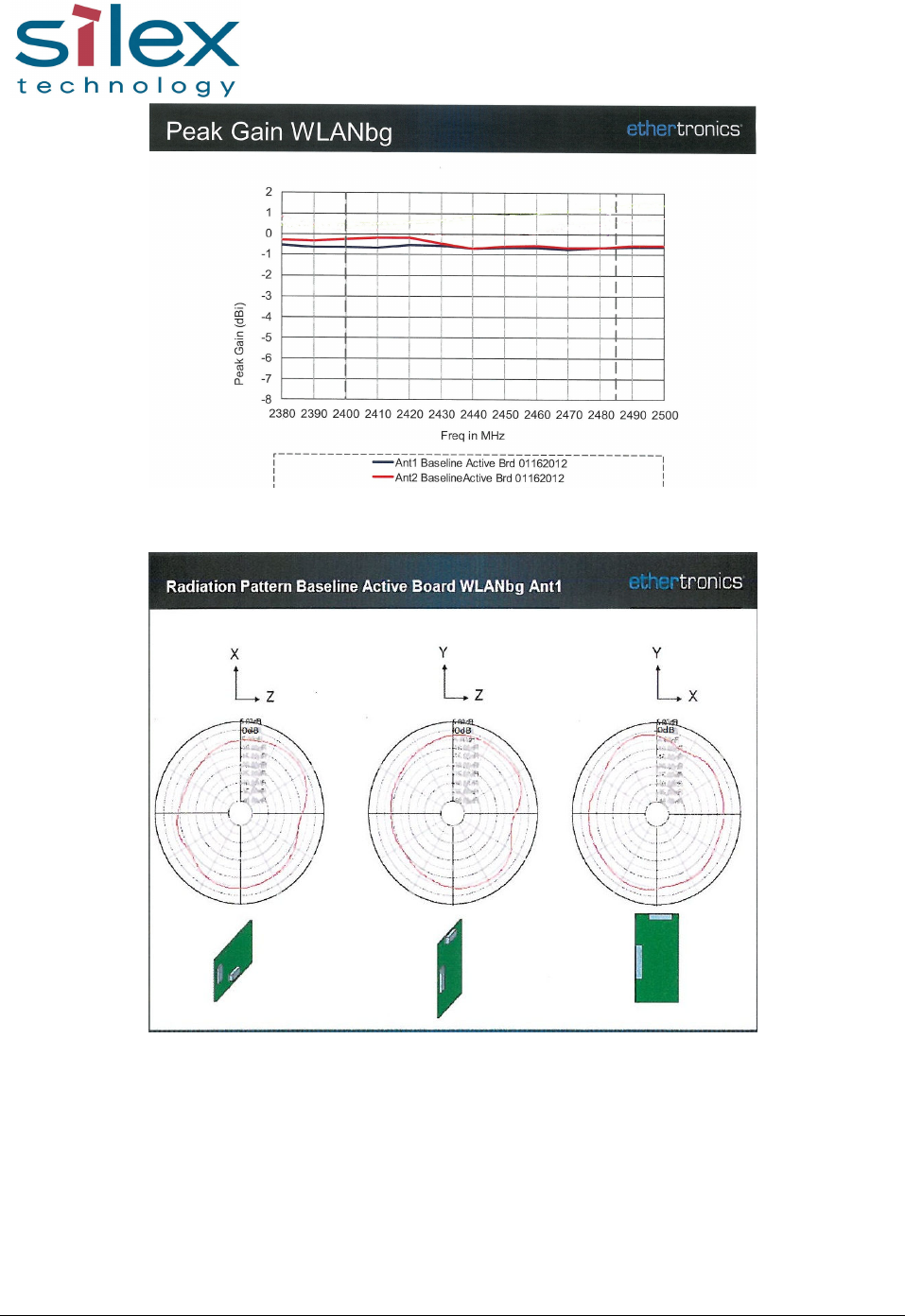

Antenna Specifications
The antenna is the Ethertronics Prestta WLAN Embedded Antenna, Part No. 1000146.
Table 1 Electrical Specifications
Parameter Value
Antenna Type Isolated Magnetic Dipole
Frequency Range 2.4 to 2.5 GHz
Impedance 50 Ohms
Gain (peak) 2.4 GHz = 0 dBi
VSWR ≤ 3.0
Test Connector U.FL Micro Coaxial Switch
Page 10 Silex Antenna Information
140-00205-100 Revision A
Antenna Information Silex Page 11
140-00205-100 Revision A
Appendix B
Silex Contact Information
Silex Technology America, Inc.
www.silexamerica.com
Technical Support: support@silexamerica.com
Sales: sales@silexamerica.com
Tel: (801) 748-1199 8:00 to 5:00 Mountain Time
Tel: (866) 765-8761 toll-free
Fax: (801) 748-0730
Silex Technology Europe GmbH
www.silexeurope.com
Tel: +49-2159-67500
Tel: 0800-7453938 German toll free
Email: contact@silexeurope.com
Corporate Headquarters
Silex Technology, Inc.
www.silex.jp
Tel: +81-6-6730-3751
Email: support@silex.jp
Silex Technology America, Inc.
www.silexamerica.com
