WiSilica SLM-D WC-D-2ch User Manual WC D 2CH0010V rev4 0

WiSilica, Inc. WC-D-2ch WC D 2CH0010V rev4 0

User Manual

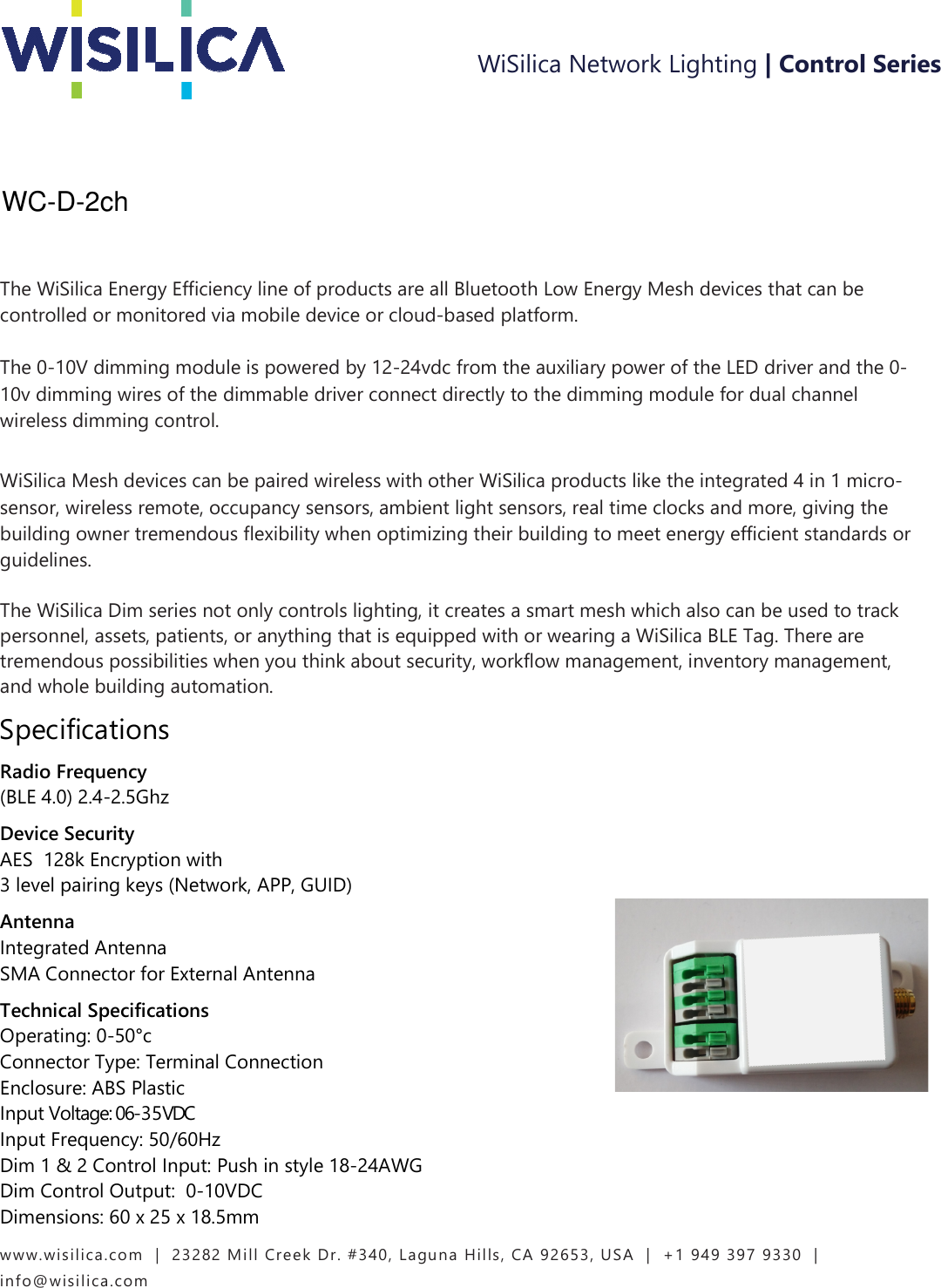

www.wisilica.com | 23282 Mill Creek Dr. #340, Laguna Hills, CA 92653, USA | +1 949 397 9330 | info@wisilica.com The WiSilica Energy Efficiency line of products are all Bluetooth Low Energy Mesh devices that can be controlled or monitored via mobile device or cloud-based platform. The 0-10V dimming module is powered by 12-24vdc from the auxiliary power of the LED driver and the 0-10v dimming wires of the dimmable driver connect directly to the dimming module for dual channel wireless dimming control. WiSilica Mesh devices can be paired wireless with other WiSilica products like the integrated 4 in 1 micro-sensor, wireless remote, occupancy sensors, ambient light sensors, real time clocks and more, giving the building owner tremendous flexibility when optimizing their building to meet energy efficient standards or guidelines. The WiSilica Dim series not only controls lighting, it creates a smart mesh which also can be used to track personnel, assets, patients, or anything that is equipped with or wearing a WiSilica BLE Tag. There are tremendous possibilities when you think about security, workflow management, inventory management, and whole building automation. Specifications Radio Frequency (BLE 4.0) 2.4-2.5Ghz Device Security AES 128k Encryption with 3 level pairing keys (Network, APP, GUID) Antenna Integrated Antenna SMA Connector for External Antenna Technical Specifications Operating: 0-50°c Connector Type: Terminal Connection Enclosure: ABS Plastic Input Voltage: 06-35VDC Input Frequency: 50/60Hz Dim 1 & 2 Control Input: Push in style 18-24AWG Dim Control Output: 0-10VDC Dimensions: 60 x 25 x 18.5mm WiSilica Network Lighting | Control Series WC-D-2ch

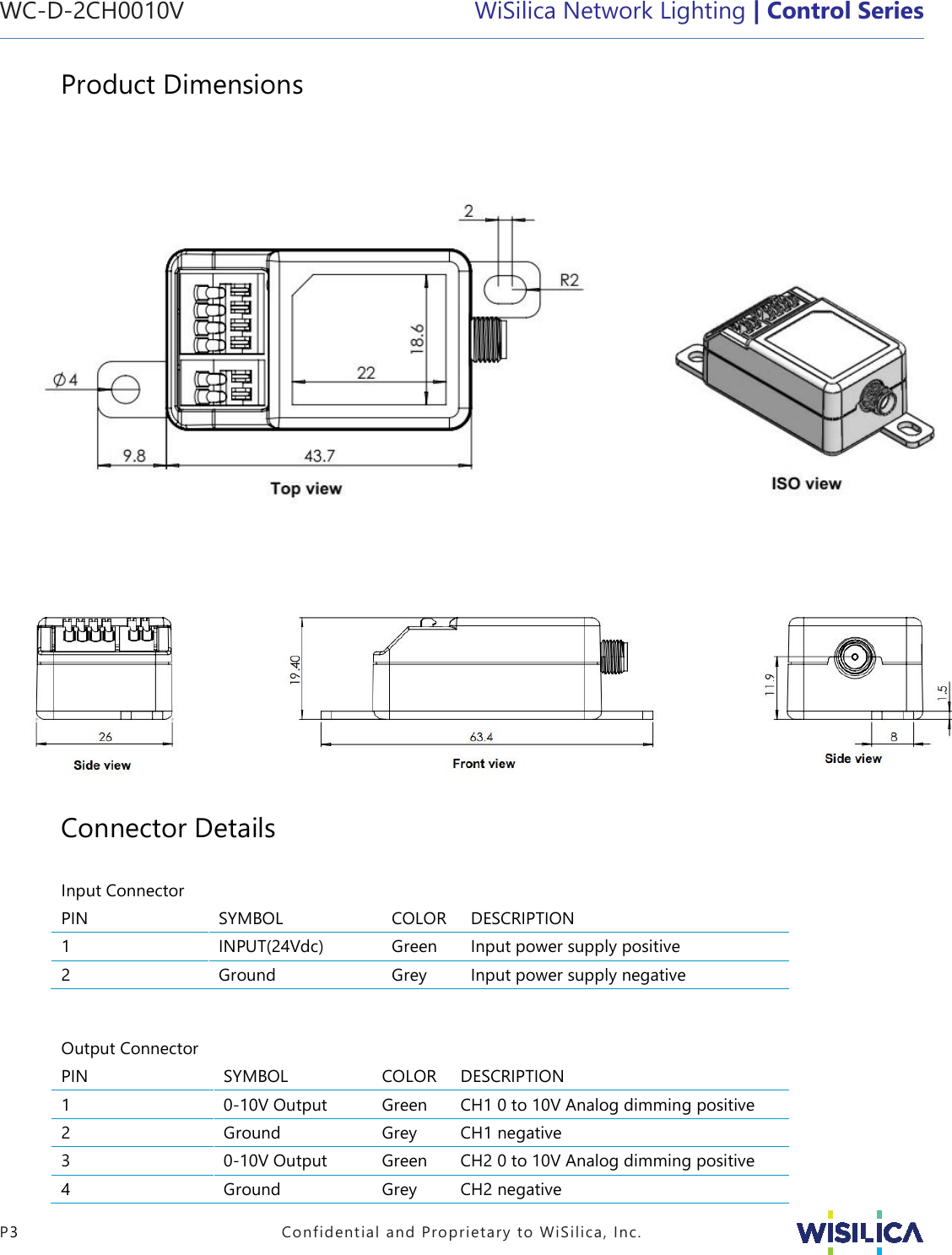

WC-D-2CH0010V WiSilica Network Lighting | Control Series P3 Confidential and Proprietary to WiSilica, Inc. Product Dimensions Connector Details Input Connector PIN SYMBOL COLOR DESCRIPTION 1 INPUT(24Vdc) Green Input power supply positive 2 Ground Grey Input power supply negative Output Connector PIN SYMBOL COLOR DESCRIPTION 1 0-10V Output Green CH1 0 to 10V Analog dimming positive 2 Ground Grey CH1 negative 3 0-10V Output Green CH2 0 to 10V Analog dimming positive 4 Ground Grey CH2 negative CH2

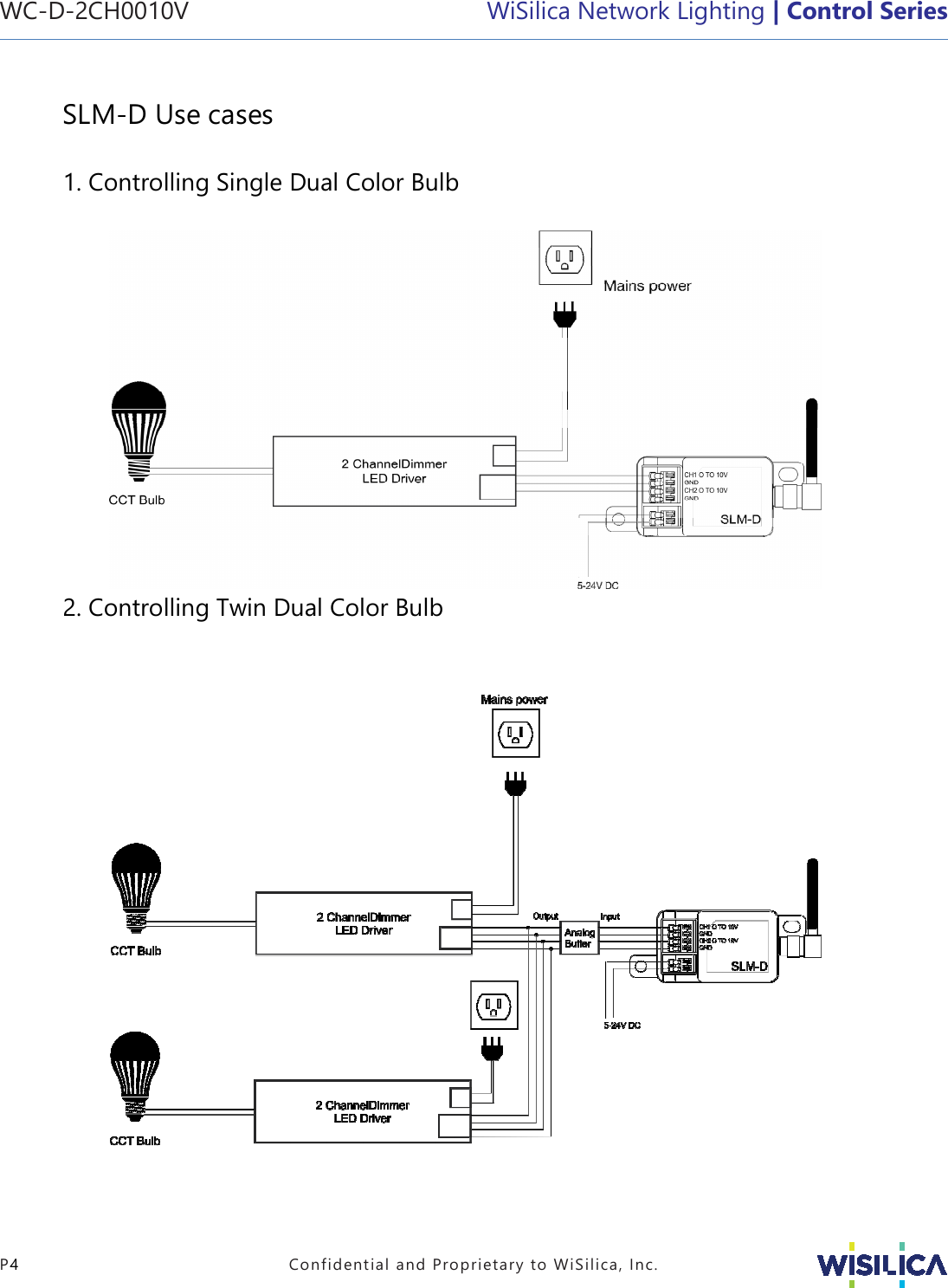

WC-D-2CH0010V WiSilica Network Lighting | Control Series P4 Confidential and Proprietary to WiSilica, Inc. SLM-D Use cases 1. Controlling Single Dual Color Bulb 2. Controlling Twin Dual Color Bulb
WC-D-2CH0010V WiSilica Network Lighting | Control Series P5 Confidential and Proprietary to WiSilica, Inc. User Precautions  Observe the correct polarity of output terminal.  Avoid input voltage exceeding the maximum rating, which may cause damage to the circuit and result in malfunction.  Static electricity or surge voltage may damage the components inside LED Driver; in order to avoid this please follow the proper anti-electrostatic working process. Installation Instructions Step 1, Insert grey ground wire Step 2, Insert red 24vdc wire Step 3, Connect purple dimming wires
FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To comply with FCC RF exposure compliance requirements,this grant isapplicable to only mobile configurations. The antennas used for this transmittermust be installed to provide a separation distance of at least 20 cm from allpersons and must not be co-located or operating in conjunction with any otherantenna or transmitter.
