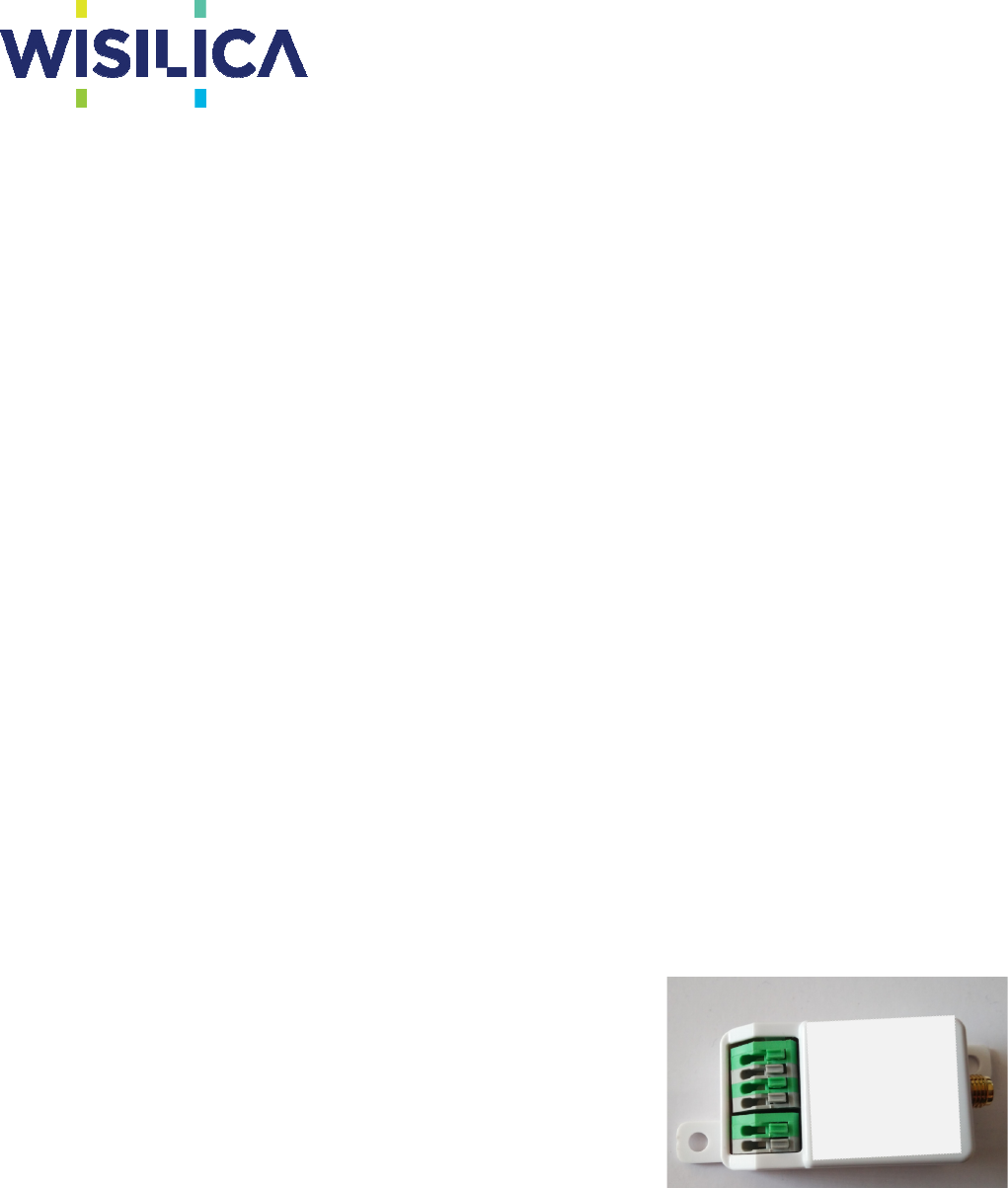

WiSilica SLM-D WC-D-2ch User Manual WC D 2CH0010V rev4 0

WiSilica, Inc. WC-D-2ch WC D 2CH0010V rev4 0

User Manual

www.wisilica.com | 23282 Mill Creek Dr. #340, Laguna Hills, CA 92653, USA | +1 949 397 9330 |
info@wisilica.com
The WiSilica Energy Efficiency line of products are all Bluetooth Low Energy Mesh devices that can be
controlled or monitored via mobile device or cloud-based platform.
The 0-10V dimming module is powered by 12-24vdc from the auxiliary power of the LED driver and the 0-
10v dimming wires of the dimmable driver connect directly to the dimming module for dual channel
wireless dimming control.
WiSilica Mesh devices can be paired wireless with other WiSilica products like the integrated 4 in 1 micro-
sensor, wireless remote, occupancy sensors, ambient light sensors, real time clocks and more, giving the
building owner tremendous flexibility when optimizing their building to meet energy efficient standards or
guidelines.
The WiSilica Dim series not only controls lighting, it creates a smart mesh which also can be used to track
personnel, assets, patients, or anything that is equipped with or wearing a WiSilica BLE Tag. There are
tremendous possibilities when you think about security, workflow management, inventory management,
and whole building automation.
Specifications
Radio Frequency
(BLE 4.0) 2.4-2.5Ghz
Device Security
AES 128k Encryption with
3 level pairing keys (Network, APP, GUID)
Antenna
Integrated Antenna
SMA Connector for External Antenna
Technical Specifications
Operating: 0-50°c
Connector Type: Terminal Connection
Enclosure: ABS Plastic
Input Voltage: 06-35VDC
Input Frequency: 50/60Hz
Dim 1 & 2 Control Input: Push in style 18-24AWG
Dim Control Output: 0-10VDC
Dimensions: 60 x 25 x 18.5mm
WiSilica Network Lighting
| Control Series
WC-D-2ch
WC-D-2CH0010V WiSilica Network Lighting | Control Series
P3 Confidential and Proprietary to WiSilica, Inc.

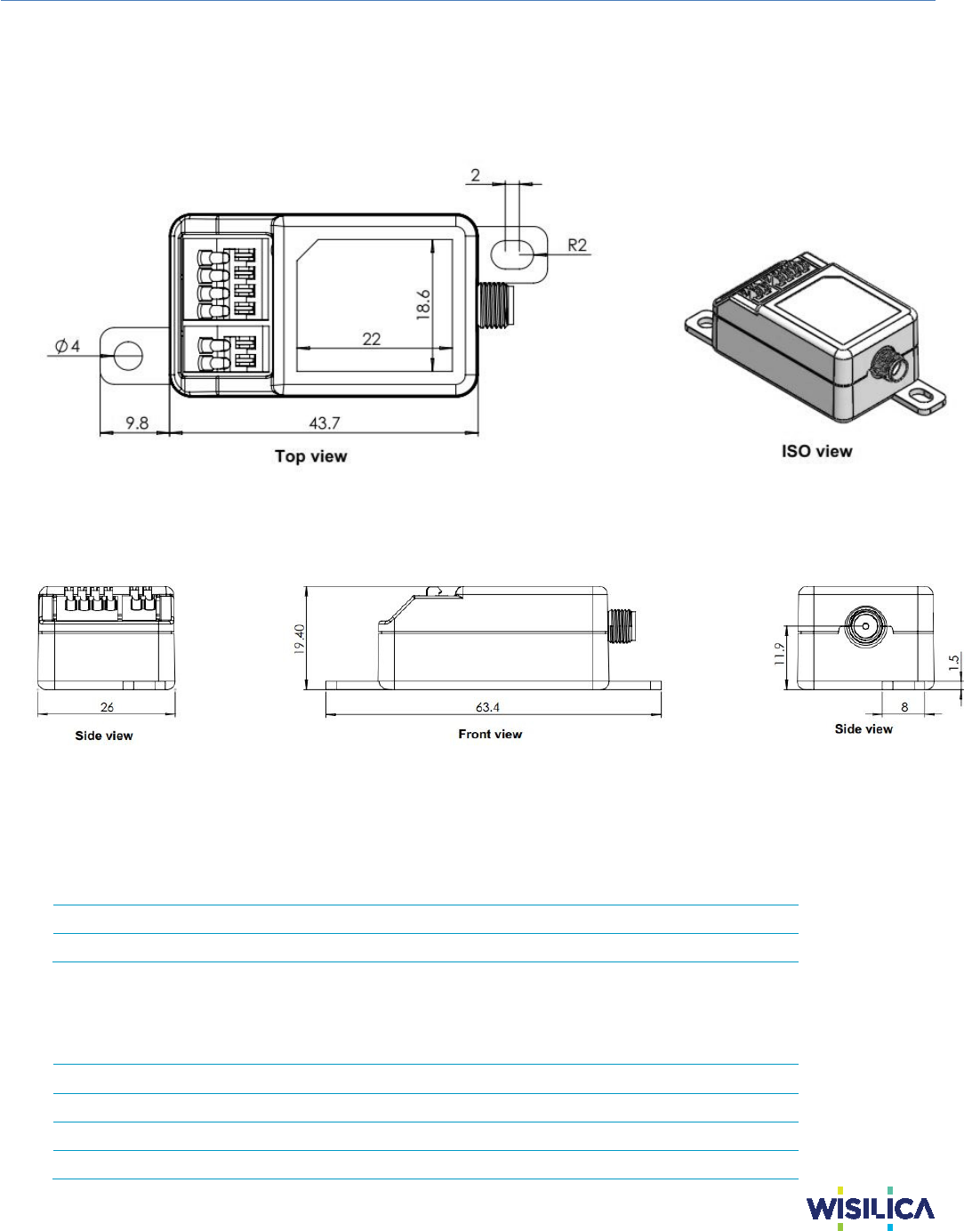

Product Dimensions
Connector Details
Input Connector
PIN
SYMBOL
COLOR
DESCRIPTION
INPUT(24Vdc)
Green
Input power supply positive
Ground
Grey
Input power supply negative
Output Connector
PIN
SYMBOL
COLOR
DESCRIPTION
-
10V Output
Green
CH1 0 to 10V Analog dimmi
ng positive
Ground
Grey
CH1 negative
-
10V Output
Green
CH2 0 to 10V Analog dimming positive
Ground
Grey
CH2 negative
CH2
WC-D-2CH0010V WiSilica Network Lighting | Control Series
P4 Confidential and Proprietary to WiSilica, Inc.

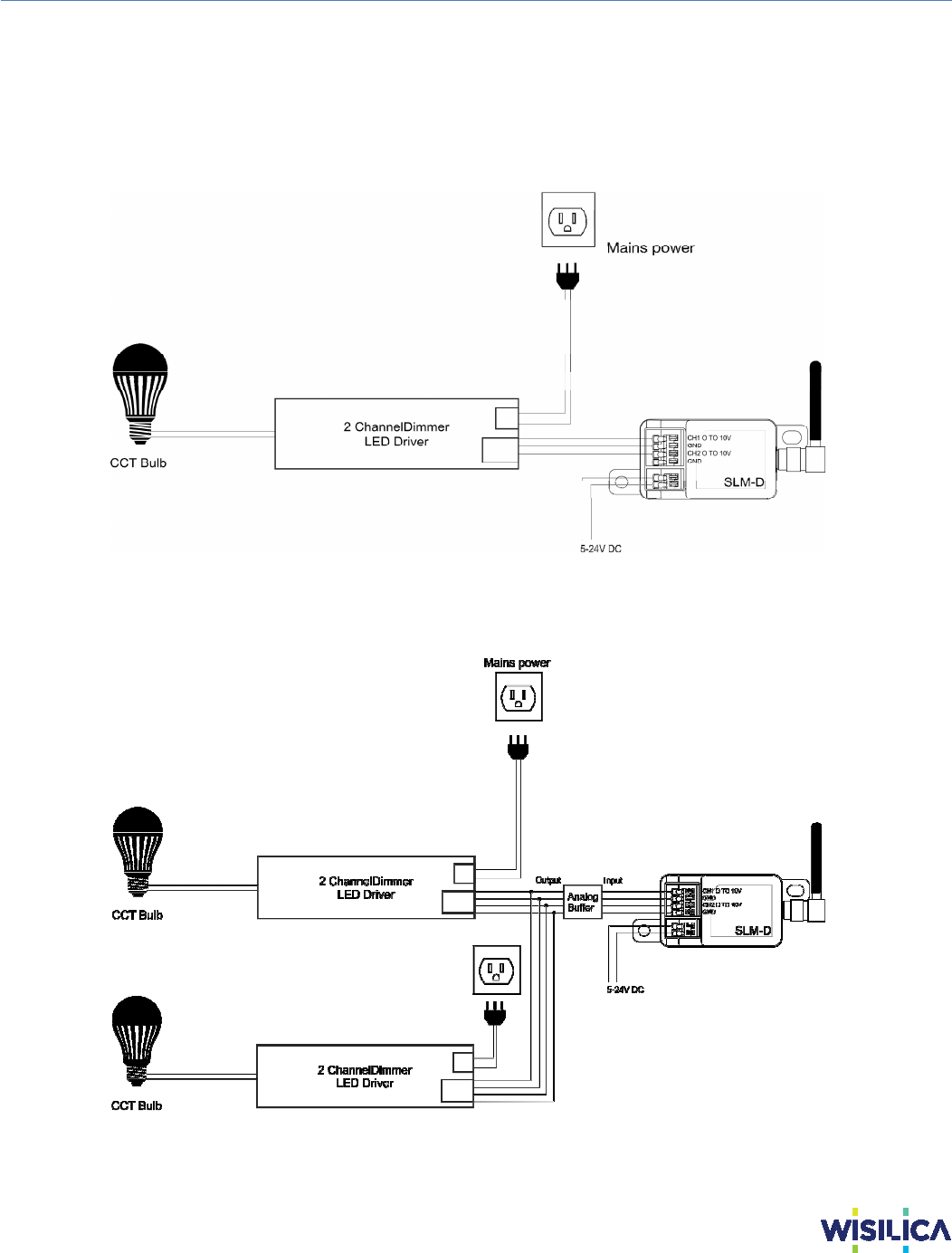

SLM-D Use cases
1. Controlling Single Dual Color Bulb
2. Controlling Twin Dual Color Bulb
WC-D-2CH0010V WiSilica Network Lighting | Control Series
P5 Confidential and Proprietary to WiSilica, Inc.
User Precautions
Observe the correct polarity of output terminal.
Avoid input voltage exceeding the maximum rating, which may cause damage to the circuit
and result in malfunction.
Static electricity or surge voltage may damage the components inside LED Driver; in order
to avoid this please follow the proper anti-electrostatic working process.

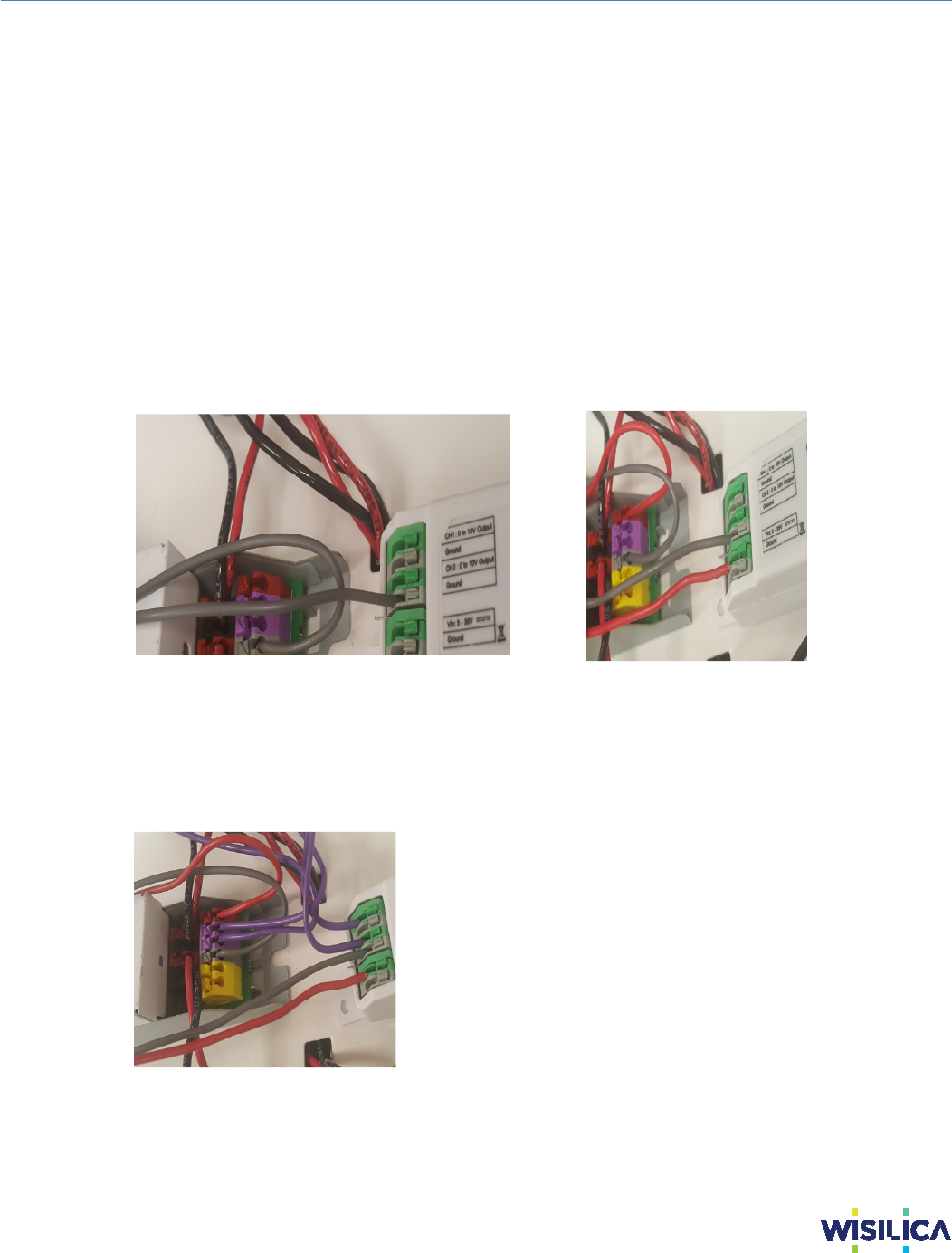

Installation Instructions
Step 1, Insert grey ground wire Step 2, Insert red 24vdc wire
Step 3, Connect purple dimming wires
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
To comply with FCC RF exposure compliance requirements,this grant isapplicable to
only mobile configurations. The antennas used for this transmittermust be installed to
provide a separation distance of at least 20 cm from allpersons and must not be co-l
ocated or operating in conjunction with any otherantenna or transmitter.
