WiSeConnect BLE Mesh Listener Technical Specification
WiSilica Inc Proprietary and Confidential
WiSeConnect BLE Mesh Listener
Hardware and Technical Specification
Preliminary Version (Rev 1.1)
Issued: 11/03/2016
WiSeConnect BLE Mesh Listener Technical Specification
WiSilica Inc Proprietary and Confidential
Revision History
Rev No Date
Notes
Rev 1.0 12/30/2015
Initial Release
Rev1.1 11/03/2016
Block diagram added.
FCC ID: 2AG4NWL105V
WiSeConnect BLE Mesh Listener Technical Specification
WiSilica Inc Proprietary and Confidential
General Information
Operational Description

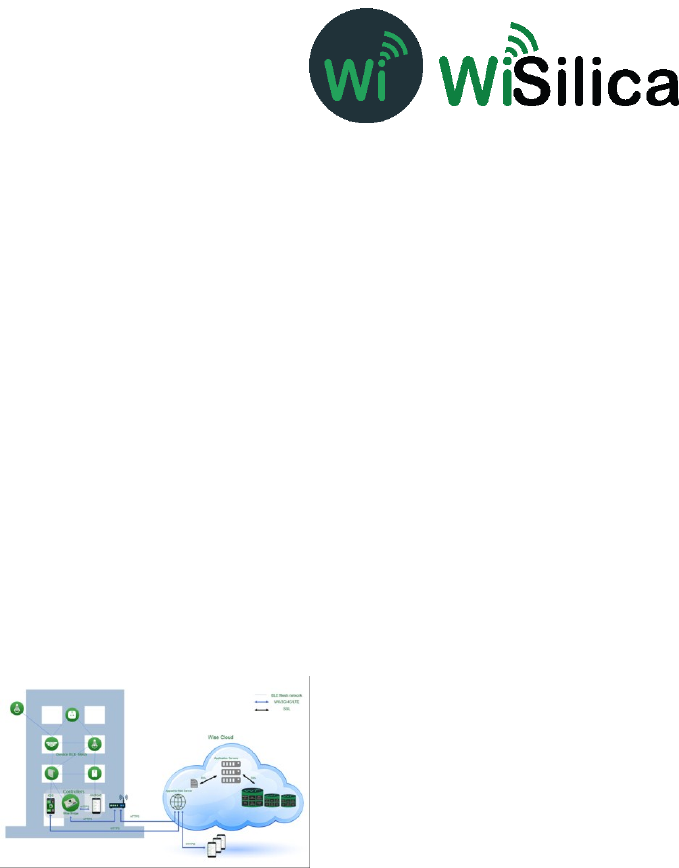

The WiSeMesh BLE Listener/Repeater (L/R) is a bi-directional communication device that can be
easily be applied at various points throughout the WiseMesh network to provide tag listening and
add performance, redundancy, robustness and to extend coverage of the WiSeMesh network. The
WiSe BLE L/R works in conjunction with WiSilica’s WiSeMesh BLE/WiFi AP and WiSeMesh BLE Tags.

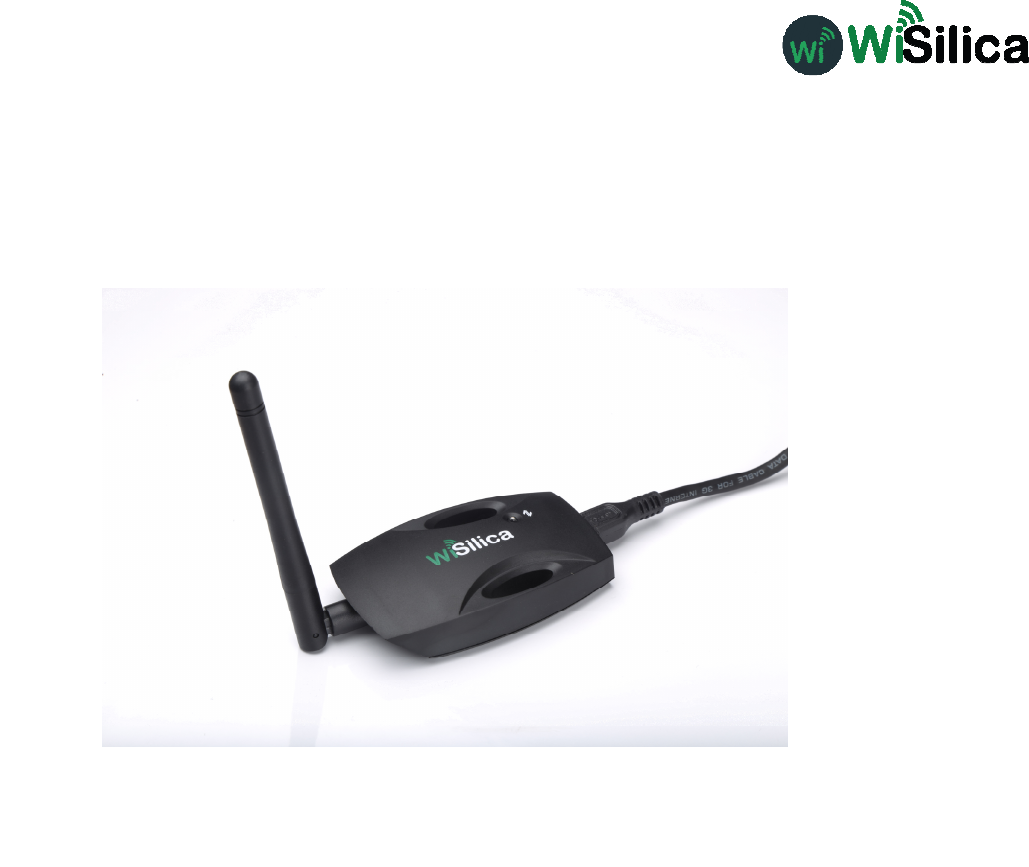

Figure 1. WiSeConnect BLE Mesh Repeater/Listener
WiSeConnect BLE Mesh Listener Technical Specification
WiSilica Inc Proprietary and Confidential

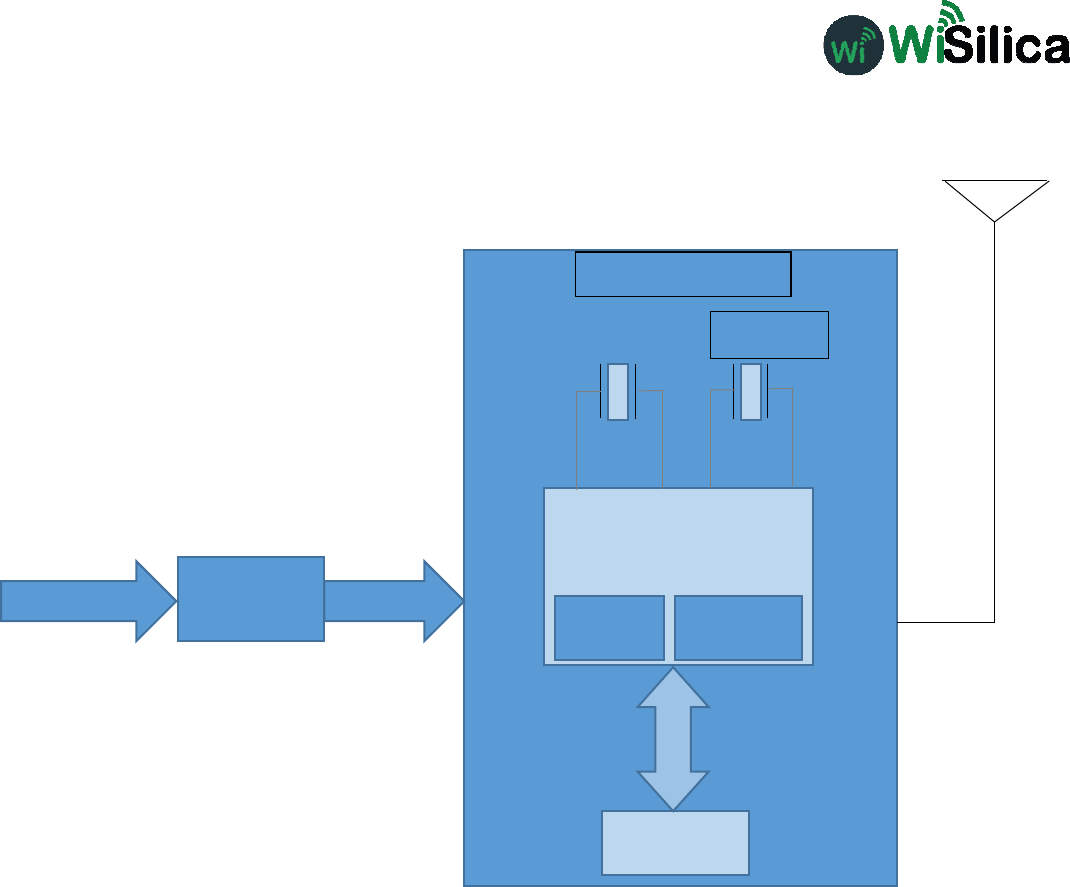

Block Diagram
Key Features
Dual Communication and Security
Each WiSeMesh BLE L/R can send and receive data in real time from the BLE connected devices and
WiSe BLE Tags to and from the WiSilica cloud. Each WiSeMesh BLE L/R is AES 128k encrypted for
device and network security.
Ease of Application
The WiSeMesh BLE L/R is compact in size, easy to install, and are available in micro USB
configurations.
Specifications
Radio Frequency
(BLE 4.0) 2.4-2.5 Ghz
Device Security
AES 128k Encryption with 3 level pairing keys (Network, APP, GUID)
5V to 3V
Regulator
USB Powered
3V Input
CSR1012
2.4Ghz
Radio
Micro
Processor
External
EEPROM
S
P
I
16Mhz
32.76Khz
WiSe 1210 Module
(BLE 4.1) 2.4-2.5 Ghz
WiSeConnect BLE Mesh Listener Technical Specification
WiSilica Inc Proprietary and Confidential
Antenna
Integrated Antenna, Omni Directional Antenna
1 x 50 ohms SMA connector: 1/2 wave whip
BLE- 2.4GHz ~ 2.5GHz 2dBi
Power
Supply 35 mA peak current @ 5V DC
Physical interfaces
Micro USB
Dimensions
79 X 50 X 18mm
Operating Conditions
Temp 0-50°C
Pairing the Listener
Once logged in; Click on the (+) sign on the right bottom to see the listeners in the pairing mode.
(Note: Listeners are in pairing mode for the first 30 seconds once they are powered on)
Select the listeners that you want to pair from the list and click on the ‘Pair’ option that pops
up upon selection of a listener.
Once you click the ‘Pair’ button, the listener is added to the database which can be verified
with the success message.
You can now go to the Home screen of the app to see the listener. A long press on these
listeners opens up options to Edit, Delete and do an OTA update.
Edit options can be used to rename the listeners.
User Manual
Pairing a Listener
COPYRIGHTCopyright © 2015 WiSilica, Inc. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form or by any means without the written
permission of WiSilica, Inc.
TRADEMARKS
WiSeHome, WiSe, WiSe Mesh, WiSe Tech, WiSeApp, WiDe, WiBe, WiSe Connect are
trademarks of WiSilica, Inc. and/or its affiliates in the US and/or other countries. WiSilica
Green in connection with IOT is distinctive of WiSilica brand products. All other registered
and unregistered trademarks herein are the sole property of their respective owners.
LICENSE INFORMATION
License Agreement
TABLE OF CONTENTS
Table of Contents .................................................................................................................. 3
Table of figures ..................................................................................................................... 4
Prerequisites ......................................................................................................................... 5
Hardware Versions Used ...................................................................................................... 5
Device Commissioning . ........................................................................................................ 5
TABLE OF FIGURES
Figure 1 "Add device" option ................................................................................................. 5
Figure 3 Filter (optional) ........................................................................................................ 6
Figure 4 Scan for devices ..................................................................................................... 6
Figure 5 "Test" option ............................................................................................................ 7
Figure 6 Pair the device ........................................................................................................ 7
Figure 7 Paired device under default group ........................................................................... 8
PREREQUISITES
App should be in Skip login mode.
HARDWARE VERSIONS USED
Sl#
Particulars
Version
1
App
iOS SDK V_3.0.3.0_B_1
2
Wise Listener
1.3.93
DEVICE COMMISSIONING .

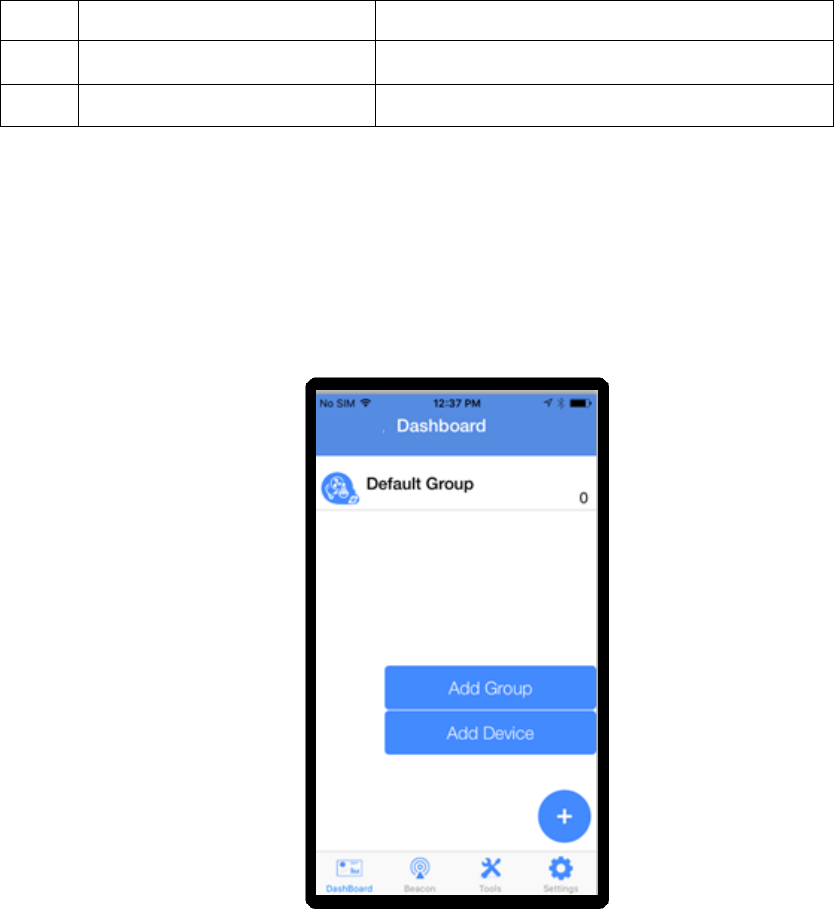

a) Click on “(+)” and select “Add Device” from the main menu options.
Figure 1 "Add device" option

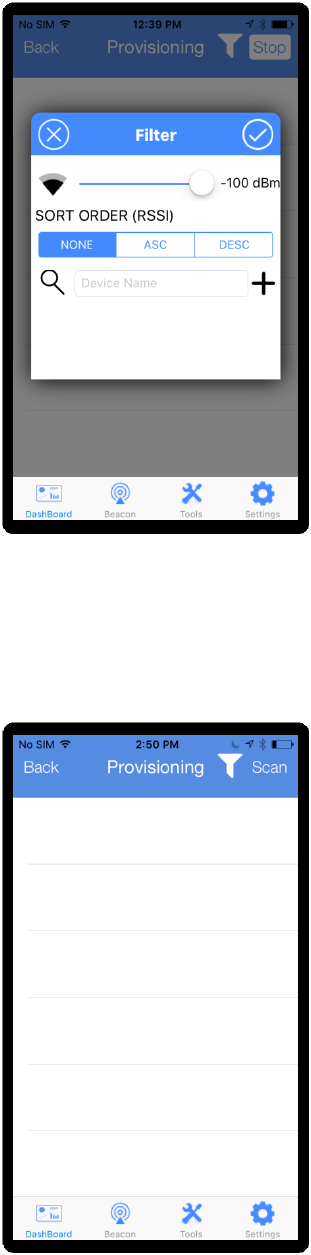

b) Click on filter icon if the user wants to filter out a particular type of device that needs
to be scanned for in the presence of multiple device types.(OPTIONAL)
Figure 2 Filter (optional)
c) Click on “Scan”
Figure 3 Scan for devices

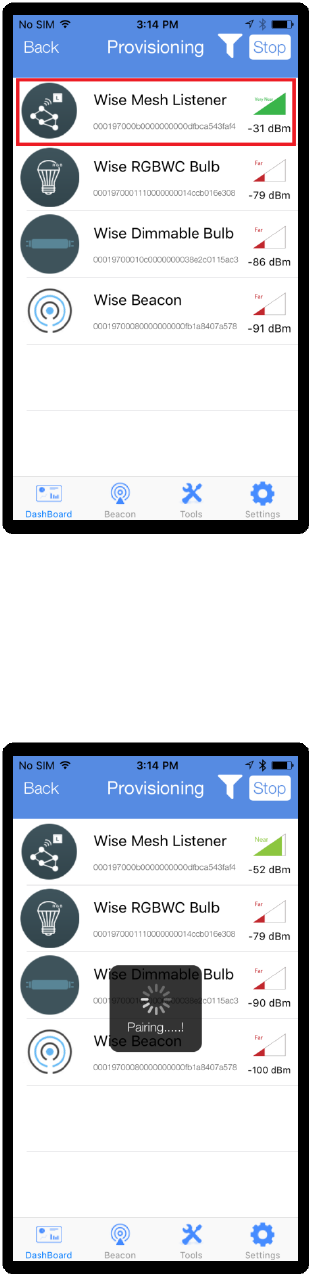

d) When Wise Listener device appears in the scanned list , swipe leftwards on the device
name and click “Test” button to test its connection.
Figure 4 "Test" option
e) Click on “Pair” button to get the device paired.
Figure 5 Pair the device

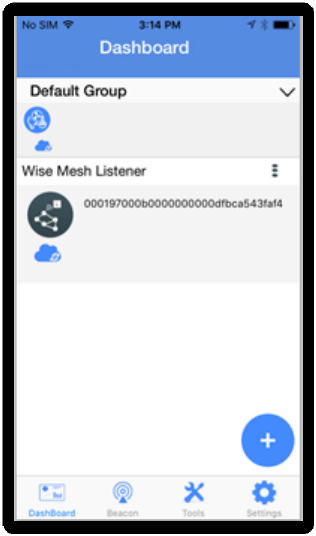

f) Paired Wise Listener device can be seen under Default group in the dashboard.
Figure 6 Paired device under default group
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
