WiSilica WT10W1 Asset Tag User Manual 15 WT10W1 UserMan

WiSilica, Inc. Asset Tag 15 WT10W1 UserMan

15_WT10W1 UserMan

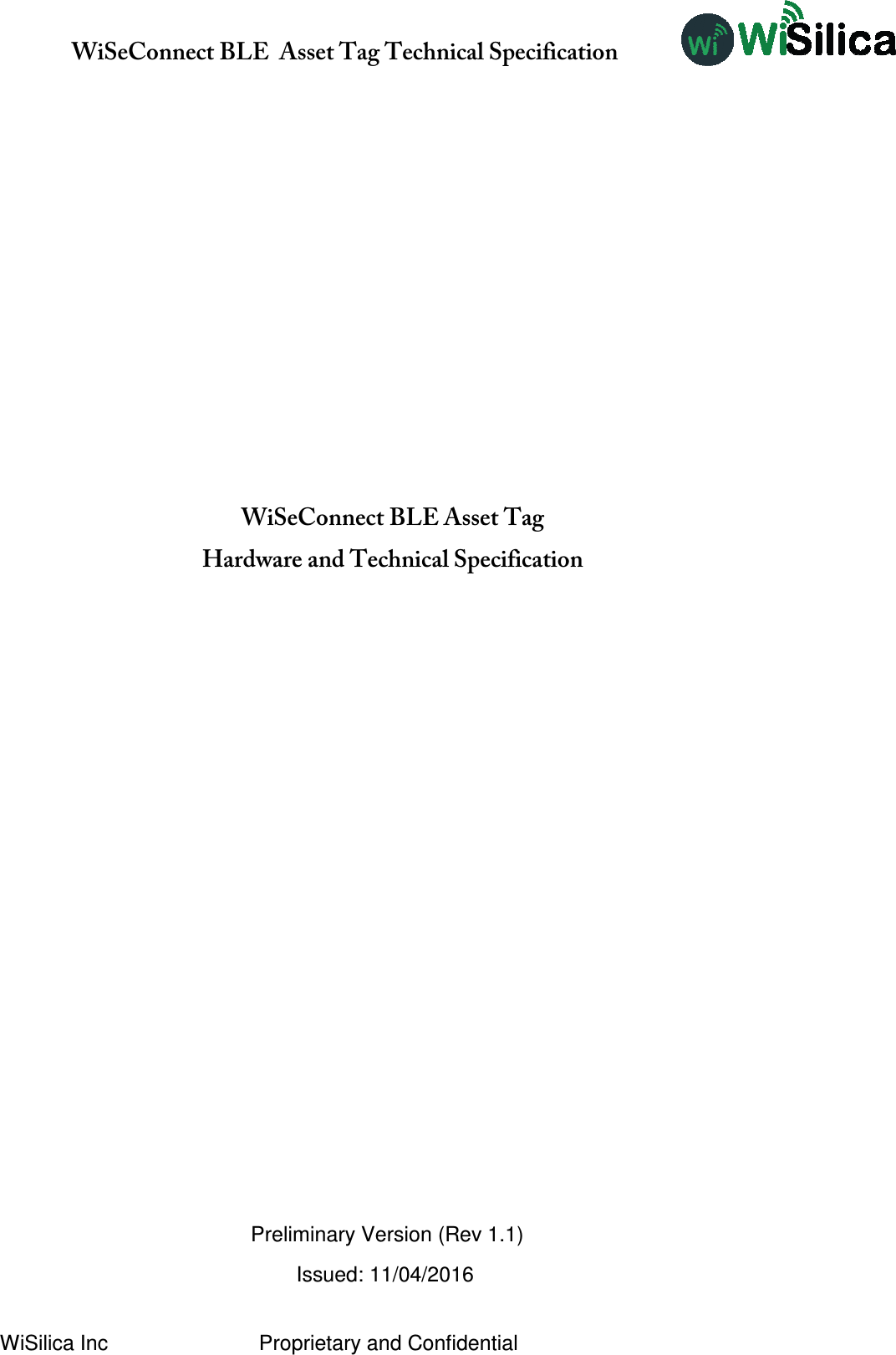

WiSeConnect BLE Asset Tag Technical Specification WiSilica Inc Proprietary and Confidential WiSeConnect BLE Asset Tag Hardware and Technical Specification Preliminary Version (Rev 1.1) Issued: 11/04/2016

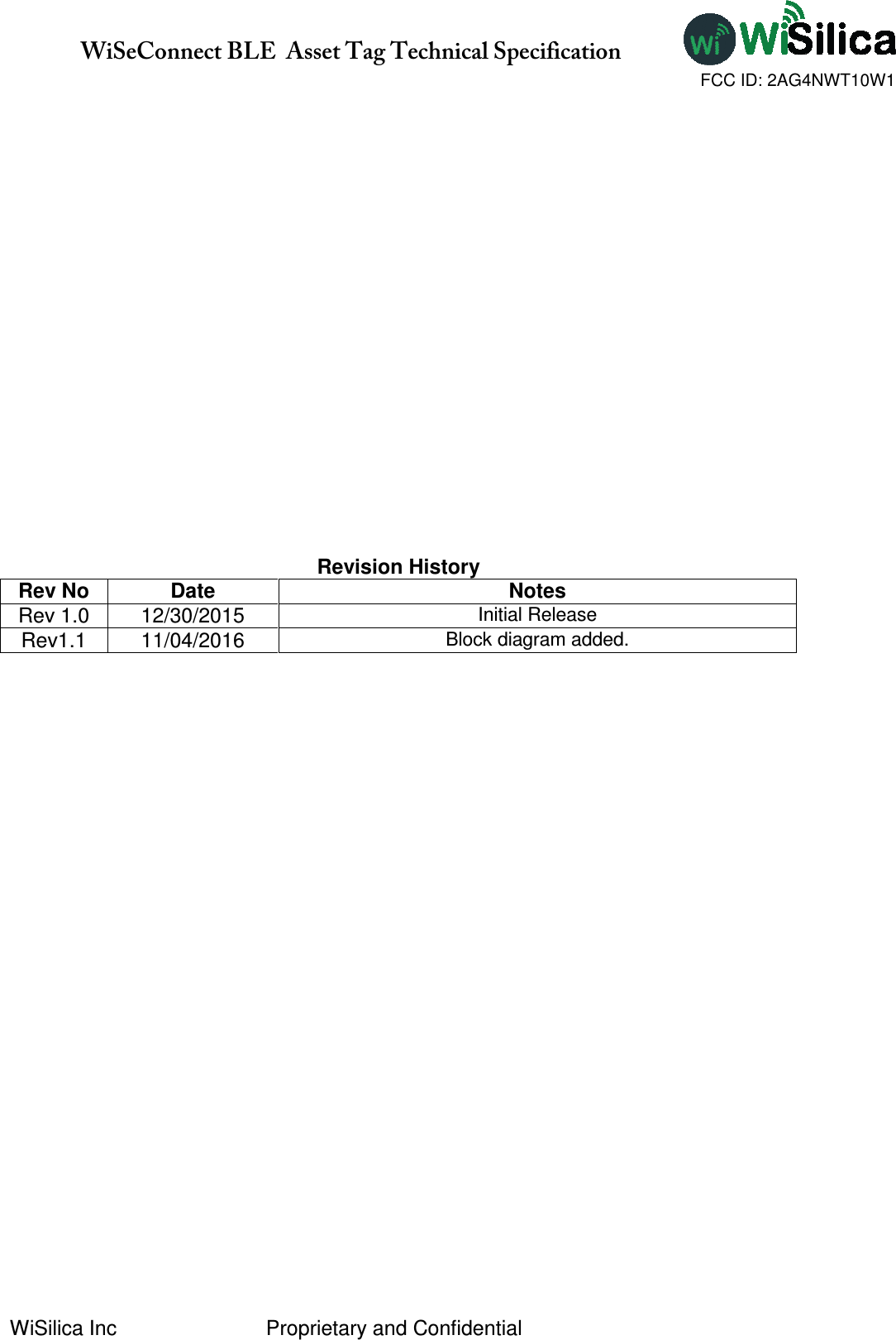

WiSeConnect BLE Asset Tag Technical Specification WiSilica Inc Proprietary and Confidential Revision History Rev No Date Notes Rev 1.0 12/30/2015 Initial Release Rev1.1 11/04/2016 Block diagram added. FCC ID: 2AG4NWT10W1

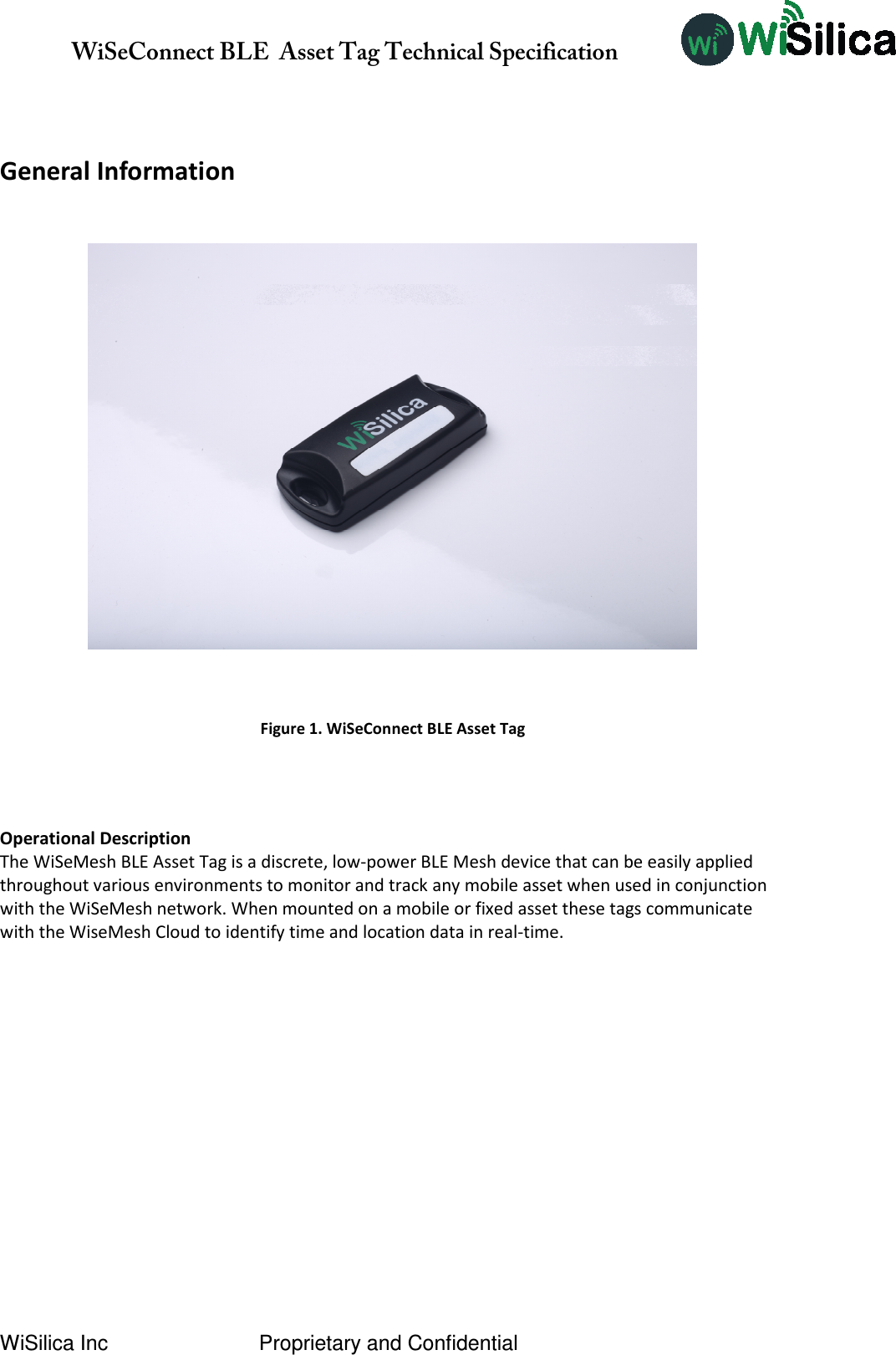

WiSeConnect BLE Asset Tag Technical Specification WiSilica Inc Proprietary and Confidential General Information Operational Description The WiSeMesh BLE Asset Tag is a discrete, low-power BLE Mesh device that can be easily applied throughout various environments to monitor and track any mobile asset when used in conjunction with the WiSeMesh network. When mounted on a mobile or fixed asset these tags communicate with the WiseMesh Cloud to identify time and location data in real-time. Figure 1. WiSeConnect BLE Asset Tag

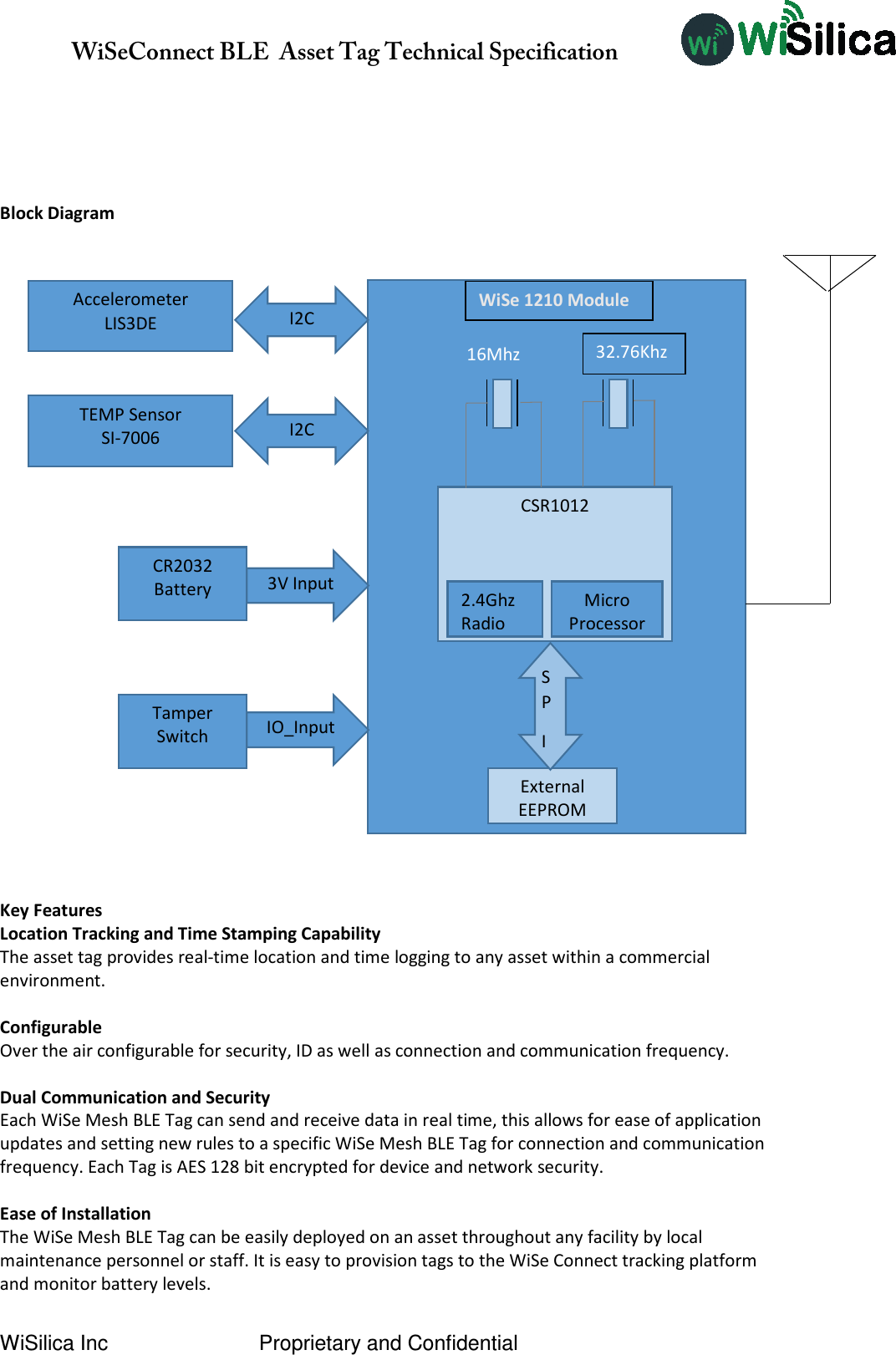

WiSeConnect BLE Asset Tag Technical Specification WiSilica Inc Proprietary and Confidential Block Diagram Key Features Location Tracking and Time Stamping Capability The asset tag provides real-time location and time logging to any asset within a commercial environment. Configurable Over the air configurable for security, ID as well as connection and communication frequency. Dual Communication and Security Each WiSe Mesh BLE Tag can send and receive data in real time, this allows for ease of application updates and setting new rules to a specific WiSe Mesh BLE Tag for connection and communication frequency. Each Tag is AES 128 bit encrypted for device and network security. Ease of Installation The WiSe Mesh BLE Tag can be easily deployed on an asset throughout any facility by local maintenance personnel or staff. It is easy to provision tags to the WiSe Connect tracking platform and monitor battery levels. CR2032 Battery 3V Input CSR1012 2.4Ghz Radio Micro Processor External EEPROM SP I 16Mhz 32.76Khz WiSe 1210 Module Accelerometer LIS3DE TEMP Sensor SI-7006 I2C I2C Tamper Switch IO_Input

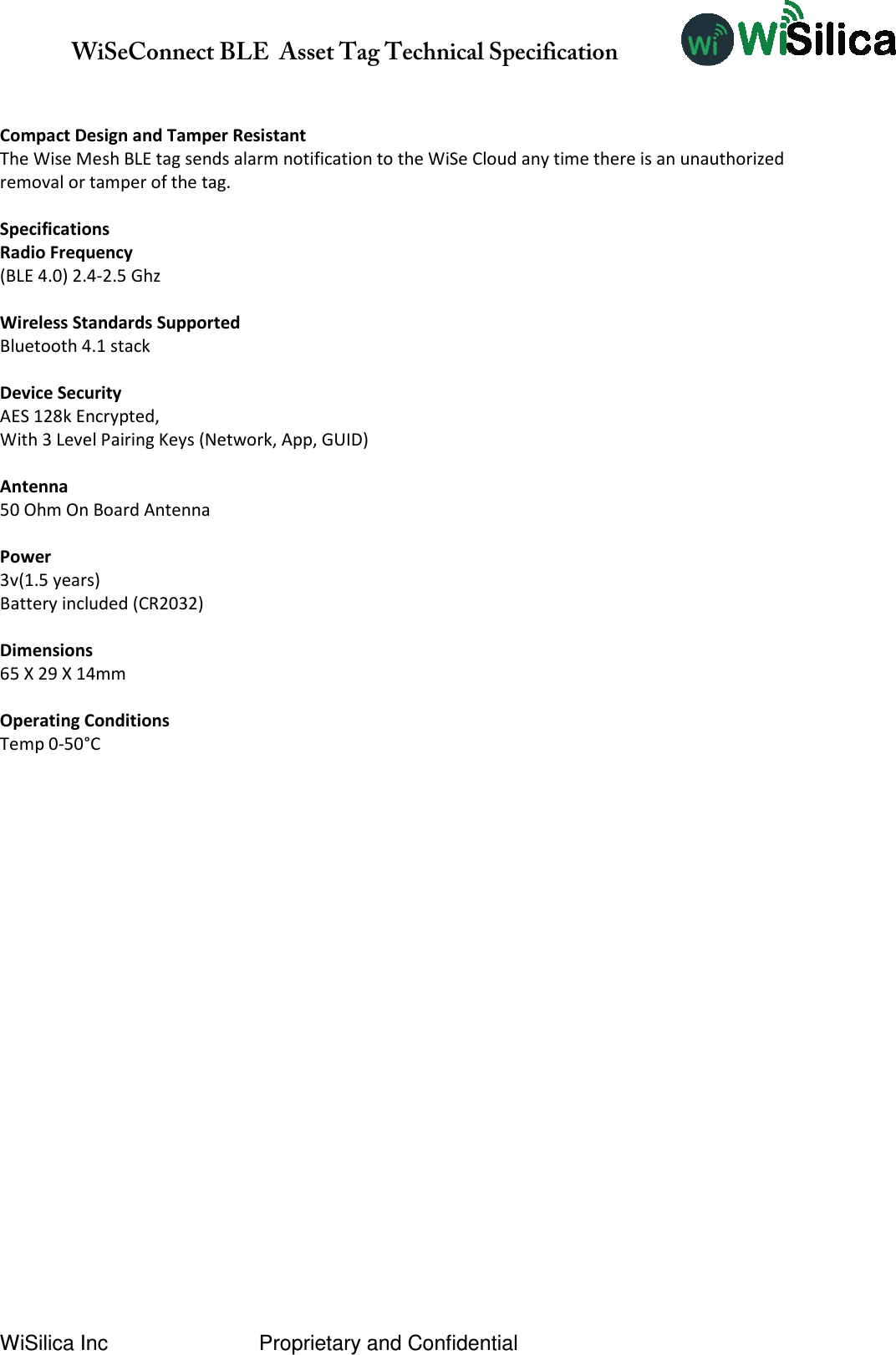

WiSeConnect BLE Asset Tag Technical Specification WiSilica Inc Proprietary and Confidential Compact Design and Tamper Resistant The Wise Mesh BLE tag sends alarm notification to the WiSe Cloud any time there is an unauthorized removal or tamper of the tag. Specifications Radio Frequency (BLE 4.0) 2.4-2.5 Ghz Wireless Standards Supported Bluetooth 4.1 stack Device Security AES 128k Encrypted, With 3 Level Pairing Keys (Network, App, GUID) Antenna 50 Ohm On Board Antenna Power 3v(1.5 years) Battery included (CR2032) Dimensions 65 X 29 X 14mm Operating Conditions Temp 0-50°C
User Manual Pairing a Tag

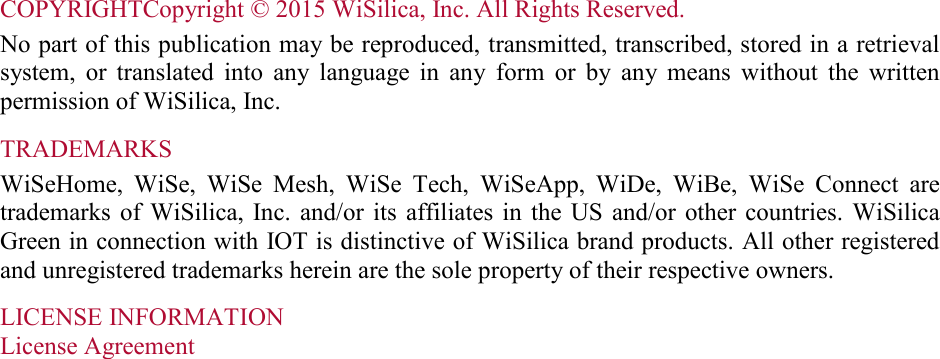

COPYRIGHTCopyright © 2015 WiSilica, Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of WiSilica, Inc. TRADEMARKS WiSeHome, WiSe, WiSe Mesh, WiSe Tech, WiSeApp, WiDe, WiBe, WiSe Connect are trademarks of WiSilica, Inc. and/or its affiliates in the US and/or other countries. WiSilica Green in connection with IOT is distinctive of WiSilica brand products. All other registered and unregistered trademarks herein are the sole property of their respective owners. LICENSE INFORMATION License Agreement

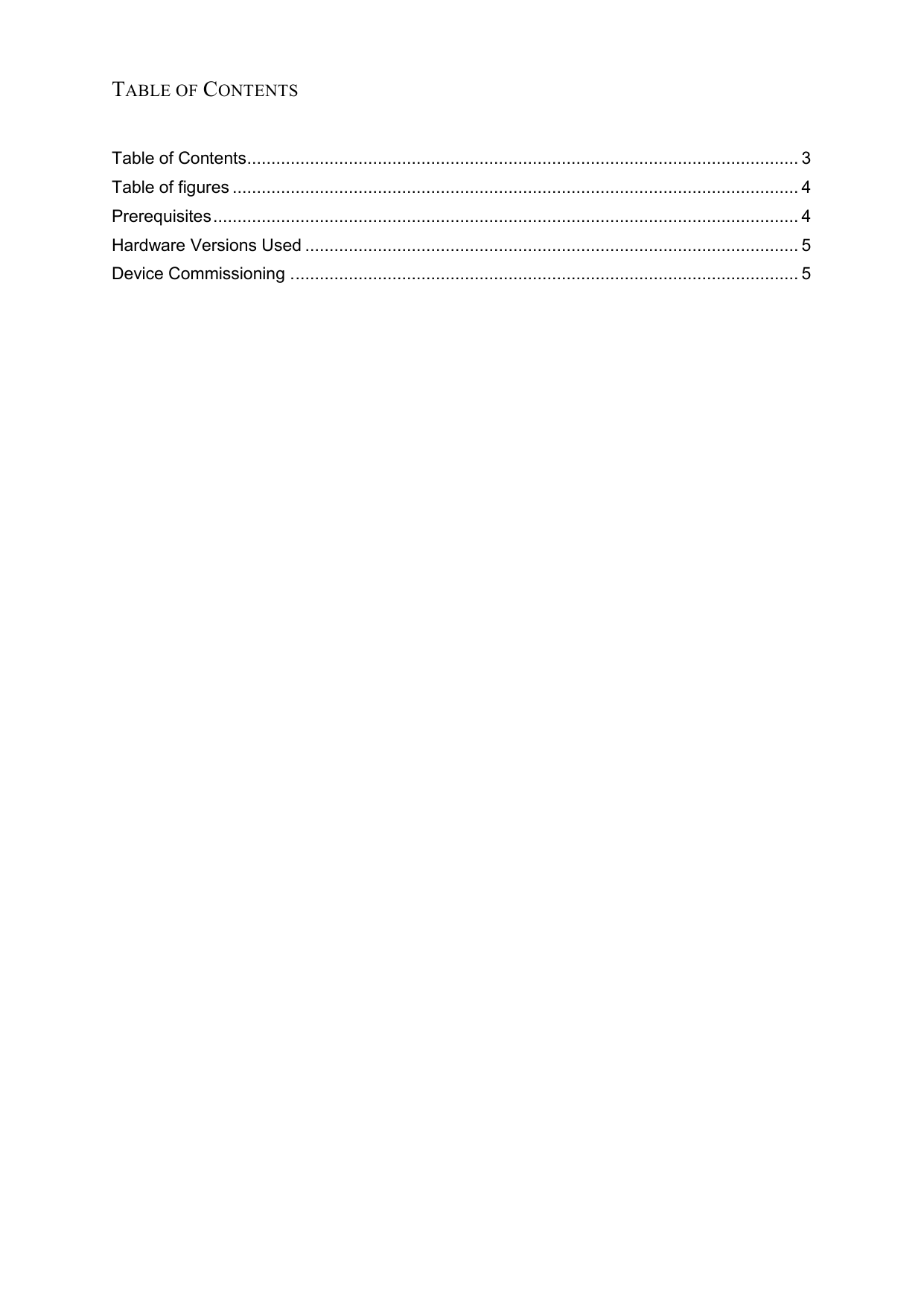

TABLE OF CONTENTS Table of Contents .................................................................................................................. 3 Table of figures ..................................................................................................................... 4 Prerequisites ......................................................................................................................... 4 Hardware Versions Used ...................................................................................................... 5 Device Commissioning . ........................................................................................................ 5

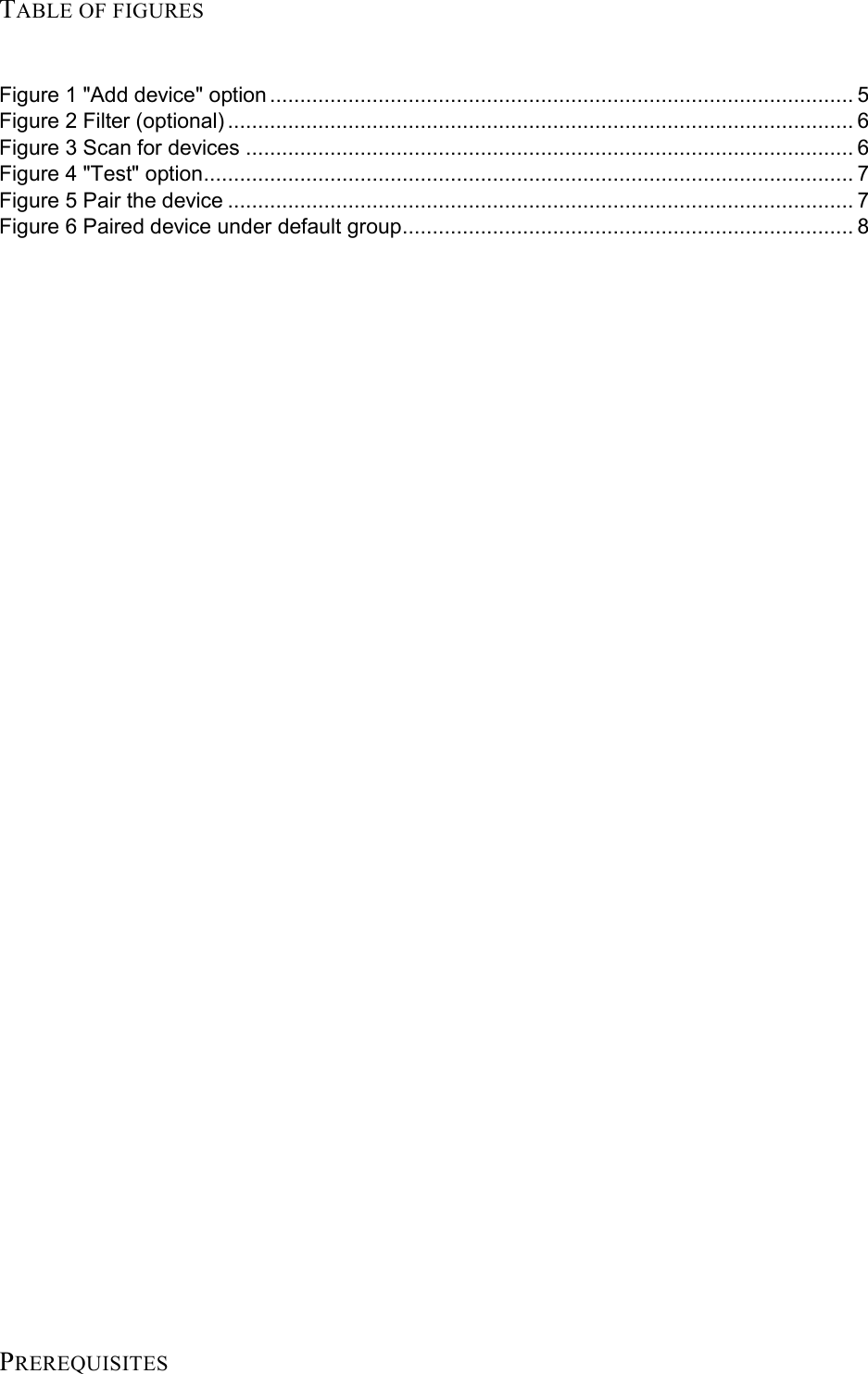

TABLE OF FIGURES Figure 1 "Add device" option ................................................................................................. 5 Figure 2 Filter (optional) ........................................................................................................ 6 Figure 3 Scan for devices ..................................................................................................... 6 Figure 4 "Test" option ............................................................................................................ 7 Figure 5 Pair the device ........................................................................................................ 7 Figure 6 Paired device under default group ........................................................................... 8 PREREQUISITES

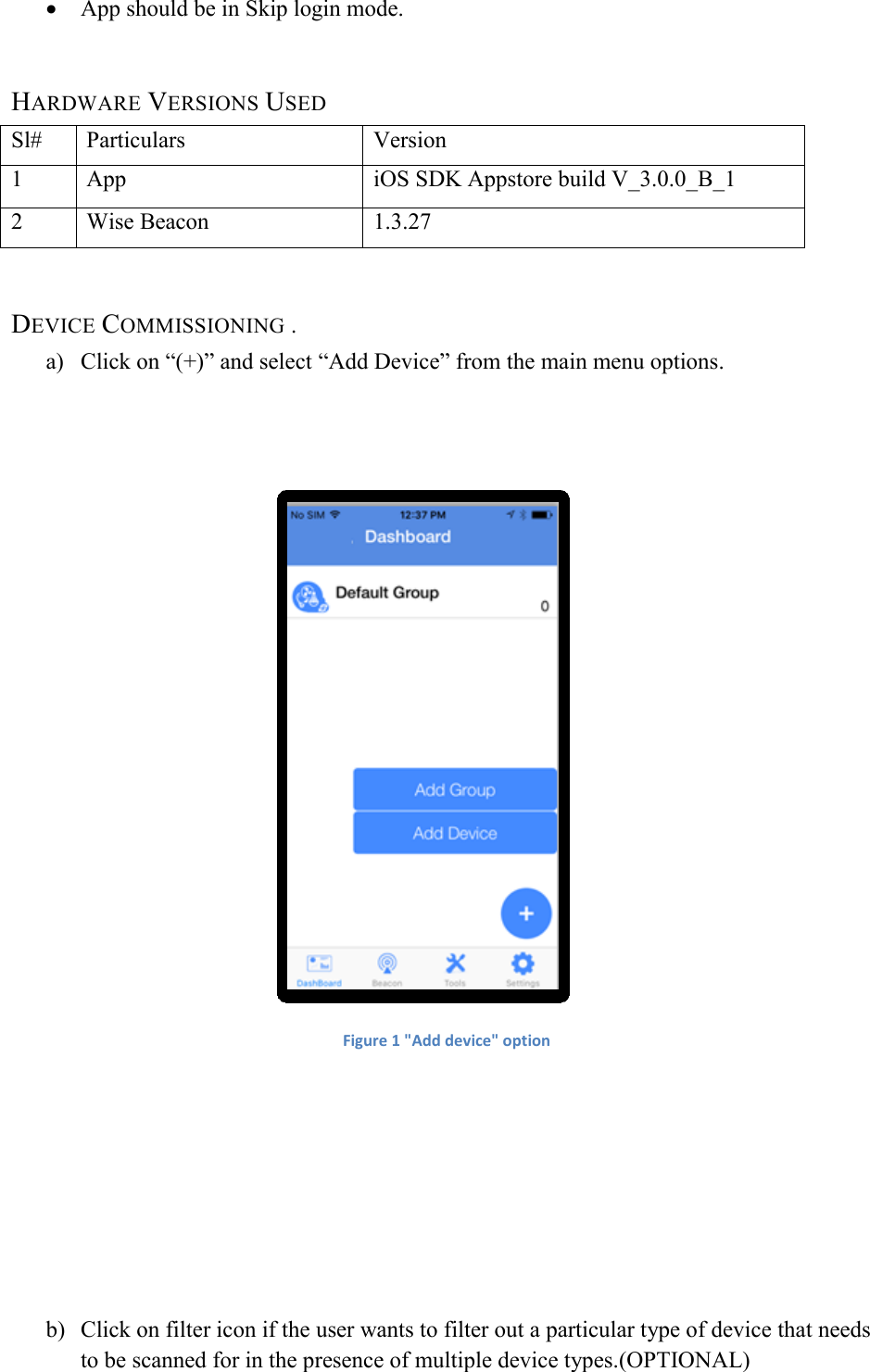

 App should be in Skip login mode. HARDWARE VERSIONS USED Sl# Particulars Version 1 App iOS SDK Appstore build V_3.0.0_B_1 2 Wise Beacon 1.3.27 DEVICE COMMISSIONING . a) Click on “(+)” and select “Add Device” from the main menu options. Figure 1 "Add device" option b) Click on filter icon if the user wants to filter out a particular type of device that needs to be scanned for in the presence of multiple device types.(OPTIONAL)

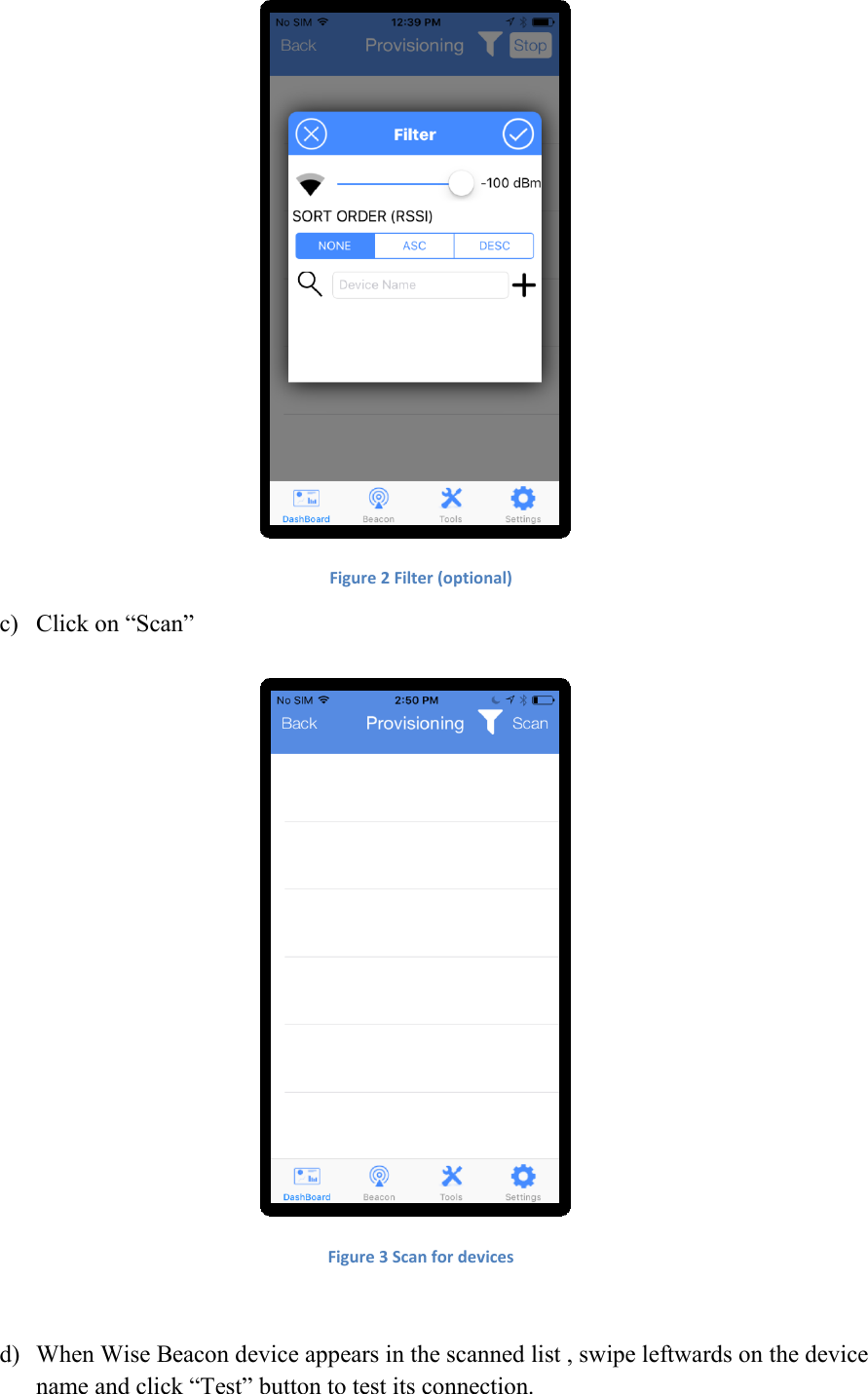

Figure 2 Filter (optional) c) Click on “Scan” Figure 3 Scan for devices d) When Wise Beacon device appears in the scanned list , swipe leftwards on the device name and click “Test” button to test its connection.

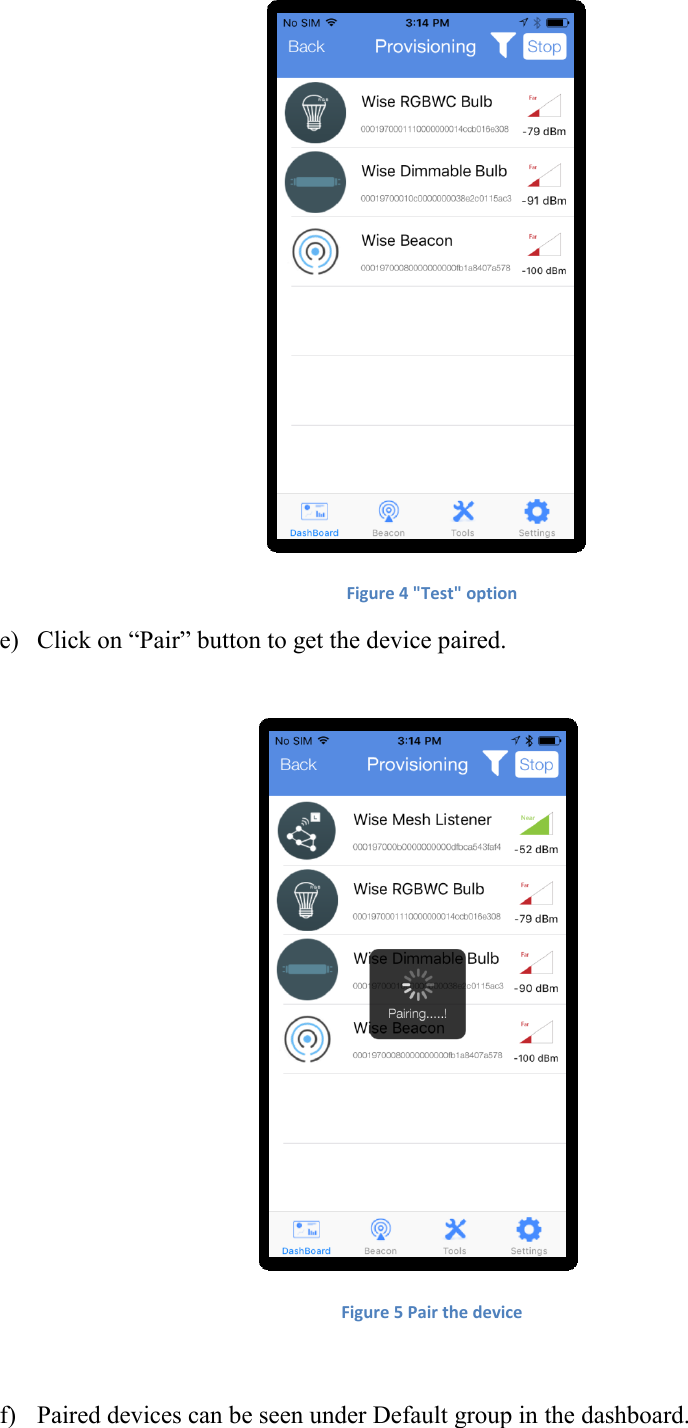

Figure 4 "Test" option e) Click on “Pair” button to get the device paired. Figure 5 Pair the device f) Paired devices can be seen under Default group in the dashboard.

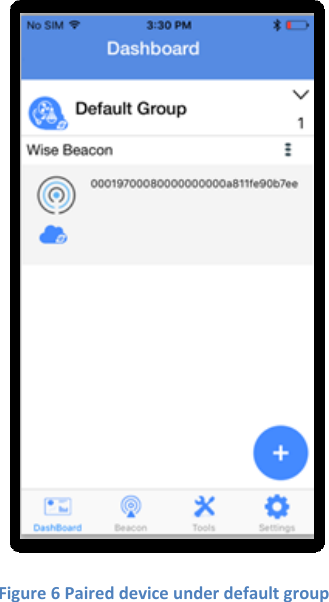

Figure 6 Paired device under default group

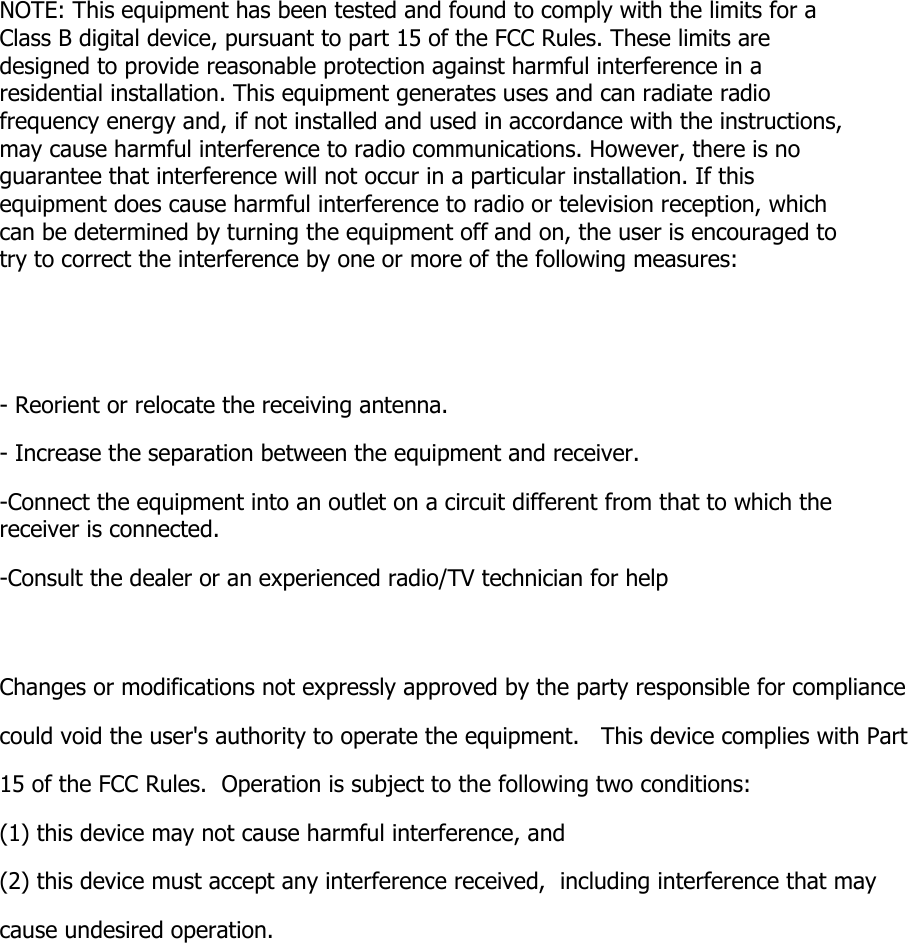

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
