WiSeConnect BLE Asset Tag Technical Specification
WiSilica Inc Proprietary and Confidential
WiSeConnect BLE Asset Tag
Hardware and Technical Specification
Preliminary Version (Rev 1.1)
Issued: 11/04/2016
WiSeConnect BLE Asset Tag Technical Specification
WiSilica Inc Proprietary and Confidential
Revision History
Rev No Date
Notes
Rev 1.0 12/30/2015
Initial Release
Rev1.1 11/04/2016
Block diagram added.
FCC ID: 2AG4NWT10W1
WiSeConnect BLE Asset Tag Technical Specification
WiSilica Inc Proprietary and Confidential
General Information
Operational Description
The WiSeMesh BLE Asset Tag is a discrete, low-power BLE Mesh device that can be easily applied
throughout various environments to monitor and track any mobile asset when used in conjunction
with the WiSeMesh network. When mounted on a mobile or fixed asset these tags communicate
with the WiseMesh Cloud to identify time and location data in real-time.

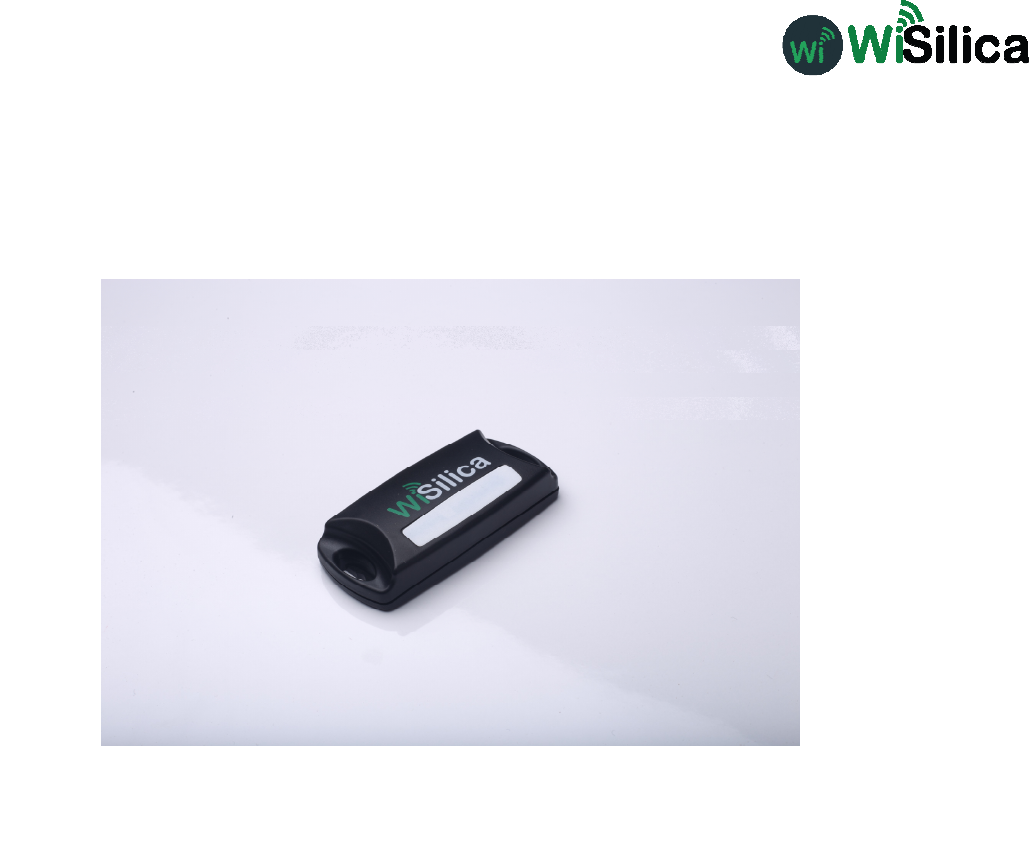

Figure 1. WiSeConnect BLE Asset Tag
WiSeConnect BLE Asset Tag Technical Specification
WiSilica Inc Proprietary and Confidential

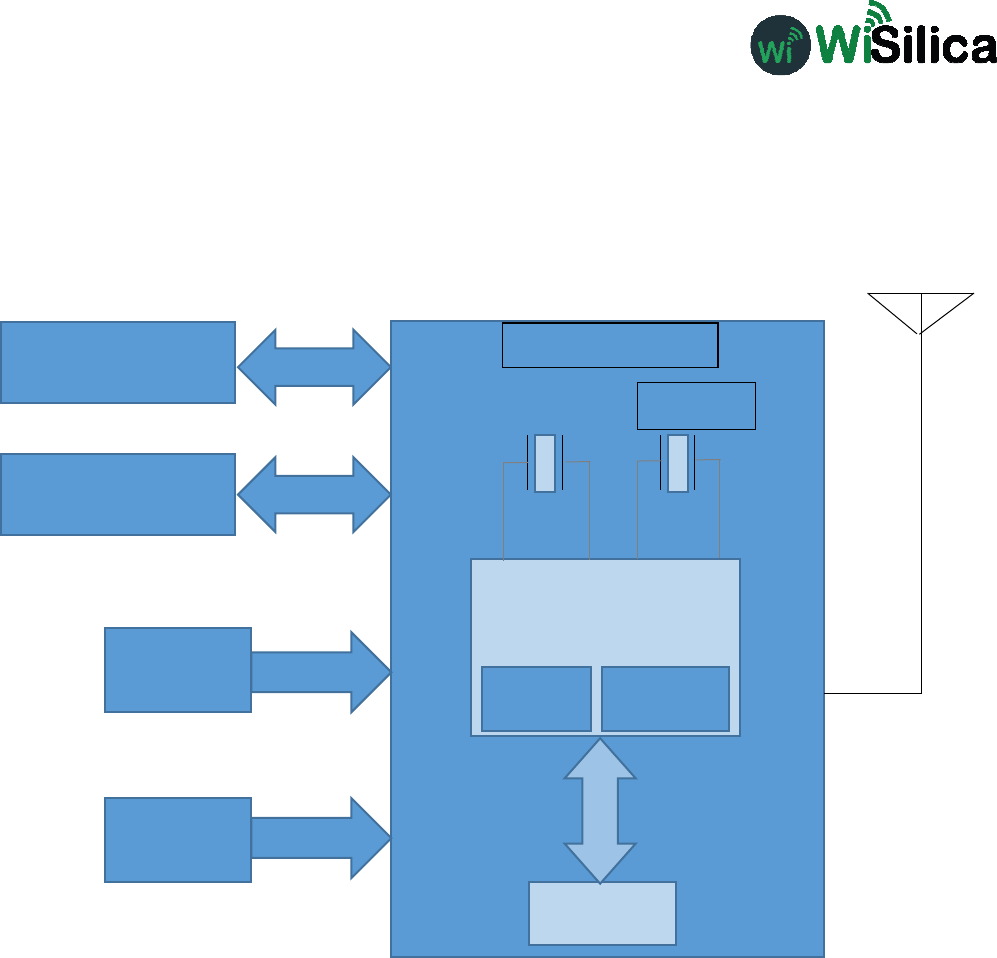

Block Diagram
Key Features
Location Tracking and Time Stamping Capability
The asset tag provides real-time location and time logging to any asset within a commercial
environment.
Configurable
Over the air configurable for security, ID as well as connection and communication frequency.
Dual Communication and Security
Each WiSe Mesh BLE Tag can send and receive data in real time, this allows for ease of application
updates and setting new rules to a specific WiSe Mesh BLE Tag for connection and communication
frequency. Each Tag is AES 128 bit encrypted for device and network security.
Ease of Installation
The WiSe Mesh BLE Tag can be easily deployed on an asset throughout any facility by local
maintenance personnel or staff. It is easy to provision tags to the WiSe Connect tracking platform
and monitor battery levels.
CR2032
Battery
3V Input
CSR1012
Radio
Micro
Processor
External
EEPROM
S
P
I
16Mhz
32.76Khz
WiS
e 1210 Module
Accelerometer
LIS3DE
TEMP Sensor
SI-7006
I2C
I2C
Tamper
Switch
IO_Input
WiSeConnect BLE Asset Tag Technical Specification
WiSilica Inc Proprietary and Confidential
Compact Design and Tamper Resistant
The Wise Mesh BLE tag sends alarm notification to the WiSe Cloud any time there is an unauthorized
removal or tamper of the tag.
Specifications
Radio Frequency
(BLE 4.0) 2.4-2.5 Ghz
Wireless Standards Supported
Bluetooth 4.1 stack
Device Security
AES 128k Encrypted,
With 3 Level Pairing Keys (Network, App, GUID)
Antenna
50 Ohm On Board Antenna
Power
3v(1.5 years)
Battery included (CR2032)
Dimensions
65 X 29 X 14mm
Operating Conditions
Temp 0-50°C
User Manual
Pairing a Tag
COPYRIGHTCopyright © 2015 WiSilica, Inc. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form or by any means without the written
permission of WiSilica, Inc.
TRADEMARKS
WiSeHome, WiSe, WiSe Mesh, WiSe Tech, WiSeApp, WiDe, WiBe, WiSe Connect are
trademarks of WiSilica, Inc. and/or its affiliates in the US and/or other countries. WiSilica
Green in connection with IOT is distinctive of WiSilica brand products. All other registered
and unregistered trademarks herein are the sole property of their respective owners.
LICENSE INFORMATION
License Agreement
TABLE OF CONTENTS
Table of Contents .................................................................................................................. 3
Table of figures ..................................................................................................................... 4
Prerequisites ......................................................................................................................... 4
Hardware Versions Used ...................................................................................................... 5
Device Commissioning . ........................................................................................................ 5
TABLE OF FIGURES
Figure 1 "Add device" option ................................................................................................. 5
Figure 2 Filter (optional) ........................................................................................................ 6
Figure 3 Scan for devices ..................................................................................................... 6
Figure 4 "Test" option ............................................................................................................ 7
Figure 5 Pair the device ........................................................................................................ 7
Figure 6 Paired device under default group ........................................................................... 8
PREREQUISITES
App should be in Skip login mode.
HARDWARE VERSIONS USED
Sl#
Particulars
Version
1
App
iOS SDK Appstore build V_3.0.0_B_1
2
Wise Beacon
1.3.27
DEVICE COMMISSIONING .

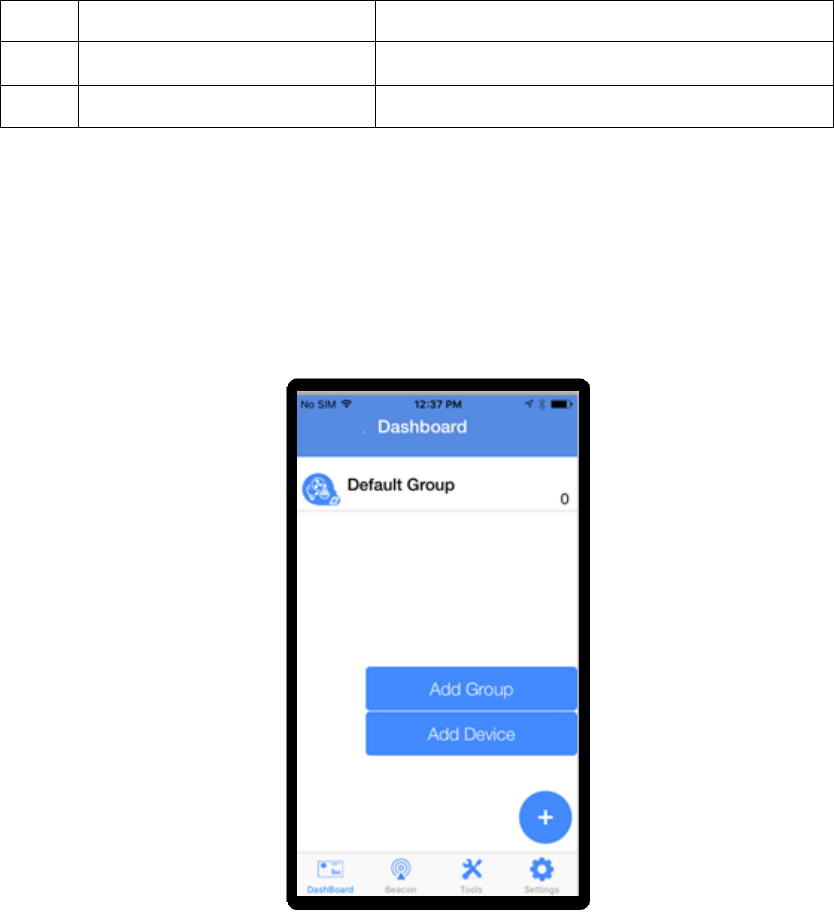

a) Click on “(+)” and select “Add Device” from the main menu options.
Figure 1 "Add device" option

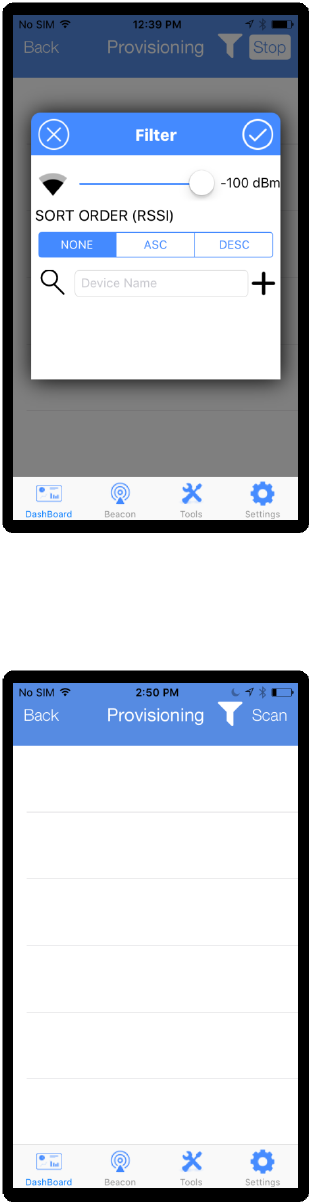

b) Click on filter icon if the user wants to filter out a particular type of device that needs
to be scanned for in the presence of multiple device types.(OPTIONAL)
Figure 2 Filter (optional)
c) Click on “Scan”
Figure 3 Scan for devices

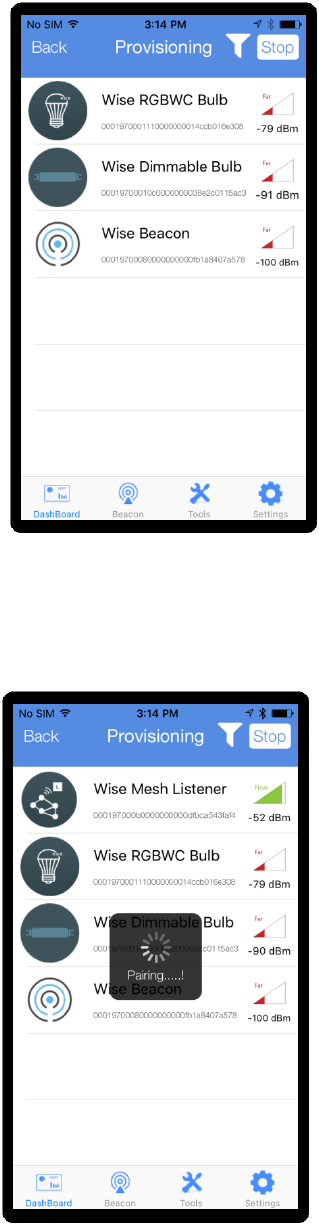

d) When Wise Beacon device appears in the scanned list , swipe leftwards on the device
name and click “Test” button to test its connection.
Figure 4 "Test" option
e) Click on “Pair” button to get the device paired.
Figure 5 Pair the device

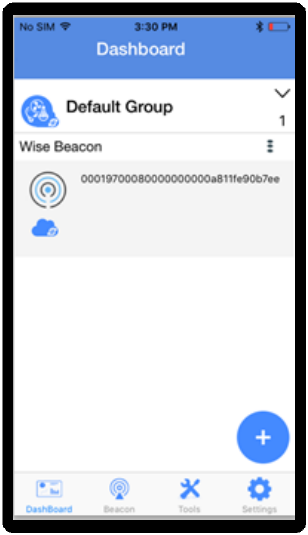

f) Paired devices can be seen under Default group in the dashboard.
Figure 6 Paired device under default group
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
