User instrUctions

M‑DEX

Package contents

M-DEX

User instructions

Lanyard

Charger

Jack-to-jack cable

contents

SYMBOLS ............................................. 

YOURNEWM-DEX ..................................... 

INTENDEDUSE........................................ 

DESCRIPTIONOFDEVICE .............................. 

M-DEXOVERVIEW ..................................... 

STATUSICONS ........................................ 

BATTERYSTATUS...................................... 

BLUETOOTH.......................................... 

ROOMOFF ........................................... 

OPERATINGRANGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 

LANYARDUSAGE ..................................... 

GETTINGSTARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 

CHARGINGTHEBATTERY .............................

TURNINGONTHEM-DEX .............................. 

TURNINGOFFTHEM-DEX.............................. 

STANDBYSCREEN....................................

MANUALKEYLOCK ...................................

BASICFUNCTIONS–REMOTECONTROL . . . . . . . . . . . . . . . . . 

CHANGINGPROGRAM ................................

ADJUSTINGTHEVOLUME .............................

CHOOSINGLISTENINGFOCUS . . . . . . . . . . . . . . . . . . . . . . . . . 

ROOMOFF...........................................

BASICFUNCTIONS–MOBILEPHONE . . . . . . . . . . . . . . . . . . . . 

PAIRINGTHEM-DEXWITHYOURMOBILEPHONE . . . . . . . 

MOBILEPHONECONVERSATIONSVIATHEM-DEX . . . . . . 

ACCEPTORREJECTCALL.............................

ENDCALL............................................

MAKINGACALL......................................

USINGTHECALLLOGTOMAKEACALL . . . . . . . . . . . . . . . . 

TRANSFERCALL .....................................

HANDS-FREEOPERATION.............................

OTHERFUNCTIONS ................................... 

ADJUSTINGTHEVOLUME .............................

ROOMOFF...........................................

ADVANCEDFUNCTIONS ............................... 

BLUETOOTH.........................................

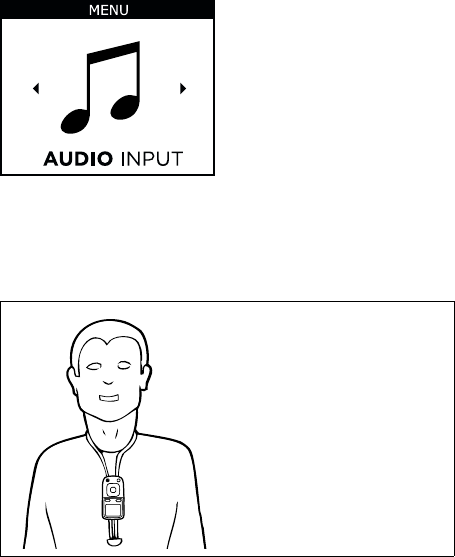

AUDIOINPUT ........................................

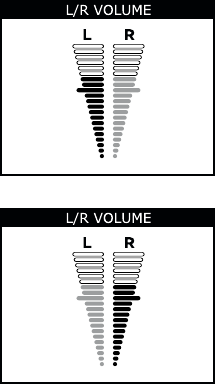

LRVOLUME.........................................

M-DEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 

SETTINGS............................................

RESET...............................................

INCASEOFMALFUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . 

CARINGFORYOURM-DEX ............................. 

WARNINGS........................................... 

SAFETYWARNING .................................... 

REGULATORYINFORMATION........................... 

symbols

The following symbols will be used throughout the

manual:

WARNING

Messages with this heading indicate adverse reactions,

potential safety hazards or inadequate device perform-

ance.

CAUTION

Messages with this heading indicate/include informa-

tion regarding any special care to be exercised.

Not for general waste

your new m‑DeX

Your M-DEX is part of the DEX™ family of assistive lis-

tening devices. These user instructions explain how the

M-DEX should be operated.

WARNING

This booklet contains important information and instructions.

Please read this booklet care fully before you start using the de-

vice.

INTENDED USE

The M-DEX is a wireless device intended for mobile

phone applications, as well as an advanced remote con-

trol.

DESCRIPTION OF DEVICE

M-DEX is an advanced hearing aid remote control.

M-DEX reproduces mobile phone conversations direct-

ly in the hearing aid and allows the user to control nor-

mal mobile phone functions and listen to audio input,

using a Bluetooth connection for compatibility with

most models of mobile phone, and WidexLink for con-

nection to Widex hearing aids.

m‑DeX oVerVIew

 Onoff

 Yes(green)

 No(red)

 Volumeup

 Volumedown

 Previous

 Next

 Menu

 RoomOff

 FreeFocus

 Microphone























status Icons

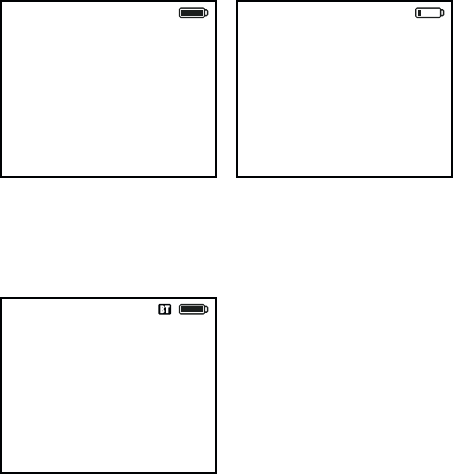

When the M-DEX is turned on, you can see the battery,

Bluetooth and Room Off status in the upper right cor-

ner of the start screen.

BATTERY STATUS

Full Low

BLUETOOTH

(blue=connected, grey=on (but not connected),

iconnot visible=off)

ROOM OFF

(Icon shown only if feature is active).

oPeratIng ranges

From the M-DEX to the hearing aids

When using it as a remote control up to 1 metre

With mobile phones, Bluetooth and

transmitted audio input, incl. M-DEX T

up to 50 cm

From the M-DEX to mobile phone

up to 10 metres

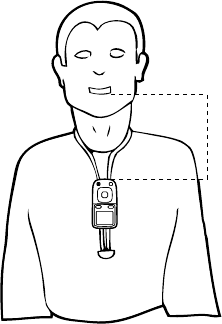

lanyarD usage

If you wish to wear the M-DEX around your neck, place

it in the plastic holder at the end of the lanyard provid-

ed, as illustrated.

WARNING

The breakaway buckle of the lanyard must be positioned at the

back of your neck (1), to make it easier to unsnap.

gettIng starteD

CHARGING THE BATTERY

The M-DEX uses a rechargeable battery. When fully

charged, the battery has a capacity of approx. 5 hours

of continuous use (when on standby, the battery will

last approximately three days. If Bluetooth is turned on,

this period will be considerably reduced). The charger

is available in four country versions. The version you

have may therefore not look exactly as illustrated in this

booklet.

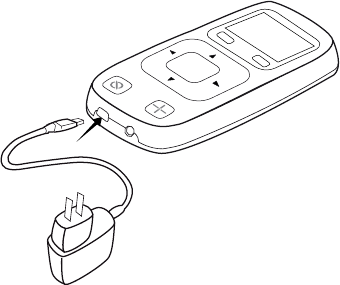

To charge the battery

1. Connect the charger to the M-DEX.

2. Plug the charger into a wall socket.

It takes approximately 6 hours to charge the battery

the first time. Allow the battery to charge for the full six

hours, even if the “battery full” icon appears.

Recharging takes approx. 3 hours, depending on

whether the device is turned on or off.

WARNING

Do not attempt to change the battery yourself. Contact your

hearing care professional if the battery needs replacement.

turnIng on the m‑DeX

Push the slide button on the right side upwards.

Note

The icons and screens in your M-DEX will depend on how it has

been configured by the hearing care professional in coopera-

tion with you. Your dispenser will have matched the M-DEX with

your hearing aids. Once this is done, you will be able to change

programs and adjust the volume in your hearing aids.

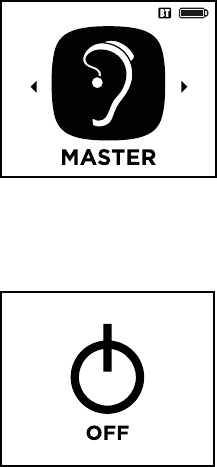

The program in position number 1 (usually Master) is

displayed.

turnIng off the m‑DeX

To turn the M-DEX off

Push the slide button on

the right side of the M-DEX

downward.

STANDBY SCREEN

To save power, the M-DEX screen will automatically

enter standby mode when it has not been used for 10

seconds.

To leave standby mode

Use any key except the on/off button. If the other keys

are locked, you can use the “No” key to leave standby

mode.

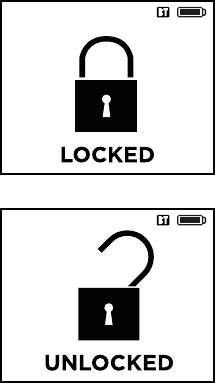

MANUAL KEYLOCK

You can activate the keylock from any program screen.

To activate the keylock

Press No ➞ Menu

To deactivate the keylock

Press No ➞ Menu

For information on automatic keylock, see page 45.

basIc functIons

–remotecontrol

From the start screen you can change programs in your

hearing aid, adjust the volume, choose listening focus

and activate/deactivate Room Off.

Except when using the Room Off function, your hearing

aids will produce speech messages or tones when you

change settings, unless the function has been deacti-

vated by your hearing care professional.

If a check mark is displayed, it means that the specific

function has been activated.

CHANGING PROGRAM

The selection of listening programs in your M-DEX de-

pends on how many and which programs you have cho-

sen to have in your hearing aid. The order of the pro-

grams is the same as in your hearing aid.

The M-DEX always starts up in the program which has

been chosen as program number 1 by you and your

hearing care professional (usually the Master program).

To navigate through the

available programs

Press  or 

Every time you press one of the arrows, an icon repre-

senting the active program is displayed.

ADJUSTING THE VOLUME

To access the volume bars

Press  or 

To increase or decrease

the volume in both

hearing aids

Press  or 

The volume adjustment will apply only to the listening

program that is currently active.

The wider bar in the middle indicates the default set-

ting. The icon displayed reflects the number of volume

adjustment steps chosen by your hearing care profes-

sional in consultation with you.

The binaural volume adjustment closes automatically

after a few seconds. To close it manually, press the No

key.

Changing to another program or turning the M-DEX off

will cancel any volume adjustment.

If you adjust the volume on the hearing aid’s volume

control, this adjustment will not be copied into the

M-DEX.

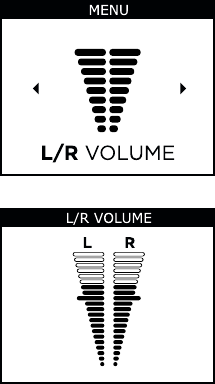

To adjust the volume of your two hearing aids separate-

ly, see “Advanced functions”.

CHOOSING LISTENING FOCUS

The FreeFocus feature allows you to focus on sound

from a specific direction with your hearing aids.

Press the FreeFocus key

The FreeFocus key lights up to indicate that FreeFocus

is activated.

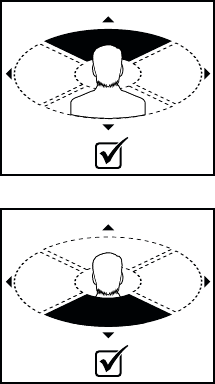

To focus on sound

from the front

Press  ➞ Menu

To focus on sound

from behind

Press  ➞ Menu

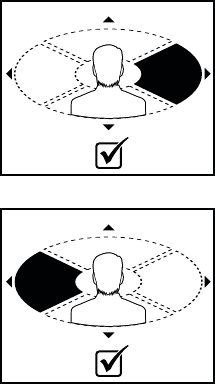

To focus on sound

from the right

Press  ➞ Menu

To focus on sound

from the left

Press  ➞ Menu

When you choose a setting and lock it by pressing

Menu, a check mark confirms your choice. You can “un-

lock” your choice by pressing Menu again.

To adjust the volume in FreeFocus

First, choose the direction of focus and lock the setting.

Then use the same procedure as for the hearing aids’

listening programs.

To deactivate FreeFocus

Press the FreeFocus key

ROOM OFF

Activating ‘Room Off’ turns the hearing aid micro-

phones off. This allows you to use the feature to listen

directly to transmitted audio sound without interfer-

ence from surrounding sounds, or as a mute function

with your normal listening programs (e.g. Master).

To activate Room Off

Press the Room Off key.

The Room Off key lights up and the Room Off icon is

displayed.

To deactivate Room Off

Press the Room Off key again

basIc functIons – mobIle Phone

PAIRING THE M-DEX WITH YOUR MOBILE PHONE

When you use the M-DEX with your mobile phone for

the first time, you will need to pair the two devices.

1. Turn on Bluetooth on your mobile phone.

2. Turn on Bluetooth on your M-DEX. To to this:

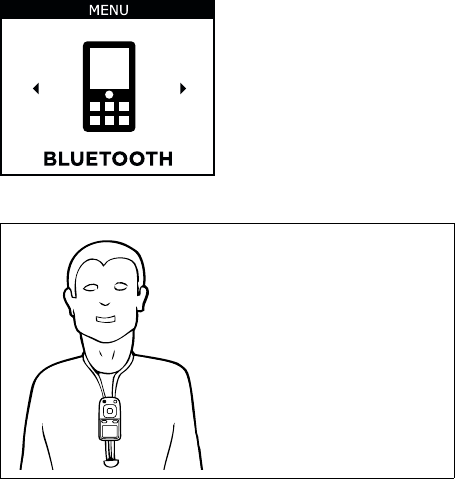

2a. Press the Menu key from any program screen.

This screen is displayed.

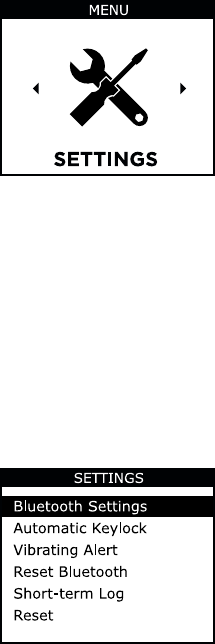

2b. Press  or  until you reach Settings.

Press Menu ➞ Menu.

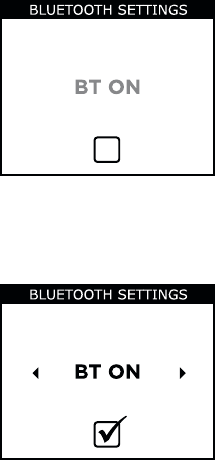

If Bluetooth is not already turned on, this screen will be

displayed.

2c. Press the Menu key to turn on BT. This screen is

displayed.

3. On your mobile phone, search for new devices. Refer

to the user instructions for your phone to see how to

do this.

4. When the M-DEX is found on the mobile phone, pair

the two devices. To do this:

4a. Press  or  to go to pairing

4b. Press the Menu key

4c. Press the Menu key again to start pairing. You

can follow the progress on the screen.

5. Select the M-DEX on your phone, and enter the pin

code (0000) displayed on your M-DEX into your

phone, if prompted.

The devices are now paired.

If no device can be detected, “Device not found. Try

again?” will be displayed on your M-DEX.

NOTE

The next time you want to use M-DEX with your mobile phone,

make sure that Bluetooth is turned on in both units. Please note

that using the devices with Bluetooth turned on will significant-

ly increase their battery consumption.

MOBILE PHONE CONVERSATIONS VIA THE M-DEX

Hold the M-DEX as you would hold a phone and speak

into the microphone. The sound will be heard in both

hearing aids. The mobile phone must be within range

(up to 10 m).

Mobile phone

M-DEX

When connected to your mobile phone, the M-DEX

gives access to the following functions:

1. Accept or reject call

2. End call

3. Transfer call

4. Make a call

5. Hands-free operation

ACCEPT OR REJECT CALL

When you receive a call, you will hear your mobile

phone ringing, and if the M-DEX is within range of your

hearing aids, you will also hear a tone in these. You can

choose to accept or reject the call by selecting “Yes” or

“No”.

END CALL

To end a call

Press End

MAKING A CALL

To make an outgoing call

Dial the telephone number on your mobile phone and

use the M-DEX as described on page 28.

USING THE CALL LOG TO MAKE A CALL

To make a call to one of the last five numbers registered

in the Call log:

Press the Yes key

Use the  or  key to

choose the desired

number.

Press the Yes key.

Arrows indicate whether it is an incoming or outgoing

call.

To leave Call log:

Press the No key.

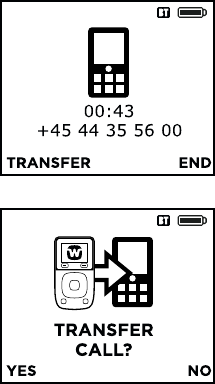

TRANSFER CALL

The transfer function allows you to transfer the call

back to the mobile phone.

To transfer a call to the

mobile

Press Transfer ➞ Yes

A check mark confirms

your choice.

Turning off your M-DEX will also transfer the call back

to the mobile phone.

HANDS-FREE OPERATION

For hands-free operation, wear the M-DEX around your

neck and speak into its microphone.

Max 30 cm

other functIons

ADJUSTING THE VOLUME

You can adjust the volume during a telephone conver-

sation.

To access the volume bars

Press  or 

To increase or decrease the volume

Press  or 

ROOM OFF

You can also use the Room Off function during phone

conversations. See page 23.

aDVanceD functIons

The following advanced functions can be accessed by

pressing the Menu key once and using  or :

If you use , the menu items are placed in the following

order

1. Bluetooth *

2. Audio Input *

3. L/R volume

4. M-DEX T *

5. Settings

Choices made in options 1, 2 and 5 will be confirmed by

a check mark.

Because items 1, 2 and 4 involve transmitted sound, the

sound in your hearing aids will be affected every time

you confirm a choice in these options. When you leave

these functions, you will return to program 1.

* The M-DEX must be within a range of 50 cm of the hearing aids.

BLUETOOTH

The Bluetooth menu is

only available (indicated

by a blue colour) if

Bluetooth is activated in

your M-DEX and this is

connected to a Bluetooth

unit. Otherwise it will be

greyed out.

Note

When using the M-DEX for

Bluetooth transmission, it

must be within range of the

hearing aids (up to 50 cm).

To start transmission:

Press the Menu key. On some personal audio devices,

e.g. telephones, the music player may need to be acti-

vated before it can play music. In the default Bluetooth

setting, the hearing aid emphasises Music. To optimise

it for Speech instead, use  or .

To confirm a new setting

Press Menu key

To leave Bluetooth

Press No ➞ No

AUDIO INPUT

This function may be useful if you wish to listen to an

external audio source such as an mp3 player. When you

connect a jack plug to the audio input, the Audio input

screen will automatically be displayed.

The Audio input menu is only available (indicated by a

blue colour) if the M-DEX and the audio source are con-

nected by a jack-to-jack cable.

Note

When using the M-DEX for au-

dio input, it must be within

range of the hearing aids (up

to 50 cm).

To start transmission:

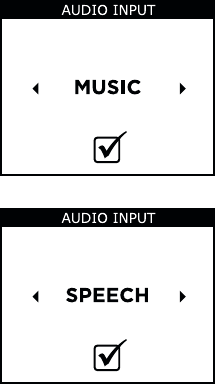

Press Menu. In the default Audio input setting, the hear-

ing aid is optimised for Music. To optimise it for Speech

instead, use  or .

To confirm a new setting

Press the Menu key

To leave Audio Input

Press No ➞ No

L/R VOLUME

This function is used if you wish to adjust the volume of

your two hearing aids separately.

Press the Menu key

To select which hearing

aid to adjust the volume

for

Use  or  to choose left

or right, respectively.

To adjust the volume up

and down

Use  or 

To leave L/R volume

Press No ➞ No

When you leave this pop-up screen, the volume in the

hearing aids will be set to default level.

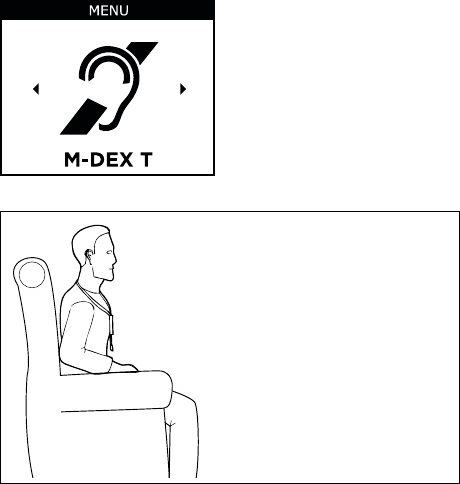

M-DEX T

This option allows you to take advantage of teleloop

systems even if you do not have a telecoil in your hear-

ing aid. If your hearing aid is provided with a telecoil

program, we recommend using this, for optimum per-

formance.

Using the telecoil in the

M-DEX

To enable the M-DEX to

pick up teleloop signals, it

should hang in a vertical

position and be within

range of the hearing aids.

(Up to 50 cm).

To change the volume

from the M-DEX T screen

Press Menu and  or 

To leave M-DEX T

Press No ➞ No

SETTINGS

Pressing the Menu key gives you access to the following

menu items:

1. Bluetooth Settings

2. Automatic Keylock

3. Vibrating Alert

4. Reset Bluetooth

5. Short-term Log

6. Reset

To select a menu item

Press  or  to go to the

desired item.

Press the Menu key to se-

lect an item

Bluetooth settings

Here you can turn Bluetooth on and off using the Menu

key.

You can also perform Bluetooth pairing.

Bluetooth pairing

See page 24.

To go back to the menu

Press No.

Note

Please note that using the M-DEX and mobile phone with Blue-

tooth turned on will significantly increase their battery con-

sumption.

Automatic keylock

This function helps you avoid pressing a key acciden-

tally, for example if you have your M-DEX in your pock-

et.

If this function has been enabled, the M-DEX keys will

automatically lock when the screen enters standby

mode.

To activate or deactivate

automatic keylock

Press Menu

To go back to the Menu

Press No

To unlock the automatic keylock

Press No ➞ Menu

Vibrating alert

If you have chosen a Silent profile in your mobile phone,

the vibrating alert will alert you when you receive a call.

To turn the vibrating alert

on or off

Press the Menu key

To go back to the Menu

Press No

Reset Bluetooth

This function allows you to delete previous Bluetooth

pairings. This can be necessary if you change your mo-

bile phone.

To select Reset Bluetooth

Press Menu

To go back to the Menu

Press No

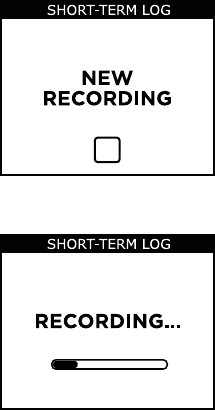

Short-term Log

If you experience difficulties in a specific listening situ-

ation, this feature allows you to make a one-minute re-

cording of the situation. This can help your hearing care

professional to fine-tune your hearing aids.

To start recording

Press the Menu key

The recording process

takes one minute and

cannot be interrupted. You

can follow the progress on

the screen.

Please note that if you start a new log, the previous log

will be deleted.

To go back to the Menu

Press No

RESET

This function resets settings to: default volume, auto-

matic keylock off, vibrating alarm off.

To reset the settings and

volume to default

Press Menu

To reset Bluetooth settings see page 46.

In case of malfunctIon....

Problem Possible cause Solution

Your M-DEX

does not work

The battery is ex-

hausted

Charge the battery

(see page 11)

Display shows

“Please match

with hearing

aids”

The M-DEX is not

matched with your

hearing aids

Contact your hearing

care professional

No Bluetooth

streaming of

telephone

music when

activating

Bluetooth on

M-DEX

On some personal au-

dio devices, the music

player may need to be

activated before it can

play music

Refer to the user man-

ual for the telephone

for further information

M-DEX not vi-

brating when

telephone

rings

Vibrator not activated

in M-DEX

The vibrator function

is activated under Set-

tings

BT icon in

M-DEX is blue

but there is no

connection to

telephone

M-DEX has been

paired with a different

device, and has estab-

lished contact with it

Turn BT off on the ac-

tive equipment or re-

set Bluetooth settings

and pair telephone

again

Your M-DEX is

on but the

display is

black

Keylock is activated Press No > Menu

Problem Possible cause Solution

Sound from

Bluetooth/

jack too low

and/or noisy

Sound not turned up

loud enough

Turn up the volume of

the device connected

to the M-DEX and turn

down to a suitable

volume on the M-DEX

M-DEX takes

a long time to

charge or

does not

charge at all

Charger used is not

the correct one

Use the charger in-

cluded with your

M-DEX

Program

shown in

M-DEX not

the same as in

the hearing

aid

M-DEX and hearing

aid not matched cor-

rectly

Ask your hearing care

professional to match

again

Incoming call

screen is

shown but no

telephone

ringing tone is

heard in the

hearing aids

Some telephones do

not produce a ringing

tone in the hearing

aids if telephone is set

to silent

Turn off the silent

function on your mo-

bile phone

The M-DEX is not

within range

Move it within range

(up to 50 cm)

When a tele-

phone key is

pressed, the

hearing aids

beep and

change to an-

other pro-

gram

Some telephones

send keypad tone to

the M-DEX

Turn off keypad tone

on the telephone

Problem Possible cause Solution

Bluetooth

pairing is not

working

Reset Bluetooth under

Settings and pair

again

No sound

when listening

to audio

M-DEX is not within

range of the hearing

aids

Slide the M-DEX up-

wards on the lanyard

carIng for your m‑DeX

The device is a valuable object and should be treated

with care. Here are some things you can do to prolong

the life of your M-DEX:

WARNING

• Do not expose the device to extreme temperatures or high

humidity.

• Do not immerse in water or other liquids.

• Do not carry your M-DEX with you during X-rays, MRIs or

other scans or radiation treatments and never place it in a

microwave oven. These are some of the types of radiation that

can damage the device. Radiation from room surveillance

equipment, burglar alarms, mobile phones and similar sources

is weaker and will not damage the device. However on occa-

sion radiation from devices such as certain burglar alarms,

automatic motion detectors and other electronics may cause

noticeable audible interference during M-DEX and hearing aid

use.

CAUTION

• Never try to open or repair the device yourself. (This should

only be done by authorised personnel.)

• Clean the device with a soft cloth. Never wash it with water,

cleaning solutions or other liquids.

• Avoid dropping the M-DEX.

• When the device is not in use, keep it in its case in a cool, dry

location out of reach of children and pets.

warnIngs

WARNING

• Keep the M-DEX and its parts and accessories out of reach of

children and anyone else who might swallow parts of the de-

vice, or otherwise cause injury to themselves with these items.

In case of ingestion, contact a physician immediately.

• Do not use the device on aircraft or in hospitals without per-

mission.

• Do not use the device in mines or other areas with explosive

gases.

• If you wear your M-DEX around your neck, make sure that the

breakaway buckle on the lanyard is always at the back of your

neck.

• The device is made of modern non-allergenic materials. None-

theless, in rare cases skin irritation may occur. If you notice

such skin irritation, contact your hearing care professional.

CAUTION

• Although the device has been designed to comply with the

most stringent international electromagnetic compatibility

standards, the possibility cannot be excluded that it may

cause interference with other equipment, such as medical de-

vices.

safety warnIng

This device is powered by an external power supply.

• Only connect a power supply that is compatible with

the M-DEX.

• The power supply must have an output rating of

5VDC, 500mA, and a mini USB connector.

• The power supply input rating voltage must match

the mains power voltage in your region, and the pow-

er supply must have a male mains plug that is com-

patible with the AC wall sockets in your region

• The power supply must be designed for ITE and must

have the certification marks showing certification by

an agency acceptable in your region.

Widex strongly recommends that you always use a

power supply unit that is supplied by your Widex Dis-

tributor to ensure safe and efficient use of your M-DEX.

regulatory InformatIon

Hereby, Widex A/S declares that this M-DEX is in com-

pliance with the essential requirements and other rele-

vant provisions of Directive 1999/5/EC.

A copy of the Declaration of Conformity can be found

at: http://www.widex.com

Federal Communications Commission

and Industry Canada Statement

FCC ID: TTY-MDEX

FCC ID: TTY092802

IC: 5676B-MDEX

IC: 5676B-092802

This device complies with part 15 of the FCC Rules and

with RSS-210 of Industry Canada. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference, and (2)

this device must accept any interference received,

including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or

more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

NOTE:

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. This

transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

This equipment complies with the Industry Canada RF

radiation exposure limits set forth for an uncontrolled

environment as per IC RSS-102.

Changes or modifications to the equipment not expressly

approved by Widex could void the user’s authority to

operate the equipment.

Hearing aids, accessories and batteries

should not be disposed of with normal

household waste. Please consult your na-

tional Widex distributor for advice on how

to dispose of these items.

¡9 514 0129 001)¤ Printed by HTO / 2010-11

9 514 0129 001 #01

¡#01v¤

Manufacturer

Widex A S MDEX M-DEX Hearing Aid Accessory User Manual Manual

Widex A/S M-DEX Hearing Aid Accessory Manual

Manual

Navigation menu

Namespaces

Views

Navigation
